Craftsman 917271661 lawn tractor User Manual

ICRRFTSMRN°I

LAWN TRACTOR

17.0 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.271661

I _ This product has a low emission engine which operates I

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

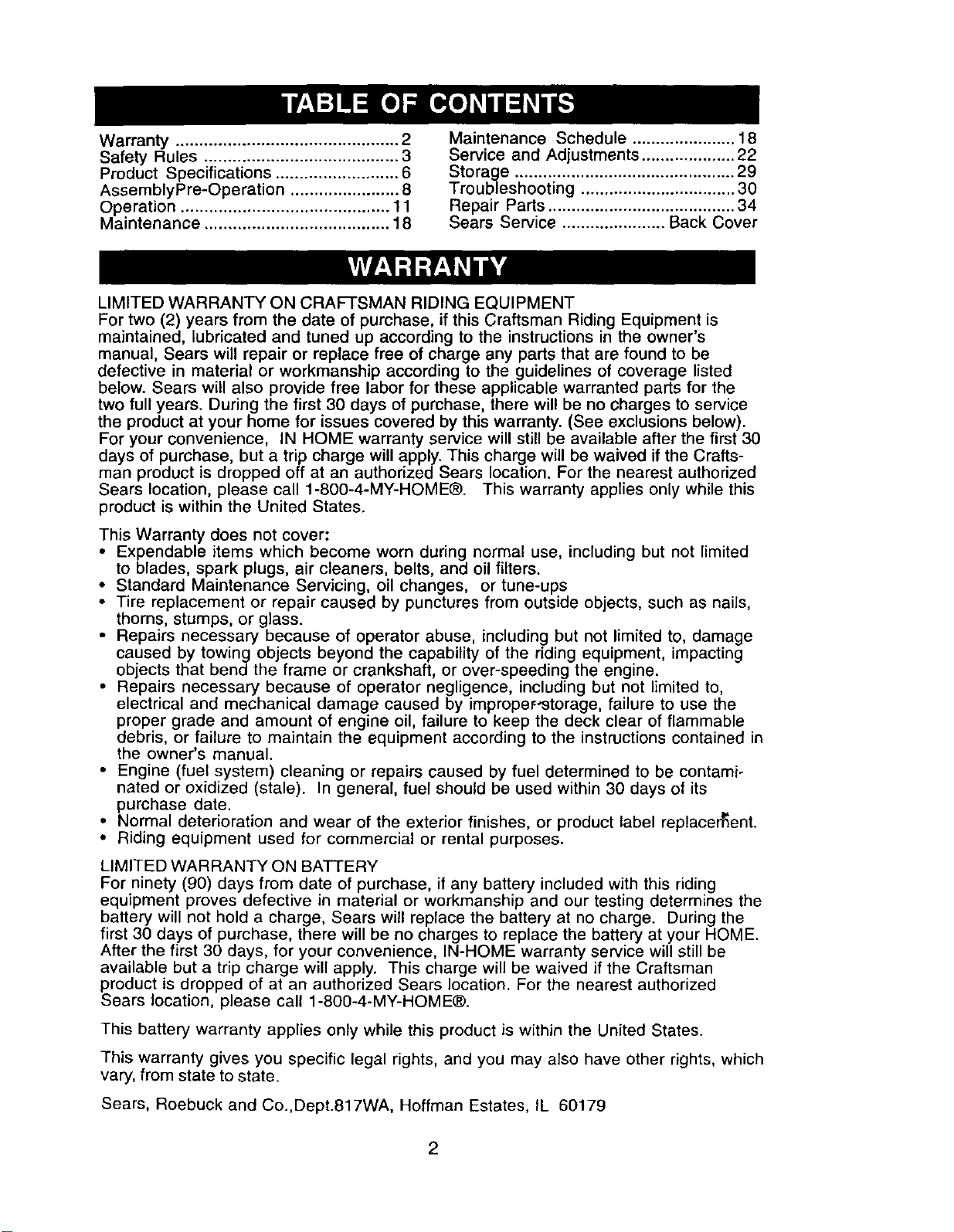

Warranty ............................................... 2

Safety Rules ......................................... 3

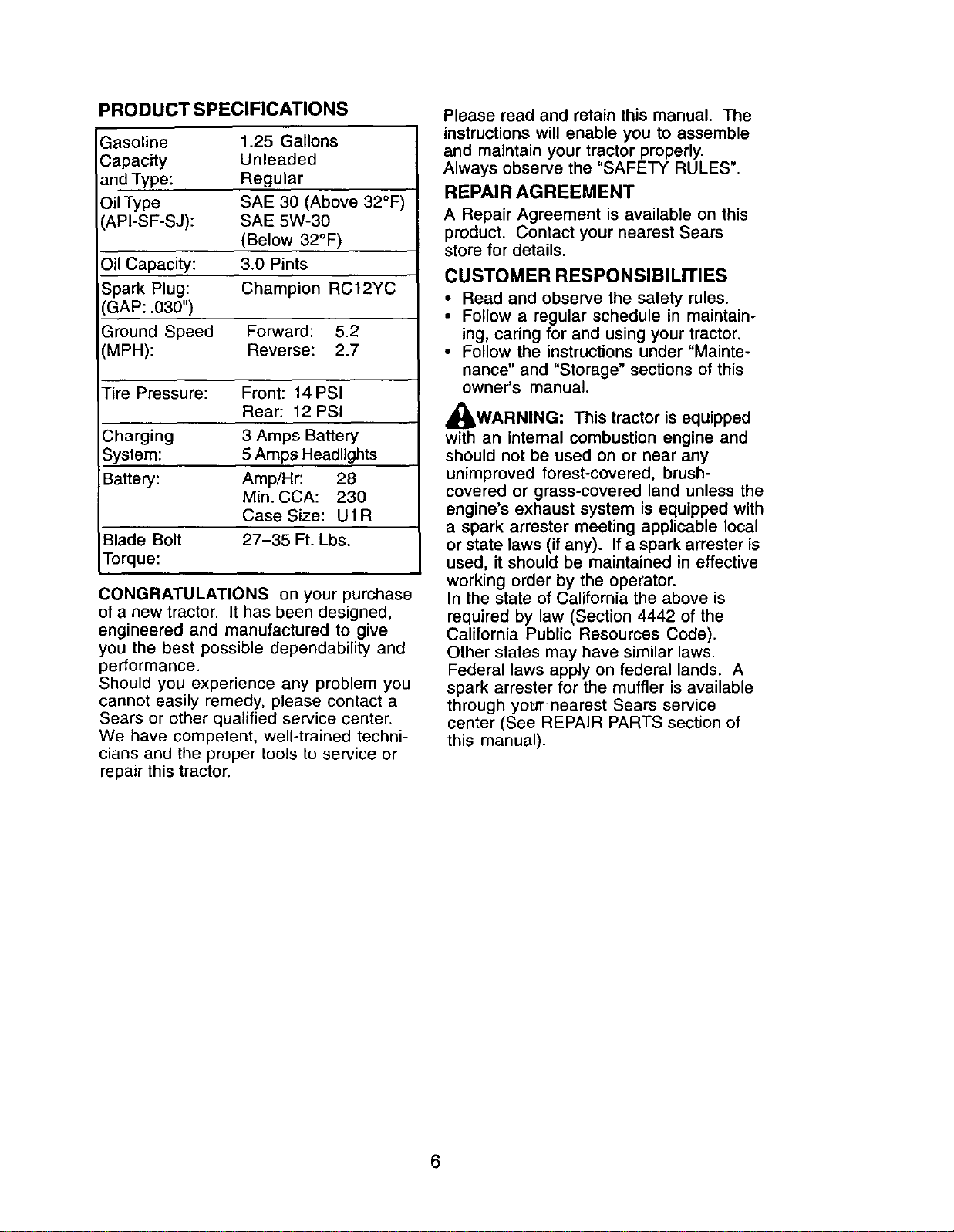

Product Specifications .......................... 6

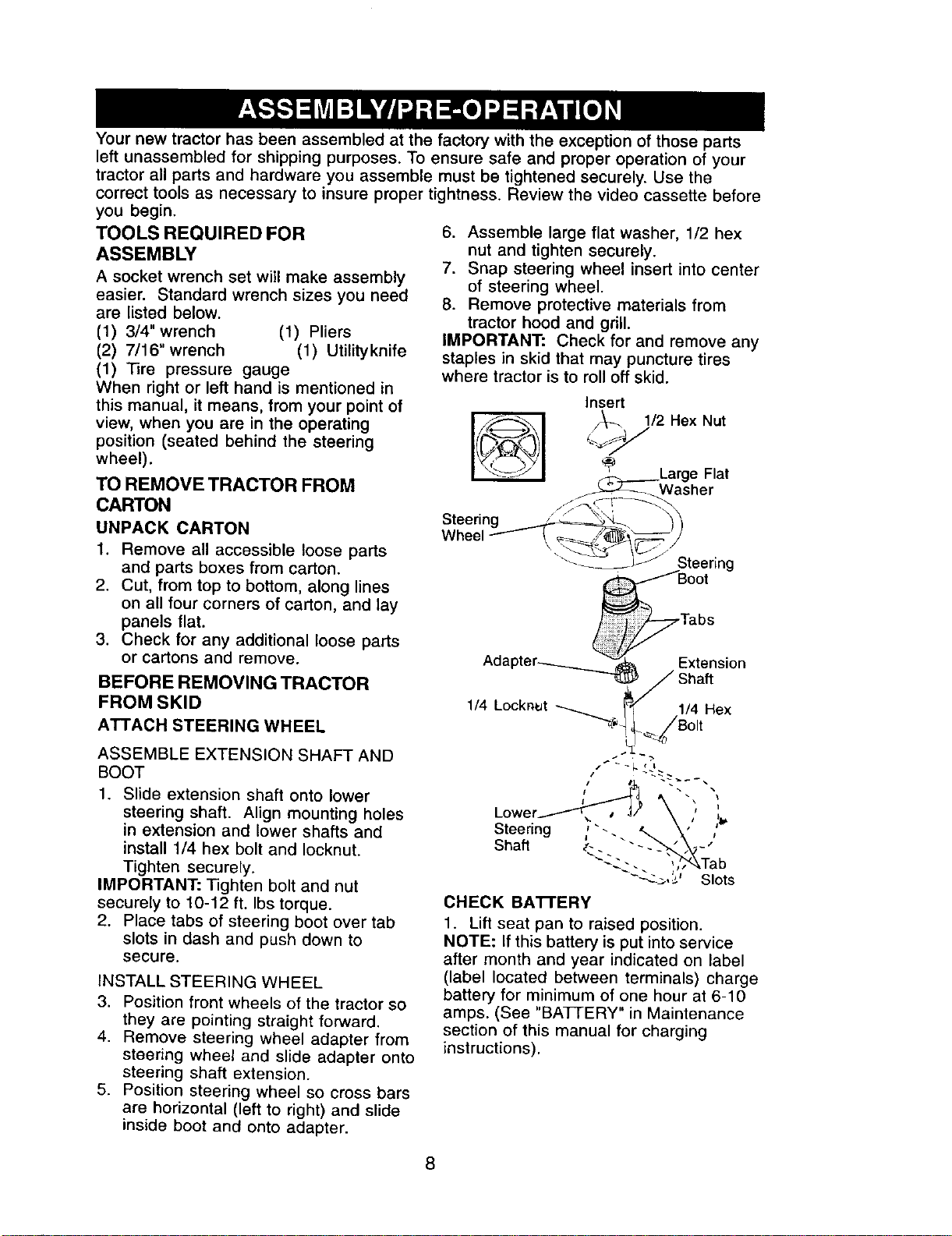

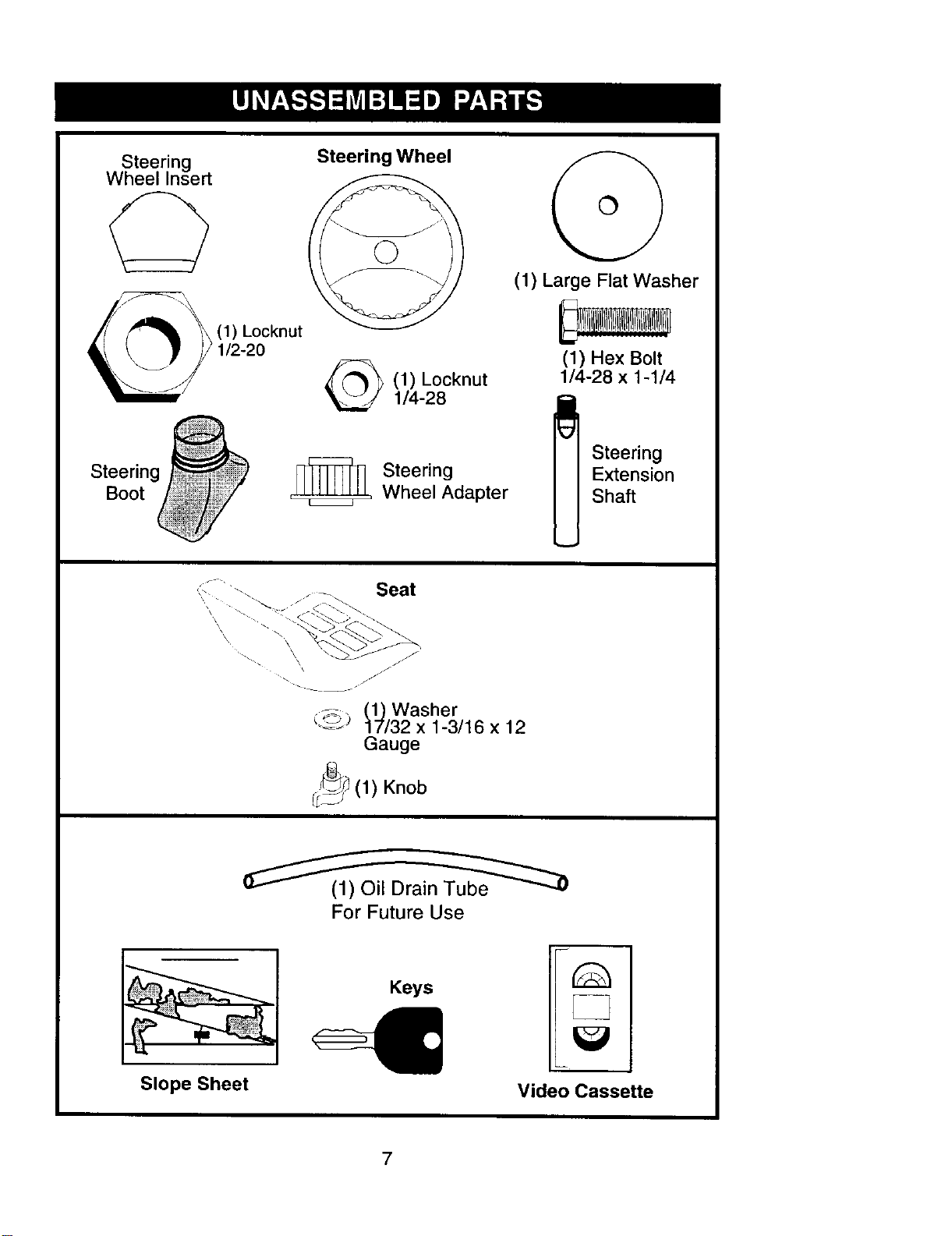

AssemblyPre-Operation ....................... 8

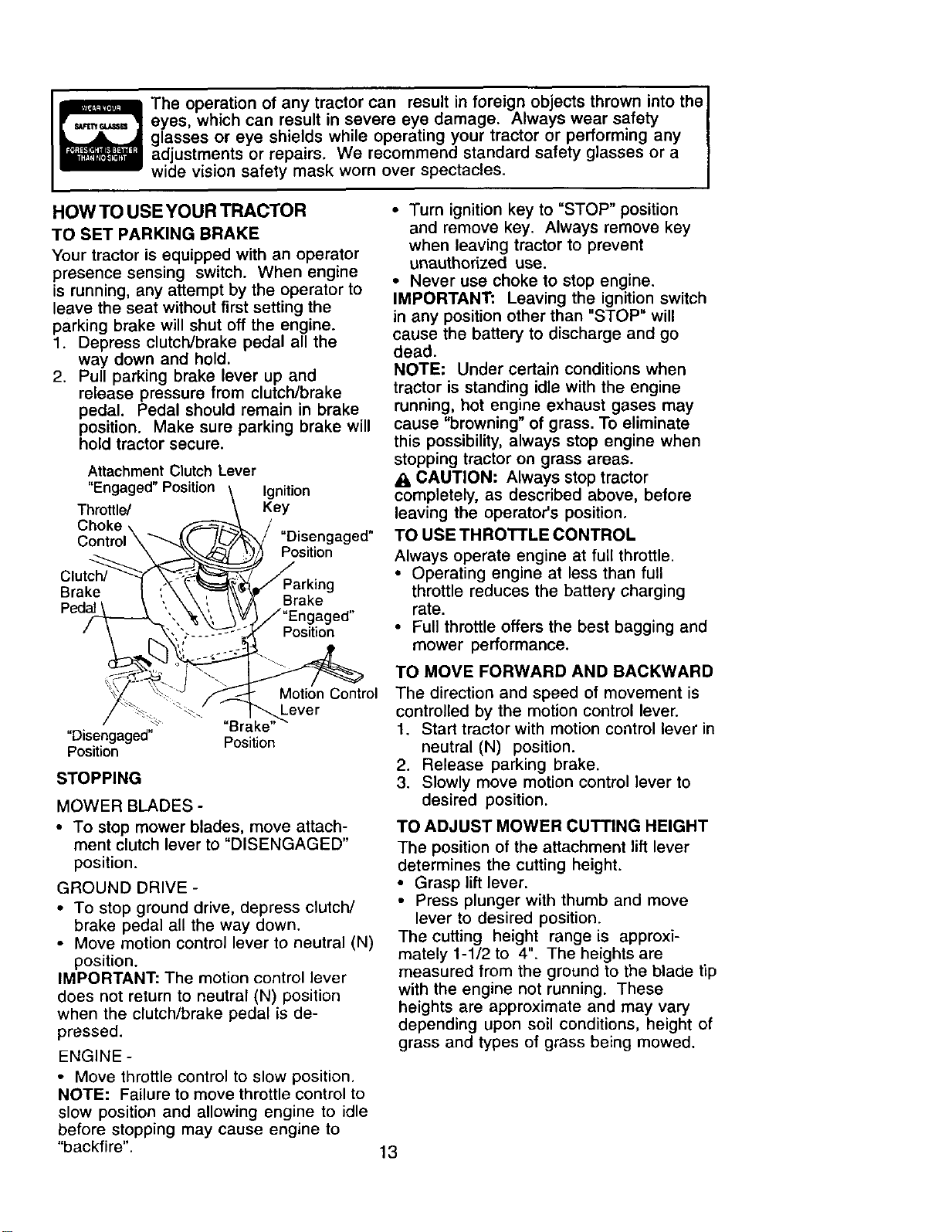

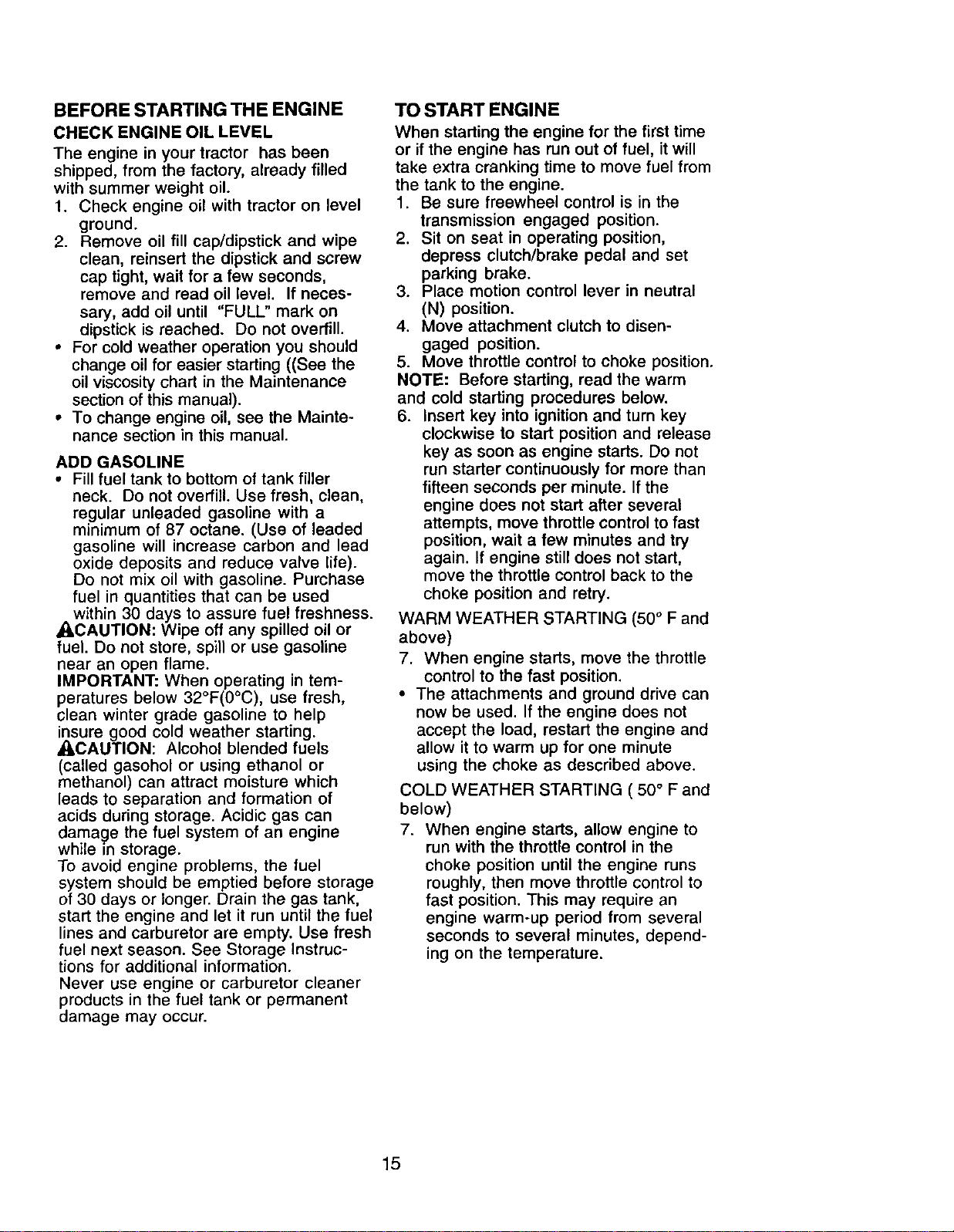

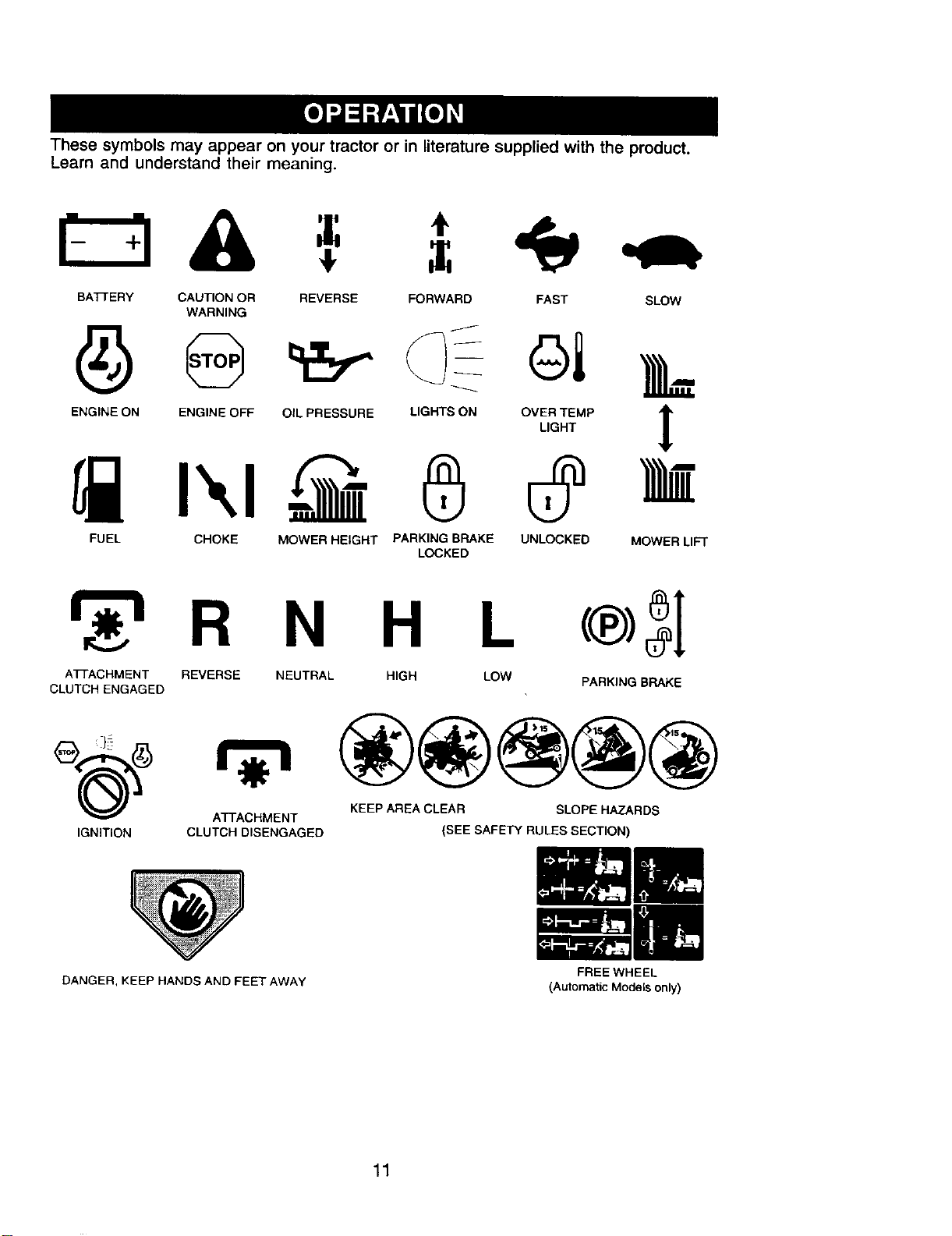

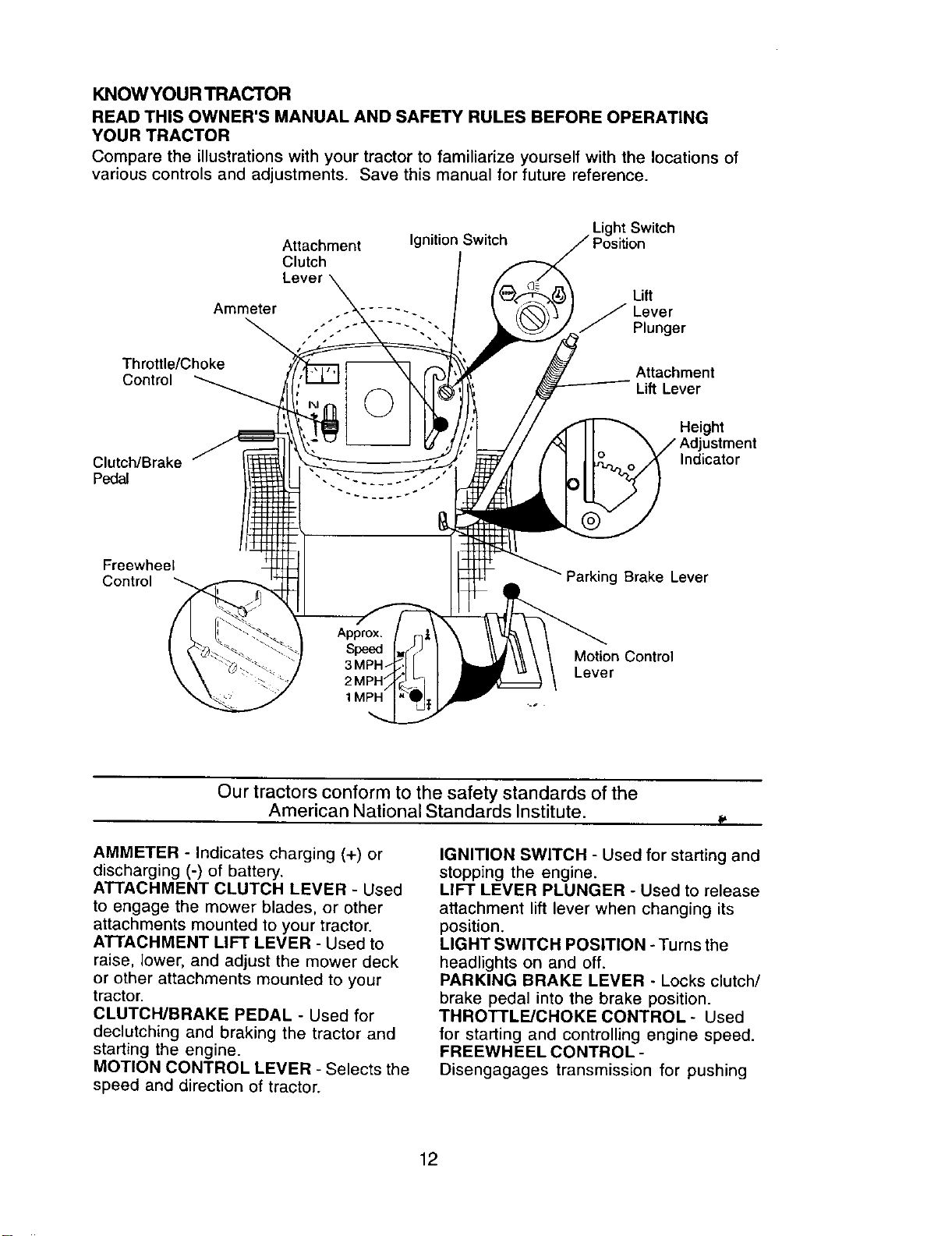

Operation ............................................ 11

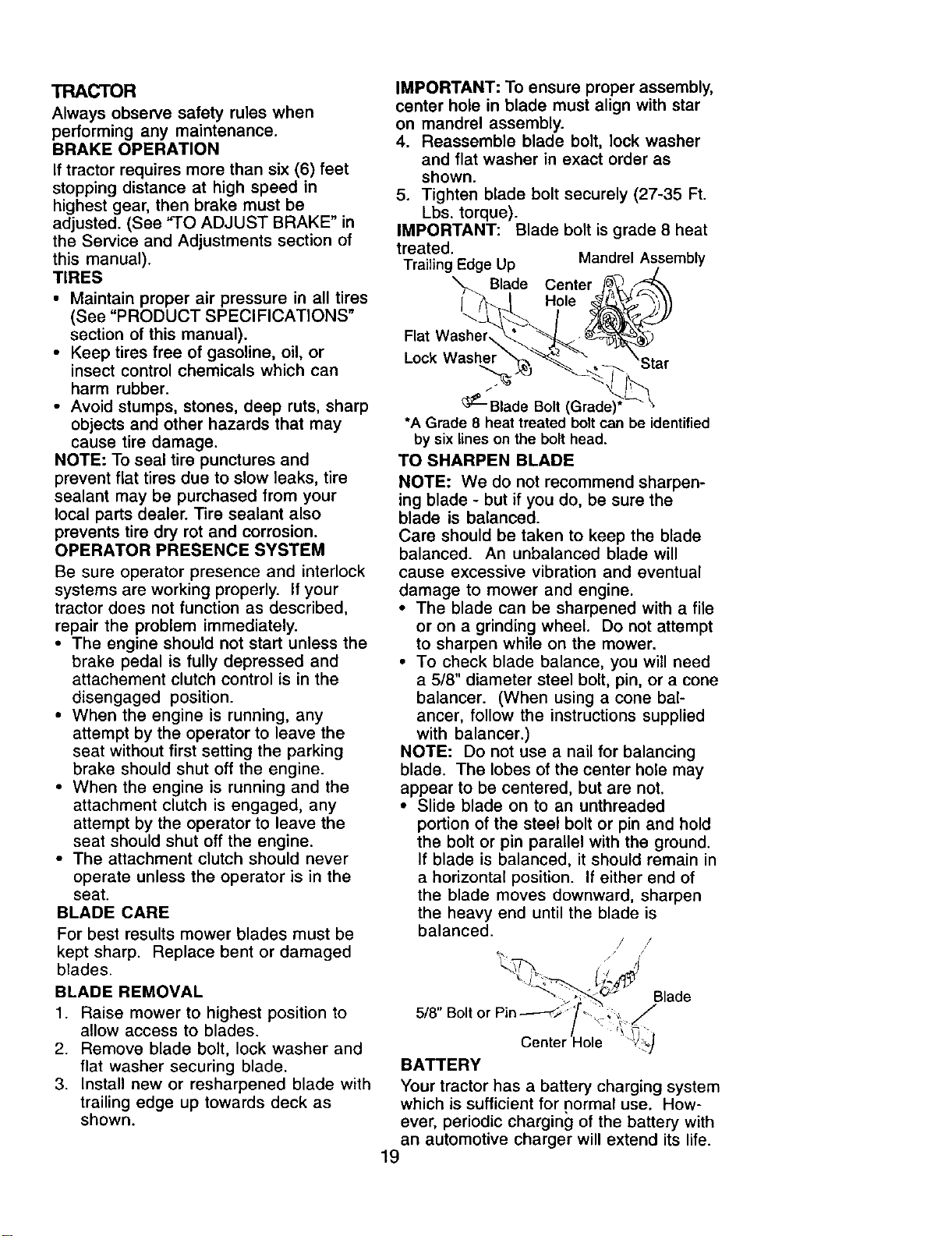

Maintenance ....................................... 18

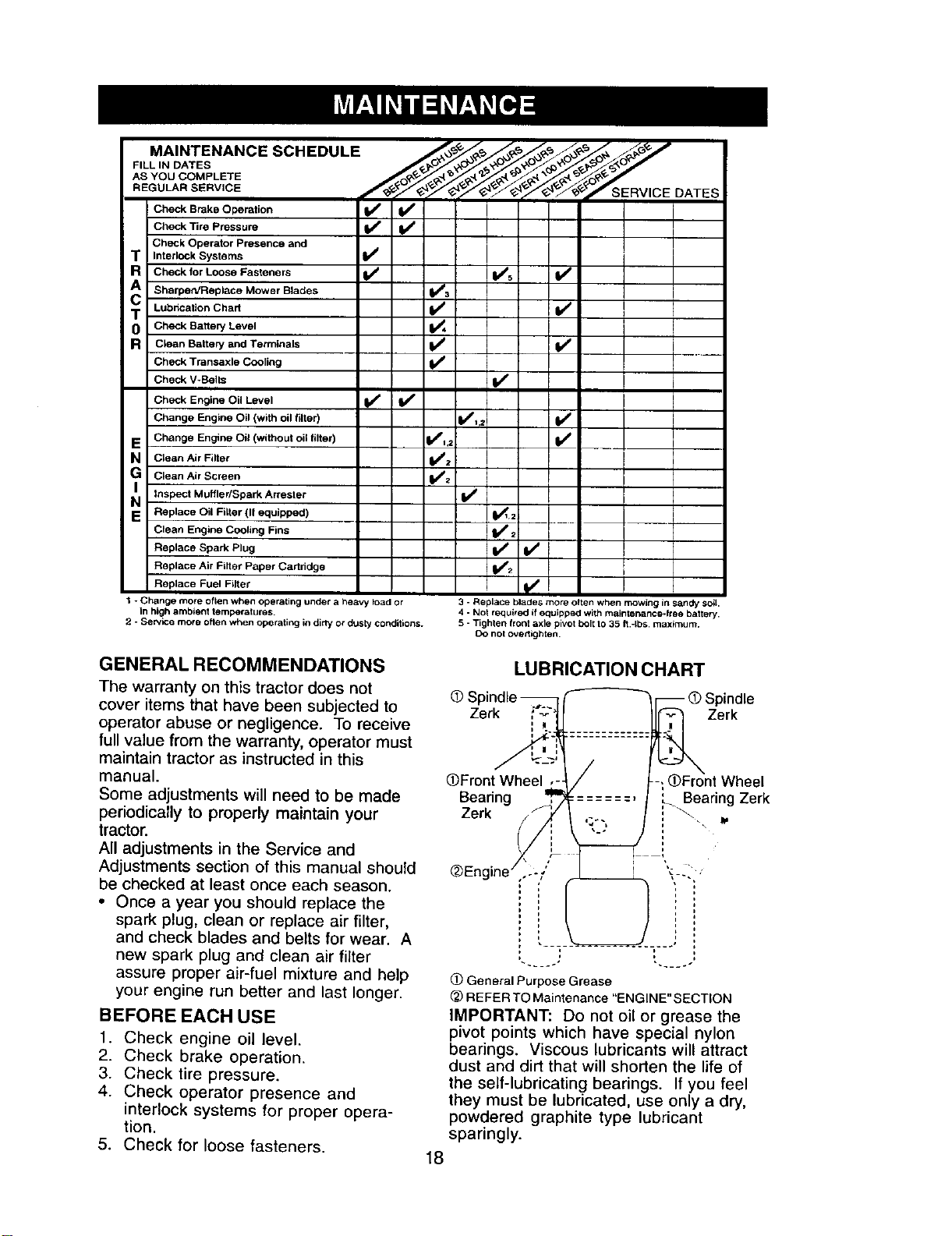

Maintenance Schedule ...................... 18

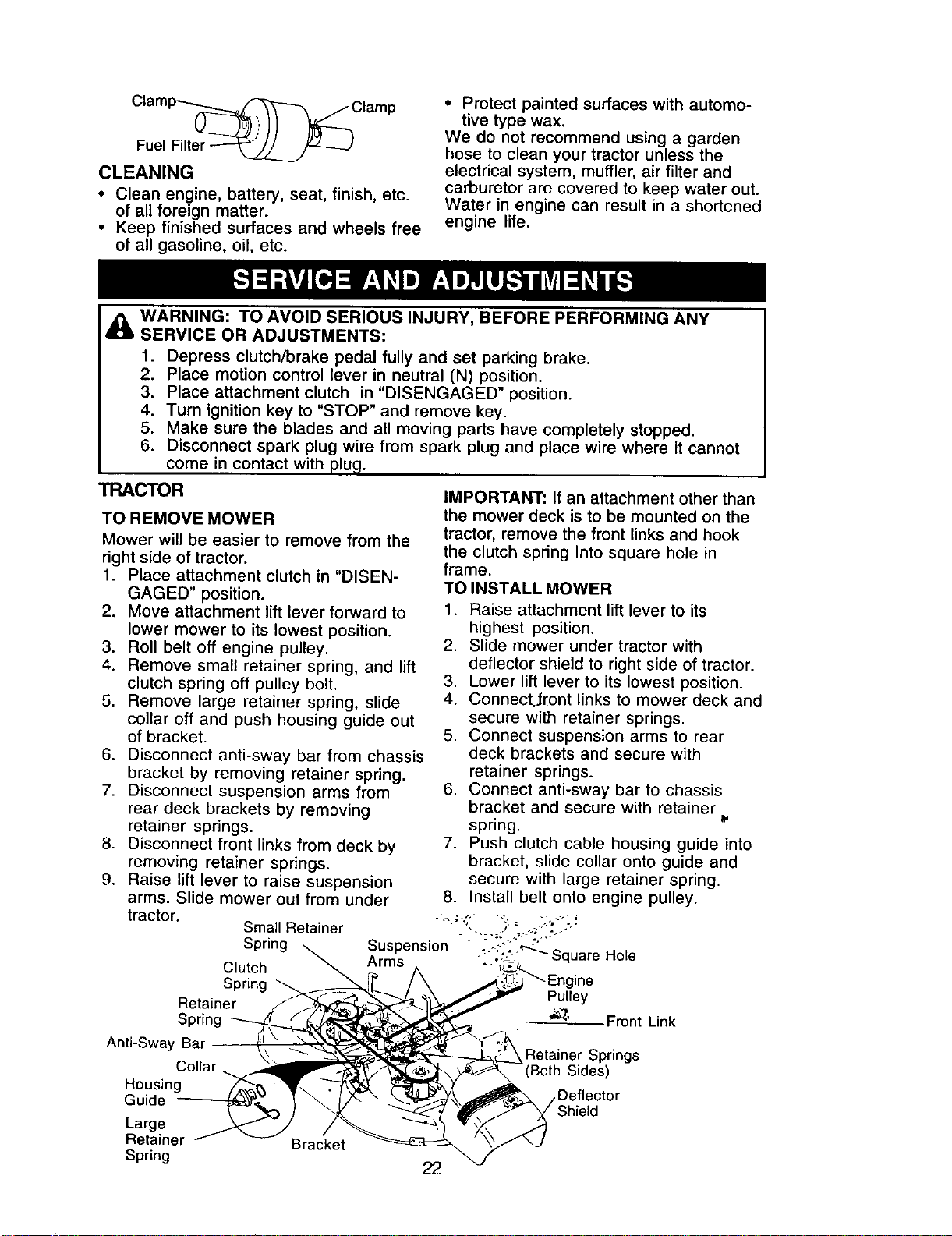

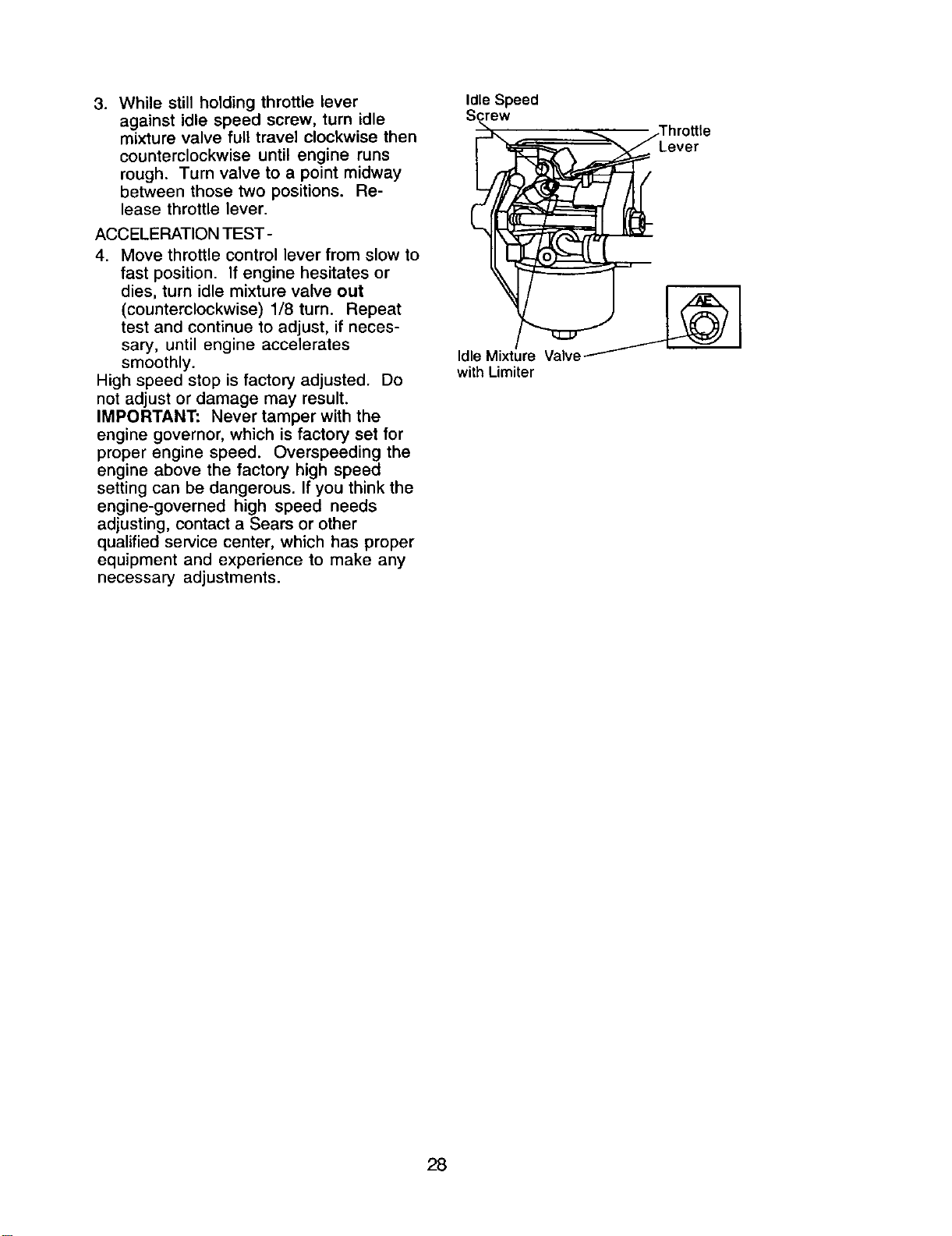

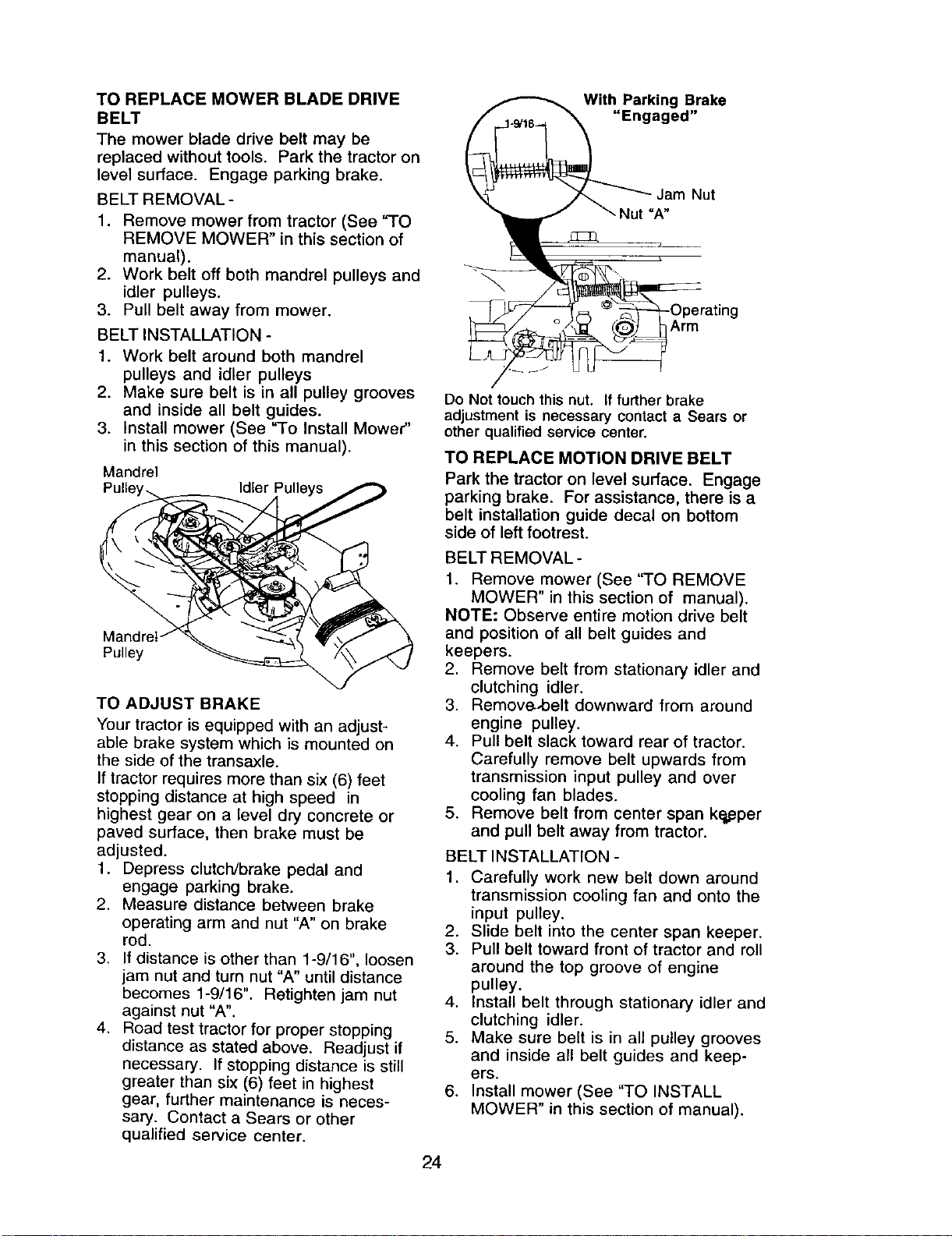

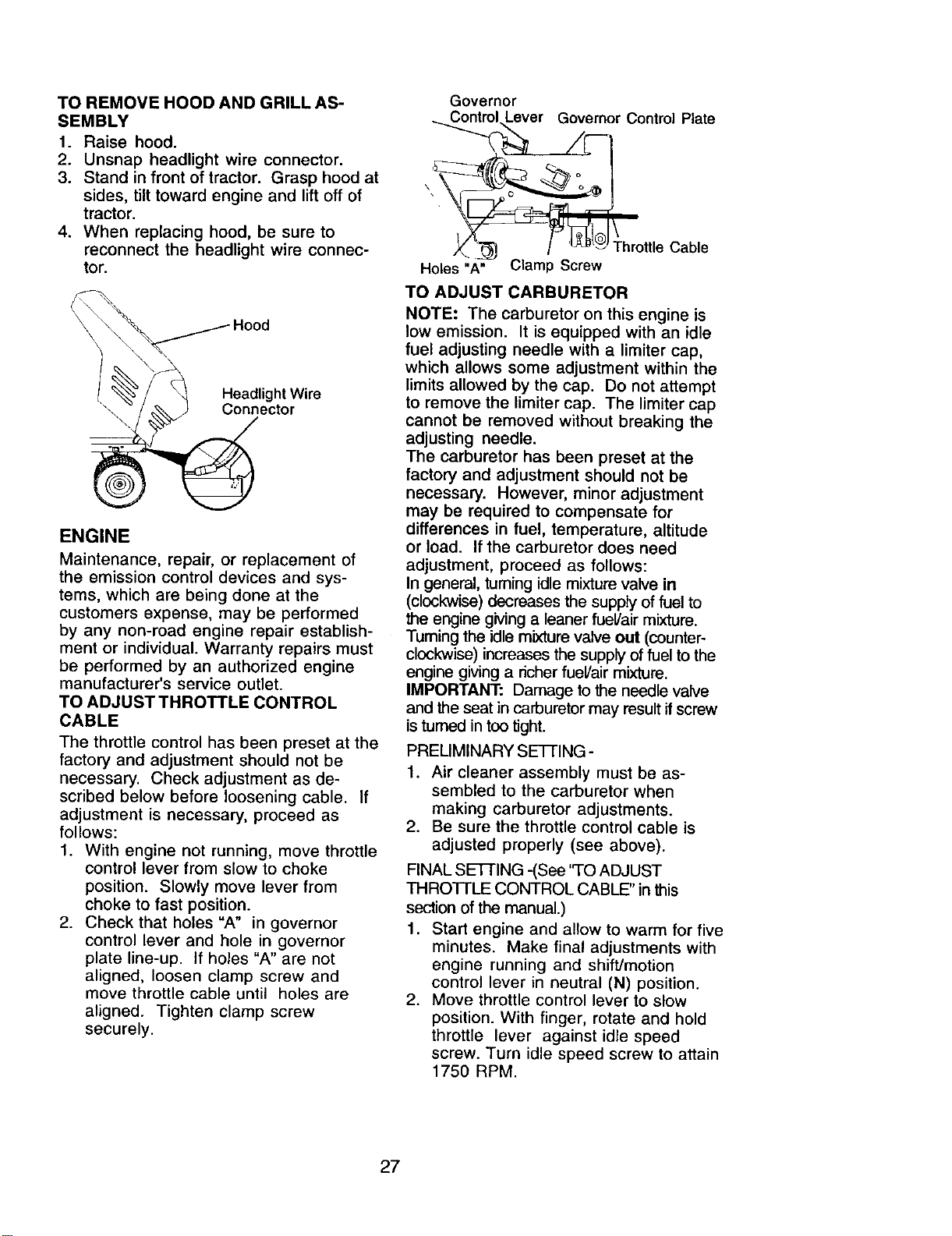

Service and Adjustments .................... 22

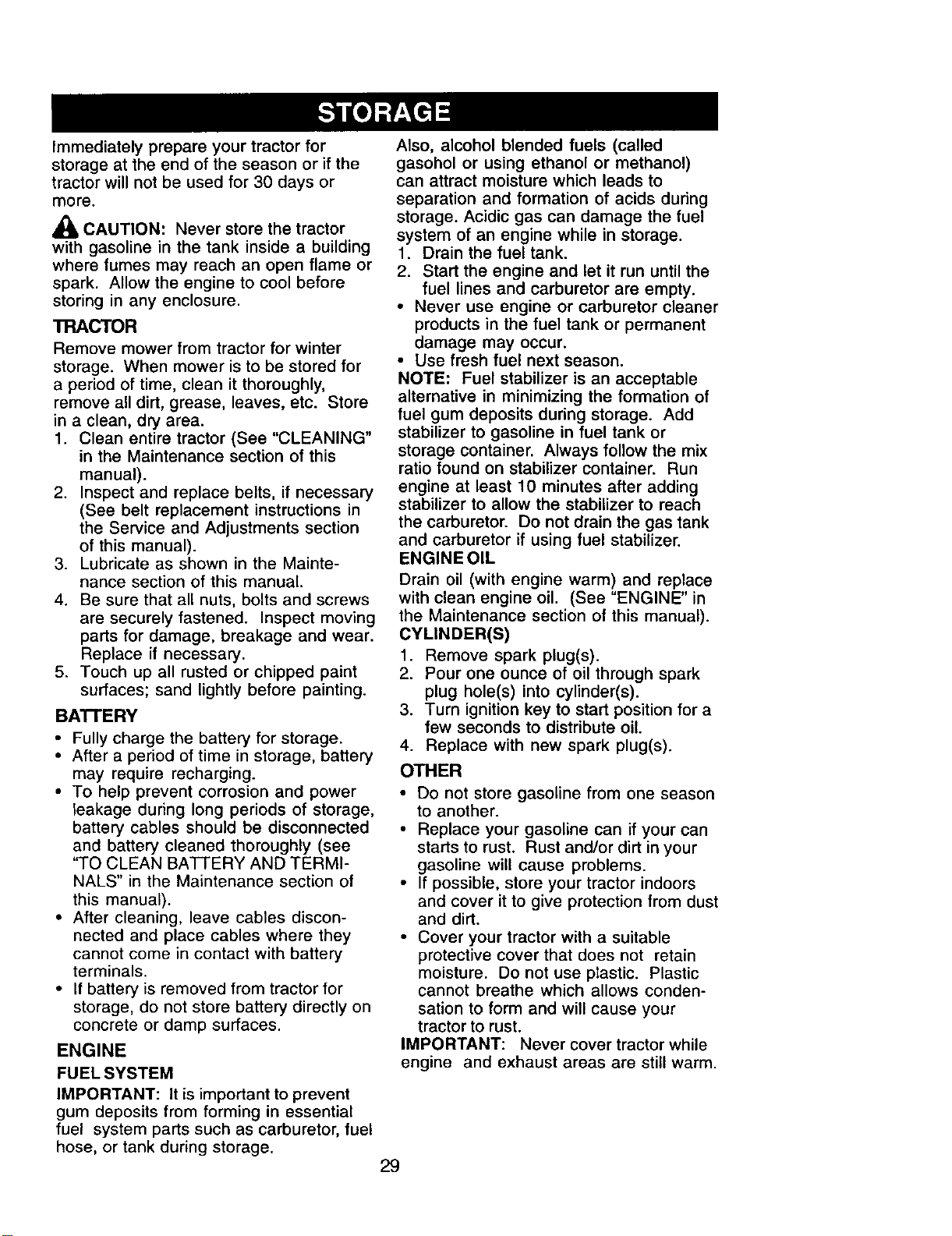

Storage ............................................... 29

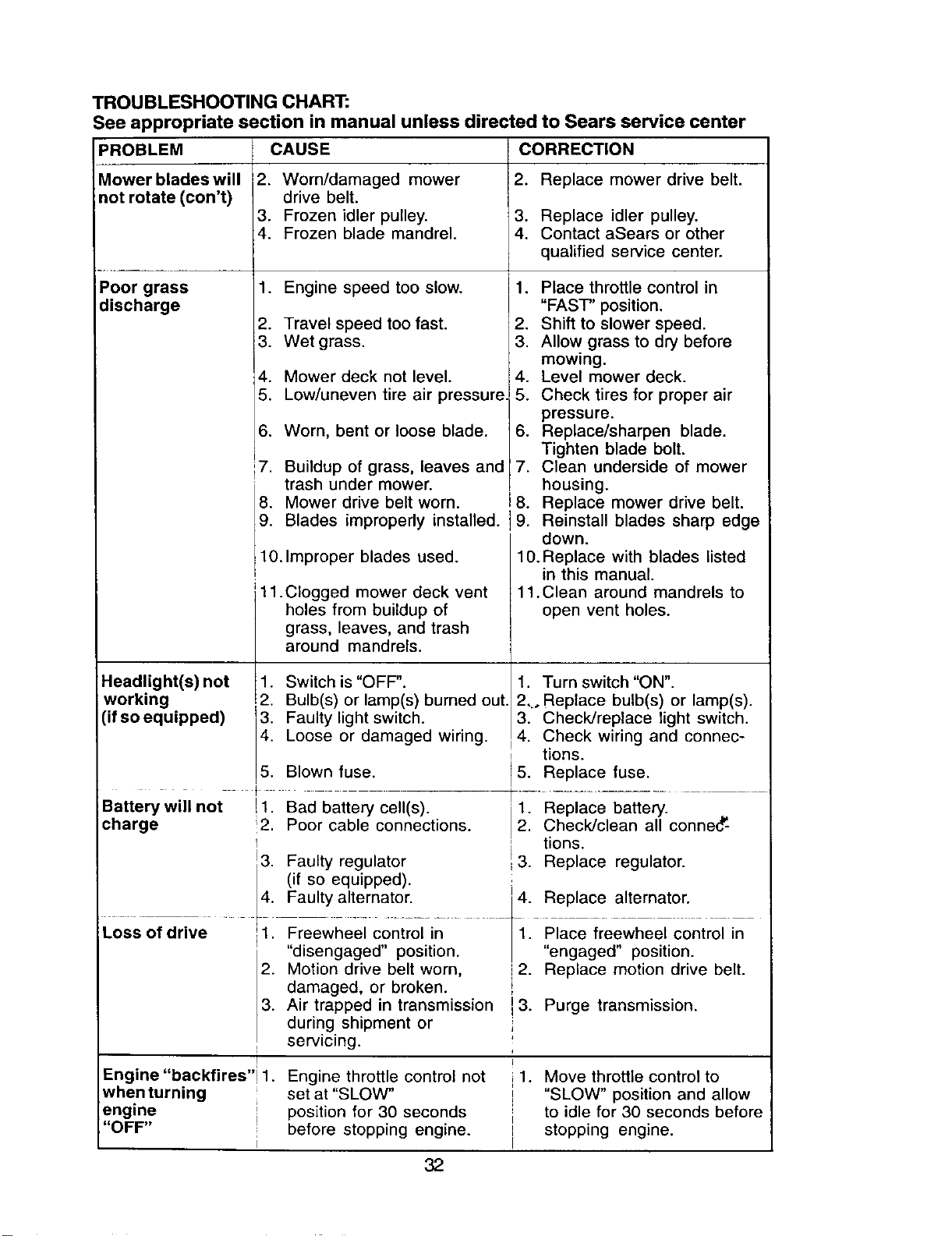

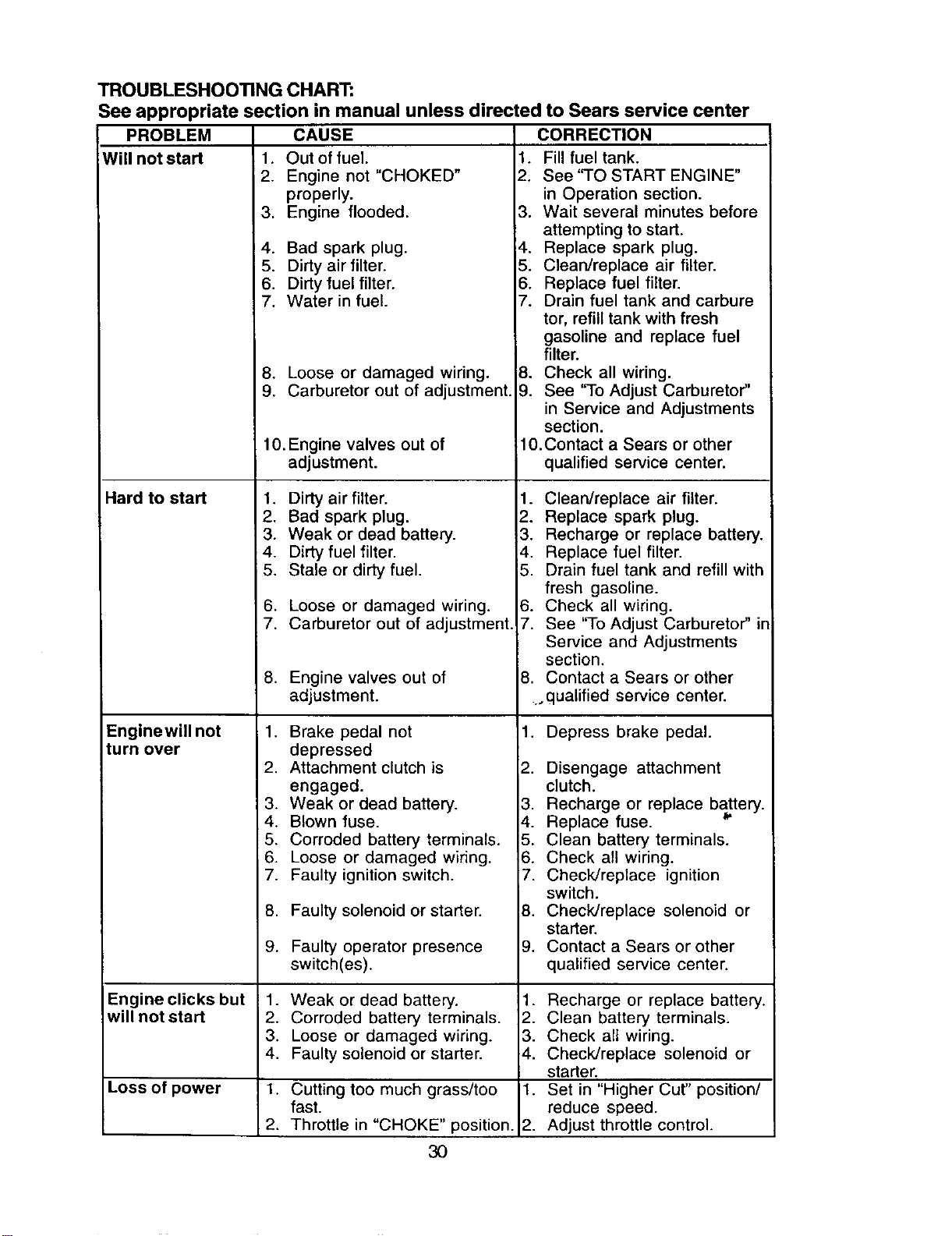

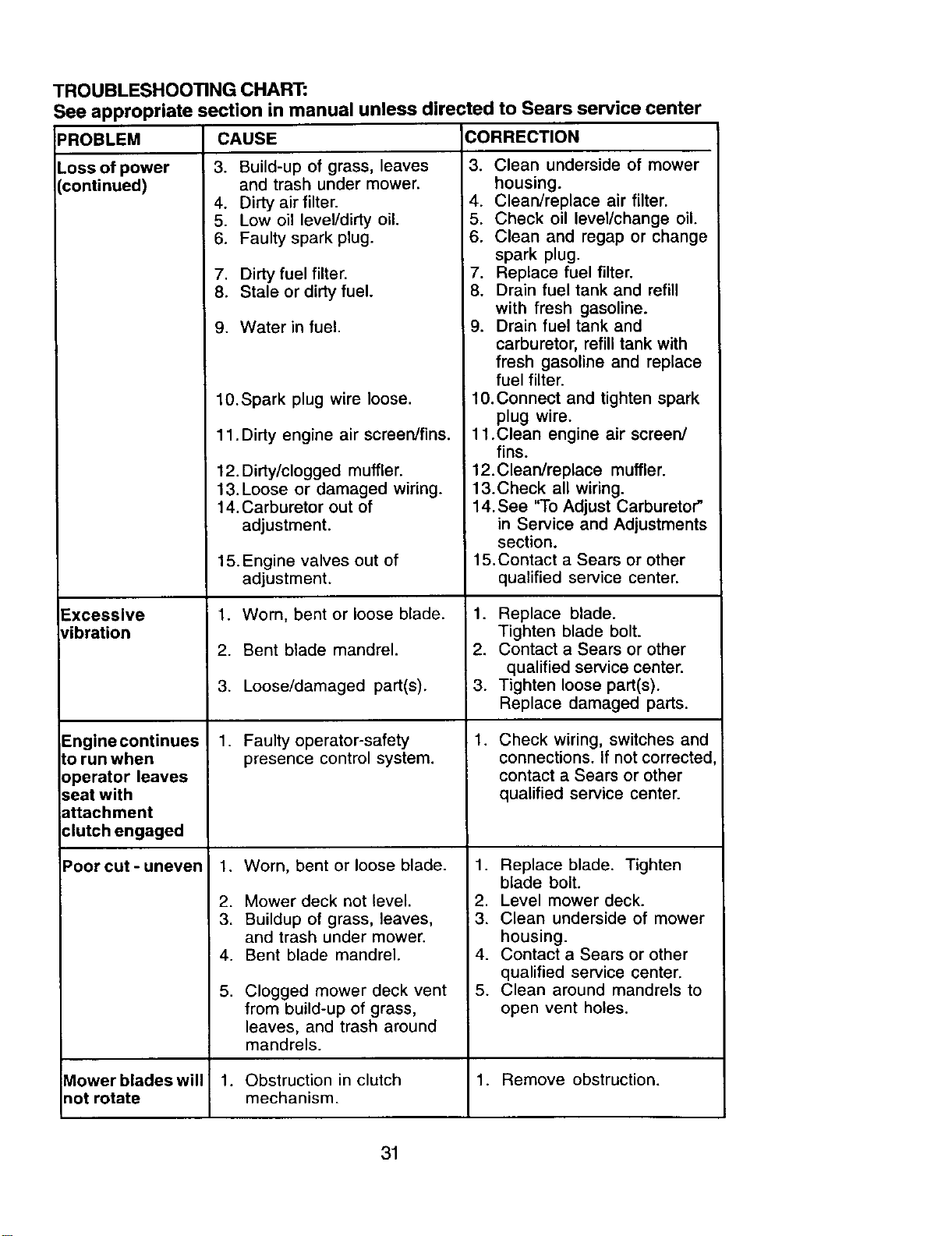

Troubleshooting ................................. 30

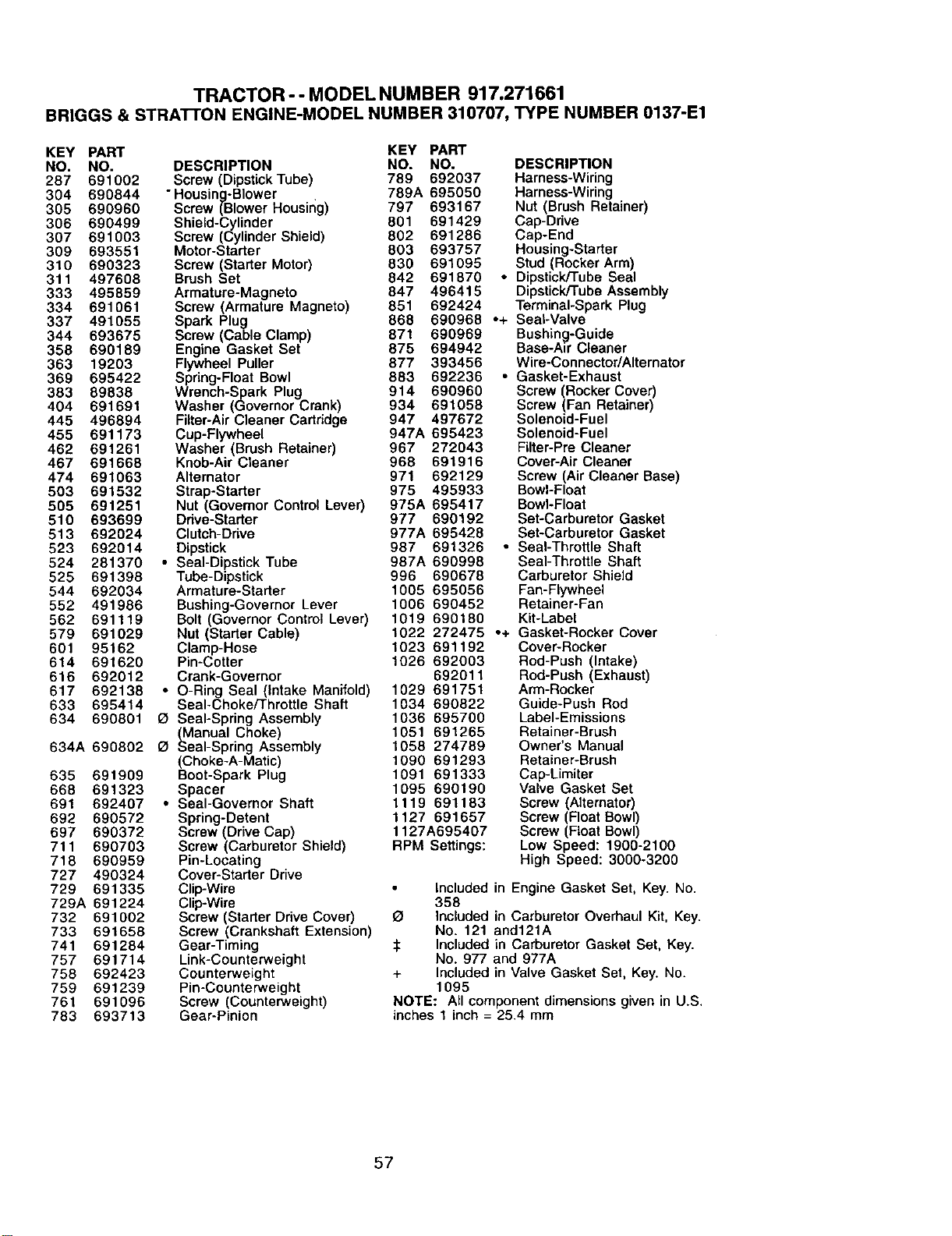

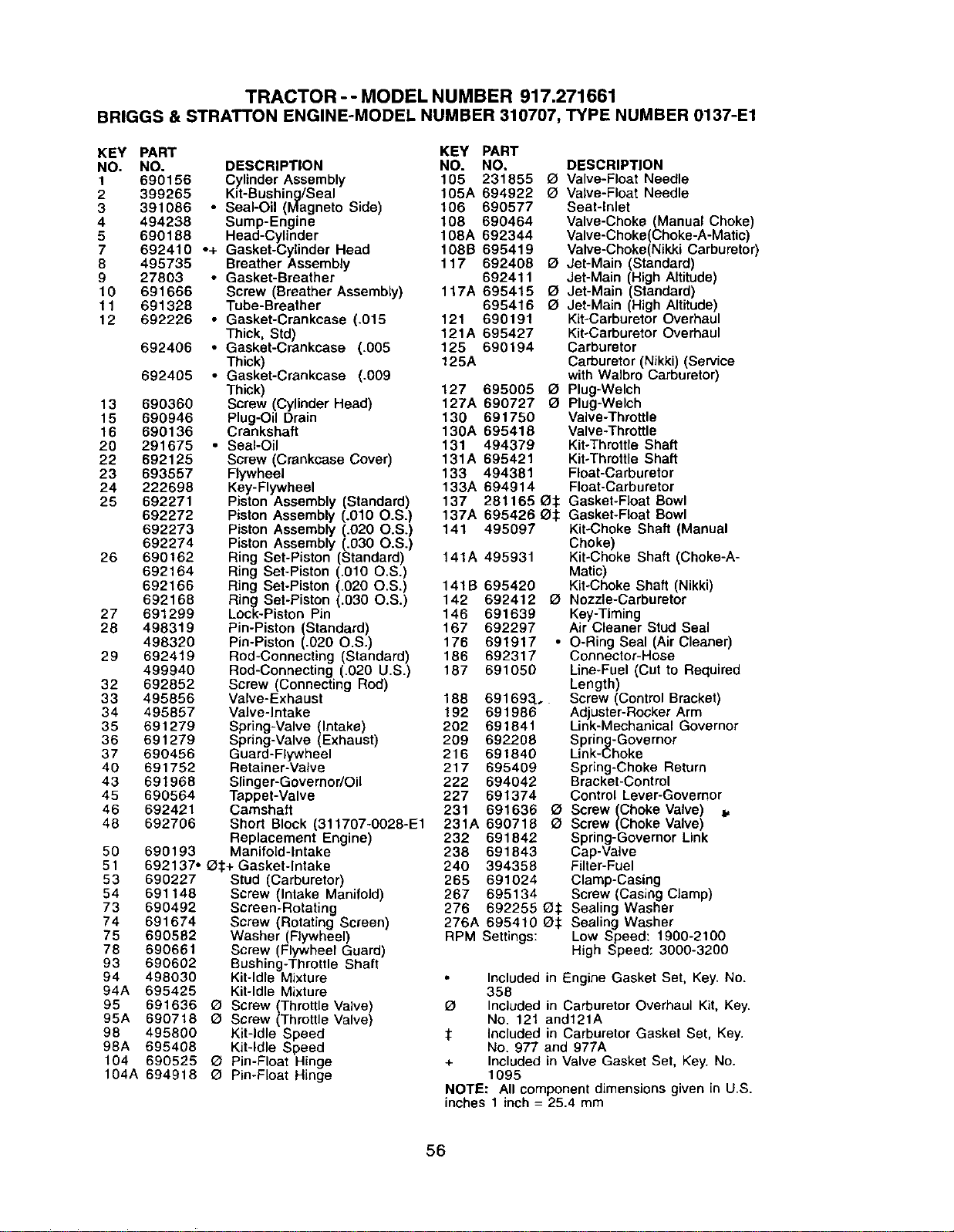

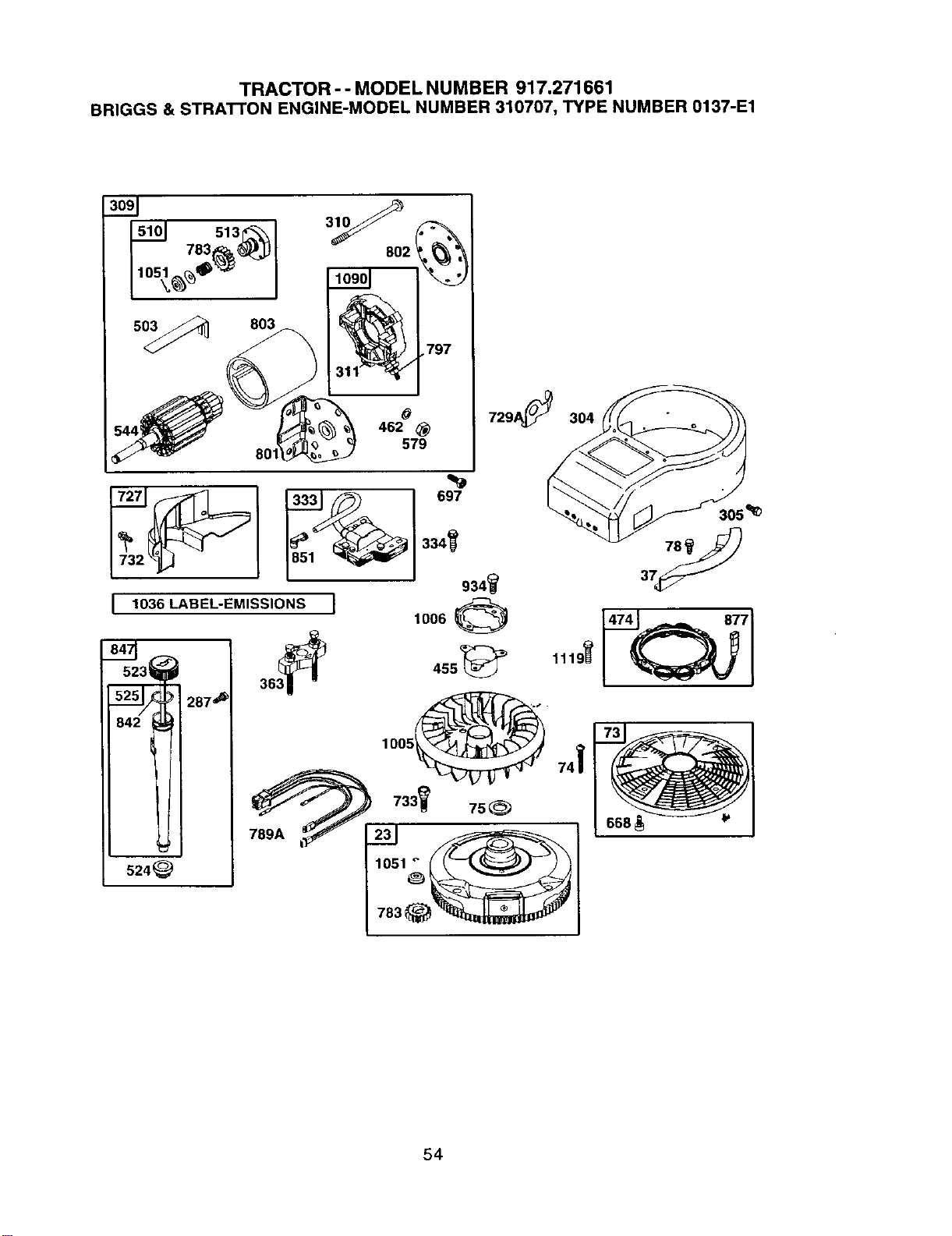

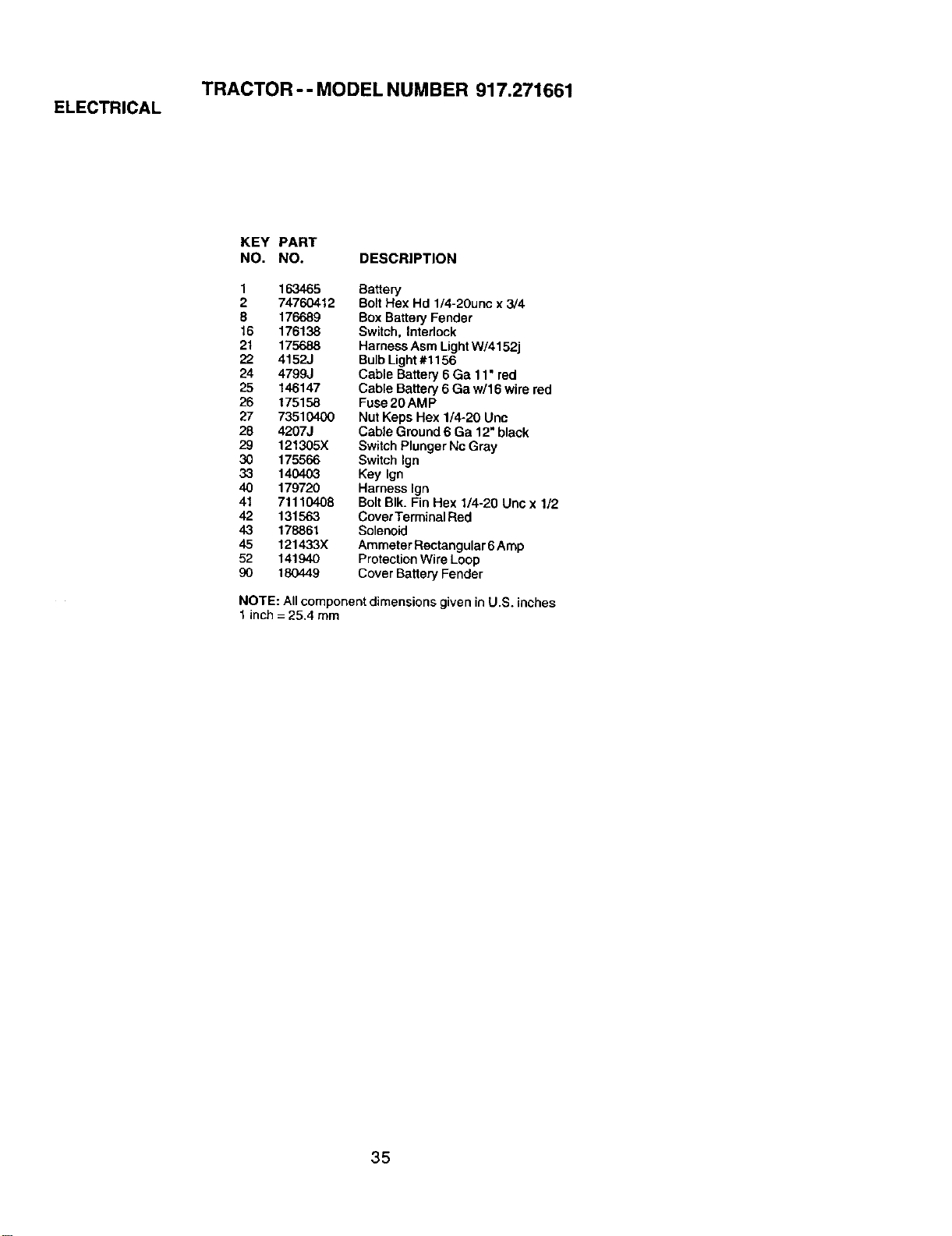

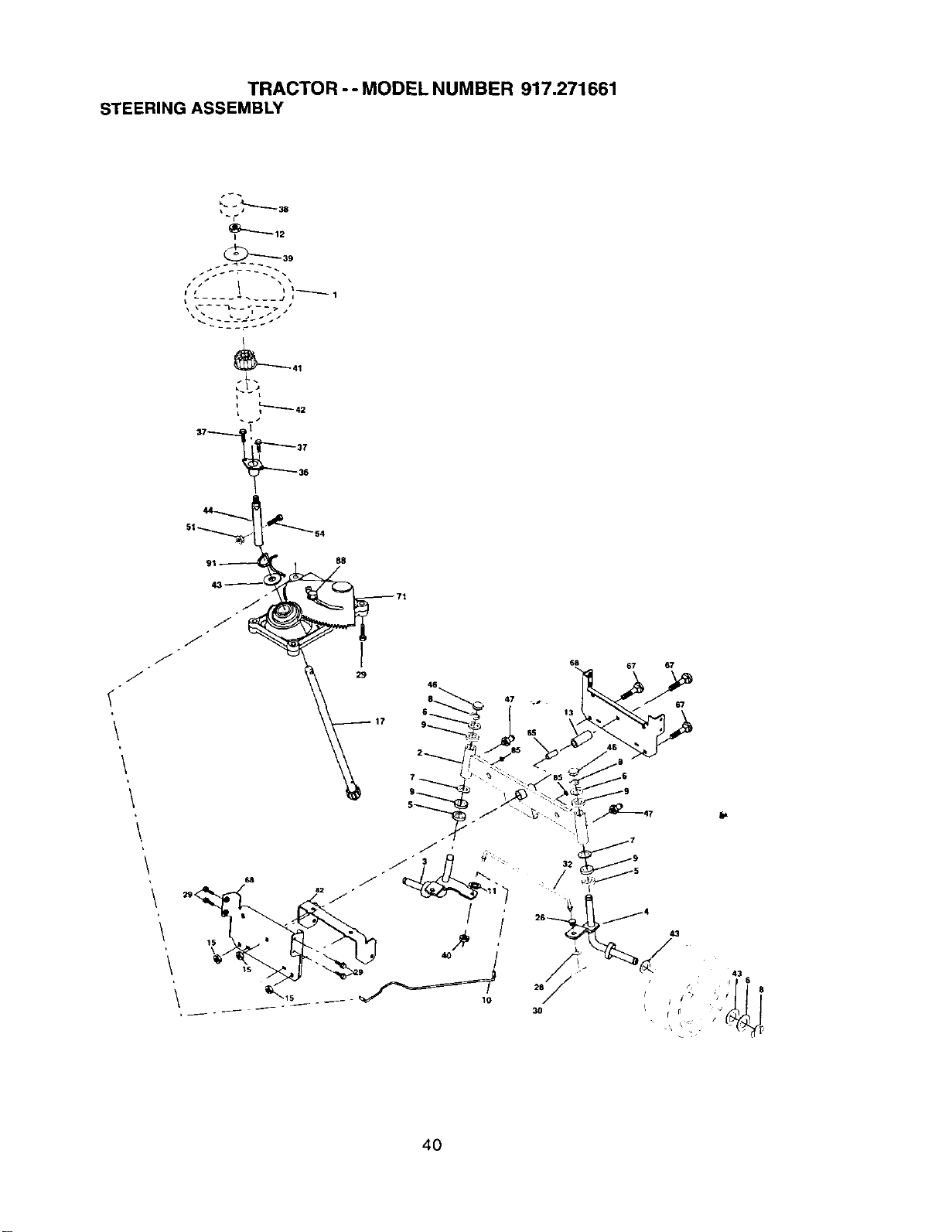

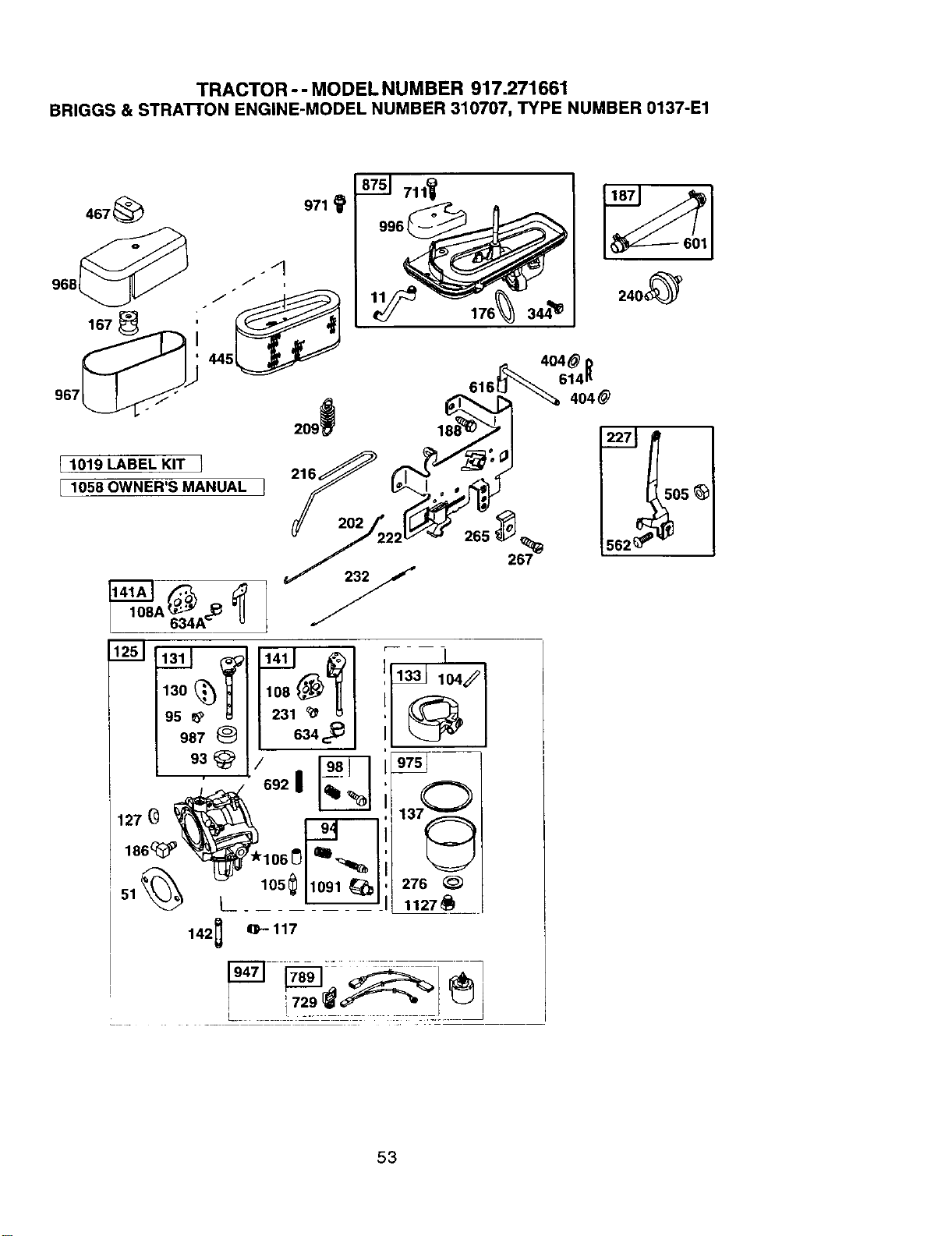

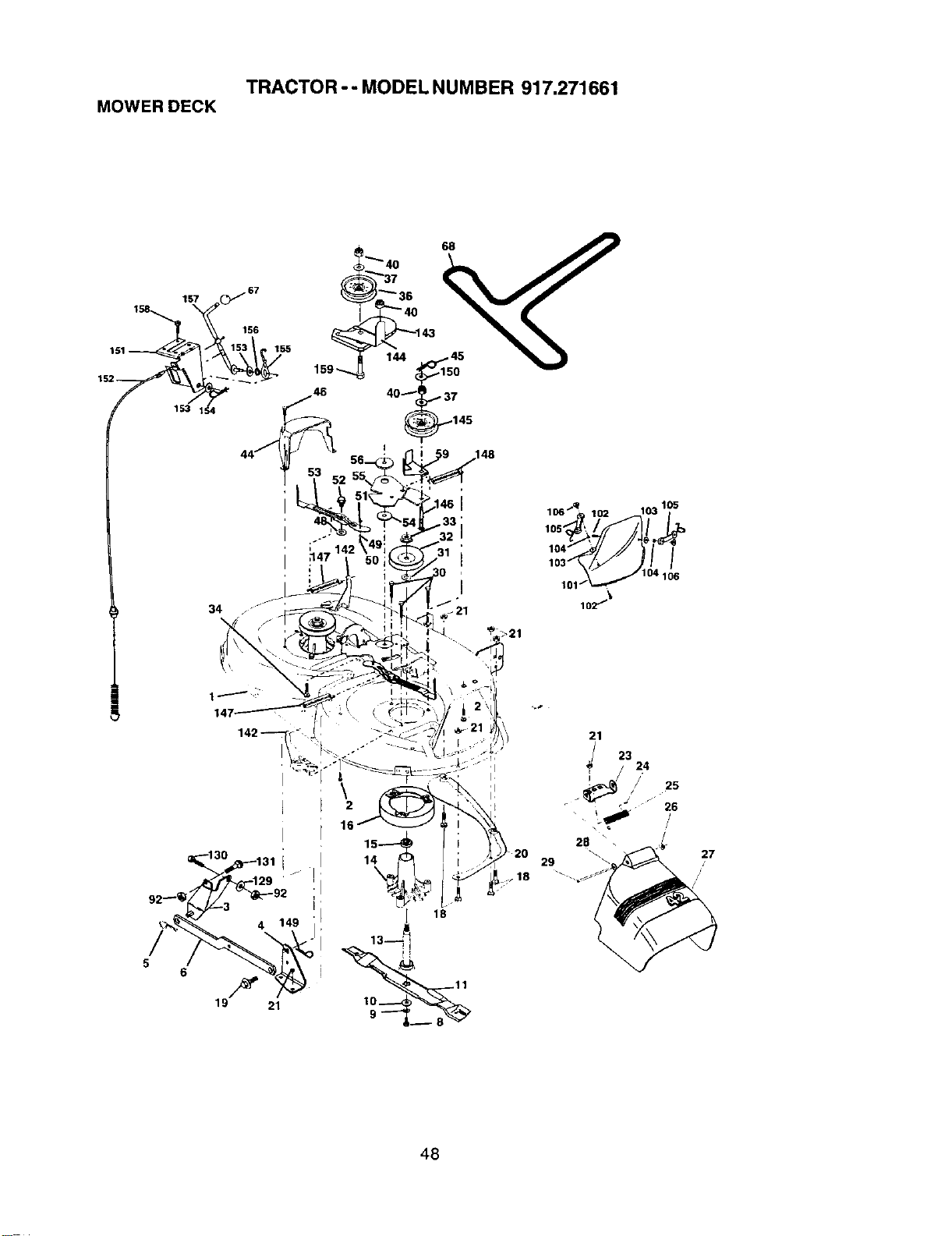

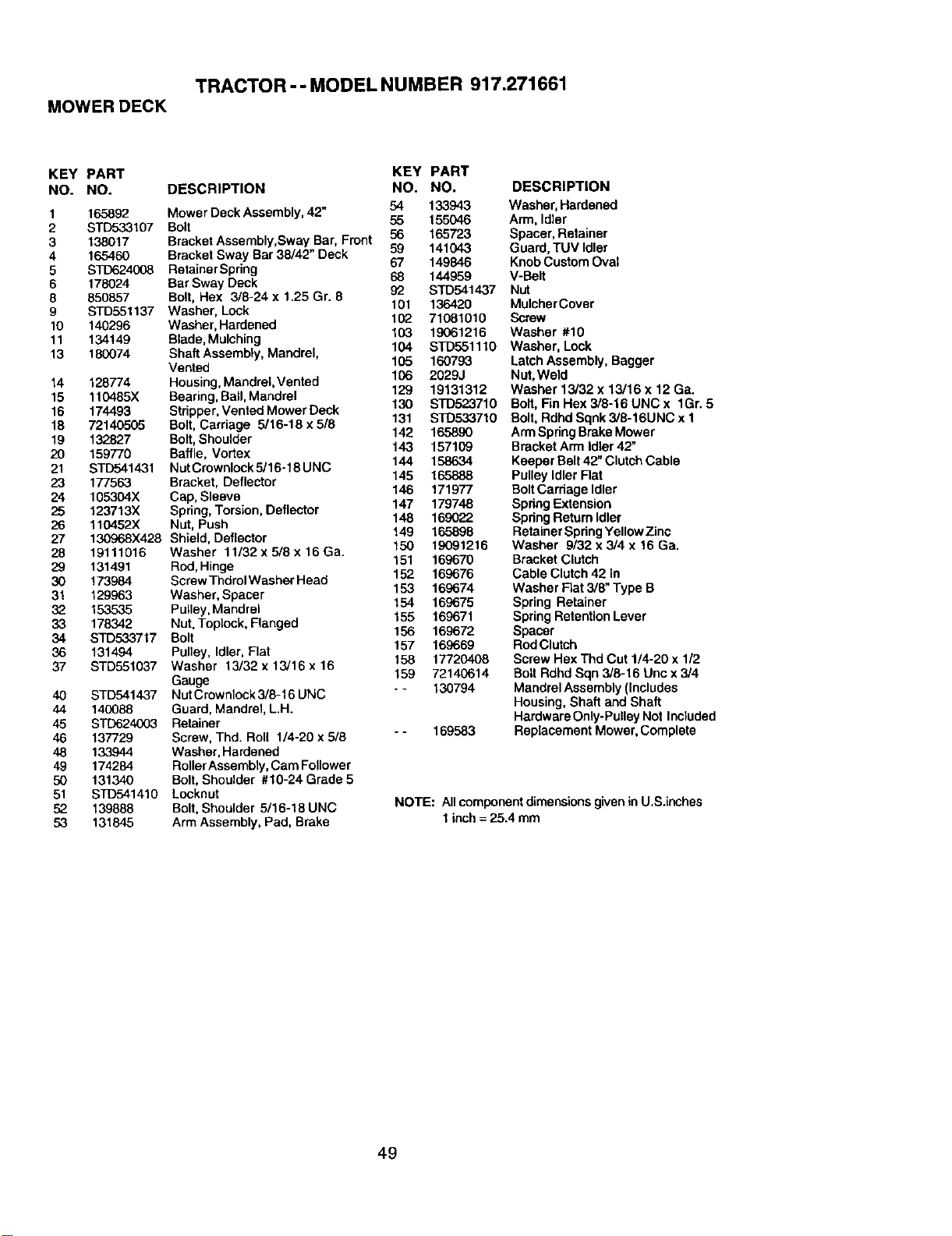

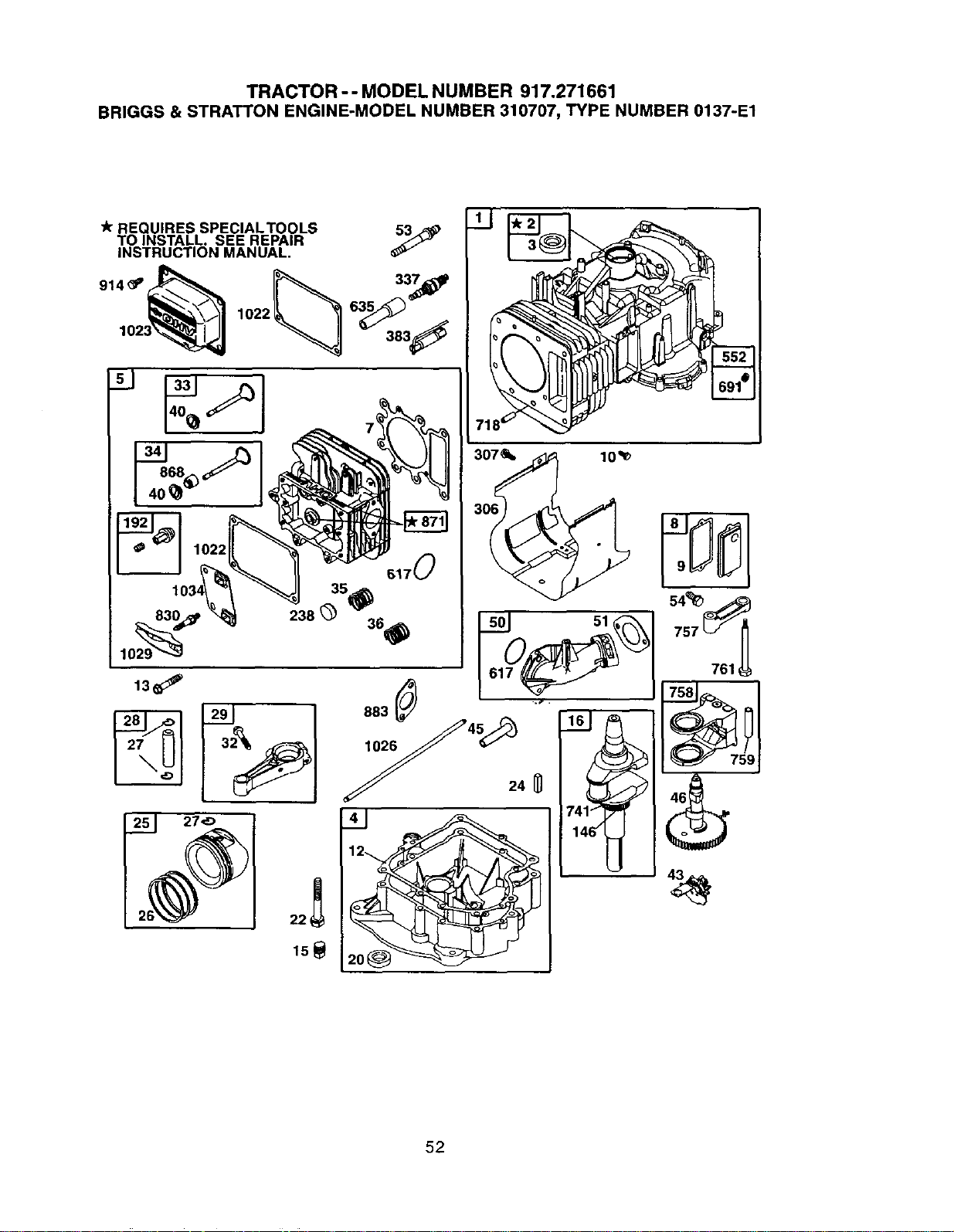

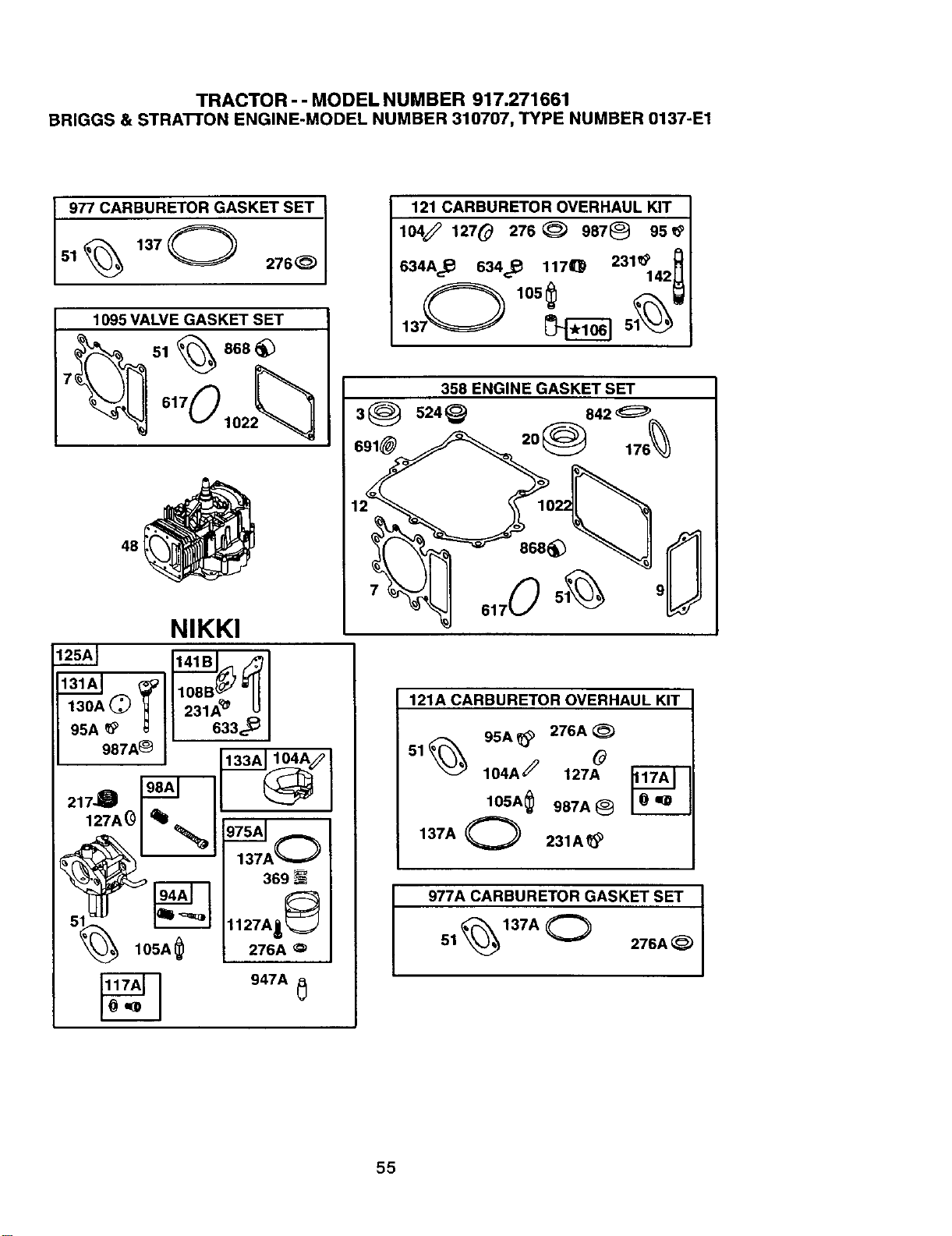

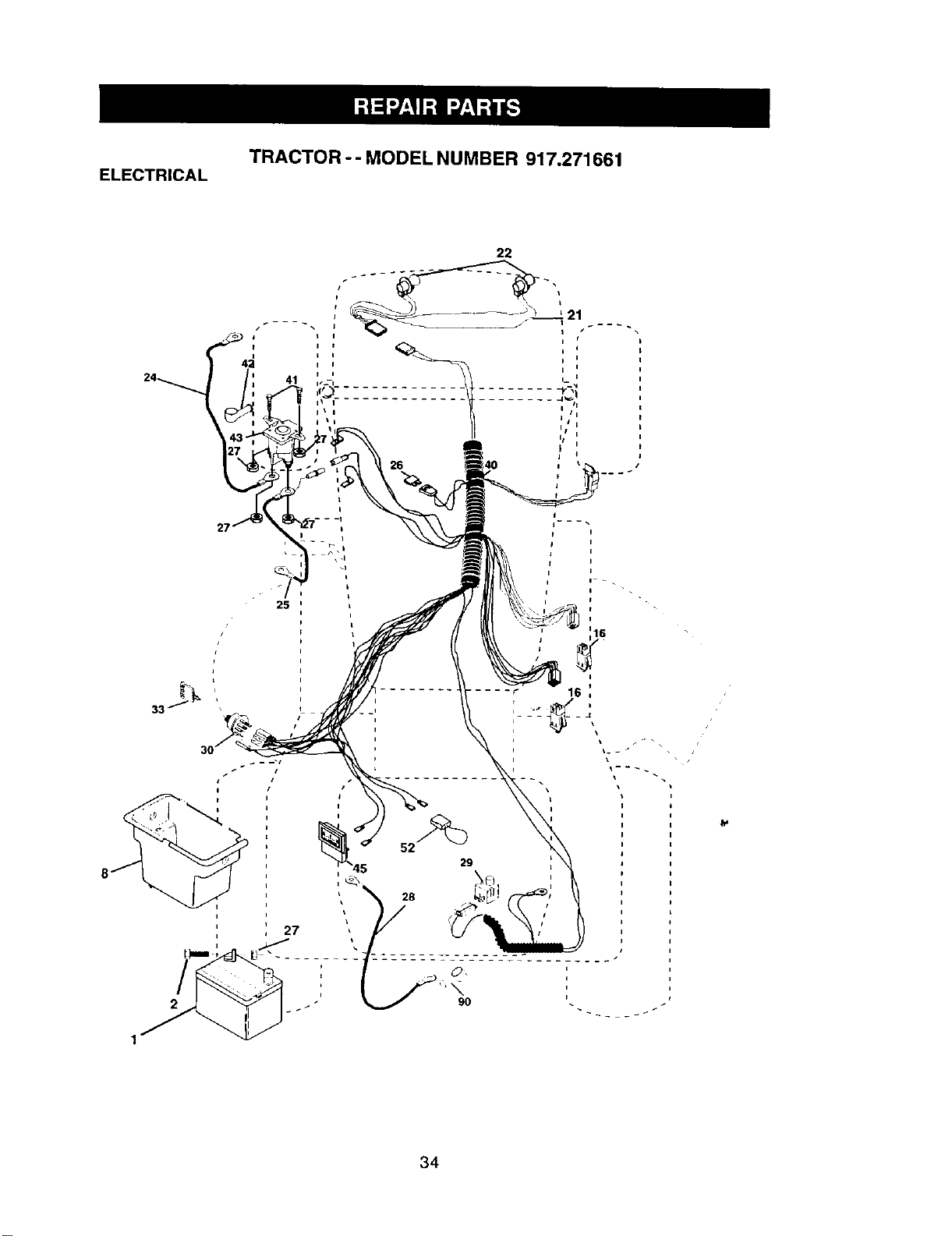

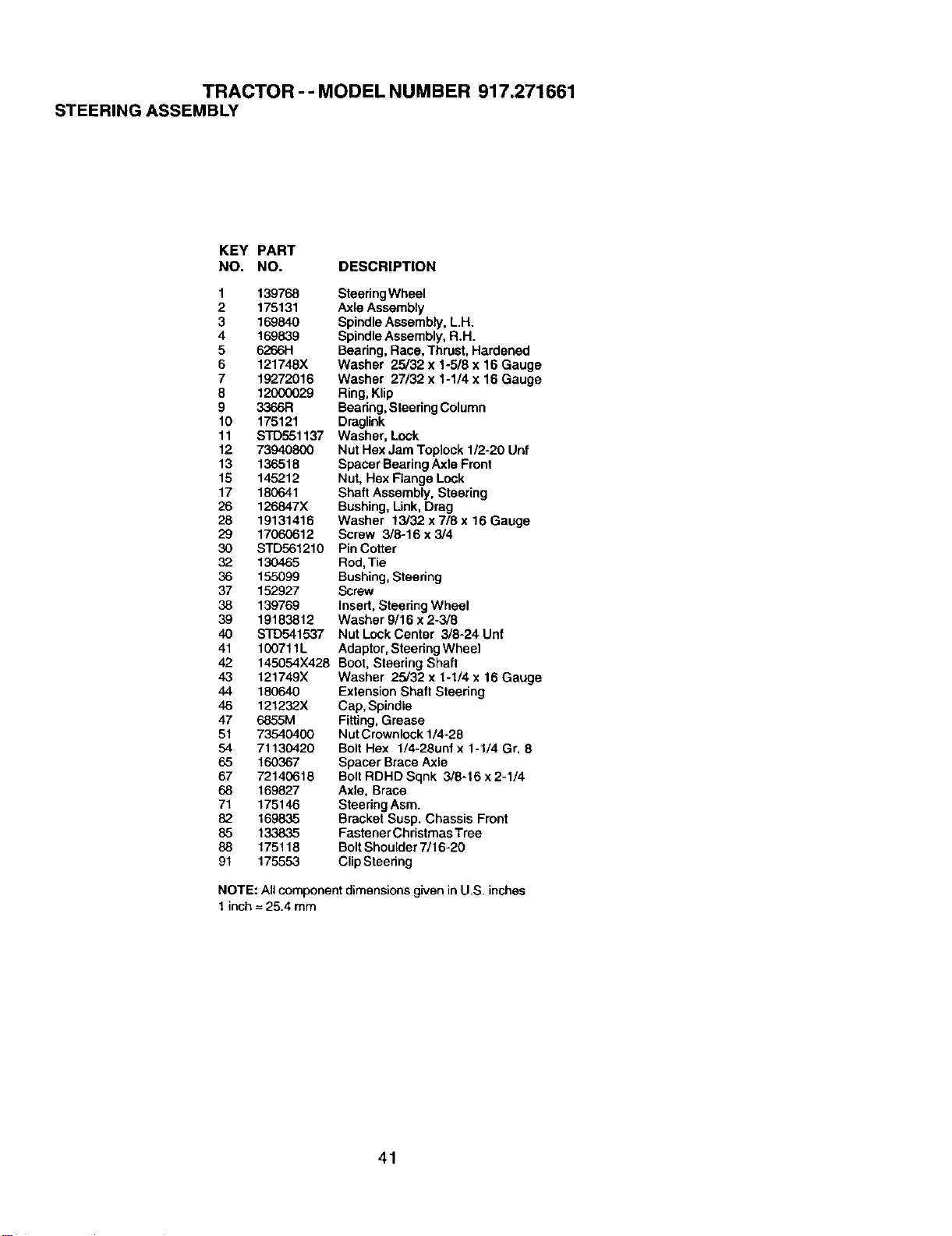

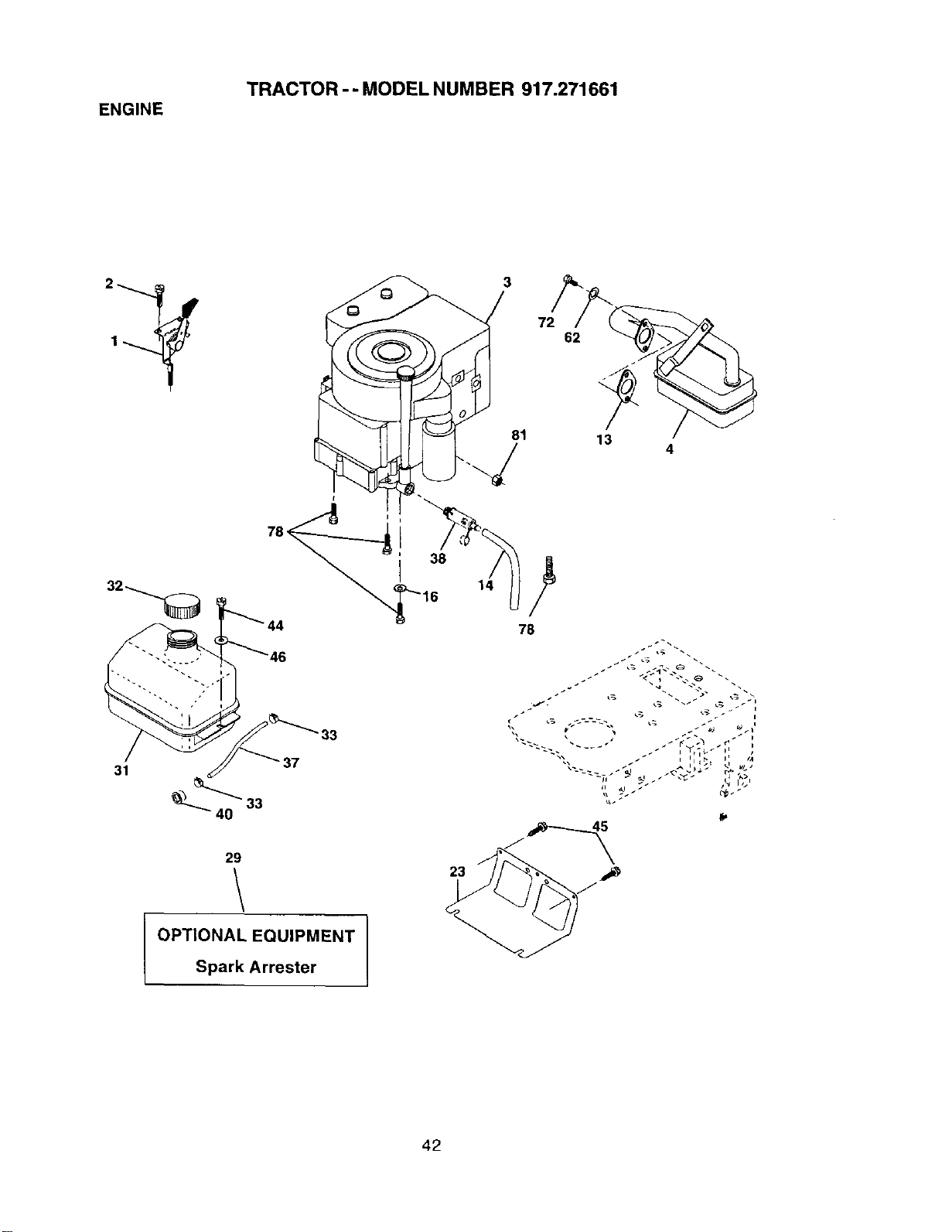

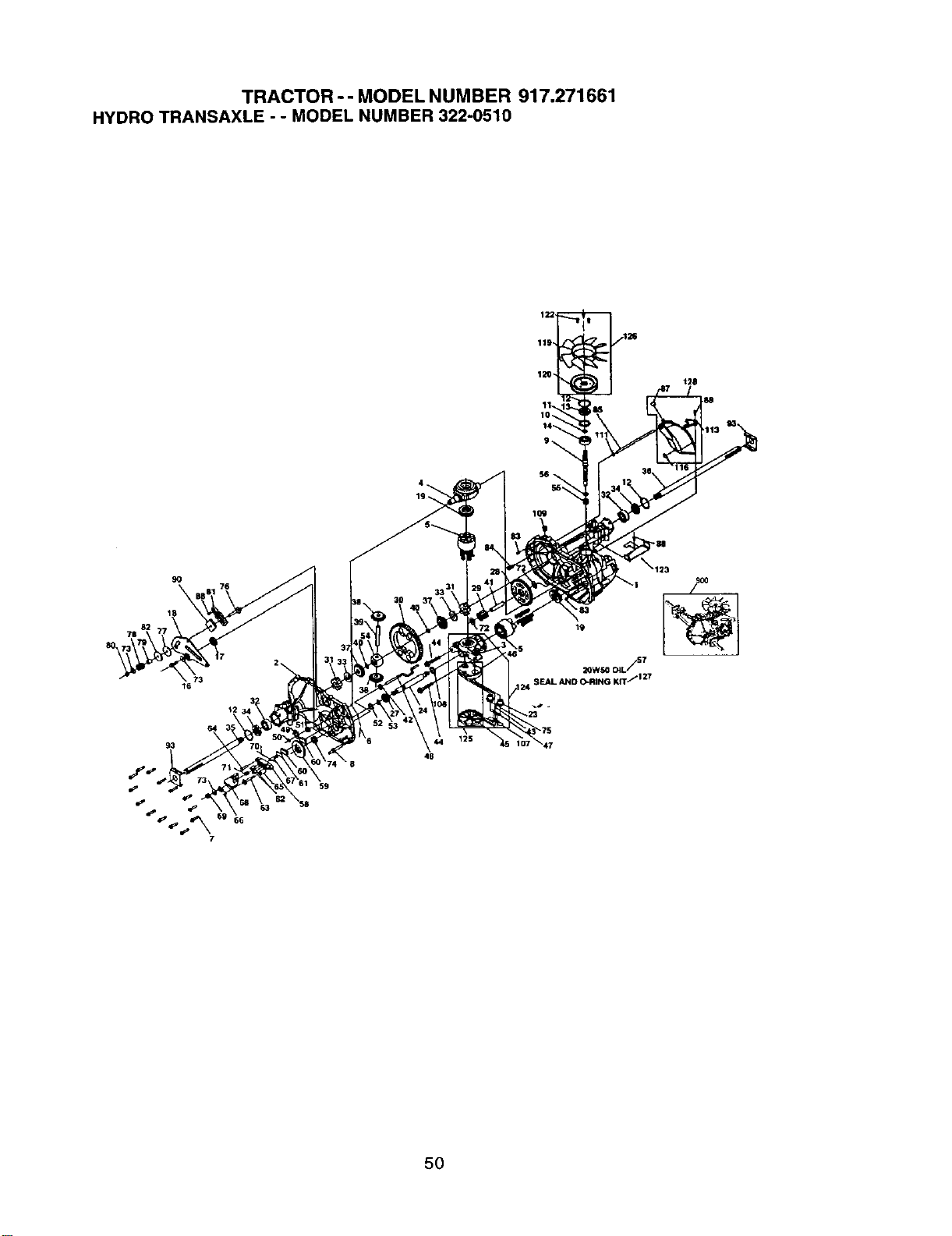

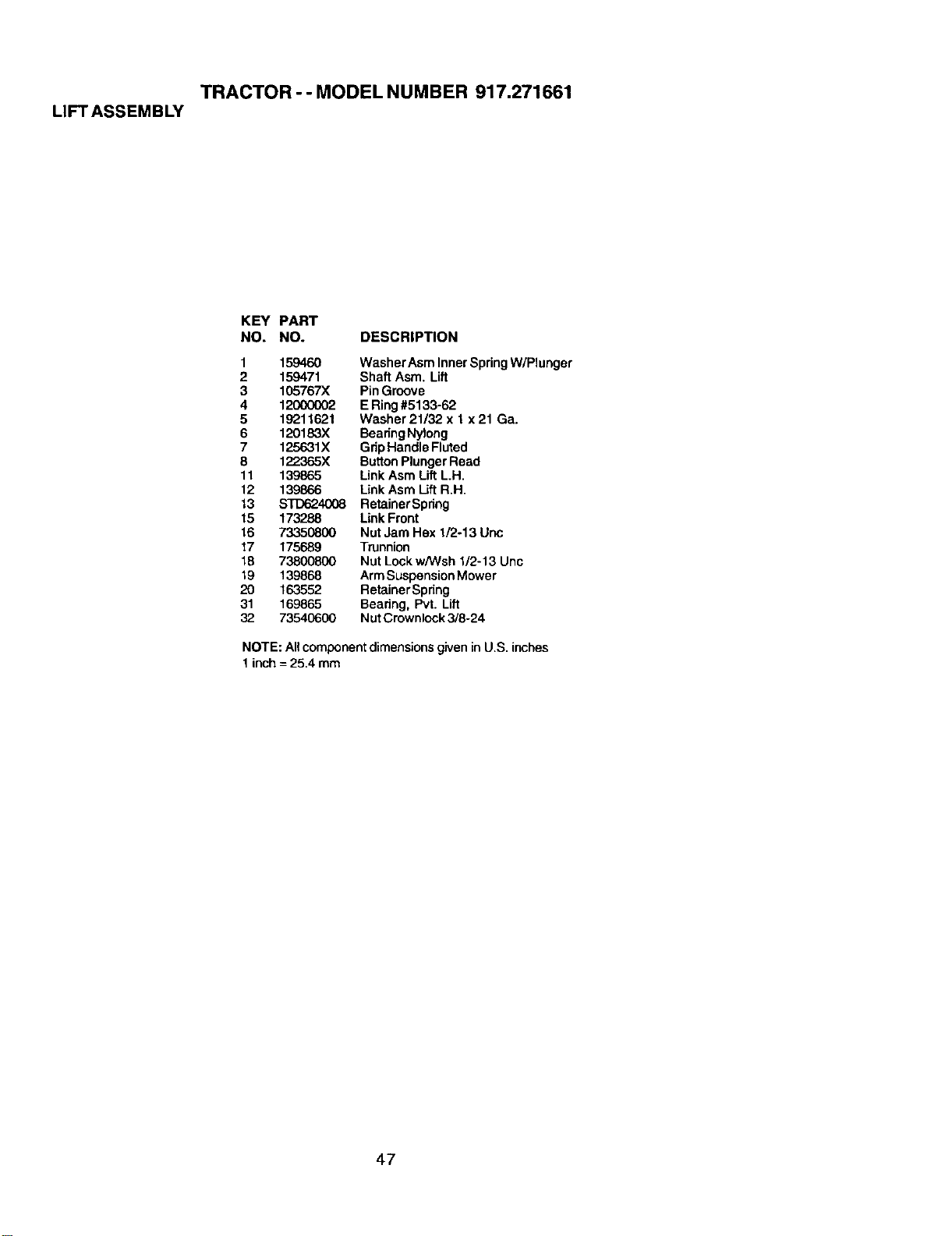

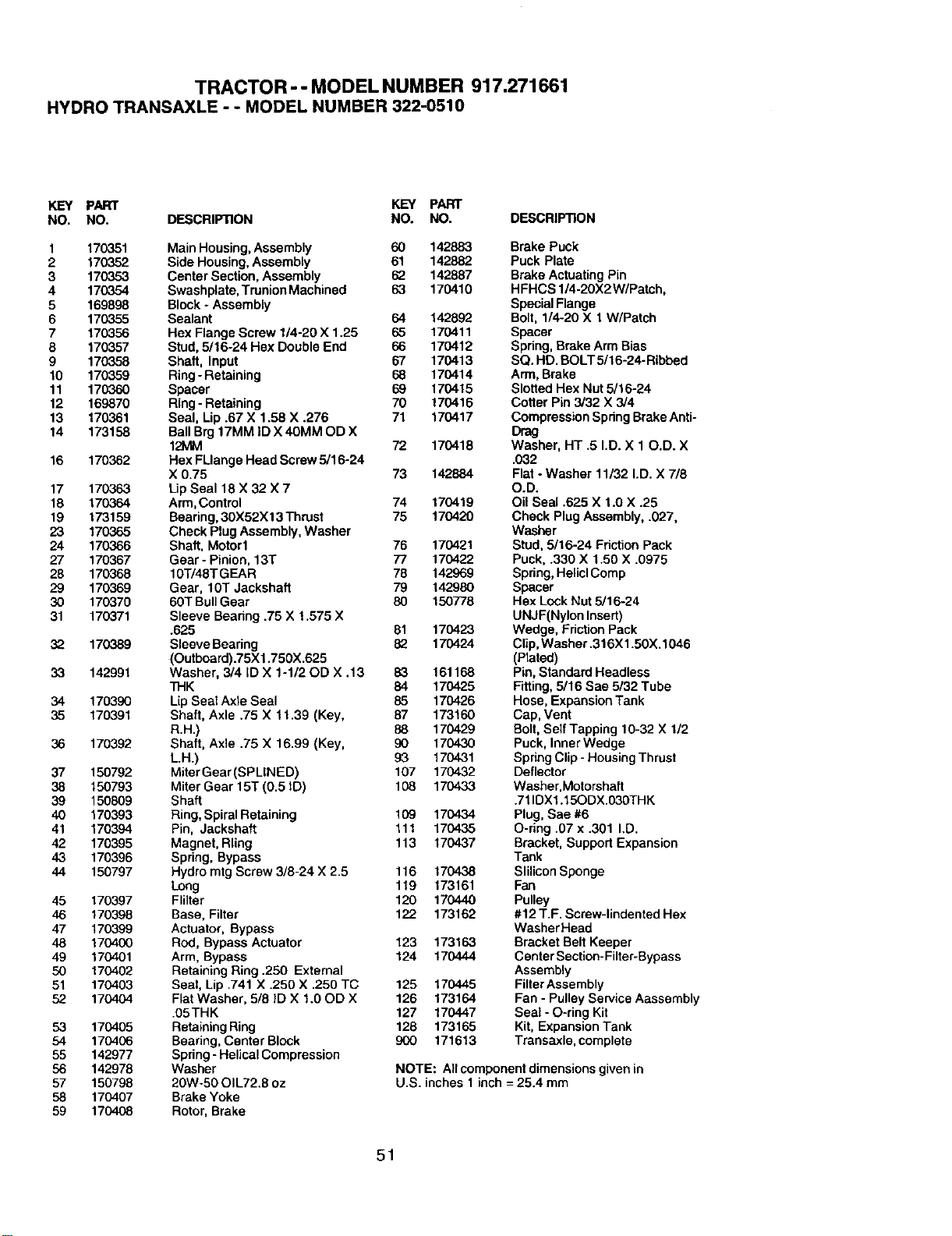

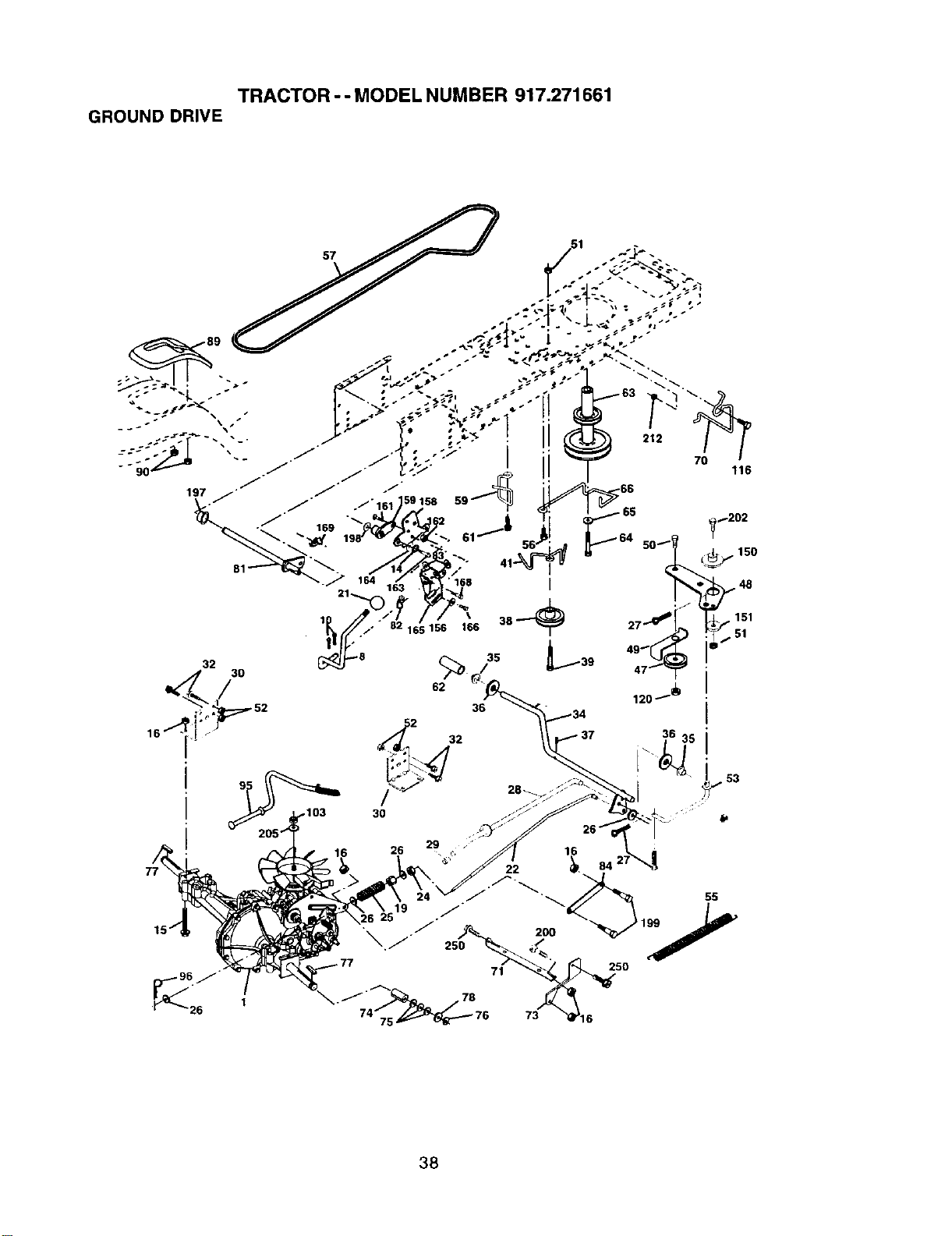

Repair Parts ........................................ 34

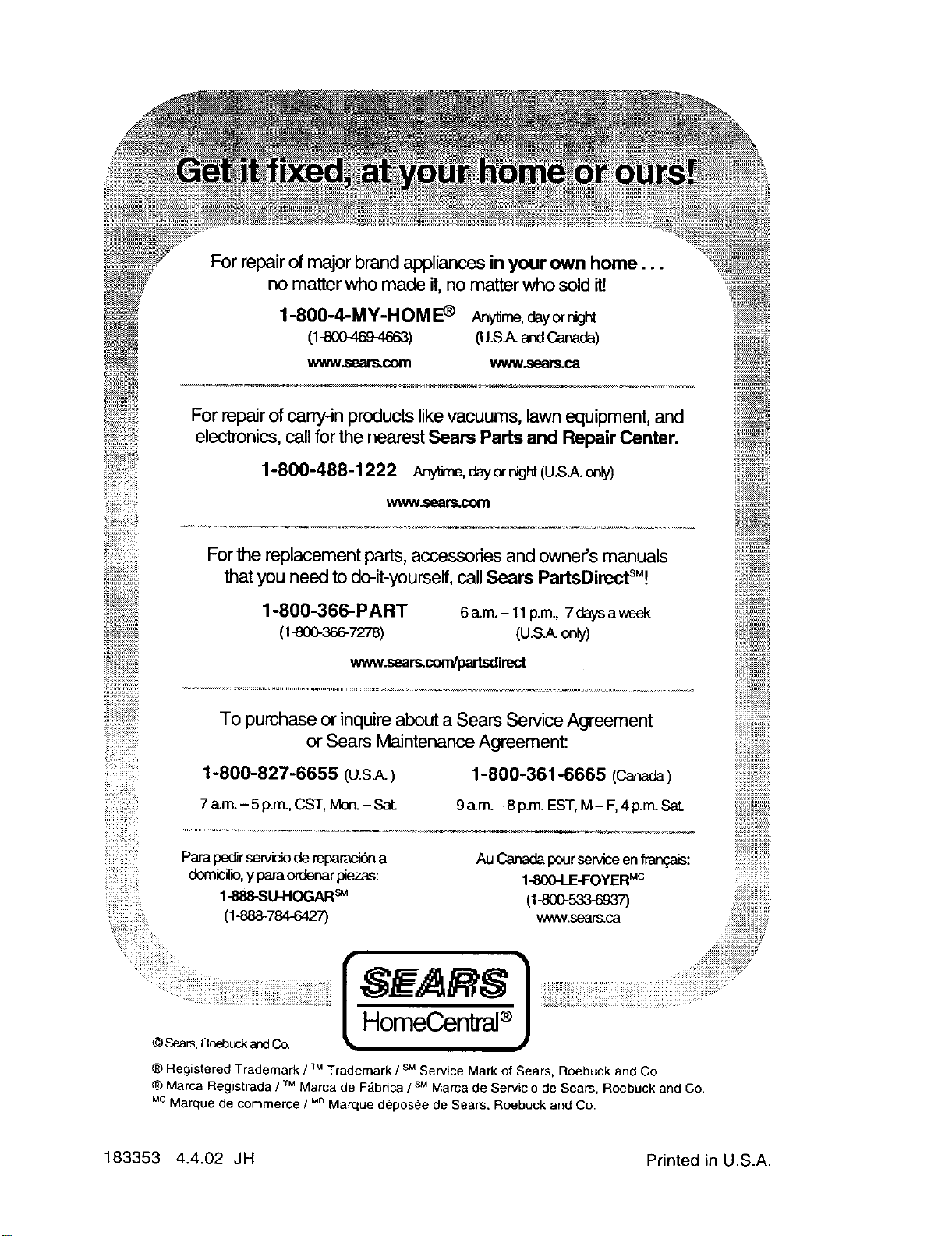

Sears Service ...................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace free of charge any parts that are found to be

defective in material or workmanship according to the guidelines of coverage listed

below. Sears will also provide free labor for these applicable warranted parts for the

two full years. During the first 30 days of purchase, there will be no charges to service

the product at your home for issues covered by this warranty. (See exclusions below).

For your convenience, IN HOME warranty service will still be available after the first 30

days of purchase, but a trip charge will apply. This charge will be waived if the Crafts-

man product is dropped off at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®. This warranty applies only while this

product is within the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited

to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by impropeF,storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or failure to maintain the equipment according to the instructions contained in

the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its

purchase date.

• Normal deterioration and wear of the exterior finishes, or product label replacen_ent.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be

available but a trip charge will apply, This charge will be waived if the Craftsman

product is dropped of at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

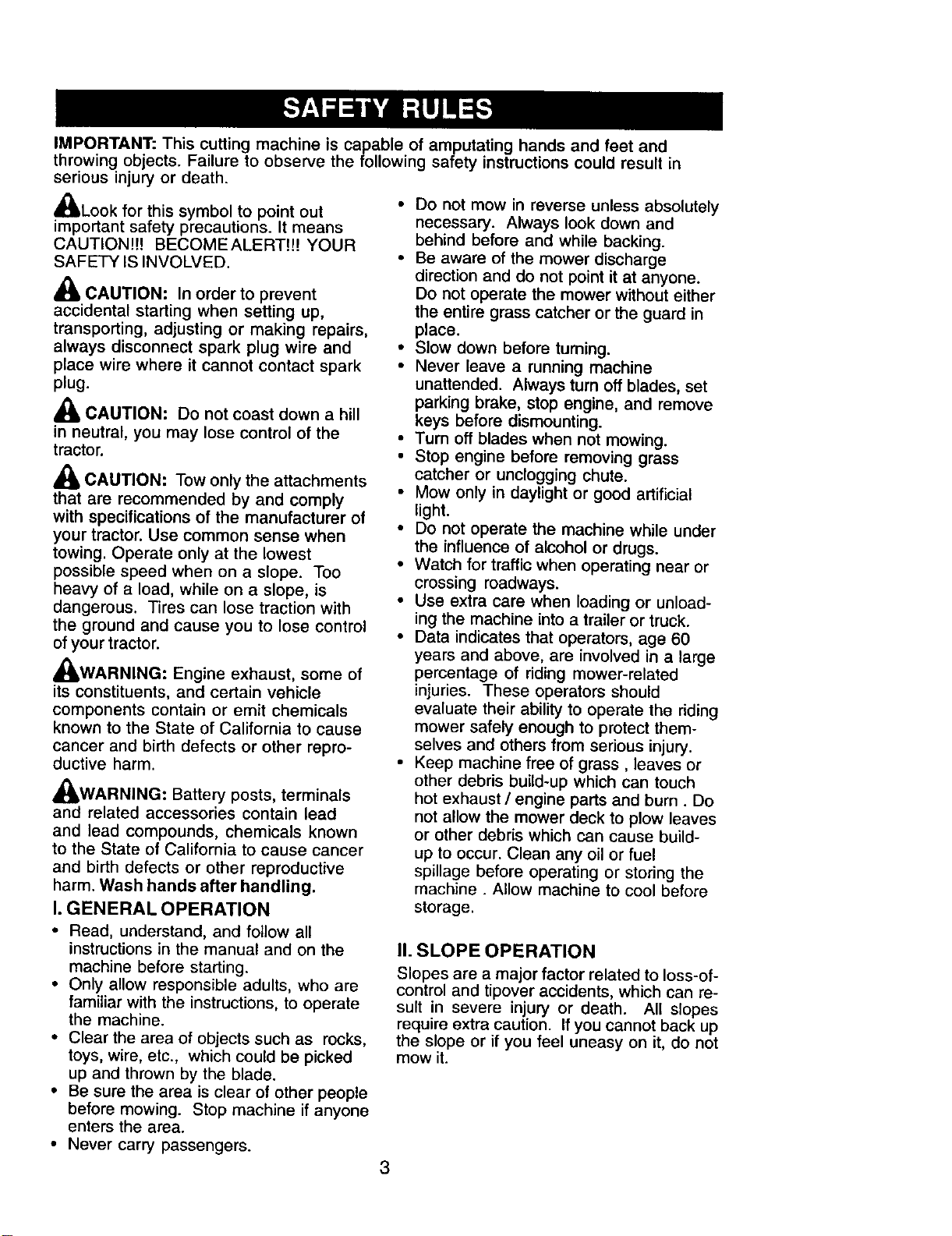

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

Look for this symbol to point out

important safety precautions. It means

CAUTION!t! BECOMEALERT[!! YOUR

SAFETY IS INVOLVED.

CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

_ CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

_WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_JLWARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look clown and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before tuming.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

• Keep machine free of grass, leaves or

other debris build+up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

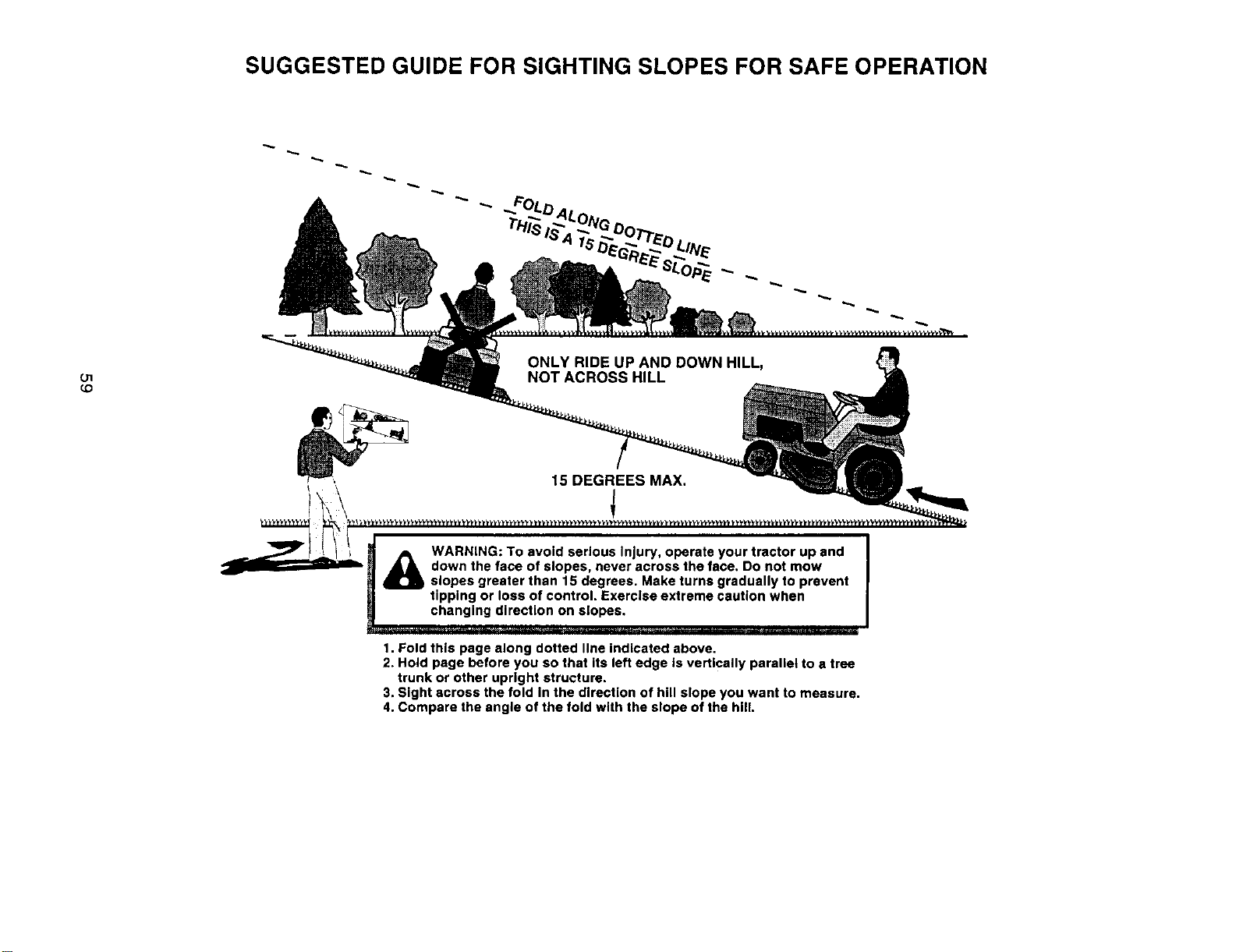

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

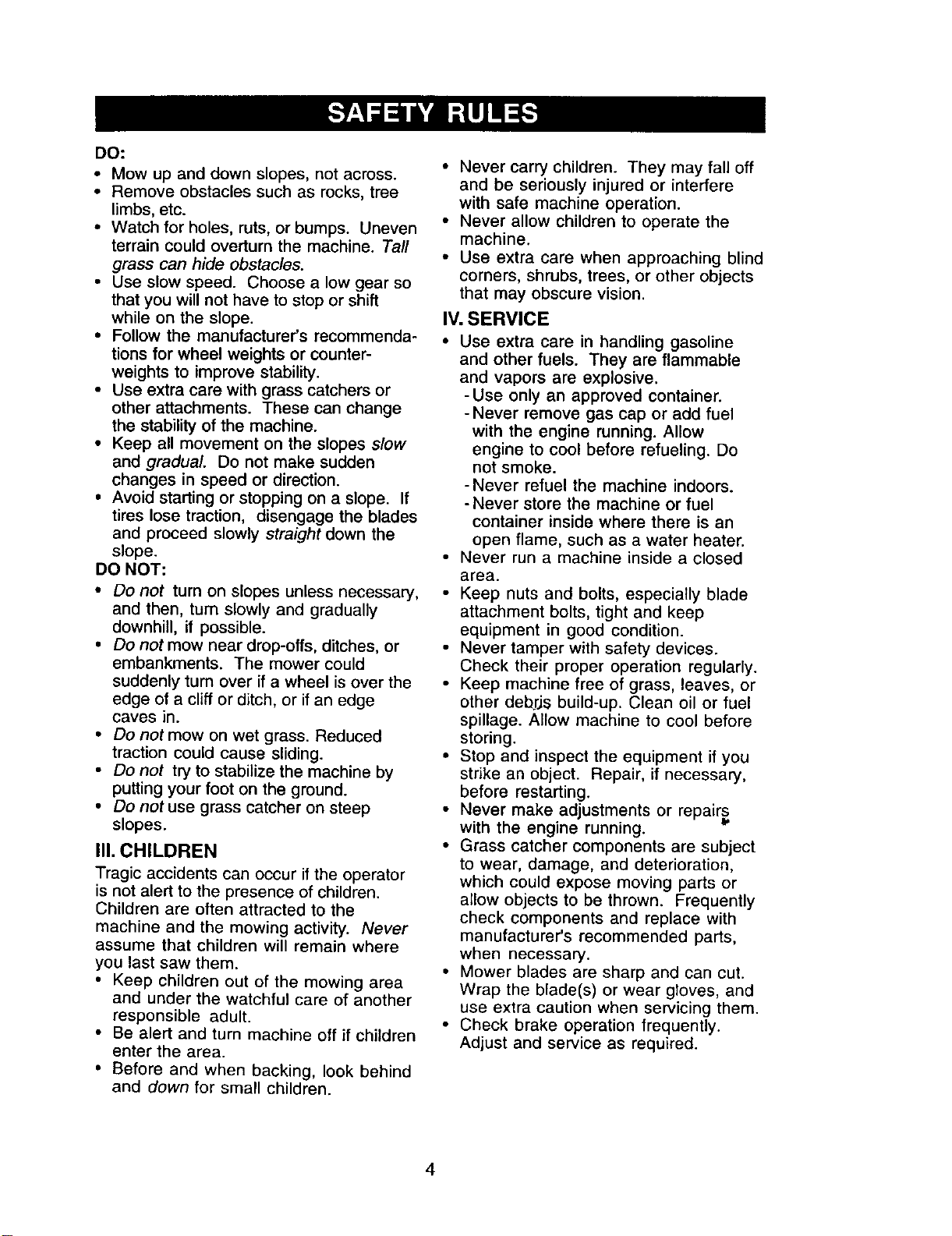

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and graduaL Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

II1.CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other deb;js build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running, i,

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

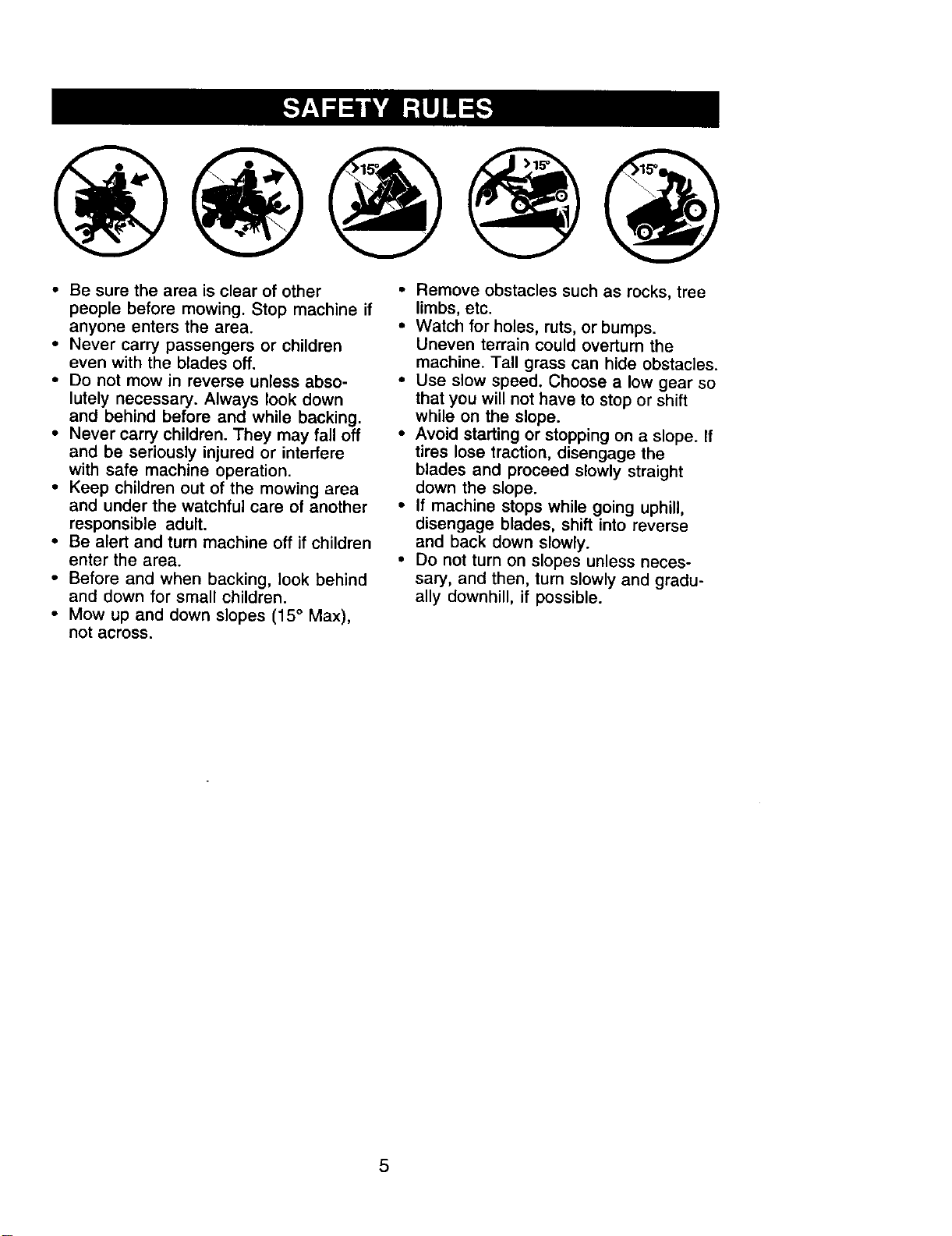

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriousty injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 1.25 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 30 (Above 32°F)

API-SF-SJ): SAE 5W-30

(Below 32°F)

Oil Capacity: 3.0 Pints

Spark Plug: Champion RC12YC

GAP: .030")

Ground Speed Forward: 5.2

(MPH): Reverse: 2.7

Tire Pressure: Front: 14 PSI

Rear: 12 PSI

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt 27-35 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your-nearest Sears service

center (See REPAIR PARTS section of

this manual).

Steering

Wheel Insert

Steering Wheel

(1) kocknut

112-20

(1) kocknut

114-28

(1) Large Flat Washer

(1) Hex Bolt

1/4-28 × 1-1/4

Steering

Boot

_ Steering

Wheel Adapter

Steering

Extension

Shaft

;;_ (_Washer

L_,) 17/32 x 1-3/16 x 12

Gauge

l_(1) Knob

For Future Use

Slope Sheet

Keys

Video Cassette

Your new tractor has been assembled at the factory with the exception of those parts

left unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin,

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set witl make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4"wrench (1) Pliers

(2) 7/16"wrench (1) Utilityknife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts boxes from carton.

2. Cut, from top to bottom, along lines

on all four corners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 1/4 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

1/4 Lockr_t

Steering , "-.

Shaft "-.

1/4 Hex

_/Bolt

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

Seat F

Label

Terminal

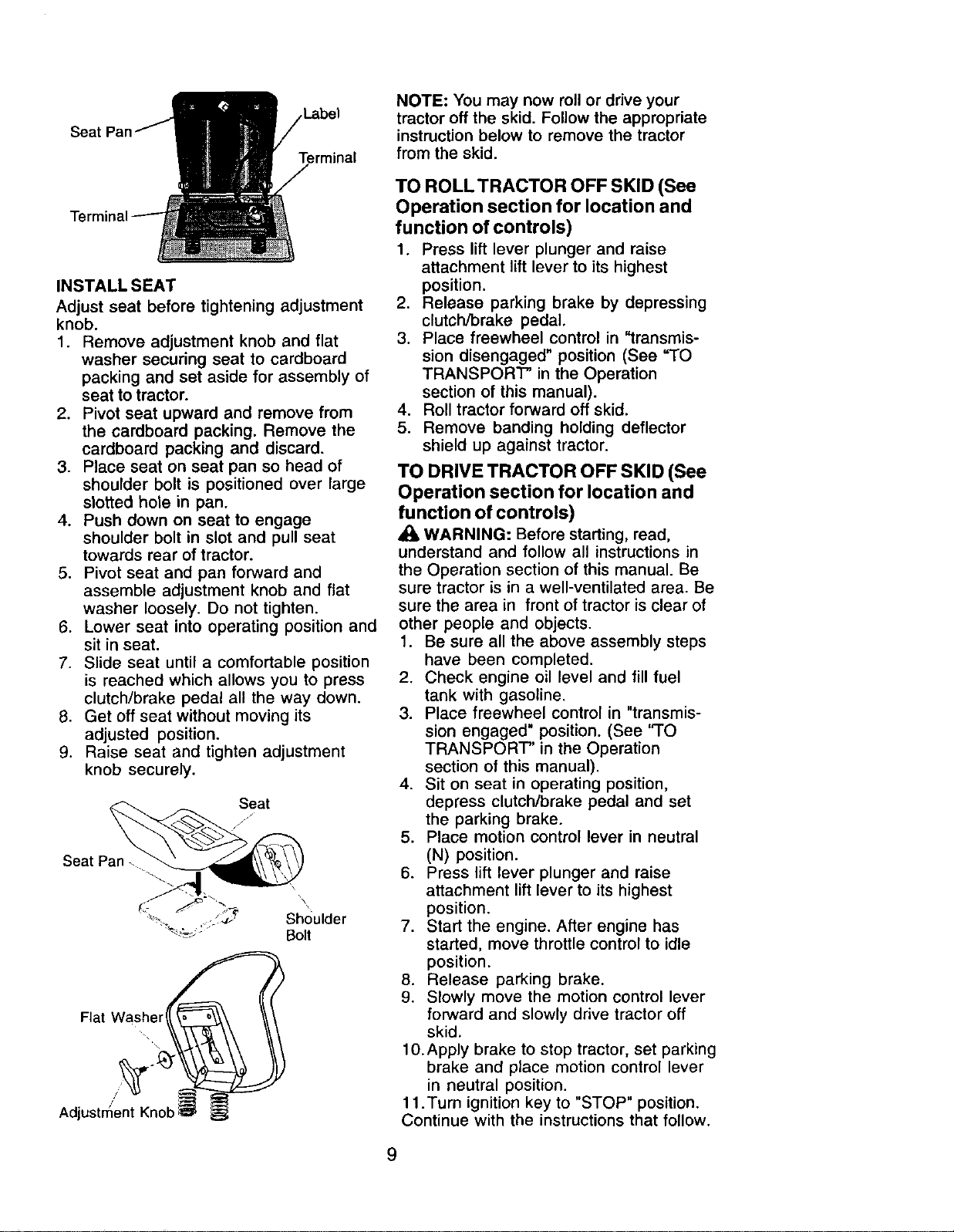

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan _.

;:_ Shoulder

Bolt

Flat _j_f_

Washer

Adjustnlent Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "transmis-

sion disengaged" position (See "TO

TRANSPORT" in the Operation

section of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position. (See "TO

TRANSPORT in the Operation

section of this manual).

4. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest

position.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor, set parking

brake and place motion control lever

in neutral position.

11.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

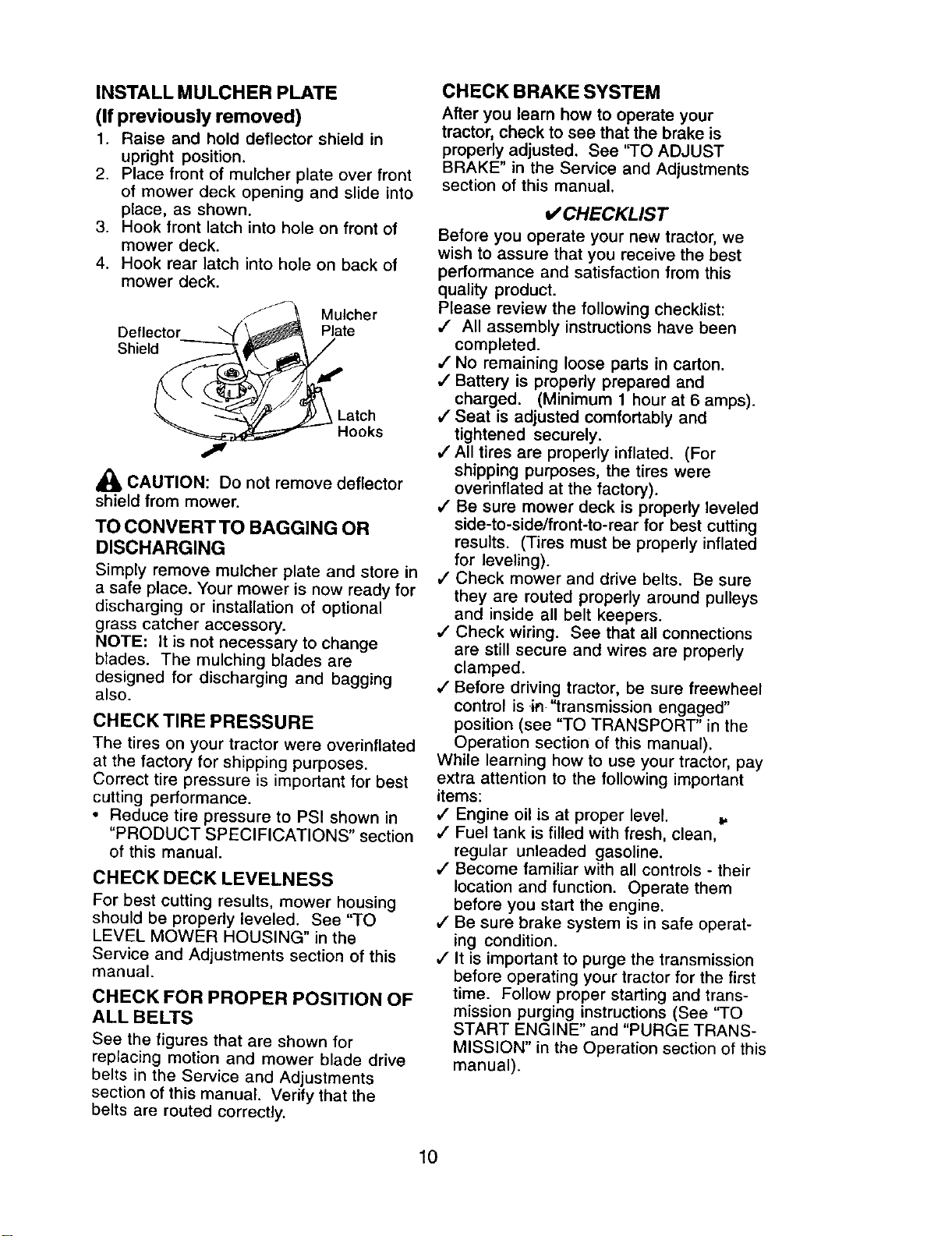

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position,

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector

Shield

Mulcher

Plate

Latch

Hooks

CAUTION: Do not remove deflector

shield from mower.

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are

designed for discharging and bagging

also.

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See ''TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

V' CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

,I All assembly instructions have been

completed.

J No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and

tightened securely.

,/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,I Check wiring. See that all connections

are still secure and wires are properly

clamped.

,I Before driving tractor, be sure freewheel

control is in. "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

,/ Engine oil is at proper level. _,

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,I Be sure brake system is in safe operat-

ing condition.

,,f It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of this

manual).

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED

LOCKED

MOWER LIFT

R N H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

_(_ ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Attachment

Clutch

Lever

Ammeter

Light Switch

IgnitionSwitch Position

Lift

J Lever

Plunger

Throttle/Choke Attachment

Control _ Lift Lever

Clutch/Brake

Pedal

Height

Indicator

Freewheel

Control

Parking Brake Lever

Motion Control

Lever

Our tractors conform to the safety standards of the

American National Standards Institute. _,

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION ° Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL- Used

for starting and controlling engine speed.

FREEWHEEL CONTROL -

Disengagages transmission for pushing

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the

way down and hold.

2. Pull parking brake lever up and

release pressure from clutch/brake

pedal. Pedal should remain in brake

position. Make sure parking brake will

hold tractor secure.

Attachment Clutch Lever

"Engaged" Position Ignition

Throttle/ Key

Choke \

Control\

"Disengaged"

Position

Brake

Position

Motion Control

_ Lever

• .Brake ,,_

"Disengaged" Position

Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position

and remove key. Always remove key

when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_1,CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade tip

with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height of

grass and types of grass being mowed.

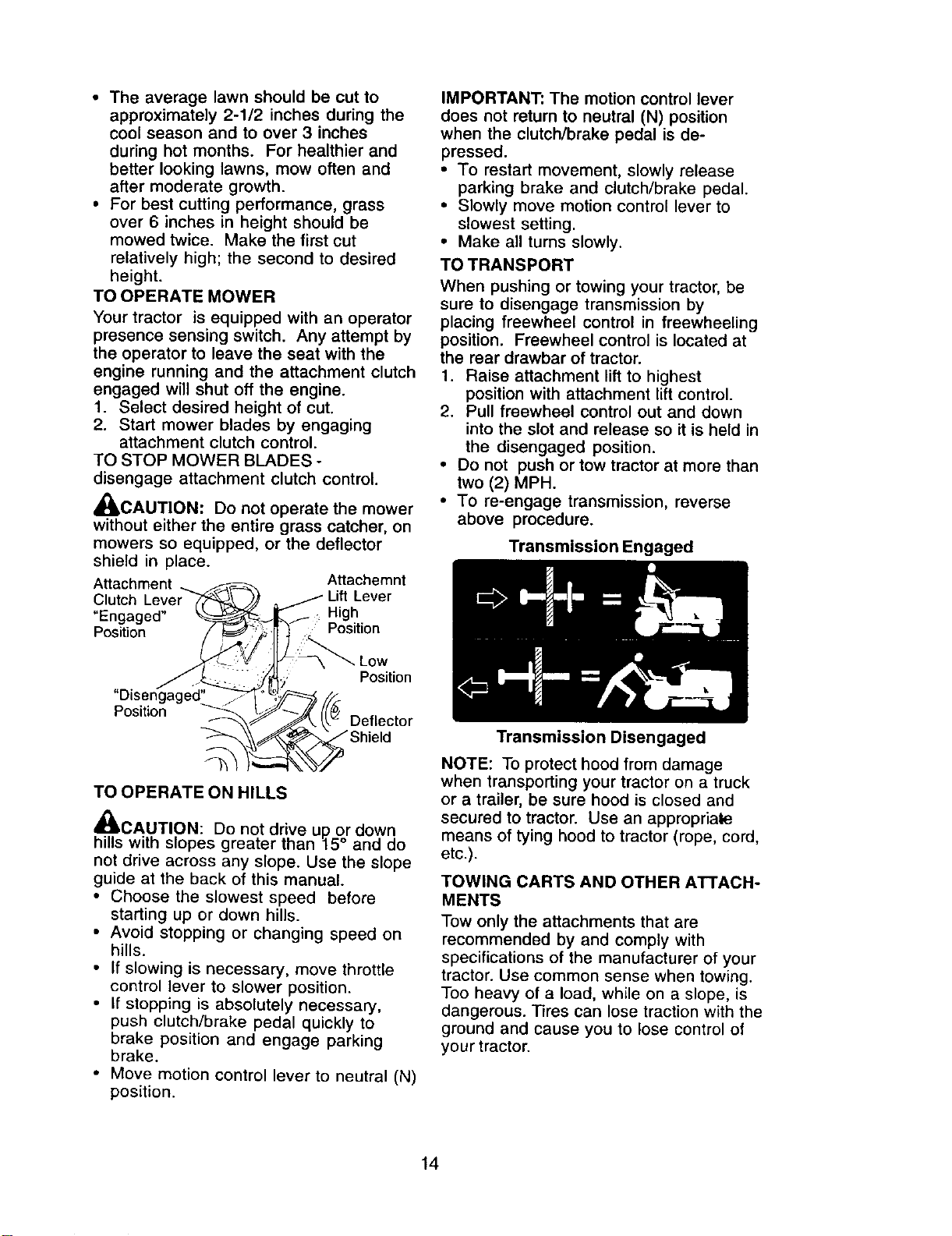

• The average lawn should be out to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

,_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Attachemnt

Clutch Lew Lift Lever

"Engaged" High

Position Position

"Disengaged--

Position

Low

Position

Deflector

TO OPERATE ON HILLS

='1

_CAUTION: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Freewheel control is located at

the rear drawbar of tractor.

1. Raise attachment lift to highest

position with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with the

ground and cause you to lose control of

your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting ((See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler

neck. Do not overfill. Use fresh, clean,

regular unleaded gasoline with a

minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead

oxide deposits and reduce valve life).

Do not mix oil with gasoline. Purchase

fuel in quantities that can be used

within 30 days to assure fuel freshness.

_,CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tem-

peratures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

=q,CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

To avoid engine problems, the fuel

system should be emptied before storage

of 30 days or longer. Drain the gas tank,

start the engine and let it run until the fuel

lines and carburetor are empty. Use fresh

fuel next season. See Storage Instruc-

tions for additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to disen-

gaged position.

5. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do not

run starter continuously for more than

fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

7. When engine starts, allow engine to

run with the throttle control in the

choke position until the engine runs

roughly, then move throttle control to

fast position. This may require an

engine warm-up period from several

seconds to several minutes, depend-

ing on the temperature.

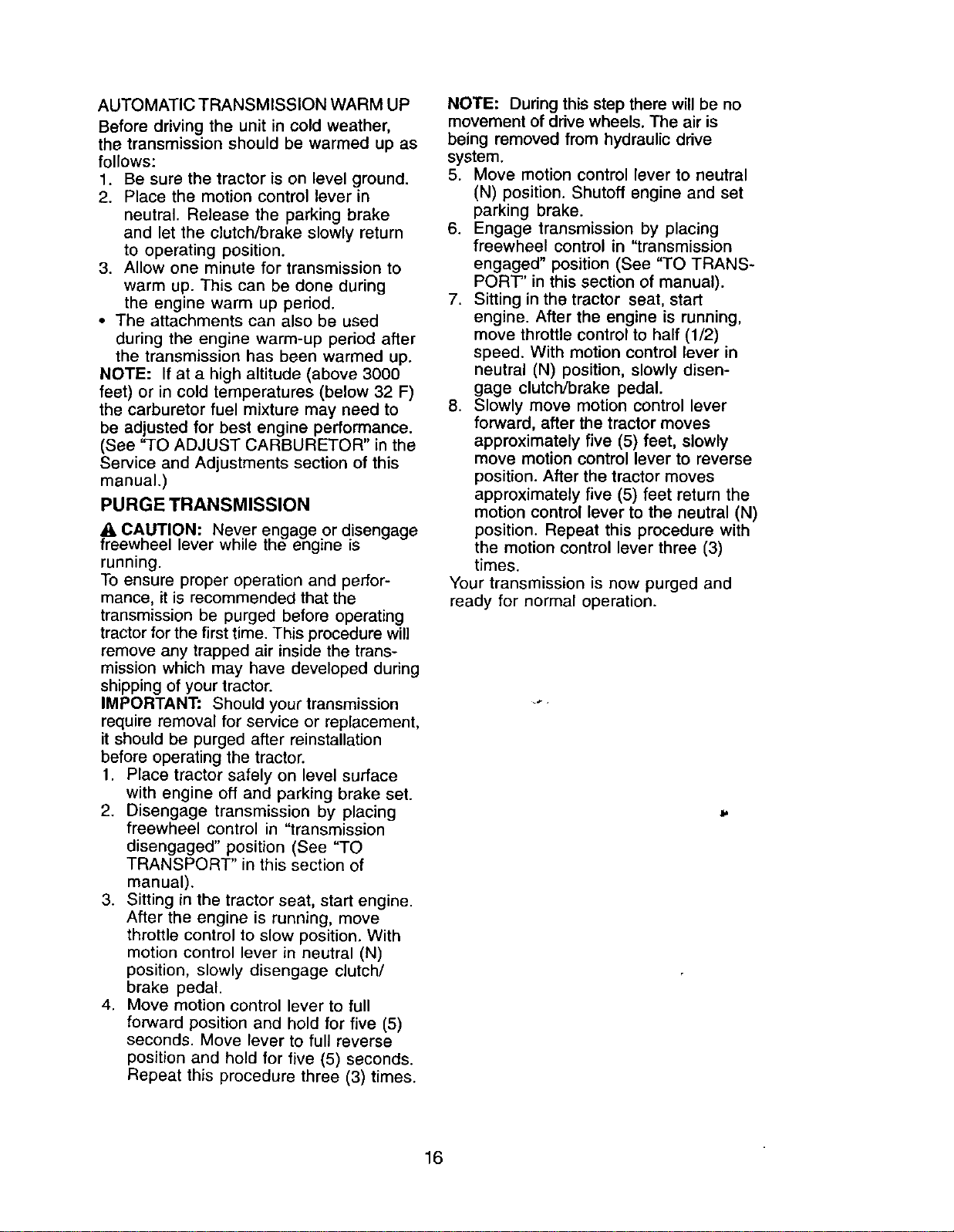

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during

the engine warm up period.

• The attachments can also be used

during the engine warm-up period after

the transmission has been warmed up.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

(See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.)

PURGE TRANSMISSION

fiAeCA,UTION: Never engage or disengage

ewneel lever while the engine is

running.

To ensure proper operation and perfor-

mance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replacement,

it should be purged after reinstallation

before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in "transmission

disengaged" position (See "TO

TRANSPORT" in this section of

manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

4. Move motion control lever to full

fonNard position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this step there will be no

movement of drive wheels. The air is

being removed from hydraulic drive

system.

5. Move motion control lever to neutral

(N) position. Shutoff engine and set

parking brake.

6. Engage transmission by placing

freewheel control in "transmission

engaged" position (See "TO TRANS-

PORT' in this section of manual).

7. Sitting in the tractor seat, start

engine. After the engine is running,

move throttle control to half (1/2)

speed. With motion control lever in

neutral (N) position, slowly disen-

gage clutch/brake pedal.

8. Slowly move motion control lever

forward, after the tractor moves

approximately five (5) feet, slowly

move motion control lever to reverse

position. After the tractor moves

approximately five (5) feet return the

motion control lever to the neutral (N)

position. Repeat this procedure with

the motion control lever three (3)

times.

Your transmission is now purged and

ready for normal operation.

If*

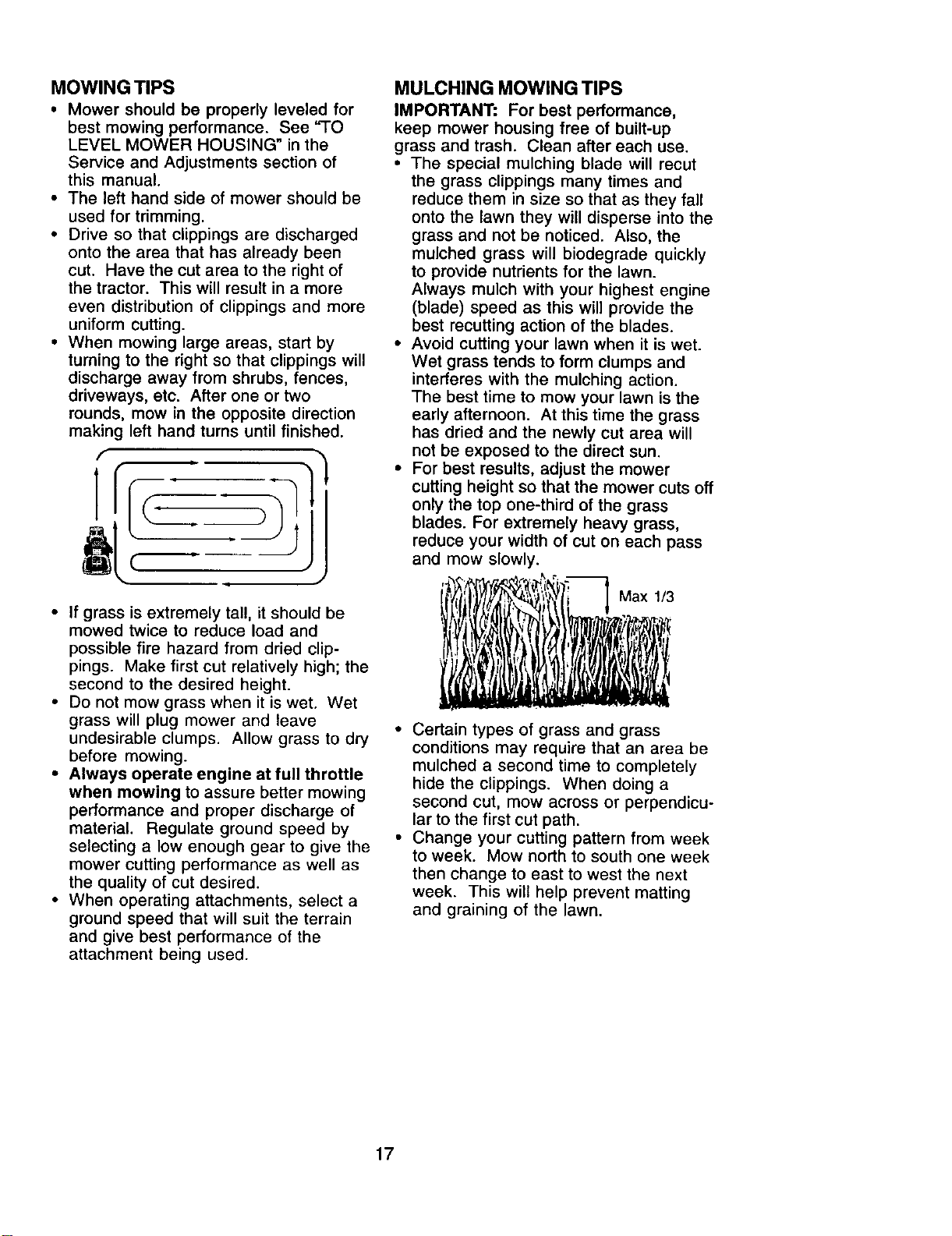

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "3-O

LEVEL MOWER HOUSING" in the

Service and Adjustments section of

this manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

[

• If grass is extremely tal!, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy grass,

reduce your width of cut on each pass

and mow slowly.

Max 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

Check Brake Operation

Check Tire Pressure _1

Check Operator Presence and

T Interlock Systems If

R Chock for Loose Fasteners V w

A Sharpen/Replace Mower Blades

T Lubrication Chart

0 Check Battery Level

R Clean Battery and Terminals

Check Transaxle Cooling

Check V-Be]ts

Check Engine Oil Level If

Change Engine Oil (with oil filter)

E Change Engine Oil (without oil filter)

N Clean Air Filtee

G Clean Air Screen

NI Inspect Muffler/Spark Arresler

E Replace Oil Filter (If equipped)

Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 ° Change more often when operating under a heavy toad or

in high ambient temperatures.

2 - Service more often when operating indirty ordusty conditions.

MAINTENANCE SCHEDULE ,_"__ ..,_/_/,,_/_ /_./'

F,LL,.O*TE

AS YOU COMPLETE /_____R-_._b R.4.,)_ _..j_ ,_,a_ ;a _/_._.

REGU LARSE RVICE _'__///_#" SE RVIC E DATES

V', I,,"

V',

V*tr 2 _d_

I,/2 I

v'P I

3 - Replace blades more olten when mowing in sandy soil.

4 - Not required if equipped with mainmnancg-free battery.

5 - Tighten front axle pivot bolt to 35 tt.-Ibs, maximum,

DO not ovedlghten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear. A

new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer•

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation•

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper opera-

tion.

5. Check for loose fasteners.

LUBRICATION CHART

O Spindle _ f'_ ,r_ Q Spindle

Zerk ".,_'1""tr I1_'_ Zerk

(_Front W_/ --i (_Front Wheel

Beadng _ ....... j ,_ Bearing Zerk

Zerk /7 ,:,. ::

• / '" ° "S (_ '

@Engine _-. ,

i i t

t i *

(i) General Purpose Grease

_) REFER TO Maintenance "ENGINE" SECTION

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be

adjusted. (See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or

insect control chemicals which can

harm rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks, tire

sealant may be purchased from your

local parts dealer. Tire sealant also

prevents tire dry rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Trailing Edge Up Mandrel Assembly

"_ Blade Center

I Hole

Flat Washer,

Lock Washer

_f--Blade Bolt (Grade)*

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

5/8" Bolt o

Blade

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

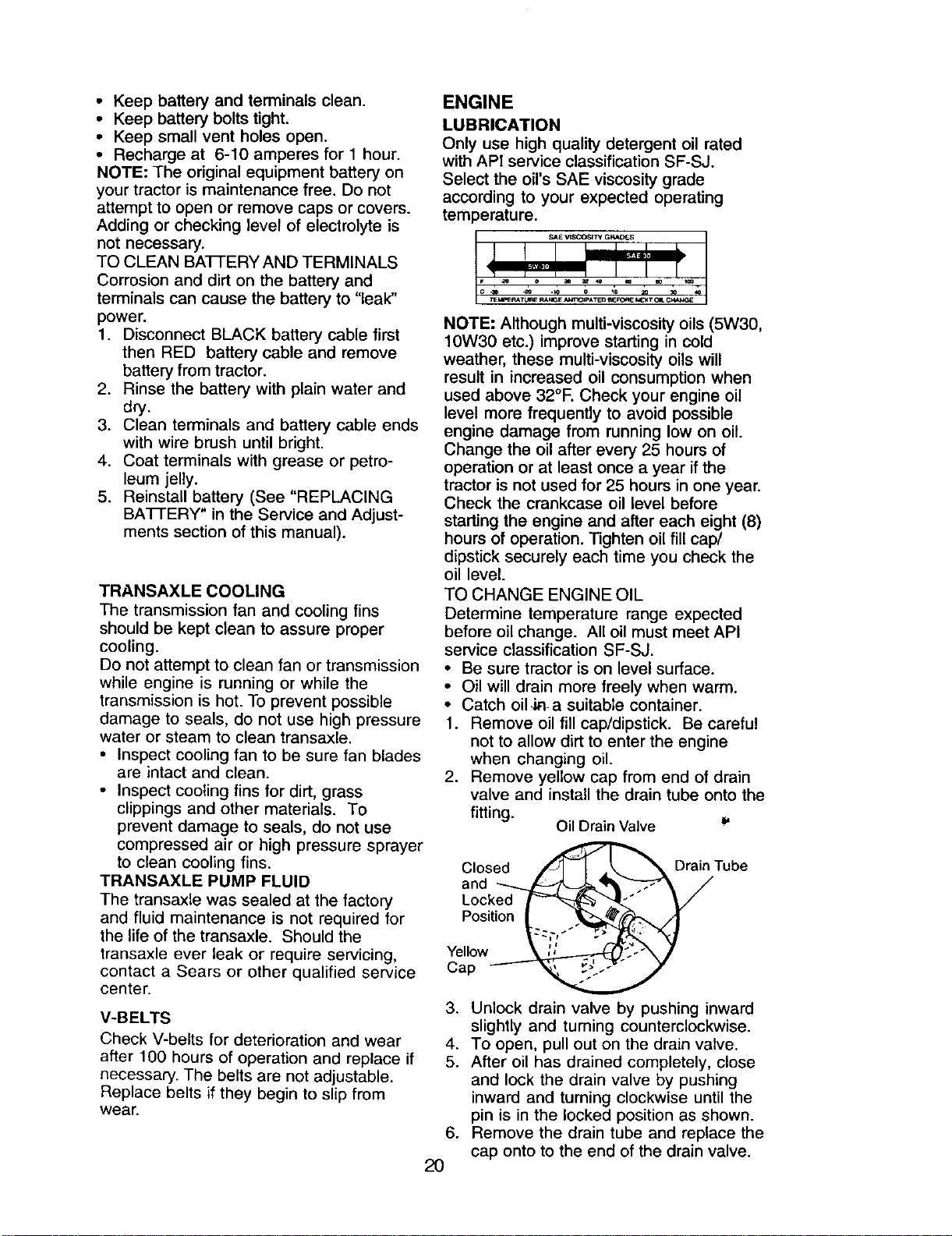

• Keepbatteryandterminalsclean.

• Keepbatteryboltstight.

• Keepsmallventholesopen.

• Rechargeat 6-10amperesfor 1hour.

NOTE:Theoriginalequipmentbatteryon

yourtractorismaintenancefree.Donot

attempttoopenorremovecapsorcovers.

Addingorcheckinglevelof electrolyteis

notnecessary.

TOCLEANBAI-1-ERYANDTERMINALS

Corrosionanddirtonthebatteryand

terminalscancausethebatteryto"leak"

power.

1. DisconnectBLACKbatterycablefirst

thenRED batterycableandremove

batteryfromtractor.

2. Rinsethebatterywithplainwaterand

dry.

3. Cleanterminalsandbatterycableends

withwirebrushuntilbright.

4. Coatterminalswithgreaseorpetro-

leumjelly.

5. Reinstallbattery(See"REPLACING

BAI-IERY"intheServiceandAdjust-

mentssectionofthismanual).

TRANSAXLECOOLING

Thetransmissionfanandcoolingfins

shouldbekeptcleantoassureproper

cooling.

Donotattempttocleanfanortransmission

whileengineis runningorwhilethe

transmissionishot.Topreventpossible

damagetoseals,donotusehighpressure

waterorsteamto cleantransaxle.

• Inspectcoolingfanto besurefanblades

areintactandclean.

• Inspectcoolingfinsfordirt,grass

clippingsandothermaterials.To

preventdamagetoseals,donotuse

compressedair orhighpressuresprayer

tocleancoolingfins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact a Sears or other qualified service

center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace if

necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

NOTE: Although multi-viscosity oils (5W30,

10W30 etc.) improve starting in cold

weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°1=. Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

tractor is not used for 25 hours in one year.

Check the crankcase oil level before

starting the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil _- a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting. Oil Drain Valve i,

Closed

and ------....LL-'!L-_ '_ ."_.-

Locked _

Position _::.,,_

Yellow ;,_.._-_.J_-- -"\

Cap "---_ "'_

Drain Tube

Unlock drain valve by pushing inward

slightly and turning counterclockwise.

To open, pull out on the drain valve.

After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

Remove the drain tube and replace the

cap onto to the end of the drain valve.

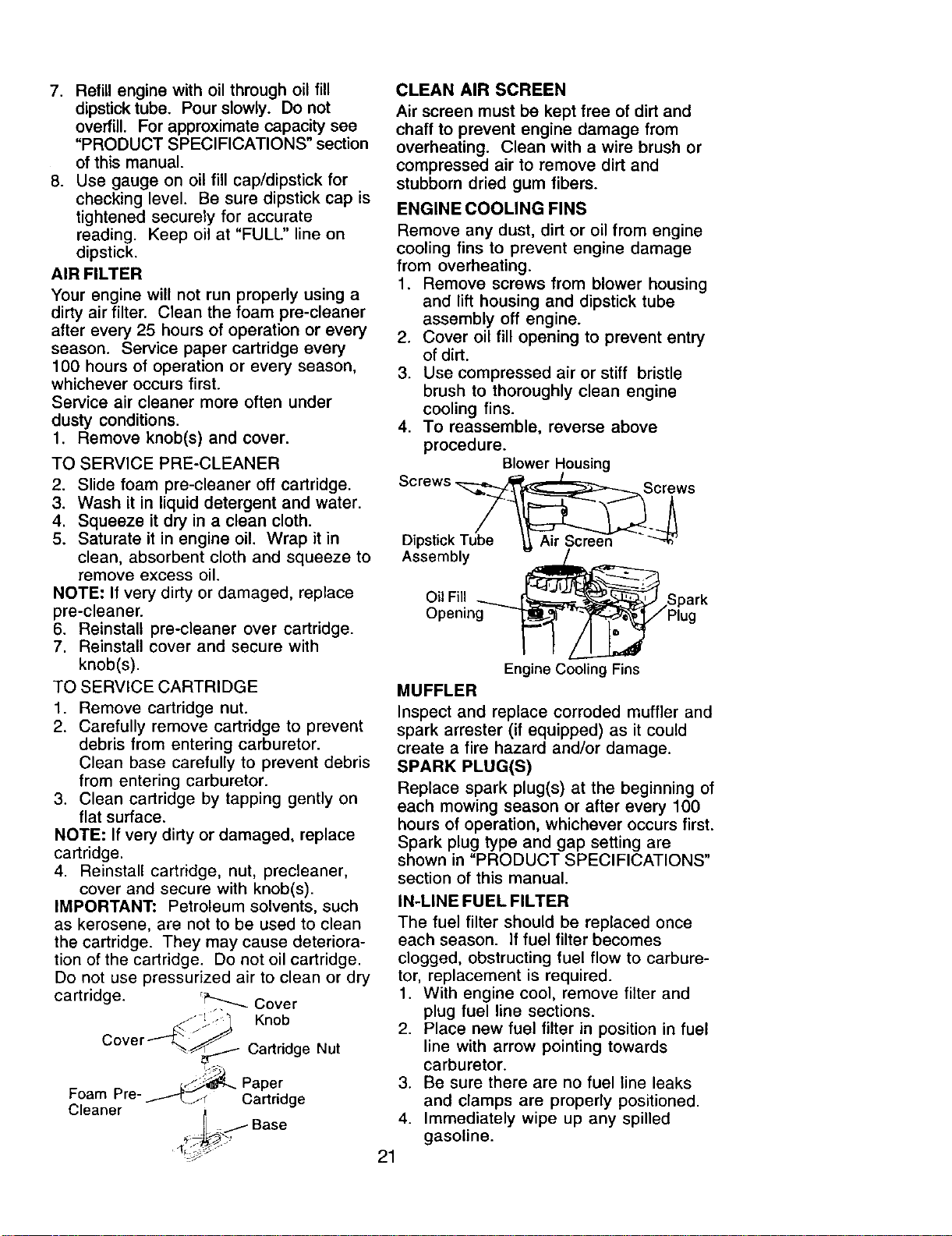

7. Refillenginewithoilthroughoilfill

dipsticktube. Pourslowly. Donot

overfill.Forapproximatecapacitysee

"PRODUCTSPECIFICATIONS"section

ofthis manual.

8. Usegaugeon oilfill cap/dipstickfor

checkinglevel. Besuredipstickcap is

tightenedsecurelyfor accurate

reading. Keepoilat "FULL"lineon

dipstick.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pro-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

6. Reinstall pre-cleaner over cartridge.

7. Reinstall cover and secure with

knob(s).

TO SERVICE CARTRIDGE

1. Remove cartridge nut.

2. Carefully remove cartridge to prevent

debris from entering carburetor.

Clean base carefully to prevent debris

from entering carburetor.

3. Clean cartridge by tapping gently on

flat surface.

NOTE: If very dirty or damaged, replace

cartridge.

4. Reinstall cartridge, nut, precieaner,

cover and secure with knob(s).

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge. 'F-_.._.. Cover

Knob

Cartridge Nut

_S_ Paper

Foam Pre-...._ _- - Cartridge

Cleaner I_\._./Base

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating.

1. Remove screws from blower housing

and lift housing and dipstick tube

assembly off engine.

2. Cover oil fill opening to prevent entry

of dirt.

3. Use compressed air or stiff bristle

brush to thoroughly clean engine

cooling fins.

4. To reassemble, reverse above

procedure.

Slower Housing

Screws _ _Screws._

Dipstick Tube Air Screen "-_4€'

Assembly

Oil Fill .,Spark

O0oni p ,

Engine Cooling Fins

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

ClamP_Clamp

Fuel Filter

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

,_il WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3, Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped,

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plu_l.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

Small Retainer

Spring

Clutch

Spring

Retainer

Spring

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in

frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its

highest position.

2. Slide mower under tractor with

deflector shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. ConnecLJront links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with

retainer springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer

spring. ="

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Install belt onto engine pulley.

Suspension -_";"_'__"_" Square Hole

Arms • 'i_..... Engin e

Pulley

Front Link

Anti-Sway Bar --

Collar

Housing

Guide

Large

Retainer

Spring

Bracket

Retainer Springs

(Both Sides)

Shield

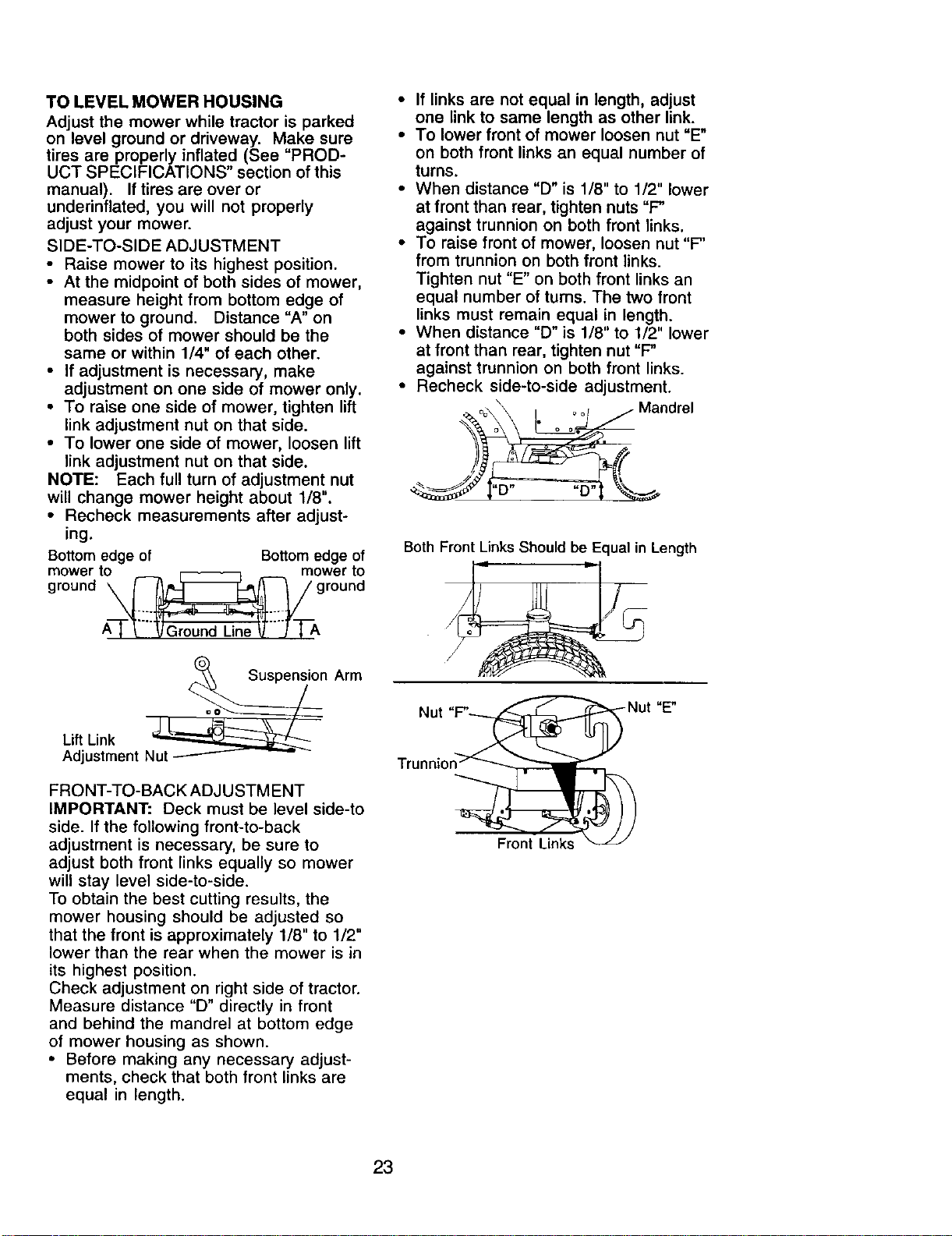

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjust-

ing.

Bottom edge of Bottom edge of

mower to mower to

ground _ ground

A_- [""'V Ground Line _'--7-FA

Arm

Lift Link

Adjustment N_

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back

adjustment is necessary, be sure to

adjust both front links equally so mower

will stay level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front

and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns. The two front

links must remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F"

against trunnion on both front links.

• Recheck side-to-side adjustment.

Mandrel

Both Front Links Should be Equal in Length

Front

"E"

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See 'q-o

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel

pulleys and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower"

in this section of this manual).

Mandrel

Idler

Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear on a level dry concrete or

paved surface, then brake must be

adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut "A" on brake

rod.

3. If distance is other than 1-9/16", loosen

jam nut and turn nut "A" until distance

becomes 1-9/16". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact a Sears or other

qualified service center.

With Parking Brake

Engaged"

\_ _ _ Jam Nut

\ Nut =A"

Arm

Do Not touch this nut. If further brake

adjustment is necessary contact a Sears or

other qualified service center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and

keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove,belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

5. Remove belt from center span ke_eper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down around

transmission cooling fan and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine

pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keep-

ers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

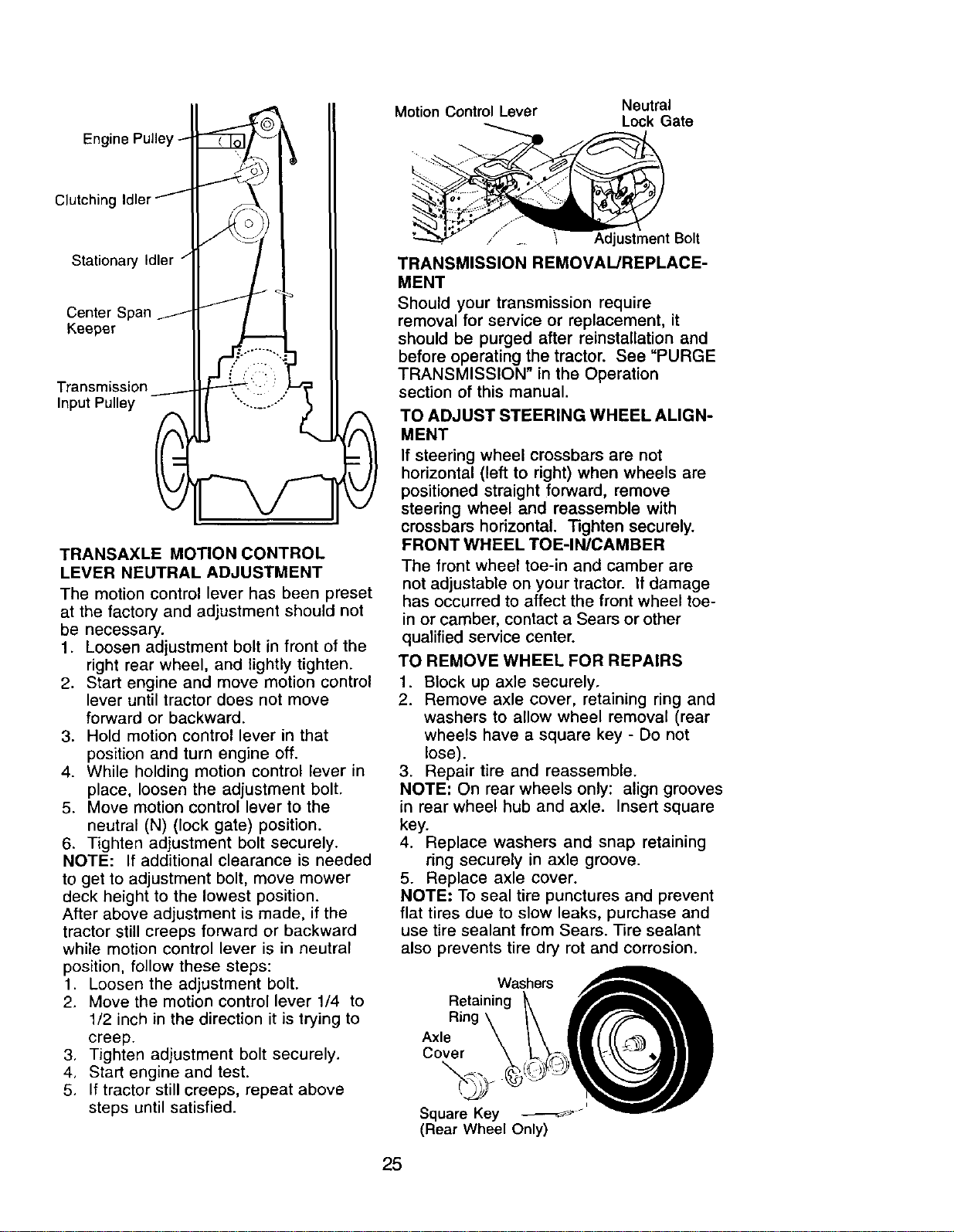

Motion Control Lever Neutral

Lock Gate

Engine

Clutching

Stationary Idler

Center Span

Keeper

.f _ T

Transmission ,,,

Input Pulley "........."

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion control

lever until tractor does not move

forward or backward.

3. Hold motion control lever in that

position and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the

neutral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4, Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

/" \ Adjustment Bolt

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See "PURGE

TRANSMISSION" in the Operation

section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble with

crossbars horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact a Sears or other

qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align grooves

in rear wheel hub and axle. Insert square

key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Axle

Cover

Square Key -----_

(Rear Wheel Only)

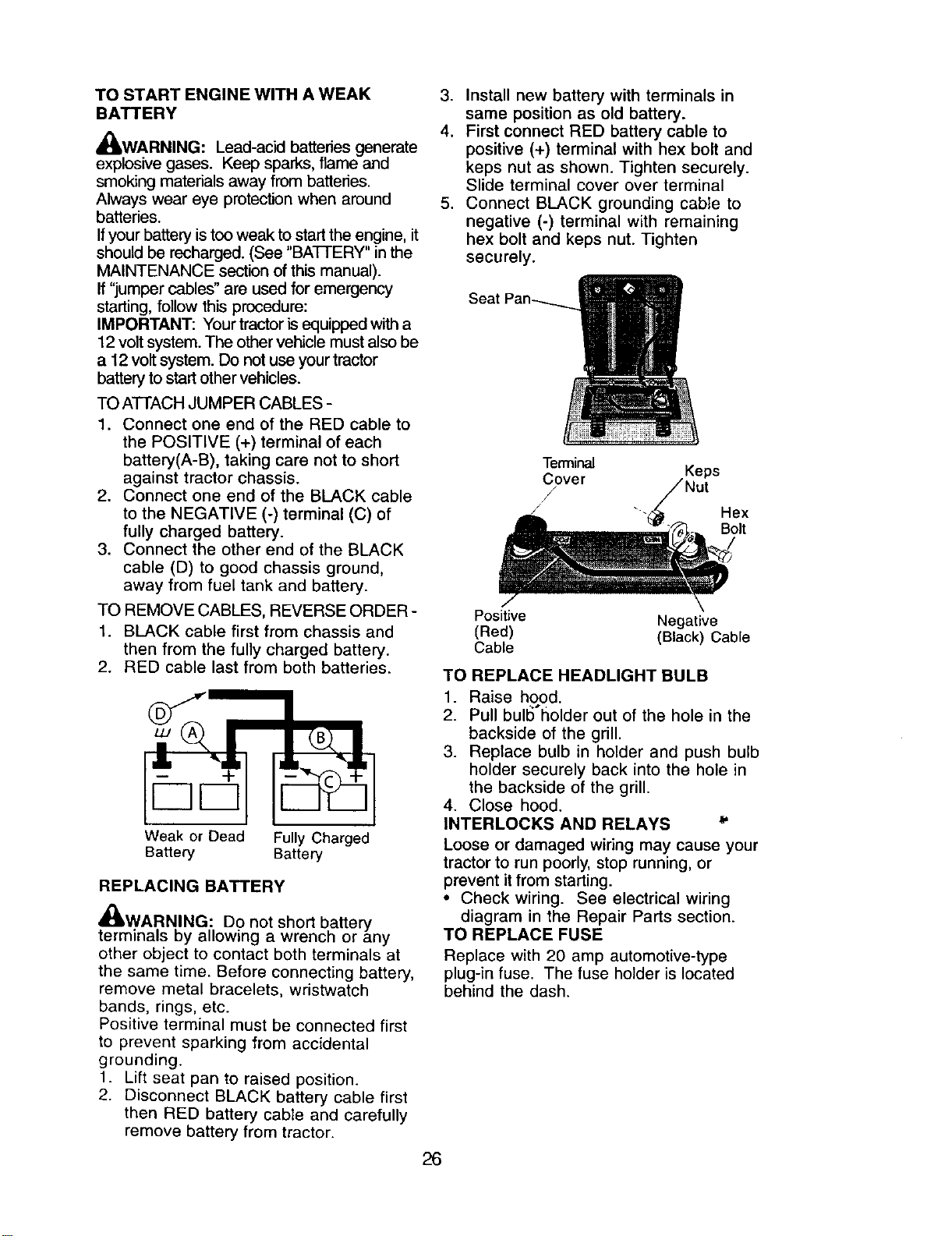

TO START ENGINE WITH A WEAK

BATTERY

AWARNING: Lead-acid batteries generate

explosive gases. Keep sparks, flame and

smoking materials away from batteries.

Always wear eye protection when around

batteries.

If your battery is too weak to start the engine, it

should be recharged. (See "BA-FFERY" in the

MAINTENANCE section of this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped with a

12 volt system. The other vehicle must also be

a 12 volt system. Do not use your tractor

battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable to

the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_IbWARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten

securely.

Terminal

Cover /Kefs

/ "-_. Hex

Bolt

Positive Negative

(Red) (Black) Cable

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bul6"holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS _'

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to

reconnect the headlight wire connec-

tor.

Headlight Wire

\ Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and sys-

tems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual. Warranty repairs must

be performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever from slow to choke

position. Slowly move lever from

choke to fast position.

2. Check that holes "A" in governor

control lever and hole in governor

plate line-up. If holes "A" are not

aligned, loosen clamp screw and

move throttle cable until holes are

aligned. Tighten clamp screw

securely.

Governor

Governor Control Plate

_ttle Cable

Holes "A" Clamp Screw

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mixture.

Tuming the idle mixture valve out (counter-

clockwise) increases the supply of fuel to the

engine giving a richer fuel/air mixture.

IMPORTANT: Damage to the needle valve

and the seat in carburetor may result if screw

is turned in too tight.

PRELIMINARY SETIING -

1. Air cleaner assembly must be as-

sembled to the carburetor when

making carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETIING -(See 'qO ADJUST

THROTTLE CONTROL CABLE" in this

section of the manual.)

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

2. Move throttle control lever to slow

position. With finger, rotate and hold

throttle lever against idle speed

screw. Turn idle speed screw to attain

1750 RPM.

3. While still holding throttle lever

against idle speed screw, turn idle

mixture valve full travel clockwise then

counterclockwise until engine runs

rough. Turn valve to a point midway

between those two positions. Re-

lease throttle lever.

ACCELERATION TEST-

4. Move throttle control lever from slow to

fast position. If engine hesitates or

dies, turn idle mixture valve out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust or damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Idle Speed

Screw

_jT hrvOet_rle

Idle Mixture Valve _

with Limiter

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BA'I'rERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, alcohol blended fuels (called

gasohol or using ethanol or methanol)

can attract moisture which leads to

separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start 1.

CAUSE

Out of fuel.

Engine not "CHOKED"

properly.

Engine flooded. 3.

Bad spark plug. 4.

Dirty air filter. 5.

Dirty fuel filter. 6,

Water in fuel. 7.

8, Loose or damaged wiring. 8.

9. Carburetor out of adjustment. 9.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

i5, Stale or dirty fuel.

6. Loose or damaged wiring. 6.

7. Carburetor out of adjustment. 7.

8. Engine valves out of

adjustment.

1. Brake pedal not

depressed

2. Attachment clutch is 2.

engaged.

3. Weak or dead battery. 3.

4. Blown fuse. 4.

5. Corroded battery terminals. 5.

6. Loose or damaged wiring. 6.

7. Faulty ignition switch. 7.

8. Faulty solenoid or starter. 8.

9. Faulty operator presence 9.

switch(es).

Hard to start

Enginewill not

turn over

CORRECTION

1. Fill fuel tank.

2. See 'q-O START ENGINE"

in Operation section.

Wait several minutes before

attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and carbure

tor, refill tank with fresh

gasoline and replace fuel

filter.

Check all wiring.

See 'q-o Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with

fresh gasoline.

Check all wiring.

See "To Adjust Carburetor" in

Service and Adjustments

section,

8. Contact a Sears or other

,,qualified service center.

1. Depress brake pedal.

Disengage attachment

clutch.

Recharge or replace battery.

Replace fuse. _"

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center,

Engine clicks but 1. Weak or dead battery. 1. Recharge or replace battery.

will not start 2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all wiring.

4. Faulty solenoid or starter. 4. Check/replace solenoid or

starter.

Loss of power 1, Cutting too much grass/too 1. Set in "Higher Cut" position/

fast. reduce speed,

2. Throttle in "CHOKE" position. 2. Adjust throttle control.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Loss of power

continued)

Excessive

_ibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poor cut - uneven

Mower blades will

not rotate

CAUSE

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/didy oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10.Spark plug wire loose.

11 .Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of

adjustment.

15.Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

1. Obstruction in clutch

mechanism.

CORRECTION

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10.Connect and tighten spark

plug wire.

1 1.Clean engine air screen/

fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See 'q'o Adjust Carburetor"

in Service and Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections, if not corrected,

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades will

not rotate (con't)

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

CAUSE

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast•

3. Wet grass.

4• Mower deck not level•

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

. Mower drive belt worn.

• Blades improperly installed.

10. Improper blades used.

11 .Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

13. Faulty light switch.

4. Loose or damaged wiring.

CORRECTION

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact aSears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

t8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

lO.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2,, Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Blown fuse. i 5. Replace fuse.

Battery will not [1. Bad battery cell(s). 1. Replace battery.

charge !2. Poor cable connections. 2. Check/clean all conne_

i tions.

!3. Faulty regulator _3. Replace regulator.

(if so equipped).

4. Faulty alternator.

Loss of drive ]1.

Engine "backf res"i 1.

when turning

engine i

"OFF" !

i4. Replace alternator.

Freewheel control in

"disengaged" position•

Motion drive belt worn, 12.

damaged, or broken. '.

Air trapped in transmission 13.

during shipment or

servicing.

Place freewheel control in

"engaged" position.

Replace motion drive belt.

Purge transmission.

Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

i 1. Move throttle control to

"SLOW" position and allow

' to idle for 30 seconds before

1 stopping engine.

:32.

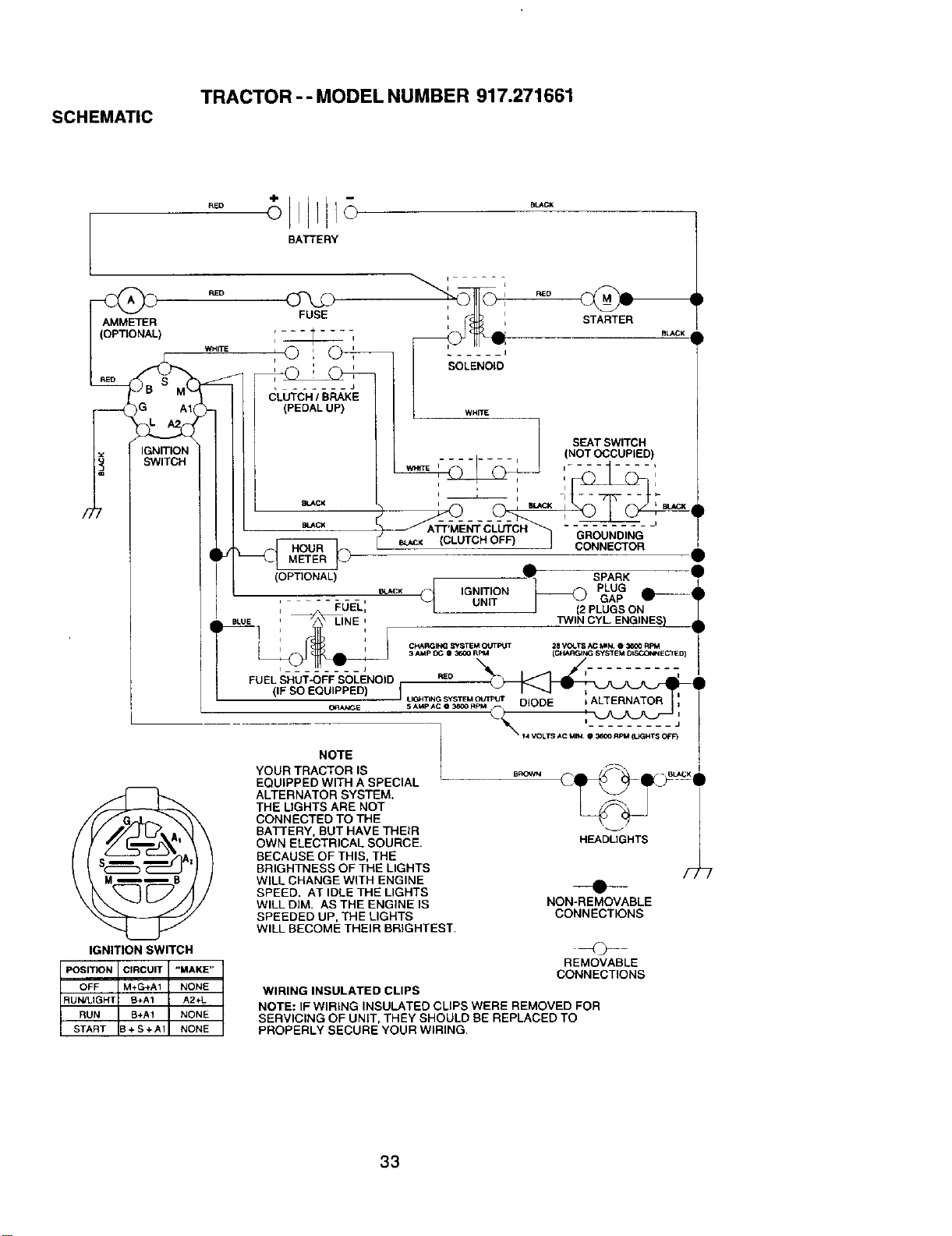

TRACTOR - - MODEL NUMBER 917.271661

SCHEMATIC

BATTERY

FUSE

AMMETER _ _ _

(OPTIONAL) i - -

i b

.--( )G AI

IGNITION

SWITCH

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START 3+S+A1 NONE

(OPTIONAL)

I SOLENOID

(CLUTCH OFF)

STARTER

BLACK

SEAT SWITCH

(NOT OCCUPIED)

GROUNDING

CONNECTOR

• SPARK :

PLUG I

GAP _I_---_ QI

I (2 PLUGSON |

TWINCYL ENGINES) 4L

NOTE I

YOUR TRACTOR IS ._ov,N _A /f-_"_ _-B_u__ 5

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM. _HTS /77

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS •

WILL DIM. AS THE ENGINE IS NON-REMOVABLE

SPEEDED UP, THE LIGHTS CONNECTIONS

WILL BECOME THEIR BRIGHTEST

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING,

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.271661

TRACTOR - - MODEL NUMBER 917.271661

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery

2 74760412 BoltHex Hd 1/4-20unc x 3/4

8 176689 Box BatteryFender

16 176138 Switch, Interlock

21 175688 Harness Asm LightW/4152j

22 4152J BulbLight#1156

24 4799J Cable Battery6 Ga 11• red

25 146147 Cable Battery 6 Ga w/16 wire rod

26 175158 Fuse20AMP

27 73510400 Nut Keps Hex 1/4-20 Unc

28 4207J Cable Ground6 Ga 12"black

29 121305)( Switch Plunger Nc Gray

30 175566 SwitchIgn

33 140403 Key Ign

40 179720 Harness Ign

41 71110408 BoltBIk. Fin Hex 1/4-20 Uricx 1/2

42 131563 CoverTerminalRed

43 178861 Solenoid

45 121433X Ammeter Rectangular 6 Amp

52 141940 Protection Wire Loop

90 180449 Cover Battery Fender

NOTE: All componentdimensions given in U.S. inches

1 inch = 25,4 mm

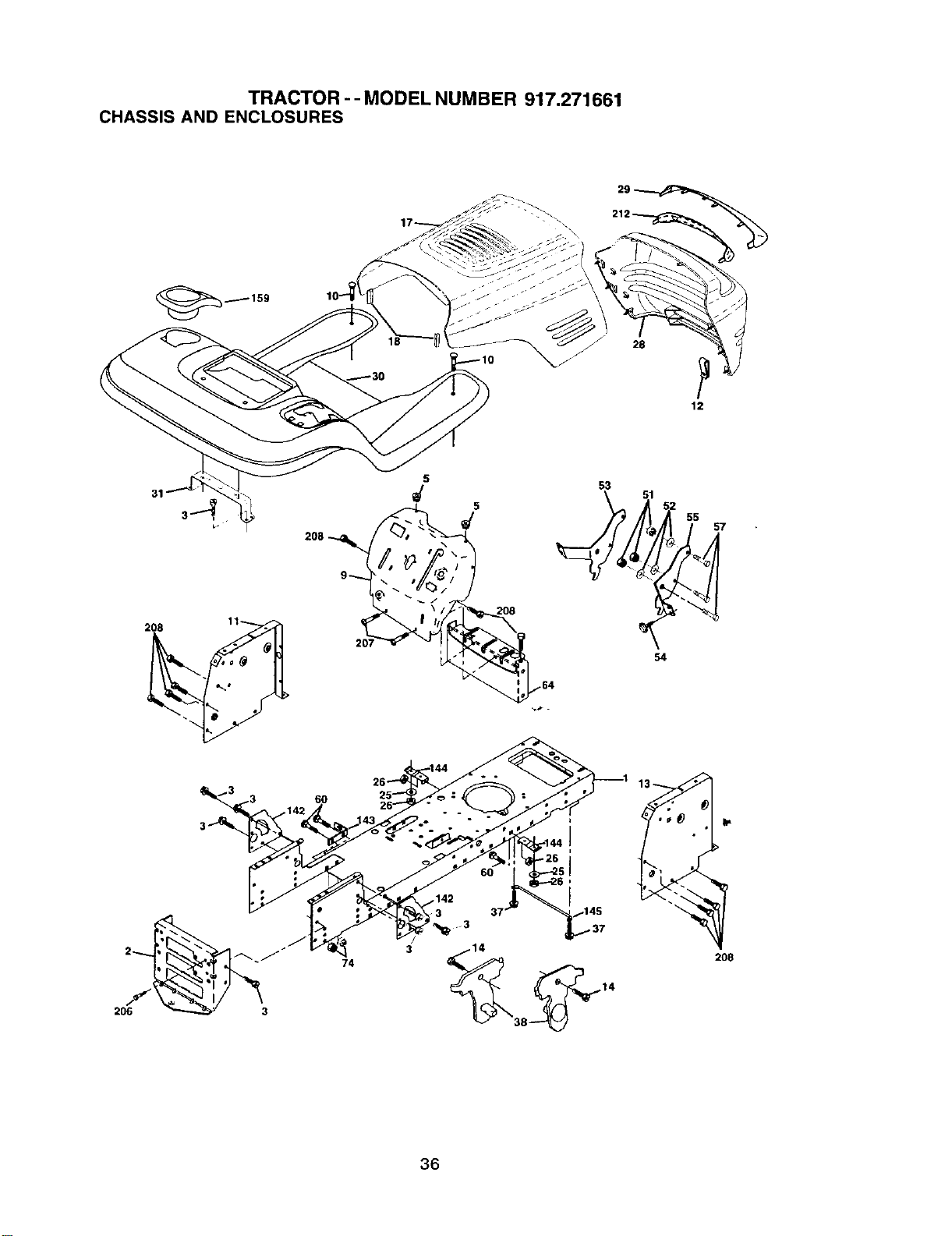

TRACTOR - - MODEL NUMBER 917.271661

CHASSIS AND ENCLOSURES

208

5 55 57

208

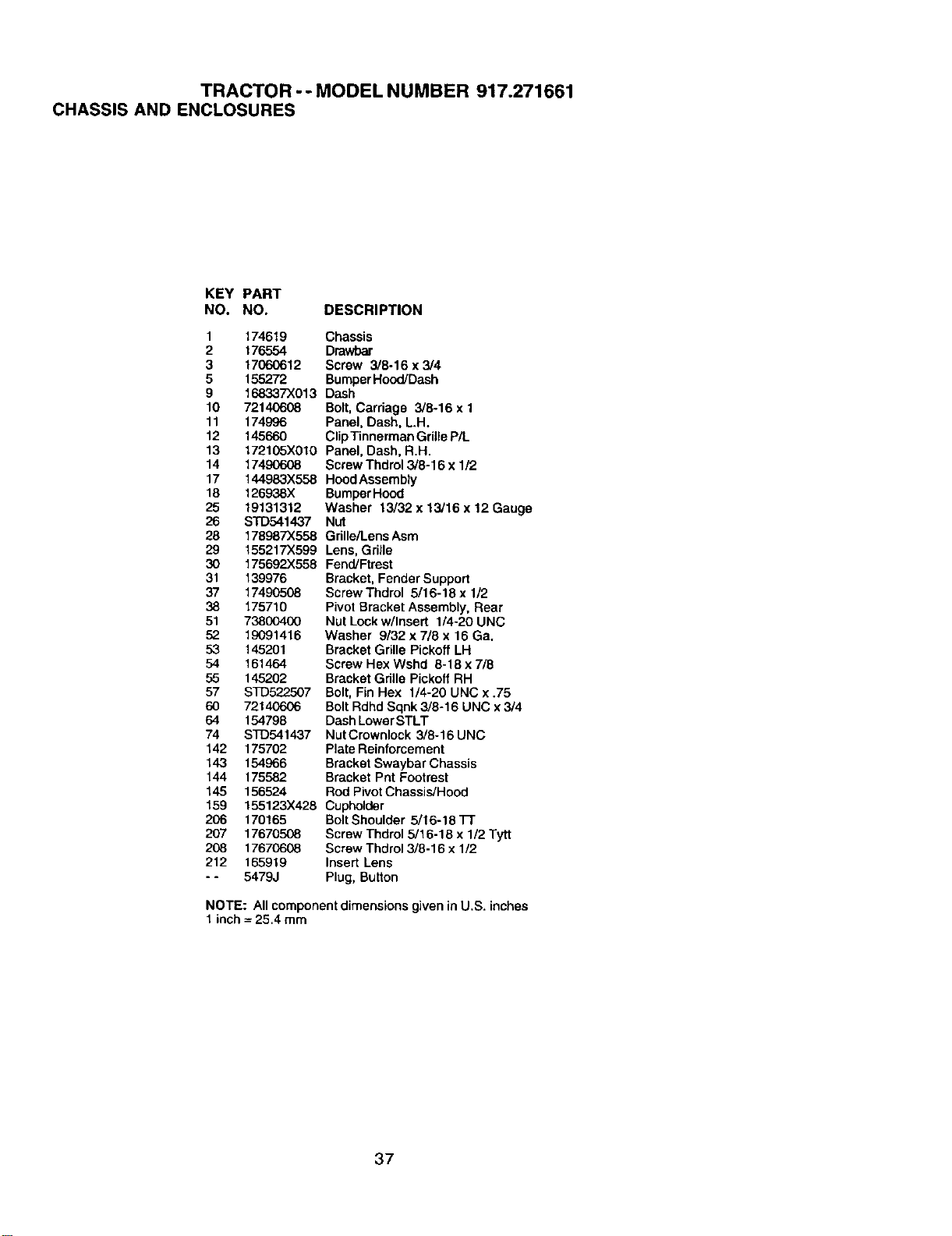

TRACTOR - - MODEL NUMBER 917.271661

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554 Drawbar

3 17060612 Screw 3/8-16 x 3/4

5 155272 BumperHood/Dash

9 168-337X013 Dash

10 72140608 Bolt, Cardage 3/6-16 x 1

11 174996 Panel, Dash, LH.

12 145660 Clip Tinnerman Grille P/L

13 172105X010 Panel, Dash, R.H.

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 144983X558 Hood Assembly

18 126938X Bumper Hood

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD5414,37 Nut

28 178987X558 Grille/Lens Asm

29 155217)(599 Lens, Grille

30 175692X558 Fend/Ftrest

31 139976 Bracket, Fender Support

37 17490508 ScrewThdrol 5/16-18x 1/2

38 175710 Pivot Bracket Assembly, Rear

51 73800400 Nut Lock w/Insert 1/4-20 UNC

52 19091416 Washer 9/32 x 7/8 x 16 Ga.

53 145201 Bracket Grille PickoffLH

54 161464 Screw Hex Wshd 8-18 x7/8

55 145202 Bracket Gdlle Pickoff RH

57 STD522507 Bolt, Fin Hex 1/4-20 UNC x .75

60 72140606 Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

64 154798 Dash Lower STLT

74 STD541437 NutCrownlock 3/8-16UNC

142 175702 Plate Reinforcement

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Pnt Footrest

145 156524 Rod Pivot Chassis/Hood

159 155123X428 Cupholder

206 170165 Bolt Shoulder 5/16-181-r

207 17670508 Screw Thdrel 5/16-18 x 1/2 Tytt

208 17670608 Screw Thdrol 3/8-16 x 1/2

212 165919 Insert Lens

- - 5479J Plug, Button

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271661

GROUND DRIVE

30 62

120 _

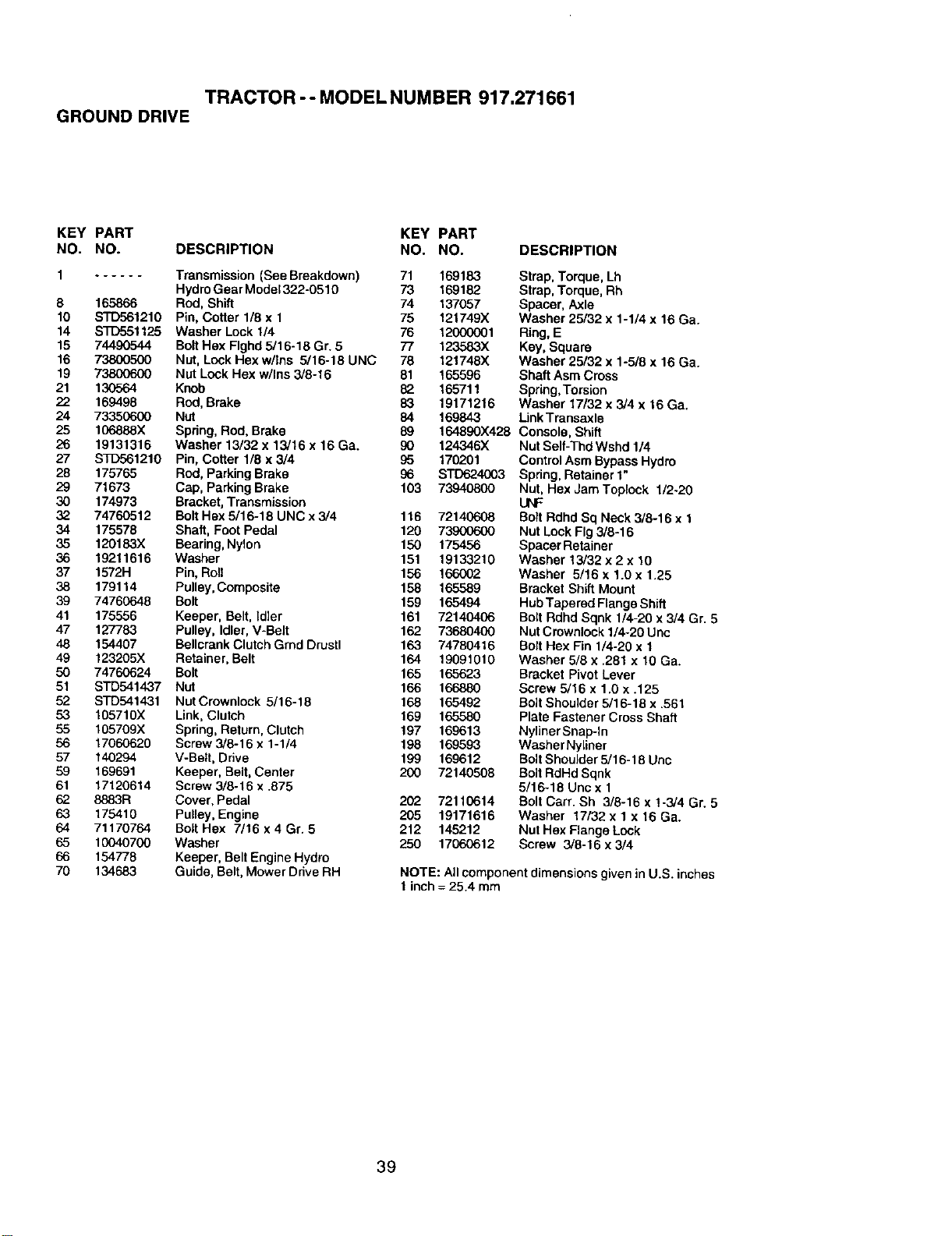

TRACTOR - - MODEL NUMBER 917.271661

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 ...... Transmission (See Breakdown) 71 169183

Hydro Gear Model 322-0510 73 169182

8 165866 Rod, Shift 74 137057

10 STD561210 Pin, Cotter 1/8 x 1 75 121749X

14 STD551125 Washer Lock 1/4 76 12000001

15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 77 123583X

16 73800500 Nut, Lock Hex w/Ins 5/16-18 UNC 78 121748X

19 73800600 Nut Lock Hex w/Ins 3/8-16 81 165596

21 130564 Knob 82 166711

22 169498 Rod, Brake 83 19171216

24 73350600 Nut 84 169843

25 106888X Spdng, Rod, Brake 89 164890X428

26 19131316 Washer 13/32 x 13/16 x 16 Ga. 90 124346X

27 STD561210 Pin, Cotter 1/8 x 3/4 95 170201

28 175765 Rod, Parking Brake 96 STD624003

29 71673 Cap, Parking Brake 103 73940800

30 174973 Bracket, Transmission

32 74760512 Bolt Hax 5/16-18 UNC x 3/4 116 72140608

34 175578 Shaft, Foot Pedal 120 73900600

35 120183X Bearing, Nylon 150 175456

36 19211616 Washer 151 19133210

37 1572H Pin, Roll 156 166002

38 179114 Pulley, Composite 158 165589

39 74760648 Bolt 159 165494

41 175556 Keeper, Belt, Idler 161 72140406

47 127783 Pulley, Idler, V-Belt 162 73680400

48 154407 Bellcrank Clutch Grnd Drustl 163 74780416

49 123205)( Retainer, Belt 164 19091010

50 74760624 Bolt 165 165623

51 STD541437 Nut 166 166880

52 STD541431 NutCrownlock 5/16-18 168 165492

53 105710X Link, Clutch 169 165580

55 105709X Spring, Return, Clutch 197 169613

56 17060620 Screw 3/8-16 x 1-1/4 198 169593

57 140294 V-Belt, Drive 199 169612

59 169691 Keeper, Belt, Center 200 72140508

61 17120614 Screw 3/8-16 x .875

62 8883R Cover. Pedal 202 72110614

63 175410 Pulley, Engine 205 19171616

64 71170764 Bolt Hex 7/16 x 4 Gr. 5 212 145212

65 10040700 Washer 250 17060612

66 154778 Keeper, Belt Engine Hydro

70 134683 Guide, Belt, Mower Drive RH

Strap, Torque, Lh

Strap,Torque,Rh

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga.

Ring,E

Key, Square

Washer 25/32 x 1-5/8 x 16 Ga.

ShaftAsm Cross

Spring,Torsion

Washer 17/32 x 3/4 x 16 Ga.

LinkTransaxle

Console, Shift

Nut Self-ThdWshd 1/4

ControlAsm Bypass Hydro

Spring,Retainer1"

Nut, Hex Jam Toplock 1/2-20

UNF

BoltRdhdSq Neck 3/8-16 x 1

Nut Lock Fig3/8-16

SpacerRetainer

Washer 13/32 x 2 x 10

Washer 5/16 x 1.0 x 1.25

Bracket Shift Mount

HubTapered FlangeShift

BoltRdhdSqnk 1/4-20 x 3/4 Gr. 5

Nut Crownlock1/4-20 Unc

BoltHax Fin 1/4-20 x 1

Washer 5/8 x .281 x 10 Ga.

Bracket PivotLever

Screw 5/16 x 1.0 x .125

BoltShoulder5/16-18 x .561

Plate Fastener Cross Shaft

NylinerSnap-In

Washer Nyliner

BoltShoulder5/16-18 Unc

BoltRdHd Sqnk

5/16-18 Unc x 1

BoltCarr. Sh 3/8-16 x 1-3/4 Gr. 5

Washer 17/32 x 1 x 16 Ga.

Nut Hex Flange Lock

Screw 3/8-16 x 3/4

NOTE: All component dimensions given in U.S. inches

I inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.271661

STEERING ASSEMBLY

_39

s7 _

67 67

TRACTOR - - MODEL NUMBER 917.271661

STEERING ASSEMBLY

KEY PART

NO, NO. DESCRIPTION

1 139768 SteeringWheel

2 175131 Axle Assembly

3 169840 SpindleAssembly, L.H.

4 169839 SpindleAssembly, R.H.

5 6266H Bearing,Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Gauge

7 19272016 Washer 27/32 x 1-1/4 x 16 Gauge

8 12000029 Ring, Klip

9 3,.366R Beadng,SteeringColumn

19 175121 Draglink

11 STD551137 Washer, Lock

12 73940800 Nut Hex Jam Toplock1/2-20 Unf

13 136518 SpacerBearingAxle Front

15 145212 Nut, Hex Flange Lock

17 190641 Shaft Assembly, Steering

26 126847X Bushing,Link,Drag

28 19131416 Washer t3/32 x 7/8 x 16 Gauge

29 17060612 Screw 3/8-16 x 3/4

30 STD561210 PinCotter

32 130465 Rod,Tie

36 155099 Bushing,Steering

37 152927 Screw

38 139769 Insert, SteeringWheel

39 19183812 Washer 9/16 x2-3/8

40 STD541537 Nut Lock Center 3/8-24 Unf

41 100711L Adaptor, Steering Wheel

42 145054X428 Boot, Steering Shaft

43 121749X Washer 25/32 x 1-I/4 x 16 Gauge

44 180640 Extension Shaft Steering

46 121232X Cap, Spindle

47 6855M Fitting,Grease

51 73540400 NutCrownlock1/4-28

54 71130420 BoltHex 1/4-28unf x 1-1/4 Gr. 8

65 160367 Spacer Brace Axle

67 72140618 BoltRDHD Sqnk 3/8-16 x 2-1/4

68 169827 Axle, Brace

71 175146 SteeringAsm.

82 169835 Bracket Susp. Chassis Front

85 133835 Fastener Christmas Tree

88 175118 Bolt Shoulder 7/16-20

91 175553 Clip Steedng

NOTE: All component dimensions gk/en in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271661

ENGINE

OPTIONAL EQUIPMENT

Spark Arrester

,42

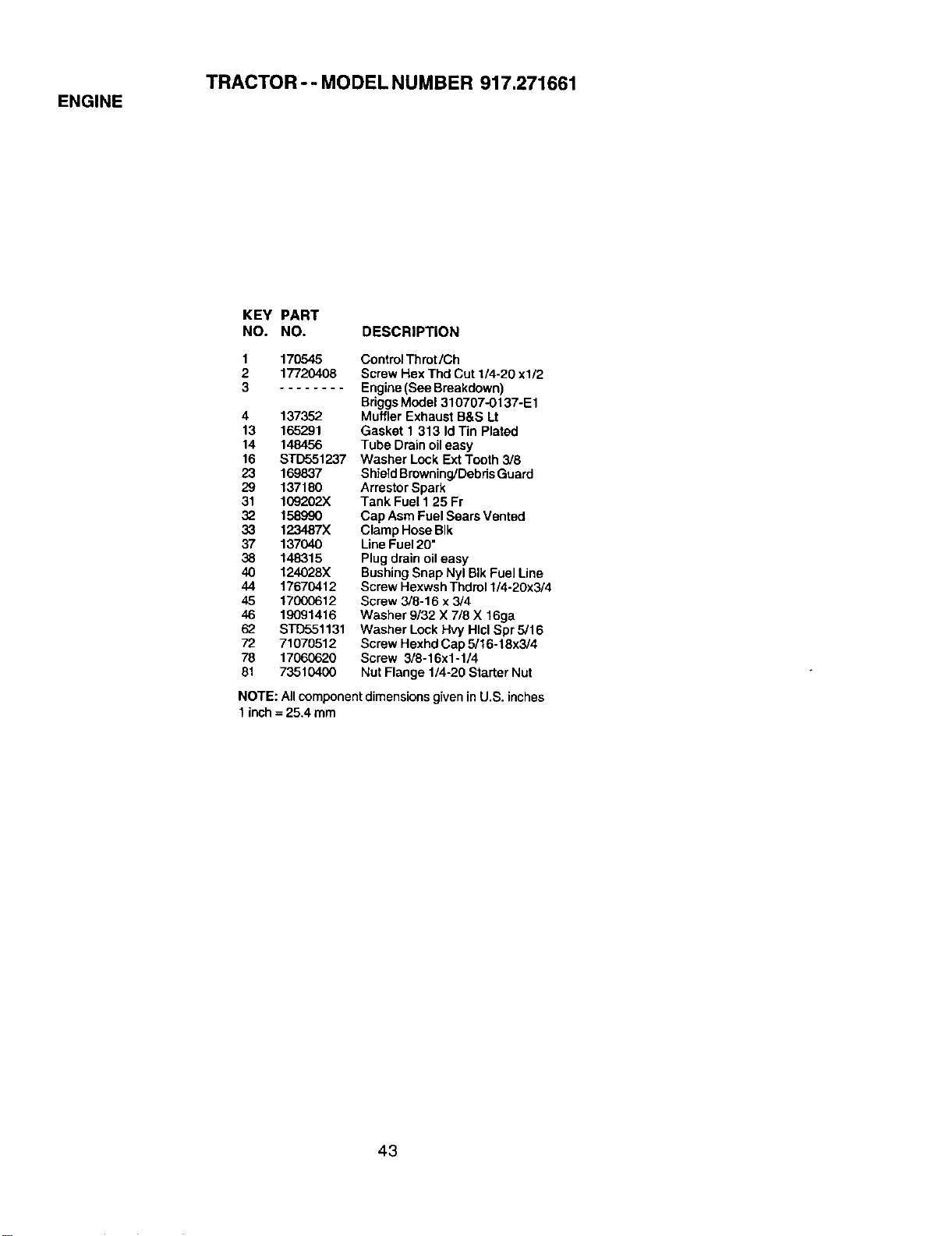

TRACTOR-- MODELNUMBER 917.271661

ENGINE

KEY PART

NO. NO. DESCRIPTION

17O545

1_20406

4 137352

13 165291

14 148456

16 STD551237

23 169837

29 137180

31 109202X

32 158990

33 123487X

37 137040

38 148315

40 124028X

44 17670412

45 17000612

46 19091416

62 STD551131

72 71070512

78 17060620

81 73510400

Control Throt/Ch

Screw Hex Thd Cut 1/4-20 xl/2

Engine(See Breakdown)

BriggsModel 310707-0137-E1

Muffler Exhaust B&S Lt

Gasket 1 313 Id Tin Plated

Tube Drainoileasy

Washer Lock Ext Tooth 3/8

Shield Browning/Debris Guard

Arrestor Spark

Tank Fuel 125 Fr

Cap Asm Fuel Sears Vented

Clamp Hose BIk

Line Fuel 20"

Plug drain oil easy

Bushing Snap Nyl BIk Fuel Line

Screw Hexwsh Thdrol 1/4-20x3/4

Screw 3/8-16 x 3/4

Washer 9/32 X 7/8 X 16ga

Washer Lock Hvy HlclSpr 5/16

Screw Hexhd Cap 5/16-18x3/4

Screw 3/8-16x1-1/4

Nut Flange 1/4-20 Starter Nut

NOTE: Allcomponentdimensions given inU.S. inches

1inch= 25,4 mm

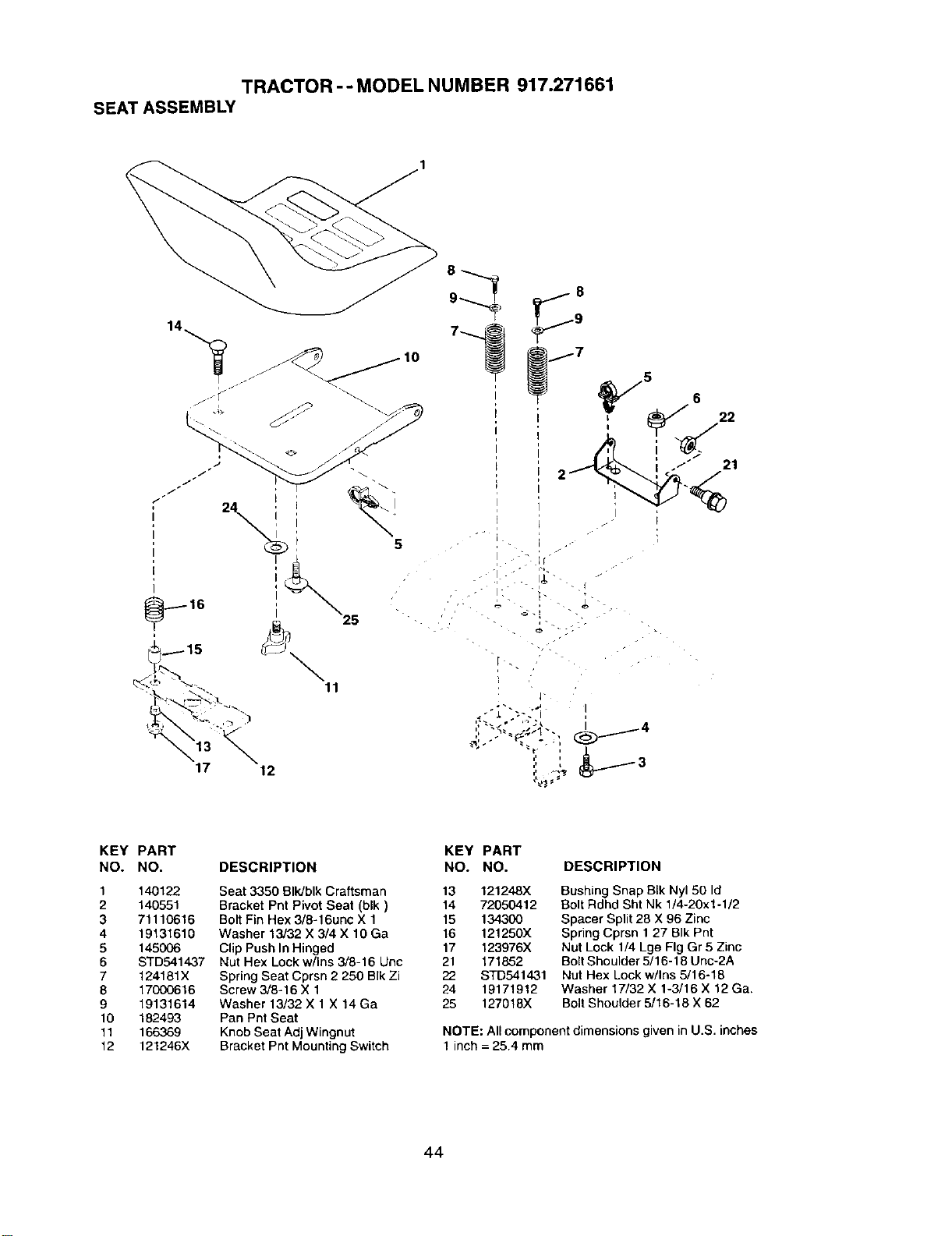

TRACTOR-- MODEL NUMBER 917.271661

SEAT ASSEMBLY

24 ! i

I 25

KEY PART

NO. NO.

1 140122

2 140551

3 71110616

4 19131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 182493

11 166369

12 121246X

DESCRIPTION

Seat 3350 BIIdblk Craftsman

Bracket Pnt Pivot Seat (blk)

Bolt Fin Hex 3/8-16unc X 1

Washer 13232 X 3/4 X 10 Ga

Clip Push In Hinged

Nut Hex Lock w/Ins 3/8-16 Unc

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16 X 1

Washer 13/32 X 1 X 14 Ga

Pan Pnt Seat

Knob Seat Adj Wingnut

Bracket Pnt Mounting Switch

KEY PART

NO. NO. DESCRIPTION

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171852

22 STD541431

24 19171912

25 127018X

Bushing Snap Bik Nyl 50 Id

Bolt Rdhd Sht Nk 1/4-20x1-1/2

Spacer Split 28 X 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoulder 5/16-18 Unc-2A

Nut Hex Lock w/Ins 5/16-18

Washer 17/32 X t-3/16 X 12 Ga.

Bolt Shoulder 5/16-18 X 62

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

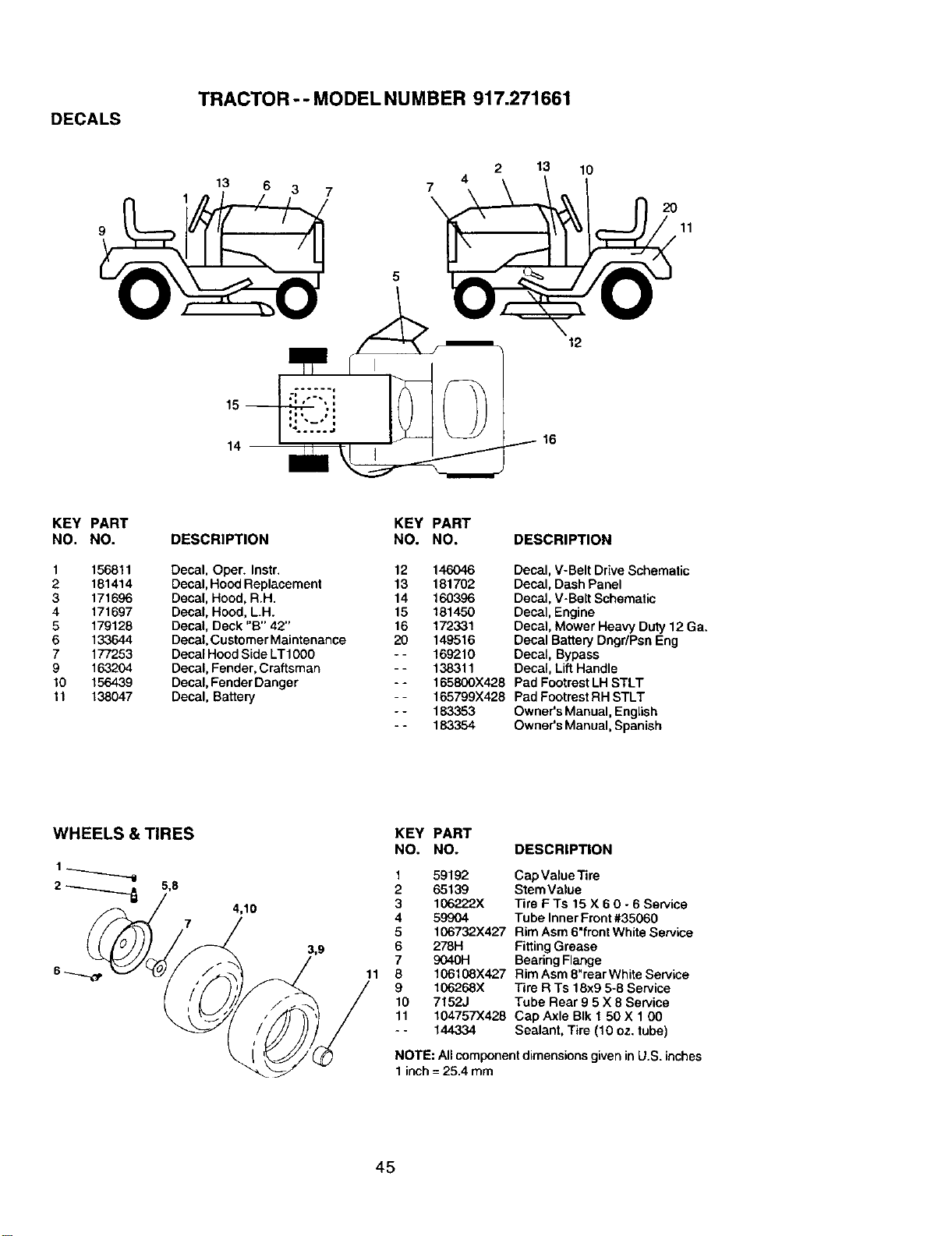

TRACTO R - - MODEL NUMBER 917.271661

DECALS

13 6 3

...... I

:'. ,,:

2 13

KEY PART

NO. NO.

1 156811

2 181414

3 171696

4 171697

5 179128

6 13.3644

7 177253

9 163204

10 156439

t 1 138047

DESCRIPTION

Decal, Oper. Instr.

Decal, Hood Replacement

Decal, Hood, R.H.

Decal, Hood, L.H.

Decal, Deck "B" 42"

Decal, Customer Maintenance

Decal Hood Side LT1000

Decal, Fender, Craftsman

Decal, Fender Danger

Decal, Battery

KEY

NO.

.°

PART

NO,

146O46

181702

160396

181450

172331

149516

169210

138311

165800X428

165799X428

1833.53

183354

DESCRIPTION

Decal, V-Belt DriveSchematic

Decal, Dash Panel

Decal, V-Belt Schematic

Decal, Engine

Decal, Mower Heavy Duty12 Ga.

Decal Battery Dngr/PsnEng

Decal, Bypass

Decal, LiftHandle

Pad FootrestLH STLT

PadFootrestRH STLT

Owner's Manual, English

Owner's Manual, Spanish

4,10

3,9

KEY PART

NO. NO. DESCRIPTION

1 59192

2 65139

3 106222X

4 59904

5 106732X427

6 278H

7 9040H

8 106108X427

9 106268X

10 7152J

11 1O47573(428

-- 144334

Cap Value Tire

StemValue

Tire F Ts 15 X 6 0 - 6 Service

Tube Inner Front #35060

Rim Asm 6"front White Service

Fitting Grease

Bearing Flange

Rim Asm 8"rear White Service

Tire R Ts 18x9 5-8 Service

Tube Rear 9 5 X 8 Service

Cap Axle BIk 1 50 X 1 00

Sealant, Tire (10 oz, tube)

NOTE: All component dimensions given in U.S.inches

1 inch = 25.4 mm

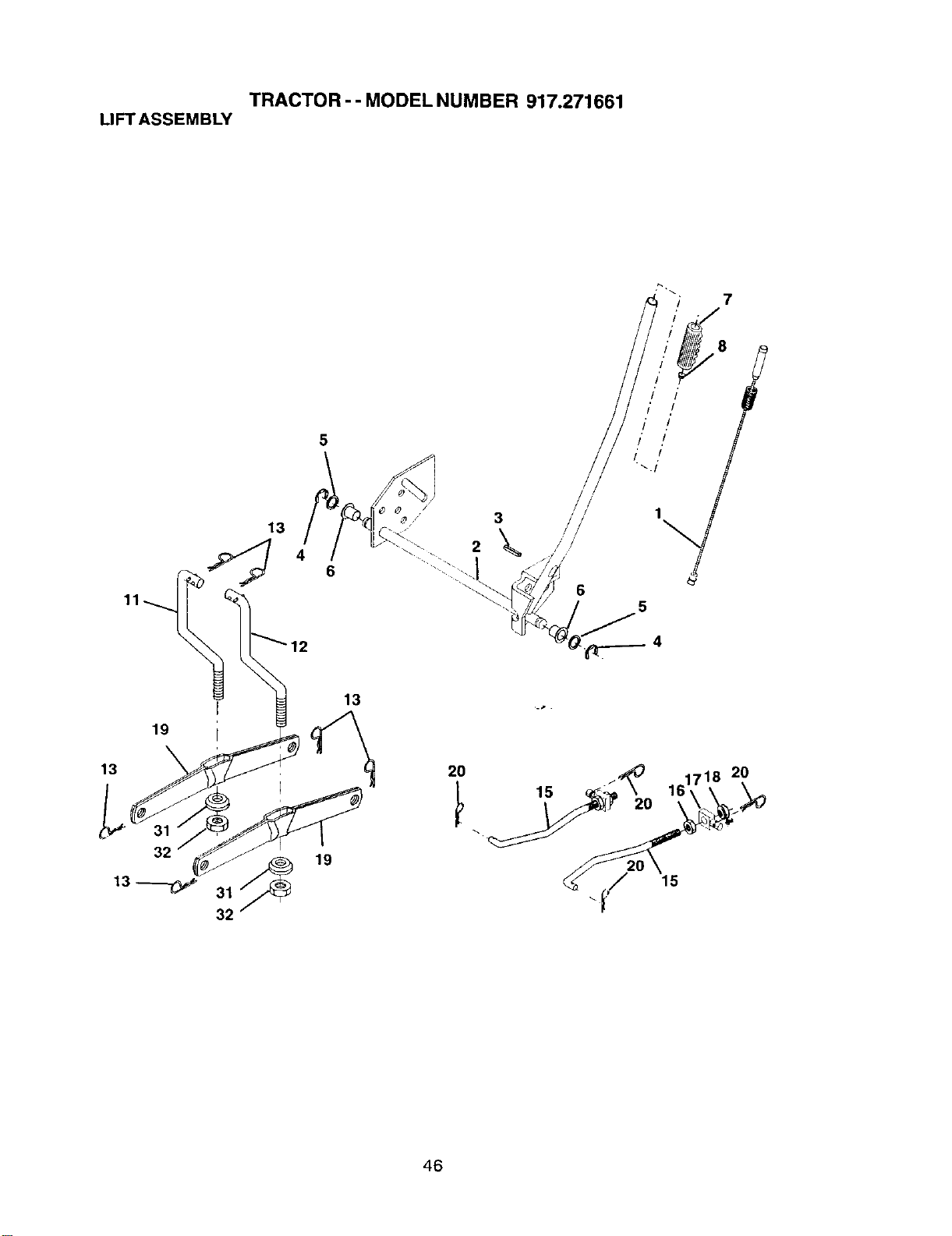

TRACTOR - - MODEL NUMBER 917.271661

LIFT ASSEMBLY

_ . 7

.1' , i1'1,1,//

TRACTOR - - MODEL NUMBER 917.271661

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Washer Asm Inner SpringW/Plunger

2 159471 Shaft Asm. Lift

3 105767X PinGroove

4 12000002 E Ring#5133-62

5 19211621 Washer 21/32 x 1 x21 Ga.

6 120183X BeadngNylong

7 125631X GdpHandleFluted

8 122365X ButtonPlungerRead

11 139865 Link Asm Lift LH,

12 139866 LinkAsm Lift R.H.

13 STD624008 RetainerSpring

15 173288 LinkFront

16 73350800 Nut Jam Hex 1/2-13 Unc

I7 176689 Trunnion

18 73800800 Nut Lockw/Wsh 1/2-13 Unc

19 139868 ArmSuspensionMower

20 163552 RetainerSpdng

31 169865 Bearing, Pvt. Lift

32 73540600 NutCrownlock 3/8-24

NOTE: All componentdimensionsgiven in U.S. inches

1 inch = 25.4 mm

TRACTOR-- MODEL NUMBER 917.271661

MOWER DECK

.148

MOWER DECK

TRACTOR - - MODEL NUMBER 917.271661

KEY PART

NO. NO.

1 165892

2 STD533107

3 138017

4 165460

5 STD624(X)8

6 178024

8 850857

9 STD551137

10 140296

11 134149

13 180074

14 128774

15 110485X

16 174493

18 72140505

19 132827

20 159770

21 STD541431

23 177663

24 105304X

25 123713)(

26 110452X

27 130968X428

28 19111016

29 131491

30 173984

31 129963

32 153535

33 178342

34 STD533717

36 131494

37 STD551037

40 STD541437

44 140088

45 STD624003

46 137729

48 133944

49 174284

50 131340

51 STD541410

52 139888

53 131845

KEY PART

DESCRIPTION NO. NO.

Mower DeckAssembly,42" 54 133943

Bolt 55 155046

BracketAssembly,Sway Bar, Front 56 165723

59 141043

BracketSway Bar 38/42" Deck 67 149846

RetainerSpring 68 144959

Bar Sway Deck

Bolt, Hex 3/6-24 x 1.25 Gr. 8 92 STD541437

101 136420

Washer, Lock 102 71081010

Washer, Hardened 103 19061216

Blade, Mulching 104 STD551110

Shaft Assembly, Mandrel,

Vented 105 160793

Housing, Mandrel,Vented 106 2929J

129 19131312

Bearing, Ball,Mandrel 130 STD523710

Stripper,Vented Mower Deck

Bolt, Carriage 5/16-18 x 518 131 STD533710

142 165890

Bolt,Shoulder

Baffle, Vortex 143 157109

NutCrewnlock 5/16-18 UNC 144 158634

Bracket, Deflector 145 165888

146 171977

Cap, Sleeve 147 179748

Spring, Torsion, Deflector 148 169022

Nut, Push

Shield, Deflector 149 165898

Washer 11/32x5/8x16Ga. 150 19091216

Rod, Hinge 151 169670

Screw Thdrol Washer Head 152 169676

Washer, Spacer 153 169674

154 169675

Pulley, Mandrel 155 169671

Nut, Toplock, Flanged

Bolt 156 169672

Pulley, Idler, Flat 157 169669

Washer 13/32 x 13/16x 16 158 17720408

Gauge 159 72140614

NutCrownlock 3/8-16 UNC - - 130794

Guard, Mandrel, L.H.

Retainer

Screw, Thd. Roll 1/4-20 x 5/8 - - 169583

Washer, Hardened

Roller Assembly, Cam Follower

Bolt, Shoulder #10-24 Grade 5

Locknut

Bolt, Shoulder 5/16-18 UNC

Arm Assembly, Pad, Brake

DESCRIPTION

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard, TUV Idler

KnobCustomOval

V-Belt

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut,Weld

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 UNC x 1Gr. 5

Bolt, RdhdSqnk3/8-16UNC x 1

ArmSpring BrakeMower

BracketArm Idler42"

Keeper Belt 42"ClutchCable

PulleyIdler Flat

Bolt Carriage Idler

SpringExtension

SpringReturn Idler

RetainerSpringYellow Zinc

Washer 9/32 x 3/4 x 16 Ga,

Bracket Clutch

Cable Clutch42 In

Washer Fiat 3/8" Type B

Spring Retainer

SpringRetention Lever

Spacer

RodClutch

Screw Hex Thd Cut 1/4-20 x 1/2

Bolt Rdhd Sqn 3/8-16 Unc x 3/4

MandrelAssembly(Includes

Housing, Shaft and Shaft

HardwareOnly-PulleyNot Included

ReplacementMower, Complete

NOTE: Allcomponent dimensions givenin U.S.inchas

1inch= 25.4 mm

TRACTOR - - MODEL NUMBER 917.271661

HYDRO TRANSAXLE - - MODEL NUMBER 322-0510

120_

128

109

20W50 OIL iS7

124 SEAL AND O-RING KiT 7127

TRACTOR-- MODEL NUMBER 917.271661

HYDRO TRANSAXLE - - MODEL NUMBER 322-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 170351 Main Housing,Assembly 60 142883

2 170352 Side Housing,Assembly 61 142882

3 170353 Center Section, Assembly 62 142887

4 170354 Swashplate,Trunian Machinod 63 170410

5 169898 Block - Assembly

6 170355 Sealant 64 142892

7 170356 Hex Flange Screw 1/4-20 X 1.25 65 170411

8 170357 Stud,5/16-24 Hex Double End 66 170412

9 170358 Shaft, Input 67 170413

10 170359 Ring-Retaining 68 170414

11 170360 Spacer 69 170415

12 169870 Ring -Retaining 70 170416

13 170361 Seal, Lip .67 X 1.58 X .276 71 170417

14 173158 BallBrg 17MM ID X40MM OD X

12MM 72 170418

16 170362 Hex FLlangeHead Screw 5/16-24

X 0.75 73 142884

17 170363 Lip Seal 18 X 32 X 7

18 170364 Arm,Control 74 170419

19 173159 Bearing,30X52X13 Thrust 75 170420

23 170365 Check PlugAssembly, Washer

24 170366 Shaft, Motor1 76 170421

27 170367 Gear- Pinion, 13T 77 170422

28 170368 10T/48TGEAR 78 142969

29 170369 Gear, 10T Jackshaft 79 142980

30 170370 60T Bull Gear 80 150778

31 170371 Sleeve Bearing .75 X 1.575 X

.625 81 170423

32 170.389 Sleeve Bearing 82 170424

(Outboard).75Xl.750X.625

33 142991 Washer, 3/4 ID X 1-1/20D X .13 83 161168

THK 84 170425

34 170390 LipSeal Axle Seal 85 170426

35 170391 Shaft, Axle .75 X 11.39 (Key, 87 173160

R.H.) 88 170429

36 170392 Shaft, Axle .75 X 16.99 (Key, 90 1704.30

L.H.) 93 17O431

37 150792 Miter Gear (SPLINED) 107 170432

38 150793 Mitar Gear 15T (0.5 ID) 108 170433

39 150809 Shaft

40 170393 Ring, Spiral Retaining 109 170434

41 170394 Pin, Jackshaft 111 170435

42 170395 Magnet, Rling 113 170437

43 170396 Spring, Bypass

44 150797 Hydro mtg Screw 3/8-24 X 2.5 116 t 70438

Long 119 173161

45 170397 Flilter 120 170440

46 170398 Base, Filter 122 173162

47 170399 Actuator, Bypass

48 170400 Rod, Bypass Actuator 123 173163

49 170401 Arm, Bypass 124 170444

50 170402 Retaining Ring .250 External

51 170403 Seat, Lip .741 X .250 X .250 TC 125 170445

52 170404 Flat Washer, 5/8 ID X 1.00D X 126 173164

.05THK 127 170447

53 170405 Retaining Ring 128 173165

54 170406 Bearing, Center Block 900 171613

55 142977 Spring -HelicalCompression

56 142978 Washer

57 150798 20W-50 OIL72.8 oz

58 170407 Brake Yoke

59 170408 Rotor, Brake

Brake Puck

Puck Plate

Brake Actuating Pin

HFHCS 1/4-20X2 W/Patch,

Special Flange

Bolt, 1/4-20 X 1 W/Patch

Spacer

Spring,Brake Arm Bias

SQ. HD.BOLT5/16-24-Ribbed

Arm, Brake

Slotted Hex Nut 5/16-24

Cotter Pin 3/32 X 3/4

CompressionSpdng BrakeAnti-

Drag

Washer, HT .5 I.D. X 10.D. X

.032

Flat - Washer 11/32 I.D. X 7/8

O.D.

Oil Seal .625 X 1.0 X .25

Check Plug Assembly,.027,

Washer

Stud, 5/16-24 FdctionPack

Puck, .330 X 1.50 X .0975

Spring,HeliclComp

Spacer

Hex LockNut 5/16-24

UNJF(NylonInsert)

Wedge, FrictionPack

Clip,Washer .316X1.50X.1046

(Prated)

Pin, Standard Headless

Fitting, 5/16 Sae 5/32 Tube

Hose, Expansion Tank

Cap, Vent

Bolt, Self Tapping 10-32 X t/2

Puck, Inner Wedge

Spring Clip -Housing Thrust

Deflector

Washer,Motorshaft

.711DXl.15ODX.030THK

Plug, Sae #6

O-ring .67 x .301 I.D.

Bracket, Support Expansion

Tank

Slilicon Sponge

Fan

Pulley

#12 T.F. Screw-lindented Hex

WasherHead

Bracket Belt Keeper

Center Section- Filter-Bypass

Assembly

Filter Assembly

Fan - Pulley Service Aassembly

Seal - O-ring Kit

Kit, Expansion Tank

Transaxle, complete

NOTE: All component dimensions given in

U.S. inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.271661

BRIGGS & STRATTON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1

REQUIRES SPECIAL TOOLS $3_

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

757 761

TRACTOR-- MODEL NUMBER 917.271661

BRIGGS & STRATI'ON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1

875J 711_

I 1019 LABEL KIT

I 1058 OWNER'S MANUAL

240_

127 0

186_

TRACTOR - - MODEL NUMBER 917.271661

BRIGGS & STRATTON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1

513_

_%#'_

803

462

579

304

3.J

I 1036 LABEL-EMISSIONS

287 _ 363_

524_

697

133,_

934_

I lOO6

lOOS "_7,1

733_ 75_

763@_

TRACTOR - - MODEL NUMBER 917.271661

BRIGGS & STRATI'ON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1

1095 VALVE GASKET SET

8o8

48 ¸

NIKKI

130A_.) HI 231A_ UI

95A 9_87A_

I I h33A1104A_

113,AO

1127A_

lOSA$ 278A

,47A6

121 CARBURETOR OVERHAUL KIT

104_'1270 278@ 9s7® 95_,

358 ENGINE GASKET SET

3 _ 524_ 842

891@ 176_

121A CARBURETOR OVERHAUL KIT

95A_ 276A_

51_ O

104A '_ 127A

105A€ 987A_

137A Q 231A_

977A CARBURETOR GASKET SET

51_ 137AQ 276A_

TRACTOR-- MODEL NUMBER 917.271661

BRIGGS & STRATTON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1

KEY PART

NO. NO. DESCRIPTION

1 690156 Cylinder Assembly

2 399265 Kit-Bushing/Seal

3 391086 • Seal-Oil (Magneto Side)

4 494238 Sump-Engine

5 690168 Head-Cylinder

7 692410 -+ Gasket-Cylinder Head

8 495735 Breather Assembly

9 27803 • Gasket-Breather

10 691666 Screw (Breather Assembly)

11 691328 Tube-Breather

12 692226 • Gasket-Crankcase (.015

Thick, Std)

692406 • Gasket-Crankcase (.005

Thick)

692405 • Gasket-Crankcase (.009

Thick)

13 690360 Screw (Cylinder Head)

15 690946 Plug-Oil Drain

16 690136 Crankshaft

20 291675 • Seal-Oil

22 692125 Screw (Crankcase Cover)

23 693557 Flywheel

24 222698 Key-Flywheel

25 692271 Piston Assembly (Standard)

692272 Piston Assembly (.010 O.S.)

692273 Piston Assembly (.020 O.S.)

692274 Piston Assembly (.030 O.S.)

26 690162 Ring Set-Piston (Standard)

692164 Ring Set-Piston (.010 O.S.)

692166 Ring Set-Piston (.020 O.S.)

692168 Ring Set-Piston (.030 O.S.)

27 691299 Lock-Piston Pin

28 498319 Pin-Piston (Standard)

498320 Pin-Piston (.020 O.S.)

29 692419 Rod-Connecting (Standard)

499940 Rod-Connecting (.020 U.S.)

32 692852 Screw (Connecting Rod)

33 495856 Valve-Exhaust

34 495857 Valve-Intake

35 691279 Spring-Valve (Intake)

36 691279 Spring-Valve (Exhaust)

37 690456 Guard-Flywheel

40 691752 Retainer-Valve

43 691968 Slinger-Governor/Oil

45 690564 Tappet-Valve

46 692421 Camshaft

48 692706 Short Block (311797-9028-E1

Replacement Engine)

50 690193 Manifold-Intake

51 692137. Q_:+ Gasket-Intake

53 690227 Stud (Carburetor)

54 691148 Screw (Intake Manifold)

73 690492 Screen-Rotating

74 691674 Screw (Rotating Screen)

75 690582 Washer (Flywheel)

78 690661 Screw (Flywheel Guard)

93 690602 Bushing-Throttle Shaft

94 498030 Kit-Idle Mixture

94A 695425 Kit-Idle Mixture

95 691636 _ Screw (Throttle Valve)

95A 690718 1_ Screw (Throttle Valve)

98 495800 Kit-idle Speed

98A 695408 Kit-Idle Speed

104 690525 O Pin-Float Hinge

104A 694918 O Pin-Float Hinge

KEY PART

NO. NO.

105 231855

105A 694922

106 690577

108 690464

108A 692344

108B 695419

117 692408

692411

117A 695415

695416

121 690191

121A 695427

125 690194

125A

127 695005

127A 690727

130 691750

130A 695418

131 494379

131A 695421

133 494381

133A 694914

DESCRIPTION

Valve-Float Needle

Seat-inlet

Valve-Choke (Manual Choke)

Valve-Choke(Choke-A-Matic)

Valve-Choke(Nikki Carburetor)

O Jet-Main (Standard)

Jet-Main (High Altitude)

Jet-Main (Standard)

Jet-Main (High Altitude)

Kit-Carburetor Overhaul

Kit÷Carburetor Overhaul

Carburetor

Carburetor (Nikki) (Service

with Walbro Carburetor)

Q Plug-Welch

Plug-Welch

Valve-Throttle

Kit-Threttle Shaft

Kit-Throttle Shaft

Float-Carburetor

137 281165 _:1: Gasket-Float Bowl

137A 695426 _:I: Gasket-Float Bowl

141 495097 Kit_Choke Shaft (Manual

Choke)

141A 495931 Kit-Choke Shaft (Choke-A-

Matic)

141B 695429 Kit-Choke Shaft (Nikki)

142 692412 O Nozzle-Carburetor

146 691639 Key-Timing

167 692297 Air Cleaner Stud Seal

176 691917 ° O-Ring Seal (Air Cleaner)

186 692317 Connector-Hose

187 691050 Line-Fuel (Cut to Required

Length)

188 691693.. Screw (Control Bracket)

192 691986 Ad uster-Rocker Arm

202 691841 Link-Mechancal Governor

209 692208 Spring-Governor

216 691840 Link-Choke

217 695409 Spring-Choke Return

222 694042 Bracket-Control

227 691374 Control Lever-Governor

231 691636 O Screw (Choke Valve) i*

231A 690716 a Screw (Choke Valve)

232 691842 Spring-Governor Link

238 691843 Cap-Valve

240 394356 Filter-Fuel

265 691024 Clamp-Casing

267 695134 Screw (Casing Clamp)

276 692255 O1: Sealing Washer

276A 695410 (_t Sealing Washer

RPM Settings: Low Speed: 1900-2100

High Speed: 3900-3200

Included in Engine Gasket Set, Key. No.

358

1_ Included in Carburetor Overhaul Kit, Key.

No. 121 and121A

:1: Included in Carburetor Gasket Set, Key.

No. 977 and 977A

+ Included in Valve Gasket Set, Key. No.

1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR-- MODELNUMBER 917.271661

BRIGGS & STRA'R'ON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

287 691002 Screw (Dipstick Tube) 789 692037

304 690844 "Housing-Blower 789A 695050

305 690960 Screw (Blower Housing) 797 693167

306 690499 Shield-Cylinder 801 691429

307 691003 Screw (Cylinder Shield) 802 691286

309 693551 Motor-Starter 803 693757

310 690323 Screw (Starter Motor) 830 691095

311 497608 Brush Set 842 691870

333 495859 Armature-Magneto 847 496415

334 691061 Screw (Armature Magneto) 851 692424

337 491055 Spark Plug 868 690968

344 693675 Screw (Cable Clamp) 871 690969

358 690189 Engine Gasket Set 875 694942

363 19203 Flywheel Puller 877 393456

369 695422 Spring-Float Bowl 883 692236

383 89838 Wrench-Spark Plug 914 690960

404 691691 Washer (Governor Crank) 934 691058

445 496894 Filter-Air Cleaner Cartridge 947 497672

455 691173 Cup-Flywheel 947A 695423

462 691261 Washer (Brush Retainer) 967 272043

467 691668 Knob-Air Cleaner 968 691916

474 691063 Alternator 971 692129

503 691532 Strap-Starter 975 495933

505 691251 Nut (Governor Control Lever) 975A 695417

510 693699 Ddve-Starter 977 690192

513 692024 Clutch-Drive 977A 695428

523 692014 Dipstick 987 691326

524 281370 • Seal-Dipstick Tube 987A 690998

525 691398 Tube-Dipstick 996 690678

544 692034 Armature-Starter 1005 695056

552 491986 Bushing-Governor Lever 1006 690452

562 691119 Bolt (Governor Control Lever) 1019 690180

579 691029 Nut (Starter Cable) 1022 272475

601 95162 Clamp-Hose 1023 691192

614 691620 Pin-Cotter 1026 692003

616 692012 Crank-Governor 692011

617 692138 • O-Ring Seal (intake Manifold) 1029 691751

633 695414 Seal-Choke/Throttle Shaft 1034 690822

634 690801 O Seal-Spring Assembly 1036 695700

(Manual Choke) 1051 691265

634A 690802 (_ Seal-Spring Assembly 1058 274789

(Choke-A-Matic) 1090 691293

635 691909 Boot-Spark Plug 1091 691333

668 691323 Spacer 1095 690190

691 692407 • Seal-Governor Shaft 1119 691183

692 690572 Spring-Detent 1127 691657

697 690372 Screw (Drive Cap) 1127A695407

711 690703 Screw (Carburetor Shield) RPM Settings:

718 690959 Pin-Locating

727 490324 Cover-Starter Drive

729 691335 Clip-Wire

729A 691224 Clip-Wire

732 691002 Screw (Starter Drive Cover)

733 691658 Screw (Crankshaft Extension)

741 691284 Gear-Timing

757 691714 Link-Counterweight

758 692423 Counterweight

759 691239 Pin-Counterweight

761 691096 Screw (Counterweight)

783 693713 Gear-Pinion

DESCRIPTION

Harness-Wiring

Nut (Brush Retainer)

Cap-Drive

Cap-End

Housing-Starter

Stud (Rocker Arm)

• Dipstick/Tube Seal

Dipstick/Tube Assembly

Terminal-Spark Plug

•+ Seal-Valve

Bushing-Guide

Base-Air Cleaner

Wire-Connector/Alternator

• Gasket-Exhaust

Screw (Rocker Cover)

Screw (Fan Retainer)

Solenoid-Fuel

Filter-Pre Cleaner

Cover-Air Cleaner

Screw (Air Cleaner Base)

Bowl-Float

Set-Carburetor Gasket

• SeaI-Throftle Shaft

Seal-Throttle Shaft

Carburetor Shield

Fan-Flywheel

Retainer-Fan

Kit-Label

•+ Gasket-Rocker Cover

Cover-Rocker

Rod-Push (Intake)

Rod-Push (Exhaust)

Arm-Rocker

Guide-Push Rod

Label-Emissions

Retainer-Brush

Owner's Manual

Retainer-Brush

Cap-Limiter

Valve Gasket Set

Screw (Alternator)

Screw (Float Bowl)

Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No.

358

Q Included in Carburetor Overhaul Kit, Key.

No. 121 and121A

Included in Carburetor Gasket Set, Key.

No. 977 and 977A

+ Included in Valve Gasket Set, Key. No.

1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SERVICENOTE

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along dotted line indicated above.

2, Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure,

3. Sight across the fold In the direction of hill slope you want to measure,

4. Compare the angle of the fold with the slope of the hill.

(U.SA and Canada)

WY_l/,seats.ca

_ii¸_i _i_

;42 *

For repair of carry-in products like vacuums, lawn equipment, and

electronics, call for the nearest Sears Pads and Repair Center.

1-800-488-1222 Anytime,dayo_r_ht (U.SA on_y)

www.$ear$.col_

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirectS_! _':_,,.,_,_

1-800-366-PART 6&m.- 11p.m., 7days aweek

(1-800-366-7278) (u.sA only)

www.sears.com/partsdirect _:_"_"

To purchase or inquire about a Sears Service Agreement

or Sears Maintenance Agreement:

1-800 -827 -6655 (usA.). 1-800 -361 -6665 (Canada) ..............

7 a.m.- 5 p.m.,CST,Mort.- Sat. 9 a.m.- 8 p.m.EST,M- F,4 p.m.Sat. ....._"

Parape_r seiviciode reparad_ a Au Canadapourserviceenfranq,a_s:

dornicilb, yparaordenar piezas: 1-8(X)-LE-FOYER_c :

1-888-SU-HOGARsM (14_00-533-6937) ; [

(1-888-784--6427) v_w.sears.ca

@ Sea_, Roebuck an_ Co H°meCentra] (_

® Registered Trademark / TMTrademark / sM Service Mark of Sears, Roebuck and Co.

® Marca Registrada / _MMama de Fabrica / s_ Mama de Servicio de Sears, Roebuck and Co.

Mc Marque de commerce / MOMarque deposee de Sears, Roebuck and Co.

183353 4.4.02 JH Printed in U.S.A.

Craftsman 917271661 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917271661 Questions and Answers
