210616
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
SKU Number: 351-8801
2-LIGHT SEMI-FLUSH MOUNT
Model Number: MH201

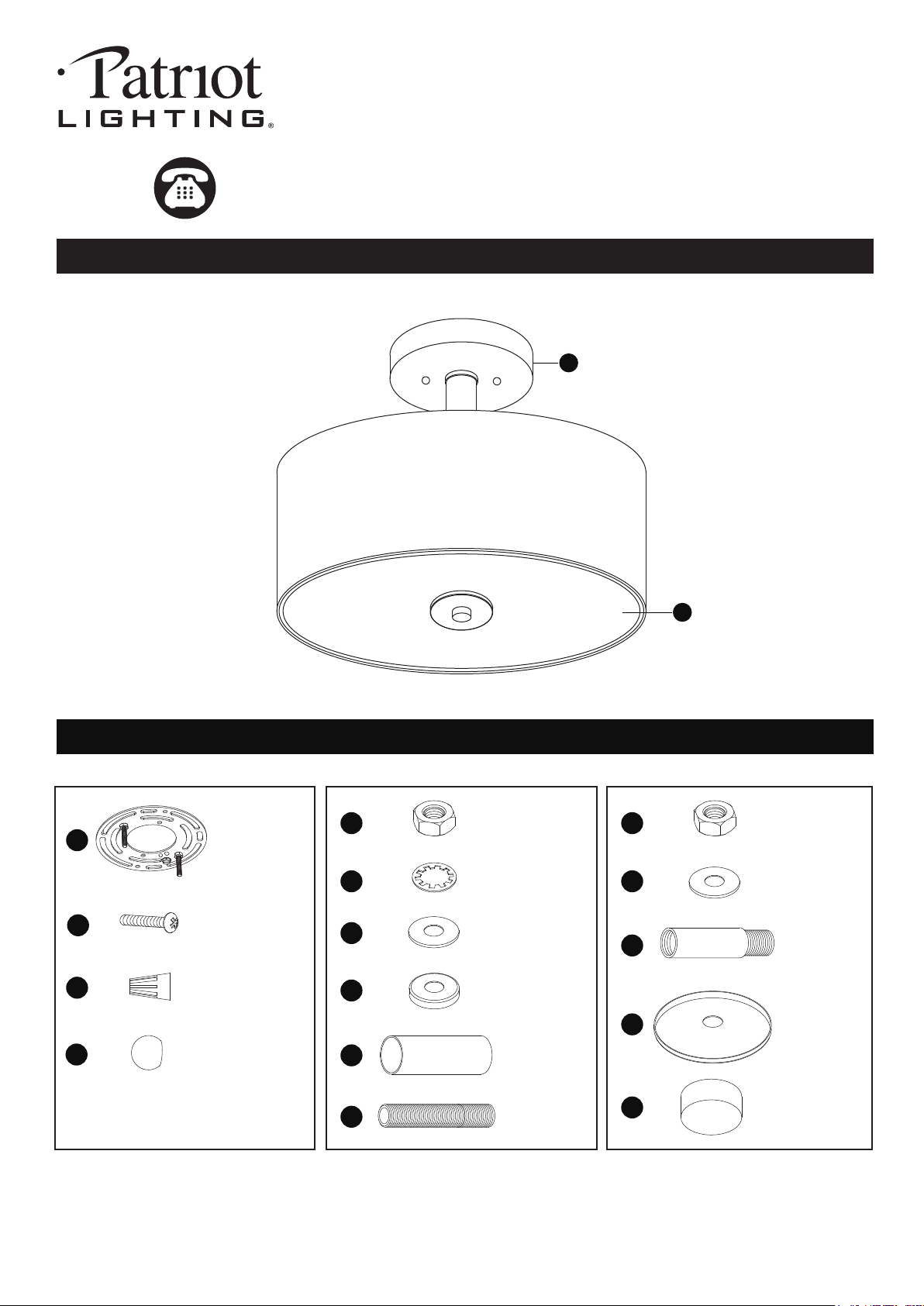

PACKAGE CONTENTS
HARDWARE CONTENTS
Mounting Screw
X2
Wire Connector
X3
AA
BB
Bolt Nut
X2
DD
CC
Mounting Plate
Unit
X1
Note: Hardware not shown actual size.
A
EE
FF
GG
Hex Nut
X2
Lock Washer
X2
Metal Pad
X1
HH
Tube Cap
X1
II
Tube
X1
JJ
Threaded Pipe
X1
KK
LL
MM
Hex Nut
X1
Metal Pad
X1
Rod
X1
NN
Decorative
Cap
X1
OO
Finial
X1
B
Page 2 of 4
210616
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or
switching off circuit breaker).
● Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
● All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
● Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
● Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
PREPARATION
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire
Cutters, Safety Glasses, Ladder, Wire Stripper.

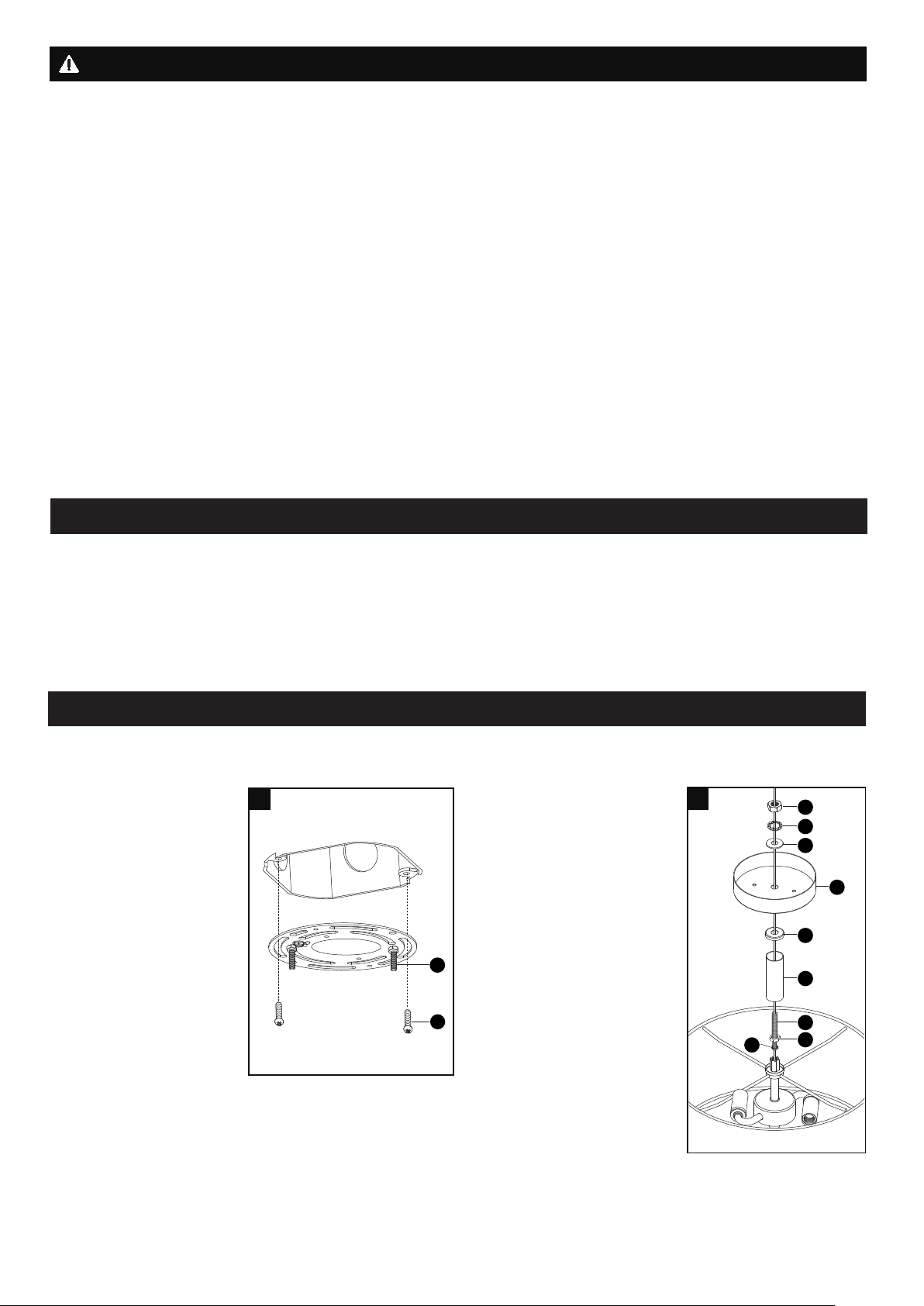

ASSEMBLY INSTRUCTIONS
SAFETY INFORMATION
1. Attach mounting plate
unit(AA) to outlet box by
using two mounting
screws(BB).
Note: The depth of
threaded pipe on the
mounting plate unit
may need to be adjusted
to properly fit the fixture.
Turn off the power at the fuse or circuit box.
2.
Thread the fixture wires
from the fixture through
the threaded pipe(JJ),
then secure the threaded
pipe(JJ) onto the fixture
using the lock washer(FF)
and hex nut(EE).
Thread the fixture wires
from the fixture through
the tube(II), tube cap(HH),
canopy(A), metal pad(GG)
,lock washer(FF) and hex
nut(EE) in sequence, then
secure them using the
hex nut(EE).
2
A
GG
FF
EE
HH
II
JJ
EE
FF
1
Outlet Box
BB
AA
Page 3 of 4
210616

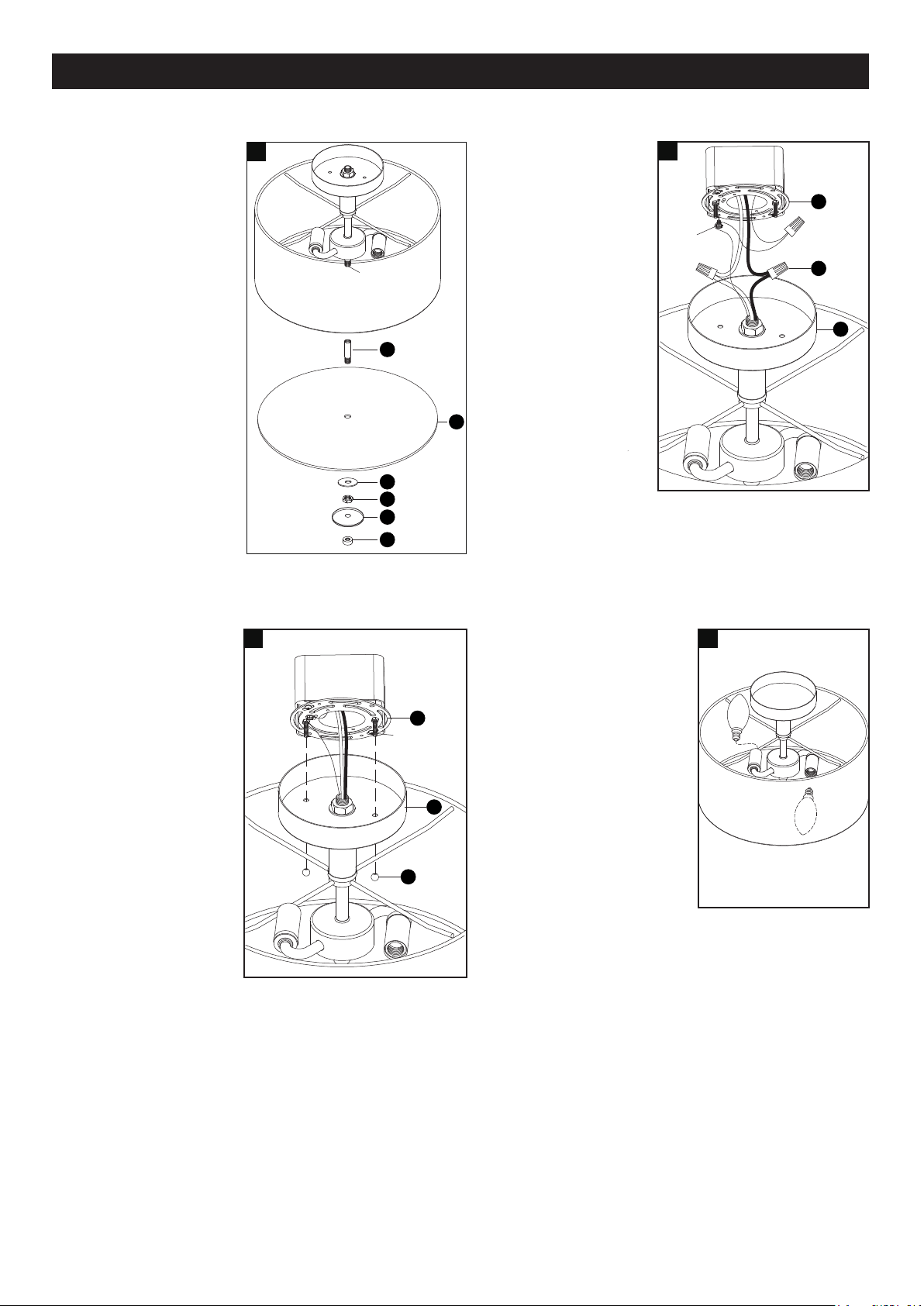

ASSEMBLY INSTRUCTIONS (continued)
3
4. Pull out the source
wires from the outlet
box, make wire
connections using
wire connectors(CC)
Green Ground
Screw
as follows:
---Connect the black
(hot) wire from the
fixture to the black
Threaded Pipe
(hot) wire from the
power source.
---Connect the white
(neutral) wire from the
fixture to the white
(neutral) wire from the
power source.
---Attach the fixture
ground wire(bare
wire) to the mounting
plate unit(AA) with the green ground screw,
then
connect the fixture ground wire to the house ground
wire with a wire connector(CC).
Carefully put all of the wires back into the outlet box.
6
6. Install 2x60W Candelabra
base bulbs. (not included)
See relamping label at
socket area or packaging
for maximum allowed
wattage.
B
OO
NN
KK
LL
MM
Candelabra base bulb
Max.60W
(not included)
5. Attach the canopy(A) to
the mounting plate unit
(AA) by aligning and
inserting the two fixture
mounting screws from
the mounting plate unit
(AA) into the open holes
on the canopy(A), then
secure the canopy(A)
with two bolt nuts(DD).
3. Attach the rod(MM) to the
fixture using the threaded
pipe.
Attach the acrylic plate(B)
to the rod(MM), and then
secure it with the metal
pad(LL) and hex nut(KK).
Attach the decorative cap
(NN) to the rod(MM), and
then secure it with the
finial(OO).
Turn on the power at the
fuse or circuit box.
4
CC
AA
A
Fixture Mounting
Screw
5
AA
DD
A
Page 4 of 4
210616
● To clean, turn off and wipe with a damp, non-abrasive cloth.
1) The light does not work:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
CARE AND MAINTENANCE
TROUBLESHOOTING
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R

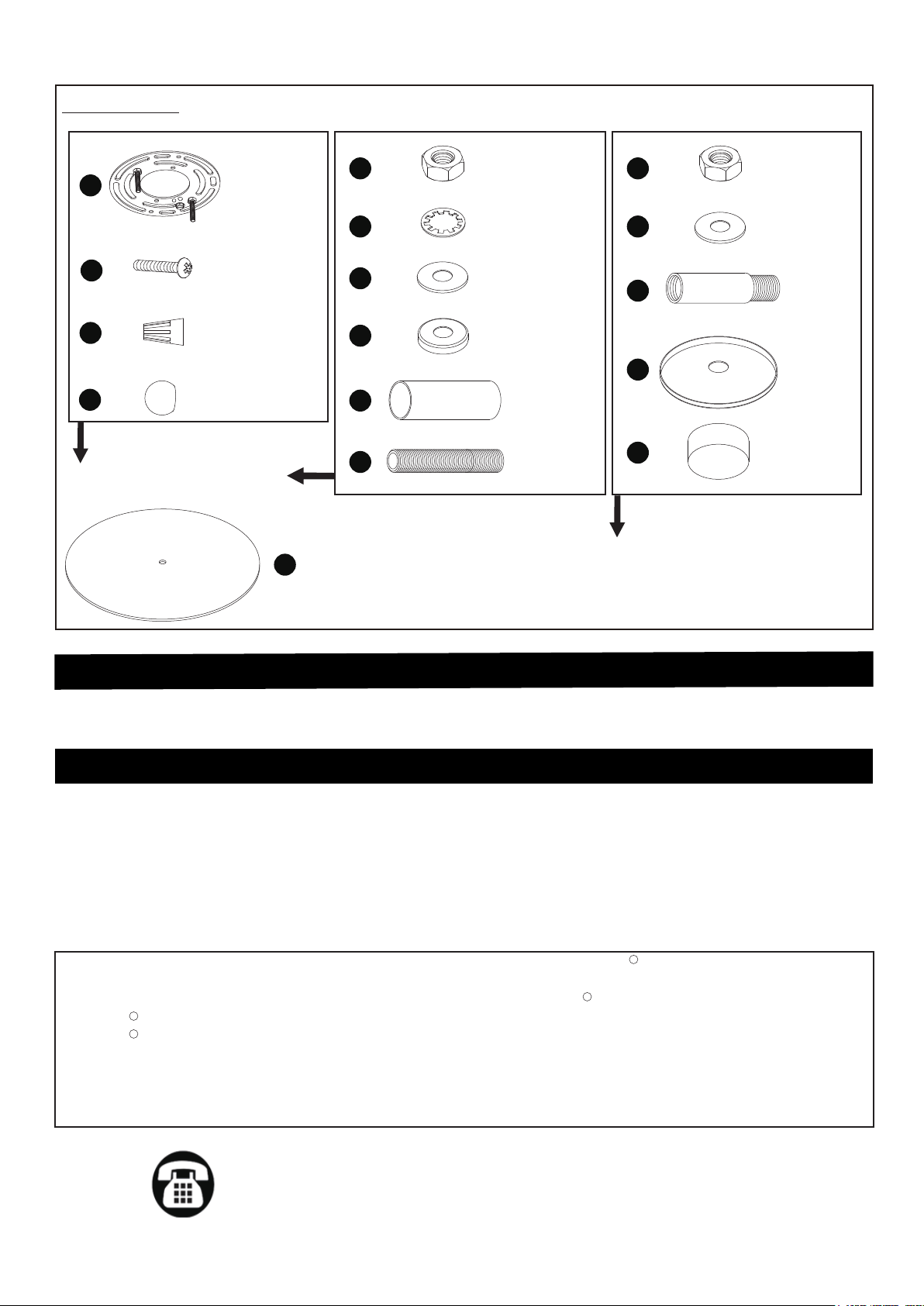

The following parts are available for reorder if damaged or missing. Call our toll free at 1-800-887-6326.
Spare Parts List:
Assembly Kit
6399MM (1 SET)
Mounting Screw
X2
Wire Connector
X3
AA
BB
Bolt Nut
X2
Acrylic Plate
10265AC
DD
CC
Mounting Plate
Unit
X1
EE
FF
GG
Hex Nut
X2
Lock Washer
X2
Metal Pad
X1
HH
Tube Cap
X1
II
Tube
X1
JJ
Threaded Pipe
X1
KK
LL
MM
Hex Nut
X1
Metal Pad
X1
Rod
X1
NN
Decorative
Cap
X1
OO
Finial
X1
Assembly Kit
6393MM (1 SET)
Assembly Kit
6398MM (1 SET)
B
