Craftsman 113177331 Full Blowing Wet/Dry Vacuum

Owner’s Manual

For 113177331. Additionally, the document applies to other Craftsman models: 113.177331

PDF File Manual, 12 pages, Read Online | Download pdf file

113177331 photo
background
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...

Owner’s Manual - Transcript

  • Page 1 - English - : Save This Manual for Future Reference 113.177311 113.177331 ————-|| SEARS/CRAFTSMAN Model and serial numbers may be : | B e 7 \ L L. O \ 5 found on the handle. voushoudrecctan FFU LL BLOWING place for future use. WET/DRY VAC FOR YOUR e operating SAFETY e repair parts INSTRUCTIONS Sears. Roebuck and Co. Hoffman Estates. IL. 60179 U.S.A. Part No. SP5535 | Printed in U.S.A.

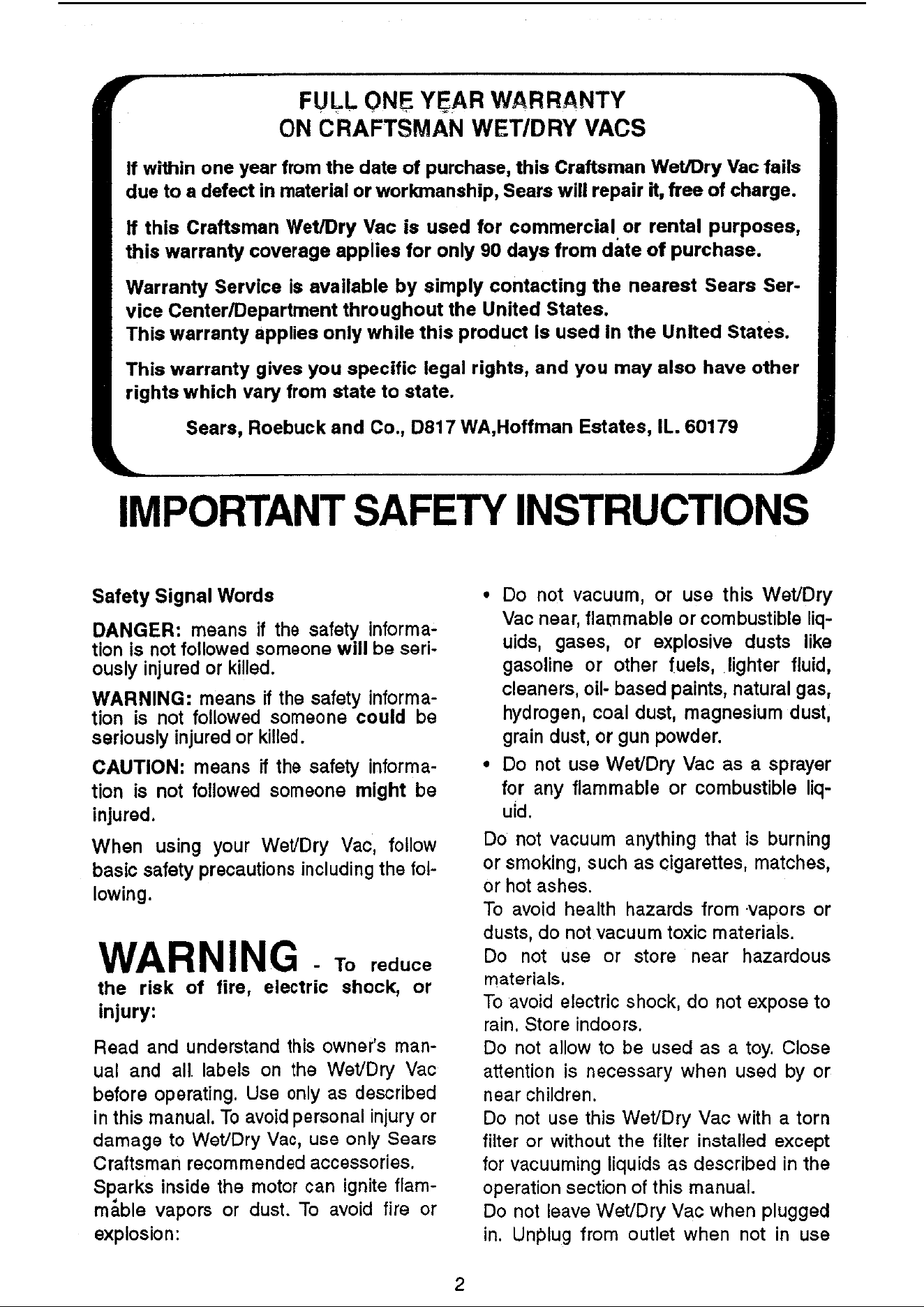

  • Page 2 - English - : FULL ONE YEAR WARRANTY ON CRAFTSMAN WET/DRY VACS if within one year from the date of purchase. this Craftsman Wet/Dry Vac fails due to a defect in material or workmanship. Sears will repair it. free of charge. lf this Craftsman Wet/Dry Vac is used for commercial or rental purposes. this warranty coverage applies for only 90 days from date of purchase. Warranty Service is available by simply contacting the nearest Sears Service Center/Department throughout the United States. | This warranty applies only while this product is used in the United States. This warranty gives you specific legal rights. and you may also have other rights which vary from state to state. Sears. Roebuck and Co. D817 WA. offman Estates. IL. 60179 IMPORTANT SAFETY INSTRUCTIONS Safety Signal Words DANGER: means if the safety information is not followed someone will be seriously injured or killed. WARNING: means if the safety information is not followed someone could be seriously injured or killed. CAUTION: means if the safety information is not followed someone might be When using your Wet/Dry Vac. follow _ basic safety precautions including the following. WARNING - To reduce the risk of fire. electric shock. or Read and understand this owner's manual and all labels on the Wet/Dry Vac before operating. Use only as described in this manual. To avoid personal injury or damage to Wet/Dry Vac. use only Sears Craftsman recommended accessories. Sparks inside the motor can ignite flammable vapors or dust. To avoid fire or ~ explosion: ¢ Do not vacuum. or use this Wet/Dry Vac near. flammable or combustible liquids. gases. or explosive dusts like gasoline or other fuels. lighter fluid. cleaners. oil- based paints. natural gas. hydrogen. coal dust. magnesium dust. grain dust. or gun powder. ¢ Do not use Wet/Dry Vac as a sprayer for any flammable or combustible liguid. Do not vacuum anything that is burning or smoking. such as cigarettes. matches. or hot ashes. To avoid health hazards from vapors or dusts. do not vacuum toxic materials. Do not use or store near hazardous materials. To avoid electric shock. do not expose to rain. Store indoors. Do not allow to be used as a toy. Close attention is necessary when used by or. near children. Do not use this Wet/Dry Vac with a torn filter or without the filter installed except for vacuuming liquids as described in the operation section of this manual. Do not leave Wet/Dry Vac when plugged in. Unplug from outlet when not in use

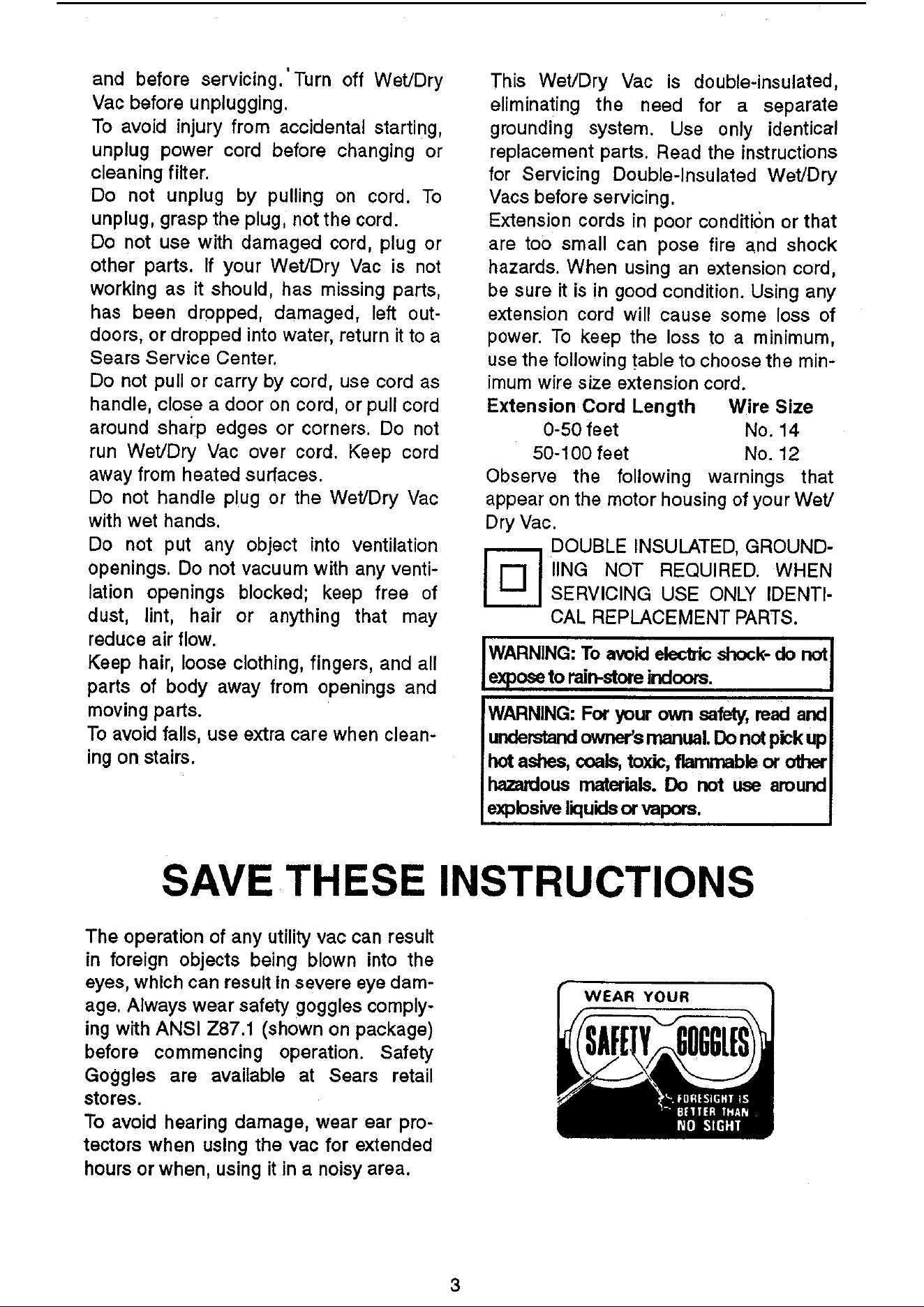

  • Page 3 - English - : and before servicing. Turn off Wet/Dry Vac before unplugging. To avoid injury from accidental starting. unplug power cord before changing or cleaning filter. Do not unplug by pulling on cord. To unplug. grasp the plug. not the cord. Do not use with damaged cord. plug or other parts. If your Wet/Dry Vac is not working as it should. has missing parts. has been dropped. damaged. left outdoors. or dropped into water. return it toa Sears Service Center. Do not pull or carry by cord. use cord as handle. close a door on cord. or pull cord around sharp edges or corners. Do not run Wet/Dry Vac over cord. Keep cord away from heated surfaces. Do not handie plug or the Wet/Dry Vac with wet hands. Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked; keep free of dust. lint. hair or anything that may reduce air flow. Keep hair. loose clothing. fingers. and all parts of body away from openings and moving parts. | To avoid falls. use extra care when cleaning on stairs. This Wet/Dry Vac is double-insulated. eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions for Servicing Double-insulated Wet/Dry Vacs before servicing. Extension cords in poor condition or that are too smail can pose fire and shock hazards. When using an extension cord. be sure it is in good condition. Using any extension cord will cause some loss of power. To Keep the loss to a minimum. use the following table to choose the minimum wire size extension cord. Extension Cord Length Wire Size 0-50 feet No. 14 50-100 feet No. 12 Observe the following warnings that appear on the motor housing of your Wet/ DOUBLE INSULATED. GROUNDING NOT REQUIRED. WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS. WARNING: To avoid electric shock- do not expose to rain-store indoors. WARNING: For your own safety. read and understand owner's manual. Do not pick up hot ashes. coals. toxic. flammable or other hazardous materials. Do not use around explosive liquids or vapors. SAVE THESE INSTRUCTIONS The operation of any utility vac can result In foreign objects being blown into the eyes. which can result in severe eye damage. Always wear safety goggles complying with ANSI 287.1 (shown on package) before commencing operation. Safety Goggles are available at Sears retail To avoid hearing damage. wear ear protectors when using the vac for extended hours or when. using it in a noisy area. SAFETY GOGGLES | ea eet L LLL!

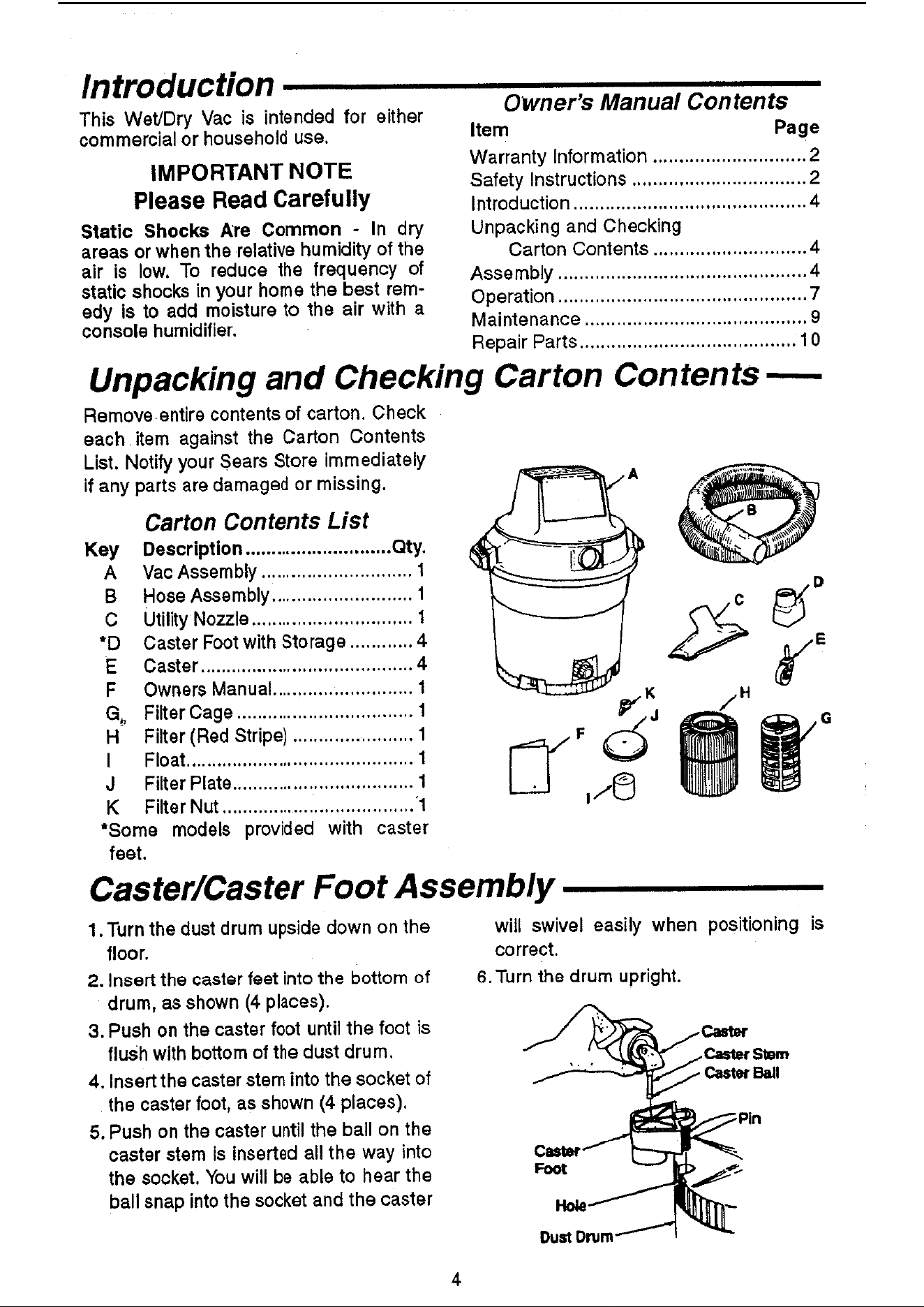

  • Page 4 - English - : Introduction This Wet/Dry Vac is intended for either commercial or household use. IMPORTANT NOTE Please Read Carefully Static Shocks Are Common - In dry areas or when the relative humidity of the air is low. To reduce the frequency of static shocks in your home the best remedy is to add moisture to the air with a console humidifier. Owner’s Manual Contents Safety INStructions oo... esccceeeseeneneeees 2 PPPLECCHIC TION os anerce nes 03 cane: zs wes sens pees sacons ones 4 Unpacking and Checking Carton Content 20... cecneeseesecees 4 MaiNt@AANGG qn enn acs 24 sa eye ye co nowser cuss sees ee 9 Unpacking and Checking Carton Contents —— Remove entire contents of carton. Check each. item against the Carton Contents List. Notify your Sears Store immediately if any parts are damaged or missing. Carton Contents List A Vac ASSEMDIY occ cccseeseeeeeeceees 1 C Utility NOZZIe oi eseesenettereeeens 1 *D Caster Foot with Storage............ 4 G. Filter Cage oe eeereerrereereene | H Filter (Red Stripe) ......... ... cena eves 1 Jo Filter Plate... eee seesereree 1 K Filter NUt.....c cece ceecseeceeeeeteneee ens 4 *Some models provided with caster Caster/Caster Foot Assembly 1. Turn the dust drum upside down on the 2. Insert the caster feet into the bottom of drum. as shown (4 places). 3. Push on the caster foot until the foot is flush with bottom of the dust drum. 4. Insert the caster stem into the socket of the caster foot. as shown (4 places). 5. Push on the caster until the ball on the caster stem is inserted all the way into the socket. You will be able to hear the ball snap into the socket and the caster will swivel easily when positioning is 6. Turn the drum upright.

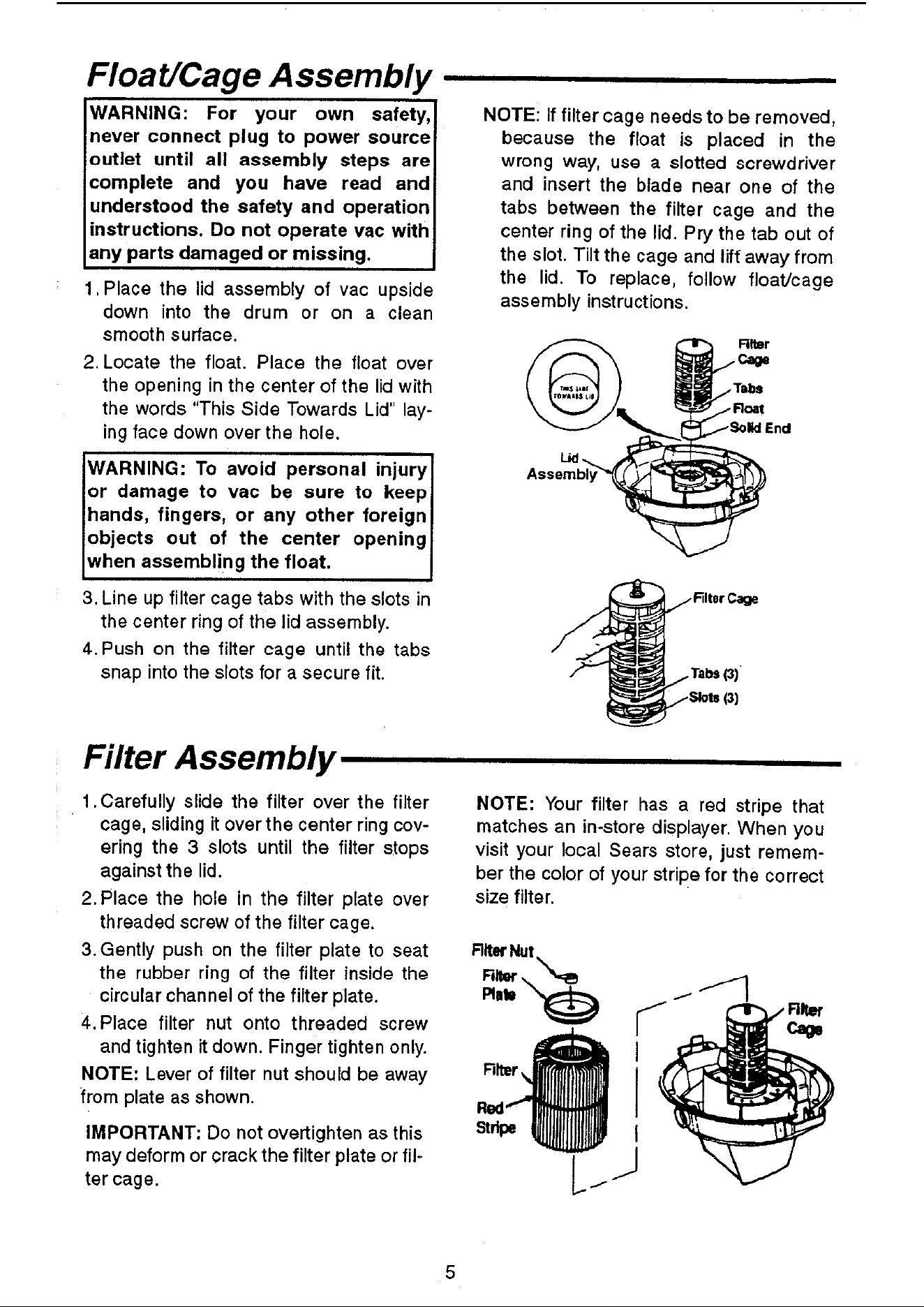

  • Page 5 - English - : Float/Cage Assembly WARNING: For your own safety. never connect plug to power source outlet until all assembly steps are complete and you have read and understood the safety and operation instructions. Do not operate vac with any parts damaged or missing. 1.Place the lid assembly of vac upside down into the drum or on a clean smooth surface. 2.Locate the float. Place the float over the opening in the center of the lid with the words “This Side Towards Lid” laying face down over the hole. WARNING: To avoid personal injury or damage to vac be sure to keep hands. fingers. or any other foreign objects out of the center opening when assembling the float. 3. Line up filter cage tabs with the slots in the center ring of the lid assembly. 4.Push on the filter cage until the tabs snap into the slots for a secure fit. Filter Assembly Carefully slide the filter over the filter cage. sliding it over the center ring covering the 3 slots until the filter stops against the lid. | 2.Place the hole in the filter plate over threaded screw of the filter cage. 3.Gently push on the filter plate to seat the rubber ring of the filter inside the ' circular channel of the filter plate. 4.Place filter nut onto threaded screw and tighten it down. Finger tighten only. NOTE: Lever of filter nut should be away from plate as shown. IMPORTANT: Do not overtighten as this may deform or crack the filter plate or filter cage. NOTE: if filter cage needs to be removed. because the float is placed in the wrong way. use a slotted screwdriver and insert the blade near one of the tabs between the filter cage and the center ring of the lid. Pry the tab out of the slot. Tilt the cage and liff away from the lid. To replace. follow float/cage assembly instructions. Filter Cage NOTE: Your filter has a red stripe that matches an in-store displayer. When you visit your local Sears store. just remember the color of your stripe for the correct size filter. |

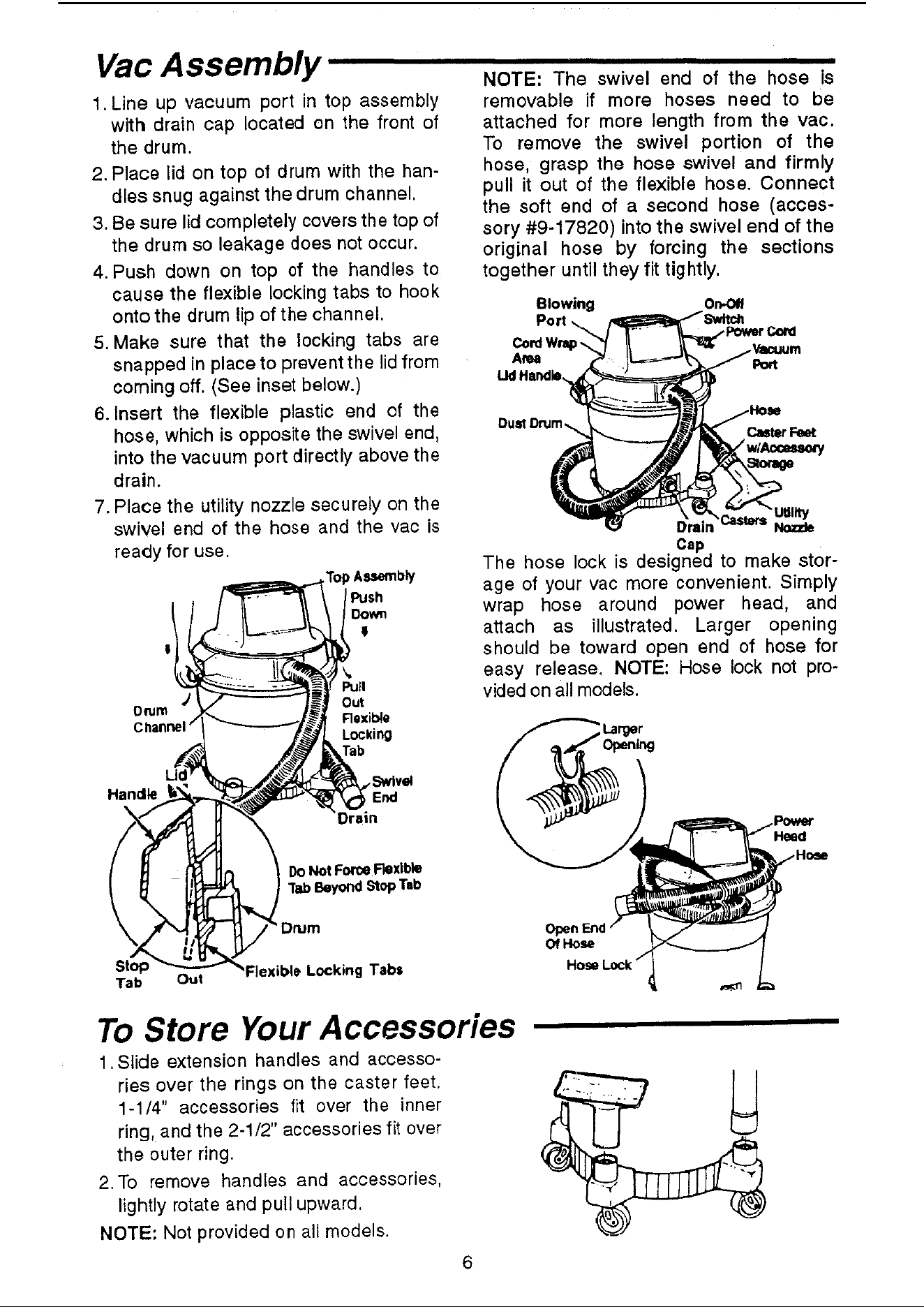

  • Page 6 - English - : Vac Assembly 1. Line up vacuum port in top assembly with drain cap located on the front of 2. Place lid on top of drum with the handles snug against the drum channel. 3. Be sure lid completely covers the top of the drum so leakage does not occur. 4.Push down on top of the handles to cause the flexible locking tabs to hook onto the drum lip of the channel. 5.Make sure that the locking tabs are snapped in place to prevent the lid from coming off. (See inset below.) 6. Insert the flexible plastic end of the hose. which is opposite the swivel end. into the vacuum port directly above the 7.Place the utility nozzle securely on the swivel end of the hose and the vac is ready for use. Top Assembly =4 Flexible fe 4 Ui SGN. Swivel Handle & RAS oD @ 4 End Do Not Force Flexible Tab Beyond Stop Tab Tab Out Flexible Locking Tabs To Store Your Accessories 1.Slide extension handles and accessories over the rings on the caster feet. 4-1/4" accessories fit over the inner ring. and the 2-1/2” accessories fit over the outer ring. 2.To remove handles and accessories. lightly rotate and pull upward. NOTE: Not provided on all models. NOTE: The swivel end of the hose is removable if more hoses need to be attached for more length from the vac. To remove the swivel portion of the hose. grasp the hose swivel and firmly puil it out of the flexible hose. Connect the soft end of a second hose (accessory #9-17820) into the swivel end of the original hose by forcing the sections together until they fit tightly. The hose lock is designed to make storage of your vac more convenient. Simply wrap hose around power head. and attach as illustrated. Larger opening should be toward open end of hose for easy release. NOTE: Hose lock not provided on all models. wg” Opening

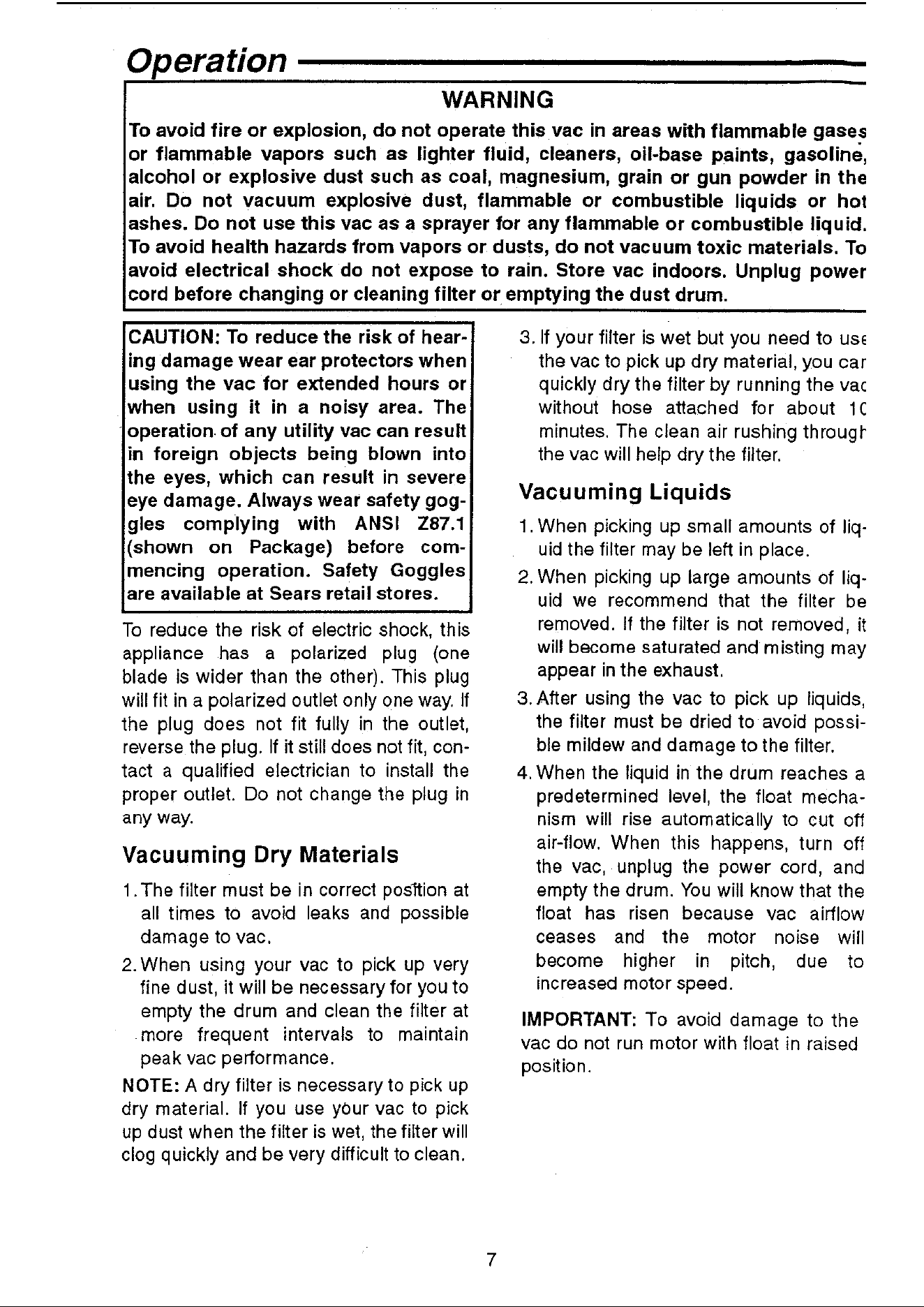

  • Page 7 - English - : To avoid fire or explosion. do not operate this vac in areas with flammable gases or flammable vapors such as lighter fluid. cleaners. oil-base paints. gasoline. alcohol or explosive dust such as coal. magnesium. grain or gun powder in the air. Do not vacuum explosive dust. flammable or combustible liquids or hot ashes. Do not use this vac as a sprayer for any flammable or combustible liquid. To avoid health hazards from vapors or dusts. do not vacuum toxic materials. To avoid electrical shock do not expose to rain. Store vac indoors. Unplug power CAUTION: To reduce the risk of hearing damage wear ear protectors when using the vac for extended hours or |when using it in a noisy area. The |operation. of any utility vac can result in foreign objects being blown into the eyes. which can result in severe eye damage. Always wear safety goggles complying with ANSI Z87.1 (shown on Package) before commencing operation. Safety Goggles are available at Sears retail stores. To reduce the risk of electric shock. this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet. reverse the plug. If it still does not fit. contact a qualified electrician to install the proper outlet. Do not change the plug in Vacuuming Dry Materials 1. The filter must be in correct position at all times to avoid leaks and possible damage to vac. 2.When using your vac to pick up very fine dust. it willbe necessary for you to empty the drum and clean the filter at more frequent intervals to maintain peak vac performance. NOTE: A dry filter is necessary to pick up dry material. If you use your vac to pick up dust when the filter is wet. the filter will clog quickly and be very difficult to clean. cord before changing or cleaning filter or emptying the dust drum. 3. If your filter is wet but you need to use the vac to pick up dry material. you car quickly dry the filter by running the vac without hose attached for about 1C minutes. The clean air rushing through the vac will help dry the filter. Vacuuming Liquids 1. When picking up small amounts of liquid the filter may be left in place. 2.When picking up large amounts of liquid we recommend that the filter be removed. If the filter is not removed. it will become saturated and misting may appear in the exhaust. 3. After using the vac to pick up liquids. the filter must be dried to avoid possible mildew and damage to the filter. 4.When the liquid in the drum reaches a predetermined level. the float mechanism will rise automatically to cut off air-flow. When this happens. turn off the vac. unplug the power cord. and empty the drum. You will know that the float has risen because vac airflow ceases and the motor noise will become higher in pitch. due to increased motor speed. IMPORTANT: To avoid damage to the vac do not run motor with float in raised

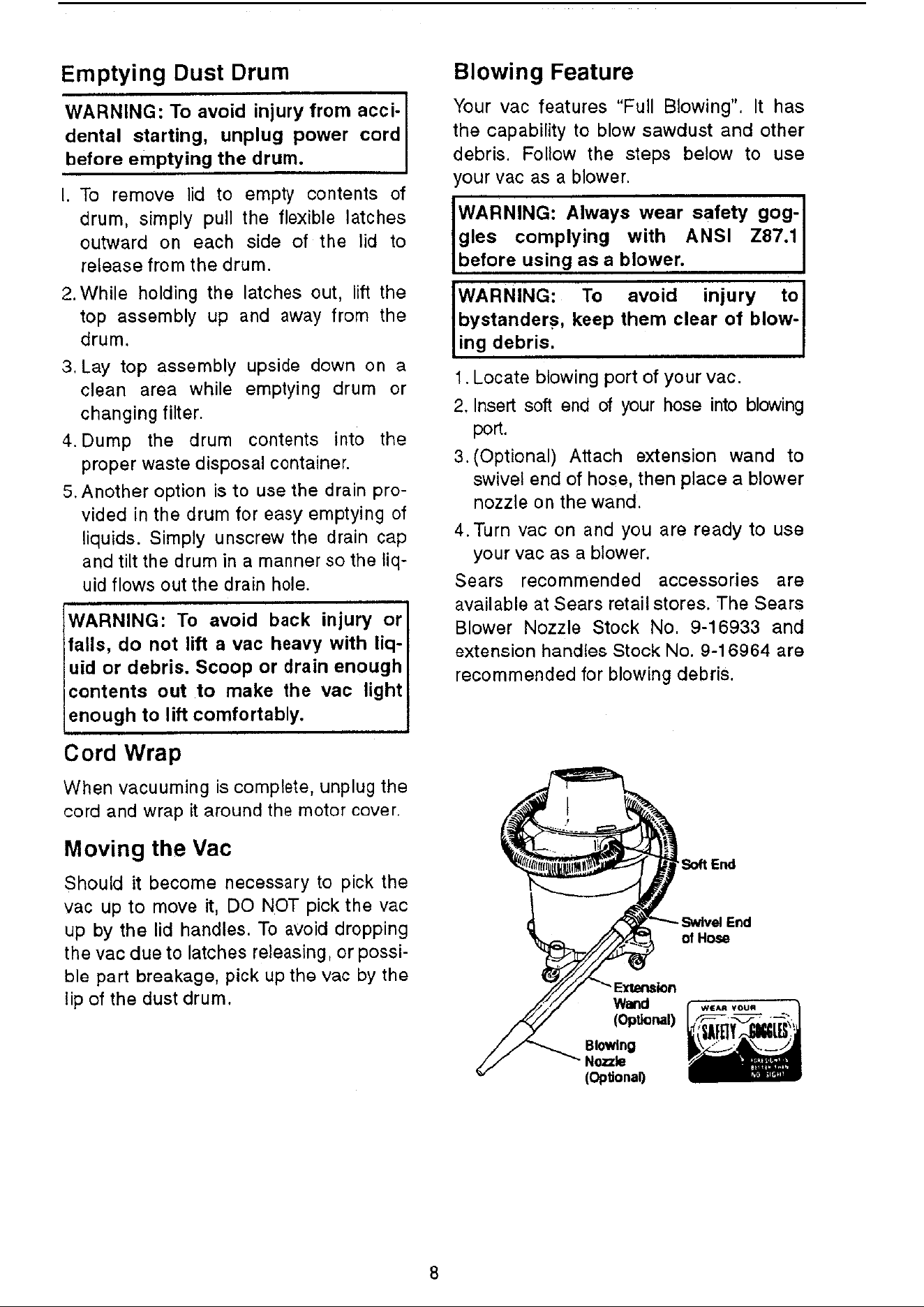

  • Page 8 - English - : Emptying Dust Drum WARNING: To avoid injury from accidental starting. unplug power cord before emptying the drum. |. To remove lid to empty contents of drum. simply pull the flexible latches outward on each side of the lid to release from the drum. 2.While holding the latches out. lift the top assembly up and away from the 3.Lay top assembly upside down on a clean area while emptying drum or changing filter. 4.Dump the drum contents into the proper waste disposal container. 5. Another option is to use the drain provided in the drum for easy emptying of liquids. Simply unscrew the drain cap and tilt the drum in a manner so the liquid flows out the drain hole. WARNING: To avoid back injury or falls. do not lift a vac heavy with liquid or debris. Scoop or drain enough contents out to make the vac light enough to lift comfortably. When vacuuming is complete. unplug the cord and wrap it around the motor cover. Moving the Vac Should it become necessary to pick the vac up to move it. DO NOT pick the vac up by the lid handles. To avoid dropping the vac due to latches releasing. or possible part breakage. pick up the vac by the lip of the dust drum. Blowing Feature Your vac features “Full Blowing”. It has the capability to blow sawdust and other debris. Follow the steps below to use your vac as a blower. WARNING: Always wear safety goggles complying with ANSI Z87.1 before using as a blower. WARNING: To avoid injury to bystanders. keep them clear of blowing debris. 1. Locate blowing port of your vac. 2. Insert soft end of your hose into blowing 3.(Optional) Attach extension wand to swivel end of hose. then place a blower nozzle on the wand. | 4. Turn vac on and you are ready to use your vac as a blower. Sears recommended accessories are available at Sears retail stores. The Sears Blower Nozzle Stock No. 9-16933 and extension handles Stock No. 9-16964 are recommended for blowing debris.

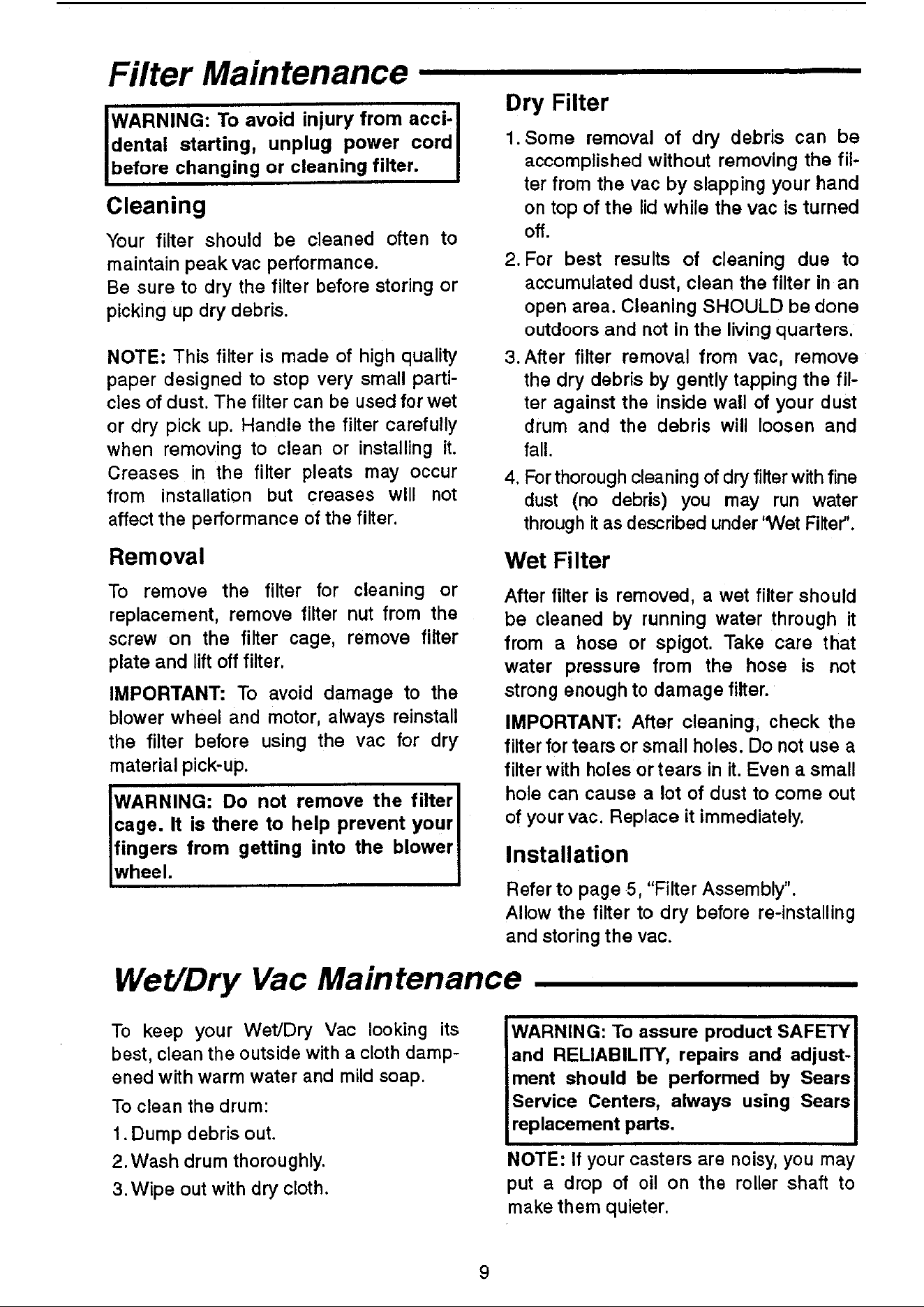

  • Page 9 - English - : Filter Maintenance WARNING: To avoid injury from accidental starting. unplug power cord before changing or cleaning filter. Your filter should be cleaned often to maintain peak vac performance. Be sure to dry the filter before storing or picking up dry debris. NOTE: This filter is made of high quality paper designed to stop very small particles of dust. The filter can be used for wet or dry pick up. Handle the filter carefully when removing to clean or installing it. Creases in the filter pleats may occur from installation but creases will not affect the performance of the filter. To remove the filter for cleaning or replacement. remove filter nut from the | screw on the filter cage. remove filter plate and lift off filter. IMPORTANT: To avoid damage to the blower wheel and motor. always reinstall the filter before using the vac for dry material pick-up. WARNING: Do not remove the filter cage. It is there to help prevent your fingers from getting into the blower Wet/Dry Vac Maintenance To keep your Wet/Dry Vac looking its best. clean the outside with a cloth dampened with warm water and mild soap. To clean the drum: 1.Dump debris out. 2.Wash drum thoroughly. 3. Wipe out with dry cloth. Dry Filter 1.Some removal of dry debris can be accomplished without removing the filter from the vac by slapping your hand on top of the lid while the vac is turned 2.For best results of cleaning due to accumulated dust. clean the filter in an open area. Cleaning SHOULD be done outdoors and not in the living quarters. 3. After filter removal from vac. remove the dry debris by gently tapping the filter against the inside wall of your dust drum and the debris will loosen and 4. For thorough cleaning of dry filter with fine dust (no debris) you may run water through it as described under Wet Filter’. Wet Filter After filter is removed. a wet filter should be cleaned by running water through it from a hose or spigot. Take care that water pressure from the hose is not strong enough to damage filter. IMPORTANT: After cleaning. check the filter for tears or small holes. Do not use a filter with holes or tears in it. Even a small hole can cause a lot of dust to come out of your vac. Replace it immediately. Installation Refer to page 5. “Filter Assembly”. Allow the filter to dry before re-installing and storing the vac. WARNING: To assure product SAFETY and RELIABILITY. repairs and adjustment should be performed by Sears Service Centers. always using Sears replacement parts. NOTE: If your casters are noisy. you may put a drop of oil on the roller shaft to make them quieter.

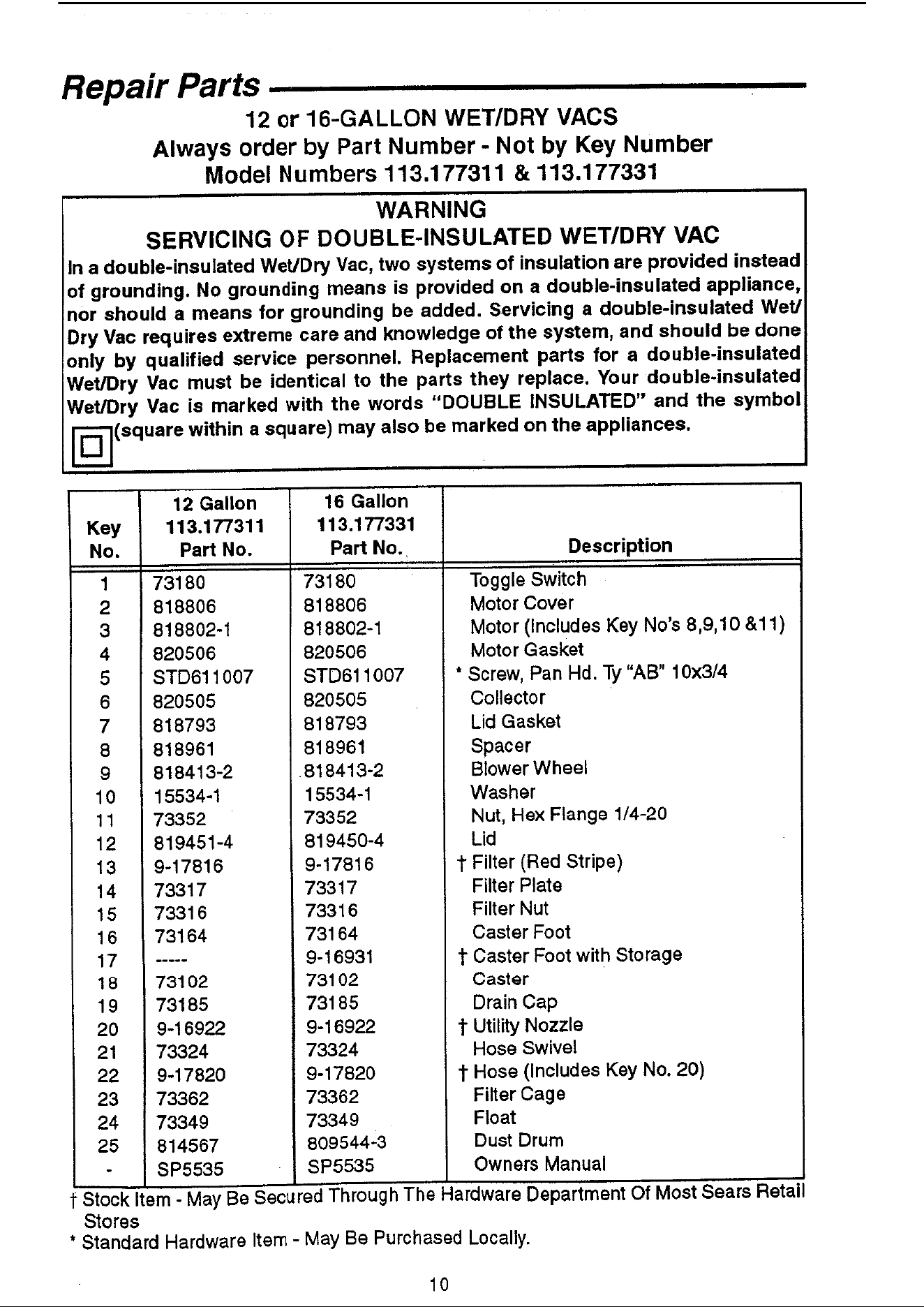

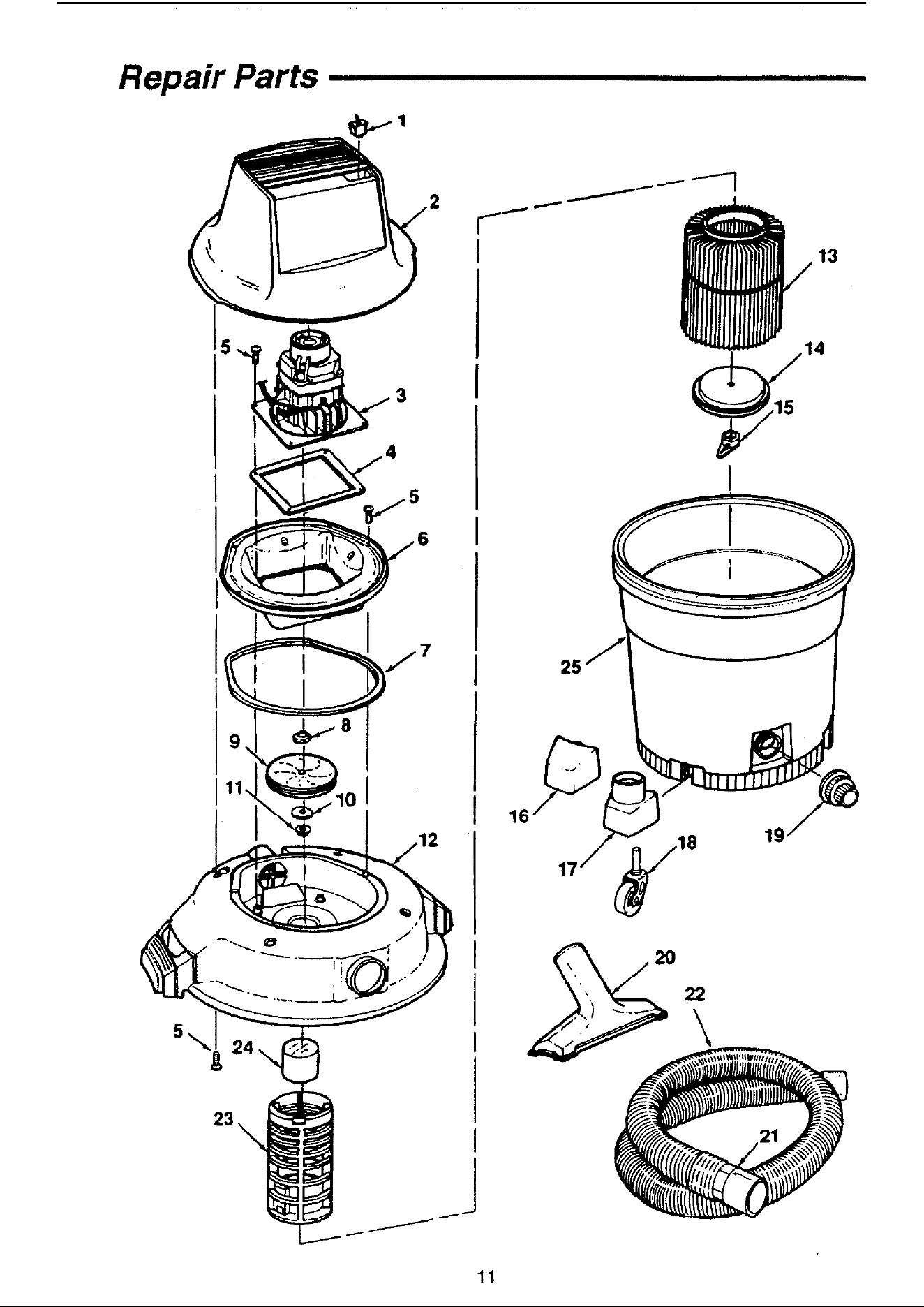

  • Page 10 - English - : Repair Parts {2 or 16-GALLON WET/DRY VACS Always order by Part Number - Not by Key Number Model Numbers 113.177311 & 113.177331 SERVICING OF DOUBLE-INSULATED WET/DRY VAC In a double-insulated Wet/Dry Vac. two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance. nor should a means for grounding be added. Servicing a double-insulated Wet/ Dry Vac requires extreme care and knowledge of the system. and should be done only by qualified service personnel. Replacement parts for a double-insulated Wet/Dry Vac must be identical to the parts they replace. Your double-insulated Wet/Dry Vac is marked with the words “DOUBLE INSULATED” and the symbol faye" within a square) may also be marked on the appliances. 113.177331 113.177311 Description ¢ Stock Item - May Be Secured Through The Hardware Department Of Most Sears Retail 1 73180 73180 Toggle Switch 2 818806 818806 Motor Cover 3 818802-1 818802-1 Motor (Includes Key No’s 8.. 0 &11) 4 | 820506 820506 Motor Gasket 5 STD611007 STD61 1007 * Screw. Pan Hd. Ty “AB” 10x3/4 6 820505 820505 Collector | 7 818793 818793 Lid Gasket 8 818961 818961 Spacer g 818413-2 £818413-2 Blower Wheel 15534-1 15534-1 Washer 73352 73352 Nut. Hex Flange 1/4-20 819451-4 819450-4 Lid 9-17816 9-17816 t Filter (Red Stripe) 73317 73317 Filter Plate 73316 73316 Filter Nut 73164 73164 Caster Foot ae 9-16931 + Caster Foot with Storage 73102 73102 Caster | 73185 73185 Drain Cap 9-16922 9-16922 t Utility Nozzle 73324 73324 Hose Swivel 9-17820 9-17820 { Hose (Includes Key No. 20) 73362 73362 Filter Cage 73349 73349 Float 814567 809544-3 Dust Drum Owners Manual * Standard Hardware Item - May Be Purchased Locally.

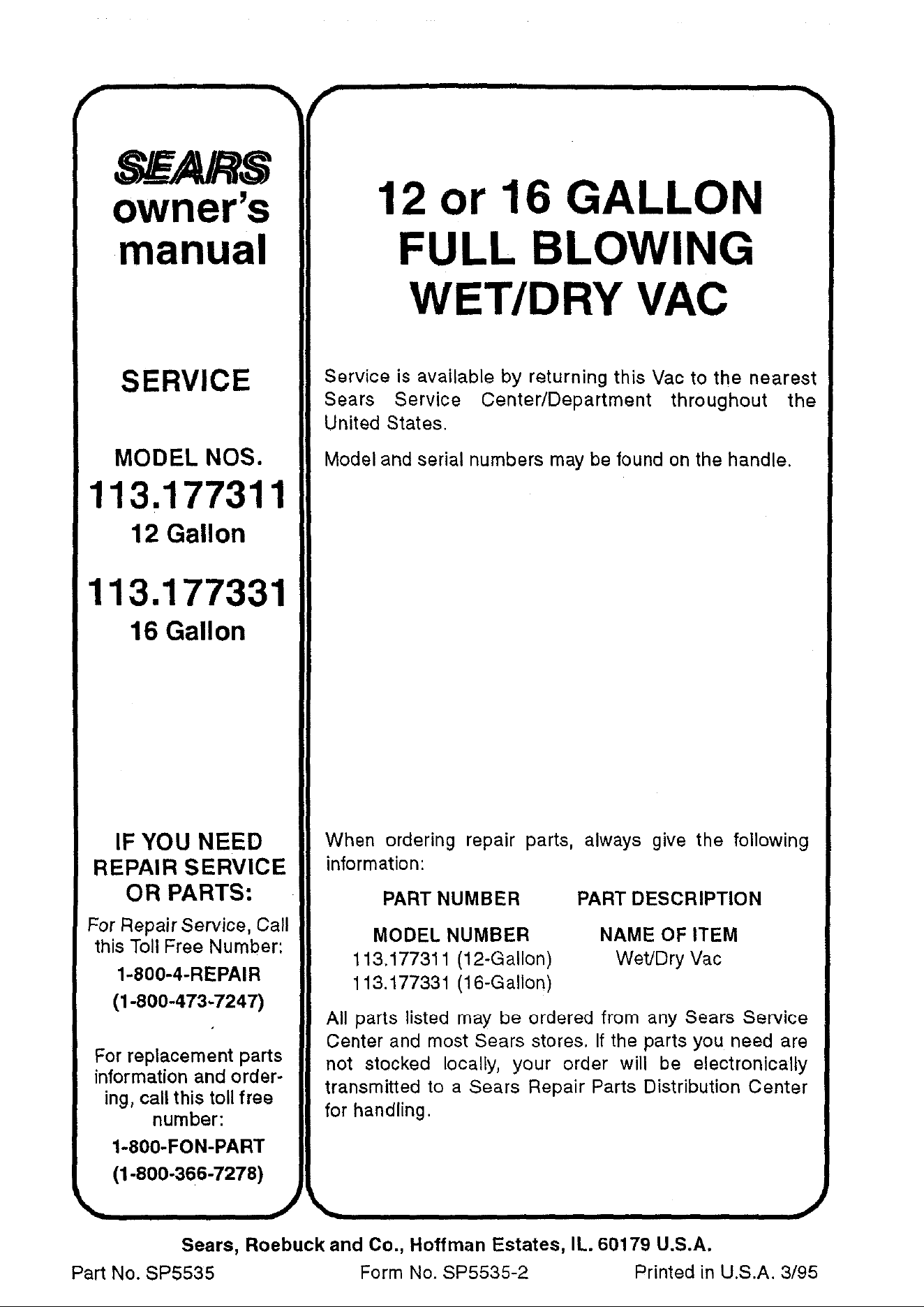

  • Page 12 - English - : MODEL NOS. 113.177311 113.177331 IF YOU NEED REPAIR SERVICE For Repair Service. Call this Toll Free Number: 1-800-4-REPAIR (1-800-473-7247) For replacement parts information and ordering. call this toll free 1-800-FON-PART (1-800-366-7278) 12 or 16 GALLON FULL BLOWING WET/DRY VAC Service is available by returning this Vac to the nearest Sears Service Center/Department throughout the United States. Model and serial numbers may be found on the handle. When ordering repair parts. always give the following information: PART NUMBER MODEL NUMBER 113.177311 (12-Gallon) 113.177331 (16-Gallon) PART DESCRIPTION NAME OF ITEM Wet/Dry Vac All parts listed may be ordered from any Sears Service Center and most Sears stores. If the parts you need are not stocked locally. your order will be electronically transmitted to a Sears Repair Parts Distribution Center for handling. Sears. Roebuck and Co. Hoffman Estates. IL. 60179 U.S.A. Part No. SP5535 Form No. SP5535-2 Printed in U.S.A. 3/95
