INSTRUCTION MANUAL
14 INCH TOWER FAN
MODEL NO: TS-14B
Thank you for purchasing 14Inch Tower Fan. We recommend that you
spend some time reading these instructions in order to fully understand
all the operational features it offers
Important Instructions – Retain for future use.
IMPORTANT SAFEGUARDS
When using your Tower Fan, the following safety precautions must be
followed.
• The appliance is for household and indoor use only.
• Before plugging in, check that the voltage on the fan rating label
is the same as the mains supply.
• To protect against electric shock, do not immerse any part of the
fan in water or other liquid.
• This fan is intended for use by competent adults only and
children should be supervised at all times.
• It is recommended to unplug the fan from the mains socket
when not in use.
• Always remove from the mains socket before cleaning.
• The supply cable cannot be replaced. If the cable is damaged
the appliance should be scrapped.
• Do not let the cable hang over the end of a table or work surface,
or touch hot surfaces.
• Do not use the appliance for other than its intended use.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless
continuously supervised. Children from 3 years and less than 8
years shall only switch on/off the appliance provided that it has
been placed or installed in its intended normal operating position
and they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years
shall not plug in, regulate and clean the appliance or perform
user maintenance.
• Don’t use this fan in the immediate surroundings of a bath, a
shower or a swimming pool. Never locate the fan where it may
fall into the bath tub or other water container.
• In case of malfunction, do not try to repair the fan yourself, it
may result in a fire hazard or electric shock.
OPERATING INSTRUCTIONS
• Select a suitable location for the fan. Always choose a safe
location in accordance with the Important Safeguards.
• When placing a fan on a table or shelf, always ensure that the
power cord does not hang where it can accidentally pulled
causing the fan to fall.
• Connect the plug to a suitable power socket
• Connect the power and press Speed buttons ( 1, 2, 3). The fan
will turn on and blow winds according to the speed you chose.

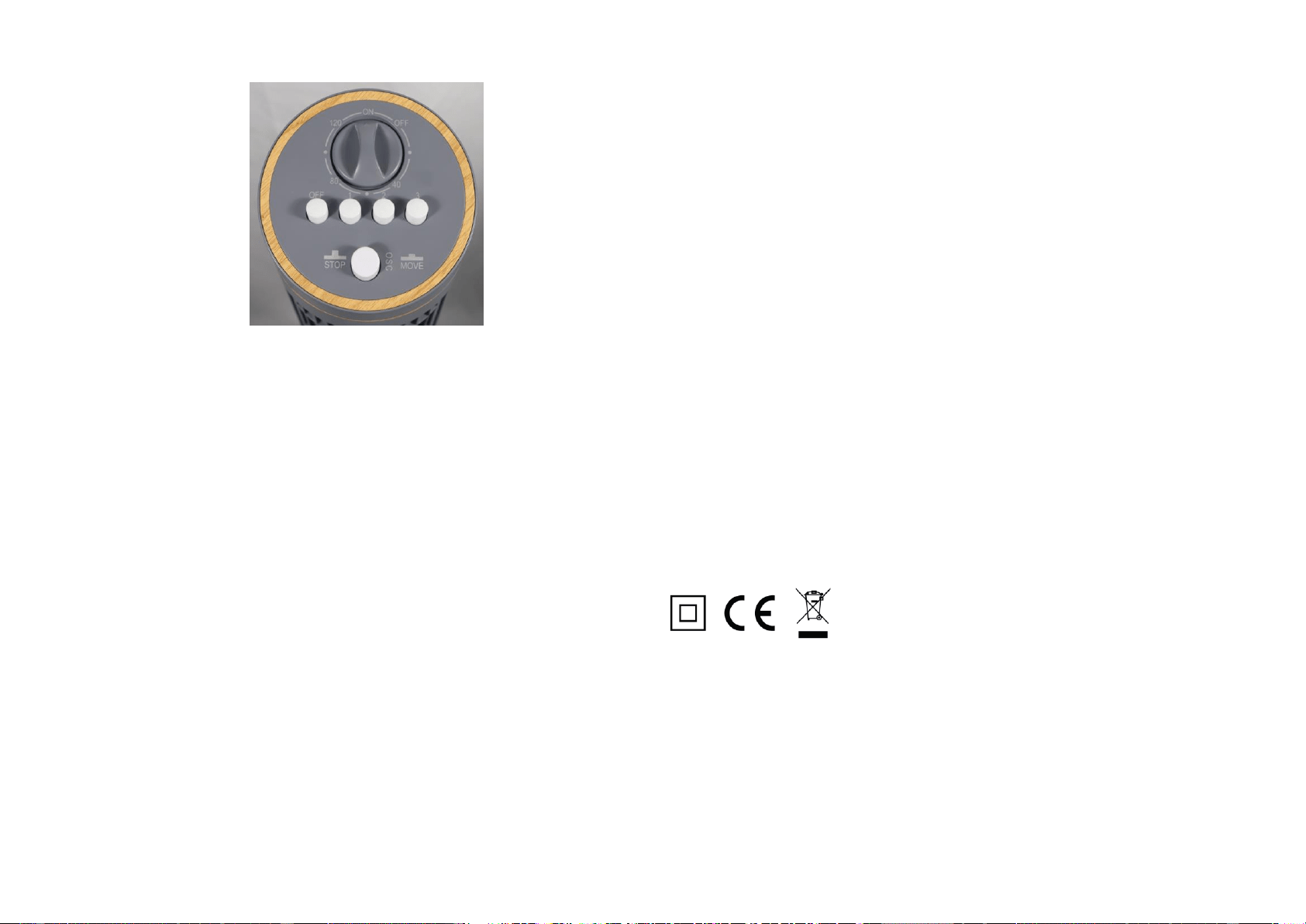

Functions of Button:
a) OFF: To stop the fan.
b) Speed setting (1, 2, 3): To select require fan speed by Low
(1), Medium (2), High (3)
c) Oscillation : To start or stop the oscillation function.
When press down the button, it will move to oscillating. When
second press, it will stop oscillating.
• Timer: To preset the timer for the fan to operate at 20 minutes,
40 minutes, 60 minutes, 80 minutes, 100 minutes and the
maximum time allow is 120 minutes turn the dial to the required
time.
MAINTENANCE
• Cleaning and user maintenance shall not be made by children
without supervision.
• Switch off and unplug from the power supply before assembling
or disassembling and cleaning.
• Keep the air vents at the rear of the main body free from dust or
fluff– use a vacuum cleaner to remove these when necessary.
Do not probe any opening to remove fluff.
• Fan component parts should be cleaned using mild soap and a
damp cloth or sponge. Do not allow any water or other liquid to
enter the motor housing.
• Thoroughly remove soap film with clean water.
CAUTION: Do not use harsh detergents, chemical cleaners or
solvents as they may damage the surface finish of the fan
components.
This product is under continuous product development and the design
may alter to that on the instruction manual or box without prior notice.
SPECIFICATION:
Rated Voltage: 220-240V ~ 50Hz
14 INCH Power Consumption: 15 watts
MADE IN CHINA
The ’Wheelie Bin’ symbol on the product or its packaging indicates that it
must not be disposed of with your other household waste. Please
dispose of this product at a designated collection point for the recycling
of waste electrical and electronic equipment. For more information
please contact your local authority.
This product is under continuous product development and the design
may alter to that on the instruction manual or box without prior notice.
