Installation ZXADJB30PSS, ZXADJB36PSS, ZXADJ48PSS
Instructions 30" to 36" Adjustable Backsplash
31-10692
04-08 JR
TOOLS AND MATERIALS REQUIRED
•
Gloves to protect against sharp edges
•
T-15 and #2 Phillips scr
ewdrivers
• Drill with 3/32" and 9/64" bits
• Safety glasses
• Level
• Pencil
This Kit Includes
• Top wall support
• Bottom wall support
•
T
op cover with shelf
• Bottom cover
• Hardware package with
– 9 Stainless Steel Torx 15 #8
self-tapping screws
– 9 Phillips #2 pan head wood #10 screws
– 3 Stainless Steel #2 truss head
#10 screws (for alternate
installation method)
WARNING:
To prevent ignition of combustible materials,
the entire back wall above the range must
be protected by a backsplash constructed
of non-combustible material.

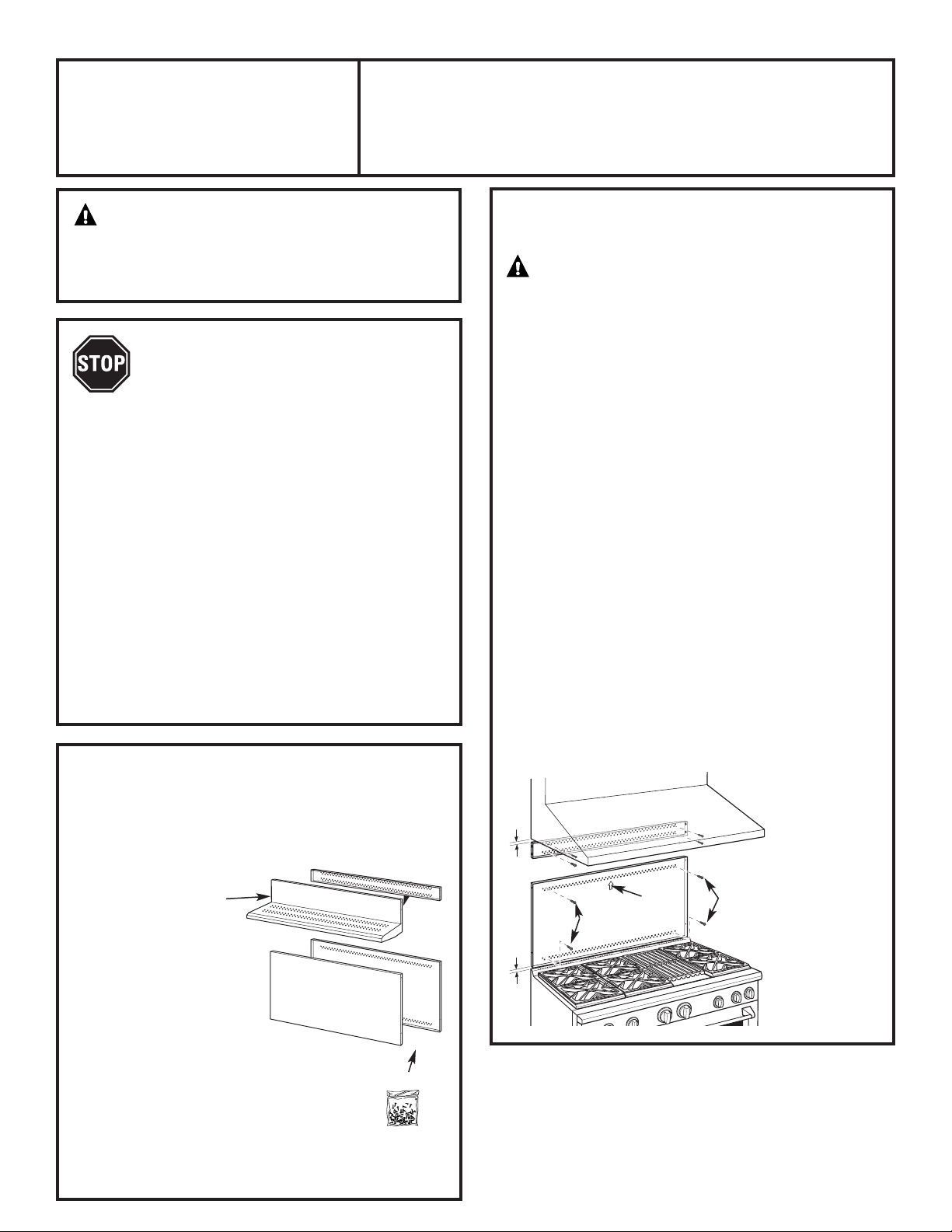

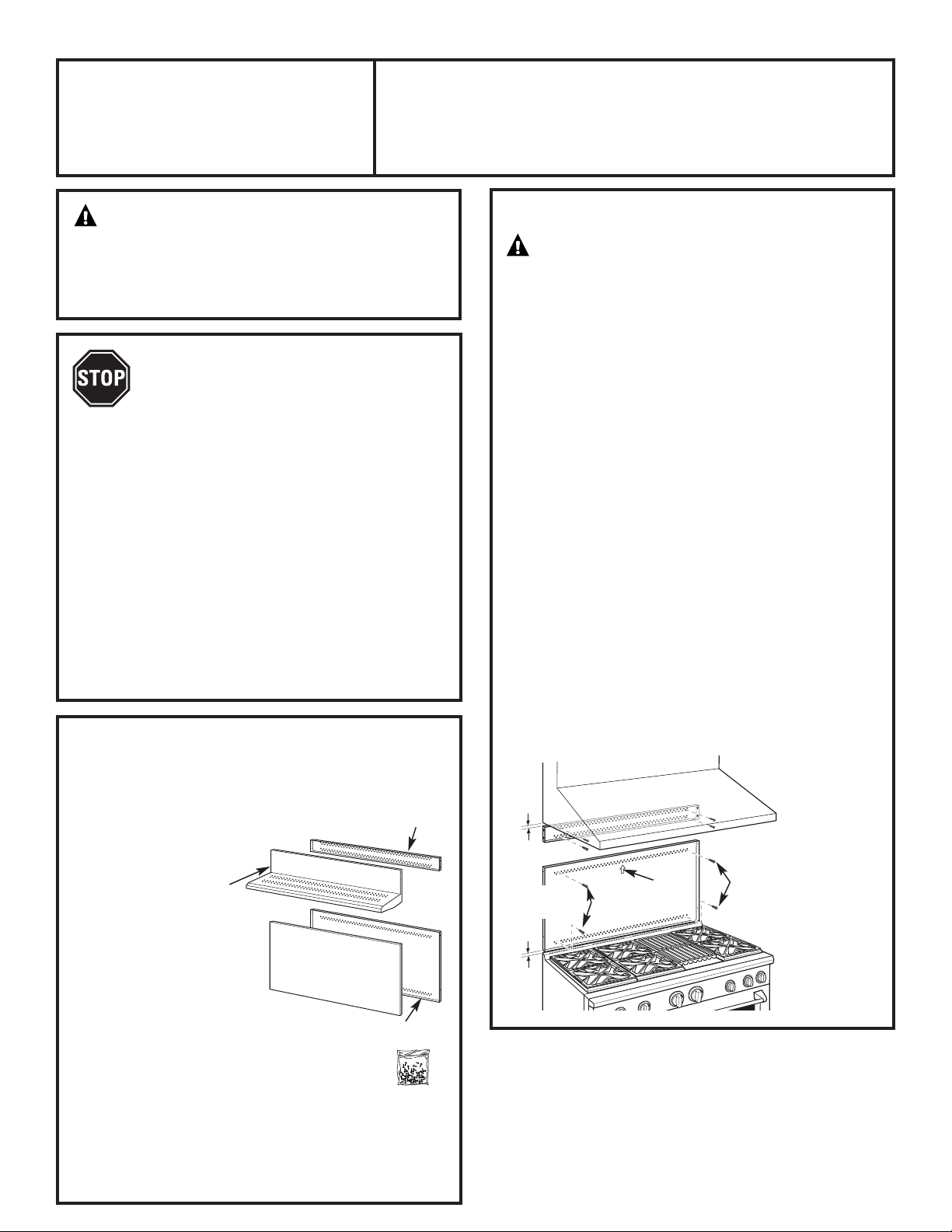

INSTALL THE WALL SUPPORT PANELS
W
ARNING:
The wall support panels
must be securely fastened to the wall. Failure to
do so could result in damage or personal injury.
IMPORTANT: This backsplash is designed to cover the wall
between the bottom of the hood and the top of the range.
The vent hood should be installed over the rangetop or
range before installing this backsplash.
• Install and level the Range/Rangetop according
to the product installation instructions.
• Remove backsplash packaging and protective film.
• Locate wall studs on each side. Where studs are not
available, plan to use wall anchors (not provided).
• Use a level to pencil 2 horizontal lines on the wall,
one 1/8" below the vent hood and the other 1/8" above
the Range/Rangetop. This 1/8" space allows the cover
panels to overlap the wall supports.
• Secure the top wall support panel to the wall with 4 wood
screws, through the outermost studs.
• Use 4 wood screws to secure the bottom wall support
panel. The center slot should be positioned at the top.

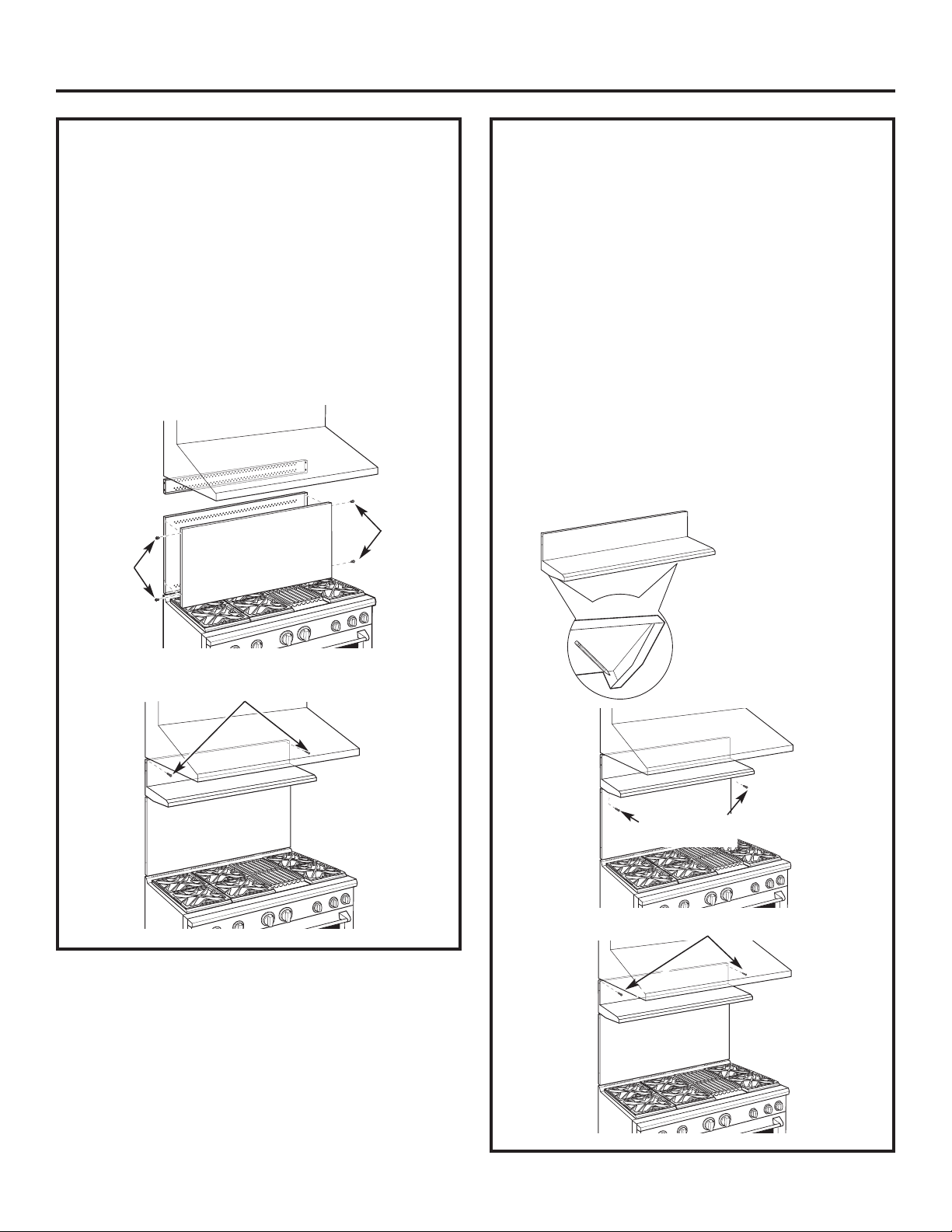

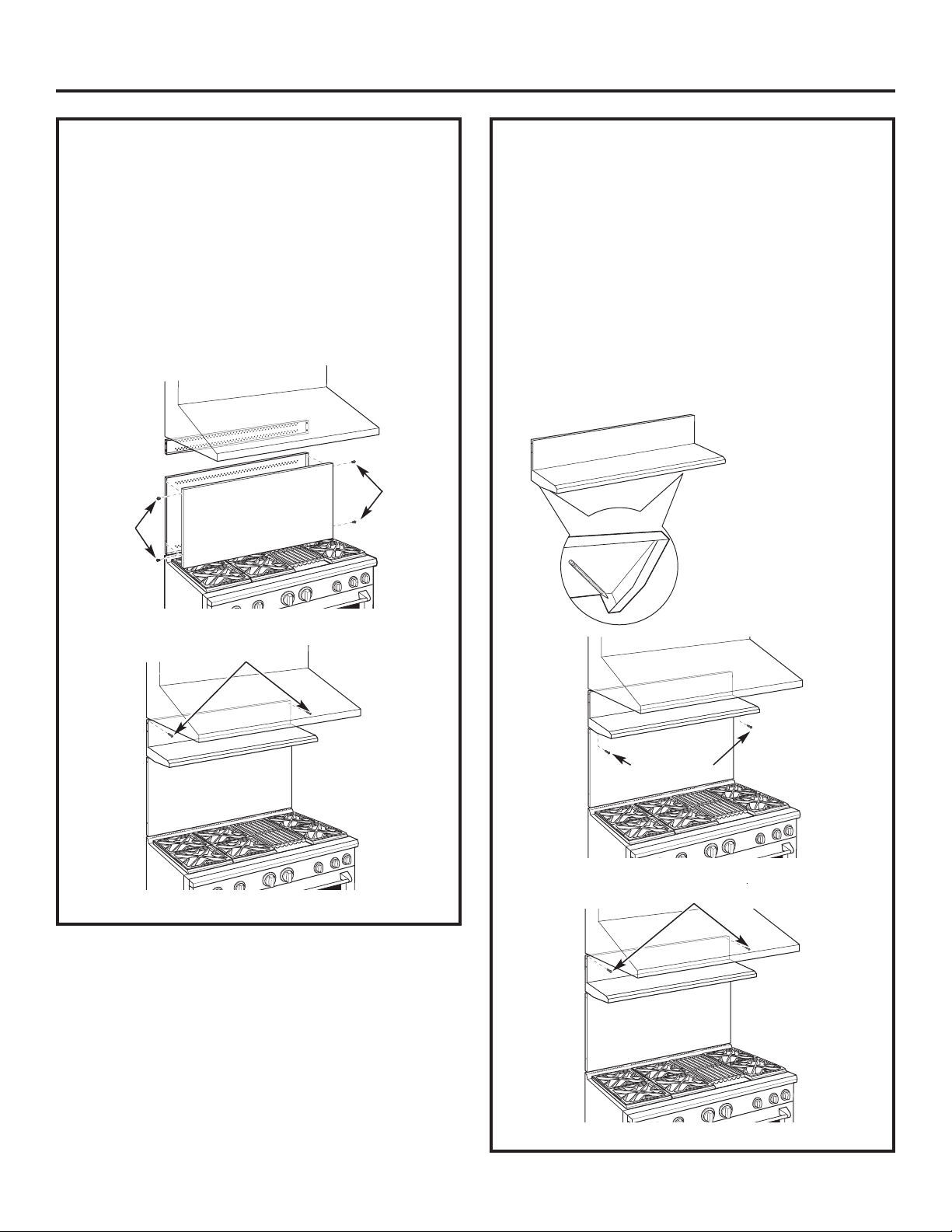

The gap between the top and bottom support panels
will be covered by the top cover with shelf.
1/8″
Secure the top
panel to the wall
with 4 wood
screws
1/8″
Secure
the bottom panel
to the wall with
4 wood screws
Center
Arrow
Wood Screws
W
ood
Screws
Top Wall
Suppor
t
Top Cover
with Shelf
Bottom Cover
Bottom Wall Support
761Dia65
Hardware
Package
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
IMPORTANT: Save these instructions for local
inspector’s use.
IMP
ORTANT
: OBSERVE ALL GOVERNING CODES
AND ORDINANCES.
NOTE TO INSTALLER: Be sure to leave these
instr
uctions with the Consumer
.
NO
TE TO CONSUMER: Keep these instructions
with your Owner’s Manual for future reference.
• This backsplash adjusts to fit the space between
the top of the range and the bottom of the hood,
fr
om 30" Min. t
o 36" Max. height
.
• Maximum shelf load-bearing weight is 40 lbs.
