Craftsman 917252531 lawn tractor User Manual

/ Ra FTZ

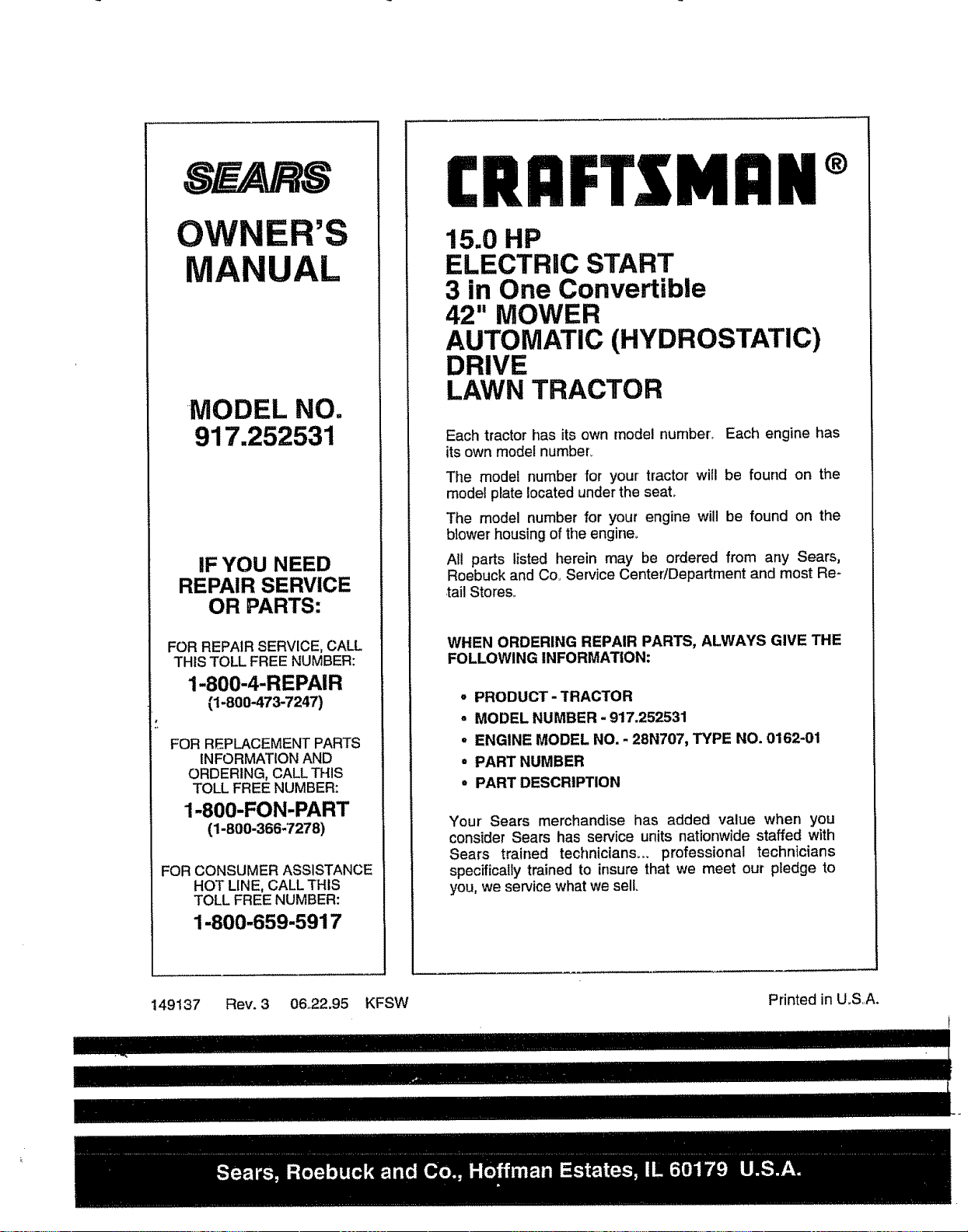

MODEL NUMBER 917.252531

• Assembly

=Operation

• Customer Responsibilities

° Service and Adjustments

• Repair Parts

OWNER'S MANUAL

Convertible

i CAUTION: Read and follow all safety rules and instructions before operating this equipment.

FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER: 1-800-659-5917

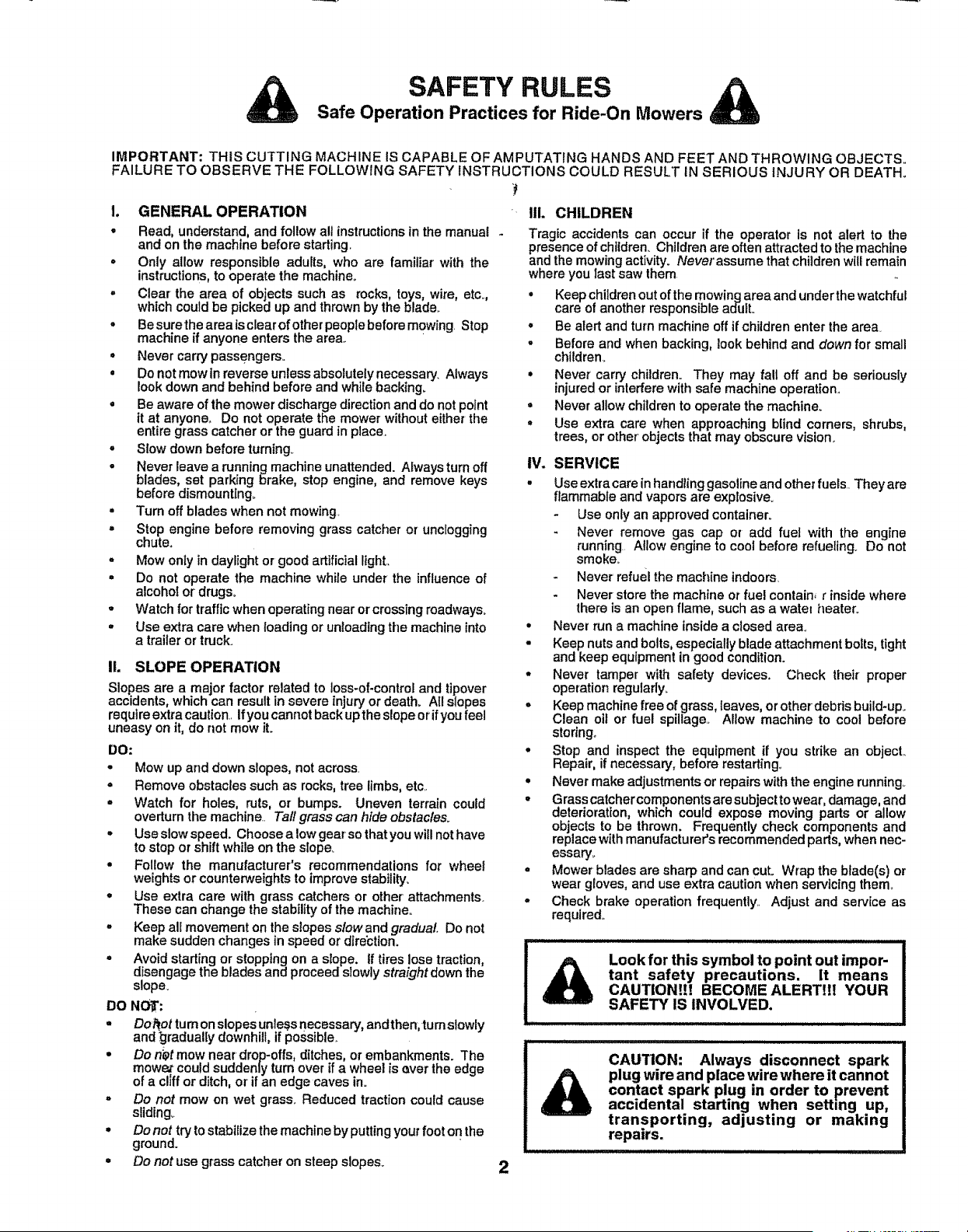

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE iS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.,

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH°

I. GENERAL OPERATION

• Read, understand, and follow alt instructions in the manual -

and on the machine before starting

• Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

° Clear the area of objects such as rocks, toys, wire, etc.

which could be picked up and thrown by the blade

• Be surethe area is clear of other people before mowing Stop

machine if anyone enters the area.

• Never carry passengers°

, Do notmow in reverse unless absolutely necessary. Always

look down and behind before and while backing.

° Be aware of the mower discharge direction and do not point

it at anyone, Do not operate the mower without either the

entire grass catcher or the guard in place.

• Slow down before turning

• Never leave a running machine unattended. Alwaysturn off

blades, set parking brake, stop engine, and remove keys

before dismountlngo

. Turn off blades when not mowing

° Stop engine before removing grass catcher or unclogging

chute.

. Mow only in daylight or good artificial light

• Do net operate the machine while under the influence of

alcohol or drugs.

• Watch for trafficwhen operating near or crossingroadways°

• Use extra care when loading or unloading the machine into

a trailer or truck.

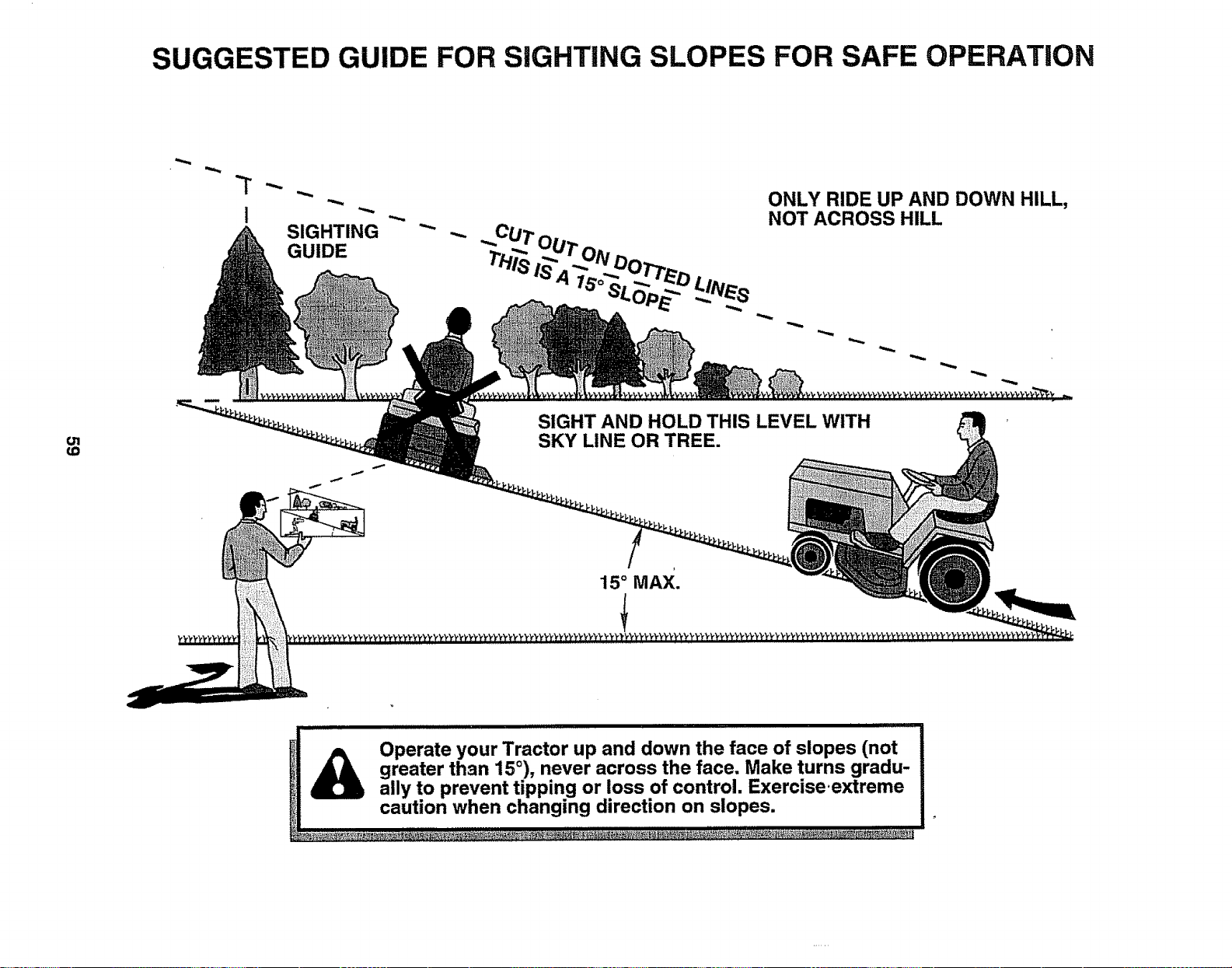

IL SLOPE OPERATION

Slopes are a major factor related to toss-of-control and tipover

accidents, which can result in severe injury or death. All slopes

requtre extra caution. Ifyoucannot backuptheslopeorifyou feel

uneasy on it, do not mow it.

DO.*

° Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc..

. Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine.. Taft grass can hide obstacles.

= Use slow speed. Choose a low gearso that you will not have

to stop or shift while on the slope.

° Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability.

• Use extra care with grass catchers or other attachments

These can change the stability of the machine..

° Keep all movement on the slopes slow and gradual, Do not

make sudden changes in speed or direction.

= Avoid starting or stopping on a slope. If tires lose traction,

disengage the blades and proceed slowly straight down the

slope.

DO NOIT:

• Do_ot turnon slopes unlessnecessary, andthen,tum slowly

and _radually downhill, if possible

° Do n_t mow near drop-offs, ditches, or embankments. The

mow_ could suddenly turn over if a wheel is aver the edge

of a cliff or ditch, or if an edge caves in.

° Do not mow on wet grass. Reduced traction could cause

sliding_.

• Do not try to stabilize the machine by putting your foot on the

ground.

° Do not use grass catcher on steep slopes..

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the machine

andthe mowing activity. Never assume that children will remain

where you last saw them

• Keep childrenoutof the mowing area and under the watchful

care of another responsible adutt.

• Be alert and turn machine off if children enter the area

• Before and when backing, look behind and down for small

children°

• Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation,

° Never allow children to operate the machine_

° Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

- Use extra care in handlinggasoline and otherfuels. They are

flammable and vapors are explosive,.

Use only an approved container°

Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueting_ Do not

smoke..

Never' refuel the machine indoors.

Never store the machine or fuel contain, r inside where

there is an open flame, such as a water heater_

, Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment botts, tight

and keep equipment in good condition.

* Never tamper with safety devices. Check their proper

operation regularly.

= Keep machine free of grass, leaves, or other-debris build-up.

Clean oil or fuel spillage.. Allow machine to cool before

storing.

,, Stop and inspect the equipment if you strike an object..

Repair, if necessary, before restarting°

° Never make adjustments or repairs with the engine running_

° Grass catcher components ara subject to wear damage, and

deterioraton, which could expose moving parts or allow

objects to be thrown. Frequently check components and

replace with manufacturer's recommended parts, when nec-

essary_

° Mower blades are sharp and can cut. Wrap the blade(s) or

wear gFoves, and use extra caution when servicing them..

= Check brake operation frequently.. Adjust and service as

required°

Look for this symbol to point out impor-

tant safety precautions. It means

CAUTION!!! BECOME ALERTH! YOUR

SAFETY IS INVOLVED.

CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making

repairs.

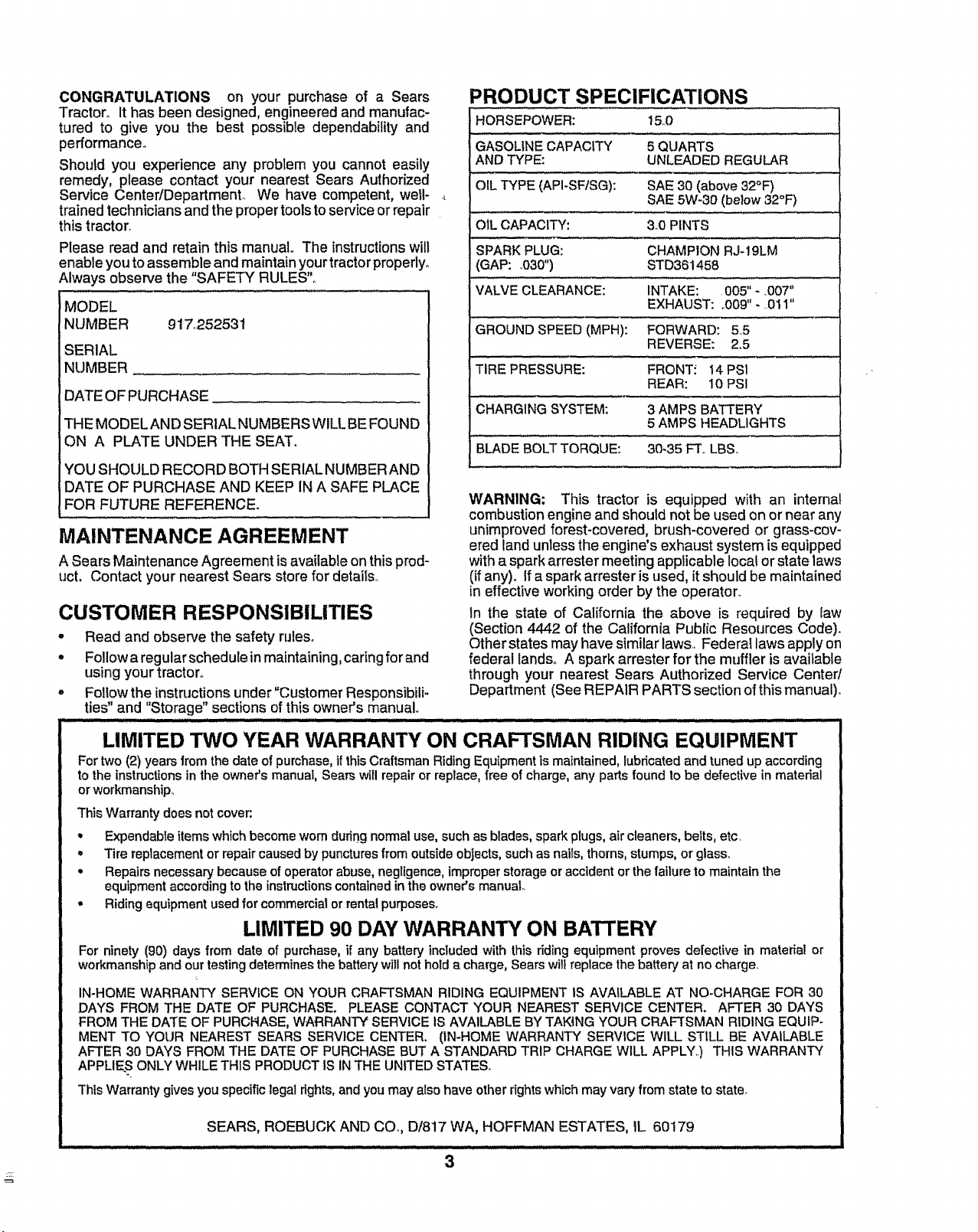

CONGRATULATIONSon your purchase of a Sears

Tractor° It has been designed, engineered and manufac-

tured to give you the best possible dependability and

performance°

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Authorized

Service CentedDepartmento We have competent, well-

trained technicians and the proper tools to service or repair

this tractor.

Please read and retain this manual The instructions will

enable you to assemble and maintain your tractor properly,.

Always observe the "SAFETY RULES"..

MODEL

NUMBER 917.252531

SERIAL

NUMBER

DATE OF PURCHASE

THE MODEL AND SERIAL NUMBERS WILL BE FOUND

ON A PLATE UNDER THE SEAT,

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE.

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this prod-

uct Contact your nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

° Read and observe the safeb] rules.

• Follow a regularschedule in maintaining, caring for and

using your tractor.

° Follow the instructions under "Customer Responsibili-

ties" and "Storage" sections of this owner's manual.

PRODUCT SPECIFICATIONS

HORSEPOWER: 15.0

GASOLINE CAPACITY 5 QUARTS

AND TYPE: UNLEADED REGULAR

OiL TYPE (API-SFtSG): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: 3°0 PINTS

SPARK PLUG: CHAMPION RJ-19LM

(GAP: .030") STD361458

VALVE CLEARANCE: INTAKE: 005" - _.007"

EXHAUST: ..009" - .011"

GROUND SPEED (MPH): FORWARD: 5.5

REVERSE: 2,.5

TIRE PRESSURE: FRONT_ 14 PSI

REAR: 10 PSI

CHARGING SYSTEM: 3 AMPS BATTERY

5 AMPS HEADLIGHTS

BLADE BOLT TORQUE: 30_35 FT.. LBSo

WARNING: This tractor is equipped with an internal

combustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unless the engine's exhaust system is equipped

with a spark arrester meeting applicable local or state laws

(if any). If a spark arrestor is used, it should be maintained

in effective working order by the operator.

in the state of California the above is required by law

(Section 4442 of the California Public Resources Code).

Other states may have similar laws._Federal laws apply on

federal lands, A spark arrester for the muffler is available

through your nearest Sears Authorized Service Center/

Department (See REPAIR PARTS section of this manual).

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according

to the instructions in the owner's manual, Seats will repair or replace, free of charge, any parts found to be defective in material

or workmanship°

This Warranty does not cover:

° Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners, belts, etc.

• Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass,

• Repairs necessary because of operator abuse, negligence, improper storage or accident or the failure to maintain the

equipment according to the instructions contained in the owner's manual

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equipment proves defective in material or

workmanship and our testing determines the battery will not hold a charge, Sears wilt replace the battery at no charge.

IN-HOME WARRANTY SERVICE ON YOUR CRAFTSMAN RIDING EQUIPMENT IS AVAILABLE AT NO-CHARGE FOR 30

DAYS FROM THE DATE OF PURCHASE. PLEASE CONTACT YOUR NEAREST SERVICE CENTER. AFTER 30 DAYS

FROM THE DATE OF PURCHASE, WARRANTY SERVICE IS AVAILABLE BY TAKING YOUR CRAFTSMAN RIDING EQUIP-

MENT TO YOUR NEAREST SEARS SERVICE CENTER. (IN-HOME WARRANTY SERVICE WILL STILL BE AVAILABLE

AFTER 30 DAYS FROM THE DATE OF PURCHASE BUT A STANDARD TRIP CHARGE WILL APPLY.) THIS WARRANTY

APPLIES ONLY WHILE THIS PRODUCT IS IN THE UNITED STATES.

This Warranty gives you specific legal rights, and you may also have other dghts which may vary from state to state,

SEARS, ROEBUCK AND COo, D/817 WA, HOFFMAN ESTATES, IL 60179

/ i /u.... ....... ....... .....

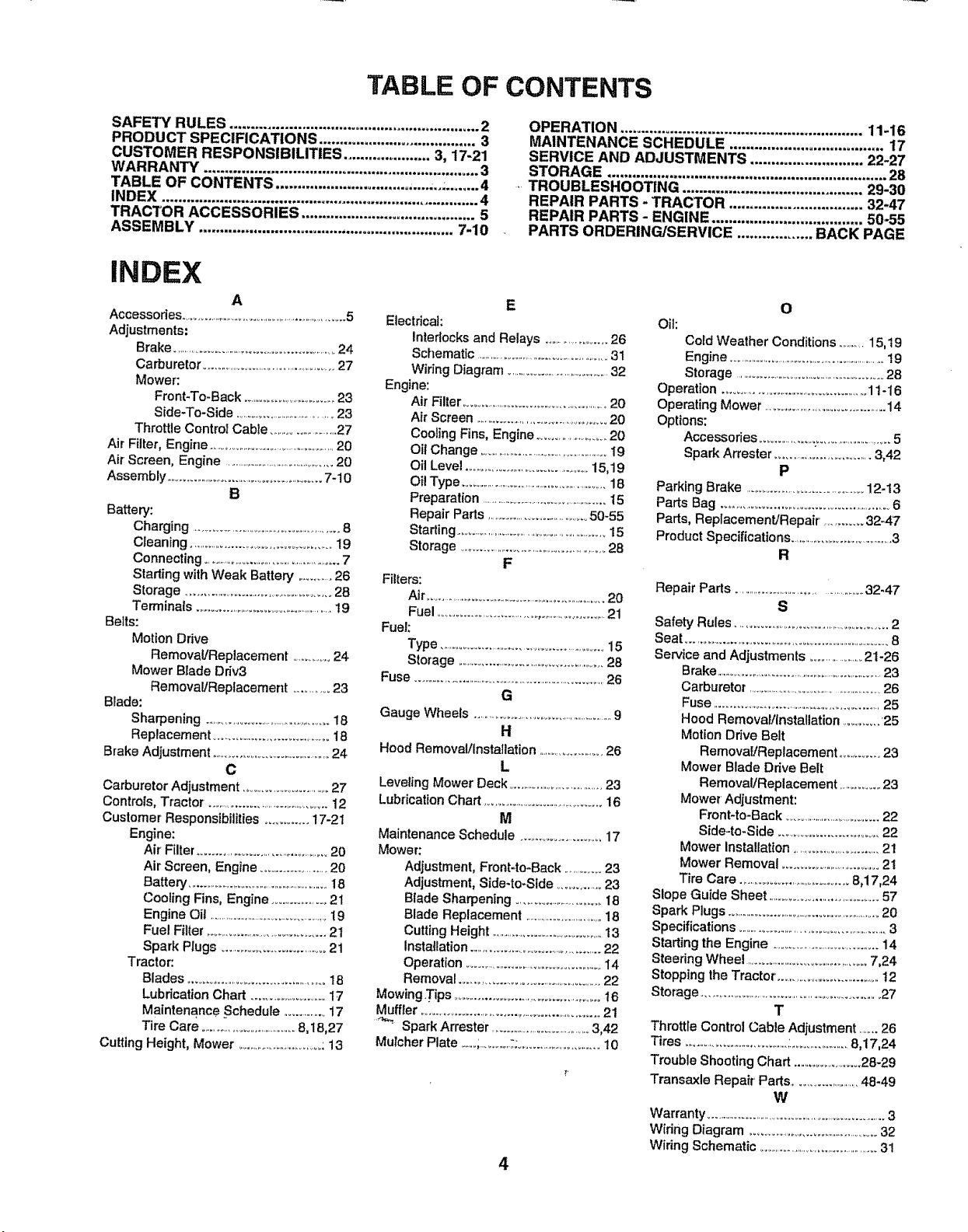

TABLE OF CONTENTS

SAFETY RULES ............................................................ 2

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ..................... 3, 17-21

WARRANTY .................................................................. 3

TABLE OF CONTENTS ..................................... ... ........ 4

INDEX ............................................................................ 4

TRACTOR ACCESSORIES .......................................... 5

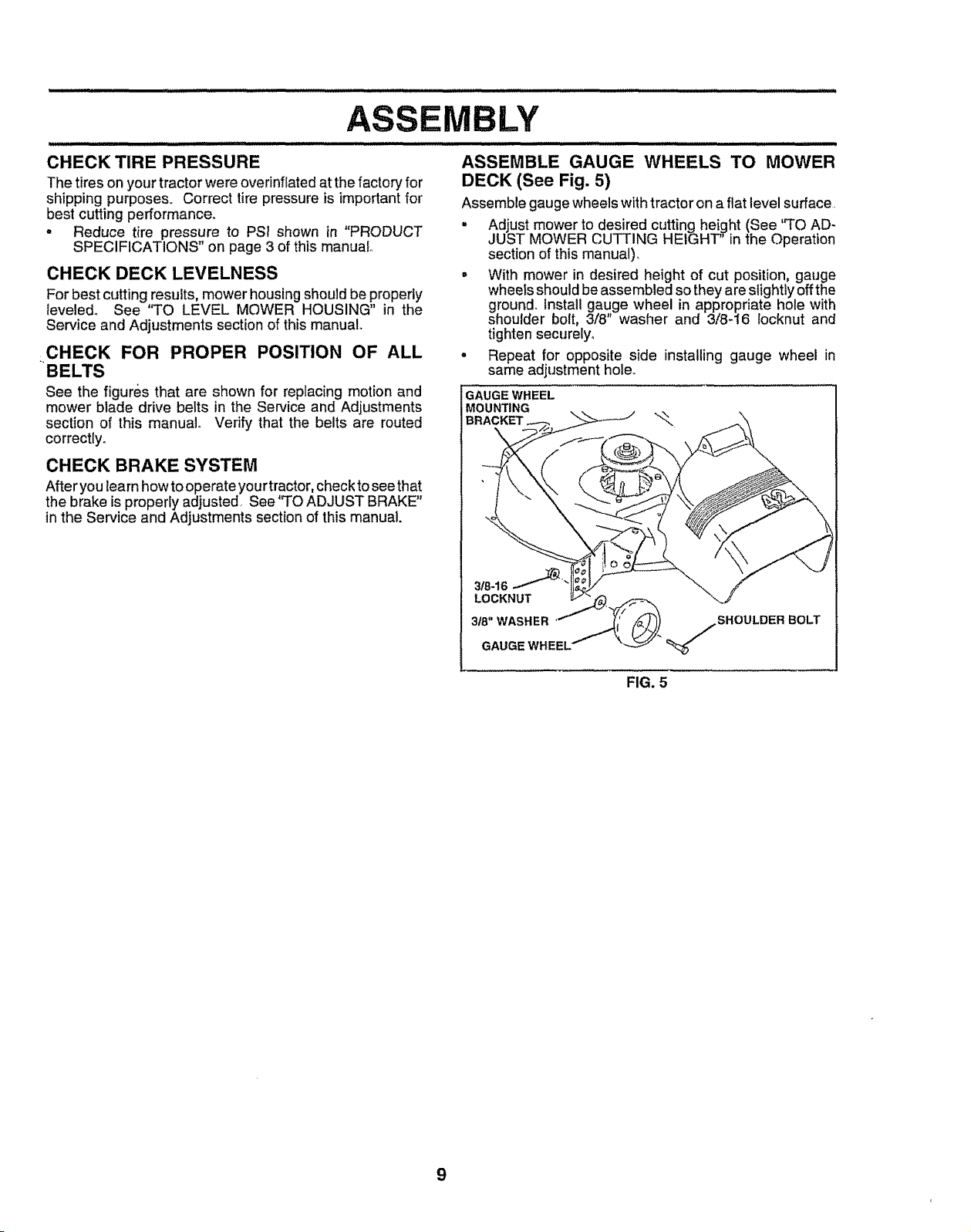

ASSEMBLY ............................................................. 7-10

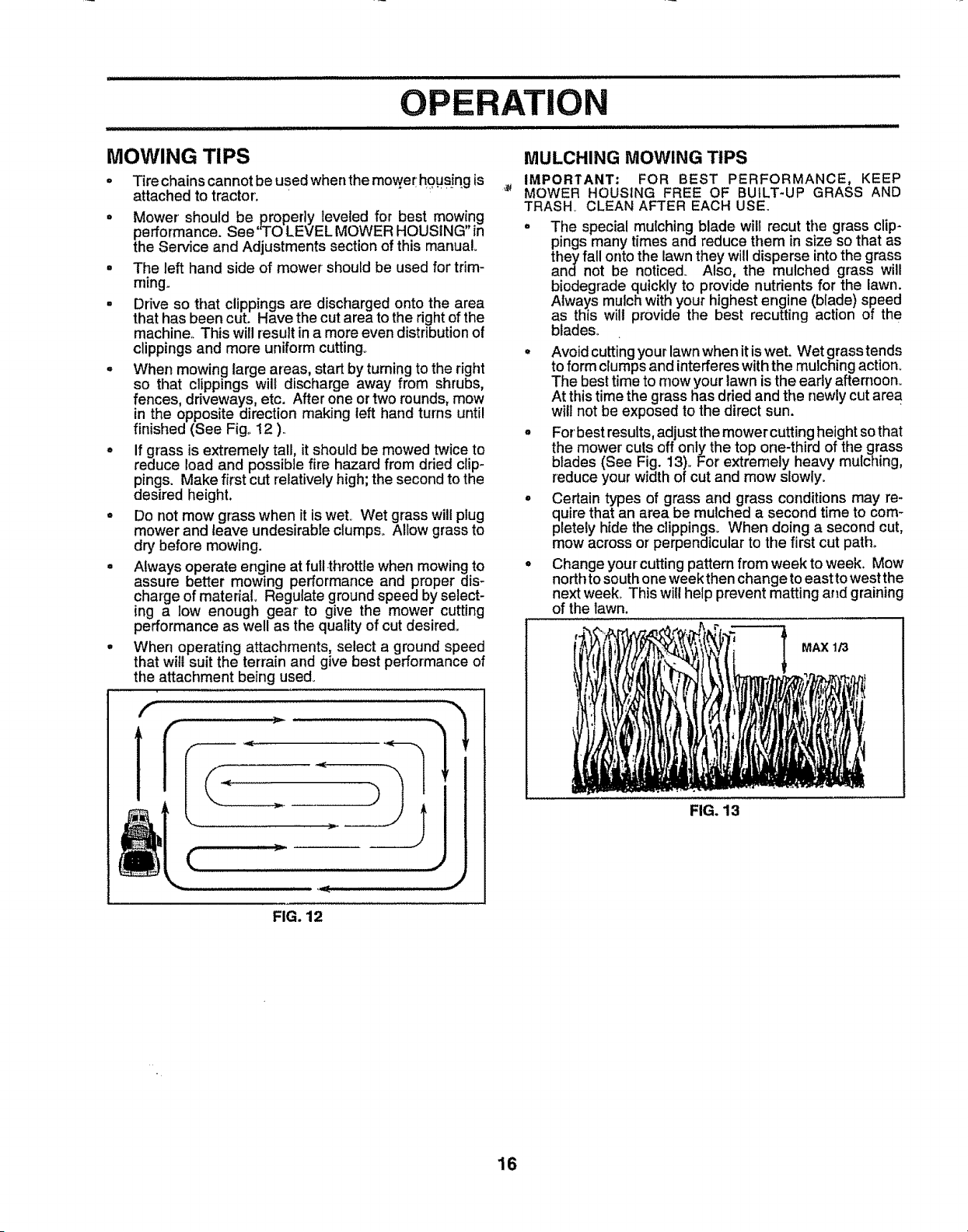

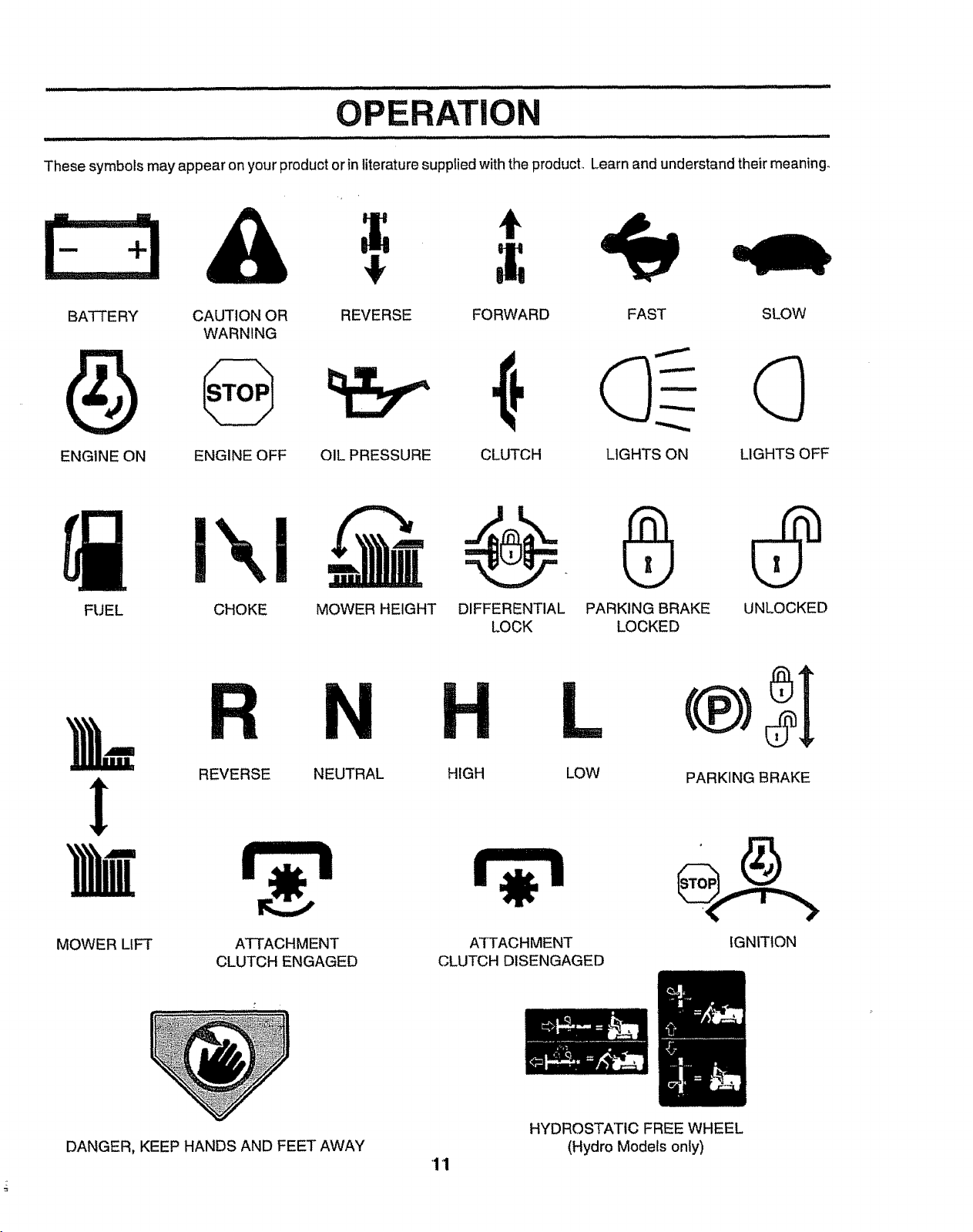

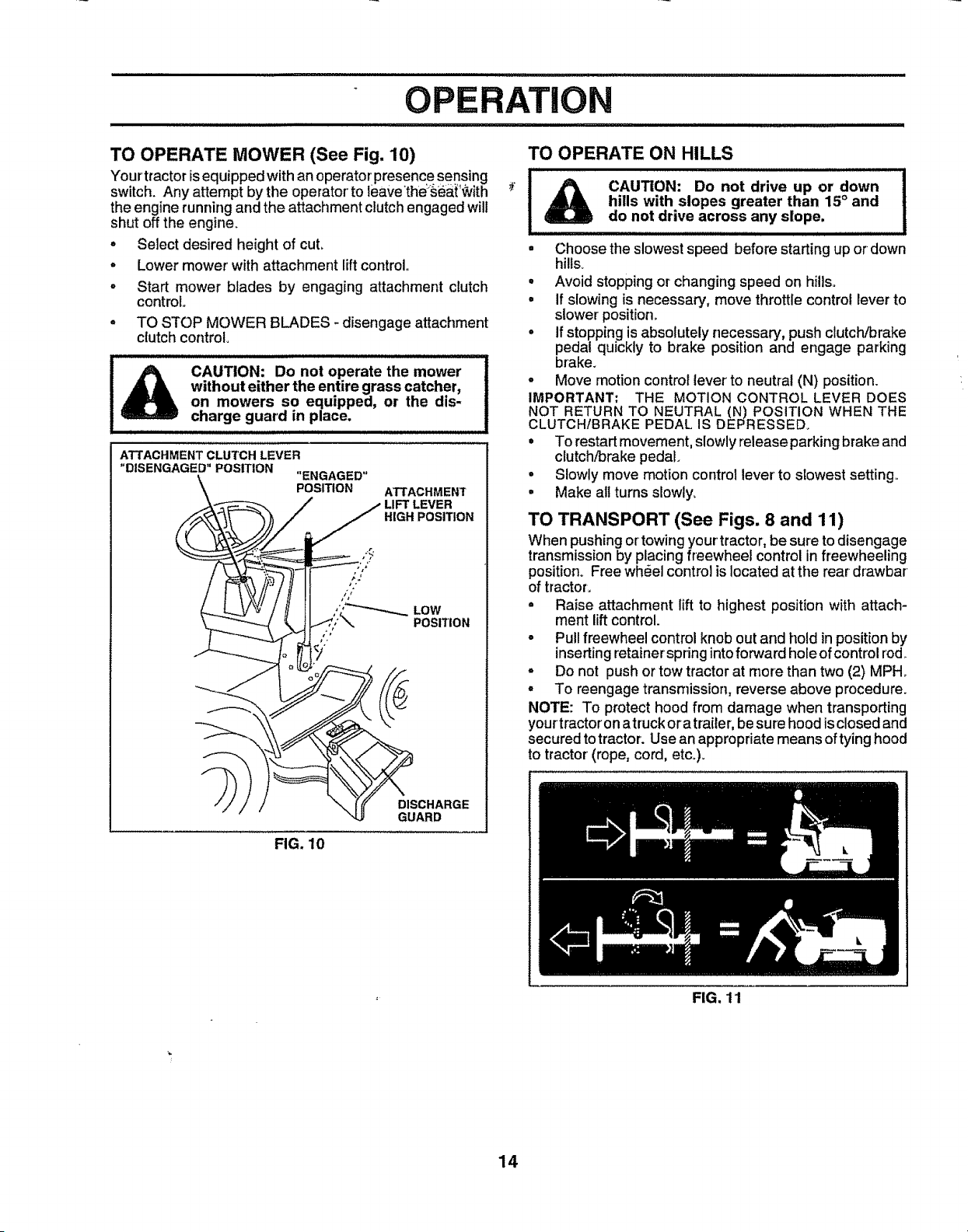

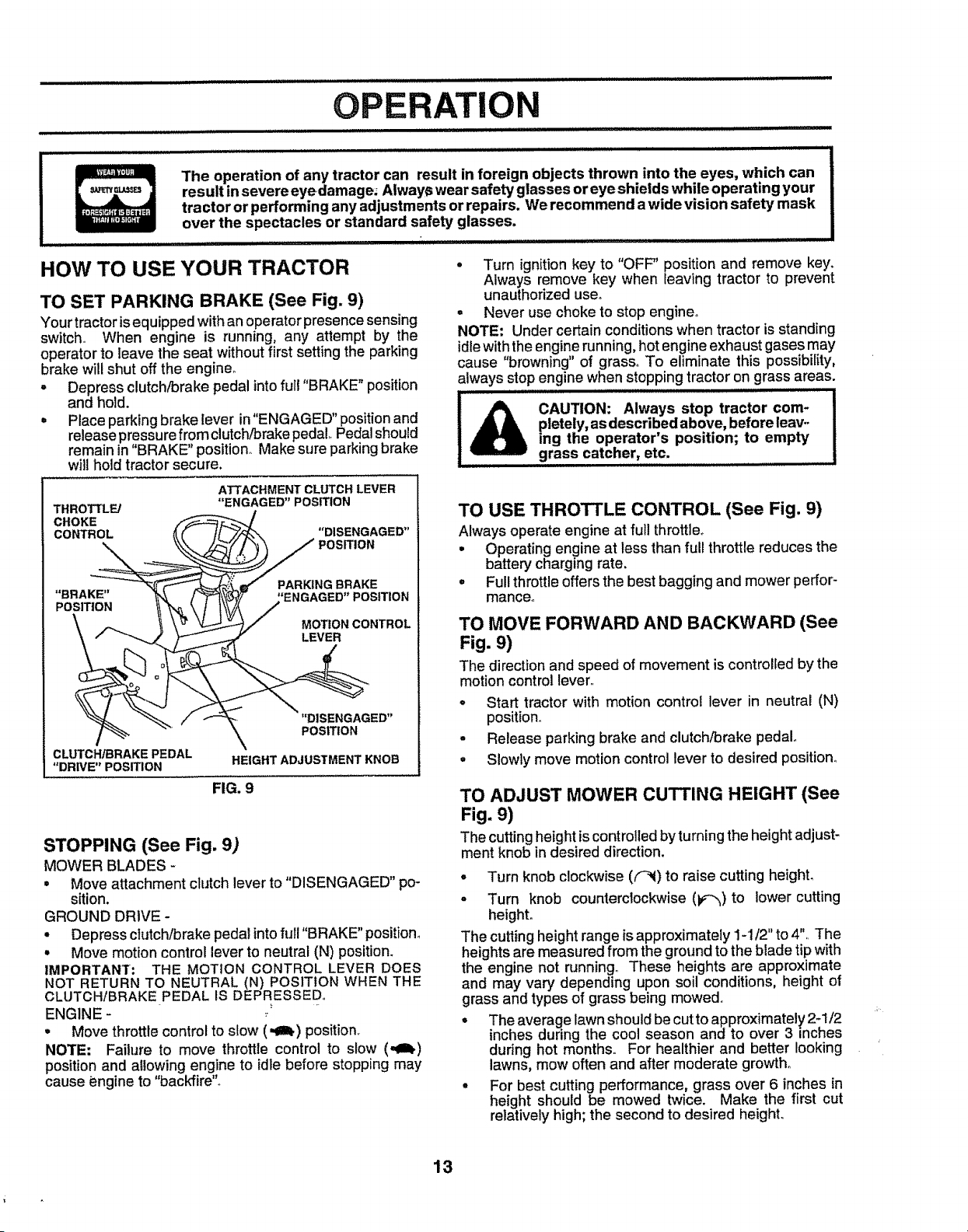

OPERATION .......................................................... 11-16

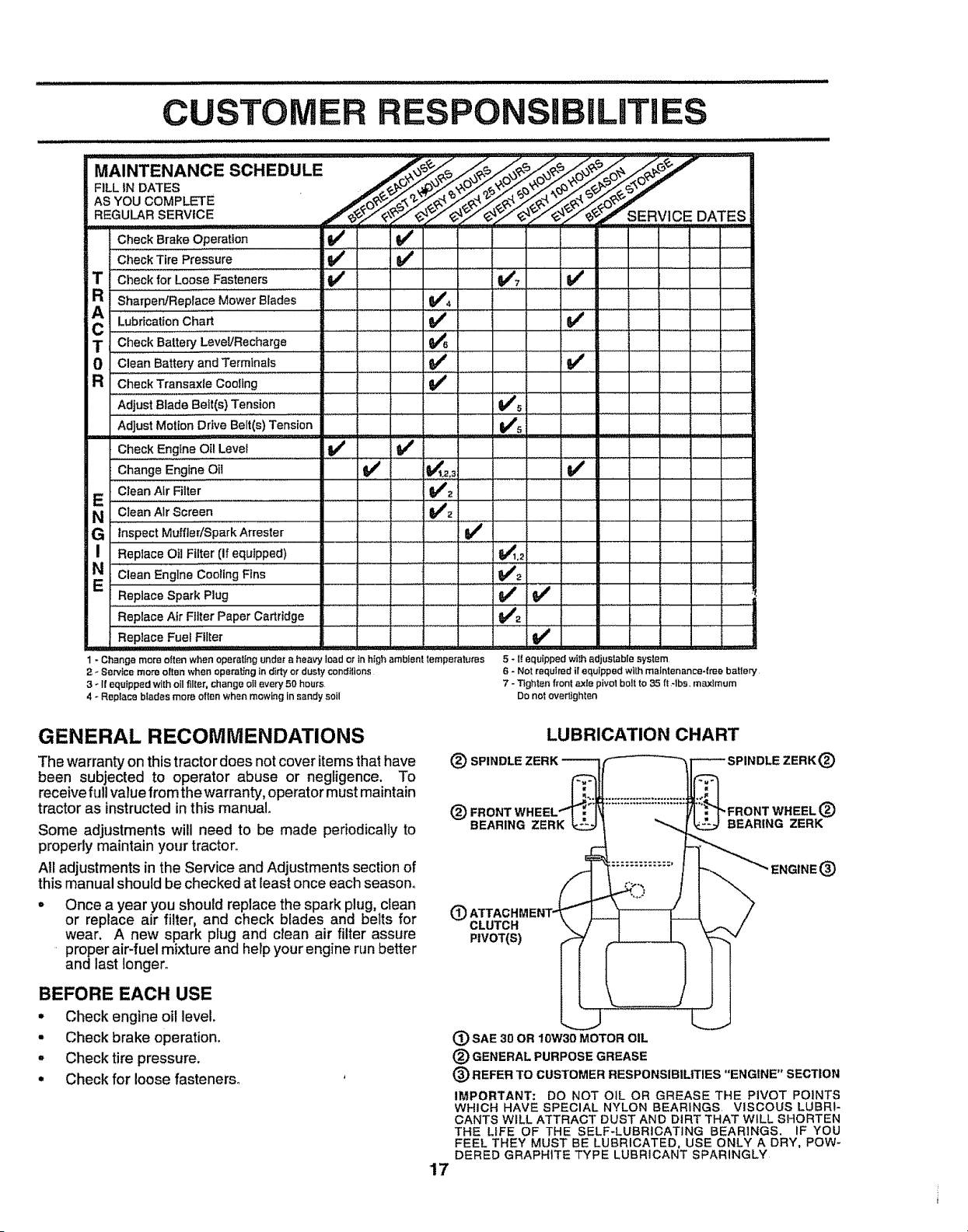

MAINTENANCE SCHEDULE ..................................... 17

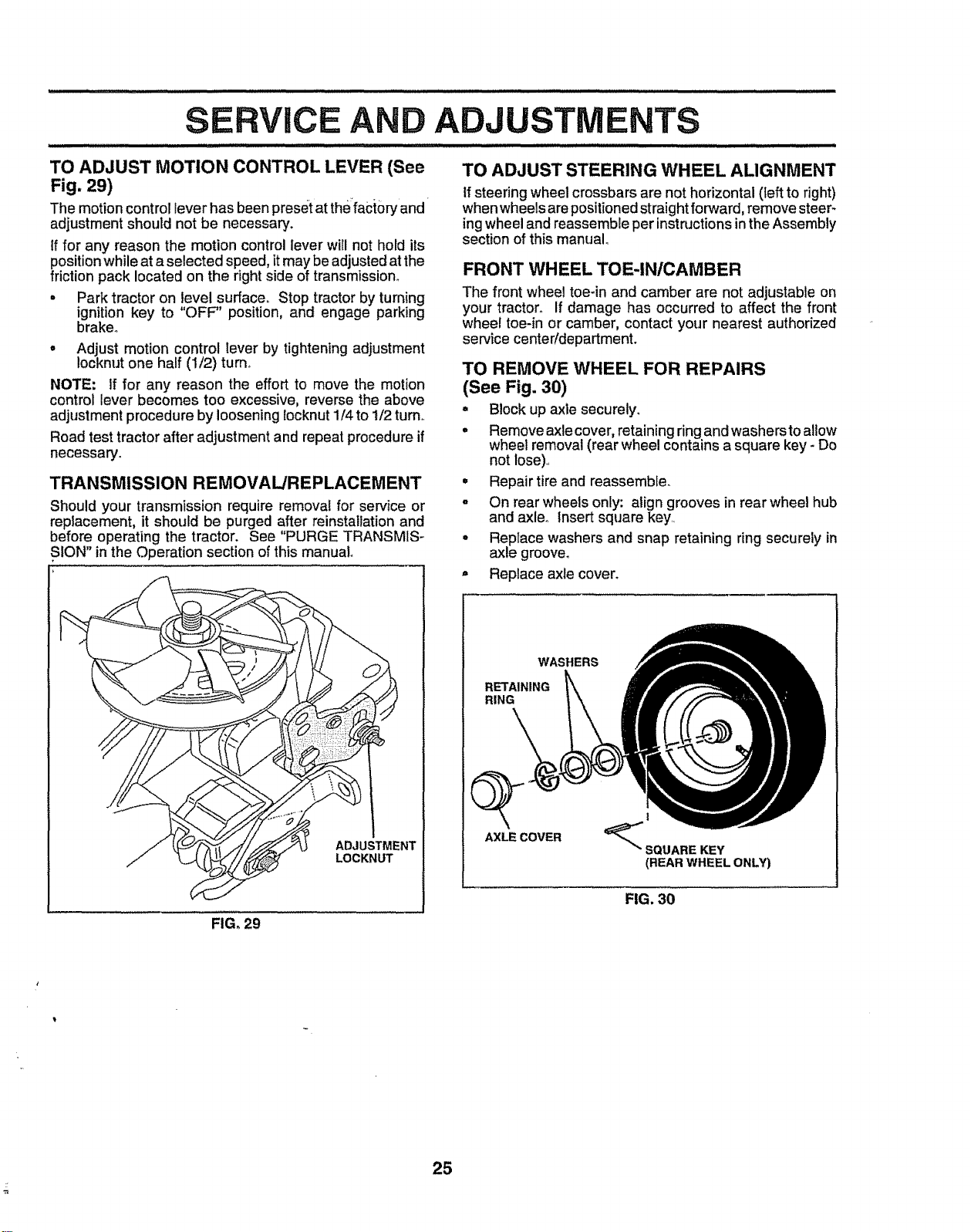

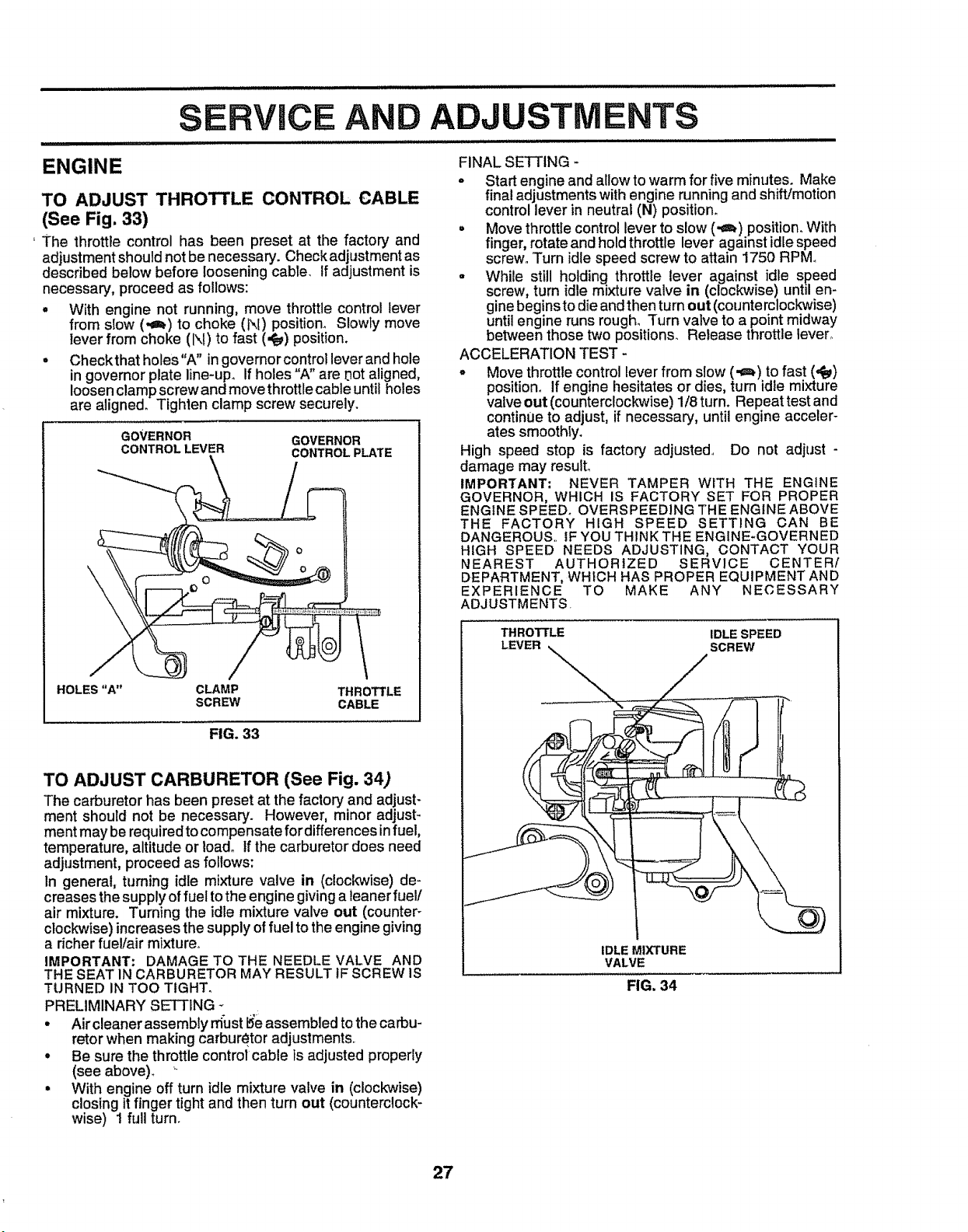

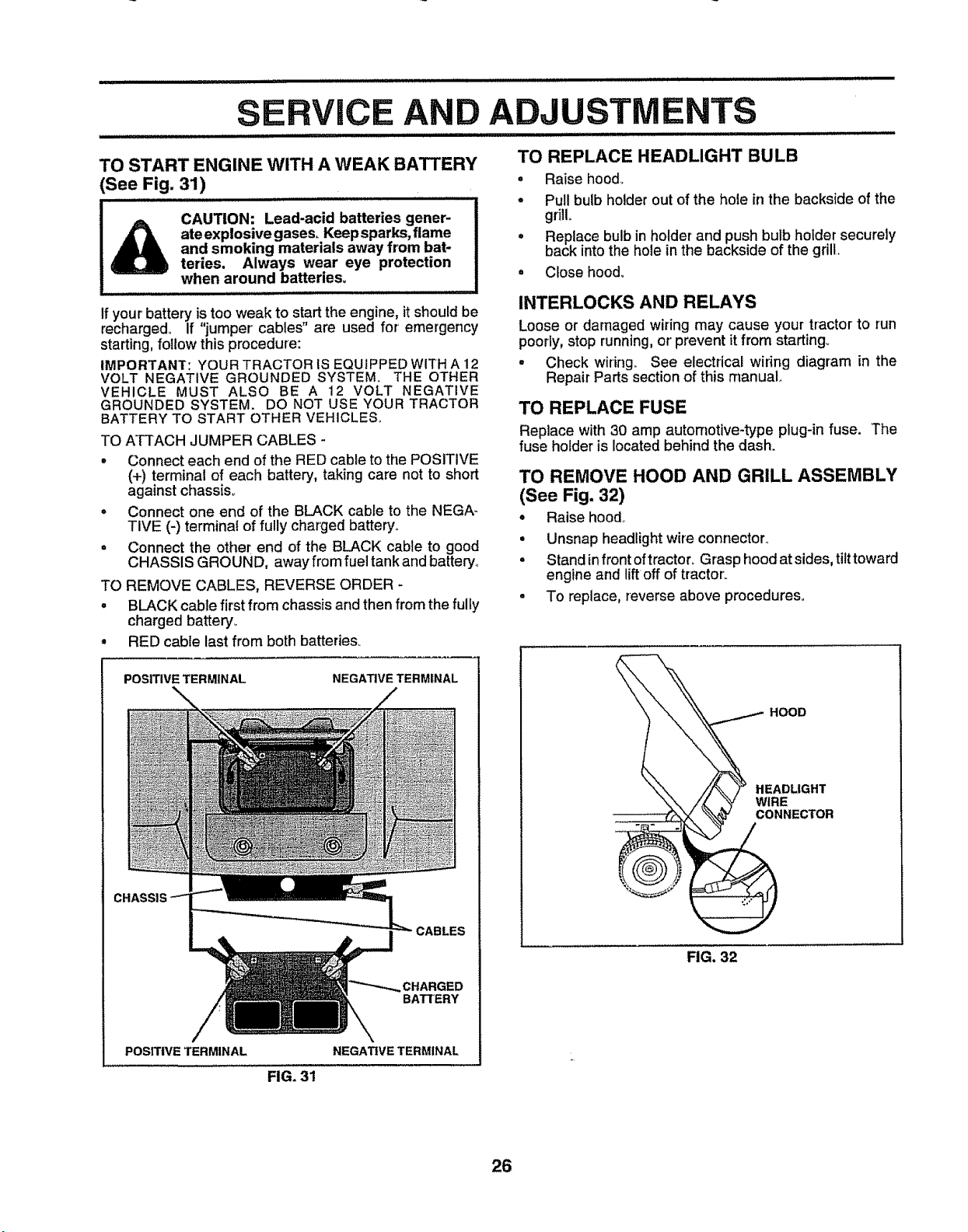

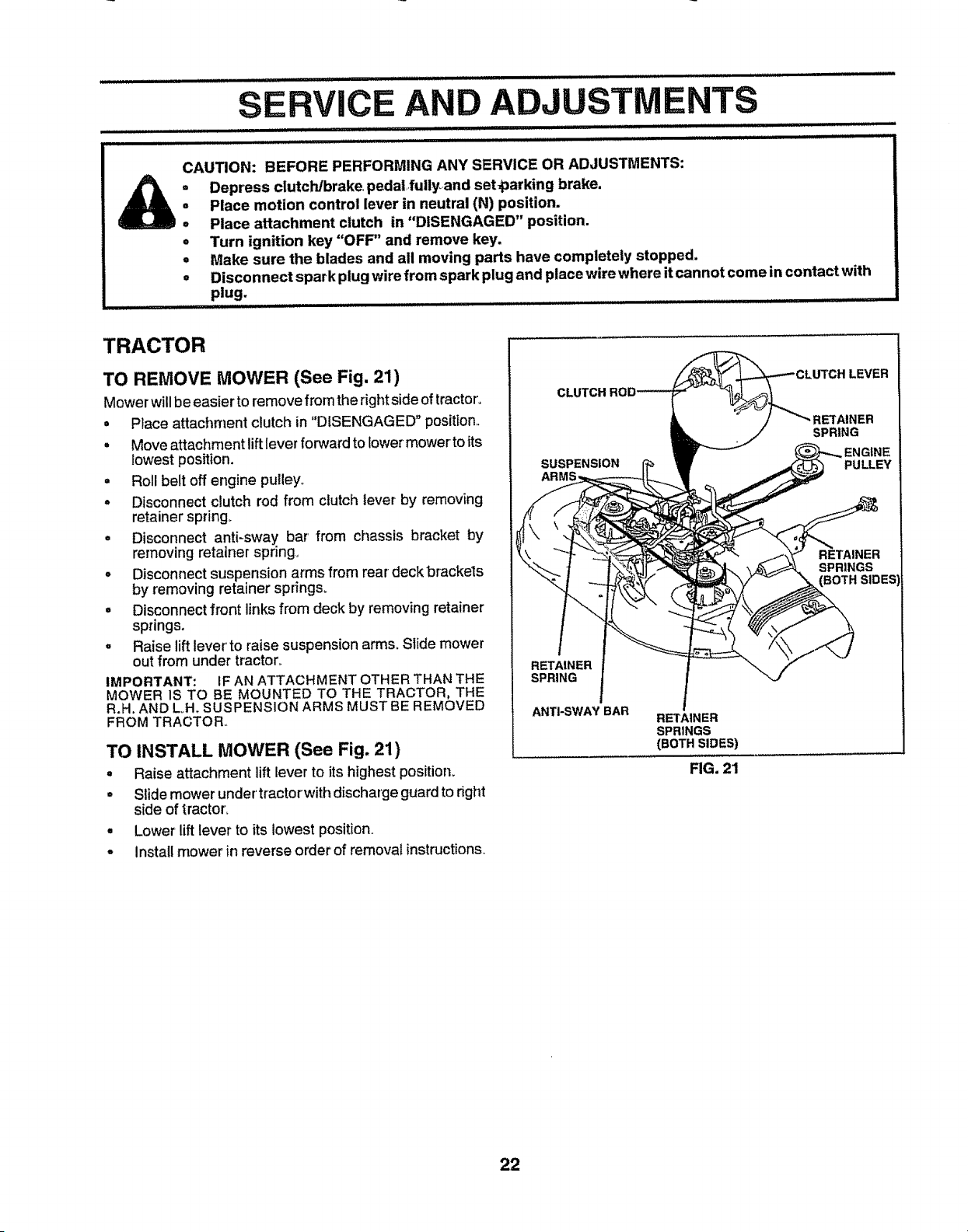

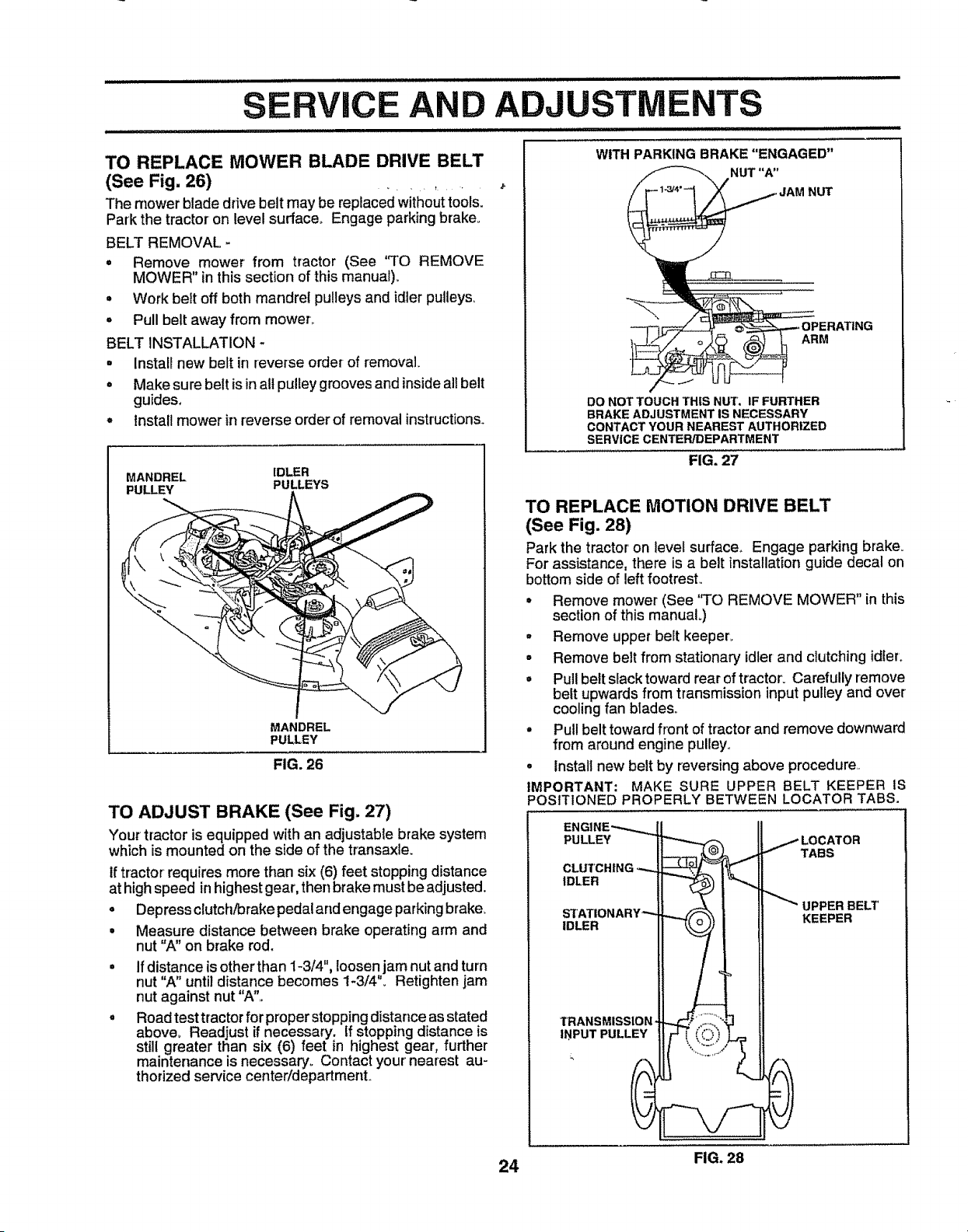

SERVICE AND ADJUSTMENTS ........................... 22-27

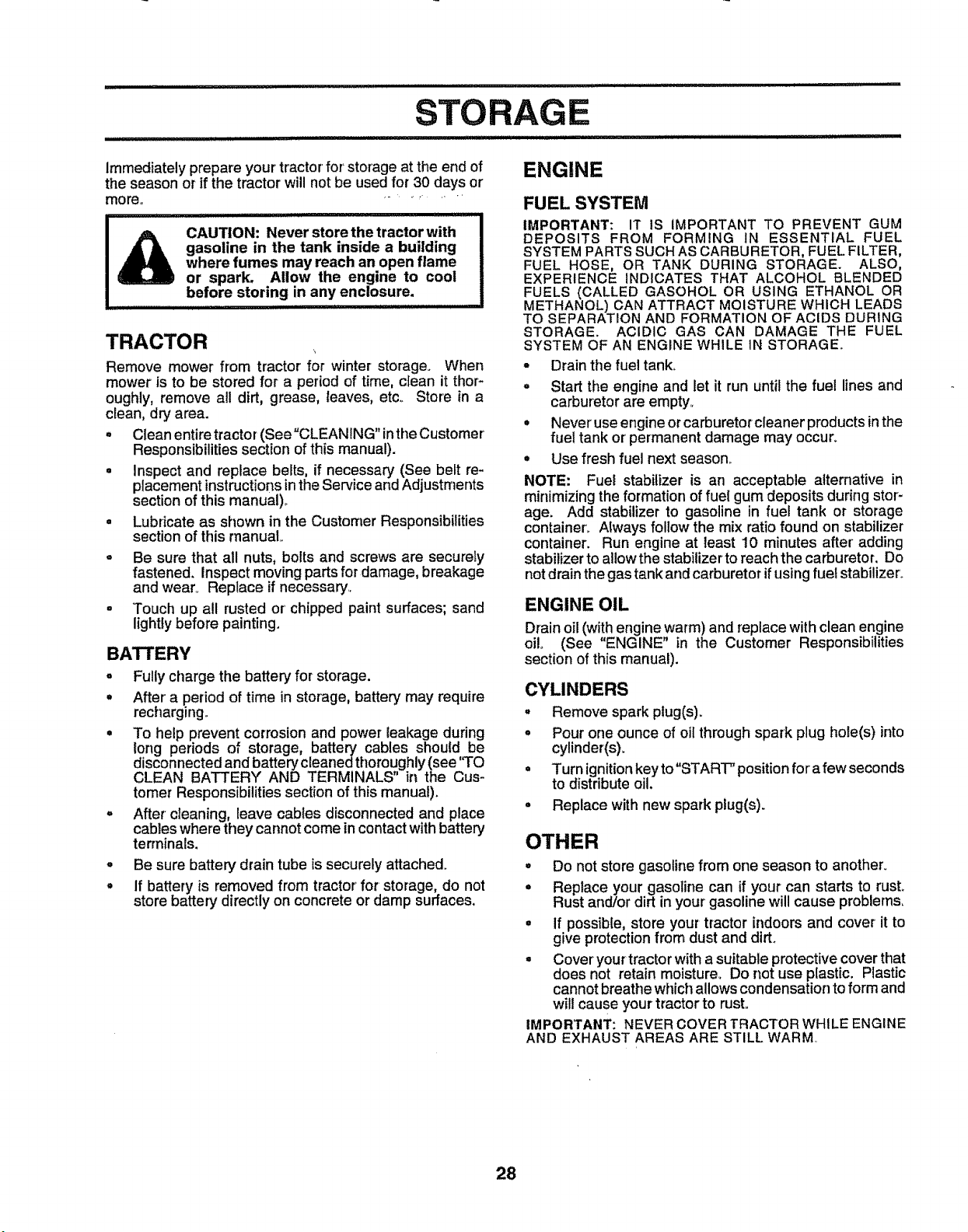

STORAGE ................................................................... 28

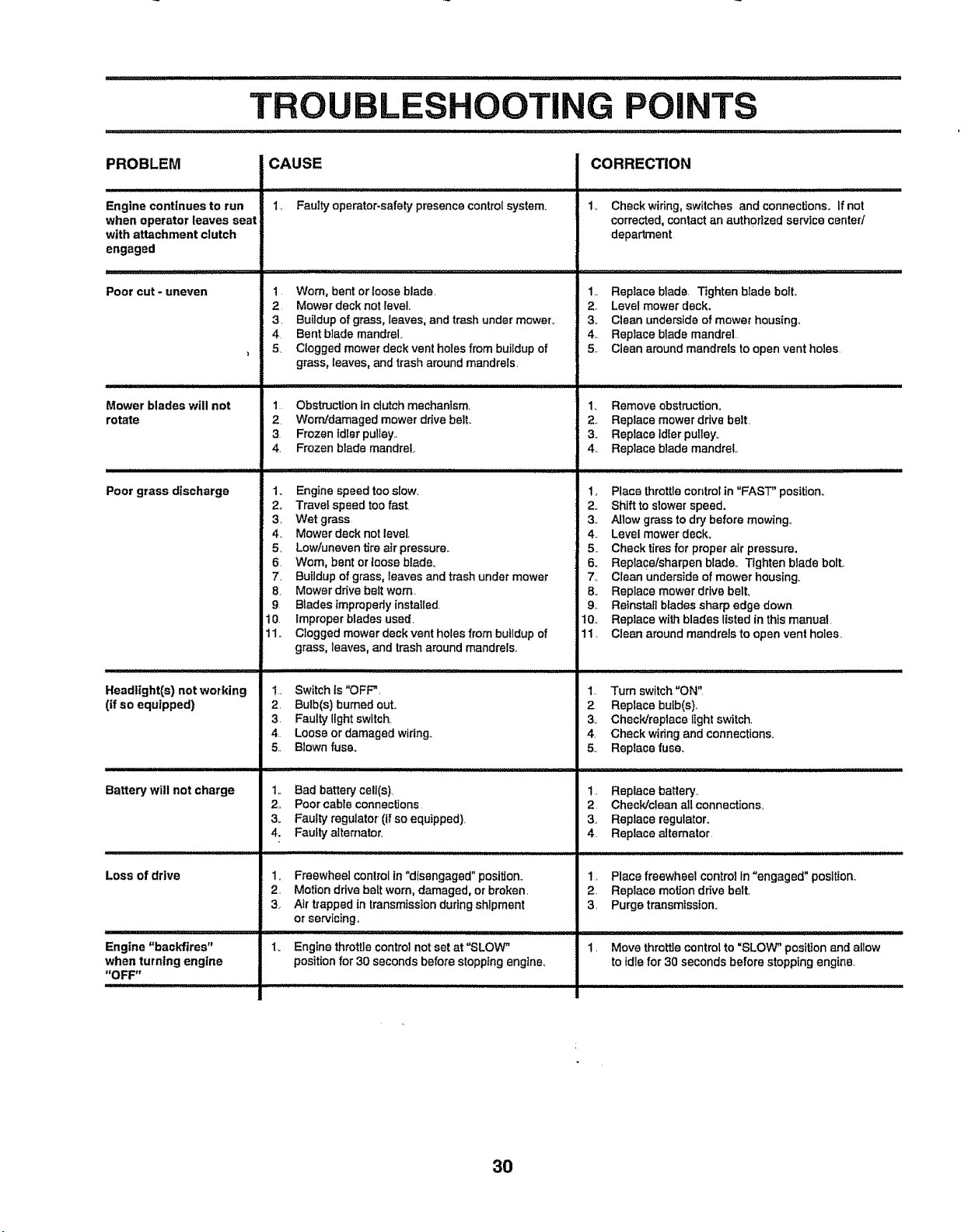

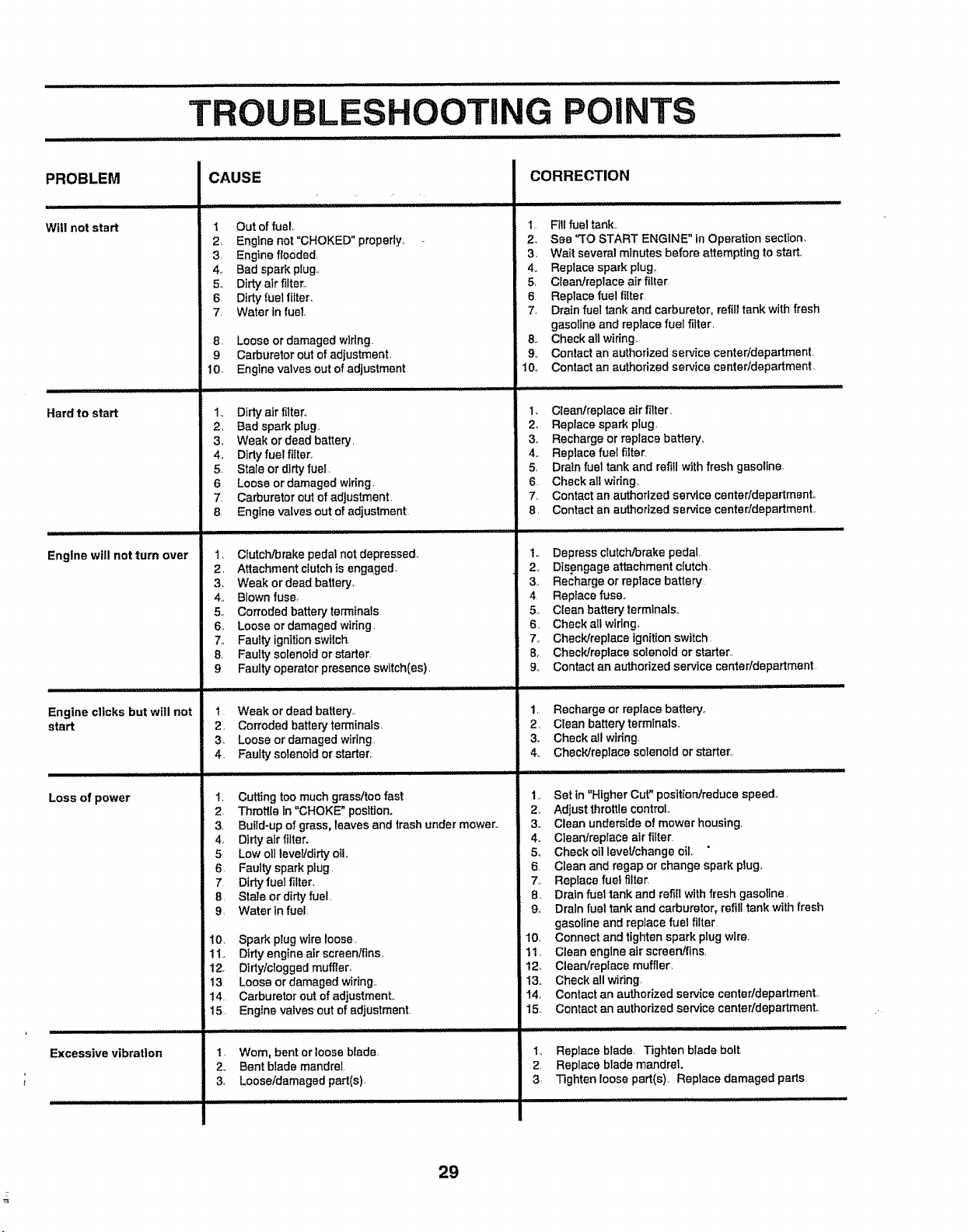

TROUBLESHOOTING ........................................... 29-30

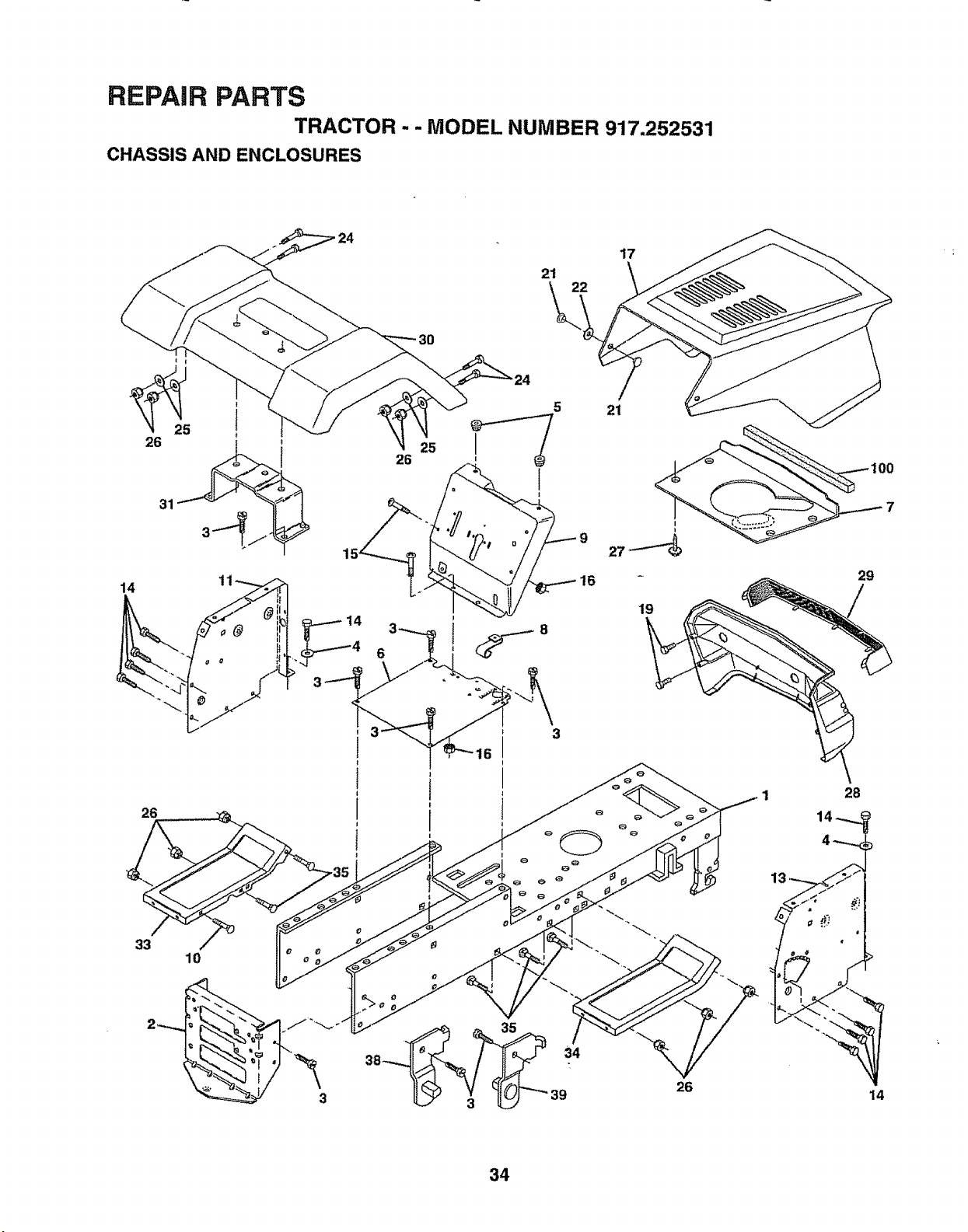

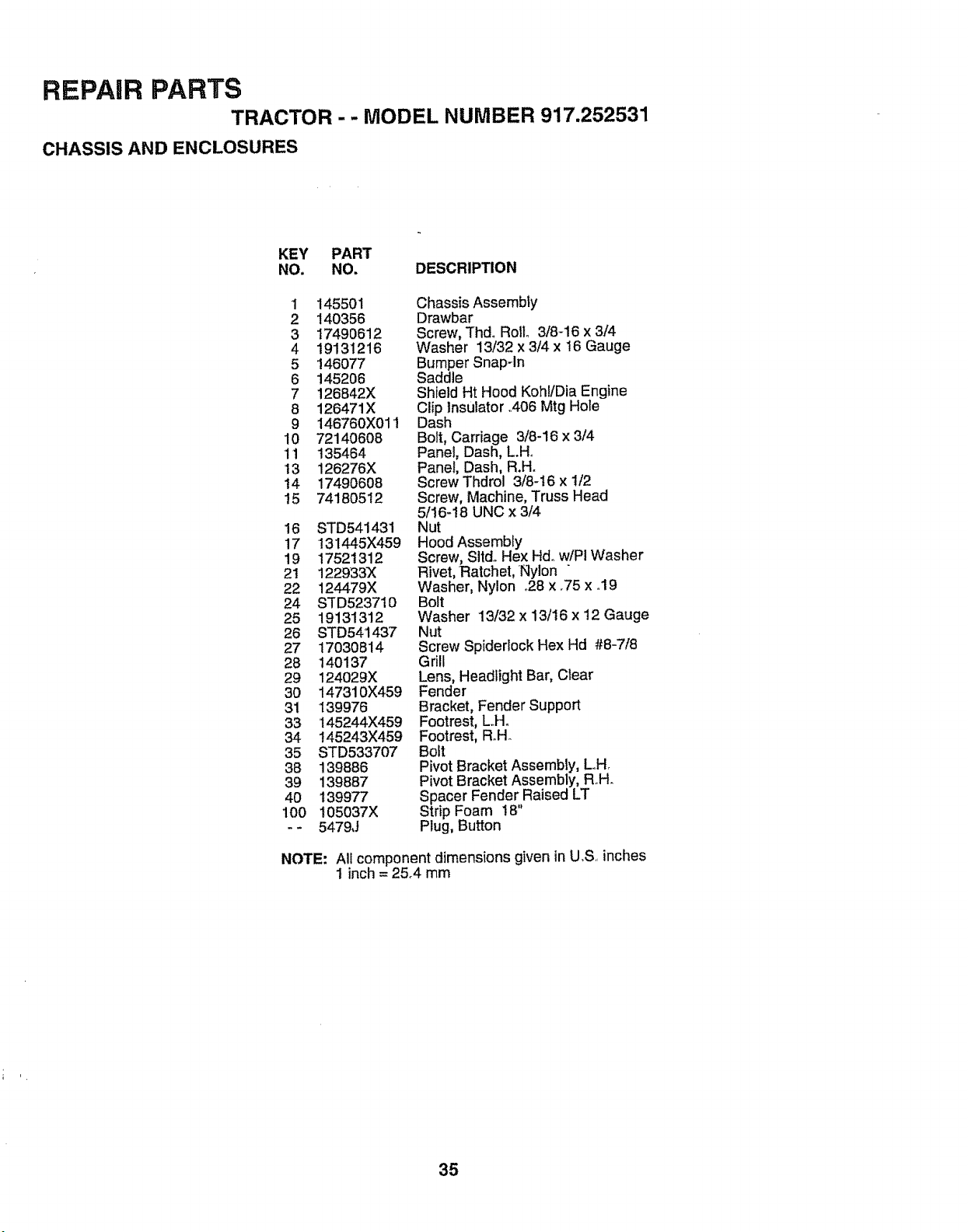

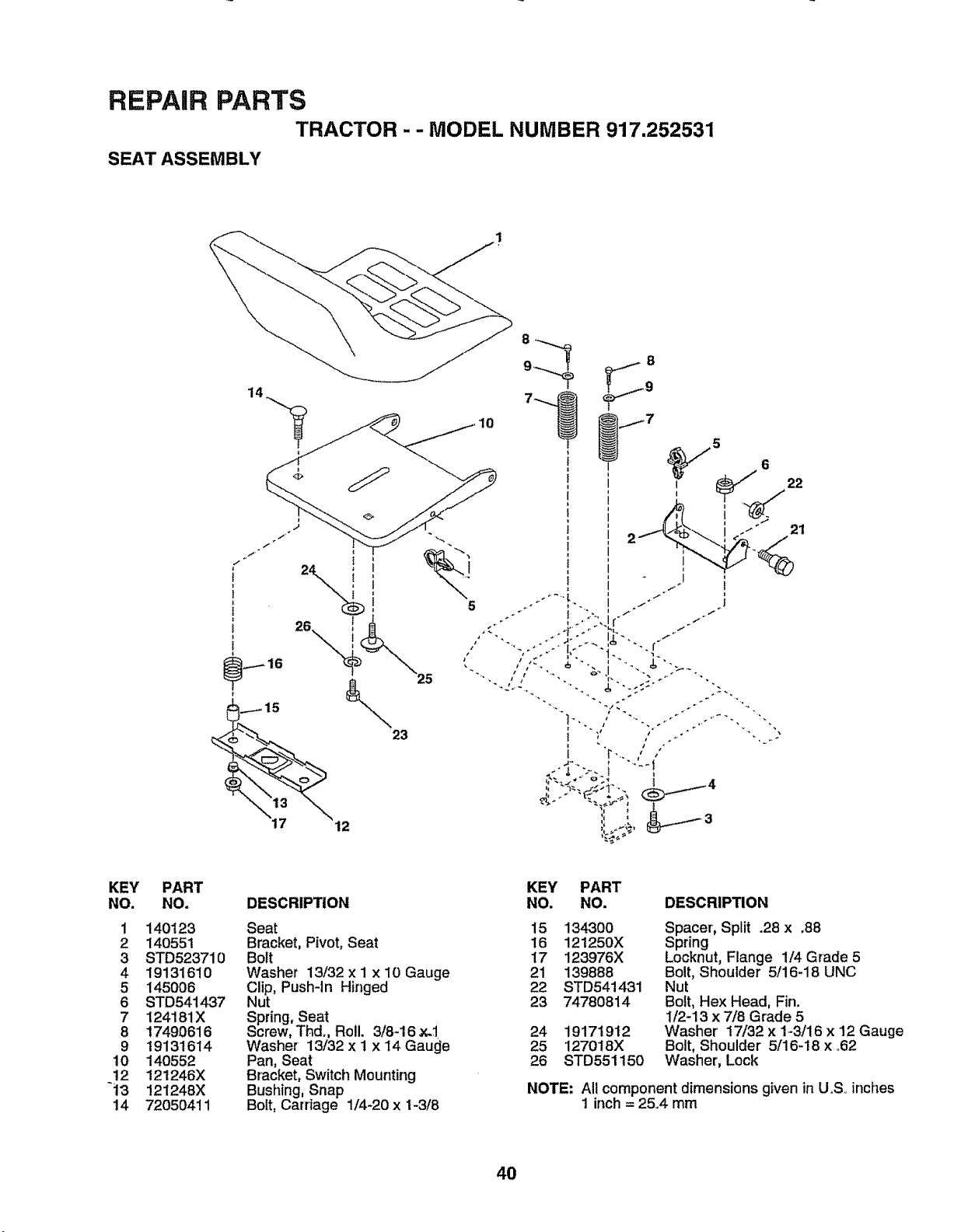

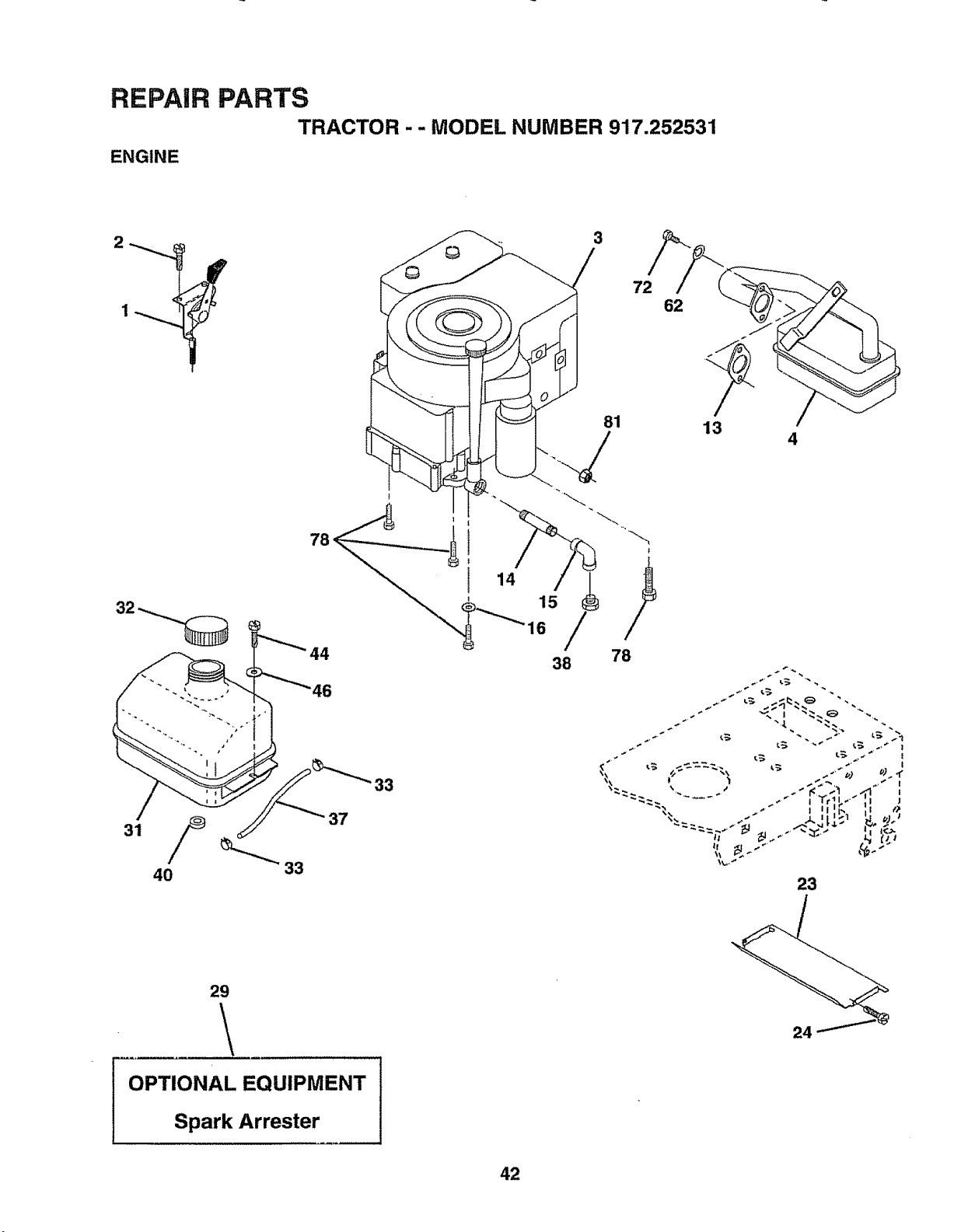

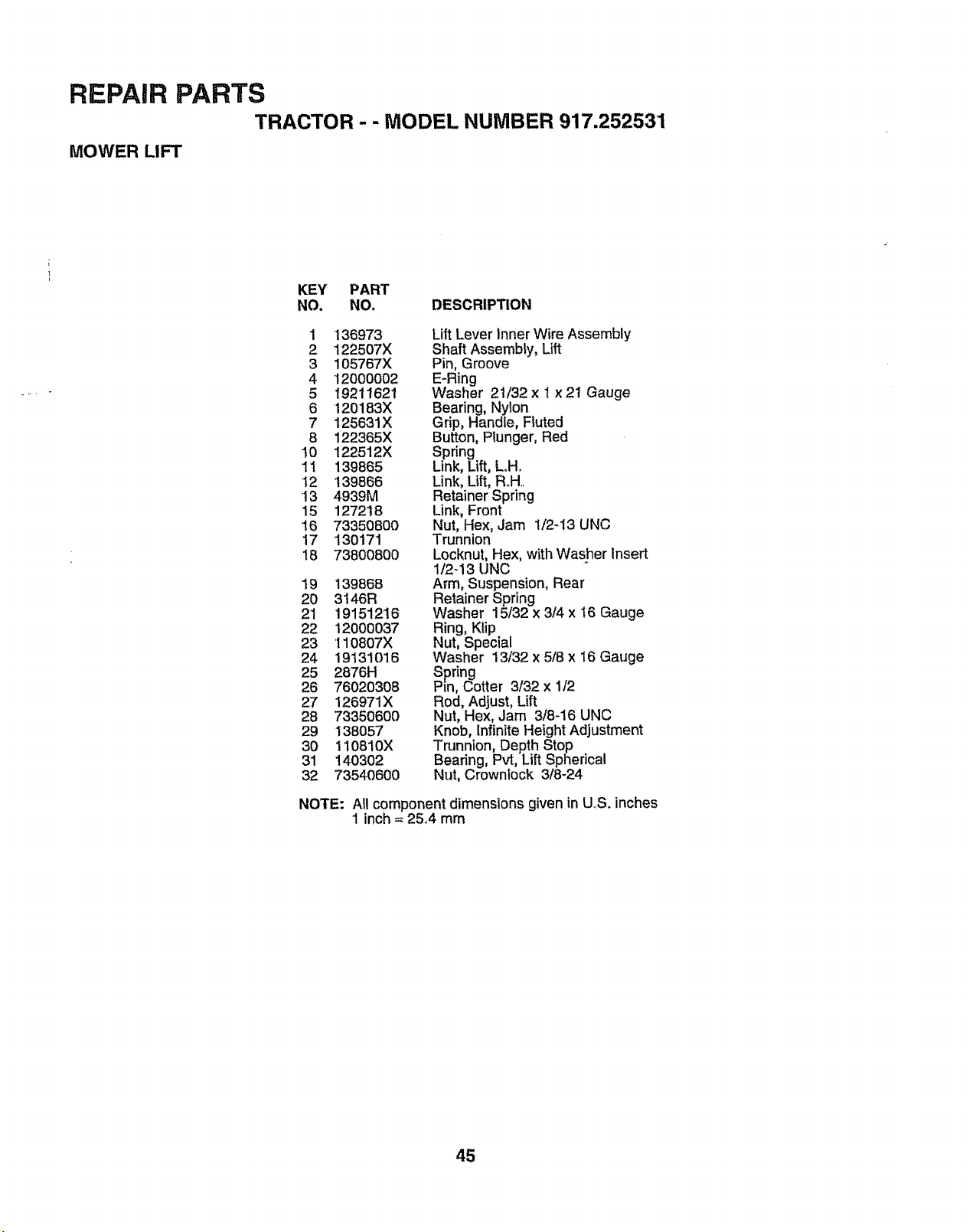

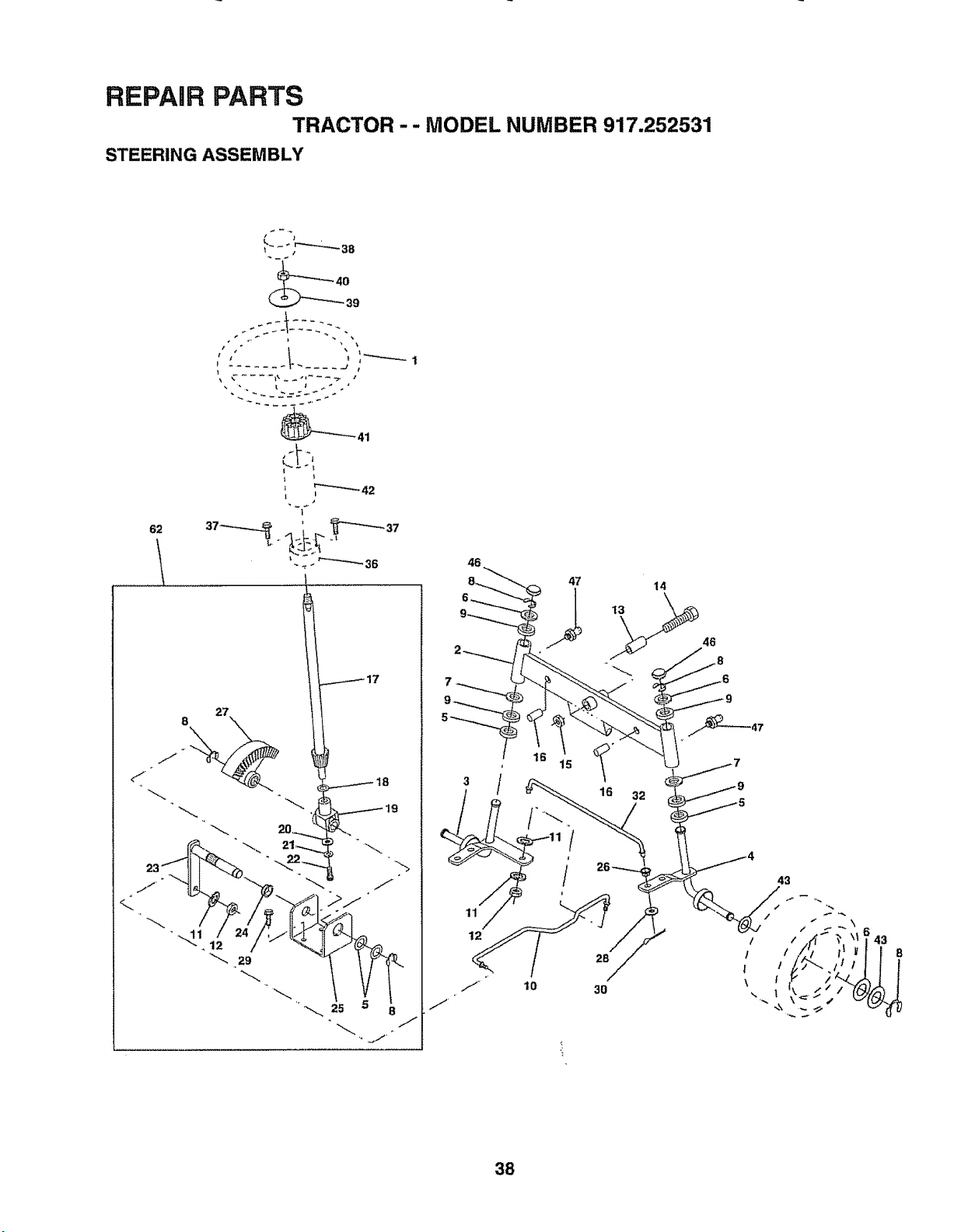

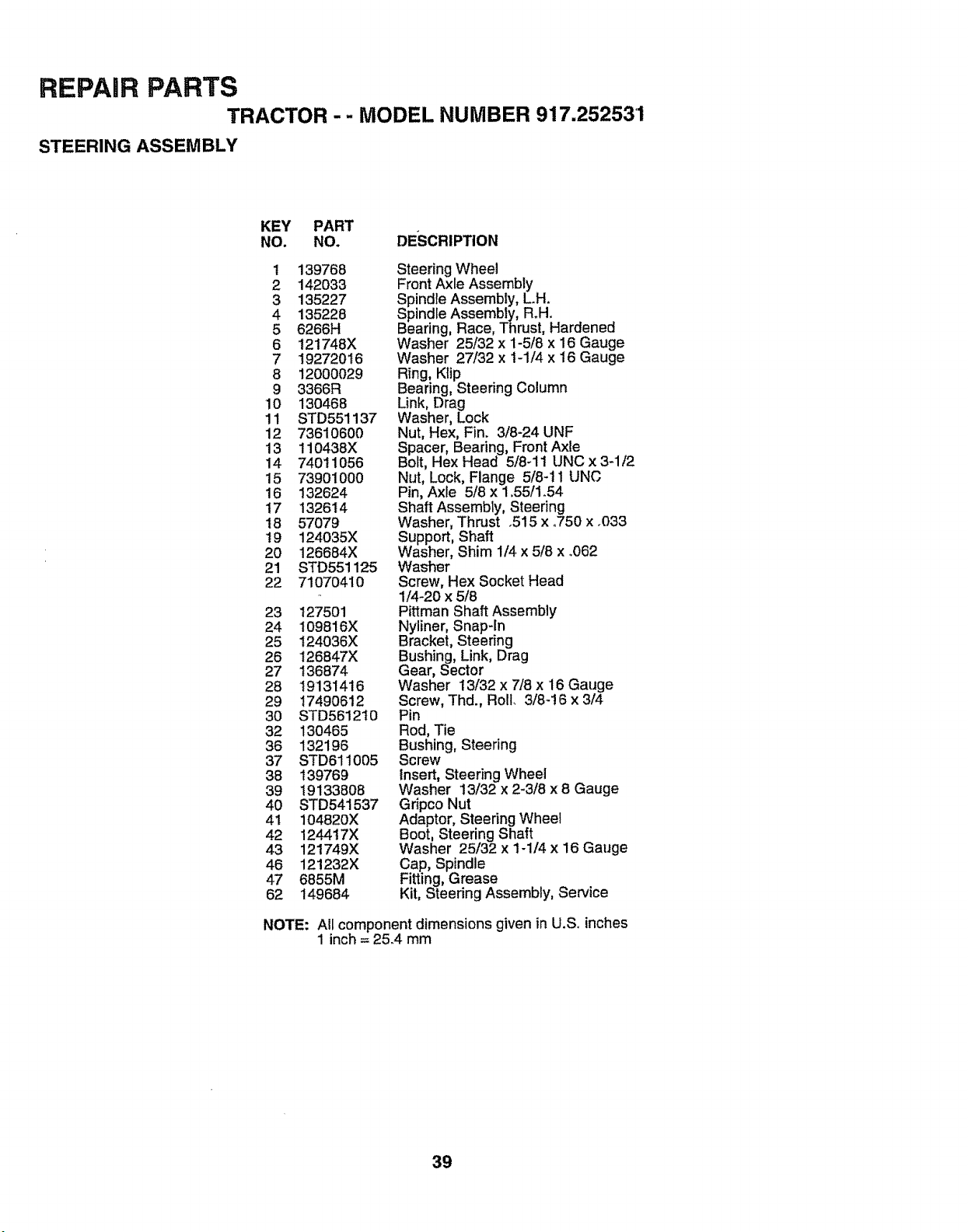

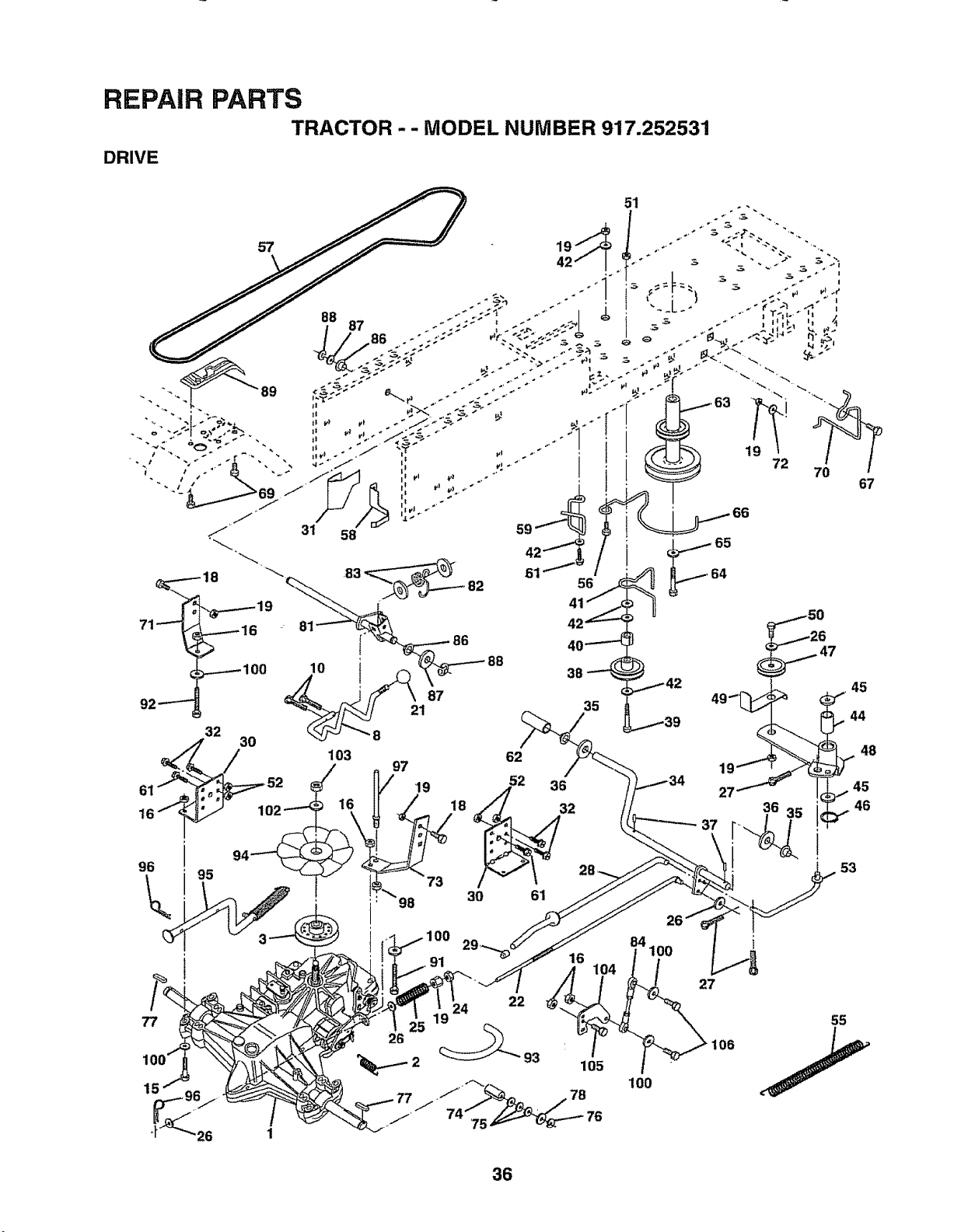

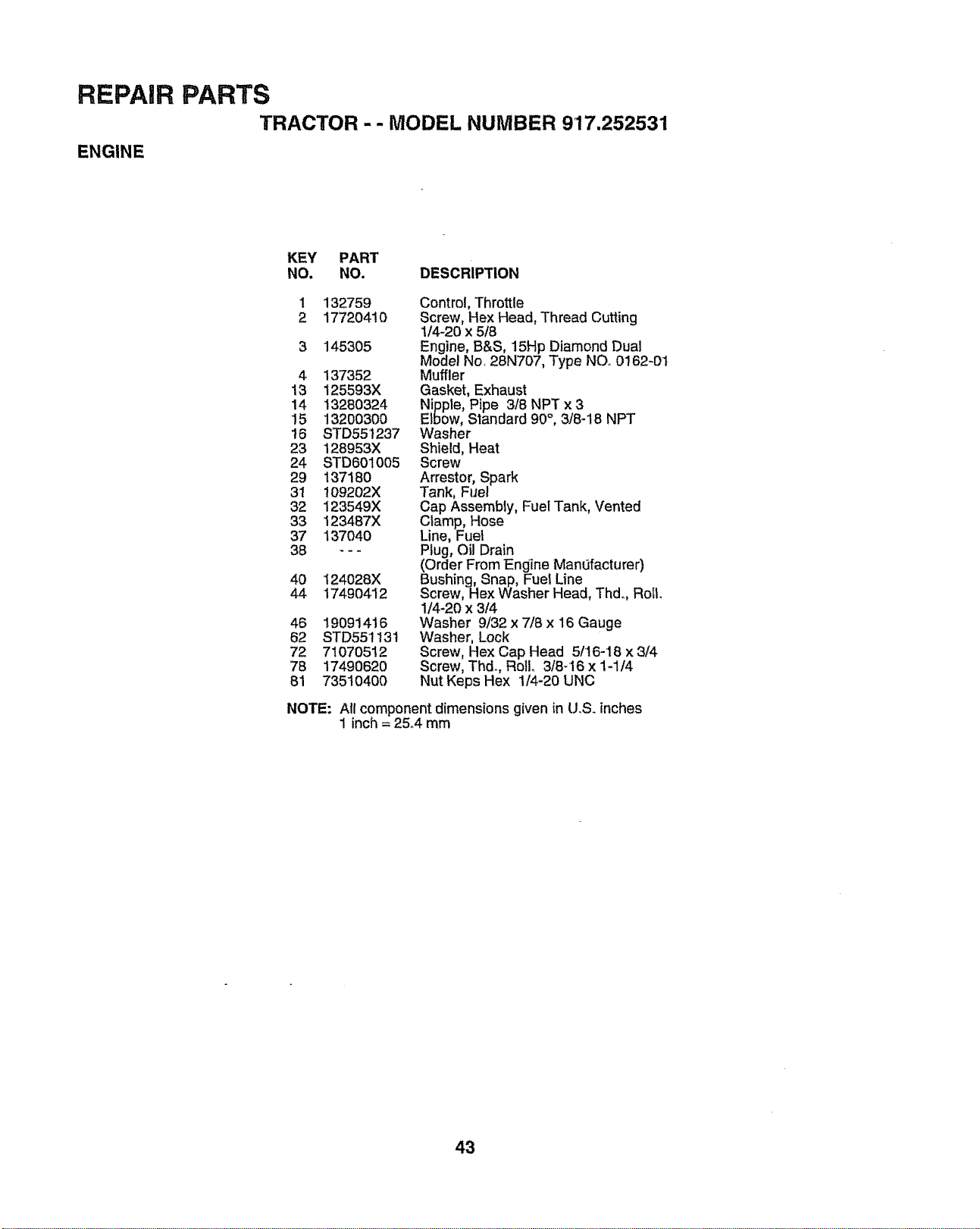

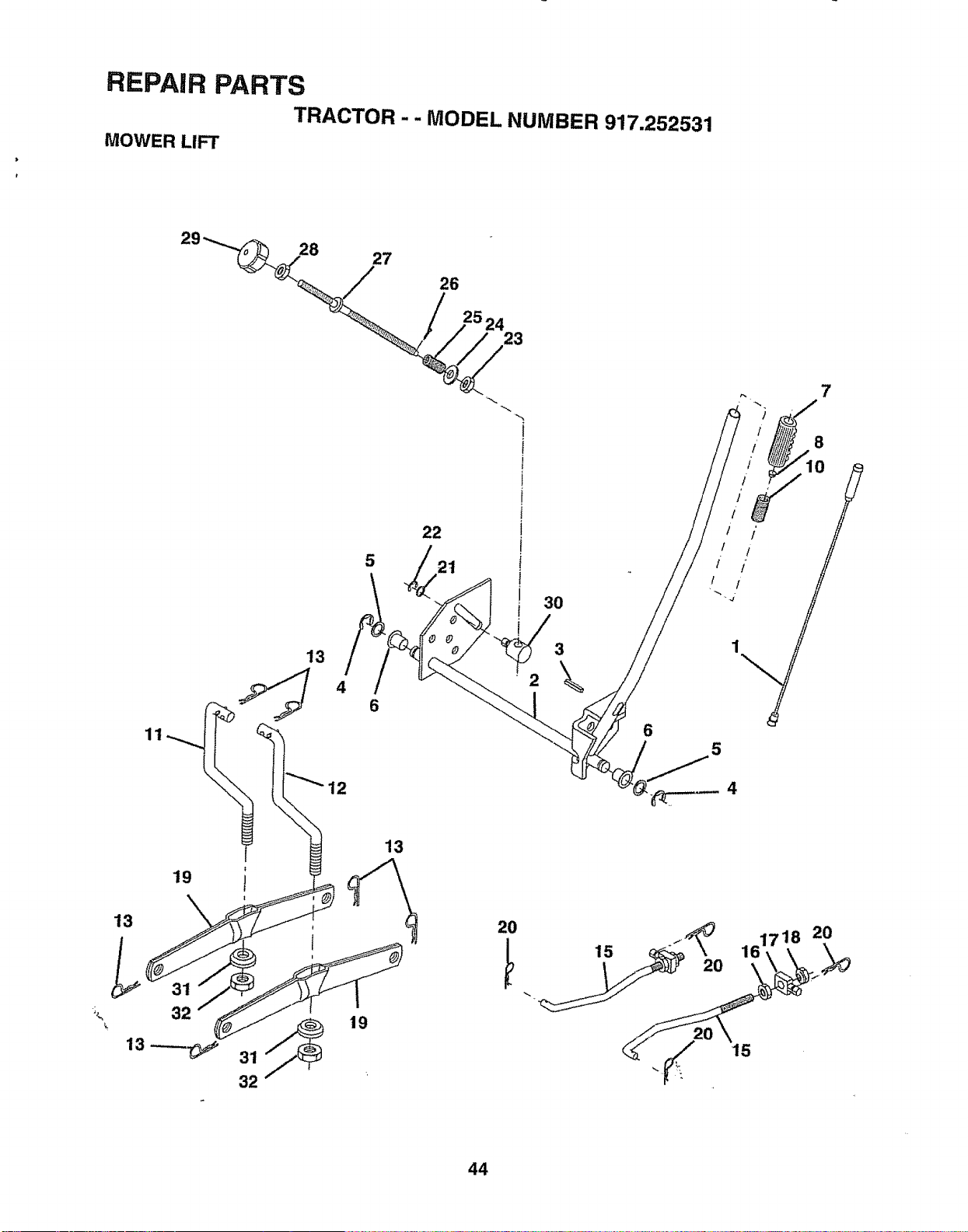

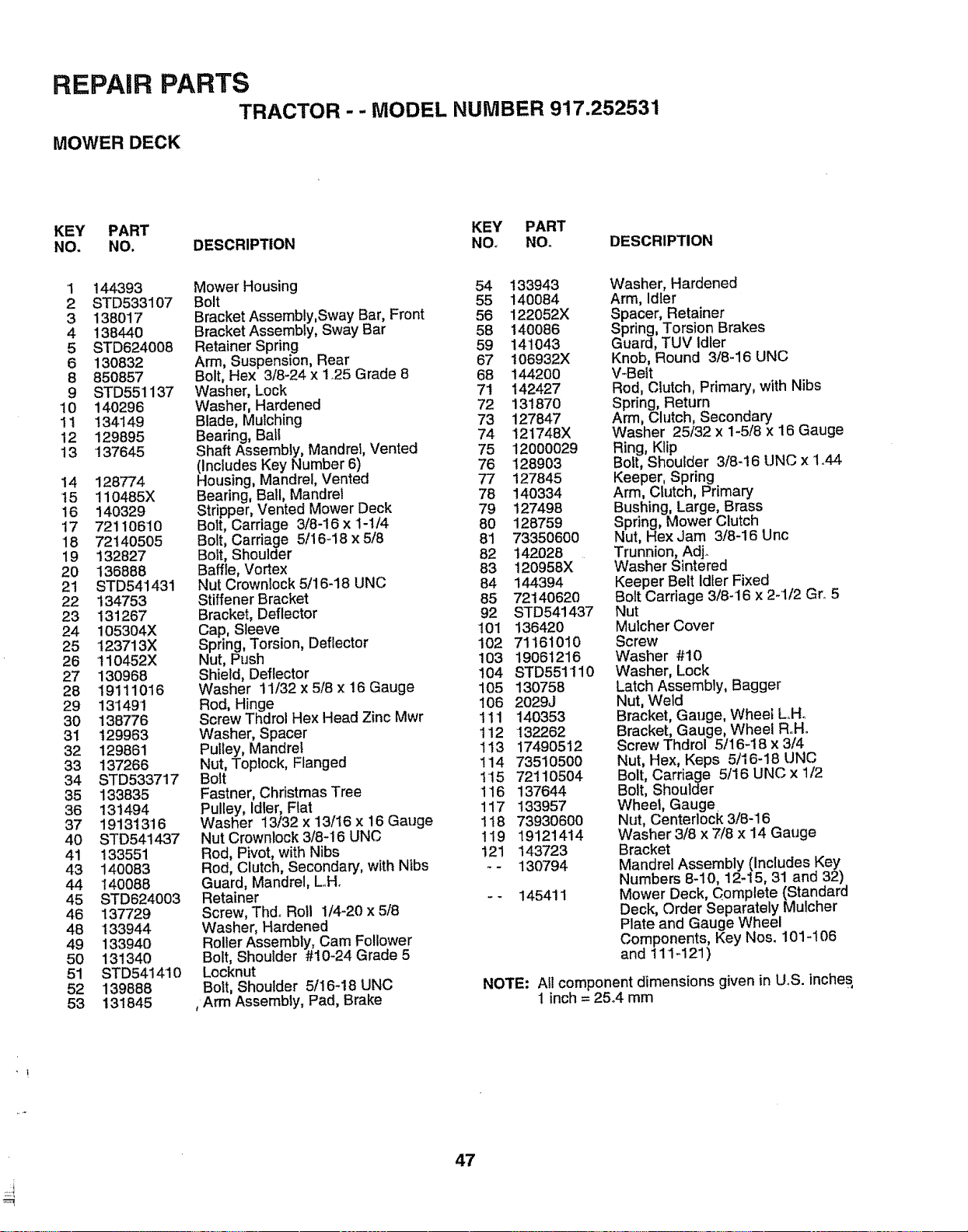

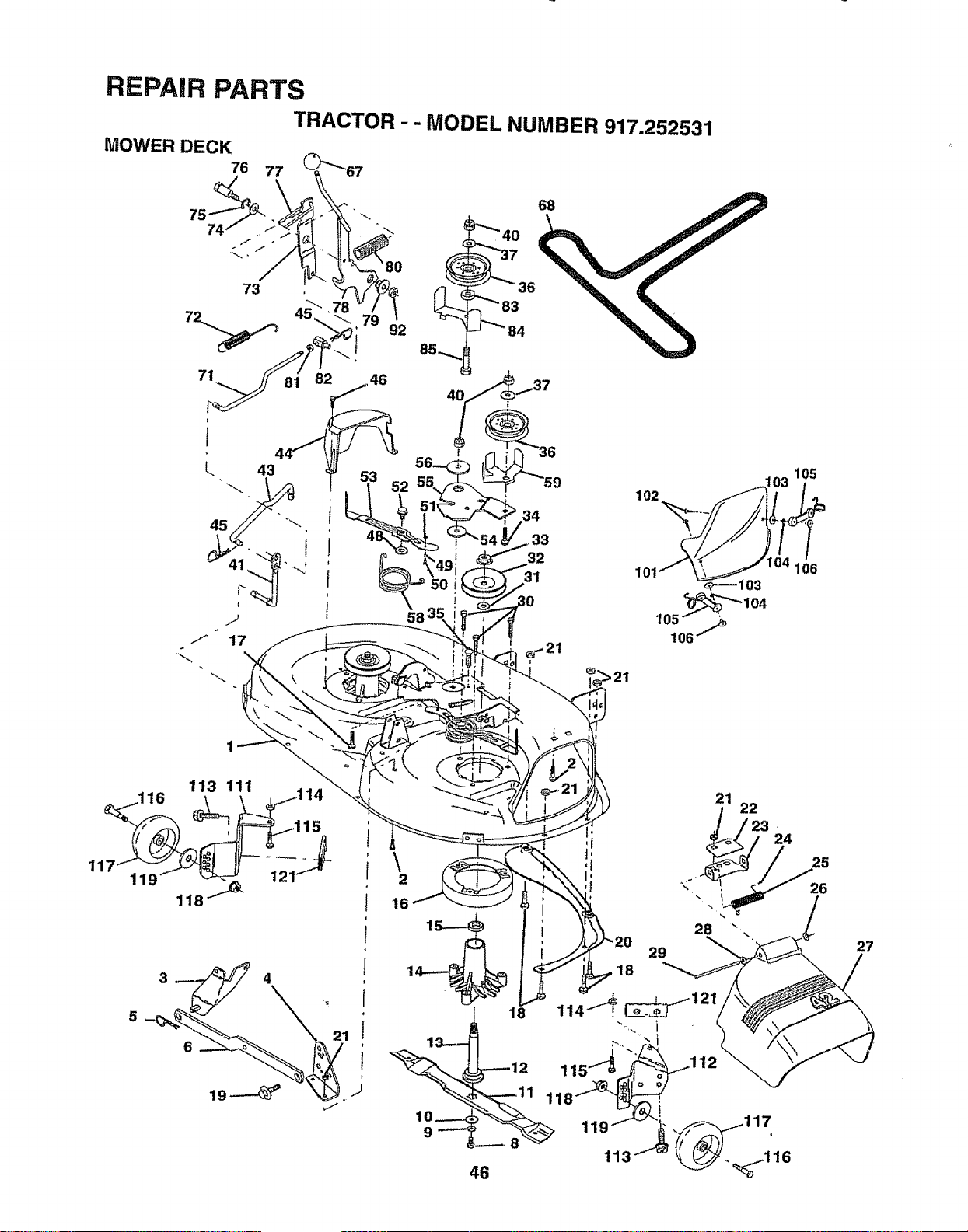

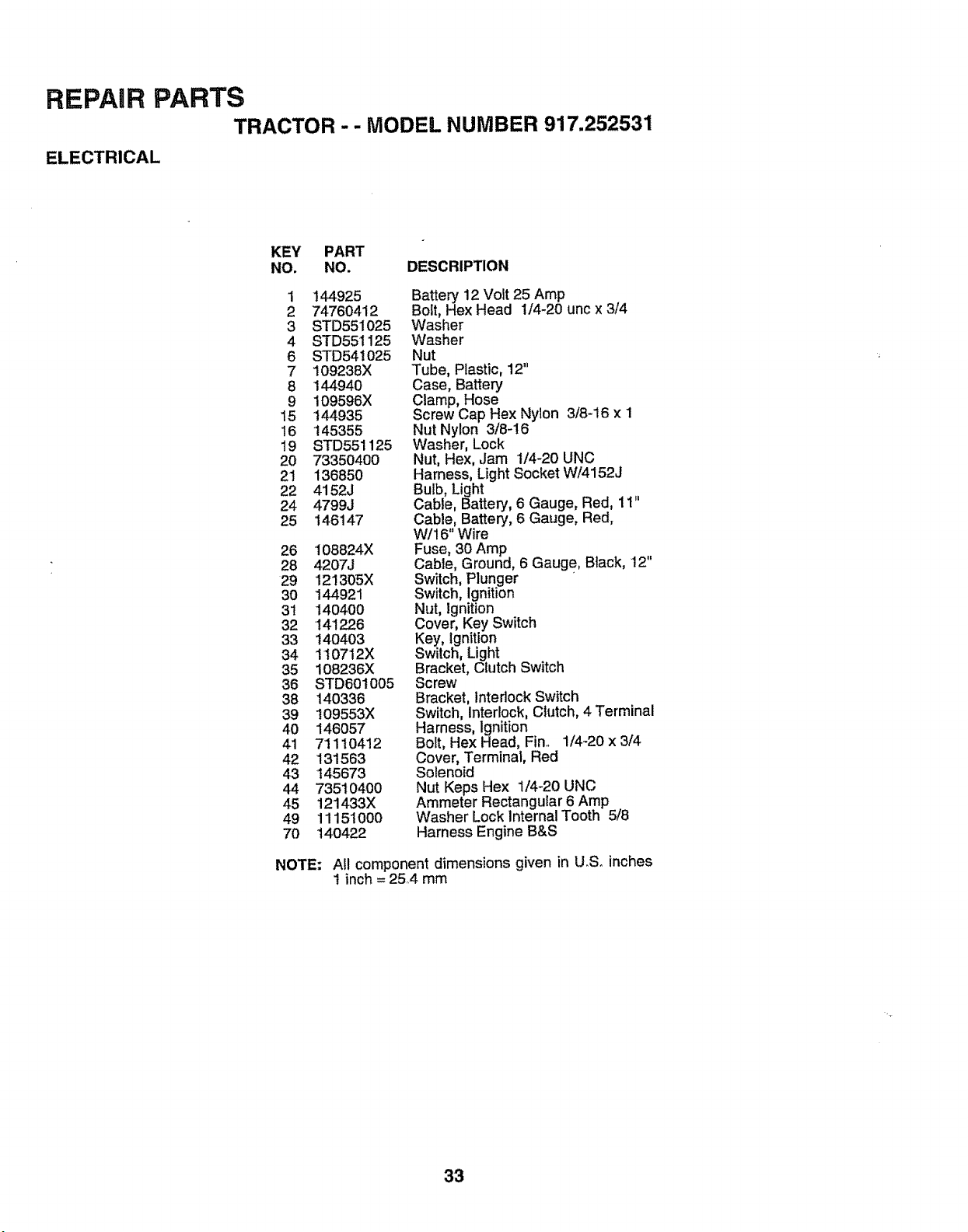

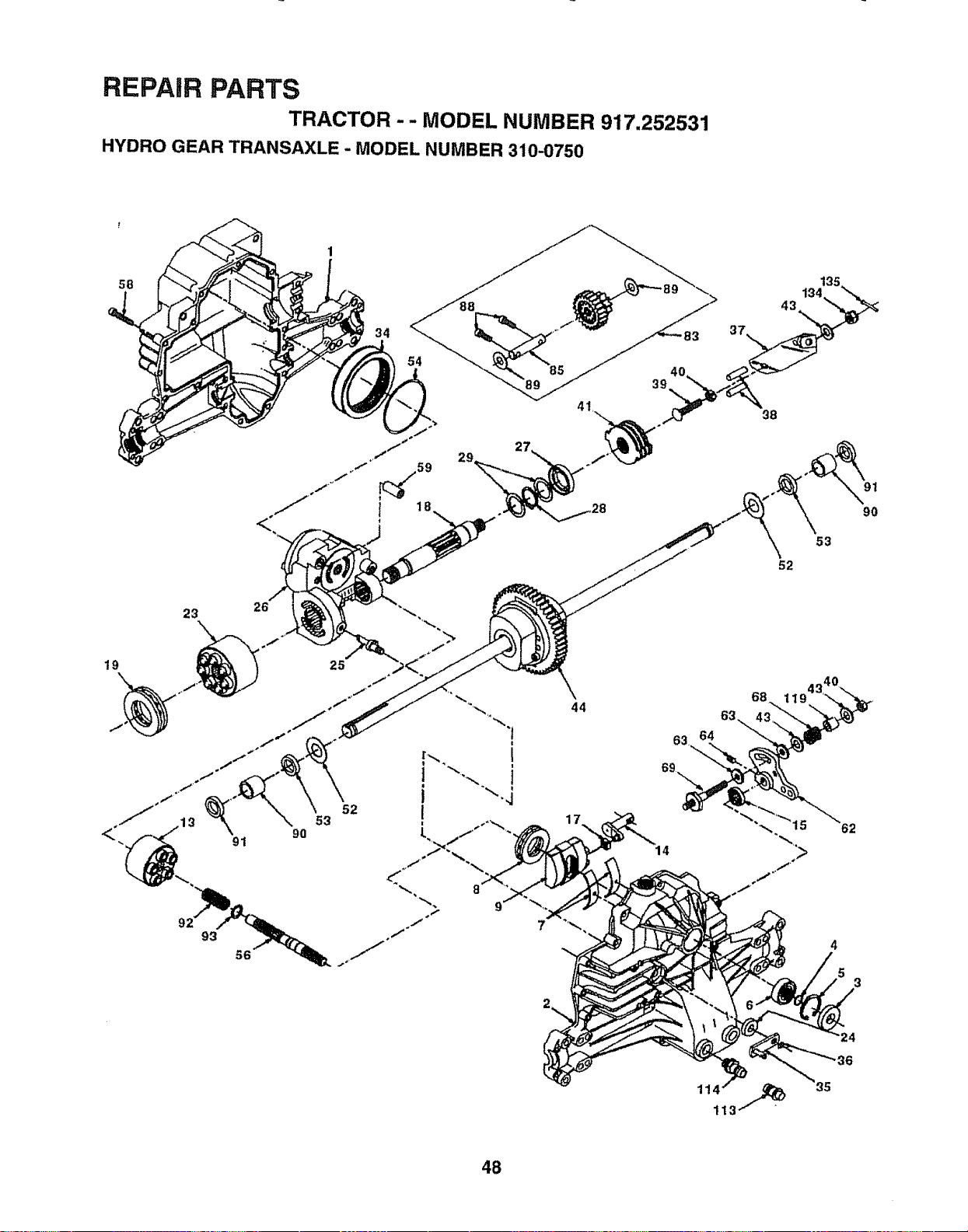

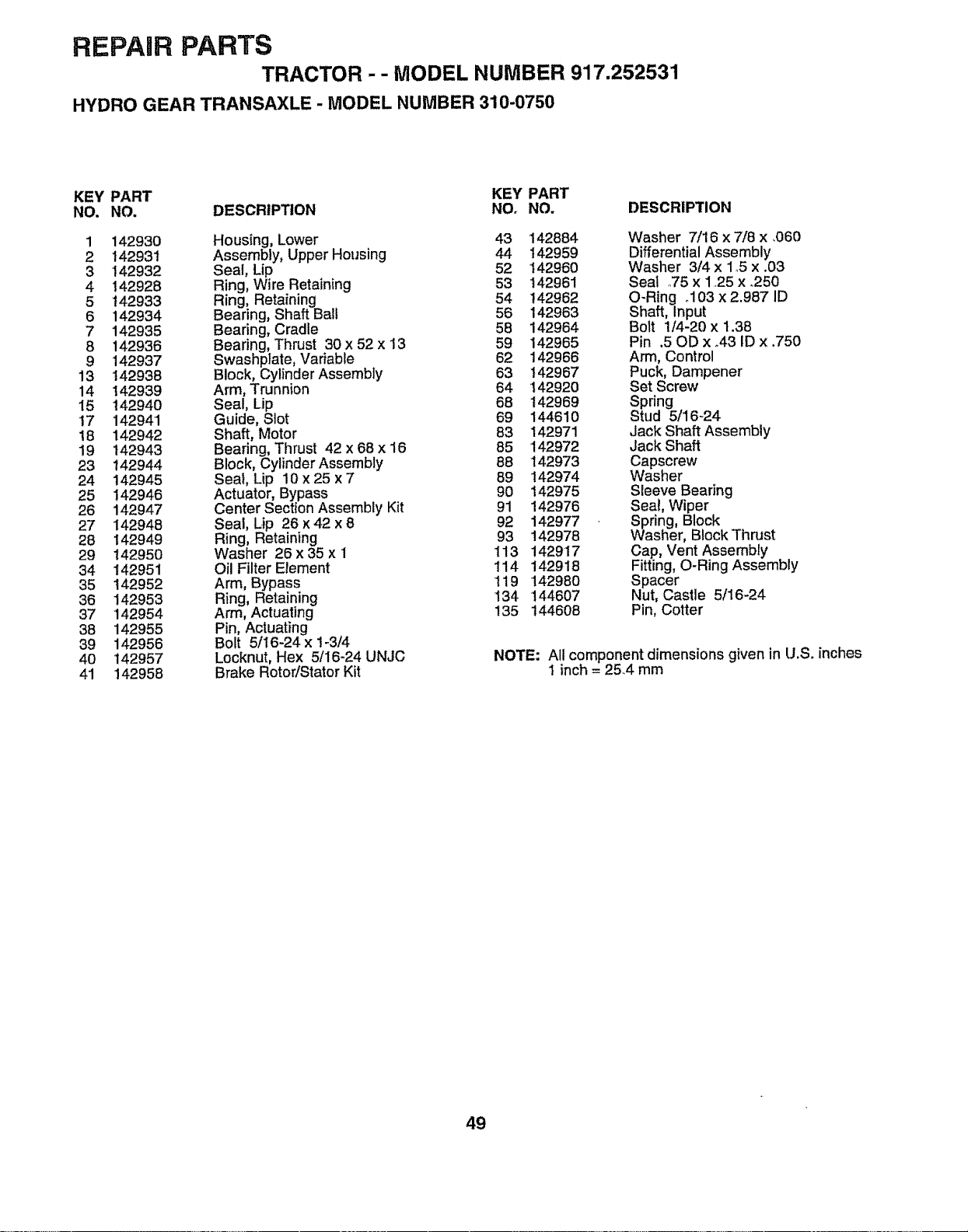

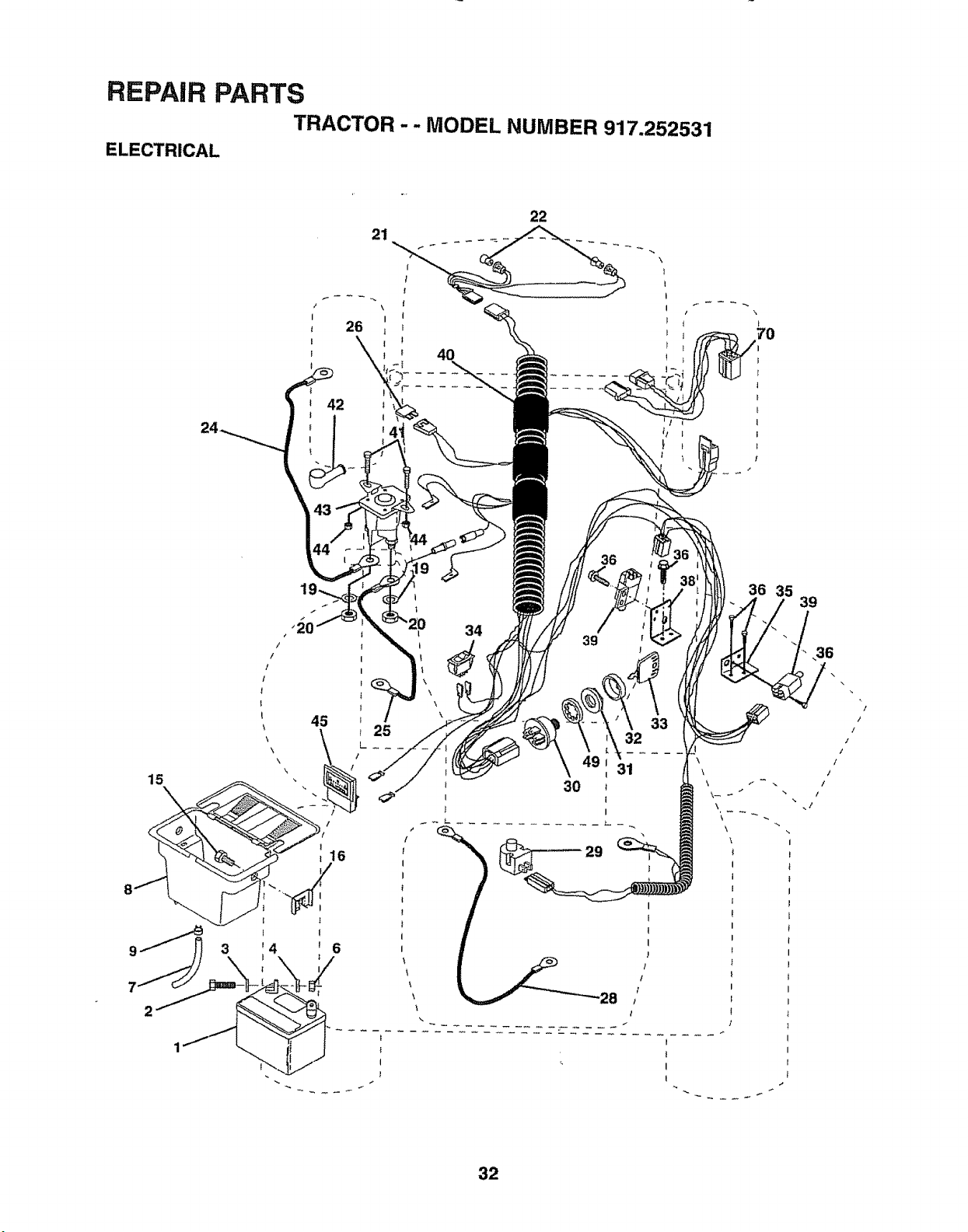

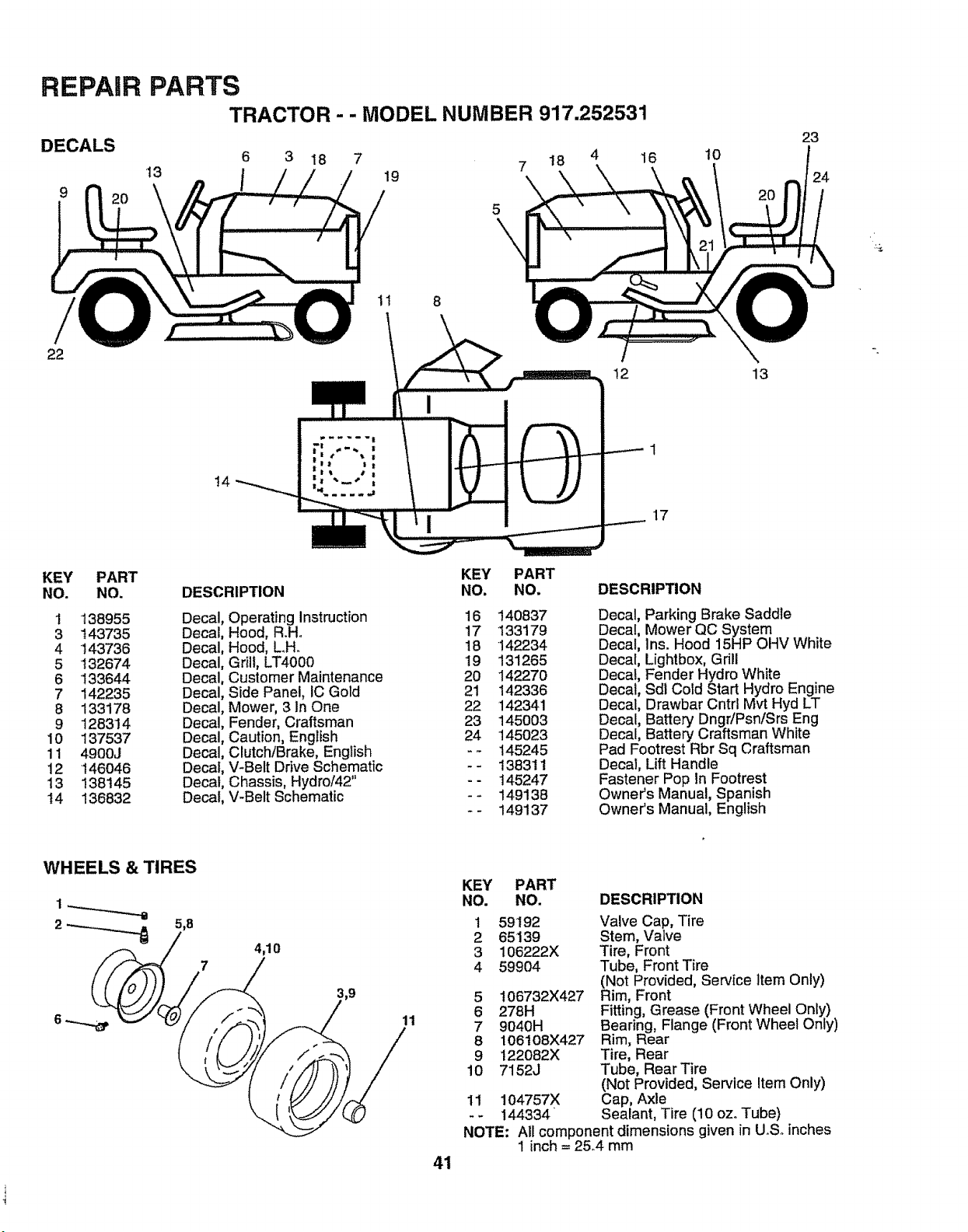

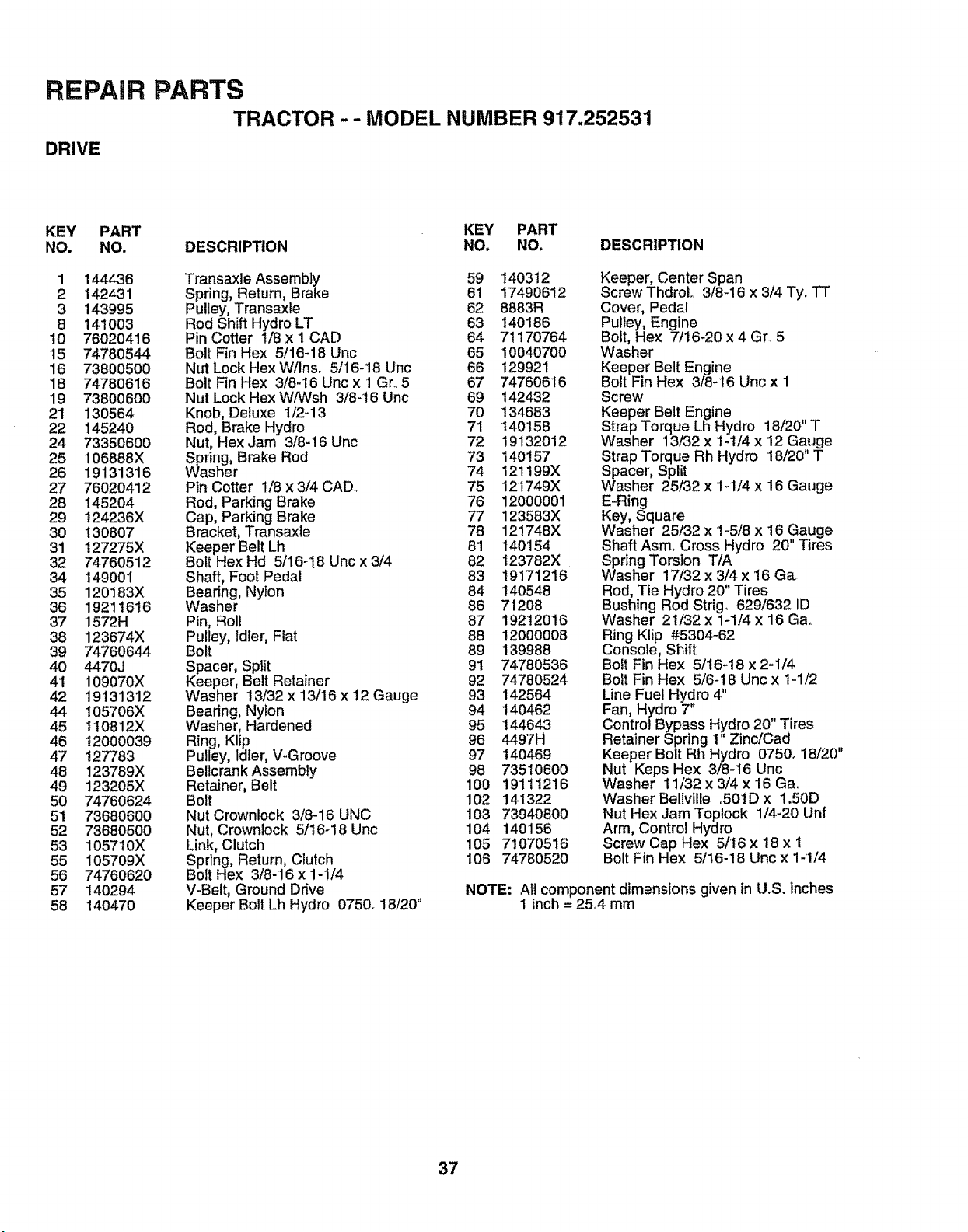

REPAIR PARTS -TRACTOR ................................ 32-47

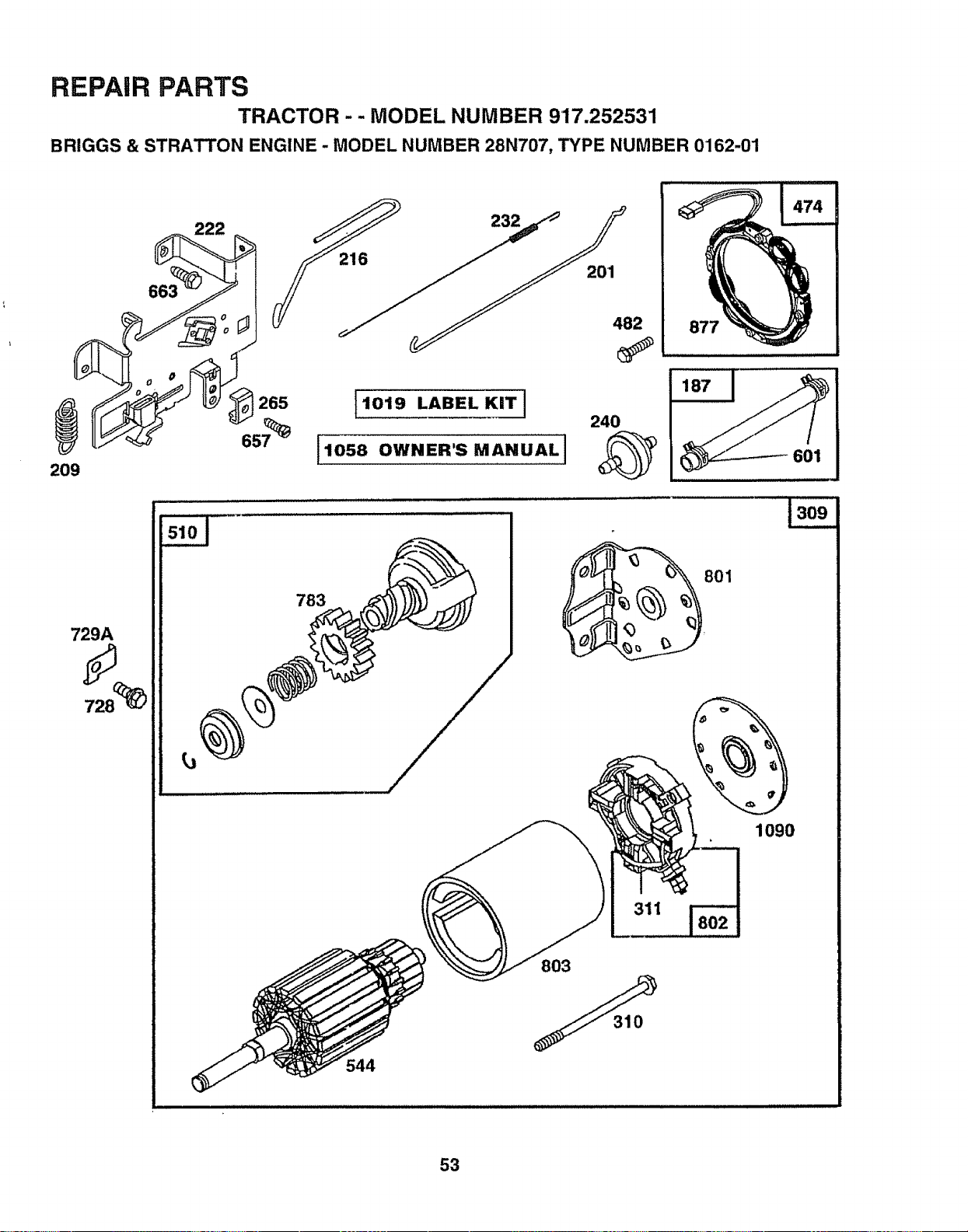

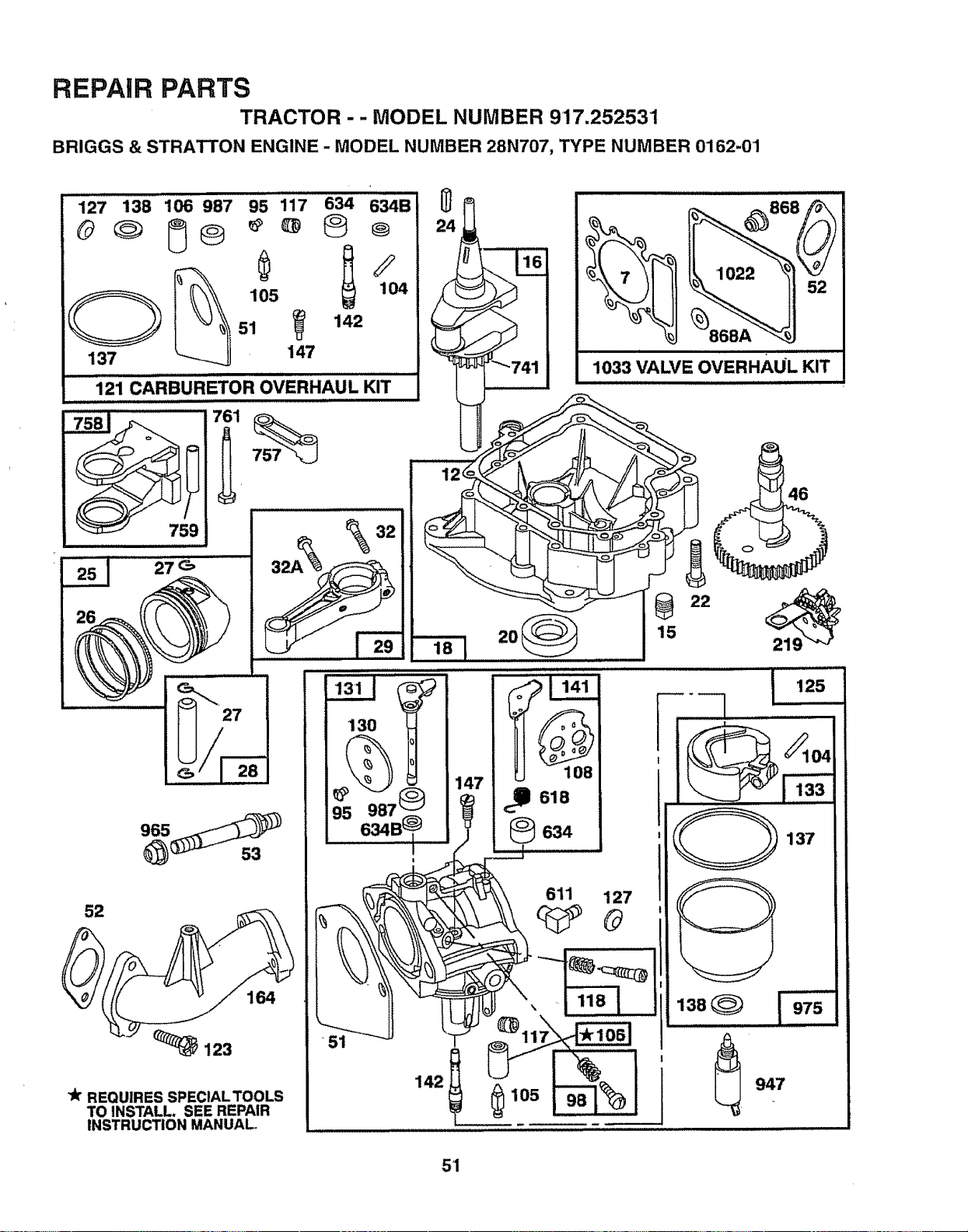

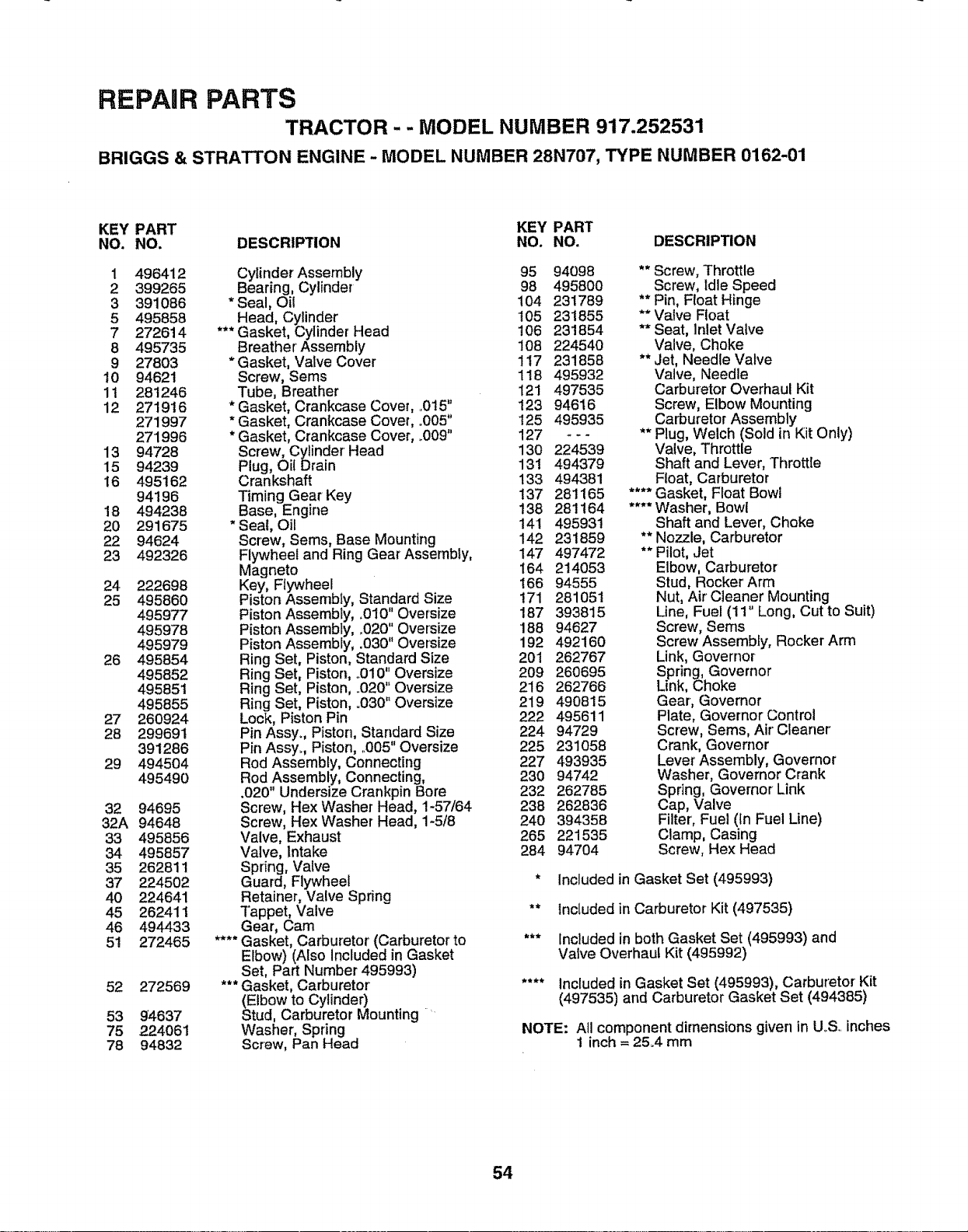

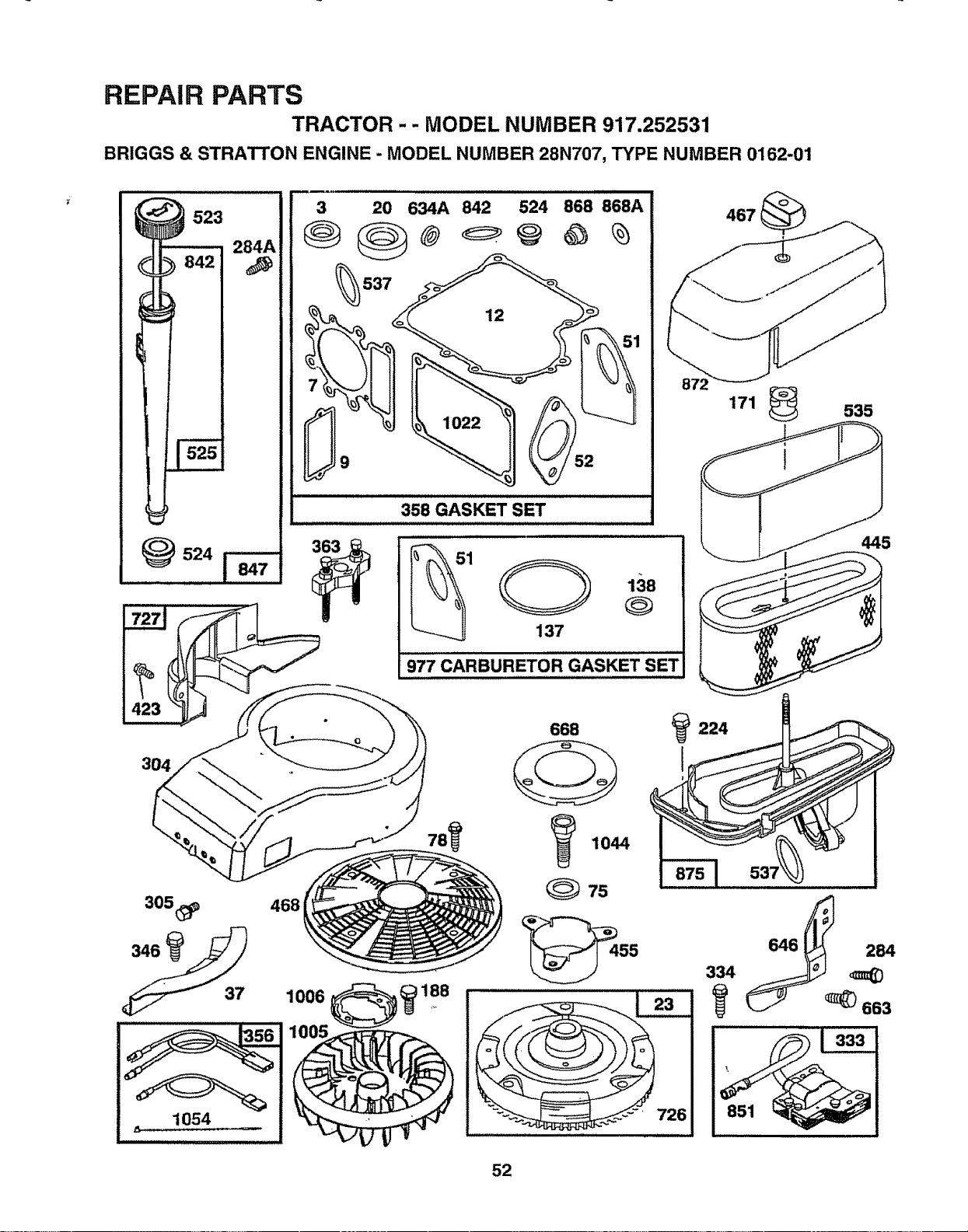

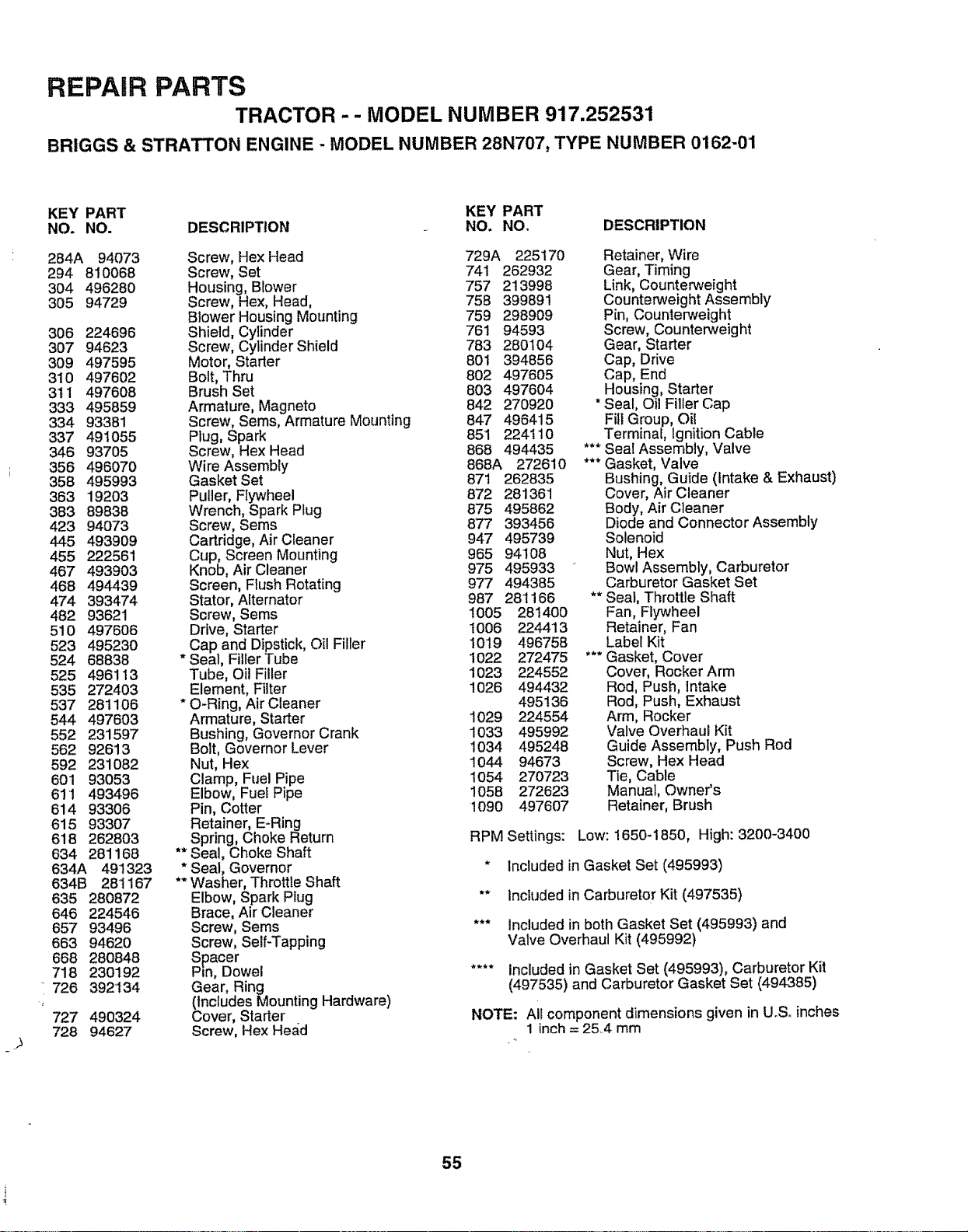

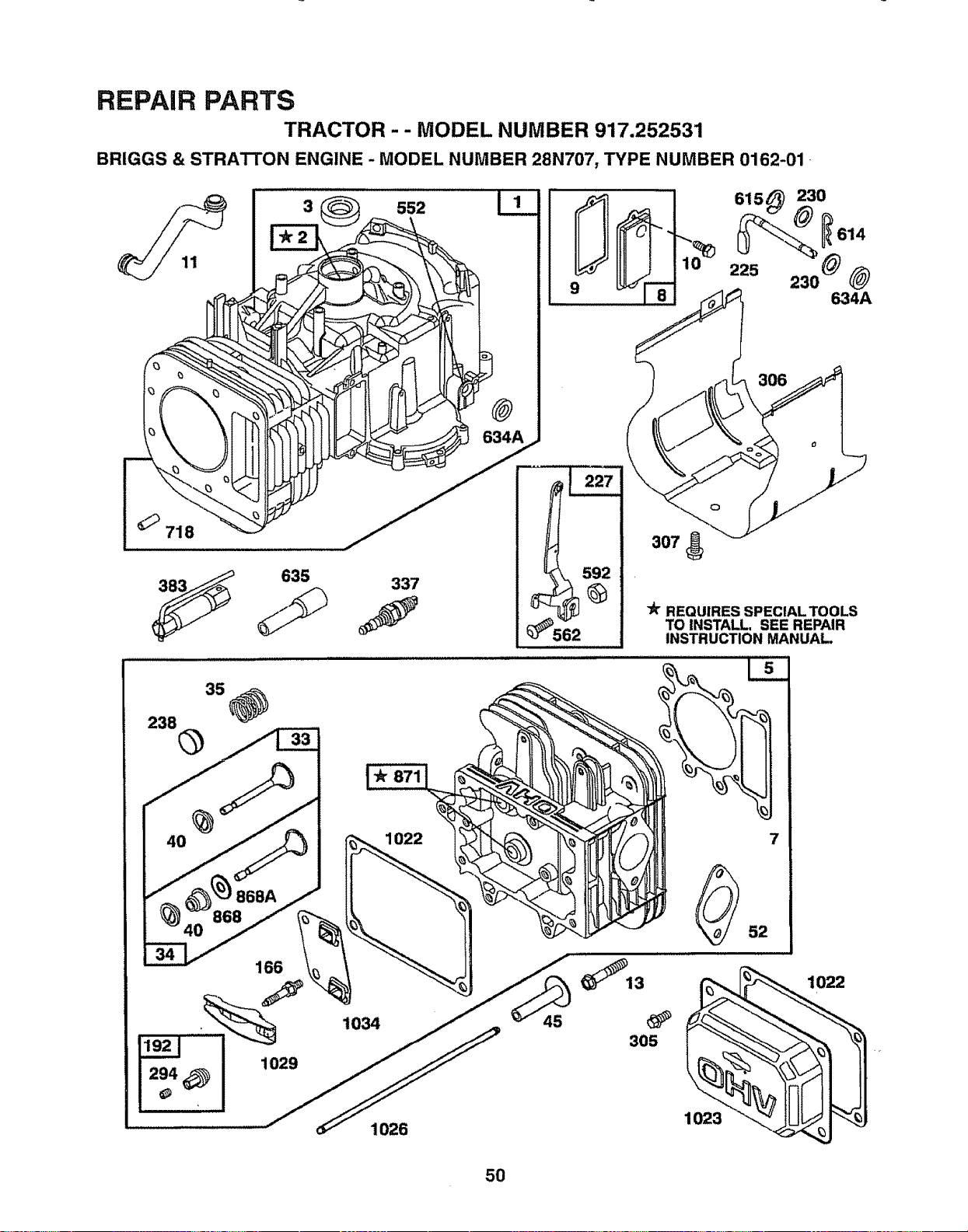

REPAIR PARTS - ENGINE .................................... 50_55

PARTS ORDERING/SERVICE .................. BACK PAGE

INDEX

Accessories................................................................5

Adjustments:

Brake ............................................................24

Carburetor ................................................27

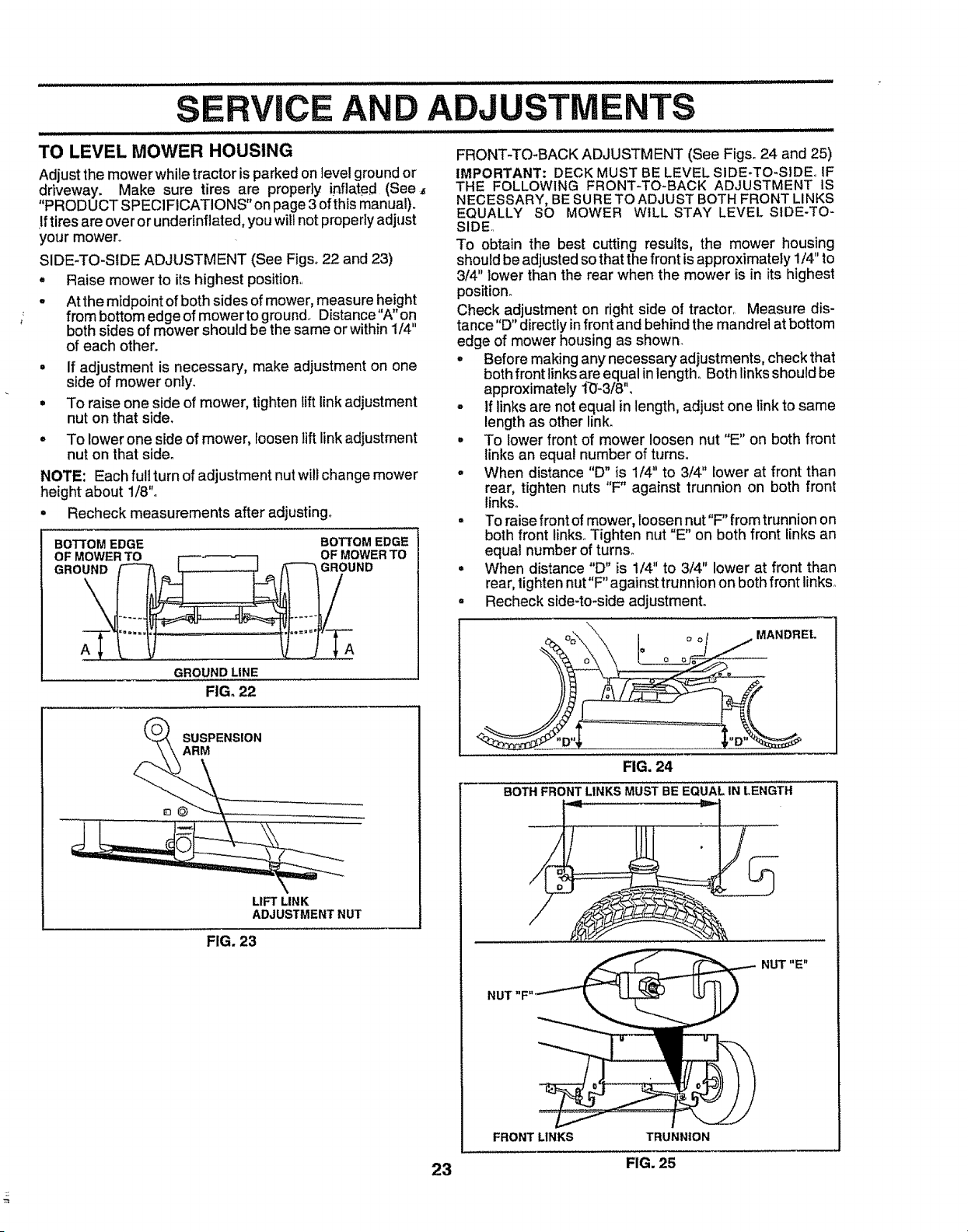

Mower:

Front-To-Back ...................................23

Side-To-Side ......................................23

Throttle Control Cabie .........................27

Air Filter, Engine .......................................................20

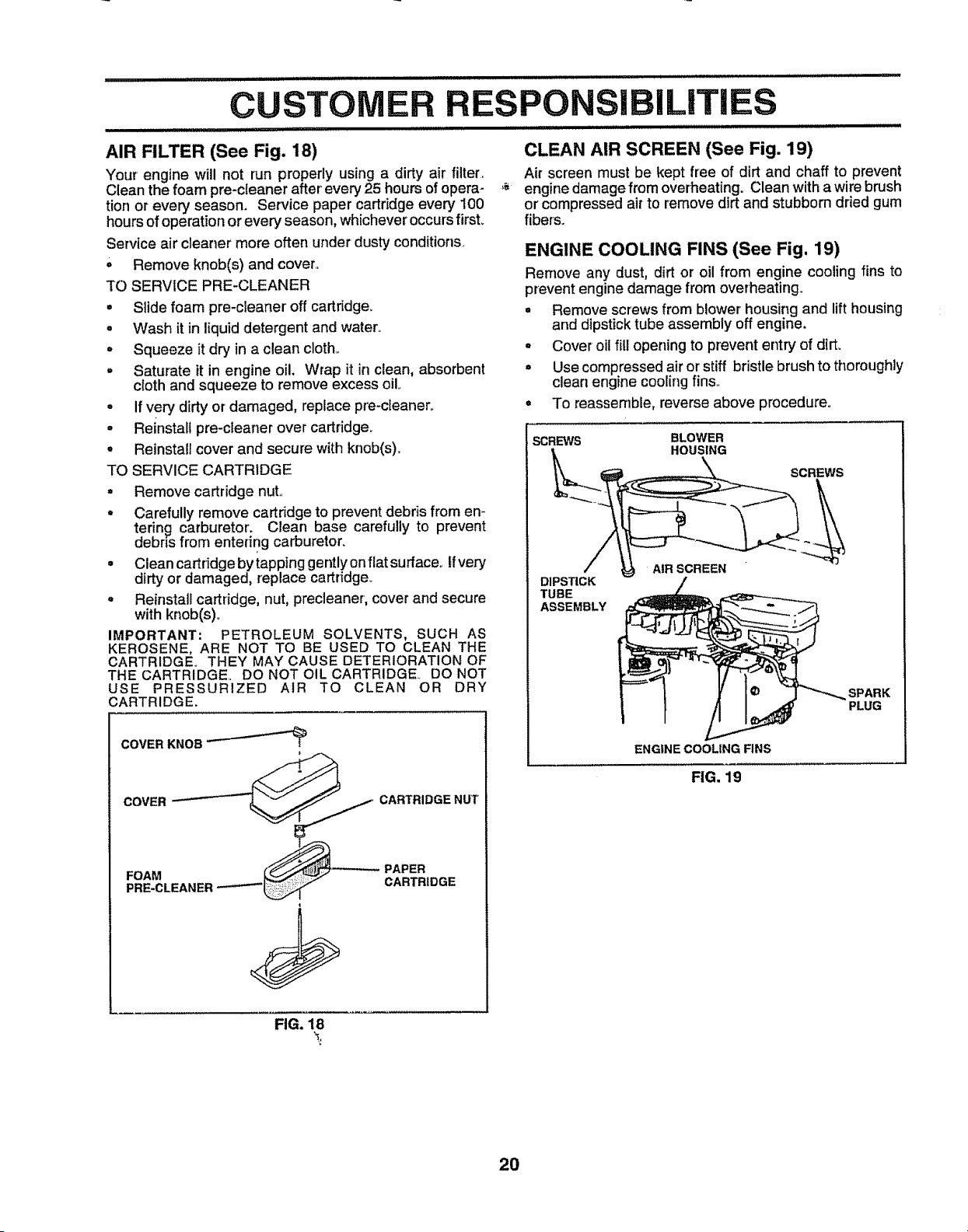

Air Screen, Engine ...............................................20

Assembly ........................................................7-10

Battery:

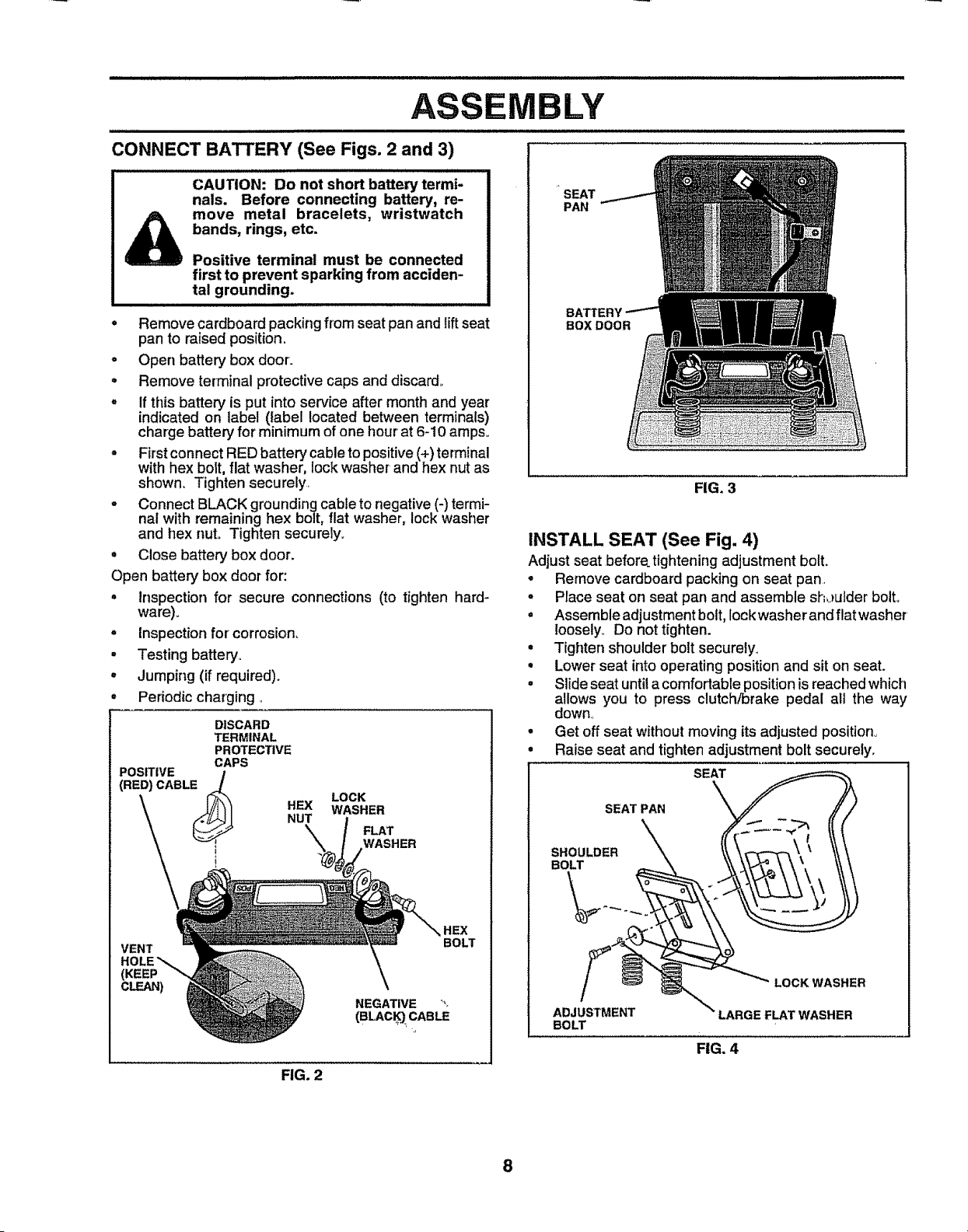

Charging ........................................................8

Cleaning ...............................................19

Connecting ......................................................7

Starting with Weak Battery .......... 26

Storage .....................................................28

Terminals .....................................................19

Belts:

Motion Drive

Removal/Replacement ..............24

Mower Blade Driv3

Removal/Replacement ............23

Blade:

Sharpening ..................................................18

Replacement .........................................18

Brake Adjustment .........................................24

Carburetor Adjustment ...............................27

Controls, Tractor ..........................................12

Customer Responsibilities ............ 17-21

Engine:

Air' Filter..............................................20

Air Screen, Engine .........................20

Battery .............................................................18

Cooling Fins, Engine ....................21

Engine Oil .................................................19

Fuel Filter ..............................................21

Spark Plugs ...................................21

Tractor:

Blades ............................................18

Lubdcation Chart ...........................17

Maintenance =Schedule ...............17

Tire Care ......................................8,18,27

Cutting Height, Mower ...................................: 13

Electrical:

interlocks and Relays .....................26

Schematic .....................................................31

Wiring Diagram .......................................32

Engine:

Air Filter .......................................................20

Air Screen ...............................................20

Cooling Fins, Engine .......................20

Oil Change ...................................................I9

Oil Level ...............................................15,19

Oil Type .....................................................18

Preparation ..................................................15

Repair Parts ......................................50-55

Starting ............................................................15

Storage .....................................................28

Filters:

Air .....................................................................20

Fuel ......................................................21

Fuel:

Type ...........................................................15

Storage ...................................................28

Fuse .....................................................................26

Gauge Wheels ..................................................9

Hood Removal/installation .........................26

Leveling Mower Deck .......................................23

Lubrication Chart ........................................16

Maintenance Schedule .............................17

Mower:

Adjustment, Front-to-Back .............23

Adjustment, Side-to-Side ...............23

Blade Sharpening ................................18

Blade Replacement ................................18

Cutting Height ...............................................13

Installation .........................................22

Operation .............................................14

Removal ....................................................22

Mowing .Tips ...............................................t6

Muffler ...........................................................21

_"_ Spark Arrestor .......................................3,42

Mutcher Plate .......;............_:............................10

Oi!:

Cold Weather Conditions ............15,19

Engine ..................................................................19

Storage ........................................................28

Operation .......................................................11-16

Operating Mower .......................................14

Options:

Accessories ..............................................5

Spark Arrestor .............._o................3,42

Parking Brake .......................................12-13

Parts Bag .........................................................6

Parts, Replacement/Repair, ...........32-47

Product Specifications ........................................3

Repair Paris .....................................................32-47

Safety' Rules .....................................................2

Seat .....................................................................8

Service and Adjustments ....................21-26

Brake ...............................................................23

Carburetor ........................................................26

Fuse ..........................................................25

Hood Removal/Installation ...........25

Motion Drive Belt

Removal/Replacement ..............23

Mower Blade Ddve Belt

RemovaltReplacement ..............23

Mower Adjustment:

Front-to-Back .....................................22

Side-to-Side ..................................22

Mower Installation .............................21

Mower Removal ....................................21

Tire Care ....................................8,17,24

Slope Guide Sheet ....................................57

Spark Plugs .............................................................20

Specifications .......................................................3

Starting the Engine .......................................14

Steering Wheel ...........................................7,24

Stopping the Tractor ..................................t2

Storage ......................................................................27

Throttle Control Cable Adjustment ........26

Tires ........................................_:....................8,17,24

Trouble Shooting Chart .......................28-29

Transaxle Repair' Parts........................48-49

Warranty .........................................................3

Widng Diagram ..............................................32

Wiring Schematic ..........................................31

AND ATTACHM

These accessories and attachments were available through most Sears retail outlets and service centers when the tractor was purchased_

Most Sears stores can order these items for you when you provide the model number of your tractor.

ENGINE

SPARK PLUG GAS CAN

ENGINEOIL FUEL STABILIZER AIR FILTER

MAINTENANCE

BLADES BELTS

PERFORMANCE

Sears offersa wide variety of attachments that fit your tractor. Many ofthese are listedbelow with brief explanations of how they can help

you. This list was current at the time of publication;however, it may change in future years - more attachments may be added, changes

may be made in these attachments, or some may no longer be available or fit your model, Contact your nearest Sears store for the

accessories and attachments that are available for your tractor.

Most of these attachments do not require additional hitches or conversion kits (those that do are indicated) and are designed for easy

attaching and detaching.

AERATOR promotes deep root growth for a healthy lawn Ta-

pered 2.5-inch steel spikes mounted on lO-inch diameter discs

puncture holes in soil at close Intervals to let moisture soak in.

Steel weight tray for increased penetration.

BAGGER lets you collect grass clippings and leaves for a

healthier, neater looking lawn. Two Permanex containers hold

30-gallon plastic bags°

BUMPER protects front end of tractor from damage.

CARTS make hauling easy. Variety of sizes available, plus

accessories such as side panel kits, too! caddy, cart cover,

protective mat and dolly.

CORING AERATOR takes small plugs out of soil to allow mois-

ture and nutrients to reach grass roots° 36-inch swath° 24

hardened steel coring tips. 150 lb. capacity weight tray.

EASY OIL DRAIN VALVE makes oil changes easier, faster_

FRONT NOSE ROLLER canters in front of mower deckto reduce

chances of "scalping" on uneven terrain

GANG HITCH lets you tow 2 or 3 pull-behind attachments at once,

such as sweepers, dethatchers, aerators (not for use with rollers,

cads or other heavy attachments).

GAUGE WHEELS on both sides of the mower deck reduce

chancesof %ealping"on uneven terrain. For mower decks notso

equipped.

MULCH RAKFJDETHATCHER loosenssoilandflipsthatchand

matted leaves to lawn surface for easy pickup. Twenty spring tine

teeth° Usefulto prepare bare areasforseeding, Available for front

or rear mounting. HIGH PERFORMANCE REEL-ACTION

SPRING T|NE DETHATCHER covers 36-inch wide path and

tosses thatch Into large hopper. Mounts behind tractor.

MULCHING CLOSE-OUT PLATE KIT, once installed, lets you

mulch, discharge or bag clippings (bagger optional) without

changing blades. For models net equipped as 3-in-1 Convertible

mowers. See "MOWER" tn the Repair Parts section of this

manual.

RAMP TOPS AND FEET let you load and unload tractor from a

pickup truck. Use with 2 x 8 or 2 x I0 lumber.

ROLLER for smoother lawn surface. 36-inch wide, 18-inch

diameterWatePtt_ht drum holds uplo390 fbs ofweighto Rounded

edges prevent harm to turf. Adjus_lable scraper automaticalIy

cleans drum.

SNOW BLADE forsnow removalonly. 14--inchhigh, 48-inch wide

blade dears42-inch path when angled left or right Raises, lowers

with side lever. Adjustable skids; replaceable, reversible scraper

bar. (Use with tire chains and wheel weights and/or rear drawbar

weight..)

SNO'I_rrHROWER has 40-inch swath. Drum-type auger handles

powdery and wet/heavy snow. Mounts easily with simple pin

arrangemenL DI,_charge chute adjusts from tractor seat. 6-inch

diameter spout discharges snow 10 to 50 feet° Lift controlled at

tractor seat. (Use with chains and wheel we' jhts and/or rear

drawbar weight°)

SPRAYERS use 12-volt DC electric motor that connects to the

tractor battery or other 12-volt source, includes booms for

automatic spraying and hand held wand for spot spraying. Wand

has adjustable spray pattern. For applying herbicides, insecti*

cides, fungicides and liquid fertilizers°

SPREADER!SEEDERS make seeding, fertilizing, and weed kill-

ing easy. Broadcast spreaders are also useful for granular de-

icers and sand.

SWEEPERS let you collect grass clippings and leaves.

TILLER has 5 hp engine and 36-inch swath to prepare seed beds,

cultivate and compost garden residue. Tiller has its own built-in

lift and depth controlsystem and does NOT require a sleeve hitch_

Fits any lawn, yard or garden tractor. Simply hook up to the tractor

drawbar and go! Optional accessories convert unit for

dethatching, aerating, hillingo..without tools.

TIRE CHAINS are heavy duty; closely spaced extra-large cross

links give smooth ride, outstanding traction.

TRACTOR CAB has heavy duty vinyl fabric over tubular steel

frame, ABS plastic top; clear plastic windshield offers 360 degree

visibility. Hinged metal doors with catch. Keeps operator warm

and dr,]. Remove vinyl sides and windshields for use as sun

protector in summer° Optional accessories include: tinted/

tempered solid safety glasswindshield with hand operated wiper,

12-volt amber caution light for mounting on cab top,,

VACS for powerfulcollectionof heavy grassclippingsand leaves.,

Optional wand attachment to pick up debris in hard-to-reach

places_ VAC/CHIPPER includes a chipper-shreddero

WEIGHT BRACKET for drawbar for snow removal applications°

Uses (1) 55 Ib, weighL

WHEEL WEIGHTS for rear wheels provide needed traction for

snow removal or dozing heavy materials.

............................................ • muuu

,,,,,, ..............

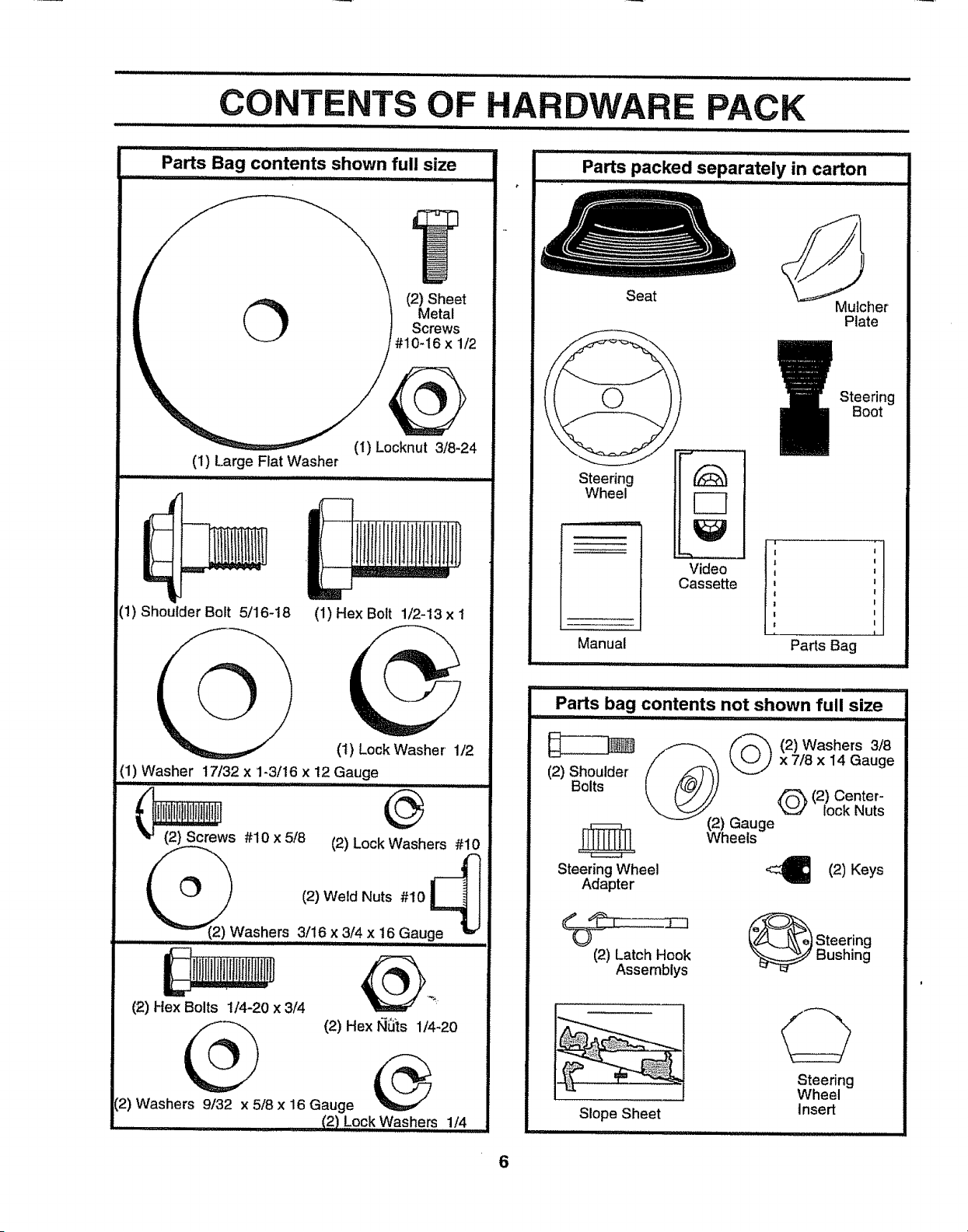

CONTENTS OF

,lll,lll,nnnlll i, llll i i ,i i ,,,,, ....

HARDWARE PACK

Parts Bag contents shown full size

iiiiiii1,111,1

O (2) Sheet

l Metal

Screws

#10-16 x 1/2

(1) Large Flat Washer

lllll i

(1) Shoulder Bolt 5116-t8

lmml|ml|lm_l!

(1) Hex Bolt 1/2-13 x 1

(1) Lock Washer 1/2

(1) Washer 17/32 x 1-3/16 x 12 Gauge

(2) Screws #10 x 5/8 (2) Lock Washers #10

__) Washers

--3

(2) Hex Bolts 1/4-20 x 3/4

(¢

(2) Washers

(2) Weld Nuts #10_

3/16 x 3/4,,,x,16 Ga,uge _ '_

(2) Hex flats 1/4-20

9/32 x 5/8 x 16 Gauge

(2) Lock Washers 1/4

i i,,, ,,urn i i i

illllUln i, u, lilt

Parts packed separately in carton

III I ...............

Seat

Mulcher

Plate

Steering

Boot

Steering

Wheel

Video

Cassette

t I

| I

I I

! I

Parts Bag

i i _llll,

ill i ............... .........

Parts bag contents not shown full size

iiii ............ i IIII .........

(2) Shoulder

Bolts

Steering Wheel

Adapter

(2) Washers 3/8

_G_x7/8 x I4 Gauge

(2) Center-

lock Nuts

) Gauge

Wheels

<_ (2) Keys

(2) Latch Hook

Assemblys

Steering

Bushing

Slope Sheet

ii ill Ill L ............

Steering

Wheel

Insert

ASSEMBLY

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes°

To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened secure!yo Use

the correct tools as necessary to insureproper tightness,

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier_ Standard

wrench sizes are listed°

(!) 5/16" wrench (1) 3/4" Socket w/drive rachet

(2) 7/16" wrenches Phillips Screwdriver

(1) 1/2" wrench Tire pressure gauge

(I) 9/16" wrench Utility knife

When right or left hand is mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

= Remove all accessible loose parts and paris cartons

from carton (See page 6)°

. Cut, from top to bottom, along lines on all four corners

of carton, and lay panels flat,,

= Check for any additional loose parts or cartons and

remove,

BEFORE ROLLING TRACTOROFF SKID

ATTACH STEERING WHEEL (See Fig. 1)

. Slide the steering bushing over the steering shaft.

o Raise steering shaft forward until screw holes in dash

line up with steering bushing. Install two (2) sheet

metal screws and tighten securely.,

o Position steedng boot over steering shaft,

= Place tabs of steering boot over tab slots in dash and

push down to secure°

= Slide steering wheel adapter onto upper steering shaft,,

= Position front wheels of the tractor so they are pointing

straight forward,,

° Position steering wheel so cross bars are horizontal

(left to right) andslide onto adapter. ,

= Assemble large flat washer and 3/8-24 Iocknut and

tighten securely.

° Snap steering wheel insert into center of steering

wheel

• Remove protective plastic from tractor hood and grill.

IMPORTANT:CHECK FOR AND REMOVE ANY STAPLES

!NSKID THAT MAY PUNCTURE TIRES WHERETRACTOR

IS TO ROLL OFF SKID.,

STEERING

SHAFT

(ASSEMBI

POSfflON)

SCREW

STEERING

SHAFT

(SHIPPING

PosmoN)

TO ROLL TRACTOR OFF SKID (See Fig. 8)

° Raise attachment lift lever to its highest position.

° Release parking br_ke by depressing clutch!brake

peda!. .,, ""

. Place freewheel control in freewheeling position, to

disengage transmission (See q'O TRANSPORT' in

the Operation section of this manual).

• Roll tractor backwards off skid,

. Remove banding holding discharge guard_up against

tractor.,

ASSEMBLY

Jllll/lllllll I I I ill

CONNECT BATTERY (See Figs. 2 and 3)

CAUTION: Do not short battery termi-

nals. Before connecting battery, re-

move metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding.

. Remove cardboard packing from seat pan and lift seat

pan to raised position.

o Open batterybox door.

o Remove terminal protective caps and discard.

° if tilis battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 ampso

= First connect RED battery cable to positive (+) terminal

with hex bolt, flat washer, lock washer and hex nut as

shown. Tighten securely_

= Connect BLACK grounding cableto negative (-) termi-

nal with remaining hex bolt, flat washer, lock washer

and flex nut° Tighten securely.

° Close battery box door.

Open battery box door for:

° inspection for secure connections (to tighten hard-

ware)°

= Inspection for corrosion.

° Testing battery.

° Jumping (if required).

Periodic charging o

DISCARD

TERMINAL

PROTECTIVE

CAPS

POSITIVE /

(RED) CABLI_ LOCK

HEX WASHER

NUT

FLAT

WASHER

BOLT

NEGATIVE "_

(BLAC_CABLE

VENT

(KEEP

CLEAN)

SEAT

PAN

BOXDOOR

FIG. 3

INSTALL SEAT (See Fig. 4)

Adjust seat before, tighteningadjustment bolt.

° Remove cardboard packing on seat pan

• Place seat on seat pan and assemble shoulder bolt.

° Assemble adjustment bolt, lockwasherand flatwasher

loosely,, Do not tighten.

° Tighten shoulder bolt securely.

° Lower seat into operating position and sit on seat.

= Slide seat until a comfortable position is reached which

allows you to press clutch/brake pedal all tile way

down,,

• Get off seat without moving its adjusted position°

° Raise seat and tighten adjustment bolt securely.

SEAT

SEAT PAN

SHOULDER

BOLT

ADJUSTMENT

BOLT

LOCK WASHER

LARGE FLATWASHER

FIG. 4

FIG. 2

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes,, Correct tire pressure is importantfor

best cutting performance,,

• Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

teveled_ See "TO LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual.

.CHECK FOR PROPER POSITION OF ALL

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual° Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn howto operate yourtractor,checktosee that

the brake is properly adjusted See "TO ADJUST BRAKE"

in the Service and Adjustments section of this manual.

EMBLY

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 5)

Assemble gauge wheels with tractor on a flat level surface,

. Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT' in the Operation

section of this manual).

° With mower in desired height of cut position, gauge

wheels should be assembled so they are slightly off the

ground. Install gauge wheel in appropriate hole with

shoulder bolt, 3/8" washer and 3/8-I6 locknut and

tighten securely°

° Repeat for opposite side installing gauge wheel in

same adjustment hole.

GAUGE WHEEL I

MOUNTING

BRACKET "_

3/8" WASHER

GAUGE WHEEL

fSHOULDER BOLT

FIG. 5

EMBLY

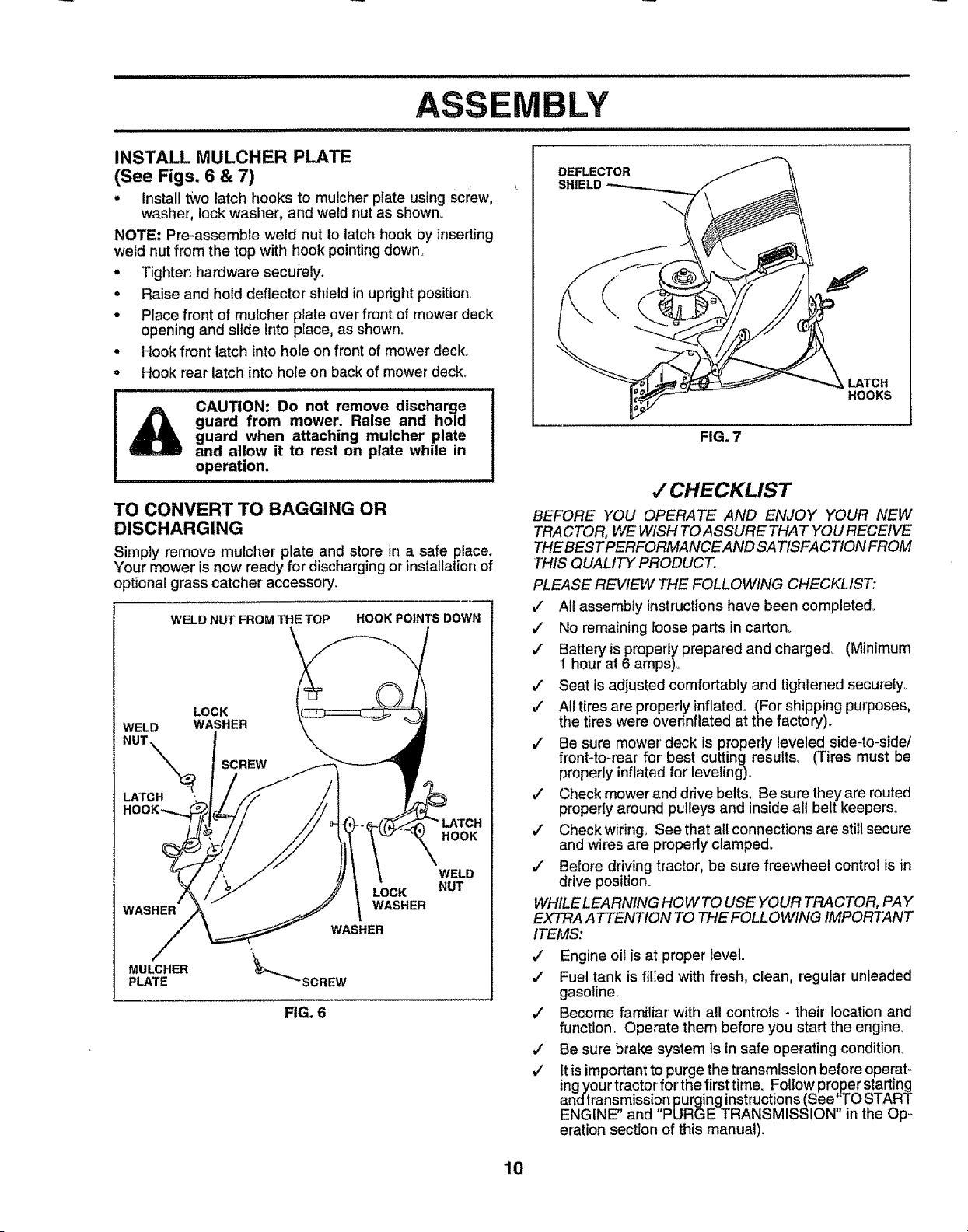

INSTALL MULCHER PLATE

(See Figs. 6 & 7)

. Install two latch hooks to mulcher plate using screw,

washer', lock washer, and weld nut as shown.

NOTE: Pre-assemble weld nut to latch hook by inserting

weld nut from the top with hook pointing down.

= Tighten hardware securely.

° Raise and hold deflector shield in upright position.

o Place front of mulcher plate over front of mower deck

opening and slide into place, as shown.

o Hook front latch into hole on front of mower' deck.

° Hook rear latch into hole on back of mower deck.

CAUTION: Do not remove discharge

guard from mower. Raise and hold

guard when attaching mulcher plate

and allow it to rest on plate while in

operation.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in a safe place.

Your' mower' is now ready for discharging or installation of

optional grass catcher accessory.

WELD NUT FROM THE TOP HOOK POINTS DOWN

LOCK

WELD WASHER

SCREW

LATCH

HOOK

WASHER

MULCHER

PLATE

LOCK

WASHER

"_"'_'SCREW

WELD

NUT

FIG. 6

DEFLECTOR

LATCH

HOOKS

FIG. 7

,/CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE

THEBEST PERFORMANCE AND SATtSFACTION FROM

THIS QUALITY PRODUCT°

PLEASE REVIEW THE FOLLOWING CHECKLIST:

v" All assembly instructionshave been completed.

,/ No remaining loose parts in carton.

#" Battery is properlyprepared and charged. (Minimum

1 hour at 6 amps)o

,/ Seat is adjusted comfortably and tightened securely_

,/ All tires are properly inflated. (For shipping purposes,

the tires were over_nflated at the factory).

,/ Be sure mower' deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling)..

v" Check mowerand drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

v" Check wiring. See that all connections are still secure

and wires are properly clamped.

,/ Before driving tractor, be sure freewheel control is in

drive position.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

,/ Engine oil is at proper level.

,/ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

,/ Become familiar' with all controls - their location and

function. Operate them before you start the engine.

,/ Be sure brake system is in safe operating condition_

,/ It isimportant to purge the transmission before operat-

ingyour tractor for the first time. Follow proper starting

andtransmission purging instructions (See"TO START

ENGINE" and "PURGE TRANSMISSION" in the Op-

eration section of this manual).

OPERATION

..................................................................................... , i i ........................

These symbols may appear on your product or in literature supplied with the product,, Learn and understand their meaning.

BATTERY CAUTION OR REVERSE

WARNING

ENGINE ON

ENGINE OFF OIL PRESSURE

FORWARD FAST SLOW

CLUTCH LIGHTS ON LIGHTS OFF

FUEL CHOKE

MOWER HEIGHT DIFFERENTIAL PARKING BRAKE UNLOCKED

LOCK LOCKED

MOWER LIFT

R N

REVERSE NEUTRAL

ATTACHMENT

CLUTCH ENGAGED

L c®) I

HIGH LOW

ATTACHMENT

CLUTCH DISENGAGED

PARKING BRAKE

IGNITION

DANGER, KEEP HANDS AND FEET AWAY

+11

HYDROSTATIC FREE WHEEL

(Hydro Models only)

OPERATION

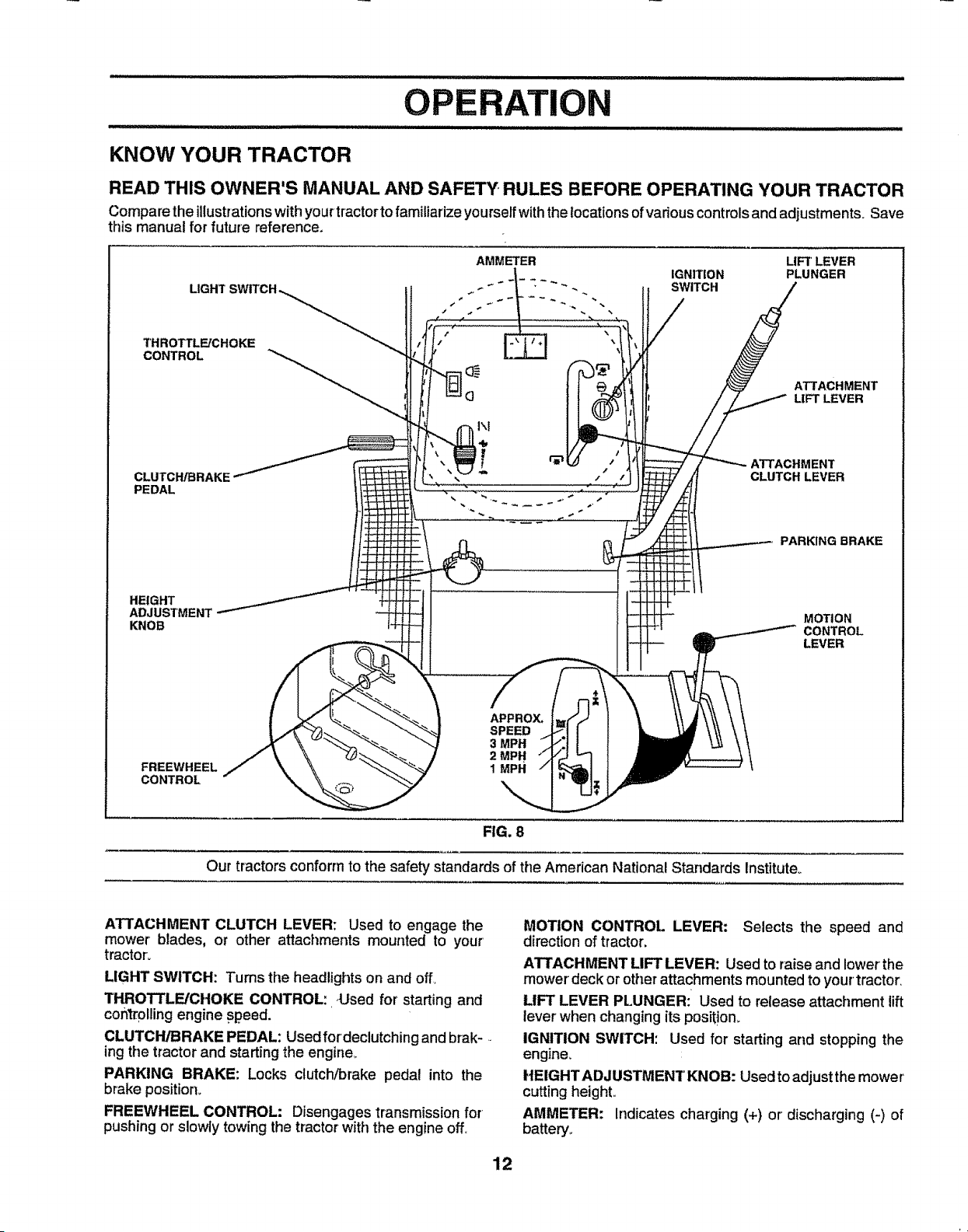

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrationswithyour tractorto familiarize yourselfwiththe locations ofvariouscontrolsandadjustments. Save

this manual for future reference.

THROTTLE/CHOKE

CONTROL

CLUTCH/BRAKE

PEDAL

HEIGHT

ADJUSI"MENT

KNOB

FREEWHEEL

CONTROL

AMMETER LIF]r LEVER

IGNITION PLUNGER

SWITCH

I\I

APPROX,

SPEED

3 MPH

2 MPH

1 MPH

ATTACHMENT

LIFT LEVER

ATTACHMENT

CLUTCH LEVER

PARKING BRAKE

MOTION

CONTROL

LEVER

FIG. 8

Our tractors conform to the safety standards of the American National Standards Institute°

ATTACHMENT CLUTCH LEVER: Used to engage the

mower blades, or other attachments mounted to your'

tractor:

LIGHT SWITCH: Turns the headlights on and off,

THROTTLE/CHOKE CONTROL: ,Used for' starting and

con'tr011ingengine speed.

CLUTCH/BRAKE PEDAL: Used fordeclutching and brak- ..

ing the tractor and startingthe engine_

PARKING BRAKE: Locks clutch/brake pedal into the

brake position_

FREEWHEEL CONTROL: Disengages transmission for

pushing or slowly towing the tractor with the engine off,

MOTION CONTROL LEVER: Selects the speed and

direction of tractor.

ATTACHMENT LIFT LEVER: Used to raiseand lower the

mower' deck or other attachments mounted to your tractor,

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its posit!on,

IGNITION SWITCH: Used for starting and stopping the

engine_

HEIGHTADJUSTMENT KNOB: Usedtoadjustthe mower'

cuttingheight,,

AMMETER: Indicates charging (+) or discharging (-) of

battery°

OPERATION

i ii IIIINI i, ,11111,1 ii iiiiiiiiiiii

The operation of any tractor can result in foreign objects thrown into the eyes, which can

result in severe eyedamage_ Always wear safety glasses oreye shields while operating your

tractor or performing any adjustments or repairs. We recommend a wide vision safety mask

over the spectacles or standard safety glasses.

I IIIII1"1'1 iiii1,1

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 9)

Your tractor is equipped with an operator presence sensing

switch, When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine°

° Depress clutch!brake pedal into full "BRAKE" position

and hold.

= Place parking brake lever in"ENGAGED" position and

release pressure from clutch/brake pedal,. Pedal should

remain in"BRAKE" position° Make sure parking brake

will hold tractor secure.

° Turn ignitionkey to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use°

= Never use choke to stop engine°

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas.

I_ CAUTION: Always stop tractor com-

pletely, as described above, before leav-

ing the operator's position; to empty

grass catcher, etc.

THROTTLE/

CHOKE

CONTROL

ATTACHMENT CLUTCH LEVER

"ENGAGED" POSITION

"DISENGAGED"

"BRAKE"

POSITION

PARKING BRAKE

POSITION

MOTION CONTROL

LEVER

"DISENGAGED"

POSITION

CLUTCH!BRAKE PEDAL

"DRIVE" POSITION

HEIGHT ADJUSTMENT KNOB

FIG. g

STOPPING (See Fig. 9)

MOWER BLADES -

= Move attachment clutch lever to "DISENGAGED" po-

sition.

GROUND DRIVE-

° Depress clutch!brake pedal into fulI"BRAKE" position.

• Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED°

ENGINE - =

° Move throttle control to slow (.€1_) position,

NOTE: Failure to move throttle control to slow (.€1_)

position and allowing engine to idle before stopping may

cause i_ngineto "backfire".

TO USE THROTTLE CONTROL (See Fig. 9)

Always operate engine at full throttle°

• Operating engine at less than full throttle reduces the

battery charging rate.

• Ful! throttle offers the best bagging and mower perfor-

mance.

TO MOVE FORWARD AND BACKWARD (See

Fig. 9)

The direction and speed of movement is controlledby the

motion control lever_

° Start tractor with motion control lever in neutral (N)

position.

° Release parking brake and clutch/brake pedal.

• Slowly move motion control lever to desired position°

TO ADJUST MOWER CUTTING HEIGHT (See

Fig. 9)

The cuttingheight iscontrolledby turningthe height adjust-

ment knob in desired direction.

° Turn knob clockwise ((_) to raise cutting height.

- Turn knob counterclockwise (iP_)to lower cutting

height.

The cutting height range is approximately 1-1/2" to 4", The

heights are measured from the ground to the blade tip with

the engine not running, These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed°

° The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months, For healthier and better looking

lawns, mow often and after moderate growth°

• For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the second to desired height.

OPERATION

TO OPERATE MOWER (See Fig. 10)

Your tractorisequipped with an operatorpresence sensing

switch. Any attempt by the operator' to leaVe'the_s6a_With

the engine running and the attachment clutch engaged will

shut off the engine.

• Select desired height of cut.

Lower mower' with attachment lift control,,

Start mower blades by engaging attachment clutch

control,,

TO STOP MOWER BLADES - disengage attachment

clutch control°

IJl,,,,,,,, ,,,,,,,,,,,,,,,,,,,,,,, ,, ,, ,,,, ,,,,,,,,, IJ I Illllllllllllll

CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the dis-

charge guard in place.

ATTACHMENT CLUTCH LEVER

"DISENGAGED" POSITION

"ENGAGED"

POSITION

ATTACHMENT

HIGH POSITION

DISCHARGE

GUARD

TO OPERATE ON HILLS

CAUTION: Do not drive up or down

hills with slopes greater than 15° and

do not drive across any slope,

Choose the slowest speed before starting up or down

hills_

• Avoid stopping or changing speed on hills.

° If slowing is necessary, move throttle control lever to

slower position.

° If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

° Move motion controllever' to neutral (N) position.

IMPORTANT; THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED.

° To restart movement, slowly release parking brake and

clutch/brake pedal

° Slowly move motion control lever to slowest setting.

= Make allturns slowly,

TO TRANSPORT (See Figs. 8 and 11)

When pushingortowingyourtractor, be sure to disengage

transmissionby placing freewheel control in freewheeling

position° Free wheel control is located at the rear drawbar

of tractor_

= Raise attachment lift to highest position with attach-

ment liftcontrol.

o Pullfreewheel control knob outand hold inpositionby

insertingretainer spring intoforward hole ofcontrolrod

° Do not push or tow tractor at more than two (2) MPH_

° To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting

yourtractoron atruckora trailer, be sure hood isclosed and

secured totractor. Use an appropriate means oftyinghood

to tractor (rope, cord, etc.).

FIG. 10

FIG. 11

........................................................ ........... : ill ill i i i i ill ii ,ll,,, i_/

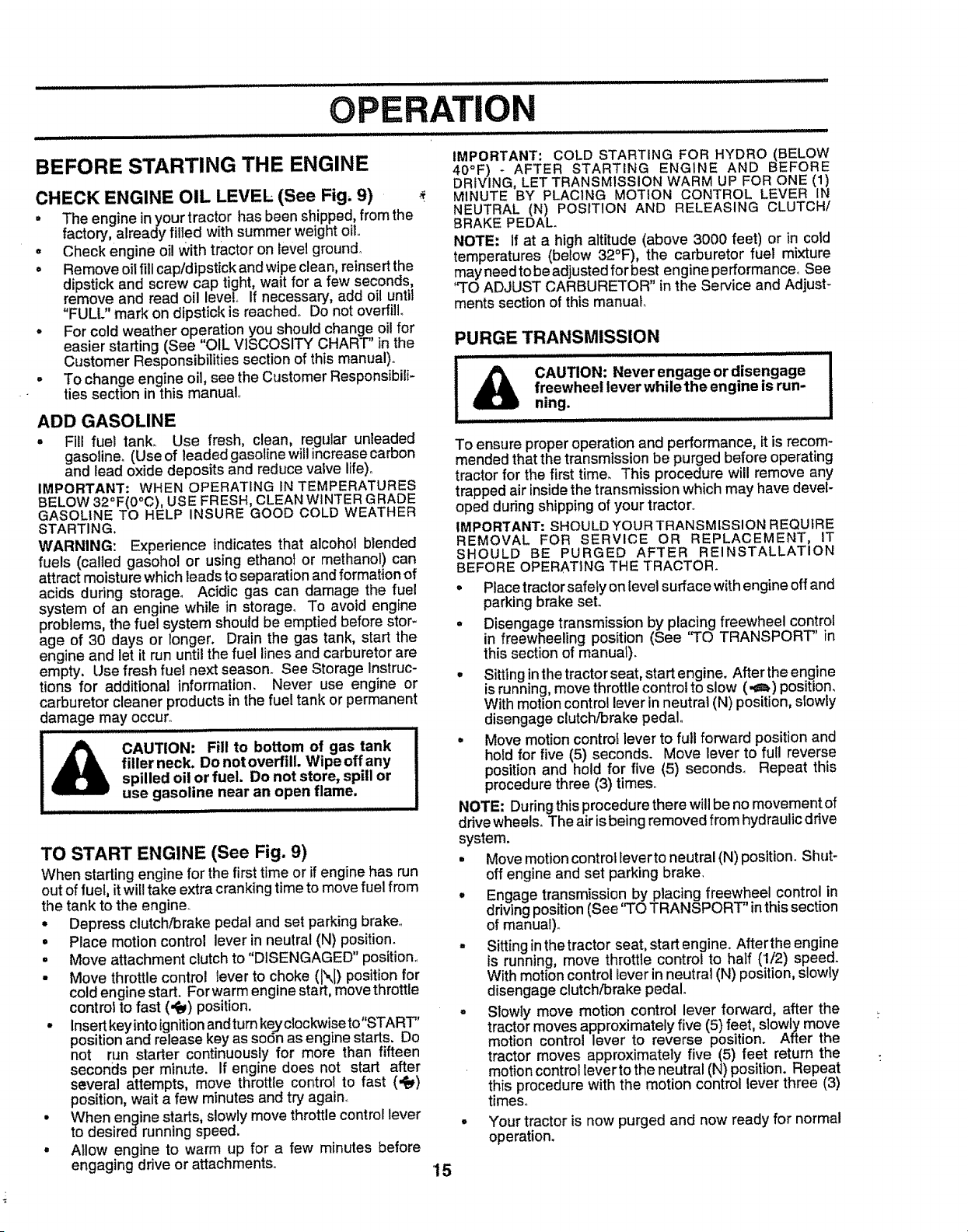

OPERAT

BEFORE STARTING THE ENGINE IMPORTANT: COLD STARTIHG FOR HYDRO (BELOW

40°F) - AFTER STARTING ENGINE AND BEFORE

DRIVING, LET TRANSMISSION WARM UP FOR ONE (1)

'_ MINUTE BY PLACING MOTION CONTROL LEVER INCHECK ENGINE OIL LEVEL (See Fig, 9)

• The engine in your tractor has been shipped, from the

factory, already filIed with summer weight oil

. Check engine oil with tractor on level ground°

• Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level If necessary, add oil until

"FULL" mark on dipstick is reached, Do not overfill

° For cold weather operation you should change oil for

easier starting (See 'OIL VISCOSITY CHART" in the

Customer Responsibilities section of this manual).

° To change engine oil, see the Customer Responsibili-

ties section in this manual,

NEUTRAL IN) POSITION AND RELEASING CLUTCH/

BRAKE PEDAL.

NOTE= If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F), the carburetor fuel mixture

may need to be adjusted for best engine performance° See

"TO ADJUST CARBURETOR" in the Service and Adjust-

ments section of this manual

ADD GASOLINE

° Fill fuel tank_ Use fresh, clean, regular unleaded

gasoline. (Use of leaded gasoline will increase carbon

and lead oxide deposits and reduce valve life)o

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisturewhich leads to separationand formation of

acids during storage° Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are

empty. Use fresh fuel next season. See Storage Instruc-

tions for additional information. Never use engine or

carburetor cleaner products in the fuel tank or permanent

damage may occur._

....... ,L l llll ::

I i 41IL CAUTION: Fill to bottom of gas tank

I, Ii fillerneck. Do not overfill. Wipeoffany

I' II I i spilled oil or fuel. Do not store, spill or

• , •,1 use gasoline near an open flame.

TO START ENGINE (See Fig. 9)

When starting engine for the first time or if engine has run

out of fuel, it wil! take extra cranking time to move fuel from

the tank to the engine.

° Depress clutch/brake pedal and set parking brake,

• Place motion control lever in neutral IN) position.

• Move attachment clutch to "DISENGAGED" position,

• Move throttle control lever to choke ({'.,) position for

cold engine start. For warm engine start, move throttle

control to fast (,_) position.

• Insert keyinto ignitionand turn keyctockwise to"START"

position and release key as sodn as engine starts. Do

not run starter continuously for more than fifteen

seconds per minute. If engine does not start after

several attempts, move throttle control to fast (,_)

position, wait a few minutes and try again.

• When engine starts, slowly move throttle control lever

to desired running speed.

• Allow engine to warm up for a few minutes before

engaging drive or attachments

PURGE TRANSMISSION

ill iii1,,,..................................

CAUTION: Never engage or disengage

freewheel lever while the engine is run-

ning.

To ensure proper operation and performance, it is recom-

mended that the transmission be purged before operating

tractor for the first time. This procedure will remove any

trapped air inside the transmission which may have devel-

oped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT

SHOULD BE PURGED AFTER REINSTALLATION

BEFORE OPERATING THE TRACTOR.

° Place tractor safely on level surface with engine off and

parking brake seL

• Disengage transmission by placing freewheel con!rol

in freewheeling position (See q'O TRANSPORT' in

this section of manual).

• Sitting in the tractor seat, start engine. After the engine

is running, move throttlecontrol to slow (-=_) position.

With motion control lever in neutral IN) position, siowly

disengage clutch/brake pedal.

• Move motion control lever to full forward position and

hold for five (5) seconds. Move lever to full reverse

position and hold for five (5) seconds. Repeat this

procedure three (3) times

NOTE; During this procedure there will be no movement of

drive wheels. The air is being removed from hydraulic drive

system.

= Move motion control teverto neutral IN) position. Shut-

off engine and set parking brake_

° Engage transmission by placing freewheel control in

driving position (See "TOTRANSPORT' inthis section

of manual).

- Sitting inthe tractor seat, start engine. Afterthe engine

is running, move throttle control to half ('1/2) speed.

With motion control lever in neutral IN) position, slowly

disengage clutch/Drake pedal.

= Slowly move motion control lever forward, after the

tractor moves approximately five (5) feet, slowly move

motion control lever to reverse position. After the

tractor moves approximately five (5) feet return the

motion control leverto the neutral IN) position. Repeat

this procedure with the motion control lever three (3)

times.

Your tractor is now purged and now ready for normal

operation.

, ill illll illll illl i illl ii ii ill ii illll

OPERATION

MOWING TIPS MULCHING MOWING TIPS

- Tire chains cannot be used when the mower ho.us!qgis

attached to tractor.

Mower' should be properly leveled for best mowing

performance. See "TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual

The left hand side of mower should be used for trim-

rning.

Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

machine,, This will result in a more even distribution of

clippings and more uniform cutting°

. When mowing large areas, start by turning to the right

so that clippings will discharge away from shrubs,

fences, driveways, etc. After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig° t2 ).

° If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

o Do not mow grass when it is wet° Wet grass will plug

mower and leave undesirable clumps° Allow grass to

dry before mowing.

• Always operate engine at full throttle when mowing to

assure better mowing performance and proper dis-

charge of material. Regulate ground speed by select-

ing a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

° When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used°

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH CLEAN AFTER EACH USE.

o The special mulching blade will recut the grass clip-

pings many times and reduce them in size so that as

they fall ontothe lawn they will disperse into the grass

ana not be noticed. Also, the mulched grass will

biodegrade quickly to provide nutrients for the lawn.

Always muich with your highest engine (blade) speed

as this will provide the best recutting action of the

blades_

FIG. 12

o Avoid cutting your lawn when it is wet. Wet grass tends

to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early aftemoon_

At this time the grass has dded and the newly cut area

will not be exposed to the direct sun.

o For'best results, adjustthe mower cutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig. 13), For extremely heavy mulching,

reduce your width of cut and mow slowly.

° Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to com-

pletely hide the clippings. When doing a second cut,

mow across or perpendicular to the first cut path°

° Change your cutting pattern from week to week. Mow

north to south one week then change to east to west the

next week_ This wiU help prevent matting a_d graining

of the lawn.

FIG. 13

MAX 1/3

iii1,11 ii ................... NIN'rl I '11'1'1"1111111111II, III "11'1'1'"11' II I ,'1"',"',',11,

CUSTOMER RESPONSiBiLiTiES

............. ,, ,, , ,,, ,,,,,,,,,,,,, ,,,,

Check Tire Pressure _#'

T Cheek for LeoseFasieners - if

AR Sharpen/Replace Mower Blades

C L,bricaiion€_a,t

N Ciea, Air Screen

G inspect Muffter/SparkArrester

Replace Oil Filter (If equipped)

NE Clean Engine C'ooling Fins

Replace Spark Plug

'"";p,ace"A,,F,,te,Pape,Co,f,dg';'""...............: . . v,2......

Replace Fuel Filter if

MAINTENANCE SCHEDULE ___/_o_n_

AS YOU COMPLETE ./_/T/_._._._O_" _

REGULARSERVICE............................_,/'_!/_-_'%_VSERVIOE DATES

Check Brake Operation if

v,'

v'7 v'

v',

v" J

Check, Battery LeveVRecha!ge ................. _ ........

Clean Battery and Terminals tf IV#

Check Transaxle Cooling If

Adjust Blade Belt(s) Tension VP5

Adjust Motion Drive Belt(s) Tension V's

..................................................... I1'

Cheek Engine 0iiLevel V _ V f

Change Engine Oil ,,t/, ..............,i_t_,3 ........... if

Clean Air Filter VP2

......... Vlf .........

......................... ! L

v'V'

1 - Change more often when operating under a heavy load or tn high ambtenltemperatures

2 _ Service more ellen when operating In dirty or dusty conditions

3 - If equipped with oil filler, change oil every 50 hours

4 - Replace blades mere often when mowing in sandy soil

5 - t! equipped wi_hadjustable system

6 - Not requiredt! equipped wilh maintenance-tree batlery,

7 - Tighten front axle pivot bolt to 35 ft_lbe, m_ximum

Do net overtlghten

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover itemsthat have

been subjected to operator abuse or negligence. To

receive full value from the warranty, operator must maintain

tractor as instructed inthis manual.

Some adjustments will need to be made periodically to

properly maintain your tractor..

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each seasom

Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear. A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer=

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

,, Check tire pressure.

• Check for loose fasteners°

LUBRICATION CHART

1_ SPINDLE ZERK ZERK(_

BEARING ZERK BEARING ZERK

ENGINE @

CLUTCH

PIVOT(S)

(_SAE 30 OR 10W30 MOTOR OiL

@ GENERAL PURPOSE GREASE

(_) REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS VISCOUS LUBRI-

CANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS. iF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POW-

DERED GRAPHITE TYPE LUBRICANT SPARINGLY

"""H"H"IHIIII"IIIlll

CUSTOMER RESPONSiBiLiTiES

TRACTOR

Always observe safety rules when performing any rnainte-

nanceo

BRAKE OPERATION

Iftractor requires more than six (6) feet stopping distance

at high speed inhighest gear, then brake must be adjusted.

(See 'q'O ADJUST BRAKE" in the Service and Adjust-

ments section of this manual)°

TIRES

- Maintain proper air' pressure in all tires (See "PROD-

UCT SPECIFICATIONS on page 3 of this manual)_

= Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.,

• Avoid stumps, stones, deep ruts, sharp objects and

other' hazards that may cause tire damage°

BLADE CARE

For best results mower' blades must be kept sharp, Re-

place bent or damaged blades,.

BLADE REMOVAL (See Fig. 14)

° Raise mower to highest position to allow access to

blades°

- Remove hex bolt, lock washer and flat washersecuring

blade_

- Install new or resharpened blade with trailing edge up

towards deck as shown.

° Reassemble hex bolt, lock washer and flat washer' in

exact order as shown.

° Tighten bolt securely (30-35 FL Lbs. torque).,

IMPORTANT: BLADE BOLT IS GRADE 8 HEATTREATED.

NOTE" We do not recommend sharpening blade- but if you

do, be sure the blade is balanced.

TO SHARPEN BLADE (See Fig. 15)

Care should be taken to keep the blade balanced, An

unbalancedblade willcause excessive vibration and even-

tual damage to mower and engine°

• The blade can be sharpened with a file oron a grinding

wheel, Do notattemptto sharpen while on the mower,,

. To check blade balance, you will need a 5/8" diameter

steel bolt. pin,ora cone balancer. (When using a cone

balancer, foIlow the instructions supplied with bal-

ancer).,

° Slide blade or] to an unthreaded portion of the steel bott

or' pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in a horizontal

position_ If either end of the blade moves downward,

sharpen the heawy end until the blade is balanced.

NOTE; Do not use a nail for balancing blade, The lobes of

the center' hole may appear to be centered, but are not.,

CENTER HOLE / /

LADE

FIG. 15

BLADE MANDREL

TRAILING EDGE

FLAT WASHER ,_ I

HEX BOLT

(GRADE

*AGRADE8HEATTREATED BOLT CAN BE

IDENTIRED BY StXLINES ONTHE BOLT HEAD.

FIG. 14

CUSTOMER

BATTERY

Your tractor has a battery charging system which is suffF

cient for normal use,, However, periodic charging of the ,_.

battery with an automotive charger will extend its life.

• Keep battery and terminals cteano

° Keep battery bolts tight.

o Keep small vent holes open (See "CONNECT BAT-

TERY" in the Assembly section of this manual).

o Recharge at 6 amperes for I hour,,

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

. Open battery box door.

° Disconnect BLACK battery cable first then RED bat-

ten/cable and remove batter/from tractor,

= Wash battery with solution of four tablespoons of

bakingsodatoonegallon ofwater. Becareful nottoget

the soda solution into the cells.

° Rinse the battery with plain water and dry,,

• Clean terminals and battery cable ends with wire brush

until bright°

: Coat terminals with grease or petroleum jelly,

Reinstall battery (See "CONNECT BATTERY" in the

Assembly section of this manual)_

V-BELTS

Check V-belts for deterioration and wear after 100 hours of

operation and replace if necessarjo The belts are not

adjustable° Replace belts if they begin to slip from wear.,

TRANSAXLE COOLING

The fan and cooling fins of transmission should be kept

clean to assure proper cooling.

Do not attempt to clean fan or transmission while engine is

running or while the transmission is hot.

° Inspect cooling fan to be sure fan blades are intact and

clean.

° Inspect cooling fins for dirt, grass clippings and other

materials,, To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean

cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-

nanceis not required for the life of the transaxle. Should the

transaxle ever leak or require servicing, contact your near-

est authorized service center!department.

ENGINE

IL IES

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF or SG, Select the oil's SAE viscosity grade

according to your expected operating temperature.,

SAE VISCOSITY GRADES

........... b

oF -20 °........... 0_ .........30° 3'2" 40 ° 60" ..............80 ° ..... 100_

_C -3o° _20° -t0 ° 0' t'0° 20= 30" 40"

"TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

FIG. 16

NOTE: Although multi-viscosity oils (5W30, 10W30 etc)

improvestarting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possibte engine damage from running low on oil

Change the oil after the first two hours of operation and

every 25 hours thereafter or at least once a year if the

tractor is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation,, Tighten oil fill

cap!dipstick securely each time you check the oil level

TO CHANGE ENGINE OIL (See Figs,, 16 and 17)

Determine temperature range expected before oil change.

All oil must meet AP1 service classification SFor SG,,

• Be sure tractor is on level surface.

• Oil will drain more freely when warm,,

° Catch oiI in a suitable container,.

• Remove oil fill cap/dipstick,, Be careful not to allow dirt

to enter the engine when changing oil

• Remove drain plug.

• After oil has drained completely, replace oil drain plug

and tighten securelyo

• Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" on page 3 of this

manual

• Use gauge on oil fill cap/dipstick for checking level Be

sure dipstick cap is tightened securely for accurate

reading° Keep oil at "FULL" line on dipstick.

CAP/DIPSTICK

OIL DRAIN

PLUG

19 FIG. 17

iii illllllllllllllll

CUSTOMER R

AIR FILTER (See Fig. 18)

Your engine will not run properly using a dirty air filter.

Clean the foam pre-cleaner after' every 25 hours of opera-

tion or every season, Service paper cartridge every 100

hours of operation or ever,,,season, whichever occursfirst,

Service air cleaner more often under dusty conditions,

* Remove knob(s) and cover.,

TO SERVICE PRE-CLEANER

. Slide foam pre-cleaner off cartridge,

- Wash it in liquid detergent and water.,

= Squeeze it dry in a clean cloth,

CLEAN AIR SCREEN (See Fig. 19)

Air screen must be kept free of dirt and chaff to prevent

enginedamage from overheating° Clean with awire brush

or compressed air to remove dirt and stubborn dried gum

fibers,

ENGINE COOLING FINS (See Fig. 19)

Saturate it in engine oil. Wrap it in clean, absorbent

cloth and squeeze to remove excess oil

• if very dirty or damaged, replace pre-cleanero

• Reinstall pre-cleaner over cartridge.

• Reinstall cover and secure with knob(s),,

TO SERVICE CARTRIDGE

Remove any dust, dirt or'oil from engine cooling fins to

prevent engine damage from overheating.

= Remove screws from blower housing and lift housing

and dipstick tube assembly off engine.

• Cover oil fill opening to prevent entry of dirt,

° Remove cartridge nut,.

= Carefully remove cartridge to prevent debris from en-

terin_ carburetor'. Clean base carefully to prevent

debns from entering carburetor.

° Clean cartridge by tapping gently on flat surface,, tfvery

dirty or damaged, replace cartridge,.

° Reinstall cartridge, nut, precleaner, cover and secure

with knob(s)o

IMPORTANT; PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE, DO NOT OIL CARTRIDGE DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY

CARTRIDGE.

COVER KNOB -"'-

COVER

• Use compressed air or stiff bristle brush to thoroughly

clean engine cooling fins.

° To reassemble, reverse above procedure,.

SCREWS BLOWER

HOUSING

AIR SCREEN

DIPS_CK

TUBE

ASSEMBLY

SCREWS

CARTRIDGE NUT

PAPER

CARTRIDGE

ENGINE COOLING FINS

FIG. 19

PLUG

FIG. 18

SIBILIT!

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage. _

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" on page 3 of this manual.

CLAMP= _i

CLAMP

IN-LINE FUEL FILTER (See Fig. 20)

The fuel filter should be replaced onceeach season, if fuel

filter becomes clogged, obstructingfuel flow to carburetor,

replacement is required.

, With engine cool, remove filter and plug fuel line

sections.

= Place new fue! filter in position in fuel line with arrow

pointing towards carburetor°

° Be sure there are no fuel line leaks and clamps are

properly positioned.

° Immediately wipe up any spilled gasoline.

FIG. 20

CLEANING

= Clean engine, battery, seat, finish, etc. of all foreign

matter.

° Keep finished surfaces and wheels free of all gasoline,

oil, etc.

° Protect painted surfaces with automotive type wax°

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out° Water in engine

can result in a shortened engine lifeo

SE ViCE D ADJU ENTS

........,, ........... , ,,, ,,, u==, iHi .........................

I/I II!l ,,,,,,,,,,,,,,,,,,,,,, ,,, ' ' .............. II IIII Illlll

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

Depress clutch/brake pedal fullyand set.parking brake.

Place motion control lever in neutral (N) position.

Place attachment clutch in "DISENGAGED" position.

, Turn ignition key "OFF" and remove key.

- Make sure the blades and all moving parts have completely stopped.

, Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with

plug.

TRACTOR

TO REMOVE MOWER (See Fig. 21)

Mower willbe easier to remove from the right side of tractor'.

• Place attachment clutch in "DISENGAGED" position,.

• Move attachment lift lever forward to lower mowerto its

lowest position.

= Roll belt off engine pulley.

= Disconnect clutch rod from clutch lever by removing

retainer spring_

° Disconnect anti=sway bar' from chassis bracket by

removing retainer spring°

° Disconnect suspension arms from rear deck brackets

by removing retainer springs.

° Disconnect front links from deck by removing retainer

springs.

° Raise lift lever' to raise suspension arms. Slide mower

out from under tractor_

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER IS TO BE MOUNTED TO THE TRACTOR, THE

R.H. AND L.H. SUSPENSION ARMS MUST BE REMOVED

FROM TRACTOR.,

TO INSTALL MOWER (See Fig. 21)

. Raise attachment lift lever to its highest position,.

° Slide mower under'tractor with discharge guard to right

side of tractor',

• Lower lift lever to its lowest position.

o Install mower in reverse order of removal instructions.

CLUTCH

RETAINER

SPRING

ANTI-SWAY BAR

RETAINER

SPRINGS

(BOTH SIDES)

FIG. 21

UTCH LEVER

.......................................... , ,,,,,,,,,,,,,,

AND ADJUSTMENTS

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway. Make sure tires are properly inflated (See

"PRODUCT SPECIFICATIONS" on page 3 of this manual).

Iftires are over or underinflated, you will not properly adjust

your mower._

SIDE-TO-SIDE ADJUSTMENT (See Figs. 22 and 23)

• Raise mower to its highest position,,

- At the midpoint of both sides of mower, measure height

from bottom edge of mower to ground, Distance"A" on

both sides of mower should be the same or within 1/4"

of each other.

• If adjustment is necessary', make adjustment on one

side of mower only.

, To raise one side of mower, tighten tift link adjustment

nut on that side.

. To lower one side of mower, loosenlift link adjustment

nut on that side°

NOTE: Each full turn of adjustment nut will change mower

height about 1/8"o

° Recheck measurements after adjusting.

BOTTOM EDGE BOTTOM EDGE

OF MOWER TO F -1 OF MOWER TO

GROUND _ L. J _ GROUND

GROUND LINE

FIG. 22

LIFT LINK

ADJUSTMENT NUT

FIG. 23

FRONT-TO-BACK ADJUSTMENT (See Figs° 24 and 25)

IMPORTANT: DECK MUST BE LEVEL SIDE_TO-SIDEo IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE.,

To obtain the best cutting results, the mower housing

should be adjusted so that the front is approximately 1/4" to

3/4" lower than the rear when the mower is in its highest

position.

Check adjustment on right side of tractor, Measure dis-

tance "D" directly infront and behind the mandrel at bottom

edge of mower housing as shown.

° Before making any necessary adjustments, check that

both front links are equal in length,, Both links should be

approximately 1-0-3/8",

o if linksare not equal in length, adjust one link to same

length as other link,

, To lower front of mower loosen nut "E" on both front

links an equal number of turns,,

. When distance "D" is 1/4" to 3/4" lower at front than

rear, tighten nuts "F" against trunnion on both front

links,,

• To raise front of mower, loosen nut"F' from trunnion on

both front links,, Tighten nut "E" on both front links an

equal number of turns.

° When distance "D" is 1/4" to 3/4" lower at front than

rear, tighten nut"F" against trunnion on both front links°

° Recheck side-to-side adjustment.

_ %'_ \_ ! o o/ MANDREL

FIG. 24

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

NUT "E"

FRONT LINKS TRUNNION

FIG. 25

S AND ADJUSTMENTS

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 26)

The mower blade drive belt may be replacedwith0ut tools.- " ' -

Park the tractor on level surface_ Engage parking brake_

BELT REMOVAL -

= Remove mower from tractor (See 'q'O REMOVE

MOWER" in this section of this manual).

• Work belt off both mandrel pulleys and idler pulleys.

• Pull belt away from mower,.

BELT INSTALLATION -

• Install new belt in reverse order of removal.

° Make sure belt isin all pulley grooves and inside al! belt

guides.

° Install mower in reverse order of removal instructions_

MANDREL IDLER

PULLEY PULLEYS

MANDREL

PULLEY

FIG. 26

TO ADJUST BRAKE (See Fig. 27)

Your tractor is equipped with an adjustable brake system

which is mounted on the side of the transaxle.

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

° Depress clutch/brake pedatand engage parking brake,

° Measure distance between brake operating arm and

nut 'W' on brake rod.

° if distance is other than 1-3/4", loosen jam nut and turn

nut "A" until distance becomes 1-3/4". Retighten jam

nut against nut 'W',,

° Road test tractor for proper stopping distance as stated

above= Readjust if necessary, if stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary° Contact your' nearest au-

thorized service center/department.

WITH PARKING BRAKE "ENGAGED"

NUT "A"

NUT

ARM

DO NOTTOUCHTHISNUT, IFFURTHER

BRAKE ADJUSTMENTISNECESSARY

CONTACT YOUR NEAREST AUTHORIZED

SERVlCE CENTER/DEPARTMENT

FIG. 27

TO REPLACE MOTION DRIVE BELT

(See Fig. 28)

Park the tractor' on level surface° Engage parking brake_

For assistance, there is a belt installation guide decal on

bottom side of left footrest,.

° Remove mower (See "TO REMOVE MOWER" in this

section of this manuaL)

° Remove upper belt keeper.

° Remove belt from stationary' idler and clutching idler,,

° Pull belt slack toward rear of tractor'. Carefully remove

belt upwards from transmission input pulley and over

cooling fan blades_

° Pull belt toward front of tractor and remove downward

from around engine pulley,,

• Install new belt by reversing above procedure,,

IMPORTANT: MAKE SURE UPPER BELT KEEPER IS

POSITIONED PROPERLY BETWEEN LOCATOR TABS.

ENGINE_-..,...._[I

PULLEY _'_ / LOCATOR

I1-_-=_ J "-TABS

CLUTCHING ,--..,._'.. L-- I_

I _ UPPER BELT

STATIONARY"..,. __ ......

IDLER _t=P.P'="rt

TRANSMISSION _H._t_._' .,,.,_"_J

INPUT PULLEY _! _,j_.,_

24 FIG. 28

TO ADJUST MOTION CONTROL LEVER (See

Fig. 29)

The motion control lever has been preset at the factory and _

adjustment should not be necessary.

If for any reason the motion control lever will not hold its

position while at a selected speed, it may be adjusted at the

friction pack located on the dght side of transmission°

° Park tractor on level surface, Stop tractor by turning

ignition key to 'OFF" position, and engage parking

brake°

. Adjust motion control lever by tightening adjustment

locknut one half (1/2) tumo

NOTE: If for any reason the effort to move the motion

control lever becomes too excessive, reverse the above

adjustment procedure by loosening locknut 1/4 to I/2 turn.

Road test tractor after adjustment and repeat procedure if

necessary.

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for service or

replacement, it should be purged after reinstallation and

before operating the tractor. See "PURGE TRANSMIS-

SION" in the Operation section of this manual.

ADJUSTMENT

LOCKNUT

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual°

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor. If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service center/department.

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 30)

• Block up axle securely.

• Remove axlecover, retaining ringand washersto allow

wheel removal (rear wheel containsa square key - Do

not iose),,

• Repair tire and reassemble_

- On rear wheels only: align grooves in rear wheel hub

and axle_ Insert square key

. Replace washers and snap retaining ring securely in

axle groove.

,, Replace axle cover_

WASHERS

RETAINING

RING

AXLE COVER

_ SQUARE KEY

(REAR WHEEL ONLY)

FIG. 30

FIGo 29

AND ADJUSTMENTS

,i , ii J,,J

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 31)

iii I II IIII IIIIIIIII IIIII

CAUTION: Lead-acid batteries gener-

ate explosivegases_ Keep sparks,flame

and smoking materials away from bat-

teries. Always wear eye protection

when around batteries°

If your battery is too weak to start the engine, it should be

recharged° If "jumper' cables" are used for' emergency

starting, follow this procedure:

IMPORTANT: YOUR TRACTOR tS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

, Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis,_

° Connect one end of the BLACK cable to the NEGA-

TIVE (-) terminal of fully charged battery_

° Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.,

TO REMOVE CABLES, REVERSE ORDER -

° BLACK cable first from chassis and then from the fuliy

charged battery.

° RED cable last from both batteries_

TO REPLACE HEADLIGHT BULB

° Raise hood_

o Pull bulb holder out of the hole in the backside of the

grill°

° Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged widng may cause your tractor to run

poorly, stop running, or prevent it from starting°

° Check wiring. See electrical widng diagram in the

Repair Parts section of this manual.

TO REPLACE FUSE

Replace with 30 amp autornotive-type plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 32)

• Raise hood_.

• Unsnap headlight wire connector_

• Stand infront oftractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedures.

POSITIVE TERMINAL NEGATIVE TERMINAL

CHASSIS

CABLES

CHARGED

BATTERY

POSITIVE TERMINAL NEGATIVE TERMINAL

FIG. 31

HOOD

HEADLIGHT

WIRE

CONNECTOR

FIG. 32

SERVICE AND ADJUSTMENTS

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 33)

The throttle control has been preset at the factory and

adjustment should not be necessary_ Check adjustment as

described below before loosening cable, if adjustment is

necessary, proceed as follows:

° With engine not running, move throttle control lever

from slow (._) to choke (N) position. Slowly move

lever from choke (N) to fast (,€_) position.

° Checkthat holes"A" in governorcontrol lever and hole

in governor plate line-up_ If holes "A" are Tot aligned,

loosen clamp screw and move throttle cable until holes

are aligned. Tighten clamp screw securely.

GOVERNOR GOVERNOR

CONTROL LEVER CONTROLPLATE

HOLES "A" CLAMP THROTTLE

SCREW CABLE

FIG. 33

TO ADJUST CARBURETOR (See Fig. 34)

The carburetor has been preset at the factory and adjust-

ment should not be necessary. However, minor adjust-

ment may be required to compensate for differences infuel,

temperature, altitude or Ioado tf the carburetor does need

adjustment, proceed as follows:

In general, turning idle mixture valve in (clockwise) de-

creases the supply of fuel to the engine giving a leaner fuel/

air mixture. Turning the idle mixture valve out (counter-

clockwise) increases the supply of fuel to the engine giving

a richer fuel/air mixture.

IMPORTANT: DAMAGE TO THE NEEDLE VALVE AND

THE SEAT 1NCARBURETOR MAY RESULT IF SCREW IS

TURNED IN TOO TtGHT.

PRELIMINARY SETTING

• Aircleaner assembly must i_'eassembled to the carbu-

retor when making carburetor adjustments,

• Be sure the throttle control cable is adjusted properly

(see above)_ _

• With engine off turn idle mixture valve in (clockwise)

closing itfinger tight and then turn out (counterclock-

wise) I full turn.

FINAL SETTING -

- Start engine and allowto warm for five minutes. Make

final adjustments with engine running and shift/motion

control lever in neutral (N) position.

° Move throttle control lever to slow (.=_) position. With

finger, rotate and hold throttle lever against idle speed

screw. Turn idle speed screw to attain 1750 RPM.

= While still holding throttle lever against idle speed

screw, turn idle mixture valve in (clockwise) untd en-

gine beg!ns to die and then turn out (counterclockwise)

untilengine runs rough. Turn valve to a point midway

between those two positions. Release throttle lever_

ACCELERATION TEST -

o Move throttle control lever from slow (._=_)to fast (,_)

position. If engine hesitates or dies, tum idle mixture

valve out (counterclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until engine acceler-

ates smoothfy.

High speed stop is factory adjusted,. Do not adjust -

damage may result,

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED° OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS.. tF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS

THROTTLE IDLE SPEED

IDLE MIXTURE

VALVE

FIG. 34

Immediately prepare your tractor for' storage at the end of

the season or if the tractor will not be used for 30 days or

more., •.....

i iillllll II,H Illl"""l" I' II I'lll ,I

I_ CAUTION: Never store the tractor with I

gasoline in the tank inside a building !

where fumes may reach an open flame !

or spark. Allow the engine to cool !

before storing in any enclosure

...... , !

TRACTOR

Remove mower from tractor for winter storage° When

mower is to be stored for a period of time, clean it thor*

oughly, remove all dirt, grease, leaves, etc. Store in a

clean, dry area.

= Clean entire tractor (See =CLEANING" inthe Customer'

Responsibilities section of this manual).

• inspect and replace belts, if necessary (See belt re-

placement instructionsin the Service and Adjustments

section of this manual),.

= Lubricate as shown in the Customer Responsibilities

section of this rnanuaL,

° Be sure that all nuts, bolts and screws are securely

fastened, inspect moving parts for damage, breakage

and wear° Replace if necessary.,

= Touch up all rusted or' chipped paint surfaces; sand

lightly before painting.

BATTERY

° Fully charge the battery for storage.

. After a period of time in storage, battery may require

recharging.

° To help prevent corrosion and power leakage during

long periods of storage, battery cables should be

disconnected and barfer'] cleaned thoroughly (see 'q'O

CLEAN BATTERY AND TERMINALS in the Cus-

tomer Responsibilities section of this manual).

° After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

° Be sure batter,] drain tube is securely attached.

° If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

o Drain the fuel tank°

° Start the engine and let it run until the fuel lines and

carburetorare empty.,

• Never use engine orcarburetorcleaner products inthe

fuel tank or'permanent damage may occur_

° Use fresh fuel next season.

NOTE: Fuet stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank or storage

container'. AIways follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after' adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer'.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil. (See "ENGINE" in the Customer Responsibilities

section of this manual).

CYLINDERS

° Remove spark plug(s)_

= Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

= Turn ignition key to"START" position for a few seconds

to distribute oil.

° Replace with new spark plug(s).

OTHER

° Do not store gasoline from one season to another_

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt inyour'gasoline will cause problems,

° If possible, store your tractor indoors and cover it to

give protectionfrom dust and dirt.

° Cover yourtractor with a suitable protectivecoverthat

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.,

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM,

.................iiii1,1,i,

TROU

.................... ll,i,iil, il, iii

HOOTING

INTS

PROBLEM

IIIl_lJl

Will not start

Hard to start

Engine will not turn over

Engine clicks but will not

start

Loss of power

,, ,, ,,, , ,,,, ,,,,,,,,,,,,,,,,,,,,,,,,

Excessive vibration

CAUSE

1 Out of fuel

2, Englne not "CHOKED" properly,

3. Engine flooded.

4., Bad spark plug,,

5, Dirty air filter,,

6 Dirty fuel filter,

7. Water In lust,

8 Loose or damagedw]flng.

9 Carburetor out of adjustment,

10. Engine valves out of adjustment

1,, Dirty air filter.,

2. Bad spark plug,

3,, Weak or dead battery,

4,, Dirty fuel filter,.

5. Stale or dirty fuel,

6 Loose or damaged wiring,

7, Carburetor out of adjustment.

8 Engine valves out of adjustment

1, Clutch/brake pedal not depressed.,

2, Attachment clutch is engaged.,

3, Weak or dead battery.

4+, Blown fuse,

5_ Corroded batter;/terminals

6, Loose or damaged wiring,

7+ Faulty ignition switch,

B, Faulty solenoid or starter,

9 Faulty operator presence switch(es),

1 Weak or dead battery,,

2, Corroded battery terminals

3. Loose or damaged wiring,

4, Faulty solenoid or starter,

1, Cuffing too much grass/too fast

2 Throttle tn "CHOKE" position°

3, Buftd-up of grass, leaves and trash under mower..

4+ Dirty air filter.

5 Low eli level/dirty oil

6, Faulty spark plug,

7 Dirty fuel filter,

8. Stale or dirty fuel,

9 Water tn fuel

10, Spark plug wire loose,

11+ Dirty engine air screen/fins.

12, Dirty/clogged muffler,

13 Loose or damaged wiring.,

14 Carburetor out of adjustmenL

15, Engine valves out of adjustment.

1, Worn, bent orloose blade+

2+ Bent blade mandrel,

3, Loose!damaged part(s).

CORRECTION

1. Fill fuel tank.,

2, See "TO START ENGINE" in Operation section_

3, Waft several minutes before attempting to start,

4., Replace spark plug,,

5, Cfean/replace air filter+

6 Replace fuel fifter,

74 Drain fuel tank and carburetor, refilltank with fresh

gasoline and replace fuel filter,

8. Check all wiring,

9+, Contact an authorized service centerldepartment,

10,, Contact an authorized service centerldepartment.

1+ Cteanlraplace air filter,

2. Replace spark plug,

3, Recharge or replace battery.

4., Replace fuel filter_

5, Drain fuel tank and refitl with fresh gasorine

6 Check all wiring,

7, Contact an auLhorlzedservice centar/departmenL

B, Contact an authorized service centerldepartment,+

1. Depress ctutchJbrakepedal,

2+ Disengage attachment clutch,

3, Recharge or reptace battery

4 Replace fuse,,

5, Clean battery" terminals.,

6, Check all wiring.,

7., Check/replace ignition switch

8+ Check/replace sotenoid or starter,,

9., Contact an authorized service center/department,

1. Recharge or replace battery,,

2, Clean battery terminals,

3. Check afl widng+

4+, Check/replace solenoid or starter,

1,. Set in "H_gher Cut" position/reduce speed°

2+ Adjust throttle control,,

3, Clean underside of mower housing.

4., Clean/replace air filter

5o Check oil leve!/change oil

6. Clean and regap or change spark plug,,

7. Replace fuel tilter.

8, Drain fuel tank and refill with fresh gasoline,

9. Drain fuel tank and carburetor, refitl tank with fresh

gasoline and replace fuel tifter

10, Connect and tighten spark plug wlre_

tl, Clean engine air screer_tins,

12, Cleanfreptace muffler.

13, Check all w]dng

14, Contact an authorized service centertdepartmenL

15. Contact an authorized service centertdepartment.

t+, Replace blade. Tighten blade bolt,

2, Replace blade mandrel.

3. Tighten loose part(s), Replace damaged parts,

NG NTS

PROBLEM

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poor cut - uneven

Mower blades will not

rotate

Poor grass discharge

Headlight{s) not working

(If so equipped)

Battery will not charge

Loss of drive

i i Ul

Engine "backfires"

when turning engine

"OFF"

CAUSE

1, Faulty operator-safety presence control system

1 Wom, bent or loose blade

2 Mower deck not level

3. Buildup of grass, leaves, and trash under mower°

4 Bent blade mandrel.

5. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1 Obstruction in clutch mechanism.

2 Worn/damaged mower ddve belt..

3 Frozen idler pultey,,

4, Frozen blade mandrel..

1. Engine speed too slow.

2o Travel speed too fast

3, Wet grass

4, Mower deck not level.

5, Low/uneven tire air pressure,,

6 Wom, bent or loose blade.

7. Buildup of grass, leaves and trash under mower

8. Mower ddve belt worn,

9 Blades improperly installed

t0 Improper blades used.

11,, C]ogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels,

1. Switch Is"OFF",

2 Bulb(s) burned ouL

3. Fault,] light switch,

4 Loose or damaged widng.

5. Blown fuse.

1,. Bad battery cell(s)

2, Poor cable connections

3. Faulty regulator (if so equipped)

4. Faulty alternator,

1, Freewheel control in "disengaged" postBon.

2, Motion drive belt worn, damaged, or broken.

3. Atr trapped in transmission dudng shipment

or servicing,

I II .................................................

1_ Engine throttle control not set at"SLOW"

position for 30 seconds before stopplng engtne_

CORRECTION

1,. Check wiring, switches and connecUons° If not

corrected, contact an authorized service center/

depadment

1,. Replace blade Tighten blade boil

2, Level mower deck.

3,. Clean underside of mower housing,

4. Replace blade mandrel

5. Clean around mandrels to open vent holes

1. Remove obstruction.

2. Replace mower drive belt,

3o Replace Idler pulley.

4, Replace blade mandrel,,

1_ Place throttlecontreI in "FAST" position_

2. Shift to slower speed.

3.. Allow grass to dry before mowing_

4. Level mower deck.

5. Check tires for proper air pressure.

6. Replacelsharpen blade., Tighten blade bolt..

7.. Clean underside of mower housing.

8. Replace mower drive belt,

9. Reinstall blades sharp edge down

10. Reptace with blades ltsled in this manual,

11. Clean around mandrels to open vent holes,

1. Turn switch "ON"

2 Replace bulb(s),.

3o Check/replace light switch,

4, Check wiring and connections_

5. Replace fuse_

1 Replace battery,

2 ChecWclean all connections,

3. Replace regulator.

4 Replace alternator

1, Place freewheel control in "engaged" positton_

2 Replace motion drive bell

3 Purge transmission.

Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

TRACTOR - - MODEL NUMBER 917.252531

SCHEMATIC

RED

BATTERY

BLACK

AMMETER

RED

L J

CLUTCH / BRAKE

(PEDAL UP)

FUSE30 AMP i (_ i

: ©: ........ ,

SOLENOID

BLAGK

BLACK

WHITE

t IGN1T!ONSWITCH

WHITE

I I

_A_A._.A_

I_ _I

AFTER FIRE SOLENOID

RED

STARTER

BLACY_j

SEAT SWITCH

_ (NOT OCCUPIED)

7 _

(CLUTCH OFF)

L (CLL; 3FF) t CONNECTOR

.... € q

O{ iGNITION ]_.____ SPARK ____UNIT PLUG

CHARGtNG SYSTEM OUTPUT

3 AMP DC: @ 3500 RPM

26 VOLTS AC M{N. @ 3600 RPM

{CHARGING SYSlqEM DISCONNECTED)

IGNITION SWITCH

..... '"'" ,,,: , T: _L

OFF M+G . ;"

ON B+ L

START 8 + S + L

NOTE o _P DIODE =ALTERNATOR t 'l

YOUR TRACTOR IS 5AMPAC@ 3600RPM ..... , _ i

EQUIPPED WITH A SPECIAL I_;_G_SOFFI

ALTERNATOR SYSTEM,. t_' @ 3600 RPM (LIGHTS OFF)

THE LIGHTS ARE NOT ]_ _ _ HEADLIGHTS

CONNECTED TO THE I I ...... I .... _ ....

BATTERY, BUT HAVE THEIR _ _/_ "F'_---mb""_._

OWN ELECTRICAL SOURCE 'f__ _ 1_'.J I

BECAUSE OF THIS,THE 14E-AE)I_I(31_T I /_ I

BRIGHTNESS OF THE LIGHTS SWITCH. L'-{ 6

WILL CHANGE WITH ENGINE (OFF)

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST,.

NON-REMOVABLE _ REMOVABLE

CONNECTIONS CONNECTIONS

WIRING INSULATED CLIPS

NOTE: tF WIRING INSULATED /-_

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING,

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252531

ELECTRICAL

45 ,

I i

36 35

REPAIR PARTS

TRACTOR-- MODEL NUMBER 917.252531

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 144925 Battery 12 Volt 25 Amp

2 74760412 Bolt, Hex Head 1/4-20 unc x 3/4

3 STD551025 Washer

4 STD551125 Washer

6 STD541025 Nut

7 109238X Tube, Plastic, 12"

8 144940 Case, Battery

9 109596X Clamp, Hose

15 144935 Screw Cap Hex Nylon 3/8-16 x 1

!6 145355 Nut Nylon 3/8-16

19 STD551125 Washer, Lock

20 73350400 Nut, Hex, ,Jam 1/4-20 UNC

21 136850 Harness, Light Socket Wi4152J

22 4152J Bulb, Light

24 4799J Cable, Battery, 6 Gauge, Red, 1t"

25 146147 Cable, Battery, 6 Gauge, Red,

W/16" Wire

26 108824X Fuse, 30 Amp

28 4207J Cable, Ground, 6 Gauge, Black, 12"

29 121305)( Switch, P]unger

30 144921 Switch, Ignition

3t 140400 Nut, Ignition

32 14'1226 Cover, Key Switch

33 140403 Key, Ignition

34 110712X Switch, Light

35 108236X Bracket, Clutch Switch

36 STD601005 Screw

38 140336 Bracket, Interlock Switch

39 109553X Switch, interlock, Clutch, 4 Terminal

40 146057 Harness, Ignition

41 71110412 Bolt, Hex Head, Fin.. 1/4-20 x 3t4

42 131563 Cover, Terminal, Red

43 t45673 Solenoid

44 73510400 Nut Keps Hex 1/4-20 UNC

45 i21433X Ammeter Rectangular 6 Amp

49 11151000 Washer Lock Internal Tooth 5/8

70 140422 Harness Engine B&S

NOTE: All component dimensions given in U_S. inches

t inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252531

CHASSIS AND ENCLOSURES

38 34

14-.-.,..

4 _,...,.._

/ _ ,

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252531

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

I 145501

2 140356

3 1749O612

4 19131216

5 146077

6 145206

7 126842X

8 126471X

9 146760X011

10 72140608

11 135464

13 126276X

t4 17490608

15 74180512

16 STD541431

17 t31445X459

19 17521312

21 122933)(

22 124479X

24 STD523710

25 19131312

26 STD541437

27 17030814

28 14O137

29 124029X

30 147310X459

31 139976

33 145244)(459

34 !45243X459

35 STD533707

38 139886

39 139887

40 139977

100 105037X

-- 5479J

Chassis Assembly

Drawbar

Screw, Thdo Roll 3/8-16 x 3/4

Washer 13/32 x 3/4 x 16 Gauge

Bumper Snapoln

Saddle

Shield Ht Hood Koh!/Dia Engine

Clip Insulator ,.406 Mtg Hole

Dash

Bolt, Carriage 3/8-16 x 3/4

Panel, Dash, L.H.

Panel, Dash, R.Ho

Screw Thdrol 3/8-t6 x 1/2

Screw, Machine, Truss Head

5/16-18 UNC x 314

Nut

Hood Assembly

Screw, Sltdo Hex Hdow/PI Washer

Rivet, Ratchet, Nylon "

Washer, Nylon °28 x .75 x .19

Bolt

Washer 13/32 x 13/16 x 12 Gauge

Nut

Screw Spiderlock Hex Hd #8-7/8

Grill

Lens, Headlight Bar, Clear

Fender

Bracket, Fender Support

Footrest, Loll.

Footrest, R.H.

Bolt

Pivot Bracket Assembly, L.H.

Pivot Bracket Assembly, R,H.

Spacer Fender Raised LT

Strip Foam !8"

Plug, Button

NOTE: All component dimensions given in U.S., inches

t inch = 25.4 mm

REPAIR PARTS

TRACTOR - . MODEL NUMBER 917.252531

DRIVE

92---'-

_---- 100

83 _ 82

,° !

103

100

2 36

30 61

105

• \i

19"_ 48

36 6

100

106

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252531

DRIVE

KEY PART KEY PART

NO. NO. DESCRIP_ON NO. NO.

1 144436 Transaxle Assembly 59 140312

2 142431 Spring, Return, Brake 61 17490612

3 143995 Pulley, Transaxle 62 8883R

8 141003 Rod Shift Hydro LT 63 140186

10 76020416 Pin Cotter I/8 x I CAD 64 7!170764

15 74780544 Bolt Fin Hex 5/16-18 Unc 65 10040700

16 73800500 Nut Lock HexWiInso 5/16-18 Unc 66 129921

18 74780616 Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 67 74760616

19 73800600 Nut Lock Hex W/Wsh 3/8-+16Unc 69 142432

21 130564 Knob, Deluxe 1/2-13 70 134683

22 145240 Rod, Brake Hydro 71 140158

24 73350600 Nut, HexJam 3/8-16 Unc 72 19132012

25 106888X Spring, Brake Rod 73 140157

26 19131316 Washer 74 121199X

27 76020412 Pin Cotter 1/8 x 3/4 CAD+ 75 121749X

28 145204 Rod, Parking Brake 76 12000001

29 124236X Cap, Parking Brake 77 123583X

30 130807 Bracket, Transaxle 78 121748X

31 127275X Keeper Belt Lh 81 140154

32 74760512 Bolt Hex Hd 5/16-!8 Unc x 3/4 82 123782X

34 149001 Shaft, Foot Pedal 83 19171216

35 120183X Bearing, Nylon 84 140548

36 19211616 Washer 86 71208

37 1572H Pin, Roll 87 19212016

38 123674X Pulley, Idler, Flat 88 12000008

39 74760644 Bolt 89 139988

40 4470J Spacer, Split 91 74780536

41 109070X Keeper, Belt Retainer 92 74780524

42 19131312 Washer 13/32 x 13/16 x 12 Gauge 93 142564

44 105706X Beadng, Nylon 94 140462

45 tt0812X Washer, Hardened 95 144643

46 12000039 Ring, Klip 96 4497H

47 127783 Pulley, idler, V-Groove 97 140469

48 123789X Bellcrank Assembly 98 73510600

49 123205X Retainer, Belt 100 19111216

50 74760624 Bolt 102 141322

51 73680600 Nut Crownlock 3/8-16 UNC 103 73940800

52 73680500 Nut, Crownlock 5/t6-18 Unc 104 140156

53 105710X Link, Clutch 105 71070516

55 105709X Spring, Return, Clutch 106 74780520

56 74760620 Bolt Hex 3/8-16 x 1-1/4

57 140294 V-Belt, Ground Drive

58 140470 Keeper Bolt Lh Hydro 0750. 18/20"

DESCRIPTION

Keeper, Center Span

Screw Thdrol, 3/8-16 x 3/4 Ty. TT

Cover, Pedal

Pulley, Engine

Bolt, Hex 7/16-20 x 4 Gr 5

Washer

Keeper Belt Engine

Bolt Fin Hex 3/8-16 Unc x 1

Screw

Keeper Belt Engine

Strap Torque Lh Hydro 18/20" T

Washer 13/32 x 1-1/4 x 12 Gauge

Strap Torque Rh Hydro 18/20" T

Spacer, Split

Washer 25/32 x 1-1/4 x 16 Gauge

E-Ring

Key, Square

Washer 25/32 x 1-5/8 x 16 Gauge

Shaft Asm. Cross Hydro 20" Tires

Spring Torsion T/A

Washer 17/32 x 3/4 x 16 Ga.

Rod, Tie Hydro 20" Tires

Bushing Rod Strig. 629/632 ID

Washer 21/32 x 1-1/4 x 16 Ga.

Ring Klip #5304-62

Console, Shift

Bolt Fin Hex 5/16-18 x 2-1/4

Bolt Fin Hex 5/6-18 Unc x 1-1/2

Line Fuel Hydro 4"

Fan, Hydro 7"

ControlBypass Hydro 20" Tires

Retainer Spring 1"Zinc/Cad

Keeper Bolt Rh Hydro 0750. 18/20"

Nut Keps Hex 3/8-16 Unc

Washer 11/32 x 3/4 x 16 Ga.

Washer Bellville _501D x 1.50D

Nut Hex Jam Toplock 1/4-20 Unf

Arm, Control Hydro

Screw Cap Hex 5/16 x 18 x I

Bolt Fin Hex 5/16+18 Unc x 1-1/4

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252531

STEERING ASSEMBLY

t t

j17

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.25253'1

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768

2 142033

3 135227

4 135228

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 130468

11 STD551137

12 73610600

13 110438X

14 74011056

15 73901000

16 132624

17 132614

18 57079

t9 124035X

20 126684X

21 STD551125

22 71070410

23 127501

24 I09816X

25 t24036X

26 126847X

27 136874

28 19131416

29 17490612

30 STD5612t0

32 130465

36 132196

37 STD611005

38 139769

39 19133808

40 STD541537

41 104820X

42 124417X

43 121749X

46 121232X

47 6855M

62 149684

Steering Wheel

Front Axle Assembly

Spindle Assembly, L.H.

Spindle Assembly, R.H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Ktip

Bearing, Steering Column

Link, Drag

Washer, Lock

Nut, Hex, Fin. 3/8-24 UNF

Spacer, Bearing, Front Axle

Bolt, Hex Head 5/8dl UNC x 3-1/2

Nut, Lock, Flange 5/8-I1 UNC

Pin, Axle 5/8 x 1.55/1.54

Shaft Assembly, Steering

Washer, Thrust 315 x .750 x .033

Support, Shaft

Washer, Shim 1/4 x 5/8 x .062

Washer

Screw, Hex Socket Head

1/4-20 x 5/8

Pittman Shaft Assembly

Nyliner, Snap-In

Bracket, Steering

Bushing, Link, Drag

Gear, Sector

Washer 13/32 x 7/8 x 16 Gauge

Screw, Thd., RoE 3/8-16 x 3/4

Rod, Tie

Bushing, Steering

Screw

Insert, Steering Wheel

Washer 13/32 x 2-3/8 x 8 Gauge

Gripco Nut

Adaptor, Steering Wheel

Boot, Steering Shaft

Washer 25/32 x 1-1/4 x 16 Gauge

Cap, Spindle

Fitting, Grease

Kit, Steering Assembly, Service

NOTE: All component dimensions given in U,Soinches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917,252531

SEAT ASSEMBLY

KEY

NO.

"13

PART

NO.

140123

140551

STD523710

19131610

145006

STD541437

! 24181X

17490616

19131614

140552

121246X

121248X

72050411

DESCRIPTION

Seat

Bracket, Pivot, Seat

Bolt

Washer 13/32 x 1 x 10 Gauge

Clip, Push-In Hinged

Nut

Spring, Seat

Screw, Thd. Roll. 3/8-16 x.l,

Washer 13/32 x 1 x 14 Gauge

Pan, Seat

Bracket, Switch Mounting

Bushing,Snap

Bolt, Carriage 1/4-20 x 1-3/8

KEY PART

NO. NO. DESCRIPTION

15 134300

16 121250X

17 123976X

21 139888

22 STD541431

23 74780814

24 19171912

25 1270t8X

26 STD551150

Spacer, Split .28 x ,88

Spring

Locknut, Flange 1/4 Grade 5

Bolt, Shoulder 5/16+18 UNC

Nut

Bolt, Hex Head, Fin,

I/2-13 x 7/8 Grade 5

Washer 17/32 x 1-3/16 x 12 Gauge

Bolt, Shoulder 5/16-18 x +62

Washer, Lock

NOTE: All component dimensions given in U+S+inches

1 inch = 25,4 mm

REPAIR

DECALS

PARTS

TRACTOR- - MODEL NUMBER 917.252531

6 3 18 7 18 4 16

t 19

11 8

KEY

NO.

PART

NO.

1 138955

3 143735

4 143736

5 '132674

6 '133644

7 142235

8 133178

9 128314

10 137537

11 4900J

12 146046

13 138145

I4 136832

DESCRIPTION

Decal

Operating Instruction

Hood, R.H.

Hood, L.H.

Grill, LT4000

Customer Maintenance

Side Panel, IC Gold

Mower, 3 In One

Fender, Craftsman

Caution, English

Clutch/Brake, English

V-Belt Drive Schematic

Chassis, Hydro/42"

V-Belt Schematic

KEY

NO.

PART

NO.

16 140837

17 133179

18 142234

19 131265

20 142270

21 142336

22 142341

23 145003

24 145023

-- 145245

-- 138311

-- 145247

-- 149138

-- 149137

DESCRIPTION

Decal

Parking Brake Saddle

Mower QC System

Ins. Hood 15HP OHV White

Lightbox, Grill

Fender Hydro White

Sdl Cold Start Hydro Engine

Drawbar Cntrl Mvt Hyd LT

Battery Dngr/Psn/Srs Eng

Battery Craftsman White

Pad Footrest Rbr Sq Craftsman

Decal, Lift Handle

Fastener Pop in Footrest

Owner's Manual, Spanish

Owner's Manual, English

4,10

!,9

KEY PART

NO. NO.

1 59192

2 65139

3 106222X

4 59904

5 106732X427

6 278H

7 9040H

8 106108X427

9 t22082X

10 7152J

DESCRIPTION

11 104757X

-- 144334

Valve Cap, Tire

Stem, Valve

Tire, Front

Tube, Front Tire

(Not Provided, Service Item Only)

Rim, Front

Fitting, Grease (Front Wheel Only)

Bearing, Flange (Front Wheel Only)

Rim, Rear

Tire, Rear

Tube, Rear Tire

(Not Provided, Service Item Only)

Cap, Axle

Sealant, Tire (10 ozoTube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR"" MODEL NUMBER 917.252531

ENGINE

OPTIONAL EQUIPMENT

Spark Attester

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252531

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 132759

2 1772041O

3 145305

4 137352

13 125593X

14 13280324

15 132O030O

16 STD551237

23 128953X

24 STD601005

29 13718O

31 109202X

32 123549X

33 123487X

37 13704O

38 ---

40 124028X

44 17490412

46 19091416

62 STD55t131

72 71070512

78 17490620

81 73510400

Control, Throttle

Screw, Hex Head, Thread Cutting

1/4-20 x 5t8

Engine, B&S, 15Hp Diamond Dual

Model No. 28N707, Type NOo 0162-01

Muffler

Gasket, Exhaust

Nipple, Pipe 3/8 NPT x 3

Elbow, Standard 90 °, 3/8-18 NPT

Washer

Shield, Heat

Screw

Arrestor, Spark

Tank, Fuel

Cap Assembly, Fuel Tank, Vented

Clamp, Hose

Line, Fuet

Plug, Oil Drain

(Order From Engine Manefacturer)

Bushing, Snap, Fuel Line

Screw, Hex Washer Head, Thd., Roll.

1/4-20 x 3/4

Washer 9/32 x 7/8 x 16 Gauge

Washer, Lock

Screw, Hex Cap Head 5/16-18 x 3/4

Screw, Thd., Roll 3/8-16 x 1-1/4

Nut Keps Hex 1/4-20 UNC

NOTE: All component dimensions given in U,S. inches

1 inch = 25,,4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252531

MOWER LIFT

5 ._21

,., 7

1 i'

I I

I i

161718

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252531

MOWER LIFT

KEY PART

NO. NO. DESCRIPTION

1 136973 Lift Lever Inner Wire Assembly

2 122507X Shaft Assembly, Lift

3 105767X Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32x I x21 Gauge

6 '120183X Bearing, Nylon

7 125631X Grip, Handle, Fluted

8 122365X Button, Plunger, Red

t0 122512X Spring

1! 139865 Link, Lift, Loll,

12 139866 Link, Lift, R.H,

13 4939M Retainer Spring

15 127218 Link, Front

16 73350800 Nut, Hex, Jam 1/2-13 UNC

17 130171 Trunnion

18 73800800 Locknut, Hex, with Washer Insert

1/2-13 UNC "

19 139868 Arm, Suspension, Rear

20 3t46R Retainer Spring

21 19151216 Washer 15132 x 3/4 x t6 Gauge

22 12000037 Ring, Klip

23 110807X Nut, Special

24 19t31016 Washer 13/32 x 5/8 x t6 Gauge

25 2876H Spring

26 76020308 Pin, Cotter 3/32 x 1/2

27 126971X Rod, Adjust, Lift

28 73350600 Nut, Hex, Jam 3/8-16 UNC

29 138057 Knob, Infinite Height Adjustment

30 110810X Tnmnion, Depth Stop

31 140302 Bearing, Pvt, Lift Spherical

32 73540600 Nut, Crowntock 3/8-24

NOTE: All component dimensions given in U_S.inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252531

MOWER DECK

76 77

102

._"'_104

105 .._

106

105

106

116 113 111 114

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252531

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO_ DESCRIPTION

'I 144393

2 STD533107

3 138017

4 138440

5 STD624008

6 130832

8 850857

9 STD551137

10 140296

11 134149

12 129895

13 137645

14 128774

15 110485X

16 140329

17 72110610

18 72140505

19 132827

20 136888

21 STD541431

22 134753

23 131267

24 105304X

25 I23713X

26 t10452X

27 130968

28 19111016

29 13'1491

30 138776

31 129963

32 129861

33 137266

34 STD533717

35 133835

36 131494

37 19131316

40 STD54t437

41 133551

43 140083

44 140088

45 STD624003

46 137729

48 I 33944

49 133940

50 131340

51 STD541410

52 139888

53 131845

Mower Housing

Bolt

Bracket Assembly,Sway Bar, Front

Bracket Assembly, Sway Bar

Retainer Spring

Arm, Suspenston, Rear

Bolt, Hex 3/8-24 x t25 Grade 8

Washer, Lock

Washer, Hardened

Blade, Mulching

Bearing, Bail

Shaft Assembly, Mandrel, Vented

(Includes Key Number 6)

Housing, Mandrel, Vented

Bearing, Ball, Mandrel

Stripper, Vented Mower Deck

Bolt, Cardage 3/8-16 x 1-1/4

Bolt, Carriage 5/16-18 x 5/8

Bolt, Shoulder

Baffle, Vortex

Nut Crownlock 5/16-18 UNC

Stiffener Bracket

Bracket, Deflector

Cap, Sleeve

Spring, Torsion, Deflector

Nut, Push

Shield, Deflector

Washer 11/32 x 5/8 x 16 Gauge

Rod, Hinge

Screw Thdrol Hex Head Zinc Mwr

Washer, Spacer

Pulley, Mandrel

Nut, Toplock, Flanged

Bolt

Fastner, Christmas Tree

Pulley, idler, Flat

Washer 13/32 x 't3/!6 x 16 Gauge

Nut Crownlock 318-16 UNC

Rod, Pivot, with Nibs

Rod, Clutch, Secondary, with Nibs

Guard, Mandrel, L_H.

Retainer

Screw, Thdo Roll 1/4-20 x 5/8

Washer, Hardened

Roller Assembly, Cam Follower

Bolt, Shoulder #!0-24 Grade 5

Locknut

Bolt, Shoulder 5/16-18 UNC

, Arm Assembly, Pad, Brake

54 133943

55 140084

56 122052X

58 140086

59 141043

67 106932X

68 144200

71 142427

72 131870

73 127847

74 121748X

75 12000029

76 128903

77 127845

78 140334

79 127498

80 128759

81 73350600

82 142028

83 120958X

84 144394

85 72140620

92 STD541437

!01 136420

102 71161010

103 19061216

104 STD551110

105 130758

106 2029J

111 140353

112 I32262

113 17490512

!14 73510500

115 72110504

116 137644

117 133957

It8 7393060O

119 19121414

121 143723

- 130794

145411

Washer, Hardened

Arm, Idler

Spacer, Retainer

Spring, Torsion Brakes

Guard, TUV idler

Knob, Round 3/8-16 UNC

V_Belt

Rod, Clutch, Primary, with Nibs

Spring, Return

Arm, Clutch, Secondary

Washer 25/32 x 1-5/8 x 16 Gauge

Ring, Klip

Bolt, ShouEder 3/8-16 UNC x 1,44

Keeper, Spring

Arm, Clutch, Primary

Bushing, Large, Brass

Spring, Mower Clutch

Nut, Hex Jam 3/8-16 Unc

Trunnion, Adj,,

Washer Sintered

Keeper Belt Idler Fixed

BOlt Carriage 3/8-16 x 2-1/2 Gr,_5

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket, Gauge, Wheel L.Ho

Bracket, Gauge, Wheel Roll.

Screw Thdrol 5/16-18 x 3/4

Nut, Hex, Keps 5/16-18 UNC

Bolt, Carriage 5/16 UNC x 1/2

Bolt, Shoulder

Wheel, Gauge

Nut, Centerlock 3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Bracket

Mandrel Assembly (Includes Key

Numbers 8-10, 12-15, 31 and 32)

Mower Deck, Complete (Standard

Deck, Order Separately Mulcher

Plate and Gauge Wheel

Components, Key Nos. 101-106

and 111-121)

NOTE: AI/component dimensions given in UoS. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252531

HYDRO GEAR TRANSAXLE - MODEL NUMBER 310-0750

13135_

41 3940 38

19 25

63\

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252531

HYDRO GEAR TRANSAXLE - MODEL NUMBER 310-0750

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 142930 Housing, Lower 43 142884

2 142931 Assembly, Upper Housing 44 142959

3 142932 Seal, Lip 52 '142960

4 142928 Ring, Wire Retaining 53 142961

5 142933 Ring, Retaining 54 142962

6 142934 Bearing, Shaft Bali 56 142963

7 142935 Bearing, Cradle 58 142964

8 142936 Bearing, Thrust 30 x 52 x 13 59 142965

9 142937 Swashp_ate, Vadable 62 142966

13 142938 Block, Cylinder Assembly 63 142967

14 t42939 Arm, Trunnion 64 142920

15 142940 Seal, Lip 68 142969

17 142941 Guide, Slot 69 144610

18 142942 Shaft, Motor 83 142971

19 142943 Bearing, Thrust 42 x68x 16 85 142972

23 142944 Block, Cylinder Assembly 88 142973

24 142945 Seal, Lip 10 x 25 x 7 89 142974

25 142946 Actuator, Bypass 90 142975

26 142947 Center Section Assembly Kit 91 142976

27 142948 Seal, Lip 26 x 42 x 8 92 142977

28 142949 Ring, Retaining 93 142978

29 142950 Washer 26 x 35 x I 113 142917

34 142951 Oil Filter Element 114 142918

35 142952 Arm, Bypass 119 142980

36 142953 Ring, Retaining 134 144607

37 142954 Arm, Actuating 135 144608

38 142955 Pin, Actuating

39 142956 Bolt 5/16-24 x i-3/4

40 142957 Locknut, Hex 5/16-24 UNJC

41 142958 Brake Rotor/Stator Kit

DESCRIPTION

Washer 7/16 x 7/8 x _060

Differential Assembly

Washer 3/4 x 1,5 x .03

Seal ,75 x 125 x .250

O-Ring o103x 2.987 ID

Shaft, Input

Bolt !/4-20 x t.38

Pin .50D x _43 ID x .750

Arm, Control

Puck, Dampener

Set Screw

Spring

Stud 5/16_24

Jack Shaft Assembly

Jack Shaft

Capscrew

Washer

Sleeve Bearing

Seal, Wiper

Spring, Block

Washer, Block Thrust

Cap, Vent Assembly

Fitting, O-Ring Assembly

Spacer

Nut, Castle 5/16-24

Pin, Cotter

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252531

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0162-01

635 337

1022

868

166

.......... _ 1026

"_"REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL

_13

305

1023

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.25253'1

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0162-01

J_'_UlL_L

127 138 106 987 95 117 ,_ _868_

137

lo33VALVEoV'ERHAULKIT

121 CARBURETOR OVERHAUL KIT =

_ 32

............. ":"::": 'o'....._' [ ,,5

147 -

987

634B 1

_._ 618

142

.,,oou,,,os 0,o ,,7

TO INSTALL, SEE REPAIR

INSTRUCTION MANUAL

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252531

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0162-01

523

284A

3 20 634A 842 524 868 868A

358 GASKET SET

524

304

363

137

13e

977 CARBURETOR GASKET SET I

668

224

467

171

535

445

1054

,i,ill

468

1006

188

1044

O 75

72(

334

REPAIR PARTS

TRACTOR -- MODEL NUMBER 9'17.252531

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0162-01

209

729A

728

783

601

1090

311

544

803

REPAIR PARTS

TRACTOR- -MODEL NUMBER 917.252531

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0162-01

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO, DESCRIPTION

1 496412

2 399265

3 391086

5 495858

7 272614

8 495735

9 27803

10 94621

1t 281246

12 271916

271997

271996

13 94728

15 94239

I6 495162

94196

18 494238

20 291675

22 94624

23 492326

32A

222698

495860

495977

495978

495979

495854

495852

495851

495855

260924

299691

391286

494504

495490

94695

94648

495856

495857

262811

224502

224641

262411

494433

272465

272569

9'4637

224061

94832

Cylinder Assembly 95

Bearing, Cylinder 98

* Seal, Oil 104

Head, Cylinder 105

*** Gasket, Cylinder Head 106

Breather Assembly 108

* Gasket, Valve Cover 117

Screw, Sems 118

Tube, Breather 121

* Gasket, Crankcase Cover, ,,015" 123

* Gasket, Crankcase Cover, .,005" !25

* Gasket, Crankcase Cover, .009" 127

Screw, Cylinder Head 130

Plug, Oil Drain 13!

Crankshaft 133

Timing Gear Key 137

Base, Engine t38

* Seal, Oil 141

Screw, Sems, Base Mounting 142

Flywheel and Ring Gear Assembly, 147

Magneto 164

Key, Flywheel 166

Piston AssernbIy, Standard Size 171

Piston Assembly, .010" Oversize 187

Piston Assembly, .020" Oversize 188

Piston Assembly, .030" Oversize 192

Ring Set, Piston, Standard Size 201

Ring Set, Piston, .010" Oversize 209

Ring Set, Piston, .020" Oversize 216

Ring Set, Piston, °030" Oversize 219

Lock, Piston Pin 222

Pin Assy. Piston, Standard Size 224

Pin Assyo, Piston, .005" Oversize 225

Rod Assembly, Connecting 227

Rod Assembly, Connecting, 230

.020" Undersize Crankpin Bore 232

Screw, Hex Washer Head, 1-57/64 238

Screw, Hex Washer Head, 1-5/8 240

Valve, Exhaust 265

Valve, Intake 284

Spring, Valve

Guard, Flywheel

Retainer, Valve Spring

Tappet, Valve

Gear, Cam

**** Gasket, Carburetor (Carburetor to

Elbow) (Also Included in Gasket

Set, Part Number 495993)

*** Gasket, Carburetor

(Elbow to Cylinder)

Stud, Carburetor Mounting _

Washer, Spring

Screw, Pan Head

94098 ** Screw, Throttle

495800 Screw, Idle Speed

231789 ** Pin, Float Hinge

231855 ** Valve Float

231854 ** Seat, lnlet Valve

224540 Valve, Choke

231858 ** Jet, Needle Valve

495932 Valve, Needle

497535 Carburetor Overhaul Kit

94616 Screw, Elbow Mounting

495935 Carburetor Assembly

-.. ** Plug, Welch (Sold in Kit Only)

224539 Valve, Throttle

494379 Shaft and Lever, Throttle

494381 Float, Carburetor

281165 .... Gasket, Float Bowl

281164 **** Washer, Bowl

495931 Shaft and Lever, Choke

231859 ** Nozzle, Carburetor

497472 ** Pilot, Jet

214053 Elbow, Carburetor

94555 Stud, Rocker' Arm

281051 Nut, Air Cleaner Mounting

393815 Line, Fuel (11" Long, Cut to Suit)

94627 Screw, Seres

492160 Screw Assembly, Rocker Arm

262767 Link, Governor

260695 Spring, Governor

262766 Link, Choke

490815 Gear, Governor

495611 Plate, Governor Control

94729 Screw, Sems, Air' Cleaner

231058 Crank, Governor

493935 Lever Assembly, Governor

94742 Washer, Governor Crank

262785 Spring, Governor Link

262836 Cap, Valve

394358 Filter', Fuel (in Fuel Line)

221535 Clamp, Casing

94704 Screw, Hex Head

* Included in Gasket Set (495993)

** Included in Carburetor Kit (497535)

*** Included in both Gasket Set (495993) and

Valve Overhaul Kit (495992)

**** Included in Gasket Set (495993), Carburetor Kit

(497535) and Carburetor Gasket Set (494385)

NOTE: All component dimensions given in UoS inches

1 inch = 25_4 mm

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252531

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0162-0'1

KEY PART KEY PART

NO. NO. DESCRIPTION _. NO. NO. DESCRIPTION

284A 94073 Screw, HexHead 729A 225170

294 810068 Screw, Set 741 262932

304 496280 Housing, Blower 757 213998

305 94729 Screw, Hex, Head, 758 399891

Blower Housing Mounting 759 298909

306 224696 Shield, Cylinder 761 94593

307 94623 Screw, Cylinder Shield 783 280104

309 497595 Motor, Starter 801 394856

310 497602 Bolt, Thru 802 497605

311 497608 Brush Set 803 497604

333 495859 Armature, Magneto 842 270920

334 93381 Screw, Seres, Armature Mounting 847 496415

337 491055 Plug, Spark 851 224110

346 93705 Screw, HexHead 868 494435

356 496070 Wire Assembly 868A 272610

358 495993 Gasket Set 871 262835

363 19203 Puller, Flywheel 872 281361

383 89838 Wrench, Spark Plug 875 495862

423 94073 Screw, Seres 877 393456

445 493909 Cartridge, Air Cleaner 947 495739

455 222561 Cup, Screen Mounting 965 94108

467 493903 Knob, Air Cleaner 975 495933

468 494439 Screen, Flush Rotating 977 494385

474 393474 Stator, Alternator 987 281166

482 93621 Screw, Seres 1005 281400

510 497606 Drive, Starter t006 224413

523 495230 Cap and Dipstick, Oil Filler 10'19 496758

524 68838 * Seal, FillerTube 1022 272475

525 496113 Tube, Oil Filler 1023 224552

535 272403 Element, Filter 1026 494432

537 281106 * O-Ring, Air Cleaner 495136

544 497603 Armature, Starter 1029 224554

552 231597 Bushing, Governor Crank 1033 495992

562 92613 Bolt, Governor Lever 1034 495248

592 231082 Nut, Hex 1044 94673

601 93053 Clamp, Fuel Pipe t054 270723

611 493496 Elbow, Fuel Pipe 1058 272623

614 93306 Pin, Cotter !090 497607

615 93307 Retainer, E-Ring

618 262803 Spring, Choke Return RPM Settings:

634 281168 ** Seal, Choke Shaft

634A 491323 * Seal, Governor * Included

634B 28t 167 ** Washer, Throttle Shaft

635 280872 Elbow, Spark Plug ** Included

646 224546 Brace, Air Cleaner

657 93496 Screw, Seres ***

663 94620 Screw, Self-Tapping

668 280848 Spacer

718 230192 Pin, Dowel ....

' 726 392134 Gear, Ring

, (Includes Mounting Hardware)

727 490324 Cover, Starter NOTE:

728 94627 Screw, Hex He,_d

Retainer, Wire

Gear, Timing

Link, Counterweight

Counterweight Assembly

Pin, Counterweight

Screw, Counterweight

Gear, Starter

Cap, Drive

Cap, End

Housing, Starter

* Seal, Oil Filler Cap

Fill Group, Oil

Terminal, ignition Cable

*** Seal Assembly, Valve

*** Gasket, Valve

Bushing, Guide (Intake & Exhaust)

Cover, Air Cleaner

Body, Air Cleaner

Diode and Connector Assembly

Solenoid

Nut, Hex

Bowl Assembly, Carburetor

Carburetor Gasket Set

** Seal, Throttle Shaft

Fan, Flywheel

Retainer, Fan

Label Kit

*** Gasket, Cover

Cover, Rocker Arm

Rod, Push, Intake

Rod, Push, Exhaust

Arm, Rocker

Valve Overhaul Kit

Guide Assembly, Push Rod

Screw, Hex Head

Tie, Cable

Manual, Owner's

Retainer, Brush

Low: 1650-1850, High: 3200-3400

in Gasket Set (495993)

in Carburetor Kit (497535)

Included in both Gasket Set (495993) and

Valve Overhaul Kit (495992)

Included in Gasket Set (495993), Carburetor Kit

(497535) and Carburetor Gasket Set (494385)

All component dimensions given in UoS,,inches

1 inch = 25,4 mm

SERVICE

................... ,,,,,,, illl illlll ii IIIIIH

I I llllll'l ...........................

SERVICE NOTES

,,,, ,,,, ............. illlllll ....................

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

rjl

SIGHTING

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

,.,..,.

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

15 ° MAX.

ILI_IIIIII I 111111IIIIIIIIIII :: : ::::_

/,t Operate your Tractor up and down the face of slopes (not

_| ,AA greater th_n 15°), never across the face. Make turns gradu-

_| a ally to prevent tipping or loss of control. Exercise.extreme J

caution when changing direction on slopes, i

OWNER'S

MANUAL

MODEL NO.

917.252531

IF YOU NEED

REPAIR SERVICE

OR PARTS:

FOR REPAIR SERVICE, CALL

THIS TOLL FREE NUMBER:

1-800-4-REPAIR

(1-800-473-7247)

FOR REPLACEMENT PARTS

INFORMATION AND

ORDERING, CALL THIS

TOLL FREE NUMBER:

1-800-FON-PART

(1-800-366-7278)

FOR CONSUMER ASSISTANCE

HOT LINE, CALL THIS

TOLL FREE NUMBER:

1-800-659-5917

CRAFTSMAN+

15.0 HP

ELECTRIC START

3 in One Convertible

42" MOWER

AUTOMATIC (HYDROSTATIC)

DRIVE

LAWN TRACTOR

Each tractor has its own model nurnber_ Each engine has

its own model number,.

The model number for your tractor wilt be found on the

model plate located underthe seat°

The model number for your engine will be found on the

blower housing of tile engine,,

All parts listed herein may be ordered from any Sears,

Roebuckand CooService Center/Department and most Re-

.tailStores_

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

• PRODUCT- TRACTOR

° MODEL NUMBER- 917.252531

° ENGINE MODEL NO. - 28N707, TYPE NO. 0162-01

° PART NUMBER

° PART DESCRIPTION

Your Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians .... professional technicians

specifically trained to insure that we meet our pledge to

you, we service what we sell.

149137 Rev. 3 0622.95 KFSW

Printed in U.S.A.

Craftsman 917252531 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917252531 Questions and Answers
