User guide
Billi B-5000 Sparkling
Tap option XL
2
User guide
Billi B-5000 Sparkling – XL.
Contents
Warnings & Important information ........2
General Maintenance.....................3
Features and Modes......................4
Tap Options & Operation
XL Tap.................................5
Dispenser Icon Codes
XL Tap.................................6
Filtration Information .....................7
Changing the filter .......................8
Changing the CO
2
cylinder ................9
Service Support ........................11
Warnings & Important information
– For continued safety of this appliance it
must be installed, operated and maintained
in accordance with the manufacturer's
instructions.
– Your appliance should be installed
by a suitably qualified tradesperson.
– For correct operation of this appliance
it is essential to observe the instructions
as outlined in this booklet.
– Do not use this appliance with water that
is microbiologically unsafe or with water
of unknown quality without adequate
disinfection before or after the system.
Systems certified for cyst reduction
may be used on disinfected water
that may contain filterable cysts.
– Filter replacement must be performed
at intervals of not more than 12 months.
– Use this appliance only as directed
in these instructions and only for its
designed purpose.
– This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
– This appliance is not suitable in an area
where a water jet could be used.
– Children should be supervised to ensure
that they do not play with the appliance.
– DANGER: The operation of the thermal
cut-out indicates a possibly dangerous
situation. Do not reset the thermal cut-out
until the water heater has been serviced
by a suitably qualified person.
– WARNING: Do not connect any restrictor
or pressure relief device to the vent pipe
of this water heater if installed.
– If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid creation of a hazard.
– Billi hose sets as supplied with the appliance
are to be used. Old or other manufacturer’s
hose sets should not be re-used.
– If the appliance is located where the
ambient air temperature could fall below
4°C when the heater is not in use, do not
turn o the power supply to the appliance.
This safeguard does not oer the same
protection to the connecting pipework
and fittings.
– The ambient temperatures this unit
should operate within are 4°C to 45°C.
– Turn o power to unit, by unplugging
the power cord from the power point,
if water supply is turned o
Caution and safety
Boiling water is dangerous and can cause
severe burns, particularly with young children.
Boiling water must always be handled with
caution. Use this appliance only as directed
in these instructions and only for the purpose
for which it has been designed. Your Billi
B-5000 is designed to be safe and practical.
In an environment with young children,
it is recommended that the boiling water
safety switch is activated.
The following safety features have been
included:
– Ergonomic levers
– Levers/touch activations located safely
above water outlet.
– Smooth electronically controlled boiling
water flow rate. Flow is briefly reduced as
water first enters cup to prevent splashing.
– Dispenser remains cool to touch.
– Childproof safety switch.
– Boiling water Safety Isolation mode.
General Maintenance
Your B-5000 Sparkling has been designed
to require minimal maintenance other
than replacement of filter cartridges.
During each filter change, check all water
connection fittings for signs of leakage.
Check all tubing for any signs of damage.
Check the cupboard area around the
base of unit for any signs of moisture.
Ensure side vents of the under bench module
are kept clear and airflow is not obstructed.
Restricted airflow will cause inecient
operation of the refrigeration system.
—Cleaning the dispenser
Your B-5000 Sparkling Dispenser is fabricated
from solid zinc casting material with tough
protective chrome plating. Proper care of the
Billi Electronic dispenser crucial; Avoid using
abrasive cleaners. Wipe clean using a damp
cloth. Use of a non-solvent, non-smearing
cleaner such as Windex is recommended.
Do not pour water over dispenser.
Cupboard ventilation requirements
Your B-5000 Sparkling underbench module
requires cupboard ventilation, refer to install
guide for details. Care should be taken when
using the cupboard space, to avoid stretching
or damaging plastic pipe work. Check fittings
and tubing at each filter change for signs of
damage or leakage. Always ensure access
to power switch and water supply tap is not
restricted.
3
User guide
Billi B-5000 Sparkling – XL.
User guide
Billi B-5000 Sparkling – XL.
Features and Modes
Dispenser Swivel
The B-5000 dispenser incorporates a swivel
function, allowing the dispenser to be swung
out of the way if more sink space is required.
A central position stop provides positive
location during normal usage.
Safety Timeout
Your B-5000 Sparkling incorporates a
water delivery Safety Timeout to prevent an
uncontrolled flow of water. Water flow
stops automatically after a set time interval.
Flow can be started again by releasing and
pressing the dispenser lever or buttons.
Boiling water timeout – 10 secs;
Chilled water – 1 minute.
Childproof safety switch
Your B-5000 Sparkling is fitted with a
childproof safety lock-out feature to protect
against accidental dispensing of boiling water
and the risk of burns. Please refer to safety
switch settings on page 5.
Self learning timer (EcoIntelligence)
Your Billi B-5000 incorporates an energy
saving self learning timer. This timer
learns the users behaviour over a period
of time (up to one month) and pre-empts
the need for water throughout each 24-hour
period over a week. Data is lost when the
power is removed however learnings from
the first days use is applied to the entire
learning cycle so the unit will quickly resume
intelligent timer operation. When the self-
learning timer is enabled the unit will enter
standby if no water is expected to be used
for a 3 hour or more period. The unit will
shutdown completely if no water is expected to
be used for a 6 hour or more period. In oce
environments this feature will typically cause
the unit to turn o outside normal business
hours, ie: overnight and on weekends. In
domestic environments with no one home
during working hours the unit will turn o
through each weekday but may remain on at
night and during weekends. See page 6 for
dispenser icons. To activate, refer to Options,
page 5.
Standby Mode
Standby operation may be optionally
enabled to reduce power consumption.
In standby mode the hot water set point
is reduced to 72°C. When enabled, standby
is invoked after two hours from the time
of last use. When a tap lever or button is
pressed in standby no water is dispensed.
The indicators will flash to indicate the
water is not ready. The lever or button can
be repressed to dispense water. During
Standby mode the moon & star icon will flash.
See page 6 for dispenser icons. To activate,
refer to Options, page 5.
Boiling water disabled mode
Your B-5000 Sparkling features an additional
boiling water safety isolation feature.
Once activated, delivery of boiling water
becomes totally disabled. Chilled water
can be dispensed normally.
During this mode, the red, hot, icon will remain
o. To activate, refer to Options & Operation,
Safety Switch Settings, page 5.
Holiday mode
Holiday Mode is provided to save energy
when the unit will not be used for long periods.
In this mode both the water chiller and water
heater are disabled and the unit will use
very little power. Pressing the Pressure
Relief button places the unit in Holiday Mode.
The unit will exit Holiday Mode if either the
power is turned o then on or if any of the
levers are pressed. The Self Learning Timer
will ignore user behaviour while the unit is in
Holiday Mode and resume normal operation
when the mode is terminated. Holiday Mode
is indicated by the star & moon icon being
illuminated. See page 6 for icon images.
4
User guide
Billi B-5000 Sparkling – XL.
Options and Operation
To operate, simply press the left lever to
dispense boiling water and the right lever
to dispense chilled. Pressing both levers will
dispense sparkling water. When lifted the
levers will latch for continual delivery, until
released with a light press.
Operating modes can be selected by the user
by entering Options Mode.
Within the options mode, you can set the safety
switch through the hot water lever and power
save mode through the cold water lever.
To enter the options mode:
1. If the following sequence malfunctions,
remove the sparkling unit control box
and try again.
2. Turn on the unit and wait for normal
operation (red & blue icons are both
illuminated constantly).
3. Touch the safety switch indent at the back
of the black panel and push both the hot
and cold levers down. Hold both levers
and safety switch for 3 seconds.
4. Icons will flash yellow.
5. Release both the levers & safety switch.
6. Unit is now in options mode.
7. If you wish to change or set the safety
switch mode, follow the safety switch
settings procedure below. If you wish
to change or activate the power saving
mode follow the power save mode
settings procedure below.
Safety Switch settings
The Red padlock indicates the dierent
safety settings enabled. To change or activate
a setting once in options mode as above, press
and release the hot (left) lever to scroll through
the following options;
– Red Icon O: indicates the hot tap
is disabled.
– Padlock icon on, Red icon on: indicates
safety switch is enabled
– Red Icon On: indicates normal operation
with safety switch not enabled.
To save new setting and exit Options Mode,
touch the safety switch and release. Wait 10
seconds for unit to return to normal operation,
with the desired settings.
To dispense boiling water once the safety
switch is activated simply touch the indent
on the black panel, at the back of the tap.
You will be able to dispense boiling water for
8 seconds. After 8 seconds the safety switch
will automatically reactivate, and the red
padlock icon will appear again.
Power save mode settings
(EcoIntelligence, standby or on 24/7)
The Green icons on the tap indicate the
power save level that is selected. To change
or activate a setting once in options mode
press and release the cold(right) lever to
scroll through the following options;
– Green Leaf icon: indicates Eco Intelligence™
self learning timer is enabled.
– Moon & Star Icon on: indicates Standby
Mode is enabled.
– Blue Icon On, no green icons: indicates
system is in 24 hour continuous mode
To save new setting and exit Options Mode,
press the safety switch and release. Wait 10
seconds for unit to return to normal operation,
with the desired settings.
Holiday mode
To set press the pressure relief valve located
under the unit cover beside the filter housing.
5
User guide
Billi B-5000 Sparkling – XL.

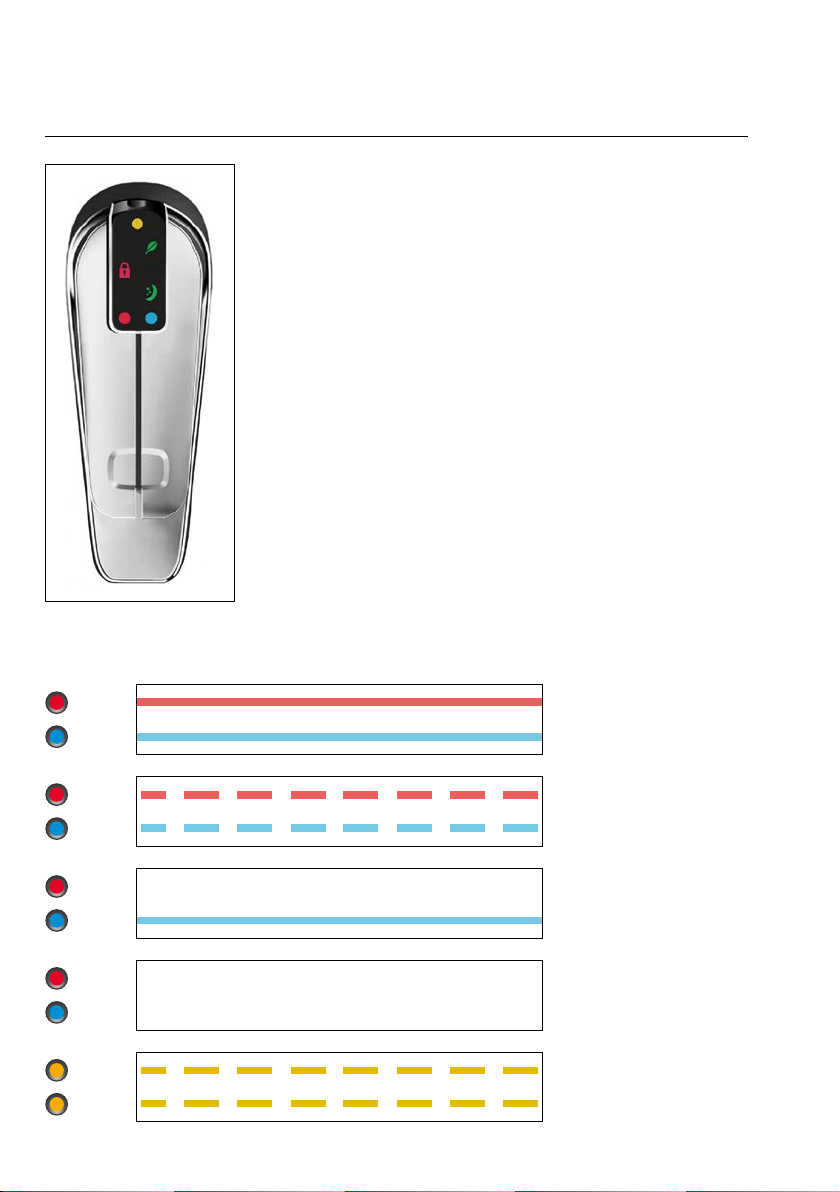

Dispenser Icon
Orange dot.
Flashes when filter change due. On constant when overdue.
Red lock illuminated.
Safety button activated. To use, press the indent on the
back of the tap momentarily & lift or press the boiling lever.
Green leaf illuminated.
Eco intelligence.
Green moon & stars illuminated.
In holiday mode. Red & blue icons will not be displayed in this mode.
Green moon & stars flashing
In standby mode. Red & blue icons will not be displayed in this mode.
Red dot.
Flashes when heating up to temperature. On constant when
boiling water ready. O when in holiday or standby mode.
Blue dot.
Flashes when chilling. On constant when chilled water ready.
O when in holiday or standby mode. Red & blue dots will
flash yellow if the unit goes into fault.
Dispenser Icon codes
Red
Blue
Red
Blue
Red
Blue
Red
Blue
Orange
Orange
Normal operation
Normal operation
Operating temperatures
of hot and cold water not
yet reached
Boiling water disabled
System in holiday or
standby mode or o
Unit in fault mode
6
Billi Filter Cartridges
The B-5000 Sparkling is fitted with single
dual action filter incorporating sediment and
chemical removal elements. All Billi B-5000
filters are manufactured using bacteria and
biofilm resistant materials for improved water
quality.
Premium filters provide better tasting
water due to the high quality, carbon
chemical removal filter. Sub micron rated,
these filters have excellent chemical
absorption, removing or reducing chlorine,
volatile organic compounds (VOCs), chemicals,
tastes and odours. Use only genuine filters
as designed for this system. All drinking
water filtration systems should be flushed
after a period of non-use. If your B-5000
Sparkling has not been used for a period of 48
hours or more, flush the system for 1 minute.
Replacement of Billi Filter Cartridge
Periodic replacement of your Filter Cartridge
is necessary to maintain the cleanliness of
your drinking water. Billi recommends a filter
replacement every 6 months. A replacement
filter change service is available. If you wish
to install the replacement filter cartridges
yourself, your Billi representative will provide
genuine Billi replacement filter cartridge sets.
Filter Change Due Monitor
The B-5000 Sparkling filter change due
monitor operates by counting the number
of cups dispensed and the number of days
elapsed until a pre-set level is reached.
Once reached, the yellow filter icon as
pictured above will turn on. The B-5000
Sparkling will continue to operate while
the filter indicator is flashing. Water filters
installed in areas with higher levels of
sediment will experience a reduced service
life. It may be necessary to change filters
before the change filter indicator flashes. If
particularly dirty water is noticed coming
through the water supply, e.g. from other
tap ware, immediately place your B-5000
Sparkling into Holiday Mode by pressing the
Pressure Relief button. This will help prevent
premature blocking of the filter cartridges.
Filter
Type
Order
Part No. Suits Micr. Filters Sediment Chlorine VOCs Chemicals
Taste
Odour
Fluoride
Minerals
Expected
Life
Prem. 994002
B-5000
Sparkling
0.2 Single
Slight
6 - 12
months
Stand. 994001
B-5000
Sparkling
5.0 Single
6 - 12
months
Billi Filter Cartridges – Reduces & Removal
User guide
Billi B-5000 Sparkling – XL.
7
User guide
Billi B-5000 Sparkling – XL.
Filter removal and
replacement instructions
Important note: Please ensure you remove the
foam packing under the filter before installing.

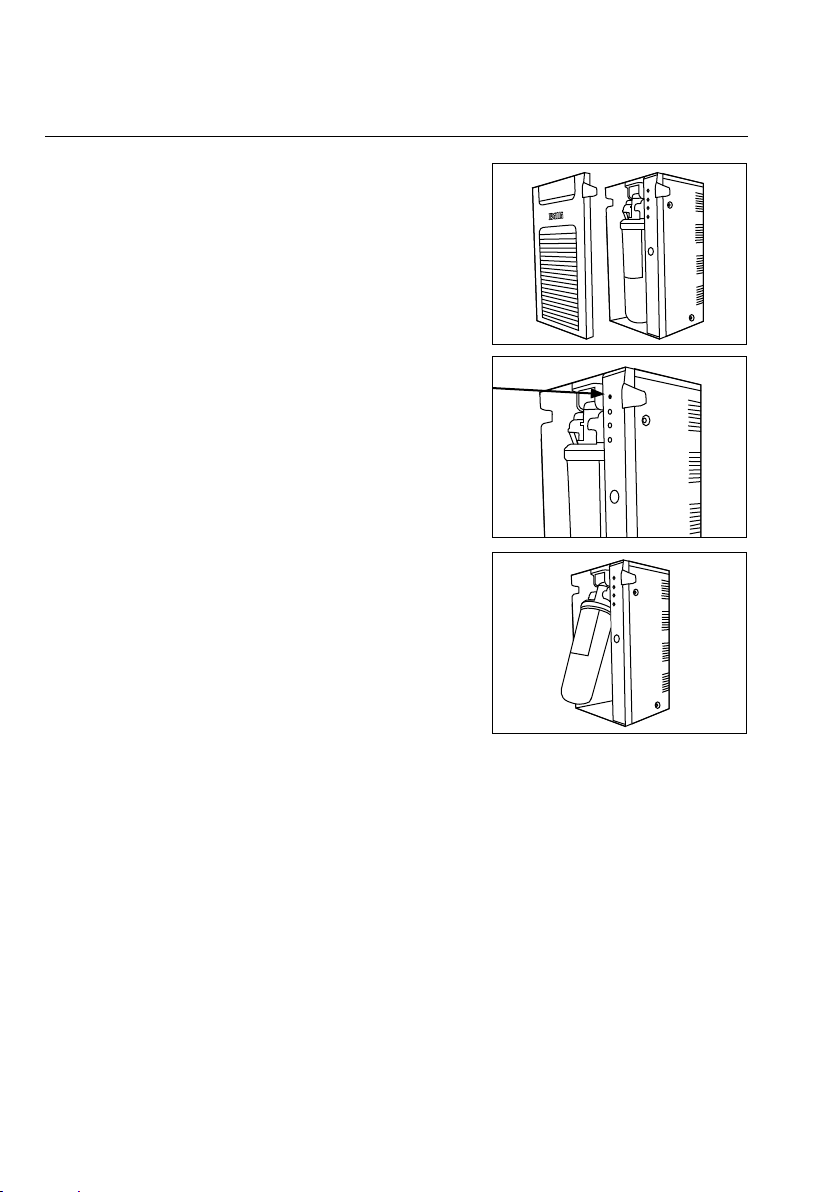

1. Remove the front panel.
2. Place the unit in Holiday Mode by
pressing the Pressure Relief button once.
The lights on the dispenser will alternate
and then go o
3. Hold filter and swing towards you slowly.
The top of the filter is in a hinged cradle
assembly. It should stop after approximately
30 degrees of travel.
4. The filter can now be released from the
holding cradle by pulling down on the filter.
5. Take care not to spill water in the base of the
tray. If so wipe gently with absorbent paper.
6. Install new filter into the same location
by pushing all the way up into the cradle.
7. Push filter back into the unit until it locks
into place. Power light should come back on.
8. Flush chilled side until water flow stops.
Wait 10 minutes.
Repeat these steps 2 times.
9. Check for any leaks from around the
filter, hosing or pipeworks.
10. Replace the front cover.
8
User guide
Billi B-5000 Sparkling – XL.
9
Removing the CO
2
cylinder
1. Isolate the water supply and turn o
the power.
– This will prevent the internal pump
from pressurizing the system.
2. Turn o the CO
2
regulator by turning the
black knob anti-clockwise.
3. Drain any remaining pressure by activating
the sparkling water option on the dispenser
installed.
Ensure the pressure gauge shows near to
zero pressure – if the pressure is less than
one bar, and the dial is fully anti-clockwise,
then the cylinder can be removed with only
a small amount of CO
2
escaping

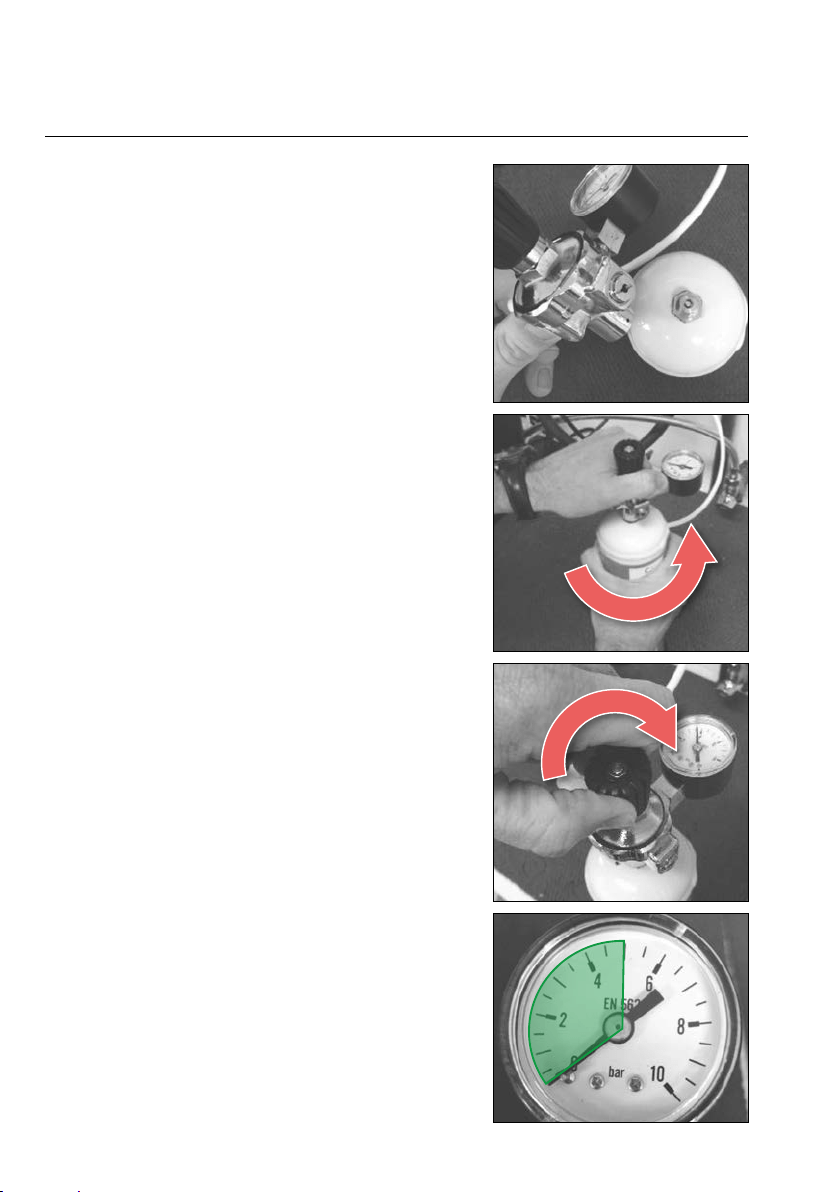

4. Hold the regulator and rotate the Cylinder
clockwise to remove.
– If the bottle is not empty, CO
2
may escape
while you are turning the bottle. The bottle
will self-seal prior to the thread being free
from the regulator.
– Avoid breathing air containing CO
2
or
contact with the cold escaping gas as
per the Safety Data Sheet.
User guide
Billi B-5000 Sparkling – XL.
10
Installing the CO
2
cylinder

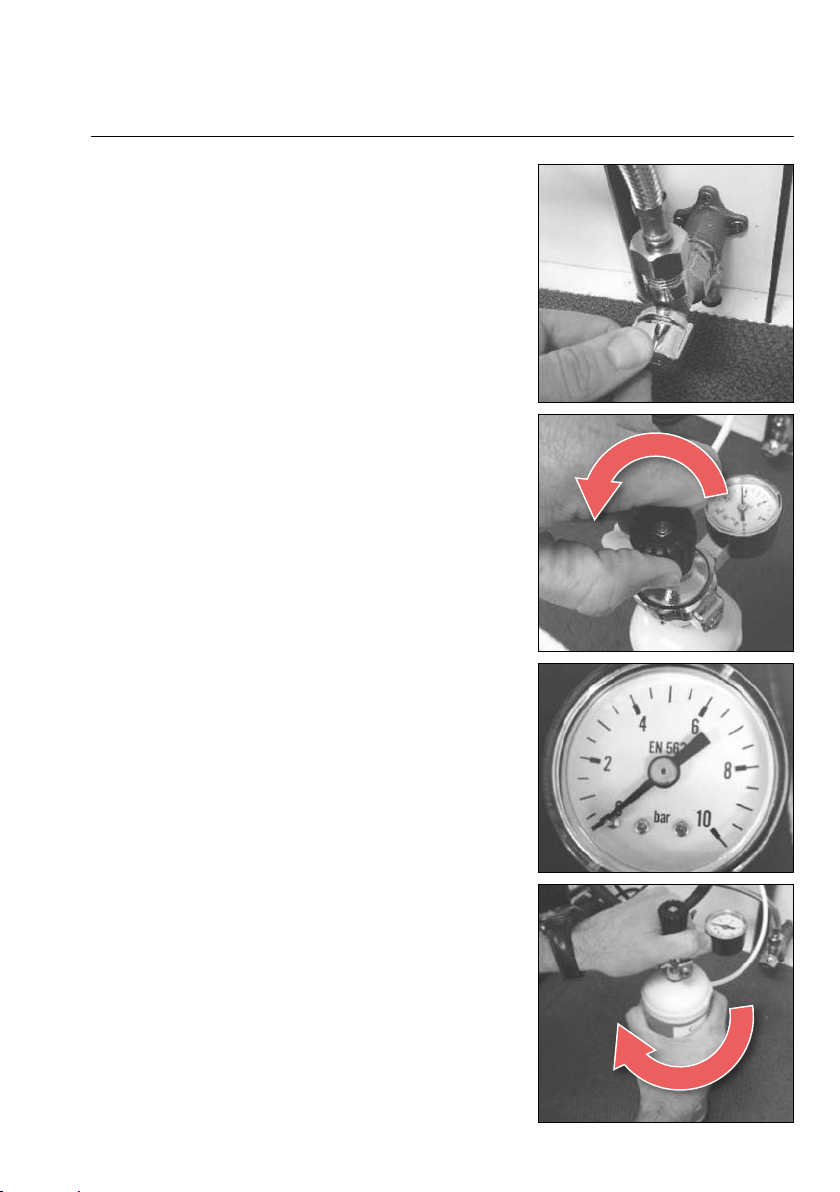

1. Ensure all connections between the
regulator and unit are secure.
Position the regulator on top of the CO
2
cylinder.
2. Tighten the bottle by rotating anti-clockwise.
– CO
2
will escape while you are turning the
bottle. Continue to turn the bottle to form
a seal with the regulator.
3. Open the pressure regulator by turning the
black knob clockwise.
– Set the initial pressure to around 3 Bar.
– Turn on the unit power and water supply.
– Wait for the unit to come back to
temperature.
4. Check bottle and connections for leaks using
soapy water to test for bubbles.
NOTE: the ¼" tube and pushfit fittings may
settle when the pressure is turned on.
5. Increase the pressure to set your level of
carbonation.
Initial set point may vary once the unit is
running, you may need to reset the pressure
once the system has stabilised.
WARNING: do not set the pressure above 5 bar.
User guide
Billi B-5000 Sparkling – XL.
11
Thank you for choosing to install a
Billi B-5000 Drinking Water Appliance.
Your B-5000 is manufactured to
exacting standards using high quality
materials and with proper maintenance
and care, should function for many
years.
For information on our filtration
and service contract please contact
Billi Head Oce on 1800 812 321
or email us at [email protected].
For technical support please call
1800 812 321 and speak to one of
Billi’s experienced technician’s.
To book a service call out request
a filter change or please contact
the Billi Service Centre on
1800 812 321 or book online
at www.billi.com.au
Filter cartridges are also
available for purchase online
at www.billi.com.au
Billi Australia Pty Ltd
42 Lucknow Crescent, Thomastown
Victoria 3074 Australia
Telephone +61 3 9469 0400
Facsimile +61 3 9469 0499
www.billi.com.au
Designed and manufactured in Australia.
As Billi Australia Pty Ltd has a policy of
continual improvement, all details are
subject to change without notice. All
goods are sold subject to our published
terms and conditions. Billi is a
registered trademark. 0618
