Installation guide
Billi B-5000
Tap options XL, XT, XR
2
Components for Billi B-5000
Before commencing installation,
ensure you have identified the following.
1. Underbench module
2. Dispenser upper with tubing
3. Dispenser base & mount
4. Barb locking bush
5. 4mm chrome screw & allen key
6. Large washer
7. Tube spring clamps x 3
8. 600mm flexible braided hose
9. Filter Cartridge (installed)
10. User guide
11. Warranty Registration Card
12. Warning label
Additional Components – XR
13. Remote panel kit
Determine Unit Location
Plan the installation. Dispenser tube lengths,
position of power and water outlets, required
air space around the underbench module and
access for service must be considered before
cutting tube lengths. Refer to Diagrams 1,2
and 3 for clearances around the dispenser
and unit. Unit must be installed horizontally
with plastic vent panel facing to front of
cupboard. The B-5000 is designed for internal
installation only.
Water Supply
The B-5000 must only be connected to a cold
water supply. A ½” BSP stop tap (not supplied)
is to be installed in an easily accessible
position within 600mm from the B-5000
water supply inlet. The B-5000 incorporates
a certified pressure limiting and backflow
prevention device. Do not fit an additional
pressure limiting valve.
Dynamic inlet supply pressure:
Min. 250 kPa, max. 1000 kPa
Supply Temperature: min. 5°C max. 30°C.
Do not install with water that is
microbiologically unsafe or with water
of unknown quality without adequate
disinfection before or after the system.
Systems certified for cyst reduction may
be used on disinfected water that may
contain filterable cysts.
Ventilation
The B-5000 requires some cupboard
ventilation and adequate air space as well
as an unobstructed clearance of at least
100mm on each side of the underbench unit
is necessary.
IMPORTANT: Insufficient ventilation will cause
inefficient refrigeration system operation,
increasing power usage.
Power Requirements
A single 10 amp standard power
outlet is required. All B-5000 units supplied
with 1 metre flex cord and plug.

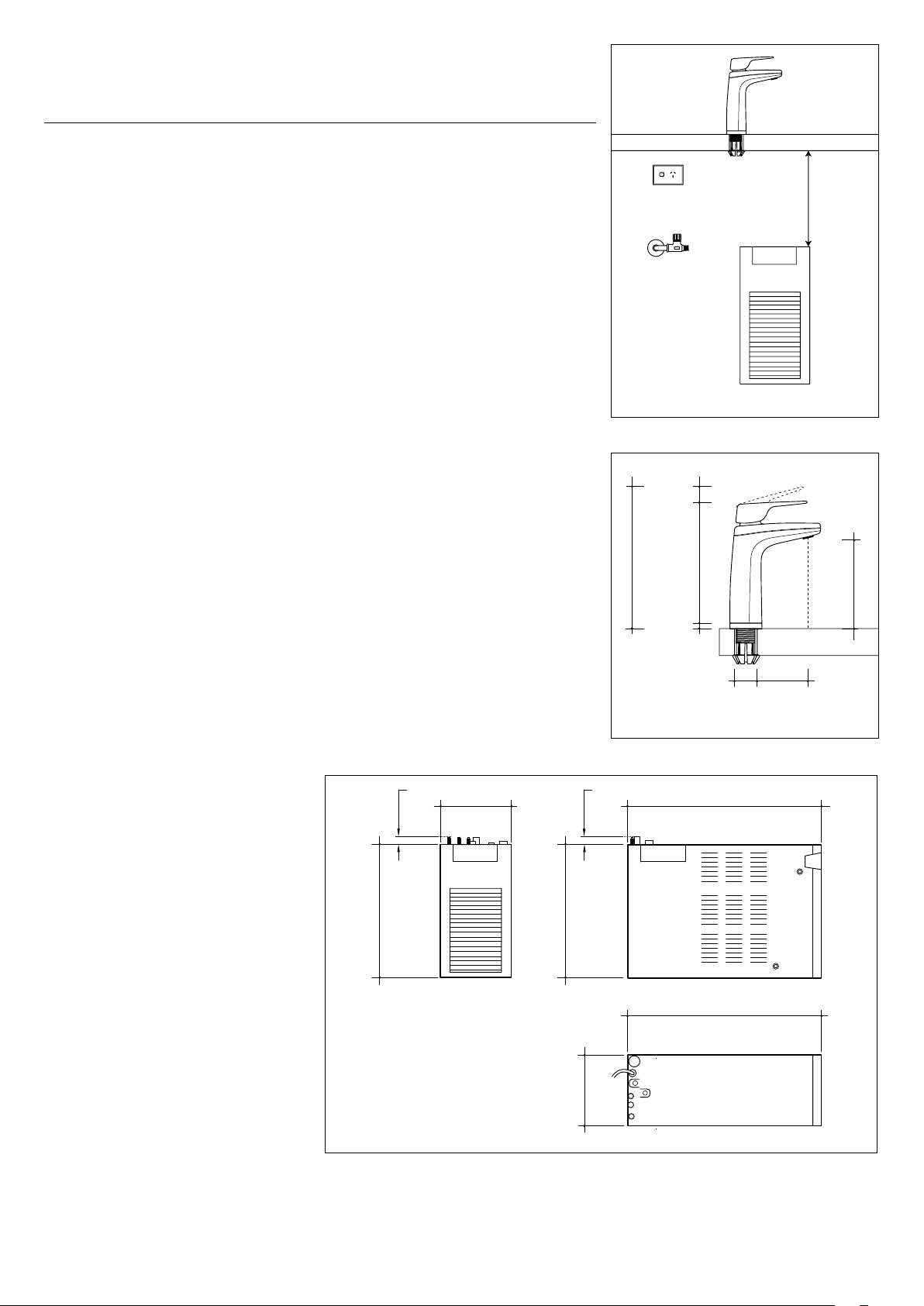

Installation requirements
XL, XT, XR.
Diagram 1
Power
Outlet
800mm
Tube Length
Supplied
Stop Tap
(Installed by Plumber)
Max 450mm from Unit
Cupboard Dimensions:
220mm Minimum Width
365mm Minimum Depth
205mm
175mm
20mm
bench
thickness
1mm-48mm
Diagram 2
10mm
130mm
35mm 70mm
Diagram 3
Tubing
removed
for clarity
Tubing
removed
for clarity
Tubing
removed
for clarity
FRONT SIDE
TOP
20mm
180mm
340mm 340mm
20mm
498mm
180mm
498mm
3
1. Install Dispenser Assembly
Determine position of dispenser mounting
hole in sinktop or benchtop.
Dispenser base
template (Diagram 4) may be cut out and
used to assist in correct positioning. Refer to
Diagram 2 for clearances allowed. Hole size
required is ø32mm.
Stainless Steel Sinktop
A suitable 35mm hole punch (Part no:
857901) is available as an accessory from Billi
Australia Pty Ltd. If possible, cut hole with die
mounted below the sinktop surface so that
burr is pulled downwards. Alternatively,
remove burr and radius edge of hole with fine
file. This allows barbed dispenser
mount to slide smoothly into mounting hole.
Timber/Laminate Benchtop
Maximum benchtop thickness is 50mm.
Cut 32mm hole in appropriate position*.
When drilling through a particle board
bench top, take care to avoid a large chip
breaking away as drill breaks through
underside surface. We recommend drilling
a small pilot hole through benchtop, partially
drilling the 32mm hole from underneath and
then completing drilling the hole from above.
The large 30mm washer supplied may be
used to secure barb where underside particle
board bench top has chipped away.
* For stone or granite bench tops you
will require a certified stone mason
to pre-drill the hole.
2. Activate Dispenser Swivel Feature
To activate the swivel feature of your
dispenser, you will need to remove the
locking piece from the dispenser base.
Simply push out the piece as show in
Diagram 5. This will allow the tap to
move 45 degrees to the left and right.
3. Fit Dispenser Base
a. Cut a 32mm hole in sinktop or benchtop.
Remove burr if protruding upwards.
b. Push barbed mounting shaft through
mount hole.
c. Insert barb locking bush as shown in
Diagram 6. Finger tighten nut.
d. Ensure barb is centred in mount hole
before tightening. Check position of base
ring and gasket.
e. Moderately tighten locking nut using
multigrips or spanner. Take care to avoid
overtightening nut which may break the
plastic threaded shaft.
f. Place large D washer over thread as
shown in Diagram 7.
g. Cut off excess threaded shaft with a
hacksaw, using washer as a cutting guide.
(Diagram 7)
IMPORTANT: Remove burrs and check internal
bore is completely smooth.
4. Fit Dispenser Head Assembly
a. Feed dispenser tubing and loom through
centre hole in the following order:
i. Dispenser power cord.
ii. Silicone tubes.
b. Gently pull hoses from under the
bench top, do not attempt to force tubing
through with a pointed object as silicone
tube is easily punctured. Check tubing
is not kinked or twisted.
c. Turn dispenser head assembly to
approximately 60° from the straight
ahead position of dispenser base.
Slide head assembly onto base assembly
whilst gently pulling tubing downwards
from underneath to prevent tubing
bunching and kinking. Mounting lugs
will pass nut and slide down the 3
grooves on the swivel bearing.
d. Once fully down, turn dispenser to
straight ahead position. Fit chrome
plated M4 retaining screw to lower rear
threaded hole and tighten using the allen
key supplied. If swivel feature activated
check dispenser now swivels smoothly
45° in each direction.

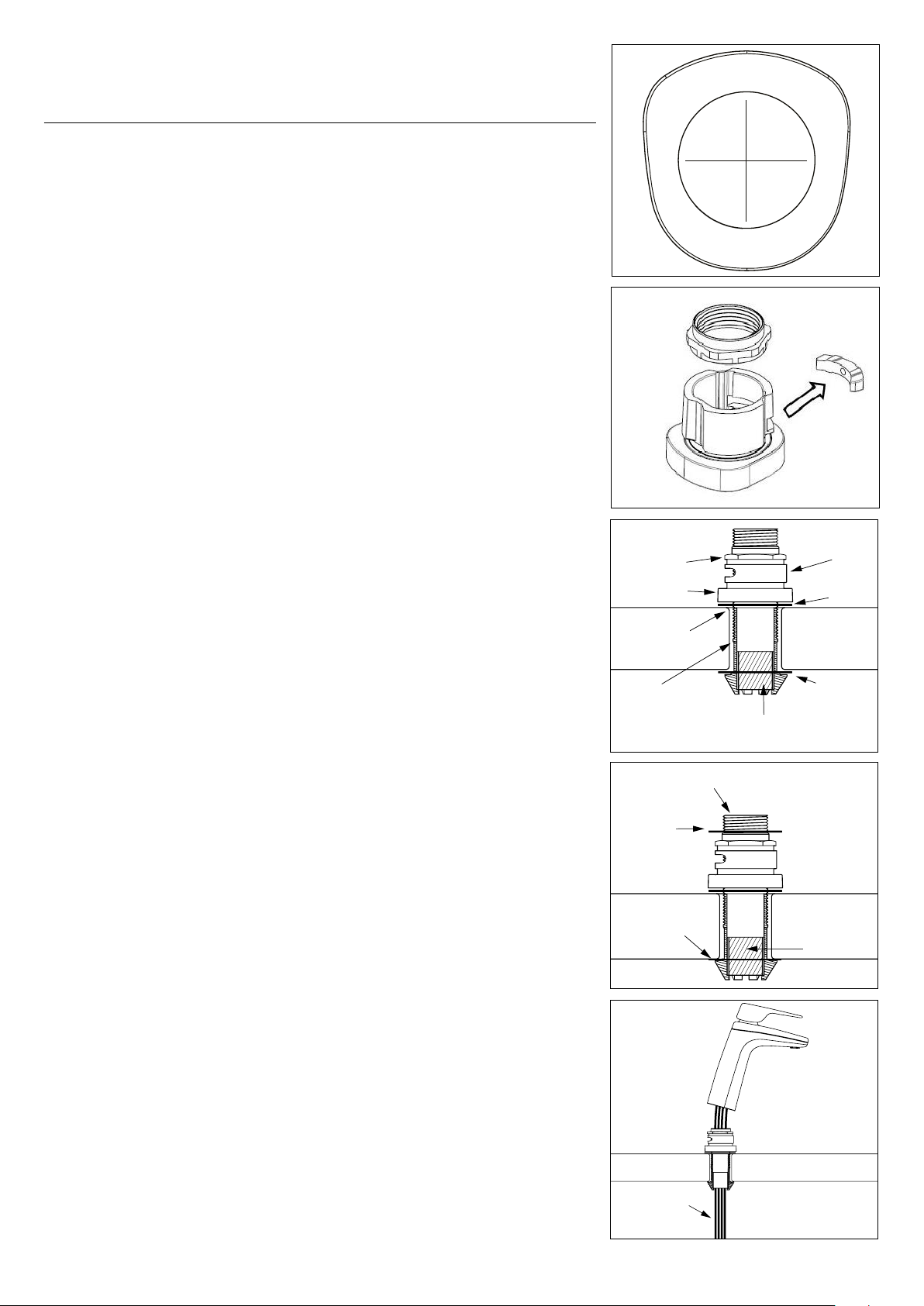

Installing the dispenser
XL, XT, XR.
IMPORTANT: This Billi appliance is to be installed by a licensed trades person in accordance with
AS/NZS 3500.1 and AS/NZ 3500.2 and in compliance with applicable state regulatory requirements.
For correct operation of this appliance, it is essential to observe the manufacturer’s instructions.
3
dispenser base
template
Diagram 4
Diagram 6
Swivel
Bearing
Gasket
D Washer
required
Barb locking bush in position
Barbed
Mounting
Shaft
Ensure burr
is removed
& edge has
a radius
Base Casting
Locking Nut
Diagram 7
Cut o
excess
thread
Remove burrs after cutting and
ensure internal bore is smooth
Alloy locking
bush
Silicone
tubing
Diagram 5
Diagram 8
D washer
4
Install Cabling
Feed the cable through pre cut hole.
Screw and fasten the cable strain bracket
to the back of remote tap module.
Secure the tap module by sliding it
onto the previously installed bracket
– see diagram 15.
Completing Installation
Ensure panel is secured.
Clean up any excess plaster.
Installation is finished – see diagram 16.
Determine Remote Panel Location
Cut out cable access hole in the desired
location.
Hole size must be Width 25mm x Height
45mm – see diagram 13.
Drill a pilot hole using bracket as a
template. The template could also be
used as a guide to cut into the plaster.
Install Mount Bracket
Fasten the mount bracket on to the
wall using phillips head screwdriver
(ensure the spring clips are facing up)
– see diagram 14.
Plaster and Paint
Start plastering as required.
Wait for the plaster to dry before cleaning
the bracket.
Use a light sandpaper to give smooth
finish on the drywall.
Then paint as required.
Completing Installation
Take the tape off the cable connector and
plug it into the panel – see diagram 11
The panel and bracket are magnetic.
Upon install, the magnets will pull
together and secure the module into
place in place – see diagram 11.
Installation is finished – see diagram 12.
Magnetic remover tool may be
required again. Do not throw away.
Determine Remote Panel Location
Dimensions and layout are shown in
diagram 9. Panel can be installed on a
wall, benchtop or even inside a cupboard
Minimum cut out dimensions are 121mm
height x 70mm width. Minimum depth
must be 20mm.
Cut out cavity into the plaster wall.
Ensure the cable is pre-installed into the
flush mount bracket before plastering.
Place the flush bracket into the plaster
wall with the cable gap facing towards the
ground.

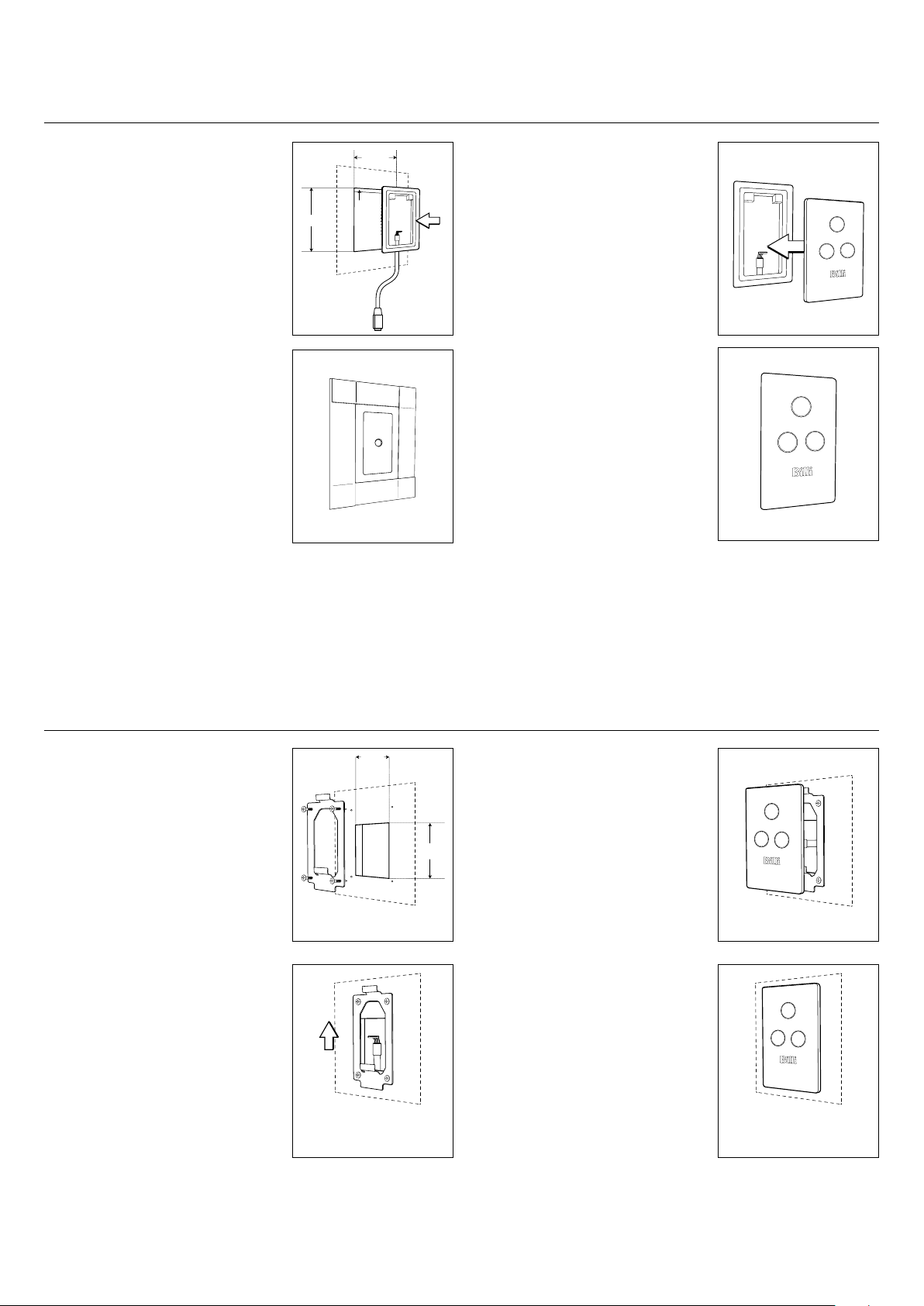

Installing the Remote Panel
Cable must be protruding out of the
bottom of bracket – see diagram 9.
Tape up the cable terminals before
plastering process – see diagram 10.
Additional installation – XR.
Flush mount remote panel.
Additional installation – XR.
Proud mount remote panel.
Diagram 10
Diagram 9
Diagram 12
Diagram 11
Diagram 14
Diagram 13
Diagram 16
Diagram 15
70mm
20mm
121mm
BRACKET
PANEL
25mm
45mm
5
1. Flush Water Supply
Flush water supply pipework before installing
the underbench unit by connecting 600mm
flexible braided hose to the supply tap and
running water into a bucket. Blockages/unit
malfunction caused by debris are not covered
under warranty.
2. Install Underbench Unit
Take care to observe minimum clearances.
Ensure there is adequate access to service
the unit, taking into account the tube lengths
and space available Refer Diagram 1, page 2.
3. Connect Dispenser Tubing
and Electrical Plug
Connect all tubing as shown in Diagram 17
& 18. Ensure correct orientation of dispenser
power plug before insertion. Trim tubes to
correct lengths using plastic tube cutter.
Do not leave excess tubing which will sag,
trapping water. Fit spring clamps supplied
to retain silicone rubber tubing to barbed
fittings.
IMPORTANT: Boiling outlet (red), vent tube
(grey) must not be kinked and must be installed
with a continual fall and no sag.
1. Turn On the Water Supply
Turn on water supply and ensure that there
are no leaks. Remove front panel of unit
and remove packing foam from under filter
canister. Ensure filter canister is securely
locked back into place. Replace front panel.
2. Power On
When power is applied the system checks
the water level in the hot tank and if empty
(below the low level sensor) then the unit will
enter the boiling point calibration mode. This
will normally only occur the first time a new
system is turned on.
On power ON, if the hot tank level sensor is
above the low level sensor, the unit will enter
its normal operating mode at full power.
This will happen when the system has been
installed and used at least once.
IMPORTANT: On initial power up, leave the
unit for 10 minutes before attempting user
setup.

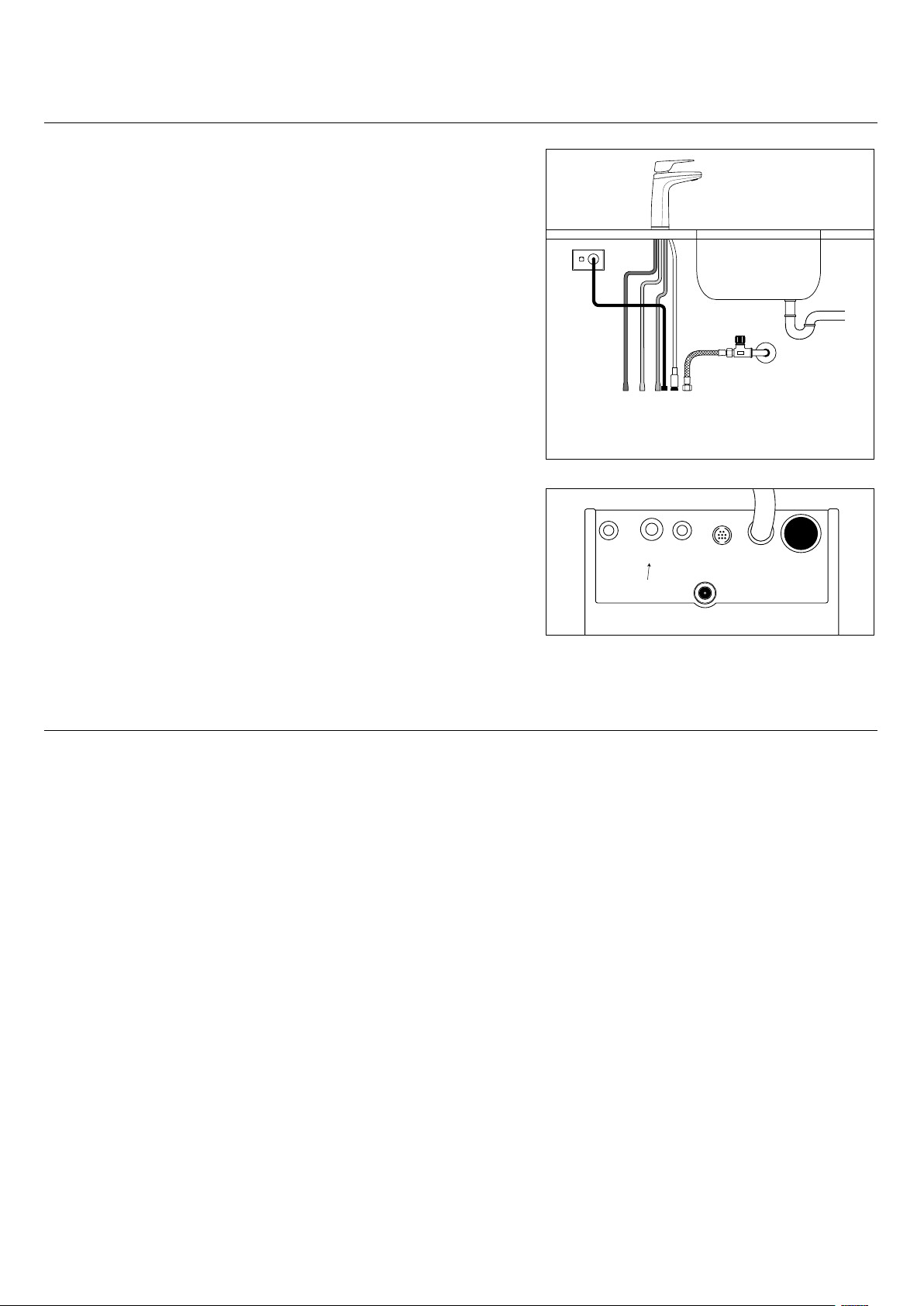

Installing underbench module.
XL, XT, XR.
Diagram 18
Top View
Hot
tube
red
Power
supply
Water
supply
Hot vent
grey tube
Cold
vent blue
tube
Chilled
Flexible
braided
hose
Blue silicone tube
Red silicone tube
Grey silicone tube
Power
cord
XL dispenser power cord
Diagram 17
Tap typical
installation layout
Must have red
cap installed
Commissioning.
Boiling Point Calibration
The hot tank will first fill to the height of the low
level sensor. The water is then heated until it
reaches boiling point. The unit will continue to
boil for up to 30 seconds while the temperature
sensor calibrates.
WARNING: and small amounts of hot water may
be discharged from the taps and vent during this
period.
While calibration is underway the hot water
indicator (red) will double blink rapidly. The hot
water set point is calibrated .5°C below the boiling
point. Once calibrated the unit will resume normal
operations and the calibration data is saved.
The unit will not re-calibrate under normal
circumstances. If a repeated calibration is
required the following procedure should
be followed:
– turn the water supply off
– run the hot water until the hot tank is empty
– turn the power off for 5 seconds, then on
again
– turn water supply on
– the unit will then re-calibrate its boiling point.
Re-check Connections for leaks Explain
Operation to user.
6
INSTALLATION AND
COMMISSIONING CHECKLIST
Filter packing foam removed from
under filter cannister.
Dispenser mounted securely.
Dispenser swivels 45º in each direction
– Locking piece is removed
Water main flushed before connection
to unit.
Tubing is cut to correct lengths and
not kinked or sagging. Red, grey and
blue silicone tubes have a continual fall.
Tubing secured correctly.
Unit connected to COLD water supply.
Correct air clearances around unit.
Power circuit fitted with an RCD
– earth leakage protection device.
Power cord connected to wall outlet.
Sawdust cleaned out of cupboard area.
Initial program settings correctly set
for dispenser tube length.
Unit heating and cooling (after initial fill).
Red and blue dispenser icons flashing
(or on continually when reached
temperature).
Boiling and chilled water flow correct.
Unit installed the correct way.
Cold vent outlet has red cap installed
(Diagram 18).
If any difficulties arise contact
Billi Australia Pty Ltd: Phone 1800 812 321
(Free call).
Validate your warranty online at
www.billi.com.au
For information on our filtration and service
contracts please contact Billi Customer
Service on 1800 812 321 or service@billi.
com.au.
For continued safety of this appliance
it must be installed, operated and
maintained in accordance with the
manufacturer’s instructions.
— Your appliance should be installed by
a suitably qualified tradesperson.
— For correct operation of this appliance
it is essential to observe the instructions
as outlined in this booklet.
— Do not use this appliance with water
that is microbiologically unsafe or with
water of unknown quality without adequate
disinfection before or after the system.
Systems certified for cyst reduction may
be used on disinfected water that may
contain filterable cysts.
— Filter replacement must be performed
at intervals of not more than 12 months.
— Use this appliance only as directed in these
instructions and only for its designed purpose.
— This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
— Children should be supervised to ensure
that they do not play with the appliance.
— DANGER: The operation of the thermal
cut-out indicates a possibly dangerous
situation. Do not reset the thermal cut-out
until the water heater has been serviced
by a qualified person.
— WARNING: Do not connect any restrictor
or pressure relief device to the vent pipe
of this water heater if installed.
— If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
— New hose-sets supplied with the appliance
are to be used and old hose-sets should
not be re-used.
Commissioning
XL, XT, XR
WARNINGS.
Billi Austral
ia Pty Ltd
42 Lucknow Crescent, Thomastown
Victoria 3074 Australia
T
elephone +61 3 9469 0400
F
acsimile +61 3 9469 0499
www.billi.com.au
Designed and manufactured in Australia.
As Billi Australia Pty Ltd has a policy of
continual improvement, all details are
subject to change without notice. All
goods are sold subject to our published
terms and conditions. Billi is a registered
trademark. 0618
