Operating instructions BORA Professional 3.0 system
Cooktop extractor and cooktops
1044130 - 48
EN
2
www.bora.com
5 Overview of features and functions 20
6 Functions and operation 21
6.1 Knob operation .................................................................... 21
– Operating the knob ring .................................................... 21
– Operating the touch surface ............................................. 21
6.2 Switching the system on and off ......................................21
– Switching on ..................................................................... 21
– Switching off ..................................................................... 21
6.3 Operating the cooktop extractor ....................................... 22
6.3.1
General operating instructions for the cooktop extractor
.... 22
6.3.2 Setting the fan power level .................................................. 22
6.3.3 Extractor power setting .......................................................22
6.3.4 Automatic after-run ..............................................................22
6.4 Cooktop extractor function menu ..................................... 22
– Calling up the function menu ............................................ 23

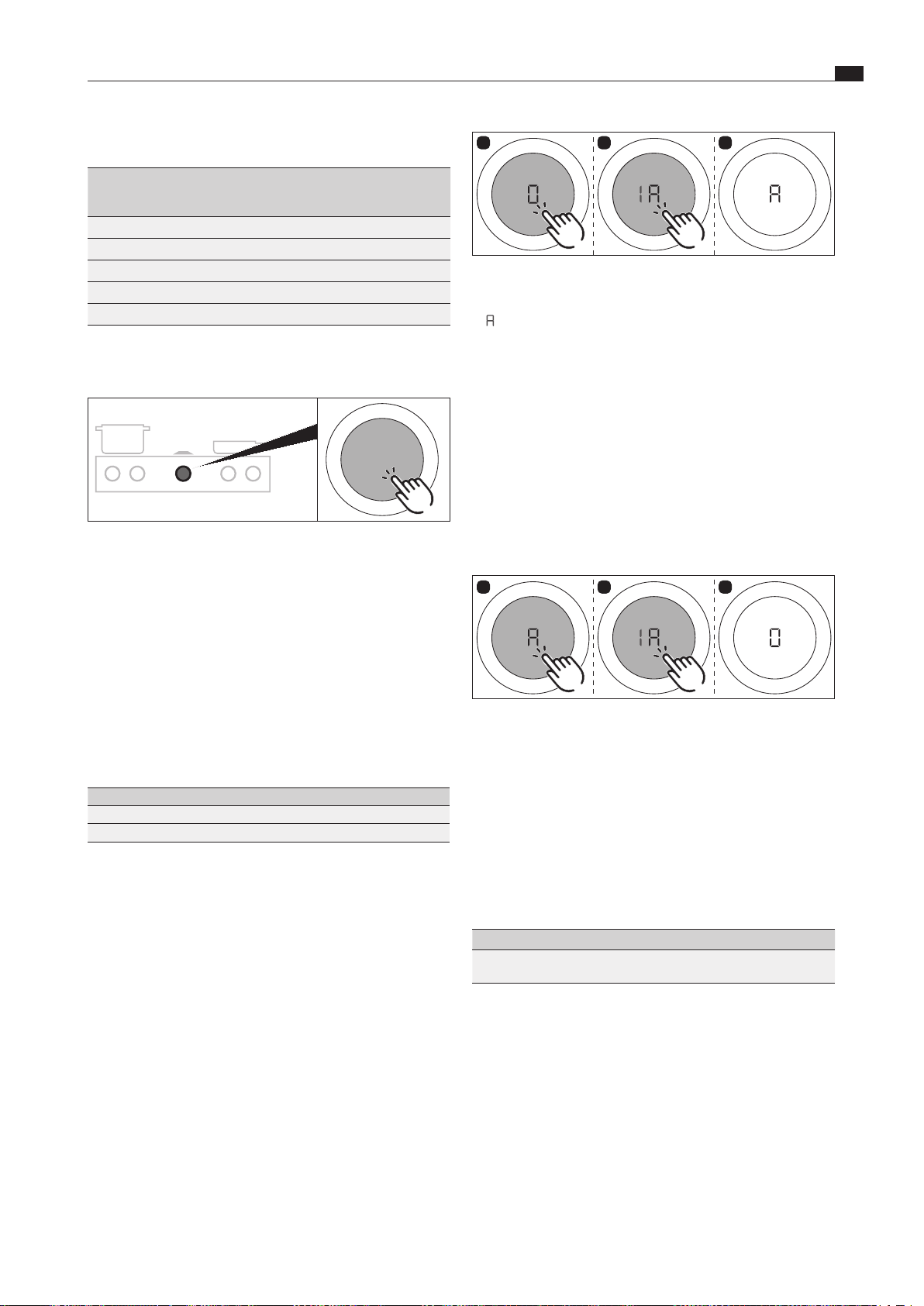

6.4.1 Automatic extractor function ...............................................23
– Activating the automatic extractor function ...................... 23
– Deactivating the automatic extractor function .................. 23

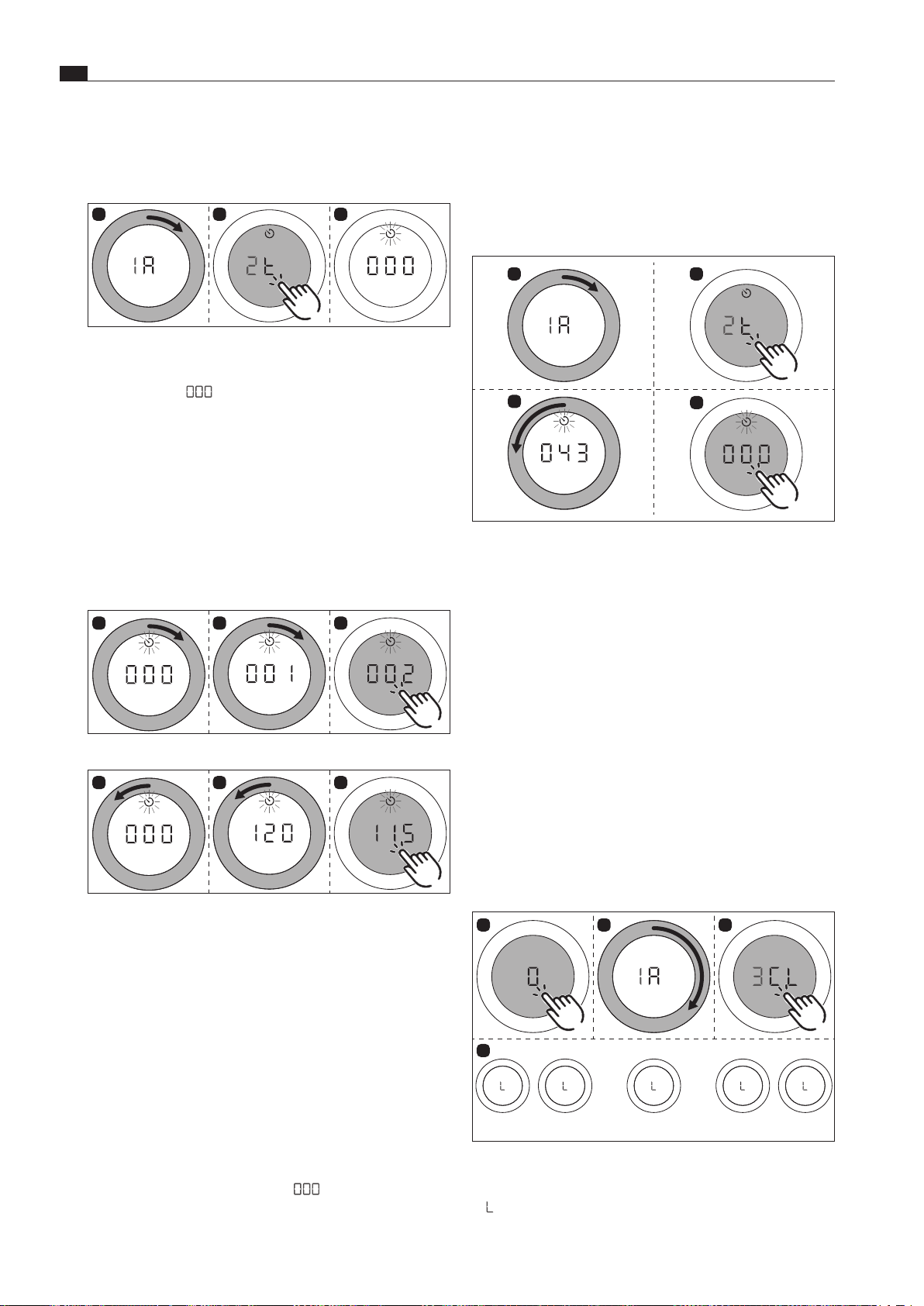

6.4.2 Short-time timer/egg timer (system function) ...................23
– Activating the short-time timer (egg timer)........................ 24
– Setting the time and starting the short-time timer
(egg timer) ......................................................................... 24
– Time lapsed ....................................................................... 24
– Switching off the short-time timer (egg timer) early .......... 24
6.4.3 Childproofing feature (system function) ..............................24
– Permanently activating the childproofing feature .............. 24
– Deactivating the childproofing feature
for a cooking session ........................................................ 25
– Permanently deactivating the childproofing feature .......... 25
6.4.4 Cooktop extractor cleaning function .................................. 25
– Activating the cooktop extractor cleaning function ........... 25
– Closing the cover flap to start a cooking session .............. 25
– Deactivating the cooktop extractor cleaning function ....... 25

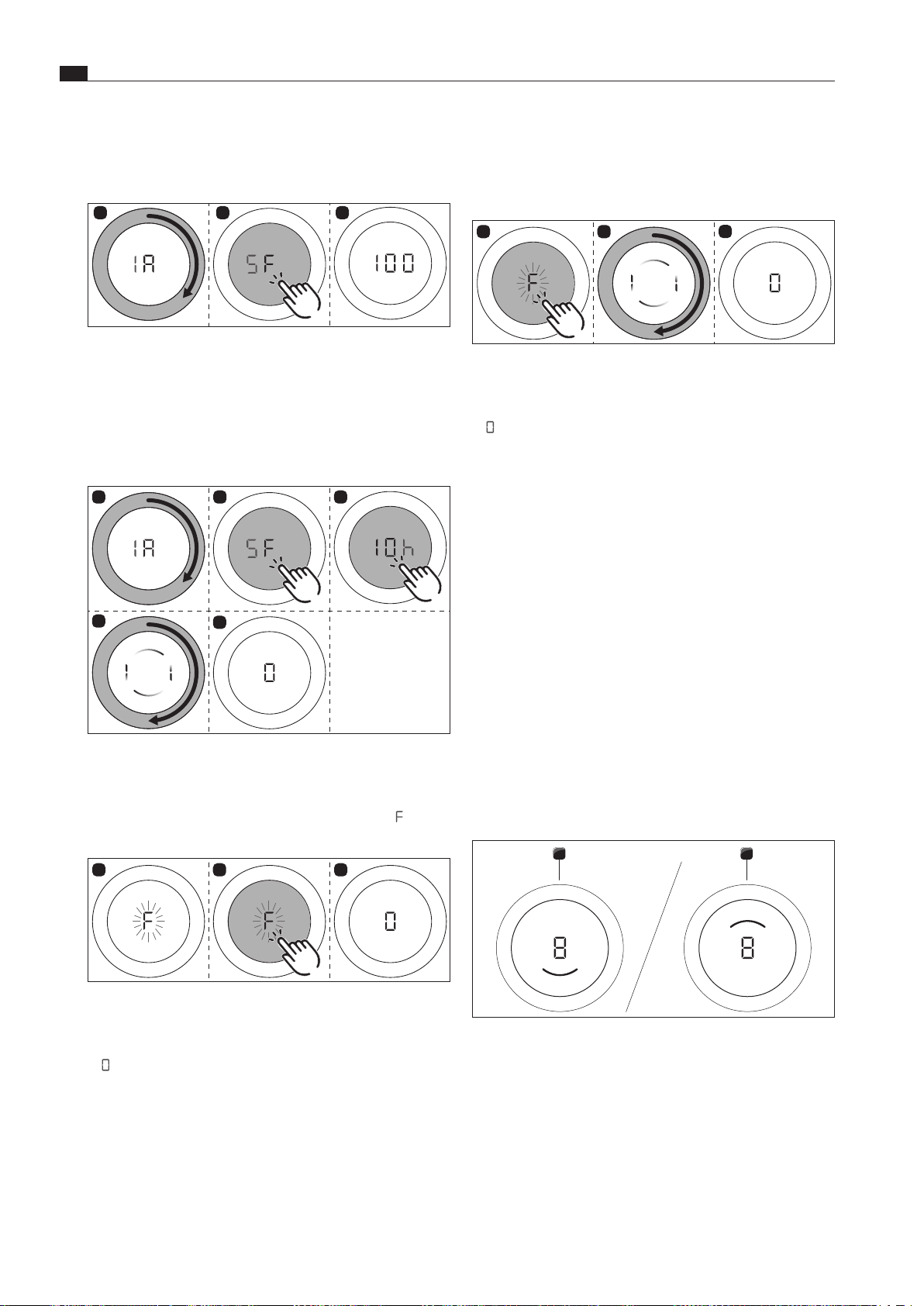

6.4.5 Filter service life and filter service display
(only in recirculation mode) ................................................. 25
– Displaying the remaining filter service life ......................... 26
– Resetting the filter service life early .................................. 26
– Deactivating the filter service display
for a cooking session ........................................................ 26
– Resetting the filter service display ..................................... 26
6.5 Operating the cooktops......................................................26
6.5.1 General operating instructions for cooktops ......................26
6.5.2 Special operating instructions for the
Tepan stainless steel grill PKT3 ........................................... 27
6.5.3 Setting cooking zone power levels ...................................... 27
– Increasing the power level ................................................. 27
– Reducing the power level .................................................. 27
– Setting the temperature on the
Tepan stainless steel grill PKT3 ......................................... 27
6.5.4 Cooktop power setting ........................................................27
6.5.5 Bridging function (only on PKFI3 and PKT3) .......................28
– Activating the bridging function ......................................... 28
– Deactivating the bridging function..................................... 28
6.5.6 Pause function (system function) ........................................28
6.5.7 Pan size recognition (only on PKFI3, PKI3, PKIW3) ............29
6.6 Function menu ....................................................................29
– Calling up the function menu ............................................ 29
1 General information 4
1.1 Liability ................................................................................... 4
1.2 Validity of the operating and installation instructions ...... 4
1.3 Product conformity ............................................................... 4
1.4 Data protection .....................................................................4
1.5 Presentation of information ................................................. 4
2 Safety 5
2.1 Use as intended ....................................................................5
2.2 People with limited abilities ................................................. 5
2.3 General safety instructions ..................................................5
2.4 Safety instructions – operation ...........................................6
2.5 Safety instructions – cleaning and maintenance .............. 8
2.6 Safety instructions –
repairs, servicing and spare parts
... 9
3 Energy labelling 10
4 Appliance description 11
4.1 Model description ...............................................................11
– BORA Professional 3.0 cooktop extractors ....................... 11
– BORA Professional 3.0 cooktops ...................................... 11
4.2 Control knob ........................................................................11
– How it works ..................................................................... 11
– Structure ........................................................................... 11
– Operating elements ........................................................... 11
– Control knob display ......................................................... 11
– Control knob assignment .................................................. 12
4.3 Cooktop extractor appliance description .........................12
– Installation variations......................................................... 12
– Cooktop extractor display and symbols ............................ 12

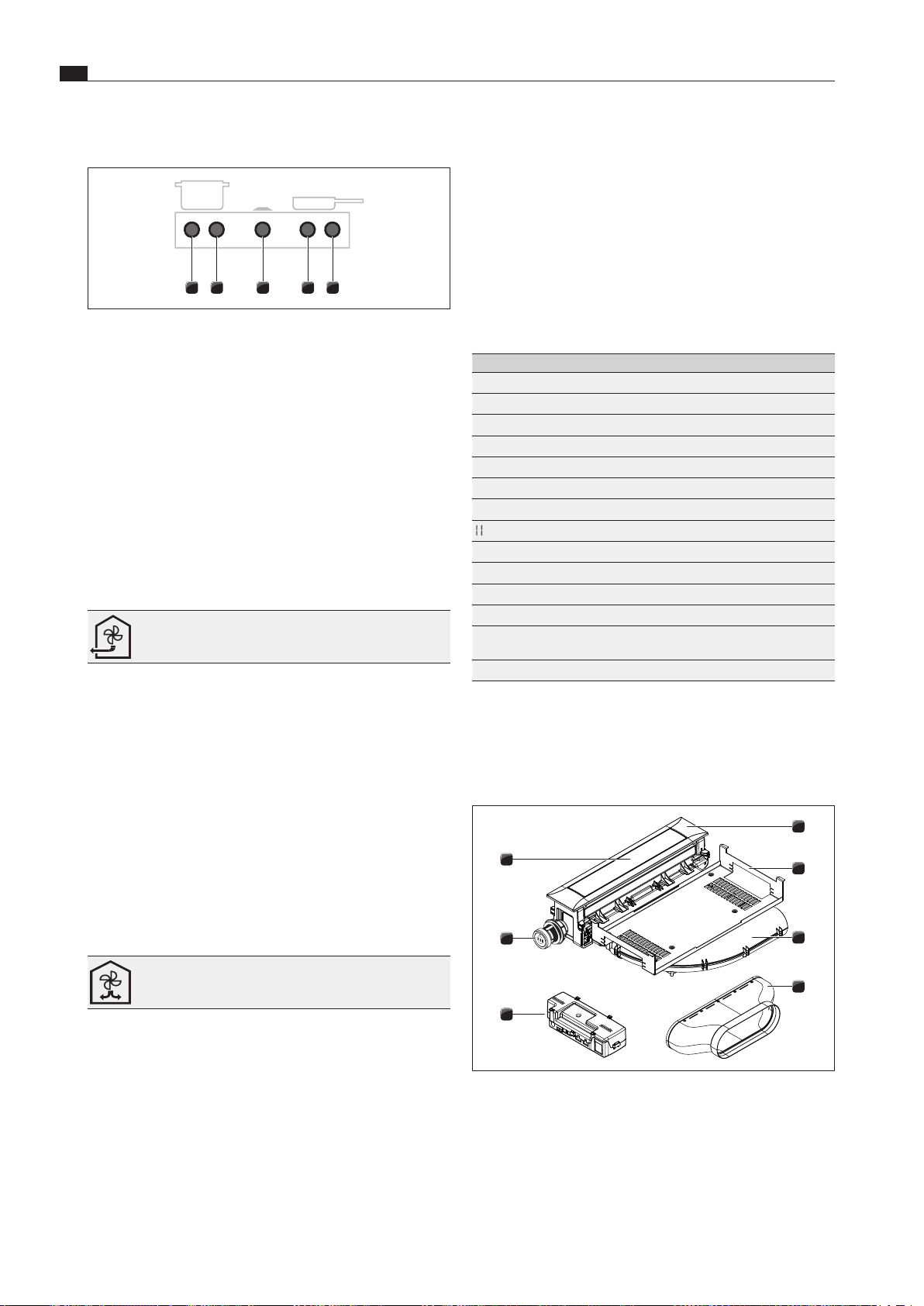

4.3.1 Structure of the cooktop extractors ....................................12
– Cooktop extractor PKA3/PKA3AB .................................... 12
– Cooktop extractor system PKAS3/PKAS3AB ................... 13
– Grease filter components .................................................. 13
4.3.2 Sensors ................................................................................13
4.3.3 Interface for external devices .............................................. 13
4.3.4 USB port for servicing .........................................................13
4.4 Cooktop appliance description ..........................................14
– Display and symbols.......................................................... 14

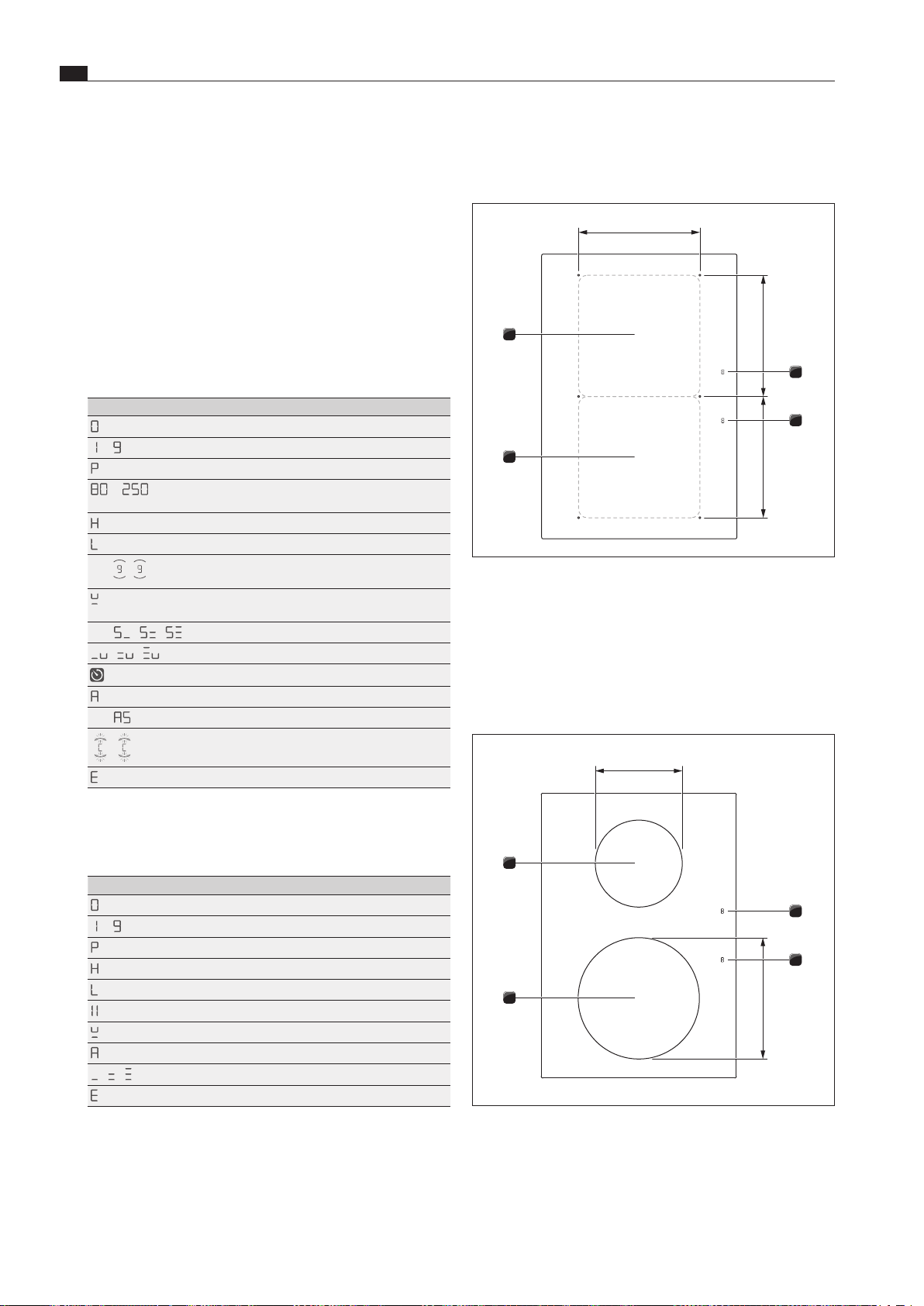

– Layout and size of the cooking zones ............................... 14
4.4.1 How induction cooktops work (PKFI3, PKI3, PKIW3) .........16

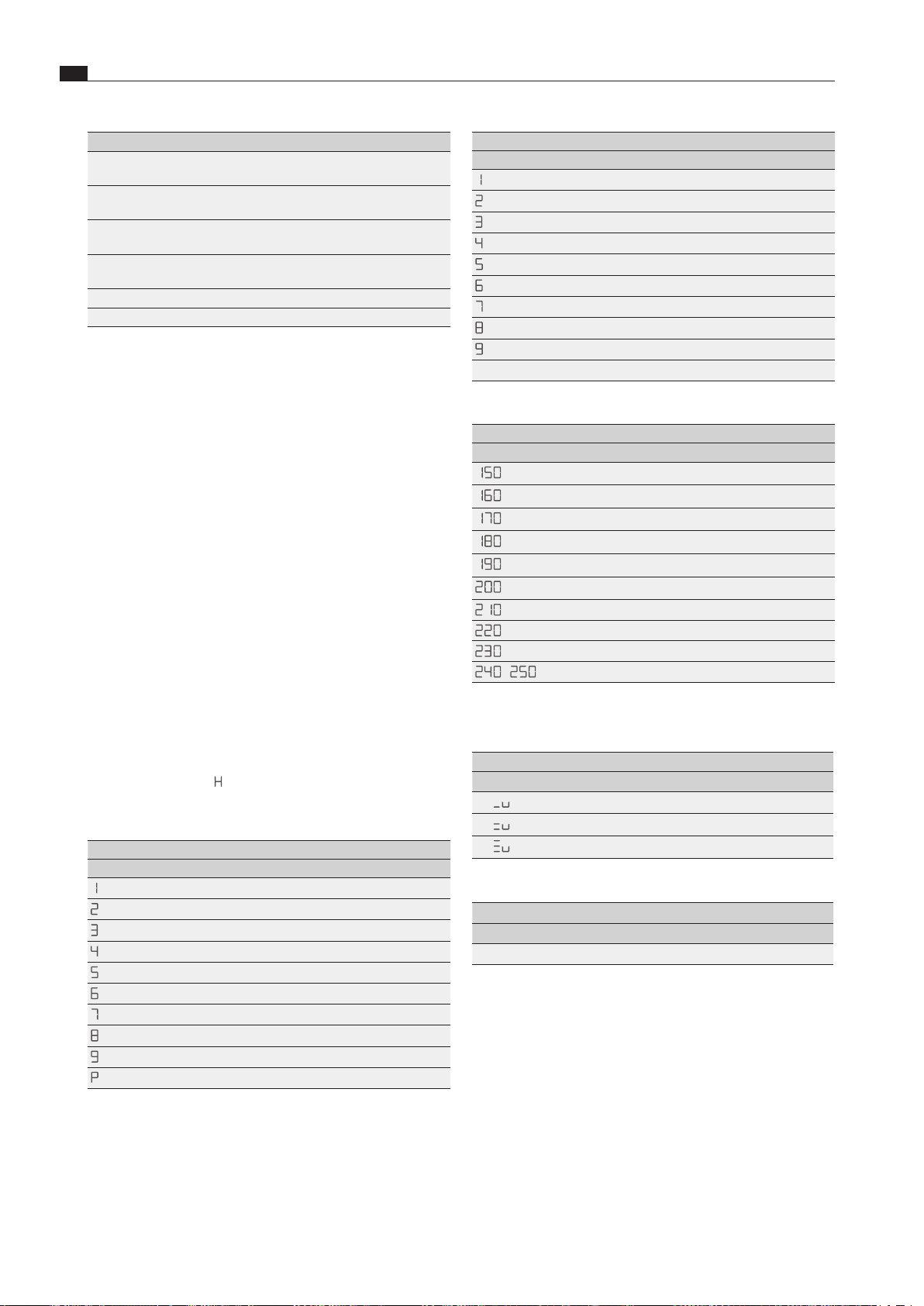

– Power levels ...................................................................... 16
– Suitable cookware ............................................................. 16
– Noises ............................................................................... 17
4.4.2 How the Hyper and HiLight cooktops work
(PKC3, PKCB3, PKCH3) ........................................................17
– Power levels ...................................................................... 17
– Suitable cookware ............................................................. 17
4.4.3 How the Tepan stainless steel grill PKT3 works .................17
– Power adjustment and temperature ranges ...................... 17
4.5 Safety devices .....................................................................18
– Anti-trap protection .......................................................... 18
– Safety shut-down ..............................................................18
– Residual heat indicator ...................................................... 19
– Overheating protection ...................................................... 19
– Childproofing feature......................................................... 19
Table of Contents
EN
3
www.bora.com
8 Cleaning and maintenance 37
8.1 Cleaning agents ................................................................... 37
– Cleaning products for glass ceramic cooktops ................. 37
– Cleaning products for the Tepan stainless steel grill ......... 37
8.2 Cleaning the cooktop extractor ......................................... 37
– Cover flap cleaning position .............................................. 37

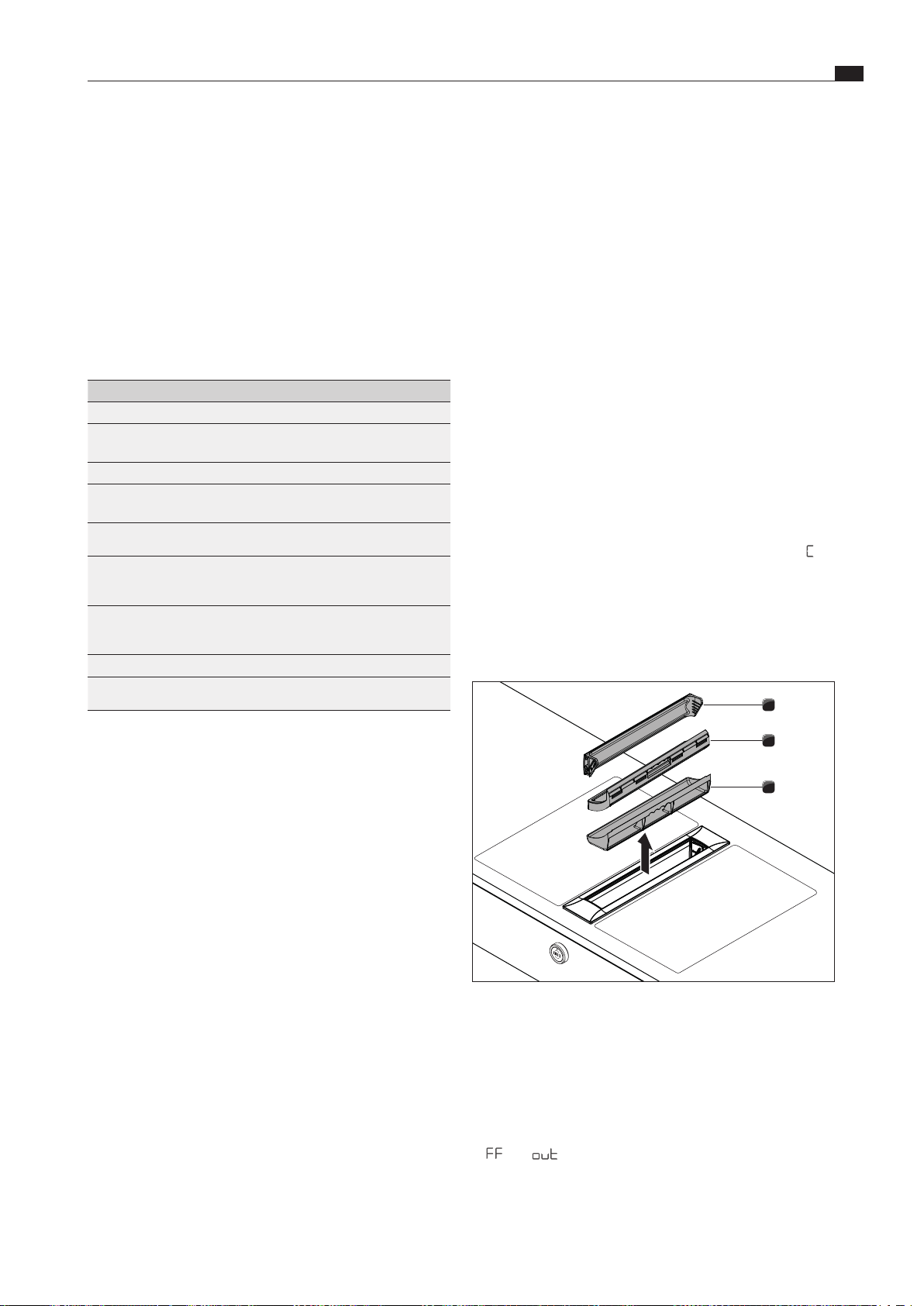

– Removing the cover flap, grease filter and filter tray ......... 37
– Fitting the cover flap, grease filter and filter tray ............... 38
– Removing the maintenance tray ........................................ 38
– Installing the maintenance tray ......................................... 38
– Cleaning the components ................................................. 39
– Ending the cooktop extractor cleaning process ................ 39
8.2.1 Replacing the recirculated air filter .....................................39
8.3 Cleaning the cooktops ........................................................ 39
8.3.1 Cleaning glass ceramic cooktops ........................................39
8.3.2 Cleaning Tepan stainless steel grill surfaces ......................39
8.4 Looking after your cooktops .............................................. 40
8.5 Cleaning the control knobs ................................................ 40
– Cleaning the knob ring ...................................................... 40
– Cleaning the touch surface and the knob housing ............ 40
9 Troubleshooting 41
9.1 Cooktop extractor troubleshooting ................................... 41
9.2 Cooktop troubleshooting ...................................................42
10 Warranty, technical service,
spare parts, accessories 43
10.1 BORA manufacturer’s warranty .........................................43
10.1.1 Warranty extension .............................................................. 43
10.2 Service .................................................................................43
10.3 Spare parts ..........................................................................43
10.4 Accessories .......................................................................... 44
11 Notes 45
6.6.1 Additionalringswitching–2-ring,3-ring,roaster
(only on PKC3, PKCB3, PKCH3) ...........................................29
– Activating additional rings
(2-ring/3-ring additional switching) ................................... 29
– Deactivating additional rings ............................................. 30
6.6.2 Variable heat retention function (not on PKT3) ..................30
– Activating the heat retention function ............................... 30
– Increasing or reducing the active heat retention level ....... 30
– Deactivating the heat retention function ........................... 30

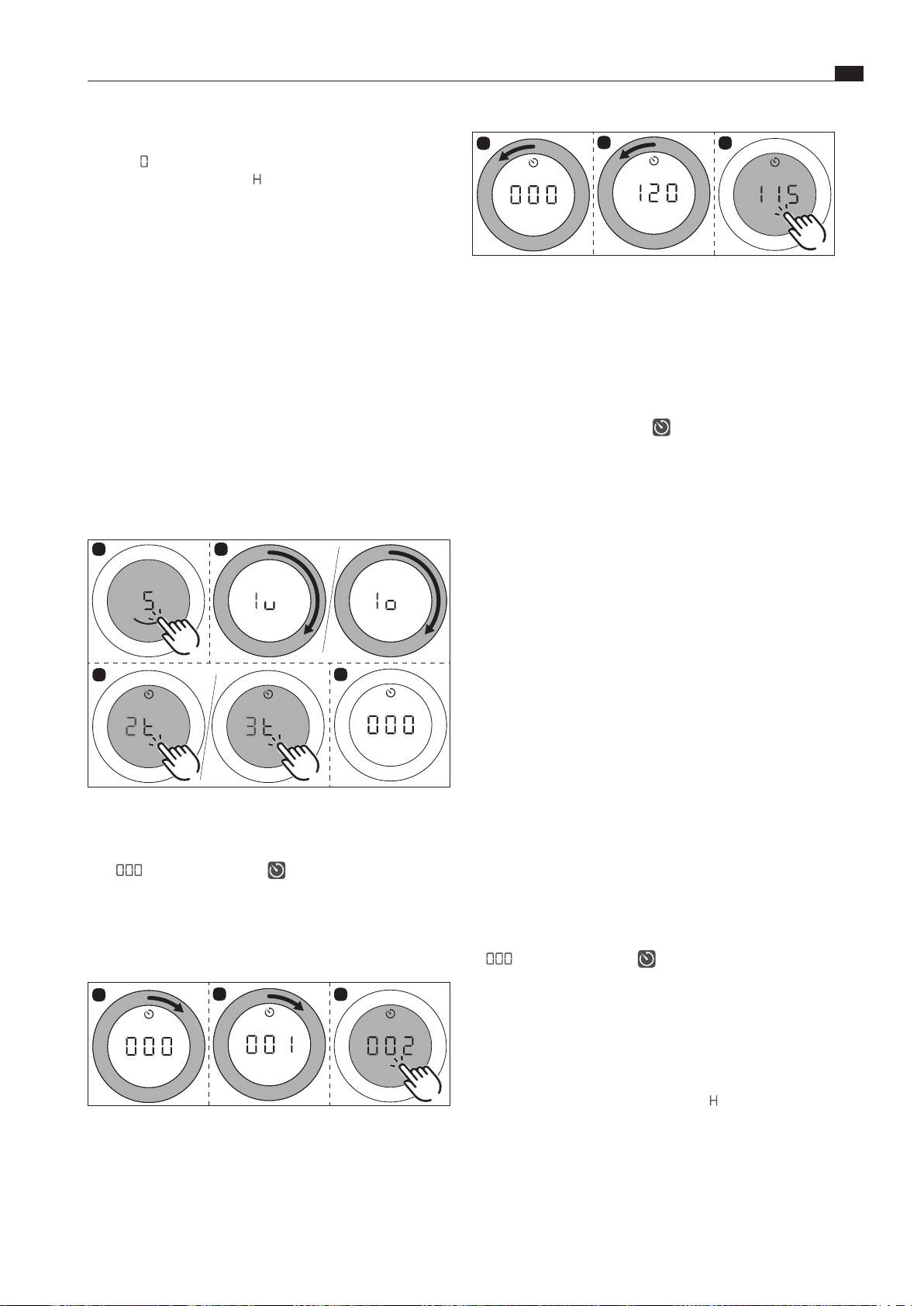

6.6.3 Timer function/automatic cut-off (not on PKT3) ................31
– Activating cooking zone timers ......................................... 31
– Setting the time and starting the timer ............................. 31
– Changing active timers ...................................................... 31
– Switching the timer off early ............................................. 31
– Time lapsed ....................................................................... 31
6.6.4 Automatic heat up function (not on PKT3) .........................32
– Activating the automatic heat up function......................... 32
– Deactivating the automatic heat up function early ............ 32
– Time lapsed ....................................................................... 32
6.6.5 Cleaning function (only on PKT3) ........................................ 33
– Activating the cleaning function ........................................ 33
– Deactivating the cleaning function .................................... 33
7 Configuration menu 34
– Menu overview .................................................................. 34
7.1 How to use the menu .........................................................34
– Calling up the menu .......................................................... 34
– Selecting and confirming menu items ............................... 34
– Making, confirming and saving settings ............................ 34
– Closing the menu .............................................................. 34
7.2 Initial operation ...................................................................34
7.2.1 Basic configuration ..............................................................34
– Menu item C3: exhaust air or recirculation mode
(incl. filter unit selection) ................................................... 34
– Menu item C4: operation with or without a wall sleeve
(only in exhaust air mode) ................................................. 35
– Menu item CA: number of fans installed ........................... 35
7.3 Description of the other menu items ................................ 35
– Menu item C0: volume of the acoustic signals ................. 35
– Menu item C1: demo mode .............................................. 35
– Menu item C2: speed of the cover flap motors ................. 35
– Menu item C5: manual operation of the
cover flap motors .............................................................. 35
– Menu item C6: switching fan PWM values ........................ 35
– Menu item C7: installation of left cooktop 0°/180° ........ 35
– Menu item C8: installation of right cooktop 0°/180° ...... 35
– Menu item C9: pause function activated/deactivated ...... 36
– Menu item Cb: software update ........................................ 36
– Menu item Cc: data export ............................................... 36
– Menu item Cd: software version indicator ........................ 36
EN
4
General information
www.bora.com
1 General information
Data can only be read out manually via your cooktop extractor.
This decision is therefore your responsibility.
These saved data then enable a rapid error search and
troubleshooting in the event of servicing.
1.5 Presentation of information
We use standard formatting, numbering, symbols, safety
instructions, terms and abbreviations so that you can work
quickly and safely when using this manual.
The term “appliance” is used to refer to cooktops, cooktop
extractors or cooktops with integrated cooktop extractor.
Instructions are indicated with an arrow.
XX
Always follow all instructions in the prescribed order.
Enumerations are indicated with a bullet point at the start of
the line:
XO
Enumeration 1
XO
Enumeration 2
i
Information notes point to special features that must be
taken into account.
Safety and warning instructions
The safety and warning instructions in this manual are
emphasised with symbols and signal words.
Safety and warning instructions are structured as follows:
WARNING SYMBOL AND SIGNAL WORD!
Type and source of danger
Results of non-compliance
XX
Measures to minimise risk
Please note:
XO
warning symbols draw attention to a high risk of injury.
XO
The signal word indicates the severity of that risk.
Warning
symbol
Signal word Risk
ü
Danger Indicates an immediate, hazardous
situation which causes death or
serious injury if not respected.
ü
Warning Indicates a potentially hazardous
situation which can cause death or
serious injury if not respected.
Caution Indicates a potentially hazardous
situation which can cause minor
injury or damage to property if not
respected.
Tab. 1.1 Meaning of the warning symbols and signal words
These instructions contain important information to protect you
from injury and prevent damage to the appliance.
Please read these instructions carefully before installing or using
the appliance for the first time.
Other documents apply alongside these instructions.
Please by all means adhere to all documents that form part of
the scope of delivery.
Assembly and installation may only be carried out by trained
specialists and taking into account the applicable laws,
regulations and standards. All safety and warning information
as well as the handling instructions in the accompanying
documents must be observed.
1.1 Liability
BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA
APAC Pty Ltd and BORA Lüftungstechnik GmbH – hereinafter
referred to as BORA – does not assume any liability for damage
arising from disregard for or non-adherence to the documents
included in the scope of delivery!
Furthermore, BORA shall not be held liable for damage caused
by improper installation or failure to observe the safety and
warning instructions!
1.2 Validity of the operating and
installation instructions
These instructions apply to several appliance versions. It is
therefore possible that some of the features described do not
apply to your appliance. The details of the figures contained
herein may differ from some appliance versions and are to be
understood as schematic diagrams.
1.3 Product conformity
Directives
The appliances meet the following EU/EC directives:
2014/30/EU EMC Directive
2014/35/EU Low Voltage Directive
2009/125/EC Ecodesign Directive
2011/65/EU RoHS Directive
1.4 Data protection
During operation your cooktop extractor saves pseudonymised
data such as menu settings entered by you, operating hours
of the individual technical units and the number of functions
selected. Furthermore, your cooktop extractor documents errors
in combination with the number of operating hours.
EN
5
Safety
www.bora.com
2 Safety
People with reduced physical, sensory or
mental capacities
The appliance can be used by people with reduced
physical, sensory or mental capacities or a lack of
experience and/or knowledge if they are supervised
or have been instructed how to use the appliance
safely and understand the resultant risks. Operation
can be restricted using the childproofing feature.
DANGER!
Risk of burns from hot cookware and food
Handles projecting over the edge of the worktop
are asking to be grabbed.
XX
Keep children away from hot cooking zones or
ensure they are supervised at all times.
XX
Do not turn pot and pan handles so they stick
out beyond the worktop.
XX
Make sure that hot pots and pans cannot be
pulled down.
XX
If necessary, use suitable stove guards or
covers.
XX
Only use stove guards and covers that are
approved by the appliance manufacturer;
otherwise, there is a risk of accidents.
XX
To choose a suitable stove guard, contact your
specialist supplier or the BORA Service Team.
2.3 General safety instructions
DANGER!
Packaging components are a choking hazard
Packagingcomponents(e.g.lm,polystyrene)can
be life-threatening for children.
XX
Store all packaging components out of reach of
children.
XX
Dispose of the packaging properly and
immediately.
The appliance complies with the stipulated safety
requirements. The user is responsible for the safe
use of the appliance, cleaning and maintenance.
Improper use can lead to personal injury and damage
to property.
2.1 Use as intended
The appliance is solely intended for preparing food in
private households.
This appliance is not intended for:
XO
outdoor use
XO
heating rooms
XO
cooling, ventilating or dehumidifying rooms
XO
use in mobile installation sites such as motor
vehicles, ships or aeroplanes
XO
use with an external timer or a separate remote
control system (except for emergency shutdown)
XO
use at altitudes of over 2,000 m (metres above sea
level).
Any other use or any use that goes beyond that which
is described here is classed as unintended.
i
BORA does not assume any liability for
damages caused by improper use or incorrect
operation.
All misuse is prohibited!
2.2 People with limited abilities
Children
The appliance can be used by children aged 8 and
over if they are supervised or have been instructed
how to use the appliance safely and understand
the resultant risks. Children must not play with the
appliance.
XX
Use the childproofing feature in order to prevent
children from switching on the appliance or
changing the settings when they are unattended.
XX
Supervise children in the vicinity of the appliance.
XX
Do not store any items that could be of interest to
children in storage spaces above or behind the
appliance. Otherwise, they will be tempted to
climb onto the appliance.
i
Any work involving cleaning and maintenance
must not be carried out by children unless they
are supervised at all times while doing so.
EN
6
Safety
www.bora.com
CAUTION!
Risk of injury from heavy lifting
If not handled correctly, carrying and installing
appliances can cause injury to the limbs or torso.
XX
If necessary, carry and install the appliance with
another person.
XX
Use appropriate aids to prevent damage or
injury.
CAUTION!
Damage from improper use
The appliance surfaces must not be used as
work or storage surfaces. This can damage the
appliances (particularly in the case of hard and
sharp objects).
XX
Never use the appliances as work or storage
surfaces.
XX
Keep hard or sharp objects away from the
appliance surfaces.
Faults and errors
XX
In the case of faults and errors, follow the
instructions in the “Troubleshooting” chapter.
XX
In the event of any faults or errors that are not
mentioned, switch the appliance off and contact
BORA Service.
Pets
XX
Keep pets away from the appliance.
2.4 Safety instructions – operation
XX
Make sure that the base of the cookware as well
as the appliance surfaces are clean and dry.
XX
Always lift (do not drag) cookware to prevent
scratching and abrasion on the appliance surface.
XX
Do not use the appliance as a storage surface.
XX
Switch off the appliance after use.
WARNING!
Risk of burning from hot appliances
Certain appliances and their exposed parts become
hot during use (e.g. cooktops). They should be
left to cool down completely after switching off.
Touching hot surfaces can cause serious burns.
XX
Do not touch hot appliances.
XX
Pay attention to the residual heat indicator.
DANGER!
Risk of electric shock or injury from damaged
surfaces
The underlying electronics can be exposed or
damagedduetossures,fracturesorcracksin
appliance surfaces (e.g. damaged glass ceramic),
particularly in the operating area. This can cause
an electric shock. Furthermore, a damaged surface
can cause injuries.
XX
Do not touch the damaged surface.
XX
If there are any cracks, fissures or fractures,
switch the appliance off immediately.
XX
Safely disconnect the appliance from the mains
using the LS switch, fuses, automatic circuit
breakers or contactor.
XX
Contact BORA Service.
WARNING!
Risk of injury from damaged components
Damaged components that cannot be removed
without tools can cause injuries.
XX
Try not to repair or replace damaged
components yourself.
XX
Contact BORA Service.
WARNING!
Risk of injury or damage due to incorrect
components or unauthorised modifications
Incorrect components can lead to personal
injuryordamagetotheappliance.Modications,
additions or alterations to the appliance can lead to
safety risks.
XX
Only use original components.
XX
Do not make any modifications, additions or
alterations to the appliance.
CAUTION!
Appliance components can cause injury if
dropped
Appliance components (e.g. pan supports,
operatingcontrols,covers,greaselters,etc.)can
cause injury if dropped.
XX
Place any appliance components that have been
removed in a safe place near the appliances.
XX
Ensure that no components removed from the
appliances can fall on the floor.
EN
7
Safety
www.bora.com
CAUTION!
Damage caused by grease and dirt deposits
Grease and dirt deposits can prevent the cooktop
extractor from functioning properly.
XX
Never use the cooktop extractor without a
correctly fitted stainless steel grease filter.
Special safety instructions for using the
exhaust air mode
DANGER!
Risk of smoke inhalation
When the cooktop extractor is used in exhaust
air mode, it draws in air from the room it is
installed in and from neighbouring rooms. If there
isinsucientairsupply,lowpressurewilloccur.
Whenusedatthesametimeasareplacethat
is dependent on the air in the room, noxious
gases can be sucked into the living areas from the
chimney or outlet shaft.
XX
Make sure that there is always a sufficient air
supply.
XX
Only use reliable, tried-and-tested switching
devices, (e.g. window contact switch, low
pressure warning device) and have them
approved by a qualified expert (certified chimney
sweep).
Special safety instructions for using the
recirculation mode
When cooking, additional moisture is released into
the ambient air. In recirculation mode, only a slight
amount of moisture is removed from the cooking
vapour.
XX
When using the recirculation mode, ensure a
sufficient supply of fresh air, e.g. by opening a
window.
XX
Ensure a normal and comfortable room climate
(humidity of 45–60%), e.g. by opening natural
ventilation openings or using domestic ventilation
systems.
XX
After every use in recirculation mode, switch the
cooktop extractor to a low power level for about
20 minutes or activate the automatic after-run
function.
WARNING!
Risk of burning and fire from hot objects
The appliance and its exposed parts are hot during
operation and the cooling phase. Objects placed on
the appliance heat up very quickly and can cause
severe burns (this particularly applies to metal
objects such as knives, forks, spoons,
lids or cooktop extractor covers).
XX
Do not place any items on the appliance.
XX
Please use suitable accessories (pot holders,
oven gloves).
CAUTION!
Damage caused by hot cookware
Hot cookware can damage certain components in
the appliance.
XX
Do not put hot cookware down in the area of the
cooktop display.
XX
Keep hot cookware away from the air inlet
nozzle.
2.4.1 Safety instructions – cooktop
extractor operation
WARNING!
Fire risk from flambéing
While the cooktop extractor is working, it sucks up
grease from cooking. Flambéing food can cause
thegreasetocatchre.
XX
Clean the cooktop extractor regularly.
XX
Never work with a naked flame while the
cooktop extractor is running.
CAUTION!
Risk of injury from moving cover flap
There is a risk of injury when the electrical cover
apismoving.
XX
Do not put your hands inside the cooktop
extractor while the cover flap is moving.
CAUTION!
Damage caused by objects or
paper suctioned in
Small and light items, such as cleaning cloths made
from material or paper, can be suctioned into the
cooktop extractor. This can damage the fan or
impair the exhaust performance.
XX
Do not store any items or paper on the cooktop
extractor.
XX
Only operate the integrated cooktop extractor
with the grease filter fitted.
EN
8
Safety
www.bora.com
CAUTION!
Damage caused by sugary and salty foods
Sugary and salty foods and juices can damage the
hot cooking zone.
XX
Make sure sugary and salty foods or juices do
not get onto the cooking zone while it is hot.
XX
Remove sugary and salty foods and juices from
the hot cooking zone immediately.
Special safety instructions for the operation of
induction cooktops
Effect on pace makers, hearing aids and metal
implants:
induction cooktops generate a high-frequency
electromagnetic field in the area of the cooking
zones. The cooking zones may affect pacemakers,
hearing aids or metal implants negatively or disturb
their function when in close proximity. A reduced
function of the pacemaker is unlikely.
XX
If in doubt, contact the manufacturer of your
medical device, or your doctor.
2.5 Safety instructions – cleaning
and maintenance
The appliance must be cleaned at regular intervals.
Dirt can lead to damage, restriction of functions, or
bothersome odours. In the worst case scenario, this
can become a hazard.
XX
Remove dirt immediately.
XX
When cleaning, only use non-abrasive detergents
to prevent scratching and abrasion on the surface.
XX
When cleaning, ensure that no water penetrates
the appliance. Use only a slightly damp cloth.
Never spray the device with water. Water
penetration can cause damage!
XX
Do not use a steam cleaner for cleaning. Steam
can cause a short circuit on live parts and thus
lead to property damage.
XX
Please follow all instructions in the “Cleaning and
Maintenance” chapter.
2.4.2 Safety instructions – cooktop
operation
XX
Do not simply rely on the pan size recognition
function on induction cooktops; always switch the
appliance off after use.
DANGER!
Danger of fire caused by leaving the cooktop
unattended
Oil or fat in the pot can quickly heat up and ignite.
XX
Never leave oil or fat to heat up unattended.
XX
Never extinguish oil and fat fires with water.
XX
Switch off the cooktop.
XX
Extinguish the fire using a pan lid or a fire
blanket, for example.
DANGER!
Danger of explosion caused by flammable
liquids
Flammable liquids in the vicinity of a cooktop can
explode and cause serious injury.
XX
Do not spray aerosols near the appliance when
it is in use.
XX
Do not place any flammable liquids in the
vicinity of a cooktop.
WARNING!
Risk of burns from hot liquids boiling over
Unattended pans can boil over allowing hot liquids
to escape.
XX
Keep an eye on pans when cooking.
XX
Try not to let them boil over.
WARNING!
Risk of burns from hot steam
Liquid between the cooking zone and the pan base
can evaporate and cause burns.
XX
Make sure that the cooking zone and the pan
base are always dry.
WARNING!
Risk of burns due to power cut
During or after a power cut, a cooktop that was
previously in operation may still be hot even though
there is no indication of residual heat.
XX
Do not touch the cooktop while it is still hot.
XX
Keep children away from the hot cooktop.
EN
9
Safety
www.bora.com
Special safety instructions for cooktop
extractor cleaning and maintenance
XX
Keep the ventilation openings in the unit below
open and clean.
WARNING!
Risk of fire from fat deposits
Theriskofrecanbeincreasedbyfailuretoclean
thegreaselterproperlyandonaregularbasis,or
ifthelterchangeisoverdue.
XX
Clean and replace the filter at regular intervals.
Special safety instructions for cooktop cleaning
and maintenance
XX
Whenever possible, clean the cooktops after every
use.
XX
Only clean the cooktops when they have cooled
down.
XX
Use the cleaning function to clean the Tepan
stainless steel grill.
2.6 Safety instructions – repairs,
servicing and spare parts
i
The appliance must only be repaired and
serviced by trained specialists who are familiar
with and comply with the standard national
regulations and supplementary regulations of
the local utility companies.
i
Work on electrical components must only be
conducted by trained electrical personnel.
XX
Before any repair work, safely disconnect the
appliance from the mains supply.
WARNING!
Risk of injury or damage from improper repairs
Incorrect components can lead to personal
injuryordamagetotheappliance.Modications,
additions or alterations to the appliance can lead to
safety risks.
XX
Only use original spare parts for repairs.
XX
Do not make any modifications, additions or
alterations to the appliance.
i
A damaged power supply cable must be
replaced by a suitable power supply cable. This
may only be done by an authorised member of
the After Sales Service team.
EN
10
Energy labelling
www.bora.com
3 Energy labelling
Product information according to delegated regulation (EU) no. 65/2014 and regulation (EU) no. 66/2014.
Manufacturer
Model identification
Symbol
Energy consumption
Annual energy consumption AEC
hood
Energy efficiency class –
Energy efficiency index EEI
hood
Flow volume
Fluid dynamic efficiency FDE
hood
Fluid dynamic efficiency class –
Minimum air flow in normal use –
Maximum air flow in normal use –
Maximum air flow on intensive or boost setting (power
setting)
Q
max
Measured air flow rate at best efficiency point Q
BEP
Measured air pressure at best efficiency point P
BEP
Measured electric power input at best efficiency point W
BEP
Time increase factor f
Lighting
Lighting efficiency LE
hood
Lighting efficiency class –
Nominal power of the lighting system W
L
Average illumination of the lighting system on the
cooking surface
E
middle
Grease filtering
Grease filtering efficiency GFE
hood
Grease filtering efficiency class –
Noise
Airborne acoustical A-weighted sound power emissions
at minimum speed available in normal use
–
Airborne acoustical A-weighted sound power emissions
at maximum speed available in normal use
–
Airborne acoustical A-weighted sound power emissions
on intensive or boost setting (power setting)
–
Sound pressure level at minimum speed available in
normal use**
–
Sound pressure level at maximum speed available in
normal use**
–
Sound pressure level on intensive or boost setting
(power setting)**
–
Power consumption
Power consumption in off mode P
o
Power consumption in standby mode P
s
Energy labelling
Unit
kWh/a
–
–
–
–
m³/h
m³/h
m³/h
m³/h
Pa
W
–
lx/W
–
W
lx
%
–
dB(A) re_1pW
dB(A) re_1pW
dB(A) re_1pW
LpA in dB re 20 µPa
LpA in dB re 20 µPa
LpA in dB re 20 µPa
W
W
BORA
PKA3/PKA3AB
Value
26,3
A++
35,2
36,9
A
269
598
613
283,7
507,3
108,3
0,7
*
*
*
*
83,7
C
47
65
65
33
52
52
0,18
*
BORA
PKAS3/PKAS3AB
Value
28,0
A+
39,8
34,3
A
221
558
670
296,7
417,0
100
0,8
*
*
*
*
74,7
D
46
67
70
34
55
58
0,18
*
Tab. 3.1 Energy labelling
* Not applicable to this product.
** Voluntary information
The sound pressure level has been determined from a distance of 1 m (distance-dependent level recording)
on the basis of the sound power level established in EN 60704-2-13.
EN
11
Appliance description
www.bora.com
4 Appliance description
i
How it works and its functions are described in more
detail in the Operation chapter.
Structure
4
3
5
2
1
Fig. 4.1 Control knob structure
[1] Knob housing
[2] Universal nut
[3] Control knob display
[4] Knob ring
[5] Wave spring
Operating elements
2
1
Fig. 4.2 Control knob operating elements
[1] Knob ring
[2] Touch surface
Control knob display
3
1
2
4
Fig. 4.3 Control knob display elements
[1] Timer/egg timer indicator
[2] Rear cooking zone indicator
[3] Multi-function display
[4] Front cooking zone indicator
XX
Observe all safety and warning information during operation
(see the Safety chapter).
4.1 Model description
BORA Professional 3.0 cooktop extractors
The cooktop extractors PKA3/PKA3AB and PKAS3/PKAS3AB
are the central components of the whole system and can be
combined with all BORA Professional 3.0 cooktops.
i
Up to 2 cooktops can be connected to each cooktop
extractor.
Model Long name and description
PKA3 BORA Pro cooktop extractor (flexible system with
separate control unit)
PKA3AB BORA Pro cooktop extractor All Black (flexible
system with separate control unit)
PKAS3 BORA Pro cooktop extractor system with
integrated fan (compact system with integrated
control unit and integrated fan)
PKAS3AB BORA Pro cooktop extractor system with
integrated fan All Black (compact system with
integrated control unit and integrated fan)
Tab. 4.1 Cooktop extractor model description
BORA Professional 3.0 cooktops
The cooktops PKFI3, PKI3, PKIW3, PKC3, PKCB3, PKCH3,
PKT3 and PKG3 are the modular components of the BORA
Professional 3.0 system.
Model Long name and description
PKFI3 BORA Pro surface induction cooktop
PKI3 BORA Pro induction cooktop
PKIW3 BORA Pro induction wok cooktop
PKC3 BORA Pro HiLight cooktop 3-ring/2-ring
PKCB3 BORA Pro HiLight cooktop 3-ring/roaster
PKCH3 BORA Pro Hyper cooktop 1-ring/2-ring
PKT3 BORA Pro Tepan stainless steel grill with
2 cooking zones
PKG3 BORA Pro gas cooktop
Tab. 4.2 Cooktop model description
i
The gas cooktop PKG3 contains separate operating and
installation instructions and is not described in any more
detail here.
4.2 Control knob
How it works
The cooktop extractor and cooktops are operated with a control
knob. The power levels and functions are controlled by turning
the knob ring and pressing the touch surface.
EN
12
Appliance description
www.bora.com
i
If the cooktop extractor is used in a recirculating air
system, when a power level is set the operating time
is automatically deducted from the recirculation filter
service life. The remaining filter service life can be seen
in the menu under menu item A (see Operation chapter).
Cooktop extractor display and symbols
i
The fan power levels, extractor functions and system
functions are shown in the cooktop extractor control
knob display.
Control knob display Meaning
0
Appliance is switched off
1
–
9
Power levels
P
Power setting
A
Automatic extractor function
t
Short-time timer (egg timer)
001
–
120
Time display
L
Childproofing feature
1 1
pulsating
Pause function
F
Filter service display
F
flashing
Filter service display
n
Automatic after-run
c
Cover flap cleaning position
E
...
Error message (see the Troubleshooting
chapter)
C
Configuration menu
Tab. 4.3 Cooktop extractor 7-segment display
4.3.1 Structure of the cooktop extractors
Cooktop extractor PKA3/PKA3AB
7
6
5
4
3
2
1
Fig. 4.5 Cooktop extractor PKA3/PKA3AB
[1] Cover frame
[2] Holding plate
[3] Curved duct piece
[4] Straight duct piece
[5] Universal control unit
[6] Control knob
[7] Cover flap
Control knob assignment
54321
Fig. 4.4 Control knob assignment
[1] Control knob for left cooktop, front cooking zone
[2] Control knob for left cooktop, rear cooking zone
[3] Control knob for cooktop extractor
[4] Control knob for right cooktop, front cooking zone
[5] Control knob for right cooktop, rear cooking zone
4.3 Cooktop extractor appliance
description
Installation variations
Depending on what you opted for when purchasing, the cooktop
extractor can be operated as an exhaust air or recirculation
model.
Exhaust air mode
The air suctioned away is purified by the grease filter and
expelled into the open air via a duct system.
The exhaust air must not be expelled into:
XO
a smoke or exhaust gas flue that is in operation
XO
a shaft used for the aeration of rooms where fireplaces are
installed.
If the exhaust air is to be directed into a smoke or exhaust gas
flue that is not in use, the installation must be checked and
approved by the responsible heating engineer.
i
If the cooktop extractor is used in an exhaust air system,
the extractor power is automatically increased for the
first 20 seconds when set on a lower power level (wall
sleeve function).
Recirculation mode
The air suctioned away is purified by the grease filter and an
activated charcoal filter and fed back into the room in which the
appliance is installed.
To prevent odours in recirculation mode, an odour filter must be
used. For hygiene and health reasons, this must be replaced at
the recommended intervals (see the Cleaning and maintenance
chapter).
i
In recirculation mode, ensure sufficient ventilation and
aeration to expel humidity.
EN
13
Appliance description
www.bora.com
4.3.2 Sensors
The cooktop extractor is equipped with sensors in the area of
the cover flap and the grease filter.
Cover flap position sensor
The cover flap sensor detects the position of the cover flap.
XO
If the cover flap is closed, the cooktop extractor is
deactivated.
XO
If the cover flap is open, the cooktop extractor can be used.
XO
If the cover flap has been removed, the cooktop extractor can
be used.
Grease filter position sensor
The grease filter sensor detects whether the grease filter has
been fitted correctly. If the grease filter is missing or has been
fitted incorrectly, the cooktop extractor is deactivated.
i
If the grease filter is removed, for example, for cleaning,
the cover flap can still be closed.
4.3.3 Interface for external devices
The internal interface can be used for extended control options.
This has a Home In and a Home Out contact (see the Installation
chapter).
XO
The Home In contact can be used for the signal input from
external switch devices (e.g. window contact switch).
XO
The Home Out contact can be used to control external
installations (e.g. electrically opening wall sleeves).
4.3.4 USB port for servicing
The system has a USB port for servicing. This port is only
suitable for mass storage devices (USB sticks). These USB sticks
must be formatted with the FAT32 data system.
i
The USB port is only designed for updates or data export
and only has sufficient power supply for these processes.
It is not possible to charge devices or carry out other
functions.
Cooktop extractor system PKAS3/PKAS3AB
6
5
4
3
2
1
Fig. 4.6 Cooktop extractor system PKAS3/PKAS3AB
[1] Cover frame
[2] Holding plate
[3] Control unit
[4] Fan housing with fan
[5] Control knob
[6] Cover flap
Grease filter components
4
3
2
1
Fig. 4.7 Grease lter components
[1] Cover flap
[2] Stainless steel grease filter
[3] Filter tray
[4] Maintenance tray
EN
14
Appliance description
www.bora.com
Layout and size of the cooking zones
Cooktop PKFI3
1
4
3
2
230
230230
Fig. 4.8 Layout of cooktop PKFI3 and size of the cooking
zones
[1] Front surface induction cooking zone
[2] Rear surface induction cooking zone
[3] Rear cooking zone display
[4] Front cooking zone display
Cooktop PKI3
1
4
3
2
230
165
Fig. 4.9 Layout of cooktop PKI3 and cooking zone dimensions
[1] Front induction cooking zone
[2] Rear induction cooking zone
[3] Rear cooking zone display
[4] Front cooking zone display
4.4 Cooktop appliance description
Display and symbols
i
The power levels and cooking functions of each cooking
zone are shown in the control knob display on the
corresponding control knob.
i
The cooktops PKFI3 and PKI3 also have a 7-segment
cooktop display for each cooking zone. Power levels and
operating functions respectively are shown directly on
the cooktop.
Control knob display
Indicator Meaning
0
Cooktop is switched off
1
–
9
Power levels
ßp
Power setting
8
0
–
2
5
0
Temperature indicator on Tepan stainless steel
grill (PKT3)
H
Residual heat indicator
L
Childproofing feature
e.g.
Bridging function active
(only on PKFI3 and PKT3)
v
,
Pan size recognition
(only on PKFI3, PKI3, PKIW3)
e.g.
5
,
/
5
:
/
5
*
Rings active (only on PKC3, PKCB3, PKCH3)
,
v
/
:
v
/
*
v
Heat retention levels active
Timer function active
A
Automatic heat up function
e.g.
A
5
Automatic heat up function active
Cleaning function active (only on PKT3)
E
...
Error message (see the Troubleshooting chapter)
Tab. 4.4 Cooktop control knob display
Cooktop display
(only on PKFI3 and PKI3)
Indicator Meaning
0
Cooktop is switched off
1
–
9
Power levels
ßp
Power setting
H
Residual heat indicator
L
Childproofing feature
1 1
Pause function
v
,
Pan size recognition
A
Automatic heat up function
,
/
:
/
*
Heat retention levels active
E
...
Error message (see the Troubleshooting chapter)
Tab. 4.5 Cooktop display
EN
15
Appliance description
www.bora.com
Cooktop PKCB3
1
2
120
180
290
121
235
Fig. 4.12 Layout of cooktop PKCB3 and cooking zone
dimensions
[1] 3-ring front cooking zone
[2] 2-ring rear cooking zone
Cooktop PKCH3
1
2
200
235 120
Fig. 4.13 Layout of cooktop PKCH3 and cooking zone
dimensions
[1] 1-ring Hyper front cooking zone
[2] 2-ring rear cooking zone
Cooktop PKIW3
1
540
Fig. 4.10 Layout of cooktop PKIW3 and cooking zone
dimensions
[1] Induction cooking zone
Cooktop PKC3
1
2
120
180
120
200
235
Fig. 4.11 Layout of cooktop PKC3 and cooking zone dimensions
[1] 3-ring front cooking zone
[2] 2-ring rear cooking zone
EN
16
Appliance description
www.bora.com
Activity Power
level
Melting butter and chocolate, breaking up gelatine
1
Keeping sauces and soups warm, soaking rice
1
–
3
Cooking potatoes, pasta, soups and ragouts, steaming
fruit, vegetables and fish, defrosting food
2
–
6
Frying in coated pans, moderate frying (without
overheating the fat) of pork cutlets or fish
6
–
7
Heating up fat, browning fish, cooking thickened
sauces and soups, making omelettes
7
–
8
Bringing large amounts of liquid to the boil, searing
steaks
9
Heating up water
ßp
Tab. 4.6 Recommendations for power levels
The specifications provided in the table are standard values.
Depending on the cookware and filling quantity, it is
recommended to either decrease or increase the power level.
Suitable cookware
i
The heating and heat-through times for the cookware
base, as well as the cooking results, are significantly
influenced by the structure and material of the cookware.
Cookware with this symbol is suitable for induction
cooktops. The cookware used for the induction cooktop
must be made of metal, feature magnetic properties and
possess an ample base.
Suitable cookware is made of:
XO
stainless steel with a magnetisable base
XO
enamelled steel
XO
cast iron
Appliance Cooking zone Minimum diameter
PKFI3 front
rear
120mm
120mm
PKI3 front
rear
120mm
90mm
PKIW3 Wok 210mm
Tab. 4.7 Minimum cookware diameter
i
The BORA induction wok pan HIW1 is ideal for the
induction wok cooktop PKIW3 and is available as an
accessory.
XX
Perform a magnet test if necessary. If a magnet sticks to the
base of the utensils, they are normally induction compatible.
XX
Pay attention to the cookware base. The base of the
cookware should not show any sign of curvature (exception:
wok cooktop PKIW3). Due to incorrect hob temperature
monitoring, this curvature may cause the cookware to
overheat. To avoid scratching the cooktop, the base of the
cookware must not have any sharp grooves or sharp edges.
XX
Place the cookware (without a mat or similar) directly onto the
glass ceramic.
Tepan stainless steel grill PKT3
1
2
232,5232,5
465
295
Fig. 4.14 Layout of Tepan stainless steel grill PKT3 and cooking
zone dimensions
[1] Front grilling zone
[2] Rear grilling zone
4.4.1 How induction cooktops work
(PKFI3, PKI3, PKIW3)
An induction coil is located underneath an induction cooking
zone. If the cooking zone is switched on, this coil creates a
magnetic field that acts directly on the base of the pot thus
heating it up. The cooking zone is only indirectly heated up by
the heat emitted by the pot. Cooking zones with induction only
work if the cookware has a magnetisable base.
Induction automatically takes into account the size of the
cookware used which means that only the area in the cooking
zone covered by the base of the pot is heated up.
XX
Observe the minimum pot base diameter (see table 4.7).
Power levels
The high power output of induction cooktops results in the very
quick heating up of cookware. In order to avoid burning food,
slight adjustment is needed in comparison to conventional cooking
systems when selecting the power level.
EN
17
Appliance description
www.bora.com
Suitable cookware
i
The heating and heat-through times for the cookware
base, as well as the cooking results, are significantly
influenced by the structure and material of the cookware.
Cookware with this symbol is suitable for radiant heating
elements. The cookware used for radiant heating
surfaces must be metal and have good heat conducting
properties.
Suitable cookware is made of:
XO
stainless steel, copper or aluminium
XO
enamelled steel
XO
cast iron
XX
Pay attention to the cookware base. The bottom of the
cookware should not show any sign of curvature. Due to
incorrect hob temperature monitoring, this curvature may
cause the cookware to overheat. To avoid scratching the
cooktop, the base of the cookware must not have any sharp
grooves or sharp edges.
XX
Place the cookware (without a mat or similar) directly onto the
glass ceramic.
4.4.3 How the Tepan stainless steel grill PKT3
works
Under each grilling zone there is a heating element. When a
grilling zone is switched on, the heating element generates heat
that directly heats the grill surface.
Power adjustment and temperature ranges
The power is adjusted via temperature ranges that are shown in
the operating panel display in °C (temperature indicator).
Temperature in °C Meaning
C
(= 70 °C)
Cleaning temperature
8
0
–
2
3
0
Power levels (in 10°C increments)
2
4
0
–
2
5
0
Power setting
Tab. 4.9 Tepan stainless steel grill temperatures
The power output of the Tepan stainless steel grill heats food
extremely quickly. A slight adjustment is needed in comparison
to conventional cooking systems when selecting the temperature
in order to avoid burning food.
Noises
The following noises may occur in the cookware when using
induction cooking zones, depending on the material and the
finish of the base:
XO
Humming may occur when using a high power level. This
decreases or disappears when the power level is decreased.
XO
Crackling or whistling may occur due to cookware bases being
made of different materials (e.g. sandwich base).
XO
Clicking sounds may occur during electronic switching
procedures, especially at low power levels.
XO
Whirring may occur when the cooling fan is switched on. In
order to increase the service life of the electronic system,
the cooktop is equipped with a cooling fan. The cooling fan
switches on automatically if the cooktop is used intensively.
You will hear a whirring sound. The cooling fan may continue
running after the appliance has been switched off.
4.4.2 How the Hyper and HiLight cooktops
work (PKC3, PKCB3, PKCH3)
Under the cooking zone is a radiant heating element with a
heating tape. When the cooking zone is switched on, the heating
tape generates radiant heat, which radiates to the cooking zone
and heats it up.
Power levels
Activity Power level
Melting butter and chocolate, breaking up gelatine
1
Keeping sauces and soups warm, soaking rice
1
–
3
Cooking potatoes, pasta, soups and ragouts,
steaming fruit, vegetables and fish, defrosting food
2
–
6
Frying in coated pans, moderate frying (without
overheating the fat) of pork cutlets or fish
6
–
7
Heating up fat, browning fish, cooking thickened
sauces and soups, making omelettes
7
–
8
Cooking large amounts of liquids, grilling steaks
and heating water
9
Grilling steaks and heating up water
ßp
Tab. 4.8 Recommendations for power levels
The specifications provided in the table are standard values.
Depending on the cookware and filling quantity, it is
recommended to either decrease or increase the power level.
Power setting on cooktop PKCH3
The front cooking zone (Hyper zone) on the Hyper cooktop
PKCH3 is fitted with a temporary power setting.
XO
ßp
is shown in the control knob display.
The power setting can be used in order to quickly heat up large
quantities of water. If the power setting is activated, the cooking
zones will run at extra high power. After 10 minutes, the cooking
zone is automatically switched back to power level
9
.
EN
18
Appliance description
www.bora.com
PKC3, PKCB3, PKCH3:
Power levels Safety shut-down after hours:minutes
1
6:00
2
6:00
3
5:00
4
5:00
5
4:00
6
1:30
7
1:30
8
1:30
9
1:30
(only in the case of the Hyper zone on the PKCH3)
Tab. 4.12 Safety shut-down on the different power levels
PKT3:
Temperature Safety shut-down after hours:minutes
1
5
0
8:24
1
6
0
6:24
1
7
0
5:12
1
8
0
4:12
1
9
0
3:18
2
0
0
2:12
2
1
0
2:12
2
2
0
1:48
2
3
0
1:18
2
4
0
/
2
5
0
0:10
Tab. 4.13 Safety shut-down on the different power levels
Safety shut-down on the different heat retention levels
PKFI3, PKI3, PKIW3, , PKC3, PKCB3, PKCH3:
Heat retention level Switch off after hours:minutes
1 (
,
v
)
8:00
2 (
:
v
)
8:00
3 (
*
v
)
8:00
Tab. 4.14 Safety shut-down on the different heat retention levels
PKT3:
Heat retention temperature Switch off after hours:minutes
80–140°C 8:00
Tab. 4.15 Safety shut-down on the different heat retention levels
XX
Switch the cooking zone back on if you want to put the
cooking zone back into operation (see the Operation chapter).
Activity Temperature in °C
Steaming fruit, e.g. apple slices,
peach halves, banana slices
160 – 170
Browning chopped vegetables, fried eggs,
veal, poultry
180 – 190
Browning breaded or battered fish,
pancakes, sausages, pork, lamb
190 – 200
Browning potato fritters, prawns,
corn on the cob and escalopes
200 – 210
Fast browning beef, fish, meatballs 220 – 230
Browning steaks 240 – 250
Tab. 4.10 Temperature recommendations (the specications
provided in the table are standard values)
4.5 Safety devices
Anti-trap protection
The electrical cover flap on the cooktop extractor has anti-trap
protection.
If the cover flap is obstructed when opening or closing, it
automatically stops moving. The cover flap returns to its start
position (see the Operation chapter).
Safety shut-down
If an appliance is switched on but is not used for a predefined
time, it is automatically switched off.
Cooktop extractor
The cooktop extractor is automatically switched off after an
operating time of 120 minutes without any change to the power
level.
Cooktops
Each cooking zone is switched off automatically when the cooking
zone exceeds the maximum operating duration on one power level
or heat retention level.
H
is displayed (Residual heat indicator).
Safety shut-down on the different power levels
PKFI3, PKI3, PKIW3:
Power levels Safety shut-down after hours:minutes
1
8:24
2
6:24
3
5:12
4
4:12
5
3:18
6
2:12
7
2:12
8
1:48
9
1:18
ßp
0:10
Tab. 4.11 Safety shut-down on the different power levels
EN
19
Appliance description
www.bora.com
Residual heat indicator
i
While
H
is displayed (residual heat indicator), do not
touch the cooking zone or place any heat-sensitive
objects on top of it. Risk of burns and fire!
After switching it off, the cooking zone remains hot.
H
is displayed (Residual heat indicator).
After a sufficient cooling period the indicator will go out
(Temperature < 60°C or < 50°C on the Tepan stainless steel
grill).
Overheating protection
i
If the cooktop overheats, the power is reduced or the
cooktop is switched off completely.
The appliance is fitted with overheating protection. The
overheating protection can be triggered if:
XO
cookware is heated up empty;
XO
oil or fat is heated on high power;
XO
a hot cooking zone is switched on again after a power cut.
Whilst the overheating protection is active, one of the following
steps is taken:
XO
the activated power setting is switched back to the previous
level;
XO
the power setting
ßp
can no longer be switched on;
XO
the set power level is reduced;
XO
the cooktop switches off completely.
After a sufficient cooling period, the cooktop can be used again.
Childproofing feature
The childproofing feature prevents the appliance from being
switched on accidentally.
XO
L
is displayed.
The childproofing feature can only be activated when all the
cooking zones are switched off (see the Operation chapter).
i
If a single cooktop is operated without a cooktop
extractor, removal of the knob ring can prevent the
appliance from being switched on accidentally or without
permission.
EN
20
Overview of features and functions
www.bora.com
5 Overview of features and functions
i
The full range of functions is only available for BORA Professional 3.0 system cooktops in combination with the cooktop
extractors PKA3 and PKAS3/PKAS3AB.
BORA Professional 3.0 system Cooktop extractors Cooktops
Appliance features
PKA3
PKAS3
PKAS3AB
PKFI3
PKI3
PKIW3
PKC3
PKCB3
PKCH3
PKT3
Electronic power adjustment
3 3 3 3 3 3 3 3 3
Power level display
3 3 3 3 3 3 3 3 3
Interface communication
3 3
Electrical cover flap with position sensor
3 3
Stainless steel grease filter
3 3
Grease filter position sensor
3 3
USB port for servicing
3 3
Pan size recognition
3 3 3
Cooktop display
3 3
Temperature display
3
System functions
Short-time timer (egg timer)
3 3
Pause function
3 3 3 3 3 3 3 3 3
Additional cooktop extractor functions
Extractor power setting
3 3
Automatic extractor function
3 3
Automatic after-run
3 3
Filter service display
3 3
Additional cooktop functions
Cooktop power setting
3 3 3 3* 3
Timer function
3 3 3 3 3 3
Automatic heat up function
3 3 3 3 3 3
Variable heat retention function
3 3 3 3 3 3
Pan size recognition
3 3 3
Additional ring switching (2-ring additional
switching)
3** 3** 3**
Additional ring switching (3-ring additional
switching)
3* 3*
Bridging function
3 3
Cleaning function
3
Safety features
Childproofing feature
3 3 3 3 3 3 3 3 3
Safety shut-down
3 3 3 3 3 3 3 3 3
Anti-trap protection
3 3
Active error monitoring
3 3 3 3 3 3 3 3 3
Residual heat indicator
3 3 3 3 3 3 3
Overheating protection
3 3 3 3 3 3 3
Tab. 5.1 Function overview
* only on the front cooking zone ** only on the rear cooking zone
i
You can see a more detailed description of the functions in the next chapter Functions and operation.
EN
21
Functions and operation
www.bora.com
6 Functions and operation
Use double-tap commands to:
XO
activate the pause function
Use long-press commands to:
XO
unlock the system
XO
exit the function menu
Use extra-long-press commands to:
XO
reset the filter service life
XO
access the configuration menu
6.2 Switching the system on and off
Switching on
Fig. 6.3 Switching on the system
Fig. 6.4 Standard display after switching on
XX
Turn a knob ring of your choice clockwise
XO
The system is activated.
XO
0
is displayed on all control knobs.
i
If
L
is displayed on all control knobs when the appliance
is switched on, the childproofing feature is active. It will
only be possible to operate the appliance when this has
been deactivated (see “Deactivating the childproofing
feature for a cooking session” or “Permanently
deactivating the childproofing feature”).
Switching off
Fig. 6.5 Switching the appliances off
XX
Turn the knob ring anticlockwise to power level 0.
XO
Any active additional functions will be deactivated and the
appliance will be switched off.
XX
Observe all safety and warning information during operation
(see the “Safety” chapter).
6.1 Knob operation
Operating the knob ring
The ring on the control knob can be turned both clockwise and
anticlockwise. It can be turned as far as you wish; there is no
defined 0 position.
Fig. 6.1 Operating the knob ring
Turn it clockwise (to the right) to:
XO
switch on
XO
increase power level/value
XO
navigate the menu
Turn it anticlockwise (to the left) to:
XO
switch off
XO
decrease power level/value
XO
navigate the menu
Operating the touch surface
The touch surface of the control knob reacts to different touch
commands:
Command Contact Time
Tap brief touch <1s
Double tap 2 brief taps one after the other
Long press keep finger in place longer 1 – 8 s
Extra-long press keep finger in place longer 3 – 8 s
Tab. 6.1 Operating the touch surface
>1s >3s
1 2 3
Fig. 6.2 Diagram of the touch commands
[1] Tap command diagram
[2] Long press diagram
[3] Extra-long press diagram
Use tap commands to:
XO
call up the function menu
XO
confirm menu items/times/functions
EN
22
Functions and operation
www.bora.com
Increasing the power level
XX
Turn the knob ring clockwise
Reducing the power level
XX
Turn the knob ring anticlockwise
XO
The selected power level is shown in the display on the
extractor control knob.
6.3.3 Extractor power setting
When the power setting is activated, maximum extractor power
is available for a predefined time.
This power setting makes it possible to suction away high levels
of cooking vapours more quickly.
Activating the power setting
XX
Turn the knob ring clockwise to power setting
P
.
XO
Maximum extractor power is available.
i
After 10 minutes, the power setting is automatically
switched back to power level 9.
Deactivating the power setting early
The fan power setting is deactivated early if another power level
is set (see “Setting the fan power level”).
6.3.4 Automatic after-run
When the extractor is switched off, the automatic after-run
function is activated. The cooktop extractor continues to run at a
lower level and switches off automatically after 20 minutes. The
display switches off 10 seconds later.
Switching off the automatic after-run early
XX
touching the touch surface of the control knob
or
XX
turning the knob ring anticlockwise
XO
The after-run function will be switched off early and the
display will go out after 10 seconds.
i
BORA expressly recommends use of the cooktop
extractor after-run function.
6.4 Cooktop extractor function menu
i
Every appliance offers different additional functions.
These can be selected and activated via a function menu.
Only the functions available for each type of appliance
are shown in the corresponding function menu.
i
The cooktop extractor function menu contains both
system functions and cooktop extractor functions.
i
If all connected appliances are switched off (= power
level 0), the whole system is automatically switched off
after 10 seconds.
The cooktop extractor was switched on
XO
The automatic after-run function is started.
XO
As soon as the after-run period is complete, the appliance is
automatically switched off.
XO
The display switches off after 10 seconds.
The cooktop was switched on
XO
H
is shown in the control knob display for previously active
and still hot cooking zones (residual heat indicator).
XO
If there is no longer any residual heat, the display will switch
off after 10 seconds.
6.3 Operating the cooktop extractor
i
The cooktop extractor must only be operated with BORA
cooktops.
i
The cooktop extractor can only be operated when the
grease filter components and cover flap are installed.
i
Both cooktop extractor functions and system functions
can be operated using the cooktop extractor control knob.
6.3.1 General operating instructions for the
cooktop extractor
Recommendations for efficient vapour extraction
XX
In the case of tall cooking pots, place the lid on at an angle
so that the cooking vapours are guided towards the cooktop
extractor.
XX
Only operate the cooktop extractor at the minimum power
level required for effective vapour extraction. This enables
you to improve the performance of the odour filters in
recirculation mode.
XX
Only operate the hob at the minimum power level required
for cooking. This reduces the cooking vapours and the power
consumption.
XX
Avoid strong drafts.
6.3.2 Setting the fan power level
The power levels are controlled by turning the knob ring to the
desired power level (electronic power adjustment).
Fig. 6.6 Setting the fan power level
EN
23
Functions and operation
www.bora.com
1
2
3
Fig. 6.8 Activating the automatic extractor function
XO
The automatic extractor function is activated.
XO
A
is shown in the control knob display.
If the power level is changed on one of the connected cooktops,
the extractor power level is automatically adjusted after a slight
delay.
If all connected cooking zones are switched off or paused, the
automatic after-run function will start after a slight delay.
i
The automatic extractor function is permanently activated
and remains active each time the system is started up
until it is deactivated.
Deactivating the automatic extractor function
XX
Open the cooktop extractor function menu.
XX
Do the following:
1
2
3
Fig. 6.9 Deactivating the automatic extractor function
XO
The automatic extractor function is deactivated.
XO
0
is shown in the control knob display.
6.4.2 Short-time timer/egg timer
(system function)
The short-time timer emits both a visual and an acoustic signal
after a time set by the user and provides the function of a
conventional egg timer.
Function Times that can be set in minutes
Short-time timer
(egg timer)
0 – 120
(1, 2, 3, ..., 19, 20, 25, 30, ..., 115, 120)
Tab. 6.4 Times that can be set on the short-time timer
There is a total of 5 additional functions to choose from:
Menu
item
Function System
function
Cooktop
extractor
function
1 A
Automatic extractor function
3
2 t
Short-time timer (egg timer)
3
3 C L
Childproofing feature
3
4 C
Extractor cleaning
3
5 F
Show and reset filter status
3
Tab. 6.2 Overview of cooktop extractor function menu
Calling up the function menu
Fig. 6.7 Calling up the cooktop extractor function menu
XX
Touch the cooktop extractor control knob
XO
The function menu is opened.
XO
The first menu item is shown in the control knob display.
6.4.1 Automatic extractor function
The extractor power level automatically adjusts itself depending
on the current cooktop settings. No manual adjustment of the
fan controls is necessary but it is possible. The extractor power
is automatically adjusted to the highest power level used on all
cooking zones that are currently in use.
Function Power levels
Cooking level 1 2 3 4 5 6 7 8 9 P
Extractor power 2 3 4 5 6 7 8 9 9 P
Tab. 6.3 Cooking levels and assigned extractor power level when
the automatic extractor function is active
If the power level of a cooking zone is changed, the automatic
extractor function automatically adjusts the extractor power
level after a time delay of...
XO
...10 seconds (cooktops PKFI3, PKI3, PKIW3).
XO
...20 seconds (cooktops PKC3, PKCB3, PKCH3, PKT3)
Activating the automatic extractor function
XX
Open the cooktop extractor function menu.
XX
Do the following:
EN
24
Functions and operation
www.bora.com
i
The flashing and the acoustic signal can be stopped by
pressing the touch surface.
Switching off the short-time timer (egg timer) early
XX
Open the cooktop extractor function menu.
XX
Enter the following settings:
1
2
3
4
Fig. 6.13 Switching off the short-time timer (egg timer) early
XO
The short-time timer is deactivated early and an acoustic
signal is heard.
6.4.3 Childproofing feature (system function)
The childproofing feature prevents the appliance from being
switched on accidentally.
Permanently activating the childproofing feature
i
Prerequisite: All appliances are inactive (0 is displayed
on all control knobs)
i
While appliances are active, the menu item
3CL
cannot
be selected.
XX
Open the cooktop extractor function menu.
XX
Do the following:
1
2
3
4
(10 s)
Fig. 6.14 Permanently activating the childproong feature
XO
The childproofing feature is permanently activated.
XO
L
is displayed on all control knobs.
XO
The display switches off after 10 seconds.
Activating the short-time timer (egg timer)
XX
Open the cooktop extractor function menu.
XX
Enter the following settings:
1
2
3
Fig. 6.10 Activating the short-time timer (egg timer)
XO
The timer symbol flashes.
XO
The time value
0
0
0
appears in the cooktop extractor control
knob display.
XX
Set a time.
i
If no time is set within 4 seconds, the short-time timer is
deactivated.
Setting the time and starting the short-time timer
(egg timer)
i
Turning clockwise increases the time (starting at
0 minutes). Turning anticlockwise reduces the time.
4
5
6
Fig. 6.11 Turning the knob ring clockwise
4
5
6
Fig. 6.12 Turning the knob ring anticlockwise
XO
In the range from 0 to 20 minutes, the time reduces/
increases in both directions by one minute at a time, while the
increments are 5 minutes for the rest of the range.
XO
After confirming with a touch command, an acoustic signal is
heard, the short-time timer is activated and the set time starts
to count down.
XO
The current power level and remaining time are shown
alternately in the control knob display.
XO
The current time remaining is shown to the minute when more
than 2 minutes remain and to the second when only 2 minutes
remain.
Time lapsed
At the end of the time, an acoustic signal is heard for 2 minutes
and the control knob display flashes
0
0
0
.
EN
25
Functions and operation
www.bora.com
Deactivating the childproofing feature for a cooking
session
XX
Do the following:
1
3s
2
3
Fig. 6.15 Deactivating the childproong feature for a cooking
session
XO
The childproofing feature is deactivated for a cooking session
and the system is unlocked.
XO
0 is displayed on all control knobs.
Permanently deactivating the childproofing feature
XX
Open the cooktop extractor function menu.
XX
Repeat steps 1–3 from point „Permanently activating the
childproofing feature“.
XO
The childproofing feature is permanently deactivated.
XO
0
is displayed on all control knobs.
XO
The display switches off after 10 seconds.
6.4.4 Cooktop extractor cleaning function
The cooktop extractor cleaning function enables components to
be removed easily and safely.
Activating the cooktop extractor cleaning function
XX
Open the cooktop extractor function menu.
XX
Enter the following settings:
1
2
3
Fig. 6.16 Activating the cooktop extractor cleaning function
XO
The cleaning function is activated and an acoustic signal is heard.
XO
The cover flap opens and the control knob display shows
C
.
XO
The fan motor will not start or will switch off if running.
i
If the system is reactivated after the cooktop extractor
cleaning function is activated,
C
will continue to be
shown in the cooktop extractor control knob display.
Cooking sessions are possible, however, the cooktop
extractor remains inactive and cannot be operated. Only
when the grease filter has been replaced can the cooktop
extractor be reactivated.
i
When the grease filter is removed, the cooktop extractor
control knob display alternates between
F
F
and
o
v
t
(=nogreasefilter).
Closing the cover flap to start a cooking session
1
2
Fig. 6.17 Closing the cover ap to start a cooking session
XX
Touch the cooktop extractor control knob
XO
The cover flap closes (without grease filter) and
C
is displayed.
XO
It is possible to cook, however, the cooktop extractor cannot
be operated.
Deactivating the cooktop extractor cleaning
function
Requirement: correctly fitted grease filter
XX
Touch the cooktop extractor control knob
XX
Repeat steps 1–2 from point „Activating the cooktop
extractor cleaning function“.
XO
The cover flap closes.
XO
The cooktop extractor and all of its functions can be used
again.
6.4.5 Filter service life and filter service
display (only in recirculation mode)
The maximum service life of the recirculation filter is defined
by the filter type configured in the system (filter service life).
Depending on the type of filter fitted, the filter service display
will be activated after 200, 300 or 600 operating hours. If after
switching on the cooktop extractor the control knob display
shows a flashing
F
(filter service display), the recirculation filter
service life has come to an end and the filter must be replaced
(filter change).
XO
The filter service display is shown every time the cooktop
extractor is switched on and remains active until the filter has
been changed and the filter service display has been reset.
XO
The cooktop extractor can still be operated without
limitations.
XO
To use the cooktop extractor, the filter service display can be
deactivated once, or permanently reset.
i
If the service life of the activated charcoal filter is
exceeded, the correct functioning of the system may be
affected. It is still possible to use the cooktop extractor,
however, the warranty and guarantee claims shall then be
invalid.
i
The components of the grease filter require regular
cleaning regardless of the filter service display (see the
“CleaningandMaintenance”chapter).
EN
26
Functions and operation
www.bora.com
Resetting the filter service display
When the recirculation filter is replaced, the filter service display
must be reset.
XX
Do the following:
3s
1 2
3
Fig. 6.21 Resetting the lter service display
XO
The filter service life is reset and the filter service display is
deactivated.
XO
0
is shown in the control knob display.
6.5 Operating the cooktops
i
The full range of functions is only available for BORA
Professional 3.0 system cooktops in combination with
the cooktop extractors PKA3/PKA3AB and PKAS3/
PKAS3AB.
i
Clean the cooking zones before using the cooktop for the
first time (see the Cleaning chapter).
6.5.1 General operating instructions for
cooktops
Cooktops are operated with 2 control knobs.
There are 9 power levels, an optional power setting and various
functions available for each cooking zone.
Each cooking zone has its own control knob. The front cooking
zone is controlled using the left-hand knob and the rear cooking
zone with the right-hand knob.
1 2
Fig. 6.22 Cooking zone indicator
[1] active front cooking zone
[2] active rear cooking zone
Displaying the remaining filter service life
XX
Open the cooktop extractor function menu.
XX
Enter the following settings:
1
2
3
Fig. 6.18 Displaying the remaining lter service life
XO
The remaining filter service life is shown in hours in the
control knob display (e.g. 100 hours).
Resetting the filter service life early
XX
Open the cooktop extractor function menu.
XX
Enter the following settings:
1
2
5s
3
4
5
Fig. 6.19 Resetting the lter service life early
Deactivating the filter service display for a cooking
session
The recirculation filter service life has come to an end.
F
flashes
in the cooktop extractor control knob display.
1
2
3
Fig. 6.20 Deactivating the lter service display for a cooking
session
XO
The cooktop extractor can be used for a cooking session.
XO
0
is shown in the control knob display.
i
If the service life of the recirculation filter is exceeded,
the correct functioning of the system may be affected. It
is still possible to use the cooktop extractor, however, the
warranty and guarantee claims shall then be invalid.
EN
27
Functions and operation
www.bora.com
Setting the temperature on the Tepan stainless
steel grill PKT3
XX
Turn the knob ring to the desired temperature.
XO
The control knob display shows the target temperature for 3
seconds. Then the warm-up phase begins.
XO
During the warm-up phase, the corresponding cooking zone
display flashes and the current temperature is shown.
XO
As soon as the target temperature is reached, the warm-
up phase comes to an end and the target temperature is
continuously displayed.
6.5.4 Cooktop power setting
When the power setting is activated, maximum cooking zone
power is available for a predefined time.
i
For this reason, on the cooktops PKFI3 and PKI3, the
max. power of the other cooking zones is automatically
and temporarily reduced.
i
Never heat up oil, fat and the like on this power setting.
The bottom of the pan can overheat due to the high
power output.
i
The power setting cannot be activated if the bridging
function is switched on (exception: Tepan stainless steel
grill PKT3).
i
If a cooking zone on the cooktops PKFI3 and PKI3 is
operated on the power setting, the second cooking zone
can be operated on power level 5 at most.
i
If a higher level than 5 is set on the second cooking zone
when the power setting is activated on the cooktops
PKFI3 and PKI3, the level will automatically be reduced to
power level 5.
i
If a power level higher than 5 is set for the second
cooking zone on the cooktops PKFI3 and PKI3, the
active power setting on the first cooking zone will be
automatically switched back to the previous level.
i
On the cooktop PKCH3 the power setting corresponds to
the Hyper setting.
Activating the power setting for a cooking zone
XX
Turn the knob ring clockwise to power setting
P
(
240
–
250
°C on the Tepan stainless steel grill).
i
After 10 minutes, the power setting is automatically
switched back to power level 9 (
230
°ContheTepan
stainless steel grill).
Deactivating the power setting early
XO
Setting another power level for the cooking zone with the
power setting active
XO
Setting a higher power level than 5 for the other, second
cooking zone (only on cooktops PKFI3 and PKI3)
6.5.2 Special operating instructions for the
Tepan stainless steel grill PKT3
Initial operation
XX
Heat the griddle to 220°C for approx. 25 minutes before
using it for the first time (both grilling zones).
i
Bothersome odours may be emitted during this process.
Operating instructions
i
The grilling zones should be preheated 5 minutes before
use.
i
During heating or cooling the griddle may make some
noise. This is a normal occurrence.
i
A fan is built in to the Tepan stainless steel grill for
cooling, guaranteeing a long service life for the electronic
components and rapid cooling of the grill surface.
Different measures have been taken to keep noise to a
minimum, but it cannot be completely avoided.
i
During use, the griddle may show signs of curvature.
i
During grilling or heating on a high power level, the
griddle may adopt a light brown colour.
6.5.3 Setting cooking zone power levels
The power levels are controlled by turning the knob ring to the
desired power level (electronic power adjustment).
Fig. 6.23 Setting cooking zone power levels
XO
The selected power level is shown in the power display on the
control knob that has been touched.
Increasing the power level
XX
Turn the knob ring clockwise
Reducing the power level
XX
Turn the knob ring anticlockwise
i
If after setting a power level on induction cooktops PKFI3,
PKI3 and PKIW3 no suitable cookware is detected (pan
size recognition) within 10 minutes, the corresponding
cooking zone will be automatically switched off.
EN
28
Functions and operation
www.bora.com
i
If no suitable cookware is recognised (pan size
recognition) on either of the two cooking zones on the
induction cooktop PKFI3 within 10 seconds, the bridging
function is deactivated.
6.5.6 Pause function (system function)
With the pause function all cooking zones can be quickly and
easily deactivated temporarily. When the function is cancelled,
operation resumes at the original settings.
The cooking session can be paused for max. 10 minutes. If the
pause function is not deactivated in this time, all cooking zones
are switched off.
i
During the pause, fan function is not interrupted. Active
bridging and egg timer functions remain active. Active
timer functions are paused.
Activating the pause function
2x
1
2
Fig. 6.25 Activating the pause function
XX
Double tap the cooktop extractor control knob
XO
1 1
pulsates in the cooktop extractor control knob display.
XO
The cooktop control knob displays are dimmed.
Deactivating the pause function
2x
1
2
Fig. 6.26 Deactivating the pause function
XX
Double tap the cooktop extractor control knob
XO
The cooktop control knob displays light up again.
XO
Paused cooking zone timers resume their countdown.
6.5.5 Bridging function
(only on PKFI3 and PKT3)
With the bridging function two cooking zones can be combined
to form one large cooking zone. The power for the combined
zones is then adjusted using any control knob. Power
adjustment takes place simultaneously (both cooking zones are
operated on the same power level).
This means, for example, that on the surface induction cooktop
very large pans or roasters can be used.
XO
Both cooking zone indicators are activated in the display on
both control knobs.
i
If the bridging function is activated on cooktop PKFI3, the
power setting cannot be used. Use of the power setting is
possible on the Tepan stainless steel grill PKT3.
i
If both cooking zones are active when the bridging
function is activated, the higher of the two power levels
will be adopted for both cooking zones. Active additional
cooking zone functions will be adopted by the cooking
zone with the higher power level.
Activating the bridging function
1
+
2
Fig. 6.24 Setting cooking zone power levels
XX
Touch both control knobs at the same time
XO
An acoustic signal can be heard and the bridging function is
activated.
XO
The power level and both cooking zone indicators are shown
on both control knobs.
Deactivating the bridging function
XX
Set the power level
0
.
or
XX
touch command on both control knobs at the same time.
XO
An acoustic signal can be heard and the bridging function is
deactivated.
XO
All cooking zones are deactivated.
XO
Each cooking zone then goes back to being operated separately.
EN
29
Functions and operation
www.bora.com
Calling up the function menu
Fig. 6.27 Accessing a cooktop function menu
XX
Touch the cooktop control knob
XO
The function menu is opened.
XO
The first menu item is shown in the control knob display.
6.6.1 Additional ring switching–
2-ring, 3-ring, roaster
(only on PKC3, PKCB3, PKCH3)
An additional, larger ring can be easily switched on. This enables
rapid adjustment to the cookware used.
i
Additional ring switching can also be activated or
deactivated when the heat-up, timer and heat retention
functions are active.
i
On cooktop PKCB3 the roaster heating element is treated
as a second ring.
Activating additional rings
(2-ring/3-ring additional switching)
XX
Open the cooktop function menu.
XX
Do the following:
1
2
3
4
5
6
Fig. 6.28 Activating additional rings
XO
The second or third ring is activated in the chosen cooking
zone.
XO
The cooking session is continued at the set power level with
two or three active rings.
XO
The number of active rings is shown in the control knob
display next to the power level (e.g.
5 .
or
5 ;
or
5 *
).
6.5.7 Pan size recognition
(only on PKFI3, PKI3, PKIW3)
On induction cooktops the cooking zone recognises the size of
the cookware automatically and only targets the energy at that
area. It also recognises cookware that is unsuitable or too small,
or if there is no cookware present.
The cooking zone does not work if...
XO
... it is switched on without cookware or with unsuitable
cookware;
XO
... the base diameter of the cookware is too small;
XO
... the cookware is removed from a switched on cooking zone.
In these cases
v
,
is displayed.
If no pot is recognised within 10 minutes of setting a power
level, the cooking zone will switch off automatically.
6.6 Function menu
i
Every appliance offers different additional functions.
These can be selected and activated via a function menu.
Only the functions available for each type of appliance
are shown in the corresponding function menu.
Function menu on induction cooktops PKFI3, PKI3, PKIW3
A total of 3 additional functions are available on induction
cooktops:
Menu item Description
1 v
Heat retention function (3 levels)
2 t
Timer function (automatic cut-off)
3 A
Automatic heat up function
Tab. 6.5 Function menu on induction cooktops
Function menu on Hyper and HiLight cooktops PKC3,
PKCB3, PKCH3
A total of 4 additional functions are available on HiLight and
Hyper cooktops (cooktops with radiant heating elements):
Menu item Description
1 o
Additional ring switching
2 v
Heat retention function (3 levels)
3 t
Timer function (automatic cut-off)
4 A
Automatic heat up function
Tab. 6.6 Function menu on Hyper and HiLight cooktops
Function menu on Tepan stainless steel grill PKT3
The Tepan stainless steel grill has 1 additional function:
Menu item Description
1 C
Cleaning function
Tab. 6.7 Function menu on Tepan stainless steel grill PKT3
EN
30
Functions and operation
www.bora.com
Hyper and HiLight cooktops (PKC3, PKCB3, PKCH3)
1 2
3
4
5
Fig. 6.30 Activating the heat retention function (PKC3, PKCB3,
PKCH3)
XO
An acoustic signal is heard.
XO
The selected heat retention level is activated.
XO
,
v
/
:
v
/
*
v
is shown in the control knob display.
Increasing or reducing the active heat retention level
Fig. 6.31 Increasing the active heat retention level
Fig. 6.32 Reducing the active heat retention level
Deactivating the heat retention function
1
2
Fig. 6.33 Deactivating the heat retention function
Deactivating additional rings
XX
Repeat the above steps, but select fewer active rings in the
function menu.
XO
The cooking session is continued at the set power level with
the selected number of rings.
6.6.2 Variable heat retention function
(not on PKT3)
The 3 heat retention levels enable cooked foods to be kept warm
at a constant temperature.
XO
The maximum duration of the heat retention function is limited
to 8 hours.
Heat retention level
Symbol Temperature Use
1
,
v
42°C Melting chocolate
2
:
v
74°C Keeping food warm
#
3
*
v
94°C Simmering
Tab. 6.8 Heat retention levels
i
In practice the temperatures of the heat retention
levels may vary slightly as they are influenced by the
cookware, the amount of food and the different heating
technologies. The temperatures can also vary due to the
influence of the cooktop extractor.
Activating the heat retention function
XX
Open the cooktop function menu.
XX
Enter the following settings:
Induction cooktops (PKFI3, PKI3, PKIW3)
1
2
3
4
Fig. 6.29 Activating the heat retention function (PKFI3; PKI3;
PKIW3)
XO
An acoustic signal is heard.
XO
The selected heat retention level is activated.
XO
,
v
/
:
v
/
*
v
is shown in the control knob display.
EN
31
Functions and operation
www.bora.com
5
6
7
Fig. 6.36 Turning the knob ring anticlockwise
XO
In the range from 0 to 20 minutes, the time reduces/
increases in both directions by one minute at a time, while the
increments are 5 minutes for the rest of the range.
XO
After confirming with a touch command, an acoustic signal
is heard, the cooking zone timer is activated and the set time
starts to count down.
XO
The control knob display changes to the current cooking
session and the timer symbol
is displayed.
XO
The set power level and the remaining time are shown
alternately in the control knob display for 3 seconds.
XO
Once the remaining time is less than 2 minutes, only the
remaining time is displayed.
XO
Once the remaining time is less than 5 seconds, the remaining
time flashes.
Changing active timers
XX
Repeat the steps for cooking zones with an active timer (see
“Activating cooking zone timers”).
XX
Change the set time and restart the timer.
Switching the timer off early
If the cooking session is to be continued:
XX
open the cooktop function menu;
XX
select the menu item “timer function (automatic cut-off)”;
XX
decrease the set time to
000
and confirm the entry.
XO
The timer is deactivated early and an acoustic signal is heard.
XO
Active cooking sessions are resumed unchanged.
If the cooking session is to be ended:
XX
turn the knob ring to power level
0
XO
An acoustic signal sounds and the cooking zone is switched
off.
Time lapsed
XO
The cooking zone switches off automatically.
XO
An acoustic signal is heard.
XO
0
0
0
and the timer symbol can be seen flashing in the
control knob display.
XO
After 5 seconds the acoustic signal and the flashing display
are automatically deactivated.
i
The flashing display and acoustic signal can be stopped
early with a touch command on the control knob.
XO
If necessary, the residual heat indicator
H
is then displayed.
XO
The cooking zone is deactivated and the control knob display
shows
0
.
XO
The residual heat indicator
H
appears in the control knob
display if necessary.
6.6.3 Timer function/automatic cut-off
(not on PKT3)
When a cooking zone is in operation, the automatic cut-off on
the timer function automatically switches it off once a preset
time has lapsed.
i
You can set a time range of between 1 and 120 minutes
for the timer functions.
i
When the bridging function is active, the timer is adopted
for both cooking zones.
Activating cooking zone timers
XX
Open the cooktop function menu.
XX
Do the following:
1
2
3
4
Fig. 6.34 Activating cooking zone timers
XO
The timer is activated for the chosen cooking zone.
XO
The control knob display shows the time to be set beginning
at
0
0
0
and the timer symbol .
XO
If no time is set within 4 seconds, the timer is deactivated.
The control knob display goes back to the current cooking
session.
Setting the time and starting the timer
5
6
7
Fig. 6.35 Turning the knob ring clockwise
EN
32
Functions and operation
www.bora.com
Activating the automatic heat up function
XX
Open the cooktop function menu.
XX
Do the following:
1
2
3
4
Fig. 6.37 Activating the automatic heat up function
XO
An acoustic signal is heard, the automatic heat up function is
activated and the corresponding timer counts down.
XO
The heat-up symbol
A
and the set power level are shown in
the control knob display (e.g.
A
5
).
Deactivating the automatic heat up function early
The activated automatic heat up function will end prematurely if
you
XX
reduce the power level (continuous cooking level);
XX
set the power level
9
;
XX
activate the power setting
ßp
;
XX
activate the heat retention level
v
;
XX
switch off the cooktop.
Time lapsed
XO
When the heat up time has lapsed, the previously set
continuous cooking level will be activated.
XO
An acoustic signal is heard.
XO
The heat up symbol will no longer be displayed
6.6.4 Automatic heat up function
(not on PKT3)
When the automatic heat up function is activated, the cooking
zone works at full power for a certain time and is then
automatically reset to the previously set level.
The system automatically determines the heating time
depending on the power level set.
PKFI3, PKI3, PKIW
Power level (continuous cooking
level)
Cooking times in min:sec
1
00:40
2
01:00
3
02:00
4
03:00
5
04:20
6
07:00
7
02:00
8
03:00
Tab. 6.9 Overview of heating times
PKC3, PKCB3, PKCH3
Power level
(continuous cooking level)
Cooking times in
min:sec
1
01:00
2
03:00
3
04:48
4
06:30
5
08:30
6
02:30
7
03:30
8
04:30
Tab. 6.10 Overview of heating times
i
If the cooking zone power level is increased while the
automatic heat up function is active, the automatic heat
up function remains active. The heating time is adjusted
accordingly.
i
If the cooking zone power level is decreased while the
automatic heat up function is active, the automatic heat
up function is deactivated.
Requirement for the automatic heat up function:
XO
cooking session with a power level between 1 and 8.
EN
33
Functions and operation
www.bora.com
6.6.5 Cleaning function (only on PKT3)
The cleaning function adjusts both cooking zones on the Tepan
stainless steel grill to a constant temperature of 70°C, which
is perfect for cleaning. This temperature is then maintained for
10 minutes.
Activating the cleaning function
XX
Open the Tepan stainless steel grill function menu.
XX
Do the following:
1
2
3
Fig. 6.38 Activating the cleaning function
XO
The cleaning function is activated and the Tepan stainless
steel grill is heated to 70°C.
XO
C
is shown on both control knobs and both cooking zone
indicators flash during the warm-up phase.
XO
As soon as the cleaning temperature is reached, the cooking
zone indicators are permanently lit and it is possible to start
cleaning.
i
Do not start cleaning until the optimum cleaning
temperature is reached (also see the Cleaning chapter).
Deactivating the cleaning function
XX
Turn the ring on the control knob on which the cleaning
function was activated anticlockwise.
XO
The cleaning function is deactivated.
XO
The residual heat indicator
H
appears in the control knob
display if necessary.
i
The cleaning function is automatically deactivated after
10 minutes.
i
When the knob ring is turned clockwise, a higher
power level is activated and cleaning must be stopped
immediately (risk of burns).
EN
34
Configuration menu
www.bora.com
7 Configuration menu
Selecting and confirming menu items
XX
Turn the knob ring to the required menu item
(see “Menu overview”).
XX
Tap to confirm.
Making, confirming and saving settings
XX
Turn the knob ring to the desired setting (for setting options
see “Description of menu items”).
XX
Tap to confirm the setting.
i
The system adopts and saves the settings made when
you exit the corresponding menu item or the menu itself.
Closing the menu
i
When navigating the menu, after the last menu item there
is an option
End
to close the menu.
XX
Turn the knob ring to
End
XX
Tap to confirm the selection.
XO
The menu is closed and the standard display appears.
i
If no settings are changed in a menu or submenu item for
2 minutes, the configuration menu is closed automatically
and the display goes out. The settings made are saved
automatically.
7.2 Initial operation
i
When used for the first time, the system mus
t be
configured. It is essential to select the correct settings
from the menu items for the basi
c configuration.
7.2.1 Basic configuration
Menu item
C3
: exhaust air or recirculation mode
(incl. filter unit selection)
Setting Operating mode Filter unit (service life)
0
Exhaust air mode No filter required
1
Recirculation mode ULB1 (200h)
2
Recirculation mode ULB3X (600h) (Factory setting)
3
Recirculation mode ULBF (300h)
Tab. 7.2 Exhaust air or recirculation mode and lter unit
selection
i
In recirculation mode, the correct selection of the filter
unit automatically sets the maximum recirculation filter
service life and adjusts the filter timer accordingly.
Menu overview
Menu item Setting
C0
Acoustic signal volume
C1
Demo mode
C2
Speed of the cover flap motors
C3
Exhaust air/recirculation mode and filter unit
selection
C4
Operation with or without a wall sleeve (only in
exhaust air mode)
C5
Manual operation of the cover flap motors
C6
Switching fan PWM values PKA/PKAS
C7
Installation of left cooktop 0°/180°
C8
Installation of right cooktop 0°/180°
C9
Pause function activated/deactivated
CA
Number of fans installed
Cb
Perform software update
Cc
Perform data export
Cd
Software version indicator
Tab. 7.1 Menu overview
7.1 How to use the menu
Calling up the menu
i
The menu can only be called up when the system is
switched on but all appliances are inactive
(= power level 0).
5s
1
2
3
Fig. 7.39 Calling up the menu
XX
Extra-long press on the cooktop extractor control knob
XO
An animation appears (= prompt to turn)
XX
Turn the ring on the control knob
XO
The menu is called up and the first menu item is displayed.
Explanation of the menu item display (e.g. C23):
Number in middle segment = menu item (100% brightness)
Number in right-hand segment = current setting (50% brightness)
EN
35
Configuration menu
www.bora.com
Menu item
C2
: speed of the cover flap motors
Setting Cover flap speed
0
100%
1
40%
2
46.7%
3
53.4%
4
60%
5
66.7%
6
73.3%
(Factory setting)
7
80%
8
86.7%
9
93.3%
Tab. 7.7 Speed of the cover ap motors
Menu item
C5
: manual operation of the cover flap
motors
Setting Function
0
Leave menu item
1
Opening the cover flap
2
Closing the cover flap
Tab. 7.8 Manual operation of the cover ap motors
i
If setting 1 or 2 is selected in menu item C5, the cover
flap can be manually opened or closed with a long press
on the touch surface of the control knob.
Menu item
C6
: switching fan PWM values
Setting Configuration
0
Fan PWM values
PKA3/PKA3AB
(Factory setting on
PKA3/PKA3AB)
1
Fan PWM values
PKAS3/ PKAS3AB
(Factory setting on
PKAS3/ PKAS3AB)
Tab. 7.9 Switching fan PWM values on PKA3/PKA3AB and
PKAS3/PKAS3AB
Menu item
C7
: installation of left cooktop 0°/180°
Setting Set-up
0
Standard installation
(0° installation)
(Factory setting)
1
Installation rotated by 180°
2
Not connected
Tab. 7.10 Set-up of the left cooktop
Menu item
C8
: installation of right cooktop 0°/180°
Setting Set-up
0
Standard installation
(0° installation)
(Factory setting)
1
Installation rotated by 180°
2
Not connected
Tab. 7.11 Set-up of the right cooktop
Menu item
C4
: operation with or without a wall
sleeve (only in exhaust air mode)
Prerequisite: The exhaust air mode setting was selected in menu
item
C3
.
Setting Wall sleeve
0
Operation without wall sleeve
1
Operation with wall sleeve
(Factory setting)
Tab. 7.3 Operation with or without a wall sleeve
i
If a wall sleeve is used in exhaust air mode, when
activating the cooktop extractor a higher power level is
automatically and temporarily activated so that the wall
sleeve opens properly (wall sleeve function).
Menu item
CA
: number of fans installed
i
If an additional fan is used when the system is installed, it
must be activated in the menu.
Setting Number of fans
1
One fan connected
(Factory setting)
2
Two fans connected
Tab. 7.4 Number of fans installed
7.3 Description of the other menu
items
Menu item
C0
: volume of the acoustic signals
Setting Acoustic signal volume
0
100%
(Factory setting)
1
10%
2
20%
3
30%
4
40%
5
50%
6
60%
7
70%
8
80%
9
90%
Tab. 7.5 Acoustic signal volume
Menu item
C1
: demo mode
i
In demo mode all control knob functions are available
and the electrical cover flap and fan are operative. The
cooktop heating function is deactivated. Demo mode is
used, for example, for exhibitions.
Setting Operating mode
0
Normal operation
(Factory setting)
1
Demo mode
Tab. 7.6 Normal operation or demo mode
EN
36
Configuration menu
www.bora.com
Menu item
C9
: pause function activated/
deactivated
Setting Function
0
Pause function deactivated
1
Pause function activated
(Factory setting)
Tab. 7.12 Pause function activated/deactivated
Menu item
Cb
: software update
XX
Start the software update by touching the display.
Menu item
Cc
: data export
XX
Start the data export by touching the display.
Menu item
Cd
: software version indicator
The software currently used for all connected appliances is
shown:
XO
left cooktop
XO
cooktop extractor
XO
right cooktop
It is shown as follows:
Indicator 1
(appliance)
Indicator 2
(software version)
LFT
xxx (= left interface board software version)
FAn
xxx (= extractor electronics software version)
rit
xxx (= right interface board software version)
Tab. 7.13 software version indicator
The software version indicators appear one after the other.
Cd
is shown in the control knob display.
EN
37
Cleaning and maintenance
www.bora.com
8 Cleaning and maintenance
8.2 Cleaning the cooktop extractor
i
Clean the stainless steel surfaces in the polishing
direction only.
Grease particles and limescale residues from cooking vapours
can settle on the surface and in the extraction system.
XX
Clean the cooktop extractor components in accordance with
the cleaning cycles.
XX
Remove the cover flap, grease filter and filter tray prior to
cleaning.
XX
Clean the surfaces using a soft, damp cloth, detergent or a
mild window cleaning agent.
XX
Soften dried on dirt using a damp cloth (do not scrape it off!).
Cover flap cleaning position
XX
Ensure that the cooktop extractor is switched on but inactive
(= power level 0).
XX
Activate the cleaning function on the cooktop extractor (see
the Functions and operation chapter).
XO
The cover flap opens and the control knob display shows
C
.
XO
The fan motor will not start or will switch off if running.
Removing the cover flap, grease filter and filter tray
i
The grease filter components can only be removed when
the cooktop extractor cleaning function is active.
3
2
1
Fig. 8.1 Removing the grease lter components
[1] Cover flap
[2] Grease filter
[3] Filter tray
XX
Lift the cover flap [1] up to remove it.
XX
Reach into the opening in the cooktop extractor and remove
the grease filter [2] and filter tray [3].
XO
F
F
and
o
v
t
are shown alternately for 1 second in the control
knob display on the cooktop extractor.
XX
Observe all safety and warning information (see the Safety
chapter).
XX
Follow the enclosed manufacturer’s information.
XX
When conducting scheduled cleaning and maintenance,
ensure that the cooktop and cooktop extractor are fully
switched off and cooled so as to prevent injury (see the
Operation chapter).
XO
Regular cleaning and maintenance ensures long service life of
the product and optimal function.
XX
Adhere to the following cleaning and maintenance cycles:
Component Cleaning cycle
Control knob:
Knob ring/knob
housing
Immediately after every soiling
Cooktop extractor:
Cooktop extractor
interior and surface
After cooking very greasy dishes; at least
once a week
Cover flap, grease
filter and filter tray
After cooking very greasy dishes; at least
once a week
Maintenance tray When necessary (in recirculation mode at
the latest when the activated charcoal filter
is replaced)
Activated charcoal
filter (with
recirculation only)
Replace if odours have built up or the
service life has expired (see “Filter service
display”).
Cooktops:
Cooktop Clean well immediately after soiling, using
conventional detergents
Tab. 8.1 Cleaning cycles
8.1 Cleaning agents
i
Due to the use of aggressive cleaning agents and
abrasion caused by the pot bases the surface will
become damaged and dark stains will occur.
XX
Never use steam cleaners, abrasive sponges, scouring pads
or chemically aggressive cleaning agents (e.g. oven cleaner
spray).
XX
Make sure that the cleaning agent does not contain any sand,
soda, acids, lyes or chloride.
Cleaning products for glass ceramic cooktops
To clean the cooktop, you need a special glass ceramic scraper
and suitable cleaning agents.
i
Do not use the glass ceramic scraper in the curved
cooking zone of the wok cooktop.
Cleaning products for the Tepan stainless steel grill
To clean the Tepan stainless steel grill you need a special Tepan
spatula and suitable cleaning agents.
EN
38
Cleaning and maintenance
www.bora.com
i
If the cover flap is not properly installed in its locking
mechanism, it will not close fully.
i
If the grease filter or cover flap are not fitted properly, the
control knob display shows an error message
E
0
1
2
or
E
0
1
3
(see the Troubleshooting chapter).
Removing the maintenance tray
i
The maintenance tray cannot be removed in the following
installation situations: single installation, 2nd adjacent
extractor, adjacent wok cooktop.
i
To remove the maintenance tray, the grease filter and
filter tray must be removed first.
2 1
Fig. 8.4 Removing the maintenance tray
[1] Maintenance tray
[2] Lock
XX
Turn the two levers of the lock [2] outwards 90° to unlock the
maintenance tray [1].
XX
Lift the maintenance tray [1] out of the cooktop extractor.
Installing the maintenance tray
Fig. 8.5 Installing the maintenance tray
Fitting the cover flap, grease filter and filter tray
Fig. 8.2 Fitting the components
XX
If necessary, activate the cooktop extractor cleaning function.
XX
Insert the filter tray in the opening on the extractor.
XX
Insert the grease filter into the opening in the extractor.
XX
Ensure that the grease filter sits correctly in the gap in the
housing.
Fitting the cover flap:
1 2 3
Fig. 8.3 Fitting the cover ap
[1] Extractor opening
[2] Holder
[3] Cover flap
XX
Lay the cover flap [3] on its side next to the extractor opening
[1].
XX
Allow the cover flap [3] to slide diagonally into the holder [2].
XX
Press the ends of the cover flap [3] lightly from above until you
hear them click into place.
XX
Make sure that the cover flap [3] has been fitted correctly.
EN
39
Cleaning and maintenance
www.bora.com
8.3 Cleaning the cooktops
8.3.1 Cleaning glass ceramic cooktops
XX
Make sure that the cooktop is switched off (see the Operation
chapter).
XX
Wait until all cooking zones are cold.
XX
Remove all coarse dirt and food residues from the cooktop
using a glass ceramic scraper.
XX
Apply the cleaning agent to the cold cooktop.
XX
Spread the cleaning agent using kitchen roll or a clean cloth.
XX
Wipe the cooktop clean with a damp cloth.
XX
Dry the cooktop with a clean cloth.
If the cooktop is hot:
XX
remove stubborn residues of plastic, aluminium foil, sugar or
sweet dishes from the hot cooking zone immediately using a
glass ceramic scraper to prevent burning.
Heavy soiling
XX
Remove heavy soiling and marks (limescale marks, mother-
of-pearl-like shiny marks) using cleaning products while the
cooktop is still warm.
XX
Wipe off any food that boils over with a damp cloth.
XX
Remove any remaining dirt with the glass ceramic scraper.
XX
Always remove any seeds, crumbs or similar that fall onto the
cooktop during cooking immediately to prevent the surface
getting scratched.
Any changes in colour or glossy spots do not mean that the
cooktop is damaged. They do not affect the functionality of the
cooktop or the stability of the glass ceramic panel.
Changes in the colour of the cooktop are the result of residues
which have not been removed and have burnt on.
Glossy spots are the result of wear by the pan base, especially
if aluminium-based cookware or unsuitable cleaning agents are
used. These are difficult to remove.
8.3.2 Cleaning Tepan stainless steel grill
surfaces
i
Use the scraper only on the grill surface as otherwise
other surfaces may be damaged.
i
Clean the stainless steel surface in the polishing direction
only.
i
Do not apply citric acid to surfaces adjacent to the
cooktop and worktop as the acid may damage them.
i
Do not use stainless steel care products on the stainless
steel surfaces or the stainless steel grill surface.
XX
Slide the maintenance tray into the cooktop extractor.
XX
Turn the two levers of the lock [2] downwards to lock the
maintenance tray [1].
Cleaning the components
The cover flap, grease filter, filter tray and maintenance tray can
be cleaned by hand or in the dishwasher.
Manual cleaning
XX
Use a cleaner and degreaser in one.
XX
Rinse the components with hot water.
XX
Clean the components with a soft brush.
XX
Rinse the components well after cleaning.
Cleaning in the dishwasher
XX
Wash on a programme with a maximum temperature of 65°C.
XO
The grease filter absorbs the greasy particles from cooking
vapours.
XO
If it is no longer possible to clean the grease filter completely,
it must be replaced.
Ending the cooktop extractor cleaning process
XX
Turn the ring on the cooktop extractor control knob.
XO
The cover flap will open fully.
XO
F
F
and
o
v
t
are shown alternately for 1 second in the control
knob display on the cooktop extractor.
XX
Put the grease filter back in place.
XO
The display changes to
0
and the cooktop extractor is ready
for use.
8.2.1 Replacing the recirculated air filter
In recirculation mode, an additional recirculation filter is used.
The recirculation filter absorbs cooking odours. The recirculation
filter is installed on the plinth fan or the duct system. If a
recirculation filter has reached the end of its service life, the
filter service display will appear and the filter must be replaced.
After replacing the filter, the filter service life must be reset.
XX
Change the recirculation filter when the filter service display
appears.
XO
You can see the service life and a description of how
to change the filter in the recirculation filter operating
instructions.
XX
Reset the filter service display (see the Functions and
operation chapter).
i
You can obtain recirculation filters (activated charcoal
filters) from your specialist supplier or from the BORA
Shop via the website at http://www.mybora.com.
EN
40
Cleaning and maintenance
www.bora.com
8.4 Looking after your cooktops
XX
Never use a cooktop as a work or storage surface.
XX
Do not push or pull cookware over the cooktop.
XX
Always lift pots and pans.
XX
Keep the cooktop clean.
XX
Remove any dirt immediately.
XX
Only use suitable cookware on the appliance (see the
Appliance description chapter).
8.5 Cleaning the control knobs
12
3
Fig. 8.6 Pull out the knob ring
[1] Knob housing
[2] Touch surface
[3] Knob ring
Cleaning the knob ring
The knob ring can only be cleaned by hand.
XX
Remove the knob ring from the knob housing.
XX
Use a cleaner and degreaser in one.
XX
Rinse the knob ring with hot water.
XX
Clean the knob ring with a soft brush.
XX
Rinse the knob ring well after cleaning.
XX
Dry the knob ring carefully.
XX
Place the dry knob ring back on the knob housing.
Cleaning the touch surface and the knob housing
XX
Remove the knob ring.
XX
Clean the touch surface and the knob housing with a soft,
damp cloth.
XX
Dry the touch surface and the knob housing carefully.
XX
Place the knob ring on the knob housing.
Light soiling
XX
Make sure that the appliance is switched off (see the
Operation chapter).
XX
Wait until the stainless steel grill surface has cooled.
XX
Remove light soiling with a damp cloth and detergent.
XX
To prevent water or limescale stains (yellowish colouring), use
a soft cloth to dry off the surfaces that have been cleaned
with water.
Normal soiling
XX
Ensure that the cleaning function is activated for both grilling
zones (see the Operation chapter).
XX
Wait until the grilling zone indicators are no longer flashing (=
optimum cleaning temperature of 70°C).
XX
Use only clean, cold water on the grill surface.
XX
Leave the water to work for 15 minutes.
XX
Then remove all coarse dirt and food residues using a Tepan
spatula.
XX
Remove the remaining dirt and water with a clean cloth.
XX
Dry the appliance with a clean cloth.
Heavy soiling
XX
Ensure that the cleaning function is activated for both grilling
zones (see the Operation chapter).
XX
Wait until the grilling zone indicators are no longer flashing (=
optimum cleaning temperature of 70°C).
XX
Dilute a dessert spoon of citric acid (approx.10 –15ml) in a
bowl of warm water (approx.200ml).
XX
Pour the liquid on the grill surface.
XX
Leave the solution to work for approx. 5–8 minutes.
XX
Loosen burned-on food from the grill surface with a plastic
brush.
XX
Remove all remaining dirt and water (citric acid solution) with
a clean cloth.
XX
Use only clean, cold water on the grill surface.
XX
Remove the remaining dirt and water with a clean cloth.
XX
Dry the cooktop with a clean cloth.
Any changes in colour or small scratches do not mean that the
appliance is damaged. They do not affect the functionality of the
Tepan stainless steel grill or the stability of the stainless steel
grill surface.
Changes in colour are the result of residues which have not been
removed and have burnt on.
EN
41
Troubleshooting
www.bora.com
9 Troubleshooting
XX
Observe all safety and warning information (see the Safety chapter).
9.1 Cooktop extractor troubleshooting
Operating situation Cause Remedy
The cooktop extractor cannot be
switched on
Knob ring missing Slot the knob ring onto the control knob
The fuse or automatic circuit breaker of the electrical
wiring system in the apartment and/or house is
defective
Replace the fuse
Switch the automatic circuit breaker back on
The fuse or the automatic circuit breaker trips
several times.
Contact the BORA Service Team
The power supply is disconnected Have a specialist electrician inspect the power
supply
The micro fuse in the control unit‘s cooling device
plug connection is defective
Replace the fuse (type: T 3.15A/250V)
The fan motor won’t start
The cover flap is not fitted or is fitted incorrectly
Fit the cover flap correctly
The grease filter is not fitted or is fitted incorrectly Fit the grease filter correctly
The fan motor is faulty Contact the BORA Service Team
Build-up of odours when new
cooktop extractor is in operation
This is normal with brand new appliances Odours stop forming after a few operating hours
The central control knob display
shows a segment turning clockwise
Knob ring not in the 0 position after fitting Turn the knob ring to the 12 o’clock position (0
position)
Control knob display
L
The childproofing feature is activated Switch off the childproofing feature (see the
Operation chapter)
Control knob display
/
Continuous operation (8 s) of the control knob or
control knob dirty
Take your finger off the control knob or clean the
knob
Control knob display
E
3
8
1
The Home In contact is interrupted Check the Home In contact cable or bridge
Control knob display
E
3
8
3
The Home In contact is interrupted In exhaust air mode, open the window, for
example
Control knob display
F
The activated charcoal filter service life has come to
an end
Replace the activated charcoal filter, possibly
clean the stainless steel filter, reset the filter
timers (see Cleaning or Operation chapter)
Control knob display
End
An object is obstructing the cover flap Remove the object
The cover flap has not clicked into place in its holder Lightly press the ends of the cover flap from above
until you hear it click into place
The limit switch is faulty or misaligned Contact the BORA Service Team
Loss of power when the cover flap opens or closes Turn the control knob to the “0” position, confirm
with a tap, and the cover flap will close.
Control knob display
E
0
1
1
The grease filter is not fitted or is fitted incorrectly Fit the grease filter correctly
The filter sensor is faulty Contact the BORA Service Team
Control knob displays
E
0
1
2
and
E
0
1
3
The cover flap is not fitted or is fitted incorrectly
Fit the cover flap correctly
The cover flap sensor is faulty Contact the BORA Service Team
Control knob display
E
0
1
9
Error in the touch surface values Turn the control knob to the “0” position
Contact the BORA Service Team
The extraction performance of the
cooktop extractor has decreased
The stainless steel grease filter is heavily soiled
Clean or replace the stainless steel grease filter
The activated charcoal filter is heavily soiled
(recirculation only)
Changing the activated charcoal filter
There is an object in the air guiding housing (e.g.
cleaning cloth)
Remove the object
The fan is defective or a duct connection has
become loose
Contact the BORA Service Team
The cover flap is not completely
open/closed
Movement was stopped by an interruption to the
power supply
Move the cover flap manually to the end position
(see the Installation chapter, table 6.13)
Tab. 9.1 Resolving a fault
EN
42
Troubleshooting
www.bora.com
9.2 Cooktop troubleshooting
Operating situation Cause Remedy
The cooktop cannot be switched on Knob ring missing Slot the knob ring onto the control knob.
The fuse or automatic circuit breaker of the
electrical wiring system in the apartment and/or
house is defective
Replace the fuse
Switch the automatic circuit breaker back on
The fuse or the automatic circuit breaker trips
several times
Contact the BORA Service Team
The power supply is disconnected Have a specialist electrician inspect the power
supply
Odours and vapours are formed
when operating the new cooktop
This is normal with brand new appliances Wait a few operating hours
If odours continue to form, contact the BORA
Service Team
The cooling fan continues to
run when the cooktop has been
switched off
The cooling fan will continue to run until the
cooktop has cooled down and will then switch off
automatically
Wait until the cooling fan switches off automatically
A cooking zone or the entire
cooktop switches off automatically
A cooking zone has been in operation too long Put the cooking zone back into operation (see the
Operation chapter).
The overheating protection has tripped (see the Appliance description chapter)
The power setting is automatically
shut off prematurely
The overheating protection has tripped (see the Appliance description chapter)
Control knob display
L
The childproofing feature is activated Switch off the childproofing feature (see the
Operation chapter)
Control knob display
v
,
No or unsuitable cookware on the cooking zone Only use suitable cookware
Select the cookware size depending on the cooking
zone (see the Appliance description chapter)
Control knob display
/
Continuous operation (8 s) of the control knob or
control knob dirty
Take your finger off the control knob or clean the
knob
Control knob display
E
0
1
9
Error in the touch surface values Turn the control knob to the “0” position
Call the BORA Service Team
Control knob display
E
0
0
2
,
E
0
2
1
,
E
0
5
7
,
E
0
8
2
,
E
0
8
3
Temperature too high Allow the cooktop to cool
Tab. 9.2 Resolving a fault
XX
Acknowledge the error by tapping the control knob.
XX
In all other cases, contact the BORA Service Team (see Warranty, technical service and spare parts chapter) and enter the error
number displayed and the appliance type.
EN
43
Warranty, technical service, spare parts, accessories
www.bora.com
XX
Observe all safety and warning information (see the Safety
chapter).
10.1 BORA manufacturer’s warranty
BORA provides its end customers with a 2-year manufacturer’s
warranty for its products. The end customer is entitled to this
warranty in addition to the statutory claims for defects against
the sellers of our products.
The manufacturer’s warranty applies to all BORA products sold
by authorised BORA dealers or BORA-trained salespeople within
the European Union, with the exception of products labelled by
BORA as Universal products or accessories.
The manufacturer’s warranty starts as soon as the BORA
product is handed over to the end customer by an authorised
BORA dealer and is valid for 2 years. By registering on www.
bora.com/registration the end customer has the possibility of
extending the manufacturer’s warranty.
The manufacturer’s warranty requires expert (in accordance with
the valid BORA ventilation handbook and operating instructions
at the time of installation) installation of the BORA products by
an authorised BORA dealer. During use, the end customer is to
adhere to the specifications and instructions in the operating
manual.
In order to file a warranty claim, the end customer is to notify
their dealer or BORA of the fault and must present the receipt.
Alternatively, the end customer can provide proof of purchase by
registering on www.bora.com.
BORA guarantees that all BORA products are free from material
and product defects. The defect must exist prior to delivery of
the product to the end customer. In the event that a warranty
claim is filed, the warranty shall not commence anew.
BORA will correct defects in BORA products at its own discretion
by repairing or replacing the product. All costs for the correction
of defects under the manufacturer’s warranty shall be assumed
by BORA.
Expressly not covered by the BORA manufacturer’s warranty are:
XO
BORA products that were not sold by authorised BORA dealers
or from BORA-trained salespeople.
XO
Damage caused by non-adherence to the operating
instructions (including product care and cleaning) This
represents improper use.
XO
Damage caused by normal use, e.g. traces of usage on the
cooktop
XO
Damage caused by external influences (such as transport
damage, ingress of condensation, damage caused by the
elements such as a lightning strike)
XO
Damage caused by repairs or attempts to repair not made by
BORA or persons authorised by BORA
XO
Damage to the glass ceramic
XO
Voltage fluctuations
XO
Secondary damage or claims for damages beyond the defect
XO
Damage to plastic parts
Legal claims, such as particularly statutory claims for defects or
product liability are not limited by the warranty.
10 Warranty, technical service, spare parts, accessories
If a defect is not covered by the manufacturer’s warranty, the
end customer can employ the services of the BORA technical
service, however, they must cover the costs themselves.
The laws of the Federal Republic of Germany apply to these
warranty conditions.
You can contact us by:
XO
Telephone: +49 800 7890 0987 Monday to Thursday from
08:00-18:00 and Friday from 08:00-17:00
XO
Email: [email protected]
10.1.1 Warranty extension
You can extend the guarantee by registering at
www.bora.com/registration.
10.2 Service
BORA Service:
see reverse side of operating and assembly instructions
+800 7890 0987
XX
In the case of faults you cannot fix yourself, contact your
BORA specialist supplier or the BORA Service Team.
The BORA Service Team will require the type designation and
serial number of your device (FD number).
Both values are indicated on the rate plate in the warranty insert
and the underside of the device.
10.3 Spare parts
XX
Only use original spare parts for repairs.
XX
Repairs may only be carried out by the BORA Service Team.
i
Spare parts can be obtained from your BORA dealer, the
BORA online service website at www.bora.com/service
or by calling the service number provided.
EN
44
Warranty, technical service, spare parts, accessories
www.bora.com
10.4 Accessories
XO
BORA Pro knob ring PKR3
XO
BORA Pro knob ring All Black PKR3AB
Special accessory for cooktop extraction systems:
XO
BORA Pro Stainless steel grease filter PKA1FF
XO
BORA Pro Cover flap PKA1VK
XO
BORA Pro Cover flap All Black PKA1VKAB
XO
BORA Pro Filter tray PKA1FW
XO
BORA Power supply cable Type I UNLI (AUS)
XO
BORA Power supply cable Type J UNLJ (CH)
XO
BORA Power supply cable Type G UNLG (GB-IE)
XO
BORA window contact switch UFKS
Special accessory for recirculation systems:
XO
BORA air purification box flexible ULBF
XO
BORA activated charcoal filter set ULB3AS for ULB3X
Special accessory for glass ceramic cooktops:
XO
BORA Glass ceramic scraper UGS
Special accessory for PKIW3:
XO
Induction wok HIW1, Controlinduc®, stainless steel,
Ø360 mm
Special accessory for PKT3:
XO
BORA Pro Tepan spatula PTTS1
EN
