Split System Submittal Data
Indoor: CS-MKE24NKU
Multi System Indoor Units - Wall Mounted
Approval:
Date:
Construction:
Unit#:
Drawing#:
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
General Data
Power (V/P/Hz) 208 - 230/1/60
Circuit Ampacity (A) 15
Fuse Size, Max.(A) 20
Running Amps (A) 0.15
Power Input (W) 45
Indoor Unit Cool/Heat
Fan type Cross Flow
Dia & Length (in.) - No. Speeds D3-11/16 L33-9/32 -1
No. Speeds 3 & Auto
No. Poles (RPM, High) 8 - 1300/1300
No. Motors (W) 1-(30)
CFM (HI) 541/541
Operation Sound (HI/Med/Lo/
QT*dB-A)
44/41/38/30 43/40/37/30
Coil Type Aluminum Plate Fin & Copper
Tube
Fin Type - Pipe Type Slit Plate - Inner Rifled
Rows - F.P.I. 2 - 19.5
Face Area (sq.ft.) 3.07
Tube Size (in) 9/32
Drain Connection Size 23/32
Refrigerant R410A
Line Size (in. O.D. Discharge) 1/4” (Flare)
Line Size (in. O.D. Discharge) 5/8” (Flare)

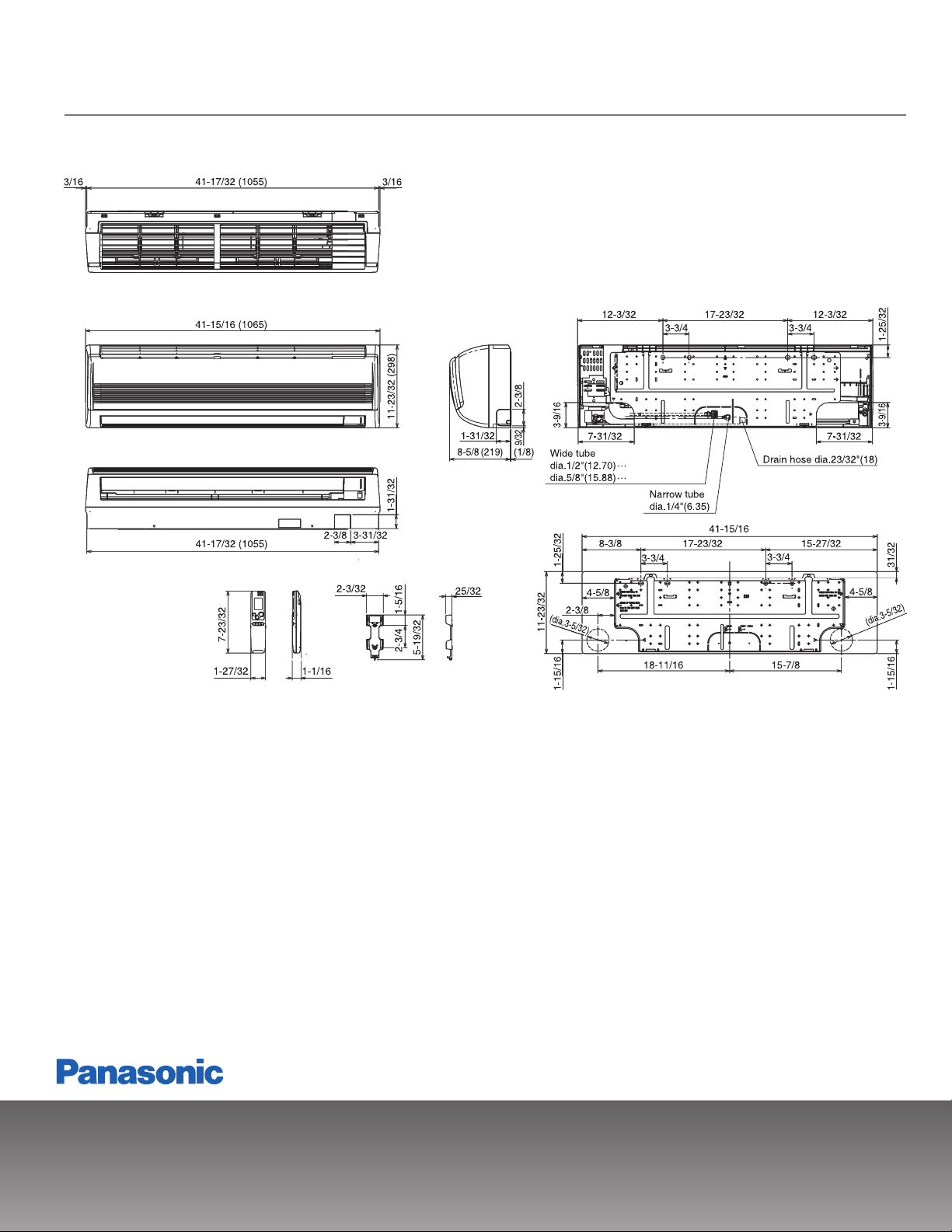

Dimensions (HxWxD)
Indoor Unit (Crated) (in.) 11-3/8 x 44-7/8 x 14-29/32
Indoor Unit (Uncrated) (in.) 11-23/32 x 41-15/16 x 8-19/32
Weight (lbs.) Indoor
Net 26.5
Shipping 33.1
Shipping Volume (cu.ft.) 4.23
Performance Data @ ARI Standard Conditions (230V)
Cooling
Total Capacity (BTU/H) 24200
Moisture Removal (HI, Pint/H) 4.89
Features
Controls Microprocessor
Remote Control LCD Wireless Type, Built-in Temp
Sensor
Temperature Control IC Thermostat
Timer 24 Hr. Program, 1 Hr. Off
Night Setback Built-In
Air Louver, Horizontal Manual
Air Louver, Vertical Automatic
Power Failure Automatic Restart Built-In
Heating/Cooling Automatic
Changeover
Built-In
Self-Diagnosis Built-In
Quiet Operation Built-In
Air Filter Washable, Anti-Mold
Ion Generator N/A
Air Clean Apatite Filer N/A
Option
Refrigerant Line Set Available
Fresh Air Intake N/A
Airduct Extension N/A
Indoor Frame Extension N/A
Condensate Drain Pump Available
Non-Removeable Remo-con
Bracket
Available
Operating Range
Indoor Air Intake Temp
Outdoor Air Intake Temp
Cooling (Max) 95F DB/71F WB 115F DB
Cooling (Min) 67F DB/57F WB 14F DB
Heating (Max) 80F DB/67F WB 75F DB/65F WB
Heating (Min) -DB/-WB 0 DB
Cooling
Total Capacity (BTU/H) 29000
