Kenmore 25377170506 Top Mount Refrigerator

Use & Care Guide - Transcript

• Page 2 - English - : Congratulations important Safety Instructions Congratulations on your purchase of a new refrigerator We here at Sears are very proud of our product and we are completely committed to providing you with the best service possible Your satisfaction is our 1 priority We know youll enjoy your new refrigerator and Thank You for choosing our product We hope you consider us for future purchases PLEASE READ AND SAVE THESE INSTRUCTIONS This Owners Guide provides specific operating instructions for your model Use your refrigerator only as instructed in this manual These instructions are not meant to cover every possible condition and situation that may occur Common sense and caution must be practiced when installing operating and maintaining any appliance Please record your model and serial numbers below for future reference This information is found on the serial plate located inside the refrigerator compartment Please Read All instructions Before Using This Refrigerator FOR YOUR SAFETY Do not store or use gasoline or other flammable liquids inthe vicinity of this or any other appliance Read product labels for warnings regarding flammability and other hazards Do not operate the refrigerator in the presence of explosive fumes Avoid contact with any moving parts of automatic ice maker Remove all staples from the carton Staples can cause severe cuts and also destroy finishes if they come in contact with other appliances or furniture CHILD SAFETY Destroy or recycle the carton plastic bags and any exterior wrapping material immediately after the refrigerator is unpacked Children should NEVER use these items to play Cartons covered with rugs NOTE use only soap and water to clean Serial platel bedspreads plastic sheets or stretch wrap may become airtight chambers and can quickly cause suffocation Model Number 253 or 970 Serial Number Purchase Date PROPER DISPOSAL OF YOUR REFRIGERATOR OR FREEZER Risk of child entrapment Child entrapment and suffocation are not problems of TABLE OF CONTENTS the past Junked or abandoned Welcome 2 Safety Instructions 23 Warranty 3 Protection Agreements 4 InstallationIncludes Connecting Optional Ice Maker To Water Supply 56 Door Removal amp Reversal 78 Features At A Glance 9 Temperature Controls 10 Looking Inside 1113 Ice Service 14 Food Storage amp Energy Saving Tips 15 Normal Operating Sounds amp Sights 16 Care amp Cleaning 1718 Before You Call 19 refrigerators or freezers are still dangerous even if they will sit for quotjusta few daysquot If you are getting rid of your old refrigerator or freezer please follow the instructions below to help prevent accidents Before you throw away your old refrigeratorfreezer Remove doors Leave shelves in place so children may not easily climb inside Have refrigerant removed by a qualified service technician
• Page 3 - English - : Instructionscont KENIVIORE APPLIANCE WARRANTY These Guidelines Must Be FollowedTo EnsureThat OneYear Limited Warranty Safety Mechanisms in This Refrigerator Will When installed operated and maintained according to all operate Properly instructionssupplied with the product ifthis appliance fails due to a defect in material or workmanship within one ELECTRICAL INFORMATION The refrigerator must be plugged into its own dedicated 115 Volt 60 Hz AC only electric outlet The power cord of the appliance is equipped with a threeprong grounding plug for your protection against electrical shock hazards itmust be plugged directly intoa properly grounded threeprong receptacle The receptacle must be installed in accordance with local codes and ordinances Consult a qualified electrician Do not use an extension cord or adapter plug Immediately repair or replace any power cord that becomes frayed or damaged Never unplug the refrigerator by pulling on the power cord Always grip the plug firmly and pull straight out from the receptacle to prevent damaging the power cord Unplug the refrigerator before cleaning and before replacing a light bulb to avoid electrical shock Performance may be affected ifthe voltage varies by 10 or more Operating the refrigerator with insufficient power can damage the compressor Such damage is not covered under your warranty Do not plug the unit into an outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off accidentally Avoid connecting refrigerator toa Ground Fault Interruptor GFI circuit IMPORTANT Turning the refrigerator temperature control to quot0quot turns off the compressor and prevents your refrigerator from cooling but does not disconnect the power to the light bulbs and other electrical componentsTo turn off power to your refrigeratoryou must unplug the power cord from the wall outlet Grounding type wall receptacle fDo not under quot any circumstances cut remove or bypass the grounding prong Power cord with 3prong grounded plug year from the date of purchase call 18004MYHOME to arrange for free repair if this appliance is used for other than private family purposes this warranty applies for only 90 days from the date of purchase This warranty covers only defects in material and workmanship Sears will NOT pay for 1 Expendable items that can wear out from normal use including but not limited to filters belts light bulbs and bags 2 A service technician to instruct the user in correct product installation operation or maintenance 3 A service technician to clean or maintain this product 4 Damage to or failure of this product if it is not installed operated or maintained according to all instructions supplied with the product 5 Damage to or failure of this product resulting from accident abuse misuse or use for other than its intended purpose 6 Damage to or failure of this product caused by the use of detergents cleaners chemicals or utensils other than those recommended in all instructions supplied with the product 7 Damage to or failure of parts or systems resulting from unauthorized modifications made to this product Disclaimer of impliedwarranties limitation ofremedies Customers sole and exclusive remedy under this limited warranty shall be product repair as provided herein implied warranties including warranties of merchantability or fitness for a particular purpose are limited to one year or the shortest period allowed by law Sears shall not be liable for incidental or consequential damages Some states and provinces do not allow the exclusion or limita tion of incidental or consequential damages or limitations on the duration of implied warranties of merchantability or fitness so these exclusions or limitations may not apply to you This warranty applies only while this appliance is used in the United States and Canada This warranty gives you specific legal rights and you may also have other rights which vary from state to state Sears Roebuck and Co Dept 817WA Hoffman Es tates IL 60179 Sears Canada IncToronto Ontario Canada M5B 2B8
• Page 4 - English - : In the USA Master Protection Agreements Congratulations on making a smart purchase Your new Kenmore product is designed and manufactured for years of dependable operation But like all products it may require preventive maintenance or repair from time to time Thats when having a Master Protection Agreement can save you money and aggravation Purchase a Master Protection Agreement now and protect yourself from unexpected hassle and expense The Master Protection Agreement also helps extend the life of your new appliance Heres whats included in the Agreement quot Expert service by our 12000 professional repair specialists Unlimited service and no charge for parts and labor on all covered repairs quot quotNolemonquot guarantee replacement of your covered product if four or more product failures occur within twelve months quot Product replacement if your covered product cant be fixed quot Annual Preventive Maintenance Check at your request no extra charge quot Fast help by phone phone support from a Sears technician on products requiring inhome repair plus convenient repair scheduling quot Power surge protection against electrical damage due to power fluctuations quot Rental reimbursement if repair of your covered product takes longer than promised Once you purchase the Agreement a simple phone call is all that it takes for you to schedule service You can call anytime day or night or schedule a service appointment online Sears has over 12000 professional repair specialists who have access to over 45 million quality parts and accessories Thats the kind of professionalism you can count on to help prolong the life of your new purchase for years to come Purchase your Master Protection Agreement today Some limitations and exclusions apply For prices and additional information call 18008276655 Sears Installation Service For Sears professional installation of home appliances and items like garage door openers water heaters and other major home items in the USA call 18004MYHOME In Canada Maintenance Agreements Your purchase has added value because you can depend on Sears HomeCentral for service With over 2400 Service Technicians and more than a million parts and accessories we have the tools parts knowledge and skills to back our pledge We Service What We Sell Your Kenmore product is designed manufactured and tested to provide years of dependable operation But like all products it may require service from time to time The Sears Maintenance Agreement offers you an outstanding service program affordably priced The Sears Maintenance Agreement Is your way to buy tomorrows service at todays price Eliminates repair bills resulting from normal wear and tear Provides phone support from a Sears technician on products requiring inhome repair Even if you dont need repairs provides an annual Preventive Maintenance Check at your request to ensure that your product is in proper running condition Some limitations apply For more information about concerning Sears Canada Maintenance Agreements call 18003616665
• Page 5 - English - : This Use amp Care Manual provides specific operating instructions for your model Use the refrigerator only as instructed in this Use amp Care Manual Before starting the refrigerator follow these important first steps LOCATION Choose a place that is near a grounded electrical outlet Do Not use an extension cord or an adapter plug If possible place the refrigerator out of direct sunlight and away from the range dishwasher or other heat sources The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator Consider water supply availability for models equipped with an automatic ice maker INSTALLATION Do Not install the refrigerator where the temperature will drop below 55F 13C or rise above 110F 43C At these temperature extremes the compressor will not be able to maintain proper temperatures inside the refrigerator Do Not block the toe grille on the lower front of your refrigerator Sufficient air circulation is essential for the proper operation of your refrigerator Installation Clearances Allow the following clearances for ease of installation proper air circulation and plumbing and electrical connections Sides amp Top 38quot Back 1quot NOTE Ifyou see black coilstubing on the back of your refrigerator aircooled condenser leave 3quot clearance at top of refrigerator DOOR OPENING NOTE If your refrigerator is placed with the door hinge side against a wall you may have to alow additional space so the door can be opened wider Your refrigerator should be positioned to allow easy access to a counter when removing food To make this possible the direction in which the doors open can be reversed See Door Removal amp Reversal Instructions on page 7 LEVELING All four corners of your refrigerator must rest firmly on a solid floor Your refrigerator is equipped with adjustable front rollers or front leveling screws to help level your unit To Level Your Refrigerator 1 Remove toe grille 2 Use flatblade screwdriver or 38quot socket wrench to adjust front rollers Use adjustable wrench to adjust eveling screws NOTE Raise the front of the refrigerator enough so the doors close freely when opened halfwayThe refrigerator should slope ¼quot to W from front to backTqen level the refrigerator from side to side Raise o C Adjustable Front Roller some models Stationary Front Roller with Leveling Screw some models
• Page 6 - English - : lrtstallatiort Connecting Optional Ice Maker To Water Supply To avoid electric shock which can cause death or severe personal injury disconnect the refrigerator from eJectrical power before connecting a water supply line to the refrigerator To Avoid Property Damage Copper tubing is recommended for the water supply line Water supply tubing made of W plastic is not recommended since it greatly increases the potential for water leaks Manufacturer will not be responsible for any damage if plastic tubing is used for supply line DO NOT install water supply tubing in areas where temperatures fall below freezing Chemicals from a malfunctioning softener can damage the ice maker if the ice maker is connected to soft water ensure that the softener is maintained and working properly IMPORTANT Ensure that your water supply line connections comply with all local plumbing codes Before Instalfing The Water Supply Line You Will Need BasicTools adjustable wrench flatblade screwdriver and Phillips TM screwdriver Access to a household cold water line with water pressure between 30 and 100 psi A water supply line made of tA inch 64 mm OD copper tubing or braided water line To determine the length of copper tubing needed you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe Then add approximately 7 feet 21 meters so the refrigerator can be moved out for cleaning as shown A shutoff valve to connect the water supply line to your household water system DO NOT use a selfpiercing type shutoff valve A compression nut and ferrule sleeve for connecting the water supply line to the ice maker inlet valve NOTE A water line kit is available from sears stores or sears Parts amp Repair at an additional cost To Connect Water Supply Line To Ice Maker Inlet Valve 1 Disconnect refrigerator from electric power source 2 Place end of water supply line into sink or bucket Turn ON water supply and flush supply line until water is clear Turn OFF water supply at shut off valve 3 Unscrew plastic cap from water valve inlet and discard cap 4 Slide brass compression nut then ferrule sleeve onto water supply line as shown 5 Push water supply line into water valve inlet as far as it will go tA inch Slide ferrule sleeve into valve inlet and finger tighten compression nut onto valve Tighten another half turn with a wrench DO NOT over tighten 6 With steel clamp and screw secure water supply line to rear panel of refrigerator as shown 7 Coil excess water supply line about 2t2turns behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface 8 Turn ON water supply at shutoff valve and tighten any connections that leak 9 Reconnect refrigerator to electrical power source 10 Toturn ice maker on lower wire signal arm see ice maker front cover for ON OFF position of arm Plastic Water Tubing to Ice Maker JSteel Clamp Brass Compression Nut Ferrule Sleeve quotCopper water line from household water supply Include enough tubing in loop to allow moving refrigerator out for cleaning IMPORTANTI t takes approximateY 24 hours for the ice maker to begin producing ice Air in new plumbing lines may cause ice maker to cycle two er three times before making a fultray of ice New plumbing may cause iceto be discolored or have poor flavor Discard ice made during the first 24 hoursl
• Page 7 - English - : Door Removal and Reversal instructions Door Stop Handle Hitge Bottom Scr Cente ge tlnge Scre ToolsNecessary Ph DS neaa Of uadrex neaa screwanver woncn Sot Top H nge Screw3s Cover Cabinet Hole Plugs Hinge Hole Handle Hole Plug Door Door Washer Hinge Pin Door Stop Door Screw JStop Hinge DOOR REMOVAL AND REVERSAL INSTRUCTIONS NOTE If your refrigerator is a stainless steel model eversing the doors is not possible unless you order new doors from the factory The direction inwhich your refrigerator doors open can be reversed by moving the door hinges from one side to the other Reversing the door swing should be performed by a qualified person IMPORTANT Before you begin turn the refrigerator temperatu quotecontrol to quot0quot and remove the electrical power cord from the wall outlet Remove any food from door shelves 1 Remove toe grille and top hinge cover 2 Remove top hinge with 38quot hex driver and lift freezer door off of center hinge pin Set door aside 3 Unscrew center hinge pin using adjustable wrench and save for reassembly Ensure plastic washer stays on hinge pin 4 Lift refrigerator door off of bottom hinge and set aside 5 Remove center hinge and shim by removing inside screw and loosening two outside screws enough to allow hinge and shim to slide out Tighten screws 6 Loosen two outside screws on opposite side of refrigerator remove inside screw and install center hinge 7 Remove two screws on bottom hinge with 38 socket wrench 8 Install bottom hinge on opposite side with the two screws removed from step 7 9 Unscrew bottom hinge pin using adjustable wrench Move hinge pin to other hole in hinge and tighten with adjustable wrench 10 Reverse door handles see instructions on next page 11 Move freezer and refrigerator door stops to opposite side Before starting screws use an awl to puncture the foam 12 Position refrigerator door onto bottom hinge pin and screw center hinge pin through center hinge into top of door Close refrigerator door to help align hinge hole 13 Tighten center hinge pin with adjustable wrench 14 Remove cabinet and hinge hole plugs and move to opposite side 15 Lower freezer door onto center hinge pin 16 Close freezer door Have an assistant lift up on opposite side ol door while tightening screws to install top hinge 17 Replace toe grille and top hinge cover 18 Plug inelectrical power cord and turn refrigerator temperature control to center position Adjust setting as necessary

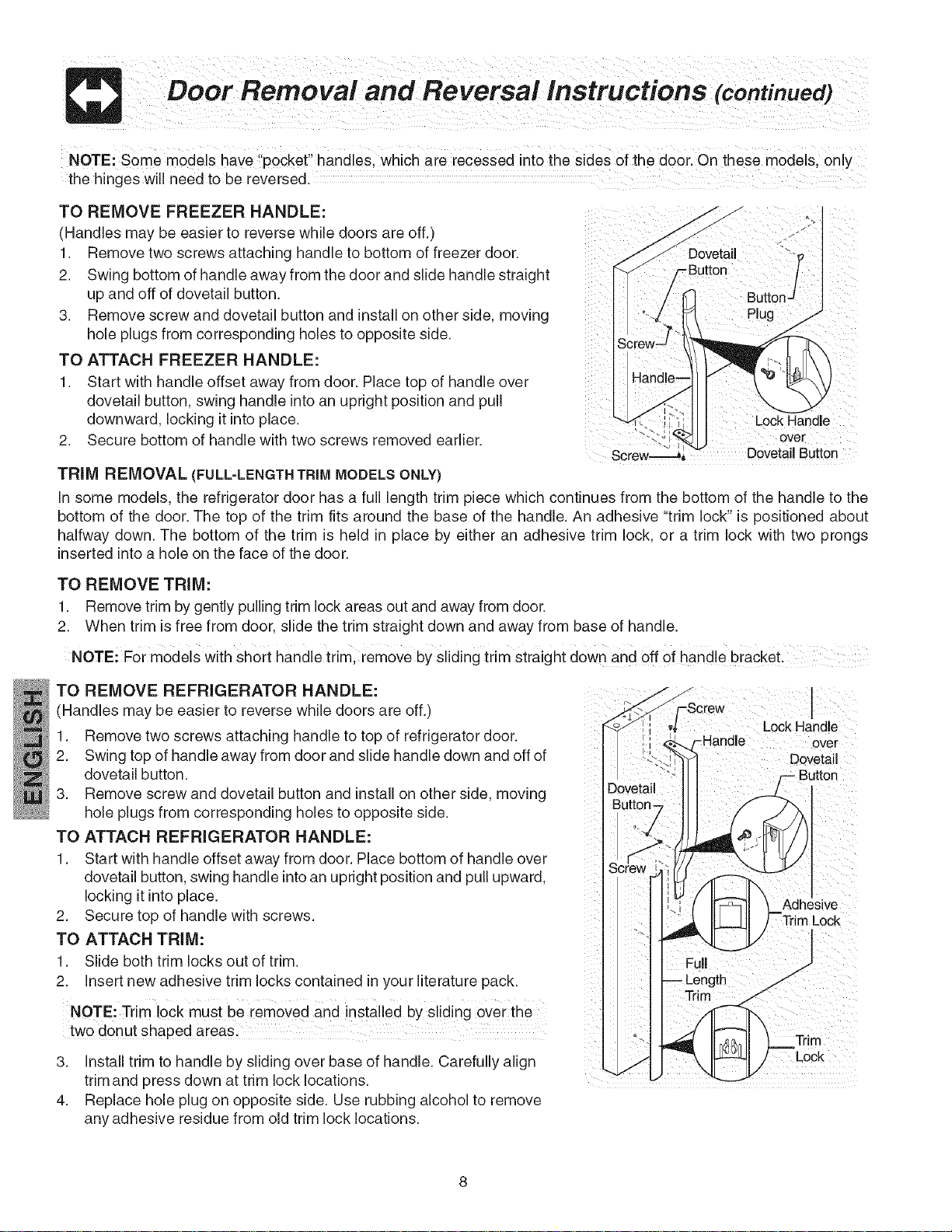

• Page 8 - English - : Door Removal and Reversal instructions continued NOTE Some models have quotpocketquot handles which are recessed into the sides oi the door On these models only the hinges will need to be reversed TO REMOVE FREEZER HANDLE Handles may be easier to reverse while doors are off 1 Remove two screws attaching handle to bottom of freezer door 2 Swing bottom of handle away from the door and slide handle straight up and off of dovetail button 3 Remove screw and dovetail button and install on other side moving hole plugs from corresponding holes to opposite side TO ATTACH FREEZER HANDLE 1 Start with handle offset away from door Place top of handle over dovetail button swing handle into an upright position and pull downward locking it into place 2 Secure bottom of handle with two screws removed earlier LockHandle over DovetailButton TRIM REMOVAL FULLLENGTH TRIM MODELS ONLY In some models the refrigerator door has a full length trim piece which continues from the bottom of the handle to the bottom of the door The top of the trim fits around the base of the handle An adhesive quottrim lockquot is positioned about halfway down The bottom of the trim is held in place by either an adhesive trim lock or a trim lock with two prongs inserted into a hole on the face of the door TO REMOVE TRIM 1 Remove trim by gently pulling trim lock areas out and away from door 2 When trim is free from door slide the trim straight down and away from base of handle NOTE F0r models with short handle triml rem0ve by Sliding trim straight down and eft Ofhandle bracket TO REMOVE REFRIGERATOR HANDLE Handles may be easier to reverse while doors are off 1 Remove two screws attaching handle to top of refrigerator door 2 Swing top of handle away from door and slide handle down and off of dovetail button 3 Remove screw and dovetail button and install on other side moving hole plugs from corresponding holes to opposite side TO ATTACH REFRIGERATOR HANDLE 1 Start with handle offset away from door Place bottom of handle over dovetail button swing handle into an upright position and pull upward locking it into place 2 Secure top of handle with screws TO ATTACH TRIM 1 Slide both trim locks out of trim 2 Insert new adhesive trim locks contained in your literature pack NOTE Trim lock must be removed and installed bySliding over the two donut shaped areas 3 install trim to handle by sliding over base of handle Carefully align trim and press down at trim lock locations 4 Replace hole plug on opposite side Use rubbing alcohol to remove any adhesive residue from old trim lock locations Lock Handle over Dovetail
• Page 9 - English - : FeaturesAtAGlance Ice Maker Ice Bucket Freezer Shelf Freezer Control Refrigerator Control Deli Drawer Cover Dell Drawer Half Shelf Wine Rack Full Special item Mid Level Lic Crisper Crisper Drawers Freezer Light F Fixed Door Bin Door Rack Dairy Door Tall Bottle Retainer Snugger Door Bin Fixed Door Bin Door Rack Features may vary according to model

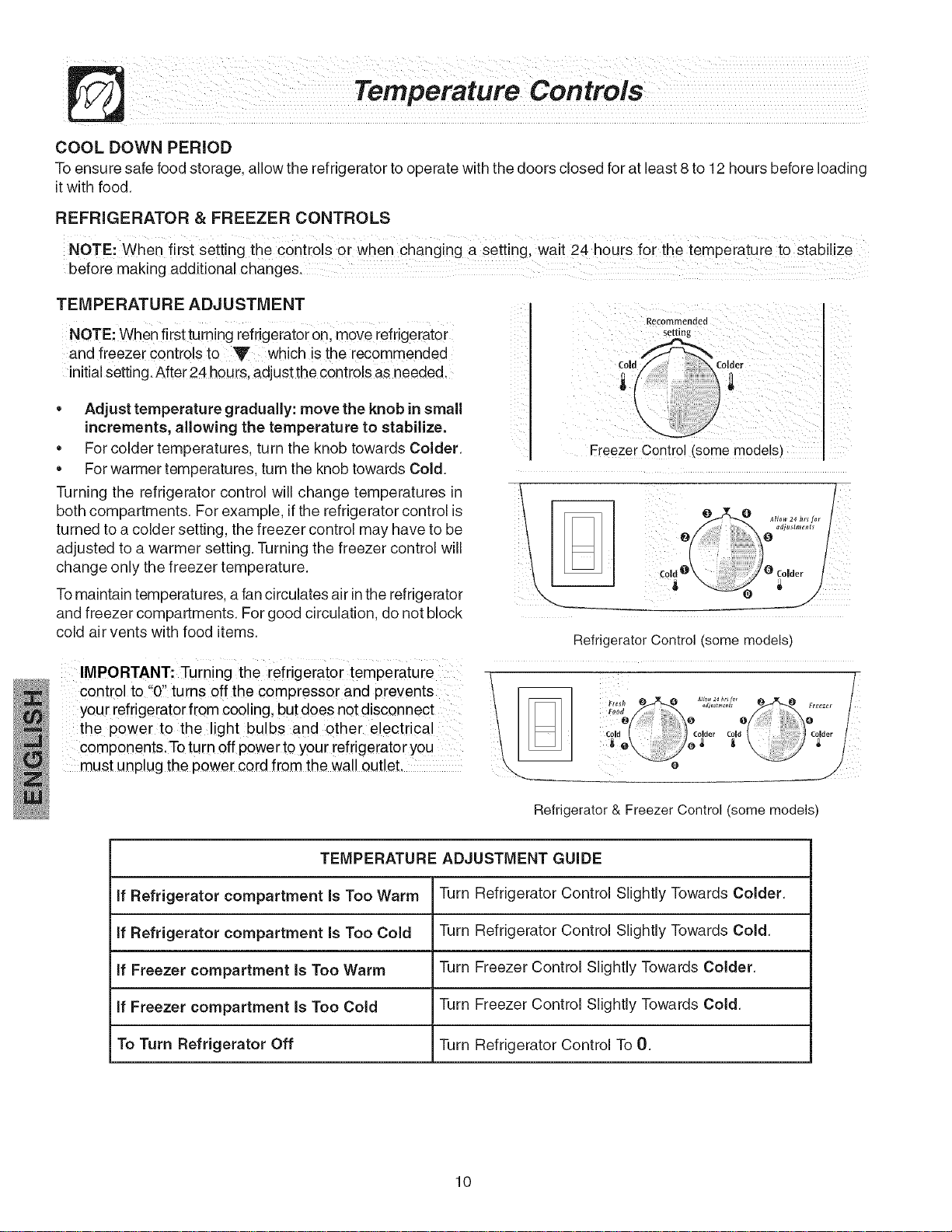

• Page 10 - English - : COOL DOWN PERIOD To ensure safe food storage allow the refrigerator to operate with the doors closed for at Jeast8 to t 2 hours before loading it with food REFRIGERATOR amp FREEZER CONTROLS NOTE When first setting the controls or when changing a setting wait 24 hours for the temperature to stabilize before making additional changes TEMPERATURE ADJUSTMENT NOTE When first turning refrigerator on move refrigerator and freezer controls to V which is the recommended initial setting After 24 hours aajust the controls as needed Recommelldec etlng Adjust temperature gradually move the knob in small increments allowing the temperature to stabilize For colder temperatures turn the knob towards Colder For warmer temperatures turn the knob towards Cold Turning the refrigerator control will change temperatures in both compartments For example ifthe refrigerator control is turned to a colder setting the freezer control may have to be aajusted to a warmer setting Turning the freezer control will change only the freezer temperature Tomaintain temperatures a fan circulates air inthe refrigerator and freezer compartments For good circulation do not block cold air vents with food items Freezer Contro isome models Refrigerator Control some models IMPORTANT Turning the refrigerator temperature 1 0ntrl t quot0i turns ff the cmpress0r and prevents o e oe e your refrigerator from cooing but does not disconnect k e quot the POWer to the light bulbs and other electrica Cod ode Cot eder comP0nentsTo turn off power to your refrigerator you e must unplug the power cord from the wal outlet Refrigerator amp Freezer Control some models TEMPERATURE ADJUSTMENT GUIDE If Refrigerator compartment Is Too Warm Turn Refrigerator Control Slightly Towards Colder If Refrigerator compartment Is Too Cold Turn Refrigerator Control Slightly Towards Cold If Freezer compartment Is Too Warm Turn Freezer Control Slightly Towards Colder If Freezer compartment Is Too Cold Turn Freezer Control Slightly Towards Cold To Turn Refrigerator Off Turn Refrigerator Control To 0
• Page 11 - English - : ToavoidPersoa njuryOrpropertydamagehaquotde tempered glass shelves carefully Shelves may break suddenly if nicked scratched or exposed to sudden temperature change SHELF ADJUSTMENT Refrigerator shelves are easily adjusted to suit individualneeds Before adjusting the shelves remove all food To adjust sliding shelves O Remove shelf by pulling forward to stop position O Lift front edge up and pull out Replace the shelf on any pair of rails in opposite order and manner of removal To adjust cantilever shelves NOTE Cantilever shelves aie supported at the back of the refrigeratoil Cantilever shelves are available in either glass or wire Lift front edge up Pull shelf out Replace the shelf by inserting the hooks at rear of the shelf into the wall bracket Lower the shelf into the desired slots and lock into position SpillProoff Mglass shelves some models catch and hold accidental spills In some models the SpillProof TM shelves slide out for easy access to food and for fast cleaning The shelves slide out independently of the cantilever brackets Just pull the front of the shelf forward The shelf can be extended as far as the stopper will allow but it is not removable from the cantilever bracket Sliding Wire Shelf Sliding Glass Shelf Full Width Cantilever Glass Shelf Cantilever Glass Shelf Fixed and Sliding
• Page 12 - English - : iD i Loo og s oo o i iiiiiiI i i DOOR STORAGE Door bins shelves and racks are provided for convenient storage of jars bottles and cans Frequently used items can be quickly selected Some models have door racks or bins that can accommodate gallonsized plastic drink containers and economysized jars TALL BOTTLE RETAINER SOME MODELS The Tall Bottle Retainer keeps tall containers in the bin from falling forward when opening or closing the refrigerator door To install hold the retainer at the top and slide it over the outside wall of the bin as shown in the diagram The Tall Bottle Retainer works best with a Bin Snugger and containers Some racks are adjustable for maximum storage capacity The dairy compartment which is warmer than the general food storage section is intended for short term storage of cheese spreads or butter Door Rack ADJUSTABLE DOOR BINS Some models have adjustable door bins that can be moved to suit individual needs Tomove door bins 1 Lift bin straight up 2 Remove bin 3 Place bin in desired position 4 Lower bin onto supports until locked in place i iiiiiiiiiiiiiiiiiiiiiii Tall Bottle Retainer left and Bin Snugger right SPECIAL ITEM RACK SOMEMODELS The innovative design of the Special Item Rack allows you to store a sixpack of t 2 ounce drink cans a bottle of wine a twoliter soft drink bottle or a carton of eggs The Special Item Rack mounts on the left side of your refrigerator To install just slide the Special Item Rack onto any shelf as shown in the drawing Special Item Rack Adjustable Door Bin
• Page 13 - English - : CRISPERSSOMEMODELS Thecrisperslocatedunderthebottomrefrigeratorshelf aredesignedforstoringfruitsvegetablesandotherfresh produceWashitemsinclearwaterandremoveexcess water before placing them in the crispers Items with strong odors or high moisture content should be wrapped before storing DELl DRAWER SOME MODELS Some models are equipped with a Dell Drawer for storage of luncheon meats spreads cheeses and other deli items Dell Drawer Crisper Drawer HUMiDiTY CONTROL SOME MODELS The Humidity Control present on some models with crisper drawers allows you to adjust the humidity within the crisper This can extend the life of fresh vegetables that keep best in high humidity NOTE Leafyvegetables keep best when stored with the Humidity Control set on High Humidity or in a drawer without a Humidity Control This keeps tncomingair to a minimum and maintains maximum moisture content WiNE RACK SOME MODELS There are two different style Wine Racks See A and B below The Wine Rack stores bottles of wine or single two liter plastic bottles ofjuice or soda pop To install slide Wine Rack A onto the shelf with the curve facing inTo remove slide the Wine Rack out install on either side of shelf The Wire Wine Rack B simply sets on the shelf Low Humidity gh Humidit Wine Racks Crisper Humidity Control
• Page 14 - English - : Ice Service If your refrigerator has an automatic ice maker it will provide a sufficient supply of ice for normal use During the initial startup of your refrigerator however no ice will be produced during the first 24 hours of operation Automatic ice makers are also optional accessories that may be installed in most models at any time Call your local dealer for information The ice maker produces 2 to 5 pounds of ice every 24 hours depending on usage conditions Ice is produced at a rate of 8 cubes every 80to 160 minutes TURNING YOUR iCE MAKER ON After the plumbing connections have been completed the water supply valve must be opened Place the ice container under the ice maker pushing it as far back as possible Lower the wire signal arm to its quotdownquot or ON position New plumbing connections may cause the first production of ice cubes to be discolored or have an odd flavor These first cubes should be discarded until the cubes produced are free of discoloration and taste TURNING YOUR iCE MAKER OFF To stop the ice maker lift the wire signal arm until it clicks and locks in the quotupquot or OFF position The ice maker also turns off automatically when the ice container is full If your model has an adjustable freezer shelf place the shelf in the lower position so that the wire signal arm will hit the ice when the container is full ON Signal Arm L Ice Maker iMPORTANT Your ice maker is Shipped Withthe wire signal arm in theON position To ensure pr0peiiunCtion of your ice maker hook up water supply immediately or turn ice maker OFF by lifting the wire signal arm until it clicks Chemicals from a malfunctioning softener can damage the ice maker ifthe ice maker is connected to soft water ensure that the softener is maintained and working properly ICE MAKER TiPS Ice cubes stored too long may develop an odd flavor Empty the ice container and ensure that the wire signal arm is in its quotdownquot or ON position The ice maker will then produce more ice Occasionally shake the ice container to keep ice separated Keep the wire signal arm in its quotupquot or OFF position until the refrigerator is connected to the water supply also OFF whenever the water supply is turned off The following sounds are normal when the ice maker is operating Motor running Ice loosening from tray Ice dropping into ice container Running water Water valve opening or closing NOTE For more information on these operations see Normal Operating Sounds and Sights section on page 16 Not place the ice container in your dishwasher Wash the ice container in warm water with mild detergent Rinse well and dry Stop the ice maker when cleaning the freezer and during vacations If the ice maker will be turned off for a long period of time turn the water supply valve to the closed position
• Page 15 - English - : FOODSTORAGEIDEAS Fresh Food Storage The fresh food compartment should be kept between 34 F and 40 F with an optimum temperature of 37 F Avoid overcrowding the refrigerator shelves This reduces the circulation of air around the food and results in uneven cooling Fruits and Vegetables Storage in the crisper drawers traps moisture to help preserve the fruit and vegetable quality for longer time periods Meat Raw meat and poultry should be wrapped secu rely so leakage and contamination of other foods or surfaces does not occur Frozen Food Storage The freezer compartment should be kept at 0 F or lower A freezer operates most efficiently when it is at least 23 full Packaging Foods for Freezing Tominimize dehydration and quality deterioration use aluminum foil freezer wrap freezer bags or airtight containers Force as much air out of the packages as possible and seal them tightly Trapped air can cause food to dry out change color and develop an offflavor freezer burn Wrap fresh meats and poultry with suitable freezer wrap prior to freezing Do not refreeze meat that has completely thawed Loading the Freezer Avoid adding too much warm food to the freezer at one time This overloads the freezer slows the rate of freezing and can raise the temperature of frozen foods Leave a space between the packages so cold air can circulate freely allowing food to freeze as quickly as possible Avoid storing hardtofreeze foods such as ice cream and orange juice on the freezer door shelves These foods are best stored in the freezer interior where the temperature varies less ENERGY SAVING IDEAS Locate the refrigerator in the coolest part of the room out of direct sunlight and away from heating ducts or registers Do not place the refrigerator next to heatproducing appliances such as a range oven or dishwasher If this is not possible a section of cabinetry or an added layer of insulation between the two appliances will help the refrigerator operate more efficiently Level the refrigerator so that the doors close tightly Refer to this Use amp Care Manual for the suggested temperature control settings Periodic cleaning of the condenser will help the refrigerator run more efficiently See the Care and Cleaning Chart on page 17 Do not overcrowd the refrigerator or block cold air vents Doing so causes the refrigerator to run longer and use more energy Cover foods and wipe containers dry before placing them in the refrigerator This cuts down on moisture buildup inside the unit Organize the refrigerator to reduce door openings Remove as many items as needed at one time and close the door as soon as possible
• Page 16 - English - : UNDERSTANDING THE SOUNDS YOU MAY HEAR Your new highefficiency refrigerator may make unfamiliar sounds These are all normal sounds and soon will become familiar to you They also indicate your refrigerator is operating as designed Hard surfaces such as vinyl or wood floors walls and kitchen cabinets may make sounds more noticeable Listed below are descriptions of some of the most common sounds you may hear and what is causing them A Evaporator The flow of refrigerant through the evaporator may create a boiling or gurgling sound B Evaporator Fan You may hear air being forced through the refrigerator by the evaporator fan C Defrost Heater During defrost cycles water dripping onto the defrost heater may cause a hissing or sizzling sound After defrosting a popping sound may occur NOTE Rigid foam insulation is very energy efficient but is not a sound insulator IMPORTANT During the aut0matic defrost cYcle you may notice a red glow in the vents on he back wa of your freezer c0mPartment This is norma during the defrost cycle D Automatic ice Maker If your refrigerator isequipped with an automatic ice maker you will hear ice cubes falling into the ice bin E Cold Control amp Defrost TimerAutomatic Defrost Control These parts can produce a snapping or clicking sound when turning the refrigerator on and off The timer also produces sounds similar to an electric clock F Condenser Fan If condenser coils are located underneath your refrigerator as shown in the drawing at the left you have a condenser fan You may hear air being forced through the condenser by the condenser fan G Compressor Modern highefficiency compressors operate much faster than older models The compressor may have a highpitched hum or pulsating sound H Water Valve If your refrigerator is equipped with an automatic ice maker you will hear a buzzing sound as the water valve opens to fill the ice maker during each cycle I Drain Pan Nonremovable You may hear water running into the drain pan during the defrost cycle The drain pan will be located on top of the compressor for aircooled condensers black coils on back of refrigerator J Condenser Coils Fancooled models only
• Page 17 - English - : Always unplug the electrical power cord from the wall outlet before cleaning Keep your refrigerator and freezer clean to prevent odor buildup Wipe up any spills immediately and clean both sections at least twice a year Never use any type of scouring pads brushes abrasive cleaners or strong alkaline solutions on any surface Do not wash any removable parts in a dishwasher When moving the refrigerator pull straight out Do not shift the refrigerator from side to side as this may tear or gouge the floor covering ifthe refrigerator has an automatic ice maker be careful not to move the refrigerator beyond the plumbing connections Damp objects stick to cold metal surfaces Do not touch refrigerated surfaces with wet or damp hands To avoid damage and help the refrigerator run as efficiently as possible clean the condenser periodically Never use CHLORIDE to clean stainless steel NOTES Turning the refrigerator temperature control toquot0quotturns off the compressor but does not disconnect electrical power to the light bulb or other electrical components Do not use razor blades or other sharp instruments which can scratch the appliance surface when removing adhesive labels Any glue leftfrom tape or labels can be removed with a mixture of warm water and mild detergent or touch the glue residue with the sticky side of tape you have already removed Do not remove the serial plate Care amp Cleaning Table Part What To Use Tips and Precautions InteriorDoor Soap and water Use 2 tablespoons of baking soda in 1 quart of warm water Be sure to wring excess water out of sponge or cloth before Liner Baking soda and water cleaning around controls light bulb or any electrical part Door Gaskets Soap and water Wipe gaskets with a clean soft cloth DrawersBins Soap and water Do not wash any removable items bins drawers etc in dishwasher Glass Shelves Soap and water Allow glass to warm to room temperature before immersing in Glass cleaner warm water Mild liquid sprays Toe Grille Soap and water Vacuum dust from front of toe grille Remove toe grille See Mild liquid sprays illustration on page 5 Vacuum backside and wipe with sudsy Vacuum attachment cloth or sponge Rinse and dry Exterior and Soap and water Do not use commercial household cleaners ammonia or alcohol Handles to clean handles Exterior and Never use CHLORIDE to clean stainless steel Soap and Handles water Ammonia Clean stainless steel front and handles with soapy water Use Stainless Stainless Steel ammonia on stubborn spots Use a nonabrasive stainless steel Steel Models Cleaners cleaner These cleaners can be purchased at most home Only improvement or major department stores Condenser Condenser Cleaning No need to clean unless operating refrigerator under particularly Coils Brush is available from dusty or greasy conditions or if there is significant pet traffic in Fancooled your dealer your home If cleaning is necessary remove toe grille and use models only Vacuum Cleaner extended vacuum attachment and condenser cleaning brush to remove dust buildup from condenser coils see item quotJquot in illustration on page 16 for location Condenser Coils Vacuum Cleaner Use the dusting tool attachment on your vacuum to remove dust buildup on the condenser coils black tubes and wires attached Aircooled to the back of aircooled refrigerators only models only Defrost Water Soap and water Some models have defrost water pan located on top of Pan compressor at bottom rear of refrigerator see illustration on next page Remove access panel at rear of refrigerator and wipe water pan with damp cloth NOTE The defrost water pan is NOT removable
• Page 18 - English - : wear gloves tO aVoid Cuts When replacing light bulbs REPLACING THE FREEZER LIGHT BULB SOME MODELS 1 Unplug refrigerator 2 Wear gloves as protection against possible broken glass 3 Unsnap light shield as shown 4 Unscrew and replace old bulb with an appliance bulb of the same wattage 5 Replace light shield 6 Remember to plug the refrigerator back in Freezer Light Cover Removal Defrost Watt Nonremovable Defrost Water Pan some models Cover Refrigerator MidLevel Light Cover Removal Vacation and Moving Tips Short Vacations Long Vacations Moving Leave refrigerator operating during vacations of 3 weeks or less Use all perishable items from refrigerator compartment before leaving on vacation Turn automatic ice maker off even if you will only be gone for a few days Remove all food and ice if you will be gone one month or more Turn controls to quot0quot and disconnect power unplug refrigerator from electrical outlet Turn off automatic ice maker and turn water supply valve to closed position Clean interior thoroughly Leave both doors open to prevent odors and mold buildup Block doors open if necessary Remove all food and ice If using handcart load from side Adjust front rollers all the way up to protect them during sliding or moving Pad cabinet to avoid scratching surface
• Page 19 - English - : See ATTENTI To Properly Install Your Refrigerator See quotInstallationquot Section On Pages 56 OR To Reverse The Doors quotDoor Removal amp Reversalquot Section On Pages 78 Before You Call Common Before calling for service review this list It may save you time and expense This list includes common occurrences that are not the result of Occurrences defective workmanship or materials in this appliance Ensure plug is tightly pushed into electrical outlet Checkreplace fuse with a 15 amp timedelay fuse Reset circuit Refrigerator does not run breaker The temperature control is turned to quotOquot Refrigerator may be in defrost cycle Wait 20 minutes and check again Freezer temperature too cold Set freezer control to a warmer setting until freezer temperature is Refrigerator temperature is satisfactory Allow 24 hours for the temperature to stabilize satisfactory Refrigerator temperature too cold Set refrigerator control to a warmer setting Allow 24 hours for Freezer temperature is temperature to stabilize Then check freezer temperatures and adjust satisfactory as needed The cabinet is not level Refrigerator is noisy or vibrates Floor is weak Interior needs to be cleaned Odors in refrigerator Foods that produce odors should be covered or wrapped Replace light bulb Ensure plug is tightly pushed into electrical outlet Cabinet light not working Light switch may be stuck Push in light switch located on the refrigerator control box to release Ensure the Wire Signal Arm is not in UP position Automatic ice maker not working some models Ice maker should produce 4 to 5 pounds of ice in a 24 hour period Water supply is turned off Water pressure is too low The freezer is not cold enough See Normal Operating Sounds and Sights section on page 16
