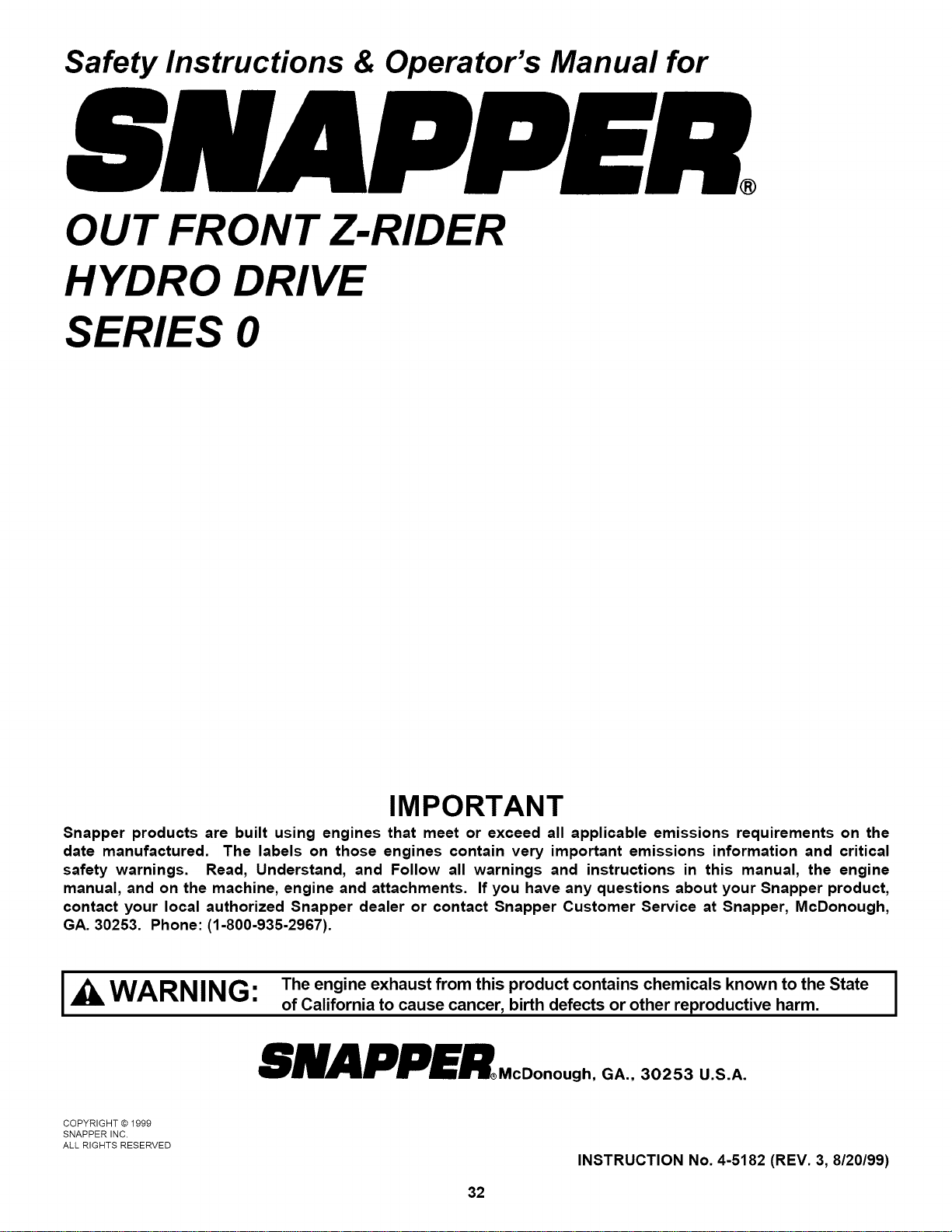

Safety Instructions & Operator's Manual for
OUT FRONT Z-RIDER
HYDRO DRIVE
SERIES 0
POWER UNIT MODELS
ZF2100DKU
ZF2300GKU
I MOWER UNIT MODELS
ZF5200M I ZF6100M
MODEL NUMBER EXPLANATION
DRIVE SYSTEM TYPE
MOWER ORIENTATION
ENGINE HP
Z - Zero Turning- Hydro Drive I
F- Out Front Mower
I
001il
POWER UNIT
21 - Engine Horse Power
23 - Engine Horse Power
ENGINE MODEL
ENGINE TYPE
SERIES DESIGNATION
00-SeriesDesignati°n I D- Diesel Fuel Engine IKU-Kub°taEngineGGasoline Fuel Engine
Z - Zero Turning - Hydro Drive
F - Out Front Mower
MOWER UNIT
I 62 - M°wer cuttingwidths1- Mower Cutting Width I 00 - series Designati°n
M - Mower Deck

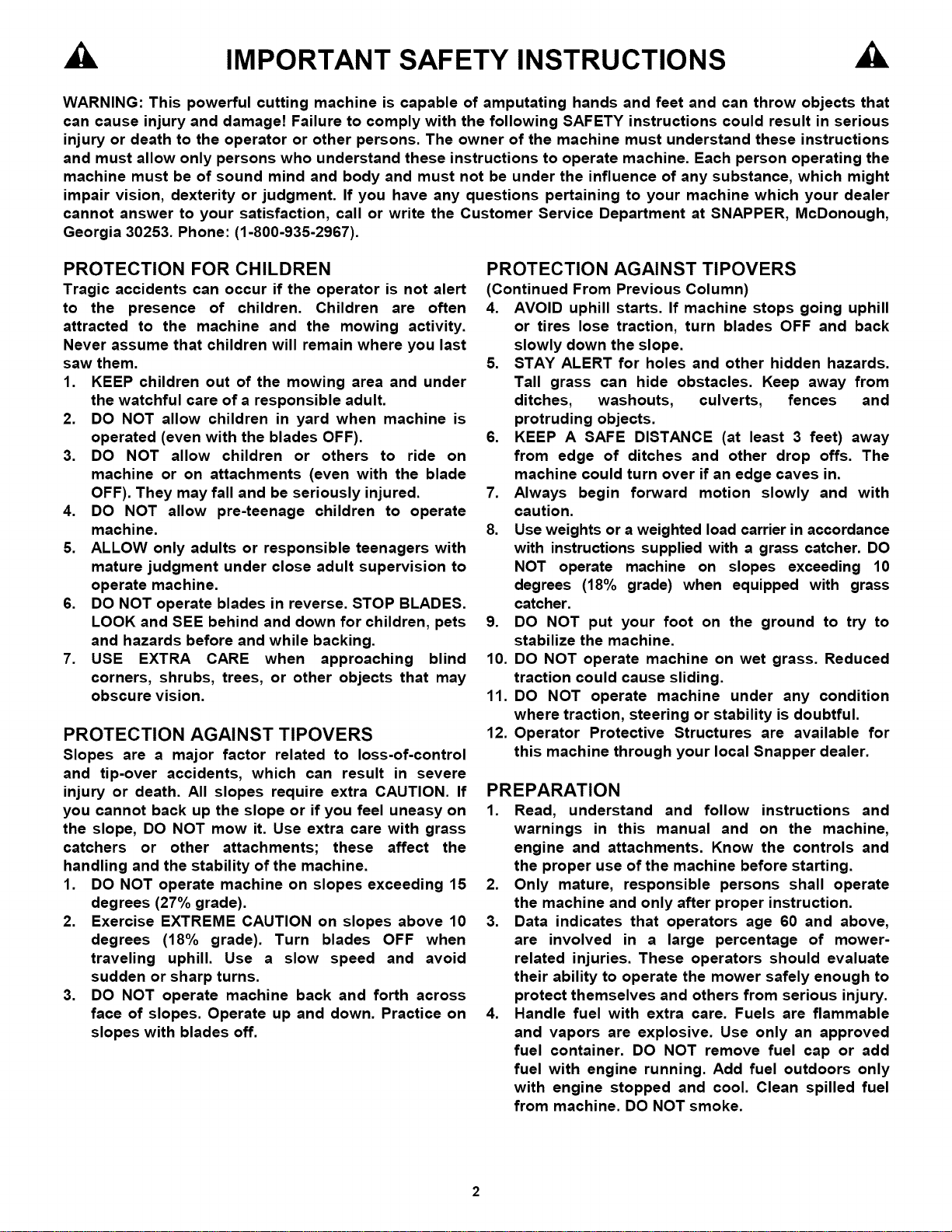

Thank you for buying a SNAPPER Productf Before operating your machine, read this manual carefully and pay particular

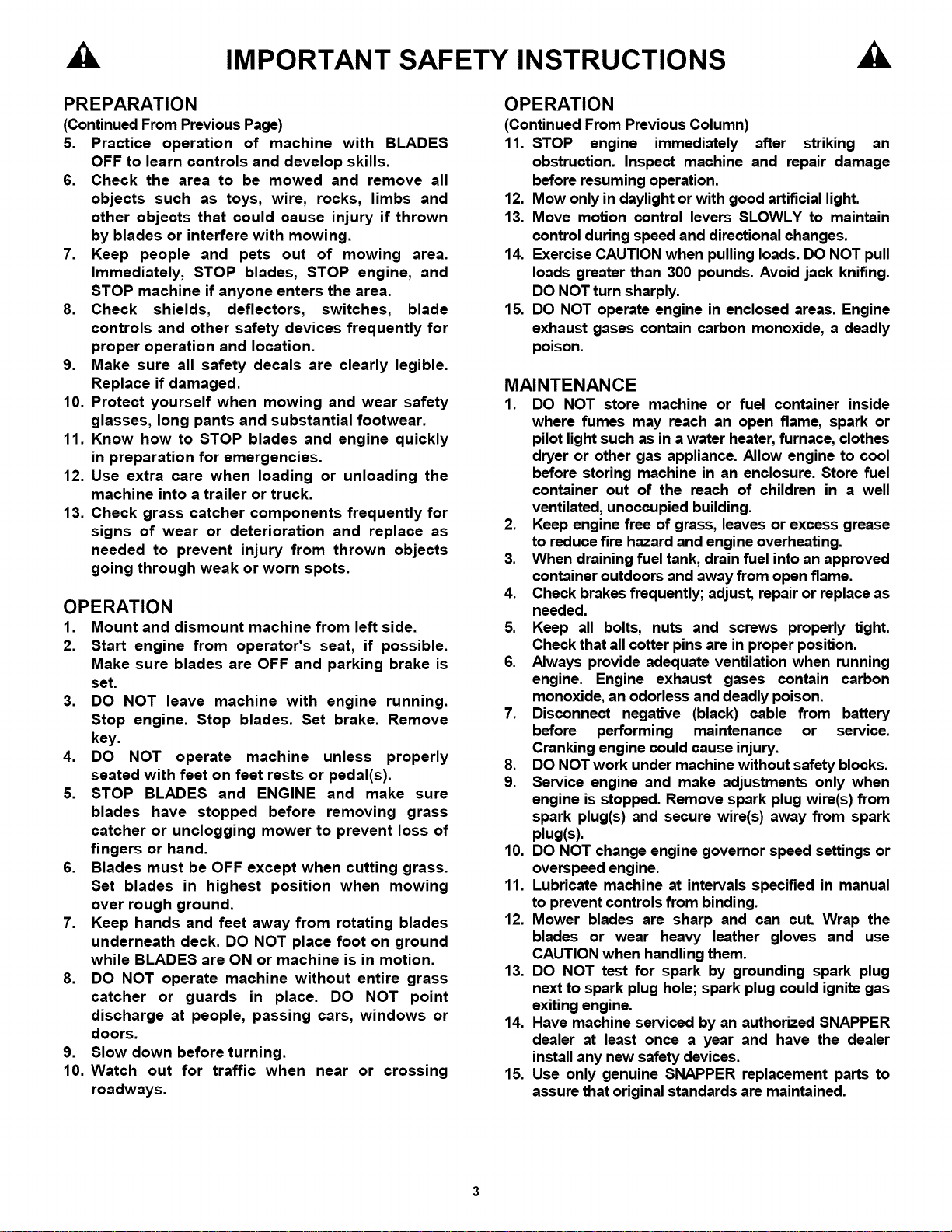

attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 & 3. Remember that all power equipment can be
dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance with the operating
instructions and common sense!
COPYRIGHT © 1999
SNAPPER INC.
ALL RIGHTS RESERVED
SNAPPER, McDonough,GA.. 30253 U.S.A.
INSTRUCTION No. 4-5182 (REV. 3, 8/20/99)
