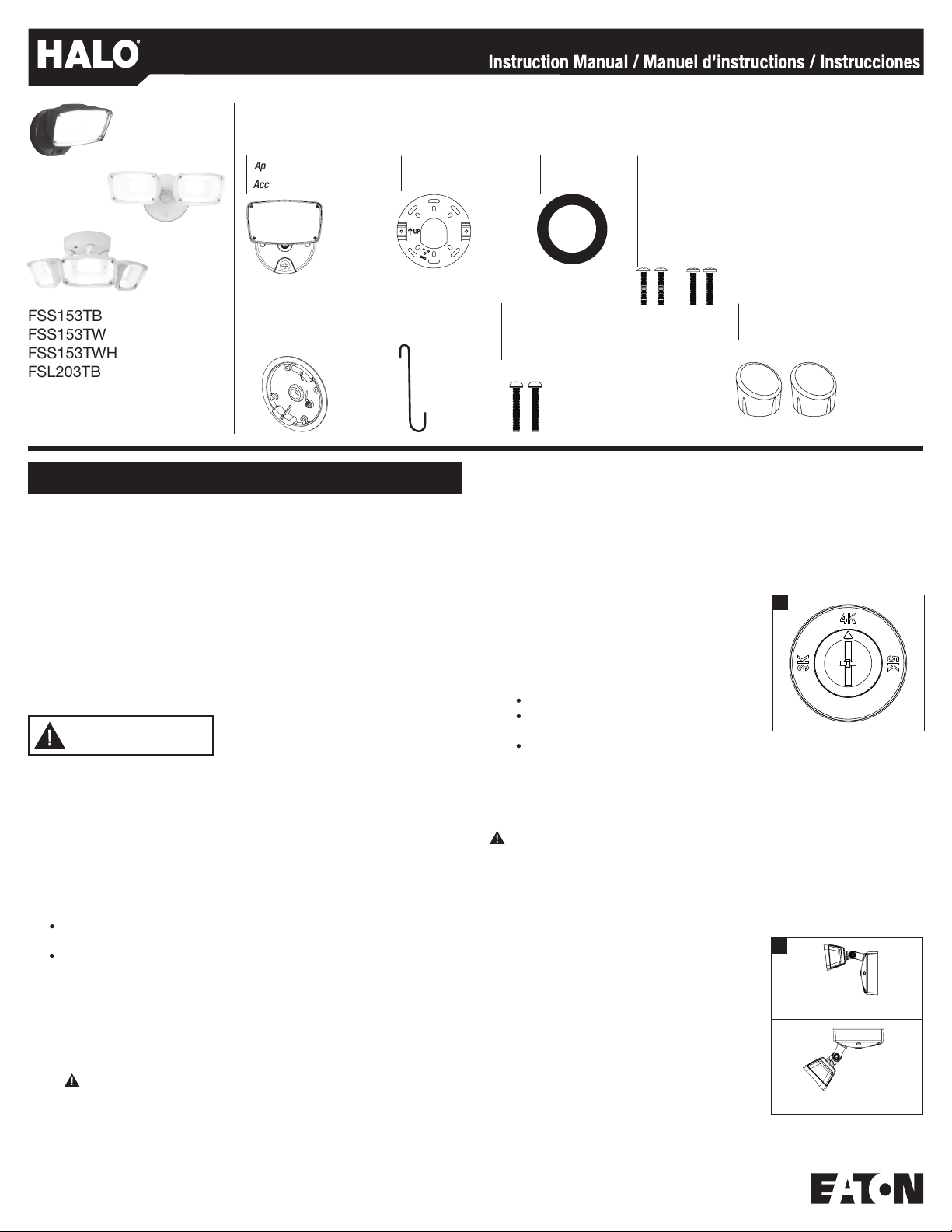

Instruction Manual/Instrucciones
PACKAGING CONTENTS/CONTENIDO DEL PAQUETE
FOR BEST RESULTS
• Install light 8-16 feet above the ground.
• When installing two fixtures on one switch,
make sure the switch is rated for at least a
1 A inductive load.

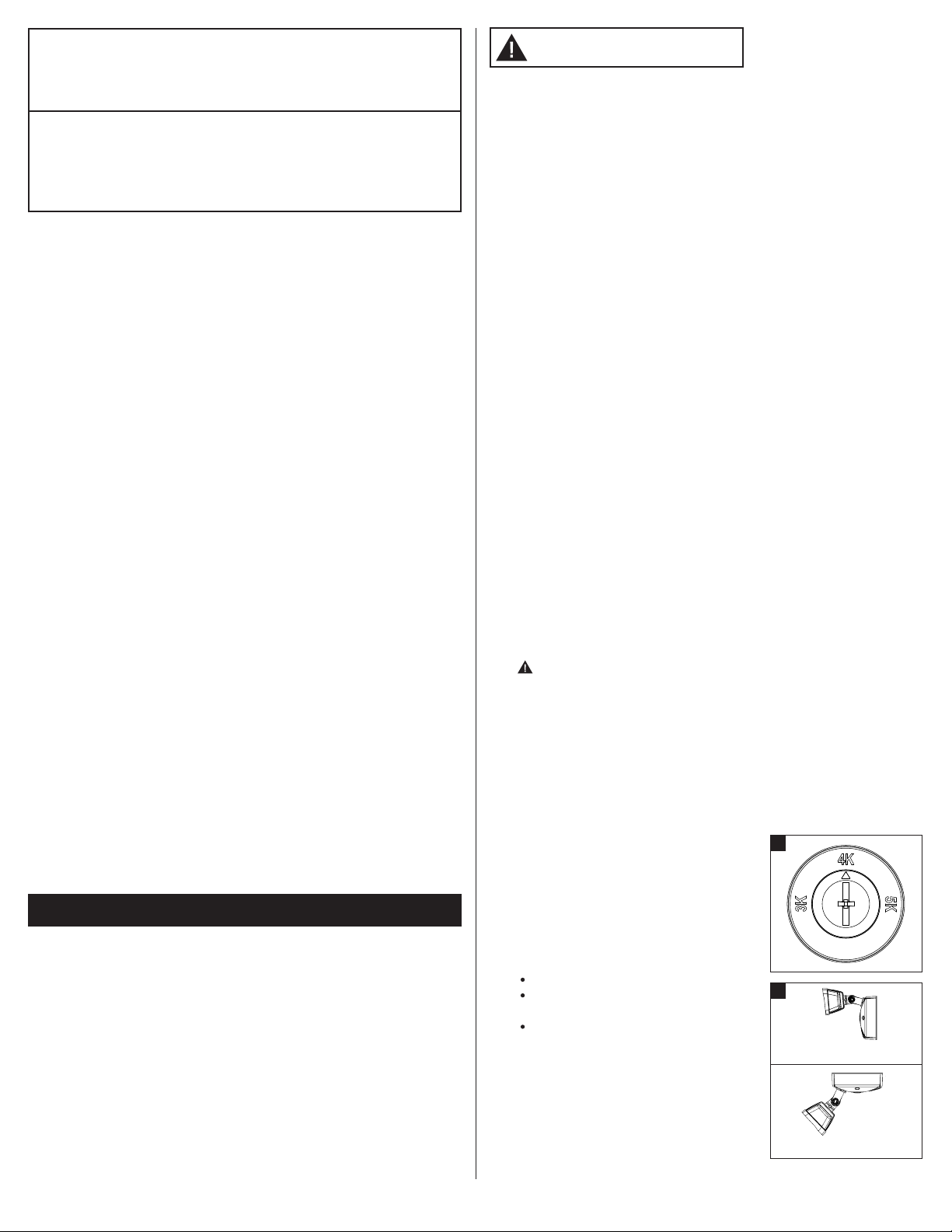

ADJUSTING THE COLOR TEMPERATURE (CCT)
• This product features selectable white color
tuning. Choose between three preset light colors
on the center dial of the base housing before,
during or after installation (fig. 1):
• These settings are designated by the abbreviations
located on the center dial on the base housing
(fig. 1):
3K = 3000K CCT, or soft white
4K = 4000K CCT, or neutral white
[factory default]
5K = 5000K CCT, or daylight
• Use a flathead or Phillips head screwdriver to rotate the
dial so the arrow points toward the desired setting.
• DO NOT USE a power tool or over-rotate the dial.
MOUNTING AND WIRING YOUR FIXTURE
WARNING: Risk of electric shock. Disconnect
power at fuse or circuit breaker before installing
or servicing.
NOTE: Fixture can be wall or eave mounted (Fig. 2).
NOTE: Coverplate mounts to recessed mounted
standard junction boxes (Fig. 3). Junction box must be
at least 1-1/2 inch in depth for proper installation for
recessed mount application. For surface mount junction
box installation, refer to installation instructions included
with the adaptar plate kit (E).

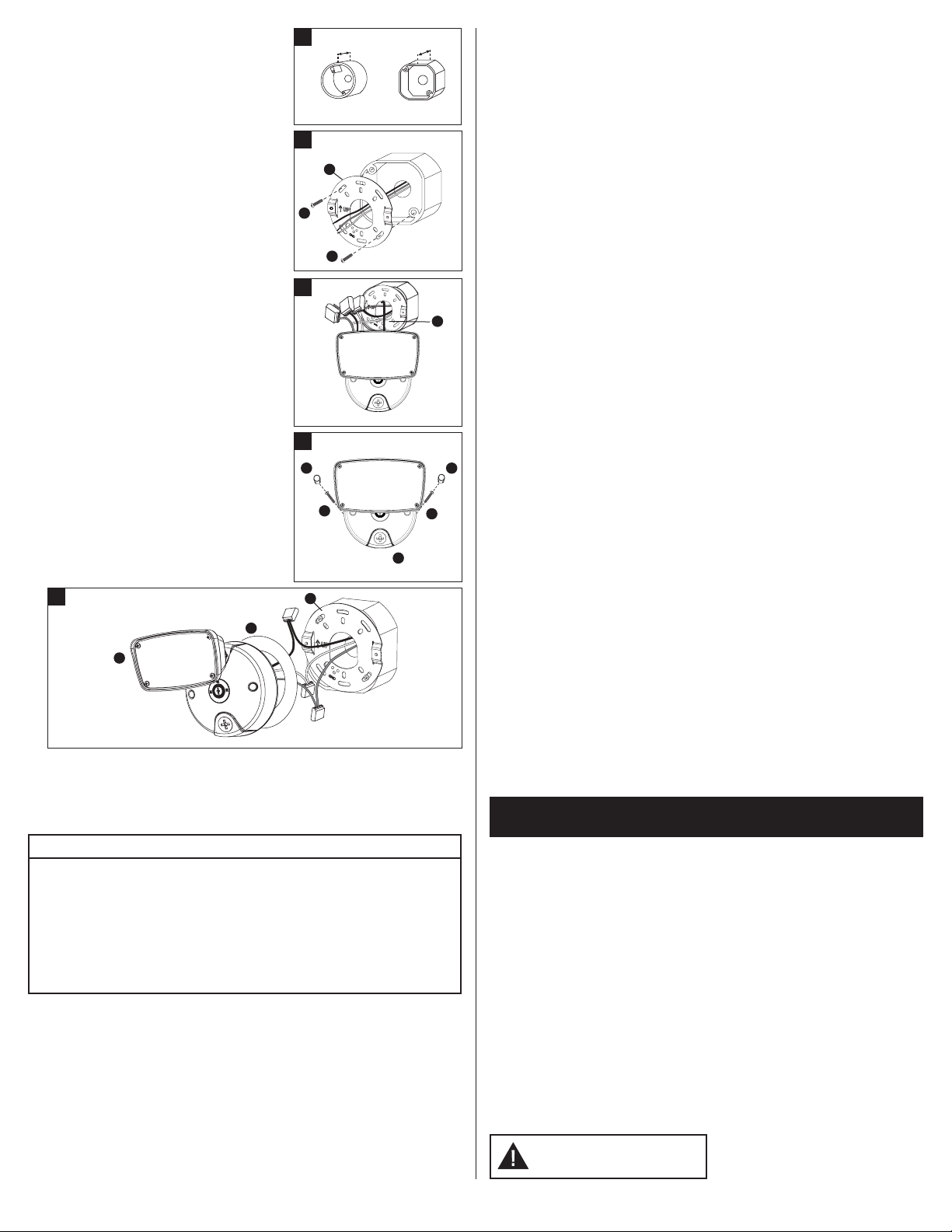

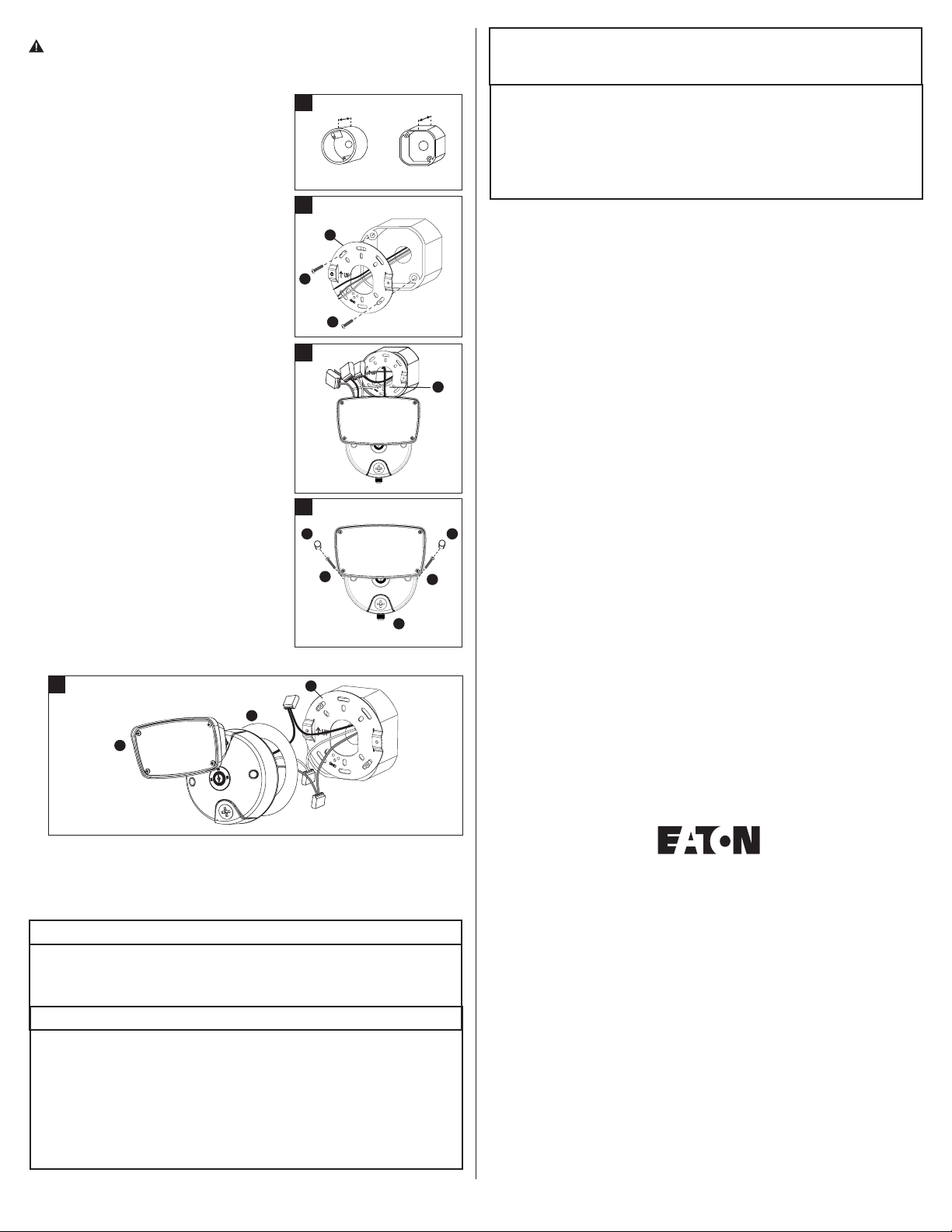

1. Line up the holes on the mounting bracket (B) with
the holes on your junction box. Using either (2) #6
screws or (2) #8 screws (D) (depending on size of
the holes in your junction box), attach the mounting
bracket (B) to your junction box (Fig. 4).
2. Thread fixture wires through mounting bracket (B)
(Fig. 4).
3. Hang one end of the support hook (F) onto the
mounting bracket and hang the light fixture on the
other end of the support hook (Fig. 5).
ITEMS REQUIRED
(Purchase separately)
• Phillips screwdriver
• Weatherproof silicone caulk
IMPORTANT SAFETY INSTRUCTIONS
When using product, basic precautions should always be followed, including the following:
• Heed all warnings, including below warnings AND those included on product.
• Save these instructions and warnings.
• For outdoor use only.
• cULus LISTED for wet location.
• Disassembling your fixture will void the warranty.
• Your fixture is prewired and preassembled for easy installation.
• Read and follow these instructions.
• Risk of fire/electric shock. If not qualified, consult an electrician.
• Disconnect power at fuse or circuit breaker before installing or servicing.
CAUTION
• Connect fixture to a 120-277 volt, 50/60 Hz power source. Any other connection voids
the warranty.
• Fixture should be installed by persons with experience in household wiring or by a
qualified electrician. The electrical system, and the method of electrically connecting
the fixture to it, must be in accordance with the National Electrical Code and local
building codes.
• Fixture designed for wall or eave mount to a junction box only. Mount fixture to a
grounded, recessed-mounted standard junction box marked for use in wet locations.
Fixture can be mounted to an outdoor rated surface mount junction box or when used
with the included adaptar plate kit. See kit instructions for proper installation methods.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation. Under Part 15 of the FCC Rules, any changes or modifications to
the motion detector described in this instruction sheet that are not expressly approved
by Eaton could void the user’s authority to operate the equipment.
WARNING: FCC Regulations state that any unauthorized changes or
modifications to this equipment not expressly approved by the manufacturer
could void the user’s authorization to operate this equipment.
SAVE THESE INSTRUCTIONS.
FSS153TB
FSS153TW
FSS153TWH
FSL203TB
FSL203TBH
FSL203TW
FSL203TWH
A. Light fixture
Appareil d’éclairage
Accesorio
ENGLISH
D. (2) #6-32 x 3/4 in. and (2) #8-32 x 3/4 in. junction box screws
(use the size that fits your junction box)
(2) vis nº 6 de 32 x 3/4 po et 2 vis nº 8 de 32 x 3/4 po pou
boîtier de jonction (choisissez la dimension convenant
à votre boîtier de jonction)
(2) Tornillos #6-32 x 3/4 pulg. y (2) tornillos #8-32 x 3/4 pulg.
para montaje de la caja de conexión (utilice el tamaño que mejor
se adecue a su caja de conexión)
F. Support hook
Crochet
Gancho de soporte
E. FLD-KIT-SFCGNDW
Adapter Plate Kit
Plaque adaptatrice trousse
Placa daptadora equipo
C. Gasket
Joint
Junta
H. (2) Decorative screw cover caps
(2) cache-vis décoratifs
(2) Cubiertas tapatornillos decorativas
G. (2) #8-32 x 1-1/4 in. cover
mounting screws
(2) vis de protection nº 8
de 32 x 1-1/4 po
(2) Tornillos #8-32 x 1-1/4 pulg.
de montaje de la cubierta
B. Mounting bracket
Support de montage
Soporte de montaje
1
WARNING
2
Wall mount
Eave mount
FSL303TB
FSL303TW
FTS203TB
FTS203TW
FHS303TB
FHS303TW
FHS303TWH
