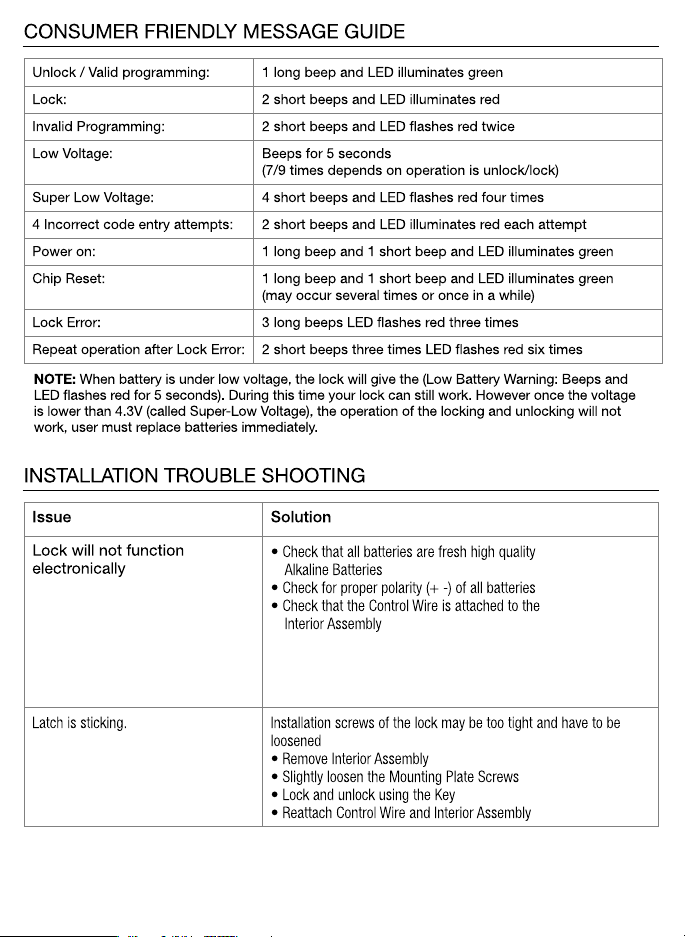

Unlock / Valid programming: 1 long beep and LED illuminates green
Lock: 2 short beeps and LED illuminates red
Invalid Programming: 2 short beeps and LED ashes red twice
Low Voltage: Beeps for 5 seconds
(7/9 times depends on operation is unlock/lock)
Super Low Voltage: 4 short beeps and LED ashes red four times
4 Incorrect code entry attempts: 2 short beeps and LED illuminates red each attempt
Power on: 1 long beep and 1 short beep and LED illuminates green
Chip Reset: 1 long beep and 1 short beep and LED illuminates green
(may occur several times or once in a while)
Lock Error: 3 long beeps LED ashes red three times
Repeat operation after Lock Error: 2 short beeps three times LED ashes red six times
Issue Solution
Lock will not function
electronically
• Check that all batteries are fresh high quality
Alkaline Batteries
• Check for proper polarity (+ -) of all batteries
• Check that the Control Wire is attached to the
Interior Assembly
Latch is sticking. Installation screws of the lock may be too tight and have to be
loosened
• Remove Interior Assembly
• Slightly loosen the Mounting Plate Screws
• Lock and unlock using the Key
• Reattach Control Wire and Interior Assembly
