ASSEMBLY MANUAL / OWNER’S MANUAL
2
Important Safety Instructions - Assembly 3
Safety Warning Labels / Serial Number 5
Speci¿cations
%efore Assembly
Parts 7
Hardware 8
Tools 8
Assembly 9
0oYing tKe 0acKine
LeYeling tKe 0acKine
Features 17
Console Features 18
Bluetooth
®
Connectivity 21
Remote Heart Rate Monitor 22
Operations 24
Adjustments 24
Power Up / Idle Mode 24
Initial Setup 25
Quick Start Program 25
User Pro¿les 25
Pro¿le Programs 27
Pausing or Stopping 31
Results / Cool Down Mode 31
GOAL TRACK Statistics 31
Console Service Mode 33
Maintenance 34
Maintenance Parts 35
Troubleshooting 3
Warranty 39
TABLE OF CONTENTS
Nautilus Inc 8 NAUTILUS / 8 28-8458 wwwNautilusInccom - Customer Service North America 8 5-339
[email protected] | outside U.S. www.nautilusinternational.com | © 2017 Nautilus, Inc. ® indicates trademarks registered in
the United States. These marks may be registered in other nations or otherwise protected by common law. Nautilus, the Nautilus
logo, Nautilus Trainer, BowÀe[, Schwinn, and Universal are trademarks owned by or licensed to Nautilus, Inc. Polar
®
, OwnCode
®
,
iTunes
®
, Google Play™, Under Armour
®
and MyFitnessPal
®
are trademarks of their respective owners. The Bluetooth
®
word
mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Nautilus, Inc. is under
license.
To validate warranty support, keep the original proof of purchase and record the following information
Serial Number __________________________
Date of Purchase ____________________
To register your product warranty , go to www.Nautilus.com/register
Or call 1 800 05±339.
If you have Tuestions or problems with your product, please call 1 800 NAUTILUS 28±8458
Or go to www.Nautilus.com
3

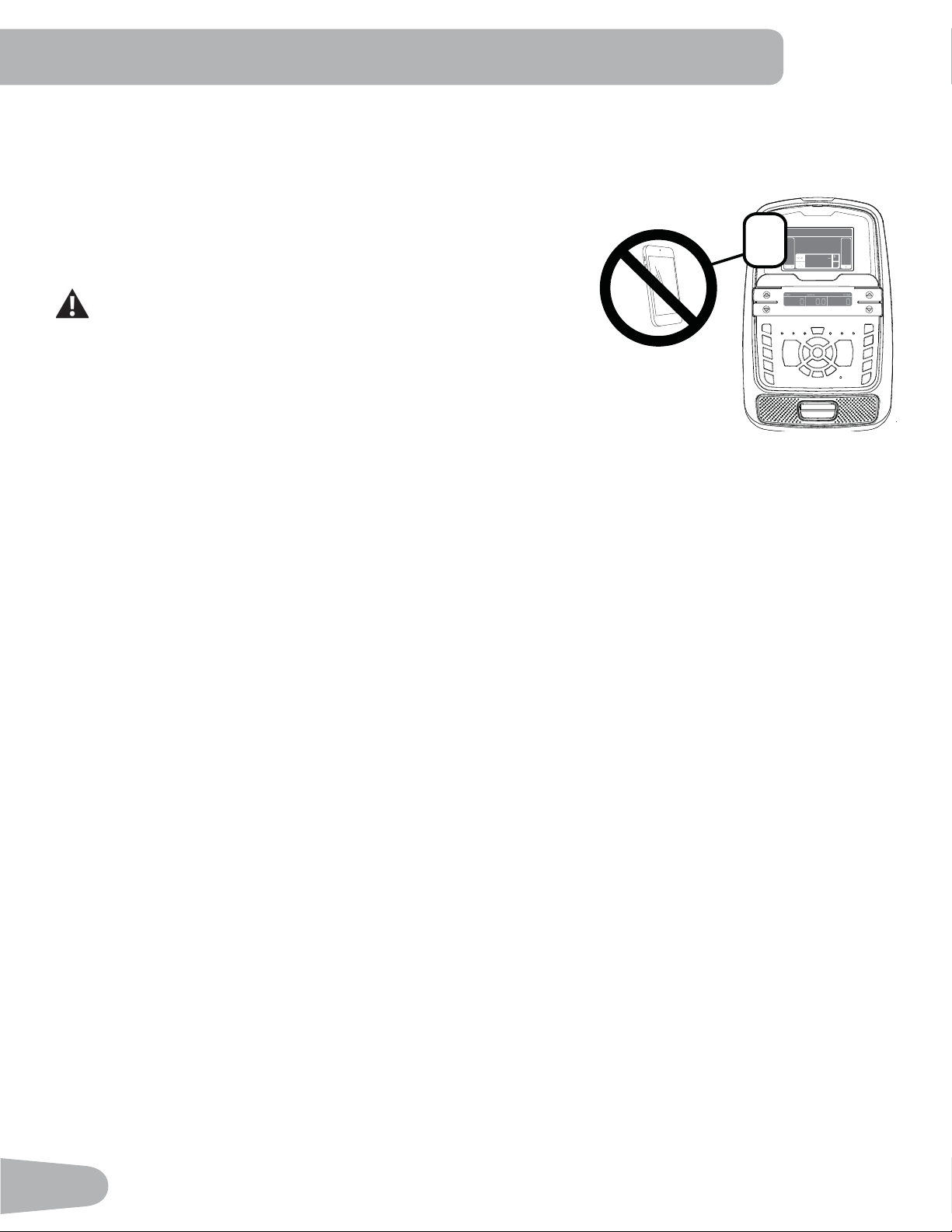

IMPORTANT SAFETY INSTRUCTIONS
!
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
Obey the following warnings:
!
Read and understand all warnings on this machine.
Carefully read and understand the Assembly instructions.
• Keep bystanders and children away from the product you are assembling at all times.
• Do not connect power supply to the machine until instructed to do so.
• Do not assemble this machine outdoors or in a wet or moist location.
• Make sure assembly is done in an appropriate work space away from foot traf¿c and e[posure to bystanders.
• Some components of the machine can be heavy or awkward. Use a second person when doing the assembly
steps involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.
• Set up this machine on a solid, level, horizontal surface.
• Do not try to change the design or functionality of this machine. This could compromise the safety of this machine
and will void the warranty.
• If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use
genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the
warranty.
• Do not use until the machine has been fully assembled and inspected for correct performance in accordance with
the Manual.
• Read and understand the complete Manual supplied with this machine before ¿rst use. Keep the Manual for future
reference.
• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.
Before using this equipment, obey the following warnings:
!
Read and understand the complete Manual. Keep the Manual for future reference.
Read and understand all warnings on this machine. If at any time the Warning labels become loose,
unreadable or dislodged, contact Nautilus Customer Service for replacement labels.
• Children must not be let on or near to this machine. Moving parts and other features of the machine can be
dangerous to children.
• Not intended for use by anyone under 13 years of age.
• Consult a physician before you start an e[ercise program. Stop e[ercising if you feel pain or tightness in your
chest, become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the
values calculated or measured by the machine’s computer for reference purposes only.
• Before each use, e[amine this machine for loose parts or signs of wear. Do not use if found in this condition.
Monitor the Seat, Pedals, and Crank Arms closely. Contact Nautilus Customer Service for repair information.
• Ma[imum user weight limit 300 lbs. 13 kg. Do not use if you are over this weight.
• This machine is for home use only.
• Do not wear loose clothing or jewelry. This machine contains moving parts. Do not put ¿ngers or other objects into
moving parts of the e[ercise equipment.
• Set up and operate this machine on a solid, level, horizontal surface.
• Make the Pedals stable before you step on them. Use caution when you step on and off the machine.
• Disconnect all power before servicing this machine.
• Do not operate this machine outdoors or in moist or wet locations. Keep the foot pedals clean and dry.
4
• Keep at least 24´ 0. m on each side of the machine clear. This is the recommended safe distance for access
and passage around and emergency dismounts from the machine. Keep third parties out of this space when
machine is in use.
• Do not over e[ert yourself during e[ercise. Operate the machine in the manner described in this manual.
• Correctly adjust and safely engage all Positional Adjustment Devices. Make sure that the Adjustment Devices do
not hit the user.
• ([ercise on this machine requires coordination and balance. Be sure to anticipate that changes in speed and
resistance level can occur during workouts, and be attentive in order to avoid loss of balance and possible injury.
• Prior to use, read and understand the owner’s manual. The appliance is not to be used by persons with functional
limitations and impairments, reduced physical, sensory or mental capabilities, or lack of e[perience and
knowledge.
5
SAFETY WARNING LABELS AND
SERIAL NUMBER
FCC Compliance
!
Changes or modi¿cations to this unit not e[pressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
The machine and power supply comply with Part 15 of the FCC rules. Operation is subject to the following two conditions
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This machine and power supply have been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an e[perienced radio/T9 technician for help.

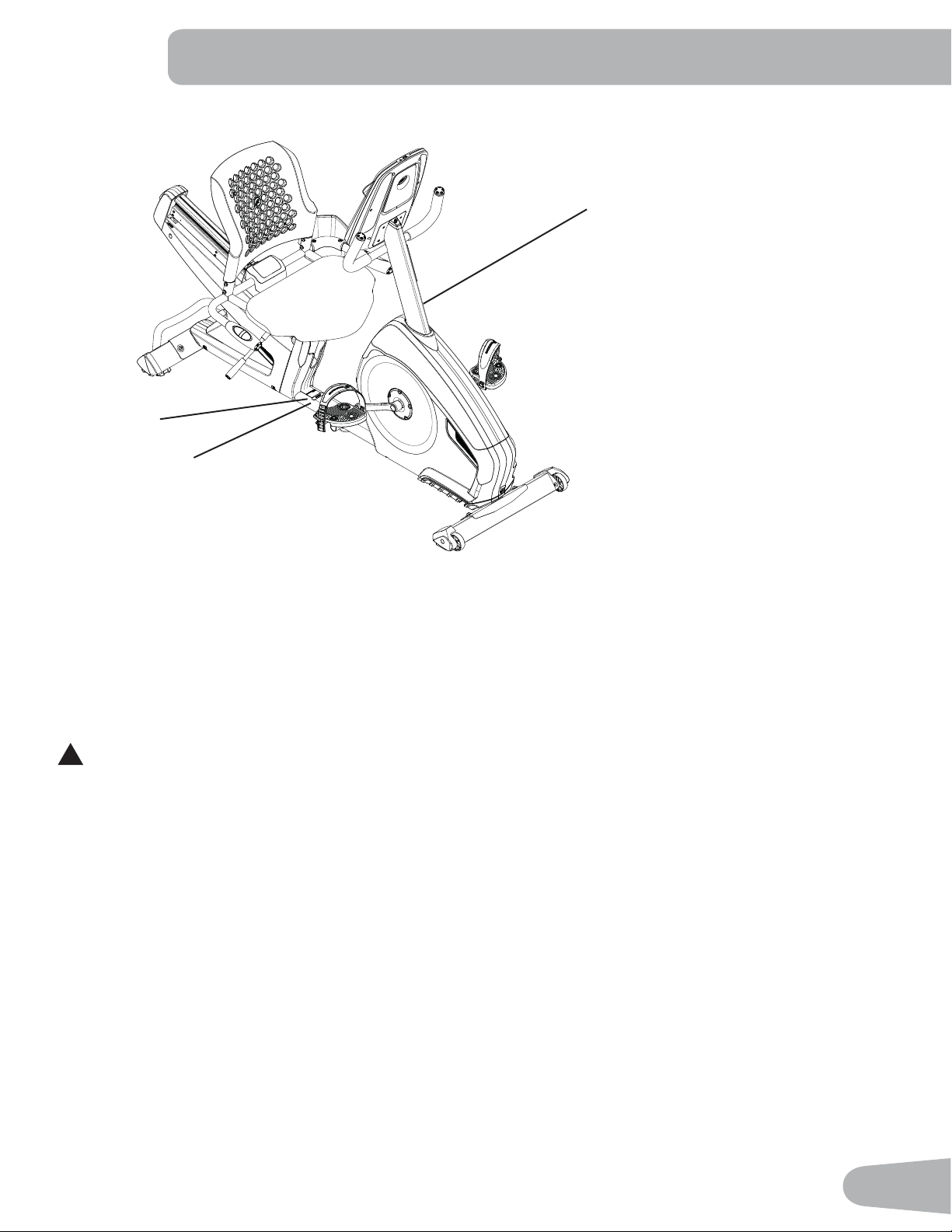

Serial Number
Product Speci¿cation
WARNING!
• Injury or death is possible if caution is
not used while using this machine.
• Keep children and pets away.
• Read and follow all warnings on this
machine.
• Refer to the Owner’s Manual for
additional warnings and safety
information.
• The heart rate displayed is an
appro[imation and should be used for
reference only.
• Not intended for use by anyone under
13 years of age.
• The ma[imum user weight for this
machine is 300 lbs ( 13 kg ).
• This machine is for home use only.
• Consult a physician prior to using any
e[ercise equipment.
6
SPECIFICATIONS
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a
hard, level surface. Allow a workout area of a minimum 77´ [ 114´ (19 cm [ 290 cm).
Basic Assembly Tips
Follow these basic points when you assemble your machine
• Read and understand the “Important Safety Instructions” before assembly.
• Collect all the pieces necessary for each assembly step.
• Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the left (counterclock-
wise) to loosen, unless instructed otherwise.
• When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt through the holes.
• The assembly can require 2 people.
Maximum User Weight: 300 lbs. (13 kg)
Machine Weight: 91.9 lbs. (41.7 kg)
Power Requirements:
Operational 9oltage 99DC
Operating Current 1.5A
AC Power Adapter UL listed, Rated 1009-2409 50/0Hz Input,
99DC, 1500mA Output. Class 2.

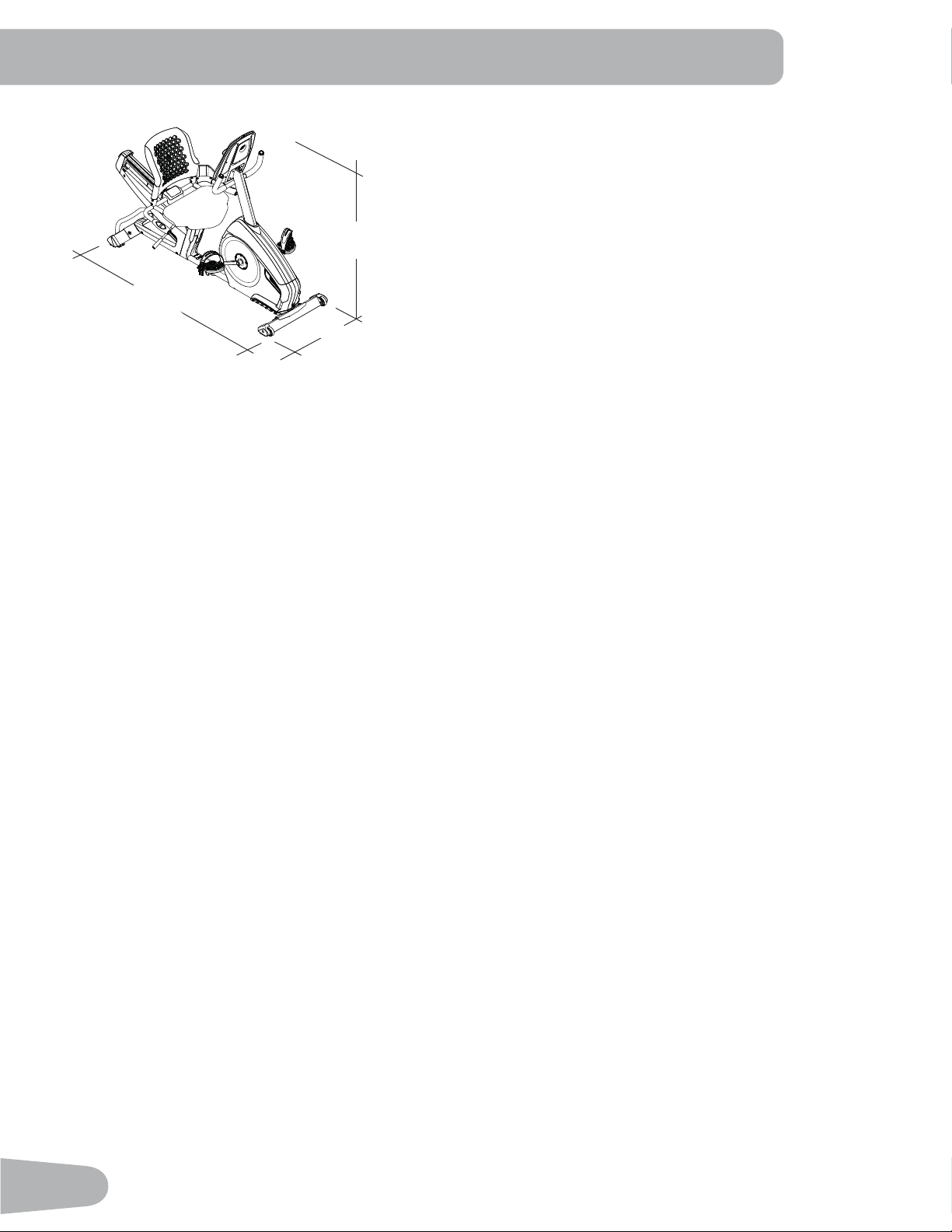

49.6”
(126 cm)
65.3”
(165.9 cm)
28.3”
(71.8 cm)
7

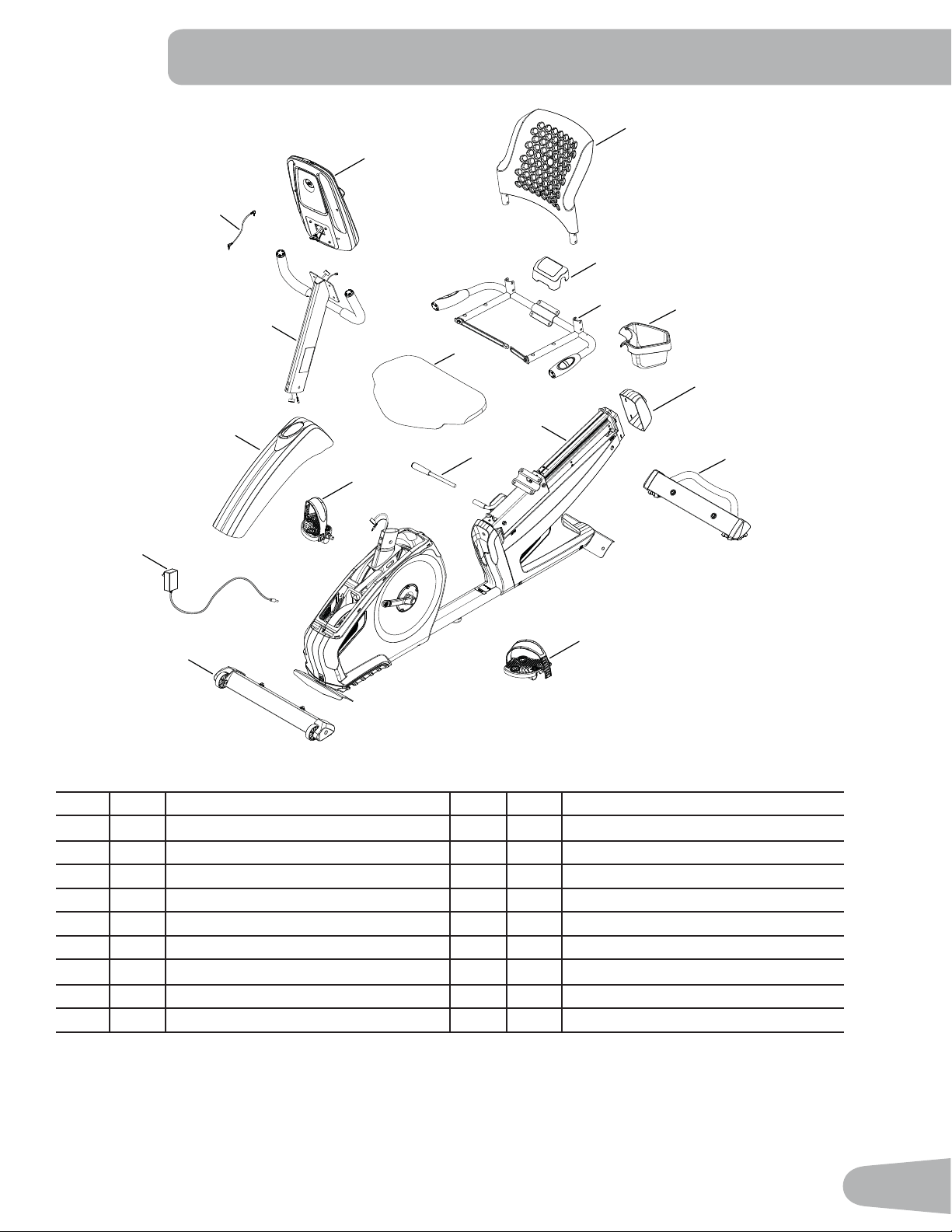

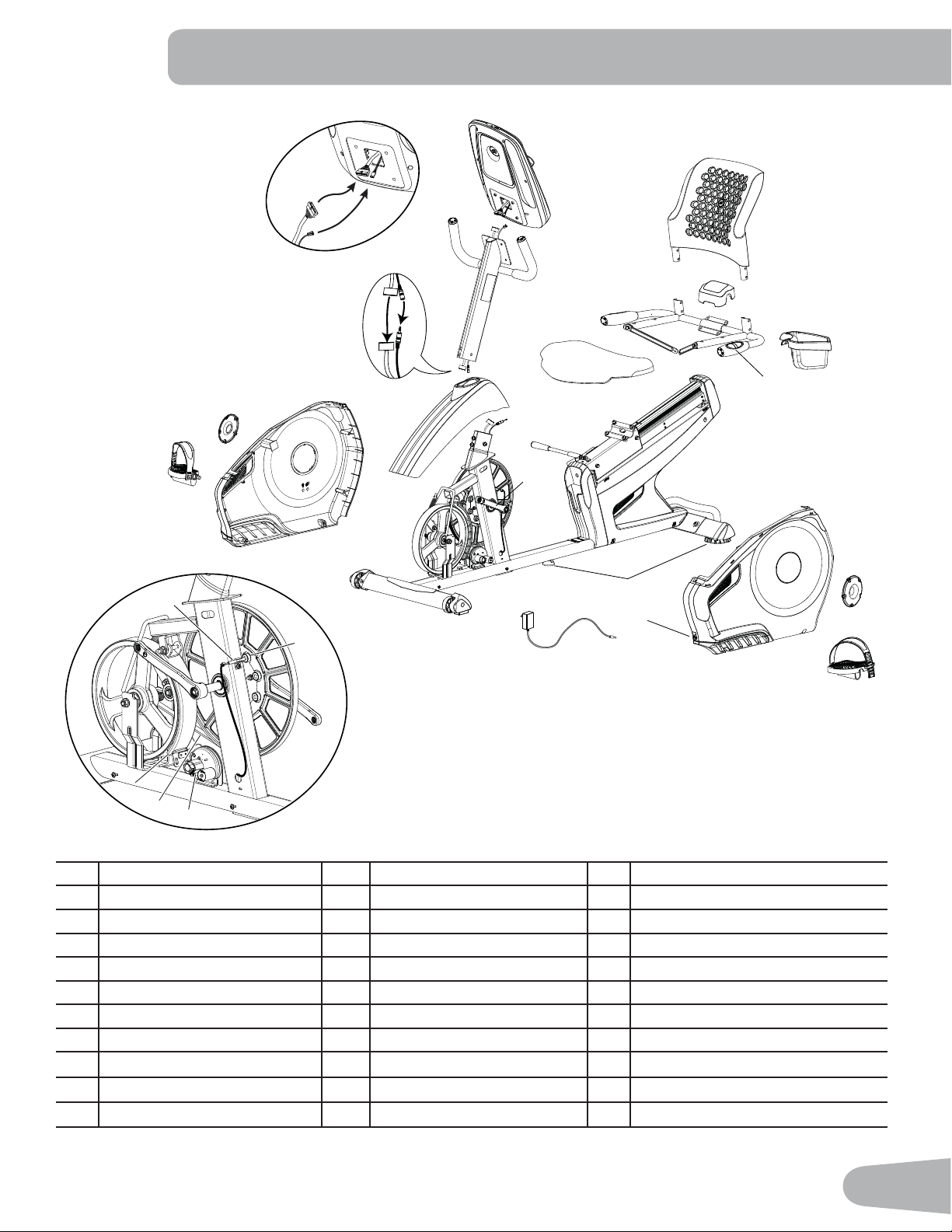

Item Qty Description Item Qty Description
1 1 Console 10 1 Rear Stabilizer
2 1 Water Bottle Holder 11 1 Left Pedal
3 1 Seat Back 12 1 Front Stabilizer
4 1 Seat Cover 13 1 Right Pedal
5 1 Seat Frame Assembly 14 1 Top Shroud
1 Seat Bottom 15 1 Console Mast
7 1 Seat Adjustment Handle 1 1 Media Cable
8 1 Frame 17 1 AC Adapter
9 1 Seat Rail End Cap
PARTS
17
9
1
15
7
13 (R)
11 (L)
4
3
6
5
10
2
14
12
16
8
8
Item Qty Description Item Qty Description

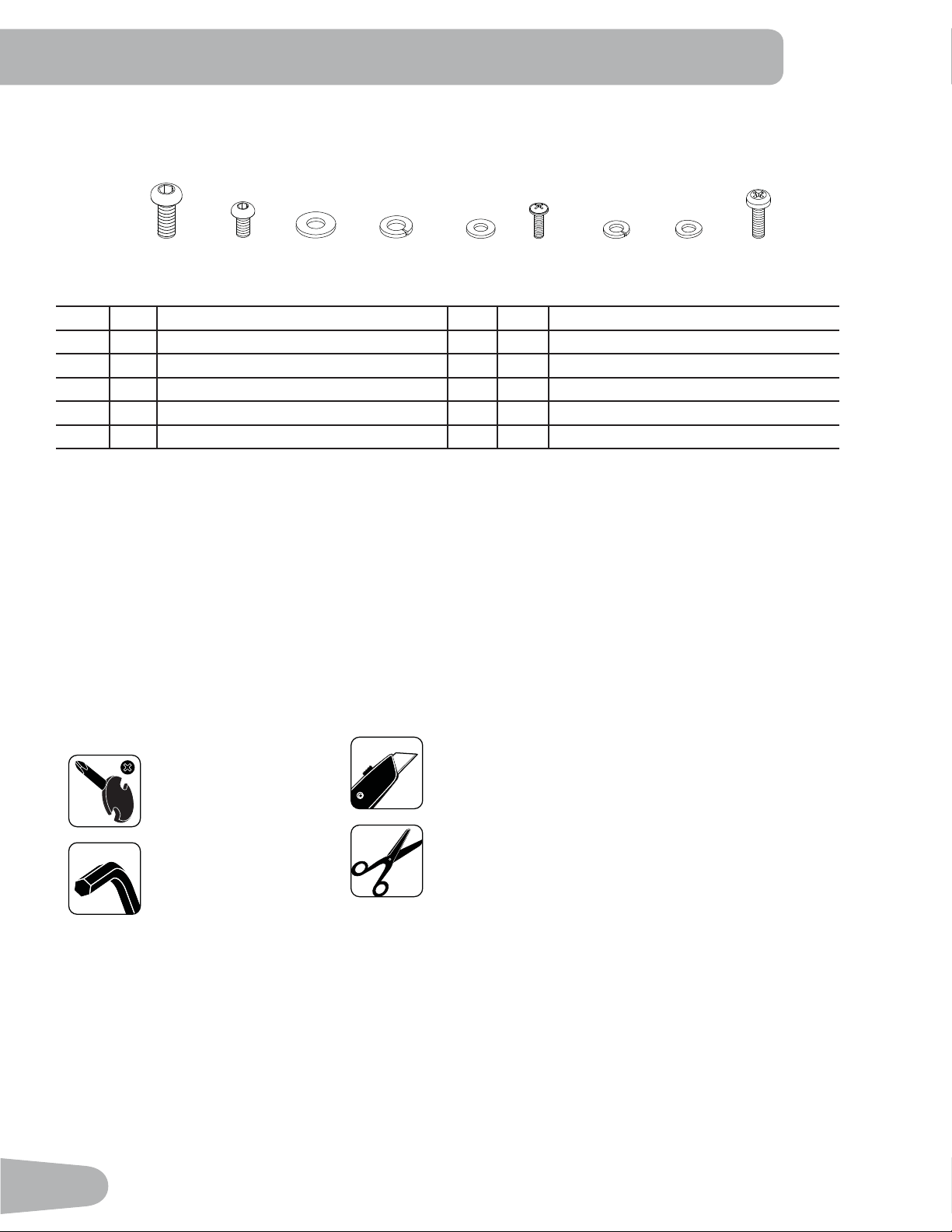

A 8 Button Head He[ Screw, M8[1 F 2 Phillips Head Screw, M5[12
B 10 Button Head He[ Screw, M[12 G 14 Lock Washer, M
C 8 Flat Washer, M8 H 4 Curved Washer, M
D 8 Lock Washer, M8 I 4 Phillips Head Screw, M[25
E 10 Flat Washer, M
HARDWARE / TOOLS
Tools
Included Not Included
(recommended)
4 mm
mm
ABC D EF
GH
I
9
ASSEMBLY

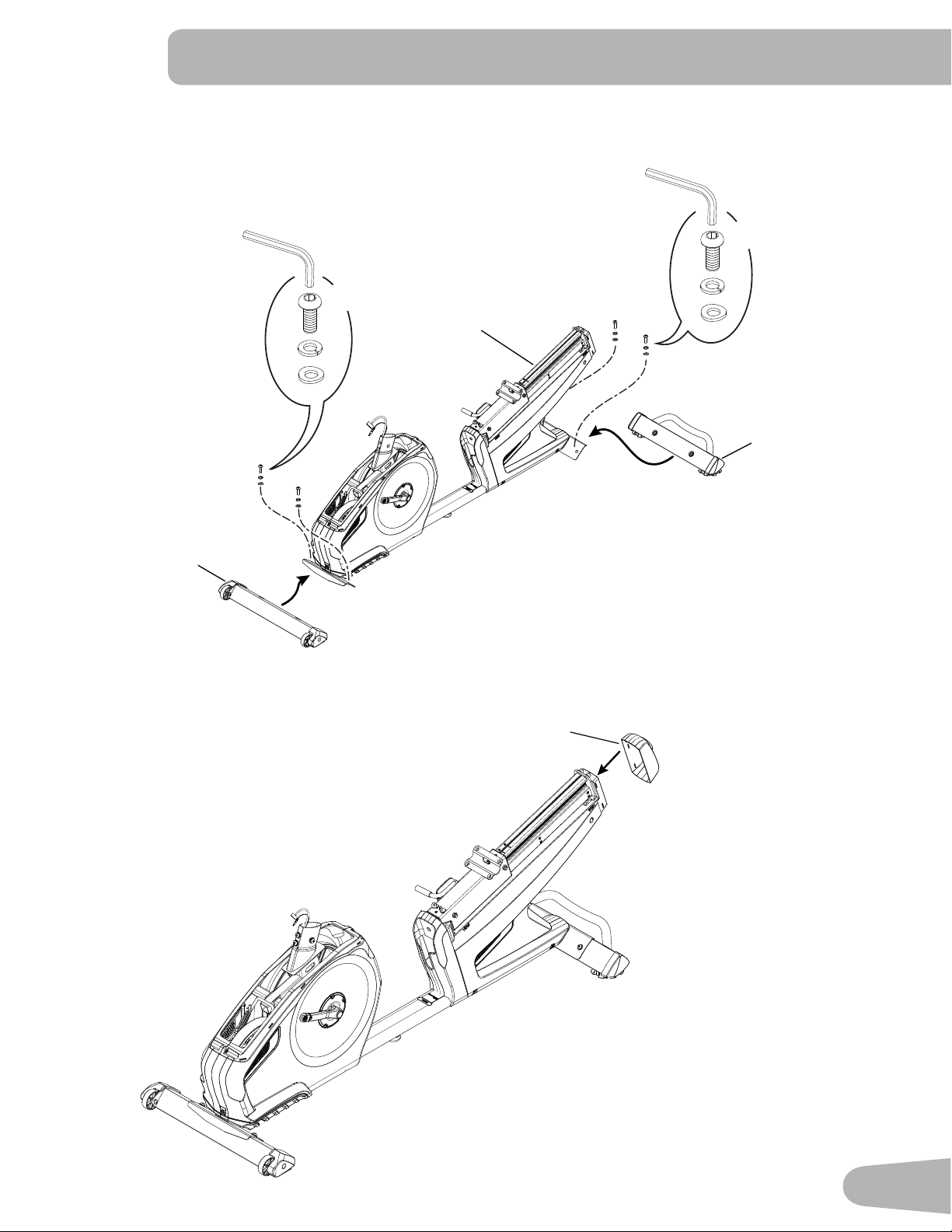

1a. Attach Stabilizers to Frame
Note: Hardware(*) is pre-installed on the stabilizers and not on Hardware Card. Make sure transport wheels on the front
stabilizer point forward.
1b. Attach the Seat Rail End Cap to the Frame Assembly
8
10
12
*
6mm
*
*
X2
*
6mm
*
*
X2
9
10
5
B
E
G
4mm
X2
A
C
D
6mm
X4

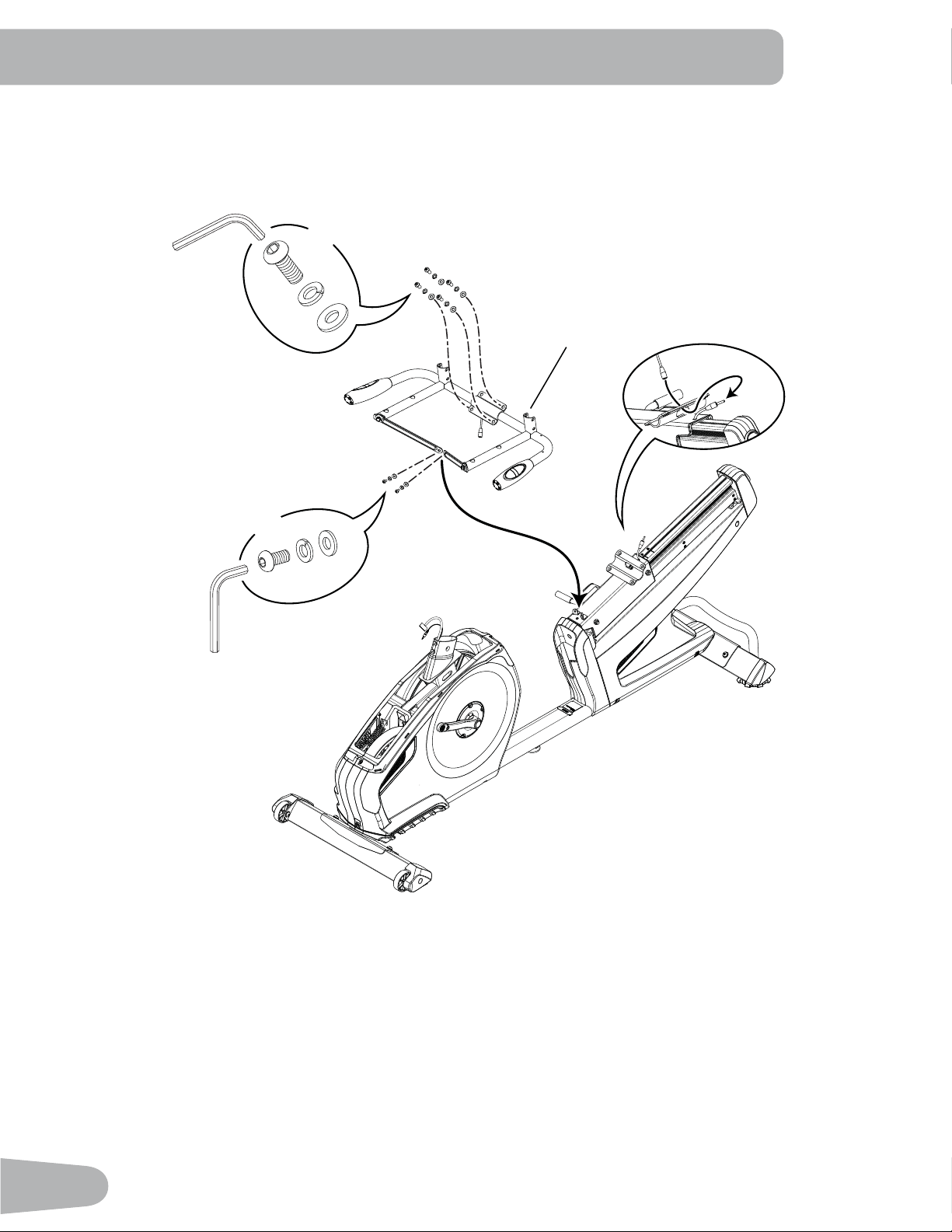

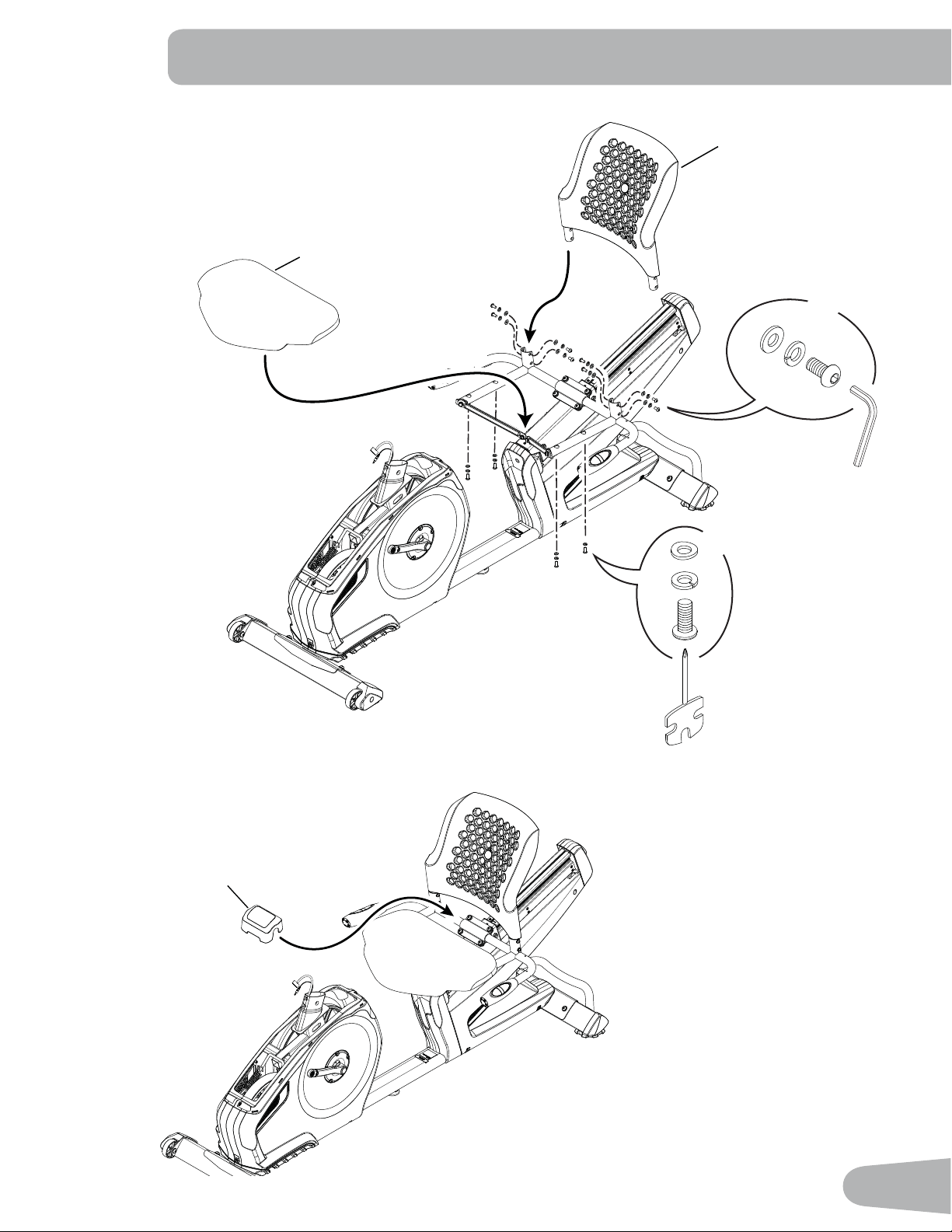

2. Attach the Seat Frame Assembly to the Seat Rail
NOTICE: Do not crimp the Heart Rate Cable. Once all hardware has been inserted, be sure to fully tighten it.
11
3. Attach Seat Pads to Seat Frame Assembly
3
6
H
X4
#2
G
I
X8
4mm
B
E
G
4. Attach Cover to Frame Assembly
4
12

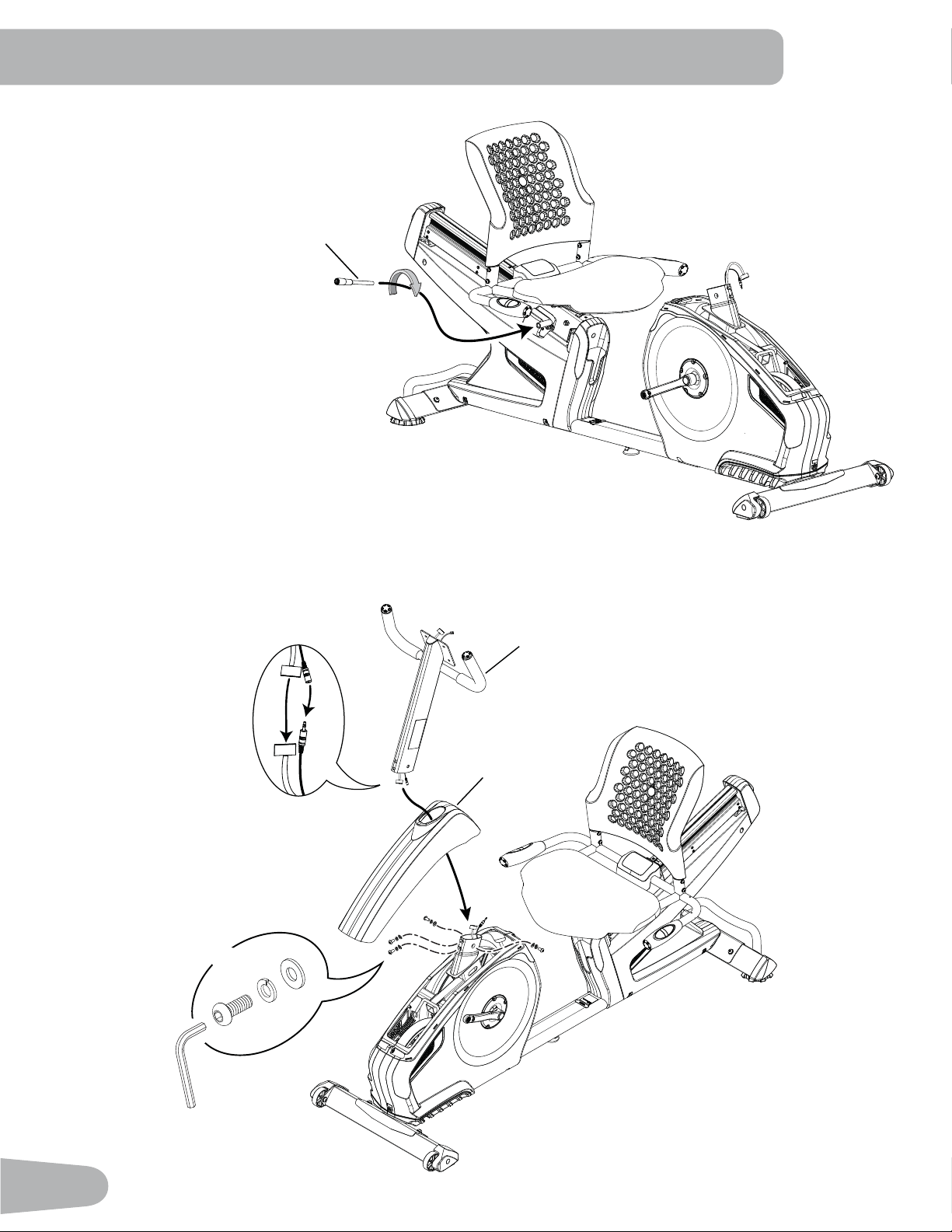

6. Connect the Cables and Attach the Console Mast to Frame Assembly
NOTICE: Do not crimp the cables.
15
14
A
C
6mm
X4
D
5. Attach Seat Adjustment Handle to Frame Assembly
7
13
7. Remove Hardware from Console
NOTICE: Do not crimp the cable.
Note: Hardware (*) is pre-installed and not on the Hardware Card. If
desired, apply the French Canadian overlay to the Console face.
1
*
X4

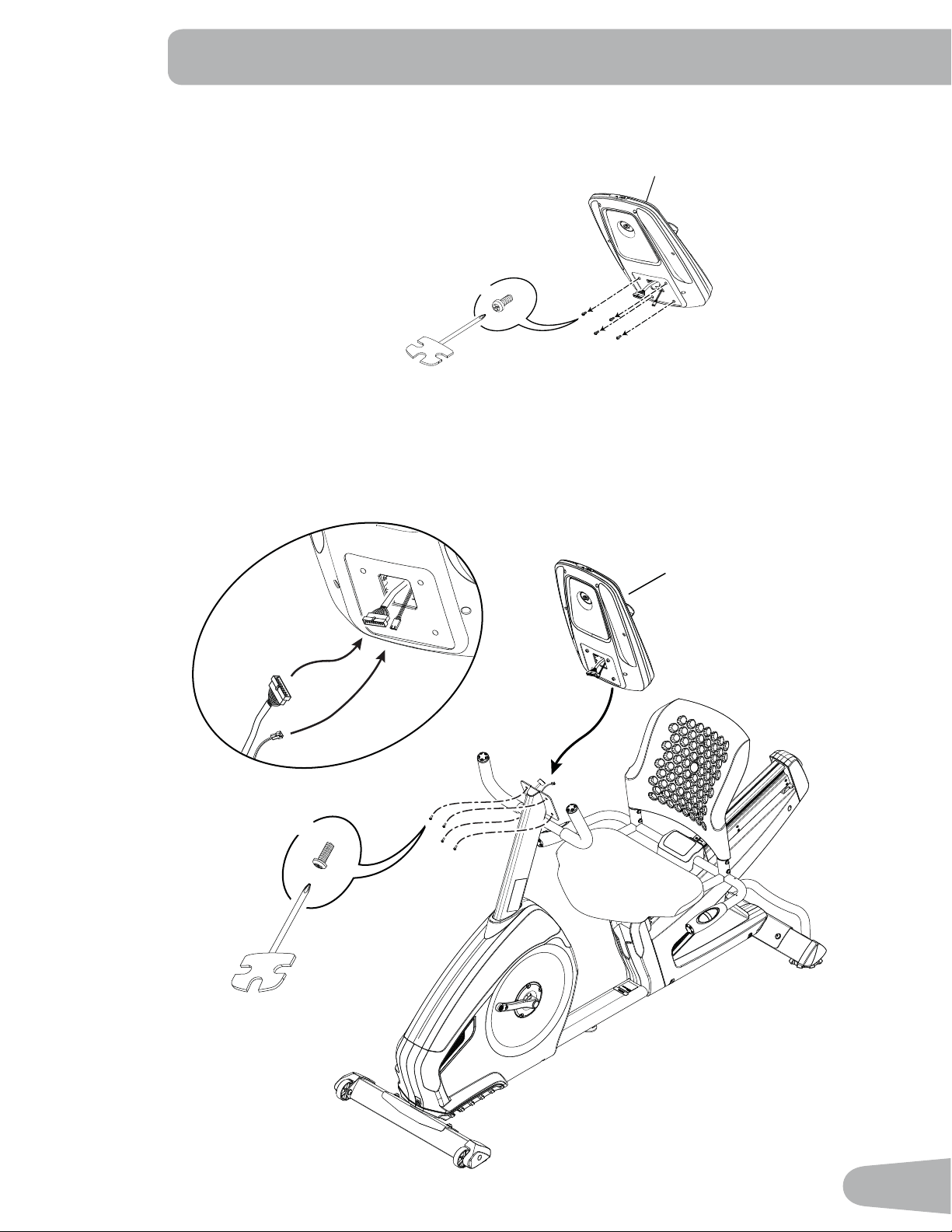

8. Connect Cables and Attach Console to Frame Assembly
NOTICE: Align the clips on the cable connectors and make sure the connectors lock. Do not crimp cables.
*
X4
#2
1
14

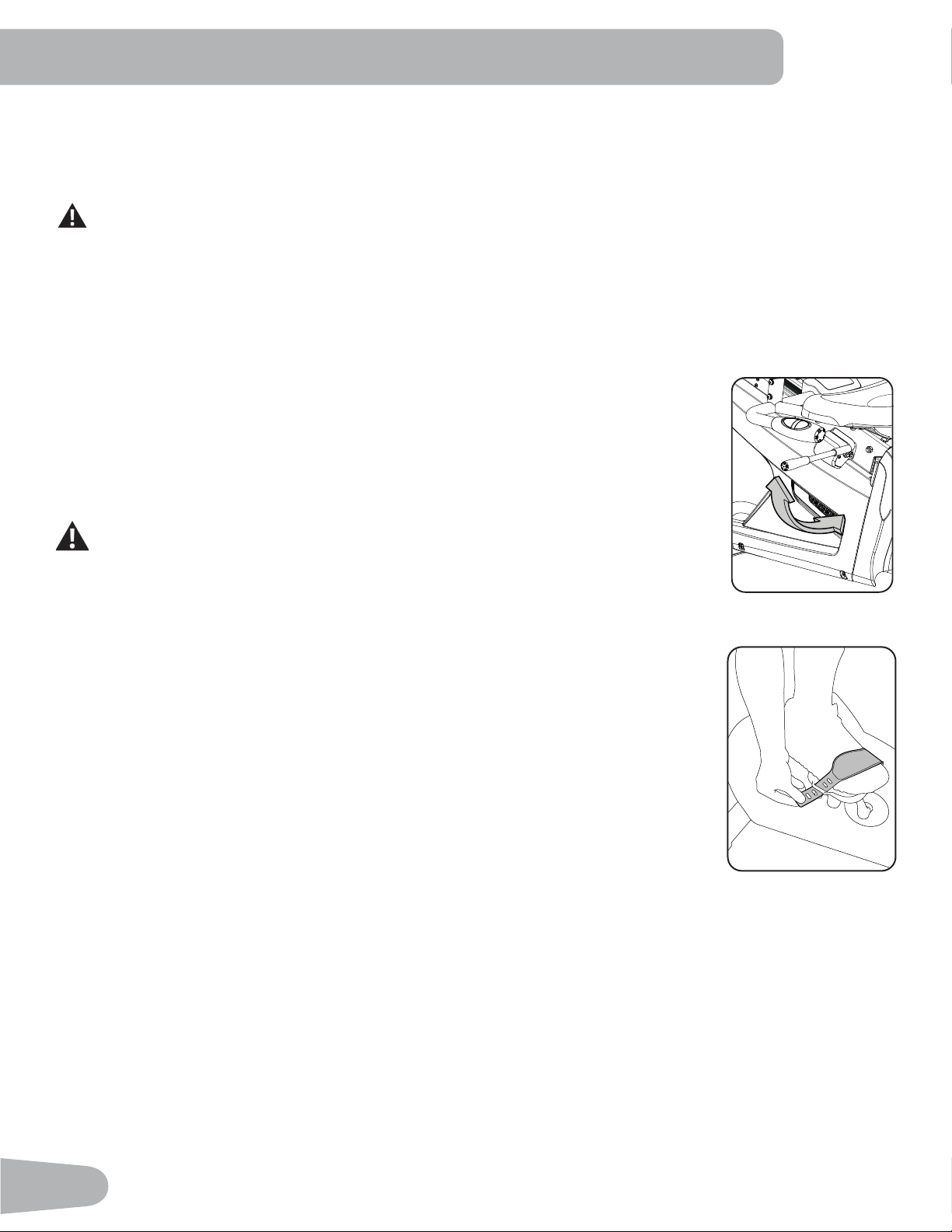

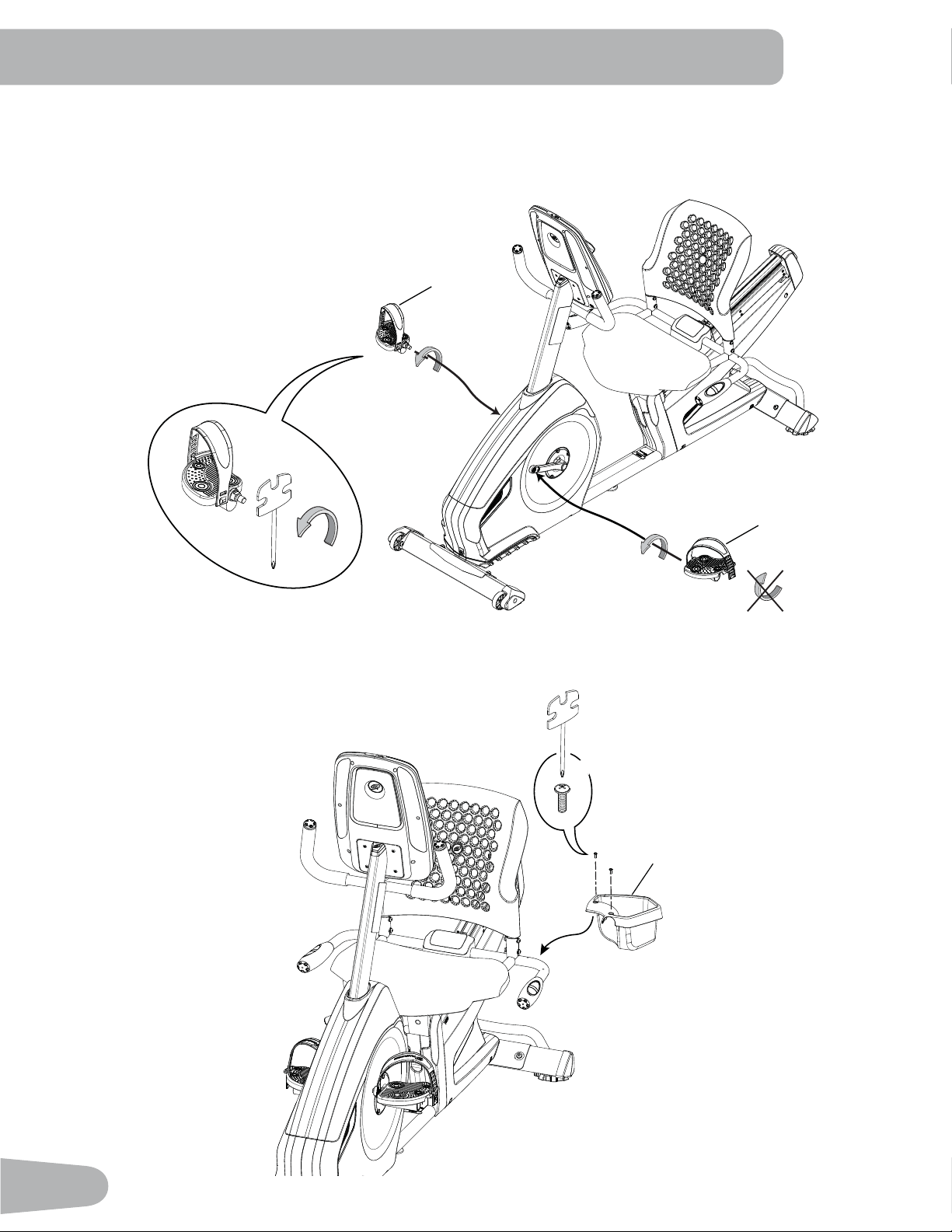

9. Attach Pedals to Frame Assembly
NOTICE: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation is based
from a seated position on the bike. The Left Pedal has an “L”, the Right Pedal an “R”.
13 (R)
11 (L)
10. Attach Water Bottle Holder to Frame Assembly
X2
F
#2
2
15

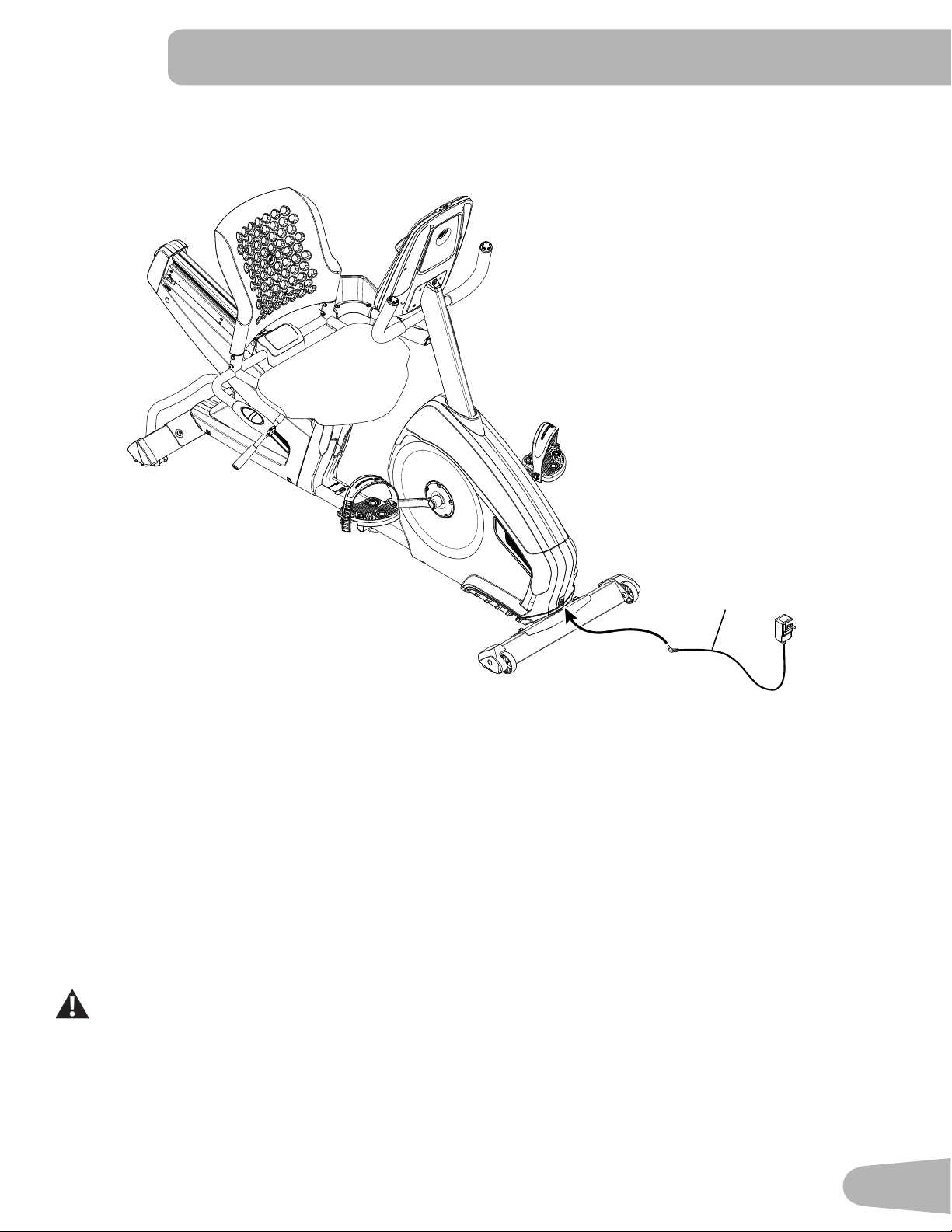

11. Connect AC Adapter to Frame Assembly
12. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are properly assembled.
Be sure to record the serial number in the ¿eld provided at the front of this manual.
Do not use until the machine has been fully assembled and inspected for correct performance in
accordance with the Owner’s Manual.
17
16

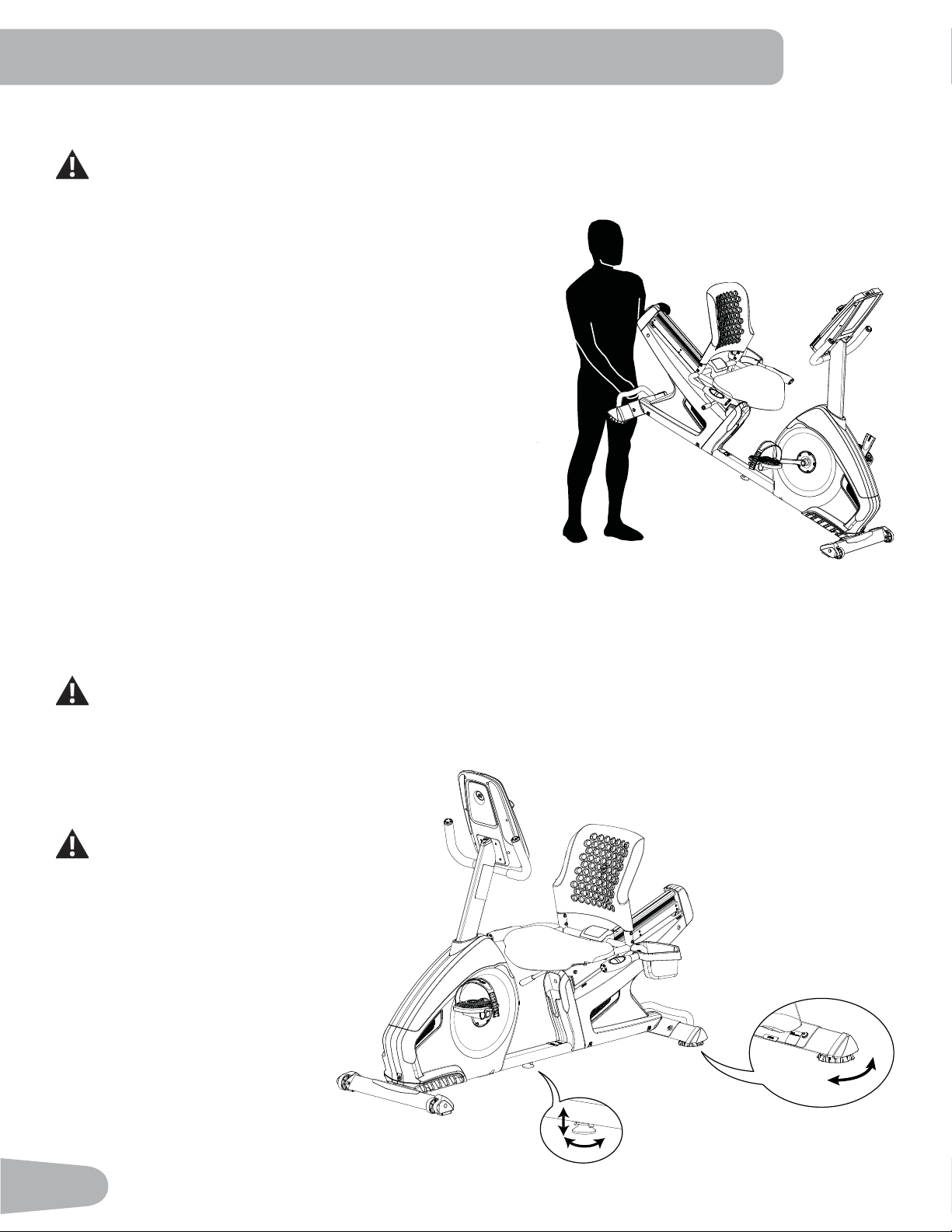

Moving the Machine
The machine may be moved by one or more persons depending on their physical abilities and capacities.
0DNHVXUHWKDW\RXDQGRWKHUVDUHDOOSK\VLFDOO\¿WDQGDEOHWRPRYHWKHPDFKLQHVDIHO\
1. Remove the power cord.
2. Use the Transport Handle to carefully lift the machine onto the
transport rollers.
3. Push the machine into position.
4. Carefully lower the machine into position.
NOTICE: Be careful when you move the bike. Abrupt motions can
affect the computer operation.
BEFORE YOU START
Leveling the Machine
Levelers are found on each side of the Rear Stabilizer and on the Frame Rail. On the Rear Stabilizer, turn the stabilizer
foot to adjust.
Do not adjust the levelers to such a height that they detach or unscrew from the machine. Injury to you or
damage to the machine can occur.
To adjust the leveler on the Frame Rail
1. Loosen the upper locking nut.
2. Turn the leveler to adjust the height.
Do not adjust the levelers to
such a height that they detach
or unscrew from the machine.
Injury to you or damage to the
machine can occur.
3. Tighten the upper locking nut to lock
the leveler.
Make sure the bike is level and stable
before you e[ercise.
17
FEATURES

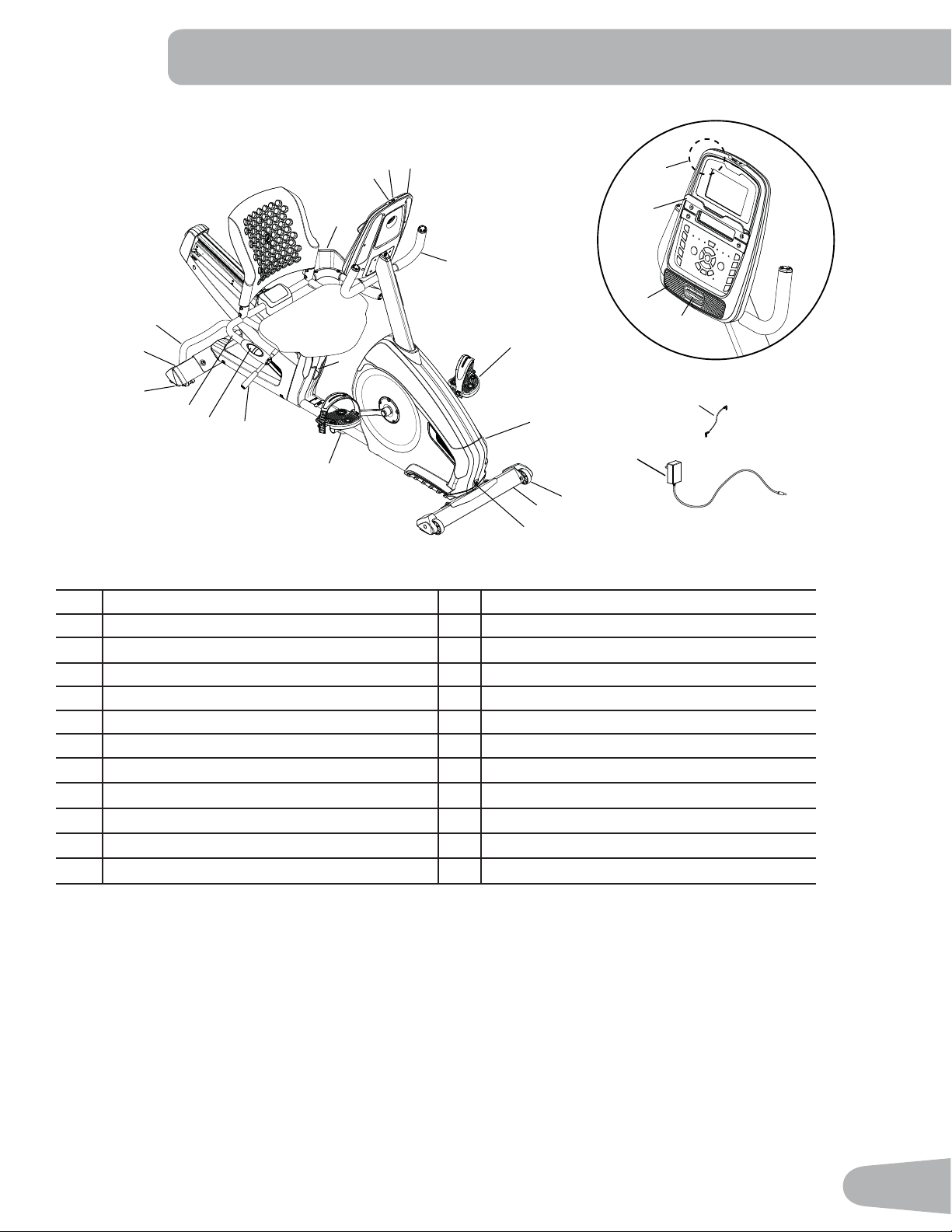

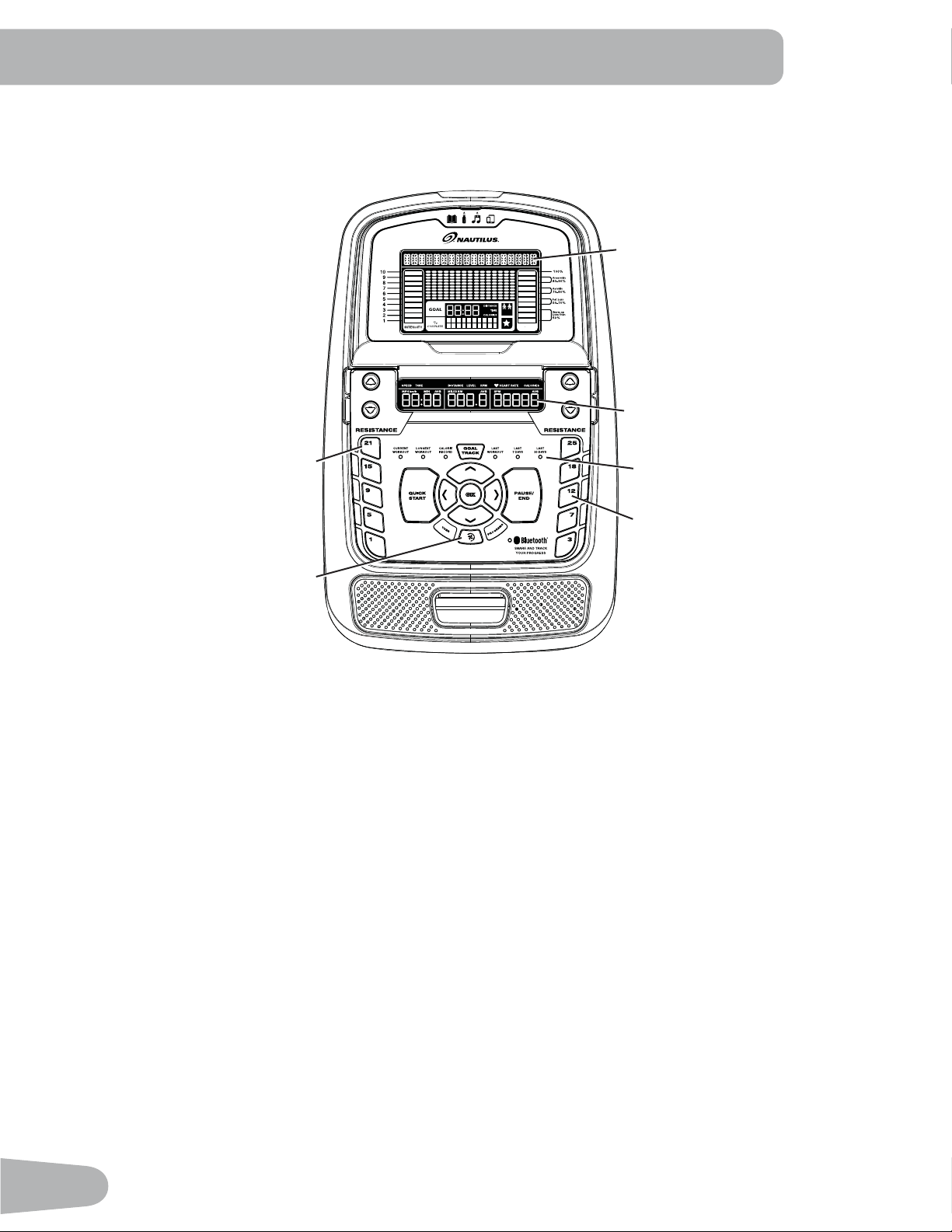

A Console M Pedal
B MP3 Input N Storage Bin
C USB Port O Seat Adjustment Handle
D Water Bottle Holder P Handlebar, Upright
E Transport Handle Q Speakers
F Stabilizer R Fan
G Leveler S Media Tray
H Handlebar, Side T Telemetry Heart Rate (HR) Receiver
I Contact Heart Rate (CHR) Sensors U Bluetooth
®
Connectivity (not shown)
J Power Connector 9 Media Cable
K Transport Wheels W AC Adapter
L Fully Shrouded Flywheel
R
Q
S
T
L
K
J
F
M
G
G
F
E
I
H
O
D
P
B
C
A
N
V
A
P
W
WARNING! Use the values calculated or measured by the machine’s computer for reference purposes only. The
heart rate displayed is an approximation and should be used for reference only. Over exercising may
result in serious injury or death. If you feel faint stop exercising immediately.
18
Console Features
The Console provides important information about your workout and lets you control the resistance levels while you
e[ercise. The Console features the Nautilus Dual Track™ display with touch control buttons to navigate you through the
e[ercise programs.
Keypad Functions
Resistance Increase (c) button- Increases the workout resistance level
Resistance Decrease (d) button- Decreases the workout resistance level
QUICK START button- Begins a Quick Start workout
USER button- Selects a User pro¿le
PROGRAMS button- Selects a category and workout program
PAUSE / END button- Pauses an active workout, ends a paused workout, or goes back to the previous screen
GOAL TRACK button- Displays the Workout Totals and Achievements for the selected User Pro¿le
Increase (c) button- Increases a value (age, time, distance, or calories) or moves through options
Left (e) button- Displays different workout values during a workout, and moves through options
OK button- Starts a Program workout, con¿rms information, or resumes a paused workout
Right (f) button- Displays different workout values during a workout, and moves through options
Decrease (d) button- Decreases a value (age, time, distance, or calories) or moves through options
Hr
Upper Display
Lower Display
Resistance Level Quick Buttons
Achievement Indicator Lights
Fan
Resistance Level Quick Buttons
19
FAN button- Controls 3-speed fan
Resistance Level Quick Buttons- Shifts the resistance levels to the setting quickly during a workout
Achievement Indicator Lights- when an achievement level is reached or a result is reviewed, the achievement indicator
light will activate

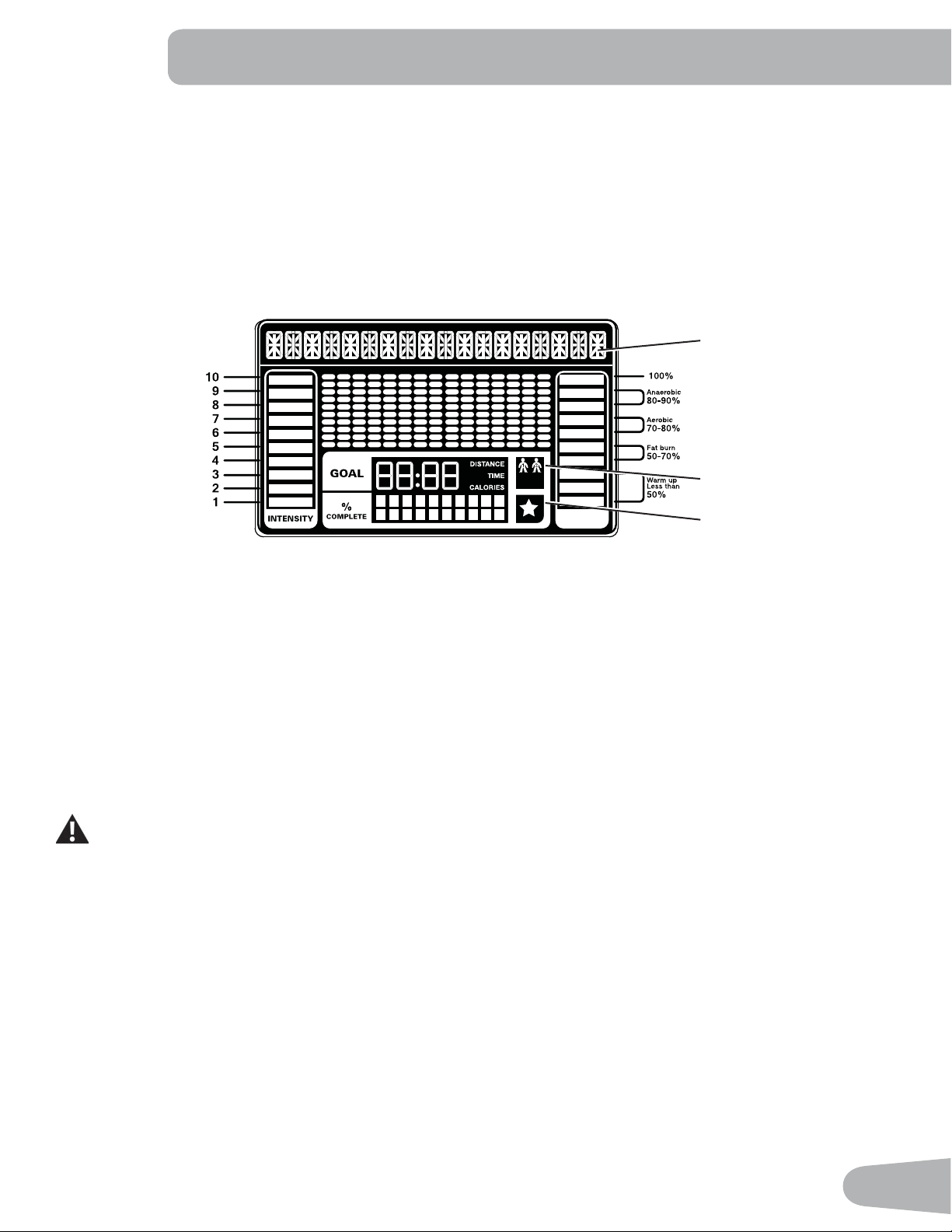

Nautilus Dual Track™ Display
Upper Display Data
Program Display
The Program Display shows information to the User and the grid display area shows the course pro¿le for the program.
Each column in the pro¿le shows one interval (workout segment). The higher the column, the higher the resistance level.
The Àashing column shows your current interval.
Intensity Display
The Intensity Display shows the level of work at that moment based on the current resistance level.
Heart Rate Zone Display
The Heart Rate Zone shows which zone the current heart rate value falls into for the current User. These Heart Rate
Zones can be used as a workout guide for a certain target zone (anaerobic, aerobic, or fat burn).
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
The heart rate displayed is an approximation and should be used for reference only.
Note: If no heart rate is detected, the display will be blank.
NOTICE: To prevent interference with the telemetry HR receiver, do not place any personal electronic devices in the left
side of the media tray.
Goal Display
The Goal Display shows the currently selected type of goal (Distance, Time or Calories), the current value to achieve the
goal, and the percent completed toward the goal.
User Display
The User Display shows which User Pro¿le is currently selected.
User Display
Achievement Display
Program Display
20
Achievement Display
The Achievement Display activates when a workout goal is reached or a workout milestone is surpassed from past
workouts. The Console display will congratulate and inform the User of their achievement, along with a celebratory sound.
Lower Display Data
The Lower Display shows the Workout 9alues and can be customized for each User (Consult the “Edit User Pro¿le”
section of this manual).
Speed
The Speed display ¿eld shows the machine speed in miles per hour (mph) or kilometers per hour (km/h).
Time
The TIME display ¿eld shows the total time count of the workout, the average Time for the User Pro¿le, or the total opera-
tional time of the machine.
Note: If a Quick Start workout is performed for more than 99 minutes and 59 seconds (9959), the units for Time will shift to
hours and minutes ( 1 hour, 40 minutes ).
Distance
The Distance display shows the distance count (miles or km) in the workout.
Note: To change the measurement units to English Imperial or metric, refer to the “Console Setup Mode” section in this
manual.
Level
The LE9EL display shows the current resistance level in the workout.
RPM
The RPM display ¿eld shows the pedal revolutions per minute (RPM).
Heart Rate (Pulse)
The Heart Rate display shows the beats per minute (BPM) from the heart rate monitor. When a heart rate signal is re-
ceived by the Console, the icon will Àash.
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
The heart rate displayed is an approximation and should be used for reference only.
Calories
The Calories display ¿eld shows the estimated calories that you have burned during the e[ercise.
Hr
21
Bluetooth
®
Connectivity with the “Nautilus Trainer™” Fitness App
This ¿tness machine is equipped with Bluetooth
®
connectivity and can wirelessly sync with the “Nautilus Trainer™”
Fitness App on supported devices. The Software App syncs with your ¿tness machine to track total calories burned, time,
distance, and more. It records and stores every workout for quick reference. Plus, it automatically syncs your workout data
with MyFitnessPal
®
, and Under Armour
®
Connected Fitness to make hitting your daily calorie goal easier than ever! Track
your results and share with friends and family.
1. Download the free Software App, named Nautilus Trainer™. The software app is available on iTunes
®
and Google
Play™.
Note: For a complete list of supported devices, review the software app on iTunes
®
or Google Play™.
2. Follow the instructions on the Software App to sync your device to your e[ercise machine.
3. To sync your workout data with MyFitnessPal
®
or Under Armour
®
Connected Fitness, click on the desired program
and login with your information.
Note: The “Nautilus Trainer™” Fitness App will automatically sync your workouts after the initial syncing.
Workout with Other Fitness Apps
This ¿tness machine has integrated Bluetooth
®
connectivity which allows it to work with a number of digital partners. For
our latest list of supported partners, please visit www.nautilus.com/partners
USB Charging
If a USB Device is attached to the USB Port, the Port will attempt to charge the Device. The power supplied from the USB
Port may not be enough to operate the Device and charge it at the same time.
9LUWXDO5HDOLW\H[SHULHQFHRQ\RXU¿WQHVVPDFKLQH
This ¿tness machine is equipped to support a 9irtual Reality (9R) e[perience on supported devices.
Review, understand, and follow all warning instructions and the correct operation as supplied with your
Virtual Reality equipment.
No one under the age of 13 should use this exercise equipment or the Virtual Reality experience.
Before starting a workout with the Virtual Reality experience, be sure the workout area is and will be clear
throughout the workout, and that all persons or pets are restricted from the workout area. If necessary, a
second person should be used to help secure the area.
The VR experience produces an immersive virtual reality experience that distracts and blocks the view of
WKHDFWXDOVXUURXQGLQJV)RUWKHVDIHVWH[SHULHQFHRQO\XVHWKH95H[SHULHQFHZKHQRSHUDWLQJWKH¿WQHVV
equipment in the seated position. Do not start the VR experience until seated and ready to start a workout.
Be sure the area is secure and that the workout area is safe from potential harm and clear of all obstacles
within reach. Damage to you or items in the workout area could result during a VR workout. Stay seated on
the exercise equipment until the VR gear has been removed and the actual surroundings are viewable.
If dizziness or motion sickness is experienced from the Virtual Reality experience, safely balance yourself
and stop the Virtual Reality experience as soon as possible. Coordination and balance is required when
using the VR experience with the exercise machine.
Consult with a doctor before using the VR experience if you have any conditions which may be affected by
an immersive Virtual Reality experience, such as epilepsy, pregnant, elderly, psychotic disorders, vision
abnormalities, heart conditions, or any other medical condition.
22
Remote Heart Rate Monitor
Monitoring your Heart Rate is one of the best procedures to control the intensity of your e[ercise. Contact Heart Rate
(CHR) sensors are installed to send your heart rate signals to the Console. The Console can also read telemetry HR
signals from a Heart Rate Chest Strap Transmitter that operates in the 4.5kHz - 5.5kHz range.
Note: The heart rate chest strap must be an uncoded heart rate strap from
Polar Electro or an uncoded POLAR
®
compatible model. (Coded
POLAR
®
heart rate straps such as POLAR
®
OwnCode
®
chest straps will
not work with this equipment.)
If you have a pacemaker or other implanted electronic device,
consult your doctor before using a wireless chest strap or other
telemetric heart rate monitor.
NOTICE: To prevent interference with the telemetry HR receiver, do not place
any personal electronic devices in the left side of the media tray.*
Contact Heart Rate Sensors
Contact Heart Rate (CHR) sensors send your heart rate signals to the Console. The CHR sensors are the stainless steel
parts of the Handlebars. To use, put your hands comfortably around the sensors. Be sure that your hands touch both the
top and the bottom of the sensors. Hold ¿rm, but not too tight or loose. Both hands must make contact with the sensors for
the Console to detect a pulse. After the Console detects four stable pulse signals, your initial pulse rate will be shown.
Once the Console has your initial heart rate, do not move or shift your hands for 10 to 15 seconds. The Console will now
validate the heart rate. Many factors inÀuence the ability of the sensors to detect your heart rate signal
• Movement of the upper body muscles (including arms) produces an electrical signal (muscle artifact) that can interfere
with pulse detection. Slight hand movement while in contact with the sensors can also produce interference.
• Calluses and hand lotion may act as an insulating layer to reduce the signal strength.
• Some Electrocardiogram (EKG) signals generated by individuals are not strong enough to be detected by the sensors.
• The pro[imity of other electronic machines can generate interference.
If your heart rate signal ever seems erratic after validation, wipe off your hands and the sensors and try again.
Heart Rate Calculations
<our ma[imum heart rate usually decreases from 220 Beats Per Minute (BPM) in childhood to appro[imately 10 BPM by
age 0. This fall in heart rate is usually linear, decreasing by appro[imately one BPM for each year. There is no indication
that training inÀuences the decrease in ma[imum heart rate. Individuals of the same age could have different ma[imum
heart rates. It is more accurate to ¿nd this value by completing a stress test than by using an age related formula.
<our at-rest heart rate is inÀuenced by endurance training. The typical adult has an at rest heart rate of appro[imately 72
BPM, whereas highly trained runners may have readings of 40 BPM or lower.
The Heart Rate table is an estimate of what Heart Rate Zone (HRZ) is effective to burn fat and improve your cardiovas-
cular system. Physical conditions vary, therefore your individual HRZ could be several beats higher or lower than what is
shown.
The most ef¿cient procedure to burn fat during e[ercise is to start at a slow pace and gradually increase your intensity un-
til your heart rate reaches between 50 ± 70 of your ma[imum heart rate. Continue at that pace, keeping your heart rate
in that target zone for over 20 minutes. The longer you maintain your target heart rate, the more fat your body will burn.
*
23
&!4"52.).'4!2'%4(%!242!4%
(EART2ATE"0-
BEATSPERMINUTE
!GE
-AXIMUM(EART2ATE
4ARGET(EART2ATE:ONE
KEEPWITHINTHISRANGE
FOROPTIMUMFATBURNING
The graph is a brief guideline, describing the generally suggested target heart rates based on age. As noted above, your
optimal target rate may be higher or lower. Consult your physician for your individual target heart rate zone.
Note: As with all e[ercises and ¿tness regimens, always use your best judgment when you increase your e[ercise time or
intensity.
24
OPERATIONS
What to Wear
Wear rubber-soled athletic shoes. <ou will need the appropriate clothes for e[ercise that allow you to move freely.
How Often Should You Exercise
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
Use the values calculated or measured by the machine’s computer for reference purposes only. The heart
rate displayed on the console is an approximation and should be used for reference only.
• 3 times a week for 30 minutes each day.
• Schedule workouts in advance and try to follow the schedule.
Seat Adjustment
Correct seat placement encourages e[ercise ef¿ciency and comfort, while reducing the risk of
injury.
1. With a Pedal in the forward position, place the ball of your foot over the center of it. Your leg
should be bent slightly at the knee.
2. If your leg is too straight or your foot cannot touch the Pedal, move the seat forward. If your
leg is bent too much, move the seat toward the back.
Step off the bike before you adjust the seat.
3. Push down on the Seat Adjustment Handle, and adjust the seat to the desired height.
4. Pull up the Seat Adjustment Handle to engage the locking mechanism. Be sure that the
handle is fully engaged.
Foot Position / Pedal Strap Adjustment
Foot pedals with straps provide secure footing to the e[ercise bike.
1. Rotate the Pedals until one can be reached.
2. Put the ball of each foot on the Pedals.
3. Fasten the strap over the shoe.
4. Repeat for the other foot.
Be sure toes and knees point directly forward to ensure ma[imum Pedal ef¿ciency. Pedal straps
can be left in position for subsequent workouts.
Power-Up / Idle Mode
The Console will enter Power-Up / Idle Mode if it is plugged into a power source, any button is pushed, or if it receives a
signal from the RPM sensor as a result of pedaling the machine.
Auto Shut-Off (Sleep Mode)
If the Console does not receive any input in appro[imately 5 minutes, it will automatically shut off unless in Demonstration
mode.
Push any button to start (wake up) the Console. If your machine is in Demonstration mode, hold down the PAUSE/END
button and Left button together for 3 seconds.
Note: The Console does not have an On/Off switch.
25
Initial Setup
During the ¿rst power-up, the Console should be setup with the date, time and your preferred measurement units.
1. Date Push the Increase/Decrease buttons to adjust the currently active value (Àashing). Push the Left/Right buttons
to change which segment is the currently active value (month / day / year).
2. Push OK to set.
3. Time Push the Increase/Decrease buttons to adjust the currently active value (Àashing). Push the Left/Right buttons
to change which segment is the currently active value (hour / minute / AM or PM).
4. Push OK to set.
5. Units of Measurement Push the Increase/Decrease buttons to adjust between “MILES” (Imperial English) or “KM”
(metric).
. Push OK to set. The Console goes back to the Power-Up / Idle Mode screen.
Note: To adjust these selections, consult the “Console Set-Up Mode” section.
Quick Start ( Manual ) Program
The Quick Start ( Manual ) program lets you start a workout without entering any information.
During a Manual Workout, each column represents a 2 minute time period. The active column will advance across the
screen every 2 minutes. If the workout lasts for more than 30 minutes, the active column is ¿[ed on the farthest column on
the right and pushes the previous columns off the display.
1. Sit on the machine.
2. Push the User button to select the correct User pro¿le. If you do not have a User pro¿le set up, you can select a User
pro¿le that has no customized data (default values only).
3. Push the QUICK START button to start the Manual program.
4. To change the resistance level, push the Resistance Increase/Decrease buttons. The current interval and future
intervals are set to the new level. The default Manual resistance level is 4. The time will count up from 0000.
Note: If a Manual workout is performed for more than 99 minutes and 59 seconds (9959), the units for Time will shift to
hours and minutes ( 1 hour, 40 minutes ).
5. When done with your workout, stop pedaling and push PAUSE/END to pause the workout. Push PAUSE/END again
to end the workout.
Note: The workout results are recorded to the current User Profile.
User Profiles
The Console lets you store and use 4 User profiles. The User profiles automatically record the workout results for each
workout, and allow the workout data to be reviewed.
The User profile stores the following data
• Name—up to 10 characters
• Age
• Weight
• Height
• Gender
• Preferred Workout 9alues
Select a User Profile
Every workout is saved to a User Pro¿le. Be sure to select the proper User Pro¿le before starting a workout. The last User
that completed a workout will be the default user.
26
User Pro¿les are assigned the default values until they are customized by editing. Be sure to edit the User Pro¿le for more
accurate calorie and heart rate information.
From the Power-Up Mode screen, push the User button to select one of the User Pro¿les. The Console will display the
name of the User Pro¿le and the User Pro¿le Icon.
Edit User Profile
1. From the Power-Up Mode screen, push the User button to select one of the User Pro¿les.
2. Push the OK button to select it.
3. The Console display shows the EDIT prompt and the current User Profile name. Push OK to start the Edit User Pro¿le
option.
To e [it the Edit User Pro¿le option, push the PAUSE/END button and the console will go back to the Power-Up Mode
screen.
4. The Console display shows the NAME prompt and the current User Profile name.
Note: The User name will be blank if this is the first edit. The name of a User Profile is limited to 10 characters.
The currently active segment will flash. Use the Increase/Decrease buttons to move through the alphabet and blank
space (found between A and Z). To set each segment, use the Left(e) or Right(f) buttons to shift between segments.
Push the OK button to accept the displayed User name.
5. To edit the other User data (EDIT AGE, EDIT WEIGHT, EDIT HEIGHT, EDIT GENDER), use the Increase/Decrease
buttons to adjust, and push OK to set each entry.
. The Console display shows the SCAN prompt. This option controls how the workout values are displayed in the Lower
Display during a workout. The “OFF” setting allows the user to push the RIGHT or LEFT buttons to view the other
workout value channels when desired. The “ON” setting allows the Console to automatically display the workout value
channels every seconds.
The default is “OFF”.
Push the OK button to set how the workout values are displayed.
7. The Console display shows the WIRELESS HR prompt. If you are using the Console speakers at their higher settings
and / or using a larger sized personal electronic device, the Console may show Heart Rate interference. This option
allows the Telemetry Heart Rate Receiver to be deactivated blocking the interference.
The Upper Display shows the current value setting “ON” or “OFF”. Push the Increase(c) or Decrease(d) buttons to
change the value.
The default is “ON”.
Push the OK button to set the Telemetry Heart Rate Receiver to active.
8. The Console display shows the EDIT LOWER DISPLAY prompt. This option allows you to customize which Workout
9alues are displayed during a workout.
The Lower Display will show all of the workout values, with the active Workout 9alue Àashing. The Upper Display
shows the active value setting “ON” or “OFF”. Push the Increase(c
) or Decrease(d) buttons to hide the active
workout value, and push the Left(e) or Right(f) buttons to shift the active workout value.
Note: to show a hidden workout value, repeat procedure and change Upper Display value to “ON” for that value.
When done with customizing the Lower Display, push the OK button to set it.
Hr
27
9. The Console will go to the Power-Up Mode screen with the user selected.
Reset a User Profile
1. From the Power-Up Mode screen, push the User button to select one of the User Pro¿les.
2. Push the OK button to select it.
3. The Console display shows the current User Profile name and the EDIT prompt. Push the Increase(c) or Decrease(d)
buttons to change the prompt.
Note: To e[it the Edit User Pro¿le option, push the PAUSE/END button and the console will go back to the Power-Up Mode
screen.
4. The Console display shows the RESET prompt and the current User Profile name. Push OK to start the Reset User
Pro¿le option.
5. The Console will now confirm the request to reset the User profile (the default selection is ‘NO’). Push the Increase(c)
or Decrease(d) buttons to adjust the selection.
. Push OK to make your selection.
7. The Console will go to the Power-Up Mode screen.
Changing Resistance Levels
Push the Resistance Level Increase(c) or Decrease(d) buttons to change the resistance level at any time in a workout
program. To rapidly change the resistance level, push the desired Resistance Level Quick Button. The Console will adjust
to the selected resistance level of the quick button.

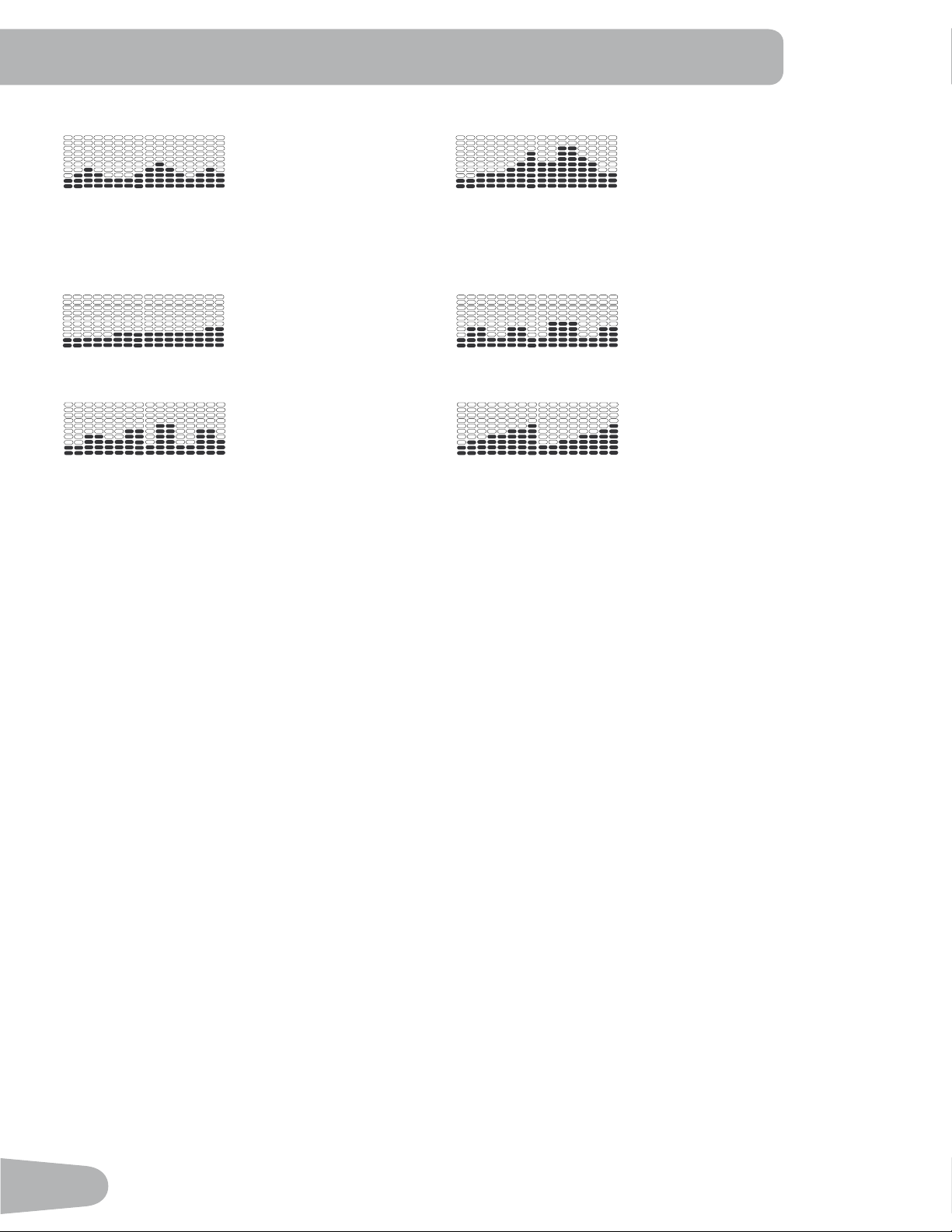

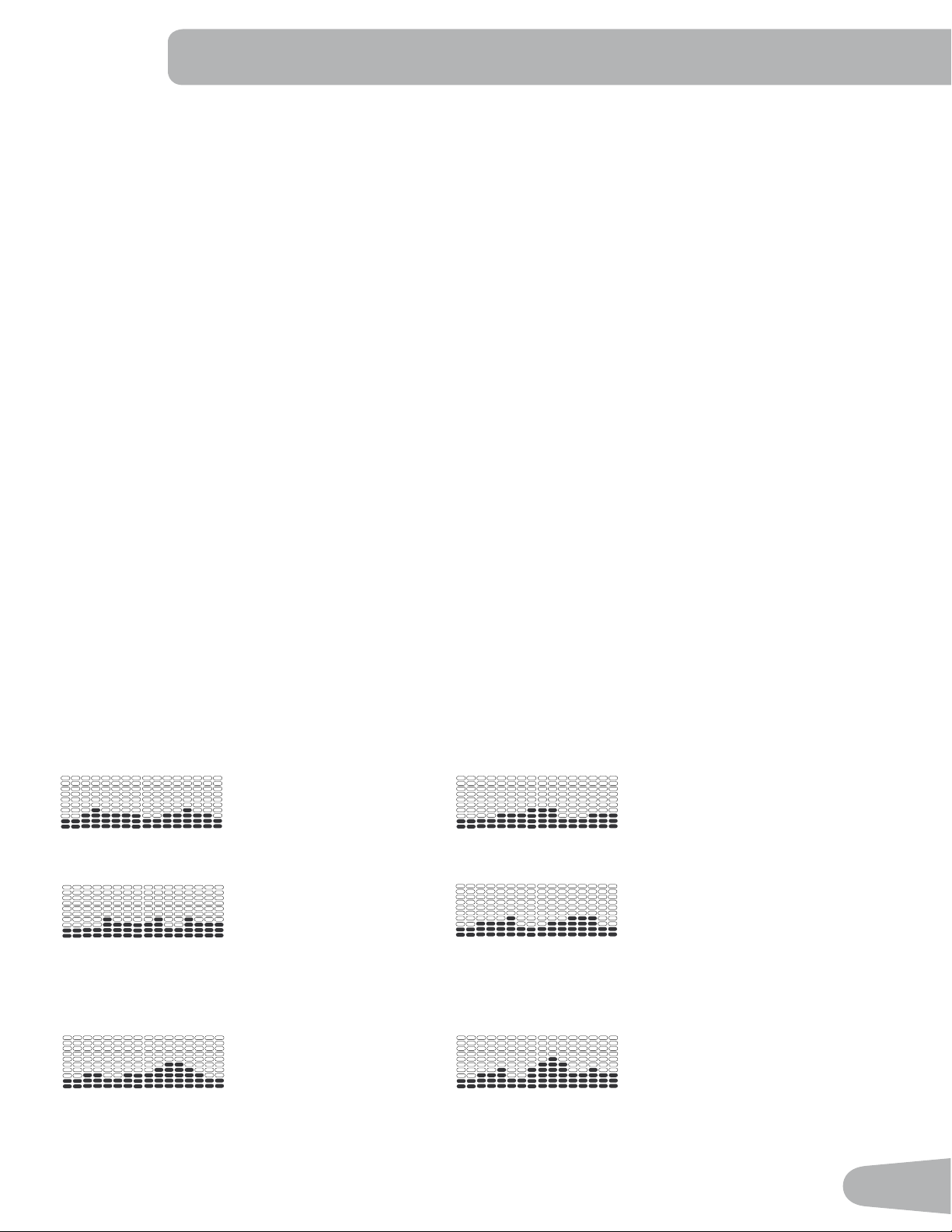

3UR¿OH3URJUDPV
These programs automate different resistance and workout levels. The Pro¿le Programs are organized into Categories
(Fun Rides, Mountains, and Challenges).
Note: Once a User views all the Categories, they will be e[panded to display the Programs within each of the Categories.
FUN RIDES
Rolling Hills Ride in the Park
Easy Tour Stream Crossing
MOUNTAINS
Pike’s Peak Mount Hood
28
Pyramids Summit Pass
CHALLENGES
Uphill Finish Cross-Training
Interval Stairs
:RUNRXW3UR¿OHDQG*RDO3URJUDP
The Console lets you select the Pro¿le Program and type of Goal for your workout (Distance, Time or Calories), and set
the Goal value.
1. Sit on the machine.
2. Push the User button to select the correct User pro¿le.
3. Push the Programs button.
4. Push the Left(e) or Right(f) buttons to select a Category of Workout.
5. Push the Increase(c) or Decrease(d) buttons to select a Profile Workout, and push OK.
. Use the Increase(c) or Decrease(d) buttons to select a type of Goal (Distance, Time or Calories), and push OK.
7. Use the Increase(c) or Decrease(d) buttons to adjust the workout value.
8. Push OK to begin the goal-oriented workout. The GOAL value will count down as the value for percent completed
increases.
Note: During a Calories Goal, each column is for a 2 minute time period. The active column will advance across the screen
every 2 minutes. If the workout lasts for more than 30 minutes, the active column will ¿[ to the last right column and push
the previous columns off the display.
Fitness Test Program
The Fitness Test measures the improvements to your physical ¿tness level. The test compares your power output (in
watts) to your heart rate. As your ¿tness level improves, your power output will increase at a given heart rate.
Note: The Console must be able to read the heart rate information from the Contact Heart Rate (CHR) sensors or Heart
Rate Monitor (HRM) to work correctly.
You can start the Fitness Test from the FEEDBACK category. The Fitness Test program ¿rst prompts you to select your
¿tness level—Beginner ( “BEG” ) or Advanced ( “AD9” ). The Console will use the Age and Weight values for the selected
User Pro¿le to calculate the Fitness Score.
Start to work out and hold the Heart Rate Sensors. When the test starts, the intensity of the workout slowly increases. This
means you will work harder, and as a result, your heart rate increases. The intensity continues to increase automatically
until your heart rate reaches the “Test Zone”. This zone is individually computed to be near 75 percent of the ma[imum
29
heart rate of your User Pro¿le. When you reach the Test Zone, the machine holds the intensity steady for 3 minutes.
This lets you reach a stable condition (where your heart rate becomes steady). At the end of the 3 minutes, the Console
measures your heart rate and the power output. These numbers, along with information about your age and weight, are
computed to produce a “Fitness Score”.
Note: Fitness Test scores should only be compared to your previous scores and not to other User Profiles.
Compare your Fitness Scores to see your improvement.
Recovery Test Program
Recovery Test shows how quickly your heart recovers from an e[ercise state to a more restful state. Improved recovery is
an indicator of increasing ¿tness.
Note: The Console must be able to read the heart rate information from the Contact Heart Rate (CHR) sensors or Heart
Rate Monitor (HRM) to work correctly.
From an elevated heart rate, select the Recovery Test Program. The Console will show “STOP EXERCISING” and the
goal will begin to count down. Stop e[ercising but continue to grip the contact heart rate sensors. After 5 seconds, the
display will show “RELAX” and will continue to count down to 0000. For the entire minute the console will also show your
heart rate. You must grip the heart rate sensors for the duration of the test if not using a Remote Heart Rate Monitor.
The display will continue to show “RELAX” and your heart rate until the goal reaches 0000. The console will then calcu-
late your recovery score.
Recovery Score Your heart rate at 100 (the beginning of the test) minus your heart rate at 0000 (the end of the test).
The higher the Recovery Test score value, the quicker your heart rate is returning to a more restful state and is an indica-
tion of improving ¿tness. By recording these values over time you can see the trend toward better health.
When you select the Recovery Test Program and there is no heart rate signal or display, the Console will show “NEED
HEART RATE”. This message will show for 5 seconds. If no signal is detected, the program will end.
Helpful Tip For a more relevant score, try to obtain a steady heart rate for 3 minutes before starting the Recovery Pro-
gram. This will be easier to achieve, and obtain the best result, in the Manual program so you can control the levels of
resistance.
Heart Rate Control (HRC) Workout Programs
The Heart Rate Control (HRC) programs let you set a heart rate goal for your workout. The program monitors your heart
rate in beats per minute (BPM) from the Contact Heart Rate (CHR) sensors on the machine or from a Heart Rate Monitor
(HRM) chest strap, and adjusts the workout to keep your heart rate in the selected zone.
Note: The console must be able to read the heart rate information from the CHR sensors or HRM for the HRC program to
work correctly.
The Target Heart Rate programs use your age and other User information to set the Heart Rate Zone values for your
workout. The console display then gives prompts for you to set up your workout
1. Select the Heart Rate Control workout level BEGINNER ( “BEG” ) or AD9ANCED ( “AD9” ) and push OK.
2. Push the Increase(c) or Decrease(d) buttons to select the percentage of ma[imum heart rate 50±0, 0±70,
70±80, 80±90.
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
Use the values calculated or measured by the machine’s computer for reference purposes only. The heart
rate displayed on the console is an approximation and should be used for reference only.
3. Push the Increase(c) or Decrease(d) buttons to select the Goal type, and push OK.
30
4. Push the Increase(c) or Decrease(d) buttons to set the goal value for the workout.
Note: Be sure to allow time for your heart rate to reach the desired heart rate zone when setting the goal.
5. Push OK to start the workout.
A User can set a Heart Rate zone instead of a value by selecting the Heart Rate Control - User program. The Console will
adjust the workout to keep the User in the desired Heart Rate zone.
1. Select HEART RATE CONTROL - USER, and push OK.
2. Push the Increase(c) or Decrease(d) buttons to set the Heart Rate zone for the workout, and push OK. The Console
shows the Heart Rate zone (percent) on the left, and the Heart Rate range for the User on the right side of the display.
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
Use the values calculated or measured by the machine’s computer for reference purposes only. The heart
rate displayed on the console is an approximation and should be used for reference only.
3. Push the Increase(c) or Decrease(d) buttons to select the Goal type, and push OK.
4. Push the Increase(c) or Decrease(d) buttons to set the value for the workout.
5. Push OK to start the workout.
Custom Program
The Custom Program lets you set the resistance level for each interval and select type of Goal (Distance, Time or Calo-
ries) to create a personalized workout. One custom workout is available for each User Pro¿le.
1. Stand on the machine.
2. Push the User button to select the correct User pro¿le.
3. Push the Programs button.
4. Push the Increase(c) or Decrease(d) buttons to select Custom Program, and push OK.
5. The Console shows Heart Rate Control. To select Heart Rate Control, push OK.
To continue in the Custom Program, push the Left button and the Console shows Custom Program again. Push OK.
. To edit the Custom Program, use the Right(f) button to move to the ne[t interval and use the Increase(c) or
Decrease(d) buttons to adjust the resistance values. Push the OK button to accept the displayed values.
7. Use the Increase(c) or Decrease(d) buttons to select a type of Goal (Distance, Time or Calories), and push OK.
8. Use the Increase(c) or Decrease(d) buttons to adjust the workout value.
9. Push OK to start the workout. The GOAL value will count down as the value for percent completed increases.
Changing a Workout Program During a Workout
The Console allows a different Workout Program to be started from an active workout.
1. From an active workout, push PROGRAMS.
2. Push the Increase(c) or Decrease(d) buttons to select the desired workout program, and push OK.
3. Push the Increase(c) or Decrease(d) buttons to select the Goal type, and push OK.
4. Push the Increase(c) or Decrease(d) buttons to set the value for the workout.
5. Push OK to stop the active workout and start the new workout.
The previous workout values are saved to the User Pro¿le.
31
Pausing or Stopping
The Console will go into Pause Mode if the user stops pedaling and pushes PAUSE/END during a workout, or there is no
RPM signal for 5 seconds (user not pedaling). The Console will cycle through a series of messages that change every 4
seconds
- WORKOUT PAUSED
- PEDAL TO CONTINUE (if a bike) / STRIDE TO CONTINUE (if an elliptical)
- PUSH END TO STOP
During a paused workout, you can use the Increase/Decrease buttons to move through the result channels manually.
1. Stop pedaling and push the PAUSE/END button to pause your workout.
2. To continue your workout, push OK or start pedaling.
To stop the workout, push the PAUSE/END button. The Console will go into Results / Cool Down mode.
Results / Cool Down Mode
After a workout the GOAL display shows 0300 and then starts to count down. During this Cool Down period, the Console
shows the Workout Results. All workouts e[cept Quick Start have a 3-minute Cool Down period.
The LCD display shows the Current Workout values in three channels
a.) TIME (total), DISTANCE (total), and CALORIES (total)
b.) SPEED (average), RPM (average), and HEART RATE (average)
c.) TIME (average), LE9EL (average), and CALORIES (average).
Push the Left(e) or Right(f) buttons to move through the result channels manually.
During the Cool Down period, the Resistance Level will adjust to a third of the average Level of the workout. The Cool
Down resistance level can be adjusted with the Resistance Increase and Decrease buttons, but the Console will not dis-
play the value.
You can push PAUSE/END to stop the Results / Cool Down period and go back to Power-Up Mode. If there is no RPM or
HR signal, the Console automatically goes into Sleep Mode.
GOAL TRACK Statistics (and Achievements)
The statistics from every workout are recorded to a User Pro¿le.
The Nautilus Dual Track™ Console shows the Goal Track workout Statistics on the Lower Display in three channels
a.) TIME (total), DISTANCE (total), and CALORIES (total)
b.) SPEED (average), RPM (average), and HEART RATE (average)
c.) TIME (average), DISTANCE (average) / or LE9EL (average) *, and CALORIES (average)
* If the Goal Track Statistic is a single workout, LE9EL (average) is displayed. If the Goal Track Statistic is a
combination of multiple workouts, DISTANCE (average) is displayed instead of LE9EL (average).
To view the GOAL TRACK statistics of a User Pro¿le
1. From the Power-Up screen, push the User button to select the correct User pro¿le.
2. Push the GOAL TRACK button. The Console will display the LAST WORKOUT values and activate the corresponding
Achievement light.
Note: Goal Track statistics can be viewed even during a workout. Push GOAL TRACK and the LAST WORKOUT values
will be displayed. The workout values for the current workout will be hidden e[cept for the GOAL display. Push GOAL
TRACK again to return to the Power-Up screen.
32
3. Push the Increase(c) button to move to the ne[t GOAL TRACK statistic, “LAST 7 DAYS”. The Console will display
the calories burned on the display (50 calories per segment) for the previous seven days, along with the workout value
totals. Use the Left(e) or Right(f) buttons to move through all the workout statistic channels.
4. Push the Increase(c) button to move to “LAST 30 DAYS”. The Console will display the total values for the previous
thirty days. Use the Left(e) or Right(f) buttons to move through all the workout statistic channels.
5. Push the Increase(c) button to move to the “LONGEST WORKOUT”. The Console will display the workout values with
the most Time value. Use the Left(e) or Right(f) buttons to move through all the workout statistic channels.
. Push the Increase(c) button to move to the “CALORIE RECORD”. The Console will display the workout values with the
most Calories value. Use the Left(e) or Right(f) buttons to move through all the workout statistic channels.
7. Push the Increase(c) button to move to “BMI”, or Body Mass Inde[. The Console will display the BMI value based on
the User settings. Be sure the height value is correct for your User Pro¿le, and the weight value is current.
The BMI Measurement is a useful tool that shows the relationship between weight and height that is associated with body
fat and health risk. The table below gives a general rating for the BMI score
Underweight Below 18.5
Normal 18.5 ± 24.9
Overweight 25.0 ± 29.9
Obesity 30.0 and above
Note: The rating may overestimate body fat in athletes and others who have a muscular build. It may also underestimate
body fat in older persons and others who have lost muscle mass.
Contact your doctor for more information about Body Mass Index (BMI) and the weight that is appropriate
for you. Use the values calculated or measured by the machine’s computer for reference purposes only.
8. Push the Increase(c) button to move to the “SA9E TO USB - OK"” prompt. Push OK and the “ARE YOU SURE"
-NO” prompt will display. Push the Increase(c) button to change it to yes and push OK. The Console will display the
“INSERT USB” prompt. Insert a USB Flash Drive into the USB Port. The Console will record the Statistics to the USB
Flash Drive.
The Console will display “SA9ING”, and then “REMO9E USB” when it is safe to remove the USB Flash Drive.
Note: Push the PAUSE/END button to force an e[it from the “SA9ING” prompt.
9. Push the Increase(c) button to move to the “CLEAR WORKOUT DATA -OK"” prompt. Push OK, and the “ARE YOU
SURE" - NO” prompt will display. Push the Increase(c) button to change to the “ARE YOU SURE" - YES” display, and
push OK. The user workouts have been reset.
10. Push GOAL TRACK to return to the Power-Up screen.
When a User performs a workout that surpasses the “LONGEST WORKOUT” or “CALORIE RECORD” of the previous
workouts, the Console will congratulate with an audible sound and tell the User the new achievement. The corresponding
Achievement Indicator Light will also be active.
33
CONSOLE SETUP MODE
The Console Setup Mode lets you input the date and time, set the units of measurement to either English or Metric,
control the sound settings ( on/ off), or see maintenance statistics (Error Log and Run Hours ± for service technician use
only).
1. Hold down the PAUSE/END button and Up arrow button together for 3 seconds while in the Power-Up Mode to go
into the Console Setup Mode.
Note: Push PAUSE/END to e[it the Console Setup Mode and return to the Power-Up Mode screen.
2. The Console display shows the Date prompt with the current setting. To change, push the Up/Down arrow buttons to
adjust the currently active value (Àashing). Push the Left/Right buttons to change which segment is the currently ac-
tive value (month / day / year).
3. Push OK to set.
4. The Console display shows the Time prompt with the current setting. Push the Up/Down arrow buttons to adjust the
currently active value (Àashing). Push the Left/Right buttons to change which segment is the currently active value
(hour / minute / AM or PM).
5. Push OK to set.
. The Console display shows the Units prompt with the current setting. To change, push OK to start the Units option.
Push the Up/Down arrow buttons to change between “MILES” (Imperial English units) and “KM” (metric units).
Note: If the units change when there is data in User Statistics, the statistics convert to the new units.
7. Push OK to set.
8. The Console display shows the Sound Settings prompt with the current setting. Push the Up/Down arrow buttons to
change between “ON” and “OFF”.
9. Push OK to set.
10. The Console display shows the TOTAL RUN HOURS for the machine.
11. For the ne[t prompt, push the OK button.
12. The Console display shows the Software 9ersion prompt.
13. For the ne[t prompt, push the OK button.
14. The Console will display the Power-Up Mode screen.
34
MAINTENANCE
Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is necessary to
do the necessary tasks.
Equipment must be regularly examined for damage and repairs. The owner is responsible to make sure that
regular maintenance is done. Worn or damaged components must be repaired or replaced immediately.
Only manufacturer supplied components can be used to maintain and repair the equipment.
If at any time the Warning labels become loose, unreadable or dislodged, contact Nautilus Customer
Service for replacement labels.
Disconnect all power to the machine before you service it.
Daily: Before each use, e[amine the e[ercise machine for loose, broken, damaged, or worn parts.
Do not use if found in this condition. Repair or replace all parts at the ¿rst sign of wear or damage.
After each workout, use a damp cloth to wipe your machine and Console free of moisture.
Note: Avoid e[cessive moisture on the Console.
NOTICE: If necessary, only use a mild dish soap with a soft cloth to clean the Console. Do not clean
with a petroleum based solvent, automotive cleaner, or any product that contains ammonia.
Do not clean the Console in direct sunlight or at high temperatures. Be sure to keep the
Console free of moisture.
Weekly: Clean the machine to remove any dust, dirt, or grime from the surfaces. Check for smooth seat
slider operation. If needed, apply a very thin coating of silicone lube to ease operation.
Silicone lubricant is not intended for human consumption. Keep out of reach of
children. Store in a safe place.
Note: Do not use petroleum based products.
Monthly
or after 20 hours:
Check pedals and crank arms and tighten as necessary. Make sure all bolts and screws are tight.
Tighten as necessary.
NOTICE: Do not clean with a petroleum based solvent or an automotive cleaner. Be sure to keep the Console free of
moisture.
35
Maintenance Parts
S
T
U
V
T
V
A
C
D
E
F
G
H
I
J
K
L
M
N
N
O
P
Q
W
FF
EE
B
GG
GG
A
R
R
Y
X
DD
CC
Z
BB
AA
A Console L Stabilizer, Front W Contact Heart Rate Sensor (CHR)
B Console Mast M Transport Wheel X Flywheel
C Seat Back N Pedals Y Drive Pulley
D Seat Cover O Shroud, Right Z Servo Motor
E Water Bottle Holder P Shroud, Upper AA Brake Assembly
F Handlebar, Side Q Shroud, Left BB Drive Belt
G Seat Bottom R Crank Arm CC Speed Sensor Magnet (8)
H Seat Adjustment Handle S Console Cable, Lower DD Speed Sensor
I Frame Assembly T Console Cable, Upper EE Power Inlet
J Rear Stabilizer U Heart Rate Cable, Lower FF AC Adapter
K Leveler 9 Heart Rate Cable, Upper GG Cover, Crank Disc
36
TROUBLESHOOTING
Condition/Problem Things to Check Solution
No display/partial display/
unit will not turn on
Check electrical (wall)
outlet
Make sure unit is plugged into a functioning wall outlet.
Check connection at front
of unit
Connection should be secure and undamaged. Replace
adapter or connection at unit if either are damaged.
Check data cable integrity All wires in cable should be intact. If any are visibly crimped or
cut, replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
Check console display for
damage
Check for visual sign that console display is cracked or other-
wise damaged. Replace Console if damaged.
Console Display If Console only has partial display and all connections are ¿ne,
replace the Console.
If the above steps do not resolve the problem, contact Cus-
tomer Care for further assistance.
Unit operates but Contact
HR not displayed
HR cable connection at
Console
Be sure cable is connected securely to Console.
HR cable bo[ connection Be sure cables from handlebars and cable to Console are
secure and undamaged.
Sensor grip Be sure hands are centered on HR sensors. Hands must be
kept still with relatively equal pressure applied to each side.
Dry or calloused hands Sensors may have dif¿culty with dried out or calloused hands.
A conductive electrode cream (heart rate cream) can help
make better conduct. These are available on the web or at
medical or some larger ¿tness stores.
Handlebar If tests reveal no other issues, Handlebars should be replaced.
Unit operates but
Telemetric HR not
displayed
Chest Strap (optional) Strap should be “POLAR®” compatible and uncoded. Make
sure strap is directly against skin and contact area is wet.
Chest Strap Batteries If strap has replaceable batteries, install new batteries.
Check User Pro¿le Select the Edit User Pro¿le option for the User Pro¿le. Go to
the WIRELESS HR setting and make sure that the current
value is set to ON.
Interference Try moving unit away from sources of interference (T9, Micro-
wave, etc).
Replace Chest Strap If interference is eliminated and HR does not function, replace
strap.
Replace Console If HR still does not function, replace Console.
Unit operates but
Telemetric HR displayed
incorrectly
Interference Make sure that the HR receiver is not blocked by a personal
electronic device in the left side of the media tray.
No speed/RPM reading,
Console displays “Please
Pedal” error code
Check data cable integrity All wires in cable should be intact. If any are cut or crimped,
replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
37
Condition/Problem Things to Check Solution
Check magnet position
(requires shroud removal)
Magnets should be in place on pulley.
Check Speed Sensor
(requires shroud removal)
Speed sensor should be aligned with magnets and connected
to data cable. Realign sensor if necessary. Replace if there is
any damage to the sensor or the connecting wire.
Resistance does not
change (machine turns on
and operates)
Batteries (if equipped) Replace batteries and check for proper operation.
Check Console Check for visual sign that Console is damaged. Replace Con-
sole if damaged.
Check data cable integrity All wires in cable should be intact. If any are visibly crimped or
cut, replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Reseat all connections. Small latch on connector should line up
and snap into place.
Check Servo Motor
(requires shroud removal)
If magnets move, adjust until they are within the proper range.
Replace Servo Motor if not functioning properly.
If the above steps do not resolve the problem, contact Cus-
tomer Care for further assistance.
Console shuts off (enters
sleep mode) while in use
Check electrical (wall)
outlet
Make sure unit is plugged into a functioning wall outlet.
Check connection at front
of unit
Connection should be secure and undamaged. Replace
adapter or connection at unit if either are damaged.
Check data cable integrity All wires in the cable should be intact. If any are cut or crimped,
replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
Reset Machine Unplug unit from electrical outlet for 3 minutes. Reconnect to
outlet.
Check magnet position
(requires shroud removal)
Magnets should be in place on pulley.
Check Speed Sensor
(requires shroud removal)
Speed sensor should be aligned with magnets and connected
to data cable. Realign sensor if necessary. Replace if there is
any damage to the sensor or the connecting wire.
Fan will not turn on or will
not turn off
Check data cable integrity All wires in cable should be intact. If any are cut or crimped,
replace cable.
Check data cable
connections/orientation
Be sure cable is connected securely and oriented properly.
Small latch on connector should line up and snap into place.
Reset machine Unplug unit from electrical outlet for 3 minutes. Reconnect to
outlet.
Fan will not turn on, but
Console operates
Check for blockage of fan Unplug unit from electrical outlet for 5 minutes. Remove mate-
rial from fan. If necessary, detach the Console to help with
removal. Replace the Console if unable to remove blockage.
Unit rocks/does not sit
level
Check leveler adjustment Adjust levelers until bike is level.
Check surface under unit Adjustment may not be able to compensate for e[tremely un-
even surfaces. Move bike to level area.
38
Condition/Problem Things to Check Solution
Seat Assembly shifts /
squeaks when in use
Hardware Check hardware that attaches Seat assembly, and fully tighten
hardware.
Pedals loose/unit dif¿cult
to pedal
Check pedal to crank arm
connection
Pedal should be tightened securely to crank. Insure connection
is not cross-threaded.
Check crank arm to a[le
connection
Crank should be tightened securely to a[le. Be sure cranks are
connected at 180 degrees from each other.
Clicking sound when
pedaling
Check pedal to crank arm
connection
Remove pedals. Make sure there is no debris on threads, and
reinstall the pedals.
Console continuously
cycles through program
screens
Console is in demonstra-
tion mode
Hold down the PAUSE/END button and Left button together for
3 seconds.
Workout results will not
sync with Bluetooth
®
enabled device
Current console mode Machine must be in Idle Mode to sync. Push the PAUSE/END
button until the Power-Up Mode screen is displayed.
Total time of workout A workout must be longer than 1 minute to be saved and
posted by the Console.
Fitness machine Unplug unit from electrical outlet for 5 minutes. Reconnect to
outlet.
Bluetooth
®
enabled device Consult your device to be sure that the Bluetooth
®
wireless
feature has been enabled on it.
Fitness App Review Speci¿cations of Fitness App and con¿rm your device
is compatible.
Contact [email protected] for further assistance.
Workout results not post-
ing from Nautilus Train-
er™ App to MyFitnessPal
®
account or Under Armour
®
Connected Fitness
Sync accounts From the Menu icon on the Nautilus Trainer™ App, select the
Sync to MyFitnessPal
®
or Under Armour
®
Connected Fitness.
39
WARRANTY
Who Is Covered
This warranty is valid only to the original purchaser and is not transferable or applicable to any other person(s).
What Is Covered
Nautilus, Inc. warrants that this product is free from defects in materials and workmanship, when used for the purpose intended, under normal conditions, and provided it receives proper care and
maintenance as described in the Product’s Assembly and Owner’s manual. This warranty is good only for authentic, original, legitimate machines manufactured by Nautilus, Inc. and sold through an
authorized agent and used in the United States or Canada.
Terms
• Frame 10 years
• Mechanical parts 3 years
• Electronics 3 years
• Labor 1 year
(Labor support does not include the installation of replacement parts involved in the initial product assembly and preventative maintenance services.)
How Nautilus Will Support the Warranty
Throughout the terms of the warranty coverage, Nautilus, Inc. will repair any machine that proves to be defective in materials or workmanship. Nautilus reserves the right to replace the product in
the event a repair is not possible. When Nautilus determines replacement is the correct remedy, Nautilus may apply a limited credit reimbursement toward another Nautilus Inc. brand Product, at
our discretion. This reimbursement may be prorated based on length of ownership. Nautilus, Inc. provides repair service within major metropolitan areas. Nautilus, Inc reserves the right to charge
the consumer for travel outside these areas. Nautilus Inc. is not responsible for dealer labor or maintenance charges beyond the applicable warranty period(s) stated herein. Nautilus, Inc. reserves
the right to substitute material, parts or products of equal or better quality if identical materials or products are not available at the time of service under this warranty. Any replacement of the product
under the terms of the Warranty in no way extends the original Warranty period. Any limited credit reimbursement may be prorated based on length of ownership. THESE REMEDIES ARE THE
EXCLUSIVE AND SOLE REMEDIES FOR ANY BREACH OF WARRANTY.
What You Must Do
• Retain appropriate and acceptable Proof of Purchase.
• 2SHUDWHPDLQWDLQDQGLQVSHFWWKH3URGXFWDVVSHFL¿HGLQWKH3URGXFW'RFXPHQWDWLRQ$VVHPEO\2ZQHU¶V0DQXDOVHWF
• Product must be used exclusively for the purpose intended.
• Notify Nautilus within 30 days after detecting an issue with the Product.
• Install replacement parts or components in accordance with any Nautilus instructions.
• Perform diagnostic procedures with a trained Nautilus, Inc representative if requested.
What Is Not Covered
• 'DPDJHGXHWRDEXVHWDPSHULQJRUPRGL¿FDWLRQRIWKH3URGXFWIDLOXUHWRSURSHUO\IROORZDVVHPEO\LQVWUXFWLRQVPDLQWHQDQFHLQVWUXFWLRQVRUVDIHW\ZDUQLQJVDVVWDWHGLQWKH3URGXFW
Documentation (Assembly, Owner’s Manuals, etc), damage due to improper storage or the effect of environmental conditions such as moisture or weather, misuse, mishandling, accident,
natural disasters, power surges.
• $PDFKLQHSODFHGRUXVHGLQDFRPPHUFLDORULQVWLWXWLRQDOVHWWLQJ7KLVLQFOXGHVJ\PVFRUSRUDWLRQVZRUNSODFHVFOXEV¿WQHVVFHQWHUVDQGDQ\SXEOLFRUSULYDWHO\HQWLW\WKDWKDVDPDFKLQHIRU
XVHE\LWVPHPEHUVFXVWRPHUVHPSOR\HHVRUDI¿OLDWHV
• 'DPDJHFDXVHGE\H[FHHGLQJPD[LPXPXVHUZHLJKWVDVGH¿QHGLQWKH3URGXFW¶V2ZQHU¶VPDQXDORUZDUQLQJODEHO
• Damage due to normal usage and wear and tear.
• This warranty does not extend to any territories or countries outside the United States and Canada.
How to Obtain Service
)RU3URGXFWVSXUFKDVHGGLUHFWO\IURP1DXWLOXV,QFFRQWDFWWKH1DXWLOXVRI¿FHOLVWHGRQWKH&RQWDFWVSDJHRIWKHSURGXFWV2ZQHU¶VPDQXDO<RXPD\EHUHTXLUHGWRUHWXUQWKHGHIHFWLYHFRPSRQHQWWR
DVSHFL¿HGDGGUHVVIRUUHSDLURULQVSHFWLRQDW\RXUH[SHQVH6WDQGDUGJURXQGVKLSSLQJRIDQ\ZDUUDQW\UHSODFHPHQWSDUWVZLOOEHSDLGE\1DXWLOXV,QF)RUSURGXFWVSXUFKDVHGIURPDUHWDLOHU\RX
may be asked to contact your retailer for warranty support.
Exclusions
The preceding warranties are the sole and exclusive express warranties made by Nautilus, Inc. They supersede any prior, contrary or additional representations, whether oral or written. No
agent, representative, dealer, person or employee has the authority to alter or increase the obligations or limitations of this warranty. Any implied warranties, including the WARRANTY OF
MERCHANTABILITY and any WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, are limited in duration to the term of the applicable express warranty provided above, whichever is longer.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Limitation of Remedies
EXCEPT AS OTHERWISE REQUIRED BY APPLICABLE LAW, THE PURCHASER’S EXCLUSIVE REMEDY IS LIMITED TO REPAIR OR REPLACEMENT OF ANY COMPONENT DEEMED BY
NAUTILUS, INC. TO BE DEFECTIVE UNDER THE TERMS AND CONDITIONS STATED HEREIN. IN NO EVENT WILL NAUTILUS, INC. BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL,
INCIDENTAL, INDIRECT OR ECONOMIC DAMAGES, REGARDLESS OF THE THEORY OF LIABILITY (INCLUDING, WITHOUT LIMITATION, PRODUCT LIABILITY, NEGLIGENCE OR OTHER
TORT) OR FOR ANY LOST REVENUE, PROFIT, DATA, PRIVACY OR FOR ANY PUNITIVE DAMAGES ARISING OUT OF OR RELATED TO THE USE OF THE FITNESS MACHINE EVEN IF
NAUTILUS, INC. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS EXCLUSION AND LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL
PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL OR INCIDENTAL TYPE DAMAGES SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU.
State Laws
7KLVZDUUDQW\JLYHV\RXVSHFL¿FOHJDOULJKWV<RXPD\DOVRKDYHRWKHUULJKWVZKLFKYDU\IURPVWDWHWRVWDWH
Expirations
,IWKHZDUUDQW\KDVH[SLUHG1DXWLOXV,QFPD\DVVLVWZLWKUHSODFHPHQWVRUUHSDLUVWRSDUWVDQGODERUEXWWKHUHZLOOEHDFKDUJHIRUWKHVHVHUYLFHV&RQWDFWD1DXWLOXVRI¿FHIRULQIRUPDWLRQRQSRVW
warranty parts and services. Nautilus does not guarantee availability of spare parts after expiration of warranty period.
International Purchases
If you purchased your machine outside of the United States consult your local distributor or dealer for warranty coverage.
Nautilus® BowÀe[® Schwinn® Universal®
801282.080118.B
EN
