INSTALLATIONINSTRUCTIONS
30" (76 CM) AND 36" (91.4 CM)
GAS BUILT-INCOOKTOP
INSTRUCTIONS D'I_ISTALLATION
DE LA TABLEDECUISSON A GAZ ENCASTREEDE
30" (76,2 CM) ET36" (91,4 CM)
TableofContents/Table desmati@res
COOKTOP SAFETY ........................................................................ 1
INSTALLATION REQUIREMENTS ................................................ 2
Tools and Parts ............................................................................ 2
Location Requirements ................................................................ 2
Electrical Requirements ............................................................... 4

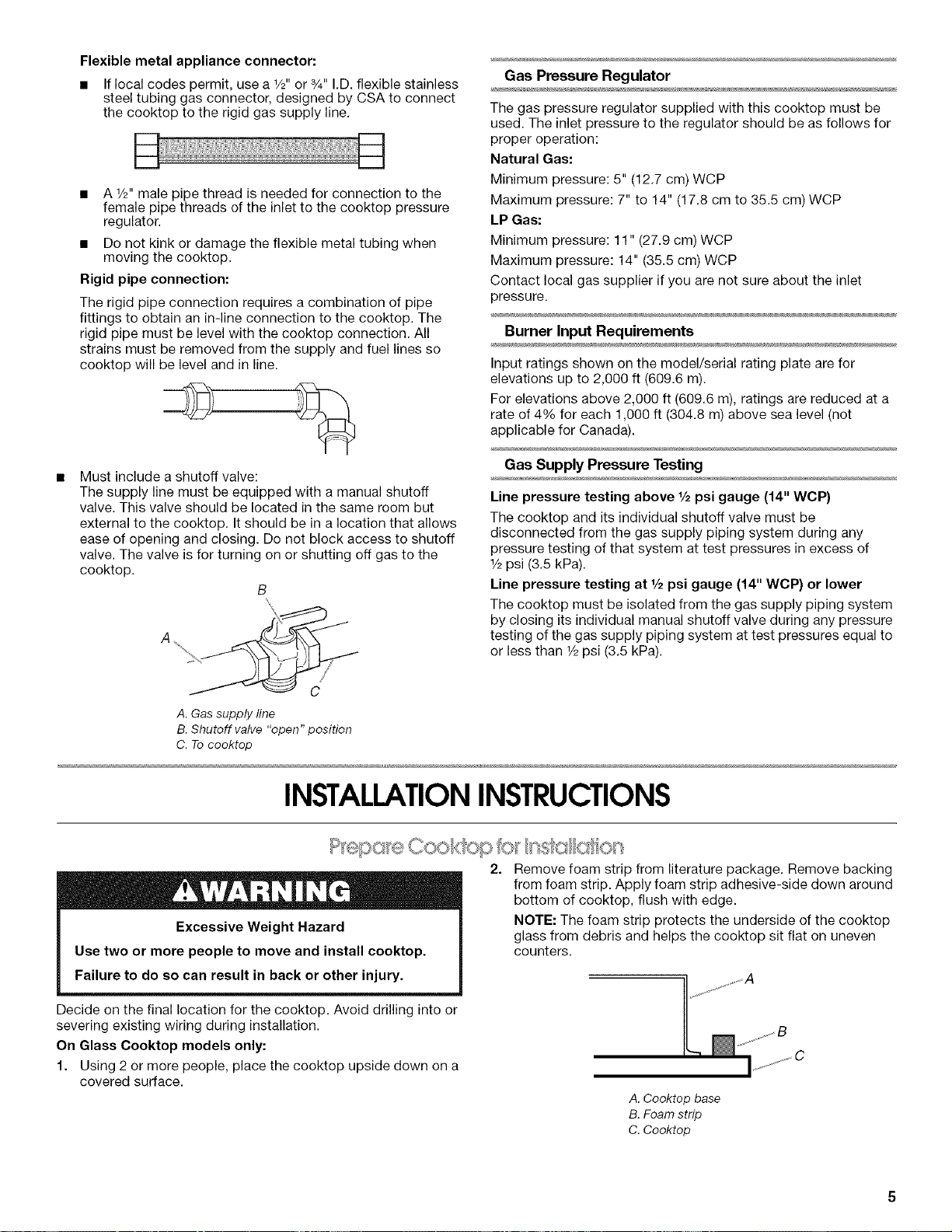

Gas Supply Requirements ........................................................... 4
INSTALLATION INSTRUCTIONS .................................................. 5
Prepare Cooktop for Installation .................................................. 5

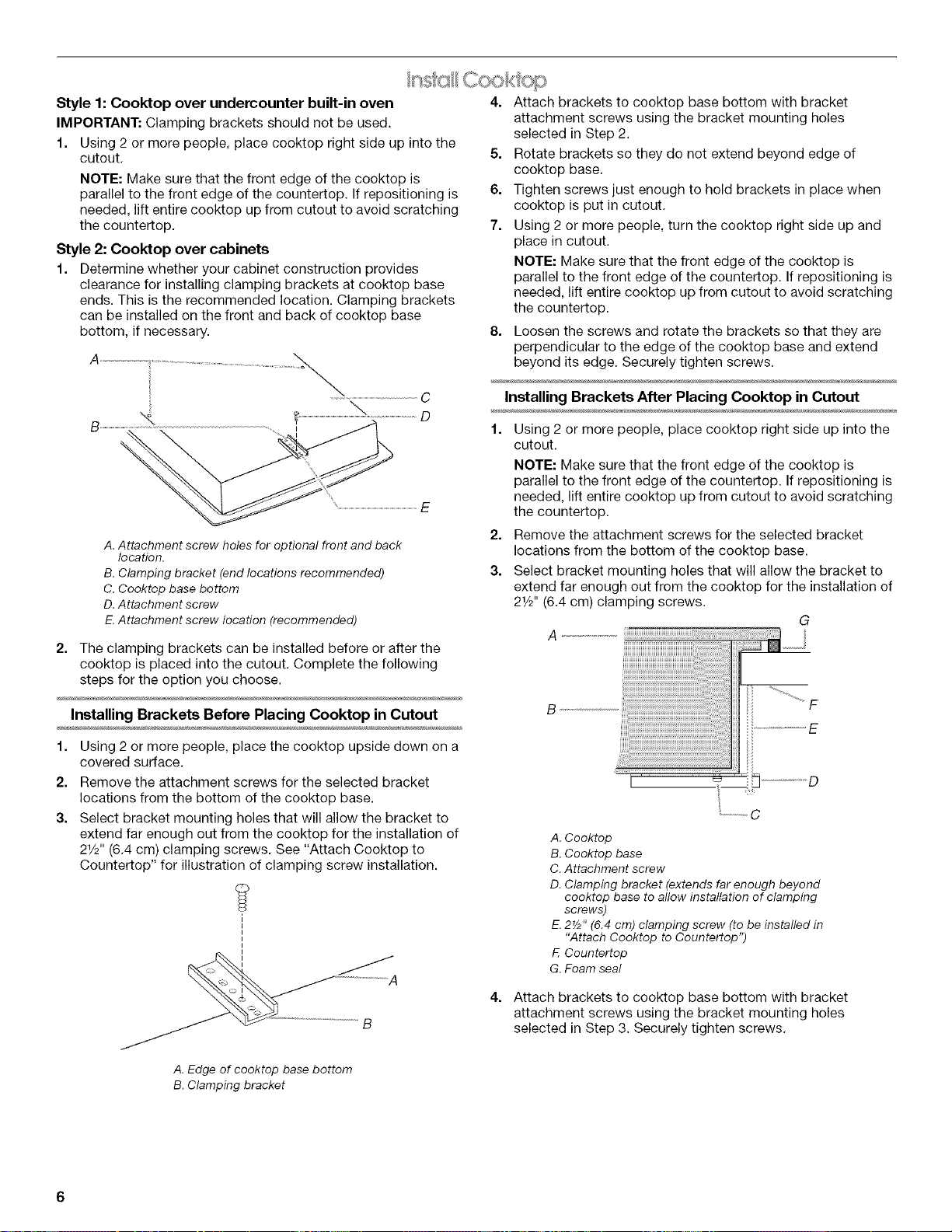

Install Cooktop ............................................................................. 6

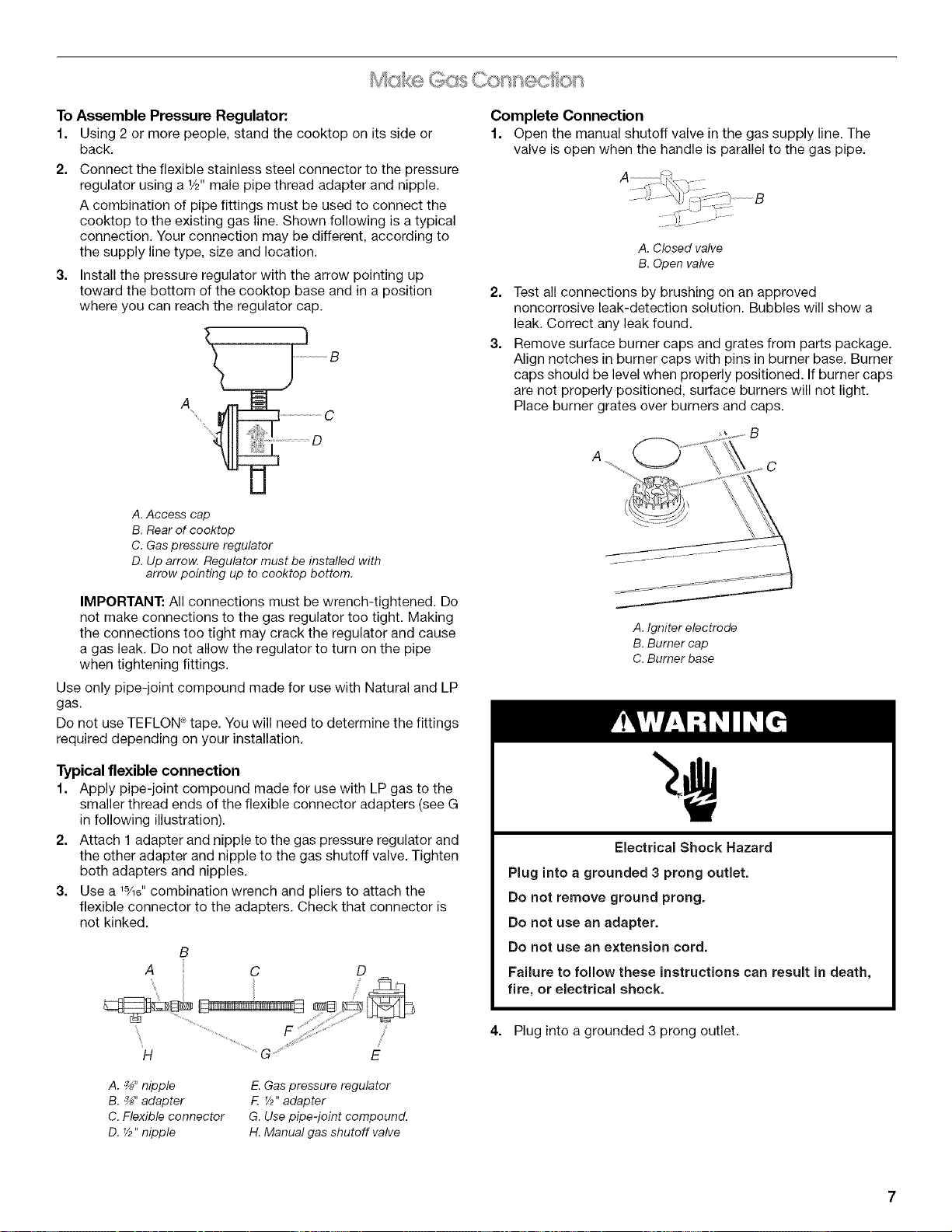

Make Gas Connection ................................................................. 7
Attach Cooktop to Countertop .................................................... 8
Complete Installation ................................................................... 8

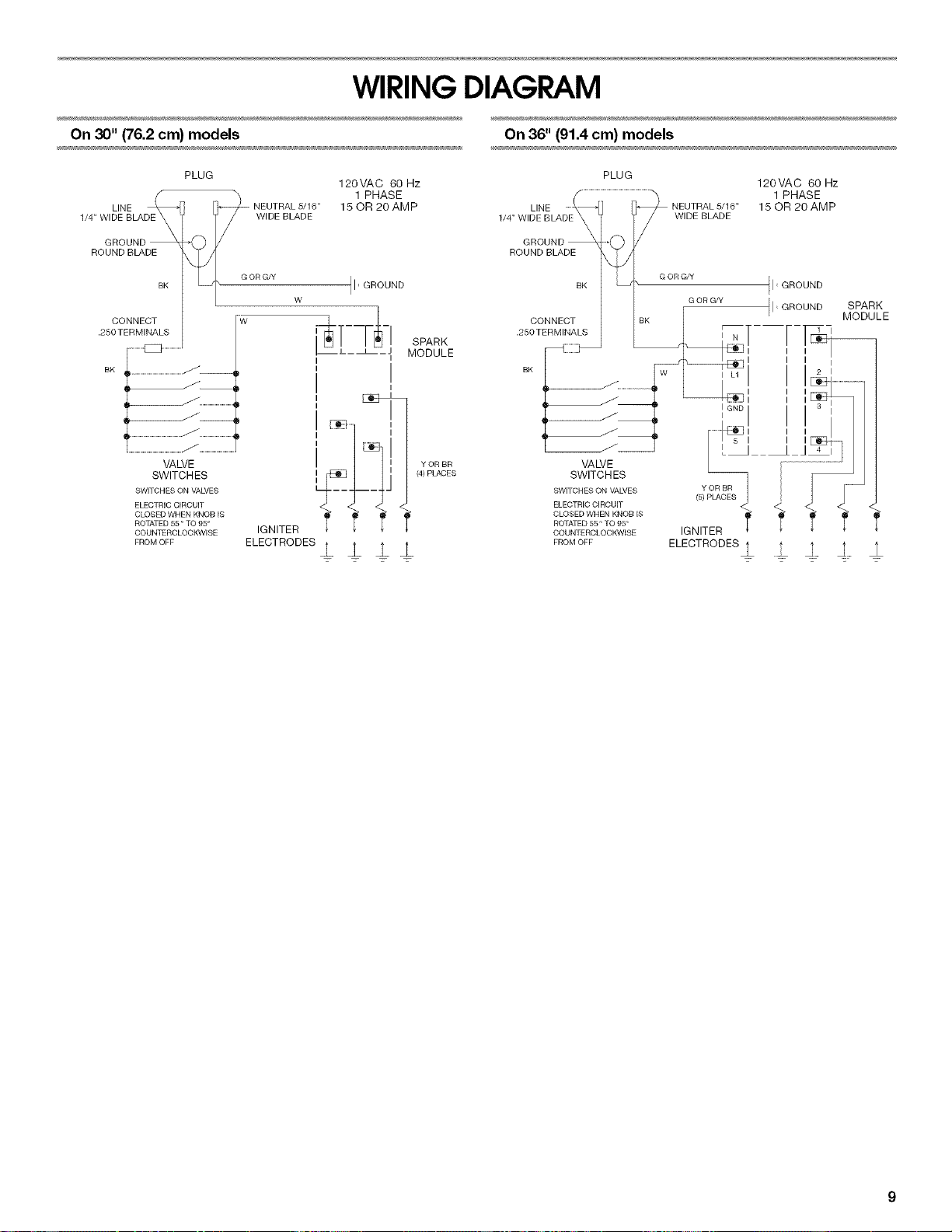

WIRING DIAGRAM ......................................................................... 9
SECURITI :!:DE LA TABLE DE CUISSON .................................... 10

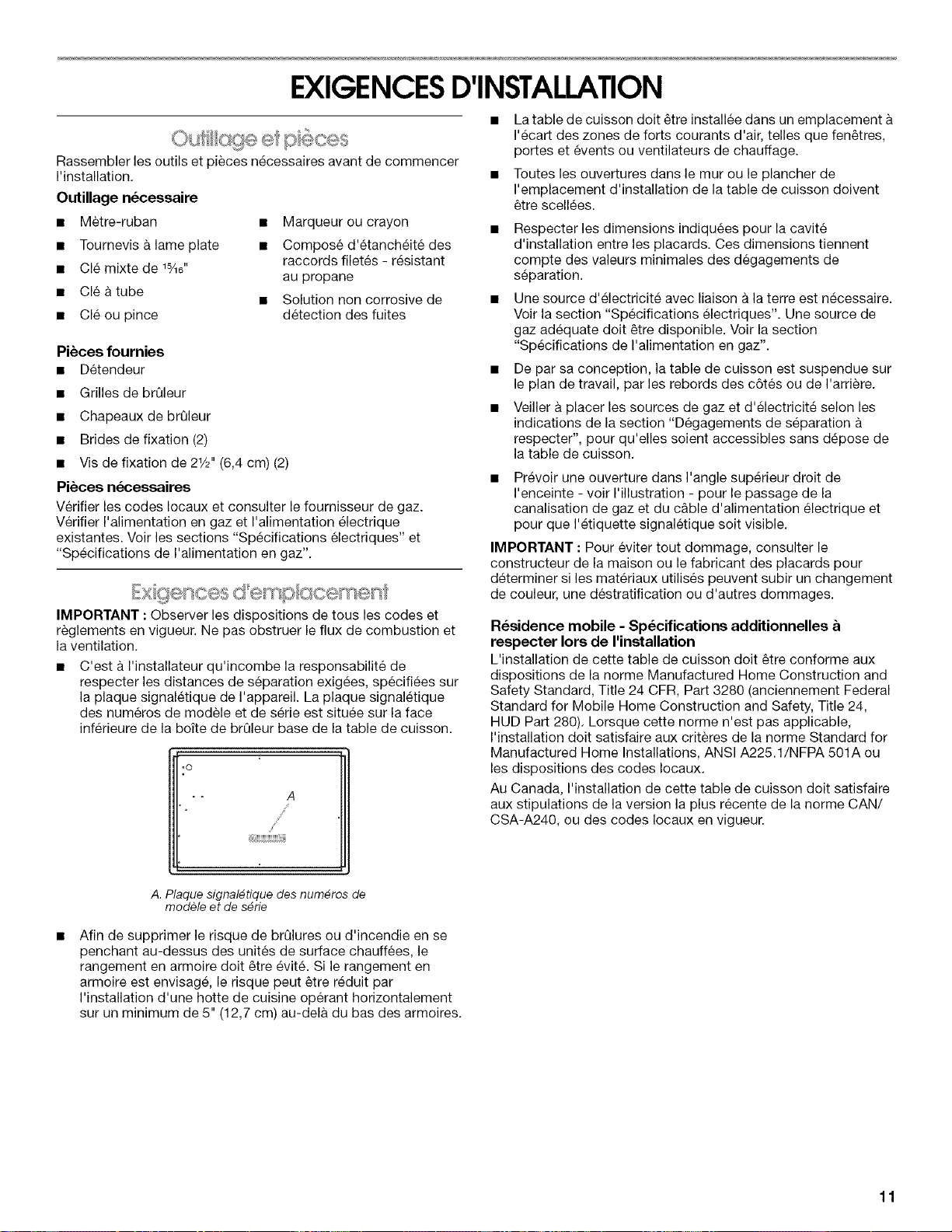

EXIGENCES D'INSTALLATION ................................................... 11
Outillage et pieces ...................................................................... 11

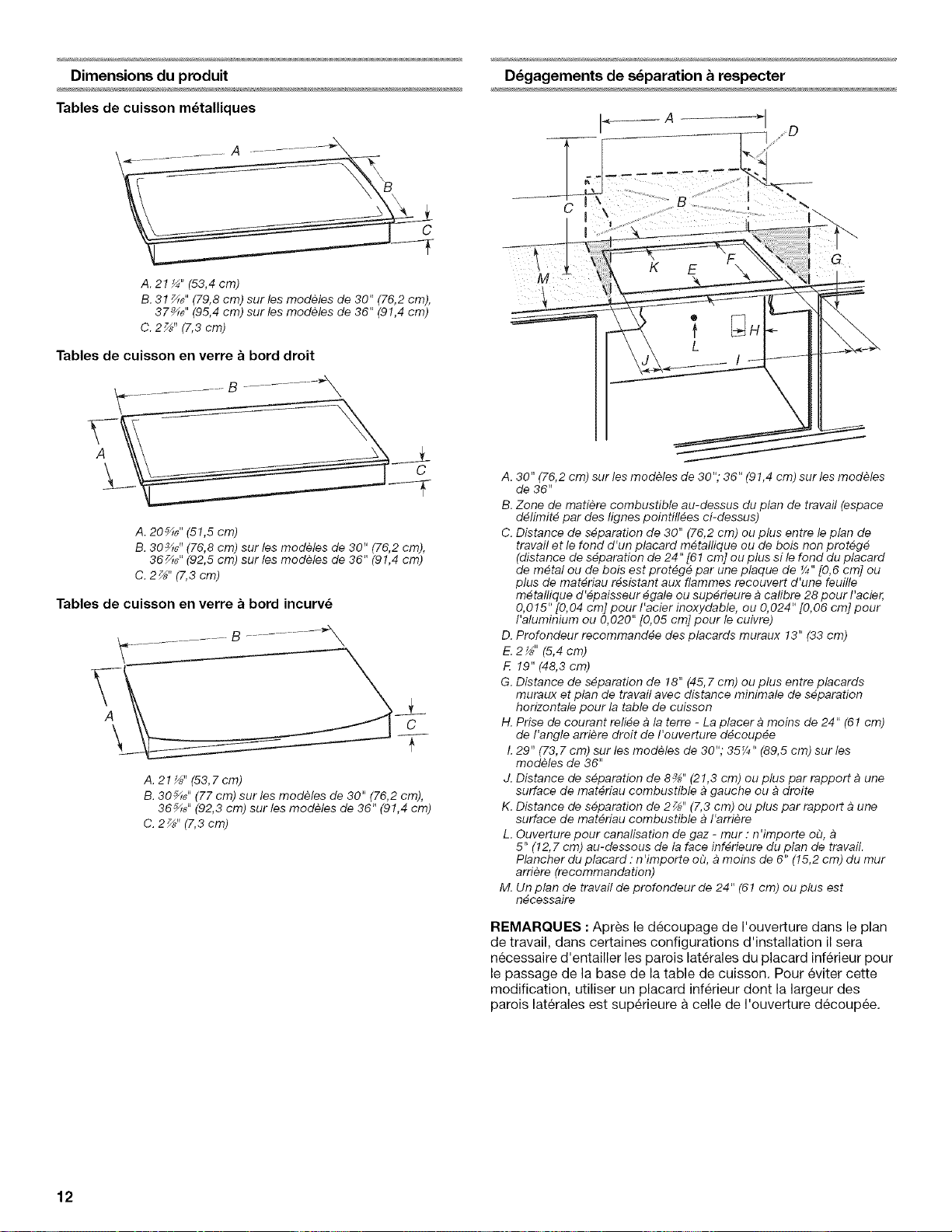

Exigences d'emplacement ......................................................... 11
Specifications electriques .......................................................... 13
Specifications de I'alimentation en gaz ..................................... 13
INSTRUCTIONS D'INSTALLATION ............................................. 15
Preparation de la table de cuisson pour I'installation ................ 15
Installation de la table de cuisson .............................................. 15
Raccordement au gaz ................................................................ 16
Fixation de la table de cuisson au plan de travail ...................... 17

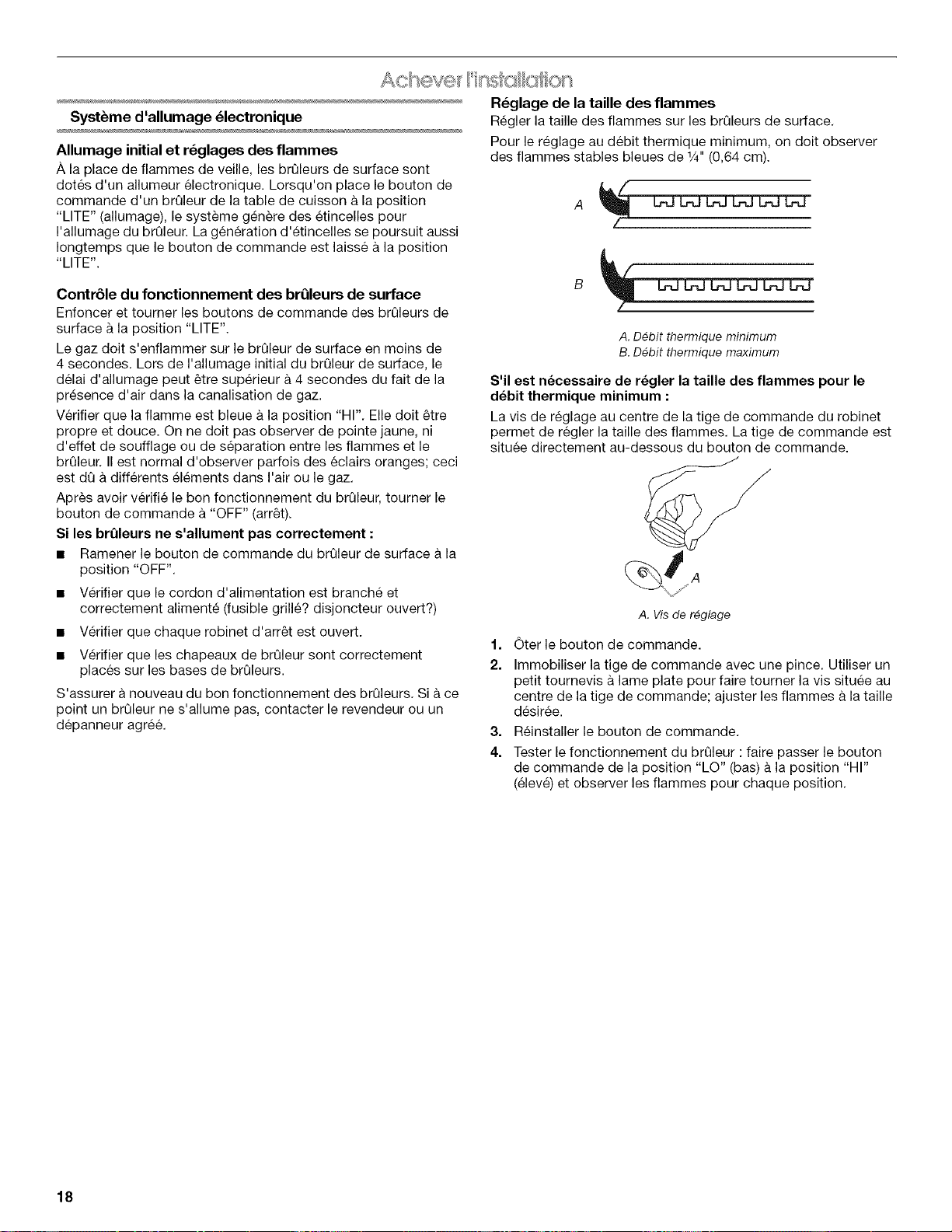

Achever I'installation .................................................................. 18

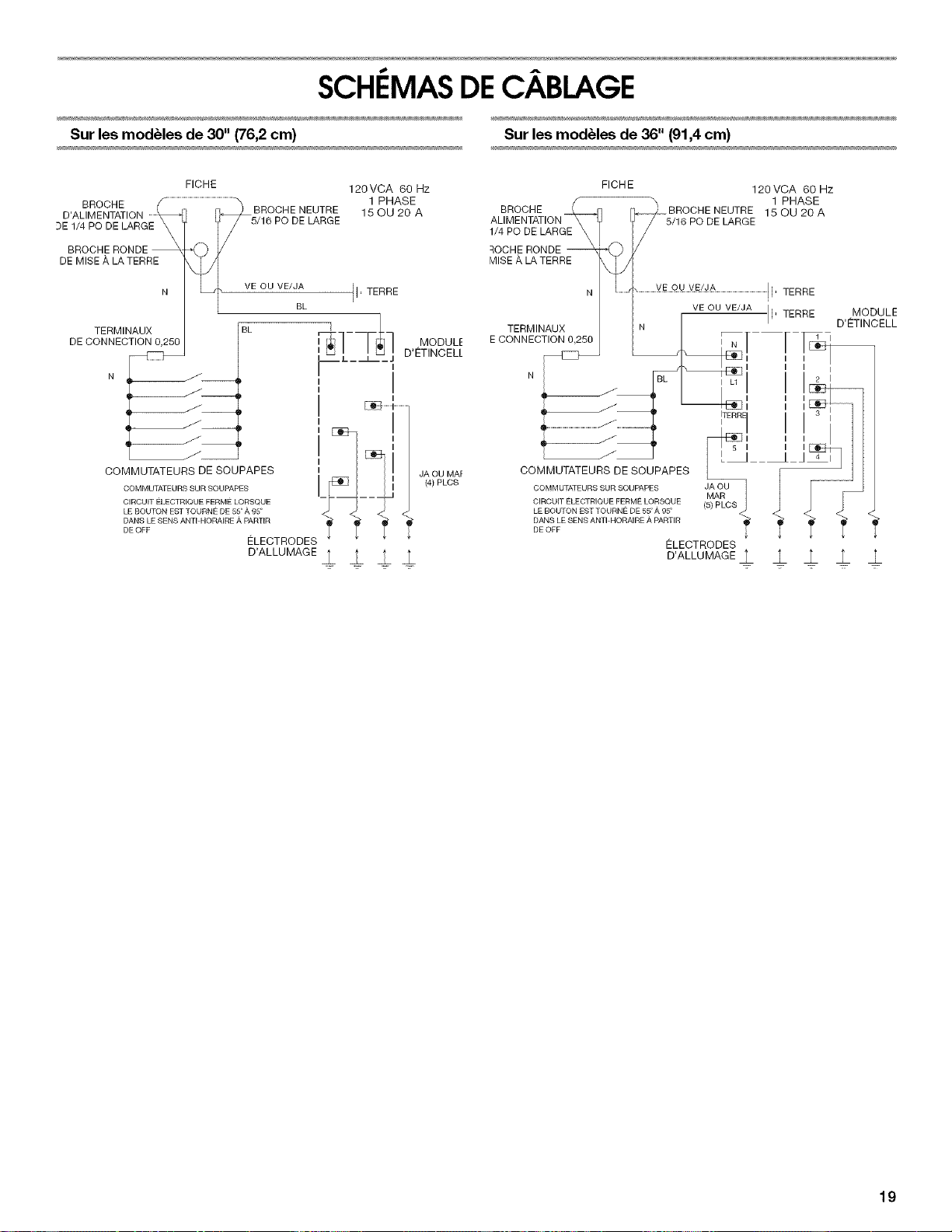

SOHI_MAS DE CABLAGE ............................................................ lg
COOKTOP SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
iMPORTANT:
Installer: Leave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.
iMPORTANT :
Installateur : Remettre les instructions d'installation au preprietaire.
Propdetaire : Conserver les instructions d'installation pour reference ulterieure.
W10131955A
