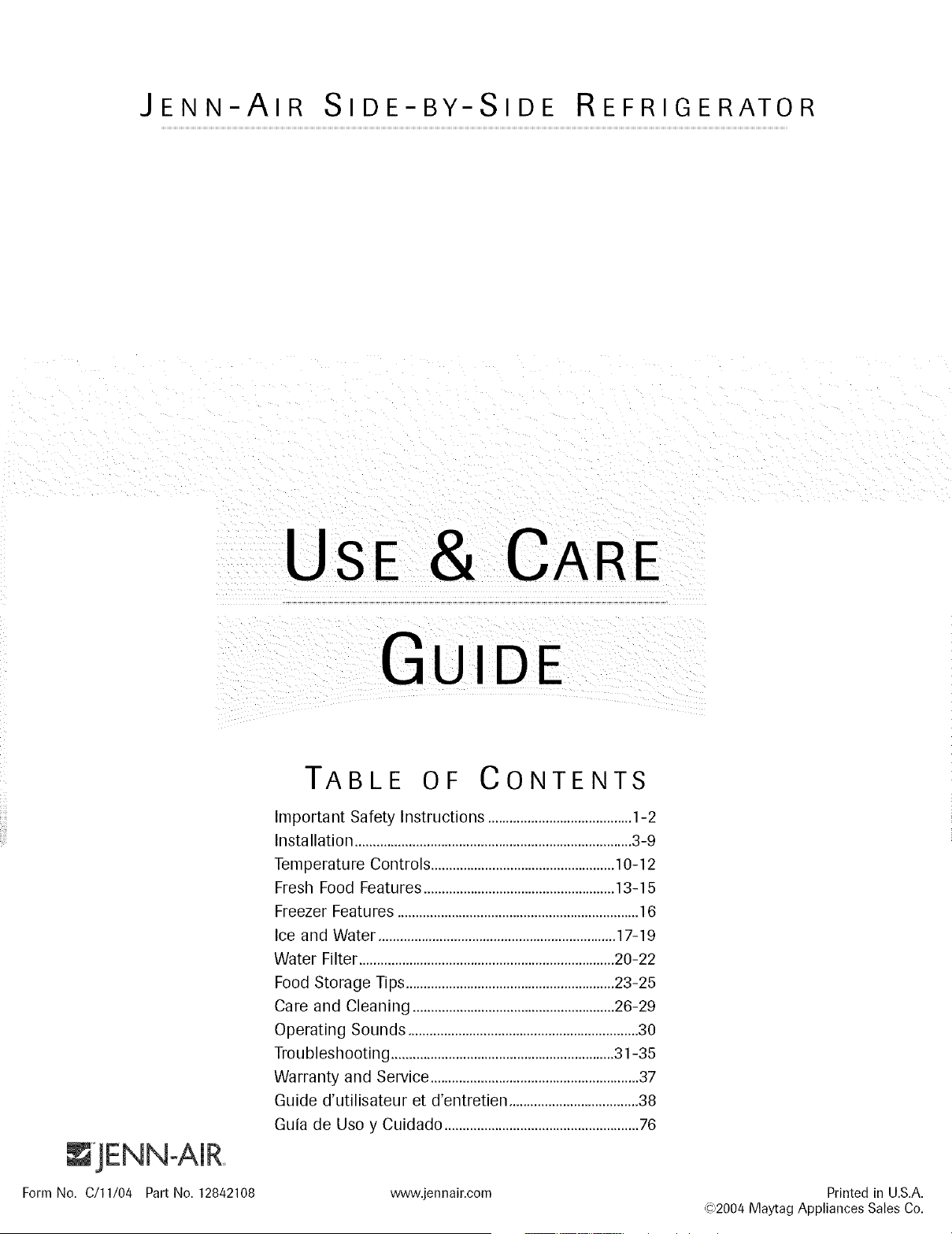

JENN-AIR SIDE-BY-SIDE REFRIGERATOR
TABLE OF CONTENTS

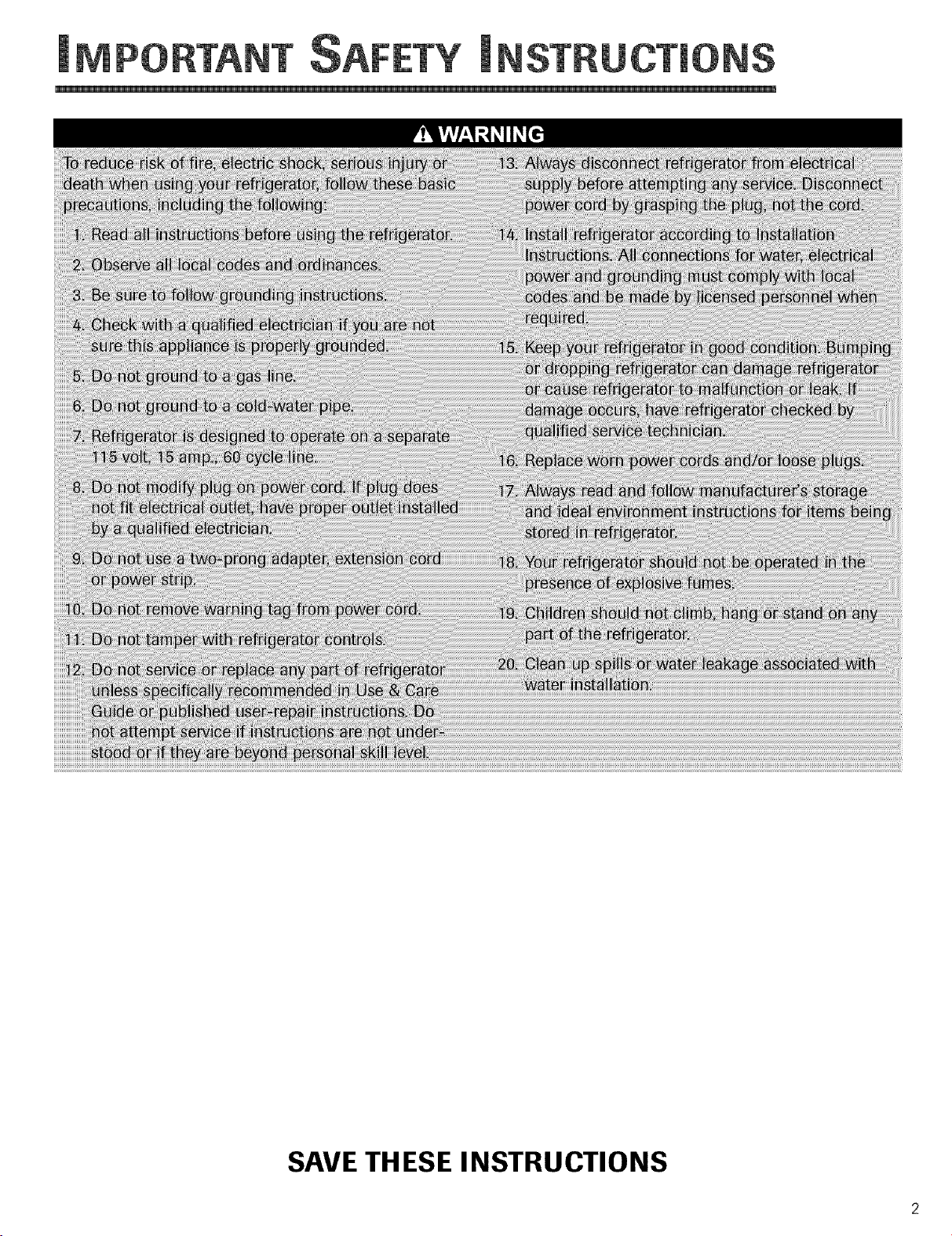

Important Safety Instructions ........................................1-2
Installation .............................................................................3-9

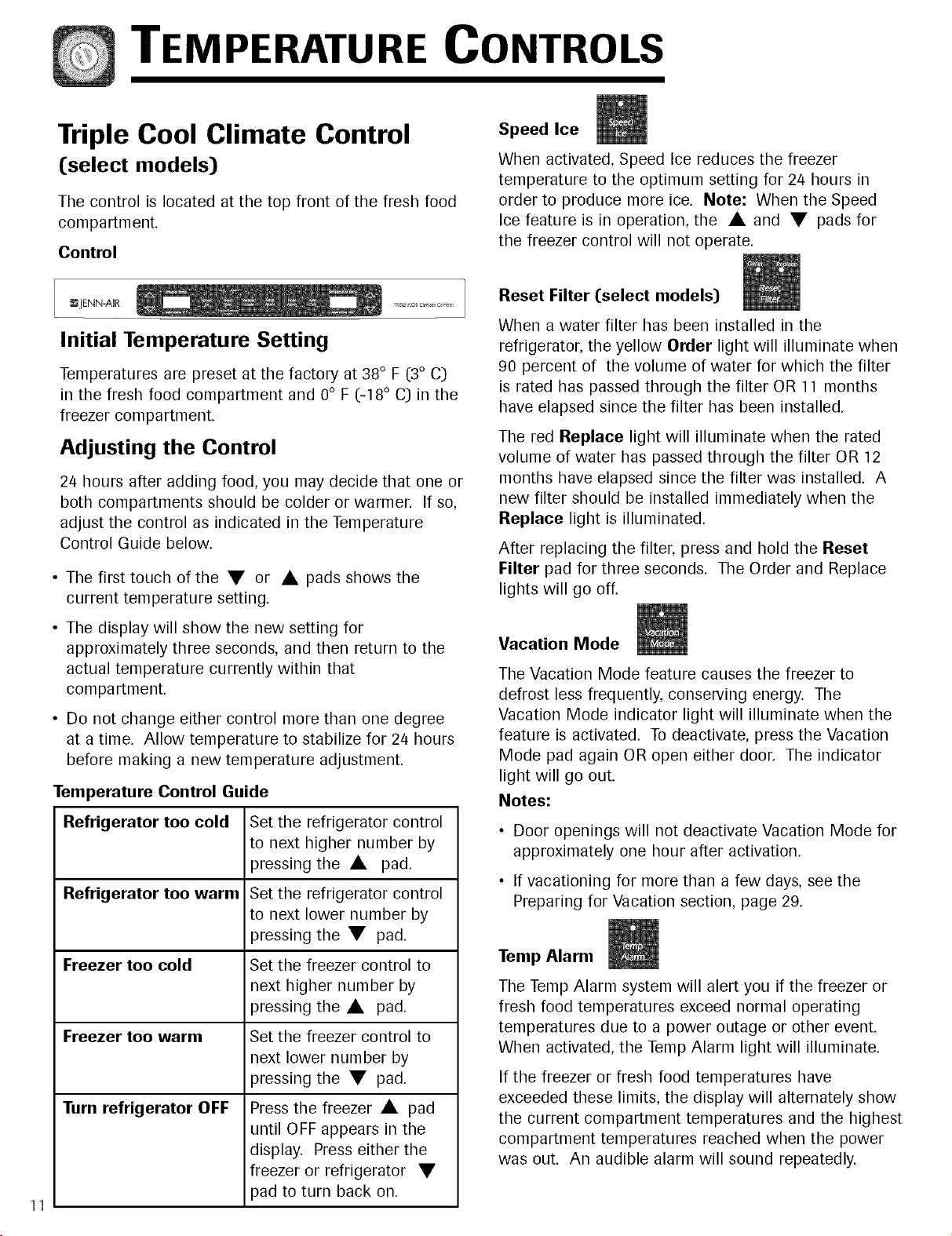

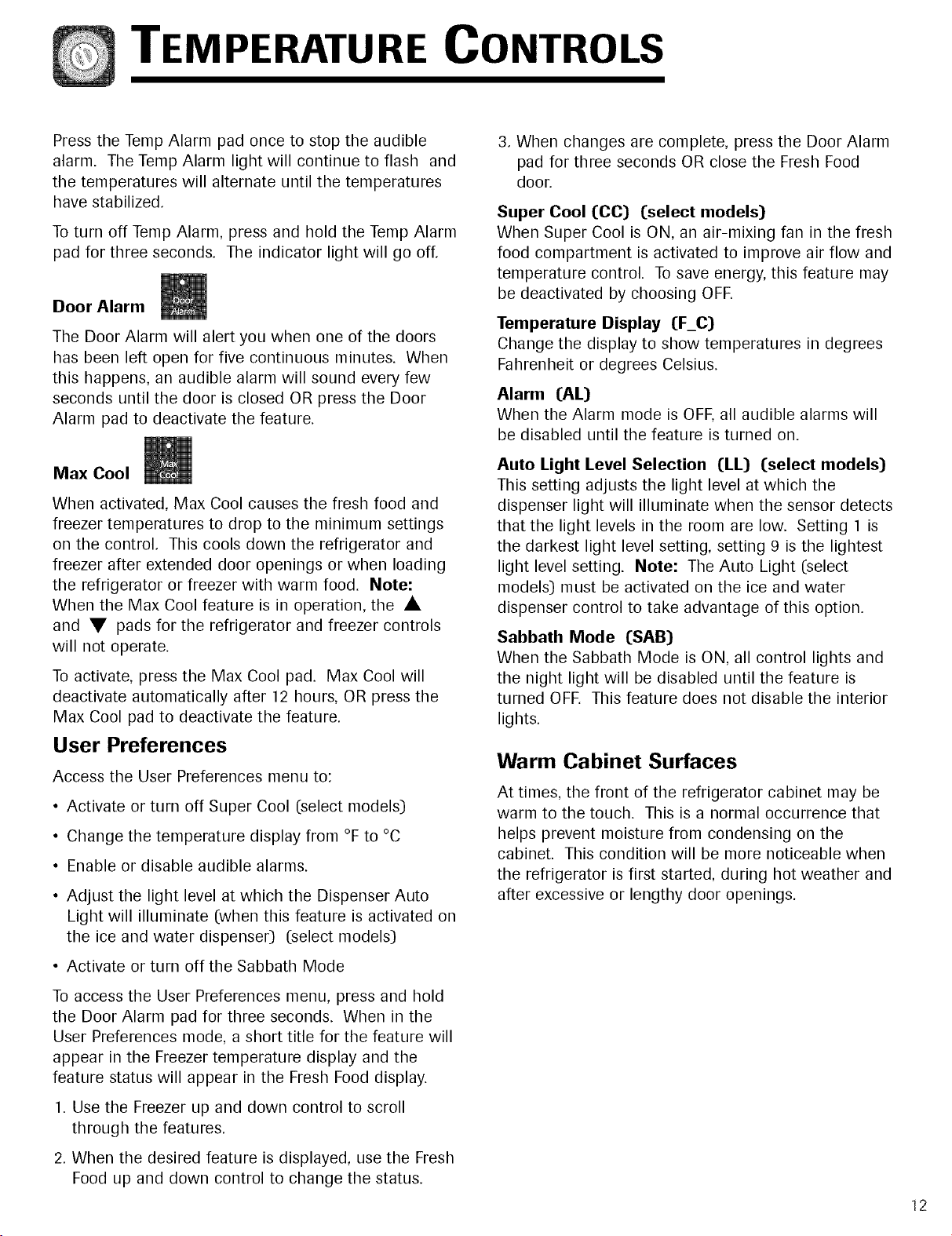

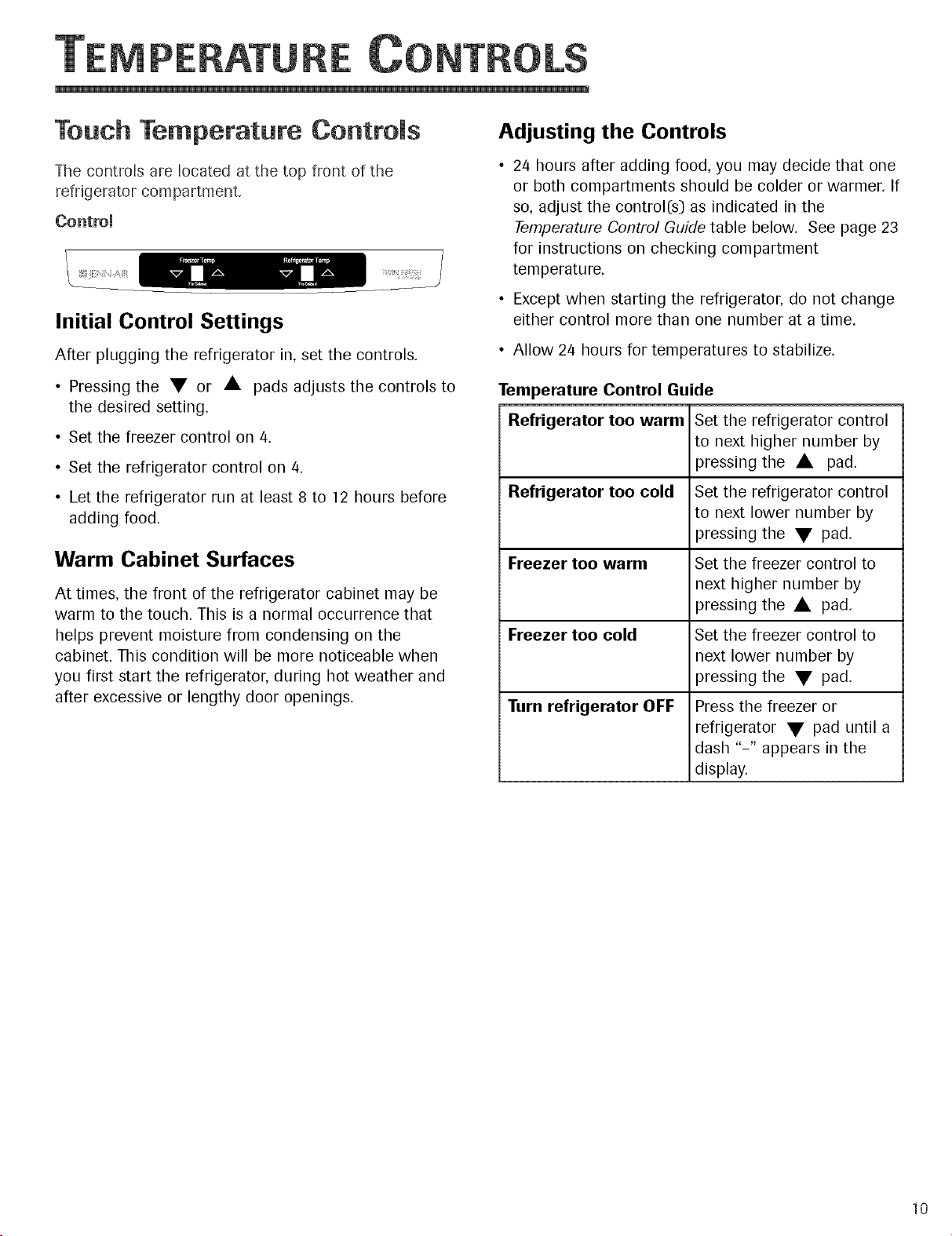

Temperature Controls ...................................................10-12

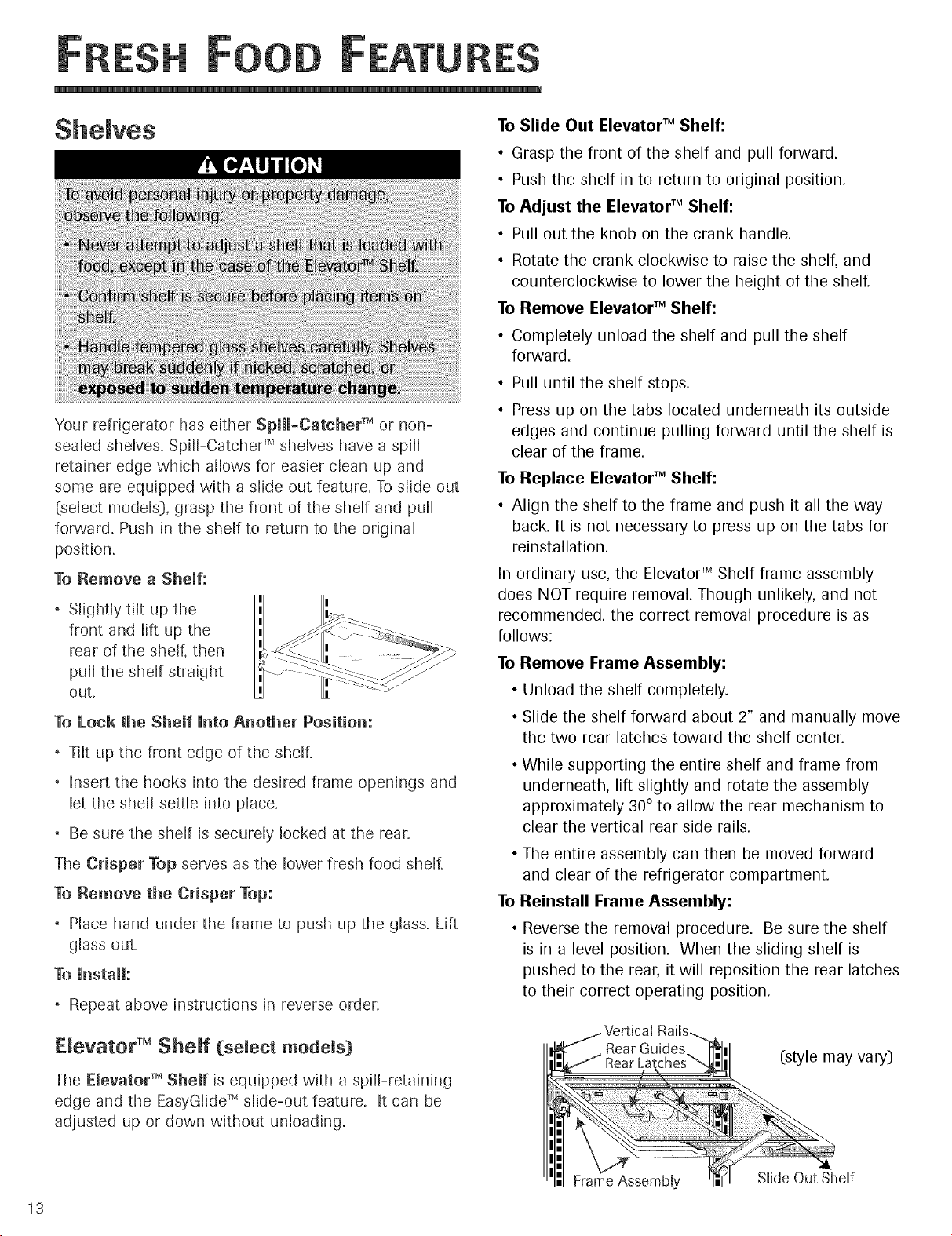

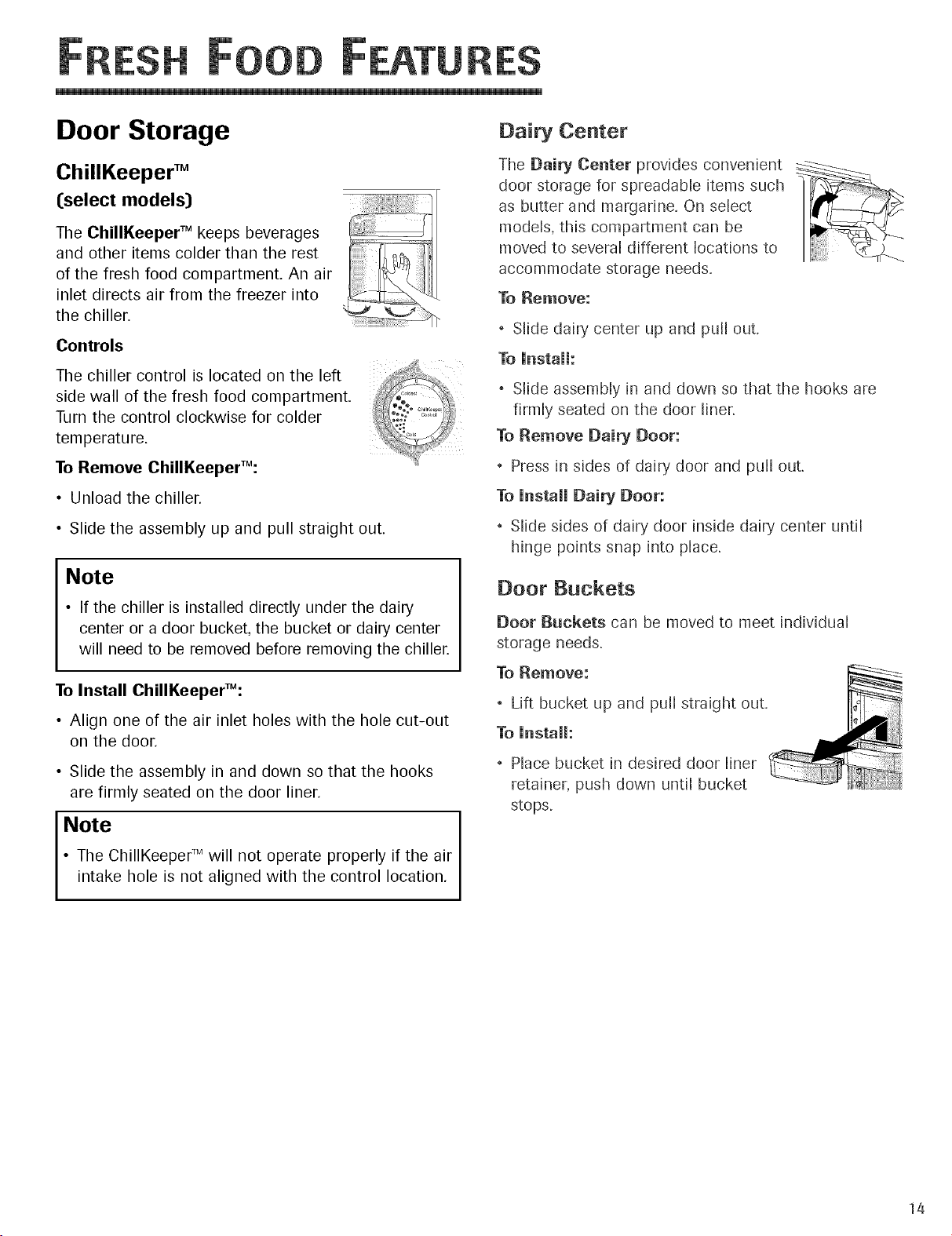

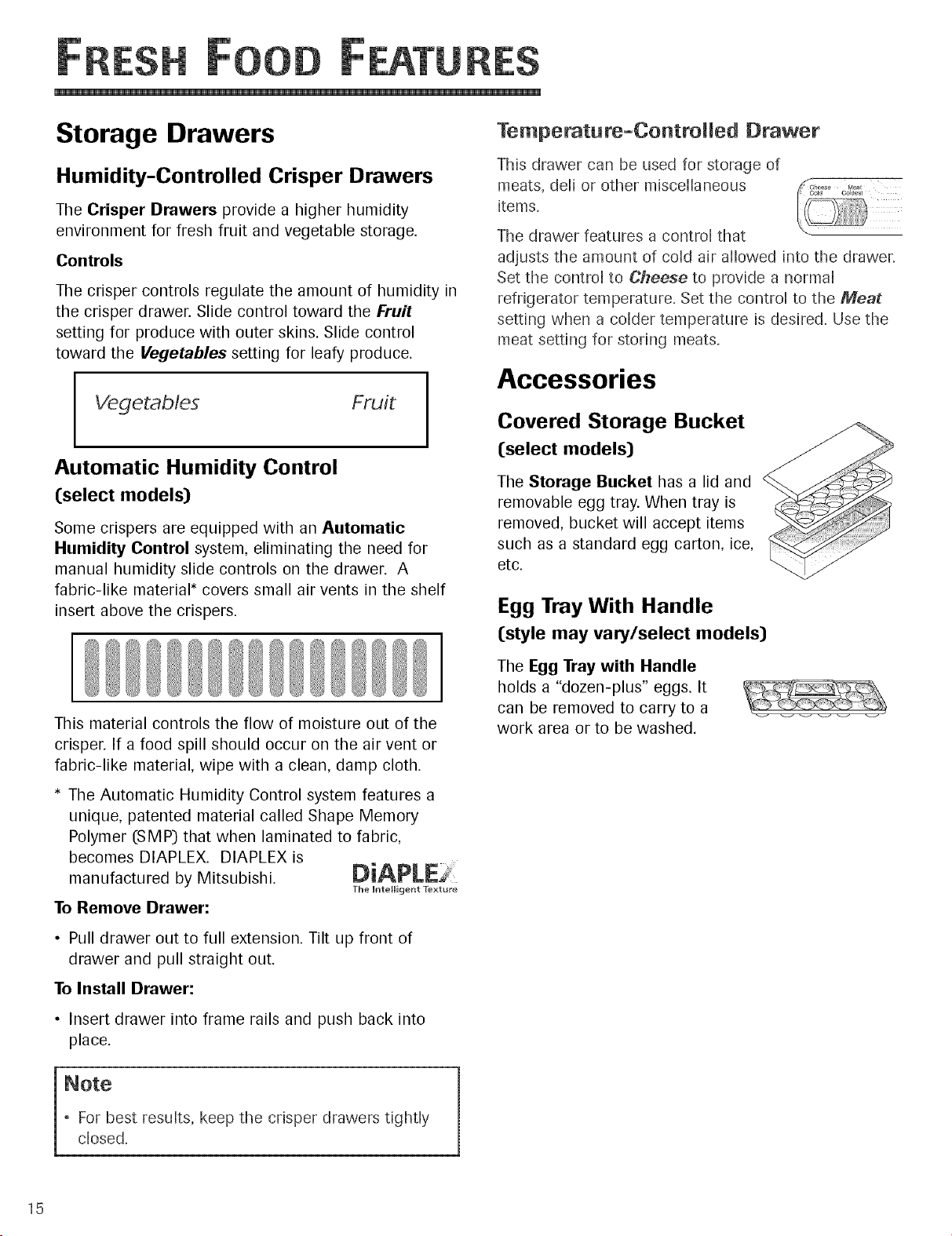

Fresh Food Features .....................................................13-15

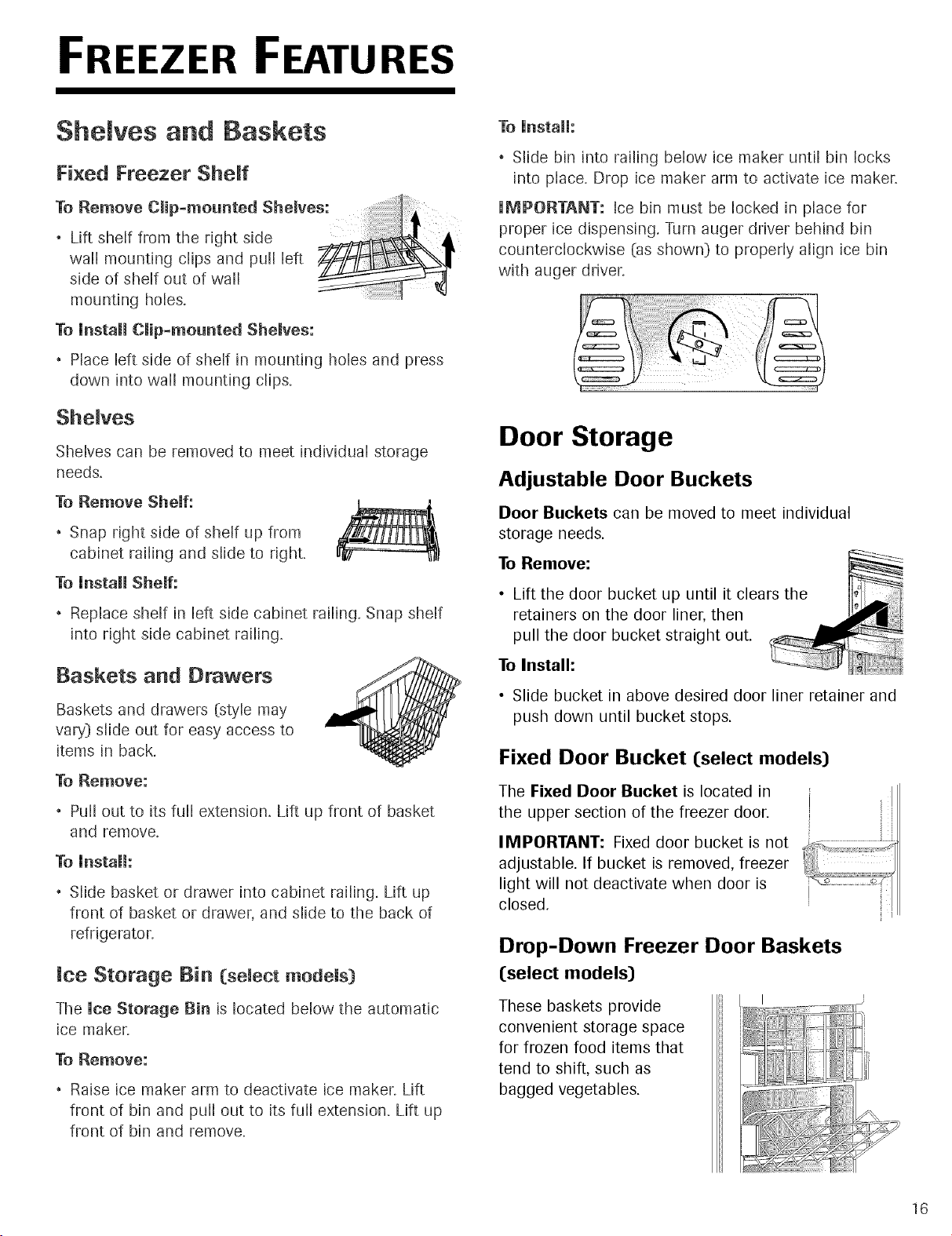

Freezer Features ...................................................................16

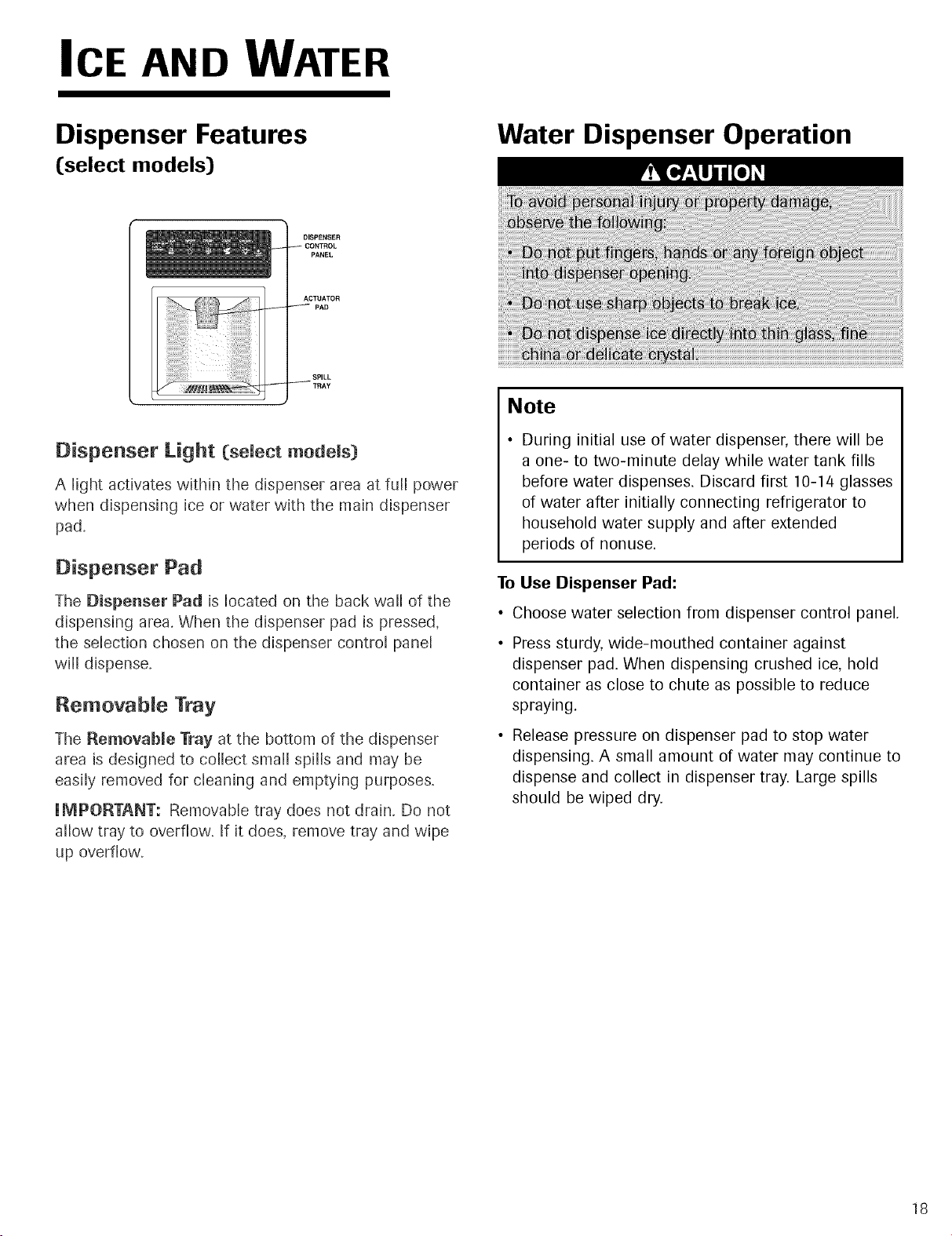

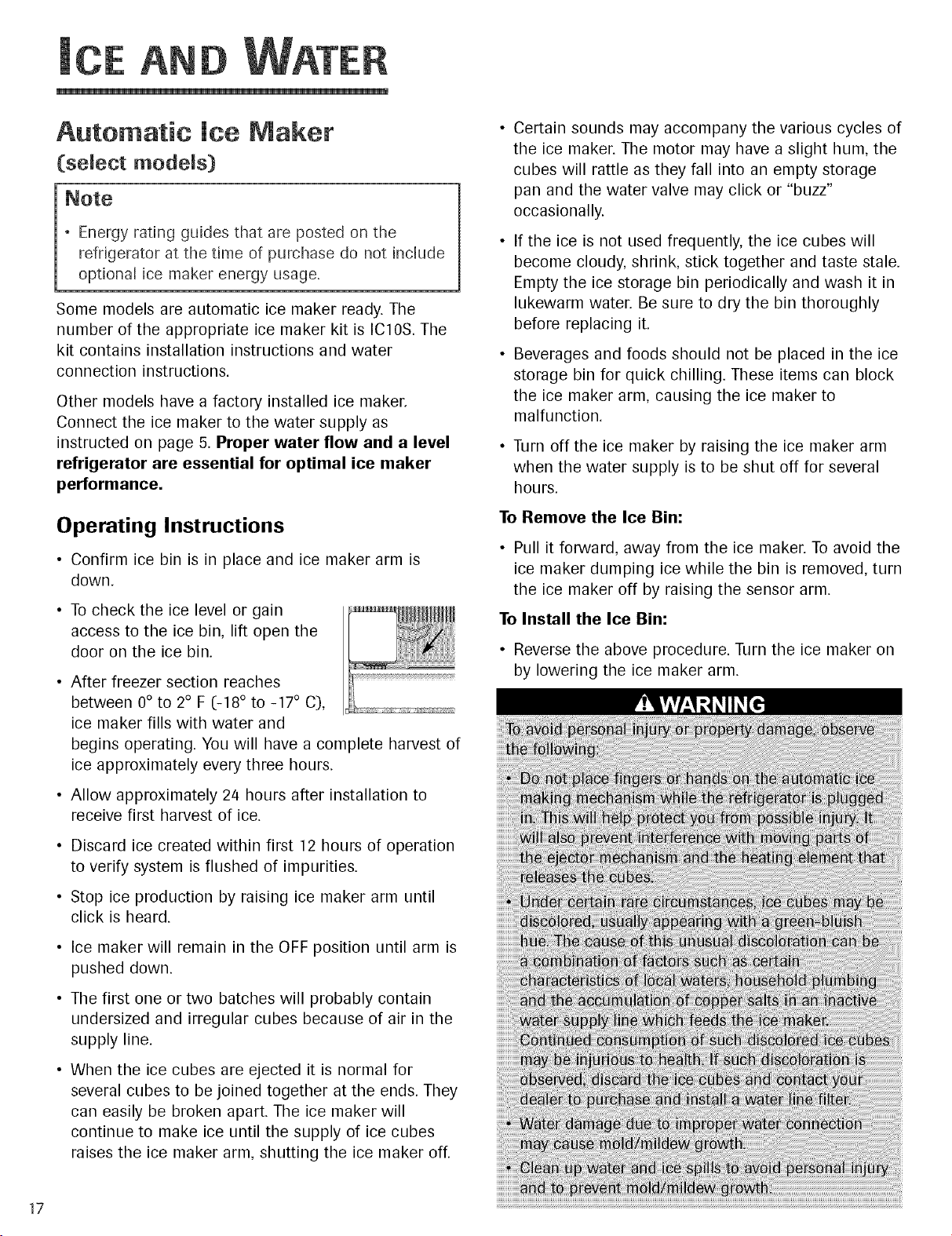

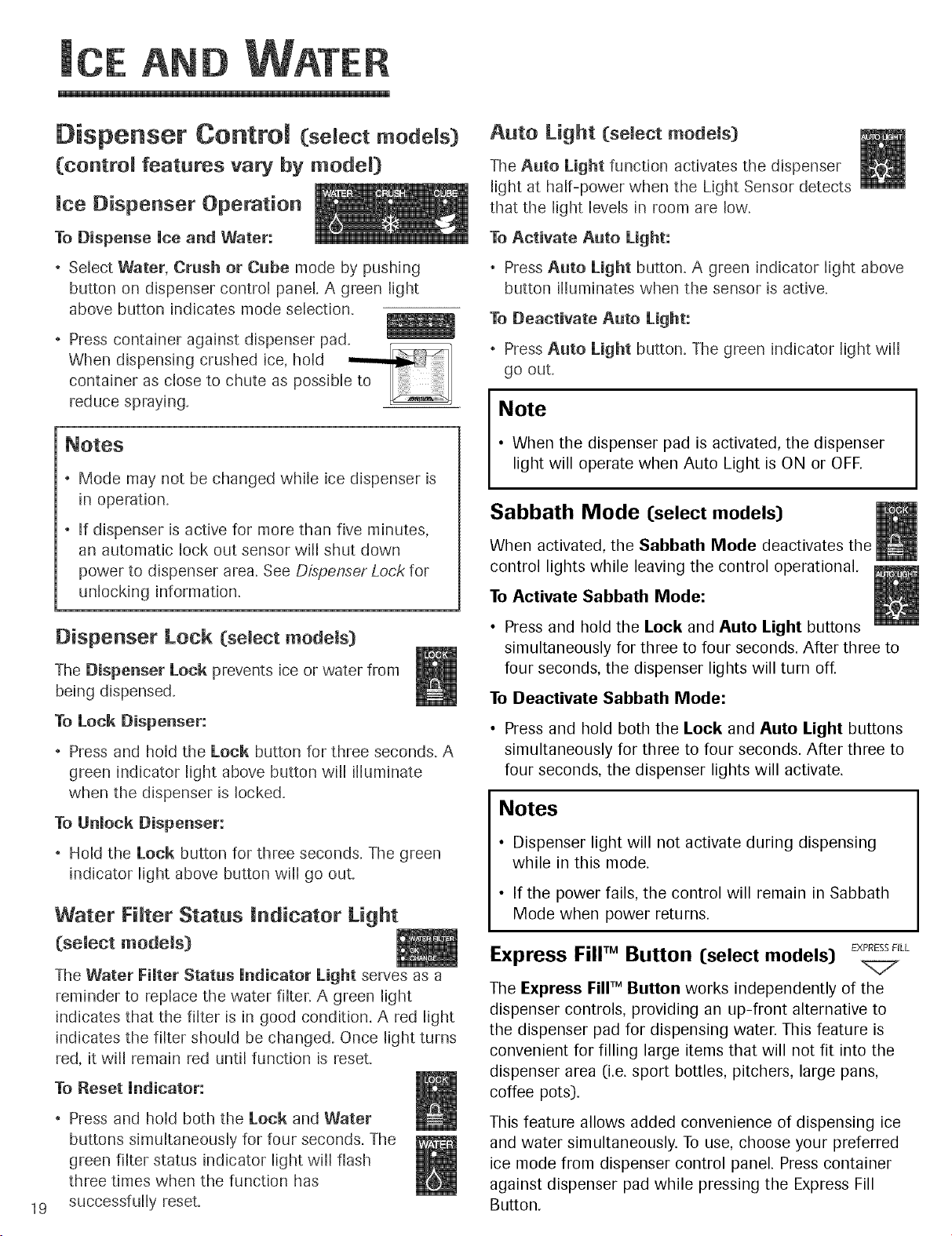

Ice and Water ..................................................................17-19

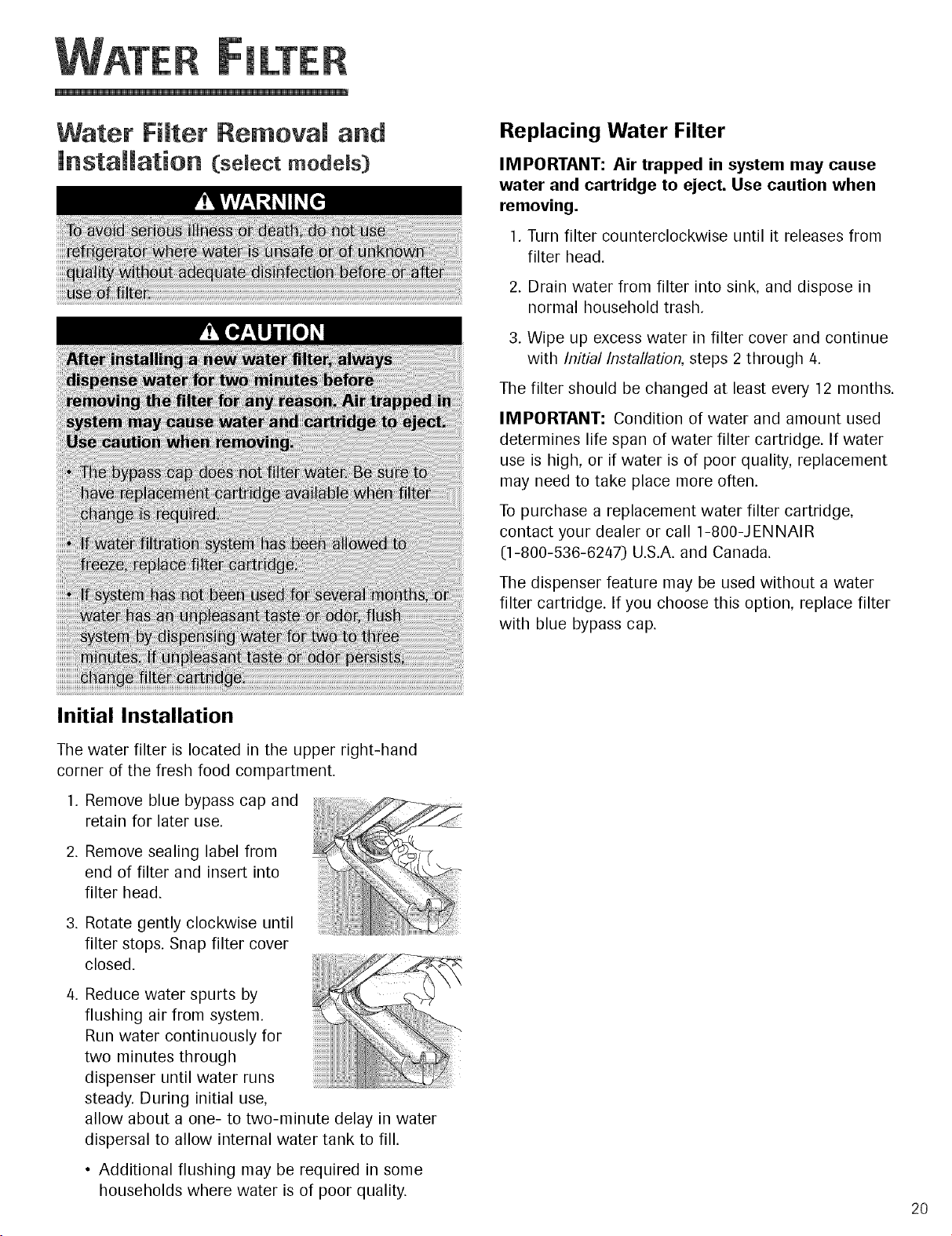

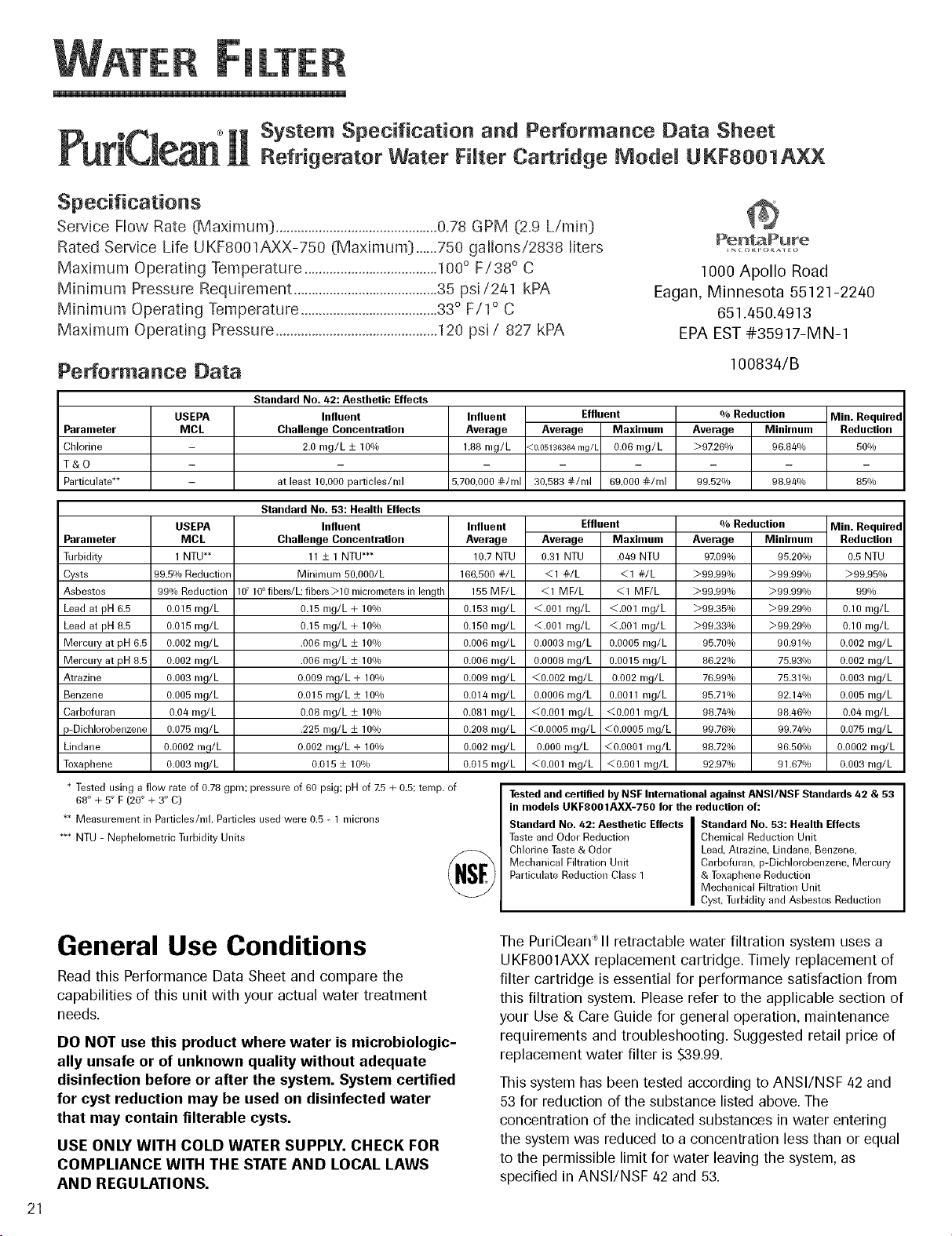

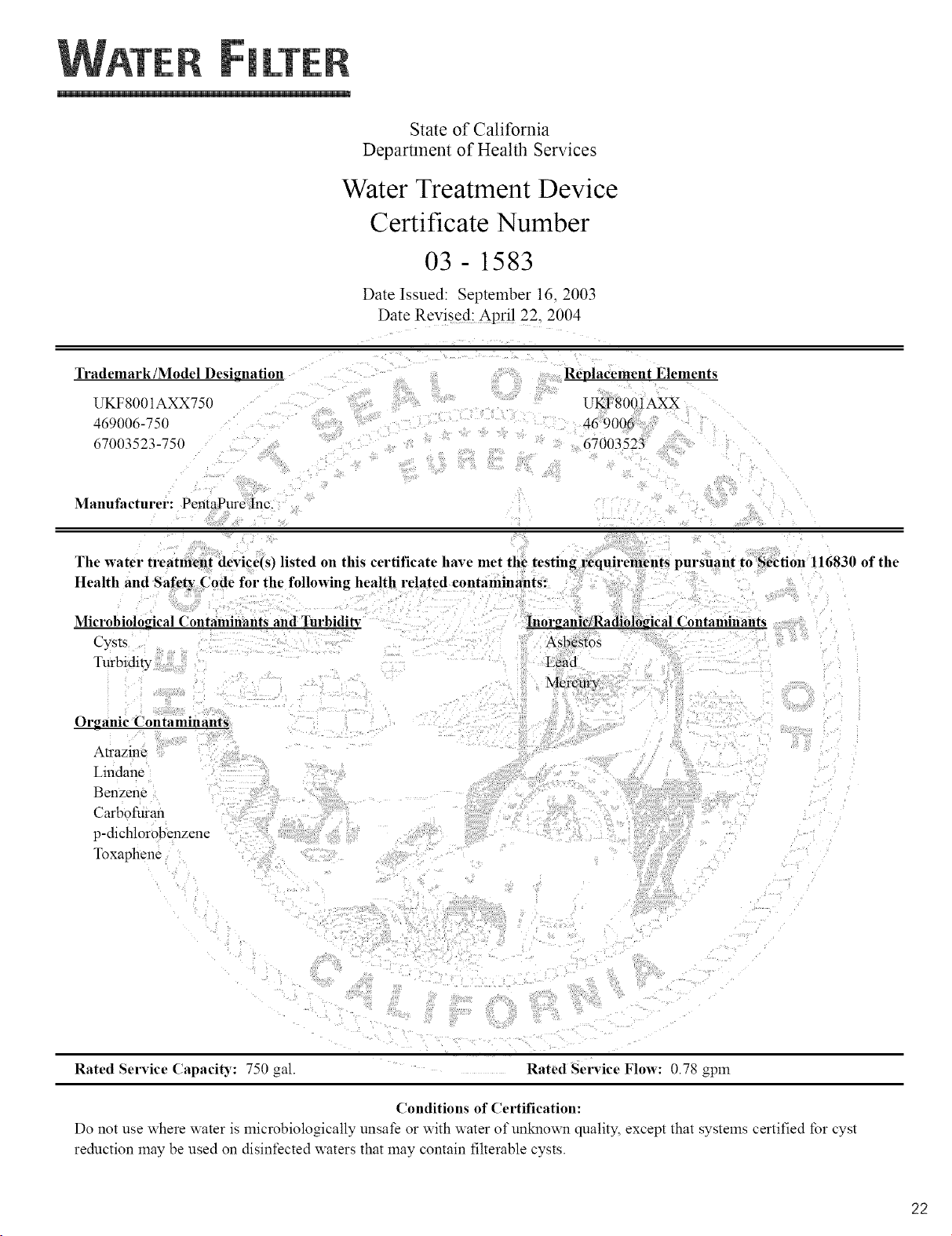

Water Filter .......................................................................20-22

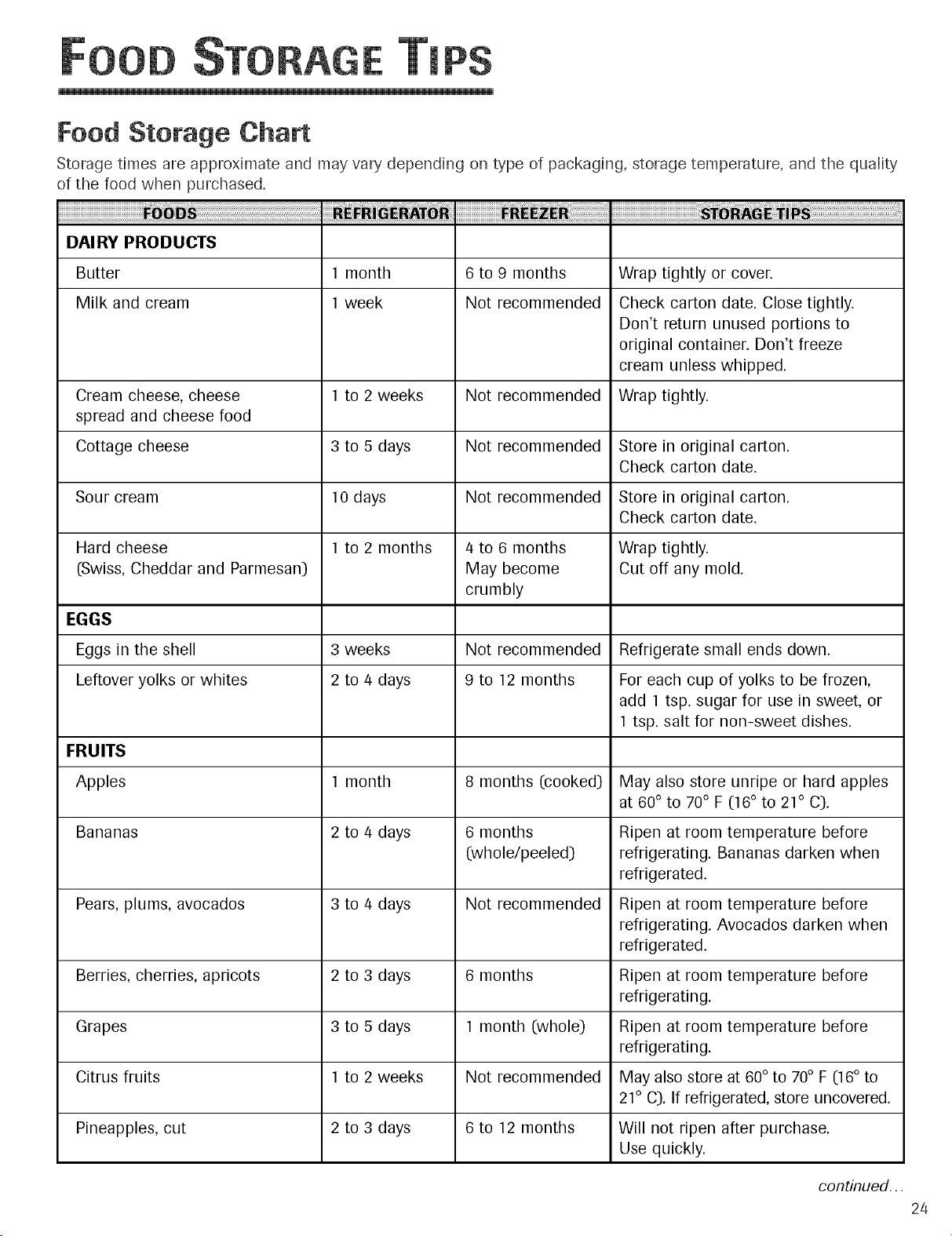

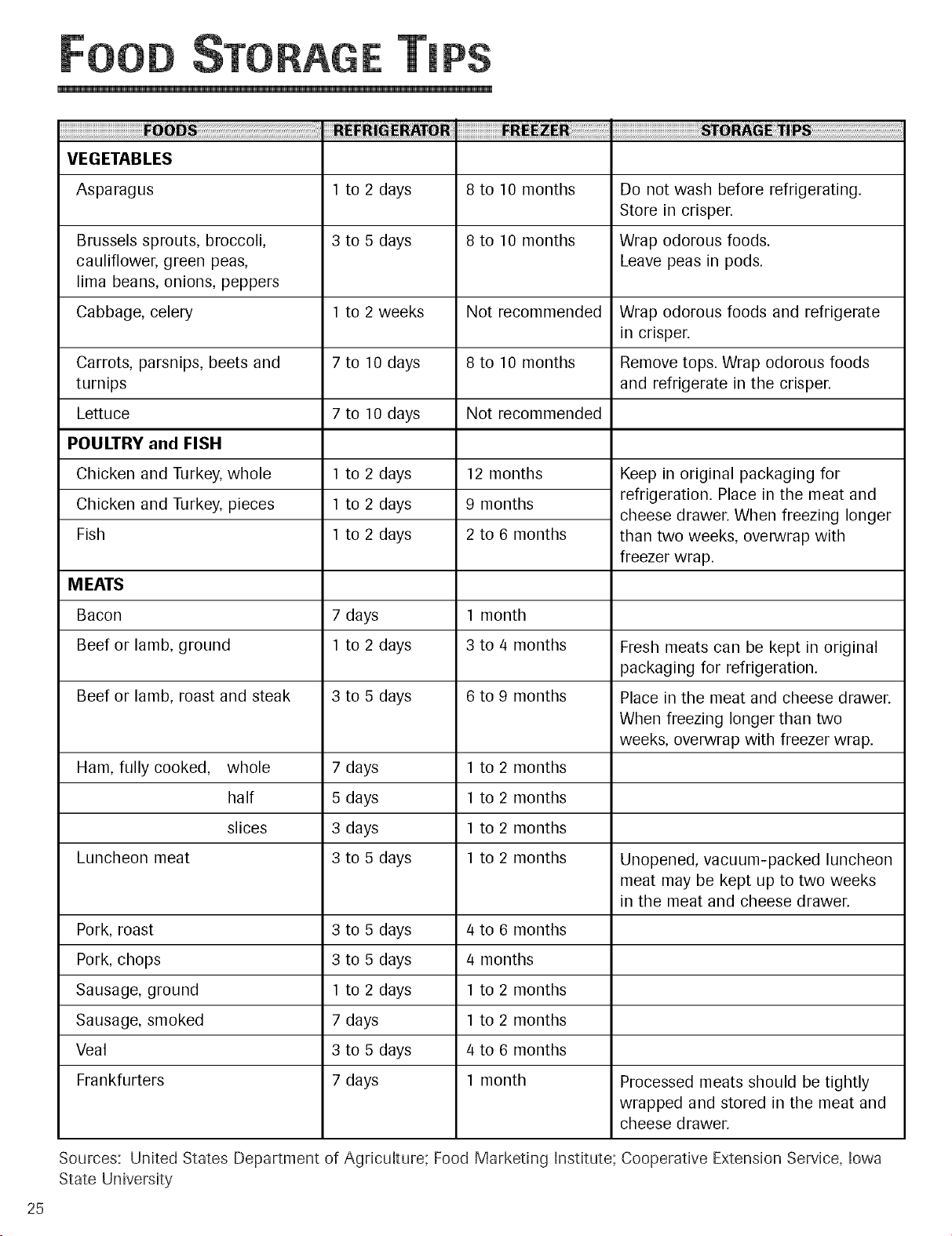

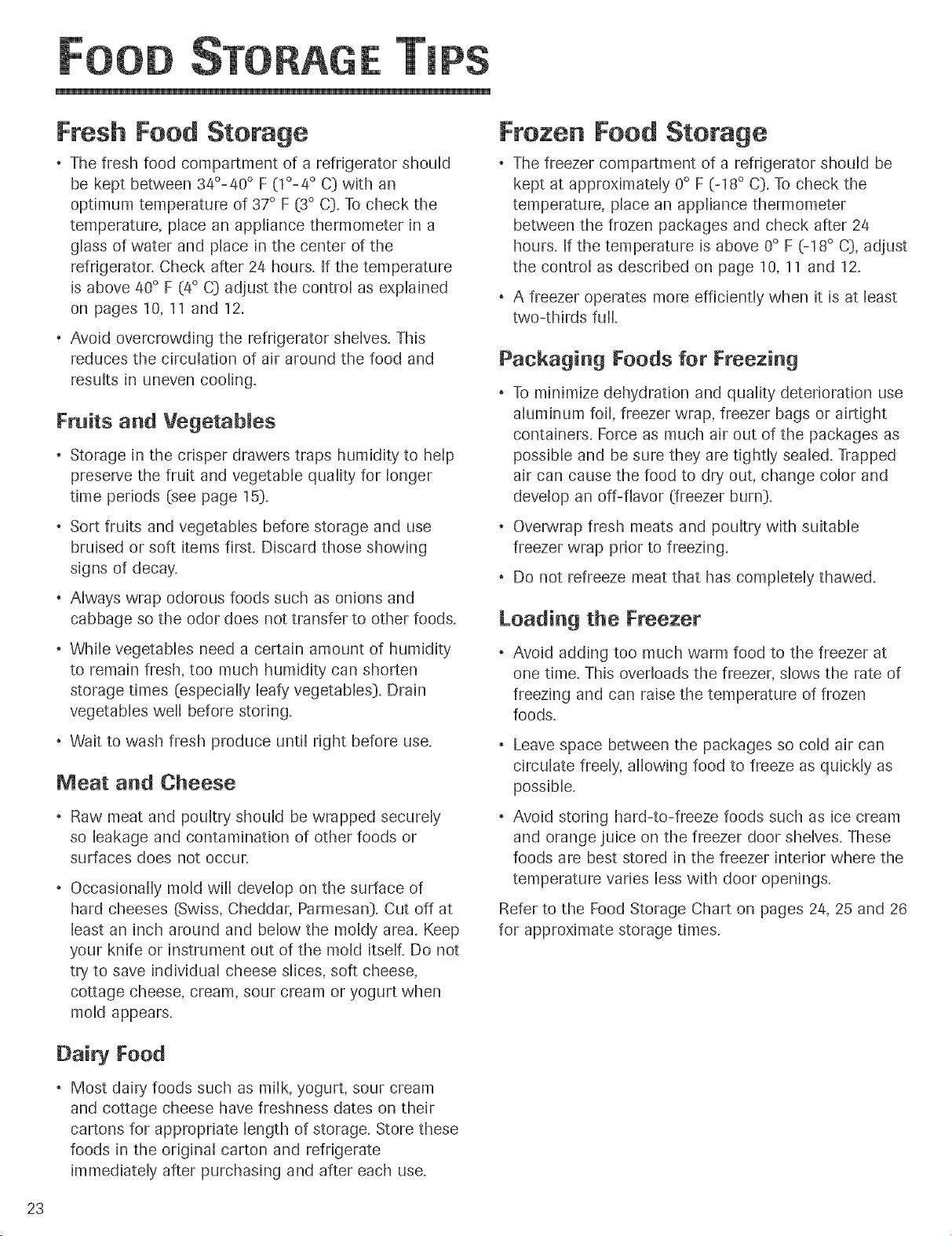

Food Storage Tips ..........................................................23-25

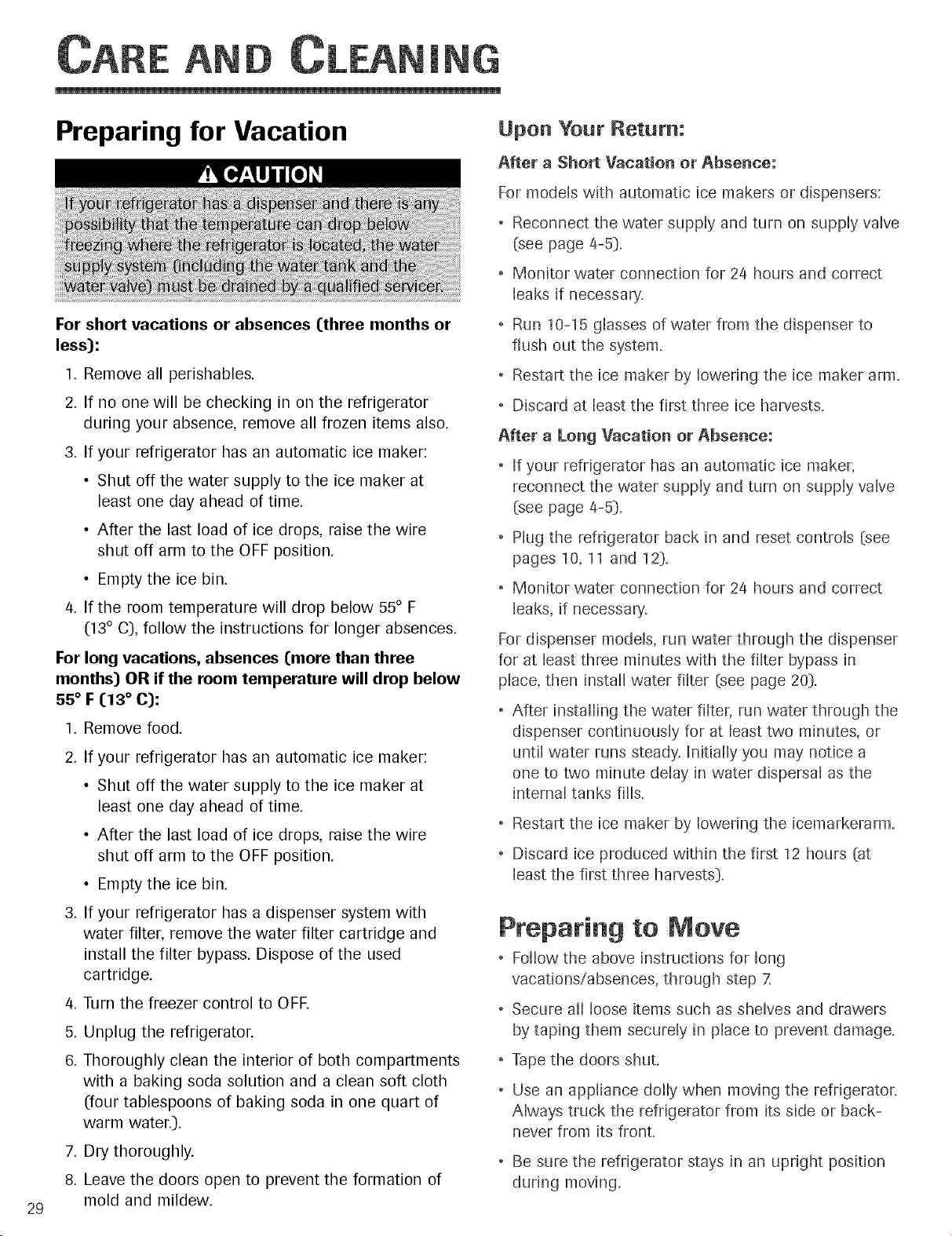

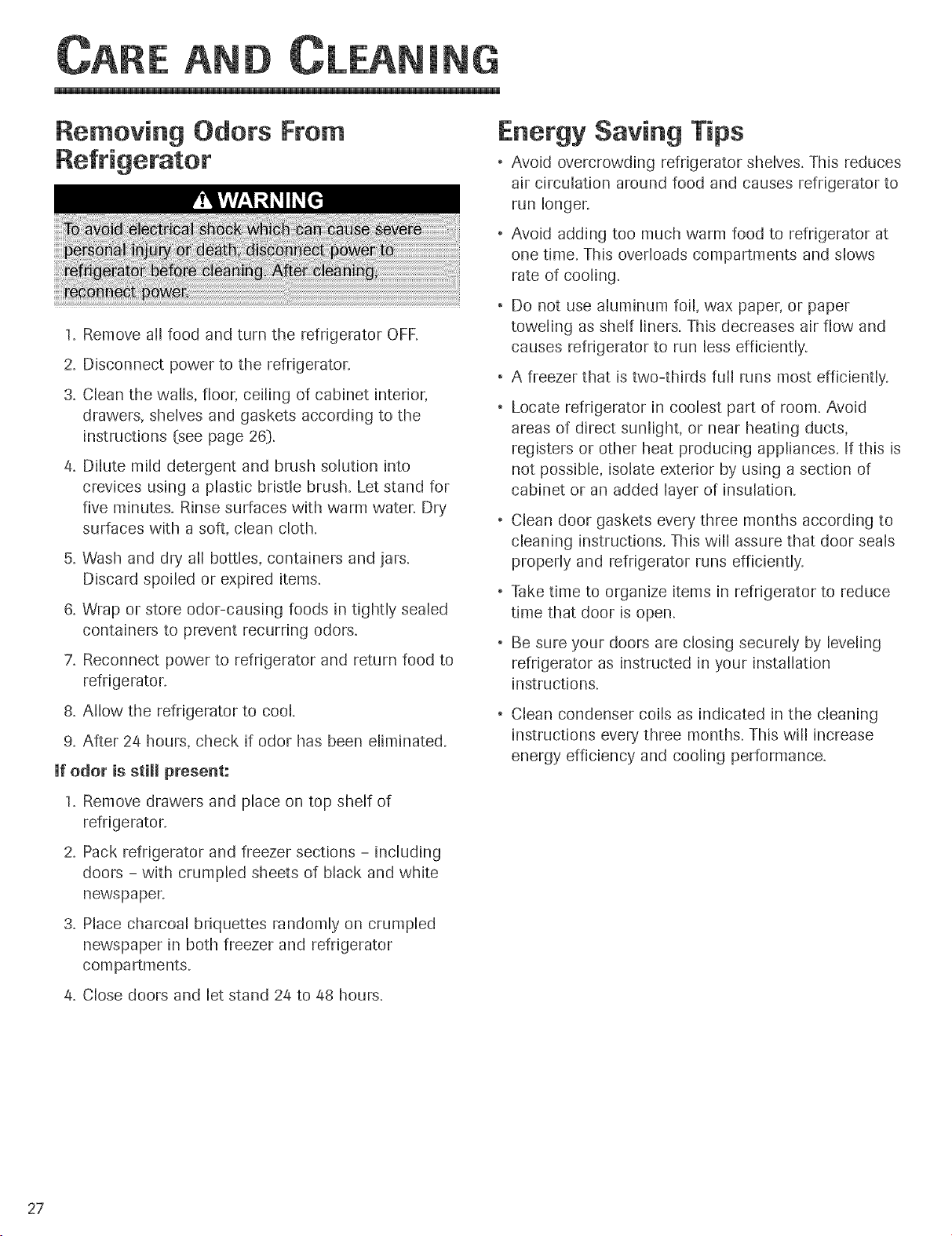

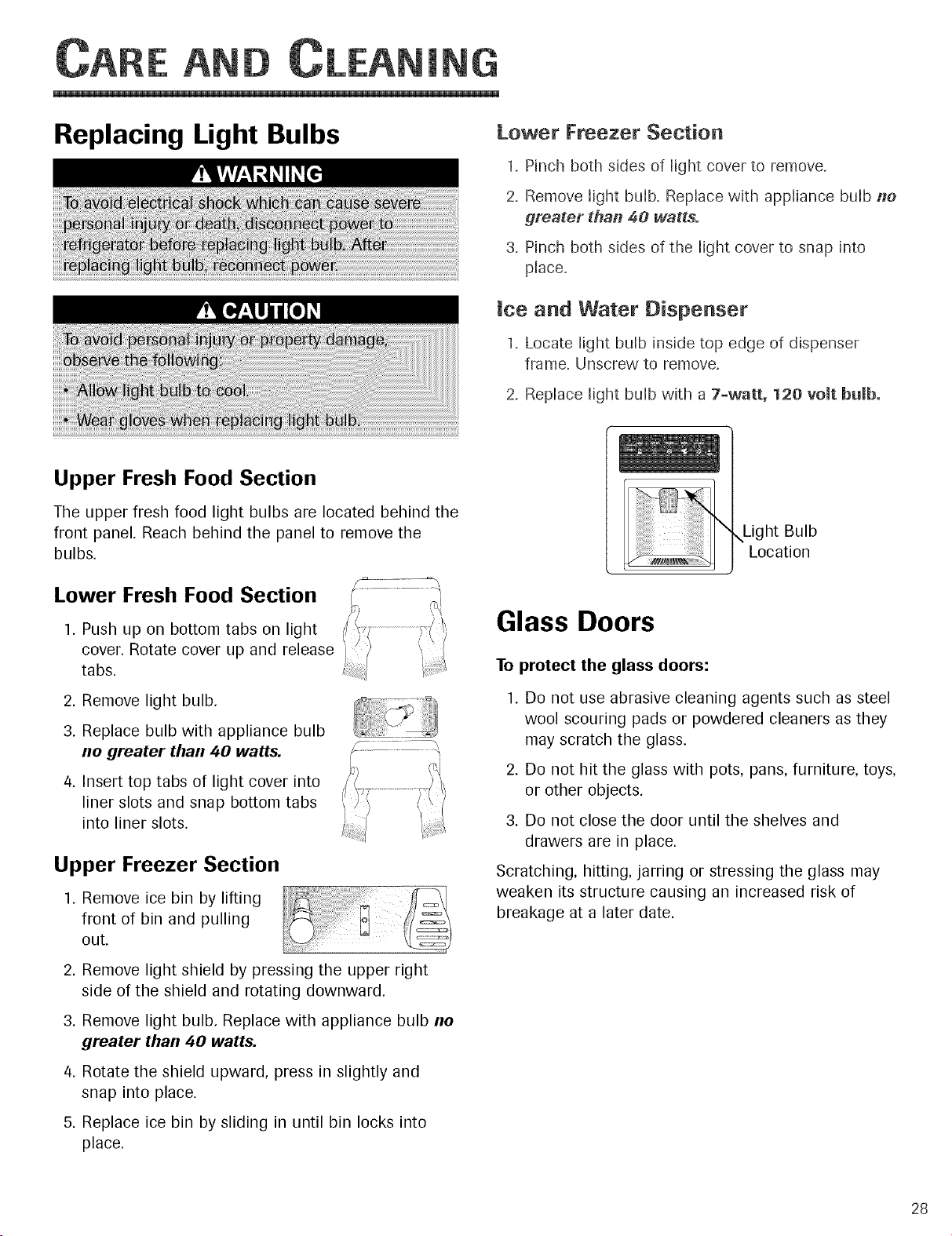

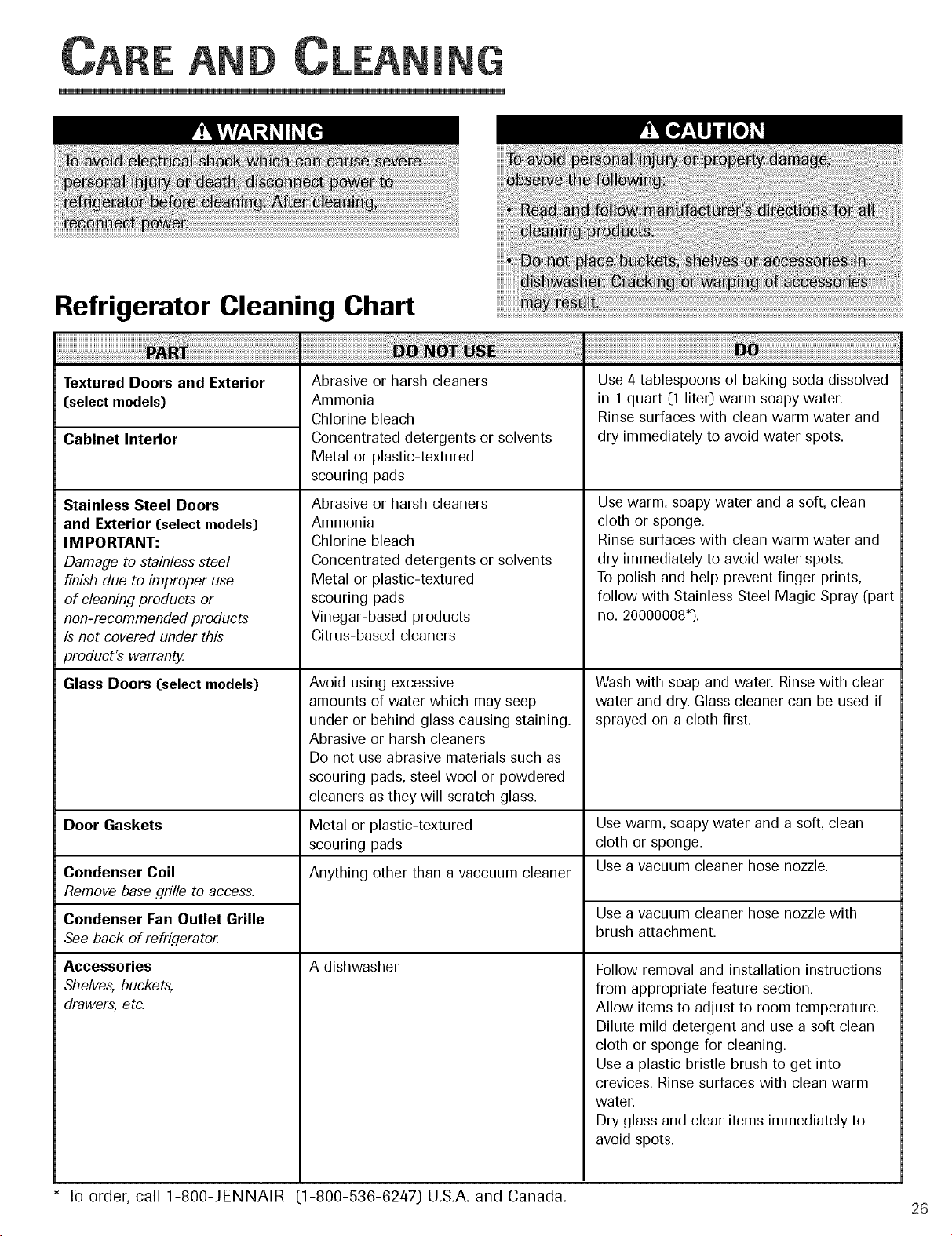

Care and Cleaning ........................................................26-29

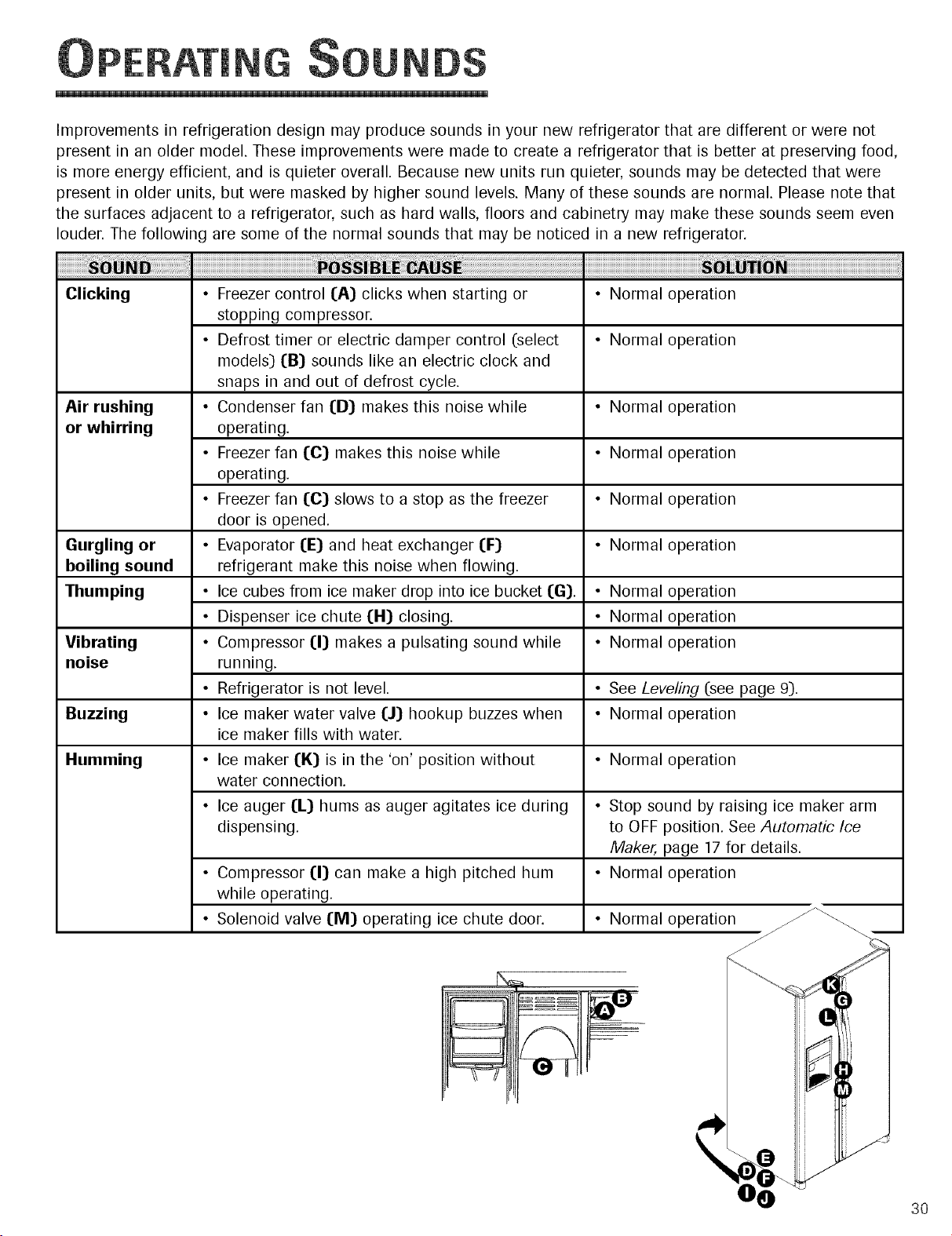

Operating Sounds ................................................................30

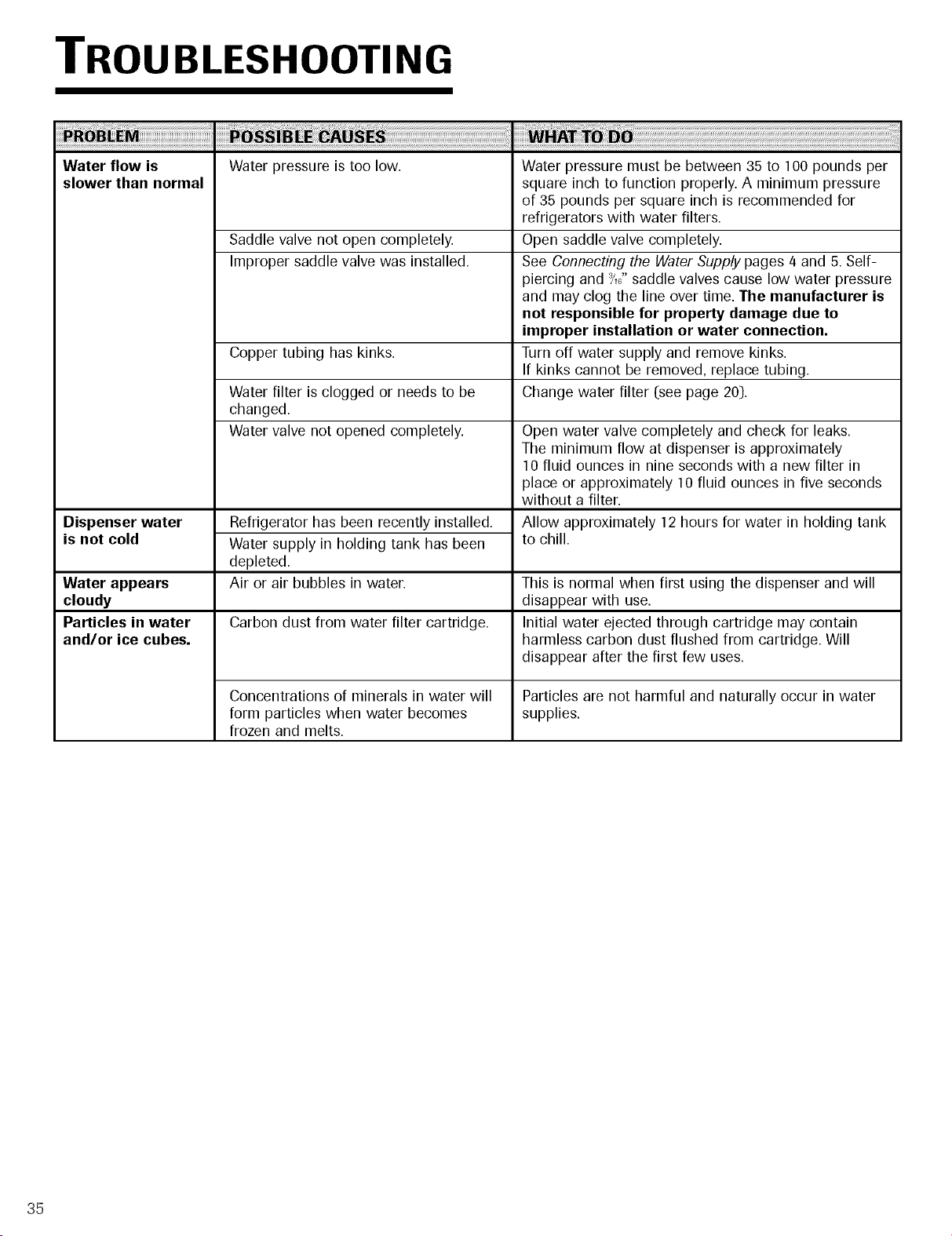

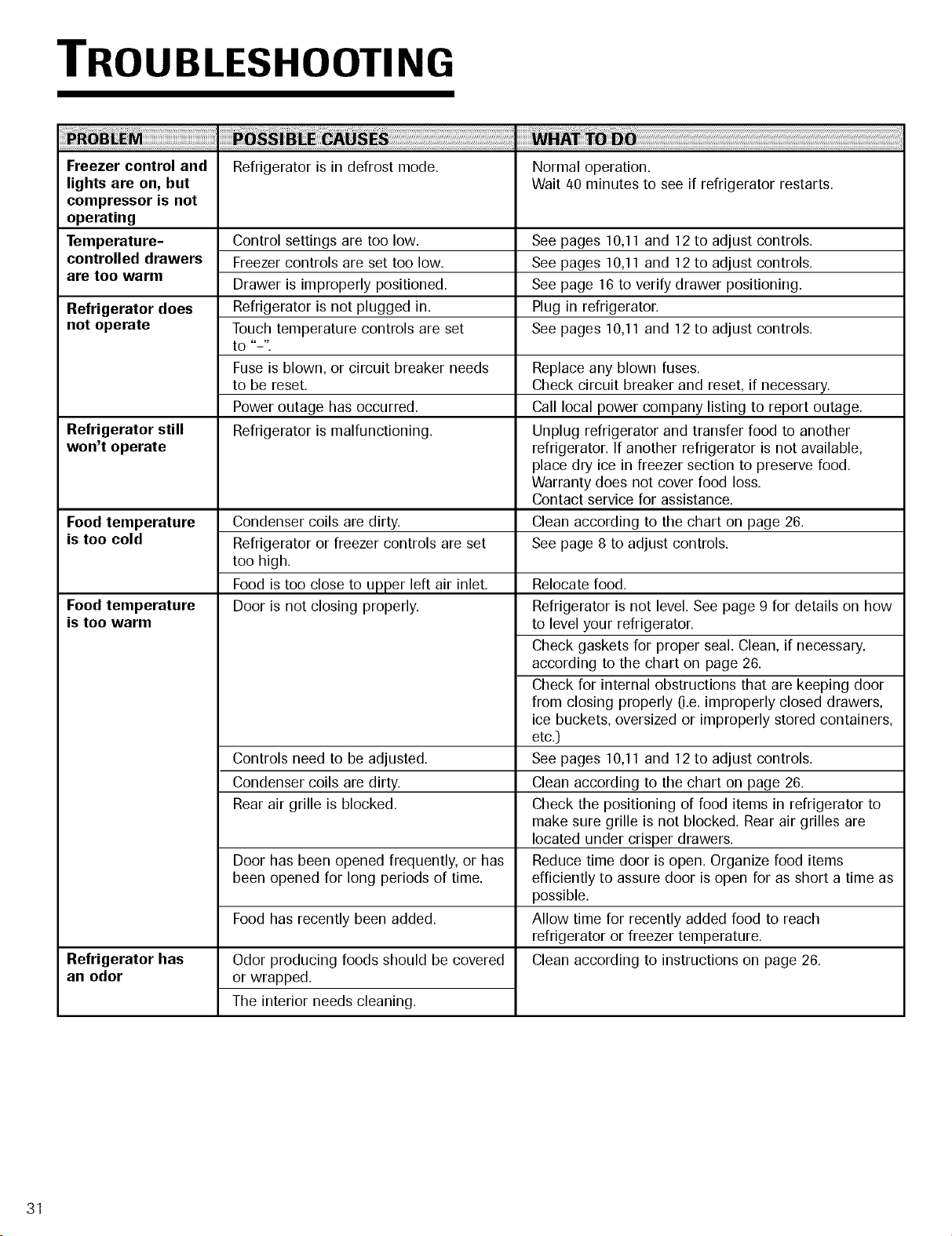

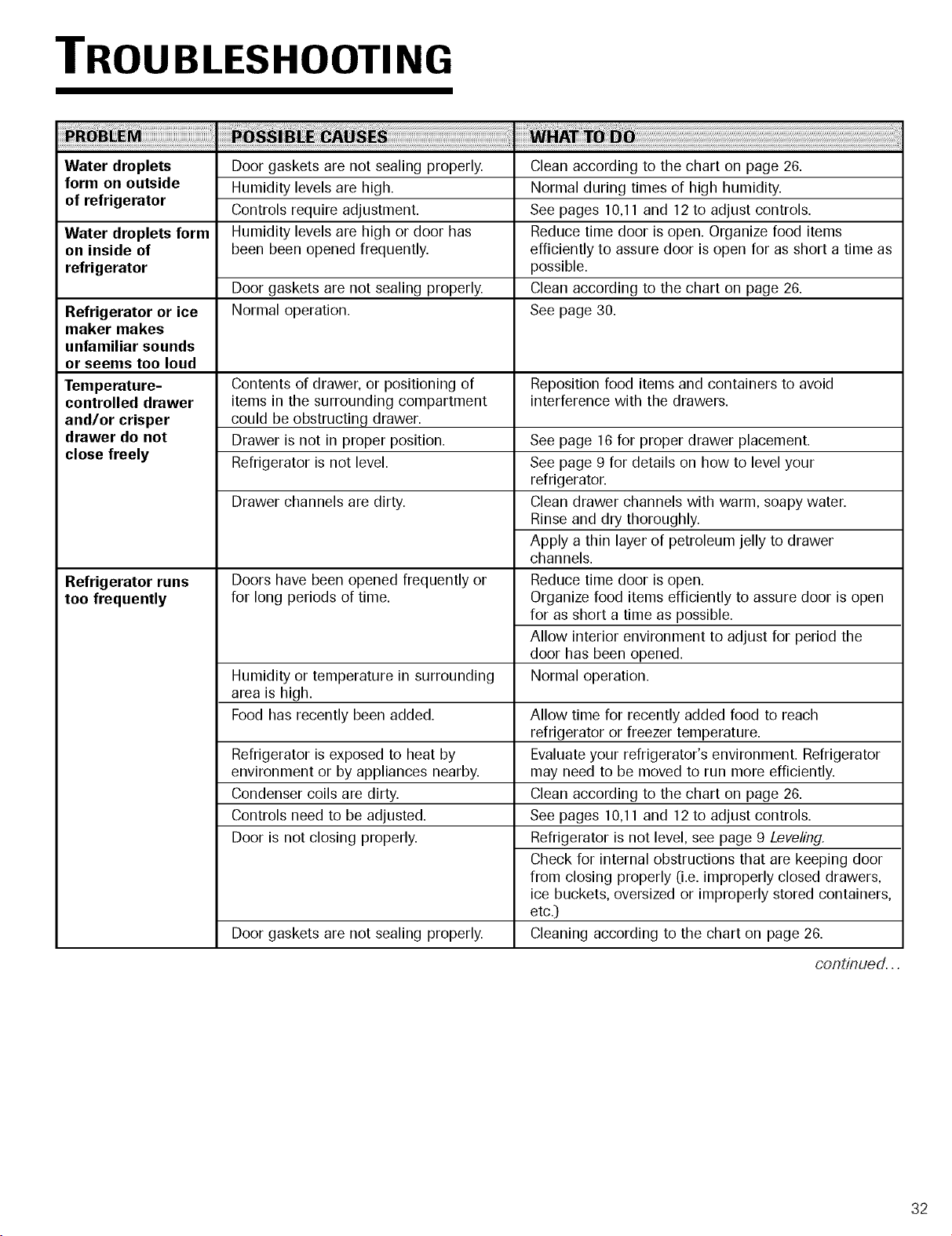

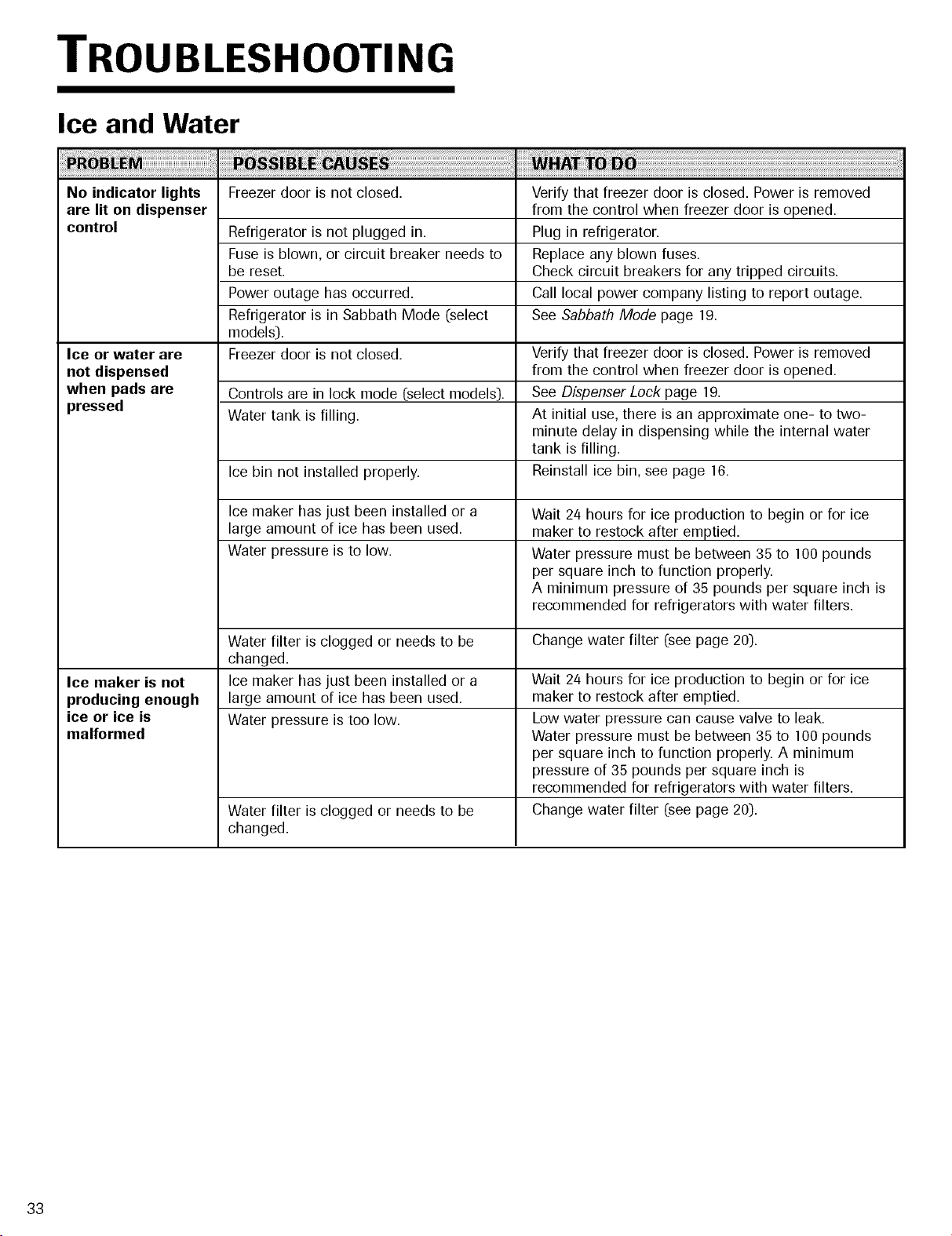

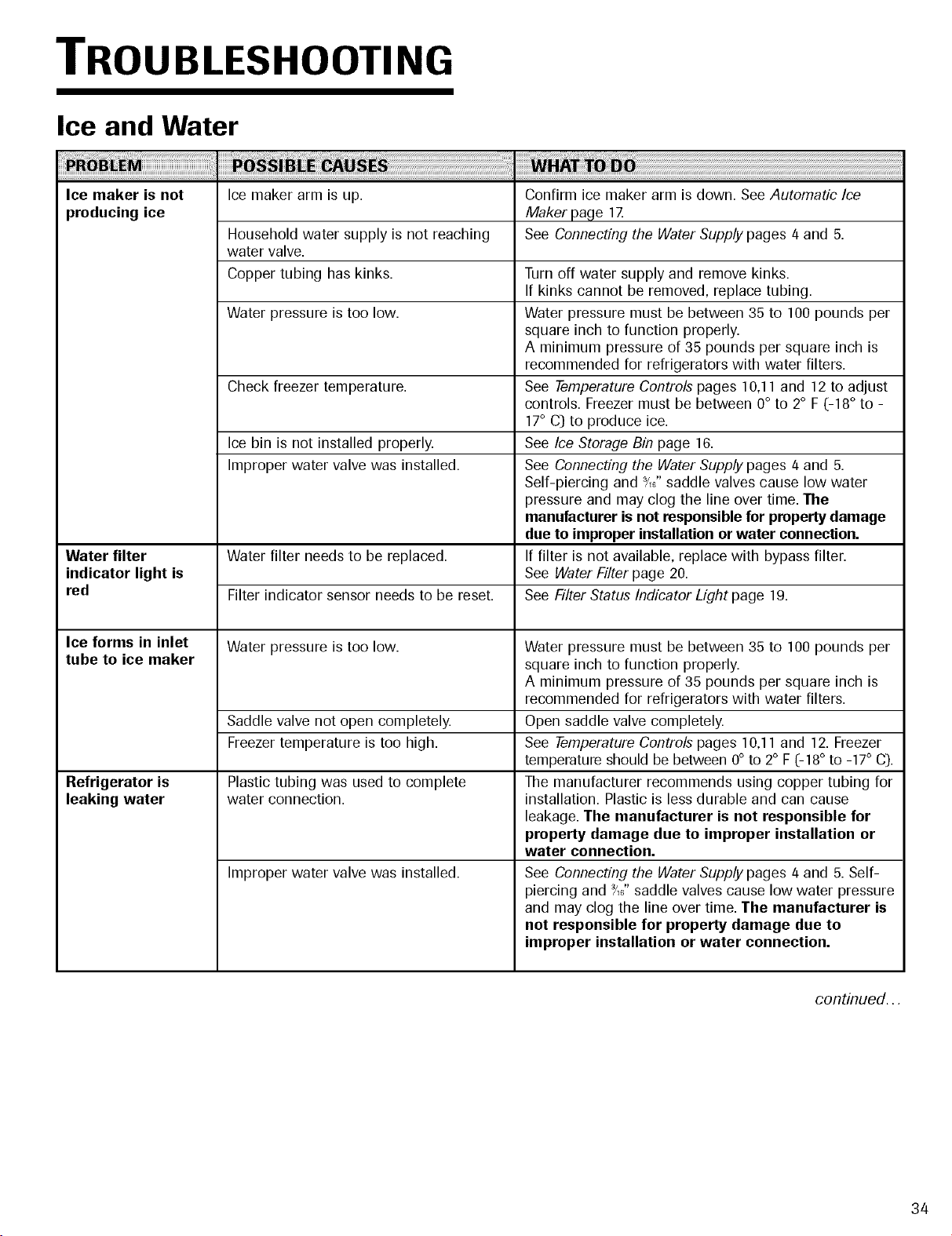

Troubleshooting ..............................................................31-35

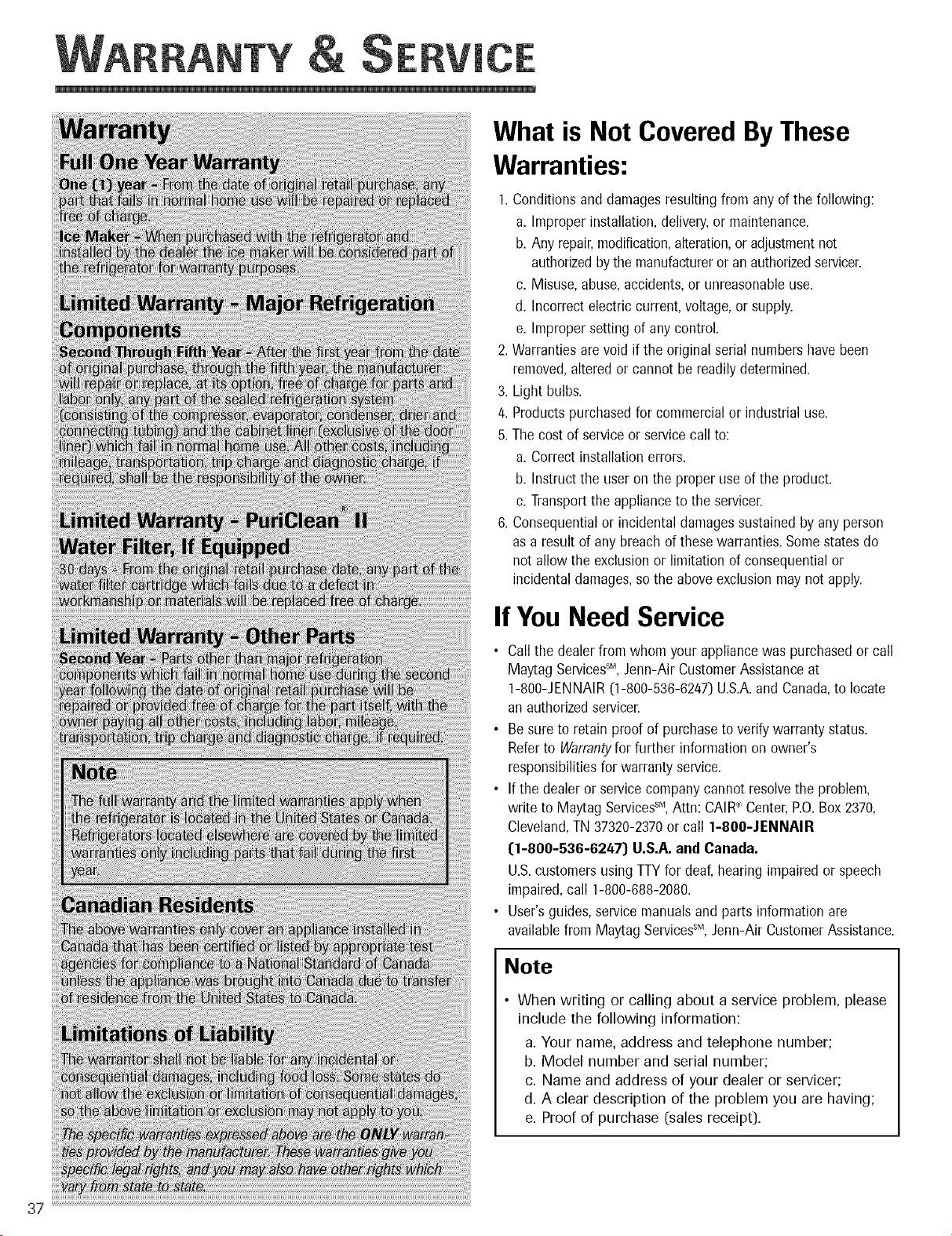

Warranty and Service ..........................................................37
Guide d'utilisateur et d'entretien ....................................38
Guia de Uso y Cuidado ......................................................76
Form No. C/11/04 Part No. 12842108 www.jennair.com Printed in U.S.A.
_,2004 Maytag Appliances Sales Co.

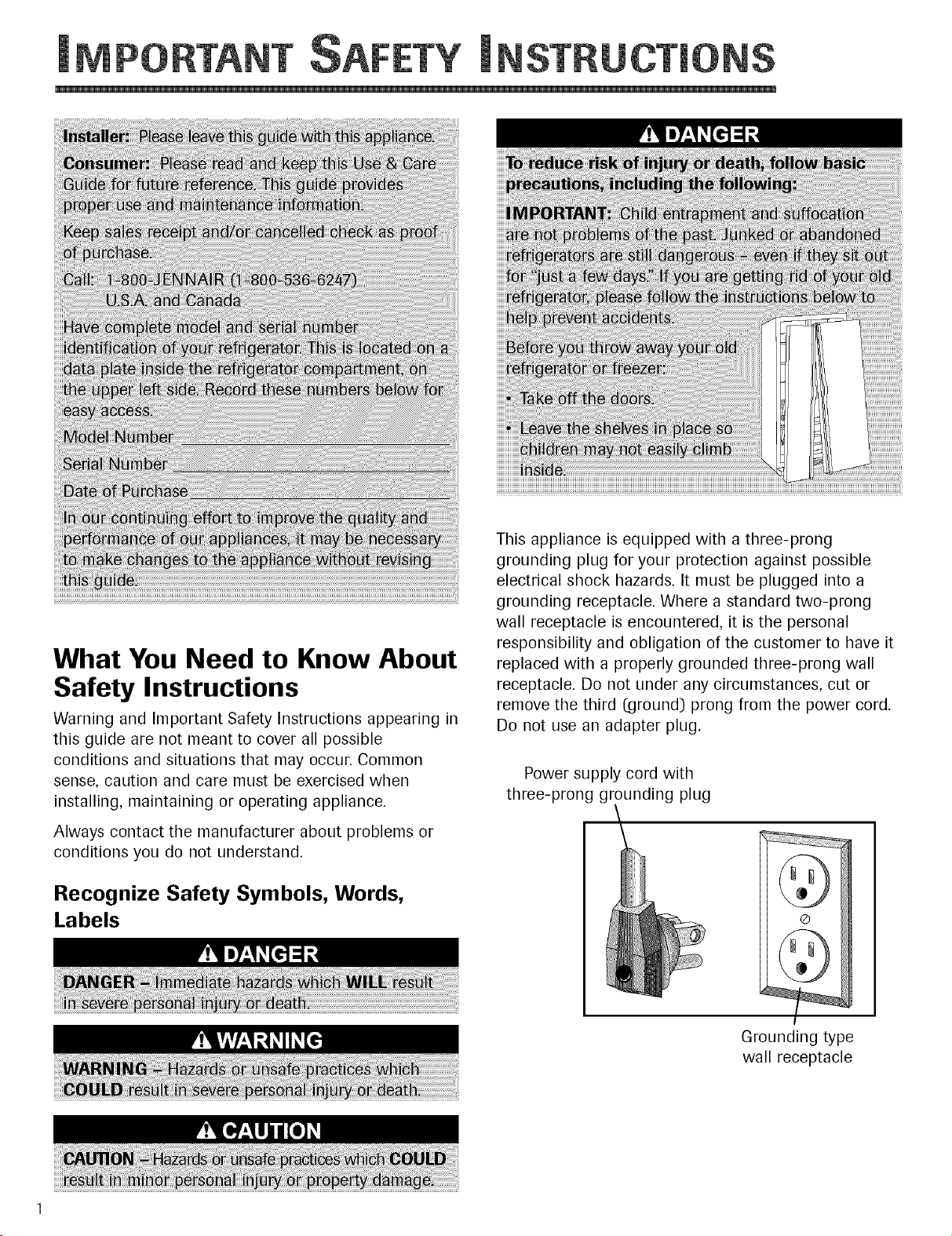

What You Need to Know About
Safety Instructions
Warning and Important Safety Instructions appearing in
this guide are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining or operating appliance.
Always contact the manufacturer about problems or
conditions you do not understand.
Recognize Safety Symbols, Words,
Labels
This appliance is equipped with a three-prong
grounding plug for your protection against possible
electrical shock hazards. It must be plugged into a
grounding receptacle. Where a standard two-prong
wall receptacle is encountered, it is the personal
responsibility and obligation of the customer to have it
replaced with a properly grounded three-prong wall
receptacle. Do not under any circumstances, cut or
remove the third (ground) prong from the power cord.
Do not use an adapter plug.
Power supply cord with
three-prong grounding plug
Grounding type
wall receptacle
SAVE TH ESE I NSTRUCTIONS

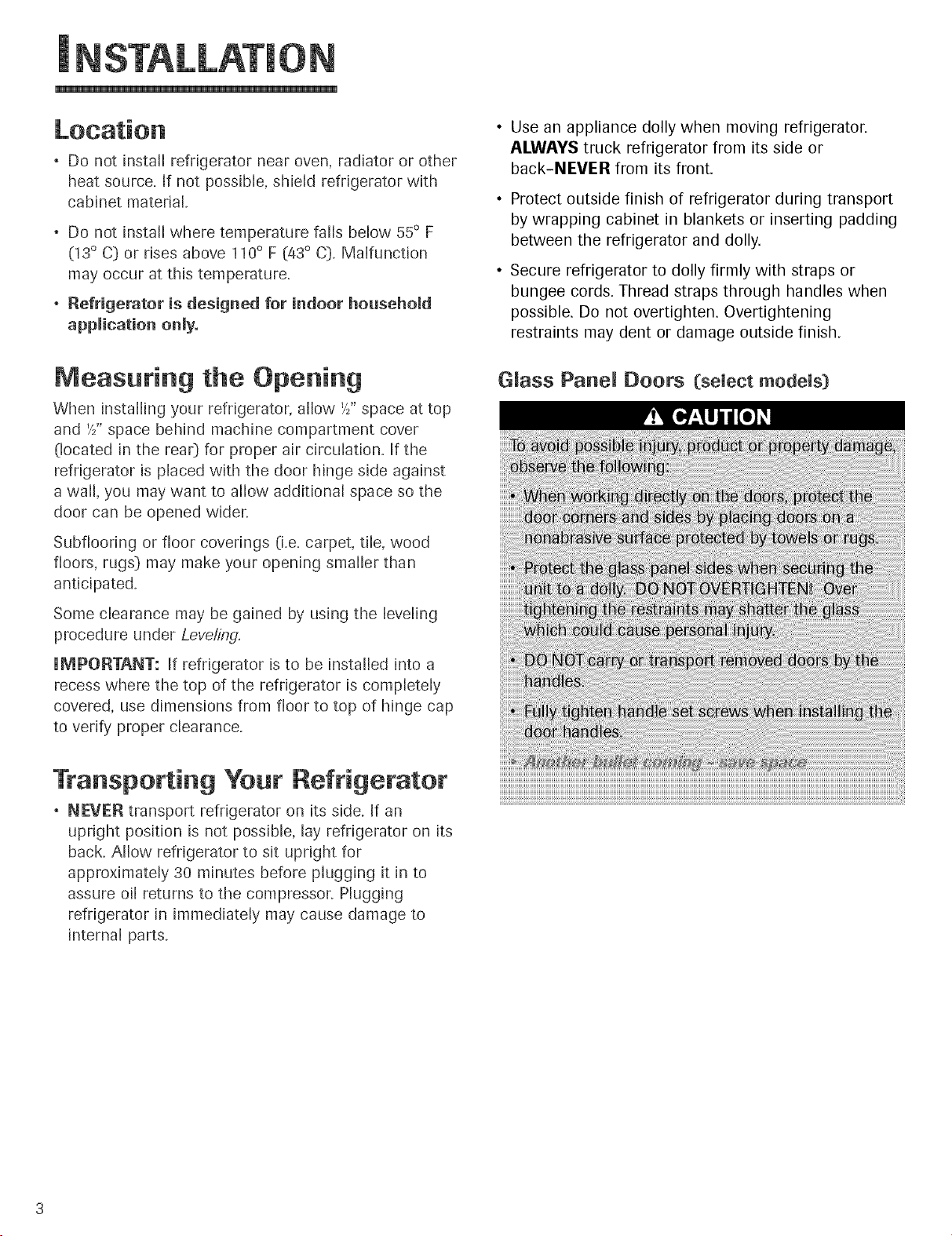

Do not install refrigerator near oven, radiator or other
heat source. Wfnot possible, shield refrigerator with
cabinet material.
Do not install where temperature falls below 55° F
(13° C) or rises above 110° F (43° C). Malfunction
may occur at this temperature.
Refrigerator is designed for indoor household
application onlyo
Measuring the Opening
When installing your refrigerator, allow '/_"space at top
and '/_"space behind machine compartment cover
(located in the rea0 for proper air circulation. If the
refrigerator is placed with the door hinge side against
a wall, you may want to allow additional space so the
door can be opened wider.
Subfiooring or floor coverings (i.e. carpet, tile, wood
floors, rugs) may make your opening smaller than
anticipated.
Some clearance may be gained by using the leveling
procedure under Leveling.
UMPORTANT: If refrigerator is to be installed into a
recess where the top of the refrigerator is completely
covered, use dimensions from floor to top of hinge cap
to verify proper clearance.
• Use an appliance dolly when moving refrigerator.
ALWAYS truck refrigerator from its side or
back-NEVER from its front.
• Protect outside finish of refrigerator during transport
by wrapping cabinet in blankets or inserting padding
between the refrigerator and dolly.
• Secure refrigerator to dolly firmly with straps or
bungee cords. Thread straps through handles when
possible. Do not overtighten. Overtightening
restraints may dent or damage outside finish.
G ass PaneH Doors (select models)
Transporting Your Refrigerator
NEVER transport refrigerator on its side. If an
upright position is not possible, lay refrigerator on its
back. Allow refrigerator to sit upright for
approximately 30 minutes before plugging it in to
assure oil returns to the compressor. Plugging
refrigerator in immediately may cause damage to
internal parts.

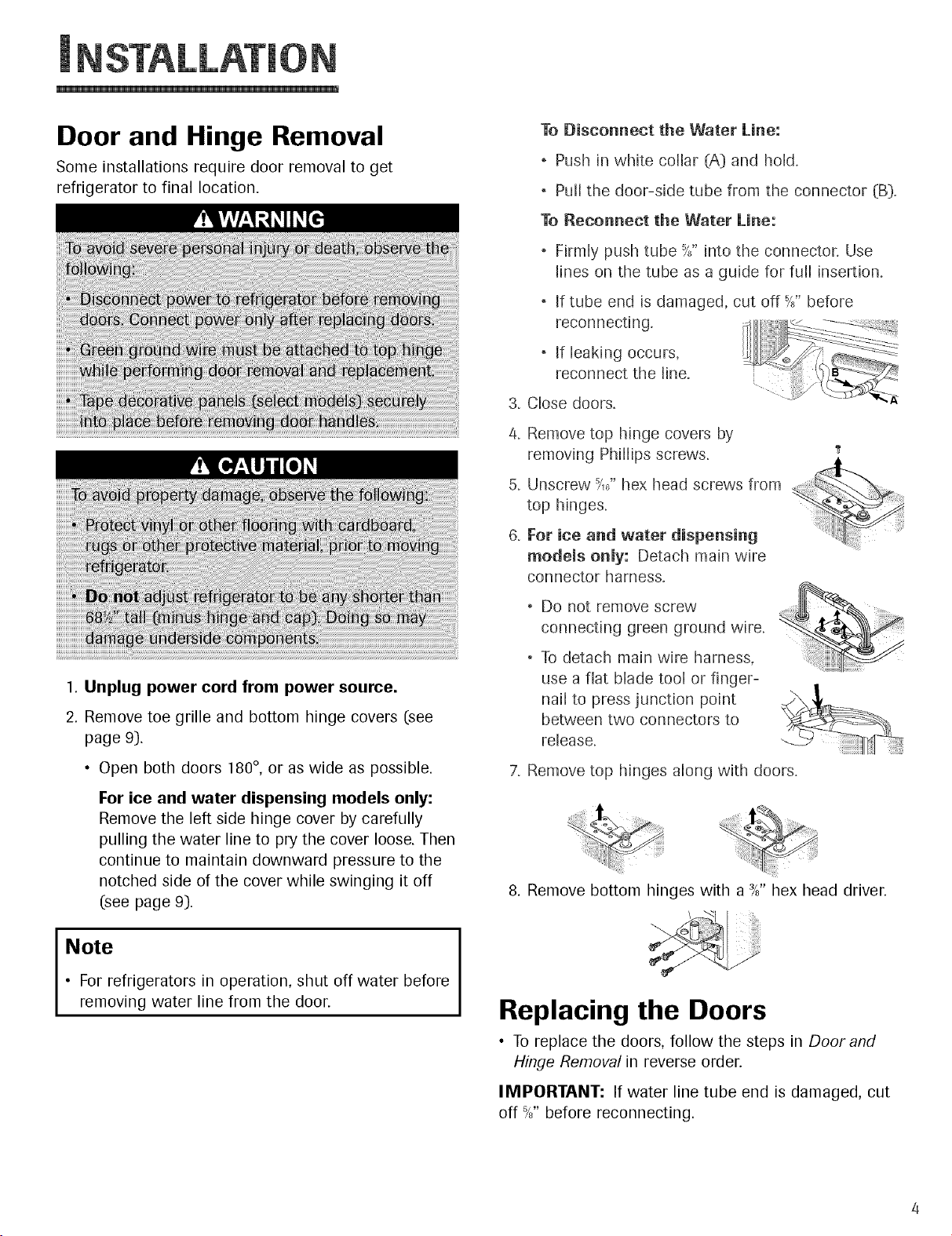

Door and Hinge Removal
Some installations require door removal to get
refrigerator to final location.
1. Unplug power cord from power source.
2. Remove toe grille and bottom hinge covers (see
page 9).
• Open both doors 180°, or as wide as possible.
For ice and water dispensing models only:
Remove the left side hinge cover by carefully
pulling the water line to pry the cover loose. Then
continue to maintain downward pressure to the
notched side of the cover while swinging it off
(see page 9).
Note
• For refrigerators in operation, shut off water before
removing water line from the door.
To Disconnect the Water Line:
Push in white collar (A_)and hold.
Pull the door-side tube from the connector (B_).
To Reconnect the Water Line:
Firmly push tube _" into the connector. Use
lines on the tube as a guide for full insertion.
If tube end is damaged, cut off %" before
reco nnecti ng.
If leaking occurs,
reconnect the line.
3. Close doors.
4_
5_
6.
Remove top hinge covers by
removing Phillips screws.
Unscrew Y,_"hex head screws from
top hinges.
For ice and water dispensing .............
modems onmy: Detach main wire
connector harness.
Do not remove screw
connecting green ground wire.
To detach main wire harness,
use a flat blade tool or finger-
nail to press junction point
between two connectors to
release.
7. Remove top hinges along with doors.
8. Remove bottom hinges with a _8"hex head driver.
Replacing the Doors
• To replace the doors, follow the steps in Door and
Hinge Removal in reverse order.
IMPORTANT: If water line tube end is damaged, cut
off %" before reconnecting.

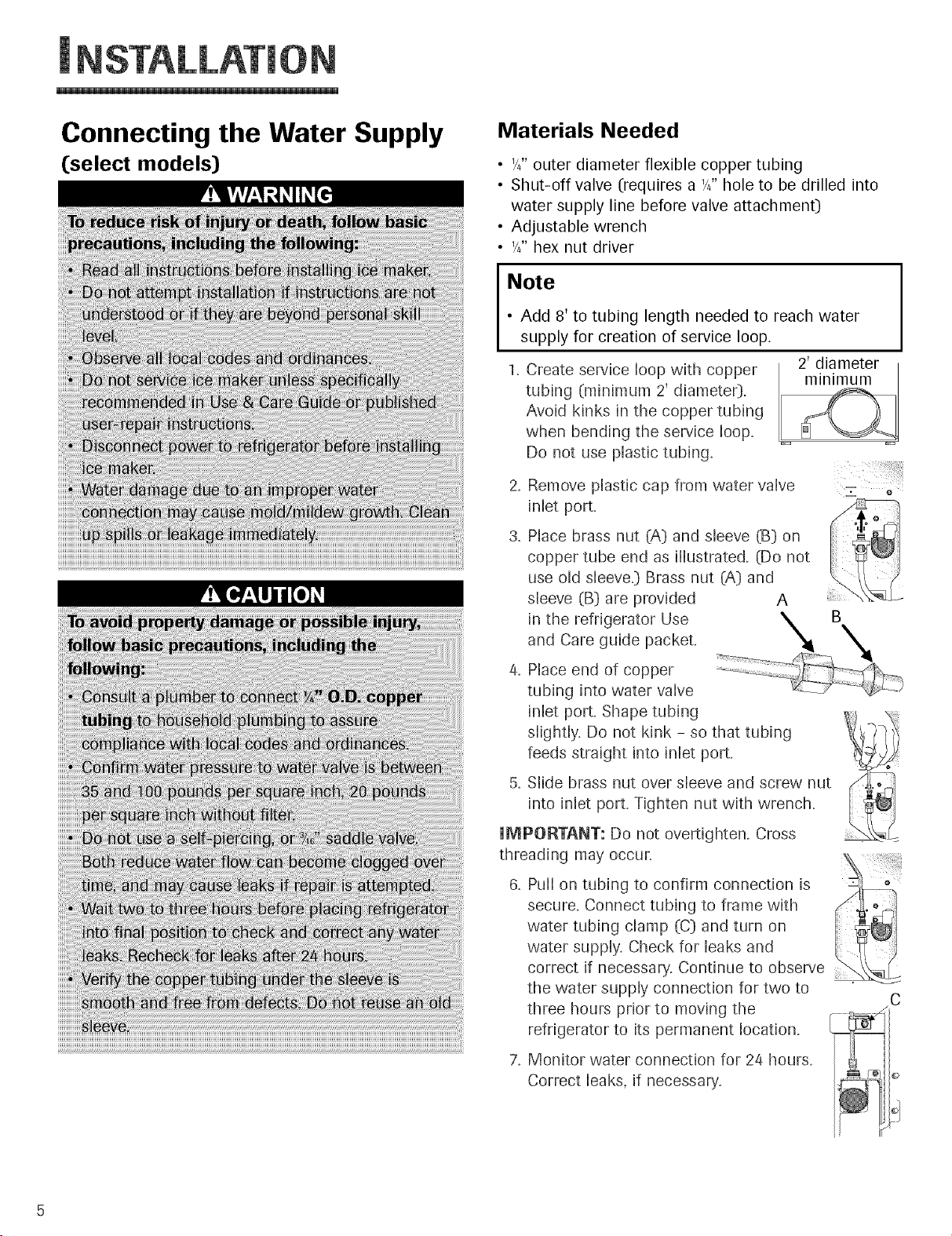

Connecting the Water Supply
Cselect models)
Materials Needed
• '/4"outer diameter flexible copper tubing
• Shut-off valve (requires a '/4" hole to be drilled into
water supply line before valve attachment)
• Adjustable wrench
• '/4" hex nut driver
Note
• Add 8' to tubing length needed to reach water
supply for creation of service loop.
2_
3_
Create service loop with copper
tubing (minimum 2' diamete0.
Avoid kinks in the copper tubing
when bending the service loop.
Do not use plastic tubing.
4_
Remove plastic cap from water valve .= o
inlet port.
Place brass nut (A} and sleeve (B} on
copper tube end as illustrated. (Do not
use old sleeve.} Brass nut (A} and
sleeve (B) are provided A
in the refrigerator Use
and Care guide packet,
Place end of copper
tubing into water valve
inlet port. Shape tubing
slightly. Do not kink - so that tubing
feeds straight into inlet port.
5. Slide brass nut over sleeve and screw nut
into inlet port. Tighten nut with wrench.
[MPORTANT: Do not overtighten. Cross
threading may occur.
6_
Pu[[ on tubing to confirm connection is
secure_ Connect tubing to frame with
water tubing clamp (C} and turn on
water supply. Check for leaks and
correct if necessary, Continue to observe
the water supply connection for two to
three hours prior to moving the
refrigerator to its permanent location.
7_ Monitor water connection for 24 hours.
Correct leaks, if necessary.
o
ili_i:
C

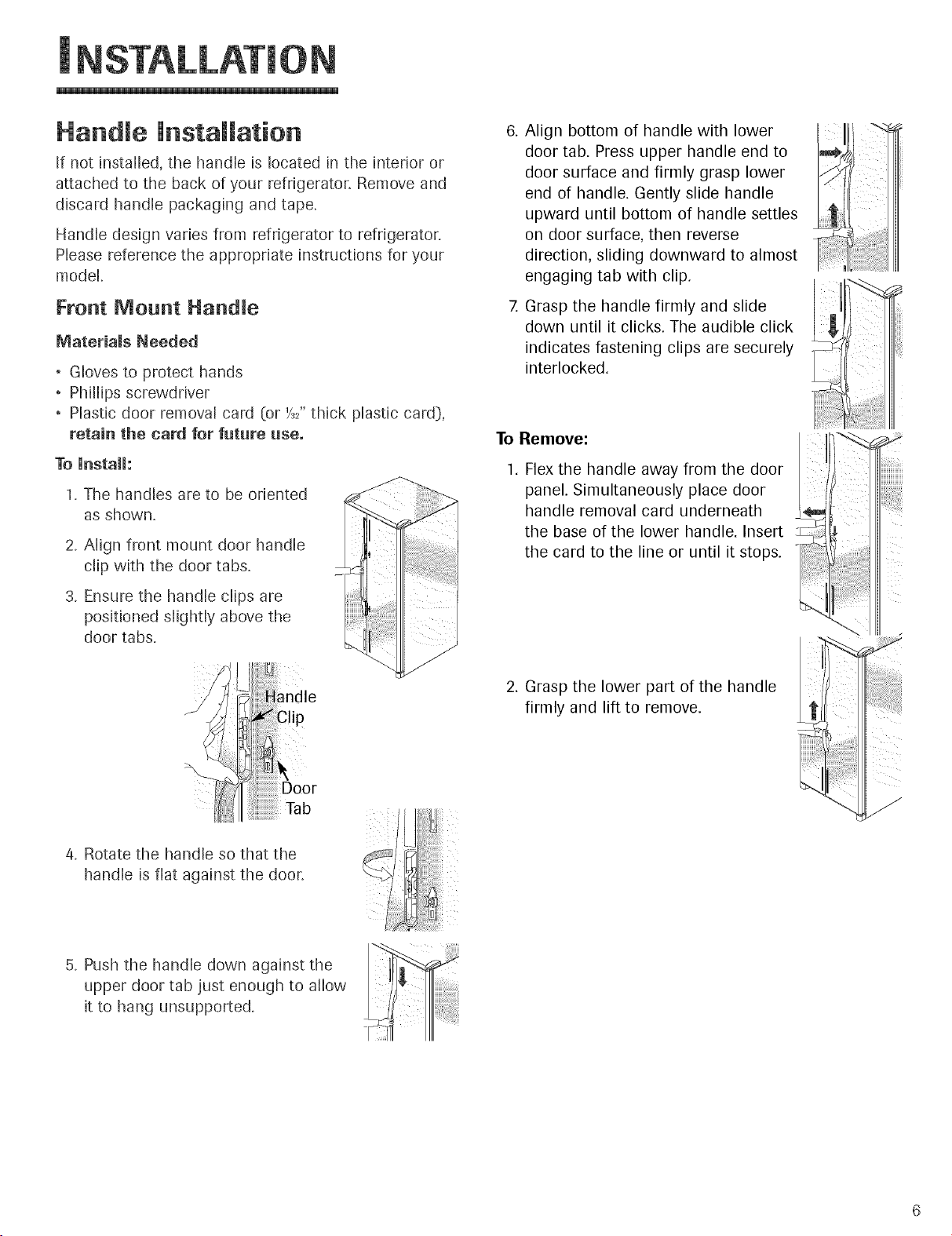

Handme installation
If not installed, the handle is located in the interior or
attached to the back of your refrigerator. Remove and
discard handle packaging and tape.
Handle design varies from refrigerator to refrigerator.
Please reference the appropriate instructions for your
model.
Front Mount Handle
Materiams Needed
Gloves to protect hands
Phillips screwdriver
Plastic door removal card (or '/X' thick plastic card}},
retain the card for future use.
To UnstaH:
1. The handles are to be oriented
as shown.
2,Align front mount door handle
clip with the door tabs.
3. Ensure the handle clips are
positioned slightly above the
door tabs.
Door
Tab
/4. Rotate the handle so that the
handle is flat against the door.
Align bottom of handle with lower
door tab. Press upper handle end to
door surface and firmly grasp lower
end of handle. Gently slide handle
upward until bottom of handle settles
on door surface, then reverse
direction, sliding downward to almost
engaging tab with clip.
Grasp the handle firmly and slide
down until it clicks. The audible click
indicates fastening clips are securely
interlocked.
To Remove:
1. Flex the handle away from the door
panel. Simultaneously place door
handle removal card underneath
the base of the lower handle. Insert
the card to the line or until it stops.
2. Grasp the lower part of the handle
firmly and lift to remove.
5. Push the handle down against the
upper door tab just enough to allow
it to hang unsupported.

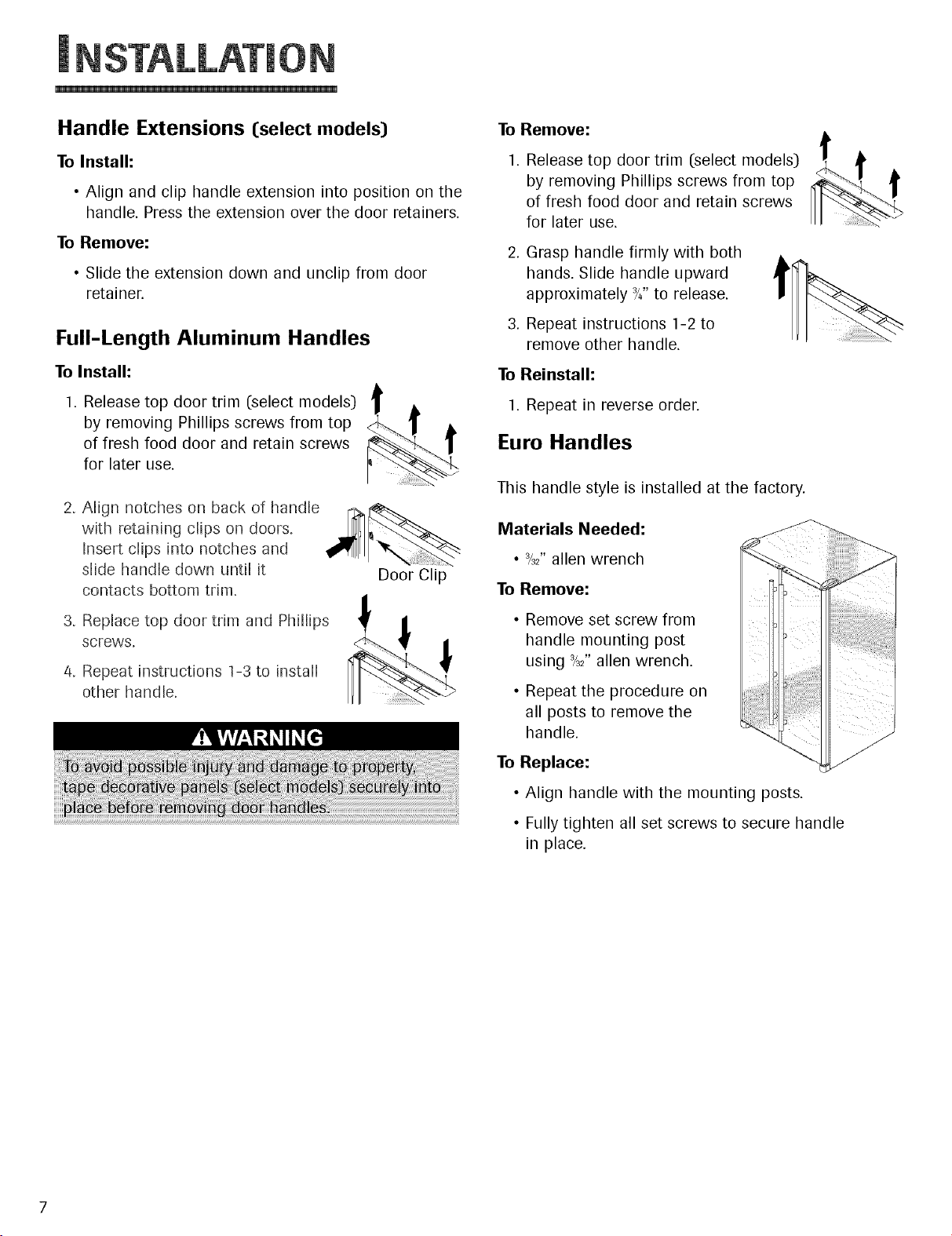

Handle Extensions [select models)
To Install:
• Align and clip handle extension into position on the
handle. Press the extension over the door retainers.
To Remove:
• Slide the extension down and unclip from door
retainer.
Full-Length Aluminum Handles
To Install:
Release top door trim (select models)
by removing Phillips screws from top
of fresh food door and retain screws
for later use.
2_
3_
4_
Align notches on back of handle
with retaining clips on doors.
Insert clips into notches and
slide handle down until it
contacts bottom trim,
Replace top door trim and Phillips
screws.
Repeat instructions 1-3 to install
other handle.
Door Clip
To Remove:
.
Release top door trim (select models)
by removing Phillips screws from top
of fresh food door and retain screws
for later use.
.
.
Grasp handle firmly with both
hands. Slide handle upward
approximately _4"to release.
Repeat instructions 1-2 to
remove other handle.
To Reinstall:
1. Repeat in reverse order.
Euro Handles
This handle style is installed at the factory.
Materials Needed:
• 3/32"allen wrench
1"o Remove:
• Remove set screw from
handle mounting post
using 3/_;,allen wrench.
• Repeat the procedure on
all posts to remove the
handle.
To Replace:
• Align handle with the mounting posts.
• Fully tighten all set screws to secure handle
in place.

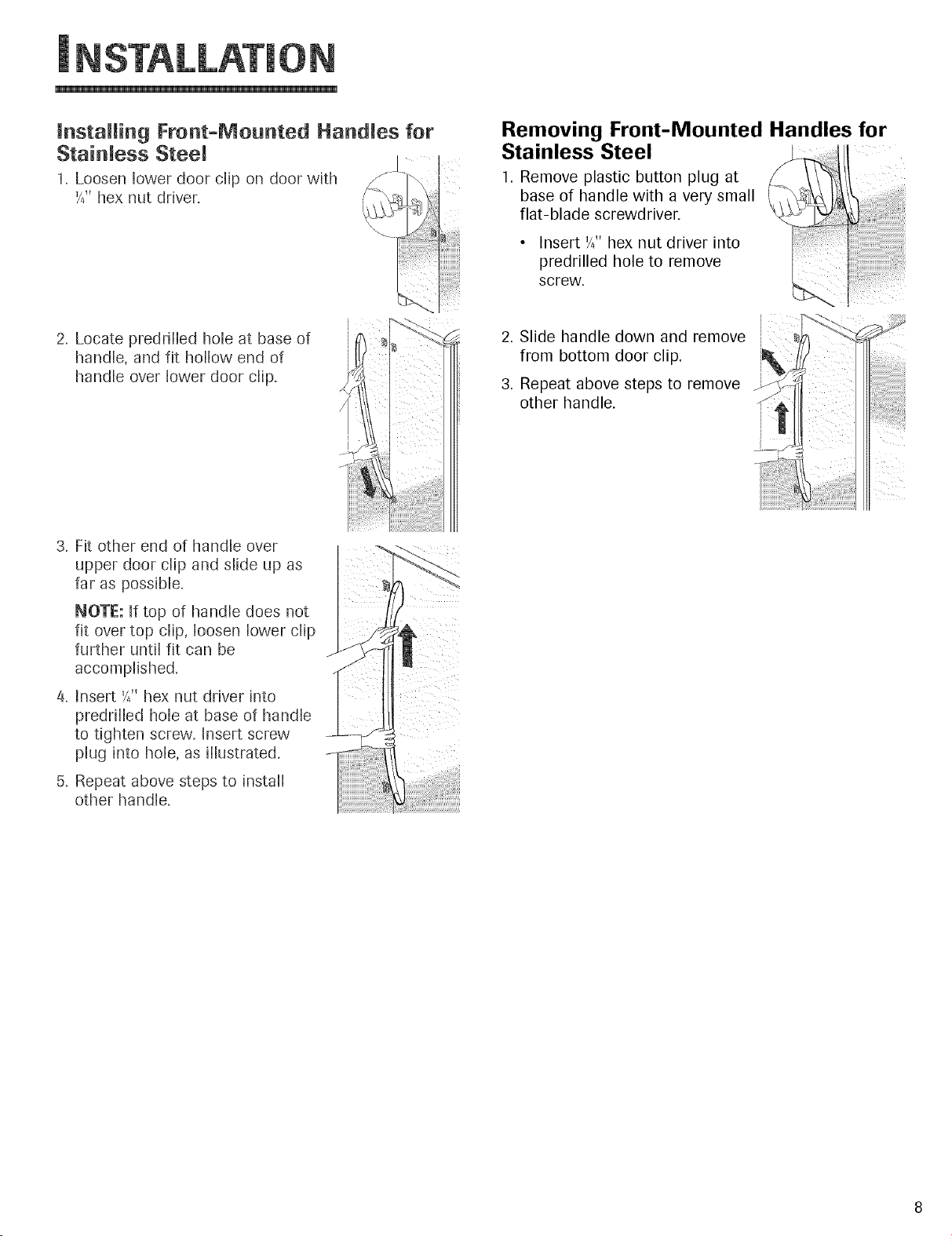

installing Front-Mounted Handles for
Stainless Stee_
1. Loosen lower door clip on door with
¼" hex nut driver.
Removing Front-Mounted Handles for
Stainless Steel
1. Remove plastic button plug at
base of handle with a very small
flat-blade screwdriver.
• Insert '/4" hex nut driver into
predrilled hole to remove
screw.
2. Locate predrflled hole at base of
handle, and fit hollow end of
handle over lower door clip.
i
2. Slide handle down and remove
from bottom door clip.
3. Repeat above steps to remove
other handle.
3. Fit other end of handle over
upper door clip and slide up as
far as possible.
NOTE: If top of handle does not
fit over top clip, loosen lower clip
further until fit can be
accomplished.
4. Insert '/4" hex nut driver into
predrflled hole at base of handle
to tighten screw. Insert screw
plug into hole, as illustrated.
5. Repeat above steps to install
other handle.

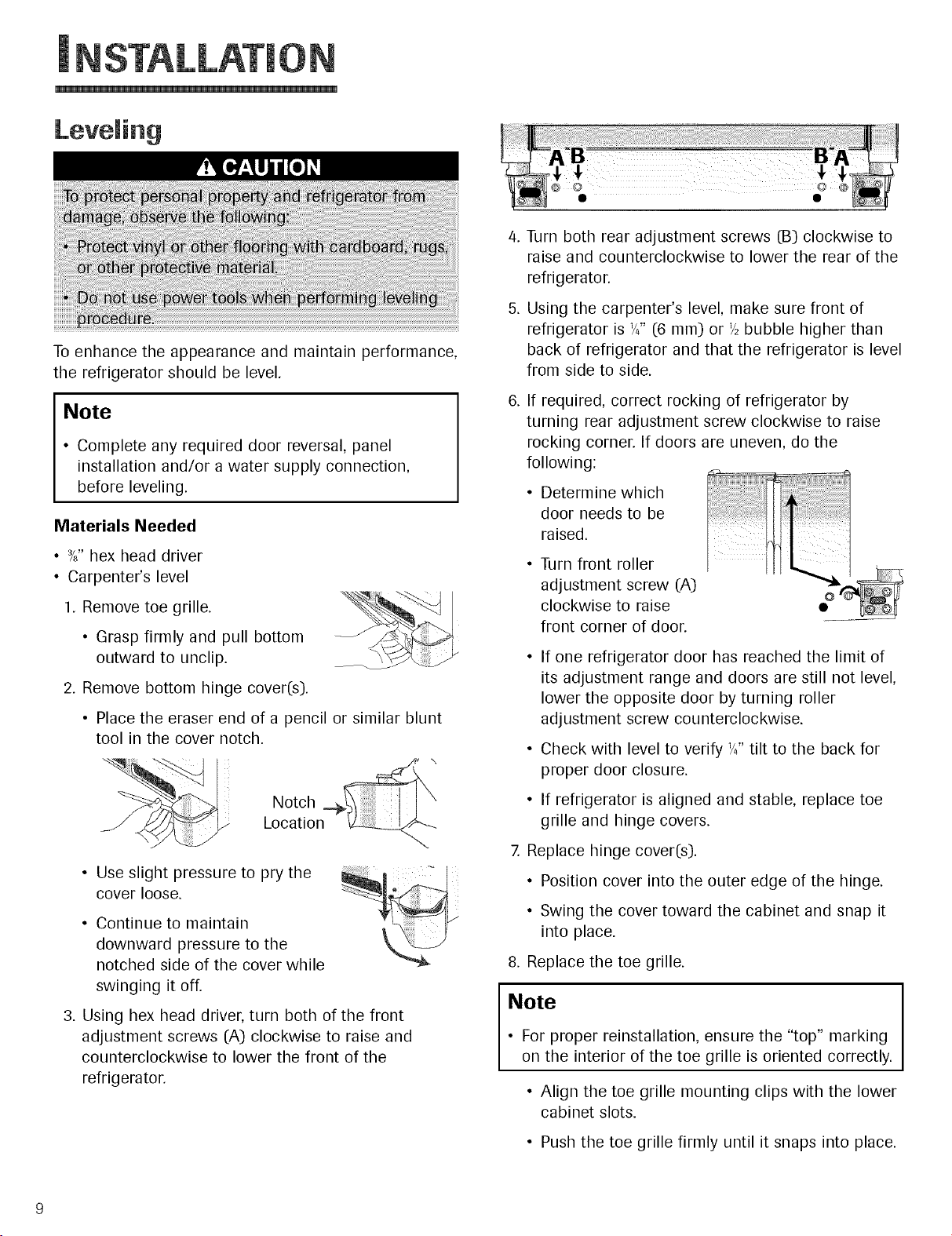

To enhance the appearance and maintain performance
the refrigerator should be level.
Note
• Complete any required door reversal, panel
installation and/or a water supply connection,
before leveling.
Materials Needed
• 3/8"hex head driver
• Carpenter's level
1. Remove toe grille.
• Grasp firmly and pull bottom
outward to unclip.
2. Remove bottom hinge cover(s).
• Place the eraser end of a pencil or similar blunt
tool in the cover notch.
Notch
Location
• Use slight pressure to pry the
cover loose.
• Continue to maintain
downward pressure to the
notched side of the cover while
swinging it off.
3. Using hex head driver, turn both of the front
adjustment screws (A) clockwise to raise and
counterclockwise to lower the front of the
refrigerator.
.
.
Turn both rear adjustment screws (B) clockwise to
raise and counterclockwise to lower the rear of the
refrigerator.
Using the carpenter's level, make sure front of
refrigerator is '/4" (6 ram) or '/2bubble higher than
back of refrigerator and that the refrigerator is level
from side to side.
.
If required, correct rocking of refrigerator by
turning rear adjustment screw clockwise to raise
rocking corner. If doors are uneven, do the
following:
• Determine which
door needs to be
raised.
• Turn front roller
adjustment screw (A)
clockwise to raise
front corner of door.
If one refrigerator door has reached the limit of
its adjustment range and doors are still not level,
lower the opposite door by turning roller
adjustment screw counterclockwise.
• Check with level to verify '/4" tilt to the back for
proper door closure.
• If refrigerator is aligned and stable, replace toe
grille and hinge covers.
7. Replace hinge cover(s).
• Position cover into the outer edge of the hinge.
• Swing the cover toward the cabinet and snap it
into place.
8. Replace the toe grille.
Note
• For proper reinstallation, ensure the "top" marking
on the interior of the toe grille is oriented correctly.
• Align the toe grille mounting clips with the lower
cabinet slots.
• Push the toe grille firmly until it snaps into place.
Touch Temperature Controls
The controls are located at the top front of the
refrigerator compartment.
Controm
Initial Control Settings
After plugging the refrigerator in, set the controls.
• Pressing the • or • pads adjusts the controls to
the desired setting.
• Set the freezer control on/4.
• Set the refrigerator control on/4.
• Let the refrigerator run at least 8 to 12 hours before
adding food.
Warm Cabinet Surfaces
At times, the front of the refrigerator cabinet may be
warm to the touch. This is a normal occurrence that
helps prevent moisture from condensing on the
cabinet. This condition will be more noticeable when
you first start the refrigerator, during hot weather and
after excessive or lengthy door openings.
Adjusting the Controls
• 24 hours after adding food, you may decide that one
or both compartments should be colder or warmer. If
so, adjust the control(s) as indicated in the
Temperature Control Guide table below. See page 23
for instructions on checking compartment
temperature.
• Except when starting the refrigerator, do not change
either control more than one number at a time.
• Allow 2/4 hours for temperatures to stabilize.
Temperature Control Guide
Refrigerator too warm
Refrigerator too cold
Freezer too warm
Freezer too cold
Turn refrigerator OFF
Set the refrigerator control
to next higher number by
pressing the • pad.
Set the refrigerator control
to next lower number by
pressing the • pad.
Set the freezer control to
next higher number by
pressing the • pad.
Set the freezer control to
next lower number by
pressing the • pad.
Press the freezer or
refrigerator • pad until a
dash "-" appears in the
display.
10
TEMPERATURE CONTROLS
Triple Cool Climate Control
(select models)
The control is located at the top front of the fresh food
compartment.
Control
Speed Ice
When activated, Speed Ice reduces the freezer
temperature to the optimum setting for 24 hours in
order to produce more ice. Note: When the Speed
Ice feature is in operation, the • and • pads for
the freezer control will not operate.
11
Initial Temperature Setting
Temperatures are preset at the factory at 38° F (3° C)
in the fresh food compartment and 0° F (-18 ° C) in the
freezer compartment.
Adjusting the Control
24 hours after adding food, you may decide that one or
both compartments should be colder or warmer. If so,
adjust the control as indicated in the Temperature
Control Guide below.
• The first touch of the • or • pads shows the
current temperature setting.
• The display will show the new setting for
approximately three seconds, and then return to the
actual temperature currently within that
compartment.
• Do not change either control more than one degree
at a time. Allow temperature to stabilize for 24 hours
before making a new temperature adjustment.
Temperature Control Guide
Refrigerator too cold
Refrigerator too warm
Freezer too cold
Freezer too warm
Turn refrigerator OFF
Set the refrigerator control
to next higher number by
pressing the • pad.
Set the refrigerator control
to next lower number by
pressing the • pad.
Set the freezer control to
next higher number by
pressing the • pad.
Set the freezer control to
next lower number by
pressing the • pad.
Press the freezer • pad
until OFF appears in the
display. Press either the
freezer or refrigerator •
pad to turn back on.
Reset Filter (select models)
When a water filter has been installed in the
refrigerator, the yellow Order light will illuminate when
90 percent of the volume of water for which the filter
is rated has passed through the filter OR 11 months
have elapsed since the filter has been installed.
The red Replace light will illuminate when the rated
volume of water has passed through the filter OR 12
months have elapsed since the filter was installed. A
new filter should be installed immediately when the
Replace light is illuminated.
After replacing the filter, press and hold the Reset
Filter pad for three seconds. The Order and Replace
lights will go off.
Vacation Mode
The Vacation Mode feature causes the freezer to
defrost less frequently, conserving energy. The
Vacation Mode indicator light will illuminate when the
feature is activated. To deactivate, press the Vacation
Mode pad again OR open either door. The indicator
light will go out.
Notes:
• Door openings will not deactivate Vacation Mode for
approximately one hour after activation.
• If vacationing for more than a few days, see the
Preparing for Vacation section, page 29.
Temp Alarm
The Temp Alarm system will alert you if the freezer or
fresh food temperatures exceed normal operating
temperatures due to a power outage or other event.
When activated, the Temp Alarm light will illuminate.
If the freezer or fresh food temperatures have
exceeded these limits, the display will alternately show
the current compartment temperatures and the highest
compartment temperatures reached when the power
was out. An audible alarm will sound repeatedly.
TEMPERATURE CONTROLS
Press the Temp Alarm pad once to stop the audible
alarm. The Temp Alarm light will continue to flash and
the temperatures will alternate until the temperatures
have stabilized.
To turn off Temp Alarm, press and hold the Temp Alarm
pad for three seconds. The indicator light will go off.
Door Alarm
The Door Alarm will alert you when one of the doors
has been left open for five continuous minutes. When
this happens, an audible alarm will sound every few
seconds until the door is closed OR press the Door
Alarm pad to deactivate the feature.
Max Cool
When activated, Max Cool causes the fresh food and
freezer temperatures to drop to the minimum settings
on the control. This cools down the refrigerator and
freezer after extended door openings or when loading
the refrigerator or freezer with warm food. Note:
When the Max Cool feature is in operation, the •
and • pads for the refrigerator and freezer controls
will not operate.
To activate, press the Max Cool pad. Max Cool will
deactivate automatically after 12 hours, OR press the
Max Cool pad to deactivate the feature.
User Preferences
Access the User Preferences menu to:
• Activate or turn off Super Cool (select models)
• Change the temperature display from °F to °C
• Enable or disable audible alarms.
• Adjust the light level at which the Dispenser Auto
Light will illuminate (when this feature is activated on
the ice and water dispenser) (select models)
• Activate or turn off the Sabbath Mode
To access the User Preferences menu, press and hold
the Door Alarm pad for three seconds. When in the
User Preferences mode, a short title for the feature will
appear in the Freezer temperature display and the
feature status will appear in the Fresh Food display.
1. Use the Freezer up and down control to scroll
through the features.
2. When the desired feature is displayed, use the Fresh
Food up and down control to change the status.
3. When changes are complete, press the Door Alarm
pad for three seconds OR close the Fresh Food
door.
Super Cool (CO) (select models)
When Super Cool is ON, an air-mixing fan in the fresh
food compartment is activated to improve air flow and
temperature control. To save energy, this feature may
be deactivated by choosing OFE
Temperature Display (F_C)
Change the display to show temperatures in degrees
Fahrenheit or degrees Celsius.
Alarm (AL)
When the Alarm mode is OFE all audible alarms will
be disabled until the feature is turned on.
Auto Light Level Selection (LL) (select models)
This setting adjusts the light level at which the
dispenser light will illuminate when the sensor detects
that the light levels in the room are low. Setting 1 is
the darkest light level setting, setting 9 is the lightest
light level setting. Note: The Auto Light (select
models) must be activated on the ice and water
dispenser control to take advantage of this option.
Sabbath Mode (SAB)
When the Sabbath Mode is ON, all control lights and
the night light will be disabled until the feature is
turned OFE This feature does not disable the interior
lights.
Warm Cabinet Surfaces
At times, the front of the refrigerator cabinet may be
warm to the touch. This is a normal occurrence that
helps prevent moisture from condensing on the
cabinet. This condition will be more noticeable when
the refrigerator is first started, during hot weather and
after excessive or lengthy door openings.
12
YourrefrigeratorhaseitherSpill_CatcherTM or non-
sealed shelves. SpflFCatcher TM shelves have a spill
retainer edge which allows for easier clean up and
some are equipped with a slide out feature. To slide out
(select models}, grasp the front of the shelf and pull
forward. Push in the shelf to return to the original
position.
To Remove a Shelf:
. Slightly tilt up the
front and lift up the
rear of the shelf, then
pull the shelf straight
out+
To Lock the Shelf Unto Another Position:
. Tilt up the front edge of the shell
, Insert the hooks into the desired frame openings and
let the shelf settle into place.
Be sure the shelf is securely locked at the rear.
The Crisper Top serves as the lower fresh food shelt
To Remove the Crisper Top:
, Place hand under the frame to push up the glass. Lift
glass out.
To Unstalh
Repeat above instructions in reverse order.
To Slide Out Elevator TM Shelf:
• Grasp the front of the shelf and pull forward.
• Push the shelf in to return to original position.
To Adjust the Elevator TM Shelf:
• Pull out the knob on the crank handle.
• Rotate the crank clockwise to raise the shelf, and
counterclockwise to lower the height of the shelf.
To Remove Elevator TM Shelf:
• Completely unload the shelf and pull the shelf
forward.
• Pull until the shelf stops.
• Press up on the tabs located underneath its outside
edges and continue pulling forward until the shelf is
clear of the frame.
To Replace Elevator TM Shelf:
• Align the shelf to the frame and push it all the way
back. It is not necessary to press up on the tabs for
reinstallation.
In ordinary use, the Elevator TM Shelf frame assembly
does NOT require removal. Though unlikely, and not
recommended, the correct removal procedure is as
follows:
To Remove Frame Assembly:
• Unload the shelf completely.
• Slide the shelf forward about 2" and manually move
the two rear latches toward the shelf center.
• While supporting the entire shelf and frame from
underneath, lift slightly and rotate the assembly
approximately 30° to allow the rear mechanism to
clear the vertical rear side rails.
• The entire assembly can then be moved forward
and clear of the refrigerator compartment.
To Reinstall Frame Assembly:
• Reverse the removal procedure. Be sure the shelf
is in a level position. When the sliding shelf is
pushed to the rear, it will reposition the rear latches
to their correct operating position.
Elevator TM Shdf (select models)
The Elevator TM Shemf is equipped with a spill-retaining
edge and the EasyGlide TM slide-out feature. It can be
adjusted up or down without unloading.
(style may vary)
13
Frame Assembly
Slide Out Shelf
Door Storage
ChillKeeper TM
(select models)
The ChillKeeper TM keeps beverages
and other items colder than the rest
of the fresh food compartment. An air
inlet directs air from the freezer into
the chiller.
Controls
The chiller control is located on the left
side wall of the fresh food compartment.
Turn the control clockwise for colder
temperature.
To Remove ChillKeeperZM:
• Unload the chiller.
• Slide the assembly up and pull straight out.
Note
• If the chiller is installed directly under the dairy
center or a door bucket, the bucket or dairy center
will need to be removed before removing the chiller.
To Install ChillKeeper'_:
• Align one of the air inlet holes with the hole cut-out
on the door.
• Slide the assembly in and down so that the hooks
are firmly seated on the door liner.
Note
• The ChillKeeper TM will not operate properly if the air
intake hole is not aligned with the control location.
Dairy Center
The Dairy Center provides convenient
door storage for spreadaNe items such
as butter and margarine. On select
models, this compartment can be
moved to several different locations to
accommodate storage needs.
To Remove:
• Slide dairy center up and pull out.
To UnstaH:
Slide assembly in and down so that the hooks are
firmly seated on the door liner.
To Remove Dairy Door:
. Press in sides of dairy door and pull out.
To Unstall Dairy Door:
. Slide sides of dairy door inside dairy center until
hinge points snap into place.
Door Buckets
Door Buckets can be moved to meet individual
storage needs.
To Remove:
. Lift bucket up and pull straight out.
To UnstaH:
. Place bucket in desired door liner
retainer, push down until bucket
stops.
14
Storage Drawers
Humidity-Controlled Crisper Drawers
The Crisper Drawers provide a higher humidity
environment for fresh fruit and vegetable storage.
Controls
The crisper controls regulate the amount of humidity in
the crisper drawer. Slide control toward the Fruit
setting for produce with outer skins. Slide control
toward the Vegetables setting for leafy produce.
Vegetables Fruit
Automatic Humidity Control
(select models)
Some crispers are equipped with an Automatic
Humidity Control system, eliminating the need for
manual humidity slide controls on the drawer. A
fabric-like material* covers small air vents in the shelf
insert above the crispers.
I
This material controls the flow of moisture out of the
crisper. If a food spill should occur on the air vent or
fabric-like material, wipe with a clean, damp cloth.
* The Automatic Humidity Control system features a
unique, patented material called Shape Memory
Polymer (SMP) that when laminated to fabric,
becomes DIAPLEX. DIAPLEX is
manufactured by Mitsubishi.
The hteltigent Texture
To Remove Drawer:
• Pull drawer out to full extension. Tilt up front of
drawer and pull straight out.
To Install Drawer:
• Insert drawer into frame rails and push back into
place.
Temperat_ re-Controlled Drawer
This drawer can be used for storage of
meats, deli or other miscellaneous
items.
The drawer features a control that
adjusts the amount of cold air allowed into the drawer.
Set the control to Cheese to provide a normal
refrigerator temperature. Set the control to the Meat
setting when a colder temperature is desired. Use the
meat setting for storing meats.
Accessories
Covered Storage Bucket
(select models)
The Storage Bucket has a lid and
removable egg tray. When tray is
removed, bucket will accept items
such as a standard egg carton, ice,
etc.
Egg Tray With Handle
(style may vary/select models)
The Egg Tray with Handle
holds a "dozen-plus" eggs. It
can be removed to carry to a
work area or to be washed.
, For best results, keep the crisper drawers tightly
closed.
15
FREEZER FEATURES
Shelves and gaskets
Fixed Freezer SheRf
To Remove Clip-mounted Shelves:
, Lift shelf from the right side
wall mounting clips and pull left
side of shelf out of wall
mounting holes.
To Unstall Clip-mounted Shelves:
, Place left side of shelf in mounting holes and press
down into wall mounting clips.
She_ves
Shelves can be removed to meet individual storage
need&
To Remove Shelf:
Snap right side of shelf up from
cabinet railing and slide to fighL
To Unstail Shelf:
, Replace shelf in left side cabinet railing. Snap shelf
into right side cabinet railing.
Baskets and Drawers
Baskets and drawers (style may
varyD slide out for easy access to
items in back.
To Remove:
, Pull out to its full extension. Lift up front of basket
and remove.
To UnstaH:
, Slide basket or drawer into cabinet railing. Lift up
front of basket or drawer, and slide to the back of
refrigerator.
Ice Storage Bin (select models)
The Uce Storage Bin is located below the automatic
ice maker.
To Remove:
, Raise ice maker arm to deactivate ice maker. Lift
frontof bin and pullout to itsfullextension.Liftup
frontof bin and remove.
To UnstaH:
Slide bin into railing below ice maker until bin locks
into place. Drop ice maker arm to activate ice maker.
UMPORTANT: Ice bin must be locked in place for
proper ice dispensing. Turn auger driver behind bin
counterclockwise (as shown_} to properly align ice bin
with auger driver.
iiiH' :
Door Storage
Adjustable Door Buckets
Door Buckets can be moved to meet individual
storage needs.
To Remove:
• Lift the door bucket up until it clears the
retainers on the door liner, then
pull the door bucket straight out.
To Install:
• Slide bucket in above desired door liner retainer and
push down until bucket stops.
Fixed Door Bucket (select models)
The Fixed Door Bucket is located in
the upper section of the freezer door.
i
IMPORTANT: Fixed door bucket is not
,fbucket,sremoved,freezeradjustable.
light will not deactivate when door is
closed. !
i i
Drop-Down Freezer Door Baskets
(select models)
These baskets provide
convenient storage space
for frozen food items that
tend to shift, such as
bagged vegetables.
16
C
Automatic ice Maker
(select modds}
Energy rating guides that are posted on the
refrigerator at the time of purchase do not include
optional ice maker energy usage.
Some models are automatic ice maker ready. The
number of the appropriate ice maker kit is ICIOS. The
kit contains installation instructions and water
connection instructions.
Other models have a factory installed ice maker.
Connect the ice maker to the water supply as
instructed on page 5. Proper water flow and a level
refrigerator are essential for optimal ice maker
performance.
Operating Instructions
• Confirm ice bin is in place and ice maker arm is
down.
• To check the ice level or gain
access to the ice bin, lift open the
door on the ice bin.
• After freezer section reaches
between 0° to 2° F (-18 ° to -17 ° C),
ice maker fills with water and
begins operating. You will have a complete harvest of
ice approximately every three hours.
• Allow approximately 24 hours after installation to
receive first harvest of ice.
• Discard ice created within first 12 hours of operation
to verify system is flushed of impurities.
• Stop ice production by raising ice maker arm until
click is heard.
• Ice maker will remain in the OFF position until arm is
pushed down.
• The first one or two batches will probably contain
undersized and irregular cubes because of air in the
supply line.
• When the ice cubes are ejected it is normal for
several cubes to be joined together at the ends. They
can easily be broken apart. The ice maker will
continue to make ice until the supply of ice cubes
raises the ice maker arm, shutting the ice maker off.
Certain sounds may accompany the various cycles of
the ice maker. The motor may have a slight hum, the
cubes will rattle as they fall into an empty storage
pan and the water valve may click or "buzz"
occasionally.
If the ice is not used frequently, the ice cubes will
become cloudy, shrink, stick together and taste stale.
Empty the ice storage bin periodically and wash it in
lukewarm water. Be sure to dry the bin thoroughly
before replacing it.
Beverages and foods should not be placed in the ice
storage bin for quick chilling. These items can block
the ice maker arm, causing the ice maker to
malfunction.
• Turn off the ice maker by raising the ice maker arm
when the water supply is to be shut off for several
hours.
To Remove the Ice Bin:
• Pull it forward, away from the ice maker. To avoid the
ice maker dumping ice while the bin is removed, turn
the ice maker off by raising the sensor arm.
To Install the Ice Bin:
• Reverse the above procedure. Turn the ice maker on
by lowering the ice maker arm.
ICE AN D WATE R
Dispenser Features
(:select models:)
Water Dispenser Operation
DISPENSER
PANEL
ACTUATOR
PAD
SPILL
_TRAY
Dispenser Light (select models)
A light activates within the dispenser area at full power
when dispensing ice or water with the main dispenser
pad.
Dispenser Pad
The Dispenser Pad is located on the back wall of the
dispensing area. When the dispenser pad is pressed,
the selection chosen on the dispenser control panel
will dispense.
Removable Tray
The Removable Tray at the bottom of the dispenser
area is designed to collect small spills and may be
easily removed for cleaning and emptying purposes.
UMPORTANT: Removable tray does not drain. Do not
allow tray to overflow. If it does, remove tray and wipe
up overflow.
Note
• During initial use of water dispenser, there will be
a one- to two-minute delay while water tank fills
before water dispenses. Discard first 10-14 glasses
of water after initially connecting refrigerator to
household water supply and after extended
periods of nonuse.
To Use Dispenser Pad:
• Choose water selection from dispenser control panel.
Press sturdy, wide-mouthed container against
dispenser pad. When dispensing crushed ice, hold
container as close to chute as possible to reduce
spraying.
Release pressure on dispenser pad to stop water
dispensing. A small amount of water may continue to
dispense and collect in dispenser tray. Large spills
should be wiped dry.
18
19
Dispenser Contro_ (sdect modds)
(contro_ features vary by modeO
Ice Dispenser Operation
To Dispense Uce and Water:
* Sebct Water, Crush or Cube mode by pushing
button on dispenser control panel. A green light
above button indicates mode sebction.
Press container against dispenser pad.
When dispensing crushed ice, hold
container as close to chute as possibl
reduce spraying.
Mode may not be changed while ice dispenser is
in operation.
If dispenser is active for more than five minutes,
an automatic lock out sensor will shut down
power to dispenser are& See Dispenser Lock for
unlocking information.
Dispenser Lock (select models)
The Dispenser Lock prevents ice or water from
being dispensed.
To Lock Dispenser:
, Press and hold the Lock button for three seconds. A
green indicator light above button will ilhminate
when the dispenser is locked.
To UnJock Dispenser:
, Hold the Lock button for three seconds. The green
indicator light above button will go out.
Water Fi_ter Status Indicator Light
(select models)
The Water Filter Status Undicator Light serves as a
reminder to replace the water filter. A green light
indicates that the filter is in good condition. A red light
indicates the filter should be changed. Once light turns
red, it will remain red until function is reset.
To Reset Undicator:
* Press and hold both the Lock and Water
buttons simultaneously for four seconds. The
green filter status indicator light will flash
three times when the function has
successfully reseL
Auto Light (semect models}
The Auto Light function activates the dispenser
light at half-power when the Light Sensor detects
that the light leveb in room are low.
To Activate Auto Light:
, Press Auto Light button. A green indicator light above
button ilhminates when the sensor is active.
To Deactivate Auto Light:
, Press Auto Light button. The green indicator light will
go out.
Note
• When the dispenser pad is activated, the dispenser
light will operate when Auto Light is ON or OFF.
Sabbath Mode [select models)
When activated, the Sabbath Mode deactivates the
control lights while leaving the control operational.
To Activate Sabbath Mode:
• Press and hold the Lock and Auto Light buttons
simultaneously for three to four seconds. After three to
four seconds, the dispenser lights will turn off.
To Deactivate Sabbath Mode:
• Press and hold both the Lock and Auto Light buttons
simultaneously for three to four seconds. After three to
four seconds, the dispenser lights will activate.
Notes
• Dispenser light will not activate during dispensing
while in this mode.
• If the power fails, the control will remain in Sabbath
Mode when power returns.
Express Fill TM Button [select models) EXPRESSF_LL
The Express FillTM Button works independently of the
dispenser controls, providing an up-front alternative to
the dispenser pad for dispensing water. This feature is
convenient for filling large items that will not fit into the
dispenser area (i.e. sport bottles 3itchers, large pans,
coffee pots).
This feature allows added convenience of dispensing ice
and water simultaneously. To use, choose your preferred
ice mode from dispenser control panel. Press container
against dispenser pad while pressing the Express Fill
Button.
i
Water FimterRe ova and
installation (select mode s)
Initial Installation
Replacing Water Filter
IMPORTANT: Air trapped in system may cause
water and cartridge to eject. Use caution when
removing.
1. Turn filter counterclockwise until it releases from
filter head.
2. Drain water from filter into sink, and dispose in
normal household trash.
3. Wipe up excess water in filter cover and continue
with Initial Installation, steps 2 through 4.
The filter should be changed at least every 12 months.
IMPORTANT: Condition of water and amount used
determines life span of water filter cartridge. If water
use is high, or if water is of poor quality, replacement
may need to take place more often.
To purchase a replacement water filter cartridge,
contact your dealer or call 1-800-JENNAIR
(1-800-536-62/47) U.S.A. and Canada.
The dispenser feature may be used without a water
filter cartridge. If you choose this option, replace filter
with blue bypass cap.
The water filter is located in the upper right-hand
corner of the fresh food compartment.
1. Remove blue bypass cap and
retain for later use.
2. Remove sealing label from
end of filter and insert into
filter head.
3. Rotate gently clockwise until
filter stops. Snap filter cover
closed.
4. Reduce water spurts by
flushing air from system.
Run water continuously for
two minutes through
dispenser until water runs
steady. During initial use,
allow about a one- to two-minute delay in water
dispersal to allow internal water tank to fill.
• Additional flushing may be required in some
households where water is of poor quality.
20
System Specification and Performance Data Sheet
Refrigerator Water FHter Cartridge Mode U KF8OOIA××
Specifications
Service Flow Rate (Maximum} .............................................0.78 GPM (2.9 L/rain}
Rated Service Life UKF8001AXX-750 (Maximum} ......750 gallons!2838 liters
Maximum Operating Temperature .....................................100° F/38 ° C
Minimum Pressure Requirement ........................................35 psi/241 kPA
Minimum Operating Temperature ......................................33° F/1 ° C
Maximum Operating Pressure .............................................120 psi/ 827 kPA
PentaPure
1000 Apollo Road
Eagan, Minnesota 55121-2240
651.450.4913
EPA EST #35917-MN-1
Performance Data
Parameter
Chlorine
T&O
Particulate**
100834/B
USEPA
MCL
Standard No. 42: Aesthetic Effects
Influent
Challenge Concentration
2.0 mg/L _+10%
Min. Required
Reduction
50%
Influent
Average
1.88 mg/L
5,700,000 #/ml
Effluent
Average Maximum
<0.05136364 mg/[ O.O6 mg/L
30,583 #/ml 69,000 #/ml
% Reduction
Average Minimum
>9726% 96.84%
99.52% 98.94%
at least 1O,OOO particles/ml 85%
Parameter
Turbidity
Cysts
Asbestos
Lead at pH 6.5
Lead at pH 8.5
MercLny at pH 6.5
MercLny at pH 8.5
Atrazine
Benzene
Carbofuran
3-Dichlorobenzene
Lindane
Toxaphene
USEPA
MCL
1 NTU_*
99.5% Reduction
99% Reduction
0.015 mg/L
0.015 mg/L
0.002 mg/L
0.002 mg/L
0.003 mg/L
0.005 mg/L
0.04 mg/L
0.075 mg/L
0.0002 mg/L
0.003 mg/L
Standard No. 53: Health Effects
Influent
Challenge Concentration
11 -+ 1 NTU***
Minimum 5O,OOO/L
10710°fibers/L; fibers >10 micrometers in length
0.15 mg/L + 10%
0.15 mg/L + 10%
.006 mg/L _+10%
.006 mg/L _+10%
0.009 mg/L + 10%
0.015 mg/L _+10%
0.08 mg/L _+10%
.225 mg/L _+10%
0.002 mg/L + 10%
0.015 ± 10O/o
Influent
Average
10.7 NTU
16&500 #/L
155 MF/L
0.153 mg/L
0.150 mg/L
0.006 mg/L
0.006 mg/L
0.009 mg/L
0.014 mg/L
0.081 mg/L
0.208 mg/L
0.002 mg/L
0.015 mg/L
Effluent
Average Maximum
0.31 NTU .049 NTU
<1 #/L <1 #/L
<1 MF/L <1 MF/L
<.001 mg/L <.001 mg/L
<.001 mg/L <.001 mg/L
0.0003 mg/L 0.0005 mg/L
0.0008 mg/L 0.0015 mg/L
<0.002 mg/L 0.002 mg/L
0.0006 mg/L 0.0011 mg/L
<0.001 mg/L <0.001 mg/L
<0.0005 mg/L <0.0005 mg/L
O.0OOmg/L <0.0001 mg/L
<0.001 mg/L <0.001 mg/L
% Reduction
Average Minimum
97.09% 95.20%
>99.99% >99.99%
>99.99% >99.99%
>99.35% >9929%
>99.33% >99.29%
95.70% 90.91%
86.22% 75.93%
76.99% 75.31%
95.71% 92.14%
98.74% 98.46%
99.76% 99.74%
98.72% 96.50%
92.97% 91.67%
Min. Required
Reduction
0.5 NTU
>99.95%
99%
0.10 mg/L
0.10 mg/L
0.002 mg/L
0.002 mg/L
0.003 mg/L
0.005 mg/L
0.04 mg/L
0.075 mg/L
0.0002 mg/L
0.003 mg/L
Tested using a flow rate of 0.78 gpm; pressure of 60 psig: pH of 25 + 0.5; temp. of
68 ° + 5° F (20 ° + 3° C)
** Measurement in Particles/mL Particles used were 0.5 - 1 microns
*** NTU - Nephelometric Turbidity Units
Tested and certified by NSF International against ANSI/NSF Standards 42 & 53
in models UKF8001AXX-750 for the reduction of:
Standard No. 42: Aesthetic Effects Standard No. 53: Health Effects
Taste and Odo_ Reduction Chenlical Reduction Unit
Chlorine Taste & Odor Lead, Atrazine, Lindane, Benzene,
Mechanical Filtration Unit Carbofuran, p-Dichlorobenzene, Mercury
Particulate Reduction Class 1 & Toxaphene Reduction
Mechanical Filtration Unit
Cyst, Turbidity and Asbestos Reduction
21
General Use Conditions
Read this Performance Data Sheet and compare the
capabilities of this unit with your actual water treatment
needs.
DO NOT use this product where water is microbiologic-
ally unsafe or of unknown quality without adequate
disinfection before or after the system. System certified
for cyst reduction may be used on disinfected water
that may contain filterable cysts.
USE ONLY WITH COLD WATER SUPPLY. CHECK FOR
COMPLIANCE WITH THE STATEAND LOCAL LAWS
AND REGULATIONS.
The PuriClean" II retractable water filtration system uses a
UKF8001AXX replacement cartridge. Timely replacement of
filter cartridge is essential for performance satisfaction from
this filtration system. Please refer to the applicable section of
your Use & Care Guide for general operation, maintenance
requirements and troubleshooting. Suggested retail price of
replacement water filter is $39.99.
This system has been tested according to ANSI/NSF 42 and
53 for reduction of the substance listed above. The
concentration of the indicated substances in water entering
the system was reduced to a concentration less than or equal
to the permissible limit for water leaving the system, as
specified in ANSI/NSF 42 and 53.
State of California
Department of Health Services
Water Treatment Device
Certificate Number
03- 1583
Date Issued: September 16, 2003
Date Revised; APril 22, 2004
Trademark/Model Designation
UKFS001AXX750
469006-750
67003523-750
Replacement Elements
Manufacturer: PentaPure Inc.
The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the
Health and Safety Code for the following health related contaminants:
Microbiological Contaminants and Turbidih lnorganic!Radi01ogical Contaminants
Cysts Asbestos
Turbidity Lead
Mercury
Organic Contaminants
Atrazine
Lmdane
Benzene
Carbofuran
p-dichlorobenzene
Toxaphene
Rated Selwice Capaci_,: 750 gal. Rated Service Flow: 0.78 gpm
Conditions of Certification:
Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for cyst
reduction may be used on disinfected waters that may contain filterable cysts.
22
Fresh Food Storage
, The fresh food compartment of a refrigerator should
be kept between 34°-40 ° F 0°-/4 ° C] with an
optimum temperature of 37 ° F (3° C}. To check the
temperature, place an appliance thermometer in a
glass of water and place in the center of the
refrigerator. Check after 2/4 hours. If the temperature
is above/40 ° F (4° C} adjust the control as explained
on pages 10, 11 and 12.
, Avoid overcrowding the refrigerator shelves. This
reduces the circulation of air around the food and
results in uneven cooling.
Fruits and VegetabRes
Storage in the crisper drawers traps humidity to help
preserve the fruit and vegetable quality for longer
time periods (see page 15].
Sort fruits and vegetables before storage and use
bruised or soft items first. Discard those showing
signs of decay.
Always wrap odorous foods such as onions and
cabbage so the odor does not transfer to other foods.
While vegetables need a certain amount of humidity
to remain fresh, too much humidity can shorten
storage times (especially leafy vegetables}. Drain
vegetables well before storing.
, Wait to wash fresh produce until right before use.
Meat and Cheese
, Raw meat and poultry should be wrapped securely
so leakage and contamination of other foods or
surfaces does not occur.
Occasionally mold will develop on the surface of
hard cheeses (Swiss, Cheddar, Parmesan]. Cut off at
least an inch around and below the moldy area. Keep
your knife or instrument out of the mold itselL Do not
try to save individual cheese slices, soft cheese,
cottage cheese, cream, sour cream or yogurt when
mold appears.
Frozen Food Storage
, The freezer compartment of a refrigerator should be
kept at approximately 0° F (-18 ° C]. To check the
temperature, place an appliance thermometer
between the frozen packages and check after 2/4
hours. If the temperature is above 0° F (-18 ° C}, adjust
the control as described on page 10, 11 and 12.
, A freezer operates more efficiently when it is at least
two-thirds full
Packaging Foods for Freezing
, To minimize dehydration and quality deterioration use
aluminum foil, freezer wrap, freezer bags or airtight
containers. Force as much air out of the packages as
possible and be sure they are tightly sealed. Trapped
air can cause the food to dry out, change color and
develop an off-flavor (freezer burn].
, Overwrap fresh meats and poultry with suitable
freezer wrap prior to freezing.
, Do not refreeze meat that has completely thawed.
Loading the Freezer
, Avoid adding too much warm food to the freezer at
one time. This overloads the freezer, slows the rate of
freezing and can raise the temperature of frozen
foods.
, Leave space between the packages so cold air can
circulate freely, allowing food to freeze as quickly as
possible.
, Avoid storing hard-to-freeze foods such as ice cream
and orange juice on the freezer door shelves. These
foods are best stored in the freezer interior where the
temperature varies less with door openings.
Refer to the Food Storage Chart on pages 2/4, 25 and 26
for approximate storage times.
[}airy Food
, Most dairy foods such as milk, yogurt, sour cream
and cottage cheese have freshness dates on their
cartons for appropriate length of storage. Store these
foods in the original carton and refrigerate
immediately after purchasing and after each use.
23
Food Storage Chart
Storage times are approximate and may vary depending on type of packaging, storage temperature, and the quality
of the food when purchased.
DAI RY PRODUCTS
Butter 1 month 6 to 9 months Wrap tightly or cover.
Milk and cream 1 week Not recommended Check carton date. Close tightly.
Don't return unused portions to
original container. Don't freeze
cream unless whipped.
Cream cheese, cheese 1 to 2 weeks Not recommended Wrap tightly.
spread and cheese food
Cottage cheese 3 to 5 days Not recommended Store in original carton.
Check carton date.
Sour cream 10 days Not recommended Store in original carton.
Check carton date.
Hard cheese 1 to 2 months 4 to 6 months Wrap tightly.
(Swiss, Cheddar and Parmesan) May become Cut off any mold.
crumbly
EGGS
Eggs in the shell 3 weeks Not recommended Refrigerate small ends down.
Leftover yolks or whites 2 to/4 days 9 to 12 months For each cup of yolks to be frozen,
add 1 tsp. sugar for use in sweet, or
1 tsp. salt for non-sweet dishes.
FRUITS
Apples 1 month 8 months (cooked) May also store unripe or hard apples
at 60° to 70° F (16° to 21° C).
Bananas 2 to 4 days 6 months Ripen at room temperature before
(whole/peeled) refrigerating. Bananas darken when
refrigerated.
Pears, plums, avocados 3 to 4 days Not recommended Ripen at room temperature before
refrigerating. Avocados darken when
refrigerated.
Berries, cherries, apricots 2 to 3 days 6 months Ripen at room temperature before
refrigerating.
Grapes 3 to 5 days 1 month (whole) Ripen at room temperature before
refrigerating.
Citrus fruits 1 to 2 weeks Not recommended May also store at 60 ° to 70° F (16° to
21° C). If refrigerated, store uncovered.
Pineapples, cut 2 to 3 days 6 to 12 months Will not ripen after purchase.
Use quickly.
continued...
24
25
:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i
VEGETABLES
Asparagus 1 to 2 days 8 to 10 months Do not wash before refrigerating.
Store in crisper.
Brussels sprouts, broccoli, 3 to 5 days 8 to 10 months Wrap odorous foods.
cauliflower, green peas, Leave peas in pods.
lima beans, onions, peppers
Cabbage, celery 1 to 2 weeks Not recommended Wrap odorous foods and refrigerate
in crisper.
7 to 10 days 8 to 10 months Remove tops. Wrap odorous foods
and refrigerate in the crisper.
7 to 10 days Not recommended
Carrots, parsnips, beets and
turnips
Lettuce
POULTRY and FISH
Chicken and Turkey, whole
Chicken and Turkey, pieces
Fish
1 to 2 days
1 to 2 days
1 to 2 days
12 months
9 months
2 to 6 months
Keep in original packaging for
refrigeration. Place in the meat and
cheese drawer. When freezing longer
than two weeks, overwrap with
freezer wrap.
M EATS
Bacon 7 days 1 month
Beef or lamb, ground 1 to 2 days 3 to 4 months Fresh meats can be kept in original
packaging for refrigeration.
Beef or lamb, roast and steak 3 to 5 days 6 to 9 months Place in the meat and cheese drawer.
When freezing longer than two
weeks, overwrap with freezer wrap.
Ham, fully cooked, whole 7 days 1 to 2 months
half 5 days 1 to 2 months
slices 3 days 1 to 2 months
Luncheon meat 3 to 5 days 1 to 2 months Unopened, vacuum-packed luncheon
meat may be kept up to two weeks
in the meat and cheese drawer.
Pork, roast 3 to 5 days 4 to 6 months
Pork, chops 3 to 5 days /4 months
Sausage, ground 1 to 2 days 1 to 2 months
Sausage, smoked 7 days 1 to 2 months
Veal 3 to 5 days 4 to 6 months
Frankfurters 7 days 1 month Processed meats should be tightly
wrapped and stored in the meat and
cheese drawer.
Sources: United States Department of Agriculture; Food Marketing Institute; Cooperative Extension Service, Iowa
State University
Refrigerator Cleaning Chart
Textured Doors and Exterior
[select models)
Cabinet Interior
Stainless Steel Doors
and Exterior (select models)
I M PORTANT:
Damage to stainless steel
finish due to improper use
of cleaning products or
non-recommended products
is not covered under this
product's warranty.
Glass Doors (select models)
Abrasive or harsh cleaners
Ammonia
Chlorine bleach
Concentrated detergents or solvents
Metal or plastic-textured
scouring pads
Abrasive or harsh cleaners
Ammonia
Chlorine bleach
Concentrated detergents or solvents
Metal or plastic-textured
scouring pads
Vinegar-based products
Citrus-based cleaners
Avoid using excessive
amounts of water which may seep
under or behind glass causing staining.
Abrasive or harsh cleaners
Do not use abrasive materials such as
scouring pads, steel wool or powdered
cleaners as they will scratch glass.
Use 4 tablespoons of baking soda dissolved
in I quart (1 liter) warm soapy water.
Rinse surfaces with clean warm water and
dry immediately to avoid water spots.
Use warm, soapy water and a soft, clean
cloth or sponge.
Rinse surfaces with clean warm water and
dry immediately to avoid water spots.
To polish and help prevent finger prints,
follow with Stainless Steel Magic Spray (part
no. 20000008"].
Wash with soap and water. Rinse with clear
water and dry. Glass cleaner can be used if
sprayed on a cloth first.
Door Gaskets Metal or plastic-textured Use warm, soapy water and a soft, clean
scouring pads cloth or sponge.
Anything other than a vaccuum cleaner Use a vacuum cleaner hose nozzle.
Condenser Coil
Remove base grille to access.
Condenser Fan Outlet Grille
See back of refrigerator.
A dishwasher
Use a vacuum cleaner [lose nozzle with
brush attachment.
Follow removal and installation instructions
from appropriate feature section.
Allow items to adjust to room temperature.
Dilute mild detergent and use a soft clean
cloth or sponge for cleaning.
Use a plastic bristle brush to get into
crevices. Rinse surfaces with clean warm
water.
Dry glass and clear items immediately to
avoid spots.
Accessories
Shelves, buckets,
drawers, etc.
* To order, call 1-800-JENNAIR (1-800-536-6247) U.S.A. and Canada.
26
Removing Odors From
1. Remove all food and turn the refrigerator OFR
2. Disconnect power to the refrigerator.
3. Clean the walls, floor, ceiling of cabinet interior,
drawers, shelves and gaskets according to the
instructions (see page 26}.
4. Dilute mild detergent and brush solution into
crevices using a plastic bristle brush. Let stand for
five minutes. Rinse surfaces with warm water, Dry
surfaces with a soft, clean cloth.
5. Wash and dry all bottles, containers and jars.
Discard spoiled or expired items.
6. Wrap or store odor-causing foods in tightly sealed
containers to prevent recurring odors.
7. Reconnect power to refrigerator and return food to
refrigerator.
8. Allow the refrigerator to cool.
9. After 24 hours, check if odor has been eliminated.
[[ odor is stiJ[ present:
1. Remove drawers and place on top shelf of
refrigerator.
2. Pack refrigerator and freezer sections - including
doors - with crumpled sheets of black and white
newspaper.
3. Place charcoal briquettes randomly on crumpled
newspaper in both freezer and refrigerator
compartments.
Energy Saving Tips
. Avoid overcrowding refrigerator shelves. This reduces
air circulation around food and causes refrigerator to
run longer.
Avoid adding too much warm food to refrigerator at
one time. This overloads compartments and slows
rate of cooling.
, Do not use aluminum foil, wax paper, or paper
toweling as shelf liners. This decreases air flow and
causes refrigerator to run less efficiently.
, A freezer that [s two-thirds full runs most efficiently.
Locate refrigerator in coolest part of room. Avoid
areas of direct sunlight, or near heating ducts,
registers or other heat producing appliances. If this is
not possible, isolate exterior by using a section of
cabinet or an added layer of insulation.
, Clean door gaskets every three months according to
cleaning instructions. This wiI[ assure that door seals
propedy and refrigerator runs efficiently.
Take time to organize [terns in refrigerator to reduce
time that door is open.
, Be sure your doors are closing securely by leveling
refrigerator as instructed in your installation
instructions.
, Clean condenser coils as indicated in the cleaning
instructions every three months. This will increase
energy efficiency and cooling performance.
4. Close doors and let stand 2/4to 48 hours.
27
Replacing Light Bulbs
Lower Freezer Section
1. Pinch both sides of light cover to remove.
2. Remove light bulb. Replace with appliance bulb ne
greater than 40 watts.
3. Pinch both sides of the light cover to snap into
place.
Ice and Water Dispenser
1. Locate light bulb inside top edge of dispenser
frame. Unscrew to remove.
2. Replace light bulb with a 7-watt, 120 volt bulb°
Upper Fresh Food Section
The upper fresh food light bulbs are located behind the
front panel. Reach behind the panel to remove the
bulbs.
Lower Fresh Food Section
1. Push up on bottom tabs on light
cover. Rotate cover up and release
tabs.
2. Remove light bulb.
3. Replace bulb with appliance bulb
no greater than 40 watts.
4. Insert top tabs of light cover into
liner slots and snap bottom tabs
into liner slots.
Upper Freezer Section
1. Remove ice bin by lifting
front of bin and pulling
out.
F .............
2. Remove light shield by pressing the upper right
side of the shield and rotating downward.
3. Remove light bulb. Replace with appliance bulb no
greater than 40 watts.
4. Rotate the shield upward, press in slightly and
snap into place.
5. Replace ice bin by sliding in until bin locks into
place.
,Light Bulb
Location
Glass Doors
To protect the glass doors:
1. Do not use abrasive cleaning agents such as steel
wool scouring pads or powdered cleaners as they
may scratch the glass.
2. Do not hit the glass with pots, pans, furniture, toys,
or other objects.
3. Do not close the door until the shelves and
drawers are in place.
Scratching, hitting, jarring or stressing the glass may
weaken its structure causing an increased risk of
breakage at a later date.
28
29
Preparing for Vacation
For short vacations or absences (three months or
less]:
1. Remove all perishables.
2. If no one will be checking in on the refrigerator
during your absence, remove all frozen items also.
3. If your refrigerator has an automatic ice maker:
• Shut off the water supply to the ice maker at
least one day ahead of time.
• After the last load of ice drops, raise the wire
shut off arm to the OFF position.
• Empty the ice bin.
4. If the room temperature will drop below 55° F
[13° C), follow the instructions for longer absences.
For long vacations, absences (more than three
months] OR if the room temperature will drop below
55 ° F [13 ° C]:
1. Remove food.
2. If your refrigerator has an automatic ice maker:
• Shut off the water supply to the ice maker at
least one day ahead of time.
• After the last load of ice drops, raise the wire
shut off arm to the OFF position.
• Empty the ice bin.
3. If your refrigerator has a dispenser system with
water filter, remove the water filter cartridge and
install the filter bypass. Dispose of the used
cartridge.
/4.Turn the freezer control to OFF.
.
6.
Unplug the refrigerator.
Thoroughly clean the interior of both compartments
with a baking soda solution and a clean soft cloth
(four tablespoons of baking soda in one quart of
warm water.).
7. Dry thoroughly.
8. Leave the doors open to prevent the formation of
mold and mildew.
Upon Your Return:
After a Short Vacation or Absence:
For models with automatic ice makers or dispensers:
, Reconnect the water supply and turn on supply valve
(see page 4-5).
, Monitor water connection for 24 hours and correct
leaks if necessary.
, Run 10-15 glasses of water from the dispenser to
flush out the system.
, Restart the ice maker by lowering the ice maker arm.
, Discard at least the first three ice harvests.
After a Long Vacation or Absence:
If your refrigerator has an automatic ice maker,
reconnect the water supply and turn on supply valve
(see page/4-5).
Hug the refrigerator back in and reset controls (see
pages 10, 11 and 12).
Monitor water connection for 24 hours and correct
leaks, if necessary.
For dispenser models, run water through the dispenser
for at least three minutes with the filter bypass in
place, then install water filter (see page 20).
After installing the water filter, run water through the
dispenser continuously for at least two minutes, or
until water runs steady. Initially you may notice a
one to two minute delay in water dispersal as the
internal tanks fills.
Restart the ice maker by lowering the icemarkerarm.
Discard ice produced within the first 12 hours (at
least the first three harvests).
Preparing to Move
Follow the above instructions for long
vacations/absences, through step Z
Secure all loose items such as shelves and drawers
by taping them securely in place to prevent damage.
Tape the doors shut.
Use an appliance dolly when moving the refrigerator.
Always truck the refrigerator from its side or back-
never from its front.
Be sure the refrigerator stays in an upright position
during moving.
Improvementsin refrigerationdesignmayproducesoundsinyour newrefrigeratorthataredifferentorwerenot
presentin an oldermodel.Theseimprovementsweremadeto createa refrigeratorthat is betterat preservingfood,
ismoreenergyefficient,andis quieteroverall.Becausenewunitsrun quieter,soundsmaybe detectedthatwere
presentin olderunits,butweremaskedbyhighersoundlevels.Manyof thesesoundsarenormal.Pleasenotethat
thesurfacesadjacentto a refrigerator,suchashardwalls,floorsandcabinetrymaymakethesesoundsseemeven
louder.Thefollowingaresomeof the normalsoundsthat maybe noticedin a newrefrigerator.
!
Clicking • Freezer control (A) clicks when starting or • Normal operation
stopping compressor.
• Defrost timer or electric damper control (select • Normal operation
models) (B) sounds like an electric clock and
snaps in and out of defrost cycle.
Air rushing • Condenser fan (D) makes this noise while • Normal operation
or whirring operating.
• Freezer fan (C) makes this noise while • Normal operation
operating.
• Freezer fan (C) slows to a stop as the freezer • Normal operation
door is opened.
Gurgling or • Evaporator (E) and heat exchanger (F) • Normal operation
boiling sound refrigerant make this noise when flowing.
Thumping • Ice cubes from ice maker drop into ice bucket (G). • Normal operation
• Dispenser ice chute (H) closing. • Normal operation
Vibrating • Compressor (I) makes a pulsating sound while • Normal operation
noise running.
• Refrigerator is not level. • See Leveling (see page 9).
Buzzing • lee maker water valve (J) hookup buzzes when • Normal operation
ice maker fills with water.
Humming • Ice maker (K) is in the 'on' position without • Normal operation
water connection.
• Ice auger (L) hums as auger agitates ice during • Stop sound by raising ice maker arm
dispensing, to OFF position. See Automatic Ice
Maker, page 17 for details.
• Compressor (I) can make a high pitched hum • Normal operation
while operating.
• Solenoid valve (M) operating ice chute door. • Normal operation ___
30
TROUBLESHOOTING
Refrigerator is in defrost mode. Normal operation.
Freezer control and
lights are on, but
compressor is not
operating
Temperature-
controlled drawers
are too warm
Refrigerator does
not operate
Refrigerator still
won't operate
Food temperature
is too cold
Food temperature
is too warm
Refrigerator has
an odor
Control settings are too low.
Freezer controls are set too low.
Drawer is improperly positioned.
Refrigerator is not plugged in.
Touch temperature controls are set
to "-'.
Fuse is blown, or circuit breaker needs
to be reset.
Power outage has occurred.
Refrigerator is malfunctioning.
Condenser coils are dirty.
Refrigerator or freezer controls are set
too high.
Food is too close to upper left air inlet.
Door is not closing properly.
Controls need to be adjusted.
Condenser coils are dirty.
Rear air grille is blocked.
Door has been opened frequently, or has
been opened for long periods of time.
Food has recently been added.
Odor producing foods should be covered
or wrapped.
The interior needs cleaning.
Wait 40 minutes to see if refrigerator restarts.
See pages 10,11 and 12 to adjust controls.
See pages 10,11 and 12 to adjust controls.
See page 16 to verify drawer positioning.
Plug in refrigerator.
See pages 10,11 and 12 to adjust controls.
Replace any blown fuses.
Check circuit breaker and reset, if necessary.
Call local power company listing to report outage.
Unplug refrigerator and transfer food to another
refrigerator. If another refrigerator is not available,
place dry ice in freezer section to preserve food.
Warranty does not cover food loss.
Contact service for assistance.
Clean according to the chart on page 26.
See page 8 to adjust controls.
Relocate food.
Refrigerator is not level. See page 9 for details on how
to level your refrigerator.
Check gaskets for proper seal. Clean, if necessary,
according to the chart on page 26.
Check for internal obstructions that are keeping door
from closing properly {i.e. improperly closed drawers,
ice buckets, oversized or improperly stored containers,
etc.]
See pages 10,11 and 12 to adjust controls.
Clean according to the chart on page 26.
Check the positioning of food items in refrigerator to
make sure grille is not blocked. Rear air grilles are
located under crisper drawers.
Reduce time door is open. Organize food items
efficiently to assure door is open for as short a time as
possible.
Allow time for recently added food to reach
refrigerator or freezer temperature.
Clean according to instructions on page 26.
31
TROUBLESHOOTING
Water droplets Door gaskets are not sealing properly. Clean according to the chart on page 26.
form on outside Humidity levels are high. Normal during times of high humidity.
of refrigerator Controls require adjustment. See pages 10,11 and 12 to adjust controls.
Water droplets form Humidity levels are high or door has Reduce time door is open. Organize food items
on inside of been been opened frequently, efficiently to assure door is open for as short a time as
refrigerator possible.
Door gaskets are not sealing properly. Clean according to the chart on page 26.
Refrigerator or ice Normal operation. See page 30.
maker makes
unfamiliar sounds
or seems too loud
Temperature- Contents of drawer, or positioning of Reposition food items and containers to avoid
controlled drawer items in the surrounding compartment interference with the drawers.
and/or crisper could be obstructing drawer.
drawer do not Drawer is not in proper position.
close freely Refrigerator is not level.
Drawer channels are dirty.
Refrigerator runs
too frequently
Doors have been opened frequently or
for long periods of time.
Humidity or temperature in surrounding
area is high.
Food has recently been added.
Refrigerator is exposed to heat by
environment or by appliances nearby.
Condenser coils are dirty.
Controls need to be adjusted.
Door is not closing properly.
Door gaskets are not sealing properly.
See page 16 for proper drawer placement.
See page 9 for details on how to level your
refrigerator.
Clean drawer channels with warm, soapy water.
Rinse and dry thoroughly.
Apply a thin layer of petroleum jelly to drawer
channels.
Reduce time door is open.
Organize food items efficiently to assure door is open
for as short a time as possible.
Allow interior environment to adjust for period the
door has been opened.
Normal operation.
Allow time for recently added food to reach
refrigerator or freezer temperature.
Evaluate your refrigerator's environment. Refrigerator
may need to be moved to run more efficiently.
Clean according to the chart on page 26.
See pages 10,11 and 12 to adjust controls.
Refrigerator is not level, see page 9 Leveling,
Check for internal obstructions that are keeping door
from closing properly 0.e. improperly closed drawers,
ice buckets, oversized or improperly stored containers,
etc.]
Cleaning according to the chart on page 26.
continued...
32
TROUBLESHOOTING
Ice and Water
No indicator lights Freezerdoor is not closed. Verify that freezer door is closed. Power is removed
are lit on dispenser from the control when freezer door is opened.
control Refrigerator is not plugged in. Plug in refrigerator.
Fuse is blown, or circuit breaker needs to Replace any blown fuses.
be reset. Check circuit breakers for any tripped circuits.
Power outage has occurred. Call local power company listing to report outage.
Refrigerator is in Sabbath Mode (:select See Sabbath Mode page 19.
models:).
Ice or water are Freezerdoor is not closed. Verify that freezer door is closed. Power is removed
not dispensed from the control when freezer door is opened.
when pads are Controls are in lock mode (:selectmodels:). See Dispenser Lock page 19.
pressed Water tank is filling. At initial use, there is an approximate one- to two-
minute delay in dispensing while the internal water
tank is filling.
Ice bin not installed properly. Reinstall ice bin, see page 16.
Ice maker has just been installed or a Wait 24 hours for ice production to begin or for ice
large amount of ice has been used. maker to restock after emptied.
Water pressure is to low. Water pressure must be between 35 to 100 pounds
per square inch to function properly.
A minimum pressure of 35 pounds per square inch is
recommended for refrigerators with water filters.
Water filter is clogged or needs to be Change water filter (:seepage 20:).
changed.
Ice maker is not Ice maker has just been installed or a Wait 24 hours for ice production to begin or for ice
producing enough large amount of ice has been used. maker to restock after emptied.
ice or ice is Water pressure is too low. Low water pressure carl cause valve to leak.
malformed Water pressure must be between 35 to 100 pounds
per square inch to function properly. A minimum
pressure of 35 pounds per square inch is
recommended for refrigerators with water filters.
Water filter is clogged or needs to be Change water filter (:seepage 20:).
changed.
33
TROUBLESHOOTING
Ice and Water
Ice maker is not
producing ice
Water filter
indicator light is
red
Ice forms in inlet
tube to ice maker
Ice maker arm is up.
Household water supply is not reaching
water valve.
Copper tubing has kinks.
Water pressure is too low.
Check freezer temperature.
Ice bin is not installed properly.
Improper water valve was installed.
Water filter needs to be replaced.
Filter indicator sensor needs to be reset.
Water pressure is too low.
Saddle valve not open completely.
Freezer temperature is too high.
Plastic tubing was used to complete
water connection.
Improper water valve was installed.
Refrigerator is
leaking water
Confirm ice maker arm is down. See Automatic Ice
Maker page 1Z
See Connecting the Water Supply pages 4 and 5.
Turn off water supply and remove kinks.
If kinks cannot be removed, replace tubing.
Water pressure must be between 35 to 100 pounds per
square inch to function properly.
A minimum pressure of 35 pounds per square inch is
recommended for refrigerators with water filters.
See Temperature Controls pages 10,11 and 12 to adjust
controls. Freezer must be between 0° to 2° F (-18° to -
17° C) to produce ice.
See Ice Storage Bin page 16.
See Connecting the Water Supply pages 4 and 5.
Self-piercing and 3/,,,saddle valves cause low water
pressure and may clog the line over time. The
manufacturer is not responsible for property damage
due to improper installation or water connection.
If filter is not available, replace with bypass filter.
See Water Filter page 20.
See Filter Status Indicator Light page 19.
Water pressure must be between 35 to 100 pounds per
square inch to function properly.
A minimum pressure of 35 pounds per square inch is
recommended for refrigerators with water filters.
Open saddle valve completely.
See Temperature Controls pages 10,11 and 12. Freezer
temperature should be between 0° to 2° F (-18° to -17° C).
The manufacturer recommends using copper tubing for
installation. Plastic is less durable and can cause
leakage. The manufacturer is not responsible for
property damage due to improper installation or
water connection.
See Connecting the Water Supply pages 4 and 5. Self-
piercing and _,_"saddle valves cause low water pressure
and may clog the line over time. The manufacturer is
not responsible for property damage due to
improper installation or water connection.
continued...
34
TROUBLESHOOTING
Water flow is Water pressure is too low.
slower than normal
Saddle valve not open completely.
Improper saddle valve was installed.
Copper tubing has kinks.
Water filter is clogged or needs to be
changed.
Water valve not opened completely.
Dispenser water
is not cold
Refrigerator has been recently installed.
Water supply in holding tank has been
depleted.
Air or air bubbles in water.
Water appears
cloudy
Particles in water Carbon dust from water filter cartridge.
and/or ice cubes.
Concentrations of minerals in water will
form particles when water becomes
frozen and melts.
Water pressure must be between 35 to 100 pounds per
square inch to function properly. A minimum pressure
of 35 pounds per square inch is recommended for
refrigerators with water filters.
Open saddle valve completely.
See Connecting the Water Supply pages/4 and 5. Self-
piercing and 3/_,,saddle valves cause low water pressure
and may clog the line over time. The manufacturer is
not responsible for property damage due to
improper installation or water connection.
Turn off water supply and remove kinks.
If kinks cannot be removed, replace tubing.
Change water filter (see page 20).
Open water valve completely and check for leaks.
The minimum flow at dispenser is approximately
10 fluid ounces in nine seconds with a new filter in
place or approximately 10 fluid ounces in five seconds
without a filter.
Allow approximately 12 hours for water in holding tank
to chill.
This is normal when first using the dispenser and will
disappear with use.
Initial water ejected through cartridge may contain
harmless carbon dust flushed from cartridge. Will
disappear after the first few uses.
Particles are not harmful and naturally occur in water
supplies.
35
36
What is Not Covered ByThese
Warranties:
_ _ _1 h_ 1. Conditionsand damagesresulting from any of the following:
a. Improperinstallation,delivery,or maintenance.
! : efj_ b. Any repair,modification,alteration,or adjustmentnot
h #frii authorizedby the manufactureror an authorizedservicer.
c. Misuse,abuse,accidents,or unreasonableuse.
i_i _ _ _ _ d. Incorrectelectric current, voltage,or supply.
e,mpropersott,ngofany
control.
T_ : te 2. Warrantiesare void if the original serial numbershave been
_n removed,altered or cannot be readilydetermined.
3. Lightbulbs.
aBe__ _a e_a_ stem..........................................................................................
/4.Productspurchasedfor commercial or industrial use.
i :_! _:_: 5. The cost of serviceor servicecall to:
i_r) _i! b _!!:_ _ts:
a. Correct installationerrors.
_i _d ill _ _ _:_i_iii_ ::_ _h_ _r_ b. Instruct the user on the proper use of the product.
Ji _ ConsequentialCTransporttheorapplianCeincidentaltOdamagestheservicer.sustainedby any person
as a resultof any breachof these warranties.Somestates do
[;q _ _ et not allow tile exclusionor limitation of consequentialor
incidental damages,so the aboveexclusionmaynot apply.
If You Need Service
• Call the dealer from whom your appliancewas purchasedor call
Maytag Servicess_,Jenn-Air CustomerAssistanceat
1-800-JENNAIR0-800-536-6247) U.S.A.and Canada,to locate
an authorizedservicer.
• Besure to retain proof of purchaseto verify warrantystatus.
Referto Warrantyfor further informationon owner's
responsibilitiesfor warranty service.
• Ifthe dealer or servicecompanycannot resolvethe problem,
write to MaytagServicess_,Attn: CAIR_ Center,P.O.Box 2370,
Cleveland,TN 37320-2370or call 1-800-JENNAIR
(1-800-536-6247) U.S.A.and Canada.
U.S.customersusing TTYfor deaf,hearingimpaired or speech
impaired,call 1-800-688-2080.
• User'sguides,servicemanualsand parts informationare
availablefrom Maytag Servicessu,Jenn-Air CustomerAssistance.
Note
• When writing or calling about a service problem, please
include the following information:
a. Your name, address and telephone number;
b. Model number and serial number;
c. Name and address of your dealer or servicer;
d. A clear description of the problem you are having;
e. Proof of purchase (sales receipt).
