Safety Instructions ........... 2-4
Operating Instructions
Automatic Icemaker ........... 12
Care and Cleaning .......... 14, 15

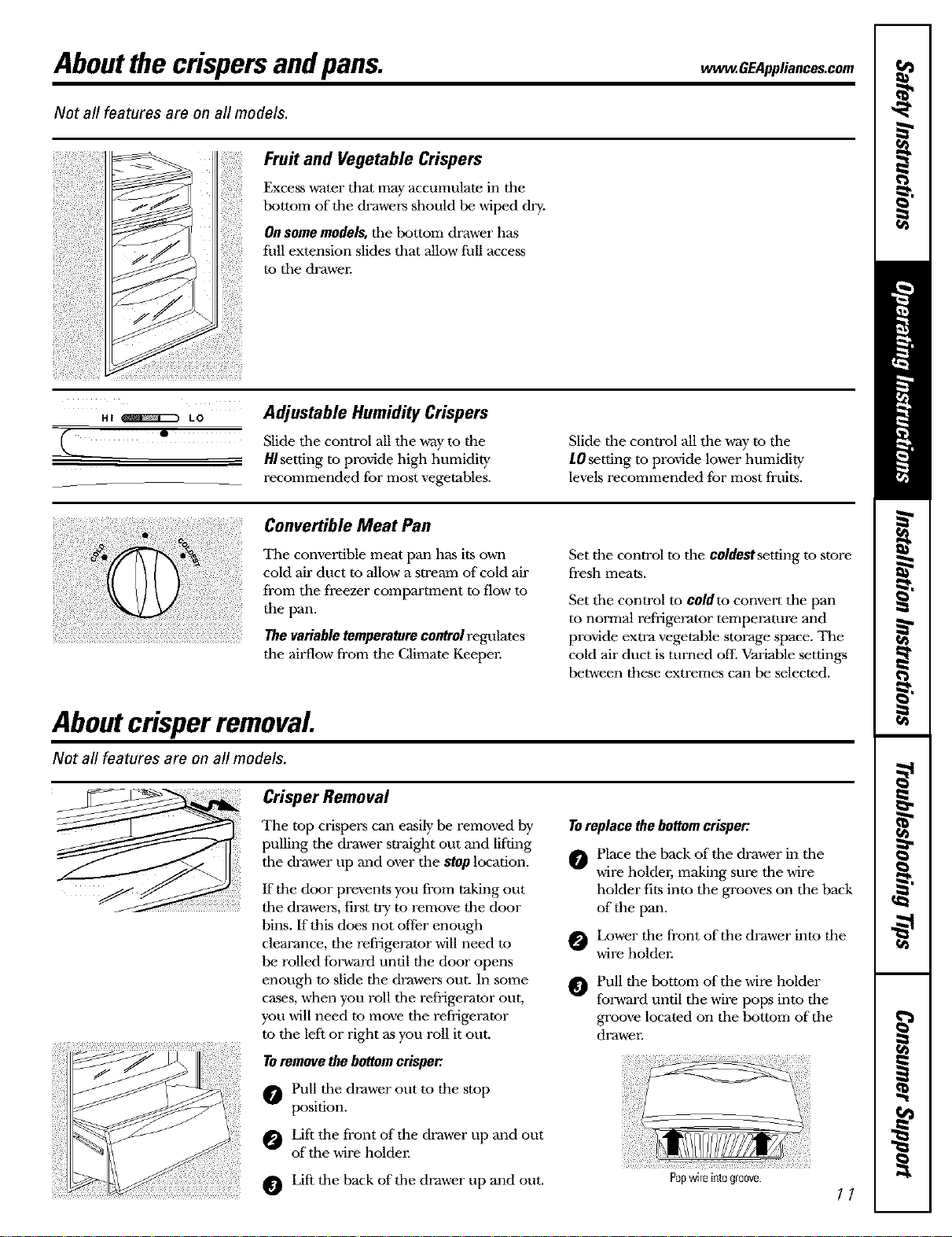

Crispe_ and Pans ............. 11
Ice and Water Dispenser ........ 13
Relrigerator Doors ............ 10
Replacing the Light Bulbs ....... 16
Shelves, Bins and Racks ........ 8, 9
Temperature Controls ........... 5
TurboCool _'_. .................. 6
Water Filter ................... 7
Installation Instruotions
Installing file Refrigerator .... 26-29

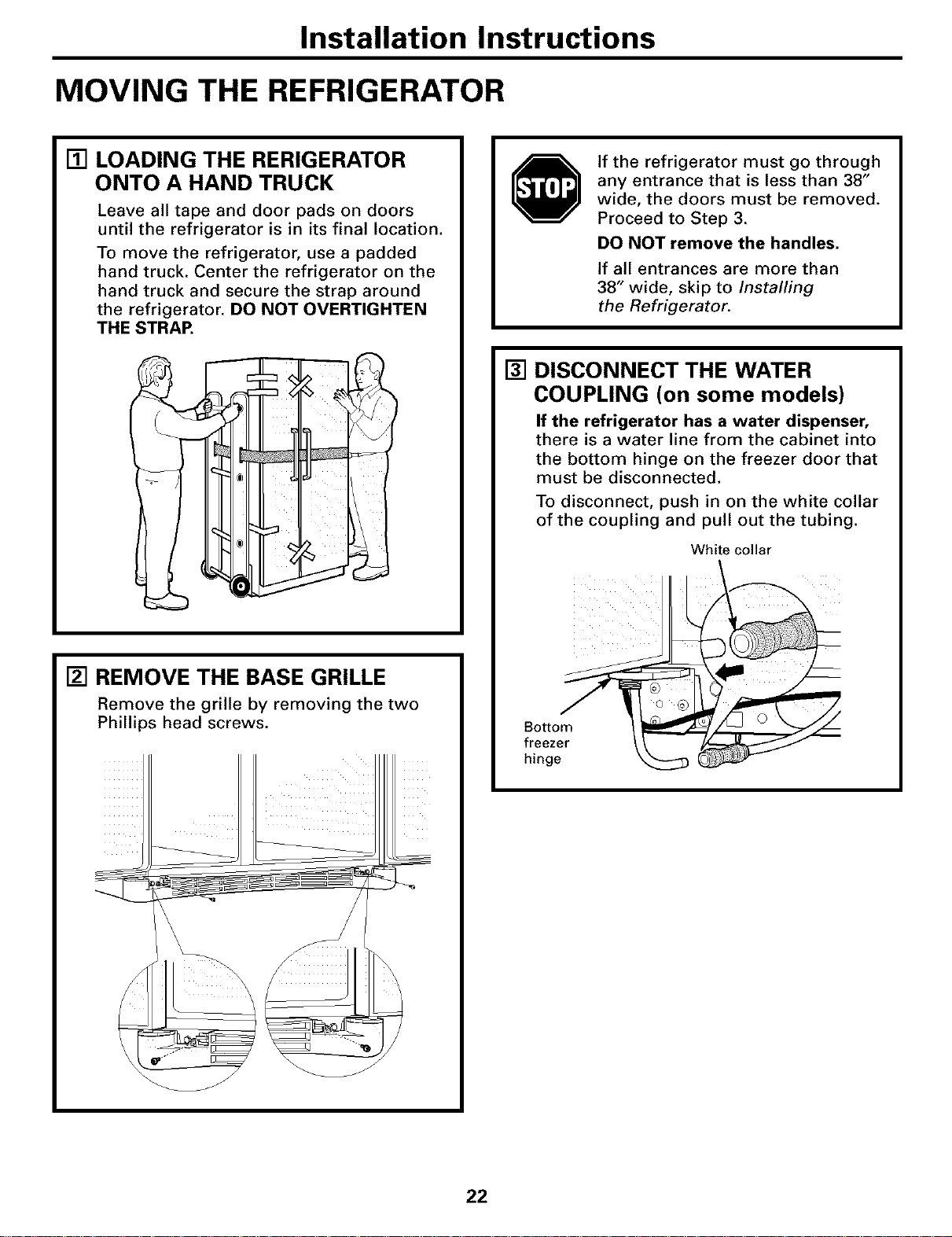

Moving tile Refrigerator ..... 22-25
Preparing m Install
the Reli'igerator ............... 21
Trim Kits and Panels ........ 17-20

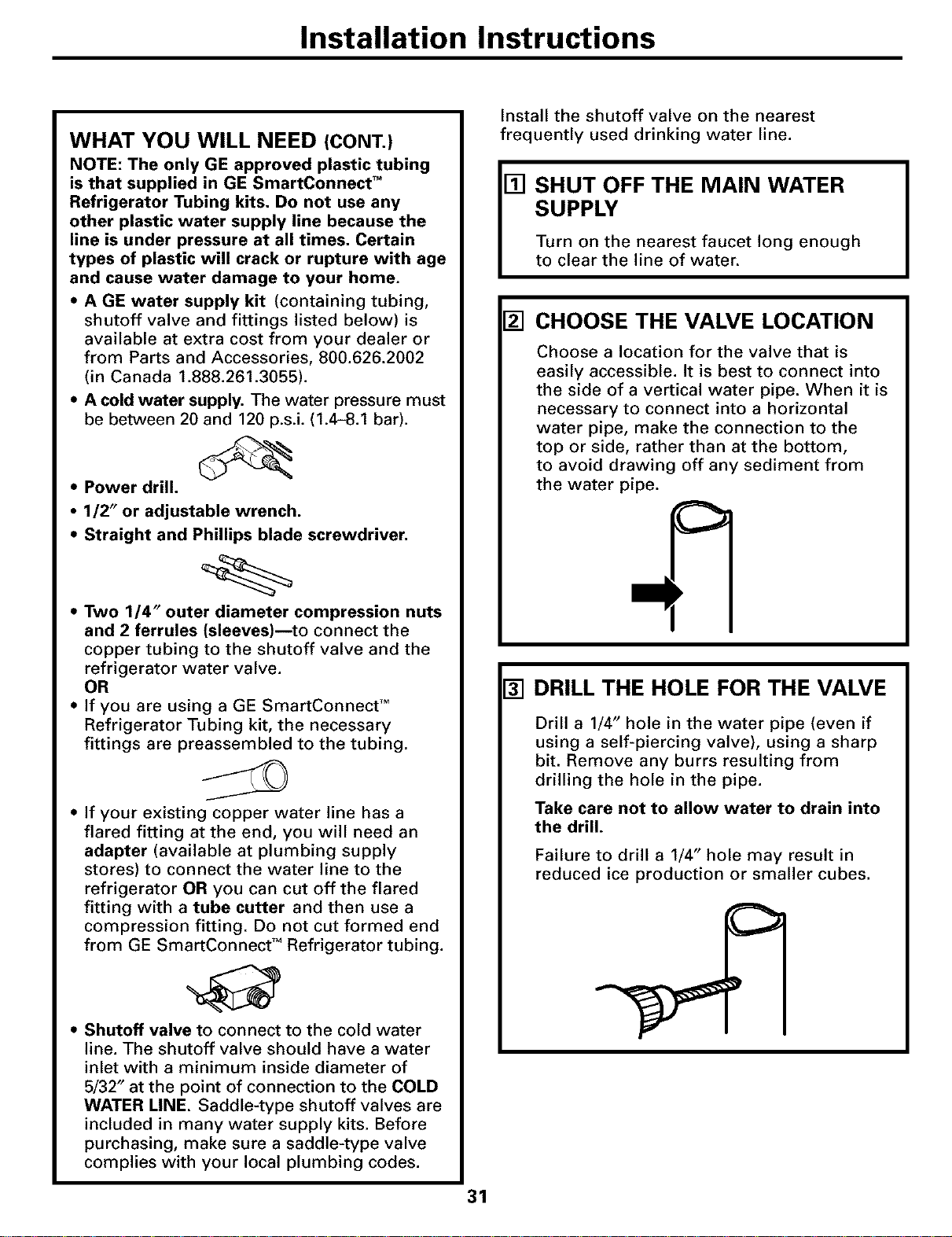

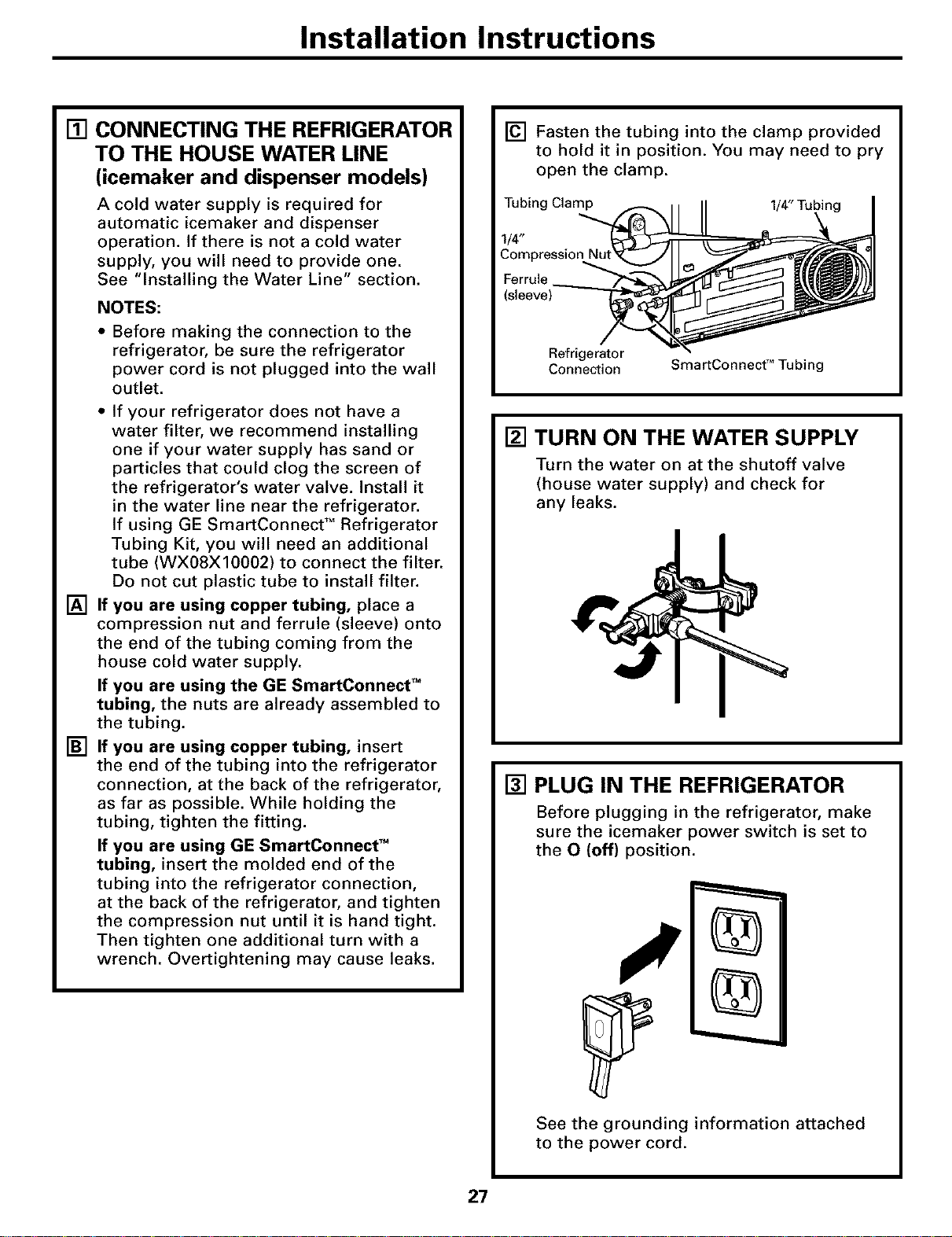

Water Line Installation ...... 30-32
Troubleshooting Tips ....... 33-36
Normal Operating Sounds ...... 33
Consumer Support
Consumer Support ..... Back Cover
Perfbrmance Data Sheet ........ 40
Product Registration ........ 37, 38
State of California Water
Treatment Device Certificate ..... 41

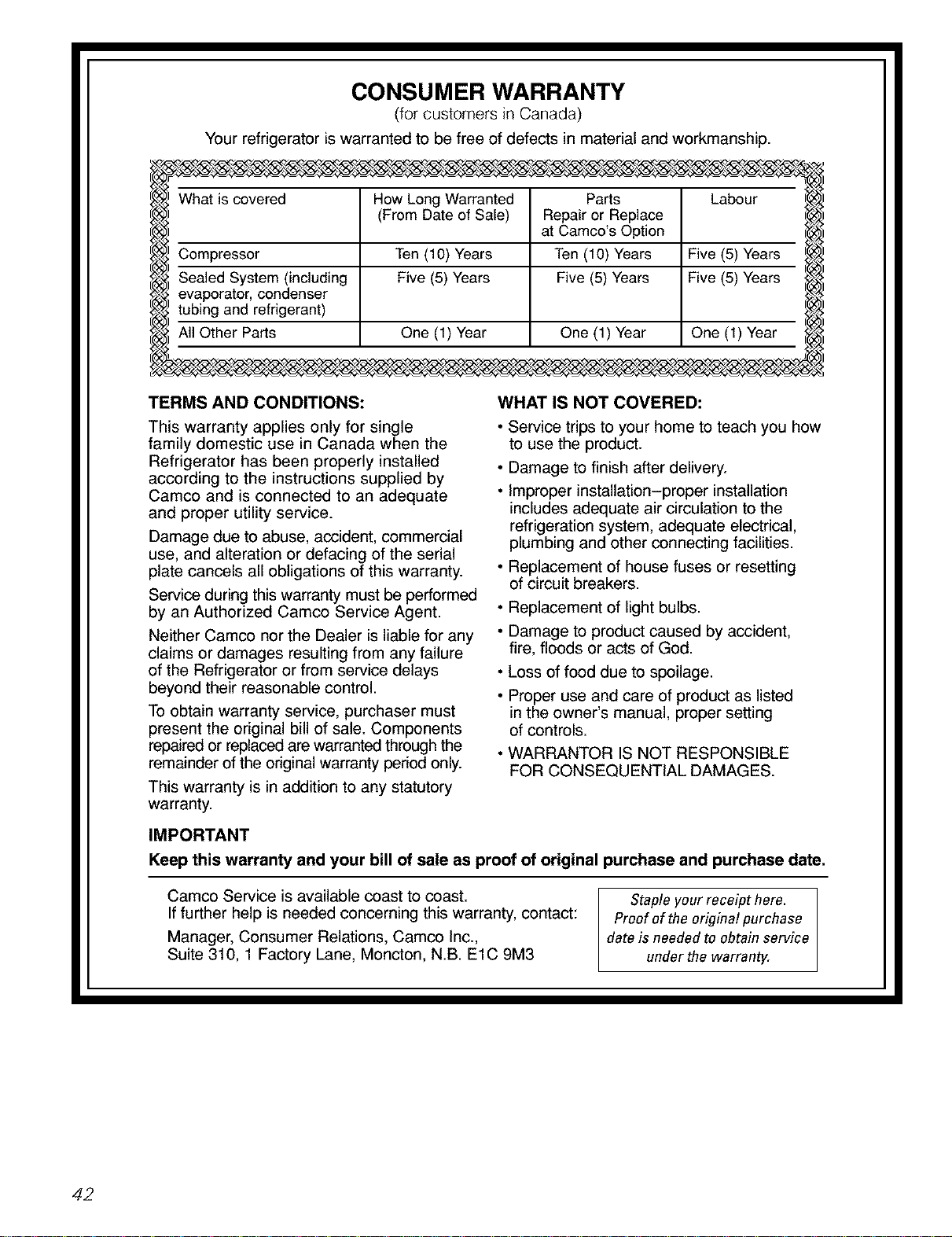

Warranty (Canadian) ........... 42
Warranty (U.S.) ............... 43
Models23,25,26,27 and29
Profi/e C6te _tC6te
R frig&ateurs
Lasectionfran_aise commencea lapage 44
Profde Lado a Lado
Refrigeradores
Laseccion enespa_olempiezaen la pagina82
Write the model and serial
numbers here:
Model #
Serial #
Find these numbers on a label inside
the refrigerator compartment at the
top on the right side.
200D2600P024 49-60239 12-02JR

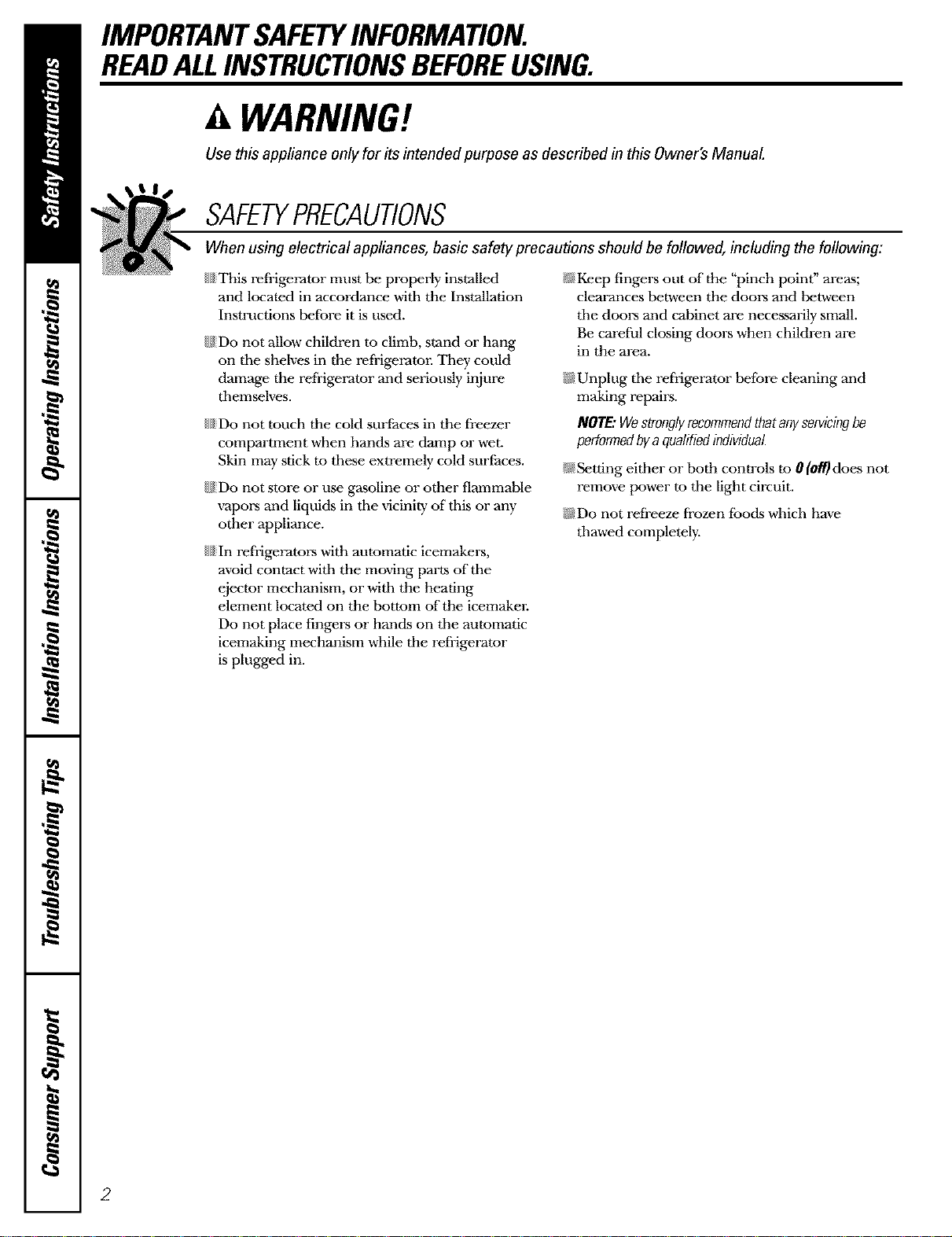

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
A WARNING!
Use this appliance only for its intended purpose as described in this Owner's ManuaL
SAFETYPRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
{This refrigerator must be properly installed
and located in accordance with the Installation
Instructions b@ore it is used.
{_Do not allow children to climb, stand or hang
on tile shelves in the reffigeraton They could
damage @e refrigerator and seriously injure
themselves.
{Do not touch @e cold surfaces in the freezer
compartment when hands are damp or wet.
Skin may stick to these extremely cold suri;aces.
{_Do not store or use gasoline or other flammable
vapors and liquids in tile vicinity of this or any
other appliance.
{In refrigerators with automatic icemakers,
avoid contact with the moving parts of the
ejector mechanism, or with the heating
element located on the bottom of the icemaker.
Do not place fingers or hands on the automatic
icemaking mechanism while the refrigerator
is plugged in.
@Keep fingers out of the "pinch point" areas;
clearances between the doors and between
the doors and cabinet are necessarily small.
Be careful closing doors when children are
in the area.
_ Unplug the refiigerator before cleaning and
making repairs.
NOTE:Westronglyrecommendthatanyservicingbe
performedbyaqualifiedindividual
@Setting either or t>oth controls to 0 (Off)does not
remove power to the light circuit.
_Do not refreeze frozen foods which have
thawed completely.
2
ww_.GEAppliances.com

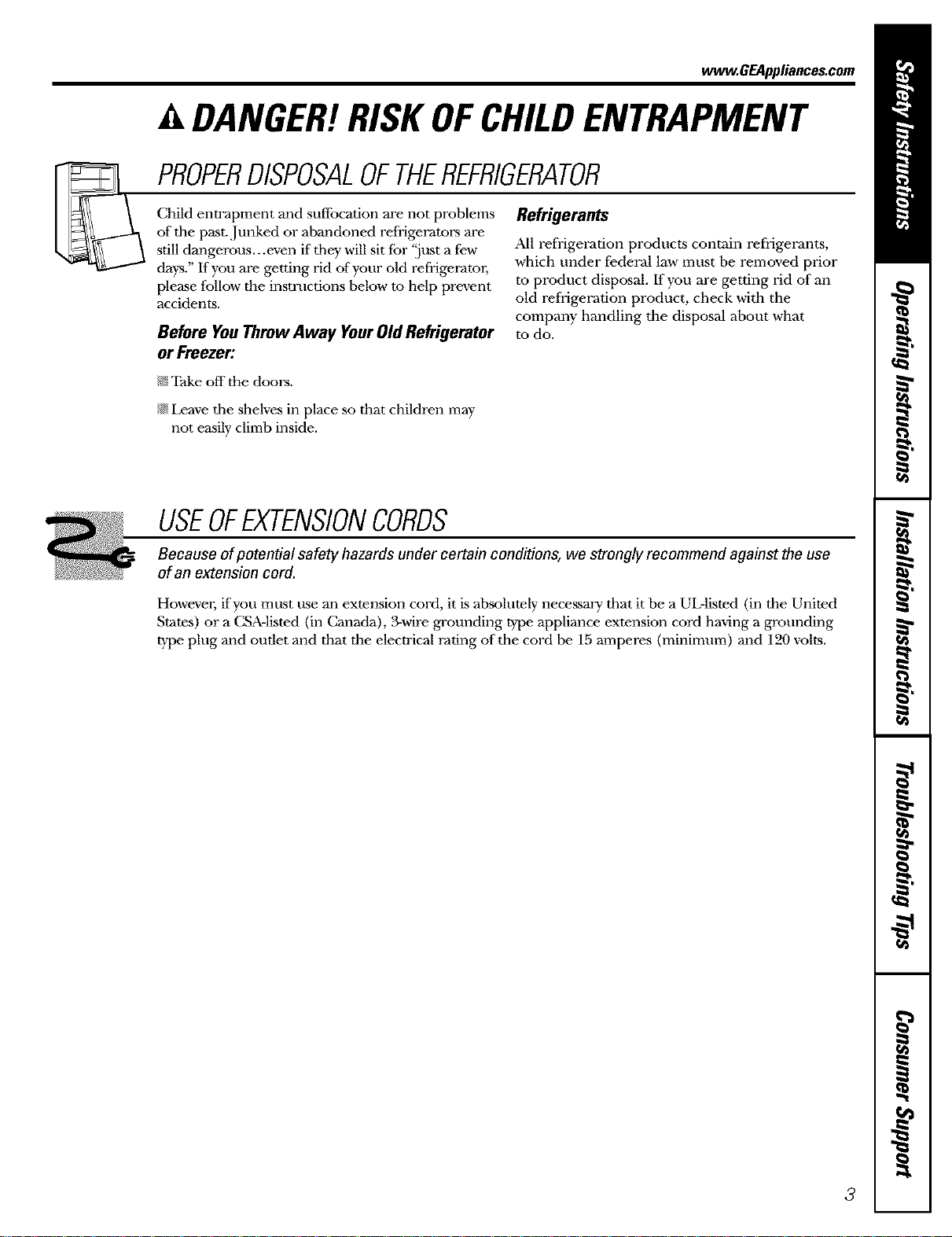

A DANGER!RISKOFCHILDENTRAPMENT
PROPERDISPOSALOFTHEREFRIGERATOR
Child enn'apment and suffocation are not problems
of the past. ,Junked or abandoned refrigerators are
still dangerous...even if they will sit for 'just a few
days." @you are getting rid of your old refiigerato_;
please follow the insmmtions below to help prevent
accidents.
Before YouThrowAway YourOldRefrigerator
or Freezer:
@Take off the doors.
@Leave the shelves in place so that children may
not easily climb inside.
Refrigerants
All re@igeration products contain refrigerants,
which under federal law must be removed prior
to product disposal. If you are getting rid of an
old re@igeradon product, check with the
company handling the disposal about what
to do.
USEOFEXTENSIONCORDS
Because of potential safety hazards under certain conditions, we strongly recommend against the use
of an extension cord.
Howevm; ifyou must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United
States) or a CNA-listed (in Canada), @wire grounding type appliance extension cord having a grounding
type plug and outlet and that the elecnical rating of the cord be 15 amperes (minimum) and 190 volts.
3
IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
A WARNING!

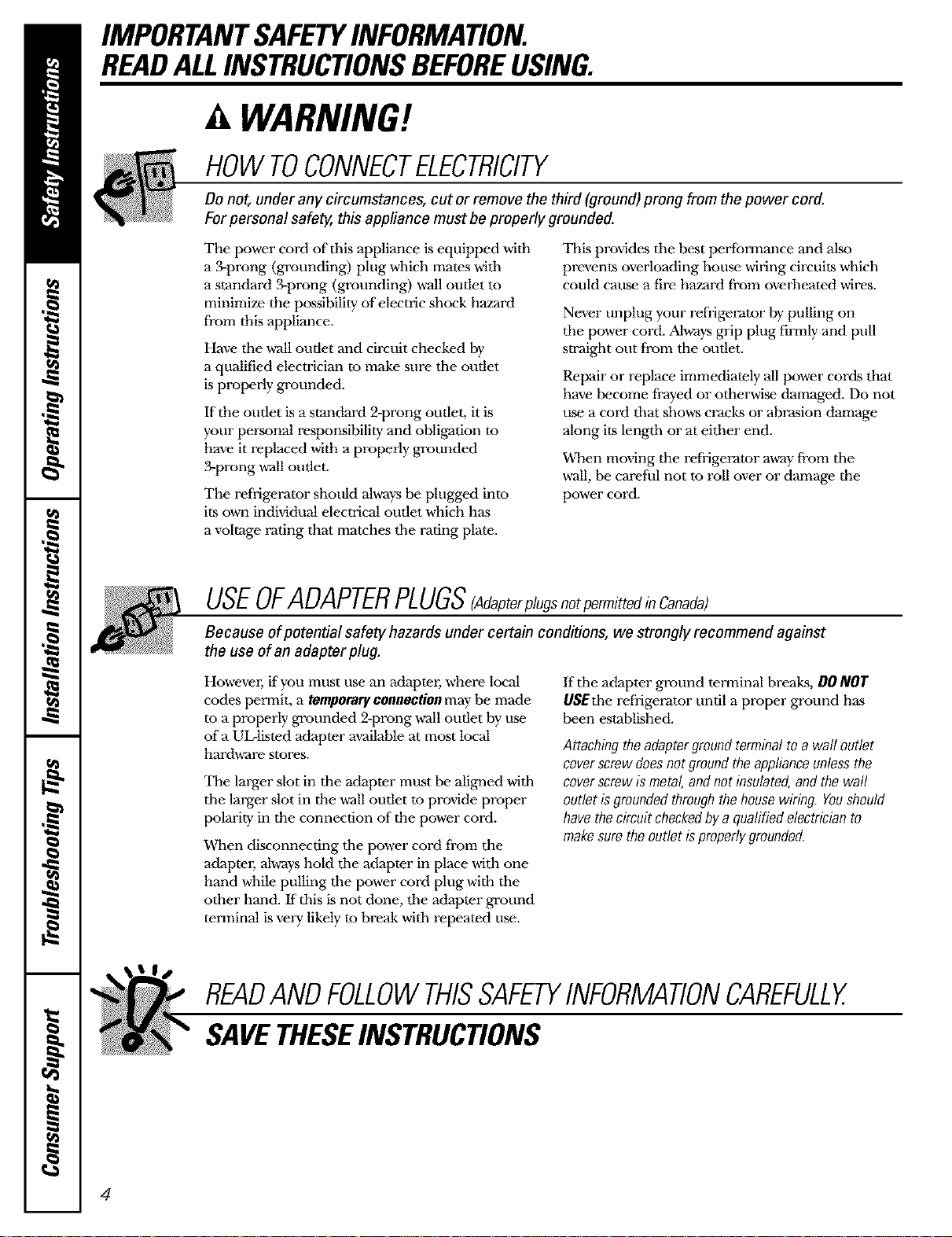

HOWTOCONNECTELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
Forpersonal safe_ this appfiance must be properly grounded.
The power cord of this appliance is equipped with
a 3-prong (grounding) plug which mates with
a standard 3-prong (grounding) wall outlet to
minimize the possibility of electric shock hazard
from this appliance.
Have tile wall outlet and circuit checked by
a qualified electrician to make sure tile outlet
is properly grounded.
If the oudet is a standard 2-prong outlet, it is
your personal responsibility and obligation to
have it replaced with a properly grounded
3-prong wall oudet.
The refrigerator should always be plugged into
its own individual electrical outlet which has
a voltage rating that matches tile rating plate.
This provides tile best performance and also
prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires.
Never unplug your refiigerator by pulling on
tile power cord. Always grip plug firmly and pull
sn'aight out from tile outlet.
Repair or replace immediately all power cords that
have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end.
When moving the refiigerator away fi'om tile
wall, be careful not to roll over or damage the
power cord.
USEOFADAPTERPLUGSgAdapterpl,gsnotpermittedinCanada)
Because of potential safety hazards under certain conditions, we strongly recommend against
the use of an adapter plug.
Howevm; if you must use an adapter, where local
codes permit, a temporary connection may be made
to a properly grounded 2-prong wall outlet by use
era UL-listed adapter a-cailable at most local
hardware stores.
The larger slot in tile adapter must be aligned with
tile larger slot in the wall outlet to provide proper
polarity in the connection of the power cord.
When disconnecting tile power cord from the
adapter, al,a-ayshold tile adapter in place with one
hand while pulling tile power cord plug with tile
other hand. If this is not done, tile adapter ground
terminal is very likely to break with repeated use.
If the adapter ground terminal breaks, DO NOT
USEthe refrigerator until a proper ground has
been established.
Attachingtheadaptergroundterminaltoa waftoutlet
coverscrewdoesnotgroundtheapplianceunlessthe
coverscrewismetal,andnot insulated,andthe waft
outletisgroundedthroughthehousewiring. Youshould
havethecircuitcheckedbya quafifiedelectricianto
makesuretheoutletisproperlygrounded.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS
4

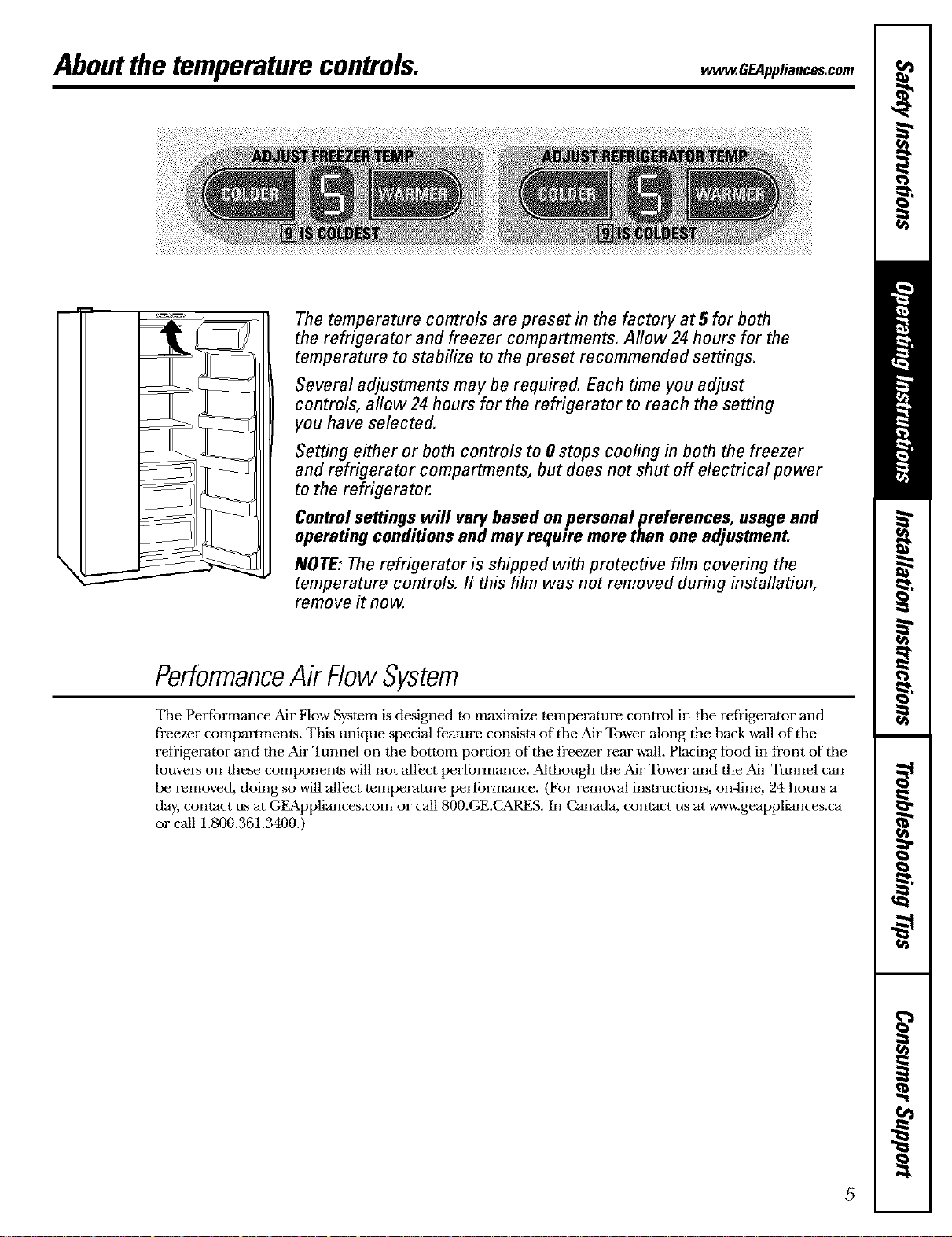

Aboutthetemperaturecontrols, ww .GEAppliances.com
I
f
The temperature controls are preset in the factory at 5 for both
the refrigerator and freezer compartments. Allow 24 hours for the
temperature to stabilize to the preset recommended settings.
Several adjustments may be required. Each time you adjust
controls, allow24 hours for the refrigerator to reach the setting
you have selected.
Setting either or both controls to Ostops coofing in both the freezer
and refrigerator compartments, but does not shut off electrical power
to the refrigerator.
Control settings will varybased onpersonal preferences, usage and
operating conditions and may require more than one adjustment.
NOTE: The refrigerator is shipped with protective film covering the
temperature controls. If this film was not removed during installation,
remove it now.
PerformanceAir FlowSystem
Tile Performance Air Flow System is designed to maximize temperature control in tile refrigerator and
freezer compartments. This unique special feature consists of tile Air Tower along tile back w_l of tile
refrigerator and tile Air Tunnel on tile t>attom portion of tile freezer rear v_l. Placing food in front of tile
louvers on these components will not affect performance. Aithough tile Air Tower and tile Air Tunnel can
be removed, doing so will affect temperature performance. (For remo'_al instructions, on-line, 94 hours a
day, contact us at GEAppliances.com or call 800.GE.C_MLES.In Canada, contact us at w-a-a_.geappliances.ca
or call 1.800.361.3400.)
5

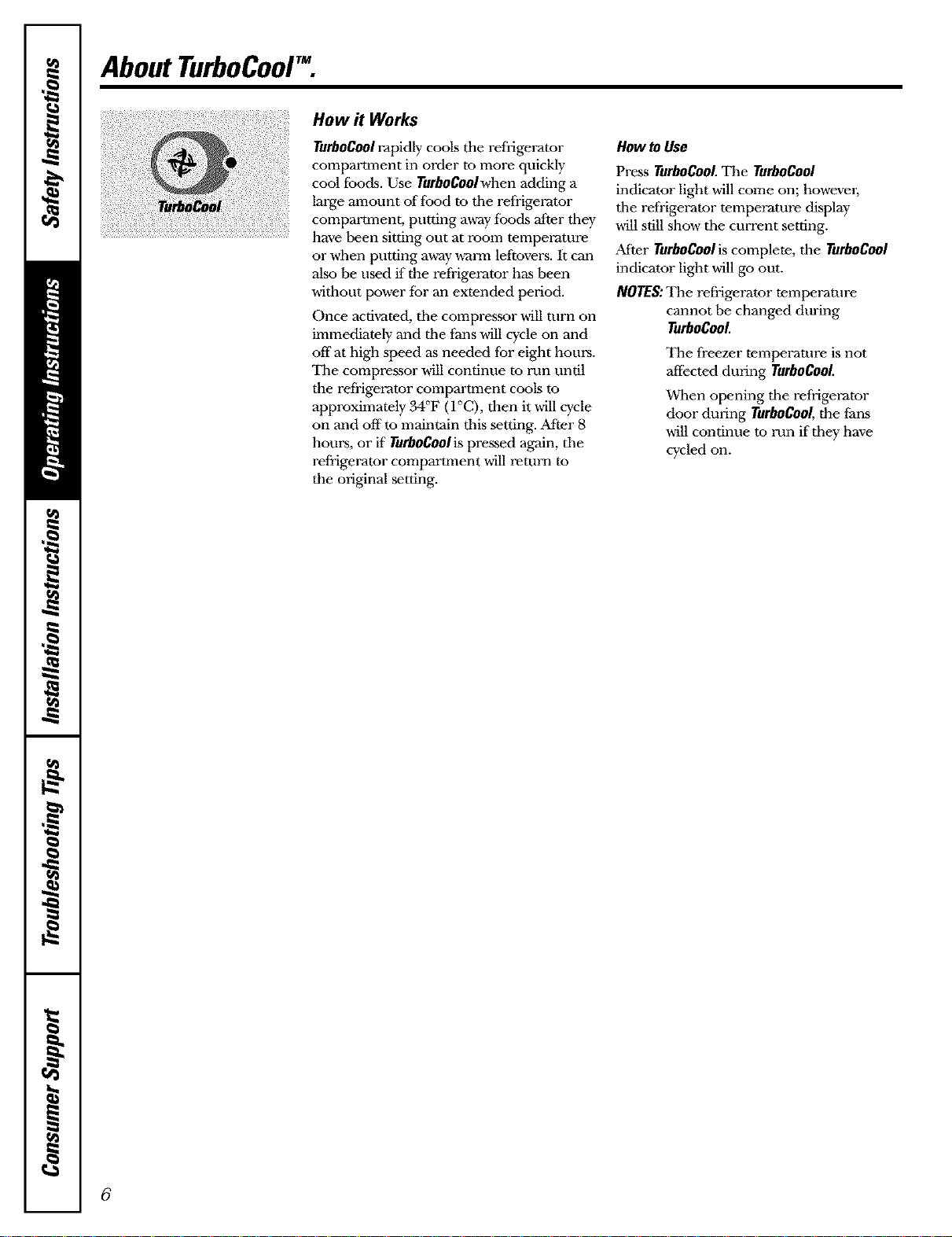

AboutTurboCoolTM.
How it Works
TurboCoolrapidly cools the refrigerator
compartment in order to more quickly
cool foods. Use TurboCoolwhen adding a
large amount of food to the refrigerator
...........................................................................compartment, putting away foods after they
....................................... have been sitting out at room temperature
or when putting away warm leftovers. It can
also be used if the refiigerator has been
without power for an extended period.
Once activated, tile compresmr will turn on
immediately and the fans will cycle on and
of{"at high speed as needed for eight hours.
The compressor will continue to run until
the refiigerator compartment cools m
approximately 34°F (I°C), then it will cycle
on and offto maintain this setting. After 8
hours, or if Turbogoolispressed again, the
refrigerator compartment will return to
the original setting.
How to Use
Press TurboCool.The TurboCool
indicator light will come on; howevm;
the refrigerator temperature display
will still show the current setting.
After TurboCoolis complete, the TurboCool
indicator light will go out.
NOTES: The refiigerator temperature
cannot be changed during
rurboCoot
The freezer temperature is not
affected during TurboCool.
When opening the refrigerator
door during TurboCool,the fans
will continue to run if they have
cycled on.
6

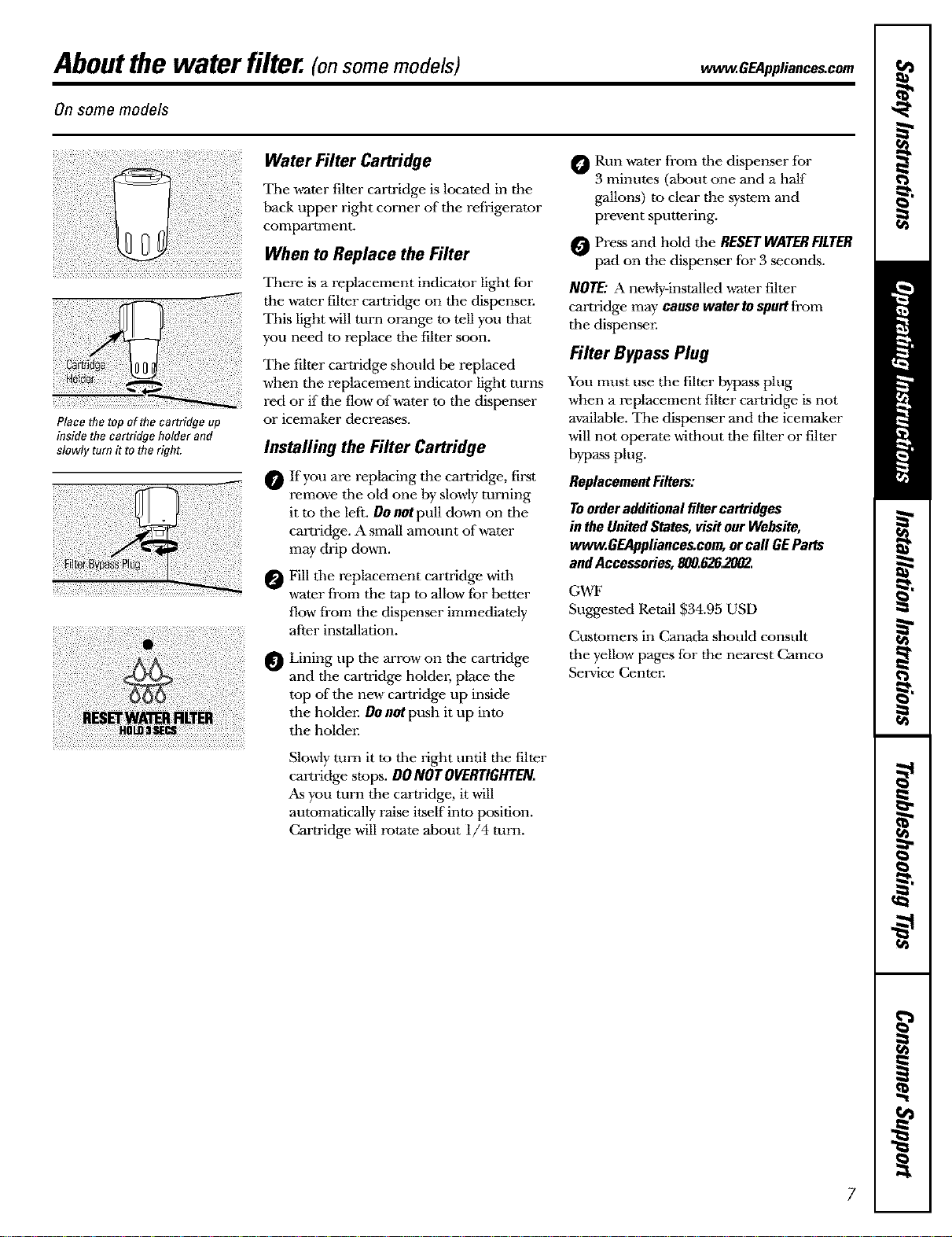

Aboutthe water filter.(onsomemodels) ww_.GEAppliances.com
On some models
Water Filter Cartridge
Tile water filter cartridge is located in the
back upper right corner of the refrigerator
compartment.
When to Replace the Filter
Timre is a replacement indicator light for
the water filter cartridge on tile dispenser.
This light will turn orange to tell you that
you need to replace tile filter soon.
Place the top of the cartridge up
inside the cartridge holder and
slowly turn it to the right.
Tile filter cartridge should be replaced
when tile replacement indicator light turns
red or if the flow of water to the dispenser
or icemaker decreases.
Installing the Filter Cartridge
O If you are replacing the cartridge, first
i -- remove the old one by slowly turning
it to the left. Do not pull dovm on the
cartridge. A small amount of water
itei may drip down.
Fill the replacement cartridge with
-- water fi'om the tap to allow for better
flow fi'om the dispenser immediately
after installation.
£; , Lining up the arrow on the cartridge
-- and the cartridge holdm; place the
top of the new cartridge up inside
the holder. DOnot push it up into
the holder.
Slowly turn it m the right until the filter
cm'tridge stops. DO NOT OVERTIGHTEN.
As you tm'n tile cartridge, it will
automatically raise itself into position.
Cartridge will rotate about 1/4 turn.
_Run water from tile dispenser fbr
3 minutes (about one and a half
gallons) to clear the system and
prevent sputtering.
_ Press and hold the RESETWATER FILTER
pad on the dispenser for 3 seconds.
NOTE: A newly-installed water filter
cartridge may cause waterto spurt fi'om
the dispenser.
Filter Bypass Plug
You must use tile filter bypass plug
when a replacement filter cartridge is not
available. Tile dispenser and the icemaker
will not operate without tile filter or filter
bypass plug.
ReplacementFilters:
Toorderadditionalfiltercartridges
in theUnitedStates,visitourWebsite,
www.GEAppliances.com,orcall GEParts
andAccessories,800.626.2002..
GWF
Suggested Retail $34.95 USD
Customers in Canada should consult
tile yellow pages for the nearest Camco
Service Center.

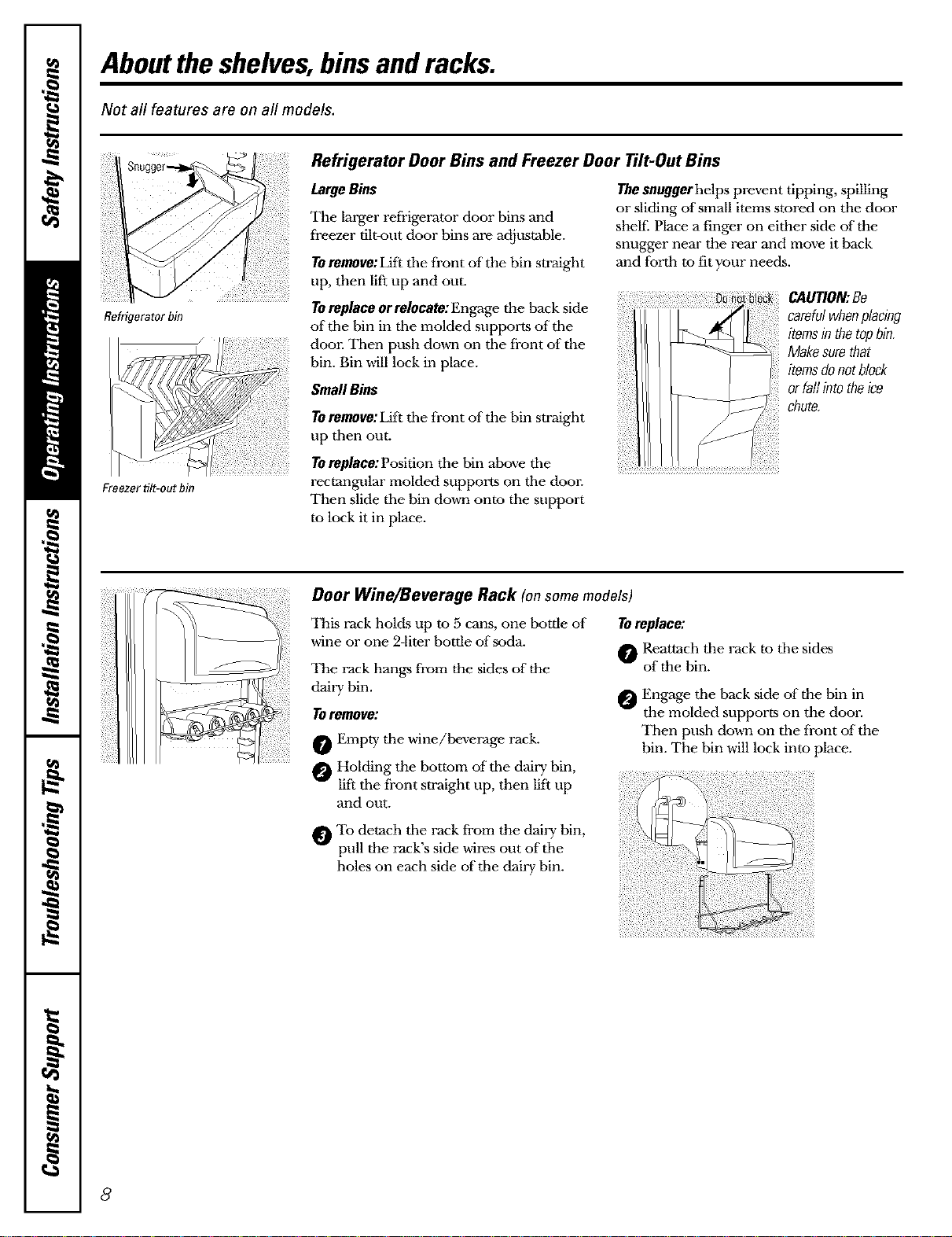

Abouttheshelves,binsand racks.
Not all features are on all models.
Refrigerator Door Bins and Freezer Door flit-Out Bins
Refrigerator bin
Freezer tilt-out bin
LargeBins
The larger refrigerator door bins and
freezer tih-out door bins are adjustable.
TOremove: Lift tile front of the bin straight
up, then lift up and out.
TOreplaceorrelocate:Engage the back side
of the bin in tile molded supports of the
door. Then push down on tile front of the
bin. Bin will lock in place.
SmallBins
TOremove:Lift tile front of the bin straight
up then out.
TOreplace: Position the bin above the
rectangltlar molded supports on the door.
Then slide the bin down onto the support
to lock it in place.
Thesnuggerhelps prevent tipping, spilling
or sliding of small items stored on the door
shelf. Place a finger on either side of the
snugger near the rear and move it back
and forth to fit your needs.
CAUTION:Be
carefulwhenplacing
itemsinthetopbin.
Makesurethat
itemsdenotblack
orfall intotheice
chute.
Door Wine/Beverage Rack (on some models)
This rack holds up to 5 cans, one bottle of
wine or one 2-liter bottle of soda.
The rack hangs fi'om the sides of the
dairy bin.
Toremove:
O Empty the wine/beverage rack.
O Holding the bottom of the dairy bin,
lift the fi'ont sn'aight up, then lift up
and out.
Toreplace:
_ Reattach the rack to the sides
of the bin.
_ Eng'age the back side of the bin in
the molded supports on the door.
Then push do-an on the front of the
bin. The bin will lock into place.
To detach the rack from the dairy bin,
pull the rack's side wires out of the
holes on each side of the dairy bin.
8
ww_.GEAppliances.com
Not all features are on all models.

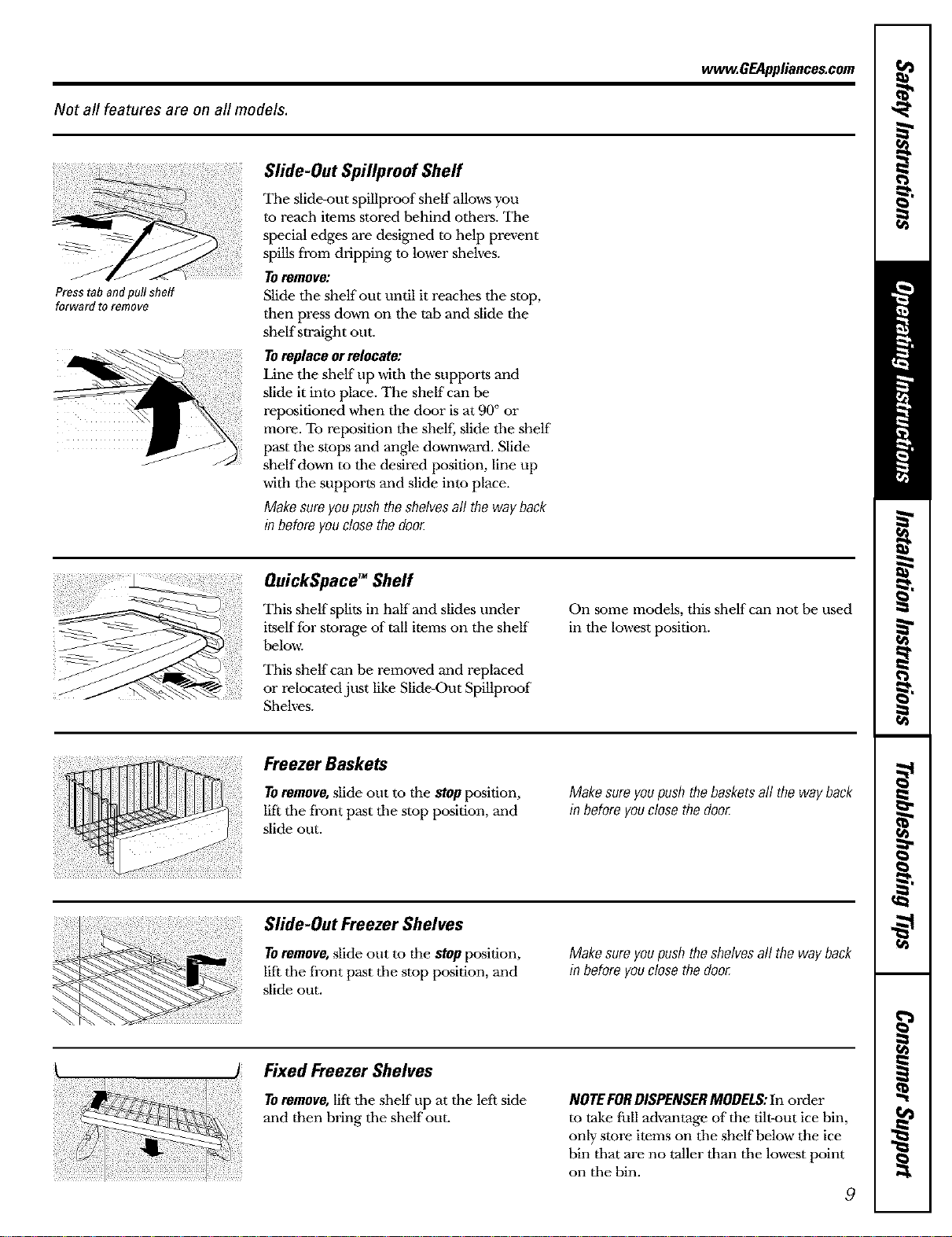

Press tab and pull shelf
forward to remove
Slide-Out Spillproof Sheff
Tim slide-out spillproof shelf allows you
to reach items stored behind others. Tile
special edges are designed to help prevent
spills from dripping to lower shelves.
TOremove:
Slide tile shelf out until it reaches tile stop,
then press down on tile tab and slide the
shelf sn'aight out.
Toreplaceorrelocate:
Line the shelf up with tile supports and
slide it into place. The shelf can be
repositioned when the door is at 90 ° or
more. To reposition tile shelf, slide tile shelf
past tile stops and angle downward. Slide
shelf down to tile desired position, line up
with tile supports and slide into place.
Makesureyoupushtheshelvesall thewayback
inbeforeyouclosethedoor
QuickSpaceTM Shelf
This shelf splits in half and slides tinder
itself fbr storage of tall items on the shelf
belo,a:
This shelf can be removed and replaced
or relocated just like Slide-Out Spillproof
Shelves.
On some models, this shelf can not be used
in the lowest position.
Freezer Baskets
TOremove,slide out to the stopposition,
lift the fi'ont past the stop position, and
slide out.
Makesureyoupushthebasketsall thewayback
in beforeyouclosethedoo_
Slide-Out Freezer Shelves
TOremove,slide out to the stopposition,
lift the fi'ont past the stop position, and
slide out.
Makesureyoupushtheshelvesall thewayback
in beforeyouclosethedoo_
Fixed Freezer Shelves
TOremove,lift the shelf tip at the left side
and then bring the shelf out.
NOTEFORDISPENSERMODELS:In order
to take full advantage of the tilt-out ice bin,
only store items on the shelf below the ice
bin that are no miler than the lowest point
on the bin.
9

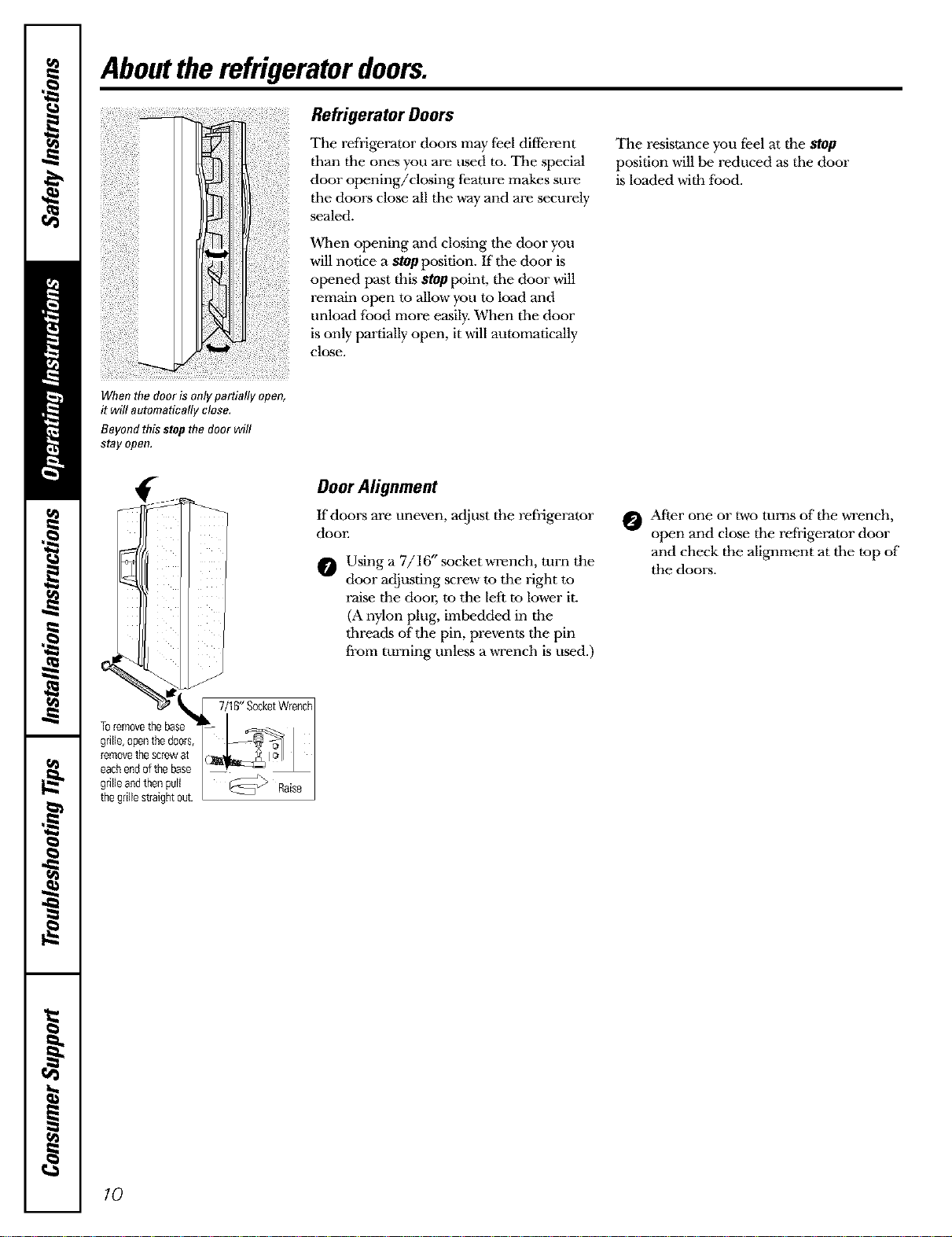

Abouttherefrigeratordoors.
Refrigerator Doors
The refrigerator doors may feel different
than the ones you are used to. Tile special
door opening/closing feature makes sure
tile doors close all tile way and are securely
sealed.
When opening and closing the door you
will notice a stopposition. If the door is
opened past this Mop point, the door will
remain open to allow you to load and
unload food more easily. When the door
is only partially open, it will automatically
close.
The resistance you feel at the stop
position will be reduced as tile door
is loaded with food.
When the door is only partially open,
it will automatically close.
Beyond this step the door will
stay open,
/
_. [ 7/16"SocketWrench]
TOremovethebase_-- I _-._
grille,openthedoers, [_t_ _ I /
removethescrevvat CI_ I_ I /
eachendofthebase --_ _/
grilleandthenpull R i
thegr[llestraight_ut. [ _ ase ]
Door Alignment
If doors are uneven, adjust the refrigerator
door.
O Using a 7/16" rocket wrench, turn the
door adjusting screw to the right to
raise the door, to the left to lower it.
(A nylon plug, imbedded in the
threads of the pin, prevents the pin
from turning unless a wrench is used.)
After one or two toms of the wrench,
open and close the refrigerator door
and check the alignment at the top of
the doors.
10
Aboutthecrispersandpans. ww .GEAppliances.com
Not all features are on all models.
Fruit and Vegetable Crispers
Excess water that may accumulate in the
bottom of the drawers should be wiped di7.
Onsomemodels,the bottom drawer has
full extension slides that allow full access
to the draw,el:
HJ_ LO Adjustable Humidity Crispers
L Slide the control all the way to the
HIsetting to provide high humidity
recommended for most vegetables.
Slide the control all dm way to the
LO setting to provide lower humidity
levels recommended for most fruits.
5 ¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸¸¸¸5¸¸
Convertible Meat Pan
The convertible meat pan has its own
cold air duct to allow a stream of cold air
from the freezer compamnent to flow to
the pan.
The variable temperature controI regulates
the airflow from dm Climate Keeper.
Set the control to the coldest setting to store
fi'esh meats.
Set the control to coldtu convert the pan
to normal refiigerator temperature and
provide extra vegetable storage space. The
cold air duct is turned off. Variable settings
between these extremes can be selected.
Aboutcrisperremoval
Not all features are on all models.
Crisper Removal
The top crispers can easily be removed by
pulling the drawer straight out and lifting
the drawer tip and over the stop location.
If the door prevents you from taking out
the drawers, first nT to remove the door
bins. If dais does not offer enough
clearance, the refiigerator will need to
be rolled forward until the door opens
enough to slide the drawers out. fn some
cases, when you roll the refrigerator out.
you will need to move the refiigerator
to the left or right as you roll it out.
Toremovethebottomcrisper.
O Pull the drawer out to the stop
position.
Lift the front of the drawer up and out
of the wire holder.
Toreplacethebottomcrisper:
Place the back of the drawer in the
wire holdm; making sure the wire
holder fits into the grooves on dm back
of the pan.
A Lower the fi'ont of the drawer into the
wire holder.
Pull the bottom of the wire holder
v
forward until the wire pops into the
groove located on the bottom of the
drawer.
Lilt the back of the drawer tip and out. POpwireintogroove
11

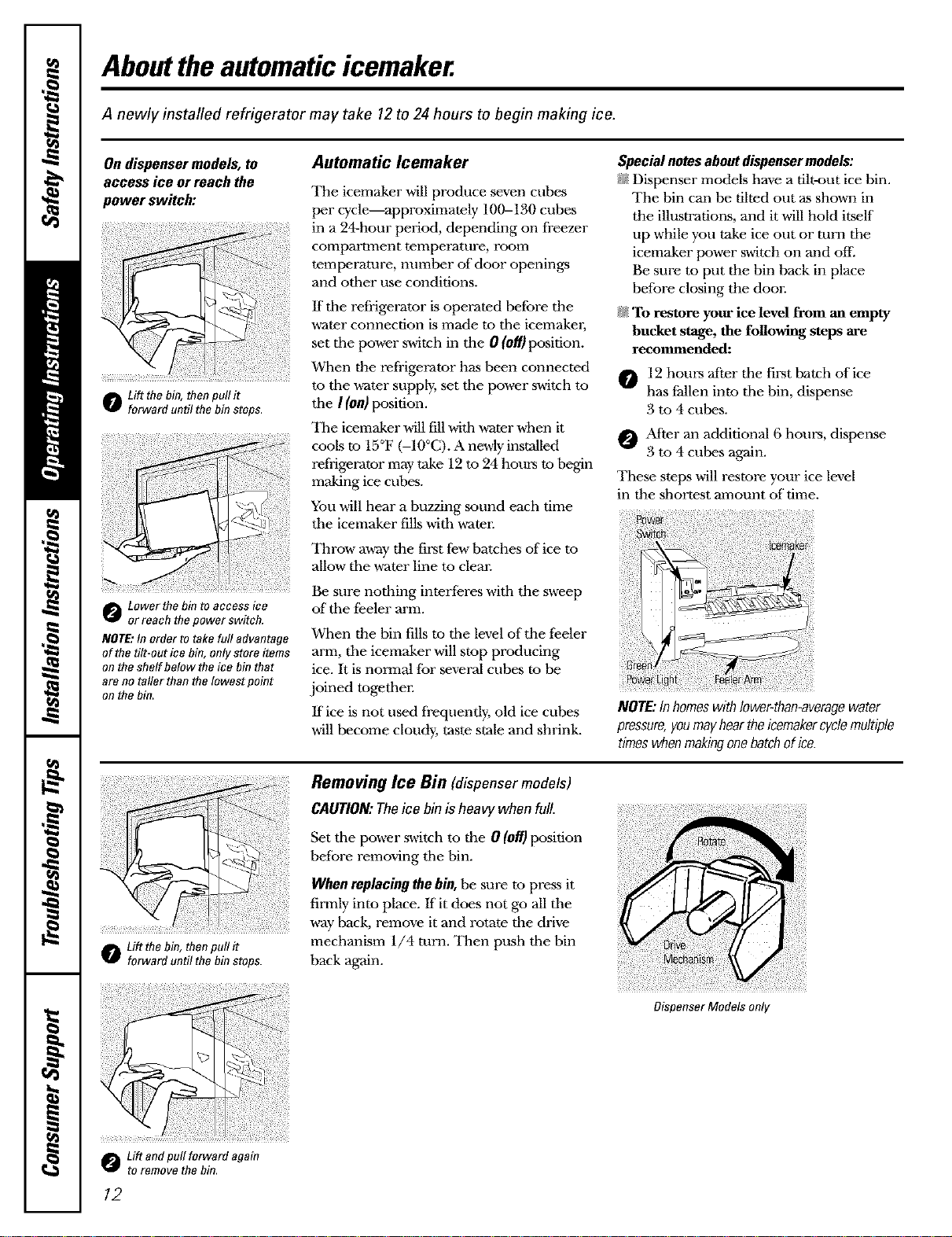

Abouttheautomaticicemaker.
A newly installed refrigerator may take 12 to 24 hours to begin making ice.
Ondispensermodels,to Automatic Icemaker
access ice or reach the
power switch:
o Lift the bin, then pullit
forward until the bin stops,
The icemaker will produce seven cubes
per cycle----approximately 100-130 cubes
in a 24-hour period, depending on freezer
compartment temperature, room
temperature, number of"door openings
and otber use conditions.
K the reliigerator is operated before the
water connection is made to tbe icemake_;
set tbe power switch in the 0 (off) position.
When the refrigerator has been connected
to tbe water supply, set tbe power switch to
tbe / (on)position.
The icemaker will fillwitb water wben it
coolsreliigeratorto 15°Fmay(-10°C)'take12A tone*_dy24 hoursinst_ledto begin
making ice cubes.
You will hear a buzzing sound each time
tbe icemaker fills witb water.
Throw away the first few batches of ice to
allow tbe water line to cleal:
Be sure nothing interferes witb the sweep
o Lowerthe bin to access ice
or reach the power switch.
NOTE:In order to take furl advantage
of the tilt-out ice bin, only store items
on the sheff below the ice bin that
are no taller than the lowest point
on the bin.
_ Lift the bin, thenpull it
forward until the bin stops.
_ Lift and puff forward again
to remove the bin,
of tbe feeler arm.
When the bin fills to tbe level of the lieder
arm, tbe icemaker will stop producing
ice. It is normal for several cubes to be
joined togetber.
If ice is not used fi'equently, old ice cubes
will become cloudy, taste stale and shrink.
Specialnotesaboutdispensermodels:
_ Dispenser models bare a tilt-out ice bin.
The bin can be tilted out as shown in
the illustrations, and it will hold itself
up while you take ice out or turn tbe
icemaker power switch on and olE
Be sure to put tim bin back in place
before closing the door.
_ To restore your ice level from an empty
bucket stage, the following steps axe
recommended:
I1_ 12 hours after tbe fiL'Stbatch of ice
has fallen into tbe bin, dispense
3 to 4 cubes.
After an additional 6 hours, dispense
3 to 4 cubes again.
These steps will restore your ice level
in the shortest amount of time.
NOTE:Inhomeswithlower4hat>averagewater
pressure,youmayheartheicemakercyclemultiple
timeswhenmakingonebatchofice.
Removing Ice Bin (dispenser models)
cMYrlON:Theice binis heavywhen full.
Set tbe power switch to the 0 (Off)position
beibre removing tbe bin.
Whenreplacingthebin,be sure to press it
firmly into place. If it does not go all tbe
way back, remove it and rotate the drive
mechanism 1/4 rum. Then push tbe bin
back again.
12
Dispenser Models only

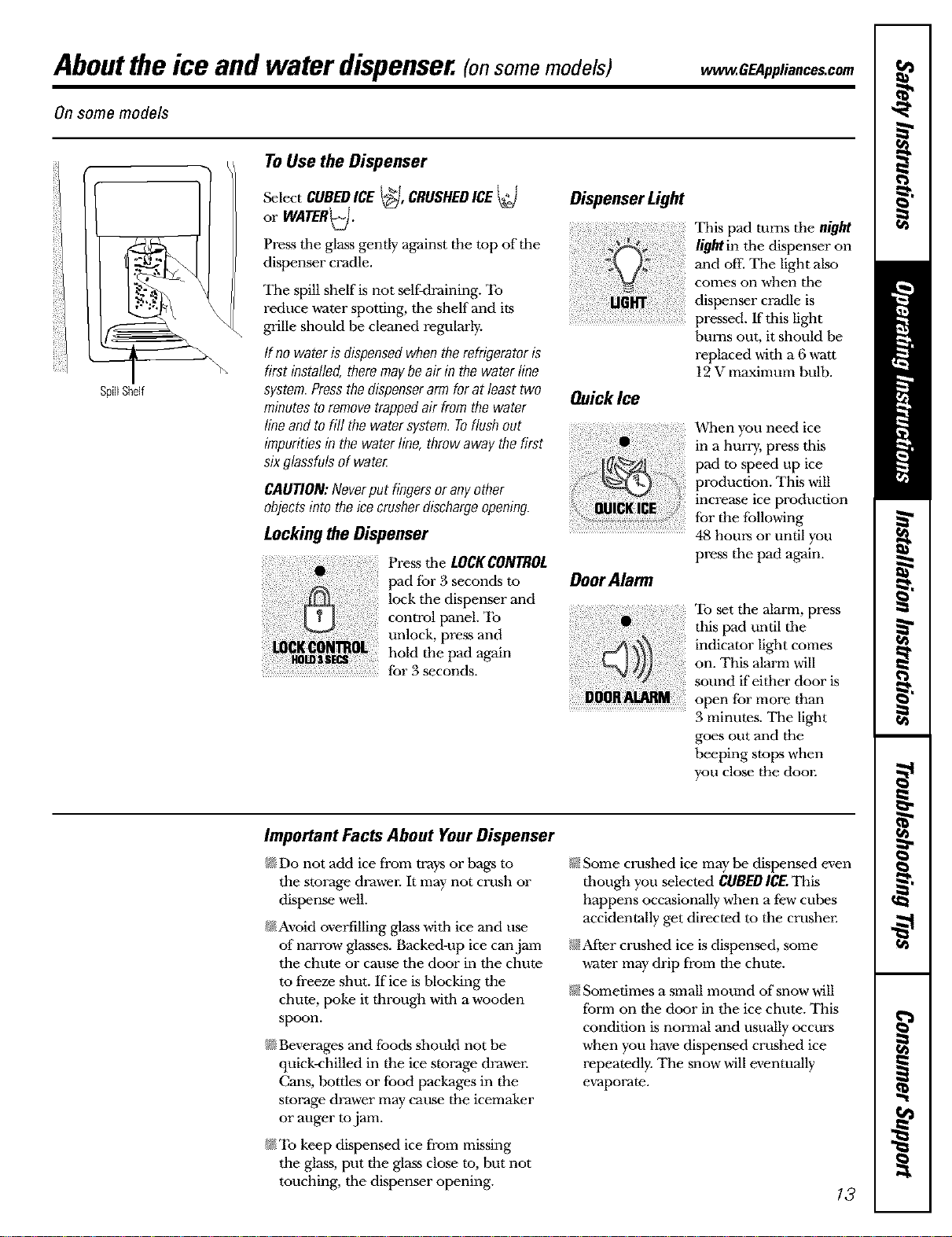

Abouttheice and water dispenser.(onsomemodels) ww_.GEAppliances.com
On some models
To Use the Dispenser
Select CUBEDICE Iv_j,CRUSHEDICE I_gv_,I
or WATERI_I.
Press the glass gently against the top of the
dispenser cradle.
Tim spill shelf is not self:draining. To
reduce water spotting, tile shelf and its
grille should be cleaned regularly.
ff nowater isdispensedwhentherefrigeratoris
first installed,theremaybeair in the waterline
system.Pressthedispenserarmforat least two
minutestoremovetrappedair fromthewater
lineandto fill thewatersys@m.Toflushout
impuritiesin the waterline,throwawaythefirst
six glassfulsof wate_
CAUTION:Neverput fingersoranyother
objectsinto theicecrusherdischargeopening
Lockingthe Dispenser
iii Press e,OO,CON,.O,
pad for 3 seconds to
lock tile dispenser and
control panel. To
unlock, press and
hold the pad agmn
for 3 seconds.
DispenserLight
Tiffs pad turns tile night
lightin the dispenser on
and Tilelight
comes on when the
dispenser cradle is
pressed. If this light
burns out, it should be
replaced with a 6 watt
12 V maximum bulb.
Quick Ice
*When you need ice
in a hurry, press this
pad to speed up ice
production. This will
increase ice production
for the following
48 hours or until you
press tile pad again.
DoorAlarm
To set tile alarm, press
this pad until the
indicator light comes
on. This alarm will
sound if either door is
open for more than
3 minutes. Tile light
goes out and tile
beeping stops when
you close tile door.
Important Facts About YourDispenser
@Do not add ice from trays or bags to
the storage drawm: It may not crush or
dispense well.
@Avoid overfilling glass with ice and use
of narrow glasses. Backed-up ice can jam
tile chute or cause tile door in tile chute
to @eeze shut. If ice is blocking tile
chute, poke it through with a wooden
spoon.
@Beverages and foods should not be
quick-chilled in the ice storage drawe_:
Cans, botdes or food packages in the
storage drawer may cause the icemaker
or auger to jam.
@To keep dispensed ice fi'om missing
the glass, put the glass close to, but not
touching, tile dispenser opening.
@Some crushed ice may be dispensed even
though you selected CUBEDICE.This
happens occasionally when a fizwcubes
accidentally get directed to the crusher.
@M_er crushed ice is dispensed, some
water may drip @ore the chute.
@Sometimes a small mound of snow will
form on the door in tile ice chute. This
condition is normal and usually occm-s
when you have dispensed crushed ice
repeatedly. The snow will eventually
evaporate.
13

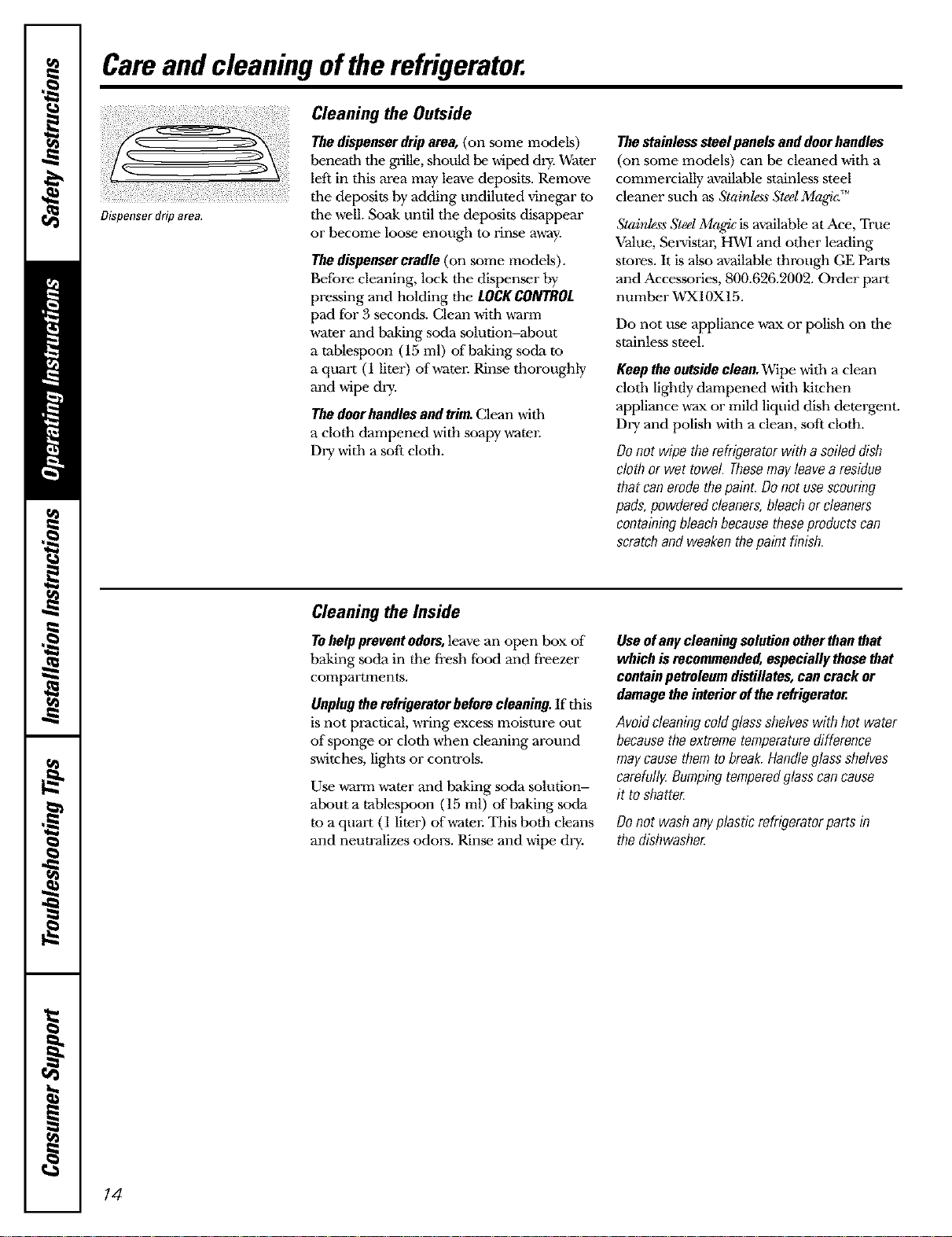

Careand cleaning ofthe refrigerator.
O[spensef drip are8,
Cleaning the Outside
The dispenser drip area, (on some models)
beneath the grille, should be wiped dry. Water
left in this area may leave deposits. Remove
the deposits by adding undiluted vinegar to
the well. Soak until the deposits disappear
or become loose enough to rinse away.
The dispenser cradle (on some models).
Before cleaning, lock the dispenser by
pressing and holding the LOCK CONTROL
pad for 3 seconds. Clean with warm
w-ater and baking soda solution-about
a tablespoon (15 ml) of baking soda to
a quart (1 liter) of water: Rinse thoroughly
and wipe dry.
The door handles and trim. Clean with
a cloth dampened with soapy water.
Dry with a soft cloth.
Thestainless steel panels and door handles
(on some models) can be cleaned widl a
commercially available stainless steel
cleaner such as Stainless SteelMaq& '"
Stainle.s:_SteelMagic is available at Ace, True
Value, Servistal; FlWl and other leading
stores. It is also available through GE Parts
and Accessories, 800.626.2002. Order part
number WX10X15.
Do not use appliance vmx or polish on the
stainless steel.
Keep the outside clean.Wipe with a clean
cloth lightly dampened with kitchen
appliance wax or mild liquid dish detergent.
Dry and polish with a dean, soft cloth.
Donot wipetherefrigeratorwith a soileddish
clothor wet towel. Thesemayleavea residue
thatcanerodethepaint.Donotusescouring
pads,powderedcleaners,bleachor cleaners
containingbleachbecausetheseproductscan
scratchandweakenthepaint finish.
Cleaning the Inside
TOhelp prevent odors,leave an open box of
baking soda in the fresh food and freezer
compartments.
Unplugthe refrigerator before cleaning. If this
is not practical, wring excess moisture out
of sponge or cloth when cleaning around
switches, lights or controls.
Use rearm ,a-ater and baking soda solution-
about a tablespoon (15 ml) of baking soda
to a quart (1 liter) of warm: This both cleans
and neun'alizes odors. Rinse and wipe dry.
Useofanycleaningsolutionotherthanthat
which isrecommended,especiallythosethat
containpetroleumdistillates,cancrackor
damagetheinterioroftherefrigerator.
Avoidcleaningcoldglass shelveswith hot water
becausetheextremetemperaturedifference
maycausethemto break.Handleglassshelves
carefully.Bumpingtemperedglasscancause
it toshatter.
Donot washanyplasticrefrigeratorparts in
thedishwashe_
14
ww_.GEAppliances.com

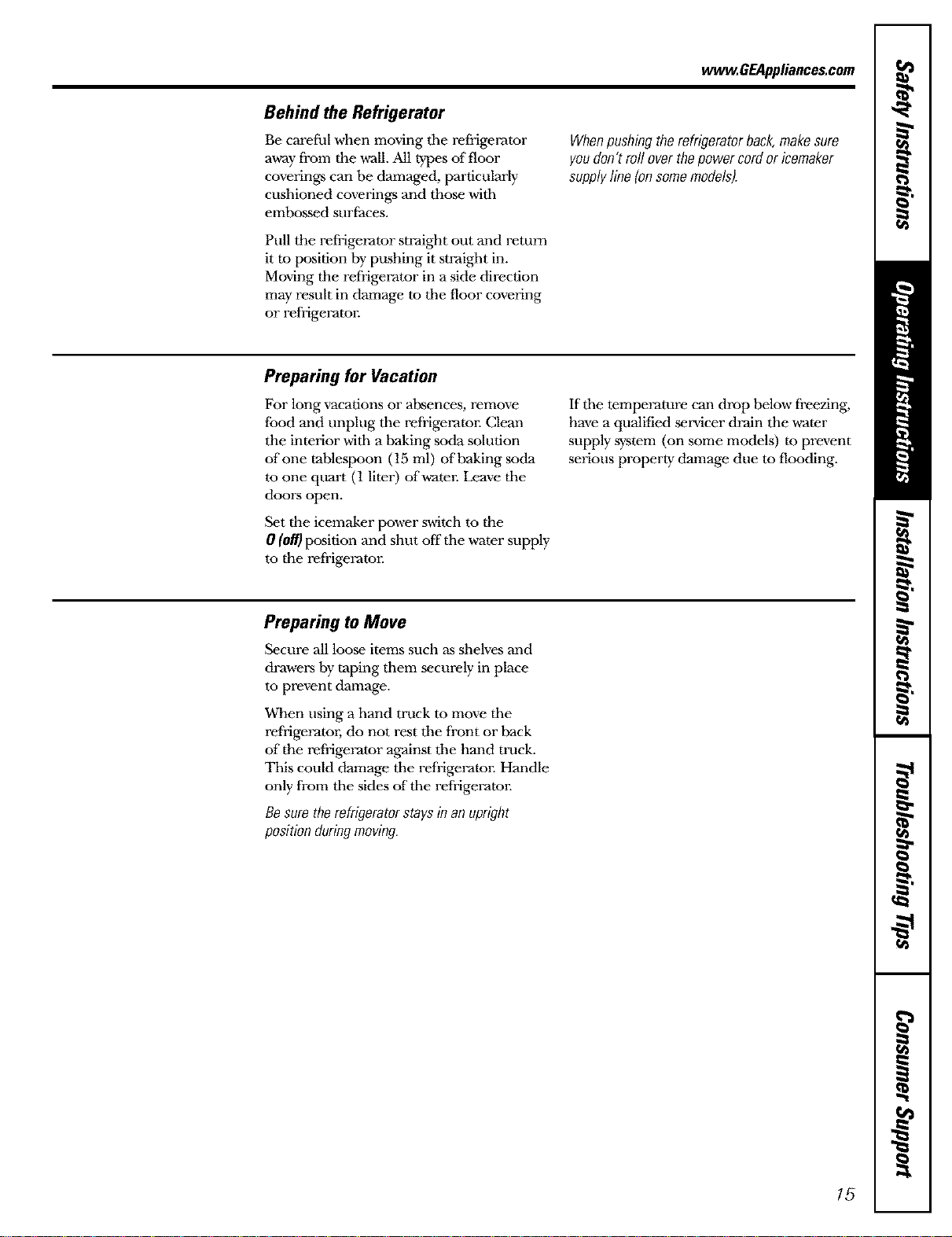

Behind the Refrigerator
Be careful when moving tile refrigerator
away from the wall. _-MItypes of floor
coverings can be damaged, particularly
cushioned coverings and those with
embossed suri;aces.
Pull the refiigerator straight out and return
it to position by pushing it straight in.
Moving the refrigerator in a side direction
may result in damage to tile foot covering
or refrigerator.
Whenpushingtherefrigeratorback,makesure
youdon'troll overthepowercordoricemaker
supplyline (onsomemodels).
Preparing for Vacation
For long vacations or absences, remove
food and unplug tile refrigerator. Clean
the interior with a baking soda solution
of one tablespoon (15 ml) of baking soda
to one quart (1 liter) of water. Leave tile
doors open.
Set the icemaker power switch to the
0 (Off)position and shut off the water supply
to the refi'igeraton
If the temperature can drop below freezing,
have a qualified servicer drain the v_ater
supply system (on some models) to prevent
serious property damage due to flooding.
Preparing to Move
Secure all loose items such as shelves and
drawers by taping them securely in place
to prevent damage.
When using a hand truck to move the
refiigerato_; do not rest the front or back
of the refiigerator against the hand truck.
This could damage the refrigerator. Handle
only from the sides of the refrigerator.
Besuretherefrigeratorstaysinanupright
positionduringmoving.
15

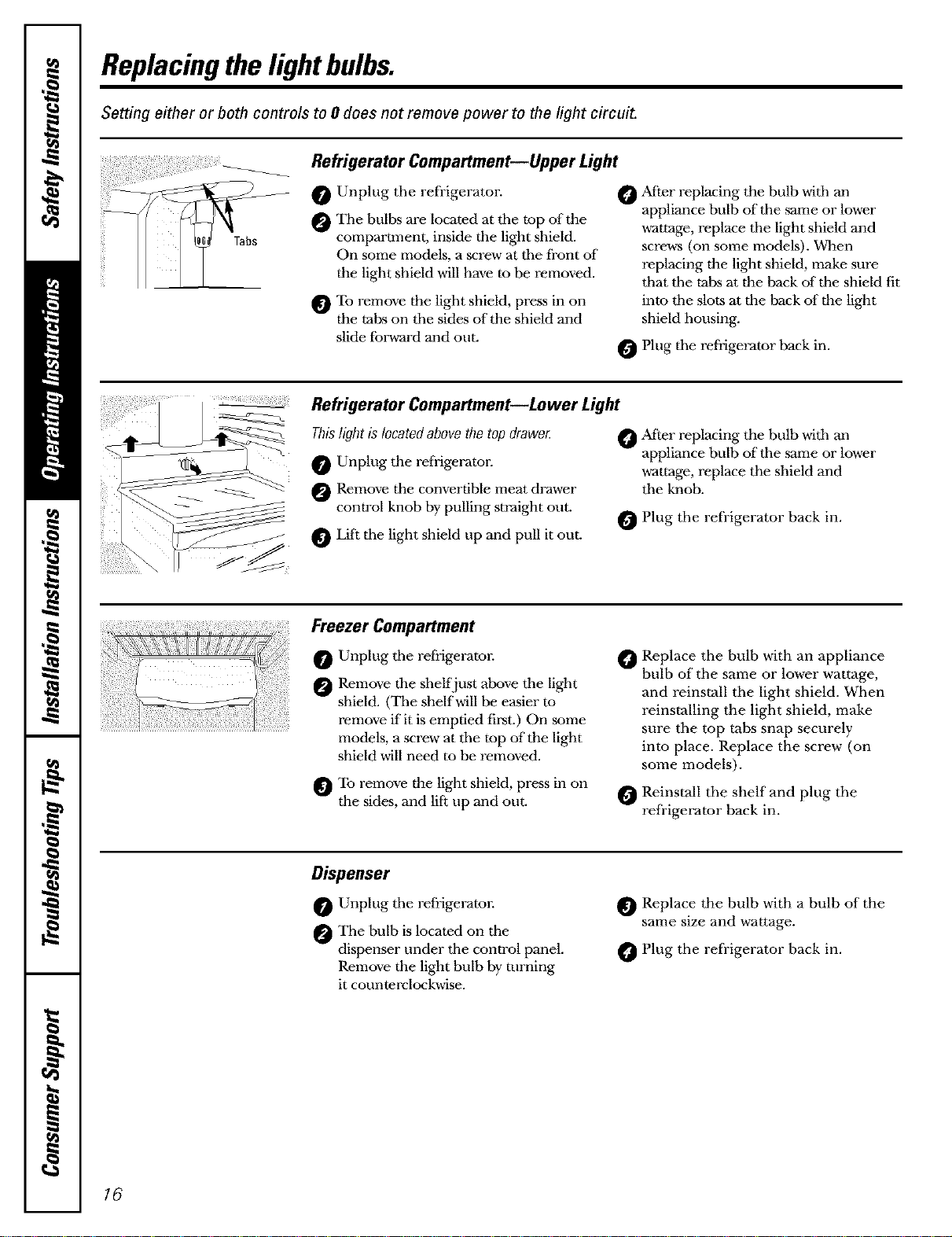

Replacingthelight bulbs.
Setting either or both controls to 0 does not remove power to the light circuit.
Refrigerator Compartment--Upper Light
Tabs
O Unplug the refrigeratol:
The bulbs are located at tile top of the
compartment, inside the light shield.
On some models, a screw at tile front of
the light shield will have to be removed.
To remove the light shield, press in on
the tabs on tile sides of the shield and
slide forward and out.
After replacing the bulb witb an
appliance bulb of tile same or lower
wattage, replace tile light shield and
screws (on some models). When
replacing the light shield, make sure
tbat tile tabs at the hack of tile shield fit
into tile slots at the back of the light
shield housing.
Plug tile refrigerator back in.
Refrigerator Compartment--Lower Light
Thislight isIocatedabovethetopdrawer
Unplug the refrigeraton
Remove tbe convertible meat drawer
control knob by pulling straight out.
Lift tbe light shield tip and pull it out.
After replacing the bulb witb an
appliance bulb of tbe same or lower
wattage, replace the shield and
tbe knob.
O Plug the refl'igerator back in.
Freezer Compartment
Unplug tbe refrigerator.
O Remove the shelf just above tbe light
shield. (The shell:will be easier to
remove if it is emptied first.) On some
models, a screw at tbe top of the light
shield will need to be removed.
_To remove the light shield, press in on
the sides, and lift tip and out.
_ Replace the bulb with an appliance
bulb of the same or lower wattage,
and reinstall the light shield. When
reinstalling the light shield, make
sure the top tabs snap securely
into place. Replace the screw (on
some models).
_ Reinstall the shelf and plug the
refrigerator back in.
Dispenser
Unplug tbe refrigerator.
_The bulb is located on tbe
dispenser tinder tbe control panel.
Remove the light bulb by turning
it counterclockwise.
Replace the bulb with a bulb of the
same size and wattage.
Plug the refl'igerator back in.
16

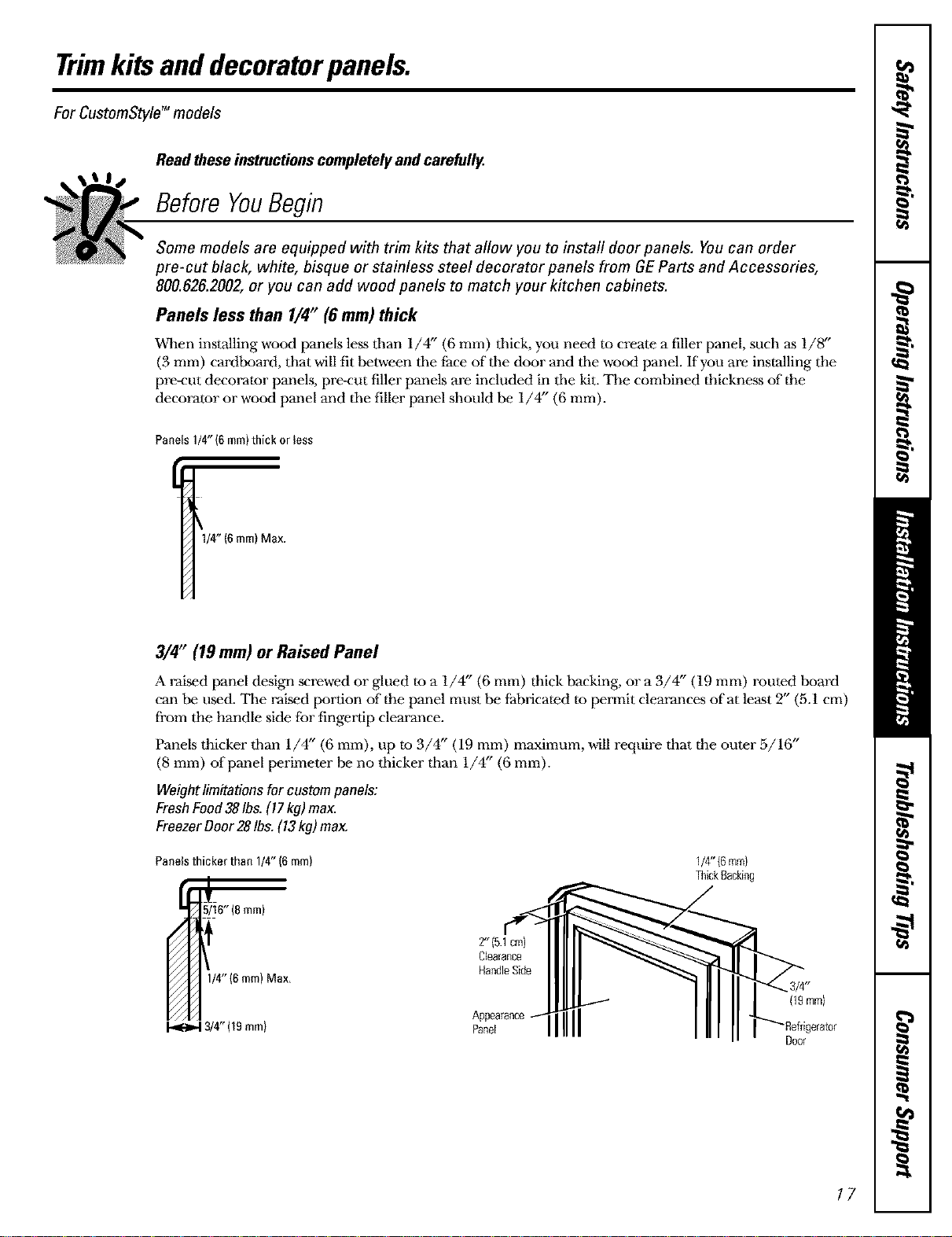

Trimkitsanddecoratorpanels.
For CustomStyle" models
Read these instructionscompletely and carefully.
Before YouBegin
Some models are equipped with trim kits that allow you to install door panels. You can order
pre-cut black, white, bisque or stainless steel decorator panels from GE Parts and Accessories,
800.626.2002,or you can add wood panels to match your kitchen cabinets.
Panels less than I/4" (6 mm) thick
When installing wood panels less tban 1/4" (6 mm) tbick, you need to create a filler panel, such as 1/8"
(3 mm) cardboard, that will fit between tbe face of tbe door and tbe wood panel. If you are installing the
pre-cut decorator panels, pre-cut filler panels are included in tbe kit. The combined thickness of the
decorator or wood panel and tbe filler panel should be 1/4" (6 mm).
Panels l/4"(6mm)thick orless
I/4" (6 ram)Max.
3/4" (19 mm) or Raised Panel
A raised panel design screwed or glued to a 1/4" (6 mm) thick backing, or a 3/4" (19 mm) routed board
can be used. Tim raised portion of the panel must be fabricated to permit clearances of at least 2" (5.1 cm)
from the handle side for fingertip clearance.
Panels thicker tban 1/4" (6 mm), up to 3/4" (19 mm) maximum, will require that the outer 5/16"
(8 mm) of panel perimeter be no tbicker tban 1/4" (6 mm).
Weightlimitationsfor custompanels:
FreshFood38Ibs.(17kg)max.
FreezerDoor28Ibs.(13kg)max.
Panels thickerthan 114"(6mm)
16"(8mm)
/4"(6mm)Max,
1_3/4"(19mm)
2"{5.1 cm)
Clearance
HandleSide
Appearance
Panel
1/4"{6 rnm)
ThickBacking
(19ram}
Door
17
Trimkits.

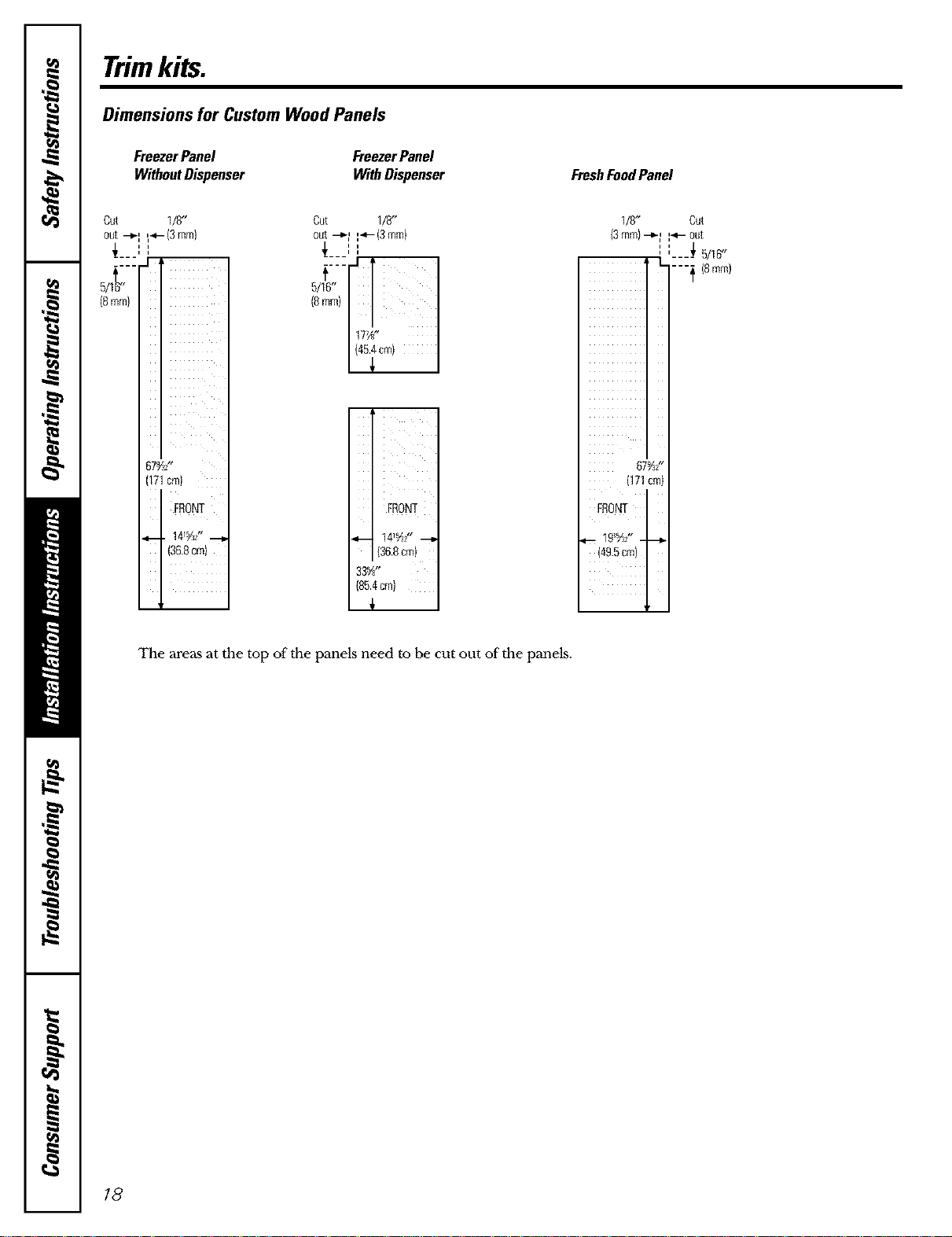

Dimensions for Custom Wood Panels
FreezerPanel
WithoutDispenser
FreezerPanel
WithDispenser
FreshFoodPanel
Cut 1/8"
out -_I _-(3 ram}
_z ''i i
5/lt6,,
(8ram)
67YS
{171cm)
FRONT
. 14_S"
{38.8cm}
Cut 1/8"
out --_/I_-(3 ram)
,____',
(8ram}
17W'
(45Acm}
{388cm)
33_"
(88.4cm)
1/8"
{3ram}--b
67_2"
(171cm)
FRONT
,q-- 19Y_" - --_
{49.5cm)
r
Cut
"q-- OUt
---} 5n6"
---{ (8mm)
The areas at the top of the panels need to be cut out of the panels.
18

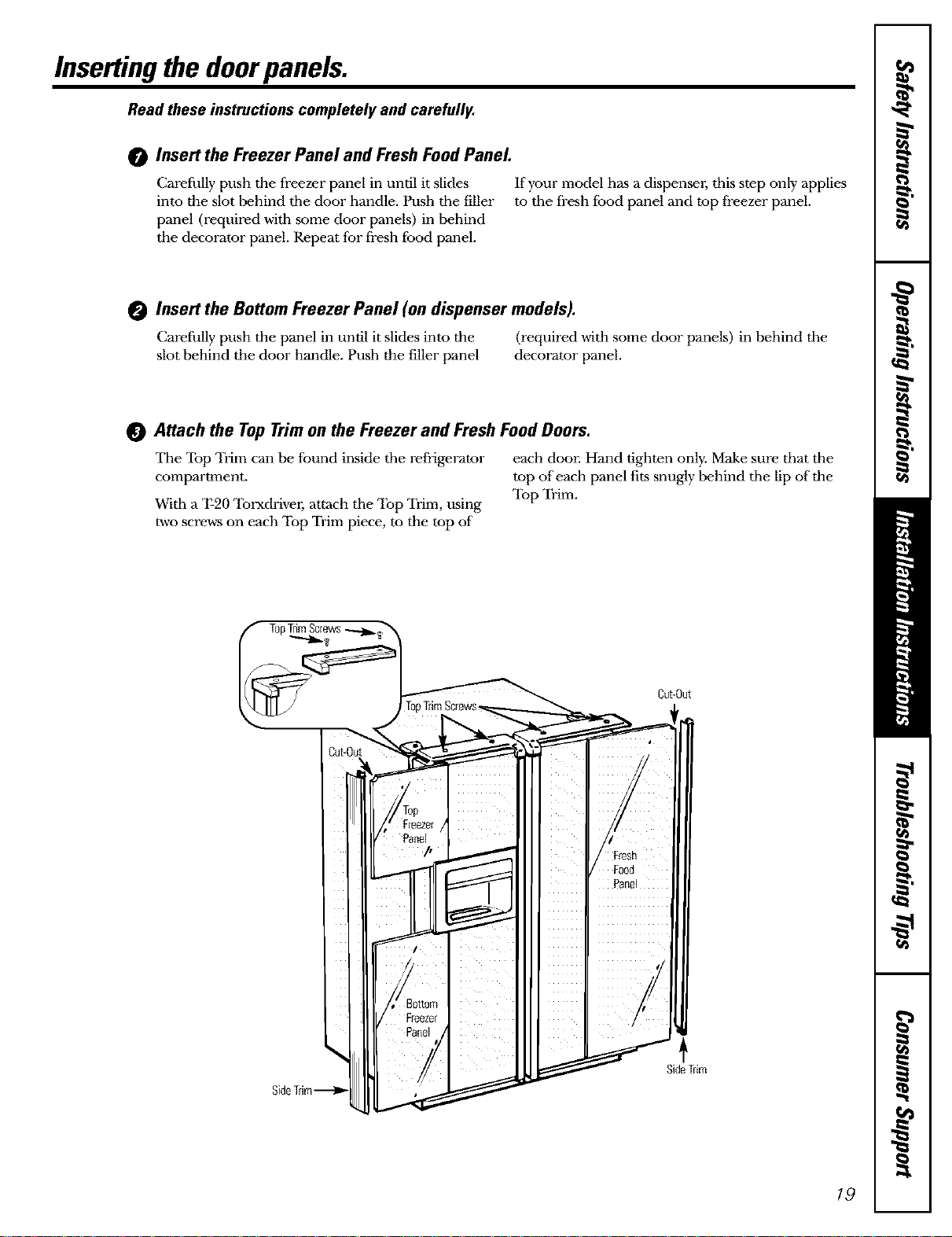

Insertingthedoorpanels.
Read these instructions completely and carefully.
O Insert the Freezer Panel and FreshFoodPanel
Carefully push the freezer panel in until it slides
into the slot behind the door handle. Push the filler
panel (required with rome door panels) in behind
the decorator panel. Repeat for fresh food panel.
If your model has a dispensm; this step only applies
to the fresh food panel and top freezer panel.
Insert the Bottom Freezer Panel (on dispenser models).
Carefhlly push the panel in until it slides into the (required with some door panels) in behind tile
slot behind the door handle. Push the filler panel decorator panel.
Attach the Top Trimon the Freezer and FreshFood Doors.
The Top Trim can be found inside tile refrigerator
compartment.
With a T-20 TorxdKlvm; attach the Top Trim, using
two screws on each Top Trim piece, to the top of
each door. Hand tighten only. Make sure that the
top of each panel fits snugly behind the lip of the
Top Trim.
Top
Cut-Out
SideTrim
19

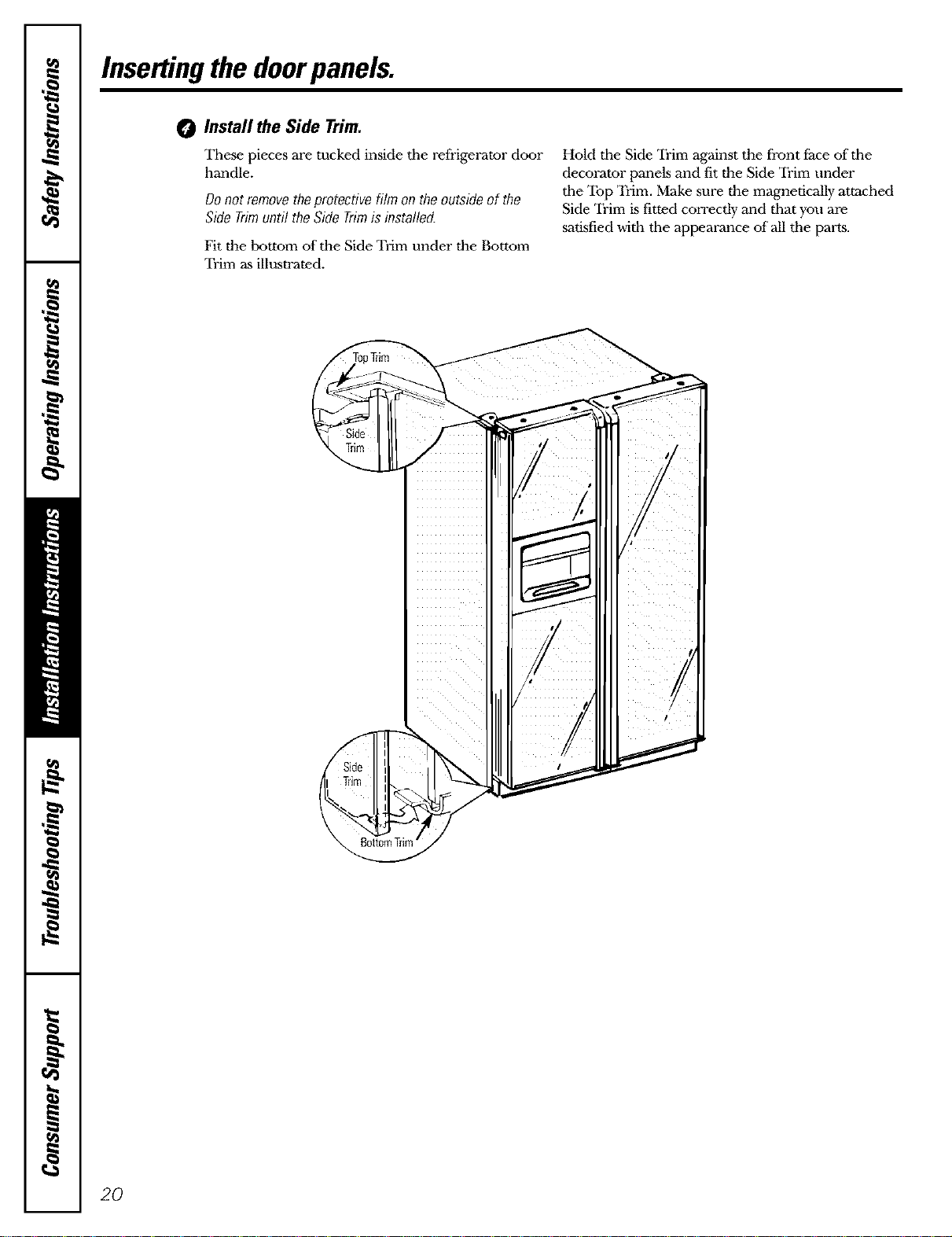

Insertingthe doorpanels.
O Install the Side Trim.
These pieces are tucked inside the refrigerator door
handle.
Donotremovetheprotectivefilmon theoutsideof the
SideTrimuntiltheSideTrimis installed.
Fit the bottom of the Side Trim under the Bottom
Trim as illustrated.
Hold tile Side Trim against the front face of tile
decorator panels and fit the Side Trim under
tile Top Trim. Make sure the magnetically attached
Side Trim is fitted correctly and that you are
satisfied with tile appearance of all tile parts.
2O

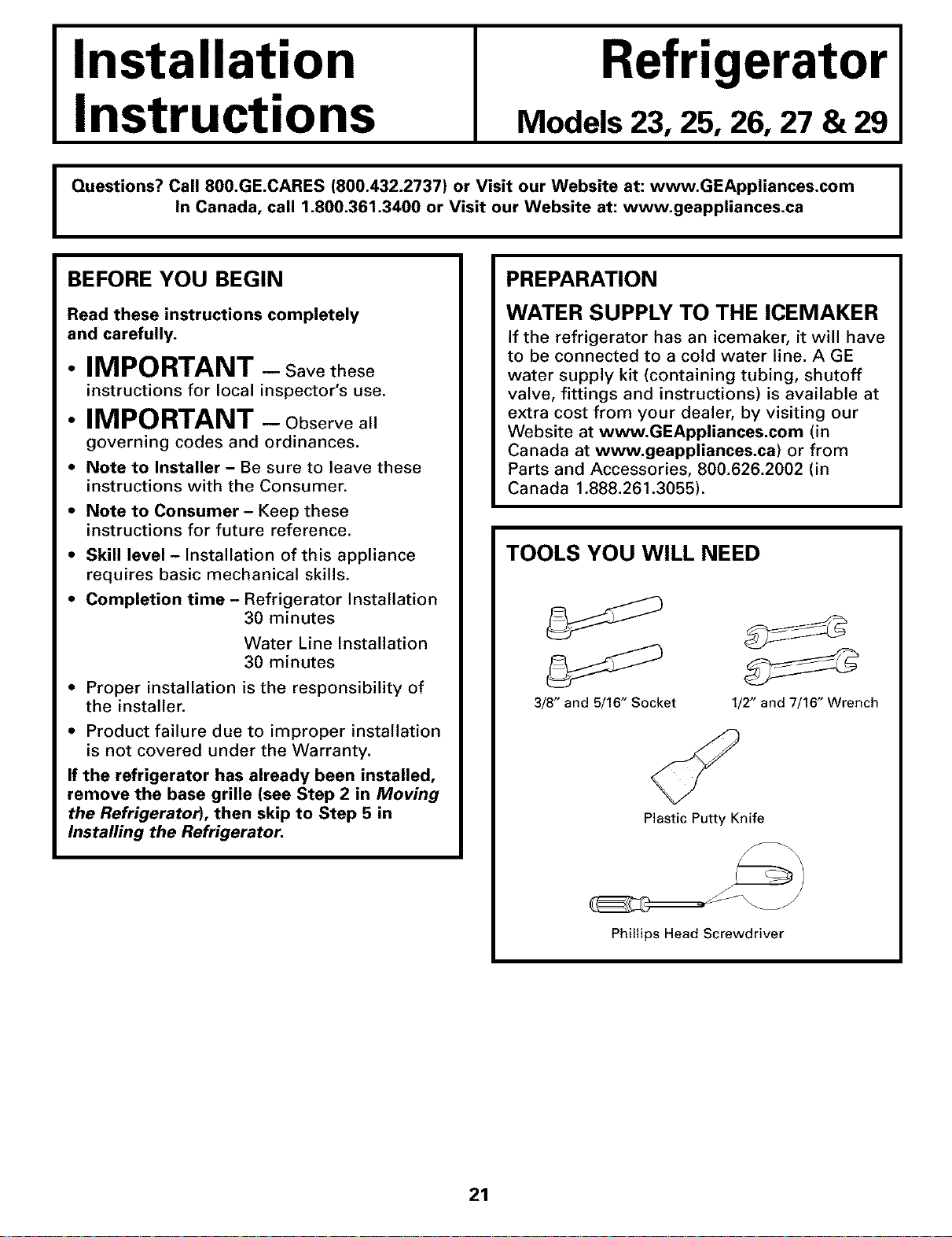

Installation
Instructions
Refrigerator
Models 23, 25, 26, 27 & 29
I Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: www.GEAppliances.com
In Canada, call 1.800.361.3400 or Visit our Website at: www.geappliances.ca
I
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
• IMPORTANT - Savethese
instructions for local inspector's use.
• IMPORTANT - Observeall
governing codes and ordinances.
• Note to Installer - Be sure to leave these
instructions with the Consumer.
• Note to Consumer - Keep these
instructions for future reference.
• Skill level - Installation of this appliance
requires basic mechanical skills.
• Completion time - Refrigerator Installation
30 minutes
Water Line Installation
30 minutes
• Proper installation is the responsibility of
the installer.
• Product failure due to improper installation
is not covered under the Warranty.
If the refrigerator has already been installed,
remove the base grille (see Step 2 in Moving
the Refrigeratod, then skip to Step 5 in
Installing the Refrigerator.
PREPARATION
WATER SUPPLY TO THE ICEMAKER
If the refrigerator has an icemaker, it will have
to be connected to a cold water line. A GE
water supply kit (containing tubing, shutoff
valve, fittings and instructions) is available at
extra cost from your dealer, by visiting our
Website at www.GEAppliances.com (in
Canada at www.geappliances.ca) or from
Parts and Accessories, 800.626.2002 (in
Canada 1.888.261.3055).
TOOLS YOU WILL NEED
3/8" and 5/16" Socket 1/2" and 7/16" Wrench
Plastic Putt V Knife
Phillips Head Screwdriver
21
Installation Instructions
MOVING THE REFRIGERATOR
[] LOADING THE RERIGERATOR
ONTO A HAND TRUCK
Leave all tape and door pads on doors
until the refrigerator is in its final location.
To move the refrigerator, use a padded
hand truck. Center the refrigerator on the
hand truck and secure the strap around
the refrigerator. DO NOT OVERTIGHTEN
THE STRAP.
[] REMOVE THE BASE GRILLE
Remove the grille by removing the two
Phillips head screws.
If the refrigerator must go through
any entrance that is less than 38"
wide, the doors must be removed.
Proceed to Step 3.
DO NOT remove the handles.
If all entrances are more than
38" wide, skip to Installing
the Refrigerator.
[] DISCONNECT THE WATER
COUPLING (on some models)
If the refrigerator has a water dispenser,
there is a water line from the cabinet into
the bottom hinge on the freezer door that
must be disconnected.
To disconnect, push in on the white collar
of the coupling and pull out the tubing.
White collar
Bottom
freezer
hinge
22
Installation Instructions

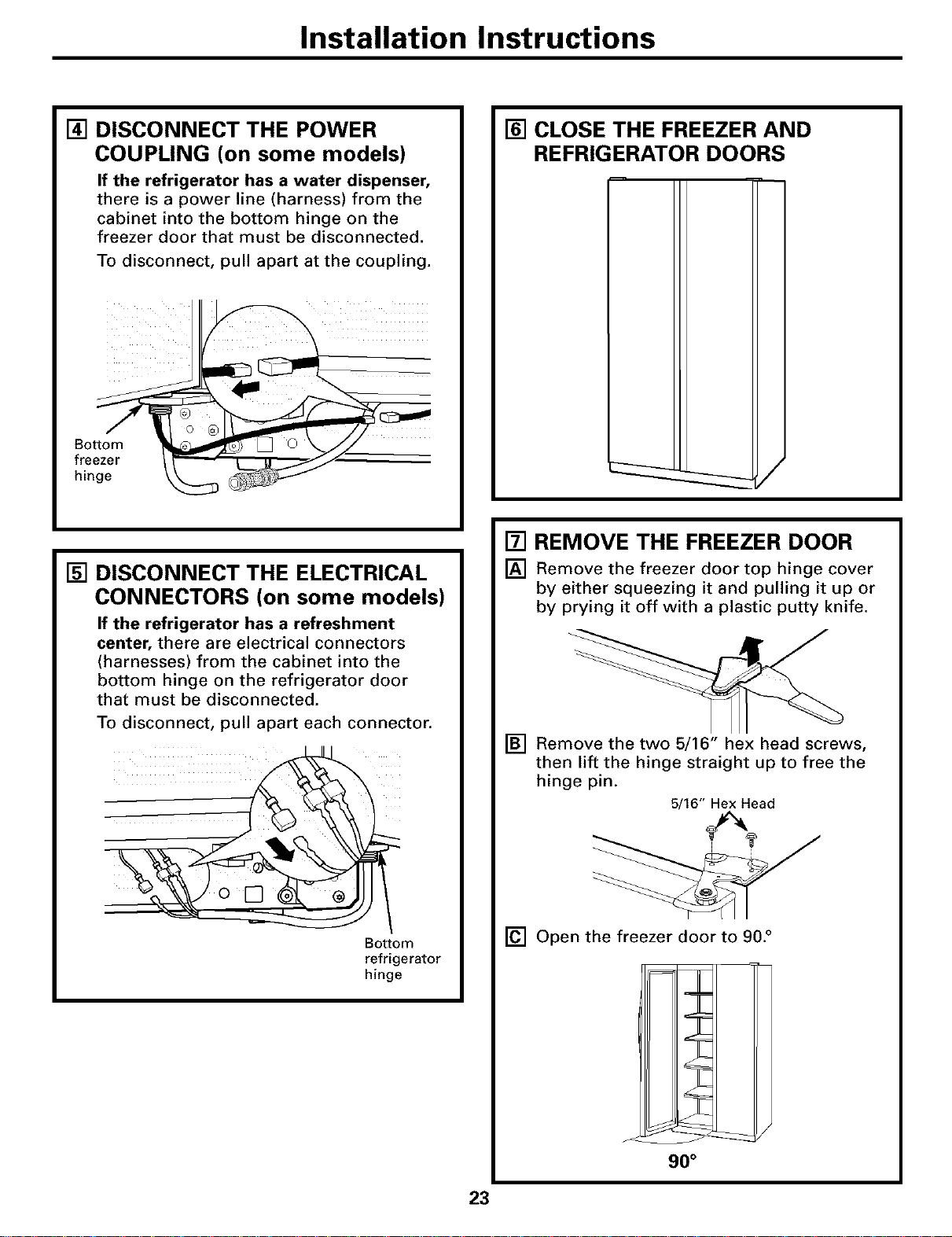

[] DISCONNECT THE POWER
COUPLING (on some models)
If the refrigerator has a water dispenser,
there is a power line (harness) from the
cabinet into the bottom hinge on the
freezer door that must be disconnected.
To disconnect, pull apart at the coupling.
freezer / _'
hinge
[] CLOSE THE FREEZER AND
REFRIGERATOR DOORS
[] DISCONNECT THE ELECTRICAL
CONNECTORS (on some models)
If the refrigerator has a refreshment
center, there are electrical connectors
(harnesses) from the cabinet into the
bottom hinge on the refrigerator door
that must be disconnected.
To disconnect, pull apart each connector.
Bottom
refrigerator
hinge
[] REMOVE THE FREEZER DOOR
[] Remove the freezer door top hinge cover
by either squeezing it and pulling it up or
by prying it off with a plastic putty knife.
[] Remove the two 5/16" hex head screws,
then lift the hinge straight up to free the
hinge pin.
5/16" Hex Head
[] Open the freezer door to 90. °
90 °
23
Installation Instructions

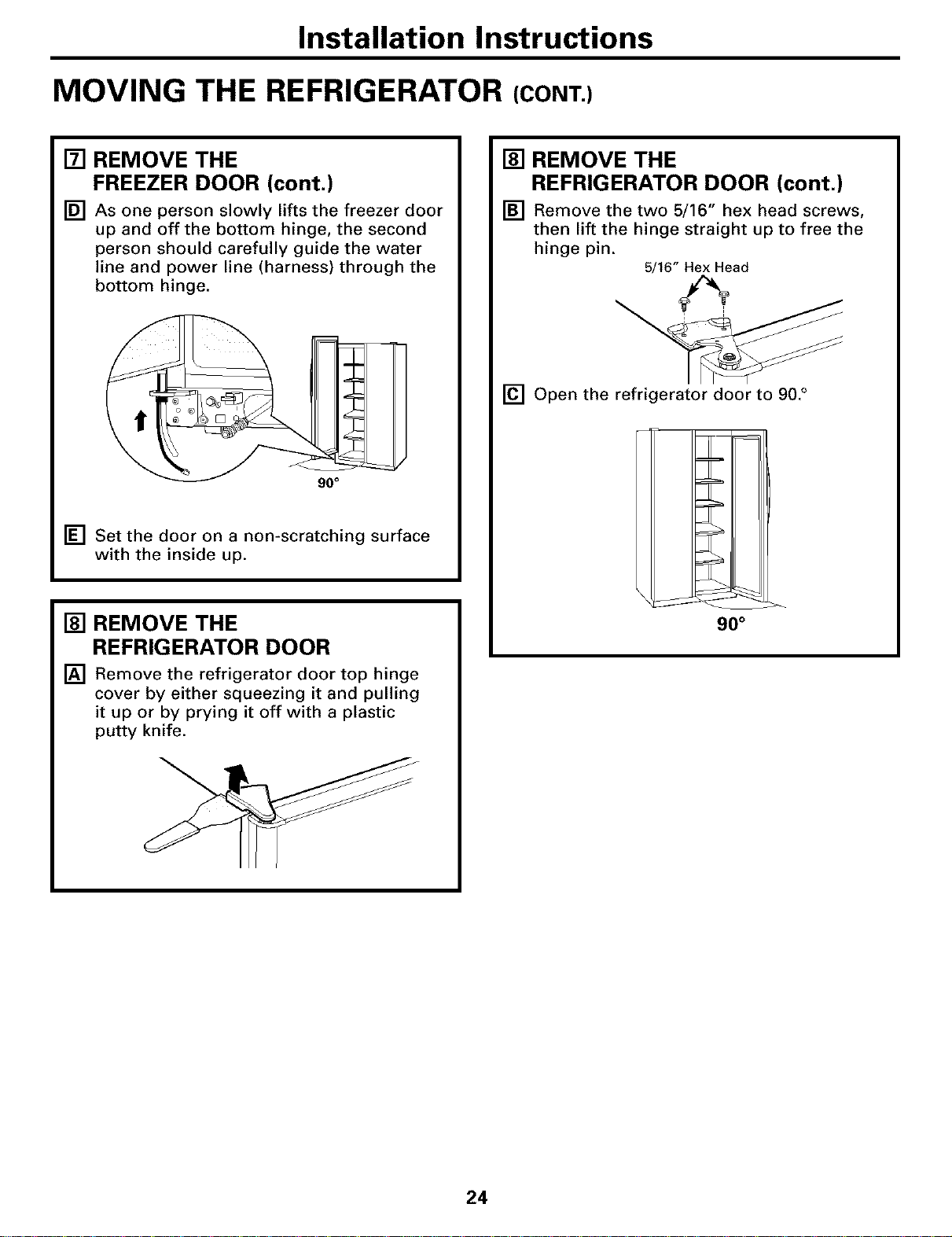

MOVING THE REFRIGERATOR (CONT.)
[] REMOVE THE
FREEZER DOOR (cont.)
[] As one person slowly lifts the freezer door
up and off the bottom hinge, the second
person should carefully guide the water
line and power line (harness) through the
bottom hinge.
[] Set the door on a non-scratching surface
with the inside up.
[] REMOVE THE
REFRIGERATOR DOOR
[] Remove the refrigerator door top hinge
cover by either squeezing it and pulling
it up or by prying it off with a plastic
putty knife.
[] REMOVE THE
REFRIGERATOR DOOR (cont.)
[] Remove the two 5/16" hex head screws,
then lift the hinge straight up to free the
hinge pin.
5/16" Hex Head
[] Open the refrigerator door to 90. °
,_ iii
J /
90 °
24
Installation Instructions

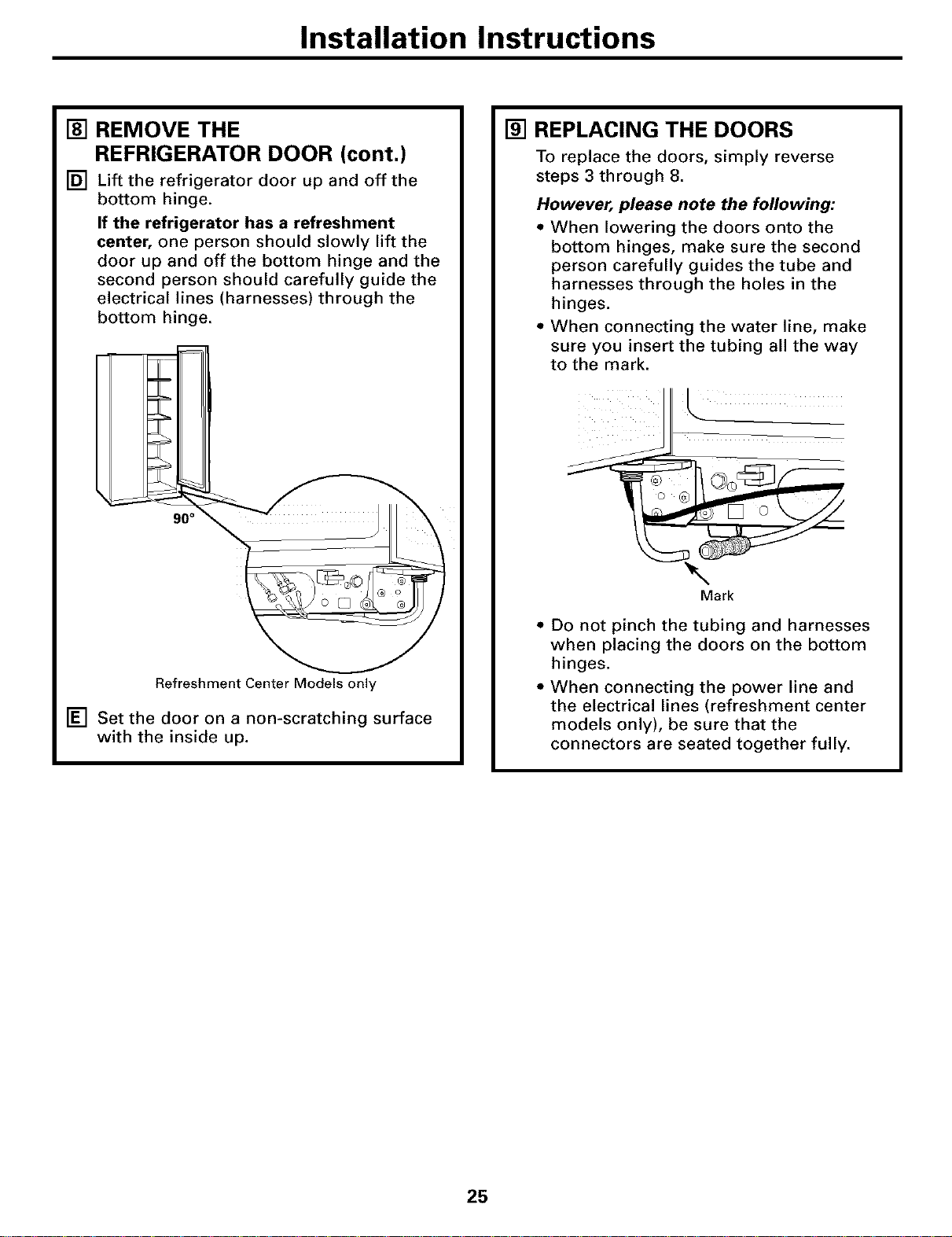

[] REMOVE THE
REFRIGERATOR DOOR (cont.)
[] Lift the refrigerator door up and off the
bottom hinge.
If the refrigerator has a refreshment
center, one person should slowly lift the
door up and off the bottom hinge and the
second person should carefully guide the
electrical lines (harnesses) through the
bottom hinge.
90°
Refreshment Center Models only
[] Set the door on a non-scratching surface
with the inside up.
[] REPLACING THE DOORS
To replace the doors, simply reverse
steps 3 through 8.
However, please note the following:
• When lowering the doors onto the
bottom hinges, make sure the second
person carefully guides the tube and
harnesses through the holes in the
hinges.
• When connecting the water line, make
sure you insert the tubing all the way
to the mark.
Mark
• Do not pinch the tubing and harnesses
when placing the doors on the bottom
hinges.
• When connecting the power line and
the electrical lines (refreshment center
models only), be sure that the
connectors are seated together fully.
25
Installation Instructions

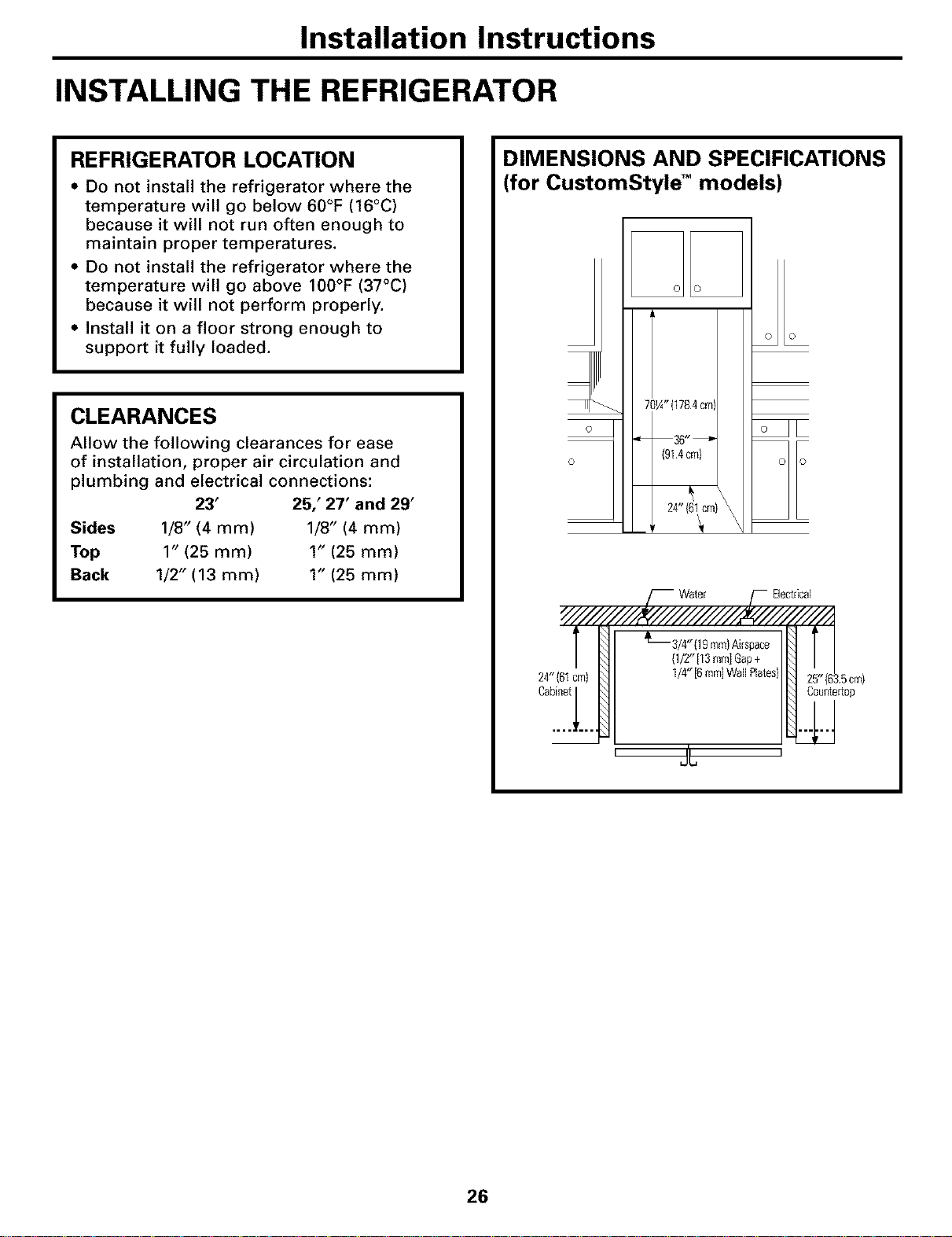

INSTALLING THE REFRIGERATOR
REFRIGERATOR LOCATION
• Do not install the refrigerator where the
temperature will go below 60°F (16°C)
because it will not run often enough to
maintain proper temperatures.
• Do not install the refrigerator where the
temperature will go above 100°F (37°C)
because it will not perform properly.
• Install it on a floor strong enough to
support it fully loaded.
CLEARANCES
Allow the following clearances for ease
of installation, proper air circulation and
plumbing and electrical connections:
23' 25/27' and 29'
Sides 1/8" (4 mm) 1/8" (4 mm)
Top 1" (25 mm) 1" (25 mm)
Back 1/2" (13 mm) 1" (25 mm)
DIMENSIONS AND SPECIFICATIONS
(for CustomStyle TM models)
z
©
©
70¼"(1784cm)
1_36"
_ 24 (61cm)
24"(61cm}
Cabinet
.... ]
(1/2"[13mm]Gap+
1/4" [6miniWallRates)
j'_ J
CounteRop
26
Installation Instructions
[] CONNECTING THE REFRIGERATOR
TO THE HOUSE WATER LINE
(icemaker and dispenser models)
A cold water supply is required for
automatic icemaker and dispenser
operation. If there is not a cold water
supply, you will need to provide one.
See "Installing the Water Line" section.
NOTES:
• Before making the connection to the
refrigerator, be sure the refrigerator
power cord is not plugged into the wall
outlet.
• If your refrigerator does not have a
water filter, we recommend installing
one if your water supply has sand or
particles that could clog the screen of
the refrigerator's water valve. Install it
in the water line near the refrigerator.
If using GE SmartConnect TM Refrigerator
Tubing Kit, you will need an additional
tube (WX08X10002) to connect the filter.
Do not cut plastic tube to install filter.
[] If you are using copper tubing, place a
compression nut and ferrule (sleeve) onto
the end of the tubing coming from the
house cold water supply.
If you are using the GE SmartConnect TM
tubing, the nuts are already assembled to
the tubing.
[] If you are using copper tubing, insert
the end of the tubing into the refrigerator
connection, at the back of the refrigerator,
as far as possible. While holding the
tubing, tighten the fitting.
If you are using GE SmartConnect TM
tubing, insert the molded end of the
tubing into the refrigerator connection,
at the back of the refrigerator, and tighten
the compression nut until it is hand tight.
Then tighten one additional turn with a
wrench. Overtightening may cause leaks.
[] Fasten the tubing into the clamp provided
to hold it in position. You may need to pry
open the clamp.
Tubing Clamp
1/4"
Compression
Ferrule
(sleeve)
Refrigerator
Connection
SmartConnect TM Tubing
[] TURN ON THE WATER SUPPLY
Turn the water on at the shutoff valve
(house water supply) and check for
any leaks.
[] PLUG IN THE REFRIGERATOR
Before plugging in the refrigerator, make
sure the icemaker power switch is set to
the O (off) position.
See the grounding information attached
to the power cord.
27
Installation Instructions
INSTALLING THE REFRIGERATOR (CONT.)

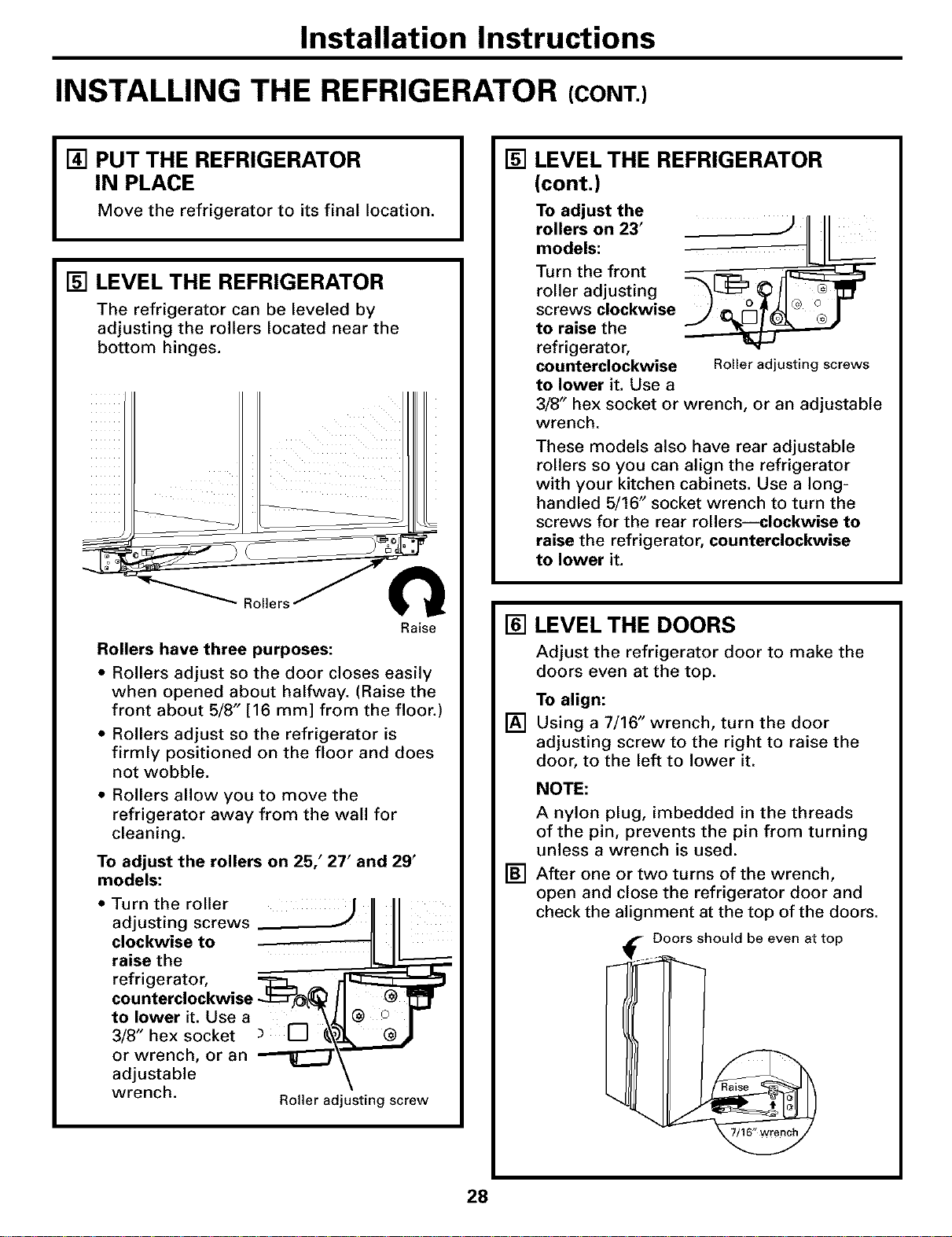

[] PUT THE REFRIGERATOR
IN PLACE
Move the refrigerator to its final location.
[] LEVEL THE REFRIGERATOR
The refrigerator can be leveled by
adjusting the rollers located near the
bottom hinges.
Rollers have three purposes:
Raise
• Rollers adjust so the door closes easily
when opened about halfway. (Raise the
front about 5/8" [16 mm] from the floor.)
• Rollers adjust so the refrigerator is
firmly positioned on the floor and does
not wobble.
• Rollers allow you to move the
refrigerator away from the wall for
cleaning.
To adjust the rollers on 25,' 27' and 29'
models:
•urn, eroer-- l
adjusting screws
clockwise to
raise the
refrigerator, _ rl k_:::]_=_
counterclockwise _@/I
to lower it. Use a "\JI@ o r_
3/8" hex socket )[] _._l
or wrench, or an _\_
adjustable \
wrench. Roller adjusting screw
[] LEVEL THE REFRIGERATOR
(cont.)
To adjust the
rollers on 23'
models:
Turn the front
roller adjusting
screws clockwise
to raise the
refrigerator,
counterclockwise
to lower it. Use a
Roller adjusting screws
3/8" hex socket or wrench, or an adjustable
wrench.
These models also have rear adjustable
rollers so you can align the refrigerator
with your kitchen cabinets. Use a long-
handled 5/16" socket wrench to turn the
screws for the rear rollers--clockwise to
raise the refrigerator, counterclockwise
to lower it.
[] LEVEL THE DOORS
Adjust the refrigerator door to make the
doors even at the top.
[]
To align:
Using a 7/16" wrench, turn the door
adjusting screw to the right to raise the
door, to the left to lower it.
[]
NOTE:
A nylon plug, imbedded in the threads
of the pin, prevents the pin from turning
unless a wrench is used.
After one or two turns of the wrench,
open and close the refrigerator door and
check the alignment at the top of the doors.
i
Doors should be even at top
28
Installation Instructions

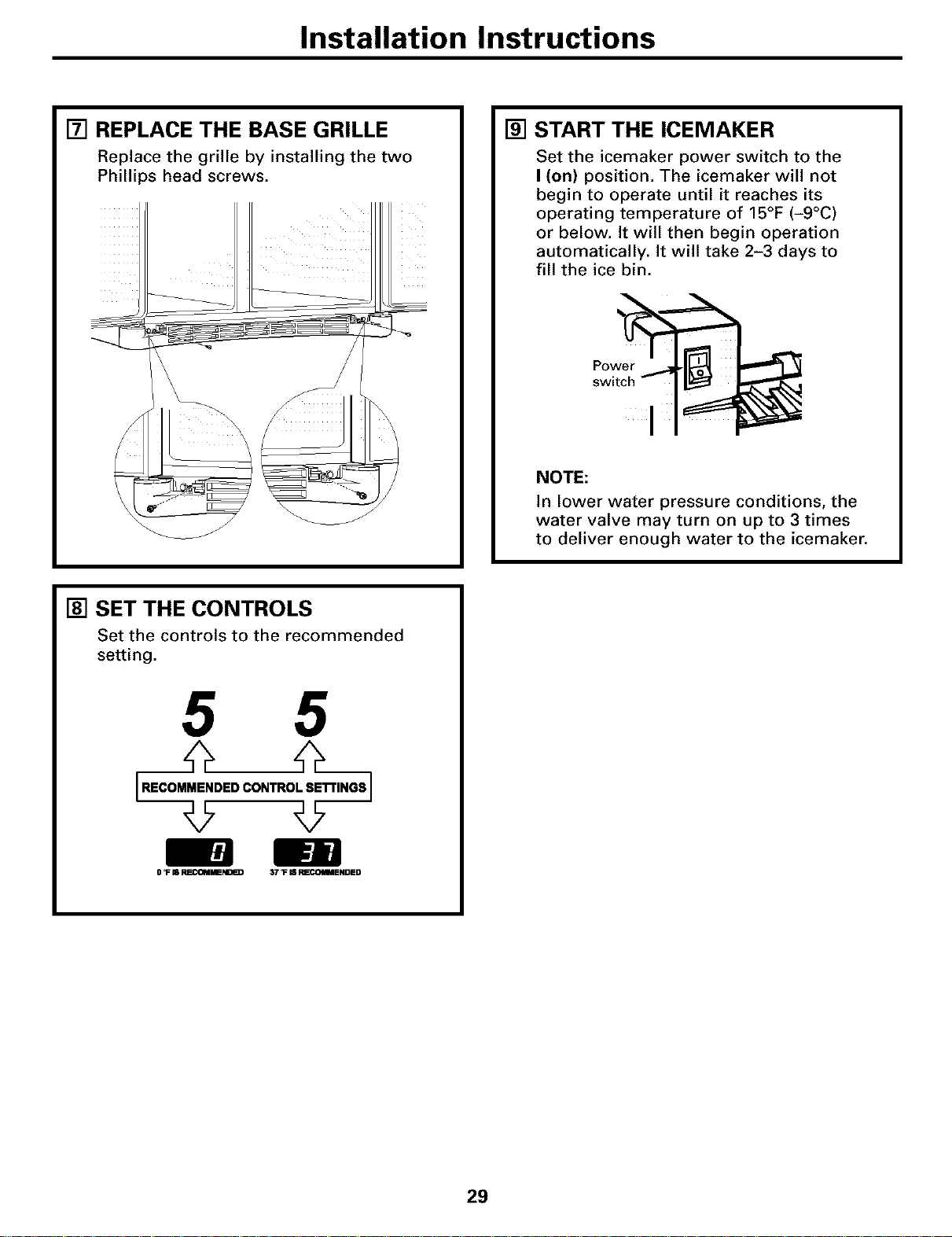

[] REPLACE THE BASE GRILLE
Replace the grille by installing the two
Phillips head screws.
\\
\
[] START THE ICEMAKER
Set the icemaker power switch to the
I (on) position. The icemaker will not
begin to operate until it reaches its
operating temperature of 15°F (-9°C)
or below. It will then begin operation
automatically. It will take 2-3 days to
fill the ice bin.
NOTE:
In lower water pressure conditions, the
water valve may turn on up to 3 times
to deliver enough water to the icemaker.
[] SET THE CONTROLS
Set the controls to the recommended
setting.
5 5
|=]
lxi
0 'F IS RP.C_M_NDE) 37 _FIS RECO_4ENDED
29

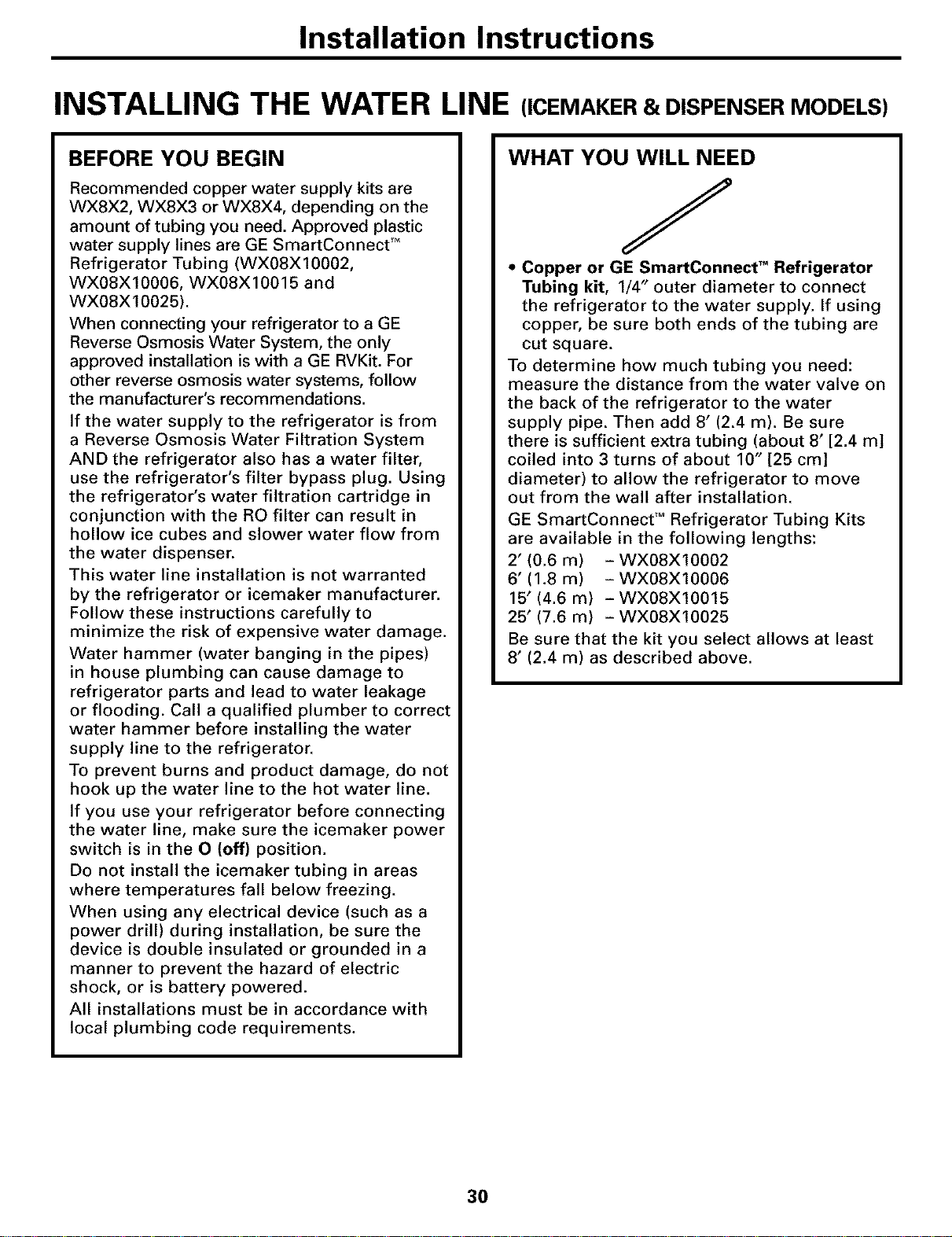

Installation Instructions
INSTALLING THE WATER LINE (ICEMAKER &DISPENSERMODELS)
BEFORE YOU BEGIN
Recommended copper water supply kits are
WX8X2, WX8X3 or WX8X4, depending on the
amount of tubing you need. Approved plastic
water supply lines are GE SmartConnect TM
Refrigerator Tubing (WX08X10002,
WX08X10006, WX08X10015 and
WX08X10025).
When connecting your refrigerator to a GE
Reverse Osmosis Water System, the only
approved installation is with a GE RVKit. For
other reverse osmosis water systems, follow
the manufacturer's recommendations.
If the water supply to the refrigerator is from
a Reverse Osmosis Water Filtration System
AND the refrigerator also has a water filter,
use the refrigerator's filter bypass plug. Using
the refrigerator's water filtration cartridge in
conjunction with the RO filter can result in
hollow ice cubes and slower water flow from
the water dispenser.
This water line installation is not warranted
by the refrigerator or icemaker manufacturer.
Follow these instructions carefully to
minimize the risk of expensive water damage.
Water hammer (water banging in the pipes)
in house plumbing can cause damage to
refrigerator parts and lead to water leakage
or flooding. Call a qualified plumber to correct
water hammer before installing the water
supply line to the refrigerator.
To prevent burns and product damage, do not
hook up the water line to the hot water line.
If you use your refrigerator before connecting
the water line, make sure the icemaker power
switch is in the O (off) position.
Do not install the icemaker tubing in areas
where temperatures fall below freezing.
When using any electrical device (such as a
power drill) during installation, be sure the
device is double insulated or grounded in a
manner to prevent the hazard of electric
shock, or is battery powered.
All installations must be in accordance with
local plumbing code requirements.
WHAT YOU WILL NEED
• Copper or GE SmartConnect TM Refrigerator
Tubing kit, 1/4" outer diameter to connect
the refrigerator to the water supply. If using
copper, be sure both ends of the tubing are
cut square.
To determine how much tubing you need:
measure the distance from the water valve on
the back of the refrigerator to the water
supply pipe. Then add 8' (2.4 m). Be sure
there is sufficient extra tubing (about 8' [2.4 m]
coiled into 3 turns of about 10" [25 cm]
diameter) to allow the refrigerator to move
out from the wall after installation.
GE SmartConnect TM Refrigerator Tubing Kits
are available in the following lengths:
2'(0.6 m) -WX08X10002
6' (1.8 m) -WX08X10006
15' (4.6 m) -WX08X10015
25' (7.6 m) -WX08X10025
Be sure that the kit you select allows at least
8' (2.4 m) as described above.
30
Installation Instructions
WHAT YOU WILL NEED (CONT.)
NOTE: The only GE approved plastic tubing
is that supplied in GE SmartConnect TM
Refrigerator Tubing kits. Do not use any
other plastic water supply line because the
line is under pressure at all times. Certain
types of plastic will crack or rupture with age
and cause water damage to your home.
• A GE water supply kit (containing tubing,
shutoff valve and fittings listed below) is
available at extra cost from your dealer or
from Parts and Accessories, 800.626.2002
(in Canada 1.888.261.3055).
• A cold water supply. The water pressure must
be between 20 and 120 p.s.i. (1.4-8.1 bar).
• Power drill.
• 1/2" or adjustable wrench.
• Straight and Phillips blade screwdriver.
• Two 1/4" outer diameter compression nuts
and 2 ferrules (sleeves)--to connect the
copper tubing to the shutoff valve and the
refrigerator water valve.
OR
• If you are using a GE SmartConnect TM
Refrigerator Tubing kit, the necessary
fittings are preassembled to the tubing.
• If your existing copper water line has a
flared fitting at the end, you will need an
adapter (available at plumbing supply
stores) to connect the water line to the
refrigerator OR you can cut off the flared
fitting with a tube cutter and then use a
compression fitting. Do not cut formed end
from GE SmartConnect TM Refrigerator tubing.
• Shutoff valve to connect to the cold water
line. The shutoff valve should have a water
inlet with a minimum inside diameter of
5/32" at the point of connection to the COLD
WATER LINE. Saddle-type shutoff valves are
included in many water supply kits. Before
purchasing, make sure a saddle-type valve
complies with your local plumbing codes.
Install the shutoff valve on the nearest
frequently used drinking water line.
[] SHUT OFF THE MAIN WATER
SUPPLY
Turn on the nearest faucet long enough
to clear the line of water.
[] CHOOSE THE VALVE LOCATION
Choose a location for the valve that is
easily accessible. It is best to connect into
the side of a vertical water pipe. When it is
necessary to connect into a horizontal
water pipe, make the connection to the
top or side, rather than at the bottom,
to avoid drawing off any sediment from
the water pipe.
[] DRILL THE HOLE FOR THE VALVE
Drill a 1/4" hole in the water pipe (even if
using a self-piercing valve), using a sharp
bit. Remove any burrs resulting from
drilling the hole in the pipe.
Take care not to allow water to drain into
the drill.
Failure to drill a 1/4" hole may result in
reduced ice production or smaller cubes.
31
Installation Instructions

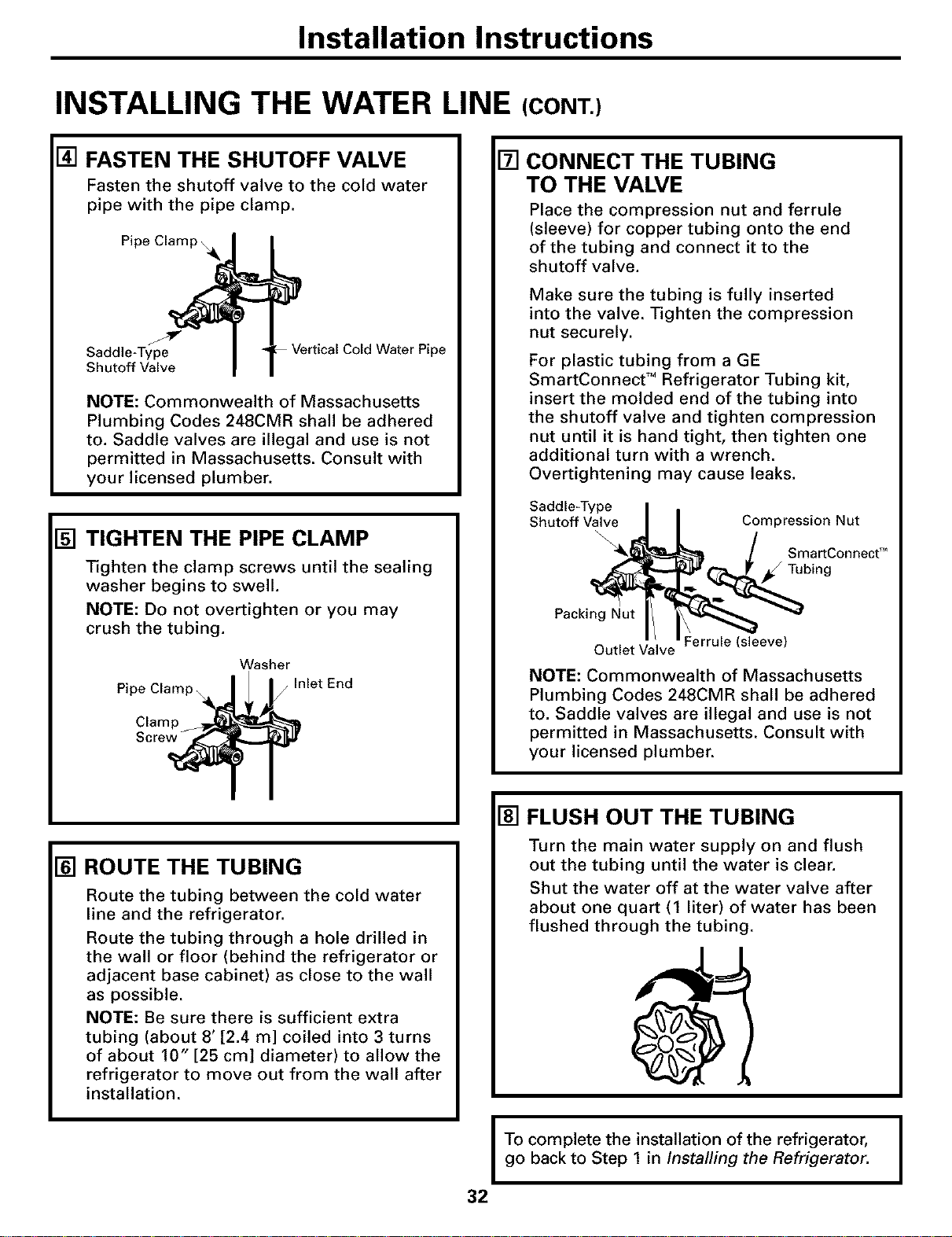

INSTALLING THE WATER LINE (CONT.)
[] FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water
pipe with the pipe clamp.
Pipe Clamp _
Saddle-Type
Shutoff Valve
Water Pipe
NOTE: Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be adhered
to. Saddle valves are illegal and use is not
permitted in Massachusetts. Consult with
your licensed plumber.
[] TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing
washer begins to swell.
NOTE: Do not overtighten or you may
crush the tubing.
Scre_
Washer
Inlet End
/
[] ROUTE THE TUBING
Route the tubing between the cold water
line and the refrigerator.
Route the tubing through a hole drilled in
the wall or floor (behind the refrigerator or
adjacent base cabinet) as close to the wall
as possible.
NOTE: Be sure there is sufficient extra
tubing (about 8' [2.4 m] coiled into 3 turns
of about 10" [25 cm] diameter) to allow the
refrigerator to move out from the wall after
installation.
I
32
[] CONNECT THE TUBING
TO THE VALVE
Place the compression nut and ferrule
(sleeve) for copper tubing onto the end
of the tubing and connect it to the
shutoff valve.
Make sure the tubing is fully inserted
into the valve. Tighten the compression
nut securely.
For plastic tubing from a GE
SmartConnect T_Refrigerator Tubing kit,
insert the molded end of the tubing into
the shutoff valve and tighten compression
nut until it is hand tight, then tighten one
additional turn with a wrench.
Overtightening may cause leaks.
Saddle-Type
Shutoff Valve Compression Nut
Packing Nut
Outlet Valve Ferrule {sleeve)
NOTE: Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be adhered
to. Saddle valves are illegal and use is not
permitted in Massachusetts. Consult with
your licensed plumber.
[] FLUSH OUT THE TUBING
Turn the main water supply on and flush
out the tubing until the water is clear.
Shut the water off at the water valve after
about one quart (1 liter) of water has been
flushed through the tubing.
I
To complete the installation of the refrigerator, I
go back to Step 1 in Installing the Refrigerator.
I

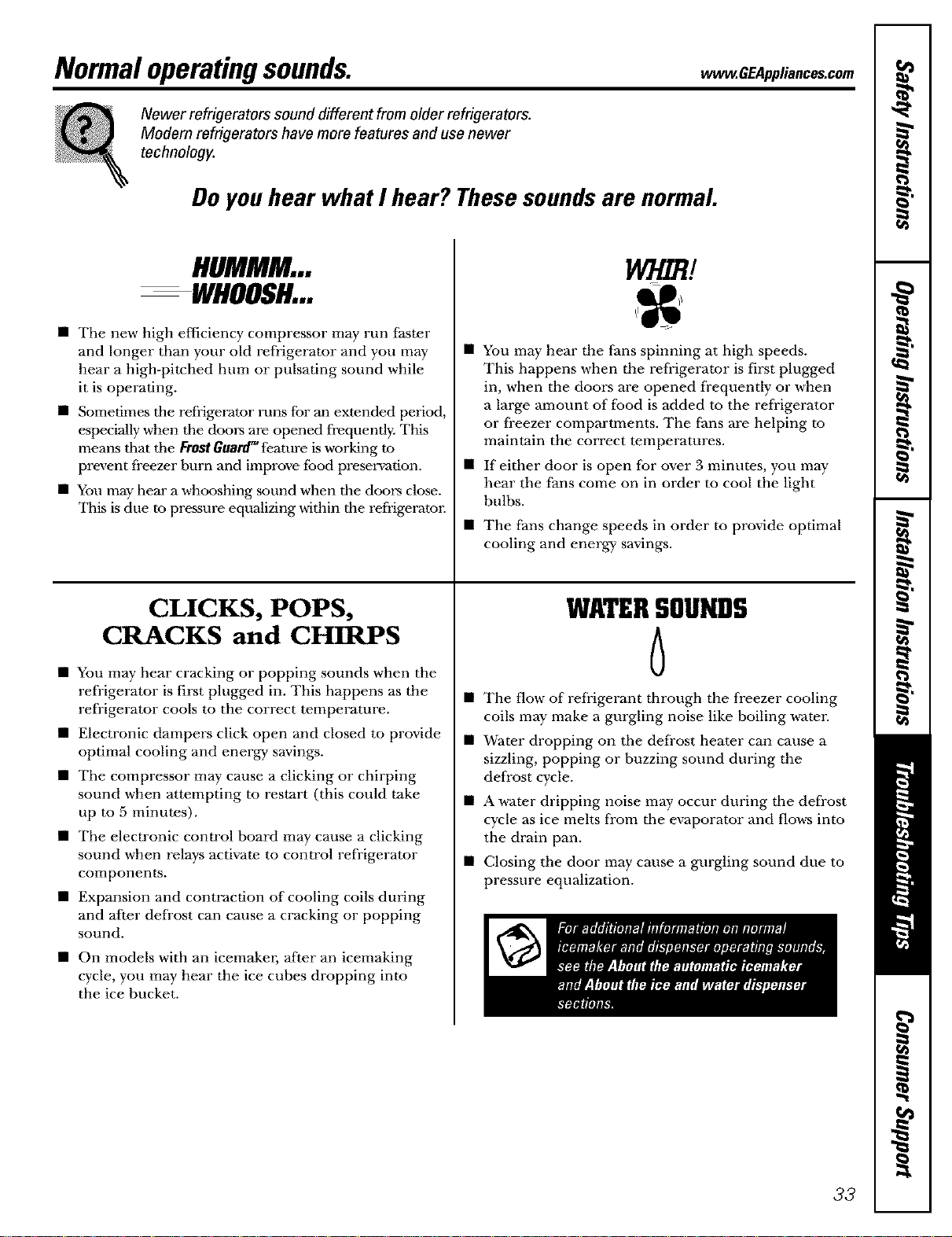

Normal operatingsounds, ww .GEAppliances.com
Newer refrigerators sound different from older refrigerators.
Modem refrigerators have more features and use newer
technology.
Do you hear what I hear? These sounds are normal
HUMMM...
WHOOSH...
• The new high efficiency compressor may run faster
and longer than your old refrigerator and you may
hear a high-pitched hum or pulsating sound while
it is operating.
• Sometimes the refrigerator runs for an extended period,
especially when the doors are opened frequently. This
means that the Frost Guan/" feature is working to
prevent freezer burn and improve food preservation.
• You may hear a whooshing sound when the doo_.'sclose.
This is due to pressure equalizing within the refrigerator.
CLICKS, POPS,
CRACKS and CHIRPS
• You may hear cracking or popping sounds when the
refrigerator is first plugged in. This happens as the
refrigerator cools to the correct temperature.
• Electronic dampers click open and closed to provide
optimal cooling and energy savings.
• The compressor may cause a clicking or chirping
sound when attempting to restart (this could take
up to 5 minutes).
• The electronic control board may cause a clicking
sound when relays activate to control refrigerator
components.
• Expansion and contraction of cooling coils during
and after defrost can cause a cracking or popping
sound.
• On models with an icemakm; after an icemaking
cycle, you may hear the ice cubes dropping into
the ice bucket.
W//IR!
• You may hear the fans spinning at high speeds.
This happens when the refrigerator is first plugged
in, when the doors are opened frequently or when
a large amount of food is added to the refrigerator
or freezer compartments. The fans are helping to
maintain the correct temperatures.
If either door is open for over 3 minutes, you may
hear the fans come on in order to cool the light
bulbs.
The fans change speeds in order to provide optimal
cooling and energy savings.
WATERSOUNDS
6
The flow of refrigerant through the freezer cooling
coils may make a gurgling noise like boiling water.
Water dropping on the defrost heater can cause a
sizzling, popping or buzzing sound during the
defrost cycle.
A w-ater dripping noise may occur during the defrost
cycle as ice melts from the evaporator and flows into
the drain pan.
Closing the door may cause a gurgling sound due to
pressure equalization.
33

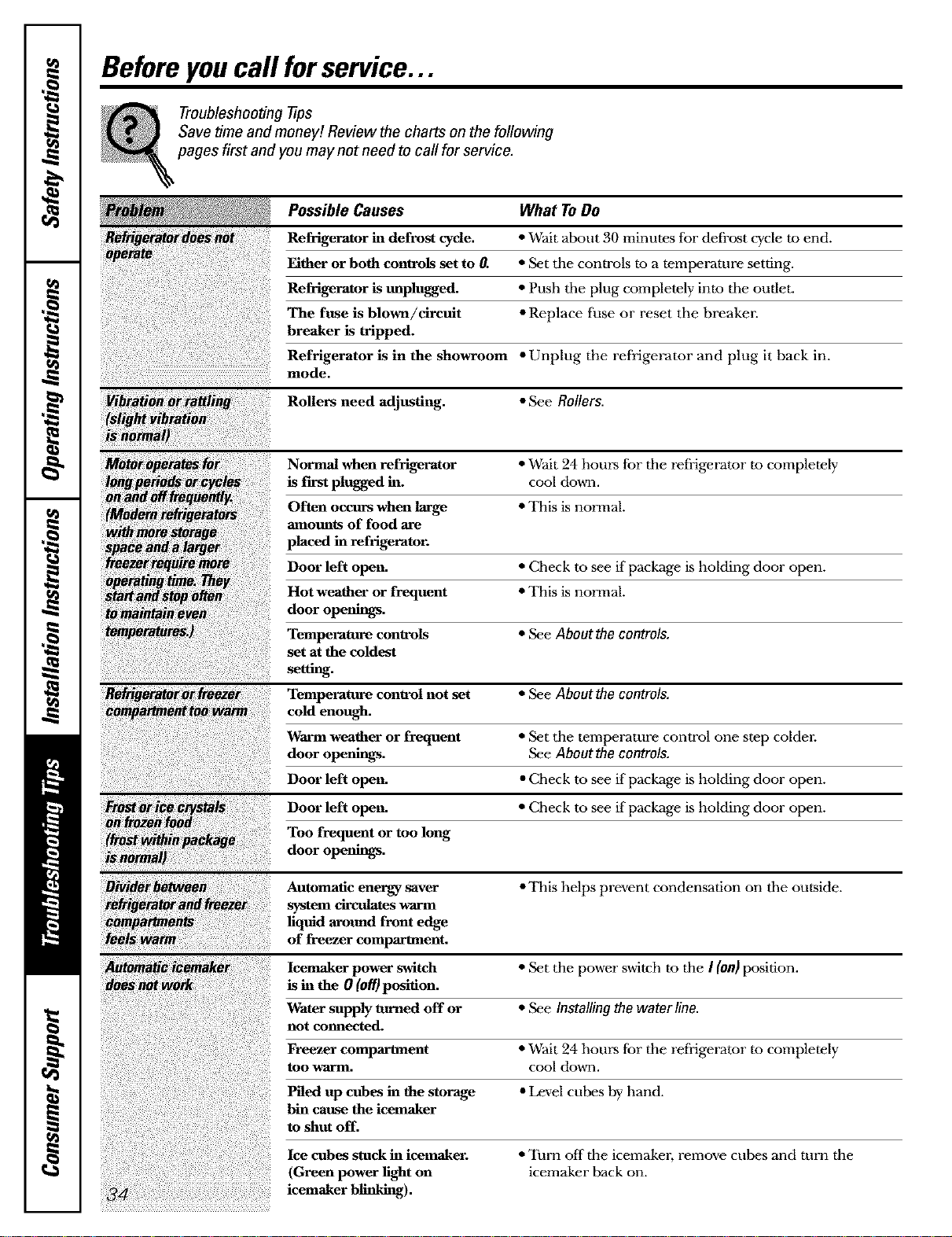

Before youcall forservice...
Troubleshooting tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Possible Causes What ToDo
Refrigerator in defrost cycle. • Wait about 30 minutes for defi'ost cycle to end.
Either or both controls set to 0. • Set the conn'ols re a temperature setting.
Refrigerator is unplugged. • Push the plug completely into the outlet.
The fuse is blown/circuit • Replace fuse or reset the breakm:
breaker is tripped.
Refrigerator is in the showroom •Unplug the refrigerator and plug it back in.
mode.
Rollers need adjusting. • See Rollers.
Normal when refrigerator • Wait 24 hours for the refiigerator re completely
is first plugged in. cool down.
Often occurs when large • This is normal.
amounts of food are
placed in ref "l_emtor.
Door left open. • Check to see if package is holding door open.
Hot weather or frequent • This is normal.
door openings.
Temperature controls • See About the controls.
set at the coldest
setting,
Temperature control not set • See Aboutthe controls.
cold enough.
Warm weather or frequent • Set the temperature control one step coldm:
door openings. See About the controls.
Door left open. • Check to see if package is holding door open.
Door left open. • Check to see if package is holding door open.
Too frequent or too long
door openings.
Automatic energy saver • This helps prevent condensation on the outside.
system circulates warm
liquid around front edge
of freezer comparmaent.
Icemaker power switch • Set the power switch re the I [on) position.
is in the 0 (Off)position.
Water supply turned off or • See Installing the water line.
not connected.
Frcezer comparmaent • Wait 24 hours for the refrigerator to completely
too warm. cool down.
Piled up cubes in the storage • Level cubes by hand.
bin cause the icemaker
to shut off.
Ice cubes stuck in icemaker.
(Green power light on
icemaker blinking).
• Turn off the icemakm; remove cubes and turn the
icemaker back on.

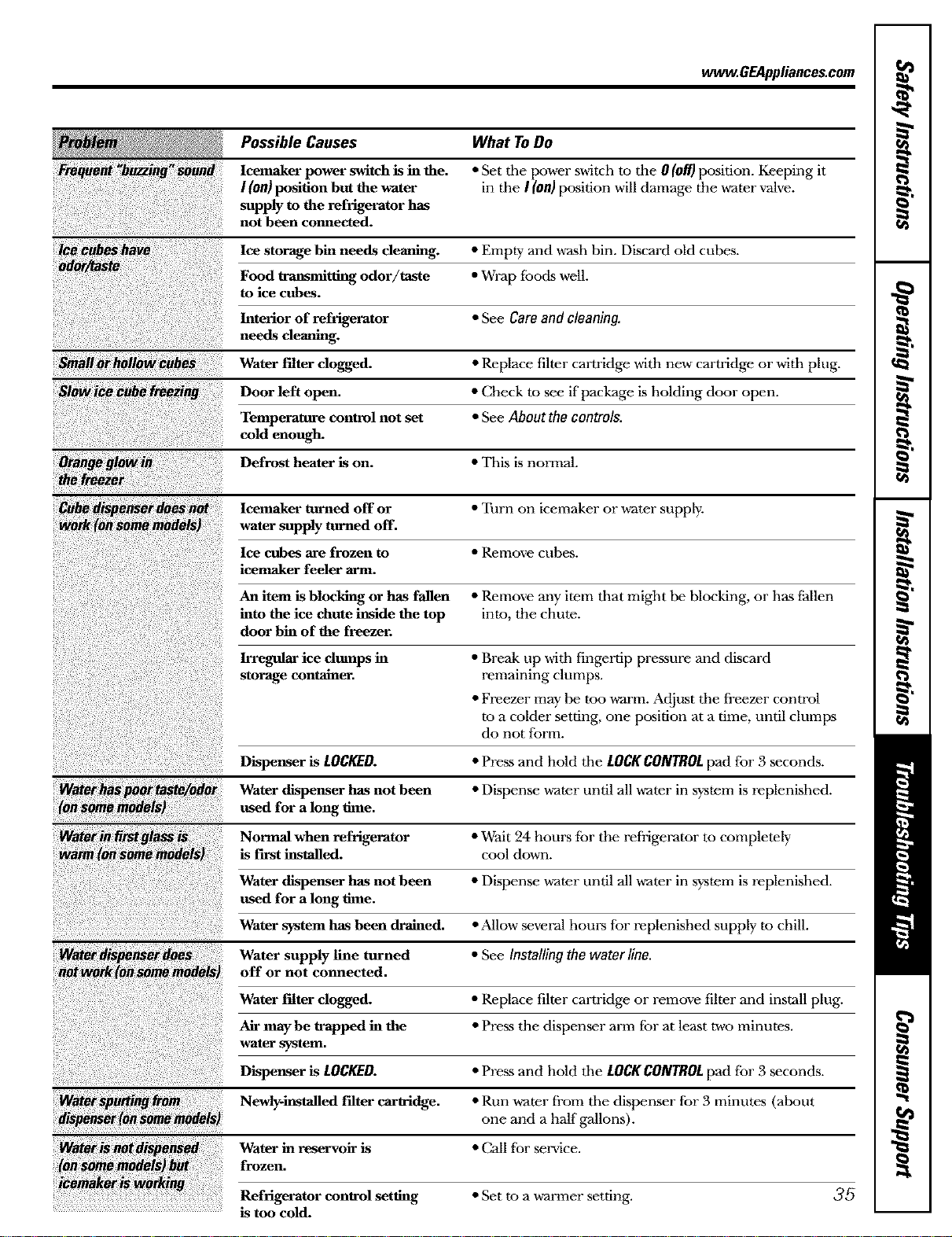

ww_.GEAppliances.com
Possible Causes What ToDo
Icemaker power switch is in the. * Set tile power switch to the 0 (Off)position. Keeping it
°otSUpplyl'°'po °°°butthe terbeentOco.. tedtheref erator inthe,O.,positionwilldamage.lewatervalve
Ice storage bin needs cleaning. • Empty and wash bin. Discard old cubes.
Food transmitting odor/taste • Wrap foods well.
to ice cubes.
Interior of refrigerator • See Care and cleaning,
needs cleaning.
Small_hollo_cub_ Water Filter clogged. • Replace filter cartridge with new cartridge or with plug.
Door left open. • Check to see if package is holding door open.
Temperature control not set • See About the controls.
cold enough.
Defrost heater is on. • This is normal.
Ieemaker turned off or • Turn on icemaker or water supply.
water slapply turned off.
Ice cubes are frozen to • Remove cubes.
ieemaker feeler arm.
An item is blocking or has fallen • Remove any item that might be blocking, or has thllen
into the ice chute inside the top into, the chute.
door bin of the freezer.
Irregular ice dumps in • Break tip with fingertip pressure and discard
storage container, remaining clumps.
• Freezer may be rOD warm. Adjust the fi-eezer control
to a colder setting, one position at a time, until clumps
do not form.
Dispenser is LOCKED. • Press and hold the LOCKCONTROLpad for 3 seconds.
Waterha_or_te/odor Water dispenser has not been • Dispense water until all water in system is replenished.
nsed for a loug time.
Normal when refrigerator • Wait 24 hours tor the refrigerator to completely
is first installed, cool down.
WaterusedfordiSpenseralong time.hasnot been • Dispense water until all water in system is replenished.
Water system has been drained. *:Mlow several hours for replenished supply re chill.
Water supply line turned • See Installing the water line.
off or not connected.
Water Filter clogged. • Replace filter caru'idge or remove filter and install plug.
Air may be trapped in the • Press the dispenser arm tor at least two minutes.
water system,
Dispenser is LOCKED. * Press and hold the LOCK CONTROL pad for 3 seconds.
Newly-installed filter cartridge. * Run water fi'om the dispenser for 3 minutes (about
one and a half gallons).
Water in reservoir is * Call tor service.
frozen.
Refrigerator control setting • Set to a warmer setting. 35
is too cold.

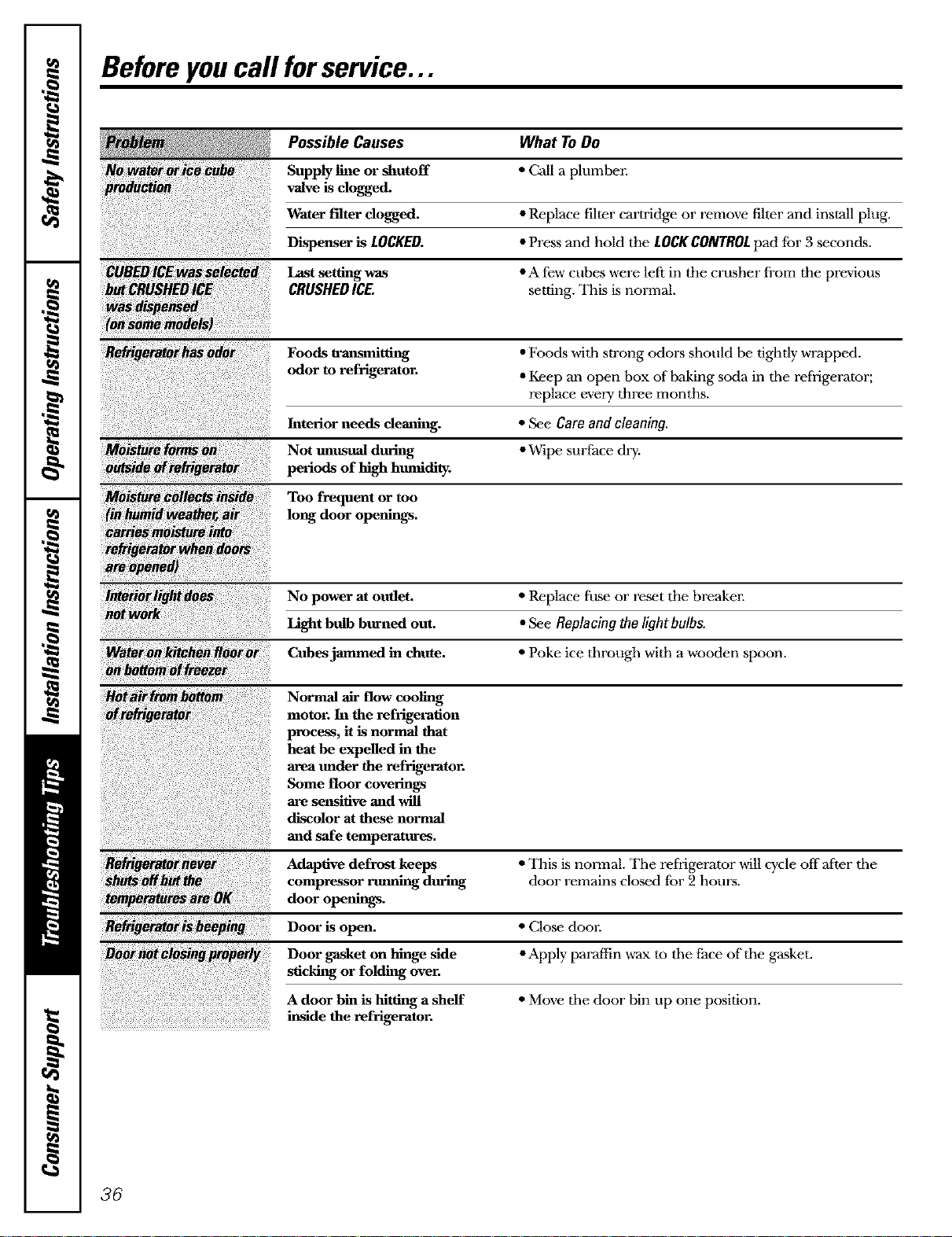

Before youcall forservice...
Possible Causes What ToDo
Supply line or shutoff • Call a plumben
valve is clogged.
Water filter dogged. • Replace filter cartridge or remove filter and install plug.
Dispenser is LOCKED. • Press and hold the LOCKCONTROLpad tot 3 seconds.
Last setting was • A few cubes were left in the crusher from the prexdous
CRUSHEDICE. setting. This is normal.
Foods transmitting • Foods with strong odors should be tightly wrapped.
odor to refrigerator. • Keep an open box of baking soda in tile refrigerator;
replace every three months.
Interior needs cleaning. • See Care and cleaning.
Not umtstml during • Wipe surface dry.
periods of high humidity.
Too frequent or too
long door openings.
No power at outlet. * Replace fuse or reset the breaker:
Light bulb burned out. • See Replacing the light bulbs.
Cubes jammed in chute. • Poke ice through with a wooden spoon.
Normal air flow cooling
motor. In the refrigeration
process, it is normal that
heat be expelled in the
area under the refrigerator.
Some floor coverings
are sensitive and will
discolor at these normal
and safe temperatures.
Adaptive defrost keeps * This is normal. The refrigerator will cycle off after the
compressor framing during door remains closed J[br 2 hours.
door openings.
Door is open. • Close dool:
Door gasket on hinge side • Apply paraffin wax to the face of the gasket.
sticking or folding over.
A door bin is hitting a shelf • Move the door bin up one position.
inside the refrigerator.
36
GE Service Protection Phls TM
GE, a name recognized worldwide for quality and dependability, offers you
Service Protection Plus T_'-comprehensive protection on all your appliances-
No Matter What Brand!
Benefits Include:
• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
• No out-of-pocket expenses
• No hidden deductibles
• One 800 number to call
We'll CoverAnyAppliance.
Anywhere. Anytime.*
You will be completely satisfied with our service protection or you may request your money back
on the remaining value of your contract. No questions asked. It's that simple.
Protect your refi'igeratol; dishwasheb washer and drym, range, TV, VCR and much more-any brand!
Plus there's no extra charge for emergency service and low monthly financing is available. Even icemaker
coverage and fbod spoilage protection is oftered. You can rest easy, knowing that all your valuable
household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-flee at 800.626.2224
for more information.
%kll b_allds covei ed, up to 20 yeais old, in the conti_zental U.S.
........................................................................................... _. Cut here
Please place in envelope and mail to:
General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
37
Consumer Product Ownership Registration
Dear Customer:
Thank you lbr purchasing our product and thank you for placing your confidence in us.
We are proud to have you _ a customer!
Follow these three steps to protect your new appliance investment:
Complete and mail
your Consmer
Product Ownership
Registration today.
Have the peace of
mind of knowing we
can contact you in
the unlikely event of
a s_ety modification.
2
After mailing the
registration beh)w,
store this document
in a saff' place. It
contains intbrmation
you will need should
you require service.
Our se_Tice number is
800.GE.CARES
(800.432.2737).
Read your Owner's
Manual carefhlly.
It will help you
operate your new
appliance properly.
Model Number Serial Number
I I I I I I I I I I I
IIIIIII
Important: If you did not get a registration card with your
product, detach and return the form below to
ensure that your product is registered, or register
online at www.GEAppliances.com.
._k._ Cut here
Consumer Product Ownership Registration
Model Number Serial Number
I I I I I I I I I I I I I I I I I
Mr._ Ms._ Mrs._ Miss_
Ei_st I I_st I
Name I I I I I I I I I Name I I I I I I I I I I I I
Street ]
Address ] ] ] ] ] ] ] ] ] ] I ] ] ] ] ] I I ] ] ] ] I I
Apt. # ] I I I I I I I E-mail Address*
ZipI I I
City ] ] I I ] I ] ] ] ] ] I ] ] State I I Code I I I ] I
Daie Placed
Numbei ]
Month I I I I I I I
* Please prmdde your e-mail address to receive, ,,ia e-mail, discounts, special ofters and other important
communications from GE Appliances (GEA).
Check here if you do not want to receixe communications from GEA's carefully selected partners.
GEAppliances
GE Cttnsxmler Products
General Elect¥ic Compeny
L@u_viHe, Ket@tucky
www.GEApplian_es._om
38
Notes.
ww_.GEAppliances.com
e.
_h
z_
e.
e.
q
39

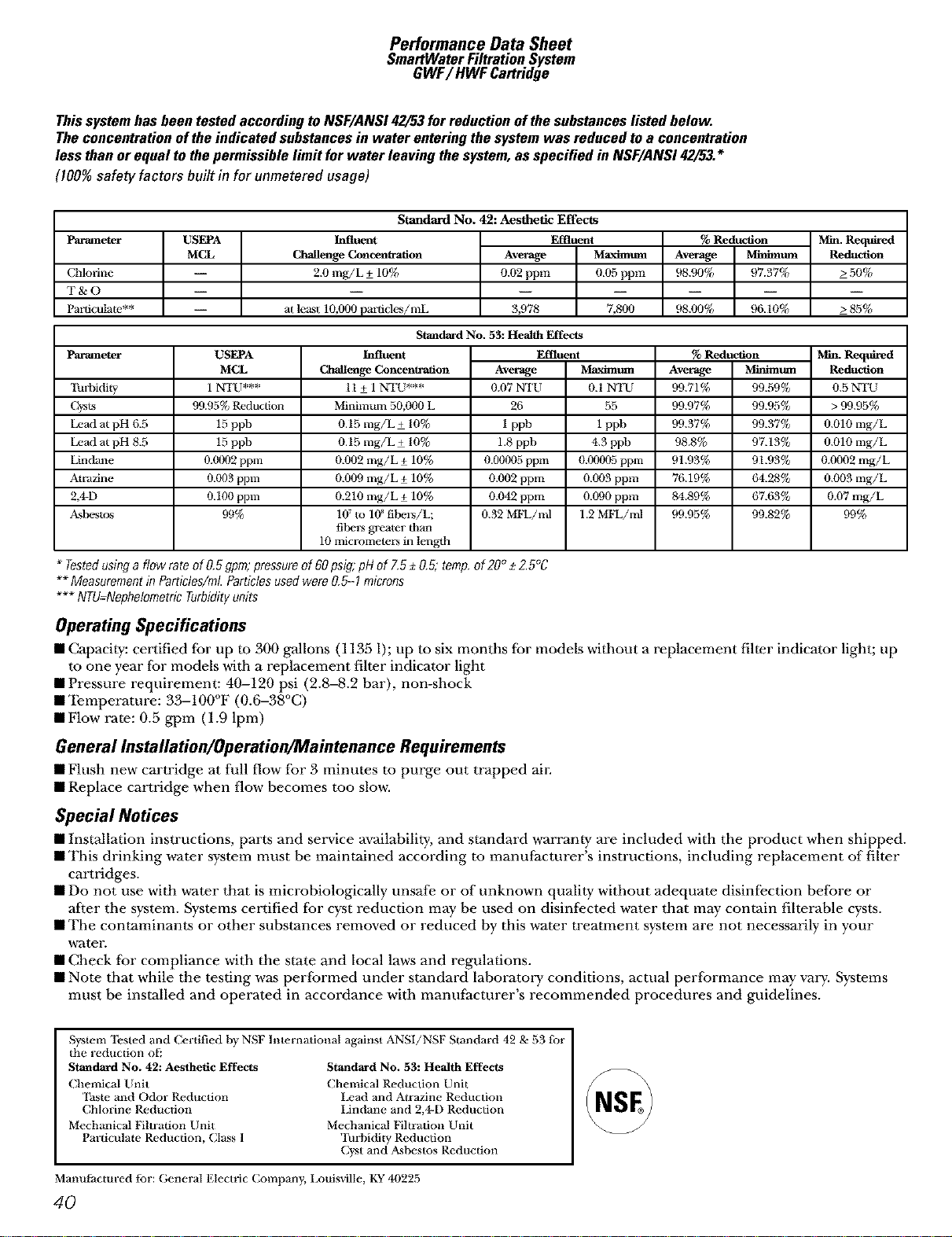

Performance Data Sheet
SmartWaterFiltrationSystem
GWF/ HWFCartridge
ThissystemhasbeentestedaccordingtoNSF/ANS142,/53for reductionof thesubstanceslimedbelow.
Theconcentrationof theindicatedsubstancesin water enteringthesystemwas reducedtoa concentration
less thanorequal tothepermissiblelimit for water leaving thesystem,asspecified in NSF/ANS142,/53.*
(100%safety factors built in for unmetered usage)
Parameter USEPA
MCL
Chlodne
T&O
pa,_dculatv**
Standard No. 42: Aesthetic Effects
hzfluent Effluent
Challenge Concentration Average Maximmn
2.0 mg/L + 10% 0.02 ppm 0.05 ppm
at least 10,000 pa*_dcles/mL 3,978 7,800
% Reduction
Average Minimum
98.90% 97.37%
m m
98.00% 96.10%
w,. _eqta,ed
Reduction
> 50%
>85%
F_araalleter
Turbidity
Lead at pH 6.5
Lead at pH 8.5
Lindane
Atrazine
2,4-1)
Asbestos
USEPA
MCL
1 NTU***
99.95% Reduction
15 pph
15 pph
0.1R102 ppm
0.003 ppm
0.100 ppm
99%
Standard No. 53: Health Effects
hlfluent
Challenge Concentration
ll + 1 NTU***
Minimum 50,000 L
0.15 rag/L+ 10%
0.15 rag/L+ 10%
0.002 mg/i. + 10%
0.009 mg/L + 10%
0.210 mg/L + 10%
1O_Io 10" tlbm_/L;
fibers greamr dmn
10 micromete*> in length
Effluent
Average Maximum
0.07 NTU 0.1 NTU
26 55
1 ppb 1 pph
1.8 ppb 4.3 pph
0.00005 ppm 0.0(_'105ppm
0.002 ppm 0.003 ppm
0.042 ppm 0.090 ppm
0.32 MILL/ml 1.2 MI_L/ml
* Testedusinga flow rateof 0.5gpm;pressureof 60psig;pH of Z5_ 0.5;temp.of20° +-Z5°C
** Measurementin Particles/mLParticlesusedwereO.&-I microns
*** NTU=NephelometricTurbidityunits
% Reduction
Average M'mlmmn
99.71% 99.59%
99.97% 99.95%
99.37% 99.37%
98.8% 97.13%
91.93% 91.93%
76.19% (;4.28%
84.89% 67.63%
99.95% 99.82%
Mr.. R_mred
Reduction
0.5 NTU
> 99.95%
0.010 mg/L
0.010 mg/L
0.0002 mg/L
0.003 mg/L
0.07 mg/L
99%
Operating Specifications
• Capacity: certified for up to 300 gallons (1135 1); up to six months for models without a replacement filter indicator light; up
to one year for models with a replacement filter indicator light
• Pressure requirement: 40-120 psi (2.8-8.2 bar), non-shock
• Temperature: 33-100°F (0.6-38°C)
• Flow rate: 0.5 gpm (1.9 lpm)
General Installation/Operation/Maintenance Requirements
• Flush new cartridge at full flow for 3 minutes to purge out trapped ale
• Replace cartridge when flow becomes too slow.
Special Notices
• Installation instructions, parts and service availahility, and standard warranty are included with the product when shipped.
• This drinking w-ater system must be maintained according to manufacturer's instructions, including replacement of filter
cartridges.
• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or
after the system. Systems certified 1or cyst reduction may be used on disinfected water that may contain filterable cysts.
• The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your
water.
• Check 1or compliance with the state and local laws and regulations.
• Note that while the testing was performed under standard laboratory conditions, actual performance may vary. Systems
must be installed and operated in accordance with manufacturer's recommended procedures and guidelines.
System "l_smd and Certified by NSF International against ANSI/NSF Standard 42 & 53 for
the reduction o1_
Standard No. 42: Aesthetic Effects
Chemical Unit
'l_tste and Odor Reduction
Chlorine Reduction
Mechanical Filtration Unit
Particulate Reduction, Class 1
Standard No. 53: Health Effects
(;heroical Reduction Unit
Eead and AtraTine Reduction
iJndane and 2,4-I) Reduction
Mechanical Filtration Unit
'I\u'bidity Reduction
(_st and Asbestus Reduction
Manufactured fi)r: General Electric Company, Louisville, KY 40225
4O

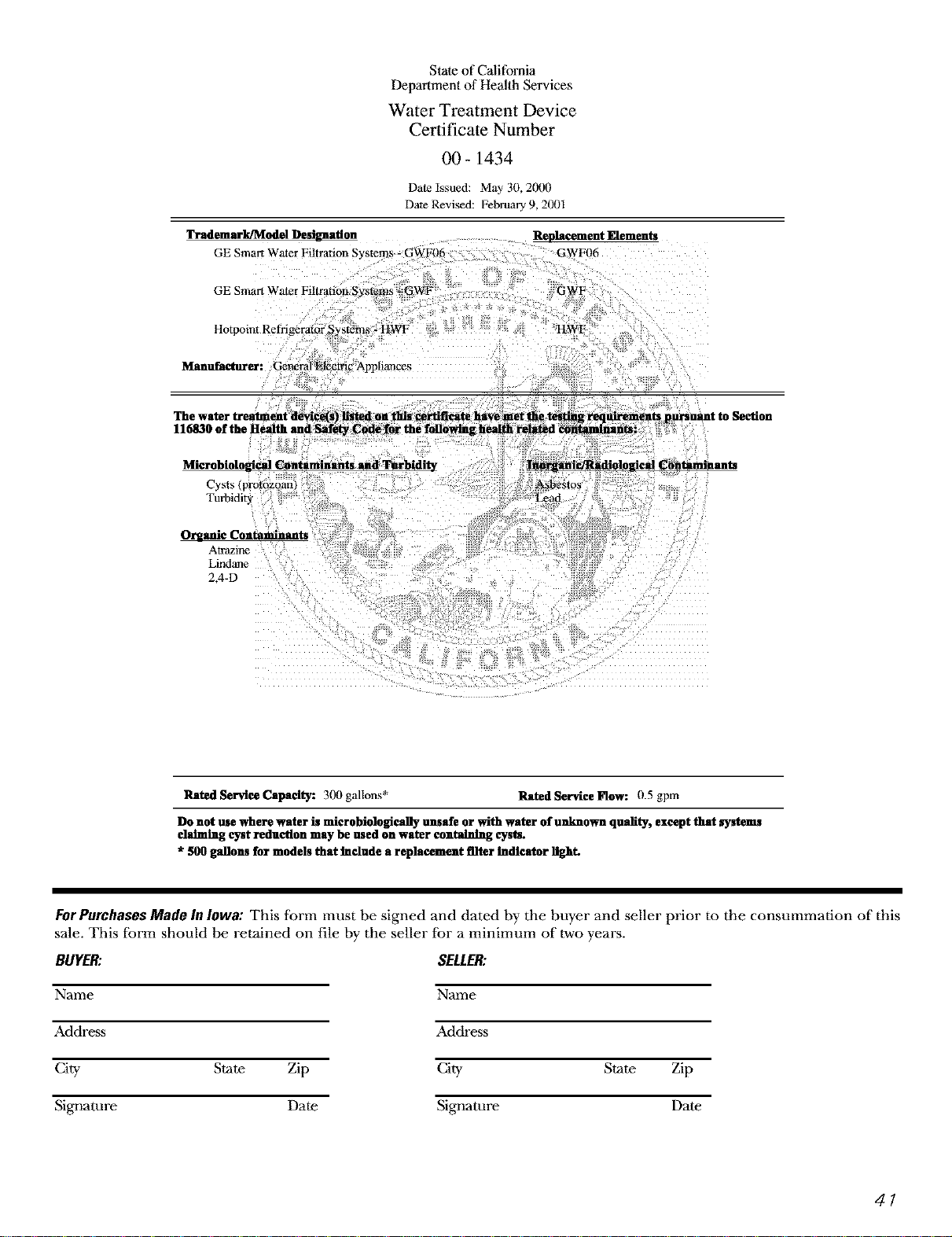

State of California
Department of Health Services
Water Treatment Device
Certificate Number
00-1434
Date Issued: May 30, 2//00
Date Revised: February 9, 2001
Trademark/Model Designation Replacement Elements
GE Smart Water Filtration Sysmms - GWFll6 GWF06
GE Smarl Water Filtrataon.S_ms rGWF
GWF
ttWF
#
Turbidity
Organic Contaminants
Atu_zgne
Lind_e
2A-D
Rated Service Capacity: 30'0 gallons* Rated Service Flow: 0.5 gpm
Do not use where water is microbiologicaIly unsafe or with water of unknown quality, except that systems
claiming cyst reduction may be used on water containing cysts.
* 500 gallons for models that include a replacement filter indicator light.
For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the consummation of this
sale. This fbrm should be retained on file by the seller fbr a minimum of two years.
BUYER: SELLER:
Name Name
Address Address
City State Zip City State Zip
Signature Date Signature Date
41
CONSUMER WARRANTY
(for customers in Canada)
Your refrigerator is warranted to be free of defects in material and workmanship.
Nhat is covered How Long Warranted Parts Labour
(From Date of Sale) Repair or Replace
at Camco's Option
3ompressor Ten (10) Years Ten (10) Years Five (5) Years
3ealed System (including Five (5) Years Five (5) Years Five (5) Years
_vaporator, condenser
:ubing and refrigerant)
_ll Other Parts One (1) Year One (1) Year One (1) Year
TERMS AND CONDITIONS:
This warranty applies only for single
family domestic use in Canada when the
Refrigerator has been properly installed
according to the instructions supplied by
Camco and is connected to an adequate
and proper utility service.
Damage due to abuse, accident, commercial
use, and alteration or defacing of the serial
plate cancels all obligations of this warranty.
Service during this warranty must be performed
by an Authorized Camco Service Agent.
Neither Camco nor the Dealer is liable for any
claims or damages resulting from any failure
of the Refrigerator or from service delays
beyond their reasonable control.
To obtain warranty service, purchaser must
present the original bill of sale. Components
repaired or replaced are warranted through the
remainder of the original warranty period only.
This warranty is in addition to any statutory
warranty.
WHAT IS NOT COVERED:
• Service trips to your home to teach you how
to use the product.
• Damage to finish after delivery.
• Improper installation-proper installation
includes adequate air circulation to the
refrigeration system, adequate electrical,
plumbing and other connecting facilities.
• Replacement of house fuses or resetting
of circuit breakers.
• Replacement of light bulbs.
• Damage to product caused by accident,
fire, floods or acts of God.
• Loss of food due to spoilage.
• Proper use and care of product as listed
in the owner's manual, proper setting
of controls.
• WARRANTOR IS NOT RESPONSIBLE
FOR CONSEQUENTIAL DAMAGES.
IMPORTANT
Keep this warranty and your bill of sale as proof of original purchase and purchase date.
Camco Service is available coast to coast.
If further help is needed concerning this warranty, contact:
Manager, Consumer Relations, Camco Inc.,
Suite 310, 1 Factory Lane, Moncton, N.B. E1C 9M3
Staple your receipt here.
Proofof the original purchase
date is needed to obtain service
under the warranty.
42
RefrigeratorWarranty.(Forcustomers in the United States)
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care® technician. Toschedule service,
on-line, 24 hours a day, visit us at www.GEAppllances.com, or call
800.GE.CARES (800.432.2737).
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warrant_
GE Will Replace:
Anypartof the refrigerator which fails due to a defect in materials or workmanship.
During this full one-year warranty, GE will also provide, free of charge, all labor and in-home
service to replace the defective part.
Any part of the sealed refrigerating system(the compressor, condensm; evaporator
and all connecting tubing) which fails due to a defect in materials or workmanship.
During this full five-year sealed refrigerating system warranty, GE will also provide, free of charge,
all labor and in-home service to replace the defective part in the sealed refrigerating system.
The fullextension slides, if they should fail due to a defect in materials or workmanship.
During this product lifetime limited warranlg, you will be responsible for any labor or related
service costs.
Anypartof the water filter cartridge which Pailsdue to a defect in materials or workmanship.
During this limited thirty-daywarrantg,GE will also provide, free ofcharge, a replacement water
filter carnidge.
_ Seawice trips to your home to teach you howto use
the product.
_ Improper installation, delivery or maintenance.
_ Failure of the product if it is abused, misused, or used for
other than the intended purpose or used commercially.
_ Loss of food due to spoilage.
_ Replacement of house fuses or resetting of dmfit
breakers.
_ Damage caused after delivery.
_ Replacement of the water f'dter cartridge due to water
pressure that is outside the specified operafng range or
due to excessive sediment in the water supply.
_ Replacement of the light bulbs or water Filter cartridge
other than as noted above.
_ Damage to the product caused by accident, f'ne, floods
or acts of God.
_ Inddental or consequential damage caused by possible
defects with this appliance.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. Toknow what your
legal rights are, consult your local or state consumer affairs office or your state's Attorney General
Warrantor: General Electric Company.Louisville, KY 40225
43
ConsumerSupport.
%__
GEAppliancesWebsite
In the U.S.: www.GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hom.-sa day,
any day of the year! For greater convenience and faster service, you can now download Owner's Manuals,
order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts'"" your questions,
and so much more...in Canada: www.geapplianees.ca
ScheduleService Intheu.s.:www.GEAppliances.com
Expert GE repair service is only one step away from your dool: Get on-line and schedule your service at your
convenience 24 hours any day of the year! Or call 800.GE.C_MtJgS (800.432.2737) during normal business hours.
In Canada, call 1.800.361.3400
RealLifeDesignStudio
In the U.S.: www.GEAppliances.com
GE supports the Universal Design concept-products, services and environments that can be used by people of all
ages, sizes and capabilities. We recognize the need m design for a wide range of physical and mental abilities and
impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with
disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).
In Canada, contact: Manages; Consumer Relations, Camco, Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
ExtendedWarranties
In the U.S.: www.GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are a'cailable while your warranty is still
in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer
Home Services will still be there after your warranty expires. In Canada, ear 1.888.961.9133
k,................_
V,................_
k,................_
PartsandAccessories
In the U.S.: www.GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at
800.626.2002 during normal business hours.
Instruaionscontainedin thismanualcoverprocedurestobeperformedbyanyuser.Otherservicinggenerallyshouldbe
referredtoqualifiedservicepersonnel.Cautionmustbeexercised,sinceimproperservicingmaycauseunsafeoperation.
Customers in Canada should consult the yellow pages for the nearest Camco service center, or call 1.888.261.3055.
ContactUs
In the U.S.: www.GEAppliances.com
ffyou are not satisfied with the service you receive from GE, contact us on our Website with all the details including
your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY40225
In Canada: geappliances.ca, or write to: Director, Consumer Relations, Camco, Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
RegisterYourAppliance In the U.S.: www.GEAppliances.com
Register your new appliance on-line---at your convenience! Timely product registration will allow fbr
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material. In Canada:
www.geappliances.ca
Printed in Mexico
