imagine the possibilities
Thank you for purchasing this Samsung
product.To receive more complete service.
please register your product a_
www.samsung.com/global/register
Model Serial No
important Warranty Regarding Viewing
information Television Format
Wide screen format LCD Displays (16:9, the aspect ratio of the screen width to height)are primarily designedto view wide screen format
full-motion video. The images displayed on them should primarily be in the wide screen18:9 ratio format, or expanded to fill the screen if
your model offers this feature and the images are constantly moving. Displayingstationarygraphics and images on screen, such as the dark
sidebars on nonexpandedstandardformat televisionvideo and programming, should be limited to no more than 5% of the total television
viewing per week.
Additionally, viewingother stationaryimages and text such as stock market reports,video game displays,station Iogos, web sites or computer
graphics and patterns, should be limited as describedabove for all televisions. Displayingstationaryimages that exceed the above guidelines
can cause uneven aging of LCD Displaysthat leave subtle, but permanentburned-in ghost images in the LCD picture. Toavoid this, vary the
programmingand images,and primarilydisplay full screen moving images, not stationarypatterns or dark bars.
On LCD models that offer picture sizing features, usethese controlsto view different formats as a full screen picture.
Be careful in the selectionand durationof television formatsused for viewing.Uneven LCD aging as a result of format selectionand use,as
wett as burned-in images, are not covered by your Samsung limited warranty.
U.S.A Only
The product unit accompanyingthis user manual is licensed under certain intellectual property rights of certain third parties. In particular,
this productis licensed under the following US patents: 5,991,715, 5,740,317,4,972,484, 5,214,878, 5,323,398,5,539,829, 5,808,818,
5,530,855, 5,777,992,6,289,308, 5,810,985, 5,481,843,5,544,247, 5,960,037,6,023,490, 5,878,080, and under US Published Patent
ApplicationNo. 2001-44713-A1.
This license is limited to private non-commercialuse by end-user consumersfor licensed contents.No rights are granted for commercial
use.The license does not cover any productunit other than this product unit and the license does not extend to any unlicensedproduct unit
or processconforming to ISO/tEC 11172-3or ISO/IEC 13818-3 usedor sold in combinationwith this product unit.The license ontycovers
the use of this product unitto encode and/or decode audio files conforming to the ISO/IEC 11172-3or ISO/IEC13818-3. No rights are
granted under this licensefor productfeaturesor functions that do not conform to the ISO/IEC 11172-3or ISO/IEC 13818-3.
Other countries
The product unit accompanyingthis user manual is licensed under certain intellectual property rights of certain third parties. This license is
limitedto private non-commercial use byend-user consumers for licensed contents.No rights are granted for commercial use. The license
does not cover any product unit other than this product unit and the license does not extend to any unlicensed productunit or process
conformingto ISO/IEC 11172-3or ISO/IEC 13818-3used or sold in combination with this product unit.The license only coversthe useof
this productunit to encode and/or decode audio files conforming to the ISO/IEC 11172-3or ISO/IEC 13818-3.No rights are granted under
this licensefor product features or functions that do not conform to the ISO/IEC 11172-3or ISO/IEC 13818-3.
]
SAMSUNGELECTRONICSNORTHAMERICANLIMITEDWARRANTYSTATEMENT
Subjectto the requirements,conditions, exclusionsand limitationsof the original LimitedWarrantysupplied with Samsung Electronics
(SAMSUNG)products, and the requirements,conditions, exclusionsand limitations containedherein. SAMSUNGwill additionally provide
Warranty Repair Service in the United States on SAMSUNGproducts purchased in Canada.and in Canada on SAMSUNC-products
purchasedin the United States. [or the warranty period originally specified,and to the Original Purchaser only.
The above describedwarranty repairs must be performed by a SAMSUNGAuthorizedService Center.Along with this Statement. tne
Origina _imited WarrantyStatement and a dated Bi]lof Saleas Proof of Purchase must Depresen[eo to the Service Center.Transportation
to and from t_e Service Centeris the responsibilityof the purchaser.
Conditionscovered are limited only to manufactanngdefects in material or workmanship, and only those encounterea in normaluse of the
product.
Excluded.but not limited to. are anyoriginally specified provisionsfor. in-homeor on-site services, minimumor maximumrepair umes.
exchangesor replacements, accessories, options,upgrades 3rconsumables
For the locationof a SAMSUNGAuthorized Service Center,please call toll-free:
In the United States : 1-800-SAMSUNG(I-800-726-7864) In Canada : 1-800-$AMSUNG
>- See the warranty card for more information on warranty terms.
• DO not disPlaY a st!!! image on the LCD panel for mole than 2 hours as it can cause screen image retention: This image
retention is also known as !'screen burn": To avoid such image retention, reduce the degree of brightness and contrast of the
screen when displaying a st!l! !mage.
Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the !eft,
right and center of the Screen caused by the difference of light emission on the Screen.
Playing a DVD or a game conso!e may cause a simi!ar effect tothe screenl
nages caused by the above effect are not covered by th e Warranty.
• DisPlaying still images from Video games and PC for !onger than a certain period of time may produce partial afterqmages.
To prevent this effect, reduce the _brightnessl and 'contrast _when displaying still images.
© 2008 Samsung Electronics Co., Ltd. All rights reserved.

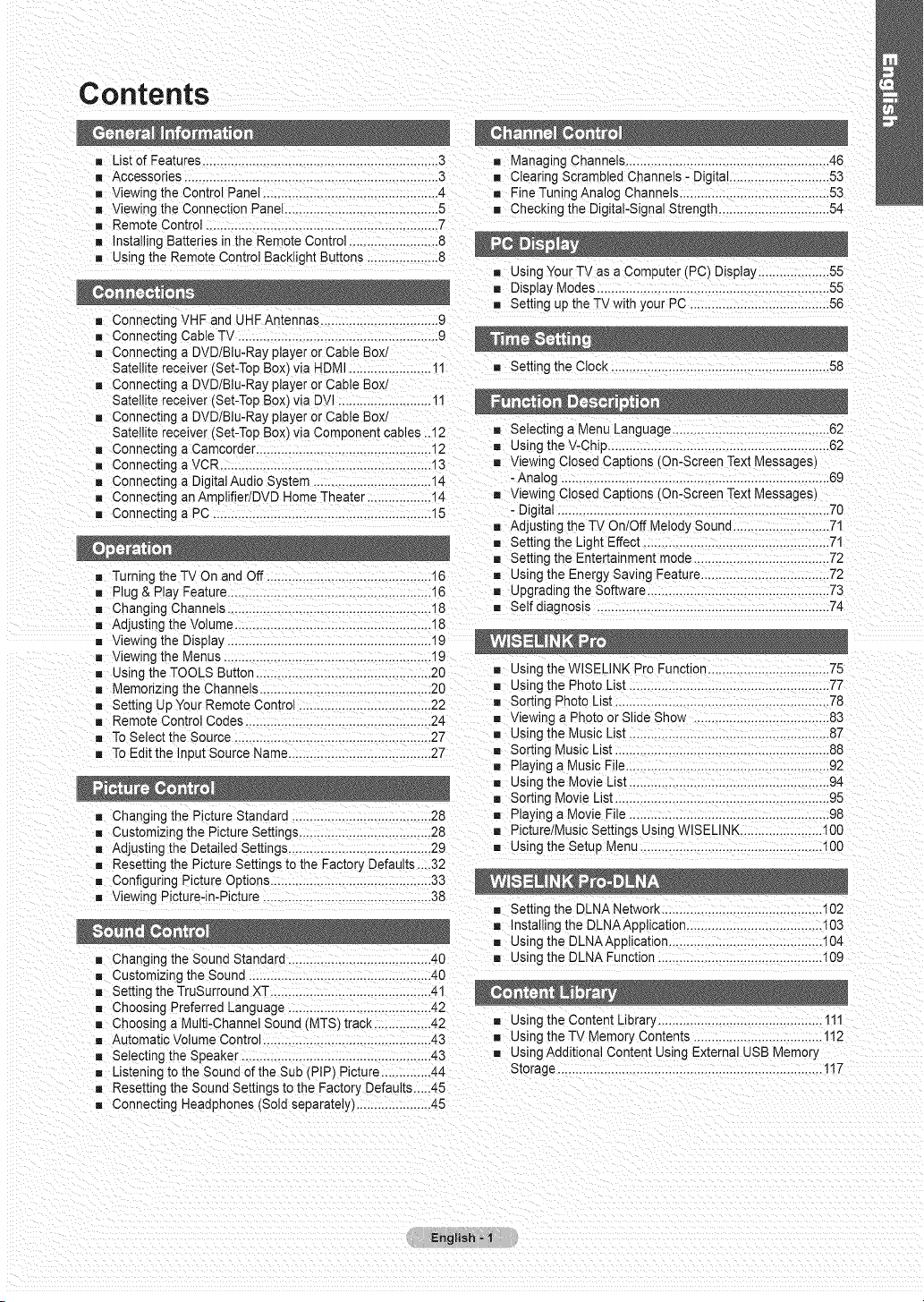

Contents
,, List of Features .................................................................. 3 = Managing Channels ......................................................... 46

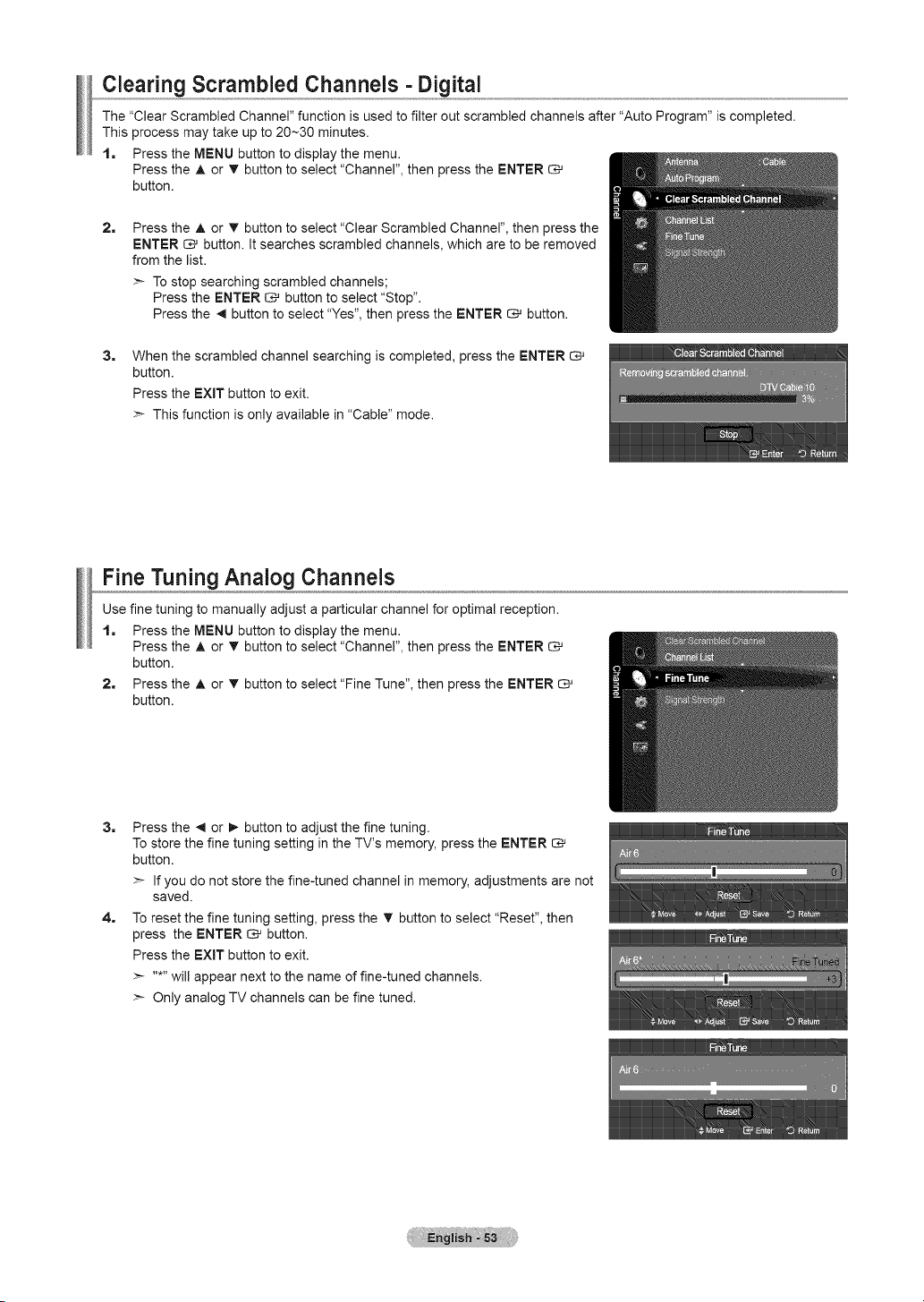

= Accessories .................................... 3 • Clearing Scrambled Channels - Digital............................ 53
= Viewing the Control Panel ................................................. 4 ,, Fine Tuning Analog Channels.......................................... 53

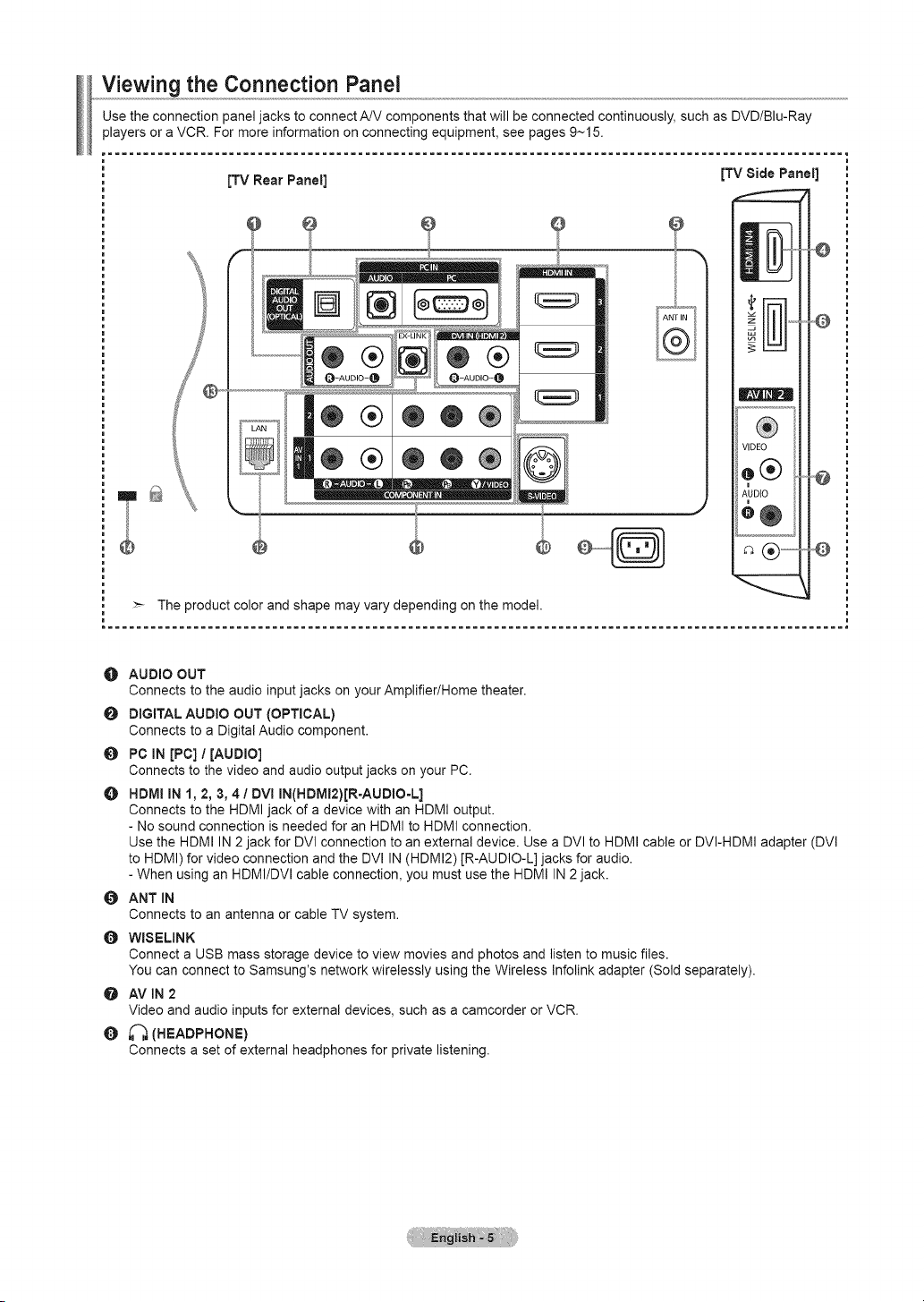

= Viewing the Connection Panel ........................................... 5 = Checking the Digital-Signal S[rength ............................... 54
= Remote Control ............................................................. 7
,, Installing Batteries in the Remote Control ................... 8
= Us ng the Remote Contro Back ght Buttons .................... 8

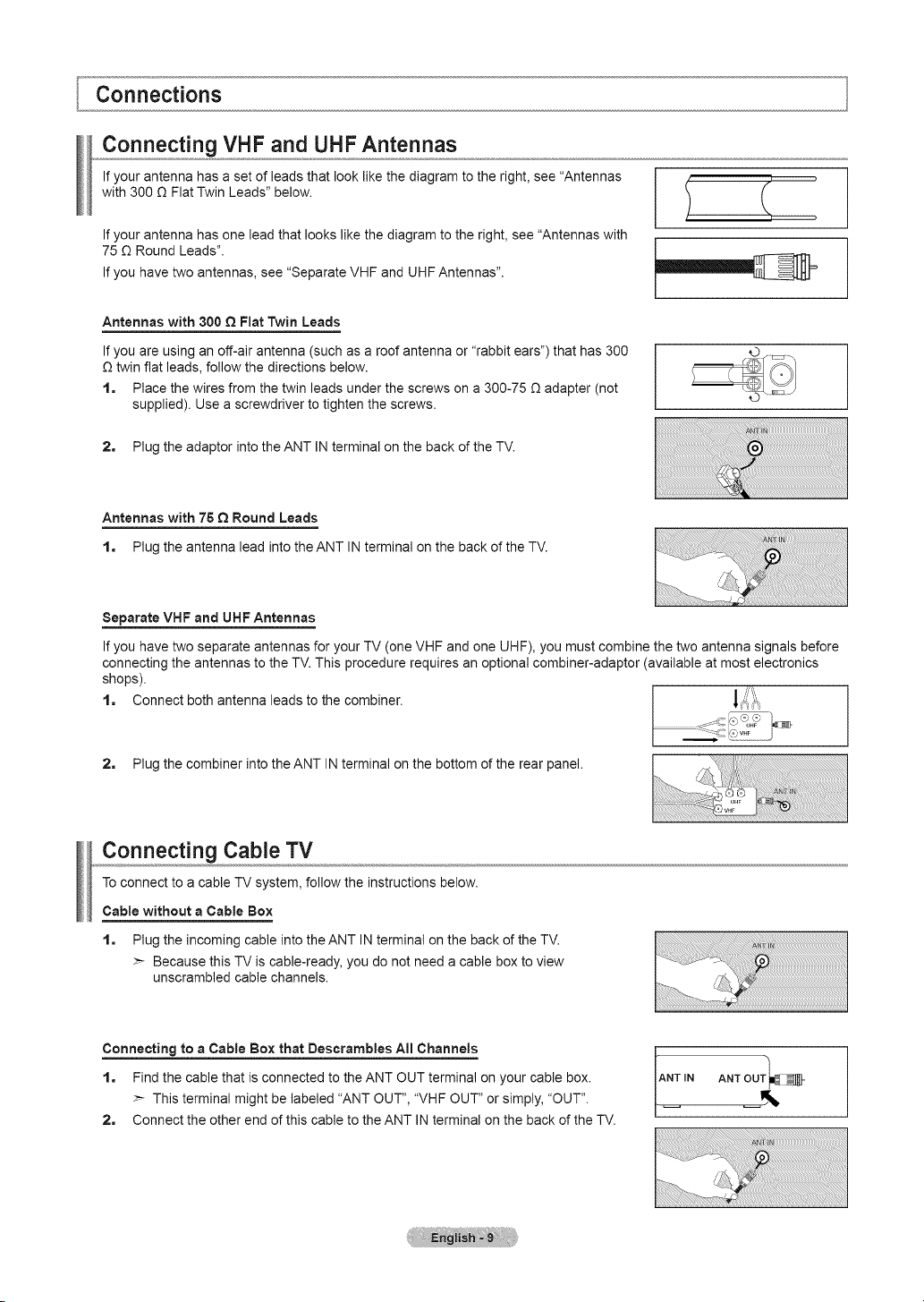

[] Connecting VHF and UHFAntennas ................................ 9

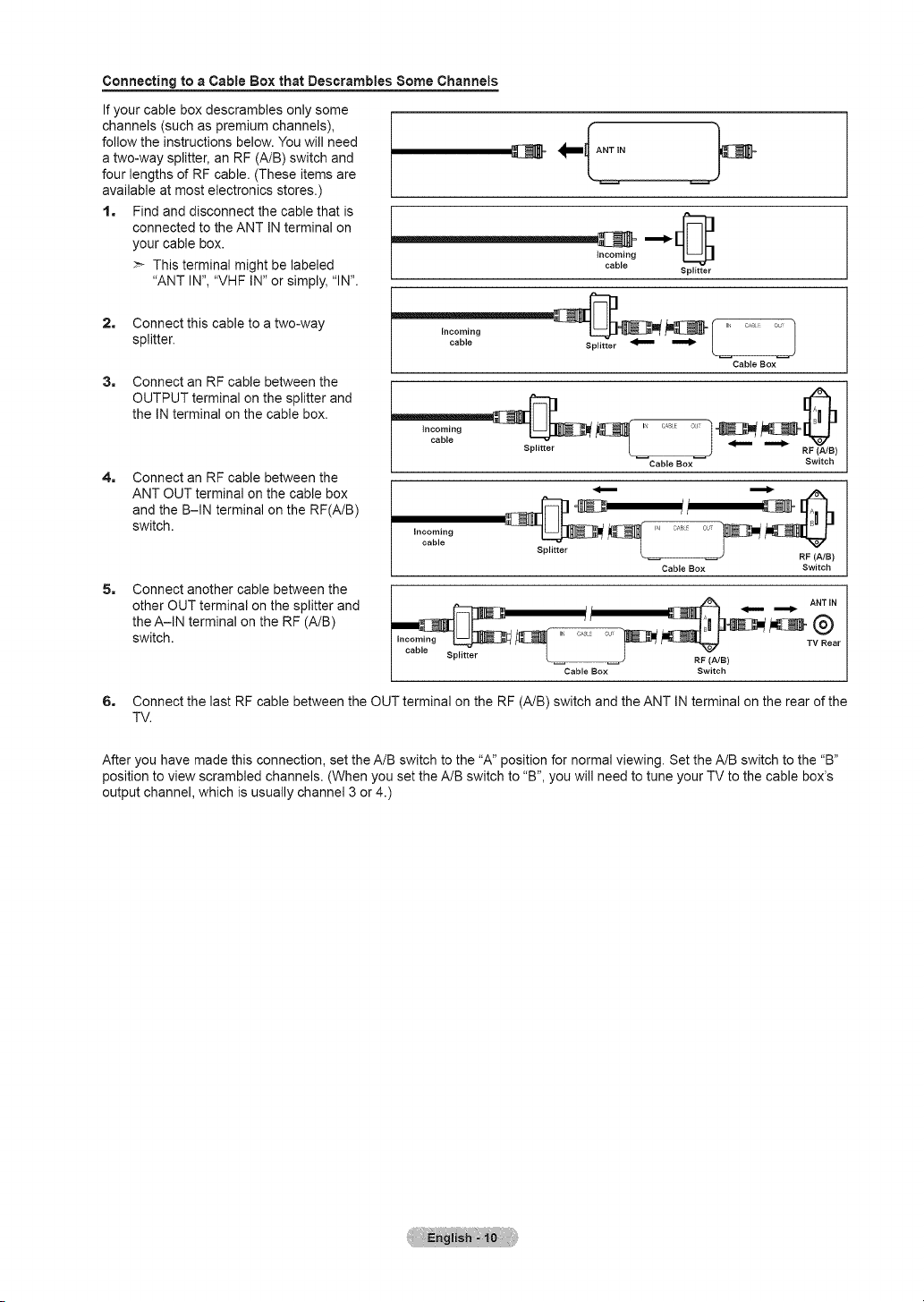

= Connecting Cable TV ..................................................... 9
[] Connecting a DVDIBlu-Ray player or Cable Box
Satellite receiver (Set-Top Box) via HDMI .................. 11
i Connecting a DVD/Blu-Ray player or Cable Box
Satellite receiver (Set-Top Box) via DVI .......................... 11
,, Connecting a DVD/Blu-Ray player or Cable Box/
= Using Your TV as a Computer (PC_ Display .................... 55
Display Modes ................................................................. 55

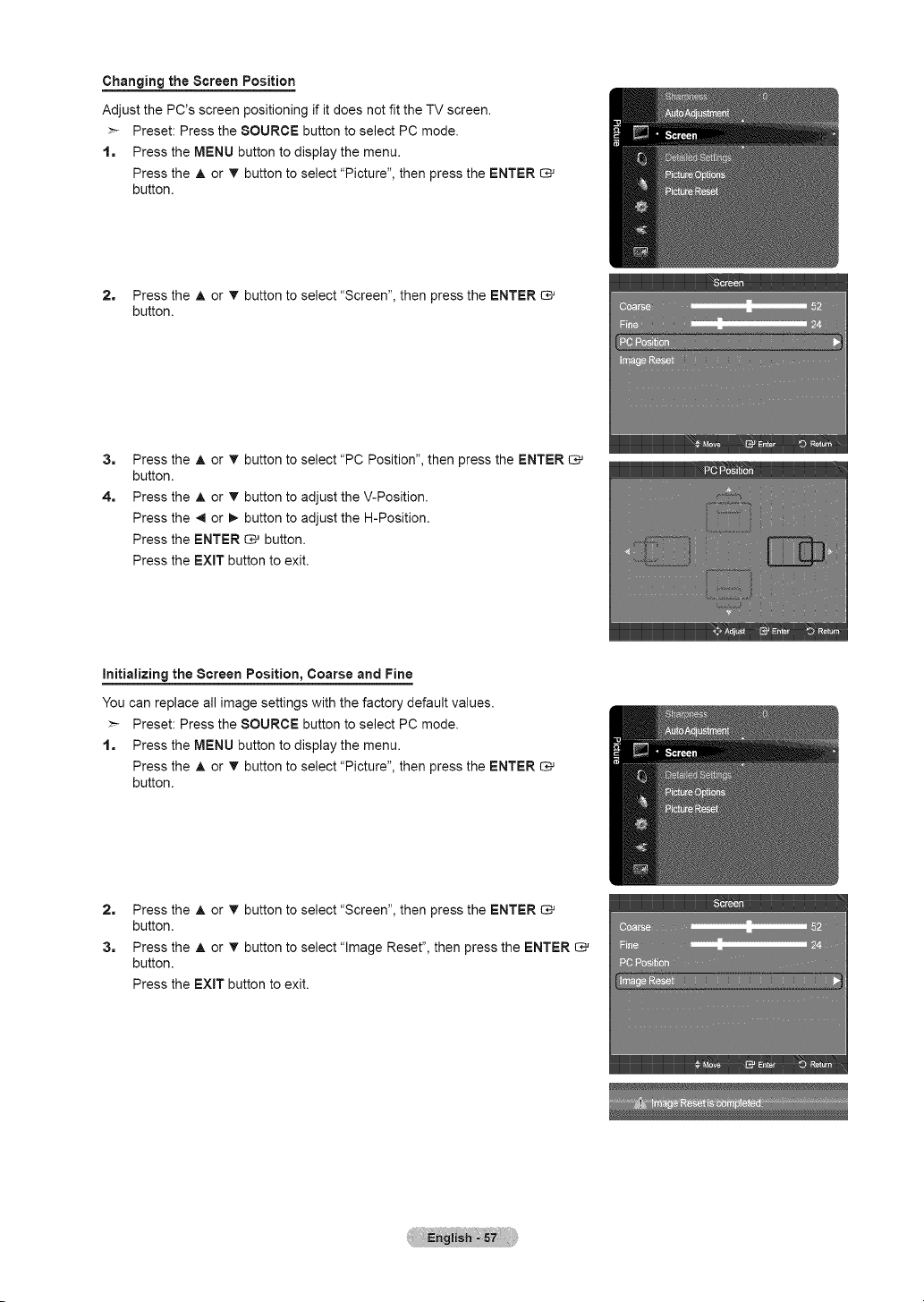

Setting up the TV with your PC ....................................... 58

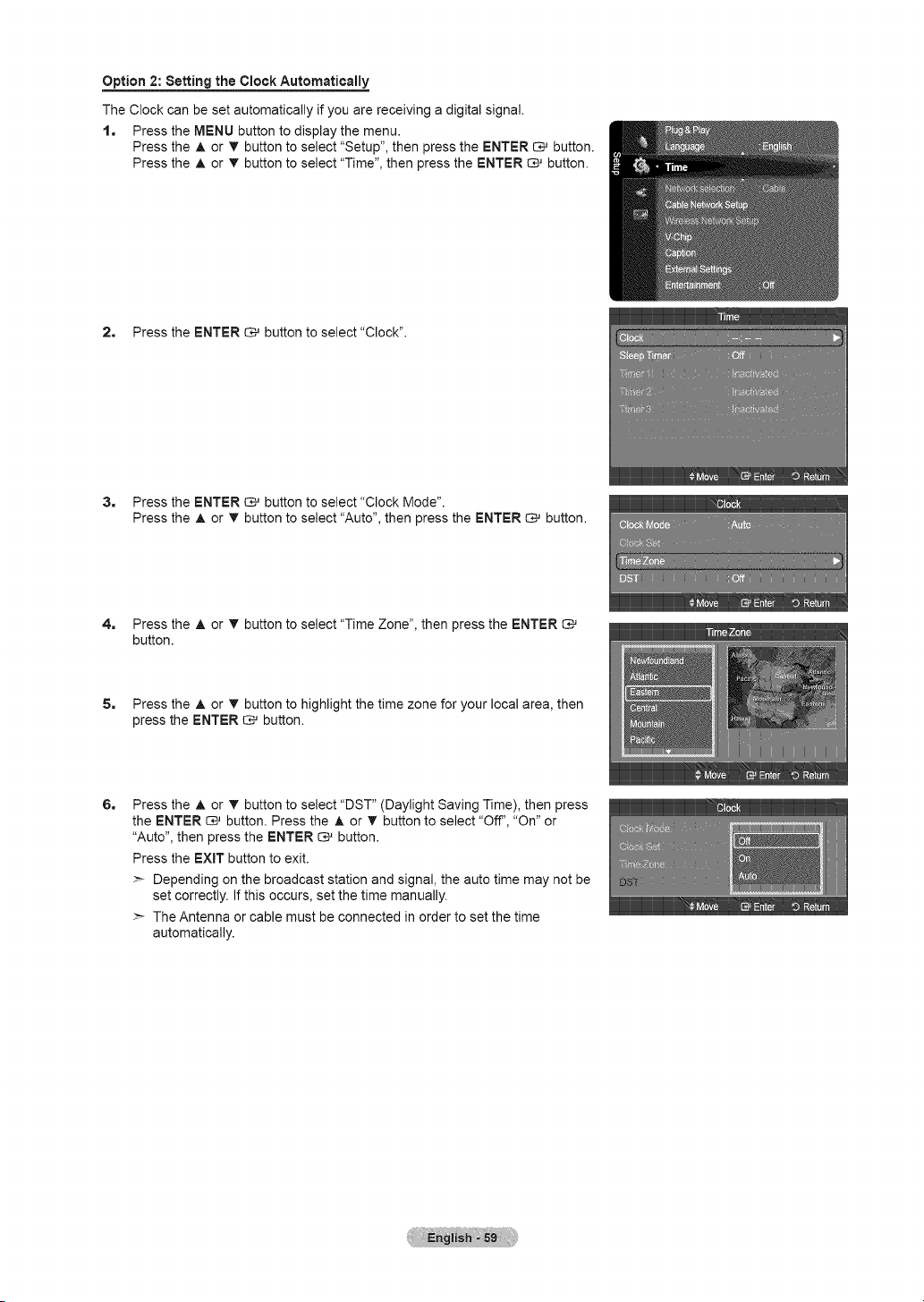

= Setting the Clock ............................................................. 58
Satellite receiver (Set-Top Box_via Component cables ..12 _ Selecting a Menu Language ........................................... 62
[] Connecting a Camcorder ................................................. 12 • Using the V-Chip.......................................................... 62
= Connecting a VCR .......................................................... 13 = Viewing Closed Captions IOn-Screen Text Messages)
Connecting a Digital Audio System ................................. 14 - Analog ....................................................................... 6_c
[] Connecting an AmplifieriDVD Home Theater .................. 14 m Viewing Closed Captions (On-Screen Text Messages)
= Connecting a PC ............................................................ 15 - Digital ........................................................................ 70
,, Turning the TV On and Off ........................................... 16

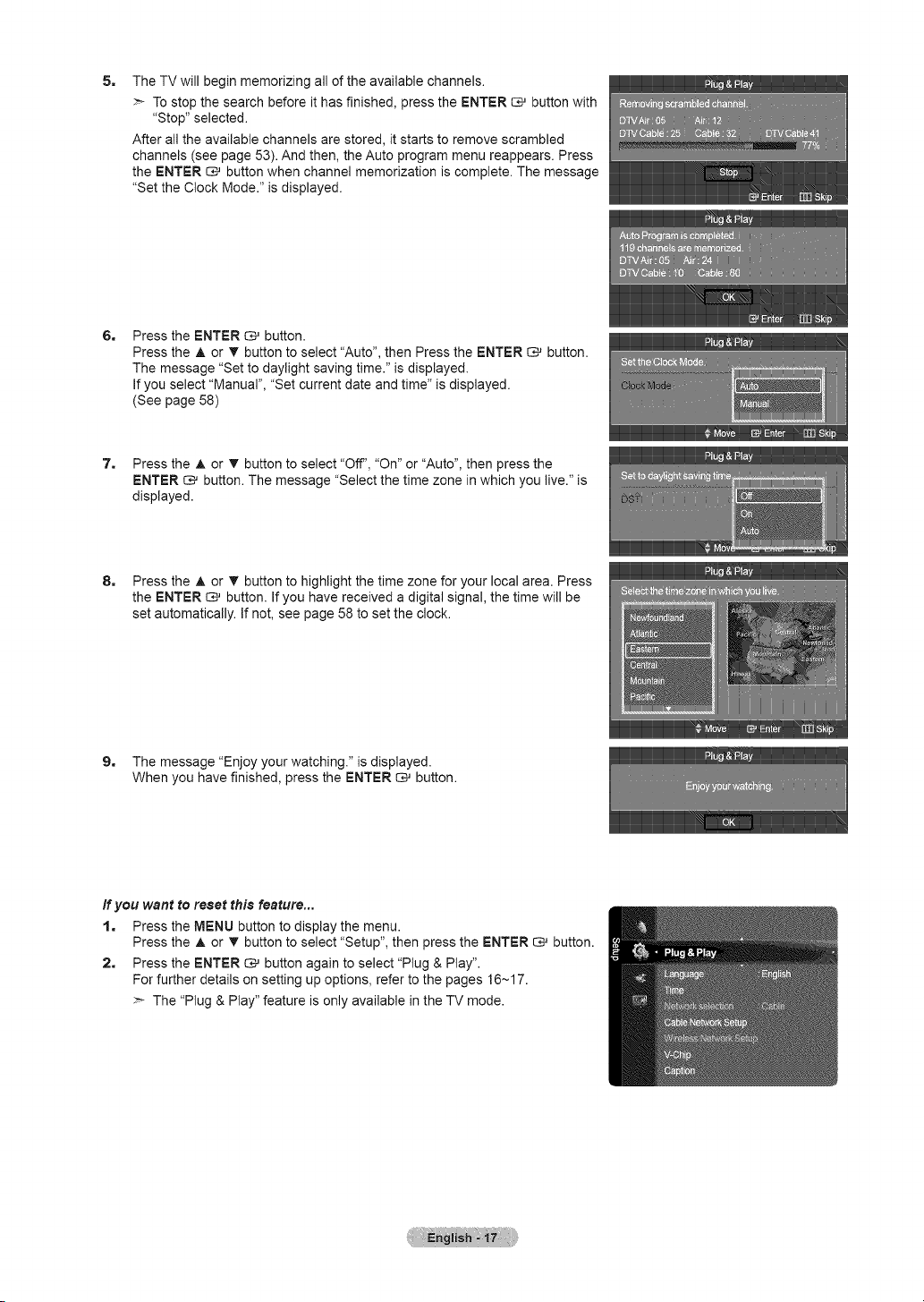

= Plug & Play Feature ......................................................... 16
= Changing Channels ......................................................... 18
[] Adjusting the Volume ..................................................... 18
= Viewing the Display ........................................................ 19
,, Viewing the Menus ......................................................... 19
,, Using the TOOLS Button ........................................... 20
= Memorizing the Channels ................................................ 20
= Setting UpYour Remote Control ..................................... 22

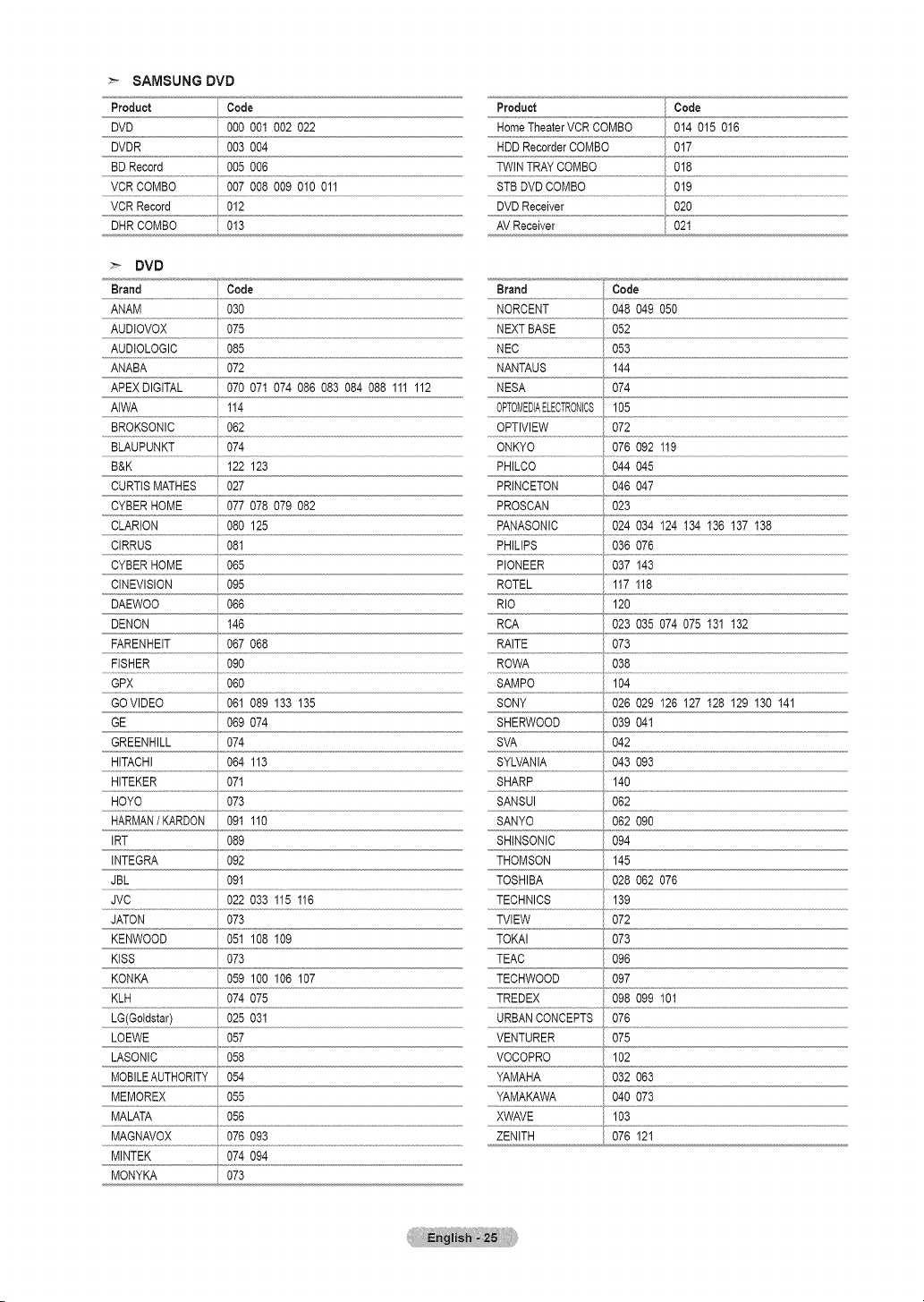

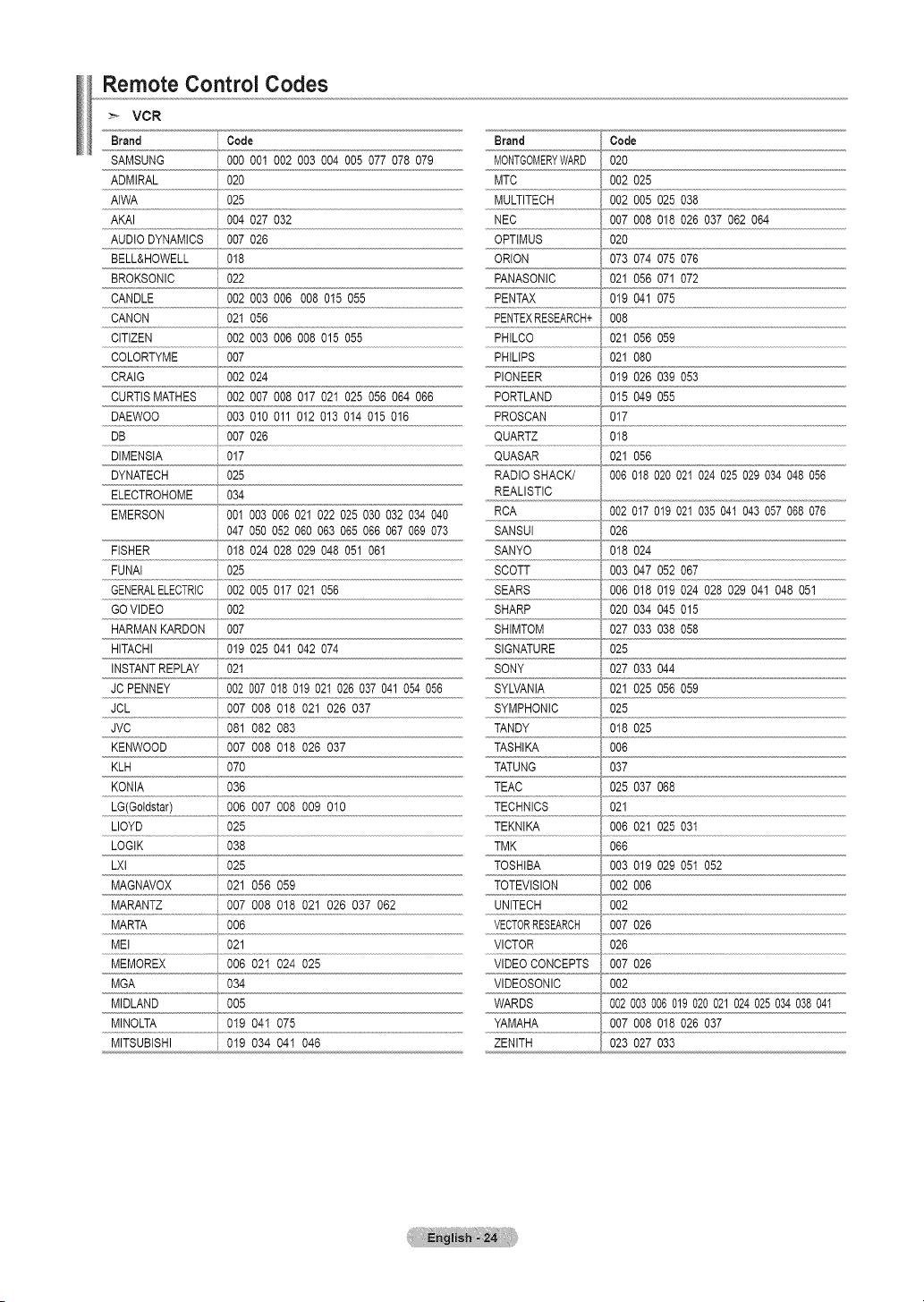

= Remote Control Codes .................................................... 24

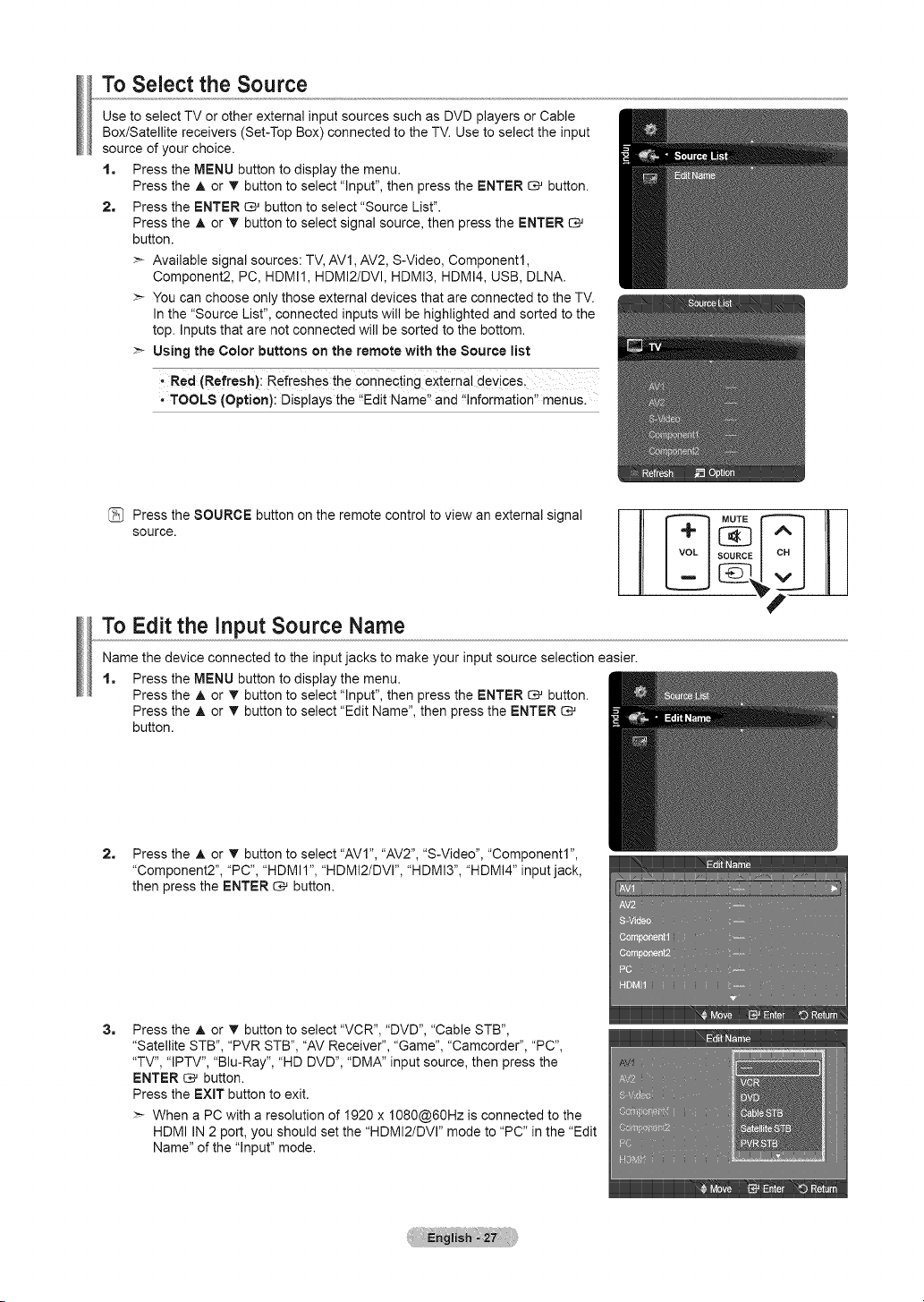

[] To Select the Source ....................................................... 27
[] To Edit the In_u_Source Name ........................................ 27
[] Adjusting the TV On/Off Melody Sound ........................... 71
Setting the Ligqt Effect ................................................ 71
Setting the Entertain "nent mode ...................................... 72
m Using the Energy Saving Fea[ure .................................... 72
= Upgrading the Software ............................................... 73
Self diagnosis ................................................................. 74
= Using the WISELINK Pro Function .................................. 75

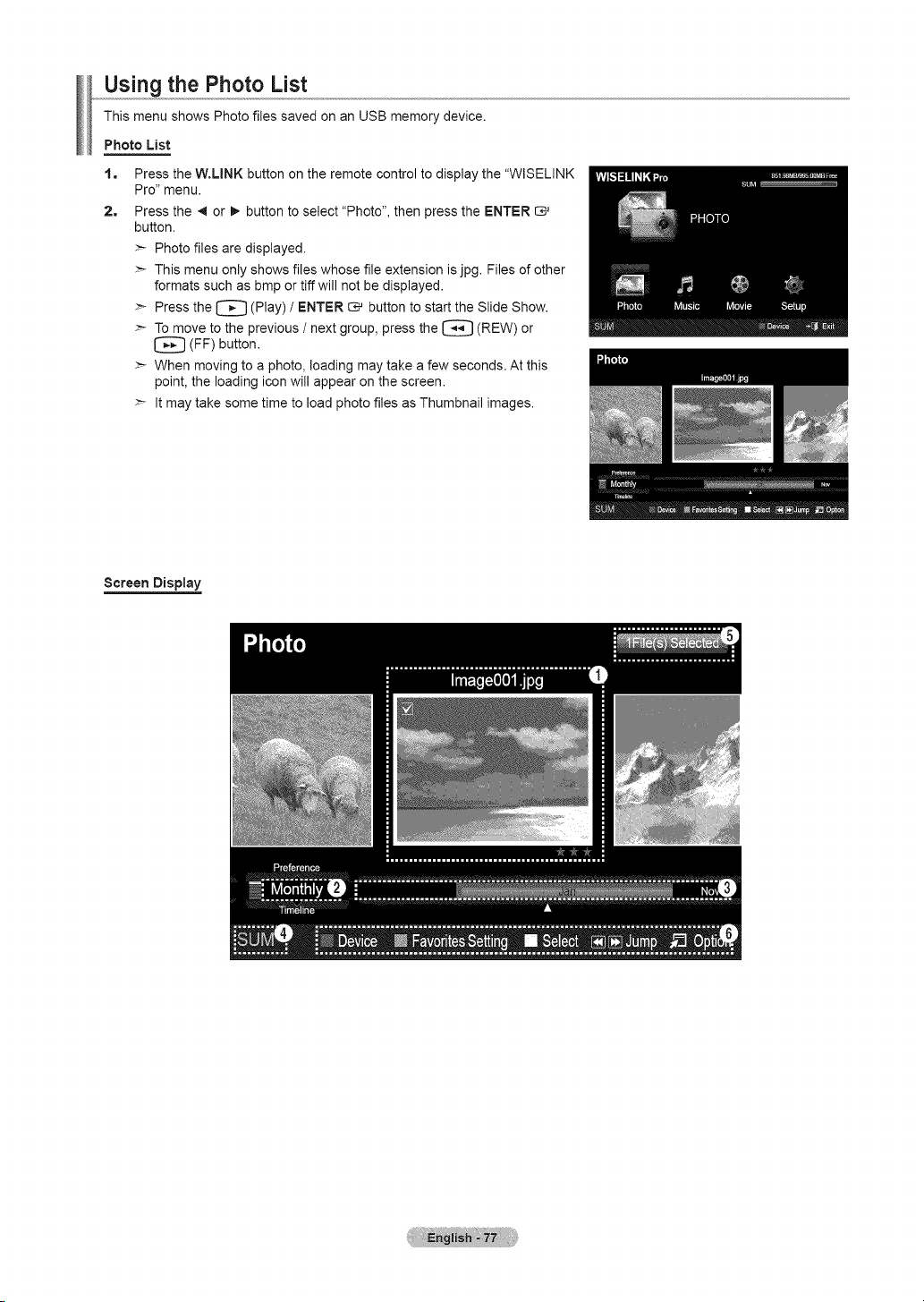

Using the Photo List ........................................................ 77
= Sorting _hoto List ........................................................ 78
Viewing a Photo or Slide Show ...................................... 83
Using the Music List ........................................................ 87
Sorting Music List ............................................................ 88

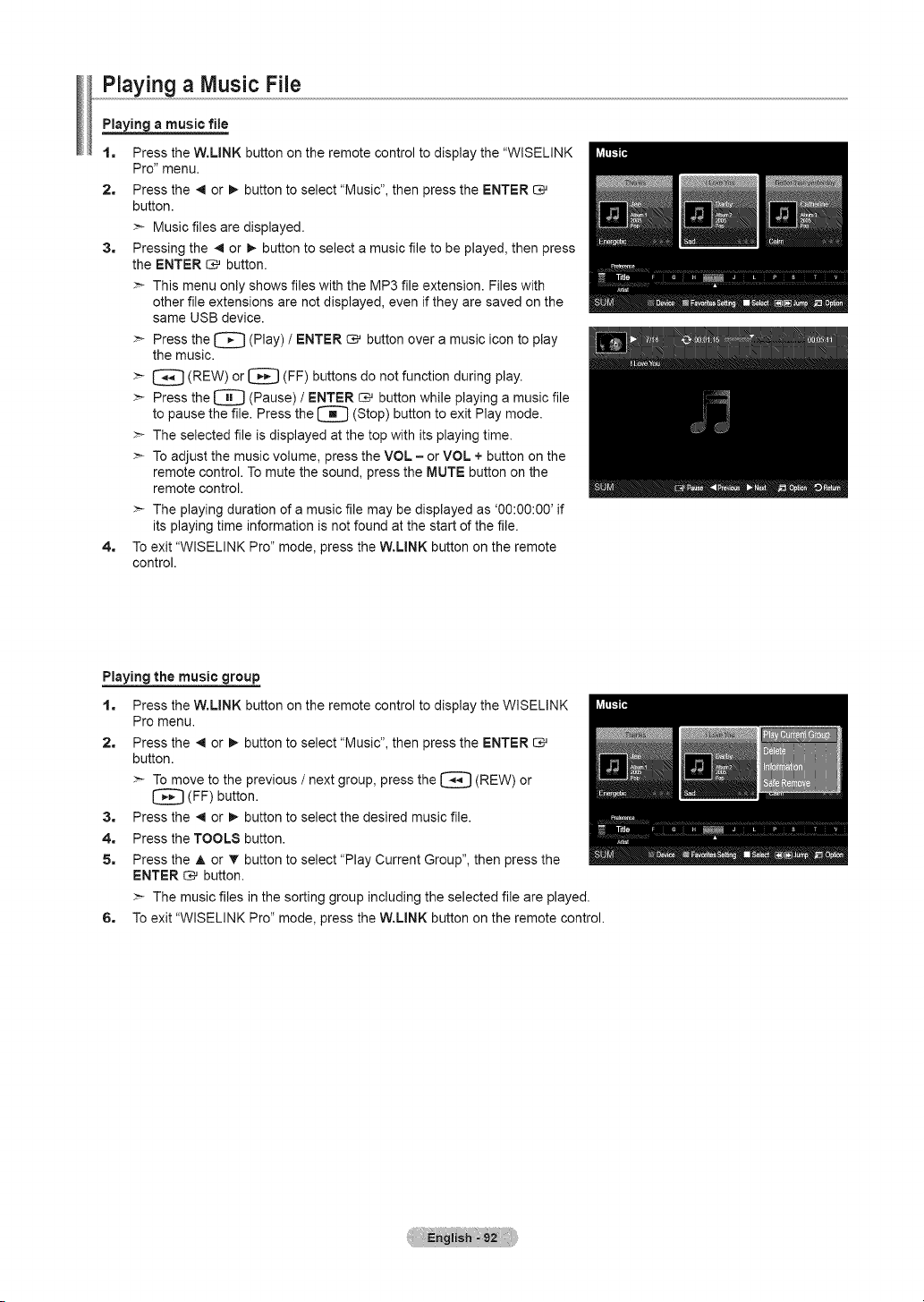

Playing a Music File......................................................... 92

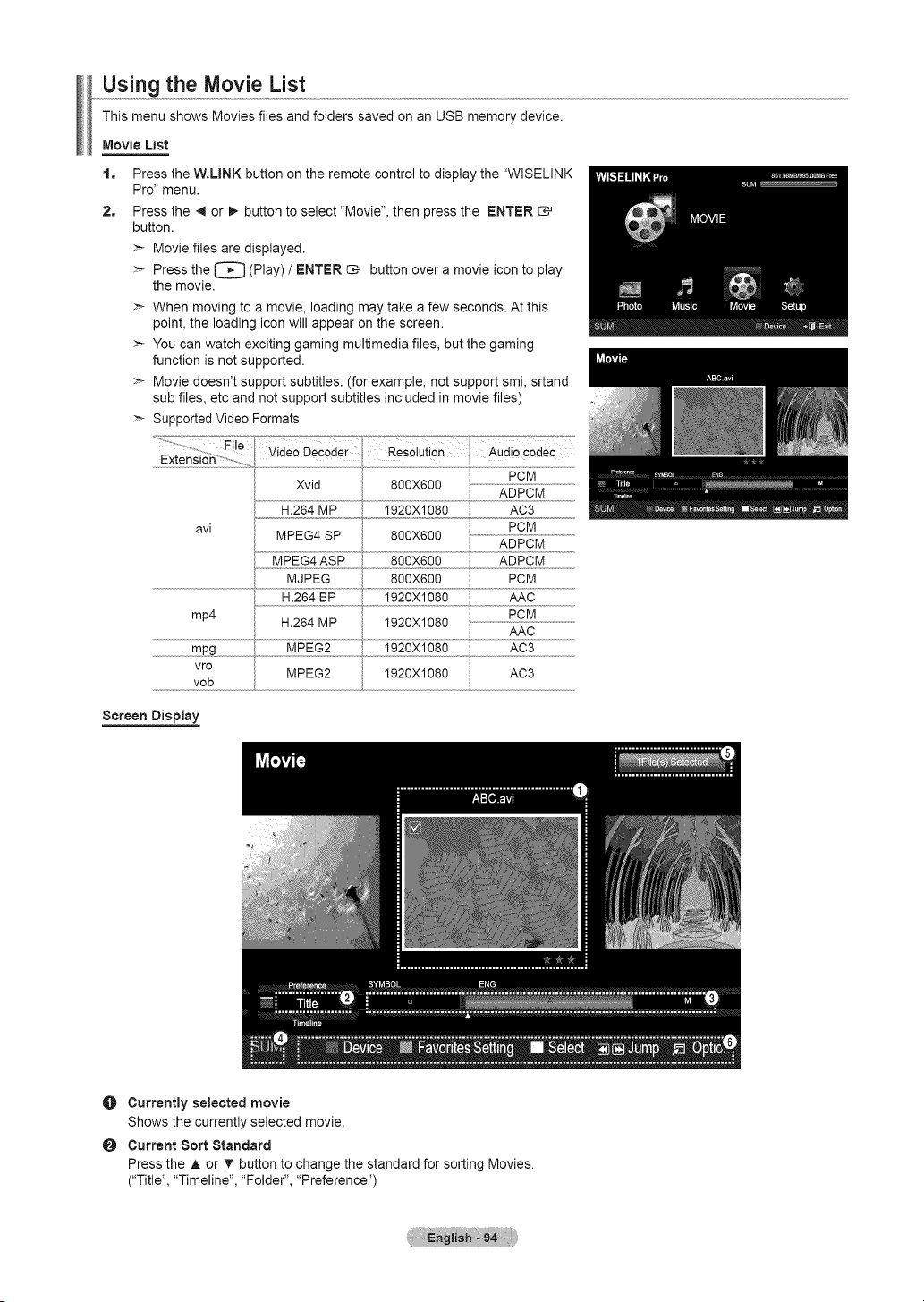

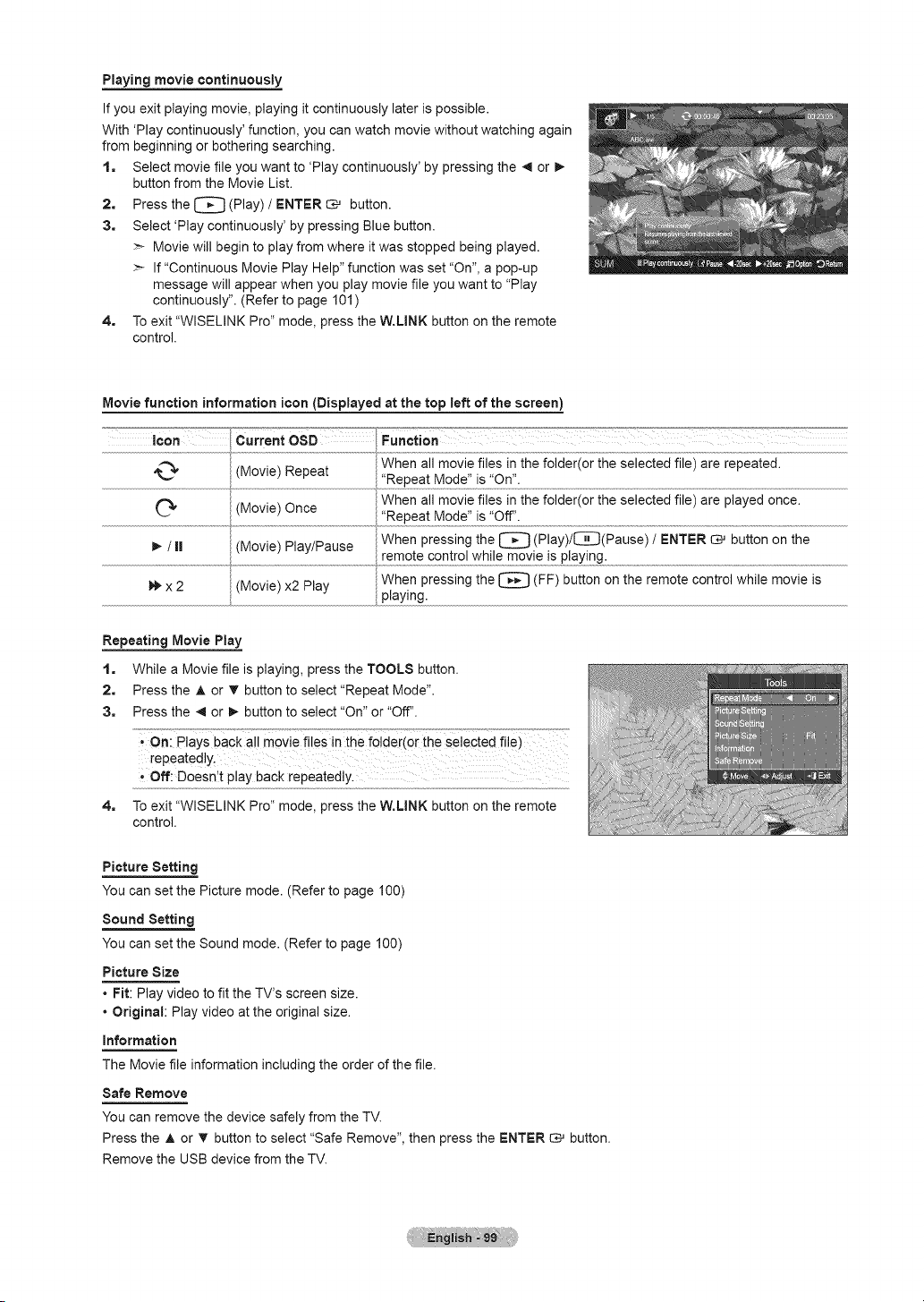

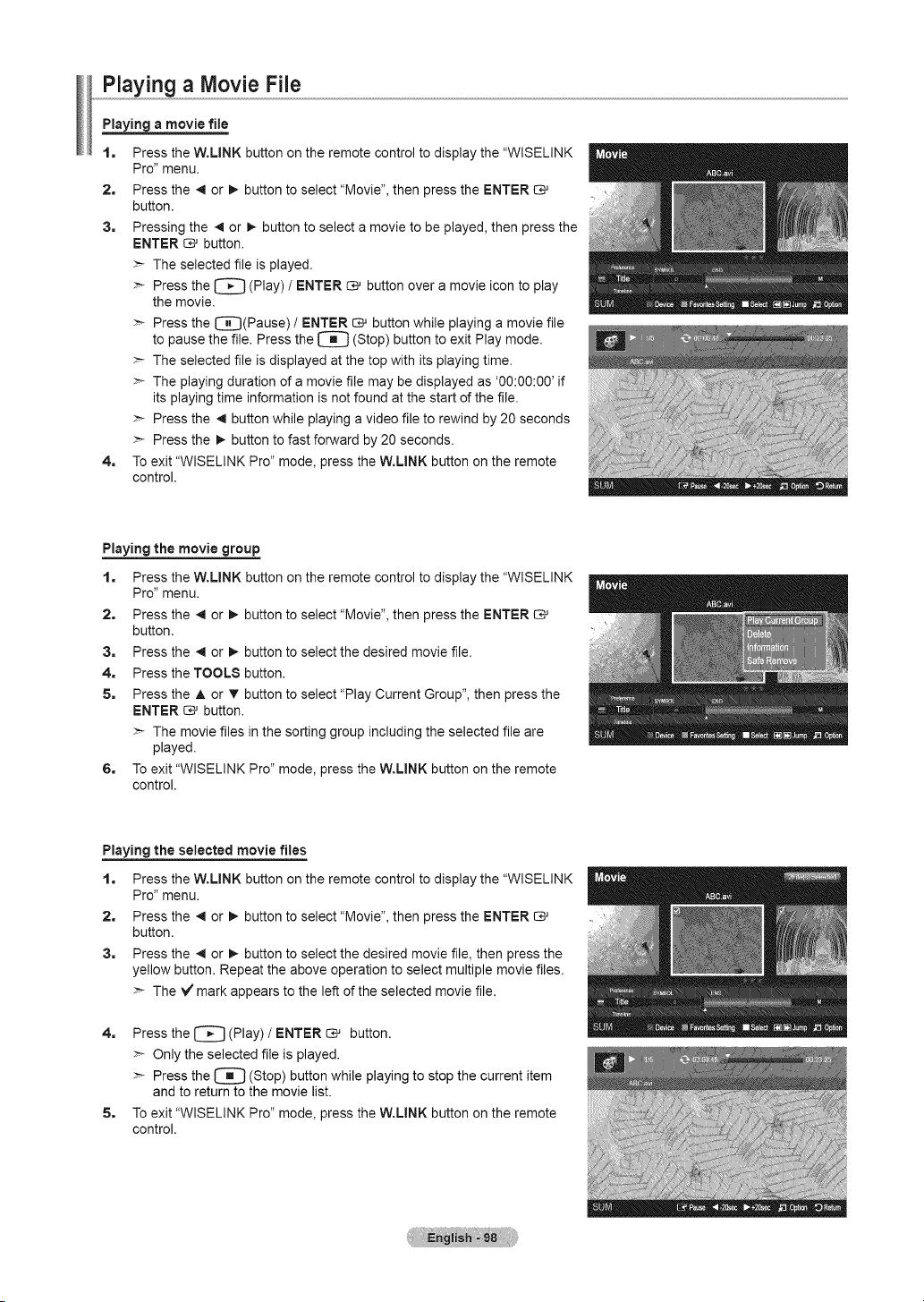

= Using the Movie List ........................................................ 94
Sorting Movie List ............................................................ 95
[] Changing the Picture Standard ....................................... 28 = Playing a Movie File .................................................... 98
[] Customizing the Picture Settings ..................................... 28 ............................ WISELINK ................. I0C
[] Adjusting the Detailed Settings ........................................ 29 = Using the Setup Menu ................................................... 100

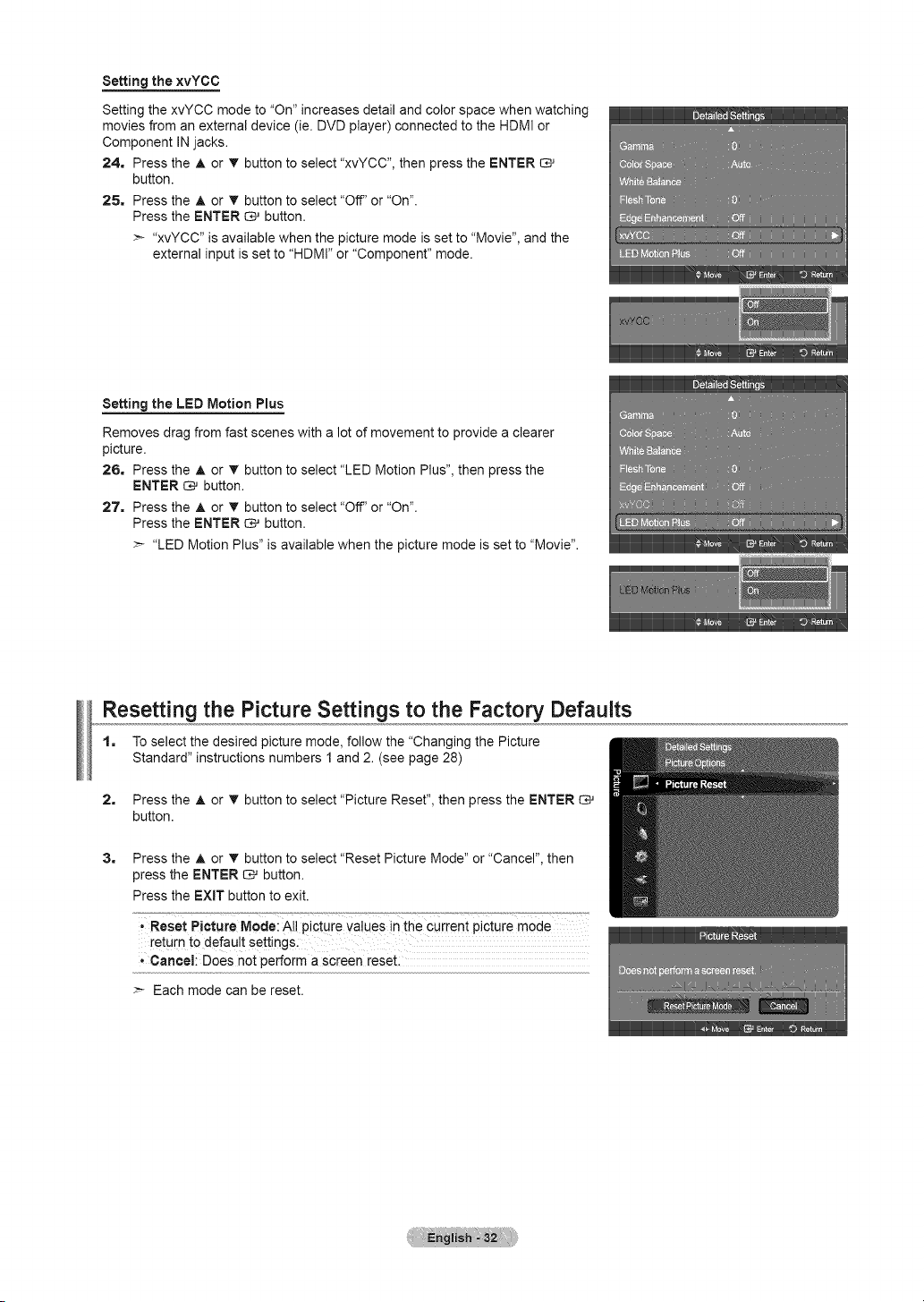

[] Resetting the Picture Settings to the Factory Defaults....32

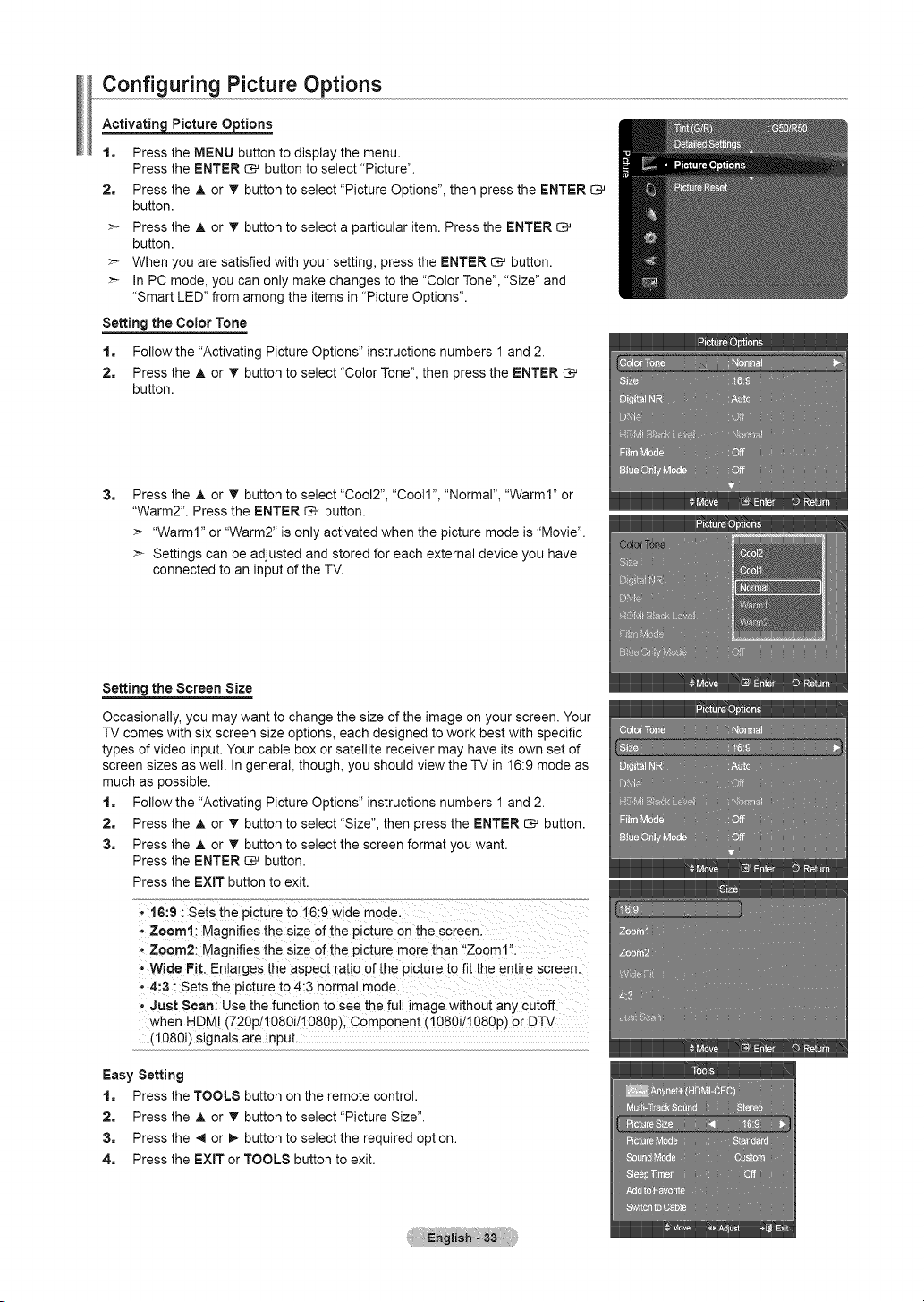

[] Configuring Picture Options ......................................... 33

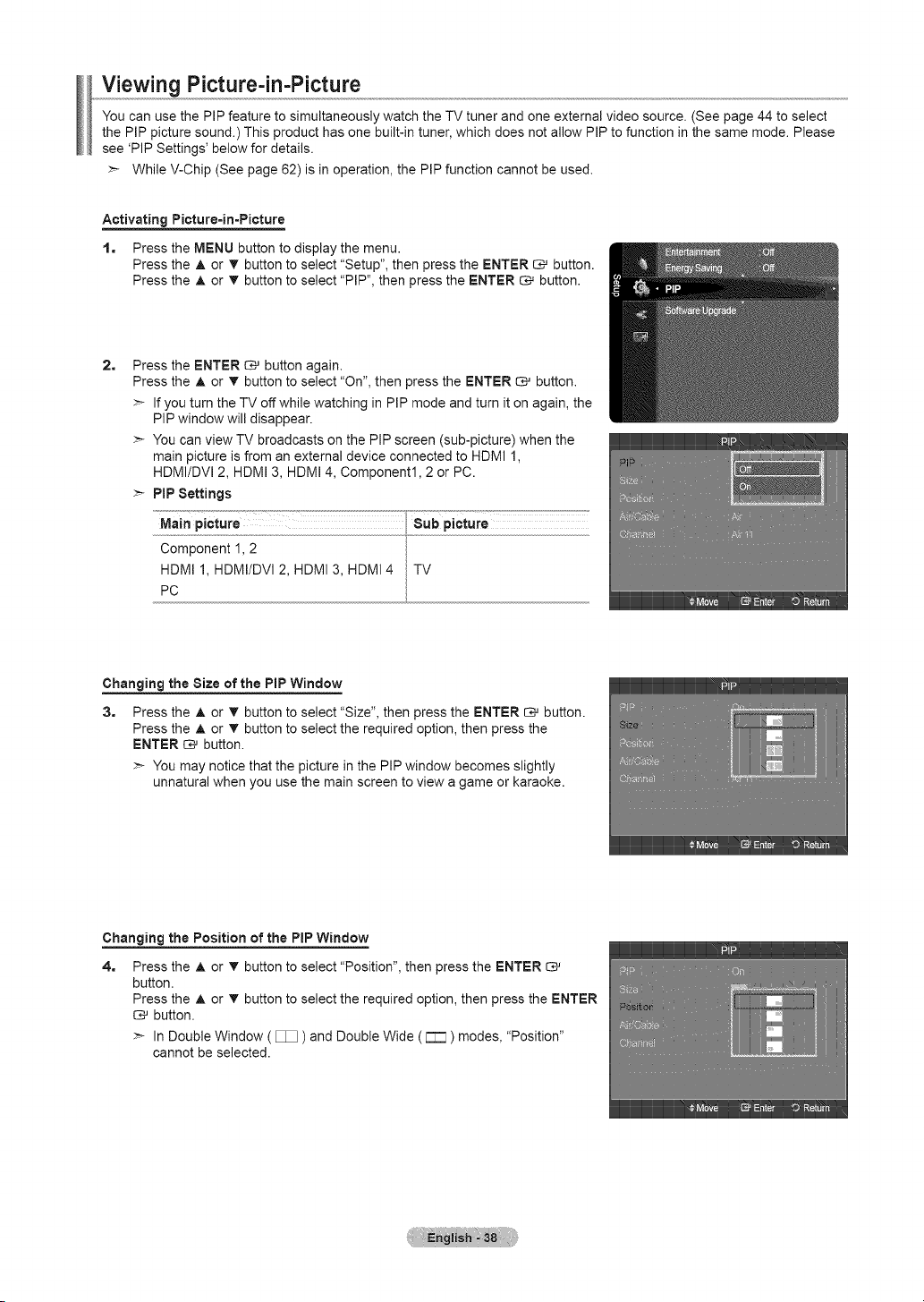

[] Viewing Picture-in-Picture ........................................... 38
[] Changing the Sound Standard .................................... 40
[] Customizing the Sound ................................................... 40
[] Setting the TruSurround XT ............................................. 41
[] Choosing Preferred Language ........................................ 42
[] Choosing a Multi-Channel Sound (MTS} track ................42

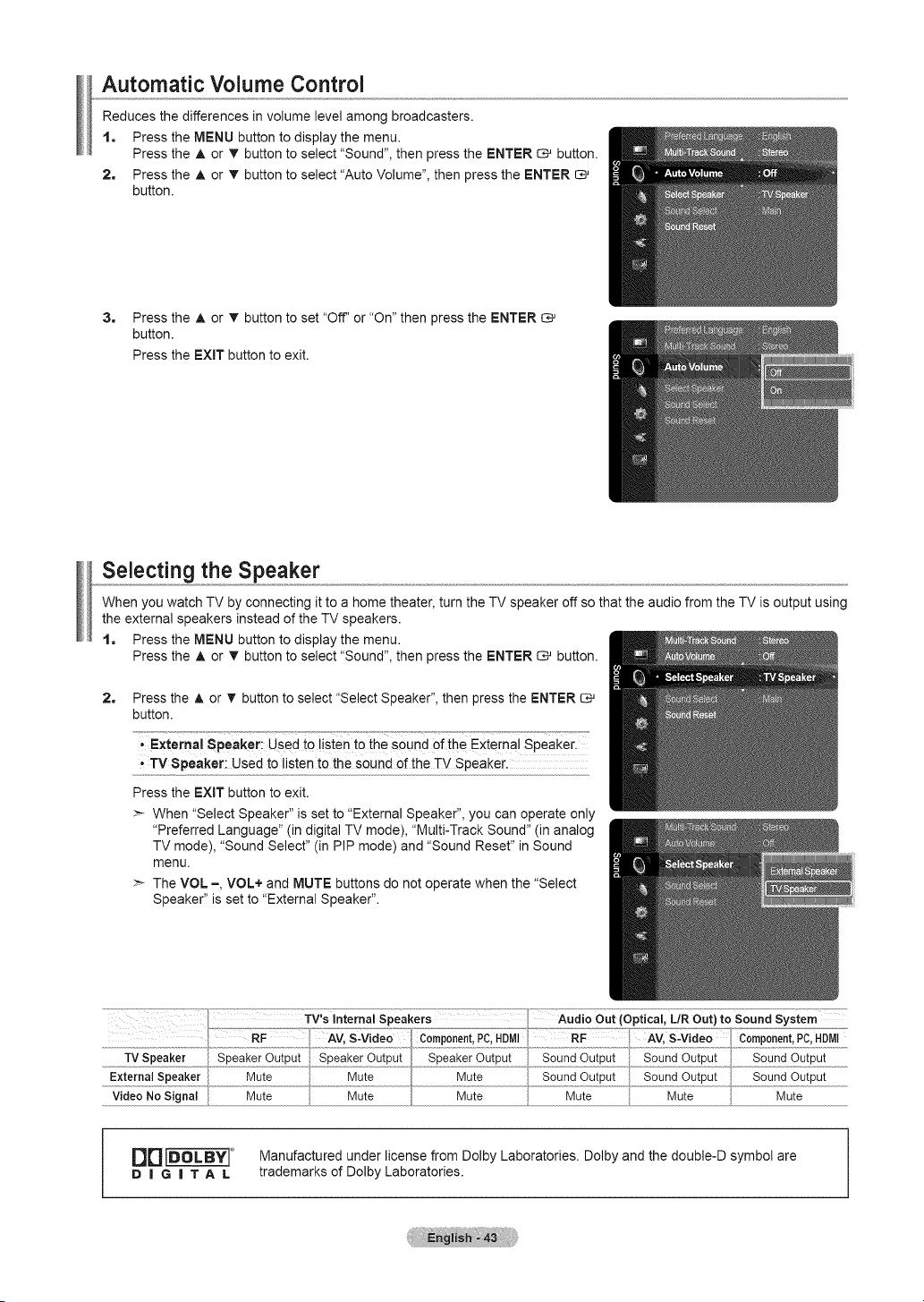

[] Automatic Volume Control .......................................... 43
[] Selecting the Speaker ..................................................... 43

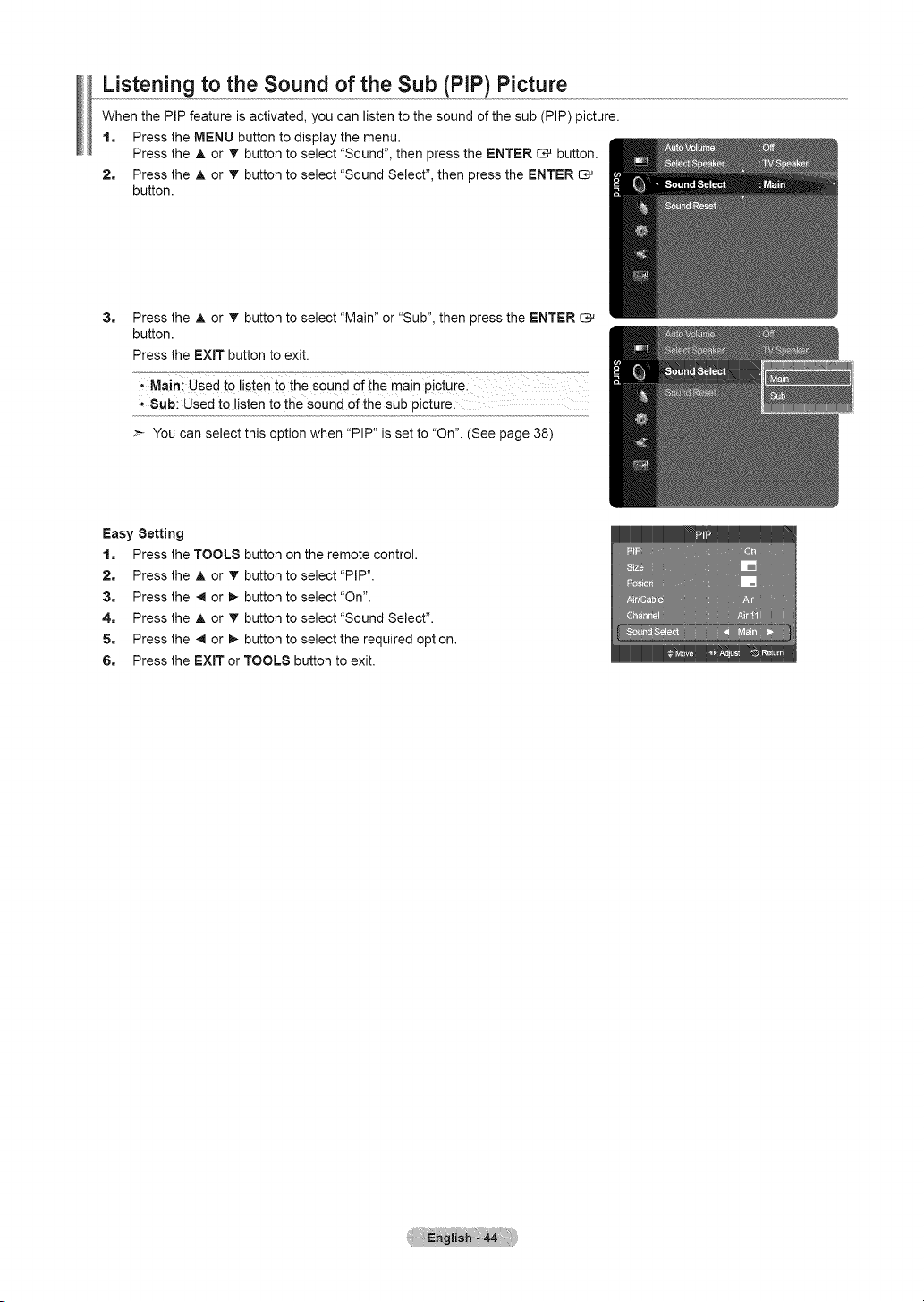

[] Listening to the Sound of the Sub (PIP} Picture ..............44

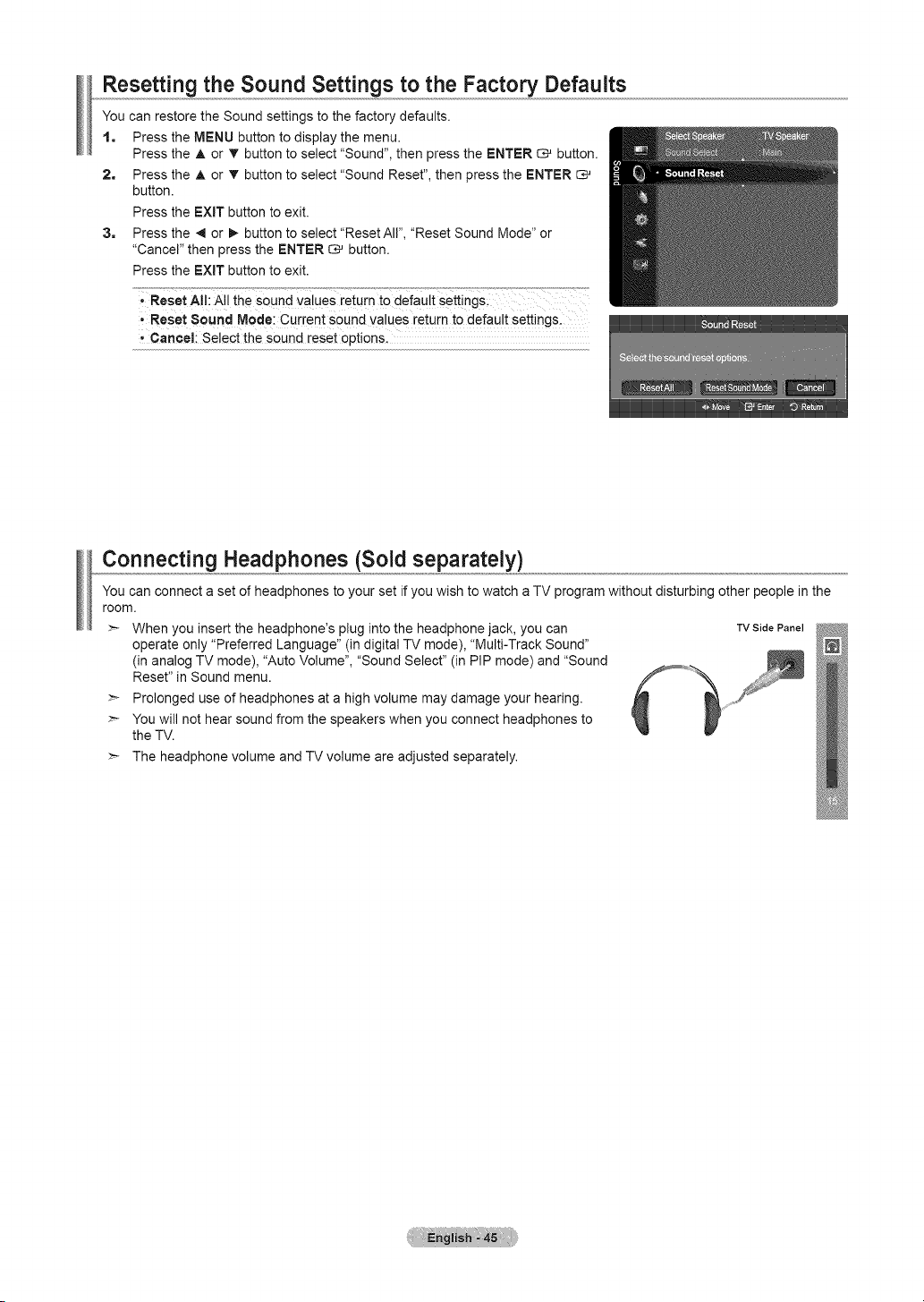

[] Resetting the Sound Settings to the Factory Defaults._..45
[] Connecting Headphones (Sold separately) ...................45

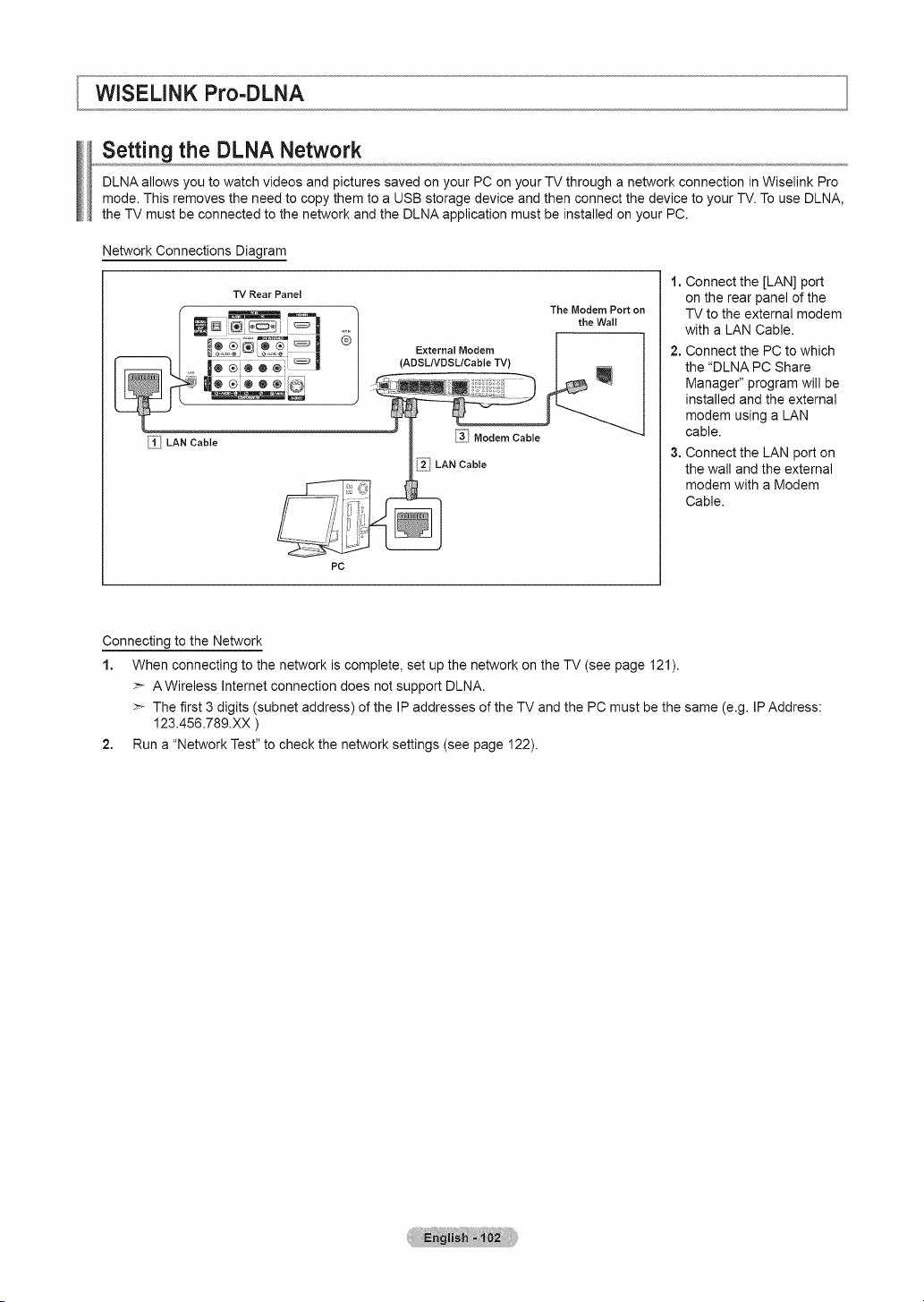

= Setting the DLNA Network ............................................. 102
•. Installing the DLNAApplication ...................................... 103

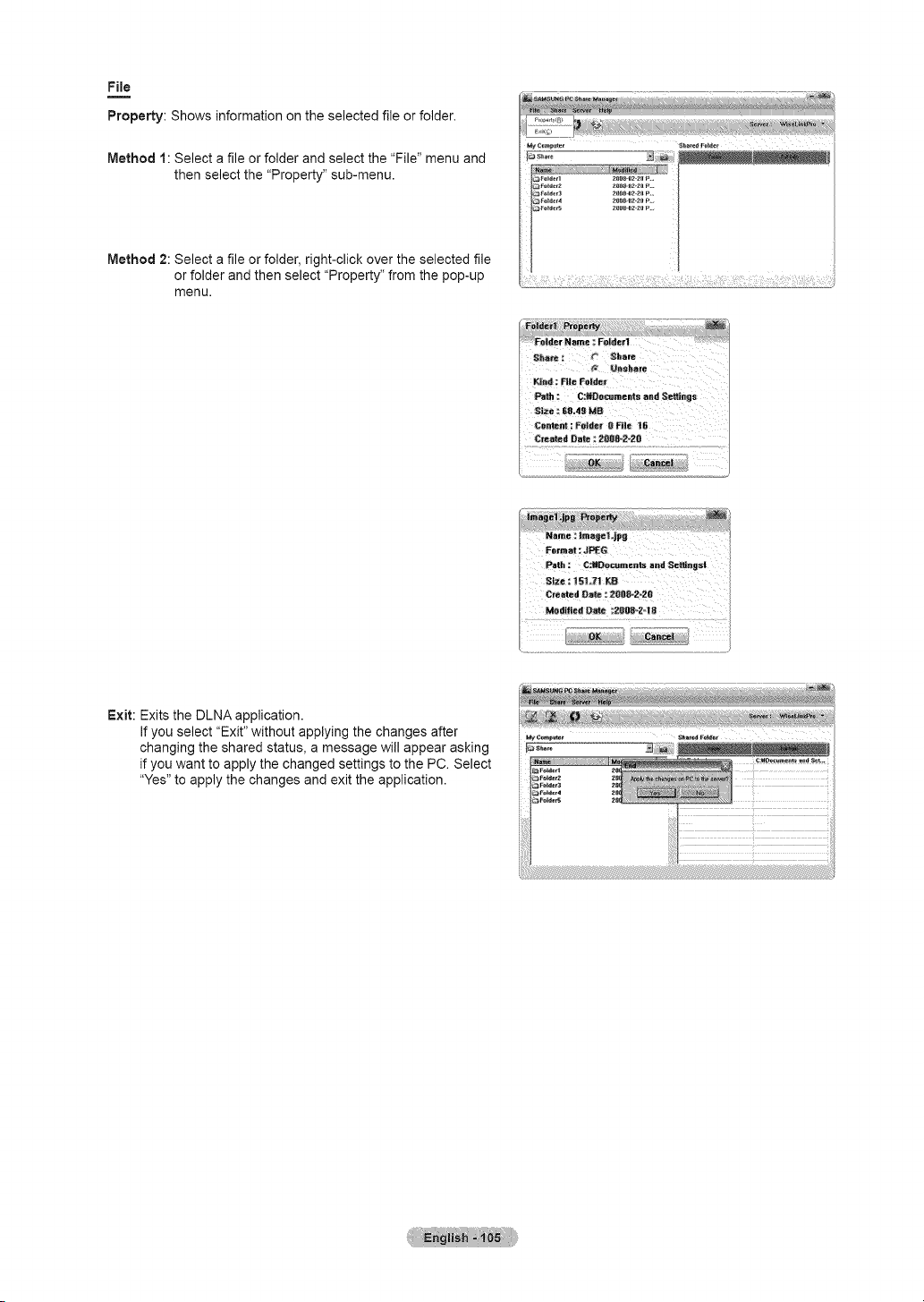

Using the DLNAApplication ........................................ 104

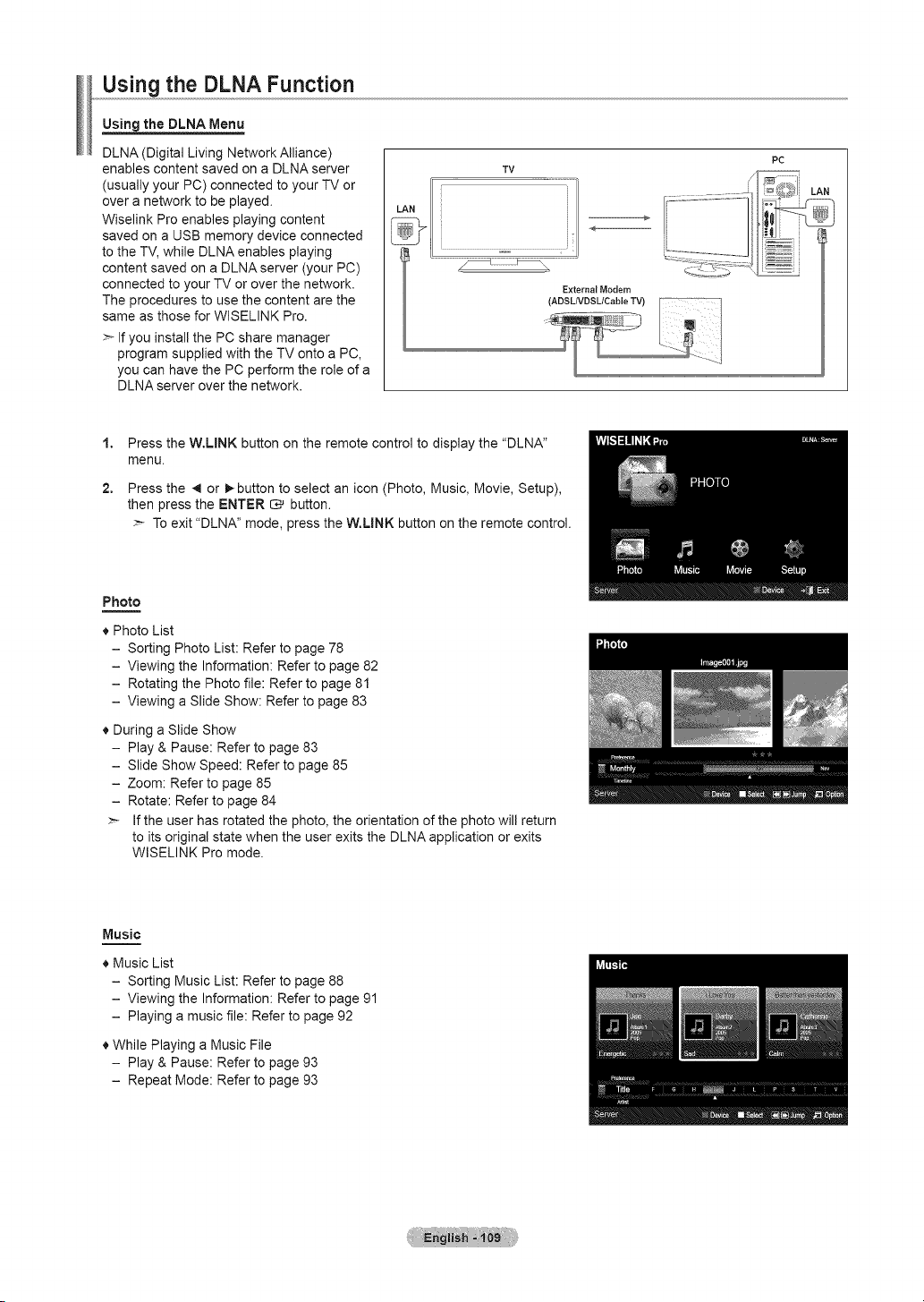

Using the DLNA Function .............................................. I0_c

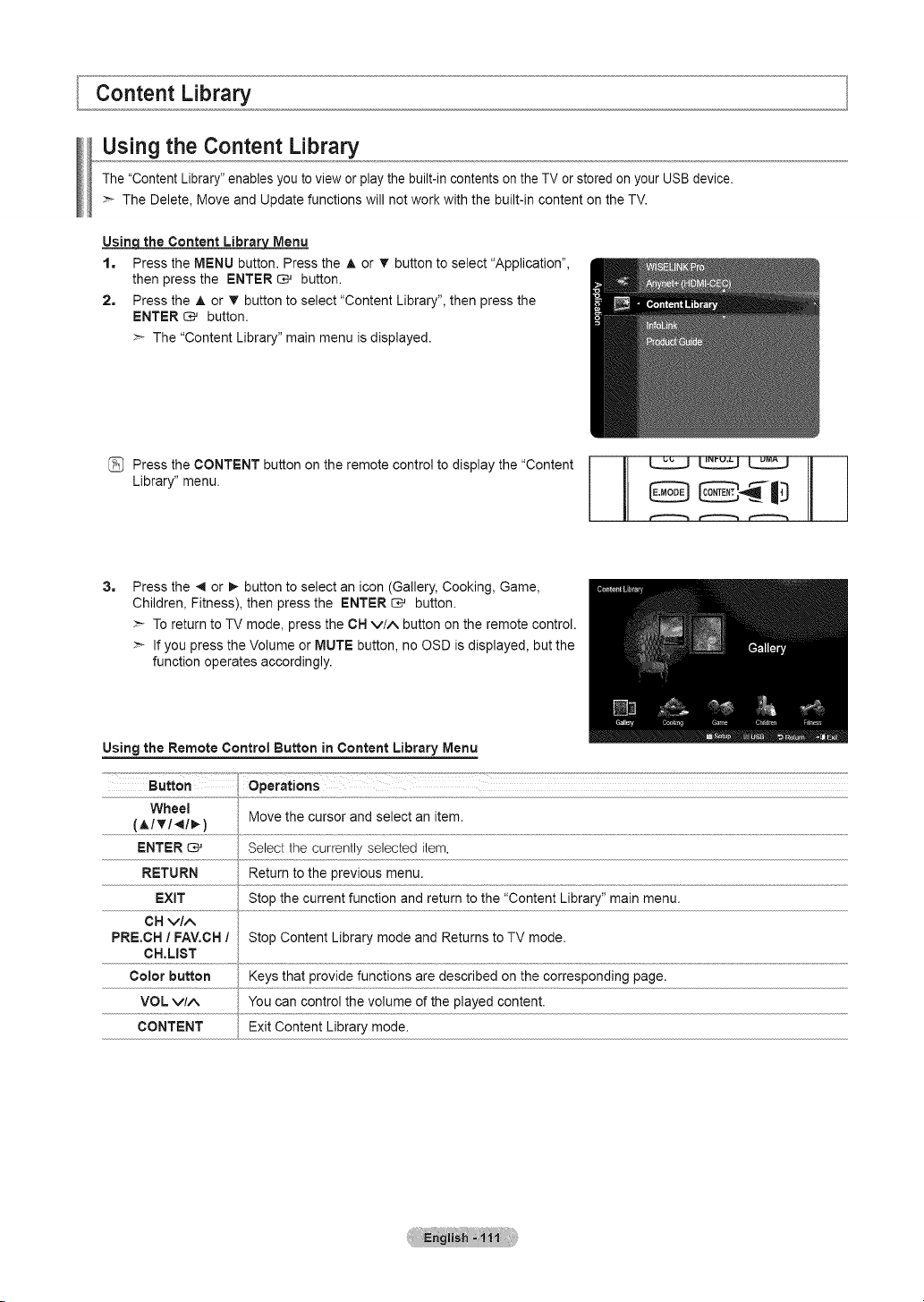

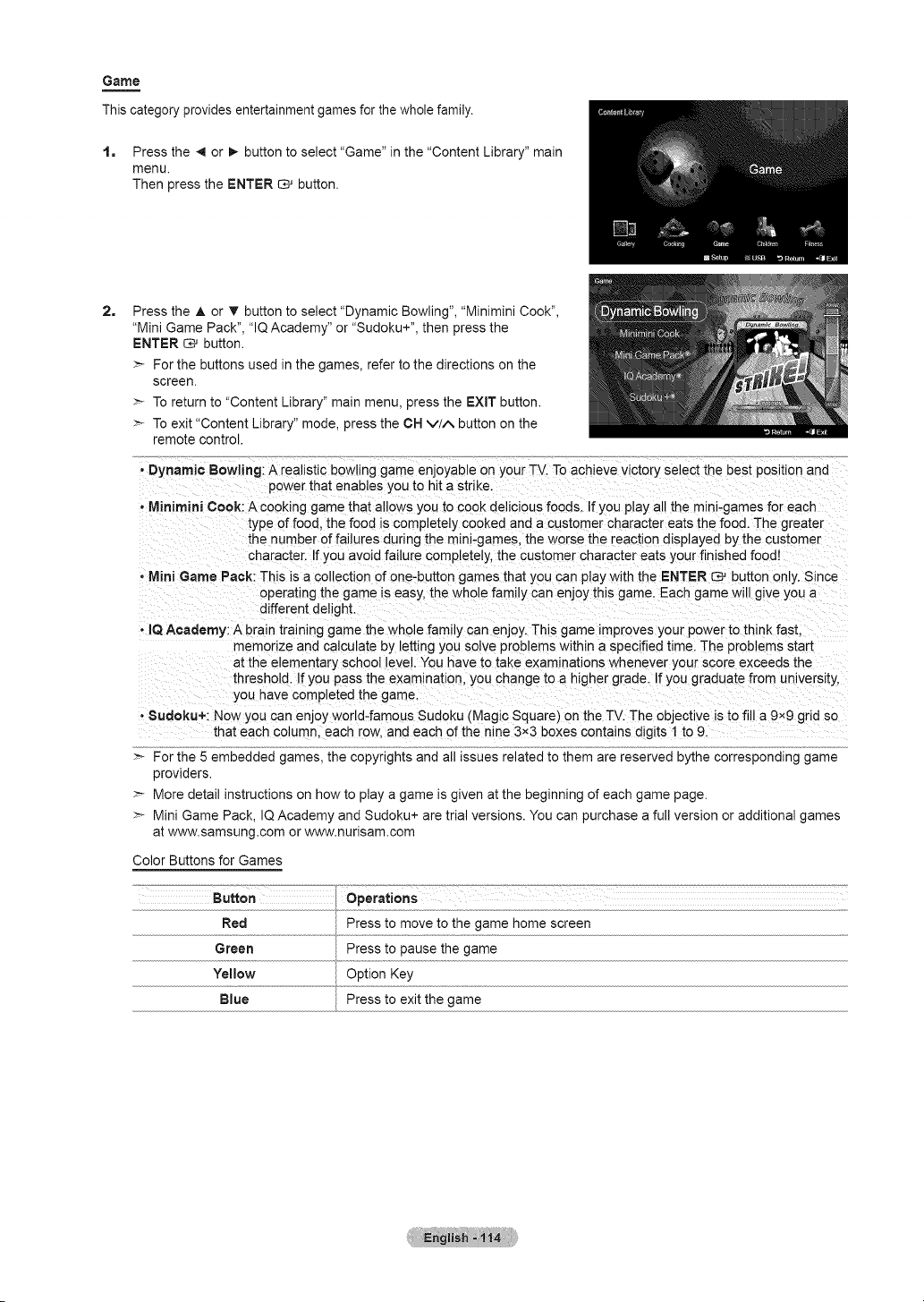

= Using the Content Library.......................................... 111
Using the TV Memory Contents .................................... 112
Using Additional Content Using External USB Memory
Storage ................................................................. 117
Engl_lsh -1

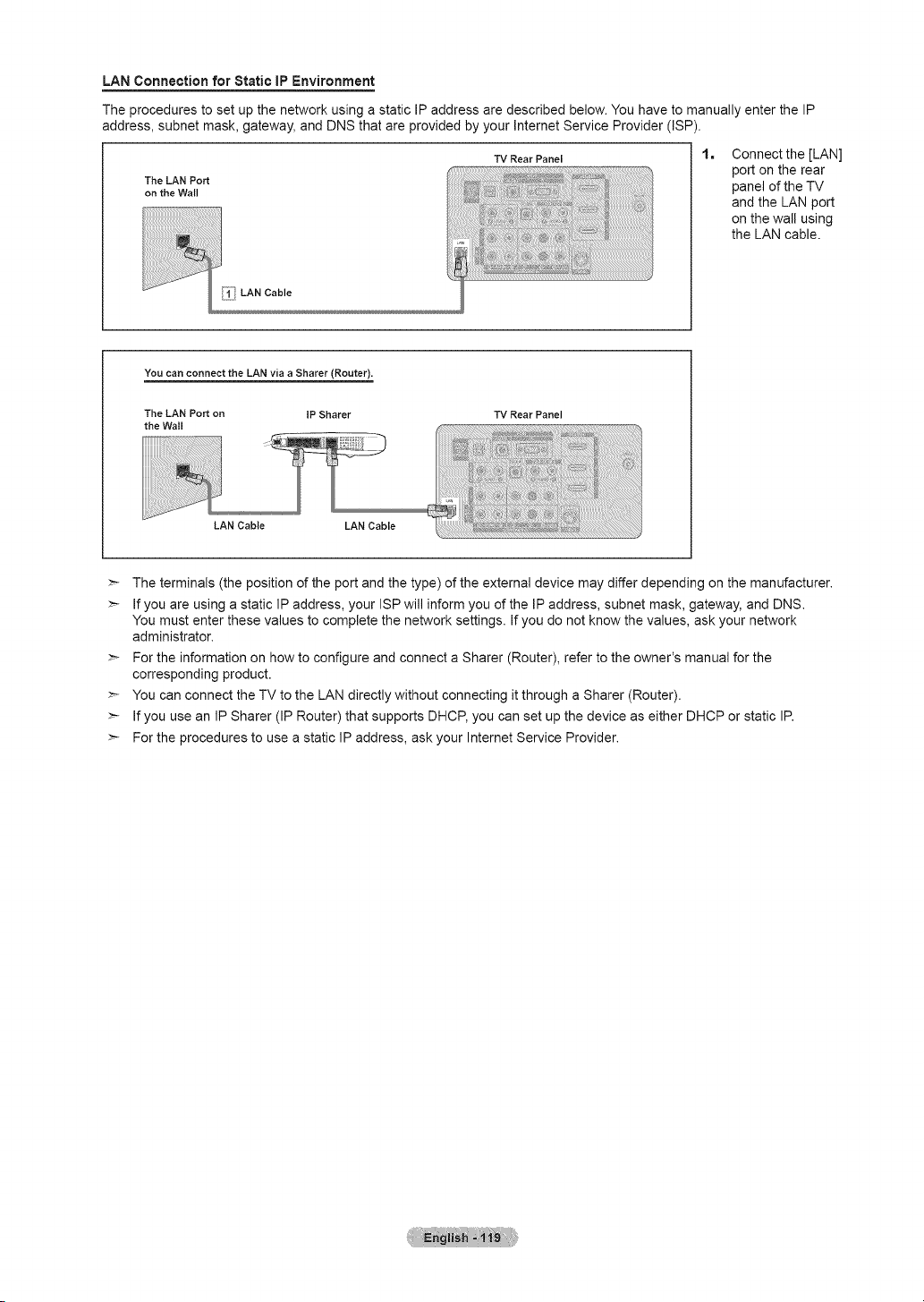

,, Network Connection - Cable.......................................... 118 = Troubleshooting ............................................................. 13_
,, Network Connection - Wireless ..................................... 120 = Installing the Stand ................................................... 138
= Network selection .......................................................... 120 = Disconnecting the Stand............................................ 138
= Cable Network Setup................................................ 121 = Auto Wali-MountAdjustment (Sold separately) ............. 13£

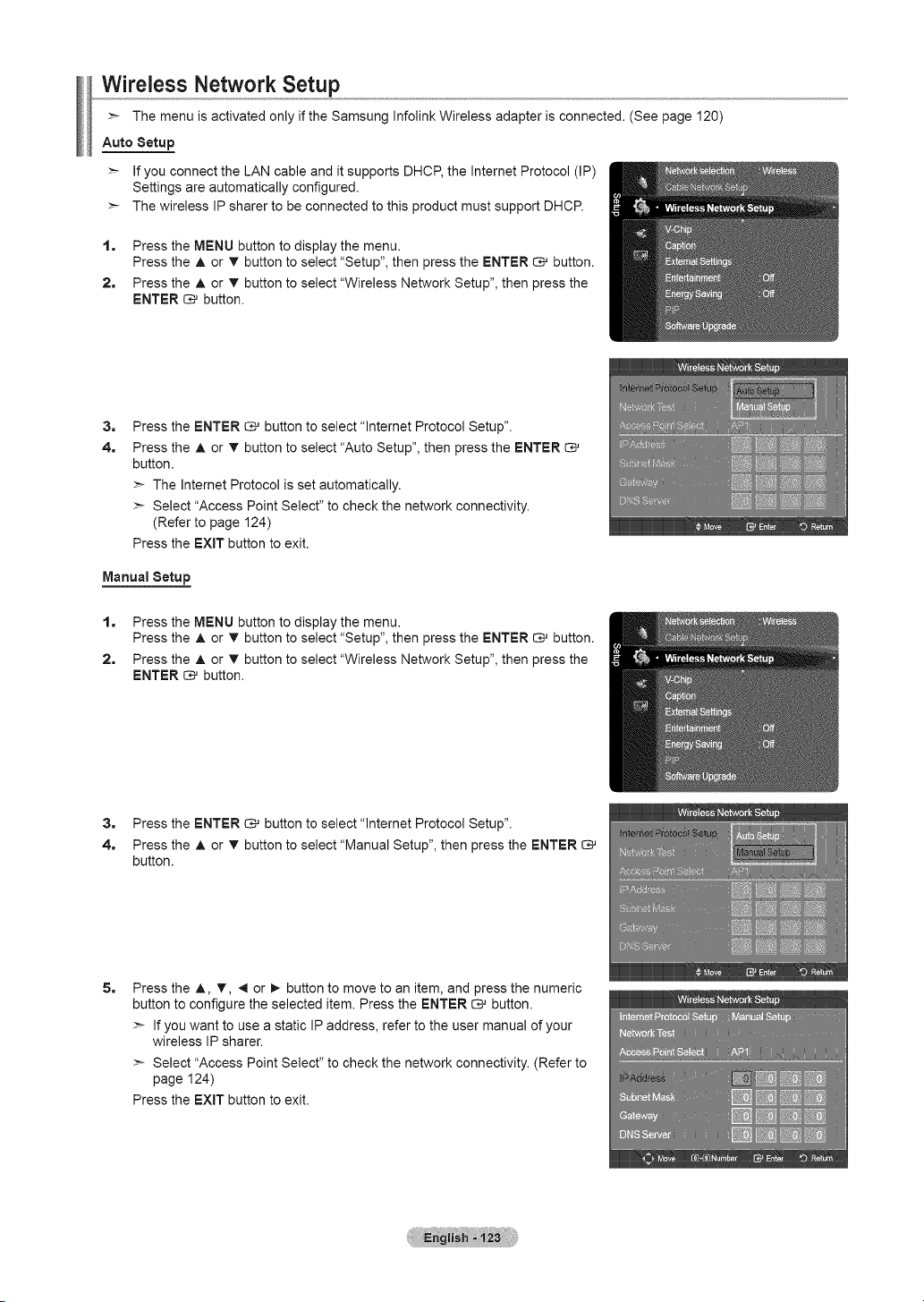

,, Wireless Network Setup ........................................... 123 = Wall Mount Kit Specifications (VESA) ...................... 140

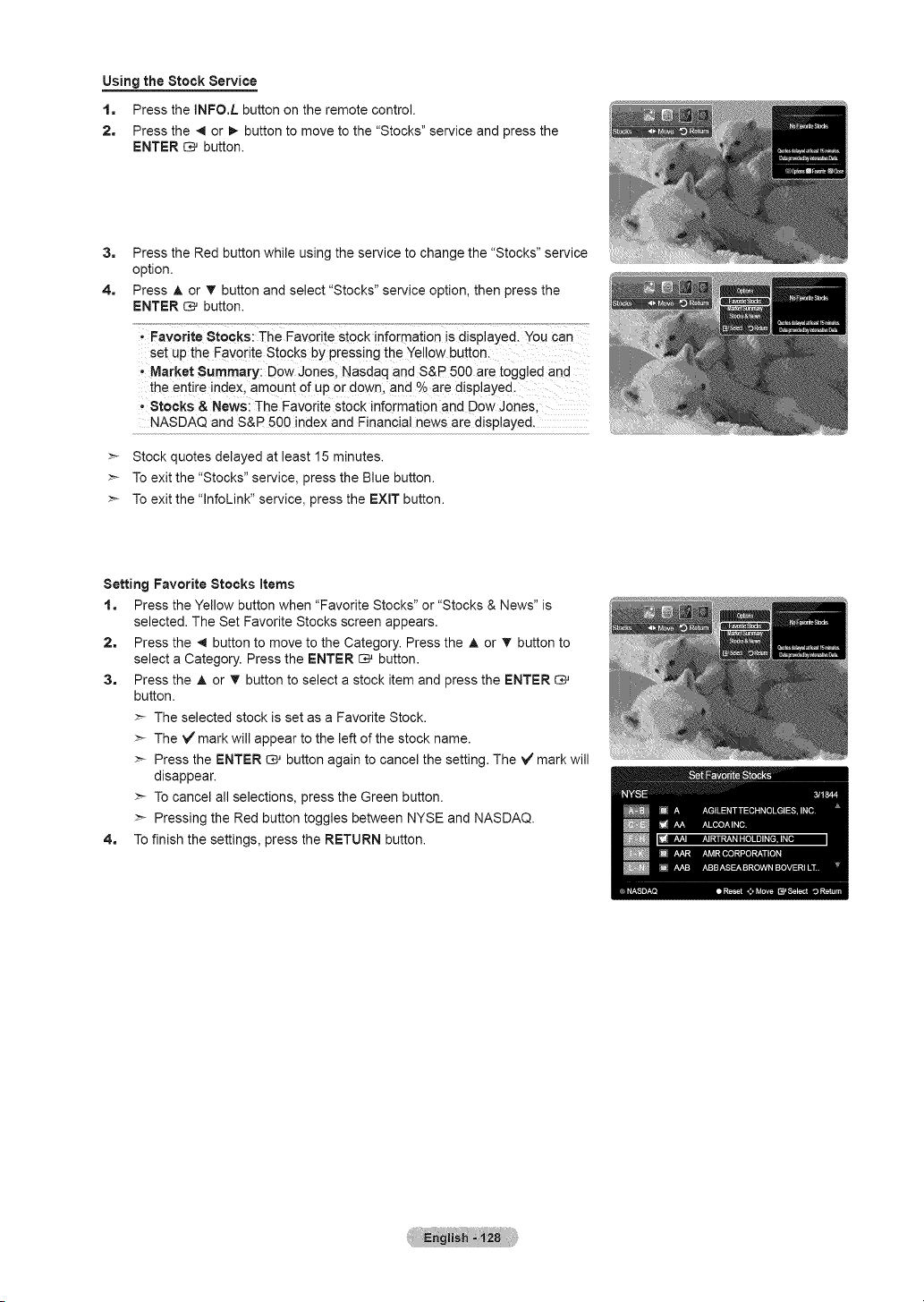

,, Using lnfoLink ................................................................ 126 = Using the Anti-Theft Kensing[on Lock ........................... 141

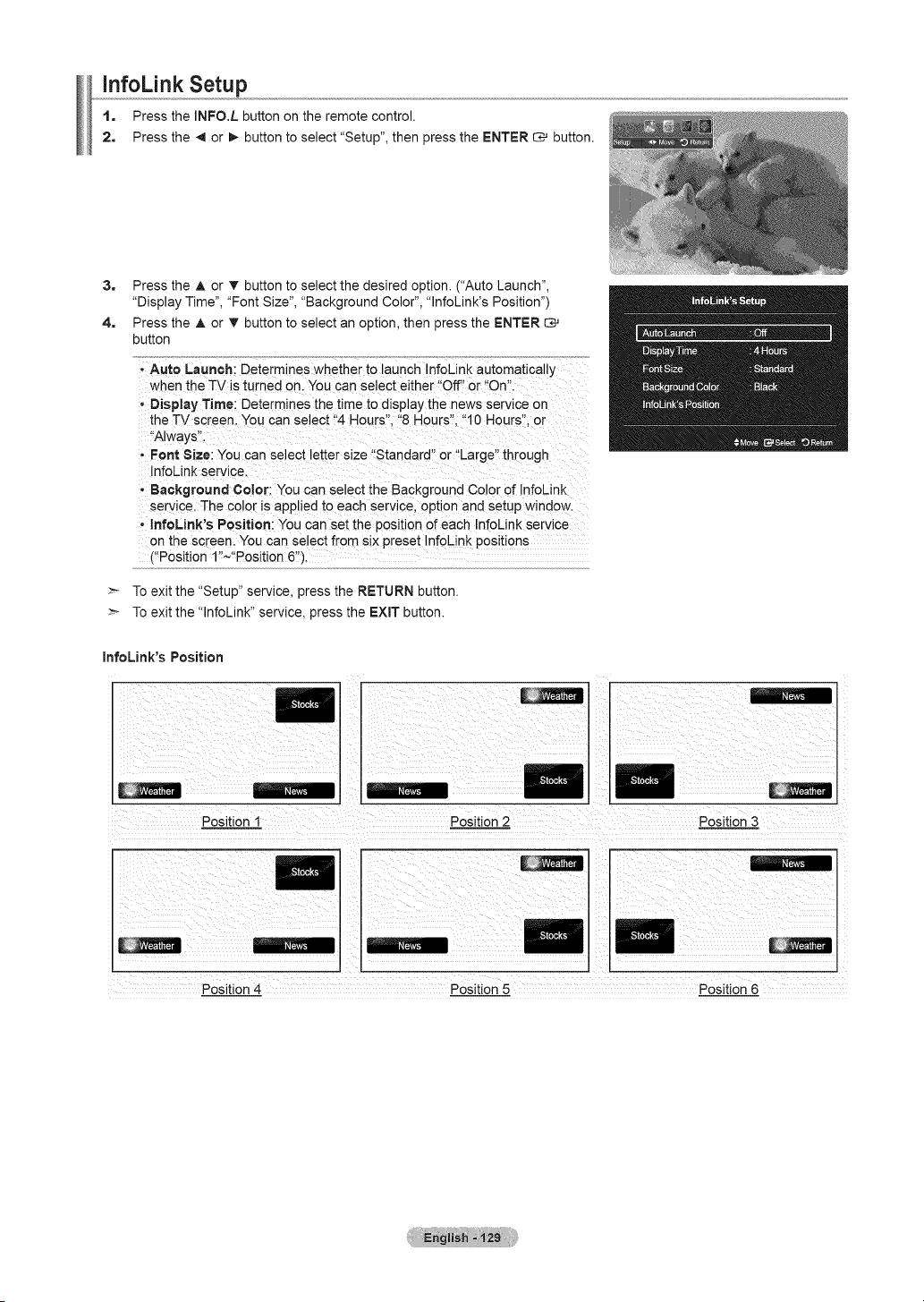

,. InfoLinkSetu3 ................................................................ 129 = Specifications ........................................................... 143

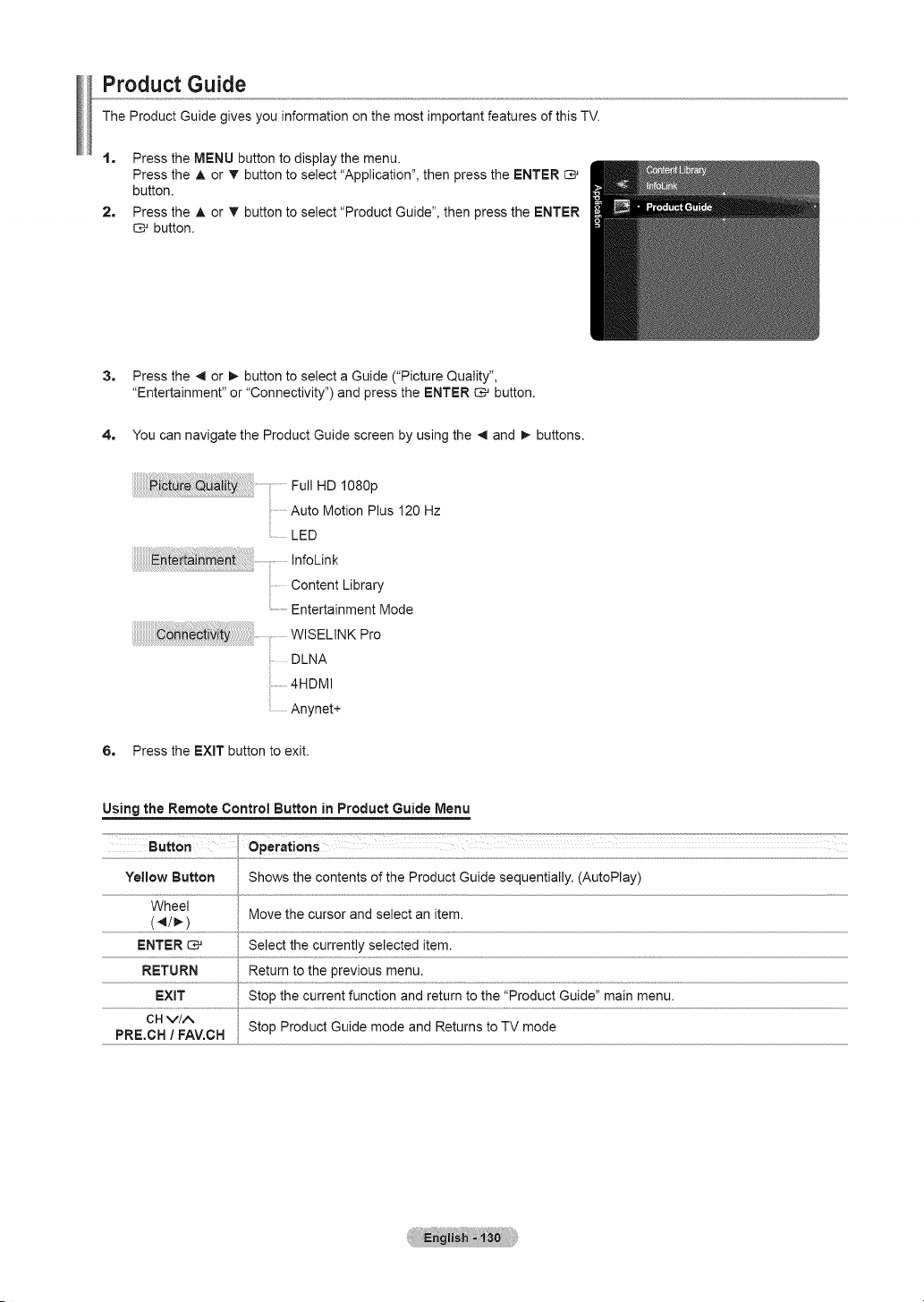

= Product Guide ................................................................ 130 E Dimensions .................................................................... 144
= What is Anynet+? ...................................................... 131
= Connecting Anynet+ Devices ......................................... 131
= Setting UpAnynet + .................................................. 132
,, Scanning and Switching betweenAnynet + Devices ......133
= Recording ...................................................................... 134
,, Listening through a Receiver(Home theater}................ 134
= Troubleshooting for Anynet* ......................................... 135
m
Symbol Press Note One-Touch Button
General information
List of Features
• Adjustable picture settings that can be stored in the TV's memory.
• Automatic timer to turn the TV on and off.
• A special sleep timer.
• Excellent Digital Interface & Networking :
With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver
(Set-Top Box) needed.
• You can view News, Weather, and Stock information over the network (SAMSUNG InfoLink's Service).
• You can listen to music files and view pictures on USB Mass Storage Class (MSC) devices.
• HDMI/DVI connection of your PC to this TV.
• Excellent Picture Quality
- DNle technology provides life-like clear images.
• SRS TruSurround XT
- SRS TruSurround XT provides a virtual surround system.
Accessories
Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.
RemoteControl& Batteries WarrantyCard/ RegistrationCard/ Cover-Bottom Ferrite Core
(AAAx 2) SafetyGuideManual (LN46A950DIF:BN63-04336A) (3301-001110)
(BN59-00700A) (Notavailableinall locations) (LN55A950D1F:BN63-04340A)
Power Cord Cleaning Cloth Program CD
Owner's Instructions
(3903-000144) (BNe3-01798B) (BN59-00726A)
The items color and shape may vary depending on the model.
Ferrite Core (AV Cable, Headphone)
The ferrite cores are used to shield the cables from interference. When connecting a
cable, open the ferrite core and clip it around the cable near the plug.
[Side PanelJacks
Viewing the Control Panel
Buttons on the Lower=Right Part of the Panel
The buttons on the lower-right panel control your TV's basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
........................................................................................................
SAMSgNG
source
_ENU
Front Panel buttons
Touch each button to
>- The product color and shape may vary depending on the model, operate.
= ....................................................................................................... •
SOURCE
Toggles between all the available input sources
(TV, AVl, AV2, S-Video, Component1, Component2, PC,
HDMI1, HDMI2/DVI, HDMI3, HDMI4). In the on-screen
menu, use this button as you would use the ENTER
button on the remote control.
O MENU
Press to see an on-screen menu of your TV's features.
- VOL +
Press to increase or decrease the volume.
In the on-screen menu, use the - VOL + buttons as you
would use the 4 and _ buttons on the remote control.
O vOH^
Press to change channels.
In the on-screen menu, use the v CH ^ buttons as
you would use the _r and A buttons on the remote
control.
O POWER INDICATOR
Blinks and turns off when the power is on and lights up
in stand-by mode.
_ (Power)
Press to turn the TV on and off.
O REMOTE CONTROL SENSOR
Aim the remote control towards this spot on the TV.
O SPEAKERS
Viewing the Connection Panel
Use the connection panel jacks to connect A/V components that will be connected continuously, such as DVD/Blu-Ray
players or a VCR. For more information on connecting equipment, see pages 9~15.
[TV Rear Panel] [TV Side Panel
®®
O-AUDIO-@
®®®
®®®
O AUDIO OUT
Connects to the audio input jacks on your Amplifier/Home theater.
O DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component,
O PC iN [PC] / [AUDIO]
Connects to the video and audio output jacks on your PC.
O HDMI IN 1, 2, 3, 4 / UVl IN(HDMI2)[R-AUDIO-L]
Connects to the HDMI jack of a device with an HDMI output.
- No sound connection is needed for an HDMI to HDMI connection.
Use the HDMI IN 2 jack for DVl connection to an external device. Use a DVI to HDMI cable or DVI-HDMI adapter (DVI
to HDMI) for video connection and the DVI IN (HDMI2) [R-AUDIO-L] jacks for audio.
- When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
O ANT iN
Connectsto an antennaor cableTV system.
O WlSELINK
Connecta USB mass storagedevicetoview movies and photosand listentomusic files.
You can connectto Samsung's networkwirelesslyusingtheWirelessInfolinkadapter(Soldseparately).
O AVIN2
Videoand audioinputsforexternaldevices,such as a camcorderor VCR.
0 _ (HEADPHONE)
Connects a set of external headphones for private listening.
O POWER iNPUT
Connects the supplied power cord.
@ S-VIDEO
Connects an S-Video signal from a camcorder or VCR,
- Use the AV IN 1 [R-AUDIO-L] jacks for audio.
_}D COMPONENT IN 1, 2/AV IN 1
Connects Component video/audio.
The COMPONENT IN 1 jack is also used as theAV IN 1 jack.
- Connect the video cable to the COMPONENT IN 1 [Y/VIDEO] jack and the audio cable to the COMPONENT IN 1
JR-AUDIO-L] jacks.
LAN
Connect a LAN cable to this port to connect to the Network (SAMSUNG InfoLink's Service). (See pages 118~119)
_) EX-LINK
Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using
your remote control.
_) KENSINGTON LOCK (LN46A950DIF)
The Kensington Lock (optional) is a device used to physically fix the system when used in a public place. If you want to
use a locking device, contact the dealer where you purchased the TV.
::'-- The location of the Kensington Lock may be different depending on its model.
Remote Control
You can use the remote control up to a distance of about 23 feet from the TV. When using the remote, always point it
directly at the TV. You can also use your remote control to operate your VCR, DVD/Blu-Ray player or Cable Box/Satellite
receiver (Set-Top Box).
O POWER
Turns the TV on and off.
O TV
Selects the TV mode directly.
O NUMERIC BUTTONS
Press to directly select the
channel.
Press to select additional
channels (digital and analog)
being broadcast by the same
station. For example, to select
channel "54-3", press "54", then
press "_" and "3".
PRE-CH
Tunes to the previous channel.
O CHv/CH^
Press to change channels.
@ SOURCE
Press to display and select the
available video sources.
_(MUTE)
Press to temporarily cut off the
sound.
VOL - / VOL +
Press to increase or decrease
the volume.

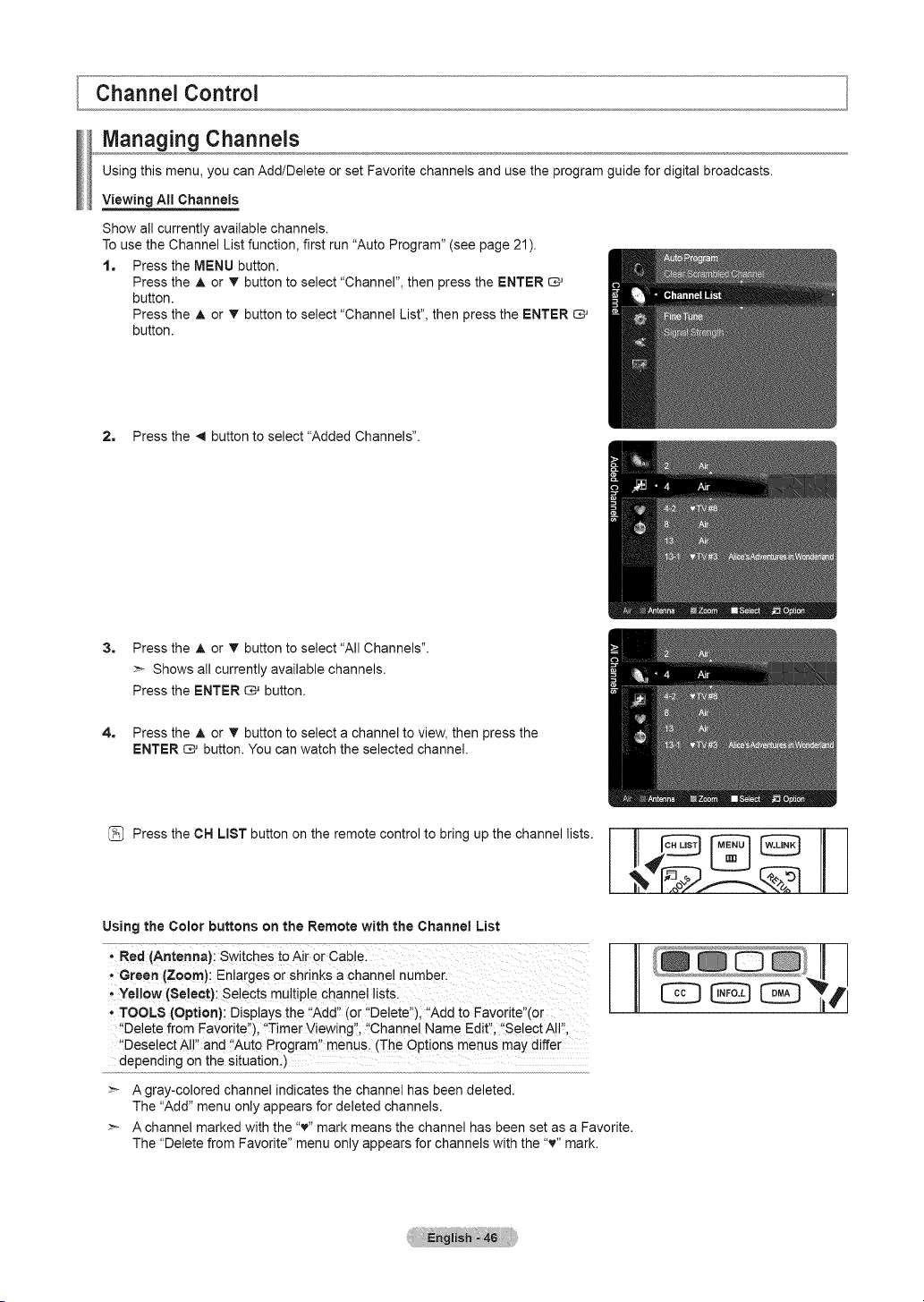

CH LiST !_
Used to display Channel Lists
on the screen.
Q TOOLS
Use to quickly select frequently
used functions.
O INFO
Press to display information on
the TV screen,
_) COLOR BUTTONS
Use these buttons in the
Channel list, WISELINK Pro,
etc.

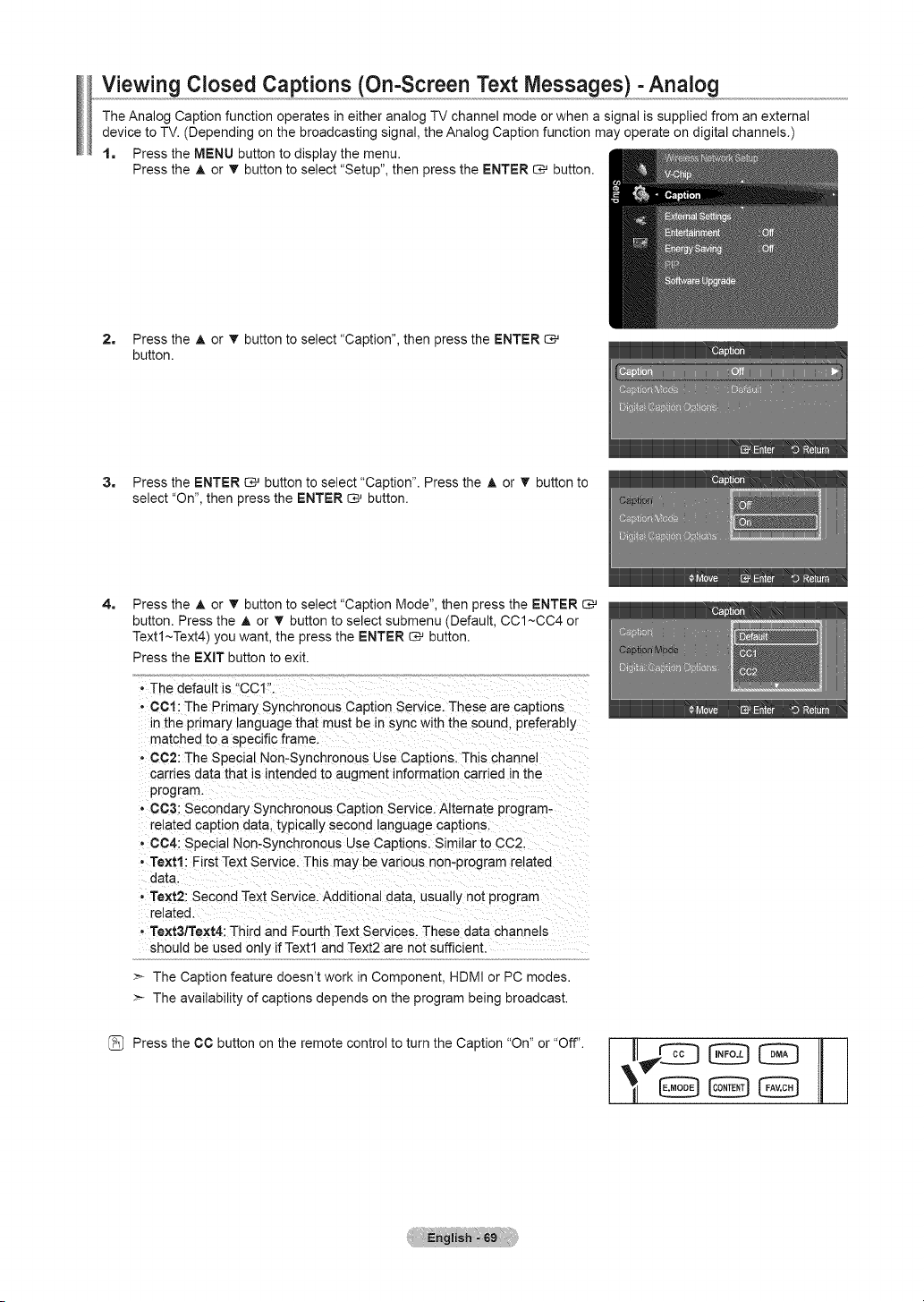

_) CC
Controls the caption decoder.
_) E.MODE
Press to select the preset
display and sound modes for
sports, cinema and games.
_) Use these buttons in the DMA,
WISELINK Pro and Anynet +
modes.
([_L]: This remote can be
used to control recording on
Samsung recorders with the
Anynet + feature)
_) SET
Sets the remote to control your
TV, VCR, DVD or Set-Top Box
_lb MODE
Press to operate your TV,
DVD, STB or VCR. (See pages
22~26)
@
@
@
O
@
¢ _ ON/OFF
Press to backlight the buttons
on the remote. This function is
convenient for using at night or
when the room is dark. (Using
the remote control with the
ON/OFF light button set to On
will reduce the battery usage
time.) (See page 8)
W.LINK (WISELINK Pro)
This function enables you to
view and play photo, music and
movie files from an external
device. (Refer to pages 77
(Photo), 87 (Music) and 94
(Movie))
MENU
Displays the main on-screen
menu.
RETURN
Returns to the previous menu.
UPA / DOWN _' / LEFT_I /
RIGHT_ / ENTER
Press the Up/Down/Left/Right
sections of the wheel button
and Enter to select on-screen
menu items and change menu
values.
You can navigate up and down
the menu, switch channels and
adjust the volume by turning
the wheel button. (See pages
18~19)
EXIT
Press to exit the menu.
DMA (Digital Media Adapter)
Use this when connecting
a SAMSUNG DMA device
through an HDMI interface and
switching to DMA mode.
For more information on the
operating procedures, refer to
the user manual of the DMA.
This button is available when
"Anynet+(HDMI-CEC) '' is "On".
(see page 132)
INFO.L
Press to use the News, Stock
Market and Weather Forecast
information services available
over Samsung's network.(see
page 126)
FAV.CH
Press to switch to your favorite
channels. (see page 48)
CONTENT
This function enables you to
view "Content Library". (see
page 111)
RESET
When your remote does not
work, change the batteries and
press the RESET button for 2-3
seconds before use.
POWER
Yv VCR DVD STB
O O O O
/
TV MODE ON/OFF
>- The performance of the remote control may be affected by bright light.
Installing Batteries in the Remote Control
1, Lift the cover at the back of the remote control upward as shown in the figure.
2, Install twoAAAsize batteries.
Make sure to match the "+" and "-" ends of the batteries with the diagram inside the
compartment.
3, Replacethe cover.
Remove the batteries and store them in a cool, dry place if you won't be using the
remote control for a long time.
The remote control can be used up to about 23 feet from the TV.
(Assuming typical TV usage, the batteries should last for about one year.)
Using the remote control with the _ ON/OFF light button set to On will reduce the
battery usage time.
If the remote control doesn't work, check the following:
1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?
Using the Remote Control Backlight Buttons
Use this feature in dark surroundings and when you are unable to see the remote control buttons clearly.
1. Press the _ ON/OFF light button.
Pressing the @ ON/OFF light button toggles between ON and OFF.
When ON, the button backlight is turned on for a moment.
Pressing a remote control button when the remote control is on turns the button backlight on for a moment. If
you touch or move the remote control and the motion is detected by the sensor of the remote control, the button
backlight will be turned on for a moment.
Since there is a vibrating device inside the remote control, shaking the remote control will result in a sound
generated by the device.
The button backlight will not be turned on when the remote control is turned off.
Connections
Connecting VHF and UHF Antennas
If your antenna has a set of leads that look like the diagram to the right, see "Antennas
with 300 _ Flat Twin Leads" below.
If your antenna has one lead that looks like the diagram to the right, see "Antennas with
75 _ Round Leads".
If you have two antennas, see "Separate VHF and UHF Antennas".
Antennas with 300 O Flat Twin Leads
If you are using an off-air antenna (such as a roof antenna or "rabbit ears") that has 300
twin flat leads, follow the directions below.
1. Place the wires from the twin leads under the screws on a 300-75 _ adapter (not
supplied). Use a screwdriver to tighten the screws.
2. Plug the adaptor into the ANT IN terminal on the back of the TV.
Antennas with 75 £_ Round Leads
1, Plug the antenna lead into the ANT IN terminal on the back of the TV.
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before
connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics
shops).
1, Connect both antenna leads to the combiner.
2, Plug the combiner into the ANT IN terminal on the bottom of the rear panel.
Connecting Cable TV
To connect to a cable TV system, follow the instructions below.
Cable without a Cable Box
1, Plug the incoming cable into the ANT IN terminal on the back of the TV.
>- Because this TV is cable-ready, you do not need a cable box to view
unscrambled cable channels.
Connecting to a Cable Box that Descrambles All Channels
1, Find the cable that is connected to the ANT OUT terminal on your cable box.
>- This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".
2, Connect the other end of this cable to the ANT IN terminal on the back of the TV.
Connecting to a Cable Box that Descrambles Some Channels
If your cable box descrambles only some
channels (such as premium channels),
follow the instructions below. You will need
a two-way splitter, an RF (A!B) switch and
four lengths of RF cable. (These items are
available at most electronics stores.)
1, Find and disconnect the cable that is
connected to the ANT IN terminal on
your cable box.
>- This terminal might be labeled
"ANT IN", "VHF IN" or simply, "IN".
...................... Incomingdl _[_
cable
Splitter
2, Connect this cable to a two-way
splitter.
3,
4,
5,
Connect an RF cable between the
OUTPUT terminal on the splitter and
the IN terminal on the cable box.
Connect an RF cable between the
ANT OUT terminal on the cable box
and the B-IN terminal on the RF(A/B)
switch.
Connect another cable between the
other OUT terminal on the splitter and
the A-IN terminal on the RF (A/B)
switch.
Incoming
cable
Splitter _
J
Cable Box
Splitter
I O_ l _ RF {A/B)
Cable Box Switch
Incoming
cable
-
IN C,'B_F OUT
S litter RF (A/B)
Cable Box Switch
cable Splitter
it4 CABLE OU_
T r
RF (A/B)
Cable Box Switch
6. Connect the last RF cable between the OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the
TV.
After you have made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B"
position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your TV to the cable box's
output channel, which is usually channel 3 or 4.)
Connectinga OVO/Blu.RayplayerorCable8ox/Satellitereceiver(Set.Top80×)via HDMi
This connection can only be made if there is an HDMI Output connector on the external device.
1= Connect an HDMI Cable
between the HDMI IN
(1,2, 3 or 4) jack on
the TV and the HDMI
jack on the DVD/Blu-
Ray player or Cable
Box/Satellite receiver
(Set-Top Box).
DVD/Blu-Ray player or Cable Bo×/Satellite
receiver (Set-Top Box} Rear Panel
HDMI Cable (Not supplied)
TV Rear Panel
TV Side Panel
>- What is HDMI?
• HDMl(High-Definition Multimedia Interface), is an interface that enables the
transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVl is that the HDMI device is smaller in size and
has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed. DVl
also requires a separate audio connection (see below).
>- Each DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) has a different
back panel configuration.
>- The TV may not output sound and pictures may be displayed with abnormal color when
DVD/Blu-Ray players/Cable Boxes/Satellite receivers supporting HDMI versions older
than 1.3 are connected. When connecting an older HDMI cable and there is no sound,
connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVl IN
(HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company
that provided the DVD/Blu-Ray player/Cable Box/Satellite receiver to confirm the HDMI
version, then request an upgrade.
>- HDMI cables that are not 1.3 may cause annoying flicker or no screen display.
Connectinga DVD/Blu.Rayplayeror Cable Box/Satellitereceiver(Set.TopBo×)via DVI
This connection can only be made if there is a DVI Output connector on the external device.
1, Connect a DVI to HDMI
Cable or DVI-HDMI
Adapter between the
HDMI IN 2 jack on the
TV and the DVI jack on DVD/Blu-RayplayerorCable Box/
the DVD/Blu-Ray player Satellite receiver (Set-Top Box)
or Cable Box/Satellite
receiver (Set-Top Box).
2= Connect Audio Cables
between the DVI IN
(HDMI 2)[R-AUDIO-L]
jack on the TV and the
DVD/Blu-Ray player
or Cable Box/Satellite
receiver (Set-Top Box).
TV Rear Panel
>- Each DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) has a different
back panel configuration.
>- When connecting a DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box),
match the color of the connection terminal to the cable.
>- When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
Connectinga DVD/Blu.RayplayerorCableBox/Satellitereceiver(Set.TopBox)via Componentcables
The rear panel jacks on your TV make it easy to connect a DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) to
your TV.
1. Connect a Component
Cable between the
COMPONENT IN
(1 or 2) [Y, PB, PR]
jacks on the TV and the
COMPONENT
[Y, PB, PR] jacks on the
DVD/Blu-Ray player
or Cable Box/Satellite
receiver (Set-Top Box).
2. Connect Audio
Cables between the
COMPONENT IN(1 or
2) JR-AUDIO-L] jacks on
the TV and the AUDIO
OUT jacks on the DVD/
Blu-Ray player or Cable
Box/Satellite receiver
(Set-Top Box).
DVD/Blu-Ray player or Cable Box /
Satellite receiver (Set-Top Box)
TV Rear Panel
i_'_i Component Cable (Not supplied)
Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and
Pr (Red) for enhanced video quality.
Be sure to match the component video and audio connections.
For example, if connecting a Component video cable to COMPONENT IN 1, connect
the audio cable to COMPONENT IN 1 also.
>- Each DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) has a different
back panel configuration.
>- When connecting a DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box),
match the color of the connection terminal to the cable.
Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV.
They allow you to view the camcorder tapes without using a VCR.
1. Connect a Video Cable
between the AV IN 2
[VIDEO] jack on the TV
and the VIDEO OUT
jack on the camcorder.
2. ConnectAudio Cables
between the AV IN 2
JR-AUDIO-L] jacks on Camcorder
the TV and the AUDIO
OUT jacks on the
camcorder.
_i Video Cable (Not supplied)
[_iiI Audio Cable (Not supplied)
TV Side Panel
>- Each Camcorder has a different back panel configuration.
>- When connecting a Camcorder, match the color of the connection terminal to the cable.
Connecting a VCR
Video Connection
These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the
instructions on pages 9~10). Skip step 1 if you have not yet connected to an antenna or a cable system.
1. Unplug the cable or
antenna from the back
of the TV.
2= Connect the cable or
antenna to the ANT IN
terminal on the back of
the VCR.
3, Connect an RF Cable
between the ANT OUT
terminal on the VCR
and the ANT IN terminal
on the TV.
4. Connect a Video Cable
between the VIDEO
OUT jack on the
VCR and the AV IN 1
[Y/VIDEO] orAV IN 2
[VIDEO] jack on the TV.
5. ConnectAudio Cables
between the AUDIO
OUT jacks on the VCR
and theAV IN 1 (orAV
IN 2) [R-AUDIO-L] jacks
on the TV.
VCR Rear Panel
Video Cable (Not supplied)
_ RF Cable (Not supplied)
TV Rear Panel
TV Side Panel
Follow the instructions in "Viewing a VCR or Camcorder Tape" to view your VCR tape.
>- Each VCR has a different back panel configuration.
:_ When connecting a VCR, match the color of the connection terminal to the cable.
>- When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not
match the color of the video cable (Yellow).
>- If you have a "mono" (non-stereo) VCR, use a Y-connector (not supplied) to connect to
the right and left audio input jacks of the TV. Alternatively, connect the cable to the "R"
jack. If your VCR is stereo, you must connect two cables.
S=Video Connection
Your Samsung TV can be connected to an S-Video jack on a VCR. (This connection delivers a better picture as compared
to a standard VCR.)
1. To begin, follow steps
1-3 in the previous
section to connect the
antenna or cable to your
VCR and your TV.
2. Connect an S-Video
Cable between the
S-VIDEO OUT jack on
the VCR and the
IS-VIDEO] jack on the
TV.
3. ConnectAudio Cables
between the AUDIO
OUT jacks on the VCR
and theAV IN 1
JR-AUDIO-L] jacks on
the TV.
TV Rear Panel
VCR Rear Panel
An S-Video cable may be included with a VCR. (If not, check your local electronics store.)
>- Each VCR has a different back panel configuration.
>- When connecting a VCR, match the color of the connection terminal to the cable.
Connecting a Digital Audio System
The rear panel jacks on your TV make it easy to connect a Digital Audio System (Home theater/Receiver) to your TV.
1=
Connect an Optical Cable
between the "DIGITAL AUDIO
OUT (OPTICAL)" jacks on
the TV and the Digital Audio
Input jacks on the Digital Audio
System.
When a Digital Audio System
is connected to the "DIGITAL
AUDIO OUT (OPTICAL)" jack:
Decrease the volume of the
TV and adjust the volume
level with the system's volume
control.
Digital Audio System TV Rear Panel
5.1CH audio is possible when the TV is connected to an external device
supporting 5.1CH.
Each Digital Audio System has a different back panel configuration.
When the receiver (home theater) is set to On, you can hear sound output from
the TV's Optical jack. When the TV is displaying a DTV(air) signal, the TV will
send out 5.1 channel sound to the Home theater receiver. When the source is a
digital component such as a DVD/Blu-Ray and is connected to the TV via HDMI,
only 2 channel sound will be heard from the Home Theater receiver. If you want
to hear 5.1 channel audio, connect the DIGITALAUDIO OUT (OPTICAL) jack on
the DVD/Blu-Ray player or Cable/Satellite Box directly to an Amplifier or Home
Theater, not the TV.
Connecting an Amplifier/DVD Home Theater
1= Connect Audio Cables
between the AUDIO OUT
[R-AUDIO-L] jacks on the TV
and AUDIO IN [R-AUDIO-L]
jacks on the Amplifier/DVD
Home Theater.
When an audio amplifier is
connected to the "AUDIO OUT
[R-AUDIO-L]" jacks: Decrease
the volume of the TV and
adjust the volume level with
the Amplifier's volume control.
AmplifiedDVD Home Theater
Audio Cable (Not supplied)
TV Rear Panel
>- Each Amplifier/DVD Home Theater has a different back panel configuration.
>- When connecting an Amplifier/DVD Home Theater, match the color of the
connection terminal to the cable.
Connecting a PC
Using the D-Sub Cable
1, Connect a D-Sub Cable
between PC IN [PC] connector
on the TV and the PC output
connector on your computer.
2, Connect a PCAudio Cable
between the PC IN [AUDIO]
jack on the TV and the Audio
Out jack of the sound card on
your computer.
PC
TV Rear Panel
Using the HDMI/DVI Cable
1=
2=
Connect an HDMI/DVI cable
between the HDMI IN 2 jack
on the TV and the PC output
jack on your computer.
Connect a 3.5 mm Stereo mini-
plug/2RCA Cable between the
DVI IN(HDMI2)[R-AUDIO-L]
jack on the TV and the Audio
Out jack of the sound card on
your computer.
TV Rear Panel
PC
>- Each PC has a different back panel configuration.
>- When connecting a PC, match the color of the connection terminal to the cable.
>- When using an HDMI/DVI cable connection, you must use the HDMI IN 2
terminal.
Operation
Turning the TV On and Off
Press the POWER(b button on the remote control.
You can also use the POWER(b button on the TV.
POWER
IV_) R ......0 0
TV MODE ON/OFF
Plug & Play Feature
When the TV is initially powered on, basic settings proceed automatically and subsequently.
1= Press the POWER button on the remote control.
The message "Menu Language, Store Demo, Channels and Time will be set."
is displayed.
Press the ENTER _ button, then "Select Language of the OSD." menu
is automatically displayed. Press the ENTER C_ button.
2=
Press the A or T button to select language, then press the ENTER
button.
The message "Select 'Home Use' when installing this TV in your home." is
displayed.
3=
Press the _1 or !_ button to select "Store Demo" or "Home Use", then
press the ENTER C_ button. The message "Select the Antenna source to
memorize." is displayed.
>- We recommend setting the TV to "Home Use" mode for the best picture in
your home environment.
>- "Store Demo" mode is only intended for use in retail environments.
>- If the unit is accidentally set to "Store Demo" mode and you want to return
to "Home Use" (Standard): Press the Volume button on the TV. When the
volume OSD is displayed, press and hold the MENU button on the TV for
5 seconds.
4= Press the A or T button to memorize the channels of the selected
connection. Press the ENTER _ button to select "Start".
>- Air: "Air" antenna signal.
Cable: "Cable" antenna signal.
Auto: "Air" and "Cable" antenna signals.
>- In Cable mode, you can select the correct signal source among STD,
HRC, and IRC by pressing the A, V, 4 or _ button, then press the
ENTER _ button. If you have Digital cable, select the cable system
signal source for both Analog and Digital. Contact your local cable
company to identify the type of cable system that exists in your particular
area.
5,
The TV will begin memorizing all of the available channels.
>- To stop the search before it has finished, press the ENTER _ button with
"Stop" selected.
After all the available channels are stored, it starts to remove scrambled
channels (see page 53). And then, the Auto program menu reappears. Press
the ENTER _ button when channel memorization is complete. The message
"Set the Clock Mode." is displayed.
6, Press the ENTER _ button.
Press the A or _' button to select "Auto", then Press the ENTER _ button.
The message "Set to daylight saving time." is displayed.
If you select "Manual", "Set current date and time" is displayed.
(See page 58)
7. Press the A or T button to select "Off', "On" or "Auto", then press the
ENTER _ button. The message "Select the time zone in which you live." is
displayed.
8. Press the _, or _' button to highlight the time zone for your local area. Press
the ENTER E_ button. If you have received a digital signal, the time will be
set automatically. If not, see page 58 to set the clock.
9. The message "Enjoy your watching." is displayed.
When you have finished, press the ENTER _ button.
If you want to reaet this feature...
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2, Press the ENTER _ button again to select "Plug & Play".
For further details on setting up options, refer to the pages 16~17.
>- The "Plug & Play" feature is only available in the TV mode.
Changing Channels
Using the Channel Buttons
1=
Press the OH v or OH A button to change channels.
_'- When you press the OH v or OH ^ button, the TV changes channels in
sequence.
You will see all the channels that the TV has memorized. (The TV must
have memorized at least three channels). You will not see channels that
were either erased or not memorized. See page 20 to memorize channels.
_'- To increase the channel number, turn the wheel clockwise when the
Channel Display is displayed. To decrease the channel number, turn the
wheel counterclockwise.
Using the Number Buttons
1, Press the number buttons to go directly to a channel. For example, to select
channel 27, press 2, then 7.
_'- For quick channel change, press the number buttons, then press the
ENTER _ button.
Using the (_ Button
The [_ button is used to select stations that broadcast a digital signal.
1, For example, for Channel 7-1, press 7, then [_, then 1.
_'- HD indicates the TV is receiving a Digital High Definition signal.
SD indicates the TV is receiving a Standard Definition signal.
_'- For quick channel change, press the number buttons, then press the
ENTER _ button.
Using the PRE-CH Button to select the Previous Channel
1, Press the PRE-CH button. The TV will switch to the last channel viewed.
_'- To quickly switch between two channels that are far apart, tune to one
channel, then use the number button to select the second channel.
Then use the PRE-CH button to quickly alternate between them.
MUTE
Adjusting the Volurne
Using the Volume Button
1, Press the VOL = or VOL+ button to increase or decrease the volume.
_'- To turn the volume up, turn the wheel clockwise when the Volume
Control window is displayed. To turn the volume down, turn the wheel
counterclockwise.
Using the MUTE button
At any time, you can cut off the sound using the MUTE button.
1, Press MUTE button and the sound cuts off.
"_" is displayed on the screen.
2, To turn mute off, press the MUTE button again or simply press the
VOL = or VOL+ button.
Viewing the Display
The display identifies the current channel and the status of certain audio-video
settings.
1, Press the INFO button on the remote control.
The TV will display the channel, the type of sound, and the status of certain
picture and sound settings.
>- Press the INFO button once more or wait approximately 10 seconds and
the display disappears automatically.
Viewing the Menus
1=
With the power on, press the MENU button.
The main menu appears on the screen.
The menu's left side has icons: Picture, Sound, Channel, Setup, Input,
Application.
2= Press the A or _' button to select one of the icons.
Then press the ENTER G*-'button to access the icon's sub-menu.
>- To move to a lower menu, turn the wheel clockwise when the menu Display
is displayed. To move to a higher menu, turn the wheel counterclockwise.
3= Press the EXIT button to exit.
>- The on-screen menus disappear from the screen after about one minute.
Using the TOOLS Button
You can use the TOOLS button to select your frequently used functions quickly and easily. The "Tools" menu changes
depending on which external input mode you are viewing.
'i. Press the TOOLS button. The "Tools" menu will appear. __ __'%(_ H
2. Press the i. or _' button to select a menu.
3. Press the I./T/_I/_-/ENTER _ buttons to display, change, or use the selected
items. For a more detailed description of each function, refer to the corresponding
page.
- Anynet+ (HDMI-CEC): see page 132
- Multi-Track Sound: see pages 42
- Picture Size: see pages 33
- Picture Mode: see page 28
- Sound Mode: see page 40
- Sleep Timer: see page 60
- Add to Favorite: see page 48
- Switch to Cable (or Switch to Air): see page 20
* PIP: see pages 38~39
* Auto Adjustment: see pages 56
Memorizing the Channels
Your TV can memorize and store all of the available channels for both "off-air" (Air) and "Cable" channels. After the available
channels are memorized, use the OH v or CH ^ button to scan through the channels. This eliminates the need to change
channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source,
memorizing the channels (automatic) and adding or deleting channels (Channel Lists).
Selecting the Video Signal=source
Before your television can begin memorizing the available channels, you must
specify the type of signal source that is connected to the TV (i.e. an Air or a Cable
system).
1, Press the MENU button to display the menu.
Press the A or T button to select "Channel", then press the ENTER
button.
2= Press the ENTER _ button to select "Antenna".
Press the A or T button to select "Air" or "Cable", then press the ENTER
button.
Press the EXiT button to exit.
Easy Setting
1, Press the TOOLS button on the remote control.
2, Press the A or T button to select "Switch to Cable (or Switch to Air)".
3, Press the ENTER _ button to switch "Cable" (or "Air").
Storing Channels in Memory (Automatic Method)
1=
2=
Press the MENU button to display the menu.
Press the A or T button to select "Channel", then press the ENTER
button.
Press the A or T button to select "Auto Program", then press the ENTER
button.
3=
Press the A or _' button to select the antenna connection, then press the
ENTER [:_ button.
>- Air: "Air" antenna signal.
Cable: "Cable" antenna signal.
Auto: "Air" and "Cable" antenna signals.
4=
When selecting the Cable TV system:
Press the ENTER _ button to start the auto program.
Press the A, _', _ or !_ to select the correct analog signal cable system
source among "STD", "HRC", and "IRC".
Press the A. or V button to select "Start", then press the ENTER _ button.
If you have Digital cable TV, select the cable system signal source for both
Analog and Digital.
>- STD, HRC and IRC identify various types of cable TV systems. Contact
your local cable company to identify the type of cable system that exists in
your particular area. At this point the signal source has been selected.
5.
The TV begins memorizing all available stations.
>- After all the available channels are stored, it starts to remove scrambled
channels (see page 53). The Auto program menu then reappears.
>- If you want to stop Auto Programming, press the ENTER _ button.
The "Stop Auto Program?" message will be displayed. Select "Yes" by
pressing the 4 or _- button, then press the ENTER _ button.
Press the EXIT button to exit.
Setting Up Your Remote Control
After the television has been set up properly, your remote control can operate in
different modes: TV, VCR, DVD, Set-Top Box. Pressing the corresponding
button on the remote control allows you to switch between these modes and
control whichever piece of equipment you choose.
>- The remote control might not be compatible with all DVD Players, VCRs, and Set-
Top Boxes.
Setting Up the Remote to Operate Your VCR
1. Turn off your VCR.
2. Press the MODE button and make sure that the VCR LED is illuminated.
3. Press the SET button on your TV's remote control.
4. Using the number buttons on your remote control, enter three digits of the VCR
code listed on page 24 of this manual for your brand of VCR. Make sure you enter
three digits of the code, even if the first digit is a "0".
(If more than one code is listed, try the first one.)
5. Press the POWERO button on the remote control.
Your VCR should turn on if your remote is set up correctly.
If your VCR does not turn on after set up, repeat steps 2, 3 and 4, but try one of
the other codes listed for your brand of VCR.
If no other codes are listed, try each VCR code, 000 through 080.
> Note on Using Remote Control Modes: VCR
When your remote control is in VCR mode, the volume buttons still control your
TV's volume.
POWER
_ v_Ro;osS
- r2_W2J1_ _C_C3 ....
Setting Up the Remote to Operate Your DVD
1. Turn off your DVD.
2. Press the MODE button and make sure that the DVD LED is illuminated.
3. Press the SET button on your TV's remote control.
4. Using the number buttons on your remote control, enter three digits of the DVD
code listed on pages 25 of this manual for your brand of DVD.
Make sure you enter three digits of the code, even if the first digit is a "0".
(If there is more than one code listed, try the first one.)
5. Press the POWERO button on the remote control.
Your DVD should turn on if your remote is set up correctly.
If your DVD does not turn on after set up, repeat steps 2, 3 and 4, but try one of
the other codes listed for your brand of DVD.
If no other codes are listed, try each code, 000 through 141.
>- Note on Using Remote Control Modes: DVD
When your remote control is in DVD mode, the volume buttons still control your
TV's volume.
POWER
EED
EEJ
OsF ORESET
............................................
Setting Up the Remote to Operate Your 8TB
1. Turn off your STB.
2. Press the MODE button and make sure that the STB LED is illuminated.
3. Press the SET button on your TV's remote control.
4. Using the number buttons on your remote control, enter three digits of the STB
code listed on page 26 of this manual for your brand of STB.
Make sure you enter three digits of the code, even if the first digit is a "0".
(If there is more than one code listed, try the first one.)
5. Press the POWERO button on the remote control.
Your STB should turn on if your remote is set up correctly.
If your STB does not turn on after set-up, repeat steps 2, 3 and 4, but try one of
the other codes listed for your brand of STB.
(If no other codes are listed, try each code, 000 through 074.)
Note on Using Remote Control Modes: STB
When your remote control is in STB mode, the volume buttons still control your
TV's volume.
POWER
; v_2 0;0 s_
Setting Up the Remote to Operate Your Cable Box
1. Turn off your Cable Box.
2. Press the MODE button and make sure that the STB LED is illuminated.
3. Press the SET button on your TV's remote control.
4. Using the number buttons on your remote control, enter three digits of the cable
box code listed on page 26 of this manual for your brand of cable box. Make sure
you enter three digits of the code, even if the first digit is a "0". (If there is more
than one code listed, try the first one.)
5. Press the POWER_ button on the remote control.
Your cable box should turn on if your remote is set up correctly.
If your cable box does not turn on after set up, repeat steps 2, 3 and 4, but try one
of the other codes listed for your brand of cable box. If no other codes are listed,
try each code, 000 through 046.
Note on Using Remote Control Modes: STB
When your remote control is in STB mode, the volume buttons still control your
TV's volume.
POWER
Remote Control Codes
VCR
Brand Code
SAMSUNG 000 001 002 003 004 005 077 078 079
ADMIRAL 020
AIWA 025
AKAI 004 027 032
AUDIO DYNAMICS 007 026
BELL&HOWELL 018
BROKSONIC 022
CANON
CITIZEN 002 003 006 008 015 055
COLORTYME 007
CRAIG 002 024
CURTISMATHES 002 007 008 017 021 025 056 064 066
T' Code
Brand
MONTGONERYWARD ,i,,020
MTC 002 025
MULTITECH 002 005 025 038
OPTIMUS
ORION
PANASONIC
i 020
_ 073 074 075 076
_ 021 056 071 072
PHILIPS __021 080
/ 019 026 039 053
PIONEER _
PORTLAND i 015 049 055
DB
DIMENSIA
DYNATECH
ELECTROHOME
EMERSON
FISHER
FUNAI
017
025
034
001 003 006 021 022 025 030 032 034 040 RCA
047 050 052 060 063 065 066 067 069 073 SANSUI
018 024 028 029 048 051 061 SANYO
025 SCOTT
QUASAR 021 056
RADIO SHACK/ 006 018 020 021 024 025 029 034 048 056
REALISTIC
002 017 019 021 035 041 043 057 068 076
026
018 024
003 047 052 067
GENERALELECTRIC 002 005 017 021 056 SEARS 006 018 019 024 028 029 041 048 051
GOVlDEO 002 SHARP 020 034 045 015
HARMAN KARDON 007 SHIMTOM 027 033 038 058
HITACHi 019 025 041 042 074 SIGNATURE 025
iNSTANTREPLAY 021 SONY 027 033 044
JC PENNEY 002 007 018 019 021 026 037 041 054 056 SYLVANIA 021 025 056 059
JCL 007 008 018 021 026 037 SYMPHONIC 025
JVC 081 082 083 TANDY 018 025
KENWOOD 007 008 018 026 037 TASHIKA 006
KLH 070 TATUNG 037
KONIA 036 TEAC 025 037 068
.......LG!Go!ds!a_! 00_OO70080090!O TECHN!CS 021
LLOYD 025 TEKNIKA 006 021 025 031
LOGIK 038 TMK ; 066
LXI 025 TOSHIBA ,003 019 029 051 052
MAGNAVOX 021 056 059 TOTEVISION J, 002 006
MARANTZ 007 008 018 021 026 037 062 UNITECH 002
MARTA 006 VECTORRESEARCH 007 026
MEI 021 VICTOR 026
MEMOREX 006 021 024 025 VIDEO CONCEPTS 007 026
MGA 034 VIDEOSONIC 1; 002
MIDLAND 005 WARDS ,,_002 003 006 019 020 021 024 025 034 038 041
MINOLTA 019 041 075 YAMAHA 007 008 018 026 037
8AMSUNG DVD
Product Code Product Code
DVD 000 001 002 022 Home Theater VCR COMBO 014 015 016
DVDR 003 004 HDD Recorder COMBO
BD Record 005 006 TWiN TRAY COMBO 018
VCR COMBO 007 008 009 010 011 STB DVD COMBO 019
VCR Record 012 DVD Receiver 020
DHR COMBO 013 AV Receiver 021
> DVD
Brand Code Brand Code
ANAM 030 NORCENT 048 049 050
AUDIOVOX 075 NEXT BASE 052
AUDIOLOGIC 085 NEC 053
ANABA 072 NANTAUS 144
APEX DIGITAL 070 071 074 086 083 084 088 11! 112 MESA 074
AIWA 114 0PTOMEDIAELECTRONICS105
BROKSONIC 062 OPTIVlEW 072
BLAUPUNKT 074 ONKYO 076 092 119
.......................................................................................................................................................................... z
B&K 122 123 PHILCO 044 045
CURTISMATHES 027 PRINCETON 046 047
CYBER HOME 077 078 079 082 PROSCAN 023
CLARION 080 125 PANASONIC 024 034 124 134 136 137 138
CIRRUS 081
CYBER HOME 065
CINEVlSION 095
DAEWOO 066
DEMON 146
FARENHEIT 067 068
f
FISHER 090
PHILIPS 036 076
PIONEER 037 143
ROTEL 117 118
120
RIO
RCA 023 035 074 075 131 132
RAITE 073
ROWA 038
GPX 060 SAMPO 104
GOVlDEO 061 089 133 135 SONY 026 029 126 127 128 129 130 141
GE 069 074 SHERWOOD 039 041
GREENHILL 074 SVA 042
HITACHi 064 113 SYLVANIA 043 093
HITEKER 071 SHARP 140
HARMAN/KARDON 091 110 SANYO 062 090
IRT 089 SHINSONIC 094
INTEGRA 092 THOMSON 145
JBL 091 TOSHIBA 028 062 076
JVC 022 033 115 116 TECHNICS 139
JATON 073 TVIEW 072
KENWOOD 051 108 109 TOKAI 073
KISS i 073 TEAC i 096
KONKA 059 100 106 107 TECHWOOD 097
KLH 074 075 TREDEX 098 099 101
LG(Goldstar) 025 031
LOEWE 057
LASONIC 058
MOBILEAUTHORITY 054
MEMOREX 055
.......MALATA i056
MAGNAVOX 076 093
MINTEK 074 094
MONYKA 073
.......URBANCONCEPTS 076
VENTURER 075
VOCOPRO 102
YAMAHA 032 063
YAMAKAWA 040 073
XWAVE
ZENITH 076 121
8AM$UNG 8ET-TOPBOX
Product Code
Ground wave STB 000 001 002 008 013
CABLE STB 000 004 008 009 010 011 012 013 014
075 076 077 078 079 080 081 082
Satellite STB 000 003 008 013
> 8ET-TOPBOX, CABLE BOX
Brand Code
ALPHASTAR 023
ANAM 043
CHANNEL MASTER 018 034
............................................................................../"
CROSSDIGITAL 019
DIRECTTV 015 016 017 019 022 045 060 061 062
085 066 067 068
DAEWOO 074
DISHNETW0RKSYSTEM 069 070
DISHPRO 069
DRAKE 018 024 032
DXANTENNA 027
ECHOSTAR 025 069 070 071
EXPRESSVU 069
,¢
GE 085
:h.........................................................................................................................................................
GENEP_LiNSTRUMENT046 047 048 083 064
GOI 069
HAMLIN 078 099 106
HTS 069
HOME CABLE 056
HITACHI ,022 100 105
HUGHESNETWORK 015 017
....... 020
zy....................................................................................................................................................................................
IQ PRISM ,,i,020
JANEIL 059
JERROLD 083 113 114
JVC 069 070
.......LGiGoidsia;i i 044 073
MAGNAVOX 016 021 036 038 039 040 041 042 084
98 103
.................................................................................._y
MEMOREX 016
MOTOROLA ,i 084
MACOM 018 100 105
MITSUBISHI I 015
Brand Code
OAK i 101
PHILIPS 015 016 017 021 033 036 038 039 040
041 042 067 094 096 098 103
P!ONEER....................................093 095 079 119
PRIMESTAR 046 049 050 063
PANASONIC 058 059 061 062 078 097 102 112 119
PAYSAT 016
PROSCAN 065 066
RCA 051 052 053 065 066 089 097 115
RADIOSHACK 064
.......R#_!,!ST!C.......................................o_7.........................................................................................................................................................................
REGAL 078
REGENCY 090 098
SA 117 118
SAMSUNG 000 001 002 003 004 008 009 010 011
012 013 014 075080 078 079 081 082
076 077
SCIENTIFICATLANTA 117 118
STAR TRAK 026
STS 020 027
/
SKY 031
SKY LiFE 005 006 007
SHACK 064
STAR CHOICE 064
SONY 054 060
SPRUCER 097
STARGATE2000 111
SYLVANIA 091
TEXSCAN 091
TOCOM 107
TOSHIBA 015 017 028 029 030 072
ULTIMATETV 060 066
UNIDEN 016 021 037 055 056 057
UNIVERSAL 108 109
VIEWSTAR 094 096 098 103
WAMER AMEX 121
ZENITH 024 031 068 092 104 110 112 120
To Select the Source
Use to select TV or other external input sources such as DVD players or Cable
Box/Satellite receivers (Set-Top Box) connected to the TV. Use to select the input
source of your choice.
1. Press the MENU button to display the menu.
Press the A or T button to select "input", then press the ENTER _ button.
2. Press the ENTER _ button to select "Source List".
Press the A or T button to select signal source, then press the ENTER C;#
button.
>- Available signal sources: TV, AV1, AV2, S-Video, Component1,
Component2, PC, HDMI1, HDMI2/DVI, HDMI3, HDMI4, USB, DLNA.
>- You can choose only those external devices that are connected to the TV.
In the "Source List", connected inputs will be highlighted and sorted to the
top. Inputs that are not connected will be sorted to the bottom.
Using the Color buttons on the remote with the Source list
,Red (Refresh}: Refi'eshes the connecting extemai devices.
. TOOLS (Option}: Displays the _'EditName '_and 'qnformation" menus.
[_ Press the SOURCE button on the remote control to view an external signal
source.
To Edit the Input Source Name
Name the device connected to the input jacks to make your input source selection easier.
1. Press the MENU button to display the menu.
Press the A or T button to select "input", then press the ENTER _ button.
Press the A or T button to select "Edit Name", then press the ENTER
button.
2. Press the A or T button to select "AVI", "AV2", "S-Video", "Component1",
"Component2", "PC", "HDMI 1", "HDMI2/DVI", "HDMI3", "HDMI4" input jack,
then press the ENTER _ button.
3= Press the A or _' button to select "VCR", "DVD", "Cable STB",
"Satellite STB", "PVR STB", "AV Receiver", "Game", "Camcorder", "PC",
"TV', "IPTV", "Blu-Ray", "HD DVD", "DMA" input source, then press the
ENTER 1:_ button.
Press the EXIT button to exit.
>- When a PC with a resolution of 1920 x 1080@60Hz is connected to the
HDMI IN 2 port, you should set the "HDMI2/DVI" mode to "PC" in the "Edit
Name" of the "Input" mode.
Picture Control
Changing the Picture Standard
You can select the type of picture which best corresponds to your viewing
requirements.
1, Press the MENU button to display the menu.
Press the ENTER _ button to select "Picture".
2= Press the ENTER _ button to select "Mode". Press the A or _r button to
select "Dynamic", "Standard" or "Movie". Press the ENTER _ button.
" DynamiC; Selects the picture for high-definition in a bright room.
Standard; Selects the picture for the optimum display in a normal
environment.
MQvie; Se!ects the picture for viewing rnovies in a dark room.
3, Press the EXiT button to exit.
Easy Setting
1, Press the TOOLS button on the remote control.
2, Press the A or v' button to select "Picture Mode".
3, Press the 4 or !_ button to select the required option.
4, Press the EXiT or TOOLS button to exit.
Customizing the Picture Settings
Your television has several setting options that allow you to control the picture quality.
1, To select the desired picture mode, follow the "Changing the Picture
Standard" instructions numbers 1 and 2.
2, Press the ,A or V button to select "Backlight", "Contrast", "Brightness",
"Sharpness", "Color" or "Tint(G/R)", then press the ENTER _ button.
3=
Press the _ or !_ button to decrease or increase the value of a particular
item. Press the ENTER _ button.
Press the EXiT button to exit.
When you make changes to "Backlight", "Contrast", "Brightness",
"Sharpness", "Color" or "Tint(G/R)", the OSD will be adjusted accordingly.
In PC mode, you can only make changes to "Backlight", "Contrast" and
"Brightness".
Settings can be adjusted and stored for each external device you have
connected to an input of the TV.
The energy consumed during use can be significantly reduced if the level
of brightness of the picture is reduced, and that this will reduce the overall
running cost.
-Backlight; Adjusts the brightness of LCD back !igh L
o Contrast:Adjusts the contrast !eve! of the picture_
, Brightness: Adjusts the brightness level of the picture.
" Sharpness: Adjusts the edge definition of the picturel
,, Color: Adjusts color saturation of th e picture_
* Tint(G/R): Adjusts the color tint of the picture.
Adjusting the Detailed Settings
Samsung's new TVs allow you to make even more precise picture settings than previous models. See below to adjust
detailed picture settings.
Activating Detailed Settings
1. Press the MENU button to display the menu.
Press the ENTER _ button to select "Picture".
2. Press the ENTER _ button to select "Mode".
Press the ,A or v' button to select "Standard" or "Movie", then press the
ENTER _ button.
>- "Detailed Settings" is available in "Standard" or "Movie" mode.
3=
Press the A or V button to select "Detailed Settings", then press the
ENTER _ button.
>- In PC mode, you can only make changes to "Dynamic Contrast",
"Gamma" and "White Balance" from among the "Detailed Settings" items.
Setting the Black adjust
You can select the black level on the screen to adjust the screen depth.
4. Press the A or v button to select "Black adjust", then press the ENTER
button.
5. Press the A or v' button to select "Off", "Low", "Medium" or "High".
Press the ENTER _ button.
,, Low: Sets the black color depth to low.
, Medium: Sets the black co or depth to medium
- High: Sets the black color depth to high.
Setting the Dynamic Contrast
You can adjust the screen contrast so that the optimal contrast is provided.
6. Press the A or v' button to select "Dynamic Contrast", then press the
ENTER C_ button.
7. Press the A or v' button to select "Off", "Low", "Medium" or "High".
Press the ENTER _ button.
* Off: Turns Offthe dynamic contrast adjustment function
* LoWi Sets the dynamic €0ntrast t010w.
, Medium: Sets the dynamic contrast to medium
- High: Sets the dynamic contrast to high.
AdjustingtheGamma
You can adjust the Primary Color (Red, Green, Blue) Intensity. (-3 ~ +3)
8. Press the A or T button to select "Gamma", then press the ENTER
button.
9. Press the 4 or !_ button to decrease or increase the value.
Press the ENTER _ button.
Setting the Color Space
Color space is a color matrix composed of red, green and blue colors.
Select your favorite color space to experience the most natural color.
10. Press the A or T button to select "Color Space", then press the ENTER
button.
1 t. Press the ENTER _ button again to select "Color Space".
12. Press the A or T button to select "Auto", "Native" or "Custom".
Press the ENTER _ button.
'Auto: Auto Co!or space automatically adjusts to the most natuial color
tone based on pr0gram sources:
, Native: Native Color Space offers deep and rich color tone.
, Custom: Adjusts the color range to suit your preference.
(see ,Customizing the Color Spacdl)
Customizing the Color Space
13. Press the A or T button to select "Color", then press the ENTER _ button.
>- "Color" is available when "Color Space" is set to "Custom".
14. Press the A or T button to select "Red", "Green", "Blue", "Yellow", "Cyan" or
"Magenta". Press the ENTER _ button.
15. Press the A or T button to select "Red", "Green", or "Blue" to change it.
Press the ENTER _ button.
16, Press the 4 or !_ button to decrease or increase the value of a particular
item. Press the ENTER 1:_ button.
>- In "Color", you can adjust the RGB values for the selected color.
>- To reset the adjusted RGB value, select "Reset".
* Red: Adjusts the red Saturation level of the selectedc"olorl _
Green: Adjusts the green saturatio n level of the selected color.
, Blue: Adjusts the blue saturation level of the selected color
- Reset: Resets the color space to the default values.
>- Changing the adjustment value will refresh the adjusted screen.
>- Settings can be adjusted and stored for each external device you have
connected to an input of the TV. For example, if you have a DVD player
connected to HDMI 1 and it is currently selected, settings and adjustments
will be saved for the DVD player.
Adjusting the White Balance
You can adjust the color temperature for more natural picture colors.
17, Press the A or T button to select "White Balance", then press the
ENTER _ button.
18. Select the required option by pressing the A or _r button, then press the
ENTER [:_ button.
19. Press the 4 or _ button to decrease or increase the value of a particular
item. Press the ENTER E_ button.
- R-Offset: Adjusts the red color darkness.
• G-Offset: Adjusts the green color darkness.
- B-Offset: Adjusts the blue color darkness.
- R-Gain: Adjusts the red color brightness.
- G-Gain: Adjusts the green color brightness.
- B-Gain: Adjusts the blue color brightness.
- Reset: The previously adjusted white balance will be reset to the
factory defaults.
>- Changing the adjustment value will refresh the adjusted screen.
Adjusting the Flesh Tone
You can emphasize the pink 'flesh tone' in the picture.
20. Press the A or T button to select "Flesh Tone", then press the ENTER
button.
2t. Press the 4 or !_ button to decrease or increase the value.
Press the ENTER _ button.
>- Changing the adjustment value will refresh the adjusted screen.
Setting the Edge Enhancement
You can emphasize object boundaries in the picture.
22, Press the A or T button to select "Edge Enhancement", then press the
ENTER _ button.
23, Press the A or T button to select "Off" or "On". Press the ENTER _ button.
Setting the xvYCC
Setting the xvYCC mode to "On" increases detail and color space when watching
movies from an external device (ie. DVD player) connected to the HDMI or
Component IN jacks.
24. Press the A or T button to select "xvYCC", then press the ENTER C,_
button.
25. Press the A or T button to select "Off' or "On".
Press the ENTER _ button.
>- "xvYCC" is available when the picture mode is set to "Movie", and the
external input is set to "HDMI" or "Component" mode.
Setting the LED Motion Plus
Removes drag from fast scenes with a lot of movement to provide a clearer
picture.
26. Press the ,t, or V button to select "LED Motion Plus", then press the
ENTER _ button.
27. Press the A or T button to select "Off' or "On".
Press the ENTER _ button.
>- "LED Motion Plus" is available when the picture mode is set to "Movie".
Resetting the Picture Settings to the Factory Defaults
1. To select the desired picture mode, follow the "Changing the Picture
Standard" instructions numbers 1 and 2. (see page 28)
2. Press the A or T button to select "Picture Reset", then press the ENTER
button.
3=
Press the _, or T button to select "Reset Picture Mode" or "Cancel", then
press the ENTER C# button.
Press the EXIT button to exit.
' Reset Picture Modei All picture values in the current picture mode
return to default settings:
- Cancel: Does not perform a screen reseL
>- Each mode can be reset.
Configuring Picture Options
Activating Picture Options
1, Press the MENU button to display the menu.
Press the ENTER _ button to select "Picture".
2, Press the A or T button to select "Picture Options", then press the ENTER 1:_
button.
>- Press the A or T button to select a particular item. Press the ENTER
button.
>- When you are satisfied with your setting, press the ENTER _ button.
>- In PC mode, you can only make changes to the "Color Tone", "Size" and
"Smart LED" from among the items in "Picture Options".
Setting the Color Tone
1, Follow the "Activating Picture Options" instructions numbers 1 and 2.
2, Press the A or T button to select "Color Tone", then press the ENTER
button.
3=
Press the A or v' button to select "Cool2", "Coo11", "Normal", "Warm1" or
"Warm2". Press the ENTER _ button.
"Warm1" or "Warm2" is only activated when the picture mode is "Movie".
Settings can be adjusted and stored for each external device you have
connected to an input of the TV.
Setting the Screen Size
Occasionally, you may want to change the size of the image on your screen. Your
TV comes with six screen size options, each designed to work best with specific
types of video input. Your cable box or satellite receiver may have its own set of
screen sizes as well. In general, though, you should view the TV in 16:9 mode as
much as possible.
1, Follow the "Activating Picture Options" instructions numbers 1 and 2.
2, Press the A or T button to select "Size", then press the ENTER _ button.
3, Press the A or _' button to select the screen format you want.
Press the ENTER _ button.
Press the EXIT button to exit.
- 16:9 : Sets the picture to 16:9 wide mode.
• Zoom1: Magnifies the size of the picture on the screen
Zoom2: Magnifies the size of the picture more than "Zoom1".
- Wide Fit: Enlarges the aspect ratio of the picture to fit the entire screen.
• 4:3 : Sets the picture to 4:3 normal mode.
- Just Seen: Use the function to see the full image without any cutoff
when HDMI (720pt108Oil1080p), Component (1080ill 089p) or DTV
(1080i) signals are input.
Easy Setting
1, Press the TOOLS button on the remote control.
2, Press the _, or v' button to select "Picture Size".
3, Press the 4 or !_ button to select the required option.
4, Press the EXIT or TOOLS button to exit.
>-WhenDouble([_, r-m ) mode has been set in PIP, the Picture Size cannot be set.
>- Temporary image retention may occur when viewing a static image on the set for more than two hours,
> After selecting "Zoom1", "Zoom2" or "Wide Fit":
Press the _ or I_ button to select "Position", then press the ENTER
button. Press the A or _' button to move the picture up and down.
Reset: Press the 4 or _ button to select "Reset", then press the
ENTER _ button. You can initialize the setting.
> After selecting "Just Scan" in HDMI (1080i/1080p) or Component
(1080i/!080p) mode:
Press the _ or I_ button to select "Position", then press the ENTER
button. Press the A, T, 4 or I_ button to move the picture.
Reset: Press the 4 or _ button to select "Reset", then press the
ENTER _ button. You can initialize the setting.
>- HD (High Definition)
16:9 - 1080i/1080p (1920x1080), 720p (1260x720)
>- Settings can be adjusted and stored for each external device you have connected to an input of the TV.
ATV, AV, S-Video, Component (480i, 480p) 16:9, Zoom1, Zoom2, 4:3
DTV(1080i), Component (1080i, 1080p), HDMI (720p, 1O8Oi,1080P) 16:9, 4:3, Wide Fit, Just Scan
PC 16:9, 4:3
16:9 Zoom1 Zoom2
Sets the picture to 16:9 wide mode. Magnifies the size of the picture on
the screen.
Wide Fit 4:3
Magnifies the size of the picture more
than "Zoom 1"
Enlarges the aspect ratio of the Sets the picture to 4:3 normal mode.
picture to fit the entire screen.
Just Scan
Use the function to see the full
image without any cutoff when HDMI
(729p11080i11080p), Component
/1080i11080p) or DTV (1080i) signals
are input.
Setting the Digital Noise Reduction
If the broadcast signal received by your TV is weak, you can activate the Digital
Noise Reduction feature to help reduce any static and ghosting that may appear
on the screen.
1=
2=
3,
Follow the "Activating Picture Options" instructions numbers 1 and 2.
(Refer to page 33)
Press the A or T button to select "Digital NR", then press the ENTER C_
button.
Press the A or v' button to select "Off', "Low", "Medium", "High" or "Auto".
Press the ENTER _ button.
Off: Turns the screen noise reduction function Off.
Low: Reduces Screen noise at a low level.
; Mediumi Reduces screen noise at a medium leVel.
High! RedUCeS screen n0ise ata high level,
- Auto: Automatically recognizes and reduces screen noise.
Press the EXIT button to exit.
Setting the DNle (Digital Natural Image engine)
2=
3,
This TV includes the DNle function to provide high visual quality. If you set DNle
to on, you can view the screen with the DNle feature activated.
1. Follow the "Activating Picture Options" instructions numbers 1 and 2.
(Refer to page 33)
Press the A or v button to select "DNle", then press the ENTER
button.
Press the A or v button to select "Off' or "On", then press the ENTER
button.
" Off: sWitches off the DNle mode.
* Oni switches 0n the DNle mode:
Press the EXIT button to exit.
>- DNle TM (Digital Natural Image engine)
This feature brings you a more detailed image with 3D noise reduction
and detail, contrast and white enhancement.
>- "DNle" is only available in "Dynamic" mode.
Setting the HDMI Black Level
You can select the black level on the screen to adjust the screen depth.
1, Follow the "Activating Picture Options" instructions numbers 1 and 2.
(Refer to page 33)
2, Press the A or V button to select "HDMI Black Level", then press the
ENTER C_ button.
3. Press the A or 'V button to select "Normal" or "Low", then press the
ENTER _ button.
>- This function is active only when an external device is connected to the
TV via HDMI. "HDMI Black Level" function may not be compatible with
all external devices.
Press the EXIT button to exit.
Setting the Fiirn Mode
The TV can be set to automatically sense and process film signals from all
sources and adjust the picture for optimum quality.
1. Follow the "Activating Picture Options" instructions numbers 1 and 2.
(Refer to page 33)
2. Press the A or T button to select "Film Mode", then press the ENTER
button.
3. Press the A or T button to select "Off', "Auto1" or "Auto2", then press the
ENTER _ button.
, Auto1: Automatically adjusts the picture for the best qual ty when
watching a film.
- Auto2: Automatically optimizes the video text when watching a filml
Press the EXIT button to exit.
>- "Film mode" is supported in TV, AV, S-Video, Component (480i / 1080i)
and HDMI (480i / 1080i).
Setting the Blue Only Mode
2=
3,
This function is for AV device measurement experts. This function displays the
blue signal only by removing the red and green signals from the video signal so
as to provide a Blue Filter effect that is used to adjust the Color and Tint of video
equipment such as DVD players, Home Theaters, etc.
Using this function, you can adjust the Color and Tint to preferred values
appropriate to the signal level of each video device using the Red/Green/Blue/
Cyan/Magenta/Yellow Color Bar Patterns, without using an additional Blue Filter.
1. Follow the "Activating Picture Options" instructions numbers 1 and 2.
(Refer to page 33)
Press the A or T button to select "Blue Only Mode", then press the
ENTER c_ button.
Press the A or T button to select "Off' or "On", then press the ENTER
button.
Press the EXIT button to exit.
>- "Blue Only Mode" is available when the picture mode is set to "Movie" or
"Standard".
Setting the Auto Motion Plus 120Hz
2=
3,
Removes drag from fast scenes with a lot of movement to provide a clearer
picture.
1. Follow the "Activating Picture Options" instructions numbers 1 and 2.
(Refer to page 33)
Press the _, or _' button to select "Auto Motion Plus 120Hz", then press the
ENTER C_ button.
Press the A or T button to select "Off", "Low", "Medium", "High" or "Demo",
then press the ENTER _ button.
' Off: Switches Auto Motion Plus 120Hz off.
' L0Wi SetSAUto MOtion Plus i20Hz to minimuml
;Medium: sets Auto Motion Plus 120Hz io mediuml
, High: Sets Auto Motion p!us !20Hz to maximum.
• DemQ: Displays the difference between Auto Motion Plus 120Hz on and
off modes. The scree n after applying ,Auto Motion Plus 120Hz, appears
on the left.
Press the EXIT button to exit.
>- If you enable "Auto Motion Plus 120Hz", noise may appear on the
screen. If this occurs, set "Auto Motion Plus 120Hz" to "Off".
>- When "Smart LED" is set to "Demo", the "Demo" option for "Auto Motion
Plus 120Hz" will not be available.
Setting the Smart LED
Controls LED backlight to maximize picture clarity.
1. Follow the "Activating Picture Options" instructions numbers 1 and 2.
(Refer to page 33)
2. Press the A or T button to select "Smart LED", then press the ENTER
button.
3. Press the A or T button to select "Off", "On" or "Demo", then press the
ENTER _ button.
' On: switches on the Smart LED m0del
Demo: Display s the difference between i'Smart LED" on and off modes.
The screen after applying _'Smart LEDII appears on the left.
Press the EXIT button to exit.
>- When "Auto Motion Plus 120Hz" is set to "Demo", the "Demo" option for
"Smart LED" will not be available.
Viewing Picture-in-Picture
You can use the PIP feature to simultaneously watch the TV tuner and one external video source. (See page 44 to select
the PIP picture sound.) This product has one built-in tuner, which does not allow PIP to function in the same mode. Please
see 'PIP Settings' below for details.
While V-Chip (See page 62) is in operation, the PIP function cannot be used.
Activating Picture=in-Picture
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
Press the A or T button to select "PIP", then press the ENTER _ button.
2=
Press the ENTER _ button again.
Press the A or _' button to select "On", then press the ENTER _ button.
If you turn the TV off while watching in PIP mode and turn it on again, the
PIP window will disappear.
You can view TV broadcasts on the PIP screen (sub-picture) when the
main picture is from an external device connected to HDMI 1,
HDMI/DVI 2, HDMI 3, HDMI 4, Component1,2 or PC.
PiP Settings
Mo np cturo SU b
Component 1,2
HDMI 1, HDMI/DVl 2, HDMI 3, HDMI 4 TV
PC
Changing the Size of the PiP Window
3=
Press the _, or T button to select "Size", then press the ENTER _ button.
Press the A or T button to select the required option, then press the
ENTER _ button.
You may notice that the picture in the PIP window becomes slightly
unnatural when you use the main screen to view a game or karaoke.
Changing the Position of the PiP Window
4=
Press the A or _' button to select "Position", then press the ENTER
button.
Press the A or T button to select the required option, then press the ENTER
button.
In Double Window ( [_ ) and Double Wide ( r-'=l) modes, "Position"
cannot be selected.
Changing the PiP Channel
5, Press the A or T button to select "Air/Cable", then press the ENTER
button.
6, Press the A or T button to select "Air" or "Cable", then press the ENTER c_
button.
7. Press the A or T button to select "Channel", then press the ENTER
button.
8. Press the A or _' button to select the desired channel in the PIP window.
Press the ENTER _ button.
Press the EXIT button to exit.
Easy Setting
1. Press the TOOLS button on the remote control.
2. Press the _, or T button to select "PIP", then press the ENTER _ button.
3. Press the 4 or _-button to select "On".
4. Press the _, or _' button to select a particular item.
5. Press the 4 or !_ button to select the required option.
6. Press the EXIT or TOOLS button to exit.
Changing the Sound Standard
You can select the sound mode to best suit the programming you're watching.
1, Press the MENU button to display the menu.
Press the A or T button to select "Sound", then press the ENTER _ button.
2= Press the ENTER _ button to select "Mode". Press the A or T button to
select "Standard", "Music", "Movie", "Speech", or "Custom" sound setting,
then press the ENTER _ button.
Press the EXIT button to exit.
, Movie: Provides the best sound for movies
Speech: Emphasizes voice over other sounds,
, Custom: Recalls your customized sound settings.
(see "Customizing the Sound'!)
Easy Setting
1, Press the TOOLS button on the remote control.
2, Press the A or _' button to select "Sound Mode".
3, Press the 4 or !_ button to select the required option.
4, Press the EXIT or TOOL8 button to exit.
Customizing the Sound
The sound settings can be adjusted to suit your personal preference.
1. Press the MENU button to display the menu.
Press the A or T button to select "Sound", then press the ENTER C,-' button.
2. Press the A or T button to select "Equalizer", then press the ENTER
button.
3, Press the ENTER _ button to select "Mode".
Press the A or T button to select "Standard", "Music", "Movie", "Speech", or
"Custom" sound setting, then press the ENTER _ button.
4=
Press the A or _' button to select a particular frequency to adjust.
Press the 4 or _ button to increase or decrease the level of the particular
frequency.
* Medei selects the sound mode among th e predefined Settingsl
, Balance L/R: Adjusts the balance between the right and left speaker,
, Bandwidth Adjustment (!0OHz, 300Hz, lkHz, 2kHz, 3kHz, !0kHz):
To adjust the leve! of different bandwidth frequencies. .......
Resetting the Equalizer Settings to the Factory Defaults
5, Press the A or T button to select "Reset", then press the ENTER C_ button.
>- The equalizer resets to the factory defaults.
Press the EXIT button to exit.
Setting the TruSurround XT
TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two
speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system,
including internal television speakers. It is fully compatible with all multichannel formats.
1. Press the MENU button to display the menu.
Press the A or T button to select "Sound", then press the ENTER C# button.
2. Press the ,_ or _' button to select "SRS TruSurround XT", then press the
ENTER C:_ button.
3, Press the A or T button to select "Off" or "On", then press the ENTER
button.
Press the EXIT button to exit.
$R$(_0_ TruSurround XT, SRS and (o) Symbol are trademarks of SRS Labs, Inc.
TruSurround XT technology is incorporated under license from SRS Labs, Inc.
Choosing Preferred Language
The digitaI-TV transmission system is capable of simultaneous transmission of many audio tracks (for example,
simultaneous translations of the program into foreign languages).
Select the language you would like to hear the audio track in.
1. Press the MENU button to display the menu.
Press the A or T button to select "Sound", then press the ENTER C*J button.
2. Press the A or T button to select "Preferred Language", then press the
ENTER _ button.
3. Press the A or T button to choose the language (English, Spanish or
French) you want, then press the ENTER _ button.
Press the EXIT button to exit.
>- "Preferred Language" is available only in Digital TV mode.
>- You can only select the language from among the actual languages being
broadcast.
Choosing a lVlulti-Channel Sound (MTS) track
1. Press the MENU button to display the menu.
Press the A or T button to select "Sound", then press the ENTER C*_ button.
2. Press the A or _' button to select "Multi-Track Sound", then press the
ENTER _ button.
3=
Press the _, or T button to select a setting you want, then press the
ENTER G_ button. Press the EXIT button to exit.
' MonQ: Choose for channels that are broadcasting in mono or if You are
having difficulty receMng a stereo signa!,
* Stereo! Choose for channels that are broadcasting in Stereoi
, SAP: Choose to listen to the Separate Audio program, which is usually
a foreign-language trans!ationl
>- "Multi-Track Sound" is available only in Analog TV mode.
>- Depending on the particular program being broadcast, you can listen to
"Mono", "Stereo" or "SAP".
Easy Setting
1. Press the TOOLS button on the remote control.
2. Press the _, or T button to select "Multi-Track Sound".
3. Press the 4 or !_button to select the required option.
4. Press the EXIT or TOOLS button to exit.
Automatic Volume Control
Reduces the differences in volume level among broadcasters.
1. Press the MENU button to display the menu.
Press the A or T button to select "Sound", then press the ENTER C_' button.
2. Press the A or T button to select "Auto Volume", then press the ENTER 1:_
button.
3, Press the A or T button to set "Off' or "On" then press the ENTER
button.
Press the EXIT button to exit.
Selecting the Speaker
When you watch TV by connecting it to a home theater, turn the TV speaker off so that the audio from the TV is output using
the external speakers instead of the TV speakers.
1. Press the MENU button to display the menu.
Press the A or T button to select "Sound", then press the ENTER 1:_ button.
2=
Press the _, or T button to select "Select Speaker", then press the ENTER
button.
* External Speaker: Used to !!sien to the sound of the External speaker.
, Tv Speaker: Used to listen to the sound of the TV Speake[,
Press the EXiT button to exit.
>- When "Select Speaker" is set to "External Speaker", you can operate only
"Preferred Language" (in digital TV mode), "Multi-Track Sound" (in analog
TV mode), "Sound Select" (in PIP mode) and "Sound Reset" in Sound
menu.
>- The VOL -, VOL+ and MUTE buttons do not operate when the "Select
Speaker" is set to "External Speaker".
r_['] FDO--LB_ '_ Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
D I G I T A L trademarks of Dolby Laboratories.
Listening to the Sound of the Sub (PIP) Picture
When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.
1. Press the MENU button to display the menu.
Press the A or T button to select "Sound", then press the ENTER C+-'button.
2. Press the A or T button to select "Sound Select", then press the ENTER
button.
3=
Press the A or T button to select "Main" or "Sub", then press the ENTER
button.
Press the EXIT button to exit.
,, Main i Used to listen to the sound Ofthe main PiCiure.
,, Sub: Used to listen to the sound Ofthe sub picture:
:_ You can select this option when "PIP" is set to "On". (See page 38)
Easy Setting
1, Press the TOOLS button on the remote control.
2, Press the A or T button to select "PIP".
3, Press the 41 or !_ button to select "On".
4, Press the A or _' button to select "Sound Select".
5, Press the 4 or !_ button to select the required option.
6, Press the EXIT or TOOLS button to exit.
Resetting the Sound Settings to the Factory Defaults
You can restore the Sound settings to the factory defaults.
1. Press the MENU button to display the menu.
Press the A or T button to select "Sound", then press the ENTER C*-'button.
2. Press the A or T button to select "Sound Reset", then press the ENTER
button.
Press the EXiT button to exit.
3. Press the 4 or _ button to select "Reset All", "Reset Sound Mode" or
"Cancel" then press the ENTER _ button.
Press the EXIT button to exit.
, Reset Sound Mode: Current sound values return to default settings.
, Cancel: Select the sound reset options.
Connecting Headphones (Sold separately)
You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the
room.
>- When you insert the headphone's plug into the headphone jack, you can TVSidePanel
operate only "Preferred Language" (in digital TV mode), "Multi-Track Sound"
(in analog TV mode), "Auto Volume", "Sound Select" (in PIP mode) and "Sound
Reset" in Sound menu.
>- Prolonged use of headphones at a high volume may damage your hearing.
>- You will not hear sound from the speakers when you connect headphones to
the TV.
>- The headphone volume and TV volume are adjusted separately.
Channel Control
Managing Channels
Using this menu, you can Add/Delete or set Favorite channels and use the program guide for digital broadcasts.
Viewing AH Channels
Show all currently available channels.
To use the Channel List function, first run "Auto Program" (see page 21).
1. Press the MENU button.
Press the A or T button to select "Channel", then press the ENTER
button.
Press the A or T button to select "Channel List", then press the ENTER
button.
2. Press the 4 button to select "Added Channels".
3. Press the A or T button to select "All Channels".
>- Shows all currently available channels.
Press the ENTER _ button.
4. Press the A or T button to select a channel to view, then press the
ENTER 13_button. You can watch the selected channel.
(_ Press the OH LIST button on the remote control to bring up the channel lists. @[-_1_[.__ _ ]_]
Using the Color buttons on the Remote with the Channel List
. Green (zoom); Enlarges or shrinks a channel number,
' Yellow (Select): se!ects mu!tiple Channe! lists:
- TOOLS (Option); Displays the !_Add'!(or _tDelete"), _'Addto Favorite'!(or :
!'Delete from Favoritdl); !'Timer Viewing'i; t!Channel Name Editil, ':Select A!!";
'tDeselect AI!'! and i'Aut0 Program!! menu& (The Options menu s may differ
depending on the situation.)
>- A gray-colored channel indicates the channel has been deleted.
The "Add" menu only appears for deleted channels.
>- A channel marked with the "v" mark means the channel has been set as a Favorite.
The "Delete from Favorite" menu only appears for channels with the "v" mark.
Erasing and Adding Channels
You can delete or add a channel to display the channels you want.
1. Press the MENU button.
Press the A or T button to select "Channel", then press the ENTER
button.
Press the _, or T button to select "Channel List", then press the
ENTER _ button.
2. Press the 4 button to select "Added Channels".
3, Press the A. or T button to select "All Channels".
>- Shows all currently available channels.
Press the ENTER _ button.
4. Press the A or _' button to select a channel to delete, then press the
TOOLS button.
5. Press the ENTER _ button to select "Delete".
>- All deleted channels will be shown on "All Channels" menu.
6. Press the EXiT button to exit.
>- You can also delete a channel to the "Added Channels" menu in the same
manner.
>- A channel must be deleted before it can be added back to the "Added
Channels" list.
>- To Add (Restore) a channel back to the All Channel List, follow steps
1-3 above, press the A or T button to select a channel to add, the press
the TOOLS button. Press the ENTER _ button to select Add.
[_ Press the CH LIST button on the remote control to bring up the channel
lists.
Setting Your Favorite Channels
You can set channels you watch frequently as favorites.
1, Press the MENU button.
Press the A or v button to select "Channel", then press the ENTER
button.
Press the A or v button to select "Channel List", then press the
ENTER _ button.
2. Press the 4 button to select "Added Channels".
3. Press the ,A or ?' button to select "All Channels".
Shows all currently available channels.
Press the ENTER _ button.
4. Press the A or ?' button to select a channel as a favorite channel.
Adding multiple channels to Favorites
Press the A or T button to select the desired channel in the channel
list. Then press the yellow button. Repeat the above operation to select
multiple channels. The _/mark appears to the left of the selected
channels.
5. Press the TOOLS button.
6. Press the _, or T button to select "Add to Favorite", then press the
ENTER G_ button. The "v" symbol will be displayed and the channel will be
set as a favorite.
7. To cancel your favorite channel selection, press the TOOLS button when a
favorite channel is selected.
Press the ,t, or T button to select "Delete from Favorite", then press the
ENTER _ button.
The channel is deleted from "Favorites" and the "v" mark also disappears.
Press the EXIT button to exit.
> You can also Add or Delete a channel from Favorites in the "Added
Channels" menu in the same manner.
> All favorite channels will be shown in the "Favorite" menu.
[_ Press the OH LIST button on the remote control to bring up the channel
lists.
[_ To select the favorite channels you have set up, press the FAV.CH button
on the remote control.
Easy Setting
1. Press the TOOLS button on the remote control.
2. Press the A or V button to select "Add to Favorite" (or "Delete from
Favorite"), then press the ENTER _ button.
The current channel is added to (or deleted from) Favorites.
Reserving a Program (Timer Viewing)
If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel
List; even when you are watching another channel.
To reserve a program, set the current time first. See pages 58~59. Reserved channels can only be set if they are in the
"Channel List" (See page 50).
1. Press the MENU button.
Press the A or T button to select "Channel", then press the ENTER _ button.
Press the A or T button to select "Channel List", then press the ENTER
button.
2. Press the A or T button to select a channel, then press the TOOLS button.
3. Press the A or _' button to select "Timer Viewing", then press the ENTER
button. The Reserve a Program (Timer Viewing) screen appears.
4. Press the A/_'/_/_ buttons to reserve a program and then press the
ENTER _ button. Reserving a program has been completed.
Press the EXIT button to exit.
You can also reserve a program in the "All Channels" or "Favorite" menus using
the same procedures.
For information on how to confirm a viewing reservation, refer to page 50.
Only memorized channels can be reserved.
You can set the channel, month, day, year, hour and minute directly by pressing
the number buttons on the remote control.
[_ Press the OH LIST button on the remote control to bring up the channel lists.
Digital Program Guide and Viewing Reservation
When a digital channel is selected, and you press the _ button, the Program Guide
for the channel appears. You can reserve a program according to the procedures
described above.
: A program currently being broadcast.
(9 : A reserved program
Confirming a Viewing Reservation
You can view, modify or delete a reservation.
1, Press the MENU button.
Press the A or T button to select "Channel", then press the ENTER
button.
Press the A or v button to select "Channel List", then press the
ENTER _ button.
2. Press the 4 button to select "Added Channels".
3. Press the A or v button to select "Programmed".
>- Shows all current reserved programs.
Press the ENTER _ button.
Modifying a viewing reservation
4. To select a reservation item to be modified, press the A or T button and
then press the TOOLS button.
5= Press the ENTER _ button to select "Change Info".
6. Press the A/V/_/_ buttons to change a reservation setting and then
press the ENTER G,_ button. The reservation modification is applied.
Canceling a reservation
4. To select a reservation item to be canceled, press the A or T button, and
then press the TOOLS button.
5. Press the A or 'V button to select "Cancel schedules", then press the
ENTER C_ button.
6. Press the 4 or _ button to select "OK", then press the ENTER _ button.
The viewing reservation has been canceled.
Press the EXIT button to exit.
Programmed Option
, Cancel schedules: Se!ect to cancel a viewing reservation.
, information: Select to view a viewing reservation,
-Select All: Select all reserved programs_
(_ Press the CH LiST button on the remote control to bring up the channel
lists.
Labeling Channels = Analog
Channels can labeled so that their call letters appear whenever the channel is selected.
1, Press the MENU button.
Press the A or v button to select "Channel", then press the ENTER
button.
Press the A or v button to select "Channel List", then press the ENTER
button.
2, Press the A or ?' button to select the channel to be assigned a new name,
then press the TOOLS button.
3, Press the ,A or _' button to select "Channel Name Edit", then press the
ENTER _ button.
4=
5=
Press the A/V/_/_ button to select a letter, then press the ENTER
button.
, Numeric buttons: You can enter numbers.
,,Red buttoni You can Switch between English and chaiaciers I
Green button; You can delete an already entered character,
,, Yellow buttoni You Can enter a blank space.
-Blue button:Press this button to finish renaming a channel,
When you have finished, press the blue button to assign the new name.
Press the EXIT button to exit.
The names of digital broadcasting channels are automatically assigned
and cannot be labelled.
Selecting and Deselecting All Channels
1= Press the MENU button.
Press the A or T button to select "Channel", then press the ENTER
button.
Press the A or T button to select "Channel List", then press the ENTER
button.
2, Press the A or T button to select a channel, then press the TOOLS button.
3=
Press the A or T button to select "Select All" or "Deselect All", then press the
ENTER _ button.
You can select(or Deselect) all channel in the channel list.
The V' mark appears to the left of the selected channels.
Storing Channels in Memory (Auto Program)
1, Press the MENU button.
Press the A or T button to select "Channel", then press the ENTER
button. Press the A or _r button to select "Channel List", then press the
ENTER C_ button.
2, Press the A or T button to select a channel, then press the TOOLS button.
3, Press the A or T button to select "Auto Program", then press the ENTER
button.
>- For further details on setting up options, refer to page 21.
Clearing Scrambled Channels - Digital
The "Clear Scrambled Channel" function is used to filter out scrambled channels after "Auto Program" is completed.
This process may take up to 20~30 minutes.
1, Press the MENU button to display the menu.
Press the A or T button to select "Channel", then press the ENTER
button.
2=
Press the _, or T button to select "Clear Scrambled Channel", then press the
ENTER _ button. It searches scrambled channels, which are to be removed
from the list.
>- To stop searching scrambled channels;
Press the ENTER _ button to select "Stop".
Press the _1 button to select "Yes", then press the ENTER _ button.
3=
When the scrambled channel searching is completed, press the ENTER
button.
Press the EXIT button to exit.
>- This function is only available in "Cable" mode.
Fine Tuning Analog Channels
Use fine tuning to manually adjust a particular channel for optimal reception.
1, Press the MENU button to display the menu.
Press the A or T button to select "Channel", then press the ENTER
button.
2, Press the A or T button to select "Fine Tune", then press the ENTER
button.
3=
4=
Press the 4 or !_ button to adjust the fine tuning.
To store the fine tuning setting in the TV's memory, press the ENTER
button.
>- If you do not store the fine-tuned channel in memory, adjustments are not
saved.
To reset the fine tuning setting, press the _r button to select "Reset", then
press the ENTER _ button.
Press the EXIT button to exit.
>- .....will appear next to the name of fine-tuned channels.
>- Only analog TV channels can be fine tuned.
Checking the Digital-Signal Strength
Unlike analog channels, which can vary in reception quality from "snowy" to clear, digital (HDTV) channels have either
perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital
channel. You can, however, adjust your antenna to improve the reception of available digital channels.
1, Press the MENU button to display the menu. Press the A or _r button to
select "Channel", then press the ENTER _ button.
2, Press the A or T button to select "Signal Strength", then press the
ENTER _ button.
if the signal strength meter indicates that the signal is weak, physically adjust
your antenna to increase the signal strength.
Continue to adjust the antenna until you find the best position with the
strongest signal.
Press the EXIT button to exit.
Using Your TV as a Computer (PC) Display
Setting Up Your PC Software (Based on Windows XP)
The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be
different, depending upon your particular version of Windows and your particular video card. However, even if !our actual
screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer
manufacturer or Samsung Dealer.)
1, First, click on "Control Panel" on the Windows start menu. _,o,,;_;_;__;;_,_ _;_;_._:
2, When the control panel window appears, click on "Appearance and Themes" and
a display dialog-box will appear.
3, When the control panel window appears, click on "Display" and a display dialog-
box will appear.
4, Navigate to the "Settings" tab on the display dialog-box.
The correct size setting (resolution) ......
Optimum: 1920 X 1080 pixels
If a vertical-frequency option exists on your display settings dialog box, the
correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.
Display Modes
If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the
system doesn't equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there
may be no video. For the display modes listed below, the screen image has been optimized during manufacturing.
D-Sub Input
_................ _..........................._: T¸ /............................................................:.........
Mode Reso ut on Horizontal Vertical Pixel Chock 8ync Polarity
Frequency (kHz) Frequency(Hz) Frequency(MHz) (HN)
_. .............. .......................................................................... .......................................
.......................................'=M ...........................................................720 x 400 ................... 31.469 70.087 28.322 -/+
VESA
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1280 x 1024
1280 x 1024
1360 x 768
1600 x 1200
31.469
37.861
37.500
37.879
48.077
46.875
48.363
56.476
60.023
63.981
79.976
47.712
75.000
59.940
72.809
75.000
60.317
72.188
75.000
60.004
70.069
75.029
60.020
75.025
60.015
60.000
25.175
31.500
31.500
40.000
50.000
49.500
65.000
75.000
78.750
108.000
135.000
85.500
162.000
-/-
-/-
-/-
+/+
+/+
+/+
-/-
-/-
+/+
+/+
+/+
+/+
+/+
CVT 1920 x 1080RB 66.587 59.934 138.500 + / -
HDMI/DVI Input
VESA
1024 x 768 i 48.363
1280 x 1024 63.981
1360 x 768 i 47.712
1600 x 1200 i 75.000
60.317
60.004
60.020
60.015
60.000
40.000
65.000
108.000
85.500
162.000
:sy.c PoJar!ty
(HN)
-/-
+/+
-/-
+/+
+/+
+/+
+/+
Setting up the TV with your PC
How to Auto Adjust
Use the Auto "Adjust function" to have the TV set automatically adjust the video
signals it receives. The function also automatically fine-tunes the settings and
adjusts the frequency values and positions.
_'- This function does not work in DVI-Digital mode.
Preset: Press the SOURCE button to select PC mode.
1. Press the MENU button to display the menu.
Press the A or T button to select "Picture", then press the ENTER
button.
2, Press the A or v' button to select "Auto Adjustment", then press the
ENTER _ button.
Press the EXIT button to exit.
Easy Setting
1. Press the TOOLS button on the remote control.
2. Press the A or v' button to select "Auto Adjustment", then press the
ENTER _ button.
Adjusting the Screen Quality
The purpose of the picture quality adjustment is to remove or reduce picture noise.
If the noise is not removed by fine tuning alone, then make the vertical frequency
adjustments on your PC and fine tune again. After the noise has been reduced,
re-adjust the picture so that it is aligned on the center of the screen.
> Preset: Press the SOURCE button to select PC mode.
1. Press the MENU button to display the menu.
Press the A or T button to select "Picture", then press the ENTER E::;_
button.
2. Press the A or T button to select "Screen", then press the ENTER E_
button.
3=
Press the A or • button to select "Coarse" or "Fine", then press the
ENTER _ button. Press the _1or !_ button to adjust the screen quality.
Vertical stripes may appear or the picture may be blurry.
Press the ENTER _ button.
Press the EXIT button to exit.
Changing the Screen Position
Adjust the PC's screen positioning if it does not fit the TV screen.
>- Preset: Press the SOURCE button to select PC mode.
1, Press the MENU button to display the menu.
Press the A or T button to select "Picture", then press the ENTER C,_
button.
2, Press the A or T button to select "Screen", then press the ENTER
button.
3=
4,
Press the A or T button to select "PC Position", then press the ENTER
button.
Press the A or T button to adjust the V-Position.
Press the 4 or !_ button to adjust the H-Position.
Press the ENTER _ button.
Press the EXIT button to exit.
Initializing the Screen Position, Coarse and Fine
You can replace all image settings with the factory default values.
>- Preset: Press the SOURCE button to select PC mode.
1, Press the MENU button to display the menu.
Press the A or T button to select "Picture", then press the ENTER C_
button.
2=
3,
Press the A or T button to select "Screen", then press the ENTER C_
button.
Press the A or T button to select "Image Reset", then press the ENTER E_
button.
Press the EXIT button to exit.
Time Setting
Setting the Clock
Setting the clock is necessary in order to use the various timer features of the TV.
Also, you can check the time while watching the TV. (Just press the INFO button.)
Option 1: Setting the Clock Manually
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
Press the A or T button to select "Time", then press the ENTER _ button.
2, Press the ENTER _ button to select "Clock".
3, Press the ENTER _ button to select "Clock Mode".
Press the A or T button to select "Manual", then press the ENTER
button.
4, Press the A or T button to select "Clock Set", then press the ENTER C_
button.
5.
Press the 4 or I_ button to move to "Month", "Day", "Year", "Hour", "Minute",
or "am/pm". Set the date and time you want by pressing the A or _r button,
then press the ENTER _ button.
Press the EXiT button to exit.
>- The current time will appear every time you press the INFO button.
>- You can set the month, day, year, hour and minute directly by pressing the
number buttons on the remote control.
Option 2: Setting the Clock Automatically
The Clock can be set automatically if you are receiving a digital signal.
1. Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
Press the A or T button to select "Time", then press the ENTER _ button.
2. Press the ENTER _ button to select "Clock".
3. Press the ENTER _ button to select "Clock Mode".
Press the A or T button to select "Auto", then press the ENTER _ button.
4, Press the A or T button to select "Time Zone", then press the ENTER
button.
5, Press the A or T button to highlight the time zone for your local area, then
press the ENTER C,_ button.
6_
Press the A or _r button to select "DST" (Daylight Saving Time), then press
the ENTER _ button. Press the A or T button to select "Off", "On" or
"Auto", then press the ENTER _ button.
Press the EXiT button to exit.
>- Depending on the broadcast station and signal, the auto time may not be
set correctly. If this occurs, set the time manually.
>- The Antenna or cable must be connected in order to set the time
automatically.
Setting the Sleep Timer
The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes).
1. Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
Press the A or T button to select "Time", then press the ENTER _ button.
2.
3.
Press the A or T button to select "Sleep Timer", then press the ENTER
button.
Press the A or T button to select the minute, then press the ENTER
button.
To ¢anee_ the set s_eep timer:
Press the A or T button to select "Off", then press the ENTER _ button.
4. Press the EXIT button to exit.
Easy Setting
1. Press the TOOLS button on the remote control.
2. Press the A or _' button to select "Sleep Timer".
3. Press the 4 or !_ button to select the minute.
4. Press the EXIT or TOOLS button to exit.
Setting the On/Off Timer
1=
Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER
button.
Press the A or T button to select "Time", then press the ENTER _ button.
2, Three different On/Off Timer Settings can be made.
Press the A or T button to select "Timer 1", "Timer 2" or "Timer 3", then
press the ENTER C;_ button.
3= Press the _ or _- button to select the desired item below.
Press the A or T button to adjust the setting.
- On Time: Set the Hour. Minute. am!pro, and Activation!Inactivation.
(To activate timer with the setting you've chosen, set to "Activate".)
, Off Time: Set the Hour. Minute. am/pro, and Activation/inactivation.
(To activate timer with the setting you've chosen, set to "Activate%
- Volume: Set the desired volume level
, Contents: When the "On Time" is active, you can turn on a specific
channel or play back contents such as photo or audio files.
- TViUSB: Select TV or USB (Make sure that an USB device is
connected to your TV.)
- Antenna: Select "Air" or "Cable".
- Channel: Select the desired channel.
- Music: Select the folder containing MP3 files on the USB device.
- Photo: Select the folder containing JPEG files on the USB device.
- Repeat: Select "Once". "Everyday", "Mon~Fri". "Mon~Sat", "Sat~Sun".
or 'Manual".
> When "Manual" is selected, press the _ button to select the
desired day of the week. Press the ENTER _ button over the
desired day and the _ mark will appear.
Press the EXiT button to exit.
>- You can set the hour, minute and channel by pressing the number
buttons on the remote control.
>- Auto Power Off
When you set the timer On, the television will eventually turn off, if no
controls are operated for 3 hours after the TV was turned on by the
timer. This function is only available in timer On mode and prevents
overheating, which may occur if a TV is on for too long time.
Function Description
Selecting a Menu Language
t,
Press the MENU button to display the menu.
Press the A or _' button to select "Setup", then press the ENTER _ button.
Press the A or _r button to select "Language", then press the ENTER
button.
2, Press the A or _r button to select "English", "EspaSol" or "Frangais".
Press the ENTER _ button.
Press the EXIT button to exit.
Using the V-Chip
The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN
(personal ID number) before any of the V-Chip restrictions are set up or changed.
>- "V-Chip" function is not available in HDMI, Component or PC mode.
U.S.A Only
This product is covered by the following U.S.patents: US4, 930, 158, US4,930, 160.
Setting Up Your Personal ID Number (PIN)
t=
2.
Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
Press the A or _r button to select "V-Chip", then press the ENTER
button.
The message "Enter PIN" will appear. Enter your 4 digit PIN number.
>- The default PIN number of a new TV set is "0-0-0-0".
3=
The "V-Chip" screen will appear.
Press the _t, or Y button to select "Change PIN", then press the ENTER C#
button. The Change PIN screen will appear. Choose any 4 digits for your
PIN and enter them. As soon as the 4 digits are entered, the "Confirm New
PIN" screen appears. Re-enter the same 4 digits. When the Confirm screen
disappears, your PIN has been memorized.
Press the EXiT button to exit.
>- If you forget the PIN, press the remote-control buttons in the following
sequence, which resets the pin to 0-0-0-0 : Power Off. --_ Mute --_ 8 --_ 2
-_ 4 -_ Power On.
How to EnablelDisable the V=Chip
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2, Press the A or T button to select "V-Chip", then press the ENTER
button.
The message "Enter PIN" will appear. Enter your 4 digit PIN number.
3=
The "V-Chip" screen will appear.
To enable the V-Chip feature, press the ENTER C;,-_button so that the "V-Chip
Lock" field is "On". (Pressing the A or _r button will alternate between "On"
and "Off".)
Press the ENTER _ button.
Press the EXIT button to exit.
How to Set up Restrictions Using the TV Parental Guidelines
First, set up a personal identification number (PIN) and enable the V-Chip. (See previous section.) Parental restrictions can
be set up using either of two methods: The TV guidelines or the MPAA rating.
1. Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2. Press the A or 'e' button to select "V-Chip", then press the ENTER
button. The message "Enter PIN" will appear. Enter your 4 digit PIN number.
3. The "V-Chip" screen will appear. Press the A or V button to select "TV
Parental Guidelines", then press the ENTER 13_button.
4. The "TV Parental Guidelines" screen will appear.
Press the ,e, or T button to select one of the six aged based categories:
TV-Y: Young children, TV-PGi Parental guidanc e
. TV-Y7: Children 7 and over , TV,14: Viewers 14 and over
- TV-G: General audience - TV-MA: Mature audience
5. At this point, one of the TV-Ratings is selected.
Press the ENTER _ button. Depending on your existing setup, the" __!}"
symbol will be selected. (Blank = Unblocked, _'_= Blocked)
While" _" is selected, press the ENTER C_ button to block or unblock the
category. To select a different TV-Rating, press the A or T button and then
repeat the process.
Allow all: Press to unlock all TV ratings.
Block all: Press to lock all TV ratings.
The TV-Y, TV-Y7, TV-G, TV-PG, TV-14 and TV-MA have additional
options. See the next step to change any of the following sub-ratings:
ALL/FV/V/S/L/D
>- The V-Chip will automatically block certain categories that are "more
restrictive". For example, if you block "TV-Y" category, then TV-Y7 will
automatically be blocked. Similarly, if you block the TV-G category,
then all the categories in the "young adult" group will be blocked (TV-G,
TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work together
similarly. (See next section.)
6. How to set the FV, D, L, S and V sub-ratings.
First, select one of these TV-Ratings: TV-Y, TV-Y7, TV-G, TV-PG, TV-14 or
TV-MA (See Step 4) and press the !_ button.
The ""_!_"symbol will be displayed for each sub-rating. While "t_" is
selected, press the ENTER _ button to go to a sub rating. Press ENTER
to block the sub rating. To select a different TV-Rating, press the A or T
button and then repeat the process.
7=
, FV: Fantasy violence , L: Adult Language
- V: Violence - D: Sexually Suggestive Dialog
>- The V-chip will automatically block certain categories that are "More
restrictive". For example, if you block "L" sub-rating in TV-PG, then the "L"
sub-ratings in TV-14 and TV-MA will automatically be blocked.
Press the EXIT button to clear all the screens. (Or proceed to the next
section, and set up additional restrictions based on the MPAA codes.)
>- These categories consist of two separate groups: TV-Y and TV-Y7 (young
children through age 7) and TV-G through TV-MA (everybody else).
The restrictions for these two groups work independently: If a household
includes very young children as well as young adults, the TV guidelines
must be set up separately for each age group. (See next step.)
How to Set up Restrictions Using the MPAA Ratings: G, PG, PG-13, R, NC-17, X, NR
The MPAA rating system uses the Motion Picture Association of America (MPAA) system and its main application is for
movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings
(either MPAA or TV-Ratings).
1. Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2, Press the A or T button to select "V-Chip", then press the ENTER
button.
The message "Enter PIN" will appear. Enter your 4 digit PIN number.
3. The "V-Chip" screen will appear. Press the A or T button to select "MPAA
Rating", then press the ENTER C_ button.
4. The "MPAA Rating" screen will appear. Repeatedly press the A or T button
to select a particular MPAA category. Pressing the A or _' button will cycle
through the MPAA categories:
o PG: Parental guidance suggested.
, PG431 parents strongly cautioned.
. R: Restricted, Children under 17 should be accompanied by an adult,
, NC4 7; N° children under age 17.
, NR: Not rated.
>- Allow all: Press to unlock all TV ratings.
Block all: Press to lock all TV ratings.
>- While a particular category is selected, press the ENTER _ button to
activate it. The "_i_" symbol will be displayed. Press the ENTER
button to block or unblock the category.
>- The V-Chip will automatically block any category that is "More restrictive".
For example, if you block the "PG-13" category, then "R", "NC-17" and "X"
will automatically be blocked also.
Press the EXiT button to exit.
How to Set up Restrictions Using the Canadian English
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2, Press the A or T button to select "V-Chip", then press the ENTER
button.
The message "Enter PIN" will appear. Enter your 4 digit PIN number.
3, The "V-Chip" screen will appear. Press the A or T button to select
"Canadian English", then press the ENTER _ button.
4=
Press the ,_ or T button to select a appropriate restriction.
Press the ENTER _ button to activate the restriction selected. The "°_"
symbol is indicated.
Press the EXiT button to exit.
>- Allow all: Press to unlock all TV ratings.
Block all: Press to lock all TV ratings.
- C: Programming intended for children under age 8.
• 08+: Programming generally considered acceptable for children 8
years and over to watch on their own.
o G: General programming, suitable for all audiences ....
- PG: Parental Guidance.
- 14+: Programming contains themes or content which may not be
suitable for viewers under the age of 14.
- 18+: Adult programming.
>- The V-Chip will automatically block any category that is "More restrictive".
For example, if you block G category, then PG, 14+ and 18+ will
automatically be blocked also.
How to Set up Restrictions Using the Canadian French
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2. Press the A or T button to select "V-Chip", then press the ENTER
button.
The message "Enter PIN" will appear. Enter your 4 digit PIN number.
3, The "V-Chip" screen will appear. Press the A or T button to select
"Canadian French", then press the ENTER C,-_ button.
4=
Press the A or T button to select an appropriate restriction. Press the
ENTER E_ button to activate the restriction selected. The" P_" symbol is
indicated.
Press the EXIT button to exit.
>- Allow all: Press to unlock all TV ratings.
Block all: Press to lock all TV ratings.
_8 arts+: Programming generally Considered acceptable for childre n 8
Years and over to watch on their ownl
,13 arts+: Programming may not be suitable for children under the age
of 13.
,16 artS+; Programming is not suitable for children under the age Of 16.
,18 ans+: Programming restricted to adults.
>- The V-Chip will automatically block any category that is "More restrictive".
For example, if you block 8 ans+ category, then 13 ans+, 16 ans+ and 18
ans+ will automatically be blocked also.
Using the V-Chip for Digital channels
Parental restriction information can be used while watching DTV channels.
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2=
3=
Press the A or T button to select "V-Chip", then press the ENTER
button.
The message "Enter PIN" will appear. Enter your 4 digit PIN number.
The "V-Chip" screen will appear. Press the ,L or T button to select
"Downloadable U.S. Rating", then press the ENTER _ button.
>- If information is not downloaded from the broadcasting station, the
Downloadable U.S. rating menu is deactivated.
>- Parental restriction information is automatically downloaded while
watching DTV channels. It may take several seconds.
>- The Downloadable U.S. rating menu is available for use after information
is downloaded from the broadcasting station. However, depending on the
information from the broadcasting station, it may not be available for use.
4=
Press the A or _' button to select a appropriate restriction. Press the ENTER
button to activate the restriction selected. The "P_!}"symbol is indicated.
Press the EXIT button to exit.
>- Allow all: Press to unlock all TV ratings.
Block all: Press to lock all TV ratings.
>- Parental restriction levels differ depending on the broadcasting station.
>- The default menu name and Downloadable US rating changes depending
on the downloaded information.
>- Even if you set the On-screen display to your desired language, the
"Downloadable U.S. Rating" menu will appear in English only.
>- The rating will automatically block certain categories that are more
restrictive.
>- The rating titles (For example: Humor Level..etc) and TV ratings (For
example: DH, MH, H..etc) may differ depending on the broadcasting
station.
Rating title
The number of current The number of all
rating information rating information
How to Reset the TV after the V=Chip Blocks a Channel ("Emergency Escape")
if the TV is tuned to a restricted channel, the V-Chip will block it. The screen
will go blank and the following message will appear:
1, Enteryour PIN.
To resume normal viewing, tune to a different channel using CH v or
CH ^ button. Under certain conditions (depending on the rating of the local
TV programs) the V-Chip might lock out all the channels. In this case, use the
V-Chip function for an "emergency escape":
>- If you forget the PIN, press the remote-control buttons in the following
sequence, which resets the pin to 0-0-0-0 : Power Off. --_ MUTE --_ 8 --_ 2
-_ 4 -_ Power On.
Viewing Closed Captions (On-Screen Text Messages) -Analog
The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external
device to TV. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.)
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2, Press the A or T button to select "Caption", then press the ENTER
button.
3, Press the ENTER _ button to select "Caption". Press the A or T button to
select "On", then press the ENTER _ button.
4=
Press the A or T button to select "Caption Mode", then press the ENTER
button. Press the A or T button to select submenu (Default, CC1~CC4 or
Textl~Text4) you want, the press the ENTER _ button.
Press the EXIT button to exit.
o The default is "CCI".
o COt: The Primary Synchronous Caption Service. These are captions
n the pdmary language that must be in sync with the sound, preferably
matched to a specific frame.
- 0C2: The Special Non-Synchronous Use Captions. This channel
carries data that is intended to augment information carried in the
program.
o CO3: Secondary Synchronous Caption Service. Alternate program-
related caption data, typically second language captions.
o OC4: Special Non-Synchronous Use Captions. Similar to CC2.
- Text1: First Text Service. This may be various non-program related
data.
- Text2: Second Text Service. Additional data. usually not program
related.
- Text3/Text4: Third and Fourth Text Services. These data channels
should be used only if Text1 and Text2 are not sufficient.
>- The Caption feature doesn't work in Component, HDMI or PC modes.
>- The availability of captions depends on the program being broadcast.
[_ Press the CC button on the remote control to turn the Caption "On" or "Off".
!
Viewing Closed Captions (On-Screen Text Messages) - Digital
The Digital Captions function operates on digital channels.
1. Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2. Press the A or T button to select "Caption", then press the ENTER
button.
3. Press the ENTER _ button to select "Caption".
Press the A or T button to select "On", then press the ENTER _ button.
4=
Press the A or T button to select "Caption Mode", then press the
ENTER _ button. Press the A or T button to select submenu (Default,
Service1 ~Service6, CC1~CC4 or Textl~Text4) you want, then press the
ENTER _ button.
5=
6=
Press the A or v' button to select "Digital Caption Options", then press the
ENTER _ button.
>- "Digital Caption Options" are available only when "Default" and "Service
1~Service 6" can be selected in "Caption Mode".
>- Service1~6 in digital caption mode may not be available depending on the
broadcast.
Press the A or T button to select "Size", then press the ENTER C*_ button.
Press the A or T button to select the desired Caption option, then press the
ENTER _ button. Press the A or T button to select the desired sub-menu
options (see options below), then press ENTER _ button.
Press the EXIT button to exit.
>- The availability of captions depends on the program being broadcast.
"Default" means to follow the standard set by the broadcaster.
>- Foreground and Background cannot be set to have the same color.
>- "Foreground Opacity" and "Background Opacity" cannot be both set to
Transparent.
- Size: This option consists of "Default". "Small". "Standard" and "Large".
The default is "Standard".
- Font Style: This option consists of "Default". "StyleO ~ Style 7". You can
change the font you want. The default is "Style 0
o Foreground Color: This option consists of "Default". "White". "Black".
"Red".-'Green". "Blue". "Yellow". "Magenta" and "Cyan". You can
cnange the color of the letter. The default is "White.
- Background Color: This option consists of "Default". "White". "Black".
'Red". "Green", "Blue", "Yellow", "Magenta" and "Cyan". You can
cnange the background color of the caption. The default is "Black".
* Foreground Opacity: This option consists of "Default". "Transparent".
'Translucent". "Solid" and "Flashing". You can change the opacity of the
etter.
, Background Opacity: This option consists of "Default", "Transparent",
'Translucent". "Solid" and "Flashing". You can change the background
opacity of the caption.
- Return to Default: This option sets each of "Size". "Font Style".
'Foreground Color". "Background color", "Foreground Opacity" and
"Background Opacity" to its default.
[_ Press the CC button on the remote control to turn the Caption "On" or "Off". I
J
Adjusting the TV On/Off lVlelodySound
A melody sound can be set to come on when the TV is powered On or Off.
1, Press the MENU button to display the menu.
Press the _, or T button to select "Setup", then press the ENTER _ button.
2, Press the ,A or _' button to select "External Settings", then press the
ENTER _ button.
3,
Press the A or v button to select "Melody", then press the ENTER
button.
Press the A or v button to select "Off", "Low", "Medium" or "High", then
press the ENTER C,-,button.
- Medium Sets the melody volume to med urn
, High: Sets the me!ody volume to high.
Press the EXIT button to exit.
The Melody does not play
- When no sound is output from the TV because the MUTE button has been
pressed.
- When no sound is output from the TV because the volume has been
reduced to minimum with the VOL = button.
- When the TV is turned off by Sleep Timer function.
Setting the Light Effect
You can turn the LED on the front of TV on/off.
1. Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2. Press the A or _' button to select "External Settings" then press the
ENTER [:_ button.
3,
Press the _, or T button to select "Light Effect", then press the
ENTER I:_ button.
Press the A or V button to select "Off", "In Standby", "Watching TV" or
"Always", then press the ENTER _ button.
, Watching TV; Turns the LED 0n while watching TV_
, Always: LED will come on after you turn the TV off.
Press the EXIT button to exit.
>- Set the "Light Effect" to "Off" to reduce power consumption.
.... LED
Setting the Entertainment mode
2=
3,
The "Entertainment" mode enables you to select the optimal display and sound for sports, cinema and games.
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
Press the A or T button to select "Entertainment", then press the ENTER
button.
Press the A or _' button to select "Off', "Sports", "Cinema" or "Game", then
press the ENTER C,,_ button.
,,Off: S#itcheS the :iEntertainment'! function off_
" 8P0rtS; pr0vides t he optimal pict ure and sound qua!ity for sports.
- cinema: Provides the optima! picture and sound quality for movie
watching, You ca n experience a riche r picture and enhanced s0und-
-Game: Provides the Optimal picture and sound quality for games. This
mode acce!erates the playing speed when using an external game
console connected to the TV.
Press the EXIT button to exit.
>- if you set any of the three "Entertainment" modes to On, the settings will
be locked and can not be adjusted. If you want to make Picture and Sound
mode adjustments, the "Entertainment" mode must be turned off.
>- The "Entertainment" settings are saved for each input source.
>- if you set any of the three "Entertainment" modes to On, "SRS TruSurround
XT" function is not available.
>- in PC mode, This function is not available.
[_ You can press the E.MODE button on the remote control repeatedly to
change the "Entertainment" setting.
Using the Energy Saving Feature
This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the
"Energy Saving" mode option to "High" to reduce eye fatigue as well as power consumption.
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2=
Press the A or T button to select "Energy Saving", then press the ENTER
[:_ button. Select the required option (Off, Low, Medium, High, Auto) by
pressing the A or V button.
Press the ENTER _ button.
; LoW: sets the TV to low energy saving mode.
, Medium: Sets the TV to medium energy saving mode.
'High: sets the TV tO high energy saving mode. ....
, Auto: Automatically adjusts the brightness 0f the TV screen in
accordance with the scenes.
Press the EXIT button to exit.
Upgrading the Software
Samsung may offer upgrades for TV's firmware in the future. Please contact the Samsung call center at 1-800-SAMSUNG
(726-7864) to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by
connecting a USB drive to the USB port located on your TV.
1, Insert a USB drive containing the firmware upgrade into the WISELINK port
on the side of the TV.
>- Software can not be upgraded through the LAN connection.
2, Press the MENU button to display the menu.
Press the A or v button to select "Setup", then press the ENTER _ button.
TV Side Panel
USB Drive
3, Press the ,A or v' button to select "Software Upgrade", then press the
ENTER c:_ button.
4, Press the ENTER _ button.
The message "Scanning for USB... It may take up to 30 seconds." is
displayed.
5, The message "Upgrade version XXXX to version XXXX? The system would
be reset after upgrade." is displayed.
Press the 4 or !_ to select the "OK", then press the ENTER _ button.
Please be careful to not disconnect the power or remove the USB drive while
upgrades are being applied. The TV will turn off and turn on automatically
after completing the firmware upgrade. Please check the firmware version
after the upgrades are complete. When software is upgraded, video and
audio settings you have made will return to their default (factory) settings. We
recommend you write down your settings so that you can easily reset them
after the upgrade.
Self diagnosis
Picture Test
If you think you have a picture problem, perform the picture test. Check the color pattern on the screen to see if the
problemstill exists.
, ess nd odthe., to .omoeth n,seoo dsh,J;S==!
>- "Self Diagnostic Test" appears on the screen. [_
2, Press the A or T button to select "Picture Test", then press the ENTER _ _
button.
>- "Does the problem still exist with this test pattern?" appears on the
screen.
3, Press the 4 or !_ button to select "Yes" or "No".
>- If the test pattern does not appear or there is noise in the test pattern,
select "Yes".
>- If the test pattern is properly displayed, select "No".
* Yes: There may be a problem with the TV. Contact the Samsung Ca!l
center at 1-800 SAMSUNGI
, No: There may be a problem with your external equipment. Please
check your connections: If the problem still persists; refer to the external
device's user manual,
Sound Test
If you think you have a sound problem, please perform the sound test. You can
check the sound by playing a built-in melody sound through the TV.
1.
2=
3=
Press and hold the _ button for more than 5 seconds.
>- "Self Diagnostic Test" appears on the screen.
Press the A or T button to select "Sound Test", then press the ENTER
button.
>- "Does the problem still exist with this sound test?" appears on the screen.
Press the 41 or !_ button to select "Yes" or "No".
>- If during the sound test you can hear sound only from one speaker or
from no speaker at all, select "Yes".
>- If you can normally hear the sound from the speakers, select "No".
i YeS: There may be a problem with the TV. Contact thesamsung Call
center at I'800,SAMSUNGI
- No: There may be a problem with your external equipment, Please
check your connections; If the problem sti!l persists; refer to the extema!
device's user manual:
>- If you hear no sound from the TV's speakers, before performing the sound
test, make sure "Select Speaker" is set to "TV speaker" in the Sound
menu.
>- The melody will be heard during the test even if "Select Speaker" is set to "External Speaker" or the sound is muted
by pressing the MUTE button.
>- If headphones are connected, the test melody will play through the headphones.
WISELINK Pro
Using the WISELINK Pro Function
Connecting a USB Device
You can view movies and photos and listen to music files stored on a USB Mass
Storage Class (MSC) device.
t. Press the POWER button on the remote control or front panel.
The TV is powered on.
2. Connect a USB device containing JPEG, MP3 and/or Movie files to the
WISELINK jack (USB jack) on the side of the TV.
TV Side Panel
USB Drive
If you enter the WISELINK Pro mode with no USB device connected the
message "No external storage device found. Check the connection status."
will appear. In this case, insert the USB device, exit the screen by pressing
the W.LINK button on the remote control and enter the WISELINK Pro screen again.
>- MTP (Media Transfer Protocol) is not supported.
The file system only supports FAT16/32 (The NTFS file system is not supported).
Certain types of USB Digital camera and audio devices may not be compatible with this TV.
WISELINK Pro only supports USB Mass Storage Class devices (MSC). MSC is a Mass Storage Class Bulk-Only
Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not
supported.)
Please connect directly to the USB port of your TV. if you are using a separate cable connection, there may be a USB
compatibility problem.
Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.
SAMSUNG is not responsible for any data file damage or data loss.
Do not disconnect the USB device while it is loading.
MSC supports MP3 and JPEG files, while a PTP device supports JPEG files only.
The sequential jpeg format is supported.
Photo and audio files must be named in English, French or Spanish. if not, the files can not be played. Change the file
names to English, French or Spanish if necessary.
The higher the resolution of the image, the longer it takes to display on the screen.
The maximum supported JPEG resolution is 15360X8640 pixels.
For unsupported or corrupted files, the "Not Supported File Format" message is displayed.
If the number of photo files exceeds 4000 (or the number of music files exceeds 3000), any files exceeding the 4000
limit may not be displayed in the Photo List (or Music List).
MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management
(DRM) is a technology that supports the creation of content, the distribution and management of the content in an
integrated and comprehensive way, including the protection of the rights and interests of the content providers, the
prevention of the illegal copying of contents, as well as managing billings and settlements.
Using the Remote Control Button in WISELiNK Pro Menu
Wheel
Move the cursor and select an item.
(A/T/4/_) •
Select the currently selected item.
ENTER _ While playing a slide show, movie, or music file:
- Pressing the ENTER _ button during play pauses play.
[_/[_] Play or pause the Slide Show, Music or Movie file.
RETURN Return to the previous menu.
TOOLS Run various functions from the Photo, Music and Movie menus.
[_ Stop the current slide show, Music or Movie file.
_/[_] Jump to previous group / Jump to next group.
INFO Show file information.
W.LINK Exit WISELINK Pro mode.
OH via
PRE.CH / FAV.CH / OH.LIST Stop WISELINK Pro mode and Returns to TV mode.
EXIT Stop the current function and return to the WISELINK Pro main menu.
SOURCE Exit WISELINK Pro mode and show the Source List.
Using the WIBELINK Pro Menu
1. Press the MENU button. Press the A or T button to select "Application",
then press the ENTER _ button.
2. Press the A or T button to select "WISELINK Pro", then press the
ENTER _ button.
>- The "WISELINK Pro" menu is displayed.
or
or[_ Press the W.L,NK button on the remote control to display the "WlSELINK_[Pro,,menu. _ _------_--_@ _ _'_ _ I
Pressthesoo°co uttonontheremoteoontro,repeoted,ytose,eoti J+l l^ll
"USB", then press the ENTER _ button. VOL SOURCE Ca
3. Press the Red button, then press the A or T button to select the
corresponding USB Memory Device (i.e. if connected through a hub). Press the ENTER _ button.
>- This function differs depending on the USB Memory Device connected to TV.
>- The selected USB device name appears at the bottom left of the screen.
4. Press the 4 or !_ button to select an icon (Photo, Music, Movie, Setup), then press the ENTER c_ button.
>- To exit "WISELINK Pro" mode, press the W.UNK button on the remote control.
Using the Photo List
This menu shows Photo files saved on an USB memory device.
Photo List
t,
2,
Press the W.LINK button on the remote control to display the "WISELINK
Pro" menu.
Press the 4 or !_ button to select "Photo", then press the ENTER
button.
> Photo files are displayed.
> This menu only shows files whose file extension is jpg. Files of other
formats such as bmp or tiff will not be displayed.
> Press the I_ (Play) / ENTER _ button to start the Slide Show.
> To move to the previous / next group, press the [_ (REW) or
[_ (FF) button.
:_ When moving to a photo, loading may take a few seconds. At this
point, the loading icon will appear on the screen.
:_ It may take some time to load photo files as Thumbnail images.
Screen Display
O Currently selected photo
Shows the currently selected photo.
O Current Sort Standard
Press the A or T button to change the standard for sorting photos. ("Monthly', "Timeline', "Color", "Composition",
"Folder", "Preference")
The item that is selected as the sorting standard is highlighted in the Photo Information Window.
0 View Groups
Shows the sorting groups. The sorting group including the currently selected photo is highlighted.
O Current Device
Shows the currently selected device name. Press the Red button to select a device.
O item Selection information
Shows the number of photos that are selected by pressing the Yellow button.
O Help Items
' Red(Device)buttoni selects a connecte d clevicel
Green(FaVorites Setting) buttoni Changes the favorites setting for the se!ected ph0tol Press this button
repeatedly Unti! the desired va!ue appears (Refer to page 8!)
, Yellow(Select) button; Selects photos from the photo list. Selected photos are ma[ked with a symbol V' on the left:
(Jump) button;JumPs to the Previous Sorting group/Jumps to the next s0rting group:
• TOOLS(Option)button; Displays the "Slide Show!!; !*P!ayCurrent Group;!, _iR0tatei'; !!De!etd!; 41ChangeGroup !nfo'!
(in ilcolor'l or "composition" group),/!!nformation'! or "Safe Remove, menus:
Sorting Photo List
You can sort photos in the Photo List by a particular standard.
1. Press the W.LINK button on the remote control to display the "WISELINK
Pro" menu.
2. Press the 4 or !_ button to select "Photo", then press the ENTER
button.
>- Photo files are displayed.
3. Press the A or _' button to select a sorting standard.
("Monthly", "Timeline", "Color", "Composition", "Folder", "Preference")
>- The photos are sorted according to the newly selected sorting
standard.
4. Press the ENTER _ button to start the Slide Show in the order selected
by the user.
>- WISELINK Pro identifies the color and composition of images and
groups them accordingly by analyzing the images on the USB device.
>- The "Composition" and "Color" information extracted from a photo file
may be different from what you selected.
>- Photo information is automatically set. You can change the "Color",
"Composition", and "Favorite".
>- Photos for which information cannot be displayed are set as
"Unclassified".
>- PTP does not support folder sort mode.
Monthly
You can sort and play photos by month.
>- It sorts and shows photos in the file by month. It sorts only by month (from
January to December) regardless of year.
1. Select "Monthly" as the sorting standard in the Photo List.
2. Press the 4 or !_ button to select from the sublist of photos grouped by
Month.
>- To move to the previous / next month group, press the [_ (REW) or
(FF) button.
3. Press the TOOLS button. Press the A or _r button to select "Play Current
Group".
4. Press ENTER _ to play the selected group of photo files from the sublist.
Timeline
You can sort and play photos by timeline.
>- It sorts and shows photos by date. It sorts by year and month from the
earliest photo.
1. Select "Timeline" as the sorting standard in the Photo List.
2. Press the 4 or !_ button to select from the sublist of photos grouped by
Timeline.
>- To move to the previous / next timeline group, press the [_ (REW)
or [_ (FF) button.
3. Press the TOOLS button. Press the A or _r button to select "Play Current
Group".
4. Press ENTER _ to play the selected group of photo files from the sublist.
Color
You can sort and play photos by color.
1. Select "Color" as the sorting standard in the Photo List.
2. Press the 4 or !_ button to select from the sublist of photos grouped by
color.
>- To move to the previous / next color group, press the [_[] (REW) or
_} (FF) button.
3. Press the TOOLS button. Press the A or _r button to select "Play Current
Group".
4. Press ENTER _ to play the selected group of photo files from the sublist.
Changing the color information of a selected photo
>- You can change a selected photo file's (or group of files) color information
in order to move it from one color group to another.
>- This does not change the actual color of the photo.
1. Select "Color" as the sorting standard in the Photo List and press the
or _ button to select a photo.
>- Changing the information of multiple photos
Press the 4 or !_ button to select the desired photo in the Photo list.
Then press the yellow button.
Repeat the above operation to select multiple photos.
The V mark appears to the left of the selected photo.
2. Press the TOOLS button.
3. Press the A or T button to select "Change Group Info".
Press the ENTER _ button.
4. Press the _ or _,-button to select the desired color option, then press the
ENTER _ button.
>- The group information of the current file is updated and the photos are
moved to the new color group.
>- "Color" options: Red, Yellow, Green, Blue, Magenta, Black, Gray,
Unclassified.
Composition
You can sort and play photos by composition.
1. Select "Composition" as the sorting standard in the Photo List.
2. Press the 4 or !_ button to select from the sublist of photos grouped by
compositon.
> To move to the previous / next composition group, press the 1_
(REW) or _ (FF) button.
3. Press the TOOLS button. Press the A or _r button to select "Play
Current Group".
4. Press ENTER _ to play the selected group of photo files from the
sublist.
Changing the composition information of a selected photo
> You can change a selected photo file's (or group of files) composition
information in order to move it from one composition group to another.
t. Select "Composition" as the sorting standard in the Photo List and press
the _1 or !_ button to select a photo.
> Changing the information of multiple photos
Press the _1 or !_ button to select the desired photo in the Photo list.
Then press the yellow button.
Repeat the above operation to select multiple photos.
The V mark appears to the left of the selected photo.
Press the TOOLS button.2=
3,
4=
Press the A or T button to select "Change Group Info".
Press the ENTER _ button.
Press the _ or t_ button to select the composition option, then press the
ENTER _ button.
The group information of the current file is updated and the photos
are moved to the new composition group.
> "Composition" options: __ (horizontal), Iili (vertical), IBI (object),
m (perspective), _ (pattern), Unclassified
Folder
You can sort and play photos by folder.
:_ If there are many folders in USB, the photos files are shown in order in
each folder. The photo file in the Root folder is shown first and the others
are shown in alphabetical order by name.
1. Select "Folder" as the sorting standard in the Photo List.
2. Press the 41 or !_ button to select from the sublist of photos grouped by
folder.
> To move to the previous / next folder group, press the [_ (REW)
or
[_ (FF) button.
3. Press the TOOLS button. Press the A or _r button to select "Play
Current Group".
4. Press ENTER _ to play the selected group of photo files from the
sublist.
Preference
You can sort and play photos by preference. (Favorite)
1. Select "Preference" as the sorting standard in the Photo List.
2. Press the 4 or !_ button to select from the sublist of photos grouped by
preference.
To move to the previous / next preference group, press the [_
(REW) or [_ (FF) button.
3. Press the TOOLS button. Press the A or V button to select "Play
Current Group".
4. Press ENTER _ to play the selected group of photo files from the
sublist.
Changing the Favorites setting
> You can change a selected photo file's (or group of files) preference
information in order to move it from one preference group to another.
1. Press the .,q or !_ button to select the desired photo in the Photo list.
2. Press the Green button repeatedly until the desired setting appears.
> Favorites settings change completed.
>- "Favorite" options: _, _, _,
> Users can select the number of stars (up to 3) according to their
preference.
> The stars are for grouping purposes only. For example, the 3 star
setting does not have any priority over the one star setting.
Rotating the Photo file
1=
2,
3,
Press the 4 or !_ button to select the desired photo in the Photo list.
Press the TOOLS button.
Press the A or T button to select "Rotate", then press the ENTER
button.
Press the 4 or !_ button repeatedly to rotate the photo by the desired
amount.
Whenever you press the 41 button, it rotates by 270 °, 180°, 90, and 0°.
Whenever you press the !_ button, it rotates by 90°, 180°, 270 °, and 0°.
The Rotating function information icon is displayed.
Current OSD Function - :_
This rotates a photo to its original
0° Rotating (0°) position
90 ° Rotating (90 °) This rotates a photo by 90 degrees
180° Rotating (180 °) This rotates a photo by 180 degrees
270° ......................
Deleting the Photo file
1. Press the 4 or !_ button to select the desired photo in the Photo list.
2. Press the TOOLS button.
3. Press the A or T button to select "Delete", then press the ENTER C#
button.
>- The "Delete this file?" message appears.
4. Press the 4 or !_button to select "OK", then press the ENTER _ button.
>- The photo is deleted.
>- When a read-only file is deleted, the "Read-only file(s). Delete the
file(s)?" message appear.
>- If you select "Cancel", the deletion is cancelled.
5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
>- You cannot remove the PTP-connected digital camera picture files.
>- While removing files, don't remove the USB memory device.
>- You cannot recover a deleted photo file.
Deleting Multiple Photos
1. Press the 4 or !_ button to select the desired photo in the Photo list.
Then press the yellow button.
>- Repeat the above operation to select multiple photos.
>- The _ mark appears to the left of the selected photo.
2. Press the TOOLS button.
3. Press the A or _' button to select "Delete selected File", then press the
ENTER C:_ button.
:_ The "Delete the selected file(s)?" message appears.
4. Press the 4 or _- button to select "OK", then press the ENTER _ button.
>- The selected photos are deleted.
:_ If you select "Cancel", the deletion is cancelled.
5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
:_ You cannot remove the read-only files from the selected ones.
:_ You cannot recover a deleted photo file.
Viewing the Photo information
The photo file information including the order of the file in the current directory,
the name, the size, the resolution, the date modified and the path is displayed.
1. Press the 4 or !_ button to select the desired photo in the Photo list.
2. Press the TOOLS button.
3. Press the A or _ button to select "Information", then press the
ENTER _3_button.
:_ The information on the selected photo appears.
[_ Press the INFO button to viewing the information.
Viewing a Photo or Slide Show
Viewing a Slide Show
1, Press the W.LINK button on the remote control to display the "WISELINK
Pro" menu.
2, Press the 4 or !_ button to move to "Photo", then press the ENTER
button.
> Photo files are displayed.
3, Press the 4 or !_ button to select the desired photo in the Photo list.
4, Press the TOOLS button.
5, Press the A or T button to select "Slide Show", then press the
ENTER _ button.
> All files in the photo list will be used for the Slide Show.
During the slide show, files are displayed in order from the currently
shown file.
The Slide Show progresses in the order sorted in the Photo list.
Music files can be automatically played during the Slide Show if the
"Background Music" is set to "On". (Refer to page 85).
[_ While a photo list is displayed, press the [_ (Play) / ENTER
button on the remote control to start the Slide Show.
To perform a 81ideShow with only the selected files
1, Press the 4 or !_ button to select the desired photo in the Photo list.
Then press the yellow button. Repeat the above operation to select multiple photos.
> The V' mark appears to the left of the selected photo.
If you select one file, the SlideShow will not be performed.
2, Press the [_ (Play) / ENTER _ button.
> The selected files will be used for the Slide Show.
If you have selected files, only the selected files will be used for the Slide Show.
Playing current group
1, Press the A or V button to select a sorting standard.
("Monthly", "Timeline", "Color", "Composition", "Folder", "Preference")
2, Press the 4 or _,-button to select the desired photo in the Photo list.
>- To move to the previous / next group, press the [_ (REW) or
(FF) button.
3. Press the TOOLS button.
4. Press the A or T button to select "Play Current Group", then press the
ENTER _ button. Only the photos in the sorting group including the
selected files will be used for the Slide Show.
5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
Slide show function information icon (Displayed at the top left of the screen)
..................:
(Photo) SlideShow Photo Slide Show is in progress.
You can pause a Slide Show by pressing the _ (Pause)/ENTER [3_ button
II Photo Pause on the remote control during a Slide Show.
To resume the Slide Show, press the _ (Play)/ENTER C# button on the
remote control again.
Viewing a photo
1.
2.
Press the W.LINK button on the remote control to display the "WISELINK
Pro" menu.
Press the 4 or !_ button to move to "Photo", then press the ENTER
button.
>- Photo files are displayed.
3. Press the _ or _- button to select the desired photo in the Photo list.
Then Press the Yellow button to select only one file.
4. Press the ENTER _ button over a photo icon.
>- The currently selected photo is displayed in full screen.
Using the option menu during a slide show (or Viewing a Photo)
1. During a slide show(or viewing a photo), press the TOOLS button to set the option.
2. Press the A or T button to select the desired option. Then press the ENTER C_ button.
Start Slide Show (or Stop Slide Show)
You can start or stop a Slide Show.
Press the A or T button to select "Start Slide Show" (or "Stop Slide Show"),
then press the ENTER _ button.
Rotate
You can rotate images in full screen mode.
Press the A or T button to select "Rotate", then press the ENTER _ button.
Press the _ or !_ button repeatedly to rotate the photo by the desired amount.
>- Whenever you press the _ button, it rotates by 270 °, 180°, 90°, and 0°.
>- Whenever you press the _- button, it rotates by 90°, 180°, 270 °, and 0°.
>- If you have selected "Zoom", the "Rotate" deactivated.
>- The rotated file is not saved.
>- The Rotating function information icon is displayed at the top right of the
screen
osD Function
9 ....................................................................................................................................................................................
This rotates a photo to its original
0° Rotating (0 °) position
90 ° Rotating (90 °) This rotates a photo by 90 degrees
.............18o_................ ............
270 ° Rotating (270 °) This rotates a photo by 270 degrees
Zoom
You can zoom into images in full screen mode.
Press the A or _' button to select "Zoom", then press the ENTER _ button.
Press the _ or _ button repeatedly to increase or decrease the Zoom effect.
(xl -* x2 -_ x4)
To move the enlarged photo image, press the ENTER _ button, then press
the A/T/4/!_ buttons.
Note that when the enlarged picture is smaller than the original screen
size, the location change function doesn't work.
The enlarged file is not saved.
If you have selected "Rotate", the "Zoom" deactivate
Zoom function information icon is displayed at the top right of the screen.
Zoom (x 2) Zoom-into a photo at 2x.
Zoom (x 4) Zoom-into a photo at 4x.
2
..............................................t....................................................................................................................................................................................................................................................................
Pan down to view the lower part of a
Pan Down
zoomed-in photo.
Pan Pan up to view the upper part of a
Up
........................................................................................................._ zoomed:!_pho!o_
Pan Right Pan right to view the right side of a
................................................................................................................Z°°med:!nph°t°:
Pan left to view the left side of a
Pan Left
zoomed-in photo.
Slide Show Speed
You can select the slide show speed.
Press the A or T button to select "Slide Show Speed".
Press the _1 or i_ button to select the desired option. (Fast --_ Slow --_ Normal)
>- You can select the SlideShow speed only during a slide show.
>- You can also change the speed of the Slide Show by pressing the
I_ (REW) or _ (FF) key during the Slide Show.
Background Music
If you set "Background Music" to On, the background music will be played
when viewing photos one by one or in a Slide Show.
Press the A or _' button to select "Background Music".
Press the _1 or !_ button to select "On" or "Off".
>- If you set "Background Music" to On, a screen appears immediately where
you can set the Background Music.
i On: when the background music is availablel if you select Onl the music
is played back. To use this feature, there must be music and photo files
stored on the USB device:
Off: Background music is not played.
Background Music Betting
You can set the background music.
Press the A or v' button to select "Background Music Setting", then press the
ENTER _ button.
> If you turn off the "Background Music", even if the "Background Music
Settings" have been set up, the background music will not be played.
Music files must be loaded and playing to change the BGM mode.
"Background Music setting" menu is displayed,
Press the 4 or _- button to select the desired BGM (Background music)
mode. (Shuffle, Selected file, Mood)
, Be!coted filel P!ays a se!ected music file_ .....
, Mood: Plays music files of a particular mood only.
Selecting the background music file
Press the 4 or _ button to set "BGM Mode" to "Selected file".
Press the h, or • button to select "Select Music File", then press the
ENTER _ button.
Press the A or T button to select a music file, then press the yellow
button.
The V' mark appears to the left of the selected music.
Repeat the above operation to select multiple music files.
Press the ENTER _ button.
Selecting the background music file mood
Press the 4 or _ button to set "BGM Mode" to Mood".
Press the A or T button to select "BGM Mood". Then press ._ or
button to select the desired BGM mood. Press the ENTER _ button.
BGM mode option: Energetic, Rhythmical, Sad, Exciting, Calm
> WISELINK Pro identifies and analyzes the mood the music files on the
USB device and groups them accordingly.
Picture Betting
You can set the Picture mode. (Refer to page 100)
Bound Betting
You can set the Sound mode. (Refer to page 100)
information
The photo file information including the order of the file in the current directory, the name, the size, the resolution, the date
modified and the path is displayed. (Refer to page 82)
Safe Remove
You can remove the device safely from the TV.
Press the A or T button to select "Safe Remove", then press the ENTER _ button.
Remove the USB device from the TV.
Using the Music List
This menu shows MP3 files from among the files saved on a USB memory
device.
1, Press the W.LINK button on the remote control to display the "WISELINK
Pro" menu.
2=
Press the 4 or !_ button to select "Music", then press the ENTER
button.
>- Music files are displayed.
>- Press the _ (Play) / ENTER _ button over a music icon to play
the music.
>- To move to the previous / next group, press the [_ (REW) or
[_ (FF) button.
Screen Display
O Currently selected music
Shows the currently selected music.
O Current Sort Standard
Press the A or T button to change the standard for sorting music files.
("Title", "Artist", "Mood", "Genre", "Folder", "Preference")
0 View Groups
Shows the sorting groups. The sorting group including the currently selected music file is highlighted.
O Current Device
Shows the currently selected device name. Press the Red button to select a device.
O ItemSelectionInformation
ShowsthenumberofmusicfilesthatareselectedbypressingtheYellowbutton.
O HelpItems
- Red(Device) button: Selects a connected device.
, Green(Favorites Setting) button: Changes the favorites setting for the selected music. Press this button
repeatedly until the desired value appears. (Refer to page 90)
- Yellow(Select) button: Selects music files from the music list. Selected music files are marked with a symbol _/on
the left.
- _ _ (Jump) button: Jumps to the previous sorting group i Jumps to the next sorting group.
• TOOLS(Option) button: Displays the "Play Current Group", "Delete", "Change Group Info" (in "Mood" group),
- nformation" or "Safe Remove" menus.
Sorting Music List
You can sort music files in the Music List by a particular standard.
1, Press the W.LINK button on the remote control to display the WISELINK
Pro menu.
2, Press the 4 or !_ button to select "Music", then press the ENTER
button.
>- Music files are displayed.
3, Press the A or T button to select a sorting standard.
("Title", "Artist", "Mood", "Genre", "Folder", "Preference")
>- Music files are sorted according to the newly selected sorting
standard.
4, Press the ENTER _ button to start playing music in the order selected by
the user.
>- Music information is set automatically and you can change the
Favorite information.
>- Music files for which information cannot be displayed are set to
"Unclassified".
>- If there is no title information for a music file, the filename is displayed.
>- If no information is available for the Genre, Artist, Album, or Year, the
corresponding item is displayed as blank.
Title
=
You can sort and play music files by title.
>- It sorts and displays the Music titles in alphabetical order.
1, Select "Title" as the sorting standard in the Music List.
2, Press the 4 or I_ button to select from the sublist of music files grouped
in alphabetical order.
>- To move to the previous / next title group, press the
(REW)
or
(FF) button.
3, Press the TOOLS button.
4. Press the A or T button to select "Play Current Group".
5. Press ENTER _ to play the selected group of music files from the
sublist.
Artist
You can sort and play music files by artist.
It sorts the music file by artist in alphabetical order.
1. Select "Artist" as the sorting standard in the Music List.
2. Press the 4 or _ button to select from the sublist of music files grouped
in alphabetical order.
To move to the previous / next artist group, press the [_
(REW)
or
[_ (FF) button.
3. Press the TOOLS button.
4. Press the A or T button to select "Play Current Group".
5. Press ENTER _ to play the selected group of music files from the sublist.
Mood
You can sort and play music files by mood.
1. Select "Mood" as the sorting standard in the Music List.
2. Press the 41 or !_ button to select from the sublist of music files grouped
by mood.
>- To move to the previous / next mood group, press the I_ (REW) or
(FF) button.
3. Press the TOOLS button.
4. Press the A or T button to select "Play Current Group".
5. Press ENTER _ to play the selected group of music files from the
sublist.
Changing the Mood information of a selected music file
>- You can change a selected music file's (or group of files) mood
information in order to move it from one mood group to another.
1. Select "Mood" as the sorting standard in the Music List and press the
_1 or I_ button to select a music file.
Changing the information of multiple music files
Press the _1 or !_ button to select the desired music in the Music list.
Then press the yellow button.
Repeat the above operation to select multiple music files.
The _' mark appears to the left of the selected music file.
2=
3,
4=
Press the TOOLS button.
Press the A or v' button to select "Change Group Info". Press the
ENTER _ button.
>- WISELINK Pro identifies the mood of the music files and groups them
accordingly by analyzing the music files on the USB device.
>- "Mood" information extracted from a music file may not always match
the Mood option. For example, a file you think is "Energetic" may be
extracted to the "Exciting" mood option.
Press the _ or _ button to select the desired mood option, then press the ENTER _ button.
>- The group information is updated and the music files are moved to the new mood group.
>- "Mood" options: Energetic, Rhythmical, Sad, Exciting, Calm, Unclassified
Genre
You can sort and play music files by genre.
1. Select "Genre" as the sorting standard in the Music List.
2. Press the 4 or !_ button to select from the sublist of music files grouped
by Genre.
>- To move to the previous / next genre group, press the _ (REW) or
(FF) button.
3. Press the TOOL8 button.
4. Press the A or • button to select "Play Current Group".
5. Press ENTER _ to play the selected group of music files from the sublist.
Folder
You can sort and play music files by folder.
>- If there are many folders in USB, the files are shown in order in each
folder. The music file in the Root folder is shown first and the others are
shown in alphabetical order by name.
1. Select "Folder" as the sorting standard in the Music List.
2. Press the _ or !_ button to select from the sublist of music files grouped
by Folder.
>- To move to the previous / next folder group, press the (REW)
or
[_ (FF) button.
3. Press the TOOL8 button.
4. Press the A or T button to select "Play Current Group".
5. Press ENTER _ to play the selected group of music files from the sublist.
Preference
You can sort and play music files by preference. (Favorite)
1. Select "Preference" as the sorting standard in the Music List.
2. Press the _ or !_ button to select from the sublist of music files grouped
by Preference.
>- To move to the previous / next preference group, press the [_
(REW) or [_ (FF) button.
3. Press the TOOL8 button.
4. Press the A or T button to select "Play Current Group".
5. Press ENTER _ to play the selected group of music files from the sublist.
Changing the Favorites setting
>- You can change a selected music file's (or group of files) preference
information in order to move it from one preference group to another.
1. Press the _1 or !_ button to select the desired music in the music list.
2. Press the Green button repeatedly until the desired setting appears.
>- Favorites settings change completed.
>- "Favorite" options: Illm, _, _,
>- Users can select the number of stars (up to 3) according to their
preference.
>- The stars are for grouping purposes only. For example, the 3 star
setting does not have any priority over the one star setting.
Deleting the Music file
t. Press the 4 or I_ button to select the desired music file in the music list.
2. Press the TOOLS button.
3. Press the A or T button to select "Delete", then press the ENTER C#
button.
>- The (for example) "Delete this file?" message appears.
4. Press the 41ior I_ button to select "OK", then press the ENTER _ button.
>- The music is deleted.
>- When a read-only file is deleted, the "Read-only file(s). Delete the
file(s)?" message appear.
>- If you select "Cancel", the deletion is cancelled.
5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
>- While removing files, don't remove the USB memory device.
>- You cannot recover deleted music files.
Deleting Multiple Music files
t. Press the 4 or I_ button to select the desired music in the music list.
Then press the yellow button.
>- Repeat the above operation to select multiple music files.
>- The _/mark appears to the left of the selected music files.
2. Press the TOOLS button.
3. Press the A or T button to select "Delete selected File", then press the
ENTER C_ button.
:_ The "Delete the selected file(s)?" message appears.
4. Press the 4 or !_ button to select "OK", then press the ENTER C,-,button.
:_ The selected music files are deleted.
:_ If you select "Cancel", the deletion is cancelled.
5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
:_ You cannot remove the read-only files from the selected ones.
:_ You cannot restore the deleted music files.
Viewing the Information
The music file information including the order of the file in the current directory,
the name, the size, the date modified and the path is displayed.
t. Press the 4 or I_ button to select the desired music in the music list.
2. Press the TOOLS button.
3. Press the _, or 'V button to select "Information", then press the
ENTER _ button.
:_ The information on the selected file appears.
[_ Press the INFO button to viewing the information.
E
Playing a Music File
Playing a music file
1=
2,
3=
4=
Press the W.LINK button on the remote control to display the "WISELINK
Pro" menu.
Press the 4 or !_ button to select "Music", then press the ENTER
button.
Music files are displayed.
Pressing the _ or b,-button to select a music file to be played, then press
the ENTER {3_ button.
>- This menu only shows files with the MP3 file extension. Files with
other file extensions are not displayed, even if they are saved on the
same USB device.
>- Press the _ (Play) / ENTER _ button over a music icon to
play
the music.
>- _ (REW) or _ (FF) buttons do not function during play.
Press the _ (Pause) / ENTER _ button while playing a music file
to pause the file. Press the _ (Stop) button to exit Play mode.
>- The selected file is displayed at the top with its playing time.
>- To adjust the music volume, press the VOL = or VOL + button on the
remote control. To mute the sound, press the MUTE button on the
remote control.
>- The playing duration of a music file may be displayed as '00:00:00' if
its playing time information is not found at the start of the file.
To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
Playing the music group
1=
2,
3=
4,
5.
Press the W.LINK button on the remote control to display the WISELINK
Pro menu.
Press the 4 or !_ button to select "Music", then press the ENTER
button.
>- To move to the previous / next group, press the [_
(REW)
or
(FF) button.
Press the 4 or !_ button to select the desired music file.
Press the TOOLS button.
Press the A or T button to select "Play Current Group", then press the
ENTER c_ button.
>- The music files in the sorting group including the selected file are played.
6. To exit "WISELINK Pro" mode, press the W.LINK button on the remote control.
Playing the selected music flies
1. Press the W.LINK button on the remote control to display the WISELINK
Pro menu.
2. Press the 4 or !_ button to select "Music", then press the ENTER
button.
3. Press the 4 or _ button to select the desired music file, then press the
yellow button. Repeat the above operation to select multiple music files.
>- The V mark appears to the left of the selected music file.
4. Press the l_ (Play) / ENTER _ button.
>- Only the selected file is played.
>- Press the I_ (Stop) button while playing to stop the current item and
to return to the music list.
5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
Music function information icon (Displayed at the top left of the screen)
O,
t,/11
When all music files in the folder(or the selected file) are repeated.
(Music)........................................................................................Repeat ,iReRea!.Mode, !s ,iOnl,:...............................................................................................................................................................
(Music) Once When all music files in the folder(or the selected file) are played once.
...............................................................................................................' Repea! Mode'i.js 'IC_I:....................................................................................................................................................................................................................
When pressing the t_ (Play)/I_ (Pause)/ENTER _ button on the
(Music) Play/Pause
remote control while music is playing.
Repeating Music Play
1. While a Music file is playing, press the TOOLS button.
2. Press the A or T button to select "Repeat Mode".
3. Press the 4 or _- button to select "On" or "Off".
4=
Off: Doesn't play back repeatedly.
To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
Picture Setting
You can set the Picture mode. (Refer to page 100)
Sound Setting
You can set the Sound mode. (Refer to page 100)
Information
The Music file information including the order of the file.
Safe Remove
You can remove the device safely from the TV.
Press the A or T button to select "Safe Remove", then press the ENTER _ button.
Remove the USB device from the TV.
Using the Movie List
This menu shows Movies files and folders saved on an USB memory device•
Movie List
1,
2,
Press the W.LINK button on the remote control to display the "WISELINK
Pro" menu.
Press the _ or !_ button to select "Movie", then press the ENTER
button.
>- Movie files are displayed.
>- Press the [_ (Play) / ENTER _ button over a movie icon to play
the movie.
>- When moving to a movie, loading may take a few seconds. At this
point, the loading icon will appear on the screen.
>- You can watch exciting gaming multimedia files, but the gaming
function is not supported.
>- Movie doesn't support subtitles. (for example, not support smi, srtand
sub files, etc and not support subtitles included in movie files)
>- Supported Video Formats
avi
mp4
Xvid 800X600 ...................ADPdM .........................
H,264 MP 1920X1080 AC3
PCM
MPEG4 SP 800X600 ..............AD#CM ...............
MPEG4 ASP 800X600 ADPCM
MJPEG 800X600 PCM
H.264 BP 1920X1080 AAC
H•264 MP 1920X1080
mpg
vro
vob
MPEG2
MPEG2
1920X1080
1920X1080
AC3
AC3
Screen Display
O Currently selected movie
Shows the currently selected movie.
O Current Sort Standard
Press the A or _' button to change the standard for sorting Movies.
("Title", "Timeline", "Folder", "Preference")
0 ViewGroups
Shows the sorting groups. The sorting group including the currently selected movie is highlighted.
O Current Device
Shows the currently selected device name. Press the Red button to select a device.
O Item Selection Information
Shows the number of movie files that are selected by pressing the Yellow button.
Help Items
, Green(Favorites Setting} button: Changes the favorites sett ng for the selected movie, press this button
repeatedly unti! the desired value appears, (Refer to page 97)
* Yellow(Select) button: Selects movies from the move list. Selected movies are marked with a symbol _/on the
left.
* _l _ (Jump)button: JumPs to the pievious s0_ing group / Jumps to the next Sorting group:
. TOOLS(Option) button: Displays the ttP!ay Current Groupi!, 11De!etdl;ti!nformationll or "Safe Remove'! menus,
Sorting Movie List
You can sort movies in the Movie List by a particular standard.
t. Press the W.LINK button on the remote control to display the "WISELINK
Pro" menu.
2=
3=
Press the 4 or !_ button to select "Movie", then press the ENTER
button.
>- Movie files are displayed.
Press the A or T button to select a sorting standard.
("Title", "Timeline', "Folder", "Preference")
>- The movies are sorted according to the newly selected sorting
standard.
>- Movie information is automatically set. You can change the "Favorite".
Title
=
You can sort and play movie files by title.
>- It sorts and displays the Movie titles in alphabetical order.
t. Select "Title" as the sorting standard in the Movie List.
2. Press the 4 or !_ button to select from the sublist of movie files grouped
by Title.
>- To move to the previous / next title group, press the I_ (REW) or
[_ (FF) button.
3. Press the TOOLS button. Press the A or _r button to select "Play
Current Group".
4. Press ENTER _ to play the selected group of movie files from the
sublist.
Timeline
You can sort and play movie files by timeline.
It sorts and shows movies by date. It sorts by year and month from the
earliest movie.
1. Select "Timeline" as the sorting standard in the Movie List.
2. Press the 4 or !_ button to select from the sublist of movie files grouped
by Timeline.
To move to the previous / next timeline group, press the (REW)
or [_ (FF) button.
3, Press the TOOL8 button. Press the A or _r button to select "Play Current
Group".
4, Press ENTER _ to play the selected group of movie files from the
sublist.
Folder
You can sort and play movie files by folder.
>- If there are many folders in USB, the movies files are shown in order in
each folder. The movie file in the Root folder is shown first and the others
are shown in alphabetical order by name.
1, Select "Folder" as the sorting standard in the Movie List.
2, Press the 4 or !_ button to select from the sublist of movie files grouped
by folder.
>- To move to the previous / next folder group, press the (_ (REW) or
(FF) button.
3. Press the TOOL8 button. Press the A or _r button to select "Play Current
Group".
4. Press ENTER _ to play the selected group of movie files from the sublist.
Preference
You can sort and play movie files by preference. (Favorite)
1. Select "Preference" as the sorting standard in the Movie List.
2. Press the 4 or !_ button to select from the sublist of movie files grouped
by preference.
>- To move to the previous / next preference group, press the I_
(REW) or _ (FF) button.
3. Press the TOOL8 button. Press the A or _r button to select "Play Current
Group".
4. Press ENTER _ to play the selected group of movie files from the
sublist.
Changing the Favorites setting
>- You can change a selected movie file's (or group of files) preference
information in order to move it from one preference group to another.
1, Press the _ or !_ button to select the desired movie in the movie list.
2, Press the Green button repeatedly until the desired setting appears.
>- Favorites settings change completed.
>- "Favorite" options: lUl, Imm, _,
>- Users can select the number of stars (up to 3) according to their
preference.
>- The stars are for grouping purposes only. For example, the 3 star
setting does not have any priority over the one star setting.
Deleting a Movie file
1. Press the 4 or !_ button to select the desired movie in the Movie list.
2. Press the TOOLS button.
3. Press the A or T button to select "Delete", then press the ENTER (:_
button.
>- The "Delete this file?" message appears.
>- When a read-only file is deleted, the "Read-only file(s). Delete the
file(s)?" message appear.
4. Press the 4 or !_button to select "OK", then press the ENTER
button.
>- The movie is deleted.
>- If you select "Cancel", the deletion is cancelled.
5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
>- While deleting files, don't remove the USB memory device.
>- You cannot recover a deleted Movie file.
Deleting Multiple Movie files
1. Press the 41 or !_ button to select the desired movie in the movie list.
Then press the yellow button.
>- Repeat the above operation to select multiple movie files.
>- The _/mark appears to the left of the selected movie files.
2. Press the TOOLS button.
3. Press the A or _' button to select "Delete selected File", then press the
ENTER C_ button.
>- The "Delete the selected file(s)?" message appears.
4. Press the 4 or !_ button to select "OK", then press the ENTER _ button.
>- The selected movie files are deleted.
>- If you select "Cancel", the deletion is cancelled.
5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
>- You cannot remove read-only files.
>- You cannot restore the deleted Movie files.
Viewing the Movie Information
The movie file information including the order of the file in the current directory,
the name, the size, the date modified and the path is displayed.
1. Press the 4 or !_ button to select the desired movie in the movie list.
2. Press the TOOLS button.
3. Press the _, or T button to select "Information", then press the
ENTER _ button.
>- The information on the selected movie appears.
[_ Press the INFO button to viewing the information.
Playing a Movie File
Playing a movie file
1. Press the W.LINK button on the remote control to display the "WISELINK
Pro" menu.
2. Press the 4 or !_ button to select "Movie", then press the ENTER
button.
3. Pressing the _ or !_ button to select a movie to be played, then press the
ENTER _ button.
> The selected file is played.
> Press the _ (Play) / ENTER _ button over a movie icon to play
the movie.
> Press the [_(Pause) / ENTER _ button while playing a movie file
to pause the file. Press the _ (Stop) button to exit Play mode.
> The selected file is displayed at the top with its playing time.
> The playing duration of a movie file may be displayed as '00:00:00' if
its playing time information is not found at the start of the file.
> Press the 41 button while playing a video file to rewind by 20 seconds
> Press the !_ button to fast forward by 20 seconds.
4. To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
Playing the movie group
1. Press the W.LINK button on the remote control to display the "WISELINK
Pro" menu.
2. Press the 4 or !_ button to select "Movie", then press the ENTER
button.
3. Press the 41 or _, button to select the desired movie file.
4. Press the TOOLS button.
5. Press the A or _' button to select "Play Current Group", then press the
ENTER _ button.
> The movie flies in the sorting group including the selected file are
played.
6. To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
Playing the selected movie flies
1. Press the W.LINK button on the remote control to display the "WISELINK
Pro" menu.
2. Press the 4 or !_ button to select "Movie", then press the ENTER
button.
3. Press the 4 or _ button to select the desired movie file, then press the
yellow button. Repeat the above operation to select multiple movie files.
:_ The _/mark appears to the left of the selected movie file.
4=
Press the I_ (Play) / ENTER _ button.
Only the selected file is played.
:_ Press the I_ (Stop) button while playing to stop the current item
and to return to the movie list.
5, To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
Playing movie continuously
If you exit playing movie, playing it continuously later is possible.
With 'Play continuously' function, you can watch movie without watching again
from beginning or bothering searching.
1. Select movie file you want to 'Play continuously' by pressing the 41 or m,,
button from the Movie List.
2. Press the _ (Play) / ENTER _ button.
3. Select 'Play continuously' by pressing Blue button.
> Movie will begin to play from where it was stopped being played.
> If "Continuous Movie Play Help" function was set "On", a pop-up
message will appear when you play movie file you want to "Play
continuously". (Refer to page 101)
4. To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
Movie function information icon (Displayed at the top left of the screen)
........................................................................................
(Movie) Repeat When all movie files in the folder(or the selected file) are repeated.
When all movie files in the folder(or the selected file) are played once.
........................................._ .}M°vie!Once ::Repea! Mode:: !s :'oft::
When pressing the 1_ (Play)/[:_:)(Pause) / ENTER _ button on the
I_ / II (Movie) Play/Pause
When pressing the _ (FF) button on the remote control while movie is
1_ x 2 (Movie) x2 Play
playing,
Repeating Movie Play
1. While a Movie file is playing, press the TOOLS button.
2. Press the A or T button to select "Repeat Mode".
3. Press the _ or _,-button to select "On" or "Off".
,, On: plays back all movie files in the foldei(o[ the selected file)
repeatedly:
,, Off: Doesn't play back repeatedly.
4. To exit "WISELINK Pro" mode, press the W.LINK button on the remote
control.
Picture Setting
You can set the Picture mode. (Refer to page 100)
Sound Setting
You can set the Sound mode. (Refer to page 100)
Picture Size
• Fit: Play video to fit the TV's screen size.
• Original: Play video at the original size.
Information
The Movie file information including the order of the file.
Safe Remove
You can remove the device safely from the TV.
Press the A or T button to select "Safe Remove", then press the ENTER _ button.
Remove the USB device from the TV.
Picture/Music Settings Using WISELINK
When watching a SlideShow or listening to music using WISELINK, you can set the picture and sound.
Picture Setting
1. Press the TOOLS button during a Slide Show or while music is playing.
2. Press the A or T button to select "Picture Setting".
3. Press the 4 or _- button to select the "Picture Mode" ("Dynamic",
"Standard", or "Movie").
4. Press the ,A or T button to move to an item. ("Contrast", "Brightness",
"Color", "Dynamic Contrast", "Black Adjust", "Auto Motion Plus 120Hz" or
"Reset")
>- Select "Reset" to initialize the picture settings.
5. Press the _1 or !_ button to adjust the settings.
>- For more information on the picture settings, refer to pages 28~32.
Sound Setting
1. Press the TOOLS button during a Slide Show or while music is playing.
2. Press the A or T button to select "Sound Setting".
3. Press the 4 or !_ button to select the "Sound Mode". ("Standard",
"Music", "Movie", "Speech", or "Custom")
4. Press the A or _' button to move to an item.
>- Select "Reset" to initialize the sound settings.
5. Press the _1 or !_ button to adjust the settings.
>- For more information on the sound settings, refer to pages 40~41.
Using the Setup Menu
Setup displays the user settings of the WISELINK Pro menu.
1. Press the WoLINK button on the remote control to display the WISELINK
Pro menu.
2=
3,
4=
Press the 4 or !_ button to select "Setup", then press the ENTER
button.
Press the A or 'v button to select the desired option.
(Slide Show Speed, Music Repeat Mode, Movie Repeat Mode, Screen
Saver Run Time, information, Safe Remove)
Press the 4 or !_ button to select the option, then press the ENTER
button.
>- To exit WISELINK Pro mode, press the W.UNK button on the remote
control.
Slide Show Speed
Select to control the slide show speed.
Press the A or _' button to select "Slide Show Speed".
Press the 41 or !_ button to select "Fast", "Normal" or "Slow".
Music Repeat Mode
Select to repeatedly play music files.
Press the A or v' button to select "Music Repeat Mode".
Press the 41 or !_ button to select "On" or "Off".
Movie Repeat Mode
Select to repeatedly play movie files.
Press the A or _' button to select "Movie Repeat Mode".
Press the 41 or !_ button to select "On" or "Off".
Continuous Movie Play Help
Select to display the help pop-up message for continuous movie playback.
Press the A or v' button to select "Continuous Movie Play Help".
Press the 41 or !_button to select "On" or "Off'.
Screen Saver Run Time
Select to set the waiting time before the screen saver appears.
Press the A or V' button to select "Screen Saver Run Time".
Press the 41 or !_ button to select "1 min", "3 rain" or "5 rain".
information
Select to viewing the information of the connected device.
Press the A or T button to select "Information", then press the ENTER C;_
button.
Safe Remove
You can remove the device safely from the TV.
Press the A or _' button to select "Safe Remove", then press the ENTER _ button.
Remove the USB device from the TV.
WISELINK Pro-DLNA
Setting the DLNA Network
DLNA allows you to watch videos and pictures saved on your PC on your TV through a network connection in Wiselink Pro
mode. This removes the need to copy them to a USB storage device and then connect the device to your TV. To use DLNA,
the TV must be connected to the network and the DLNA application must be installed on your PC.
Network Connections Diagram
TV Rear Panel
External Modem
(ADSL/VDSL/Cable TV)
LANCab,e
Modem Cable
11)17AN Cable
PC
The Modem Port on
the Wall
1. Connect the [LAN] port
on the rear panel of the
TV to the external modem
with a LAN Cable.
2. Connect the PC to which
the "DLNA PC Share
Manager" program will be
installed and the external
modem using a LAN
cable.
3. Connect the LAN port on
the wall and the external
modem with a Modem
Cable.
Connecting to the Network
1. When connecting to the network is complete, set up the network on the TV (see page 121).
A Wireless Intemet connection does not support DLNA.
The first 3 digits (subnet address) of the IP addresses of the TV and the PC must be the same (e.g. IP Address:
123.456.789.XX )
2. Run a "Network Test" to check the network settings (see page 122).
Installing the DLNA Application
To play content on the PC on the TV, you have to first installthe application.
System Requirements
1. Insert the Program CD supplied with this TV into your PC.
2. 20MB of free hard disk space is needed for the program installation.
>- If you share files, up to 20MB of hard disk drive space is required for each 100 files.
>- If you cancel file sharing, the hard disk drive space used for the thumbnail information is also freed.
Supported Formats
1. Image : JPEG (jpg, jpeg)
2. Audio : MP3(mp3)
3. Video : MPEGI(mpg, mpeg), MPEG2 PS/TS(mpg, mpeg, trp, ts, tp), divx(mpg, mpeg, avi), MPEG4 / H.264 (mpg, mpeg)
Install the application
1. Run the Setup.exe file on the Program CD supplied with the product.
>- Alternatively, you can download the file from www.samsung.com.
2. Install the SAMSUNG PC Share Manager as shown in the figures below.
V
Y
Y
V
3. When the installation is complete, the PC Share Manager icon appears on your Desktop.
>- Double-click the icon to run the program.
Using the DLNAApplication
The Program Screen Layout
QFo_d_rl 2008-02-20 P_.
_Fotder2 2008-02-20 P.,.
_Fold_r3 2008-02_20 P...
_Fold_r4 2808-02-20 P...
_Foider5 ZgOS-0Z-ZO P-.
1. Menus: The following application menus are provided :"File", "Share", "Server", and "Help".
2. Click to share the selected PC server folder (see page 106)
3. Click to cancel sharing (see page 106)
4. Click to refresh the PC folder and files.
5. Click to synchronize the share status (see page 107)
6. The folders and files of the PC to be shared are listed.
7. Folders shared by the user are listed.
File
Property: Shows information on the selected file or folder.
Method 1: Select a file or folder and select the "File" menu and
then select the "Property" sub-menu.
Method 2: Select a file or folder, right-click over the selected file
or folder and then select "Property" from the pop-up
menu.
_,, ................................
•°'° __i
I
Fl,_a_r4 z0_Hz-_0 P.
_e : Fll_ F_,|de_r
:SiZe : 6&49 M8
CO_a_ ; _F_|det 8 Rle 16
Created Da_ : 2_9_2'_28
_re_d Date _2_0_
_r_dt_led 8_ _ZSOS-Z48
Exit: Exits the DLNA application.
If you select "Exit" without applying the changes after
changing the shared status, a message will appear asking
if you want to apply the changed settings to the PC. Select
"Yes" to apply the changes and exit the application.
Share
Sharing a Folder
You can share a folder from your PC to the TV.
The maximum number of folders that can be shared is 32.
Your PC will operate as a server to the TV.
Method 1: Select a folder in "My Computer", select the "Share"
menu and then select the "Share Folder" sub-menu.
Method 2: Select a folder in "My Computer", right-click over the
selected folder and then select "Share Folder" from
the pop-up menu.
Method 3: Locate the mouse pointer over a folder in the "My
Computer" folder list in the left pane and drag&drop
the folder into the Shared Folders pane. If a message
appears asking you to confirm the shared folder,
select "Yes".
_eld_rl Z_eB_2 26 _..
Cancelling a Shared Folder
You can cancel a shared folder on your PC. Select a folder from
the "Shared Folder" pane and select "Unshare Folder".
Method 1: Select a folder from the "Shared Folder" pane, select
the "Share" menu and then select "Unshare Folder".
_ _ _r
_Fo_I
Method 2: Select a folder from the "Shared Folder" pane,
right-click over the selected folder and then select
"Unshare Folder" from the pop-up menu.
Method 3: Locate the mouse pointer over a folder in the "Shared
Folder" pane and drag&drop the folder into the "My
Computer" pane. If a message appears asking you to
confirm the cancelation, select "Yes".
Applying the Current Settings
Perform this when synchronization is necessary due to a new
shared folder or canceling a shared folder. The "Set Changed
State" menu applies changes to shared folders to the data
saved with the PC share program.
Since applying changes to the internal data is a time-consuming
process, this function enables users to apply changes to the
data only when required.
Until the "Set Changed State" menu is selected, the changed
state of the shared folder is not applied to the server.
Changes to the shared folders are not applied to your PC until
you select the "Set Changed State" menu.
Method 1: Select the "Share" menu and select the "Refresh DB"
sub-menu.
Method 2: Click the "Set Changed State" icon.
j _y cemp_
Setting the Access Permission
To enable the TV to find your PC, the TV must be set to "Set
Device Policy" in the Access Permission Settings window. In
addition, the PC server and the TV must be on the same subnet.
Method: Select the "Share" menu and select "Set Device
Policy".
>- Rejected items are represented in gray.
>- You can change the access permissions by using the
Allow "Accept"/"Deny" button.
>- To delete an item, select the item and select "Delete
Item".
Server
Server
You can run or stop using your PC as a server.
Start Server at Windows start
You can determine whether to start the PC server automatically
when Windows starts.
Change server name
You can rename the PC server. Enter a new name and click "OK".
The new name will appear at the top right of the window and will
appear on the TV.
_ _/j _'
Hel..._p
Version
The program version information message box appears.
Using the DLNA Function
Using the DLNA Menu
DLNA (Digital Living Network Alliance)
enables content saved on a DLNA server
(usually your PC) connected to your TV or
over a network to be played.
Wiselink Pro enables playing content
saved on a USB memory device connected
to the TV, while DLNA enables playing
content saved on a DLNA server (your PC)
connected to your TV or over the network.
The procedures to use the content are the
same as those for WISELINK Pro.
>- If you install the PC share manager
program supplied with the TV onto a PC,
you can have the PC perform the role of a
DLNA server over the network.
TV
External Modem
(ADSLNDSL/Cable TV)
PC
E J ;
1,
2,
Press the W.LINK button on the remote control to display the "DLNA"
menu.
Press the _ or _button to select an icon (Photo, Music, Movie, Setup),
then press the ENTER C_ button.
>- To exit "DLNA" mode, press the W.LINK button on the remote control.
_,Photo List
- Sorting Photo List: Refer to page 78
- Viewing the Information: Refer to page 82
- Rotating the Photo file: Refer to page 81
- Viewing a Slide Show: Refer to page 83
_,During a Slide Show
- Play & Pause: Refer to page 83
- Slide Show Speed: Refer to page 85
- Zoom: Refer to page 85
- Rotate: Refer to page 84
>- If the user has rotated the photo, the orientation of the photo will return
to its original state when the user exits the DLNA application or exits
WISELINK Pro mode.
Music
_,Music List
- Sorting Music List: Refer to page 88
- Viewing the Information: Refer to page 91
- Playing a music file: Refer to page 92
_,While Playing a Music File
- Play & Pause: Refer to page 93
- Repeat Mode: Refer to page 93
Movie
) Movie List
- Sorting Movie List: Refer to page 95
- Viewing the Information: Refer to page 97
- Playing a Movie file: Refer to page 98
) While Playing a Movie File
- Play & Pause: Refer to page 99
- Repeat Mode: Refer to page 99
Setup
- Slide Show Speed: Refer to page 101
- Music Repeat Mode: Refer to page 101
- Movie Repeat Mode: Refer to page 101
- Screen Saver Run Time: Refer to page 101
- Information: Refer to page 101
>- DLNA does not support the following functions.
- The Background Music and Background Music Setting functions.
- Sorting files by preference in the Photo, Music, and Movie folders.
- The Change Group Info function.
- The Delete function.
- The Safe Remove function.
- The REW/FF (_1 / I_) key functions while a movie is playing.
- Function to watch continuously when playing movie.
>- The Skip (4/_ keys) or Pause function may not work while a movie
is playing for the DLNA of other manufacturers, depending on the
corresponding content information.
>- The playing time may not be displayed while a movie is playing.
Content Library
Using the Content Library
The "Content Library" enables you to view or play the built-in contents on the TV or stored on your USB device.
The Delete, Move and Update functions will not work with the built-in content on the TV.
Usin_qthe Content Library Menu
1, Press the MENU button. Press the A or T button to select "Application",
then press the ENTER _ button.
2, Press the A or T button to select "Content Library", then press the
ENTER _ button.
The "Content Library" main menu is displayed.
PresstheCONT°NTbutt°n°ntherein°to°°ntr°t°dsPaYtheC°ntentI !Lmenu
3=
Press the _ or _ button to select an icon (Gallery, Cooking, Game,
Children, Fitness), then press the ENTER _ button.
To return to TV mode, press the OH v/^ button on the remote control.
If you press the Volume or MUTE button, no OSD is displayed, but the
function operates accordingly.
Using the Remote Control Button in Content Library Menu
Wheel
Move the cursor and select an item.
(,_ITI41_)
ENTER _ Select the currently selected item.
RETURN Return to the previous menu.
EXIT Stop the current function and return to the "Content Library" main menu.
OH via
PRE.OH / FAV.CH / Stop Content Library mode and Returns to TV mode.
OH.LIST
Co,or button Keys that provide functions are described on the corresponding page.
VOL v/^ You can control the volume of the played content.
CONTENT Exit Content Library mode.
Using the TV Memory Contents
The built-in contents of the "Content Library" are composed of the following sub-categories: "Gallery", "Cooking", "Game",
"Children", and "Fitness".
Gallery
This function plays a SlideShow with high resolution images and background music
and produces various atmospheres.
Using the Gallery function of the TV, you can change your home atmosphere.
1, Press the 4 or !_ button to select "Gallery" in the "Content Library" main
menu.
Then press the ENTER C# button.
2=
3=
Press the • or _' button to select "Art", "Relaxation" or "Party", then press
the ENTER _ button.
>- The selected slide show is played.
>- There is default music for each for the "Art", "Relaxation", and "Party"
options.
Press the yellow button to playback all images.
>- To return to "Content Library" main menu, press the EXIT button.
>- To exit "Content Library" mode, press the OH via button on the remote control.
.....................!........
- Art: You can view masterpieces of the impressionistsincluding Van
Goghl Monet, Degasl cezannel etcl
Relaxation: You can view beautiful and serene image s of nature.
• Partyl You can view images that can produce a cheerfu! and
exciting atmosphere.
>- The copyrights of the "Gallery" contents and all issues related to them are reserved by Gallery Player, Inc.
>- For additional "Gallery" contents, check for information through www.samsung.com. Please refer to the "Using
Additional Content Using External USB Memory Storage" section (page 117) to see how to play additional imagery.
CONTENTS LIBRARY CONTAINS TEXT, GRAPHICS, IMAGES, MULTIMEDIA, AND OTHER MATERIALS FOR
INFORMATIONALAND PROMOTIONAL PURPOSES ONLY. MATERIALS IN CONTENTS LIBRARY HAS BEEN MODIFIED
AND KEEPS BEING REVISED AND UPDATED. THE MATERIALS IN THE CONTENTS LIBRARY MAY NOT BE SUITABLE
FOR ALLAUDIENCES.
INFORMATION IN THE CONTENTS LIBRARY IS PROVIDED "AS IS." ALTHOUGH THE INFORMATION PROVIDED TO
YOU IN THE CONTENTS LIBRARY IS OBTAINED OR COMPLIED FROM SOURCES WE BELIEVE TO BE RELIABLE,
SAMSUNG CANNOTAND DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS OR COMPLETENESS
OF ANY INFORMATION OR DATAMADE AVAILABLE TO YOU FOR ANY PARTICULAR PURPOSE. UNDER NO
CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE HELD LIABLE, WHETHER IN CONTRACT
OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY
FEES, EXPENSES, OR ANY OTHER DAMAGES WHATSOEVER ARISING OUT OF, OR IN CONNECTION WITH, ANY
INFORMATION CONTAINED IN, OR THE USE OF, THE CONTENTS LIBRARY, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
Cooking
You can view various recipes that you can then easily follow step by step. Enjoy these contents which give you great ideas for
meals.
1. Press the 4 or !_ button to select "Cooking" in the "Content Library" main
menu.
Then press the ENTER C,_ button.
2=
Press the A or T button to select "Starters", "Main Courses" or "Dessert",
then press the ENTER _ button.
, Startersi Selection of light meals and Starters to biing YOurappetite,
"Main Courses: Most popular recipes of Chicken, Seafood,
Desserts: Wide choice of sweet treats and fancy beverages.
are based on recipes published by Anness Publishing.
>- The copyrights of the "Cooking" contents and all issues related to them
are reserved by Practical Pictures.
3=
4=
5=
Press the A or _' button to select a particular item.
Press the ENTER _ button.
Press the A, T, _1 or !_ button to select a recipe you want to use.
Then press the ENTER Cj,_button.
Press the _,, T, _1 or I_ button to use a recipe.
>- To return to "Content Library" main menu, press the EXIT button.
>- To exit "Content Library" mode, press the CH via button on the
remote control.
Game
This category provides entertainment games for the whole family.
1, Press the 4 or !_ button to select "Game" in the "Content Library" main
menu.
Then press the ENTER O,-'button.
2=
Press the A or T button to select "Dynamic Bowling", "Minimini Cook",
"Mini Game Pack", "IQ Academy" or "Sudoku+', then press the
ENTER C_ button.
>- For the buttons used in the games, refer to the directions on the
screen.
>- To return to "Content Library" main menu, press the EXIT button.
>- To exit "Content Library" mode, press the CH via button on the
remote control.
- Dynamic Bowling: A realistic bowling game enjoyable on your TV. To achieve victory select the best position and
power that enables you to hit a strike
- Minimini Cook: A cooking game that allows you to cook delicious foods. If you play all the mini-games for each
type of food. the food is completely cooked and a customer character eats the food. The greater
the number of failures during the mini-games, the worse the reaction displayed by the customer
character. If you avoid failure completely, the customer character eats your finished food!
• Mini Game Pack: This is a collection of one-button games that you can play with the ENTER _ button only. Since
operating the game is easy, the whole family can enjoy this game. Each game will give you a
different delight.
• IQ Academy: A b_ain training game the whole family can enjoy. This game improves your power to think fast.
memorize and calculate by letting you solve problems within a specified time. The problems start
at the elementary school level. You have to take examinations whenever your score exceeds the
threshold. If you pass the examination, you change to a higher grade. If you graduate from university,
you have completed the game.
, Budoku+: Now you can enjoy world-famous Sudoku (Magic Square) on the TV. The objective is to fill a 9x9 grid so
that each column, each row. and each of the nine 3x3 boxes contains digits 1 to 9.
>- For the 5 embedded games, the copyrights and all issues related to them are reserved bythe corresponding game
providers.
>- More detail instructions on how to play a game is given at the beginning of each game page.
>- Mini Game Pack, IQ Academy and Sudoku+ are trial versions. You can purchase a full version or additional games
at www.samsung.com or www.nurisam.com
Color Buttons for Games
ButtOn Operations
Red Press to move to the game home screen
Green Press to pause the game
Yellow Option Key
y
Blue Press to exit the game
Children
This is educational and interactive content that children can watch repeatedly. Enjoy existing stories, songs and games with the
Boowa and Kwala characters.
1, Press the 4 or !_ button to select "Children" in the "Content Library" main
menu.
Then press the ENTER C_ button.
2, Press the A or T button to select "Story", "Song" or "Play", then press the
ENTER _ button.
oSong: You can enjoy Sing Along content with the Boowa and Kwala
characters.
i Play: You Canenjoy exciting and fu n interactive games using the
remote
>- The copyrights of the "Children" contents and issues related to them
are reserved by UpToTen.
3=
Press the A or T button to select an item to play. Press the ENTER
button.
The selected content is played.
>- To return to "Content Library" main menu, press the EXIT button.
>- To exit "Content Library" mode, press the CH via button on the
remote control.
Fitness
This is beneficial health management content that provides stretching and massage
exercises that can be enjoyed by the whole family.
1. Press the 4 or !_ button to select "Fitness" in the "Content Library" main
menu.
Then press the ENTER C,_ button.
2. Press the A or T button to select "Basic Stretches" or "Massage", then
press the ENTER C_ button.
detailed descriptions and slow motion mages
step by stepl
, Massage: Manage your health and release your stress through the
easy to follow massage&
>- The "Basic Stretches" contents for the Samsung TV are based on the
book Stretching by Suzanne Martin which is published by DK and the
"Massage" contents are based on the books published by Anness
Publishing.
>- The copyrights to "Basic Stretches" are reserved by the DK Publishing
Company. The copyrights to the "Massage" content are reserved by
Practical Pictures. All issues related to copyrights are reserved by the
corresponding company.
3.
Press the 4, m,,,A or T button to select an item to view.
Press the ENTER _ button.
>- The "Basic Stretches" contents are automatically played so that
you can easily follow the movements on the screen. To move to
the previous or next operation, press the _ or !_ button to view the
required step.
>- The selected item is displayed on the screen.
>- To return to "Content Library" main menu, press the EXIT button.
>- To exit "Content Library" mode, press the CH via button on the
remote control.
Using the Remote Control Button in Fitness menu
Wheel
View to previous step / View to next step
(_/_)
ENTER _ Play or pause (in Basic Stretches)
Setup
Select to set the waiting time before the screen saver appears.
1. Press the yellow button to select "Setup" in the "Content Library" main
menu.
2. Press the 4 or !_button to select "10 min.", "20 rain.", "1 hour" or "Off'.
Using Additional Content Using External USB Memory Storage
You can download contents onto a USB memory device and play them on your TV.
(The contents on the external USB device are played directly without being copied to the built-in Flash memory of the TV.)
Playing and Exiting New Content
1, Press the Red button in the "Content Library" main menu.
>- The USB Browser main screen is displayed.
>- A list of files saved on the USB device is displayed.
2,
Press the A or V button to move to the file (or folder) you want to play. Press
the ENTER _ button.
>- The selected content is played.
>- The use of contents is the same as in using the TV memory contents.
>- To return to the USB browser main screen, press the EXIT button.
To exit "Content Library" mode, press the CH v/^ button on the remote
control.
>- "Content Library" only supports USB Mass Storage Class devices (MSC).
MSC is a Mass Storage Class Bulk-Only Transport device. Examples of
MSC are Thumb drives and Flash Card Readers (Both USB HDD and
HUB are not supported.)
Playing a game using an external USB memory device will allow you to
save your game (depending on the game).
Take care as removing the USB memory device while saving data to the
USB memory device may cause the data to be lost.
Downloading New Contents
New content other than the built-in contents will be provided via the Samsung.com
website with or without charge.
Downloading Content
1. Visit the www.samsung.com website and open the Content Library
page.
2. Enter the product number (UDN, Unique Device Number).
3. Select a content item in the Contents Download page.
4. Download the contents onto the USB memory device.
>- "Content Library" only supports USB Mass Storage Class devices
(MSC). MSC is a Mass Storage Class Bulk-Only Transport device.
Examples of MSC are Thumb drives and Flash Card Readers (Both
USB HDD and HUB are not supported.)
& Go to "Content Library" main menu by pressing "Contents" button or choosing "Content Library" (Menu_Application--*"
Content Library")
6. Plug the USB memory into USB port on the side of the TV.
Finding a product number (Unique Device Number, UDN)
1. Insert the USB memory into the USB port on the side of the TV.
2. In the USB Browser main screen, press the Green button (Show UDN).
3. The 18-digit number on the screen is the product code.
Provided Content
Additional contents are available on www.samsung.com
The Remote Control Buttons Used in the USB "Content Library"
Button Operations :_" _
Red Return to the main menu of the TV Memory "Content Library".
Show the product number (unique device number) of the TV used to download content from
Green
the website.
EXIT Stop the current function and return to the "Content Library" main menu.
OH VIA / PREoCH
/ FAV.CH / OH.LIST Stop Content Library mode and Returns to TV mode.
Network Settings and infoLink
To access Samsung's Infolink network feature, you must make one of the connections on the following pages.
Network Connection - Cable
LAN Connection for a DHCP Environment
The procedures to set up the network using Dynamic Host Configuration Protocol (DHCP) are described below. Since an
IP address, subnet mask, gateway, and DNS are automatically allocated when DHCP is selected, you do not have to enter
them manually.
The Modem Port
on the Wall External Modem
(ADSLNDSL/Cable TV)
TV Rear Panel t, Connect the
[LAN] port on
the rear panel of
the TV and the
external modem
with a LAN Cable.
2, Connect the LAN
port on the wall
and the external
modem with a
Modem Cable.
You can connect the LAN via a Sharer (Router).
iP Sharer TV Rear Panel
External Modem
The Modem Port (ADSL/VDSL/
on the Wall Cable TV)
LAN Cable
You can connect the LAN port and the TV directly depending on your network status.
TV Rear Panel
The LAN Port
on the Walt
LAN Cable
>- The terminals (the position of the port and the type) of the external device may differ depending on the manufacturer.
>- If the IP address allocation by the DHCP server has failed, turn the external modem off, turn it on again after at least 10
seconds and then try again.
>- For the connections between the external modem and the Sharer (Router), refer to the owner's manual of the
corresponding product.
>- You can connect the TV to the LAN directly without connecting it through a Sharer (Router)
>- You cannot use a manual-connection-type ADSL modem because it does not support DHCP. You have to use an
automatic-connection-type ADSL modem.
LAN Connection for Static IP Environment
The procedures to set up the network using a static IP address are described below. You have to manually enter the IP
address, subnet mask, gateway, and DNS that are provided by your Internet Service Provider (ISP).
The LAN Port
on the Wall
_;_i;ii ,A. Cable
TV Rear Panel
t=
Connect the [LAN]
port on the rear
panel of the TV
and the LAN port
on the wall using
the LAN cable.
You can connect the LAN via a Sharer (Router).
The LAN Port on tP Sharer TV Rear Panel
the Wall
LAN Cable LAN Cable
The terminals (the position of the port and the type) of the external device may differ depending on the manufacturer.
:_ If you are using a static IP address, your ISP will inform you of the IP address, subnet mask, gateway, and DNS.
You must enter these values to complete the network settings. If you do not know the values, ask your network
administrator.
For the information on how to configure and connect a Sharer (Router), refer to the owner's manual for the
corresponding product.
You can connect the TV to the LAN directly without connecting it through a Sharer (Router).
:_ If you use an IP Sharer (IP Router) that supports DHCP, you can set up the device as either DHCP or static IR
:_ For the procedures to use a static IP address, ask your Internet Service Provider.
Network Connection - Wireless
You can connect to the Samsung's Infolink network wirelessly through a wireless IP sharer.
The LAN Port on
Wireless IP sharer
the Wall
TV Side Panel
Wireless LAN Adapter
for InfoLink
1=
Connect the Samsung
Infolink Wireless adapter
into the Wiselink terminal
of the TV.
>- You must use the Samsung Wireless LAN Adapter for InfoLink(WIS-08BG) to use a wireless network.
>- The Samsung Wireless LAN Adapter for InfoLink is sold separately. Contact a Samsung Electronics agent or service
center for purchasing.
>- To use a wireless network, your TV must be connected to a wireless IP sharer.
>- If the wireless IP sharer supports DHCP, you TV can use a DHCP or static IP address to connect to the wireless
network.
>- You must use a wireless IP sharer that supports IEEE 802.11 B or IEEE 802.11G.
>- If the wireless IP sharer allows you to turn on/off the Ping connection function, turn it on.
>- Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.
>- Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer
is currently being used by another device nearby, this will result in interference and communications may fail.
>- When applying the security key for the AP (wireless IP sharer), only the following is supported.
• 1)Authentication Mode : WEP, WPAPSK, WPA2PSK
• 2) Encryption Type : WEE TKIP, AES
If you apply a security system other than the systems listed above, it will not work with the TV.
Network selection
Select Cable or Wireless as the method to connect to the Samsung's Infolink
network.
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2, Press the _, or v' button to select "Network selection", then press the
ENTER _ button.
3=
Press the A or T button to select "Cable" or "Wireless", then press the
ENTER _ button.
* Cable: Connect to Samsung's !nfolink network using a cab!el
, Wireless: Connect to Samsung's Infolink network wirelessly.
>- The menu is activated only if the Samsung Wireless LAN Adapter for
InfoLink is connected. (See page 120)
Cable Network Setup
>- First, the "Network selection" must be set to "Cable". (See page 120)
Auto Setup
If you connect the LAN cable and it supports DHCP, the Internet Protocol (IP) Settings are automatically configured.
>- Please check if the LAN cable is connected. (See page 118)
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2, Press the A or T button to select "Cable Network Setup", then press the
ENTER _ button.
3=
4,
Press the ENTER _ button to select "lnternet Protocol Setup".
Press the A or T button to select "Auto Setup", then press the ENTER
button.
>- The Internet Protocol is set automatically.
>- Select "Network Test" to check the network connectivity.
(Refer to page 122)
Press the EXIT button to exit.
Manual Setup
To connect the TV to the LAN using a static IP address, you must set up the
Intemet Protocol (IP).
>- Please check if the LAN cable is connected. (See page 119)
1. Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2. Press the A or T button to select "Cable Network Setup", then press the
ENTER _ button.
3. Press the ENTER _ button to select "lnternet Protocol Setup".
4. Press the A or T button to select "Manual Setup", then press the ENTER I:_
button.
5=
Press the A, T, 4 or _ button to move to an item, and press the numeric
button to configure the selected item. Press the ENTER _ button.
>- Select "Network Test" to check the network connectivity.
(Refer to page 122)
Press the EXIT button to exit.
Network Test
You can test or confirm the network connection status after setting up the network.
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2, Press the A or _' button to select "Cable Network Setup", then press the
ENTER _ button.
3=
Press the A or T button to select "Network Test", then press the ENTER
button.
>- The current network settings will appear.
Press the EXIT button to exit.
When unable to connect to a wired network
1. If your Internet service provider has registered the MAC address of the
device used to connect to the Internet for the first time and authenticates
the MAC address each time you connect to the lnternet, your TV may not
be able to connect to the Internet as the MAC address differs from that of
the device (PC) used to connect to the lnternet the first time. In this case.
ask your lnternet service provider about the procedures to connect devices
other than your PC (such as your TV) to the Internet.
2. If your Internet service provider requires an ID or password to connect to
the Internet (network), your TV may not be able to connect to the Internet.
In this case, you have to enter your ID or password when connecting to the
Internet using an Internet Sharer (Router).
3. The internet connection may fail due to a firewall problem In this case.
comact your Internet service provider.
If you cannot connect to the Internet even if you have followed the procedures
of your Internet service provider, please contact a Samsung Electronics
Service Center.
Wireless Network Setup
>- The menu is activated only if the Samsung Infolink Wireless adapter is connected. (See page 120)
Auto Setup
>- If you connect the LAN cable and it supports DHCP, the Internet Protocol (IP)
Settings are automatically configured.
>- The wireless IP sharer to be connected to this product must support DHCR
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2, Press the A or v' button to select "Wireless Network Setup", then press the
ENTER _ button.
3=
4,
Press the ENTER _ button to select "lntemet Protocol Setup".
Press the A or T button to select "Auto Setup", then press the ENTER C,,_
button.
>- The Intemet Protocol is set automatically.
>- Select "Access Point Select" to check the network connectivity.
(Refer to page 124)
Press the EXIT button to exit.
Manual Setup
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2, Press the _, or v' button to select "Wireless Network Setup", then press the
ENTER _ button.
3, Press the ENTER _ button to select "lnternet Protocol Setup".
4, Press the A or T button to select "Manual Setup", then press the ENTER
button.
5=
Press the A, T, 4 or _ button to move to an item, and press the numeric
button to configure the selected item. Press the ENTER _ button.
>- If you want to use a static IP address, refer to the user manual of your
wireless IP sharer.
>- Select "Access Point Select" to check the network connectivity. (Refer to
page 124)
Press the EXIT button to exit.
Access Point Select
You can select the IP sharer to use when using a wireless network.
1. Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2. Press the A or v' button to select "Wireless Network Setup", then press the
ENTER _ button.
3_
Press the ,_ or T button to select "Access Point Select", then press the
ENTER _ button.
>- The wireless Access Points that exist in you area are searched and
displayed in the Access Point List.
4_
Press the A or _' button to select the Access Point to use. Then press the
ENTER _ button.
>- If a wireless Access Point is not in the Access Point list, press the Red
button.
>- When the connection is made, you will be returned to the screen
automatically.
>- If you selected an Access Point that requires security authentication,
enter the security key.
>- You can enter up to characters for a security key.
>- The character set may differ and the red button may not appear
depending on the Access Point.
If you have selected an Access Point with a security authentication:
- The Security Key input screen appears.
- Enter the security key and press the ENTER _ button.
- Using the Remote Control Buttons on the Security Key Input Screen
Button _!ii_eerat!£ns ............... ............
Wheel
(_/_/_/_) Moves the selection up/down/left/right.
..........................................ENTER _ ..................................... ................
Switch between Upper- and Lower-Case
RED
Letters
You can delete an already entered
GREEN
character.
Press this button to finish entering the
BLUE
security key.
Network Test
You can test or confirm the network connection status after setting up the network.
1, Press the MENU button to display the menu.
Press the A or T button to select "Setup", then press the ENTER _ button.
2, Press the A or _' button to select "Wireless Network Setup", then press the
ENTER E? button.
3=
Press the A or T button to select "Network Test", then press the ENTER c:_
button.
>- The current network settings will appear.
>- If no "Access Point Select" is set up, the test cannot be completed. (See
page 124)
Press the EXIT button to exit.
When unable to connect to a wireless network
1. "YourTV may fail to locate an AP that is configured as a private SSID type.
In this case. please change the AP settings and try again
2. If your Internet service provider has registered the MAC address of the
device used to connect to the Internet for the first time and authenticates
the MAC address each time you connect to the Internet, yourTV may not
be able to connect to the Internet as the MAC address differs from that of
the device (PC) used to connect to the lnternet the first time. In this case.
ask your lntemet service provider about the procedures to connect devices
other than your PC (such as your TV) to the Internet.
If you cannot connect to the Internet even if you have followed the procedures
of your Internet service provider, please contact 1-800-SAMSUNG
Using infoLink
You can view news, stock market and weather information services using SAMSUNG's InfoLink service.
Set up the network. (Refer to pages 118~125)
information provided by USA TODAY via Infolink is for the United States only. information for other countries is not
provided.
Activating InfoLink
1, Press the MENU button to display the menu.
Press the A or T button to select "Application", then press the ENTER
button.
2, Press the A or T button to select "lnfoLink", then press the ENTER
button.
3=
Press the _ or _ button to select a service ("Weather", "News", "Stocks" or
"Setup") and press the ENTER _ button.
You can select and view more than one service at the same time only for
'News (without detailed information)', 'Weather-Today's Weather', and
'Stocks-Favorite Stocks, Market Summary'.
Press the EXiT button to exit.
[_ Press the INFO.L button on the remote control to display the "lnfoLink" menu.
ALL THE MATERIALS AVAILABLE THROUGH INFOLINK ["INFOLINK CONTENT'] ARE THE PROPERTY OF THE ORIGINATOR
OF THE CONTENT ["CONTENT OWNER'] AND/OR ITS AFFILIATES OR LICENSOR& AND ARE PROTECTED BY COPYRIGHT,
TRADEMARK, AND OTHER INTELLECTUAL PROPERTY LAWS. ALL INFOLINK CONTENT IS PROVIDED SOLELY FOR YOUR
PERSONAL NONCOMMERCIAL USE. YOU MAY NOT USE ANY INFOLINK CONTENT IN A MANNER THAT CONSTITUTES AN
INFRINGEMENT OF THE CONTENT OWNERS' RIGHTS OR THAT HAS NOT BEEN AUTHORIZED BY THE CONTENT OWNER.
MORE SPECIFICALLY, UNLESS EXPLICITLY AUTHORIZED IN THIS DISCLAIMER OR BY THE CONTENT OWNER, YOU MAY NOT
MODIFY, COPY, REPRODUCE, REPUBLISH, UPLOAD, POST, TRANSMIT, TRANSLATE, SELL, CREATE DERIVATIVE WORKS,
EXPLOIT, OR DISTRIBUTE IN ANY MANNER OR MEDIUM (INCLUDING BY EMAIL OR OTHER ELECTRONIC MEANS) ANY
INFOLINK CONTENT ORANY OTHER MATERIAL FROM THE INFOLINK SERVICE. CONTENT PROVIDED CONTENT OWNERS IN
CONNECTION WITH THE INFOLINK SERVICE MAY BE TIME-DELAYED AS SPECIFIED BY THE CONTENT OWNER AND/OR ITS
AFFILIATES.
INFOLINK IS PROVIDED THROUGH AGREEMENT BETWEEN SAMSUNG AND THE CONTENT OWNER. INFOLINK MAY
BE TERMINATED OR INTERUPTED AT ANY TIME BY EITHER SAMSUNG OR THE CONTENT PROVIDER OR THROUGH
TERMINATION OF THE AGREEMENT BETWEEN THEM. UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL
SAMSUNG OR THE CONTENT PROVIDER BE HELD LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, ORANY OTHER
DAMAGES WHATSOEVER ARtStNG OUT OF, OR IN CONNECTION WITH, SUCH TERMINATION OR INTERUPTION. SINCE
CONTENT TRANSMITTED VIA INFOLINK IS RECEIVED BY MEANS OF NETWORKS AND TRANSMISSION FACILITIES OVER
WHICH SAMSUNG HAS NO CONTROL, SAMSUNG EXPRESSLY DISCLAIMS ANY RESPONSIBILITY OR LIABILITY FORANY
INTERRUPTION OR SUSPENSION OF INTERLINK SERVICE OR FOR THE ABSENCE OF CONTENT RESULTING THEREFROM.
INFORMATION tN THE INFOLINK IS PROVIDED "AS IS,"AND CONSEQUENTLY, SAMSUNG DOES NOT WARRANT THE
INFORMATION SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FORANY PARTICULAR PURPOSE; AND SAMSUNG
EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY
OR FITNESS FORA PARTICULAR PURPOSE. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS,
LEGALITY, OR COMPLETENESS OF ANY INFORMATION OR DATA MADE AVAILABLE THROUGH INFOLINK FORANY
PARTICULAR PURPOSE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE HELD LIABLE,
WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES,
ATTORNEY FEES, EXPENSES, ORANY OTHER DAMAGES WHATSOEVER ARISING OUT OF, OR IN CONNECTION WITH, ANY
INFORMATION CONTAINED IN, ORAS A RESULT OF THE USE OF INFOLINK BY YOU ORANY THIRD PARTY, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.
Using the Weather Service
1, Press the INFO.L button on the remote control.
2, Press the 4 or _ button to move to the "Weather" service and press the
ENTER _ button.
Set up the Region
3. Press Yellow button, input the postal (zip) code of the region by pressing the
number buttons on the remote, then press the ENTER _ button.
>- You can check the weather of the selected region.
Set up Weather Option
4. Press the Red button while using the service to change the "Weather" service
option.
5. Press A or T button and select"Weather" option.
>- To exit the "Weather" service, press the Blue button.
>- To exit the "lnfoLink" service, press the EXIT button.
Using the News Service
>- The news provider may be changed in the future.
1. Press the INFO.L button on the remote control.
2. Press the 4 or !_ button to move to the "News" service and press the
ENTER _ button.
:_ Press the ENTER _ button to view the detailed article.
:_ Press the A or T button to view the previous or next article.
3. Press the Red button while using the service to change the "News" service
Option.
4. Press A or T button and select"News" service option.
>- The News service option changes depending on the provided web service.
>- To exit the "News" service, press the Blue button.
>- To exit the "lnfoLink" service, press the EXIT button.
Using the Stock Service
1, Press the INFO.L button on the remote control.
2, Press the 4 or _ button to move to the "Stocks" service and press the
ENTER _ button.
3. Press the Red button while using the service to change the "Stocks" service
option.
4. Press A or _' button and select "Stocks" service option, then press the
ENTER c_ button.
' Favorite Stocks: The Favorite stock information is displayed. You can
set up the Favorite Stocks by pressing the Ye!!ow button.
-Market Summary: Dow Jones, Nasdaq and S&P 500 are toggled and
o
the entire index, amount of up or down, and yoare displaye&
* Stocks & News: The Favorite stock information and Dow Jones;
NASDAQ and S&P 500 index and Financial news are displayed.
>- Stock quotes delayed at least 15 minutes.
>- To exit the "Stocks" service, press the Blue button.
>- To exit the "lnfoLink" service, press the EXIT button.
Setting Favorite Stocks Items
t. Press the Yellow button when "Favorite Stocks" or "Stocks & News" is
selected. The Set Favorite Stocks screen appears.
2. Press the 4 button to move to the Category. Press the A or _r button to
select a Category. Press the ENTER _ button.
3. Press the A or T button to select a stock item and press the ENTER
button.
>- The selected stock is set as a Favorite Stock.
>- The _/mark will appear to the left of the stock name.
>- Press the ENTER _ button again to cancel the setting. The _1 mark will
disappear.
>- To cancel all selections, press the Green button.
>- Pressing the Red button toggles between NYSE and NASDAQ.
4. To finish the settings, press the RETURN button.
InfoLink Setup
1, Press the INFO.L button on the remote control.
2, Press the 4 or !_ button to select "Setup", then press the ENTER _ button.
3. Press the A or _' button to select the desired option. ("Auto Launch",
"Display Time", "Font Size", "Background Color", "lnfoLink's Position")
4. Press the A or T button to select an option, then press the ENTER
button
' Auto Launohi Determines whether to launch !nfo[..ink automatically
when the TV is turned on. You can select either '!Off' or "On'k
, Display Time; Determines the time to display the news service on
the TV screen, You can select !'4 Hours" "8 Hours'; "10 Hours" or
!'Always'L
, Font size; You can select letter size '!Standard:' or '%argo'! through
lnfoLink service,
, Background Color: You can select the Background Color of lnfoLink
service, The color is applied to each service, option and setup window.
, InfoMnk's Position: You can set the position of each InfoLink service
on the screen. You can select f[0rn six preset lnfoL!nk positions
("Position l'_~"Pesition 6::),
>- To exit the "Setup" service, press the RETURN button.
:_ To exit the "lnfoLink" service, press the EXIT button.
InfoLink's Position
Position "
Position_
"--1
Position2 Position3
Position 5
I
Product Guide
The Product Guide gives you information on the most important features of this TV.
1=
2=
Press the MENU button to display the menu.
Press the A or T button to select "Application", then press the ENTER
button.
Press the A or T button to select "Product Guide", then press the ENTER
button.
3=
4=
Press the 4 or _ button to select a Guide ("Picture Quality",
"Entertainment" or "Connectivity") and press the ENTER _ button.
You can navigate the Product Guide screen by using the _ and !_ buttons.
Fu,HD1080p
Auto Motion Plus 120 Hz
LED
Content Library
Entertainment Mode
DLNA
4HDMI
i
Anynet+
6, Press the EXIT button to exit.
Using the Remote Control Button in Product Guide Menu
RETURN
EXIT Stop the current function and return to the "Product Guide" main menu.
CH VIA
Stop Product Guide mode and Returns to TV mode
PRE.CH / FAV.CH
About Anynet +
What is Anynet+?
Anynet + is a function that enables you to control all connected Samsung devices that support Anynet + with your Samsung
TV's remote.
Connecting Anynet + Devices
The Anynet + system can be used only with Samsung devices that have the Anynet + feature. To be sure your Samsung
device has this feature, check if there is an Anynet + logo on it.
To connect to a TV
TV Rear Panel
Anynet + Device 1 Anynet + Device 2 Anynet + Device 3 Anynet + Device 4
HDMI 1.3 Cable
Connect the [HDMI 1], [HDMI 2], [HDMI 3] or [HDMI 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet ÷
device using an HDMI cable.
To connect to Home Theater
TV Rear Panel
t. Connect the
[HDMI 1], [HDMI
2], [HDMI 3] or
[HDMI 4] jack on
the TV and the
HDMI OUT jack of
the corresponding
Anynet + device
using an HDMI
cable.
2. Connect the
HDMI IN jack of
the home theater
and the HDMI
OUT jack of the
corresponding
Anynet + device
using an HDMI
cable.
>- Connect the Optical cable between the Digital Audio Out (Optical) jack on your TV and the Digital Audio Input on the
Home Theater.
>- When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from
the Home Theater's Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect
the DIGITAL AUDIO OUT (OPTICAL)jack on the DVD/Blu-Ray player or Cable/Satellite Box (ie Anynet Device 1 or 2)
directly to the Amplifier or Home Theater, not the TV.
>- Connect only one Home Theater.
>- You can connect an Anynet + device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet + functions.
>- Anynet + works when the AV device supporting Anynet + is in the Standby or On status.
>- Anynet + supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.
Setting Up Anynet+
The following settings help set the Anynet + functions.
To use the Anynet+ Function, Anynet + (HDMI-CEC) must be set to On
1, Press the MENU button. Press the A or T button to select "Application",
then press the ENTER _ button.
2, Press the ,t, or T button to select "Anynet + (HDMI-CEC)", then press the
ENTER 13_button.
3. Press the A or T button to select "Setup", then press the ENTER _ button.
4. Press the A or v' button to select "Anynet + (HDMI-CEC)", then press the
ENTER [:_ button.
5. Press the A or T button to select "On", then press the ENTER _ button.
>- The "Anynet + (HDMI-CEC)" function is enabled.
>- If you select Off, "Anynet + (HDMI-CEC)" is disabled.
>- When the "Anynet + (HDMI-CEC)" function is disabled, all the Anynet +
related operations are deactivated.
Setting an Anynet + Device to turn Off Automatically when the TV is Turned Off
1. Press the A or T button to select "Auto Turn Off", then press the ENTER
button.
2. Press the A or T button to select "Yes", then press the ENTER _ button.
>- The "Auto Turn Off' function is enabled.
>- If you select "No", the "Auto Turn Off" function is canceled.
Press the EXiT button to exit.
>- The active source on the TV remote must be set to TV to use the Anynet +
function.
>- If you set "Auto Turn Off' to "Yes", connected external devices are also turned
off when the TV is turned off. If an external device is still recording, it may or
may not turn off.
Easy Setting
1, Press the TOOLS button on the remote control.
2, Press the ENTER _ button to select "Anynet+ (HDMI-CEC)".
>- The Anynet+ (HDMI-CEC) menus appear on the screen.
Scanning and Switching between Anynet+ Devices
1, Press the TOOLS button.
Press the ENTER _ button to select "Anynet+ (HDMI-CEC)".
2, Press the A or T button to select "Device List", then press the ENTER
button.
3=
>- Anynet+ devices connected to the TV are listed.
If you cannot find a device you want, press the red button to scan for
devices.
>- Only when you set "Anynet+ (HDMI-CEC)" to On in the "Setup" menu, the
"Device List" menu appears.
Press the A or V button to select to a particular device and press the
ENTER I:_ button. It is switched to the selected device.
>- Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching
operation.
>- The time required to scan for devices is determined by the number of connected devices.
>- When the device scan is complete, the number of devices found are not displayed.
>- Although the TV automatically searches the device list when the TV is turned on via the power button, devices
connected to the TV when the TV is on or under some conditions are not automatically displayed in the device list.
Press the red button to search for the connected device.
If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet + function. Make
sure to switch to an Anynet + device by using the "Device List"
Anynet + Menu
The Anynet + menu changes depending on the type and status of the Anynet + devices connected to the TV.
Anynet + Menu
View TV
Device List
(device_name) Menu
(device_name) Operation
Record: (*recorder)
(*recorder) Reserve Recording
Stop Recording: (*recorder)
Receiver
Description
Anynet+ mode changes to TV broadcast mode.
Shows the Anynet+ device list.
Shows the connected device menus.
E.g. If a DVD recorder is connected, the disc menu of the DVD recorder will appear.
Shows the play menu of the connected device.
E.g. If a DVD recorder is connected, the play menu of the DVD recorder will appear.
Starts recording immediately using the recorder. (This is only available for devices that
support the recording function.)
Enables reserving a recording for the recorder. (This is only available for devices that
support the recording reservation function.)
Stops recording.
Sound is played through the receiver.
If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is
connected, it will be represented as (*device_name).
TV Remote Control Buttons Available in Anynet + Mode
Device Type Available Buttons
After switching to the device, when the Numeric buttons
menu of the corresponding device is A/'I'/_I/I,_/ENTER _ buttons
Anynet + Device displayed on the screen. Color buttons / EXIT button
After switching to the device, while _ (Backward search) / _ (Forward search)
playing a file _ (Stop) / _ (Play) / _ (Pause)
Device with built-in Tuner ' After switching to the device, when you CH v / CH ^ button
Aud!o Device .........................................When Rece!ver !s act!vated ............................................. .............................................................................................
>- The Anynet + function onl_ works when the active source on the TV remote control is set to TV.
>- The _ button works only while in the recordable state.
>- You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet ÷ devices only using the TV
remote control.
>- The TV remote control may not work under certain conditions. In this case, reselect the Anynet + device.
>- The Anynet + functions do not operate with other manufacturers' products.
>- The I:_, I_ operations may differ depending on the device.
Recording
You can make a recording of a TV program using a Samsung recorder.
1. Press the TOOLS button.
Press the ENTER _ button to select "Anynet+ (HDMI-CEC)".
2. Press the A or V button to select "Recording: (device_name)", then press
the ENTER _ button. Recording begins.
When multip!e recording devices are connected, the recording devices are
listed. Press the A or V button to select a recording device and press the
ENTER 13_buttonl Recording begins.
When the recording device iS not displayed
Select '!Device List" and press the red button to search devices.
Press the EXIT button to exit.
>- You can record the source streams by selecting "Recording: (device_name)".
>- Pressing the _ button will record whatever you are currently watching. If you are watching video from another
device, the video from the device is recorded.
>- Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect
an antenna to a recording device, refer to the recording device's users manual.
Listening through a Receiver (Home theater)
You can listen to sound through a receiver instead of the TV speaker.
1. Press the TOOLS button.
Press the ENTER _ button to select "Anynet+ (HDMI-CEC)".
2. Press the A or T button to select "Receiver".
Press the 4 or !_ button to select "On" or "Off".
3. Press the EXiT button to exit.
>- If your receiver supports audio only, it may not appear in the device list.
>- The receiver will work when you have properly connected the Optical IN jack
of the receiver to the Optical Out jack of the TV.
>- When the receiver (home theater) is set to On, you can hear sound output
from the TV's Optical jack. When the TV is displaying a DTV(air) signal, the
TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a
DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver.
>- When using the WISELINK Pro feature, sound may not output properly through the receiver.
>- When listening through the receiver, there are restrictions for using the PIP and audio-related (MTS, Preferred
language) menus.
>- If there is a power interruption to the TV when the "Receiver" is set to "On" (by disconnecting the power cord or a
power failure), the "Select Speaker" may be set to "External Speaker" when you turn the TV on again. (see page 43)
Troubleshooting for Anynet+
Anynet + does not work. Check if the device is an Anynet + device. The Anynet + system supports Anynet +
devices only.
Connect only one receiver (home theater).
Check if the Anynet + device power cord is properly connected.
Check the Anynet + device's Video/Audio/HDMI 1.3 cable connections.
Check whether Anynet + (HDMI-CEC) is set to On in the Anynet ÷ setup menu.
Check whether the TV remote control is in TV mode.
Check whether it is Anynet + exclusive remote control.
Anynet + doesn't work in certain situations. (Searching channels, Operating
WISELINK Pro, Plug & Play, etc.)
When connecting or removing the HDMI 1.3 cable, please make sure to search
devices again or turn your TV off and on again.
Check if the Anynet + Function of Anynet ÷ device is set on.
i want to start Anynet +. Check if the Anynet + device is properly connected to the TV and check if the
Anynet + (HDMI-CEC) is set to On in the Anynet + Setup menu.
Press the TV button on the TV remote control to switch to TV. Then press the
TOOLS button to show the Anynet + menu and select a menu you want.
I want to exit Anynet +. Select View TV in the Anynet + menu.
Press the SOURCE button on the TV remote control and select a device other
than Anynet + devices.
Press OH, CH LIST, PRE-OH, and FAV.OH to change the TV mode.
(Note that the channel button operates only when a tuner-embedded Anynet +
device is not connected.)
The message Connecting to • You cannot use the remote control when you are configuring Anynet + or
Anynet + device.., appears on the switching to a view mode.
screen. , Use the remote control when the Anynet + setting or switching to view mode is
complete.
The Anynet + device does not play. You cannot use the play function when Plug & Play is in progress.
The connected device is not • Check whether or not the device supports Anynet + functions.
displayed. Check whether or not the HDMI 1.3 cable is properly connected.
Check whether Anynet + (HDMI-CEC) is set to On in the Anynet + setup menu.
Search Anynet + devices again.
You can connect an Anynet + device using the HDMI 1.3 cable only. Some HDMI
cables may not support Anynet + functions.
If it is terminated by an abnormal situation such as disconnecting the HDMI cable
or power cord or a power failure, please repeat the device scan.
The TV program cannot be Check whether the antenna jack on the recording device is properly connected.
recorded.
The TV sound is not output Connect the optical cable between TV and the receiver.
through the receiver.
Appendix
Troubleshooting
If the TV seems to have a problem, first try this list of possible problems and solutions.
If none of these troubleshooting tips apply, call Samsung customer service at 1-800-SAMSUNG
Problem Possible Solution
Poor picture. Try another channel.
Adjust the antenna.
Check all wire connections.
Poor sound quality.
No picture or sound.
Try another channel.
Adjust the antenna.
Try another channel.
Press the SOURCE button.
Make sure the TV is plugged in.
Check the antenna connections.
No sound or sound is too low at
maximum volume.
Picture rolls vertically.
There is a problem with the picture
There is a problem with the sound
The TV operates erratically.
The TV won't turn on
Remote control malfunctions.
'Check signal cable' message.
'Not Supported Mode' message.
Digital broadcasting screen problem.
The _mage Jstoo light or too dark.
Black bars on the screen.
Picture has a Red!Green or Pink tint.
Closed Captioning not working.
Snowy picture.
Ghosting on picture.
Horizontal bars appear to flicker, jitter
or shimmer on the image.
Vertical bars appear to flicker, jitter or
shimmer on the image.
First, check the volume of units connected to your TV (digital broadcasting
receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV
volume accordingly.
Check all wire connections.
Run the Picture test in the Self diagnostic menu
Run the Sound test in the Self diagnostic menu
Unplug the TV for 30 seconds, then try operating it again.
Make sure the wall outlet is working.
Replace the remote control batteries.
Clean the upper edge of the remote control (transmission window).
Check the battery terminals.
Ensure that the signal cable is firmly connected to the PC source.
Check the maximum resolution and connected device's Video frequency.
Compare these values with the data in the Display Modes.
Please check the digital signal strength and input antenna.
Adjust the Brightness and Contrast.
Adjust the Fine tuning.
Make sure the broadcast you're receiving is High Definition (HD).
HD channels sometimes broadcast Standard Definition (SD) programming,
which can cause black bars.
Set your cable/satellite box to stretch or widescreen mode to eliminate the bars.
Make sure the Component cables are connected to the correct jacks.
If you are using a Cable/Satellite box, you must set Closed Captioning on the
box, not your TV.
Your cable box may need a firmware upgrade. Please contact your Cable
company.
This is sometimes caused by compatibility issues with your cable box.
Try connecting Component cables instead.
Adjust the Coarse tuning and then adjust the Fine tuning.
Adjust the Coarse tuning and then adjust the Fine tuning.
Problem
Screen is black and power indicator
light blinks steadily.
Image is not stable and may appear
to vibrate when you have a computer
connected to the PC input.
Possible Solution
On your computer check: Power, Signal Cable.
The TV is using its power management system.
Move the computer's mouse or press any key on the keyboard.
If the setting is not correct, use your computer utility program to change the
display settings.
_-- Your TV supports multiscan display functions within the following
frequency domain:
Horizontal frequency (kHz) 30~60
Vertical frequency (Hz) 60~75
PC Maximum refresh rate (at 60 Hz) 1920 x 1080
Image is not centered on the screen. Adjust the horizontal and vertical position.
The screen position must be adjusted on the output source (i.e. STB) with a
digital signal.
The picture appears distorted in the If "Just Scan" is selected with some external devices, the picture may appear
corner of the screen, distorted in the corner of the screen. This symptom is caused by the external
devices, not TV.
The 'Resets all settings to the default This appears when you press and hold the EXIT button for a while. The product
values' message appears, se!!!ngs are rese! !o the !act0ry detau!!s: .....................................................................................................................................................................................
You may see small particles if you This is part of the product's design and is not a defect.
look closely at the edge of the bezel
This TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce.
However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of
the product.
Installing the Stand
1, Attach your LCD TV to the stand.
>- Two or more people should carry the TV.
>- Make sure to distinguish between the front and back of the stand when attaching it.
>- To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the
upper left of right sides of the TV.
2, Fasten two screws at position O and then fasten two screws at position 0.
>- Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to
one side.
Disconnecting the Stand
1, Remove four screws from the back of the TV.
2, Separate the stand from the TV.
>- Two or more people should carry the TV.
3, Cover the bottom hole with the cover.
Auto Wall-Mount Adjustment (Sold separately)
Once the auto wall mount is installed, your TV's position can be easil adjusted.
Auto Wall-Mount
TV Rear Panel
EX-LINK Cable
(Not supplied)
Entering the menu
1, Press the A, _r, 41 or _ button on your remote control.
>- The Wall Mount Adjustment screen is displayed.
>- If the Wall Mount Adjustment screen is not displayed when clicking on
a direction button while watching your TV, use the menu to display that
screen.
• Press the MENU button to display the menu. Press the A or T button to select
"Setup", then press the ENTER _ button.
• Press the A or _r button to select "External Settings", then press the ENTER
button.
• Press the A or T button to select "Wall-Mount Adjustment", then press the
ENTER _ button.
Remembering the Position
2. Adjust to the desired position using the A, T, 4, _ buttons.
>- If you press an arrow button when no OSD is displayed on the TV screen,
the Adjustment screen appears.
>- Press the INFO button to reset. Press the 41or D,,button to select "Yes",
then press the ENTER _ button. The position is initialized to the default
setting.
3. Pressthe Blue button.
Press the A and _' buttons to select a save mode from either Position 1,
Position 2 or Position 3 in order to save the current position.
>- To not save the current position, press the RETURN button.
>- When selecting a save mode, you cannot use the Color buttons.
4. Press the ENTER _ button to save.
>- When Position1 is selected, the message "Current position saved as
Position1" is displayed.
5. Pressthe ENTER _ button.
>- The saved Position appears on the left side of the OSD.
Moving to the remembered position
1,
2=
Complete Step 1 of "Entering the menu".
Pressing a Color (Red, Green, Yellow) button moves the auto wall mount to
the saved position.
>- You can move the wall mount to one of the 3 pre-set positions by pressing
the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons.
>- If you adjust the position after moving to a pre-set position, the position display will disappear.
>- For installation, refer to the Installation Manual provided with the wall mount.
>- For product installation and the installation and moving of the wall mount, make sure to consult a specialized
installation company.
>- This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building
materials, please contact your nearest dealer.
>- The auto wall mount will not work when Anynet + or WISELINK Pro is operating.
>- LN46A950D1F models are not compatible with the old electrically powered wall mount model (WMN5090A).
Wall Mount Kit Specifications (VESA)
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact
your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.
A
Product Family inches
LCD-TV
PDP=TV
23 ~ 26
32 ~ 40
46 ~ 55
57
..............................................................................
80~
VESA 8pec. (A* B) '_I '-_J_ Quantity
200 * 100 M4
600*400
700*400
(No VESA)
800*400
1400"800
600*400
I
M8
M8
Standard dimensions for wall mount kits are shown in the table above.
When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ
depending on their specifications.
Do not use screws that do not comply with the VESA standard screw specifications.
Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal
injury.Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or
the consumer fails to follow the product installation instructions.
Our 57" and 63" models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount
kit for this model.
Do not exceed 15 degrees tilt when mounting this TV.
//_ Do not install your Wall Mount Kit while your TV is turned on. It may result in personal
injury due to electric shock.
Using the Anti-Theft Kensington Lock
>- Applicable to models LN46A95OD1F only.
The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and
locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the
Kensington Lock for proper use. The locking device has to be purchased separately.
Cable
Figure 2
Figure 1
<Optional>
1,
2,
3,
The location of the Kensington Lock may be different depending on its model.
Insert the locking device into the Kensington slot on the LCD TV (Figure 1) and turn it in the locking direction
(Figure 2).
Connect the Kensington Lock cable.
Fix the Kensington Lock to a desk or a heavy stationary object.
Securing the TV to the Wall
CautiOn: Pulling,pushing, Or Climbing on the TVmay cause the TV to fal!, in particular, ensure your children do not
hang over or destabilize the TV; doing so may cause the TV to tip over,causing serious injuries or death. FollOW
a!l safety precautions provided on the included Safety Rye[. F0[ added stability, install the anti-fa!l device for safety
purposes, as fo!!ows.
To secure the TV:
t,
Put the screws into the clamps and firmly fasten them onto the wall.
Confirm that the screws have been firmly installed onto the wall.
You may need additional material such as an anchor depending on
the type of wall.
Since the necessary clamps, screws, and string are not supplied,
please purchase them separately.
2,
Remove the screws from the center back of the TV, put the screws into
the clamps, and then fasten the screws onto the TV again.
Screws may not be supplied with the product. In this case, please
purchase the screws of the following specifications.
Screw Specifications
- Fora 17 ~29 Inch LCD TV: M4X 15
- For a 32 ~ 40 Inch LCD TV: M6 X 15
3,
4,
Connect the clamps fixed onto the TV and the clamps fixed onto the wall
with a strong cable.
Install the TV near to the wall so that it does not fall backwards.
It is safe to connect the cable so that the clamps fixed on the wall are
equal to or lower than the clamps fixed on the TV.
Remove the cable before moving the TV.
Verify all connections are properly secured. Periodically check
connections for any sign of fatigue or failure. If you have any doubt
about the security of your connections,contact a professional installer.
Wall
Specifications
Model Name LN46A950D1F
Screen Size
(Diagonal)
PC Resolution
Sound
Outpu[
Dimensions(WxDxH)
Body
With stand
Weight
With Stand
Without Stand
Environmental
Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Stand Swivel
(Left / Right)
46inches
'45.9inches measured diagonally)
1920 x 1080@60 Hz 1920 x 1080@60 Hz
lOW X 2
,Sub woofer: lOW X 2)
15WX 2
(Sub woofer: 15W X 2)
45.7 X 4.2 X 26.4 inches
,1160.2 X 107.9 X 669.3 mm)
45.7 X 11.8 X 29.9 inches
•1160.2 X 299.9 X 759.4 mm)
53.7 X 4.4 X 32.3 inches
(1364.0 X 112.7 X 821.3 mm)
53.7 X 13.3 X 34.7 inches
(1364.0 X 337.8 X 882.6 mm)
67.71bs (30.7 kg)
58.01bs (26.3 kg)
91.31bs (41.4 kg)
80.Olbs (36.3 kg)
50°F to 104°F (10°C to 40°C)
10% to 80%, non-condensing
-4°F to 113°F (-20°C to 45°C)
5% to 95%, non-condensing
0 o
>- Design and specifications are subject to change without prior notice.
>- This device is a Class B digital apparatus.
>- For the power supply and Power Consumption, refer to the label attached to the product.
Dimensions
LN46A960D1 F
I I !
L [ ]
TOP VIEW
JACK PANEL DETAIL 3.7"H X 9.1"W
45.7
40.1
22.6
4.2
29.9
FRONT ViEW / SiDE ViEW
l _23.6 (600 mm)_
1_!(400 mm)
o
REAR ViEW
NOTE: All drawings are not necessarily to scale.
Some dimensions are subject to change without prior notice.
Refer to the dimensions prior to performing installation of your TV.
Not responsible for typographical or printed errors.
© 2008 Samsung Electronics America, Inc.
Dimensions
LN56A960D1 F
I I l
[ [ ]
TOP VIEW
]
JACK PANEL DETAIL 3.7"H X 9.1"W
53.7
47.7
26.9
4.4
34.7
FRONT VIEW / SiDE VIEW
l _23.6 (600 mm)_
1_!(400 mm)
o
REAR ViEW
NOTE: All drawings are not necessarily to scale.
Some dimensions are subject to change without prior notice.
Refer to the dimensions prior to performing installation of your TV.
Not responsible for typographical or printed errors.
© 2008 Samsung Electronics America, Inc.
= ThisproductusespartsofthesoftwarefromtheIndependentJPEGGroup.
,,, This product uses parts of the software owned by the Freetype Project (www.freetype.org).
,,, This product uses some software programs which are distributed under the GPL/LGPL license. Accordingly, the
following GPL and LGPL software source codes that have been used in this product can be provided after asking to
GPL software: Linux Kernel, Busybox, Binutils
LGPL software: Glibc, Libusb, Libgphoto2, SDL
The GNU General Public License (GPL)
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General
Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all
its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose
authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License
instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure
that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source
code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and th at you know you
can do these things.
Toprotect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the
rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that
you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they
know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to
copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this
free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not
the original, so that any problems introduced by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free
program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear
that any patent must be licensed for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be
distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work
based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the
Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is
included without limitation in the term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of
running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on
the Program (independent of having been made by running the Program). Whether that is true depends on what the Program
does.
I. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you
conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all
the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of
this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange
for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy
and distribute such modifications or work under the terms of Section I above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or
any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for
such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice
and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the
program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is
interactive but does not normally print such an announcement, your work based on the Program is not required to print an
announcement.)
Theserequirementsapplytothemodifiedworkasawhole.Ifidentifiablesectionsofthatworkarenotderivedfromthe
Program,andcanbereasonablyconsideredindependentandseparateworksinthemselves,thenthisLicense,andits
terms,donotapplytothosesectionswhenyoudistributethemasseparateworks.Butwhenyoudistributethesame
sectionsaspartofawholewhichisaworkbasedontheProgram,thedistributionofthewholemustbeonthetermsofthis
License,whosepermissionsforotherlicenseesextendtotheentirewhole,andthustoeachandeverypartregardlessof
whowroteit.
Thus,itisnottheintentofthissectiontoclaimrightsorcontestyourrightstoworkwrittenentirelybyyou;rather,theintent
istoexercisetherighttocontrolthedistributionofderivativeorcollectiveworksbasedontheProgram.
Inaddition,mereaggregationofanotherworknotbasedontheProgramwiththeProgram(orwithaworkbasedonthe
Program)onavolumeofastorageordistributionmediumdoesnotbringtheotherworkunderthescopeofthisLicense.
3.YoumaycopyanddistributetheProgram(oraworkbasedonit,underSection2)inobjectcodeorexecutableform
underthetermsofSections1and2aboveprovidedthatyoualsodooneofthefollowing:
a)Accompanyitwiththecompletecorrespondingmachine-readablesourcecode,whichmustbedistributedunderthe
termsofSections1and2aboveonamediumcustomarilyusedforsoftwareinterchange;or,
b)Accompanyitwithawrittenoffer,validforatleastthreeyears,togiveanythirdparty,forachargenomorethanyour
costofphysicallyperformingsourcedistribution,acompletemachine-readablecopyofthecorrespondingsourcecode,
tobedistributedunderthetermsofSections1and2aboveonamediumcustomarilyusedforsoftwareinterchange;
or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This
alternative is allowed only for noncommercial distribution and only if you received the program in object code or
executable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work,
complete source code means all the source code for all modules it contains, plus any associated interface definition files,
plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source
code distributed need not include anything that is normally distributed (in either source or binary form) with the major
components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component
itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering
equivalent access to copy the source code from the same place counts as distribution of the source code, even though third
parties are not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any
attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights
under this License. However, parties who have received copies, or rights, from you under this License will not have their
licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission
to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this
License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your
acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or
works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a
license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may
not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for
enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent
issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions
of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy
simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not
distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by
all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License
would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is
intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of
any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which
is implemented by public license practices. Many people have made generous contributions to the wide range of software
distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if
he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted
interfaces, the original copyright holder who places the Program under this License may add an explicit geographical
distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus
excluded. In such case, this License incorporates the limitation as if written in the body of this License.
9.TheFreeSoftwareFoundationmaypublishrevisedand/ornewversionsoftheGeneralPublicLicensefromtimeto
time.Suchnewversionswillbesimilarinspirittothepresentversion,butmaydifferindetailtoaddressnewproblemsor
concerns.
Eachversionisgivenadistinguishingversionnumber.IftheProgramspecifiesaversionnumberofthisLicensewhich
appliestoitand"anylaterversion",youhavetheoptionoffollowingthetermsandconditionseitherofthatversionorofany
laterversionpublishedbytheFreeSoftwareFoundation.IftheProgramdoesnotspecifyaversionnumberofthisLicense,
youmaychooseanyversioneverpublishedbytheFreeSoftwareFoundation.
10.IfyouwishtoincorporatepartsoftheProgramintootherfreeprogramswhosedistributionconditionsaredifferent,write
totheauthortoaskforpermission.ForsoftwarewhichiscopyrightedbytheFreeSoftwareFoundation,writetotheFree
SoftwareFoundation;wesometimesmakeexceptionsforthis.Ourdecisionwillbeguidedbythetwogoalsofpreserving
thefreestatusofallderivativesofourfreesoftwareandofpromotingthesharingandreuseofsoftwaregenerally.
NOWARRANTY
11.BECAUSETHEPROGRAMISLICENSEDFREEOFCHARGE,THEREISNOWARRANTYFORTHEPROGRAM,
TOTHEEXTENTPERMITTEDBYAPPLICABLELAW.EXCEPTWHENOTHERWISESTATEDINWRITINGTHE
COPYRIGHTHOLDERSAND/OROTHERPARTIESPROVIDETHEPROGRAM"ASIS"WITHOUTWARRANTYOF
ANYKIND,EITHEREXPRESSEDORIMPLIED,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOF
MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSE.THEENTIRERISKASTOTHEQUALITYAND
PERFORMANCEOFTHEPROGRAMISWITHYOU.SHOULDTHEPROGRAMPROVEDEFECTIVE,YOUASSUME
THECOSTOFALLNECESSARYSERVICING,REPAIRORCORRECTION.
12.INNOEVENTUNLESSREQUIREDBYAPPLICABLELAWORAGREEDTOINWRITINGWILLANYCOPYRIGHT
HOLDER,ORANYOTHERPARTYWHOMAYMODIFYAND/ORREDISTRIBUTETHEPROGRAMASPERMITTED
ABOVE,BELIABLETOYOUFORDAMAGES,INCLUDINGANYGENERAL,SPECIAL,INCIDENTALOR
CONSEQUENTIALDAMAGESARISINGOUTOFTHEUSEORINABILITYTOUSETHEPROGRAM(INCLUDINGBUT
NOTLIMITEDTOLOSSOFDATAORDATABEINGRENDEREDINACCURATEORLOSSESSUSTAINEDBYYOUOR
THIRDPARTIESORAFAILUREOFTHEPROGRAMTOOPERATEWITHANYOTHERPROGRAMS),EVENIFSUCH
HOLDEROROTHERPARTYHASBEENADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGES.
ENDOFTERMSANDCONDITIONS
HowtoApplyTheseTermstoYourNewPrograms
If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this
is to make it free software which everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most
effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where
the full notice is found.
One line to give the program's name and a brief idea of what it does.
Copyright (C) <year> <name of author>
This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public
License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later
version.
This program is distributed in the hope that it will be useful, but WITHOUTANY WARRANTY; without even the implied
warranty of MERCHANTABILITY or FITNESS FORA PARTICULAR PURPOSE. See the GNU General Public License
for more details.
You should have received a copy of the GNU General Public License along with this program; if not, write to the Free
Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY;
for details type "show w'. This is free software, and you are welcome to redistribute it under certain conditions; type
"show c' for details.
The hypothetical commands "show w' and "show c' should show the appropriate parts of the General Public License. Of
course, the commands you use may be called something other than "show w' and "show c'; they could even be mouse-
clicks or menu items--whatever suits your program.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for
the program, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the program "Gnomovision' (which makes passes at
compilers) written by James Hacker.
signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating your program into proprietary programs. If your program is a
subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what
you want to do, use the GNU Library General Public License instead of this License.
GNU Lesser General Public License (LGPL)
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License,
version 2, hence the version number 2.1 .]
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU
General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the
software is free for all its users.
This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries-
-of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think
carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular
case, based on the explanations below.
When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to
make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you
receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs;
and that you are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to
surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if
you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that
we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library,
you must provide complete object files to the recipients, so that they can relink them with the library after making changes to
the library and recompiling it. And you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives
you legal permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is
modified by someone else and passed on, the recipients should know that what they have is not the original version, so that
the original author's reputation will not be affected by problems that might be introduced by others.
Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company
cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we
insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in
this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the
GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General
Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.
When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally
speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such
linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria
for linking other code with the library.
We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the
ordinary General Public License. It also provides other free software developers Less of an advantage over competing
non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries.
However, the Lesser license provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so
that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent
case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting
the free library to free software only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a
large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more
people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a
program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of
the Library.
The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference
between a "work based on the library" and a "work that uses the library". The former contains code derived from the library,
whereas the latter must be combined with the library in order to run.
TERMSANDCONDiTiONSFOR COPYING, DiSTRiBUTiON AND MODiFiCATiON
0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright
holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also
called "this License"). Each licensee is addressed as "you".
A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application
programs (which use some of those functions and data) to form executables.
The "Library", below, refers to any such software library or work which has been distributed under these terms. A "work
based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing
the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language.
(Hereinafter, translation is included without limitation in the term "modification".)
"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source
code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts
used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The
act of running a program using the Library is not restricted, and output from such a program is covered only if its contents
constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true
depends on what the Library does and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium,
provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of
warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of
this License along with the Library.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in
exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and
copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these
conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any
change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program
that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith
effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and
performs whatever part of its purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of
the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function
must be optional: if the application does not supply it, the square root function must still compute square roots.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the
Library, and can be reasonably considered independent and separate works in themselves, then this License, and its
terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same
sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms
of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part
regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the
intent is to exercise the right to control the distribution of derivative or collective works based on the Library.
In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the
Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the
Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General
Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public
License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these
notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License
applies to all subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable
form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-
readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used
for software interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to
copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties
are not compelled to copy the source along with the object code.
5.AprogramthatcontainsnoderivativeofanyportionoftheLibrary,butisdesignedtoworkwiththeLibrarybybeing
compiledorlinkedwithit,iscalleda"workthatusestheLibrary".Suchawork,inisolation,isnotaderivativeworkofthe
Library,andthereforefallsoutsidethescopeofthisLicense.
However,linkinga"workthatusestheLibrary"withtheLibrarycreatesanexecutablethatisaderivativeoftheLibrary
(becauseitcontainsportionsoftheLibrary),ratherthana"workthatusesthelibrary".Theexecutableisthereforecovered
bythisLicense.Section6statestermsfordistributionofsuchexecutables.
Whena"workthatusestheLibrary"usesmaterialfromaheaderfilethatispartoftheLibrary,theobjectcodeforthework
maybeaderivativeworkoftheLibraryeventhoughthesourcecodeisnot.Whetherthisistrueisespeciallysignificantif
theworkcanbelinkedwithouttheLibrary,oriftheworkisitselfalibrary.Thethresholdforthistobetrueisnotprecisely
definedbylaw.
Ifsuchanobjectfileusesonlynumericalparameters,datastructurelayoutsandaccessors,andsmallmacrosandsmall
inlinefunctions(tenlinesorlessinlength),thentheuseoftheobjectfileisunrestricted,regardlessofwhetheritislegallya
derivativework.(ExecutablescontainingthisobjectcodeplusportionsoftheLibrarywillstillfallunderSection6.)
Otherwise,iftheworkisaderivativeoftheLibrary,youmaydistributetheobjectcodefortheworkunderthetermsof
Section6.AnyexecutablescontainingthatworkalsofallunderSection6,whetherornottheyarelinkeddirectlywiththe
Libraryitself.
6.AsanexceptiontotheSectionsabove,youmayalsocombineorlinka"workthatusestheLibrary"withtheLibraryto
produceaworkcontainingportionsoftheLibrary,anddistributethatworkundertermsofyourchoice,providedthatthe
termspermitmodificationoftheworkforthecustomer'sownuseandreverseengineeringfordebuggingsuchmodifications.
YoumustgiveprominentnoticewitheachcopyoftheworkthattheLibraryisusedinitandthattheLibraryanditsuseare
coveredbythisLicense.YoumustsupplyacopyofthisLicense.Iftheworkduringexecutiondisplayscopyrightnotices,you
mustincludethecopyrightnoticefortheLibraryamongthem,aswellasareferencedirectingtheusertothecopyofthis
License.Also,youmustdooneofthesethings:
a)Accompanytheworkwiththecompletecorrespondingmachine-readablesourcecodefortheLibraryincluding
whateverchangeswereusedinthework(whichmustbedistributedunderSections1and2above);and,ifthework
isanexecutablelinkedwiththeLibrary,withthecompletemachine-readable"workthatusestheLibrary",asobject
codeand/orsourcecode,sothattheusercanmodifytheLibraryandthenrelinktoproduceamodifiedexecutable
containingthemodifiedLibrary.(Itisunderstoodthattheuserwhochangesthecontentsofdefinitionsfilesinthe
Librarywillnotnecessarilybeabletorecompiletheapplicationtousethemodifieddefinitions.)
b)UseasuitablesharedlibrarymechanismforlinkingwiththeLibrary.Asuitablemechanismisonethat(1)usesat
runtimeacopyofthelibraryalreadypresentontheuser'scomputersystem,ratherthancopyinglibraryfunctionsinto
theexecutable,and(2)willoperateproperlywithamodifiedversionofthelibrary,iftheuserinstallsone,aslongas
themodifiedversionisinterface-compatiblewiththeversionthattheworkwasmadewith.
c)Accompanytheworkwithawrittenoffer,validforatleastthreeyears,togivethesameuserthematerialsspecified
inSubsection6a,above,forachargenomorethanthecostofperformingthisdistribution.
d)Ifdistributionoftheworkismadebyofferingaccesstocopyfromadesignatedplace,offerequivalentaccessto
copytheabovespecifiedmaterialsfromthesameplace.
e)Verifythattheuserhasalreadyreceivedacopyofthesematerialsorthatyouhavealreadysentthisuseracopy.
Foranexecutable,therequiredformofthe"workthatusestheLibrary"mustincludeanydataandutilityprogramsneeded
forreproducingtheexecutablefromit.However,asaspecialexception,thematerialstobedistributedneednotinclude
anythingthatisnormallydistributed(ineithersourceorbinaryform)withthemajorcomponents(compiler,kernel,andso
on)oftheoperatingsystemonwhichtheexecutableruns,unlessthatcomponentitselfaccompaniestheexecutable.
Itmayhappenthatthisrequirementcontradictsthelicenserestrictionsofotherproprietarylibrariesthatdonotnormally
accompanytheoperatingsystem.SuchacontradictionmeansyoucannotuseboththemandtheLibrarytogetherinan
executablethatyoudistribute.
7.YoumayplacelibraryfacilitiesthatareaworkbasedontheLibraryside-by-sideinasinglelibrarytogetherwithother
libraryfacilitiesnotcoveredbythisLicense,anddistributesuchacombinedlibrary,providedthattheseparatedistribution
oftheworkbasedontheLibraryandoftheotherlibraryfacilitiesisotherwisepermitted,andprovidedthatyoudothesetwo
things:
a)AccompanythecombinedlibrarywithacopyofthesameworkbasedontheLibrary,uncombinedwithanyother
libraryfacilities.ThismustbedistributedunderthetermsoftheSectionsabove.
b)GiveprominentnoticewiththecombinedlibraryofthefactthatpartofitisaworkbasedontheLibrary,and
explainingwheretofindtheaccompanyinguncombinedformofthesamework.
8.Youmaynotcopy,modify,sublicense,linkwith,ordistributetheLibraryexceptasexpresslyprovidedunderthisLicense.
Anyattemptotherwisetocopy,modify,sublicense,linkwith,ordistributetheLibraryisvoid,andwillautomaticallyterminate
yourrightsunderthisLicense.However,partieswhohavereceivedcopies,orrights,fromyouunderthisLicensewillnot
havetheirlicensesterminatedsolongassuchpartiesremaininfullcompliance.
9.YouarenotrequiredtoacceptthisLicense,sinceyouhavenotsignedit.However,nothingelsegrantsyoupermissionto
modifyordistributetheLibraryoritsderivativeworks.TheseactionsareprohibitedbylawifyoudonotacceptthisLicense.
Therefore,bymodifyingordistributingtheLibrary(oranyworkbasedontheLibrary),youindicateyouracceptanceofthis
Licensetodoso,andallitstermsandconditionsforcopying,distributingormodifyingtheLibraryorworksbasedonit.
10.EachtimeyouredistributetheLibrary(oranyworkbasedontheLibrary),therecipientautomaticallyreceivesalicense
fromtheoriginallicensortocopy,distribute,linkwithormodifytheLibrarysubjecttothesetermsandconditions.Youmay
notimposeanyfurtherrestrictionsontherecipients'exerciseoftherightsgrantedherein.Youarenotresponsiblefor
enforcingcompliancebythirdpartieswiththisLicense.
11.If,asaconsequenceofacourtjudgmentorallegationofpatentinfringementorforanyotherreason(notlimited
topatentissues),conditionsareimposedonyou(whetherbycourtorder,agreementorotherwise)thatcontradictthe
conditionsofthisLicense,theydonotexcuseyoufromtheconditionsofthisLicense.Ifyoucannotdistributesoasto
satisfysimultaneouslyyourobligationsunderthisLicenseandanyotherpertinentobligations,thenasaconsequenceyou
maynotdistributetheLibraryatall.Forexample,ifapatentlicensewouldnotpermitroyalty-freeredistributionoftheLibrary
byallthosewhoreceivecopiesdirectlyorindirectlythroughyou,thentheonlywayyoucouldsatisfybothitandthisLicense
wouldbetorefrainentirelyfromdistributionoftheLibrary.
Ifanyportionofthissectionisheldinvalidorunenforceableunderanyparticularcircumstance,thebalanceofthesectionis
intendedtoapply,andthesectionasawholeisintendedtoapplyinothercircumstances.
Itisnotthepurposeofthissectiontoinduceyoutoinfringeanypatentsorotherpropertyrightclaimsortocontestvalidityof
anysuchclaims;thissectionhasthesolepurposeofprotectingtheintegrityofthefreesoftwaredistributionsystemwhich
isimplementedbypubliclicensepractices.Manypeoplehavemadegenerouscontributionstothewiderangeofsoftware
distributedthroughthatsysteminrelianceonconsistentapplicationofthatsystem;itisuptotheauthor/donortodecideif
heorsheiswillingtodistributesoftwarethroughanyothersystemandalicenseecannotimposethatchoice.
ThissectionisintendedtomakethoroughlyclearwhatisbelievedtobeaconsequenceoftherestofthisLicense.
12.Ifthedistributionand/oruseoftheLibraryisrestrictedincertaincountrieseitherbypatentsorbycopyrightedinterfaces,
theoriginalcopyrightholderwhoplacestheLibraryunderthisLicensemayaddanexplicitgeographicaldistribution
limitationexcludingthosecountries,sothatdistributionispermittedonlyinoramongcountriesnotthusexcluded.Insuch
case,thisLicenseincorporatesthelimitationasifwritteninthebodyofthisLicense.
13.TheFreeSoftwareFoundationmaypublishrevisedand/ornewversionsoftheLesserGeneralPublicLicensefromtime
totime.Suchnewversionswillbesimilarinspirittothepresentversion,butmaydifferindetailtoaddressnewproblemsor
concerns.
Eachversionisgivenadistinguishingversionnumber.IftheLibraryspecifiesaversionnumberofthisLicensewhich
appliestoitand"anylaterversion",youhavetheoptionoffollowingthetermsandconditionseitherofthatversionorofany
laterversionpublishedbytheFreeSoftwareFoundation.IftheLibrarydoesnotspecifyalicenseversionnumber,youmay
chooseanyversioneverpublishedbytheFreeSoftwareFoundation.
14.IfyouwishtoincorporatepartsoftheLibraryintootherfreeprogramswhosedistributionconditionsareincompatible
withthese,writetotheauthortoaskforpermission.ForsoftwarewhichiscopyrightedbytheFreeSoftwareFoundation,
writetotheFreeSoftwareFoundation;wesometimesmakeexceptionsforthis.Ourdecisionwillbeguidedbythetwo
goalsofpreservingthefreestatusofallderivativesofourfreesoftwareandofpromotingthesharingandreuseofsoftware
generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY,
TO THE EXTENT PERMITTED BYAPPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND
PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE
COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT
HOLDER, ORANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED
ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT
NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR
THIRD PARTIES ORA FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH
HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDiTiONS
Hew to Apply These Terms to Your New Libraries
If you develop a new library,and you want it to be of the greatest possible use to the public, we recommend making it
free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or,
alternatively, under the terms of the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to
most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to
where the full notice is found.
<one line to give the library's name and an idea of what it does.> Copyright (C) <year> <name of author>
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public
License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later
version.
This library is distributed in the hope that it will be useful, but WITHOUTANY WARRANTY; without even the implied
warranty of MERCHANTABILITY or FITNESS FORA PARTICULAR PURPOSE. See the GNU Lesser General Public
License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the
Free Software Foundation, inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for
the library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library "Frob' (a library for tweaking knobs) written by
James Random Hacker.
signature of Ty Coon, 1 April 1990
Ty Coon, President of Vice
That's all there is to it!
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
Contacte con SAMSUNG WORLDWIDE
Si tiene alguna pregunta o comentario referente a nuestros productos, por favor contacte con nuestro Servicio de Atenci6n al
Cliente.
Samsung Electronics Canada Inc., Customer
Service 55 Standish Court Mississauga,
Ontario L5R 4B2 Canada
CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca
Samsung Electronique Canada Inc.,
Service a la Clientele 55 Standish Court
Mississauga, Ontario L5R 4B2 Canada
Samsung Electronics America, Inc.
U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/us 105 Challenger Road
Ridgefield Park, NJ 07660-0511
