Craftsman 917271826 lawn tractor User Manual

Owner's Manual

ICRHFTSMIIN'J

19.5 HP

ELECTRIC START

42" MOWER

AUTOMATIC

LAWN TRACTOR

Model No.

917.271826

• Safety

• Assembly

• Operation

• Maintenance

• Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craftsman

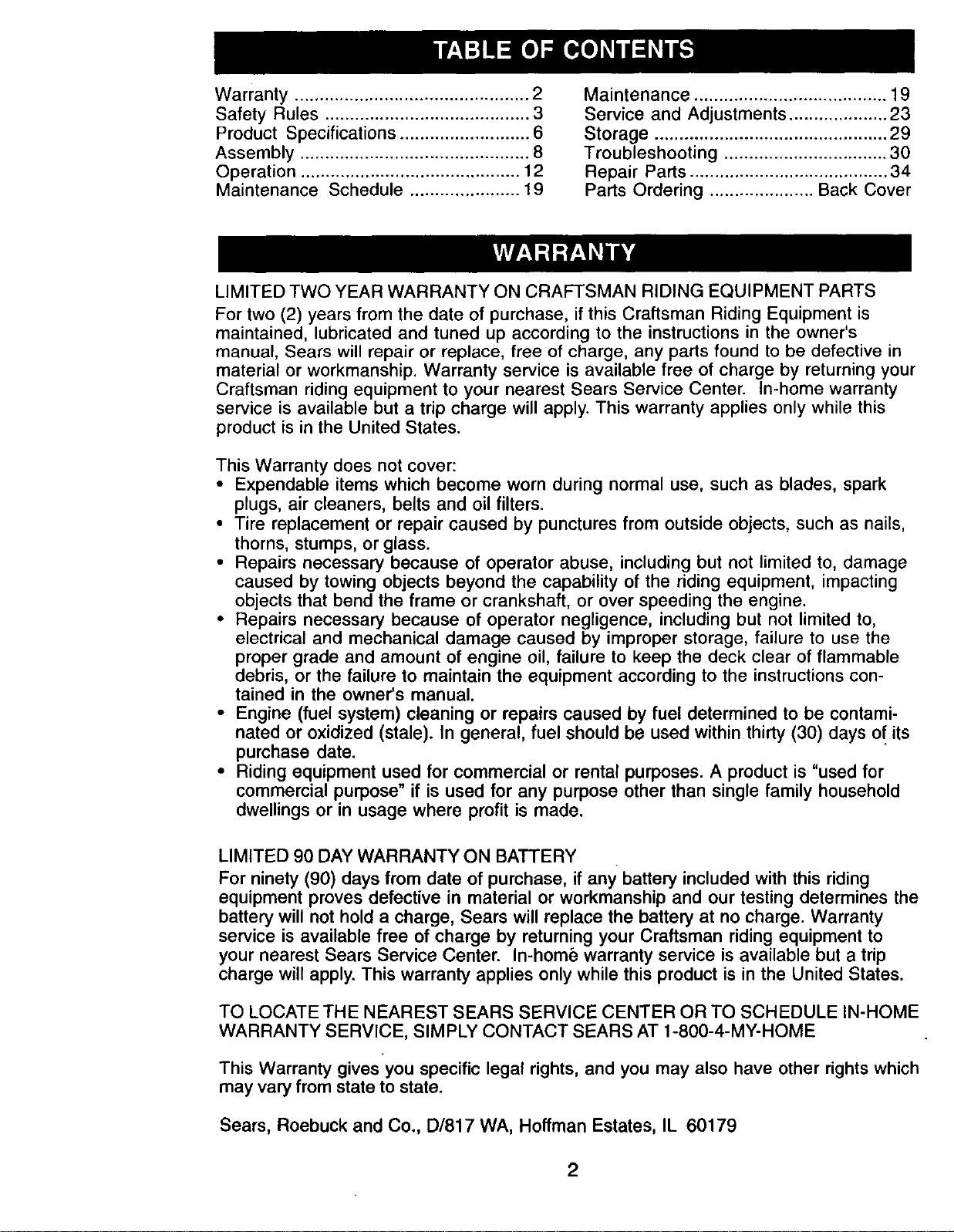

warranty ...............................................2

Safety Rules .........................................3

Product Specifications..........................6

Assembly ..............................................8

Operation............................................12

Maintenance Schedule ......................19

Maintenance.......................................19

Service and Adjustments....................23

Storage ...............................................29

Troubleshooting .................................30

Repair Parts........................................34

Parts Ordering .....................BackCover

LIMITEDTWOYEARWARRANTYONCRAFTSMANRIDINGEQUIPMENTPARTS

Fortwo (2)years from the date of purchase,if this CraftsmanRidingEquipmentis

maintained,lubricatedand tuned up accordingto the instructionsin the owner's

manual,Searswill repairor replace,free of charge, any parts found to be defectivein

materialor workmanship.Warrantyservice is available free of charge by returningyour

Craftsman ridingequipmentto your nearest SearsService Center. In-homewarranty

service is availablebut a trip charge will apply.This warrantyapplies only while this

productis in the UnitedStates.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes. A product is "used for

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by returning your Craftsman riding equipment to

your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-HOME

WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights which

may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

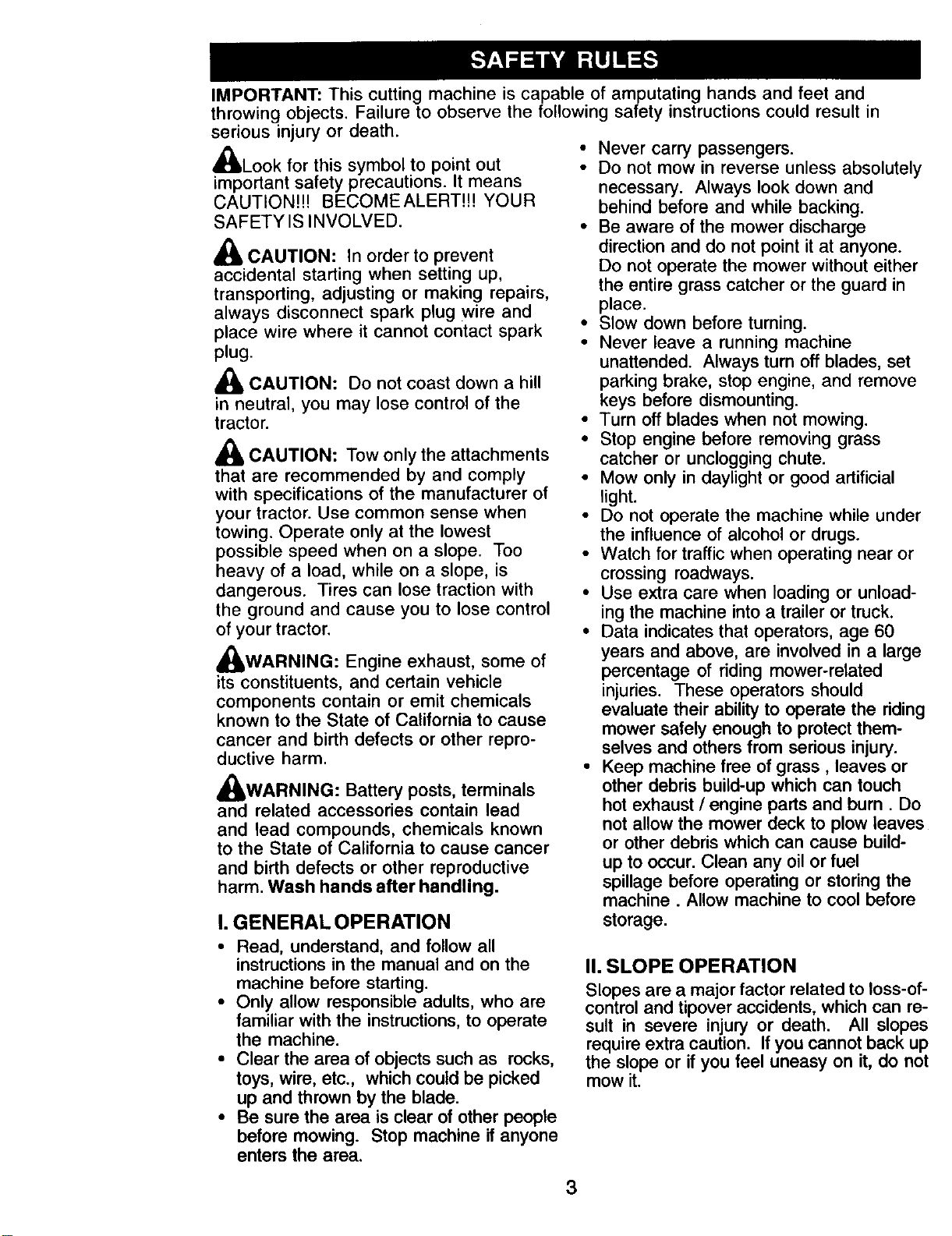

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

_Look for this symbol to point out

important safety precautions. It means

CAUTION!H BECOMEALERT!!! YOUR

SAFETY IS INVOLVED. •

_ CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_I, CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_kWARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I.GENERAL OPERATION

Never carry passengers.

Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

Slow down before turning.

Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or unload-

ing the machine into a trailer or truck.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

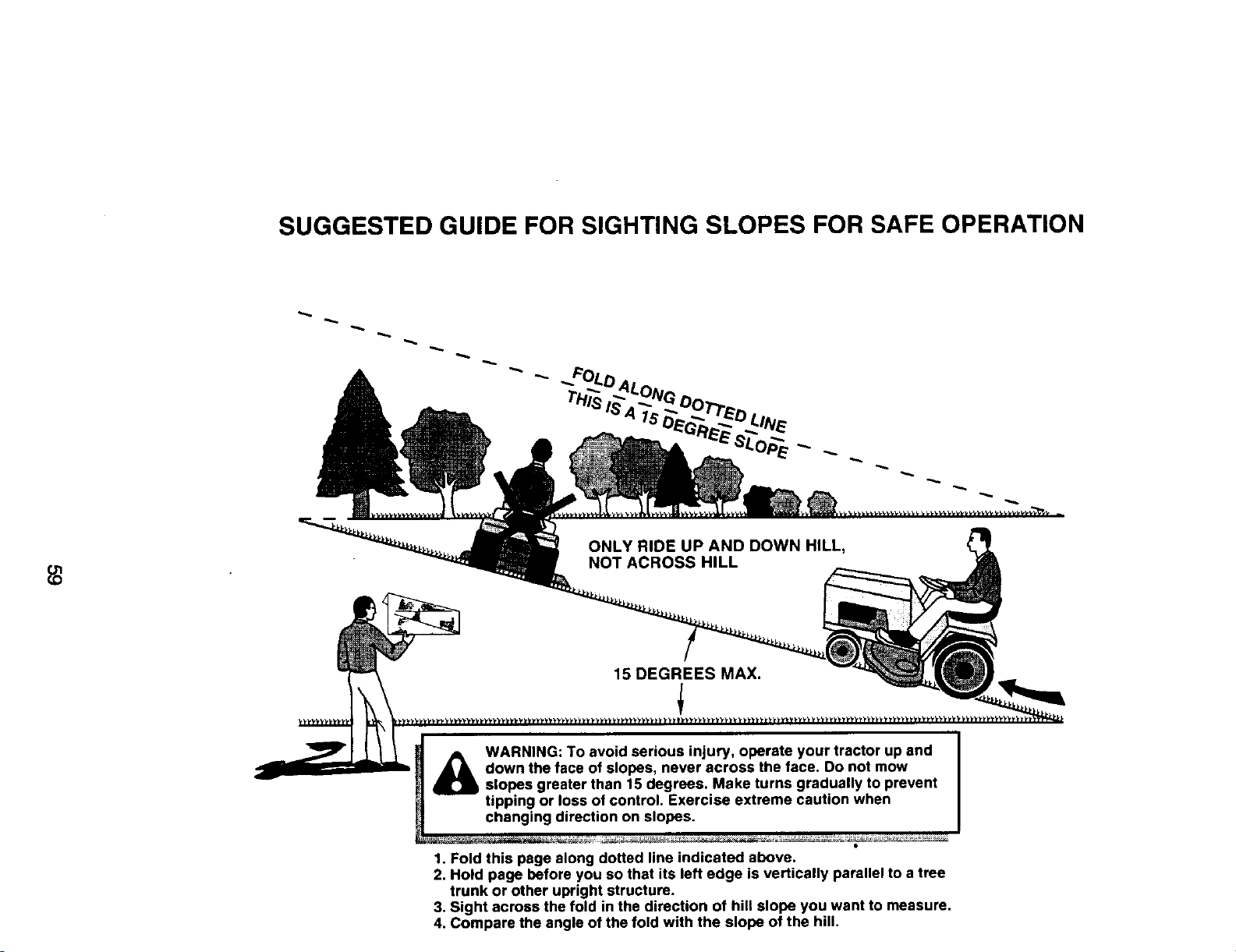

I1.SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

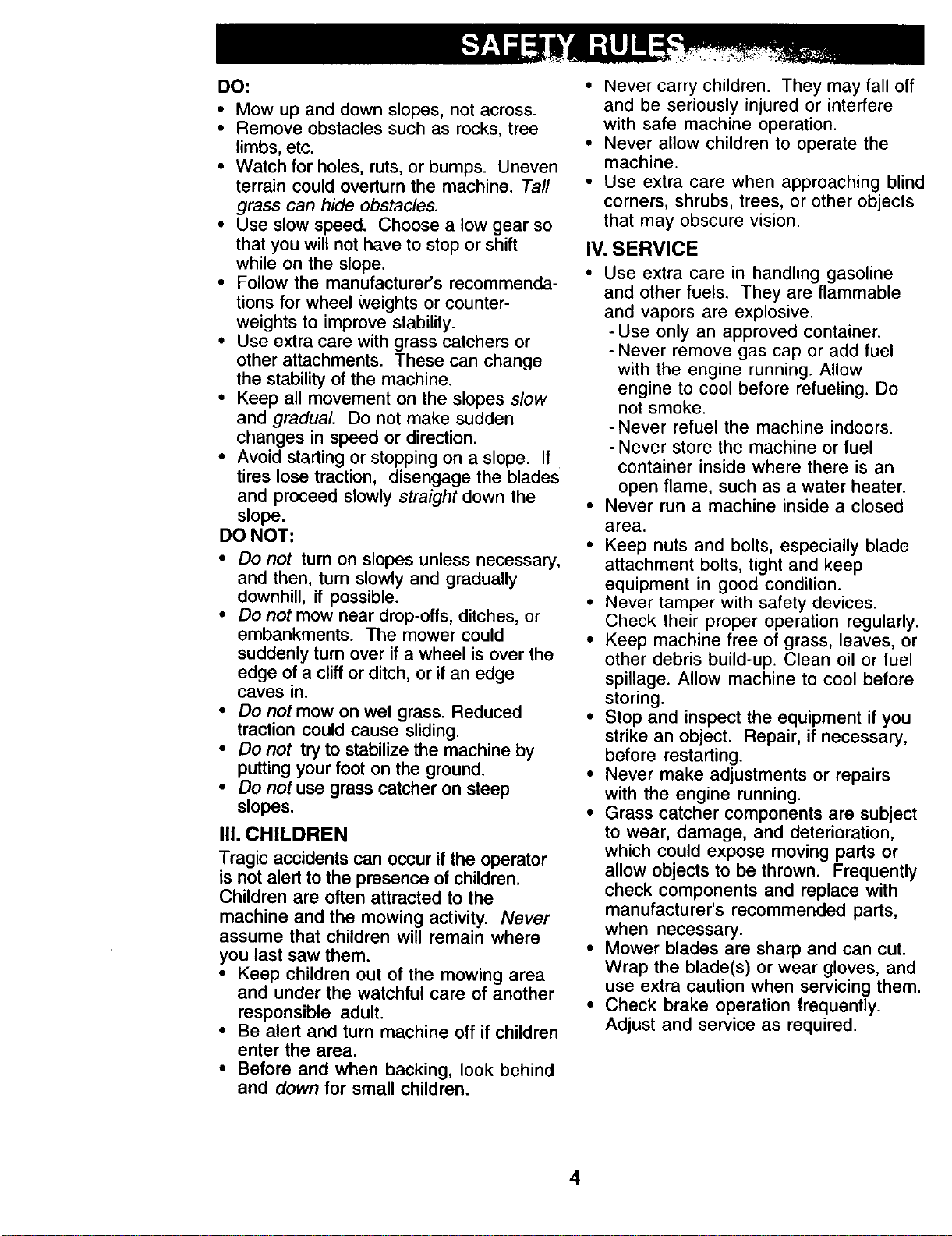

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel Weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. ]-he mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

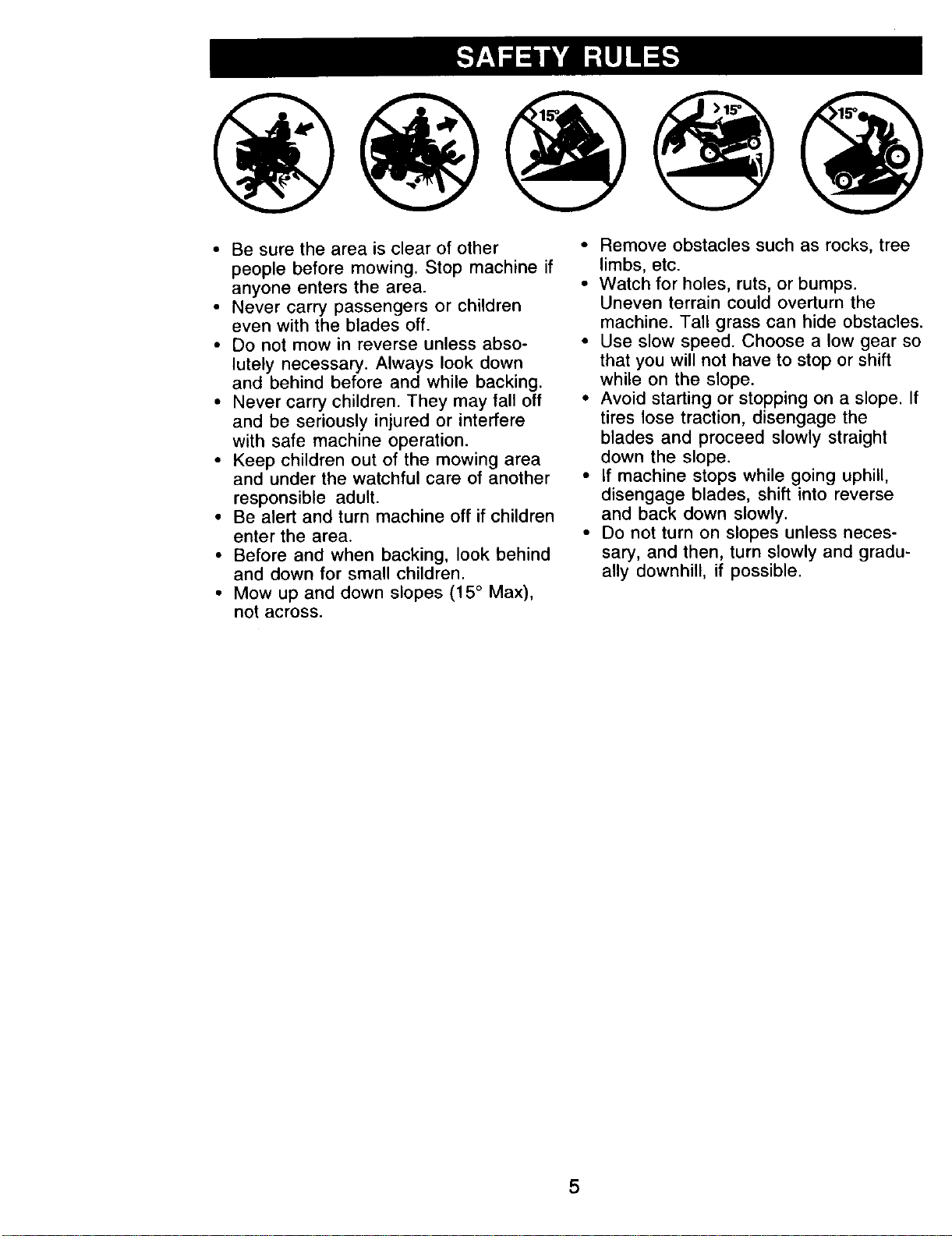

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

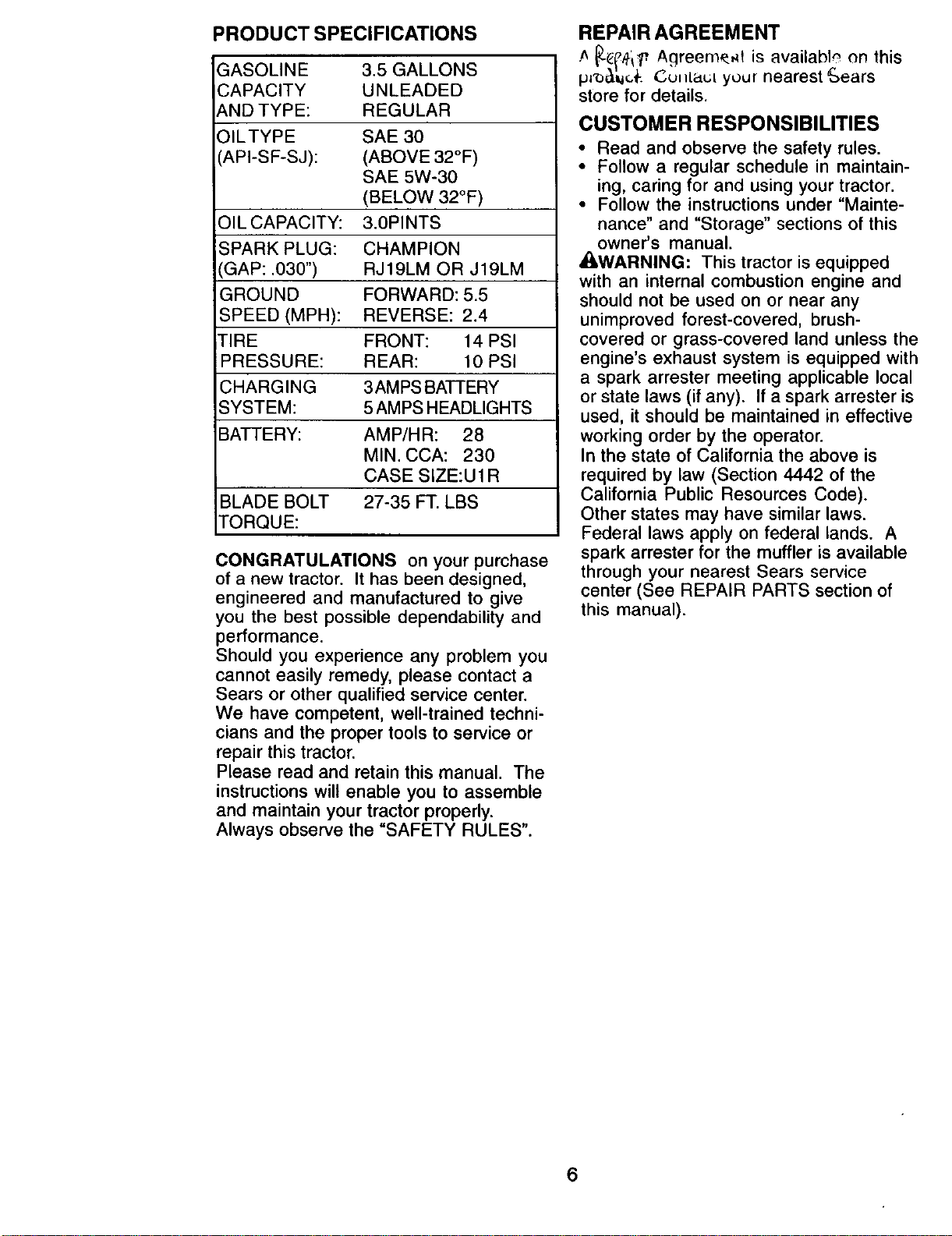

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

_,NDTYPE: REGULAR

)ILTYPE SAE 30

_,PI-SF-SJ): (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

OIL CAPACITY: 3.0PINTS

SPARK PLUG: CHAMPION

GAP: .030") RJ19LM OR J19LM

GROUND FORWARD: 5.5

SPEED (MPH): REVERSE: 2.4

iTIRE FRONT: 14 PSI

iPRESSURE: REAR: 10 PSI

CHARGING 3AMPS BATTERY

SYSTEM: 5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 28

MIN. CCA: 230

CASE SIZE:U 1R

BLADE BOLT 27-35 FT. LBS

TORQUE:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

/__¢_-_ Agreement is availabl ,_on this

ps_o_m+_-+-'CuHtaL,t your nearest _ears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

A, WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

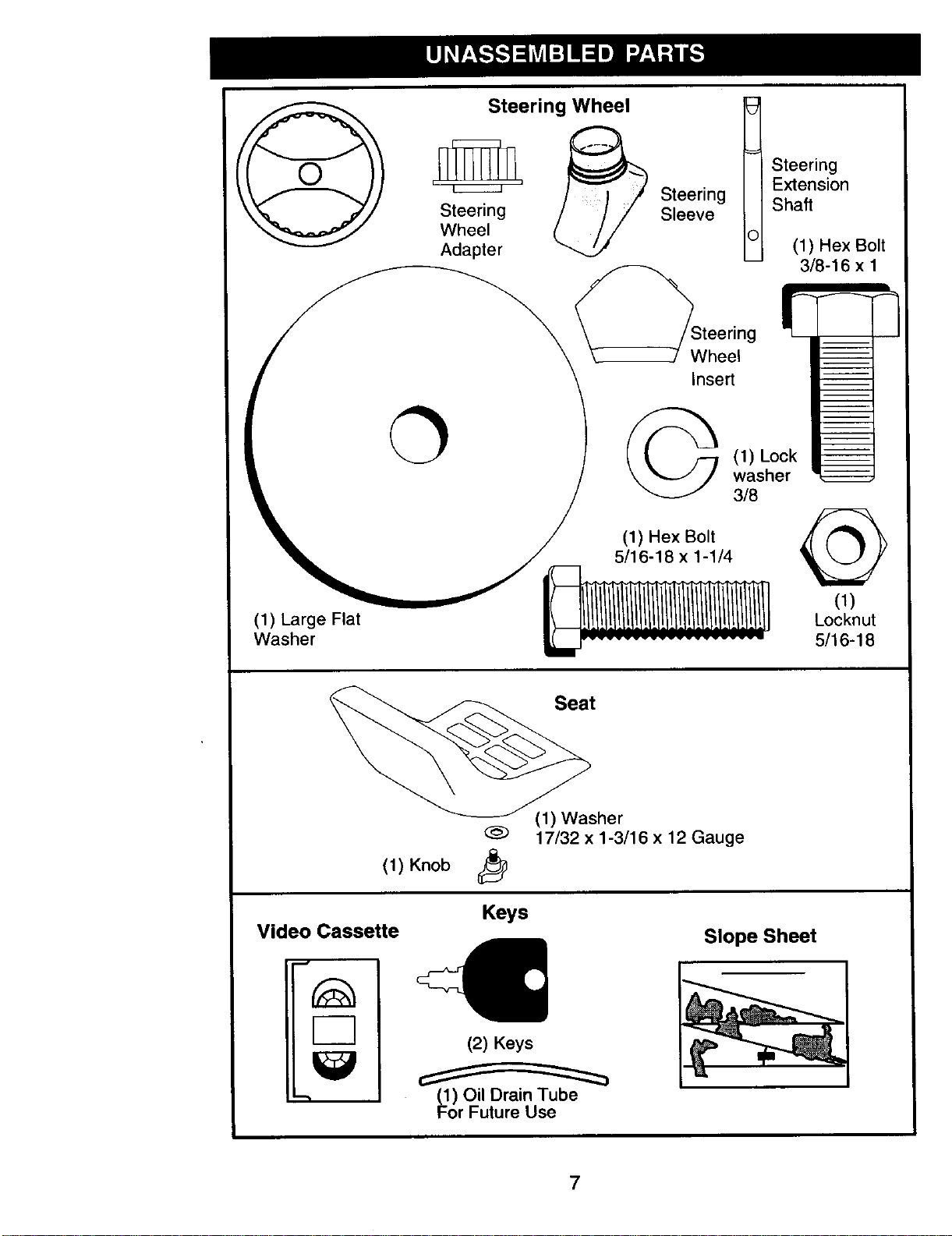

Steering Wheel

Steering

Wheel

Adapter

Steering

Sleeve

Steering

Extension

Shaft

(1) Hex Bolt

-- 3/8-16 x 1

(1) Large Flat

Washer

Wheel

Insert

(1) Lock

washer

3/8

(1) Hex Bolt _,"_

5/16-18 x 1-1/4

(1)

Locknut

5/16-18

Seat

(1) Knob

Video Cassette

F-1

"-'t

Keys

(1) Washer

17/32 x 1-3/16 x 12 Gauge

Slope Sheet

(2) Keys

(1) Oil Drain Tube

For Future Use

Your new tractor has been assembled _i [i_ |_Cloiy wlLli exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(2) 1/2" wrench (1) Utility knife

(1) Tire pressure

drive ratchet gauge

When right or left hand is mentioned in

this manual, it means when you are in the

operating position (seated behind the

steering wheel).

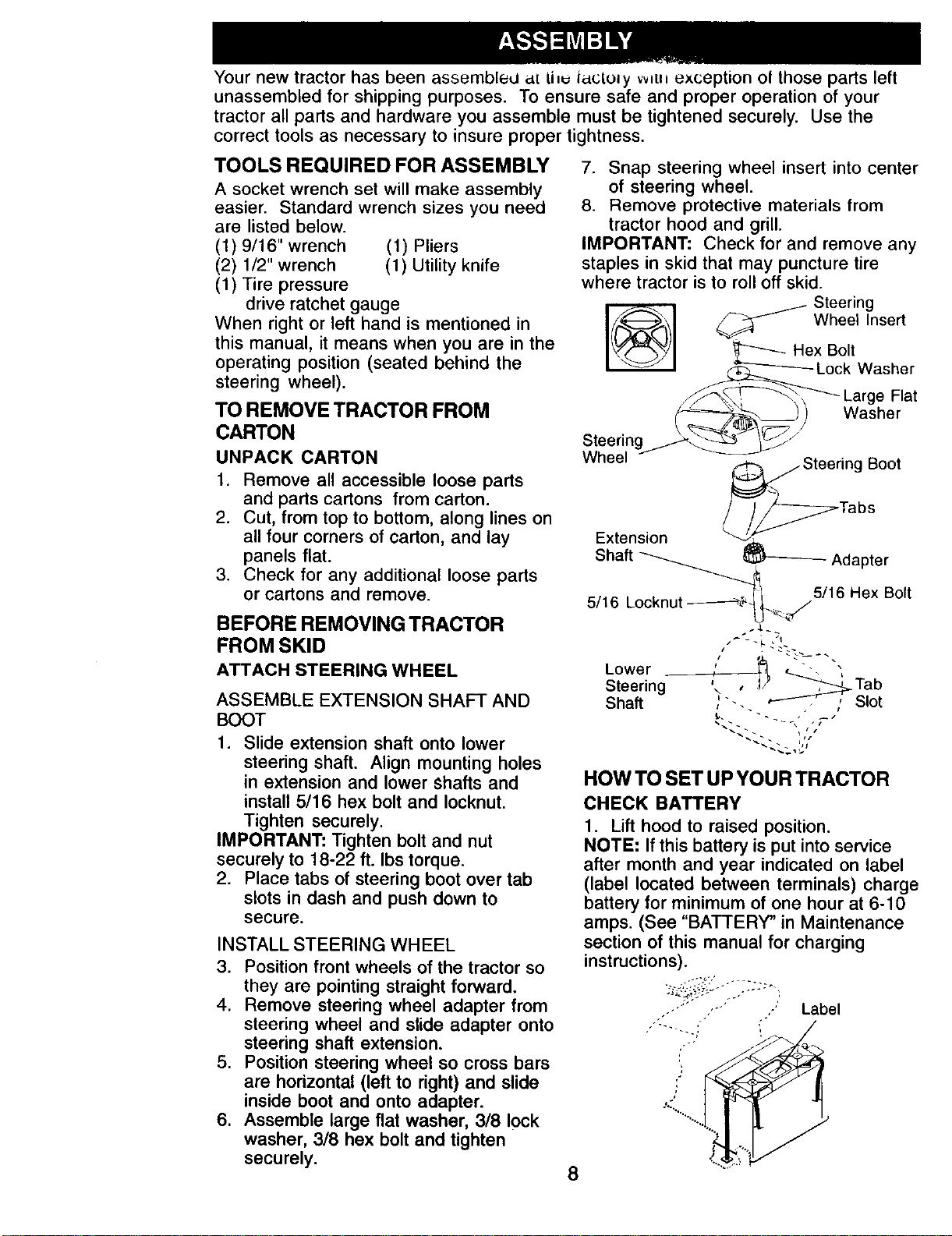

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower Shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 18-22 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 10ck

washer, 3/8 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tire

where tractor is to roll off skid.

_ _ Steering

_ Wheel Insert

Hex Bolt

_Lock Washer

//_', "_ \ _ Large Flat

__ Washer

Steering __/

Wheel

_ Steering Boot

F/ Ta°s

E_ltae___..__ '''_' Adapter

5/16 L°cknut _-_'L_;:f "5/16U Hex Bo,t

Lower " ",

Steering ] __Tab.,

Shaft _'-. i'--1-F_ ,, Slot

"...'... ,,;"

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

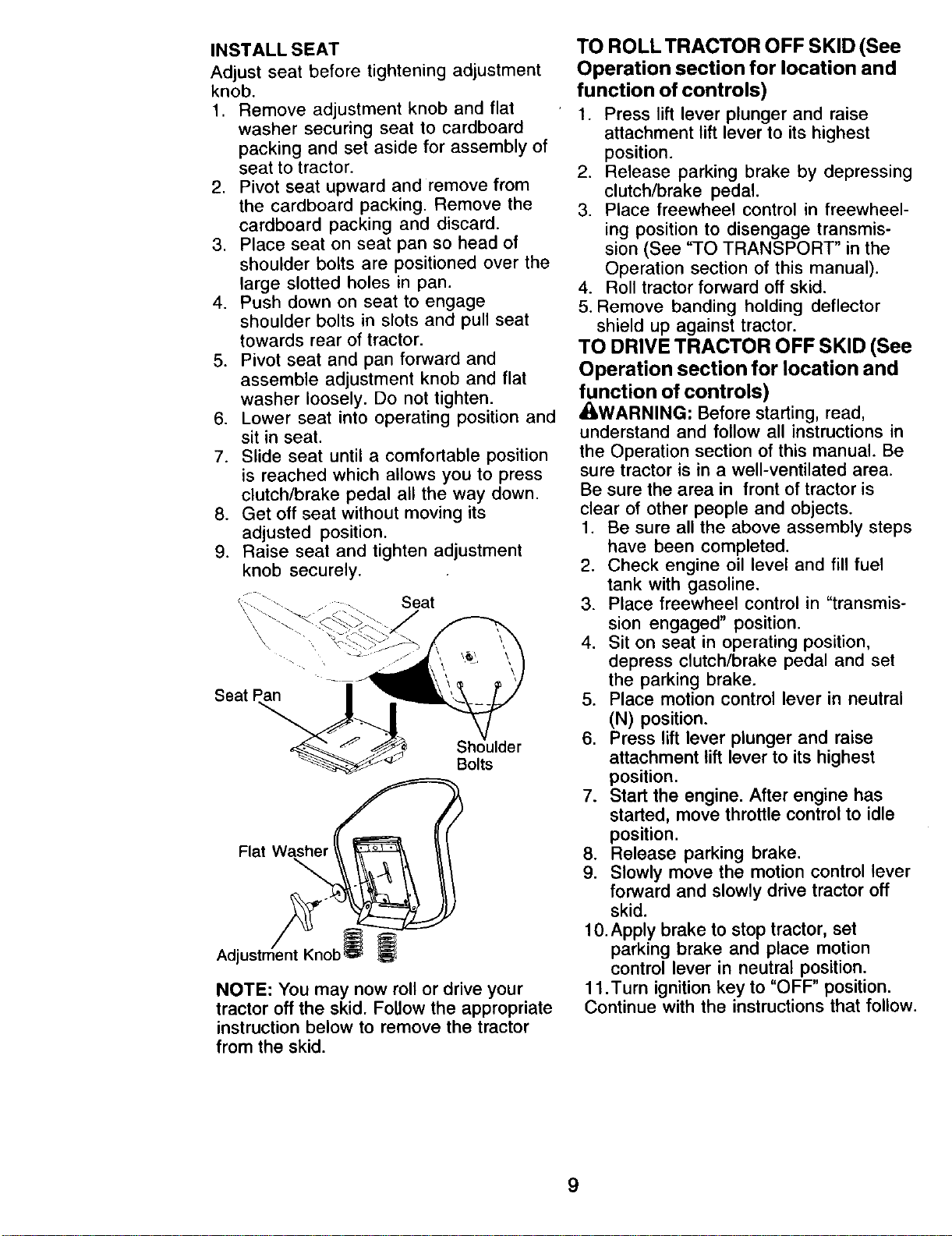

INSTALL SEAT

Adjust seat before tightening adjustment

knob,

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage

shoulder bolts in slots and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

..... Seat

Seat F

der

Bolts

Flat Washer

Adjustment

NOTE: You may now roll or drive your

tractor off the skid. FoUow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in freewheel-

ing position to disengage transmis-

sion (See "TO TRANSPORT" in the

Operation section of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

A, WARNING" Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is

clear of other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position.

4. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest

position.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor, set

parking brake and place motion

control lever in neutral position.

11.Turn ignition key to "OFF" position.

Continue with the instructions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

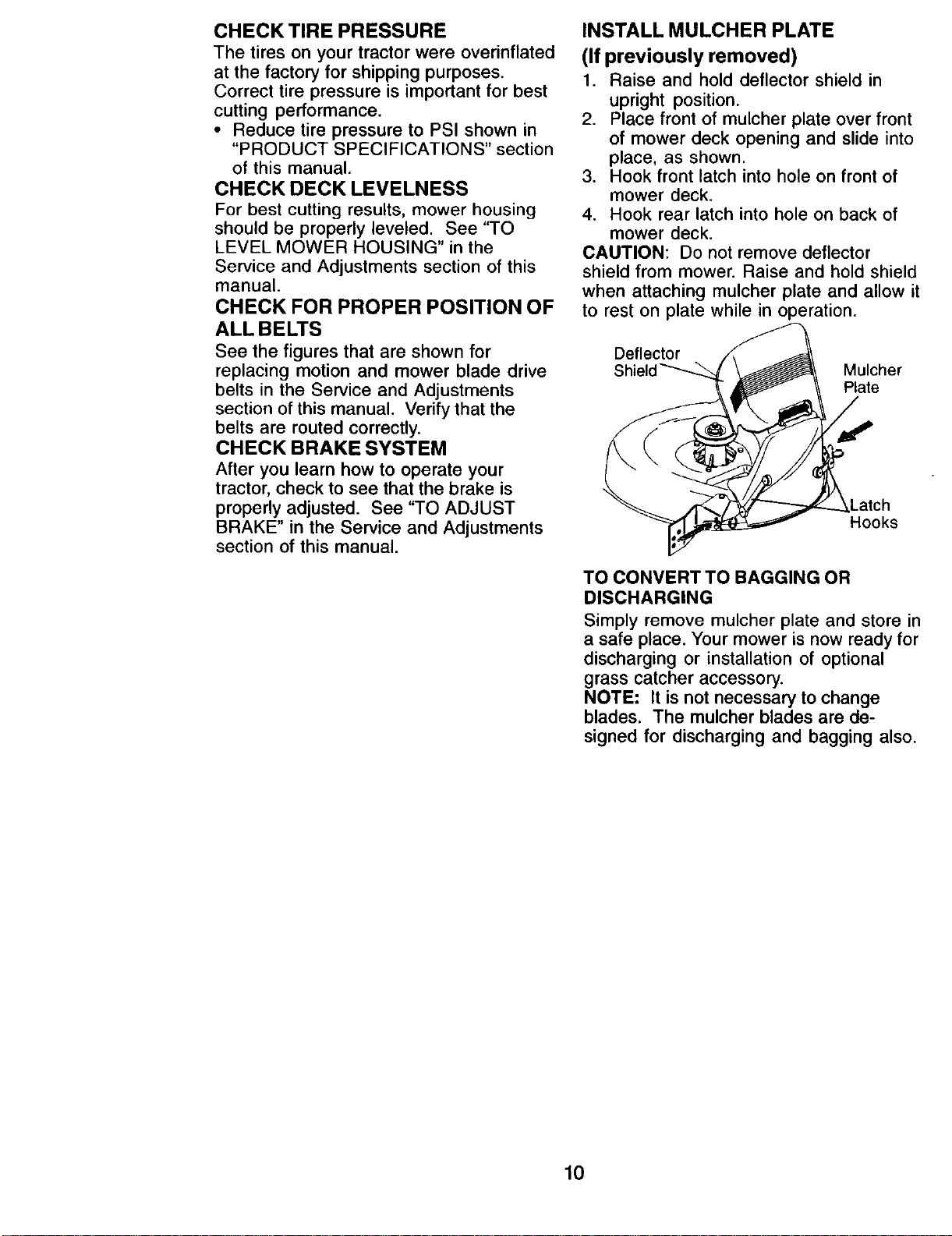

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

Deflector

Mulcher

Plate

.atch

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also.

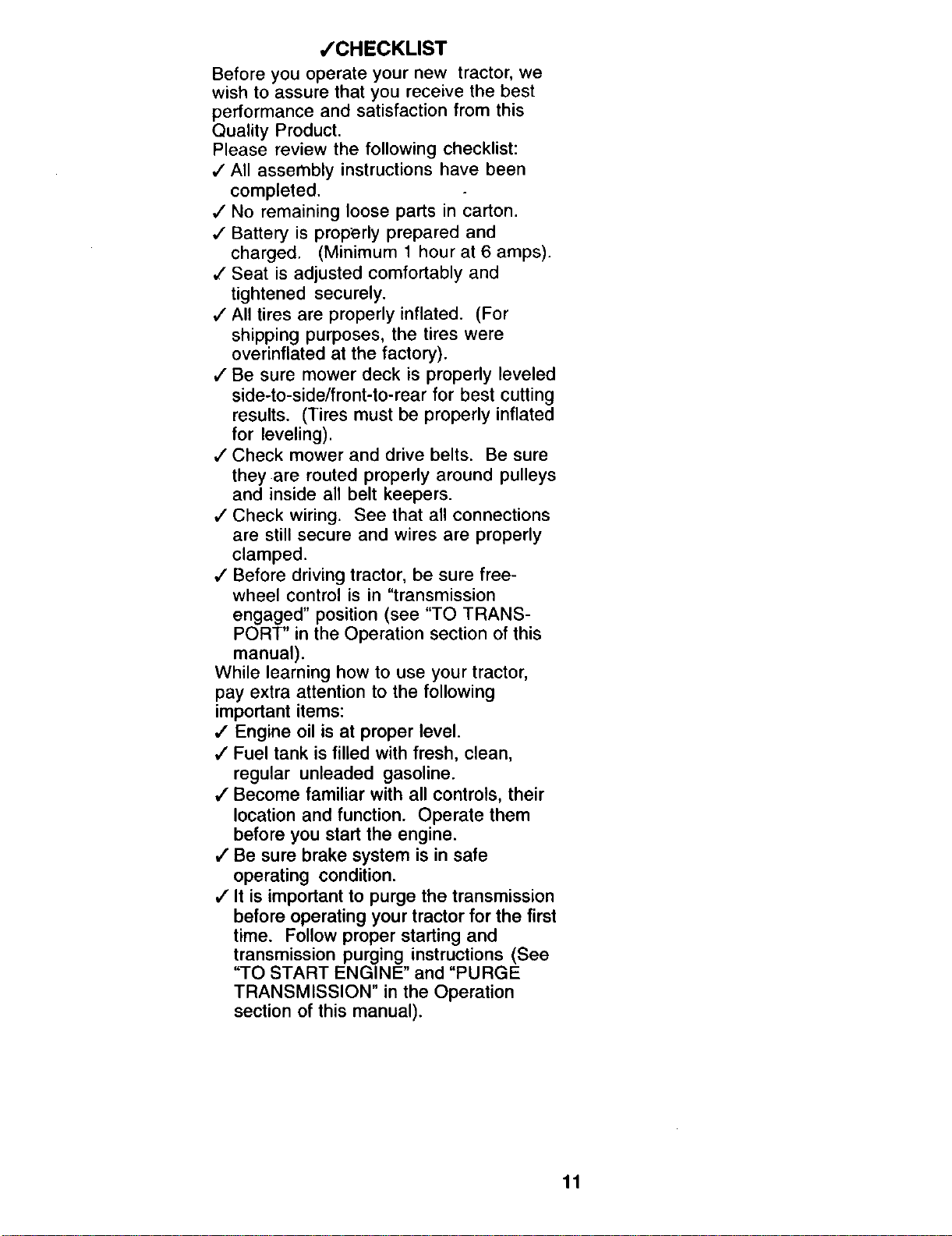

JCHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

J Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and

tightened securely.

,/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure free-

wheel control is in "transmission

engaged" position (see "TO TRANS-

PORT" in the Operation section of this

manual).

While learning how to use your tractor,

pay extra attention to the following

important items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/" Become familiar with all controls, their

location and function. Operate them

before you start the engine.

•,_Be sure brake system is in safe

operating condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation

section of this manual).

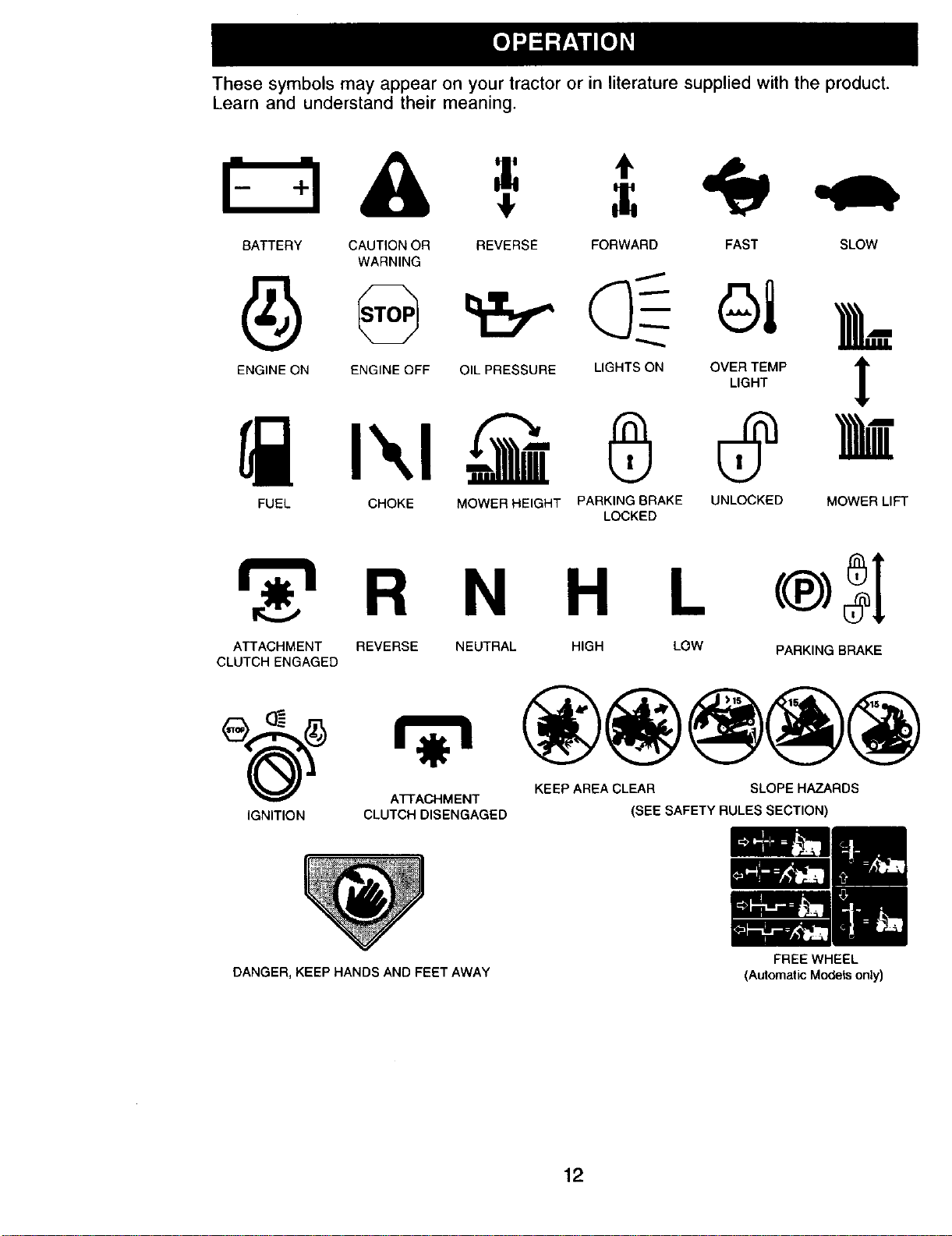

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

I- A ,=

BATTERY CAUTION OR

WARNING

REVERSE FORWARD FAST SLOW

ENGINE ON ENGINE OFF OIL PRESSURE

FUEL CHOKE MOWER HEIGHT

LIGHTS ON

PARKING BRAKE

LOCKED

OV_MP ]_

UNLOCKED MOWER LIFT

R N H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW

CLUTCH ENGAGED

PARKING BRAKE

KEEP AREA CLEAR SLOPE HAZARDS

ATTACHMENT

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

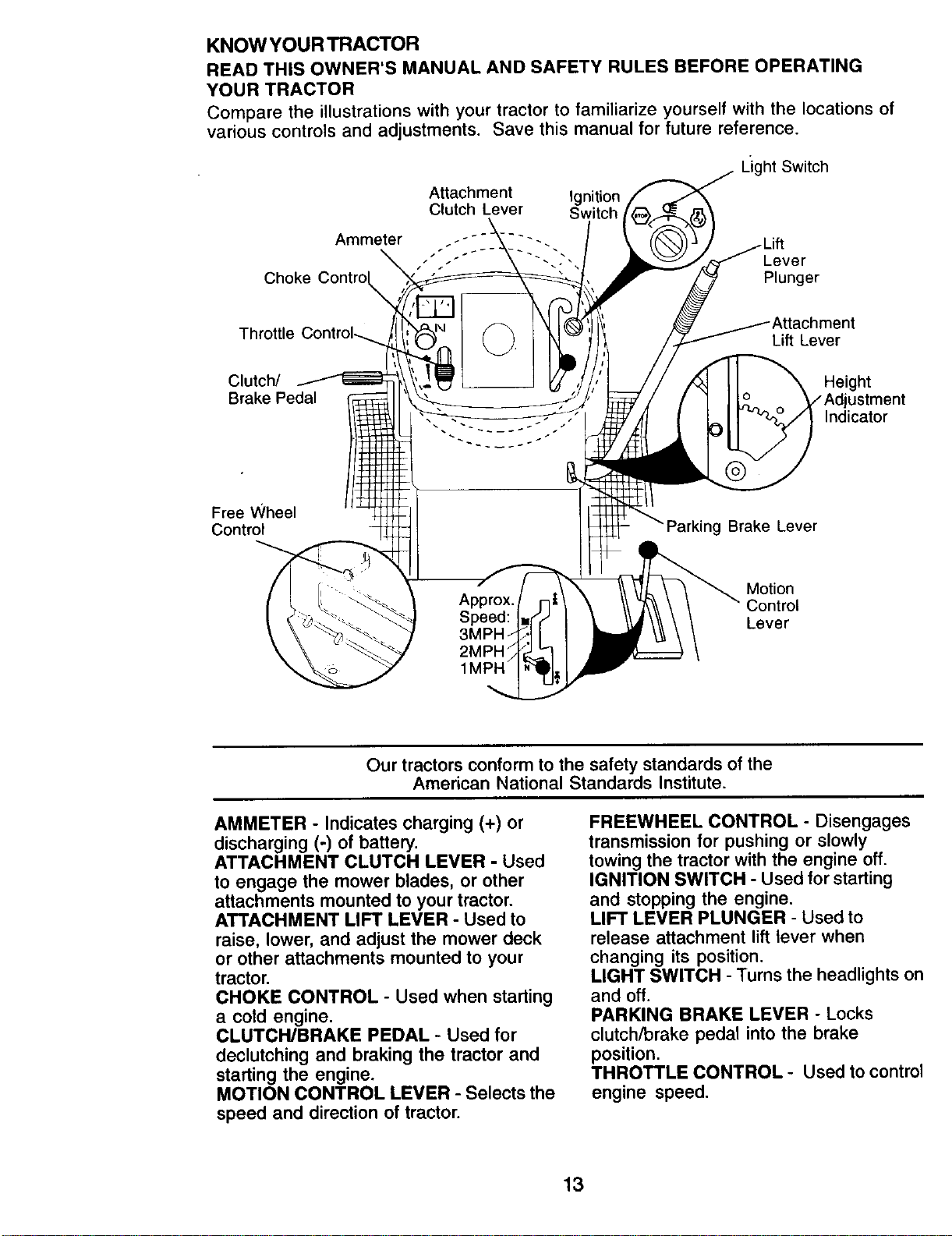

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Light Switch

Attachment Ignition

Clutch Lever Switch

Throttle

Lift Lever

Clutch/

Brake Pedal

Height

ustment

Indicator

Free Wheel

Control Brake Lever

Motion

Control

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CHOKE CONTROL - Used when starting

a cold engine.

CLUTCWBRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly

towing the tractor with the engine off.

IGNITION SWITCH - Used for starting

and stopping the engine.

LIFT LEVER PLUNGER - Used to

release attachment lift lever when

changing its position.

LIGHT SWITCH - Turns the headlights on

and off.

PARKING BRAKE LEVER - Locks

clutch/brake pedal into the brake

position.

THROTTLE CONTROL - Used to control

engine speed.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

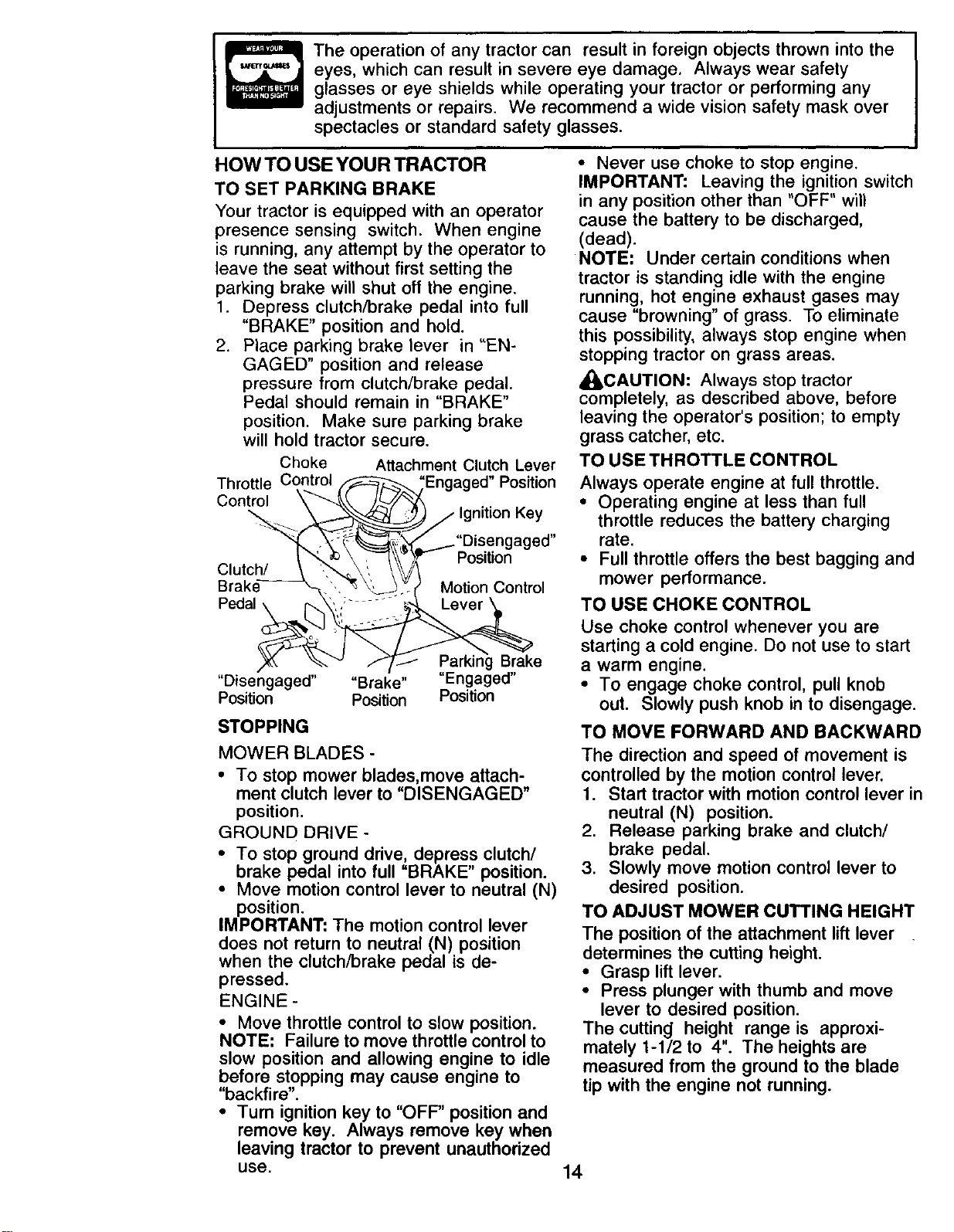

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal into full

"BRAKE" position and hold.

2. Place parking brake lever in "EN-

GAGED" position and release

pressure from clutch/brake pedal.

Pedal should remain in "BRAKE"

position. Make sure parking brake

will hold tractor secure.

Choke Attachment Clutch Lever

Throttle Control

Control_ _"'_\ )_L//'3

cutch,

Brake- \/'_ "_ 7_

Peda,_ *,_- --:_ o':

"Disengaged .... Brake"

Position Position

'Engaged" Position

j Ignition Key

..........."Disengaged"

Position

Motion Control

"Engaged"

Position

STOPPING

MOWER BLADES -

• To stop mower blades,move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "OFF' position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "OFF" wilt

cause the battery to be discharged,

(dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

• ILCAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob

out. Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake and clutch/

brake pedal.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running.

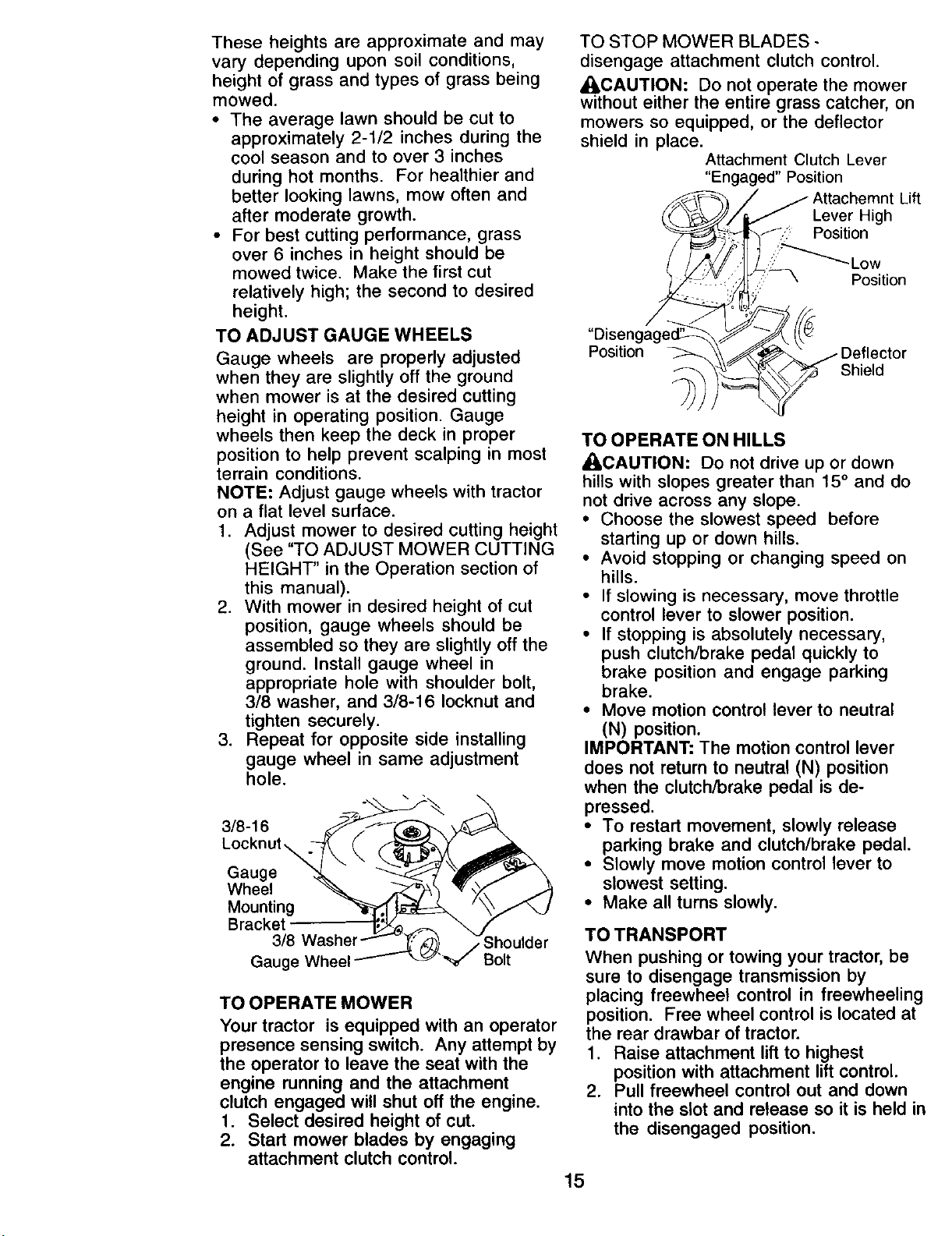

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in the Operation section of

this manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in

appropriate hole with shoulder bolt,

3/8 washer, and 3/8-16 Iocknut and

tighten securely.

3. Repeat for opposite side installing

gauge wheel in same adjustment

hole.

3/8-16

Locknut_

Gauge

Wheel

Mounting

3/8 ;houlder

Gauge Wheel Bolt

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment

clutch engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Clutch Lever

"Engaged" Position

Attachemnt Lift

Lever High

Position

LOW

Position

Shield

TO OPERATE ON HILLS

_CAUTION: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move motion control lever to neutral

(N) position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Free wheel control is located at

the rear drawbar of tractor.

1. Raise attachment lift to highest

position with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To reengage transmission, reverse

above procedure.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER

ATTACHMENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until =FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

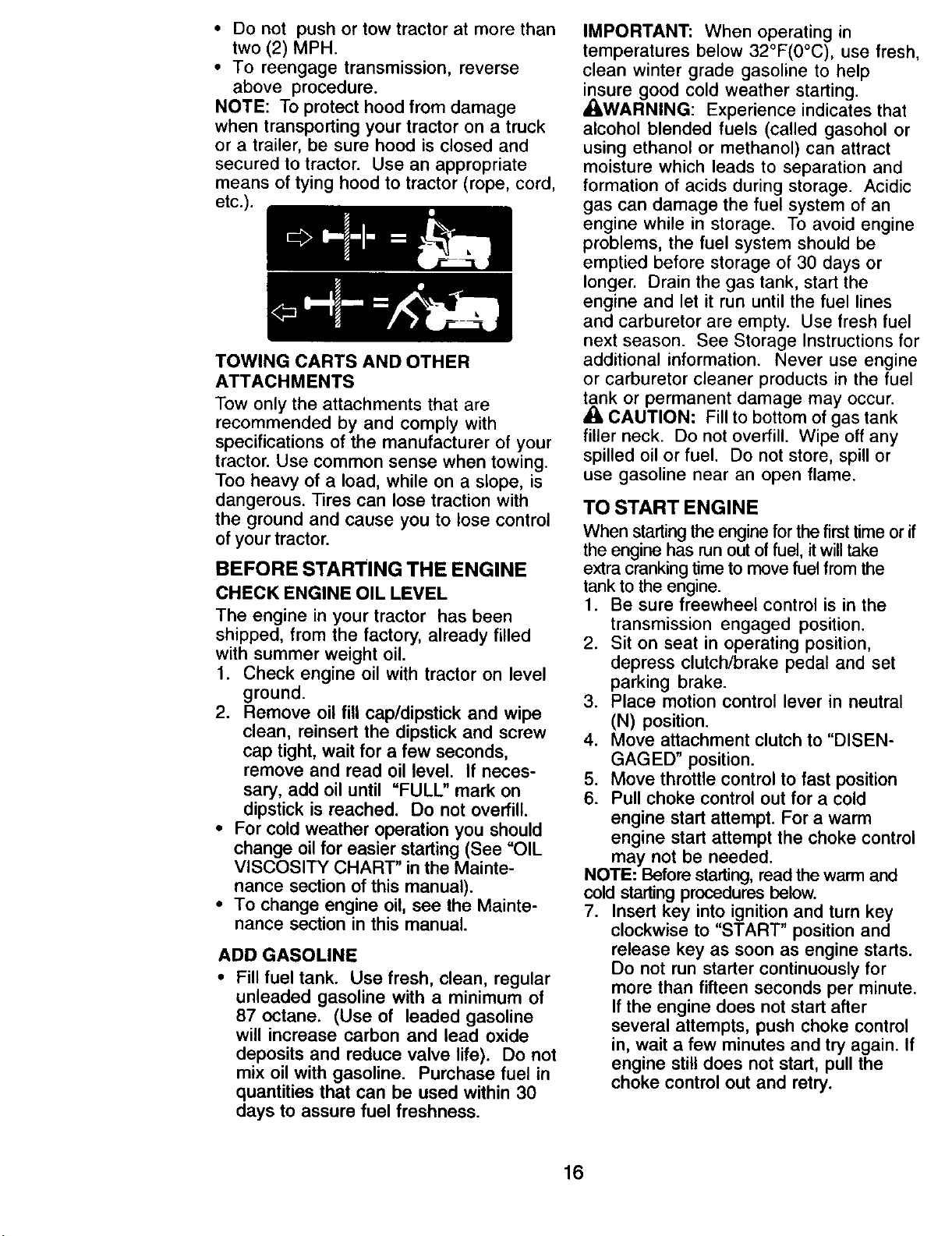

IMPORTANT: When operating in

temperatures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

_ILWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

Iong.er. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time or if

the engine has run out of fuel, it will take

extra cranking time to move fuel from the

tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to "DISEN-

GAGED" position.

5. Move throttle control to fast position

6. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before starting,read the warm and

cold startingprocedures below.

7. Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, push choke control

in, wait a few minutes and try again. If

engine still does not start, pull the

choke control out and retry.

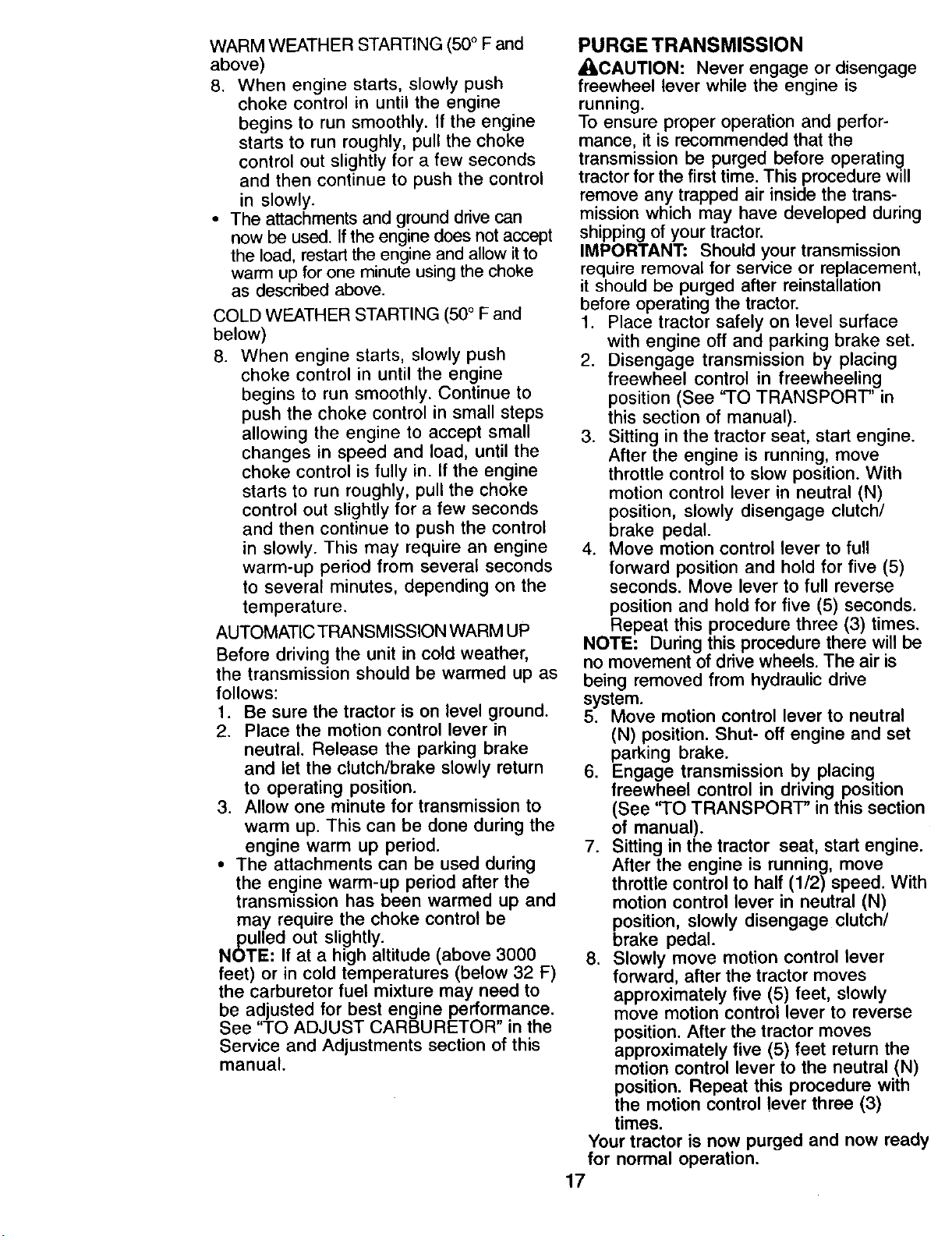

WARM WEATHER STARTING (50° Fand

above)

8. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

• The attachments and ground drive can

now be used. If the engine does not accept

the load, restart the engine and allow itto

warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50° F and

below)

8. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

• The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be

pulled out slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

PURGE TRANSMISSION

_CAUTION: Never engage or disengage

freewheel lever while the engine is

running.

To ensure proper operation and perfor-

mance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replacement,

it should be purged after reinstallation

before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in freewheeling

position (See 'frO TRANSPORT" in

this section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this procedure there will be

no movement of drive wheels. The air is

being removed from hydraulic drive

system.

5. Move motion control lever to neutral

(N) position. Shut- off engine and set

parking brake.

6. Engage transmission by placing

freewheel control in driving position

(See 'qO TRANSPORT" in this section

of manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

8. Slowly move motion control lever

forward, after the tractor moves

approximately five (5) feet, slowly

move motion control lever to reverse

position. After the tractor moves

approximately five (5) feet return the

motion control lever to the neutral (N)

position. Repeat this procedure with

the motion control lever three (3)

times.

Your tractor is now purged and now ready

for normal operation.

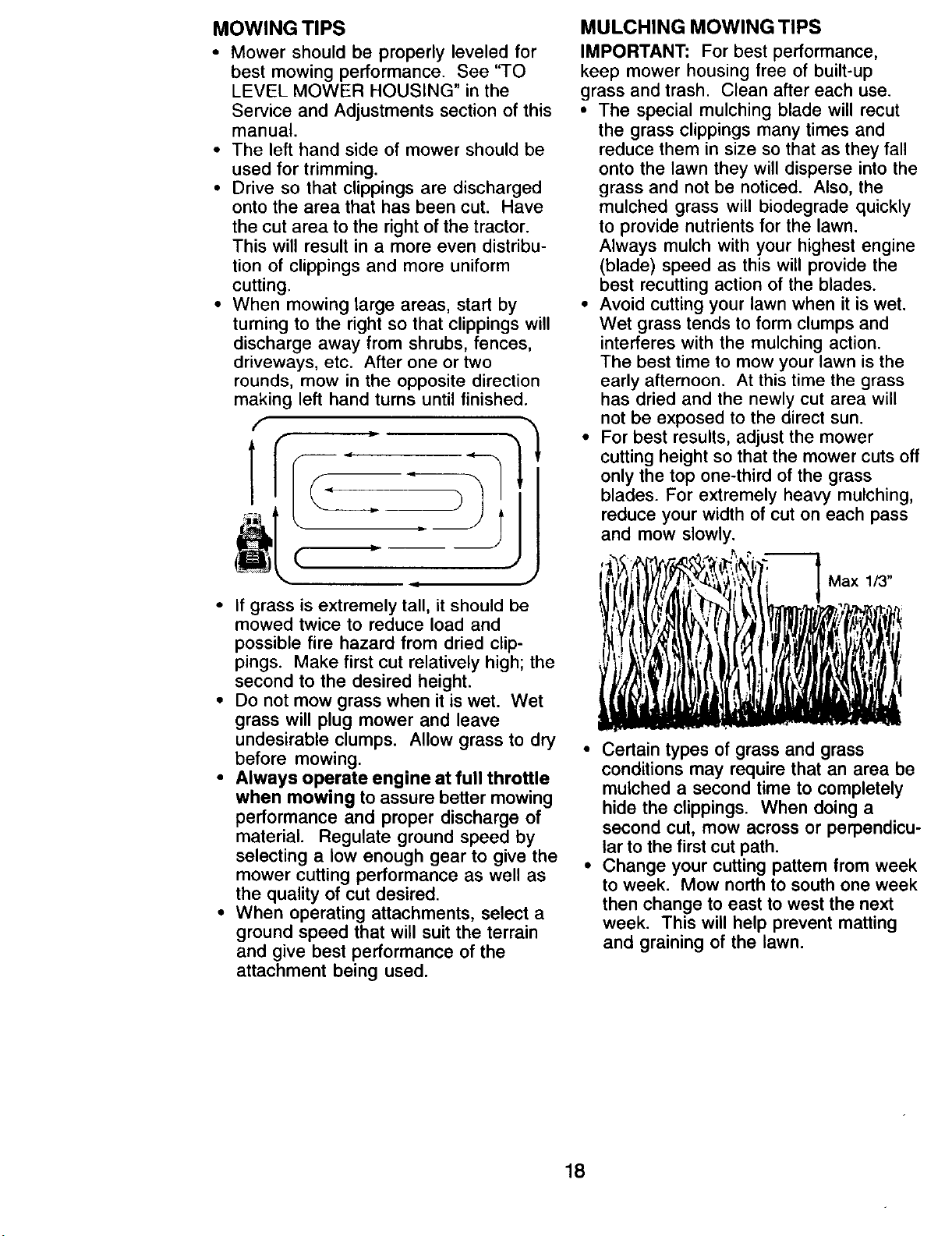

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the tractor.

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

Max 1/3"

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattem from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

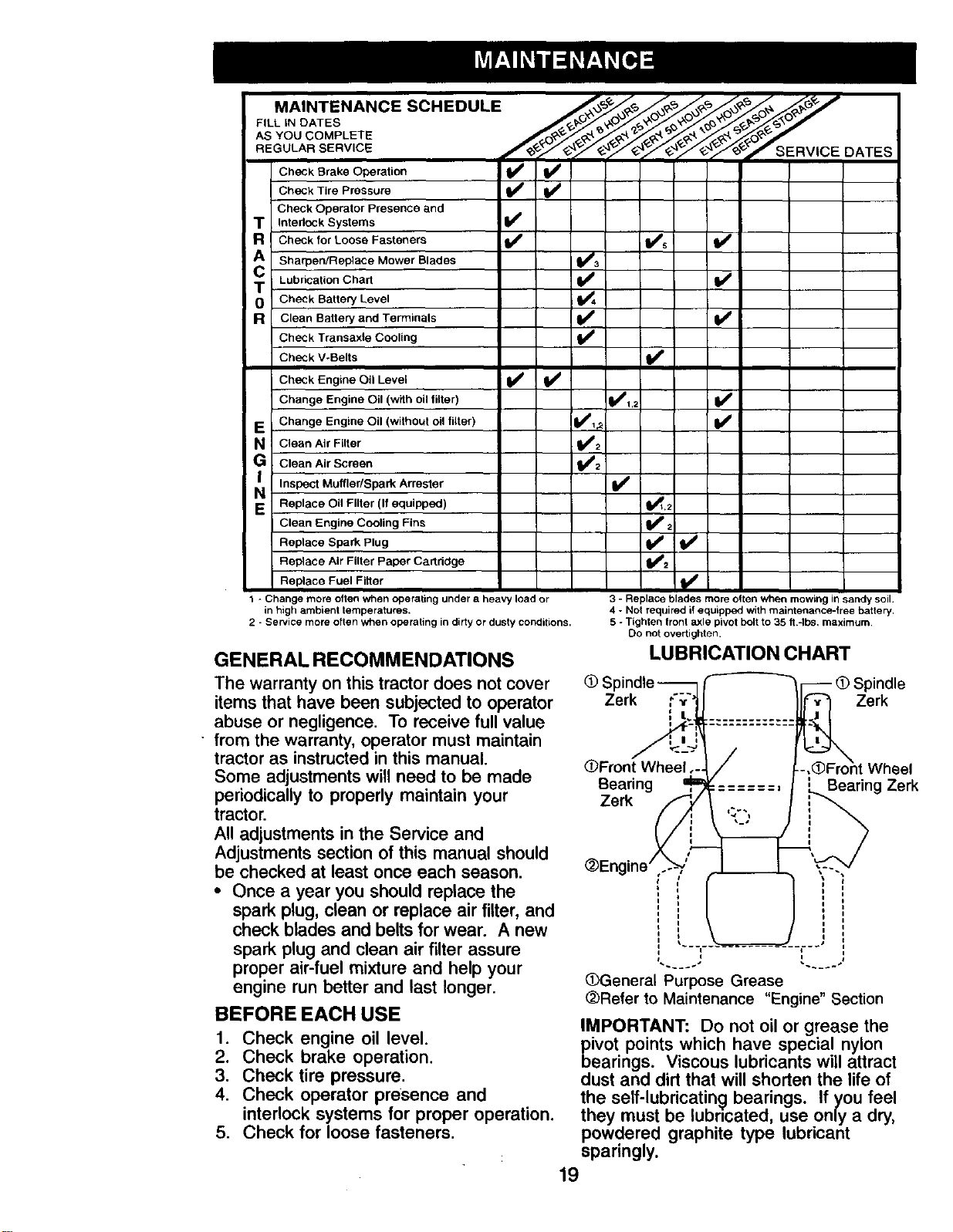

E,LLI.DATES

REGULAR SERVICE

DATES

Check Brake Operation _V'

Check Tire Pressure

Check Operator Presence and

T Interlock Systems

R Check for Loose Fasteners If V's

A Sharpen/Replace Mower Blades I_

CTo! Lubhcation Chart _4- _'

Check Battery Level

R I Clean Battery and Terminals V'

Check Transaxte Cooling I_#

Check V-Belts

Check Engine Oil Level I_ V'

Change Engine Oil (with oil filter) V'l,;

G Clean Air Screen

_! Inspect Muffler/Spark Arrester

Replace Oil Filter (If equipped) I_h2

Clean Engine Cooling Fins _ 2

Replace Spark Plug _ If

Reptace Air Filter Paper Cartddge _2

Replace Fuel Fitter

I - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

GENERALRECOMMENDATIONS

3 - Replace blades more olten when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery,

5 - Tighten front axle pivot bolt to 35 It.-Ibs, maximum.

Do not overtighten.

LUBRICATION CHART

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

• from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

IMPORTANT: Do not oil or grease the

_ivot points which have special nylon

earings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If )/ou feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

sparingly.

(Dsr

Zerk Zerk

(_Front Wheel _el

Bzeearrking i\_.. i,g Zerk

(_Engine_

i ,

OGeneral Purpose Grease

_)Refer to Maintenance "Engine" Section

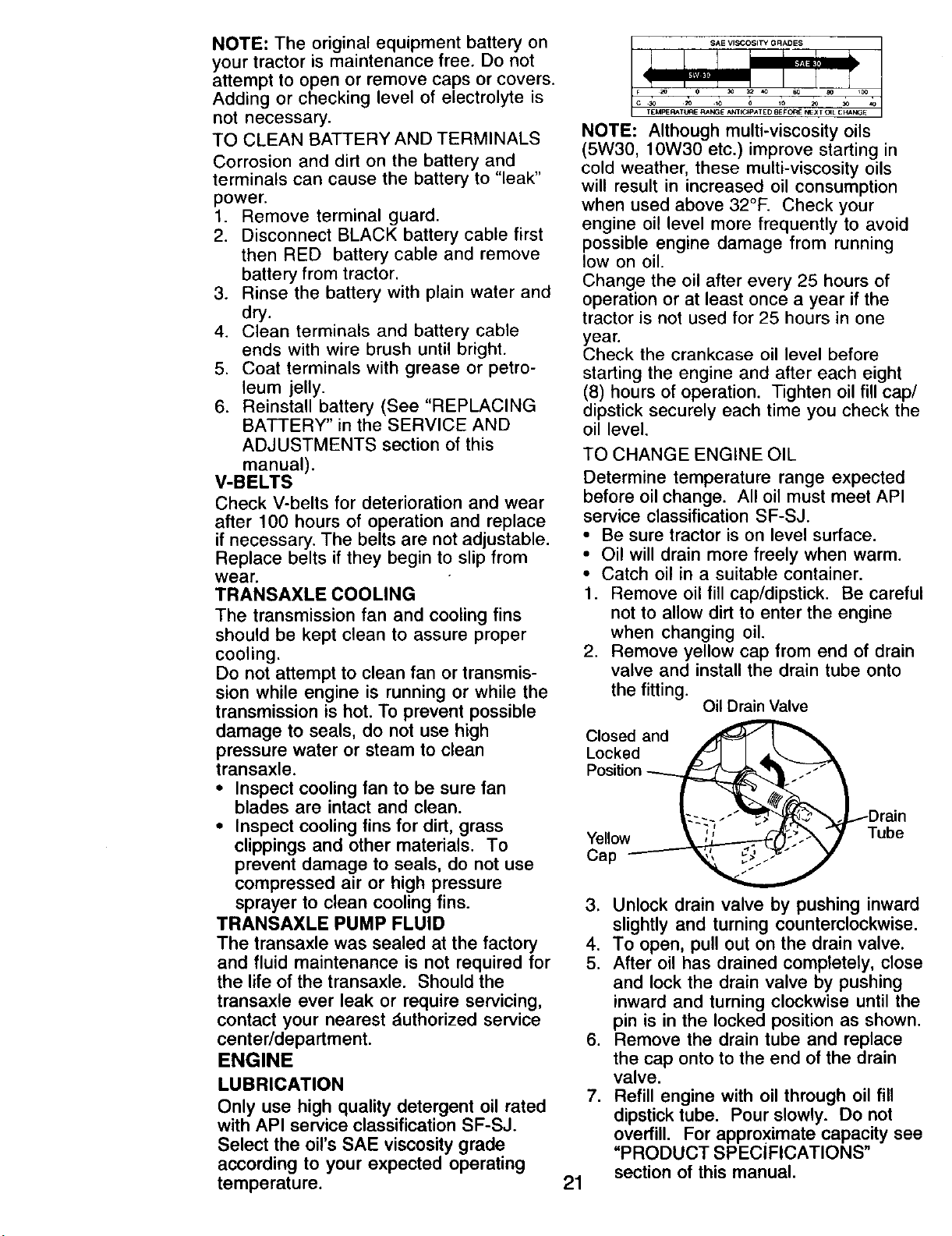

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high

pressure water or steam to clean

transaxle.

• Inspect cooling fan to be sure fan

blades are intact and clean.

• Inspect cooling fins for dirt, grass

clippings and other materials. To

prevent damage to seals, do not use

compressed air or high pressure

sprayer to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact your nearest duthorized service

center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°F. Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

tractor is not used for 25 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Oil Drain Valve

Closed and _

Locked _'J L _'_---_._

Position_ /Drain

Yellow _y-_ Tube

Cap _

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto to the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

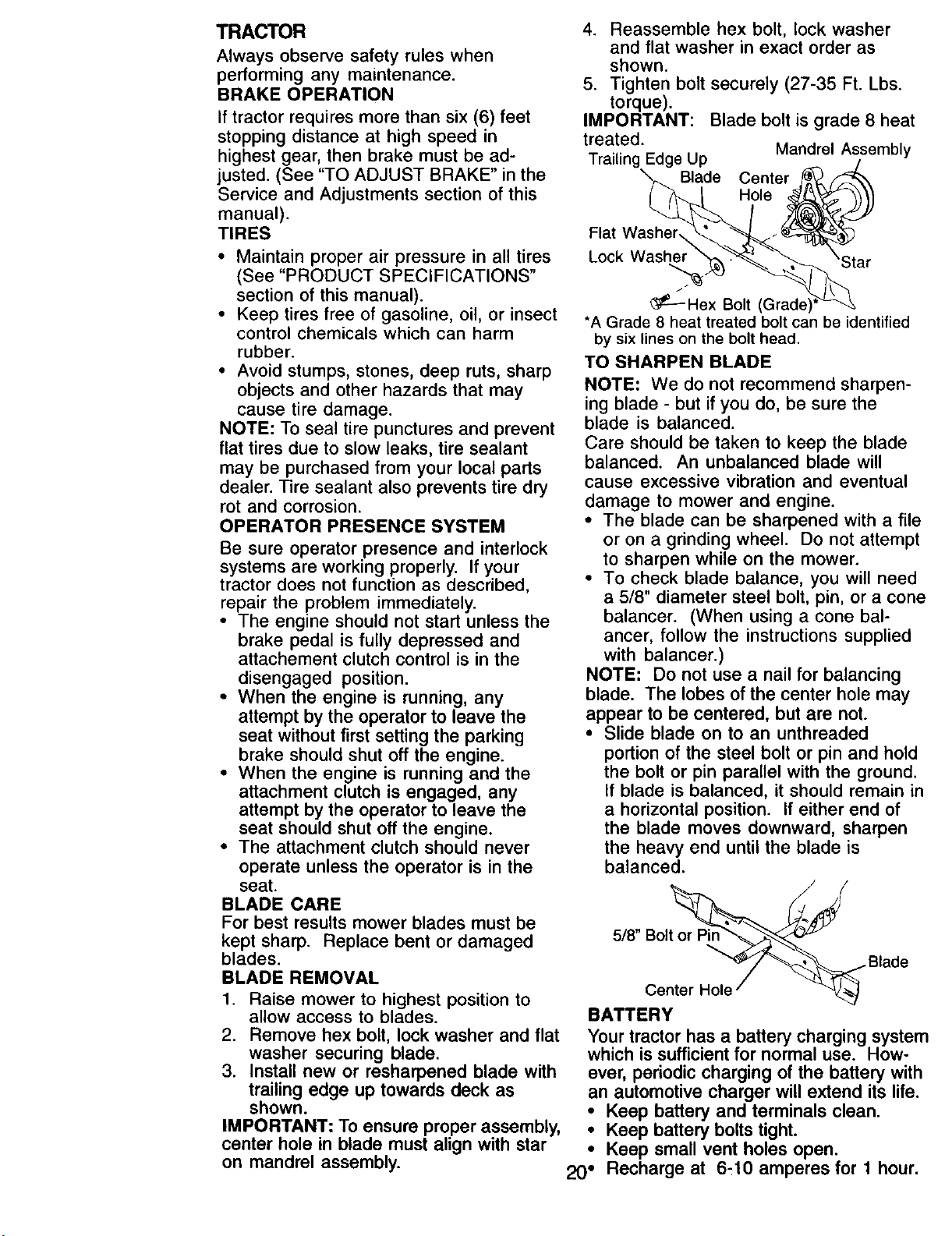

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and flat

washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble hex bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Mandrel Assembly

Trailinq Edge Up

Blade Center

Hole

Flat Washer\

Lock Washer

_f--- Hex Bolt,

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life,

• Keep battery and terminals clean,

• Keep battery bolts tight.

• Keep small vent holes open.

20° Recharge at 6_10 amperes for 1 hour.

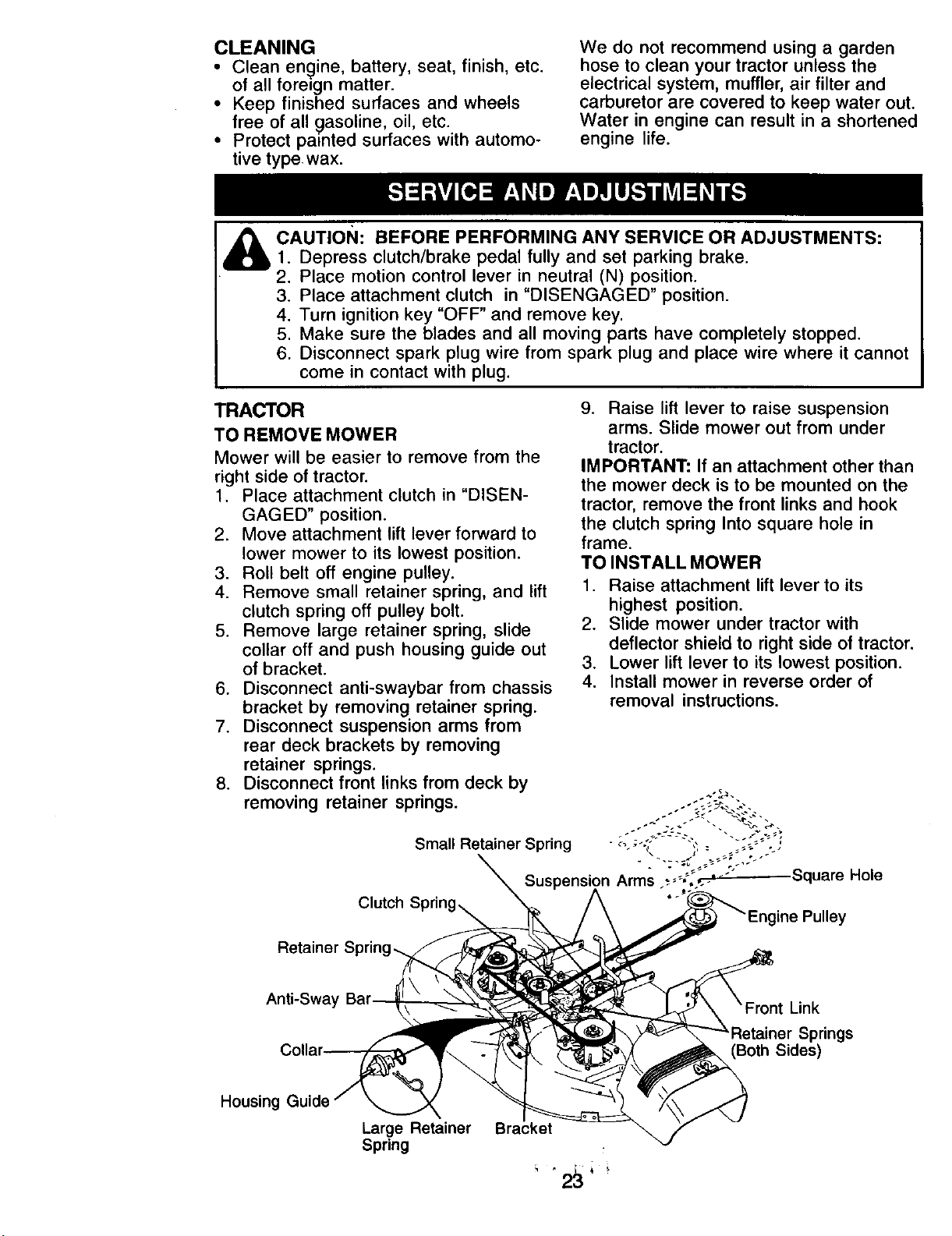

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels

free of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type. wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

I_ BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

CAUTION:

1. Depress clutch/brake pedal fully and set parking brake.

-- 2. Place motion control lever in neutral (N) position.

3, Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key "OFF" and remove key,

5, Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1, Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-swaybar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in

frame.

TO INSTALL MOWER

1, Raise attachment lift lever to its

highest position.

2. Slide mower under tractor with

deflector shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Install mower in reverse order of

removal instructions,

Square Hole

Clutch Spdn!

ine Pulley

Anti-Sway

Link

(Both Sides)

Housing

Large Retainer

Spring

Bracket

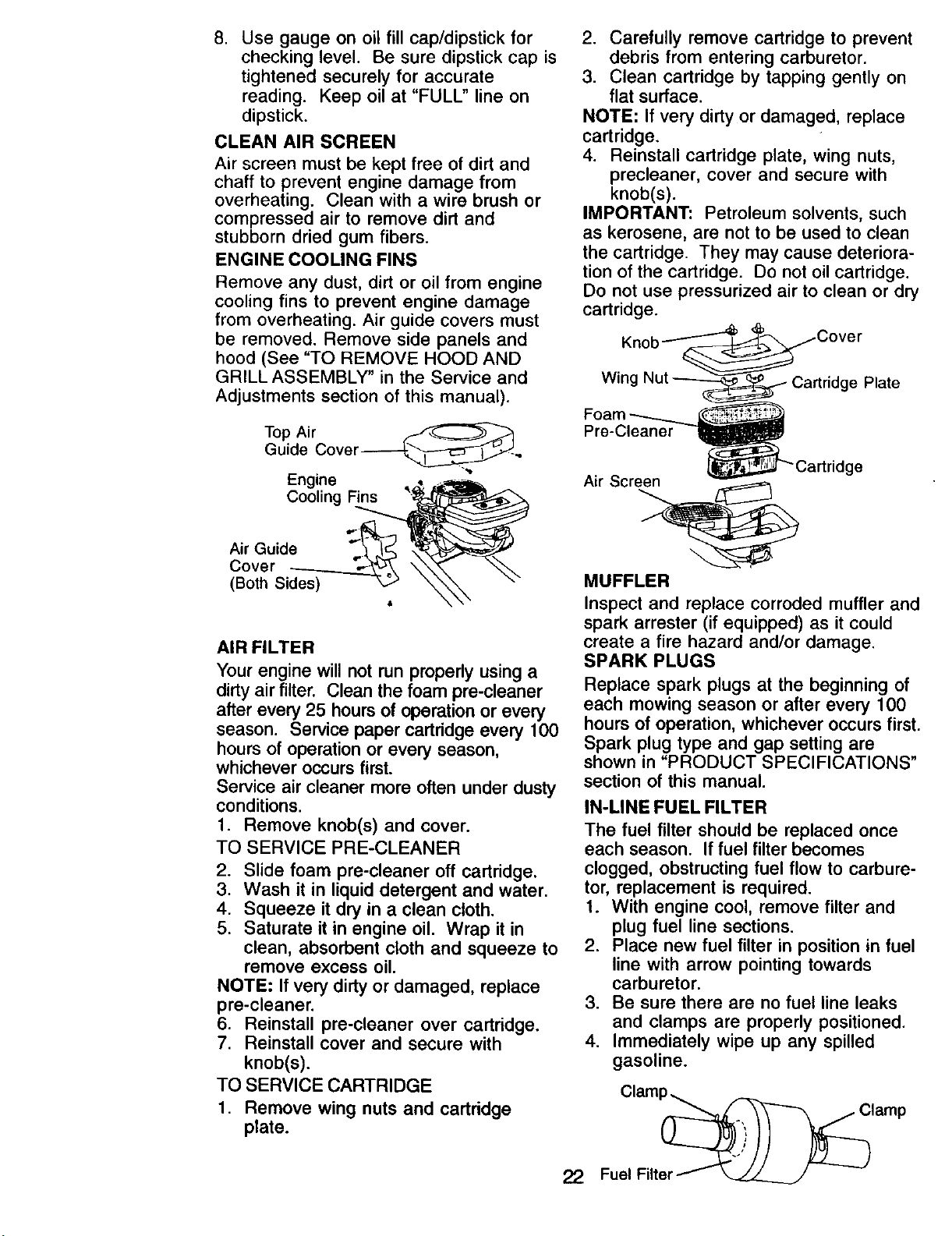

8. Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate

reading. Keep oil at "FULL" line on

dipstick.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating. Air guide covers must

be removed. Remove side panels and

hood (See "TO REMOVE HOOD AND

GRILL ASSEMBLY" in the Service and

Adjustments section of this manual).

Top Air

Guide Cover _..

Engine

Cooling Fins

Air Guide

Cover

(Both Sides)

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every 100

hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

6. Reinstall pre-cleaner over cartridge.

7. Reinstall cover and secure with

knob(s).

TO SERVICE CARTRIDGE

1. Remove wing nuts and cartridge

plate.

2. Carefully remove cartridge to prevent

debris from entering carburetor.

3. Clean cartridge by tapping gently on

flat surface.

NOTE: If very dirty or damaged, replace

cartridge.

4. Reinstall cartridge plate, wing nuts,

precleaner, cover and secure with

knob(s).

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

Wi _ _but_c a_Cr:i_r plate

Foam _ _

Pre-Cleaner _

[_1_ Cartridge

Air Screen '"----

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

Clamp ,._

lamp

22 Fuel Filter _ _

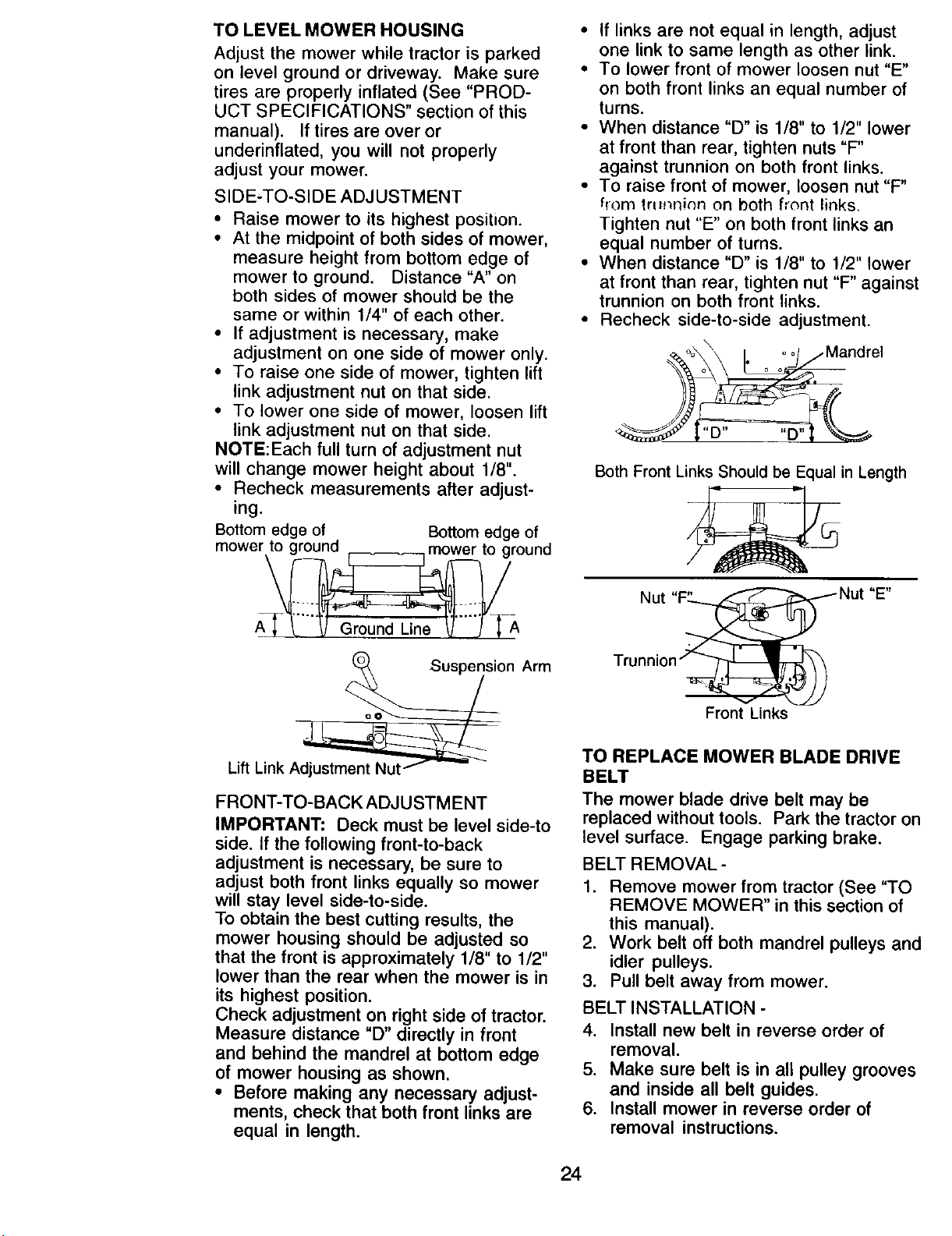

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE:Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjust-

ing.

Bottom edge of Bottom edge of

mower to ground

round

A_'-"_ Ground Line _.""J-_

FRONT-TO-BACK ADJUSTM ENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back

adjustment is necessary, be sure to

adjust both front links equally so mower

will stay level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front

and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from lrL_ni_}n on both front links.

Tighten nut "E" on both front links an

equal number of turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Both Front Links Should be Equal in Length

Nut

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL-

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

this manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

4. Install new belt in reverse order of

removal.

5. Make sure belt is in all pulley grooves

and inside all belt guides.

6. Install mower in reverse order of

removal instructions.

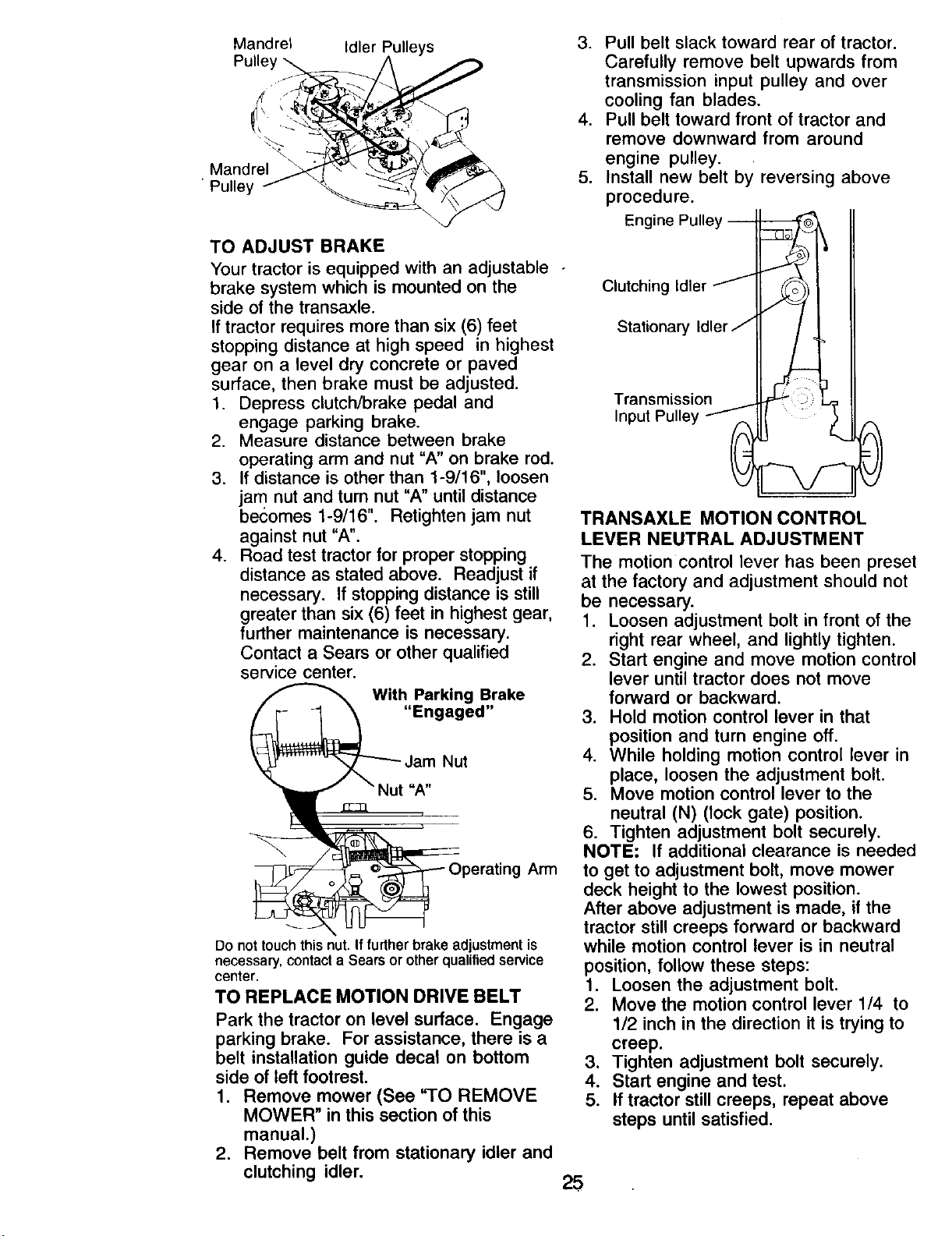

Mandrel Idler Pulleys

Pulley

Mandrel

• Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear on a level dry concrete or paved

surface, then brake must be adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut "A" on brake rod.

3. If distance is other than 1-9/16", loosen

jam nut and turn nut "A" until distance

becomes 1-9/16". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest gear,

further maintenance is necessary.

Contact a Sears or other qualified

service center.

With Parking Brake

"Engaged"

Operating Arm

Do not touch this nut.If further brake adjustment is

necessary, contact a Sears or other qualified service

center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of this

manual.)

2. Remove belt from stationary idler and

clutching idler.

Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

Pull belt toward front of tractor and

remove downward from around

engine pulley.

Install new belt by reversing above

procedure.

Engine Pulley --

Stationary Idler / /_L

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion control

lever until tractor does not move

forward or backward.

3. Hold motion control lever in that

position and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the

neutral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

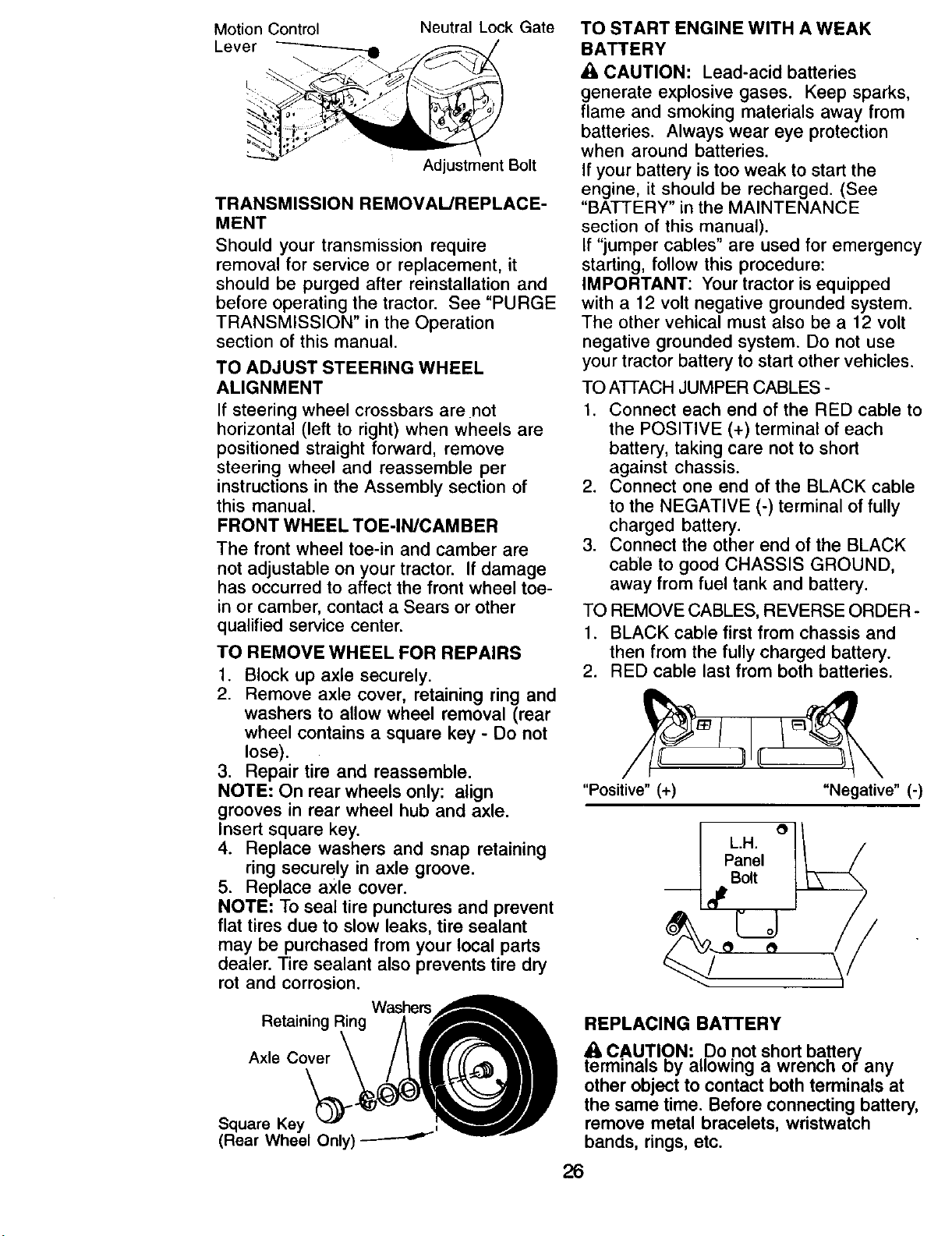

Motion Control

Lever

Neutral Lock Gate

Adjustment Bolt

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See "PURGE

TRANSMISSION" in the Operation

section of this manual.

TO ADJUST STEERING WHEEL

ALIGNMENT

TO START ENGINE WITH A WEAK

BATTERY

_, CAUTION: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BATTERY" in the MAINTENANCE

section of this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt negative grounded system.

The other vehical must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of

this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact a Sears or other

qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retaining I " --

Axle Cover

Square Kay_n__)

(Rear Wheel Only) ------_'

1. Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short

against chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

3. Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

"Positive" (+) "Negative" (-)

L.H. @

Panel __ /

___],Bo,

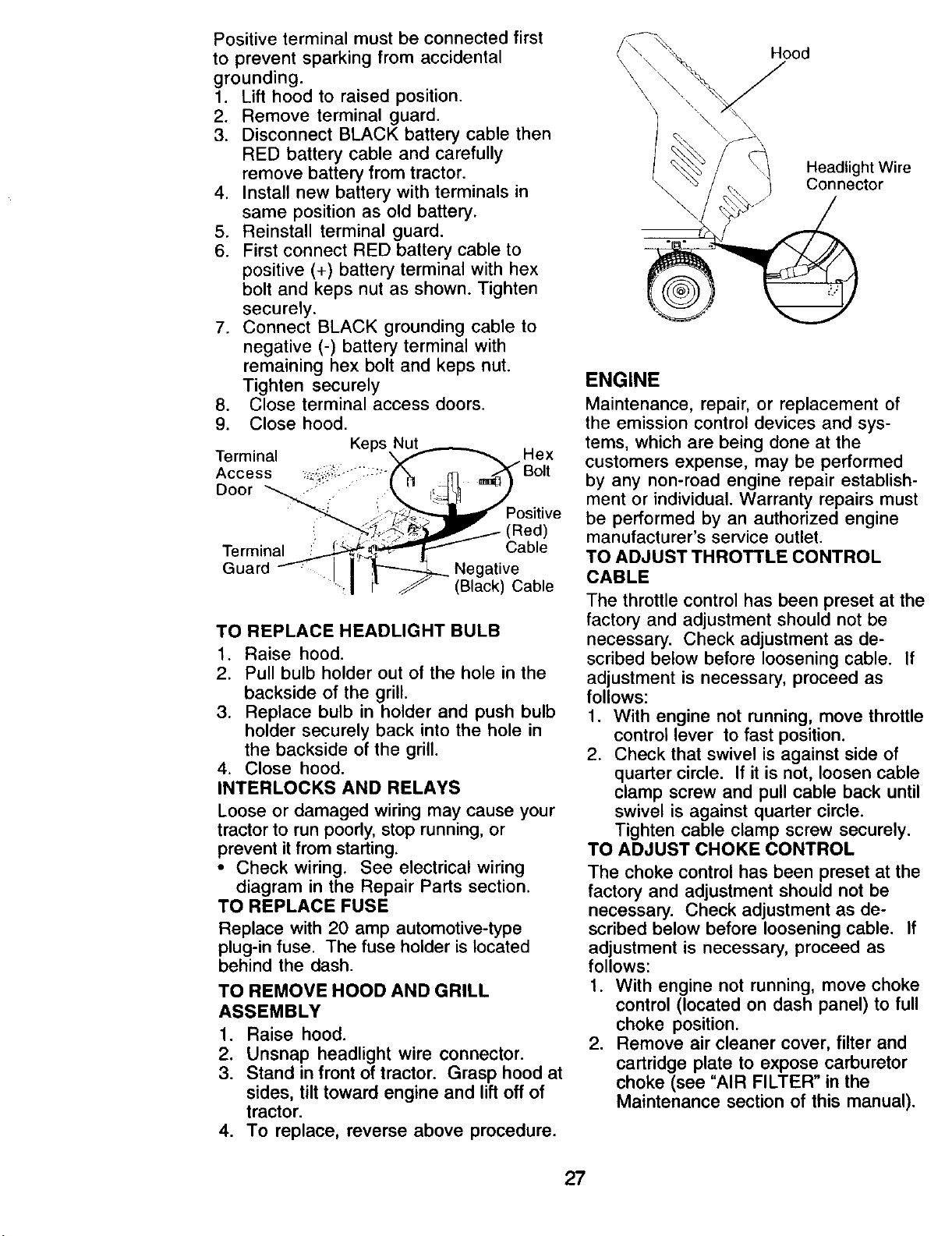

REPLACING BATTERY

A CAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

Keps Nut

Terminal _-'"-'-'_,_ Hex

Access ;'_'_i_: :;:::_-("_ .Jn ,=wJ'_Bolt

Ooor

Af/__ Positive

"_"_ J,,__ _J_;_._...._ (Red)

Termina__.'__ ,...'Cable

Guard ' I I '_"-"-"_ Negative

,1 F' _ (Black) Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. To replace, reverse above procedure.

Hood

ENGINE

Maintenance, repair, or replacement of

the emission control devices and sys-

tems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual. Warranty repairs must

be performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against side of

quarter circle. If it is not, loosen cable

clamp screw and pull cable back until

swivel is against quarter circle.

Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (see "AIR FILTER" in the

Maintenance section of this manual).

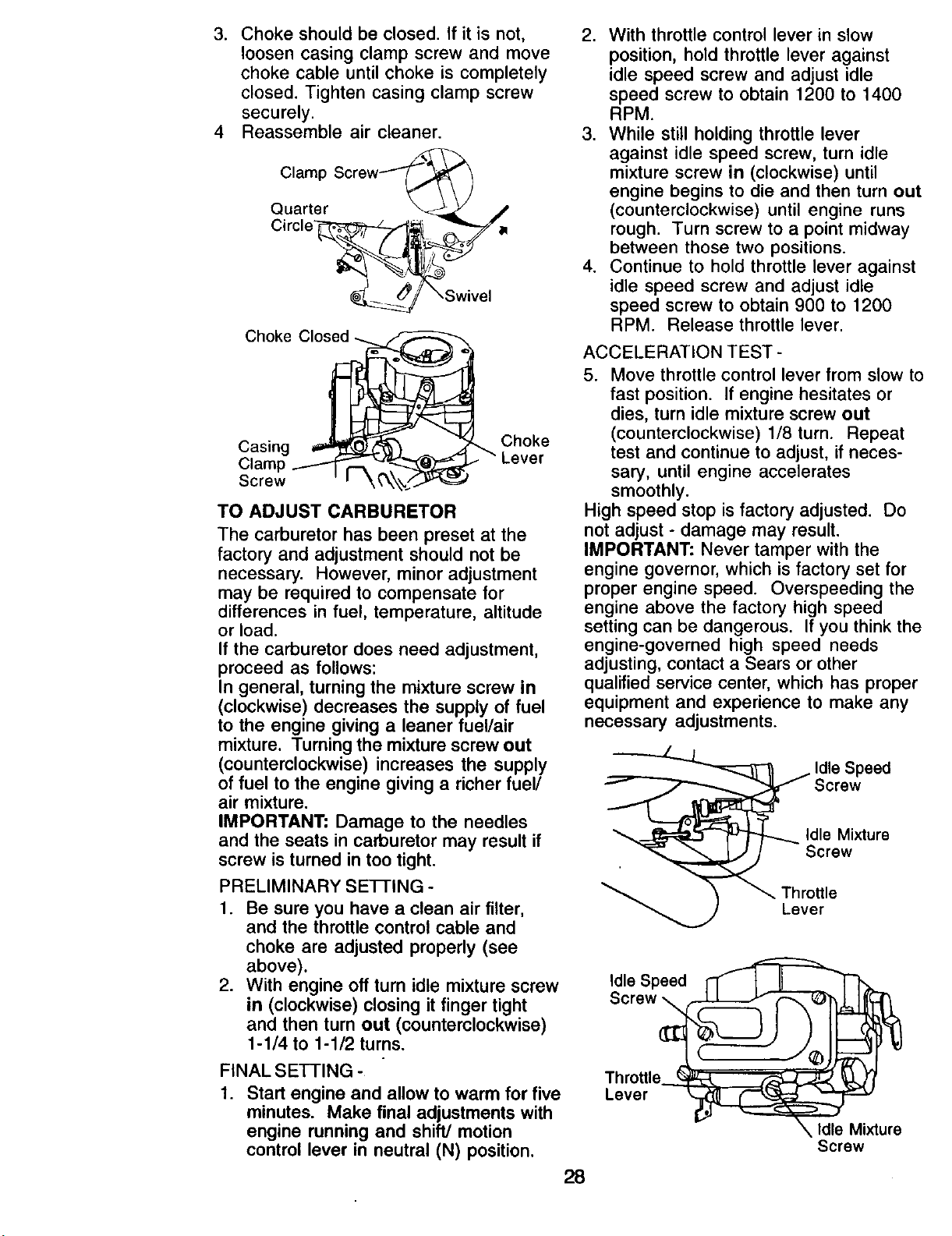

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4 Reassemble air cleaner.

Clamp Screw_

',Swivel

Choke Closed

Casing

Clamp

Screw

Choke

TO ADJUST CARBURETOR

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or load.

If the carburetor does need adjustment,

proceed as follows:

In general, turning the mixture screw in

(clockwise) decreases the supply of fuel

to the engine giving a leaner fuel/air

mixture. Turning the mixture screw out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/

air mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SE-I-FING -

1. Be sure you have a clean air filter,

and the throttle control cable and

choke are adjusted properly (see

above).

2. With engine off turn idle mixture screw

in (clockwise) closing it finger tight

and then turn out (counterclockwise)

1-1/4 to 1-1/2 turns.

FINAL SETTING -

Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position,

2. With throttle control lever in slow

position, hold throttle lever against

idle speed screw and adjust idle

speed screw to obtain 1200 to 1400

RPM.

3. While still holding throttle lever

against idle speed screw, turn idle

mixture screw in (clockwise) until

engine begins to die and then turn out

(counterclockwise) until engine runs

rough. Turn screw to a point midway

between those two positions.

4. Continue to hold throttle lever against

idle speed screw and adjust idle

speed screw to obtain 900 to 1200

RPM. Release throttle lever.

ACCELERATION TEST -

5. Move throttle control lever from slow to

fast position. If engine hesitates or

dies, turn idle mixture screw out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Speed

Screw

Idle Mixture

Screw

Throttle

Lever

Screw_

Throttle _ _ -f'f'f'f'f'f'f'f__

Lever

Idle Mixture

Screw

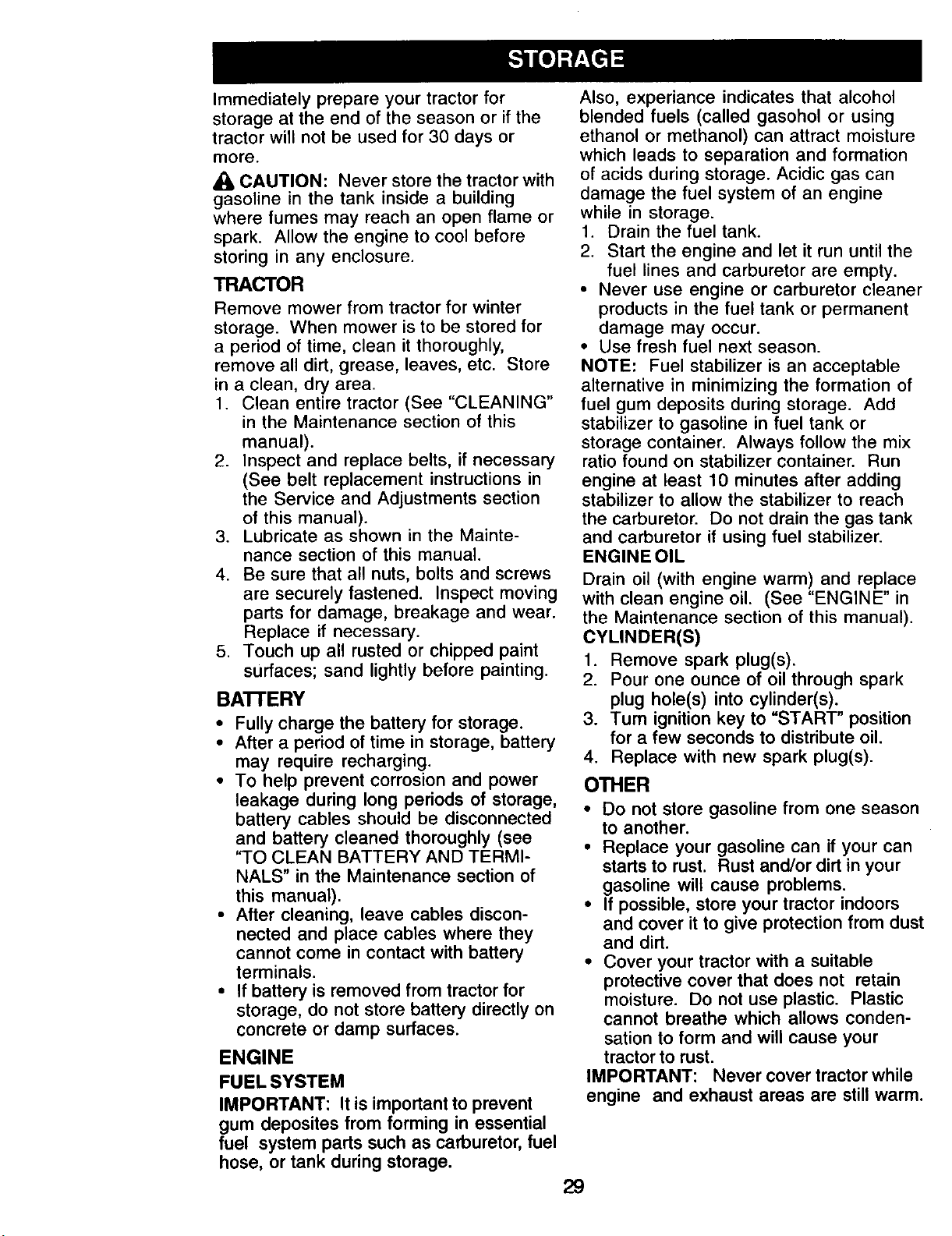

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

_A_OR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATFERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

'3-0 CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposites from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, experiance indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to =START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline wilt cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

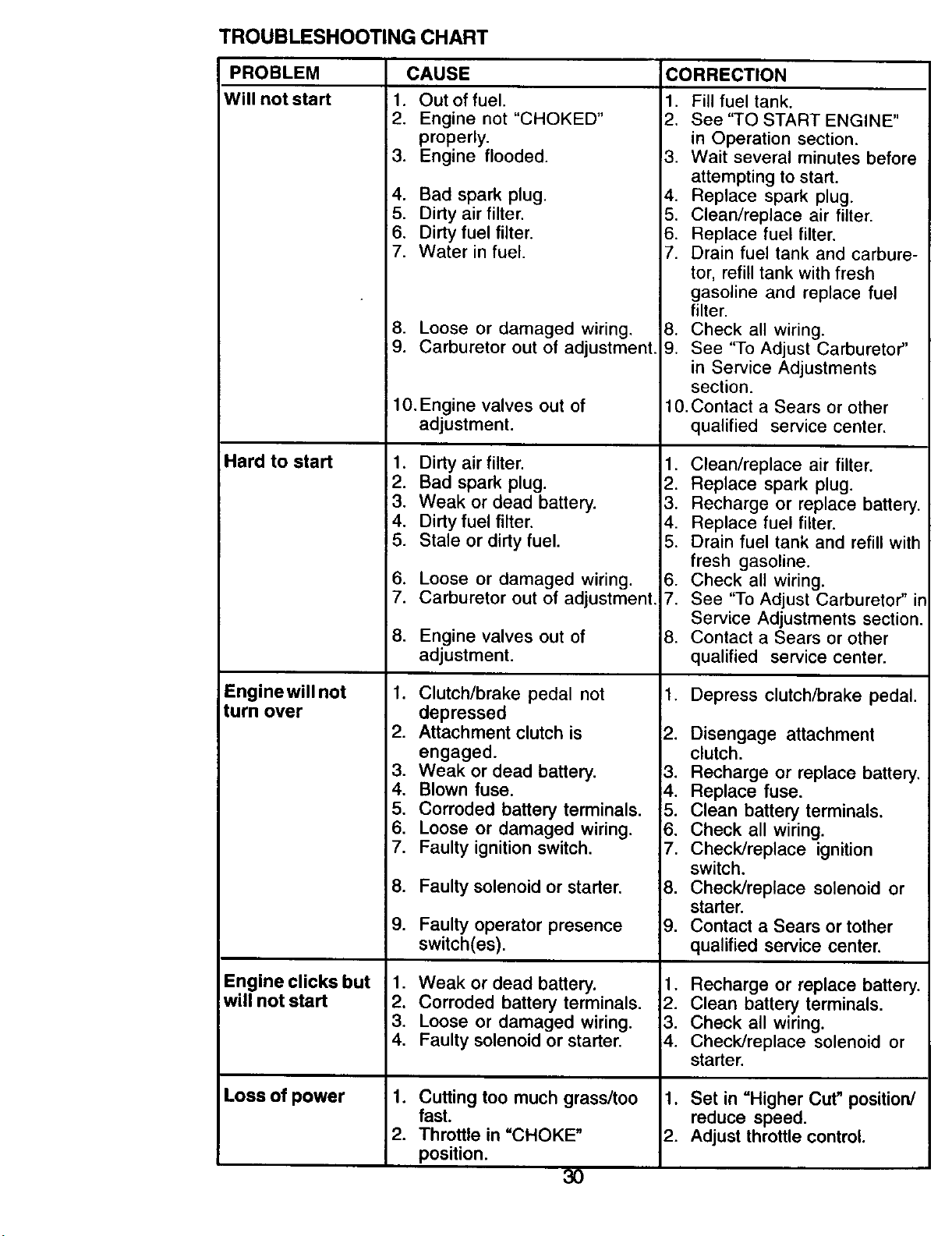

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Willnotstart

Hard to start

Engine will not

turn over

Engine clicks but

will not start

Loss of power

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug,

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast,

2. Throttle in =CHOKE"

position.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carbure-

tor. refill tank with fresh

gasoline and replace fuel

filter.

8. Check all wiring.

9, See "To Adjust Carburetor"

in Service Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with

fresh gasoline,

6. Check all wiring.

7. See "To Adjust Carburetor" in

Service Adjustments section.

8. Contact a Sears or other

qualified service center.

1, Depress clutch/brake pedal.

2. Disengage attachment

clutch.

3. Recharge or replace battery,

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch,

8. Check/replace solenoid or

starter.

9, Contact a Sears or tother

qualified service center,

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

1. Set in =Higher Cut" position/

reduce speed.

2. Adjust throttle control.

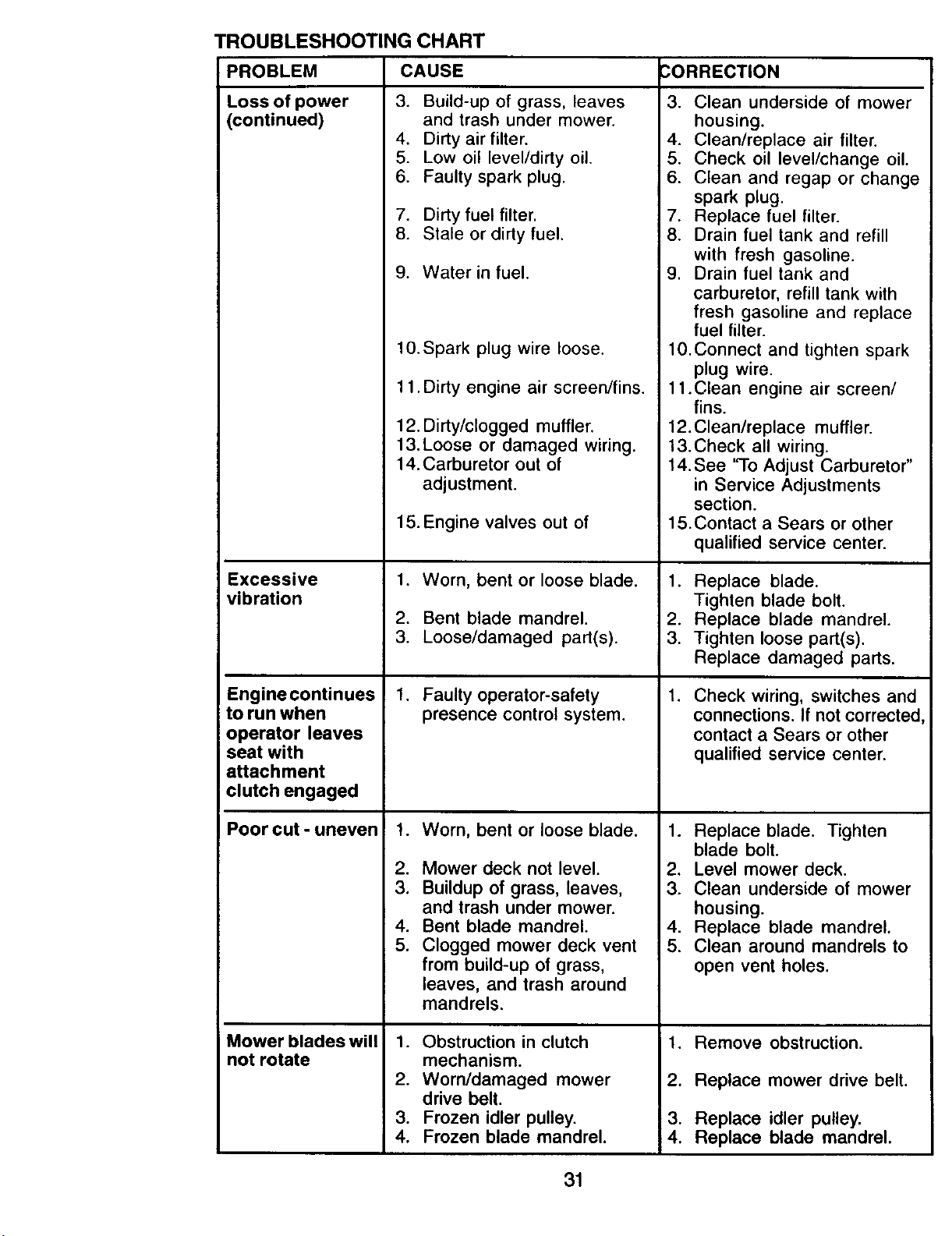

TROUBLESHOOTING CHART

CAUSE .'ORRECTION

PROBLEM

Loss of power

(continued)

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poorcut-uneven

Mower blades will

not rotate

Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10.Spark plug wire loose.

11.Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Loose or damaged wiring.

14.Carburetor out of

adjustment.

15. Engine valves out of

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/

fins.

12. Clean/replace muffler.

13. Check all wiring.

14.See "To Adjust Carburetor"

in Service Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected,

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

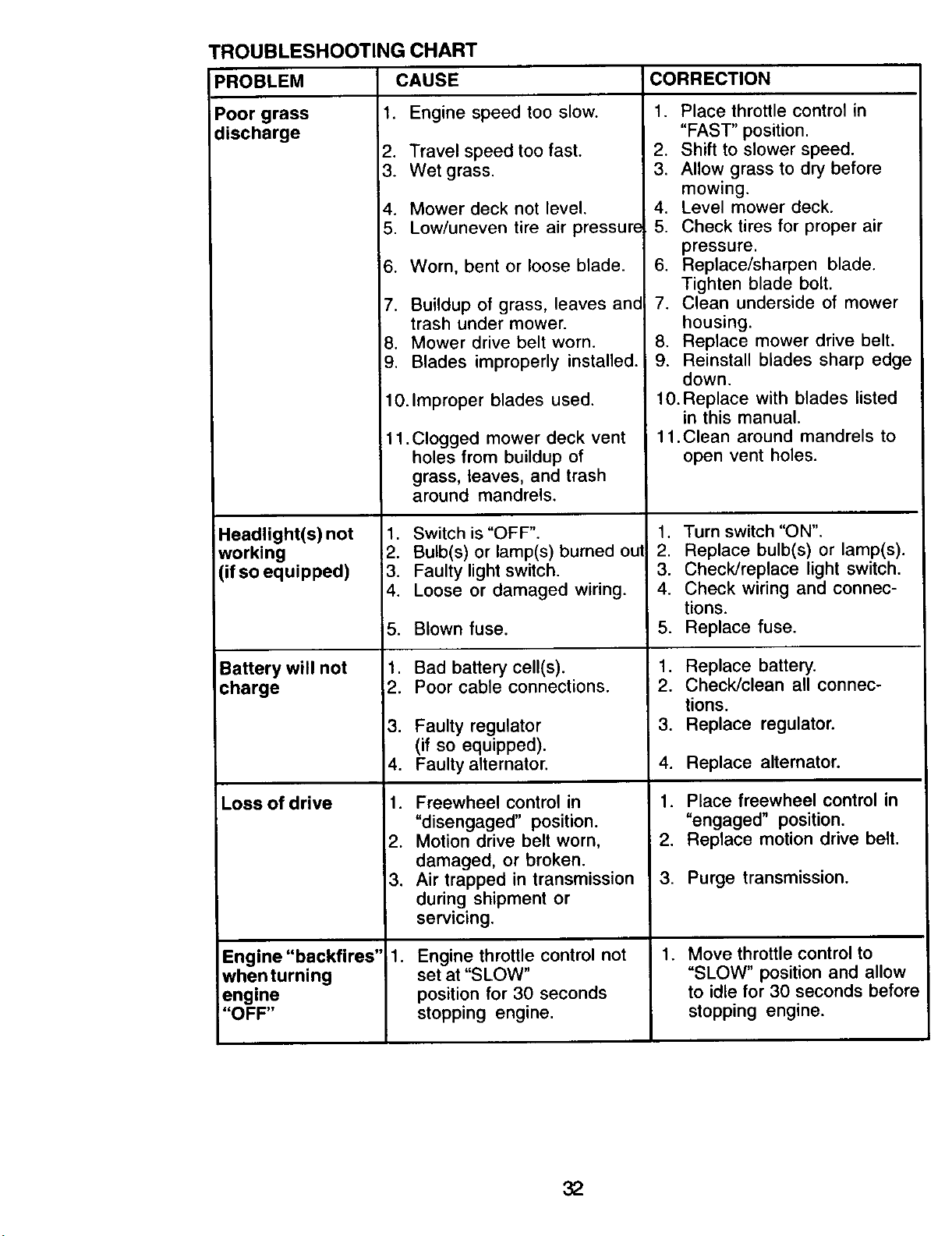

TROUBLESHOOTING CHART

CAUSE

PROBLEM

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Loss of drive

Engine "backfires"

whenturning

engine

"OFF"

Engine speed too slow.

Travel speed too fast.

Wet grass.

Mower deck not level.

Low/uneven tire air pressure

Worn, bent or loose blade.

Buildup of grass, leaves and

trash under mower.

Mower drive belt worn.

Blades improperly installed.

10.Improper blades used.

11.Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned oul

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or

servicing.

,1.

Engine throttle control not

set at "SLOW"

position for 30 seconds

stopping engine.

CORRECTION

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

1. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

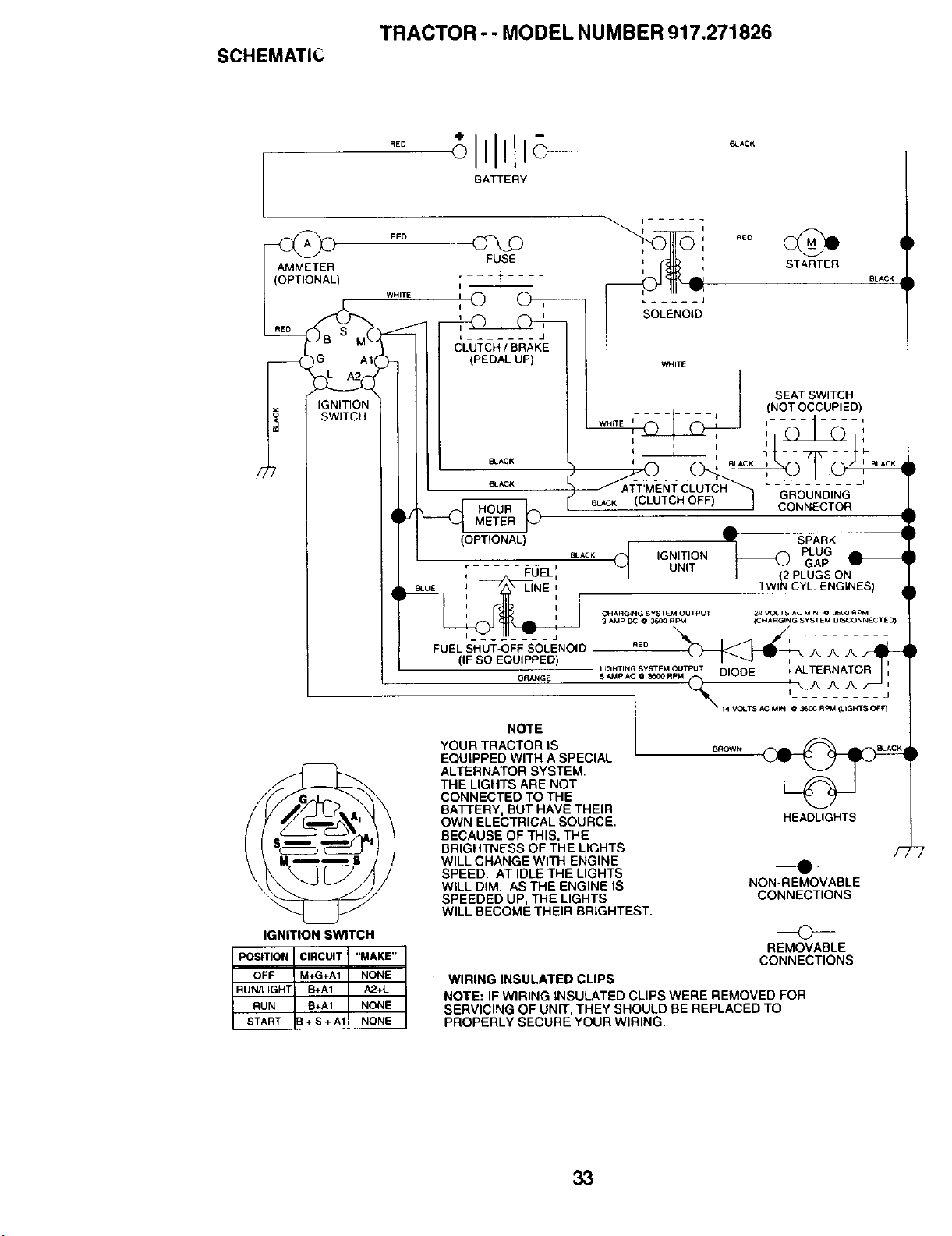

SCH EMATI(.;

TRACTOR - - MODEL NUMBER 917.271826

BATTERY

RE D

AMMETER FUSE

(OPTIONAL) ; I '

WH,TE 'O '

- _LUTCH_BRAK_

)G A1 (PEDAL UP)

IGNITION

BLACK

(OPTIONAL)

SWITCH

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+AI A2+L

RUN B+A1 NONE

START _÷S + A1 NONE

8LACK

STARTER

BLACK

SOLENOID

WHJT E I........ i

[ -;;. ......

o OONO,N

CONNECTOR 1

• SPARK {

(_ PLUG

IGNITION

= - GAP

UNIT

TWI_ CYL ENGINES) •

I 12PLUGS ON

SEAT SWITCH

(NOT OCCUPIED)

_ I BLACK

CHARG_IG SYSTEM OUTPUT 2R vOtT5 AC MIN @ 36OO _pM

3 AMP _ @ 36OO RPM (CHARGING S'_ST EM DISCONNECTED)

FUEL SHUT-OFF SOLENOID RED

IF SO EQUIPPED , L_GHTINGSYSTEUOUTPUT _ALTERNATOR

ORANGE S_MpAc• 36ooR_ DIODE

O "_ ;,

BROWN

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS. THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED, AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

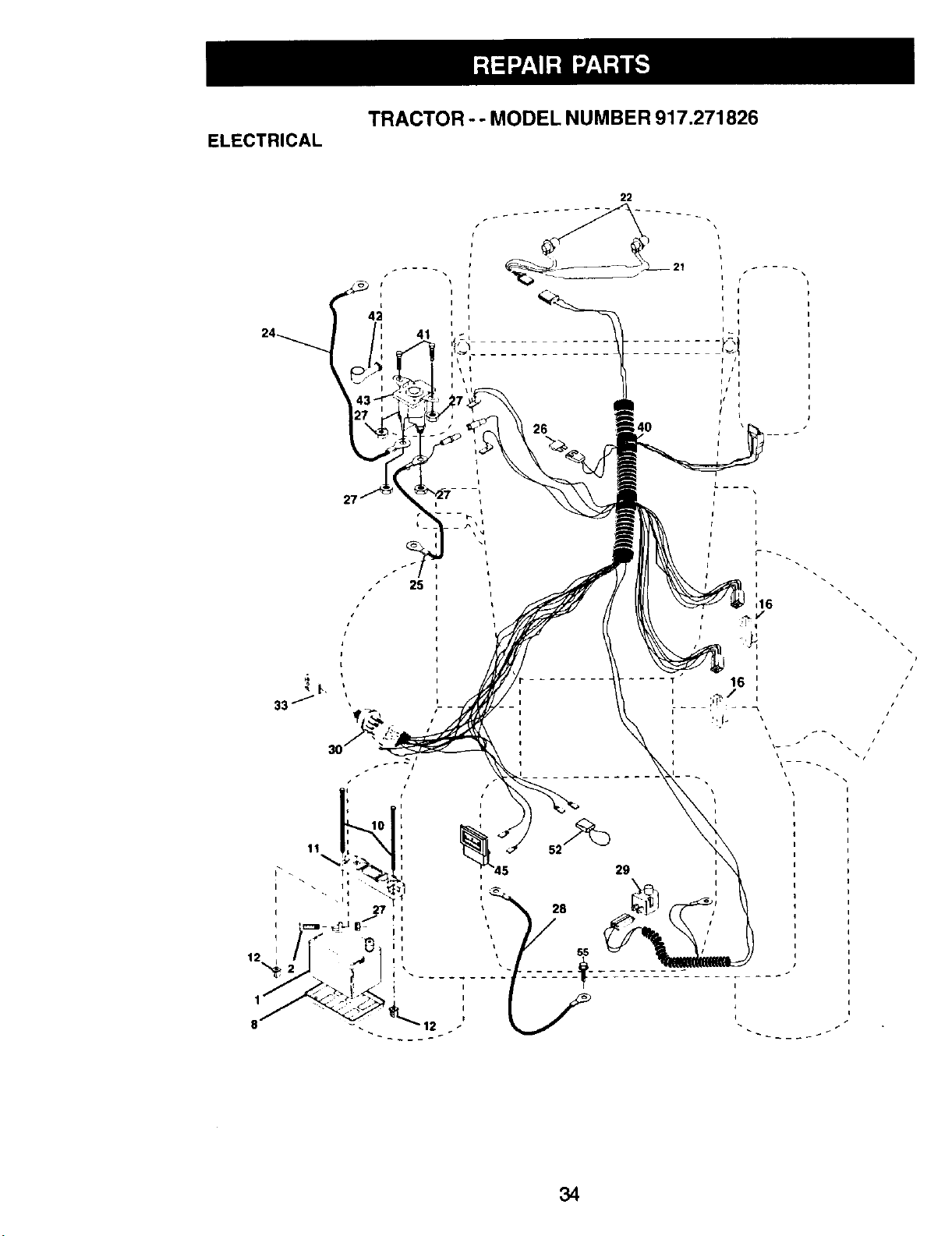

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.271826

• I

10 _

,16

t ._ J

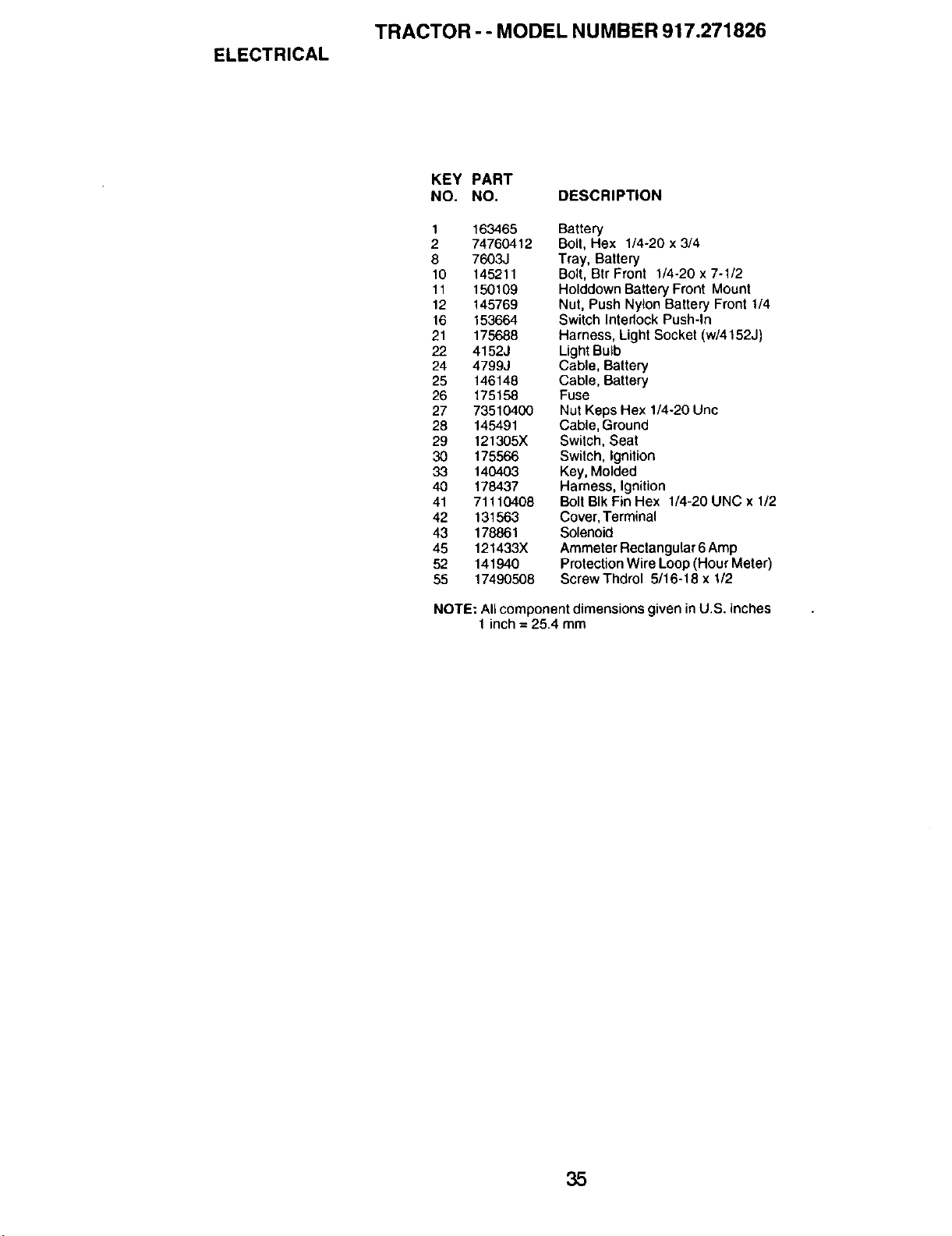

ELECTRICAL

TRACTOR - - MODEL NU MBER 917.271826

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery

2 74760412 Bolt, Hex 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt, Btr Front 1/4-20 x 7-1/2

11 150109 Holddown Battery Front Mount

12 145769 Nut, Push Nylon Battery Front 1/4

16 153664 Switch Interlock Push-In

21 175688 Harness, Light Socket (w/4152J)

22 4152J Light Bulb

24 4799J Cable, Battery

25 146148 Cable, Battery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 Uric

28 145491 Cable, Ground

29 121305X Switch, Seat

30 175566 Switch, Ignition

33 140403 Key, Molded

40 178437 Harness, Ignition

41 71110408 Bolt BIk Fin Hex 1/4-20 UNC x 1/2

42 131563 Cover, Terminal

43 178861 Solenoid

45 121433X Ammeter Rectangular 6 Amp

52 141940 Protection Wire Loop (Hour Meter)

55 17490508 ScrewThdrol 5/16-18x 1/2

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

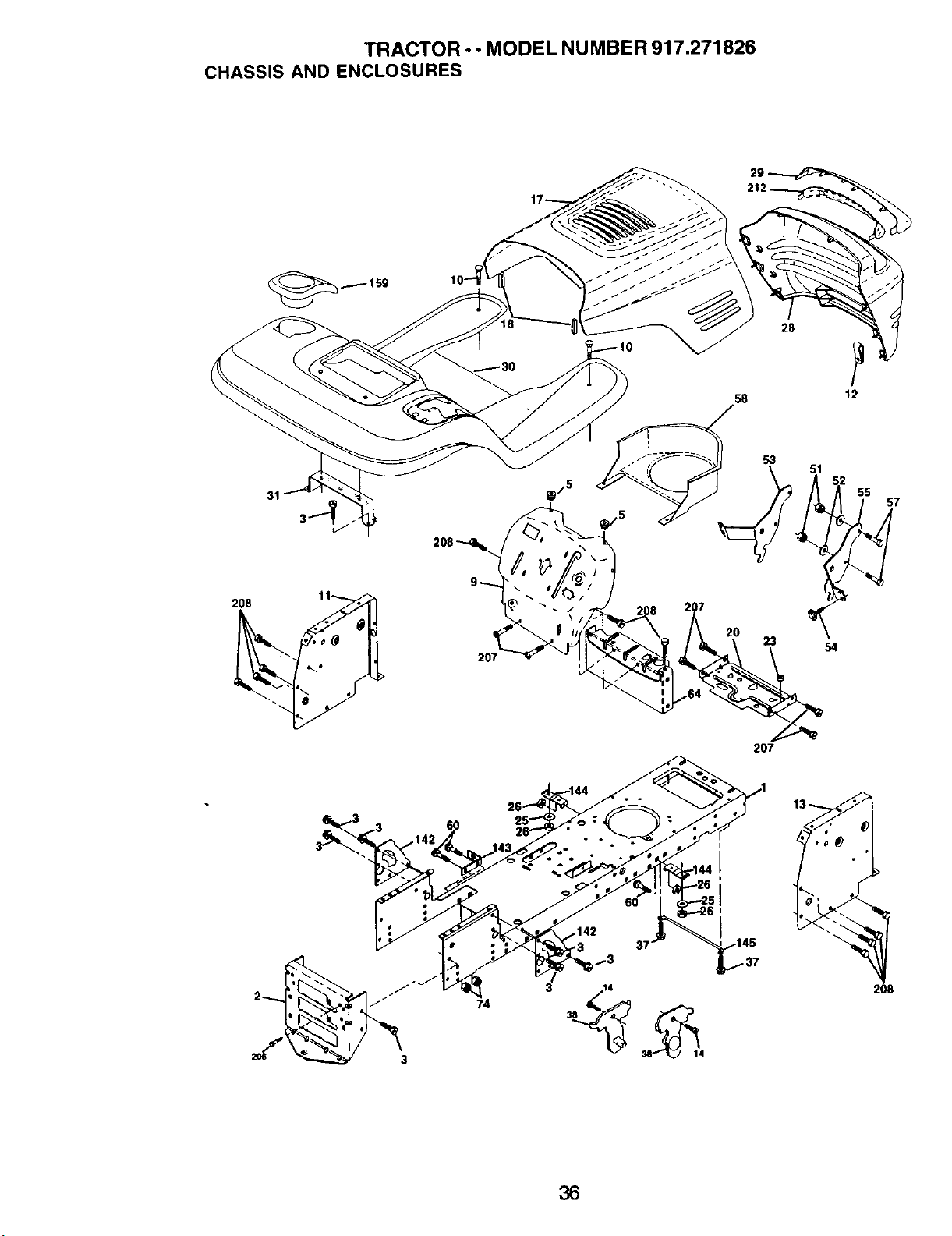

TRACTOR - - MODEL NUMBER 917.271826

CHASSIS AND ENCLOSURES

207

208

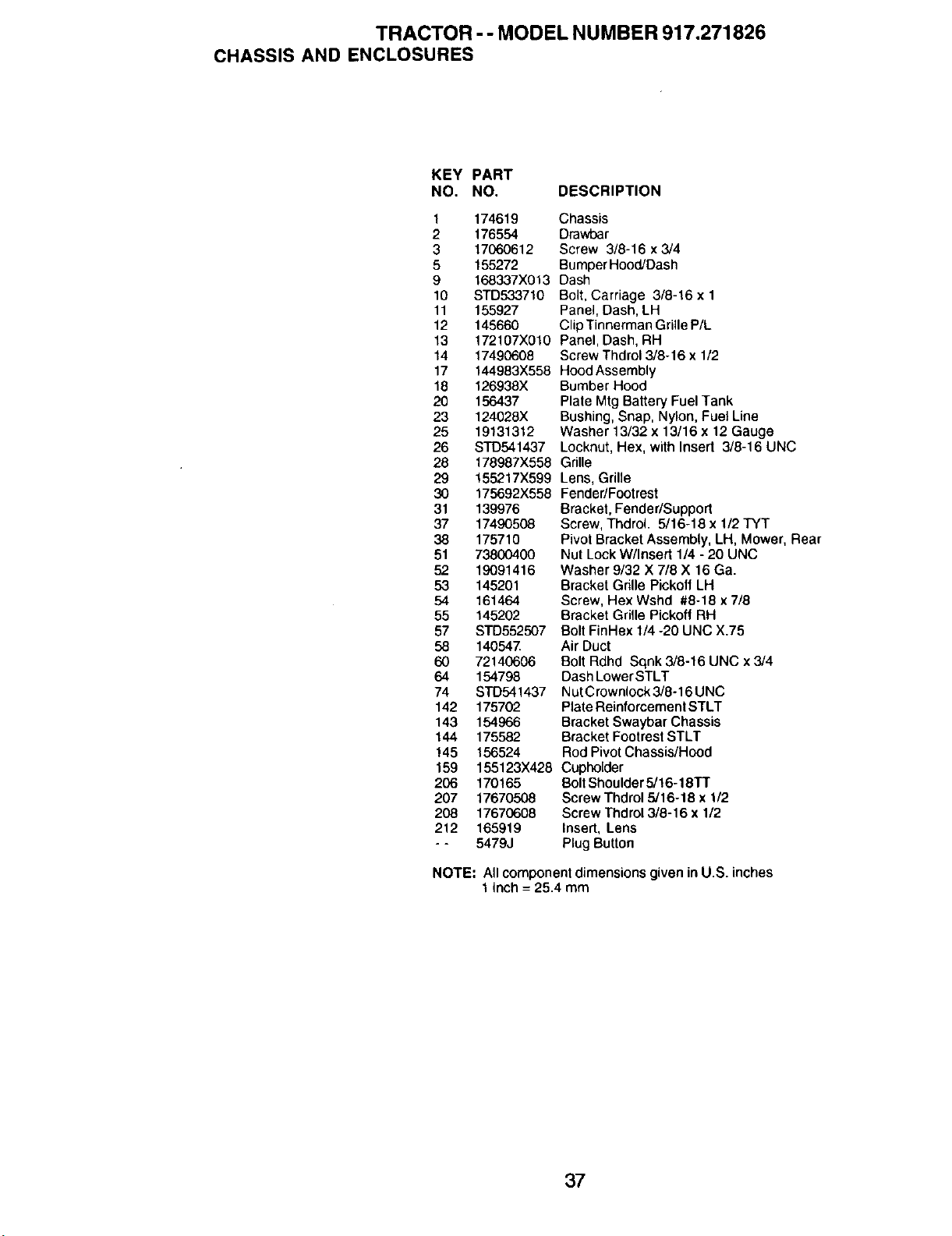

TRACTOR-- MODEL NUMBER 917.271826

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619

2 176554

3 17060612

5 155272

9 168337X013

10 STD533710

11 155927

12 145660

13 172107X010

14 17490608

17 144983X558

18 126938X

20 156437

23 124028X

25 19131312

26 STD541437

28 178987X558

29 155217X599

30 175692X558

31 139976

37 17490508

38 175710

51 73800400

52 19091416

53 145201

54 161464

55 145202

57 STD552507

58 140547.

60 72140606

64 154798

74 STD541437

142 175702

143 154966

144 175582

!45 156524

159 155123X428

206 170165

207 17670508

208 17670608

212 165919

- - 5479J

Chassis

Drawbar

Screw 3/8-16 x 3/4

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8-16 x 1

Panel, Dash, LH

Clip Tinnerman Grille P/L

Panel, Dash, RH

Screw Thdrol 3/8-16 x 1/2

HoodAssembly

Bumber Hood

Plate Mtg Battery Fuel Tank

Bushing, Snap, Nylon, Fuel Line

Washer 13/32 x 13/16 x 12 Gauge

Locknut, Hex, with Insert 3/8-16 UNC

Grille

Lens, Grille

Fender/Footrest

Bracket, Fender/Support

Screw, Thdrol. 5/16-18 x 1/2 TYT

Pivot Bracket Assembly, LH, Mower, Rear

Nut Lock W/Insert 1/4 - 20 UNC

Washer 9/32 X 7/8 X 16 Ga.

Bracket Grille Pickoff LH

Screw, Hex Wshd #8-18 x 7/8

Bracket Grille Pickofi RH

Bolt FinHex 1/4 -20 UNC X.75

Air Duct

Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

Dash Lower STLT

Nut Crownloek3/8 -16 UNC

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Footrest STLT

Rod PivotChassis/Hood

Cupholder

BoltShoulder 5/16-18TT

Screw Thdrol 5/16-18 x 1/2

Screw Thdrol 3/8-16 x 1/2

Insert, Lens

Plug Button

NOTE: All component dimensions given in U.S. inches

1 inch = 254 mm

TRACTOR - - MODEL NUMBER 917.271826

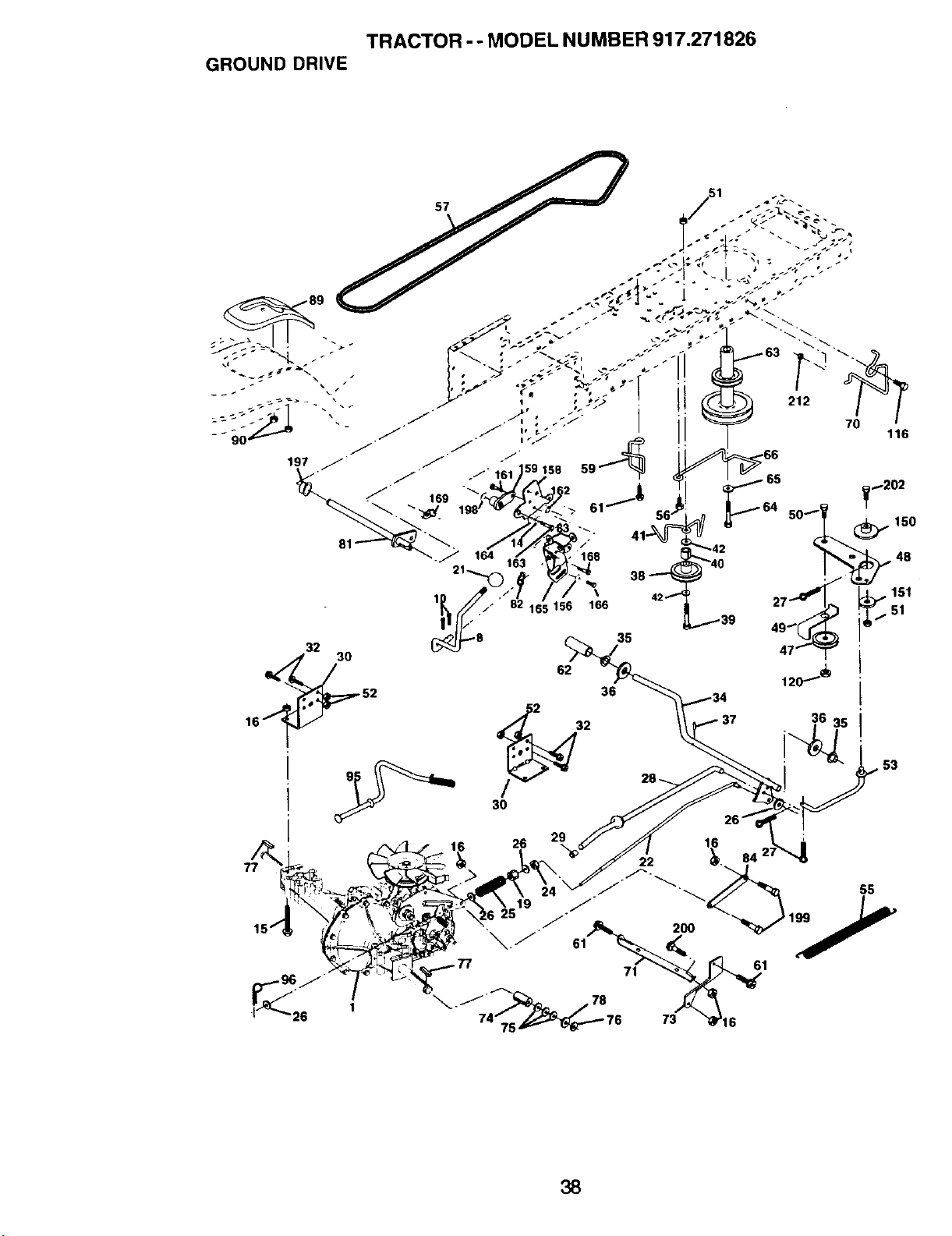

GROUND DRIVE

62 120"_

/_32 ! 36 3_5

28-_

• 53

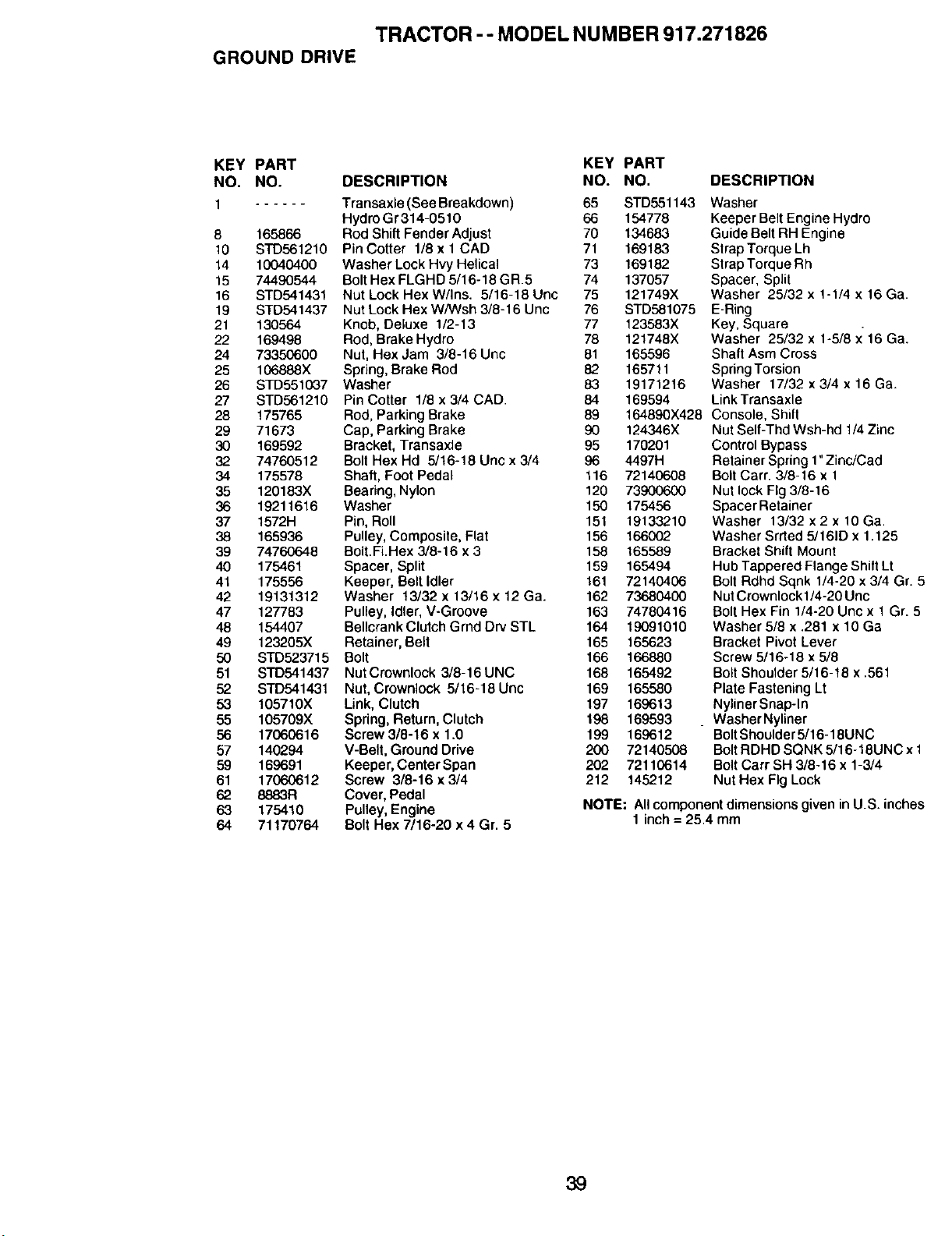

TRACTOR - - MODEL NUMBER 917.271826

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 Transaxle (See Breakdown) 65 STD551143

Hydro Gr314-0510 66 154778

8 165866 Rod Shift Fender Adjust 70 134683

10 STD561210 Pin Cotter 1/8 x 1CAD 71 169183

14 10040400 Washer Lock Hvy Helical 73 169182

15 74490544 Bolt Hex FLGHD 5/16-18 GR.5 74 137057

16 STD541431 Nut Lock Hex W/Ins. 5/16-18 Uric 75 121749X

19 STD541437 Nut Lock Hex W/Wsh 3/8-16 Unc 76 STD581075

21 130564 Knob, Deluxe 1/2-13 77 123583X

22 169498 Rod, Brake Hydro 78 121748X

24 73350600 Nut, Hex Jam 3/8-16 Unc 81 165596

25 106888X Spring, Brake Rod 82 165711

26 STD551037 Washer 83 19171216

27 STD561210 Pin Cotter 1/8 x 3/4 CAD. 84 169594

28 175765 Rod, Parking Brake 89

29 71673 Cap, Parking Brake 90 124346X

30 169592 Bracket, Transaxle 95 170201

32 74760512 Bolt Hex Hd 5/t6-18 Unc x 3/4 96 4497H

34 175578 Shaft, Foot Pedal 116 72140608

35 120183X Bearing, Nylon 120 73900600

36 19211616 Washer 150 175456

37 1572H Pin, Roll 151 19133210

38 165936 Pulley, Composite, Flat 156 166002

39 74760648 Bolt.Fi.Hex 3/8-16 x 3 158 165589

40 175461 Spacer, Split 159 165494

41 175556 Keeper, Belt Idler 161 72140406

42 19131312 Washer t3/32 x 13/16 x 12 Ga. 162 73680400

47 127783 Pulley, Idler, V-Groove 163 74780416

48 154407 BellcrankClutch Grnd Drv STL 164 19091010

49 123205X Retainer, Belt 165 165623

50 STD523715 Bolt 166 166880

51 S'rD541437 NutCrownlook 3/8-16UNC 168 165492

52 STD541431 Nut, Crownlock 5/t6-18Unc 169 165580

53 105710X Link, Clutch 197 169613

55 105709X Spring, Return, Clutch 198 169593

56 17060616 Screw3/8-16 x 1.6 199 169612

57 140294 V-Belt, Ground Drive 200 72140508

59 169691 Keeper, Center Span 202 72110614

61 17060612 Screw 3/9-16 x 3/4 212 145212

62 8883R Cover, Pedal

63 175410 Pulley, Engine

64 71170764 Bolt Hex 7/16-20 x 4 Gr. 5

DESCRIPTION

Washer

Keeper Belt Engine Hydro

Guide Belt RH Engine

Strap Torque Lh

Strap Torque Rh

Spacer, Split

Washer 25/32 x 1-1/4 x 16 Ga.

E-Ring

Key, Square

Washer 25/32 x 1-5/8 x 16 Ga.

Shaft Asm Cross

Spring Torsion

Washer 17/32 x 3/4 x 16 Ga.

LinkTransaxle

164890X428 Console, Shift

Nut Self-Thd Wsh-hd 1/4 Zinc

Control Bypass

Retainer Spring 1" Zinc/Cad

Bolt Carr. 3/8-16 x 1

Nut lock Fig 3/8-16

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrted 5/161D x 1.125

Bracket Shift Mount

Hub Tappered Flange Shift Lt

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

Nut Crownlockl/4-20 Uric

Bolt Hex Fin 1/4-20 Unc x 1 Gr. 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-t8 x .561

Plate Fastening Lt

Nyliner Snap-In

. Washer Nyliner

Bolt Shoulder 5/16-18UNC

Bolt RDHD SQNK 5/16-18UNC x 1

Bolt Cart SH 3/8-16 x 1-3/4

Nut Hex Fig Lock

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271826

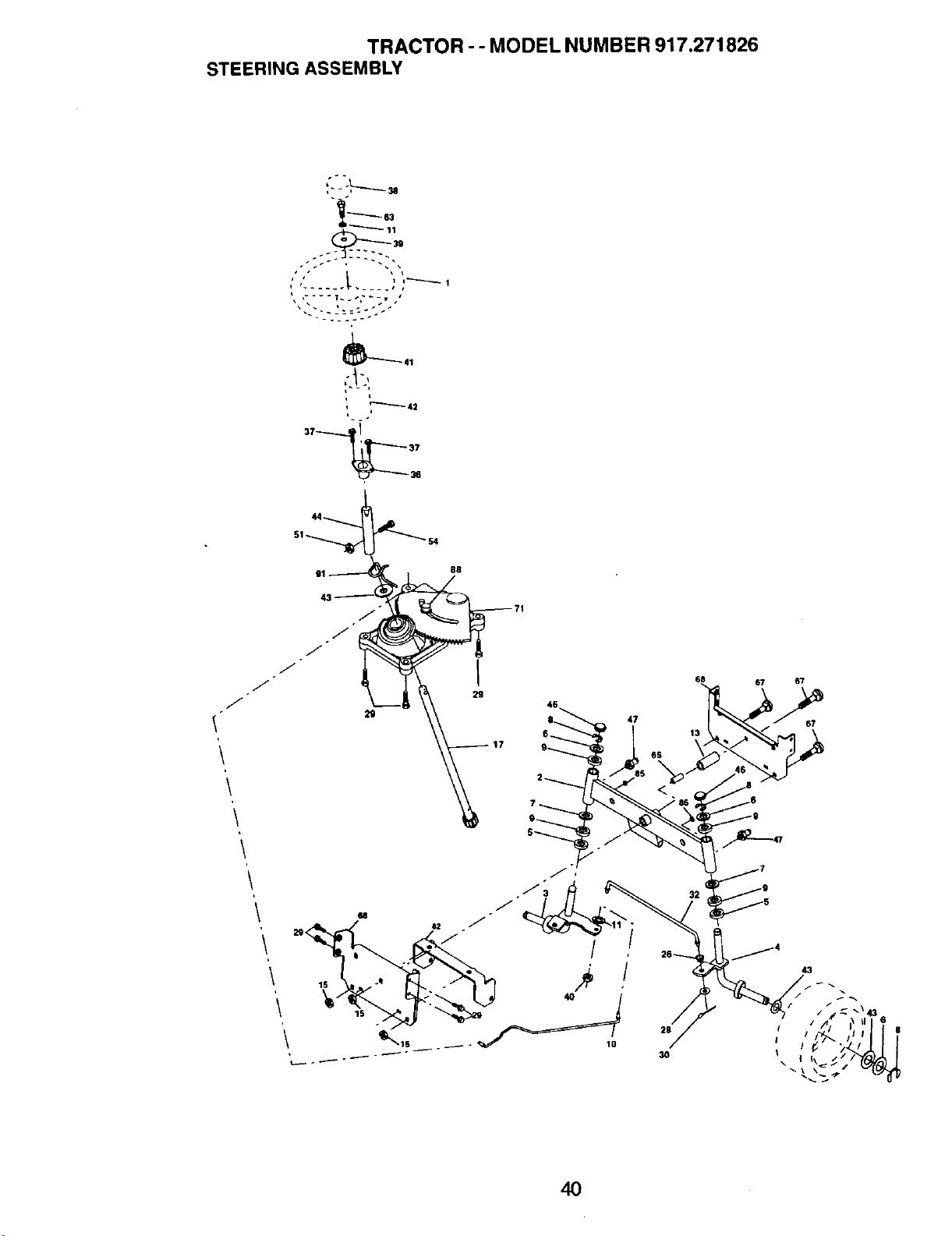

STEERING ASSEMBLY

• 4 _ . - •

L .... _~._ i

. _--_-_=--______-"

37-----__I

68 67 67

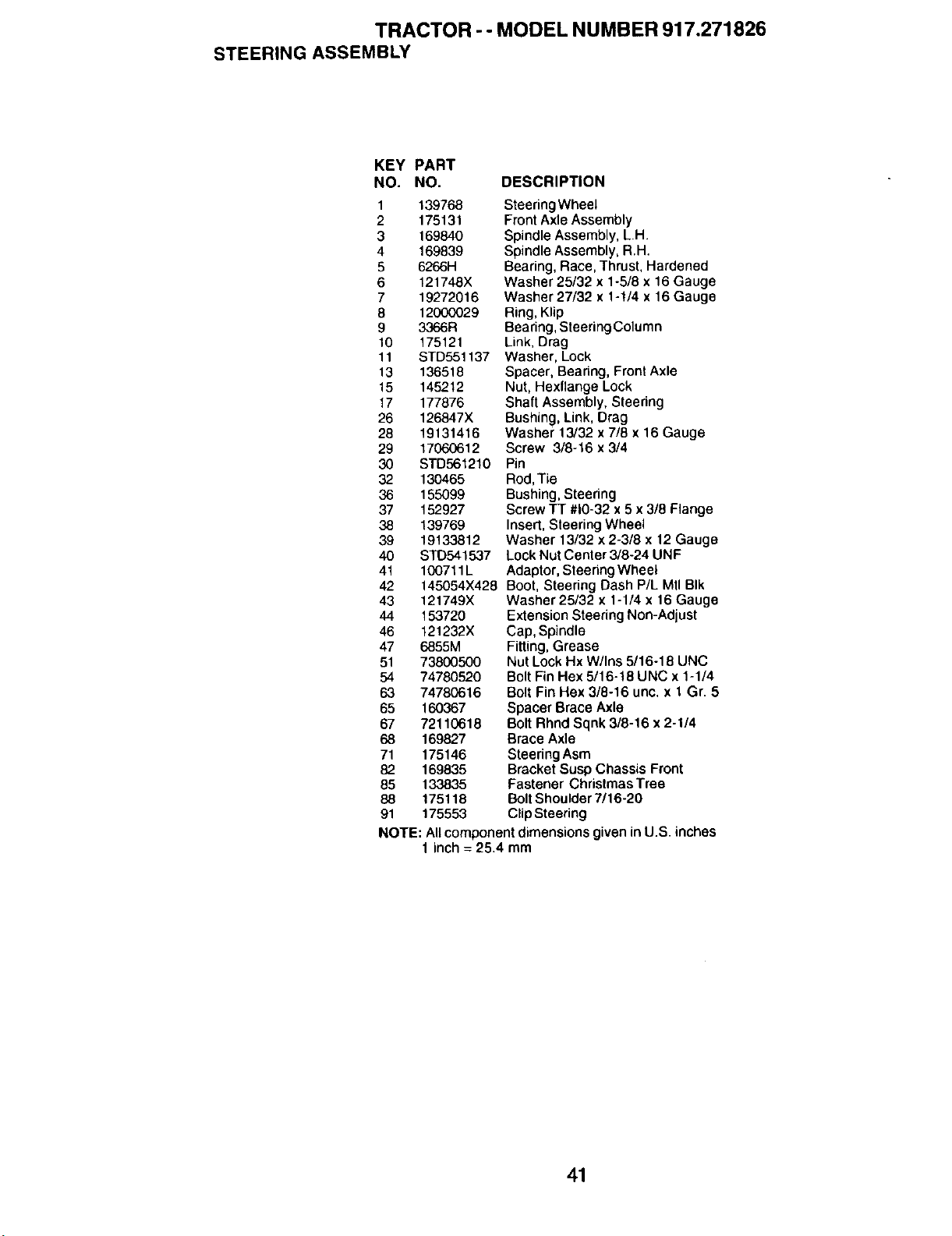

TRACTOR - - MODEL NUMBER 917.271826

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768

2 175131

3 169840

4 169839

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 175121

11 STD551137

13 136518

15 145212

17 177876

26 126847X

28 19131416

29 17060612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19133812

40 STD541537

41 100711L

42 145054X428

43 121749X

44 153720

46 121232X

47 6855M

51 73800500

54 74780520

63 74780616

65 160367

67 72110618

68 169827

71 175146

82 169835

85 133835

88 175118

91 175553

Steering Wheel

Front Axle Assembly

Spindle Assembly, L.H.

Spindle Assembly, RH.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing, Steering Column

Link, Drag

Washer, Lock

Spacer, Bearing, Front Axle

Nut, Hexflange Lock

Shaft Assembly, Steenng

Bushing, Link, Drag

Washer 13/32 x 7/8 x 16 Gauge

Screw 3/8-16 x 3/4

Rod, Tie

Bushing, Steering

Screw TT #10-32 x 5 x 3/8 Flange

Insert, Steering Wheel

Washer 13/32 x 2-3/8 x 12 Gauge

Lock Nut Center 3/8-24 UNF

Adaptor, Steering Wheel

Boot, Steering Dash P/L Mtl BIk

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Steering Non-Adjust

Cap, Spindle

Fitting, Grease

Nut Lock Hx W/Ins 5/16-18 UNC

Bolt Fin Hex 5/16-18 UNC x 1-1/4

Bolt Fin Hex 3/8-16 unc. x 1 Gr. 5

Spacer Brace Axle

Bolt Rhnd Sqnk 3/8-16 x 2-1/4

Brace Axle

Steering Asm

Bracket Susp Chassis Front

Fastener Christmas Tree

Bolt Shoulder 7/16-20

Clip Steering

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

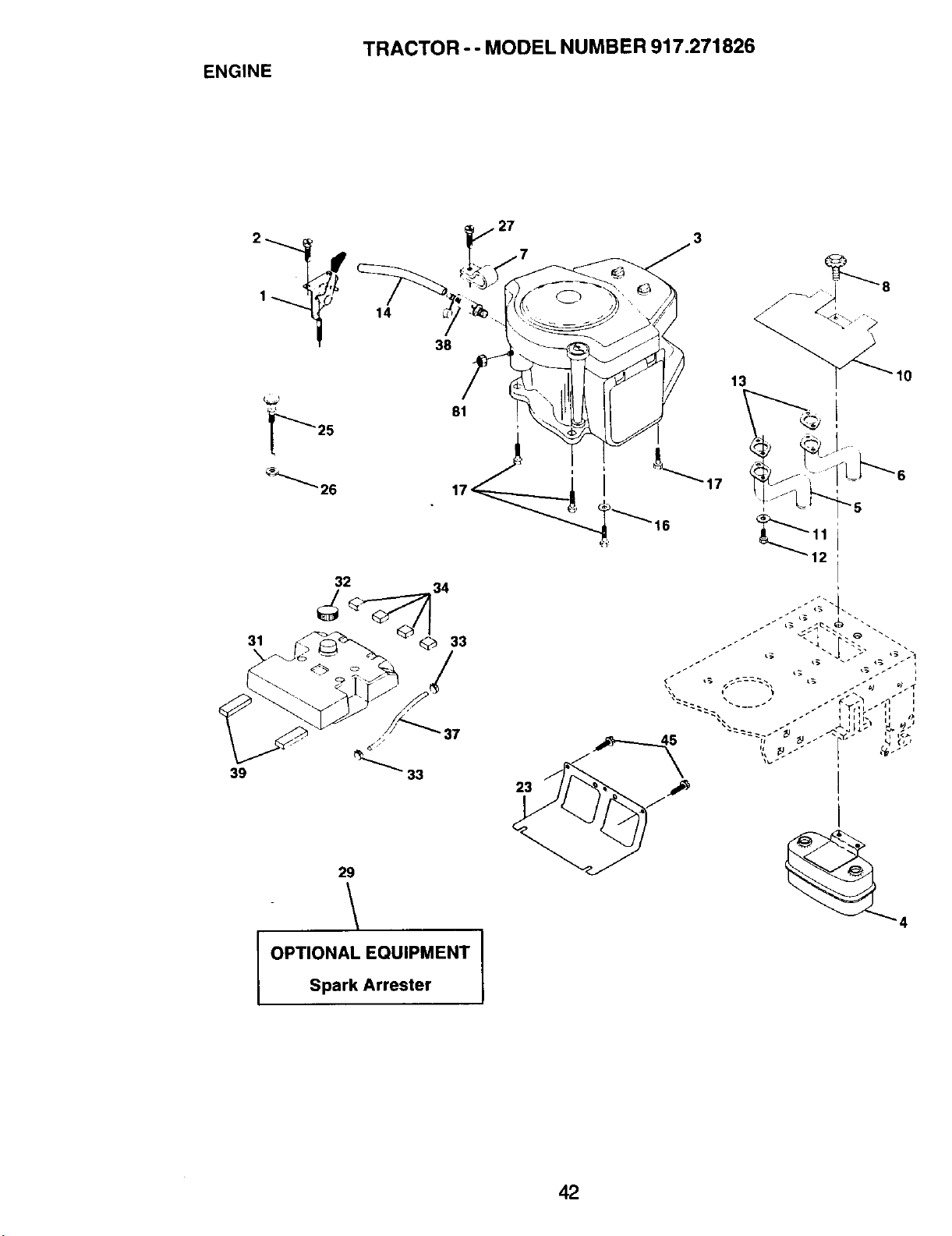

ENGINE

TRACTOR-- MODEL NUMBER 917.271826

_'_"_ 26

32 34

o /c_

OPTIONAL EQUIPMENT

Spark Arrester

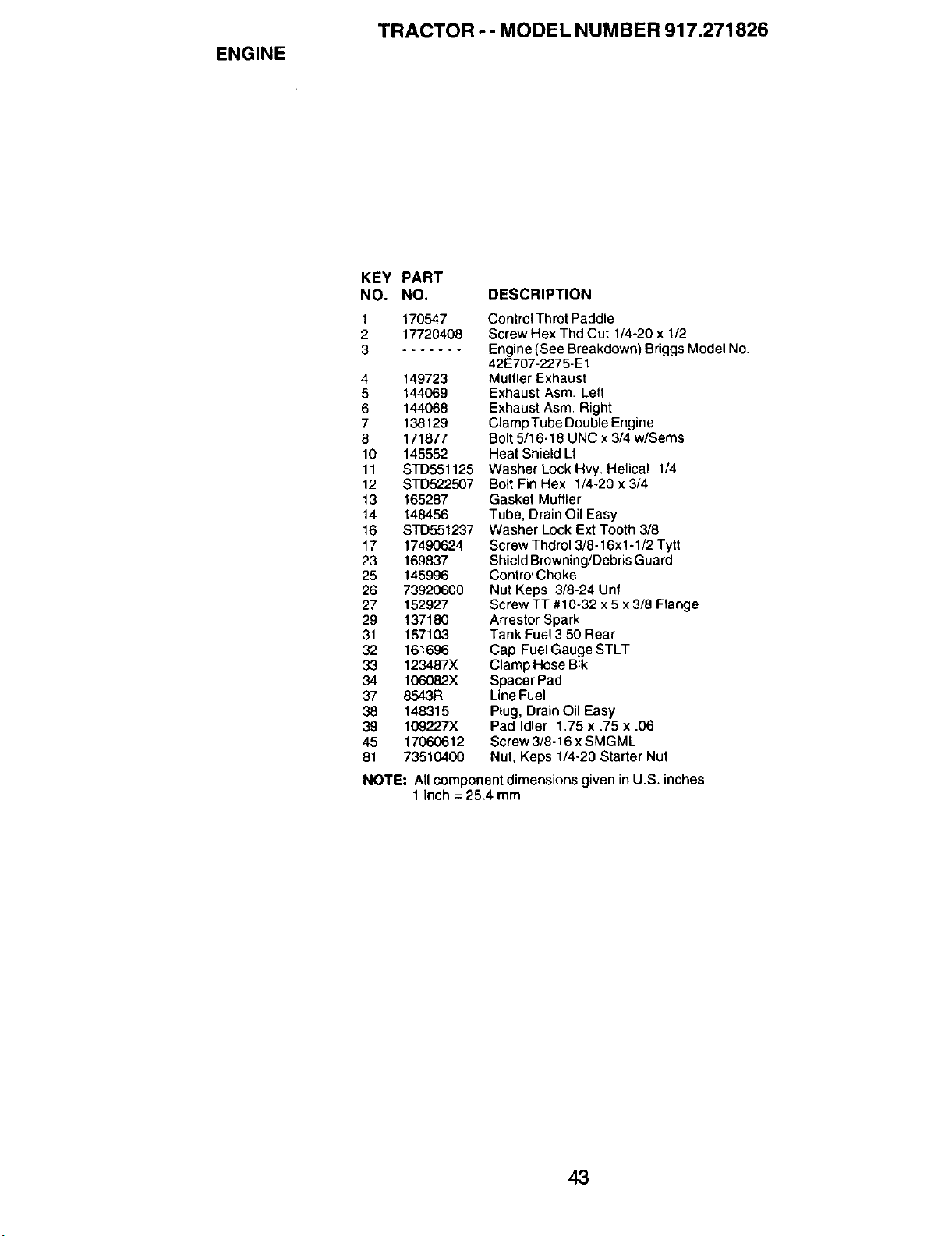

ENGINE

TRACTOR - - MODEL NUMBER 917.271826

KEY PART

NO. NO. DESCRIPTION

170547

17720408

4 149723

5 144069

6 144068

7 138129

8 171877

10 145552

11 STD551125

12 STD522507

13 165287

14 148456

16 STD551237

17 174£0624

23 169837

25 145996

26 73920600

27 152927

29 137180

31 157103

32 161696

33 123487X

34 106082X

37 8543R

38 148315

39 109227X

45 17060612

81 73510400

Control Throt Paddle

Screw Hex Thd Cut 1/4-20 x 1/2

Engine (See Breakdown) Briggs Model No.

42E707-2275-E1

Muffler Exhaust

Exhaust Asm. Left

Exhaust Asm. Right

Clamp Tube Double Engine

Bolt 5/16-18 UNC x 3/4 w/Seres

Heat Shield Lt

Washer Lock Hvy. Helical 1/4

Bolt Fin Hex 1/4-20 x 3/4

Gasket Muffler

Tube, Drain Oil Easy

Washer Lock Ext Tooth 3/8

Screw Thdrol 3/8-16x 1-1/2 Tytt

Shield Browning/Debris Guard

Control Choke

Nut Keps 3/8-24 Unf

Screw TT #10-32 x 5 x 3/8 Flange

Arrestor Spark

Tank Fuel 3 50 Rear

Cap Fuel Gauge STLT

Clamp Hose BIk

Spacer Pad

Line Fuel

Plug, Drain Oil Easy

Pad Idler 1.75 x .75 x .06

Screw 3/8-16 x SMGML

Nut, Keps 1/4-20 Starter Nut

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271826

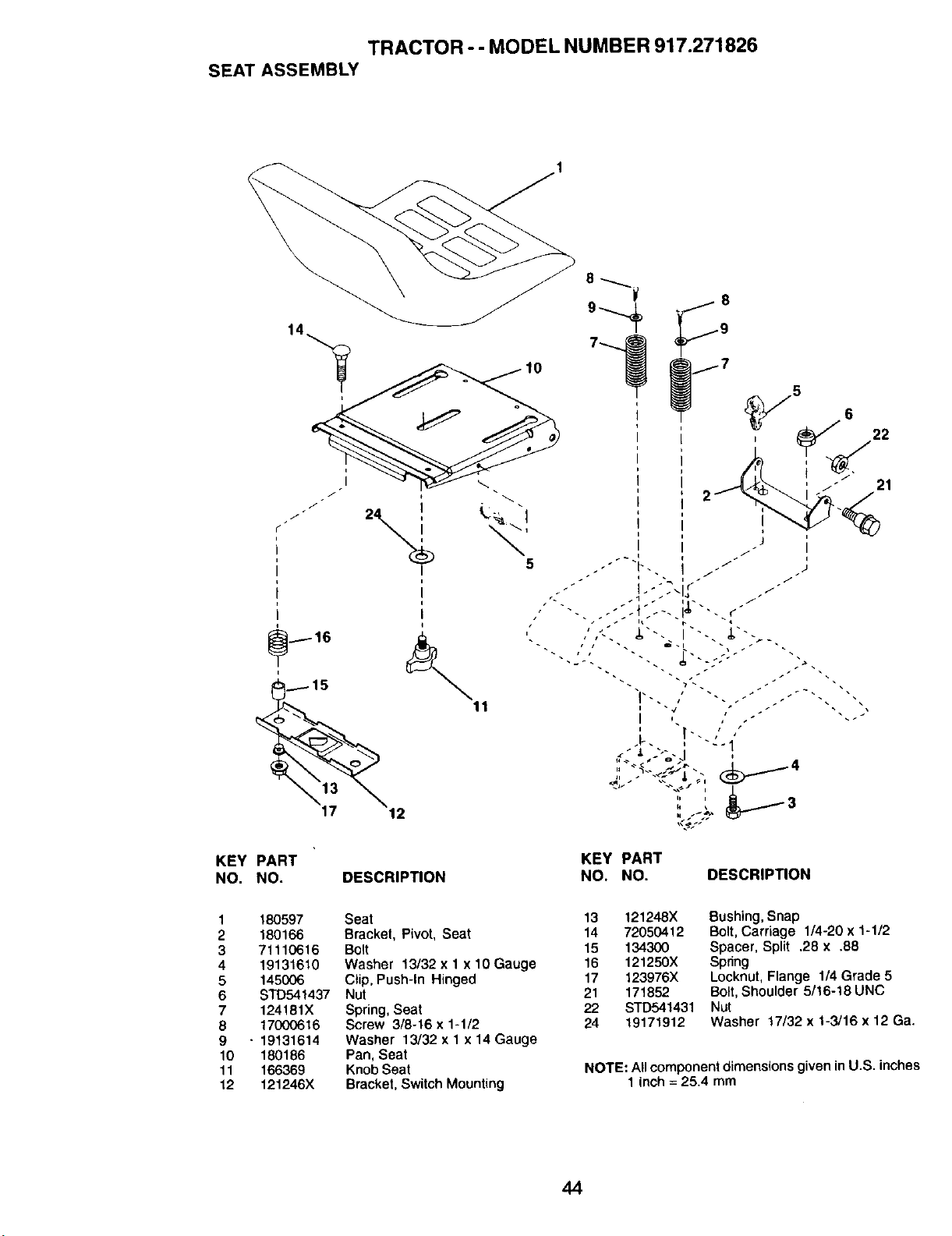

SEAT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

180597

180166

71110616

19131610

145006

STD541437

124181X

17000616

- 19131614

180186

166369

121246X

Seat

Bracket, Pivot, Seat

Bolt

Washer 13/32 x 1 x 10 Gauge

Ctip, Push-In Hinged

Nut

Spring, Seat

Screw 3/8-16 x 1-1/2

Washer 13/32 x 1 x 14 Gauge

Pan, Seat

Knob Seat

Bracket, Switch Mounting

13 121248X Bushing, Snap

14 72050412 Bolt, Carriage 1/4-20 x 1-1/2

15 134300 Spacer, Split .28 x .88

16 121250X Spdng

17 123976X Locknut, Flange 1/4 Grade 5

21 171852 Bolt, Shoulder 5/16-18 UNC

22 STD541431 Nut

24 19171912 Washer 17/32 x 1-3/16 x 12 Ga

NOTE: All component dimensions given in U.S. inche

1 inch = 25.4 mm

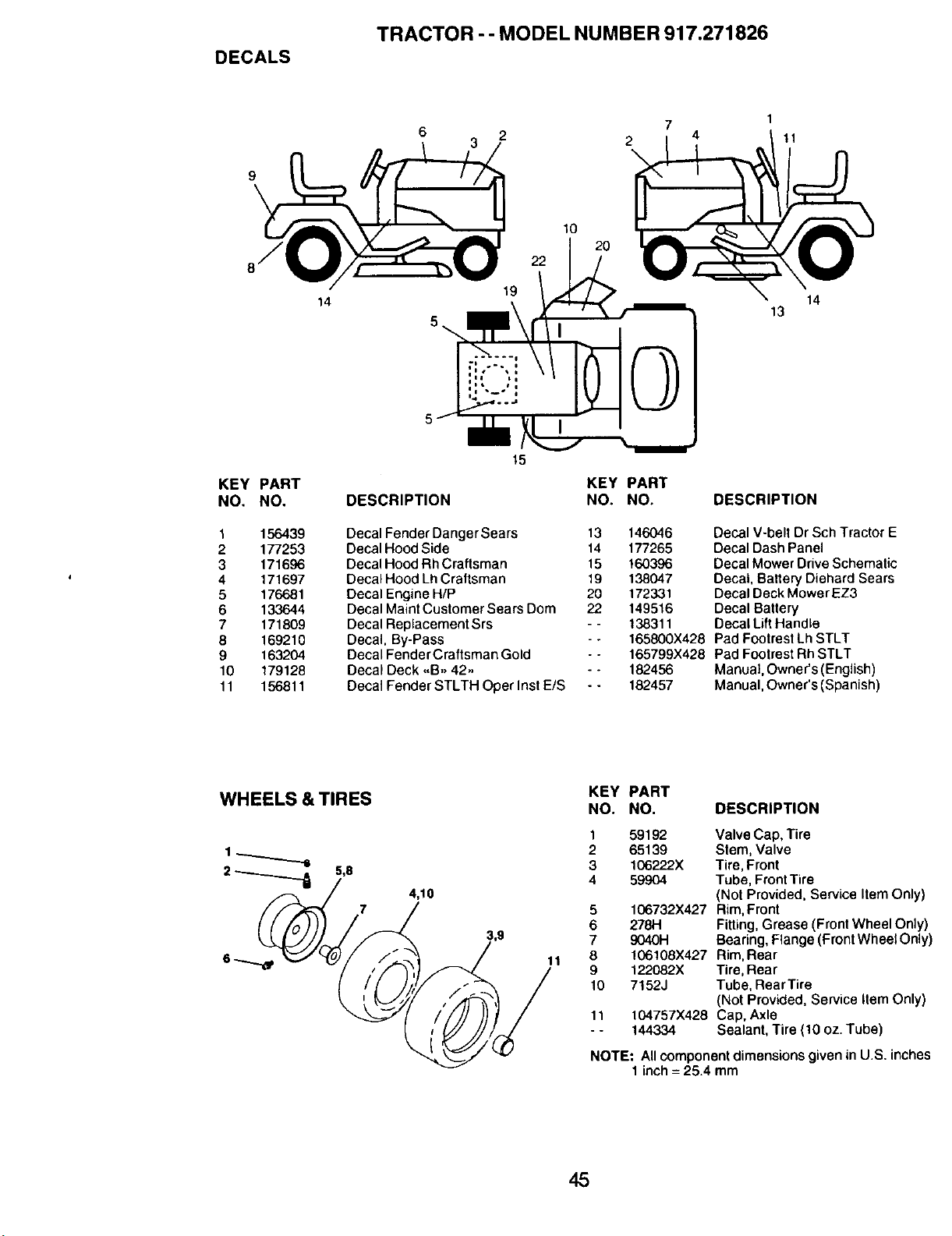

DECALS

TRACTOR - - MODEL NU MBER 917.271826

3 2 2

5._.

KEY

NO.

PART

NO,

1 156439

2 177253

3 171696

4 171697

5 176681

6 133644

7 171809

8 169210

9 163204

10 179128

11 156811

KEY PART

DESCRIPTION NO. NO.

Decal Fender Danger Sears 13 146046

Decal Hood Side 14 177265

Decal Hood Rh Craftsman 15 160396

Decal Hood Lh Craftsman 19 138047

Decal Engine H/P 20 172331

Decal Maint Customer Sears Dora 22 149516

Decal Replacement Srs - - 138311

Decal, By-Pass - - 166800X428

Decal Fender Craftsman Gold - - 165799X428

Decal Deck ,,B,, 42 .... 182456

Decal Fender STLTH Oper Inst E/S - - 182457

DESCRIPTION

Decal V-belt Dr Sch Tractor E

Decal Dash Panel

Decal Mower Drive Schematic

Decal, Batter,/Diehard Sears

Decal Deck Mower EZ3

Decal Battery

Decal Lift Handle

Pad Footrest Lh STLT

Pad Footrest Rh STLT

Manual, Owner's (English)

Manual, Owner's (Spanish)

WHEELS & TIRES

4,10

KEY PART

NO. NO. DESCRIPTION

59192 Valve Cap, Tire

65139 Stem, Valve

106222X Tire, Front

59904 Tube, Front Tire

(Not Provided, Service Item Only)

106732X427 Rim, Front

2781-1 Fitting, Grease (Front Wheel Only)

9040H Bearing, Flange (Front Wheel Only)

106108X427 Rim, Rear

122082X Tire, Rear

7152J Tube, RearTire

(Not Provided, Service Item Only)

104757X428 Cap, Axle

144334 Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S, inches

1 inch = 25.4 mm

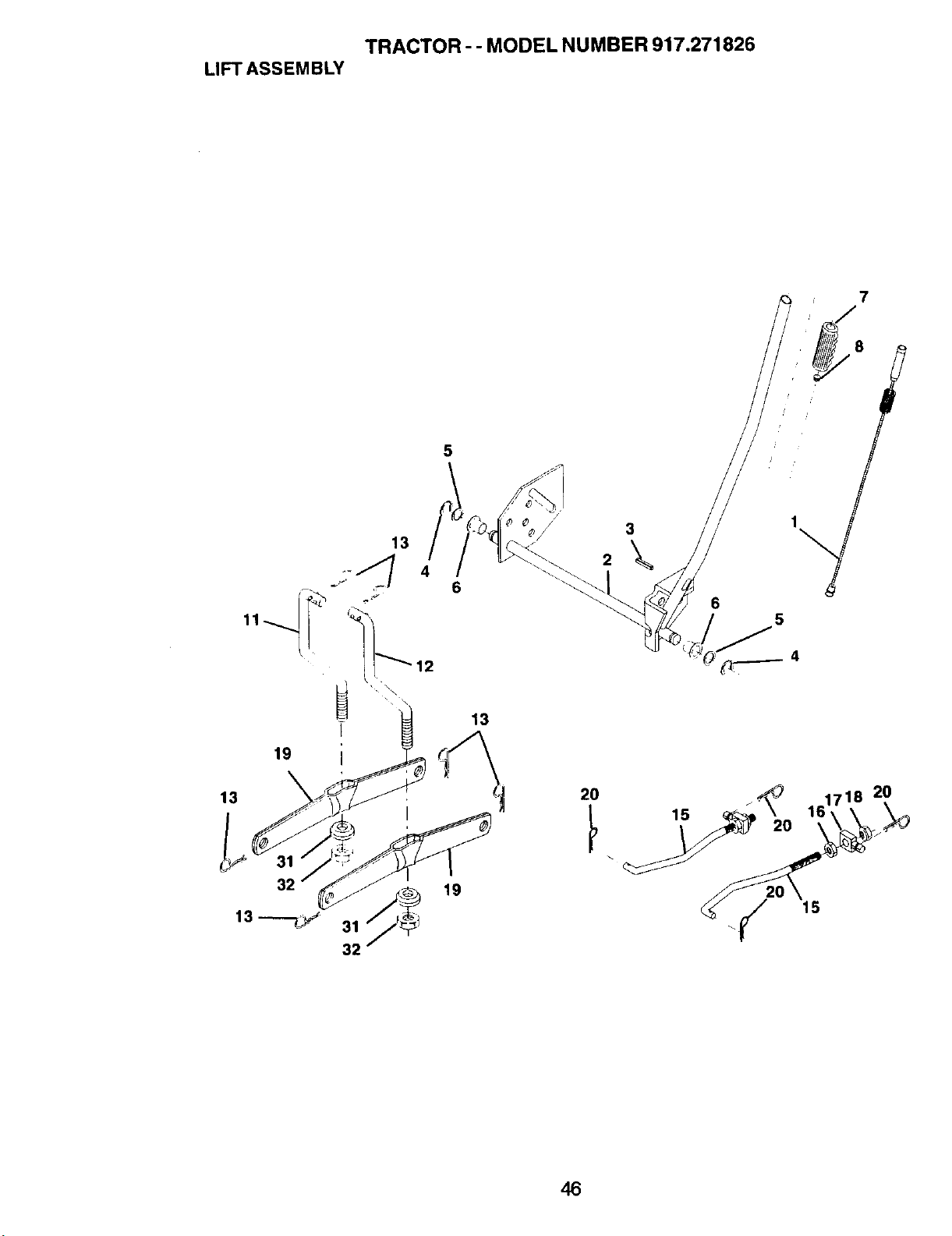

TRACTOR - - MODEL NUMBER 917.271826

LIFT ASSEMBLY

13_ 31_

32 /

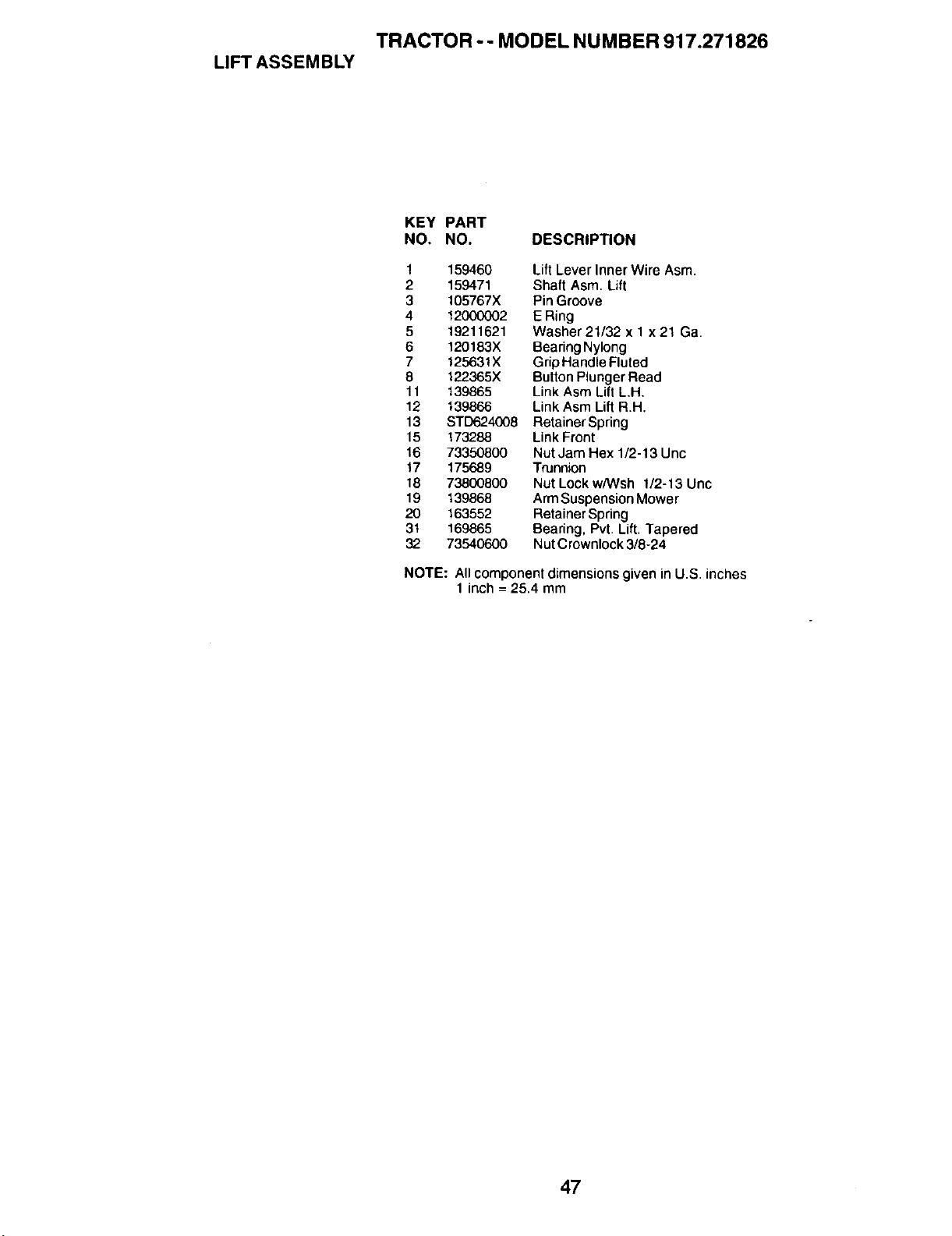

TRACTOR - - MODEL NUMBER 917.271826

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 LiftLever Inner Wire Asm.

2 159471 Shaft Asm. Lift

3 105767X Pin Groove

4 12000002 E Ring

5 19211621 Washer 21/32 x 1 x 21 Ga,

6 120183X Bearing Nylong

7 125631X Grip Handle Fluted

8 122365X Button Plunger Read

11 139865 Link Asm Lift L.H.

12 139866 Link Asm Lift RH.

13 STD62.4008 Retainer Spring

15 173288 Link Front

16 73350800 Nut Jam Hex 1/2-13 Unc

17 175689 Trunnion

18 73800800 Nut Lock w/Wsh 1/2-13 Unc

19 139868 Arm Suspension Mower

20 163552 Retainer Spring

31 169865 Bearing, Pvt. Lift. Tapered

32 73540600 Nut Crownlock 3/8-24

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

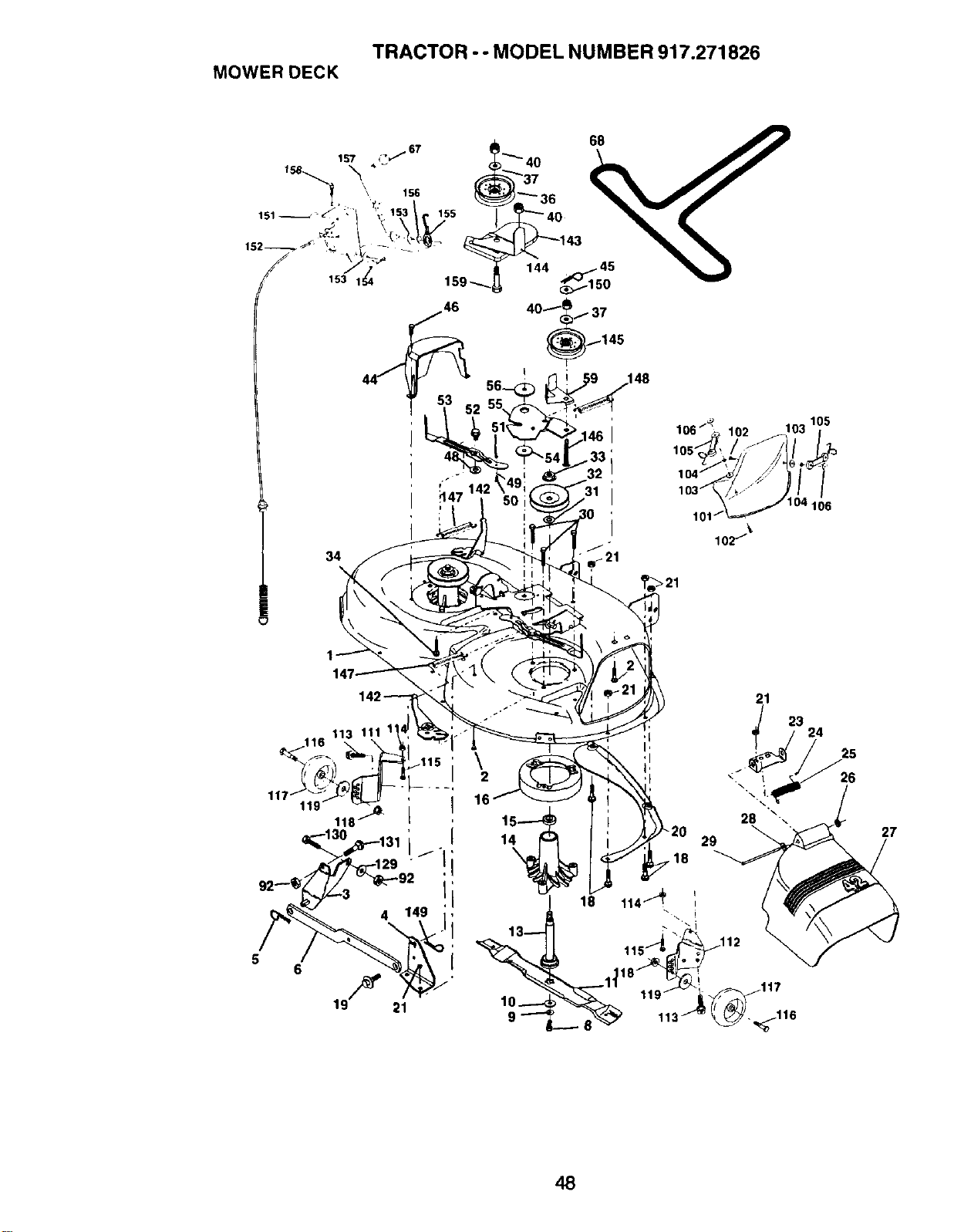

TRACTOR - - MODEL NUMBER 917.271826

MOWER DECK

105

103

" 142

_147

101

102_

119

13_

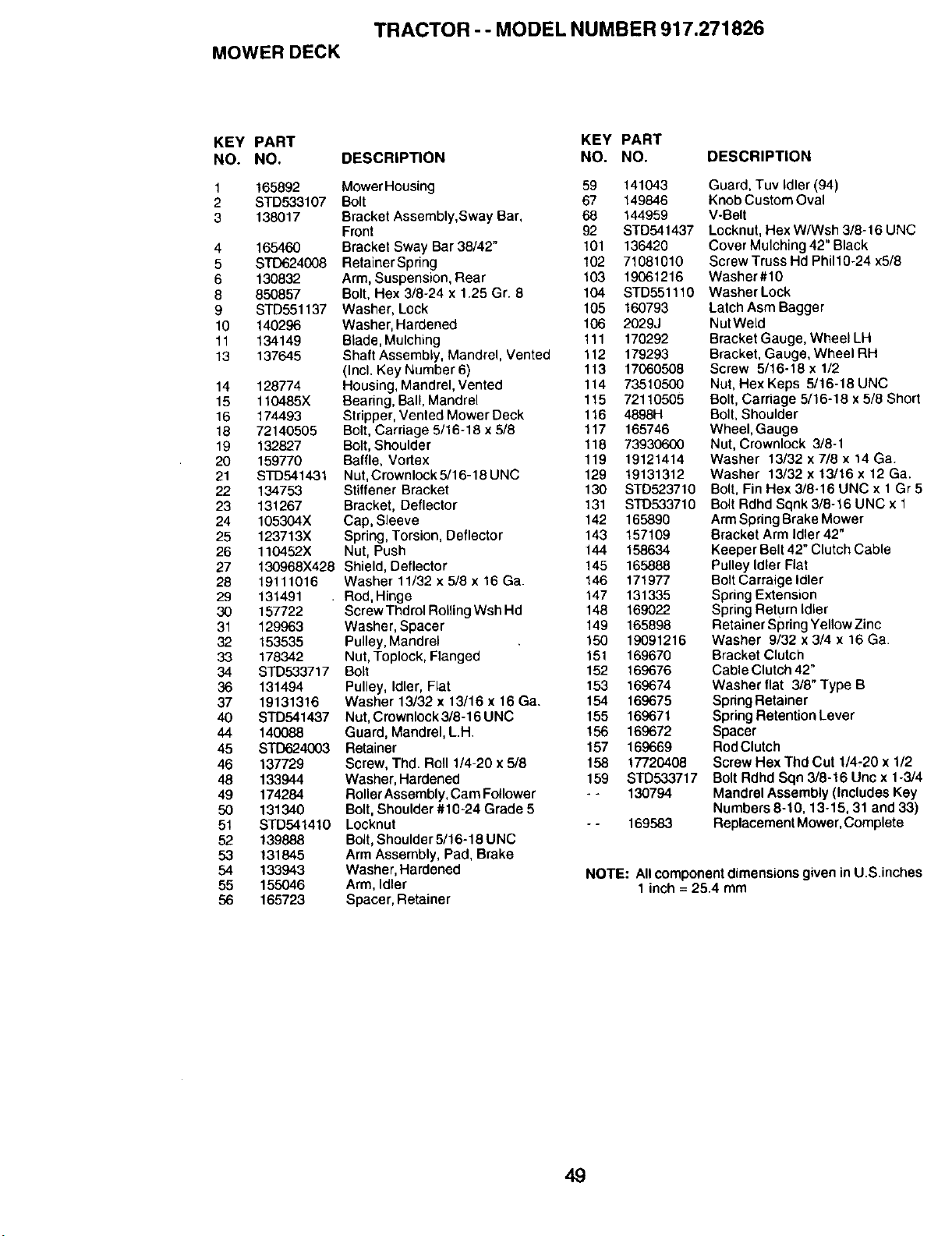

MOWER DECK

TRACTOR - - MODEL NUMBER 917.271826

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 165892 Mower Housing 59 141043 Guard, Tuv Idler (94)

2 STD533107 Bolt 67 149846 Knob Custom Oval

3 138017 Bracket Assembly,Sway Bar, 68 144959 V-Belt

Front 92 STD541437 Locknut, Hex W/Wsh 3/8-16 UNC

4 165460 Bracket Sway Bar 38/42" 101 136420 Cover Mulching 42" Black

5 STD624008 RetainerSpring 102 71081010 Screw Truss Hd Phil10-24 x5/8

6 130832 Arm, Suspension, Rear 103 19061216 Washer#10

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 104 STD551110 WasherLock

9 STD551137 Washer, Lock 105 160793 Latch Asm Bagger

10 140296 Washer, Hardened 106 2029J Nut Weld

11 134149 Blade, Mulching 111 170292 Bracket Gauge, Wheel LR

13 137645 Shaft Assembly, Mandrel, Vented 112 179293 Bracket, Gauge, Wheel RH

(Incl. Key Number 6) 113 17060508 Screw 5/16-18 x 1/2

14 128774 Housing, Mandrel, Vented 114 73510500 Nut, Hex Keps 5/16-18 UNC

15 110485X Bearing, Ball, Mandrel 115 72110505 Bolt, Carriage 5/16-18 x 5/8 Short

16 174493 Stripper, Vented Mower Deck 116 4898H Bolt, Shoulder

18 72140505 Bolt, Carriage 5/16-18 x 5/8 117 165746 Wheel, Gauge

19 132827 Bolt, Shoulder 118 73930600 Nut, Crownlock 3/8-1

20 159770 Baffle, Vortex 119 19121414 Washer 13/32 x 7/8 x 14 Ga.

21 STD541431 Nut, Crownlock5/16-18UNC 129 19131312 Washer 13/32 x 13/16 x 12 Ga.

22 134753 Stiffener Bracket 130 STD523710 Bolt, Fin Hex 3/8-16 UNC x 1 Gr 5

23 131267 Bracket, Deflector 131 STD533710 Bolt Rdhd Sqnk 3/8-16 UNC x 1

24 105304X Cap, Sleeve 142 165890 Arm Spring Brake Mower

25 123713X Spring, Torsion, Deflector 143 157109 Bracket Arm Idler 42"

26 110452X Nut, Push 144 158634 KeeperBelt42"ClutchCable

27 130968X428 Shield, Deflector 145 165888 Pulleyldler Fiat

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 146 171977 Bolt Carraige Idler

29 131491 . Rod, Hinge 147 131335 Spring Extension

30 157722 Screw Thdrol Rolling Wsh Hd 148 169022 Spdng Ret_JmIdler

31 129963 Washer, Spacer 149 165898 Retainer Spring Yellow Zinc

32 153535 Pulley, Mandrel 150 19091216 Washer 9/32 x 3/4 x 16 Ga.

33 178342 Nut, Toplock, Flanged 151 169670 Bracket Clutch

34 STD533717 Bolt 152 169676 Cable Clutch 42"

36 131494 Pulley, Idler, Flat 153 169674 Washer flat 3/8" Type B

37 19131316 Washer 13/32 x 13/16 x 16 Ga. 154 169675 SpringRetainer

40 STD541437 Nut, Crownlock3/8-16UNC 155 169671 SpringRetentionLever

44 140088 Guard, MandreI, L.H. 156 169672 Spacer

45 STD62.4003 Retainer 157 169669 RodClutch

46 137729 Screw, Thd. Roll 1/4-20 x 5/8 158 17720408 Screw Hex Thd Cut 1/4-20 x 1/2

48 133944 Washer, Hardened 159 STD533717 Bolt Rdhd Sqn 3/8-16 Unc x 1-3/4

49 174284 Roller Assembly, Cam Follower . - 130794 Mandrel Assembly (Includes Key

50 131340 Bolt, Shoulder #10-24 Grade 5 Numbera 8-10, 13-15, 31 and 33)

51 STD541410 Locknut - - 169583 ReplaeementMower, Complete

52 139888 Bolt, Shoulder 5/16-18 UNC

53 131845 Arm Assembly, Pad, Brake

54 133943 Washer, Hardened NOTE: All component dimensions given in U.S.inches

55 155046 Arm, Idler 1 inch = 25.4 mm

56 165723 Spacer, Retainer

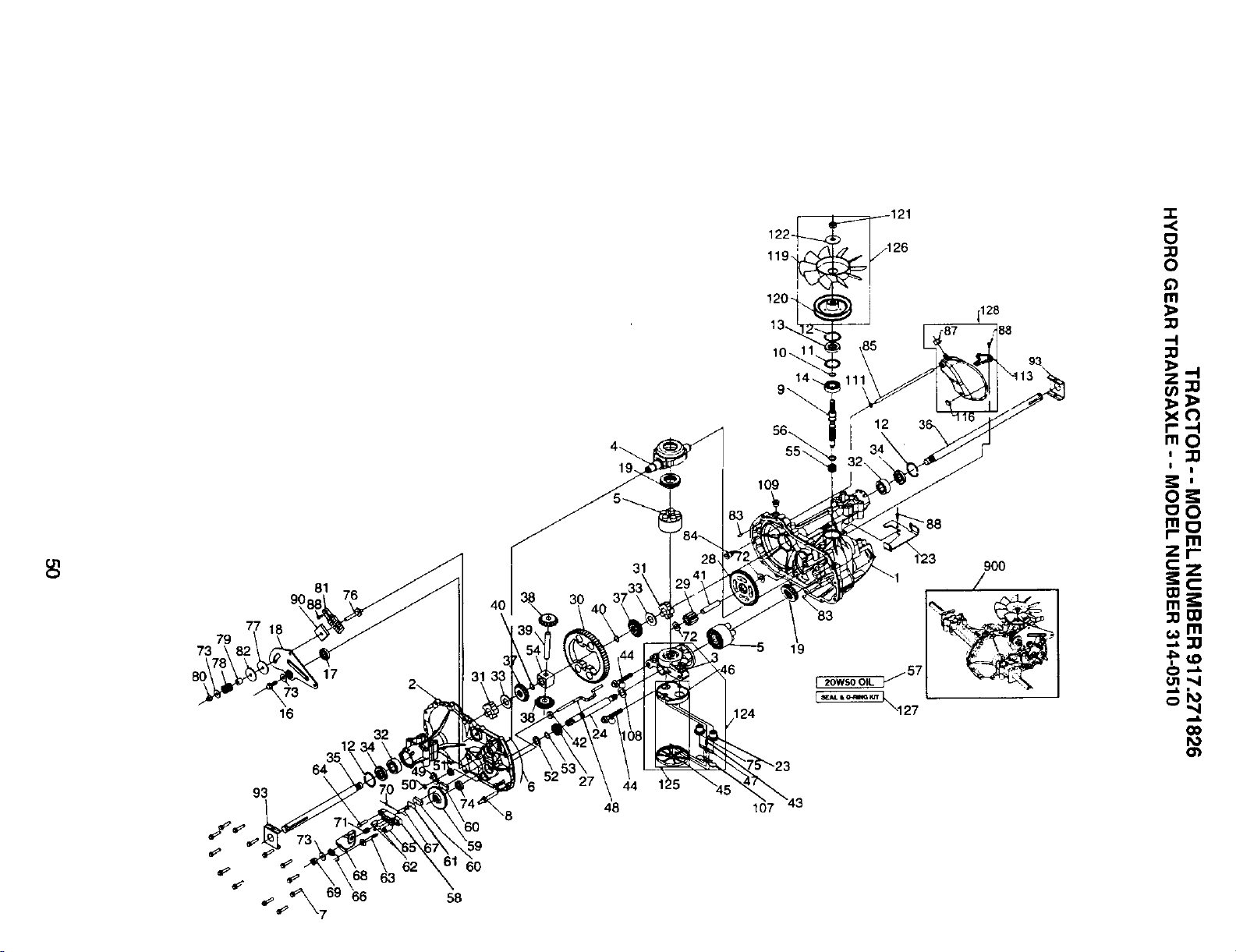

122-

119-,

120-

56_

55\

109

107

20WSO OIL

C....

\127

128

900

>7>

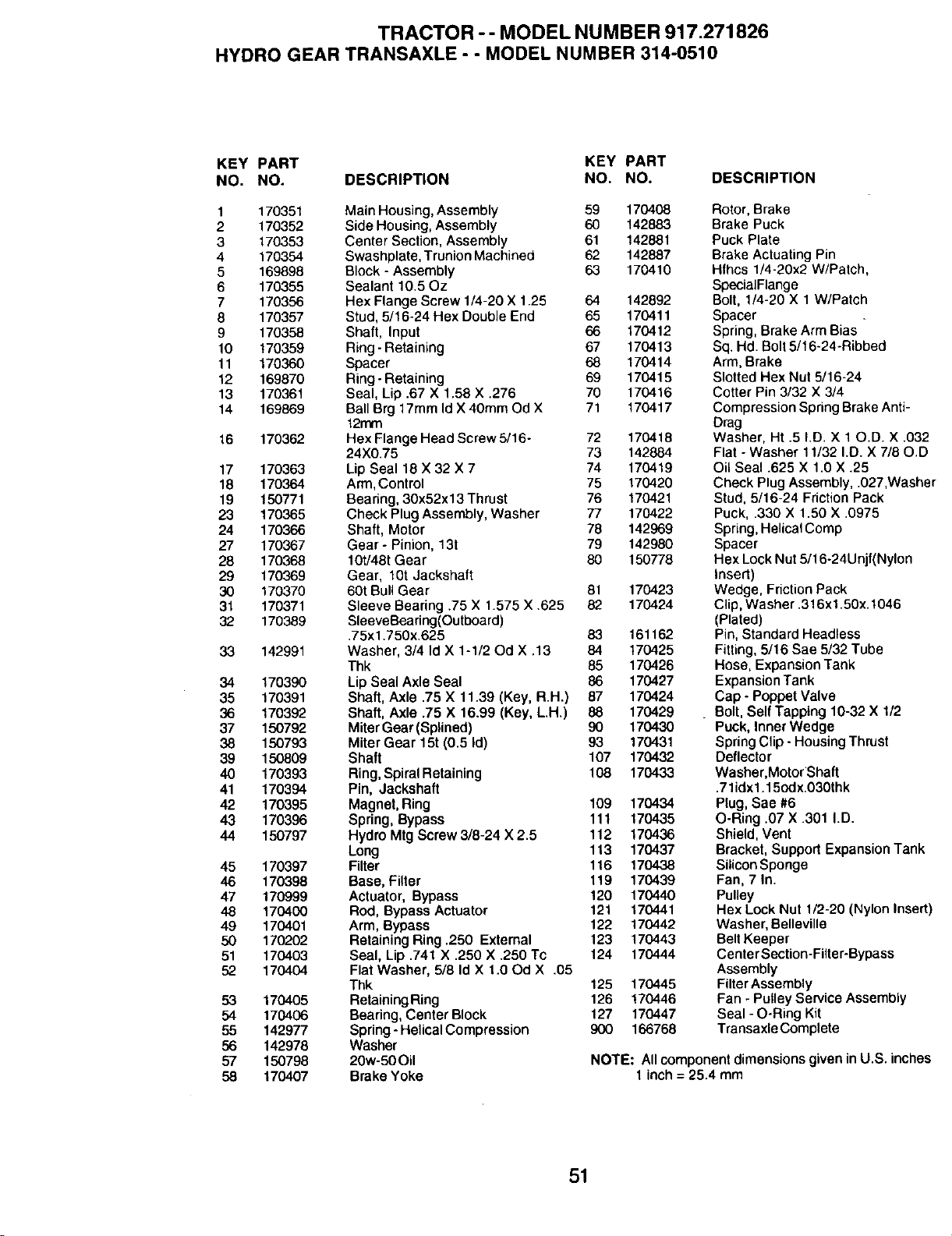

TRACTOR - - MODEL NU MBER 917.271826

HYDRO GEAR TRANSAXLE - - MODEL NUMBER 314-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 170351 Main Housing, Assembly 59 170408

2 170352 Side Housing, Assembly 60 142883

3 170353 Center Section, Assembly 61 142881

4 170354 Swashplate, Trunion Machined 62 142887

5 169898 Block - Assembly 63 170410

6 170355 Sealant 10.50z

7 170356 Hex Flange Screw 1/4-20 X 1.25 64 142892

8 170357 Stud, 5/16-24 Hex Double End 65 170411

9 170358 Shaft, Input 66 170412

10 170359 Ring-Retaining 67 170413

11 170360 Spacer 68 170414

12 169870 Ring-Retaining 69 170415

13 170361 Seal, Lip .67 X 1.58 X .276 70 170416

14 169869 Ball Brg 17mm Id X 40mm Od X 71 170417

12rnm

16 170362 Hex Flange Head Screw 5/16- 72 170418

24X0.75 73 142884

17 170363 Lip Seal 18 X 32 X 7 74 170419

18 170364 Arm, Control 75 170420

19 150771 Beanng, 30x52x13 Thrust 76 170421

23 170365 Check Plug Assembly, Washer 77 170422

24 170366 Shaft, Motor 78 142969

27 170367 Gear - Pinion, 131 79 142980

28 170368 10t/481 Gear 80 150778

29 170369 Gear, 101 Jackshaft

30 170370 60t Bull Gear 81 170423

31 170371 Sleeve Bearing .75 X 1.575 X .625 82 170424

32 170389 SleeveBearing(Outboard)

.75x1.750x.625 83 161162

33 142991 Washer, 3/4 Id X 1-1/20d X .13 84 170425

Thk 85 170426

34 170390 Lip Seal Axle Seal 86 170427

35 170391 Shaft, Axle .75 X 11.39 (Key, R.H.) 87 170424

36 170392 Shaft, Axle .75 X 16.99 (Key, L.H.) 88 170429

37 150792 Miter Gear (Splined) 90 170430

38 150793 Miter Gear 151(0.5 Id) 93 170431

39 150809 Shaft 107 170432

40 170393 Ring, Spiral Retaining 108 170433

41 170394 Pin, Jackshaft

42 170395 Magnet, Ring 109 170434

43 170396 Spring, Bypass 111 170435

44 150797 Hydro Mtg Screw 3/8-24 X 2.5 112 170436

Long 113 170437

45 170397 Filter 116 170438

46 170398 Base, Filter 119 170439

47 170999 Actuator, Bypass 120 170440

48 170400 Rod, Bypass Actuator 121 170441

49 170401 Arm, Bypass 122 170442

50 170202 Retaining Ring .250 External 123 170443

51 170403 Seal, Lip .741 X .250 X .250 Tc 124 170444

52 170404 Flat Washer, 5/8 Id X 1.00d X .05

Thk 125 170445

53 170405 Retaining Ring 126 170446

54 170406 Beadng, Center Block 127 170447

55 142977 Spring - Helical Compression 900 166768

56 142976 Washer

67 150798 20w-50Oil

58 170407 Brake Yoke

Rotor, Brake

Brake Puck

Puck Plate

Brake Actuating Pin

Hfbcs 1/4-20x2 W/Patch,

SpecialFlange

Bolt, 1/4-20 X 1 W/Patch

Spacer

Spring, Brake Arm Bias

Sq. Hd. Bolt 5/16-24-Ribbed

Arm, Brake

Slotted Hex Nut 5/16-24

Cotter Pin 3/32 X 3/4

Compression Spring Brake Anti-

Drag

Washer, Ht .5 I.D. X 10.D. X .032

Flat - Washer 11/32 I.D. X 7/80.D

Oil Seal .625 X 1.0 X .25

Check Plug Assembly, .027,Washer

Stud, 5/16-24 Friction Pack

Puck, .330 X 1.50 X .0975

Spring, Helical Comp

Spacer

Hex Lock Nut 5/16-24Unit(Nylon

Insert)

Wedge, Friction Pack

Clip, Washer .316xl.50x.1046

(Plated)

Pin, Standard Headless

Fitting, 5/16 Sae 5/32 Tube

Hose, Expansion Tank

Expansion Tank

Cap - Poppet Valve

. Bolt, Self Tapping 10-32 X 1/2

Puck, Inner Wedge

Spring Clip - Housing Thrust

Deflector

Washer, Motor'Shaft

.71idx1.15odx.030thk

Plug, Sae #6

O-Ring .07 X .301 I.D.

Shield, Vent

Bracket, Support Expansion Tank

Silicon Sponge

Fan, 7 In.

Pulley

Hex Lock Nut 1/2-20 (Nylon Insert)

Washer, Belleville

Belt Keeper

Center Section-Filter-Bypass

Assembly

Filter Assembly

Fan - Pulley Service Assembly

Seal - O-Ring Kit

Transaxle Complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

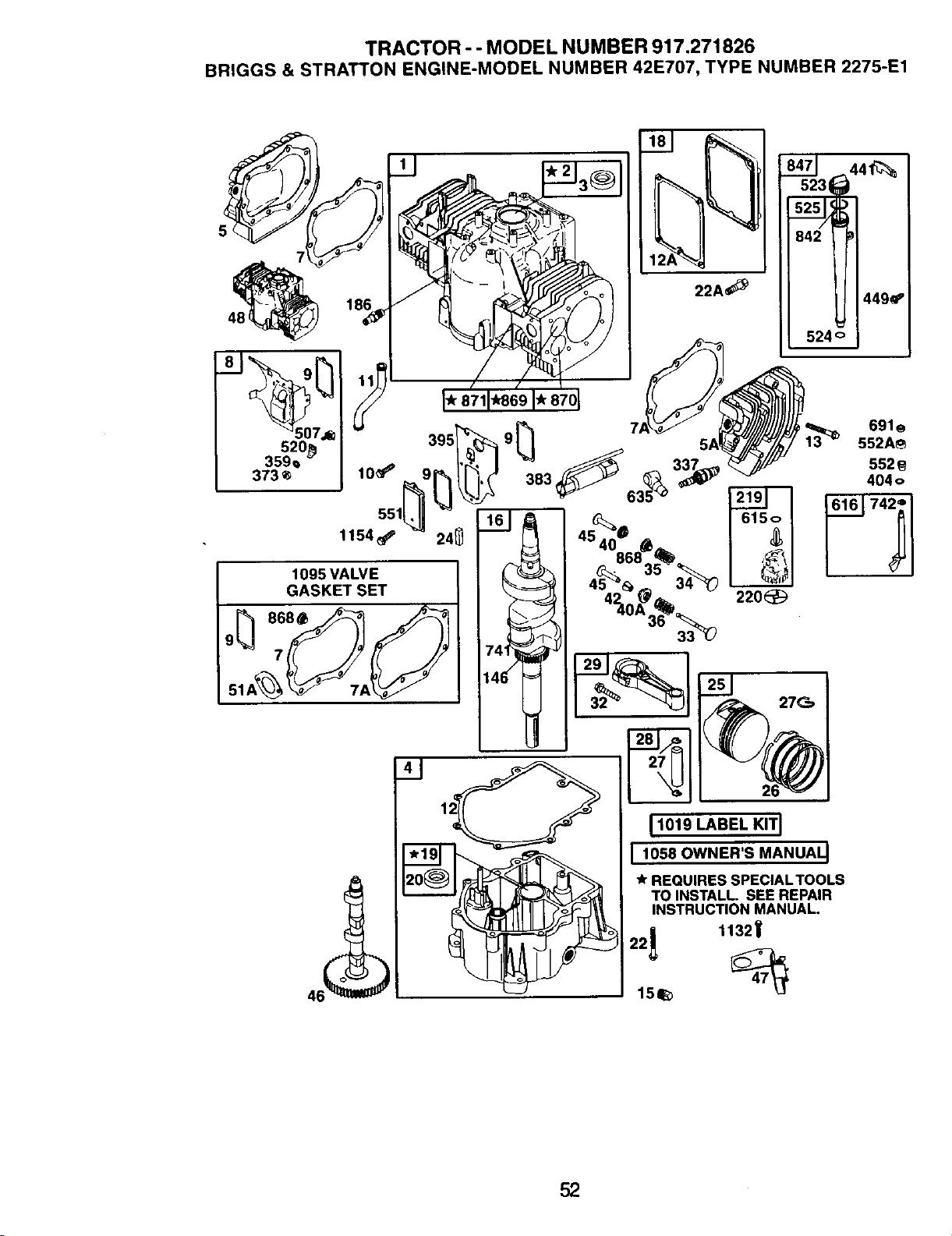

TRACTOR - - MODEL NUMBER 917.271826

BRIGGS & STRATTON ENGINE-MODEL NUMBER 42E707, TYPE NUMBER 2275-E1

s2o_ 39s 9[_ _ 691.

552A_

359_ 10_ )_ S 552_

4040

1154_ 24 :__ 4S-_::_0 -

22o_

GASK ETSET \::_ 4240A_36.2.__

51A__7A_ = 27*

1; 11019LABEL KITI

! 10.OWNER'SMA.UALI

20_lt ! lk REQUIRES SPECIALTOOLS

TO INSTALL SEE REPAIR

INSTRUCTION MANUAL,

156

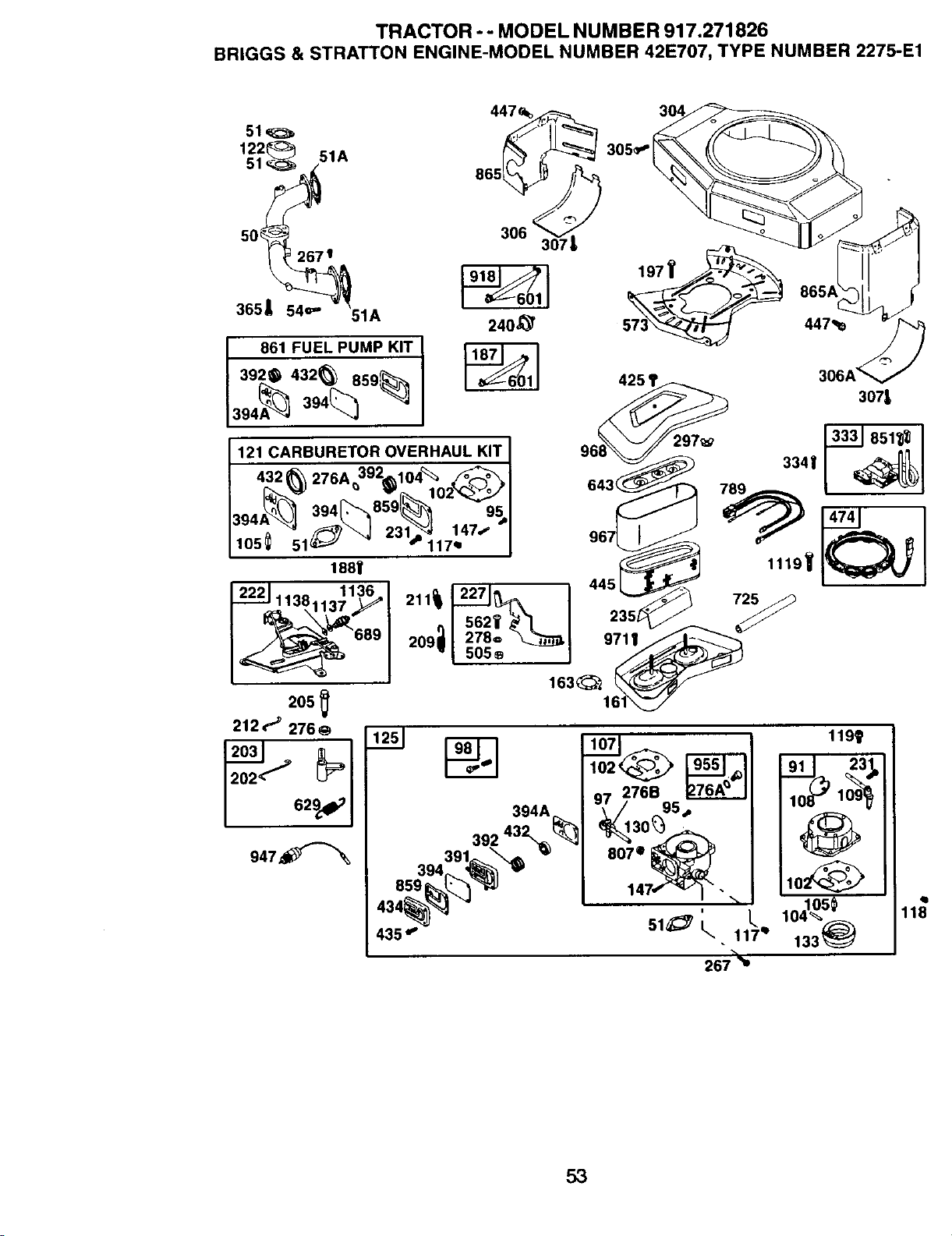

TRACTOR - - MODEL NUMBER 917.271826

BRIGGS & STRATTON ENGINE-MODEL NUMBER 42E707, TYPE NUMBER 2275-E1

51_

51 51A

50_

267 t

365_ 54m"

861 FUEL PUMP KIT I

392_ 432_ 859_---_

394A_ 394% q_

119_

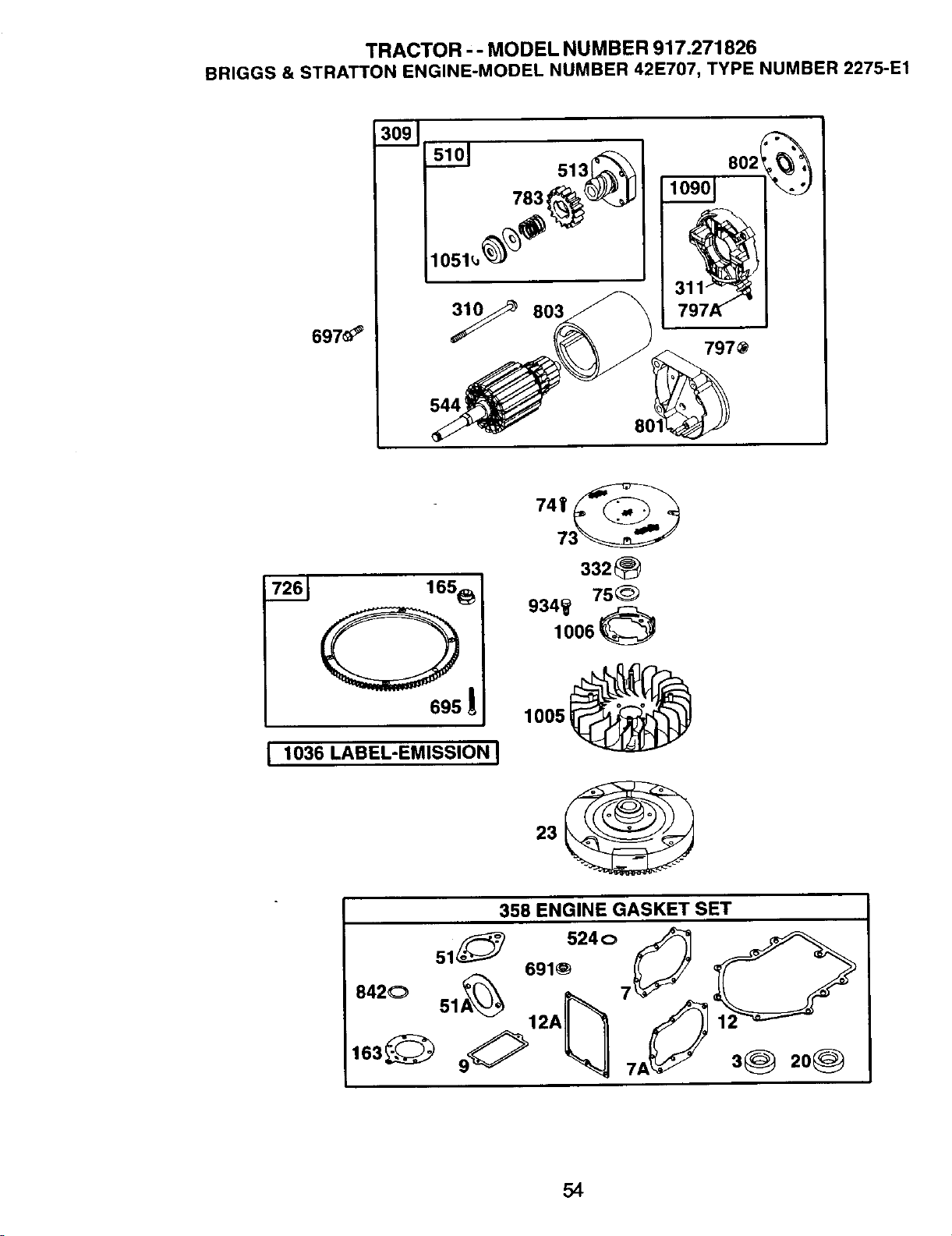

TRACTOR '- MODEL NUMBER 917.271826

BRIGGS & STRATTON ENGINE-MODEL NUMBER 42E707, TYPE NUMBER 2275-E1

697_

544

801

797_

165_

695

I 1036 LABEL-EMISSION I

73_

332_

75@

934_

1006._%_

1005_

358 ENGINE GASKET SET

1:4o

842_:_ 51A_ 12A_

1639 9° _J

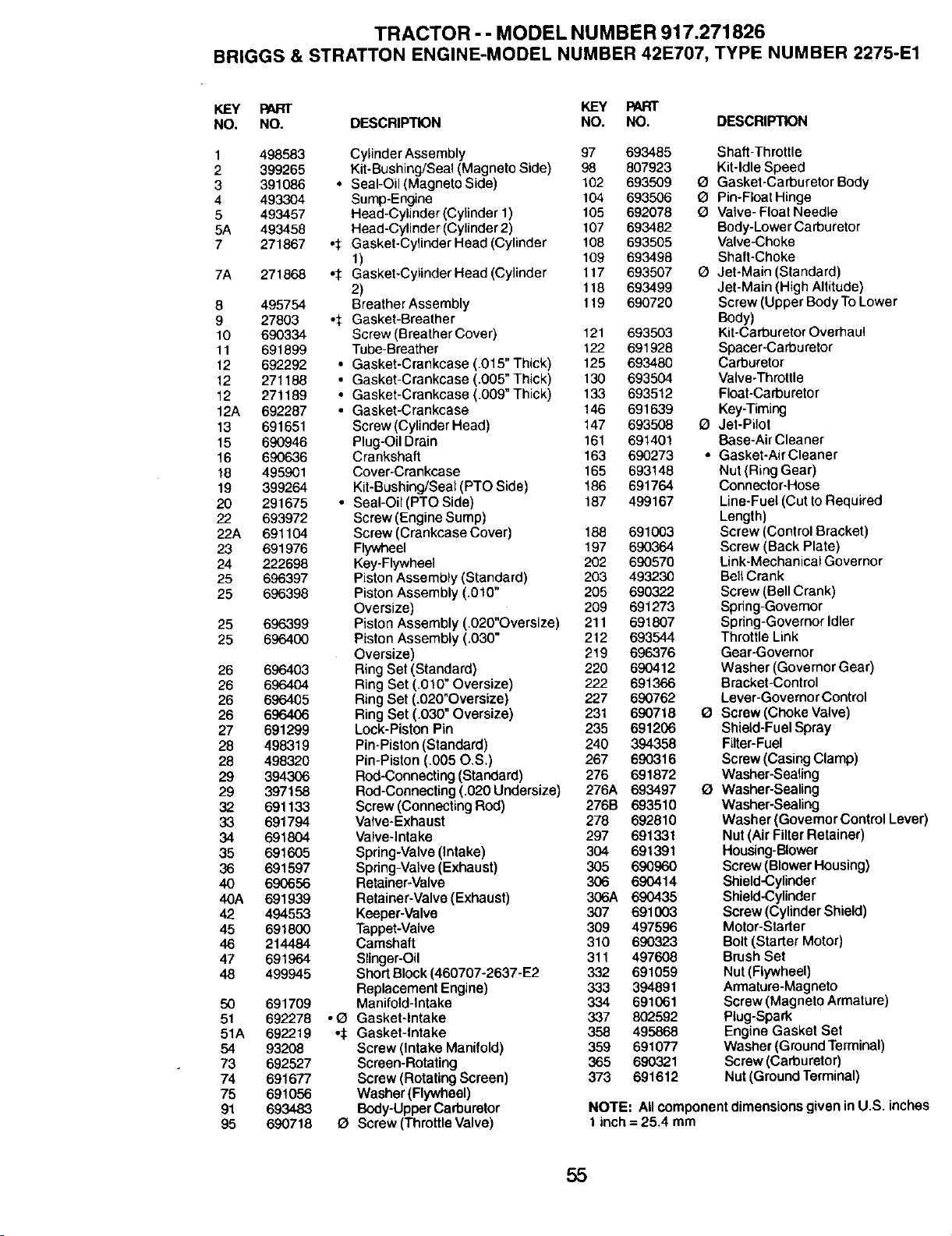

TRACTOR - - MODEL NUMBER 917.271826

BRIGGS & STRATTON ENGINE-MODEL NUMBER 42E707, TYPE NUMBER 2275-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 498583 Cylinder Assembly 97 693485

2 399265 Kit-Bushing/Seal (Magneto Side) 98 807923

3 391086 • Seal-Oil (Magneto Side) 102 693509

4 493304 Sump-Engine 104 693506

5 493457 Head-Cylinder (Cylinder 1) 105 692078

5A 493458 Head-Cylinder (Cylinder 2) 107 693482

7 271867 ,_- Gasket-Cylinder Head (Cylinder 108 693505

1) 109 693498

7A 271868 ,t Gasket-Cylinder Head (Cylinder 117 693507

2) 118 693499

8 495754 Breather Assembly 119 690720

9 27803 °_ Gasket-Breather

10 690334 Screw (Breather Cover) 121 693503

11 691899 Tube-Breather 122 691928

12 692292 • Gasket-Crankcase (.015" Thick) 125 693480

12 271188 • Gasket-Crankcase (.005" Thick) 130 693504

12 271189 ° Gasket-Crankcase (.009" Thick) 133 693512

12A 692287 ° Gasket-Crankcase 146 691639

13 691651 Screw (CyUnder Head) 147 693508

15 690946 Plug-Oil Drain 161 691401

16 690636 Crankshaft 163 690273

18 495901 Cover-Crankcase 165 693148

19 399264 Kit-Bushing/Seal (PTO Side) 186 691764

20 291675 • Seal-Oil (PTO Side) 187 499167

22 693972 Screw (Engine Sump)

22A 691104 Screw (Crankcase Cover) 188 691003

23 691976 Flywheel 197 690364

24 222698 Key-Flywheel 202 690570

25 696397 Piston Assembly (Standard) 203 493230

25 696398 Piston Assembly (.010" 205 690322

Oversize) 209 691273

25 696399 Piston Assembly (.020"Oversize) 211 691807

25 696400 Piston Assembly (.030" 212 693544

Oversize) 219 696376

26 696403 Ring Set (Standard) 220 690412

26 696404 Ring Set (.010" Oversize) 222 691366

26 696405 Ring Set (.020"Overaize) 227 690762

26 696406 Ring Set (.030" Oversize) 231 690718

27 691299 Lock-Piston Pin 235 691206

28 498319 Pin-Piston (Standard) 240 394358

28 498320 Pin-Piston (.005 O.S.) 267 690316

29 394306 Rod-Connecting(Standard) 276 691872

29 397158 Rod-Connecting (.020 Undersize) 276A 693497

32 691133 Screw (Connecting Rod) 276B 693510

33 691794 Valve-Exhaust 278 692810

34 691804 Valve-Intake 297 691331

35 691605 Spring-Valve (Intake) 304 691391

36 691597 Spring-Valve (Exhaust) 305 690960

40 690656 Retainer-Valve 306 690414

40A 691939 Retainer-Valve(Exhaust) 306A 690435

42 494553 Keeper-Valve 307 691003

45 691800 Tappet-Valve 309 497596

46 214484 Camshaft 310 690323

47 691964 Slinger-Oil 311 497608

48 499945 Short Block (460707-2637-E2 332 691059

Replacement Engine) 333 394891

50 691709 Manifold-Intake 334 691061

51 692278 °Q Gasket-Intake 337 802592

51A 692219 °:t: Gasket-Intake 358 495868

54 93208 Screw (Intake Manifold) 359 691077

73 692527 Screen-Rotating 365 690321

74 691677 Screw (Rotating Screen) 373 691612

75 691056 Washer(Flywheel)

91 693483 Body-Upper Carburetor

95 690718 O Screw (Throttle valve)

Shaft-Throttle

Kit-Idle Speed

Q Gasket-Carburetor Body

Q Pin-Float Hinge

Q Valve- Float Needle

Body-Lower Carburetor

Valve_;hoke

Shaft-Choke

Jet-Main (Standard)

Jet-Main (High Altitude)

Screw (Upper Body To Lower

Body)

Kit-Carburetor Overhaul

Spacer-Carburetor

Carburetor

Valve-Throttle

Float-Carburetor

Key-Timing

13 Jet-Pilot

Base-Air Cleaner

• Gasket-Air Cleaner

Nut (Ring Gear)

Connector-Hose

Line-Fuel (Cut to Required

Length)

Screw (Control Bracket)

Screw (Back Plate)

Link-Mechanical Governor

BeltCrank

Screw (Bell Crank)

Spring-Governor

Spring-Governor Idler

Throttle Link

Gear-Governor

Washer (Governor Gear)

Bracket-Control

Lever-Governor Control

Q Screw (Choke Valve)

Shield-Fuel Spray

Filter-Fuel

Screw (Casing Clamp)

Washer-Sealing

1_ Washer-Sealing

Washer-Sealing

Washer (Governor Control Lever)

Nut (Air Filter Retainer)

Housing-Blower

Screw (Blower Housing)

Shield-Cylinder

Screw (Cylinder Shield)

Motor-Starter

Bolt(Starter Motor)

Brush Set

Nut (Flywheel)

Armature-Magneto

Screw (Magneto Armature)

Plug-Spark

Engine Gasket Set

Washer (Ground Terminal)

Screw (Carburetor)

Nut (Ground Terminal)

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

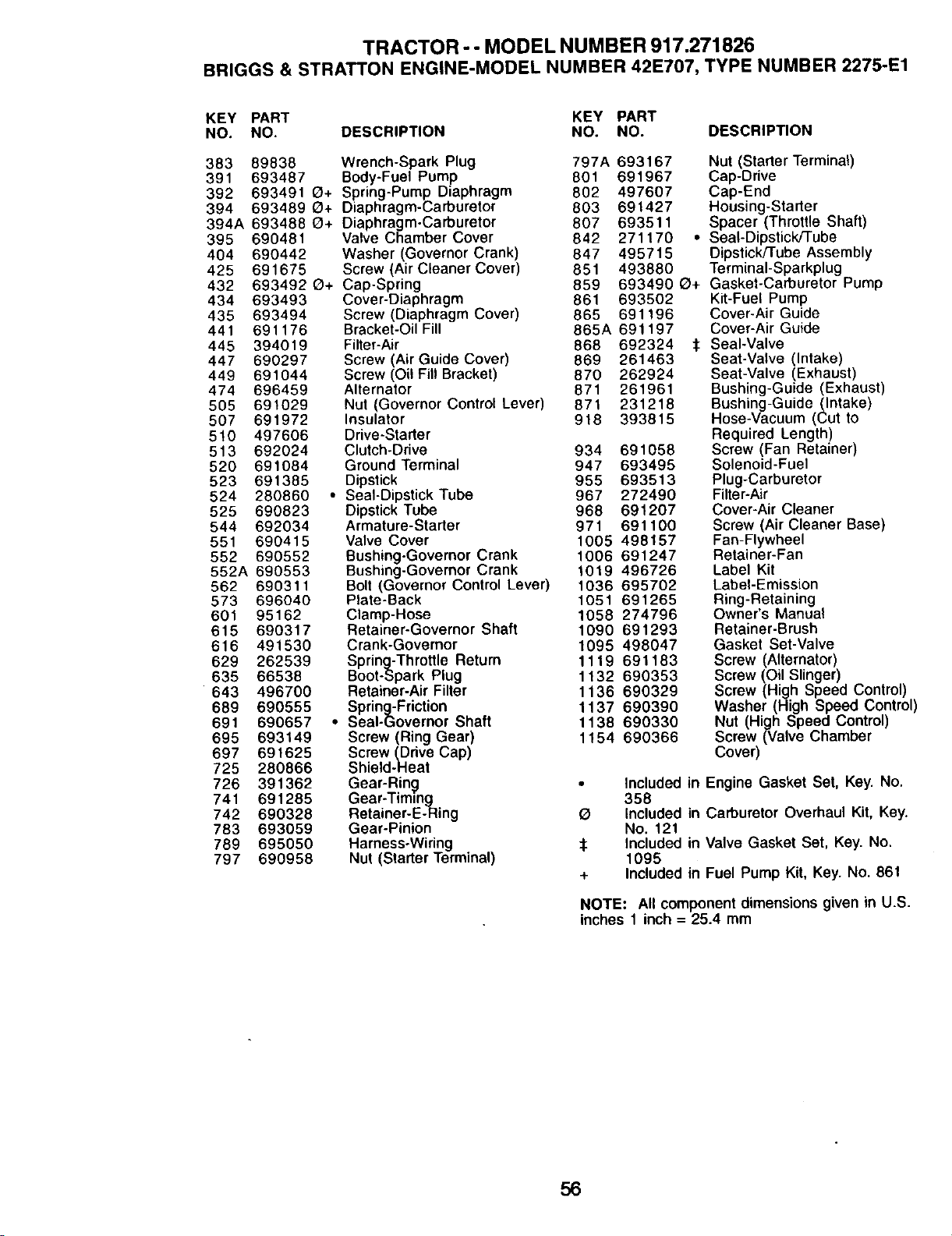

TRACTOR-- MODEL NUMBER 917.271826

BRIGGS& STRATTONENGINE-MODELNUMBER 42E707,TYPE NUMBER2275-E1

KEY PART KEY PART

NO. NO, DESCRIPTION NO. NO. DESCRIPTION

383 89838 Wrench-Spark Plug 797A 693167

391 693487 Body-Fuel Pump 601 691967

392 693491 (_+ Spring-Pump Diaphragm 802 497607

394 693489 Q+ Diaphragm-Carburetor 803 691427

394A 693488 (_+ Diaphragm-Carburetor 807 693511

395 690481 Valve Chamber Cover 842 271170

404 690442 Washer (Governor Crank) 847 495715

425 691675 Screw (Air Cleaner Cover) 851 493880

432 693492 Q+ Cap-Spring 859 693490

434 693493 Cover-Diaphragm 861 693502

435 693494 Screw (Diaphragm Cover) 865 691196

441 691176 Bracket-OilFill 865A 691197

445 394019 Filter-Air 868 692324

447 690297 Screw (Air Guide Cover) 869 261463

449 691044 Screw (Oi! Fill Bracket) 870 262924

474 696459 Alternator 871 261961

505 691029 Nut (Governor Control Lever) 871 231218

507 691972 Insulator 918 393815

5!0 497606 Drive-Starter

513 692024 Clutch-Drive 934 691058

520 691084 Ground Terminal 947 693495

523 691385 Dipstick 955 693513

524 280860 • Seal-Dipstick Tube 967 272490

525 690823 Dipstick Tube 968 691207

544 692034 Armature-Starter 971 691100

551 690415 Valve Cover 1005 498157

552 690552 Bushing-Governor Crank 1006 691247

562A 690553 Bushing-Governor Crank 1019 496726

562 690311 Bolt (Governor Control Lever) 1036 695702

573 696040 Plate-Back 1051 691265

601 95162 Clamp-Hose 1058 274796

615 690317 Retainer-Governor Shaft 1090 691293

616 491530 Crank-Governor 1095 498047

629 262539 Spring-Throttle Return 1119 691183

635 66538 Boot-Spark Plug 1132 690353

643 496700 Retainer-Air Filter 1136 690329

689 690555 Spring-Friction 1137 690390

691 690657 • Seal-Governor Shaft 1138 690330

695 693149 Screw (Ring Gear) 1154 690366

697 691625 Screw (Drive Cap)

725 280866 Shield-Heat

726 391362 Gear-Ring • Included

741 691285 Gear-Timing 358

742 690328 Retainer-E-Ring _ Included

783 693059 Gear-Pinion No. 121

789 695050 Harness-Wiring :1: Included

797 690958 Nut (Starter Terminal) 1095

+ Included

Nut (Starter Terminal)

Cap-Drive

Cap-End

Housing-Starter

Spacer (Throttle Shaft)

• Seal-Dipstick/Tube

Dipstick/Tube Assembly

TerminaI-Sparkplug

O+ Gasket-Carburetor Pump

Kit-Fuel Pump

Cover-Air Guide

_t Seal-Valve

Seat-Valve (Intake)

Seat-Valve (Exhaust)

Bushing-Guide (Exhaust)

Bushing-Guide (Intake)

Hose-Vacuum (Cut to

Required Length)

Screw (Fan Retainer)

Solenoid-Fuel

Plug-Carburetor

Filter-Air

Cover-Air Cleaner

Screw (Air Cleaner Base)

Fan-Flywheel

Retainer-Fan

Label Kit

Label-Emission

Ring-Retaining

Owner's Manual

Retainer-Brush

Gasket Set-Valve

Screw (Alternator)

Screw (Oil Slinger)

Screw (High Speed Control)

Washer (High Speed Control)

Nut (High Speed Control)

Screw (Valve Chamber

Cover)

in Engine Gasket Set, Key. No.

in Carburetor Overhaul Kit, Key.

in Valve Gasket Set, Key. No.

in Fuel Pump Kit, Key. No. 861

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure,

4, Compare the angle of the fold with the slope of the hill.

Get it fixed, at your home or ours!

For repairof major brand appliances in your own home...

no matter who made it,no matter who solditJ

1-8OO-4-MY-HOME _ Anydme,dayornight

(1-800-469_) (u.s._ andCanada

www.sears.conl www.se6r_3.ca

For repairofcarry-inproductslikevacuums, lawn equipment,and

electronics,callforthe nearestSears Parts and Repair Center.

1-800-488-1222 Anyt,T_,dayorr_gt_t(U.S.A.orgy)

iN_l_N..se_lrs.com

For the replacement parts,accessories and owner'smanuals

that you needto do-it-yourself,call Sears PartsDirectSM!

1-800-366-PART 6 a.m.-11 p.m., 7 daysaweek

(1-800-36_7278) (U.S.A.only)

www_eamcoeYpertsdlrect

To purchaseor inquireabouta Sears Service Agreement

or Sears Maintenance Agreement:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Cana(_)

7 a.m. - 5 p.m.,CST, Mort.- Sat. 9 a.m.- 8 p.m.EST, M- F, 4 p.m.Sat.

Parapedr sewlclodemparack_ a

domiclo, y para ordenarpiezas:

1-S88-SU.+IOGAR su

(1-888-784.6427)

Au_ pourserviceonfran93is:

1-800-LE-FOYER Mc

(1-ax_o33-6_

www.sears.ca

®Regtstered Trademark / TMTrademark / su Serv=ce Mark of Sears. Roebuck and Co

® Marca Reg=strada / TMMarca de F_bnca / SMMarca de Servic=ode Sears, Roebuck and Co

McMarque de commerce / MeMarque ddposee de Sears, Roebuck and Co

182456 1.8.02 JH Printed in U.S.A.

Craftsman 917271826 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917271826 Questions and Answers

Related Products

Craftsman 917273900 lawn tractor

Craftsman 917287440 Lawn tractor 26.0HP. 54'' Mover Electric Start Automatic Transmission

Craftsman 917250551 Lawn Tractor

Craftsman 917276390 Lawn Tractor 18.0 HP, 42'' Mower Electric Start 6 Speed Transaxle

Craftsman 247203790 Lawn Tractor

Craftsman 917287320 Lawn Tractor 26.0 HR 54" Mower Electric Start Automatic Transmission
