User Guide
Dual Fuel Downdraft Range
THANK YOU for purchasing this high-quality product. Register your range at www.jennair.com. In Canada, register your range
at www.jennair.ca.
For future reference, please make a note of your product model and serial numbers. These can be found on the label located on the
oven frame behind the top right side of the oven door.
Model Number______________________________________________ Serial Number_______________________________________________
Para una versión de estas instrucciones en español, visite www.jennair.com.
Deberá tener a mano el número de modelo y de serie, que están ubicados en el marco del horno, detrás del lado derecho superior de la
puerta del horno.
Table of Contents
W11123986A
RANGE SAFETY .............................................................................2
The Anti-Tip Bracket ....................................................................3
KEY USAGE TIPS ...........................................................................5
AquaLift
®
Self-Cleaning Technology ............................................5
Surface Temperatures ..................................................................5
Preheating ....................................................................................5
Surface Burners ...........................................................................5
FEATURE GUIDE ............................................................................6
Electronic Oven Controls .............................................................9
COOKTOP .....................................................................................11
Surface Burners .........................................................................11
Surface Grates ...........................................................................12
Burner Size .................................................................................12
Griddle ........................................................................................13
Downdraft Ventilation System .................................................... 13
Cookware ...................................................................................13
Home Canning ...........................................................................14
OVEN .............................................................................................15
Aluminum Foil .............................................................................15
Positioning Racks and Bakeware ..............................................15
Roll-Out Rack .............................................................................16
Oven Vent ...................................................................................17
Sabbath Mode............................................................................17
Baking and Roasting ..................................................................17
Broiling........................................................................................17
Convection Cooking ..................................................................18
Proong Bread ...........................................................................18
Favorite .......................................................................................18
Cook Time ..................................................................................19
Oven Light ..................................................................................19
RANGE CARE ...............................................................................20
Clean Cycle ................................................................................20
General Cleaning ........................................................................21
TROUBLESHOOTING ..................................................................23
ACCESSORIES .............................................................................25
WARRANTY ..................................................................................26
2
Range Safety
You can be killed or seriously injured if you don't immediately
You
can be killed or seriously injured if you don't
follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
– Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
– WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch.
•
Do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
If a gas leak is detected, follow the “What to do if you smell gas” instructions.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
3
The Anti-Tip Bracket
The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without the
anti-tip bracket fastened down properly.
Tip Over Hazard
A child or adult can tip the range and be killed.
Verify the anti-tip bracket has been properly installed and engaged per installation instructions.
Re-engage anti-tip bracket if range is moved.
Do not operate range without anti-tip bracket installed and engaged.
Failure to follow these instructions can result in death or serious burns to children and adults.
To verify the anti-tip bracket is installed and engaged:
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor or wall.
• Slide range back so rear range foot is under anti-tip bracket.
• See installation instructions for details.
WARNING
Anti-Tip
Bracket
Range Foot
4
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical shock, injury to
persons, or damage when using the range, follow basic
precautions, including the following:
■
WARNING:
TO REDUCE THE RISK OF TIPPING OF THE
RANGE, THE RANGE MUST BE SECURED BY PROPERLY
INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES
ARE INSTALLED PROPERLY, SLIDE RANGE FORWARD,
LOOK FOR ANTI-TIP BRACKET SECURELY ATTACHED TO
FLOOR OR WALL, AND SLIDE RANGE BACK SO REAR
RANGE FOOT IS UNDER ANTI-TIP BRACKET.
■ WARNING:
NEVER use this appliance as a space heater to
heat or warm the room. Doing so may result in carbon monoxide
poisoning and overheating of the oven.
■
WARNING:
NEVER cover any slots, holes or passages in the
oven bottom or cover an entire rack with materials such as
aluminum foil. Doing so blocks air flow through the oven and
may cause carbon monoxide poisoning. Aluminum foil linings
may also trap heat, causing a fire hazard.
■ CAUTION:
Do not store items of interest to children in
cabinets above a range or on the backguard of a range –
children climbing on the range to reach items could be seriously
injured.
■
Do Not Leave Children Alone – Children should not be left alone
or unattended in area where the range is in use. They should
never be allowed to sit or stand on any part of the range.
■ Wear Proper Apparel – Loose-fitting or hanging garments
should never be worn while using the range.
■ User Servicing – Do not repair or replace any part of the range
unless specifically recommended in the manual. All other
servicing should be referred to a qualified technician.
■ Storage in or on the Range – Flammable materials should not
be stored in an oven or near surface units.
■ Do Not Use Water on Grease Fires – Smother fire or flame or
use dry chemical or foam-type extinguisher.
■ Use Only Dry Potholders – Moist or damp potholders on hot
surfaces may result in burns from steam. Do not let potholder
touch hot heating elements. Do not use a towel or other bulky
cloth.
■ DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS –
Surface units may be hot even though they are dark in color.
Areas near surface units may become hot enough to cause
burns. During and after use, do not touch, or let clothing or
other flammable materials contact surface units or areas near
units until they have had sufficient time to cool. Among those
areas are the cooktop and surfaces facing the cooktop.
■ Never Leave Surface Units Unattended at High Heat Settings –
Boilover causes smoking and greasy spillovers
that may ignite.
■ Glazed Cooking Utensils – Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed utensils
are suitable for range-top service without breaking due to the
sudden change in temperature.
■ Utensil Handles Should Be Turned Inward and Not Extend Over
Adjacent Surface Units – To reduce the risk of burns, ignition of
flammable materials, and spillage due to unintentional contact
with the utensil, the handle of a utensil should be positioned so
that it is turned inward, and does not extend over adjacent
surface units.
■
Clean Cooktop With Caution – If a wet sponge or cloth
is used to wipe spills on a hot cooking area, be careful
to avoid steam burn. Some cleaners can produce
noxious fumes if applied to a hot surface.
■ Use Care When Opening Door – Let hot air or steam
escape before removing or replacing food.
■
Do Not Heat Unopened Food Containers – Build-up of
pressure may cause container to burst and result in
injury.
■
Keep Oven Vent Ducts Unobstructed.
■ Placement of Oven Racks – Always place oven racks in
desired location while oven is cool. If rack must be
moved while oven is hot, do not let potholder contact
hot heating element in oven.
■ DO NOT TOUCH HEATING ELEMENTS OR INTERIOR
SURFACES OF OVEN – Heating elements may be hot
even though they are dark in color. Interior surfaces of
an oven become hot enough to cause burns. During
and after use, do not touch, or let clothing or other
flammable materials contact heating elements or interior
surfaces of oven until they have had sufficient time to
cool. Other surfaces of the appliance may become hot
enough to cause burns – among these surfaces are
oven vent openings and surfaces near these openings,
oven doors, and windows of oven doors.
■
Proper Installation – The range, when installed, must be
electrically grounded in accordance with local codes or,
in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70. In Canada, the range
must be electrically grounded in accordance with
Canadian Electrical Code. Be sure the range is properly
installed and grounded by a qualified technician.
■ Disconnect the electrical supply before servicing the
appliance.
■
Injuries may result from the misuse of appliance doors
or drawers such as
stepping, leaning, or sitting on the
doors or drawers.
■ Maintenance – Keep range area clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
■
Top burner flame size should be adjusted so it does not
extend beyond the edge of the cooking utensil.
For self-cleaning ranges –
■ Do Not Clean Door Gasket – The door gasket is
essential for a good seal. Care should be taken not to
rub, damage, or move the gasket.
■ Do Not Use Oven Cleaners – No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
■ Clean Only Parts Listed in Manual.
■ Before Self-Cleaning the Oven – Remove broiler pan
and other utensils. Wipe off all excessive spillage before
initiating the cleaning cycle.
For units with ventilating hood –
■ Clean Ventilating Hoods Frequently – Grease should not
be allowed to accumulate on hood or filter.
■ When flambéing foods under the hood, turn the fan on.
5
Key Usage Tips
AquaLift
®
Self-Cleaning Technology
AquaLift
®
Self-Cleaning Technology is a rst-of-its-kind cleaning
solution designed to minimize the time, temperature and odors
that ordinarily come with traditional self-cleaning methods. With
AquaLift
®
Self-Cleaning Technology, an innovative coating on the
interior of the oven is activated with heat and water to release
baked-on soil. To use AquaLift
®
Self-Cleaning Technology, simply
wipe out loose debris, pour water into the oven bottom and run
the AquaLift
®
Self-Cleaning cycle. When the cycle nishes in under
1 hour at a lower temperature than in traditional self-cleaning
methods, just wipe out the remaining water and loose debris.
See the “Clean Cycle” section for more detailed instructions. For
additional information, frequently asked questions and videos
on using AquaLift
®
Self-Cleaning Technology, visit our website at
http://whirlpoolcorp.com/aqualift.
Surface Temperatures
When the range is in use, all range surfaces may become hot,
such as the knobs and oven door.
Baking Drawer (On Some Models)
When the oven is in use, the drawer may become hot. Do not store
plastics, cloth, or other items that could melt or burn in the drawer.
Oven Vent
The oven vent releases hot air and moisture from the oven, and
should not be blocked or covered. Do not set plastics, paper or
other items that could melt or burn near the oven vent.
Preheating
When beginning a Bake or Convect Bake cycle, the oven will begin
preheating after Start is pressed. The oven will take approximately
12 to 15 minutes to reach 350°F (177°C) with all of the oven
racks provided with your oven inside the oven cavity. Higher
temperatures will take longer to preheat. The preheat cycle rapidly
increases the oven temperature. The actual oven temperature
will go above your set temperature to offset the heat lost when
your oven door is opened to insert food. This ensures that when
you place your food in the oven, the oven will begin at the proper
temperature. Insert your food when the preheat tone sounds. Do
not open the door during preheat before the tone sounds.
Surface Burners

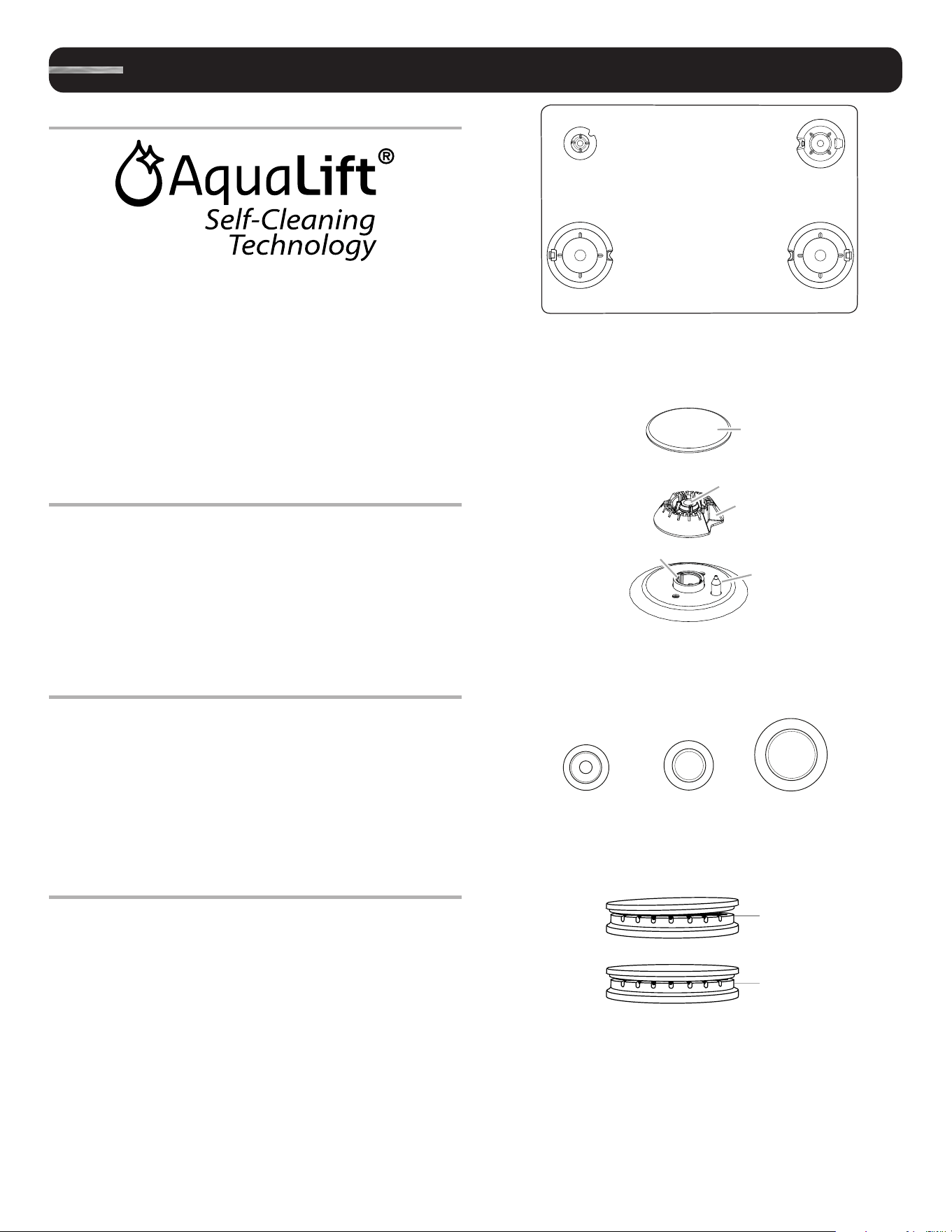

The burner bases and caps must be properly positioned before
cooking. Your range comes with 3 sizes of burners and caps. Each
round burner base is marked with a letter indicating the burner
size. Align the burner bases as shown in the following illustration:
A. Small
B. Large
D. Medium
E. Large
Align the gas tube opening in the burner base with the orice
holder on the cooktop and the igniter electrode with the notch
in the burner base.
A. Burner cap
B. Gas tube opening
C. Burner base
D. Igniter electrode
E. Orifice holder
Place the burner caps on the appropriate burner bases.
Burner caps should be level when properly positioned. If burner
caps are not properly positioned, surface burners will not light. The
burner cap should not rock or wobble when properly aligned.
A. Incorrect
B. Correct
A
C
BD
A
B
C
D
E
A
B
Small capMedium cap Large cap
6
Feature Guide
This manual covers several models. Your model may have some or all of the items listed. Refer to this manual or the Frequently Asked
Questions (FAQs) section of our website at www.jennair.com for more detailed instructions. In Canada, refer to the Customer Service
Section at www.jennair.ca.
KEYPAD FEATURE INSTRUCTIONS
OPTIONS/CLOCK Clock The Clock can use a 12- or 24-hour cycle. See the “Electronic Oven Controls” section.
1. Press OPTIONS/CLOCK until “CLOCK” is displayed.
2. Press START to change the time.
3. Press “3” for AM or “6” for PM.
4. Use the number keypad to set the time of day.
5. Press START to exit.
OPTIONS/CLOCK Settings Enables you to personalize the audible tones and oven operation to suit your needs. See the
“Electronic Oven Controls” section.
LIGHT Oven cavity
light
The oven light is controlled by a keypad on the oven control panel. While the oven door is
closed, press LIGHT to turn the light on and off. When the oven door is opened, the oven
light will automatically come on.
TIMER SET/OFF Oven timer The Timer can be set in hours or minutes up to 9 hours and 59 minutes.
1. Press TIMER SET/OFF.
2. Press the number keypads to set the length of time in hr-min-min. Leading zeros do not
have to be entered. For example, for 2 minutes, enter “2.”
3. Press TIMER SET/OFF to begin the countdown. If enabled, end-of-cycle tones will
sound at end of countdown.
4. Press TIMER SET/OFF again to cancel the Timer and return to the time of day. Do not
press the Cancel keypad because the oven will turn off.
5. If the Timer is running, but not in the display, press TIMER SET/OFF to display the
countdown for 5 seconds.
START Cooking start The Start keypad begins any oven function. If Start is not pressed within 2 minutes after
pressing a keypad, the function is canceled and the time of day is displayed.
CANCEL Range function The Cancel keypad stops any function, except the Clock and Timer.
BAKE Baking and
roasting
1. Press BAKE.
2. Set the desired temperature between 170°F and 500°F (75°C and 260°C) using the
number keypads. The default temperature is 350°F (180°C).
3. Press START.
4. To change the temperature, repeat steps 2 and 3.
5. Press CANCEL when nished.
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
7
KEYPAD FEATURE INSTRUCTIONS
BROIL Broiling 1. Press BROIL.
2. Press the number keypads to set the desired temperature.
3. Press START and allow the oven to preheat for 2 minutes.
4. To change the temperature, repeat steps 2 and 3.
5. Position the cookware in the oven, and then close the door.
6. Press CANCEL when nished.
PROOF Proong bread 1. Place prepared dough in oven. Press PROOF.
2. Press START.
Let the dough rise until nearly doubled in size. Proong time may vary depending on
dough type and quantity.
3. Press CANCEL when nished proong.
Refer to the “Proong Bread” section for more information.
KEEP WARM Hold warm Food must be at serving temperature before placing it in the warmed oven.
1. Press KEEP WARM.
2. Set the desired temperature between 145°F and 190°F (63°C and 88°C) using the
number keypads. The default temperature is 170°F (75°C).
3. Press START.
4. Press CANCEL when nished.
MANUAL CONVECT
MODES
Convection
cooking
1. Press MANUAL CONVECT MODES until the desired convection mode appears in the
display.
2. Press START.
3. Press the number keypads to set the desired temperature.
4. Press START.
5. Insert food when prompted.
6. To change the temperature, repeat steps 3 and 4.
7. Press CANCEL when nished.
AUTO CONVECT
MODES
Convection
cooking
1. Press AUTO CONVECT MODES until the desired convection mode appears in the
display.
2. Press START.
3. Press the number keypads to set the desired temperature.
4. Press START.
5. Press the number keypads to set the desired cook time.
6. Press START.
7. Insert food when prompted.
8. To change the temperature, repeat steps 3 through 6.
9. Press CANCEL when nished.
FAVORITE Saved favorite The Favorite keypad stores the oven mode, cook time, and temperature for your favorite
recipe. To save or use favorite, see the “Favorite” section.
COOK TIME Timed cooking Timed cooking allows the oven to be set to turn on at a certain time of day, cook for a set
length of time, and/or shut off automatically.
To set a Timed Cook or a Delayed Timed Cook, see “Cook Time” section.
DELAY START Delayed start The Delay Start keypad is used to enter the starting time for an oven function with a delayed
start. Delay Start should not be used for foods such as breads and cakes because they may
not bake properly.
To set a Timed Cook or a Delayed Timed Cook, see “Cook Time” section.
AQUALIFT SELF
CLEAN
Clean cycle See the “Clean Cycle” section.
8
KEYPAD FEATURE INSTRUCTIONS
DOWNDRAFT FAN
HIGH/LOW/AUTO
OFF/OFF
Downdraft fan Press DOWNDRAFT FAN HIGH or DOWNDRAFT FAN LOW to turn on the Downdraft Fan at
the desired speed.
Press DOWNDRAFT FAN OFF to turn off the Downdraft Fan immediately.
Press DOWNDRAFT FAN AUTO OFF to automatically turn off the Downdraft Fan after a set
time. To add 15 minutes to the set time, up to 1 hour, press DOWNDRAFT FAN AUTO OFF
again.
If the Downdraft Fan is Off, pressing Downdraft Fan Auto Off will turn the Downdraft Fan On
at High speed. If the Downdraft Fan is already on, pressing Downdraft Fan Auto Off will not
change the Downdraft Fan speed.
START (hold 3 sec to
lock)
Oven control
lockout
1. Check that the oven is off.
2. Press and hold START (hold 3 sec to lock) for 3 seconds.
3. A tone will sound, and “Control Locked” will scroll, and then “Locked” will be displayed.
4. Repeat to unlock. No keypads will function with the controls locked. The cooktop
functions are not affected by the oven control lockout.
OPTIONS/CLOCK Energy save Press and hold OPTIONS/CLOCK for 3 seconds to change status. The display will scroll
“Energy saver on.” or “Energy saver off.”
If Energy Save is on, the range will go into sleep mode after 5 minutes of inactivity. Any
keypad press will activate the display. If Energy Save is off, the display will be on at all times.
9
Electronic Oven Controls
Control Display
The display will ash when powered up or after a power loss.
Press CANCEL to clear. When the oven is not in use, the time of
day is displayed. If the range is in Energy Save mode, the display
will be blank when not in use.
Tones
Tones are audible signals, indicating the following:
One Tone
■ Valid keypad press
■ Oven is preheated (long tone)
■ Function has been entered
■ Reminder, repeating each minute after the end-of-cycle tones
Three Tones
■ Invalid keypad press
Four Tones
■ End of cycle
Use the Options/Clock keypad to change the tone settings.
Energy Save
The Energy Save mode puts the range into sleep mode and
reduces energy consumption.
To Activate the Energy Save Mode:
1. Press and hold OPTIONS/CLOCK for 3 seconds. “Energy
saver on.” will appear in the display.
2. The setting will be activated after 5 minutes.
To Deactivate the Energy Save Mode:
1. Press and hold OPTIONS/CLOCK for 3 seconds. “Energy
saver off.” will appear in the display.
2. The clock will reappear in the display, and the range can be
operated as usual.
Settings
Many features of the oven control can be adjusted to meet your
personal needs. These changes are made using the Options/Clock
keypad.
Use the Options/Clock keypad to scroll through the features that
can be changed. Each press of the Options/Clock keypad will
advance the display to the next setting. After selecting the feature
to be changed, the control will prompt you for the required input.
Then press START or CANCEL to exit and display the time of day.
Details of all of the feature changes are explained in the following
sections.
Press CANCEL to exit Settings.
Clock
The Clock can use a 12- or 24-hour cycle.
1. Press OPTIONS/CLOCK until “CLOCK” is displayed.
2. Press START to change the time.
3. Press “3” for AM or “6” for PM.
4. Use the number keypads to set the time of day.
5. Press START or CANCEL to exit and display the time of day.
Fahrenheit and Celsius
The temperature is preset to Fahrenheit, but can be changed to
Celsius.
1. Press OPTIONS/CLOCK until “TEMP UNIT” is displayed.
2. The current setting will be displayed.
3. Press the “1” keypad to adjust the setting.
4. Press START or CANCEL to exit and display the time of day.
Audible Tones Disable
Turns off all tones, including the end of cycle tone and key press
tones. Reminder tones are still active when all tones are disabled.
1. Press OPTIONS/CLOCK until “SOUND” is displayed.
2. The current setting will be displayed.
3. Press the “1” keypad to adjust the setting.
4. Press START or CANCEL to exit and display the time of day.
Sound Volume
Sets the volume of the tone to either high or low.
1. Press OPTIONS/CLOCK until “SOUND VOLUME” is displayed.
2. The current setting will be displayed.
3. Press the “1” keypad to adjust the setting.
4. Press START or CANCEL to exit and display the time of day.
End of Cycle Tone
Activates or turns off the tones that sound at the end of a cycle.
1. Press OPTIONS/CLOCK until “END TONE” is displayed.
2. The current setting will be displayed.
3. Press the “1” keypad to adjust the setting.
4. Press START or CANCEL to exit and display the time of day.
Key Press Tones
Activates or turns off the tones when a keypad is pressed.
1. Press OPTIONS/CLOCK until “KEYPRESS TONE” is
displayed.
2. The current setting will be displayed.
3. Press the “1” keypad to adjust the setting.
4. Press START or CANCEL to exit and display the time of day.
Reminder Tones Disable
Turns off the short repeating tone that sounds every 1 minute after
the end of cycle tones.
1. Press OPTIONS/CLOCK until “REMINDER TONE” is displayed.
2. The current setting will be displayed.
3. Press the “1” keypad to adjust the setting.
4. Press START or CANCEL to exit and display the time of day.
12/24 Hour Clock
1. Press OPTIONS/CLOCK until “12/24 HOUR” is displayed.
2. The current setting will be displayed.
3. Press the “1” keypad to adjust the setting.
4. Press START or CANCEL to exit and display the time of day.
10
Demo Mode
IMPORTANT: This feature is intended for use on the sales oor
with 120 V power connection and permits the control features
to be demonstrated without the oven turning on. If this feature is
activated, the oven will not work.
1. Press OPTIONS/CLOCK until “DEMO MODE” is displayed.
2. The current setting will be displayed.
3. Press the “1” keypad to adjust the setting.
4. Press START or CANCEL to exit and display the time of day.
Sabbath Mode
The Sabbath Mode sets the oven to remain on in a bake setting
until turned off.
When the Sabbath Mode is set, only the Bake cycle will operate.
All other cooking and cleaning cycles are disabled. No tones will
sound, and the displays will not indicate temperature changes.
When the oven door is opened or closed, the oven light will not
turn on or off, and the heating elements will not turn on or off
immediately.
To Enable Sabbath Mode Capability (One Time Only):
1. Press OPTIONS/CLOCK until “SABBATH” is displayed.
2. The current setting will be displayed.
3. Press the “1” keypad to adjust the setting.
4. Press START or CANCEL to exit and display the time of day.
12-Hour Shutoff
The oven control is set to automatically shut off the oven 12 hours
after the oven initiates a cook or clean function. This will not
interfere with any timed or delay cook functions.
1. Press OPTIONS/CLOCK until “12Hr AUTO_OFF” is displayed.
2. The current setting will be displayed.
3. Press the “1” keypad to adjust the setting.
4. Press START or CANCEL to exit and display the time of day.
Languages - Scrolling Display Text
Language options are English, Spanish and French.
1. Press OPTIONS/CLOCK until “LANGUAGE” is displayed.
2. The current setting will be displayed.
3. Press the “1” or “2” keypad to select the desired language.
4. Press START or CANCEL to exit and display the time of day.
Oven Temperature Offset Control
IMPORTANT: Do not use a thermometer to measure oven
temperature. Elements will cycle on and off as needed to provide
consistent temperature but may run slightly hot or cool at any
point in time due to this cycling. Most thermometers are slow
to react to temperature change and will not provide an accurate
reading due to this cycling.
The oven provides accurate temperatures; however, it may cook
faster or slower than your previous oven, so the temperature can
be adjusted to personalize it for your cooking needs. It can be
changed to Fahrenheit or Celsius.
To Adjust Oven Temperature:
1. Press OPTIONS/CLOCK until “TEMP CALIB” is displayed.
2. On some models, press “1” to adjust the drawer temperature
calibration. Press START, wait 10 seconds for the display to
change, and then continue with Step 3.
OR
Press START to adjust the oven temperature calibration. Wait
10 seconds for the display to change, and then continue with
Step 3.
3. Press the “3” keypad to increase the temperature in 5°F
(3°C) increments, or press the “6” keypad to decrease the
temperature in 5°F (3°C) increments. The offset range is from
-30°F to +30°F (-18°C to +18°C).
4. Press START or CANCEL to exit and display the time of day.
11
Cooktop
Electric igniters automatically light the surface burners when
control knobs are turned to IGNITE.
Before setting a control knob, place lled cookware on the
grate. Do not operate a burner using empty cookware or without
cookware on the grate.
To Set:
1. Push in and turn knob counterclockwise to IGNITE.
All surface burners will click. Only the burner with the control
knob turned to IGNITE will produce a ame.
2. Turn knob to anywhere between HIGH and LOW.
Power Failure
In case of prolonged power failure, the surface burners can be
lit manually. Hold a lit match near a burner, and then turn knob
counterclockwise to IGNITE. After burner lights, turn knob to
setting.

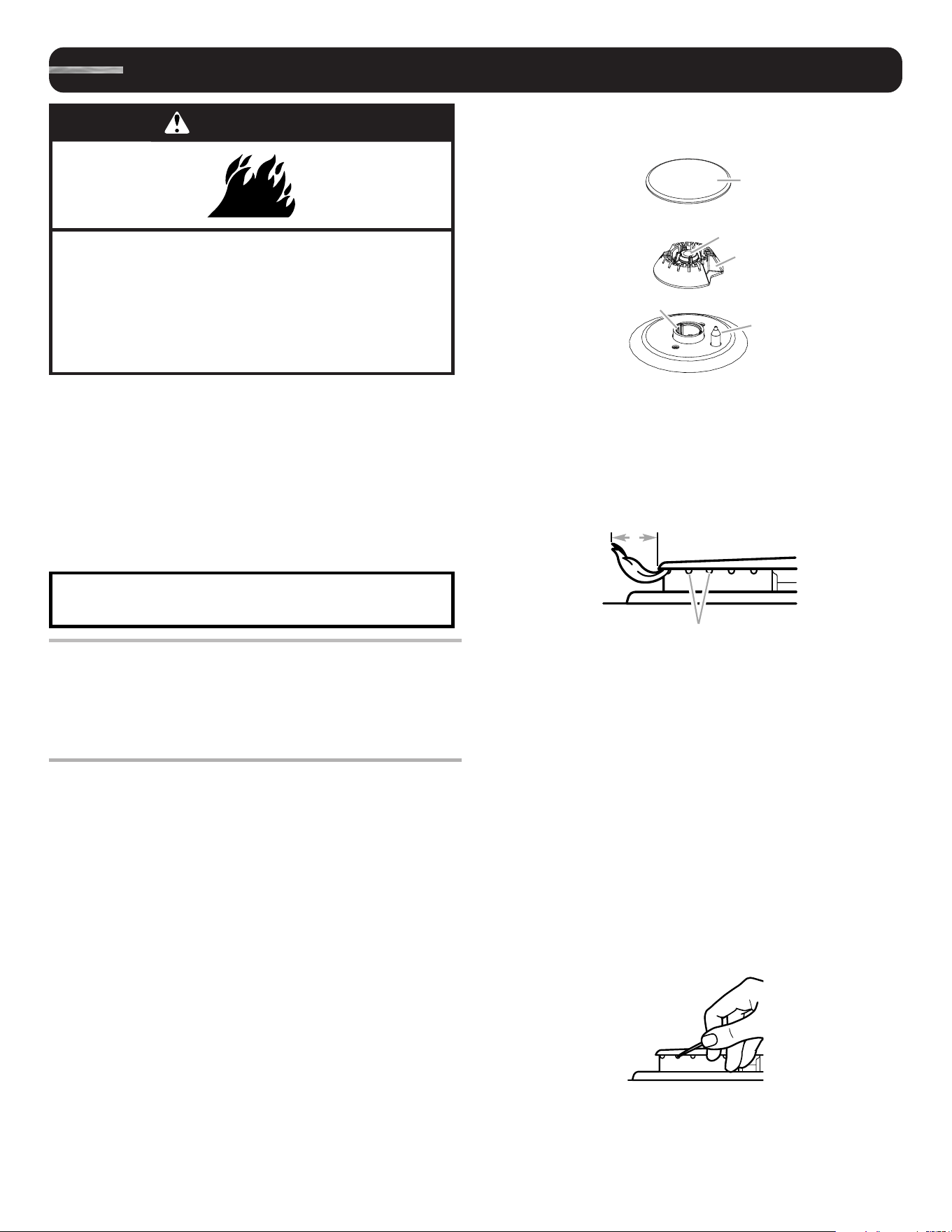

Surface Burners
IMPORTANT: Do not obstruct the ow of combustion and
ventilation air around the burner grate edges.
Burner Cap: Always keep the burner cap in place when using a
surface burner. A clean burner cap will help avoid poor ignition and
uneven ames. Always clean the burner cap after a spillover, and
routinely remove and clean the caps according to the “General
Cleaning” section.
Alignment: Be sure to align the gas tube opening in the burner
base with the orice holder on the cooktop and the igniter
electrode with the notch in the burner base.
A. Burner cap
B. Gas tube opening
C. Burner base
D. Igniter electrode
E. Orifice holder
Gas Tube Opening: Gas must ow freely throughout the gas tube
opening for the burner to light properly. Keep this area free of soil,
and do not allow spills, food, cleaning agents or any other material
to enter the gas tube opening. Keep spillovers out of the gas tube
opening by always using a burner cap.
Burner Ports: Check burner ames occasionally for proper size
and shape as shown in the previous illustration. A good ame is
blue in color, not yellow. Keep this area free of soil, and do not
allow spills, food, cleaning agents or any other material to enter
the burner ports.
To Clean:
IMPORTANT: Before cleaning, make sure all controls are off and
the cooktop is cool. Do not use oven cleaners, bleach or rust
removers. Do not wash in the dishwasher.
1. Remove the burner cap and the burner base and clean
according to “General Cleaning” section.
2. Clean the gas tube opening with a damp cloth.
3. Clean clogged burner ports with a straight pin as shown. Do
not enlarge or distort the port. Do not use a wooden toothpick.
If the burner needs to be adjusted, contact a trained repair
specialist.
A. 1 to 1¹⁄
2
" (2.5 to 3.8 cm)
B. Burner ports
WARNING
Fire Hazard
Do not let the burner flame extend beyond the edge of
the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can result in death
or fire.
REMEMBER: When range is in use, the entire cooktop area
may become hot.
A
B
C
D
E
B
A
12
4. Replace the burner base. See the following illustration for
burner positions.
5. Replace the burner cap, making sure it is properly aligned with
the burner base. The burner cap should not rock or wobble
when properly aligned.
IMPORTANT: The bottom of the small and medium caps are
different. Do not put the wrong size burner cap on the burner
base.
6. Turn on the burner. If the burner does not light, check cap
alignment. If the burner still does not light, turn off the burner.
Do not service the burner yourself. Contact a trained repair
specialist.
The surface grates interlock using the hooks on the middle grate
and the indents on the end grates. To remove the grates, remove
the end grates rst, and then remove the middle grate. To replace
the grates, replace the middle grate rst, and then place the end
grates on either side.
A. Indent
B. Hook
Although the burner grates are durable, they will gradually lose
their shine and/or discolor due to the high temperatures of the
gas ame.
B
A
Surface Grates
The grates must be properly positioned before cooking. In the
proper position, the grates should be ush and level. Improper
installation of the grates may result in chipping or scratching of
the cooktop.
To ensure proper positioning, align bumpers on grate bottom with
the indentations in the cooktop.
A. Bumpers
B. Alignment indentations
A
A
B
A. Small
B. Large
D. Medium
E. Large
A
C
BD
A. Incorrect
B. Correct
A
B
Small capMedium cap Large cap

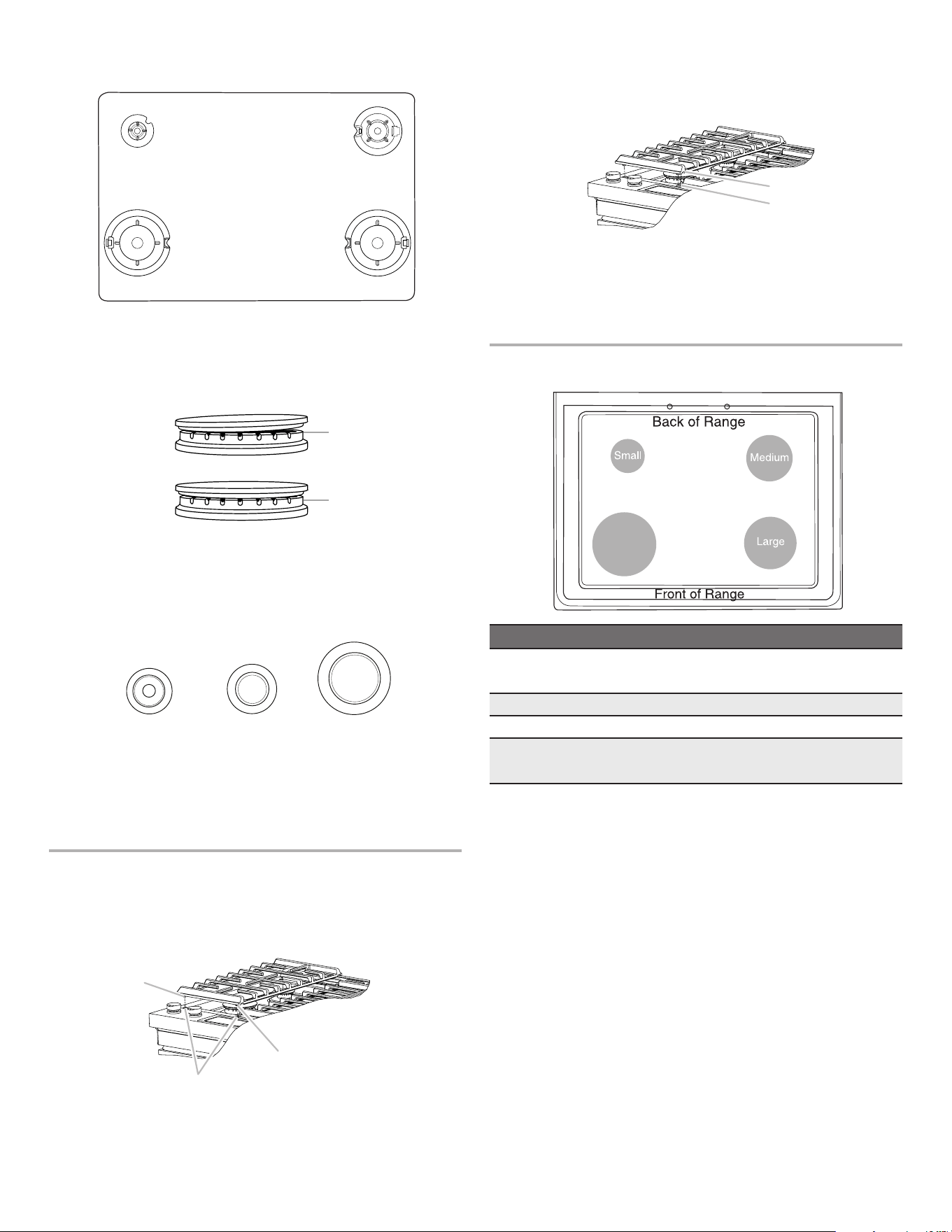

Burner Size
Select a burner that best ts your cookware. See the following
illustration and chart.
Burner Size Recommended Use
Small ■ Low-heat cooking
■ Melting chocolate or butter
Medium ■ Multipurpose burner
Large ■ For large cookware
Large (most
powerful)
■ For large cookware
■ Most powerful burner
Large
(most
powerful)
13
Griddle Downdraft Ventilation System
The built-in downdraft ventilation system removes cooking vapors,
odors and smoke from foods prepared on the cooktop.
IMPORTANT: For optimal performance, operate the downdraft
ventilation system with the lter properly installed.
To avoid the buildup of grease, the lter should be cleaned often.
For more information on proper lter placement and cleaning, see
“Downdraft Ventilation System” in the “General Cleaning” section.

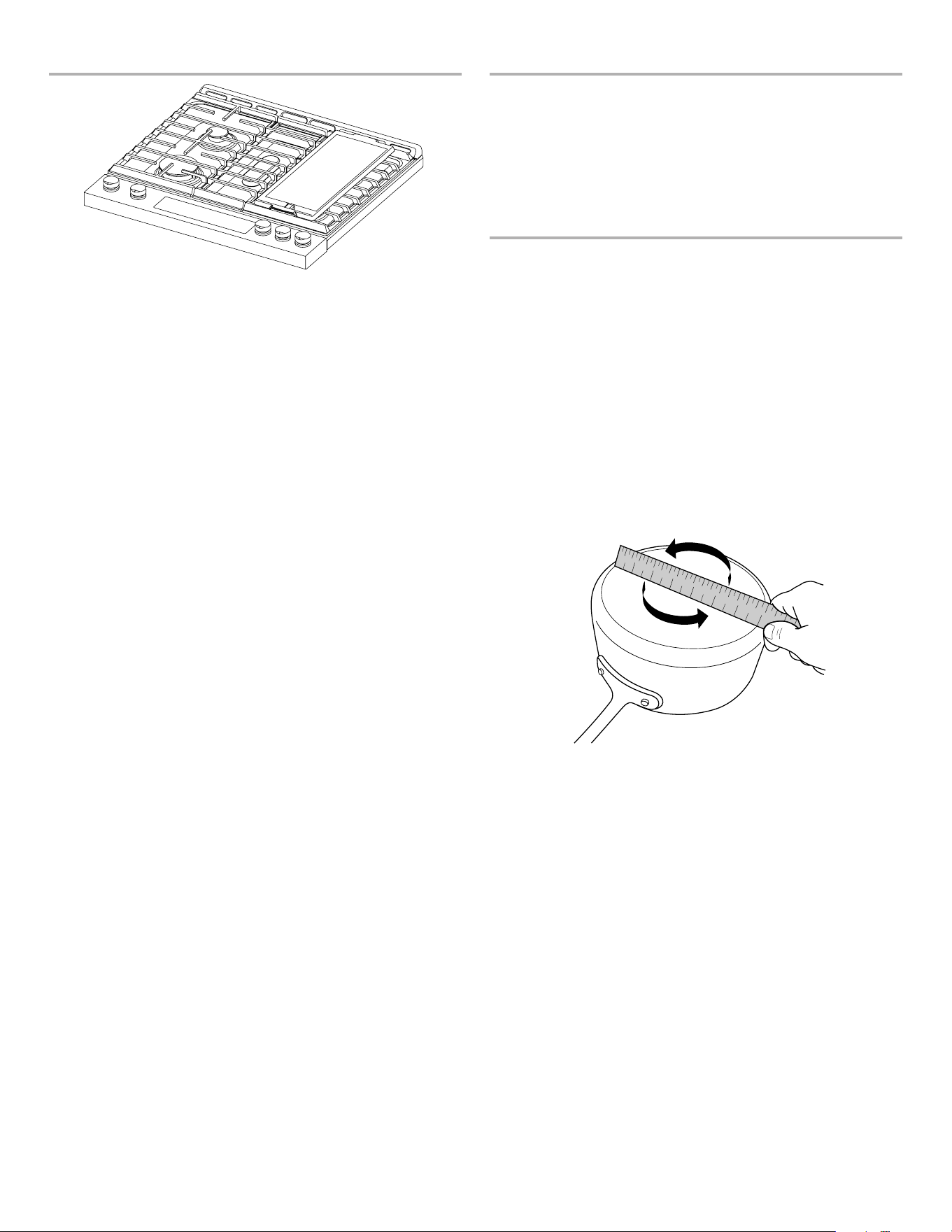

Griddle installed on right side of cooktop
To Use the Griddle:
1. Locate the griddle on the right side grate, as shown. The
locating feet on the bottom of the griddle will engage the grate
tines to keep the griddle from sliding.
2. Before each use, brush on a thin layer of cooking oil to keep
food from sticking. Cooking sprays may leave a sticky residue
on the griddle that is hard to remove.
3. Preheat the griddle for 5 minutes. Preheating the griddle slowly
will ensure even heat distribution and will avoid warping the
griddle.
4. For preheating and cooking, set the front burner to the lowest
heat setting and the rear burner to medium-high heat for best
performance.
NOTE: The griddle may also be used on the left side grate. For
best results, the rear burner setting should be set to Medium-
Low or Medium, and the front burner setting should be set to
Low.
To Clean the Griddle:
1. Let the griddle cool, and then empty the drip tray.
2. See the “General Cleaning” section for cleaning instructions.
3. Store griddle in a cool dry place.
Cookware
IMPORTANT: Do not leave empty cookware on a hot surface
cooking area, element or surface burner.
Ideal cookware should have a at bottom, straight sides and a
well-tting lid, and the material should be of medium-to-heavy
thickness.
Rough nishes may scratch the cooktop. Aluminum and copper
may be used as a core or base in cookware. However, when used
as a base, they can leave permanent marks on the surfaces.
Cookware material is a factor in how quickly and evenly heat is
transferred, which affects cooking results. A nonstick nish has the
same characteristics as its base material. For example, aluminum
cookware with a nonstick nish will take on the properties of
aluminum.
Cookware with nonstick surfaces should not be used under the
broiler.
Check for atness by placing the straight edge of a ruler across
the bottom of the cookware. While you rotate the ruler, no space
or light should be visible between it and the cookware.
1
2
3
4
5
6
7
8
9
1 0
1 1
1 2
1 3
1 4
1 5
1 6
1 7
1 8
1 9
2 0
1
2
3
4
5
6
7
14
Cookware Characteristics
Aluminum ■ Heats quickly and evenly.
■ Suitable for all types of cooking.
■ Medium or heavy thickness is best for
most cooking tasks.
■ May leave aluminum residues,
which may be diminished if cleaned
immediately after cooking.
Cast iron ■ Heats slowly and evenly.
■ Good for browning and frying.
■ Maintains heat for slow cooking.
■ Rough edges or burrs may scratch the
cooktop.
Ceramic or
Ceramic glass
■ Follow manufacturer’s instructions.
■ Heats slowly, but unevenly.
■ Ideal results on low to medium heat
settings.
■ May scratch the cooktop.
Copper ■ Heats very quickly and evenly.
■ May leave copper residues, which may
be diminished if cleaned immediately
after cooking.
■ Can leave a permanent stain or bond to
the cooktop if overheated.
Earthenware ■ Follow manufacturer’s instructions.
■ Use on low heat settings.
■ May scratch the cooktop.
Porcelain
enamel-on-steel
or cast iron
■ See stainless steel or cast iron.
■ Porcelain enamel bakeware without the
metal base may bond to the cooktop if
overheated.
Stainless steel ■ Heats quickly, but unevenly.
■ A core or base of aluminum or copper
on stainless steel provides even heating.
Use at-bottomed cookware for best cooking results and energy
efciency. The cookware should be about the same size as the
cooking area outlined on the cooktop. Cookware should not
extend more than ½” (1.3 cm) outside the area.
Home Canning
When canning for long periods, alternate the use of surface
burners between batches. This allows time for the most recently
used areas to cool.
■ Center the canner on the grate above the burner.
■ Do not place canner on 2 surface burners at the same time.
■ For more information, contact your local agricultural extension
ofce, or refer to published home canning guides. Companies
that manufacture home canning products can also offer
assistance.
Use the following chart as a guide for cookware material
characteristics.
15
Oven
Odors and smoke are normal when the oven is used the rst few
times or when it is heavily soiled.
IMPORTANT: The health of some birds is extremely sensitive to
the fumes given off by the oven. Exposure to the fumes may result
in death to certain birds. Always move birds to another closed and
well-ventilated room.
Aluminum Foil
IMPORTANT: To avoid permanent damage to the oven bottom
nish, do not line the oven bottom with any type of foil or liner.
For best cooking results, do not cover entire oven rack with foil
because air must be able to move freely.
Positioning Racks and Bakeware
IMPORTANT: To avoid permanent damage to the porcelain
nish, do not place food or bakeware directly on the oven door or
bottom.
Bakeware
To cook food evenly, hot air must be able to circulate. Allow
2" (5 cm) of space around bakeware and oven walls. Make sure
that no bakeware piece is directly over another.
Racks
■ Position racks before turning on the oven.
■ Do not position racks with bakeware on them.
■ Make sure racks are level.
To position a rack, pull it out to the stop position, raise the front
edge, and then lift out. Use the following illustration and charts as
a guide.

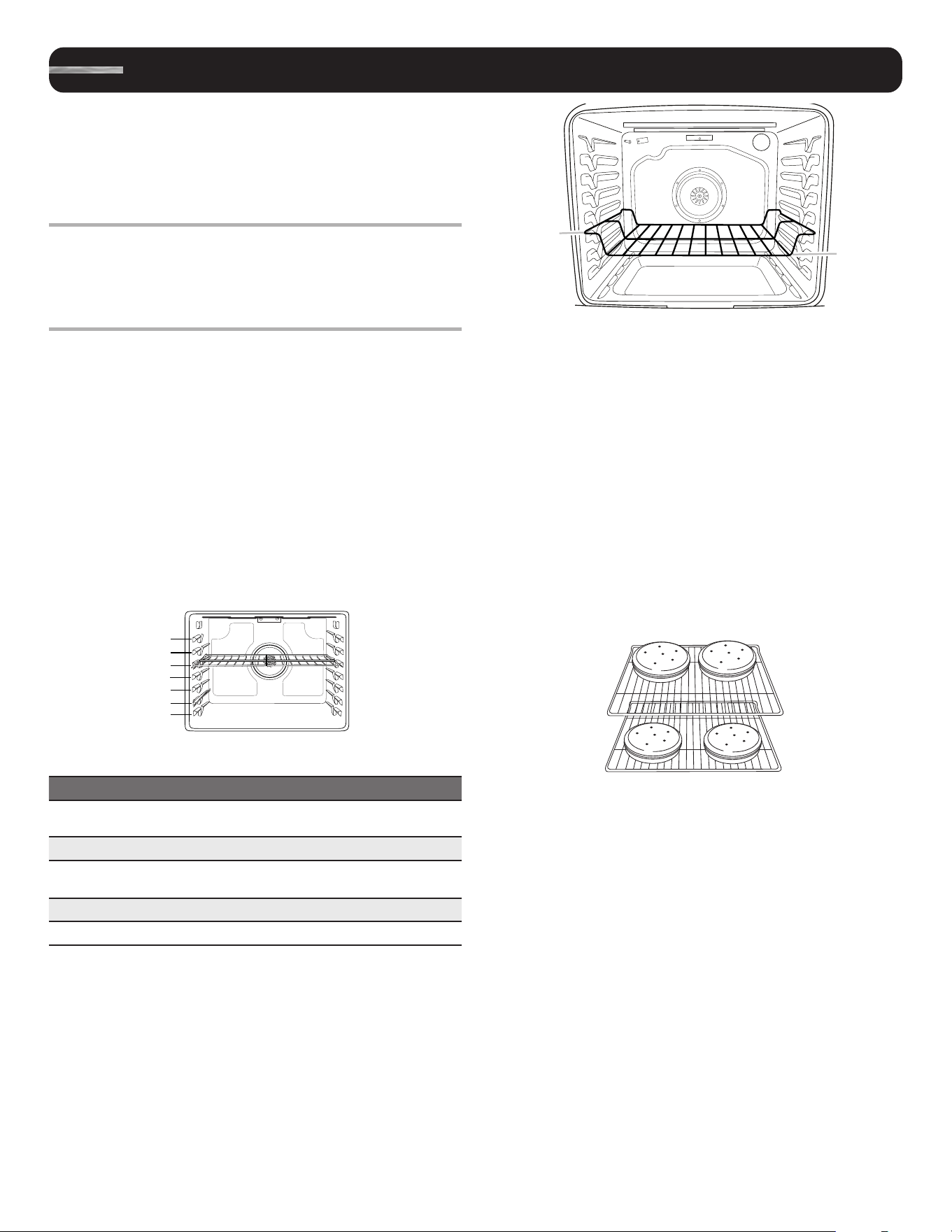

The oven has 7 positions for a at rack, as shown in the previous
illustration and the following table.
Flat Rack Position* Type of Food
7 Broiling/searing meats, hamburgers,
steaks
6 Broiled meats, poultry, sh
3 or 4 Most baked goods, casseroles,
frozen foods
2 Roasted meats
1 Large roasts or poultry
For hamburger patties to have a well-seared exterior and a rare
interior, use a at rack in rack position 7. Side 1 should cook
for approximately 2½ to 3½ minutes. Side 2 should cook for
approximately 4 to 5 minutes. Expect a moderate degree of smoke
when broiling.
* If your model has a Max Capacity Oven Rack, the recessed ends
must be placed in the rack position above the desired position
of the food. See the following illustration.
A. Ends of rack in position 3
B. Food in position 2
IMPORTANT: These rack positions are for at racks. If a Max
Capacity Oven Rack is used, the rack position must be adjusted
as shown in the previous gure.
Multiple Rack Cooking
2-rack (non-convection): Use rack positions 2 and 5 or 3 and 6.
2-rack (convection): Use rack positions 2 and 5 or 3 and 6.
3-rack (convection): Use rack positions 2 and 7 and a Max
Capacity Oven Rack in rack position 5.
Baking Cookies and Layer Cakes on 2 Racks
Baking Layer Cakes
For best results when baking cakes on 2 racks, use the Bake
function, a at rack in rack position 3 and a roll-out rack in rack
position 5. Place the cakes on the racks as shown. Keep at least
3” (7.6 cm) of space between the front of the racks and the front
cakes.
Baking Cookies
For best results when baking cookies on 2 racks, use the
Convection Bake function, a at rack in rack position 3 and a
rollout rack in rack position 5.
7
6
5
4
3
2
1
A
B
16

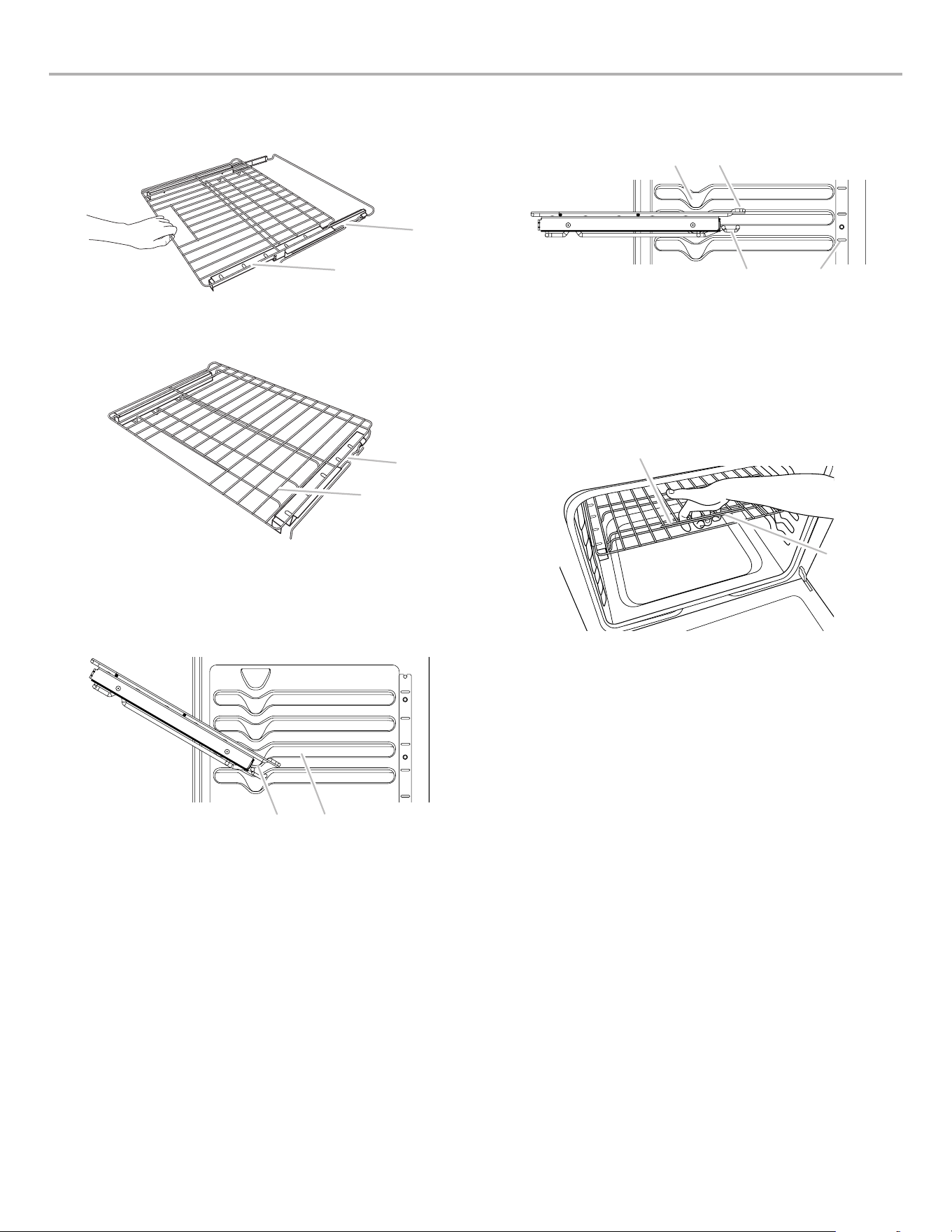

Roll-Out Rack
The roll-out rack allows easy access to position and remove food
in the oven. It is not recommended to use the roll-out rack in the
top rack, position 7, or the bottom rack, position 1.
Open Position
A. Rack frame
B. Sliding rack
Closed and Engaged Position
A. Rack frame
B. Sliding rack
To Insert Roll-Out Rack
1. Angle the front of the rack assembly up, and then insert the
rack frame into the “V” cutout in the rack guides of the oven
cavity.
A. “V” cutout
B. Rack guides
2. Keep rack assembly lifted up at an angle, and then push in to
bypass the lower “V” cutout.
3. Lower the front of the rack assembly, and then gently slide
rack assembly into oven, bypassing the “V” cutouts. Push the
rack assembly into the oven until it stops at the ladder in the
back of the oven.
A. “V” cutout
B. Rack guides
C. Ladder hook
D. Ladder
4. Reach through the rack to hold the sliding rack and the front
crossbar. Lift the front of the rack assembly, and then push the
rack assembly to the back of the oven. Lower the front of the
rack assembly so the ladder hook engages with the ladder on
both sides of the oven.
A. Sliding rack
B. Front crossbar
To Remove Roll-Out Rack
1. Push the sliding rack in completely so that it is in the closed
and engaged position.
2. Reach through the rack to hold the sliding rack and the front
crossbar. Lift the front of the rack assembly to disengage the
ladder hook from the ladders at the rear of the oven, and then
pull the rack assembly forward.
3. Using 2 hands, gently pull the sliding rack and the rack frame
at the same time to the “V” cutout. Angle the rack so that the
front is higher than the back, and then gently pull rack past “V”
cutout and then out of the oven.
To avoid damage to the sliding rack, do not place more than 25 lbs
(11.4 kg) on the rack.
Do not clean the roll-out rack in a dishwasher. It may remove the
rack’s lubricant and affect its ability to slide.
See the “General Cleaning” section for more information.
A
B
A
B
C
D
A
B
A
B
A
B
17
Oven Vent
A. Oven vent
The oven vent releases hot air and moisture from the oven, and
should not be blocked or covered. Blocking or covering the oven
vent will cause poor air circulation, affecting cooking and cleaning
results. Do not set plastics, paper or other items that could melt or
burn near the oven vent.
Sabbath Mode
The Sabbath mode sets the oven to remain on in a bake setting
until turned off.
When the Sabbath mode is set, only the Bake cycle will operate.
All other cooking and cleaning cycles are disabled. No tones will
sound, and the displays will not indicate temperature changes.
When the oven door is opened or closed, the oven light will not
turn on or off, and the heating elements will not turn on or off
immediately.
To Enable Sabbath Mode Capability
(One Time Only):
1. Press OPTIONS/CLOCK until “SABBATH” is displayed.
“OFF. Press (1) for On” will scroll in the display.
2. Press the “1” keypad. “ON. Press (1) for Off” will scroll in the
display. Sabbath mode can be activated for baking.
3. Press START or CANCEL to exit and display the time of day.
NOTE: To disable the Sabbath mode, repeat steps 1 through 3
to change the status from “SABBATH ON” to “SABBATH OFF.”
To Activate Sabbath Mode:
1. Press BAKE.
2. Press the number keypad to set a temperature other than
350°F (177°C).
3. Press START.
For timed cooking in Sabbath mode, press COOK TIME, and
then the number keypads to set the desired cook time.
4. Press OPTIONS/CLOCK. Three tones will sound. Then press
“7.” “SAb” will appear in the display.
To Adjust Temperature (When Sabbath Mode is Running):
1. Press the number keypad as instructed by the scrolling text to
select the new temperature.
NOTE: The temperature adjustment will not appear on the
display. The scrolling text will be shown on the display as it
was before the keypad was pressed.
2. Press START.
To Deactivate Sabbath Mode:
Press OPTIONS/CLOCK, and then press “7” to return to regular
baking, or press CANCEL to turn off the range.
Baking and Roasting
Preheating
When beginning a Bake, Convect Bake or Convect Roast cycle,
the oven will begin preheating after Start is pressed. The oven
will take approximately 12 to 15 minutes to reach 350°F (177°C)
with all of the oven racks provided with your oven inside the
oven cavity. Higher temperatures will take longer to preheat. The
preheat cycle rapidly increases the oven temperature. The actual
oven temperature will go above your set temperature to offset
the heat lost when your oven door is opened to insert food. This
ensures that when you place your food in the oven, the oven
will begin at the proper temperature. Insert your food when the
preheat tone sounds. Do not open the door during preheat before
the tone sounds.
Oven Temperature
While in use, the oven elements will cycle on and off as needed
to maintain a consistent temperature, but they may run slightly
hot or cool at any point in time due to this cycling. Opening the
oven door while in use will release the hot air and cool the oven
which could impact the cooking time and performance. It is
recommended to use the oven light to monitor cooking progress.
NOTE: On models with convection, the convection fan may run in
the non-convection bake mode to improve oven performance.
Temperature Management System
The Temperature Management System electronically regulates the
oven heat levels during preheat and bake to maintain a precise
temperature range for optimal cooking results. The bake and broil
elements or burners cycle on and off in intervals. On convection
range models, the fan will run while preheating and may be cycled
on and off for short intervals during bake to provide the best
results. This feature is automatically activated when the oven is in
use.
Before baking and roasting, position racks according to
“Positioning Racks and Bakeware” section. When roasting, it is
not necessary to wait for the oven preheat before putting food in
unless it is recommended in the recipe.
Broiling
When broiling, preheat the oven for 2 minutes before putting food
in unless recommended otherwise in the recipe. Position food on
grid in a broiler pan, and then place it in the center of the oven
rack.
IMPORTANT: Close the door to ensure proper broiling
temperature.
Changing the temperature when broiling allows more precise
control when cooking. The lower the broil setting, the slower the
cooking. Thicker cuts and unevenly shaped pieces of meat, sh
and poultry may cook better at lower broil settings. Use racks 6
or 7 for broiling. Refer to the “Positioning Racks and Bakeware”
section for more information.
On lower settings, the broil element will cycle on and off to
maintain the proper temperature.
■ For best results, use a broiler pan and grid. It is designed to
drain juices and help avoid spatter and smoke.
If you would like to purchase a broiler pan, one may be
ordered. See the “Accessories” section.
A
18
Convection Cooking
In a convection oven, the fan-circulated hot air continually
distributes heat more evenly than the natural movement of air in a
standard thermal oven. This movement of hot air helps maintain a
consistent temperature throughout the oven, cooking foods more
evenly, crisping surfaces while sealing in moisture and yielding
crustier breads.
During convection baking or roasting, the bake, broil and
convection elements cycle on and off in intervals while the fan
circulates the hot air. During convection broiling, the broil and
convection elements cycle on and off.
If the oven door is opened during convection cooking, the fan will
turn off immediately. It will come back on when the oven door is
closed.
With convection cooking, most foods can be cooked at a lower
temperature and/or a shorter cooking time than in a standard
thermal oven. When using Manual Convect Modes, reduce the
time and temperature when setting the oven. Use the following
chart as a guide.
Convection Mode Time/Temp. Guidelines
Convection Bake 25°F (15°C) lower temperature,
possible shortened cooking time
Convection Roast Cooking time shortened by up to 30%
Convection Broil Shortened cooking time
When using Auto Convect Modes, the oven will automatically
adjust the time and temperature for the selected mode.
Convect Modes
Manual Convect Modes:
Convect Bake - Multiple-rack baking or cookies, biscuits, breads,
casseroles, tarts, tortes, cakes.
Convect Roast - Whole chicken or turkey, vegetables, pork roasts,
beef roasts.
Convect Broil - Thicker cuts or unevenly shaped pieces of meat,
sh or poultry.
Auto Convect Modes:
Meats - Chicken: whole and pieces; meat loaf; roasts: pork, beef,
ham.
Baked Goods - Biscuits, quick breads, yeast breads, cakes,
cookies, casseroles.
Others - Frozen convenience foods: french fries, nuggets, sh
sticks, lasagna, pizza.
Proofing Bread
Proong bread prepares the dough for baking by activating the
yeast. Follow the recipe directions as a guide. Proof should be
used for fresh dough, thawed dough, and for the rst and second
rise.
To Proof:
Before rst proong, place the dough in a lightly greased bowl and
cover loosely with wax paper, coated with shortening. Place on
rack guide 2 and close the oven door.
NOTE: If the temperature of the oven is greater than 120°F (49°C),
“Oven Cooling” will be displayed until the temperature is less than
120°F (49°C).
1. Press PROOF.
2. Press START.
Let the dough rise until nearly doubled in size. Proong time
may vary depending on dough type and quantity.
3. Press CANCEL when nished proong.
Before second proong, shape the dough, place it in baking pan(s)
and cover loosely. Follow the same placement and control steps
above. Before baking, remove the cover.
NOTE: If the oven temperature is greater than 120°F (49°C), the
display will indicate “Oven Cooling” until the temperature is below
120°F (49°C).
Favorite
Favorite stores the oven mode and temperature for your favorite
recipe.
To Save a Recipe:
1. While the oven is being used for Bake, Broil, Convect Bake,
Convect Roast or Convect Broil, press and hold FAVORITE for
3 seconds.
2. The current oven mode, cook time and temperature will be
displayed. “SAVED” will be displayed. The recipe has been
saved.
NOTE: Only one recipe can be saved at a time. Saving a new
recipe will overwrite a previously saved recipe.
To Select the Favorite Recipe:
1. Press FAVORITE. The saved oven mode and temperature will
be displayed.
NOTE: Favorite does not store cook times.
2. Press START.
3. Once the recipe is selected, oven will begin preheating to the
set program.
4. To change the temperature, press the number keypads to set
the desired temperature.
5. Press START.
6. To change the cook time, press COOK TIME.
7. Press the number keypads to set the desired cook time.
8. Press START.
9. Press CANCEL when nished cooking.
19
Cook Time
To Set a Timed Cook:
1. Press BAKE, BROIL, or press AUTO CONVECT MODES or
MANUAL CONVECT MODES until the desired convection
mode appears on the display.
2. Press the number keypads to enter a temperature other than
the one displayed.
3. Press COOK TIME. The Cook Time oven indicator light will
light up.
4. Press the number keypads to enter the length of time to cook.
5. Press START. The display will count down the time. When the
time ends, the oven will shut off automatically.
6. Press CANCEL for the desired oven to clear the display.
Oven Light
The oven light is a standard 40-watt appliance bulb. Before
replacing, make sure the oven and cooktop are cool and the
control knobs are in the Off position.
To Replace:
1. Unplug range or disconnect power.
2. Turn the glass bulb cover in the back of the oven
counterclockwise to remove.
3. Turn bulb counterclockwise to remove from socket.
4. Replace bulb by turning clockwise.
5. Replace bulb cover by turning clockwise.
6. Plug in range or reconnect power.
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
To Set a Delayed Timed Cook:
1. Press BAKE or BROIL, or press AUTO CONVECT MODES
or MANUAL CONVECT MODES until the desired convection
mode appears on the display.
2. Press the number keypads to enter a temperature other than
the one displayed.
3. Press COOK TIME. The Cook Time oven indicator light will
light up.
4. Press number keypads to enter the length of time to cook.
5. Press DELAY START.
6. Press number keypads to enter the number of hours and/or
minutes you want to delay the start time.
7. Press START.
When the start time is reached, the oven will automatically turn
on. The temperature and/or time settings can be changed anytime
after pressing Start by repeating steps 2 through 7. When the set
cook time ends, the oven will shut off automatically.
8. Press CANCEL for the desired oven to clear the display.
20
Range Care

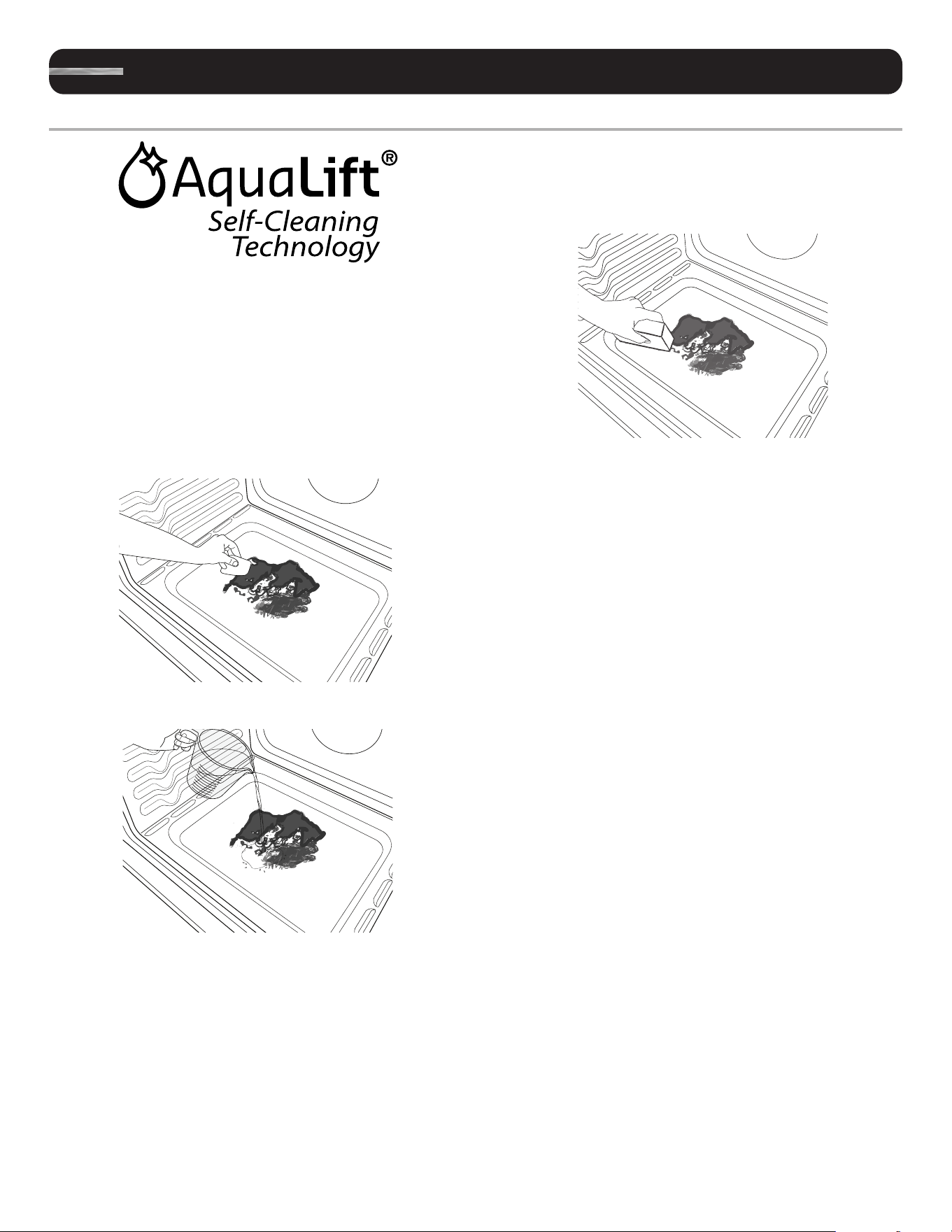

Clean Cycle
AquaLift
®
Technology is an innovative cleaning solution that
utilizes heat and water to release baked-on spills from the oven in
less than 1 hour. This new cleaning technology is a low-heat, odor-
free alternative to traditional self-cleaning options.
Allow the oven to cool to room temperature before using the Clean
cycle. If your oven cavity is above 200°F (93°C), “Oven Cooling”
will appear in the display, and the Clean cycle will not be activated
until the oven cavity cools down.
To Clean:
1. Remove all racks and accessories from the oven cavity and
wipe excess soil. Use a plastic scraper to remove easily-
removed soils.
2. Pour 2 cups (16 oz [500 mL]) of distilled or ltered water onto
the bottom of the empty oven and close the oven door.
IMPORTANT: Do not use chemicals or other additives with the
water. Do not open the oven door during the Clean cycle. The
water on the oven bottom is hot.
3. Press AQUALIFT SELF CLEAN and then START on the oven
control panel.
4. Allow 40 minutes for cleaning and cool down. A beep will
sound when the Clean cycle is complete.
5. Press CANCEL UPPER at the end of the cycle. Cancel Upper
may be pressed at any time to stop the Clean cycle.
7. If any soils remain, remove them with a non-scratch scrubbing
sponge or plastic scraper. Additional Clean cycles may be run
to help remove the stubborn soils.
IMPORTANT: Do not use oven cleaners. The use of chemicals,
including commercial oven cleaners or metal scouring pads,
may cause permanent damage to the porcelain surface of the
oven interior.
NOTES:
■ The range should be level to ensure that the entire surface
of the bottom of the oven cavity is covered by water at the
beginning of the Clean cycle.
■ For best results, use distilled or ltered water. Tap water may
leave mineral deposits on the oven bottom.
■ Before removing the residual water and loosened soils at the
end of the Clean cycle, insert a cloth or paper towel between
the lower edge of the oven door and the front frame to keep
water from spilling onto the front of the range and the oor.
■ Soil baked on through several cooking cycles will be more
difcult to remove with the Clean cycle.
■ Nonabrasive scrub sponges or eraser style cleaning pads
(without cleaners) can be effective for cleaning the oven cavity
walls, oven door and oven bottom for difcult soils. For best
results, moisten the pads and sponges before use.
■ Run an additional Clean cycle for stubborn soils.
■ Affresh
®
Kitchen Appliance Cleaner and affresh
®
Cooktop
Cleaner may be used to clean the oven bottom, walls and
door when the oven has nished the cycle and returned to
room temperature. If affresh
®
Cooktop Cleaner is used, it is
recommended to wipe out the cavity with distilled water as
well. Refer to the “Accessories” section for information on
ordering.
■ Additional AquaLift
®
Technology Cleaning Kits may be
obtained by ordering Part Number W10423113RP. See the
“Accessories” section for more information.
■ For assistance with AquaLift
®
Technology, call
1-877-258-0808 in the U.S.A., or 1-800-807-6777 in Canada,
or visit our website at http://whirlpoolcorp.com/aqualift.
6. Remove the residual water and loosened soils with a sponge
or cloth immediately after the Clean cycle is complete. Much
of the initial 1¾ cups (14 oz [414 mL]) of water will remain in
the oven after the cycle is completed. If additional soils remain,
leave a small amount of water in the oven bottom to assist
with the cleaning.
21
General Cleaning
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Always follow label instructions
on cleaning products. For additional information, you can visit
the Frequently Asked Questions (FAQs) section of our website at
www.jennair.com. In Canada, visit our website at
www.jennair.ca.
Soap, water and a soft cloth or sponge are suggested rst unless
otherwise noted.
EXTERIOR PORCELAIN ENAMEL SURFACES
(on some models)
Food spills containing acids, such as vinegar and tomato, should
be cleaned as soon as the entire range is cool. These spills may
affect the nish.
Cleaning Method:
■ Glass cleaner, mild liquid cleaner or nonabrasive scrubbing
pad:
Gently clean around the model/serial/rating plate because
scrubbing may remove numbers.
■ Affresh
®
Kitchen and Appliance Cleaner Part Number
W10355010 (not included):
See the “Accessories” section for more information.
STAINLESS STEEL (on some models)
NOTE: To avoid damage to stainless steel surfaces, do not use
soap-lled scouring pads, abrasive cleaners, Cooktop Cleaner,
steel-wool pads, gritty washcloths or abrasive paper towels.
Damage may occur to stainless steel surfaces, even with one-time
or limited use.
Cleaning Method:
Rub in direction of grain to avoid damaging.
■ Affresh
®
Stainless Steel Cleaner Part Number W10355016 (not
included):
See the “Accessories” section for more information.
METALLIC PAINT (on some models)
Do not use abrasive cleaners, cleaners with bleach, rust removers,
ammonia or sodium hydroxide (lye) because paint surface may
stain.
PORCELAIN-COATED GRATES AND CAPS
Food spills containing acids, such as vinegar and tomato, should
be cleaned as soon as the cooktop, grates and caps are cool.
These spills may affect the nish.
To avoid chipping, do not bang grates and caps against each
other or hard surfaces such as cast iron cookware.
Do not reassemble caps on burners while wet.
Cleaning Method:
■ Nonabrasive plastic scrubbing pad and mildly abrasive
cleanser:
Clean as soon as cooktop, grates and caps are cool.
■ Dishwasher (grates only, not caps):
Use the most aggressive cycle. Cooked-on soils should be
soaked or scrubbed before going into a dishwasher.
Although the burner grates are durable, they may lose their
shine and/or discolor when washed in a dishwasher.
■ Gas Grate and Drip Pan Cleaner Part Number 31617 (not
included):
See the “Accessories” section for more information.
SURFACE BURNERS
Food spills containing acids, such as vinegar and tomato, should
be cleaned as soon as the cooktop, grates and caps are cool.
These spills may affect the nish.
To avoid chipping, do not bang grates and caps against each
other or hard surfaces such as cast iron cookware.
Do not reassemble caps on burners while wet.
Do not clean in the Self-Cleaning cycle.
Do not clean in dishwasher.
Cleaning Method:
■ Nonabrasive plastic scrubbing pad and mildly abrasive
cleanser:
Clean as soon as cooktop, grates, burners and caps are cool.
■ Gas Grate and Drip Pan Cleaner (not included).
COOKTOP CONTROLS
To avoid damage to the cooktop controls, do not use steel wool,
abrasive cleansers or oven cleaner.
To avoid damage, do not soak knobs. When replacing knobs,
make sure knobs are in the Off position.
On some models, do not remove seals under knobs.
Cleaning Method:
■ Soap and water:
Pull knobs straight away from control panel to remove.
GRIDDLE
To avoid damaging the nonstick surface, do not use steel wool or
abrasive cleaners.
Cleaning Method:
■ Mild detergent
■ Dishwasher:
Although the burner grates are durable, they may lose their
shine and/or discolor when washed in a dishwasher.
CONTROL PANEL AND OVEN DOOR EXTERIOR
To avoid damage to the control panel, do not use abrasive
cleaners, steel-wool pads, gritty washcloths or abrasive paper
towels.
Cleaning Method:
■ Glass cleaner and soft cloth or sponge:
Apply glass cleaner to soft cloth or sponge, not directly on
panel.
■ Affresh
®
Kitchen and Appliance Cleaner Part Number
W10355010 (not included):
See the “Accessories” section for more information.
OVEN RACKS
Cleaning Method:
■ Steel-wool pad
■ For racks that have discolored and are harder to slide, a light
coating of vegetable oil applied to the rack guides will help
them slide.
22
OVEN CAVITY
Use AquaLift
®
Technology regularly to clean oven spills.
Do not use oven cleaners.
Food spills should be cleaned when oven cools. At high
temperatures, foods react with porcelain and staining, etching,
pitting or faint white spots can result.
Cleaning Method:
■ Clean cycle:
See “Clean Cycle” section.

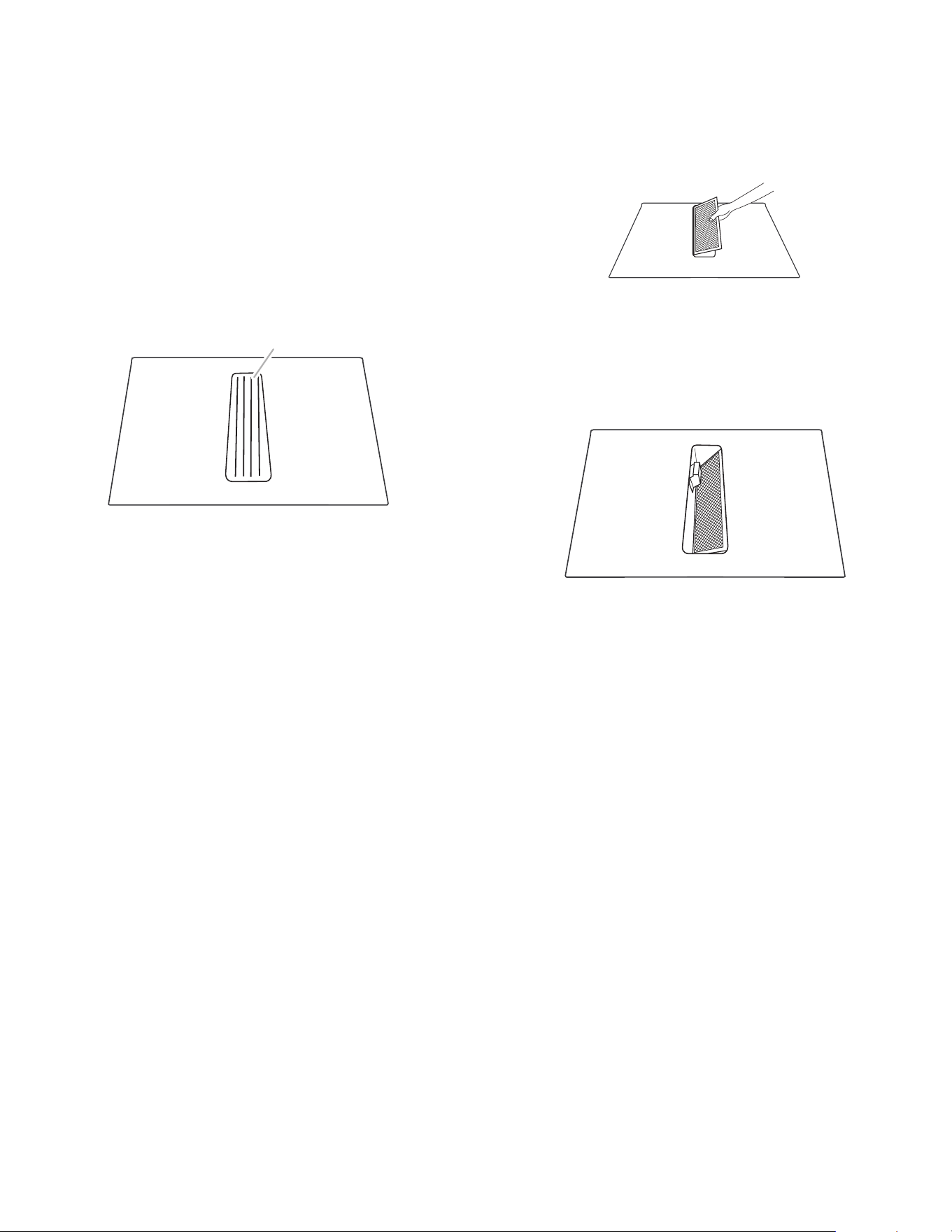

DOWNDRAFT VENTILATION SYSTEM
Vent Grate
Cleaning Method:
■ Remove the burner grates.
■ Lift the vent grate off the cooktop.
■ Wipe clean or wash in sink:
Nonabrasive plastic scrubbing pad and mildly abrasive
cleanser
■ Dishwasher:
Use mild detergent.
A. Vent grate
A
Filter
The lter is a permanent type and should be cleaned when soiled.
Cleaning Method:
■ Turn off the downdraft ventilation system before removing the
lter.
■ Remove vent grate, and then lift the lter out of the vent
chamber.
■ Clean the lter in the sink with warm water and detergent or in
the dishwasher.
■ Replace the lter.
The lter should always be placed at an angle. As you face the
front of the range, the top of the lter should rest against the
right side of the vent opening. The bottom of the lter should rest
against the left side of the vent chamber at the bottom. If the lter
is at against the fan wall, ventilation effectiveness will be reduced.
Ventilation Chamber
The ventilation chamber, which houses the lter, should be
cleaned in the event of spills or when it becomes coated with a
lm of grease.
Cleaning Method:
■ Mild household detergent or cleanser and paper towel, damp
cloth or sponge:
Apply detergent or cleanser to paper towel, damp cloth or
sponge, not directly to the ventilation chamber.
23
Troubleshooting
First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call,
refer to the warranty page in this manual, or visit https://jennair.custhelp.com. InCanada, visit http://www.jennair.ca.
Contact us by mail with any questions or concerns at the address below:
In the U.S.A.:
Jenn-Air Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
In Canada:
Jenn-Air Brand Home Appliances
Customer eXperience Centre
200 - 6750 Century Ave.
Mississauga, Ontario L5N 0B7
PROBLEM POSSIBLE CAUSES AND/OR SOLUTIONS
Nothing will operate Power supply cord is unplugged - Plug into a grounded outlet.
ENERGY SAVE is active, and the display is blank - Press any keypad on the control to display the
time of day. See the “Electronic Oven Controls” section for more information.
Household fuse is blown, or a circuit breaker is tripped - Replace the fuse or reset the circuit breaker.
If the problem continues, call an electrician.
The control displays an F9 or F9 E0 error code - The electrical outlet in the home may be miswired.
Contact a qualified electrician to verify the electrical supply.
Surface burners will not
operate
The control knob is not set correctly - Push in knob before turning to a setting.
Air in the gas lines - If this is the first time the surface burners have been used, turn on any one of the
surface burner knobs to release air from the gas lines.
Clogged burner ports - See “Sealed Surface Burners” section.
Surface burner flames are
uneven, yellow and/or
noisy
Clogged burner ports - See “Sealed Surface Burners” section.
Burner caps positioned improperly - See “Sealed Surface Burners” section.
Range converted improperly - If Propane gas is being used, contact a service technician or see
“Warranty” for contact information.
Excessive heat around
cookware on cooktop
Cookware and flame are not matched - The cookware should be centered above the burner with the
bottom sitting level on the grate. The flame should be adjusted so that it does not extend up the sides of
the pan.
Cooktop cooking results
not what expected
Improper cookware - Ideal cookware should have a flat bottom, straight sides and a well fitting lid, and
the material should be of a medium to heavy thickness.
Control knob set to incorrect heat level - See “Cooktop” section.
Range is not level - Level the range. See the Installation Instructions.
Oven will not operate Delay Start is set - See “Cook Time” section.
Control Lock is on - Press and hold START for 3 seconds to unlock.
The range is in Demo Mode - Demo Mode will deactivate all oven elements. See “Demo Mode” in the
“Electronic Oven Controls” section.
Electronic oven control set incorrectly - See “Electronic Oven Controls” section.
Oven temperature too high
or too low
Oven temperature needs adjustment - See “Oven Te mperature Control” in the “Electronic Oven
Controls” section.
Display shows messages Power failure (display shows flashing time) - Clear the display. On some models, reset the clock, if
needed. See “Clock” keypad feature in the “Feature Guide” section.
Error code (display shows letter followed by number) - Depending on your model, press CANCEL to
clear the display. See “Control Display” in the “Electronic Oven Controls” section. If it reappears, call for
service. See “Warranty” for contact information.
Start needs to be pressed so a cycle can begin (display shows “PUSH” or “PSH”) - See the “Start”
keypad feature in the “Feature Guide” section.
Range is in Sabbath Mode (display shows “SAb”) - Press CANCEL to exit Sabbath Mode.
Clean cycle did not work
on all spills
Several cooking cycles between Clean cycles or spills on oven walls and doors - Run additional
Clean cycles. Use the AquaLift
®
Te chnology Cleaning Kit. affresh
®
Kitchen and Appliance Cleaner or
affresh
®
Cooktop Cleaner can be used for stubborn soils. See the “Accessories” and “Clean Cycle”
sections for more information.
24
Noises
Mineral deposits are left on
the oven bottom after the
Clean cycle
Tap water was used in the Clean cycle - Use distilled or filtered water in the Clean cycle.
To remove deposits, use a cloth soaked with vinegar. Then use a cloth dampened with water to
thoroughly remove any vinegar residue.
Range is not level - Mineral deposits will collect on dry areas of the oven bottom during the Clean cycle.
Level the range. See the Installation Instructions.
To remove deposits, use a cloth soaked with vinegar. Then use a cloth dampened with water to
thoroughly remove any vinegar residue.
Oven cooking results not
what expected
Range is not level - Level the range. See the Installation Instructions.
The set temperature was incorrect - Double-check the recipe in a reliable cookbook.
Oven temperature needs adjustment - See “Oven Te mperature Control” in the “Electronic Oven
Controls” section.
Oven was not preheated - See “Baking and Roasting” section.
Racks were positioned improperly - See “Positioning Racks and Bakeware” section.
Not enough air circulation around bakeware - See “Positioning Racks and Bakeware” section.
Batter distributed unevenly in pan - Check that batter is level in the pan.
Darker browning of food caused by dull or dark bakeware - Lower oven temperature 25°F (15°C) or
move rack to a higher position in the oven.
Lighter browning of food caused by shiny or light colored bakeware - Move rack to a lower position
in the oven.
Incorrect length of cooking time was used - Adjust cooking time.
Oven door was not closed - Be sure that the bakeware does not keep the door from closing.
Oven door was opened during cooking - Oven peeking releases oven heat and can result in longer
cooking times.
Rack is too close to bake burner, making baked items too brown on bottom - Move rack to higher
position in the oven.
Pie crusts browning too quickly - Use aluminum foil to cover the edge of the crust and/or reduce
baking temperature.
Ventilation system not
capturing smoke efficiently
Poor cross ventilation in the room or makeup air - See the Installation Instructions.
Outside wall cup shut or blocked - Check outside wall cup.
Range or air filter installed incorrectly - See the Installation Instructions.
PROBLEM POSSIBLE CAUSES AND/OR SOLUTIONS
Surface burner making
popping noises
Wet burner - Allow it to dry.
PROBLEM POSSIBLE CAUSES AND/OR SOLUTIONS
25
Accessories
For accessories in the U.S.A., you can visit our website at www.jennair.com or call us at 1-800-JENNAIR (1-800-536-6247).
In Canada, visit our website at www.jennair.ca or call us at 1-800-JENNAIR (1-800-536-6247).
Complete Cooktop Cleaner Kit
(ceramic glass models)
(includes cleaner, protectant, protectant
applicator, scraper, and cleaner pads)
Order Part Number 31605
Cooktop Protectant
(ceramic glass models)
Order Part Number 31463A
Affresh
®
Stainless Steel Cleaning
Wipes
(stainless steel models)
Order Part Number W10355049
Affresh
®
Cooktop Cleaner
(ceramic glass models)
Order Part Number W10355051
Cooktop Cleaning Pads
(ceramic glass models)
Order Part Number W10391473
Affresh
®
Stainless Steel Cleaner
(stainless steel models)
Order Part Number W10355016
Affresh
®
Kitchen and Appliance
Cleaner
Order Part Number W10355010
AquaLift
®
Oven Cleaning Kit
Order Part Number W10423113RP
Cooktop Scraper
(ceramic glass models)
Order Part Number WA906B
Granite Cleaner and Polish
Order Part Number W10275756
Gas Grate and Drip Pan Cleaner
Order Part Number 31617A
Gourmet Griddle
Order Part Number W10432539
Heavy Duty Flat Oven Rack
Order Part Number W10554005
Split Oven Rack
Order Part Number 4396927
HD Max Capacity Oven Rack
Order Part Number W10554006
Sliding Flat Oven Rack
Order Part Number W10554008
Porcelain Broiler Pan and Grid
Order Part Number 4396923
Premium Broiler Pan and Roasting
Rack
Order Part Number W10123240
Trim Assembly
5
⁄
8
" (1.7 cm) White - Order Part Number
W10675027
5
⁄
8
" (1.7 cm) Black - Order Part Number
W10675026
5
⁄
8
" (1.7 cm) Stainless Steel - Order Part
Number W10675028
1¹⁄
8
" (2.9 cm) White - Order Part Number
W10731885
1¹⁄
8
" (2.9 cm) Black - Order Part Number
W10731886
1¹⁄
8
" (2.9 cm) Stainless Steel - Order Part
Number W10731887
Backsplash Assembly
White - Order Part Number W10655448
Black - Order Part Number W10655449
Stainless Steel - Order Part Number
W10655450
Grill Kit
Order Part Number W10432545
26
12/14
IF YOU NEED SERVICE:
1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without
service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, or visit
https://jennair.custhelp.com.
2. All warranty service is provided exclusively by our authorized Jenn-Air Service Providers. In the U.S. and Canada, direct all requests for
warranty service to:
Jenn-Air Customer eXperience Center
1-800-JENNAIR (1-800-536-6247).
If outside the 50 United States or Canada, contact your authorized Jenn-Air dealer to determine whether another warranty applies.
JENN-AIR
®
MAJOR APPLIANCE
LIMITED WARRANTY
ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO
OBTAIN WARRANTY SERVICE.
Please have the following information available when you call the Customer
eXperience Center:
■ Name, address and telephone number
■ Model number and serial number
■ A clear, detailed description of the problem
■ Proof of purchase including dealer or retailer name and address
TWO YEAR LIMITED WARRANTY
WHAT IS COVERED WHAT IS NOT COVERED
For two years from the date of purchase,
when this major appliance is installed,
operated and maintained according to
instructions attached to or furnished with
the product, Jenn-Air brand of Whirlpool
Corporation or Whirlpool Canada LP
(hereafter “Jenn-Air”) will pay for Factory
Specied Replacement Parts and repair
labor to correct defects in materials or
workmanship that existed when this
major appliance was purchased, or at
its sole discretion replace the product.
In the event of product replacement,
your appliance will be warranted for
the remaining term of the original unit’s
warranty period.
YOUR SOLE AND EXCLUSIVE REMEDY
UNDER THIS LIMITED WARRANTY
SHALL BE PRODUCT REPAIR AS
PROVIDED HEREIN. Service must be
provided by a Jenn-Air designated
service company. This limited warranty
is valid only in the United States or
Canada and applies only when the major
appliance is used in the country in which
it was purchased. This limited warranty
is effective from the date of original
consumer purchase. Proof of original
purchase date is required to obtain
service under this limited warranty.
1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or
installation instructions.
2. In-home instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with
electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses
or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water lters, preservation solutions, etc.).
5. Defects or damage caused by the use of non-genuine Jenn-Air parts or accessories.
6. Conversion of products from natural gas or Propane gas.
7. Damage from accident, misuse, abuse, re, oods, acts of God or use with products not approved
byJenn-Air.
8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service,
alteration or modication of the appliance.
9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance nishes
unless such damage results from defects in materials and workmanship and is reported to Jenn-Air
within 30 days.
10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including
but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
11. Food or medicine loss due to product failure.
12. Pick-up or delivery. This product is intended for in-home repair.
13. Travel or transportation expenses for service in remote locations where an authorized Jenn-Air
servicer is not available.
14. Removal or reinstallation of inaccessible appliances or built-in xtures (i.e. trim, decorative panels,
ooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or
replacement of the product.
15. Service or parts for appliances with original model/serial numbers removed, altered or not easily
determined.
The cost of repair or replacement under these excluded circumstances shall be borne by
the customer.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO TWO YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not
allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you
specic legal rights, and you also may have other rights that vary from state to state or province to province.
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
Jenn-Air makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations
contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you
should ask Jenn-Air or your retailer about buying an extended warranty.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. JENN-AIR
SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation
of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specic legal rights, and
you also may have other rights that vary from state to state or province to province.
W11123986A
SP PN W11156431A
®
/™ ©2017. Used under license in Canada. All rights reserved.
®
/™ ©2017. Utilise sous licence au Canada. Tous droits reserves.
07/17
Printed in U.S.A.
Imprimé aux É.-U.
