OUTDOOR SENSOR LIGHT
Model Number: DH7037
Page 1 of 5

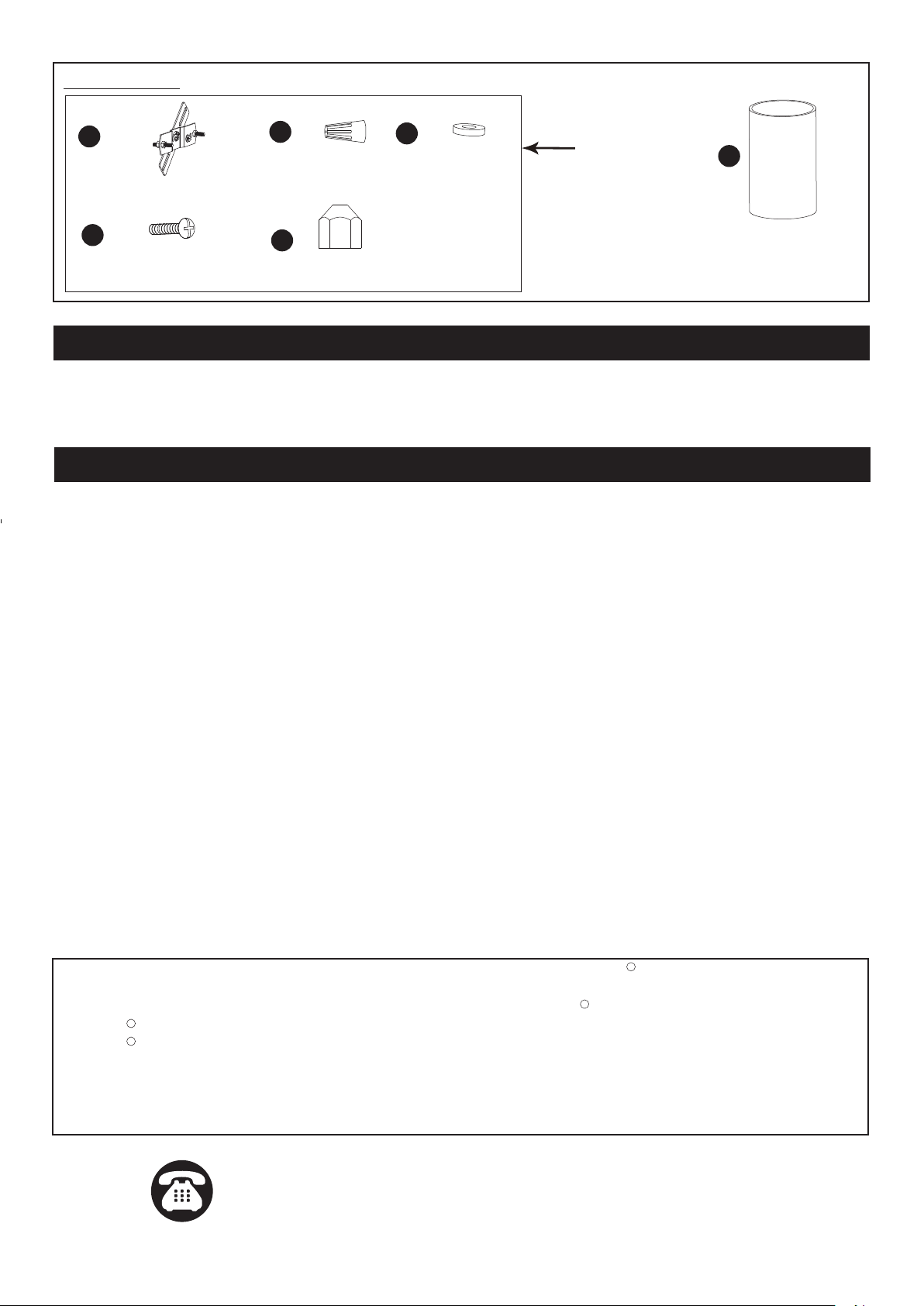

PACKAGE CONTENTS
A
B
HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
BB
CC
DD
EE
Mounting Screw
X2
Wire Nut
X3
Ball Nut
X2
Rubber Pad
X2
Cross Bar Unit
X1
• All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
• Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
• Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters,
Safety Glasses, Ladder.
Page 2 of 5

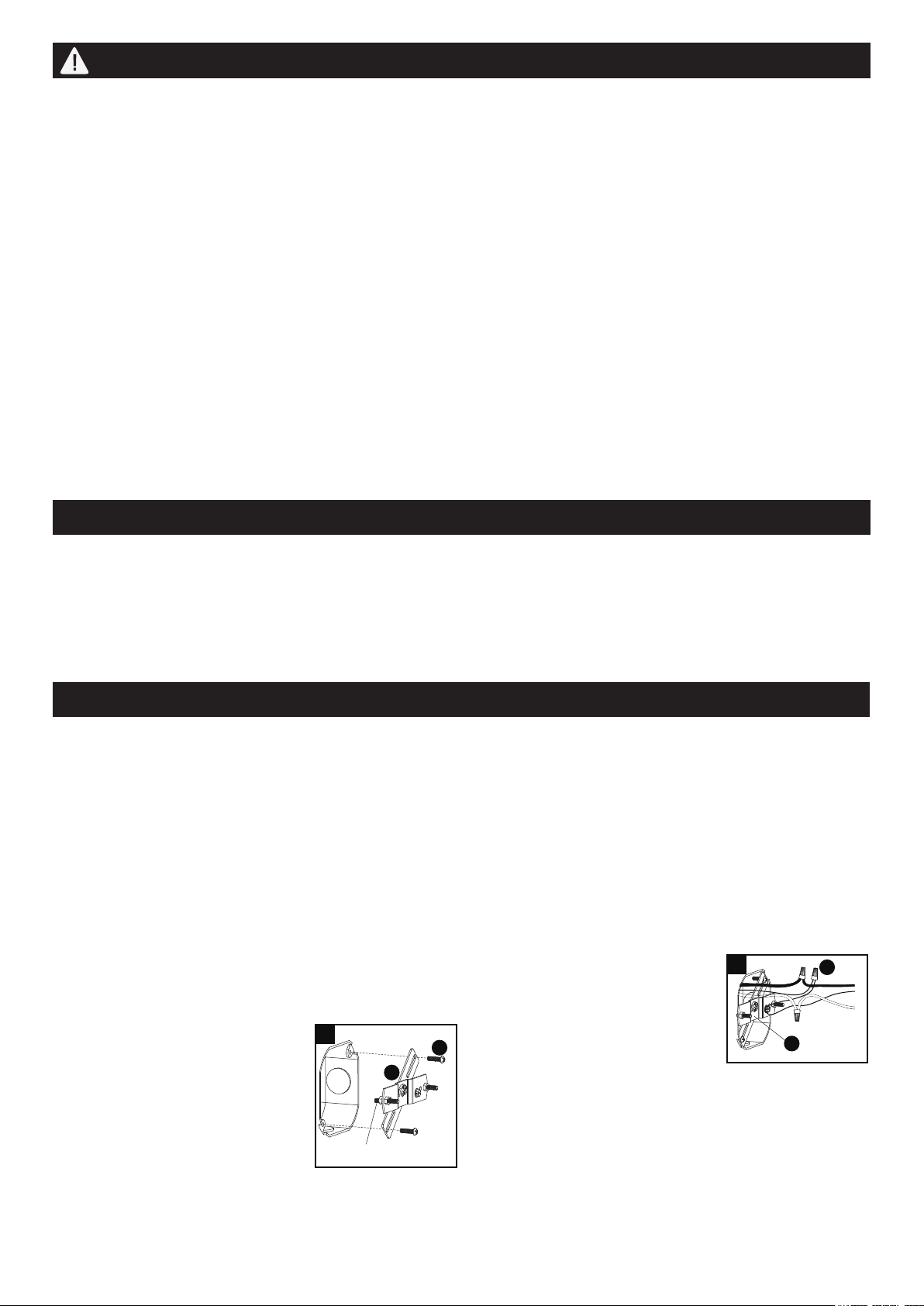

ASSEMBLY INSTRUCTIONS
PREPARATION
Important to Know
Please read and understand this entire manual before atte
mpting to assemble, operate or install the product.
WARNING
•
Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or
switching off circuit breaker).
• Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
SAFETY INFORMATION
Maximum Wattage: 60W
Work Temperature: - 4°F~104°F
1. This fixture requires a 120 VAC, 60 Hz power source.
2. For general safety and to avoid any possible damage to the sensor, be sure the power is switched "off" before
adjustment.
3. Motion sensor: turns light ON automatically when motion is detected and turns light OFF automatically when motion
stops.
4. Photocell keeps the light OFF during daylight hours.
5. Compatible with LED dimmable bulb.
6. Use the dim-to-bright illumination option where you want some minimum illumination through out the night, such as
at your front entrance or garage door. Use the dark-to-bright illumination option where you do not need minimum
brightness, such as the backyard or back porch.
Installation Steps
Turn off the power at fuse or
circuit box.
1. Attach cross bar unit(AA) to outlet
box using two mounting
screws(BB). Adjust the length of
the headless screws if necessary.
Note: Make sure that the
headless screws are lined up
horizontally to make the fixture
level.
2. Pull out the source wires from the
outlet box. Make wire connections
using wire nuts as follows:
• Connect the hot wire (usually
black insulation) from the fixture
to the black wire from the power
source.
• Connect the neutral wire (usually white insulation)
from the fixture to the white wire from the power
source.
• Attach the fixture grounding wire (usually green
insulation or bare wire) to the cross bar unit (AA) with
the green grounding screw, and then connect it to
the house grounding wire with the wire nut (CC).
Carefully put all of the wires back into the outlet box.
AA
BB
1
Headless Screw
CC
AA
2
Page 3 of 5

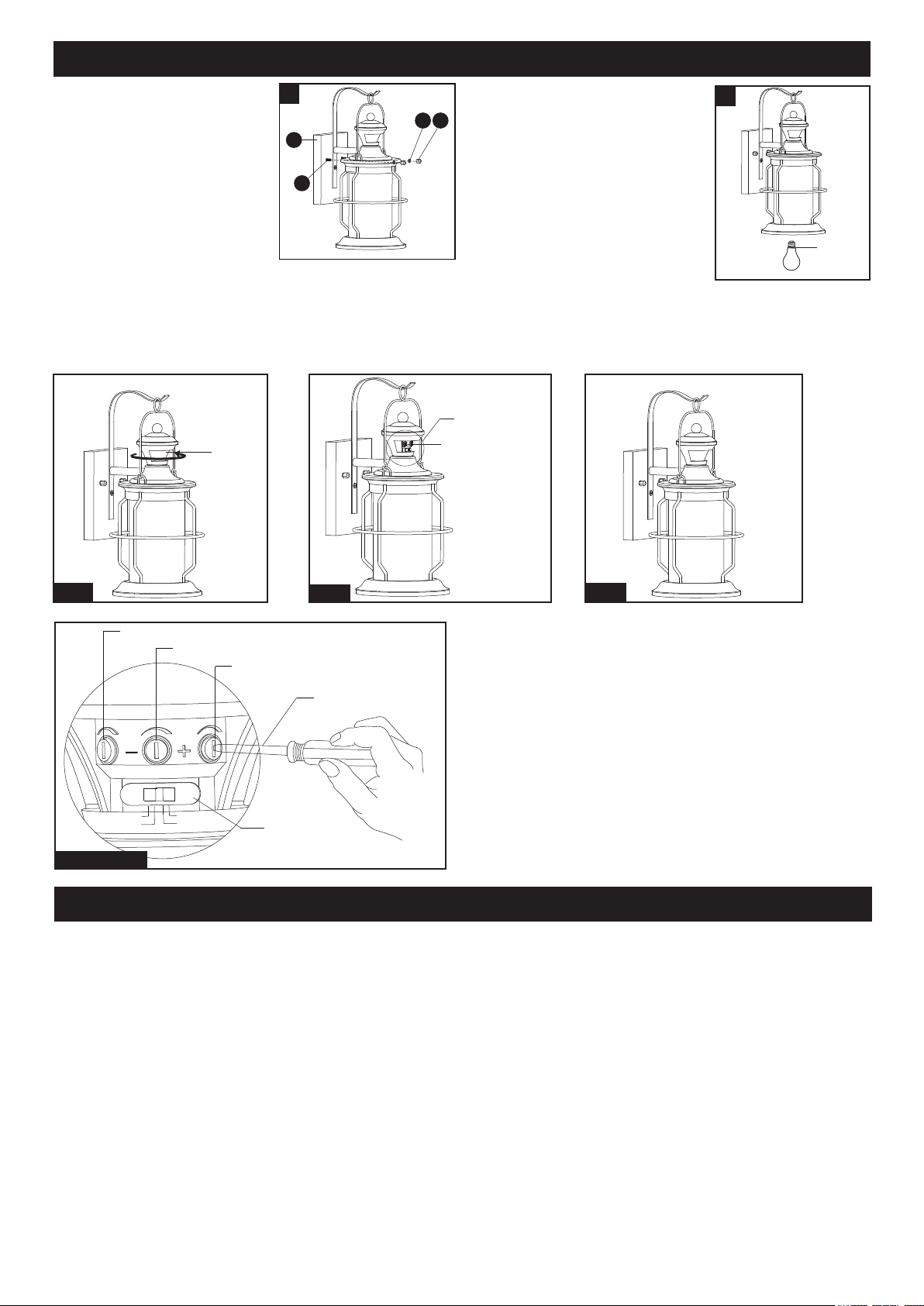

ASSEMBLY INSTRUCTIONS (continued)
Step 1: Rotate the sensor lens counterclockwise to show
up the adjustable knobs and slide switch.
(See Fig.1)
Step 2: Use the small flathead screwdriver to adjust time,
low level brightness and sensitivity. And slide the
slide switch to choose desired mode. (See Fig.2
and Detail A view).
Step 3: Rotate the sensor lens clockwise to restore original
position.(See Fig.3)
The Position of Adjustable Knob
Sensor
Lens
TIME
LOW LEVEL
Adjustable
Knob
See Detail A
Fig.1
Fig.2
Fig.3
“TIME” Knob
“LOW LEVEL” Knob
“SENS” Knob
Flathead Screwdriver
(not included)
Slide Switch
TEST
OFF
AUTO
PC
TIME
LOW LEVEL
SENS
Detail A View
FUNCTION AND OPERATION
Choose a mode by sliding the switch at the back of sensor lens. When power is first applied, the light will turn on
immediately. Wait for 100 seconds to allow the sensor to warm up.
1. TEST MODE (daytime and nighttime operation)
• The light will turn to low-level brightness (0~50%).The light will turn to high-level brightness (full brightness) when
motion is detected, and stay on as long as the motion continues. The light will revert to low-level brightness you set
about 5 seconds after motion is no longer detected.
2. OFF MODE (nighttime operation only)
• At dusk, the light will turn on when motion is detected, and stay on as long as the motion continues. When the motion
stops, the light will remain on for the predetermined time set (5 ~ 180 seconds), then the light will turn off
automatically.
GG
CC
A
FF
3. Attach the back plate of the
fixture(A) to the cross bar by
inserting headless
screws(CC) into holes on
back plate, and then secure it
with two rubber pads(GG)
and two ball nuts(FF).
Note: With silicone
caulking compound, caulk
completely around where
the back plate meets with the wall surface to prevent
water from seeping into the outlet box.
3
4. Install a Bulb type A
Max. 60W (not include).
Turn on the power at fuse or circuit
box.
4
Bulb type A
Max. 60W
(not include)
Page 4 of 5

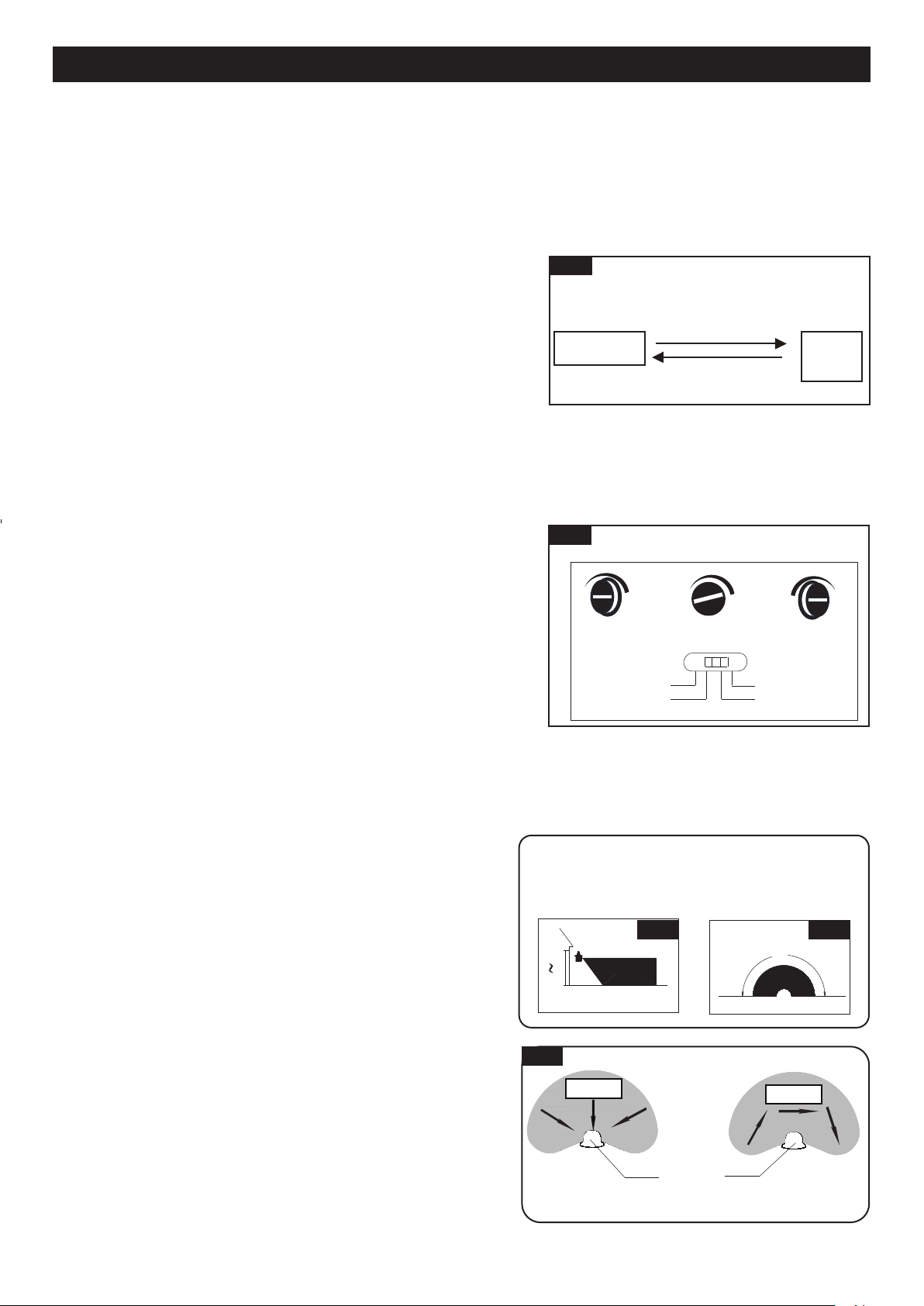

FUNCTION AND OPERATION (continued)
OFF Mode
AUTO Mode
Manual
Override
Manual Override Operation Diagram
Turn wall switch OFF-ON
in 0.5~3 Seconds
Turn wall switch OFF-ON
in 0.5~3 Seconds
Fig. 4
Fig. 5
TEST
OFF
AUTO
PC
(View from back of sensor head)
TIME
SENS
Fig. 8
LOW LEVEL
Model
Motion
Least sensitive
Motion
Most sensitive
Sensor
3. AUTO MODE (nighttime operation only)
• At dusk, the light will turn to low-level brightness (0~50%). The light will turn to high-level brightness (full brightness)
when motion is detected, and stay on as long as the motion continues. When the motion stops, the light will remain
on for the predetermined time set (5 ~ 180 seconds), and then revert to low-level brightness you set.
• The light will turn off automatically at dawn.
4. PC MODE (nighttime operation only)
• The light will turn to high-level brightness (full brightness) at dusk. It will turn off at dawn.
5. Manual Override MODE (nighttime operation only)
• To shift to the manual override mode, set the switch to “OFF” or
“AUTO” mode. Turn the wall switch “OFF” and then turn it “ON”
within 3 seconds. The light will remain on all night long. To shift back
to the “OFF” or “AUTO” mode, turn the wall switch “OFF” and then
turn it “ON” within 3 seconds again. (See Fig.4)
• The light will last only for one night and turn off automatically at dawn.
Note: 1.You can adjust the low level brightness (0~50%) by rotating
“LOW LEVEL” knob at the back of sensor lens. (See Fig.5)
2.To make sure the above functions operate properly, always keep the wall switch in the “ON” position
(including the daytime).
3. Please notice the warm up time is 100 seconds, any operations are invalid during this time.
Customization Options
Shut-off Delay
The Shut-off delay is the length of time the light will stay at high-level
brightness after motion has ceased to be detected. This Shut-off delay
can be set when operation is in “OFF”, or “AUTO” mode by using the
“TIME” knob located on the left side of the panel at the back of sensor
head (See Fig.5) . To increase the shut-off delay, turn the knob
clockwise. To decrease shut off delay, turn the knob counterclockwise.
The delay may be adjusted from a minimum of 5 seconds to a maximum
of 3 minutes. The light will stay on as long as motion is detected
continuously and will automatically turn to low-level brightness when no
more motion is detected after the delay time has passed.
Sensitivity of Motion Sensor
The sensitivity of the motion sensor can be adjusted by using the “Sens” knob located on the right side of the panel at
the back of sensor lens (See Fig.5). To increase sensitivity, turn the knob clockwise. To decrease sensitivity, turn the
knob counterclockwise. The sensitivity may be adjusted from a minimum of 5 feet to a maximum of 40 feet.
NOTE:
1. The sensitivity of the motion sensor will increase as the
environmental temperature gets cooler. For best performance,
gently clean the lens with a soft cloth every 1 or 2 months to
assure maximum sensitivity.
2. For best performance, install fixture at least 6 feet above
the ground. At such a height, the fixture will provide a
detection distance of up to 40 feet at 77 degrees
Fahrenheit. (See Fig.6)
3.The sensor detects across a detection range of 180 degrees.
(See Fig.7)
4. The sensor will be more sensitive to motion across its
detection path than motion directly towards it. (See Fig.8)
5. To reduce possible nuisances, do not mount the fixture
near a heat source like an air conditioner, vent or furnace
exhaust, or in a direction facing any reflecting object or
other light source.
5`
6`
10`
40`
Where you install your lantern is important:
Be sure the light is mounted straight on the wall;
otherwise, the detection distance may be limited.
Fig. 6 Fig. 7
180˚
Page 5 of 5
Clean the glass and coated metal surfaces with a non-abrasive cleaner. Do not use any cleaners with chemicals,
solvents or harsh abrasives, The motion detecting lens is coated with a specially painted finish and requires special
care when cleaning. Use only a soft dry cloth to dust or wipe the lens area.
TROUBLESHOOTING
CARE AND MAINTENANCE
The following parts are available for re-order if damaged or missing. Call us toll-free at 1-800-887-6326.
Spare Parts List:
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
If the light does not work at all:
1. Make sure the wall switch and circuit breaker are on.
2. Make sure the wiring connection is correct.
3. Cover the sensor with dark color cloth to verify that the ambient light level is not too high.
In TEST Mode, if the light stays on over 5 seconds after motion is no longer detected:
1. Make sure the slide switch is at the TEST position.
2. Cover the sensor with a dark color cloth to verify that motion is not detected.
3. Make sure the light is not mounted near a barbecue, air conditioner or other heat source.
In OFF/AUTO Mode, if the light stays on full brightness after 3 minutes:
1. Make sure there is no motion detected by the sensor.
2. Make sure that it is not in manual override mode.
3. Make sure the light is not mounted near a barbecue, air conditioner or other heat source.
In PC / Manual override Mode, if the light stays on after dawn:
1. Whether the ambient light level is too low.
If the light blinks:
1. Make sure the light is not mounted near a barbecue, air conditioner or other heat source.
In TEST/AUTO Mode, if the light doesn’t have low level brightness:
1. Make sure the bulb is dimmable, if you use LED bulb.
If unable to fix any of the above issues, please consult a certified electrician.
Assembly Kit
5739MM (1 SET)
Glass Shade
9906CS
AA
BB
CC
B
DD
EE
Mounting Screw
X2
Wire Nut
X3
Ball Nut
X2
Rubber Pad
X2
Cross Bar Unit
X1
