Rinnai RPC26MC 2.6kW Cooling Only Portable Air Conditioner User Manual

Portable Room Air Conditioner

Operation & Installation Manual

Models:

REFRIGERANT

R290

RPC26MC

RPC35MC

Rinnai 2 Portable Room AC OIM

For continued safety of this appliance it must

be installed and maintained in accordance with

the manufacturer’s instructions�

Before proceeding with the operation of your

new Rinnai Portable Room Air Conditioner,

please read this manual thoroughly and gain a

full understanding of the requirements,

features and operation of your new appliance�

REFRIGERANT

R290

Rinnai 3 Portable Room AC OIM

TABLE OF CONTENTS

Safety & Important Information 4

Specications 10

Introduction �� 10

Specications �� 10

AirConditionerBasics 11

Appliance Components �� 11

Operation 12

Control Panel �� 12

Basic Operation �� 12

Basic Operation Control Panel �� 12

Auto �� 12

Cool �� 13

Dry �� 13

FAN �� 13

Other Operation �� 13

Filter Reset �� 13

Sleep �� 13

Timer �� 14

Swing �� 14

RemoteControl 15

Care&Maintenance 17

General Maintenance �� 17

Cleaning the Air Filter �� 17

Save a Service Call �� 18

When to Call for Service �� 18

Installation 19

Location �� 19

Duct Assembly �� 19

Exhaust Ducting Options �� 20

Window Installations �� 20

Semi-Permanent Wall Installation �� 21

Condensate Drainage �� 21

Internal Condensate Tank �� 21

Fixed Condensate Drainage Hose �� 21

Warranty 22

Contacts 28

Rinnai 4 Portable Room AC OIM

WARNING

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

Alwayscomplywiththefollowingprecautionstoavoiddangeroussituationsandtoensure

optimumperformance.

Failure to carefully read and follow all instructions in this manual can result in equipment

malfunction,propertydamage,personalinjuryand/ordeath.

DANGER:Indicatesanimminentlyhazardoussituationwhich,ifnotavoided,willresultin

personalinjuryordeath.

WARNINGS:Indicatesapotentiallyhazardoussituationwhich,ifnotavoided,couldresultin

personalinjuryordeath.

CAUTIONS:Indicatesapotentiallyhazardoussituationwhich, ifnotavoided,couldresult

inminorormoderateinjuryordamagetotheappliance.Itmayalsobeusedtoalertagainst

unsafepractices.

WARNING

The appliance is tted with an Australian exible cord and plug intended for connection to an Australian

10 Amp socket outlet. It is not suitable for connection in other countries or alternative power supplies.

Ensure that the voltage and frequency of the power supply correspond to the ratings on the dataplate of

the appliance�

This appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for their safety.

Young children should be supervised to ensure they do not play with the appliance.

DO NOT allow children or persons with reduced physical, sensory or mental capabilities to sleep directly

in front of this appliance.

DO NOT allow children to ‘post articles’ into the louvres of the appliance.

DO NOT use power boards or double adaptors with this appliance.

DO NOT coil or bundle the electric cord to reduce it’s length as overheating of the cord may occur which

could result in a re hazard.

The exible cord and plug must not be modied. If the cord or plug are damaged, they must be replaced

by Rinnai or a Rinnai appointed service agent.

DO NOT cover or place articles on or against any parts of this appliance, to avoid overheating.

DO NOT sit on this appliance

DO NOT use this appliance in the immediate surroundings of a bath, a shower or a swimming pool.

DO NOT move this appliance whilst it is turned on.

DO NOT unplug the appliance by pulling on the exible cord.

DO NOT handle any parts of this appliance, including the plug and exible cord, with wet or damp hands.

DO NOT immerse the appliance, exible cord and plug in water or any other liquid.

DO NOT place containers of any liquid or wax on top of this appliance.

Turn o󰀨 the appliance and unplug from the power socket outlet when not in use.

DO NOT use in areas where ammable liquids are stored.

This appliance is suitable for indoor use only.

Never dismantle the appliance. Tampering with electrical connections and components is highly

dangerous and may cause appliance malfunction, property damage, personal injury and/or death.

SAFETY & IMPORTANT INFORMATION

Rinnai 5 Portable Room AC OIM

WARNING

WARNINGINFORMATIONREGARDINGAPPLIANCESWITHR290REFRIGERANTGAS

Thoroughly read all of the warnings.

This appliance contains up to 210g of R290 refrigerant gas.

This appliance uses R290 refrigerant, which is class 3 ammability and must be handled by a refrigeration

mechanic with appropriate Australian refrigerant handling licence.

The appliance must be installed, used and stored in a ventilated area that is greater than 11 m

2

�

When cleaning the appliance, do not use any tools other than those recommended by the manufacturing

company�

DO NOT use means to accelerate the defrosting process or to clean, other than those recommended

by the manufacturer�

The appliance must be placed in an area without any continuous sources of ignition (for example: open

ames, gas or electrical appliances in operation).

DO NOT puncture and DO NOT burn�

Refrigerant gases can be odourless.

If the appliance is installed, operated or stored in a non-ventilated area, the room must be designed to

prevent the accumulation of refrigerant leaks resulting in a risk of re or explosion due to ignition of the

refrigerant caused by electric heaters, stoves, or other sources of ignition.

Compliance with national gas regulations shall be observed. Keep ventilation openings clear of

obstruction.

A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds

to the room area as specied for operation.

Any person who is involved with working on or breaking into a refrigerant circuit should hold a current

valid certicate from an industry-accredited assessment authority, which authorises their competence to

handle refrigerants safely in accordance with an industry recognised assessment specication.

Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and

repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the

person competent in the use of ammable refrigerants.

The appliance MUST BE stored in such a way as to prevent mechanical failure.

Repairs must be performed based on the recommendations from the manufacturing company.

Maintenance and repairs that require the assistance of other qualied personnel must be performed

under the supervision of an individual specied in the use of ammable refrigerants.

IMPORTANT

MANDATORY INSPECTION PRIOR TO INSTALLATION

Immediately report any damage or discrepancies to the Supplier of the appliance. This appliance was

inspected and tested at the time of manufacture and packaging, and released for transportation without

known damage. Upon receipt, inspect the exterior for evidence of rough handling in shipment. Ensure

that the appliance is labelled correctly for the gas and electrical supply, and/or other services it is intended

to be connected to�

For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be installed

or operated under any circumstances. Installation of damaged or incorrect appliances may contravene

local government regulations. Rinnai disclaims any liability or responsibility whatsoever in relation to the

installation or operation of damaged or incorrect appliances.

NOTE

A NOTE ON ILLUSTRATIONS

The illustrations used in this manual are for explanatory purposes only and the shape of your indoor unit

may vary slightly from that which is shown in this manual.

SAFETY & IMPORTANT INFORMATION

Rinnai 6 Portable Room AC OIM

WARNING

EXPLANATION OF SYMBOLS DISPLAYED ON THE UNIT

WARNINGRiskofre/ammablematerial.Iftherefrigerantisleaked,togetherwithan

externalignitionsource,thereisapossibilityofignition.

ReadtheOPERATINGINSTRUCTIONScarefullybeforeoperation.

Service personnel are required to carefully read the OPERATING INSTRUCTIONS and

INSTALLATIONMANUALbeforeoperation.

Further information is available in the OPERATING INSTRUCTIONS, INSTALLATION

MANUAL,andthelike.

1. Transportofequipmentcontainingammablerefrigerants

See transport regulations.

2. Markingofequipmentusingsigns

See local regulations.

3. Disposalofequipmentusingammablerefrigerants

See national regulations.

4. Storageofequipment/appliances

The storage of equipment should be in accordance with the manufacturer’s instructions.

5. Storageofpacked(unsold)equipment

Storage package protection should be constructed such that mechanical damage to the equipment inside the

package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to

be stored together will be determined by local regulations.

•

General work area

All maintenance sta󰀨 and others working in the local area shall be instructed on the nature of work being carried

out. Work in conned spaces shall be avoided. The area around the workspace shall be sectioned o󰀨. Ensure that

the conditions within the area have been made safe by control of ammable material.

6. Informationonservicing

1) Checks to the area Prior to beginning work on systems containing ammable refrigerants, safety checks

are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the

following precautions shall be complied with prior to conducting work on the system.

2) Work procedure

Work shall be undertaken under a controlled procedure so as to minimise the risk of a ammable gas or vapour

being present while the work is being performed.

3) General work area

All maintenance sta󰀨 and others working in the local area shall be instructed on the nature of work being carried

out. Work in conned spaces shall be avoided. The area around the workspace shall be sectioned o󰀨. Ensure that

the conditions within the area have been made safe by control of ammable material.

4) Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician

is aware of potentially ammable atmospheres. Ensure that the leak detection equipment being used is suitable for

use with ammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

5) Presence of re extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate re

extinguishing equipment shall be available to hand. Have a dry powder or CO

2

re extinguisher adjacent to the

charging area�

SAFETY & IMPORTANT INFORMATION

Rinnai 7 Portable Room AC OIM

6) No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that

contains or has contained ammable refrigerant shall use any sources of ignition in such a manner that it may lead

to the risk of re or explosion. All possible ignition sources, including cigarette smoking, should be kept su󰀩ciently

far away from the site of installation, repairing, removing and disposal, during which ammable refrigerant can

possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be

surveyed to make sure that there are no ammable hazards or ignition risks. No Smoking signs shall be displayed.

7) Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting

any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation

should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

8) Checks to the refrigeration equipment

Where electrical components are being changed, they shall be t for the purpose and to the correct specication.

At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt consult the

manufacturer’s technical department for assistance. The following checks shall be applied to installations using

ammable refrigerants:

The charge size is in accordance with the room size within which the refrigerant containing parts are installed;

The ventilation machinery and outlets are operating adequately and are not obstructed;

If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;

Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;

Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance

which may corrode refrigerant containing components, unless the components are constructed of materials which

are inherently resistant to being corroded or are suitably protected against being so corroded.

9) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection

procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the

circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue

operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so

all parties are advised.

Initial safety checks shall include:

That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;

That there no live electrical components and wiring are exposed while charging, recovering or purging the system;

That there is continuity of earth bonding.

7. Repairstosealedcomponents

1) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment

being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an

electrical supply to equipment during servicing, then a permanently operating form of leak detection shall

be located at the most critical point to warn of a potentially hazardous situation.

2) Particular attention shall be paid to the following to ensure that by working on electrical components, the

casing is not altered in such a way that the level of protection is a󰀨ected. This shall include damage to

cables, excessive number of connections, terminals not made to original specication, damage to seals,

incorrect tting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing

materials have not degraded such that they no longer serve the purpose of preventing the ingress of

ammable atmospheres. Replacement parts shall be in accordance with the manufacturer’s specications.

NOTE: The use of silicon sealant may inhibit the e󰀨ectiveness of some types of leak detection equipment.

Intrinsically safe components do not have to be isolated prior to working on them.

SAFETY & IMPORTANT INFORMATION

Rinnai 8 Portable Room AC OIM

8. Repairtointrinsicallysafecomponents

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed

the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only

types that can be worked on while live in the presence of a ammable atmosphere. The test apparatus shall be at

the correct rating. Replace components only with parts specied by the manufacturer. Other parts may result in the

ignition of refrigerant in the atmosphere from a leak.

9. Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other

adverse environmental e󰀨ects. The check shall also take into account the e󰀨ects of aging or continual vibration

from sources such as compressors or fans.

10. Detectionofammablerefrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant

leaks. A halide torch (or any other detector using a naked ame) shall not be used.

11. Leakdetectionmethods

The following leak detection methods are deemed acceptable for systems containing ammable refrigerants.

Electronic leak detectors shall be used to detect ammable refrigerants, but the sensitivity may not be adequate,

or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the

detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment

shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and

the appropriate percentage of gas (25 % maximum) is conrmed. Leak detection uids are suitable for use with

most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with

the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked ames shall be removed/

extinguished.

If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system,

or isolated (by means of shut o󰀨 valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN)

shall then be purged through the system both before and during the brazing process.

12. Removalandevacuation

When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall

be used. However, it is important that best practice is followed since ammability is a consideration. The following

procedure shall be adhered to:

Remove refrigerant; Purge the circuit with inert gas; Evacuate; Purge again with inert gas; Open the circuit by

cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be ushed with

OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen

shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and

continuing to ll until the working pressure is achieved, then venting to atmosphere, and nally pulling down to a

vacuum. This process shall be repeated until no refrigerant is within the system.

When the nal OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to

take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that

the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

13. Chargingprocedures

In addition to conventional charging procedures, the following requirements shall be followed. Ensure that

contamination of di󰀨erent refrigerants does not occur when using charging equipment. Hoses or lines shall be as

short as possible to minimise the amount of refrigerant contained in them.

Cylinders shall be kept upright.

Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.

Label the system when charging is complete (if not already).

Extreme care shall be taken not to overll the refrigeration system. Prior to recharging the system it shall be

pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning.

A follow up leak test shall be carried out prior to leaving the site.

SAFETY & IMPORTANT INFORMATION

Rinnai 9 Portable Room AC OIM

14. Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and

all its detail. It is recommended good practice that all refrigerants are recovered safely.

Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior

to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.

b) Isolate system electrically.

c) Before attempting the procedure ensure that: Mechanical handling equipment is available, if required, for

handling refrigerant cylinders; All personal protective equipment is available and being used correctly;

The recovery process is supervised at all times by a competent person; Recovery equipment and cylinders

conform to the appropriate standards.

d) Pump down refrigerant system, if possible.

e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the

system.

f) Make sure that cylinder is situated on the scales before recovery takes place.

g) Start the recovery machine and operate in accordance with manufacturer’s instructions.

h) Do not overll cylinders. (No more than 80% volume liquid charge).

i) Do not exceed the maximum working pressure of the cylinder, even temporarily.

j) When the cylinders have been lled correctly and the process completed, make sure that the cylinders and

the equipment are removed from site promptly and all isolation valves on the equipment are closed o󰀨.

k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and

checked.

15. Labelling

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall

be dated and signed. Ensure that there are labels on the equipment stating the equipment contains ammable

refrigerant�

16. Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good

practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only

appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding

the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and

labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete

with pressure relief valve and associated shut-o󰀨 valves in good working order. Empty recovery cylinders are

evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working

order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of

ammable refrigerants.

In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be

complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check

that it is in satisfactory working order, has been properly maintained and that any associated electrical components

are sealed to prevent ignition in the event of a refrigerant release.

Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the

correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units

and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been

evacuated to an acceptable level to make certain that ammable refrigerant does not remain within the lubricant.

The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating

to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall

be carried out safely.

SAFETY & IMPORTANT INFORMATION

Rinnai 10 Portable Room AC OIM

INTRODUCTION

This portable air conditioner can alter the room temperature and humidity. It has multiple functions of cooling

dehumidifying (drying) and fan ventilation and can be moved from room to room and transported from building to

building easily.

The air conditioner can maintain set room indoor air temperatures between 16°C and 32°C. The set room

temperature is displayed on the remote control and in the control panel on the unit. This does not mean that the air

conditioner will necessarily reduce the actual room temperature to the set room temperature.

•

Do not place the air conditioner or plastic window slider in direct sunlight. Close all curtains in the room being

cooled�

•

For maximum cooling (COOLING MODE), set the temperature at 18°C and the fan at HIGH. After

approximately 3 minutes, the compressor will turn on and cooled air will come out of the front air outlet.

Warm air will also come out of the rear outlet and into the exhaust hose.

•

In COOLING MODE the air conditioner will not cool unless the set temperature is below the existing room

temperature�

•

In COOLING MODE once the existing room temperature reaches the set temperature, the fan continues

operating and the compressor switches on and o󰀨 to maintain the set temperature within the room.

•

For maximum cooling output keep the exhaust hose as short and as straight as possible. Minimise bends

which can reduce the maximum cooling capacity of the air conditioner. Elevate the air conditioner if necessary.

•

Make sure the air intake and outlet grills are unobstructed.

•

Clean the lters at least once every two weeks.

SPECIFICATIONS

MODEL RPC26MC RPC35MC

Power Supply V/Hz 220-240~ / 50

Maximum Input Power W 950 1450

Dimensions - Net (H x W x D)

mm

710 x 476 x 385 710 x 476 x 385

Dimensions - Packing (H x W x D) 885 x 545 x 435 885 x 545 x 435

Weight kg 32 33

Nominal Cooling Capacity kW 2�6 3�4

Rated Input Current A 4�5 8

Rated Input Power kW 0�95 1�45

Refrigerant Type R290

Refrigerant Volume g 200 210

Sound Power Level dB(A) 64 65

SPECIFICATIONS

Rinnai 11 Portable Room AC OIM

APPLIANCE COMPONENTS

1� Control panel 2� Cool air outlet

3� Receiver window 4� Remote control

5� Exhaust outlet 6� Carry handles

7� Drain outlet 1 8� Drain outlet 2 (not used on this model)

9� Room air intake (lter located behind grill) 10� Lower air intake (lter located behind grill)

11� Swivel casters (x4) 12� Drain tray outlet

13� 1.2m exible 2 pin cord 220-240V 50Hz 10A 14� Adjustable window slide kit

15� Window exhaust duct window adaptor. 16� Exhaust duct (extends to 1.8M)

17� Duct to appliance adaptor 18� Condensate drain hose

1

2

3

4

9

6

5

7

8

11

12

13

10

Front

Back

15

17 16

18

14

AIR CONDITIONER BASICS

Rinnai 12 Portable Room AC OIM

CONTROL PANEL

1� ON/OFF Button 2� Filter Reset Button

3� Fan Speed Button 4� Temperature Button

5� Mode Selection Button 6� Sleep Mode Button

7� Timer Button 8� Swing Button

IMPORTANT

Before operating this appliance ensure that the location, installation and condensation

requirementshavebeenmet,refertoinstallationinstructionsstartingonpage19fordetails.

Forthebestcoolingresultsensurethattheltersareclean,referpage17fordetails.

Whentheapplianceispluggedandthepowerpointisturnedonasinglebeepwillbeheardand

thecoolairoutletlouvrewillcycleopenandclosedonce,thisisnormal.

BASIC OPERATION

There are four basic operational modes available, these are AUTO, COOL (chilled air operation), DRY (chilled and

dehumidied operation) and FAN (fan only operation).

BASIC OPERATION CONTROL PANEL

AUTO

1� Press the ON/OFF button (1).

2� Press the mode selection button (5) until the AUTO mode indicator is illuminated.

The table below describes the relationship between room temperature and modes of operation when set to Auto.

RoomTemperature SetTemperature Operation Mode

≥ 24°C 24°C COOL Mode

< 24°C 24°C FAN mode

3� Use fan speed button (3) to select the desired fan speed (AUTO, LOW, MED or HIGH).

4� Press the ON/OFF button (1) to stop operation.

1235678 4

TEMP� Indicator

OPERATION

Rinnai 13 Portable Room AC OIM

COOL

1� Press the ON/OFF (1) button.

2� Press the mode selection (5) button until the COOL mode indicator

is illuminated.

3� Use temperature buttons (4) to select the desired temperature (16°C to 32°C)

4� Use fan speed button (3) to select the desired fan speed (AUTO, LOW, MED or HIGH).

5� Press the ON/OFF button (1) to stop operation.

DRY

1� Press the ON/OFF (1) button.

2� Press the mode selection button (5) until the DRY mode indicator

is illuminated.

3� Use temperature buttons (4) to select the desired temperature (16°C to 32°C)

4� Press the ON/OFF button (1).

FAN

1� Press the ON/OFF button (1).

2� Press the mode selection button (5) until the FAN mode indicator

is illuminated.

3� Use fan speed buttons (3) to select the desired fan speed (LOW, MED or HIGH).

NOTE

AUTOfanspeedisnotavailableonFANmode.

4� Press the ON/OFF button (1).

NOTE

Themostrecentbasicoperationalsettingsarestoredintheappliancesmemory.

If the appliance is not disconnected from the mains power supply then these setting will be

availablethenexttimetheapplianceisturnedonviatheON/OFFbutton.

OTHER OPERATION

FILTER RESET

When lter reset indicator light on, it means the air lter should be cleaned.

After cleaning the air lter, press the Filter Reset button to reset the countdown timer, the indicator light o󰀨.

NOTE

Theltercleanreminderisforgeneralusepurpose;Ifperiodsofheavyuse,airltersshouldbe

checkedandcleanedeveryweek.

SLEEP

The SLEEP function allows the set temperature to increase

and decrease over an 8 hour period at pre-set time intervals

to maintain your comfort while saving energy after the 8 hours

has passed the appliance will resume normal operation.

NOTE

Sleep mode is not available in FAN only and

DRY mode

C°C = Set cooling temperature

1

Sleep mode 8 hours

0.5 8

1°C

Set temp

1°C

Sleep Mode

Finishes

Sleep Mode

Starts

0

OPERATION

Rinnai 14 Portable Room AC OIM

TIMER

With the appliance "OFF", press the "TIMER" button (7) once to active Delay On Timer.

Press - or + to set the desired time period.

Press the "TIMER" button 9&) again to lock in the setting.

With the appliance "ON", press the "TIMER" button (7) once to active Delay O󰀨 Timer.

Press - or + to set the desired time period.

Press the "TIMER" button (7) again to lock in the setting.

When a timer is set, pressing the "TIMER" button (7) will cancel any timer settings.

SWING

Press this button (8) to adjust the air ow direction.

NOTE

Onlyonemodeofoperationisavailableatanytime.

OPERATION

Rinnai 15 Portable Room AC OIM

NOTE

BeforeproceedingwiththeoperationofyournewRinnaiPortableRoomAirConditionerRemote

Controller, please read these instructions thoroughly and gain a full understanding of the

requirementsfeaturesandoperationofyournewRemoteController.

PleasekeeptheOperationandInstallationManualforyournewPortableRoomAirConditioner

handysoitcanbereferredtoatanytimeinconjunctionwiththeseinstructions.

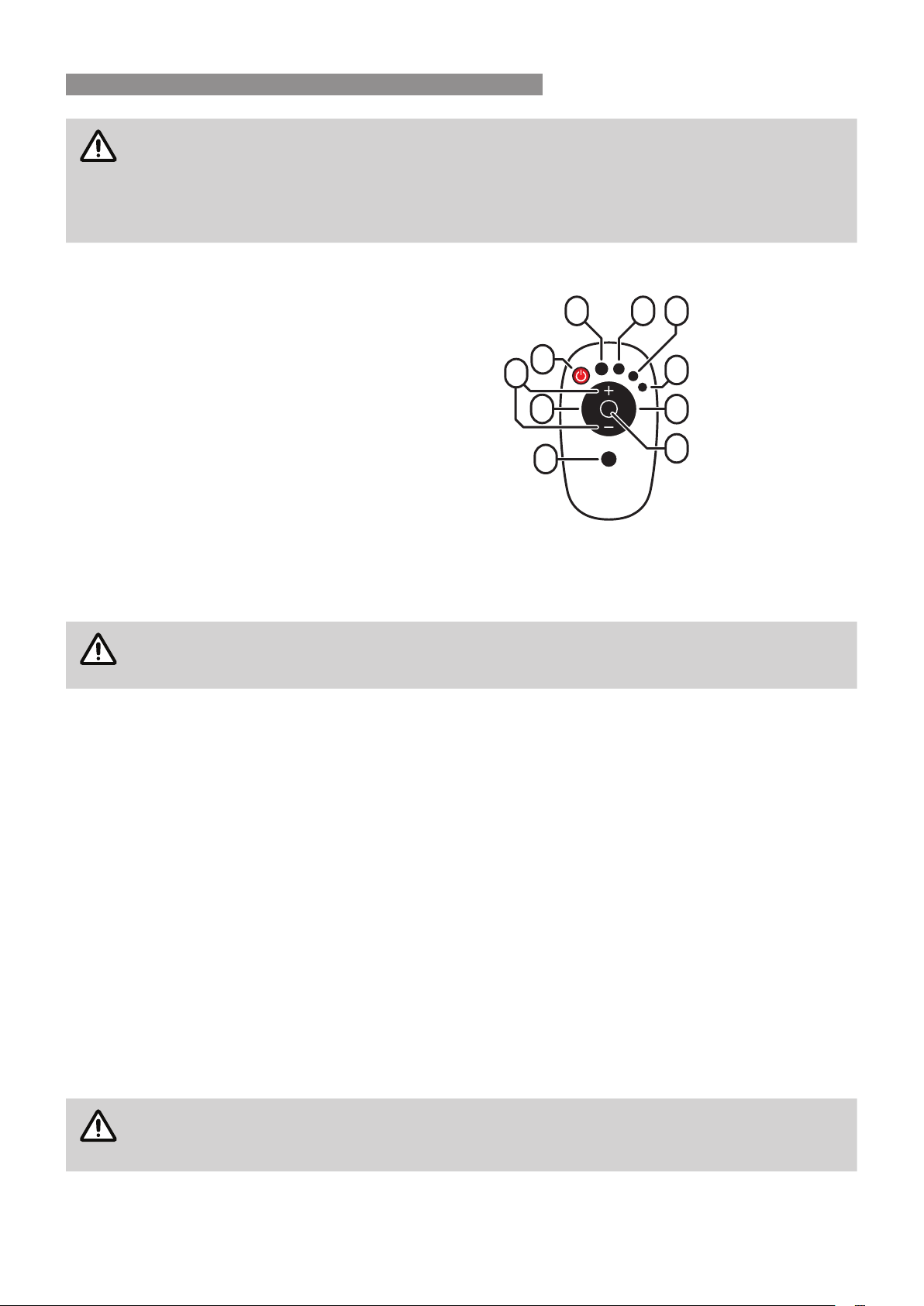

REMOTE CONTROL OVERVIEW

1� ON/OFF Button

2� Fan Speed Button

3� Swing Button

4� Timer Button

5� Sleep Button

6� Temperature UP/DOWN Buttons

7� Fan Only Button

8� Cool Button

9� Dry (Dehumidifying) Button

10� This button has no function on this model.

BASIC OPERATION REMOTE CONTROLLER

The Rinnai Remote Controller allows for convenient operation of the appliance within a 8 metre range.

NOTE

Aconrmationbeepsoundstoconrmthatasuccessfulcontrollerinputhasbeenreceivedby

theappliance.

BUTTON DESCRIPTIONS & OPERATION

1� "ON/OFF" Button

Press "ON/OFF" button to turn "ON" or "OFF" the Air Conditioner.

2� "SPEED" Button

Press "SPEED" to set the fan speed (LOW, MEDIUM or HIGH).

3� "+" and "-" Button to adjust temperature or time

(a) Press “+”and “-” to regulate the temperature (the unit is 1°C) and set the time (the unit is 1h).

The temperature ranges from 16° to 32°, and the time ranges from 1h to 24h.

4� "SWING" Button

Press "SWING" to turn "ON" or "OFF" the swing function.

5� "TIMER" Button

(a) When the air conditioner is turned "OFF", press "TIMER" to set a time to turn "ON" the Air Conditioner.

Press "+" or "-" to set the time, and press "TIMER" again to conrm it.

(b) When the air conditioner is turned "ON", press "TIMER" to set a time to turn "OFF" the Air Conditioner.

Press "+" or "-" to set the time, and press "TIMER" again to conrm it.

(c) After setting the time, press "TIMER" again to cancel the set time.

NOTE

After setting the time,press “TIMER” againto conrm itin 5 seconds. Withoutanyoperation

in 5 seconds, the air conditioner will conrm the time automatically. Pressing “TIMER” after

conrmingthetimethiswillcancelthesettime.

2 3

1

9

6

4

5

7

8

10

REMOTE CONTROL

Rinnai 16 Portable Room AC OIM

6� “SLEEP” Button

(a) In operating mode, press “SLEEP” to enter the 10-hour intelligent sleep mode. After 10 hours, the air

conditioner will exit the sleep mode and restore its previous mode.

(b) In sleep mode, press “SLEEP” again, or press “MODE” or “ON/OFF” to exit the sleep mode.

NOTE

Thesleepmodecannotbestartedinfanonlymode.

7� “FAN” button - Press “FAN” to start the Ventilation mode.

8� “COOL” button - Press “COOL” to start the Refrigeration mode.

9� “DRY” button - Press “DRY” to start the Dehumidication mode.

NOTE

Onlywhentemperaturereaches16°canyouturnonthedehumidicationmode.

FIT BATTERIES

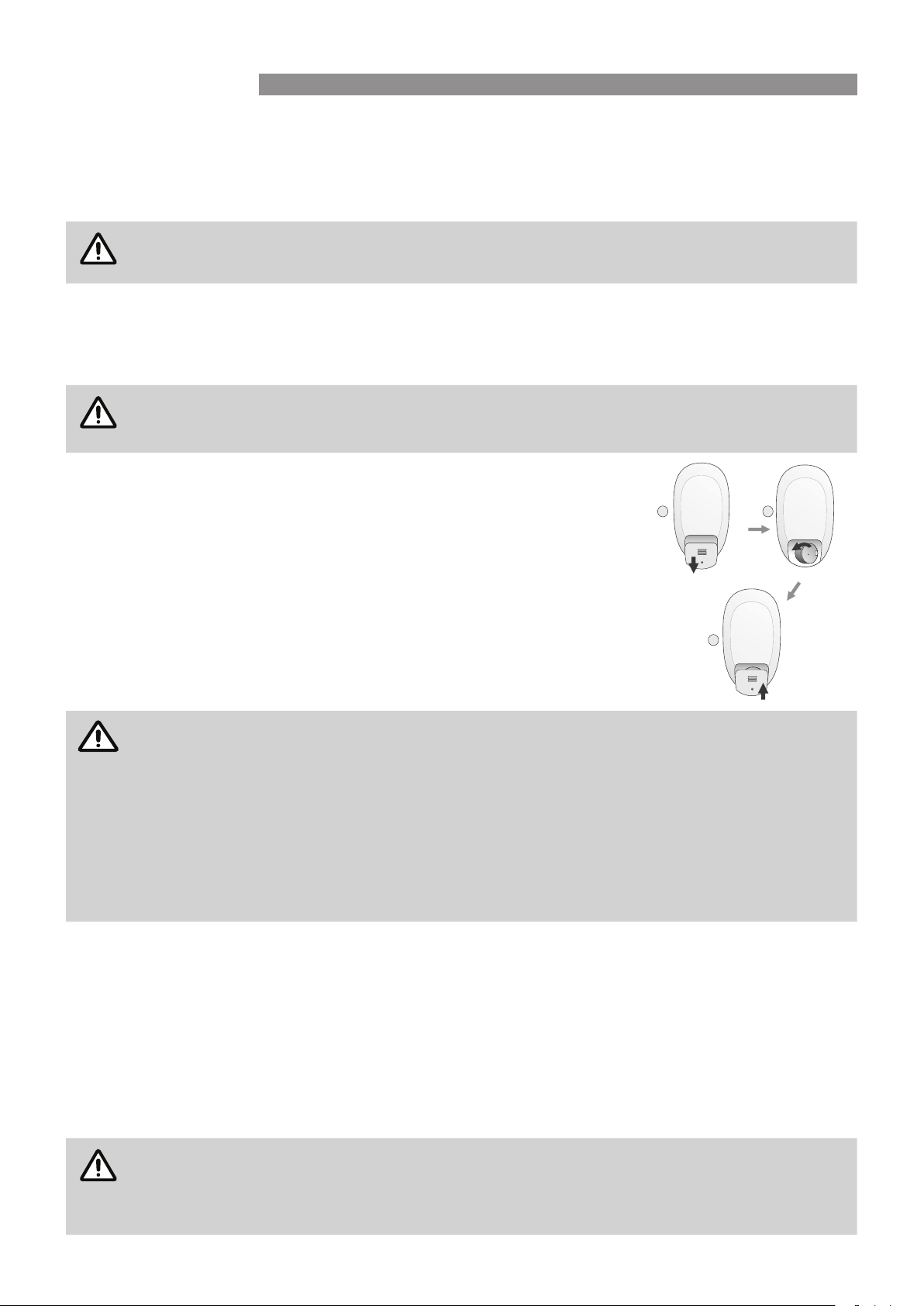

1� Remove retaining screw of the cover. Slide down to open the cover according

to the direction indicated by the arrow head�

2� Install the button battery (CR2032/3V). Make sure the positive pole faces up.

3� Put back the cover and replace the retaining screw.

WARNING

KEEP BATTERIES OUT OF REACH OF CHILDREN

Swallowingbuttonbatteries may lead toseriousinjury in as littleas2hours or death, dueto

chemicalburnsandpotentialperforationoftheoesophagus.

Ifyoususpectyourchildhasswallowedorinsertedabuttonbatteryimmediatelycallthe24hr

PoisonsInformationCentreon131126forfast,expertadvice.

Regularlyexaminetheremotecontrollerandmakesurethebatterycompartmentiscompletely

secured.

Disposeofusedbuttonbatteriesimmediatelyandsafely.

IMPORTANT

1� Aim the remote control towards the receiver on the front of Air Conditioner.

2� The remote control should be within 8 meters away from the receiver.

3� Ensure there are no obstacles between the remote control and the receiver.

4� Do not drop or throw the remote control�

5� Do not leave the remote control in the sun or near heating devices.

6� Only use the button battery (CR2032/3V). Ensure the battery cover is securely in place.

NOTE

ThediagramshownoftheRemoteControllerisanexampleonly.Theimagecontainsalmostall

ofthefunctionbuttons.

RemoteControllersmaybeslightlydi󰀨erentfromillustrateddiagramdependingonwhichmodel

purchased.

2

0

3

R

2

C

2

0

3

R

2

C

1

2

3

REMOTE CONTROL

Rinnai 17 Portable Room AC OIM

GENERAL MAINTENANCE

It is recommended that after each cooling season the exterior

panels and display of the appliance are cleaned with a soft damp

cloth�

Air lters should be checked and cleaned every week during

periods of heavy use. For intermittent use this can be extended to

2 to 3 weeks.

If storing the appliance for a prolong period remove the plugs and

hoses from the drain outlets (7) , (8) and (12).

CAUTION

ALWAYSturno󰀨thepowerbeforeyouperformany

maintenance.

DO NOTusesolvents,alcoholorharshcleanerson

thisapplianceorthelters.

NEVER use water that is hotter than 40°C when

you clean the lters. It may cause deformation or

discolouration.

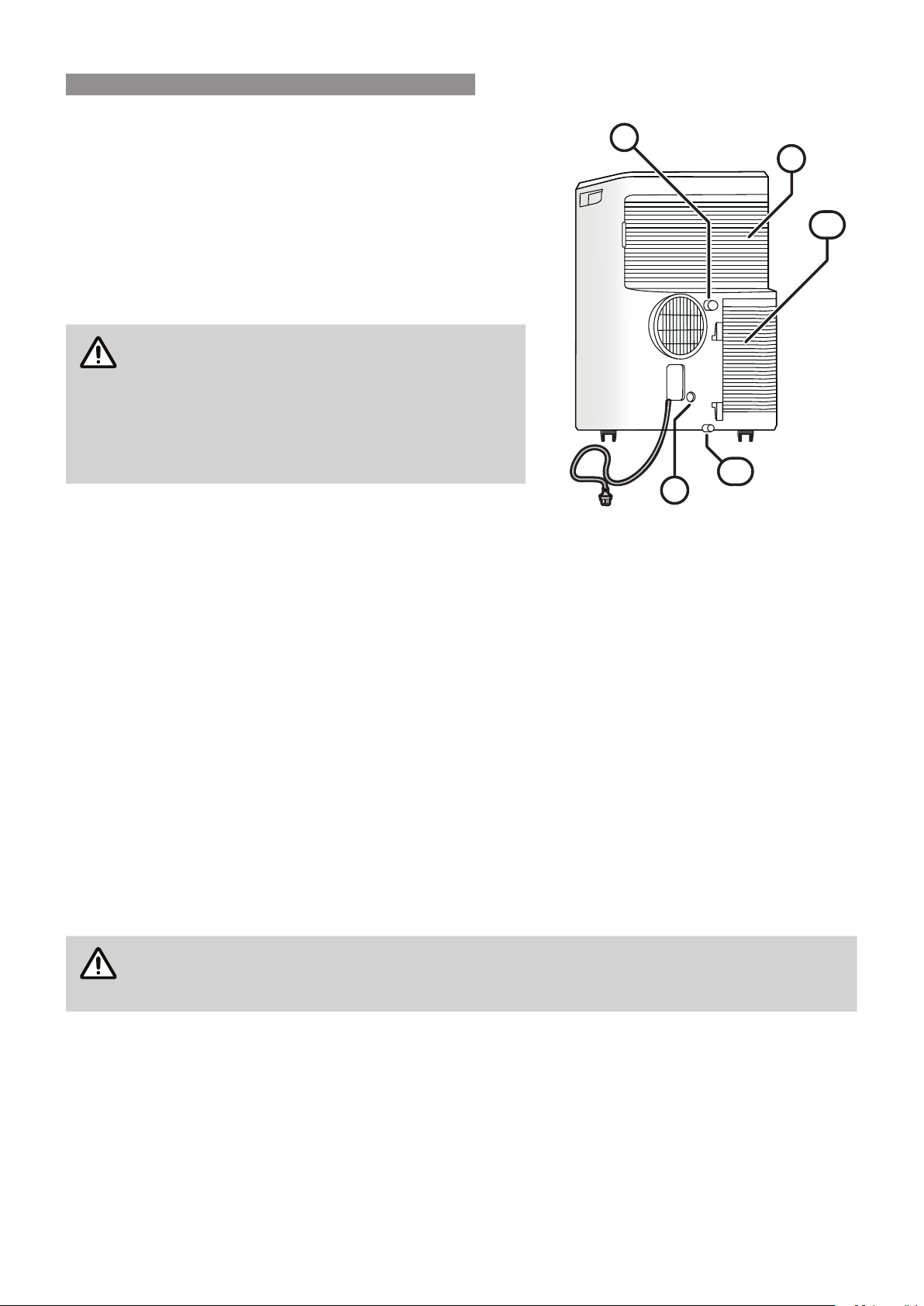

CLEANING THE AIR FILTER

There are two air lters in this appliance, there is one lter each tted to the inside of the Room Air Intake Grill (9),

and the Lower Air Intake (10).

Before removing the grills, ensure the power cord is disconnected from the power supply.

1� Remove the grills:

To remove the Room Air Intake Grill (9) pull down on the top tab and un-clip the grill.

To remove the Lower Air Intake Grill (10) use a Philips head screw driver to remove the securing screw and

un-clip the grill�

2� Un-clip the lters from each of the grills. Clean the lters with a vacuum cleaner or with warm water. If dirt is

di󰀩cult to remove, wash the lter in lukewarm water with a mild detergent.

3� Ensuring that the lters are dry before replacing, then clip the lters back into the grill covers.

4� Re-attach the grills:

To re-attach the Room Air Intake Grill (9) ensure that all the tabs are properly seated and that the grill is

securely clipped back into place.

To re-attach the Lower Air Intake Grill (10) ensure that all the tabs are properly seated and that the grill is

securely clipped back into place and that the securing screw is replaced.

The power may now be reconnected�

NOTE

Failuretocleantheltersregularlycancauseexcessivecondensationtoformandreducethe

appliancese󰀩ciency.

Ifyouneedreplacementlters,pleasecontactRinnai.

8

9

7

12

10

Back

CARE & MAINTENANCE

Rinnai 18 Portable Room AC OIM

SAVE A SERVICE CALL

SYMPTOM POSSIBLE CAUSES POSSIBLE SOLUTIONS

Appliance will not operate�

Not plugged into power� Plug into power�

Power switch OFF. Switch power ON�

Timer Function set. Wait or reset timer function.

Power to Appliance but it will not start.

After switching o󰀨 the

appliance there may be a 3

minute delay before it may

be re-started.

Wait 3 minutes.

Room temperature is lower

than the set temperature.

Adjust the set temperature

to be lower than the room

temperature�

P1 appears on the display. Drain the water from the

drain outlets.

The air conditioner does not generate

enough cool air�

The air intake lters are

blocked

Clean air lters.

The set temperature is too

high�

Adjust the set temperature to

a lower temperature�

Drafts from open windows

and doors.

Close windows and doors

in the area you want to be

cooled�

Other heat sources in the

room�

Remove or turn o󰀨 heat

sources.

Cooling space too big. Operate the appliance within

the required cooling capacity.

Too noisy or vibrating.

Operating surface not level Move the appliance to level a

operating surface.

Splashing sound.

High level of condensate

being generated�

This is normal. This appliance

has a pump that evaporates

some condensate through

the exhaust duct.

WHEN TO CALL FOR SERVICE

SYMPTOM CAUSE

There is a burning smell and a

strange sound coming from the

unit�

When operated if a circuit breaker

(safety, ground) is thrown or a fuse

is blown.

Turn o󰀨 the air conditioner, and contact Rinnai.

CARE & MAINTENANCE

LOCATION

This portable air conditioner must be installed on a at and

dry surface. A minimum clearance of 500mm from walls or

other appliances is required as well as easy access to a

power point (GPO).

The air outlets and the ducting system must not be obstructed.

IMPORTANT

Theapplianceisttedwitha1.2mexiblecord

220-240V50Hz10A.

Themaximumductextensionis1.8mintotal.

Bothfactorsaretobetakenintoaccountwhen

determiningthelocationthattheappliancewill

beoperatedin.

DUCT ASSEMBLY

1� Place the Duct to Unit Adaptor (17) over the Exhaust Outlet (5), push it downwards to ensure it engages the

Exhaust Outlet tabs.

2� Screw one end of the Exhaust Duct (16) into the Duct to Unit Adaptor (17).

3� On the other end of the Exhaust Duct (16) x the Window Exhaust Duct Adaptor (15).

1

2

3

4

9

6

5

7

8

11

12

13

10

Front

Back

15

17 16

18

14

500mm

INSTALLATION

Rinnai 19 Portable Room AC OIM

EXHAUST DUCTING OPTIONS

There are two ducting options available for this appliance, these are a Window installation or an optional Semi-

permanent wall installation.

IMPORTANT

DONOToverextendtheexhaustduct.

Overextensionoftheexhaustductcanleadtokinking.

Kinkedductingcausesairowrestrictionsandlowersthe

e󰀩ciencyoftheappliance.

Keepingtheexhaustductasshortaspossibleavoidsthis

issue.

WINDOW INSTALLATIONS

The window kit has been designed to t most standard vertical and horizontal window applications. There may be

some cases where you may need to modify some aspects of this installation procedure for certain window types.

Minimum and maximum horizontal / vertical window opening dimensions:

1� Once a suitable window has been chosen, t the Adjustable Slider Kit (14) into the window areas and x the

length of the kit using the supplied slide lock nut and bolt.

NOTE

Itisrecommendedtoplacealengthoffoamdraftsealingstripalongthetopandbottomedgesof

thekitortheinsidethewindowopeningtoformaseal.

2� Connect the Window Exhaust Duct Adaptor (15) to the Adjustable Slider Kit (14).

Foam seal

Insert window

exhaust duct

adaptor here

Slide lock nut and bolt

Horizontal

Window

Installation

A - Minimum = 675mm

A - Maximum = 1250mm

Vertical

Window

Installation

Window

Installation

kit

A

INSTALLATION

Rinnai 20 Portable Room AC OIM

SEMI-PERMANENTWALLINSTALLATION

In some cases a window opening might not be assessable; therefore Wall Exhaust Adaptor and Wall Exhaust

Terminal are required that can be connected the Exhaust Duct. Note: Wall Exhaust Adaptor (PN 94320029) and

Wall Exhaust Terminal (PN 94320031) are not supplied, please order separately.

WARNING

Thepositioningandinstallationofthewallangeshouldbecompletedbyanauthorisedperson

andmustcomplywithallmunicipalbuildingcodesandOH&Sguidelines.

CONDENSATE DRAINAGE

NOTE

CondensateproducedbythisapplianceisNOTpotable,

disposeofviawasteoutletorallowtoevaporate.

INTERNAL CONDENSATE TANK

During operation the appliance may produce small amounts of condensate.

The appliance has an inbuilt condensate tank. If all three drain outlets

(7), (8) and (12) are plugged, then this tank may reach capacity. If this

happens, the appliance will stop operation and the condensate full code

“P1” will be shown on the control panel display and the condensate tank

will need to be drained before operation can be resumed. To do this:

1� Place shallow tray such as an oven baking tray or similar (with at

least a 1 litre volume) under Drain Tray Outlet (12).

2� Remove the plug from Drain Tray Outlet (12) and drain out the

condensate water, once the condensate is drained replace the plug,

the appliance will now be able to then resume operation.

FIXED CONDENSATE DRAINAGE HOSE

As an alternative to using the appliances internal condensate tank, a condensate drain hose (18) may de tted.

Option 1 - External Drain Tray: with drain outlets (8) and (12) plugged, t the condensate drain hose (18) to drain

outlet (7) and drain the condensate into a drain tray.

Option 2 - Existing Waste Outlet: with drain outlets (7) and (8) plugged, t the condensate drain hose (18) to drain

outlet (12) and drain the condensate into a drain tray or waste outlet.

NOTE

ThepointtowhichthecondensateistobedrainedMUST BElowerthanthedrainageoutletpoint.

Whenusingadraintrayoption,ensurethatthecapacityofthetrayisgreaterthanthatofthe

condensatebeingproduced.

7

8

12

Shallow baking tray

7

8

Option

1

12

7

8

Option

2

12

INSTALLATION

Rinnai 21 Portable Room AC OIM

TERMS OF WARRANTY – AUSTRALIA

Rinnai Australia Pty. Ltd. ABN 74 005 138 769, 100 Atlantic Drive, Keysborough VIC 3173.

NOTICE TO CONSUMERS UNDER AUSTRALIAN CONSUMER LAW

Our goods and services come with guarantees that cannot be excluded under the Australian Consumer Law.

For a major failure with a good, you are entitled to a replacement or refund and compensation for any other

reasonable foreseeable loss or damage. If the failure does not amount to a major failure and if the goods fail

to be of acceptable quality, you are also entitled to have the goods repaired or replaced.

For a major failure with the service, you are entitled to cancel your service contract with us and obtain a refund

for the unused portion, or to compensation for its reduced value. You are also entitled to be compensated for

any other reasonably foreseeable loss or damage. If the failure does not amount to a major failure you are

entitled to have problems with the service rectied in a reasonable time and, if this is not done, to cancel your

contract and obtain a refund for the unused portion of the contract.

The benets provided by this Warranty are in addition to any other rights and remedies available to a consumer

under the Australian Consumer Law and any other law which may apply to the goods and or services.

1 DEFINITIONS

The terms listed below shall have the following meanings:

1 “Authorised Service Representative” means an independent service contractor authorised by Rinnai or

Rinnai service personnel.

2 “Rinnai” means Rinnai Australia Pty Ltd (ABN 74 005 138 769) and any related company.

3 “Certicate(s) of Compliance” means certicate(s) issued by licensed personnel (including plumbers,

refrigeration mechanics, electricians or other relevant tradespeople) to certify that any prescribed works comply

with applicable regulatory requirements.

4 “Certicate(s) of Occupancy” means certicate(s) issued by the local government authority (or similar

organisation) which certies that a home can be occupied.

5 “InstallationSite” means the site at which the Product is originally installed.

6 “NormalBusinessHours” means 8:30am to 5:00pm Monday to Friday, excluding public holidays.

7 “Operating/Installation Instructions” means the user manual or other documentation which provides

detailed instructions on the proper operation and maintenance of the Product.

8 “Other Applications” means any Product used for purposes other than Residential & Light Commercial

Applications. Other Applications may include but are not limited to factory, IT/Server room, telephone exchange,

processing area (e.g. bakery, kitchen, warehouse, swimming pool, agricultural facilities such as a nursery).

Any Product which has been installed, for whatever purpose, as a retrot component to an existing system, will

also be classed as being part of an “Other Application” regardless of the purpose of use of the existing system

into which such product has been installed.

9 “Purchaser” means the end user of the Product, the person named as owner in the Warranty certicate, the

holder of the Proof of Purchase or the holder of a property transfer document where the Product is included

as part of the chattels.

10 “Product” means the equipment purchased by the Purchaser and described in Section 2 of this document.

11 “ProofofPurchase” means a Tax Invoice or Receipt in respect of the Product. In the case of new constructions,

a Certicate of Occupancy or a Certicate of Compliance that details the date of installation or commissioning

will su󰀩ce.

12 “Qualied Installer” means the qualied installation contractor who is responsible for performing the

installation work in the manner prescribed by local and statutory regulations, including compliance with any

relevant and to Rinnai specications, including Australian Standards.

13 “Residential&LightCommercialApplications” means any Product for use in residential or light commercial

applications where

a) the Product is solely used for the purpose of human comfort; and

b) the ambient temperature of the space the Product is intended to heat or cool is inuenced solely or

primarily by natural exterior weather conditions rather than by man-made or mechanical heat sources.

Examples of Residential & Light Commercial Applications include, homes, o󰀩ces, hotels, apartments,

nursing homes, hospitals, health care premises, shopping centres, and retail stores.

WARRANTY

Rinnai 22 Portable Room AC OIM

2 TERMS OF WARRANTY

2�1 Subject to the Terms of Warranty set out in this document, e󰀨ective from the date of purchase by the Purchaser,

the Product is warranted to be free from defects in materials & factory workmanship for the period set out in

table below:

Residential and Light Commercial

PRODUCT GROUPS PARTS LABOUR

Evaporative Coolers & Ducted Gas Heaters (excluding

Compact Classic Series)

5 Years

*Extended 4

Years Option

5 Years

*Extended 4

Years Option

Ducted Gas Heaters - Compact Classic Series 3 Years 3 Years

Refrigerated Airconditioning Products 5 Years 5 Years

Ducted Gas Heaters - Heat Exchangers and Burners

Evaporative Coolers - Structural components only

10 Years N/A

Portable Air conditioning 2 Years N/A

Wi-Fi Devices 1 Year 1 Year

Other Applications All Product Groups 2 Years 1 Year

After Market Spare Parts 1 Year N/A

*Extended Warranty Option

Up to 4 year extended warranty (in addition to the standard warranty period listed above)

applies on selected products when you opt in to the Rinnai Service Advantage program.

This program has terms and conditions, including the requirement for scheduled servicing

of the product by Rinnai�

To participate in the program you must register your product online at: www.rinnai.com.au/

support-resources/ warranty-registration/ within the rst 12 months of the product being

installed.

2�2 Rinnai will determine in its sole discretion, which classication the Product ts into and the corresponding

Warranty that shall apply.

2�3 An Authorised Service Representative will repair or replace, at its option, the Product or any part of the

Product that its examination shows to be defective. The repair or replacement shall be performed during

Normal Business Hours by an Authorised Service Representative. Repair by persons other than an Authorised

Service Representatives may void the Warranty.

2�4 Alternatively to clause 2.3 above, Rinnai can at its discretion elect to pay you an amount equivalent to the cost

of repairing or replacing the Product�

2�5 If Rinnai provides you with either the replacement costs or replacement product, ownership of the original

Product shall immediately transfer to Rinnai.

2�6 Rinnai is responsible for reasonable costs associated with legitimate warranty claims, including call-out of an

Authorised Service Representative to inspect the Product. Rinnai is not responsible for:

a) costs for tradespeople engaged by you that are not Rinnai Authorised Service Representatives.

b) any costs, including call out costs for a Rinnai Authorised Service Representatives, associated with a

Product which is determined upon inspection not to be covered by this warranty.

2�7 Rinnai will reimburse any reasonable costs associated with making a legitimate warranty claim against Rinnai

which are not otherwise specied above.

2�8 The Warranty of the Product requires that, in addition to all other conditions, the Purchaser conducts regular

and/or preventative maintenance as may be specied by the Operating/Installation Instructions or otherwise

directed by Rinnai and required by the level of usage and the usage environment, including the use of

correct and uncontaminated refrigerants and lubricants. Refrigeration, plumbing and electrical works must be

undertaken by licensed personnel.

2�9 Where a Product or failed component is replaced under warranty, the time remaining on the original Product

warranty period will continue to apply and the replacement product or part will be subject to the original

warranty period only�

WARRANTY

Rinnai 23 Portable Room AC OIM

3 CONDITIONS OF WARRANTY

3�1 The Purchaser may only obtain the benet of the Warranty if the Purchaser:

a) maintains and has the Product serviced in accordance with the instructions set out in the service section

of the relevant Service or Owner’s Manual;

b) complies with clause “7 Purchaser’s Responsibilities” on page 25;

c) noties Rinnai within 30 days of a defect occurring or, in the case of a latent defect, becoming apparent,

that a claim is being made under this Warranty; and

d) provides, in support of the claim made under this Warranty, a Proof of Purchase.

3�2 This document (and any statutory consumer guarantees) represents the only Warranty given by Rinnai in

respect of the Product. No other person or organisation is authorised to o󰀨er any alternative warranty on

behalf of Rinnai�

3�3 If the date of purchase cannot be established to Rinnai’s satisfaction, the date shall be deemed to be 2

months after the date of manufacture or the date of sale by Rinnai, whichever is the latter.

3�4 This warranty applies to Products which are manufactured on or after the date of publication of this warranty

but before the next date of publication of this warranty.

4 EXCLUSIONS

4�1 This Warranty does NOT cover:

a) damage, problems or failure resulting from improper operation and/or inadequate maintenance by the

Purchaser (refer Purchaser’s Responsibilities section below);

b) damage, problems or failure resulting from improper or faulty installation. The Product must be installed

by a Qualied Installer in accordance with applicable regulations. Where applicable, Certicate(s)

of Compliance must be obtained by the purchaser from the Qualied Installer and presented to the

Authorised Service Representative;

c) damage, problems or failure caused by factors external to the Product including, but not limited to, faulty

or poor external electrical wiring, incorrect or faulty power supply, voltage uctuations, over voltage

transients or electromagnetic interference, inadequate or faulty gas, drainage services, or water services,

including water pressure, and non-potable water;

d) damage, problems or failure caused by acts of God, re, wind, lightning, ood, storm, hail storm fallout,

vandalism, earthquake, war, civil insurrection, misuse, abuse, negligence, accident, pests, animals, pets,

vermin, insects, spiders/bugs or entry of foreign objects or matter into the Product such as dirt, debris,

soot or moisture;

e) damage, problems or failure caused by environmental conditions including, but not limited to, excessive

moisture, salt or other corrosive substances or atmospheric conditions;

f) Product which has been installed in a portable or mobile building, structure or application including, but

not limited to, a caravan, boat or trailer;

g) Product which has been re-installed at a location other than the original site;

h) any consumable item supplied with the Product including, but not limited to, an air lter, battery, fan belt,

igniter or cooler pad;

i) installation of third-party components that may be attached to the Product. These include, but are

not limited to, control wiring, ducting, return air lter(s) grille, register, di󰀨user, zone motors, controls/

thermostats, pipe work and fabricated or added components. These items remain solely the responsibility

of the Qualied Installer;

j) installations where electrics/electronics may be subjected to moisture/chemicals (e.g. swimming pools

or nurseries);

k) any repair, which is needed as a result of an accident, misuse, abuse or negligence;

l) Product that is utilised in an environment (indoor and outdoor) outside its specied operating range; and

m) fair wear and tear to the Product�

n) On-site labour warranty on portable (non-xed installation) Products – In respect of such Products the

Purchaser must return the Product to the supplier for repair or replacement).

WARRANTY

Rinnai 24 Portable Room AC OIM

5 LIMITATIONS

5�1 Third parties are often involved in providing advice to consumers about the climate control solutions best

suited to the consumer’s needs. Any advice or recommendations given by such parties, including advice

about Product tness for purpose and overall system design, sizing and application are not the responsibility

of Rinnai. This includes but is not limited to the heat load calculations, airow and system balancing.

5�2 This Warranty does not apply to any Product installed at an Installation Site which is outside Australia.

5�3 Except where inconsistent with the purchaser’s statutory rights and the rights given by this Warranty, all

liabilities of Rinnai for any direct, special, indirect or consequential loss or damage, any damage or expense

for personal injury or any loss or destruction of property, arising directly or indirectly from the use or inability

to use the Product or any of its parts and/or servicing the Product, are expressly excluded.

6 TRAVEL, TRANSPORT & ACCESS COSTS

6�1 The Purchaser must pay freight charges, in-transit insurance expenses and travelling costs for repairs/

replacements under this Warranty, that are required to be performed 50km from the nearest Rinnai branch or

Authorised Service Representative.

6�2 Subject to clause 6.3, Rinnai will pay freight charges, in-transit insurance expenses and travelling costs for

repairs/replacements that are required to be performed less than 50km from the nearest Rinnai branch or

Authorised Service Representative, subject to the following:

a) Rinnai will arrange for such repairs/replacements and make any payment directly to the third party to

provide the freight, in-transit insurance or travel services; or

b) if Rinnai considers appropriate, it will authorise the Purchaser in writing to pay for the relevant freight

charges, in-transit insurance expenses or travelling costs and then, upon provision by the Purchaser to

Rinnai of a tax invoice showing those costs have been incurred, reimburse the Purchaser for such costs

which are within the terms of the authorisation. If the Purchaser pays for the relevant freight charges,

in-transit insurance expenses or travelling costs without written authorisation from Rinnai, Rinnai will not

reimburse the Purchaser for such costs.

6�3 The Purchaser must pay all costs and expenses in respect of:

a) any service call out fee if the Product is not accessible for service

b) making the Product accessible for service, for example, restricted access or working at heights, or the

labour cost for an additional person due to OHS requirements.

c) providing a safe working environment for installation, service, maintenance or repair of the Product;

d) any surcharge applicable in respect of supplying replacement parts outside Normal Business Hours; and

e) any other costs and expenses in relation to claiming the Warranty that is not covered by clause 6.2.

7 PURCHASER’S RESPONSIBILITIES

7�1 The Purchaser must operate and maintain the Product in accordance with the Operating Instructions and

service maintenance schedule, including conducting an appropriate number of services to the unit during the

Warranty period, based on usage and the usage environment including but not limited to;

a) regularly cleaning the air lter(s) and replacing them where necessary;

b) replacing expired batteries or other consumables as required;

c) ensuring that the condensate drain is kept clean and clear of obstructions.

HOW TO MAKE A WARRANTY CLAIM:

If you wish to make a warranty claim in respect of any Portable Product, please return it to the place of purchase,

or if that is not possible, contact Rinnai to enquire about alternative arrangements.

If you wish to make a warranty claim in respect of any xed Product, please contact Rinnai on the details set out

below to make arrangements for an Authorised Service Representative to inspect the product.

As per clause 2.6 of the Terms and Conditions of Warranty, purchasers are responsible for the costs of any repair

and/or call out fee where, on inspection, the alleged defect is found by Rinnai’s Authorised Service Representative

not to be covered by this warranty or any statutory consumer guarantee applicable to the Product.

The Terms and Conditions of Warranty contain important information about your rights and obligations under this

warranty. Please read them fully and carefully before making a claim.

WARRANTY

Rinnai 25 Portable Room AC OIM

NOTES

Rinnai 26 Portable Room AC OIM

NOTES

Rinnai 27 Portable Room AC OIM

Rinnai 28 Portable Room AC M Series OIM Issue 1 - July 2020

CONTACTS

Rinnai Australia Pty Ltd

ABN 74 005 138 769 | AU45204

100 Atlantic Drive, Keysborough, Victoria 3173

P.O. Box 460, Braeside, Victoria 3195

Tel: (03) 9271 6625

Fax: (03) 9271 6622

National Help Line

Tel: 1300 555 545* Fax: 1300 555 655

Monday to Friday, 8.00 am to 5.00 pm EST.

*Cost of a local call higher from mobile or public phones.

For further information visit www.rinnai.com.au

or email [email protected]

Rinnai has a Service and Spare Parts network with

personnel who are fully trained and equipped to give

the best service on your Rinnai appliance. If your

appliance requires service, please call our National

Help Line. Rinnai recommends that this appliance be

serviced every 2 years.

With our policy of continuous improvement, we

reserve the right to change, or discontinue at any time,

speciﬁcations or designs without notice.

Rinnai RPC26MC 2.6kW Cooling Only Portable Air Conditioner

Product's Documents

User Manual

Specifications

Rinnai RPC26MC Questions and Answers
