Island Hood Installation
15
Installation
Tutorial Video
1
2

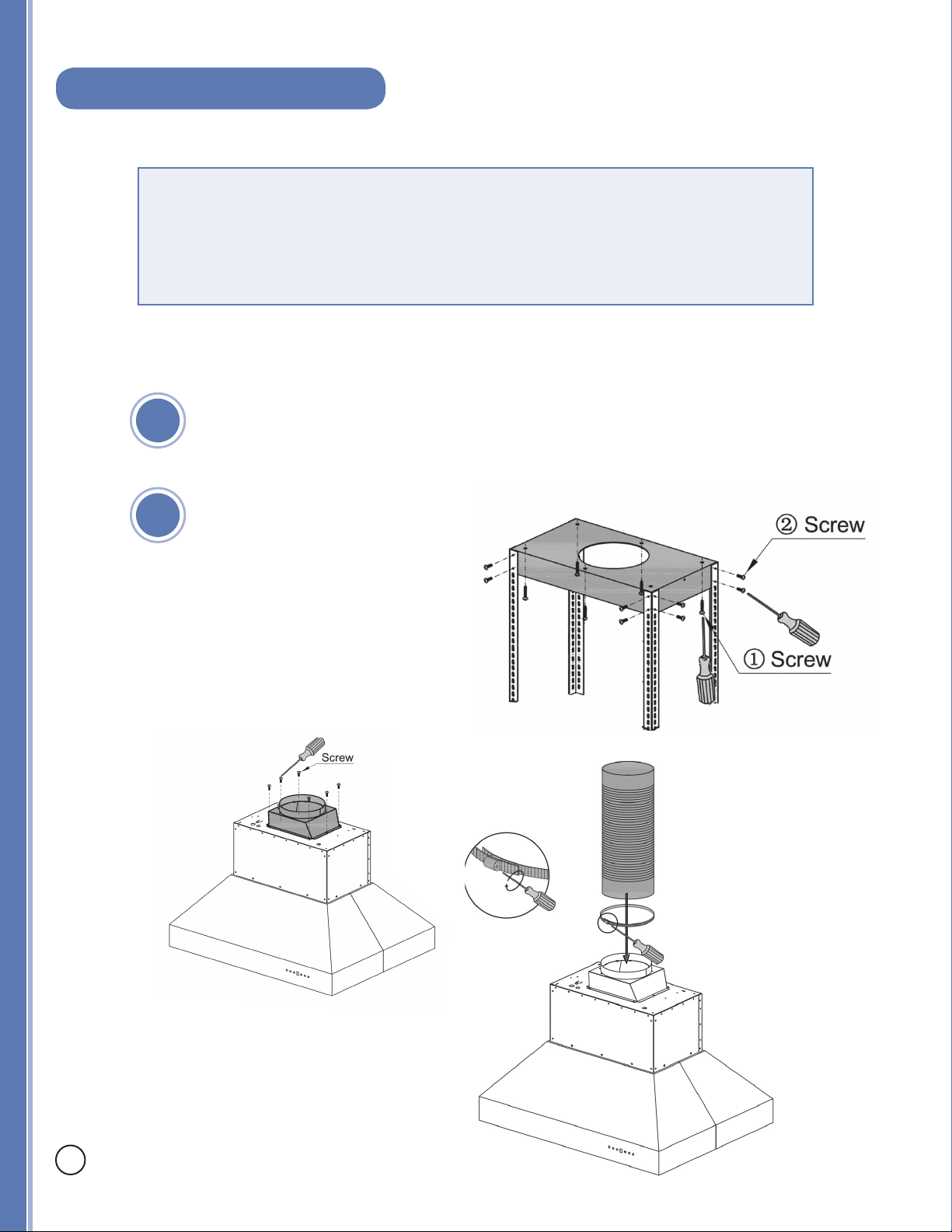

Locate the center above the stove where the hood is to be installed. Ensure
that the bracket will be secured to solid wood backing. Attach mounting
bracket to the ceiling.
Attach the transition piece and ducting
to top of the hood. (Figures 1 and 2)
*e recommended height to install your hood is 30˝ minimum and 36˝ maximum
above the cooktop.
*For Outdoor (304 Series) hood installation, the unit must be installed at a minimum
of 36˝ above the grill.
Figure 1
Figure 2
16
Island Hood Installation
3
4

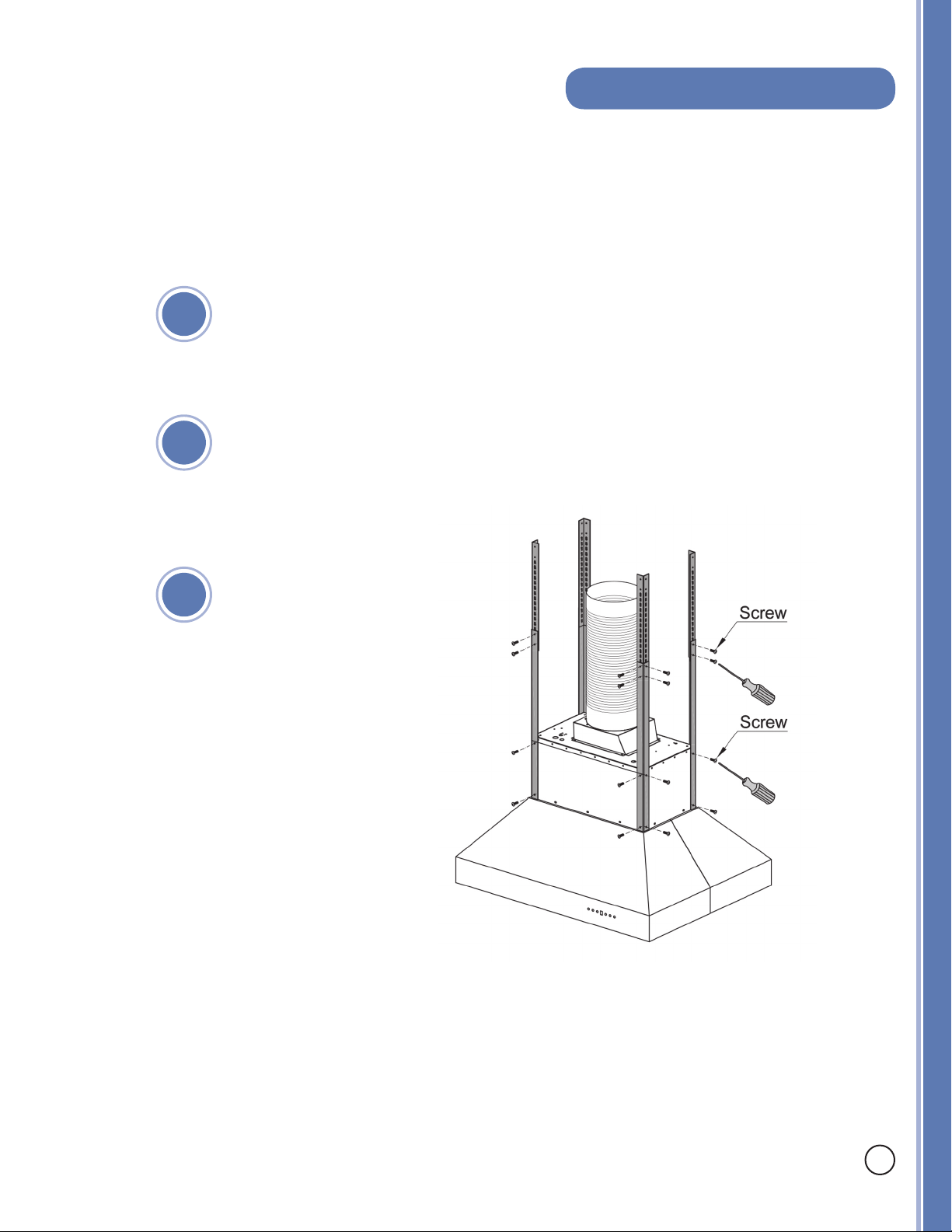

Attach the four long angle iron pieces to
the hood’s motor housing (Figure 3)
Determine desired height and attach
the four short angle iron pieces to the
long angle iron pieces that are attached
to the hood (Figure 3)
5
Install the duct work in the center of
the ceiling bracket.
Figure 3
17
Island Hood Installation
18
6
7
8
9
10

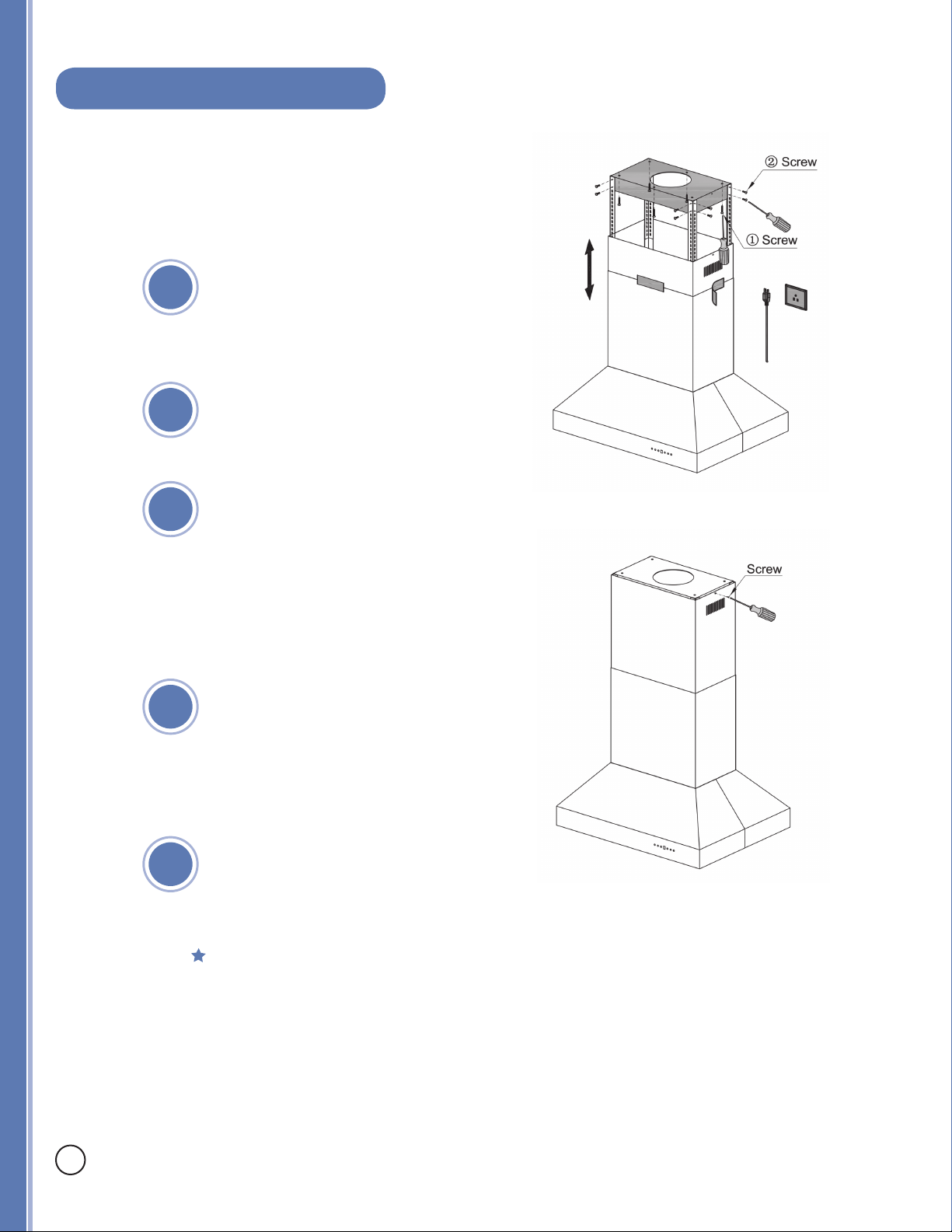

Slide chimney pieces over the angle
iron on the hood. Pull the electrical
plug to the top of the chimney sec-
tions. (Figure 4)
Li the hood to attach the angle iron
to the ceiling bracket. Use screws pro-
vided to attach.
Make your electrical and ducting
connections. Use rigid duct wherever
possible. Try and minimize the use of
elbows. More elbows and longer runs
create higher static pressure. e hood
comes with a grounded three prong
plug that can either be a direct wired
or plugged into a 20 amp circuit.
Slide top chimney piece up over the
mounting bracket on the ceiling and
secure in place with screws provided.
(Figure 5)
Install stainless steel bae lters.
Before installing bae lters, make sure that you
insert the grease cup under the motor blower.
Figure 5
Figure 4
