Napoleon GX36NTR1 Ascent Series Direct Vent Natural Gas User Manual

W415-1678 / 08.09.16

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.

CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE

INSTALLATION AND

OPERATING INSTRUCTIONS

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /

103 Miller Drive, Crittenden, Kentucky, USA, 41030

Phone (705)721-1212 • Fax (705)720-9081 • www.napoleonﬁ replaces.com • [email protected]

1.28F

$10.00

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

DANGER

A barrier designed to reduce the risk of burns from

the hot viewing glass is provided with this appliance

and shall be installed for the protection of children

and other at-risk individuals.

SAFETY INFORMATION

WARNING

- Do not store or use gasoline or other ﬂ ammable

vapors and liquids in the vicinity of this or any

other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use

any phone in your building.

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the

ﬁ re department.

- Installation and service must be performed by a

qualiﬁ ed installer, service agency or the supplier.

This appliance may be installed in an aftermarket,

permanently located, manufactured home (USA

only) or mobile home, where not prohibited by

local codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless a

certiﬁ ed kit is used.

If the information in these instructions

are not followed exactly, a ﬁ re or

explosion may result causing property

damage, personal injury or loss of life.

CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.

Decorative Product: Not for use as a heating appliance.

CONFORMS TO AMERICAN NATIONAL STANDARDS: ANSI Z21.50, CERTIFIED TO CANADIAN CSA 2.22 FOR VENTED GAS FIREPLACES.

B36NTR / B36NTRE &

GX36NTR-1 / GX36NTRE-1

NATURAL GAS MODEL

B36 ILLUSTRATED

SAFETY BARRIER

B36PTR / B36PTRE &

GX36PTR-1 / GX36PTRE-1

PROPANE GAS MODEL

W415-1678 / 08.09.16

TABLE OF CONTENTS

1.0 INSTALLATION OVERVIEW 3

2.0 INTRODUCTION 4

2.1 DIMENSIONS 5

2.2 GENERAL INSTRUCTIONS 6

2.3 GENERAL INFORMATION 7

2.4 RATING PLATE INFORMATION 8

3.0 VENTING 9

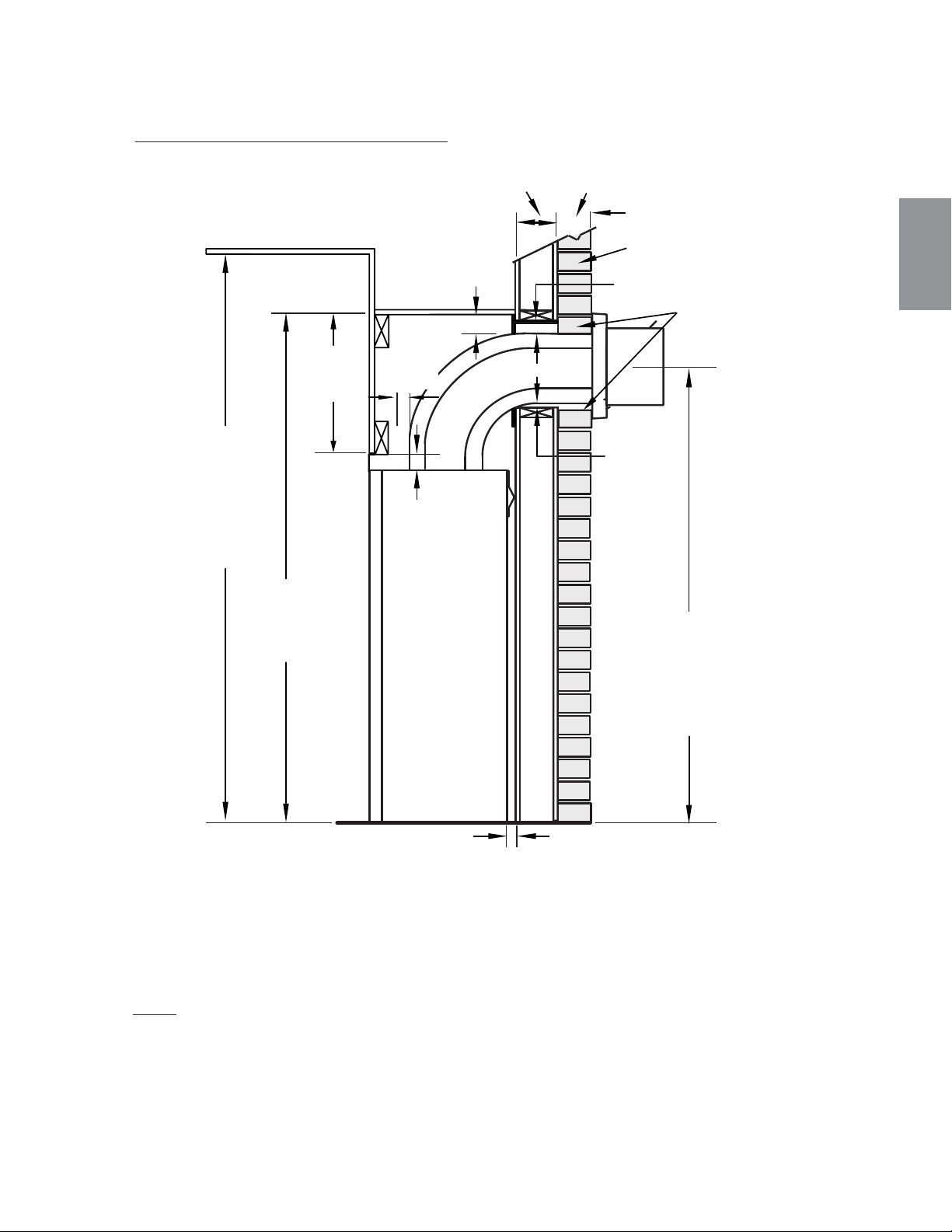

3.1 VENTING LENGTHS AND COMPONENTS 10

3.2 TYPICAL VENT INSTALLATION 11

3.3 SPECIAL VENT INSTALLATIONS 13

3.3.1 PERISCOPE TERMINATION 13

3.3.2 CORNER TERMINATION 13

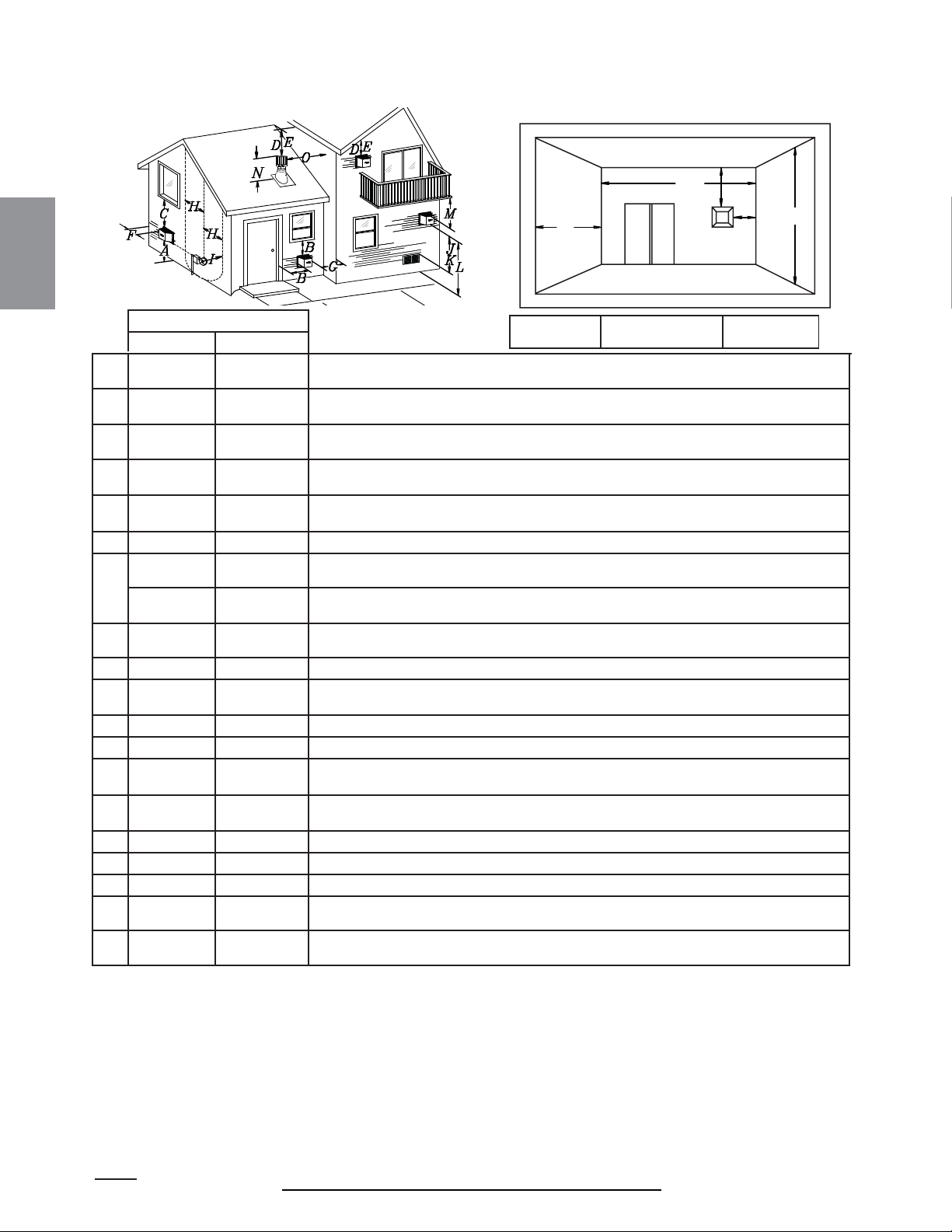

3.4 MINIMUM AIR TERMINAL LOCATION CLEARANCES 14

3.5 VENTING APPLICATION FLOW CHART 15

3.6 DEFINITIONS 16

3.7 ELBOW VENT LENGTH VALUES 16

3.8 TOP EXIT HORIZONTAL TERMINATION 17

3.9 REAR EXIT HORIZONTAL TERMINATION 19

3.10 TOP AND REAR EXIT VERTICAL TERMINATION 21

3.11 REAR EXIT 23

3.12 REAR EXIT SHIELD (FOR REAR VENT ONLY) 23

3.13 TOP EXIT 24

4.0 INSTALLATION 25

4.1 WALL AND CEILING PROTECTION 25

4.1.1 HORIZONTAL INSTALLATION 26

4.1.2 VERTICAL INSTALLATION 26

4.2 USING FLEXIBLE VENT COMPONENTS 27

4.2.1 HORIZONTAL AIR TERMINAL INSTALLATION 27

4.2.2 VERTICAL AIR TERMINAL INSTALLATION 28

4.2.3 APPLIANCE VENT CONNECTION 29

4.3 USING RIGID VENT COMPONENTS 29

4.3.1 HORIZONTAL AIR TERMINAL INSTALLATION 29

4.3.2 VERTICAL AIR TERMINAL INSTALLATION 30

4.3.3 RESTRICTING VERTICAL VENTS 31

4.4 VERTICAL THROUGH EXISTING CHIMNEY 32

4.5 MOBILE HOME INSTALLATION 33

4.6 GAS INSTALLATION 34

4.7 OPTIONAL WALL SWITCH 34

5.0 FRAMING 35

5.1 B36 FRAMING 35

5.1.1 B36 MINIMUM FRAMING DIMENSIONS 36

5.2 MINIMUM ENCLOSURE CLEARANCES 38

5.3 GX36-1 FRAMING 42

5.3.1 GX36-1 MINIMUM FRAMING DIMENSIONS 43

5.4 MINIMUM ENCLOSURE CLEARANCES GX36-1 45

5.5 NON-COMBUSTIBLE FACING MATERIAL 49

5.6 ALCOVE CLEARANCES 49

5.7 RECESSED INSTALLATION 50

5.8 MINIMUM MANTEL CLEARANCES 51

5.9 NAILING TAB INSTALLATION 51

6.0 FINISHING 52

6.1 SAFETY SCREEN & DOOR REMOVAL / INSTALLATION 52

6.2 FRONT HOOD INSTALLATION 53

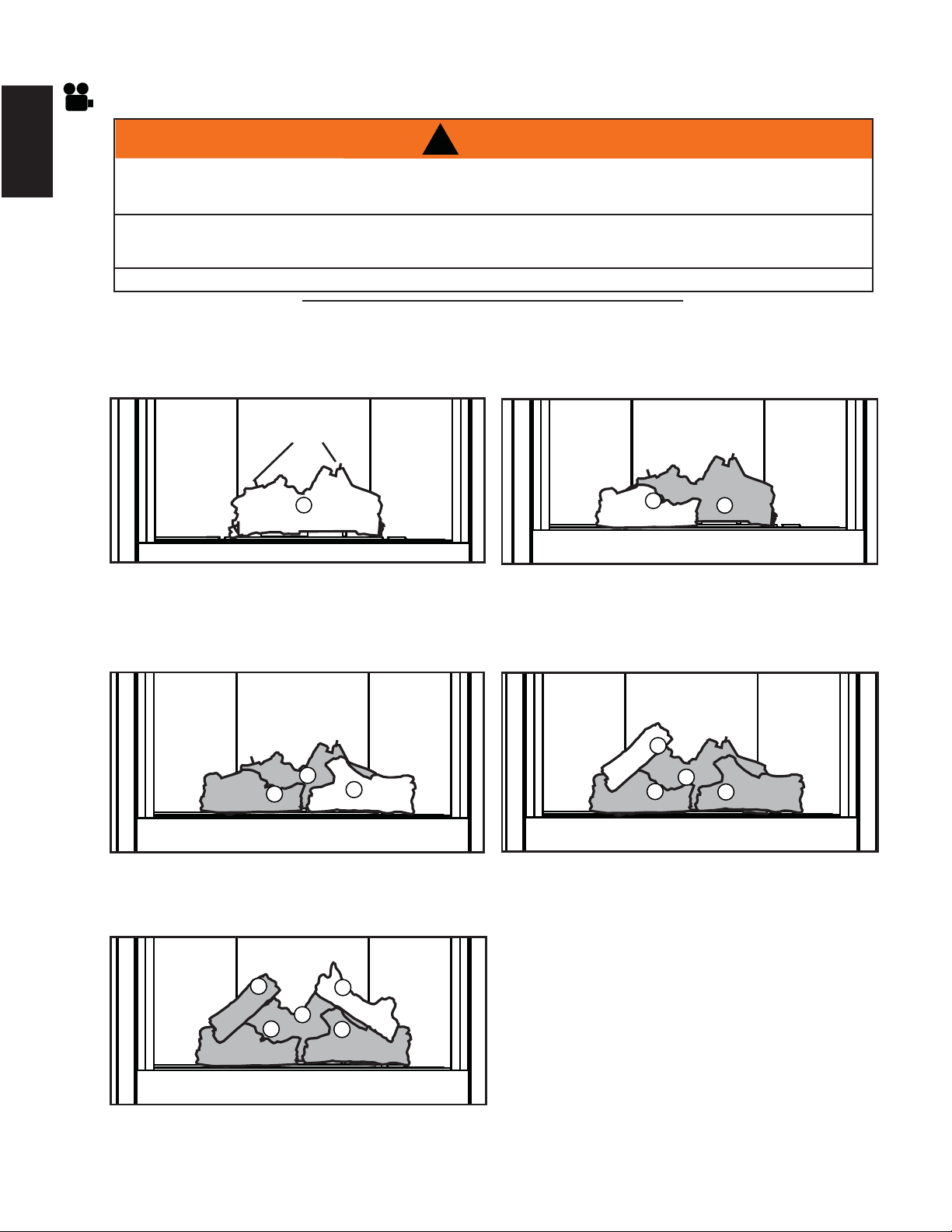

6.3 B36 LOG PLACEMENT 54

6.4 GX36-1 LOG PLACEMENT 55

6.5 CHARCOAL EMBERS 56

6.6 GLOWING EMBERS 56

6.7 LOGO PLACEMENT 56

6.8 BATTERY BACK-UP INSTALLATION 56

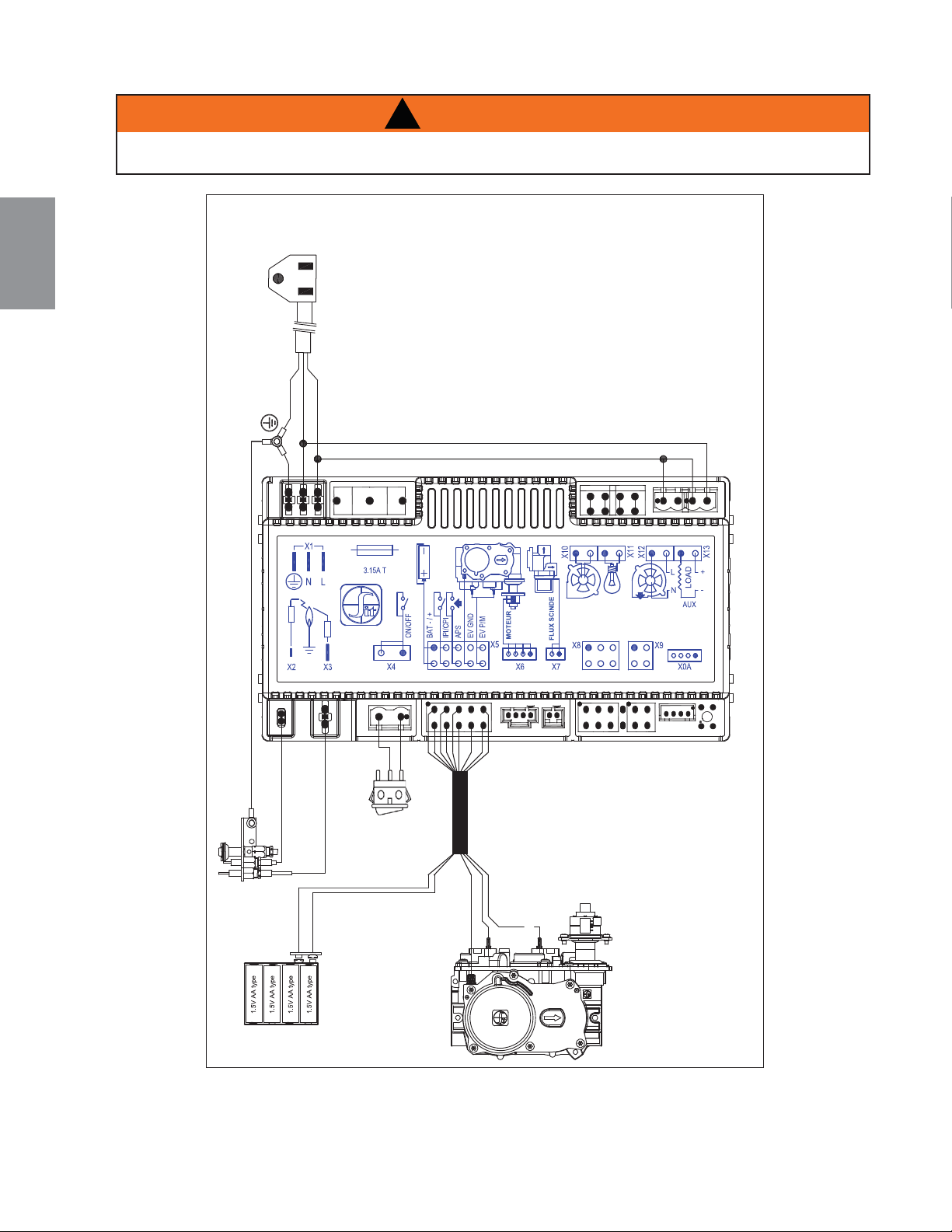

7.0 WIRING DIAGRAM 57

7.1 B36 ELECTRONIC WIRING DIAGRAM 57

7.2 GX36-1 ELECTRONIC WIRING DIAGRAM 58

7.2.1 WIRING REQUIREMENTS 58

8.0 OPERATION (ELECTRONIC) 60

9.0 OPERATION (MILLIVOLT) 61

10.0 ADJUSTMENT 62

10.1 PILOT BURNER ADJUSTMENT 62

10.2 VENTURI ADJUSTMENT 62

10.3 FLAME CHARACTERISTICS 63

10.4 OPTIONAL ANTI CONDENSATION SWITCH

(MODELS B36NTRE/B36PTRE/GX36NTRE-1 & GX36PTRE-1 ONLY) 63

11.0 MAINTENANCE 64

11.1 ANNUAL MAINTENANCE 65

11.2 DOOR GLASS REPLACEMENT 65

11.3 CARE OF GLASS 66

12.0 REPLACEMENTS 66

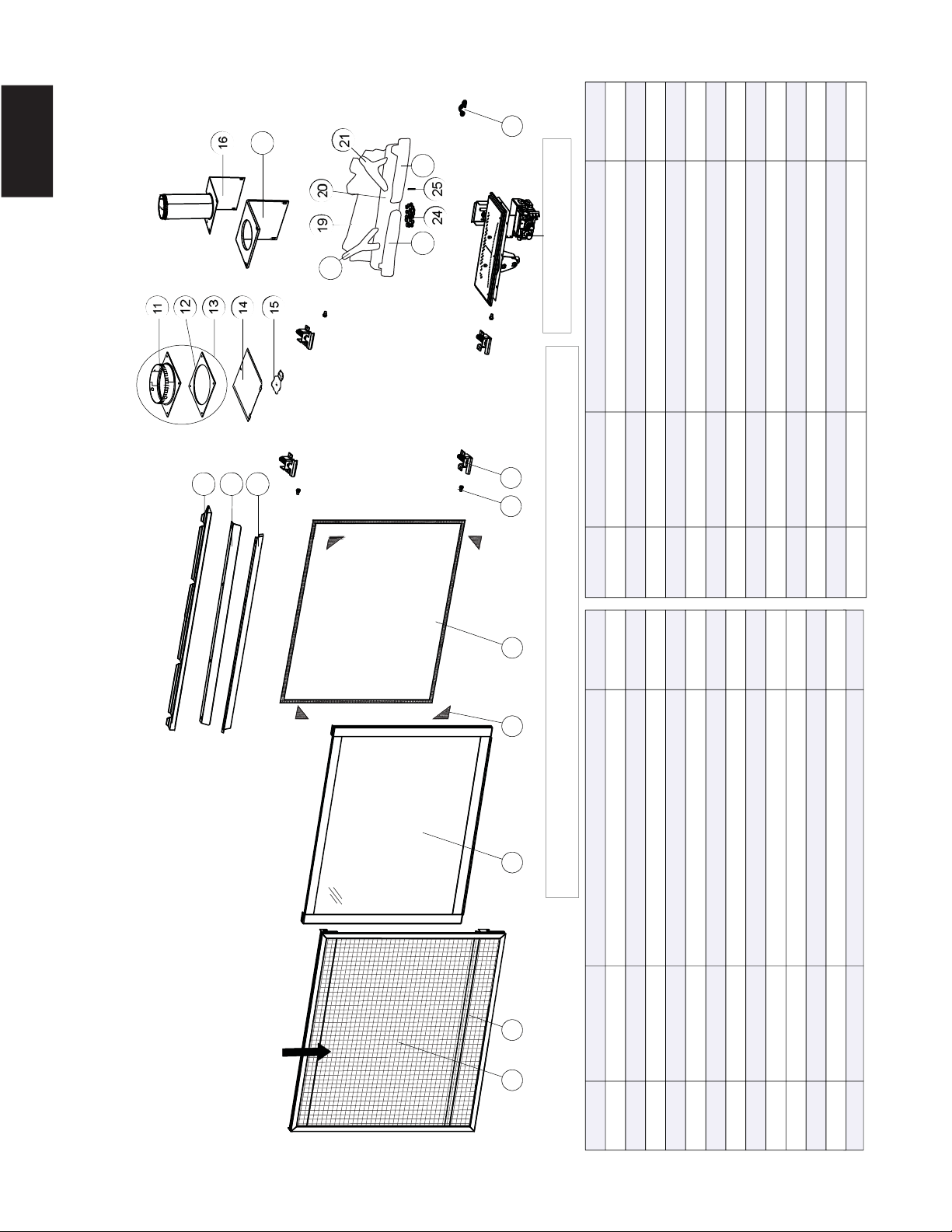

12.1 B36 OVERVIEW 67

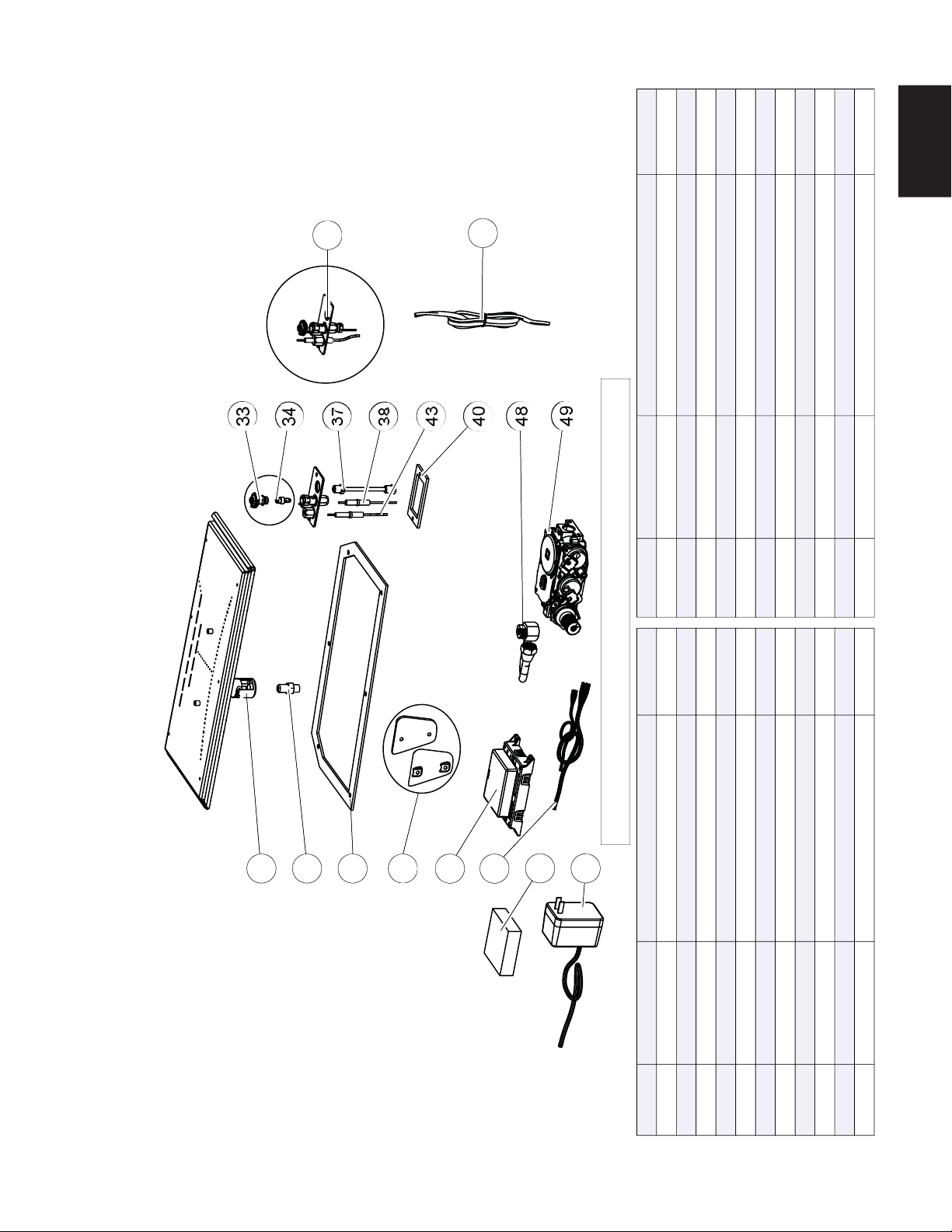

12.2 B36 MILLIVOLT VALVE ASSEMBLY 68

12.3 B36 ELECTRONIC VALVE ASSEMBLY 69

12.4 GX36-1 OVERVIEW 70

12.5 GX36-1 MILLIVOLT VALVE ASSEMBLY 71

12.6 GX36-1 ELECTRONIC VALVE ASSEMBLY 72

NOTE: The camera icon indicates video tutorials are available as additional reference, visit

http://mynapoleon.napoleonproducts.com/download/index/44/1

W415-1678 / 08.09.16

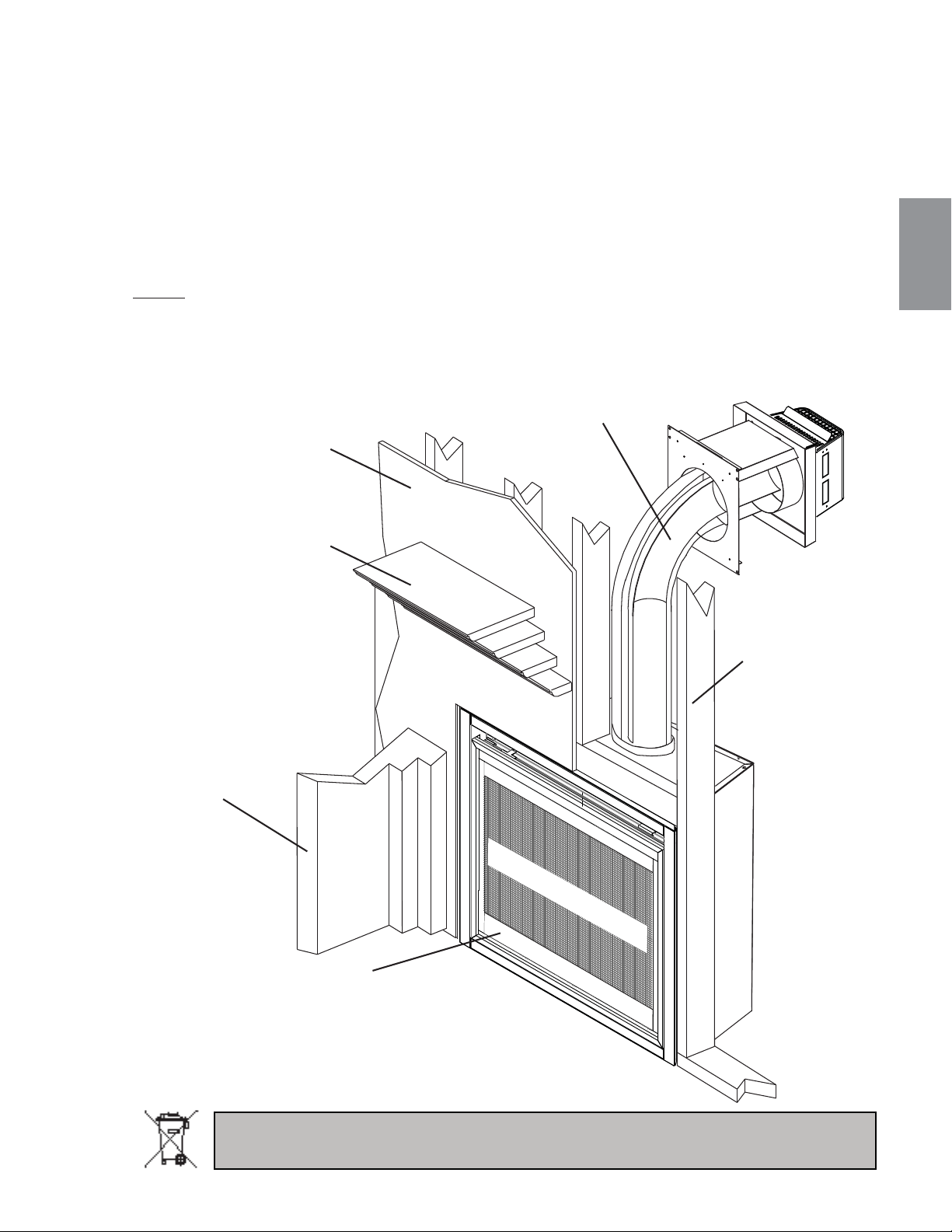

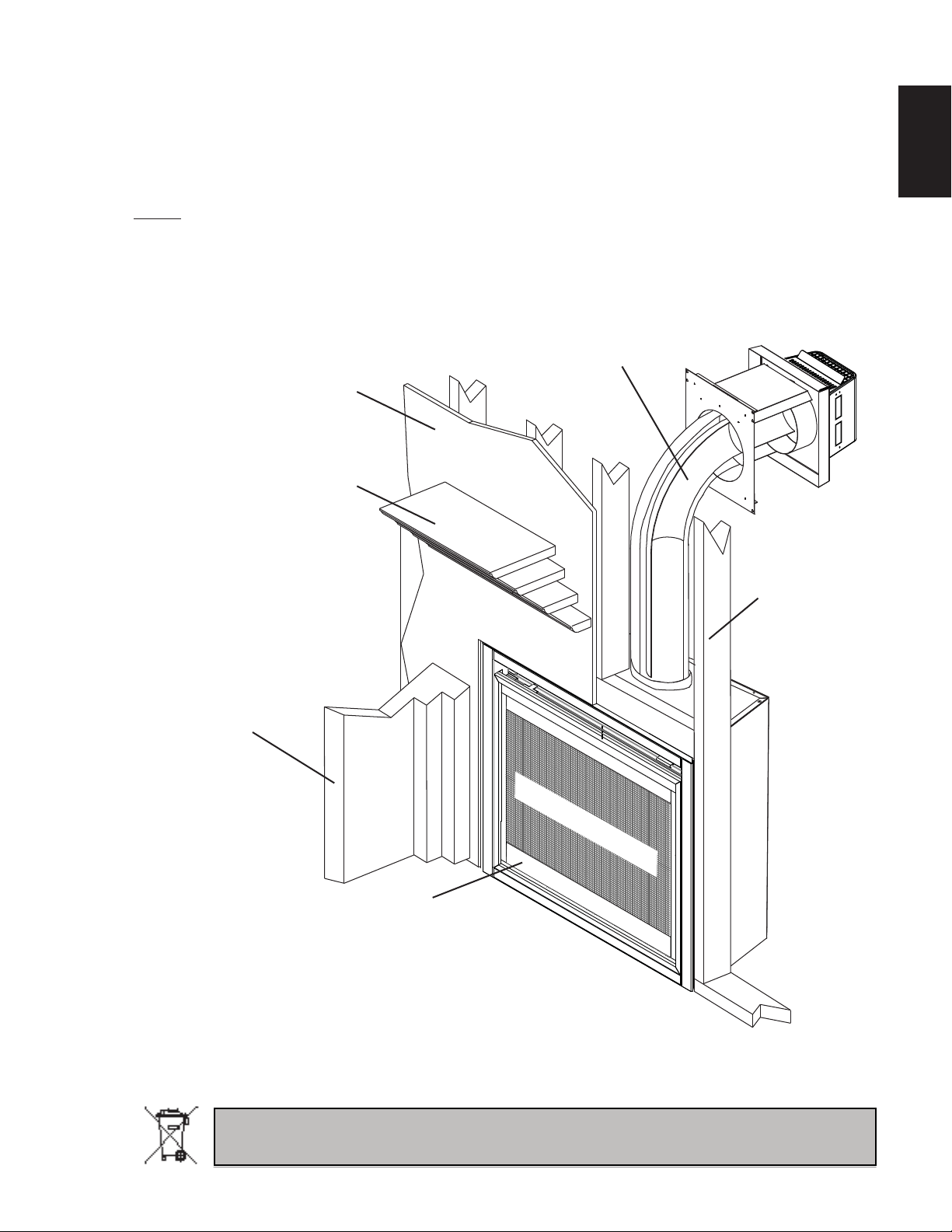

1.0 INSTALLATION OVERVIEW

See the section “MINIMUM

ENCLOSURE CLEARANCES”

for drywall (or other

combustible material).

See the section “MINIMUM

MANTEL CLEARANCES”.

See the section

“MINIMUM FRAMING

DIMENSIONS”.

Side

Wall

See the section

“FRAMING”.

See the section “VENTING”

and “INSTALLATION”.

See the section

“RATING PLATE

INFORMATION”.

SAFETY BARRIER

B36 ILLUSTRATED

Batteries must be disposed of according to the local laws and regulations. Some batteries may be

recycled, and may be accepted for disposal at your local recycling center. Check with your municipality

for recycling instructions.

NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.

13.0 B36 ACCESSORIES 73

14.0 GX36-1 ACCESSORIES 74

GX36-1 ACCESSORIES (PAGE 2) 75

15.0 TROUBLESHOOTING (ELECTRONIC) 76

16.0 TROUBLESHOOTING (MILLIVOLT) 78

17.0 WARRANTY 80

18.0 SERVICE HISTORY 81

W415-1678 / 08.09.16

2.0 INTRODUCTION

• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.

• ANY CHANGES TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND ARE PROHIBITED.

• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to

operating instructions could cause ﬁ re or injury.

• Risk of ﬁ re or asphyxiation do not operate appliance with ﬁ xed glass removed.

• Do not connect 110 volts to the control valve.

• Risk of burns. The appliance should be turned off and cooled before servicing.

• Do not install damaged, incomplete or substitute components.

• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges may be sharp.

• Do not burn wood or other materials in this appliance.

• Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid burns

or clothing ignition.

• Young children should be carefully supervised when they are in the same room as the appliance.

Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is

recommended if there are at risk individuals in the house. To restrict access to an appliance or stove, install an

adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and away from hot

surfaces.

• Clothing or other ﬂ ammable material should not be placed on or near the appliance.

• Due to high temperatures, the appliance should be located out of trafﬁ c and away from furniture and draperies.

• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.

• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot surfaces. These

screens and guards must be fastened to the ﬂ oor.

• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior to operating the

appliance.

• The appliance is a vented gas-ﬁ red appliance. Do not burn wood or other materials in the appliance.

• The appliance area must be kept clear and free from combustible materials, gasoline and other ﬂ ammable vapors and liquids.

• Under no circumstances should this appliance be modiﬁ ed.

• This appliance must not be connected to a chimney ﬂ ue pipe serving a separate solid fuel burning appliance.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician to inspect the appliance

and to replace any part of the control system and any gas control which has been under water.

• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should be done by a

licensed or qualiﬁ ed service person.

• Do not strike or slam shut the appliance glass door.

• When equipped with pressure relief doors, they must be kept closed while the appliance is operating to prevent exhaust fumes

containing carbon monoxide, from entering into the home. Temperatures of the exhaust escaping through these openings can also

cause the surrounding combustible materials to overheat and catch ﬁ re.Only doors / optional fronts certiﬁ ed with the unit are to be

installed on the appliance.

• Only doors / optional fronts certiﬁ ed with the unit are to be installed on the appliance.

• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all plastic bags, these

are not toys and should be kept away from children and infants.

• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as well as having a

Carbon Monoxide Detector installed in the same area to defend you and your family against Carbon Monoxide.

• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance. Elevated temperatures

on the wall or in the air above the appliance can cause melting, discolouration or damage to decorations, a T.V. or other electronic

components.

• A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be

installed.

• If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.

• Installation and repair should be done by a qualiﬁ ed service person. The appliance should be inspected before use and

at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from

carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air passageways of

the appliance be kept clean.

• The millivolt version of this appliance uses and requires a fast acting thermocouple. Replace only with a fast acting thermocouple

supplied by Wolf Steel Ltd.

3.1E

WARNING

W415-1678 / 08.09.16

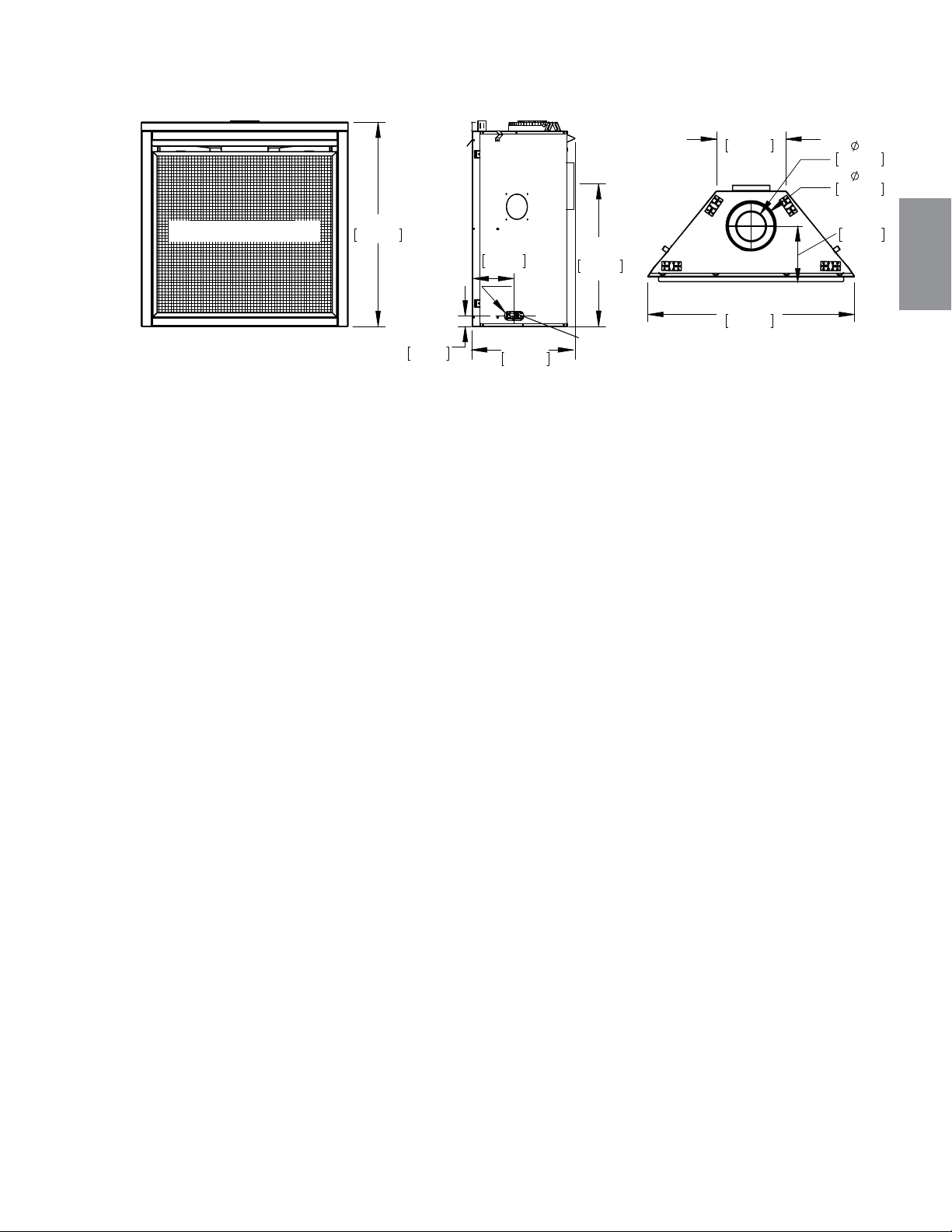

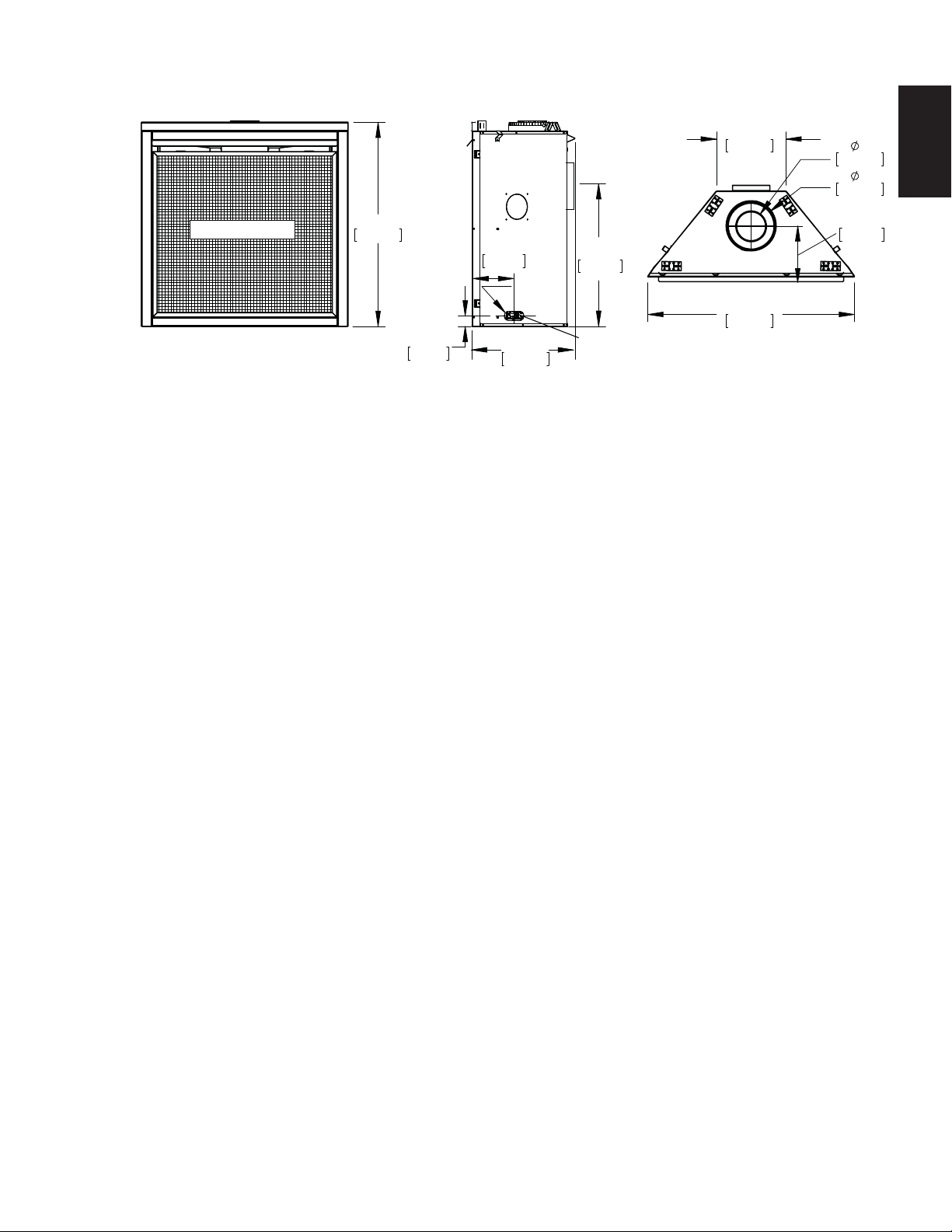

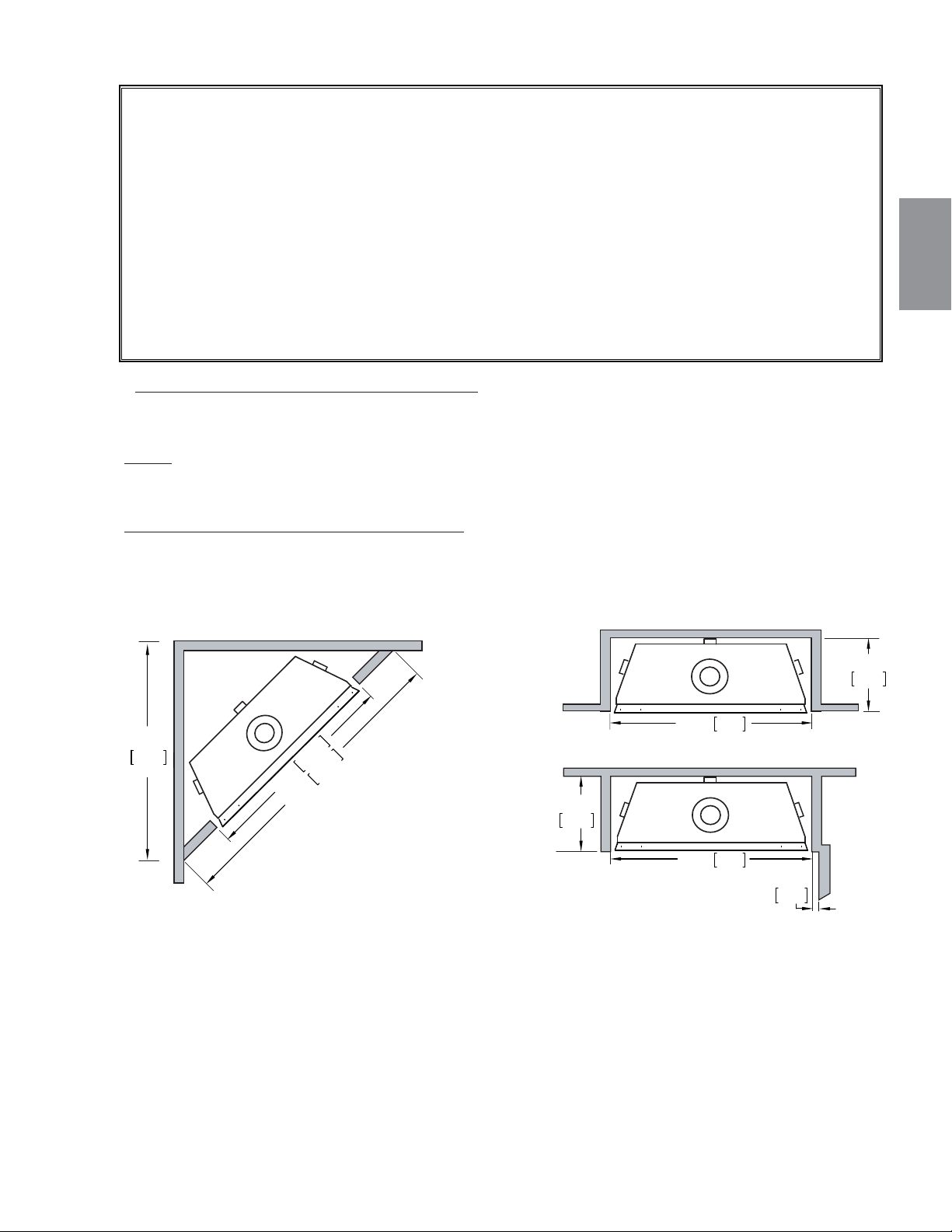

2.1 DIMENSIONS

34 5/8"

879mm

9 1/16"

230mm

15 3/8"

391mm

102mm

178mm

35"

889mm

SAFETY BARRIER

24"

610mm

2 3/16"

55.5mm

GAS INLET

15 3/4"

400mm

203mm

W415-1678 / 08.09.16

2.2 GENERAL INSTRUCTIONS

4.1C

THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to

conform with local codes. Installation practices vary from region to region and it is important to know the

speciﬁ cs that apply to your area, for example in Massachusetts State:

• This product must be installed by a licensed plumber or gas ﬁ tter when installed within the

commonwealth of Massachusetts.

• The appliance damper must be removed or welded in the open position prior to installation of an

appliance insert or gas log.

• The appliance off valve must be a “T” handle gas cock.

• The ﬂ exible connector must not be longer than 36 inches (914mm).

• A Carbon Monoxide detector is required in all rooms containing gas ﬁ red appliances.

• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent

sealed combustion product.

The installation must conform with local codes or, in

absence of local codes, the National Gas and Propane

Installation Code CSA B149.1 in Canada, or the National

Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United

States. Suitable for mobile home installation if installed

in accordance with the current standard CAN/CSA

Z240MH Series, for gas equipped mobile homes, in

Canada or ANSI Z223.1 and NFPA 54 in the United

States.

s long as the required clearance to combustibles is

maintained, the most desirable and beneﬁ cial location for an appliance is in the center of a building, thereby

allowing the most efﬁ cient use of the heat created. The location of windows, doors and the trafﬁ c ﬂ ow in the

room where the appliance is to be located should be considered. If possible, you should choose a location

where the vent will pass through the house without cutting a ﬂ oor or roof joist.

If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood

ﬂ ooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.

Some appliances have optional fans or blowers. If an optional fan or blower is installed, the junction box must

be electrically connected and grounded in accordance with local codes, use the current CSA C22.1 Canadian

Electrical Code in Canada or the ANSI/NFPA 70 National Electrical code in the United States.

We suggest that our gas

hearth products be installed

and serviced by professionals

who are certied in the U.S.

by the National Fireplace

Institute

(NFI) as NFI Gas

Specialists

www.ncertied.org

ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,

WITH THE GLASS DOOR OPENED OR REMOVED.

PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.

PROVIDE ADEQUATE VENTILATION.

NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.

OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” (1219mm)

FROM THE FRONT FACE OF THE APPLIANCE.

SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID CONTACT

WHEN THE APPLIANCE IS OPERATING.

FIRE RISK. EXPLOSION HAZARD.

HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING GAS

LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE PRESSURE

TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG (35mb).

USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.

USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING

COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.

THE APPLIANCE MUST NOT BE OPERATED AT TEMPERATURES BELOW FREEZING (32°F / 0°C).

ALLOW THE APPLIANCE TO WARM TO ABOVE FREEZING PRIOR TO OPERATION.

WARNING

W415-1678 / 08.09.16

2.3 GENERAL INFORMATION

FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND

QUALITY!

When the appliance is installed at elevations above 4,500 ft (1371m), and in the absence of speciﬁ c

recommendations from the local authority having jurisdiction, the certiﬁ ed high altitude input rating shall be

reduced at the rate of 4% for each additional 1,000 ft (305m).

This appliance is approved for bathroom, bedroom and bed-sitting room installations and is suitable for

mobile home installation.

No external electricity (110 volts or 24 volts) is required for the gas millivolt system operation.

Expansion / contraction noises during heating up and cooling down cycles are normal and are to be

expected.

RATES AND EFFICIENCIES

B36 GX36-1

NG LP NG LP

Altitude (FT) 0-4,500 0-4500 0-4,500 0-4,500

Max. Input (BTU/HR) 18,000 18,000 26,000 26,000

Min. Inlet Gas Supply

Pressure

4.5" (11mb) w.c. 11" (27mb) w.c. 4.5" (11mb)

w.c.

11" (27mb) w.c.

Max. Inlet Gas Supply

Pressure

13" (32mb) w.c. 13" (32mb) w.c. 13" (17mb) w.c. 13" (32mb) w.c.

Manifold Pressure (Under

Flow Conditions)

3.5" (9mb) w.c. 10" (25mb) w.c. 3.5" (9mb) w.c. 10" (25mb) w.c.

MODEL DESIGNATIONS

FUEL TYPE OPERATING SYSTEM

B36NTR

NATURAL MILLIVOLT

B36NTRE

NATURAL ELECTRONIC IGNITION

B36PTR

PROPANE MILLIVOLT

B36PTRE

PROPANE ELECTRONIC IGNITION

GX36NTR-1

NATURAL MILLIVOLT

GX36NTRE-1

NATURAL ELECTRONIC IGNITION

GX36PTR-1

PROPANE MILLIVOLT

GX36PTRE-1

PROPANE ELECTRONIC IGNITION

W415-1678 / 08.09.16

2.4 RATING PLATE INFORMATION

W385-1987

FOYER À GAZ VENTILÉ DIRECT. HOMOLOGUE POUR INSTALLATION DANS UNE CHAMBRE A COUCHER,

UNE SALLE DE BAIN ET UN STUDIO. APPROPRIE POUR INSTALLATION DANS UNE MAISON MOBILE SI

SON INSTALLATION CONFORME AUX EXIGENCES DE LA NORME CAN/CSA Z240MH SERIE DE MAISONS

MOBILES EQUIPEES AU GAZ, EN VIGUEUR AU CANADA OU AUX ETATS-UNIS DE LA NORME DE

SECURITE ET DE CONSTRUCTION DE MAISONS MANUFACTUREES, TITRE 24 CFR, SECTION 3280.

DANS LE CAS OU CETTE NORME D'ETATS-UNIS NE PEUT ETRE APPLIQUEE, SE REFERER A LA NORME

RELATIVE AU CRITERE DE MESURES DE SECURITE CONTRE L'INCENDIE POUR LES INSTALLATIONS

DANS LES MAISONS MANUFACTURES, LES SITES ET LES COMMUNAUTES, ANSI/NFPA 501A.

POUR

UNE UTILISER AVEC BARRIÈRE W565-0144. SUIVEZ LES INSTRUCTIONS

D'INSTALLATION SE TROUVENT DANS LE MANUEL D'INSTALLATION

DIRECT VENT GAS FIREPLACE. SUITABLE FOR BEDROOM, BATHROOM AND BED-SITTING ROOM

INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN ACCORDANCE

WITH THE CURRENT STANDARD CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES,

IN CANADA OR IN THE UNITED STATES THE MANUFACTURED HOME CONTRUCTION AND

SAFETY STANDARD, TITLE 24 CFR, PART 3280. WHEN THIS US STANDARD IS NOT

APPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFACTURED

HOME INSTALLATIONS, SITES AND COMMUNITIES, ANSI / NFPA 501A.

FOR USE WITH BARRIER

W565-0144. FOLLOW THE INSTALLATION INSTRUCTIONS LOCATED IN THE INSTALLATION MANUAL.

9700539 (WSL) 4001657 (NGZ)

4001658 (NAC) 4001659 (WUSA)

0-4500FT (0-1370m) ALTITUDE / ELEVATION 0-4500FT (0-1370m)

18,000 BTU/h INPUT / ALIMENTATION 18,000 BTU/h

13,000 BTU/h REDUCED INPUT / ALIMENTATION REDUITE 13,500 BTU/h

MANIFOLD PRESSURE: 3.5" (9MB) WATER COLUMN MANIFOLD PRESSURE: 10" (25MB) WATER COLUMN

PRESSION AU COLLECTEUR: 3.5" (9 MB) D'UNE COLONNE D'EAU PRESSION AU COLLECTEUR: 10" (25MB) D'UNE COLONNE D'EAU

MINIMUM SUPPLY PRESSURE: 4.5" (11MB) WATER COLUMN MINIMUM SUPPLY PRESSURE: 11" (27MB) WATER COLUMN

PRESSION D'ALIMENTATION MINIMALE: 4.5" (11MB) D'UNE COLONNE D'EAU PRESSION D'ALIMENTATION MINIMALE: 11" (27MB) D'UNE COLONNE D'EAU

MAXIMUM SUPPLY PRESSURE: 7.0" (17MB) WATER COLUMN MAXIMUM SUPPLY PRESSURE: 13" (32MB) WATER COLUMN

PRESSION D'ALIMENTATION MAXIMALE: 7.0" (17MB) D'UNE COLONNE D'EAU PRESSION D'ALIMENTATION MAXIMALE: 13" (32MB) D'UNE COLONNE D'EAU

P4: 51.7% P4: 51.7%

NOT FOR USE WITH SOLID FUEL. FOR USE WITH GLASS DOORS

CERTIFIED WITH THIS UNIT ONLY.

WARNING:

THIS FIREPLACE USES AND REQUIRES A FAST ACTING THERMOCOUPLE. REPLACE

ONLY WITH A FAST ACTING THERMOCOUPLE SUPPLIED BY WOLF STEEL LTD.

DO NOT ADD ANY MATERIAL TO THE APPLIANCE, WHICH WILL COME IN CONTACT WITH THE FLAMES,

OTHER THAN THAT SUPPLIED BY THE MANUFACTURER WITH THE APPLIANCE. MINIMUM CLEARANCE

TO COMBUSTIBLE MATERIALS /

DEGAGEMENTS MINIMAUX DES MATERIAUX COMBUSTIBLES:

TOP/ DESSUS 0 RECESSED DEPTH / PROFONDEUR D'ENCASTRE 16"

FLOOR / PLANCHER 0 VENT SIDES / COTES DE L'EVENT 1"

SIDES / COTES 0 VENT TOP / EVENT SUPERIEUR 3"

BACK / ARRIERE 0 VENT BOTTOM / EVENT INFERIEUR 1"

MANTEL / MANTEAU 2" *

* MAXIMUM HORIZONTAL EXTENSION / L'EXTENSION HORIZONTALE MAXIMALE: 2". SEE INSTRUCTION

MANUAL FOR GREATER EXTENSIONS. REFERER AU MANUEL D'INSTRUCTION POUR DES

EXTENSIONS PLUS GRANDES.

SEE OWNER'S INSTRUCTION MANUAL FOR MINIMUM AND MAXIMUM VENT LENGTHS.

REFERER AU MANUEL D'INSTALLATION DE PROPRIETAIRE POUR LES LONGUEURS

D'EVACUATION MINIMALE ET MAXIMALE.

WOLF STEEL LTD.

24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA

UN COMBUSTIBLE SOLIDE NE DOIT PAS ETRE UTILISE AVEC CET

APPAREIL. UTILISER AVEC LES PORTES VITREES HOMOLOGUEES

SEULEMENT AVEC CETTE UNITE.

AVERTISSEMENT: CE FOYER UTILISE ET REQUIERT UN THERMOCOUPLE À ACTION RAPIDE.

REMPLACEZ UNIQUEMENT AVEC UN THERMOCOUPLE À ACTION RAPIDE DE WOLF STEEL LTÉE.

N’AJOUTEZ PAS A CET APPAREIL AUCUN MATERIAU DEVANT ENTRER EN CONTACT AVEC LES FLAMMES

AUTRE QUE CELUI QUI EST FOURNI AVEC CET APPAREIL PAR LE FABRICANT.

THE APPLIANCE MUST BE VENTED USING THE APPROPRIATE WOLF STEEL VENT KITS. SEE OWNERS

INSTALLATION MANUAL FOR VENTING SPECIFICS. PROPER REINSTALLATION AND RESEALING IS

NECESSARY AFTER SERVICING THE VENT-AIR INTAKE SYSTEM.

L'APPAREIL DOIT EVACUER SES GAZ EN UTILISANT L'ENSEMBLE D'EVACUATION PROPRE A NAPOLEON.

REFERER AU MANUEL D'INSTALLATION DE PROPRIETAIRE POUR L'EVACUATION PRECISE. IL EST

IMPORTANT DE BIEN REINSTALLER ET RESCELLER L'EVENT APRES AVOIR ASSURE LE MAINTIEN DU

SYSTEME DE PRISE D'AIR.

DECORATIVE PRODUCT: NOT FOR USE AS A HEATING APPLIANCE

PRODUIT DÉCORATIF: NE PAS UTILISER COMME APPPAREIL DE CHAUFFAGE.

ELECTRICAL RATING / CLASSIFICATION: 115V 0.82AMP, 60HZ

OPTIONAL FAN KIT / ENSEMBLE DE VENTILATEUR FACULTATIF: EP35

SERIAL NUMBER/NO. DE SERIE:

B36

B36NTR CB36NTR MODEL CB36PTR B36PTR

B36NTRE CB36NTRE CB36PTRE B36PTRE

CONFORMS TO / CONFORME AUX: ANSI Z21.50-2014, CERTIFIED TO / CERTIFIE CSA 2.22-2014 VENTED GAS FIREPLACE / FOYER À GAZ VENTILÉ.

INSTALLER: It is your responsibility to check off the appropriate box on the rating plate according to

the model, venting and gas type of the appliance.

For rating plate location, see “INSTALLATION OVERVIEW” section.

This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.

NOTE: The rating plate must remain with the appliance at all times. It must not be removed.

A barrier designed to reduce the risk of burns from the hot viewing glass, is provided with the

appliance and must be installed.

SAMPLE

E POURE POUR

PROPRIE POUROPRIE POU

UX EXIGENCES DE LX EXIGENCES

EN VIGUEUR AU CANADA ON VIGUEUR AU CANADA

TRUCTION DE MAISONS MANUFACON DE MAISONS MANUFA

ETTE NORME D'ETATS-UNIS NE PEUT ETD'ETATS-UNIS NE PEUT

CRITERE DE MESURES DE SECURITE CONTREES DE SECURITE C

S MAISONS MANUFACTURES, LES SITES ET LES COMMAISONS MANUFACTURES, LES SITES ET LES COM

UNE UTILISER AVEC BARRIÈRE W565-0144. UNE UTILISER AVEC BARRIÈRE W565-0144.

D'INSTALLATION SE TROUVENT DANS LE D'INSTALLATION SE TROUVENT DANS LE

4001657 (NGZ)(NGZ)

4001659 4001659

(WUSA)WUSA)

ALTITUDE / ELEVATION ALTITUDE / ELEVATIO

0-4500FT (0-1370m)500FT (0-1370m

INP

ALIMENTATI

INPUT / ALIMENTATION

18,000 BTU/h0 BTU/h

REDUCED INPUT / ALIMENTATION REDUITE 13,500 BTUD INPUT / ALIMENTATION REDUITE 13,500 BT

5" (9MB) WATER COLUMN (9MB) WATER COLUMN

ANIFOLD PRESSURE:

ANIFOLD

10"

9 MB) D'UNE COLONNE D'EAU B) D'UNE COLONNE D'EAU

PRESSION AU COLLECSSION A

URE:

4.5"

(

11MB

)

WATER

LUMN

5" (11MB) WATER COLUMN

MINIMUM SUPPLY MINIMUM SUP

4.5" (11MB) D'UNE COLONNE D'EAUD'UNE COLONNE D'EA

PRESSION D'APRESSION D'

PRESSURE:PRESS

7.0"

(

17MB

)

WATER

LUMN

17MB) WATER COLUMN

MAXIMUMMAXIMUM

AXIMALE:MALE:

7.0"

(

17MB

)

D'UNE

NNE D'EAU

7.0" (17MB) D'UNE COLONNE D'EAU

PRESPRE

:P4:

51.7

% 51.7%

EL. FOR USE WITH GLASS DOORSSE WITH GLASS DOORS

T ONLY.T ONLY.

USES AND REQUIRES A FAST ACTING THERMOCOUPLE. REP

ES AND REQUIRES A FAST ACTING THERMOCOUPLE. RE

ERMOCOUPLE SUPPLIED BY WOLF STEEL LTD.

OCOUPLE SUPPLIED BY WOLF STEEL LT

THE APPLIANCE, WHICH WILL COME

HE APPLIANCE, WHICH WILL COME

IN CONTACT WIN CONTACT W

THE MANUFACTURER WITH THE APPLIANCE. M

THE MANUFACTURER WITH THE AP

TERIAUX COMBUSTIBLES:RIAUX COMBUSTIBLES

ESSED DEPTH / PROFONDEURROFONDEU

SIDES / COTES DE L'EVEDES / COTES DE L'E

OP / EVENT SUPEROP / EVENT SUPER

TTOM / EVENTTOM / EVEN

EL CB36PTR B36PTR EL CB36PTR

CB36PTRE B36PTRE CB36PTRE B36PTRE

W415-1678 / 08.09.16

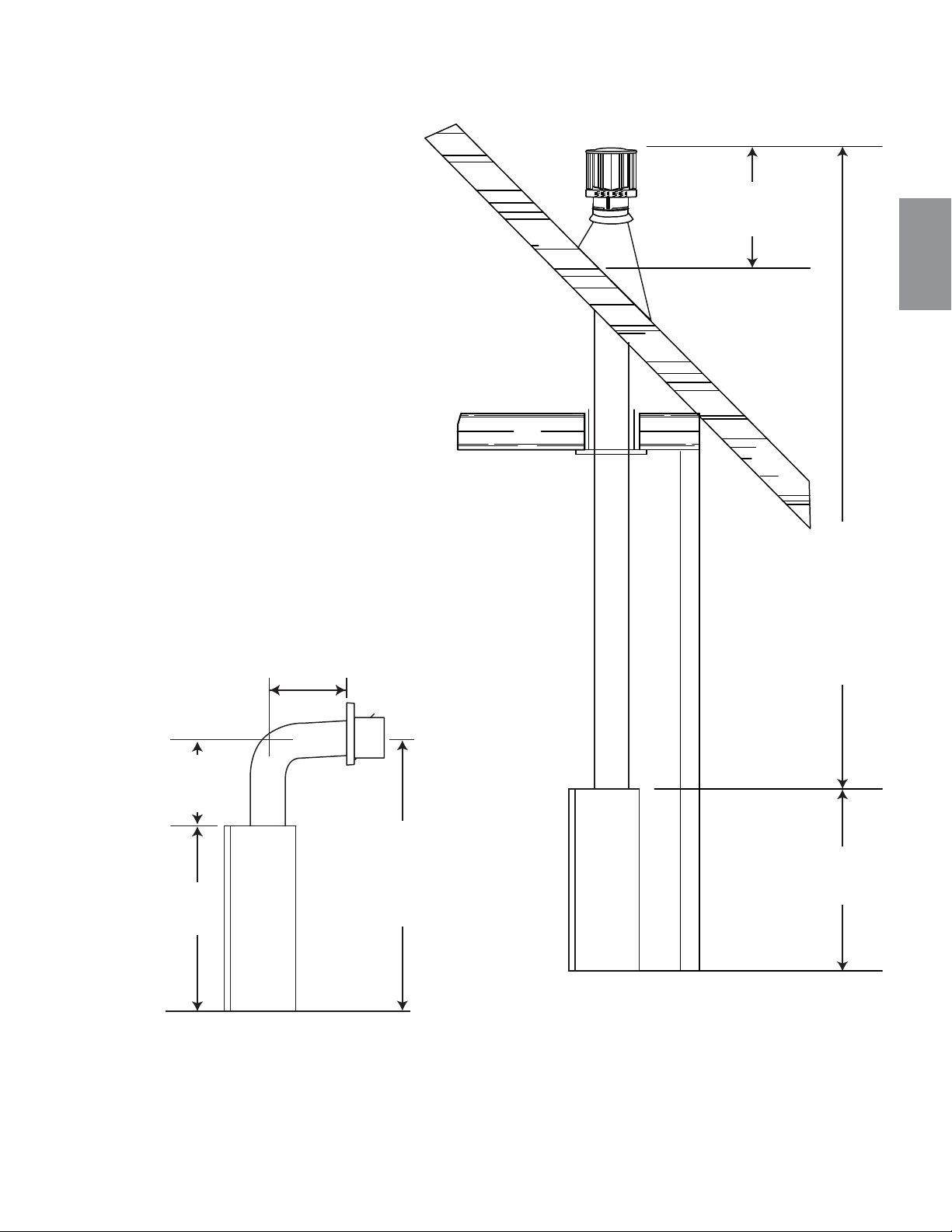

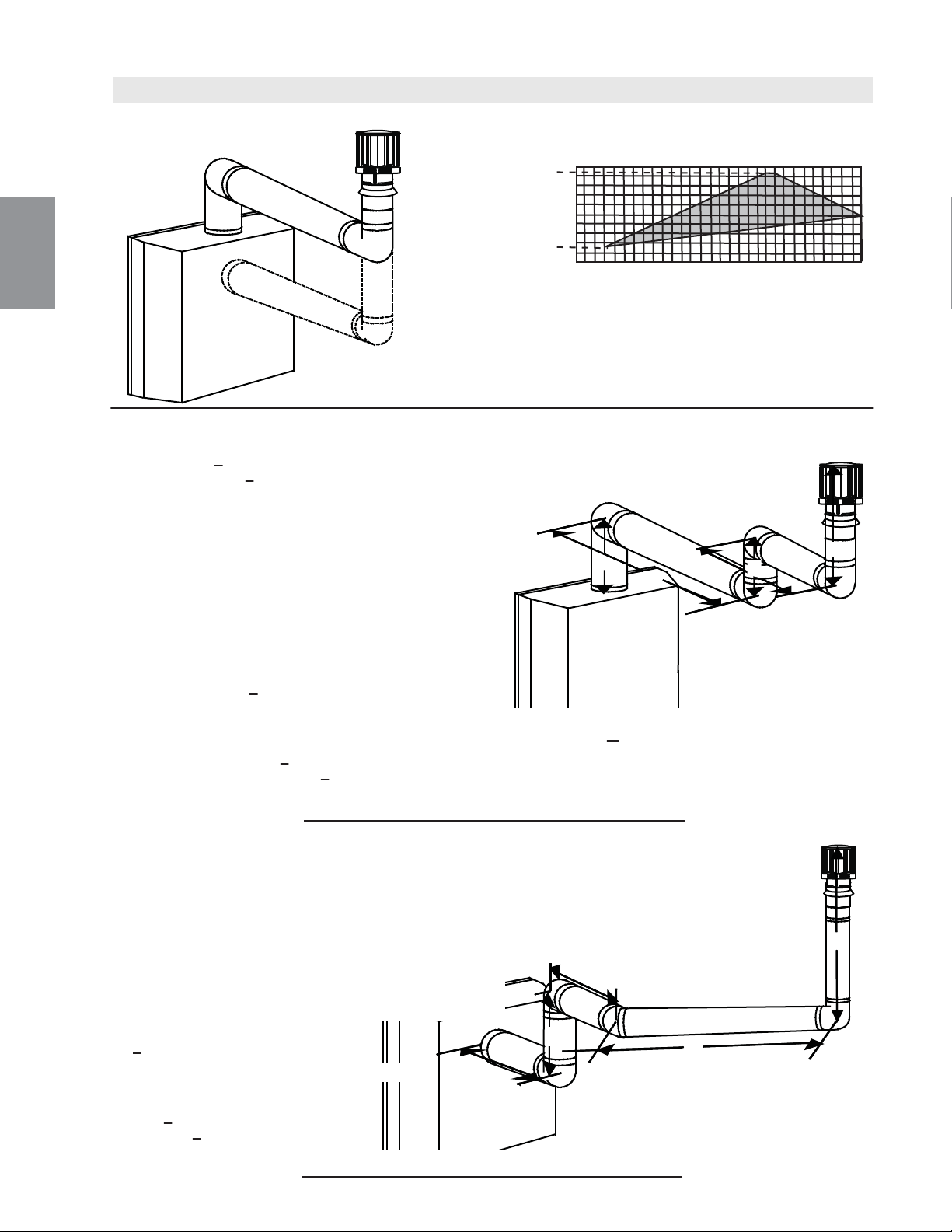

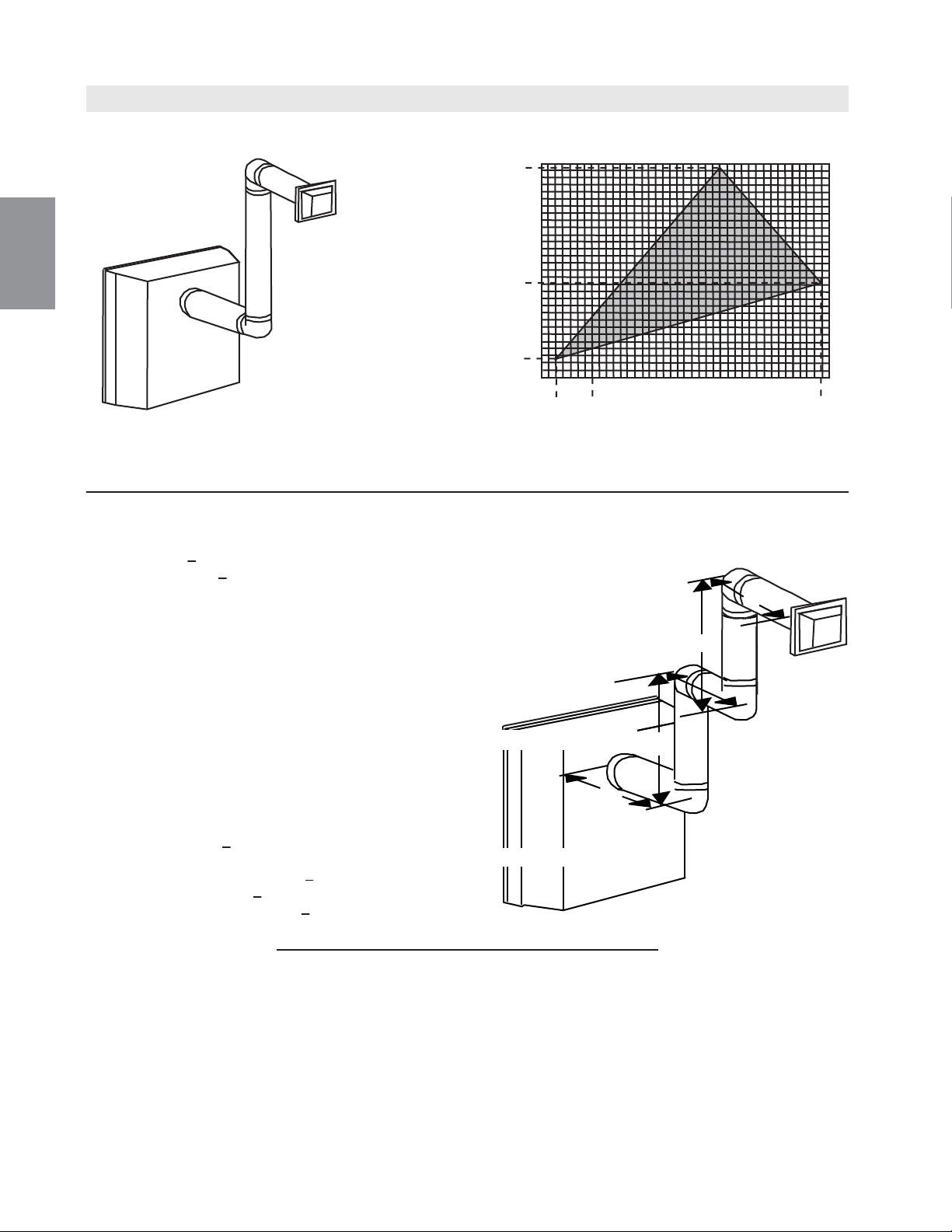

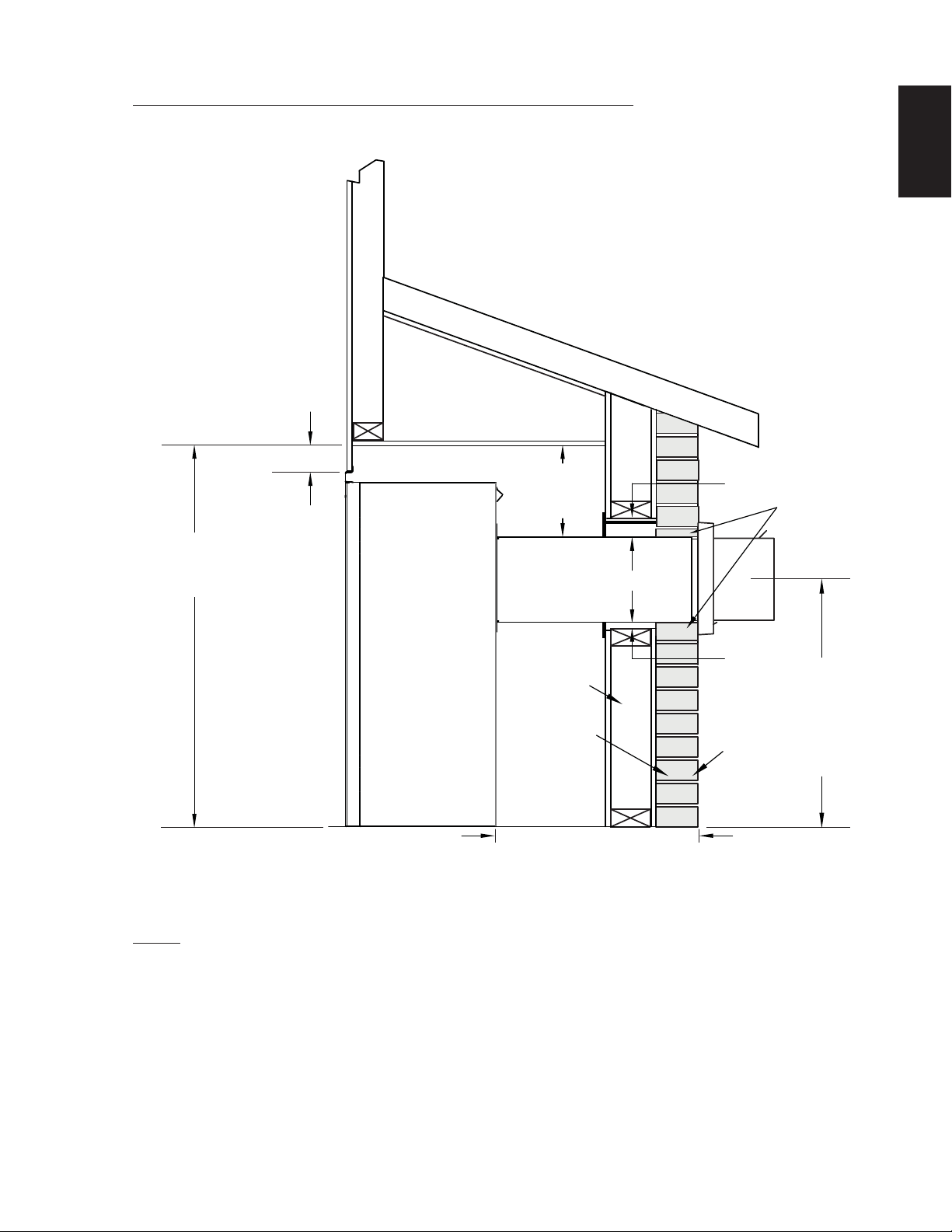

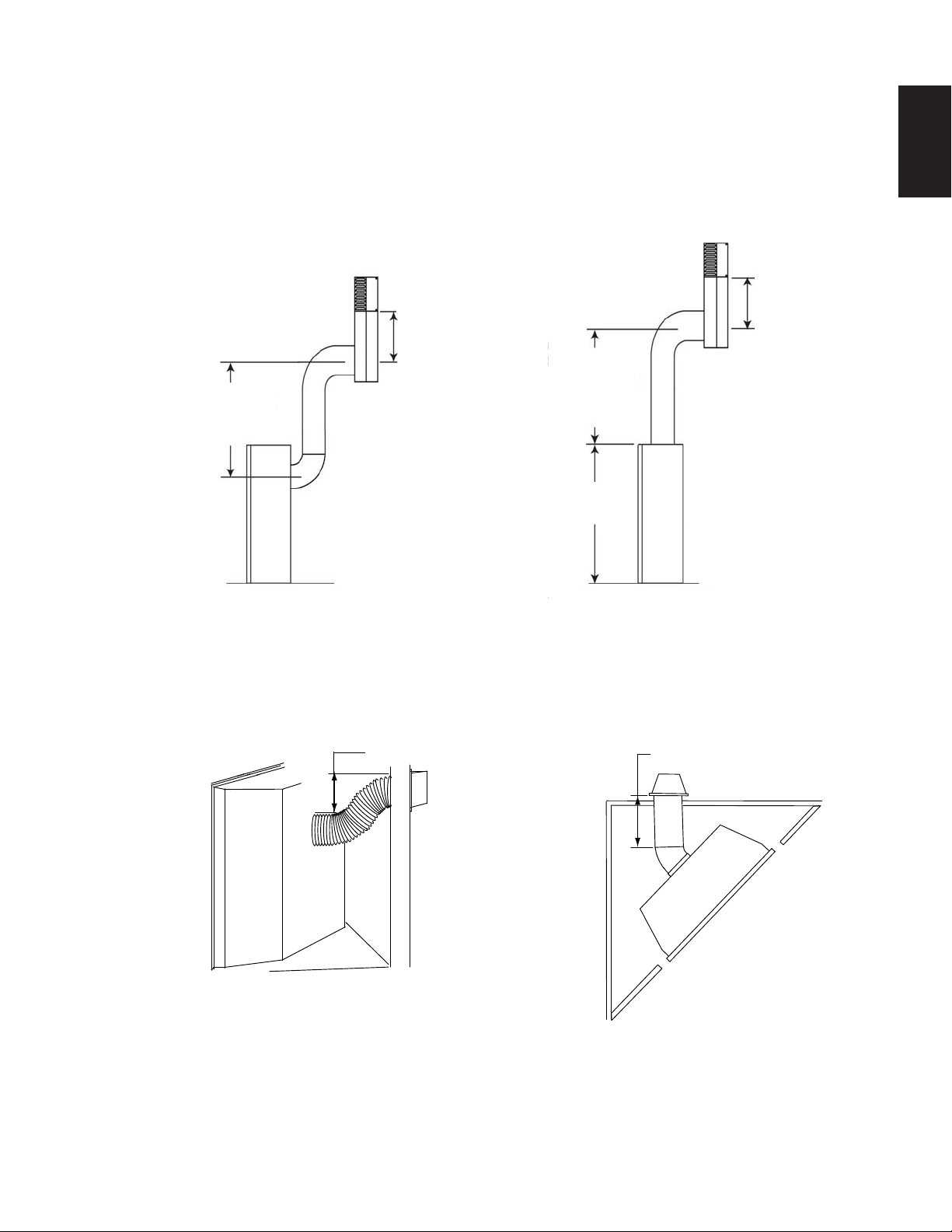

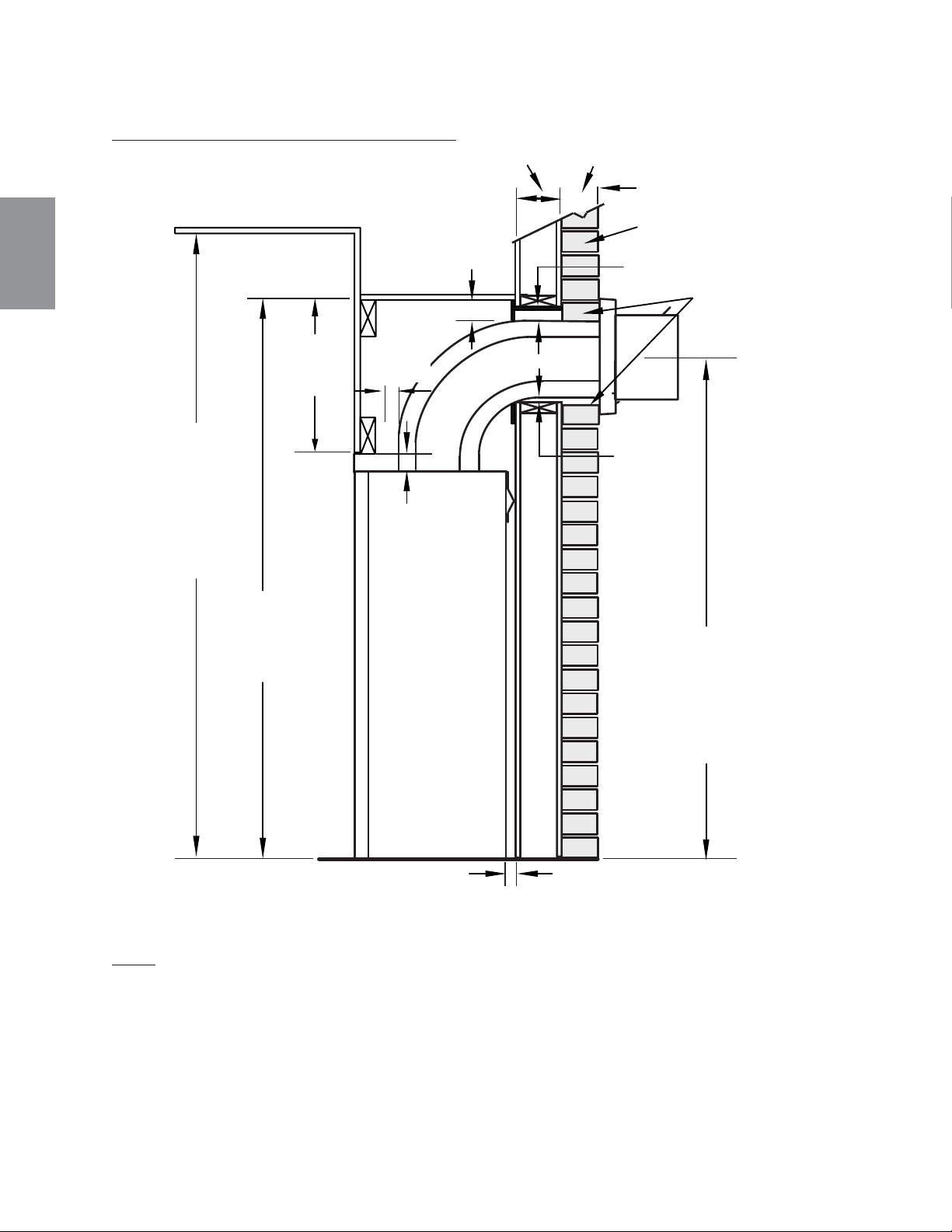

3.0 VENTING

7.1F

THIS APPLIANCE USES A 4” (102mm) EXHAUST / 7” (178mm) AIR INTAKE VENT PIPE SYSTEM.

Refer to the section applicable to your installation.

For safe and proper operation of the appliance follow the venting instruction exactly. Deviation from the

minimum vertical vent length can create difﬁ culty in burner start-up and/or carboning. Under extreme

vent conﬁ gurations, allow several minutes (5-15) for the ﬂ ame to stabilize after ignition. Although not a

requirement, it is recommended for vent lengths that pass through unheated spaces (attics, garages, crawl

spaces) be insulated with the insulation wrapped in a protective sleeve to minimize condensation. Provide

a means for visually checking the vent connection to the appliance after the appliance is installed. Use a

ﬁ restop, vent pipe shield or attic insulation shield when penetrating interior walls, ﬂ oor or ceiling.

The vent terminal may be painted with a high temperature paint to match exterior colours. Use an outdoor

paint suitable for 400°F (200°C). Application and performance of paint is the consumer’s responsibility. Spot

testing is recommended.

NOTE: If for any reason the vent air intake system is disassembled; reinstall per the instructions

provided for the initial installation.

NOTE: This appliance must be installed with a continuous connection of exhaust and air intake vent

pipes. Utilizing alternate constructions such as a chimney as part of the vent system is not permitted.

WARNING

RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.

IF VENTING IS INCLUDED WITH SPACERS THE VENT SYSTEM MUST BE SUPPORTED EVERY 3FT

(0.9m) FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT

NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM

COMBUSTIBLES. USE WOLF STEEL LTD. SUPPORT RING ASSEMBLY W010-0370 OR EQUIVALENT

NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE MINIMUM CLEARANCE TO COMBUSTIBLES

FOR BOTH VERTICAL AND HORIZONTAL RUNS. SPACERS ARE ATTACHED TO THE INNER PIPE AT

PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER PIPE. THIS GAP IS

REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED AT THE START, MIDDLE AND END OF

EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS MUST NOT BE REMOVED.

W415-1678 / 08.09.16

3.1 VENTING LENGTHS AND COMPONENTS

Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab

venting components. Minimum and maximum vent lengths, for both horizontal and vertical installations,

clearances from vent pipes to combustibles and air terminal locations as set out in this manual apply to

all vent systems and must be adhered to. For Simpson Dura-Vent, Selkirk Direct Temp, American Metal

Amerivent and Metal-Fab follow the installation procedure provided with the venting components.

A starter adaptor must be used with the following vent systems and may be purchased from the

corresponding supplier:

For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab follow the

installation procedure found on the website for your venting supplier.

For vent systems that provide seals on the inner exhaust ﬂ ue, only the outer air intake joints must be sealed

using a red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and

outer intake vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection

to the appliance ﬂ ue collar which must be sealed using the black high temperature sealant Mill Pac. High

temperature sealant must be ordered separately.

When using Wolf Steel venting components, use only approved Wolf Steel rigid / ﬂ exible components with the

following termination kits: wall terminal kit GD-222, GD-222R, or 1/12 to 7/12 pitch roof terminal kit

GD-110, 8/12 to 12/12 roof terminal kit GD-111, ﬂ at roof terminal kit GD-112 or periscope kit GD-201 (for wall

penetration below grade). With ﬂ exible venting, in conjunction with the various terminations, use either the

5 foot (1.5m) vent kit GD-220 or the 10 foot (3.1m) vent kit GD-330.

For optimum ﬂ ame appearance and appliance performance, keep the vent length and number of

elbows to a minimum. The air terminal must remain unobstructed at all times. Examine the air

terminal at least once a year to verify that it is unobstructed and undamaged.

Rigid and ﬂ exible venting systems must not be combined. Different venting manufacturer

components must not be combined.

These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable

horizontal run is 20 feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The maximum

number of vent connections is two horizontally or three vertically (excluding the appliance and the air terminal

connections) when using ﬂ exible venting.

PART 4”/7” SUPPLIER WEBSITE

Duravent W175-0053 Wolf Steel www.duravent.com

Amerivent 4DSC-N2 American Metal www.americanmetalproducts.com

Direct Temp 4DT-AAN Selkirk www.selkirkcorp.com

SuperSeal 4DNA Metal-Fab www.mtlfab.com

8.1B

** When a vertical rise is used as part of the venting conﬁ guration, a 0" (0mm) rise per foot is acceptable.

For optimum performance, it is recommended that all horizontal runs have a 1" (25mm) rise per foot.

GX36-1 REQUIRED RISE ON HORIZONTAL

VENTING

B36 REQUIRED RISE ON HORIZONTAL

VENTING

Rear Vent

Rigid Venting 1" (25mm) / FT**

Rear Vent

Rigid Venting 0" / FT

Flexible Venting 1" (25mm) / FT** Flexible Venting 0" / FT

Top Vent

Rigid Venting 0" / FT

Top Vent

Rigid Venting 0" / FT

Flexible Venting 0" / FT Flexible Venting 0" / FT

Corner Vent

Rigid Venting 6" (152mm)

Corner Vent

Rigid Venting 0"

Flexible Venting 6" (152mm) Flexible Venting 6" (152mm)

W415-1678 / 08.09.16

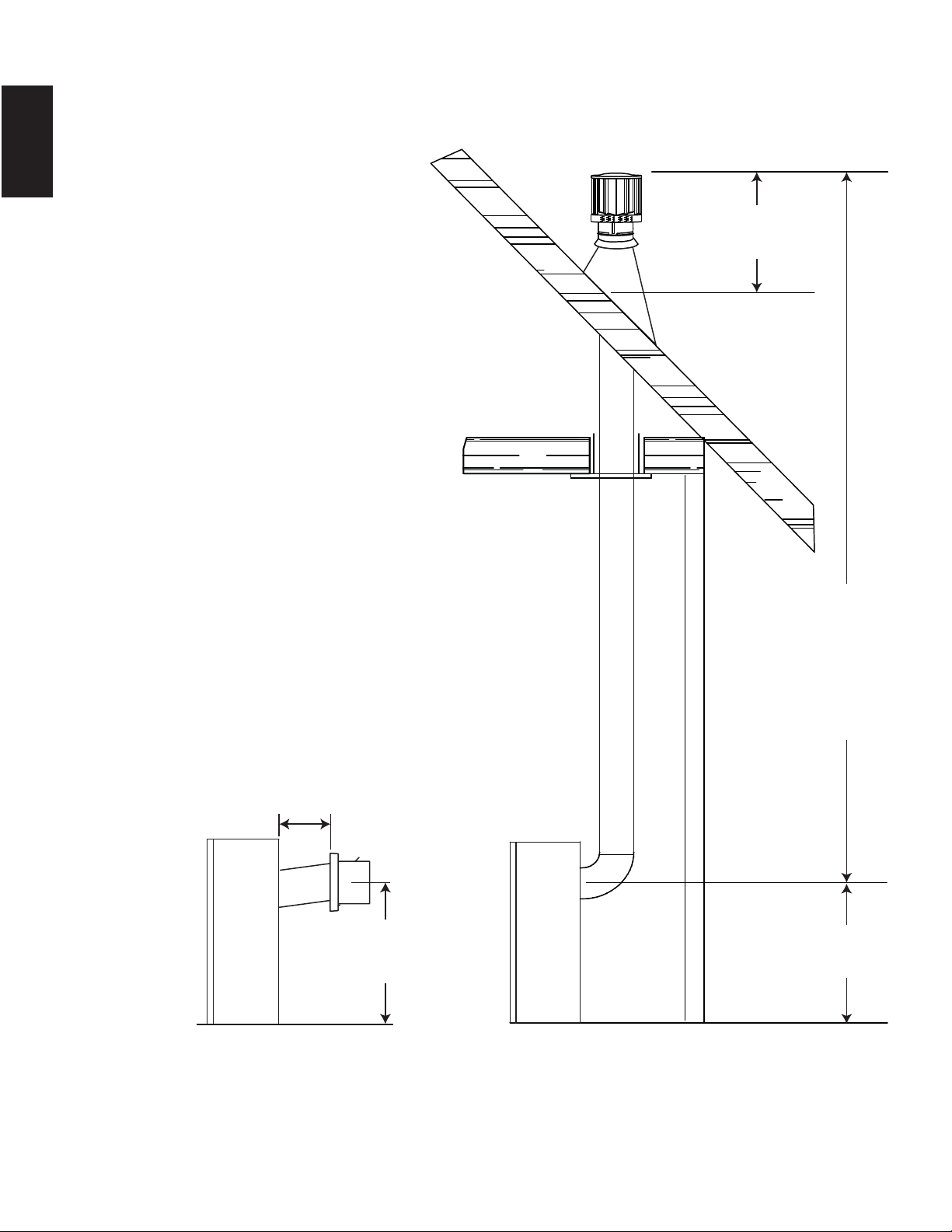

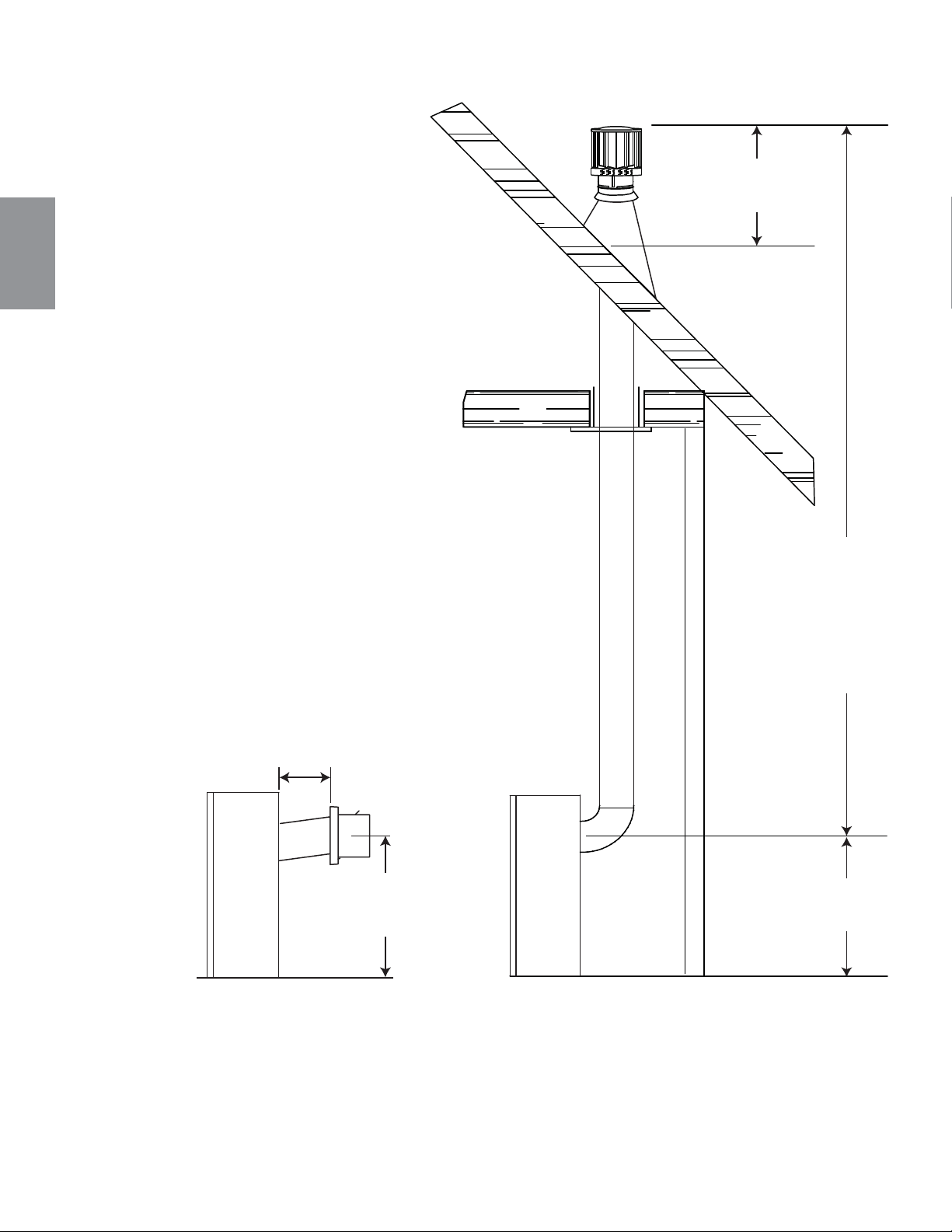

3.2 TYPICAL VENT INSTALLATION

16" (406MM)

MINIMUM

40 FT (12.2M)

MAXIMUM

3 FT (1M)

MINIMUM

34 5/8"

(879MM)

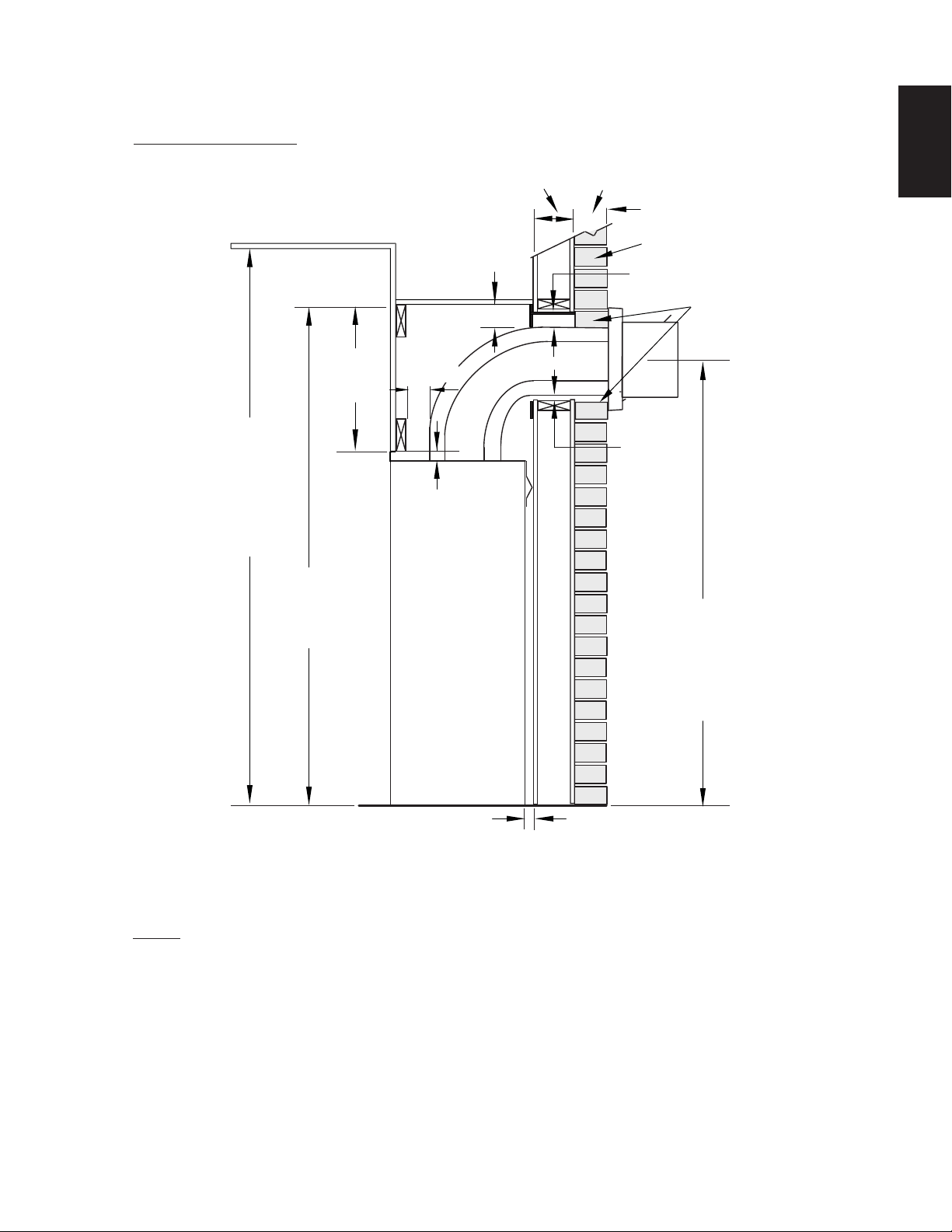

TOP VENT

8" (203MM)

MINIMUM

34 5/8"

(879MM)

42 5/8" (1083MM)

MINIMUM PLUS

RISE*

24" (610MM)

MAXIMUM

W415-1678 / 08.09.16

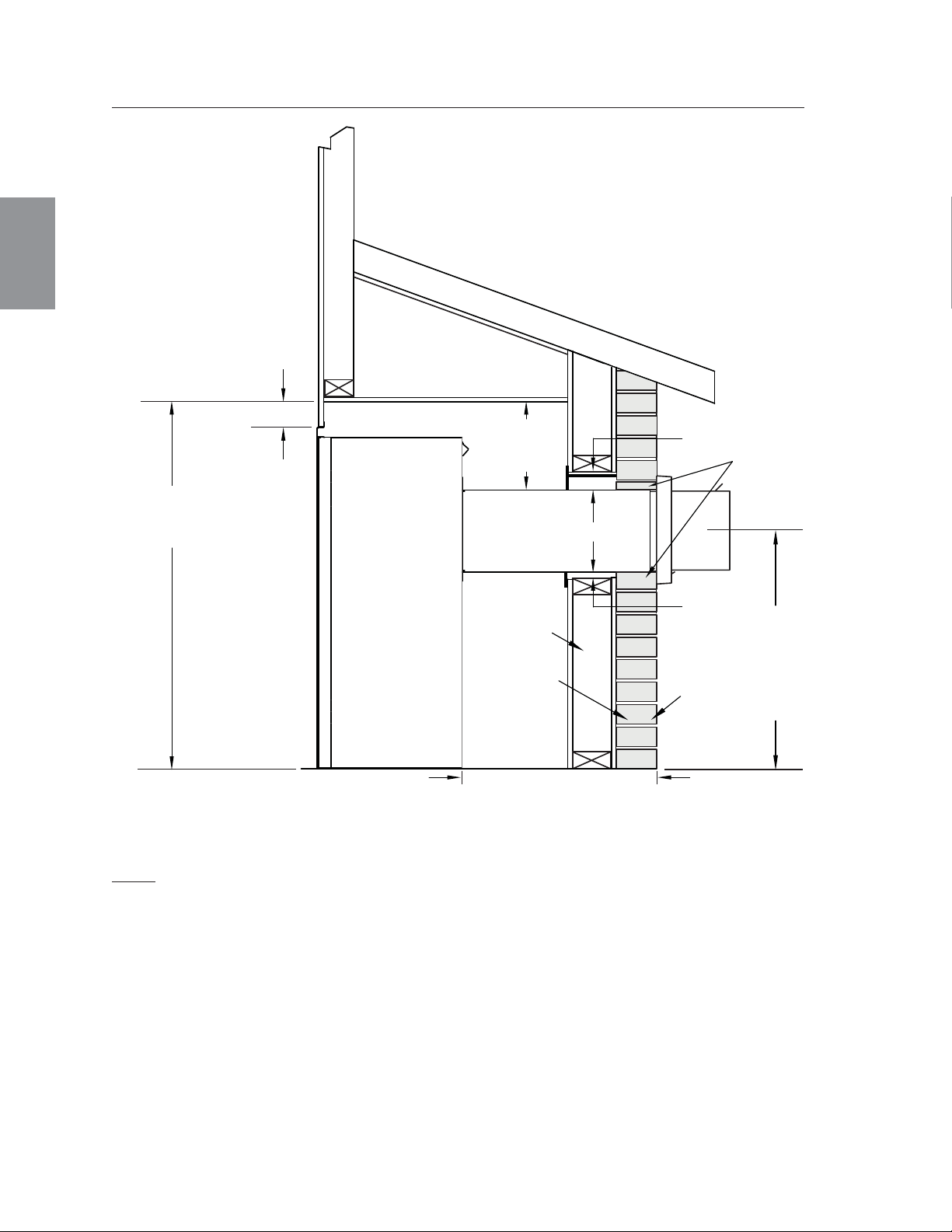

REAR VENT

40 FT (12.2M)

MAXIMUM

3 FT (1M)

MINIMUM

16" (406MM)

MINIMUM

20"

(508MM)

MAX

24 3/16" (614MM)

MINIMUM

PLUS RISE*

* SEE "VENTING" SECTION

24" 3/16

(614MM)

W415-1678 / 08.09.16

3.3 SPECIAL VENT INSTALLATIONS

3.3.1 PERISCOPE TERMINATION

Use the periscope kit to locate the air termination above grade. The periscope must be installed so that

when ﬁ nal grading is completed, the bottom air slot is located a minimum 12” (304.8mm) above grade.

The maximum allowable vent length is 10’ (3.1m).

12" (305MM)

MINIMUM

TO GRADE

30" (762MM)

MINIMUM

30" (762MM)

MINIMUM

34 5/8"

(879MM)

20” (508mm)

MAXIMUM

6” (152.4mm)

RISE

3.3.2 CORNER TERMINATION

The maximum vent length for a corner installation is 20" (508mm) of horizontal run, in addition to the 45°

offset. In this case zero rise is acceptable when using rigid venting. It is required to maintain a 6"(152mm) rise

when using ﬂ exible venting. See illustrations below.

12" (305MM)

MINIMUM

TO GRADE

FLEXIBLE VENTING RIGID VENTING

W415-1678 / 08.09.16

3.4 MINIMUM AIR TERMINAL LOCATION CLEARANCES

W415-1678 / 08.09.16

3.5 VENTING APPLICATION FLOW CHART

13.3A

TOP EXIT

Horizontal Termination

Vertical Termination

Vertical rise is equal

to or greater than

the horizontal run

Vertical rise is less

than horizontal run

Vertical rise is equal

to or greater than

the horizontal run

Vertical rise is less

than horizontal run

Horizontal run +

vertical rise to

maximum of

35 feet (10.7m)

Horizontal run +

vertical rise to

maximum of 24.75

feet (7.5m)

Horizontal run +

vertical rise to

maximum of

35 feet (10.7m)

Horizontal run +

vertical rise to

maximum of

35 feet (10.7m)

4.2 times the

vertical rise equal to

or greater than the

horizontal run

3 times the vertical

rise equal to or

greater than the

horizontal run

13.2A

REAR EXIT

Horizontal Termination

Vertical Termination

Vertical rise is equal

to or greater than

the horizontal run

Vertical rise is less

than horizontal run

Vertical rise is equal

to or greater than

the horizontal run

Vertical rise is less

than horizontal run

Horizontal run +

vertical rise to

Horizontal run +

vertical rise to

maximum of

24.75 feet (7.5m)

Horizontal run +

vertical rise to

Horizontal run +

vertical rise to

3.5 times the

vertical rise equal to

or greater than the

horizontal run

3 times the vertical

rise equal to or

greater than the

horizontal run

maximum of 40 feet

(12m)

maximum of 40 feet

(12m)

maximum of 40 feet

(12m)

W415-1678 / 08.09.16

3.6 DEFINITIONS

14.1

For the following symbols used in the venting calculations and examples are:

> - greater than

> - equal to or greater than

< - less than

< - equal to or less than

- total of both horizontal vent lengths (Hr) and offsets (Ho) in feet

- combined horizontal vent lengths in feet

- offset factor: .03 (total degrees of offset - 90°*) in feet

- combined vertical vent lengths in feet

3.7 ELBOW VENT LENGTH VALUES

15.1A

FEET INCHES MILLIMETERS

1° 0.03 0.5 12.7

15° 0.45 6.0 152.4

30° 0.9 11.0 279.4

45° 1.35 16.0 406.4

90°* 2.7 32.0 812.8

* The ﬁ rst 90° offset has a zero value and is shown in the formula as - 90°

W415-1678 / 08.09.16

16.1B

Simple venting conﬁ guration (only one 90° elbow)

) < (V

)

For vent conﬁ gurations requiring more than one 90° elbow, the following formulas apply:

Formula 1: H

< V

Formula 2: H

+ V

< 40 feet (12.2m)

Example:

= 3 FT (0.9m)

= 8 FT (2.4m)

= V

+ V

= 3 FT (0.9m ) + 8 FT (2.4m) = 11 FT (3.4m)

= 2.5 FT (0.8m)

= 2 FT (0.6m)

= H

+ H

= 2.5 FT (0.8m) + 2 FT (0.6m) = 4.5 FT (1.4m)

= .03 (three 90° elbows - 90°) = .03 (270° - 90°) = 5.4 FT (1.7m)

= H

+ H

= 4.5 FT (1.4m) + 5.4 FT (1.6m) = 9.9 FT (3m)

+ V

= 9.9 FT (3m) + 11 FT (3.4m) = 20.9 FT (6.4m)

Formula 1: H

< V

9.9 FT (3m) < 11 FT (3.4m)

Formula 2: H

+ V

< 40 FT (12.2m)

20.9 FT (6.4m) < 40 FT (12.2m)

Since both formulas are met, this vent conﬁ guration is acceptable.

See graph to determine the required vertical

rise V

for the required horizontal run H

The shaded area within the lines represents

acceptable values for H

and V

2.5

(0.8)

(1.5)

7.5

(2.3)

(3.1)

12.5

(3.8)

(4.6)

40 (12.2)

10 (3.1)

20 (6.1)

30 (9.1)

17.5

(5.3)

(6.1)

39 (11.9)

REQUIRED

VERTICAL

RISE IN FEET

(METERS)V

HORIZONTAL VENT RUN PLUS OFFSET IN

FEET (METERS) H

90°

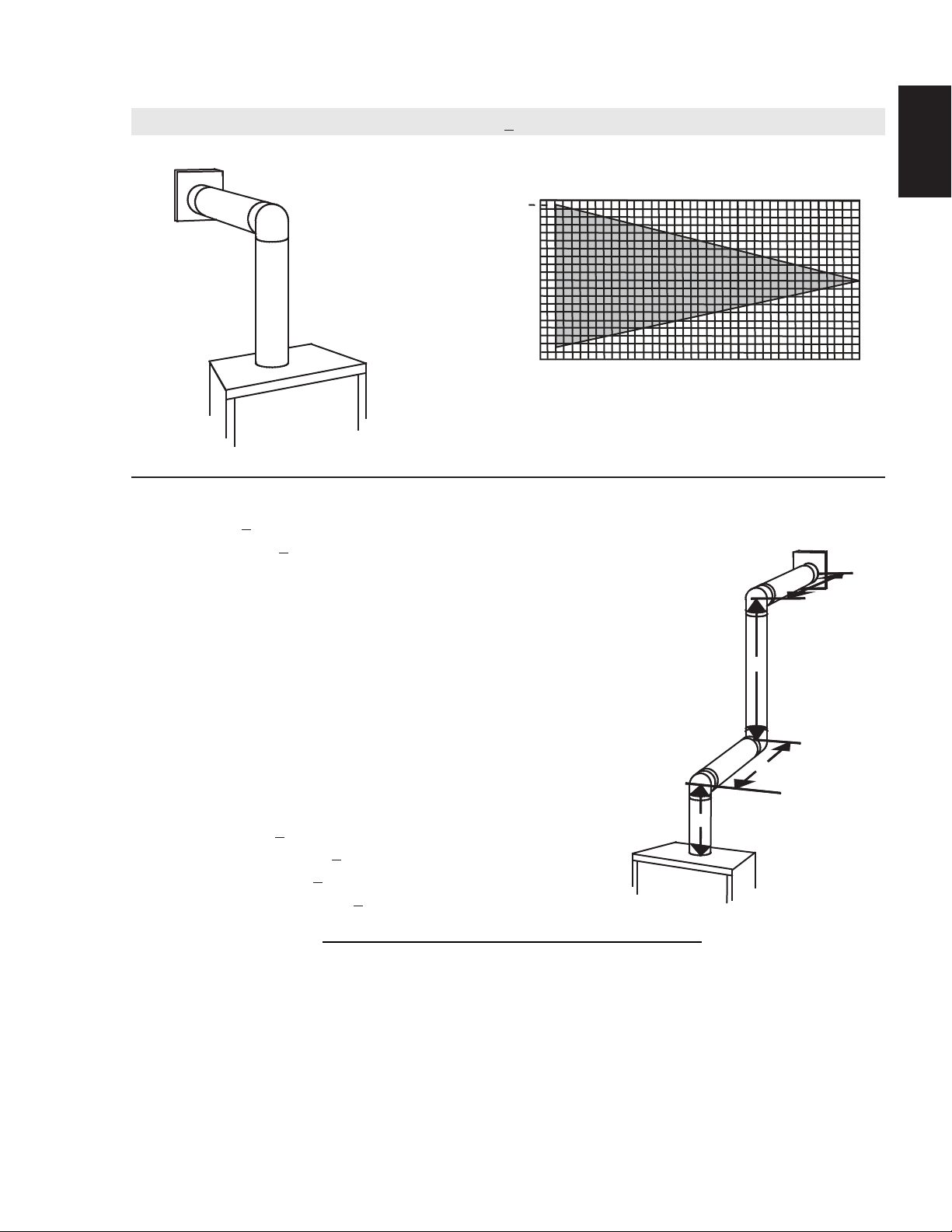

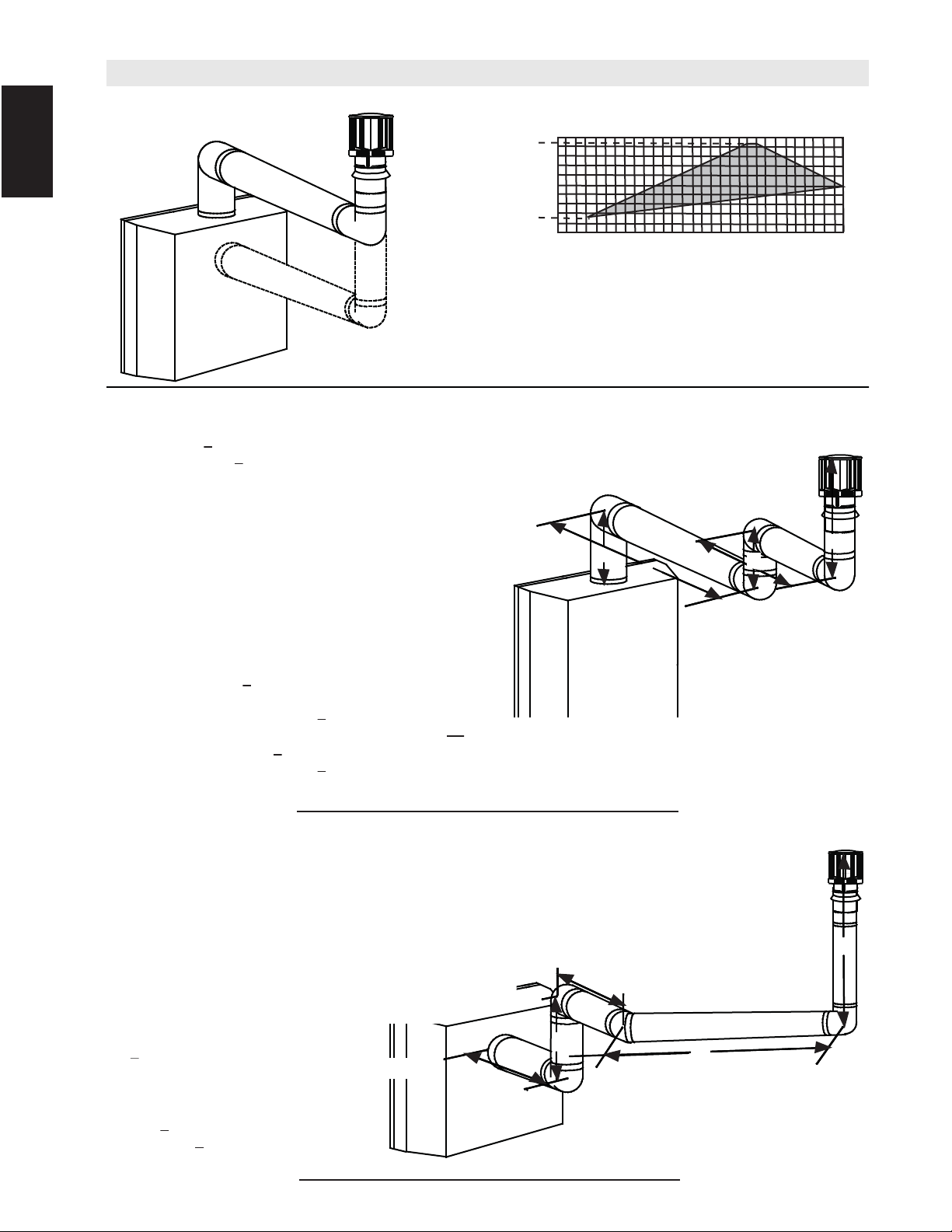

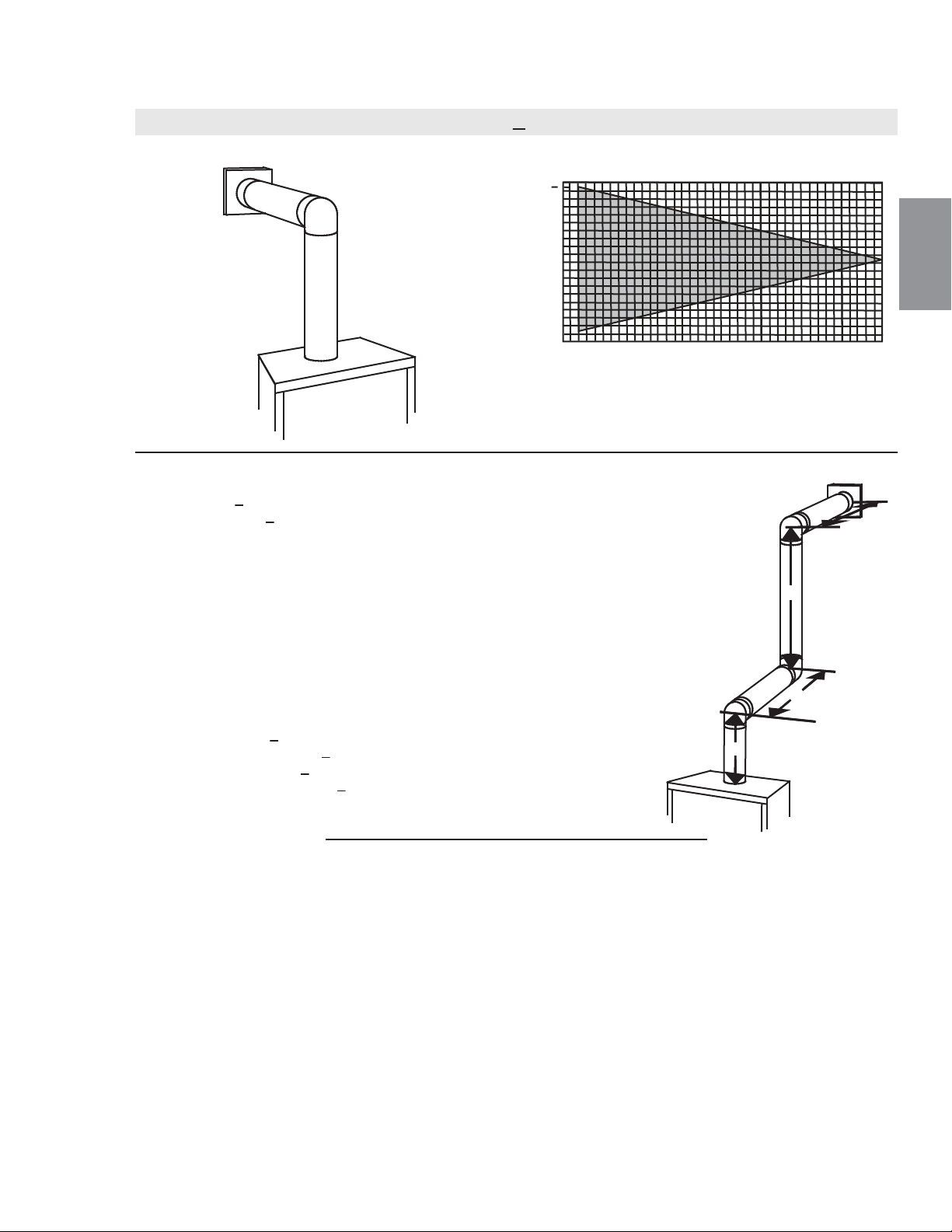

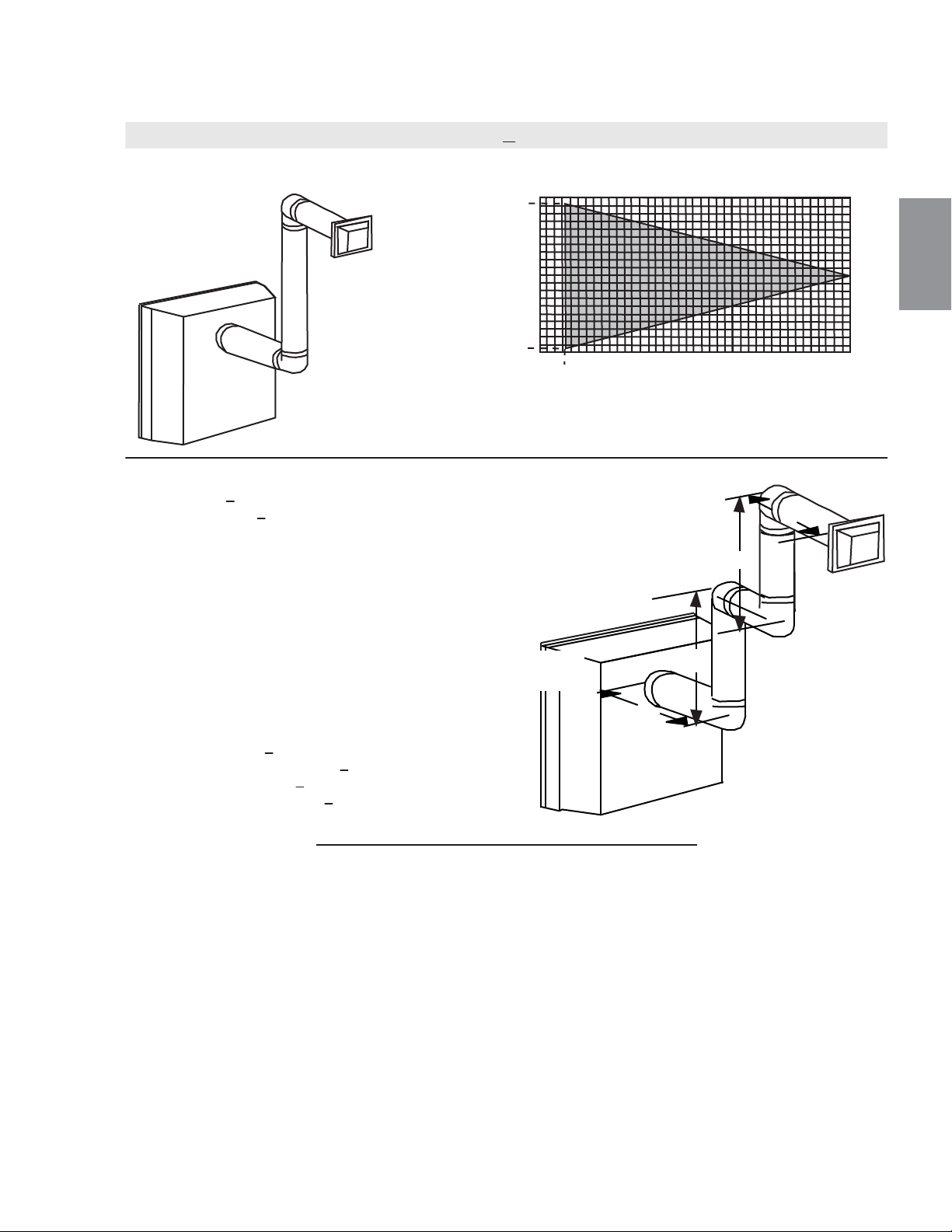

3.8 TOP EXIT HORIZONTAL TERMINATION

W415-1678 / 08.09.16

) > (V

)

Simple venting configuration

(only one 90° elbow)

See graph to determine the required vertical rise V

for the required horizontal run H

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) H

For vent configurations requiring more than one 90° elbow, the following formulas apply:

Formula 1: H

< 4.2 V

Formula 2: H

+ V

< 24.75 feet (7.5m)

Example:

= V

= 6 FT (1.8m)

= 3 FT (0.9m)

= 5 FT (1.5m)

= H

+ H

= 3FT (0.9m) + 5FT (1.5m) = 8FT (2.4m)

= .03 (two 90° elbows - 90°) = .03 (180° - 90°) = 2.7FT (0.8m)

= H

+ H

= 8FT (2.4m) + 2.7FT (0.8m) = 10.7FT (3.3m)

+ V

= 10.7FT (3.3m) + 6FT (1.8m) = 16.7FT (5.1m)

Formula 1: H

< 4.2 V

4.2 V

= 4.2FT (1.3m) x 6FT (1.8m) = 25.2FT (7.7m)

Formula 2: H

+ V

< 24.75 FT (7.5m)

16.7 FT (5.1m) < 24.75 FT (7.5m)

Since both formulas are met, this vent configuration is acceptable.

The shaded area within the lines represents acceptable values for H

and V

90°

Example:

= 4 FT (1.2m)

= 1.5 FT (0.5m)

= V

+ V

= 4 FT (1.2m) + 1.5 FT (0.5m) = 5.5 FT (1.7m)

= 2 FT (0.6m)

= 1 FT (0.3m)

= 1.5 FT (0.5m)

= H

+ H

= 2FT (0.6m) + 1FT (0.3m) + 1FT (0.3m) + 1.5FT (0.5m) = 5.5 FT (1.7m)

= .03 (four 90° elbows - 90°) = .03 (360° - 90°) = 8.1 FT (2.5m)

= H

+ H

= 5.5 FT (1.7m) + 8.1 FT (2.5m) = 13.6 FT (4.2m)

+ V

= 13.6 FT (4.2m) + 5.5 FT (1.7m) = 19.1 FT (5.8m)

Formula 1: H

< 4.2 V

4.2 V

= 4.2 FT (1.3m) x 5.5 FT (1.7m) = 23.1 FT (7m)

13.6 FT (4.2m) < 23.1 FT (7m)

Formula 2: H

+ V

< 24.75 FT (7.5m)

19.1 FT (5.8m) < 24.75 FT (7.5m)

Since both formulas are met, this vent configuration is acceptable.

90°

(1.5)

(4.6)

20 (6.1)

100 (2540)

50 (1270)

150 (3810)

12.5

(3.8)

8 (203)

57 (1447.8)

147 (3733.8)

(0.6)

(3.1)

19.5

(5.9)

REQUIRED

VERTICAL

RISE IN INCHES

(MILLIMETERS) V

16.16

W415-1678 / 08.09.16

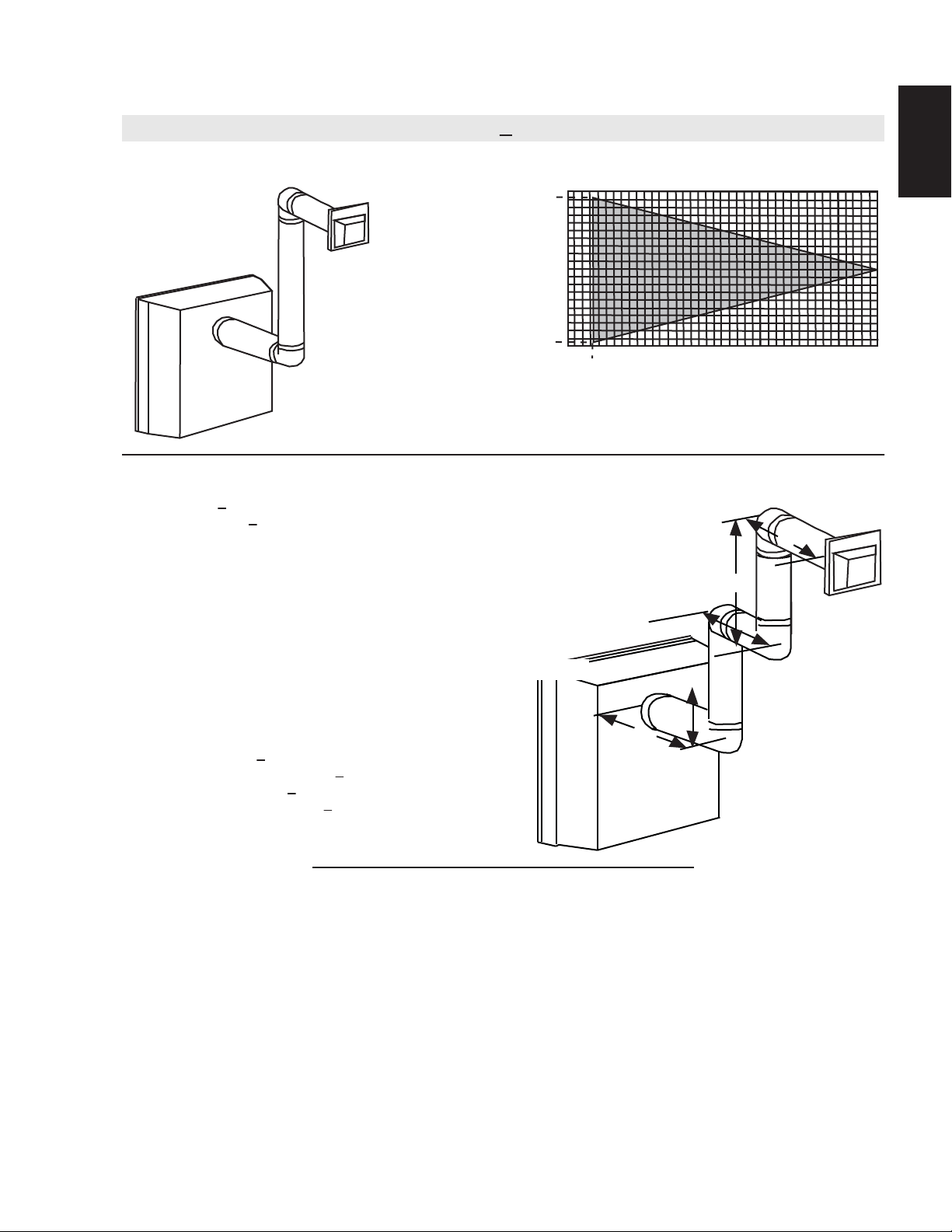

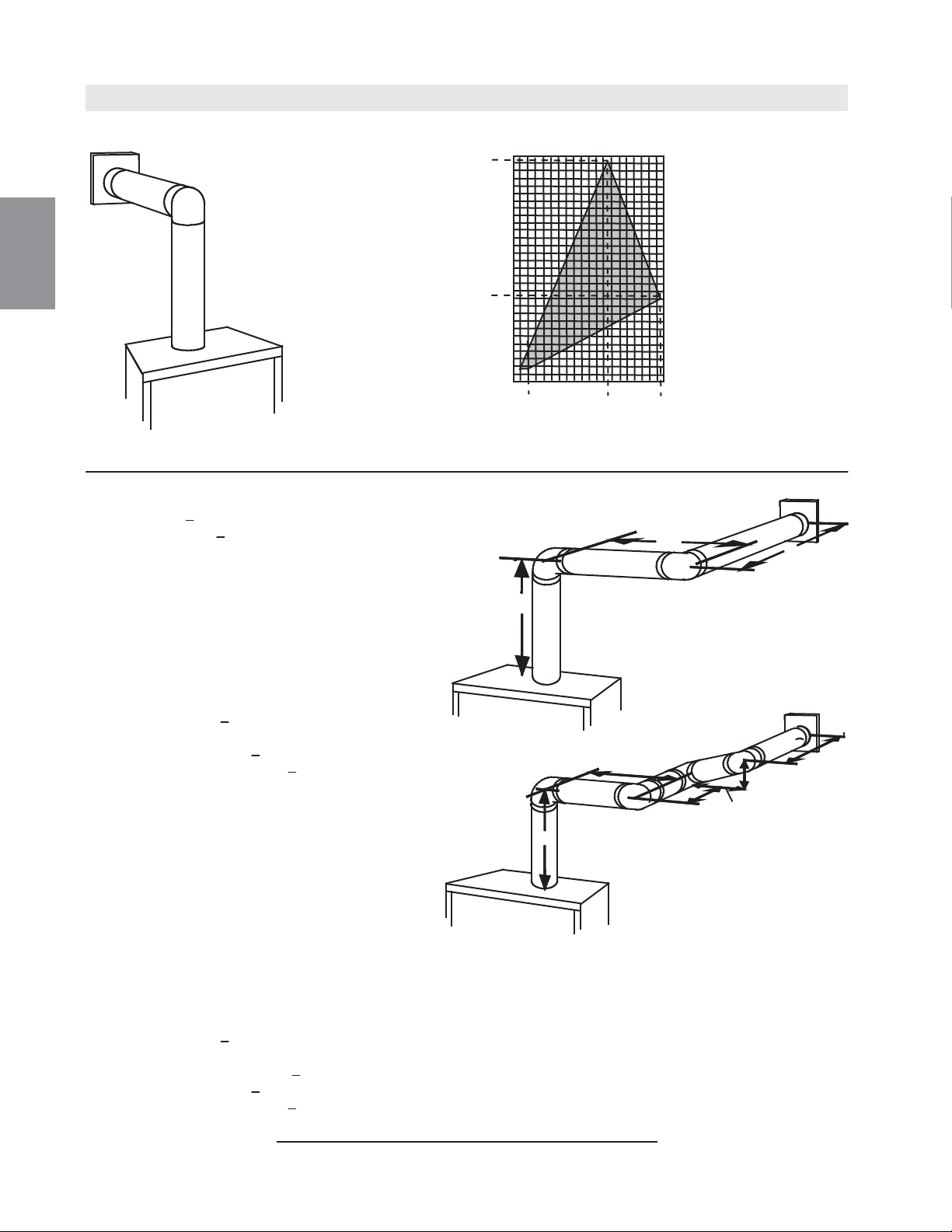

3.9 REAR EXIT HORIZONTAL TERMINATION

2.5

(0.8)

(1.5)

7.5

(2.3)

(3.1)

12.5

(3.8)

(4.6)

40 (12.2)

10 (3.1)

20 (6.1)

30 (9.1)

17.5

(5.3)

(6.1)

1.6

(0.5)

1.6 (0.5)

38.3 (11.7)

90°

Simple venting configuration

(only two 90° elbows)

See graph to determine the required vertical rise V

for the required

horizontal run H

REQUIRED

VERTICAL

RISE IN

FEET

(METERS) V

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) H

The shaded area within the lines represents acceptable values for H

and H

) < (V

)

16.3A

For vent configurations requiring more than two 90° elbows, the following formulas apply:

Formula 1: H

< V

Formula 2: H

+ V

< 40 feet (12.2m)

Example:

= 9 FT (2.7m)

= 6 FT (1.8m)

= V

+ V

= 9FT (2.7m) + 6FT (1.8m) = 15FT (4.6m)

= 3 FT (0.9m)

= 2 FT (0.6m)

= 1.5 FT (0.5m)

= H

+ H

= 3FT (0.9m) + 2FT (0.6m) + 1.5FT (0.5m) = 6.5FT (2m)

= .03 (four 90° elbows - 90°) = .03 (360° - 90°) = 8.1 FT (2.5m)

= H

+ H

= 6.5FT (2m) + 8.1FT (2.5m) = 14.6FT (4.5m)

+ V

= 14.6FT (4.5m) + 15FT (4.6m) = 29.6 FT (9m)

Formula 1: H

< V

14.6 FT (4.5m) < 15 FT (4.6m)

Formula 2: H

+ V

< 40 FT (12.2m)

29.6 FT (9m) < 40 FT (12.2m)

Since both formulas are met, this vent configuration is acceptable.

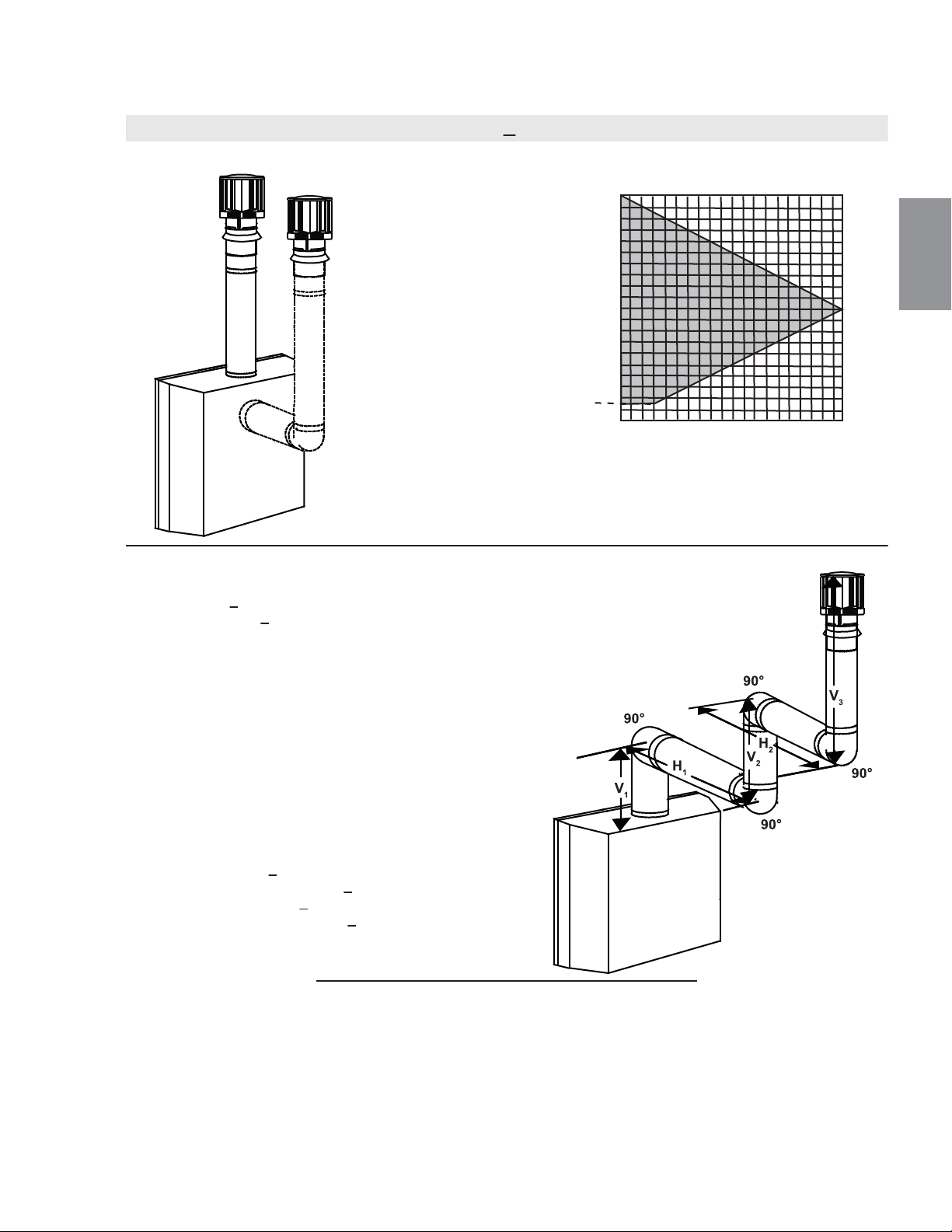

W415-1678 / 08.09.16

Simple venting configuration

(only two 90° elbows)

See graph to determine the required vertical rise V

for the

required horizontal run H

REQUIRED

VERTICAL RISE IN

INCHES

(MILLIMETERS)V

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) H

The shaded area within the lines represents acceptable

values for H

and H

90°

) > (V

)

50 (1270)

100 (2540)

150(3810)

2.5

(0.8)

(1.5)

7.5

(2.3)

(3.1)

12.5

(3.8)

(4.6)

17.5

(5.3)

(6.1)

147 (3733.8

(304.8)

(1676.4)

(0.3)

3.5

(1.1)

19.25

(5.9)

16.3_2B

For vent configurations requiring more than two 90° elbows, the following formulas apply:

Formula 1: H

< 3.5V

Formula 2: H

+ V

< 24.75 feet (7.5m)

Example:

= 4 FT (1.2m)

= 1.5 FT (0.5m)

= V

+ V

= 4FT (1.2m) + 1.5FT (0.5m) = 5.5 FT (1.7m)

= 2 FT (0.6m)

= 1 FT (0.3m)

= 1.5 FT (0.5m)

= H

+ H

= 2FT(0.6m) + 1FT(0.3m) + 1FT(0.3m) + 1.5FT(0.5m) = 5.5 FT(1.7m)

= .03 (four 90° elbows + one 45° elbow - 90°)

= .03 (90 + 90 + 90 + 90 + 45 - 90) = 9.45 FT (2.9m)

= H

+ H

= 5.5FT (1.7m) + 9.45FT (2.9m) = 14.95FT (4.6m)

+ V

= 14.95FT (4.6m) + 5.5FT (1.7m) = 20.45FT (6.2m)

Formula 1: H

< 3.5V

3.5V

= 3.5FT (1.1m) x 5.5FT (1.7m) = 19.25FT (5.9m)

14.95 FT (4.6m) < 19.25 FT (5.9m)

Formula 2: H

+ V

< 24.75 FT (7.5m)

20.45 FT (6.2m) < 24.75 FT (7.5m)

Since both formulas are met, this vent configuration is acceptable.

50 (1270)

100 (2540)

150(3810)

2.5

(0.8)

(1.5)

7.5

(2.3)

(3.1)

12.5

(3.8)

(4.6)

17.5

(5.3)

(6.1)

147 (3733.8

8 (203)

(1676.4)

(0.3)

3.5

(1.1)

19.25

(5.9)

W415-1678 / 08.09.16

3.10 TOP AND REAR EXIT VERTICAL TERMINATION

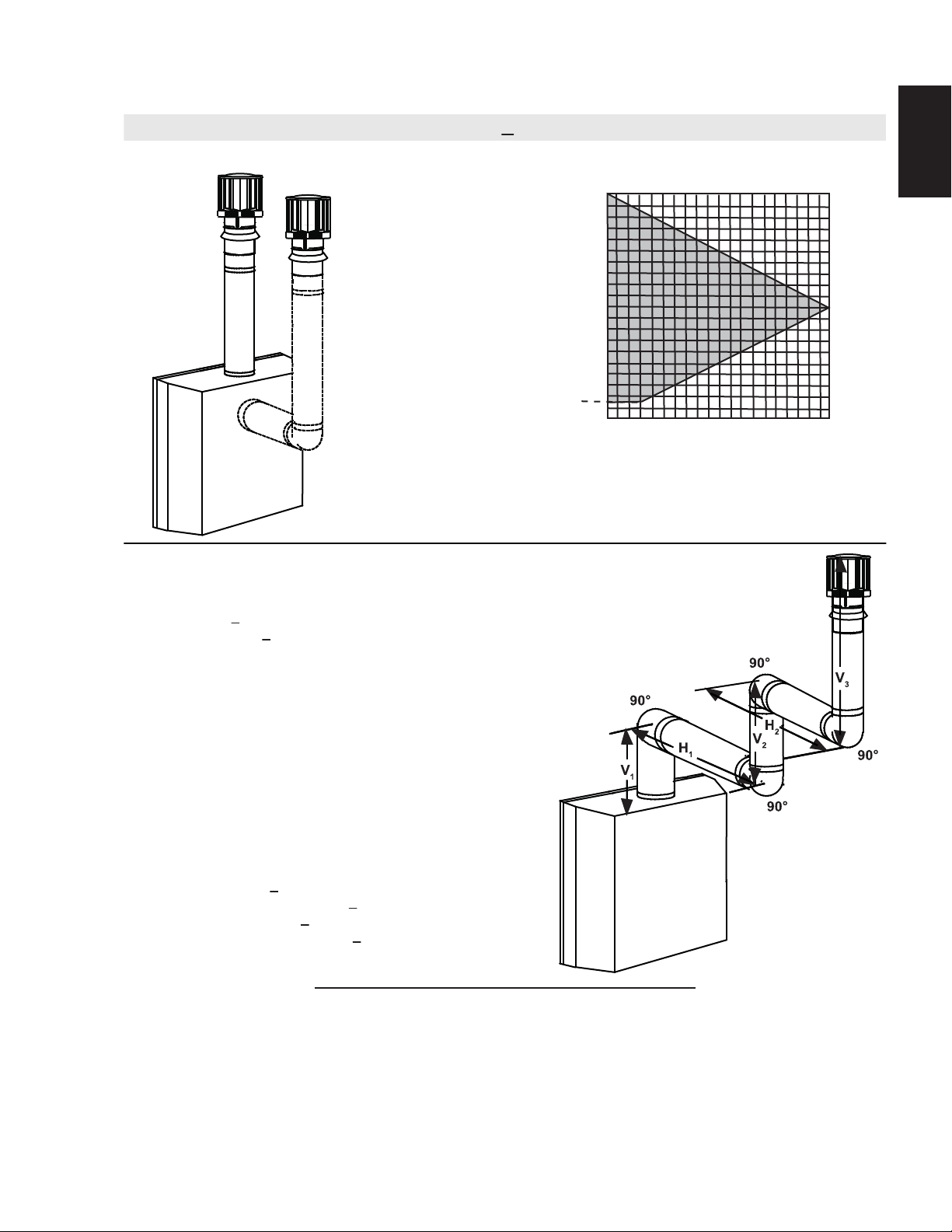

Simple venting configurations.

See graph to determine the required vertical rise V

for the

required horizontal run H

REQUIRED

VERTICAL RISE

IN FEET

(METERS)V

HORIZONTAL VENT RUN PLUS OFFSET IN FEET

(METERS) H

The shaded area within the lines represents acceptable

values for H

and H

(1.5)

(3.1)

(4.6)

(6.1)

40 (12.2)

10 (3.1)

20 (6.1)

30 (9.1)

3 (0.9)

) < (V

)

18.2A

For vent configurations requiring one or more 90° elbows (top exit) or one or more 90° elbows

(rear exit), the following formulas apply:

Formula 1: H

< V

Formula 2: H

+ V

< 40 feet (12.2m)

Example:

= 5 FT (1.5m)

= 6 FT (1.8m)

= 10 FT (3.1m)

= V

+ V

= 5FT (1.5m) + 6FT (1.8m) + 10FT (3.1m) = 21 FT (6.4m)

= 8 FT (2.4m)

= 2.5 FT (0.8m)

= H

+ H

= 8FT (2.4m) + 2.5FT (0.8m) = 10.5FT (3.2m)

= .03 (four 90° elbows - 90°)

= .03 (360° - 90°) = 8.1 FT (2.5m)

= H

+ H

= 10.5FT (3.2m) + 8.1FT (2.5m) = 18.6FT (5.7m)

+ V

= 18.6FT (5.7m) + 21FT (6.4m) = 39.6FT (12.1m)

Formula 1: H

< 3.5V

18.6 FT (5.7m) < 21 FT (6.4m)

Formula 2: H

+ V

< 40 FT (12.2m)

39.6FT (12.1m) < 40 FT (12.2m)

Since both formulas are met, this vent configuration is acceptable.

W415-1678 / 08.09.16

Simple venting configurations.

See graph to determine the required vertical rise V

for the

required horizontal run H

REQUIRED

VERTICAL

RISE IN

FEET

(METERS)V

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS)H

The shaded area within the lines represents acceptable

values for H

and H

(1.5)

(3.1)

(4.6)

(6.1)

10 (3.1)

20 (6.1)

3 (0.9)

(7.6)

(9.1)

19 (5.8)

90°

) > (V

)

18.2_2B

For vent configurations requiring more than two 90° elbows (top exit) or one 90° elbow (rear exit), the following

formulas apply:

Formula 1: H

< 3 V

Formula 2: H

+ V

< 40 feet (12.2m)

Example:

= 2 FT (0.6m)

= 1 FT (0.3m)

= 1.5 FT (0.5m)

= V

+ V

= 2FT (0.6m) + 1FT (0.3m) + 1.5FT (0.5m) = 4.5 FT (1.4m)

= 6 FT (1.8m)

= 2 FT (0.6m)

= H

+ H

= 6FT (1.8m) + 2FT (0.6m) = 8 FT (2.4m)

= .03 (four 90° elbows - 90°)

= .03 (360° - 90°) = 8.1 FT (2.5m)

= H

+ H

= 8FT (2.4m) + 8.1FT (2.5m) = 16.1FT (4.9m)

+ V

= 16.1FT (4.9m) + 4.5FT (1.4m) = 20.6FT (6.3m)

Formula 1: H

< 3.5 V

3.5 V

= 3FT (0.9m) x 4.5FT (1.4m) = 13.5 FT (4.1m)

16.1FT (4.9m) < 13.5 FT (4.1m)

Since this formula is not met, this vent configuration is unacceptable.

Formula 2: H

+ V

< 40 FT (12.2m)

16.1FT (4.9m) < 13.5 (4.1m)

Since only formula 2 is met, this vent configuration is unacceptable and a new fireplace location or vent configuration will

need to be established to satisfy both formulas.

90°

45°

18.2_3A

Example:

= 1.5 FT (0.5m)

= 5 FT (1.5m)

= V

+ V

= 1.5FT (0.5m)+ 5FT (1.5m) = 6.5 FT (2m)

= 1 FT (0.3m)

= 10.75 FT (3.3m)

= H

+ H

= 1FT (0.3m) + 1FT (0.3m) + 10.75FT (3.3m) = 12.75FT (3.9m)

= .03 (four 90° elbows + one 45° elbow - 90°)

= .03 (360° + 45° - 90°) = 6.75 FT (2.1m)

= H

+ H

= 12.75FT (3.9m) + 6.75FT (2.1m) = 19.5 FT (5.9m)

+ V

= 19.5FT (5.9m) + 6.5FT (2m) = 26 FT (7.9m)

Formula 1:

< 3 V

3 V

= 3FT (0.9m) x 6.5FT (2m) = 19.5FT (5.9m)

19.5FT (5.9m) = 19.5FT (5.9m)

Formula 2:

+ V

< 40 FT (12.2m)

26 FT (7.9m) < 40 FT (12.2m)

Since both formulas are met, this vent conﬁguration is acceptable.

W415-1678 / 08.09.16

3.11 REAR EXIT

WARNING

FAILURE TO CREATE A SEAL TO THE FIREBOX WITH THE EXHAUST COLLAR ASSEMBLY WILL CAUSE

THE APPLIANCE TO FUNCTION IMPROPERLY AND CAN CAUSE INJURY OR PROPERTY DAMAGE.

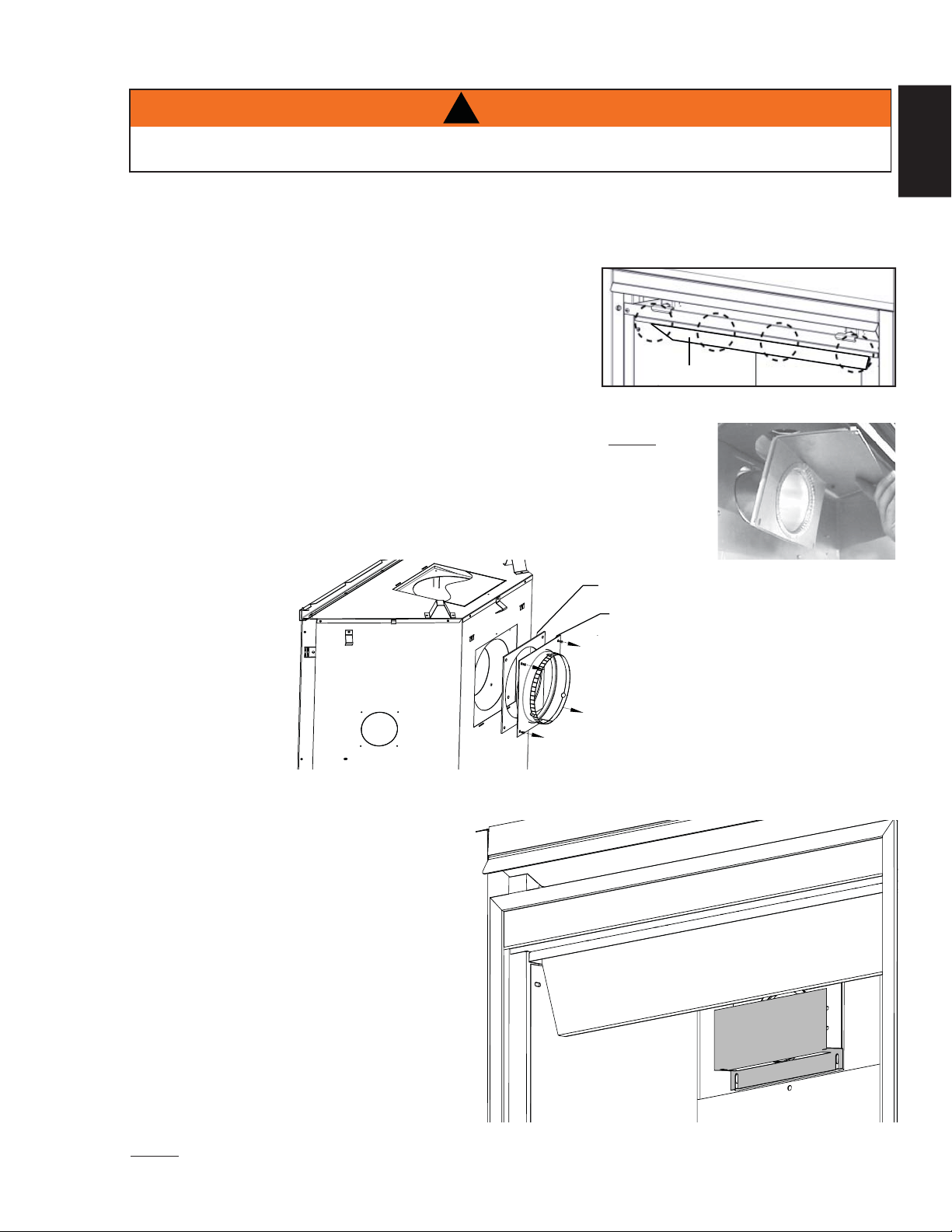

A. Remove the safety screen and glass front, refer to " SAFETY SCREEN / DOOR REMOVAL AND

INSTALLATION" section.

B. Remove the contents from the ﬁ rebox and set aside, you will need the exhaust and air inlet collar.

C. To ease assembly, remove the four hex head screws securing the deﬂ ector from inside the top front of

the ﬁ rebox, refer to Figure 1.

D. Place the gasket (provided) over the 4" (102mm) ﬂ ue

collar assembly and bend along perforation.

E. From inside the ﬁ rebox, insert the 4" (102mm) ﬂ ue collar

through the back of the ﬁ rebox. Install the rear exit shield

onto the 4" (102mm) ﬂ ue collar, see "REAR EXIT SHIELD"

section for installation instructions.

F. Secure the ﬂ ue collar assembly, gasket and rear exit shield using the four

black pan head 5/8" thread cutting screws, refer to Figure 2. NOTE: Do not

overtighten. The gasket needs only to be snug against the ﬁ rebox.

G. Reattach the deﬂ ector using the four screws and install the log set, glass

door and safety screen.

H. Install the 7" collar assembly, complete with gasket onto the rear panel

around the 4" (102mm) collar with the screws provided, refer to Figure 3.

Fig. 2

DEFLECTOR

Fig. 1

3.12 REAR EXIT SHIELD (FOR REAR VENT ONLY)

A. Remove the safety barrier assembly and

door from the appliance, refer to the

“SAFETY SCREEN & DOOR REMOVAL

/ INSTALLATION” section of the manual

for detailed instructions.

B. Loosen the two screws, that secure

the exhaust plate, and slide the shield

in place by sliding its slotted openings

behind the screwheads, tighten the two

previously loosened screws. Refer to

the illustration.

C. Reinstall the door and safety barrier

assembly on the appliance, refer to the

“SAFETY SCREEN & DOOR REMOVAL

/ INSTALLATION” section of the manual

for detailed instructions.

NOTE: THIS SHIELD IS USED TO BLOCK THE VIEW THROUGH THE VENTING TO THE OUTDOORS.

Fig. 3

INTAKE COLLAR

ASSEMBLY

GASKET

W415-1678 / 08.09.16

3.13 TOP EXIT

A. Remove the safety screen and glass front, refer to " SAFETY

SCREEN & DOOR REMOVAL / INSTALLATION" section.

B. Remove the contents from the ﬁ rebox and set aside, you

will need the ﬂ ue collar from the top of the log carton.

C. To ease assembly, remove the four hex head screws

securing the deﬂ ector from inside the top front of the

ﬁ rebox.

D. Remove the single screw from the outer cover on the

back of the appliance.

E. Remove the four screws on the 7" (178mm) intake collar

assembly; set the intakecollar and gasket aside. Careful

not to damage gasket.

F. Remove the single screw from the outer cover with

knockout intact, on the top of the appliance and set

aside.

G. Remove the inner cover plate and gasket by removing

the four screws. Reinstall the inner cover plate and

gasket onto the back of the appliance.

H. Take the outer cover (with knockout intact) and secure

onto the back of the appliance.

I. Remove and discard the 1 1/2" thick batt of insulation.

J. Place the 7" (178mm) intake collar

and gasket into the top of the

appliance and secure with the four

screws.

K. Re-install the outer cover (without

knock out) over the 7" (178mm)

exhaust collar assembly and secure.

L. From inside the ﬁ rebox, install the 4"

(102mm) exhaust collar up through the

top of the ﬁ rebox and secure with the

the four hex head 3/8" thread cutting screws. NOTE: Do not

overtighten. The gasket needs only to be snug against the

ﬁ rebox.

M. Re-attach the top deﬂ ector, log set, glass door and safety

screen.

NOTE: This appliance has been factory shipped as a rear vent.

EXHAUST FLUE COLLAR

INTAKE COLLAR

ASSEMBLY

GASKET

OUTER COVER

INNER

COVERPLATE

GASKET

OUTER

COVER

(with knockout)

WARNING

FAILURE TO CREATE A SEAL TO THE FIREBOX WITH THE EXHAUST COLLAR ASSEMBLY WILL CAUSE

THE APPLIANCE TO FUNCTION IMPROPERLY AND CAN CAUSE INJURY OR PROPERTY DAMAGE.

DEFLECTOR

W415-1678 / 08.09.16

4.0 INSTALLATION

4.1 WALL AND CEILING PROTECTION

For clearances to combustible materials from the vent pipe, see “FRAMING” section.

WARNING

DO NOT FILL THE SPACE BETWEEN THE VENT PIPE AND ENCLOSURE WITH ANY TYPE OF

MATERIAL. DO NOT PACK INSULATION OR COMBUSTIBLES BETWEEN CEILING FIRESTOPS.

ALWAYS MAINTAIN SPECIFIED CLEARANCES AROUND VENTING AND FIRESTOP SYSTEMS.

INSTALL WALL SHIELDS AND FIRESTOPS AS SPECIFIED. FAILURE TO KEEP INSULATION OR

OTHER MATERIALS AWAY FROM VENT PIPE MAY CAUSE FIRE.

70.1

WARNING

ENSURE TO UNPACK ALL LOOSE MATERIALS FROM INSIDE THE FIREBOX PRIOR TO HOOKING UP

THE GAS AND ELECTRICAL SUPPLY.

IF YOUR APPLIANCE IS SUPPLIED WITH A REMOTE ENSURE THE REMOTE RECEIVER IS IN THE

“OFF” POSITION PRIOR TO HOOKING UP THE GAS AND ELECTRICAL SUPPLY TO THE APPLIANCE.

FOR SAFE AND PROPER OPERATION OF THE APPLIANCE, FOLLOW THE VENTING INSTRUCTIONS

EXACTLY.

ALL EXHAUST AND INTAKE VENT PIPE JOINTS MUST BE SEALED USING RED RTV HIGH TEMP

SILICONE SEALANT W573-0002 (NOT SUPPLIED) OR BLACK HIGH TEMP MILL PAC W573-0007 (NOT

SUPPLIED) WITH THE EXCEPTION OF THE APPLIANCE EXHAUST FLUE COLLAR WHICH MUST BE

SEALED USING MILL PAC.

IF USING PIPE CLAMPS TO CONNECT VENT COMPONENTS, A MINIMUM OF 3 SCREWS MUST ALSO

BE USED TO ENSURE THE CONNECTION CANNOT SLIP OFF.

DO NOT CLAMP THE FLEXIBLE VENT PIPE.

RISK OF FIRE, EXPLOSION OR ASPHYXIATION. IMPROPER SUPPORT OF THE ENTIRE VENTING

SYSTEM MAY ALLOW VENT TO SAG AND SEPARATE. USE VENT RUN SUPPORTS AND CONNECT

VENT SECTIONS PER INSTALLATION INSTRUCTIONS.

RISK OF FIRE, DO NOT ALLOW LOOSE MATERIALS OR INSULATION TO TOUCH THE VENT PIPE.

REMOVE INSULATION TO ALLOW FOR THE INSTALLATION OF THE ATTIC SHIELD AND TO

MAINTAIN CLEARANCES TO COMBUSTIBLES.

68.2D

W415-1678 / 08.09.16

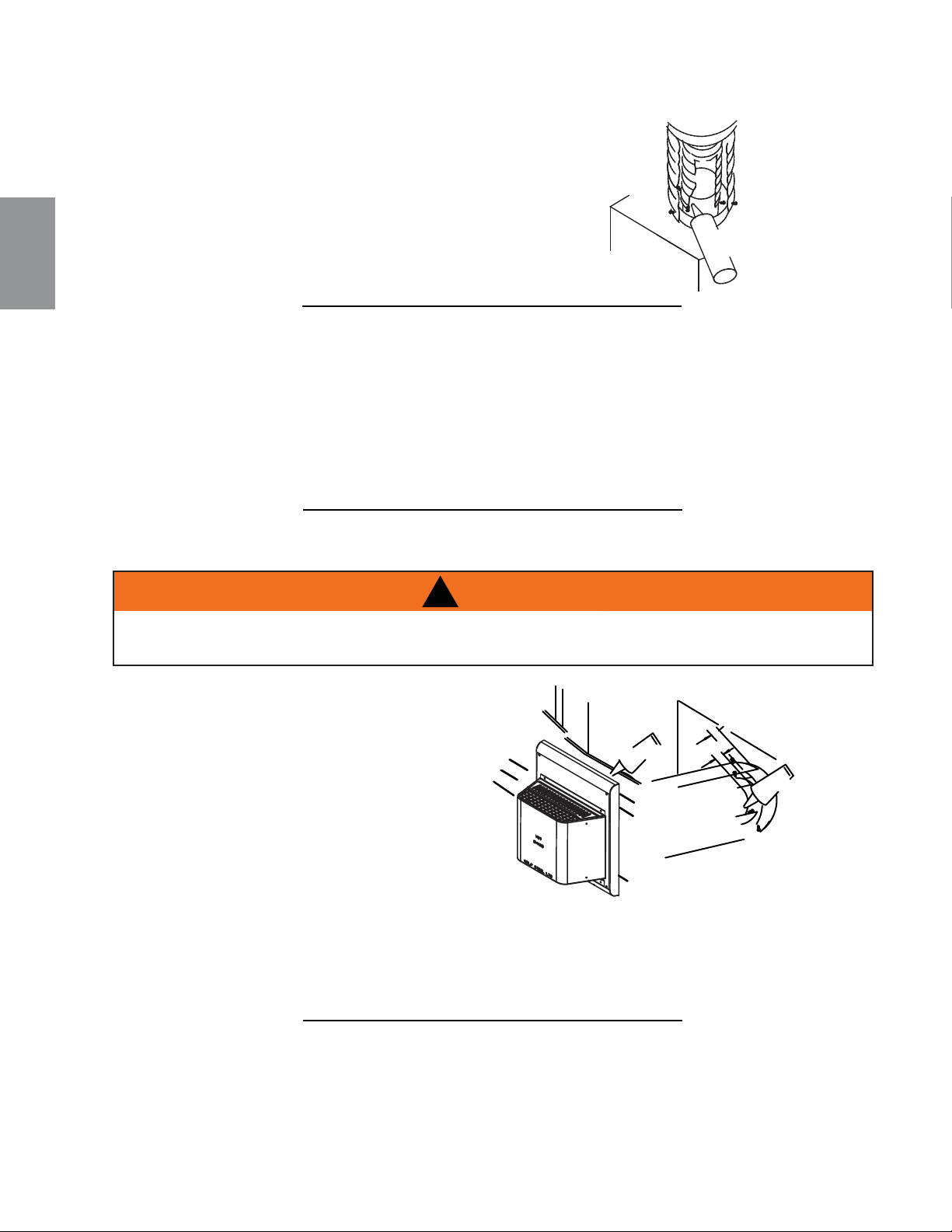

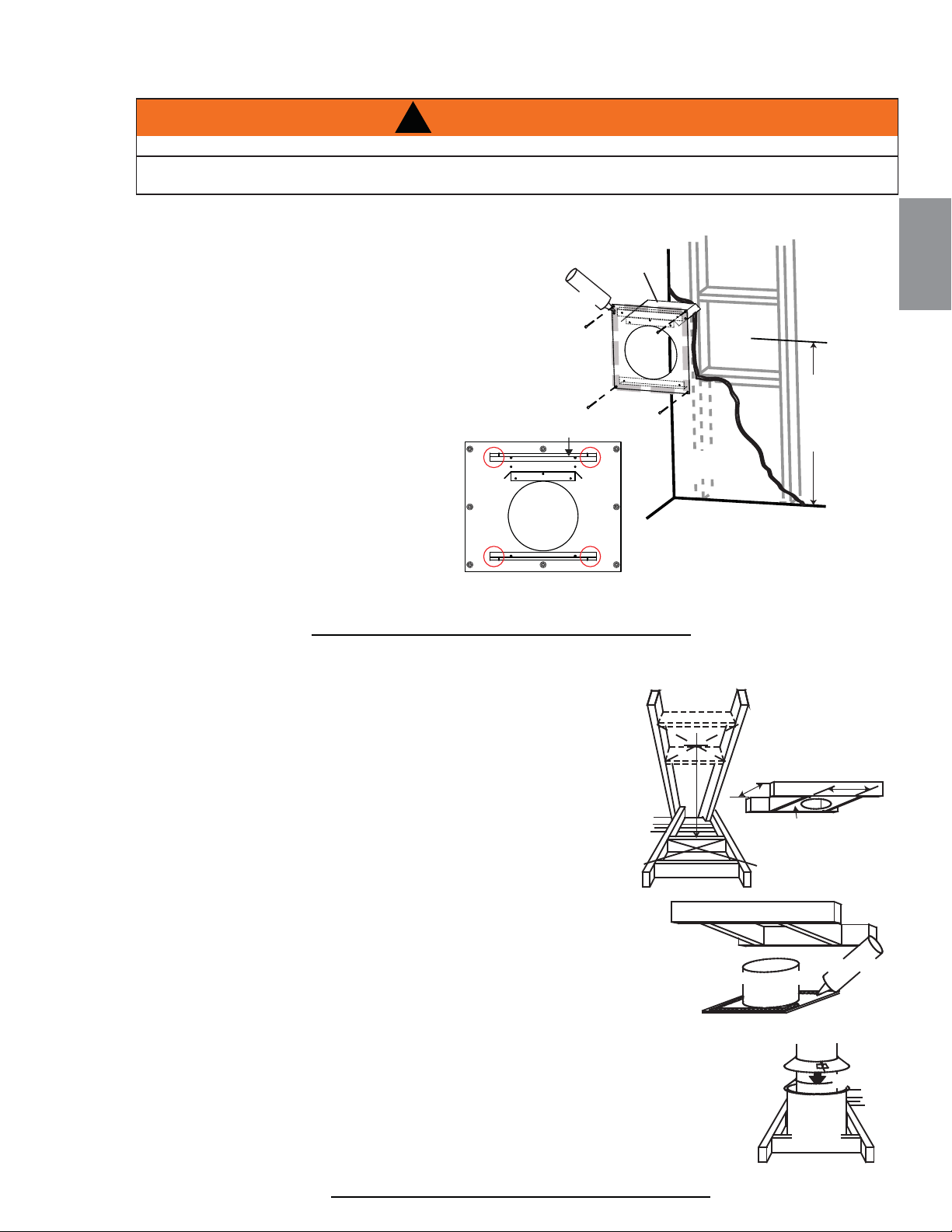

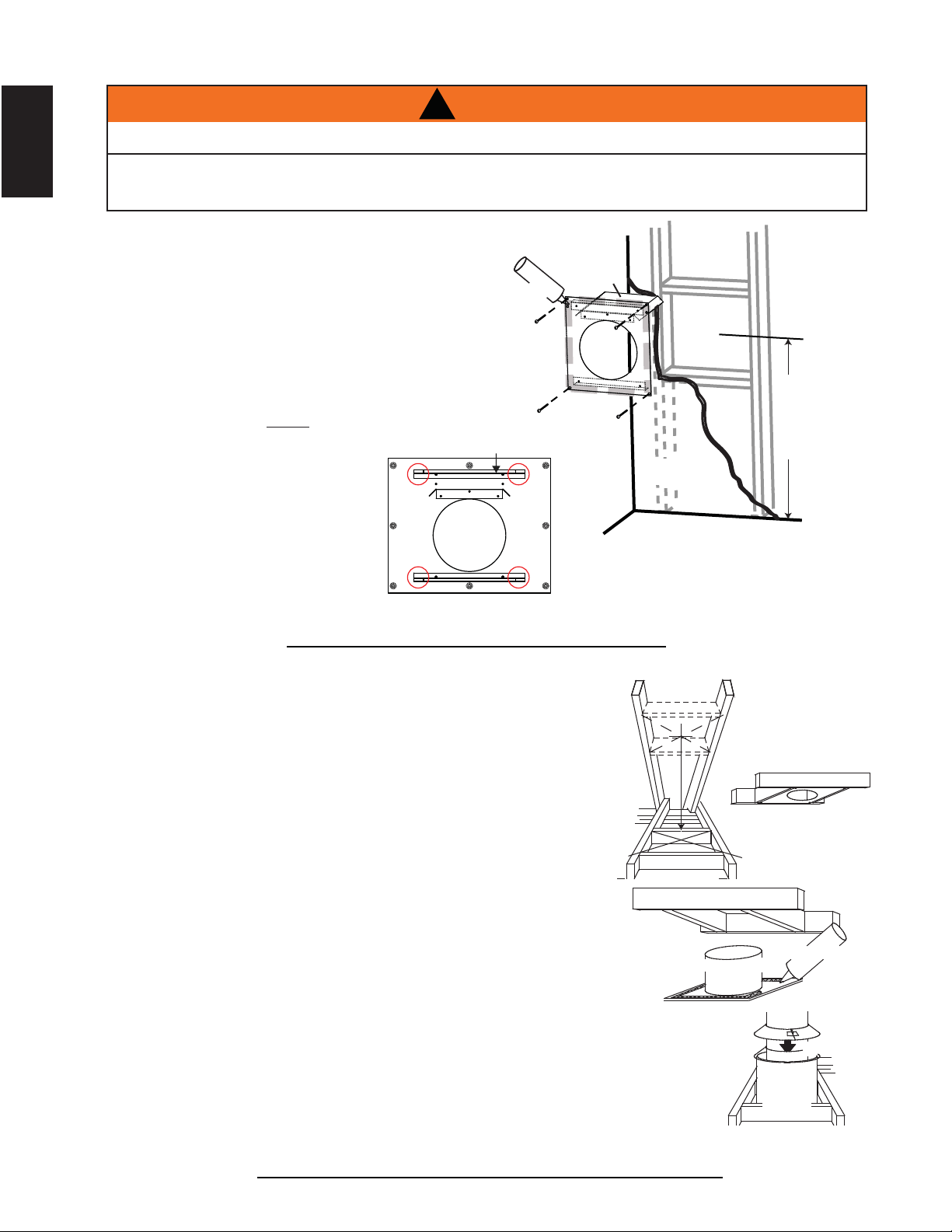

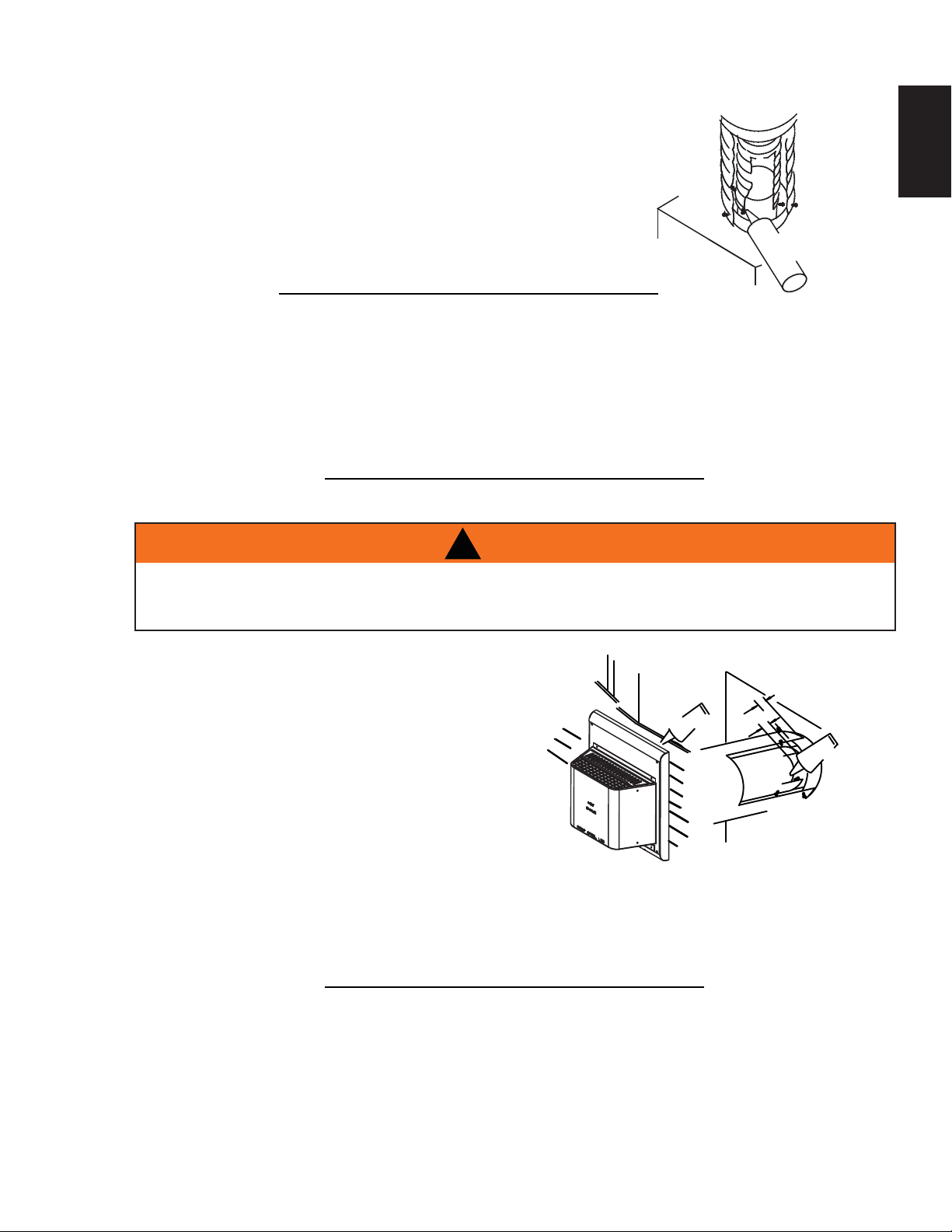

4.1.1 HORIZONTAL INSTALLATION

4.1.2 VERTICAL INSTALLATION

This application occurs when venting through a roof. Installation kits for

various roof pitches are available from your authorized dealer / distributor.

See accessories to order speciﬁ c kits required.

A. Determine the air terminal location, cut and frame a square opening as

illustrated in the ceiling and the roof to provide the minimum 1" (25mm)

clearance between the vent pipe and any combustible material. Try to

center the vent pipe location midway between two joists to prevent

having to cut them. Use a plumb bob to line up the center of the

openings. A vent pipe shield will prevent any materials such as

insulation, from ﬁ lling up the 1" (25mm) air space around the pipe.

Nail headers between the joist for extra support.

B. Apply a bead of caulking (not supplied) to the framework or to the

Wolf Steel vent pipe shield plate or equivalent (in the case of a ﬁ nished

ceiling), and secure over the opening in the ceiling. A ﬁ restop must be placed

on the bottom of each framed opening in a roof or ceiling that the venting

system passes through. Apply a bead of caulking all around and place a

ﬁ restop spacer over the vent shield to restrict cold air from being drawn into the

room or around the ﬁ replace. Ensure that both spacer and shield maintain the required

clearance to combustibles. Once the vent pipe is installed in its ﬁ nal position, apply

Mill Pac sealant (W573-0007) (not supplied) or red RTV silicone (W573-0002) (not

supplied) between the pipe and the ﬁ restop assembly.

C. In the attic, slide the vent pipe collar down to cover up the open end of the shield and

tighten. This will prevent any materials, such as insulation, from ﬁ lling up the 1" (25mm)

air space around the pipe.

21.1B

CAULKING

VENT PIPE

SHIELD

FIRESTOP

UNDERSIDE OF

JOIST

VENT

PIPE

COLLAR

VENT

PIPE

SHIELD

This application occurs when venting through an exterior wall.

Having determined the correct height for the air terminal

location, cut and frame a hole in the exterior wall as

illustrated to accommodate the ﬁ restop assembly.

Dry ﬁ t the ﬁ restop assembly before proceeding to

ensure the brackets on the rear surface ﬁ t to the

inside surface of the horizontal framing.

The vent shield must be installed to the full depth of

the combustible wall. The length of the vent shield

may be cut shorter for combustible walls that are less

than 6" (152mm) thick.

NOTE: Bend the tabs for reduced side

clearances or move the shield for reduced top clearances.

A. Apply a bead of caulking (not

supplied) around the corner

edge of the inside surface of the

ﬁ restop assembly, ﬁ t the ﬁ restop

assembly to the hole and secure

using the 4 screws (supplied in

your manual baggie).

B. Once the vent pipe is installed in its ﬁ nal position, apply red

RTV silicone sealant (W573-0002) (not supplied)

between the pipe and the ﬁ restop.

DETERMINE

THE

CORRECT

HEIGHT

CAULKING

FIRESTOP

SPACER

VENT

SHIELD

FINISHING

MATERIAL

20.7C

WARNING

THE FIRESTOP ASSEMBLY MUST BE INSTALLED WITH THE VENT SHIELD TO THE TOP.

TERMINALS MUST NOT BE RECESSED INTO A WALL OR SIDING MORE THAN THE DEPTH OF THE

RETURN FLANGE OF THE MOUNTING PLATE.

W415-1678 / 08.09.16

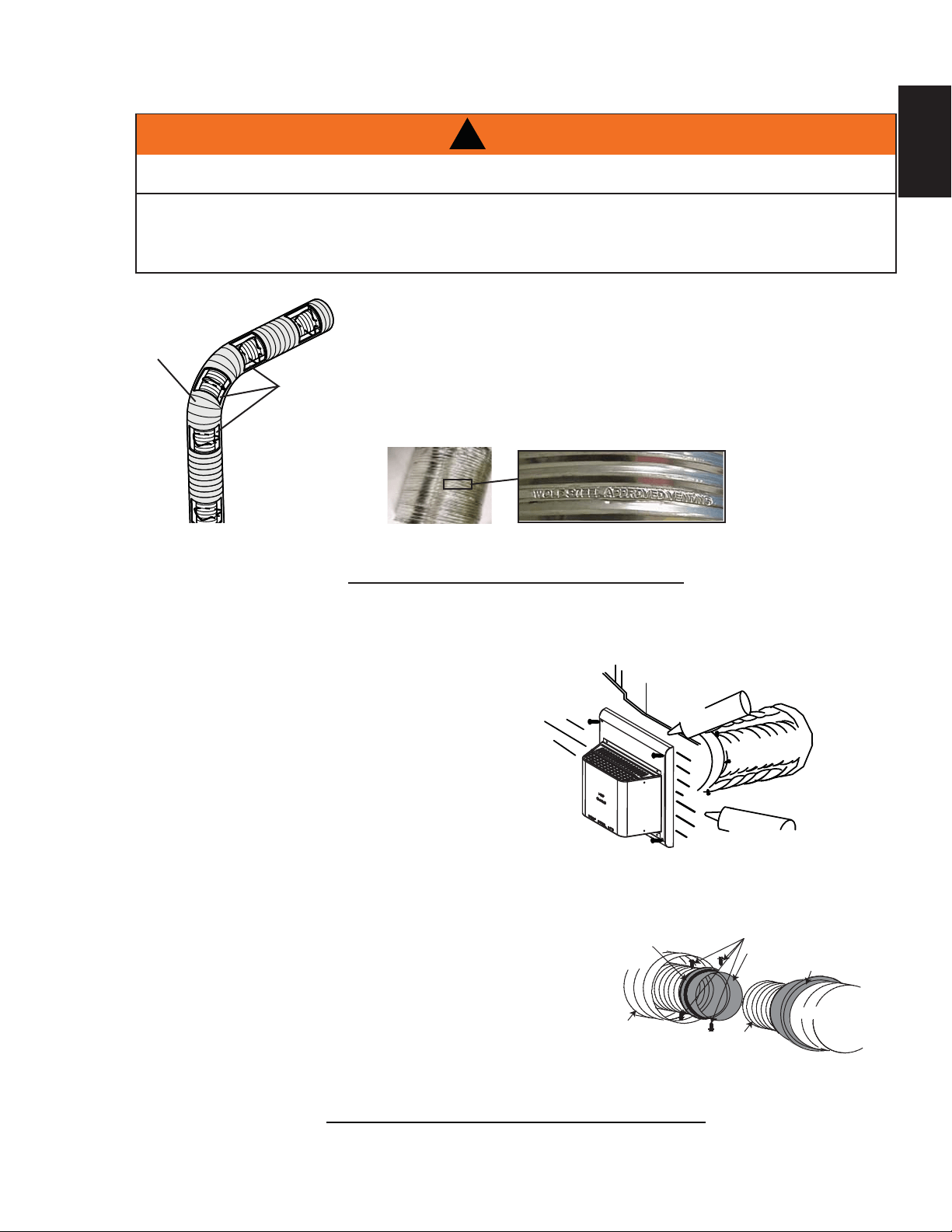

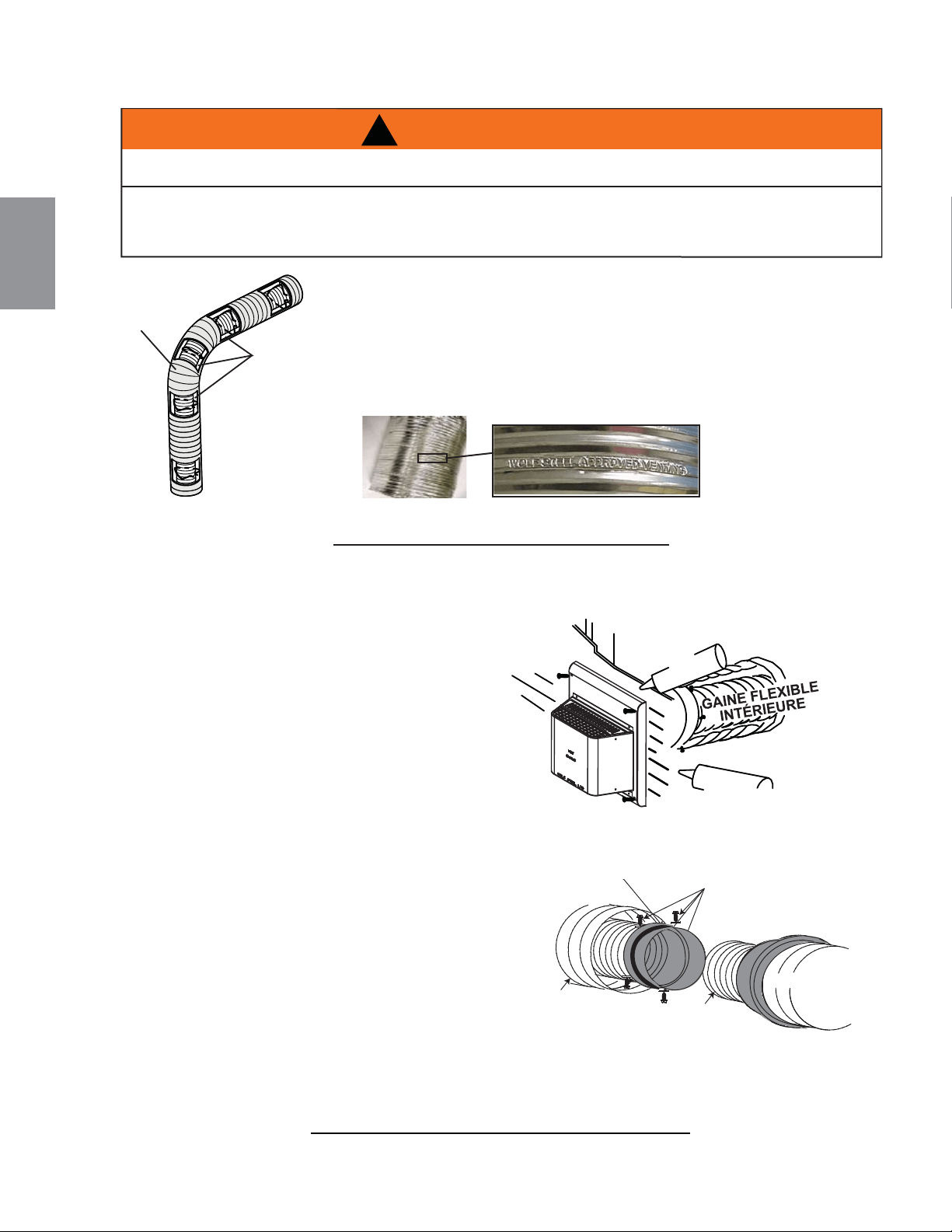

4.2 USING FLEXIBLE VENT COMPONENTS

For safe and proper operation of the appliance, follow the venting

instructions exactly.

All inner ﬂ ex pipe and outer ﬂ ex pipe joints may be sealed using high

temperature red RTV silicone W573-0002 (not supplied) or the high

temperature sealant W573-0007 Mill Pac (not supplied). However, the high

temperature sealant W573-0007 Mill Pac (not supplied) must be used on

the joint connecting the inner ﬂ ex pipe and the exhaust ﬂ ue collar.

Use only approved ﬂ exible vent pipe kits marked:

“Wolf Steel Approved Venting” as identiﬁ ed by

the stamp only on the outer ﬂ ex pipe.

22.1A

ELBOW

SPACERS

DO NOT ALLOW THE INNER FLEX PIPE TO BUNCH UP ON HORIZONTAL OR VERTICAL RUNS AND ELBOWS.

KEEP IT PULLED TIGHT.

SPACERS ARE ATTACHED TO THE INNER FLEX PIPE AT PREDETERMINED INTERVALS TO MAINTAIN AN EVEN

AIR GAP TO THE OUTER FLEX PIPE. THIS GAP IS REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED

AT THE START, MIDDLE AND END OF EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS

MUST NOT BE REMOVED.

WARNING

4.2.1 HORIZONTAL AIR TERMINAL INSTALLATION

. Stretch the inner ﬂ ex pipe to the required length taking into

account the additional length needed for the ﬁ nished wall

surface. Apply a heavy bead of the Mill Pac sealant

(W573-0007) (not supplied) to the inner sleeve of

the air terminal. Slip the vent pipe a minimum of 2”

(50.8mm) over the inner sleeve of the air terminal and

secure with a minimum of 3 #8 screws.

B. Using the outer ﬂ ex pipe, slide over the outer

combustion air sleeve of the air terminal and secure with

a minimum of 3 #8 screws. Seal using red RTV silicone

(W573-0002) (not supplied).

C. Insert the vent pipes through the ﬁ restop maintaining the

required clearance to combustibles. Holding the air terminal

(lettering in an upright, readable position), secure to the

exterior wall and make weather tight by sealing with

caulking (not supplied).

D. If more vent pipe needs to be used to reach the ﬁ replace,

couple them together as illustrated. The vent system must

be supported approximately every 3 feet (0.9m) for both

vertical and horizontal runs. Use noncombustible strapping

to maintain the minimum clearance to combustibles.

The air terminal mounting plate may be recessed into the exterior wall or siding no greater than the depth

of its return ﬂ ange.

23.1C

SCREWS

#10x2"

2" (50.8mm) OVERLAP

OUTER FLEX PIPE

INNER FLEX

PIPE

HIGH TEMPERATURE

SEALANT

CAULKING

HI-TEMP

SEALANT

#8 X 1/2” SELF DRILLING

SCREWS

INNER COUPLER

OUTER COUPLER

OUTER

FLEX PIPE

INNER

FLEX PIPE

OUTER

FLEX PIPE

W415-1678 / 08.09.16

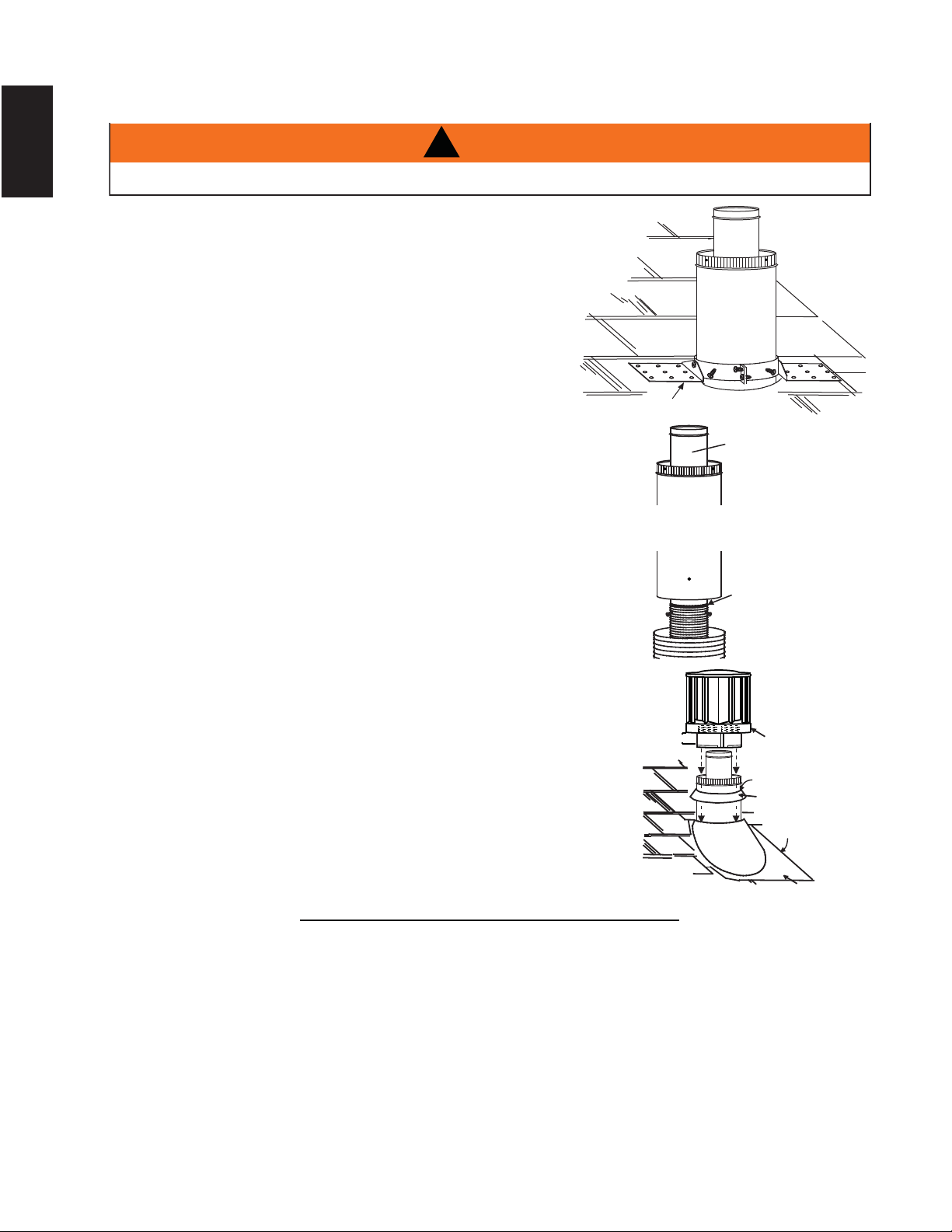

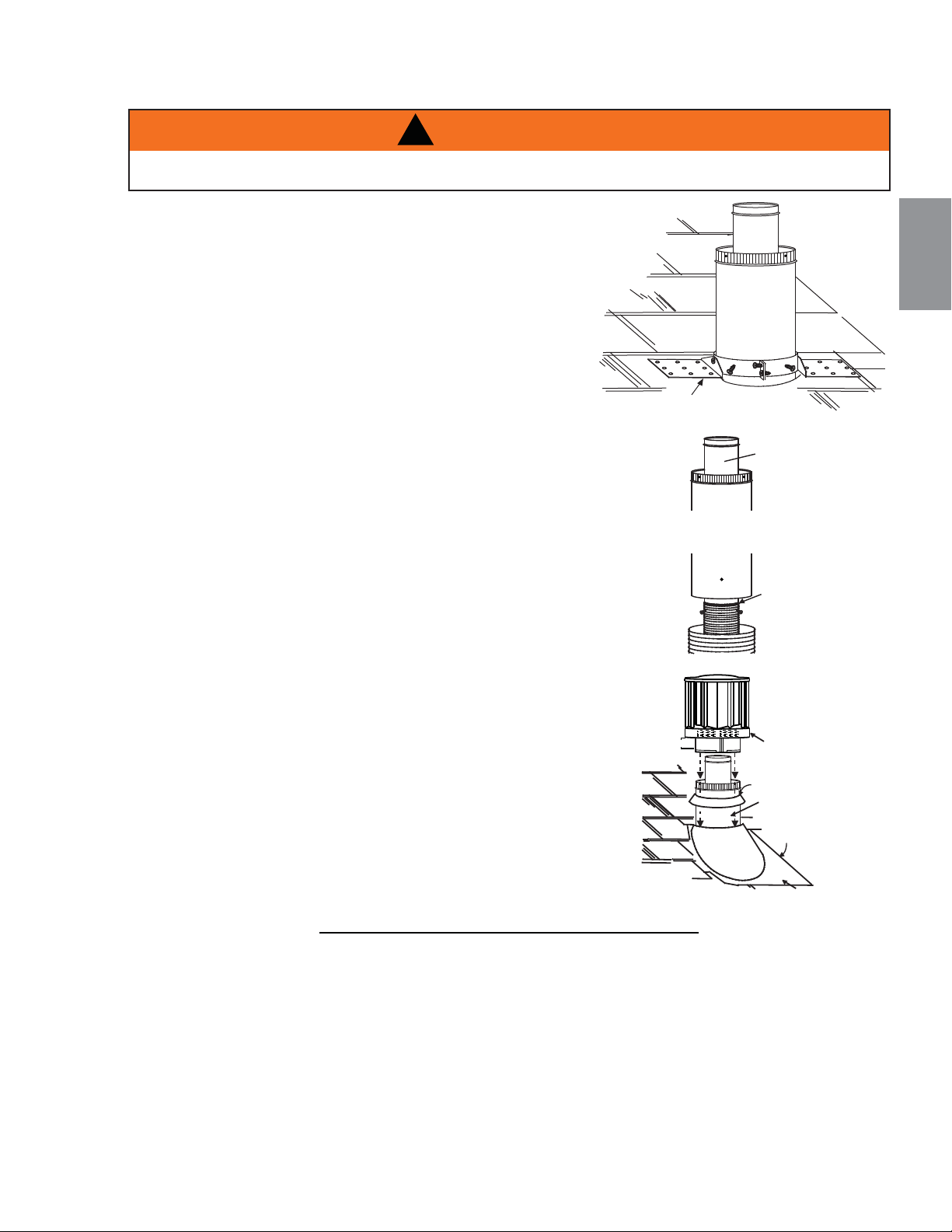

4.2.2 VERTICAL AIR TERMINAL INSTALLATION

. Fasten the roof support to the roof using the screws provided. The

roof support is optional. In this case the venting is to be adequately

supported using either an alternate method suitable to the

authority having jurisdiction or the optional roof support.

B. Stretch the inner ﬂ ex pipe to the required length. Slip the

inner ﬂ ex pipe a minimum of 2” (51mm) over the inner pipe

of the air terminal connector and secure with a minimum of

3 #8 screws. Seal using a heavy bead of Mill Pac sealant

(W573-0007) (not supplied).

C. Repeat using the outer ﬂ ex pipe, using a heavy bead

of red RTV silicone (W573-0002) (not supplied) and a

minimum of 3 #8 screws.

D. Thread the air terminal connector / vent pipe assembly down through

the roof. The air terminal must be positioned vertically and plumb.

Attach the air terminal connector to the roof support, ensuring that

the top of the air terminal is 16” (406mm) above the highest point

that it penetrates the roof.

E. Remove nails from the shingles, above and to the sides of the air

terminal connector. Place the ﬂ ashing over the air terminal connector

leaving a min. 3/4” (19mm) of the air terminal connector showing

above the top of the ﬂ ashing. Slide the ﬂ ashing underneath the

sides and upper edge of the shingles. Ensure that the air terminal

connector is properly centered within the ﬂ ashing, giving a 3/4”

(19mm) margin all around. Fasten to the roof. Do not nail through

the lower portion of the ﬂ ashing. Make weather-tight by sealing with

caulking. Where possible, cover the sides and top edges of the

ﬂ ashing with rooﬁ ng material.

F. Aligning the seams of the terminal and air terminal connector,

place the terminal over the air terminal connector making sure

the vent pipe goes into the hole in the terminal. Secure with

the three screws provided.

G. Apply a heavy bead of weatherproof caulking 2” (51mm)

above the ﬂ ashing. Install the storm collar around the air

terminal and slide down to the caulking. Tighten to ensure that

a weather-tight seal between the air terminal and the collar is

achieved.

H. If more vent pipe needs to be used to reach the appliance see

“HORIZONTAL AIR TERMINAL INSTALLATION” section.

24.1C

STORM COLLAR

FLASHING

CAULKING

WEATHER

SEALANT

2” (51mm)

AIR INLET

BASE

ROOF SUPPORT

INNER FLEX PIPE

INNER PIPE

MILL PAC

SEALANT

(W572-0007)

AIR

TERMINAL

CONNECTOR

OUTER FLEX PIPE

MAINTAIN A MINIMUM 2” (51mm) SPACE BETWEEN THE AIR INLET BASE AND THE STORM COLLAR.

WARNING

W415-1678 / 08.09.16

4.2.3 APPLIANCE VENT CONNECTION

. Install the inner exhaust ﬂ ue collar to the appliance. Secure

with a minimum of 3 #8 screws. Seal the joint and screw

holes using Mill Pac sealant (W573-0007) (not supplied).

B. Install the outer ﬂ ex pipe to the appliance. Attach and seal

the joints using a red RTV silicone and a minimum of 3 #8

screws.

28.1D

2” (50.8mm)

OVERLAP

HIGH TEMP

SEALANT

#8 X 1/2”

SELF

DRILLING

SCREWS

4.3 USING RIGID VENT COMPONENTS

The vent system must be supported approximately every 3 feet (0.9m) for both vertical and horizontal runs.

Use Wolf Steel Ltd. support ring assembly or equivalent noncombustible strapping to maintain the minimum

clearance to combustibles for both vertical and horizontal runs.

ll inner exhaust and outer intake vent pipe joints may be sealed using either red high temperature silicone

sealant W573-0002 (not supplied) or black high temperature sealant W573-0007 Mill Pac (not supplied) with

the exception of the appliance exhaust ﬂ ue collar which must be sealed using Mill Pac.

25.1A

4.3.1 HORIZONTAL AIR TERMINAL INSTALLATION

A. Move the appliance into position. Measure the

vent length required between terminal and

appliance taking into account the additional

length needed for the ﬁ nished wall surface

and any 1¼” (31.8mm) overlaps between

venting components.

B. Apply high temperature sealant W573-0007 Mill Pac

(not supplied) to the outer edge of the inner exhaust

ﬂ ue collar of the appliance. Attach the ﬁ rst inner rigid

pipe component and secure using a minimum of 3

self tapping screws. Repeat using the outer rigid pipe.

C. Insert the vent pipes through the ﬁ restop maintaining the required clearance to combustibles. Holding

the air terminal (lettering in an upright, readable position), secure to the exterior wall and make

weather tight by sealing with caulking (not supplied).

The air terminal mounting plate may be recessed into the exterior wall or siding no greater than the

depth of the return ﬂ ange.

26.1A

SCREWS

#10x2"

OUTER

RIGID

PIPE

CAULKING

INNER

RIGID

PIPE

SCREWS

SELF DRILLING

#8x1/2"

1" (25.4mm)

OVERLAP

SEALANT

HI-TEMP

WARNING

RISK OF FIRE, DO NOT ALLOW LOOSE MATERIALS OR INSULATION TO TOUCH THE VENT PIPE.

REMOVE INSULATION TO ALLOW FOR THE INSTALLATION OF THE ATTIC SHIELD AND TO

MAINTAIN CLEARANCES TO COMBUSTIBLES.

W415-1678 / 08.09.16

4.3.2 VERTICAL AIR TERMINAL INSTALLATION

A. Move the appliance into position.

B. Fasten the roof support to the roof using the screws provided. The

roof support is optional. In this case the venting is to be adequately

supported using either an alternate method suitable to the authority

having jurisdiction or the optional roof support.

C. Apply high temperature sealant (not supplied) to the outer edge of

the inner sleeve of the air terminal. Slip the inner coupler a minimum

of 2" (51mm)over the sleeve and secure using a minimum of 3

screws.

D. Apply high temperature sealant (not supplied) to the outer edge of

the of the outside sleeve of the air terminal connector. Slip the outer

coupler over the sleeve and secure as before. Trim the outer coupler

even with the inner coupler end.

E. Thread the air terminal connector / vent pipe assembly down through

the roof support and attach, ensuring that a minimum 16" (406mm) of

air terminal connector will penetrate the roof when fastened. If the attic space is tight, we recommend

threading the Wolf Steel vent pipe collar or equivalent loosely onto the air terminal connector / vent

pipe assembly as it is passed through the attic. The air terminal connector must be located vertically

and plumb.

F. Remove nails from the shingles, above and to the sides of the air terminal

connector. Place the ﬂ ashing over the air terminal connector and slide it

underneath the sides and upper edge of the shingles. Ensure that the air

terminal connector is properly centered within the ﬂ ashing, giving a 3/4"

(19mm) margin all around. Fasten to the roof. Do NOT nail through the lower

portion of the ﬂ ashing. Make weather-tight by sealing with caulking. Where

possible, cover the sides and top edges of the ﬂ ashing with rooﬁ ng material.

G. Apply a heavy bead of waterproof caulking 2" (51mm) above the ﬂ ashing. Install the storm collar

around the air terminal and slide down to the caulking. Tighten to ensure that a weather-tight seal

between the air terminal connector and the collar is achieved.

H. Continue adding rigid venting sections, sealing and securing as above. Attach the inner collapsed

telescopic sleeve to the last section of rigid piping. Secure with screws and seal. Repeat using the

outer telescopic sleeve.

I. Run a bead of red RTV silicone (not supplied) around the outside of the inner exhaust ﬂ ue collar

on the appliance. Pull the telescopic sleeve a minimum of 2" (51mm) onto the collar. Secure with a

mnimum of 3 screws. Repeat with the outer telescopic sleeve.

J. In the attic, slide the vent pipe collar down to cover up the open end of the shield and tighten. This will

prevent any materials, such as insulation, from ﬁ lling up the 1" (25mm) air space around the pipe.

27.2A

INNER RIGID

PIPE

OUTER

RIGID PIPE

INNER PIPE

HIGH

TEMPERATURE

SEALANT

AIR

TERMINAL

CONNECTOR

VENT

PIPE

COLLAR

VENT

PIPE

SHIELD

W415-1678 / 08.09.16

4.3.3 RESTRICTING VERTICAL VENTS

WARNING







1. MOST RESTRICTION

2. MODERATE RESTRICTION

3. LEAST RESTRICTION

EXHAUST COLLAR

RESTRICTOR

MOUNTING

SCREWS

FIREBOX TOP

RESTRICTOR

TOP VIEW

#8 x ½ HEX HEAD

SHEET METAL

SCREW

TURN OFF GAS AND ELECTRICAL SUPPLY BEFORE SERVICING THE APPLIANCE.

APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE IS COOL.

FOR SAFE AND PROPER OPERATION OF THE APPLIANCE, FOLLOW THE VENTING INSTRUCTION EXACTLY.

TO AVOID DANGER OF SUFFOCATION KEEP THE PACKAGING BAG AWAY FROM BABIES AND

CHILDREN. DO NOT USE IN CRIBS, BED, CARRIAGES OR PLAY PENS. THIS BAG IS NOT A TOY.

KNOT BEFORE THROWING AWAY.

Vertical installations may display a very active ﬂ ame. If this appearance is not desirable, the exhaust outlet may

be restricted with a Wolf Steel approved restrictor kit. This kit is not recommended for short vertical vent runs.

Depending on the model and/or year of your appliance, mounting holes may not exist.

A. If mounting holes exist, remove the screws from the ﬁ rebox top, align the restrictor plate as illustrated

and secure.

B. If mounting holes do not exist, align the restrictor plate as illustrated and secure using the two #8x1/2

hex head sheet metal screws supplied.

C. Ensure the plate will pivot at the slot up into the exhaust outlet.

D. Depending on the amount of restriction desired, the restrictor plate can be left ﬂ at for most restriction or

bent up for varying degrees of restriction.

W415-1678 / 08.09.16

7.6B

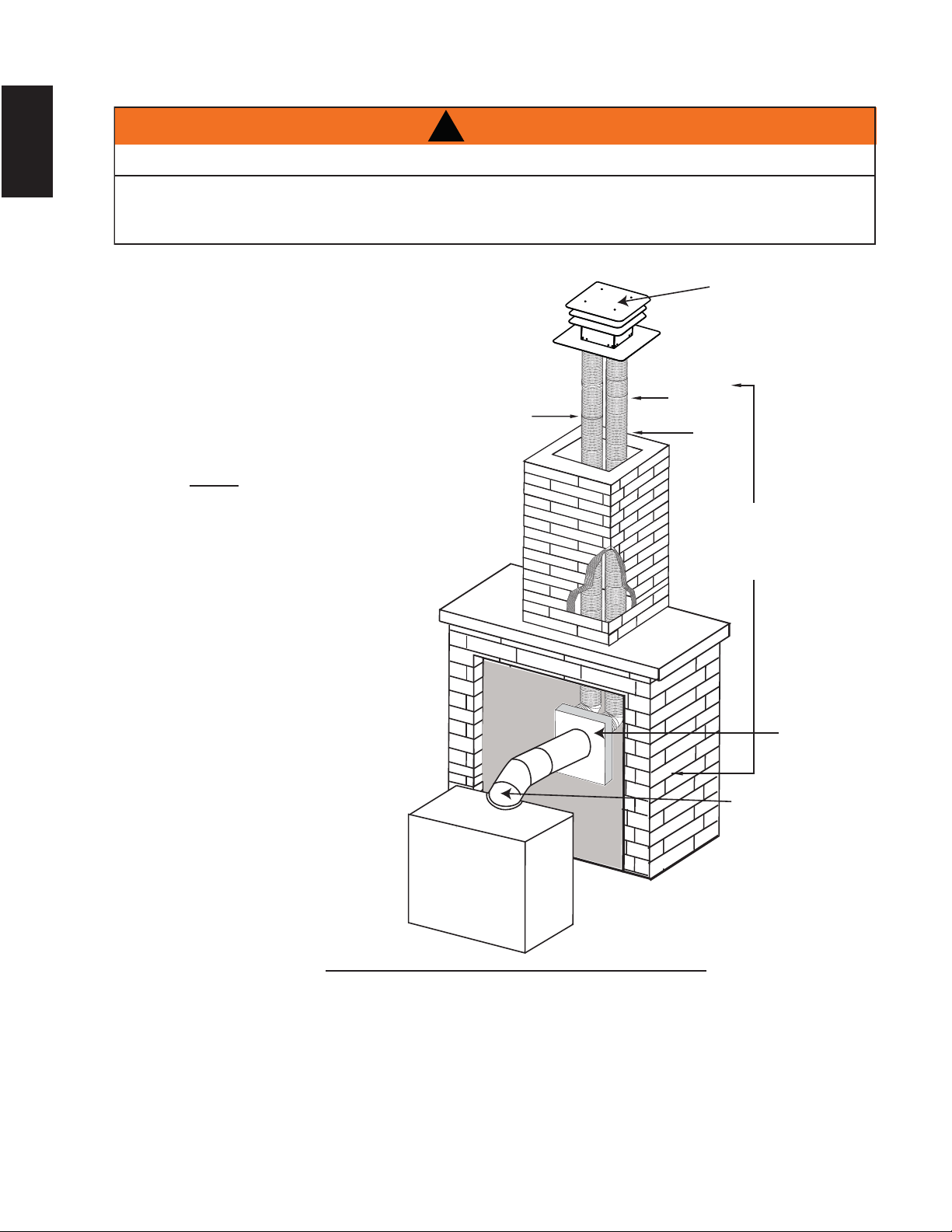

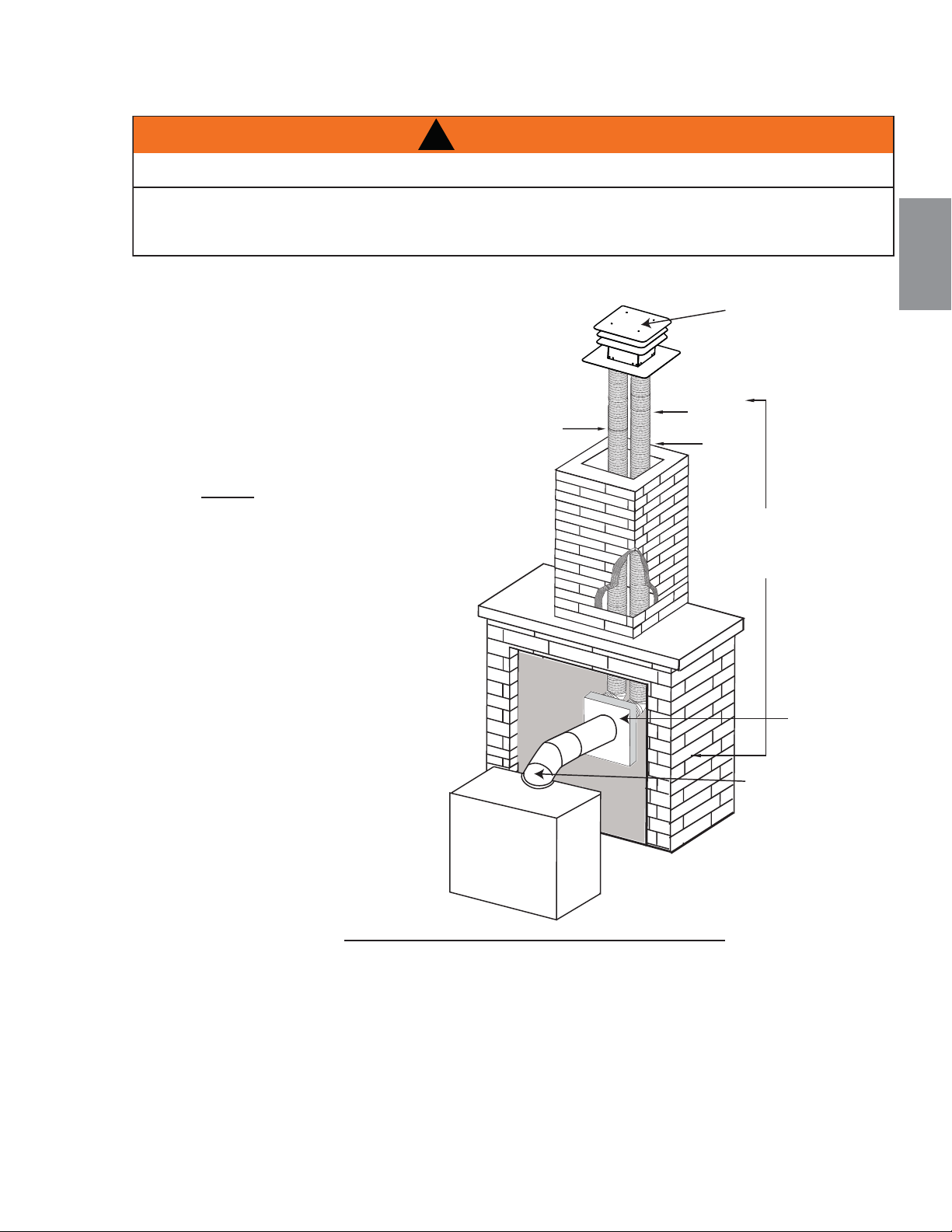

This appliance is designed to be attached to a 3” (76.2mm) co-linear aluminum ﬂ ex vent system running the

full length of a masonry chimney.

The ﬂ ex liners accommodate any contours of a

masonry chimney, however, it is necessary to keep

the ﬂ exible liners as straight as possible. The inlet air

collar of the termination cap must be connected to

the air intake ﬂ ex liner and the exhaust collar must be

connected to the exhaust ﬂ exible liner.

Both Simpson Duravent and Selkirk co-linear to

co-axial adaptors have been approved on this

appliance (NOTE: A vent adaptor will be required

directly off the appliance).

Follow vent manufacturer’s installation instructions.

Different manufacturer’s venting components must

not be combined. Once the preferred manufacturer’s

appliance adaptor has been attached, the

remainder of the system must be that of the

same manufacturer.

The only exception to this rule is to use Wolf

Steel’s approved 3” (76.2mm) ﬂ ex liner and

co-linear termination.

WARNING

RISK OF FIRE!

CO-AXIAL TO CO-LINEAR VENTING CONFIGURATIONS MUST ONLY BE USED IN A NON-

COMBUSTIBLE CHIMNEY OR ENCLOSURE. INSTALLATION IN A COMBUSTIBLE ENCLOSURE COULD

RESULT IN A FIRE.

AIR

INTAKE

EXHAUST

FLUE

FLEX

LINER

* 40 FT (12.2m)

MAX.

10 FT (3.1m)

MIN

COAXIAL TO

CO-LINEAR

ADAPATOR

APPLIANCE

VENT ADAPTOR

TERMINATION

* Measured from appliance ﬂ ue collar to

termination ﬂ ue collar

4.4 VERTICAL THROUGH EXISTING CHIMNEY

W415-1678 / 08.09.16

This appliance must be installed in accordance with the manufacturer’s instructions and the Manufactured

Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home

Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas

indicated on the rating plate.

29.1B

This Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the unit. Built

in appliances are equipped with 1/4” (6.4mm) diameter holes located in the front left and right corners of the base.

Use #10 hex head screws, inserted through the holes in the base to secure. For free standing products contact

your local authorized dealer / distributor for the appropriate securing kit. For mobile home installations,

the appliance must be fastened in place. It is recommended that the appliance be secured in all installations.

Always turn off the pilot and the fuel supply at the source, prior to moving the mobile home. After moving the

mobile home and prior to lighting the appliance, ensure that the logs are positioned correctly.

This appliance is certiﬁ ed to be installed in an aftermarket permanently located, manufactured (mobile)

home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not

convertible for use with other gases, unless a certiﬁ ed kit is used.

Conversion Kits

This appliance is ﬁ eld convertible between Natural Gas (NG) and Propane (LP).

To convert from one gas to another consult your Authorized dealer/distributor.

4.5 MOBILE HOME INSTALLATION

W415-1678 / 08.09.16

4.6 GAS INSTALLATION

30.1A

Installation and servicing to be done by a qualiﬁ ed installer.

• Move the appliance into position and secure.

• If equipped with a ﬂ ex connector the appliance is designed to accept a 1/2” (13mm) gas supply.

Without the connector it is designed to accept a 3/8” (9.5mm) gas supply. The appliance is equipped

with a manual shut off valve to turn off the gas supply to the appliance.

• Connect the gas supply in accordance to local codes. In the absence of local codes, install to the

current CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI

Z223.1 / NFPA 54 in the United States.

• When ﬂ exing any gas line, support the gas valve so that the lines are not bent or kinked.

• The gas line ﬂ ex-connector should be installed to provide sufﬁ cient movement for shifting the burner

assembly on its side to aid with servicing components.

• Check for gas leaks by brushing on a soap and water solution. Do not use open ﬂ ame.

WARNING

RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS

SPARKS OR OPEN FLAMES.

SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE.

ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT

WITH THE GLASS DOOR OPENED OR REMOVED. PURGING OF THE GAS SUPPLY LINE SHOULD BE

PERFORMED BY A QUALIFIED SERVICE TECHNICIAN. ASSURE THAT A CONTINUOUS GAS FLOW IS AT

THE BURNER BEFORE CLOSING THE DOOR. ENSURE ADEQUATE VENTILATION. FOR GAS AND

ELECTRICAL LOCATIONS, SEE “DIMENSIONS” SECTION.

ALL GAS CONNECTIONS MUST BE CONTAINED WITHIN THE APPLIANCE WHEN COMPLETE.

HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE TESTING GAS

LINE AT TEST PRESSURES ABOVE 1/2 PSIG.

VALVE SETTINGS HAVE BEEN FACTORY SET, DO NOT CHANGE.

4.7 OPTIONAL WALL SWITCH

50.6

For ease of accessibility, an optional remote wall switch or millivolt thermostat may be installed in a convenient

location. Route a 2 strand, solid core millivolt wire from the valve to the wall switch or millivolt thermostat. The

recommended maximum lead length depends on wire size:

WIRE SIZE MAX. LENGTH

14 gauge (1.8mm) 100 feet (30.5m)

16 gauge (1.5mm) 60 feet (18.3m)

18 gauge (1.2mm) 40 feet (12.2m)

Refer to"WIRING DIAGRAM"

WARNING

DO NOT CONNECT EITHER THE WALL SWITCH, THERMOSTAT OR GAS VALVE DIRECTLY TO 110

VOLT ELECTRICITY.

W415-1678 / 08.09.16

5.0 FRAMING

5.1 B36 FRAMING

WARNING

71.1C

RISK OF FIRE!

IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING

IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE

APPLIANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH

ANY OTHER OUTSIDE WALL OF A HOME. THIS WILL ENSURE THAT CLEARANCE TO

COMBUSTIBLES IS MAINTAINED WITHIN THE CAVITY.

DO NOT NOTCH THE FRAMING AROUND THE APPLIANCE STAND-OFFS. FAILURE TO MAINTAIN

AIR SPACE CLEARANCE MAY CAUSE OVER HEATING AND FIRE. PREVENT CONTACT WITH

SAGGING OR LOOSE INSULATION OR FRAMING AND OTHER COMBUSTIBLE MATERIALS. BLOCK

OPENING INTO THE CHASE TO PREVENT ENTRY OF BLOWN-IN INSULATION. MAKE SURE

INSULATION AND OTHER MATERIALS ARE SECURED.

WHEN CONSTRUCTING THE ENCLOSURE ALLOW FOR FINISHING MATERIAL THICKNESS TO

MAINTAIN CLEARANCES. FRAMING OR FINISHING MATERIAL CLOSER THAN THE MINIMUMS

LISTED MUST BE CONSTRUCTED ENTIRELY OF NON-COMBUSTIBLE MATERIALS. MATERIALS

CONSISTING ENTIRELY OF STEEL, IRON, BRICK, TILE, CONCRETE, SLATE, GLASS OR PLASTERS,

OR ANY COMBINATION THEREOF ARE SUITABLE. MATERIALS THAT ARE REPORTED AS PASSING

ASTM E 136, STANDARD TEST METHOD FOR BEHAVIOUR OF MATERIALS IN A VERTICAL TUBE

FURNACE AT 1382° F (750°C) AND UL763 SHALL BE CONSIDERED NON-COMBUSTIBLE

MATERIALS.

MINIMUM CLEARANCE TO COMBUSTIBLES MUST BE MAINTAINED OR A SERIOUS FIRE HAZARD

COULD RESULT.

THE APPLIANCE REQUIRES A MINIMUM ENCLOSURE HEIGHT. MEASURE FROM THE APPLIANCE

BASE.

IF STEEL STUD FRAMING KITS WITH CEMENT BOARD ARE PROVIDED, OR SPECIFIED IN THE

INSTALLATION INSTRUCTIONS, THEY MUST BE INSTALLED.

IF SPECIFIED IN THE INSTALLATION INSTRUCTION FINISHING MUST BE DONE USING A NON-

COMBUSTIBLE MATERIAL SUCH AS NON-COMBUSTIBLE BOARD, CERAMIC TILE, MARBLE, ETC.

DO NOT USE WOOD OR DRYWALL. ANY FIRE RATED DRYWALL IS NOT ACCEPTABLE

It is best to frame your appliance after it is positioned and the vent system is installed. Frame to local building

codes.

It is not necessary to install a hearth extension with this appliance.

When roughing in the appliance, raise the appliance to accommodate for the thickness of the ﬁ nished ﬂ oor

materials, i.e. tile, carpeting, hard wood, which if not planned for will interfere with the opening of the lower

access door and the installation of many decorative ﬂ ashing accessories.

Combustible materials may be installed ﬂ ush with the front of the appliance but must not cover any of the

black face-areas of the appliance. Non-combustible material (brick, stone or ceramic tile) may protrude in

these areas.

W415-1678 / 08.09.16

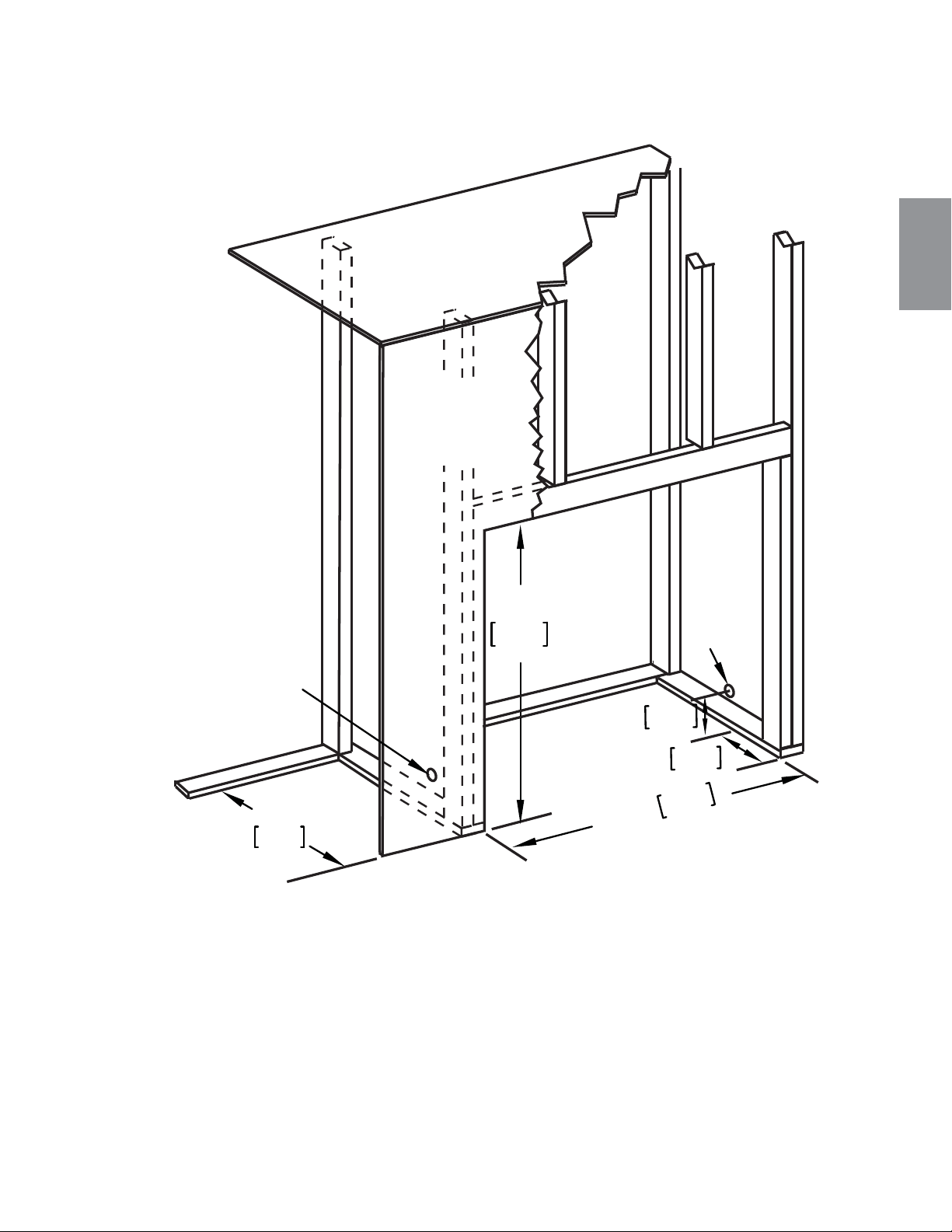

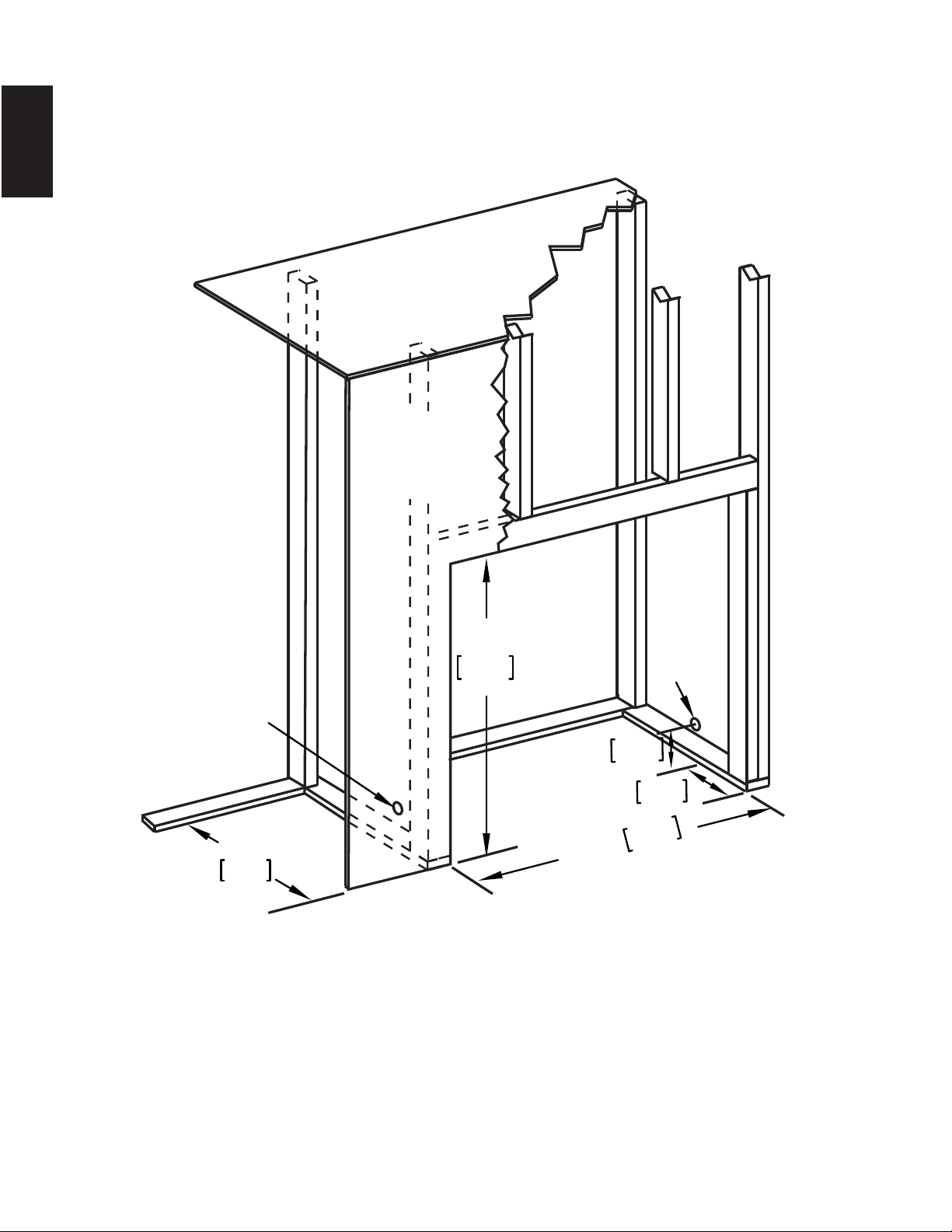

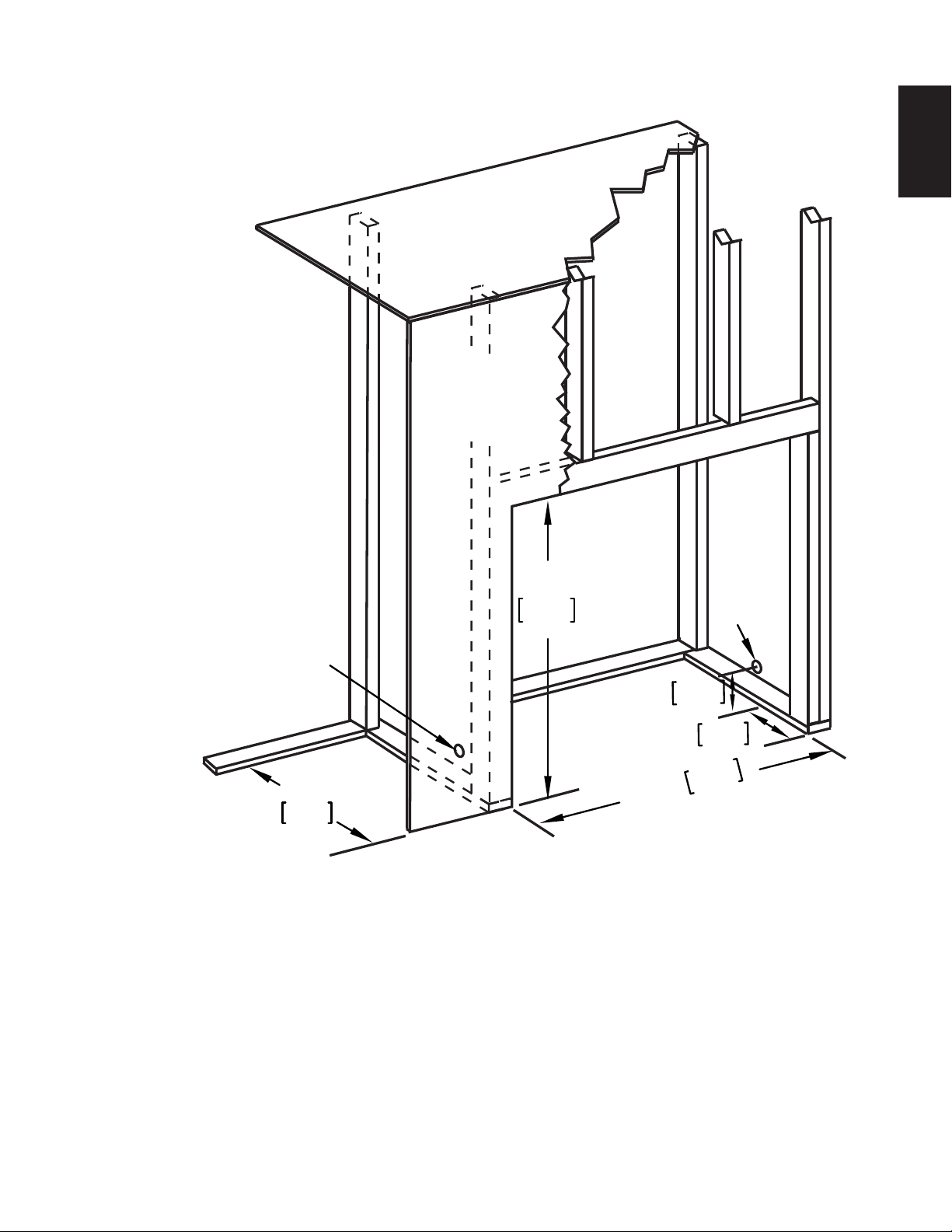

5.1.1 B36 MINIMUM FRAMING DIMENSIONS

35 1/2"

902mm

35"

889mm

1 7/8"

47mm

203mm

16"

406mm

GAS

INLET

LOCATION

ELECTRICAL

CONNECTION

ENCLOSURE

TOP

FINISHING

MATERIAL

W415-1678 / 08.09.16

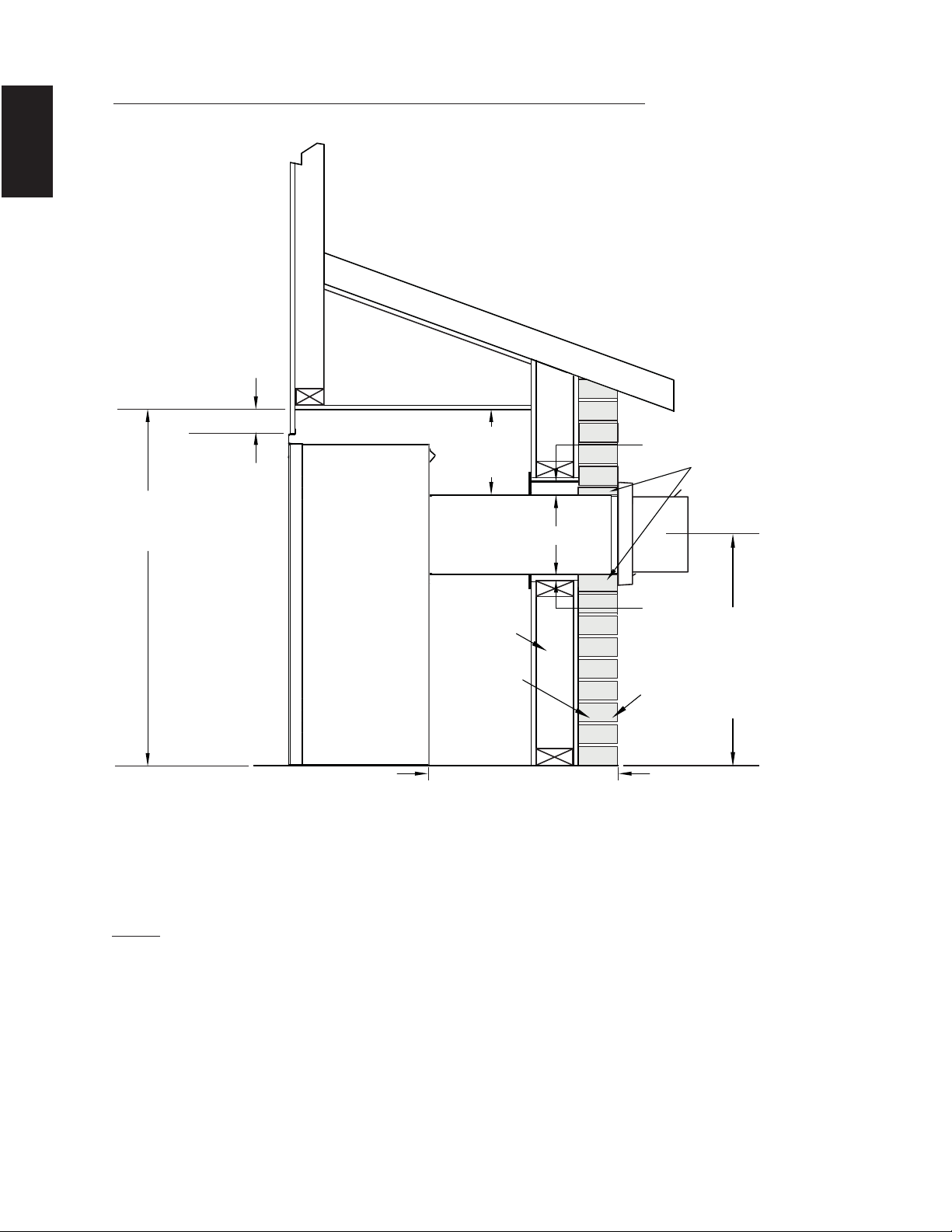

Minimum clearance to combustible construction from appliance and vent surfaces:

Combustible Framing:

- 0" to stand-offs

- 1" (25mm) to bottom and sides of the vent pipe*

- 3" (76mm) to top of the vent pipe*

Combustible Finishing:

- 0" to rear stand offs

- 0" to front face top and sides

Top Exit

- 50 1/2" (1283mm) to combustible enclosure top from base of the appliance

- 54" (1372mm) to ceiling from base of the appliance

Rear Exit

- 41" (1041mm) to combustile enclosure top from base of the appliance

- 54" (1372mm) to ceiling from base of the appliance

*B36 HORIZONTAL VENT SECTIONS: A minimum of 1" (25mm) at the bottom and sides and 3" (76mm) at

the top of the vent pipe on all horizontal runs to combustibles is required. Use ﬁ restop spacer W010-3440

(supplied).

NOTE: The minimum clearances from the top of the horizontal vent pipe to combustible materials may

be reduced from 3" (76mm) to 1" (25mm) in those installations with a minimum 38" (965mm) vertical

vent rise made immediately off the ﬁ replace collar.

*B36 VERTICAL VENT SECTIONS: A minimum of 1" (25mm) all around the vent pipe on all vertical runs

to combustibles is required except for clearances in appliance enclosures. See "MINIMUM ENCLOSURE

CLEARANCES" section. Use ﬁ restop spacer W500-0096 (not supplied).

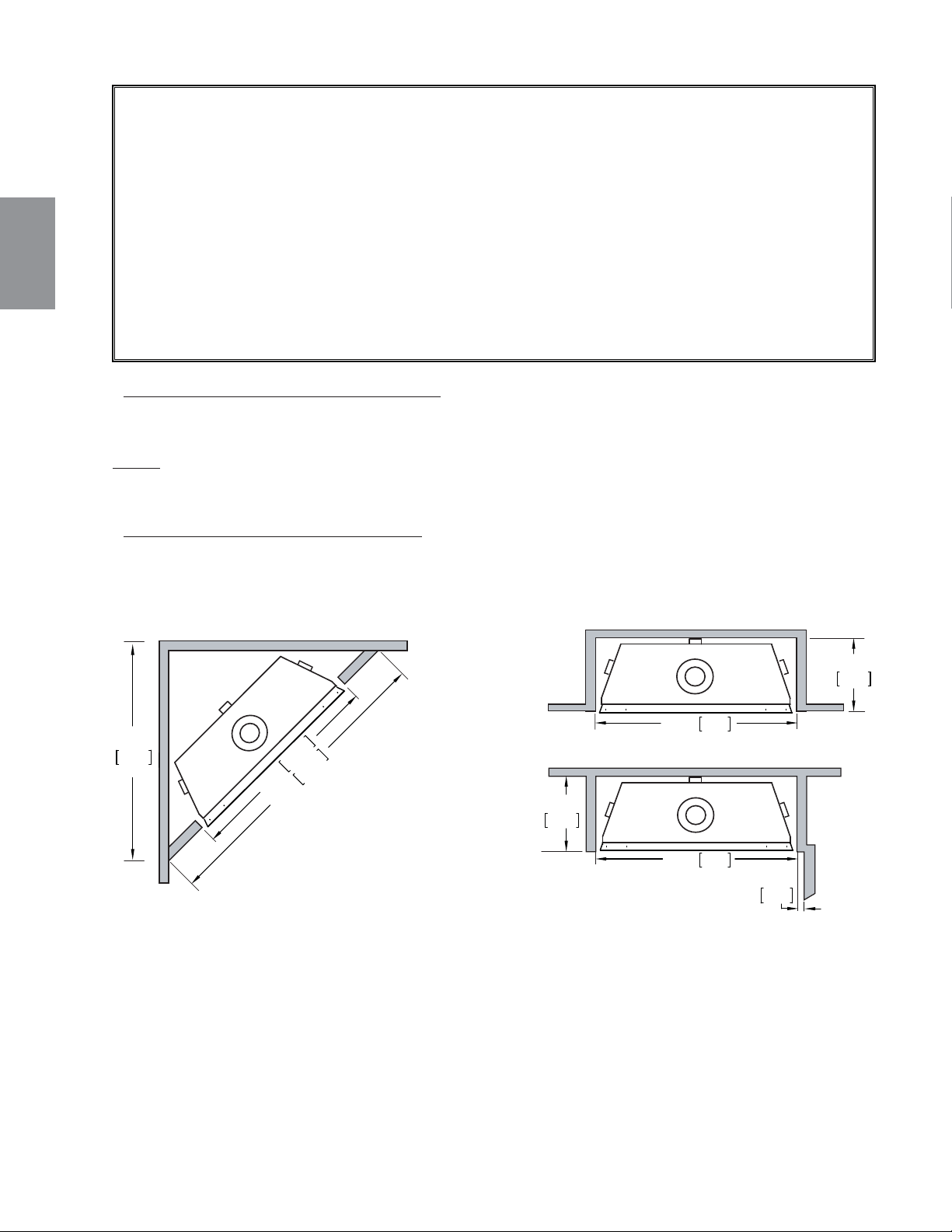

51mm

INSIDE

CHASE

OUTSIDE

CHASE

SIDE

WALL

47 7/8"

1216mm

33 7/8"

860mm

35 1/2 "

902mm

16"

406mm

16"

406mm

35 1/2"

902mm

35 1/2"

902mm

W415-1678 / 08.09.16

5.2 MINIMUM ENCLOSURE CLEARANCES

3" [76mm]

COMBUSTIBLE

NON-COMBUSTIBLE

BRICK

0” (0MM) IF

NON-COMBUSTIBLE

FINISHING IS USED

SUCH AS BRICK

AND STONE.

3" [76mm]

MINIMUM

3" [76mm]

[51 mm]

[25mm]

50 1/2"

[1283mm]

54"

[1372mm]

CEILING

(MIN)

42 5/8"

[1083mm]

MINIMUM

PLUS RISE*

[25mm]

15 5/8”

[403 mm]

TOP EXIT ENCLOSURE

The appliance requires a minimum enclosure height of 50 1/2" (1282mm). For temperature requirements, the

enclosure space around and above the appliance must be left unobstructed.

B36 TOP VENT

NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of the combustible

wall penetration.

* See "MINIMUM FRAMING DIMENSION" section for details on reducing vent pipe top clearances.

These parameters also apply to the illustrations found in the "MINIMUM ENCLOSURE

CLEARANCES" section.

W415-1678 / 08.09.16

* See "VENTING" section.

REAR EXIT ENCLOSURE

The appliance requires a minimum non-combustible enclosure height of 41" (1041mm). For temperature

requirements, the enclosure space around and above the appliance must be left unobstructed.

24"

[610mm]

MINIMUM

PLUS RISE*

COMBUSTIBLE

NON-COMBUSTIBLE

[25mm]

[76mm]

BRICK

0” (0MM) IF

NON-COMBUSTIBLE

FINISHING IS USED

SUCH AS BRICK

AND STONE.

6 3/8"

[162mm]

41"

[1041mm]

1"-10"

[25mm-254mm]

VENT RUN

54"

[1376mm]

CEILING

(MIN)

B36 MINIMUM REAR VENT CLEARANCES

For rear vent termination not exceeding 10" (254mm) of horizontal vent run.

NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of the combustible

wall penetration.

W415-1678 / 08.09.16

REAR EXIT ENCLOSURE

The appliance requires a minimum enclosure height of 41" (1041mm). For temperature requirements, the

enclosure space around and above the appliance must be left unobstructed.

B36 MAXIMUM REAR VENT CLEARANCES (EXAMPLE 1)

24"

[610mm]

MINIMUM

PLUS RISE*

COMBUSTIBLE

NON-COMBUSTIBLE

[25mm]

[76mm]

BRICK

0” (0MM) IF

NON-COMBUSTIBLE

FINISHING IS USED

SUCH AS BRICK

AND STONE.

6 3/8"

[162mm]

41"

[1041mm]

10"-20"

[254mm-508mm]

VENT RUN

11 1/2"

[368mm]

NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of the combustible

wall penetration.

W415-1678 / 08.09.16

REAR EXIT ENCLOSURE

The appliance requires a minimum enclosure height of 41" (1041mm). For temperature requirements, the

enclosure space around and above the appliance must be left unobstructed.

B36 MAXIMUM REAR VENT CLEARANCES (EXAMPLE 2)

24"

[610mm]

MINIMUM

PLUS RISE*

COMBUSTIBLE

NON-COMBUSTIBLE

[25mm]

[76mm]

BRICK

0” (0MM) IF

NON-COMBUSTIBLE

FINISHING IS USED

SUCH AS BRICK

AND STONE.

6 3/8"

[162mm]

41"

[1041mm]

10"-20"

[254mm-508mm]

VENT RUN

11 1/2"

[292mm]

NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of the combustible

wall penetration.

W415-1678 / 08.09.16

5.3 GX36-1 FRAMING

WARNING

71.1C

RISK OF FIRE!

IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING

IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE

APPLIANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH

ANY OTHER OUTSIDE WALL OF A HOME. THIS WILL ENSURE THAT CLEARANCE TO

COMBUSTIBLES IS MAINTAINED WITHIN THE CAVITY.

DO NOT NOTCH THE FRAMING AROUND THE APPLIANCE STAND-OFFS. FAILURE TO MAINTAIN

AIR SPACE CLEARANCE MAY CAUSE OVER HEATING AND FIRE. PREVENT CONTACT WITH

SAGGING OR LOOSE INSULATION OR FRAMING AND OTHER COMBUSTIBLE MATERIALS. BLOCK

OPENING INTO THE CHASE TO PREVENT ENTRY OF BLOWN-IN INSULATION. MAKE SURE

INSULATION AND OTHER MATERIALS ARE SECURED.

WHEN CONSTRUCTING THE ENCLOSURE ALLOW FOR FINISHING MATERIAL THICKNESS TO

MAINTAIN CLEARANCES. FRAMING OR FINISHING MATERIAL CLOSER THAN THE MINIMUMS

LISTED MUST BE CONSTRUCTED ENTIRELY OF NON-COMBUSTIBLE MATERIALS. MATERIALS

CONSISTING ENTIRELY OF STEEL, IRON, BRICK, TILE, CONCRETE, SLATE, GLASS OR PLASTERS,

OR ANY COMBINATION THEREOF ARE SUITABLE. MATERIALS THAT ARE REPORTED AS PASSING

ASTM E 136, STANDARD TEST METHOD FOR BEHAVIOUR OF MATERIALS IN A VERTICAL TUBE

FURNACE AT 1382° F (750°C) AND UL763 SHALL BE CONSIDERED NON-COMBUSTIBLE

MATERIALS.

MINIMUM CLEARANCE TO COMBUSTIBLES MUST BE MAINTAINED OR A SERIOUS FIRE HAZARD

COULD RESULT.

THE APPLIANCE REQUIRES A MINIMUM ENCLOSURE HEIGHT. MEASURE FROM THE APPLIANCE

BASE.

IF STEEL STUD FRAMING KITS WITH CEMENT BOARD ARE PROVIDED, OR SPECIFIED IN THE

INSTALLATION INSTRUCTIONS, THEY MUST BE INSTALLED.

IF SPECIFIED IN THE INSTALLATION INSTRUCTION FINISHING MUST BE DONE USING A NON-

COMBUSTIBLE MATERIAL SUCH AS NON-COMBUSTIBLE BOARD, CERAMIC TILE, MARBLE, ETC.

DO NOT USE WOOD OR DRYWALL. ANY FIRE RATED DRYWALL IS NOT ACCEPTABLE

It is best to frame your appliance after it is positioned and the vent system is installed. Frame to local building

codes.

It is not necessary to install a hearth extension with this appliance.

When roughing in the appliance, raise the appliance to accommodate for the thickness of the ﬁ nished ﬂ oor

materials, i.e. tile, carpeting, hard wood, which if not planned for will interfere with the opening of the lower

access door and the installation of many decorative ﬂ ashing accessories.

Combustible materials may be installed ﬂ ush with the front of the appliance but must not cover any of the

black face-areas of the appliance. Non-combustible material (brick, stone or ceramic tile) may protrude in

these areas.

W415-1678 / 08.09.16

5.3.1 GX36-1 MINIMUM FRAMING DIMENSIONS

35 1/2"

902mm

35"

889mm

1 7/8"

47mm

203mm

16"

406mm

GAS

INLET

LOCATION

ELECTRICAL

CONNECTION

ENCLOSURE

TOP

FINISHING

MATERIAL

W415-1678 / 08.09.16

Minimum clearance to combustible construction from appliance and vent surfaces:

Combustible Framing:

- 0" to stand-offs

- 1" (25mm) to bottom and sides of the vent pipe*

- 3" (76mm) to top of the vent pipe*

Combustible Finishing:

- 0" to rear stand offs

- 0" to front face top and sides

Top Exit

- 50 1/2" (1283mm) to combustible enclosure top from base of the appliance

- 54" (1372mm) to ceiling from base of the appliance

Rear Exit

- 44" (1118mm) to combustile enclosure top from base of the appliance

- 54" (1372mm) to ceiling from base of the appliance

*GX36-1 HORIZONTAL VENT SECTIONS: A minimum of 1" (25mm) at the bottom and sides and 3" (76mm)

at the top of the vent pipe on all horizontal runs to combustibles is required. Use ﬁ restop spacer W010-3440

(supplied).

NOTE: The minimum clearances from the top of the horizontal vent pipe to combustible materials may

be reduced from 3" (76mm) to 2" (51mm) in those installations with a minimum 38" (965mm) vertical

vent rise made immediately off the ﬁ replace collar.

*GX36-1 VERTICAL VENT SECTIONS: A minimum of 1" (25mm) all around the vent pipe on all vertical runs

to combustibles is required except for clearances in appliance enclosures. Vertical runs within the enclosure

must maintain a 3" (76mm) clearance from combustibles. See "MINIMUM ENCLOSURE CLEARANCES"

section. Use ﬁ restop spacer W500-0096 (not supplied).

51mm

INSIDE

CHASE

OUTSIDE

CHASE

SIDE

WALL

47 7/8"

1216mm

33 7/8"

860mm

35 1/2 "

902mm

16"

406mm

16"

406mm

35 1/2"

902mm

35 1/2"

902mm

W415-1678 / 08.09.16

3" [76mm]

COMBUSTIBLE

NON-COMBUSTIBLE

BRICK

0” (0MM) IF

NON-COMBUSTIBLE

FINISHING IS USED

SUCH AS BRICK

AND STONE.

3" [76mm]

MINIMUM

3" [76mm]

[51 mm]

[25mm]

50 1/2"

[1283mm]

54"

[1372mm]

CEILING

(MIN)

42 5/8"

[1083mm]

MINIMUM

PLUS RISE*

[25mm]

15 5/8”

[403 mm]

TOP EXIT ENCLOSURE

The appliance requires a minimum enclosure height of 50 1/2" (1282mm). For temperature requirements,

the enclosure space around and above the appliance must be left unobstructed.

NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of the combustible

wall penetration.

* See "MINIMUM FRAMING DIMENSION" section for details on reducing vent pipe top clearances.

These parameters also apply to the illustrations found in the "MINIMUM ENCLOSURE

CLEARANCES" section.

5.4 MINIMUM ENCLOSURE CLEARANCES GX36-1

GX36-1 TOP VENT

W415-1678 / 08.09.16

GX36-1 MINIMUM REAR VENT CLEARANCES

REAR EXIT ENCLOSURE

The appliance requires a minimum enclosure height of 44" (1118mm). For temperature requirements, the

enclosure space around and above the appliance must be left unobstructed.

24"

[610mm]

MINIMUM

PLUS RISE*

COMBUSTIBLE

NON-COMBUSTIBLE

[25mm]

[76mm]

BRICK

0” (0MM) IF

NON-COMBUSTIBLE

FINISHING IS USED

SUCH AS BRICK

AND STONE.

9 3/8"

[238mm]

44"

[1118mm]

1"-10"

[25mm-254mm]

VENT RUN

34 5/8"

[879mm]

NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of the combustible

wall penetration.

For rear vent termination not exceeding 10" (254mm) of horizontal vent run.

W415-1678 / 08.09.16

GX36-1 MAXIMUM REAR VENT CLEARANCES (EXAMPLE 1)

REAR EXIT ENCLOSURE

The appliance requires a minimum enclosure height of 44" (1118mm). For temperature requirements, the

enclosure space around and above the appliance must be left unobstructed.

24"

[610mm]

MINIMUM

PLUS RISE*

COMBUSTIBLE

NON-COMBUSTIBLE

[25mm]

[76mm]

BRICK

0” (0MM) IF

NON-COMBUSTIBL

FINISHING IS USED

SUCH AS BRICK

AND STONE.

44"

118mm]

10"-20"

[254mm-508mm]

VENT RUN

14 1/2"

[368mm]

9 3/8"

[238mm]

NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of the combustible

wall penetration.

W415-1678 / 08.09.16

GX36-1 MAXIMUM REAR VENT CLEARANCES (EXAMPLE 2)

REAR EXIT ENCLOSURE

The appliance requires a minimum enclosure height of 44" (1118mm). For temperature requirements, the

enclosure space around and above the appliance must be left unobstructed.

24"

[610mm]

MINIMUM

PLUS RISE*

COMBUSTIBLE

NON-COMBUSTIBLE

[25mm]

[76mm]

BRICK

0” (0MM) IF

NON-COMBUSTIBLE

FINISHING IS USED

SUCH AS BRICK

AND STONE.

9 3/8"

[238mm]

44"

[1118mm]

10"-20"

[254mm-508mm]

VENT RUN

14 1/2"

[368mm]

NOTE: The vent shield is telescopic and must be adjusted to shield the full depth of the combustible

wall penetration.

W415-1678 / 08.09.16

5.5 NON-COMBUSTIBLE FACING MATERIAL

71.7

WARNING: Non-combustible facing material must not project more than 4” (102mm) from the face of

the door (all three sides). If greater projections are desired, increase the clearance to the sides and

top by 2” (51mm) for every additional 1” (25mm) of projection. If using an optional surround, the same

rule applies, starting from the top of the surround. Ensure clearances are maintained for surround

removal, as it must lift off the appliance for maintenance.

GLASS

DOOR

TOP OF

APPLIANCE

4" (102mm)

APPLIANCE

RECESS OR

ALCOVE

AREA

NOTE: Recesses or alcoves above the appliance can be made as deep as desired provided the minimum

clearances to combustibles are maintained.

Non-combustible material can be used, provided the minimum clearances to combustible materials are applied.

The minimum enclosure volume must be increased by no less than the volume of the recess. This adjustment

can be made by increasing any or all of the height, width and depth of the enclosure.

71.2

ENCLOSURE

AREA

5.6 ALCOVE CLEARANCES

W415-1678 / 08.09.16

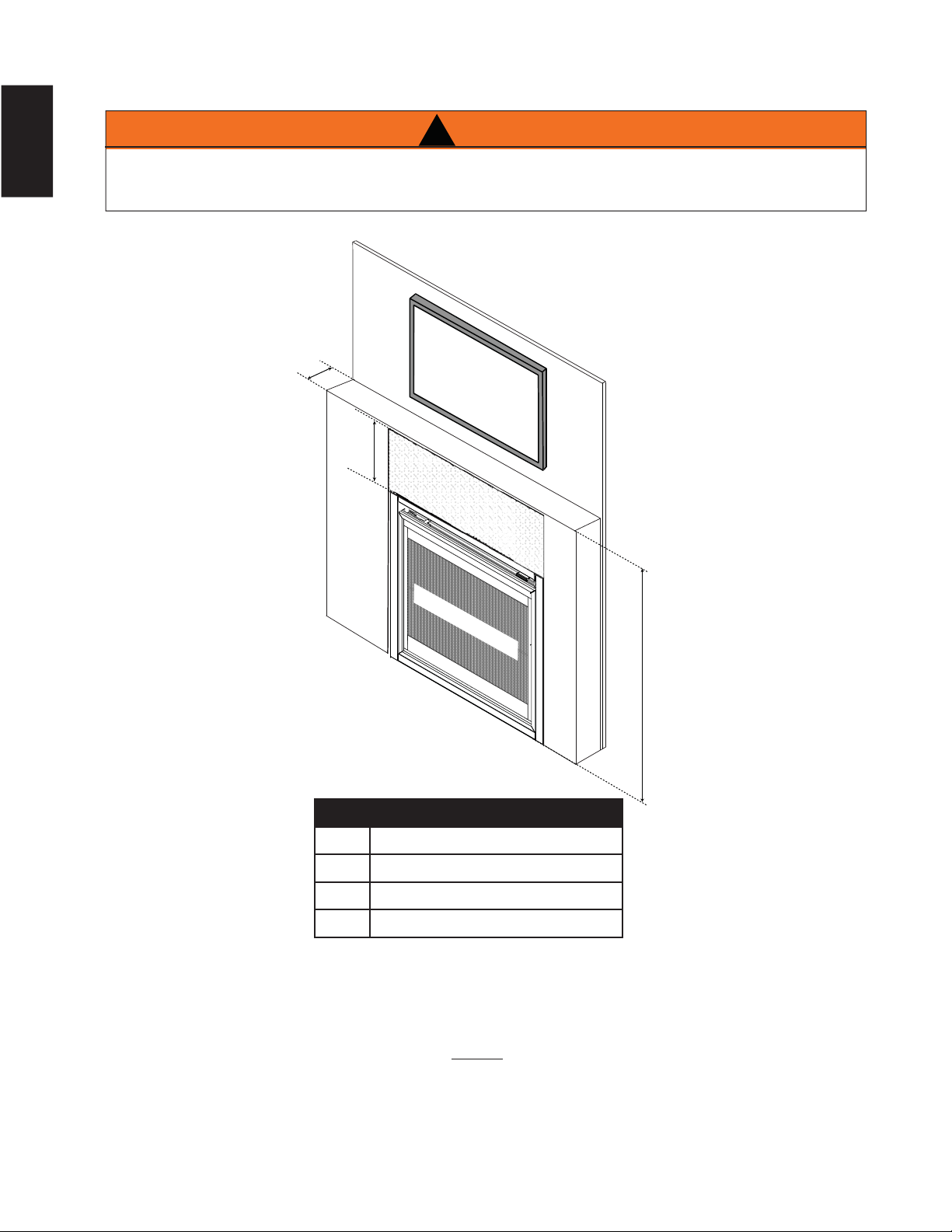

A. When a mantel is installed between the appliance and an electronic device or other materials, the

effect of direct heat on the electronics or other materials will be reduced. Follow mantel height and

depth instructions for proper clearances. NOTE: Increasing the horizontal length of the mantel will

further reduce the intensity of heat on the electronics.

B. Refer to “MINIMUM MANTEL CLEARANCES” section for more detailed mantel clearance information.

WARNING

INSTALLING A TELEVISION OR OTHER ELECTRONICS ABOVE THE APPLIANCE MAY CAUSE

DISCOLOURATION, MELTING OR DAMAGE TO THE ELECTRONICS. USE CLEARANCES AS GUIDELINES

AND REFER TO YOUR MANUFACTURER’S INSTRUCTIONS FOR FURTHER INFORMATION.

Before placing anything above a heat source, it is advisable to follow proper clearances and

manufacturer’s instructions.

CLEARANCES CHART

6" (152mm) MAX

10" (254mm) MIN

44" (1117mm) MIN (REAR VENT)

50 1/2" (1283mm) (TOP VENT)

SAFETY BARRIER

5.7 RECESSED INSTALLATION

W415-1678 / 08.09.16

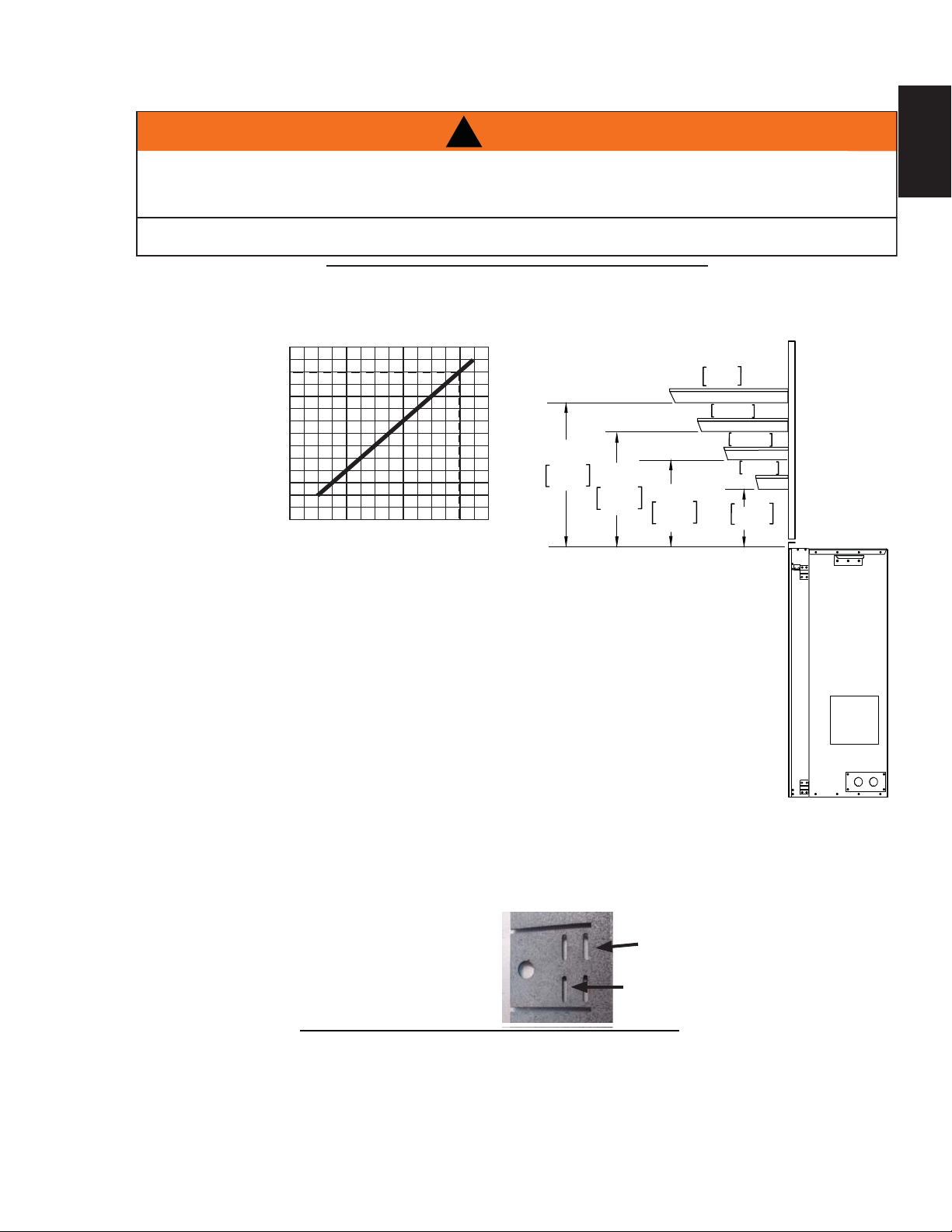

Combustible Mantel clearance can vary according to the Mantel depth. Use the graph to help evaluate

the clearance needed. These same requirements apply to any combustibles protruding on either side of

the appliance.

WARNING

RISK OF FIRE, MAINTAIN ALL SPECIFIED AIR SPACE CLEARANCES TO COMBUSTIBLES. FAILURE

TO COMPLY WITH THESE INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO

OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT, MANTEL, FRONT, ETC.) ARE

CLEARLY MAINTAINED.

WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE

HEAT RESISTANT TO PREVENT DISCOLOURATION.

73.1

5.8 MINIMUM MANTEL CLEARANCES

TOP OF APPLIANCE

OPENING

152mm

8"8"

203mm

MANTEL

51mm

102mm

152mm

203mm

102mm

51mm

(



2" (51mm)

24681012

MANTEL DEPTH (INCHES)

4" (102mm)

6" (152mm)

10" (254mm)

12" (305mm)

8" (203mm)

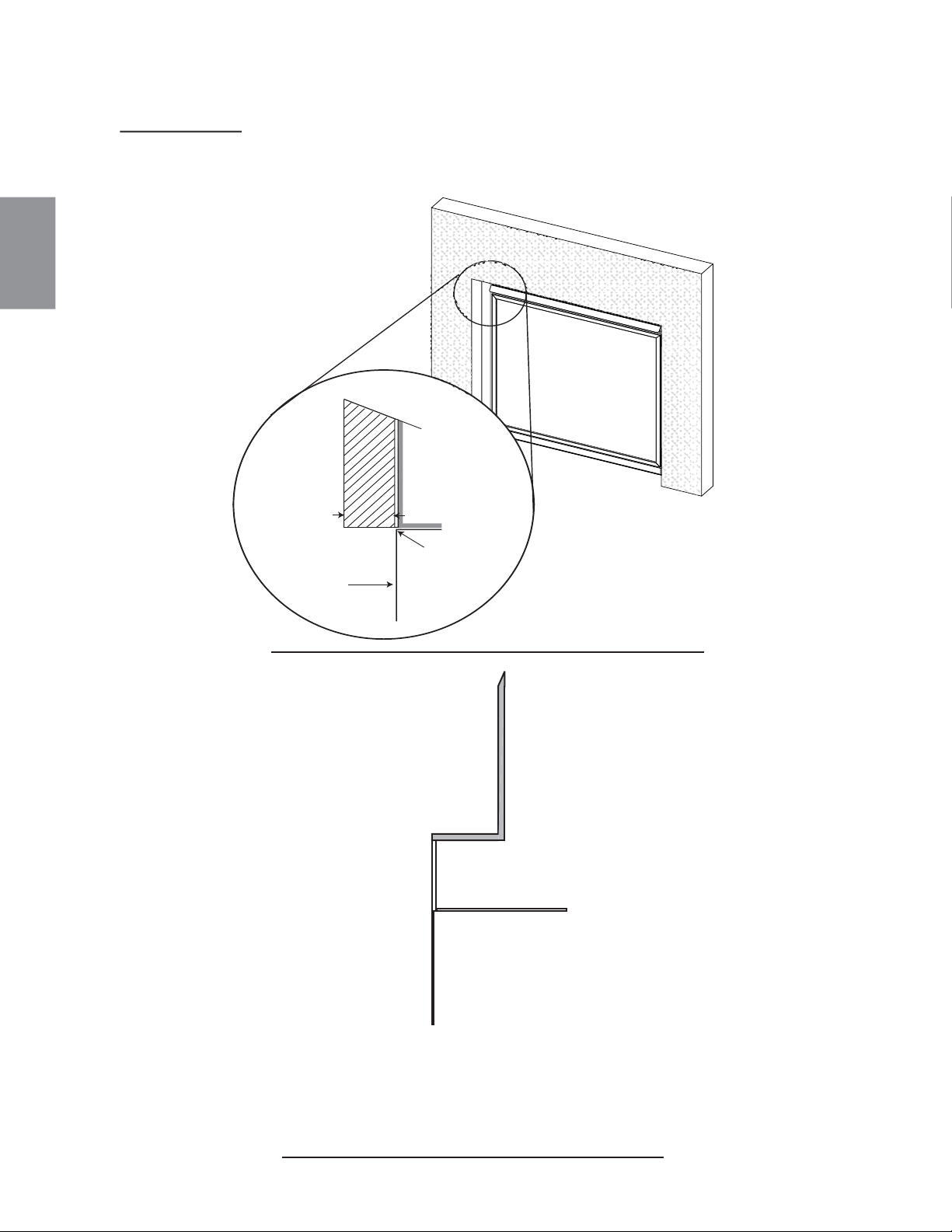

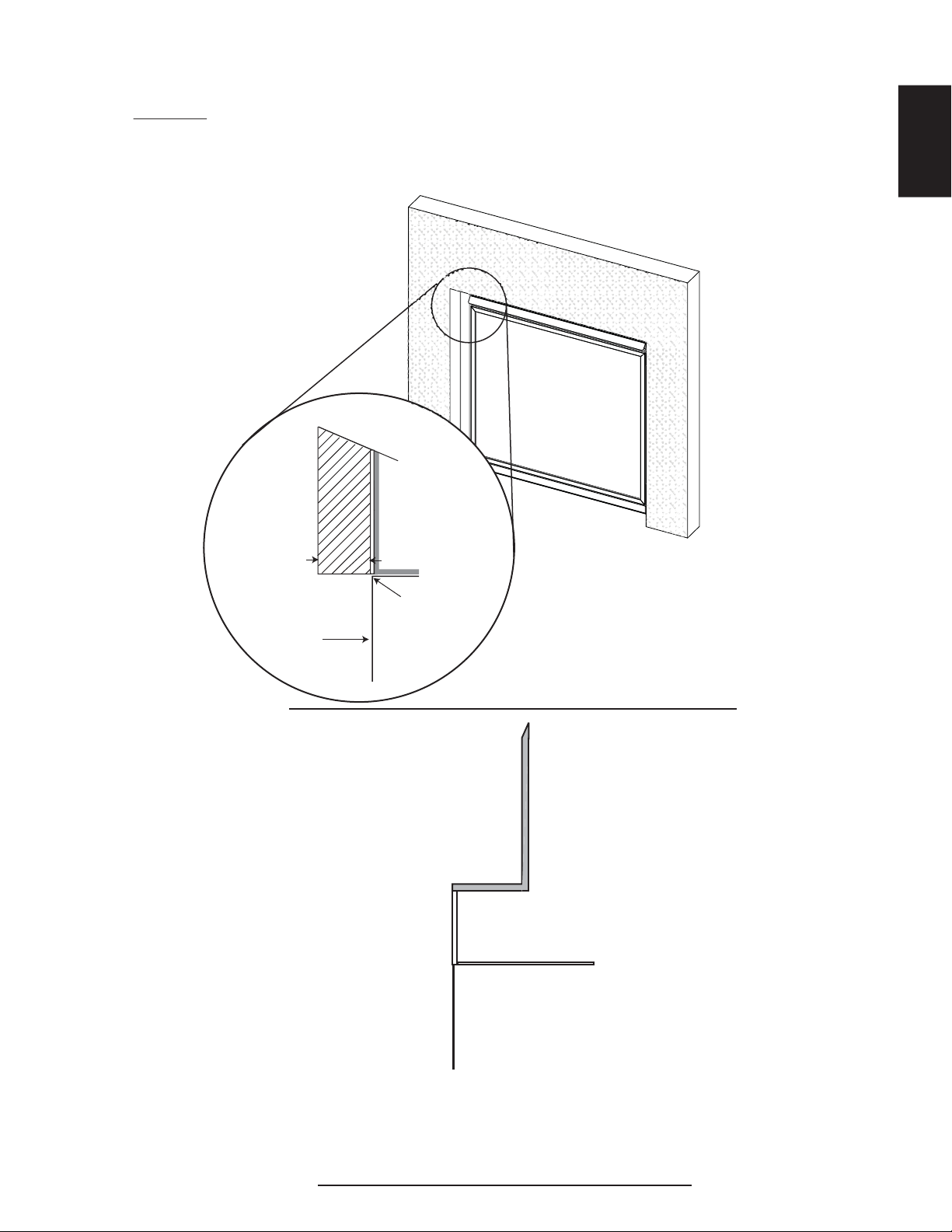

5.9 NAILING TAB INSTALLATION

55.3

A. To determine the ﬁ nal location and where to bend the nailing tabs you must ﬁ rst determine the

thickness of your ﬁ nishing material (i.e. drywall). This will determine the dimension from the

front edge of the corner post to the nailing tab. Once the desired tab has been choosen, bend

and secure to the framing.

1/2” FINISHING

MATERIAL

3/4” FINISHING

MATERIAL

W415-1678 / 08.09.16

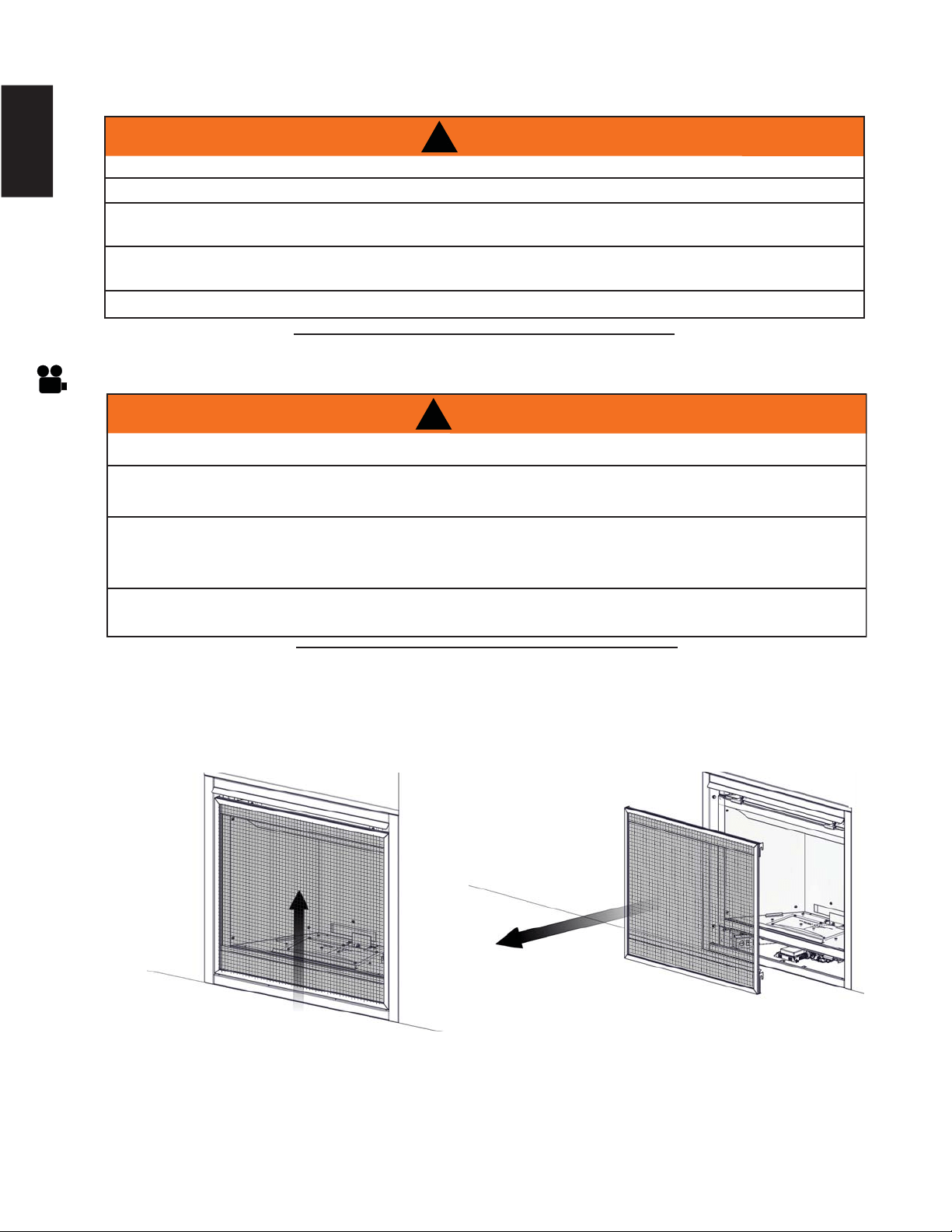

6.0 FINISHING

WARNING

RISK OF FIRE!

NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.

IF FINISHING THE FRONT OF THE APPLIANCE, IT MUST BE FINISHED WITH ANY NON-COMBUSTIBLE

MATERIAL SUCH AS BRICK, MARBLE, GRANITE, ETC.

DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS

REMOVED, CRACKED, BROKEN OR SCRATCHED.

FACING AND/OR FINISHING MATERIAL MUST NEVER OVERHANG INTO THE APPLIANCE OPENING.

72.1B

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the

appliance and must be installed.

Before the glass door can be removed, the safety screen must be removed. Lift the safety screen off the 4

pins, tilt the top forward and remove from the appliance.

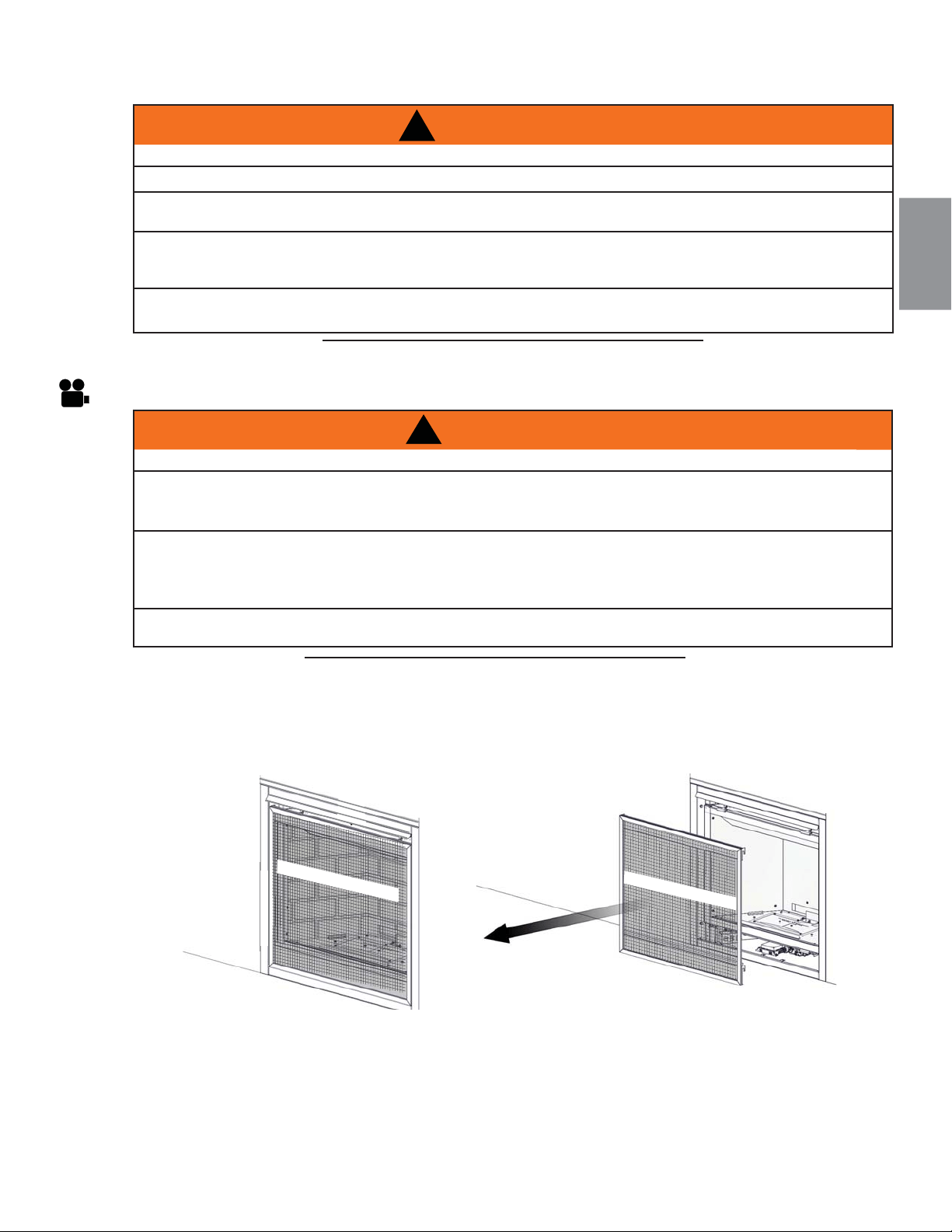

6.1 SAFETY SCREEN & DOOR REMOVAL / INSTALLATION

WARNING

GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.

IF EQUIPPED WITH DOOR LATCHES THAT ARE PART OF A SAFETY RELIEF SYSTEM, THEY MUST BE

PROPERLY ENGAGED. DO NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED.

FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR

OPENINGS, LOUVRE OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR

SERVICE. OBSERVE ALL CLEARANCES WHEN APPLYING COMBUSTIBLE MATERIALS.

BEFORE DOOR IS REMOVED TURN THE APPLIANCE OFF AND WAIT UNTIL APPLIANCE IS COOL TO

THE TOUCH. DOORS ARE HEAVY AND FRAGILE SO HANDLE WITH CARE.

75.1A

SAFETY SCREEN

W415-1678 / 08.09.16

Spring

Latches

Spring Latches

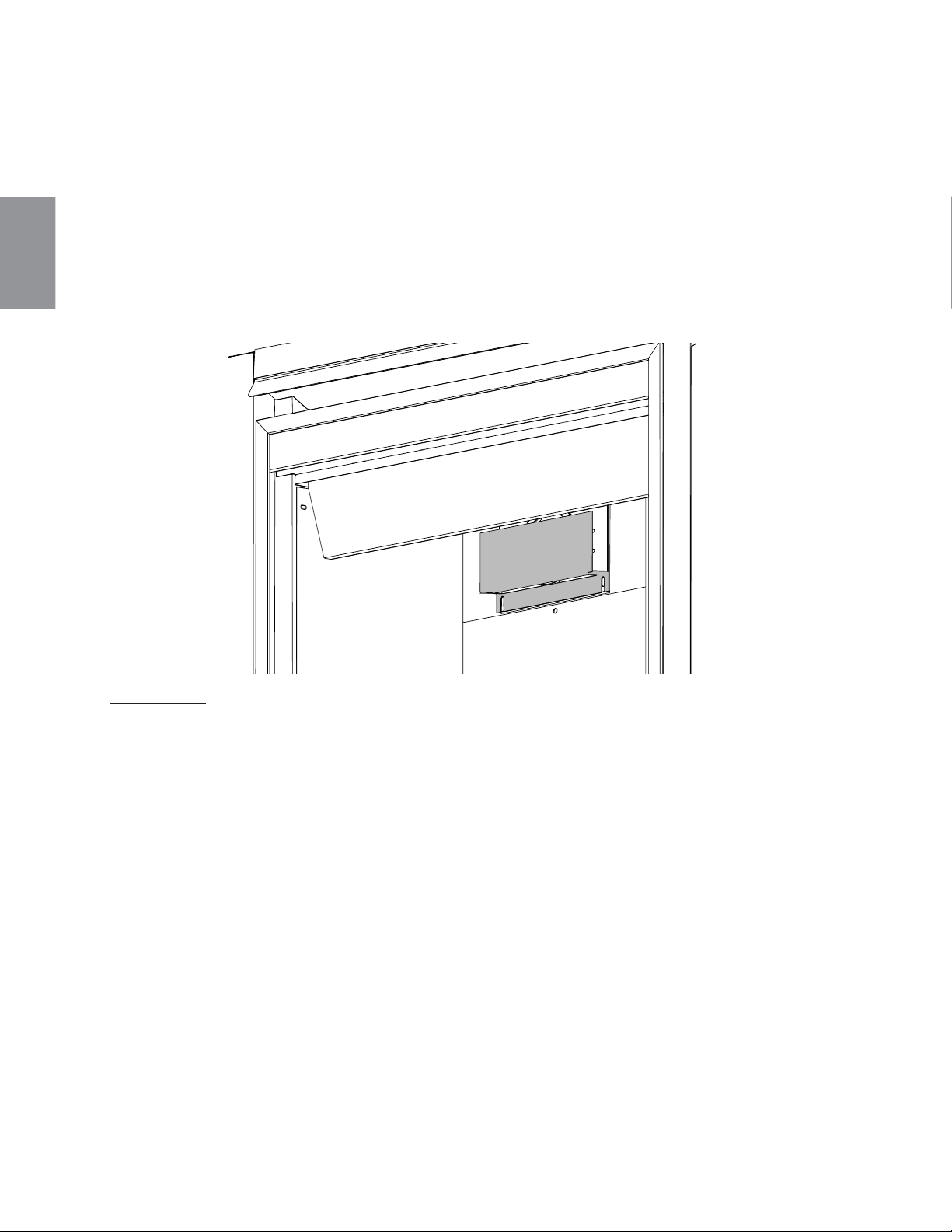

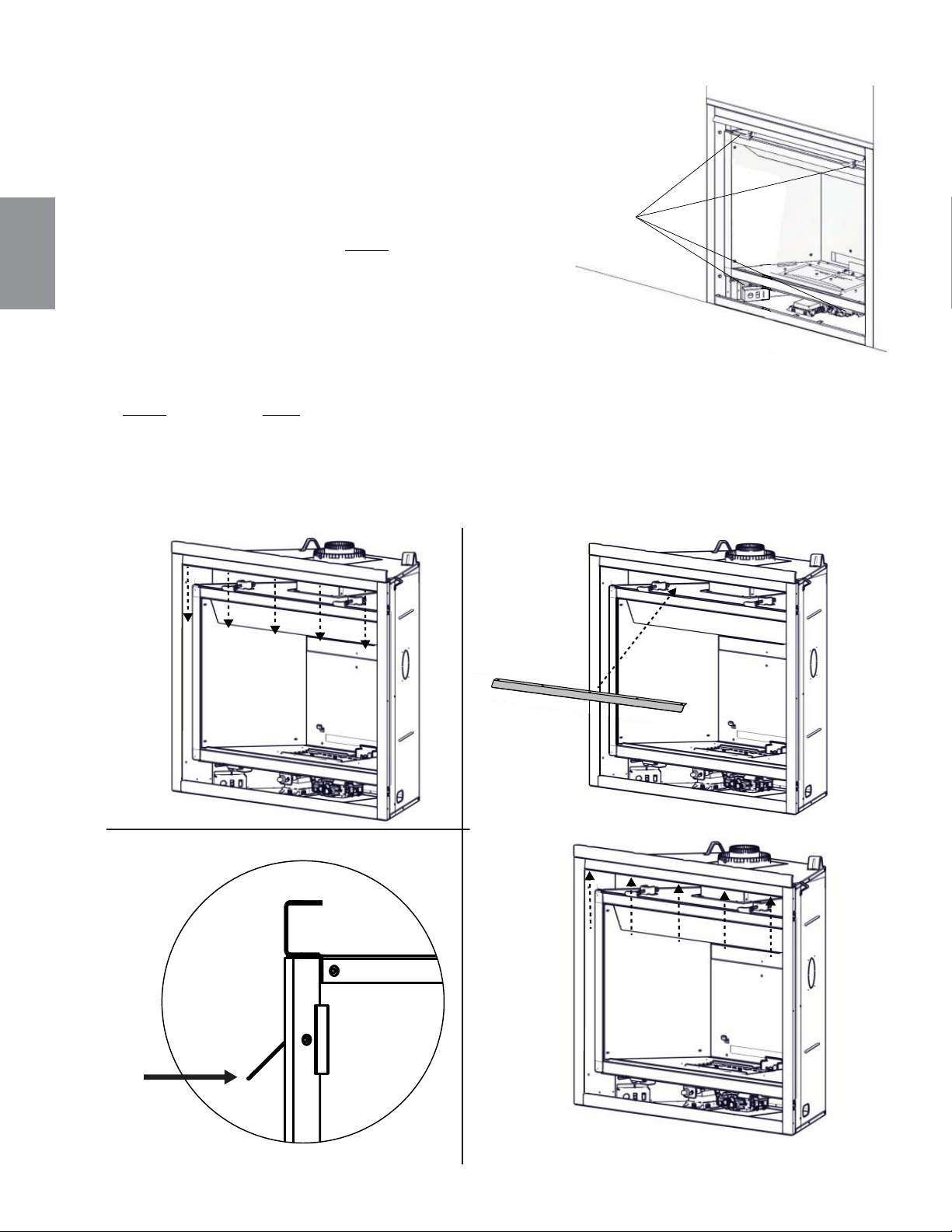

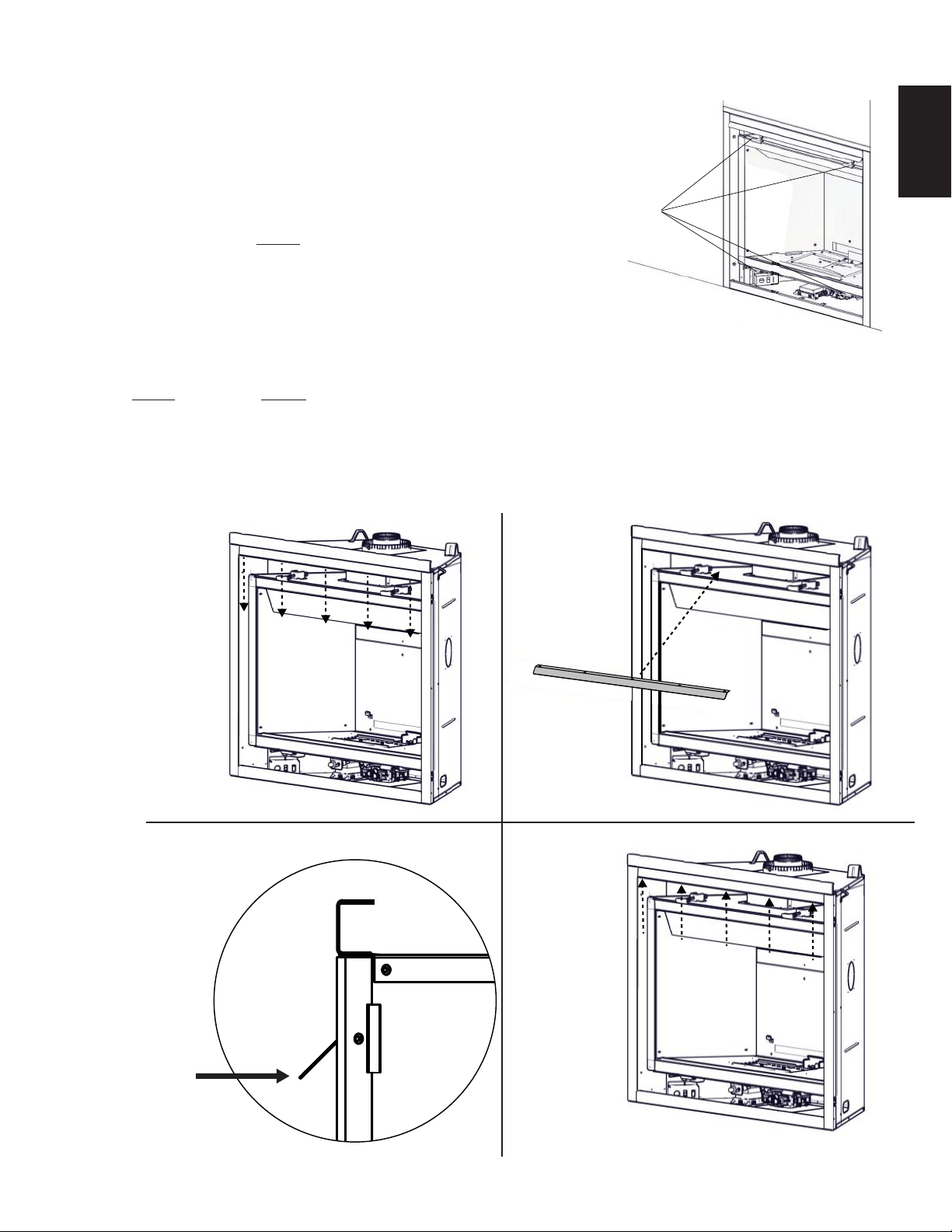

6.2 FRONT HOOD INSTALLATION

Leave a hand on the glass door during entire door

removal. The glass door is secured to the ﬁ rebox with two

spring latches along the top and two along the bottom.

Pull the handles of the latches forward, then lift the latches

out from the door frame to release the top of the door.

Repeat the same step for the two bottom latches. Next,

pivot the door forward until the top edge clears the front of

the appliance. Carefully grip the sides of the door lifting it

off the appliance. NOTE: These spring latches make up

the spring relief system for the appliance. Ensure they

open freely and close sealed.

Reverse these steps to reinstall the safety screen and

door. Ensure safety screen is installed correctly.

HOOD

SIDE VIEW

A. Safety door and screen must be removed.

B. Remove the securing screws from the top of the ﬁ rebox, as shown.

C. Install the front hood, ensure it is angled downward when installed.

D. Reinstall the previously removed securing screws.

NOTE: This hood MUST be installed, if it has not already been factory installed.

W415-1678 / 08.09.16

C. Position the right log (W135-0645) onto the

two studs located on the right side of the log

support.

D. Place the left crossover log (W135-0546) onto

the pin located in the left side of the rear log,

allow it to rest in the notch of the left log.

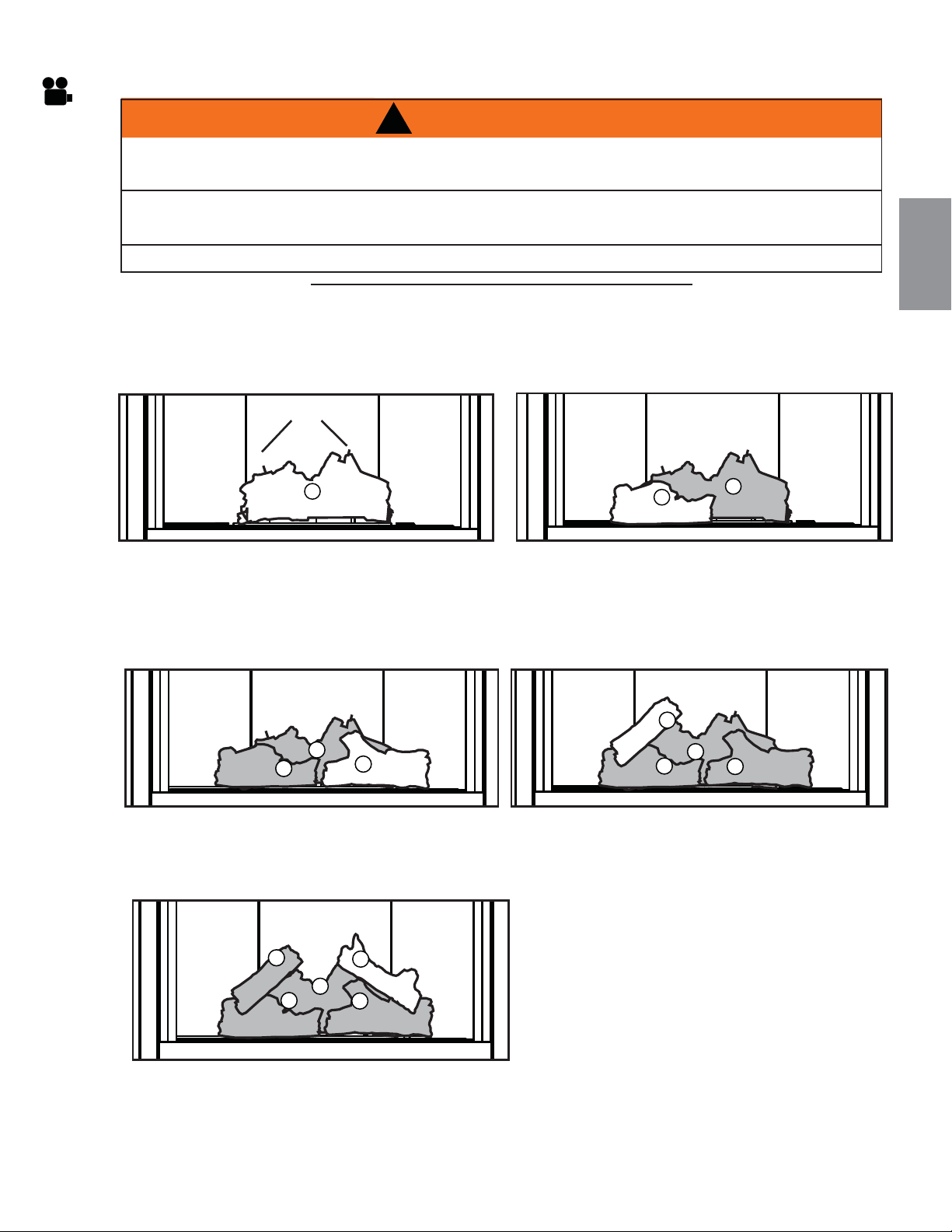

6.3 B36 LOG PLACEMENT

PHAZER

logs and glowing embers exclusive to Napoleon, provide a unique and realistic glowing effect that

is different in every installation. Take the time to carefully position the glowing embers for a maximum glowing

effect. Log colours may vary. During the initial use of the appliance, the colours will become more uniform as

colour pigments burn in during the heat activated curing process.

A. Place the rear log (W135-0643) ﬁ rmly onto

the two studs at the rear of the support tray.

Ensure the log sits ﬂ at and does not cover

the pilot opening. Place two pins in the holes

located on the top rear of the rear log.

B. Place the left log (W135-0644) onto the two

studs located on the left side of the log support.

WARNING

FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE

ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY

DAMAGE OR PERSONAL INJURY.

LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE

PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED

IGNITION MAY OCCUR.

THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.

76.1A

PINS

E. Place the right crossover log (W135-0589)

onto the two remaining pins.

F. Reinstall the door and safety screen, refer

to your installation manual for installation

instructions.

W415-1678 / 08.09.16

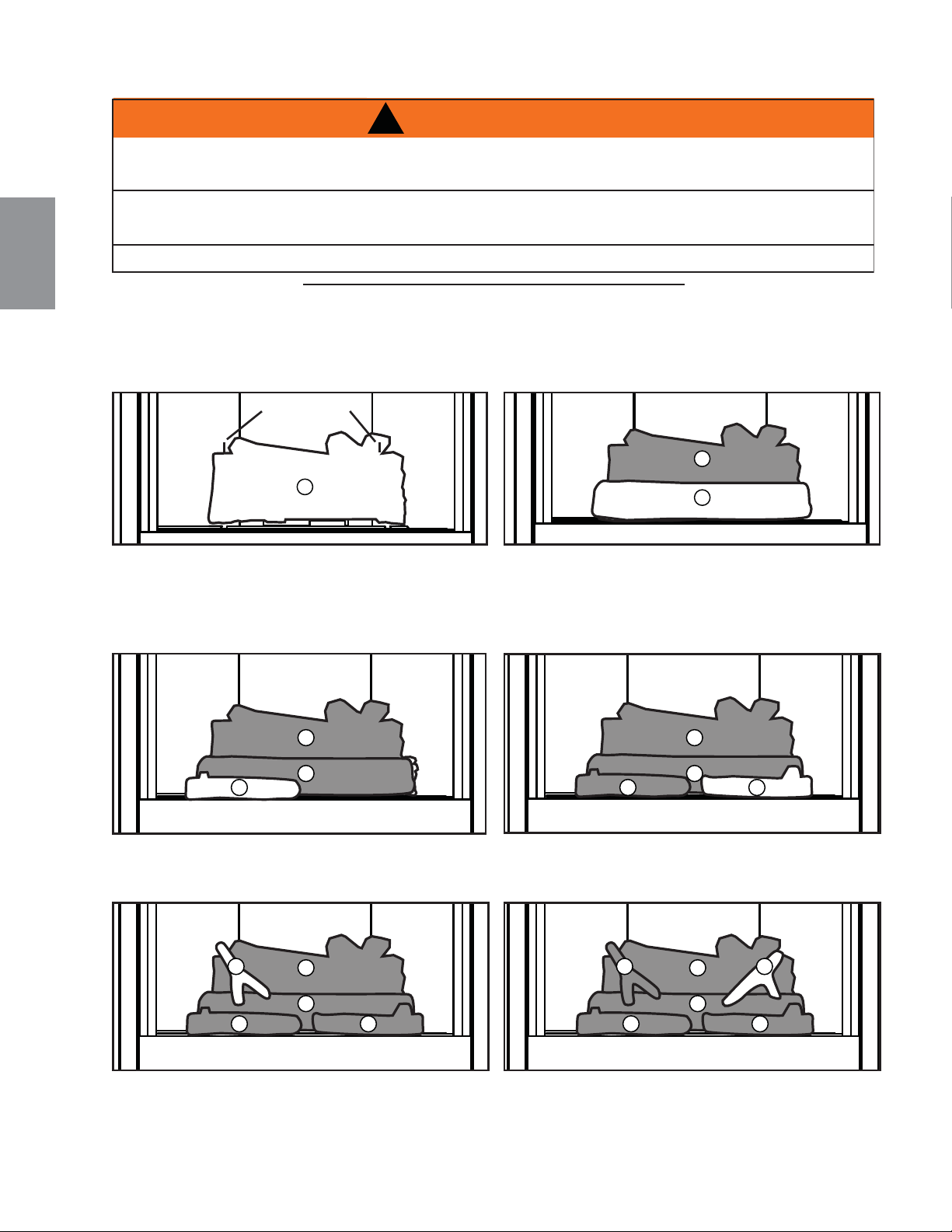

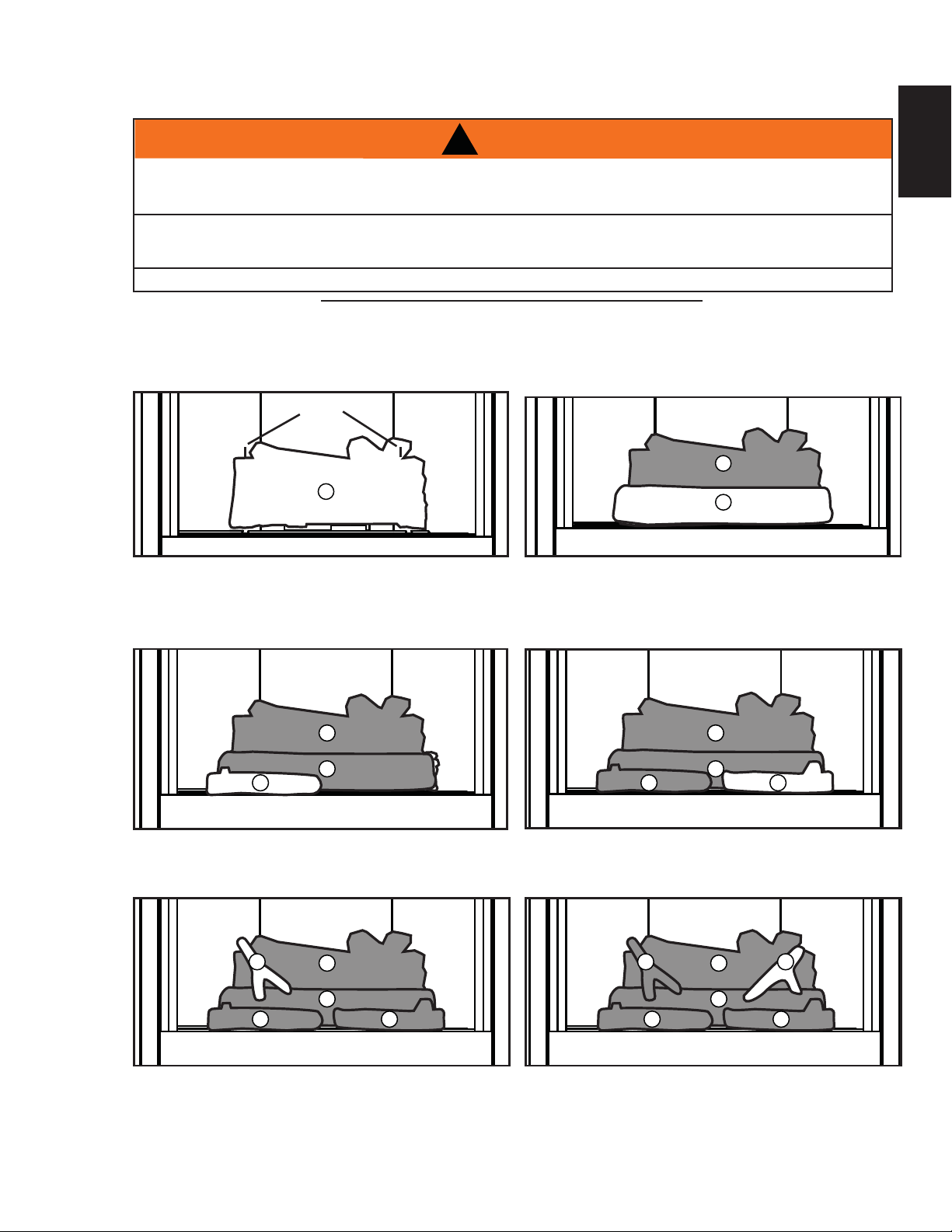

6.4 GX36-1 LOG PLACEMENT

PHAZER

logs and glowing embers exclusive to Napoleon, provide a unique and realistic glowing effect that

is different in every installation. Take the time to carefully position the glowing embers for a maximum glowing

effect. Log colours may vary. During the initial use of the appliance, the colours will become more uniform as

colour pigments burn in during the heat activated curing process.

WARNING

FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE

ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY

DAMAGE OR PERSONAL INJURY.

LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE

PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED

IGNITION MAY OCCUR.

THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.

76.1A

C. Position the front left log (W135-0688) onto

left side of the log support, in front of the

middle log.

D. Position the front right log (W135-0687) onto

right side of the log support, in front of the

middle log.

A. Place the rear log (W135-0685) ﬁ rmly onto

the two studs at the rear of the support tray.

Ensure the log sits ﬂ at and does not cover

the pilot opening. Place two pins in the holes

located on the top rear of the rear log.

B. Place the middle log (W135-0686) onto the four

studs located on the log support.

E. Place the left crossover log (W135-0690) onto

the pin located in the left side of the rear log,

allow it to rest in the notch of the middle log.

G. Reinstall the door and safety screen, refer to your installation manual for installation instructions.

PINS

F. Place the right crossover log (W135-0689)

onto the pin located in the right side of the

rear log, allow it to rest in the notch of the

middle log.

E E F

W415-1678 / 08.09.16

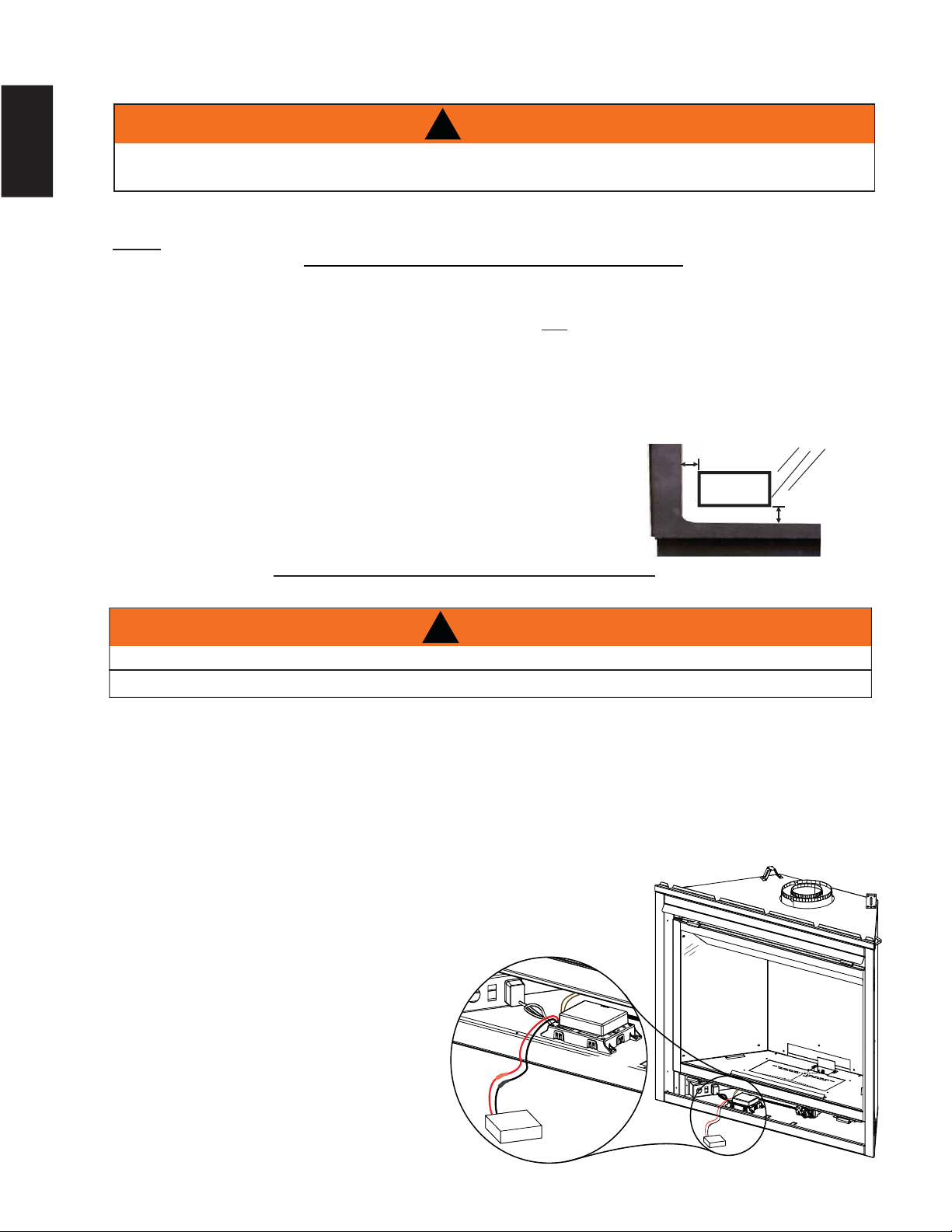

97.1A

Remove the backing of the logo supplied and place on the glass viewing

door, as indicated.

½"(12.7mm)

LOGO

½"(12.7mm)

Tear the embers into pieces and place along the front row of ports covering all of the burner area in front of

the small logs. Care should be taken to shred the embers into thin, small irregular pieces as only the exposed

edges of the ﬁ bre hairs will glow. The ember material will only glow when exposed to direct ﬂ ame;

however, care should be taken to not block the burner ports.

Blocked burner ports can cause an incorrect ﬂ ame pattern, carbon deposits and delayed ignition. PHAZER

logs glow when exposed to direct ﬂ ame. Use only certiﬁ ed "glowing embers" and PHAZER

logs available

from your authorized dealer / distributor.

A. Before beginning installation, disconnect the gas and electrical power supply from the appliance.

B. Locate the battery housing supplied in the manual baggie.

C. Install four “AA” batteries (not supplied) into the battery housing, ensure the positive and negative

ends correspond with those identiﬁ ed on the holder. (To open the battery housing, slide the back

piece upwards and off of the battery housing).

D. Remove the safety screen to easily access the control compartment.

E. Attach the wire labelled “BATTERY”

from the wiring harness, located in the

control compartment of the appliance,

to the battery housing.

F. Place the battery housing into the

control compartment, ensure that the

battery housing is placed in a clean

and easily accessible location.

G. Reinstall the safety screen. The safety

screen must be installed at all times

during the appliance operation.

H. Turn the gas and electrical power back

on to begin operating the appliance.

WARNING

ENSURE THE GAS AND ELECTRICAL POWER TO THE APPLIANCE IS TURNED OFF.

APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL THE APPLIANCE HAS COOLED.

NOTE: In the event of a power failure your appliance can be operated using the battery back-up supplied.

NOTE: Once the power has been restored,

remove the batteries from the holder. The

system will drain the batteries if they are left

in the battery holder.

RED WIRE

BLACK WIRE

BATTERY

HOUSING

CONTROL MODULE

32.1

Randomly place the charcoal embers along the

ront and sides o

the log support tray in a realistic manner.

Fine dust found in the bottom of the bag should not be used.

NOTE: Charcoal embers are not to be placed on the burner.

WARNING

CHARCOAL EMBERS, VERMICULITE AND CHARCOAL LUMPS ARE NOT TO BE PLACED ON THE

BURNER.

6.5 CHARCOAL EMBERS

6.6 GLOWING EMBERS

6.7 LOGO PLACEMENT

6.8 BATTERY BACK-UP INSTALLATION

W415-1678 / 08.09.16

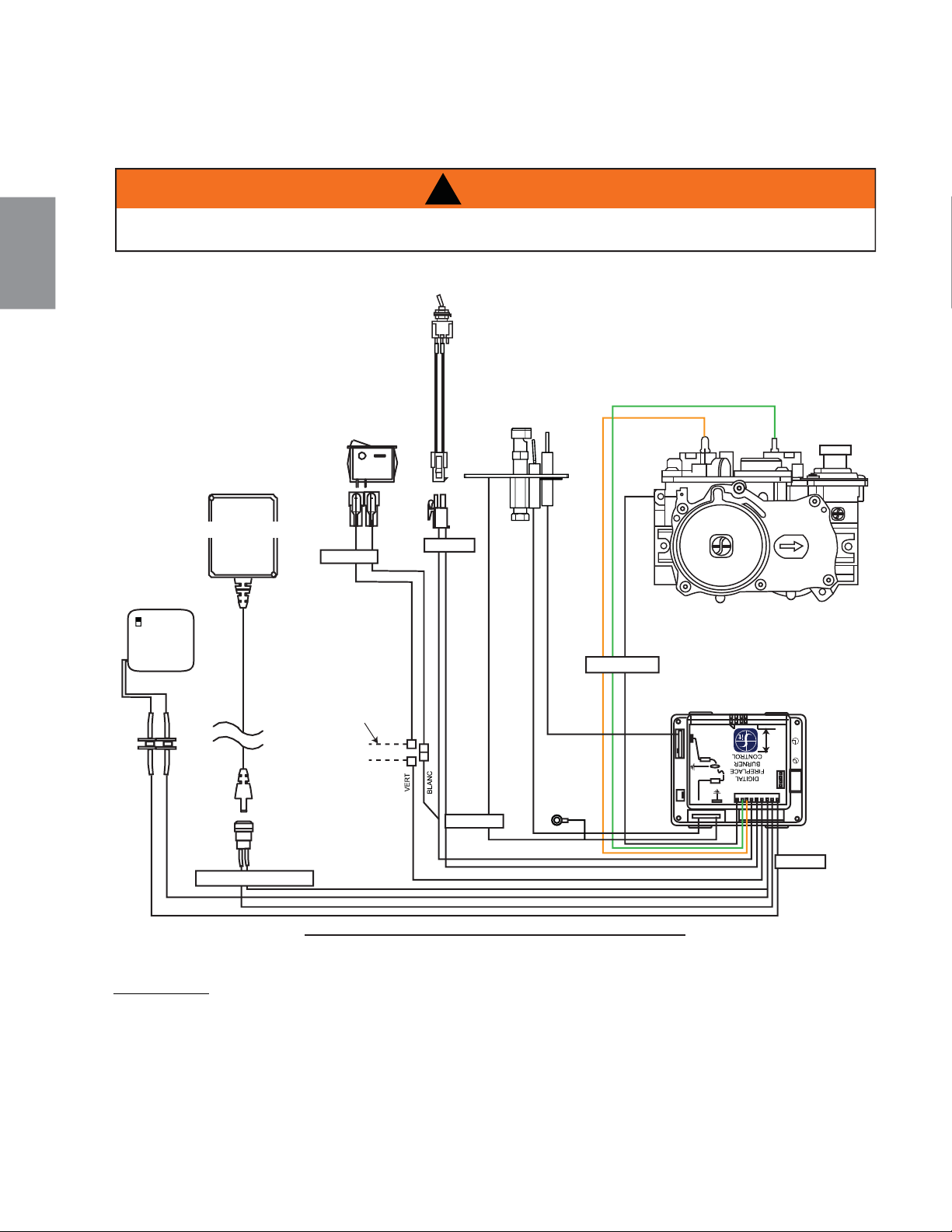

69.7

WARNING

DO NOT WIRE 110 VOLTS TO THE VALVE OR WALL SWITCH

ON / OFF

SWITCH

ACS/IPI

SWITCH

BATTERY

HOUSING

(SUPPLIED IN

MANUAL BAGGIE)

GROUND

DFC

VALVE

ORANGE

GREEN

GROUND

EYELET

ON / OFF

IPI / CPI

DISCONNECT THESE

CONNECTIONS TO THE

ON/OFF SWITCH AND

CONNECT TO AN

OPTIONAL THERMOSTAT.

IPI BOARD

DC SUPPLY

TRANSFORMER

VALVE

ELECTRONIC

OFF ON

This appliance comes equipped with a battery back-up. If this back-up is used, install 4AA batteries (not

supplied) into the holder and connect to the wire harness.

(OPTIONAL)

BATTERY

HOUSING

NOTE: The battery holder was supplied with your appliance but not connected. In an event of a power

failure, install four 'AA' batteries in the holder and attach to wire harness as illustrated above.

7.0 WIRING DIAGRAM

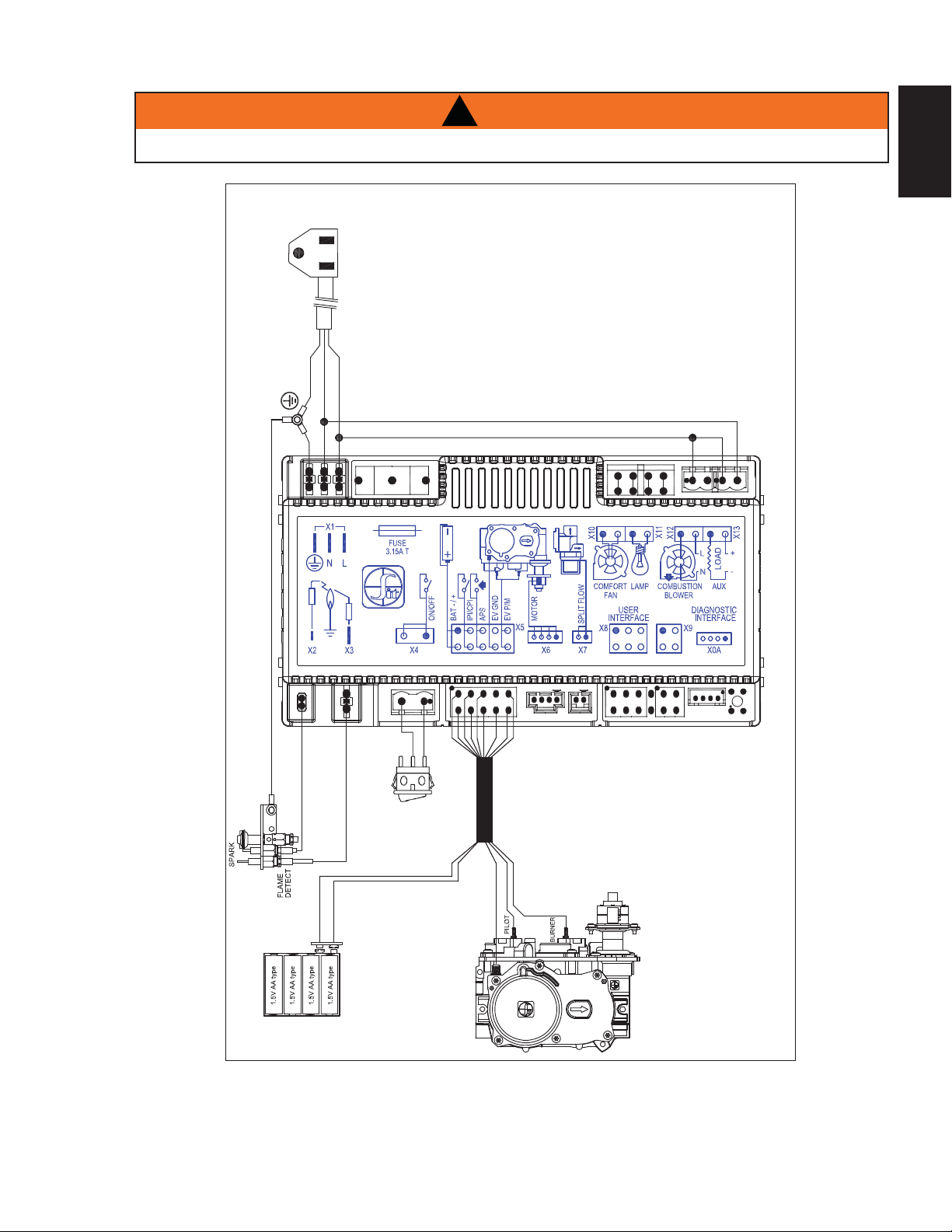

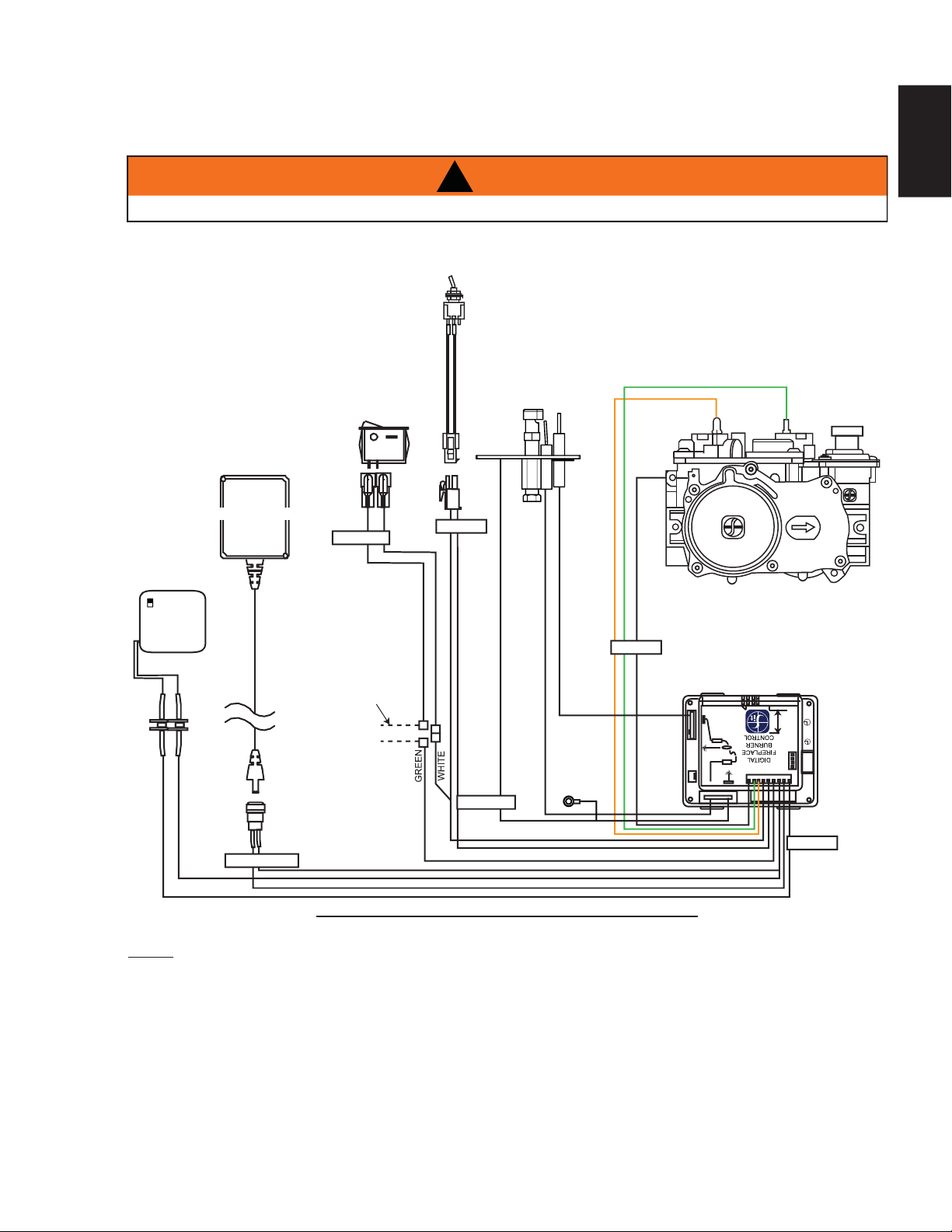

7.1 B36 ELECTRONIC WIRING DIAGRAM

W415-1678 / 08.09.16

7.2 GX36-1 ELECTRONIC WIRING DIAGRAM

WARNING

DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. CALL A QUALIFIED

SERVICE TECHNICIAN IMMEDIATELY TO HAVE THE APPLIANCE INSPECTED FOR DAMAGE TO THE

ELECTRICAL CIRCUIT.

RISK OF ELECTRICAL SHOCK OR EXPLOSION. DO NOT WIRE 110V TO THE VALVE OR TO THE

APPLIANCE WALL SWITCH. INCORRECT WIRING WILL DAMAGE CONTROLS.

ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE

WITH LOCAL CODES. IN THE ABSENCE OF LOCAL CODES, USE THE CURRENT CSA22.1 CANADIAN

ELECTRIC CODE IN CANADA OR THE CURRENT NATIONAL ELECTRIC CODE ANSI/NFPA NO. 70 IN

THE UNITED STATES.

ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,

WITH THE GLASS DOOR OPENED OR REMOVED.

69.2_2

7.2.1 WIRING REQUIREMENTS

This appliance must be electrically connected and grounded in accordance with local codes. In the absence

of local codes, use the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada or the ANSI/NFPA 70-

1996 NATIONAL ELECTRICAL CODE in the United States.

It is necessary to hard wire this appliance.

Permanently framing the appliance with an enclosure, requires the appliance junction box to be hard wired.

This appliance must be electrically connected and grounded in accordance with local codes. In the absence

of local codes, use the current CSA C22.1 Canadian electrical code in Canada or the ANSI/NFPA 70-1996

national electrical code in the United States.

W415-1678 / 08.09.16

WARNING

DO NOT WIRE 110 VOLTS TO THE VALVE OR WALL SWITCH.

PILOT

W725-0062 (NG)

W725-0063 (LP)

GAS VALVE

W750-0267

WIRE HARNESS

W175-0633

(CONNECTOR)

885 PROFLAME

MAIN ON/OFF

SWITCH

W350-0702

(BATTERY HOUSING)

BATTERY

PACK

W010-2763 (NG)

W010-2808 (LP)

(PILOT ASSEMBLY)

W750-0274

(POWER CORD)

APPLIANCE

GROUND STAR

MAIN

LINE

W190-0113

CONTROL MODULE

W415-1678 / 08.09.16

8.0 OPERATION (ELECTRONIC)

Ensure that a continuous gas ﬂ ow is at the burner before installing the door. When lit for the ﬁ rst time, the

ﬁ replace will emit an odor for a few hours. This is a normal temporary condition caused by the “burn-in” of

paints and lubricants used in the manufacturing process and will not occur again. After extended periods of

non-operation such as following a vacation or a warm weather season, the ﬁ replace may emit a slight odor for

a few hours. This is caused by dust particles in the heat exchanger burning off. In both cases, open a window

to sufﬁ ciently ventilate the room.

FOR YOUR SAFETY READ BEFORE LIGHTING:

• Do not turn on if children or other at risk individuals are near the ﬁ replace.

• This ﬁ replace is equipped with a pilot which must be lit by hand while following these instructions

exactly.

• Before operating smell all around the ﬁ replace area for gas and next to the ﬂ oor because some gas is

heavier than air and will settle on the ﬂ oor.

• Use only your hand to turn the gas control knob. Never use tools. If the knob will not turn by hand, do

not try to repair it. Call a qualiﬁ ed service technician. Force or attempted repair may result in a ﬁ re or

explosion.

• Do not use this ﬁ replace if any part has been under water. Immediately call a qualiﬁ ed service

technician to inspect the ﬁ replace and replace any part of the control system and any gas control which

has been underwater.

WHAT TO DO IF YOU SMELL GAS:

• Turn off all gas to the ﬁ replace.

• Open windows.

• Do not try to light any appliance.

• Do not touch any electric switch; do not use

any phone in your building.

• Immediately call your gas supplier from

a neighbour’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier,

call the ﬁ re department.

LIGHTING INSTRUCTIONS:

A. Stop! Read the above safety information on this label

B. Remove batteries from the transmitter.

C. Turn off all electrical power to the ﬁ replace.

D. This ﬁ replace is equipped with an ignition device which automatically lights the pilot. Do not try to light

the pilot by hand.

E. Open the glass door.

F. Turn manual shutoff valve clockwise to off. Located behind the access panel.

G. Wait ﬁ ve (5) minutes to clear out any gas. If you smell gas including near the ﬂ oor,

STOP! Follow “B” in the above safety information on this label. If you don’t smell

gas go to the next step.

H. Turn manual shutoff valve counter-clockwise to on.

I. Close the glass door.

J. Turn on all electric power to the ﬁ replace and re-install batteries into the transmitter.

K. Push the “ON” button on the transmitter. You should here an audible beep from

the receiver which indicates communication (refer to Fireplace Operation for

remote activation).

A. Turn off all electric power to the ﬁ replace if service is to be performed.

B. Push in gas control knob slightly and turn clockwise to off. Do not force.

TO TURN OFF GAS:

GAS KNOB

47.3A

IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT

CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH

THE GLASS DOOR OPENED OR REMOVED.

WARNING

B36NTRE/GX36NTRE-1 & B36PTRE/GX36PTRE-1

W415-1678 / 08.09.16

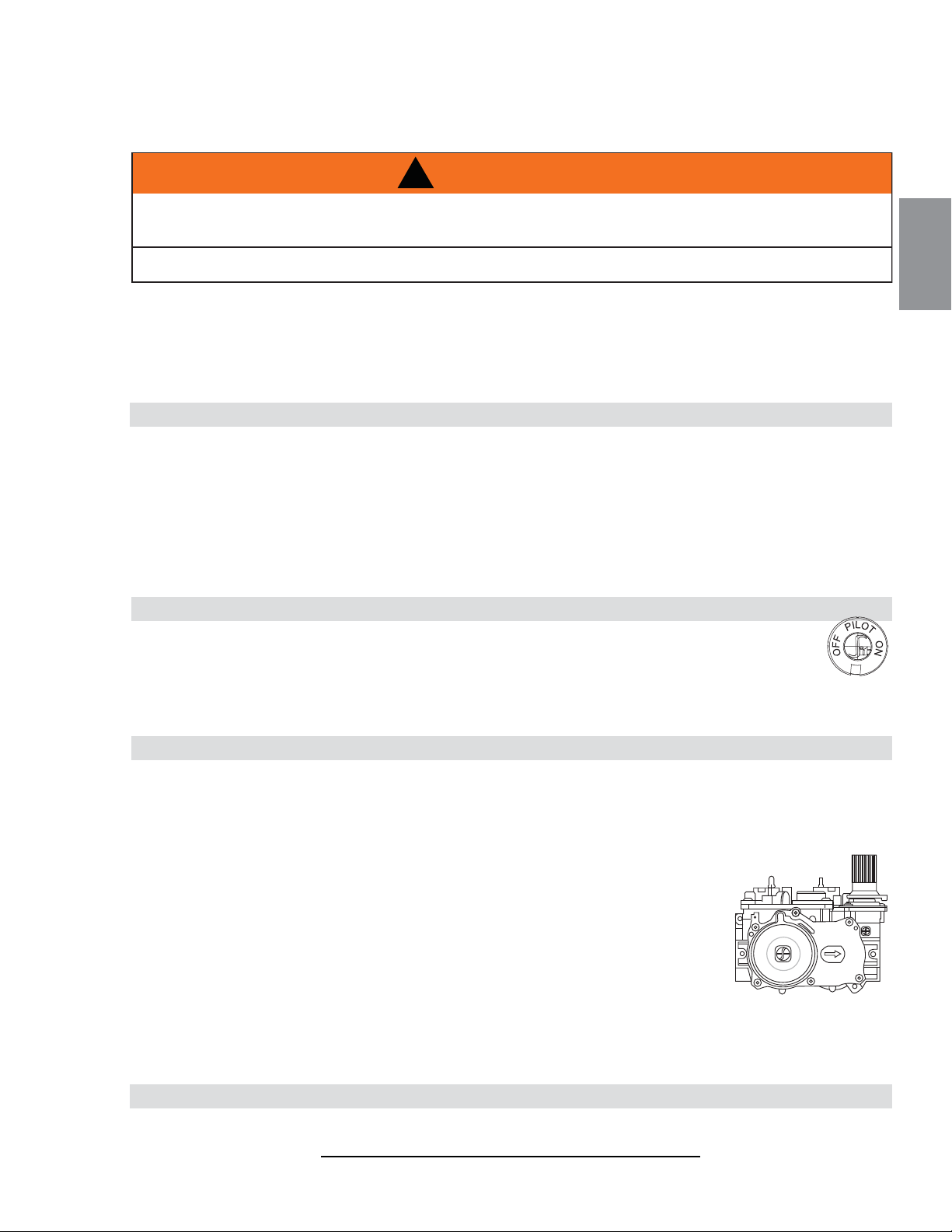

Ensure that a continuous gas flow is at the burner before installing the door. When lit for the first time, the appliance will

emit an odor for a few hours. This is a normal temporary condition caused by the "burn-in" of paints and lubricants used in

the manufacturing process and will not occur again.

fter extended periods of non-operation such as following a vacation or a warm weather season, the appliance may emit a

slight odor for a few hours. This is caused by dust particles in the heat exchanger burning off. In both cases, open a

window to sufficiently ventilate the room.

FOR YOUR SAFETY READ BEFORE LIGHTING:



This appliance is equipped with a pilot which must be lit by hand while following these instructions exactly.



Before operating smell all around the appliance area for gas and next to the floor because some gas is heavier than

air and will settle on the floor.



Use only your hand to turn the gas control knob. Never use tools. If the knob will not turn by hand, do not try to

repair it. Call a qualified service technician. Force or attempted repair may result in a fire or explosion.



Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect

the appliance and replace any part of the control system and any gas control which has been under water.

Turn off all gas to the appliance.

Open windows.

Do not try to light any appliance.

Do not touch any electric switch; do not use any

phone in your building.

*$6.12%

:$51,1*7KHJDVYDOYHKDVDQLQWHUORFNGHYLFHZKLFKZLOOQRWDOORZWKHSLORWEXUQHUWREHOLWXQWLOWKHWKHUPR-

FRXSOHKDVFRROHG$OORZDSSUR[LPDWHO\VHFRQGVIRUWKHWKHUPRFRXSOHWRFRRO

When lighting and re-lighting, the gas knob cannot be turned from pilot to off unless the knob is depressed slightly.

$ Stop! Read the above safety information on this label.

% Turn off all electric power to the appliance.

& Turn the gas knob clockwise to off.

' Wait five (5) minutes to clear out any gas. If you smell gas including near the floor. Stop! Follow "B" in the

above safety information on this label. If you don't smell gas go the next step.

( Turn gas knob counter-clockwise to pilot.

) Depress slightly and hold gas knob while lighting the pilot with the push button igniter. Keep knob depressed for one

minute, then release. If pilot does not continue to burn, repeat steps 3 through 5.

* With pilot lit, depress and turn gas knob counter-clockwise to on.

+ If equipped with remote on-off switch / thermostat, main burner may not come on when you turn valve to on. Remote

switch must be in the on position to ignite burner.

, Turn on all electric power to the appliance.

$ Turn off all electric power to the appliance if service is to be performed.

% Push in gas control knob slightly and turn clockwise to off. Do not force.

Immediately call your gas supplier from a

neighbor's phone. Follow the gas

supplier's instructions.

If you cannot reach your gas supplier,

call the fire department.

WHAT TO DO IF YOU SMELL GAS:

LIGHTING INSTRUCTIONS:

TO TURN OFF GAS

TURN THE CONTROL VALVE TO THE OFF POSITION WHEN HEATER IS NOT IN USE.



,)<28'2127)2//2:7+(6(,16758&7,216(;$&7/<$),5(25(;3/26,210$<5(68/7

&$86,1*3523(57<'$0$*(3(5621$/,1-85<25/2662)/,)(

$/:$<6/,*+77+(3,/27:+(7+(5)257+(),5677,0(25,)7+(*$66833/<+$6581287:,7+

7+(*/$66'22523(1('255(029('

WARNING

9.0 OPERATION (MILLIVOLT)

B36NTR/GX36NTR-1 & B36PTR/GX36PTR-1

W415-1678 / 08.09.16

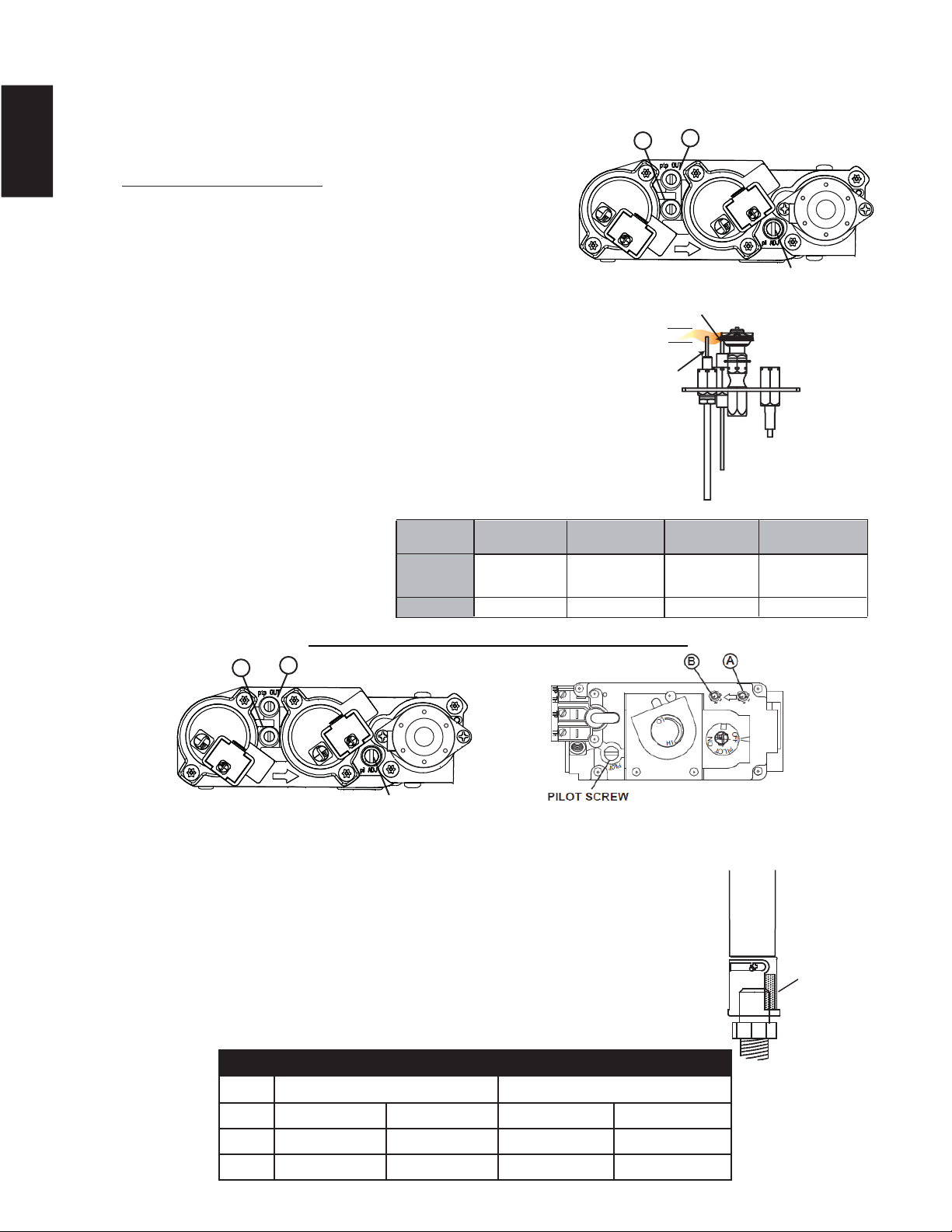

This appliance has an air shutter that has been factory set open according

to the chart below:

Regardless of venturi orientation, closing the air shutter will cause a more

yellow ﬂame, but can lead to carbonization. Opening the air shutter will

cause a more blue ﬂame, but can cause ﬂame lifting from the burner ports.

The ﬂame may not appear yellow immediately; allow 15 to 30 minutes for

the ﬁnal ﬂame colour to be established.

AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED

INSTALLER!

AIR

SHUTTER

OPENING

VENTURI

BURNER

ORIFICE

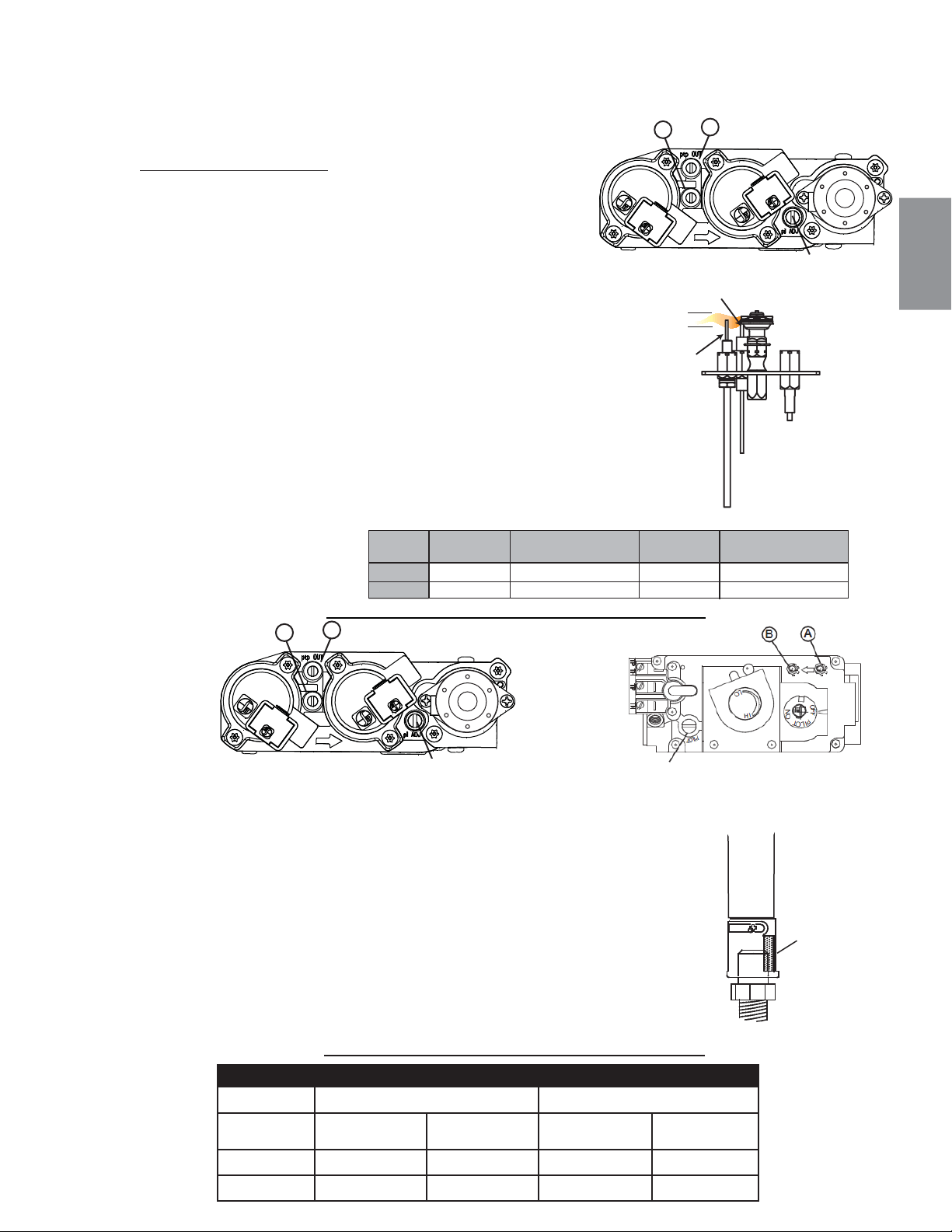

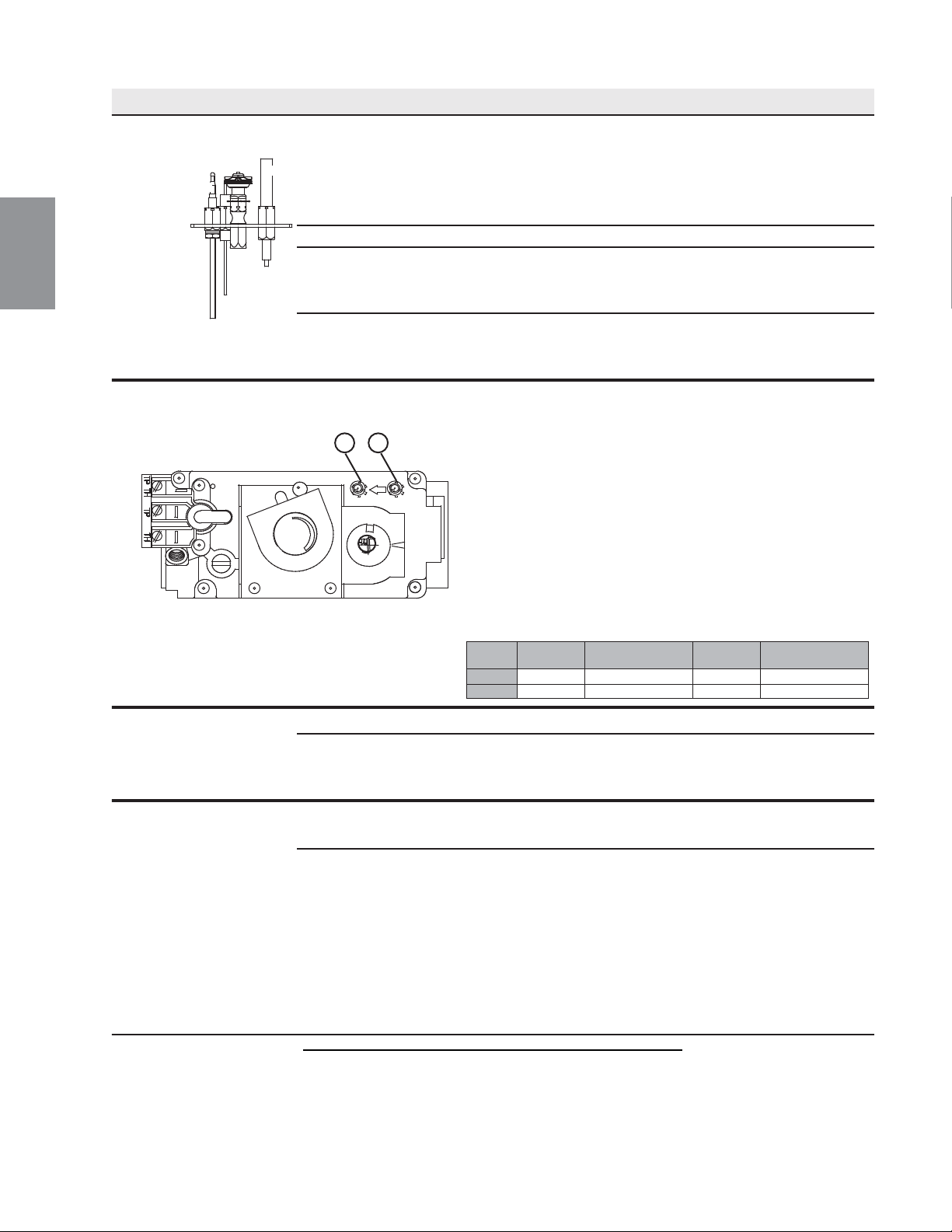

10.0 ADJUSTMENT

10.1 PILOT BURNER ADJUSTMENT

10.2 VENTURI ADJUSTMENT

Adjust the pilot screw to provide properly sized ﬂ ame. Turn in a

clockwise direction to reduce the gas ﬂ ow.

Check Pressure Readings:

Inlet pressure can be checked by turning screw (A) counter-

clockwise 2 or 3 turns and then placing pressure gauge tubing

over the test point. Gauge should read as described on the chart

below. Check pressure with main burner operating on “HI”.

Outlet pressure can be checked the same as above using

screw (B). Gauge should read as described on the chart

below. Check pressure with main burner operating on “HI”.

AFTER TAKING PRESSURE READINGS, BE SURE TO

TURN SCREWS CLOCKWISE FIRMLY TO RESEAL. DO

NOT OVERTORQUE.

Leak test with a soap and water solution.

Prior to pilot adjustment, ensure that the pilot assembly

has not been painted. If overspray or painting of the pilot

assembly has occurred remove the paint from the pilot

assembly, or replace. Fine emery

cloth or a synthetic scrub pad (such as

Scotch-Brite

™)

can be used to remove

the paint from the pilot hood, electrode

and ﬂ ame sensor.

*Maximum inlet pressure

not to exceeed 13”.

39.1E

PILOT SCREW

FLAME MUST ENVELOP

UPPER 3/8” (9.5mm) TO 1/2”

(12.7mm) OF FLAME SENSOR

PILOT

BURNER

ELECTRODE

FLAME

SENSOR

3/8” - 1/2”

(9.5mm - 12.7mm)

Pressure

Inlet

Outlet

Natural Gas

(inches)

Natural Gas

(millibars)

Propane

(inches)

Propane

(millibars)

(MIN. 4.5")

3.5"

13"

(MIN. 11")

10"

17.4mb

(MIN. 11.2mb)

8.7mb

32.4mb

(MIN. 27.4mb)

24.9mb

PILOT SCREW

ELECTRONIC MILLIVOLT

VENTURI ADJUSTMENT CHART

B36 GX36-1

FUEL TOP REAR TOP REAR

NG 1/16" (1.5mm) 1/16" (1.5mm) 1/16" (1.5mm) 1/8" (3.2mm)

LP 1/4" (6.3mm) 3/8" (9.5mm) 1/4" (6.3mm) 3/8" (9.5mm)

W415-1678 / 08.09.16

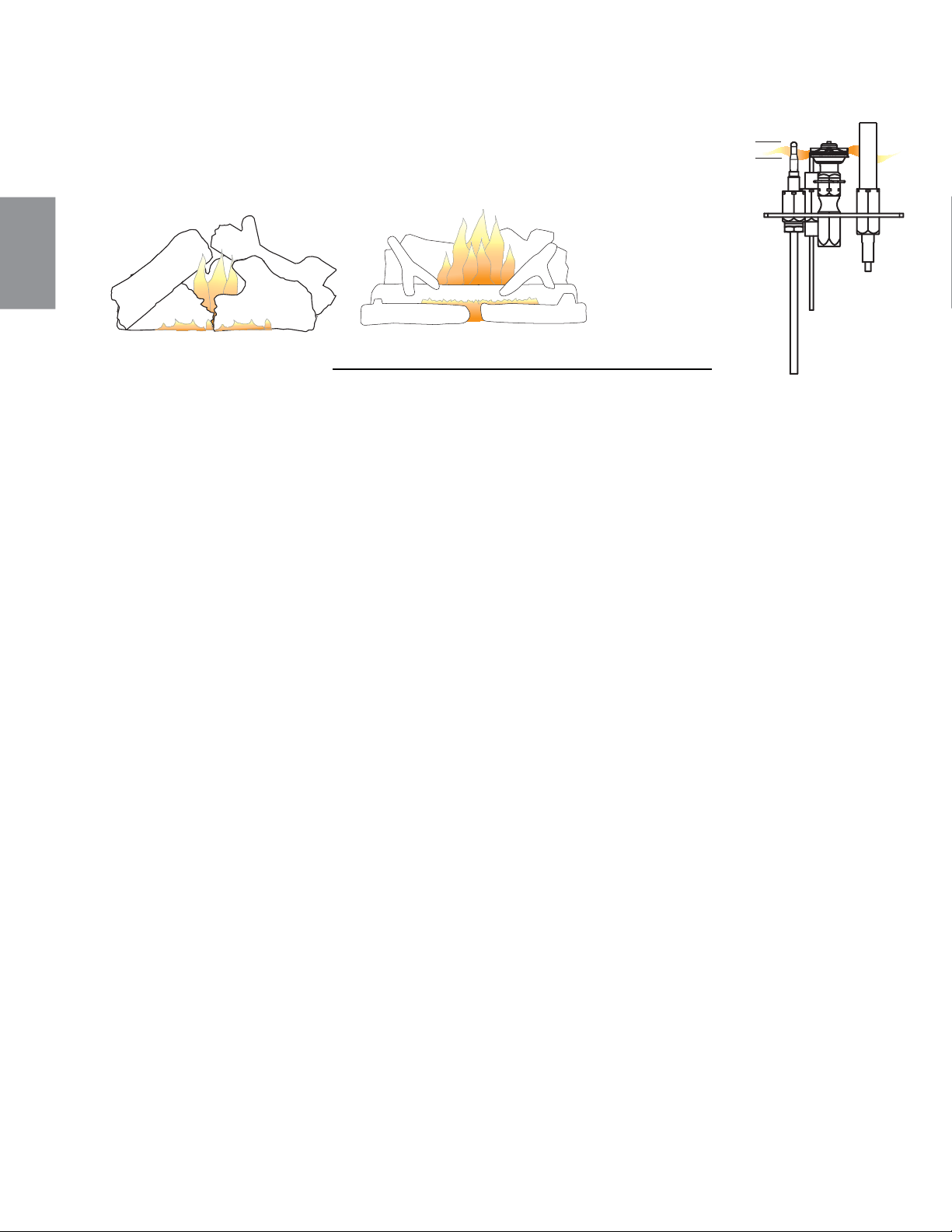

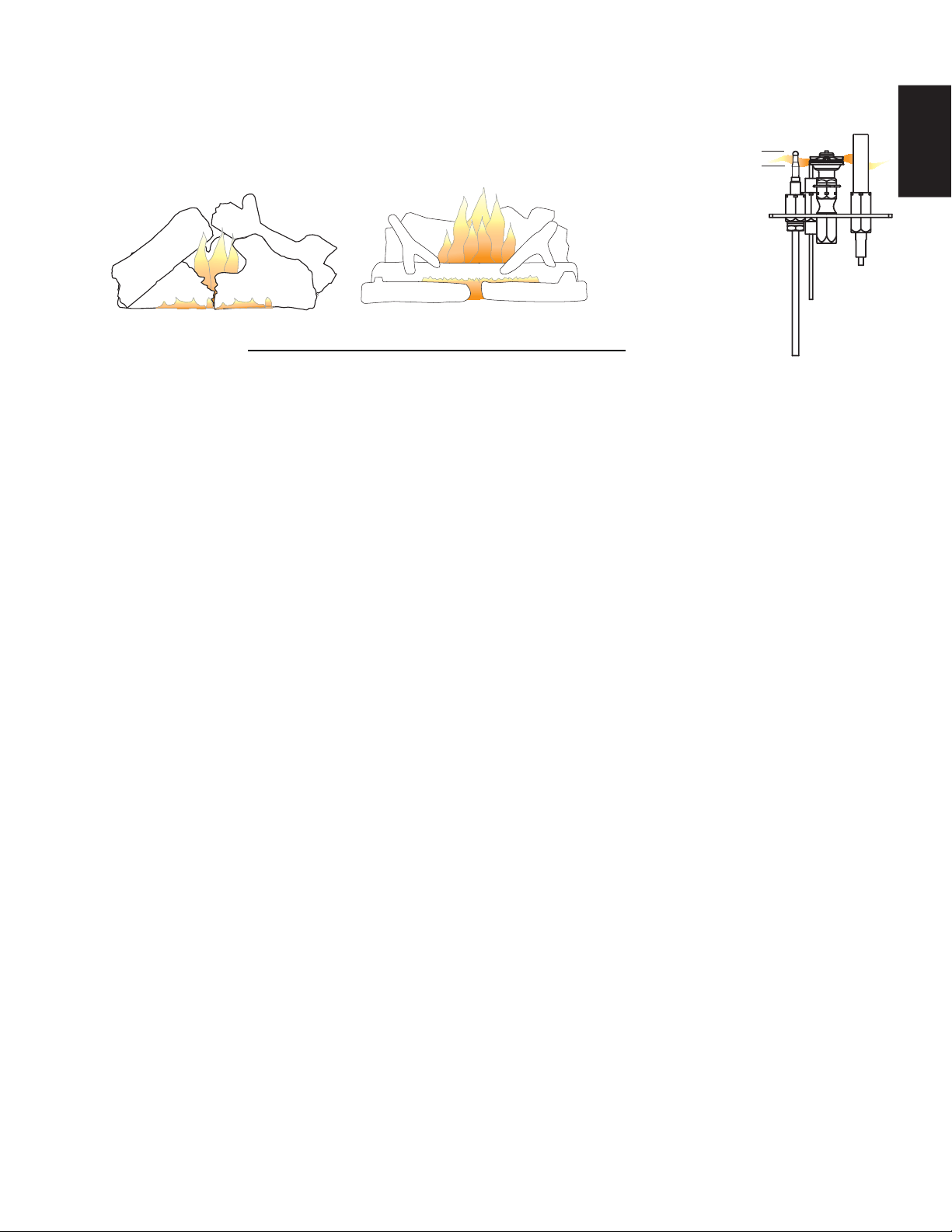

It’s important to periodically perform a visual check of the pilot and

burner ﬂ ames. Compare them to the illustrations provided. If any ﬂ ame

appears abnormal call a service person.

54.2A

3/8” - 1/2”

FLAME MUST

ENVELOP UPPER

3/8" TO 1/2"

(12.7mm - 9.5mm) OF

THERMOCOUPLE &

THERMOPILE

(9.5mm - 12.7mm)

MILLIVOLT

ILLUSTRATED

B36

GX36-1

10.3 FLAME CHARACTERISTICS

10.4 OPTIONAL ANTI CONDENSATION SWITCH

(MODELS B36NTRE/B36PTRE/GX36NTRE-1 & GX36PTRE-1 ONLY)

This appliance has the option to change from an electronic intermittent pilot ignition (IPI) to a standing pilot for

cold climates. The anti condensation control (standing pilot) is located in the center of the control panel. Using

your ﬁ nger, ﬂ ip the switch up for standing pilot, or down for intermittent pilot ignition.

Turning the ACS switch on will allow the pilot ﬂ ame burning to burn continuously. This mode will minimize the

condensation which forms on the inside of the glass when the main burner is ﬁ rst turned on. It will also help

the ﬁ replace and vent system stabilize more quickly during the colder winter months.

During the warmer winter and summer months, the ACS switch can be turned off to minimize fuel

consumption.

W415-1678 / 08.09.16

11.0 MAINTENANCE

This appliance and its venting system should be inspected before use and at least annually by a qualiﬁ ed

service person. The following suggested checks should be performed by a qualiﬁ ed technician. The

appliance area must be kept clear and free of combustible materials, gasoline or other ﬂ ammable vapors and

liquids. The ﬂ ow of combustion and ventilation air must not be obstructed.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper

and dangerous operation. Verify proper operation after servicing.

A. In order to properly clean the burner and pilot assembly, remove the logs, rocks and/or glass to

expose both assemblies.

B. Keep the control compartment, media, burner, air shutter opening and the area surrounding the logs

clean by vacuuming or brushing, at least once a year.

C. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning

or are not burning properly.

D. Check to see that the pilot ﬂ ame is large enough to engulf the ﬂ ame sensor and/or thermocouple /

thermopile as well as reaches the burner.

E. Replace the cleaned logs, rocks or glass. Failure to properly position the media may cause carbon

which can be distributed inside of ﬁ rebox and on exterior surfaces surrounding vent termination.

F. Check to see that the main burner ignites completely on all openings when turned on. A 5 to 10

second total light-up period is satisfactory. Service as required.

G. Check that the gasketing on the sides, top and bottom of the door is not broken or missing. Replace

if necessary.

H. If for any reason the vent air intake system is disassembled, re-install and re-seal per the instructions

provided for the initial installation.

I. Cleaning the safety barrier may be necessary due to excessive lint / dust from carpeting, pets, etc.

simply vacuum using the brush attachment.

J. Ensure the relief system performs effectively. Check that the gasket is not worn or damaged. Replace

if necessary.

40.1E

TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE.

APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED.

DO NOT USE ABRASIVE CLEANERS.

DO NOT PAINT THE PILOT ASSEMBLY.

MAINTENANCE

WARNING

W415-1678 / 08.09.16

11.1 ANNUAL MAINTENANCE

WARNING

DO NOT USE SUBSTITUTE MATERIALS.

GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.

CARE MUST BE TAKEN WHEN REMOVING AND DISPOSING OF ANY BROKEN DOOR GLASS OR

DAMAGED COMPONENTS. BE SURE TO VACUUM UP ANY BROKEN GLASS FROM INSIDE THE

APPLIANCE BEFORE OPERATION.

DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS

REMOVED, CRACKED, BROKEN OR SCRATCHED.

56.1C

Replacement glass/frame assembly shall be replaced as a complete unit as supplied by the

appliance manufacturer.

37.1E

WARNING

THE FIREBOX BECOMES VERY HOT DURING OPERATION. LET THE APPLIANCE COOL

COMPLETELY OR WEAR HEAT RESISTANT GLOVES BEFORE CONDUCTING SERVICE.

NEVER VACUUM HOT EMBERS.

DO NOT PAINT THE PILOT ASSEMBLY.

• This appliance will require maintenance which should be planned on an annual basis.

• Service should include cleaning, battery replacement, venting inspection and inspection of the burner,

media and ﬁ rebox. Refer to the door removal section and remove the door as instructed.

• Carefully remove media if necessary (logs, glass, brick panels etc).

• Using a vacuum with a soft brush attachment, gently remove any dirt, debris or carbon build up from the

logs, ﬁ rebox and burner. For glass media, follow the installation instructions for pre-cleaning.

• Also gently remove any build-up on the pilot assembly including, if equipped; thermopile, thermocouple,

ﬂ ame sensor and igniter.

NOTE: Clean ﬂ ame sensor using a ﬁ ne emery cloth or a synthetic scrub pad

(such as Scotch-Brite™) to remove any oxides.

Clean the pilot assembly using a vacuum with a soft

brush attachment.

It is important that the pilot assembly is not painted.

• Inspect all accessible gaskets and replace as required.

• Access the blower, if equipped and clean using a soft brush and vacuum.

• Re-assemble the various components in reverse order.

• Inspect the relief system. The appliance relieves through the main glass door or through the ﬂ aps on the

ﬁ rebox top. Ensure they open freely, and close sealed.

• Check the gas control valve pilot and Hi / Lo knobs move freely (if equipped) – replace if any stiffness in

movement is experienced.

• Check for gas leaks on all gas connections up and downstream from the gas valve including the pilot

tube connections.

11.2 DOOR GLASS REPLACEMENT

W415-1678 / 08.09.16

Contact your dealer for questions concerning prices and policies on replacement parts. Normally all parts can

be ordered through your Authorized dealer / distributor.

FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE

REQUIRED TO HONOUR THE CLAIM.

When ordering replacement parts always give the following information:

• Model & Serial Number of appliance

• Installation date of appliance

• Part number

• Description of part

• Finish

PARTS, PART NUMBERS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.

PARTS IDENTIFIED AS STOCKED WILL BE DELIVERED WITHIN 2 TO 5 BUSINESS DAYS FOR MOST

DELIVERY DESTINATIONS.

PARTS NOT IDENTIFIED AS STOCKED WILL BE DELIVERED WITHIN A 2 TO 4 WEEK PERIOD.

PARTS IDENTIFIED AS ‘SO’ ARE SPECIAL ORDER AND CAN TAKE UP TO 90 DAYS FOR DELIVERY.

41.2B

FAILURE TO POSITION THE PARTS IN ACCORDANCE WITH THIS MANUAL OR FAILURE TO USE

ONLY PARTS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY

DAMAGE OR PERSONAL INJURY.

** THIS IS A FAST ACTING THERMOCOUPLE. IT IS AN INTEGRAL SAFETY COMPONENT. REPLACE ONLY WITH

A FAST ACTING THERMOCOUPLE SUPPLIED BY WOLF STEEL LTD.

WARNING

11.3 CARE OF GLASS

5.1A

DO NOT CLEAN GLASS WHEN HOT! DO NOT USE

ABRASIVE CLEANERS TO CLEAN GLASS.

Buff lightly with a clean dry soft cloth. Clean both sides

of the glass after the ﬁ rst 10 hours of operation with a

recommended ﬁ replace glass cleaner. Do not use an

ammonia-based ﬁ replace glass cleaner. Thereafter clean

as required. If the glass is not kept clean permanent

discoloration and / or blemishes may result.

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

WARNING

5.5A

This appliance is factory equipped with 4mm tempered glass. Use only replacement parts available from your

appliance manufacturer. DO NOT SUBSTITUTE MATERIALS.

5.5.1A

This appliance is factory equipped with 5mm ceramic glass. Use only replacement parts as supplied by the

appliance manufacturer. DO NOT SUBSTITUTE MATERIALS.

B36:

GX36-1:

12.0 REPLACEMENTS

W415-1678 / 08.09.16

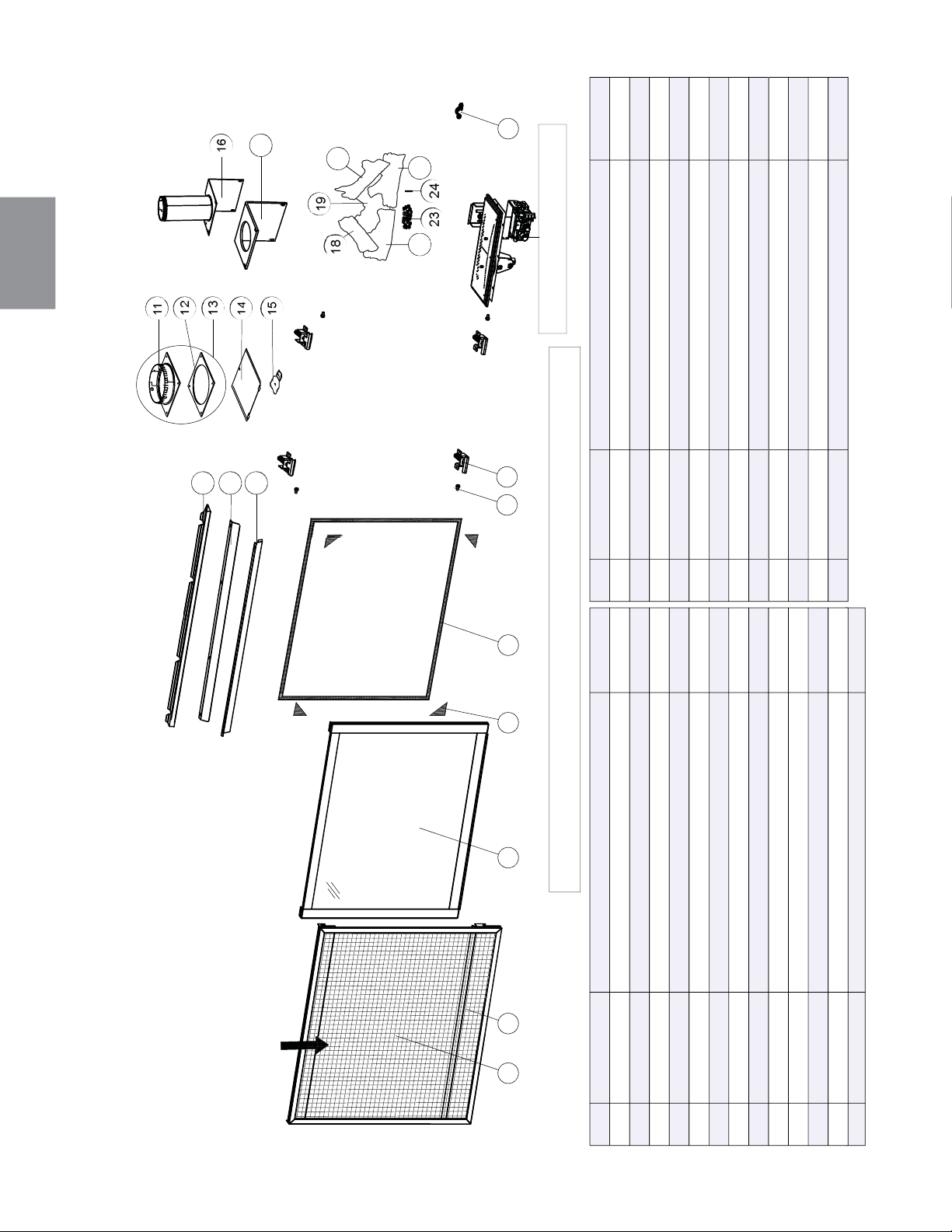

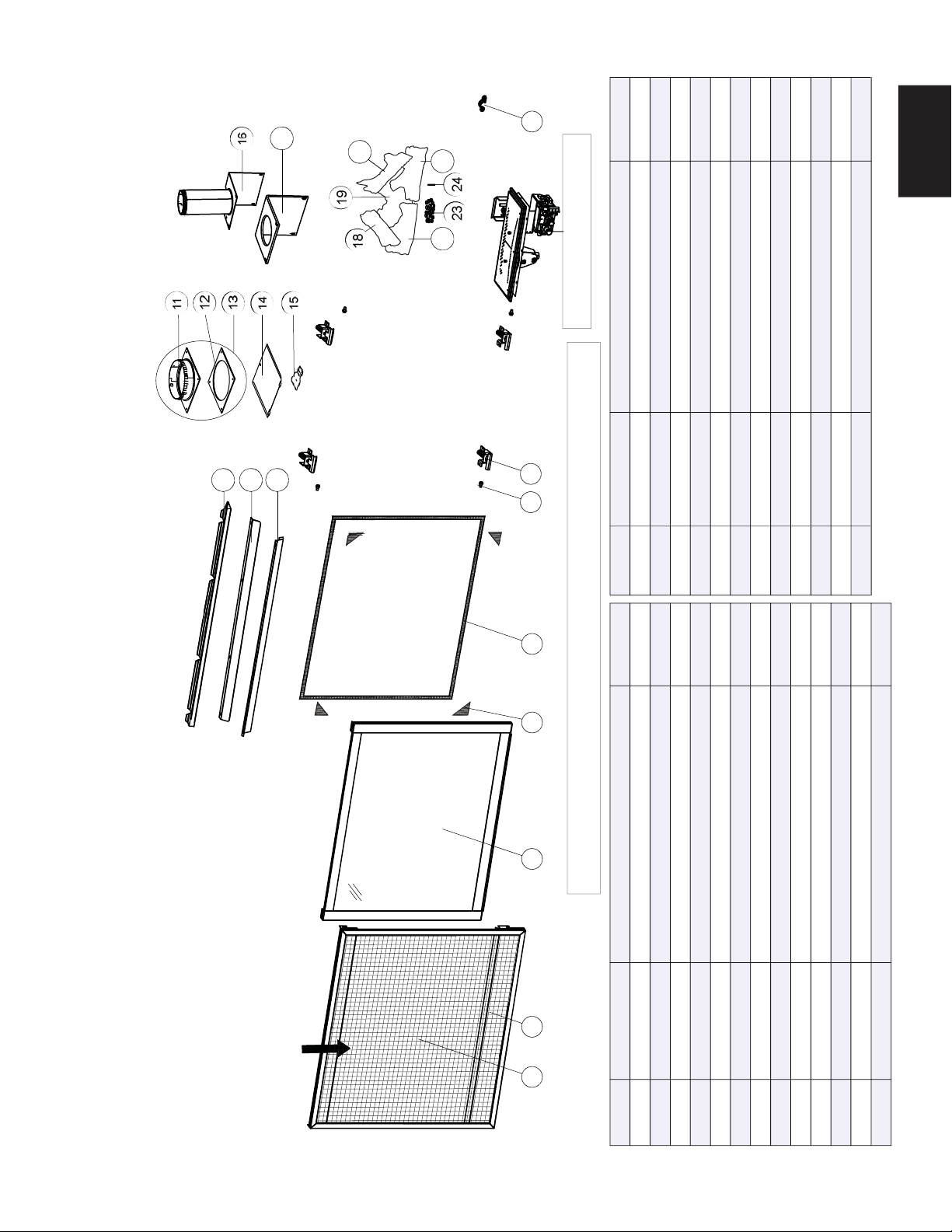

12.1 B36 OVERVIEW

36 O

REF. NO.

PART NUMBER

DESCRIPTION

REF. NO.

PART NUMBER

DESCRIPTION

FOR REPLACEMENTS PARTS REFER

TO: "VALVE TRAIN ASSEMBLY"

ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED

W565-0209-SER

SAFETY SCREEN

W010-3402

COMPLETE DOOR ASSEMBLY

W715-1040

TOP FINISHING TRIM

HOOD

LEFT CROSSOVER LOG (GL-696)

REAR LOG (GL-696)

W135-0546

W135-0643

STOCKED

YES

LOG LOCATING PIN (X2)

W485-0042

W385-2010

NAPOLEON LOGO

YES

GLOWING EMBERS (GL-696)

W361-0016

W562-0009

DOOR GASKET

W667-0018

GASKET TAPE (X4)

YES

RIGHT SIDE LOG (GL-696)

W135-0645

LEFT SIDE LOG (GL-696)

W135-0644

W010-3072-SER

SAFETY BARRIER ASSEMBLY

RIGHT CROSSOVER LOG (GL-696)

W135-0589

YES

W570-0135

SHOULDER SCREWS (X4)

W010-3070

DOOR LATCHES (X4)

W290-0282

EXHAUST BRACKET GASKET

W010-3490-SER

EXHAUST COLLAR ASSEMBLY

FRONT BAFFLE

W018-0158

W010-3489

W290-0054

RP4

7” AIR COLLAR ASSEMBLY

7” FLANGE GASKET

4” RESTRICTOR PLATE

SAFETY BARRIER

ASSEMBLY

GL-696

W335-0063

W500-0837

VENT COVER PLATE

W010-3489-SER

7” AIR COLLAR ASSEMBLY (C/W GASKET)

YES

W415-1678 / 08.09.16

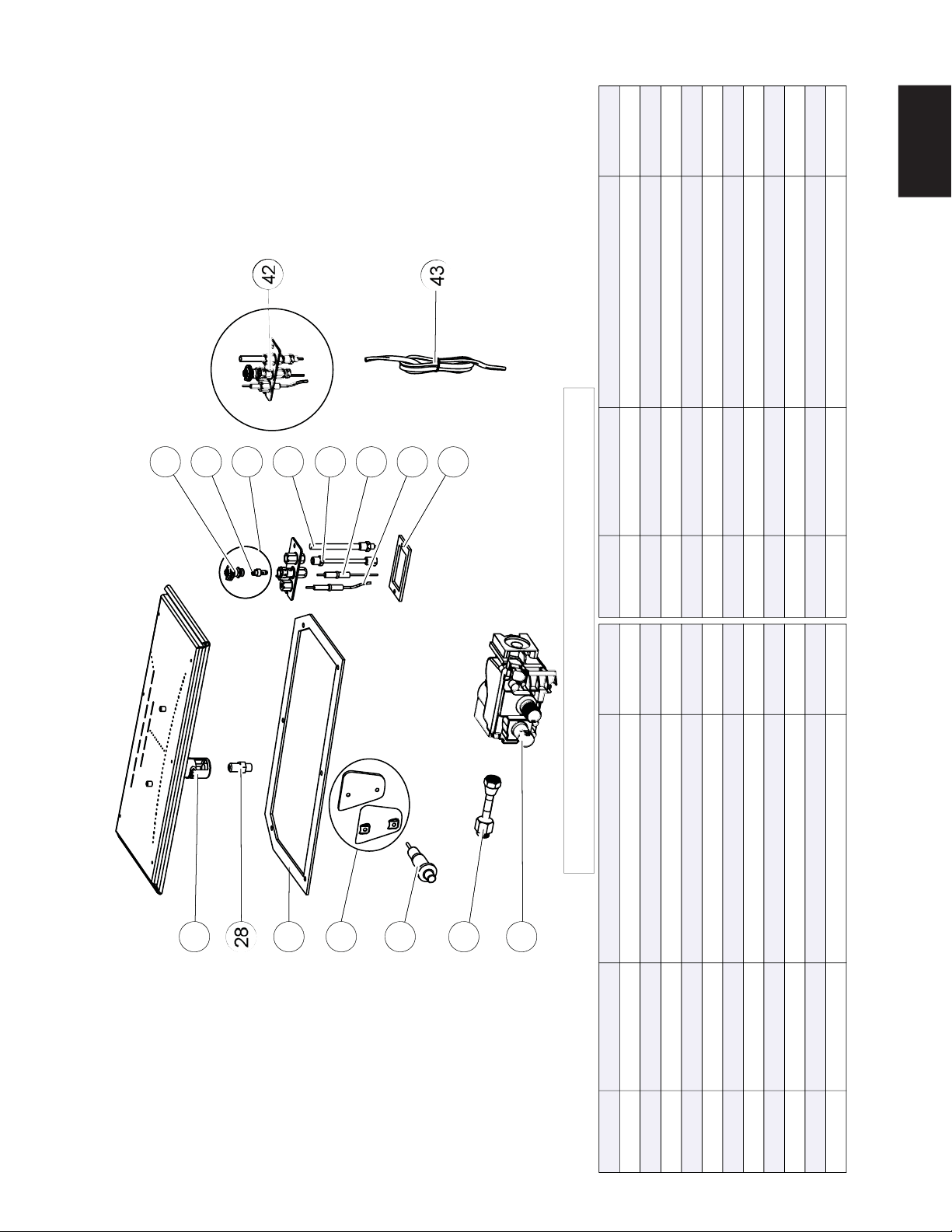

12.2 B36 MILLIVOLT VALVE ASSEMBLY

ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED

REF. NO.

PART NUMBER

DESCRIPTION

STOCKED

W100-0190-SER

BURNER ASSEMBLY

YES

W456-0047

BURNER ORIFICE #47 (NG)

YES

W456-0056

BURNER ORIFICE #56 (LP)

YES

W290-0248

VALVE TRAIN GASKET

YES

REF. NO.

PART NUMBER

DESCRIPTION

STOCKED

2229

W432-0078

MANIFOLD FLEX PIPE

W725-0025

VALVE (NG)

W725-0043

VALVE (LP)

W335-0039

PILOT HOOD

W455-0070

PILOT ORIFICE #62 (NG)

W455-0068

PILOT ORIFICE #35 (LP)

W357-0001

PUSH BUTTON IGNITOR

W500-0276-SER

VENTURI COVER ASSEMBLY

W010-0801

PILOT (NG)

YES

W010-0800

PILOT (LP)

YES

W680-0004

THERMOPILE

YES

W720-0062

PILOT TUBE (w/ FITTINGS)

YES

W240-0006

ELECTRODE (w/ WIRE)

YES

W680-0005

THERMOCOUPLE

YES

W290-0029

PILOT GASKET

W010-0798

PILOY ASSEMBLY (NG)

W010-0799

PILOT ASSEMBLY (LP)

W750-0112

WIRE SWITCH

YES

** THIS IS A FAST ACTING THERMOCOUPLE. IT IS AN INTEGRAL SAFETY COMPONENT. REPLACE ONLY WITH A FAST ACTING

THERMOCOUPLE SUPPLIED BY WOLF STEEL LTD.

W415-1678 / 08.09.16

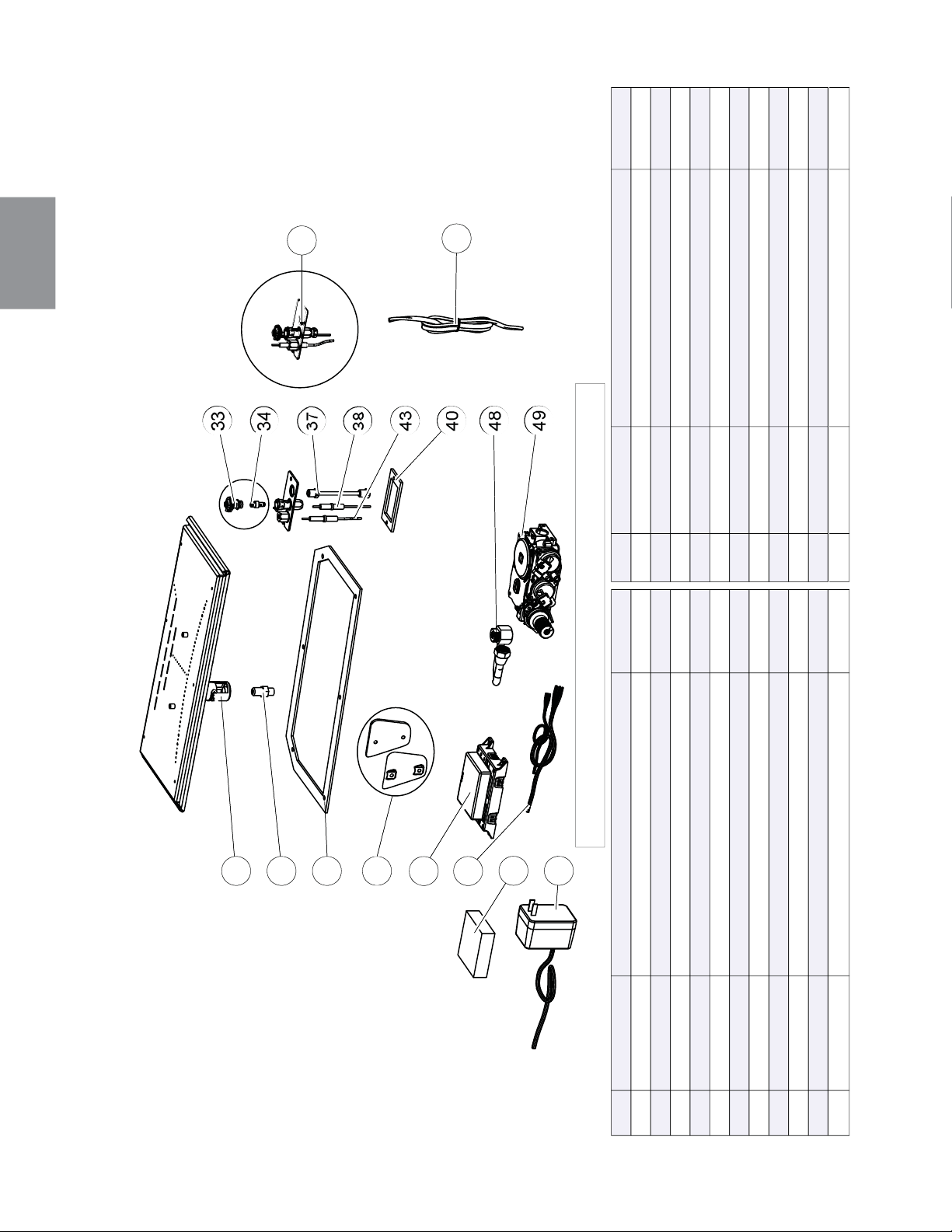

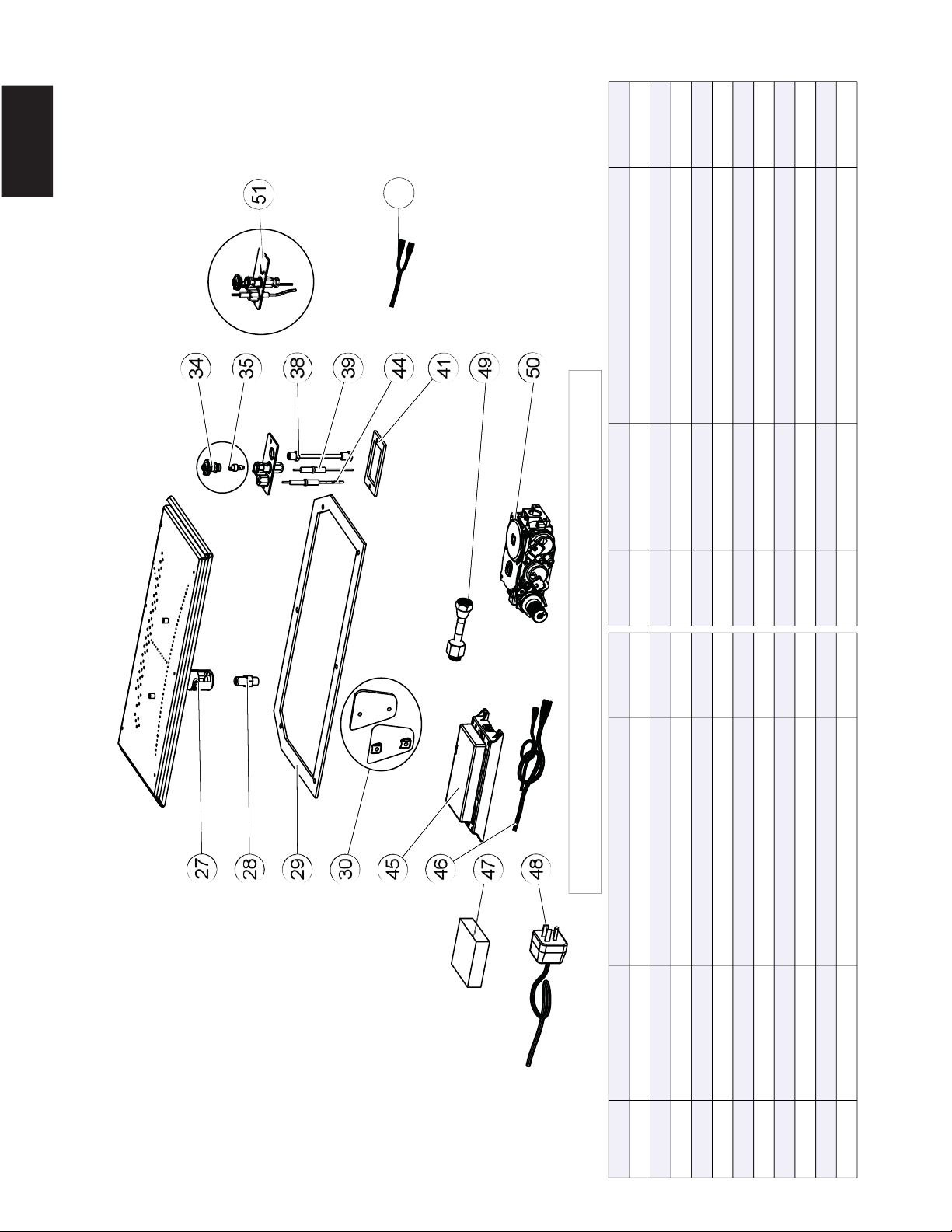

12.3 B36 ELECTRONIC VALVE ASSEMBLY

ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED

REF. NO.

PART NUMBER

DESCRIPTION

STOCKED

W100-0190-SER

BURNER ASSEMBLY

YES

W456-0047

BURNER ORIFICE #47 (NG)

YES

W456-0056

BURNER ORIFICE #56 (LP)

YES

REF. NO.

PART NUMBER

DESCRIPTION

STOCKED

3348

2329

W335-0039

PILOT HOOD

YES

W455-0070

PILOT ORIFICE #62 (NG)

YES

W455-0068

PILOT ORIFICE #35 (LP)

YES

W720-0062

PILOT TUBE (w/ FITTINGS)

YES

W240-0013

ELECTRODE (w/ WIRE)

YES

W290-0029

PILOT GASKET

W245-0025

THERMOSENSOR

YES

W500-0276-SER

VENTURI COVER ASSEMBLY

W290-0248

VALVE TRAIN GASKET

YES

W190-0022

CONTROL MODULE

YES

W010-1986

WIRE HARNESS (THERMOSTAT)

YES

W350-0702

BATTERY BACK-UP

YES

W707-0010

TRANSFORMER

YES

W725-0062

886 PROFLAME VALVE (NG)

YES

W725-0063

886 PROFLAME VALVE (LP)

YES

W010-2763

PILOT ASSEMBLY (NG)

W010-2808

PILOT ASSEMBLY (LP)

W750-0270

WIRE SWITCH

YES

W432-0046

MANIFOLD FLEX PIPE

W415-1678 / 08.09.16

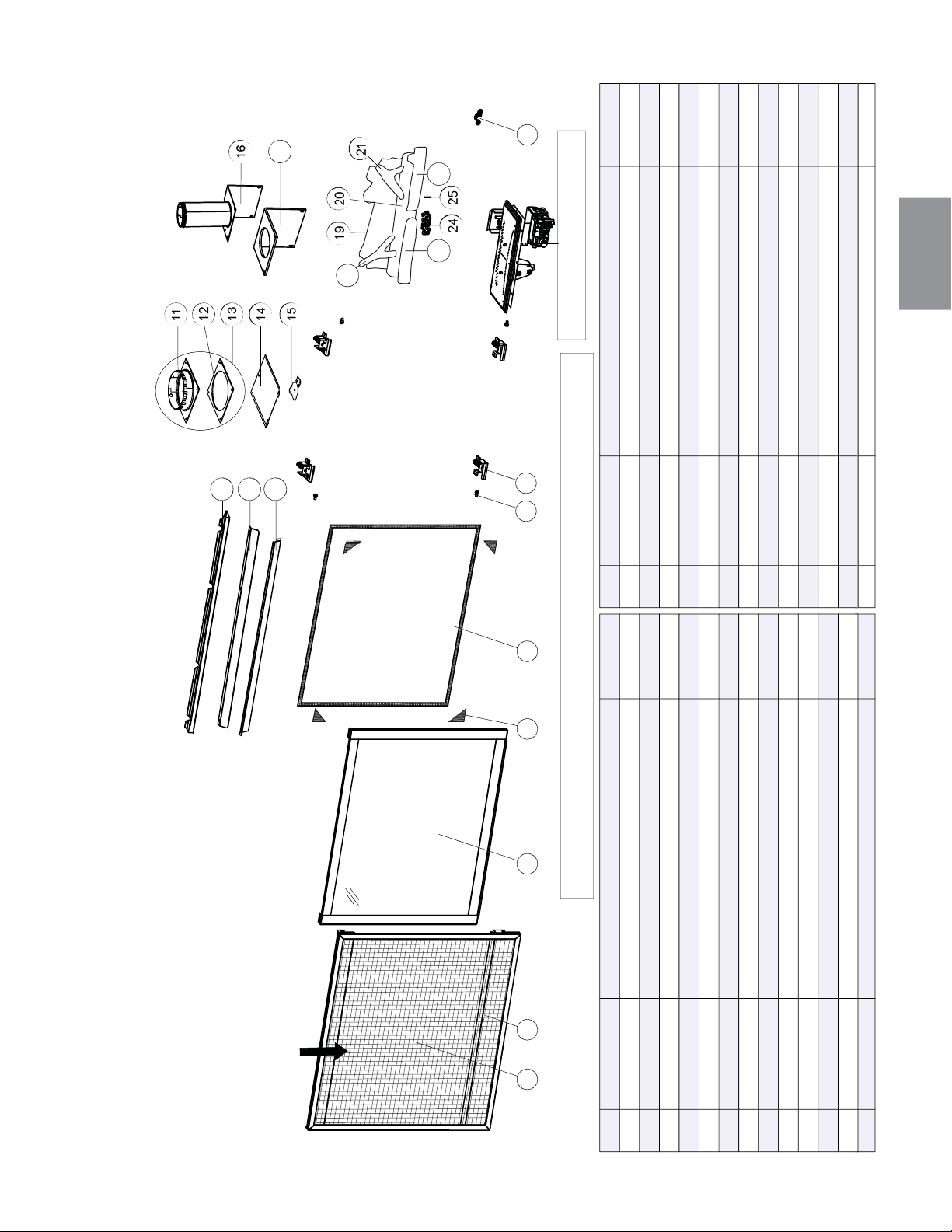

12.4 GX36-1 OVERVIEW

REF. NO. PART NUMBER DESCRIPTION

ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED

W565-0242-SER SAFETY SCREEN

W010-3402 COMPLETE DOOR ASSEMBLY

W715-1040 TOP FINISHING TRIM

HOOD

STOCKED STOCKED

YES

W562-0009

DOOR GASKET

W667-0018 GASKET TAPE (X4)

YES

W010-4006-SER SAFETY BARRIER ASSEMBLY

YES

W570-0135 SHOULDER SCREWS (X4)

W010-3070 DOOR LATCHES (X4)

FRONT BAFFLEW018-0158

W335-0063

31 4 52 26

FOR REPLACEMENTS PARTS REFER

TO: "VALVE TRAIN ASSEMBLY"

6 7

SAFETY BARRIER

ASSEMBLY

GL-704

LEFT CROSSOVER LOG (GL-704)

REAR LOG (GL-704)

W135-0690

LOG LOCATING PIN (X2)

W485-0042

YES

GLOWING EMBERS (GL-704)W361-0016

FRONT RIGHT LOG (GL-704)

FRONT LEFT LOG (GL-704)

RIGHT CROSSOVER LOG (GL-704)W135-0689

YES

W290-0282

EXHAUST BRACKET GASKET

W010-3490-SER EXHAUST COLLAR ASSEMBLY

RP4

4” RESTRICTOR PLATE

W135-0685

W135-0688

YES

W385-2010 NAPOLEON LOGO

YES

MIDDLE LOG (GL-704)W135-0686

W135-0687

YES

W010-3489

W290-0054

7” AIR COLLAR ASSEMBLY

7” FLANGE GASKET

W010-3489-SER

7” AIR COLLAR ASSEMBLY (C/W GASKET)

26 YES

W500-0837 VENT COVER PLATE

W415-1678 / 08.09.16

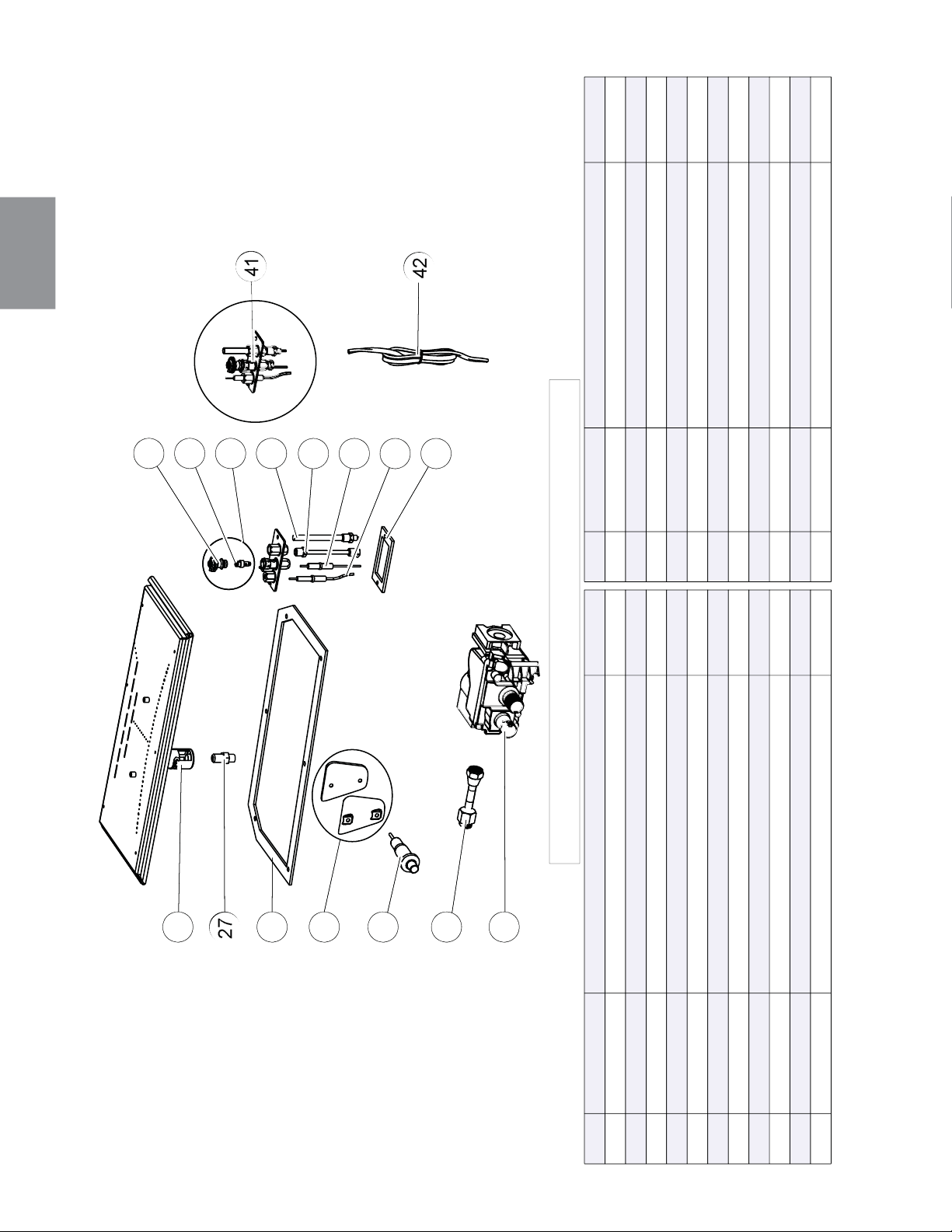

12.5 GX36-1 MILLIVOLT VALVE ASSEMBLY

** THIS IS A FAST ACTING THERMOCOUPLE. IT IS AN INTEGRAL SAFETY COMPONENT. REPLACE ONLY WITH A FAST ACTING

THERMOCOUPLE SUPPLIED BY WOLF STEEL LTD.

ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED

REF. NO.

PART NUMBER

DESCRIPTION

STOCKED

W100-0190-SER

BURNER ASSEMBLY

YES

W456-0047

BURNER ORIFICE #47 (NG)

YES

W456-0056

BURNER ORIFICE #56 (LP)

YES

W290-0248

VALVE TRAIN GASKET

YES

REF. NO.

PART NUMBER

DESCRIPTION

STOCKED

2230

W432-0078

MANIFOLD FLEX PIPE

W725-0025

VALVE (NG)

W725-0043

VALVE (LP)

W335-0039

PILOT HOOD

W455-0070

PILOT ORIFICE #62 (NG)

W455-0068

PILOT ORIFICE #35 (LP)

W357-0001

PUSH BUTTON IGNITOR

W500-0276-SER

VENTURI COVER ASSEMBLY

W010-0801

PILOT (NG)

YES

W010-0800

PILOT (LP)

YES

W680-0004

THERMOPILE

YES

W720-0062

PILOT TUBE (w/ FITTINGS)

YES

W240-0006

ELECTRODE (w/ WIRE)

YES

W680-0005

THERMOCOUPLE

YES

W290-0029

PILOT GASKET

W010-0798

PILOY ASSEMBLY (NG)

W010-0799

PILOT ASSEMBLY (LP)

W750-0112

WIRE SWITCH

YES

W415-1678 / 08.09.16

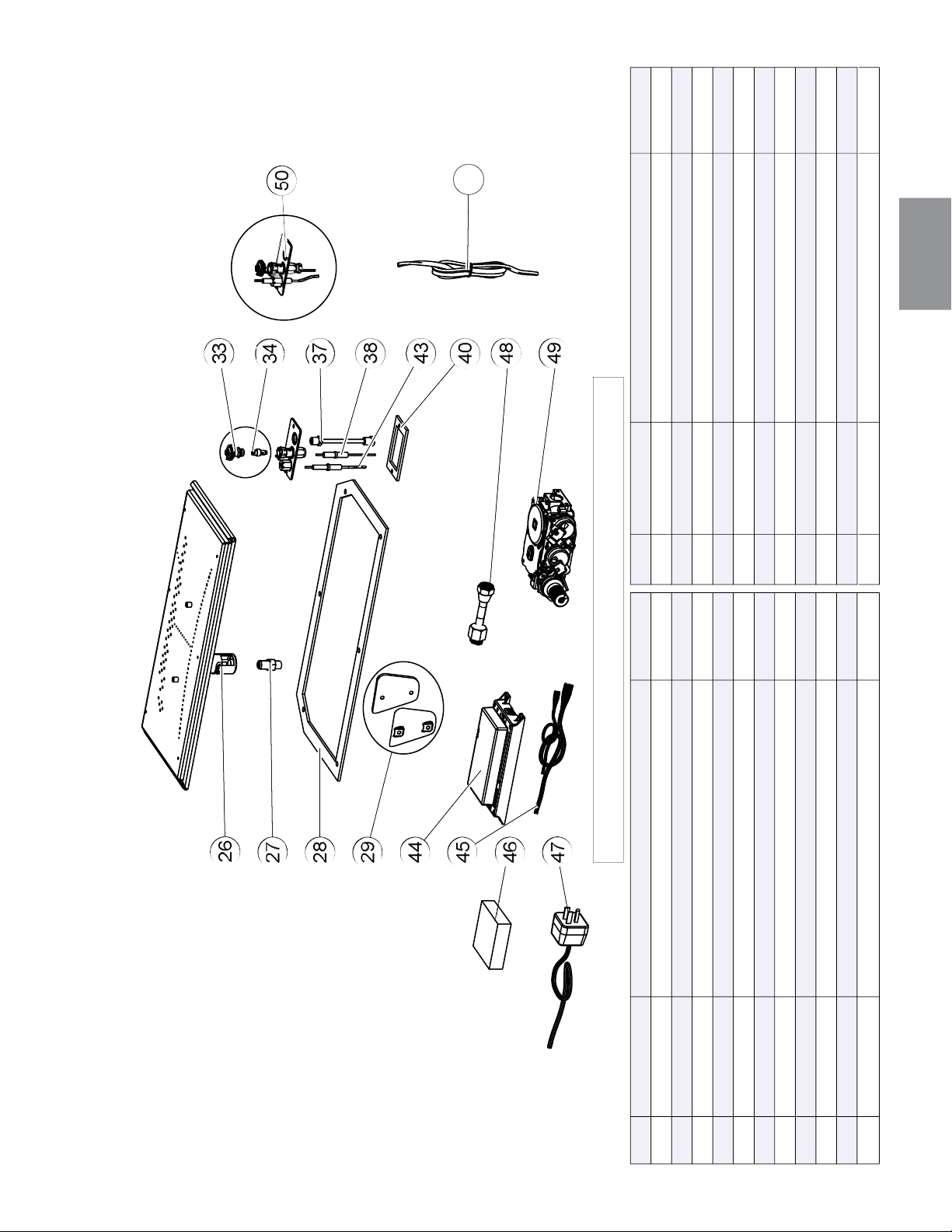

12.6 GX36-1 ELECTRONIC VALVE ASSEMBLY

ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED

REF. NO.

PART NUMBER

STOCKED

W100-0191-SER

BURNER ASSEMBLY

YES

REF. NO.

PART NUMBER

STOCKED

W190-0113

W175-0633

W350-0702

W750-0294

W725-0062

W725-0063

W010-2763

W010-2808

DESCRIPTION

CONTROL MODULE

6” CONNECTOR

BATTERY BACK-UP

POWER CORD

VALVE (NG)

VALVE (LP)

PILOT ASSEMBLY (NG)

PILOT ASSEMBLY (LP)

YES

W245-0025

THERMOSENSOR

W456-0053

DESCRIPTION

BURNER ORIFICE #53 (LP)

YES

W456-0042

BURNER ORIFICE #42 (NG)

YES

W290-0248

W335-0039

W455-0070

W455-0068

W720-0062

W240-0013

W290-0029

PILOT ORIFICE #62 (NG)

VALVE TRAIN GASKET

PILOT HOOD

YES

PILOT ORIFICE #35 (LP)

YES

PILOT TUBE (w/ FITTINGS)

YES

ELECTRODE (w/ WIRE)

YES

PILOT GASKET

YES

4452

YES

W500-0276-SER

VENTURI COVER ASSEMBLY

W432-0078

MANIFOLD FLEX PIPE

YES

W750-0267

WIRE HARNESS (CONTROL)

W415-1678 / 08.09.16

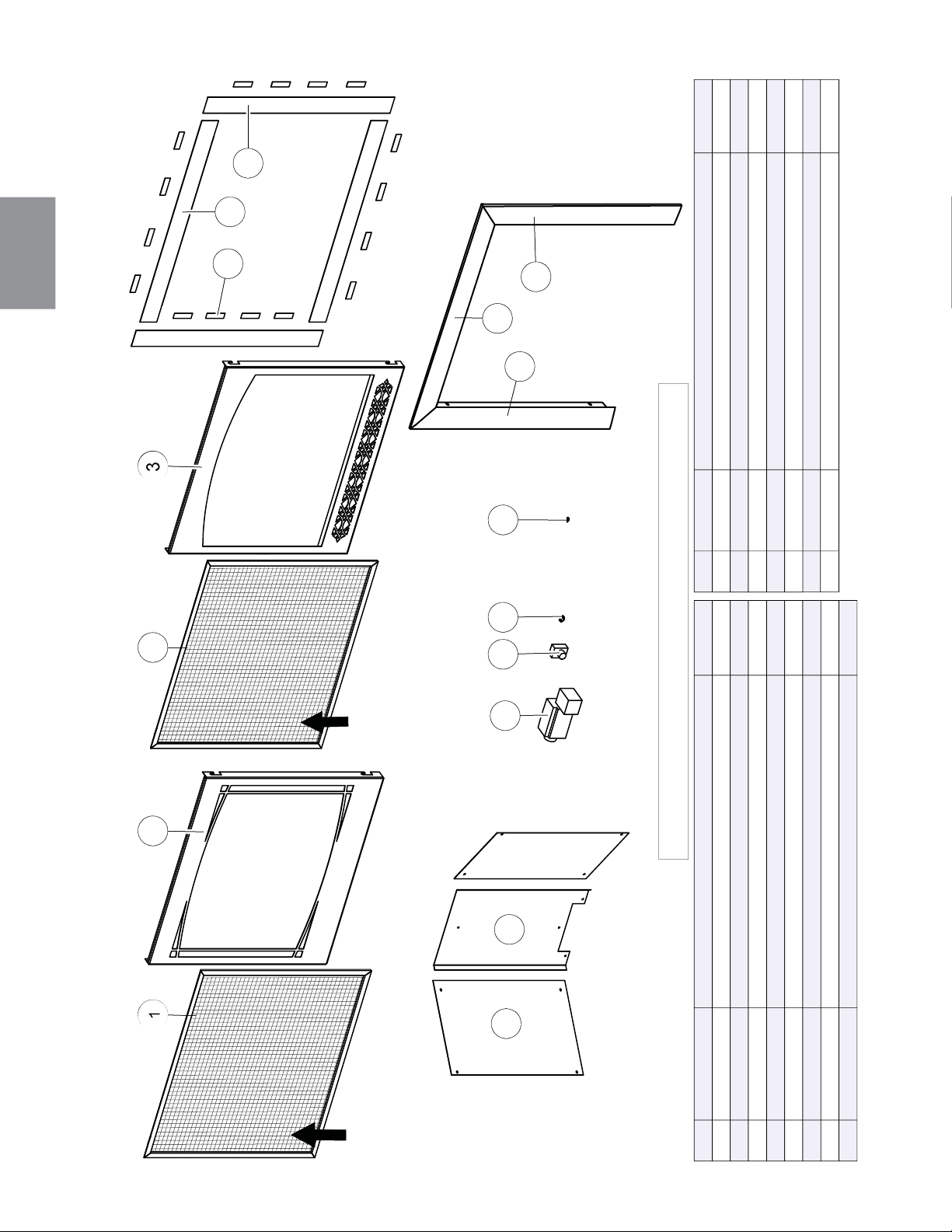

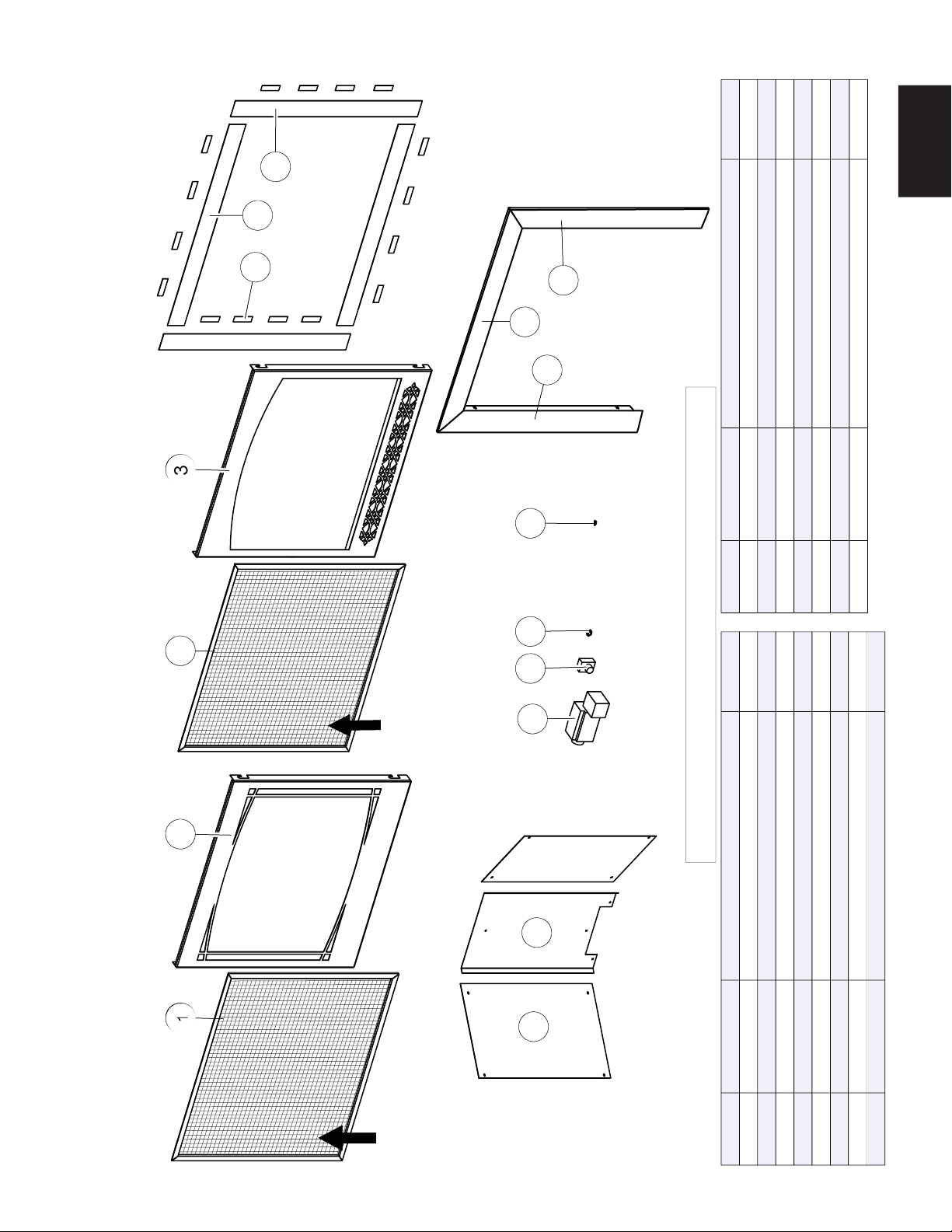

13.0 B36 ACCESSORIES

ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED

TK35

PRPB36

AUB

H35F

Z35F

SAFETY

SCREEN

SAFETY

SCREEN

REF. NO.

PART NUMBER

DESCRIPTION

STOCKED

W565-0209-SER

SAFETY SCREEN (Z35F & H35F)

YES

W010-3281

ZEN FRONT ASSEMBLY (Z35F)

W010-3282

HERRITAGE FRONT ASSEMBLY(H35F)

W430-0003

MAGNET (X16) (TK35)

YES

W715-0953

TOP/BOTTOM TRIM (X2) (TK35)

W715-0952

SIDE TRIM (X2) (TK35)

W475-1012

SIDE PORCELAIN PANEL(X2) (PRPB36)

REF. NO.

PART NUMBER

DESCRIPTION

STOCKED

W062-0059

BLOWER (AUB)

YES

KB-35

VARIABLE SPEED SWITCH

YES

W690-0002

THERMODISC

YES

ACS-SIT

ANTI-CONDENSATION SWITCH (ACS)

YES

4614

BT36

4713

4915

W475-1013

REAR PORCELAIN PANEL (PRPB36)

W715-1069

LEFT SIDE BEVELLED TRIM (BT36)

W715-1068

TOP BEVELLED TRIM (BT36)

W715-1070

RIGHT SIDE BEVELLED TRIM (BT36)

W415-1678 / 08.09.16

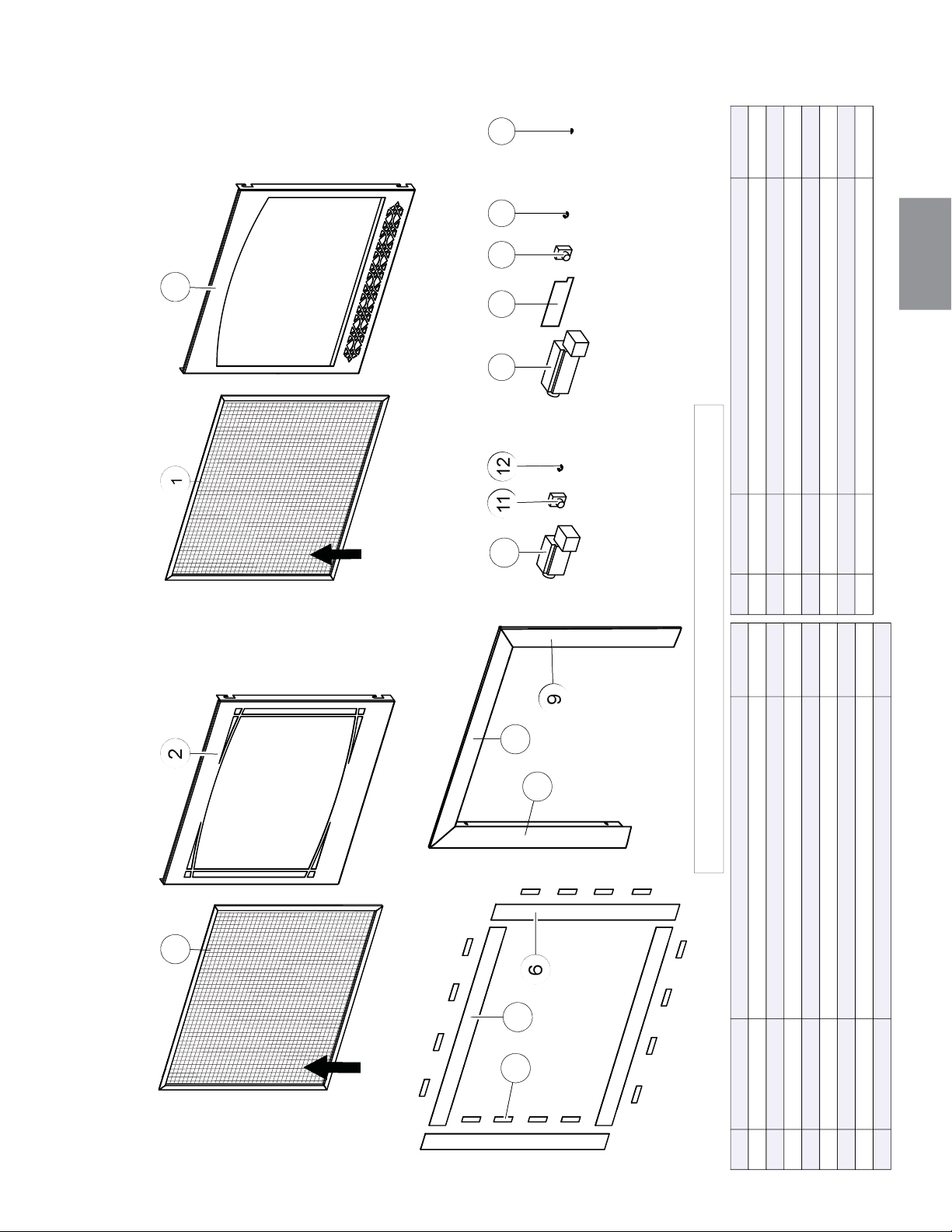

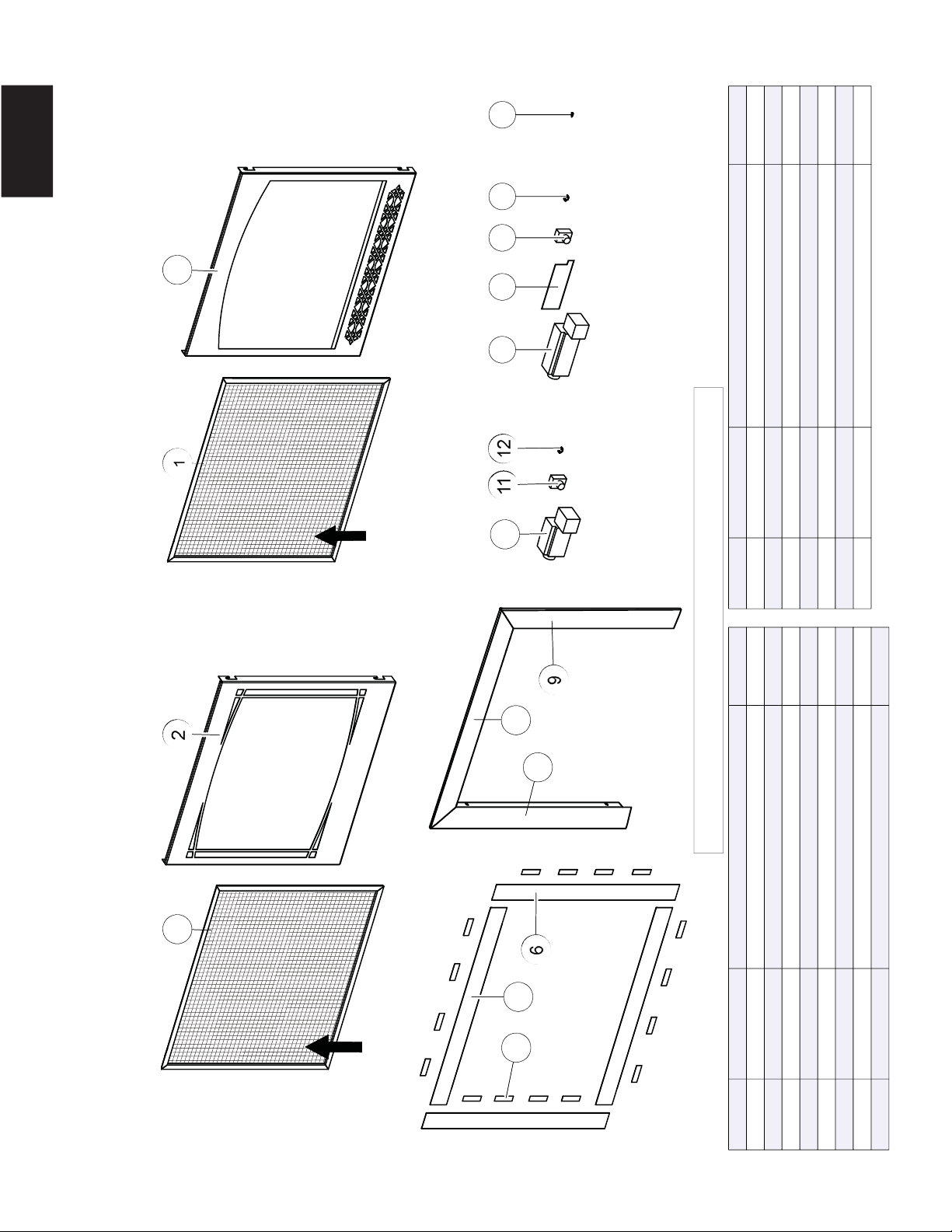

14.0 GX36-1 ACCESSORIES

W715-1068

TOP BEVELLED TRIM (BT36)

ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED

TK35

H35F

Z35F

SAFETY

SCREEN

SAFETY

SCREEN

REF. NO.

PART NUMBER

DESCRIPTION

STOCKED

W565-0242-SER

SAFETY SCREEN (Z35F & H35F)

YES

W010-3281

ZEN FRONT ASSEMBLY (Z35F)

W010-3282

HERRITAGE FRONT ASSEMBLY(H35F)

W430-0003

MAGNET (X16) (TK35)

YES

W715-0953

TOP/BOTTOM TRIM (X2) (TK35)

REF. NO.

PART NUMBER

DESCRIPTION

STOCKED

W715-1069

LEFT SIDE BEVELLED TRIM (BT36)

W715-1069

RIGHT SIDE BEVELLED TRIM (BT36)

468

BT36

477

499

W715-0952

SIDE TRIM (X2) (TK35)

YES

GZ600KT

YES

AUB

W062-0059

BLOWER ASSEMBLY (AUB)

W062-0051

BLOWER ASSEMBLY (GZ600KT)

KB-35

VARIABLE SPEED SWITCH ASSEMBLY

W690-0002

THERMODISC

W290-0345

BLOWER GASKET (GZ600KT)

ACS-SIT

ANTI-CONDENSATION SWITCH (ACS)

YES

W415-1678 / 08.09.16

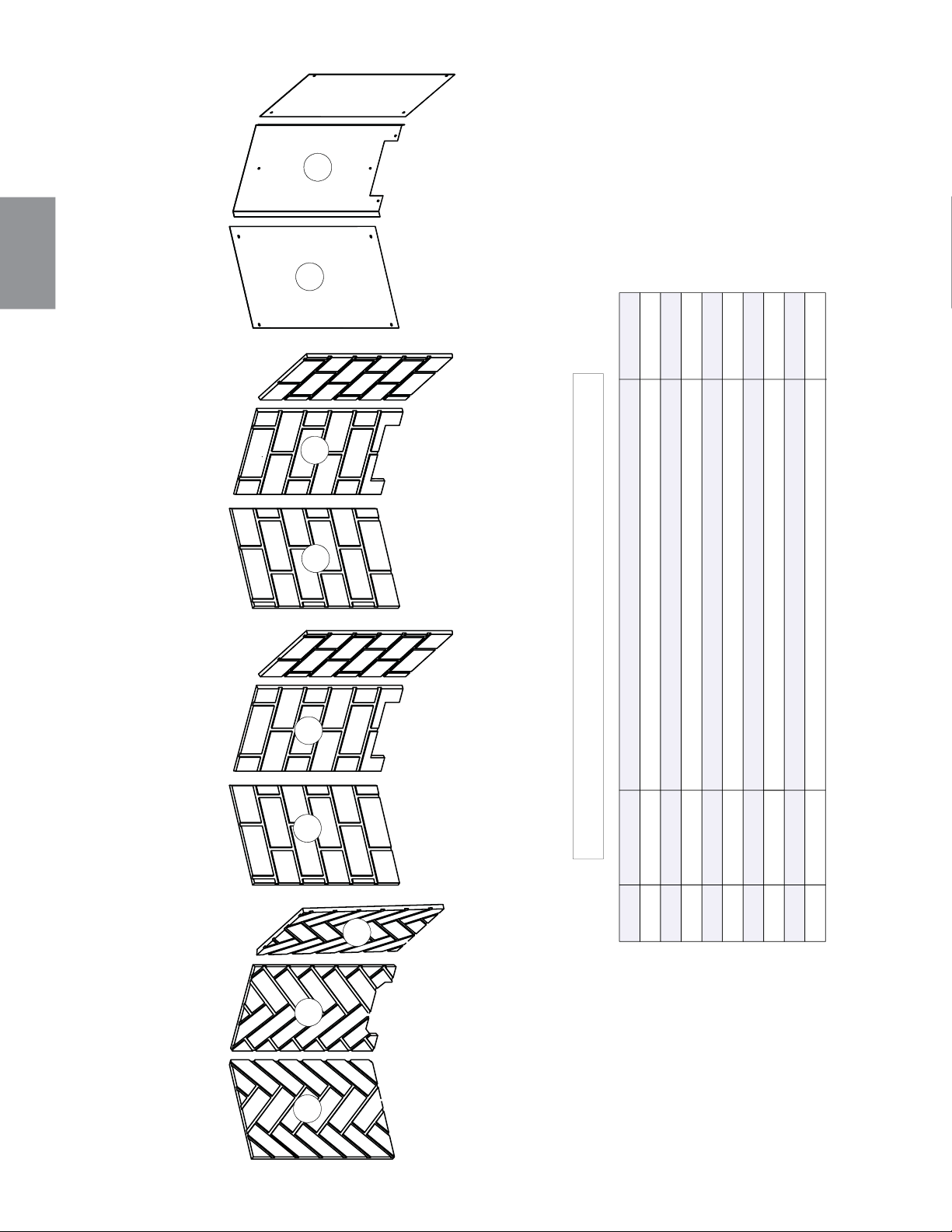

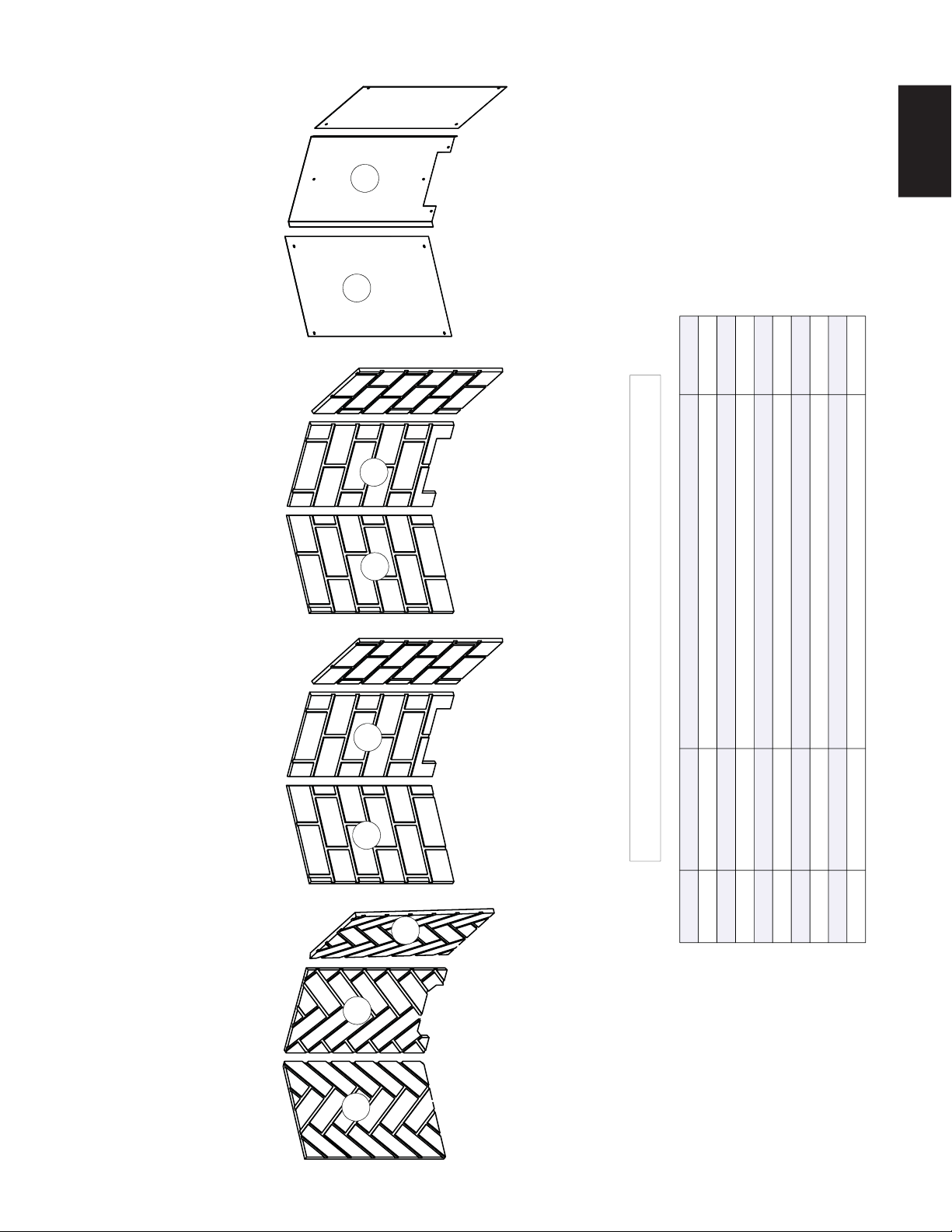

GD861KT

PRPB36

GD863KT

GD862KT

ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED

REF. NO.

PART NUMBER

DESCRIPTION

STOCKED

LEFT SIDE HERRINGBONE PANEL (GD861KT)

REAR HERRINGBONE PANEL (GD861KT)

W475-0994

W475-0993

SIDE SANDSTONE BRICK PANEL (X2)(GD862KT)

REAR SANDSTONE BRICK PANEL (GD862KT)

W475-0992

W475-0991

RIGHT SIDE HERRINGBONE PANEL (GD861KT)

W475-0995

SIDE PORCELAIN PANELS (X2)(PRPB36)

W475-1012

SIDE NEWPORT BRICK PANEL (X2)(GD863KT)

REAR NEWPORT BRICK PANEL (GD863KT)

W475-0997

W475-0996

REAR PORCELAIN PANEL (PRPB36)

W475-1013

GX36-1 ACCESSORIES (PAGE 2)

W415-1678 / 08.09.16

15.0 TROUBLESHOOTING (ELECTRONIC)

SYMPTOM PROBLEM TEST SOLUTION

Pilot will not light.

Makes noise with

no spark at pilot

burner.

Wiring. - Verify the wire for the sensor and the wire for the ignitor are

connected to the correct terminals (not reversed) on the

module. NOTE: Sensor has 3/16” (4.8mm) connection

and ignitor has 1/8” (3.2mm)connection.

Loose connection. - Verify no loose connections, electrical shorts in the wiring

or ground out to any metal object.

Module. - Turn the ON/OFF switch to the “OFF” position. Remove

the igniter wire from the module. Place the ON/OFF switch

to the “ON” position. Hold a grounded wire about 3/16”

(4.8mm) away from the ignitor (spark) terminal on the

module. If no spark the ignitor terminal module must be

replaced. If there is a spark the ignitor terminal is ﬁ ne.

Inspect pilot assembly for a shorted wire or cracked

insulator around the electrode.

Igniter Spark gap is incorrect. - Spark gap of the ignitor to the pilot should be 1/8” (3.2mm).

Transformer. - Verify the transformer is installed and plugged into the

module. Check voltage of the transformer under load at

the spade connections on the module with the ON/OFF

switch in the “ON” position. Acceptable readings of a good

transformer are between 6.2 and 7.0 volts A.C.

Battery backup (if power is

off)

- Check batteries.

A shorted or loose

Connection.

- Remove and reinstall the wiring harness that plugs into the

module. Remove and verify continuity of each wire in wiring

harness.

Improper switch wiring. - Troubleshoot the system with the simplest ON/OFF switch.

Module is not grounded. - Verify the valve and pilot assemblies are properly grounded to

the metal chassis of the appliance or log set.

Pilot sparks but

will not light.

Gas supply. - Verify that the incoming gas line ball valve is “Open”. Verify

that the inlet pressure reading is within acceptable limits,

inlet pressures must not exceed 13” W.C. (32.3mb).

Out of propane gas. - Fill the tank.

Carbon is being

deposited on

glass, logs,

rocks, media

or combustion

chamber surfaces.

Air shutter has become

blocked.

- Ensure air shutter opening is free of lint or other

obstructions.

Flame is impinging on the

glass, logs, rocks, media or

combustion chamber.

- Check that the glass, logs, rocks or media are correctly positioned.

- Too much glass media around the burner can cause carbon deposits.

- Open air shutter to increase the primary air.

- Check the input rate: check the manifold pressure and

oriﬁ ce size as speciﬁ ed by the rating plate values.

- Check that the door gasketing is not broken or missing and

that the seal is tight.

- Check that both vent liners are free of holes and well

sealed at all joints.

- Check that minimum rise per foot has been adhered to for

any horizontal venting.

SENSOR

IGNITOR

(SPARK)

PILOT

TUBE

42.7B

WARNING

ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,

WITH THE GLASS DOOR OPEN OR REMOVED.

TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE.

APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED.

DO NOT USE ABRASIVE CLEANERS.

W415-1678 / 08.09.16

42.7_2A

SYMPTOM PROBLEM TEST SOLUTION

Continues to spark

and pilot lights, but

main burner will not

light.

Short or loose

connection in sensor rod.

- Verify all connections. Verify the connections from the

pilot assembly are tight; also verify these connections are

not grounding out to any metal.

Poor ﬂ ame rectiﬁ cation

or contaminated

sensor rod.

- Verify the ﬂ ame is engulﬁ ng the sensor rod. This will

increase the ﬂ ame rectiﬁ cation. Verify correct pilot oriﬁ ce is

installed and inlet gas speciﬁ cations to manual. (Remember,

the ﬂ ame carries the rectiﬁ cation current, not the gas. If the

ﬂ ame lifts from pilot hood, the circuit is broken. A wrong

oriﬁ ce or to high of an inlet pressure can cause the pilot

ﬂ ame to lift.) The sensor rod may need cleaning.

Poor grounding between

pilot assembly and

gas valve.

- Verify that the wire harness is ﬁ rmly connected to module.

Verify that the ceramic insulator around the sensor rod is

not cracked, damaged, or loose. Verify the connection from

the sensor rod to the sensor wire.

Damaged pilot or dirty

sensor rod.

- Clean sensor rod with a ﬁ ne emery cloth or synthetic

scrub pad to remove any contamination that may have

accumulated on the sensor rod. Verify continuity with

multimeter with ohms set at the lowest range.

Pilot lights

Stops sparking

/ pilot remains lit

but burner will

not turn on.

Wiring / Connection. - Inspect all wires, ensure good tight connections. Verify

that all wiring is installed exactly as speciﬁ ed.

Wiring harness. - Inspect the wiring harness, and verify the harness is

tightly connected to the module. Verify that all wires are

connected in the right order. See “WIRING DIAGRAM”

section.

Exhaust fumes

smelled in room,

headaches.

Appliance is spilling. - Check all seals.

- Check if exhaust is re-entering through an open door or

window.

White / grey ﬁ lm

forms.

Sulphur from fuel is being

deposited on glass, logs or

combustion chamber

surfaces.

- Clean the glass, see “CARE OF GLASS” section

- DO NOT CLEAN GLASS WHEN HOT.

- If deposits are not cleaned off regularly, the glass may

become permanently marked.

Flames are very

aggressive.

Door is ajar. - Tighten door clamps if applicable.

Venting action is too great. - Restrict vent exit with restrictor plate. See

“RESTRICTING VENTS” section if applicable.

Main burner ﬂ ame

is a blue, lazy,

transparent

ﬂ ame.

Blockage in vent. - Remove blockage. In extreme conditions, ice buildup

may occur on the terminal and should be removed. To

minimize this from happening again, it is recommended

that the vent lengths that pass through unheated

spaces (attics, garages, crawl spaces) be wrapped

with an insulated mylar sleeve. Prevent sleeve from

sagging. Contact your local authorized dealer for more

information.

Compromised venting.

- Check venting system parameters (seal, length, rise, etc.).

Main burner goes

out: pilot goes out.

Vent recirculation. - Check joint seals and installation.

W415-1678 / 08.09.16

16.0 TROUBLESHOOTING (MILLIVOLT)

SYMPTOM PROBLEM TEST SOLUTION

Main burner goes out; pilot

stays on.

Pilot ﬂ ame is not large enough

or not engulﬁ ng the thermopile.

- Turn up the pilot ﬂ ame.

- Replace pilot assembly.

Thermopile shorting. - Clean thermopile connection to the valve. Reconnect.

- Replace thermopile / valve.

Remote wall switch wire is too long;

too much resistance in the system

- Shorten wire to correct length or wire gauge.

Faulty thermostat or switch. - Replace.

Main burner goes out; pilot

goes out.

Refer to “MAIN BURNER GOES OUT; PILOT STAYS ON”

Vent is blocked - Check for vent blockage.

Vent is re-circulating - Check joint seals and installation

Flexible vent has become

disconnected from appliance.

- Re-attach to appliance.

- Cap was not replaced.

Pilot goes out when the gas

knob is released.

The gas valve has an

interlock device which

will not allow the pilot

burner to be lit until the

thermocouple has cooled.

Allow approximately

60 seconds for the

thermocouple to cool.

System is not correctly purged - Purge the gas line.

Out of propane gas. - Fill the tank.

Pilot ﬂ ame is not large enough. - Turn up the pilot ﬂ ame.

Pilot ﬂ ame is not engulﬁ ng the

thermocouple

- Gently twist the pilot head to improve the ﬂ ame pattern

around the thermocouple.

Thermocouple shorting / faulty. - Loosen and tighten thermocouple.

- Clean thermocouple and valve connection.

- Replace thermocouple.

- Replace valve.

Faulty valve. - Replace.

Pilot burning; no gas to main

burner; gas knob is on ‘HI’;

wall switch / thermostat is

on.

Thermostat or switch is

defective

- Connect a jumper wire across the wall switch terminals; if

main burner lights, replace switch / thermostat.

Wall switch wiring is defective. - Disconnect the switch wires & connect a jumper wire across

terminals 1 & 3; if the main burner lights, check the wires for

defects and/or replace wires.

Main burner oriﬁ ce is plugged. - Remove stoppage in oriﬁ ce.

Faulty valve. - Replace.

Pilot goes out while

standing; Main burner is in

‘OFF’ position.

Gas piping is undersized. - Turn on all gas appliances and see if pilot ﬂ ame ﬂ utters,

diminishes or extinguishes, especially when main burner

ignites. Monitor appliance supply working pressure.

- Check if supply piping size is to code. Correct all undersized piping.

Main burner ﬂ ame is a blue,

lazy, transparent ﬂ ame.

Blockage in vent. - Remove blockage. In really cold conditions, ice buildup may

occur on the terminal and should be removed as required.

To minimize this from happening again, it is recommended

that the vent lengths that pass through unheated spaces

(attics, garages, crawl spaces) be wrapped with an insulated

mylar sleeve. Prevent sleeve from sagging. Contact your

local authorized dealer for more information.

Flames are very aggressive. Door is ajar. - Ensure the mechanical means of securing the door is

providing a tight seal.

Venting action is too

great.

- Check to ensure venting is properly sealed.

- If restriction is required see “RESTRICTING VERTICAL

VENT” section.

42.3B

WARNING

ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,

WITH THE GLASS DOOR OPEN OR REMOVED.

TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE.

APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED.

DO NOT USE ABRASIVE CLEANERS.

W415-1678 / 08.09.16

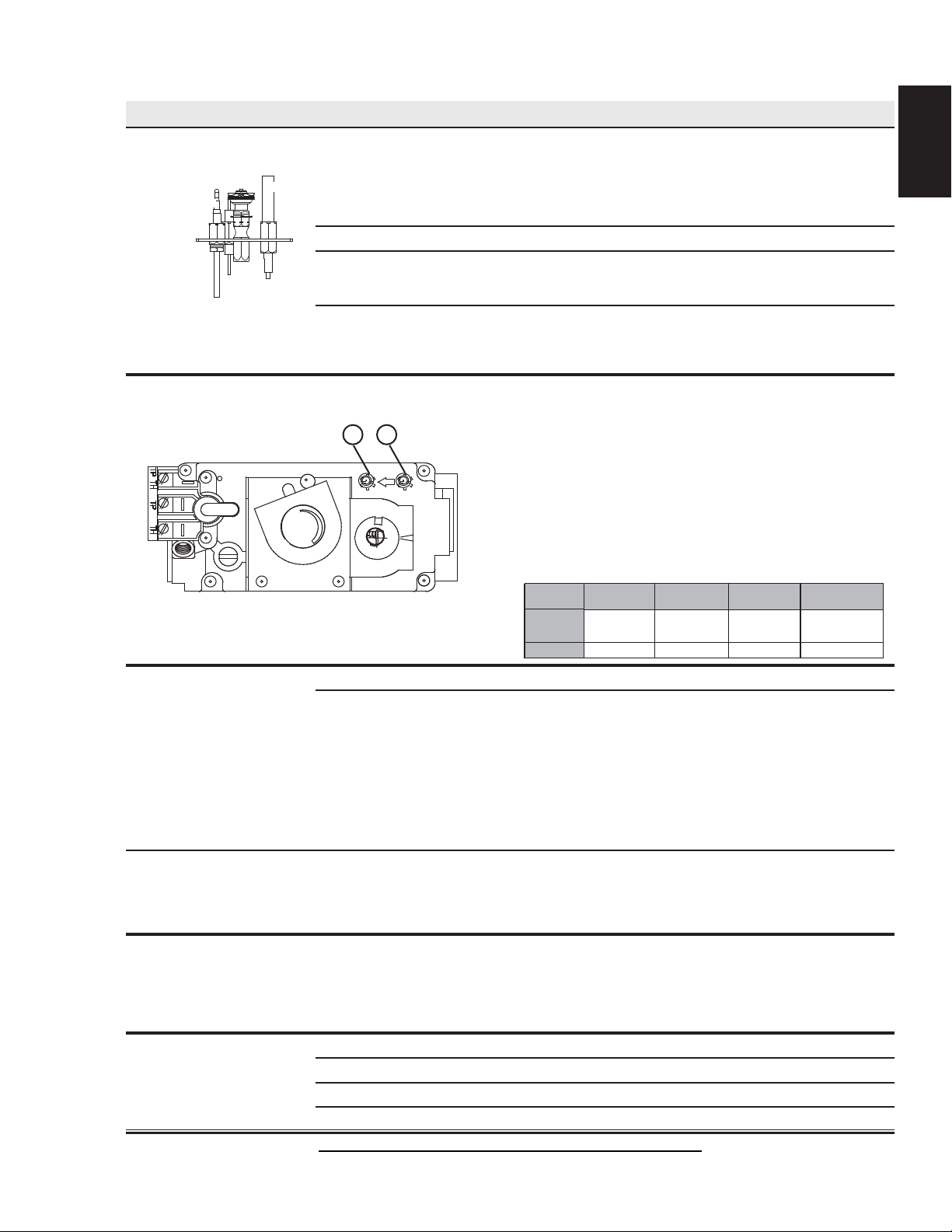

SYMPTOM PROBLEM TEST SOLUTION

Pilot will not light. No spark at pilot burner.

- Check if pilot can be lit by a match.

- Check that the wire is connected to the push button igniter.

- Check if the push button igniter needs tightening.

- Replace the wire if the wire insulation is broken or frayed.

- Replace the electrode if the ceramic insulator is cracked or broken.

- Replace the push button ignitor

Out of propane gas. - Fill the tank.

Spark gap is incorrect.

- Spark gap should be 0.150” (3.8mm) to 0.175” (4.5mm) from the

electrode tip and the pilot burner. To ensure proper electrode

location, tighten securing nut (ﬁ nger tight plus 1/4 turn).

No gas at the pilot burner. - Check that the manual valve is turned on.

- Check the pilot oriﬁ ce for blockage.

- Replace the valve.

- Call the gas distributor.

Flames are consistently

too large or too small.

Carboning occurs.

Unit is over-ﬁ red or underﬁ red. - Check pressure readings:

- Inlet pressure can be checked by turning screw (A) counter-

clockwise 2 or 3 turns and then placing pressure gauge

tubing over the test point. Gauge should read as described

on the chart below.

Check with main burner is operating on

‘HI’.

- Outlet pressure can be checked the same as above using

screw (B). Gauge should read as described on the chart

below. Check that main burner is operating on ‘HI’.

- AFTER TAKING PRESSURE READINGS, BE SURE TO TURN

SCREWS CLOCKWISE FIRMLY TO RESEAL. DO NOT OVER

TORQUE.

- Leak test with a soap and water solution.

Carbon is being deposited

on glass, logs or combustion

chamber surfaces.

Air shutter has become blocked. - Ensure air shutter opening is free of lint or other obstructions.

Flame is impinging on the logs

or combustion chamber.

- Check that the logs are correctly positioned.

- Open air shutter to increase the primary air.

- Check the input rate: check the manifold pressure and oriﬁ ce

size as speciﬁ ed by the rating plate values.

- Check that the door gasketing is not broken or missing and

that the seal is tight.

- Check that both vent liners are free of holes and well sealed

at all joints.

- Check that minimum rise per foot (meter) has been adhered

to for any horizontal venting.

White / grey ﬁ lm forms. Sulphur from fuel is being

deposited on glass, logs or

combustion chamber surfaces.

- Clean the glass with a recommended gas appliance glass

cleaner.

- DO NOT CLEAN GLASS WHEN HOT.

- If deposits are not cleaned off regularly, the glass may

become permanently marked.

Exhaust fumes smelled in

room, headaches.

Appliance is spilling. - Ensure exhaust bracket gasket seal.

- Check door seal and relief ﬂ ap seal.

- Check for chimney blockage.

- Check that chimney is installed to building code.

- Room is in negative pressure; increase fresh air supply.

- Check cap gasket on the ﬂ ue pipe assembly.

Remote wall switch is in

’OFF’ position; main burner

comes on when gas knob is

turned to ‘ON’ position.

Wall switch is mounted upside down.

- Reverse.

Remote wall switch is grounding.

- Replace.

Remote wall switch wire is grounding.

- Check for ground (short); repair ground or replace wire.

Faulty valve. - Replace.

42.3_2G

PILOT

BURNER

THERMOCOUPLE

THERMOPILE

Pressure

Inlet

Outlet

Natural Gas

(inches)

Natural Gas

(millibars)

Propane

(inches)

Propane

(millibars)

(MIN. 4.5")

3.5"

13"

(MIN. 11")

10"

17.4mb

(MIN. 11.2mb)

8.7mb

32.4mb

(MIN. 27.4mb)

24.9mb

*MAXIMUM INLET PRESSURE NOT TO EXCEED 13”

W415-1678 / 08.09.16

NAPOLEON warrants its products against manufacturing defects to the original purchaser only. Registering your warranty is not

necessary. Simply provide your proof of purchase along with the model and serial number to make a warranty claim. NAPOLEON

reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty claim. Provided

that the purchase was made through an authorized NAPOLEON dealer your appliance is subject to the following conditions and

limitations:

Warranty coverage begins on the date of original installation.

This factory warranty is non-transferable and may not be extended whatsoever by any of our representatives.

The gas appliance must be installed by a licensed, authorized service technician or contractor. Installation must be done in

accordance with the installation instructions included with the product and all local and national building and ﬁ re codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or neglect and

parts installed from other manufacturers will nullify this warranty.

This limited warranty further does not cover any scratches, dents, corrosion or discoloring caused by excessive heat, abrasive and

chemical cleaners nor chipping on porcelain enamel parts, mechanical breakage of PHAZER™ logs and embers.

This warranty extends to the repair or replacement of warranted parts which are defective in material or workmanship provided that

the product has been operated in accordance with the operation instructions and under normal conditions.

After the ﬁ rst year, with respect to this President’s Lifetime Limited Warranty, NAPOLEON may, at its discretion, fully discharge all

obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but

defective part(s).

NAPOLEON will not be responsible for installation, labour or any other expenses related to the reinstallation of a warranted part and

such expenses are not covered by this warranty.

Notwithstanding any provisions contained in the President’s Lifetime Limited Warranty, NAPOLEON’S responsibility under this

warranty is deﬁ ned as above and it shall not in any event extend to any incidental, consequential or indirect damages.

This warranty deﬁ nes the obligations and liability of NAPOLEON with respect to the NAPOLEON gas appliance and any other

warranties expressed or implied with respect to this product, its components or accessories are excluded.

NAPOLEON neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of

this product.

NAPOLEON will not be responsible for: over-ﬁ ring, downdrafts, spillage caused by environmental conditions such as rooftops,

buildings, nearby trees, hills, mountains, inadequate vents or ventilation, excessive venting conﬁ gurations, insufﬁ cient makeup air, or

negative air pressures which may or may not be caused by mechanical systems such as exhaust fans, furnaces, clothes dryers, etc.

Any damages to the appliance, combustion chamber, heat exchanger, plated trim or other components due to water, weather

damage, long periods of dampness, condensation, damaging chemicals or cleaners will not be the responsibility of NAPOLEON.

All parts replaced under the President’s Limited Lifetime Warranty Policy are subject to a single claim.

During the ﬁ rst 10 years NAPOLEON will replace or repair the defective parts covered by the lifetime warranty at our discretion free of

charge. From 10 years to life, NAPOLEON will provide replacement parts at 50% of the current retail price.

All parts replaced under the warranty will be covered for a period of 90 days from the date of their installation.

The manufacturer may require that defective parts or products be returned or that digital pictures be provided to support the

claim. Returned products are to be shipped prepaid to the manufacturer for investigation. If a product is found to be defective, the

manufacturer will repair or replace such defect.

Before shipping your appliance or defective components, your dealer must obtain an authorization number. Any merchandise

shipped without authorization will be refused and returned to sender.

Shipping costs are not covered under this warranty.

Additional service fees may apply if you are seeking warranty service from a dealer.

Warranty labour allowance is only for the replacement of the warranted part. Travel, diagnostic tests, shipping and other related

charges are not covered by this warranty.

2.1D

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality

Assurance Certiﬁ cate.

NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take

great pride in their work. The burner and valve assembly are leak and test-ﬁ red at a quality test station. The complete

appliance is again thoroughly inspected by a qualiﬁ ed technician before packaging to ensure that you, the customer,

receives the quality product that you expect from NAPOLEON.

The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for

as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™

logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized

enameled components and aluminum extrusion trims.*

Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement

parts free of charge during the ﬁ rst year of the limited warranty. This covers: blowers, gas valves, thermal switches,

switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.*

Labour related to warranty repair is covered free of charge during the ﬁ rst year. Repair work, however, requires

the prior approval of an authorized company ofﬁ cial. Labour costs to the account of NAPOLEON are based on a

predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer.

* Construction of models vary. Warranty applies only to components included with your speciﬁ c appliance.

NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY

CONDITIONS AND LIMITATIONS

ALL SPECIFICATIONS AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE DUE TO ON-GOING PRODUCT

IMPROVEMENTS. NAPOLEON IS A REGISTERED TRADEMARK OF WOLF STEEL LTD.

17.0 WARRANTY

W415-1678 / 08.09.16

43.1

18.0 SERVICE HISTORY

Other Napoleon

Products

'JSFQMBDF*OTFSUTt$IBSDPBM(SJMMT

t(BT'JSFQMBDFTt8BUFSGBMMTt8PPE4UPWFT

)FBUJOH$PPMJOHt&MFDUSJD'JSFQMBDFTt0VUEPPS'JSFQMBDFTt(BT(SJMMT

'JSFQMBDFT)FBUJOH$PPMJOHDBMMt(SJMMTDBMM

napoleonproducts.com

/BQPMFPO3PBE#BSSJF0OUBSJP$BOBEB-.(

#BZWJFX%SJWF#BSSJF0OUBSJP$BOBEB-/:

.JMMFS%SJWF$SJUUFOEFO,FOUVDLZ64"

5SBOT$BOBEB)JHIXBZ.POUSFBM2VFCFD$BOBEB)5"

W415-1678 / 08.09.16

INSTALLATEUR : LAISSEZ CE MANUEL AVEC L’APPAREIL.

PROPRIÉTAIRE : CONSERVEZ CE MANUEL POUR CONSULTATION ULTÉRIEURE.

NE LAISSEZ PAS LES ENFANTS OU AUTRES INDIVIDUS À RISQUE SEULS À PROXIMITÉ DE L’APPAREIL.

INSTRUCTIONS

D’INSTALLATION ET

D’OPÉRATION

1.28E

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /

103 Miller Drive, Crittenden, Kentucky, USA, 41030

Téléphone 705-721-1212 • Télécopieur 705-720-9081 • www.napoleonfoyers.com • hearth@napoleonproducts.com

10,00$

CERTIFIÉ POUR LE CANADA ET LES ÉTATS-UNIS SELON LES

MÉTHODES ANSI/CSA.

CONSIGNES DE SÉCURITÉ

AVERTISSEMENT

- N’entreposez pas et n’utilisez pas d’essence ou autres

liquides et vapeurs inﬂ ammables à proximité de cet ap-

pareil ou tout autre appareil.

- QUE FAIRE SI VOUS DÉTECTEZ UNE ODEUR DE GAZ :

• N’allumez aucun appareil.

• Ne touchez à aucun interrupteur électrique;

n’utilisez aucun téléphone dans votre immeuble.

• Appelez immédiatement votre fournisseur de gaz

d’un téléphone voisin. Suivez ses instructions.

• Si vous ne pouvez pas rejoindre votre fournisseur

de gaz, appelez le service des incendies.

- L’installation et l’entretien doivent être faits par un

installateur qualiﬁ é, une agence d’entretien ou le

fournisseur.

Cet appareil peut être installé dans une maison

préfabriquée (mobile) déjà installée à demeure si les

règlements locaux le permettent.

Cet appareil doit être utilisé uniquement avec le type de

gaz indiqué sur la plaque signalétique. Cet appareil ne

peut être converti à d’autres gaz, sauf si une trousse de

conversion est utilisée.

Si ces instructions ne sont pas suivies à la

lettre, un incendie ou une explosion pourraient

s’ensuivre, causant des dommages matériels,

des blessures corporelles ou des pertes de vie.

Produit décoratif : Ne pas utiliser comme appareil de chauffage.

LA VITRE CHAUDE CAUSERA

DES BRÛLURES.

NE PAS TOUCHER LA VITRE

AVANT QU’ELLE AIT REFROIDI.

NE JAMAIS LAISSER LES

ENFANTS TOUCHER LA VITRE.

AVERTISSEMENT

Une barriére conçu à réduire le risque de brûlures

causées par le verre chaud est fourni avec l’appareil

et sera installé pour la protection des enfants et

d’autres personnes à risque.

ÉCRAN DE

PROTECTION

CONFORME AUX LES NORMES NATIONALES AMÉRICAINES: ANSI Z21.50, CERTIFIE CANADIENNES: CSA 2.22 FOYER À GAZ VENTILÉ.

B36 ILLUSTRÉ

ÉCRAN DE PROTECTION

B36NTR / B36NTRE &

GX36NTR-1 / GX36NTRE-1

MODÈLE GAZ NATUREL

B36PTR / B36PTRE &

GX36PTR-1 / GX36PTRE-1

MODÈLE AU PROPANE

W415-1678 / 08.09.16

TABLE DES MATIÈRES

1.0 VUE D'ENSEMBLE DE L'INSTALLATION 85

2.0 INTRODUCTION 86

2.1 DIMENSIONS 87

2.2 INSTRUCTIONS GÉNÉRALES 88

2.3 INFORMATIONS GÉNÉRALES 89

2.4 INFORMATION DE LA PLAQUE D’HOMOLOGATION 90

3.0 ÉVACUATION 91

3.1 LONGUEURS DES CONDUITS D’ÉVACUATION ET COMPOSANTS 92

3.2 INSTALLATIONS TYPIQUES D'ÉVENTS 93

3.3 INSTALLATIONS PARTICULIÈRES D'ÉVENTS 95

3.3.1 ENSEMBLE PÉRISCOPIQUE 95

3.3.2 INSTALLATION EN COIN 95

3.4 EMPLACEMENTS ET DÉGAGEMENTS MINIMAUX DE LA TERMINAISON 96

3.5 CHARTE D'APPLICATION DES ÉVACUATIONS 97

3.6 LÉGENDE 98

3.7 VALEURS DU COUDE EN LONGUEURS D'ÉVENT 98

3.8 ÉVACUATION SUR LE DESSUS TERMINAISON HORIZONTALE 99

3.9 ÉVACUATION SUR L'ARRIÉRE TERMINAISON HORIZONTALE 101

3.10 ÉVACUATION SUR L'ARRIÉRE ET AU DESSUS TERMINAISON VERTICALE 103

3.11 ÉVACUATION À L'ARRIÈRE 105

3.12 DÉFLECTEUR DU VENTILATION ARRIÈRE (POUR L'APPLICATION DE VENTILATION ARRIÈRE SEULEMENT) 106

3.13 ÉVACUATION SUR LE DESSUS 107

4.0 INSTALLATION 108

4.1 PROTECTION DU MUR ET DU PLAFOND 108

4.1.1 INSTALLATION HORIZONTALE 109

4.1.2 INSTALLATION VERTICALE 109

4.2 UTILISATION DE COMPOSANTS FLEXIBLES D’ÉVACUATION 110

4.2.1 INSTALLATION DE LA TERMINAISON HORIZONTALE 110

4.2.2 INSTALLATION DE LA TERMINAISON VERTICALE 111

4.2.3 RACCORDEMENT DES ÉVENTS À L'APPAREIL 112

4.3 UTILISATION DE COMPOSANTS RIGIDES D’ÉVACUATION 112

4.3.1 INSTALLATION DE LA TERMINAISON HORIZONTALE 112

4.3.2 INSTALLATION DE LA TERMINAISON VERTICALE 113

4.3.3 RENSTREIGNANT DES ÉVENTS VERTICAUX 114

4.4 TERMINAISON VERTICALE À TRAVERS UNE CHEMINÉE EXISTANTE 115

4.5 INSTALLATION DANS UNE MAISON MOBILE 116

4.6 BRANCHEMENT DU GAZ 117

4.7 INTERRUPTEUR MURAL OPTIONNEL 117

5.0 OSSATURE 118

5.1 L'OSSATURE B36 118

5.1.1 DIMENSIONS MINIMALES DE L’OSSATURE B36 119

5.2 DÉGAGEMENTS MINIMAUX DE L'ENCEINTE B36 121

5.3 L'OSSATURE GX36-1 125

5.3.1 DIMENSIONS MINIMALES DE L’OSSATURE GX36-1 126

5.4 DÉGAGEMENTS MINIMAUX DE L'ENCEINTE GX36-1 128

5.5 MATÉRIAU DE FINITION INCOMBUSTIBLE 132

5.6 INSTALLATION EN ALCÔVE 132

5.7 INSTALLATION ENCADRÉE 133

5.8 DÉGAGEMENTS MINIMAUX DE LA TABLETTE 134

5.9 INSTALLATION SUPPORT DE FIXATION 134

6.0 FINITIONS 135

6.1 INSTALLATION ET ENLEVEMENT DE L'ÉCRAN DE PROTECTION ET LA PORTE 135

6.2 L'AVANT HOTTE D'INSTALLATION 136

6.3 DISPOSITION DES BÛCHES DU B36 137

6.4 DISPOSITION DES BÛCHES DU GX36-1 138

6.5 BRAISES DE CHARBON 139

6.6 BRAISES INCANDESCENTES 139

6.7 MISE EN PLACE DU LOGO 139

6.8 D’INSTALLATION DU SAUVEGARDE DE PILE 139

7.0 SCHÉMA DE CÂBLAGE 140

7.1 SCHÉMA DE CÂBLAGE ÉLECTRONIQUE DU B36 140

7.2 SCHÉMA DE CÂBLAGE ÉLECTRONIQUE DU GX36-1 141

7.2.1 BRANCHEMENT PAR CÂBLE 141

8.0 FONCTIONNEMENT (ÉLECTRONIQUE) 143

9.0 FONCTIONNEMENT (MILLIVOLT) 144

10.0 RÉGLAGES 145

10.1 RÉGLAGE DE LA VEILLEUSE 145

10.2 RÉGLAGE DU VENTURI 145

10.3 CARACTÉRISTIQUES DE LA FLAMME 146

10.4 INTERRUPTEUR OPTIONELLE CONTRE LA CONDENSATION 146

11.0 ENTRETIEN 147

11.1 ENTRETIEN ANNUEL 148

11.2 REMPLACEMENT DE LA VITRE DE PORTE 148

11.3 SOINS DE LA VITRE 149

NOTE: L'icône du camera indique que les vidéos sont disponibles comme une référence

supplémentaire, visitez http://mynapoleon.napoleonproducts.com/download/index/44/1

W415-1678 / 08.09.16

NOTE: Les modiﬁ cations, autres qu’éditoriales, sont indiquées par une ligne verticale dans la marge.

1.0 VUE D'ENSEMBLE DE L'INSTALLATION

Voir la section

« DÉGAGEMENTS MINIMAUX

DE L’ENCEINTE » pour les

cloisons sèches (ou autre

matériau combustible).

Voir la section

« DÉGAGEMENTS

MINIMAUX DE LA

TABLETTE ».

Mur

latéral

Voir les sections

« ÉVACUATION » et

« INSTALLATION ».

Voir la section

« INFORMATION DE LA

PLAQUE D’HOMOLOGATION ».

B36 ILLUSTRÉ

Voir la section

« OSSATURE ».

Voir la section

«DIMENSIONS

MINIMALES DE

L’OSSATURE ».

ÉCRAN DE PROTECTION

12.0 RECHANGES 149

12.1 VUE D'ENSEMBLE DU B36 150

12.2 L'ASSEMBLAGE DE LA SOUPAPE MILLIVOLT DU B36 151

12.3 L'ASSEMBLAGE DE LA SOUPAPE ÉLECTRONIQUE DU B36 152

12.4 VUE D'ENSEMBLE DU GX36-1 153

12.5 L'ASSEMBLAGE DE LA SOUPAPE MILLIVOLT DU GX36-1 154

12.6 L'ASSEMBLAGE DE LA SOUPAPE ÉLECTRONIQUE DU GX36-1 155

13.0 B36 ACCESSORIES 156

14.0 GX36-1 ACCESSORIES 157

GX36-1 ACCESSORIES (PAGE 2) 158

15.0 GUIDE DE DÉPANNAGE (ÉLECTRONIQUE) 159

16.0 GUIDE DE DÉPANNAGE (MILLIVOLT) 161

17.0 GARANTIE 163

Les piles doivent être mises au rebut conformément aux lois et à la réglementation locales. Certaines

piles peuvent être recyclées et acceptées dans votre centre de recyclage local. Renseignez-vous auprès

de votre municipalité au sujet des directives de recyclage.

W415-1678 / 08.09.16

2.0 INTRODUCTION

AVERTISSEMENT

3.1E

• CET APPAREIL EST CHAUD LORSQU’IL FONCTIONNE ET PEUT CAUSER DE GRAVES BRÛLURES EN CAS DE

CONTACT.

• TOUTE MODIFICATION APPORTÉE À CET APPAREIL OU AUX CONTRÔLES PEUT ÊTRE DANGEREUX ET SONT

INTERDIT.

• Ne faites pas fonctionner l’appareil avant d’avoir lu et compris les instructions d’opération. Omettre d’utiliser l’appareil selon les

instructions d’opération pourrait causer un incendie ou des blessures.

• Risque d’incendie ou d’asphyxie. Ne faites pas fonctionner l’appareil avec la vitre retirée.

• Ne branchez pas la soupape à du courant 110 volts.

• Risque de brûlures. L’appareil doit être éteint et refroidi avant d’effectuer un entretien.

• N’installez pas de composants endommagés ou incomplets ni des composants substituts.

• Risque de coupures et d’éraﬂ ures. Portez des gants protecteurs et des lunettes de sécurité lors de l’installation. Les bordures

des pièces de métal peuvent être coupantes.

• Ne brûlez pas de bois ou autres matériaux dans cet appareil.

• Les enfants et les adultes devraient être informés des dangers que posent les températures de surface élevées et se

tenir à distance afin d’éviter des brûlures ou que leurs vêtements ne s’enflamment.

• Les jeunes enfants doivent être supervisés attentivement lorsqu’ils sont dans la même pièce que l’appareil. Les jeunes

enfants et autres personnes sont sujets aux brûlures accidentelles. Une barrière de protection est recommandée si

des individus à risque se trouvent dans la maison. Aﬁ n de restreindre l’accès à l’appareil, installez une barrière de

protection ajustable pour garder les jeunes enfants ou autres personnes à risque hors de la pièce et loin des surfaces

chaudes.

• Les vêtements et autres matériaux combustibles ne doivent pas être posés sur l’appareil ou à proximité.

• En raison des températures élevées, l’appareil devrait être placé loin des endroits passants et loin des meubles et des

rideaux.

• Assurez-vous de disposer de mesures de sécurité adéquates pour empêcher les jeunes enfants de toucher aux surfaces

chaudes.

• Même une fois que l’appareil est éteint, la vitre et/ou le pare-étincelles demeureront chauds pendant un temps prolongé.

• Consultez votre détaillant local de foyer pour connaître les grillages de sécurité et les écrans offerts pour protéger les enfants

des surfaces chaudes. Ces grillages de sécurité et ces écrans doivent être ﬁ xés au plancher.

• Tout grillages de sécurité, écrans ou barriére enlevés pour faire l’entretien devront être remis en place avant d’utiliser

l’appareil.

• Cet appareil est un appareil à gaz ventilé. Ne brûlez pas de bois ou autres matériaux dans cet appareil.

• Il est primordial de garder propres les compartiments de contrôle, les brûleurs, la soufﬂ erie, les bouches d’air de l’appareil ainsi

que le système d’évacuation. L’appareil et son système d’évacuation doivent être inspectés avant la première utilisation et au

moins une fois l’an par un spécialiste en entretien. Un entretien plus fréquent pourrait être nécessaire en raison des peluches

provenant des tapis, literie, etc. L’emplacement de l’appareil doit être gardé libre de tous matériaux combustibles, essence ou

autres liquides et vapeurs inﬂ ammables.

• Cet appareil ne devra être modiﬁ é en aucun cas.

• Cet appareil ne doit pas être raccordé au conduit d’une cheminée desservant un autre appareil de chauffage à combustible

solide.

• N’utilisez pas cet appareil si une partie quelconque a été submergée. Contactez immédiatement un technicien de service

qualiﬁ é pour inspecter l’appareil et pour remplacer toute pièce du système de contrôle et du contrôle du gaz qui aurait été

submergée.

• Ne pas opérer l’appareil lorsque la porte vitrée est enlevée, ﬁ ssurée ou brisée. Le remplacement de la vitre devra être effectué

par un technicien de service certiﬁ é ou qualiﬁ é.

• Ne frappez pas et ne claquez pas la porte vitrée de appareil.

• Lorsque l’appareil est muni de portes d’évacuation de pression, elles doivent demeurer fermées pendant le fonctionnement de

l’appareil aﬁ n d’empêcher les gaz de combustion contenant du monoxyde de carbone de s’inﬁ ltrer dans la maison.

• Seules les portes/façades certiﬁ ées pour cet appareil peuvent être utilisées avec cet appareil.

• Gardez les matériaux d’emballage hors de la portée des enfants et mettez ces matériaux au rebut de façon sécuritaire. Comme

tous les emballages de plastique, ces matériaux ne sont pas des jouets et doivent demeurer hors de la portée des enfants et

des bébés.

• Comme dans le cas de tout appareil à combustion, il est recommandé de faire inspecter et entretenir votre appareil

régulièrement. De même, installez un détecteur de monoxyde de carbone dans la pièce pour vous protéger, ainsi que votre

famille, contre les intoxications.

• Assurez-vous de respecter les dégagements aux matériaux combustibles lorsque vous installez un manteau ou des tablettes

au-dessus de l’appareil. Les téléviseurs et autres composants électroniques soumis à des températures élevées peuvent

fondre, se déformer, se décolorer et entraîner des défaillances prématurées de ces appareils.

• La version de millivolt de cet appareil utilise et requiert un thermocouple à action rapide. Remplacez uniquement par un

thermocouple à action rapide de Wolf Steel ltée.

• Une barriére conçu à réduire le risque de brûlures causées par le verre chaud est fourni avec l’appareil et sera installé.

• Si la barriére est endommagée, elle devra être remplacée par la barriére conçu par le manufacturier pour cet appareil.

• L’installation et la réparation devraient être effectuées par un technicien qualiﬁ é. L’appareil et son système

d’évacuation devraient être inspectés avant l’utilisation initiale et au moins une fois l’an par un professionel qualiﬁ é.

Un nettoyage plus réquent peut être requis en raison de la poussière excessive laissée par les moquettes, les

couvertures, etc. Il est impératif que les compartiments de contrôle, le brûleur et les passages de circulation d’air

soient gardés propres aﬁ n de fourni une combustion et une circulation d’air adéquates.

• Le fonctionnement de millivolt pour cette appareil requiert un thermocouple à action rapide. Remplacez uniquement

avec un thermocouple à action rapide de Wolf Steel Ltée.

W415-1678 / 08.09.16

2.1 DIMENSIONS

34 5/8"

879mm

9 1/16"

230mm

15 3/8"

391mm

102mm

178mm

35"

889mm

SAFETY BARRIER

24"

610mm

2 3/16"

55.5mm

GAS INLET

15 3/4"

400mm

203mm

ÉCRAN DE PROTECTION

ENTRÉE

DU GAZ

4.1C

CET APPAREIL AU GAZ DEVRAIT ÊTRE INSTALLÉ ET ENTRETENU PAR UN INSTALLATEUR QUALIFIÉ en se conformant

aux codes locaux. Les pratiques d’installation peuvent varier d’une région à l’autre. Il est donc important de connaître les normes

spéciﬁ ques qui s’appliquent à votre région. Par exemple dans l’état du Massachusetts:

• Ce produit doit être installé par un plombier certiﬁ é ou un installateur pour le gaz lorsque installé dans le Commonwealth du Massachusetts.

• Le registre de l’appareil doit être enlevé ou bloqué en le soudant en position ouverte avant d’installer un encastré ou un ensemble

de bûches à gaz.

• La soupape d’arrêt doit être un robinet à gaz avec une poignée en T.

• Le raccord ﬂ exible ne doit pas mesurer plus que 36 pouces (914.4mm).

• Un détecteur de monoxyde de carbone est requis dans toutes les pièces contenant des appareils alimentés au gaz.

• L’appareil n’est pas approuvé pour installation dans une chambre à coucher ou une salle de bain à moins d’être un appareil avec

une chambre de combustion scellée à évacuation directe.

L’installation doit se conformer aux codes locaux. En l’absence de codes locaux, l’installation doit être conforme au Code d’installation

du gaz naturel et du propane CSA B149.1 au Canada ou au National Fuel Gas Code, ANSI Z223.1/ NFPA 54 aux États-Unis. Cet

appareil convient pour installation dans une maison mobile si l’installation est conforme aux normes actuelles pour les maisons

mobiles équipées au gaz CAN/CSA Z240 SÉRIE MM au Canada ou selon les normes ANSI Z223.1 et NFPA 54 aux États-Unis.

Tant que les distances requises pour les dégagements aux matériaux combustibles sont respectées, le meilleur endroit pour un

appareil est le centre de la maison, car ceci permet une meilleure utilisation de la chaleur fournie. L’emplacement des fenêtres, des

portes et la circulation dans la pièce où se trouve l’appareil devront être

pris en considération. Si possible, vous devriez choisir un emplacement où

le système d’évent peut passer à travers la maison sans avoir à découper

des solives de plancher ou de toit.

Si l’appareil est installé directement sur un tapis, sur une surface de vinyle

ou tout autre revêtement de plancher combustible autre que le bois,

l’appareil devra être monté sur un panneau continu de métal ou de bois se

prolongeant sur toute la largeur et la profondeur.

Certains appareils ont une soufﬂ erie ou un ensemble de deux

soufﬂ eries optionnel. Si la soufﬂ erie ou l’ensemble de deux soufﬂ eries

optionnel est installé, la boîte de dérivation doit être branchée au circuit électrique et mise à la terre conformément aux codes

locaux. Utilisez la version courante du Code canadien de l’électricité CSA C22.1 au Canada ou le National Electrical Code ANSI/

NFPA 70 aux États-Unis.

Nous suggérons que nos

appareils au gaz soient installés

et que l'entretien soit effectué

par des professionnels certi-

fiés par le National Fireplace

Institute® (NFI) comme

spécialiste du gaz NFI.

AVERTISSEMENT

ALLUMEZ TOUJOURS LA VEILLEUSE, QUE CE SOIT POUR LA PREMIÈRE FOIS OU LORSQUE

L’APPROVISIONNEMENT EN GAZ EST ÉPUISÉ, AVEC LA PORTE VITRÉE OUVERTE OU RETIRÉE.

PRÉVOYEZ UN ACCÈS SUFFISANT POUR ENTRETENIR ET OPÉRER L’APPAREIL.

ASSUREZ-VOUS D'UNE QUANTITÉ SUFFISANTE D’AIR DE VENTILATION.

N’OBSTRUEZ JAMAIS L’OUVERTURE DE L’APPAREIL.

LES OBJETS PLACÉS DEVANT L’APPAREIL DOIVENT ÊTRE GARDÉS À UNE DISTANCE D'AU MOINS 48"

(1219.2mm) DE LA FACE VITRÉE DE L'APPAREIL.

LES SURFACES AUTOUR ET SURTOUT AU-DESSUS DE L’APPAREIL PEUVENT DEVENIR CHAUDES.

NE TOUCHEZ PAS L’APPAREIL QUAND IL FONCTIONNE.

RISQUE D’INCENDIE OU D’EXPLOSION.

LES PRESSIONS ÉLEVÉES ENDOMMAGERONT LA SOUPAPE. L’ALIMENTATION EN GAZ DOIT ÊTRE DÉBRAN-

CHÉE PENDANT LES ESSAIS DE PRESSION DE CE SYSTÈME LORSQUE LES PRESSIONS D’ESSAI EXCÈDENT

½ LB/PO² (3,5 KPA). FERMEZ LA SOUPAPE D’ARRÊT MANUELLE PENDANT TOUT ESSAI DE PRESSION DU

SYSTÈME D’ALIMENTATION EN GAZ LORSQUE LA PRESSION EST DE ½ LB/PO² (3,5 mb) OU MOINS.

N’UTILISEZ QUE LES ACCESSOIRES OPTIONNELS ET LES PIÈCES DE RECHANGE APPROUVÉS PAR WOLF

STEEL POUR CET APPAREIL. L’UTILISATION D’ACCESSOIRES NON LISTÉS (SOUFFLERIE, PORTES, PER-

SIENNES, MOULURES, COMPOSANTS DE GAZ, COMPOSANTS D’ÉVACUATION, ETC.) POURRAIT ÊTRE NON

SÉCURITAIRE ET ANNULERA LA GARANTIE ET LA CERTIFICATION.

L'APPAREIL NE DOIT PAS ÊTRE UTILISÉ AU TEMPÉRATURES AU-DESSOUS DE ZERO (

32°F / 0°C)

. PERMETTRE

À L'APPAREIL POUR RÉCHAUFFER AU-DESSUS DE ZERO AVANT LE FONCTIONNEMENT.

W415-1678 / 08.09.16

2.2 INSTRUCTIONS GÉNÉRALES

W415-1678 / 08.09.16

2.3 INFORMATIONS GÉNÉRALES

POUR VOTRE SATISFACTION, CET APPAREIL A ÉTÉ MIS À L'ESSAI POUR CONFIRMER SON

FONCTIONNEMENT ET SA QUALITÉ!

Lorsque l'appareil est installé à des élévations dépassant 4 500 pieds (1371m), et en l’absence de

recommandations spéciﬁ ques de l’autorité compétente locale, l’indice certiﬁ é du débit à haute altitude devra

être réduit au taux de 4 % pour chaque 1 000 pieds (305m) supplémentaires.

Cet appareil est approuvé pour installation dans les salles de bain, les chambres à coucher ou les chambres

studio et convient pour installation dans les maisons mobiles.

Aucune alimentation électrique externe (110 volts ou 24 volts) n'est requise pour le millivolt

fonctionnement du système.

Les bruits causés par l'expansion et la contraction lors des cycles de chauffage et de refroidissement

sont tout à fait normaux et il faut s'y attendre.

RENDEMENTS ET EFFICACITÉS

B36 GX36-1

GN PL GN PL

Altitude (PI) 0-4,500 0-4500 0-4,500 0-4,500

Débit max. (BTU/H) 18,000 18,000 26,000 26,000

Pression minimale

d'alimentation en gaz

4.5" (11mb) w.c. 11" (27mb) w.c. 4.5" (11mb)

w.c.

11" (27mb) w.c.

Pression maximale

d'alimentation en gaz

13" (32mb) w.c. 13" (32mb) w.c. 7" (17mb) w.c. 13" (32mb) w.c.

Pression au collecteur

(lorsque le gaz circule)

3.5" (9mb) w.c. 10" (25mb) w.c. 3.5" (9mb) w.c. 10" (25mb) w.c.

DESIGNATIONS DU MODÈLE

TYPE DE CARBURANT

SYSTÈME DE

FONCTIONNEMENT

B36NTR

NATUREL MILLIVOLT

B36NTRE

NATUREL ALLUMAGE ÉLECTRONIQUE

B36PTR

PROPANE MILLIVOLT

B36PTRE

PROPANE ALLUMAGE ÉLECTRONIQUE

GX36NTR-1

NATUREL MILLIVOLT

GX36NTRE-1

NATUREL ALLUMAGE ÉLECTRONIQUE

GX36PTR-1

PROPANE MILLIVOLT

GX36PTRE-1

PROPANE ALLUMAGE ÉLECTRONIQUE

ÉCHANTILLON
