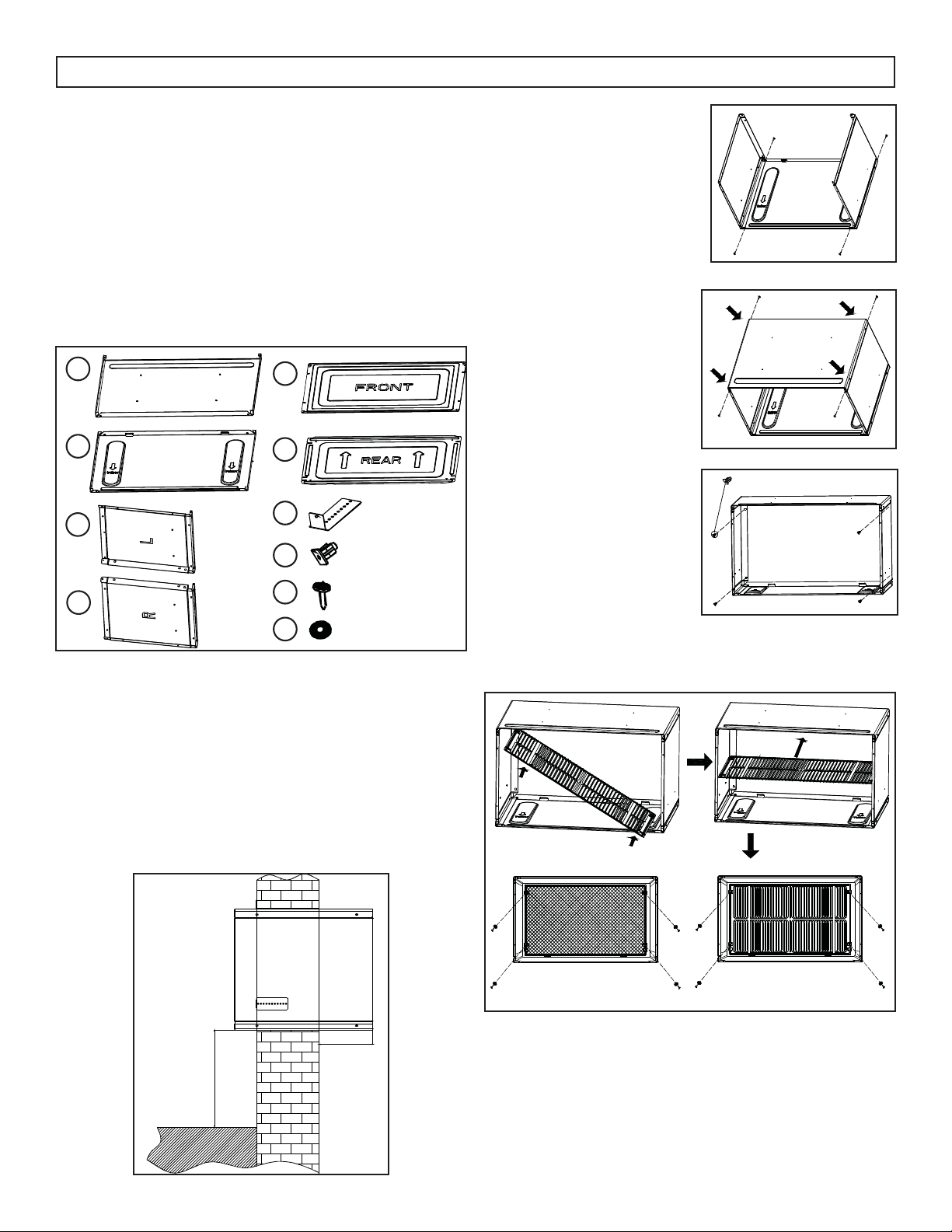

THROUGH-THE-WALL AIR CONDITIONER SLEEVE INSTALLATION INSTRUCTIONS
ACCESSORIES
1. Top panel
2. Bottom panel
3. Left side panel
4. Right side panel
5. Front cover panel
6. Rear cover panel
7. Bracket (x4)
8. Clasp (x4)
9. Screw (x28)
10. Washer (x8)
1
2
3
4
5
6
7
8
9
10
4” min
1/2” min
Assembled dimensions:
• 25 1/2” (64.8 cm) wide
• 15 1/4” (38.8 cm) tall
• 17 1/2” (44.4 cm) deep
The sleeve must be installed a minimum of 4”
above any fl oor or heat source such as baseboard
heaters or radiators. The sleeve must be installed a
minimum of 1/2” outside the building.
1. Use four screws to
fasten the side panels
to the bottom panel.
The arrow marks
on the bottom panel
indicate the direction
of the indoor side.
2. Attach the top panel
using four screws.
3. Insert the four clasps
into the holes in the
side panels.
Expanded rear grille Louvered rear grille
4. Insert the louvered rear grille or the expanded
rear grille that was packed with the air
conditioner.
• The wall sleeve must be securely fastened to the
wall before installing the air conditioner.
• After the sleeve is installed, caulk where
necessary around the entire interior and exterior
wall opening.
