BUILT-IN ELECTRIC SINGLE & DOUBLE WALL OVENS
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
© 2018 American Range
All Rights Reserved
MODELS: SEF-30, SEC-30, DEF-30, DEC-30,DEFC-30
RETAIN THIS MANUAL FOR FUTURE REFERENCE
LEGACY WALL OVEN
INSTALLATION GUIDE AND USE & CARE MANUAL
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
IMPORTANT SERVICE NOTICE!
Using any part other than genuine American Range factory supplied parts relieves
the manufacturer of all liability. American Range reserves the right to change
specications and product design without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions or replacements for
the previously purchased equipment.
WHAT TO DO IF YOU SMELL GAS
• DO NOT try to light the appliance.
• DO NOT touch any electrical switch, DO NOT use any phone in your building.
• IMMEDIATELY call your gas company. Follow the gas supplier instructions.
• If you cannot reach your gas supplier, call the Fire Department.
READ & SAVE INSTRUCTIONS
WARNING
!
ALL PERSONNEL IN THE WORKPLACE WHO MAY BE SUBJECT TO ANY EXPOSURE OR CARBON MONOXIDE MUST BE WARNED OF SUCH POSSIBLE
EXPOSURE. THIS WARNING SHOULD BE CONVEYED IN A MANNER SO THAT IT IS CLEARLY UNDERSTOOD BY THE EMPLOYEE. THE EMPLOYEE
MUST BE ASKED IF IN FACT HE OR SHE UNDERSTANDS THE CORRECT METHOD OF OPERATION OF THE EQUIPMENT AND THAT A RISK OF
EXPOSURE EXISTS IF THE EQUIPMENT IS OPERATED IMPROPERLY.
CAUTION
!
Purchase a kitchen re extinguisher for your home and store it in close proximity to your appliance. Should an uncontrolled re occur, never use water on grease
res. Never pick up a aming pan. The oven door interior and exterior, especially the oven door glass can get hot during operation. Do not touch the glass - use the
door handle to open or close the range door. Children should not be left alone or unattended in the kitchen while the appliance is in use. Never leave the appliance
unattended during use.
NEVER wear loose tting or long sleeved apparel while cooking. Never wear garments made from ammable materials. Clothing may ignite or catch utensil handles.
DO NOT drape towel or other items on door handles. These items could ignite and cause burns.

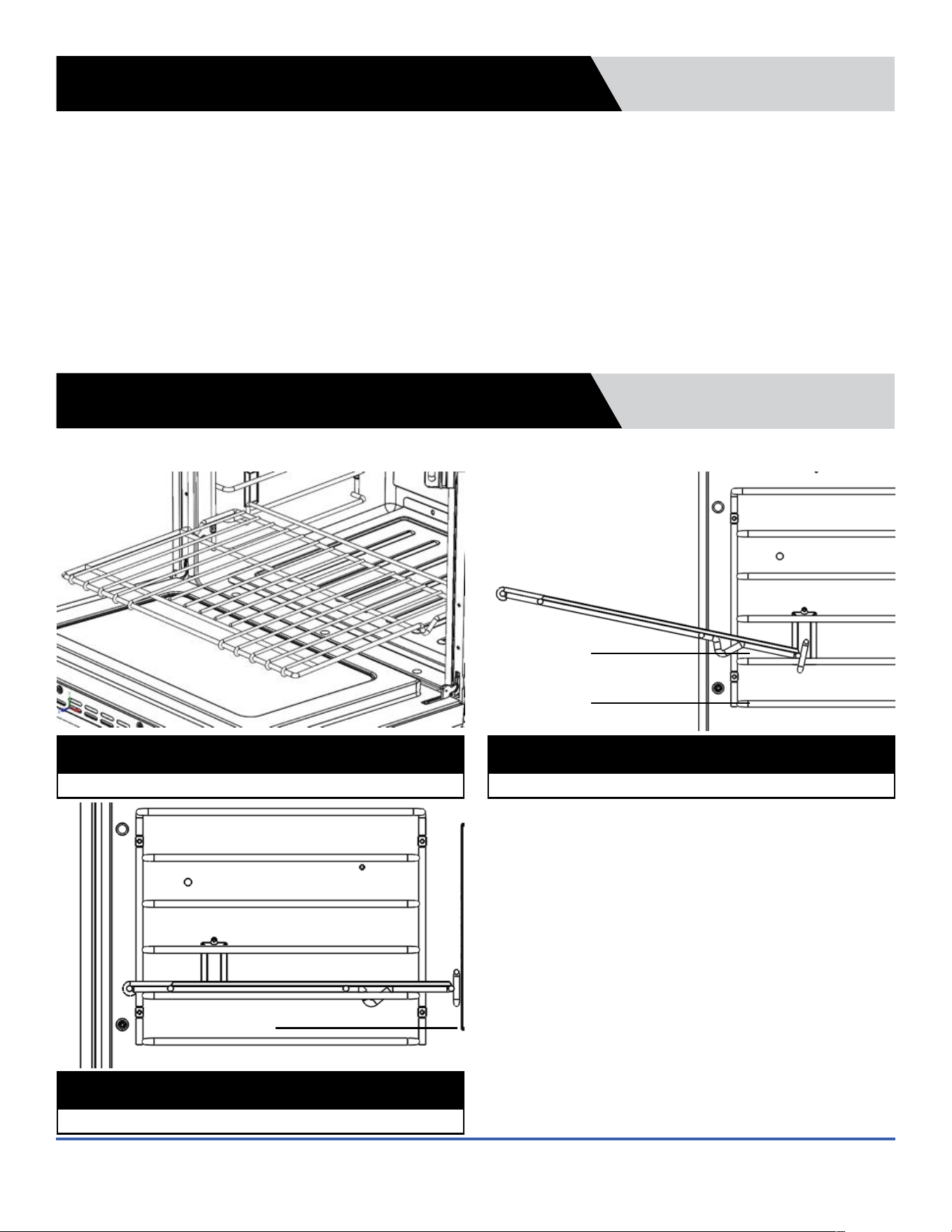

ALWAYS place oven racks in the desired position before you start cooking and while the oven is cool. Always use dry and sturdy pot-holders to carefully slide the
oven rack out to add or remove food.
ALWAYS turn the appliance off at the end of cooking.
When dehydrating food items, periodically check during the process to ensure that they do not catch re.
Turn the knobs to the OFF position prior to removing them from the valve stems for cleaning.
WARNING
!
NEVER use this appliance as a space heater to heat or warm a room. Doing so may result in carbon monoxide poisoning and overheating of the appliance. Do not
use the range top or oven as a food or kitchen item storage area.
NEVER block or cover any slots, holes, or passages located anywhere inside or outside the appliance. These structures are important to safe operation of the appliance
and doing so may block airow through the oven or cook top possibly causing carbon monoxide poisoning or re. Routinely keep all slots free of grease and other
materials.
This appliance has been tested for safe performance using conventional cookware. DO NOT USE any device or accessory not specically recommended in this
guide. DO NOT USE pan or pan covers on surface units, grills, or griddles. These units can create serious safety hazards including personal injury, create performance
problems, and may damage the appliance.
Do not store or use corrosive chemicals, vapors, ammables, or non-food products in or near this appliance. It is specically designed for use when heating or cooking
food. The use of corrosive chemicals while heating or cleaning could result in personal injury or damage to the appliance.
INSTALLATION GUIDE AND USE & CARE MANUAL
Read instructions carefully prior to using the appliance. These instructions will reduce the risk of burns, electric shocks, re and injury.
Upon completion of installation, have the installer show you the location of the circuit breaker or fuse. Label for easy reference.
This appliance is intended for normal family household use only. It is not approved for outdoor installation and use. Refer to WARRANTY section of this manual.
• DO NOT store or use gasoline, kerosene or other ammables inside the oven or near the appliance.
• DO NOT use the appliance if damaged and not working properly. Contact Manufacturer or authorized servicer for proper instructions.
• DO NOT store any objects in front of the appliance. These may obstruct the vents and result in improper oven circulation and overheating.
• DO NOT use aluminum foil or protective liners in any part of the appliance, especially inside the oven. They may cover the vents in the oven resulting in poor cook-
ing performance. They will damage the porcelain nish and if left for longer period, may cause re.
• In case of re inside the oven, DO NOT open oven door. Turn off appliance and disconnect the appliance in the circuit breaker or fuse box.
• It is recommended that a smoke detector be installed near the kitchen.
• It is recommended that a re extinguisher be available in every household. Inquire from the local hardware store the proper type of re extinguisher to use for the
type of re, and ask instructions for its proper use.
• Care should be observed when opening doors during and after cooking. Open the oven door slightly at rst to release some heated air or steam. Keep face away and
fully open door when safe.
• DO NOT touch the heating element, racks or oven surfaces. Use dry pot holders when removing pans, cookie sheets and trays. Wet or damp pot holders on hot
surfaces may result in burns from steam.
• DO NOT leave opened oven door unattended.
• DO NOT allow anyone to climb, stand, lean, sit or hang on any part of the appliance. These may cause damage to the appliance and potentially cause injury.
• DO NOT leave children and pets unattended in the kitchen area.
CAUTION
!
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
FOR YOUR SAFETY!
Do not store or use gasoline or other ammable vapors or liquids in the vicinity of this or any other appliance.
GENERAL INSTRUCTIONS
• Do not remove protective packaging until you are ready to perform the installation.
• Do not remove the protective wrapping from the product control panel until the product is installed.
• Use proper equipment to move products.
• Any openings in the wall and in the oor behind or under the appliance must be sealed.
INSTALLATION INSTRUCTIONS
• INSTALLATION AND SERVICE MUST BE PREFORMED BY A CERTIFIED / LICENCED INSTALLER, SERVICE AGENCY OR GAS SUPPLIER
• DO NOT store or use gasoline or other ammable vapors or liquids in the vicinity of this or any other appliance.
• Products are anchored to the wooden shipping pallet using metal straps that are screwed to the bottom of the product and the pallet.
• To remove the packaging, rst remove the staples located at the bottom perimeter of the corrugated cover.
• Remove the corrugated cover by lifting it off the product and remove the inner packing.
• Detach the product from the metal anchor strip by removing the attachment screw.
• Conrm available access to adequate power and gas. See Specications & Electrical Requirements table.
• Fill out page 1 of this installation manual with requested data. Model number and serial number can be found on the plate located underneath the control
panel on the front of the oven.
• The oven is zero-clearance safe against combustible surfaces.
• Provide 4” space between oor and bottom of the oven.
• Provide 4” space between top of the oven and bottom edge of cabinet doors.
SHIPPING DAMAGE CLAIM PROCEDURE
The equipment is crafted and inspected carefully by skilled personnel before leaving the factory. The transportation company assumes full responsibility for the safe
delivery upon acceptance of the equipment.
If you receive a damaged product, immediately contact your delivery company, your dealer, your builder or installer. Do not install or attempt to operate a damaged
appliance.
1. Note on the freight bill or express delivery any visible loss or damage and have the note signed by the person making the delivery.
2. File claim for damages immediately regardless of the extent of damages.
3. For damage noticed after unpacking (concealed loss or damage), notify the transportation company immediately and le a "Concealed Damage" claim with
them. This should be done within fteen (5) days from the date that delivery is made to you. Retain the shipping container for inspection.
PRECAUTIONS
READ & SAVE INSTRUCTIONS
WARNING!
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
Instruction to be followed in the event the user smells gas should be posted in a prominent location. This information
should be obtained by consulting the local gas supplier.
Do not use the handle or oven door to lift the
oven. Remove pull down door before installation to
ensure that it is not used to lift the unit. Make sure
pins are inserted into hinges before removing door
to prevent injury to hands and / or ngers.
WARNING
!
Do not use an extension cord with this appliance.
Such use may result in re, electrical shock or
other personal injury. Please observe all local and
national codes and ordinances. Do not remove
any permanent warning labels or places from this
product.
WARNING
!
The appliance is heavy. Use extreme care when
handling. Please ensure that this product is
electrically grounded. Consumers should retain these
instructions for local inspector and for future use.
CAUTION
!
• Before beginning, please read all the instructions carefully.
• DO NOT remove permanently afxed labels, warnings, or plates from product. This may void the warranty.
• All local and national codes and ordinances must be observed; installation must conform with local codes.
• The Installer must leave these instructions with the consumer who should retain for local inspector’s use and for future reference.
• Installation and service must be performed by a qualied installer, service agency or gas supplier.
• Please ensure that the product is properly grounded.
Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
IMPORTANT - PLEASE READ AND FOLLOW!
INSTALLATION GUIDE AND USE & CARE MANUAL
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
To prevent possible damage to cabinets and cabinet nishes, use only materials that will not discolor or delaminate and will
withstand temperatures up to 194ºF (90ºC). Heat resistant adhesive must be used if the product is to be installed in laminated
cabinetry. Check with your builder or cabinet supplier to make sure that the materials meet these requirements.
The use of cabinets for storage above the oven may result in potential re or burn hazard.
To avoid risk of electrical shock, personal injury or death; verify your appliance has been properly grounded in accordance
with local codes or in absence of codes, with the National Electrical Code (NEC).ANSI/NFPA 70 latest edition.

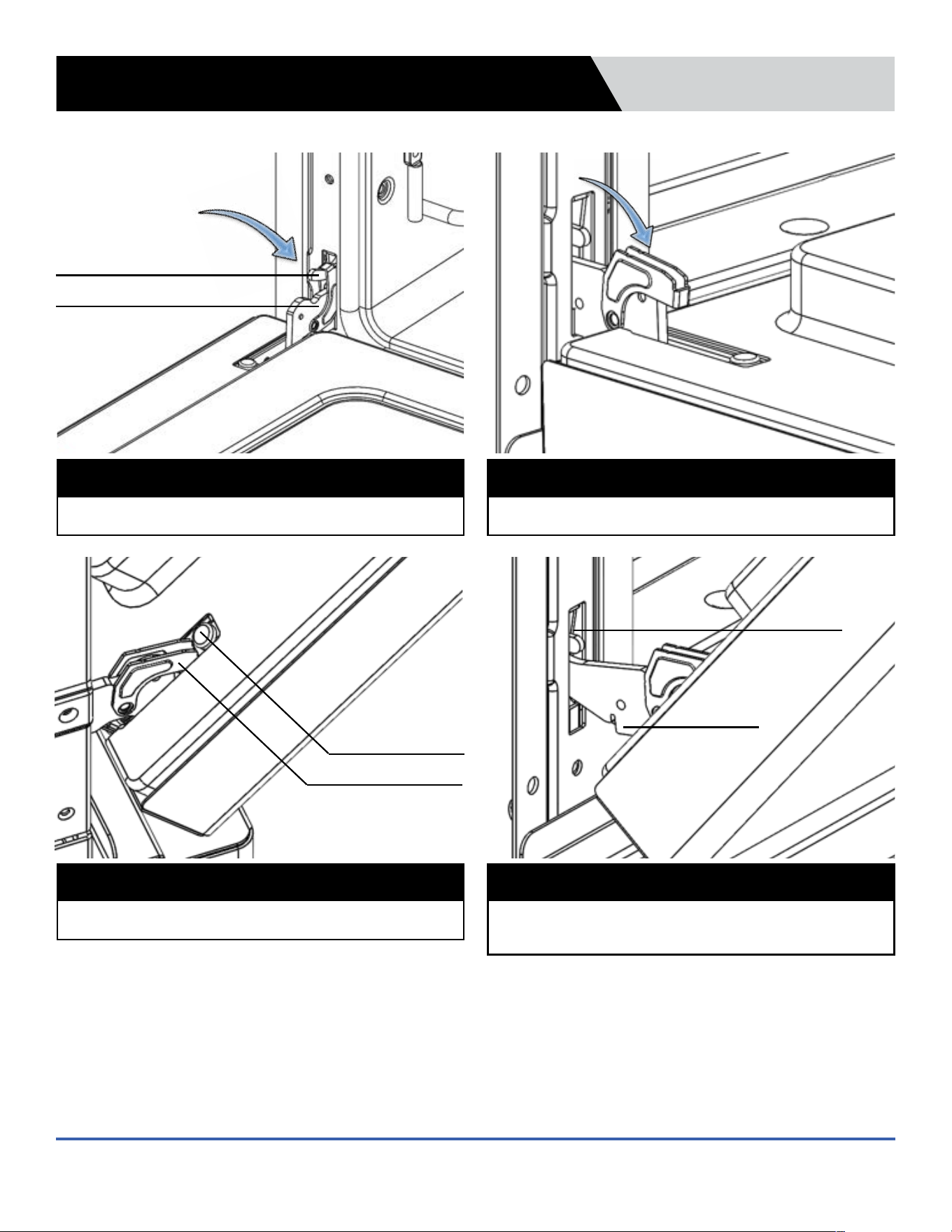

Do not use the handle or oven door to lift the oven. Remove pull down door before installation to ensure that it is not used to
lift the unit. Make sure pins are inserted into hinges before removing door to prevent injury to hands and / or ngers.
The misuse of the oven door(s) (e.g.; stepping, sitting, or leaning on them) can result in hazard or injuries and damage to the
product.
This appliance should not be used for space heating. This information is based on safety considerations.
MOVING HAZARD
To avoid risk of severe personal injury; this appliance requires 2 or more personnel while handling and moving. Use of a moving
dolly is recommended.
For personal safety, this appliance must be connected to a properly grounded and polarized electrical power supply. If only a two-prong outlet is available, it is the
customer’s responsibility to have it replaced with a dedicated, grounded, three-prong electrical outlet by a licensed technician.
• Do not cut or remove the third (ground) prong from the power cord
• Do not use an adapter plug
• Do not use an extension cord
• Do not use a power cord that is frayed or damaged
• Do not plug the appliance into an electrical outlet with a Ground Fault Circuit Interrupter (GFCI)
American Range will not warranty any problems from GFI outlets.
WARRANTY REQUIREMENT
For reliable operation and for your own safety, this professional cooking equipment must be installed by a certied/licensed contractor.
Failure to comply will void any written or implied warranty.
Should the equipment require service during the standard warranty period, the receipt proving certied installation must be made available to American Range
for verication.
If installation was not performed by a certied/licensed contractor, be prepared to submit a major credit card for payment for proper installation prior to service.
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
DANGER
!
IMPORTANT - PLEASE READ AND FOLLOW!
CAUTION
!
• Please observe all local and national codes and ordinances.
• Do not remove any permanent warning labels or plates from this product.
• Please ensure that this product is electrically grounded.
• Consumers should retain these instructions for local inspectors and for future use.
This is the SAFETY ALERT SYMBOL. This symbol alerts you to hazards which will result in severe injury of death.
Hazards or unsafe practices which will result in severe personal injury or death.
Hazards or unsafe practices which may result in minor personal injury or property damage.
!
DANGER
!
CAUTION
!
INSTALLATION GUIDE AND USE & CARE MANUAL
READ & SAVE INSTRUCTIONS
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
INSTALLATION GUIDE AND
USE & CARE MANUAL
INSTALLATION GUIDE AND
USE & CARE MANUAL

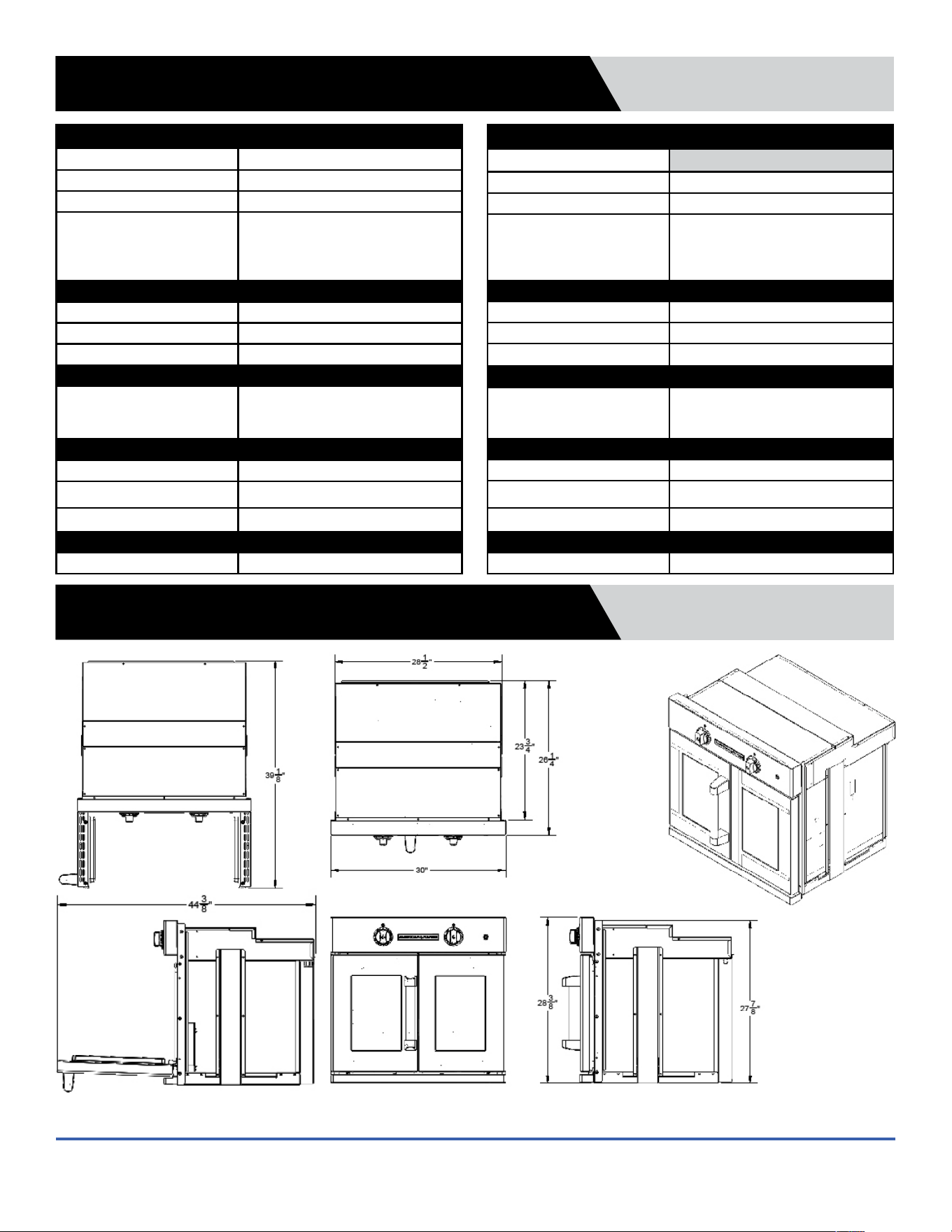

SPECIFICATIONS & ELECTRICAL REQUIREMENTS
OVEN DIMENSIONS SINGLE WALL OVEN
SINGLE WALL OVEN
Description
Electric
Overall Width 30”
Overall Height 31-3/8”
Overall Depth:
To the edge of control panel
With French Door open
With Chef Door open
26-1/2”
39-1/2”
45-1/4”
Cutout Width 28-1/2”
Cutout Height 31-1/4”
Cutout Depth 24” min

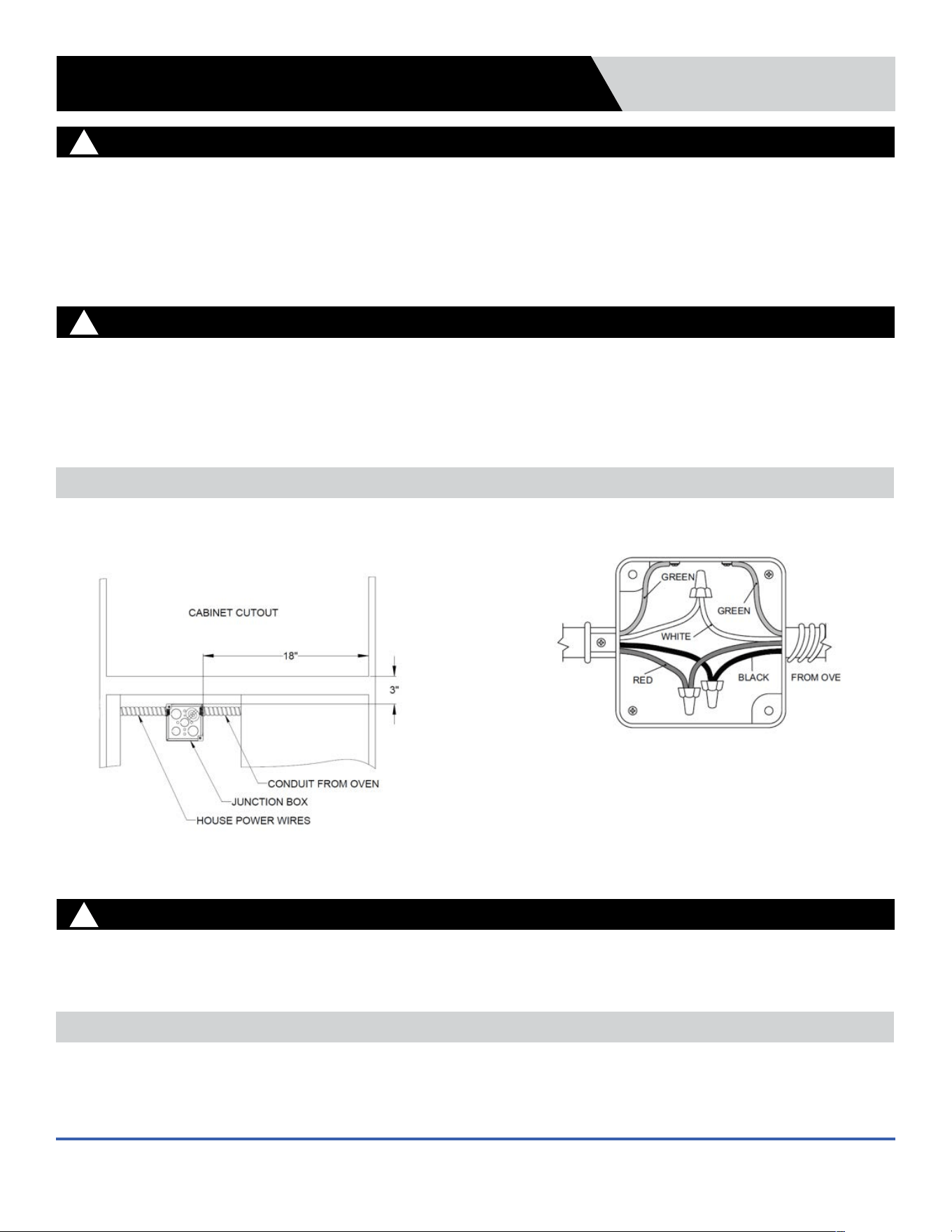

Electrical Requirements
4-wire ground, 240 VAC, 35 AMP electrical
connection. Equipped with #10 ground
wire in unit. Fuse separately. Solid copper.
Oven (Electric) 3500 WATTS
Broiler (Electric) 3500 WATTS
Convection (Electric) 2500 WATTS
Approximate Shipping Weight 235 Lb.
DOUBLE WALL OVEN
Description
Electric / Electric
Overall Width 30”
Overall Height 58-5/8”
Overall Depth:
To the edge of control panel
With French Door open
With Chef Door open
26-1/2”
39-1/2”
45-1/4”
Cutout Width 28-1/2”
Cutout Height 57-1/2”
Cutout Depth 24 ” min
Electrical Requirements 4-wire ground, 240 VAC, 60 AMP electrical
connection. Fuse separately.
Oven (Electric) 3500 WATTS
Broiler (Electric) 3500 WATTS
Convection (Electric) 2500 WATTS
Approximate Shipping Weight 403 Lb.
DROP DOWN / CHEF DOOR FRENCH DOOR FRENCH DOOR
FRENCH DOOR
FRENCH DOOR
FRENCH DOOR
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
INSTALLATION GUIDE AND
USE & CARE MANUAL

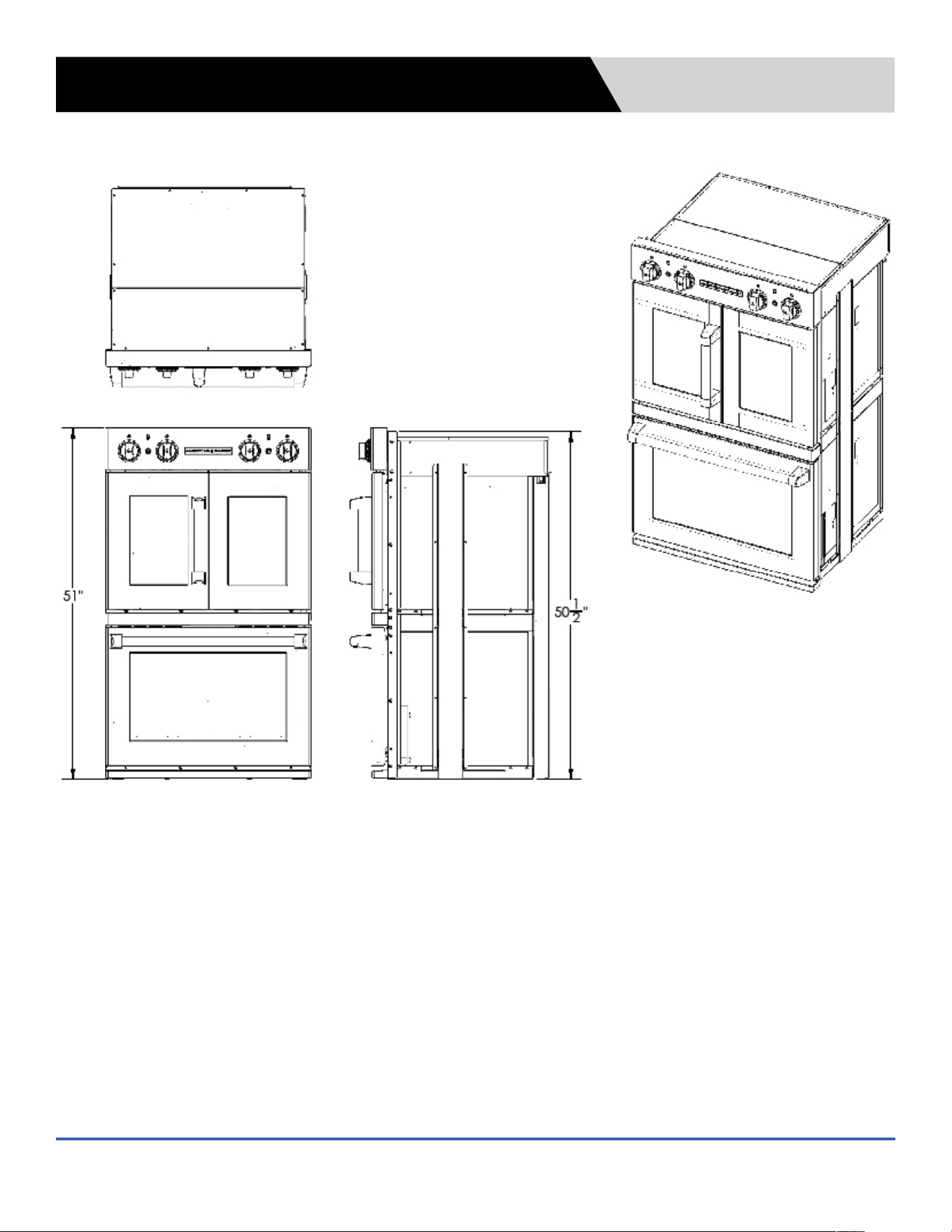

OVEN DIMENSIONS DOUBLE WALL OVEN
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
For all Single Wall Ovens
For all Double Wall Ovens
INSTALLATION GUIDE AND
USE & CARE MANUAL

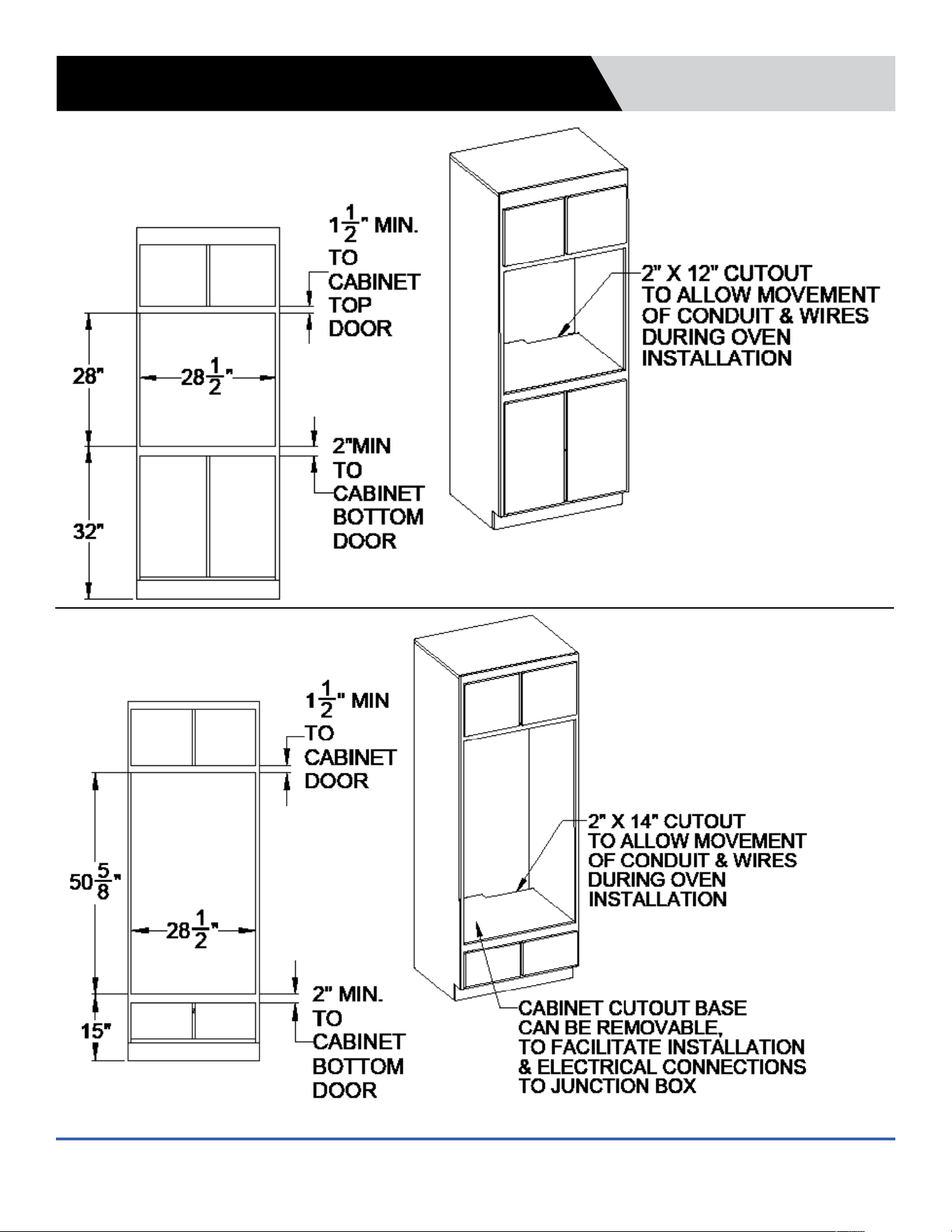

CUTOUT DIMENSIONS SINGLE WALL OVEN
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com

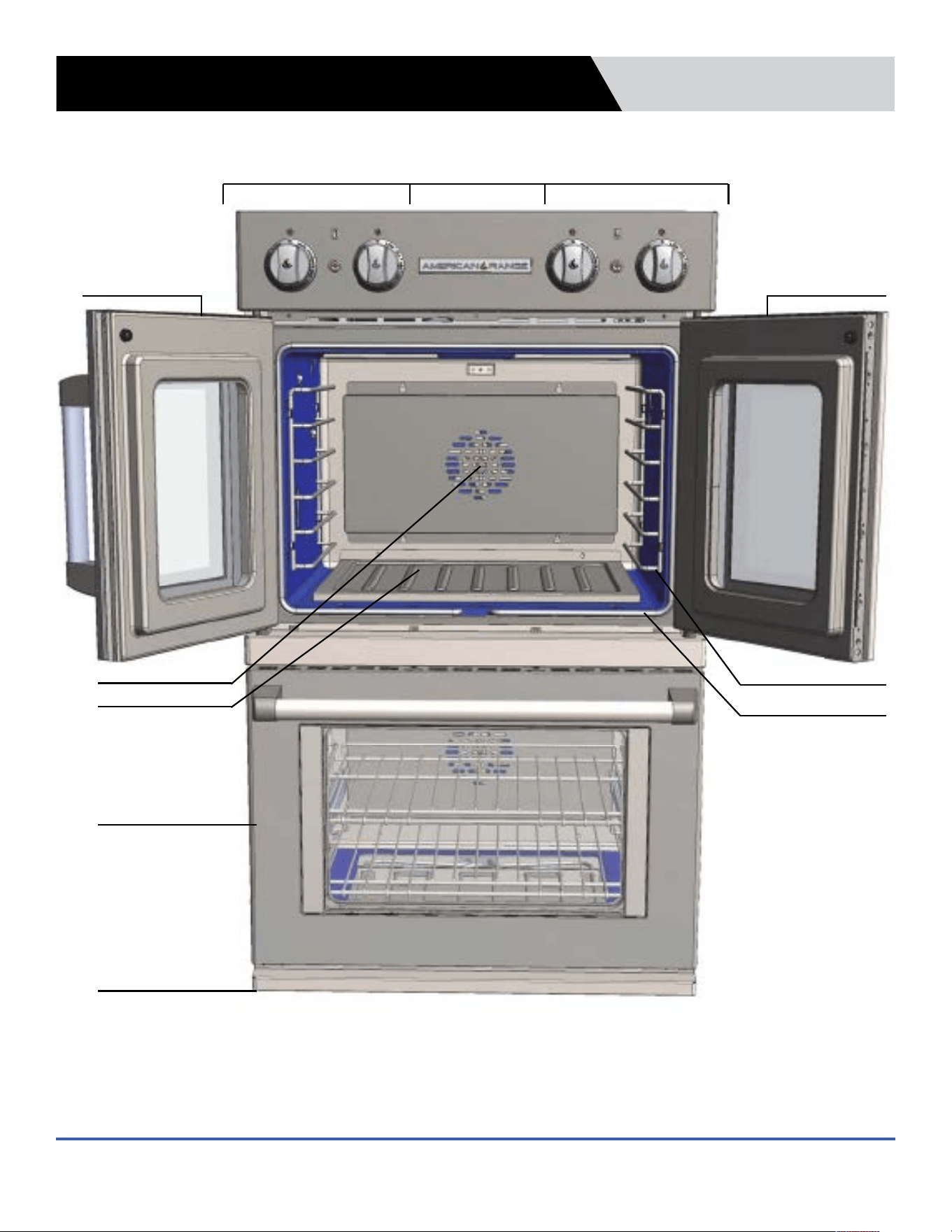

PICTURE SHOWS DOUBLE OVEN WITH FRENCH & CHEF DOORS, YOUR APPLIANCE MAY VARY
INSTALLATION GUIDE AND
USE & CARE MANUAL
GETTING STARTED
CONTROL PANEL
Logo BadgeUpper Oven
Left French Door
Drop down (Chef) Door
Oven Vent
Right French Door
Rack Side Support (6 Positions)
Oven Gasket
Convection Fan
Oven Bottom Cover
Lower Oven
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
INSTALLATION GUIDE AND
USE & CARE MANUAL
STANDARD RACK
GETTING STARTED
REMOVING AND REPLACING RACKS
COOLING FAN
OVEN VENT
CONVECTION FAN
OVEN BOTTOM
The cooling fan runs on all cooking modes. The fan can be heard when it is running and warm air can be felt as it release through the oven vent. The fan will continue to
run after the oven mode is off.
The oven vent is located at the bottom of the appliance. Warm air may be released during and after cooking. DO NOT block the vent as it is important for air circulation.
The convection fan operates during all convection modes and during the preheat cycle of cooking modes. it will run intermittently on ROAST.
The oven bottom conceals the bake element. DO NOT place food directly on the oven bottom. DO NOT use aluminum foil or liners on the oven bottom, nor any part
of the oven cavity.
NOTE:
To remove rack during or after cooking, use dry oven mitts or pot holders. Hold
the front side of the rack, and slide rack towards front until the rack stops hit the
rack support rod. Slightly lift the rack front side, enough so that the rack stops clear
the frame rods and continue to slide the rack towards front.
To replace rack or change rack position, follow steps above.

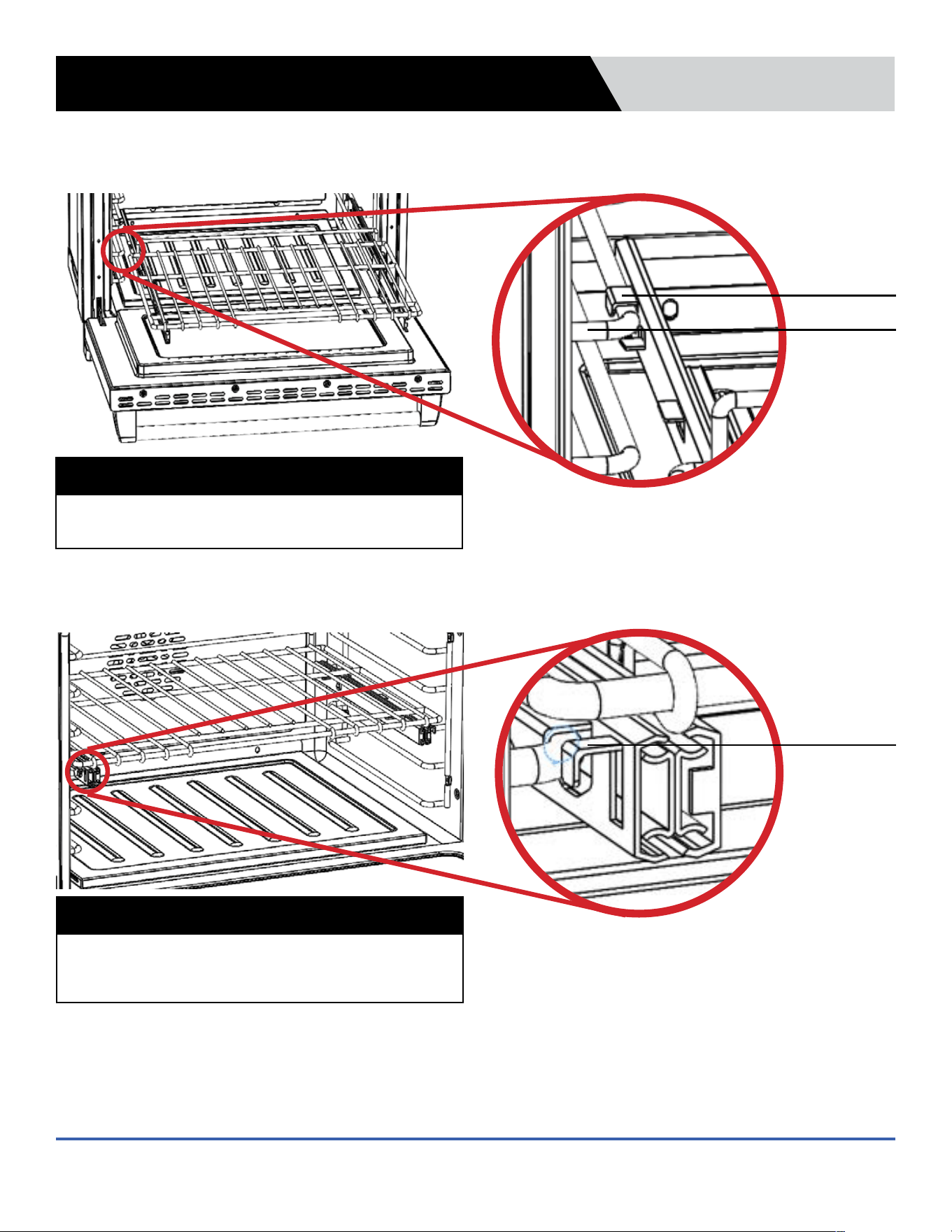

STEP 1
Place rack on the desired position as shown.
STEP 3
Lower the rack and push until it stops.
STEP 2
Tilt the rack front side slightly to clear the rack stop and slide towards the rear.
Rack Stop
Rack Side Support
Convection Fan Cover
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
GLIDE RACK
REMOVING AND REPLACING RACKS
STEP 2
Push rack assembly in until the front hang tabs hit the front rods of the side
supports. Slightly lift the front of the rack assembly, and slide in further until the
rods are in between the openings on the front hang tabs. Push the front of the
rack assembly down until the rack assembly is in-place.
STEP 1
Extend the left and right glides at the same length, and hold rack and glides, one
on each side. Choose rack position and locate rear hang tabs on the left and
right glides and place on the left and right rack side supports.
Rack Side Support
Rear Hang Tab
Front Hang Tab
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com

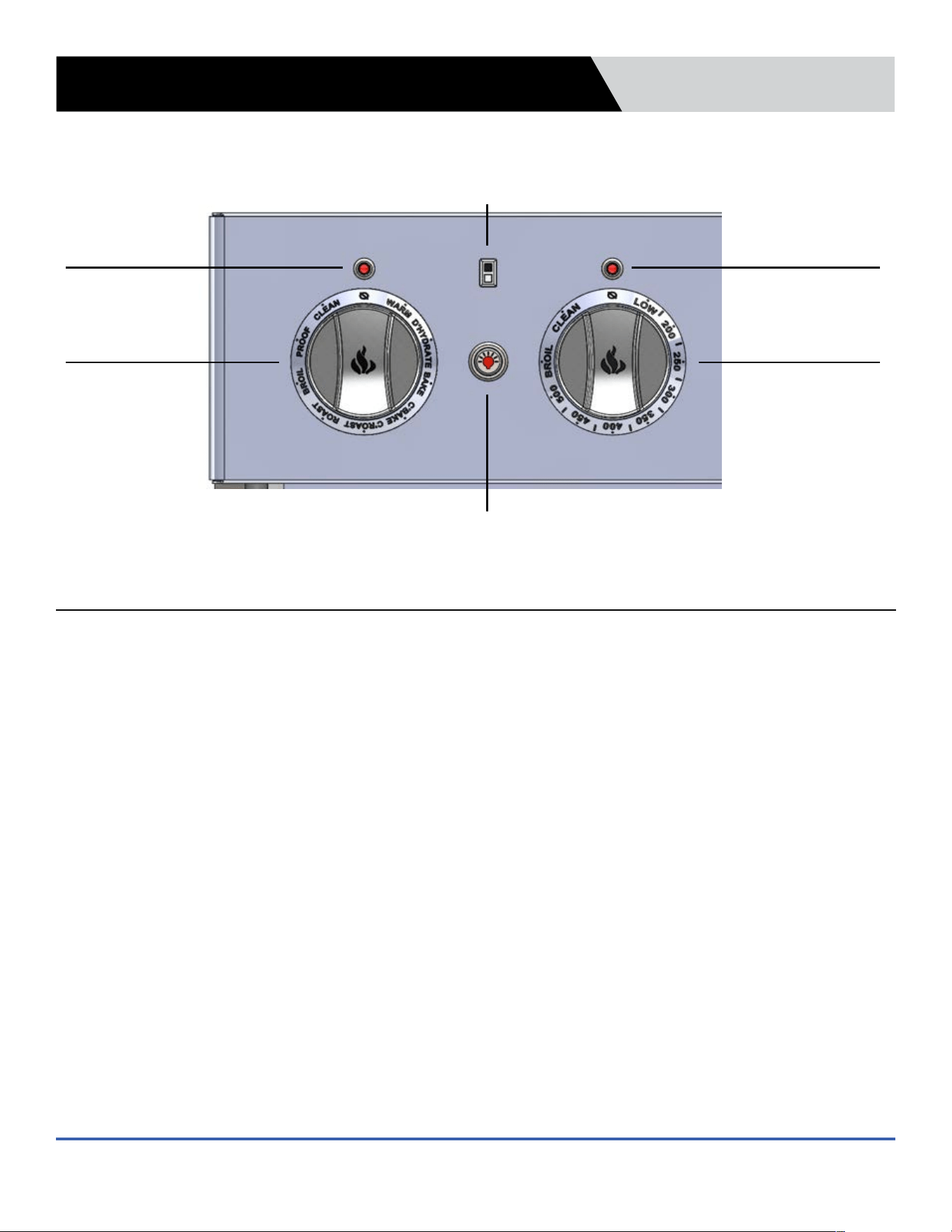

OPERATING MODES
CONTROL PANEL OPERATION
Oven Mode Cycle Light
Oven Position Indicator Badge (Upper Oven Shown)
Oven Light Push Button Switch
Oven Temperature Cycle Light
Oven Mode Select Knob Temperature Select Knob
WARM
Use mode to keep cooked food at serving temperature. Maximum temperature is 170°F. The convection fan is not used in this mode.
Rotate Mode Select Knob to WARM position and the Oven Mode Cycle Light shall turn on. Rotate Temperature Select Knob to any setting from LOW to 250°F
and the Oven Temperature Cycle Light shall turn on. The Oven Temperature Cycle Light shall turn off when the oven reaches 170°F, and shall turn back on when the
elements are energized again, to maintain the oven temperature.
Use a lid or aluminum foil to keep the food moist. DO NOT leave foods inside the oven for extended periods of time.
DEHYDRATE
Use this mode to dry or preserve fruits, vegetables and herbs. Maximum temperature is 135°F. The heated air is circulated by the convection fan.
Rotate Mode Select Knob to DEHYDRATE position and the Oven Mode Cycle Light shall turn on. Rotate Temperature Select Knob to any setting between LOW and
250°F and the Oven Temperature Cycle Light shall turn on. The bake element is energized and the convection fan runs continuously. The Oven Temperature Cycle Light
shall turn off when the temperature reaches 135°F and shall cycle on and off, as the bake element energizes and de-energizes, to maintain the temperature inside the
oven.
Drying times vary depending on the cut size, amount being dried, and moisture content. Refer to cook books, recipe books, packaging directions and the internet for
Dehydrate Charts.
BAKE
Use this mode to prepare variety of foods using heated air in the oven. Refer to recipes or package directions for oven temperature settings, Preheat and baking times.
With SMART Bake, multiple trays may be used.
Rotate Oven Mode Select Knob to BAKE position and the Oven Mode Cycle Light shall turn on. Rotate Oven Temperature Select Knob to the desired temperature
and the Oven Temperature Cycle Light shall turn on. The upper and lower heating elements shall turn on and off, intermittently during the Preheat cycle. The Oven
Temperature Cycle Light shall turn off when the desired temperature is reached. After Preheat, the lower heating element is energized on and off to maintain desired
temperature. The Oven Temperature Cycle Light shall turn on or off with operation of the lower heating element.
Keep door closed to minimize heat loss. Use Oven Push Button Switch to turn on oven lights and see inside of oven without opening door.
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
OPERATING MODES
CONTROL PANEL OPERATION
CONVECTION ROAST
Uses the lower and upper heating elements and the convection fan element. Convection roast is usually done on large meat, poultry and vegetables. Refer to recipes or
package directions for oven temperature settings, Preheat and roasting times.
Rotate Oven Mode Select Knob to ROAST position and the Oven Mode Cycle Light shall turn on. Rotate Oven Temperature Select Knob to the desired temperature
and the Oven Temperature Cycle Light shall turn on and the convection fan turns on. The lower and upper heating elements and convection element shall turn on and
off, intermittently during the Preheat cycle. The Oven Temperature Cycle Light shall turn off when the desired temperature is reached. After Preheat, the lower heating
element and the convection element are energized on and off to maintain desired temperature. The Oven Temperature Cycle Light shall turn on or off with operations
of the elements.
Keep door closed to minimize heat loss. Use Oven Push Button Switch to turn on oven lights and see inside oven without opening door.
ROAST
Uses the lower and upper heating elements. Roast is usually done on large meat and poultry. Refer to recipes or package directions for oven temperature settings,
Preheat and roasting times.
Rotate Oven Mode Select Knob to ROAST position and the Oven Mode Cycle Light shall turn on. Rotate Oven Temperature Select Knob to the desired temperature
and the Oven Temperature Cycle Light shall turn on. The lower and upper heating elements shall turn on and off, intermittently during the Preheat cycle. The Oven
Temperature Cycle Light shall turn off when the desired temperature is reached. After Preheat, the lower and upper heating elements are energized on and off to
maintain desired temperature. The Oven Temperature Cycle Light shall turn on or off with operations of the elements.
Keep door closed to minimize heat loss. Use Oven Push Button Switch to turn on oven lights and see inside oven without opening door.
BROIL
Uses intense heat from the upper heating element. Broil is usually done on thin slice(s) of meat, poultry and sh. Place food in the recommended rack position after the
broil element has preheated. Refer to recipes or packages for directions on broiling. Always broil with oven door closed.
Rotate Oven Mode Select Knob to BROIL position and the Oven Mode Cycle Light shall turn on. Rotate Oven Temperature Select Knob to BROIL position and the
Oven Temperature Cycle Light shall turn on. The upper heating element is energized continuously to maintain 550°F temperature.
Keep door closed to minimize heat loss. Use Oven Push Button Switch to turn on oven lights and see inside oven without opening door.
PROOF
Use to proof bread and other baked goods dough with yeast. Maximum temperature is 100°F. The convection fan runs continuously in this mode.
Rotate Mode Select Knob to PROOF position and the Oven Mode Cycle Light shall turn on. Rotate Temperature Select Knob to any setting from LOW to 250°F, the
Oven Temperature Cycle Light shall turn on and the lower heating element is energized. The Oven Temperature Cycle Light shall turn off when the oven reaches 100°F,
and shall turn back on when the elements are energized again, to maintain the oven temperature.
Keep the oven door closed. Use the oven lights to check the rising of the dough.
CLEAN
Use mode to clean the inside of oven regularly. Clean temperature is 500°F and clean time is 1 hour. The convection fan is not used on this mode.
Rotate Mode Select Knob to CLEAN position and the Oven Mode Cycle Light shall turn on. Rotate Temperature Select Knob to CLEAN the Oven Temperature Cycle
Light shall turn on.
The porcelain nish inside the oven and oven doors that can be cleaned at a lower temperature and shorter period, compared to self-cleaning or pyrolytic ovens.
It is recommended that excessive spillage be removed before using the CLEAN mode. Use a wooden or soft plastic scraper for hardened spills. Spray water on
encrusted food or dirt, if necessary.
It is not necessary to remove the oven racks and broil pans.
When CLEAN mode is nished and the oven has cooled down, wipe out surfaces with a damp towel. Remove stubborn stains using soft cleaning liquids and pads. Rinse
and dry with a clean towel.
CONVECTION BAKE
Similar to BAKE mode, except that a convection fan is used to circulate the heated air in the oven. Compared to BAKE, the temperature is lowered by 25°F, cook times
may slightly decrease and multiple trays can be used. Refer to recipes or package directions for oven temperature settings, Preheat and baking times.
Rotate Oven Mode Select Knob to C’BAKE position and the Oven Mode Cycle Light shall turn on. Rotate Oven Temperature Select Knob to the desired temperature
and the Oven Temperature Cycle Light shall turn on and the convection fan turns on. The upper and lower heating elements and convection element shall turn on and
off, intermittently during the Preheat cycle. The Oven Temperature Cycle Light shall turn off when the desired temperature is reached. After Preheat, the lower heating
element and the convection element are energized on and off to maintain desired temperature. The Oven Temperature Cycle Light shall turn on or off with operations
of the elements.
Keep door closed to minimize heat loss. Use Oven Push Button Switch to turn on oven lights and see inside oven without opening door. For best results, use shallow,
uncovered pans and cookie sheets without sides.
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com

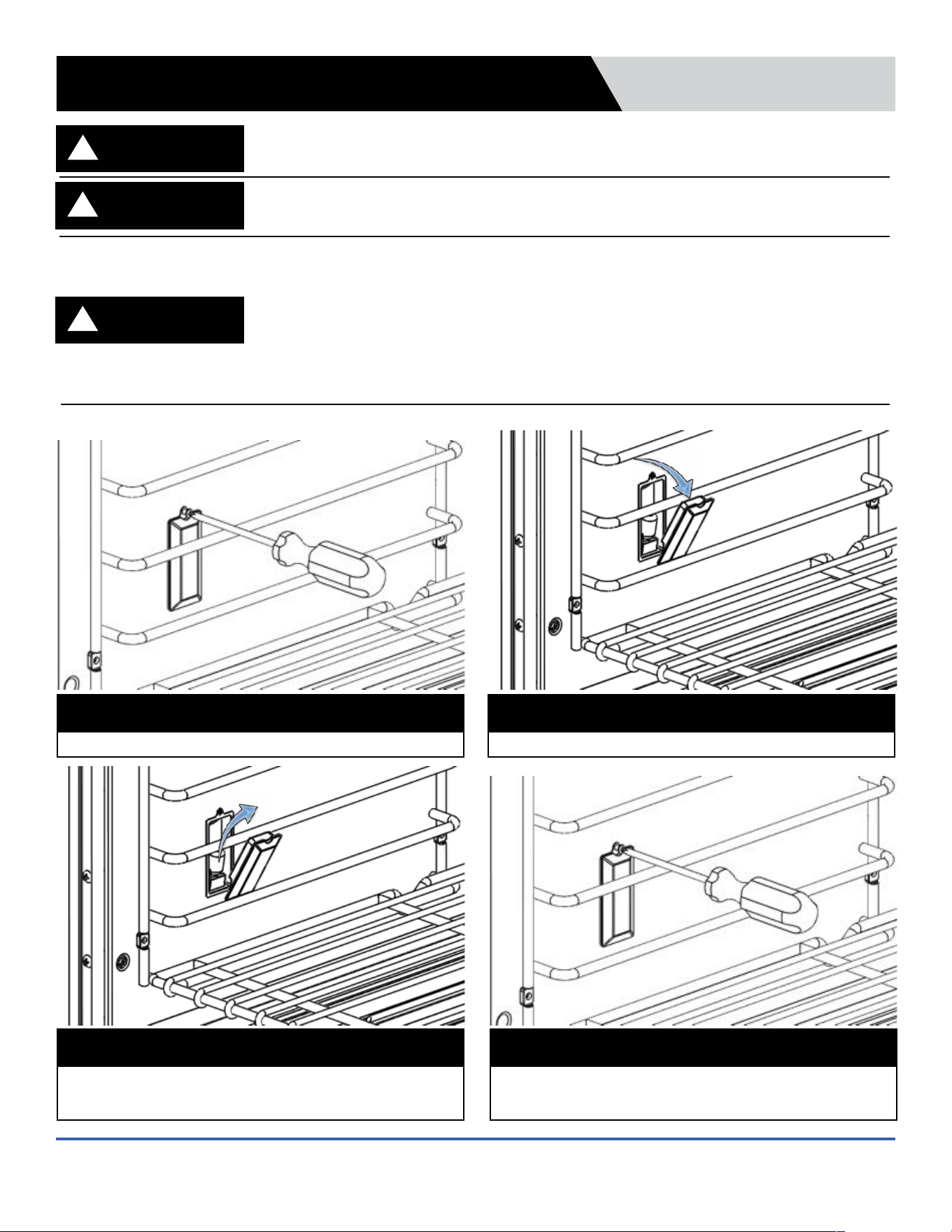

MAINTENANCE
REPLACING THE
OVEN LIGHT BULB
Handle the cover glass and halogen bulb carefully to avoid breaking. Broken glass may cause injury.
Any maintenance on appliances with French doors must be performed by a qualied service technician. Improper handling and
replacement of the doors may result in improper oven operation, door breakage and personal injury.
Always wait until the oven has cooled down before any cleaning and maintenance. Care must be taken when removing the Chef
door as it is heavy and constructed with stainless steel front, glass and door liner with porcelain enamel nish.
Grasp along the sides [TOP-LEFT & TOP-RIGHT] of the oven door when lifting. DO NOT lift using the door handle as the
door may swing in your hand and cause injury.
Place the oven door on a at surface away from a busy area. Use a clean rug or board to protect the door parts.
CAUTION
!
CAUTION
!
Before doing any maintenance, disconnect power to the appliance and wait until the oven is cool.
CAUTION
!
STEP 1
Remove the #6 Screw using a Phillips head Screwdriver.
STEP 3
Pull the halogen bulb from its socket and replace bulb using a clean dry cloth.
The halogen bulbs are available from local hardware and retail stores. Use 25W
120V halogen bulbs.
STEP 2
Remove the holding clips and glass cover to expose the halogen bulb.
STEP 4
Replace the holding clips back into the light receptacle and insert cover glass
until seated properly. Replace the screw and connect power back to the
appliance.
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
MAINTENANCE
REMOVING THE OVEN DOOR
CHEF (DROP DOWN) DOOR
STEP 1
Open the oven door completely. The left door hinge is equipped with a slow
closing lever. The lever should be pushed down to release the hinge clip.
Push Lever Down And In
Slow Closing Lever
Hinge Clip
STEP 2
Rotate the hinge clip towards you until it completely stops. Repeat on the right
door hinge.
STEP 3
Slowly close the door until the left and right door hinge bodies are engaged
with the hinge clips and door tops momentarily.
Hinge Body
Hinge Clip
STEP 4
Continue to close the door and you will feel a slight lift. Hold the door rmly
along the sides and lift slowly until the left and right door hinge arm unhooks
from the hinge receivers. Pull the door away from the oven.
Hinge Arm
Hinge Receiver
TO REPLACE DOOR
Refer to steps above [reversely].
1. Holding the door rmly on both sides, slowly move the door towards the hinge receiver opening and hook the hinge arms into the hinge receivers. Check for
alignment. DO NOT move the hinge clips until the hinge arm is properly seated into the hinge receivers.
2. Open the door completely.
3. Push levers towards the oven until stop.
4. Close door. Observe that the door will close slowly at the top end.
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
ELECTRICAL CONNECTIONS
SAFETY AND
USE INFORMATION
WARNING
!
WARNING
!
WARNING
!
Follow all safety instructions in this manual.
Failure to do so may result in re, electrical shock, personal injury and death.
It is recommended that electrical connections and wire sizes are adequate and in conformance with the National Electrical Code, ANSI/NFPA 70-latest edition or C22.1
Canadian Electrical Code Part1.
The oven must be connected to a main power supply with proper electrical voltage and amperage as specied in the Electrical Requirements or model/serial number rating
plate. The junction box located near the oven must be checked by a certied electrician or approved service technician for proper grounding and connections.
Disconnect power before installation or servicing. Check for proper grounding.
Failure to follow safety instructions can result in re, electrical shock and death.
Ovens are heavy and may need 2 or more people to move and install into the cabinet cutout. Appliance mover, with wheels or casters, is recommended to facilitate move-
ment of the appliance and prevent damage to oor surface.
Failure to follow safety precautions can result to back or other injury.
Ovens are heavy and may need 2 or more people to move and install into the cabinet cutout. Appliance mover, with wheels or casters, is recommended to facilitate
movement of the appliance and prevent damage to oor surface.
Failure to follow safety precautions can result to back or other injury.
MAKE ELECTRICAL CONNECTIONS
MAKE OVEN INSTALLATION
1. Disconnect power. Lock and tag-out.
2. Install junction box. For single & double oven cabinet installation, the junction
box location:
3. Move the oven with exible conduit/wires close to the cabinet cutout and
feed the wires and conduit through the rectangular cutout located at the rear
end of the cabinet cutout base.
4. Feed the wires in to the junction box and connect the conduit to the
junctions box using agency 1/2” conduit connector.
5. Connect the 2 black wires together using a UL listed wire connector.
6. Connect the 2 red wires together using a UL listed wire connector.
7. Connect the 2 white wires together using a UL listed wire connector.
8. Connect the solid copper wire to the green or bare ground wire with a
UL listed wire connector, or use the screw(s) in the grounded junction
box.
9. Install junction box cover.
1. Rotate oven so that the back side is facing the cabinet cutout. Push the oven in to the cabinet cutout until the front side frames are ushed to the cabinet.
2. Securely fasten the oven to the cabinet using the #8 X 1” screws (supplied with appliance). Use 2 for single ovens and 4 for double ovens.
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
SINGLE UNDER COUNTER INSTALLATION
SAFETY AND
USE INFORMATION
WARNING
!
Ovens are heavy and may need 2 or more people to move and install into the cabinet cutout. Appliance mover, with wheels or casters, is recommended to facilitate
movement of the appliance and prevent damage to oor surface.
Failure to follow safety precautions can result to back or other injury.
INSTALLATION
1. Disconnect power.
2. Move the appliance adjacent the cabinet cutout, with the conduit and wires as close as possible to the cabinet cutout.
3. Feed the wires and the conduit through the 1-1/2” hole located at the bottom right rear corner of the cabinet cutout.
4. Rotate the oven so that the back side is facing the cabinet cutout. Push the oven in to the cabinet cutout until the front side frames are ushed to the cabinet. Pull the
wires and conduit while pushing the oven.
5. The junction box should be located on the right side cabinet. Feed the oven wires in to the junction box and connect the conduit using an agency approved ½”
conduit connector.
6. Connect the 2 black wires together using a UL listed wire connector.
7. Connect the 2 red wires together using a UL listed wire connector.
8. Connect the 2 white wires together using a UL listed wire connector.
9. Connect the solid copper wire to the green or bare ground wire with a UL listed wire connector, or use the ground screw(s) in the grounded junction box.
10. Install junction box cover.

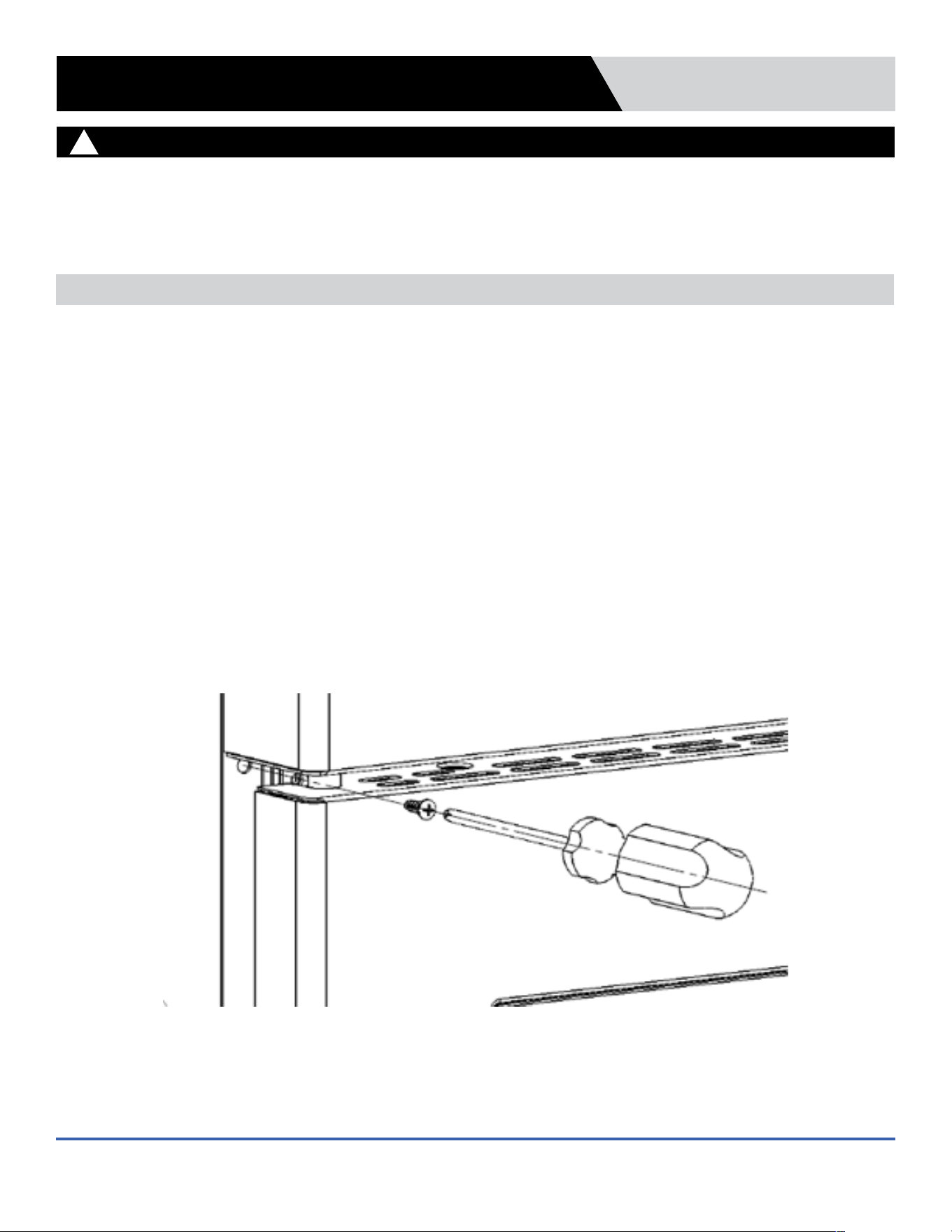

11. Securely fasten the oven to cabinet using the #8 X 1” screws provided.
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
PERFORMANCE CHECKLIST
INSTALLATION GUIDE AND
USE & CARE MANUAL
UPON COMPLETION OF INSTALLATION, THE QUALIFIED INSTALLER SHOULD PERFORM THE FOLLOWING PERFORMANCE CHECKS:
Some Stainless Steel parts may still have the protective lm. They should be peeled off carefully prior to oven use. To clean Stainless Steel surfaces, we recommend using warm soapy water and
soft clean cloth. You may also use liquid cleaner for Stainless Steel surfaces that are available from local stores.
To remove dry encrusted materials, soak the area with warm soapy water or damp cloth and use wooden or nylon scraper. It is advisable to follow the direction of the Stainless Steel grain when
cleaning.
DO NOT USE STEEL WOOL, ABRASIVE CLOTHS, CLEANERS OR POWDERS WHEN CLEANING STAINLESS STEEL SURFACES. DO NOT USE METAL KNIVES, SPATULAS OR OTHER
METAL TOOLS TO REMOVE ENCRUSTED MATERIALS.
The interior of the oven may be cleaned with warm soapy water and soft clean cloth. Rinse thoroughly and dry with soft cloth.
FINAL PREPARATION & PRECAUTIONS
CAUTION
!
Check your local building codes for proper installation methods. In the absence of local codes, the appliance should be installed in accordance with the National Electrical Code ANSI/NFPA No. 70
current issue, or C22.1 Canadian Electrical Code Part 1.
For personal safety, this appliance must be connected to a properly grounded and polarized electrical power supply. If only a two-prong outlet is available, it is the customer’s responsibility to have it
replaced with a dedicated, grounded, three-prong electrical outlet by a licensed technician.
• Do not cut or remove the third (ground) prong from the power cord
• Do not use an adapter plug
• Do not use an extension cord
• Do not use a power cord that is frayed or damaged
• Do not plug the appliance into an electrical outlet with a Ground Fault Circuit Interrupter (GFCI)
CAUTION
!
To avoid the possibility of explosion or re, do not store or use combustible, ammable or explosive liquids (such as gasoline) or vapors inside or in the vicinity of this or any other appliance.
Keep items that could explode, such as aerosol cans, away from the product. Do not store explosive or ammable materials in nearby cabinets or areas.
When operating the oven, do not touch the surfaces of the glass, the rack or rack supports, the walls of the oven or the inside surfaces of the oven door - interior surfaces become hot enough to
cause burns. The heat deector, which deects heat away from the control panel, and the oven door sides will also be hot during use.
DANGER
!
Any service to the appliance must be performed by a certied electrician or service agency. If it necessary to disconnect power to the appliance, it should be switched off in the main electrical
panel to the house.
WARNING
!
Do not store items of interest to children above or near the appliance. Children, as well as adults, should never be allowed to sit, stand or climb on any part of the appliance. Serious personal
injury may occur.
DANGER
!
WARNING
If not installed, operated and maintained in accordance with the manufacturer's instructions, this product could expose you to fuel or fuel combustion substances,
which can cause death or serious illness, which are know to the State of California to cause cancer, birth defects or other reproductive harm.
The State of California enacted the California Safe Drinking Water and Toxic Enforcement Act of 1986, (Prop. 65), which "prohibits any person in the course of doing business from knowingly and
intentionally exposing any individual to a chemical know to the State of California to cause cancer or reproductive toxicity without rst giving clear and reasonable warning to such individuals." The
Governor's Scientic Advisory Panel added carbon monoxide to the list of hazardous chemicals known to cause reproductive harm.
In order to establish full compliance with Proposition 65, a yellow warning label has been attached to each gas-red unit manufactured by The Company.
Carbon monoxide would not be present in concentrations that would pose a "signicant risk" to the consumer when the equipment is installed, operated and maintained as follows:
1. Installed in accordance with all local codes, or in the absence of local codes, with the current National Fuel Gas Code ANSIZ223.1 Latest Addenda.
2. Installed under a properly designed and operating exhaust hood.
3. Connected to the type of gas for which the unit is equipped.
4. Proper appliance pressure regulator installed on the gas supply line and adjusted for the manifold pressure marked on the rating plate.
5. Adequate air supply to the unit.
6. The equipment is operated in a manner intended and using the proper utensil for that type of appliance.
7. Keep the equipment clean and have it checked periodically.
8. Burner air adjustments, mechanical maintenance and repairs must be performed by qualied service personnel.
0 Check BAKE operation by rotating oven control knob counterclockwise to any
cook mode. The power indicator light should turn on. Rotate the temperature knob
counterclockwise to any setting. The cycle indicator light should turn on and the
hidden element shall start to heat up.
0 Check BROIL operation by rotating oven control knob to BROIL. The power
indicator light should turn on. Rotate the temperature knob to BROIL. The cycle
indicator light should turn on and the radiant element shall start to heat up.
0 Check oven lights operation by pressing the oven light switch. The oven lights should turn on.
Press again to turn off.
0 Check convection fan operation by rotating the oven control knob to either C’BAKE or
C’ROAST. The power indicator light should turn on. Rotate the temperature knob to 350° and
the cycle indicator light turn on. The convection fan should rotate and the convection element
shall start to heat up.
APPLIANCE SHOULD BE TURNED OFF UPON COMPLETION OF ABOVE.
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
WARRANTY
INSTALLATION GUIDE AND
USE & CARE MANUAL
RESIDENTIAL APPLIANCES TWO YEAR LIMITED WARRANTY*
American Range (hereafter AMR) hereby provides the following warranty to the original residential user (“Owner”) for its new RESIDENTIAL Product(s) to be free from
defects in material and workmanship in normal household use for the Warranty period(s) set forth below, beginning from the date that power and/or gas is turned on
with proof of installation. Without proof of installation, the beginning is from time of purchase under the terms and conditions as follows: Proof of original purchase date is
required to obtain service under this limited warranty.
This Warranty is applicable only on new AMR residential Products and is non-transferable.
This Warranty is not applicable to AMR commercial Products. This Warranty is strictly limited to Products sold to the original Owner in the United States or Canada, and
said Owner shall not be entitled to transfer this Warranty to third parties. This Warranty is also not applicable on AMR residential Products that are used for commercial
purposes, including without limitation, vacation rentals, re stations, clubs, government facilities, non-prot groups, bed and breakfast facilities, and board & care facilities, and
any home based business whereby AMR products are utilized for a commercial, non-household purpose. Residential products should not be used in a commercial environ-
ment.
Warranty Period: For all Product(s) properly registered with AMR, with proof of purchase and within ninety (90) days from the date of purchase, a two year warranty* is
in effect subject to the terms and conditions herein.
However, in the event that Owner fails to promptly register the Product(s) with AMR within ninety (90) days of the date of purchase, the Warranty period shall be strictly
limited to a period of one year for parts and labor, from the date of purchase. Proof of purchase is required for all claims under this Warranty.
*Igniters limited to a one year warranty, from the date of purchase. Proof of purchase is required for all claims under this Warranty. Two Year Warranty applies only to
purchases made after May 1, 2018, with a serial number of 180101-100 or higher.
Exceptions to the Warranty: Rubber seals, light bulbs, and gaskets are covered for a period of ninety (90) days only. Oven glass, porcelain, and Products that are not
defective, but that require adjustments for normal wear and tear are expressly excluded from this Warranty.
Warranty Claims: In the event of a claim for repair of the Product(s), and to obtain warranty service, Owner must contact either (i) the dealer from whom the product
was purchased; (ii) an authorized AMR service agent; or (iii) AMR Residential service support at 1-888-753-9898. You will be asked to provide a model and serial number,
and date of original purchase.
AMR shall provide all new replacement parts and all repair labor under the Warranty.
Under the terms of this Warranty, service must be performed by a factory authorized AMR service agent/representative, and approved in advance by AMR. AMR shall not
be responsible for labor costs that have not been pre-approved, with written conrmation by AMR. Note that service providers are independent entities and not afliated
with AMR. Travel expenses from the factory authorized service agent to the product location are limited to 25 miles each way. For greater distances, either have the product
delivered to the servicer, make separate travel arrangements, or pay for the additional servicer travel. All repair services shall be provided during normal business hours.
AMR will not be responsible for premium time or overtime charges for labor covered under this warranty or for repairs made without AMR authorization. Such charges
shall be the responsibility of the Owner.
Limitation of Warranty: AMR shall have no obligation under this Warranty as to any Product(s) which have been misapplied, mishandled, abused, misused, modied,
altered, subject to improper cleaning methods, subject to harsh chemical action, modied by unauthorized service personnel, damaged by accidents, ood, re, smoke,
public unrest, earthquake, tornado, hurricane, other acts of God, Owner negligence, reasons beyond the control of AMR, failures due to improper installation, insufcient
gas or electrical supply, problems due to improper ventilation, or removed/altered serial numbers. Any damage due to water, chemical, or direct contact to infrared burners
will also not be covered under this Warranty. This Warranty shall be void if the Product(s) are not properly installed by a licensed plumber, and not properly calibrated for
electrical and gas connectivity, gas line size, correct pressure, and properly leveled. Additionally, AMR factory recommended cleaning instructions must be followed by Owner
at all times or this Warranty shall be voided by AMR. All delivery, installation, labor costs and other service costs are the responsibility of the purchaser.
Dealer display, model home display and products sold “as-is” have the following warranty:
• 1 year parts only warranty, if the manufacture date is less than 3 years old.
• Excludes items that are: missing; cracked; aesthetic; broken; dented; frayed.
Except as stated herein-above the dealer display and model home display goods are being sold on an ‘as-is’ or ‘with all faults’ basis. Except as stated, the
entire risk as to the quality and performance of the goods is with the buyer. Additionally, except as stated, should the goods prove defective following
their purchase, the buyer and not the manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair.
THIS WARRANTY IS LIMITED AND MADE IN LIEU OF ANY AND ALL OTHER SUCH WARRANTIES EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITA-
TION, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE LIABILITY OF AMR IS SET FORTH HEREIN
THIS WARRANTY. OWNER SPECIFICALLY UNDERSTANDS AND ACKNOWLEDGES THAT THERE ARE NO WARRANTIES, EITHER EXPRESSED OR IMPLIED
HEREUNDER OTHER THAN THE WARRANTIES WHICH ARE SPECIFICALLY STATED HEREIN. SAID OWNER SHALL NOT RELY ON ANY OTHER ASSERTIONS,
REPRESENTATIONS OR STATEMENTS BY AMR OR ITS AGENTS, OTHER THAN THOSE SPECIFICALLY EXPRESSED IN THIS WARRANTY.
AMR’S LIABILITY ON ANY CLAIM OF ANY KIND IS EXPRESSLY LIMITED AND SHALL NOT EXCEED THE WHOLESALE PRICE OF THE PRODUCT(S) OR PART(S)
THEREOF THAT GIVE RISE TO SUCH CLAIM.
Failure by AMR to enforce any of its rights under this Warranty shall not be construed as a waiver of those rights. AMR specically reserves the right to investigate and
verify all claims to determine the validity of the claim and the claimant’s qualications under this Warranty. AMR reserves the right to refuse Warranty service in the event
that AMR determines that a claimant’s right to the Warranty is inapplicable under the terms and conditions herein.
AMR is not responsible for consequential or incidental damage whether arising out of breach of warranty, breach of contract, tort, or any other legal theory, including with-
out limitation, property damage, bodily injury, loss of use, and/or lost prots. This Warranty gives the Customer certain legal rights. The customer may also have other legal
rights which vary from state to state. Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of incidental or
consequential damages. If such laws apply, the limitations or exclusions contained in the terms and conditions of this Warranty may not apply to all such Owners.
AMR expressly reserves the right to make changes to their Warranty policy before or after purchase by the Owner.
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
MODEL & PARTS IDENTIFICATION
INSTALLATION GUIDE AND
USE & CARE MANUAL
LEGACY SERIES - GAS WALL OVENS
DESCRIPTION SEF-30 SEC-30 DEF-30 DEC-30 DEFC-30
Oven Racks (STD / SLIDE) 1/1 1/1 2/2 2/2 2/2
Control Knobs 2 2 4 4 4
Regis. Card 1 1 1 1 1
U&C Manual 1 1 1 1 1
OPERATING INSTRUCTIONS
WHAT IS THE CONVECTION COOKING PROCESS?
• Convection is the process of cooking with hot air that is mechanically circulated by a fan in a continuous pattern around the food.
• Cooking results can be faster than cooking charts suggest and food should be checked for doneness perhaps ve to fteen minutes early.
• Oven temperatures should be lowered 25°F in most cases.
• Multiple racks of food can be cooked at the same time with even browning and even cooking times.
Other Features:
• This oven can be used at low temperatures to dehydrate food, warm plates or for very slow cooking at a low heat.
HOW AND WHEN TO COOK ON STANDARD BAKE MODE
1. Bake - The standard Bake mode is best used for roasting, or single rack applications. If you wish to cook on multiple racks, use convection for terric results.
Oven Racks: Each oven is supplied with two heavy chrome-plated adjustable oven racks.
Rack Supports: On each side of the oven, heavy chrome-plated rack supports allow ve positions, numbered from the bottom up.
Oven Control Knob: The oven control knob is used to set the Baking temperature or to select the Broil function. During baking, the convection fan may be activated.
Broil Burner Igniter: The igniter glows a very hot, bright red-orange color, reaching proper ignition temperature to light the Ceramic Tile Infrared Broil Burner.
ELECTRIC OVENS
Broil: Ribbon element located in the oven ceiling, becomes red hot in just a few seconds.
Bake: A ribbon element, below the oor of the oven when the element cycles "ON."
Selector Switch and Indicator Light: Rotate this knob from the OFF position and select Convection Bake, Standard Bake, Fan-Only, or Broil modes. In any mode position,
the Indicator Light glows indicating the Oven is ready to operate. When you’re done, always rotate the knob to the OFF position.
Oven Thermostat Knob: Thermostat Temperature Selection - Select your desired temperature.
On Indicator Light: Whenever an oven heat source is activated (either Bake or Broil), the “on” indicator will glow. It is normal for the indicator light to cycle off and on
during baking or broiling – showing that more heat is being applied.
Door Gasket: The door gasket is made from high temperature materials and creates a seal between the hot oven and the cool kitchen.
Convection Fan and Switch: Operated by the front panel switch, the convection fan circulates oven air, removing the “thermal boundary layer” on items being baked – and
in doing so – speeding up heat transfer and cook time by as much as 25%. Convection is active only during baking.
Oven Light and Switch: A single lamp is provided in the oven to illuminate baked and broiled food items, as well as shed some light on the wall to help during clean-up –
activated by the front panel switch.
OVENS 101
The oven is a temperature controlled cooking cavity which is highly insulated to keep the kitchen cool and the food hot. The oven contains two heat sources: Bake, positioned
below the oven oor, and Broil, located in the ceiling of the oven. Bake and Broil are very different cooking operations and the burners are designed to deliver energy in a
way appropriate to the task.
There are two types of baking - called Standard Bake (or conventional) and Convection Bake. Standard baking make the best use of Grandma’s cookie, cake or pie recipes
– such as Bake at 350ºF for forty-ve minutes – to get the job done. These recipes are tried and true – conventional or standard bake will deliver wonderful performance
for roasting.
In convection cooking, not only is the cook time faster, but also, the oven temperature is more even, top to bottom and side to side - so cookies on several racks will have the
same brown color and texture. Food does not need to be rotated to get uniform color. However, to best take advantage of convection, use low, shallow bake ware so that
moving air can get over the sides and up to the food surface.
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
TO USE THE “PROOF” FEATURE:
• The lower oven of a double oven unit is equipped with a "Proof" feature. When placed in the proof mode the oven maintains a warm, non-drafty environment
useful for proong yeast-leavened baking products. The oven is heated by a ceiling mounted electric heating element and specially designed reector assembly.
• It is recommended to proof on the lowest rack position, so place an oven rack on the bottom rack position before turning the oven to "Proof."
• To set the lower oven for proong, simply rotate the lower oven selector switch to the "Proof" setting. The indicator lights above the selector switch and
the thermostat dial will turn on. Turn the lower oven thermostat dial to "Proof".
• The ideal temperature for proong will be maintained until the selector switch is rotated to the OFF position.
• Set a minute timer for the minimum proof time and place the product to be proofed on the lower rack. Do not open the oven door unnecessarily, as
doing so will lower the oven temperature and increase proong time.
• Do not use the "Proof" mode for warming food or keeping food hot. The proong feature will not keep the oven hot enough to hold foods at
safe temperatures (above 140ºF).
• If the "Proof" temperatures are too high, the oven cavity lamps can be used to create even lower temperatures - ranging from room temperature to 80ºF - 85ºF.
Simply turn on the lamp and close the door.
BAKING CHART
FOOD
TRADITIONAL
TEMPERATURE
TRADITIONAL
TIME
INNOVECTION
CONVECTION
TEMPERATURE
INNOVECTION
CONVECTION
TIME
Yeast bread 375ºF 30 - 35 minutes 350ºF 25 - 35 minutes
Quick bread 375ºF 30 - 35 minutes 350ºF 20 - 25 minutes
Mufns 375ºF 15 - 20 minutes 350ºF 12 - 15 minutes
Angel food cake 375ºF 35 - 45 minutes 350ºF 30 - 35 minutes
Bundt cake 350ºF 45 - 50 minutes 325ºF 35 - 40 minutes
Sheet layer 9"x13" 350ºF 40 - 50 minutes 325ºF 30 - 35 minutes
Cake, layer round 8"
or 9"
350ºF 30 - 35 minutes 325ºF 25 - 30 minutes
Cookies/choc chip 375ºF 10 - 12 minutes 350ºF 8 - 10 minutes
Pie shell 425ºF 10 - 12 minutes 400ºF 7 - 9 minutes
2 crusts fruit pie 375ºF 55 - 60 minutes 350ºF 50 - 55 minutes
Custard 350ºF 35 - 40 minutes Not recommended --
Baked potato 375ºF 60 - 75 minutes 350ºF 50 - 55 minutes
Lasagna 375ºF 55 - 60 minutes 350ºF 45 - 50 minutes
Soufé 350ºF 45 - 50 minutes 325ºF 35 - 45 minutes
Quiche 400ºF 25 - 30 minutes Not recommended --
MODEL & PARTS IDENTIFICATION
INSTALLATION GUIDE AND
USE & CARE MANUAL
COOKING CHARTS
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
ROASTING CHART
FOOD
TRADITIONAL
SETTING
INNOVECTION
CONVECTION
SETTING
ROAST TIME
MIN./LB.
INTERNAL
TEMPERATURE
Beef rib roast 325ºF 300ºF
20 min. / lb.
25 min. / lb.
30 min. / lb.
Rare - 140ºF
Med. - 155ºF
Well - 170ºF
Beef tri tip 325ºF 300ºF 30 min. / lb. Med. - 155ºF
Leg of lamb 325ºF 300ºF 30 min. / lb. Med. - 145ºF
Pork loin 325ºF 300ºF 35 min. / lb.
Med. - Well
170ºF
Chicken - whole 350ºF 325ºF 25 min. / lb.
170ºF breast
175ºF thigh
Stufng 165ºF
Turkey - unstuffed 325ºF 300ºF 9-12 min. / lb.
165ºF breast
175ºF thigh
Whole, unstuffed poultry such as chicken and turkey should be placed on rack one or two with the legs and cavity opening, pointing towards the back of the oven.
TO USE THE BROILER:
• When using broil, the rack position depends on the food, and the thickness of the meat. Rack position one is at the bottom of the oven, and
the positions number up as a ladder with six being at the top.
• The oven door remains closed during broil.
• Most broiling uses rack positions three or four counting from the bottom.
• Turn selector to broil.
• Push in oven knob and turn to the broil setting, the blue indicator light will come on.
• When the broiler is hot the light turns off.
• When inspecting the food, open the oven door no more than two inches. For best results, broil small, at cuts of meat such as steaks, ham-
burgers, chops or boneless chicken breasts.
BROILING CHART
FOOD WEIGHT & SIZE RACK TIME
Steak 12 oz. and 1" 3
Rare - 10 minutes
Med. - 12 minutes
Well - 15 minutes
Hamburger 4 oz. and 1/2" 4 10 minutes
Chicken pieces 1 lb. 3 15 to 20 minutes
Pork chops 1 lb. and 3/4" 3 14 minutes
Salmon steak 1 lb. 4 8 to 10 minutes
DRYING AND DEHYDRATING
The United States Department of Agriculture advises: DO NOT hold foods at temperature between 40ºF to 140ºF more than two hours – and cooking
raw foods below 275ºF is not recommended. The low setting of the oven (ranging from 150ºF to 225ºF) may be used to keep food hot and in special
recipes, used to dehydrate fruits and vegetables.
During dehydration, the convection fans circulates hot air over the food, causes moisture to escape from the food surface – generally drying it out. This re-
moval of water inhibits growth of microorganisms and slows down the activity of enzymes. Starting with only the freshest, best quality food items, prepare
as directed and:
• Place the food on drying racks spaced evenly in the oven cavity.
• Set the temperature control to 200ºF and switch on the convection fan.
• Remember to periodically check the food items for dryness state.
DEFROST
It is best to defrost in the refrigerator, but sometimes it becomes an issue of speed.
COOKING CHARTS
INSTALLATION GUIDE AND
USE & CARE MANUAL
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
It is always easier to clean as you go – and while some evenings you’d rather sit down with a good book instead of a Scrubbie, keeping your
appliance in a ready-to-go state for the next meal makes everything a little more tolerable.
When cleaning the extention:
0 Use the mildest procedure that will do the job efciently and effectively – and since some cleaners are harsher than others, it is best to try them on a small, incon-
spicuous area rst.
0 Use only clean, soft cloths, sponges, paper towels, plastic brushes, non-metal soap pads for cleaning and scouring.
0 When cleaning the oven door, control panel, curved sections or the at top area – always pretend it is made of wood – and
rub the nish in the direction of the grain. This is the most effective cleaning direction, to prevent marring the surface.
0 Any part of this appliance can be cleaned with hot, sudsy water. When rinsing is required, rinse thoroughly.
0 Always wipe dry immediately to reduce the appearance of water marks.
TO CLEAN THE OVEN INTERIOR
The oven cavity is porcelainized with Chrome rack guides and racks. The infrared broiler does not need to be cleaned. Any soil is burned off by the intense heat.
0 Place a medium glass baking dish lled with one quart of water, in the oven. Close the door and bake at 225
o
F for an hour or two. Allow to cool until safe, wipe
with a damp cloth, them dry. This process softens the soil for easier removal.
0 Wash the interior of the oven with soap and water. Make a paste with baking soda and water, and using a sponge or nylon pad, rub away stubborn stains.
0 Use mild scrubbing compounds such as Bon Ami or Cameo, if necessary.
0 Do not use steel wool pads or abrasive sponges or scrubbers.
0 If necessary, spray on oven cleaner can be used.
DO NOT SPRAY OVEN CLEANER INTO THE CONVECTION FANS OR UP ONTO THE INFRARED BROILER.
DO NOT LET SPRAY CONTACT THE STAINLESS STEEL EXTERIOR.
0 When spray on oven cleaners are used, follow using a 1/4 cup vinegar mixed with one quart of water to rinse the oven.
0 Do not use scouring powders on the glass window; oven spray may be used on the window. Rinse with vinegar and water solution.
CARE AND CLEANING
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE WHAT TO DO
Oven will not heat No electrical power to the oven Check circuit breakers in house
Oven light does not work
Light switch is in the off position
Light is burned out
Try switching the light on
Locate and test a new replacement light, unscrew glass lens,
remove bad light, replace
Convection fan does not
turn
Switch the fan on
Unit in broil mode
Bad fan
Adjust oven selector switch to Convection.
Turn thermostat to bake temperatures.
Call for service
Condensation on the oven
window
Cold appliance
It is normal for some condensation to appear on the window; it
will disappear in about ten minutes.
Foods over-cook
Incorrect temperature cooking time, or rack position. Tempera-
ture differs from your previous oven.
Oven not pre-heated
Reduce cooking time, or temperature. This modern appliance
operates at the set temperature. You may want to reduce the set
temperature until you become more familiar with your new oven.
Allow pre-heat cycle to complete.
Foods under-cook Incorrect temperature, cooking time or rack position Adjust accordingly
Baked goods dark on
bottom
Dark colored cookie sheets Use light-colored cookie sheets
COOKING CHARTS
INSTALLATION GUIDE AND
USE & CARE MANUAL
13592 Desmond St., Pacoima, CA 91331 - 818.897.0808 - 888.753.9898 - www.americanrange.com
13592 Desmond St., Pacoima, CA 91331
818.897.0808 - 888.753.9898
www.americanrange.com
Model Number: __________________________________________
Serial Number: ___________________________________________
Purchase Date: ___________________________________________
Installed By: __________________________ Install Date:__________
Gas Type: _______________________________________________
Electrical Information: ______________________________________
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
This equipment is design engineered for residential use only.
R70010 08242018 Rev A
USE AND CARE MANUAL FOR
LEGACY WALL OVENS
MODEL NUMBERS:
GAS MODELS: AROFG-30, AROSG-30, AROFFG-230, AROSSG-230, AROFSG-230
ELECTRIC MODELS: AROFE030, AROSE-30, AROFFE-230, AROSSE-230, AROFSE-230
HYBRID MODELS: AROFFHGE-230, AROSSHGE-230, AROFSHGE-230
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
RETAIN THIS MANUAL FOR FUTURE REFERENCE
DESIGN CLASS FUNCTION
© 2016 American Range
All Rights Reserved
Legacy Wall Ovens Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
FOR YOUR SAFETY!
Do not store or use gasoline or
other ammable vapors or liquids
in the vicinity of this or any other appliance.
FOR
YOUR
SAFETY
FOR
YOUR
SAFETY
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING!
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury
or death and will void warranty. Read the
installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING
IMPROPER
INSTALLATION
WARNING
IMPROPER
INSTALLATION
Model Number: __________________________________________
Serial Number: ___________________________________________
Purchase Date: ___________________________________________
Installed By: __________________________ Install Date:__________
Gas Type: _______________________________________________
Electrical Information: ______________________________________
This equipment is design engineered for commercial use only.
IMPORTANT SERVICE NOTICE!
Using any part other than genuine American Range factory supplied
parts relieves the manufacturer of all liability.
American Range reserves the right to change specications and
product design without notice. Such revisions do not entitle the buyer
to corresponding changes, improvements, additions or replacements
for the previously purchased equipment.
Instruction to be followed in the event the user smells gas should be posted
in a prominent location. This information should be obtained by
consulting the local gas supplier.
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
To Our Most Valued Customer:
Congratulations on your purchase of an American Range product. We hope you will enjoy the
design, manufactured quality, innovative features and cooking performance of this product – it
represents our continuing dedication to satisfying the most demanding needs of customers
like you.
Please read this manual and become familiar with important safety information about how
to install and set-up the unit, basic operating instructions, and how to maintain that just-like-
brand-new appearance and performance - over years of day-to-day and special holiday use.
If you should encounter any sort of problem, turn to the section of the manual entitled,
"Troubleshooting" – for a quick solution or guidance regarding the next step required to get
back to tip-top condition.
Thank you for choosing an American Range product for your home. As you can expect, this
appliance is designed for years of reliable service. If you have any questions or comments,
please contact the dealer from whom you purchased the unit, or contact American Range
Customer Service at www.americanrange.com or 818.897.0808.
PROFESSIONAL QUALITY COOKING EQUIPMENT
Sincerely,
President, American Range Corporation
Shane Demirjian
Legacy Wall Ovens Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
Table of Contents
GENERAL ................................................................................................... 1-2
General Information ...........................................................................................1
About This Manual ..............................................................................................2
Shipping Damage Claim Procedure .......................................................... 3
Precautions .........................................................................................................3-5
CONVECTION....................................................................................... 6
Oven Features.......................................................................................................6
How to Cook ........................................................................................................6
OPERATING INSTRUCTIONS...........................................................7-14
Using the Ovens ..................................................................................................7
Before Baking or Broiling.................................................................................7
Cooking Methods and Modes .................. ................................................ ...7
Convection Cooking Process .................................................................... ...7
Model and Parts Identication .....................................................................8
Ovens 101 ............................................................................................................ ...9
Oven Operation ............................................................................................... ...9
Broiler Operation ............................................................................................. ...9
Proof Feature ...................................................................................................... 10
Baking Chart........................................................................................................11
Roasting & Broiling Charts ..........................................................................12
Drying & Dehydrating ...................................................................................13
Cooking Substitute Chart ...........................................................................13
CARE AND CLEANING ...........................................................................14
TROUBLESHOOTING ..............................................................................15
WARRANTY ........................................................ .......................................16
Legacy Wall Ovens Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
1
WARNING
If the information in this manual is not followed exactly, a re or
explosion may result causing damage, personal injury or death.
• INSTALLATION AND SERVICE MUST BE PERFORMED BY A
CERTIFIED / LICENSED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER
• Do not store or use gasoline or other ammable vapors or liquids in the vicinity
of this or any other appliance.
• Please observe all local and national codes and ordinances.
• Do not remove any permanent warning labels or plates from this product.
• Please ensure that this product is electrically grounded.
• Consumers should retain these instructions for local inspectors and for
future use.
• WHAT TO DO IF YOU SMELL GAS
º
Do not try to light any appliance.
º
Do not touch any electrical switch, do not use any phone in your building.
º
Immediately call your gas company. Follow the gas supplier instructions.
º
If you cannot reach your gas supplier, call the Fire Department.
WARRANTY REQUIREMENT
For reliable operation and for your own safety, this professional cooking equipment
must be installed by a certied/licensed contractor.
Failure to comply will void any written or implied warranty.
Should the equipment require service during the standard warranty period, the
receipt proving certied installation must be made available to American Range for
verication.
If installation was not performed by a certied/licensed contractor be prepared to
submit a major credit card for payment for proper installation.
Legacy Wall Ovens Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
2
The Use and Care Manual is divided into several sections:
The Safety Section informs you about signicant safety precautions when installing and operating your
new appliance. This is a must read section of the manual.
Quick Start and Installation Section describes how to unpack the unit, what to save and what to discard,
installation dimensions, gas and electrical connections and how to identify the primary parts of the
product so you can better understand what’s going on “under the hood”.
How to Use Your Product and How to Use the Oven Sections show you how to light the burners, set
the range for broil or bake and how to use convection to speed cooking times and improve the quality of
your baked and roasted dishes.
The Care and Maintenance and Troubleshooting and Service Sections discuss how to keep your product
in good operating condition, how to identify what might be going wrong with the unit, and how to
communicate your observations with authorized eld service technicians.
Before using your appliance, please read this manual paying special attention to the important safety
instructions located in the next several pages.
ABOUT THIS MANUAL
!
DANGER
!
WARNING
!
CAUTION
!
This is the SAFETY ALERT SYMBOL. This symbol alerts
you to hazards which will result in severe injury or death.
Hazards or unsafe practices which will result in severe
personal injury or death.
Hazards or unsafe practices which may result in severe
personal injury or death.
Hazards or unsafe practices which may result in minor
personal injury or property damage.
Legacy Wall Ovens Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
3
PRECAUTIONS
CAUTION
!
Check your local building codes for proper installation methods. In the absence of local codes, this appliance should be installed
in accordance with the National Fuel Gas Code No. Z223.1 current issue, and the National Electrical Code ANSI/NFPA No. 70
current issue, or the CAN – B149 Installation Codes for Gas Burning Appliances, and C22.1 Canadian Electrical Code Part 1.
Verify the type of gas supplied to the location, being sure that the appliance is connected to the type of gas for which it is
certied. Models come from the factory certied for use with Natural Gas (NG) or Liquid Propane (LP) gas. Your product,
shown on the rating label and the supplied gas type must be the same. Upon opening your product, the rating label can be
located on the front panel if it is a range or oven. If it is a cook top it can be found on the side panel underneath the left burner.
If connecting this appliance to propane gas, make certain the propane gas tank is equipped with its own high-pressure
regulator - in addition to the pressure regulator supplied with this product when applicable. The maximum propane gas pressure
to this appliance must not exceed 14.0 inches of water column (34.9 millibar) from the propane gas tank to the pressure
regulator.
Your appliance must be installed by a qualied gas installation technician. Have the technician show you the exact location of the
gas shut-off valve on the incoming gas line so you know how to turn off the gas if necessary.
For personal safety, this appliance must be connected to a properly grounded and polarized electrical power supply. If only a
two-prong outlet is available, it is the customer’s responsibility to have it replaced with a dedicated, grounded, three-prong
electrical outlet by a licensed technician. The gas surface burner re-ignition system when applicable depends on a low resistance
electrical ground connection for reliable operation.
• Do not cut or remove the third (ground) prong from the power cord
• Do not use an adapter plug
• Do not use an extension cord
• Do not use a power cord that is frayed or damaged
• Do not plug the appliance into an electrical outlet with a Ground Fault Circuit Interrupter (GFCI)
CAUTION
!
SHIPPING DAMAGE CLAIM PROCEDURE
The equipment is crafted and inspected carefully by skilled personnel before leaving the factory. The transportation company
assumes full responsibility for the safe delivery upon acceptance of the equipment.
If you receive a damaged product, immediately contact your delivery company, your dealer, your builder or installer. Do not
install or attempt to operate a damaged appliance.
1. Note on the freight bill or express delivery any visible loss or damage and have the note signed by the person making
the delivery.
2. File claim for damages immediately regardless of the extent of damages.
3. For damage noticed after unpacking (concealed loss or damage), notify the transportation company immediately and le
a "Concealed Damage" claim with them. This should be done within fteen (15) days from the date that delivery
is made to you. Retain the shipping container for inspection.
Legacy Wall Ovens Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
4
Always disconnect the electrical plug from the wall outlet before servicing the unit. It is recommended that a dedicated
electrical circuit be used for this appliance.
Always turn gas shut-off valve to OFF position before servicing unit.
WARNING
!
The State of California enacted the California Safe Drinking Water and Toxic Enforcement Act of 1986, (Prop. 65), which "prohibits
any person in the course of doing business from knowingly and intentionally exposing any individual to a chemical know to the
State of California to cause cancer or reproductive toxicity without rst giving clear and reasonable warning to such individuals."
The Governor's Scientic Advisory Panel added carbon monoxide to the list of hazardous chemicals known to cause reproductive
harm.
In order to establish full compliance with Proposition 65, a yellow warning label has been attached to each gas-red unit
manufactured by The Company.
Carbon monoxide would not be present in concentrations that would pose a "signicant risk" to the consumer when the
equipment is installed, operated and maintained as follows:
1. Installed in accordance with all local codes, or in the absence of local codes, with the current National Fuel Gas Code
ANSIZ223.1 Latest Addenda.
2. Installed under a properly designed and operating exhaust hood.
3. Connected to the type of gas for which the unit is equipped.
4. Proper appliance pressure regulator installed on the gas supply line and adjusted for the manifold pressure marked on the rating
plate.
5. Adequate air supply to the unit.
6. The equipment is operated in a manner intended and using the proper utensil for that type of appliance.
7. Keep the equipment clean and have it checked periodically.
8. Burner air adjustments, mechanical maintenance and repairs must be performed by qualied service personnel.
Do not store items of interest to children above or near the appliance. Children, as well as adults, should never be allowed to
sit, stand or climb on any part of the appliance. Serious personal injury may occur.
DANGER
!
To avoid the possibility of explosion or re, do not store or use combustible, ammable or explosive liquids (such
as gasoline) or vapors inside or in the vicinity of this or any other appliance. Keep items that could explode, such as
aerosol cans, away from the product. Do not store explosive or ammable materials in nearby cabinets or areas.
When operating the oven or broiler, do not touch the surfaces of the ceramic tile broiler, the rack or rack supports, the
walls of the oven or the inside surfaces of the oven door - interior surfaces become hot enough to cause burns. The heat
deector, which deects heat away from the control panel, and the oven door sides will also be hot during use.
DANGER
!
WARNING
If not installed, operated and maintained in accordance with the manufacturer's
instructions, this product could expose you to fuel or fuel combustion substances, which
can cause death or serious illness, which are know to the State of California to cause
cancer, birth defects or other reproductive harm.
Legacy Wall Ovens Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
5
NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning
and overheating of the appliance. Do not use the range top or oven as a food or kitchen item storage area.
Never block or cover any slots, holes or passages located anywhere inside or outside the appliance. These structures are
important to safe operation of the appliance and doing so may block airow through the oven or cook top possibly causing
carbon monoxide poisoning or re. Routinely keep all slots free of grease and other materials.
This appliance has been tested for safe performance using conventional cookware. DO NOT USE any device or accessory not
specically recommended in this guide. DO NOT USE pan or pan covers on surface units, grills or griddles. These devices can
create serious safety hazards including personal injury, create performance problems and may damage the appliance.
Do not store or use corrosive chemicals, vapors, ammables or non-food products in or near this appliance. It is specically
designed for use when heating or cooking food. The use of corrosive chemicals while heating or cleaning could result in
personal injury or damage to the appliance.
WARNING
!
If the equipment is not installed, operated and maintained in accordance with the above requirements, concentrations of
carbon monoxide in excess of the established limits could be present in the kitchen environment.
ALL PERSONNEL IN THE WORKPLACE WHO MAY BE SUBJECT TO ANY EXPOSURE OR CARBON
MONOXIDE MUST BE WARNED OF SUCH POSSIBLE EXPOSURE. THIS WARNING SHOULD BE CONVEYED
IN A MANNER SO THAT IT IS CLEARLY UNDERSTOOD BY THE EMPLOYEE. THE EMPLOYEE MUST BE ASKED
IF IN FACT HE OR SHE UNDERSTANDS THE CORRECT METHOD OF OPERATION OF THE EQUIPMENT AND
THAT A RISK OF EXPOSURE EXISTS IF THE EQUIPMENT IS OPERATED IMPROPERLY.
Purchase a kitchen re extinguisher for your home and store it in close proximity to your appliance. Should an uncontrolled
re occur, never use water on grease res. Never pick up a aming pan. The oven door interior and exterior, especially the
oven door glass can get hot during operation. Do not touch the glass - use the door handle to open or close the range door.
The push-to-turn gas valve knobs on the appliance are designed to be child-safe, however, they are not a guarantee of
operation. Children should not be left alone or unattended in the kitchen while the appliance is in use.
Never leave the appliance unattended during use.
Never wear loose tting or long sleeved apparel while cooking. Never wear garments made of ammable materials. Clothing
may ignite or catch utensil handles. DO NOT drape towels or other items on door handles. These items could ignite and
cause burns.
ALWAYS place oven racks in the desired position before you start cooking and while the oven is cool. Always use dry and
sturdy pot-holders to carefully slide the oven rack out to add or remove food.
ALWAYS turn the appliance off at the end of cooking.
When dehydrating food items, periodically check during the process to ensure that they do not catch on re.
Turn the knobs to the OFF position prior to removing them from the valve stems for cleaning.
CAUTION
!
WARNING
!
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
6
Legacy Wall Ovens Use & Care Manual
INNOVECTION
®
- CONVECTION
• INNOVECTION
®
- CONVECTION is the unique convection system created by American Range engineers.
• INNOVECTION
®
- CONVECTION uses two fans at the back of the oven to circulate hot air more
evenly around the oven. Air is also vented into the oven through side vents to create a more uniform
and fast cooking process. Circulating hot air reaches all areas of the oven and eliminates any hot or cold spots.
• The 30" oven is 30,000 BTU/hr and the broil-only element is 15,500 BTU/hr.
• The 18" oven is 22,000 BTU/hr and the broil-only element is 13,000 BTU/hr.
• The Bake Burner is rated at 2,200 Watts, the Broil Burner is 3,500 Watts.
OVEN FEATURES:
• Your new Professional Wall Oven is equipped with a separate bake and a separate broil burner.
• Each oven has its own temperature control knob that cycles the burners off and on to maintain the
proper heat.
• All models have six rack positions and the large 30" oven includes two racks.
• When cooking with INNOVECTION
®
- CONVECTION, any rack is suitable.
HOW TO COOK WITH INNOVECTION
®
- CONVECTION:
INNOVECTION
®
- CONVECTION fan-circulated hot air browns all food surfaces quickly.
1. The circulating hot air seals in the juices in meats and vegetables.
2. This cooking process eliminates the need to baste with additional fat or juices.
3. Meat and poultry are roasted in an uncovered shallow pan that allows the circulating hot air to quickly brown all food surfaces.
4. This roasting process enhances avors and keeps the inside of food moist and juicy.
5. For best results when cooking with INNOVECTION
®
- CONVECTION we recommend that low-sided pans be used.
6. Circulating hot air needs to reach all sides of the food for the best cooking results.
7. It is suggested that the oven temperature be lowered 25° for all recipes and to reduce the cooking time by 10 to 15%.
8. Multiple racks of food can be successfully cooked at one time such as three racks of cookies or breads.
9. A meal of meat and vegetables, cooked on different racks, all at the same time saves time and conserves energy.
10. For best results always preheat the oven before INNOVECTION
®
- CONVECTION baking.
11. There is always a condensation that occurs during cooking and water could appear on the cooler panel outside of the oven.
12. Caution should be used when opening the oven door during the cooking. For best results, resist opening the oven door as it
lets heat escape, requiring the oven to cycle on more than necessary.
HOW AND WHEN TO COOK ON STANDARD BAKE MODE
1. Bake - The standard Bake mode is best used for roasting, or single rack applications. If you wish to cook on multiple racks, use
convection for terric results.
OPERATING INSTRUCTIONS
USING THE OVEN(S)
The oven bake and broil burners have an infrared glow igniter and safety system that lights the gas. There is
approximately a thirty second delay for the igniter to heat up after the knob is pushed in and set before the
gas will ow. After the gas begins to ow it is normal for the burner to light within four seconds.
SINGLE GAS WALL OVENS & THE UPPER OVEN OF A DOUBLE GAS WALL OVEN UNIT HAVE THREE
COOKING METHODS AVAILABLE:
INNOVECTION
®
- CONVECTION
• Traditional Bake
• Broil
• Fan – Cool Down (utilized to cool your oven temperature rapidly)
THE LOWER OVEN OF A DOUBLE GAS WALL OVEN HAS THE FOLLOWING
COOKING MODES AVAILABLE:
• CONVECTION
• Bake
• Proof (used to "proof" bread dough)
• Fan – Cool Down (used to cool your oven temperature rapidly)
WHAT IS THE CONVECTION COOKING PROCESS?
• Convection is the process of cooking with hot air that is mechanically circulated by a fan in a
continuous pattern around the food.
• Cooking results can be faster than cooking charts suggest and food should be checked for
doneness perhaps ve to fteen minutes early.
• Oven temperatures should be lowered 25°F in most cases.
• Multiple racks of food can be cooked at the same time with even browning and even cooking times.
Other Features:
• This oven can be used at low temperatures to dehydrate food, warm plates or for very slow cooking
at a low heat.
• Use only the fan to defrost frozen foods.
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
7
Legacy Wall Ovens Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
8
Legacy Wall Ovens Use & Care Manual
MODEL AND PARTS IDENTIFICATION
Oven Racks: Each oven is supplied with two heavy chrome-
plated adjustable oven racks.
Rack Supports: On each side of the oven, heavy chrome-plated
rack supports allow ve positions, numbered from the bottom
up.
Oven Control Knob: The oven control knob is used to set the
Baking temperature or to select the Broil function. During baking,
the convection fan may be activated.
GAS OVENS
Bake: The Bake element or burner is located on the bottom of
the oven, below the oor and is activated by the Oven Control
Knob.
Ceramic Tile Infrared Broil Burner: Positioned in the oven
ceiling, burning gas heats the ceramic tile to a temperature of
1,550ºF – creating searing heat similar to the glowing coals of a
wood re.
Broil Burner Igniter: The igniter glows a very hot, bright red-
orange color, reaching proper ignition temperature to light the
Ceramic Tile Infrared Broil Burner.
ELECTRIC OVENS
Broil: Ribbon element located in the oven ceiling, becomes red
hot in just a few seconds.
Bake: A ribbon element can be seen below the oor of the
oven when the element cycles "ON."
Selector Switch and Indicator Light: Rotate this knob from
the OFF position and select Convection Bake, Standard Bake,
Fan-Only, or Broil modes. In any mode position, the Indicator
Light glows indicating the Oven is ready to operate. When you’re
done, always rotate the knob to the OFF position.
Oven Thermostat Knob: Thermostat Temperature Selection
- Select your desired temperature.
On Indicator Light: Whenever an oven heat source is
activated (either Bake or Broil), the "on" indicator will glow. It is
normal for the indicator light to cycle off and on during baking or
broiling – showing that more heat is being applied.
Door Gasket: The door gasket is made from high temperature
materials and creates a seal between the hot oven and the cool
kitchen.
Convection Fan and Switch: Operated by the front panel
switch, the convection fan circulates oven air, removing the
“thermal boundary layer” on items being baked – and in doing
so – speeding up heat transfer and cook time by as much as 25%.
Convection is active only during baking.
Oven Light and Switch: A single lamp is provided in the oven
to illuminate baked and broiled food items, as well as shed some
light on the wall to help during clean-up – activated by the front
panel switch.
LEGACY SERIES - GAS WALL OVENS
DESCRIPTION AROFG-30 AROSG-30 AROFSG-230 AROFFG-230 AROSSG-230
Oven Racks 2 2 2 2 2
Control Knobs 2 2 4 4 4
Regis. Card 1 1 1 1 1
U&C Manual 1 1 1 1 1
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
9
Legacy Wall Ovens Use & Care Manual
OVEN OPERATION
To start the oven, push in and turn the thermostat to the desired operating temperature from 200ºF to 500ºF. On a gas oven, you may
be able to see a bright glow from the sides of the oven bottom - this is normal and indicates the hot surface igniter is activated. Once the
igniter is hot enough for ignition, the gas valve will open, allowing the ow of gas into the bake burner. This may take up to one minute. On
an electric oven, you will see the ribbon element below the glass on the oven oor glow.
During the rst few minutes of operation, a mild condensation may appear on the interior glass pane of the door window. Water vapor
is a normal by-product of combustion, and the condensation will disappear as the oven warms.
Allow the oven to preheat before use. The control panel light will turn off when preheat is complete. After preheat, the light will cycle on
and off whenever the oven is heating.
Never place any pan or food item on the bottom of the oven, always use an oven rack.
To use the Broil feature of the range, rst consider what type of broiling you would like to perform. The closer you are to the broil burner,
the faster you will evaporate moisture from the surface of food and the quicker the surface will brown. In a similar fashion, the further
away you place the food (on the lowest rack, for example) the slower you will evaporate surface moisture and the longer it will take for
the surface to brown. A good rule of thumb is to start about 6” away from the broiler and watch for how quickly the food is browning.
BROILER OPERATION
To begin broiling, push in and turn the thermostat to the position labeled BROIL on the control knob. In about twenty seconds, you will
see a bright glow in the oven - this is the hot surface igniter. Once the igniter is hot enough for ignition, the gas valve will open, allowing the
ow of gas into the broil burner. This may take up to one minute.
The broiler will have a blue ame that covers the ceramic tiles – after a few minutes, the tiles will glow bright red/orange and radiate infrared
energy. Remember the red surface is over 1800ºF in temperature and can be a source of serious burns or injury.
On an electric oven, you can see the ribbon element glow on the roof of the oven cell. This takes just a few seconds.
The Bake burner and Broil burner will not operate at the same time; the convection fan will not operate during Broiling.
OVENS 101
The oven is a temperature controlled cooking cavity which is highly insulated to keep the kitchen cool and the food hot. The oven contains
two heat sources - Bake, positioned below the oven oor, and Broil, located in the ceiling of the oven. Bake and Broil are very different
cooking operations and the burners are designed to deliver energy in a way appropriate to the task.
There are two types of baking - called Standard Bake (or conventional) and Convection Bake. Standard baking make the best use of
Grandma’s cookie, cake or pie recipes – such as Bake at 350ºF for forty-ve minutes – to get the job done. These recipes are tried and
true – conventional or standard bake will deliver wonderful performance for roasting.
In convection cooking, not only is the cook time faster, but also, the oven temperature is more even, top to bottom and side to side - so
cookies on several racks will have the same brown color and texture. Food does not need to be rotated to get uniform color. However, to
best take advantage of convection, use low, shallow bake ware so that moving air can get over the sides and up to the food surface. Foods
in covered dishes (like casseroles or pot roasts) do not benet from convection cooking.
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
10
Legacy Wall Ovens Use & Care Manual
TO USE THE “PROOF” FEATURE:
• The lower oven of a double oven unit is equipped with a "Proof" feature. When placed in the proof mode the oven maintains
a warm, non-drafty environment useful for proong yeast-leavened baking products. The oven is heated by a ceiling mounted
electric heating element and specially designed reector assembly.
• It is recommended to proof on the lowest rack position, so place an oven rack on the bottom rack position before turning the
oven to "Proof."
• To set the lower oven for proong, simply rotate the lower oven selector switch to the "Proof" setting. The indicator lights
above the selector switch and the thermostat dial will turn on. Turn the lower oven thermostat dial to "Proof".
• The ideal temperature for proong will be maintained until the selector switch is rotated to the OFF position.
• Set a minute timer for the minimum proof time and place the product to be proofed on the lower rack. Do not open the oven
door unnecessarily as doing so will lower the oven temperature and increase proong time.
• Do not use the "Proof" mode for warming food or keeping food hot. The proong feature will not keep the oven hot enough
to hold foods at safe temperatures (above 140ºF).
• If the "Proof" temperatures are too high, the oven cavity lamps can be used to create even lower temperatures - ranging from
room temperature to 80ºF - 85ºF. Simply turn on the lamp and close the door.
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
11
Legacy Wall Ovens Use & Care Manual
BAKING CHART
FOOD
TRADITIONAL
TEMPERATURE
TRADITIONAL
TIME
INNOVECTION
CONVECTION
TEMPERATURE
INNOVECTION
CONVECTION
TIME
Yeast bread 375ºF 30 - 35 minutes 350ºF 25 - 35 minutes
Quick bread 375ºF 30 - 35 minutes 350ºF 20 - 25 minutes
Mufns 375ºF 15 - 20 minutes 350ºF 12 - 15 minutes
Angel food cake 375ºF 35 - 45 minutes 350ºF 30 - 35 minutes
Bundt cake 350ºF 45 - 50 minutes 325ºF 35 - 40 minutes
Sheet layer 9"x13" 350ºF 40 - 50 minutes 325ºF 30 - 35 minutes
Cake, layer round 8"
or 9"
350ºF 30 - 35 minutes 325ºF 25 - 30 minutes
Cookies/choc chip 375ºF 10 - 12 minutes 350ºF 8 - 10 minutes
Pie shell 425ºF 10 - 12 minutes 400ºF 7 - 9 minutes
2 crusts fruit pie 375ºF 55 - 60 minutes 350ºF 50 - 55 minutes
Custard 350ºF 35 - 40 minutes Not recommended --
Baked potato 375ºF 60 - 75 minutes 350ºF 50 - 55 minutes
Lasagna 375ºF 55 - 60 minutes 350ºF 45 - 50 minutes
Soufé 350ºF 45 - 50 minutes 325ºF 35 - 45 minutes
Quiche 400ºF 25 - 30 minutes Not recommended --
ROASTING CHART
FOOD
TRADITIONAL
SETTING
INNOVECTION
CONVECTION
SETTING
ROAST TIME
MIN./LB.
INTERNAL
TEMPERATURE
Beef rib roast 325ºF 300ºF
20 min. / lb.
25 min. / lb.
30 min. / lb.
Rare - 140ºF
Med. - 155ºF
Well - 170ºF
Beef tri tip 325ºF 300ºF 30 min. / lb. Med. - 155ºF
Leg of lamb 325ºF 300ºF 30 min. / lb. Med. - 145ºF
Pork loin 325ºF 300ºF 35 min. / lb.
Med. - Well
170ºF
Chicken - whole 375ºF 350ºF 25 min. / lb.
170ºF breast
175ºF thigh
Stufng 165ºF
Turkey - unstuffed 325ºF 300ºF 9-12 min. / lb.
165ºF breast
175ºF thigh
Whole, unstuffed poultry such as chicken and turkey should be placed on rack one or two with the legs and
cavity opening, pointing towards the back of the oven.
TO USE THE BROILER:
• When using broil, the rack position depends on the food, and the thickness of the meat. Rack position one
is at the bottom of the oven, and the positions number up as a ladder with six being at the top.
• The oven door remains closed during broil.
• Most broiling uses rack positions three or four counting from the bottom.
• Turn selector to broil.
• Push in oven knob and turn to the broil setting, the blue indicator light will come on.
• When the broiler is hot the light turns off.
• When inspecting the food, open the oven door no more than two inches. The burner turns off but will
re-ignite in four seconds when the door is closed.
• For best results, broil small, at cuts of meat such as steaks, hamburgers, chops or boneless chicken breasts.
BROILING CHART
FOOD WEIGHT & SIZE RACK TIME
Steak 12 oz. and 1" 3
Rare - 10 minutes
Med. - 12 minutes
Well - 15 minutes
Hamburger 4 oz. and 1/2" 4 10 minutes
Chicken pieces 1 lb. 3 15 to 20 minutes
Pork chops 1 lb. and 3/4" 3 14 minutes
Salmon steak 1 lb. 4 8 to 10 minutes
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
12
Legacy Wall Ovens Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
13
Legacy Wall Ovens Use & Care Manual
DRYING AND DEHYDRATING
The United States Department of Agriculture advises: DO NOT hold foods at temperature between 40ºF to 140ºF more than two
hours – and cooking raw foods below 275ºF is not recommended, the low setting of the oven (ranging from 150ºF to 225ºF)
may be used to keep food hot and in special recipes, used to dehydrate fruits and vegetables.
During dehydration, the convection fans circulates hot air over the food, causes moisture to escape from the food surface – generally
drying it out. This removal of water inhibits growth of microorganisms and slows down the activity of enzymes. Starting with only the
freshest, best quality food items, prepare as directed and:
• Place the food on drying racks spaced evenly in the oven cavity.
• Set the temperature control to 200ºF and switch on the convection fan.
• Remember to periodically check the food items for dryness state.
DEFROST
To speed the defrost process, place in oven and select FAN. This will defrost without cooking. Remember, it is best to defrost in the
refrigerator, but sometimes it becomes an issue of speed.
COOKING SUBSTITUTE CHARTS
Often, a recipe requires an ingredient which is either not readily available or calls for a unit of measure that you nd is not easily
recognized. The following charts have been provided as guides, should these situations arise.
INGREDIENT SUBSTITUTION OPTIONS
RECIPE CALLS FOR SUBSTITUTE WITH
1 tbsp Cornstarch 2 tbsp Four (thickening)
1 Whole Egg 2 Egg Yolks, plus 1 tbsp Water
1 Cup Whole Milk 1 Cup Skim Milk, plus 2 tbsp Margarine, or 1/2 Cup Evaporated
Milk, plus 1/2 Cup Water
1 oz Unsweetened Chocolate 3 tbsp Cocoa Powder, plus 1 tbsp Margarine
1 tbsp Baking Powder 1/2 tsp Cream of Tartar, plus 1/2 tsp Baking Soda
1/2 Cup Butter 7 tbsp Margarine or Shortening
1 Cup Dairy Sour Cream 1 tbsp Lemon Juice, plus 1 Cup Evaporated Milk
MEASUREMENT EQUIVALENTS
MEASUREMENT EQUIVALENT METRIC*
1 tbsp 3 tsp 15 mL
2 tbsp 1 oz 30 mL
1 jigger 1-1/2 oz 45 mL
1/4 cup 4 tbsp 60 mL
1/3 cup 5 tbsp, plus 1 tsp 80 mL
1/2 cup 8 tbsp 125 mL
1 cup 16 tbsp 250 mL
1 pint 2 cups 30 g
1 lb 16 oz 454 g
Legacy Wall Ovens Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
14
CARE AND CLEANING
It is always easier to clean as you go – and while some evenings you’d rather sit down with a good book instead of a Scrubbie, keeping
your appliance in a ready-to-go-state for the next meal makes everything a little more tolerable.
When cleaning the range:
0 Use the mildest procedure that will do the job efciently and effectively – and since some cleaners are harsher than others, it
is best to try them on a small, inconspicuous area rst.
0 Use only clean, soft cloths, sponges, paper towels, plastic brushes, non-metal soap pads for cleaning and scouring.
0 When cleaning the oven door, control panel, curved sections or the at top area – always pretend it is made of wood – and
rub the nish in the direction of the grain. This is the most effective cleaning direction, to prevent marring the surface.
0 Any part of this appliance can be cleaned with hot, sudsy water. When rinsing is required, rinse thoroughly.
0 Always wipe dry immediately to reduce the appearance of water marks.
TO CLEAN THE OVEN
The oven cavity is porcelainized with Chrome rack guides and racks. The infrared broiler does not need to be cleaned. Any soil is burned
off by the intense heat.
0 Place a medium glass baking dish lled with one quart of water. Close the door and bake at 225
o
F for an hour or two. Allow to
cool until safe, wipe with a damp cloth, them dry. This process softens the soil for easier removal.
0 Wash the interior of the oven with soap and water. Make a paste with baking soda and water, and using a sponge or nylon pad
rub away stubborn stains.
0 Use mild scrubbing compounds such as Bon Ami or Cameo if necessary.
0 Do not use steel wool pads or abrasive sponges or scrubbers.
0 If necessary, spray oven cleaner can be used.
DO NOT SPRAY OVEN CLEANER INTO THE CONVECTION FANS OR UP ONTO THE INFRARED BROILER.
DO NOT LET SPRAY CONTACT THE STAINLESS STEEL EXTERIOR.
0 When spray oven cleaners are used, follow using a 1/4 cup vinegar mixed with one quart of water to rinse the oven.
0 Do not use scouring powders on the glass window; oven spray may be used on the window. Rinse with vinegar and water
solution.
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
15
Legacy Wall Ovens Use & Care Manual
GAS WALL OVENS
PROBLEM POSSIBLE CAUSE WHAT TO DO
Oven will not heat
No electrical power to the range
Gas service is turned off
Gas supply has been interrupted
Look for red glow of hot surface igniter
Check circuit breakers in house
Try to light a surface burner
Contact the gas company
If no glow, call for service
Oven light does not
work
Light switch is in the off position
Light is burned out
Try switching the light on
Locate and test a new replacement light, unscrew
glass lens, remove bad light, replace
Broiler will not light
No electrical power to the range
Gas service is turned off
Look for red glow of hot surface igniter
Check circuit breakers in house
Try to light a surface burner
If no glow, call for service
Convection fan does
not turn
Switch the fan on
Unit in broil mode
Bad fan
Adjust oven selector switch to Convection.
Turn thermostat to bake temperatures.
Call for service
Condensation on the
oven window
Cold appliance
It is normal for some condensation to appear on the
window; it will disappear in about ten minutes.
Foods over-cook
Incorrect temperature cooking time, or rack posi-
tion. Temperature differs from your previous oven.
Oven not pre-heated
Reduce cooking time, or temperature. This modern
appliance operates at the set temperature. You
may want to reduce the set temperature until you
become more familiar with your new oven.
Allow pre-heat cycle to complete.
Foods under-cook
Incorrect temperature, cooking time or rack posi-
tion
Adjust accordingly
Baked goods dark on
bottom
Dark colored cookie sheets Use light-colored cookie sheets
TROUBLESHOOTING GUIDE
13592 Desmond Street, Pacoima, CA 91331
818.897.0808 tel 888.753.9898 toll free
818.897.1670 fax
www.americanrange.com
WARRANTY REQUIREMENT
For reliable operation and for your own safety, this professional cooking equipment must
be installed by a certied/licensed contractor.
Failure to comply will void any written or implied warranty.
Should the equipment require service during the standard warranty period, the receipt
proving certied installation must be made available to American Range for verication.
If installation was not performed by a certied/licensed contractor be prepared to submit
a major credit card for payment for proper installation prior to service.
R70001 01152016 REV D
