User Manual Mila 2.0 Air Purifier with Basic Breather Filter (H12 HEPA)

Mila 2.0 Air Purifier with Basic Breather Filter (H12 HEPA) - Use Manual - Use Guide PDF.
Documents: Go to download!

• Owner's manual - (English)

Table of contents

• Getting Started
• Definitions
• Operating Instructions
• Air Quality
• Modes
• Maintenance and Care
• Troubleshooting

Owner Manual Air Ourifiers

Getting Started

Setting up

1. Operate your Mila in an enclosed area. Close all doors, windows, and other openings connecting to the outside of the room.
2. Place the air purifier in a location that does not restrict the airflow through the top of the unit, or the intake vents on the sides of the unit.
3. The unit must be placed on a leveled surface that can support it.
4. There should be a minimum of 11.8” (30 cm) of clearance around the unit.

Pairing Mode

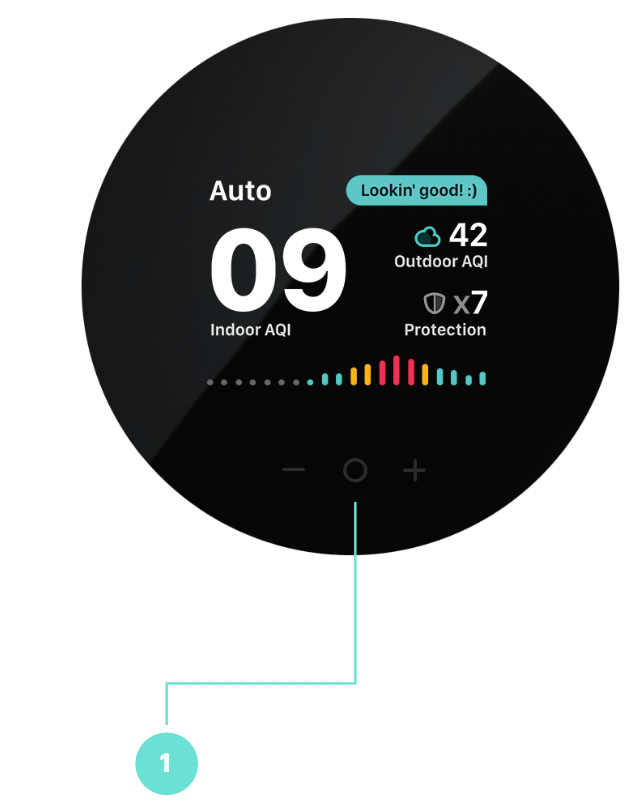

1. Tap and hold the “Mode” button for 5 seconds.

2. While Pairing Mode is active, a WiFi network will emit from the unit called “Mila Air Purifier”.

3. Connect to the “Mila Air Purifier” network and follow the instructions in your Mila app.


If a unit loses network connectivity, a “Connection Lost” screen will be shown until network connectivity is restored.

Mila supports pairing with a 2.4GHz network.

Definitions

Operating Instructions

To turn on your unit …

The unit will beep and begin operating in CALIBRATION Mode before switching to AUTOMAGIC Mode.

NOTE: It can take up to 90 seconds for the sensor to analyze the air quality. Each time the unit is turned on, the AUTOMAGIC Mode is activated automatically.

1. Make sure your Mila filter door is closed.
2. Plug in the unit to your power outlet.
3. Flip the power switch located on the bottom of the unit.

Calibration Mode

This mode starts automatically each time the unit boots up or the filter door is removed and replaced.

In this mode, the sensors are calibrating and functionality is disabled until calibration is completed.

Calibration typically takes 70 seconds to complete and displays a countdown timer for time remaining.

Air Quality

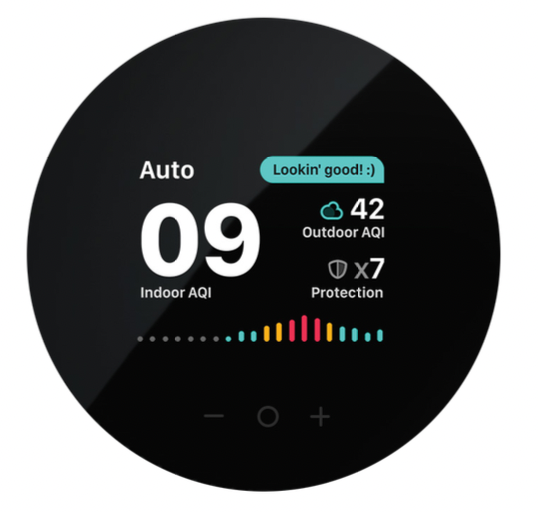

This unit has an air quality sensor that analyzes the air quality. The display will show the air quality in real time. In Automagic Mode, a message bubble gives further information or analysis about the air quality level detected as shown below:

NOTE: It may take up to 70 seconds for the sensor to analyze the air quality each time the unit is turned on.

Very high humidity conditions in the room might produce condensation in the sensors. This could affect the accuracy of the sensor readings.

Modes

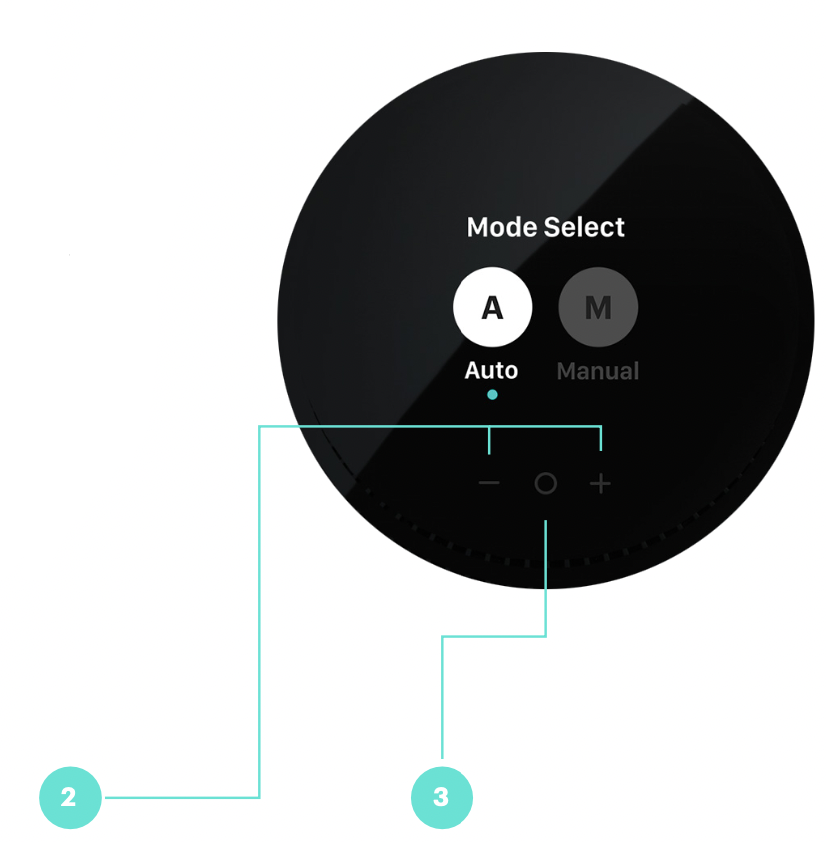

1. Tap the “Mode” button (o) located at the bottom of the display, between the minus (-) and plus (+) buttons. The screen will change to show the “Mode Selection” screen.

2. Tap the “-” or “+” button to change your selection.
3. Tap the “Mode” button (o) again to conirm your mode selection.


Automagic Mode

In this mode, the unit will choose the fan speed automatically, based on your preferences, the indoor air quality level, detected pollutants in the room, and the outdoor air quality (this requires an Internet connection and location-sharing). This is the default mode each time your turn on your Mila.

Select custom Automagic settings in the Mila app:

Quiet Mode
Reduce fan speeds to whisper-quiet levels when you’re in the room.

Housekeeping Mode
Let Mila deep-clean your room when no one is around.

Deep Clean
Give your room a thorough airing out with a 20-minute blast.

Turndown Service
Activate an hour before bedtime to give your room a deep clean to reduce nighttime allergies.

Light Sleeper
Snooze in peace and quiet with lights off, lower fan speeds, and controlled fan fluctuations.

White Noise
Drift off to the calming rhythm of oscillating fans that clean while they soothe.

Quarantine
This one’s for the clean air freaks. Let Mila do whatever it takes to keep your room 100% particle free.

NOTE: In Automagic Mode the fan speed cannot be changed manually.

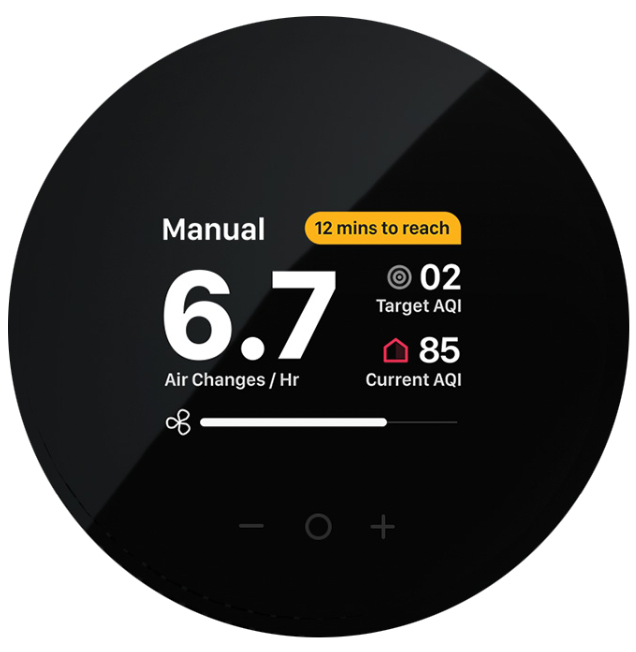

Manual Mode

To switch to manual mode follow the next steps.

1. Tap the “Mode” button.
2. Tap the “+” button to change the selected mode to Manual.
3. Tap the “Mode” button again to confirm the selection.

In this mode, the fan speed can be changed manually by touching the minus (-) and plus (+) buttons to increase or decrease fan speed.

Manual Mode begins with the fan stopped (0 RPM) or 0.0 Air Changes / Hr (ACH).

The fan speed will change gradually after a new fan speed is selected.

Each time the fan speed changes, the timer at the top right of the screen will recalculate the estimated time to clean based on the Target AQI shown. This timer will decrease or increase as time passes and the air quality changes.

Each time the fan speed is changed, the value for “Target AQI” will be updated and a new Time to Clean will be calculated.

Target AQI is calculated based on your set room size and the estimated ACH.

It’s important to note that at lower AQI levels, it can take longer to clean. Additionally, if your Indoor AQI increases, so will your Time to Clean.

This screen also presents the “Air Changes / Hr” and the indoor “Current AQI”.

Maintenance and Care

Changing Filters

Filters should be replaced every 6-9 months depending on use. Replacing a ilter can be achieved while the unit is ON or OFF.

1. Remove the filter door located at the front of the unit by pulling the bottom half of the door panel. The fan will stop and the screen will change to notify you that the filter door is open.
2. Remove the dirty filter and insert a fresh filter.
3. Close the filter door by sliding the top first and pushing the magnets on the bottom of the door toward the unit.
4. The unit will recalibrate its sensors after detecting that the filter door has been closed.

Mila Sock care

Wash the Mila Sock (prefilter) by hand in cold/warm water and let dry completely before fitting it back on your Mila filter.

Cleaning

Unplug the unit before cleaning to prevent shock or fire hazards.

The plastic parts of the unit may be cleaned with an oil-free dry cloth or by using a vacuum cleaner with a soft brush.

Never use abrasive, harsh cleaners or wax when cleaning the unit.

NOTE: The multi-layer filter cannot be washed. Please dispose in accordance with your local laws and replace as needed.

Storage

If you are not planning to use the unit for a long time, cover it with plastic or return it to its carton. Filters should be kept sealed in their original packaging until ready for use.

Troubleshooting
