Siemens WM16Y790AU 8kg Front Load Washing Machine User Manual

www.siemens-home.com

en Instruction Manual

and Installation

Instructions

WM16Y790AU

Washing machine

Your new washing machine

You have chosen a premium washing machine made by

Siemens. Thanks to its innovative technologies, the washing

machine is distinguished by its perfect washing performance and

its economic consumption of water and energy.

Please take a couple of minutes to read and become familiar

with the advantages of your washing machine.

To meet the high quality demands of the Siemens brand, each

washing machine, which leaves our factory, is inspected

thoroughly to ensure that it functions properly and is in perfect

condition.

Further information on our products, accessories, spare parts

and services can be found at: www.siemens-home.com or

contact our customer service centres.

If the instructions for use and assembly describe various models,

reference is made to the differences at the appropriate places.

Explanation of the symbols

ã Warning!

This combination of symbol and signal word indicates a

potentially dangerous situation which may result in death or

serious injuries unless it is avoided.

ã Caution!

This combination of symbol and signal word indicates a

potentially dangerous situation which may result in slight or

minor injuries or damage to property and the environment.

Instructions on how best to use the appliance as well as other

useful information.

Contents

Instruction Manual and Installation Instructions

Before washing

Ø Intended use 4

Ø Safety instructions 5

Ø Protection of the environment 7

Ø The main points in brief 8

Ø Getting to know your appliance 9

Ø Detergent drawer 10

Ø Operating elements/Display elements 11

Operating the appliance

Ø Before each washing 12

Ø Washing 18

Ø After washing 21

Ø Programme overview 22

Ø Programme settings/options 27

Ø Anti-stain system 29

Ø Consumption values 30

Ø Appliance settings 31

Ø Sensors – Your washing machine is so intelligent 32

Cleaning and maintenance

Ø Care and maintenance 33

Ø Emergency lock release, e.g. if power failure occurs 37

Ø Information on the display panel 38

Ø Faults, what to do? 39

Ø Customer service 41

Installing the appliance

Ø Standard accessories 42

Ø Installation 44

Ø Remove transportation protection devices 47

Ø Connecting the water 49

Ø Alignment 52

Ø Electrical connection 53

Ø Before the 1st washing 54

Ø Transportation, e.g. if moving house 55

Index 56

Before washing

Intended use

Ø For use in the household only.

Ø The washing machine is suitable for washing machine-

washable textiles and hand-washable wool in wash liquor.

Ø The washing machine is suitable to be operated with cold

drinking water and commercially available detergents and

care products which are suitable for use in washing

machines.

Ø When dosing all detergents, cleaning aids, cleaning products

and cleaning agents, always follow the manufacturer's

instructions.

Ø The washing machine may be operated by children from 8

years of age, by persons who have limited physical, sensory

or mental abilities and by persons who have inadequate

experience or knowledge, provided they are supervised or

have been instructed by a responsible person.

Ø Keep pets away from the washing machine!

Read and follow the operating and installation instructions and all

other information enclosed with the washing machine.

Retain documents for subsequent use.

Safety instructions

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

– Never pull out the mains plug by tugging the power cord.

– Insert/pull out the mains plug with dry hands only.

ã Warning!

Risk to children!

– Do not leave children unsupervised near the washing machine.

– Children must not play with the washing machine.

– This will prevent children from locking themselves in and

suffocating.

On redundant appliances:

– Pull out the mains plug!

– Sever the power cord and discard together with the plug.

– Destroy the lock on the washing-machine door.

– Children must not perform any cleaning or maintenance work

without supervision.

– When playing, children may become entangled in the

packaging/film and packaging parts or pull them over their

heads and suffocate.

Keep packaging, plastic film and packaging parts out of the reach

of children.

– When washing at high temperatures, the glass of the washing

machine door becomes hot.

Prevent children from touching the hot washing machine door.

– Detergents and care products may cause intoxication if

consumed or eye and skin irritation if touched.

Keep detergents and care products out of the reach of children.

ã Warning!

Risk of explosion!

Items of washing pretreated with solvent detergents, e.g. stain

remover/petroleum ether, may cause an explosion when the

washing machine has been loaded.

Before hand thoroughly rinse items of washing by hand.

ã Caution!

Danger of scalding!

When washing at high temperatures, you may be scalded if you

touch the hot wash liquor (e.g. if draining hot wash liquor into a

washbasin or if draining the washing machine in an emergency).

Allow detergent solution to cool down.

ã Caution!

Risk of damaging appliance!

– Cover plate may break!

Do not climb on the washing machine.

– Opened washing machine door may break off or washing

machine may overturn!

Do not lean on the open washing machine door.

ã Caution!

Danger when reaching into/gripping the rotating drum!

If you reach into the rotating drum, you may injure your hands.

Do not grip the rotating drum. Wait until the drum stops rotating.

ã Caution!

Risk of coming into contact with liquid detergents/care products!

If the detergent drawer is opened while the washing machine is

running, detergent/care product may spray out.

Caution when opening the detergent drawer.

In case of eye/skin contact, rinse thoroughly.

If accidentally swallowed, seek medical advice.

Protection of the environment

Packaging/Old appliance

Hints and tips

Ø Utilise the maximum amount of washing for the particular

programme.

Ø Wash normally soiled washing without Pre-wash.

Ø Instead of Cottons 90 °C programme select Cottons 60 °C

and ecoPerfect ¦ button. Comparable cleaning result with

significantly lower energy consumption.

Ø Energy saving mode: The display panel light goes out after

several minutes, Start/Reload Ü flashes. To activate the

light, select any button.

The energy-saving mode is not activated if a programme is

running.

Ø Automatic switch off: If the appliance is not operated for a

prolonged period, it automatically switches off before the

programme starts and when the programme has ended to

save energy. Switch on by pressing main switch # button.

Ø If the washing is then dried in the tumble dryer, select spin

speed according to the instructions of the dryer

manufacturer.

)

Dispose of packaging in an environmentally friendly manner.

This appliance has been identified in accordance with the

European Directive 2002/96/EG on Waste Electrical and

Electronic Equipment (WEEE).

The Directive specifies the framework for an EU-wide valid return

and recycling of waste appliances.

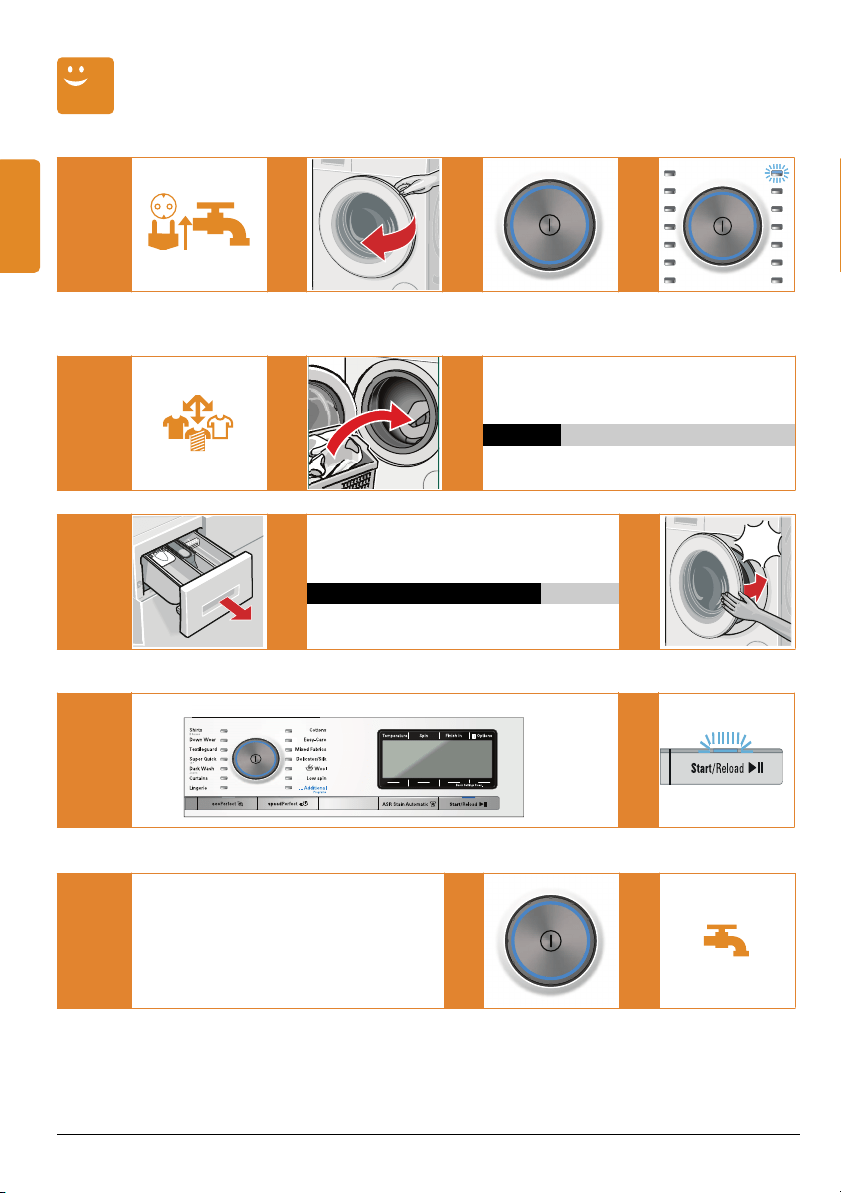

The main points in brief

@ @ @

Insert mains plug.

Turn the tap on.

Open the washing

machine door.

To switch on, press

the

# button.

Select the

programme, e.g.

Cottons.

@ @

Dosage: 30%

Please load laundry: max. 8kg

Sort the washing. Insert the washing. Do not exceed maximum load.

@ @

Dosage: 70%

Please load laundry: max. 8kg

Open the detergent

drawer.

Dose detergent according to dosing

recommendation.

Close the washing

machine door.

FODFN

If required, change programme settings of the selected programme and

select programme settings/options.

Select Start/

Reload Ü.

@ @

Finished, remove washing

End of the programme For switching the

machine on, press

the # button.

Turn off the mains

supply (for models

without Aqua-Stop).

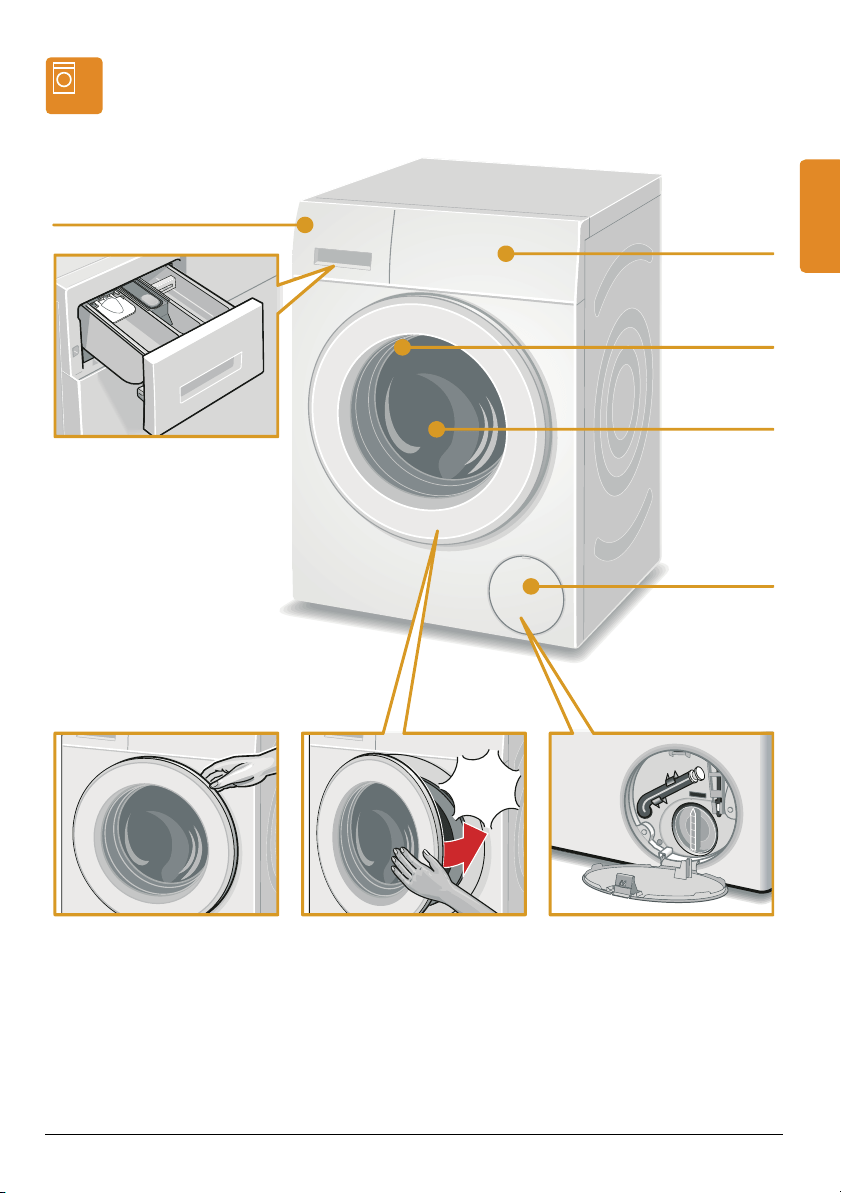

Getting to know your appliance

'HWHUJHQWGUDZHU

FODFN

2SHUDWLQJ

HOHPHQWV

'LVSOD\

HOHPHQWV

'UXPOLJKW

GHSHQGLQJ

RQPRGHO

'RRU

6HUYLFHIODS

2SHQLQJ DQGFORVLQJWKHGRRU 6HUYLFHIODS

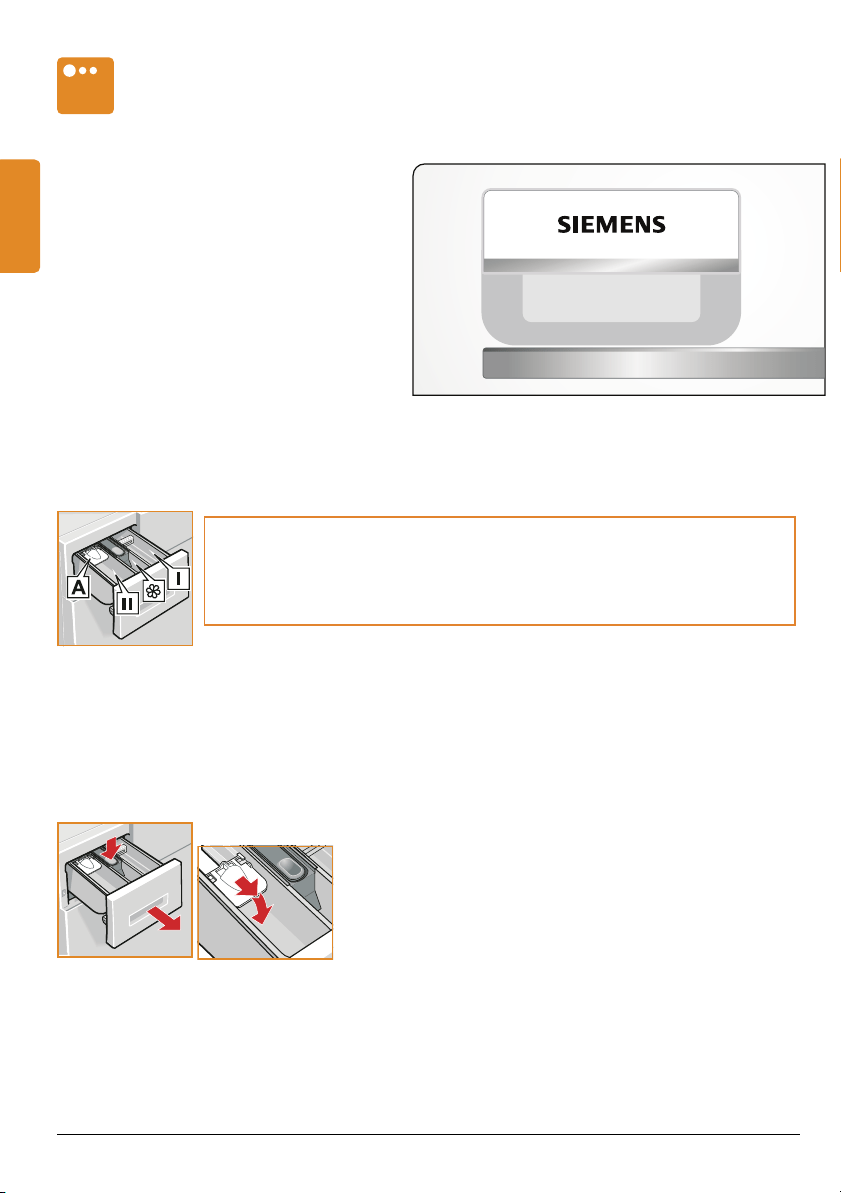

Detergent drawer

Dispenser I Detergent for prewash

Dispenser i

Softener, starch. Do not exceed the maximum load.

Dispenser II Detergent for main wash, water softener, bleach, stain

remover

Dispenser A for dosing liquid detergent (not for all models)

For models with insert for liquid detergent:

The detergent drawer features an insert which is used as a dosing aid for liquid detergent.

² Do not use insert:

– For gel-like detergents and washing powders.

– For programmes with Prewash or Ready in option.

Position insert for dosing liquid detergent:

Completely remove detergent drawer.

Push insert forwards.

For models without insert for liquid detergent:

Dose liquid detergent according to the manufacturer’s instructions.

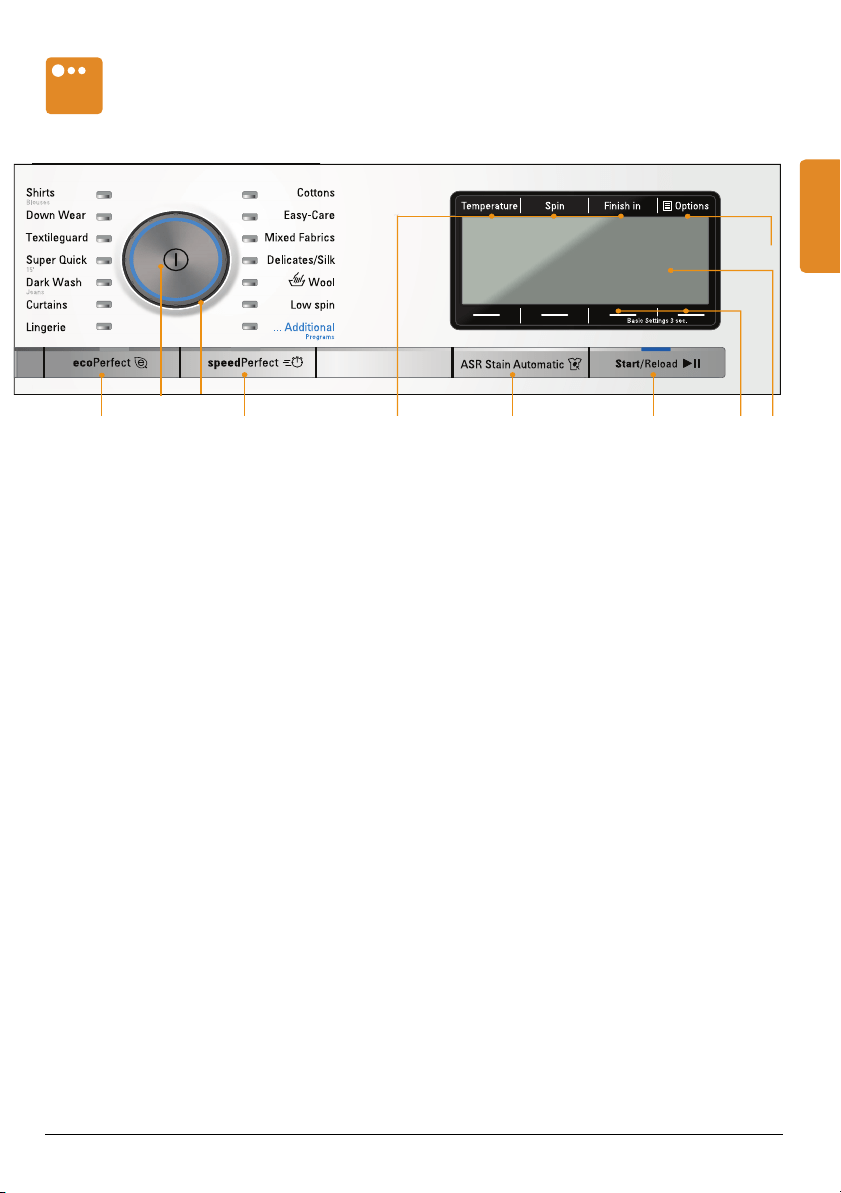

Operating elements/Display elements

RST

² All buttons are sensitive, they only need to be touched gently.

i Switch on and off the appliance. Press

the # main switch button.

j Select a programme. Rotating the in

either direction is possible. Programme

Overview, refer to ~ Page 22

Change programme settings of the selected

programme and select programme options:

k Select Temperature, Spin, Finish in

buttons and change. ~ Page 16,

~ Page 27

l Select ecoPerfect ¦ or

speedPerfect G button. ~ Page 16,

~ Page 27

m Select ASR Stain Automatic ã button

for stain selection. Overview of all stains

~ Page 29

n Select × Options button for additional

programme options. Overview of all

options ~ Page 27

o Start wash programme. Select

Start/Reload Ü button to start, interrupt

and cancel the programme (e.g. reload

washing).

p Change appliance settings. Hold down

Basic Settings 3 sec. button for

appliance settings (end signal, button

signal, language, autom. switch off) for

approx. 3 seconds. See Overview of all

settings. ~ Page 31

q Display panel for settings and

information.

Operatin g the appliance

Before each washing

– Install and connect washing machine properly. Refer

to ~ Page 44

– Before the 1st wash, wash once without any washing.

~ Page 54

1. Preparing the washing

Sorting the washing according to:

Ø Type of fabric/fibre.

Ø Colour.

Ø Soiling.

Ø Follow manufacturer’s care information.

Ø Care label specifications:

Protecting the washing and the machine:

– When dosing all detergents, cleaning aids, cleaning products

and cleaning agents, always follow the manufacturer's

instructions.

– Keep detergents and agents for the pretreatment of washing

(e.g. stain remover, prewash sprays, ...) away from the

surfaces of the washing machine. Using a damp cloth,

immediately remove any fine spray residue and other

residue/droplets.

–Empty pockets.

– Remove metal parts (paper clips, etc.).

– Wash delicates in the net/bag (tights, underwired bras).

– Close zips, button up covers.

– Brush sand out of pockets and collars.

– Remove curtain fittings or include in the net/bag.

– Wash new items separately.

< ;

Cottons 95 °C, 90 °C

: 9 8

Coloureds 60 °C, 40 °C, 30 °C

B A >

Easy-Care 60 °C, 40 °C, 30 °C

A L >

Delicates 40 °C, 30 °C

W A L

> K

Hand and machine-washable silk and woollens cold, 40 °C,

30 °C

Do not wash laundry in the washing machine.

2. Preparing the appliance

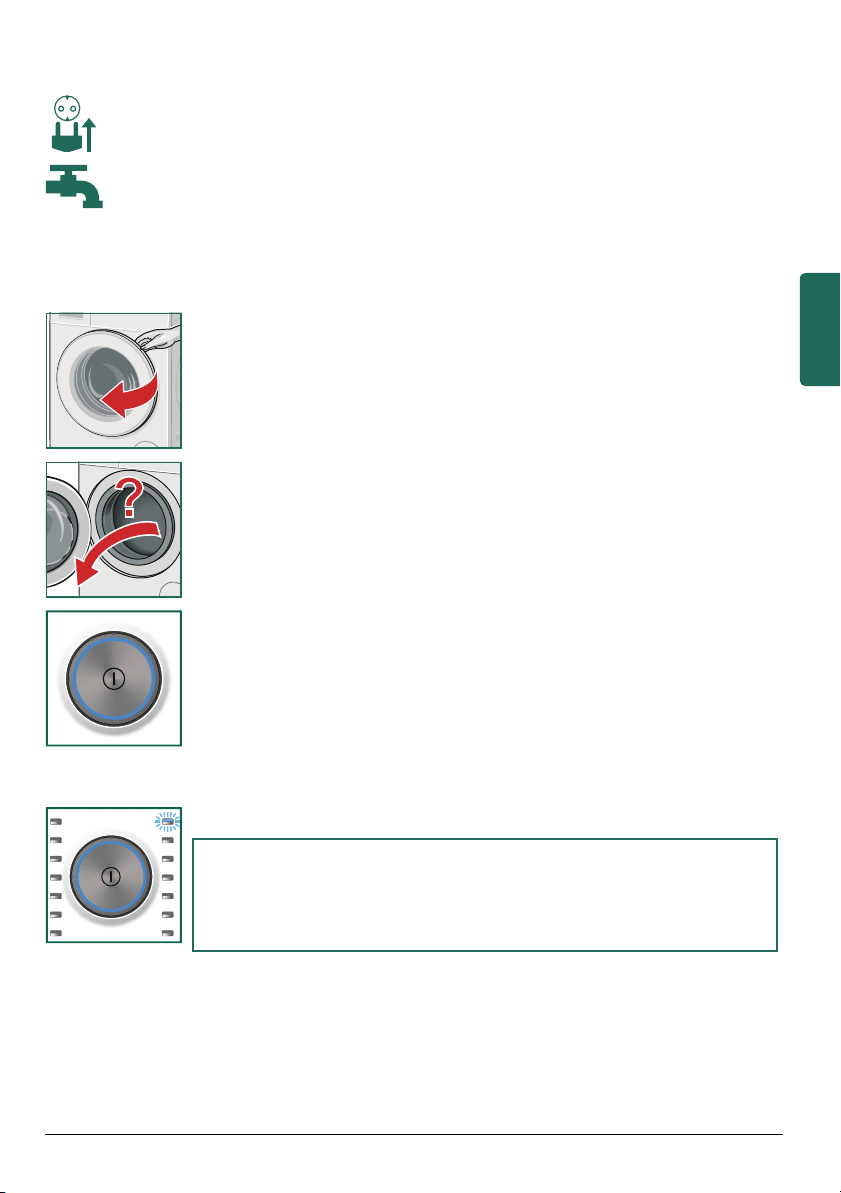

Insert mains plug.

Turn on water tap.

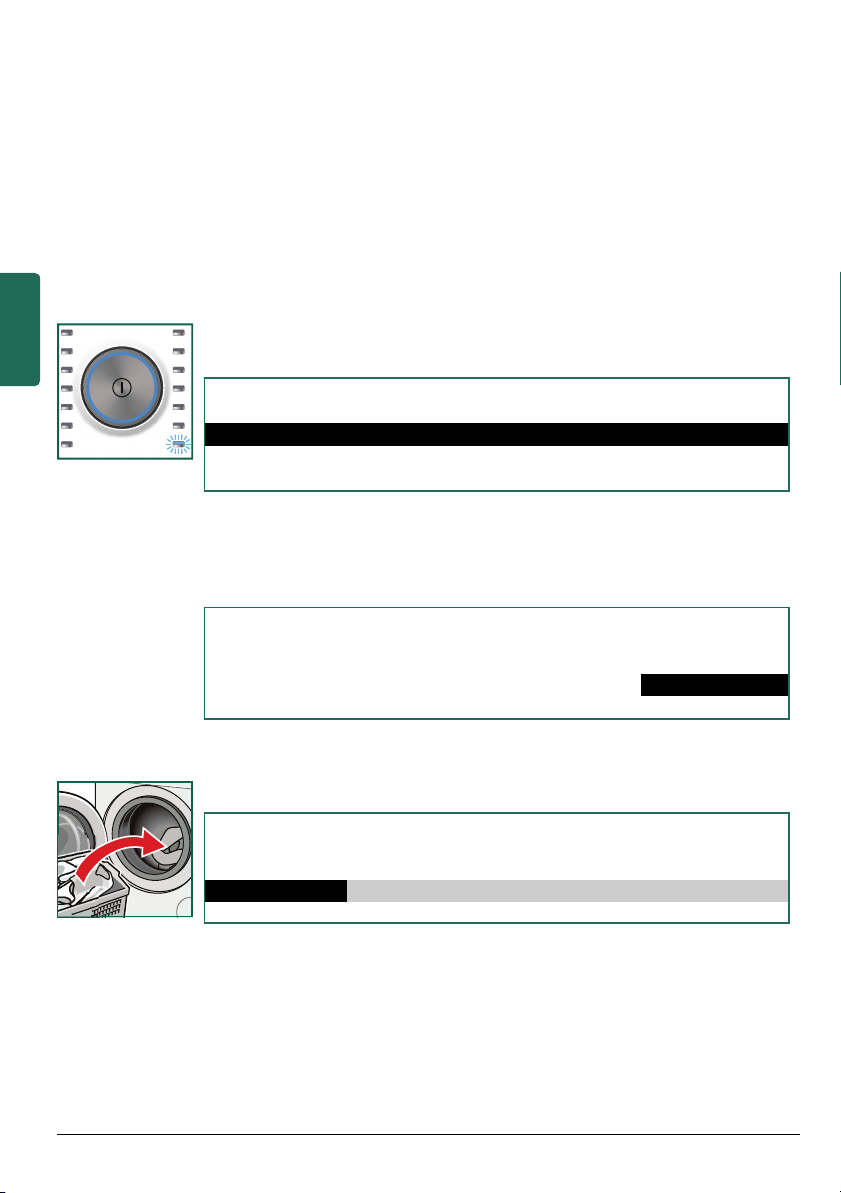

3. Selecting a programme and putting the washing in the

drum

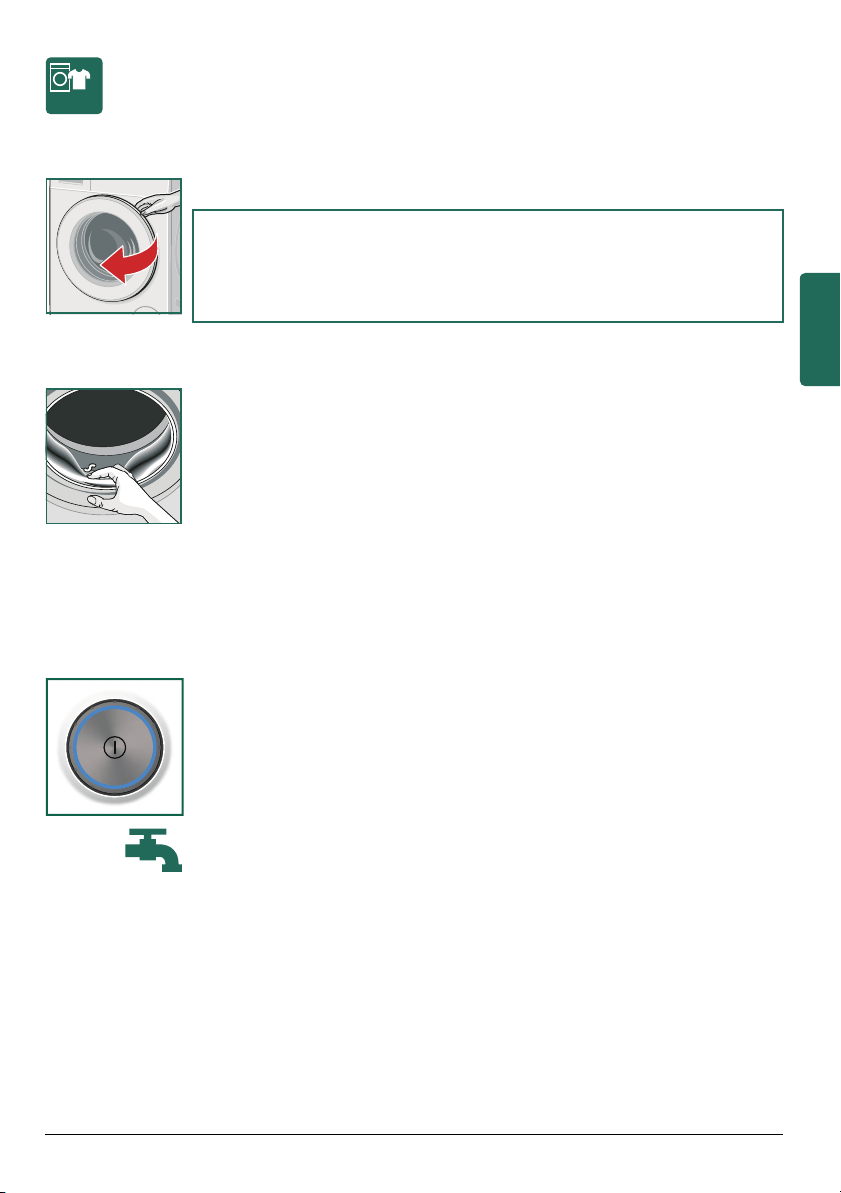

Open the washing machine door.

Check whether the drum has been completely emptied. If

required, empty. Otherwise, the load display may malfunction.

~ Page 32

Press the # button. The appliance is switched on.

The Siemens logo is indicated on the display panel and all

programme indicator lamps are lit.

Then always the Cottons programme preset at the factory is

displayed.

Displays for the Cottons programme:

– The indicator lamp is lit on the programme selector and

the main menu for the selected programme is indicated

on the display panel.

– For appliances with drum light:

cccc

°C 1400B 2:31h

bb b

After switching on the appliance, after opening and

closing the washing machine door as well as after starting

the programme, the drum is lit. The light goes out

automatically.

Select a programme.

You can use the saved programme

or select another programme, Programme Overview, refer to

~ Page 22,

or select other programmes (see

Additional Programs) and

choose one programme as follows:

other programmes selected using Additional Programs and

choose e.g. Outdoor:

– Select programme using the buttons under the arrows.

The selection is acknowledged by a tick.

– Wait or back by pressing Main menu button, selected

programme is indicated on the display panel.

– To change the programme, select button under the black

highlighted programme and change programme.

Insert the washing.

The load screen for the selected programme (e.g. for Cottons) is

indicated on the display panel. The load screen is indicated when

the door is opened or when the amount of washing is changed.

– Unfold and load presorted items of washing. Mix large and

small items. Washing items of different size distribute

themselves better during the spin cycle. Individual items of

washing may cause imbalances. ~ Page 32

30 °C

800

1:04h

Drain

Additional programms Outdoor

Rinse

Main menu

cccc

°C 800B 1:04h

Outdoor

bbbb

Dosage: 30%

Please load laundry: max. 8kg

– Do not load washing until the main menu for the saved

programme is displayed after the Siemens logo.

– The load bar progresses as the washing machine is loaded. If

the max. load is exceeded, the bar flashes. Do not exceed

indicated max. load. Overfilling reduces the washing result

and encourages creasing.

4. Add detergent and care product

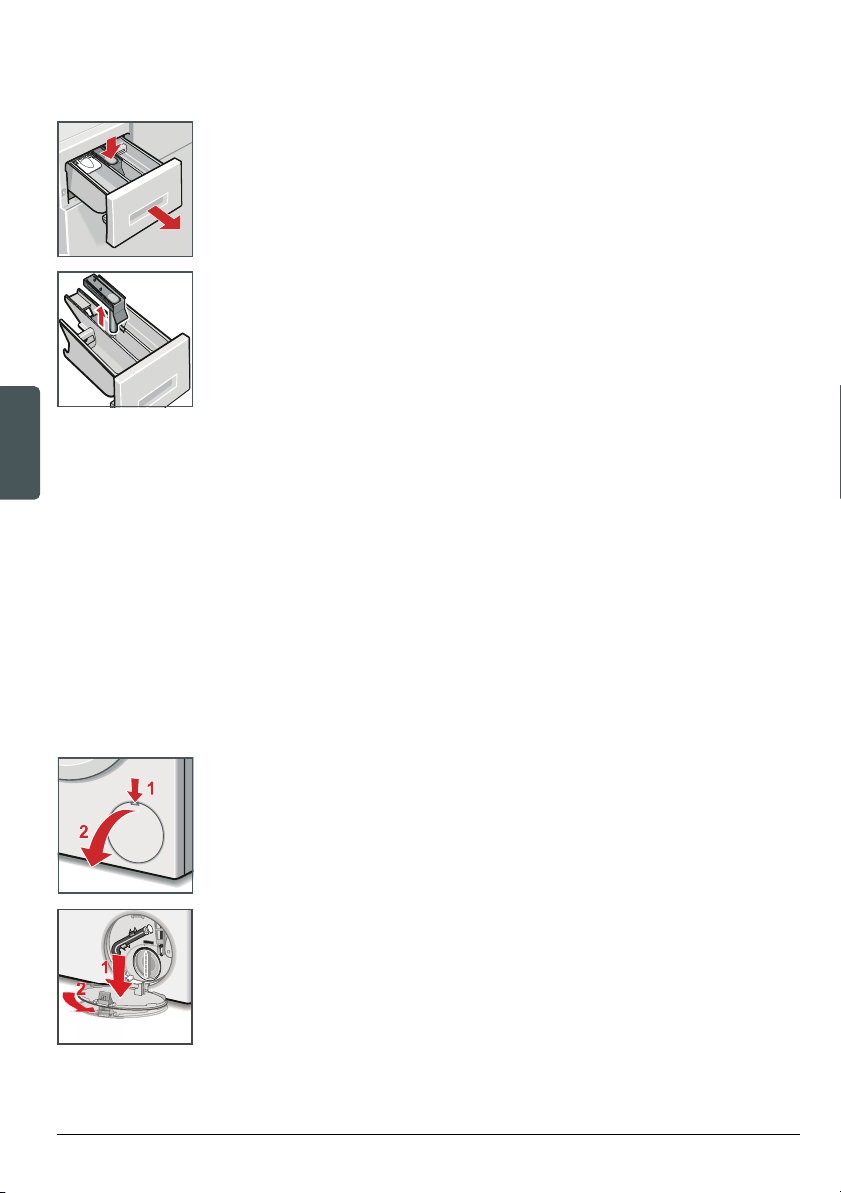

Pull out the detergent drawer.

Dosing in dispenser according to:

– Dosing recommendation on the display panel,

e.g. for Cottons:

Depending on the amount of washing in the washing

machine, a dosing recommendation is indicated on the

display panel.

–Soiling.

– Water hardness (ask your water supply company).

– Manufacturer’s instructions.

– When dosing all detergents, cleaning aids, cleaning products

and cleaning agents, always follow the manufacturer's

instructions.

– Dilute viscous fabric softener and fabric conditioner with

water.

Prevents blockage of the overflow!

5. Changing the settings of the selected programme

Take care not to trap any items of clothing between the loading

door and rubber seal.

Close the door.

The main menu for the selected programme is indicated again on

the display panel.

Dosage: 70%

Please load laundry: max. 8kg

FODFN

cccc

60°C 1400B 2:31h

bb b

You can use the displayed presettings or adjust the selected

programme optimally to the items of washing by changing the

presettings or selecting additional settings/options.

Ø Changing the Temperature, Spin, Finish in. Refer to

~ Page 27:

e.g. selecting and changing the Temperature:

The arrows on the display panel indicate which buttons are

used to change the settings. The settings are active without

acknowledgement and are displayed in the main menu.

– If the buttons are held down, the set values automatically run

through.

– The respective programme duration is displayed by selecting

the programme. The programme duration is adjusted while

the programme is running if the programme duration requires

changing, e.g. due to changes in the programme settings/

options, foam detection, unbalanced load detection, the load

or soiling.

Ø ecoPerfect ¦:

for saving energy with a comparable washing effect to the

standard programme. When selected, the display lamp is lit.

Ø speedPerfect G:

for a shorter wash time with a comparable washing effect to

the standard programme. Observe maximum load.

~ Page 22 When selected, the display lamp is lit.

Ø ASR Stain Automatic ã. Overview of all stains ~ Page 29

Do not let stains dry. Remove solid substances beforehand.

Arrange items of washing as usual and load washing

machine. Select the programme. Select a stain type

(depending on the selected programme).

cccc

60°C

1400B 2:31h

bb b

Select ASR Stain Automatic ã button and select e.g. grass:

– Select/deselect stain using displayed buttons. Stain option

is immediately active and is indicated on the display

panel.

– Wait or back by pressing Main menu or ASR Stain

Automatic

ã button.

Ø ß Options. Overview of all options~ Page 27

Select ß Options and e.g. z Water Plus buttons:

– Select option by pressing the two buttons displayed on the

left.

– Select/deselect option by pressing the two buttons

displayed on the right. The selected options are

immediately active.

In the case of multi-level settings keep touching the

buttons to run through the settings automatically.

– Wait or back to the main menu by pressing

ß Options

button.

6. Starting the programme

Ø Select Start/Reload Ü. The indicator light is on.

60°C

1400B

2:31h

soil + sand

ã Stains μ grass è

coffee

Main menu

60°C

1400B

2:31h

Extra rinse

zWater Plus

bcbc

Washing

During the wash cycle the programme progress is indicated by a

bar on the display panel. The bar progresses in the course of the

wash cycle and provides information about the current

programme progress.

The arrows are switched on and off according to the programme

progress. They indicate the programme settings/options which

can be changed/added as the programme progresses.

Some programme sequence steps explained:

Ø Load adjust active ~ Page 32

Ø Prewash, wash, rinse, spin, drain ... are displayed during the

wash cycle.

Ø Extra rinse: foam~ Page 20

Ø Other displays ~ Page 38

During washing

Ø Childlock

To prevent the set functions of the washing machine from

being accidentally changed, the childproof lock can be

activated.

Activate/deactivate: press Finish in for approx. 5 seconds.

Display panel goes back to the Main menu after approx.

3seconds.

If the programme selector is adjusted or a button is selected

while the childproof lock is active, the

w symbol flashes

briefly.

cc c

60°C

1400B

2:31h

Load adjust active

wChildlock has been activated

Ø Topping up washing

When the programme has started, washing can be reloaded

or taken out as required.

Select Start/Reload

Ü.

– If there is a high water level, high temperature or if the drum

is rotating, the washing machine door remains locked for

reasons of safety and reload is not possible. Follow the

information on the display panel. To continue the programme,

select the Start/Reload

Ü button. The washing machine

door is locked and the programme continues automatically.

– Load display is not active during relosding.

– Do not leave washing machine door open for a prolonged

period – water could run out of the washing.

Ø Changing the programme sequence

if you have mistakenly started a wrong programme:

1. Select Start/Reload

Ü.

2. Select another programme.

3. Select Start/Reload Ü . The new programme starts from

the beginning.

Ø Cancelling the programme

For programmes at high temperature:

1. Select Start/Reload

Ü.

2. Cool down washing: select Rinse/Freshen Up

(see

Additional Programs).

3. Select Start/Reload

Ü .

For programmes at low temperature:

1. Select Start/Reload Ü.

2. Select Spin * or Drain *.

(* see

Additional Programs)

3. Select Start/Reload Ü.

cc c

60°C

1400

2:31h

Pause: Reload is possible

Ø End of programme by Rinse Hold

1. Select Spin (If required, adjust the spin speed) or Drain.

2. Select Start/Reload Ü.

End of the programme

Finished, remove washing is indicated on the display panel.

If Foam has been detected is also indicated on the display panel,

the washing machine has detected too much foam during the

wash programme and therefore automatically activates additional

rinse cycles to eliminate the foam.

Dose less detergent in the next wash cycle with the same load.

Rinse hold reached:

Select "spin" or "drain"

and then "start".

Spin Drain

Finished, remove washing

After washing

Open washing machine door and remove washing..

– Do not leave any items of washing in the drum. In the next

wash they may shrink or discolour something else.

– Remove any foreign objects from the drum and the rubber

seal – risk of rust.

– Leave detergent drawer and door open so that residual water

can evaporate.

Before switching the machine off:

– Always remove the washing. Otherwise, the load display may

malfunction.

– Always wait until the programme ends, as the appliance

could still be locked. Then switch the appliance on and wait

for the unlocking device.

Press the # button. Appliance is switched off.

Turn off the water tap.

Not required for Aqua-Stop models. ~ Page 60

Remove the washing.

Switch off the device.

Programme overview

The presettings of the

programmes are highlighted

in bold.

Programme/Type of washing Options/information

Name of the programme

Brief explanation of the programme and for

which textiles it is suitable.

max. load

selectable temperature as °C

selectable spin speeds in rpm,

the max. spin speed depends

on the model

possible programme options

for the Less Ironing

programme option possible

spin speeds in rpm

Cottons

Hard-wearing textiles, heat-resistant textiles

made of cotton or linen.

². * reduced load for speedPerfect G

option

max. 8 kg/5 kg *

cold – 40 – 90 °C

0 ... 1200 ... 1600 rpm

¦,G,ã,!,æ,l,z,$,ç

at æ: 0 ... 800 rpm

Easy-Care

Textiles made of synthetic materials or

blended fabrics.

max. 3.5 kg

cold – 40 – 60 °C

0 ... 1200 rpm

¦,G,ã,!,æ,l,z,$,ç

at æ: 0 ... 600 ...800 rpm

Mixed Fabrics

Mixed load consisting of textiles made of

cotton and synthetics.

max. 3.5 kg

cold – 40 °C

0 ... 1400 ... 1600 rpm

¦,G,ã,!,æ,l,z,$,ç

at æ: 0 ... 600 ... 800 rpm

Delicates/Silk

For delicate, washable textiles, e.g. made of

silk, satin, synthetic fibres or blended fabrics

(e.g. silk blouses, silk scarf).

². For machine wash use detergent suitable

for delicates and/or silk.

max. 2 kg

cold – 30 – 40 °C

0 ... 600 ... 800 rpm

¦,G,ã,!,æ,l,z,$,ç

at æ: 0 ... 600 rpm

u Wool

Hand or machine-washable wool or rich-wool

textiles.

Especially gentle wash programme to prevent

shrinkage, longer programme pauses

(textiles rest in wash liquor).

². Wool is of animal origin, e.g.: angora,

alpaca, lama, sheep.

². For machine wash use detergent suitable

for wool.

max. 2 kg

cold – 30 – 40 °C

0 ... 800 rpm

$,ç

Low spin

Extra spin cycle at reduced speed and with

especially gentle spin mechanism.

0 ... 800 ... 1200 rpm

æ,ç

at æ: 0 ... 600 rpm

Lingerie

For delicate, washable underwear e.g. made

of velvet, lace, Lycra, silk or satin.

max. 1 kg

cold – 30 – 40 °C

0 ... 600 rpm

¦,G,ã,æ,l,z,$,ç

at æ: 0 ... 400 rpm

Curtains

3.5 kg heavy curtains or 25 – 30 m² light

curtains.

². Reduced rinse and final spin cycle.

². For machine wash use detergent suitable

for curtains.

max. 3.5 kg

cold – 30 – 40 °C

0 ... 400 ... 800 rpm

¦,G,ã,!,l,z,$,ç

Dark Wash/Jeans

Dark textiles made of cotton and dark easy-

care textiles.

Wash textiles inside out.

max. 3.5 kg

cold – 30 – 40 °C

0 ... 800 ... 1200 rpm

¦,G,ã,!,æ,l,z,$,ç

at æ: 0 ... 600 ... 800 rpm

Super Quick 15’

Extra short programme approx. 15 minutes,

suitable for lightly soiled washing as a small

amounts of laundry.

max. 2 kg

cold – 30 – 40 °C

0 ... 800 ... 1200 rpm

$,ç

The presettings of the

programmes are highlighted

in bold.

Programme/Type of washing Options/information

Textileguard

Washing followed by impregnation of

weatherproof and outdoor clothing with

membrane coating and water-resistant

textiles.

². Use special detergents suitable for

machine wash. Dosage according to

manufacturer’s instructions.

– Pour into dispenser II special detergent

and

– textile guard agent (max. 170 ml) into

dispenser M .

². The laundry must not be treated with

fabric softener.

². Before washing, remove all fabric

softener residue from detergent drawer (all

dispensers).

max. 1 kg

cold – 30 – 40 °C

0 ... 800 rpm

¦,G,ã,l,z,ç

Down Wear

Machine-washable textiles filled with down,

pillows, blankets or duvets.

². Wash large items individually. Use mild

detergent. Meter detergent sparingly.

max. 2 kg

cold – 40 – 60 °C

0 ... 1200 rpm

¦,G,ã,l,z,ç

Shirts/Blouses

Non-iron shirts/Blouses made of cotton, linen,

synthetics fibres or blended fabrics.

For the æ Less Ironing option, shirts/

blouses are given a short spin only, hang up

dripping wet. ~ Self-smoothing effect.

². Wash shirts/blouses made of delicates/

silk in Delicates/silk programme.

max. 2 kg

cold – 40 – 60 °C

0 ... 800 rpm

¦,G,ã,!,æ,l,z,$,ç

at æ: 0 ... 400 rpm

The presettings of the

programmes are highlighted

in bold.

Programme/Type of washing Options/information

... more programmes

The presettings of the pro-

grammes are highlighted in

bold.

Programme/Type of washing Options/information

Outdoor

Weatherproof and outdoor clothing with a

membrane coating and water-resistant

textiles.

² Use special detergents suitable for

machine wash. Pour detergent into dis-

penser II according to manufacturer’s

specifications.

² The laundry must not be treated with

fabric softener.

² Before washing, remove all fabric

softener residue from detergent drawer

(all dispensers).

max. 2 kg

cold - 30 – 40 °C

0 ... 800 rpm

¦,G,ã,æ,l,z,$,ç

at æ: 0 ... 600 rpm

Rinsing

Extra rinse with spin.

0 ... 1200 ... 1600 rpm

æ,l,z,$,ç

at æ: 0 ... 800 rpm

Spin

Extra spin with selectable spin speed.

0 ... 1200 ... 1600 rpm

æ,ç

at æ: 0 ... 800 rpm

Drain

the rinsing water when Rinse stop $

(without final spin) is actuated.

Starching

The washing should not be treated with fabric softener.

Liquid starch can be used in all wash programmes. Pour starch

into the dispenser M according to manufacturer’s specifications

(if required clean beforehand).

Dyeing/Discolouring

Dye in household quantities only. Salt may attack stainless steel!

Observe specifications of the dye manufacturer! Do not discolour

washing in the washing machine!

Soaking

Pour soaking agent/detergent into dispenser II according to the

manufacturer’s instructions. Set programme selector to

Cottons 30 °C and select Start/Reload

Ü. After approx.

10 minutes select Start/Reload

Ü. After the required soaking

time reselect Start/Reload Ü, if the programme is to be

continued or change the programme.

Insert washing of the same colour. No additional detergent

required, the soaking solution is used for washing.

Programme settings/options

Depending on the programme, you can use the programme

options to adjust the washing process even more efficiently to

your items of washing.

– Are active without acknowledgement.

– Not retained after appliance is switched off.

– Can be selected or deselected or changed depending on the

programme progress.

Buttons Notes

Temperature Before and during the programme the presettings

can be changed for as long as the arrows are

displayed.

Maximum spin speed depends on the programme

and model.

Spin

Finish in Delays the Finished in time (end of programme).

Before the programme starts, the end of the

programme can be preselected in h steps up to

maximum 24h.

When the programme has started, the preselected

time is displayed e.g. for 8h and counts down until

the wash programme starts. Then the programme

duration is displayed, e.g. 2:30h.

When the programme has started, the preselected

time can be changed as follows:

1. Select Start/Reload

Ü.

2. Select Finish in button and change Finish in time.

3. Select Start/Reload Ü.

ecoPerfect ¦

For saving energy.

speedPerfectG

For a shorter wash time.

Anti-stain

system ã

For washing stained laundry.

Press ß Options button to select:

Notes

Pre-wash

on – off

For heavily soiled washing.

Pour detergent into dispensers I and II.

Less Ironing

on – off

Reduces creasing by special spin sequence followed

by fluffing and reduced spin speed.

². Residual moisture of the washing slightly

increased.

Extra rinse

ö + 1 Rinse

÷ + 2 Rinses

ø + 3 Rinses

Additional rinse cycles depending on the

programme, prolonged programme duration.

². Recommended application: for particularly

sensitive skin or/and in areas with very soft water.

Water Plus

on – off

Increased water level, more gentle treatment of the

washing.

Rinse Hold

on – off

The washing remains in the water after the last rinse

cycle. End the programme. ~ Page 20

Silent Wash

on – off

Reduced noise values by special wash and spin

cycle and deactivated end signal. Especially suitable

for washing at night.

². Residual moisture of the washing slightly

increased.

Anti-stain system

General information about stains

A total of 16 different stains can be selected. The washing

machine adjusts the washing temperature, drum movement and

soaking time specific to the type of stain. Hot or cold water, gentle

or intensive washing control and long or short soaking provide

the wash programme with a special sequence for each type of

stain. The result: stains are treated optimally.

The treatment of two stains explained in the following

example

For the other stains we have developed comparable solutions in

intensive studies.

Selectable treatment of stains

ë blood

Blood is first “dissolved” in cold water, then the selected wash

programme starts.

í egg

Egg particles are removed by soaking in the lukewarm water

bath, selecting a wash cycle with a high water level and running

additional rinse cycles.

baby food á soil + sand ó orange ï dirty socks

ë blood ì grass â red wine ð grease + oil

í egg ä coffee ê chocolate ñ tea

ò strawberry î cosmetics à sweat é tomatoes

Consumption values

Programme Additonal

function

Load Energy

consumption ***

Water *** Programme

duration ***

Cottons 30 °C * 8 kg 0,33 kWh 58 l 2:17 h

Cottons 40 °C * 8 kg 0,87 kWh 57 l 2:27 h

Cottons 60 °C * 8 kg 1,47 kWh 57 l 2:27 h

Cottons 60 °C

EcoPerfect ** 8 kg 0.85 kWh 57 l 3:56 h

Cottons 90 °C 8 kg 2,40 kWh 70 l 2:17 h

Easy-Care 40 °C * 3.5 kg 0,57 kWh 41 l 1:35 h

Mixed Fabrics

40 °C

3.5 kg 0,60 kWh 39 l 0:53 h

Delicates/Silk 30 °C 2 kg 0,15 kWh 34 l 0:43 h

Wool 30 °C 2 kg 0,20 kWh 39 l 0:40 h

* Programme setting for tests according to currently valid European standard EN60456.

Information about comparability tests: To test the test programmes, wash indicated load

size at maximum spin speed.

** To be used for normally soiled laundry. Programme setting for energy labelling

according to AS/NZS 2040.

*** The values may deviate from the stated values depending on water pressure and

hardness, room temperature, type and amount of laundry, detergents used, fluctuations

in the mains voltage and selected additional functions.

Appliance settings

By pressing the Basic Settings 3 sec. buttons, appliance settings

can be changed, e.g. button signal.

Simultaneously hold down Basic Settings 3 sec. buttons for

approx. 3 seconds:

Ø If the buttons are held down, the settings automatically run

through.

Ø Select Setting with the two left buttons.

Ø Select displayed value with the two right buttons (selection

acknowledged by a tick).

Ø Wait or hold down Basic Settings 3 sec. buttons again.

Settings are retained after appliance is switched off.

language

end signal off è

button signal

bc bc

Settings Set values Notes

end signal off – quiet – medium –

loud – very loud

Adjust volume of the end signal.

button signal off – quiet – medium –

loud – very loud

Adjust volume of the button signals.

Auto power-

off of the

appliance

in 15 – 30 – 60 min –

never

The appliance automatically switches off after ...

min. (= 0 kWh energy consumption); to switch

on, press main switch button

# .

language German

GB English

...

Change displayed language.

Sensors – Your washing machine is so

intelligent

Load adjust

Depending on the type of textile and load, the load adjust

optimally adjusts the water consumption in each programme.

Aqua-Sensor depending on model

During the rinse cycle the Aqua sensor checks the degree

of turbidity (turbidity is caused by dirt and detergent residue)

of the rinsing water. The duration and the number of rinse cycles

depend on the turbidity of the water.

Load sensor/Load display

The load sensor detects the load level in the washing machine

when the door is open. This is indicated by a progressing bar on

the display panel.

To ensure that the load sensor measures all the laundry, the drum

must be empty before the washing machine is switched on.

Dosing recommendation

The dosing recommendation indicates a recommended

detergent dosage as a %, depending on the selected programme

and the detected load. The indicated % refers to the

recommendation of the detergent manufacturer.

By observing the recommended dosage, you will protect the

environment and reduce your household costs.

Unbalanced load detection system

The automatic unbalanced load detection system spins the

laundry several times to ensure even distribution.

For reasons of safety the speed is reduced or does not perform

a spin cycle if the washing is very unevenly distributed.

Distribute small and large items of washing in the drum. Faults,

what to do? ~ Page 39

Cleaning and maintenance

Care and maintenance

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

Switch off the appliance. Pull out the mains plug!

ã Caution!

Fire and explosion hazard!

If solvent cleaning agents, e.g. petroleum ether, are

used in the washing machine, components may be

damaged and toxic fumes generated.

Do not use solvent-based cleaning agents.

ã Caution!

Washing machine may be damaged!

If solvent cleaning agents, e.g. petroleum ether, are

used on the washing machine, the surfaces may be

damaged.

Do not use solvent-based cleaning agents.

Machine housing/Control panel

Ø Remove detergent residue immediately.

Ø Wipe with a soft, damp cloth.

Ø Do not clean the appliance with a water jet.

Drum

Use chlorine-free cleaning agent, not steel wool.

If there is an odour in the washing machine, run Cottons 90 °C

programme. Use standard detergent.

Descaling

Not required if detergent dosed correctly. However, if this does

occur, follow the instructions of the descaling agent

manufacturer. Suitable descalers can be purchased on our

website or from customer service. ~ Page 41

Cleaning the detergent drawer

If it contains detergent or fabric softener residue:

Pull out, depress insert, take out drawer all the way.

Take out insert: using your finger, press insert upwards.

Clean detergent dispenser and insert with water and a brush

and dry.

Attach insert and lock into position (push cylinder onto guide

pin).

Insert detergent drawer.

Leave detergent drawer open so that residual water can

evaporate.

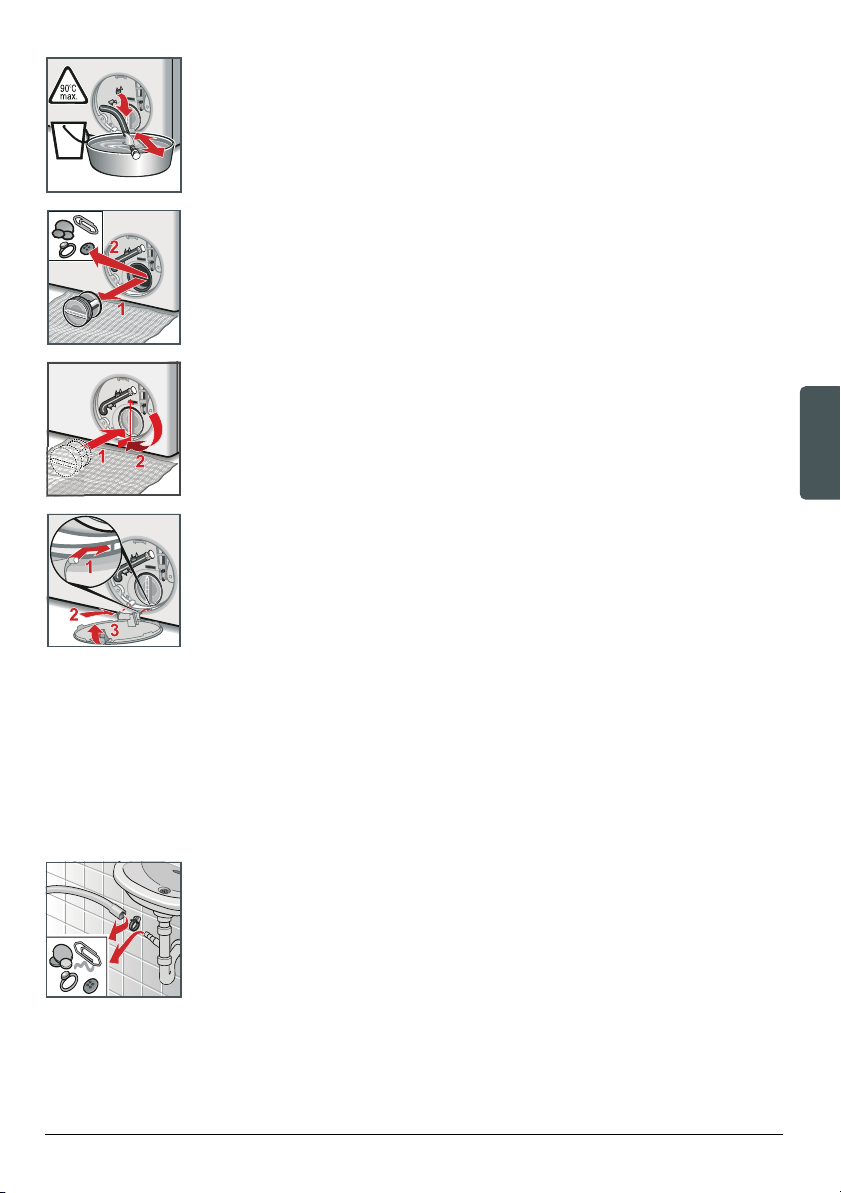

Drain pump blocked

ã Warning!

Danger of scalding!

Wa sh l iq u or is ho t whe n was hi ng a t high t emp era t u re s.

You may be scalded if you touch the hot wash liquor.

Allow wash liquor to cool down.

Turn the tap off to prevent more water from flowing in and to

ensure that it is drained via the pump.

Switch off the device. Pull out the mains plug.

Open service flap.

Remove service flap.

Take the drainage hose out of the holder. Remove the

sealing cap, drain water into a suitable receptacle.

Press on sealing cap and insert drainage hose into the

holder.

Note: Residual water may run out.

Carefully unscrew the pump cover. Clean the interior, pump

cover thread and pump housing (fan impeller in the

detergent-solution pump must rotate).

Reinsert and screw on pump cover. Handle should be

vertical.

Insert service flap (1), engage (2) and close (3).

To prevent unused detergent from flowing into the outlet during

the next wash cycle: Pour approx. 1 litre of water into dispenser II

and start the Drain programme.

Drainage hose on the siphon blocked

Switch off the appliance. Pull out the mains plug!

Note: Residual water may run out!

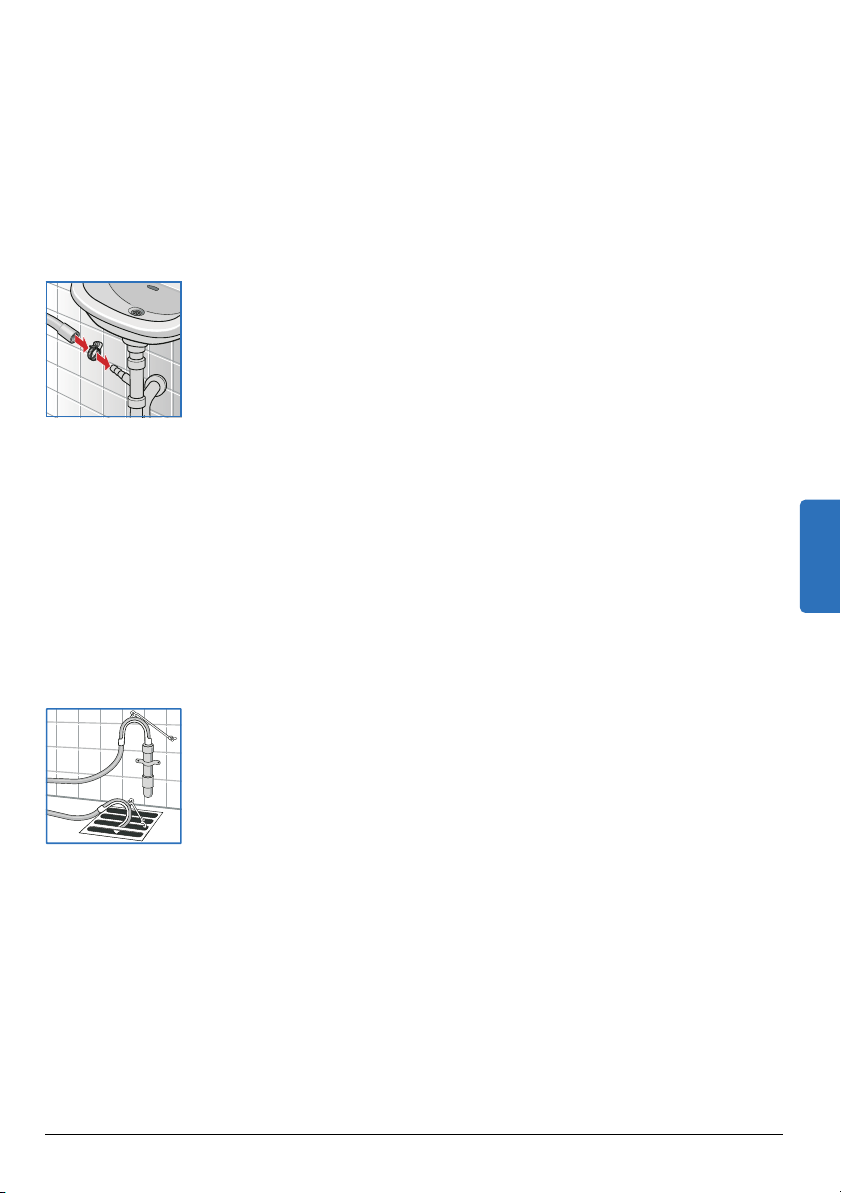

Loosen hose clip, carefully remove drainage hose.

Clean drainage hose and siphon spigot.

Re-attach drainage hose and secure connection point with

hose clip.

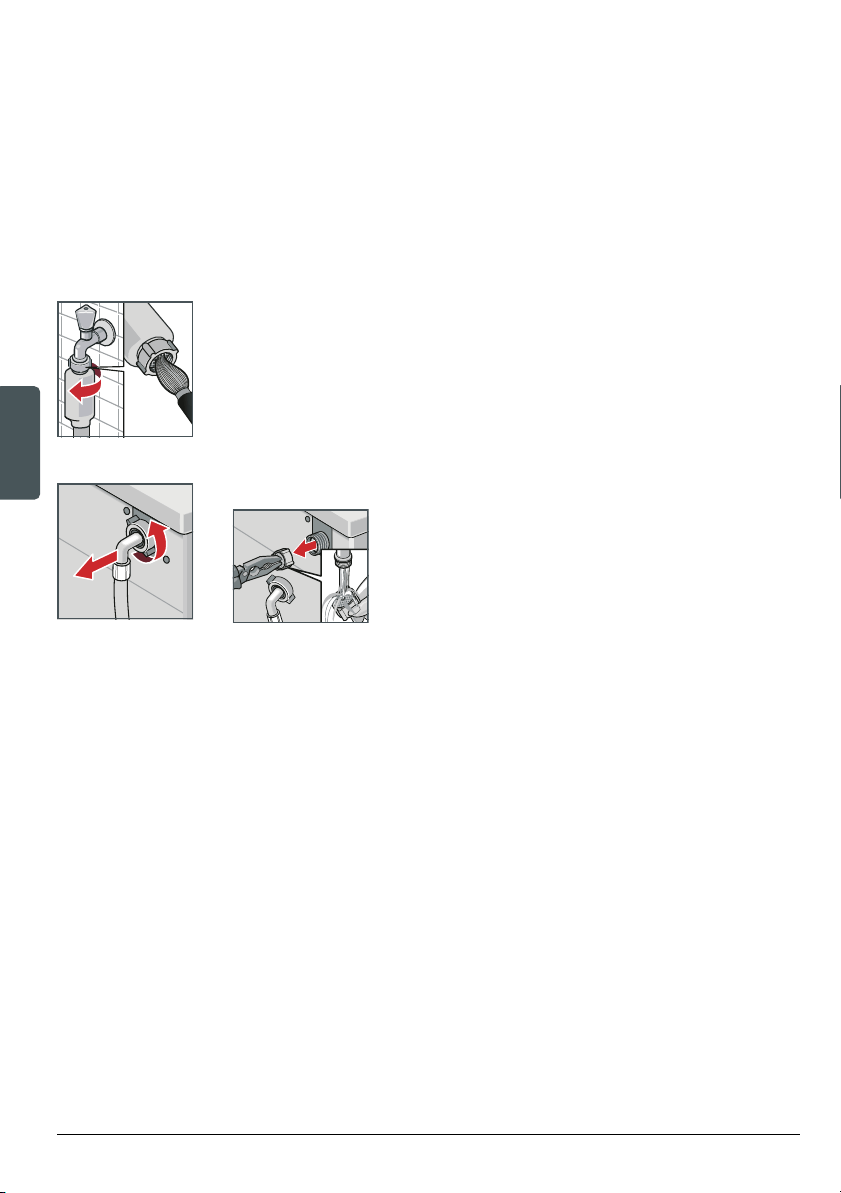

Filter blocked in water inlet hose

First, release water pressure in the supply hose:

Turn off the tap!

Select any programme (except Spin/Drain).

Select Start/Reload Ü. Leave programme for approx. 40

seconds.

Press the # button. Appliance is switched off. Pull out the

mains plug!

Clean the filter:

Disconnect the hose from the water tap.

Clean filter with small brush.

and/or for standard and Aqua-Secure models:

Remove hose from the rear of the appliance.

Take out filter with pliers and clean.

Connect the hose and check for leaks.

Emergency lock release, e.g. if power

failure occurs

The programme continues running when the power supply is

restored. If the washing is still to be removed, the door can be

opened as described below:

ã Warning!

Danger of scalding!

Wash liquor and washing may be hot. If touched, there

is a risk of scalding.

If required, leave to cool down.

ã Caution!

Danger when reaching into/gripping the rotating drum!

If you reach into the rotating drum, you may injure your

hands.

Do not grip the rotating drum. Wait until the drum stops

rotating.

ã Caution!

Water damage possible!

Leaking water may cause damage.

Do not open the door if you can still see water through

the glass.

Switch off the appliance. Pull out the mains plug!

Drain the water.

Pull down emergency release with a tool and release.

Door can then be opened.

Information on the display panel

Display Cause/Remedy

The door cannot be

locked, please open

the door again, then

close it and select

"start/pause".

– Washing may be caught. Please open and close washing ma-

chine door again and select Start/Reload Ü.

– If required, shut washing machine door or remove washing and

shut again.

– If required, switch appliance off and on again; set programme

and make individual settings; start programme.

Please open tap – Turn on tap fully.

– Supply hose kinked/jammed.

– Water pressure too low. Clean the filter. ~ Page 36

Please clean pump – Drain pump blocked. Clean the drain pump.

– The water drainage pipe/drain hose is blocked. Clean the drain-

age hose on the siphon. ~ Page 35

Pause: Reload is not

possible

Water level or temperature is too high.

Select Start/Reload

Ü to continue the programme.

Door cannot be un-

locked: Water level

or temperature is too

high

Water level or temperature is too high.

Select Start/Reload Ü to continue the programme.

aquaStop has been

activated!

Please call customer

service

not applicable without Aqua-Stop

Water in the base pan, appliance leaking.

Call customer service! ~ Page 41

Auto power-off in ...

seconds,

Appliance automatically switches off after ... seconds if it is not op-

erated for a prolonged period. In order to cancel the programme,

press any button. ~ Page 31

Cooling down the

detergent solution

To protect the wastewater pipes, the hot detergent solution is

cooled before being drained.

Other displays

Error E: XXX

Switch off appliance, wait 5 seconds and switch on again. If the dis-

play is indicated again, call customer service. ~ Page 41

Faults, what to do?

Faults Cause/Remedy

Water is running out. – Correctly attach/replace drainage hose.

– Tighten screw-fitting on the supply hose.

Water not flowing in.

Detergent not

washed in.

– Start/Reload Ü not selected?

–Tap not open?

– Filter blocked? Clean the filter. ~ Page 36

– Supply hose kinked or jammed?

Washing-machine

door cannot be

opened.

– Safety function active. Stop programme?

– Rinse Hold

$ (without final spin) selected?

– Can be opened via emergency release only? ~ Page 37

Programme does

not start.

– Start/Reload Ü or Finish in time selected?

– Door closed?

– Childlock active? Deactivate.

Detergent solution is

not drained.

– Rinse Hold

$ (without final spin) selected?

– Clean the drain pump.

– Clean outlet pipe and/or drainage hose.

Water not visible in

the drum.

Not a fault – water below the visible area.

Spin result not satis-

factory.

Washing wet/too

damp.

– Not a fault – unbalanced load detection system has stopped the

spin cycle, washing unevenly distributed.

Distribute small and large items of washing in the drum.

– Less Ironing

æ selected? ~ Page 28

– Too low speed selected? ~ Page 22

Spin cycle actuated

several times.

Not a fault – unbalanced load detection system adjusts imbalance.

Residual water in the

dispenser for care

product.

– Not a fault – effect of the care product not impaired.

– If required, clean insert. ~ Page 34

Odour formation in

the washing ma-

chine.

Run Cottons 90 °C programme without washing.

Use standard detergent.

Loud noise forma-

tion, vibrations and

“wandering” during

spin cycle.

– Appliance aligned?

Align the appliance. ~ Page 52

– Appliance feet fixed?

Secure appliance feet. ~ Page 52

– Transportation safety devices removed?

Remove transportation protection devices. ~ Page 47

Display panel/indi-

cator lights do not

function while the

appliance is running.

– Power failure?

– Fuse tripped? Switch on/replace fuse.

– If the fault occurs repeatedly, call customer service. ~ Page 41

The programme

takes longer than

usual.

– Not a fault – unbalanced load detection system adjusts imbal-

ance by repeatedly distributing the washing.

– Not a fault – foam detection system active – several rinse cycles

are switched on.

Detergent residue

on the washing.

– Occasionally phosphate-free detergents contain water-insoluble

residue.

– Select Rinsing or brush the laundry after washing.

In the pause status

Start/Reload

flashes very quickly

and a signal sounds.

– Water level too high. Washing cannot be reloaded. Immediately

close washing machine door.

– Select Start/Reload Ü to continue the programme.

If a fault cannot be rectified (switching the machine on and off) or a repair is required:

– Switch off the appliance and pull out the mains plug.

– Turn off the tap and call customer service. ~ Page 41

Faults Cause/Remedy

Customer service

If you cannot rectify the fault yourself, Faults, what to

do?~ Page 39, please contact our customer service. We will

always finds a suitable solution to avoid unnecessary visits by

technicians.

Please give customer service the product number (E-Nr.) and the

production number (FD) of the appliance.

Rely on the competence of the manufacturer.

out by trained service technicians who carry original spare parts.

These instructions can be

found on: inside of

washing machine door */

open service flap * and

rear of the appliance.

* depending on model

Product number Production number

(1U )'

Installing the appliance

Standard accessories

Also required for connection of the water drainage hose to a

siphon:

1 hose clip Ø 24–40 mm (DIY store) is also required for

connection to a siphon. Connecting the water ~ Page 51

Useful tools:

Ø Spirit level for alignment.

Ø Socket wrench

size 13: for loosening the transportation protection devices

~ Page 47 and

size 17: for aligning the appliance feet. ~ Page 52

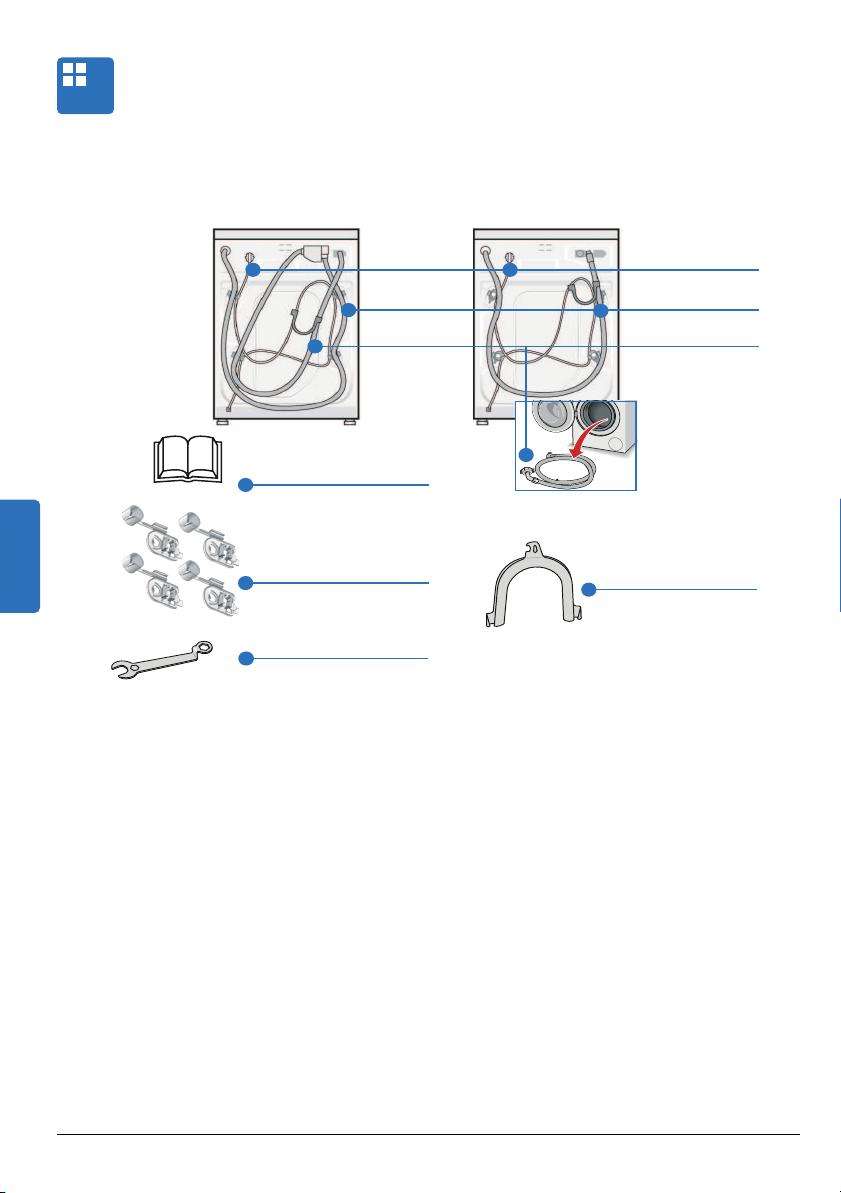

GHSHQGLQJRQPRGHO

$TXD6WRS 6WDQGDUG$TXD6HFXUH

0DLQVFDEOH

:DWHURXWOHW

:DWHULQOHW

(OERZ

IRUVHFXULQJWKH

ZDWHURXWOHWKRVH

6SDQQHU

,QVWUXFWLRQPDQXDODQG

,QVWDOODWLRQLQVWUXFWLRQV

&RYHUVZLWKKRVHFOLS

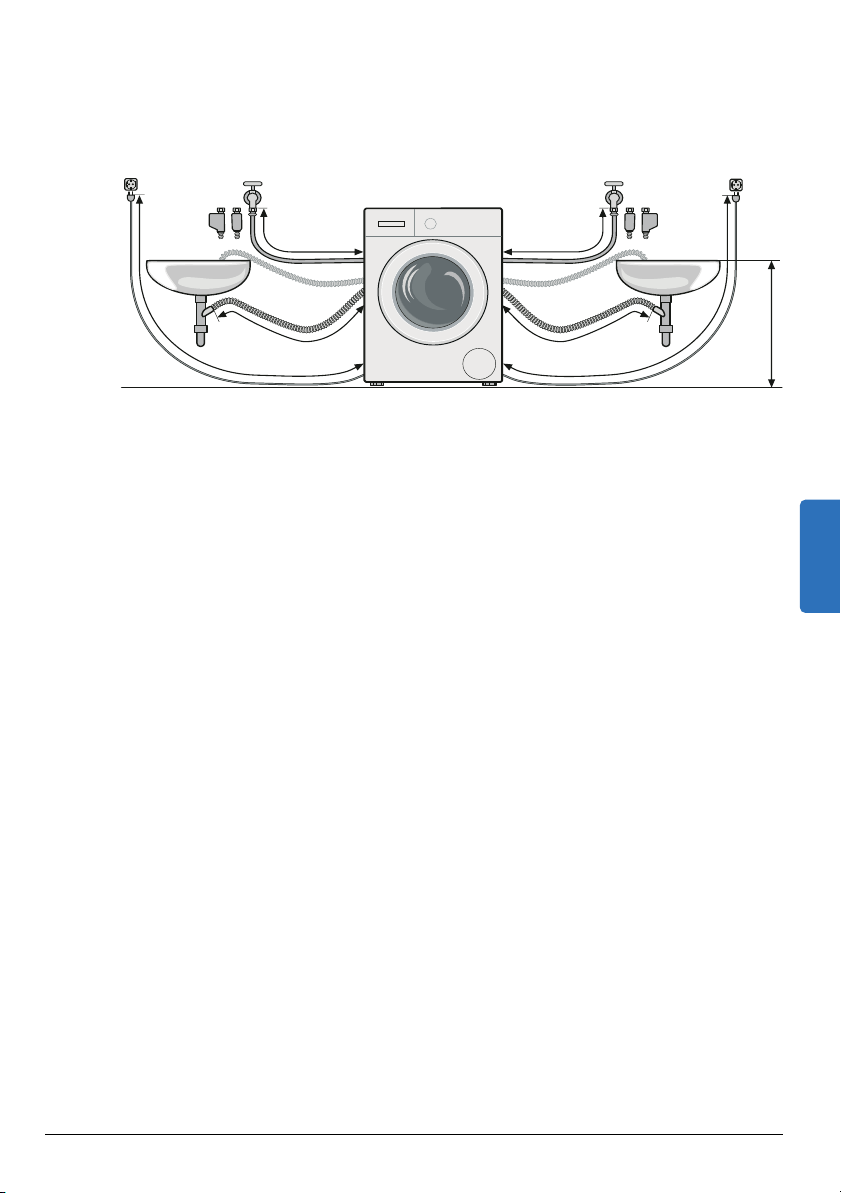

Hose and cable lengths

If the hose holders are used, the possible hose lengths are

reduced!

Available from dealer/customer service:

Ø Extension for Aqua-Stop or cold water inlet hose

(approx. 2.50 m).

Order no. WMZ2380, WZ10130, CZ11350, Z7070X0

Ø Longer supply hose (approx. 2.20 m), for standard model.

Technical specifications

aFP

aFP

aFP

aFP

aFPaFP

aFPaFP

PD[

FP

&RQQHFWLRQRQOHIWVLGH

&RQQHFWLRQRQULJKWVLGH

GHSHQGLQJRQPRGHO

Dimensions

(width x depth x height)

60 x 59 x 85 cm

Weight depending on modell: 63–83 kg

Mains connection Nominal voltage 220–240 V, 50 Hz

Nominal current 10 A

Nominal power 2300 W

Water pressure 100–1000 kPa (1–10 bar)

Installation

Humidity in the drum is caused by the final inspection.

Secure installation

ã Warning!

Risk of injury!

– The washing machine is heavy – caution: take care

when lifting it.

– If the washing machine is raised by protruding

components (e.g. washing machine door), the

components may break off and cause injuries.

Donot lift the washing machine by its projecting

parts.

ã Caution!

Risk of stumbling!

If the hoses and power cord are installed improperly,

there is a risk of tripping and injury.

Lay hoses and cables in such a way that there is no

risk of stumbling.

ã Caution!

Washing machine may be damaged!

– Frozen hoses may tear/burst.

Do not install the washing machine in an area where

there is a risk of frost or outdoors.

– If the washing machine is raised by protruding

components (e.g. washing machine door), the

components may break off and the washing

machine may be damaged.

Donot lift the washing machine by its projecting

parts.

– In addition to the safety information listed here, the local

water and electricity supplier may have special requirements.

– If in doubt, have the appliance connected by a technician.

ã Warning!

Risk of injury!

– The washing machine is heavy – caution: take care

when lifting it.

– If the washing machine is raised by protruding

components (e.g. washing machine door), the

components may break off and cause injuries.

Do not lift the washing machine by its projecting

parts.

ã Caution!

Risk of stumbling!

If the hoses and power cord are installed incorrectly,

there is a risk of tripping and injury.

Lay hoses and cables in such a way that there is no

risk of stumbling.

ã Caution!

Washing machine may be damaged!

– Frozen hoses may tear/burst.

Do not install the washing machine in an area where

there is a risk of frost or outdoors.

– If the washing machine is raised by protruding

components (e.g. washing machine door), the

components may break off and the washing

machine may be damaged.

Do not lift the washing machine by its projecting

parts.

– In addition to the safety information listed here, the local

water and electricity supplier may have special requirements.

– If in doubt, have the appliance connected by a technician.

Installation area

Stability is important to prevent the washing machine from

wandering!

– The installation area must be firm and level.

– Soft floors/floor coverings are not suitable.

Installation on a platform with drawer

Platform: order no. WMZ 20490, WZ- 20490

Installing the appliance on a base or on a wooden joist

ceiling

ã Warning!

Washing machine may be damaged!!

The washing machine may wander during the spin

cycle and topple/fall off the base.

Always secure the washing machine feet with fixing

brackets.

Holding brackets: order no. WMZ 2200, WX 9756,

CZ 110600, Z 7080X0

If installing on a wooden joist ceiling:

– If possible, install the washing machine in a corner.

– Screw a water-resistant wooden panel (min. 30 mm thick) to

the floor.

Appliance installed under/between kitchen units

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

The appliance cover plate must not be removed.

–60cm cavity width required.

– Install washing machine only under a continuous worktop

connected firmly to the adjacent cupboards.

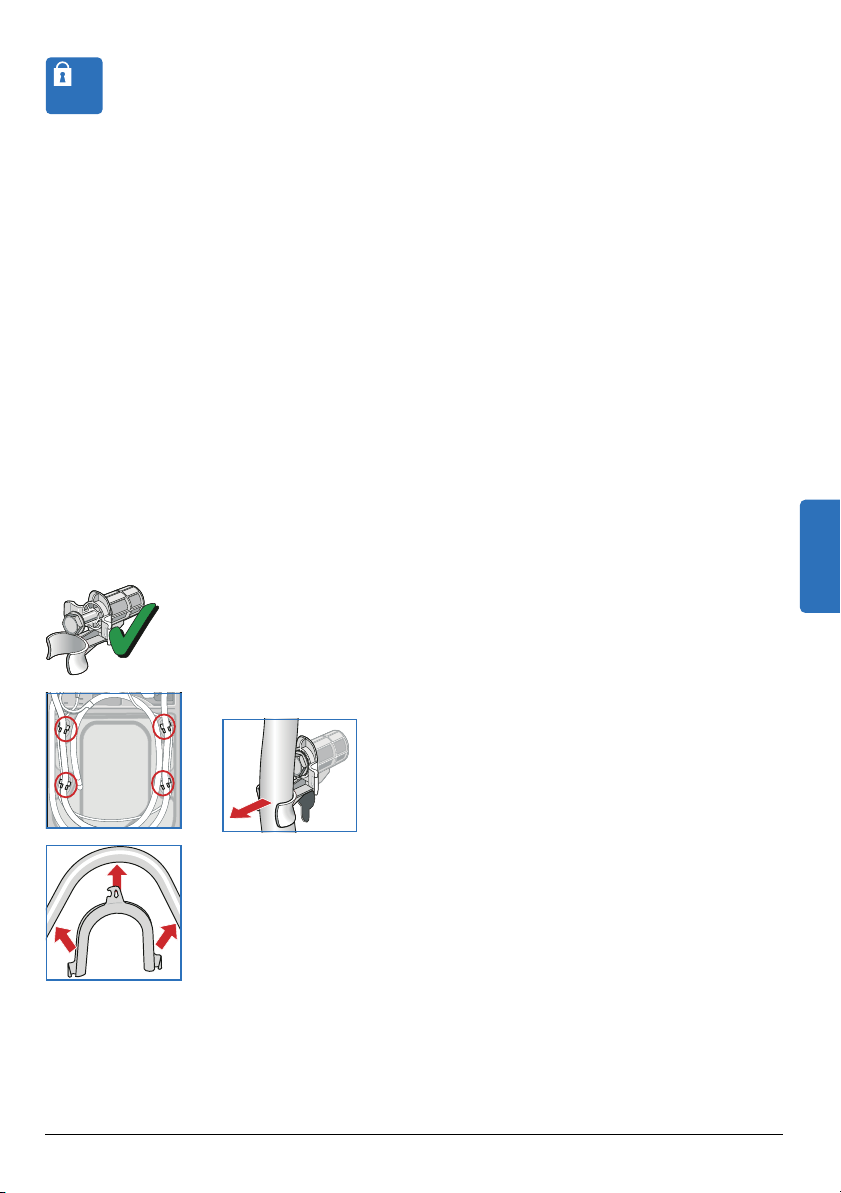

Remove transportation protection

devices

ã Caution!

Washing machine may be damaged!

Transit bolts which have not been removed may

damage e.g. the drum while the washing machine is

running.

Before using the appliance for the first time, remove

the 4 transportation protection devices completely

and keep in a safe place.

ã Caution!

Washing machine may be damaged!

To prevent damage in transit when transporting the

washing machine subsequently, always re-install the

transit bolts prior to transportation. ~ Page 55

Keep screw and sleeve screwed together.

Take the hoses out of the holders.

Take hoses out of the elbow and remove elbow.

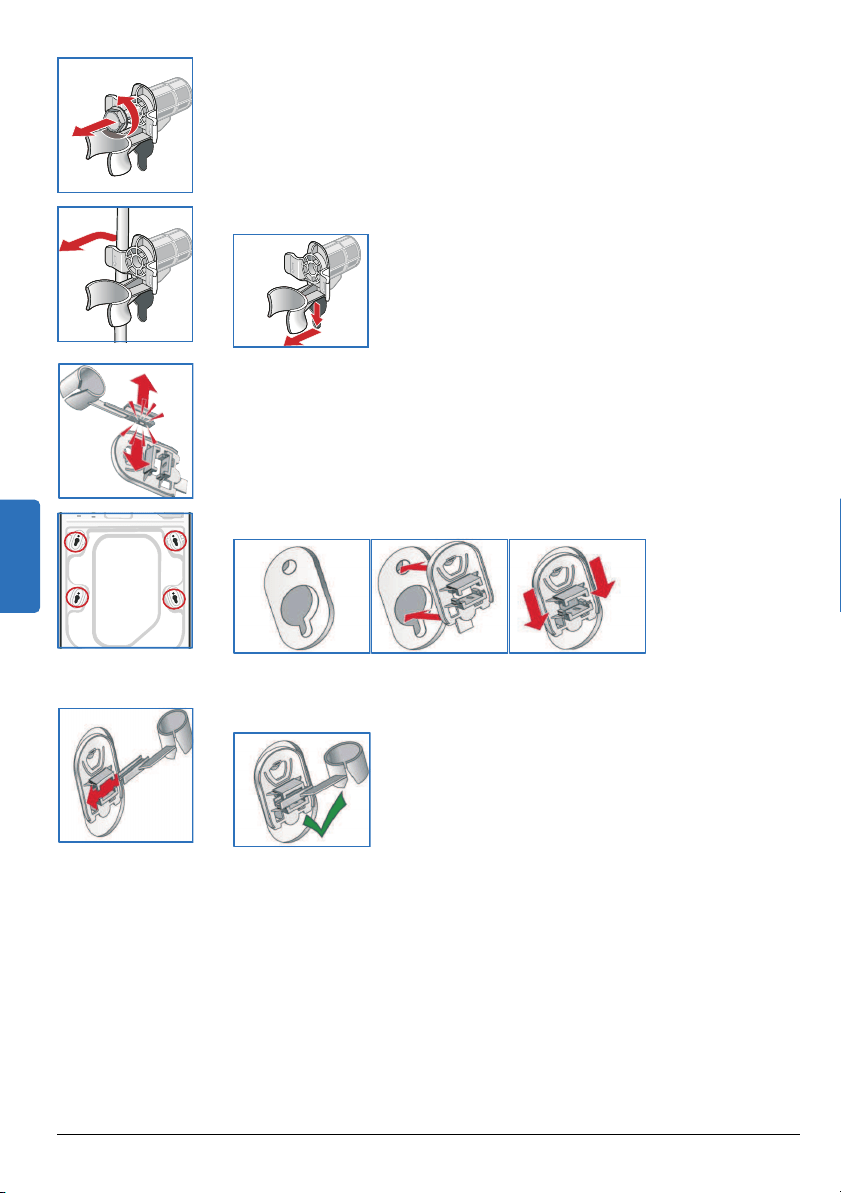

Loosen and remove all 4 transportation lock screws.

Take the power cord out of the holders. Remove sleeves.

Prepare/separate cover.

Insert covers.

Lock covers firmly by pressing on the locking hook.

Insert hose holder.

Secure hoses in the hose holders.

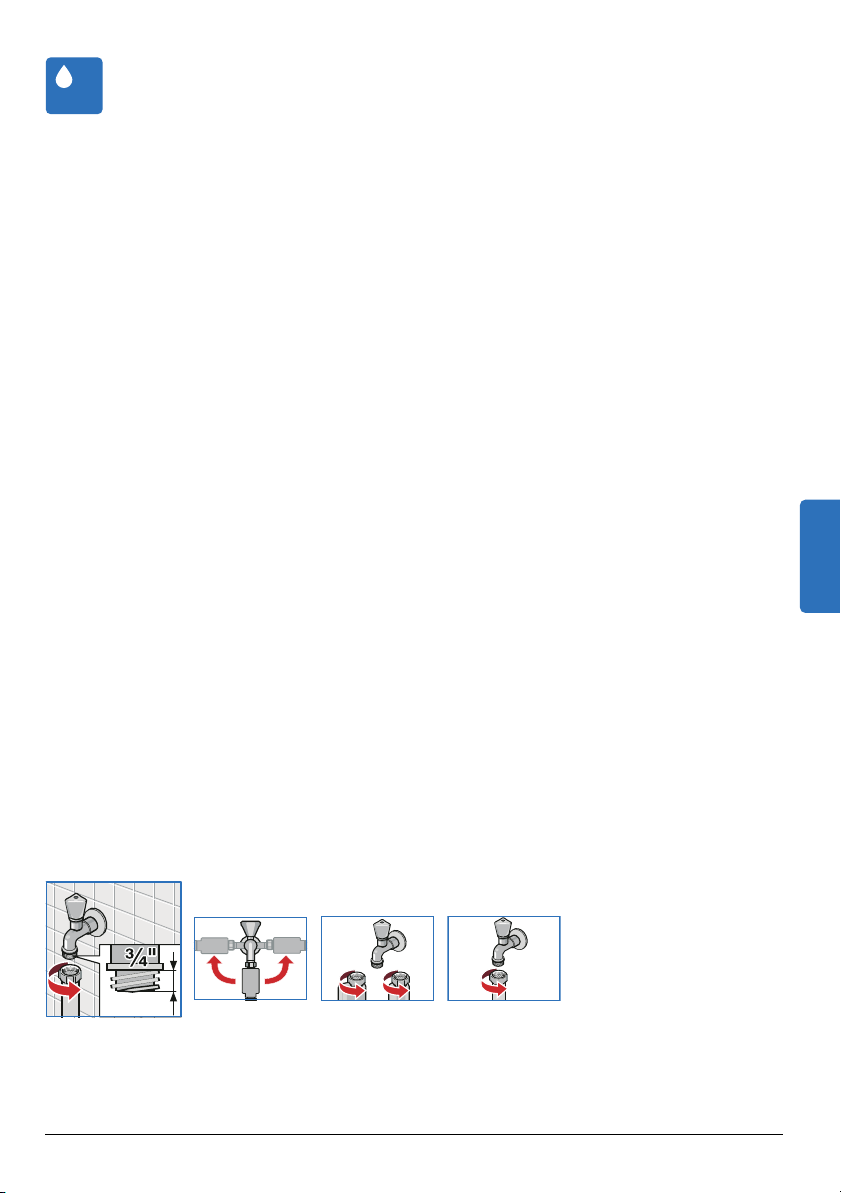

Connecting the water

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

Do not immerse Aqua-Stop safety device in water

(contains an electric valve).

– To prevent leakage or water damage, follow the instructions

in this chapter!

– Operate the washing machine with cold drinking water only.

– Do not connect to the mixer tap of an unpressurised hot-

water apparatus.

– Use only the supplied inlet hose or one purchased from an

authorised specialist outlet, not a used one!

– If in doubt, have the appliance connected by a technician.

Water inlet hose

Water inlet hose: do not kink, crush, modify or sever (strength is

no longer guaranteed).

Optimum water pressure in the mains: 100–1000 kPa

(1–10 bar)

Ø When the tap is turned on, the water flow is at least 8 l/min.

Ø If the water pressure is higher, install a pressure reducing

valve.

Connect the water supply hose.

ã Warning!

Threads for screw connections may be damaged!

If the screw connections are tightened too tightly using

a tool (pliers), the threads may be damaged.

Tighten plastic screw-fittings by hand only.

to the tap (¾" = 26.4 mm):

PLQPP

Aqua-Stop and Aqua-Secure Standard

PD[



PD[



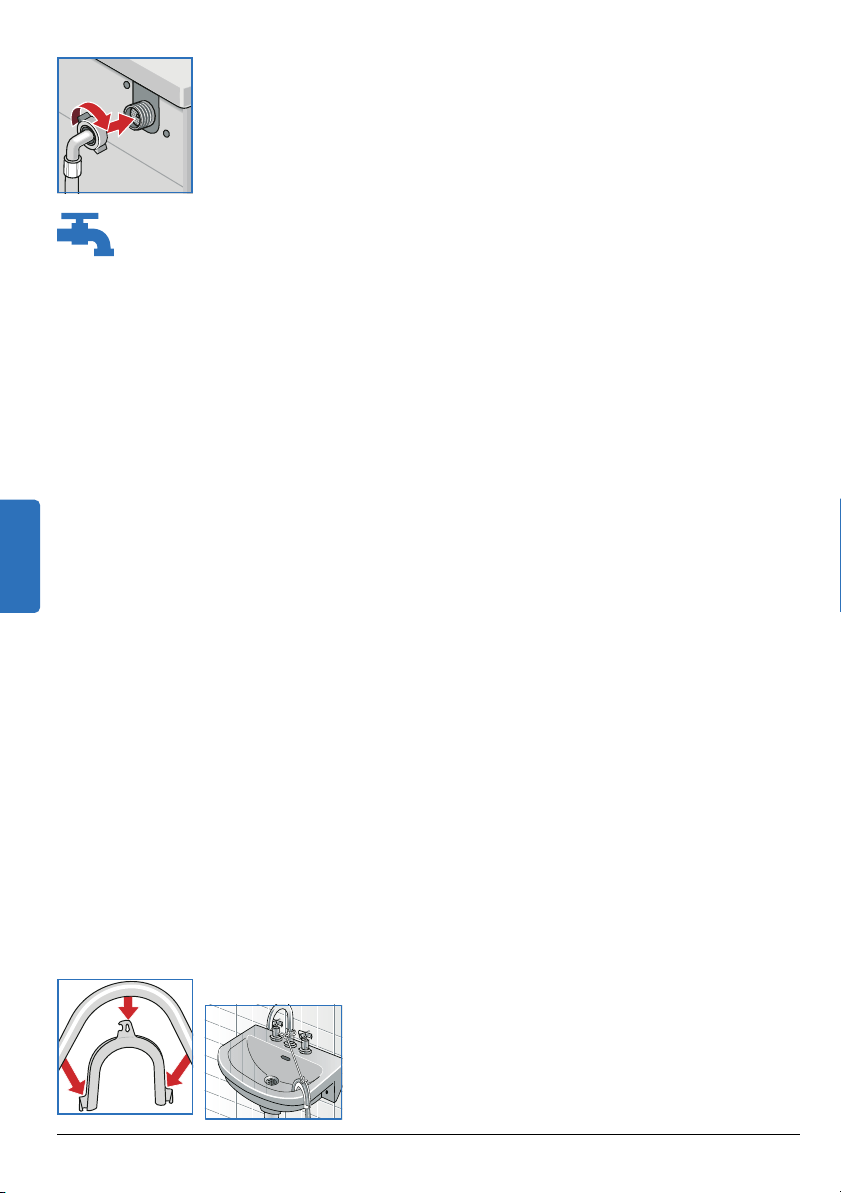

on the appliance:

for Standard and Aqua-Secure models

Carefully turn on the tap and check that the connection points

are not leaking.

Screw connection is under water pipe pressure.

Water drainage hose

– Do not kink or protract the the water supply hose.

– Height difference between the placement area and drainage

point: 0–maximum 100 cm

Drainage into a wash basin

ã Warning!

Water damage possible!

If the attached drainage hose slips out of the

washbasin due to high water pressure when draining

the washing machine, leaking water may cause

damage.

Secure the drainage hose to prevent it from slipping

out of the sink.

ã Caution!

The appliance may be damaged.

If the end of the drainage hose is immersed in the

drained water, water may be drawn back into the

appliance!

– The plug must not be in the plug hole.

– When the water is being pumped out of the

washing machine, check that the water drains

away quickly enough.

– The end of the drainage hose must not be

immersed in the drained water!

Installing the drainage hose:

Drainage into a siphon

ã Warning!

Water damage possible!

If the drainage hose slips off the siphon connection

due to high water pressure when draining the washing

machine, leaking water may cause damage.

Connection point must be secured with hose clip,

Ø 24–40 mm (specialist outlet).

Connecting

Drainage into a plastic pipe with rubber sleeve or into

a gully:

ã Warning!

Water damage possible!

If the drainage hose slips off the plastic pipe due to

high water pressure when draining the washing

machine, leaking water may cause damage.

Secure the drainage hose to prevent it from slipping

out of the sink.

Connecting

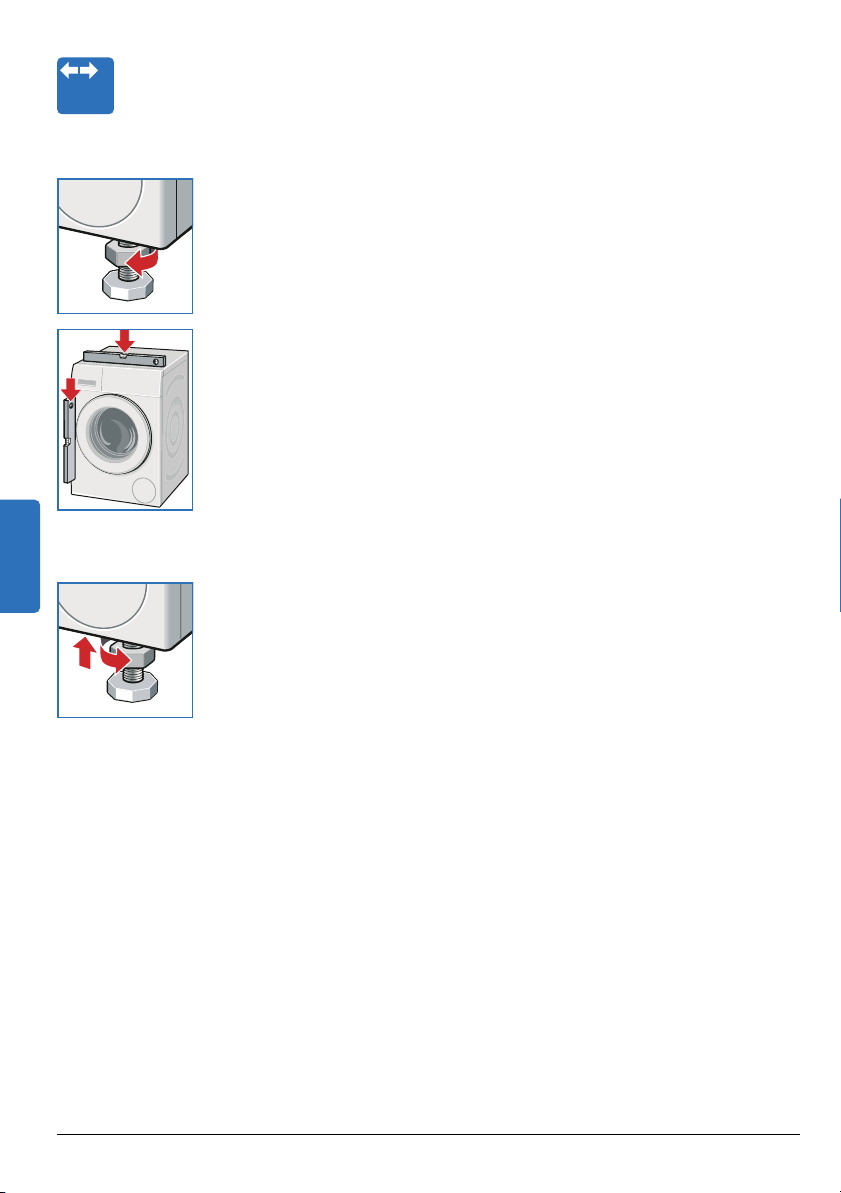

Alignment

Loosen lock nut in a clockwise direction with a wrench.

Check alignment of the washing machine with a spirit level

and, if required, correct. Adjust the height by rotating the foot.

All four feet must be firmly on the floor.

The washing machine must not wobble!

Tighten the lock nut against the housing.

Grip the foot and do not adjust the height.

– The lock nuts on all four appliance feet must be screwed

tightly against the housing!

– Loud noise formation, intense vibrations and “wandering”

may be due to incorrect alignment!

Electrical connection

Electrical safety

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

– Never pull out the mains plug by tugging the power

cord.

– Insert/pull out the mains plug with dry hands only.

– Never pull out the mains plug during operation.

– Connect the washing machine to an alternating

current via a correctly installed earthed socket only.

– The mains voltage and voltage specifications on

the washing machine (appliance rating plate) must

match.

– Connected load as well as required fuse are

indicated on the appliance rating plate.

Ensure that:

– Mains plug and socket match fit.

– Cable cross-section is adequate.

– Earthing system has been installed correctly.

– A damaged power cord may be replaced by

an electrician only. A replacement mains cable can

be obtained from customer service.

– Do not use multiple plugs/couplings or extension

cables.

– If a residual-current-operated circuit breaker is

used, use only a type which features this symbol:

Only this symbol guarantees compliance with

currently valid regulations.

– The mains plug must be accessible at all times.

Before the 1st washing

The washing machine was inspected thoroughly before leaving

the factory. To remove any water left over from testing

procedures, the first washing cycle should be carried out without

laundry in the machine.

The washing machine must have been installed and connected

properly. See chapter Installing ~ Page 52

Check the machine.

Never switch on a damaged machine. Inform your customer

service. ~ Page 41

Remove protective film from the fascia.

Insert mains plug.

Turn the tap on.

Switch on the appliance.

Close the washing machine door. Do not load any washing.

Select the Cottons programme.

Select the temperature 90 °C.

Open the detergent drawer.

10.

Pour approx. 1 litre of water (1¾ pt) into dispenser II.

11.

Add standard detergent to dispenser II according

to manufacturer’s instructions for light soiling.

To prevent frothing, use only half the recommended amount

of detergent. Do not use any standard or mild detergents.

12.

Close the detergent drawer.

13.

Select Start/Reload Ü.

14.

When the programme ends, switch off the appliance.

Your washing machine is now ready for use.

Transportation, e.g. if moving house

Preparatory work

Turn off the tap.

Release the water pressure in the supply hose. Maintenance

– Filter in the water inlet hose ~ Page 36

Drain any residual detergent solution. Maintenance – Drain

pump blocked

Isolate the washing machine from the power supply.

Remove the hoses.

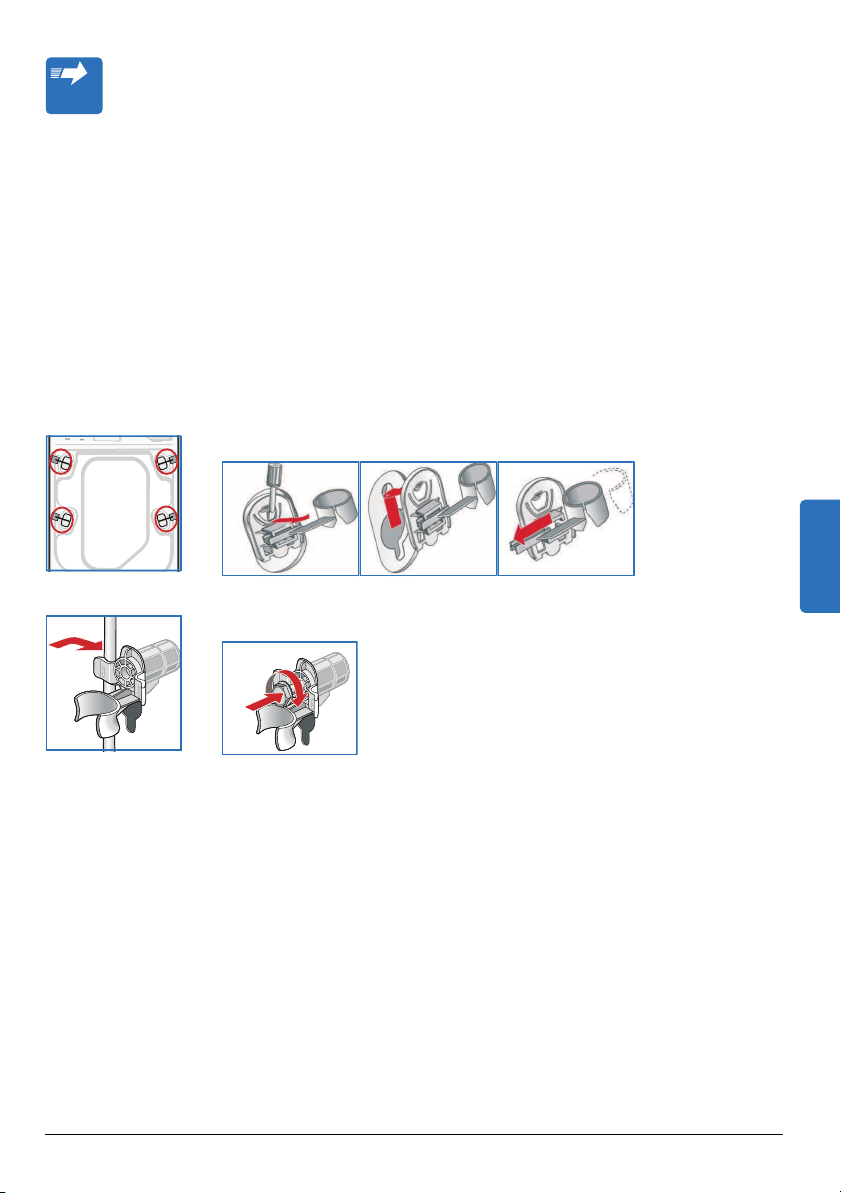

Installing transportation protection devices

Remove covers and keep in a safe place.

If required, use a screwdriver.

Insert all 4 sleeves.

Clamp mains cable on the holders. Insert and tighten the

bolts.

Before switching on the appliance:

– Remove the transportation protection devices! ~ Page 47

– To prevent unused detergent from flowing into the outlet

during the next wash: Pour 1 litre of water into dispenser II

and start the Drain programme.

Index

Alignment, 52

Anti-stain system, 27, 29

Aqua-Sensor, 32

ASR Stain Automatic, 11, 16

Basic Settings 3 sec., 11

Cancelling

the programme, 19

Care, 33

Drum, 33

Machine housing/Control

panel, 33

Changing

the programme, 19

Childlock, 18

Cleaning

the detergent drawer, 34

the filter, 36

the siphon, 35

Connecting the water, 49

Water drainage, 50

Water supply, 49

Consumption values, 30

Customer service, 41

Descaling, 33

Detergent drawer, 10

Discolouring, 26

Display panel, 11

Dosing recommendation, 32

Drain pump blocked, 34

Drum light, 13

Dyeing, 26

ecoPerfect, 11, 16, 27

Electrical connection, 53

Emergency lock release, 37

End of the programme, 20

Extra rinse, 28

Fascia, 11

Faults, what to do?, 39

Finish in, 11, 16, 27

Getting to know your appliance, 9

Hints and tips, 7 Hose and cable lengths, 43

Information on the display

panel, 38

Inserting the laundry, 15

Insert the laundry, 13

Insert the washing, 14

Installation, 44

Installing transportation

protection devices, 55

Intended use, 4

Less Ironing, 28

Load adjust, 32

Load sensor/Load display, 32

Maintenance, 33

Old appliance, 7 Options, 11, 17, 27

Packaging, 7

Pre-wash, 28

Programme overview, 22

Programme selector, 11

Programme sequence

steps, 18

Programme

settings, 15, 16, 27

Protection of the

environment, 7

Quick-reference instructions, 8

Rinse Hold, 20, 28

Safety instructions, 5

Select

ASR Stain Automatic, 11

Selecting

the programme, 14

Settings 3 sec., 31

Silent Wash, 28

Soaking, 26

Sorting

the washing, 12, 16

speedPerfect, 11, 16, 27

Spin, 11, 16, 27

Standard accessories, 42

Starching, 26

Start/Reload, 11

Starting

the programme, 17

Technical specifications, 43

Temperature, 11, 16, 27

Topping up washing, 19

Transport bolts, 47

Unbalanced load detection

system, 32

Unloading

the laundry, 21

Water Plus, 28

Siemens-Electrogeräte GmbH

Carl-Wery-Str. 34, 81739 München

Germany

*9000730942*

9000730942 (9102) 444444

Aqua-Stop warranty

For appliances with Aqua-Stop only

In addition to warranty claims against the seller based on the contract

of sale and in addition to our appliance warranty we shall pay

damages under the following conditions:

If water damage is caused by a fault in our water safety system,

we shall make reparation for the damage with respect to private

users.

The liability warranty applies to the service life of the appliance.

A claim can only be made under the warranty if the appliance and

Aqua-Stop have been correctly installed and connected

according to our instructions; this also includes a correctly

installed Aqua-Stop extension (original accessory).

Our guarantee does not apply to defective cables/hoses or to

fittings up to the connection on the tap.

Appliances which feature Aqua-Stop can be left unattended

during operation and it is not necessary to turn off the tap

afterwards.

The tap should only be turned off if you are away for a prolonged

period, e.g. several weeks holiday.

To book an engineer visit and product advice

GB 0844 8928999 Calls from a BT landline will be charged at

up to 3 pence per minute.

IE 01450 2655

Please find the contact data of all countries in the enclosed customer

service list.

Siemens WM16Y790AU 8kg Front Load Washing Machine

Product's Documents

User Manual

Specifications

Siemens WM16Y790AU Questions and Answers
