en Instruction Manual

and Installation

Instructions

WM16Y890AU

Washing machine

Your new washing machine

You have chosen a premium washing machine made by

Siemens. Thanks to its innovative technologies, the washing

machine is distinguished by its perfect washing performance and

its economic consumption of water and energy.

Please take a couple of minutes to read and become familiar

with the advantages of your washing machine.

To meet the high quality demands of the Siemens brand, each

washing machine, which leaves our factory, is inspected

thoroughly to ensure that it functions properly and is in perfect

condition.

Further information on our products, accessories, spare parts

and services can be found at: www.siemens-home.com or

contact our customer service centres.

If the instructions for use and assembly describe various models,

reference is made to the differences at the appropriate places.

Explanation of the symbols

ã Warning!

This combination of symbol and signal word indicates a

potentially dangerous situation which may result in death or

serious injuries unless it is avoided.

ã Caution!

This combination of symbol and signal word indicates a

potentially dangerous situation which may result in slight or

minor injuries or damage to property and the environment.

Instructions on how best to use the appliance as well as other

useful information.

Contents

Instruction Manual and Installation Instructions

Before washing

Ø Intended use 4

Ø Safety instructions 5

Ø Protection of the environment 7

Ø The main points in brief 8

Ø Getting to know your appliance 9

Ø Detergent drawer 10

Ø Operating elements/Display elements 11

Operating the appliance

Ø Before each washing 12

Ø Washing 18

Ø After washing 21

Ø Programme overview 22

Ø Programme settings/options 28

Ø Anti-stain system 31

Ø Intelligent Dosing System 32

Ø Consumption values 37

Ø Appliance settings 38

Ø Sensors – Your washing machine is so intelligent 39

Cleaning and maintenance

Ø Care and maintenance 40

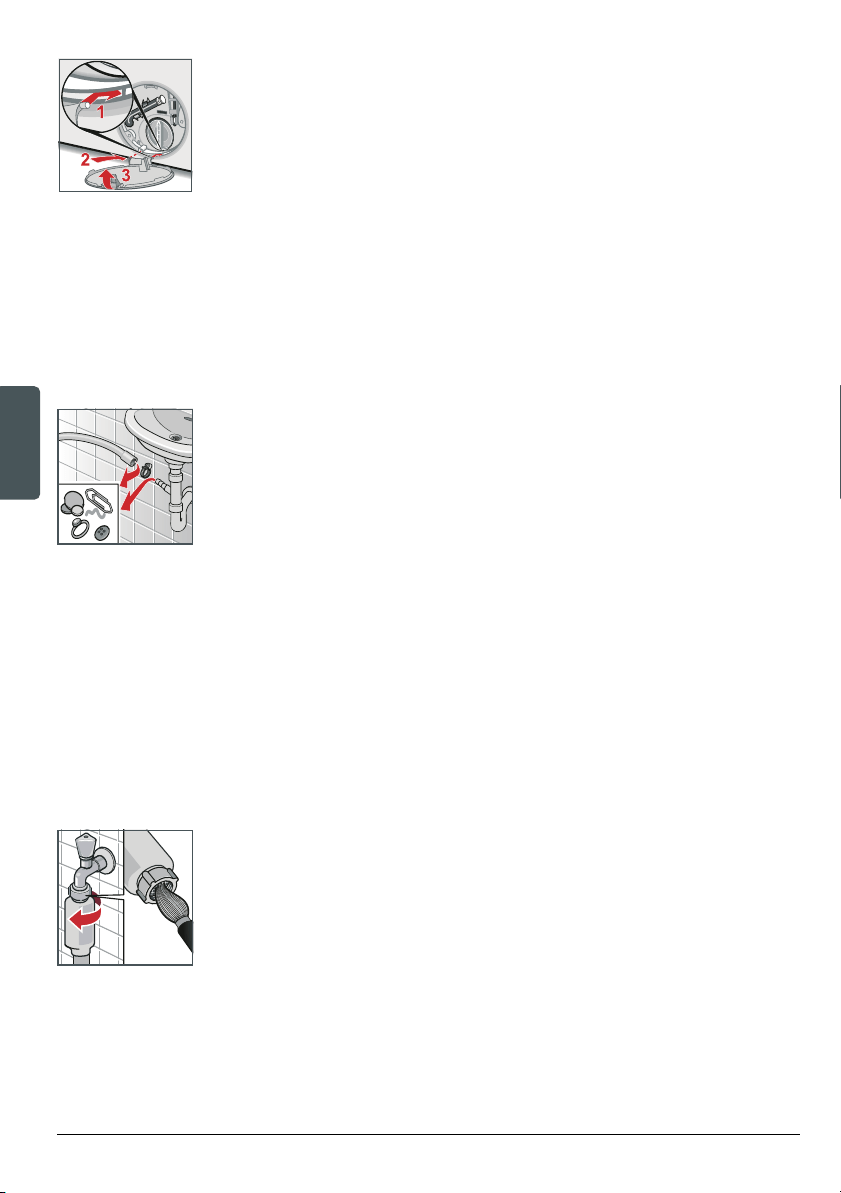

Ø Emergency lock release, e.g. if power failure occurs 46

Ø Information on the display panel 47

Ø Faults, what to do? 48

Ø Customer service 50

Installing the appliance

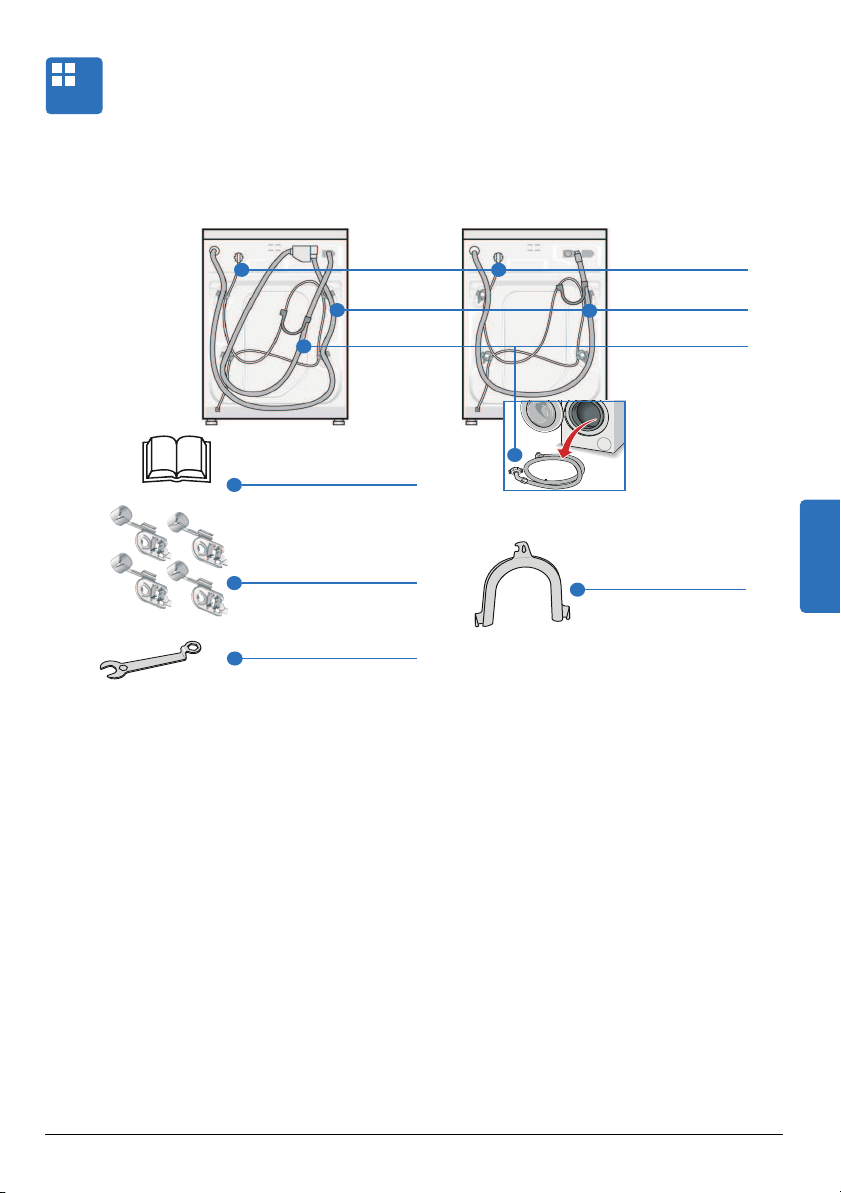

Ø Standard accessories 51

Ø Installation 53

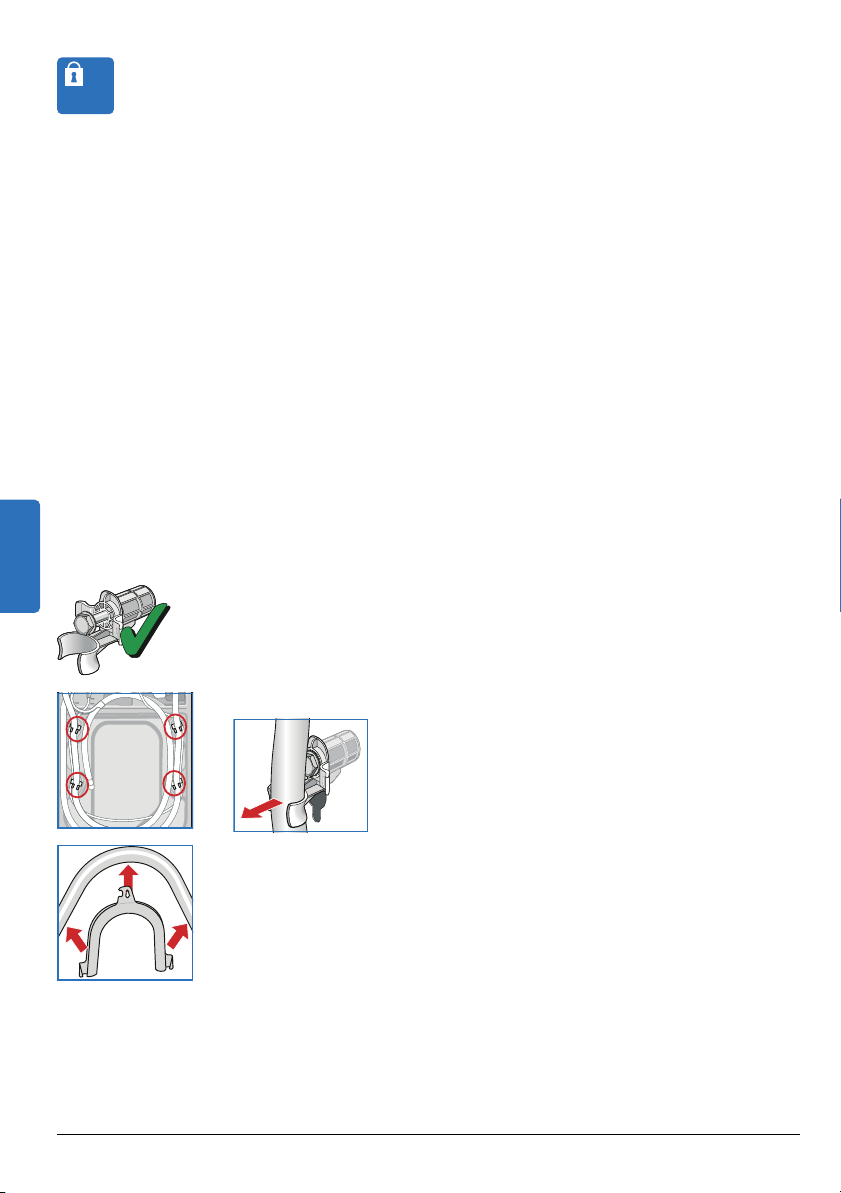

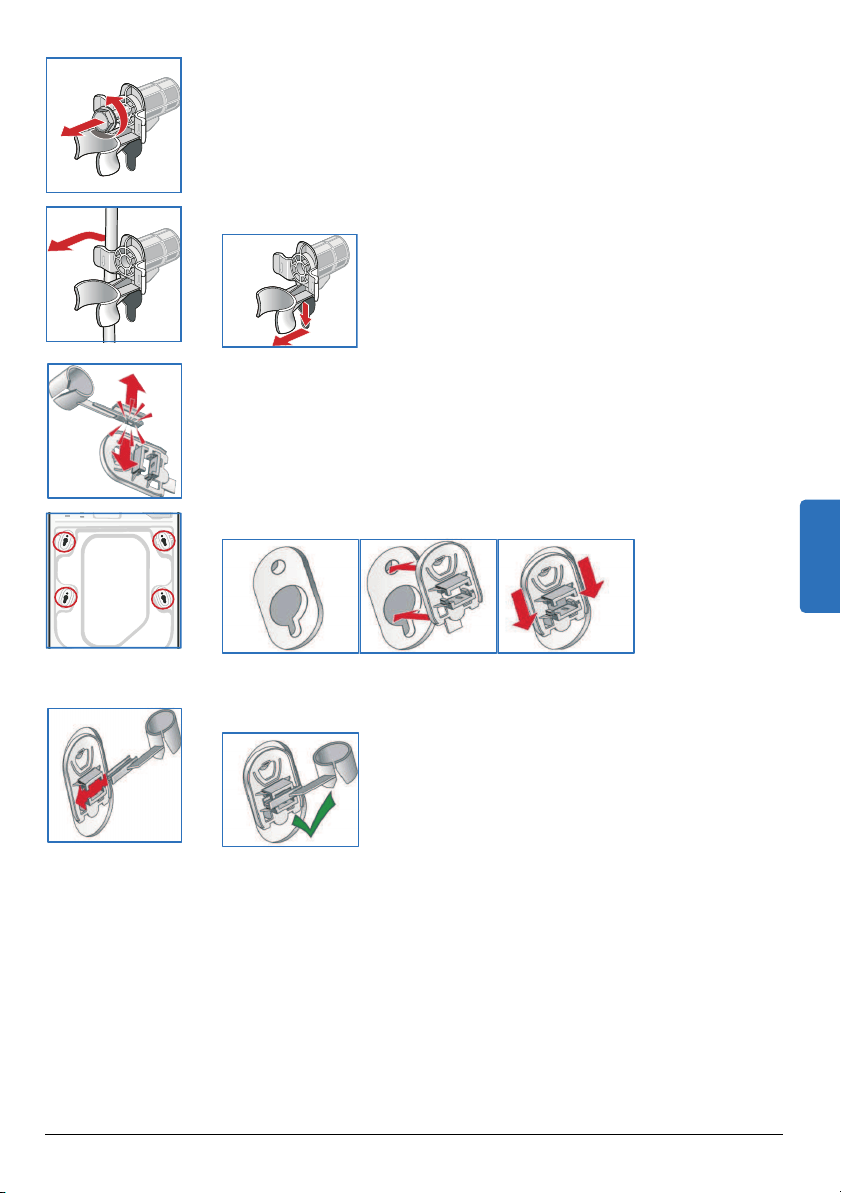

Ø Remove transportation protection devices 56

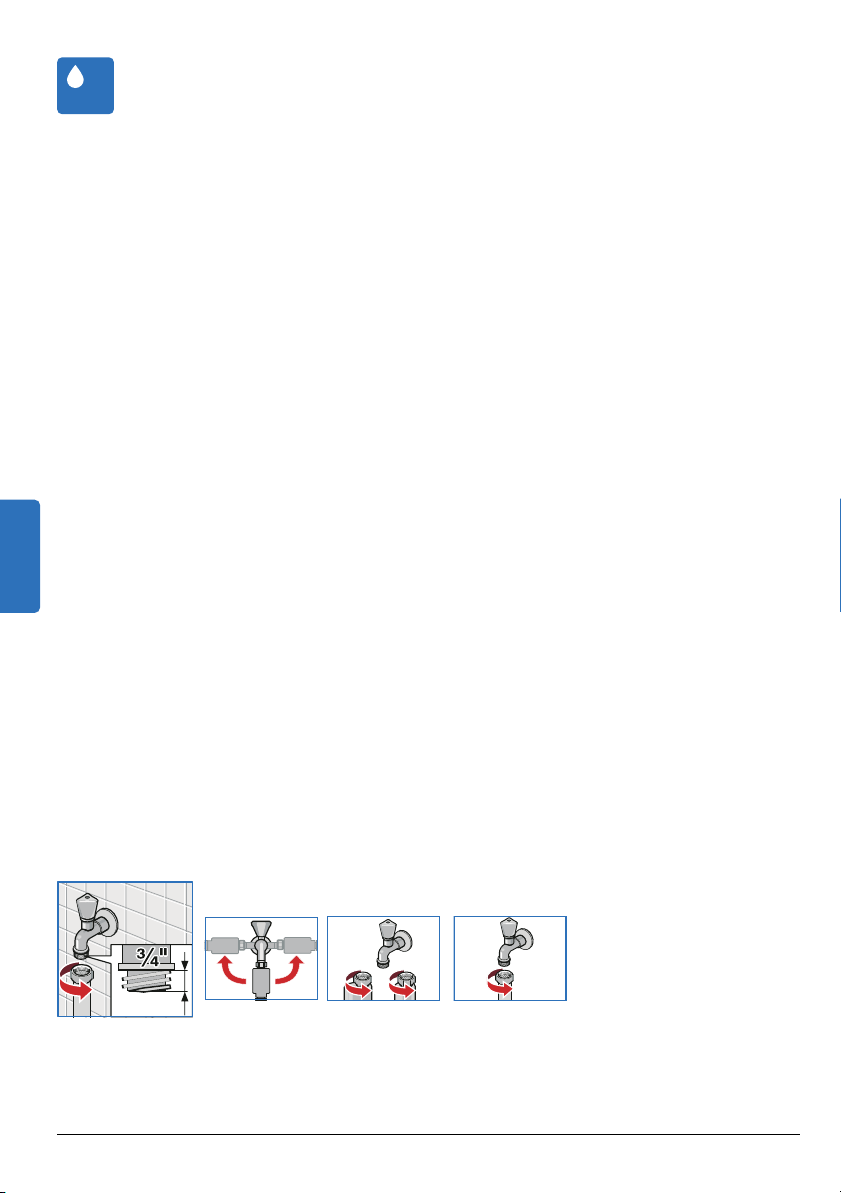

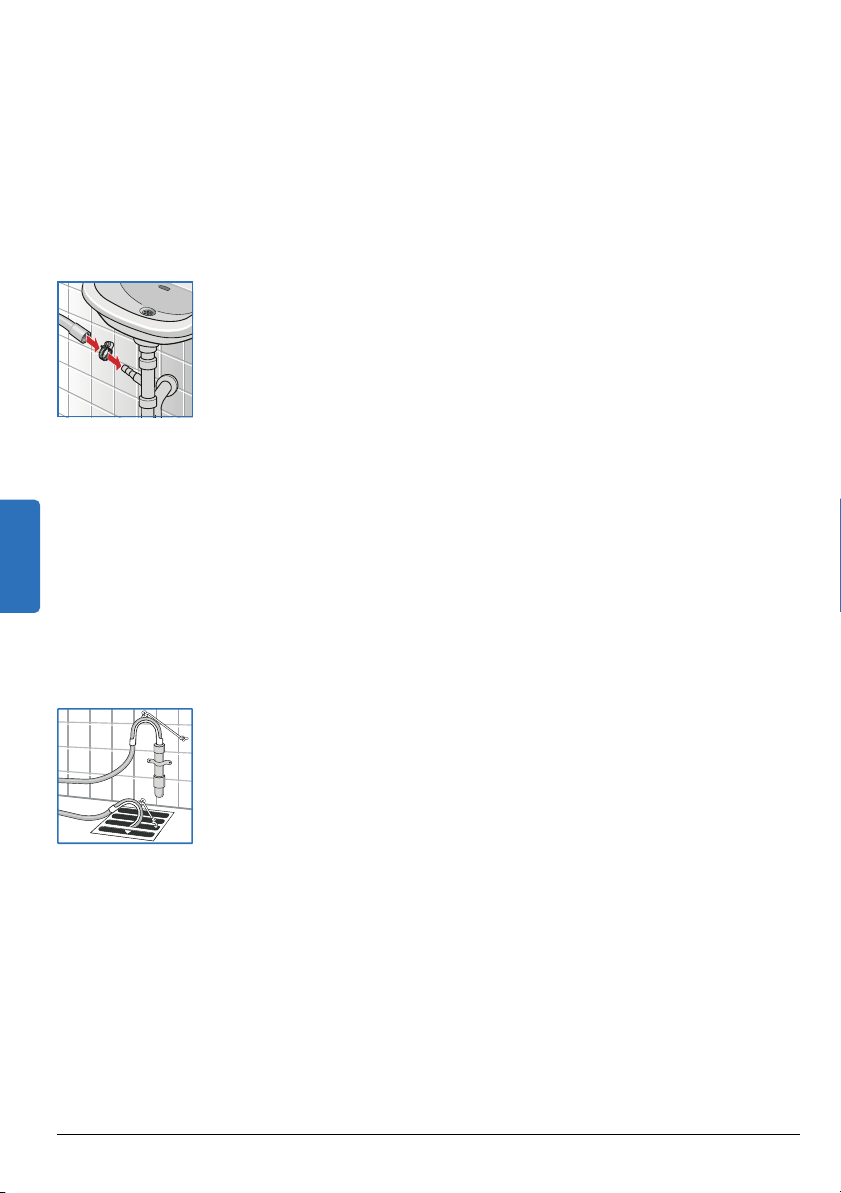

Ø Connecting the water 58

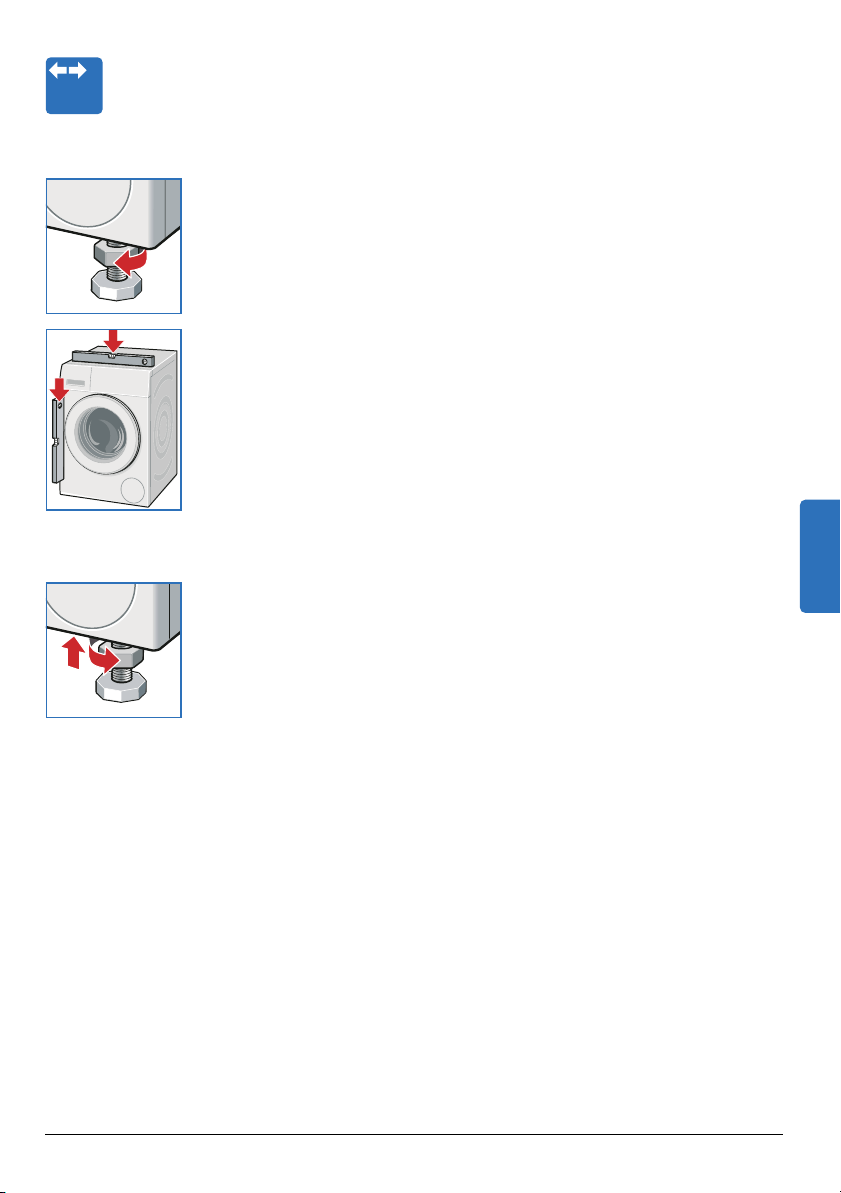

Ø Alignment 61

Ø Electrical connection 62

Ø Before the 1st washing 63

Ø Transportation, e.g. if moving house 64

Index 65

Before washing

Intended use

Ø For use in the household only.

Ø The washing machine is suitable for washing machine-

washable textiles and hand-washable wool in wash liquor.

Ø The washing machine is suitable to be operated with cold

drinking water and commercially available detergents and

care products which are suitable for use in washing

machines.

Ø When dosing all detergents, cleaning aids, cleaning products

and cleaning agents, always follow the manufacturer's

instructions.

Ø The washing machine may be operated by children from 8

years of age, by persons who have limited physical, sensory

or mental abilities and by persons who have inadequate

experience or knowledge, provided they are supervised or

have been instructed by a responsible person.

Ø Keep pets away from the washing machine!

Read and follow the operating and installation instructions and all

other information enclosed with the washing machine.

Retain documents for subsequent use.

Safety instructions

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

– Never pull out the mains plug by tugging the power cord.

– Insert/pull out the mains plug with dry hands only.

ã Warning!

Risk to children!

– Do not leave children unsupervised near the washing machine.

– Children must not play with the washing machine.

– This will prevent children from locking themselves in and

suffocating.

On redundant appliances:

– Pull out the mains plug!

– Sever the power cord and discard together with the plug.

– Destroy the lock on the washing-machine door.

– Children must not perform any cleaning or maintenance work

without supervision.

– When playing, children may become entangled in the

packaging/film and packaging parts or pull them over their

heads and suffocate.

Keep packaging, plastic film and packaging parts out of the reach

of children.

– When washing at high temperatures, the glass of the washing

machine door becomes hot.

Prevent children from touching the hot washing machine door.

– Detergents and care products may cause intoxication if

consumed or eye and skin irritation if touched.

Keep detergents and care products out of the reach of children.

ã Warning!

Risk of explosion!

Items of washing pretreated with solvent detergents, e.g. stain

remover/petroleum ether, may cause an explosion when the

washing machine has been loaded.

Before hand thoroughly rinse items of washing by hand.

ã Caution!

Danger of scalding!

When washing at high temperatures, you may be scalded if you

touch the hot wash liquor (e.g. if draining hot wash liquor into a

washbasin or if draining the washing machine in an emergency).

Allow detergent solution to cool down.

ã Caution!

Risk of damaging appliance!

– Cover plate may break!

Do not climb on the washing machine.

– Opened washing machine door may break off or washing

machine may overturn!

Do not lean on the open washing machine door.

ã Caution!

Danger when reaching into/gripping the rotating drum!

If you reach into the rotating drum, you may injure your hands.

Do not grip the rotating drum. Wait until the drum stops rotating.

ã Caution!

Risk of coming into contact with liquid detergents/care products!

If the detergent drawer is opened while the washing machine is

running, detergent/care product may spray out.

Caution when opening the detergent drawer.

In case of eye/skin contact, rinse thoroughly.

If accidentally swallowed, seek medical advice.

ã Caution!

Hazard due to detergent/softener running out of the dispensers!

Leaking detergent/softener may impair the function of the appliance,

e.g. damage to electronics.

Before transporting the appliance, always drain dispensers.

Protection of the environment

Packaging/Old appliance

Hints and tips

Ø Utilise the maximum amount of washing for the particular

programme.

Ø Wash normally soiled washing without Pre-wash.

Ø Instead of Cottons 90 °C programme select Cottons 60 °C

and ecoPerfect ¦ button. Comparable cleaning result with

significantly lower energy consumption.

Ø Detergent dosage using the intelligent dosing system helps

save detergent and water.

Ø Energy saving mode: The display panel light goes out after

several minutes, Start/Reload Ü flashes. To activate the

light, select any button.

The energy-saving mode is not activated if a programme is

running.

Ø Automatic switch off: If the appliance is not operated for a

prolonged period, it automatically switches off before the

programme starts and when the programme has ended to

save energy. Switch on by pressing main switch

# button.

Ø If the washing is then dried in the tumble dryer, select spin

speed according to the instructions of the dryer

manufacturer.

)

Dispose of packaging in an environmentally friendly manner.

This appliance has been identified in accordance with the

European Directive 2002/96/EG on Waste Electrical and

Electronic Equipment (WEEE).

The Directive specifies the framework for an EU-wide valid return

and recycling of waste appliances.

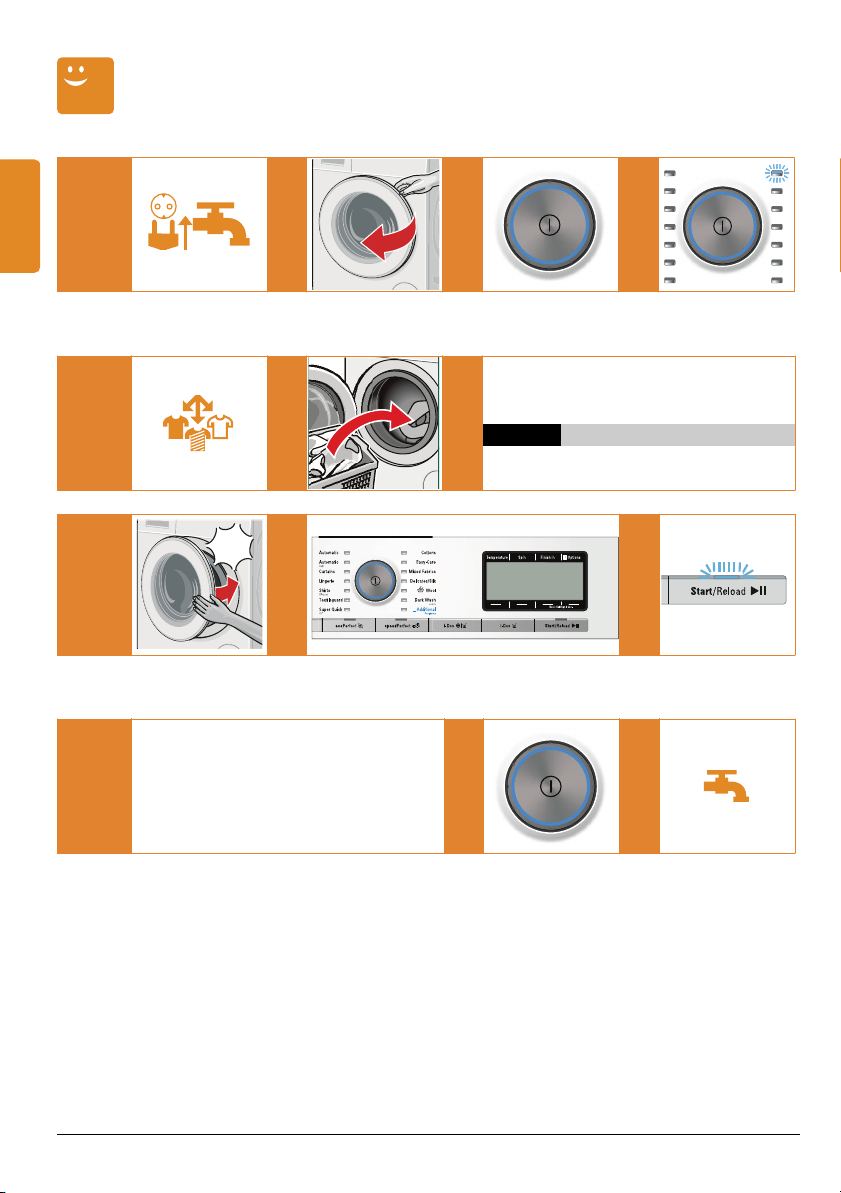

The main points in brief

@ @ @

Insert mains plug.

Turn the tap on.

Open the washing

machine door.

To switch on, press

the

# button.

Select the

programme, e.g.

Cottons.

@ @

Dosage: automatic

Please load laundry: max. 8kg

Sort the washing. Insert the washing. Do not exceed maximum load.

@ @

Close the washing

machine door.

If required, change programme settings of the

selected programme and select programme

settings/options.

Select

Start/Reload Ü.

FODFN

@ @

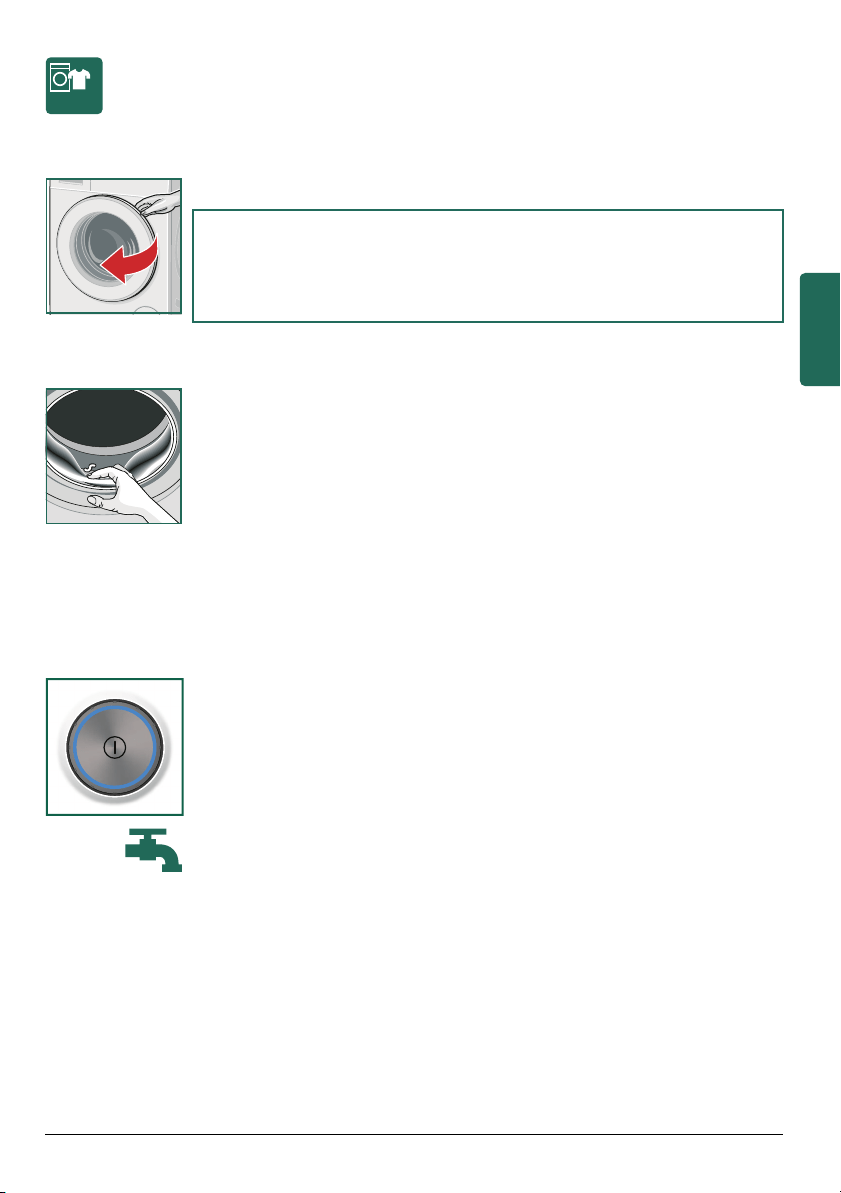

Finished, remove washing

End of the programme For switching the

machine on, press

the # button.

Turn off the mains

supply (for models

without Aqua-Stop).

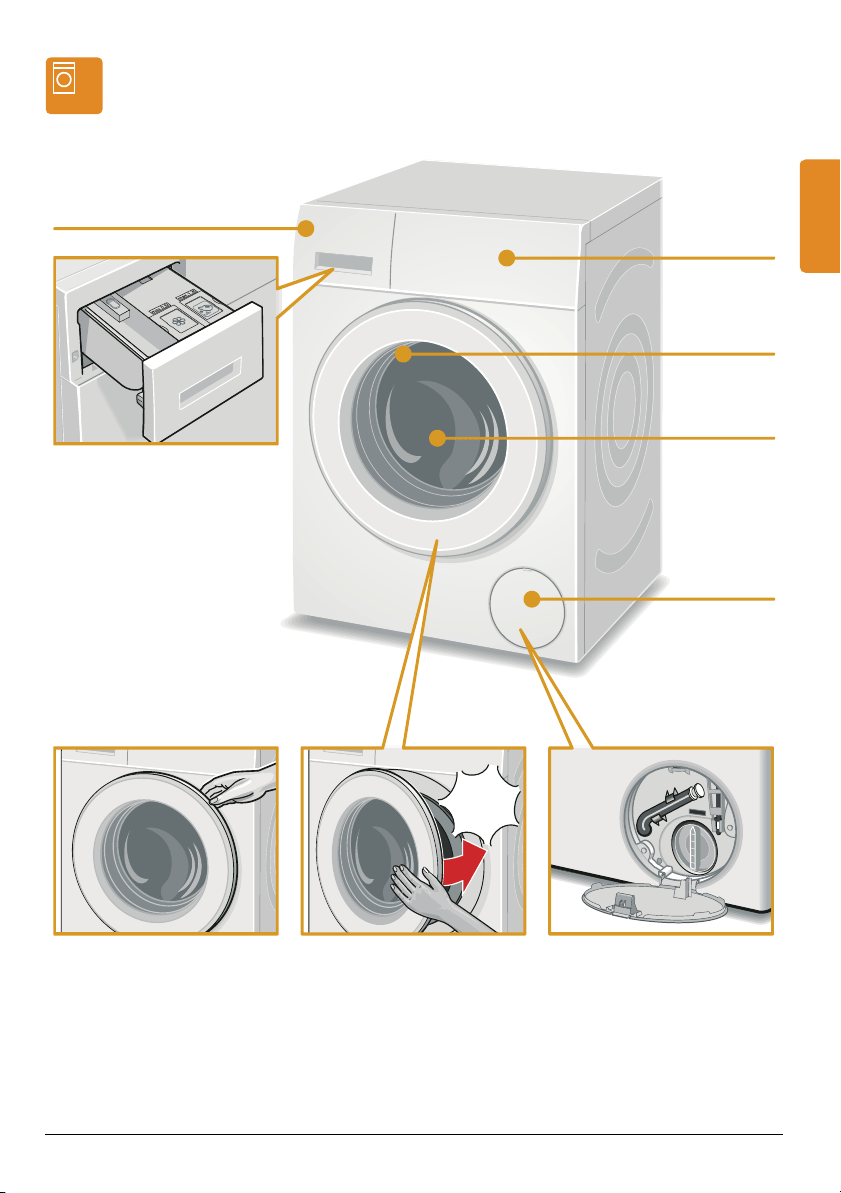

Getting to know your appliance

2SHUDWLQJ

HOHPHQWV

'LVSOD\

HOHPHQWV

'UXPOLJKW

GHSHQGLQJ

RQPRGHO

'RRU

6HUYLFHIODS

'HWHUJHQWGUDZHU

2SHQLQJ

DQGFORVLQJWKHGRRU

6HUYLFHIODS

FODFN

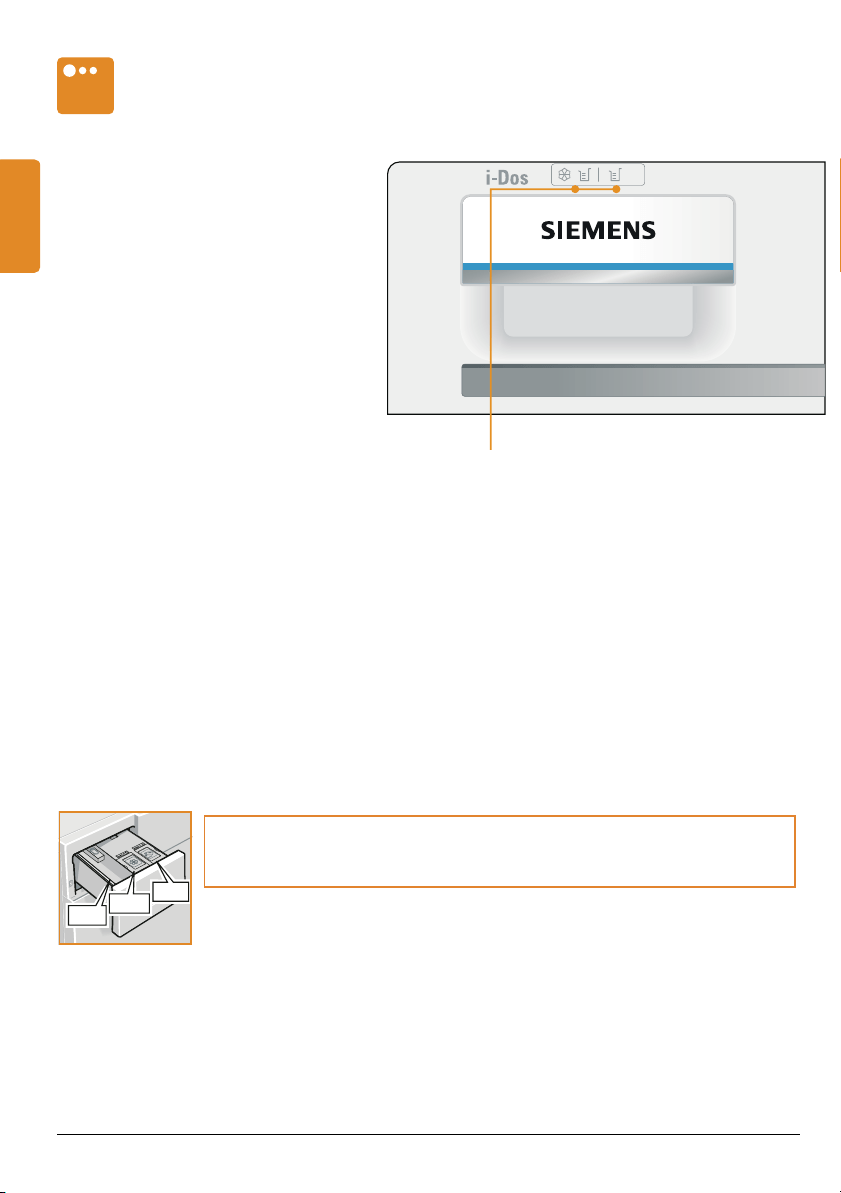

Detergent drawer

Intelligent Dosing System (i-Dos):

Your washing machine features an intelligent dosing system for liquid detergent and

softener. Dispensers i-Dos ô (1.3 l) and i-Dos iIô (0.5 l) in the detergent drawer are

used for this. You can select whether you want to use one liquid detergent and one

softener or two liquid detergents.

Depending on the selected programme and settings, the optimum amounts of detergent/

softener are dosed via the i-Dos containers.

At the factory the dosage has been preset for:

–i-Dosô¨ detergent for lightly soiled washing and

–i-DosiI

ô © softener for normally soft washing.

Overview of the i-Dos settings starting on ~ Page 22

¼ü



Dispenser ô

for intelligent dosage: liquid detergent

Dispenser i ô

for intelligent dosage: softener or liquid detergent

Dispenser ÀÁ

for manual dosage. ~ Page 36

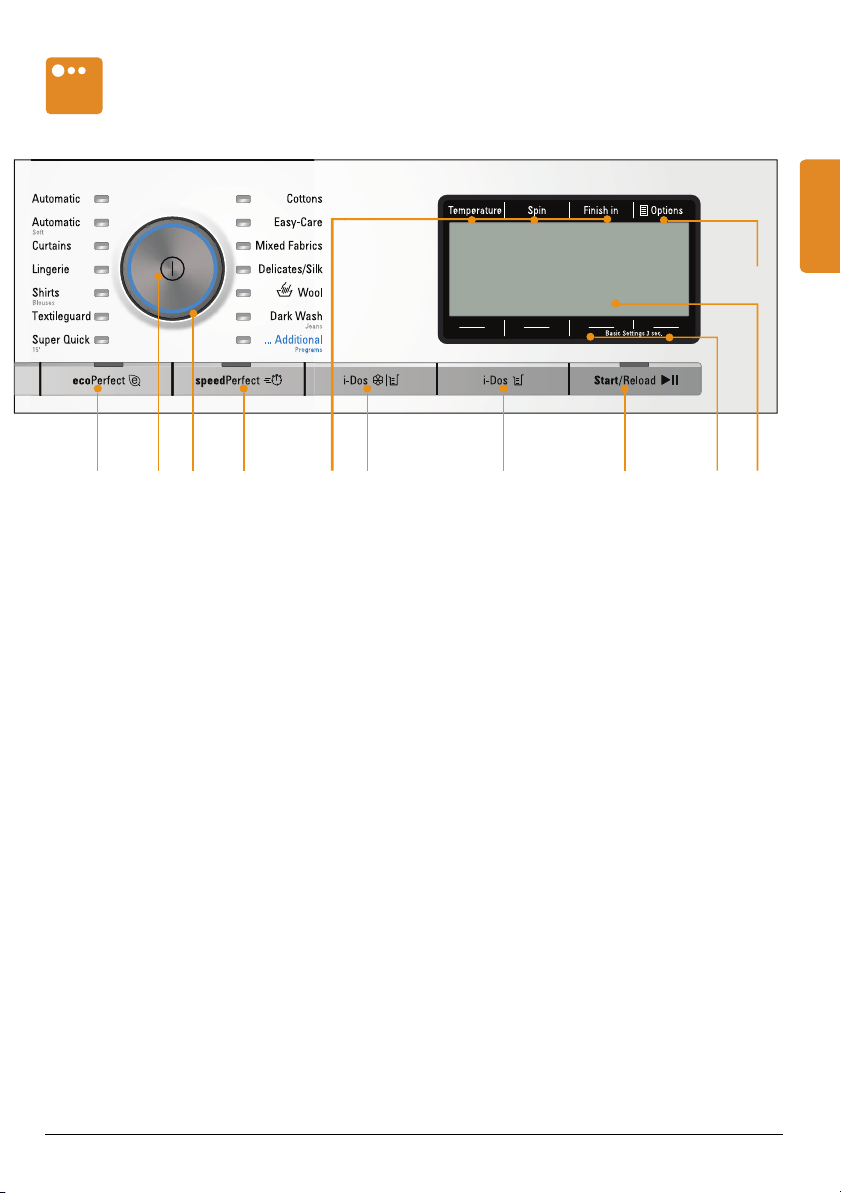

Operating elements/Display elements

M P

² All buttons are sensitive, they only need to be touched gently.

i Indicator lights for intelligent dosage

~ Page 33

j Button ecoPerfect ¦ ~ Page 16,

~ Page 28

k Press the main switch # button. Switch

on and off the appliance.

l Programme selector – can be rotated in

either direction. Programme Overview,

refer to ~ Page 22

m Button speedPerfect G ~ Page 16,

~ Page 28

n Buttons Temperature, Spin, Finish in

time ~ Page 15, ~ Page 28

o i-Dos iIô button,

Dosage ~ Page 17, ~ Page 29

p i-Dos ô button,

Dosage ~ Page 17, ~ Page 29

q Start/Reload Ü button to start, interrupt

and cancel the programme (e.g. reload

washing).

h Simultaneously hold down Basic

Settings 3 sec. for appliance settings

(end signal, button signal, language,

autom. switch off, i-Dos settings) for

approx. 3 seconds. Overview of all

settings ~ Page 38

r Display panel for settings and

information.

s Select × Options for additional

programme options. Overview of all

options ~ Page 30

Operatin g the appliance

Before each washing

– Install and connect washing machine properly. Refer

to ~ Page 53

– Before the 1st wash, wash once without any washing.

~ Page 63

1. Preparing the washing

Sorting the washing according to:

Ø Type of fabric/fibre.

Ø Colour.

Ø Soiling.

Ø Follow manufacturer’s care information.

Ø Care label specifications:

Protecting the washing and the machine:

– When dosing all detergents, cleaning aids, cleaning products

and cleaning agents, always follow the manufacturer's

instructions.

– Keep detergents and agents for the pretreatment of washing

(e.g. stain remover, prewash sprays, ...) away from the

surfaces of the washing machine. Using a damp cloth,

immediately remove any fine spray residue and other

residue/droplets.

–Empty pockets.

– Remove metal parts (paper clips, etc.).

– Wash delicates in the net/bag (tights, underwired bras).

– Close zips, button up covers.

– Brush sand out of pockets and collars.

– Remove curtain fittings or include in the net/bag.

– Wash new items separately.

< ;

Cottons 95 °C, 90 °C

: 9 8

Coloureds 60 °C, 40 °C, 30 °C

B A >

Easy-Care 60 °C, 40 °C, 30 °C

A L >

Delicates 40 °C, 30 °C

W A L

> K

Hand and machine-washable silk and woollens cold, 40 °C,

30 °C

Do not wash laundry in the washing machine.

2. Preparing the appliance

Insert mains plug.

Turn on water tap.

3. Selecting a programme and putting the washing in the

drum

Open the washing machine door.

Check whether the drum has been completely emptied. If

required, empty. Otherwise, the load display may malfunction.

~ Page 39

Press the # button. The appliance is switched on.

The Siemens logo is indicated on the display panel and all

programme indicator lamps are lit.

Then always the Cottons programme preset at the factory is

displayed.

Displays for the Cottons programme:

– The indicator lamp is lit on the programme selector and

the main menu for the selected programme is indicated

on the display panel.

cccc

40°C 1200B 2:27h

i-Dos iI

ô ©

i-Dos ø øô¨

bb b

– In the shell grip of the detergent drawer the indicator lights

for intelligent dosage are lit if intelligent dosage has been

selected.

– For appliances with drum light:

After switching on the appliance, after opening and

closing the washing machine door as well as after starting

the programme, the drum is lit. The light goes out

automatically.

Select a programme.

You can use the saved programme

or select another programme, Programme overview, refer

to ~ Page 22,

or select other programmes (see

... Additional Programs)

and choose one programme as follows:

e.g. Textileguard:

– Select programme using the buttons under the arrows.

The selection is acknowledged by a tick.

– Wait or back by pressing Main menu button, selected

programme is indicated on the display panel.

– To change the programme, select button under the black

highlighted programme and change programme.

Insert the washing.

The load screen for the selected programme (e.g. for

Cottons) is indicated on the display panel.

30 °C

800 B

1:04h

Down Wear

Additional programms Outdoor è

Rinse

Main menu

cccc

°C 800B 1:04h

Outdoor

bbbb

Dosage: automatic

Please load laundry: max. 8kg

Displays for recommended dosage:

– Dosage: automatic, if intelligent dosage has been preset.

– Dosage: ...%, recommended dosage if no intelligent

dosage preset, see Manual dosage. ~ Page 36

– Unfold and load presorted items of washing. Mix large and

small items. Washing items of different size distribute

themselves better during the spin cycle. Individual items of

washing may cause an unbalanced load. ~ Page 39

– Do not load washing until the main menu for the saved

programme is displayed after the Siemens logo.

– The load screen is indicated when the door is opened or

when the amount of washing is changed.

– The load bar progresses as the washing machine is loaded. If

the max. load is exceeded, the bar flashes. Do not exceed

indicated max. load. Overfilling reduces the washing result

and encourages creasing.

4. Changing the settings of the selected programme

Take care not to trap any items of clothing between the loading

door and rubber seal.

Close the door.

The main menu for the selected programme is indicated again on

the display panel.

You can use the displayed presettings or adjust the selected

programme optimally to the items of washing by changing the

presettings or selecting additional settings/options.

Ø Change Temperature, Spin, Finish in time~ Page 28:

Selecting and changing e.g. the Temperature:

The arrows on the display panel indicate which buttons are

used to change the settings. The settings are active without

acknowledgement and are displayed in the main menu.

FODFN

cccc

40°C 1200B 2:27h

i-Dos iI

ô ©

i-Dos ø øô ¨

bb b

cccc

40°C

i-Dos

ô ©

i-Dos øø ô ¨

1200B 2:27h

bb b

– If the buttons are held down, the set values automatically run

through.

– The respective programme duration is displayed by selecting

the programme. The programme duration is adjusted while

the programme is running if the programme duration requires

changing, e.g. due to changes in the programme settings/

options, foam detection, unbalanced load detection, the load

or soiling.

Ø ecoPerfect ¦:

For saving energy with a comparable washing effect to the

standard programme. When selected, the display lamp is lit.

Ø speedPerfect G:

For a shorter wash time with a comparable washing effect to

the standard programme. Observe maximum load. Refer to

When selected, the display lamp is lit.

Ø ß Options. Overview of all options ~ Page 30

Select ß Options and e.g. z Water Plus button:

– Select option by pressing the two buttons displayed on the

left.

– Select/deselect option by pressing the two buttons

displayed on the right. The selected options are

immediately active.

In the case of multi-level settings keep touching the

buttons to run through the settings automatically.

– Wait or back to the main menu by pressing ß Options

button.

40°C

1200B

2:27h

Extra rinse

zWater Plus

Rinse Hold

bcbc

Ø i-Dos iIô for dosing a softener or a second liquid

detergent:

Selecting i-Dos

iIô and changing dosage strength:

strong: for especially soft washing (softener) or for heavily

soiled or stained washing (detergent) when container

content: Detergent set

Ø i-Dos ô for dosing a liquid detergent:

Selecting i-Dos ô and changing dosage strength:

normal: for normally soiled washing.

Do not manually dose additional detergent into detergent

drawer

ÀÁ, if intelligent dosage for detergent has been

activated; prevents overdosage and foaming.

6. Starting the programme

Ø Select Start/Reload Ü. The indicator light is on.

40°C

1200

2:27h

ô ª

normal

i-Dos iIô dosage ª strong è

off

bcbc

40°C

1200B

2:27h

ô ©

light

i-Dos ô dosage © normal è

strong

bcbc

Washing

During the wash cycle the programme progress is indicated by a

bar on the display panel. The bar progresses in the course of the

wash cycle and provides information about the current

programme progress.

The arrows are switched on and off according to the programme

progress. They indicate the programme settings/options which

can be changed/added as the programme progresses.

Some programme sequence steps explained:

Ø Load adjust active ~ Page 39

Ø Prewash, wash, rinse, spin, drain ... are displayed during the

wash cycle.

Ø Rinsing with aqua sensor ~ Page 39

Ø Extra rinse: foam

Ø Other displays ~ Page 47

During washing

Ø Childlock

To prevent the set functions of the washing machine from

being accidentally changed, the childproof lock can be

activated.

Activate/deactivate: press Finish in for approx. 5 seconds.

Display panel goes back to the Main menu after approx.

3seconds.

cc c

40°C 1200B 2:27h

i-Dos

ô ©

i-Dos ø øô ¨

Load adjust active

w Childlock has been activated

If the programme selector is adjusted or a button is selected

while the childproof lock is active, the w symbol flashes

briefly.

Ø Topping up washing

When the programme has started, washing can be reloaded

or taken out as required.

Select Start/Reload Ü.

– If there is a high water level, high temperature or if the drum

is rotating, the washing machine door remains locked for

reasons of safety and reload is not possible. Follow the

information on the display panel. To continue the programme,

select the Start/Reload

Ü button. The washing machine

door is locked and the programme continues automatically.

– Load display is not active during relosding.

– Do not leave washing machine door open for a prolonged

period – water could run out of the washing.

Ø Changing the programme

if you have mistakenly started a wrong programme:

1. Select Start/Reload Ü.

2. Select another programme.

3. Select Start/Reload Ü . The new programme starts from

the beginning.

Ø Cancelling the programme

For programmes at high temperature:

1. Select Start/Reload Ü.

2. Cool down washing: select Rinse/Freshen Up

(see

... Additional Programs).

3. Select Start/Reload Ü .

For programmes at low temperature:

1. Select Start/Reload

Ü.

2. Select Spin * or Drain *.

(* see

... Additional Programs)

3. Select Start/Reload Ü.

cc c

40°C 1200B 2:27h

i-Dos iI

ô ©

i-Dos ø øô ¨

Pause: Reload is possible

Ø End of programme by Rinse Hold

1. Select Spin (If required, adjust the spin speed) or Drain.

2. Select Start/Reload Ü.

End of the programme

Finished, remove washing is indicated on the display panel.

If Foam has been detected is also indicated on the display panel,

the washing machine has detected too much foam during the

wash programme and therefore automatically activates additional

rinse cycles to eliminate the foam.

Dose less detergent in the next wash cycle with the same load.

Reduce basic dosage. ~ Page 34

Rinse hold reached:

Select "spin" or "drain"

and then "start".

Spin Drain

Finished, remove washing

After washing

Open washing machine door and remove washing..

– Do not leave any items of washing in the drum. In the next

wash they may shrink or discolour something else.

– Remove any foreign objects from the drum and the rubber

seal – risk of rust.

– Leave detergent drawer and door open so that residual water

can evaporate.

Before switching the machine off:

– Always remove the washing. Otherwise, the load display may

malfunction.

– Always wait until the programme ends, as the appliance

could still be locked. Then switch the appliance on and wait

for the unlocking device.

Press the # button. Appliance is switched off.

Turn off the water tap.

Not required for Aqua-Stop models. ~ Page 68

Remove the washing.

Switch off the device.

Programme overview

The presettings of the

programmes are highlighted

in bold.

Programme/Type of washing Options/Information

Name of the programme

Brief explanation of the programme and for

which textiles it is suitable.

max. load

selectable temperature as °C

selectable spin speeds in rpm,

the max. spin speed depends

on the model

possible programme options

for the Less Ironing

programme option possible

spin speeds in rpm

possible automatic dosage of a

softener and a detergent

Ý can be selected/deselected

‒ cannot be selected

Cottons

Hard-wearing textiles, heat-resistant textiles

made of cotton or linen.

². * reduced load for speedPerfect G

option

max. 8 kg/5 kg *

cold – 40 – 90 °C

0 ... 1200 ... 1600 rpm

¦,G,ã,!,æ,l,z,$,ç

at æ: 0 ... 800 rpm

detergent Ý, softener Ý

Easy-Care

Textiles made of synthetic materials or

blended fabrics.

max. 3.5 kg

cold – 40 – 60 °C

0 ... 1200 rpm

¦,G,ã,!,æ,l,z,$,ç

at æ: 0 ... 600 ...800 rpm

detergent Ý, softener Ý

Mixed Fabrics

Mixed load consisting of textiles made of

cotton and synthetics.

max. 3.5 kg

cold – 40 °C

0 ... 1400 ... 1600 rpm

¦,G,ã,!,æ,l,z,$,ç

at æ: 0 ... 600 ... 800 rpm

detergent

Ý, softener Ý

Delicates/Silk

For delicate, washable textiles, e.g. made of

silk, satin, synthetic fibres or blended fabrics

(e.g. silk blouses, silk scarf).

². For machine wash use detergent suitable

for delicates and/or silk.

max. 2 kg

cold – 30 – 40 °C

0 ... 600 ... 800 rpm

¦,G,ã,!,æ,l,z,$,ç

at æ: 0 ... 600 rpm

detergent

Ý, softener Ý

W Wool

Hand or machine-washable wool or rich-wool

textiles.

Especially gentle wash programme to prevent

shrinkage, longer programme pauses

(textiles rest in wash liquor).

². Wool is of animal origin, e.g.: angora,

alpaca, lama, sheep.

². For machine wash use detergent suitable

for wool.

max. 2 kg

cold – 30 – 40 °C

0 ... 800 rpm

$,ç

detergent ‒, softener Ý

Dark Wash/Jeans

Dark textiles made of cotton and dark easy-

care textiles.

Wash textiles inside out.

max. 3.5 kg

cold – 30 – 40 °C

0 ... 800 ... 1200 rpm

¦,G,ã,!,æ,l,z,$,ç

at æ: 0 ... 600 ... 800 rpm

detergent

Ý, softener Ý

Super Quick

Extra short programme approx. 15 minutes,

suitable for lightly soiled washing as a small

amounts of laundry.

max. 2 kg

cold – 30 – 40 °C

0 ... 800 ... 1200 rpm

$,ç

detergent Ý, softener Ý

Textileguard

Washing followed by water proofing

of weatherproof and outdoor clothing with

membrane coating and water-resistant

textiles. ~ Page 26

max. 1 kg

cold – 30 – 40 °C

0 ... 800 rpm

¦,G,ã,l,z,ç

detergent ‒, softener ‒

The presettings of the

programmes are highlighted

in bold.

Programme/Type of washing Options/Information

Shirts/Blouses

Shirts/Blouses made of cotton, linen,

synthetics fibres or blended fabrics.

For non-iron shirts the shirts/blouses are

given only a short spin using the

æ Less

Ironing option, hang up dripping wet.

~ Self-smoothing effect.

². Wash shirts/blouses made of delicates/

silk in Delicates/Silk programme.

max. 2 kg

cold – 40 – 60 °C

0 ... 800 rpm

¦,G,ã,!,æ,l,z,$,ç

at æ: 0 ... 400 rpm

detergent

Ý, softener Ý

Lingerie

For delicate, washable underwear e.g. made

of velvet, lace, Lycra, silk or satin.

max. 1 kg

cold – 30 – 40 °C

0 ... 600 rpm

¦,G,ã,æ,l,z,$,ç

at æ: 0 ... 400 rpm

detergent ‒, softener Ý

Curtains

3.5 kg heavy curtains or 25 – 30 m² light

curtains.

². Pre-wash option has been preset.

². Reduced rinse and final spin cycle.

². For machine wash use detergent suitable

for curtains.

max. 3.5 kg

cold – 30 – 40 °C

0 ... 400 ... 800 rpm

¦,G,ã,!,l,z,$,ç

detergent Ý, softener Ý

Automatic

Hard-wearing textiles.

The degree of soiling and the type of washing

are automatically detected and the washing

sequence as well as intelligent dosage are

optimally adjusted. ~ Page 26

max. 6 kg

automatic, up to 40 °C

automatic, up to 1400 rpm

ã,$,ç

detergent Ý, softener Ý

Automatic Soft

Gentler treatment of washing. The degree of

soiling and the type of washing are

automatically detected and the washing

sequence as well as intelligent dosage are

optimally adjusted. ~ Page 26

max. 3.5 kg

automatic, up to 30 °C

automatic, up to 1000 rpm

ã,$,ç

detergent Ý, softener Ý

The presettings of the

programmes are highlighted

in bold.

Programme/Type of washing Options/Information

see ... Additional programs

The presettings of the

programmes are highlighted

in bold.

Programme/Type of washing Options/Information

Down Wear

Machine-washable textiles filled with down,

pillows, blankets.

². Wash large items individually. Use mild

detergent. Measure detergent sparingly.

max. 2 kg

cold – 40 – 60 °C

0 ... 1200 rpm

¦,G,ã,l,z,$

detergent ‒, softener ‒

Outdoor

Weatherproof and outdoor clothing with a

membrane coating and water-resistant

textiles.

². Use special detergents suitable for

machine wash. Pour detergent into

dispenser

ÀÁ according to manufacturer’s

specifications.

². The laundry must not be treated with

fabric softener.

². Before washing, remove all fabric

softener residue from detergent drawer (all

dispensers).

max. 2 kg

cold - 30 – 40 °C

0 ... 800 rpm

¦,G,ã,æ,l,z,$,ç

at æ: 0 ... 600 rpm

detergent ‒, softener ‒

Rinse

Extra rinse with spin.

0 ... 1200 ... 1600 rpm

æ,l,z,$,ç

at æ: 0 ... 800 rpm

detergent ‒, softener

Spin

Extra spin with selectable spin speed.

0 ... 1200 ... 1600 rpm

æ,ç

at æ: 0 ... 800 rpm

detergent ‒, softener ‒

Automatic programmes

The degree of soiling and the type of washing are automatically

detected and the washing sequence as well as intelligent dosage

are optimally adjusted.

Ø Automatic: for durable textiles

Ø Automatic Soft: gentler treatment of washing

Textileguard

– The laundry must not be treated with fabric softener.

– Use special detergents suitable for machine wash. Dosage

according to manufacturer’s instructions.

Set programme selector to Textileguard.

Dose special detergent for outdoor textiles in

dispenser ÀÁ.

Select Start/Reload Ü. Programme stops before last rinse

cycle.

Spin/Low program

Extra spin cycle at reduced speed and with

especially gentle spin mechanism.

0 ... 800 ... 1200 rpm

æ,ç

at æ: 0 ... 600 rpm

detergent ‒, softener ‒

Drain

The rinsing water when Rinse Hold

(without final spin) is activated.

detergent ‒, softener ‒

see ... Additional programs

The presettings of the

programmes are highlighted

in bold.

Programme/Type of washing Options/Information

Rinse hold reached:

Please add to detergent drawer À

the water proofing agent

and then select "start"

Dose textile-guard agent (max. 170 ml) in dispenser ÀÁ.

Select Start/Reload Ü. After-treatment of the washing

according to manufacturer’s instructions.

Starching

The washing should not be treated with fabric softener.

Select Rinsing programme.

Manually dose liquid starch into dispenser

ÀÁ (if required,

clean beforehand) according to manufacturer’s instructions.

Select Start/Reload

Ü.

Dyeing/Discolouring

Dye in household quantities only. Salt may attack stainless steel!

Observe specifications of the dye manufacturer! Do not discolour

washing in the washing machine!

Soaking

Dose detergent with i-Dos or pour into dispenser ÀÁ

according to manufacturer’s instructions.

Set programme selector to Cottons 30 °C and select

Start/Reload

Ü.

After approx. 10 minutes select Start/Reload Ü to stop the

programme.

After the required soaking time reselect Start/Reload Ü,

if the programme is to be continued or change the

programme.

Insert washing of the same colour. No additional detergent

required, the soaking solution is used for washing.

Programme settings/options

Depending on the programme, you can use the programme

options to adjust the washing process even more efficiently to

your items of washing.

Programme settings/options:

Ø Are active without acknowledgement.

Ø Can be selected or deselected or changed depending on the

programme progress.

Ø Settings i-Dos iIô and i-Dos ô are retained after appliance

is switched off. All other programme settings/options must be

reset for reselection.

Buttons Notes

Temperature Before and during the programme the presettings

can be changed for as long as the arrows are

displayed.

Maximum spin speed depends on the programme

and model.

Spin

Finish in Delays the Finished in time (end of programme).

Before the programme starts, the end of the

programme can be preselected in h steps up to

maximum 24h.

When the programme has started, the preselected

time is displayed e.g. for 8h and counts down until

the wash programme starts. Then the programme

duration is displayed, e.g. 2:30h.

When the programme has started, the preselected

time can be changed as follows:

1. Select Start/Reload

Ü.

2. Select Finish in button and change Finish in time.

3. Select Start/Reload Ü.

To activate/deactivate the Childlock. ~ Page 18

ecoPerfect ¦

For saving energy.

speedPerfect G

For a shorter wash time.

i-Dos iIô

light – normal –

strong – off

To change the softener dosage strength (or

detergent when container content: detergent set) for

the selected programme permanently until the next

change:

– light: slightly soft washing

– normal: normally soft washing

–strong: especially soft washing

i-Dos

light – normal –

strong – off

To change the detergent dosage strength for the

selected programme permanently until the next

change:

– light: lightly soiled washing

– normal: normally soiled washing

– strong: heavily soiled or stained washing

Buttons Notes

Press ß Options button to se-

lect:

Notes

Pre-wash

on – off

For heavily soiled washing.

For intelligent dosage: Selected detergent is used for

prewash and main wash. To prevent overdosage, select

medium i-Dos setting.

For manual dosage: Divide detergent for pre-wash and

main wash. Put detergent for prewash in the drum and

pour detergent for main wash in dispenser

ÀÁ.

Less Ironing

on – off

Reduces creasing by special spin sequence followed by

fluffing and reduced spin speed.

². Residual moisture of the washing slightly increased.

Extra rinse

ö + 1 Rinse

÷ + 2 Rinses

ø + 3 Rinses

Additional rinse cycles depending on the programme,

prolonged programme duration.

². Recommended application: for particularly sensitive

skin or/and in areas with very soft water.

Water Plus

on – off

Increased water level, more gentle treatment of the

washing.

Rinse Hold

on – off

The washing remains in the water after the last rinse

cycle. End the programme.

Silent Wash

on – off

Reduced noise values by adjusted spin sequence and

deactivated end signal. Especially suitable for washing at

night.

² Residual moisture of the washing slightly increased.

Stains

Selectable treat-

ment of stains, see

~ Page 31

For washing stained laundry.

Anti-stain system

General information about stains

The Stains additional programme option for treating special

stains can be found via the Ö Options button.

A total of 16 different stains can be selected. The washing

machine adjusts the washing temperature, drum movement and

soaking time specific to the type of stain. Hot or cold water, gentle

or intensive washing control and long or short soaking provide

the wash programme with a special sequence for each type of

stain. The result: stains are treated optimally.

The treatment of two stains explained in the following

example

For the other stains we have developed comparable solutions in

intensive studies.

Selectable treatment of stains

ë blood

Blood is first “dissolved” in cold water, then the selected wash

programme starts.

í egg

Egg particles are removed by soaking in the lukewarm water

bath, selecting a wash cycle with a high water level and running

additional rinse cycles.

baby food á soil + sand ó orange ï dirty socks

ë blood ì grass â red wine ð grease + oil

í egg ä coffee ê chocolate ñ tea

ò strawberry î cosmetics à sweat é tomatoes

Intelligent Dosing System

Your washing machine features an intelligent dosing system for

liquid detergent and softener. Dispensers i-Dos ô (1.3 l) and

i-Dos iIô (0.5 l) in the detergent drawer are used for this. You

can select whether you want to use one liquid detergent and one

softener or two liquid detergents.

Depending on the selected programme and settings, the

optimum amounts of detergent/softener are dosed via the i-Dos

containers.

Switching on the appliance

The appliance has been preset at the factory for the dosing of a

liquid detergent and a softener, indicated by corresponding

changeable inserts in the fill covers:

Ø Þ Color detergent, pre-installed.

Ø i Softener only i-Dos MIô, pre-installed,

Ø ß Standard/universal detergent, enclosed.

If required, attach the enclosed programme selector label:

Filling dispenser

Open detergent drawer.

Open fill cover.

Pour detergent/softener. Fill dispenser maximum up to max

marking.

Close fill cover.

Slowly push in detergent drawer all the way.

When the appliance is switched on, the completely inserted

drawer is indicated by:

Ø Associated display is lit when intelligent dosage i-Dos ô /

i-Dos i ô is selected. ~ Page 33

Ø Display flashes once and goes out, if intelligent dosage is not

selected. ~ Page 33

When selecting your detergent and care product, follow the

instructions of the manufacturers. We recommend the use of

standard, universal and color liquid and gel-like detergents for all

machine-washable, coloured textiles made of cotton and

synthetic materials.

Ø Use only self-flowing liquid products and gels which the

manufacturer recommends adding to a detergent drawer.

Ø Do not mix different liquid detergents. If changing the liquid

detergent (type, manufacturer, ...), empty the dispenser

completely. ~ Page 41

Ø Do not use any solvent-based, corrosive or gas-emitting

products (e.g. liquid beach).

Ø Do not mix detergent and softener.

Ø Do not use any superimposed or highly thickened products.

Ø To prevent product from drying, do not leave the fill cover

open for a long time.

In daily use

Ø Illuminated displays on the drawer handle

–Display is lit if intelligent dosage is selected for the

dispenser. In the case of the combined container i ô

the indicator light is lit for the stored container content

(i for softener/ô for detergent). ~ Page 38

–Display flashes if the fill level for the container is below

the minimum when intelligent dosage has been selected.

–Display flashes briefly when drawer has been inserted

correctly.

Ø Selecting and deselecting intelligent dosage/adjusting

dosage strength

The intelligent dosage of detergent and softener is selected

in the factory for all permitted programmes. Refer to The

dosage strength for detergent has been preset to light (lightly

soiled washing) and for softener to medium (normally soft

washing) and can be individually changed for each

programme. Refer to ~ Page 17

In addition to intelligent dosage, washing additives (e.g. stain

remover) can be added manually via dispenser

ÀÁ.

~ Page 36

The selection (on/off) of i-Dos MIô and i-Dos ô is retained for

each programme until the next change occurs, even if the

machine is switched off.

Ø Reloading detergent/softener

The flashing of the associated illuminated display when

intelligent dosage is selected and a corresponding message

on the display panel indicate that the level is below the

minimum. There are still enough contents for approx.

3washes.

The same detergent or softener can be topped up at any

time. If the product/manufacturer is changed, we recommend

cleaning the dispensers beforehand. ~ Page 41 If required,

adjusting the basic dosage. ~ Page 34

Standard settings

Ø If required, change basic dosages for detergent and softener:

The basic dosage amount to be set corresponds:

For detergents – to the manufacturer’s recommendation for

normal soiling and to the particular water hardness.

For softeners – to the manufacturer’s recommendation for

medium softness and to the particular water hardness.

This information can be found on the package label of the

detergent/softener or ask the manufacturer directly.

To determine the existing water hardness, use a test strip or

check with your water utility company.

My water hardness:

Here is an example of the detergent dosage on a package

label:

– Factory setting of the basic dosage: for detergent 75 ml and

for softener 36 ml.

– In the case of more concentrated detergents reduce the

basic dosage amount.

Degree of soiling ヾ

Water hardness ゝ

light normal heavy very

heavy

soft/medium 55 ml 75 ml 120 ml 160 ml

hard/very hard 75 ml 95 ml 150 ml 180 ml

Ø If intensive foaming occurs repeatedly during washing, please

check the basic dosage setting and dosage strength.

Furthermore, some liquid detergents may have a tendency to

excessive foaming. If the basic dosage settings and dosage

strengths are correct, it is recommended to use a different

liquid detergent.

Change basic dosage amount. ~ Page 38

Ø If required, convert i-Dos iIô dispenser contents.

Instead of softener, a second liquid detergent can also be

used in dispenser i-Dos

iIô.

Change dispenser content. ~ Page 38

– An additional changeable insert for a second detergent is

enclosed and can be fitted in the fill cover.

–When the i-Dos

iIô container content is switched from

softener to detergent, the basic dosage amount of detergent

for this container is set to the factory setting (75 ml) and the

dosage for this detergent is set to off in all permitted

programmes. Then select the detergent dosage (light, normal

or strong) via the i-Dos iIô button on the display panel.

~ Page 17

The i-Dos

ô container is automatically deactivated if the

detergent dosage is activated for the i-Dos

iIô container.

The settings are retained for this programme until the next

change.

–When the i-Dos

ô container content is switched to

softener, the basic dosage amount is set to factory setting

(36 ml) and the dosage is set to normal in all permitted

programmes.

– Switching over the container contents requires an additional

acknowledgement via the display panel.

i A change to the i-Dos content

resets the i-Dos iIô settings

to their standard value.

Cancel Continue

Manual dosage

In the case of programmes in which intelligent dosage is not

possible or not requested (then set intelligent dosage to off),

detergent is added to detergent drawer

ÀÁ.

In addition to intelligent dosage of detergents - cleaning agents

such as water softener, bleach or stain remover can also be

dosed here.

Pull out the detergent drawer.

Dosing in dispenser ÀÁ according to:

– Dosage recommendation on the display panel, e.g. for

Cottons:

Depending on the amount of washing in the washing

machine, a dosing recommendation is indicated on the

display panel.

–Soiling.

– Water hardness (~ Page 34) or ask your water supply

company.

– Manufacturer’s instructions.

– When dosing all detergents, cleaning aids and cleaning

agents, always follow the manufacturer's instructions.

– Dilute viscous fabric softener and fabric conditioner with

water. Prevents blockage of the overflow!

– If detergent is dosed manually, no additional detergent via

intelligent dosage (set intelligent dosage to off). It prevents

overdosage and foaming.

Dosage: 70%

Please load laundry: max. 8kg

Consumption values

Programme Additonal

function

Load Energy

consumption ***

Water *** Programme

duration ***

Cottons 30 °C * 8 kg 0,33 kWh 58 l 2:17 h

Cottons 40 °C * 8 kg 0,87 kWh 57 l 2:27 h

Cottons 60 °C * 8 kg 1,47 kWh 57 l 2:27 h

Cottons 60 °C ecoPerfect ** 8 kg 0.85 kWh 57 l 3:56 h

Cottons 90 °C 8 kg 2,40 kWh 70 l 2:17 h

Easy-Care

40 °C *

3.5 kg 0,57 kWh 41 l 1:35 h

Mixed Fabrics

40 °C

3.5 kg 0,60 kWh 39 l 0:53 h

Delicates/Silk

30 °C

2 kg 0,15 kWh 34 l 0:43 h

Wool 30 °C 2 kg 0,20 kWh 39 l 0:40 h

* Programme setting for tests according to currently valid European standard EN60456.

Information about comparability tests: To test the test programmes, wash indicated load

size at maximum spin speed.

** To be used for normally soiled laundry. Programme setting for energy labelling

according to AS/NZS 2040.

*** The values may deviate from the stated values depending on water pressure and

hardness, room temperature, type and amount of laundry, detergents used, fluctuations

in the mains voltage and selected additional functions.

Appliance settings

By pressing the Basic Settings 3 sec. buttons, appliance settings

can be changed, e.g. button signal.

Simultaneously hold down Basic Settings 3 sec. buttons for

approx. 3 seconds:

Ø If the buttons are held down, the settings automatically run

through.

Ø Select Setting with the two left buttons.

Ø Select displayed value with the two right buttons (selection

acknowledged by a tick).

Ø Wait or hold down Basic Settings 3 sec. buttons again.

Settings are retained after appliance is switched off.

Language

end signal off è

button signal

bcbc

Settings Set values Notes

end signal off – quiet – medium –

loud – very loud

Adjust volume of the end signal.

button signal off – quiet – medium –

loud – very loud

Adjust volume of the button signals.

Auto power-

off of the

appliance

in 15 – 30 – 60 min –

never

The appliance automatically switches off after ...

min. (= 0 kWh energy consumption); to switch

on, press main switch button # .

language German

GB English

...

Change displayed language.

i-Dos i ô

content

Softener –

Detergent

Select dispenser contents.

i-Dos i ô

10 ml – 200 ml Set basic dosage according to recommendation

of the detergent/softener manufacturer.

i-Dos ô

10 ml – 200 ml

Sensors – Your washing machine is so

intelligent

Load adjust

Depending on the type of textile and load, the load adjust

optimally adjusts the water consumption in each programme.

Aqua-Sensor

During the wash and rinse cycles the Aqua sensor checks the

degree of turbidity (turbidity is caused by dirt and detergent

residue) of the washing and rinsing water. The duration and

number of rinse cycles are specified depending on the water

turbidity and, if required, an additional amount of detergent is

dosed in the automatic programmes.

Load sensor/Load display

The load sensor detects the load level in the washing machine

when the door is open. This is indicated by a progressing bar on

the display panel.

To ensure that the load sensor measures all the laundry, the drum

must be empty before the washing machine is switched on.

Dosing recommendation

The dosing recommendation indicates a recommended

detergent dosage as a %, depending on the selected programme

and the detected load. The indicated % refers to the

recommendation of the detergent manufacturer.

By observing the recommended dosage, you will protect the

environment and reduce your household costs.

Unbalanced load detection system

The automatic unbalanced load detection system spins the

laundry several times to ensure even distribution.

For reasons of safety the speed is reduced or does not perform

a spin cycle if the washing is very unevenly distributed.

Distribute small and large items of washing in the drum. Faults,

what to do? ~ Page 48

Cleaning and maintenance

Care and maintenance

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

Switch off the appliance. Pull out the mains plug!

ã Caution!

Fire and explosion hazard!

If solvent cleaning agents, e.g. petroleum ether, are

used in the washing machine, components may be

damaged and toxic fumes generated.

Do not use solvent-based cleaning agents.

ã Caution!

Washing machine may be damaged!

If solvent cleaning agents, e.g. petroleum ether, are

used on the washing machine, the surfaces may be

damaged.

Do not use solvent-based cleaning agents.

Machine housing/Control panel

Ø Remove detergent residue immediately.

Ø Wipe with a soft, damp cloth.

Ø Do not clean the appliance with a water jet.

Drum

Use chlorine-free cleaning agent, not steel wool.

If there is an odour in the washing machine, run Cottons 90 °C

programme. Use standard detergent.

Descaling

Not required if detergent dosed correctly. However, if this does

occur, follow the instructions of the descaling agent

manufacturer. Suitable descalers can be purchased on our

website or from customer service. ~ Page 50

i-Dos Clean the detergent drawer

Ø Drain dispensers

The dispensers have drainage openings with removable

stoppers in the front area. To drain the dispensers, first

remove the drawer handle as illustrated:

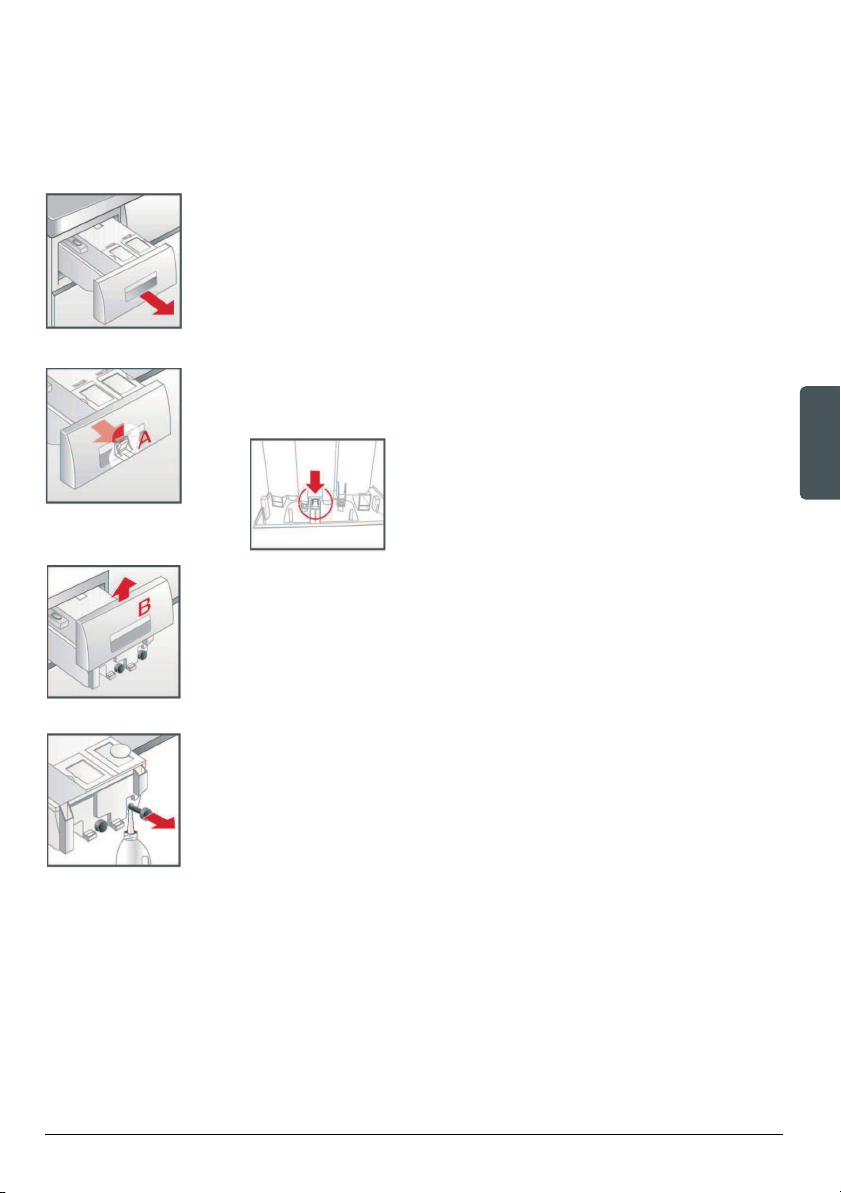

1. Open detergent drawer.

2. Pull release lever (A) on the back of the drawer handle

(bottom middle) gently towards yourself and

simultaneously ...

... pull up released drawer handle (B).

3. To drain the the dispensers, carefully remove the

respective sealing plug and drain the contents into a

suitable receptacle.

4. Reinsert sealing plug all the way.

Ø Cleaning dispensers/detergent drawer

To clean the drained dispensers, the detergent drawer can

be completely removed.

1. Drain dispensers before removing them.

Re-attach drawer handle only after cleaning.

2. Open drawer.

3. Press release lever and completely remove drawer.

4. Carefully remove drawer cover.

ã Caution!

Detergent drawer may be damaged!

The detergent drawer contains electrical components.

They may be damaged if they come into contact with

water.

– Do not clean the cover in the dishwasher and do

not immerse in water.

– Protect rear drawer plug from moisture, detergent

or softener residue; if required clean outer surfaces

with a soft, damp cloth. Dry before re-inserting.

5. Clean tray and cover with soft, damp cloth or hand

shower. Clean inner surface also with a soft, damp cloth.

6. Dry tray and cover and re-assemble.

7. Push on drawer handle from above until it locks in place.

8. Push in detergent drawer all the way.

Drain pump blocked

ã Warning!

Danger of scalding!

Wash liquor is hot when washing at high temperatures.

You may be scalded if you touch the hot wash liquor.

Allow wash liquor to cool down.

Turn the tap off to prevent more water from flowing in and to

ensure that it is drained via the pump.

Switch off the device. Pull out the mains plug.

Open service flap.

Remove service flap.

Take the drainage hose out of the holder. Remove the

sealing cap, drain water into a suitable receptacle.

Press on sealing cap and insert drainage hose into the

holder.

Note: Residual water may run out.

Carefully unscrew the pump cover. Clean the interior, pump

cover thread and pump housing (fan impeller in the

detergent-solution pump must rotate).

Reinsert and screw on pump cover. Handle should be

vertical.

Insert service flap (1), engage (2) and close (3).

To prevent unused detergent from flowing into the outlet during

the next wash cycle: Pour approx. 1 litre of water into

dispenser

ÀÁ and start the Drain programme.

Drainage hose on the siphon blocked

Switch off the appliance. Pull out the mains plug!

Note: Residual water may run out!

Loosen hose clip, carefully remove drainage hose.

Clean drainage hose and siphon spigot.

Re-attach drainage hose and secure connection point with

hose clip.

Filter blocked in water inlet hose

First, release water pressure in the supply hose:

Turn off the tap!

Select any programme (except Spin/Drain).

Select Start/Reload Ü. Leave programme for approx. 40

seconds.

Press the # button. Appliance is switched off. Pull out the

mains plug!

Clean the filter:

Disconnect the hose from the water tap.

Clean filter with small brush.

and/or for standard and Aqua-Secure models:

Remove hose from the rear of the appliance.

Take out filter with pliers and clean.

Connect the hose and check for leaks.

Emergency lock release, e.g. if power

failure occurs

The programme continues running when the power supply is

restored. If the washing is still to be removed, the door can be

opened as described below:

ã Warning!

Danger of scalding!

Wash liquor and washing may be hot. If touched, there

is a risk of scalding.

If required, leave to cool down.

ã Caution!

Danger when reaching into/gripping the rotating drum!

If you reach into the rotating drum, you may injure your

hands.

Do not grip the rotating drum. Wait until the drum stops

rotating.

ã Caution!

Water damage possible!

Leaking water may cause damage.

Do not open the door if you can still see water through

the glass.

Switch off the appliance. Pull out the mains plug!

Drain the water.

Pull down emergency release with a tool and release.

Door can then be opened.

Information on the display panel

Display Cause/Remedy

The door cannot be

locked, please open

the door again, then

close it and select

"start/pause".

– Washing may be caught. Please open and close washing

machine door again and select Start/Reload Ü.

– If required, shut washing machine door or remove washing and

shut again.

– If required, switch appliance off and on again; set programme

and make individual settings; start programme.

Please re-fill

i-Dos

iIô, i-Dos ô

container

Level i-Dos container below minimum, Top up ~ Page 32

i-Dos

iIô, i-Dos ô

error; deactivate

i-Dos iIô, i-Dos ô

Set i-Dos iIô, i-Dos ô to off.

Call customer Service. Appliance can continue to be operated with

manual dosage. ~ Page 36

Please close

detergent drawer.

Push in detergent drawer correctly. ~ Page 32

Please open tap – Turn on tap fully.

–Supply hose kinked/jammed.

– Water pressure too low. Clean the filter. ~ Page 44

Please clean pump – Drain pump blocked. Clean the drain pump.

– The water drainage pipe/drain hose is blocked. Clean the

drainage hose on the siphon. ~ Page 44

Pause: Reload is not

possible

Water level or temperature is too high.

Select Start/Reload Ü to continue the programme.

Door cannot be

unlocked: Water

level or temperature

is too high

Water level or temperature is too high.

Select Start/Reload Ü to continue the programme.

aquaStop has been

activated!

Please call customer

service

not applicable without Aqua-Stop

Water in the base pan, appliance leaking.

Call customer service! ~ Page 50

Auto power-off in ...

seconds,

Appliance automatically switches off after ... seconds if it is not

operated for a prolonged period. In order to cancel the

programme, press any button. ~ Page 38

Water cooling To protect the wastewater pipes, the hot detergent solution is

cooled before being drained.

Other displays

Error E: XXX

Switch off appliance, wait 5 seconds and switch on again. If the

display is indicated again, call customer service. ~ Page 50

Faults, what to do?

Faults Cause/Remedy

Water is running out. – Correctly attach/replace drainage hose.

– Tighten screw-fitting on the supply hose.

Water not flowing in. – Start/Reload

Ü not selected?

–Tap not open?

– Filter blocked? Clean the filter. ~ Page 44

– Supply hose kinked or jammed?

Dispenser is empty

and fill level display

is not flashing.

– Drawer cover/rear drawer plug dirty? Cleaning ~ Page 41

– Detergent drawer not inserted correctly? Insert correctly.

~ Page 32

Wrong detergent/

softener has been

poured into

dispenser.

Dispensers:

1. Drain and clean dispensers.

2. Refill dispensers. ~ Page 32

Detergent/softener

congealed in the

dispensers.

Clean and refill dispensers.

Washing-machine

door cannot be

opened.

– Safety function active. Stop programme?

– Rinse Hold

$ (without final spin) selected?

– Can be opened via emergency release only? ~ Page 46

Programme does

not start.

– Start/Reload

Ü or Finish in time selected?

– Door closed?

– Childlock active? Deactivate.

Detergent solution is

not drained.

– Rinse Hold $ (without final spin) selected?

– Clean the drain pump.

– Clean outlet pipe and/or drainage hose.

Water not visible in

the drum.

Not a fault – water below the visible area.

Spin result not

satisfactory.

Washing wet/too

damp.

– Not a fault – unbalanced load detection system has stopped the

spin cycle, washing unevenly distributed.

Distribute small and large items of washing in the drum.

– Less Ironing

æ selected?

– Too low speed selected? ~ Page 22

Spin cycle activated

several times.

Not a fault – unbalanced load detection system adjusts imbalance.

Residual water in the

dispenser for care

product.

– Not a fault – effect of the care product not impaired.

– If required, clean insert.

Odour formation in

the washing

machine.

Run Cottons 90 °C programme without washing.

Use standard detergent.

Repeated, intensive

foaming.

– Check basic dosage settings and dosage strength.

– If required, use a different liquid detergent.

Detergent/softener

drips off the seal and

collects on the door

or in the seal fold.

Too much detergent/softener in the dispensers. Observe max mark

in the dispensers.

i-Dos

iIô

presetting deleted.

If the i-Dos iIô: content menu setting is changed, all settings are

changed. ~ Page 35

Loud noise

formation, vibrations

and “wandering”

during spin cycle.

– Appliance aligned?

Align the appliance. ~ Page 61

– Appliance feet fixed?

Secure appliance feet. ~ Page 61

– Transportation safety devices removed?

Remove transportation protection devices. ~ Page 56

Display panel/

indicator lights do

not function while

the appliance is

running.

–Power failure?

– Fuse tripped? Switch on/replace fuse.

– If the fault occurs repeatedly, call customer service. ~ Page 50

The programme

takes longer than

usual.

– Not a fault – unbalanced load detection system adjusts

imbalance by repeatedly distributing the washing.

– Not a fault – foam detection system active – several rinse cycles

are switched on.

Detergent residue

on the washing.

– Occasionally phosphate-free detergents contain water-insoluble

residue.

– Select Rinsing or brush the laundry after washing.

In the pause status

Start/Reload

flashes very quickly

and a signal sounds.

– Water level too high. Washing cannot be reloaded. Immediately

close washing machine door.

– Select Start/Reload Ü to continue the programme.

If a fault cannot be rectified (switching the machine on and off) or a repair is required:

– Switch off the appliance and pull out the mains plug.

– Turn off the tap and call customer service. ~ Page 50

Faults Cause/Remedy

Customer service

If you cannot rectify the fault yourself, Faults, what to

do?~ Page 48, please contact our customer service. We will

always finds a suitable solution to avoid unnecessary visits by

technicians.

Please give customer service the product number (E-Nr.) and the

production number (FD) of the appliance.

Rely on the competence of the manufacturer.

out by trained service technicians who carry original spare parts.

These instructions can be

found on: inside of

washing machine door */

open service flap * and

rear of the appliance.

* depending on model

Product number Production number

(1U )'

Installing the appliance

Standard accessories

Also required for connection of the water drainage hose to a

siphon:

1 hose clip Ø 24–40 mm (DIY store) is also required for

connection to a siphon. Connecting the water ~ Page 60

Useful tools:

Ø Spirit level for alignment.

Ø Socket wrench

size 13: for loosening the transportation protection devices

~ Page 56 and

size 17: for aligning the appliance feet. ~ Page 61

GHSHQGLQJRQPRGHO

$TXD6WRS 6WDQGDUG$TXD6HFXUH

0DLQVFDEOH

:DWHURXWOHW

:DWHULQOHW

(OERZ

IRUVHFXULQJWKH

ZDWHURXWOHWKRVH

6SDQQHU

,QVWUXFWLRQPDQXDODQG

,QVWDOODWLRQLQVWUXFWLRQV

&RYHUVZLWKKRVHFOLS

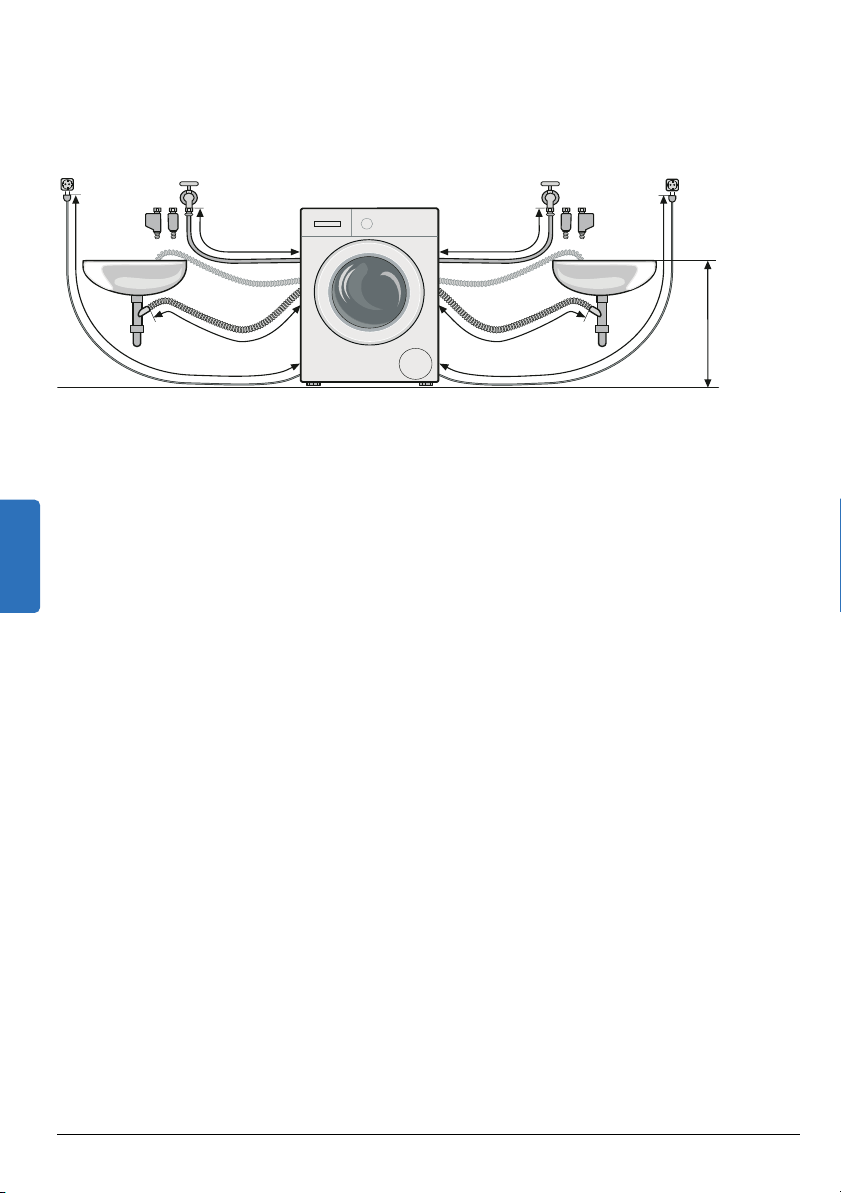

Hose and cable lengths

If the hose holders are used, the possible hose lengths are

reduced!

Available from dealer/customer service:

Ø Extension for Aqua-Stop or cold water inlet hose

(approx. 2.50 m).

Order no. WMZ2380, WZ10130, CZ11350, Z7070X0

Ø Longer supply hose (approx. 2.20 m), for standard model.

Technical specifications

aFP

aFP

aFP

aFP

aFPaFP

aFPaFP

PD[

FP

&RQQHFWLRQRQOHIWVLGH

&RQQHFWLRQRQULJKWVLGH

GHSHQGLQJRQPRGHO

Dimensions

(width x depth x height)

60 x 59 x 85 cm

Weight depending on modell: 63–83 kg

Mains connection Nominal voltage 220–240 V, 50 Hz

Nominal current 10 A

Nominal power 2300 W

Water pressure 100–1000 kPa (1–10 bar)

Installation

Humidity in the drum is caused by the final inspection.

Secure installation

ã Warning!

Risk of injury!

– The washing machine is heavy – caution: take care

when lifting it.

– If the washing machine is raised by protruding

components (e.g. washing machine door), the

components may break off and cause injuries.

Donot lift the washing machine by its projecting

parts.

ã Caution!

Risk of stumbling!

If the hoses and power cord are installed improperly,

there is a risk of tripping and injury.

Lay hoses and cables in such a way that there is no

risk of stumbling.

ã Caution!

Washing machine may be damaged!

– Frozen hoses may tear/burst.

Do not install the washing machine in an area where

there is a risk of frost or outdoors.

– If the washing machine is raised by protruding

components (e.g. washing machine door), the

components may break off and the washing

machine may be damaged.

Donot lift the washing machine by its projecting

parts.

– In addition to the safety information listed here, the local

water and electricity supplier may have special requirements.

– If in doubt, have the appliance connected by a technician.

ã Warning!

Risk of injury!

– The washing machine is heavy – caution: take care

when lifting it.

– If the washing machine is raised by protruding

components (e.g. washing machine door), the

components may break off and cause injuries.

Do not lift the washing machine by its projecting

parts.

ã Caution!

Risk of stumbling!

If the hoses and power cord are installed incorrectly,

there is a risk of tripping and injury.

Lay hoses and cables in such a way that there is no

risk of stumbling.

ã Caution!

Washing machine may be damaged!

– Frozen hoses may tear/burst.

Do not install the washing machine in an area where

there is a risk of frost or outdoors.

– If the washing machine is raised by protruding

components (e.g. washing machine door), the

components may break off and the washing

machine may be damaged.

Do not lift the washing machine by its projecting

parts.

– In addition to the safety information listed here, the local

water and electricity supplier may have special requirements.

– If in doubt, have the appliance connected by a technician.

Installation area

Stability is important to prevent the washing machine from

wandering!

– The installation area must be firm and level.

– Soft floors/floor coverings are not suitable.

Installation on a platform with drawer

Platform: order no. WMZ 20490, WZ- 20490

Installing the appliance on a base or on a wooden joist

ceiling

ã Warning!

Washing machine may be damaged!!

The washing machine may wander during the spin

cycle and topple/fall off the base.

Always secure the washing machine feet with fixing

brackets.

Holding brackets: order no. WMZ 2200, WX 9756,

CZ 110600, Z 7080X0

If installing on a wooden joist ceiling:

– If possible, install the washing machine in a corner.

– Screw a water-resistant wooden panel (min. 30 mm thick) to

the floor.

Appliance installed under/between kitchen units

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

The appliance cover plate must not be removed.

–60cm cavity width required.

– Install washing machine only under a continuous worktop

connected firmly to the adjacent cupboards.

Remove transportation protection

devices

ã Caution!

Washing machine may be damaged!

Transit bolts which have not been removed may

damage e.g. the drum while the washing machine is

running.

Before using the appliance for the first time, remove

the 4 transportation protection devices completely

and keep in a safe place.

ã Caution!

Washing machine may be damaged!

To prevent damage in transit when transporting the

washing machine subsequently, always re-install the

transit bolts prior to transportation.

Keep screw and sleeve screwed together.

Take the hoses out of the holders.

Take hoses out of the elbow and remove elbow.

Loosen and remove all 4 transportation lock screws.

Take the power cord out of the holders. Remove sleeves.

Prepare/separate cover.

Insert covers.

Lock covers firmly by pressing on the locking hook.

Insert hose holder.

Secure hoses in the hose holders.

Connecting the water

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

Do not immerse Aqua-Stop safety device in water

(contains an electric valve).

– To prevent leakage or water damage, follow the instructions

in this chapter!

– Operate the washing machine with cold drinking water only.

– Do not connect to the mixer tap of an unpressurised hot-

water apparatus.

– Use only the supplied inlet hose or one purchased from an

authorised specialist outlet, not a used one!

– If in doubt, have the appliance connected by a technician.

Water inlet hose

Water inlet hose: do not kink, crush, modify or sever (strength is

no longer guaranteed).

Optimum water pressure in the mains: 100–1000 kPa

(1–10 bar)

Ø When the tap is turned on, the water flow is at least 8 l/min.

Ø If the water pressure is higher, install a pressure reducing

valve.

Connect the water supply hose.

ã Warning!

Threads for screw connections may be damaged!

If the screw connections are tightened too tightly using

a tool (pliers), the threads may be damaged.

Tighten plastic screw-fittings by hand only.

to the tap (¾" = 26.4 mm):

PLQPP

Aqua-Stop and Aqua-Secure Standard

PD[



PD[



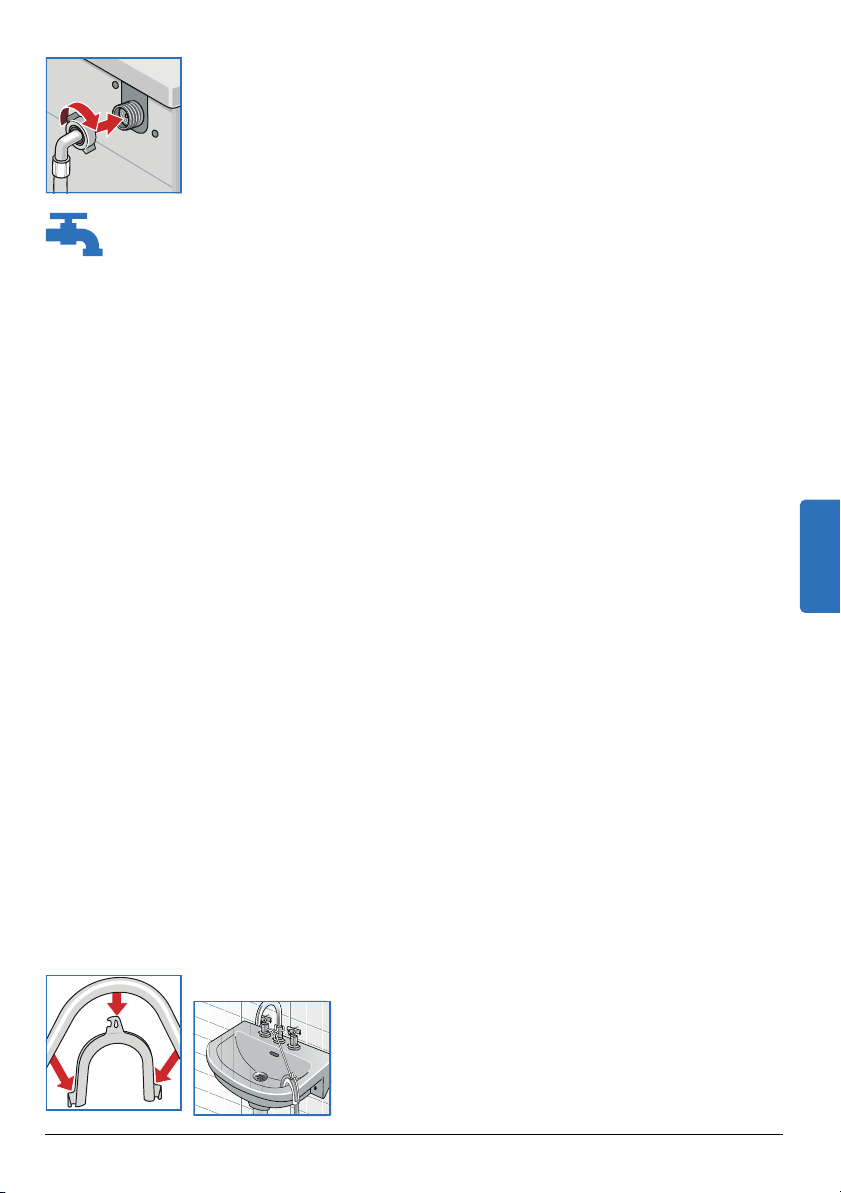

on the appliance:

for Standard and Aqua-Secure models

Carefully turn on the tap and check that the connection points

are not leaking.

Screw connection is under water pipe pressure.

Water drainage hose

– Do not kink or protract the the water supply hose.

– Height difference between the placement area and drainage

point: 0–maximum 100 cm

Drainage into a wash basin

ã Warning!

Water damage possible!

If the attached drainage hose slips out of the

washbasin due to high water pressure when draining

the washing machine, leaking water may cause

damage.

Secure the drainage hose to prevent it from slipping

out of the sink.

ã Caution!

The appliance may be damaged.

If the end of the drainage hose is immersed in the

drained water, water may be drawn back into the

appliance!

– The plug must not be in the plug hole.

– When the water is being pumped out of the

washing machine, check that the water drains

away quickly enough.

– The end of the drainage hose must not be

immersed in the drained water!

Installing the drainage hose:

Drainage into a siphon

ã Warning!

Water damage possible!

If the drainage hose slips off the siphon connection

due to high water pressure when draining the washing

machine, leaking water may cause damage.

Connection point must be secured with hose clip,

Ø 24–40 mm (specialist outlet).

Connecting

Drainage into a plastic pipe with rubber sleeve or into

a gully:

ã Warning!

Water damage possible!

If the drainage hose slips off the plastic pipe due to

high water pressure when draining the washing

machine, leaking water may cause damage.

Secure the drainage hose to prevent it from slipping

out of the sink.

Connecting

Alignment

Loosen lock nut in a clockwise direction with a wrench.

Check alignment of the washing machine with a spirit level

and, if required, correct. Adjust the height by rotating the foot.

All four feet must be firmly on the floor.

The washing machine must not wobble!

Tighten the lock nut against the housing.

Grip the foot and do not adjust the height.

– The lock nuts on all four appliance feet must be screwed

tightly against the housing!

– Loud noise formation, intense vibrations and “wandering”

may be due to incorrect alignment!

Electrical connection

Electrical safety

ã Warning!

Danger of death from electric shock!

Danger of death if live parts are touched.

– Never pull out the mains plug by tugging the power

cord.

– Insert/pull out the mains plug with dry hands only.

– Never pull out the mains plug during operation.

– Connect the washing machine to an alternating

current via a correctly installed earthed socket only.

– The mains voltage and voltage specifications on

the washing machine (appliance rating plate) must

match.

– Connected load as well as required fuse are

indicated on the appliance rating plate.

Ensure that:

– Mains plug and socket match fit.

– Cable cross-section is adequate.

– Earthing system has been installed correctly.

– A damaged power cord may be replaced by

an electrician only. A replacement mains cable can

be obtained from customer service.

– Do not use multiple plugs/couplings or extension

cables.

– If a residual-current-operated circuit breaker is

used, use only a type which features this symbol:

Only this symbol guarantees compliance with

currently valid regulations.

– The mains plug must be accessible at all times.

Before the 1st washing

The washing machine was inspected thoroughly before leaving

the factory. To remove any water left over from testing

procedures, the first washing cycle should be carried out without

laundry in the machine.

The washing machine must have been installed and connected

properly. See chapter Installing ~ Page 61

Check the machine.

Never switch on a damaged machine. Inform your customer

service. ~ Page 50

Fill dispensers ô / M ô. ~ Page 32

Remove protective film from the fascia.

Insert mains plug.

Turn the tap on.

Switch on the appliance.

Close the washing machine door. Do not load any washing.

To prevent unused detergent from flowing into the outlet

during the first wash: Pour 1 litre of water into dispenser ÀÁ

and start the Drain programme.

Select and start the Cottons 90 °C programme.

10.

When the programme ends, switch off the appliance.

Your washing machine is now ready for use.

Transportation, e.g. if moving house

Preparatory work

Turn off the tap.

Release the water pressure in the supply hose.

Maintenance – Filter in the water inlet hose ~ Page 44

Drain any residual detergent solution.

Maintenance – Drain pump blocked

Isolate the washing machine from the power supply.

Remove the hoses.

Drain dispensers. ~ Page 41

Installing transportation protection devices

Remove covers and keep in a safe place.

If required, use a screwdriver.

Insert all 4 sleeves.

Clamp mains cable on the holders. Insert and tighten the

bolts.

Before switching on the appliance:

– Always remove the transportation protection devices!

~ Page 56

– To prevent unused detergent from flowing into the outlet

during the next wash cycle: Pour 1 litre of water into

dispenser

ÀÁ and start the Drain programme.

Index

Alignment, 61

Anti-stain system, 31

Aqua-Sensor, 39

Automatic programmes, 26

Basic Settings 3 sec., 11

Button

ecoPerfect, 11, 16, 28

Finish in, 11, 15, 28

i-Dos iIô, 11, 17, 29

i-Dos ô, 11, 17, 29

Options, 11, 16

speedPerfect, 11, 16, 28

Spin, 11, 15, 28

Start/Reload, 11

Temperature, 11, 15, 28

Cancelling

the programme, 19

Care, 40

Drum, 40

Machine housing/Control

panel, 40

Changing

the programme, 19

Childlock, 18, 28

Cleaning

Detergent drawer, 41

the filter, 44

the siphon, 44

Connecting the water, 58

Water drainage, 59

Water supply, 58

Consumption values, 37

Customer service, 50

Descaling, 40

Detergent drawer, 10

Discolouring, 27

Display panel, 11

Dosing recommendation, 39

Drain pump blocked, 43

Drum light, 14

Dyeing, 27

ecoPerfect, 11, 16, 28

Electrical connection, 62

Emergency lock release, 46

End of the programme, 20

Extra rinse, 30

Fascia, 11

Faults, what to do?, 48

Finish in, 11, 15, 28

Getting to know your appliance, 9

Hints and tips, 7 Hose and cable lengths, 52

i-Dos, 10, 22, 29

Clean the dispenser, 41

Drain dispensers, 41

Filling dispenser, 32

In daily use, 33

Standard settings, 34

Switching on the

appliance, 32

i-Dos iIô, 11, 17

i-Dos

ô, 11, 17

Information on the display

panel, 47

Insert

the laundry, 15

the washing, 14

Installation, 53

Installing transportation

protection devices, 64

Intended use, 4

Less Ironing, 30

Load adjust, 39

Load sensor/Load display, 39

Maintenance, 40 Manual dosage, 36

Old appliance, 7

Option

Extra rinse, 30

Less Ironing, 30

Pre-wash, 30

Rinse Hold, 30

Silent Wash, 30

Stains, 30

Water Plus, 30

Options, 11, 16, 28

Packaging, 7

Pre-wash, 30

Programme overview, 22

Programme selector, 11

Programme sequence

steps, 18

Programme setting, 15, 16

Programme settings, 28

Protection of the

environment, 7

Quick-reference instructions, 8

Rinse Hold, 20, 30

Safety instructions, 5

Selecting

the programme, 14

Settings 3 sec., 38

Silent Wash, 30

Soaking, 27

Sorting

the washing, 12

speedPerfect, 11, 16, 28

Spin, 11, 15, 28

Stains, 30

Standard accessories, 51

Starching, 27

Starting

the programme, 17

Technical specifications, 52

Temperature, 11, 15, 28

Textileguard, 26

Topping up

washing, 19

Transport bolts, 56

Unbalanced load detection

system, 39

Unloading

the laundry, 21

Washing

Insert laundry, 13

Water Plus, 30

Siemens-Electrogeräte GmbH

Carl-Wery-Str. 34, 81739 München

Germany

*9000713844*

9000713844 (9204)

Aqua-Stop warranty

For appliances with Aqua-Stop only

In addition to warranty claims against the seller based on the contract

of sale and in addition to our appliance warranty we shall pay

damages under the following conditions:

If water damage is caused by a fault in our water safety system,

we shall make reparation for the damage with respect to private

users.

The liability warranty applies to the service life of the appliance.

A claim can only be made under the warranty if the appliance and

Aqua-Stop have been correctly installed and connected

according to our instructions; this also includes a correctly

installed Aqua-Stop extension (original accessory).

Our guarantee does not apply to defective cables/hoses or to

fittings up to the connection on the tap.

Appliances which feature Aqua-Stop can be left unattended

during operation and it is not necessary to turn off the tap

afterwards.

The tap should only be turned off if you are away for a prolonged

period, e.g. several weeks holiday.

To book an engineer visit and product advice

GB 0844 8928999 Calls from a BT landline will be charged at

up to 3 pence per minute.

IE 01450 2655

Please find the contact data of all countries in the enclosed customer

service list.

Siemens WM16Y890AU 8kg Front Load Washing Machine

Product's Documents

User Manual

Specifications

Siemens WM16Y890AU Questions and Answers

Related Products

Siemens WM14P380AU 8kg Front Load Washing Machine

Siemens WM16Y790AU 8kg Front Load Washing Machine

Siemens WM14P480AU 8kg Front Load Washing Machine

Siemens WM14W440AU iQ700 8kg Front Load Washing Machine

Siemens WM14P380AU 8kg Front Load Washing Machine

Siemens WM16Y790AU 8kg Front Load Washing Machine
