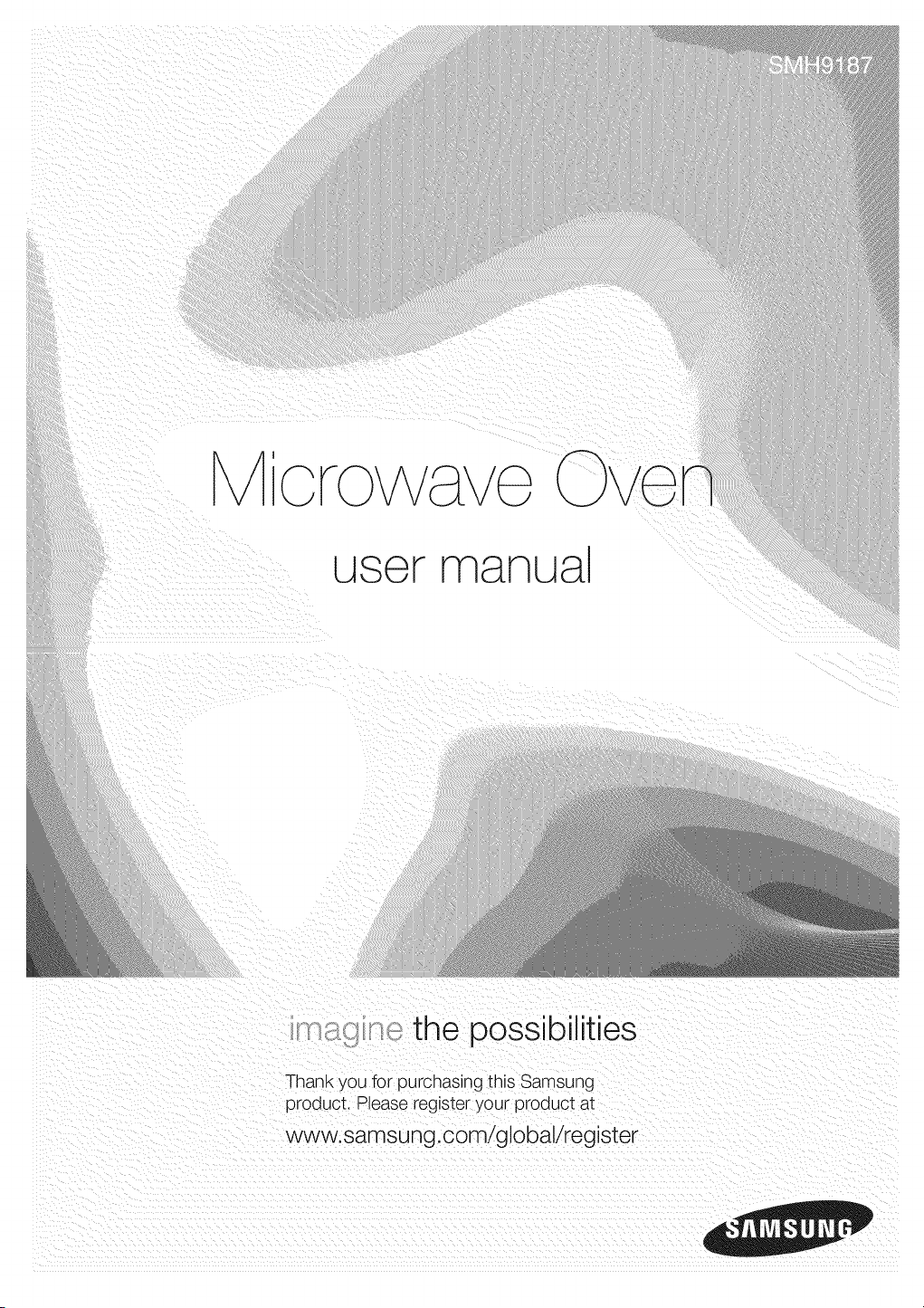

Samsung SMH9187B/XAA microwave User Manual

user manual

the possibilities

Thank you for purchasing this Samsung

product, Please register your product at

www, samsu rig. c om/g Iobal/reg ister

fo tuFo¢ of youF now

Professionai Design

The new Stainless Steel Samsung Over The Range (OTR) oven has a clean, professional look

that matches your other kitchen appliances perfectly, providing a harmonious and complete

kitchen solution.

Turbo vent

With 400 CFM(Cubic Feet per Minute, FWmin) of ventilation power, your new Over The

Range (OTR) oven offers optimal cooking conditions by absorbing smoke and odor from the

cook-top. It is also as silent as other OTRs with much lower ventilation power.

Experience maximum power with no additional noise!

Large Interior capacity

With its 1.8 cu.ft capacity, your OTR oven delivers plenty of space for all your cooking needs.

A big capacity combined with 1,100 watts of output guarantees superior cooking results.

Sensor Cooking

Don't know how to cook? Samsung's new OTR sensor technology offers preset functions

resulting in perfectly cooked dishes every time. Simply select a cooking menu, and the

cooking results will astound you.

VFD display

With an informative VFD (Vacuum Fluorescent Display), your OTR lets you easily use all

available functions.

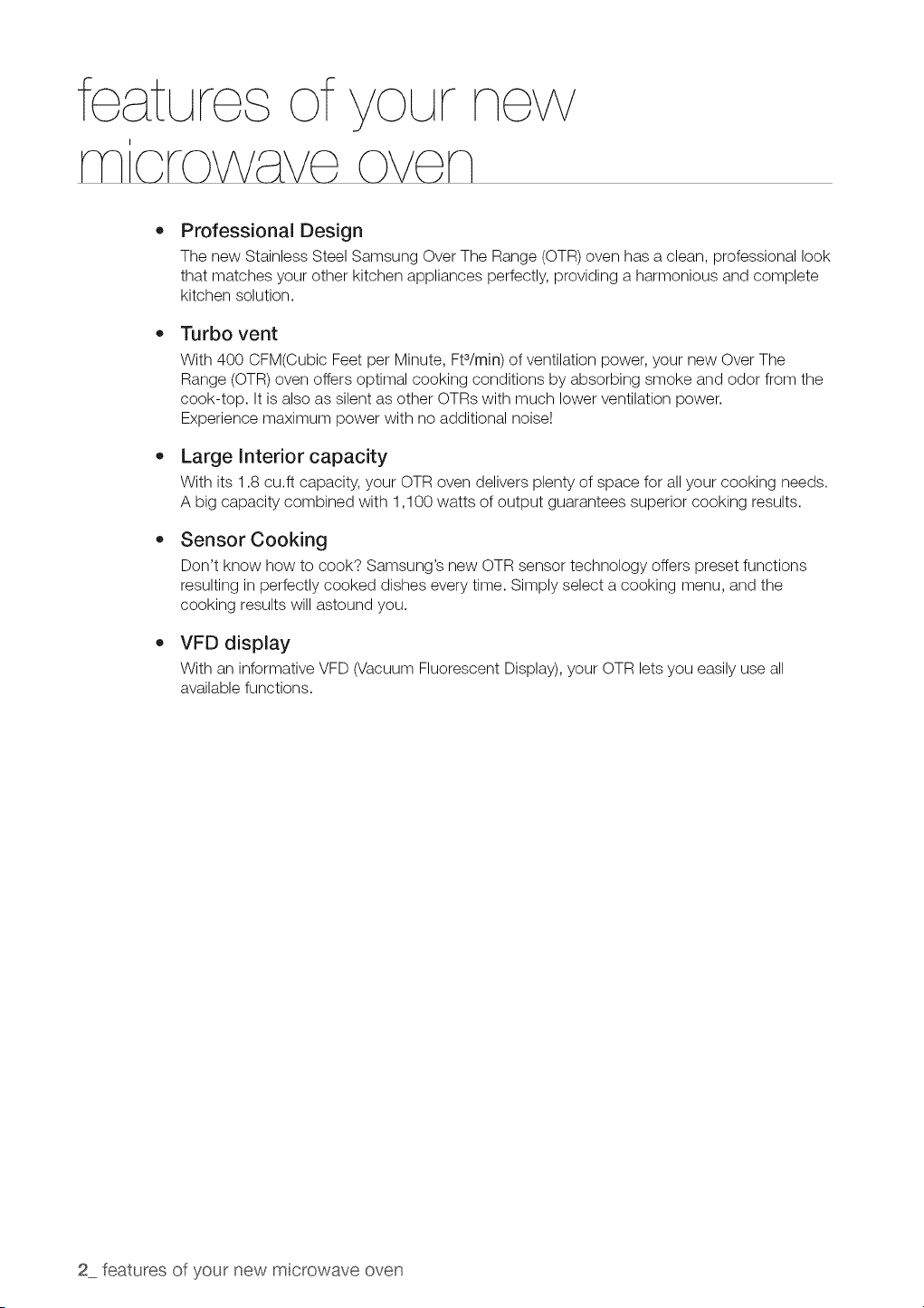

2 features of your new microwave oven

Throughout this manual, you'll see Warning and ©aution notes.

These warnings, cautions, and the important sCety instructions that follow do not

cover all possible conditions and situations that may occur.

It's your responsibility to use common sense, caution, and care when installing,

maintaining, and operation your microwave oven. Samsung is not liable for

damages resulting from improper use.

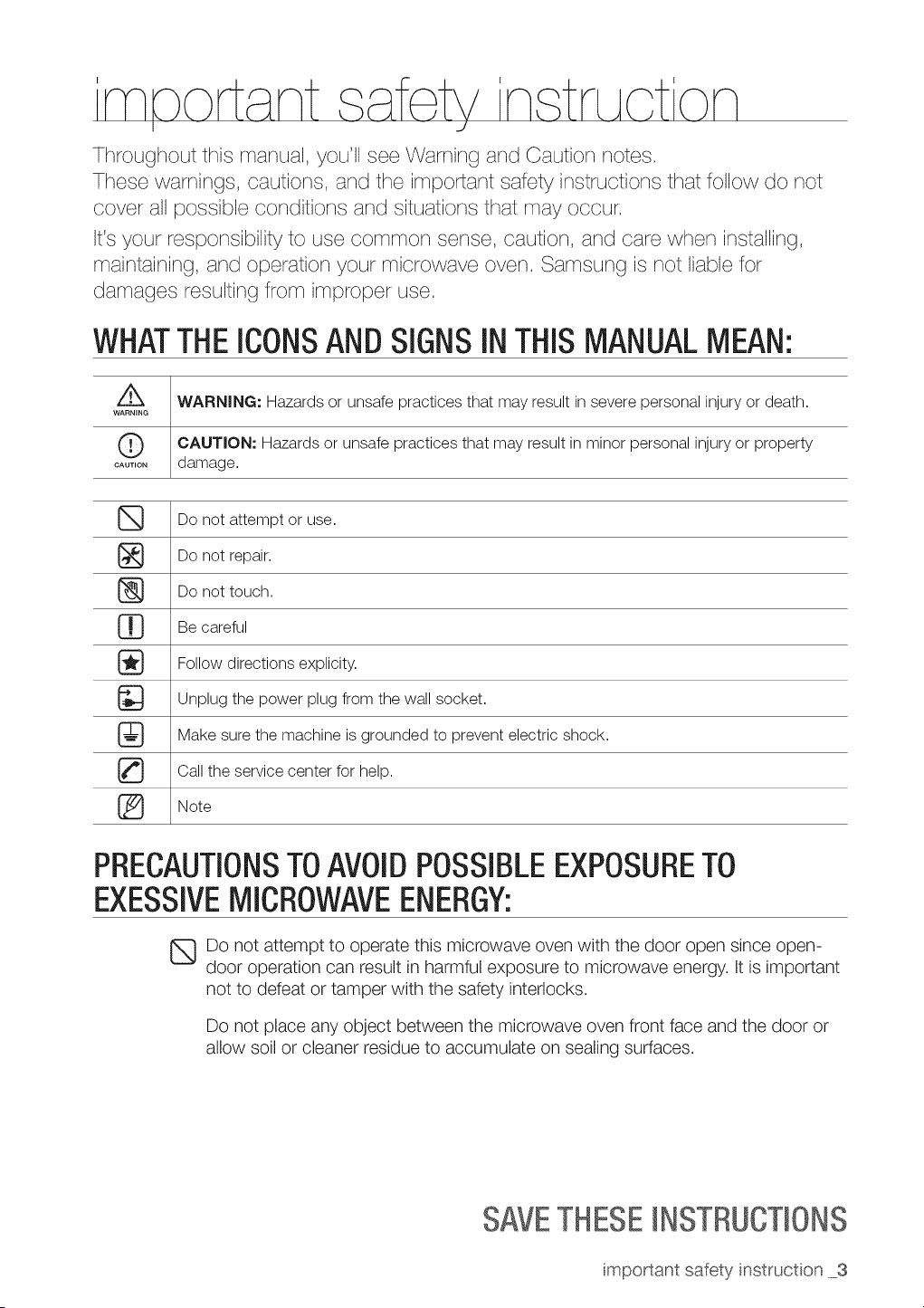

WHATTHEICONSANDSIGNSINTHISMANUALMEAN:

Z_ WARNING: Hazards or unsafe practices that may result in severe personal injury or death.

WARNING

CAUTION: Hazards or unsafe practices that may result in minor personal injury or property

CAOT,ONdamage.

Do not attempt or use.

] Do not repair.

Do not touch.

Be careful

I_ Follow directions explicity.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

PRECAUTIONSTOAVOIDPOSSIBLEEXPOSURETO

EXESSIVEMICROWAVEENERGY:

_Do not attempt to operate this microwave oven with the door open since open-

door operation can result in harmful exposure to microwave energy. It is important

not to defeat or tamper with the safety interlocks.

Do not place any object between the microwave oven front face and the door or

allow soil or cleaner residue to accumulate on sealing surfaces.

SAVETHESEINSTRUCTIONS

important safety instruction ....3

Do not operate the microwave oven if it is damaged. It is particularly important that

the microwave oven door close properly and that there is no damage to the

• Door (bent or dented),

Hinges and latches (broken or loosened),

Door seals and sealing surfaces.

The microwave oven should not be adjusted or repaired by anyone except

properly qualified service personnel.

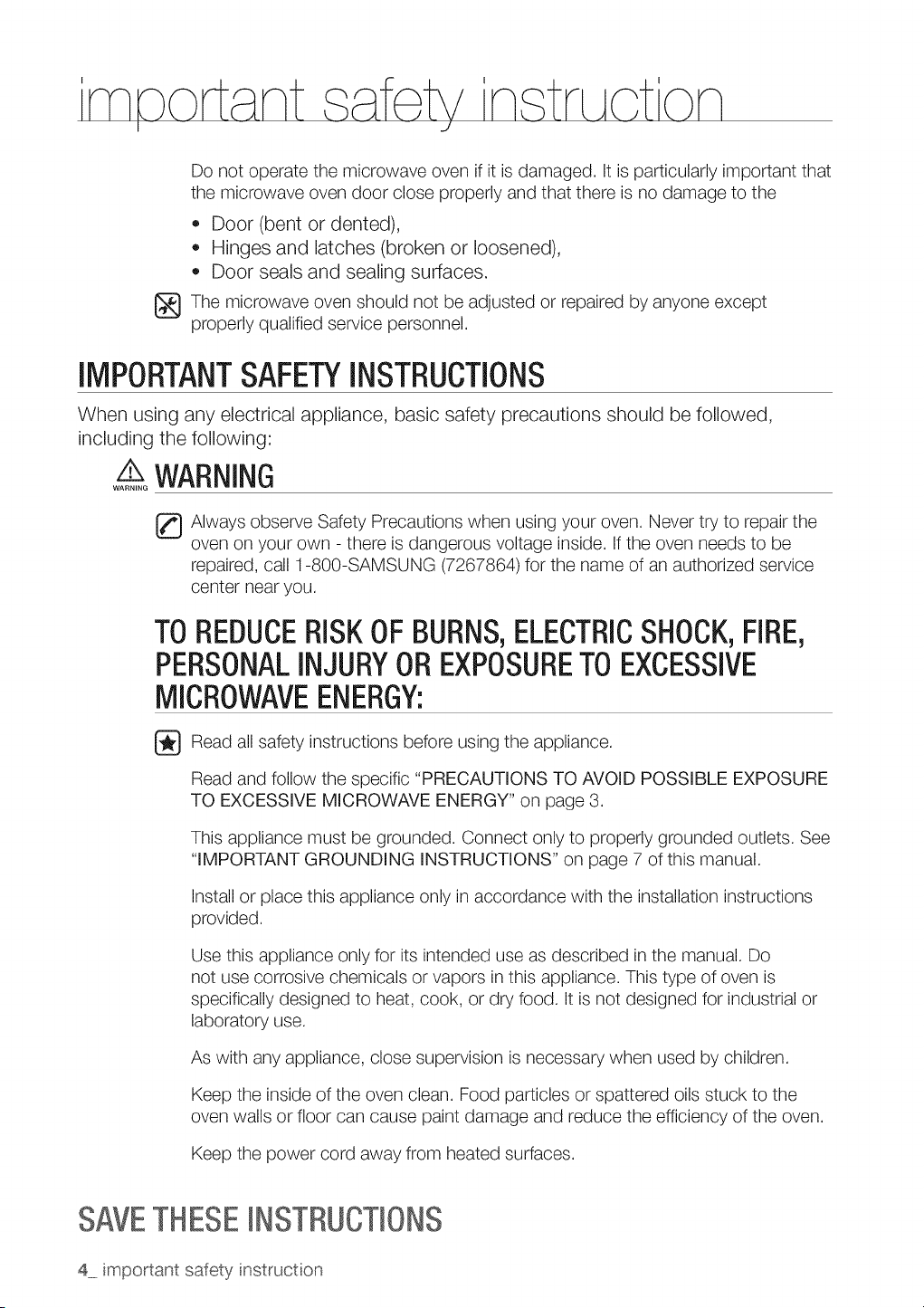

IMPORTANTSAFETYINSTRUCTIONS

When using any electrical appliance, basic safety precautions should be followed,

including the following:

_o WARNING

[_} Always observe Safety Precautions when using your oven. Never try to repair the

oven on your own - there is dangerous voltage inside. If the oven needs to be

repaired, call 1-800-SAMSUNG (7267864) for the name of an authorized service

center near you.

TOREDUCERISKOFBURNS,ELECTRICSHOCK,FIRE,

PERSONALINJURYOREXPOSURETOEXCESSIVE

MICROWAVEENERGY:

Read all safety instructions before using the appliance.

Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY" on page 3.

This appliance must be grounded. Connect only to properly grounded outlets. See

"IMPORTANT GROUNDING INSTRUCTIONS" on page 7 of this manual.

Install or place this appliance only in accordance with the installation instructions

provided.

Use this appliance only for its intended use as described in the manual. Do

not use corrosive chemicals or vapors in this appliance. This type of oven is

specifically designed to heat, cook, or dry food. It is not designed for industrial or

laboratory use.

As with any appliance, close supervision is necessary when used by children.

Keep the inside of the oven clean. Food particles or spattered oils stuck to the

oven walls or floor can cause paint damage and reduce the efficiency of the oven.

Keep the power cord away from heated surfaces.

SAVETHESEINSTRUCTIONS

4....important safety instruct on

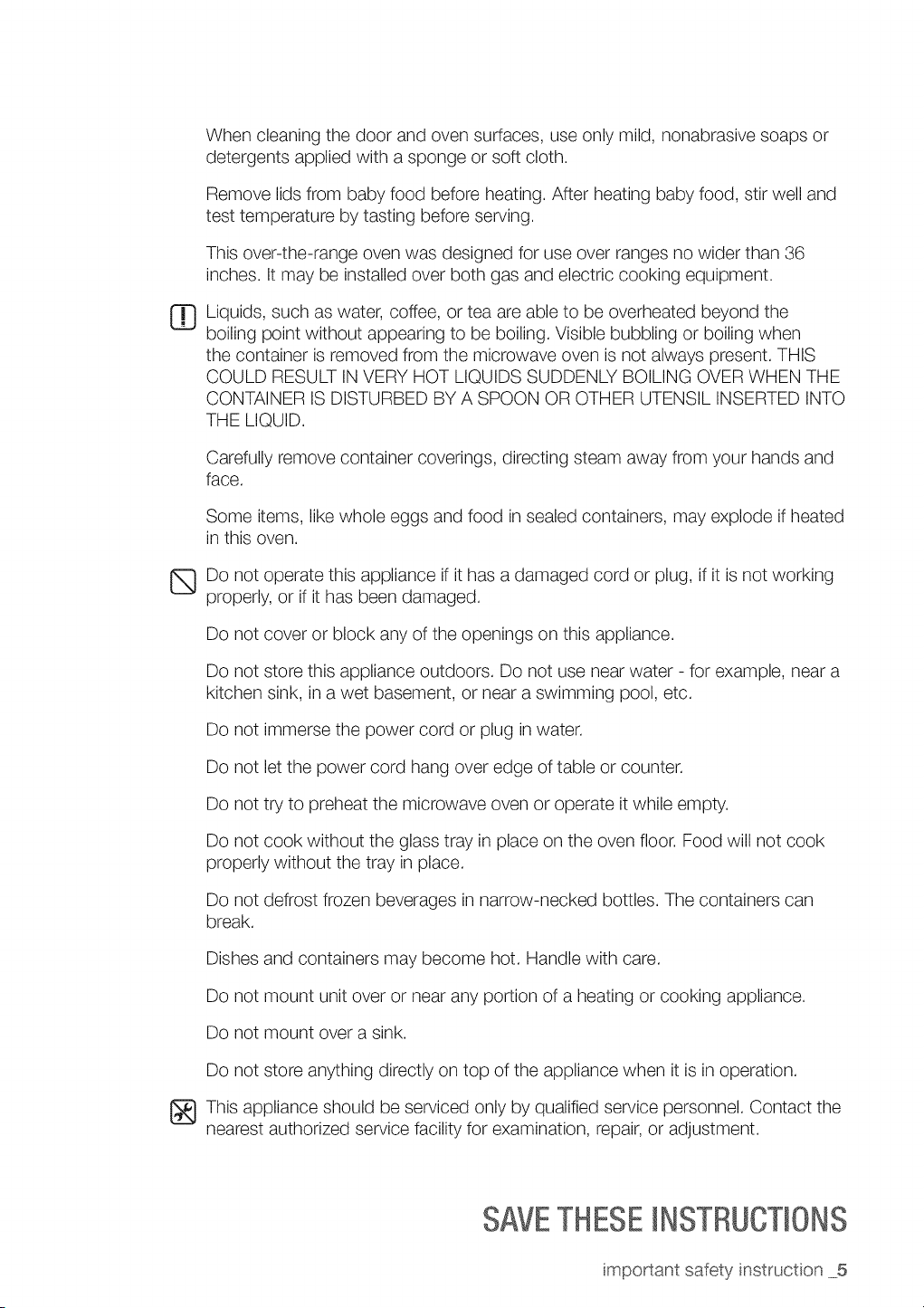

Whencleaningthedoorandovensurfaces,useonlymild,nonabrasivesoapsor

detergentsappliedwithaspongeorsoftcloth.

Removelidsfrombabyfoodbeforeheating.Afterheatingbabyfood,stirwelland

testtemperaturebytastingbeforeserving.

Thisover-the-rangeovenwasdesignedforuseoverrangesnowiderthan36

inches.Itmaybeinstalledoverbothgasandelectriccookingequipment.

[_ Liquids,suchaswater,coffee,orteaareabletobeoverheatedbeyondthe

boilingpointwithoutappearingto beboiling.Visiblebubblingor boilingwhen

thecontainerisremovedfromthemicrowaveovenisnotalwayspresent.THIS

COULDRESULTINVERYHOTLIQUIDSSUDDENLYBOILINGOVERWHENTHE

CONTAINERISDISTURBEDBYA SPOONOROTHERUTENSILINSERTEDINTO

THELIQUID.

Carefullyremovecontainercoverings,directingsteamawayfromyourhandsand

face.

Someitems,likewholeeggsandfoodinsealedcontainers,mayexplodeif heated

inthisoven.

Donotoperatethisapplianceif ithasa damagedcordor plug,ifit isnotworking

properly,orifit hasbeendamaged.

Donotcoverorblockanyoftheopeningsonthisappliance.

Donotstorethisapplianceoutdoors.Donotusenearwater-forexample,neara

kitchensink,ina wetbasement,ornearaswimmingpool,etc.

Donotimmersethepowercordorpluginwater.

Donotletthepowercordhangoveredgeoftableor counter.

Donottrytopreheatthemicrowaveovenor operateitwhileempty.

Donotcookwithouttheglasstrayinplaceontheovenfloor.Foodwillnotcook

properlywithoutthetrayinplace.

Donotdefrostfrozenbeveragesinnarrow-neckedbottles.Thecontainerscan

break.

Dishesandcontainersmaybecomehot.Handlewithcare.

Donotmountunitoverornearanyportionofa heatingorcookingappliance.

Donotmountoverasink.

Donotstoreanythingdirectlyontopoftheappliancewhenit isinoperation.

Thisapplianceshouldbeservicedonlybyqualifiedservicepersonnel.Contactthe

nearestauthorizedservicefacilityforexamination,repair,oradjustment.

SAVETHESEINSTRUCTIONS

important safety instruction ....5

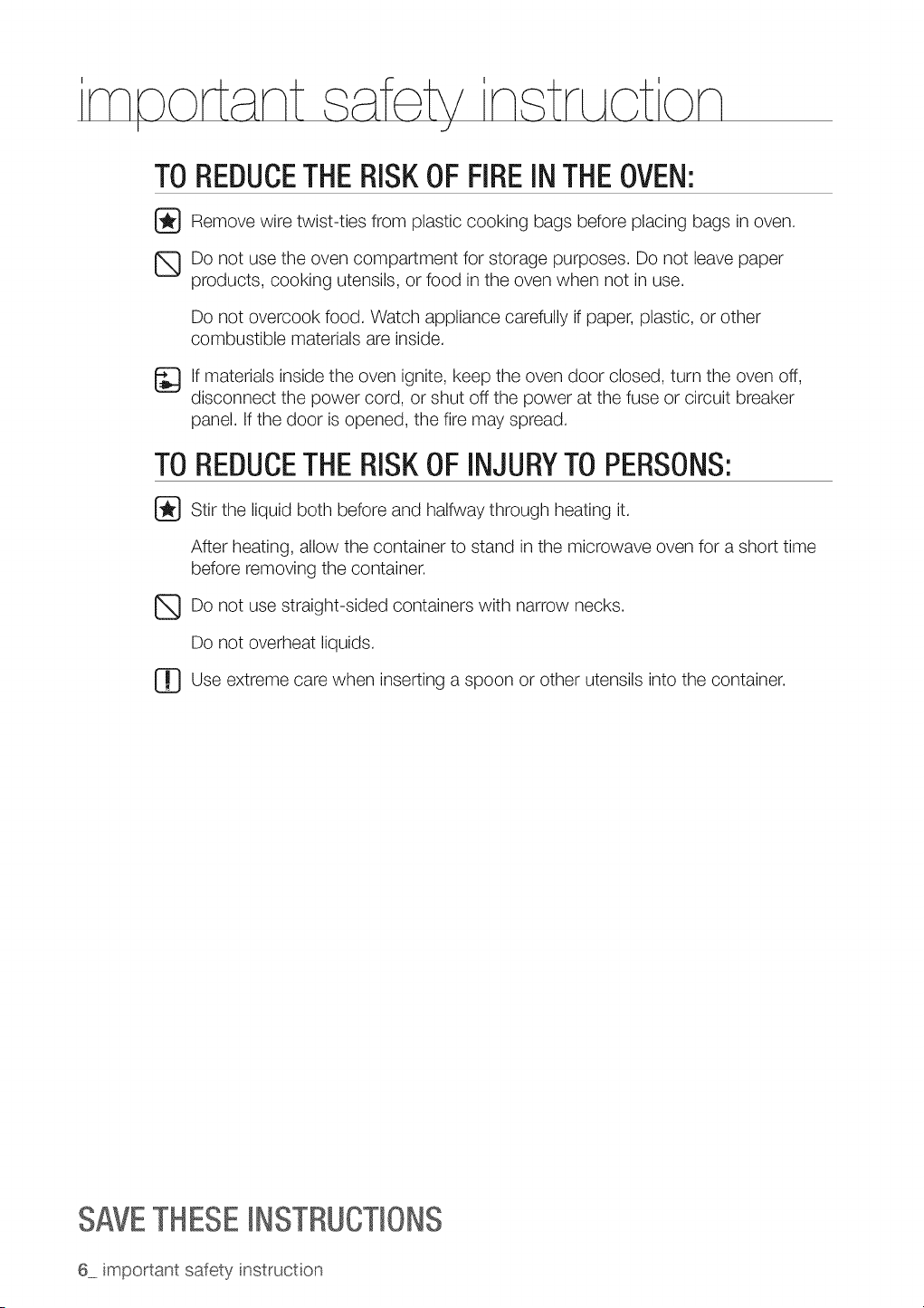

TOREDUCETHERISKOF FIREINTHEOVEN:

[_ Remove wire twist-ties from plastic cooking bags before placing bags in oven.

_Do not use the oven compartment for storage purposes. Do not leave paper

products, cooking utensils, or food in the oven when not in use.

Do not overcook food. Watch appliance carefully if paper, plastic, or other

combustible materials are inside.

_lf materials inside the oven ignite, keep the oven door closed, turn the oven off,

disconnect the power cord, or shut off the power at the fuse or circuit breaker

panel. If the door is opened, the fire may spread.

TOREDUCETHERISKOFINJURYTOPERSONS:

_]__.}Stir the liquid both before and halfway through heating it.

After heating, allow the container to stand in the microwave oven for a short time

before removing the container.

_Do not use straight-sided containers with narrow necks.

Do not overheat liquids.

_Use extreme when other utensils into the container.

care

inserting

spoon

SAVETHESEINSTRUCTIONS

6_. important safety instruct on

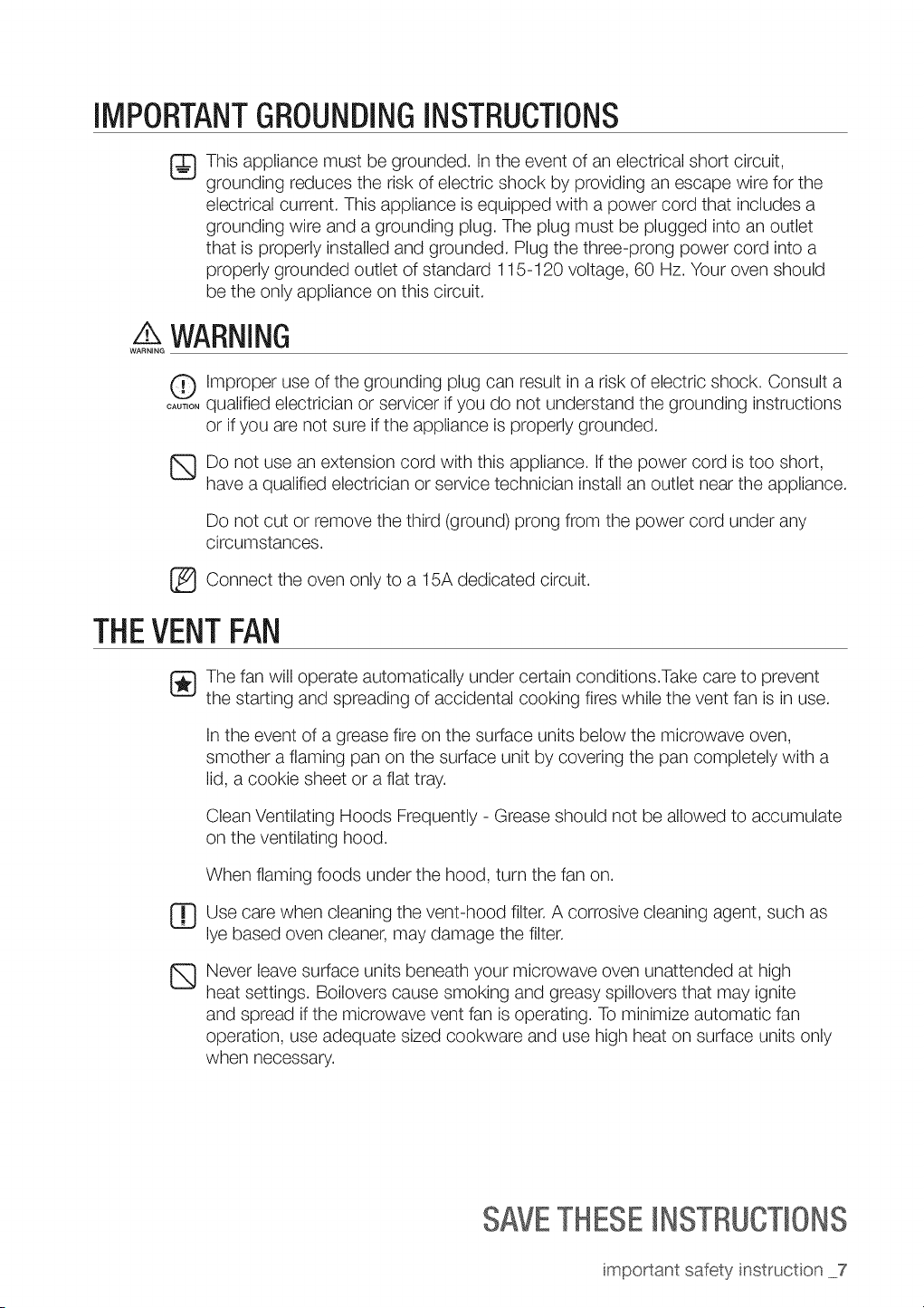

IMPORTANTGROUNDINGINSTRUCTIONS

[_ This appliance must be grounded. In the event of an electrical short circuit,

grounding reduces the risk of electric shock by providing an escape wire for the

electrical current. This appliance is equipped with a power cord that includes a

grounding wire and a grounding plug. The plug must be plugged into an outlet

that is properly installed and grounded. Plug the three-prong power cord into a

properly grounded outlet of standard 115-120 voltage, 60 Hz. Your oven should

be the only appliance on this circuit.

A WARNING

WARNING

O Improper use of the grounding plug can result in a risk of electric shock. Consult a

....... qualified electrician or servicer if you do not understand the grounding instructions

or if you are not sure if the appliance is properly grounded.

_Do not use an extension cord with this appliance. If the power cord is too short,

have a qualified electrician or service technician install an outlet near the appliance.

Do not cut or remove the third (ground) prong from the power cord under any

circumstances.

[_ Connect the 15A dedicated circuit.

oven

only

THEVENTFAN

_} The fan will operate automatically under certain conditions.Take care to prevent

the starting and spreading of accidental cooking fires while the vent fan is in use.

In the event of a grease fire on the surface units below the microwave oven,

smother a flaming pan on the surface unit by covering the pan completely with a

lid, a cookie sheet or a flat tray.

Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate

on the ventilating hood.

When flaming foods under the hood, turn the fan on.

Use care when cleaning the vent-hood filter. A corrosive cleaning agent, such as

lye based oven cleaner, may damage the filter.

Never leave surface units beneath your microwave oven unattended at high

heat settings. Boilovers cause smoking and greasy spillovers that may ignite

and spread if the microwave vent fan is operating. To minimize automatic fan

operation, use adequate sized cookware and use high heat on surface units only

when necessary.

SAVETHESEINSTRUCTIONS

important safety instruction ....7

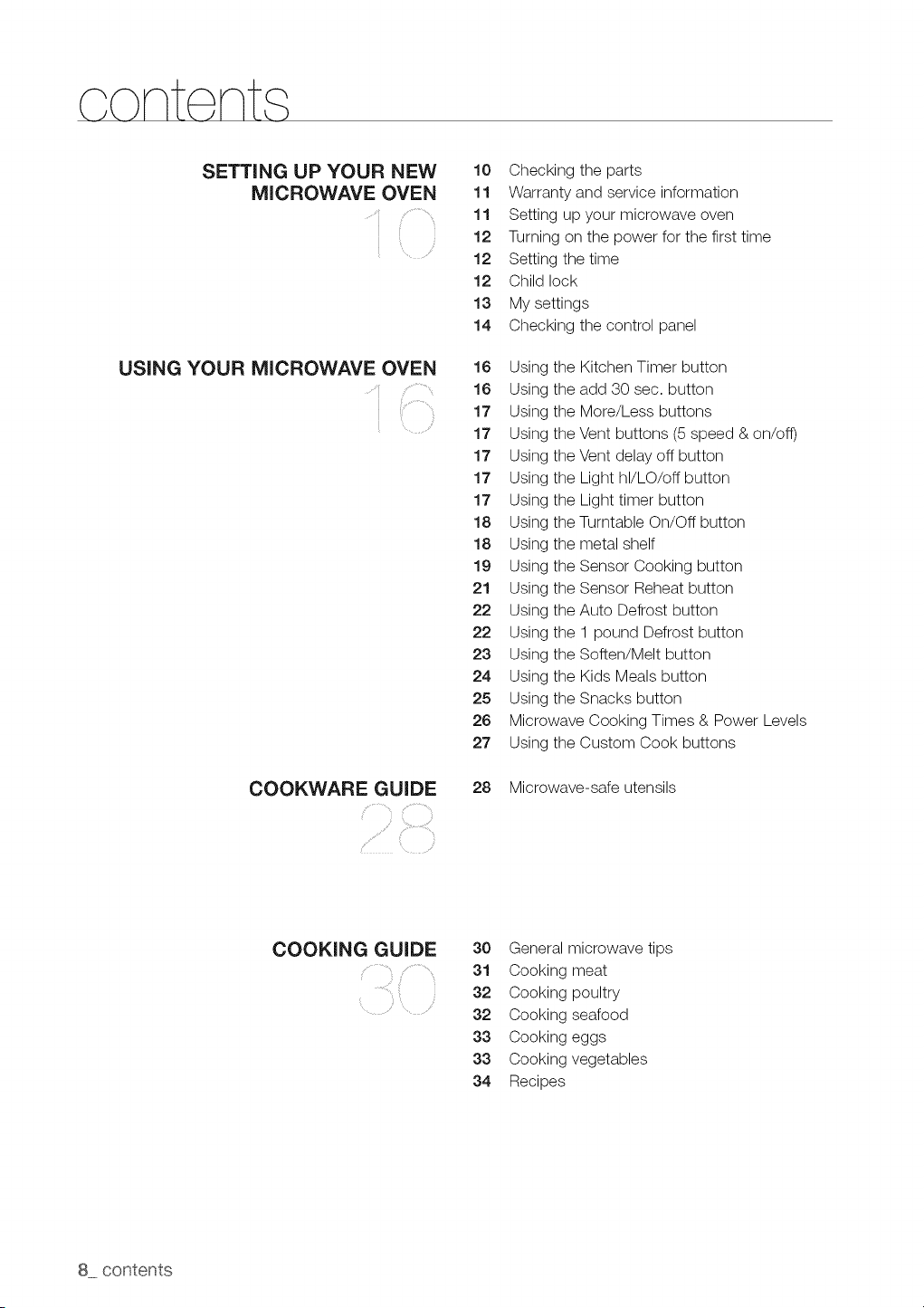

content

SETTING UP YOUR NEW

MICROWAVE OVEN

USING YOUR MICROWAVE OVEN

COOKWARE GUIDE

10 Checking the parts

11 Warranty and service information

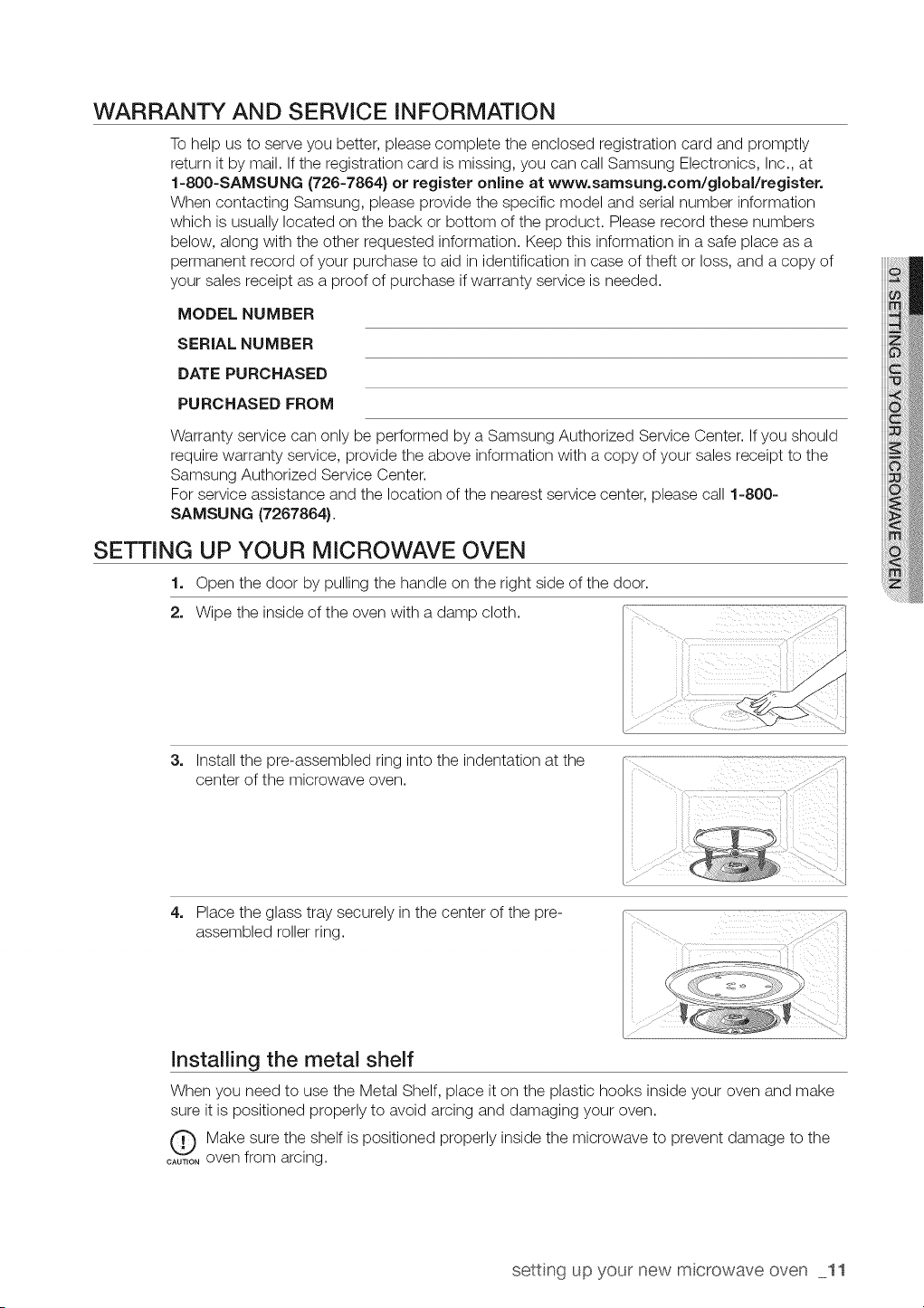

11 Setting up your microwave oven

12 Turning on the power for the first time

12 Setting the time

12 Child lock

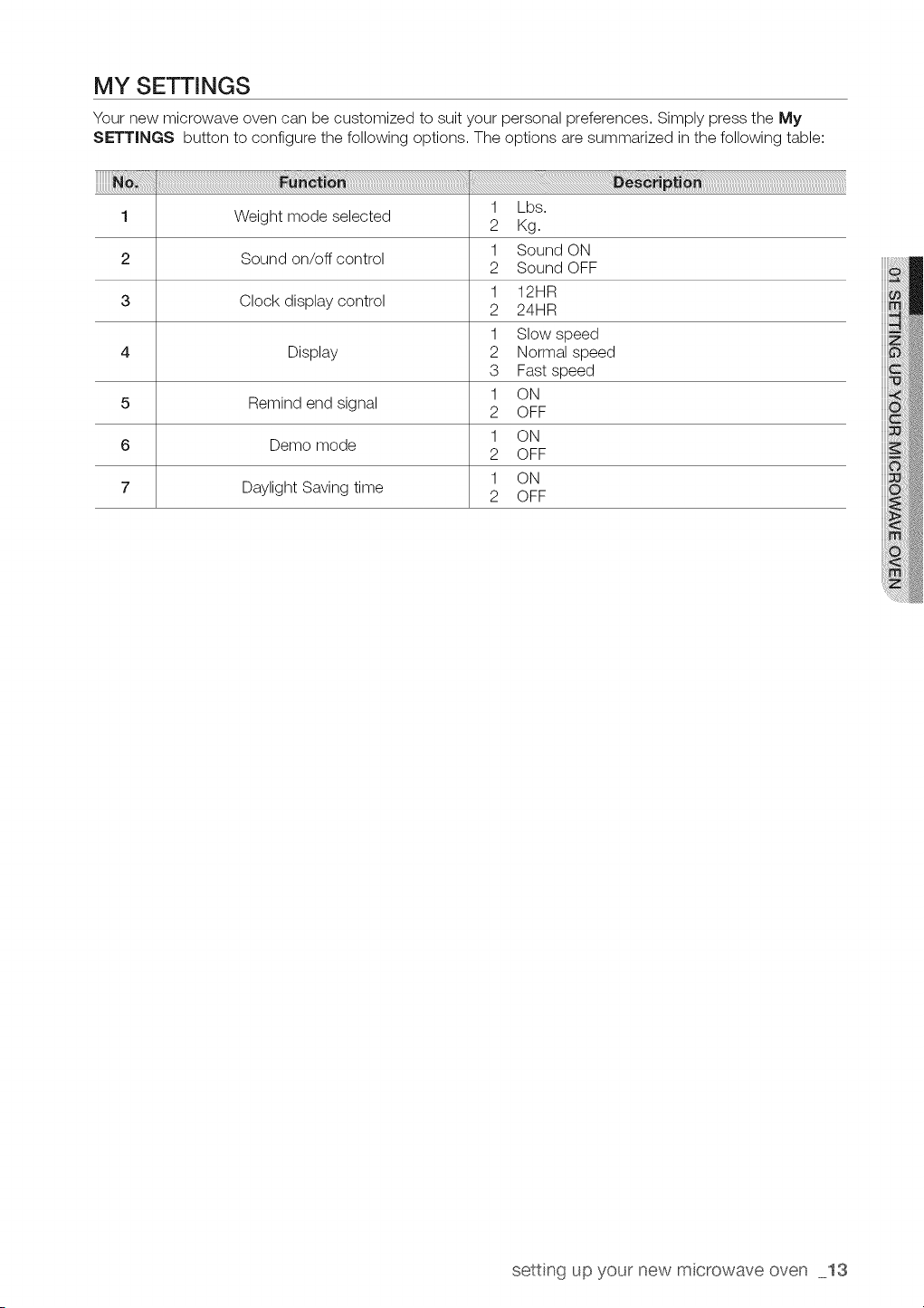

13 My settings

14 Checking the control panel

16 Usin¢

17 Usin¢

18 Usin¢

19 Usin¢

21 Usin¢

22 Usin¢

23 Using

24 Using

the Kitchen Timer button

the add 30 sec. button

the More/Less buttons

the Vent buttons (5 speed & on/off)

the Vent delay off button

the Light hl/LO/off button

the Light timer button

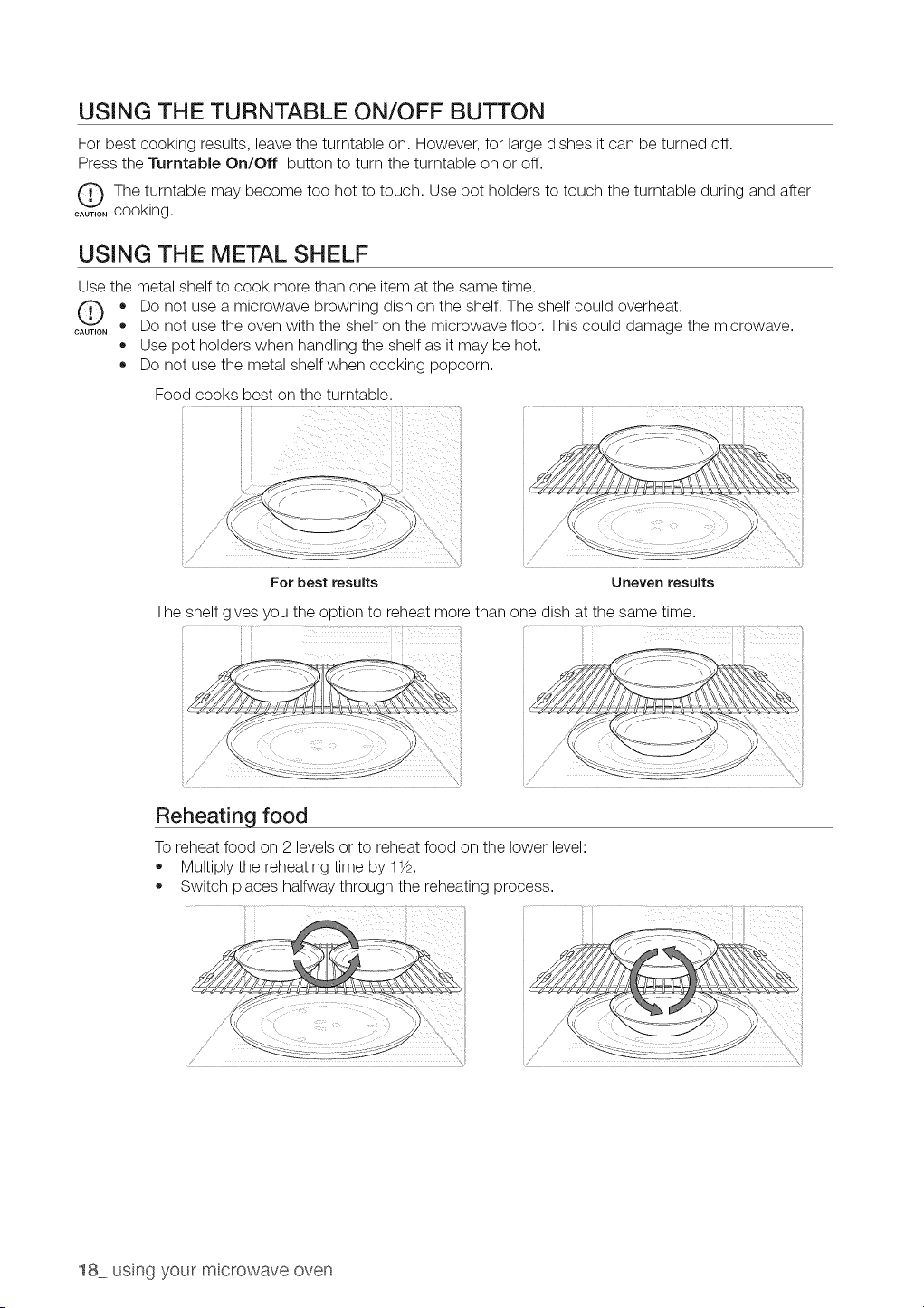

the Turntable On/Off button

the metal shelf

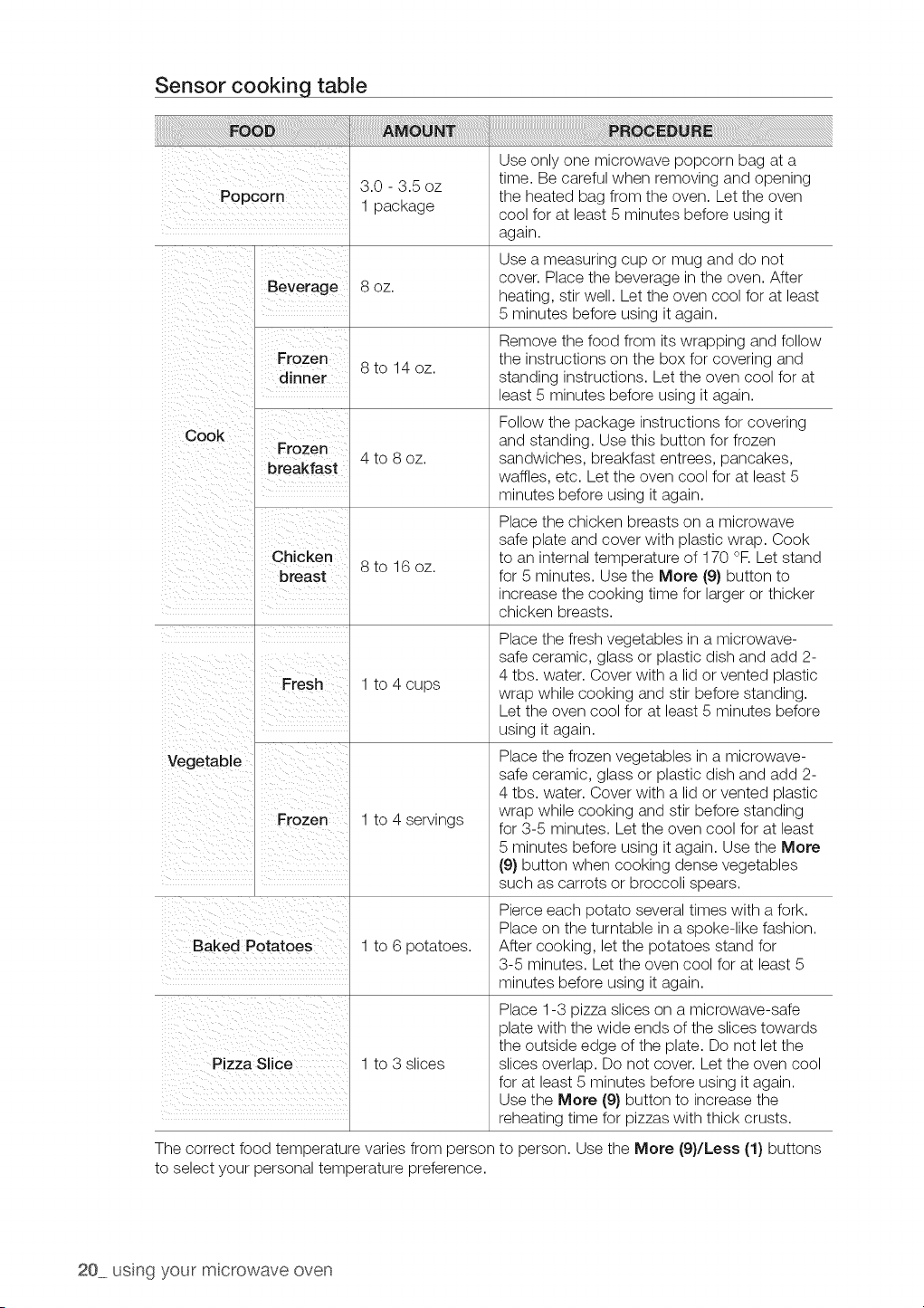

the Sensor Cooking button

the Sensor Reheat button

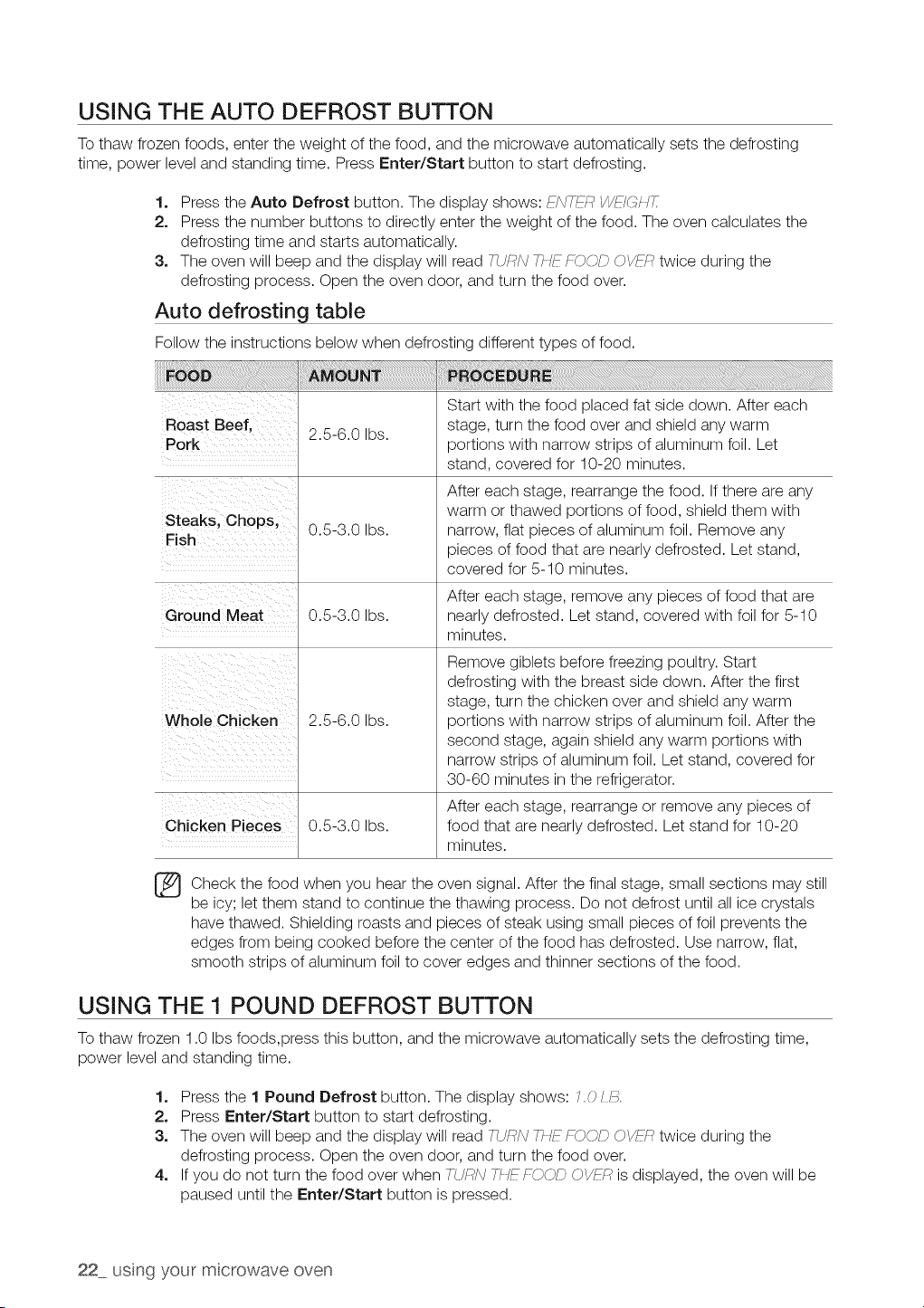

the Auto Defrost button

the 1 pound Defrost button

the Soften/Melt button

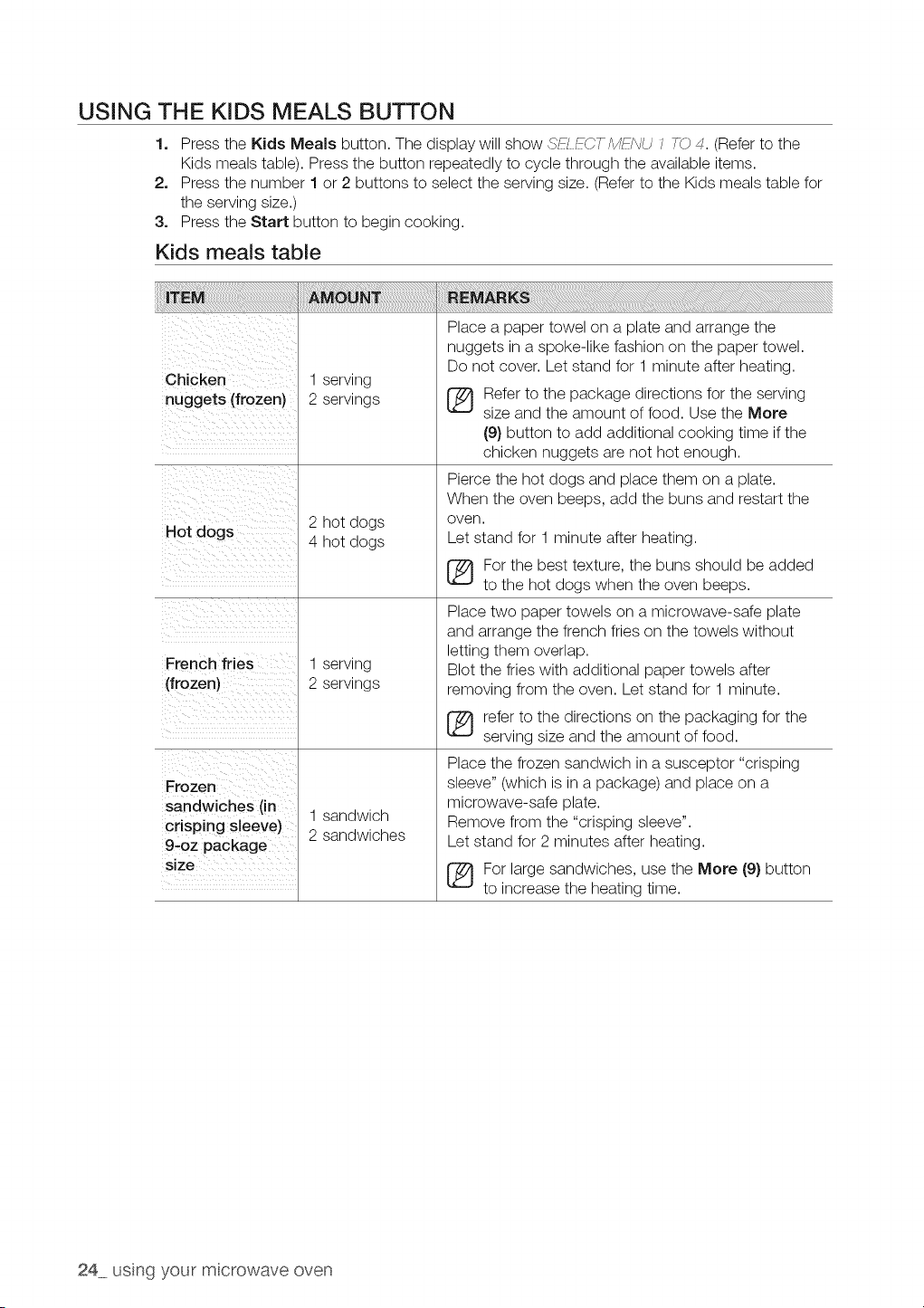

the Kids Meals button

Using the Snacks button

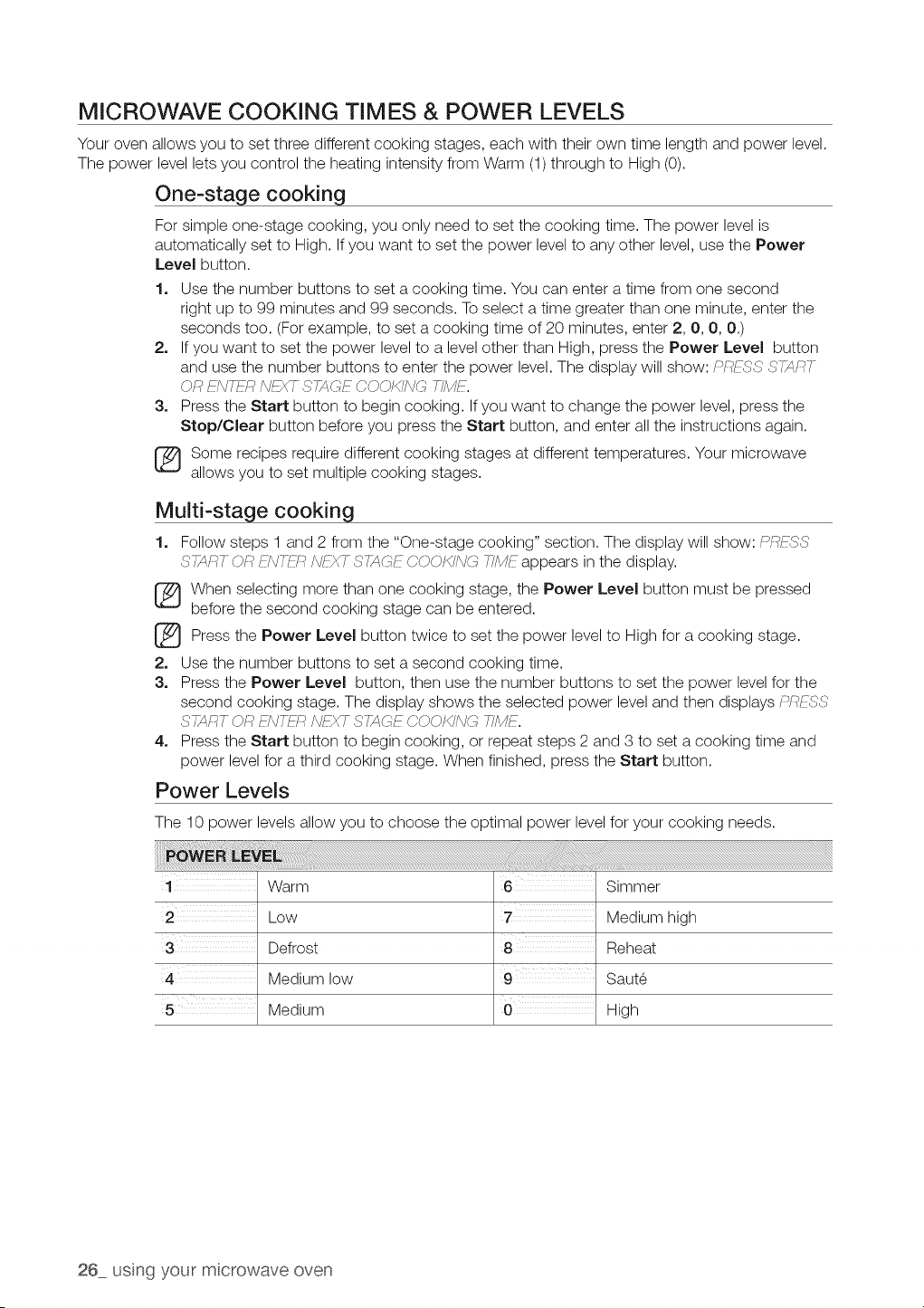

Microwave Cooking Times & Power Levels

Using the Custom Cook buttons

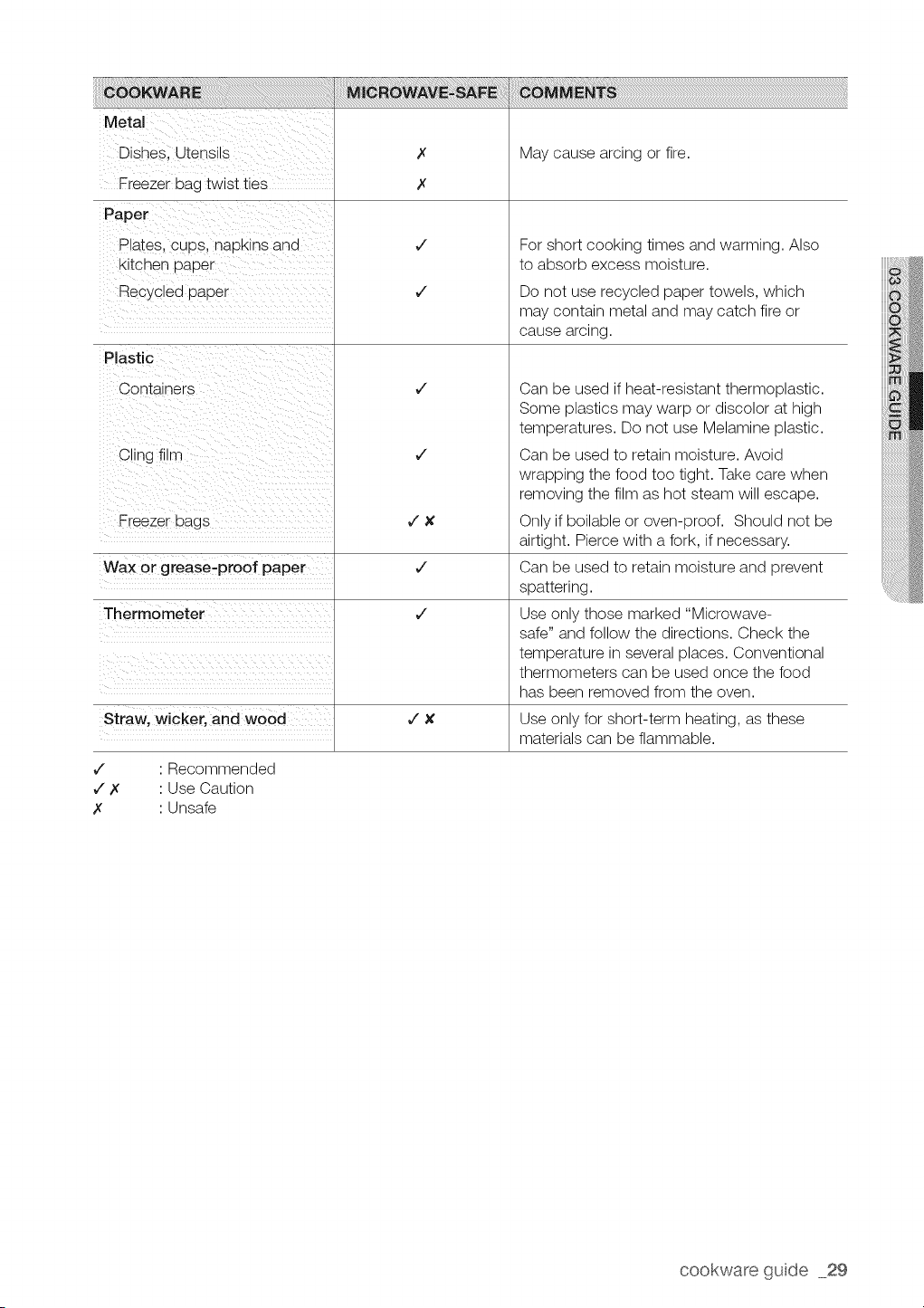

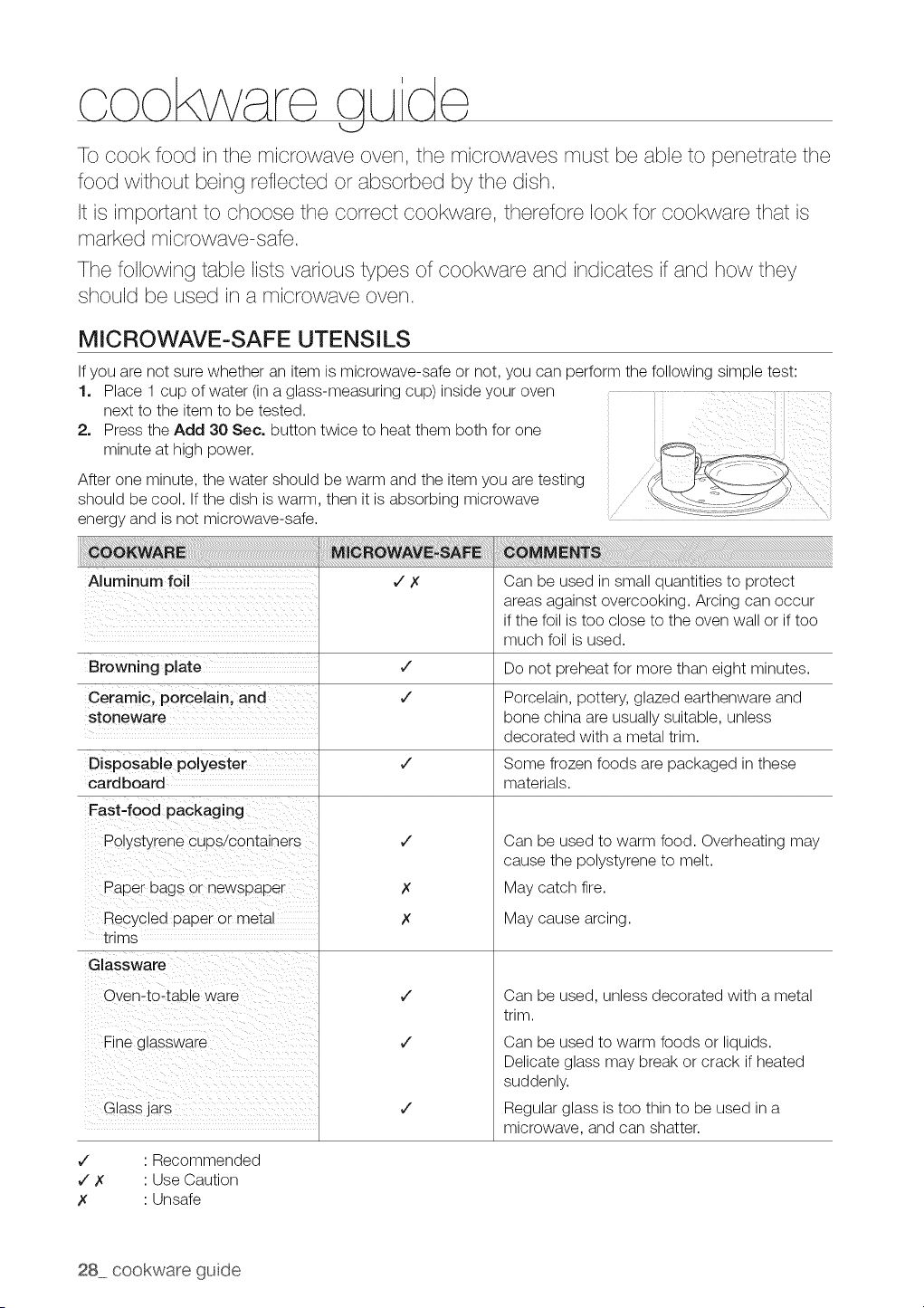

28 Microwave-safe utensils

COOKING GUIDE

30 General microwave tips

31 Cooking meat

32 Cooking poultry

32 Cooking seafood

33 Cooking eggs

33 Cooking vegetables

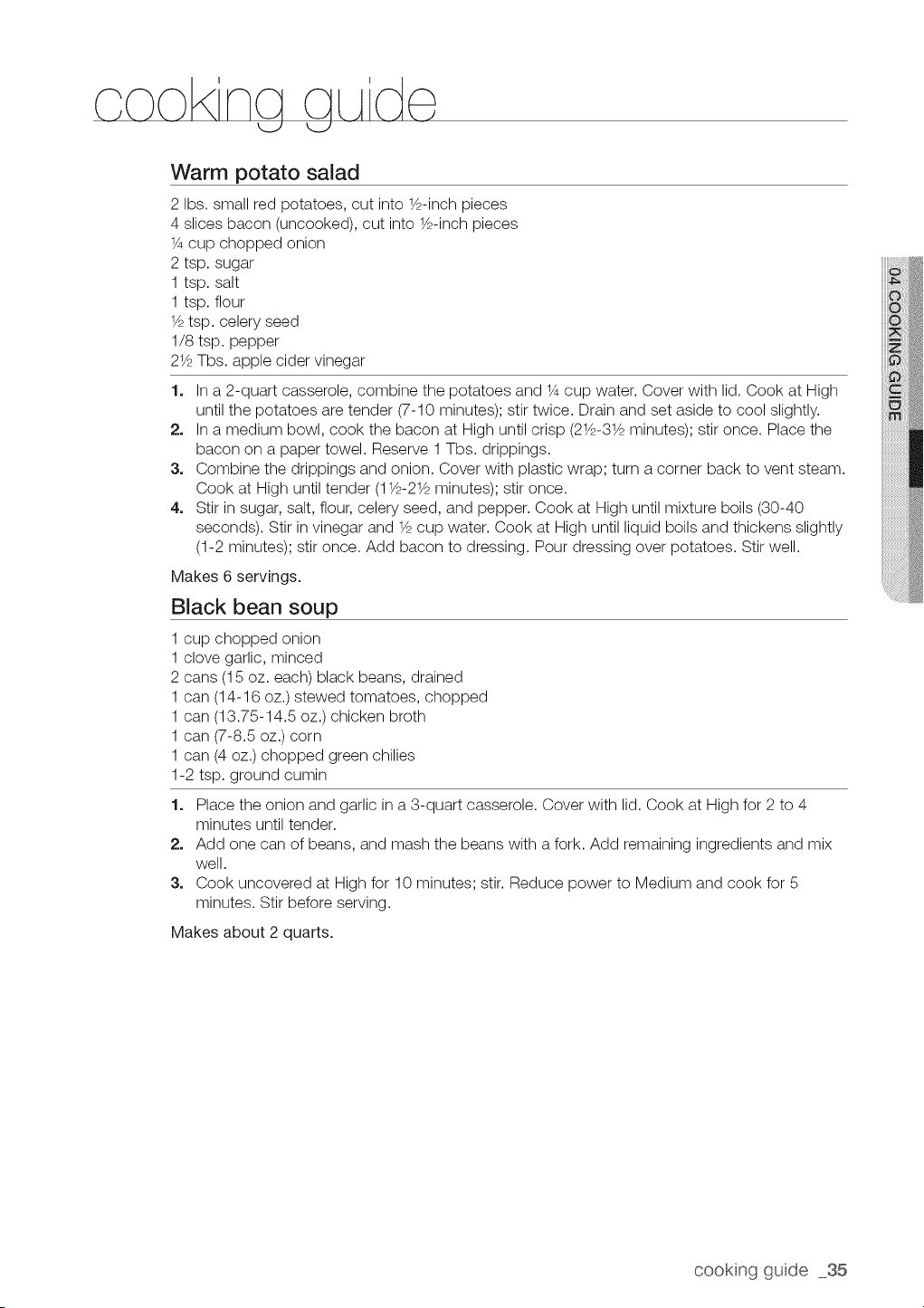

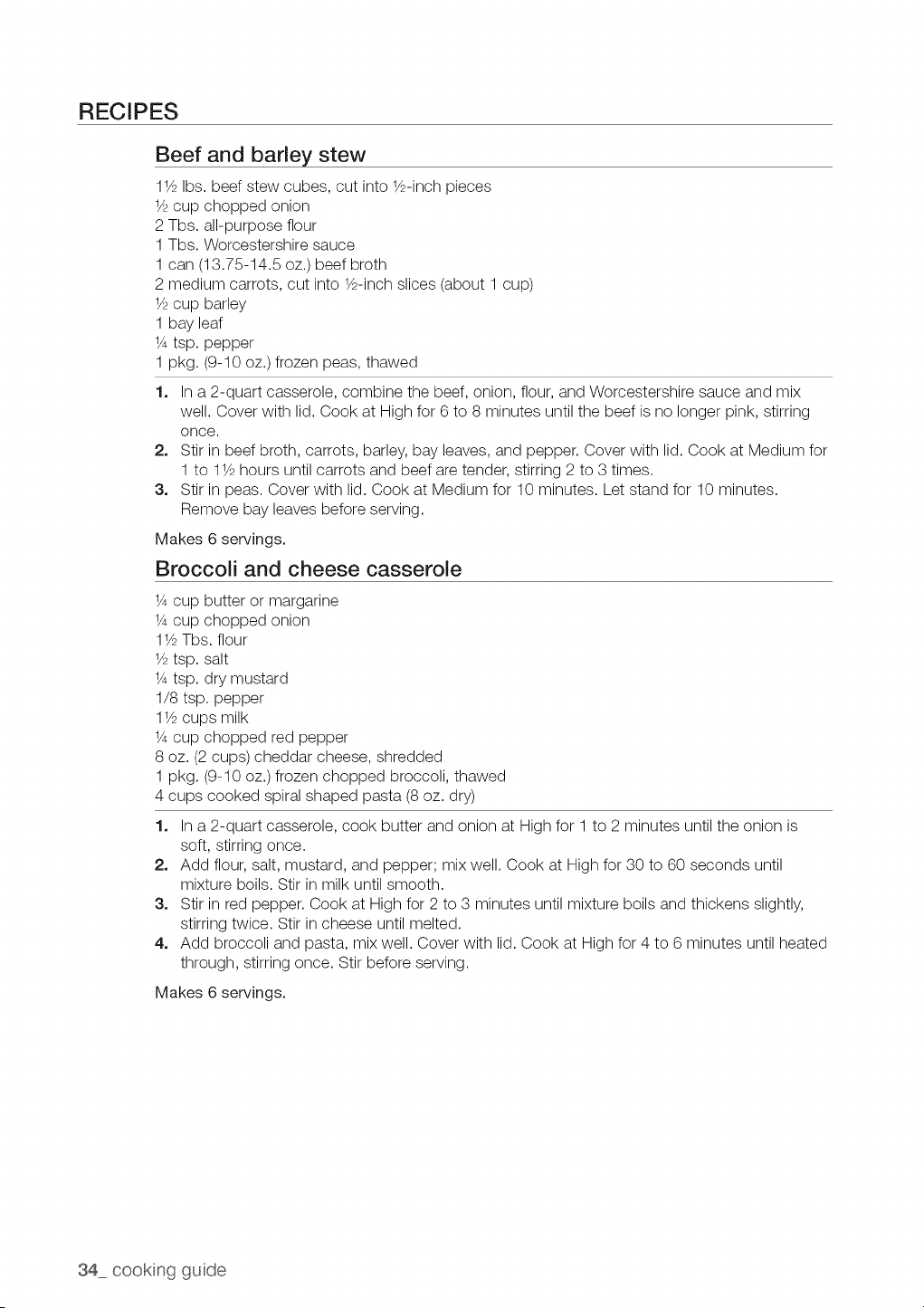

34 Recipes

8 contents

CLEANING AND MAiNTAiNiNG YOUR

MICROWAVE OVEN

36 Cleaning the exterior

36 Cleaning the interior

36 Cleaning the turntable and roller rings

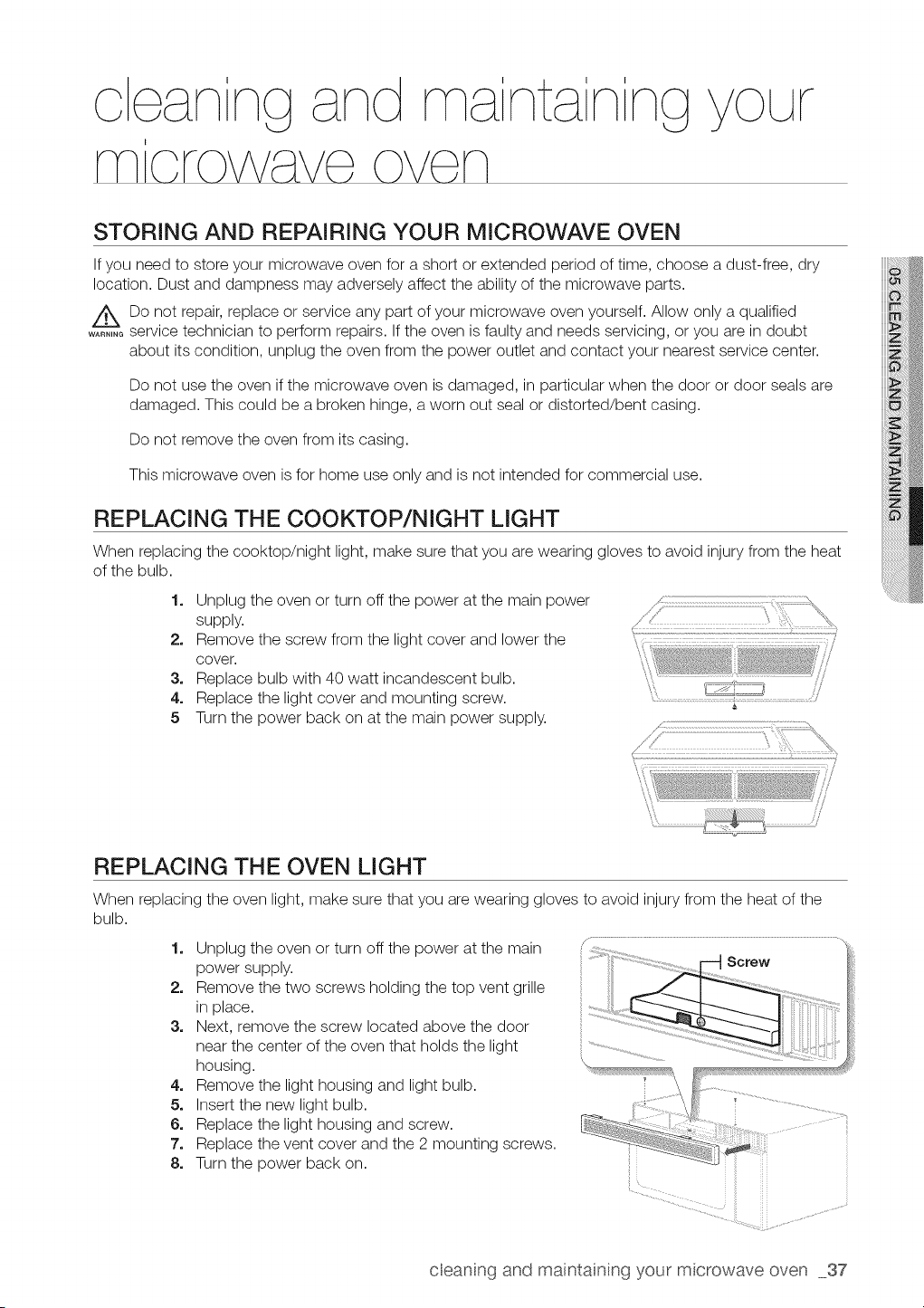

37 Storing and repairing your microwave oven

37 Replacing the cooktop/night light

37 Replacing the oven light

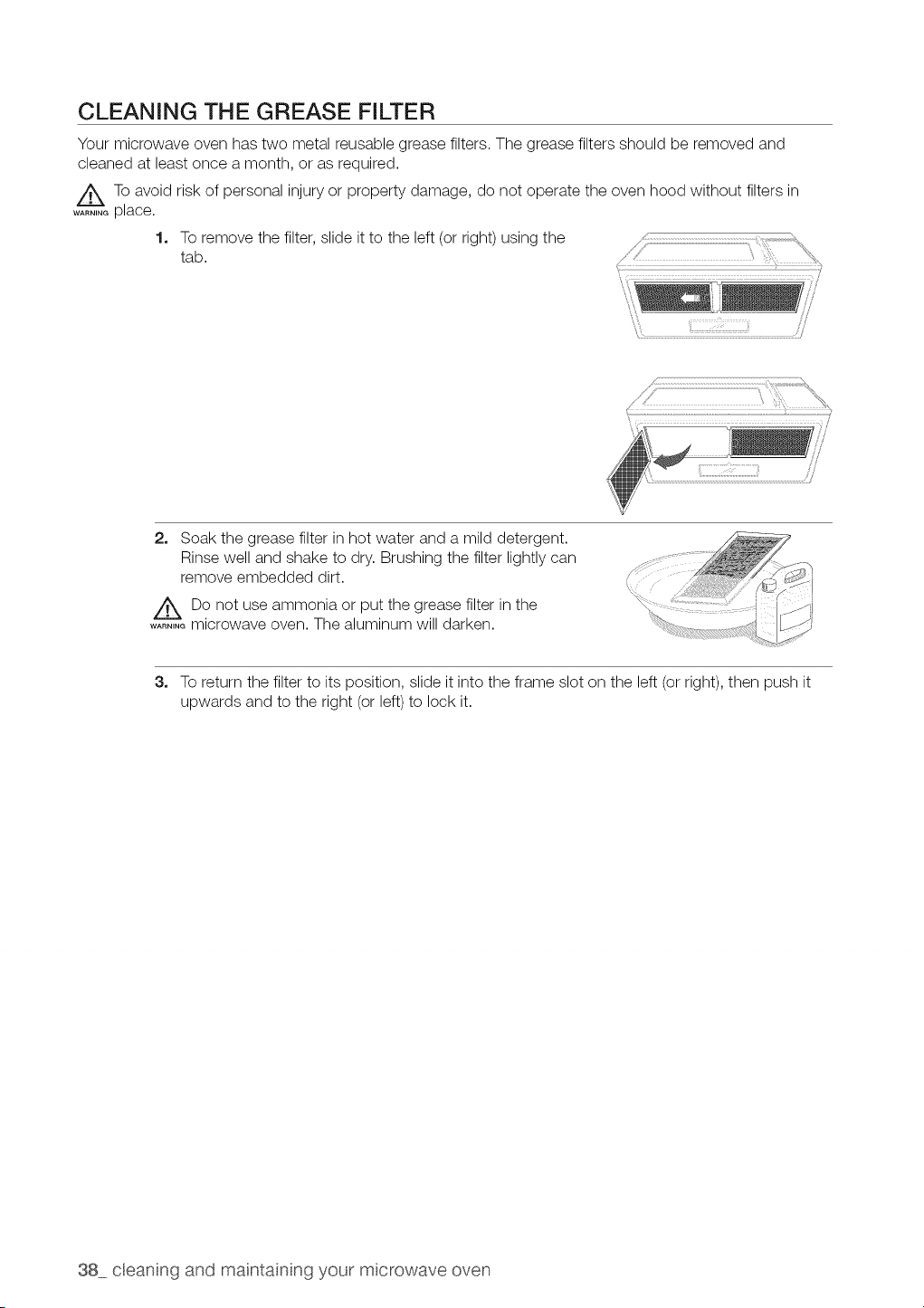

38 Cleaning the grease filter

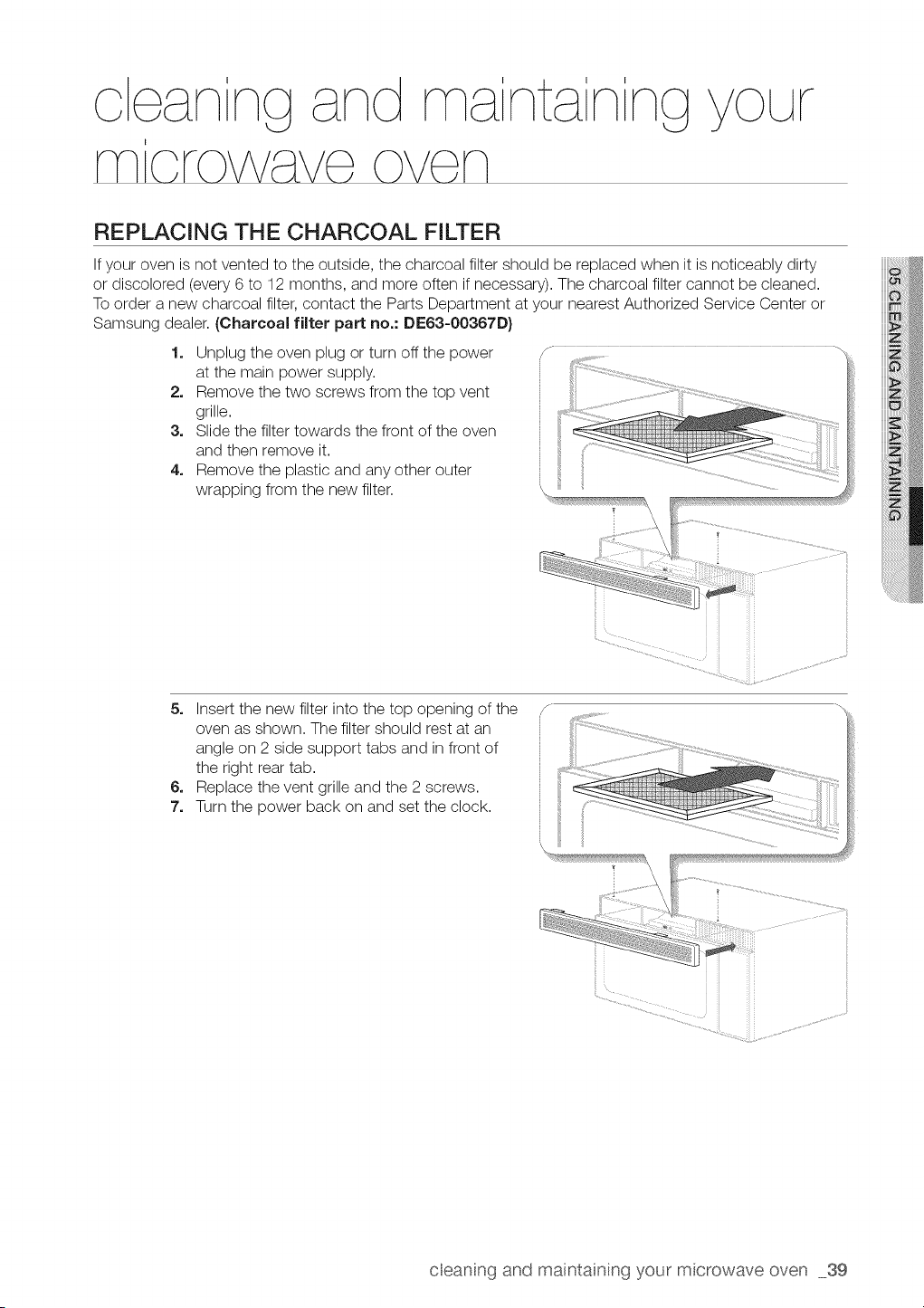

39 Replacing the charcoal filter

TROUBLESHOOTING

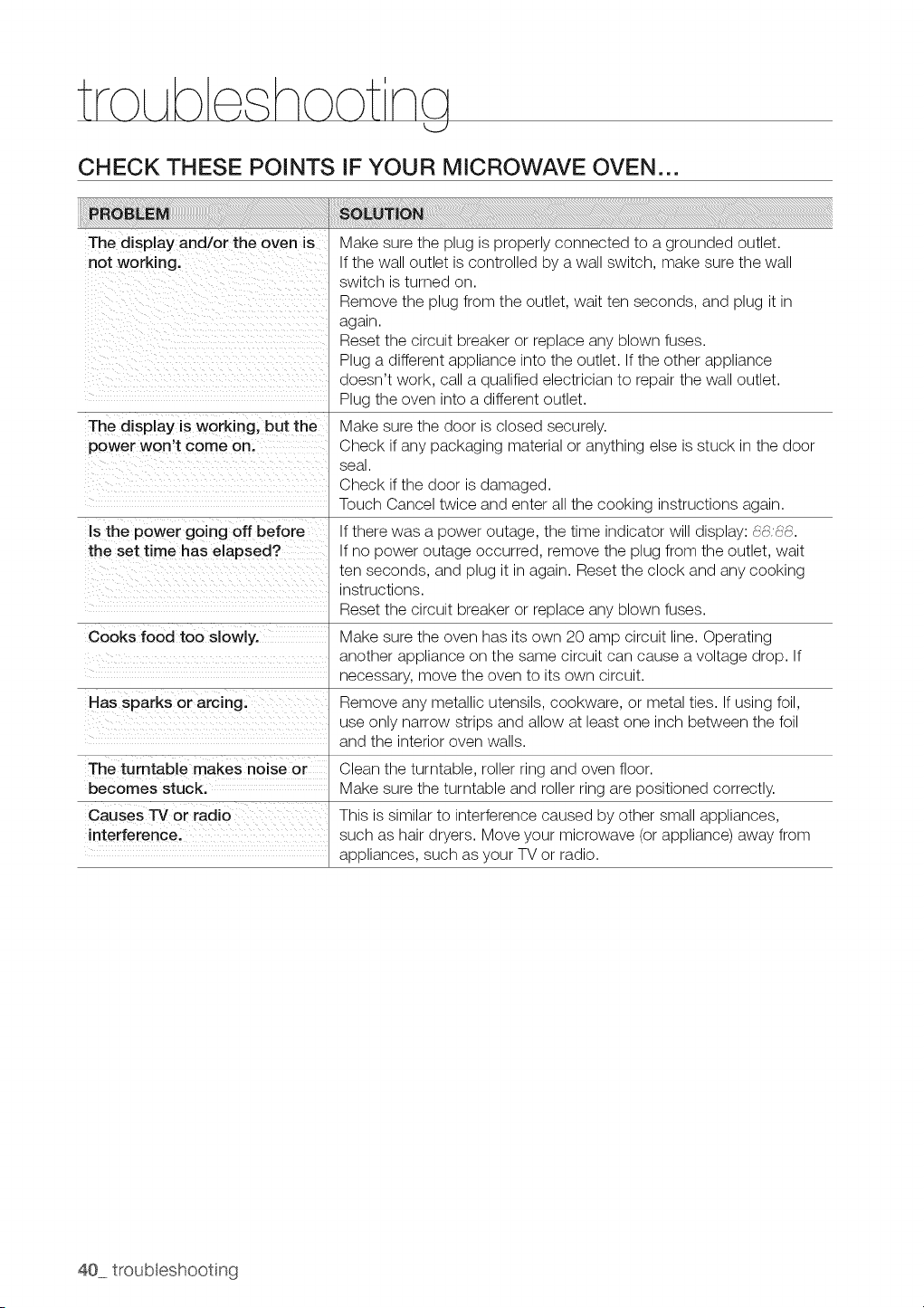

40 Check these points if your microwave oven...

APPENDIX 41 Specifications

WARRANTY

contents 9

sort ncj up

F nOW

Be sure to follow these instructions closely so that your new microwave oven works

properly,

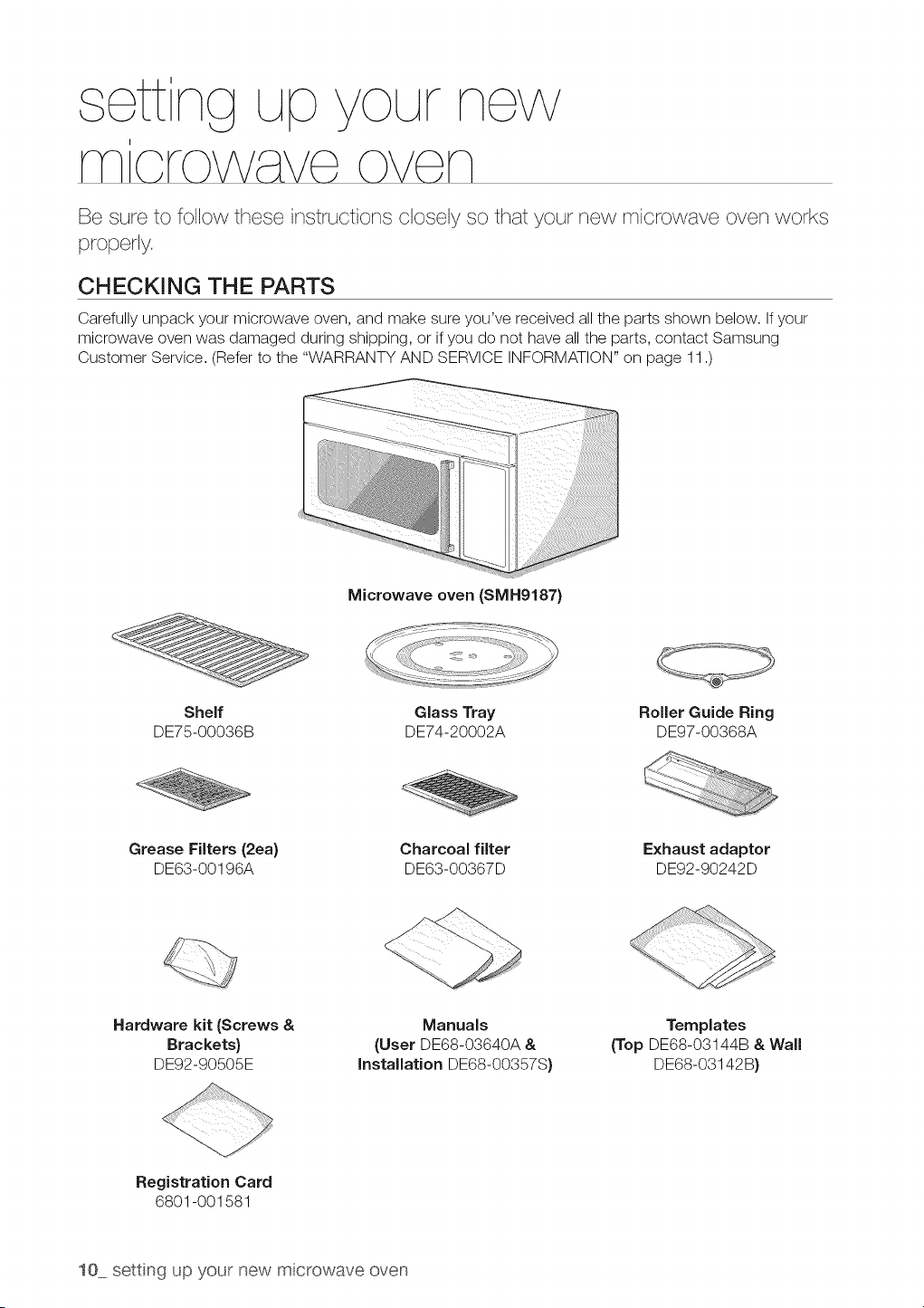

CHECKING THE PARTS

Carefully unpack your microwave oven, and make sure you've received all the parts shown below. If your

microwave oven was damaged during shipping, or if you do not have all the parts, contact Samsung

Customer Service. (Refer to the "WARRANTY AND SERVICE INFORMATION" on page 11 .)

Microwave oven (SMH9187}

Shelf Glass Tray Roller Guide Ring

DE75-00036B DE74-20002A DE97-00368A

Grease Filters (2ca)

DE63-00196A

Charcoal filter

DE63-00367D

Exhaust adaptor

DE92-90242D

Hardware kit (Screws &

Brackets)

DE92-90505E

Manuals

(User DE68-03640A &

installation DE68-00357S}

Templates

(Top DE68-03144B & Wall

DE68-03142B)

Registration Card

6801-001581

10 setting up your new microwave oven

WARRANTY AND SERVICE INFORMATION

To help us to serve you better, please complete the enclosed registration card and promptly

return it by mail. If the registration card is missing, you can call Samsung Electronics, Inc., at

1-8O0=SAMSUNG (726-7864} or register online at www.samsung.com/global/register.

When contacting Samsung, please provide the specific model and serial number information

which is usually located on the back or bottom of the product. Please record these numbers

below, along with the other requested information. Keep this information in a safe place as a

permanent record of your purchase to aid in identification in case of theft or loss, and a copy of

your sales receipt as a proof of purchase if warranty service is needed.

MODEL NUMBER

SERIAL NUMBER

DATE PURCHASED

PURCHASED FROM

Warranty service can only be performed by a Samsung Authorized Service Center. If you should

require warranty service, provide the above information with a copy of your sales receipt to the

Samsung Authorized Service Center.

For service assistance and the location of the nearest service center, please call 1-800-

SAMSUNG (7267864).

SETTING UP YOUR MICROWAVE OVEN

Open the door by pulling the handle on the right side of the door.

Wipe the inside of the oven with a damp cloth.

Install the pre-assembled ring into the indentation at the

center of the microwave oven.

Place the glass tray securely in the center of the pre-

assembled roller ring.

Installing the metal shelf

When you need to use the Metal Shelf, place it on the plastic hooks inside your oven and make

sure it is positioned properly to avoid arcing and damaging your oven.

O Make sure the shelf is positioned properly inside the microwave to prevent damage to the

CAUTIONoven from arcing.

setting up your new m crowave oven 11

sett ng up

F nOW

TURNING ON THE POWER FOR THE FIRST TIME

The first time you plug the power cord into an outlet the display turns on after four seconds with:/_//½?E

7T?_/¢}//OZO¢}/4"A/_J??F7 77J_EO//XY

[]_ This occur a power interruption

will also after

SETTING THE TIME

Your microwave oven is equipped with a built-in clock. Set the clock when first installing your microwave

oven and after a power failure. The time is displayed whenever the microwave oven is not being used.

1. Press the Clock button.

2. The display will show £\/7X? T//W.,'cOi/?AY.

3, Use the number buttons to enter the current time. You need to press at least three numbers

to set the clock. For example, if the current time is 5:00, press 5, 0, 0. The display will show:

_'}00.

4, Press the Enter / Start button again.

5. The display will show AA_7bL/Oi/J/>A_ 7-Ot/O/P.

6. Use the number button to select AM / PM.

7. Press the Enter / Start button again.

8. A colon appears indicating that the time is set.

To check the time while cooking, press the Clock button.

CHILD LOCK

The Child Lock function allows you to lock the buttons so that the microwave oven cannot be operated

accidentally. The oven can be locked at any time.

Activating/Deactivating

If you want to activate or deactivate the child lock function, press the Enter / Start button for 3 seconds.

The display will show O////D l OCX (10Nwhen the oven is locked and then returns to displaying the time.

12 setting up your new microwave oven

MY SETTINGS

Your new microwave oven can be customized to suit your personal preferences. Simply press the My

SETTINGS button to configure the following options. The options are summarized in the following table:

1 Weight mode selected

2 Sound on/off control

3 Clock display control

4 Display

5 Remind end signal

6 Demo mode

7 Daylight Saving time

1 Lbs.

2 Kg.

1 Sound ON

2 Sound OFF

1 12HR

2 24HR

1 Slow speed

2 Normal speed

3 Fast speed

1 ON

2 OFF

1 ON

2 OFF

1 ON

2 OFF

setting up your new m crowave oven 13

sett ng up

F nOW

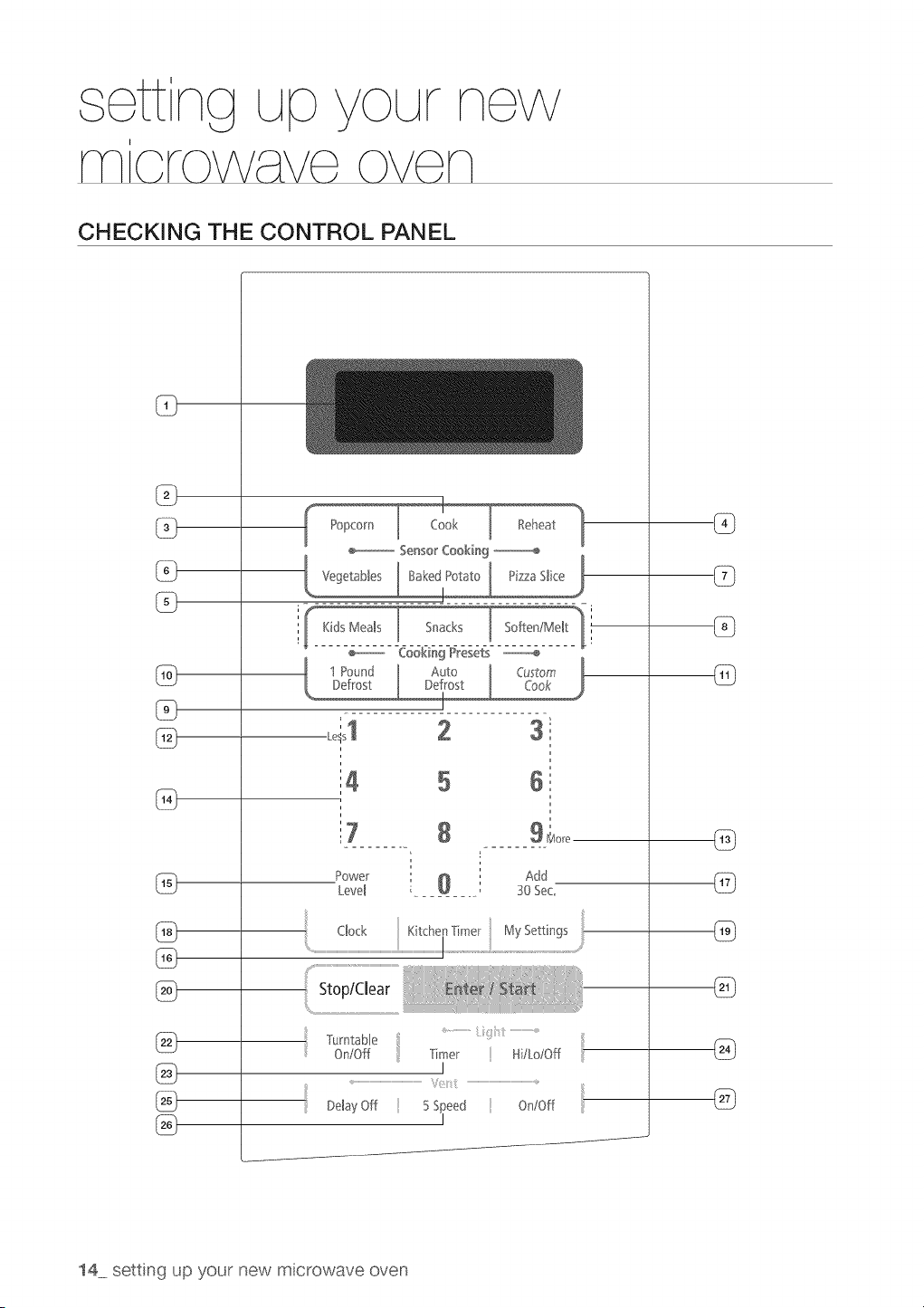

CHECKING THE CONTROL PANEL

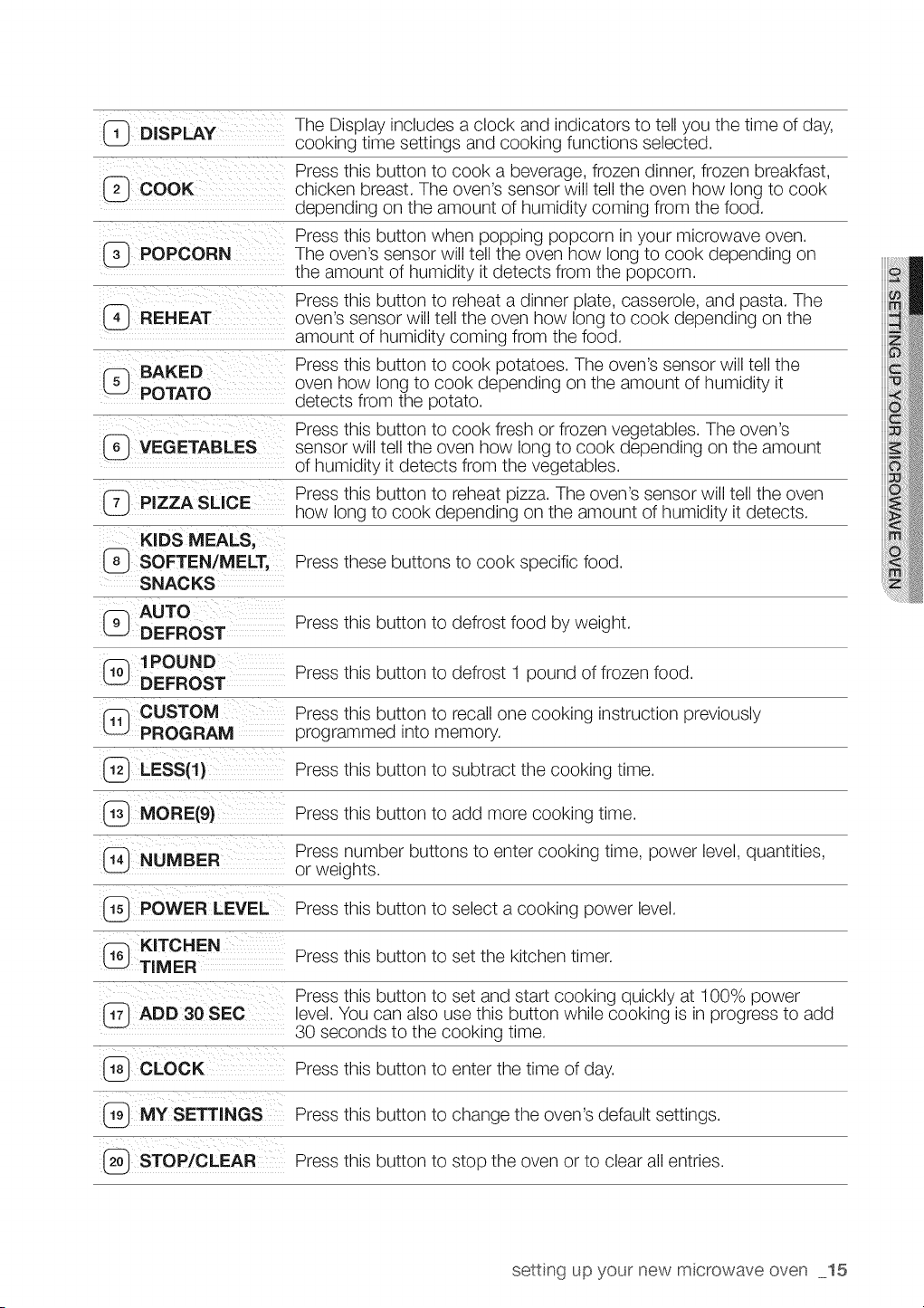

Popcorn Reheat

Se_sor Cooking

Baked Potato

÷ ........... Cooki_ 9 Presets ---_

Auto

Defrost

41 2 31

Power

Level

Add

30 Sec,,

StoplClear

; Turntable ...........................: ............................

On/Off Timer H/Lo/Off :

Delay Off 5 Speed Or#Off

14 setting up your new m crowave oven

ino,u o,oo i 0io to stote,,

cooking time settings and cooking functions selected.

Press this button to cook a beverage, frozen dinner, frozen breakfast,

COOK chicken breast. The oven's sensor will tell the oven how long to cook

depending on the amount of humidity coming from the food.

Press this button when popping popcorn in your microwave oven.

LIJ POPOO The oven's sensor will tell the oven how long to cook depending on

the amount of humidity it detects from the popcorn.

(_ Press this button to reheat a dinner plate, casserole, and pasta. The

oven's sensor will tell the oven how long to cook depending on the

amount of humidity coming from the food.

Press this button to cook potatoes. The oven's sensor will tell the

t_ POTATO oven how long to cook depending on the amount of humidity it

detects from the potato.

Press this button to cook fresh or frozen vegetables. The oven's

(_ ETABLES sensor will tell the oven how long to cook depending on the amount

of humidity it detects from the vegetables.

(_ PIZZA SL|OE Press this button to reheat pizza. The oven's sensor will tell the oven

how long to cook depending on the amount of humidity it detects.

KIDS MEALSI

SOFTEN/MELT, Press these buttons to cook specific food.

SNACKS

/AUTO

k_zu DEFROST Press this button to defrost food by weight.

1POUND

DEFROST Press this button to defrost 1 pound of frozen food.

@ CUSTOM Press this button to recall one cooking instruction previously

PROGRAM programmed into memory.

@ LESS(1 Press this button to subtract the cooking time.

(_ MORE{9)Press this button to add more cooking time.

NUMBER Press number buttons to enter cooking time, power level, quantities,

or weights.

@ POWER LEVEL Press this button to select a cooking power level.

I_ KITCHEN

TIMER Press this button to set the kitchen timer.

Press this button to set and start cooking quickly at 100% power

(_ ADD 30 SEC level. You can also use this button while cooking is in progress to add

30 seconds to the cooking time.

@ CLOCK Press this button to enter the time of day.

@ MY SETT|NGS Press this button to change the oven's default settings.

_ STOP_CLEAR Press this button to stop the oven or to clear all entries.

setting up your new m crowave oven 15

Press this button to start a function. If you open the door after the

@ ENTER/START oven begins to cook, close the door and press the Enter/Start

button again.

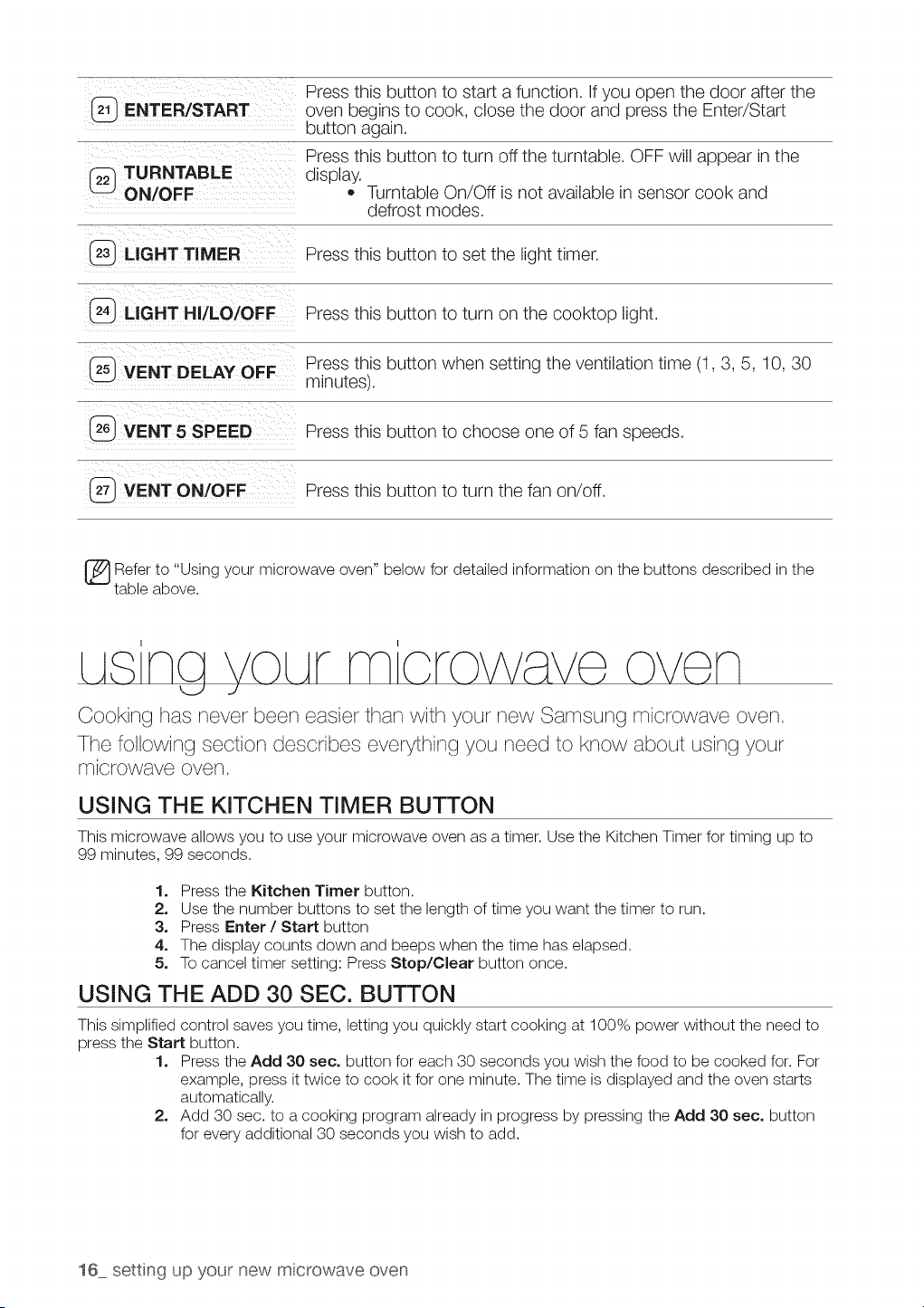

Press this button to turn off the turntable. OFF will appear in the

@ TURNTABLE display.

ON/OFF • Turntable On/Off is not available in sensor cook and

defrost modes.

LIGHT TIMER Press this button to set the light timer.

LIGHT HI/LO/OFF Press this button to turn on the cooktop light.

Press this button when setting the ventilation time (1,3, 5, 10, 30

VENT DELAY OFF minutes).

VENT 5 SPEED Press this button to choose one of 5 fan speeds.

_VENT ON/OFF Press this button to turn the fan on/off.

[_ Refer to "Using microwave oven" below for detailed information on the buttons described in the

your

table above.

Cooking has never been easier than with your new Samsung microwave oven.

The following section describes everything you need to know about using your

microwave oven.

USING THE KITCHEN TIMER BUTTON

This microwave allows you to use your microwave oven as a timer. Use the Kitchen Timer for timing up to

99 minutes, 99 seconds.

1. Press the Kitchen Timer button.

2. Use the number buttons to set the length of time you want the timer to run.

3. Press Enter / Start button

4. The display counts down and beeps when the time has elapsed.

5. To cancel timer setting: Press Stop/Clear button once.

USING THE ADD 30 SEC. BUTTON

This simplified control saves you time, letting you quickly start cooking at 100% power without the need to

press the Start button.

1. Press the Add 30 sec. button for each 30 seconds you wish the food to be cooked for. For

example, press it twice to cook it for one minute. The time is displayed and the oven starts

automatically.

2. Add 30 sec. to a cooking program already in progress by pressing the Add 30 sec. button

for every additional 30 seconds you wish to add.

16 setting up your new microwave oven

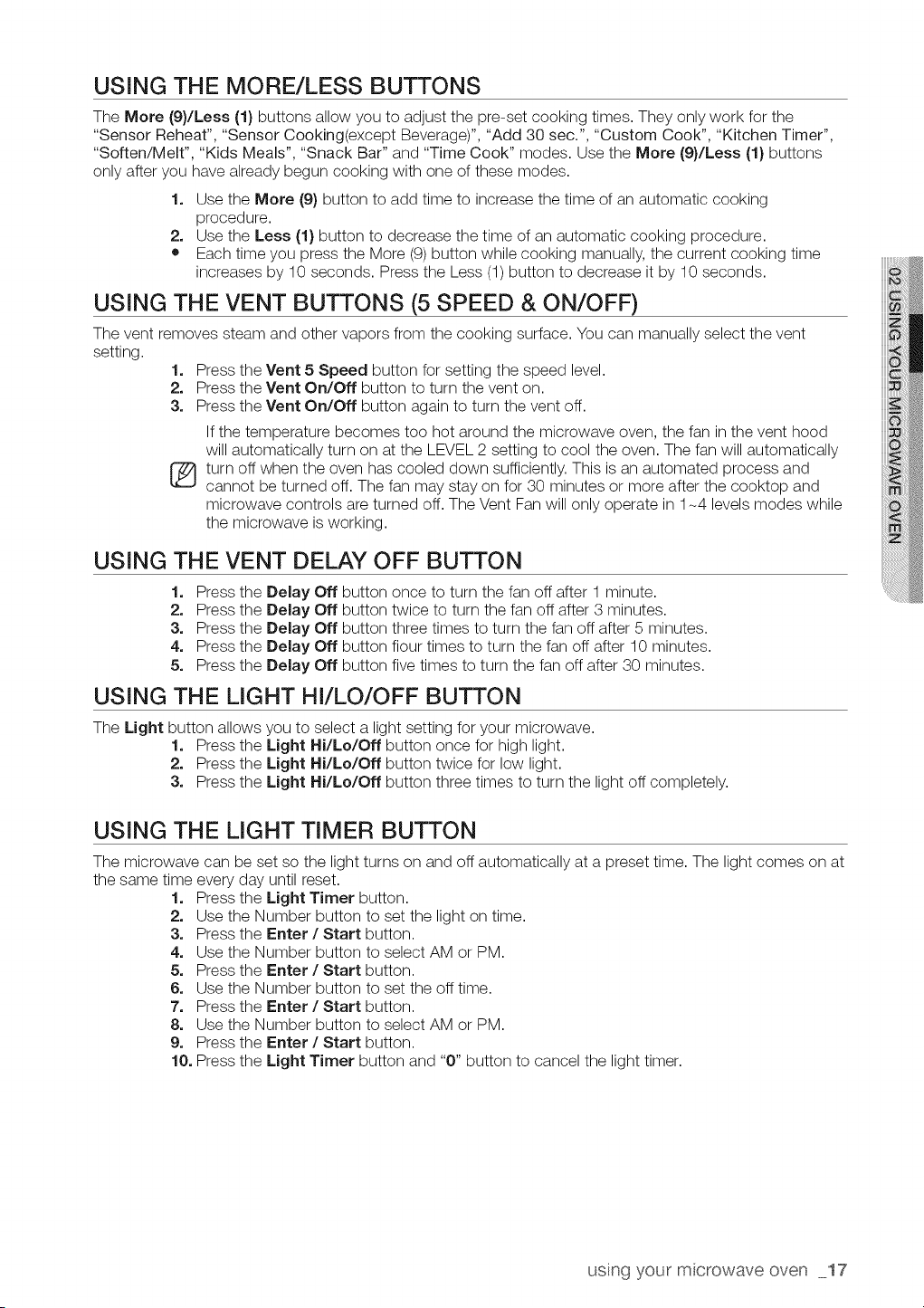

USING THE MORE/LESS BUTTONS

The More (9)/Less (1) buttons allow you to adjust the pre-set cooking times. They only work for the

"Sensor Reheat", "Sensor Cooking(except Beverage)", "Add 30 sec.", "Custom Cook", "Kitchen Timer",

"Soften/Melt", "Kids Meals", "Snack Bar" and "Time Cook" modes. Use the More (9}/Less (1} buttons

only after you have already begun cooking with one of these modes.

1. Use the More (9) button to add time to increase the time of an automatic cooking

procedure.

2. Use the Less (1} button to decrease the time of an automatic cooking procedure.

• Each time you press the More (9) button while cooking manually, the current cooking time

increases by 10 seconds. Press the Less (1) button to decrease it by 10 seconds.

USING THE VENT BUTTONS (5 SPEED & ON/OFF)

The vent removes steam and other vapors from the cooking surface. You can manually select the vent

setting.

1. Press the Vent 5 Speed button for setting the speed level.

2. Press the Vent On/Off button to turn the vent on.

3. Press the Vent On/Off button again to turn the vent off.

If the temperature becomes too hot around the microwave oven, the fan in the vent hood

will automatically turn on at the LEVEL 2 setting to cool the oven. The fan will automatically

[_ turn off when the oven has cooled down sufficiently. This is an automated process and

cannot be turned off. The fan may stay on for 30 minutes or more after the cooktop and

microwave controls are turned off. The Vent Fan will only operate in 1-4 levels modes while

the microwave is working.

USING

The Light

THE VENT DELAY OFF BUTTON

1. Press the Delay Off button once to turn the fan off after 1 minute.

2. Press the Delay Off button twice to turn the fan off after 3 minutes.

3. Press the Delay Off button three times to turn the fan off after 5 minutes.

4. Press the Delay Off button flour times to turn the fan off after 10 minutes.

5. Press the Delay Off button five times to turn the fan off after 30 minutes.

THE LIGHT Hi/LO/OFF BUTTON

button allows you to select a light setting for your microwave.

1. Press the Light Hi/Lo/Off button once for high light.

2. Press the Light Hi/Lo/Off button twice for low light.

3. Press the Light Hi/Lo/Off button three times to turn the light off completely.

USING THE LIGHT TIMER BUTTON

The microwave can be set so the light turns on and off automatically at a preset time. The light comes on at

the same time every day until reset.

1. Press the Light Timer button.

2. Use the Number button to set the light on time.

3. Press the Enter / Start button.

4. Use the Number button to select AM or PM.

5. Press the Enter / Start button.

6. Use the Number button to set the off time.

7. Press the Enter / Start button.

8. Use the Number button to select AM or PM.

9. Press the Enter / Start button.

10. Press the Light Timer button and "0" button to cancel the light timer.

using your mcrowave oven 17

USING THE TURNTABLE ON/OFF BUTTON

For best cooking results, leave the turntable on. However, for large dishes it can be turned off.

Press the Turntable On/Off button to turn the turntable on or off.

The turntable may become too hot to touch. Use pot holders to touch the turntable during and after

oAoT,o,cooking.

USING THE METAL SHELF

Use the metal shelf to cook more than one item at the same time.

• Do not use a microwave browning dish on the shelf. The shelf could overheat.

....... • Do not use the oven with the shelf on the microwave floor. This could damage the microwave.

Use pot holders when handling the shelf as it may be hot.

Do not use the metal shelf when cooking popcorn.

Food cooks best on the turntable.

For best results Uneven results

The shelf gives you the option to reheat more than one dish at the same time.

Reheating food

To reheat food on 2 levels or to reheat food on the lower level:

Multiply the reheating time by 11/2.

Switch places halfway through the reheating process.

18 using your mcrowave oven

I I

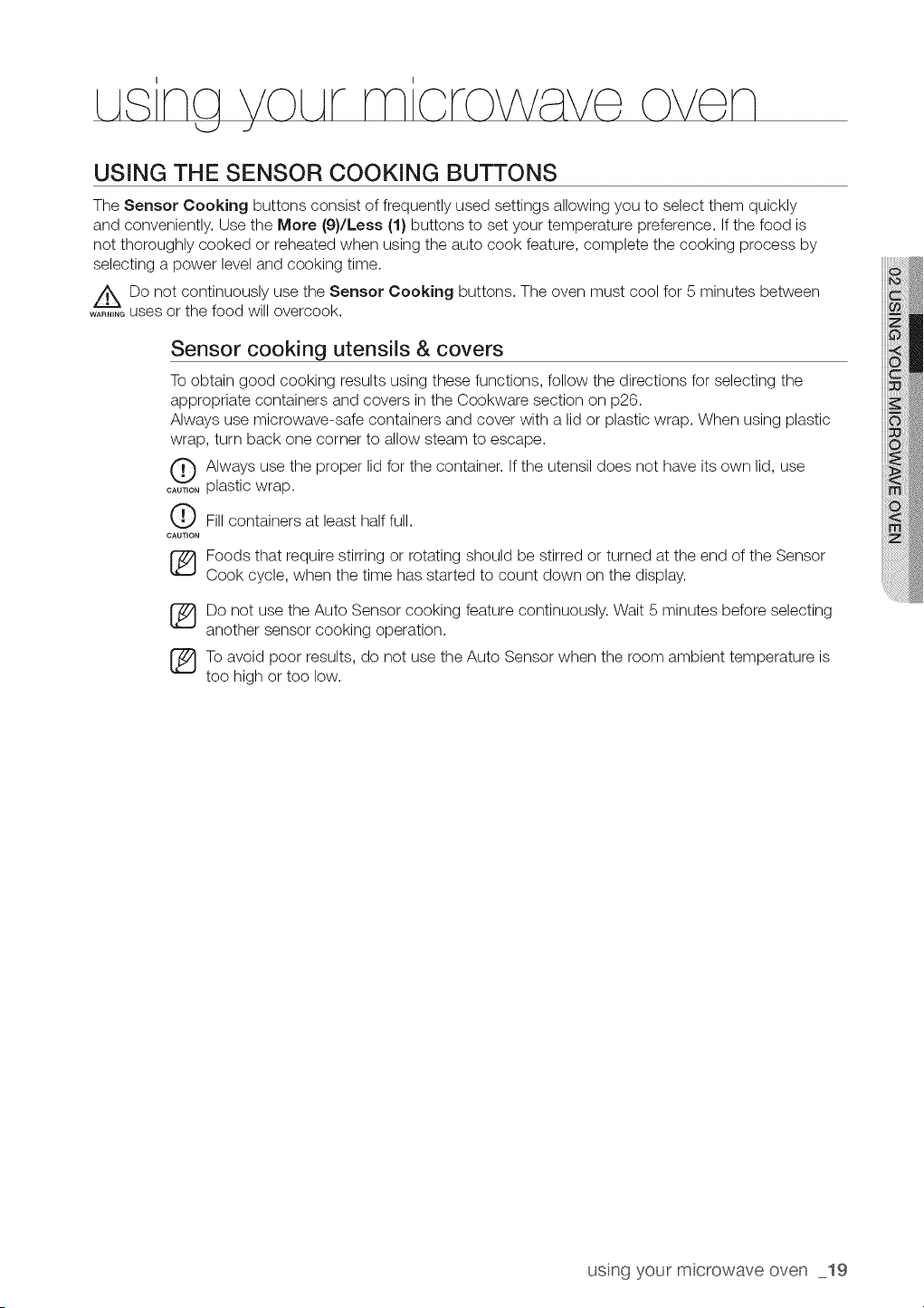

USING THE SENSOR COOKING BUTTONS

The Sensor Cooking buttons consist of frequently used settings allowing you to select them quickly

and conveniently. Use the More (9)/Less (1) buttons to set your temperature preference. If the food is

not thoroughly cooked or reheated when using the auto cook feature, complete the cooking process by

selecting a power level and cooking time.

ADo not continuously use the Sensor Cooking buttons. The oven must cool for 5 minutes between

....... uses or the food will overcook.

Sensor cooking utensils & covers

To obtain good cooking results using these functions, follow the directions for selecting the

appropriate containers and covers in the Cookware section on p26.

Always use microwave-safe containers and cover with a lid or plastic wrap. When using plastic

wrap, turn back one corner to allow steam to escape.

O Always use the proper lid for the container. If the utensil does not have its own lid, use

....... plastic wrap.

O Fill containers at least half full.

CAUTION

(_ oods that require stirring or rotating should be stirred or turned at the end of the Sensor

Cook cycle, when the time has started to count down on the display.

[_ Do not use the Auto Sensor cooking feature continuously. Wait 5 minutes before selecting

another sensor cooking operation.

To avoid poor results, do not use the Auto Sensor when the room ambient temperature is

too high or too low.

using your mcrowave oven 19

Sensor cooking table

Popcorn

Frozen

d nner

Cook

Frozen

breakfast

Chicken

breast

Fresh

Vegetable

Frozen

Baked Potatoes

3.0 - 3.5 oz

1 package

8 OZ.

8 to 14 oz.

4 to 8 oz.

8 to 16 oz.

1 to 4 cups

1 to 4 servings

1 to 6 potatoes.

1 to 3 slices

Use only one microwave popcorn bag at a

time. Be careful when removing and opening

the heated bag from the oven. Let the oven

cool for at least 5 minutes before using it

again.

Use a measuring cup or mug and do not

cover. Place the beverage in the oven. After

heating, stir well. Let the oven cool for at least

5 minutes before using it again.

Remove the food from its wrapping and follow

the instructions on the box for covering and

standing instructions. Let the oven cool for at

least 5 minutes before using it again.

Follow the package instructions for covering

and standing. Use this button for frozen

sandwiches, breakfast entrees, pancakes,

waffles, etc. Let the oven cool for at least 5

minutes before using it again.

Place the chicken breasts on a microwave

safe plate and cover with plastic wrap. Cook

to an internal temperature of 170 °F. Let stand

for 5 minutes. Use the More (9) button to

increase the cooking time for larger or thicker

chicken breasts.

Place the fresh vegetables in a microwave-

safe ceramic, glass or plastic dish and add 2-

4 tbs. water. Cover with a lid or vented plastic

wrap while cooking and stir before standing.

Let the oven cool for at least 5 minutes before

using it again.

Place the frozen vegetables in a microwave-

safe ceramic, glass or plastic dish and add 2-

4 tbs. water. Cover with a lid or vented plastic

wrap while cooking and stir before standing

for 3-5 minutes. Let the oven cool for at least

5 minutes before using it again. Use the More

(9} button when cooking dense vegetables

such as carrots or broccoli spears.

Pierce each potato several times with a fork.

Place on the turntable in a spoke-like fashion.

After cooking, let the potatoes stand for

3-5 minutes. Let the oven cool for at least 5

minutes before using it again.

Place 1-3 pizza slices on a microwave-safe

plate with the wide ends of the slices towards

the outside edge of the plate. Do not let the

slices overlap. Do not cover. Let the oven cool

for at least 5 minutes before using it again.

Use the More (9} button to increase the

reheating time for pizzas with thick crusts.

The correct food temperature varies from person to person. Use the More (9)/Less (1} buttons

to select your personal temperature preference.

20 using your mcrowave oven

I I

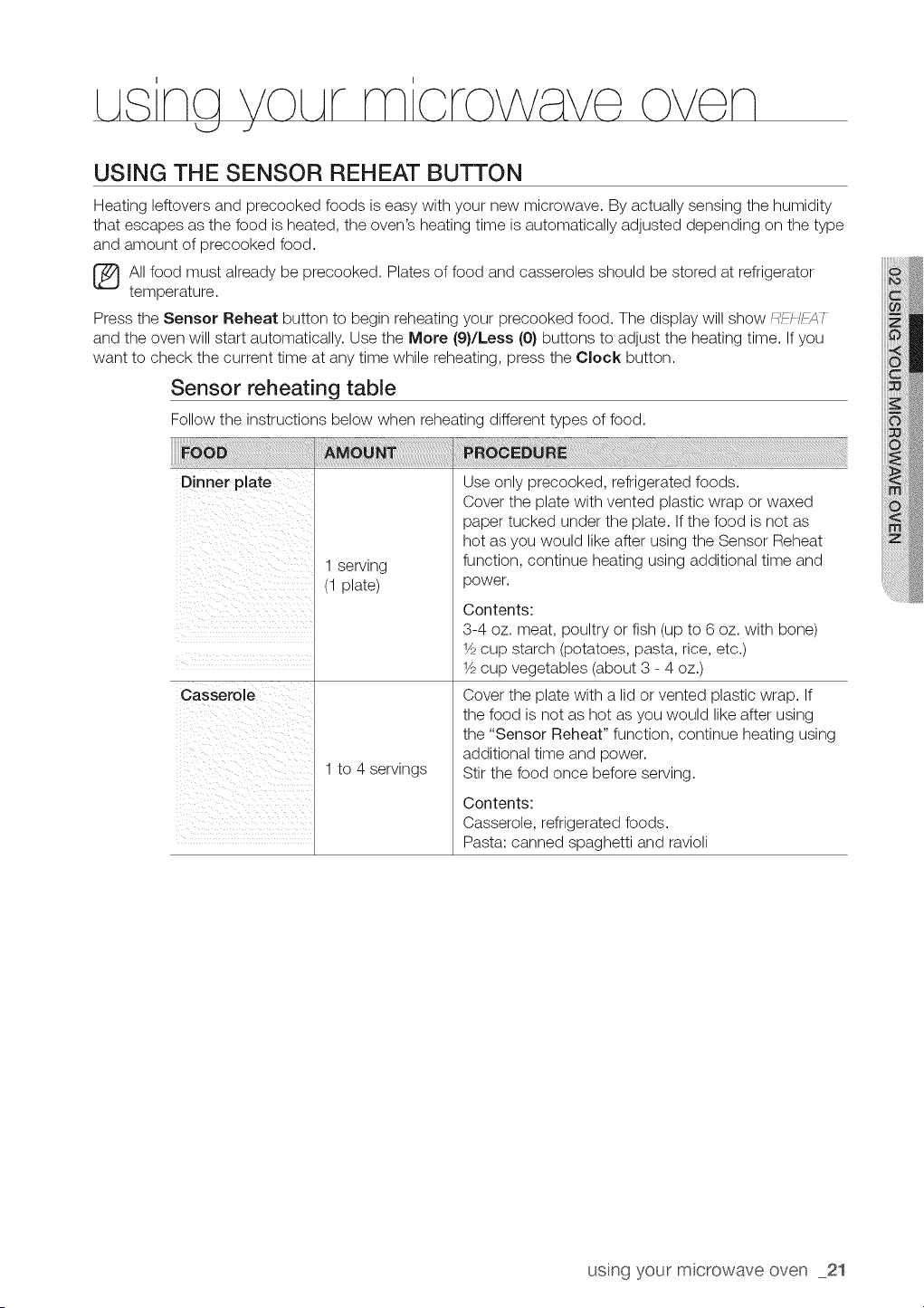

USING THE SENSOR REHEAT BUTTON

Heating leftovers and precooked foods is easy with your new microwave. By actually sensing the humidity

that escapes as the food is heated, the oven's heating time is automatically adjusted depending on the type

and amount of precooked food.

AII food must already be precooked. Plates of food and casseroles should be stored at refrigerator

temperature.

Press the Sensor Reheat button to begin reheating your precooked food. The display will show/_FJ_,c½7-

and the oven will start automatically. Use the More (9}/Less (0} buttons to adjust the heating time. If you

want to check the current time at any time while reheating, press the Clock button.

Sensor reheating table

Follow the instructions below when reheating different types of food.

Dinner plate

Casserole

1 serving

(1 plate)

1 to 4 servings

Use only precooked, refrigerated foods.

Cover the plate with vented plastic wrap or waxed

paper tucked under the plate. If the food is not as

hot as you would like after using the Sensor Reheat

function, continue heating using additional time and

power.

Contents:

3-4 oz. meat, poultry or fish (up to 6 oz. with bone)

1/2cup starch (potatoes, pasta, rice, etc.)

1/2cup vegetables (about 3 - 4 oz.)

Cover the plate with a lid or vented plastic wrap. If

the food is not as hot as you would like after using

the "Sensor Reheat" function, continue heating using

additional time and power.

Stir the food once before serving.

Contents:

Casserole, refrigerated foods.

Pasta: canned spaghetti and ravioli

using your mcrowave oven 21

USING THE AUTO DEFROST BUTTON

To thaw frozen foods, enter the weight of the food, and the microwave automatically sets the defrosting

time, power level and standing time. Press Enter/Start button to start defrosting.

1. Press the Auto Defrost button. The display shows:/_7W7_c7_ V,/F7(_ft77

2. Press the number buttons to directly enter the weight of the food. The oven calculates the

defrosting time and starts automatically.

3. The oven will beep and the display will read 77,X_M/77/F/_JOD OYFT7twice during the

defrosting process. Open the oven door, and turn the food over.

Auto defrosting table

Follow the instructions below when defrosting different types of food.

i!iiiiiiiiii 6 i! !iii!iiiii ii i i i i i i i i i i iiiii iiiiiiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i!iiiii!i

_iii!_i!i!_iii!_i!i!_iii!_i!i!_iii!_i!i!_iii!_i!i!_iii!_i!i!_ii_i_i!!_i_!!i_i_!!i_i_!!i_i_!!i_i_!!i_i_!!i_i_!!i_i_!!i_i_!!i_i_!!i_i_!!i_i_!!i_i_!!i_i_!!i_i_!!i_i_!i!!ili!ii!_i_iiiili_iiiiiiiii_i!!iiili!iiii!!iiiii!1111717_iiii_iiii_iiii_iiii_iiii_iiii_iiii_iiii_i!_!i!iii_!

Roast Beef,

Pork

Steaks, Chops,

Fish

Ground Meat

Whole Chicken

Chicken Pieces

2.5-6.0 Ibs.

0.5-3.0 Ibs.

2.5-6.0 Ibs.

0.5-3.0 Ibs.

Start with the food placed fat side down. After each

stage, turn the food over and shield any warm

portions with narrow strips of aluminum foil. Let

stand, covered for 10-20 minutes.

After each stage, rearrange the food. If there are any

warm or thawed portions of food, shield them with

narrow, flat pieces of aluminum foil. Remove any

pieces of food that are nearly defrosted. Let stand,

covered for 5-10 minutes.

After each stage, remove any pieces of food that are

nearly defrosted. Let stand, covered with foil for 5-10

minutes.

Remove giblets before freezing poultry. Start

defrosting with the breast side down. After the first

stage, turn the chicken over and shield any warm

portions with narrow strips of aluminum foil. After the

second stage, again shield any warm portions with

narrow strips of aluminum foil. Let stand, covered for

30-60 minutes in the refrigerator.

After each stage, rearrange or remove any pieces of

food that are nearly defrosted. Let stand for 10-20

minutes.

Check the food when you hear the oven signal. After the final stage, small sections may still

be icy; let them stand to continue the thawing process. Do not defrost until all ice crystals

have thawed. Shielding roasts and pieces of steak using small pieces of foil prevents the

edges from being cooked before the center of the food has defrosted. Use narrow, flat,

smooth strips of aluminum foil to cover edges and thinner sections of the food.

USING THE 1 POUND DEFROST BUTTON

To thaw frozen 1.0 Ibs foods,press this button, and the microwave automatically sets the defrosting time,

power level and standing time.

1. Press the 1 Pound Defrost button. The display shows: 7.0 L/_.

2. Press Enter/Start button to start defrosting.

3. The oven will beep and the display will read 77,X_M/77/_c/_JODOYFT7twice during the

defrosting process. Open the oven door, and turn the food over.

4. If you do not turn the food over when 7:U/_N77/FLOOD OtX,_7-7is displayed, the oven will be

paused until the Enter/Start button is pressed.

22 using your morowave oven

I I

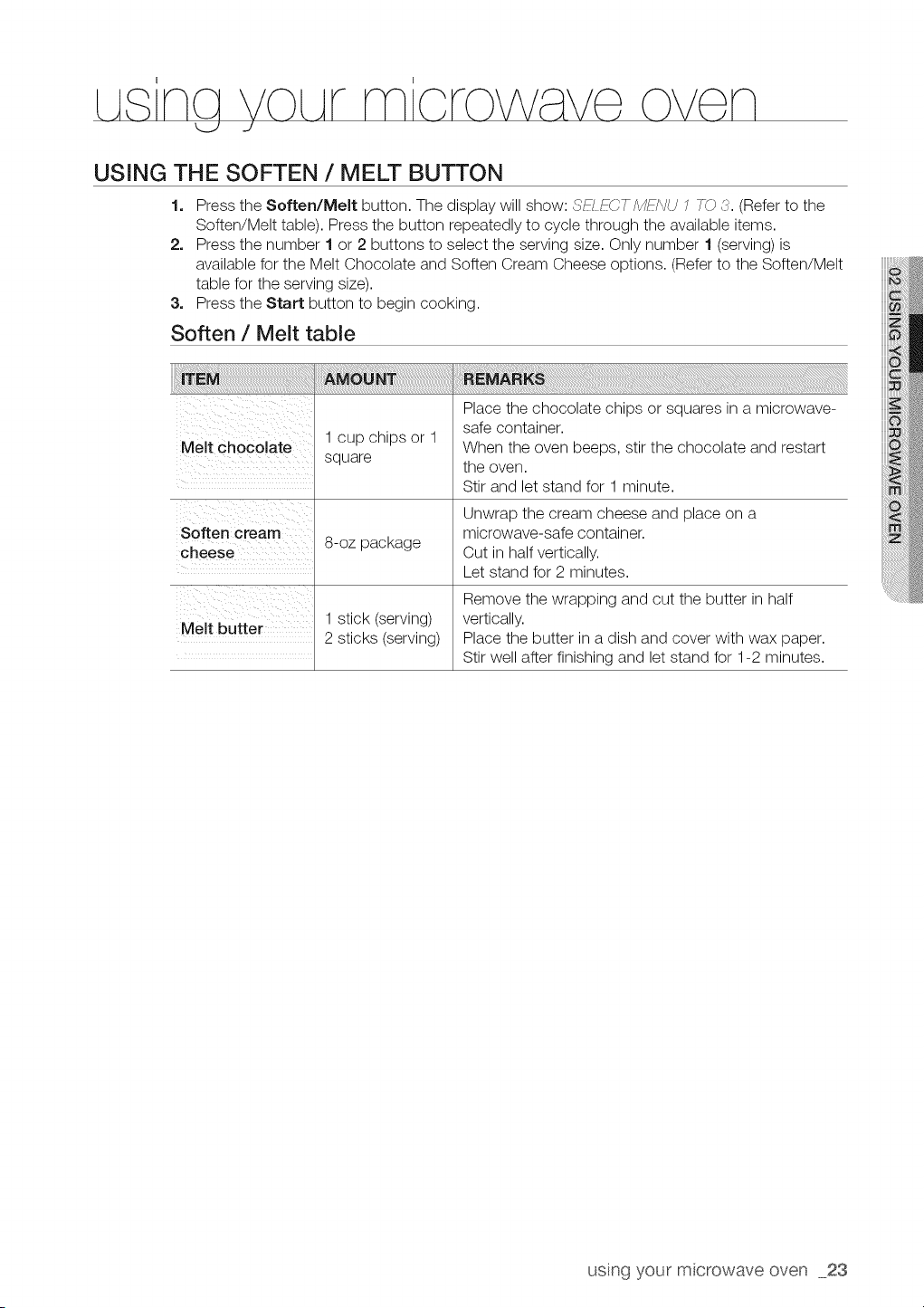

USING THE SOFTEN / MELT BUTTON

1. Press the Soften/Melt button. The display will show: _F/F_:_'T/_2_'ciX/UJ 7_?_¢.(Refer to the

Soften/Melt table). Press the button repeatedly to cycle through the available items.

2. Press the number 1 or 2 buttons to select the serving size. Only number 1 (serving) is

available for the Melt Chocolate and Soften Cream Cheese options. (Refer to the Soften/Melt

table for the serving size).

3. Press the Start button to begin cooking.

Soften / Melt table

Melt chocolate

Soften cream

cheese

Melt butter

1 cup chips or 1

square

8-oz package

1 stick (serving)

2 sticks (serving)

Place the chocolate chips or squares in a microwave-

safe container.

When the oven beeps, stir the chocolate and restart

the oven.

Stir and let stand for 1 minute.

Unwrap the cream cheese and place on a

microwave-safe container.

Cut in half vertically.

Let stand for 2 minutes.

Remove the wrapping and cut the butter in half

vertically.

Place the butter in a dish and cover with wax paper.

Stir well after finishing and let stand for 1-2 minutes.

using your mcrowave oven 23

USING THE KIDS MEALS BUTTON

1. Press the Kids Meals button. The display will show _4Y-/i_'7-/',/i_i*/U1 7C_4. (Refer to the

Kids meals table). Press the button repeatedly to cycle through the available items.

2. Press the number 1 or 2 buttons to select the serving size. (Refer to the Kids meals table for

the serving size.)

3. Press the Start button to begin cooking.

Kids meals table

Chicken

nuggets (frozen)

Hot dogs

FrenCh fries

(frozen)

sandwiches (in

crisping sleeve)

9.oz package

1 serving

2 servings

2 hot dogs

4 hot dogs

1 serving

2 servings

1 sandwich

2 sandwiches

Place a paper towel on a plate and arrange the

nuggets in a spoke-like fashion on the paper towel.

Do not cover. Let stand for 1 minute after heating.

[_ Refer to the package directions for the serving

size and the amount of food. Use the More

(9) button to add additional cooking time if the

chicken nuggets are not hot enough.

Pierce the hot dogs and place them on a plate.

When the oven beeps, add the buns and restart the

oven.

Let stand for 1 minute after heating.

(_ or the best texture, the buns should be added

to the hot dogs when the oven beeps.

Place two paper towels on a microwave-safe plate

and arrange the french fries on the towels without

letting them overlap.

Blot the fries with additional paper towels after

removing from the oven. Let stand for 1 minute.

(_ efer to the directions on the packaging for the

serving size and the amount of food.

Place the frozen sandwich in a susceptor "crisping

sleeve" (which is in a package) and place on a

microwave-safe plate.

Remove from the "crisping sleeve".

Let stand for 2 minutes after heating.

For large sandwiches, use the Mere (9) button

to increase the heating time.

24 using your mcrowave oven

I I

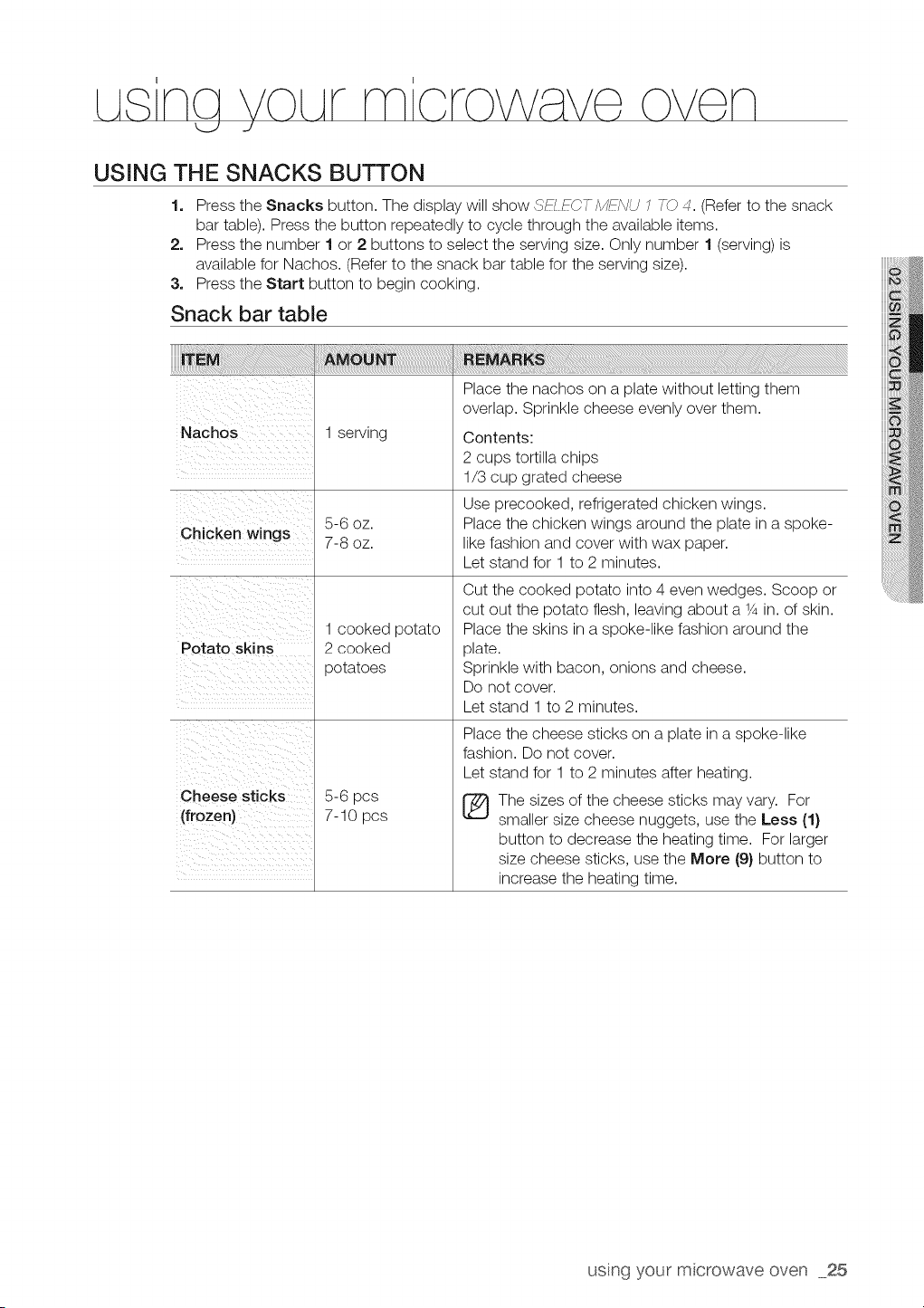

USING THE SNACKS BUTTON

1. Press the Snacks button. The display will show _4_F7_77 /_/_'_iX/U1 7-(?4. (Refer to the snack

bar table). Press the button repeatedly to cycle through the available items.

2. Press the number 1 or 2 buttons to select the serving size. Only number 1 (serving) is

available for Nachos. (Refer to the snack bar table for the serving size).

3. Press the Start button to begin cooking.

Snack bar table

Nachos

Chicken wings

Potato skins

Cheese sticks

(frozen)

1 serving

5-6 oz.

7-8 oz.

1 cooked potato

2 cooked

potatoes

5-6 pcs

7-10 pcs

Place the nachos on a plate without letting them

overlap. Sprinkle cheese evenly over them.

Contents:

2 cups tortilla chips

1/3 cup grated cheese

Use precooked, refrigerated chicken wings.

Place the chicken wings around the plate in a spoke-

like fashion and cover with wax paper.

Let stand for 1 to 2 minutes.

Cut the cooked potato into 4 even wedges. Scoop or

cut out the potato flesh, leaving about a 1/4in. of skin.

Place the skins in a spoke-like fashion around the

plate.

Sprinkle with bacon, onions and cheese.

Do not cover.

Let stand 1 to 2 minutes.

Place the cheese sticks on a plate in a spoke-like

fashion. Do not cover.

Let stand for 1 to 2 minutes after heating.

The sizes of the cheese sticks may vary. For

smaller size cheese nuggets, use the Less (1}

button to decrease the heating time. For larger

size cheese sticks, use the More (9} button to

increase the heating time.

using your mcrowave oven 25

MICROWAVE COOKING TIMES & POWER LEVELS

Your oven allows you to set three different cooking stages, each with their own time length and power level.

The power level lets you control the heating intensity from Warm (1) through to High (0).

One-stage cooking

For simple one-stage cooking, you only need to set the cooking time. The power level is

automatically set to High. If you want to set the power level to any other level, use the Power

Level button.

1. Use the number buttons to set a cooking time. You can enter a time from one second

right up to 99 minutes and 99 seconds. To select a time greater than one minute, enter the

seconds too. (For example, to set a cooking time of 20 minutes, enter 2, O, O, 0.)

2. If you want to set the power level to a level other than High, press the Power Level button

and use the number buttons to enter the power level. The display will show: _?F_S S7XR7-

OR F_/TF,o I\/F_7 STXC_EC00/47YC _T/IW?.

3. Press the Start button to begin cooking. If you want to change the power level, press the

Stop/Clear button before you press the Start button, and enter all the instructions again.

[_ ome recipes require different cooking stages at different temperatures. Your microwave

allows you to set multiple cooking stages.

Multi-stage cooking

1. Follow steps 1 and 2 from the "One-stage cooking" section. The display will show: M?F_

STXR7 OR _i*q7_77NFXT ST_C_ECOOKiNC T/IWi_ appears in the display.

[_ hen selecting more than one cooking stage, the Power Level button must be pressed

before the second cooking stage can be entered.

[_ Press the Power Level button twice to set the level to forpower

High

cooking stage.

2. Use the number buttons to set a second cooking time.

3. Press the Power Level button, then use the number buttons to set the power level for the

second cooking stage. The display shows the selected power level and then displays _::_S

S7XR7 OR Fi\/7/h'_£/FX7 S7XOE C'OO_?'NG771W/_.

4. Press the Start button to begin cooking, or repeat steps 2 and 3 to set a cooking time and

power level for a third cooking stage. When finished, press the Start button.

Power Levels

The 10 power levels allow you to choose the optimal power level for your cooking needs.

1¸¸¸¸¸¸ Warm

Low

Defrost

Medium low

Medium

Simmer

Medium high

Reheat

Saute

High

26 using your mcrowave oven

I I

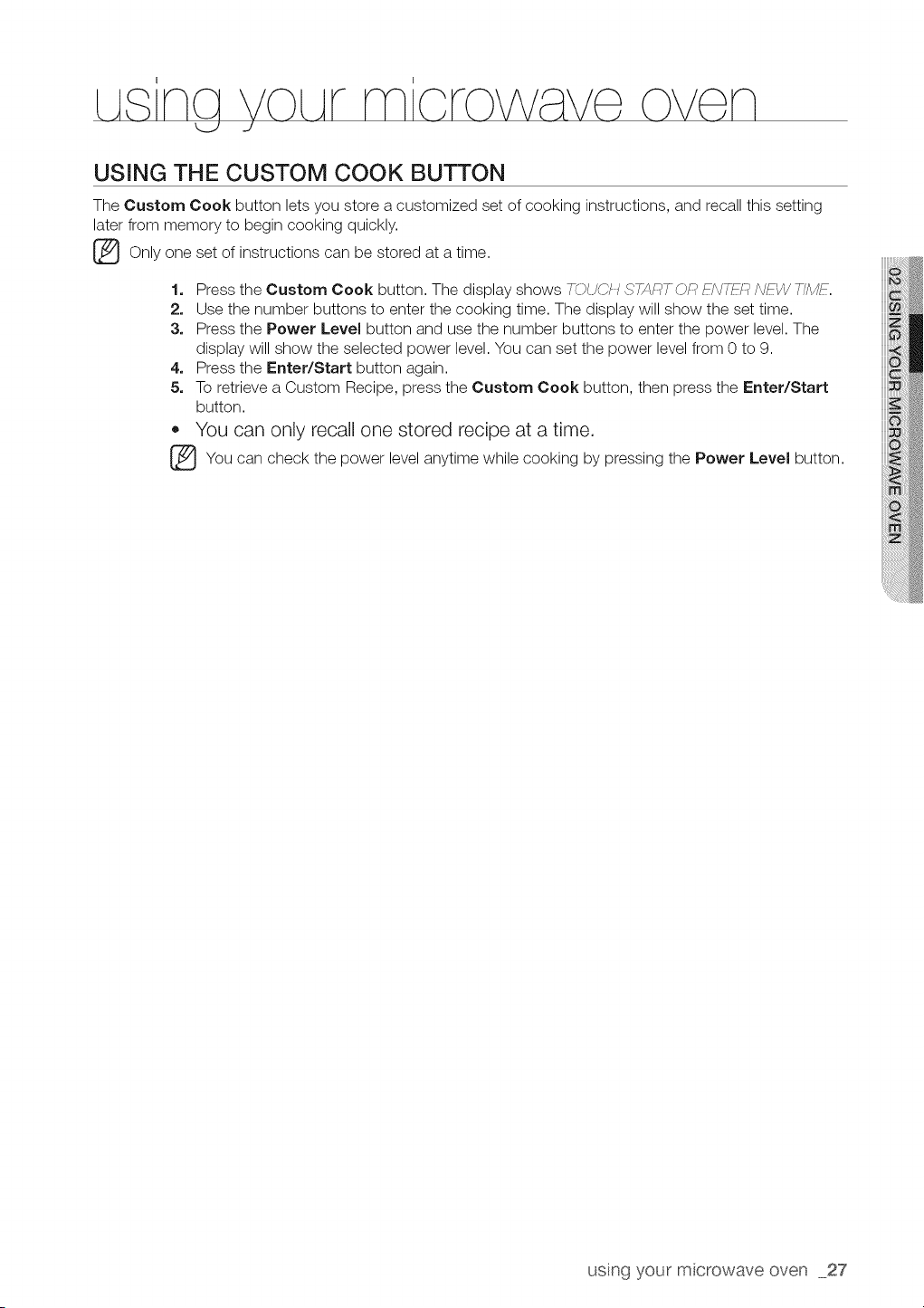

USING THE CUSTOM COOK BUTTON

The Custom Cook button lets you store a customized set of cooking instructions, and recall this setting

later from memory to begin cooking quickly.

[_ Only one set of instructions can be stored at a time.

1. Press the Custom Cook button. The display shows 7-_JUC'it _4_77_R7(JR/WUT_7_/W_W 77/WF.

2. Use the number buttons to enter the cooking time. The display will show the set time.

3. Press the Power Level button and use the number buttons to enter the power level. The

display will show the selected power level. You can set the power level from 0 to 9.

4. Press the Enter/Start button again.

5. To retrieve a Custom Recipe, press the Custom Cook button, then press the Enter/Start

button.

• You can only recall one stored recipe at a time.

_You can check the power level anytime while cooking by pressing the Power Level button.

using your mcrowave oven 27

To cook food in the microwave oven, the microwaves must be able to penetrate the

food without being reflected or absorbed by the dish,

It is important to choose the correct cookware, therefore look for cookware that is

marked microwave-safe,

The following table lists various types of cookware and indicates if and how they

should be used in a microwave oven.

MICROWAVE-SAFE UTENSi LS

If you are not sure whether an item is microwave-safe or not, you can perform the following simple test:

1, Place 1 cup of water (in a glass-measuring cup) inside your oven

next to the item to be tested.

2, Press the Add 30 Sec. button twice to heat them both for one

minute at high power.

After one minute, the water should be warm and the item you are testing

should be cool. If the dish is warm, then it is absorbing microwave

energy and is not microwave-safe.

Aluminum foil /X

Can be used in small quantities to protect

areas against overcooking. Arcing can occur

if the foil is too close to the oven wall or if too

much foil is used.

Browning plate ,/ Do not preheat for more than eight minutes.

Ceramic, porcelain, and ,/ Porcelain, pottery, glazed earthenware and

stoneware bone china are usually suitable, unless

decorated with a metal trim.

v" Some frozen foods are packaged in these

materials.

Disposable polyester

cardboard

Fast-food packaging

Polystyrene CUDS/containers

Paper Dags or newsDaDer

Recyclea paper or meta

trims

Glassware

Oven-to-table ware

Fine glassware

Glass ars

¢,

v" 'Recommended

,/_ ' Use Caution

X 'Unsafe

Can be used to warm food. Overheating may

cause the polystyrene to melt.

May catch fire.

May cause arcing.

Can be used, unless decorated with a metal

trim.

Can be used to warm foods or liquids.

Delicate glass may break or crack if heated

suddenly.

Regular glass is too thin to be used in a

microwave, and can shatter.

28 cookware gude

coo .E

Metal

Dishes. Utensns

Freezer bag twist ties

Paper

Plates. CUDS.napKins ana

Kltcnen paper

Recyclea paper

Plastic

Containers

CI ng filrr

Freezer bags

Wax or grease-proof paper

Thermometer

May cause arcing or fire.

For short cooking times and warming. Also

to absorb excess moisture.

Do not use recycled paper towels, which

may contain metal and may catch fire or

cause arcing.

Can be used if heat-resistant thermoplastic.

Some plastics may warp or discolor at high

temperatures. Do not use Melamine plastic.

Can be used to retain moisture. Avoid

wrapping the food too tight. Take care when

removing the film as hot steam will escape.

Only if boilable or oven-proof. Should not be

airtight. Pierce with a fork, if necessary.

Can be used to retain moisture and prevent

spattering.

Use only those marked "Microwave-

safe" and follow the directions. Check the

temperature in several places. Conventional

thermometers can be used once the food

has been removed from the oven.

Straw, wicker, and wood v" X Use only for short-term heating, as these

materials can be flammable.

v" :Recommended

v" _ : Use Caution

X :Unsafe

cookware gude 29

Microwave energy actually penetrates food, attracted and absorbed by the water,

fat and sugar content. The microwaves cause the molecules in the food to move

rapidJy. The rapid movement of these molecules creates friction and the resulting

heat cooks the food.

GENERAL MICROWAVE TIPS

Dense foods, such as potatoes, take longer to heat than lighter foods. Foods with a delicate texture should

be heated at a low power level to avoid becoming tough.

Foods with a non-porous skin such as potatoes or hot dogs, should be pierced to prevent bursting.

Putting heating oil or fat in the microwave is not recommended. Fat and oil can suddenly boil over and

cause severe burns.

Some ingredients heat faster than others. For example, the jelly in the jelly doughnut will be hotter than the

dough. Keep this in mind to avoid burns.

The altitude and the type of cookware you are using can affect the cooking time. When using a new recipe,

use the minimum cooking time and check the food occasionally to prevent overcooking.

Home canning in the microwave oven is not recommended because not all harmful bacteria may be

destroyed by the microwave heating process.

Although microwaves do not heat the cookware, the heat from the food is often transferred to the

cookware. Always use pot holders when removing food from the microwave and instruct children to do the

same.

Making candy in the microwave is not recommended as candy can be heated to very high temperatures.

Keep this in mind to avoid injury.

Cooking techniques

If the oven is set to cook for more than 25 minutes, it will automatically adjust to 70 percent

power after 25 minutes to avoid overcooking.

Stirring

Stir foods such as casseroles and vegetables while cooking to distribute heat evenly. Food at

the outside of the dish absorbs more energy and heats more quickly, so stir from the outside

towards the center. The oven will turn off when you open the door to stir your food.

Arrangement

Arrange unevenly shaped foods, such as chicken pieces or chops, with the thicker, meatier

parts toward the outside of the turntable where they receive more microwave energy. To prevent

overcooking, place thin or delicate parts towards the center of the turntable.

Shielding

Shield food with narrow strips of aluminum foil to prevent overcooking. Areas that need shielding

include poultry wing-tips, the ends of poultry legs, and corners of square baking dishes. Use only

small amounts of aluminum foil. Larger amounts can damage your oven.

Turning

Turn foods over midway through the cooking cycle to expose all parts to the microwave energy.

This is especially important with large items such as roasts.

Standing

Foods cooked in the microwave build up internal heat and continue to cook for a few minutes

after the oven stops. Let foods stand to complete the cooking process, especially foods such as

roasts and whole vegetables. Roasts need this time to complete cooking in the center without

overcooking the outer areas. All liquids, such as soup or hot chocolate should be shaken or

stirred when cooking is complete. Let liquids stand a moment before serving. When heating

baby food, stir well and test the temperature before serving.

30 cookng gude

Adding moisture

Microwave energy is attracted to water molecules. Food that is uneven in moisture content

should be covered or allowed to stand so that the heat disperses evenly. Add a small amount of

water to dry food to help it cook.

Venting

After covering a dish with plastic wrap, vent the plastic wrap by turning back one corner to let

excess steam escape.

COOKING MEAT

Place the meat fat side down on a microwave-safe roasting rack in a microwave-safe dish. Use narrow

strips of aluminum foil to shield any bone tips or thin pieces of meat. Check the temperature in several

places before letting the meat stand the recommended time.

The following temperatures are the removal temperatures. The temperature of the food will rise during

standing time.

Roast beef Cooking Time:

(boneless) 7-11 min. / lb. for 145 °F - Rare

Upt0 4 Ibs; 8-12 min./lb, for 160 °F- Medium

9-14 rain./lb, for 170 °F- Well Done

Power Level:

High (0) for first 5 minutes, then Medium (5).

Pork (boneless Cooking Time:

or bone,in) 11-15 min./lb, at 170 °F Well Done

Up to 4 Ibs,

Power Level:

High (0) for first 5 minutes, then Medium (5).

Place the roast fat-side down on the

roasting rack and cover with wax

paper. Turn over halfway through the

cooking process. Let stand for 10 to

15 minutes.

Place the roast fat-side down on the

roasting rack and cover with wax

paper. Turn over halfway through

cooking process. Let stand for 10 to

15 minutes.

Expect a 10 °F rise in temperature during the standing time.

Beef Rare

Medium

Well Done

Pork Medium

Well Done

Dark meat

Light meat

135 °F

150 °F

160 °F

150 °F

160 °F

170 °F

160 °F

145 °F

160 °F

170 °F

160 °F

170 °F

180 °F

170 °F

cookng guide 31

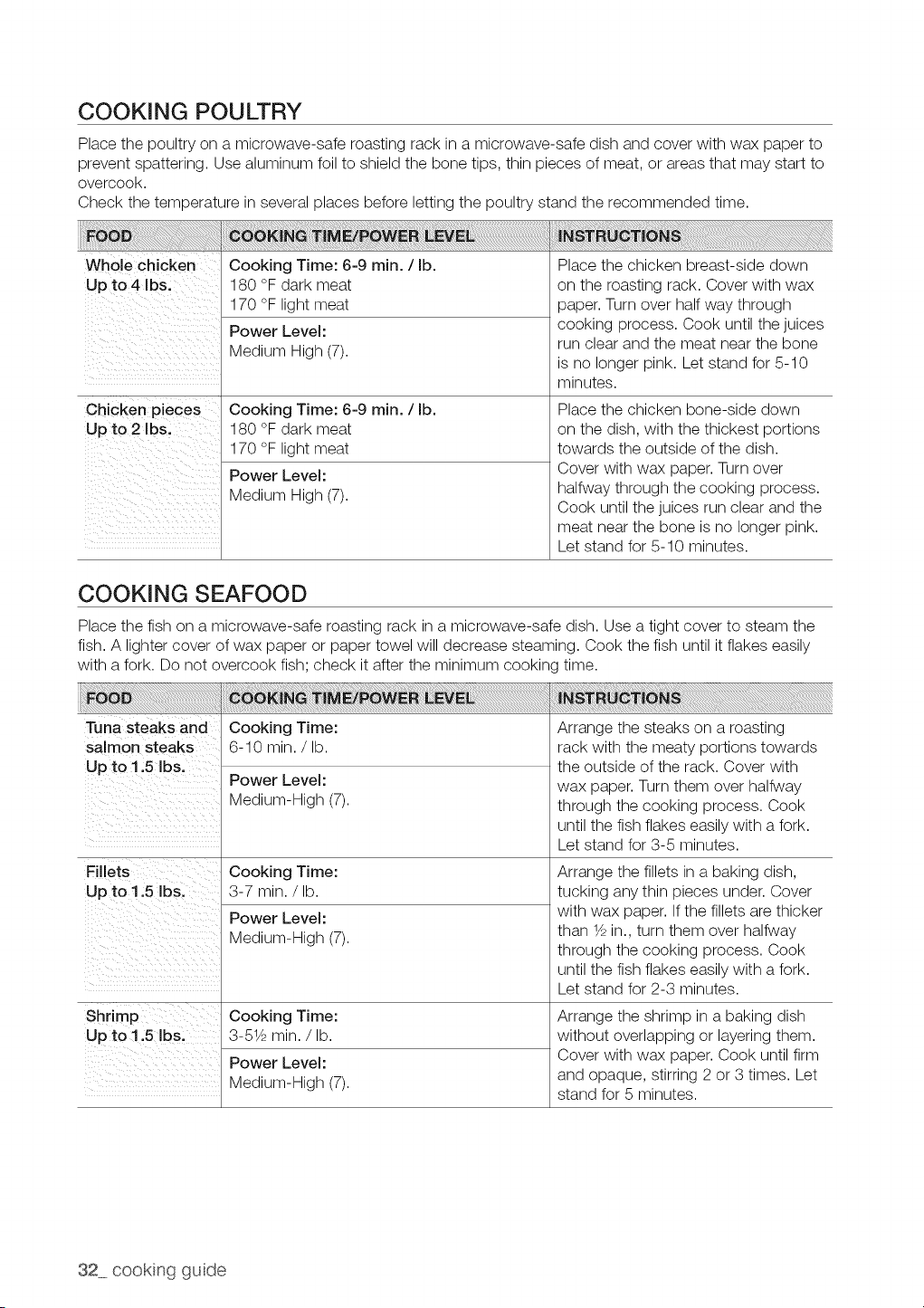

COOKING POULTRY

Place the poultry on a microwave-safe roasting rack in a microwave-safe dish and cover with wax paper to

prevent spattering. Use aluminum foil to shield the bone tips, thin pieces of meat, or areas that may start to

overcook.

Check the temperature in several places before letting the poultry stand the recommended time.

Whole chicken Cooking Time: 6-9 min. / lb. Place the chicken breast-side down

Chicken pieces

Up to 2 Ibs_

180 °F dark meat

170 °F light meat

Power Level:

Medium High (7).

Cooking Time: 6-9 min. / lb.

180 °F dark meat

170 °F light meat

Power Level:

Medium High (7).

COOKING SEAFOOD

on the roasting rack. Cover with wax

paper. Turn over half way through

cooking process. Cook until the juices

run clear and the meat near the bone

is no longer pink. Let stand for 5-10

minutes.

Place the chicken bone-side down

on the dish, with the thickest portions

towards the outside of the dish.

Cover with wax paper. Turn over

halfway through the cooking process.

Cook until the juices run clear and the

meat near the bone is no longer pink.

Let stand for 5-10 minutes.

Place the fish on a microwave-safe roasting rack in a microwave-safe dish. Use a tight cover to steam the

fish. A lighter cover of wax paper or paper towel will decrease steaming. Cook the fish until it flakes easily

with a fork. Do not overcook fish; check it after the minimum cooking time.

i_i!_i_i_!_iiiii_ii!ii_iiiii_ii!ii_iiiii_ii!ii_iiiii_ii!ii_iiiii_ii!ii_iiiii_ii!ii_iiiii_ii!ii_iiiii_ii!ii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_:__iiii!ii;iiiili;iiiili;iiiili;iiiili;iiiili;iiiili;iiiili;iiiili;iiiili_!_i

Tuna steaks and

Sal mort steaks

Up to 1,5 Ibs,

shrimp

Upto 1,5 Ibs*

Cooking Time:

6-10 min./lb.

Power Level:

Medium-High (7).

Cooking Time:

3-7 min. /lb.

Power Level:

Medium-High (7).

Cooking Time:

3-51/2 min. /lb.

Power Level:

Medium-High (7).

Arrange the steaks on a roasting

rack with the meaty portions towards

the outside of the rack. Cover with

wax paper. Turn them over halfway

through the cooking process. Cook

until the fish flakes easily with a fork.

Let stand for 3-5 minutes.

Arrange the fillets in a baking dish,

tucking any thin pieces under. Cover

with wax paper. If the fillets are thicker

than 1/2in., turn them over halfway

through the cooking process. Cook

until the fish flakes easily with a fork.

Let stand for 2-3 minutes.

Arrange the shrimp in a baking dish

without overlapping or layering them.

Cover with wax paper. Cook until firm

and opaque, stirring 2 or 3 times. Let

stand for 5 minutes.

32 cookng gude

COOKING EGGS

You can use your microwave oven to cook eggs. Cook them until they are just set as they become tough if

they are overcooked.

Z_ Never cook eggs in their shells, and never warm up hard-boiled eggs in their shells as they may

....... explode. Always pierce whole eggs to keep them from bursting.

COOKING VEGETABLES

Vegetables should be washed prior to cooking. Usually, no extra water is needed. If dense vegetables such

as potatoes, carrots and green beans are being cooked, add about 1/4cup water.

Small vegetables (sliced carrots, peas, lima beans, etc.) will cook faster than larger ones.

Whole vegetables, such as potatoes, acorn squash or corn on the cob, should be arranged in a circle

on the turntable before cooking. They will cook more evenly if turned over halfway through the cooking

process.

Always place vegetables such as asparagus and broccoli with the stems pointing towards the edge of the

dish and the tips toward the center.

When cooking cut vegetables, always cover the dish with a lid or vented microwavable plastic wrap.

Whole, unpeeled vegetables such as potatoes, squash, eggplant, etc., should have their skins pierced in

several spots before cooking to prevent them from bursting.

For a more even cooking result, stir or rearrange whole vegetables halfway through the cook time.

Generally, the denser the food, the longer the standing time. (The standing time refers to the time necessary

for dense, large foods and vegetables to finish cooking after they come out of the oven.) A baked potato

can stand on the counter for five minutes before cooking is completed, while a dish of peas can be served

immediately.

cookng gude 33

RECIPES

Beef and barley stew

11/2Ibs. beef stew cubes, cut into 1/2-inchpieces

1/2cup chopped onion

2 Tbs. all-purpose flour

1 Tbs. Worcestershire sauce

1 can (13.75-14.5 oz.) beef broth

2 medium carrots, cut into 1/2-inchslices (about 1 cup)

1/2cup barley

1 bay leaf

1/4tsp. pepper

1 pkg. (9-10 oz.) frozen peas, thawed

1. In a 2-quart casserole, combine the beef, onion, flour, and Worcestershire sauce and mix

well. Cover with lid. Cook at High for 6 to 8 minutes until the beef is no longer pink, stirring

once.

2. Stir in beef broth, carrots, barley, bay leaves, and pepper. Cover with lid. Cook at Medium for

1 to 11/2hours until carrots and beef are tender, stirring 2 to 3 times.

3. Stir in peas. Cover with lid. Cook at Medium for 10 minutes. Let stand for 10 minutes.

Remove bay leaves before serving.

Makes 6 servings.

Broccoli and cheese casserole

1/4cup butter or margarine

1/4cup chopped onion

11/2Tbs. flour

1/2tsp. salt

1/4tsp. dry mustard

1/8 tsp. pepper

11/2cups milk

1/4cup chopped red pepper

8 oz. (2 cups) cheddar cheese, shredded

1 pkg. (9-10 oz.) frozen chopped broccoli, thawed

4 cups cooked spiral shaped pasta (8 oz. dry)

1. In a 2-quart casserole, cook butter and onion at High for 1 to 2 minutes until the onion is

soft, stirring once.

2. Add flour, salt, mustard, and pepper; mix well. Cook at High for 30 to 60 seconds until

mixture boils. Stir in milk until smooth.

3. Stir in red pepper. Cook at High for 2 to 3 minutes until mixture boils and thickens slightly,

stirring twice. Stir in cheese until melted.

4. Add broccoli and pasta, mix well. Cover with lid. Cook at High for 4 to 6 minutes until heated

through, stirring once. Stir before serving.

Makes 6 servings.

34 cookng gude

Warm potato salad

2 Ibs. small red potatoes, cut into 1/2-inchpieces

4 slices bacon (uncooked), cut into 1/2-inchpieces

1/4cup chopped onion

2 tsp. sugar

1 tsp. salt

1 tsp. flour

1/2tsp. celery seed

1/8 tsp. pepper

21/2Tbs. apple cider vinegar

1. In a 2-quart casserole, combine the potatoes and 1/4cup water. Cover with lid. Cook at High

until the potatoes are tender (7-10 minutes); stir twice. Drain and set aside to cool slightly.

2. In a medium bowl, cook the bacon at High until crisp (21/2-31/2minutes); stir once. Place the

bacon on a paper towel. Reserve 1 Tbs. drippings.

3. Combine the drippings and onion. Cover with plastic wrap; turn a corner back to vent steam.

Cook at High until tender (11/2-21/2minutes); stir once.

4. Stir in sugar, salt, flour, celery seed, and pepper. Cook at High until mixture boils (30-40

seconds). Stir in vinegar and 1/2cup water. Cook at High until liquid boils and thickens slightly

(1-2 minutes); stir once. Add bacon to dressing. Pour dressing over potatoes. Stir well.

Makes 6 servings.

Black bean soup

1 cup chopped onion

1 clove garlic, minced

2 cans (15 oz. each) black beans, drained

1 can (14-16 oz.) stewed tomatoes, chopped

1 can (13.75-14.5 oz.) chicken broth

1 can (7-8.5 oz.) corn

1 can (4 oz.) chopped green chilies

1-2 tsp. ground cumin

1. Place the onion and garlic in a 3-quart casserole. Cover with lid. Cook at High for 2 to 4

minutes until tender.

2. Add one can of beans, and mash the beans with a fork. Add remaining ingredients and mix

well.

3. Cook uncovered at High for 10 minutes; stir. Reduce power to Medium and cook for 5

minutes. Stir before serving.

Makes about 2 quarts.

cookng gude 35

c can ng and ma nta n ng

Keeping your microwave oven clean improves its performance, wards off

unnecessary repairs, and lengthens its life.

CLEANING THE EXTERIOR

It's best to clean spills on the outside of your microwave oven as they occur. Use a soft cloth and warm,

soapy water. Rinse and dry.

Do not water into the vents. Never abrasive chemical solvents such ammonia

get

use

products

or as

....... or alcohol as they can damage the appearance of your microwave.

Cleaning under your microwave oven

Regularly clean grease and dust from the bottom of your microwave using a solution of warm

water and detergent.

Cleaning the control panel

Wipe with a damp cloth and dry thoroughly. Do not use cleaning sprays, large amounts of soap

and water, abrasives or sharp objects on the panel as it is easily damaged.

Cleaning the door and door seals

Always ensure that the door seals are clean and that the door closes properly. Take particular

care when cleaning the door seals to ensure that no particles accumulate and prevent the door

from closing correctly. Wash the glass door with very mild soap and water. Be sure to use a soft

cloth to avoid scratching.

If steam accumulates inside or outside the oven door, wipe with a soft cloth. Steam can

accumulate when operating the oven at high humidity and in no way indicates microwave

leakage.

CLEANING THE INTERIOR

Ensure that the microwave oven has cooled down before cleaning it to avoid injury.

CAUTION

Remove the glass tray from the oven when cleaning the oven or tray.

....... To prevent the tray from breaking, handle it with care and do not put it in water immediately after

cooking. Wash the tray carefully in warm sudsy water or in the dishwasher.

Clean the interior surfaces (oven cavity) of your microwave oven periodically to remove any splashes or

stains. To remove hardened food articles and remove smells, place 2 cups of water (add lemon juice for

extra freshness) in a four-cup measuring glass (why a 4-cup measuring glass) at High power for 5 minutes

or until boiling. Let it stand in the oven for one or two minutes.

CLEANING THE TURNTABLE AND ROLLER RINGS

Clean the roller rings periodically and wash the turntable as required. The turntable can safely be washed in

your dishwasher.

36 cean ng and maintan ng your microwave oven

o nncj nt nncj

STORING AND REPAIRING YOUR MICROWAVE OVEN

If you need to store your microwave oven for a short or extended period of time, choose a dust-free, dry

location. Dust and dampness may adversely affect the ability of the microwave parts.

ADo not repair, replace or service any part of your microwave oven yourself. Allow only a qualified

....... service technician to perform repairs. If the oven is faulty and needs servicing, or you are in doubt

about its condition, unplug the oven from the power outlet and contact your nearest service center.

Do not use the oven if the microwave oven is damaged, in particular when the door or door seals are

damaged. This could be a broken hinge, a worn out seal or distorted/bent casing.

Do not remove the oven from its casing.

This microwave oven is for home use only and is not intended for commercial use.

REPLACING THE COOKTOP/NIGHT LIGHT

When replacing the cooktop/night light, make sure that you are wearing gloves to avoid injury from the heat

of the bulb.

1. Unplug the oven or turn off the power at the main power

supply.

2. Remove the screw from the light cover and lower the

cover.

3. Replace bulb with 40 watt incandescent bulb.

4. Replace the light cover and mounting screw.

5 Turn the power back on at the main power supply.

REPLACING THE OVEN LIGHT

When replacing the oven light, make sure that you are wearing gloves to avoid injury from the heat of the

bulb.

1. Unplug the oven or turn off the power at the main

power supply.

2. Remove the two screws holding the top vent grille

in place.

3. Next, remove the screw located above the door

near the center of the oven that holds the light

housing.

4. Remove the light housing and light bulb.

5. Insert the new light bulb.

6. Replace the light housing and screw.

7. Replace the vent cover and the 2 mounting screws.

8. Turn the power back on.

f ................................................................................................................................................................................

Screw

_I"IL:LLIII:IIIILILL,II,II__ii iliili

cleanng and maintainng your mcrowave oven 37

CLEANING THE GREASE FILTER

Your microwave oven has two metal reusable grease filters. The grease filters should be removed and

cleaned at least once a month, or as required.

A To avoid risk of personal injury or property damage, do not operate the oven hood without filters in

wAR.,.Gplace.

1. To remove the filter, slide it to the left (or right) using the

tab.

2. Soak the grease filter in hot water and a mild detergent.

Rinse well and shake to dry. Brushing the filter lightly can

remove embedded dirt.

ADo not use ammonia or put the grease filter in the

....... microwave oven. The aluminum will darken.

(

....

3. To return the filter to its position, slide it into the frame slot on the left (or right), then push it

upwards and to the right (or left) to lock it.

38 clean ng and maintan ng your microwave oven

o ean ncj and ma ntanncj

REPLACING THE CHARCOAL FILTER

If your oven is not vented to the outside, the charcoal filter should be replaced when it is noticeably dirty

or discolored (every 6 to 12 months, and more often if necessary). The charcoal filter cannot be cleaned.

To order a new charcoal filter, contact the Parts Department at your nearest Authorized Service Center or

Samsung dealer. (Charcoal filter part no.: DE63-00367D}

1, Unplug the oven plug or turn off the power

at the main power supply.

2, Remove the two screws from the top vent

grille.

3, Slide the filter towards the front of the oven

and then remove it.

4, Remove the plastic and any other outer

wrapping from the new filter.

f°

!ill

ill

5, Insert the new filter into the top opening of the

oven as shown. The filter should rest at an

angle on 2 side support tabs and in front of

the right rear tab.

6, Replace the vent grille and the 2 screws.

7. Turn the power back on and set the clock.

cleanng and maintainng your mcrowave oven 39

troLAbe hootng

CHECK THESE POINTS IF YOUR MICROWAVE OVEN...

The display and/or the oven is

not working.

The display is working, but the

power won't come on,

Is the power going off before

the set time has elapsed?

Cooks food too slowly,

Has sparks or arcing.

The turntable makes noise or

becomes stuck.

Causes -IV or radio

interference.

Make sure the plug is properly connected to a grounded outlet.

If the wall outlet is controlled by a wall switch, make sure the wall

switch is turned on.

Remove the plug from the outlet, wait ten seconds, and plug it in

again.

Reset the circuit breaker or replace any blown fuses.

Plug a different appliance into the outlet. If the other appliance

doesn't work, call a qualified electrician to repair the wall outlet.

Plug the oven into a different outlet.

Make sure the door is closed securely.

Check if any packaging material or anything else is stuck in the door

seal.

Check if the door is damaged.

Touch Cancel twice and enter all the cooking instructions again.

If there was a power outage, the time indicator will display: _:_,'_:_3.

If no power outage occurred, remove the plug from the outlet, wait

ten seconds, and plug it in again. Reset the clock and any cooking

instructions.

Reset the circuit breaker or replace any blown fuses.

Make sure the oven has its own 20 amp circuit line. Operating

another appliance on the same circuit can cause a voltage drop. If

necessary, move the oven to its own circuit.

Remove any metallic utensils, cookware, or metal ties. If using foil,

use only narrow strips and allow at least one inch between the foil

and the interior oven walls.

Clean the turntable, roller ring and oven floor.

Make sure the turntable and roller ring are positioned correctly.

This is similar to interference caused by other small appliances,

such as hair dryers. Move your microwave (or appliance) away from

appliances, such as your TV or radio.

40 troubleshooting

SPECIFICATIONS

Oven Cavity 1.8 cuft

Controls 10 power levels, including defrost

Timer 99 minutes, 99 seconds

Power Source 120 VAC, 60 Hz

Power ConsumptiOn 1650 Watts

Power Output 1100 Watts

Oven Cavity Dimensions 21 W32"(W)X 10 9/32"(H)X 14 17/32"(D)

Outside Dimensions 29 7/8"0N)X 16 V2"(H) X 15 _5/32"(D)

Shipping Dimensions 33 3/8"0N)X 19 _5/_"(H) X 19 _'V32"(D)

NetJshiPping Weight 47.8/58.8 Ibs

Oven Cavity 1.8 cuft

Controls 10 power levels, including defrost

Timer 99 minutes, 99 seconds

Power Source 120 VAC, 60 Hz

Power Consumption 1650 Watts

Power Output 1100 Watts

Oven Cavity Dimensions 21 _:_&2"(VV)X 10 9/32"(H) X 14 17/32"(%

Outside Dimensions 29 7/8"0N)X 16 V2"(H) X 15 _s&2"(D)

Sh pping Dimensions 33 3/_"0N)X 19 _5/_"(H) X 19 _'V3_"(D)

NetJShipping Weight 48.5/59.6 Ibs

append x 41

SAMSUNG OVER-THE-RANGE(OTR) MICROWAVE OVEN

Limited warranty to original purchaser

This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG)

and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against

manufacturing defects in materials and workmanship for a limited warranty period of:

ONE (1) YEAR PARTS AND LABOR, TEN (10) YEARS PARTS WARRANTY FOR MAGNETRON

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the

United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service

procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of

sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center.

SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or

reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced

parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and

products assume the remaining original warranty, or ninety (90) days, whichever is longer.

In-home service will be provided during the warranty labor period subject to availability within the contiguous United

States. In-home service is not available in all areas. To receive in-home service, the product must be unobstructed and

accessible to service personnel. If during in-home service repair can not be completed, it may be necessary to remove,

repair and return the product. If in-home service is unavailable, SAMSUNG may elect, at our option, to provide for

transportation of our choice to and from a SAMSUNG authorized service center. Otherwise, transportation to and from

the SAMSUNG authorized service center is the responsibility of the purchaser.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial

use of this product and shall not apply to the following, including, but not limited to: damage which occurs in shipment;

delivery and installation; applications and uses for which this product was not intended; altered product or serial

numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature;

use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs,

external wiring or connectors not supplied or authorized by SAMSUNG which damage this product or result in service

problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating

instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction

book; problems caused by pest infestations, and overheating or overcooking by user; glass tray or turntable; reduced

magnetron power output related to normal aging. SAMSUNG does not warrant uninterrupted or error-free operation of

the product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO

WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY

PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM

OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL

NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS,

OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR

INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED,

AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY

OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT

SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER

ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S

PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE

THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED

WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS

NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or

consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific

legal rights, and you may also have other rights which vary from state to state.

To obtain warranty service, please contact SAMSUNG at:

1-800-SAMSUNG (7267864) and www.samsung.com

42 warranty

___©

ELECTRONICS

QUESTIONS OR COMMENTS

CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca

MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mx

U,S.A 1-800-SAMSUNG(726-7864) www.samsung,com/us

Code No.: DE68-03640A

user manual

the possibilities

Thank you for purchasing this Samsung

product, Please register your product at

www, samsu rig. c om/g Iobal/reg ister

fo tuFo¢ of youF now

Professionai Design

The new Stainless Steel Samsung Over The Range (OTR) oven has a clean, professional look

that matches your other kitchen appliances perfectly, providing a harmonious and complete

kitchen solution.

Turbo vent

With 400 CFM(Cubic Feet per Minute, FWmin) of ventilation power, your new Over The

Range (OTR) oven offers optimal cooking conditions by absorbing smoke and odor from the

cook-top. It is also as silent as other OTRs with much lower ventilation power.

Experience maximum power with no additional noise!

Large Interior capacity

With its 1.8 cu.ft capacity, your OTR oven delivers plenty of space for all your cooking needs.

A big capacity combined with 1,100 watts of output guarantees superior cooking results.

Sensor Cooking

Don't know how to cook? Samsung's new OTR sensor technology offers preset functions

resulting in perfectly cooked dishes every time. Simply select a cooking menu, and the

cooking results will astound you.

VFD display

With an informative VFD (Vacuum Fluorescent Display), your OTR lets you easily use all

available functions.

2 features of your new microwave oven

Throughout this manual, you'll see Warning and ©aution notes.

These warnings, cautions, and the important sCety instructions that follow do not

cover all possible conditions and situations that may occur.

It's your responsibility to use common sense, caution, and care when installing,

maintaining, and operation your microwave oven. Samsung is not liable for

damages resulting from improper use.

WHATTHEICONSANDSIGNSINTHISMANUALMEAN:

Z_ WARNING: Hazards or unsafe practices that may result in severe personal injury or death.

WARNING

CAUTION: Hazards or unsafe practices that may result in minor personal injury or property

CAOT,ONdamage.

Do not attempt or use.

] Do not repair.

Do not touch.

Be careful

I_ Follow directions explicity.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

PRECAUTIONSTOAVOIDPOSSIBLEEXPOSURETO

EXESSIVEMICROWAVEENERGY:

_Do not attempt to operate this microwave oven with the door open since open-

door operation can result in harmful exposure to microwave energy. It is important

not to defeat or tamper with the safety interlocks.

Do not place any object between the microwave oven front face and the door or

allow soil or cleaner residue to accumulate on sealing surfaces.

SAVETHESEINSTRUCTIONS

important safety instruction ....3

Do not operate the microwave oven if it is damaged. It is particularly important that

the microwave oven door close properly and that there is no damage to the

• Door (bent or dented),

Hinges and latches (broken or loosened),

Door seals and sealing surfaces.

The microwave oven should not be adjusted or repaired by anyone except

properly qualified service personnel.

IMPORTANTSAFETYINSTRUCTIONS

When using any electrical appliance, basic safety precautions should be followed,

including the following:

_o WARNING

[_} Always observe Safety Precautions when using your oven. Never try to repair the

oven on your own - there is dangerous voltage inside. If the oven needs to be

repaired, call 1-800-SAMSUNG (7267864) for the name of an authorized service

center near you.

TOREDUCERISKOFBURNS,ELECTRICSHOCK,FIRE,

PERSONALINJURYOREXPOSURETOEXCESSIVE

MICROWAVEENERGY:

Read all safety instructions before using the appliance.

Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY" on page 3.

This appliance must be grounded. Connect only to properly grounded outlets. See

"IMPORTANT GROUNDING INSTRUCTIONS" on page 7 of this manual.

Install or place this appliance only in accordance with the installation instructions

provided.

Use this appliance only for its intended use as described in the manual. Do

not use corrosive chemicals or vapors in this appliance. This type of oven is

specifically designed to heat, cook, or dry food. It is not designed for industrial or

laboratory use.

As with any appliance, close supervision is necessary when used by children.

Keep the inside of the oven clean. Food particles or spattered oils stuck to the

oven walls or floor can cause paint damage and reduce the efficiency of the oven.

Keep the power cord away from heated surfaces.

SAVETHESEINSTRUCTIONS

4....important safety instruct on

Whencleaningthedoorandovensurfaces,useonlymild,nonabrasivesoapsor

detergentsappliedwithaspongeorsoftcloth.

Removelidsfrombabyfoodbeforeheating.Afterheatingbabyfood,stirwelland

testtemperaturebytastingbeforeserving.

Thisover-the-rangeovenwasdesignedforuseoverrangesnowiderthan36

inches.Itmaybeinstalledoverbothgasandelectriccookingequipment.

[_ Liquids,suchaswater,coffee,orteaareabletobeoverheatedbeyondthe

boilingpointwithoutappearingto beboiling.Visiblebubblingor boilingwhen

thecontainerisremovedfromthemicrowaveovenisnotalwayspresent.THIS

COULDRESULTINVERYHOTLIQUIDSSUDDENLYBOILINGOVERWHENTHE

CONTAINERISDISTURBEDBYA SPOONOROTHERUTENSILINSERTEDINTO

THELIQUID.

Carefullyremovecontainercoverings,directingsteamawayfromyourhandsand

face.

Someitems,likewholeeggsandfoodinsealedcontainers,mayexplodeif heated

inthisoven.

Donotoperatethisapplianceif ithasa damagedcordor plug,ifit isnotworking

properly,orifit hasbeendamaged.

Donotcoverorblockanyoftheopeningsonthisappliance.

Donotstorethisapplianceoutdoors.Donotusenearwater-forexample,neara

kitchensink,ina wetbasement,orneara swimmingpool,etc.

Donotimmersethepowercordorpluginwater.

Donotletthepowercordhangoveredgeoftableor counter.

Donottrytopreheatthemicrowaveovenoroperateitwhileempty.

Donotcookwithouttheglasstrayinplaceontheovenfloor.Foodwillnotcook

properlywithoutthetrayinplace.

Donotdefrostfrozenbeveragesinnarrow-neckedbottles.Thecontainerscan

break.

Dishesandcontainersmaybecomehot.Handlewithcare.

Donotmountunitoverornearanyportionofa heatingorcookingappliance.

Donotmountoverasink.

Donotstoreanythingdirectlyontopoftheappliancewhenit isinoperation.

Thisapplianceshouldbeservicedonlybyqualifiedservicepersonnel.Contactthe

nearestauthorizedservicefacilityforexamination,repair,oradjustment.

SAVETHESEINSTRUCTIONS

important safety instruction ....5

TOREDUCETHERISKOF FIREINTHEOVEN:

[_ Remove wire twist-ties from plastic cooking bags before placing bags in oven.

_Do not use the oven compartment for storage purposes. Do not leave paper

products, cooking utensils, or food in the oven when not in use.

Do not overcook food. Watch appliance carefully if paper, plastic, or other

combustible materials are inside.

_lf materials inside the oven ignite, keep the oven door closed, turn the oven off,

disconnect the power cord, or shut off the power at the fuse or circuit breaker

panel. If the door is opened, the fire may spread.

TOREDUCETHERISKOFINJURYTOPERSONS:

_]__.}Stir the liquid both before and halfway through heating it.

After heating, allow the container to stand in the microwave oven for a short time

before removing the container.

_Do not use straight-sided containers with narrow necks.

Do not overheat liquids.

_Use extreme when other utensils into the container.

care

inserting

spoon

SAVETHESEINSTRUCTIONS

6_. important safety instruct on

IMPORTANTGROUNDINGINSTRUCTIONS

[_ This appliance must be grounded. In the event of an electrical short circuit,

grounding reduces the risk of electric shock by providing an escape wire for the

electrical current. This appliance is equipped with a power cord that includes a

grounding wire and a grounding plug. The plug must be plugged into an outlet

that is properly installed and grounded. Plug the three-prong power cord into a

properly grounded outlet of standard 115-120 voltage, 60 Hz. Your oven should

be the only appliance on this circuit.

A WARNING

WARNING

O Improper use of the grounding plug can result in a risk of electric shock. Consult a

....... qualified electrician or servicer if you do not understand the grounding instructions

or if you are not sure if the appliance is properly grounded.

_Do not use an extension cord with this appliance. If the power cord is too short,

have a qualified electrician or service technician install an outlet near the appliance.

Do not cut or remove the third (ground) prong from the power cord under any

circumstances.

[_ Connect the 15A dedicated circuit.

oven

only

THEVENTFAN

_} The fan will operate automatically under certain conditions.Take care to prevent

the starting and spreading of accidental cooking fires while the vent fan is in use.

In the event of a grease fire on the surface units below the microwave oven,

smother a flaming pan on the surface unit by covering the pan completely with a

lid, a cookie sheet or a flat tray.

Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate

on the ventilating hood.

When flaming foods under the hood, turn the fan on.

Use care when cleaning the vent-hood filter. A corrosive cleaning agent, such as

lye based oven cleaner, may damage the filter.

Never leave surface units beneath your microwave oven unattended at high

heat settings. Boilovers cause smoking and greasy spillovers that may ignite

and spread if the microwave vent fan is operating. To minimize automatic fan

operation, use adequate sized cookware and use high heat on surface units only

when necessary.

SAVETHESEINSTRUCTIONS

important safety instruction ....7

content

SETTING UP YOUR NEW

MICROWAVE OVEN

USING YOUR MICROWAVE OVEN

COOKWARE GUIDE

10 Checking the parts

11 Warranty and service information

11 Setting up your microwave oven

12 Turning on the power for the first time

12 Setting the time

12 Child lock

13 My settings

14 Checking the control panel

16 Usin¢

17 Usin¢

18 Usin¢

19 Usin¢

21 Usin¢

22 Usin¢

23 Using

24 Using

the Kitchen Timer button

the add 30 sec. button

the More/Less buttons

the Vent buttons (5 speed & on/off)

the Vent delay off button

the Light hl/LO/off button

the Light timer button

the Turntable On/Off button

the metal shelf

the Sensor Cooking button

the Sensor Reheat button

the Auto Defrost button

the 1 pound Defrost button

the Soften/Melt button

the Kids Meals button

Using the Snacks button

Microwave Cooking Times & Power Levels

Using the Custom Cook buttons

28 Microwave-safe utensils

COOKING GUIDE

30 General microwave tips

31 Cooking meat

32 Cooking poultry

32 Cooking seafood

33 Cooking eggs

33 Cooking vegetables

34 Recipes

8 contents

CLEANING AND MAiNTAiNiNG YOUR

MICROWAVE OVEN

36 Cleaning the exterior

36 Cleaning the interior

36 Cleaning the turntable and roller rings

37 Storing and repairing your microwave oven

37 Replacing the cooktop/night light

37 Replacing the oven light

38 Cleaning the grease filter

39 Replacing the charcoal filter

TROUBLESHOOTING

40 Check these points if your microwave oven...

APPENDIX 41 Specifications

WARRANTY

contents 9

sort ncj up

F nOW

Be sure to follow these instructions closely so that your new microwave oven works

properly,

CHECKING THE PARTS

Carefully unpack your microwave oven, and make sure you've received all the parts shown below. If your

microwave oven was damaged during shipping, or if you do not have all the parts, contact Samsung

Customer Service. (Refer to the "WARRANTY AND SERVICE INFORMATION" on page 11 .)

Microwave oven (SMH9187}

Shelf Glass Tray Roller Guide Ring

DE75-00036B DE74-20002A DE97-00368A

Grease Filters (2ca)

DE63-00196A

Charcoal filter

DE63-00367D

Exhaust adaptor

DE92-90242D

Hardware kit (Screws &

Brackets)

DE92-90505E

Manuals

(User DE68-03640A &

installation DE68-00357S}

Templates

(Top DE68-03144B & Wall

DE68-03142B)

Registration Card

6801-001581

10 setting up your new microwave oven
