Dear Customer,
Thank you for purchasing this Toshiba LCD TV. This
manual will help you use the many exciting features of your
new LCD TV. Before operating your LCD TV, please
read this manual completely, and keep it nearby for
future reference.
Safety Precautions
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
WARNING: TO REDUCE THE RiSK OF ELECTRIC
SHOCK_ DO NOT REMOVE COVER (OR BACK),
NO USER=SERVICEABLE PARTS iNSIDE, REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL,
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated "dangerous voltage" within
the product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
WARNING
To prevent injury, this apparatus must be securely
attached to the floor/wall in accordance with the
installation instructions. See item 23 on page 3 and
instructions on page 5.
WARNING:If you decide to wall mount this
television, always use a UL Listed wall bracket
appropriate for the size and weight of this television.
The use of any wall bracket other than a UL Listed wall
bracket appropriate for the size and weight of this
television for wall mounting this television could result
in serious bodily injury and/or property damage. See
"Removing the Pedestal Stand" (_ page 5).
NOTETOCATV INSTALLERS
This is a reminder to call the CATV system installer's
attention to Article 820-40 of the U.S. NEC, which provides
guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry
as practical. For additional antenna grounding information,
see items 30 and 31 on page 4.
Congratulationsonyourpurchase!Asyouenjoyyour
newproduct,pleasekeepthesesafetytipsinmind:
The issue
. The hometheater entertainmentexperienceisa growingtrend
and larger flat panel displaysare popular purchases.However,
flat panel displaysare not always supportedon the proper stands
or installed accordingto the manufacturer'srecommendations.
. Flat paneldisplaysthat are inappropriately
situatedon dressers,bookcases,
shelves,desks,speakers,chestsor
cartsmayfall over and cause
injury.
TOSHIBA Cares!
The consumerelectronicsindustry
is committedto making home
entertainmentenjoyableand safe.
Tuneinto Safety
* OnesizedoesNOTfit all.Followthe manufacturer'srecommendations
forthe safeinstallationanduseof yourflat paneldisplay.
* Carefullyread and understandall enclosedinstructions for
proper useof this product.
* Don't allow children to climb on or playwith furniture and
televisionsets.
* Don't placeflat paneldisplayson furniture
that can easilybe usedas steps,such
as a chest of drawers.
* Rememberthat children can
becomeexcited while watching a
program, especiallyon a "larger
than life" flat paneldisplay. Care
should be takento placeor install
the display where it cannot be
pushed, pulled over,or knockeddown.
* Care should betakento route all cords and
cablesconnectedto the flat paneldisplay sothat they cannotbe
pulled or grabbedby curious children.
WallMounting:if youdecidetowall mountyour
fiat paneldisplay,always:
. Usea mount that hasbeen recommendedby the display
manufacturerand/or listed byan independentlaboratory (such
as UL, CSA,ETL).
° Followall instructions suppliedby the display andwall mount
manufacturers.
° If you haveany doubts about your ability to safelyinstall your
flat panel display,contact your retailerabout professional
installation.
° Make sure that the wall whereyou are mountingthe display is
appropriate.Some wall mounts are not designedto be mounted
to wallswith steel studs or old cinder blockconstruction. If you
are unsure,contact a professionalinstaller.
° A minimum of two people are
requiredfor installation. Flatpanel
displayscan be heavy.
www.CE.org/safety

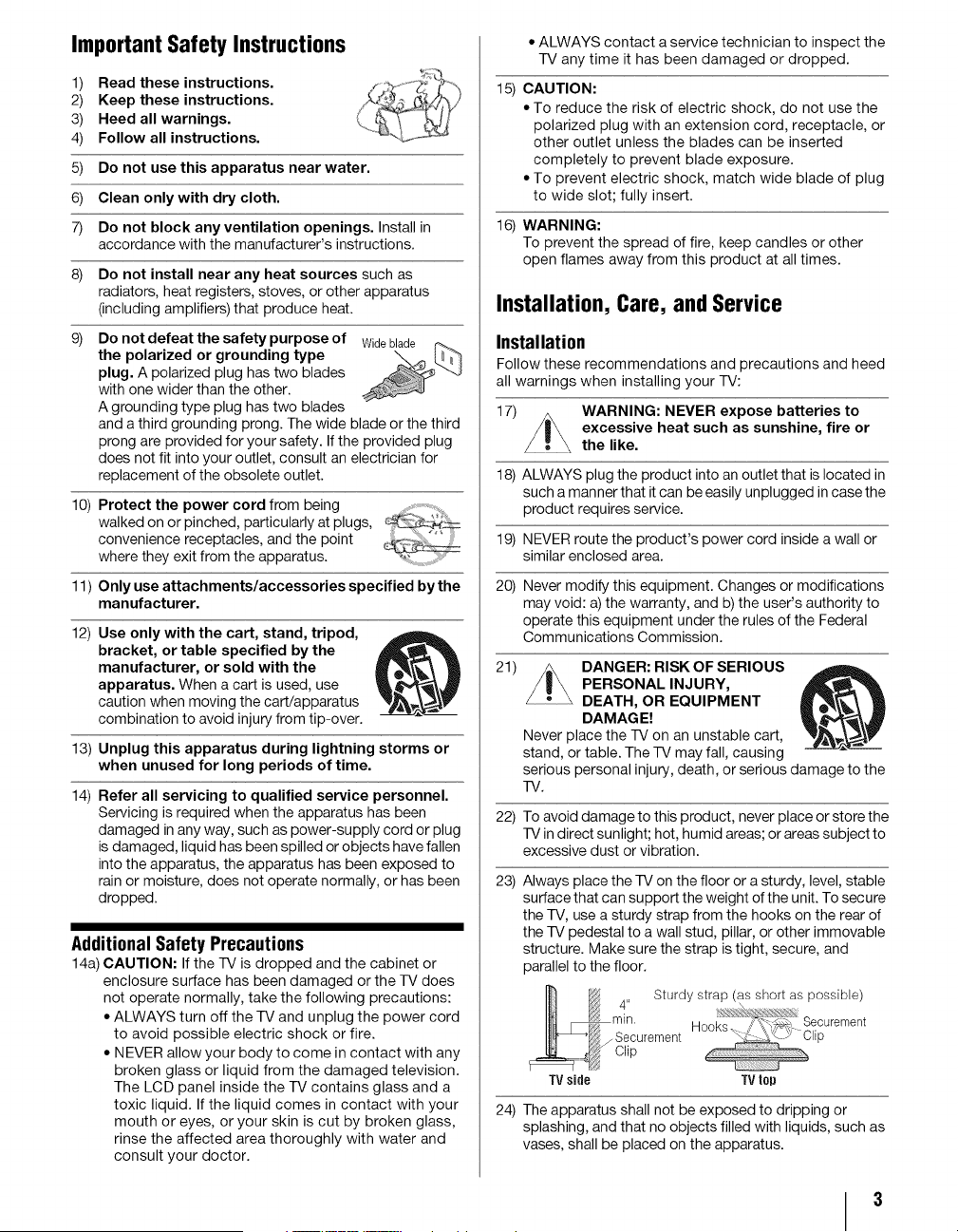

Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of
the polarized or grounding type
plug. A polarized plug has two blades
with one wider than the other.
A grounding type plug has two blades
and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
AdditionalSafety Precautions
14a) CAUTION: If the TV is dropped and the cabinet or
enclosure surface has been damaged or the TV does
not operate normally, take the following precautions:
* ALWAYS turn off the TV and unplug the power cord
to avoid possible electric shock or fire.
* NEVER allow your body to come in contact with any
broken glass or liquid from the damaged television.
The LCD panel inside the TV contains glass and a
toxic liquid. If the liquid comes in contact with your
mouth or eyes, or your skin is cut by broken glass,
rinse the affected area thoroughly with water and
consult your doctor.
* ALWAYS contact a service technician to inspect the
TV any time it has been damaged or dropped.
15) CAUTION:
° To reduce the risk of electric shock, do not use the
polarized plug with an extension cord, receptacle, or
other outlet unless the blades can be inserted
completely to prevent blade exposure.
* To prevent electric shock, match wide blade of plug
to wide slot; fully insert.
16) WARNING:
To prevent the spread of fire, keep candles or other
open flames away from this product at all times.
Installation, Care,and Service
Installation
Follow these recommendations and precautions and heed
all warnings when installing your TV:
17) WARNING: NEVER expose batteries to
excessive heat such as sunshine, fire or
the like.
18) ALWAYS plug the product into an outlet that is located in
such a manner that it can be easily unplugged in case the
product requires service.
19) NEVER route the product's power cord inside a wall or
similar enclosed area.
20) Never modify this equipment. Changes or modifications
may void: a)the warranty, and b) the user's authority to
operate this equipment under the rules of the Federal
Communications Commission.
21) DANGER: RISK OF SERIOUS
PERSONAL INJURY,
DEATH, OR EQUIPMENT
DAMAGE!
Never place the TV on an unstable cart,
stand, or table. The TV may fall, causing
serious personal injury, death, or serious damage to the
TV.
22) To avoid damage to this product, never place or store the
TV in direct sunlight; hot, humid areas; or areas subject to
excessive dust or vibration.
23) Always place the TV on the floor or a sturdy, level, stable
surface that can support the weight of the unit. To secure
the TV, use a sturdy strap from the hooks on the rear of
the TV pedestal to a wall stud, pillar, or other immovable
structure. Make sure the strap is tight, secure, and
parallel to the floor.
Sturdy strap (as short as possible)
4"
Securement
Clip
TV side TV ted
24) The apparatus shall not be exposed to dripping or
splashing, and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
3
25) Never block or cover the slots or openings in the TV
cabinet back, bottom, and sides. Never place the TV:
* on a bed, sofa, rug, or similar
surface;
. too close to drapes, curtains, or
walls; or
* in a confined space such as a
bookcase, built-in cabinet, or i ..............
any other place with poor
ventilation.
The slots and openings are provided to protect the TV
from overheating and to help maintain reliable operation
of the TV. Leave a space of at least 4 (four) inches around
the TV.
26) Always place the back of the television at least four (4)
inches away from any vertical surface (such as a wall) to
allow proper ventilation.
27) Never allow anything to rest on or roll over the power
cord, and never place the TV where the power cord is
subject to wear or abuse.
28) Never overload wall outlets and extension cords.
29) Always operate this equipment from a 120 VAC, 60 Hz
power source only.
30) Always make sure the antenna system is properly
grounded to provide adequate protection against voltage
surges and built-up static charges (see Section 810
of the National Electric Code).
Ground clamp
Electric service equipment \
I
Ground clamps
conductors
)
Power service grounding
electrode system (NEC Art 250 Part-H)
31)
DANGER: RISK OF SERIOUS
PERSONAL INJURY OR DEATH!
* Use extreme care to make sure you are never in a
position where your body (or any item you are in
contact with, such as a ladder or screwdriver) can
accidentally touch overhead power lines. Never locate
the antenna near overhead power lines or other
electrical circuits.
* Never attempt to install any of the following during
lightning activity: a) an antenna system; or b) cables,
wires, or any home theater component connected to
an antenna or phone system.
Care
For better performance and safer operation of your TOSHIBA
TV, follow these recommendations and precautions:
32) If you use the TV in a room whose temperature is 32 °F
(0 °C) or below, the picture brightness may vary until the
LCD warms up. This is not a sign of malfunction.
33) Always unplug the TV before
cleaning. Gently wipe the display
panel surface (the TV screen)
using a dry, soft cloth only
(cotton, flannel, etc.). A hard
cloth may damage the surface of
the panel. Avoid contact with alcohol, thinner, benzene,
acidic or alkaline solvent cleaners, abrasive cleaners, or
chemical cloths, which may damage the surface. Never
spray volatile compounds such as insecticide on the
cabinet. Such products may damage or discolor the
cabinet.
34)
WARNING:
RISK OF ELECTRIC SHOCK!
Never spill liquids or push objects of any kind into the TV
cabinet slots.
35)
36)
3h
While it is thundering, do not touch the connecting cables
or apparatus.
For added protection of your TV from lightning and power
surges, always unplug the power cord and disconnect
the antenna from the TV if you leave the TV unattended or
unused for long periods of time.
ALWAYS unplug the TV to completely disconnect from
mains power. When the TV is turned off using the on/off
switch, it is not completely disconnected from power and
a minute amount of current is still consumed.
38) During normal use, the TV may make occasional
snapping or popping sounds. This is normal, especially
when the unit is being turned on or off. If these sounds
become frequent or continuous, unplug the power cord
and contact a Toshiba Authorized Service Center.
39)
WARNING: RISK OF
SERIOUS PERSONAL
INJURY OR EQUIPMENT
DAMAGE!
Never strike the screen with a sharp
or heavy object.
40) °The LCD screen of this product can be damaged by
ultraviolet radiation from the sun. When selecting a
location for the television, avoid locations where the
screen may be exposed to direct sunlight, such as in
front of a window.
* Never touch, press, or place anything on the LCD
screen. These actions will damage the LCD screen. If
you need to clean the LCD screen, follow the
instructions in item 33 on this page.
Service
41)
WARNING:
RiSK OF ELECTRIC SHOCK!
Never attempt to service the TV yourself. Opening and
removing the covers may expose you to dangerous
voltage or other hazards. Failure to follow this WARN IN G
may result in death or serious injury. Refer all servicing
not specified in this manual to a Toshiba Authorized
Service Center.
42) If you have the TV serviced:
• Ask the service technician to use only replacement
parts specified by the manufacturer.
• Upon completion of service, ask the service
technician to perform routine safety checks to
determine that the TV is in safe operating condition.
43) The fluorescent lamp(s) in the LCD panel contain a small
amount of mercury.
When the TV reaches the end of its useful life, dispose
of the used TV by the approved method for your area, or
ask a qualified service technician to properly dispose of
the TV.
_ Vete- The lamp(s) inside this product contain
mercury. Disposal may be regulated due to
environmental considerations. For disposal or
recycling information, contact your local authorities or
the Electronics Industries Alliance (www.eiae.org).
Choosing a location for your LCDTV
To DisplayyourLCDTV onthe included Pedestal
Stand:
Observe the following safety precautions:
1) Read and Follow the pedestal assembly instructions
included with the pedestal.
CAUTION: Before beginning pedestal assembly,
carefully lay the front of the LCD Panel face down on a
flat, cushioned surface such as a quilt or blanket.
Leave the bottom of the unit protruding over the edge
of the surface and assemble the pedestal as indicated
below.
/Vote: Extreme care should always be used when
attaching the pedestal stand to avoid damage to the
LCD panel
2) Place the TV on a sturdy, level surface that can support
the weight of the TV.
3) Be sure to secure the TV to a wall stud, pillar, surface,
or other immovable structure. To secure the TV in this
manner: (1) attach the provided securement clip to an
immovable structure, then (2) pass a sturdy strap
through the securement clip and attach each end to
the hooks located on the back of the TV. Be sure to
leave at least 4 inches between the TV and the wall or
similar structure for ventilation. See item 23, page 3 for
additional details.
To Displayyour LCDTV usinga Wall Bracket:
If you decide to wail mount your LCD TV, always use a U_
listed wall bracket appropriate for the size and weight of
the LCD TV (_ page 2) :
1) CAUTION: Two people are required for installation.
2) Unplug and remove any cables and/or other
component connectors from the rear of the TV.
3) Follow the instructions provided with your wall
bracket. Before proceeding, make sure the
appropriate bracket(s) are attached to the wall and the
back of the TV as described in the instructions
provided with the wall bracket.
4) After attaching the appropriate bracket(s) to the wall
and the back of the TV, remove the pedestal stand
from the TV as described below.
Removingthe Pedestal Stand
1) Carefully lay the front of the unit face down on a fiat,
cushioned surface such as a quilt or blanket. Leave the
stand protruding over the edge of the surface.
/Vote: Extreme care should always be used when
removing the pedestal stand to avoid damage to the
LCD panel.
2) Remove the four screws shown in the diagram below.
This will allow removal of the pedestal stand.
3) Once you have removed all four screws holding the
pedestal stand in place, remove the pedestal stand
from the TV by sliding the pedestal stand away from
the TV.
Four screws
5
FCCDeclarationof Conformity
ComplianceStatement{Part15):
The Toshiba 40XV645U, 46XV645U and 52XV645U
Televisions comply with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
The party responsible for compliance to these rules is:
Toshiba America Consumer Products, L.L.C.
82 Totowa Rd. Wayne, NJ 07470.
Ph: 1-800-631-3811
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These fimits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by
removing and applying power to the equipment, the user
is encouraged to try to correct the interference by one or
more of the following measures:
° Reorient o1"relocate the receiving antelula.
• Increase the separation between the equipment and the
receiver.
• Colulect the equipment into an outlet on a circuit
different from that to which the receiver is corulected.
• Consult the dealer or an experienced radio/TV
technician for help.
Caution: Changes or modifications to this equipment not
expressly approved by Toshiba could void the user's
authority to operate this equipment.
EN£RGYSTA Userinformation
ENERGY STAR User Information Statement: the factory
default settings of this television meet ENERGY STAR ®
requirements. Enabling or changing certain features and
functionality (e.g. Picture Settings, Auto Brightness Sensor,
Power-On Mode) may increase energy consumption,
possibly beyond the limits required for ENERGY STAR
qualification.
To ensure your television is operating at optimal energy
efficiency, select [Home] mode during initial activation. To
return to [Home] mode settings, select [AutoView] picture
mode, set theAuto Brightness Sensor to [On] mode, and set
the Power-On mode to [Power-Saving]. [AutoView] mode
is recommended for normal home use.
For more information, see page 30 and 39.
ENERGY STAR ® qualified TV. Products that
earn the ENERGY STAR prevent green house
gas emissions by meeting strict guidelines set
by the U.S. Environmental Protection Agency.
ENERGY STAR and the ENERGY STAR mark
are registered U.S. marks.
importantnotesaboutyour LCDTV
The following symptoms are technical limitations of
LCD Display technologyand are not an indication of
malfunction; therefore, Toshiba is not responsible for
perceived issues resulting from these symptoms.
1) An afterimage (ghost) may appear on the screen if a
fixed, non-moving image is displayed for a long period
of time. The afterimage is not permanent and will
disappear in a short period of time.
2) The LCD panel contained in this TV is manufactured
using an extremely high level of precision technology;
however, there may be an occasional pixel (dot of light)
that does not operate properly (does not light, remains
constantly lit, etc.). This is a structural property of LCD
technology, is not a sign of malfunction, and is not
covered under your warranty. Such pixels are not
visible when the picture is viewed from a normal
viewing distance.
Note: Interactive video games that involve shooting a
"gun" type of joystick at an on-screen target may not work
with this TV.
• Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
• HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
• INSTAPORT TM and INSTAPORT logo are trademarks of
Silicon Image, Inc. in the United States and other countries.
Important Safety Instructions ...................... 3
Installation, Care, and Service ..................... 3
Choosing a location for your LCD TV ................. 5
Chapter 1: Introduction ........................... 9
Features of your new TV .......................... 9
Overview of steps for installing, setting up,
and using your new TV ......................... 9
TV front and side panel controls and connections .... 10
TV back panel connections ........................ 11
Chapter 2: Connecting your IV ..................... 12
Overview of cable types .......................... 12
About the connection illustrations ................. 12
Connecting a VCR (or a VCR with S-video) and
antenna, Cable TV o1' Camcorder ................ 13
Connecting a DVD player with ColorStream _
(component video), a VCR, and
a satellite receiver ............................. 14
Connecting an HDMI rM or DVI device to
the HDMI input ............................... 15
REGZA-LINK c_9connection ....................... 16
Connecting a digital audio system ................. 17
Connecting an audio system ...................... 17
Connecting a personal computer (PC) .............. 18
Chapter 3: Using the remote control .................. 19
Preparing the remote control for use ............... 19
Installing the remote control batteries .............. 19
Learning about the remote control ................. 20
Using the remote control to control
your other devices ............................. 21
Remote Control functional key chart ............... 22
Programming the remote control to control
your other devices ............................. 23
Remote control codes ............................ 24
Chapter 4: Menu layout and navigation ................ 26
Main lnenu layout ............................... 26
Navigating the menu system ...................... 26
Chapter 5: Setting up your IV ...................... 27
Initial Setup ..................................... 27
Quick Setup from the SETUP menu ................ 27
Selecting the menu language ...................... 27
Configuring the antenna input source for
the ANT/CABLE terminal ...................... 28
Programming channels into the
TV's channel memory .......................... 28
Auto Tuning .................................. 28
Manual Tuning ............................... 28
Setting channel skip .............................. 29
Setting video input skip .......................... 29
Labeling video input sources ...................... 29
Setting the time zone ............................. 30
Selecting the location ............................. 30
Selecting the TOSHIBA Illumination mode .......... 30
Selecting the Power-On Mode ..................... 30
Using Blue Screen ............................... 30
Setting the screen transparency .................... 30
Viewing the system status ........................ 31
Reset Factory Defaults ............................ 31
Chapter 6: Using the TV's features ................... 32
Selecting the video input source to view. ........... 32
Tuning channels ................................. 33
Tuning channels using the Channel Browser TM .... 33
Setting the Channel Tuning Mode ............... 35
Tuning to the next programmed channel ......... 35
Tuning to a specific channel
(programmed or unprogrammed) ........... 35
Switching between two channels using
Channel Return ........................... 35
Switching between two channels
using SurfLock TM ......................... 35
Selecting the picture size .......................... 36
Scrolling the picture .............................. 38
Using the Auto Aspect Ratio feature ................ 38
Using the 4:3 Stretch ............................. 38
Using the FREEZE feature ........................ 38
Adjusting the picture ............................. 39
Selecting the picture mode ...................... 39
Adjusting the picture quality .................... 39
Using the TheaterLock TM feature ................... 40
Viewing the Control Visualization window ......... 40
Using the closed caption mode .................... 40
Analog CC Mode .............................. 40
Digital CC Settings ............................ 41
CC Selector ................................... 41
Adjusting the audio .............................. 42
Muting the sound ............................. 42
Using the digital audio selector .................. 42
Selecting stereo/SAP broadcasts ................. 42
Adjusting the audio quality ..................... 42
Using the StableSound c_)feature ................. 43
Selecting the optical audio output format ......... 43
Using the Dolby _9 Digital
Dynamic Range Control feature ............. 43
Setting the PIN code ............................. 43
Registering a new PIN code ..................... 43
Changing or deleting your PIN code ............. 43
If you cannot remember your PIN code ........... 43
Blocking TV programs and movies
by rating (V-Chip) ........................ 44
Downloading an additional rating system
for blocking TV programs and movies ....... 44
Unlocking programs ........................... 45
Locking channels ................................ 46
Using the input lock feature ..................... 46
Using the GameTimer c'_feature .................. 46
Using the panel lock feature .................... 46
Using the PC settings feature ...................... 47
Setting the PC Audio ............................. 47
Setting the On Timer ............................. 48
Setting the Sleep Timer ........................... 48
Using REGZA-LINK c_9............................ 49
REGZA-LINK _ playback device
(DVD player, etc.) control .................. 49
REGZA-LINK ;®input source selection ............ 49
Amplifier VOLUME and MUTE controls ......... 50
Other REGZA-LINK ;®functions ................. 50
REGZA-LINK ;®PC Link ........................ 50
Using the HDMI settings feature ................... 51
Setting the HDMI audio mode ..................... 51
Displaying TV status information .................. 52
Understanding the auto power off feature ........... 52
Understanding the last mode memory feature ....... 52
Chapter 7: Using the TV's advanced features ............ 53
Using the advanced picture settings features ........ 53
Using the Resolution+ rMfeature ................. 53
Using the DynaLighU M feature .................. 53
7
Using the
Using the
Using the
Using the
Using the
Using the
Using the
Using the
Using the
Using the
Dynamic Contrast .................... 53
Static Gamma ........................ 53
Film Stabilization .................... 53
Expert Mode ......................... 54
ClearFrame TM feature ................. 54
MPEG NR feature .................... 54
DNR feature ......................... 54
Auto Brightness Sensor ............... 55
Backlight Adjustment Pro ............. 55
ColorMaster TM feature ................ 55
Using the Base Color Adjustment ................ 55
Selecting the color temperature ................. 56
Using the advanced sound setting features .......... 56
Using the Media Player ........................... 57
Media Player Specifications ..................... 57
Basic operation ................................ 57
Viewing JPEG files ............................ 58
Chapter8: Troubleshooting........................ 5g
General troubleshooting .......................... 59
LED indications ................................. 61
Chapter9:Appendix............................ 62
Specifications ................................... 62
Acceptable signal formats for
PC IN and HDMI terminals ..................... 63
PC IN signal formats ........................... 63
HDMI signal formats .......................... 64
Limited United States Warranty
for LCD Televisions 26" and Larger .............. 65
Limited Canadian Warranty
for Toshiba Brand Flat Panel Televisions ......... 66
Index....................................... 69

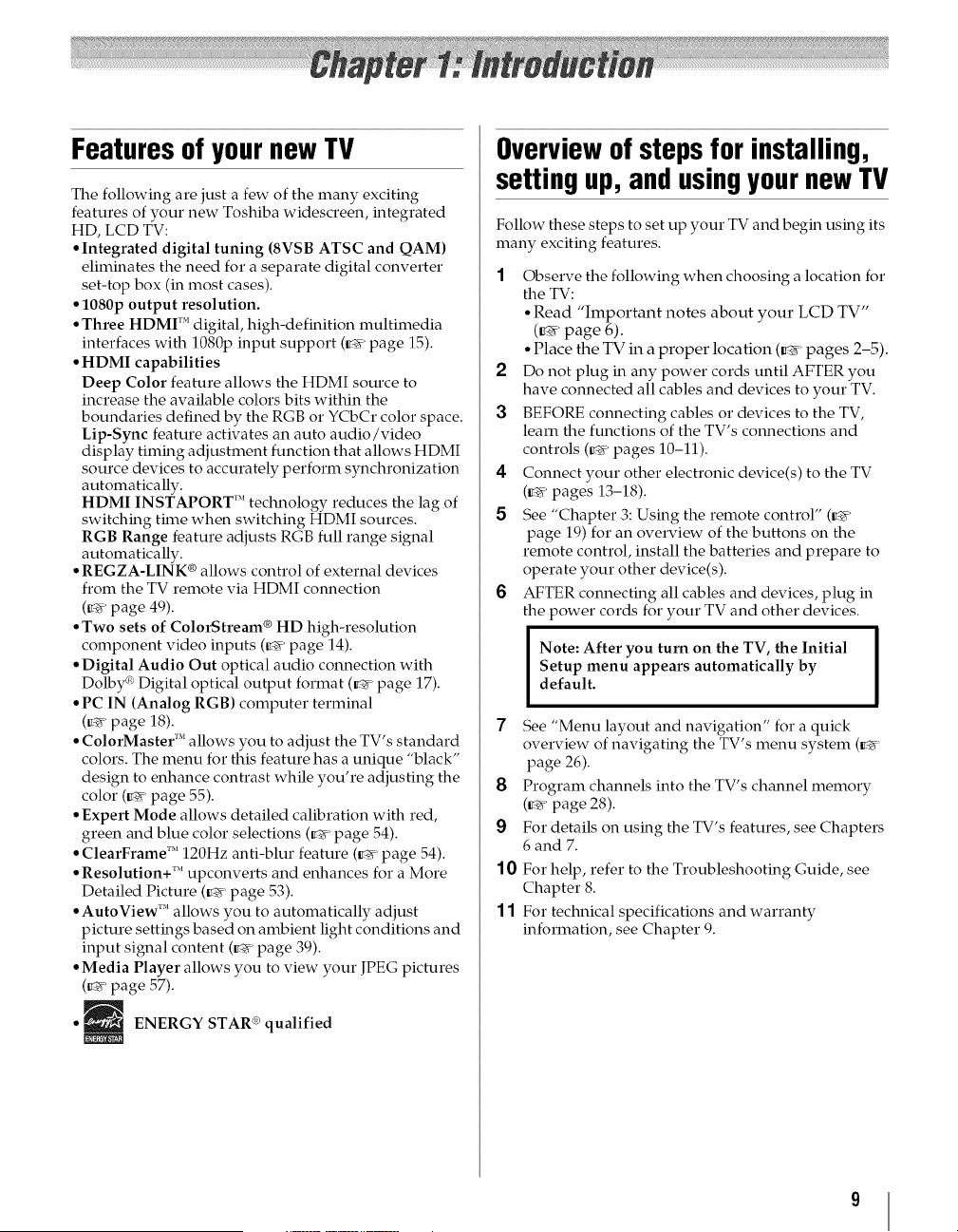

Features of your new TV
The following are just a few of the many exciting
features of your new Toshiba widescreen, integrated
HD, LCD TV:
• Integrated digital tuning (8VSB ATSC and QAM)
eliminates the need for a separate digital converter
set-top box (in most cases).
• 1080p output resolution.
• Three HDMI _Mdigital, high-definition multimedia
interfaces with 1080p input support (_#r page 15).
• HDMI capabilities
Deep Color feature allows the HDMI source to
increase the available colors bits within the
boundaries defined by the RGB or YCbCr color space.
Lip-Sync feature activates an auto audio/video
display timing adjustment function that allows HDMI
source devices to accurately perform synchronization
automatically.
HDMI INSTAPORT 'Mtechnology reduces the lag of
switching time when switching HDMI sources.
RGB Range feature adjusts RGB full range signal
automatically.
• REGZA-LINK ® allows control of external devices
from the TV remote via HDMI connection
(_' page 49).
• Two sets of ColorStream ® HD high-resolution
component video inputs (_#r page 14).
• Digital Audio Out optical audio connection with
Dolby _'>Digital optical output format (_#r page 17).
• PC IN (Analog RGB) computer terminal
(_#r page 18).
• ColorMaster r'*allows you to adjust the TV's standard
colors. The menu for this feature has a unique "black"
design to enhance contrast while you're adjusting the
color (_#r page 55).
• Expert Mode allows detailed calibration with red,
green and blue color selections (_#r page 54).
• ClearFrame r'* 120Hz anti-blur feature (_#r page 54).
• Resolution+ 'Mupconverts and enhances for a More
Detailed Picture (_#r page 53).
• AutoView _Mallows you to automatically adjust
picture settings based on ambient light conditions and
input signal content (_#r page 39).
• Media Player allows you to view your JPEG pictures
(_2vrpage 57).
• ENERGY STAR ® qualified
Overviewof stepsfor installing,
settingup, and usingyournewTV
Follow these steps to set up your TV and begin using its
many exciting features.
1 Observe the following when choosing a location for
the TV:
• Read "Important notes about your LCD TV"
(_' page 6).
• Place tile TV in a proper location (_' pages 2-5).
2 Do not plug in any power cords until AFTER you
have connected all cables and devices to your TV.
3 BEFORE connecting cables or devices to the TV,
learn the functions of the TV's connections and
controls (_#r pages 10-11).
4 Connect your other electronic device(s) to the TV
(_' pages 13-18).
5 See "Chapter 3: Using the remote control" (_#r
page 19) for an overview of the buttons on the
remote control, install the batteries and prepare to
operate your other device(s).
6 AFTER connecting all cables and devices, plug in
the power cords for your TV and other devices.
Note: After you turn on the TV, the Initial
Setup menu appears automatically by
default.
8
9
10
11
See "Menu layout and navigation" for a quick
overview of navigating the TV's menu system (_#r
page 26).
Program channels into the TV's channel memory
(_#r page 28).
For details on using the TV's features, see Chapters
6 and 7.
For help, refer to the Troubleshooting Guide, see
Chapter 8.
For technical specifications and warranty
information, see Chapter 9.
TV front and side panel controls and connections
Model 46XV645U is used in this manual for illustration purposes.
TV front
23
Control panel
1 TOSHIBA Illumination
The TOSHIBA logo will be illuminated by the LED
backlight. See "Selecting the TOSHIBA Illumination
mode" on page 30 for additional information.
2 Auto Brightness Sensor--This sensor will detect
the ambient light conditions to optimize the
backlighting levels. See "Using the Auto Brightness
Sensor" on page 55 for additional information.
3 Remote sensor-- Point the remote control toward
this remote sensor.
Effective range:
4 On Timer LED _4'_/5m/
See "Setting the On Timer" on page 48.
5 Power LED
See "LED indications" on page 61 for additional
information.
6 VIDEO 2 IN -- The side panel A/V connections are
referred to as "VIDEO 2" and include standard A/V
connections.
7 POWER -- Press to turn the TV on and off. If the TV
stops responding to the controls on the remote
control or TV control panel and you cannot turn off
the TV, press and hold the POWER button on the
TV control panel for 5 or more seconds to reset the
TV.
8 VOLUME+ --- These buttons adjust the volume
level.
ARROWS < > -- When a menu is on-screen, these
buttons function as left/right menu navigation
buttons.
9 INPUT/ENTER -- Repeatedly press to change the
source you are viewing (ANT/CABLE, VIDEO 1,
VIDEO 2, ColorStream HD1, ColorStream HD2,
HDMI 1, HDMI 2, HDMI 3, PC).When a menu is on-
screen, the INPUT button on the TV's control panel
functions as the ENTER button.
10 CHANNEL AV -- When no menu is on-screen,
these buttons change the channel (programmed
channels only; _#r page 28).
ARROWS ^ v -- When a menu is on-screen, these
buttons function as up/down menu navigation
buttons.
11 MENU/BACK -- Press to access the menu system
(_#r page 26). When a menu is on-screen, the MENU
button on the TV's control panel functions as the
BACK button.
12 USB terminal -- For use when inserting a USB
device.
13 HDMI TMIN -- High-Definition Multimedia
Interface (HDMI 3) input receives digital audio and
uncompressed digital video from an HDMI device
or uncompressed digital video from a DVI device.
HDMI connection is necessary to receive 1080p
signals.
10

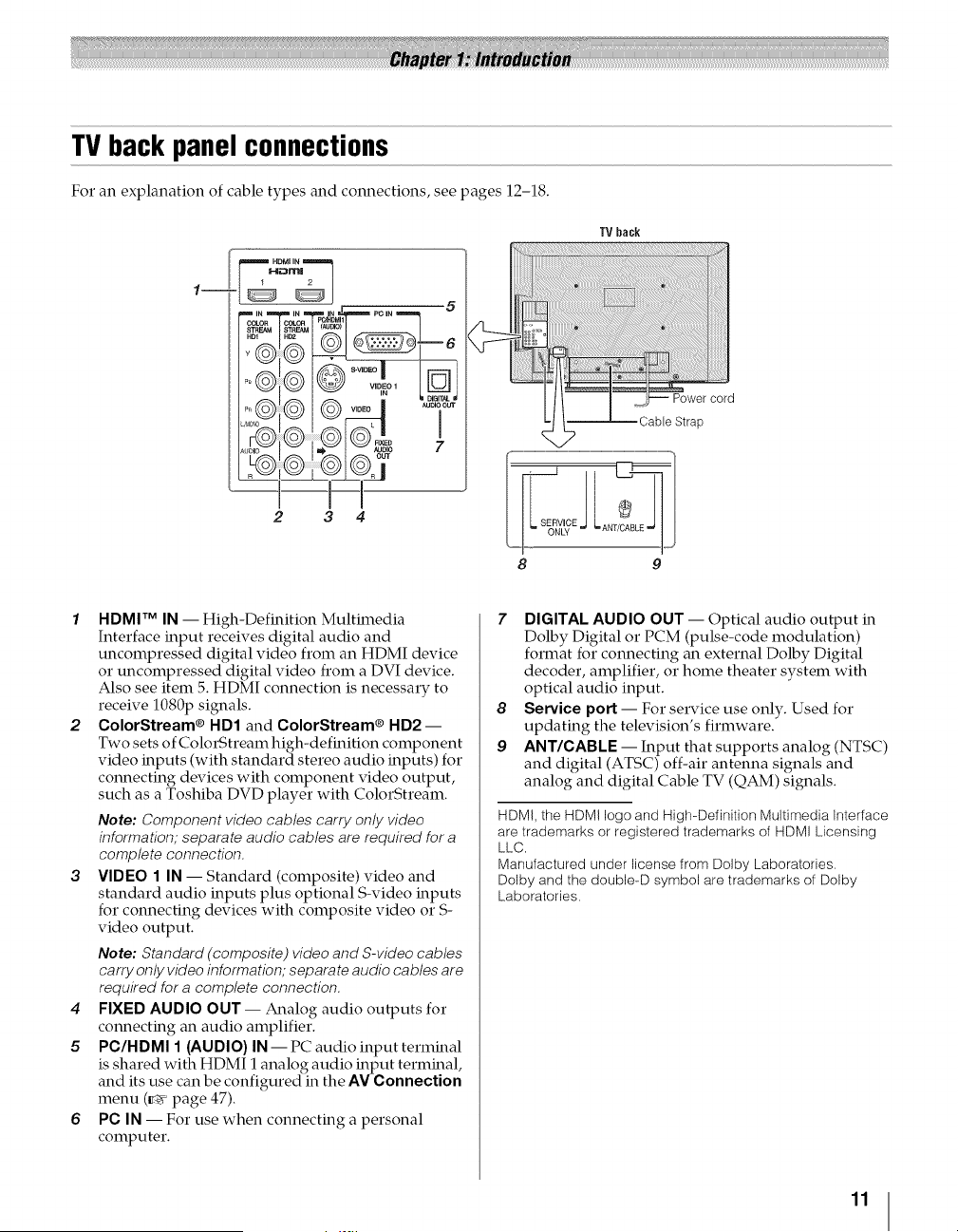

TV back panel connections
For an explanation of cable types and connections, see pages 12-18.
FIXED
AUDIO
TVback
2 3 4
8 9
1 HDMI TM IN -- High-Definition Multimedia
Interface input receives digital audio and
uncompressed digital video from an HDMI device
or uncompressed digital video from a DVI device.
Also see item 5. HDMI connection is necessary to
receive 1080p signals.
2 ColorStream ® HD1 and ColorStream ® HD2--
Two sets of ColorStream high-definition component
video inputs (with standard stereo audio inputs) for
connecting devices with component video output,
such as a Toshiba DVD player with ColorStream.
Note: Component video cables carry only video
information; separate audio cables are required for a
complete connection.
3 VIDEO 1 IN -- Standard (composite) video and
standard audio inputs plus optional S-video inputs
for connecting devices with composite video or S-
video output.
Note: Standard (composite) video and S-video cables
carry only video information; separate audio cables are
required for a complete connection.
4 FIXED AUDIO OUT-- Analog audio outputs for
connecting an audio amplifier.
5 PC/HDMI 1 (AUDIO) IN-- PC audio input terminal
is shared with HDMI 1 analog audio input terminal,
and its use can be configured in the AV Connection
menu (_ page 47).
6 PC IN -- For use when connecting a personal
computer.
7 DIGITAL AUDIO OUT -- Optical audio output in
Dolby Digital or PCM (pulse-code modulation)
format for connecting an external Dolby Digital
decoder, amplifier, or home theater system with
optical audio input.
8 Service port-- For service use only. Used for
updating the television's firmware.
9 ANT/CABLE-- Input that supports analog (NTSC)
and digital (ATSC) off-air antenna signals and
analog and digital Cable TV (QAM) signals.
HDMI, the HDMI logo and High-Definition Multimedia interface
are trademarks or registered trademarks of HDMI Licensing
LLC.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
11

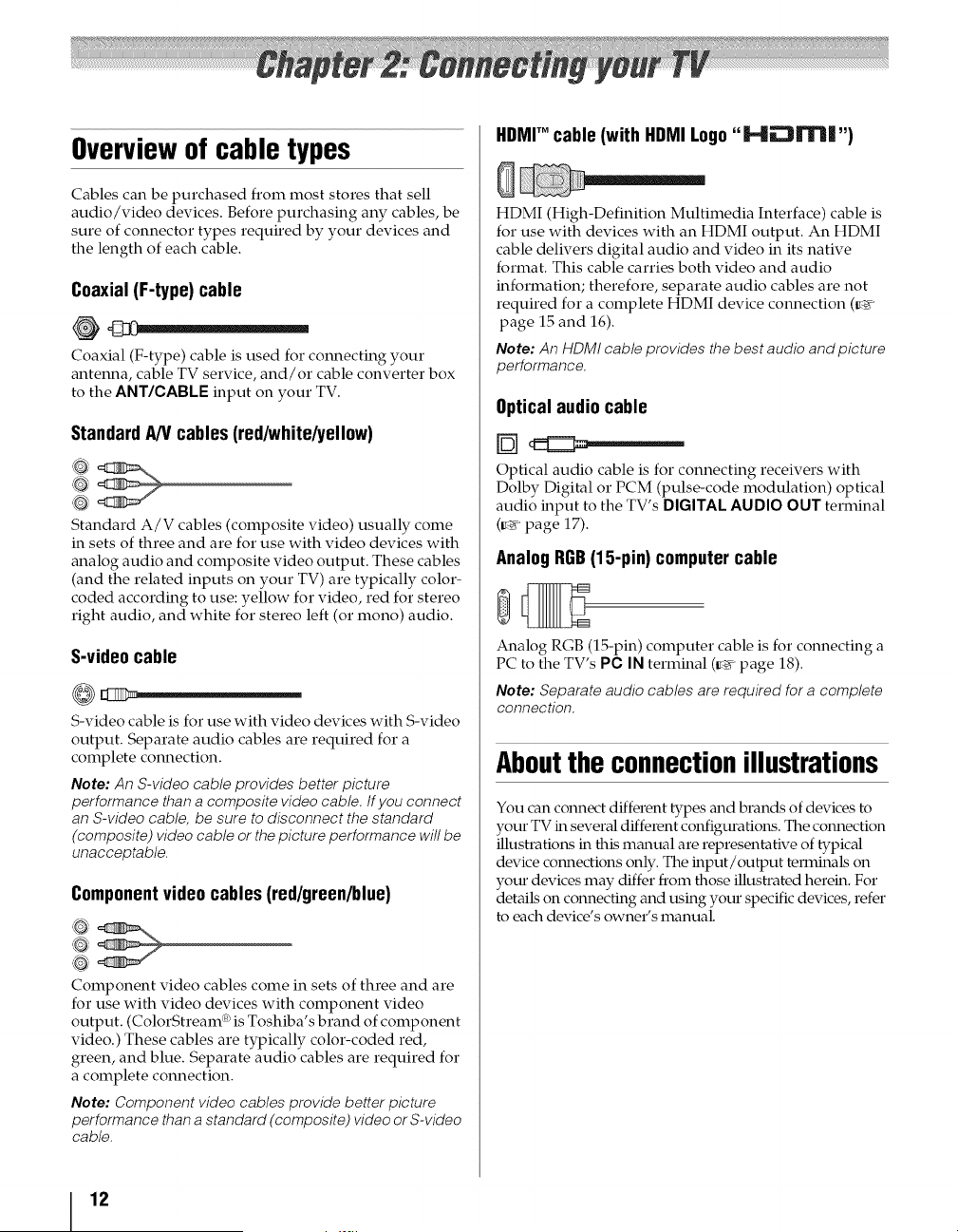

Overviewof cable types
Cables can be purchased from most stores that sell
audio/video devices. Before purchasing any cables, be
sure of connector types required by your devices and
the length of each cable.
Coaxial(F-type) cable
Coaxial (F-type) cable is used for connecting your
antenna, cable TV service, and/or cable converter box
to the ANT/CABLE input on your TV.
StandardA/V cables(red/white/yellow)
Standard A/V cables (composite video) usually come
in sets of three and are for use with video devices with
analog audio and composite video output. These cables
(and the related inputs on your TV) are typically color-
coded according to use: yellow for video, red for stereo
right audio, and white for stereo left (or mono) audio.
S-videocable
S-video cable is for use with video devices with S-video
output. Separate audio cables are required for a
complete connection.
Note: An S-video cable provides better picture
performance than a composite video cable. If you connect
an S-video cable, be sure to disconnect the standard
(composite) video cable or the picture performance will be
unacceptable.
Componentvideo cables(red/green/blue)
@
@
Component video cables come in sets of three and are
for use with video devices with component video
output. (ColorStream ® is Toshiba's brand of component
video.) These cables are typically color-coded red,
green, and blue. Separate audio cables are required for
a complete connection.
Note: Component video cables provide better picture
performance than a standard (composite) video or S-video
cable.
HDMITM cable (with HDMILogo"JHJ_rru")
HDMI (High-Definition Multimedia Interface) cable is
for use with devices with an HDMI output. An HDMI
cable delivers digital audio and video in its native
format. This cable carries both video and audio
information; therefore, separate audio cables are not
required for a complete HDMI device connection (_
page 15 and 16).
Note: An HDMI cable provides the best audio and picture
performance.
Optical audiocable
[__
Optical audio cable is for connecting receivers with
Dolby Digital or PCM (pulse-code modulation) optical
audio input to the TV's DIGITAL AUDIO OUT terminal
(_ page 17).
AnalogRGB(15-pin) computercable
Analog RGB (15-pin) computer cable is for connecting a
PC to the TV's PC IN terminal (_' page 18).
Note: Separate audio cables are required for a complete
connection.
Aboutthe connectionillustrations
You can connect different types and brands of devices to
your TV in several different configLu'ations. The connection
illustrations in this manual are representative of typical
device connections only. The input/output tem_inals on
your devices may differ from those illustrated herein. For
details on connecting and using your specific devices, refer
to each device's owner's manual.
12

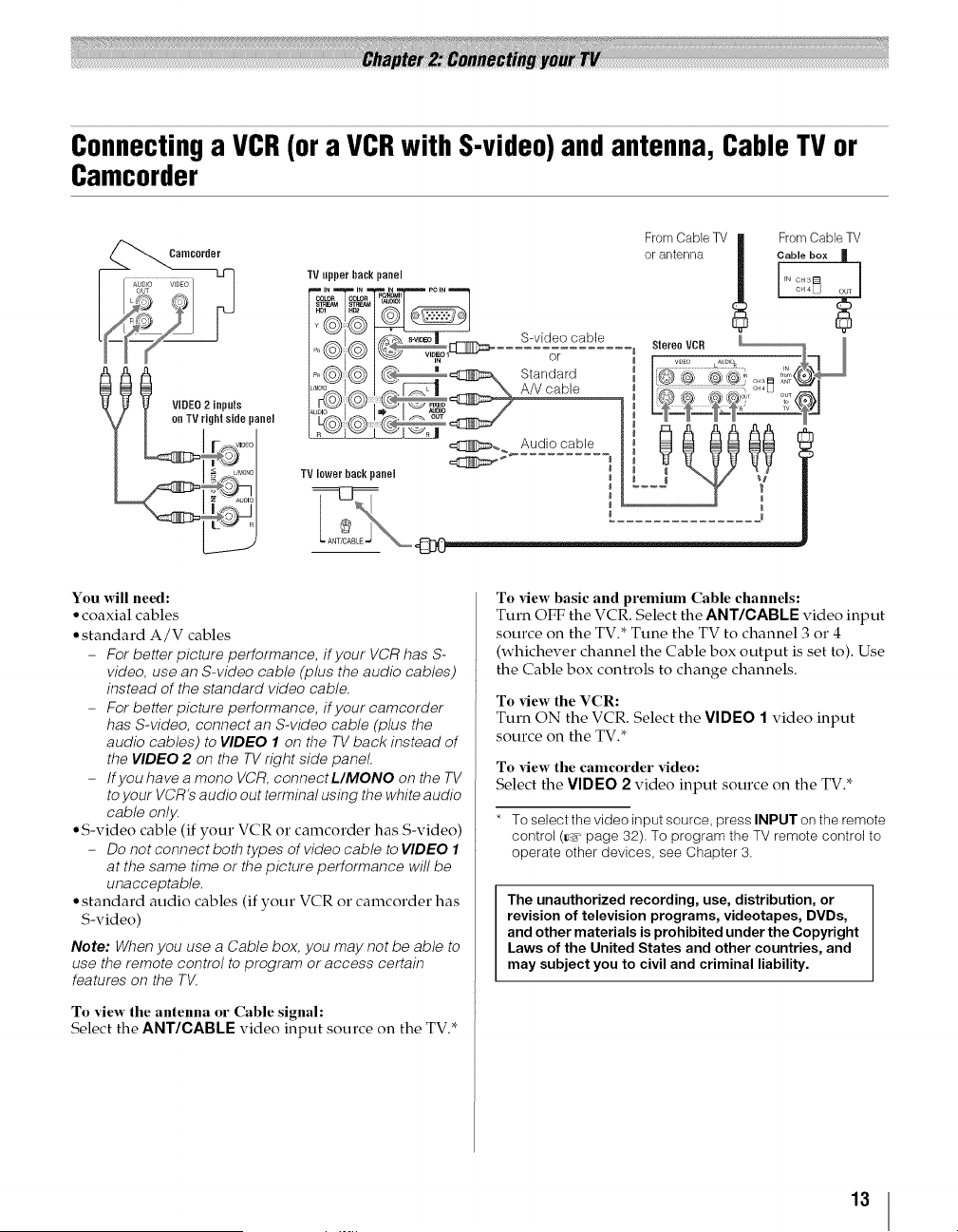

Connectinga VCR(ora VCRwith S-video)and antenna,CableTVor
Camcorder
TV upper back panel
FromOab, TV romOab, ;
or antenna Cable box _J
,N
_ _ VIDEO 2 inputs
on TV right side panel
....
TV _auel _ ..........
Ion, __ Jl ....
ANT/CABLE_ illl_ __
You will need:
• coaxial cables
• standard A/V cables
- For betterpicture performance, if your VCR has S-
video, use an S-video cable (plus the audio cables)
instead of the standard video cable.
- For betterpicture performance, if your camcorder
has S-video, connect an S-video cable (plus the
audio cables) to VIDEO 1 on the TV back instead of
the VIDEO 2 on the TV right side panel
- Ifyou have a mono VCR, connectL/MONO on the TV
to your VCR's audio out terminal using the white audio
cable only.
• S-video cable (if your VCR o1"camcorder has S-video)
- Do not connect both types of video cable to VIDEO 1
at the same time or the picture performance wifl be
unacceptable.
• standard audio cables (if your VCR o1"camcorder has
S-video)
Note: When you use a Cable box, you may not be able to
use the remote control to program or access certain
features on the TV.
To view the antenna or Cable signal:
Select the ANT/CABLE video input source on the TV.*
To xiew basic and premium Cable channels:
Turn OFF the VCR. Select the ANT/CABLE video input
source on the TV.* Tune the TV to channel 3 o1"4
(whichever channel the Cable box output is set to). Use
the Cable box controls to change channels.
To _iew the VCR:
Turn ON the VCR. Select the VIDEO 1 video input
source on the TV.*
To _iew the camcorder _ideo:
Select the VIDEO 2 video input source on the TV.*
* To select the video input source, press INPUT on the remote
control (_¢ page 32). To program the TV remote control to
operate other devices, see Chapter 3.
The unauthorized recording, use, distribution, or
revision of television programs, videotapes, DVDs,
and other materials is prohibited under the Copyright
Laws of the United States and other countries, and
may subject you to civil and criminal liability.
13
Connectinga DVDplayerwith ColorStream® (componentvideo),
a VCR,anda satellite receiver
Your TV has two sets of ColorStream ® (component video) inputs.
TVupperhackpanel
Stereo VCR
From antenna
DVDplayer with componentvideo
From satellite dish
Satellite receiver with componentvideo
TV lowerhackpanel
You will need:
• coaxial cables
• standard A/V cables
- For betterpicture performance, if your VCR has S-
video, use an S-video cable (plus the audio cables)
instead of the standard video cable. Do not connect
both types of video cable to VIDEO I at the same
time or the picture performance will be
unacceptable.
- Ifyou have a mono VCR, connectL/MONO on the TV
to your VCR'S audio out terminal using the white
audio cable only.
• standard audio cables
• component video cables
- You can connect the component video cables (plus
audio cables) from the DVD player or satellite
receiver to either set of OolerStream terminals on the
TV (HD1 or HD2) The ColorStream HD1 and HD2
terminals can be used to display Progressive (480p,
720p, 1080p) and Interlaced (480L 1080i). Please
check the Owner's Manual of the DVD player or
satellite receiver in order to determine the best output
signal available (1080p 24Hz/30Hz/50Hz/25Hz are
not supported).
- If your DVD player or satellite receiver does not have
component video, connect a standard A/V cable to
VIDEO 2 on the side panel If your DVD player has
HDMI video, see page 15.
To view antenna or Cable channels:
Select the ANT/CABLE video input source on the TV.*
To _iew the DVD player:
Turn ON the DVD player. Select the ColorStream HD1
video input source on the TV.*
To xiew satellite programs using the component video
connections:
Turn on the satellite receiver. Select the ColorStream
HD2 video input source on the TV.*
To _iew the VCR or view and record antenna channels:
Turn ON the VCR. Tune the VCR to the channel you
want to watch. Select the VIDEO 1 video input source
on the TV.*
To record a TV program while watching a DVD:
Turn ON the VCR. Tune the VCR to the channel to
record. Select the ColorStream ND1 video input
source on the TV* to view the DVD.
To select the video input source, press INPUT on the
remote control (_" page 32). To program the TV remote
control to operate other devices, see Chapter 3.
The unauthorized recording, use, distribution, or
revision of television programs, videotapes, DVDs,
and other materials is prohibited under the Copyright
Laws of the United States and other countries, and
may subject you to civil and criminal liability.
14
Connectingan HDMITM or DVI
deviceto the HDMIinput
The HDMI input on your TV recewes digital audio and
uncompressed digital video from an HDMI source
device, or uncompressed digital video from a DVI
(Digital Visual Interface) source device.
This input is designed to accept HDCP (High-
Bandwidth Digital-Content Protection) program
material in digital form from EIA/CEA-861-E-
compliant[ 1] consumer electronic devices (such as a set-
top box or DVD player with HDMI or DVI output).
The HDMI input can accept and display VGA, SVGA,
XGA, WXGA, SXGA, 480i (60Hz), 480p (60Hz), 720p
(60Hz), 1080i (60Hz), and 1080p (24Hz/60Hz) signal
formats. For detailed signal specifications, see page 64.
Supported Audio format: Linear PCM, sampling rate
32/44.1/48 kHz
Note:
° To connect a PC to the HDMI input, see page 18.
° Some legacy HDMI sources may not work properly with
your HDMI TV, due to the adoption of new standards.
Please try setting the following four options (Deep Color,
Lip Sync, INSTAPORT TMand RGB Range) to Off. Your
legacy HDMI source should operate properly with your
TV. See page 51.
To connect an HDMI device, you will need:
* one HDMI cable per HDMI device
- For proper opera tion, it is recommended that you use
an HDMI cable with the HDMI Logo (L_-l_| ).
- To display an 1080p/6OHz signal format, you will
need a High Speed HDMI TMcable. Conventional
HDMI/DVI cable may not work properly.
- HDMI cable transfers both video andaudio. Separate
analog audio cables are not required (see
illustration).
- See "Setting the HDMI audio mode" (_,_ page 51).
TV upper back panel TY right side panel
HDMIdevice
i_,© _ ®®+,
To view the HDMI device video:
Select the HDMI 1, HDMI 2, or HDMI 3 video input
source on the TV.*
* To select the video input source, press INPUT on the remote
control (_ page 32), To program the TV remote control to
operate other devices, see Chapter 3=
To connect a DVI device, you will need:
• one HDMI-to-DVI adapter cable
- Forproper operation, the length of an HDM/-to-DVI
adapter cable should not exceed 9.8 ft (3m). The
recommended length is 6.6 ft (2m).
° one 3.5mm Stereo to RCA Y-Cable
- An HDM/-to-DV/adapter cable transfers video only.
Make sure to connect this cable to the HDMI 1 input
on the TV. Separate analog audio cables are required
(see illustration).
- See "Setting the HDMI audio mode" (_,_ page 51).
TV upper back panel
Note: To ensure that the HDMI or DVI device is reset
properly, it is recommended that you follow these
procedures:
• When turning on your electronic components, turn on
the 71/first and then the HDMI or DVI device.
• When turning off your electronic components, turn off
the HDMI or DVI device first and then the TV.
[1] EIA/CEA-861-D compliance covers the transmission of
uncompressed digital video with high-bandwidth digital
content protection, which is being standardized for
reception of high-definition video signals. Because this
is an evolving technology, it is possible that some
devices may not operate properly with the TV.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
15
REGZA-LINK® connection
You can control the basic functions of connected audio/video devices using the TV's remote control if you connect
a REGZA-LINK compatible audio receiver or playback device. For an explanation of setup and operations, see pages
49.
W upper hack panel
._i' TV right side pauel
p,oye,,e,c.
J............. oo,
Playbackdevice
(REGZA-LINKDVDplayer,etc.)
To connect an Audio Receiver and Playback Devices, you
will need:
• HDMI cables (_ page 12)
Note:
• If several devices are connected, REGZA-LINK feature
may not operate properly.
° For proper operation, it is recommended that you use
HDMI cables with the HDMI Logo (I,4_Nl| ).
Before controlling the de_ice(s):
* After completing the above connections, set the
REGZA-LINK Setup menu as you desire
(_ page 50).
° The connected devices must also be set. For details,
see the operation manual for each device.
° The REGZA-LINK feature uses the CEC technology as
regulated by the HDMI standard.
° This feature is limited to models incorporating
Toshiba's REGZA-LINK. However, Toshiba is not
liable for those operations. Refer to the individual
instruction manuals for compatibility information.
16
Connectinga digital audio system
The TV's DIGITAL AUDIO OUT terminal outputs a
Dolby ®* Digital _Do_,_yor 2-channel down-mixed PCM
(pulse-code modulation) signal for use with an external
Dolby ® Digital decoder or other external audio system
with optical audio input.
You will need:
• optical audio cable (Use an optical audio cable that has
the larger "TosLink" connector and not the smaller
"mini-optical" connector.)
-_ Dolby Digitaldecoder or
otberdigJtaJaudiosystem J ,._, J
TV upper back panel
To control the audio:
1 Turn on the TV and the digital audio device.
2 Press M_uon the remote control to open the SETUP
menu.
3 Press • or • to select AV Connection and press _.
4
Press • or • to select Digital Audio Output, and
then press _ or • to select either Auto or PCM
(_ "Selecting the optical audio output format" on
page 43).
Note:
• Some audio systems may not be compatible with Dolby
Digital bitstream signals. Older audio systems that are
not compatible with standard optical out signals may
not work properly, creating a high noise level that may
damage speakers or headphones. THIS DAMAGE IS
NOT COVERED BY YOUR WARRANTX
• The DIGITAL AUDIO OUT terminal may not output
some digital audio sources because of copy
restrictions.
° The Dolby Digital format is only available when tuned to
a digital RF channel
* Manufactured under license from Dolby Laboratories.
Dolby, and the double-D symbol are trademarks of Dolby
Laboratories.
Connectingan audiosystem
This connection allows you to use external speakers
with an external analog audio amplifier to adjust the
sound level.
You will need:
• standard audio cables
--_ nalogaudioamplifier _]
I
To control the audio:
1 Turn on the TV and the stereo amplifier.
Minimize the sound volume from the TV's built-in
speakers and control the volume level using the
amplifier's remote control.
17

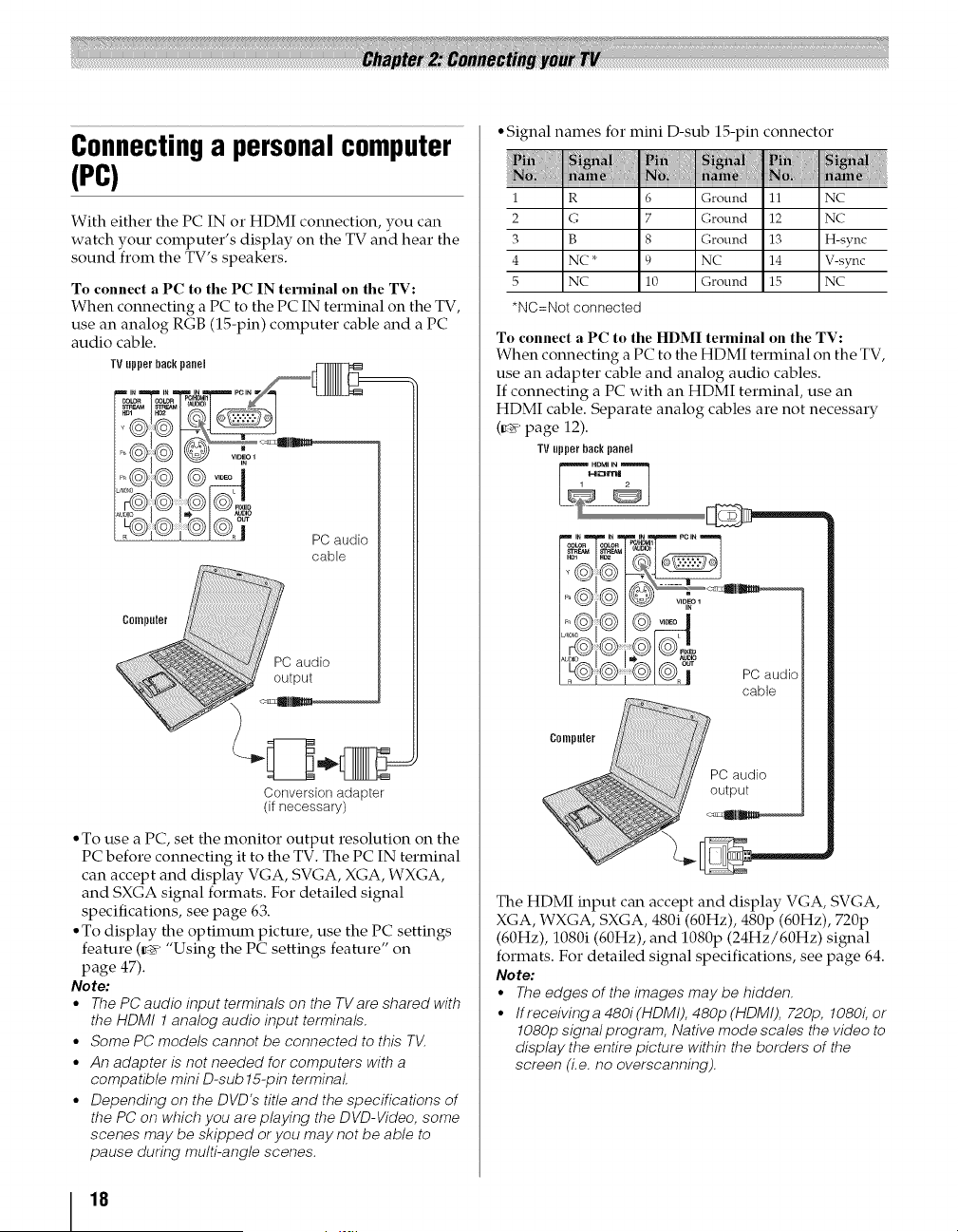

Connecting a personal computer
(PC)
With either the PC IN or HDMI connection, you can
watch your computer's display on the TV and hear the
sound from the TV's speakers.
To connect a PC to the PC IN terminal on the TV:
When connecting a PC to the PC IN terminal on the TV,
use an analog RGB (15-pin) computer cable and a PC
audio cable.
TVupperbackpanel __
Y©i©
;:;ei©6 po,
audio
cable
Computer
PC audio
output
Conversion adapter
(if necessary)
• To use a PC, set the monitor output resolution on the
PC before connecting it to the TV. The PC IN terminal
can accept and display VGA, SVGA, XGA, WXGA,
and SXGA signal formats. For detailed signal
specifications, see page 63.
• To display the optimum picture, use the PC settings
feature (_4r' "Using the PC settings feature" on
page 47).
Note:
° The PC audio input terminals on the TVare shared with
the HDMI 1 analog audio input terminals.
• Some PC models cannot be connected to this TV.
• An adapter is not needed for computers with a
compatible mini D-sub 15-pin terminal
• Depending on the DVD's title and the specifications of
the PC on which you are playing the DVD-Video, some
scenes may be skipped or you may not be able to
pause during multi-angle scenes.
• Signal names for mini D-sub 15-pin connector
1 R 6 Ground 11 NC
2 G 7 Ground 12 NC
3 B 8 Ground 13 H-sync
4 NC * 9 NC 14 V-sync
5 NC 10 Ground 15 NC
• NC=Not connected
To connect a PC to the HDMI tennainal on the TV:
When connecting a PC to the HDMI terminal on the TV,
use an adapter cable and analog audio cables.
If connecting a PC with an HDMI terminal, use an
HDMI cable. Separate analog cables are not necessary
(_4r_page 12).
TV upper back panel
IN IN IN _c IN
COLOR COLOR _H DMII
F__I_ _ _,o_
H
....Gl.olGl
'© °l©]i'i©i Pcaudio
cable
Computer
The HDMI input can accept and display VGA, SVGA,
XGA, WXGA, SXGA, 480i (60Hz), 480p (60Hz), 720p
(60Hz), 1080i (60Hz), and 1080p (24Hz/60Hz) signal
formats. For detailed signal specifications, see page 64.
Note:
• The edges of the images may be hidden.
• If receiving a 480i (HDMI), 480p (HDMI), 720p, 1080L or
1080/9 signal program, Native mode scales the video to
display the entire picture within the borders of the
screen (i.e. no overscanning).
18

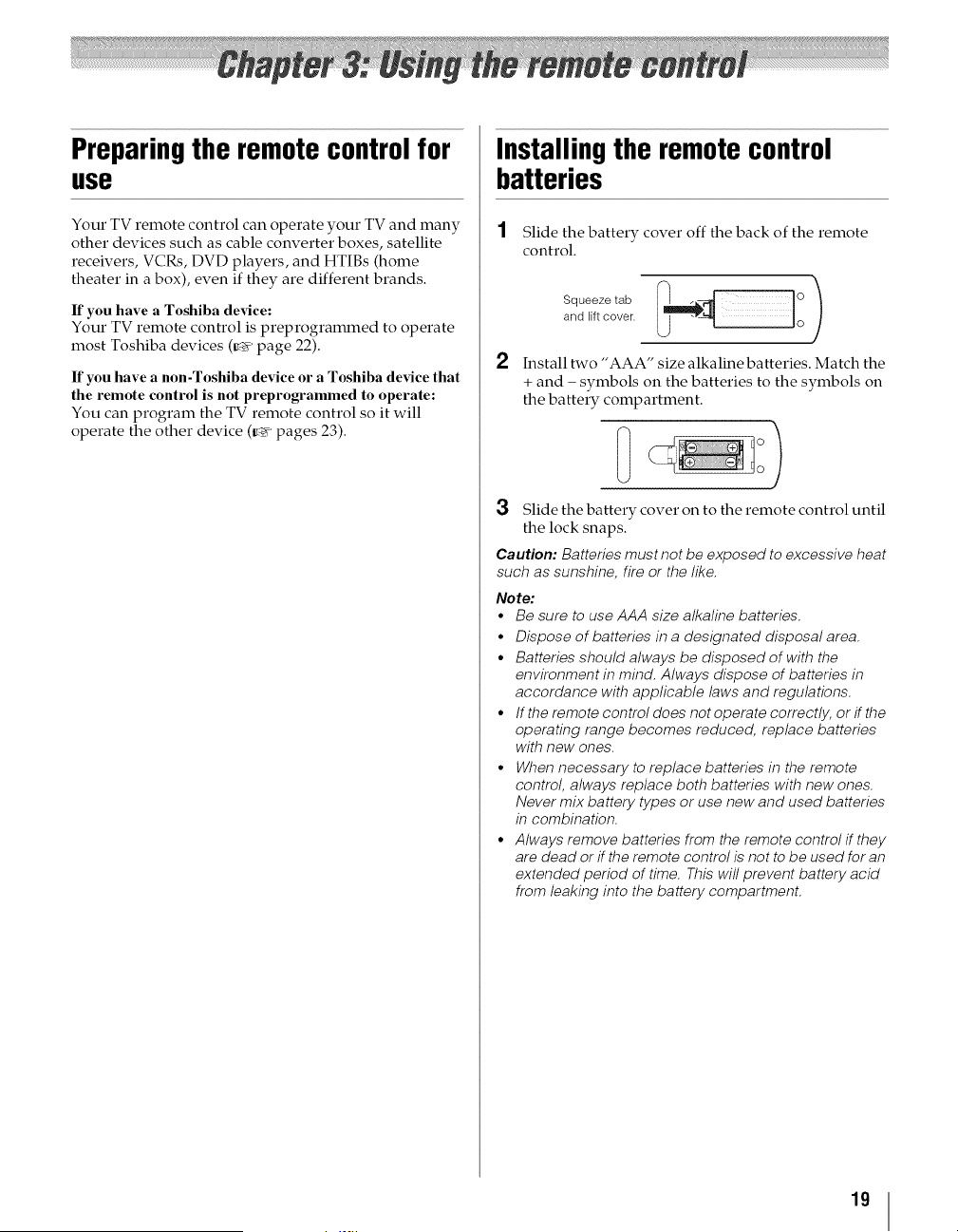

Preparing the remote control for
use
Your TV remote control can operate your TV and many
other devices such as cable converter boxes, satellite
receivers, VCRs, DVD players, and HTIBs (home
theater in a box), even if they are different brands.
If you have a Toshiba de_ice:
Your TV remote control is preprogrammed to operate
most Toshiba devices (_' page 22).
If you have a non-Toshiba device or a Toshiba dexice that
the remote control is not preprogrammed to operate:
You can program the TV remote control so it will
operate the other device (_ pages 23).
Installing the remote control
batteries
1 Slide the battery cover off the back of the remote
control.
2
3
Install two "AAA" size alkaline batteries. Match the
+ and - symbols on the batteries to the symbols on
the battery compartment.
Slide the battery cover on to the remote control until
the lock snaps.
Caution: Batteries must not be exposed to excessive heat
such as sunshine, fire or the like.
Note:
• Be sure to use AAA size alkaline batteries.
• Dispose of batteries in a designated disposal area.
• Batteries should always be disposed of with the
environment in mind. Always dispose of batteries in
accordance with applicable laws and regulations.
• If the remote control does not operate correctly, or if the
operating range becomes reduced, replace batteries
with new ones.
• When necessary to replace batteries in the remote
control, always replace both batteries with new ones.
Never mix battery types or use new and used batteries
in combination.
• Always remove batteries from the remote control if they
are dead or if the remote control is not to be used for an
extended period of time. This will prevent battery acid
from leaking into the battery compartment.
19

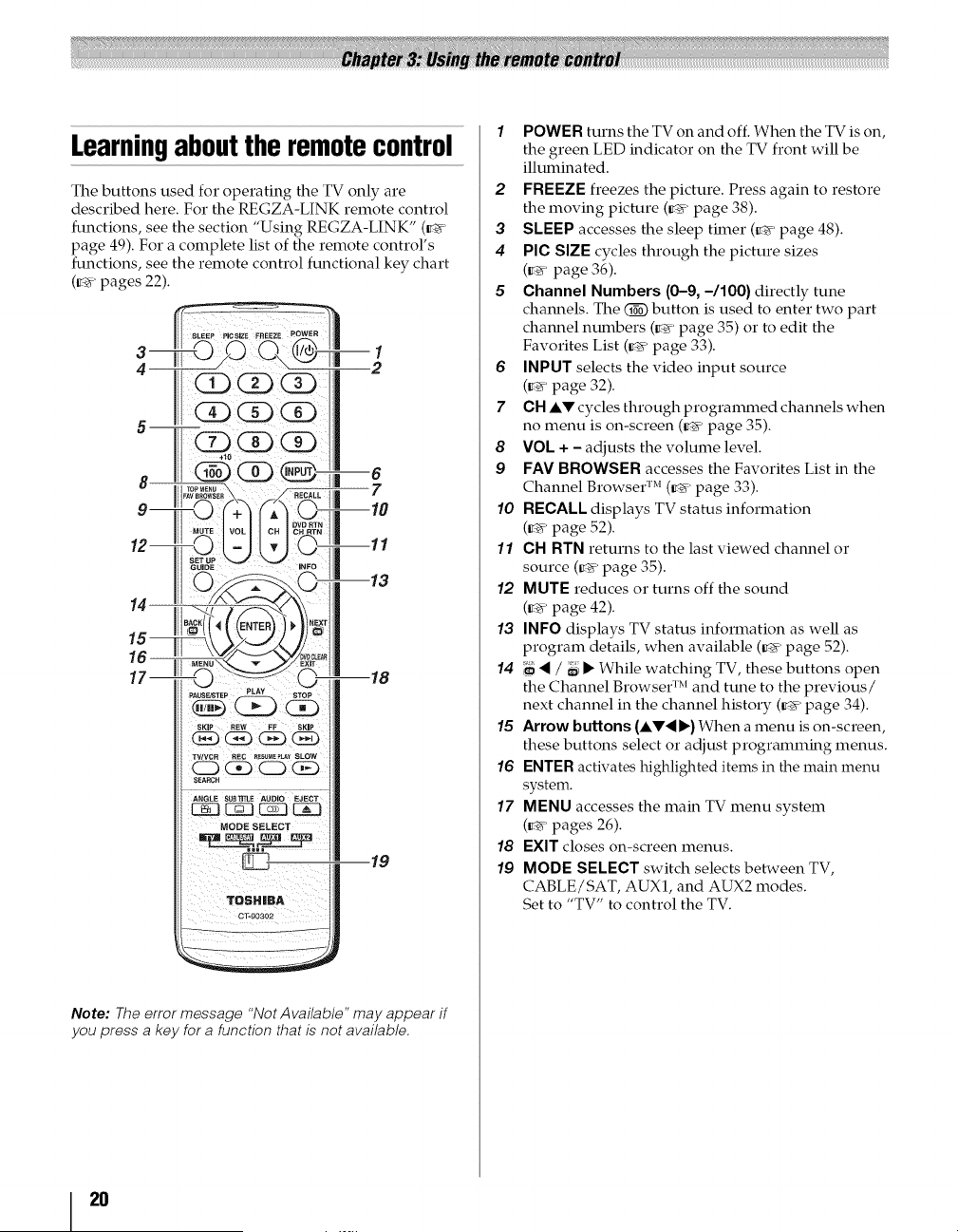

Learningabout the remotecontrol
The buttons used for operating the TV only are
described here. For the REGZA-LINK remote control
functions, see the section "Using REGZA-LINK" (_
page 49). For a complete list of the remote control's
functions, see the remote control functional key chart
(_ pages 22).
16
19
Note: The error message "Not Available" may appear if
you press a key for a function that is not available.
1 POWER turns the TV on and off. When the TV is on,
the green LED indicator on the TV front will be
illuminated.
2 FREEZE freezes the picture. Press again to restore
the moving picture (_ page 38).
3 SLEEP accesses the sleep timer (_' page 48).
4 PIC SIZE cycles through the picture sizes
(_ page 36).
5 Channel Numbers (0-9, -/100} directly tune
channels. The _ button is used to enter two part
channel numbers (_ page 35) or to edit the
Favorites List (_ page 33).
8 INPUT selects the video input source
(_ page 32).
7 CH AV cycles through programmed channels when
no menu is on-screen (_ page 35).
8 VOL + - adjusts the volume level.
9 FAV BROWSER accesses the Favorites List in the
Channel Browser TM (_ page 33).
10 RECALL displays TV status information
(_ page 52).
11 CH RTN returns to the last viewed channel or
source (_ page 35).
/2 MUTE reduces or turns off the sound
(_ page 42).
/3 INFO displays TV status information as well as
program details, when available (_ page 52).
14 _ "4 / _4 • While watching TV, these buttons open
the Channel Browser rM and tune to the previous/
next channel in the channel history (_ page 34).
15 Arrow buttons (AV4•) When a menu is on-screen,
these buttons select or adjust programming menus.
16 ENTER activates highlighted items in the main menu
system.
17 MENU accesses the main TV menu system
(_ pages 26).
18 EXIT closes on-screen menus.
19 MODE SELECT switch selects between TV,
CABLE/SAT, AUX1, and AUX2 modes.
Set to "TV" to control the TV.
20
Usingthe remote control to
control your other devices
If you have a non-Toshiba device or a Toshiba device
that the remote control is not preprogrammed to
operate, you must first program the remote control to
recognize the device (if you have not already done so)
(_ pages 23).
To use your TV remote control to operate:
• Cable converter box or satellite receiver, set the MODE
SELECT switch to CABLE/SAT.
°VCR, set the MODE SELECT switch to AUX1.
°DVD player or HTIB, set the MODE SELECT switch
toAUX2.
Note: Even after the TV remote control is programmed, it
may not operate certain features on any other devices. If
this happens and you wish to use those features, you will
need to use the device's original remote control.
Point the remote control
directly at the device.
IIIQ®®
IIIci) G3 CD
2
Q Q
9
11 10
16-- I1|
17--
18--
19--
1 POWER Turns the selected device on and off.
2 Channel Numbers (0-9) Press to directly access
channels (as opposed to _ _j).
3 +10 Press to directly access DVD chapters higher
than 10.
4 TOP MENU Accesses a DVD's top menu.
5 CH •V For channels programmed into the channel
memory (_ page 28):
• selects the next higher channel.
• selects the next lower channel.
6 GUIDE Displays the channel guide in the CABLE/
SAT mode.
SET UP Accesses a DVD's setup menu in the AUX
mode.
7 INFO Displays TV status information on-screen.
8 ••_ • Press to navigate DVD menus (may not
work on some DVD players).
9 ENTER Required by some satellite receivers and
DVD players to activate certain functions.
10 DVD CLEAR Press to reset the title and chapter
number.
11 PLAY Begins playback of a tape or DVD.
12 PAUSE Press during play or record mode to pause
the picture; press again to restart.
13 STOP Stops the tape or DVD.
14 SKIP =,M Skips forward to locate later DVD
chapters.
15 FF Fast-forwards the tape or DVD. (Press during
play mode to view the picture moving rapidly
forward.)
16 SKIP _ Skips back to beginning of current DVD
chapter, or locates previous chapters.
17 REW Rewinds/reverses the tape or DVD. (Press
during play mode to view the picture moving
rapidly backward.)
18 TV/VCR To view one program while recording
another, press to select TV mode.
SEARCH Selects a specific DVD chapter, title or
time.
19 REC Starts tape recording.
20 MODE SELECT Switches Set to "TV" to control the
TV; "CABLE/SAT" to control a cable converter box
or satellite receiver; "AUXI" to control a VCR;
"AUX2" to control a DVD player or HTIB.
21
Remote Control functional key chart
!!!!!!!!!_f!!!!!!!!J!!!!!!!!!!
!!!!!!_!_!!i!!!!_!_!!!!!!_i!!!!!!j!!i!!!!!!!!!,!!!!i_!_!!!!i!!:!!!!!!!!!!
iiiiiilii_i;ii,_222_...................................ii!
!!!!!!!!!_!!!!!!_!_!!_!!!!_!!_!!!!!!!!!_!!!_!!!!!!!!_!_!!;!!!!!_!!!!_!!_!!_!!!!!:
iii!!ii_ii_i_ii_ii_i_i_i_iiii_i_iiiiiiii_;_ii_i_iiiiiiii_i!i;_iiiii_i!!!!!_!_!!!!!!_!!!!:!!!!_!:!!!!!_!!!!!!!!:!!!!!!!!!!!_
!!!!!!,_!,!,!;!!,_!!i!!_!!!!!!!!!!!!_,!_!,!!!_!!!!!!!!!!!!,!!
............!!!!!:!!:!i!!!!:!:!!:!!i,l!!!!!:i!!!!!!_!!!!!!!!!!!!!J!_!!!!!
!!!!!i!!!_!!,!!,!!_!!!!!!!!
iiiiiili l!;_i,iiiiiiiiiil!i!!!i!!!!!!!!!!!_!!!:!!!!_:!!!!!J!!!
iiiiiiiii _i'_ii!i_iiii!iiilii_!lili}}iii!ii_iiBii_iii!i!ii!!ii!ili!_ii
iiii_i_i_i:iiiii_ii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_;i
HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH
_ _i !_ ii_ i_
......iiiiii:iiii{{}i;;;;__ ; _i_i_i¸i'_ ; :iiiiii:; i_iiiiiiiii' .....
iiiiii_i'_i_iiiHi!!ii!!/iiiliii!i !iil',!,iiiiiii!iiii!iiiiiiiiil;!;ii'iii
iiiiiiI_;i_i_i_%%_@_i_i_ii_ii!_i!_i_iiii_I_i_iiiiiii_iii_iii_iiii_iiiiiii_iiii
iiiii!i!_i__!!!!'!'i'!!!!!;!_!!!_
.............................iii!L L_,_'__i i_iiiiilii ii;';_;i;'i_;_:i;'i_¸I¸I¸Ii_i:;__;:;i;_;i:;i_i__i_;iii_;iii_iii;'i;'ii'i;'ii'
iiiiiilii _ili;iiii!!!!!!!!!!!!!!!!!!!!!!!i!!!!!!!!!!!!!!:!i;
Power
TV
TV
TV
Digit 1-9
Digit 0
TV
TV
TV
Channel
up/down
TV
iiiiiilii_li!,li,!,i!illiiiiiiiiiiii!;....
!!!!!i!!_l_!!!!!,!!i!!!:!:!!!:!:!:!!;
Power
Sleep timer
Picture size
FREEZE
Digit 1-9
Digit 0
- (sub CH)
TV/Video select
FAV BROWSER
DVD TOP Menu*
Sound mute
Guide*
Volume up/down
Channel
up/down
RECALL
Previous chmmel
DVD previous menu*
Info
Enter
Menu up/down
Menu left/
Channel Browser _
Menu right/
Channel Browser _
Menu
Exit
DVD clear*
Pause*
Play*
Stop*
Skip REW*
Skip FWD*
Rewind*
Fast FWD*
DVD search*
REC MENU*
SLOW FWD*
Angle*
Sub title*
Audio*
Eject*
!!!!!,!!_!!_!!!!!!!!!!!!!!!i_!_!!!:!_:!!!:i!!!:!_:!!!!!!i!!i,!ii!iiiX_i:lliii:i!
.........._,_{{{ilililiiiiiiiii:li:l:iiiiii_iiii;ii_ii,i_lii!!2!!!!!!!!!!!!!!!!!!!
.....!_!!_!!_;!!J_:!!!_!!!_:!!_!!!_!!!!_i!_ii!i!i_i_!_i!_i_iiii_i!iiiii:ii_iii;!;!i!:i_iii!i
iiiii_!!_:!_:!!:_:!_!!!!i!!_!_!!_!!!!_!!,!!i!!!!!
!!!!!!@!!!!
iiiiiiii
Power
TV
TV
TV
Digit 1-9
Digit 0
- (sub CH)
TV
TV
SAT Guide
TV
Channel
up/down
TV
Info
Select, Enter
Menu
up/down
Menu left
Menu right
Action Menu
Exit
Power
TV
TV
TV
Digit 1-9
Digit 0
100
TV
TV
TV
Channel
up/down
TV
Pause
Play
Stop
Rewind
Fast FWD
TV/VCR
Record (2 click)
Note:
• "---" = key does not send a signal in that remote control mode.
° "_ TV" = key will affect the TV, even though the remote control is in another mode.
° "*"= Notavailable for this TV.
22
Power
TV
TV
TV
Digit 1-9
Digit 0
+10
TV
Top Menu
TV
Setup
TV
Channel
up/down
TV
DVD Return
Display
Enter
Menu up / down
Menu left
Menu right
DVD Menu
DVD Clear
Pause
Play
Stop
Skip REW
Skip FWD
Rewind
Fast FWD
DVD search
Record (2 click)
Resume Play
SLOW FWD
DVD Angle
DVD Sub title
DVD Audio
DVD Eject

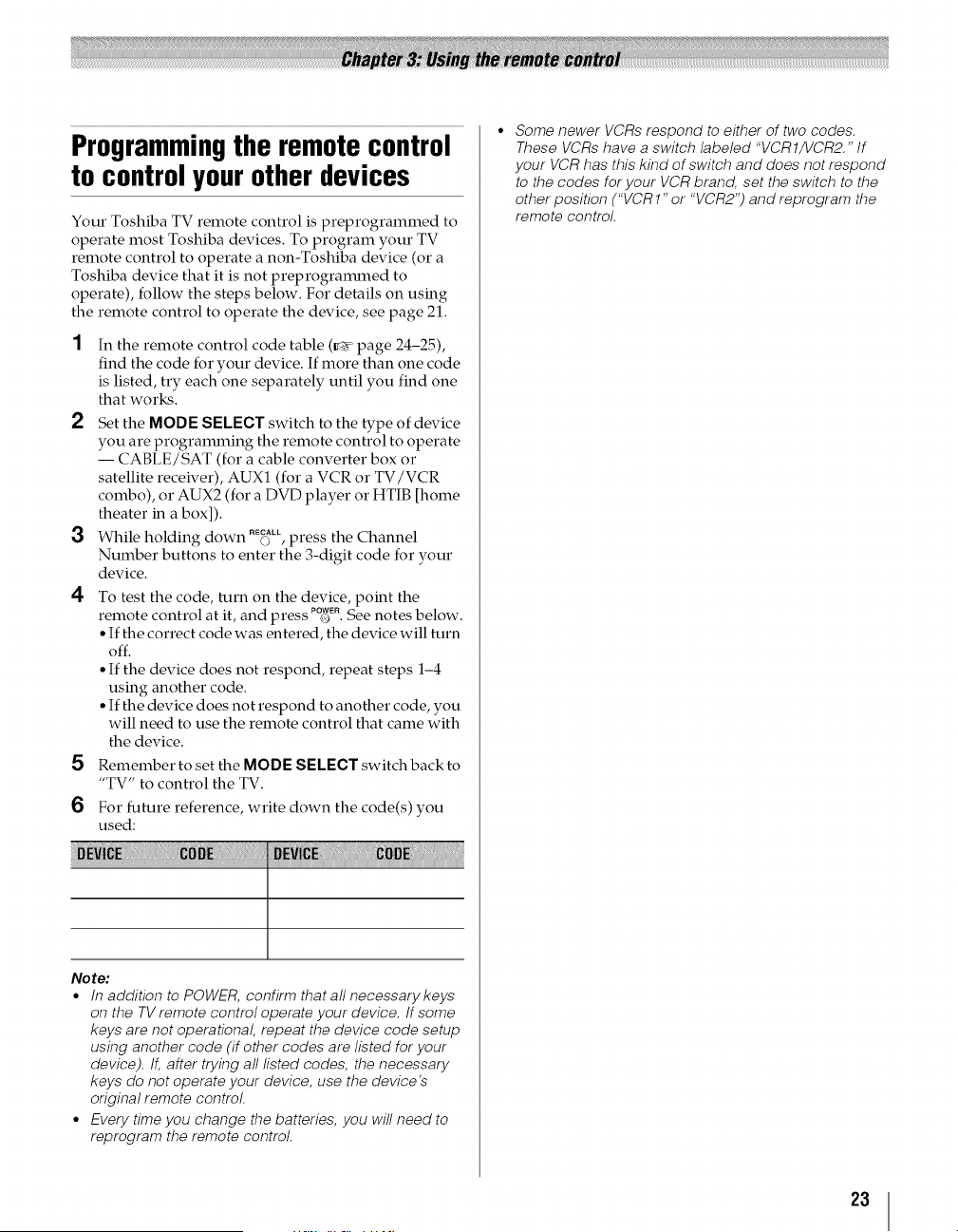

Programmingthe remote control
to control your other devices
Your Toshiba TV remote control is preprogrammed to
operate most Toshiba devices. To program your TV
remote control to operate a non-Toshiba device (or a
Toshiba device that it is not preprogrammed to
operate), follow the steps below. For details on using
the remote control to operate the device, see page 21.
2
3
4
5
6
In the remote control code table (_ page 24-25),
find the code for your device. If more than one code
is listed, try each one separately until you find one
that works.
Set the MODE SELECT switch to the type of device
you are programming the remote control to operate
-- CABLE/SAT (for a cable converter box or
satellite receiver), AUX1 (for a VCR or TV/VCR
combo), or AUX2 (for a DVD player or HTIB [home
theater in a box]).
While holding down RE_LL,press the Channel
Number buttons to enter the 3-digit code for your
device.
To test the code, turn on the device, point the
remote control at it, and press P%_R.See notes below.
• If the correct code was entered, the device will turn
off.
• If the device does not respond, repeat steps 1-4
using another code.
• If the device does not respond to another code, you
will need to use the remote control that came with
the device.
Remember to set the MODE SELECT switch back to
"TV" to control the TV.
For future reference, write down the code(s) you
used:
Note:
• In addition to POWER, confirm that all necessary keys
on the TV remote control operate your device. If some
keys are not operational repeat the device code setup
using another code (if other codes are listed for your
device). If, after trying all listed codes, the necessary
keys do not operate your device, use the device's
original remote control
° Every time you change the batteries, you will need to
reprogram the remote control.
• Some newer VCRs respond to either of two codes.
These VCRs have a switch labeled "VCR1/VCR2." If
your VCR has this kind of switch and does not respond
to the codes for your VCR brand, set the switch to the
other position ("VCR 1" or "VCR2") and reprogram the
remote control.
23
Remotecontrol
codes
In some cases, you may notbe able
to operate your device with the TV
remote control. Your device may
use a code that is not recognized
by the TV remote control. If this
happens, use the device's remote
control.
Cable converterbox
ABC 061,062, 063, 082,
084, 087, 092,
096, 098
Archer 065, 092, 097, 099
Cableview 064, 094
Century 092
Citizen 090, 092, 097
Contec 083, 085, 086, 088,
093, 098
Diamond 093
GE 061,062
Gemini 069, 070, 094
Hamlin 093
Hitachi 062, 095, 096
Jasco 097
Motorola/GI/Jerrold 062, 069, 071,082,
086, 089, 096, 107
Magnavox 072, 096
Memorex 092, 104
Multi Canal 090
Novavision 101
Panasonic 081,083, 085
Philco 087
Philips 066, 067, 068, 070,
072, 073, 074, 075,
092
Pioneer 076, 077
Proscan 061, 062
Radio Shack 092, 097, 099
RCA 064, 081
Realistic 065
Recoton 102
Samsung 077, 090
Scientific Atlanta 063, 078, 079, 080,
088, 098, 101, 105
Sears 095
Signature 062
Signature 2000 096
Sprucer 081, 085
Starcom 069, 082, 087, 096,
103, 104
Stargate 069, 090
Sylvania 095, 100
TeleView 090
Texscan 100
Tocom 071,084, 085
U. S. Electronics 087, 096, 098
United Cable 082
Universal 065, 092, 097, 099,
102, 103
Wards 096
24
Satellite receiver
Alphastar 038, 059
Chaparral 034
DISH Network 057
Drake 020, 040, 044, 046,
050, 053
Echostar 018, 041, 051
Express Vu 057
Fujitsu 027
GE 008, 009, 013
General instruments 010, 011,012, 022,
023, 031,049
Hitachi 033
Hughes 033
Hughes Network
Systems019
Intersat 048
Janeil 027
JVC 017, 057
Kenwood 029
Magnavox 060
Optimus 058
Pansat 036, 052
Primestar 015, 042
Proscan 008, 009, 013
Radio Shack 022, 023, 030
RCA 008, 009, 013, 016
Realistic 030
Samsung 059
Sony 014, 055
Star Choice 057, 106
Star Trak 025, 026, 037, 054
STS 024
Toshiba 000, 001,002, 003,
004, 005, 006, 007,
020, 031, {)56
Uniden 021,028, 030, 032,
035, 039, 043, 045,
047, 058
Zenith 027
TV/VCRCombo
Action 078
GE 059, 062
Goldstar 065
Panasonic 065
Precision 078
Quasar 065
Realistic 079
Sony 074
Toshiba 057
Zenith 065
Totevision 009, 010, 065
DVD/VCRCombo
Go Video DVD=087,
VCR=081
JVC DVD=088,
VCR=082
RCA DVD=089,
VCR=083
Samsung DVD=090,
VCR=084
Sanyo DVD=091,
VCR=085
Zenith DVD-092,
VCR-086
DVDplayer
Aiwa 006, 015
Apex 016, 017
BOSE 097
Broksonic 018
Clarion 019
Classic 020
Daewoo 021
Denon 022, 023, 024, 025
Emerson 026, 027
Fisher 028
Funai 027
GE 001,029, 030
Go Video 087
GPX 031
Hitachi 005, 032, 033, 034,
035
JVC 003, 007, 036, 042,
088
Kenwood 037
Konka 008, 009
Magnavox 004, 038
Memorex 039
Mintek 040
NAD 026
Nakamichi 041
Norcent 043
Onkyo 044
Oritron 058
Panasonic 010, 045, 046, 047,
048, 049, 050
Philips 004, 051
Pioneer 052, 053, 054, 055
Proscan 001,056
Qwestar 057, 058
RCA 001, 002, 059, 089
Sampo 060
Samsung 061, 062, 086, 090
Sansui 073
Sanyo 063, 091
Sharp 064, 067
Sherwood 074
Sony 011,012, 065, 066,
068, 069, 070
Sylvania 027
Teac 071
Technics 072
Techwood 075
Toshiba 000, 013, 076, 077,
078
Yamaha 079, 080, 081
Zenith 014, 082, 092
PortableDVDplayer
Aiwa 093
Audiovox 094, 095
Panasonic 024, 096, 099
RCA 098
VCR
Admiral 049
Aiko 019
Aiwa 018
Akai 003, 004, 037, 038,
Audiovox
Bell&Howell
Broksonic
Calix
Carver
CCE
Citizen
Colortyme
Craig
CurtisMathes
Daewoo
Daytron
Denon
Dimensia
Electrohome
Emerson
Fisher
Fuji
Funai
Garrard
GE
GoVideo
Goldstar
Gradiente
HarmanKardon
Hitachi
JBL
)CPenney
Jensen
lVC
Kenwood
Kodak
LG
Lloyds
Logik
LXI
Magnasonic
Magnavox
Marantz
Memorex
MGA
MGN
039, 058, 069
010
007, 068
008, 017
010
026
019
009, 010, 011,012,
013, 014, 015, 019,
057, 073
005
009, 010,016,061,
065, 079
001,005,009,012,
014, 040, 048, 053,
056, 057
011,013, 015, 017,
018, {319, 057, 078
078
063
001,048
010, 020, 065
003, 008, 010,011,
017, 018, 020, 028,
039, 054, 057, 062,
065, 068, 072
007, 016, 021,022,
023, 057, 064, 068,
070, 071, 079
004, 041
018, 073
018
001,002, 009, 040,
042, 048, 056
056, 059, 061,081
005, 010, 014, 054,
056, 065, 067
018, 065
005
024, 025, 035, 037,
042, 063, 070, 080
076
005, 006, 007, 008,
009, 010, 023, 024,
025, 026, 035, 056,
061,063, 065
024, 025, 037, 050
005, 006, 007, 014,
037, 043, 055, 062,
063, 068, 082
005, 006, 007, 012,
014, 037, 043, 050,
053, 068, 071
010
010
053, 073, 079
061
010
061,065, 078
026, 027, 034, 044,
057, 061, 072
005, 006, 007, 012,
014, 026, 053, 067
007, 009, 010, 016,
018, 034, 049, 063,
065, 066, 068, 075,
079
020, 028, 039
056
Minolta 024, 025, 035, 063
Mitsubishi 020, 024, 025, 028,
039, 043, 065
Montgomery Ward 049
Motorola 049
MTC 009, 046, 061
Multitech 009, 012, 018
NEC 005, 006, 007, 012,
014, 037, 043,053,
054, 067, 070
Nikko 010
Noblex 009
Optimus 010, 049, 065
Optonica 031
Orion 054, 057, 062, 065,
O68, 072
Panasonic 036, 045, 046, 057,
061, 072, 079
Pentax 012, 024, 025, 035,
042, 053, 063
Pentex Research 014
Philco 026, 027, 063
Philips 026, 031,044, 057
Pioneer 006, 024, 043, 055
Portland 012, 013, 015
Proscan 001,002, 048
Proton 061
Quasar 045
Radio Shack 010, 031,065
Radio Shack/Realistic007, 009, 010, 016,
018, 020, 021,022,
031,049
Radix 010
RCA 001,002, 003, 009,
024, 025, 029, 035,
040,042,045,048,
055, 056, 063, 071,
083
Realistic 0(37, 0(39, 01(3, 011,
016, 018, 020, 021,
022, 031,049, 051,
056, 060, 065, 075,
079
Ricoh 047
Runco 034
Samsung 009, 011,038, 056,
073, 084
Sansui 006, (337, 043, 061
Sanyo 0{)7, 009, 016, 054,
064, 068, 071,075,
079, 085
Scott 008, 011, 017, 028,
030, (357, 065, 072
Sears 007,010,016, 021,
022,023, 024, 025,
035,053,057, 063,
064, 065, 068, 071,
075, 079
Sharp 013, 020, 031,049,
051,060, 066
Shin{ore 004, (325, 032, (361
Signature 049
Signature 2000 075
Singer 047, (361
Sony 004, 032, 033,041,
052, 058, 070, 074,
076, 077, 080
STS O35
Sylvania 018, 026, 027, 028,
044, 072
Symphonic 018, 05(3, 051,053,
073, (379
Tandy 007
Tashiko 010
Tatung 037
Teac 018, (329, 037
Technics 036
Teknika 010, (318, 065
Toshiba 000, 011,021,023,
024, 028,030,039,
057, 074, 078, 079,
100,i01
Totevision (309,(310,065
Unitec 073
Unitech 009
Vector Research 005, 006, 011,012,
053
Vide{) Concepts 005, 006, 011,012,
039, (353
Wards 0(39, 010, 011,016,
018, 020,024, 025,
031,035, 049, 051,
056, 057, 060, 065,
066, (379
White Westinghouse 073
XR-1000 018
Yamaha 005, 006, 0(37, 014,
037, (353
Zenith 0(34, 032, 034, 041,
047, 069, 086
HTIB
Lasonic 083
Panasonic 084
Venturer 085
25
I
Main menu layout
To open the main menus (illustrated below), press M_u
on the remote control or TV control panel.
i
SOUND
APPLiCATiONS
PREFERENCES
Picture Mode 39
Reset 39
Backlight 39
Contrast 39
Brightness 39
Color 39
Tint 39
Sharpness 39
Advanced Picture Settings 53
Control Visualization 40
TheaterLock 40
MTS 42
Bass 42
Treble 42
Balance 42
Advanced Sound Settings 56
StableSound 43
Dynamic Range Control 43
Media Player 57
Channel Browser 33
Favorites Browser 33
REGZA-LINK Player Control 49
On Timer 48
Sleep Timer 48
REGZA-LINK Setup 49
Photo Viewer Setup 58
Channel Browser Setup 33
CC and Digital Audio 40
Selectors
PIN Setting 43
Parental Control and Locks 44
Auto Aspect 38
4:3 Stretch 38
Blue Screen 30
Transparency 30
TOSHIBA Illumination 30
iliii i!! iiiiiiiiiiiii!!i!!!!!!!!!!!!!i i!i ! ! i iiiiiiiiH i iii !ii!iii!
SETUP
Menu Language 27
ANT/CABLE In 28
Auto Tuning 28
Manual Tuning 28
TV Settings 29
Manual Setting 29
AV Collnection 43
PC Settings 47
Picture Position 38
Quick Setup 27
Power-On Mode 30
Location 30
System Information 31
Reset TV 31
Navigatingthe menusystem
You can use the buttons on the remote control or TV
control panel to access and navigate your TV's on-
screen menu system.
• Press M_u to open the main menus.
• Press < or • on the remote control or TV control panel
to select the top menu, its respective items will appear
below.
• To use the items, press • or • on the remote control or
TV control panel to move up and down through them.
• Press < or • to adjust settings.
• All menus close automatically if you do not make a
selection within 60 seconds.
EXIT
• To close a menu instantly, press MEc_Uo1" ©.
26

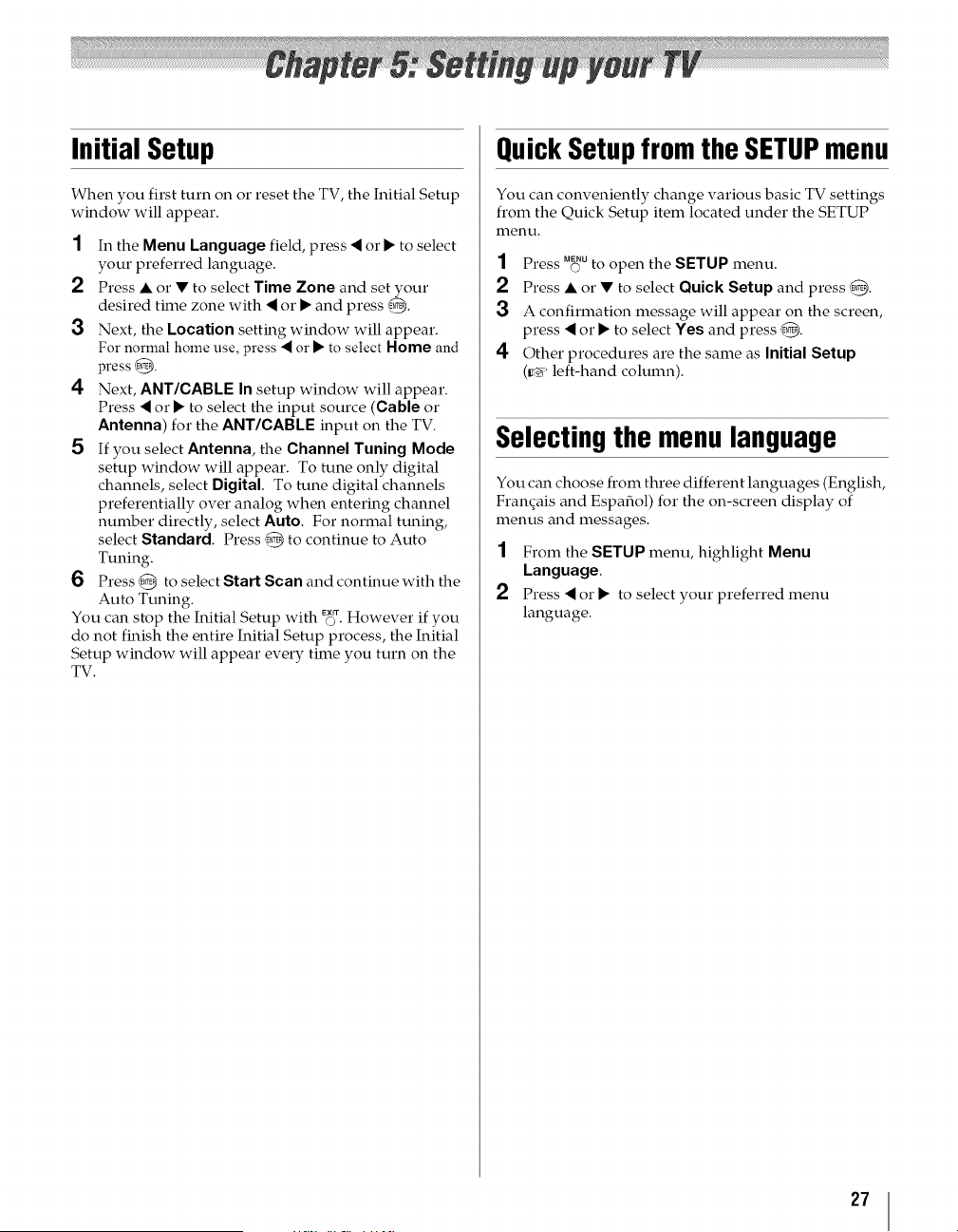

Initial Setup
When you first turn on or reset the TV, the Initial Setup
window will appear.
1 In the Menu Language field, press < or • to select
your preferred language.
2 Press • or • to select Time Zone and set your
desired time zone with < or • and press @.
3 Next, the Location setting window will appear.
For normal home use, press "<or • to select Home and
press @.
4 Next, ANT/CABLE In setup window will appear.
Press < or • to select the input source (Cable or
Antenna) for the ANT/CABLE input on the TV.
5 If you select Antenna, the Channel Tuning Mode
setup window will appear. To tune only digital
channels, select Digital. To tune digital channels
preferentially over analog when entering channel
number directly, select Auto. For normal tuning,
select Standard. Press @ to continue to Auto
Tuning.
6 Press @ to select Start Scan and continue with the
Auto Tuning.
You can stop the Initial Setup with ?w However if you
do not finish the entire Initial Setup process, the Initial
Setup window will appear every time you turn on the
TV.
QuickSetupfromthe SETUPmenu
You can conveniently change various basic TV settings
from the Quick Setup item located under the SETUP
menu.
1 Press M_u to open the SETUP menu.
2 Press • or • to select Quick Setup and press _.
3 A confirmation message will appear on the screen,
press < or • to select Yes and press _.
4 Other procedures are the same as Initial Setup
(_ left-hand column).
Selectingthe menulanguage
You can choose from three different languages (English,
Frangais and Espafiol) for the on-screen display of
menus and messages.
1 From the SETUP menu, highlight Menu
Language.
2 Press <or • toselectyourpreferredmenu
language.
27

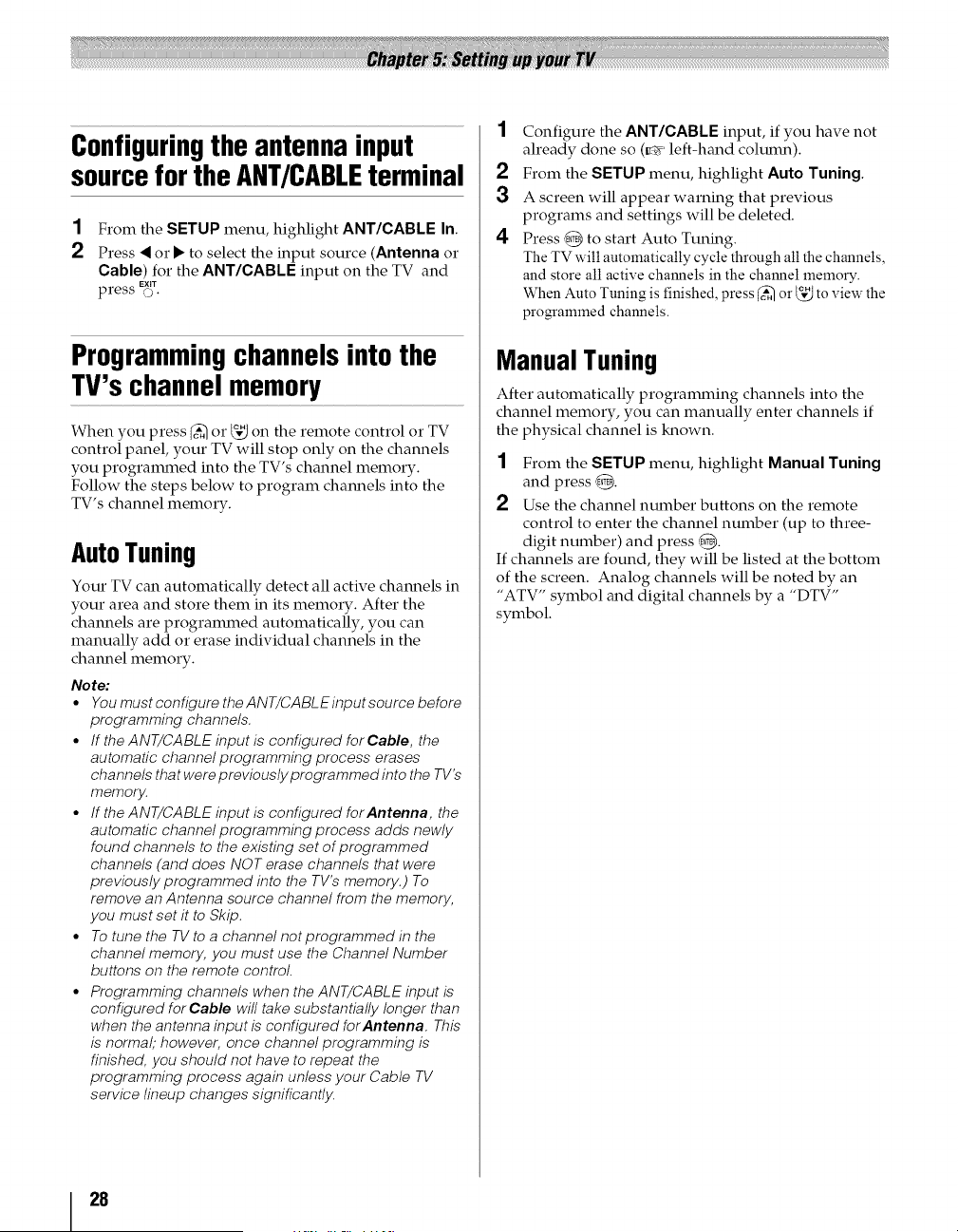

Configuringthe antenna input
sourcefor the ANT/CABLEterminal
1 From the SETUP menu, highlight ANT/CABLE In.
2 Press _ or • to select the input source (Antenna or
Cable) for the ANT/CABLE input on the TV and
press Ex,].
Programmingchannels into the
TV's channel memory
When you press _ or _j on the remote control or TV
control panel, your TV will stop only on the channels
you programmed into the TV's channel memory.
Follow the steps below to program channels into the
TV's channel memory.
Auto Tuning
Your TV can automatically detect all actwe channels in
your area and store them in its memory. After the
channels are programmed automatically, you can
manually add or erase individual channels in the
channel memory.
Note:
• You must configure the ANT/CABLEinput source before
programming channels.
• If the ANT/CABLE input is configured forOable, the
automatic channel programming process erases
channels that were previously programmed into the TV's
memory.
° If the ANT/CABLE input is configured forAntenna, the
automatic channel programming process adds newly
found channels to the existing set of programmed
channels (and does NOT erase channels that were
previously programmed into the TV's memory.) To
remove an Antenna source channel from the memory,
you must set it to Skip.
• To tune the TV to a channel notprogrammed in the
channel memory, you must use the Channel Number
buttons on the remote control.
• Programming channels when the ANT/CABLE input is
configured forCable will take substantially longer than
when the antenna input is configured forAntenna. This
is normal; however, once channel programming is
finished, you should not have to repeat the
programming process again unless your Cable TV
service lineup changes significantly.
1 Configure the ANT/CABLE input, if you have not
already done so (_ left-hand column).
2 From the SETUP menu, highlight Auto Tuning.
3 A screen will appear warning that previous
programs and settings will be deleted.
4 Press _ to start Auto Tuning.
The TV will automatically cycle through all the channels,
and store all active channels in the channel memory.
When Auto Tuning is finished, press _ or _j to view the
programmed channels.
Manual Tuning
After automatically programming channels into the
channel memory, you can manually enter channels if
the physical channel is known.
1 From the SETUP menu, highlight Manual Tuning
and press _.
2 Use the channel number buttons on the remote
control to enter the channel number (up to three-
digit number) and press _.
If channels are found, they will be listed at the bottom
of the screen. Analog channels will be noted by an
"ATV" symbol and digital channels by a "DTV"
symbol.
28
Setting channel skip
To prevent certain channels from being viewed,
channel positions can be skipped.
1 From the SETUP menu, highlight TV Settings and
press @.
2 Press • or • to select Channel Options and press
@. The list of channels will appear.
3 Press • or • to select a channel position to be
skipped and press @. A tick will appear in the box.
To remove the tick, press @ again.
Note: Skipped channels cannot be selected with _ or _j,
however, they can still be accessed using the number keys
on the remote control.
Setting video input skip
If you set a video input source to be skipped, it will be
skipped over when selecting the input by repeatedly
pressing _D.
To turn on the skip:
1 Tune to the video input source to be skipped.
2 From the SETUP menu, highlight Manual Setting
and press @. The setting window will appear.
3 Press • or • to select _ (skip on) and press ?w
To turn offthe skip:
1 Select the video input that is set to skip by direct
number entry or by using • or • and then press 0.
2 From the SETUP menu, highlight Manual Setting
and press 0. The setting window will appear.
3 Press • or • to select _ (skip off) and press _w
Labeling video input sources
You can label video input sources.
1
2
3
Tune to the input you want to label.
From the SETUP menu, highlight Manual Setting
and press @. The setting window will appear.
Press • to move from the skip selection in order to
select a label, and press• or • to put in the desired
characters and press @.
4 Repeat steps 1 through 3 for other inputs.
5 To save your settings, press @.
Note: Available characters are O- (,), * +, -, and/.
29
Setting the time zone
The Time Zone setup will allow you to specify the
correct time zone for your region. This feature will
allow the TV status information to show the correct
time zone information for your viewing area.
1
2
3
4
5
From the SETUP menu, highlight TV Settings and
press @.
Press • or • to select Local Time Setting and press
Highlight Time Zone and press _ or • to set your
desired time zone.
If you want to activate the daylight saving time,
highlight Daylight Saving Time.
Press _ or • to select On and press EXIT
Selecting the location
You can select Home or Store for the TV location. For
normal home use, select Home.
1 From the SETUP menu, highlight Location.
2 Press _ or • to select Home and press EXacT.
Selecting the TOSHIBA
Illumination mode
You can set the illumination mode of the TOSHIBA logo
located on the front panel to On or Off.
1 From the PREFERENCES menu, highlight
TOSHIBA Illumination.
2 Press _ or • to select either On or Off, then press ,XT
Selecting the Power-On Mode
You can select either Power-Saving or Fast mode.
• Power-Saving mode keeps power consumption in
standby mode to below lW. As a result, it takes a bit
longer for the TV to turn on.
• Fast mode increases power consumption in standby
mode. As a result, the TV will turn on more quickly.
1
2
From the SETUP menu, highlight Power-On
Mode.
Press _ or • to select either Power-Saving or Fast,
then press %w
Select Power-Saving for optimal energy efficiency.
Using Blue Screen
With the Blue Screen feature, the screen will turn blue
and the sound will be muted on analog channels and
external input modes when no signal is received.
1 From the PREFERENCES menu, highlight Blue
Screen.
2 Press _ or • to select On, and press EXiT
Setting the screen transparency
You can set the transparency of the on-screen display
system.
1 From the PREFERENCES menu, highlight
Transparency.
2 Press _ o1"• to select Low, Middle, High 01" Off, and
press EXIT
3O
Viewing the system status
1 From the SETUP menu, highlight System
Information.
2 Press _ to display the system information.
Reset Factory Defaults
You can reset all settings and channels to their factory
default values.
1 From the SETUP menu, highlight Reset "IV and
press _.
2 Enter your PIN code (if PIN code has been set).
3 Press < or • to select Yes and press _. The TV will
turn off automatically.
To cancel the reset:
Press < or • to select No and press _.
31

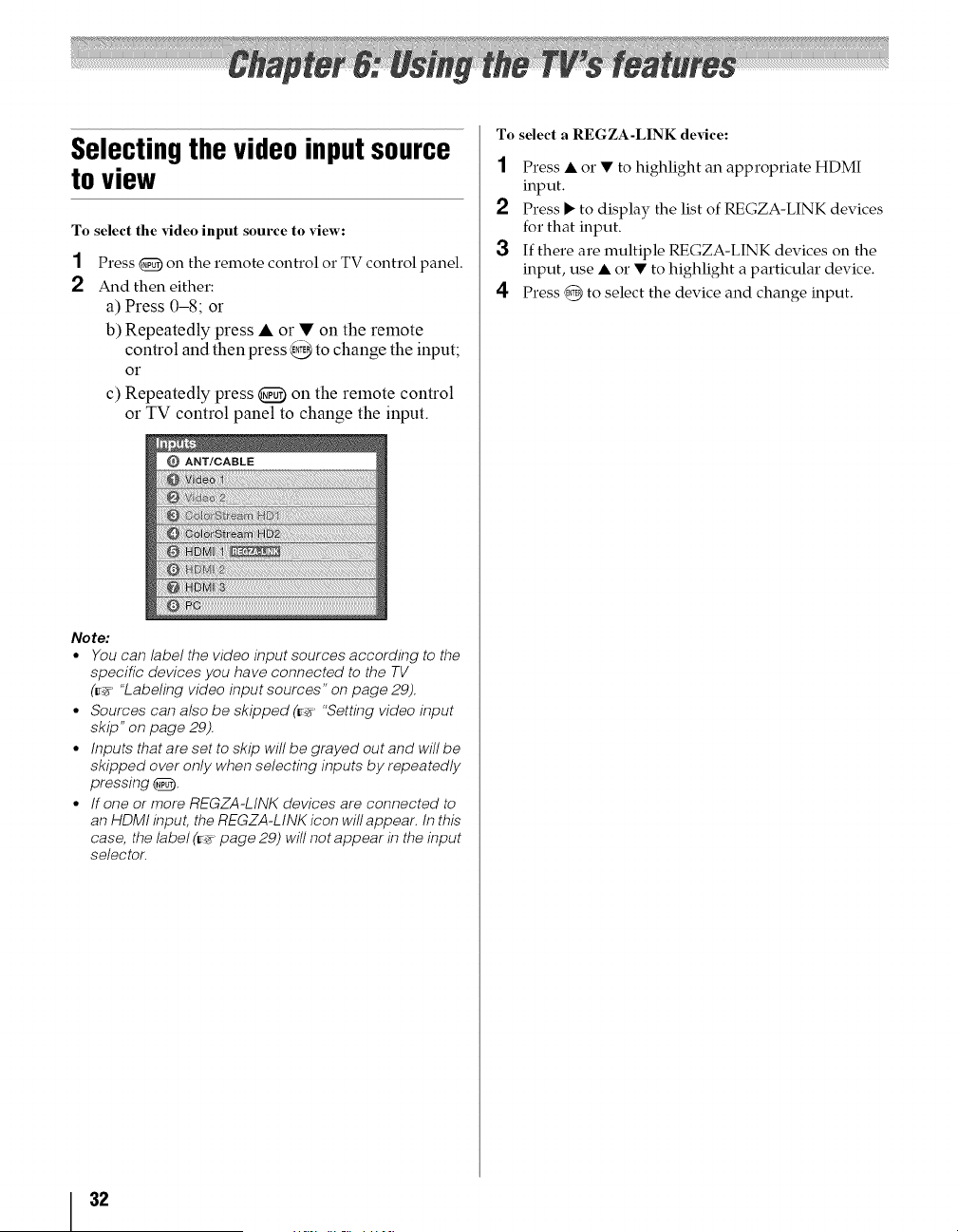

Selecting the video input source
to view
To select the xideo input source to view:
1 Press _) on the remote control or TV control panel.
_) And then either:
a) Press 0-8; or
b) Repeatedly press • or • on the remote
control and then press _ to change the input;
or
c) Repeatedly press _) on the remote control
or TV control panel to change the input.
Note:
• You can label the video input sources according to the
specific devices you have connected to the TV
(_,_ "Labeling video input sources" on page 29).
° Sources can also be skipped (_,_ "Setting video input
skip" on page 29).
° Inputs that are set to skip will be grayed out and will be
skipped over only when selecting inputs by repeatedly
pressing _).
° If one or more REGZA-LINK devices are connected to
an HDMI input, the REGZA-LINK icon will appear. In this
case, the label (_ page 29) will not appear in the input
selector.
To select a REGZA-LINK dex@e:
1 Press • or • to highlight an appropriate HDMI
input.
_) Press • to display the list of REGZA-LINK devices
for that input.
3 If there are multiple REGZA-LINK devices on the
input, use • or • to highlight a particular device.
4 Press _ to select the device and change input.
32

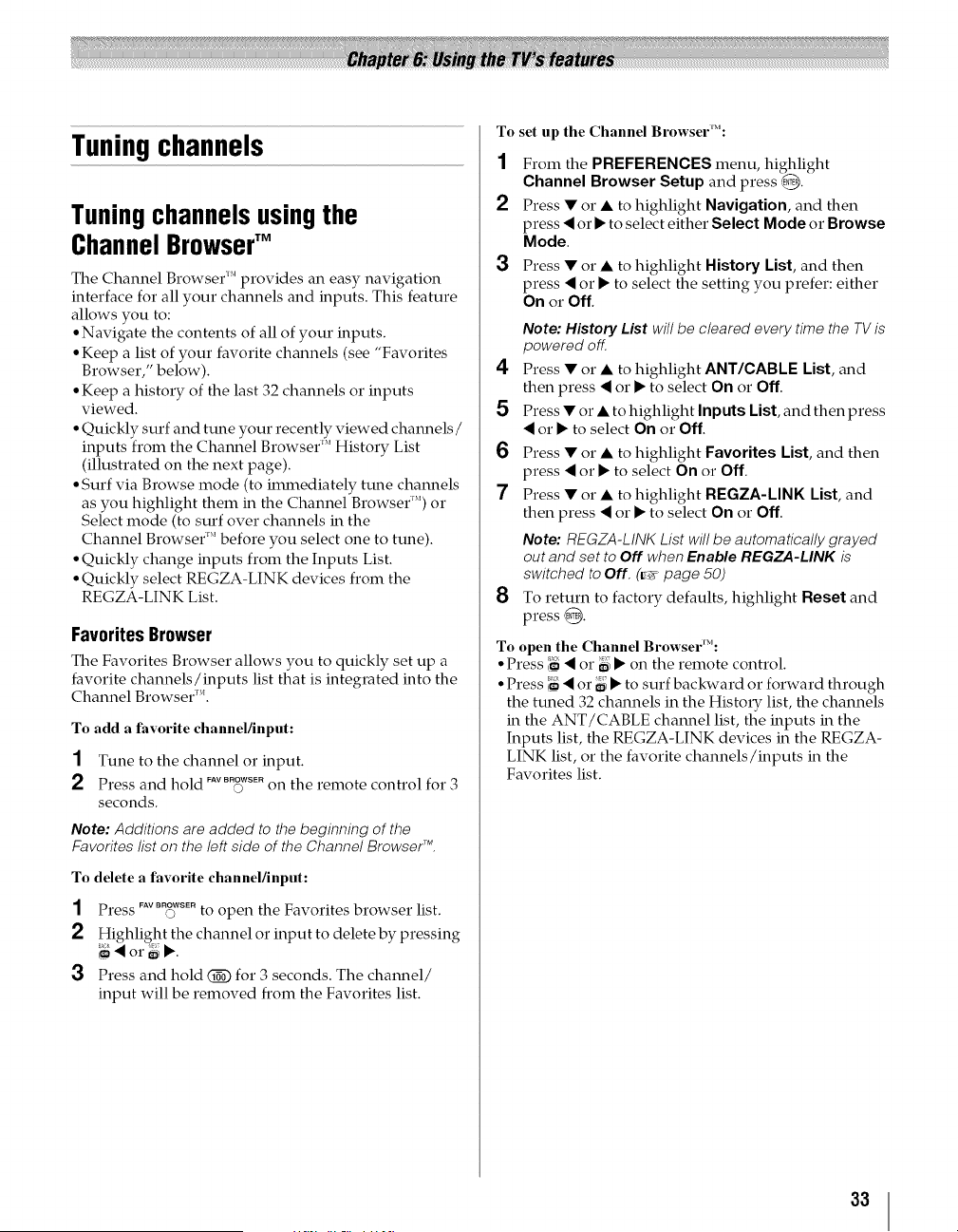

Tuning channels
Tuning channels usingthe
Channel BrowserTM
The Channel Browser _'_provides an easy navigation
interface for all your channels and inputs. This feature
allows you to:
• Navigate the contents of all of your inputs.
• Keep a list of your favorite channels (see "Favorites
Browser," below).
• Keep a history of the last 32 channels or inputs
viewed.
• Quickly surf and tune your recently viewed channels /
inputs from the Channel Browser _MHistory List
(illustrated on the next page).
• Surf via Browse mode (to immediately tune channels
as you highlight them in the Channel Browser _M)or
Select mode (to surf over channels in the
Channel Browser _Mbefore you select one to tune).
• Quickly change inputs from the Inputs List.
• Quickly select REGZA-LINK devices from the
REGZA-LINK List.
FavoritesBrowser
The Favorites Browser allows you to quickly set up a
favorite channels/inputs list that is integrated into the
Channel Browser _M.
To add a favorite channel/input:
1 Tune to the channel or input.
2 Press and hold .... %wsE_on the remote control for 3
seconds.
Note: Additions are added to the beginning of the
Favorites list on the left side of the Channel BrowserZ
To delete a favorite channel/input:
1 Press FAYB_WSE_to open the Favorites browser list.
2 Highlight the channel or input to delete by pressing
3 Press and hold _ for 3 seconds. The channel/
input will be removed from the Favorites list.
To set up the Channel Browser'_':
2
3
From the PREFERENCES menu, highlight
Channel Browser Setup and press _.
Press • or • to highlight Navigation, and then
press < or • to select either Select Mode or Browse
Mode.
Press • or • to highlight History List, and then
press < or • to select the setting you prefer: either
On or Off.
4
5
6
7
8
Note: History List will be cleared every time the TV is
powered off.
Press • or • to highlight ANT/CABLE List, and
then press < or • to select On or Off.
Press • or • to highlight Inputs List, and then press
< or • to select On or Off.
Press•or•to highlight Favorites List, and then
press<or•to select On or Off.
Press•or•to highlight REGZA-LINKList, and
then press<or•to select On or Off.
Note: REGZA-LINK List will be automatically grayed
out and set to Off when Enable REGZA-LINK is
switched to Off. (_,_ page 50)
To return to factory defaults, highlight Reset and
press _.
To open the Channel Browser'_':
• Press _a4< o1"_4 • on the remote control.
• Press _a4< or _ • to surf backward or forward through
the tuned 32 channels in the Histoly list, the channels
in the ANT/CABLE channel list, the inputs in the
Inputs list, the REGZA-LINK devices in the REGZA-
LINK list, or the favorite channels/inputs in the
Favorites list.
33

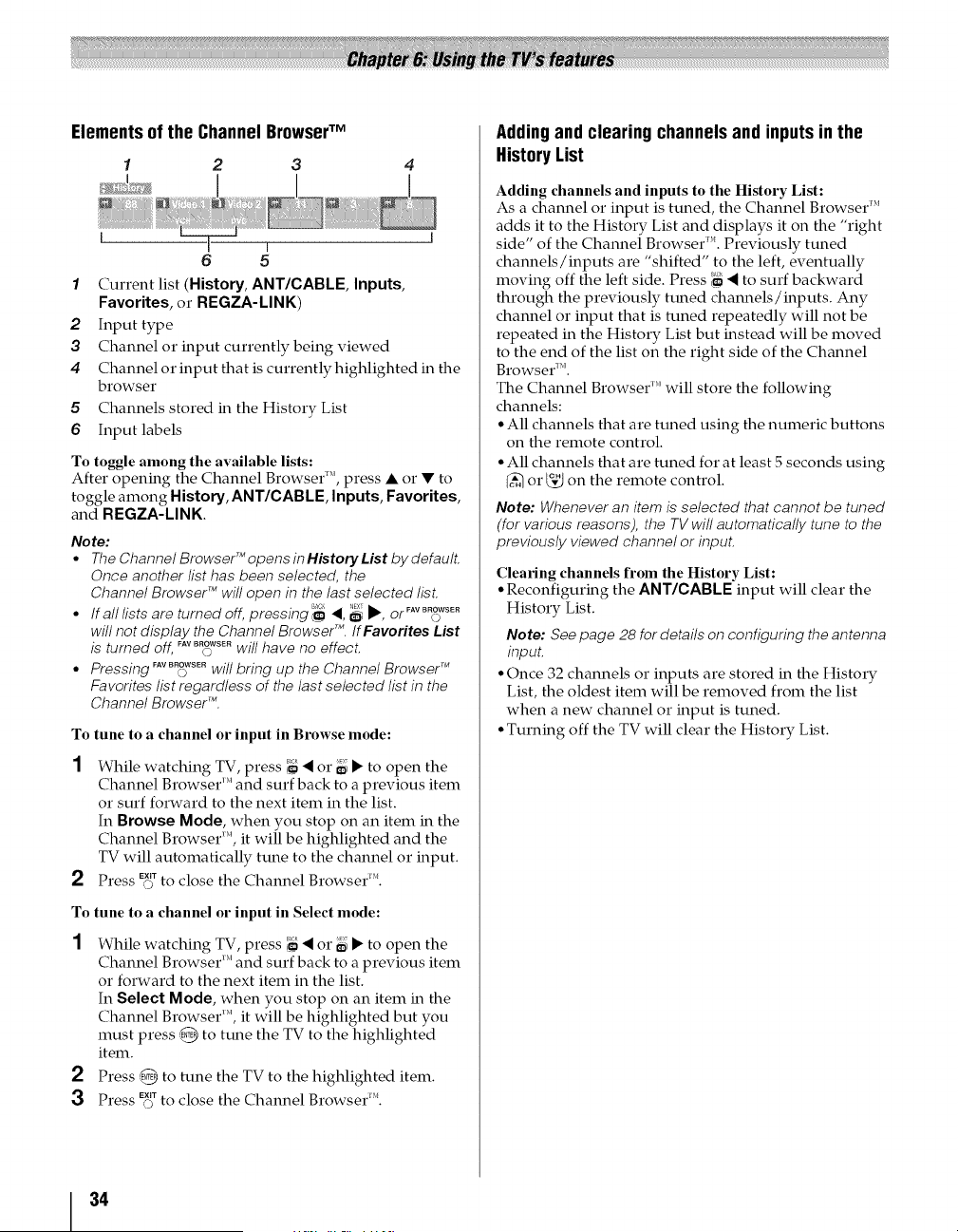

Elementsof the ChannelBrowserTM
? 2 3
I I
I
6 5
1 Current list (History, ANT/CABLE, Inputs,
Favorites, or REGZA-LINK)
2 Input type
3 Channel or input currently being viewed
4 Channel or input that is currently highlighted in the
browser
5 Channels stored in the History List
6 Input labels
To toggle among the available lists:
After opening the Channel Browser "_, press • or • to
toggle among History, ANT/CABLE, Inputs, Favorites,
and REGZA-LINK
Note:
• The Channel Browser TMopens in History List by default.
Once another list has been selected, the
Channel BrowseY will open in the last selected lisL
If all lists are turned off, ..... °_
pressing _ <, _i _, F.........
• _ or 0
will not display the Channel BrowserZ If Favorites List
is turned off, .... _,sE. will have no effect.
• Pressing .... .owsE.will bring up the Channel BrowseY
Favorites list regardless of the last selected list in the
Channel BrowserZ
To tune to a channel or input in Browse mode:
1 While watching TV, press "6 < or _4 • to open the
Channel Browser '' and surf back to a previous item
or surf forward to the next item in the list.
In Browse Mode, when you stop on an item in the
Channel Browser ", it will be highlighted and the
TV will automatically tune to the channel or input.
2 Press _w to close the Channel Browser_ k
To tune to a channel or input in Select mode:
While watching TV, press "6 < or _4 • to open the
Channel Browser ''_ and surf back to a previous item
or forward to the next item in the list.
In Select Mode, when you stop on an item in the
Channel Browser ''_, it will be highlighted but you
must press @ to tune the TV to the highlighted
item.
2 Press @ to tune the TV to the highlighted item.
3 Press _w to close the Channel Browser_ k
Addingand clearing channelsand inputs in the
HistoryList
Adding channels and inputs to the History List:
As a channel or input is tuned, the Channel Browser _M
adds it to the History List and displays it on the "right
side" of the Channel Browser _M.Previously tuned
channels/inputs are "shifted" to the left, eventually
moving off the left side. Press _6 < to surf backward
through the previously tuned channels/inputs. Any
channel or input that is tuned repeatedly will not be
repeated in the History List but instead will be moved
to the end of the list on the right side of the Channel
Browser _M.
The Channel Browser ''_ will store the following
channels:
• All channels that are tuned using the numeric buttons
on the remote control.
• All channels that are tuned for at least 5 seconds using
or _j on the remote control.
Note: Whenever an item is selected that cannot be tuned
(for various reasons), the TV will automatically tune to the
previously viewed channel or inpuL
Clearing channels from the History List:
• Reconfiguring the ANT/CABLE input will clear the
History List.
Note: See page 28 for details on configuring the antenna
inpuL
• Once 32 channels o1"inputs are stored in the History
List, the oldest item will be removed from the list
when a new channel or input is tuned.
• Turning off the TV will clear the History List.
34

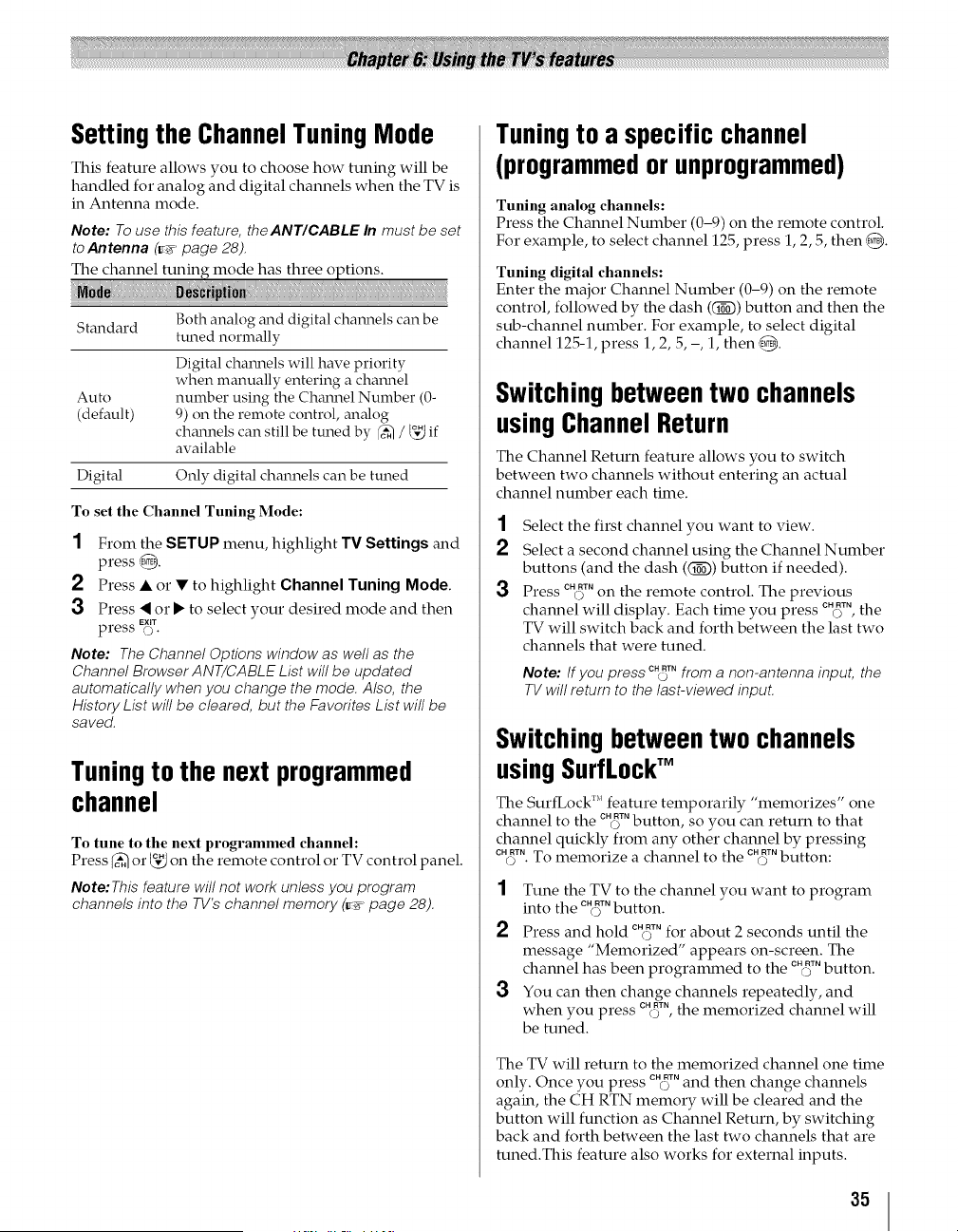

Settingthe ChannelTuningMode
This feature allows you to choose how tuning will be
handled for analog and digital channels when the TV is
in Antenna mode.
Note: To use this feature, the ANT/CABLE In must be set
to Antenna (_,_,page 28).
The channel tuning mode has three options.
Standard Both analog _md digital chalmels can be
tuned normally
Auto
(default)
Digital chalmels will have priority
when manually entering a chalmel
number using the Chmmel Number (0-
9) on the remote control, analog
chmmels can still be tuned by _ / _ if
available
Digital Only digital channels can be tuned
To set the Channel Tuning Mode:
2
3
From the SETUP menu, highlight TV Settings and
press _.
Press • or • to highlight Channel Tuning Mode.
Press _ or • to select your desired mode and then
press Ex_j
Note: The Channel Options window as well as the
Channel Browser ANT/CABLE List will be updated
automatically when you change the mode. Also, the
History List will be cleared, but the Favorites List will be
saved.
Tuningto the next programmed
channel
To tune to the next programmed channel:
Press _ or _,j on the remote control or TV control panel.
Note:This feature will not work unless you program
channels into the TV's channel memory (_< page 28).
Tuningto a specific channel
(programmedor unprogrammed)
Tuning analog channels:
Press the Channel Number (0-9) on the remote control.
For example, to select channel 125, press 1, 2, 5, then _.
Tuning digital channels:
Enter the major Channel Number (0-9) on the remote
control, followed by the dash ((_) button and then the
sub-channel number. For example, to select digital
channel 125-1, press 1, 2, 5, -, 1, then @.
Switchingbetweentwo channels
usingChannelReturn
The Channel Return feature allows you to switch
between two channels without entering an actual
channel number each time.
1 Select the first channel you want to view.
2 Select a second channel using the Channel Number
buttons (and the dash ((_)) button if needed).
3 Press c_T. on the remote control. The previous
channel will display. Each time you press c_T., the
TV will switch back and forth between the last two
channels that were tuned.
Note: If you press c._T, from a non-antenna input, the
TV will return to the last-viewed input.
Switchingbetweentwo channels
usingSurfLockTM
The SurfLock '_' feature temporarily "memorizes" one
CH RTN
channel to the o button, so you can return to that
channel quickly from any other channel by pressing
CH RTN
o . To memorize a channel to the c,_T. button:
1 Tune the TV to the channel you want to program
into the c_. button.
CH RTN
2 Press and hold o for about 2 seconds until the
message "Memorized" appears on-screen. The
channel has been programmed to the c.<_. button.
3 You can then change channels repeatedly, and
when you press c"c_", the memorized channel will
be tuned.
The TV will return to the memorized channel one time
only. Once you press c_T. and then change channels
again, the CH RTN memory will be cleared and the
button will function as Channel Return, by switching
back and forth between the last two channels that are
tuned.This feature also works for external inputs.
35
Selectingthe picturesize
You can view many program formats in a variety of
picture sizes--Native, 4:3, Full, TheaterWide 1,
TheaterWide 2, TheaterWide 3, Normal and Dot by
Dot.
Note: The "picture size" illustrations are examples only.
The format of the image (in any of the picture sizes) will
vary depending on the format of the signal you are
currently watching. Select the picture size that displays the
current program the way that looks best to you.
You can save separate picture size preferences for each
input on your TV.
To select the picture size using the remote controh
1
2
Press p,_,zE on the remote control.
While the Picture Size screen is open, you can do
one of the following to select the desired picture
size:
° Repeatedly press p,cs,zEo .
° Press the corresponding Number button while the
Picture Size screen is open.
° Press • or • and @ while the Picture Size screen
is open.
Note: Some of the picture sizes may not be available
depending on the receiving signal format.
Using these functions to change the picture size (i.e.,
changing the height/width ratio) for any purpose other
than your private viewing may be prohibited under the
Copyright Laws of the United States and other
countries, and may subject you to civil and criminal
liability.
Note: If you select one of the TheaterWide _ picture sizes,
the top and bottom edges of the picture (including
subtitles or captions) may be hidden. To view the hidden
edges, either adjust the Picture Position or try viewing the
program in 4:3 or Full picture size.
36

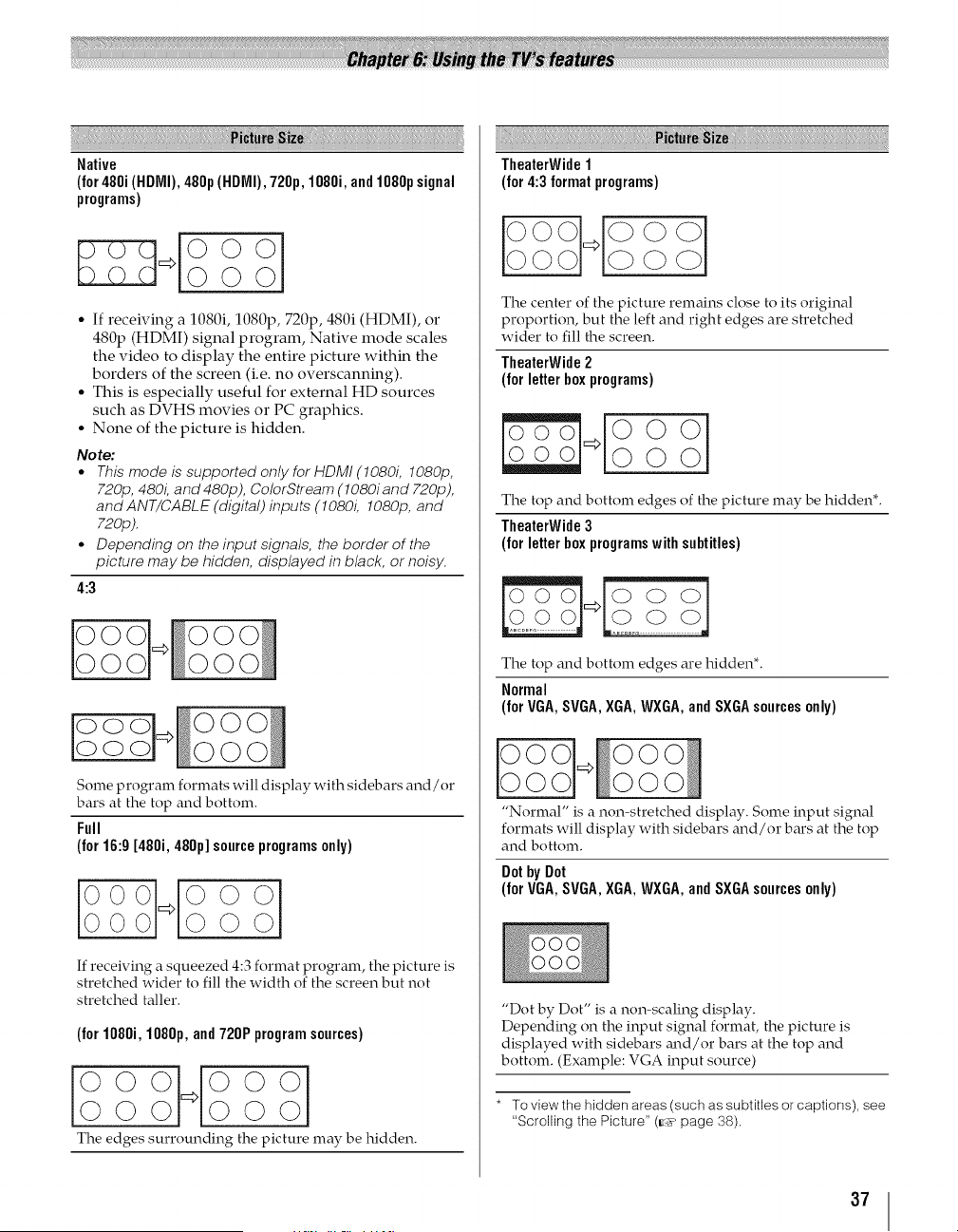

Native
(for 480i (HDMI), 480p (HDMI), 720p, 1080i, and1080p signal
programs)
0 0 0
000
• If receiving a 1080i, 1080p, 720p, 480i (HDMI), or
480p (HDMI) signal program, Native mode scales
the video to display the entire picture within the
borders of the screen (i.e. no overscanning).
° This is especially useful for external HD sources
such as DVHS movies or PC graphics.
° None of the picture is hidden.
Note:
• This mode is supported only for HDMI (1080i, 1080p,
720p, 480L and 480p), ColorStream (1080i and 720p),
and ANT/CABLE (digital) inputs (1080L 1080p, and
720p).
° Depending on the input signals, the border of the
picture may be hidden, displayed in black, or noisy.
4:3
000
000
Some progralTt formats will display with sidebars and/or
bars at the top and bottom.
Full
(for 16:g [4801, 480p] source programs only)
If receiving a squeezed 4:3 format program, the picture is
stretched wider to fill the width of the screen but not
stretched taller.
(for 10801, 1080p, and720P programsources)
000< 000
The edges surrounding the picture may be hidden.
TheaterWide1
(for4:3formatprograms)
I©O
The center of the picture remains close to its original
proportion, but the left and right edges are stretched
wider to fill the screen.
TheaterWide 2
(for letter box programs)
°°°-
O0
The top and bottom edges of the picture may be hidden*.
TheaterWide 3
(for letter box programswith subtitles)
I0001 I0 0 0
The top and bottom edges are hidden*.
Normal
(for VGA, SVGA, XGA, WXGA, and SXGAsourcesonly)
"Normal" is a non-stretched display. Some input signal
formats will display with sidebars and/or bars at the top
and bottom.
DotbyDot
(forVGA,SVGA,XGA,WXGA,andSXGAsourcesonly)
"Dot by Dot" is a non-scaling display.
Depending on the input signal format, the picture is
displayed with sidebars and/or bars at the top and
bottom. (Example: VGA input source)
* To view the hidden areas (such as subtitles or captions), see
"Scrolling the Picture" (_" page 38).
37
Scrolling the picture
If the edges of the picture are cut off, you can adjust the
position image.
Note: You can adjust the picture position when the picture
size is set to TheaterWide 2 or TheaterWide 3.
1 From the SETUP menu, highlight Picture Position.
2 Press • or • to select Vertical Position.
3 Press ,i or • to make the appropriate adjustments.
The adjustment range is from -5 to +10.
Note: This feature is not available on digital channels.
Usingthe Auto Aspect Ratio
feature
When the auto aspect ratio feature is set to On, the TV
will automatically select the picture size when one of
the following input sources is received:
°A 480i, 480p, 720p, 1080i digital signal from the ANT/
CABLE input
° A 480i signal from the Video 1 or Video 2 input
• A 480i signal from the ColorStream HD1 or HD2
input
°A 480i, 480p, 720p, 1080i, 1080p, or VGA (60/72/
75Hz) signal from the HDMI 1/2/3 input
Note: The auto aspect ratio feature is not applicable to the
PC input.
1 From the PREFERENCES menu, highlight Auto
Aspect.
2 Press ,i or • to select On, and then press %w.
Usingthe 4:3 Stretch
When 4:3 Stretch is activated, the size switching system
changes 4:3 programs into full screen picture.
1 From the PREFERENCES menu, highlight 4:3
Stretch.
2 Press ,i or • to select On, and then press %w.
Note: When Auto Aspect is set to Off, this feature will be
grayed out.
Usingthe FREEZEfeature
1
2
When viewing the TV, press FROZEto make the
picture a still picture.
To return to the moving picture, press FROZEagain.
Note: If the TV is left in FREEZEmode for more than 15
minutes, the FREEZE mode will automatically be
released and the TV will return to moving picture.
Using the FREEZE function for any purpose other than
your private viewing may be prohibited under the
Copyright Laws of the United States and other
countries, and may subject you to civil and criminal
liability.
38
Adjusting the picture
Selectingthe picturemode
You can select your desired picture settings from the
following modes, as described below.
Automatically adjusts picture settings
AutoView'* based on ambient light conditions and
input signal content
Sports Bright and dynamic picture
Standard Standard picture settings
Movie Lower contrast for darkened room
Designed for playing a video game
Game requiring split-second timing between
the on-screen display and input from
the controller
PC Designed for viewing of PC tables and
documents
Note:
• Because the AutoView mode automatically adjusts
picture settings based on ambient light conditions and
input signal content, some menus will be grayed out
when it is selected.
• PC mode is available for HDMI and PC inputs only (not
displayed for other input soumes).
• Game mode cannot be turned on when theANT/
CABLE input is selected.
1 From the PICTURE menu, highlight Picture Mode.
2 Press _ or • to select the picture mode you prefer
and press _.
Note: The picture mode you select affects the current
input only. You can select a different picture mode for
each input.
Adjustingthe picturequality
The picture quality you adjusted under a certain picture
mode is saved to the picture mode of same name.
Backlight* darker lighter
Contrast lower higher
Brightness darker lighter
Color paler deeper
Tint reddish greenish
Sharpness softer sharper
* This feature adjusts the brightness of the entire screen.
When in video mode and no signal is input, this will
automatically be set to O. (Settings are stored in memory.)
Note: Some menus cannot be adjusted when the picture
mode is set to AutoView or TheaterLock is set to On.
To adjust the picture quality:
2
From the PICTURE menu, highlight picture quality
you want to adjust (Backlight, Contrast,
Brightness, Color, Tint, or Sharpness).
Once you select the desire item, press < or • to
adjust the setting, as described in the table above
and then press E×'c].
Note: The picture quality you adjusted affects the current
input only. You can adjust the picture quality for each input
and source for photo viewing.
To revel1 to the factory defaults:
1 Select the picture mode you want to reset.
2 From the PICTURE menu, highlight Reset and
press _.
3 A confirmation message will appear. Press "4 or • to
select Yes, and then press _.
39
Usingthe TheaterLockTM feature
The TheaterLock feature allows you to "lock" items in
the PICTURE menu that affect the picture display.
These items will be grayed out and unavailable when
the TheaterLock setting is set to "On".
1 Fromthe PICTUREmenu, highlight TheaterLock
2 Press < or • to select On, and then press _.
Viewing the Control Visualization
window
This feature displays a histogram and control curve
illustrating the brightness of the TV.
1 From the PICTURE menu, highlight Control
Visualization and press _. The histogram window
will appear.
2 Press c_T. to close the window and go back to menu.
If no key is pressed within 10 minutes, it closes
automatically.
Usingthe closed caption mode
Analog CC Mode
The closed caption mode has two options:
• Captions--An on-screen display of the dialogue,
narration, and sound effects of TV programs and
videos that are closed captioned (usually marked
"CC" in program guides).
• Text--An on-screen display of information not related
to the current program, such as weather or stock data
(when provided by individual stations).
To turn on the closed caption mode:
1 From the SETUP menu, highlight TV Settings and
press _.
2 Press • or • to select Closed Captions Settings
and press _.
3 Press • or • to select Closed Captions and press <
or • to select On.
To x4ew captions or text:
From the Closed Captions Settings menu, highlight
the Analog CC Mode.
° To view captions:
Press < or • to highlight 001,002, 003, or 004.
Note: If the program or video you selected is not closed
captioned no captions will display onscreen
°To view text:
Press < or • to highlight T1, T2, T3, or T4.
Note: If text is not available in your area a black
rectangle may appear on screen If this happens set the
Closed Captions setting to Off
Note: A closed caption signal may not display in the
following situations:
= When a videotape has been dubbed
• When the signal reception is weak
• When the signal reception is nonstandard
4O
DigitalCCSettings
You can customize the closed caption display
characteristics by changing the background color,
opacity, text size, type, edge, and color.
Note:
• This feature is available for digital channels only.
° You cannot set the Caption Text and Background as the
same color.
Caption Size Auto, Small, Standard, Large
Auto, Default, Mono w. Serif, Prop. w.
Caption Text Serif, Mono w/o Serif, Prop. w/o Serif,
Type Casual, Cursive, Small Capitals
Auto, None, Raised, Depressed,
Caption Text
Uniform, Left Drop Shadow, Right
Edge Drop shadow
Caption Text Auto, Black, White, Red, Green, Blue,
Color Yellow, Magenta, Cyan
TextForeground Auto, Transparent, Translucent,
Opacity Flashing, Solid
Background Auto, Black, White, Red, Green, Blue,
Color Yellow, Magenta, Cyan
Text
Auto, Transparent, Translucent,
Background Flashing, Solid
Opacity
Caption Text Auto, Black, White, Red, Green, Blue,
Edge Color Yellow, Magenta, Cyan
To customize the closed captions:
1 From the SETUP menu, highlight TV Settings and
press @.
2 Press • or • to select Closed Captions Settings
and press @.
3 Then highlight Digital CC Settings and press @.
4 Press • or • to highlight the characteristic you want
to change, and then press < or • to select the format
for that characteristic (see table above).
CCSelector
You can use the CC and Digital Audio Selectors to
temporarily override the default analog caption mode
(set in Analog CC Mode) for a particular channel.
However, once you change to another analog channel,
the closed caption setting will automatically change
back to the current Analog CC Mode setting.
You can also use the CC Selector to select digital closed
caption services (if available). When such services are
not available, the CC Selector presents a default list of
services. If the selected service is not available, the next
best service will be used instead.
To select closed captions:
1 From the PREFERENCES menu, highlight CC and
Digital Audio Selectors and press @.
2 Press • or • to highlight Closed Caption, and then
press < or • to select the desired sel_Tice, then press
EXIT
O.
41
Adjusting the audio
Muting the sound
Press M_Eon the remote control to partially reduce (1/2
MUTE) or turn off (MUTE) the sound. Each time you
MUTE
press O, the mute mode will change in the following
order:
[---1/2 Mute --_ Mute ---*Volume --_==.]
If the closed caption mode is set to Off when you select
"MUTE" mode, the closed caption feature is
automatically activated if the TV program is Closed
Captioned. To mute the audio without automatically
activating the closed caption feature, use _-_ to set the
volume to 0. See "Using the closed caption mode" (_
page 40) for more information on closed caption
modes.
Note: If you modify items in the SOUND menu while mute
is active, the mute will automatically be cancelled to allow
for proper adjustment.
Usingthe digital audioselector
You can use the Digital Audio setting to conveniently
switch between audio tracks on a digital channel (for
those channels that have multiple audio tracks). This
temporarily overrides the audio track chosen by the
language option under MTS (_ "Selecting stereo/SAP
broadcasts" on right hand column).
To use the digital audio selector:
1 From the PREFERENCES menu, highlight CC and
Digital Audio Selectors and press _.
2 Press • or • to select Digital Audio.
3 Press < or • to select the desired service, then press
EXIT
O.
Selectingstereo/SAPbroadcasts
The multi-channel TV sound (MTS) feature allows you
to output high-fidelity stereo sound. MTS also can
transmit a second audio program (SAP) containing a
second language, music, or other audio information
(when provided by individual stations).
When the TV receives a stereo or SAP broadcast, the
word "STEREO" or "SAP" appears on-screen when
RE_LLis pressed. The MTS feature is only available for
analog signals on the ANT/CABLE input.
To listen a stereo sound:
1 From the SOUND menu, highlight MTS.
2 Press < or • to select Stereo and press Ex,J.
Note:
• You can typically leave the TV in Stereo mode because
it will automatically output the type of sound being
broadcast (stereo or monaural).
• If the stereo sound is noisy, selectMono to reduce the
noise.
To listen a second audio program on an analog station (if
available):
Select SAP in step 2.
Note:
• A SecondAudio Program (SAP) can be heard only on
those TV stations that offer iL For example, a station
might broadcast another language as a second audio
program. If you have SAP on, you will see the current
program on the screen but hear the other language
instead of the program's normal audio.
• If you have SAP on and the station you are watching is
not broadcasting a second audio program, the station's
normal audio will be output. However, occasionally
there is no sound a t all in SAP mode. If this happens, set
the MTS feature to Stereo mode.
Adjustingthe audioquality
You can adjust the audio quality by adjusting the bass,
treble, and balance.
1
2
From the SOU N D menu, highlight the item you
want to adjust (Bass, Treble, or Balance).
Press _ or • to adjust the level of desire item, and
then press E_ST
° < makes the bass or treble weaker or increases
the balance in the left channel (depending on the
item selected).
* • makes the bass or treble stronger or increases
the balance in the right channel (depending on the
item selected).
42
Usingthe StableSound® feature
The StableSound feature limits the highest volume level
to prevent extreme changes in volume when the signal
source changes (for example, to prevent the sudden
increase in volume that often happens when a TV
program switches to a commercial).
1 From the SOUND menu, highlight StableSound
2 Press < or • to select On, then press EXT.
Selecting the optical audio output
format
You can use this feature to select the optical audio
output format when you connect a Dolby Digital
decoder or other digital audio system to the DIGITAL
AUDIO OUT terminal on the TV.
1 Tune to a digital source on the ANT/CABLE input.
2 From the SETUP menu, highlight AV Connection
and press @.
3 Press • or • to select Digital Audio Output.
4 Press < or • to select Auto or PCM, then press %w
Auto: this mode outputs Dolby Digital or PCM to
the digital audio output socket providing it is being
broadcast.
PCM: this mode outputs PCM format to the digital
audio output socket.
Usingthe Dolby® Digital Dynamic
RangeControlfeature
This dynamic range control feature causes the ATSC
dynamic range to be further compressed, allowing you
to switch from digital to analog broadcasts at the same
dynamic range.
1 From the SOUND menu, highlight Dynamic Range
Control.
2 Press < or • to select On, then press EXT
Note:
Setting the PIN code
A PIN code is necessary for some menus.
Registeringa newPINcode
1 From the PREFERENCES menu, highlight PIN
Setting and press @. A new screen will display.
2 Press number buttons to enter a four-digit number.
Reenter the PIN code to confirm it.
Changingor deletingyourPINcode
1 From the PREFERENCES menu, highlight PIN
Setting and press @. A new screen will display.
2 Press number buttons to enter your four-digit PIN
code.
• Change PIN
Highlight Change PIN and press @.
• Delete PIN
Highlight Delete PIN and press @.
If you delete the PIN code, the settings of Parental
Control and Locks are reset.
If youcannotrememberyourPINcode
While the PIN code entering screen is displayed, press
RE_LLfour times within five seconds. The PIN code ;viii
be cleared and you can enter a new PIN code.
43
BlockingTVprogramsandmoviesby
rating(V-Chip)
Some TV programs and movies include signals that
classify the content of the program (violence, sex,
dialogue, language). The V-Chip feature in this TV
detects the signals and blocks the programs according
to the ratings you select. (For rating descriptions, see the
tables on the next page.)
Note: Rating blocking is a function of the V-Chip feature in
this TV, which supports the U.S. V-Chip system only.
To block and unblock TV programs and moxies:
2
3
4
5
6
From the PREFERENCES menu, highlight
Parental Control and Locks and press _.
Enter your four-digit PIN code.
Press • or • to highlight Enable Rating Blocking.
Press < or • to select On.
Press • to highlight Edit Rating Limits and press
The Edit Rating Limits screen appears.
Press •, •, < or • and then press _ to select the
level of blocking you prefer. A box with an "X" is a
rating that will be blocked. As you highlight a
rating, a definition for the rating appears at the
bottom of the screen.
Downloadingan additionalrating
systemfor blockingTV programs
and movies
In the future, an additional rating system may become
available for use in selectively blocking programs.
Note: The currently tuned station must be receiving a
digital signal before an additional rating system can be
downloaded.
To download the additional rating system
(if available):
2
3
4
5
6
7
From the PREFERENCES menu, highlight
Parental Control and Locks and press _.
Enter your four-digit PIN code. Parental Control
and Locks window is displayed.
Press • or • to highlight Enable Rating Blocking.
Press < or • to select On.
Press • to highlight Edit Rating Limits and press
The Edit Rating Limits screen appears.
Highlight AIt RS and press _. The Edit Alternate
Ratings screen will appear.
Note:
• The AIt RS button will only be available if an
additional rating system is currently available.
• It may take several minutes for the TV to download
the additional rating system.
• The information displayed in theAItemate
Ratings screen will depend on the configuration of
the additional rating system available at the time of
download.
Press • • < • and then press _ to select the level
of blocking you prefer. A box with an "X" is a rating
that will be blocked.
Note:
• The additional rating system can only be downloaded
one time. You will not be able to download any updates
to the rating system should such updates become
available.
• The additional rating system is not designed,
transmitted, or controlled by the TV or Toshiba, nor is
the availability of an additional rating system
determined or controlled by Toshiba. Similarly, the
rating of programs in an additional rating system is not
determined, transmitted, or controlled by the TV or
Toshiba.
• The additional rating system is an evolving technology;
therefore, availability, content, and format may vary.
44
Independent rating systemfor broadcasters
_ati_;,
Mature Audience Only (This program is
specifically designed to be viewed by adults
"I'V-MA and therefore may be unsuitable for children
under 17.)
L) Crude or indecent language S) Explicit
sexual activity V) Graphic violence
Parents Strongly Cautioned (This pro_am
contains some material that many parents
would find unsuitable for children under 14
"I'V-14 years of age.)
D) Intensely suggestive dialo_le L) Strong,
coarse language S) Intense sexual situations V)
Intense violence
Parental Guidance Suggested (This pro_am
contains material parents may find unsuitable
TV-PG for younger children.)
D) Some suggestive dialogue L) Infrequent
coarse lan_mge S) Some sexual situations
V) Moderate violence
General Audience (Most parents would find
TV-G
this pro_am suitable for all ages.)
Directed to Older Children (This program is
designed for children age 7 and above. Note:
TV-Y7, Pro_ams in which fantasy violence may be
"I'V-Y7FV more intense or more combative than other
programs in this category are designated TV-
Y7FV.)
All Children (This program is designed to be
TV-Y
appropriate for all children.)
Independent rating systemfor movies
X-rated (For adults only)
Not intended for anyone 17 and under
Restricted (Under 17 requires accompanying
parent or adult)
Parents Strongly Cautioned (Some material may
be inappropriate for children under 13)
Parental Guidance Suggested (Some material
may not be suitable for children)
General Audience (Appropriate for all ages)
Note:
If you place an '×" in the box next to "None Rated",
programs rated "None" or "Not Rated" will be blocked;
however, programs that do not provide any rating
information will not be blocked.
To display the rating of the program you are watching,
RECALL
press o on the remote control. If it is rated "None, "the
word "NONE" appears in the RECALL screen (as
shown below right). If rating information is not provided,
no rating will appear in the RECALL screen.
Unlockingprograms
If you try to tune the TV to a program that exceeds the
rating limits you set, the TV will enter program lock
mode and a warning message will appear on-screen.
You can either unlock the program or tune to an
unlocked program to watch.
45
Locking channels
With the Lock feature, you can lock specific channels.
The locked channels can only be accessed by entering
the PIN.
1 From the SETUP menu, highlight TV Settings and
press @.
2 Press • or • to select Channel Options and press
@. The list of channels will appear.
3 Press • and then • or • to select a channel in the
lock column.
4 PIN code entry will be required to set locked
channel.
Note: If the PIN code has not been set yet, a warning
message will appear.
5 A tick will appear in the box.
To remove the tick, press @ again.
Usingthe inputlock feature
You can use the Input Lock feature to lock the video
inputs (Video 1, Video 2, ColorStream HD1,
ColorStream HD2, HDMI 1, HDMI 2, HDMI 3, and PC)
and channels 3 and 4. You will not be able to view the
input sources or channels until you unlock the inputs.
1 From the PREFERENCES menu, highlight
Parental Control and Locks and press @.
2 Enter your four-digit PIN code.
3 Press • or • to select Input Lock.
4 Press _ or • to select Video, Video+ or Off.
Locks Video 1, Video 2, ColorStream HD1/
Video
HD2, HDMI 1, HDMI 2, HDMI 3, and PC.
Locks Video 1, Video 2, ColorStream HD1 /
HD2, HDMI 1, HDMI 2, HDMI 3, PC, and
Video+ channels 3 mid 4.
• Select Video+ if you play video tapes via an
ANT/CABLE input.
Off Unlocks all video inputs and channels 3 and 4.
Usingthe GameTimer®feature
You can use the GameTimer to set a time limit for
playing a video game (30-120 minutes). When the
GameTimer expires, the TV enters Input Lock mode
and locks out the input source for the video game
device.
1 From the PREFERENCES menu, highlight
Parental Control and Locks and press @.
2 Enter your four-digit PIN code.
3 Press • or • to select GameTimer, and then press
or • to select 30, 60, 90, or 120 minutes.
To cancel the GalneTilner®:
Select Off in step 3 above.
To deactivate the Input Lock once the GameTilner has
activated it:
Set the Input Lock to Off (_' left-hand column).
Note:
• A message willappear when 10 minutes, 3 minutes, and
1 minute remain on the GameTimer.
° If the TV loses power with time remaining on the
GameTimer, when power is restored the TV will enter
Input Lock mode (as if the GameTimer had been
activated), and you will have to deactivate the Input
Lock (f_> left-hand column).
Usingthe panel lockfeature
You can lock the control panel to prevent your settings
from being changed accidentally (by children, for
example). When Panel Lock is On, none of the controls
on the TV control panel will operate except POWER.
2
3
From the PREFERENCES menu, highlight
Parental Control and Locks and press @.
Enter your four-digit PIN code.
Press • or • to select Panel Lock, and then press
or • to select On.
When Panel Lock is set to On, a reminder will
appear when the buttons on the TV control panel
are pressed. If the POWER button is pressed the TV
will switch off and can only be brought out of
standby by using the remote control.
To unlock the control panel:
Select Off in step 3 above.
46

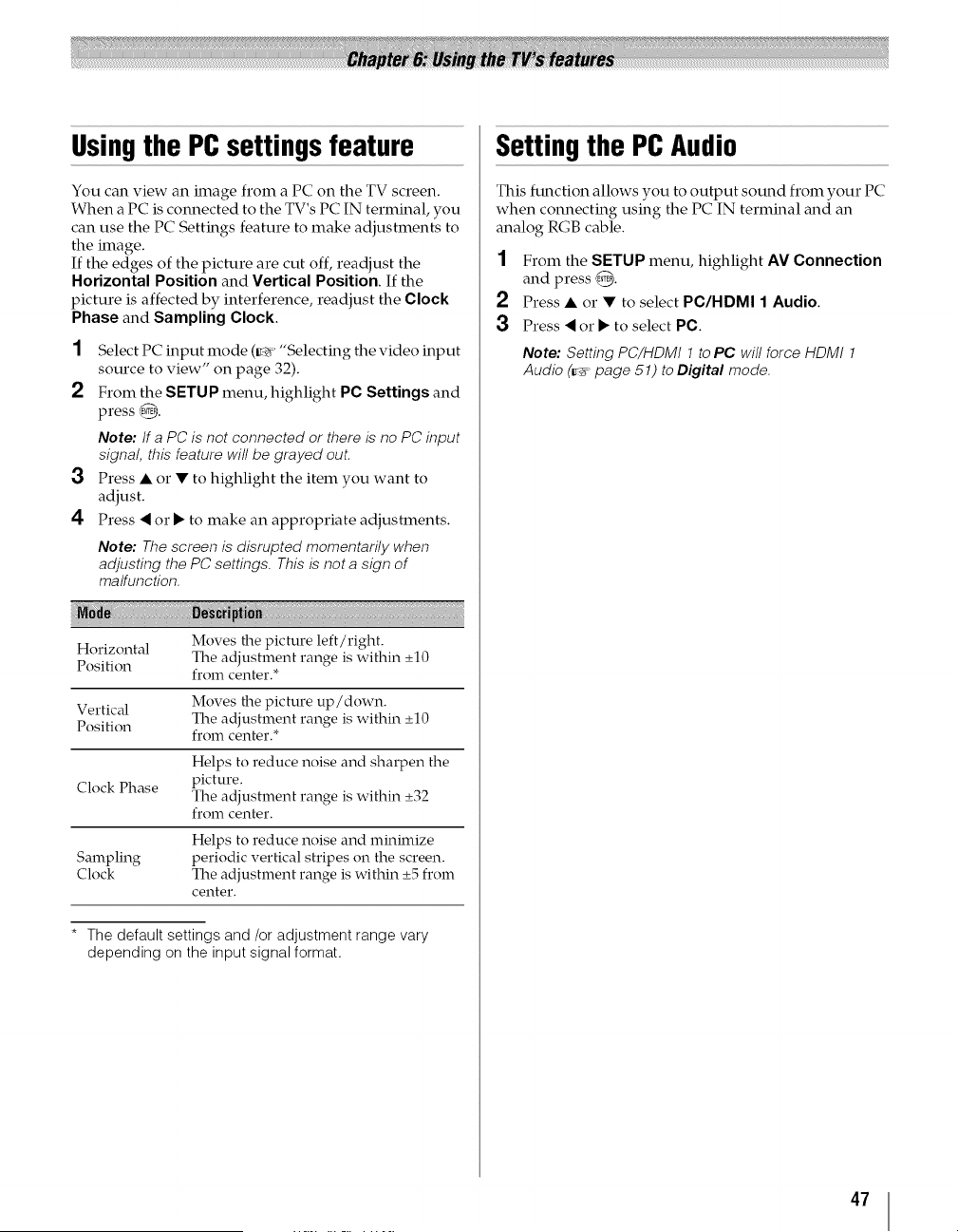

Usingthe PC settings feature
You can view an image from a PC on the TV screen.
When a PC is connected to the TV's PC IN terminal, you
can use the PC Settings feature to make adjustments to
the image.
If the edges of the picture are cut off, readjust the
Horizontal Position and Vertical Position. If the
picture is affected by interference, readjust the Clock
Phase and Sampling Clock.
1 Select PC input mode (_#r' "Selecting the video input
source to view" on page 32).
2 From the SETUP menu, highlight PC Settings and
press _.
Note: If a PC is not connected or there is no PC input
signal, this feature will be grayed ouL
3 Press • or • to highlight the item you want to
adjust.
4 Press _ or • to make an appropriate adjustments.
Note: The screen is disrupted momentarily when
adjusting the PC settings. This is not a sign of
malfunction.
Moves the picture left/right.
Horizontal
Position The adjustment range is within +_10
frolYl center.*
Moves the picture up/down.
Vertical
Position The adjustment range is within +_10
frolYl center.*
Helps to reduce noise and sharpen the
Clock Phase picture.
The adjustment range is within +_32
from center.
Helps to reduce noise and minimize
Sampling periodic vertical stripes on the screen.
Clock The adjustment range is within +_5from
center.
* The default settings and/or adjustment range vary
depending on the input signal format.
Setting the PC Audio
This function allows you to output sound from your PC
when connecting using the PC IN terminal and an
analog RGB cable.
1
2
3
From the SETUP menu, highlight AV Connection
and press _.
Press • or • to select PC/HDMI 1 Audio.
Press_or•to select PC.
Note: Setting PC/HDMI 1 to PC will force HDMI 1
Audio (_ page 51) to Digital mode.
47
Settingthe OnTimer
You can set the on timer to automatically turn on the TV
to a preset channel or input at a preset time.
To activate the On Timer:
1 From the APPLICATIONS menu, highlight On
Timer and press @.
2 Press • or • to select Enable On Timer, and then
press • or • to select On.
Note: If the Enable On Timer is set to Off, other menus
under On Timer cannot be changed.
To set the On Timer:
1 From the APPLICATIONS menu, highlight On
Timer and press _.
2 Press • or • to highlight the item you want to
change, and then press • or • to make your desired
adjustment.
To select video input source (ANT/CABLE,
Input Video 1, Video 2, ColorStream HD1,
ColorStream HD2, HDMI 1, HDMI 2,
HDMI 3, or PC).
Chalmel To select the channel when the TV turns on.
Volume To set the volume when the TV turns on.
Time until To set the time when the TV turns on from
now with • or • or the number buttons
Power On (maximum of 12 hours and 50 minutes).
Note:
• While the On Timer is set to On, the On Timer LED is
turned on (_ "LED indications" on page 61).
° Ifyou do notoperate the TVfor 1hourafteritispowered
on by the On Timer feature, the TV will automatically turn
itself off.
To cancel the On Timer:
1
2
3
From the APPLICATIONS menu, highlight On
Timer and press _.
Press • or • to select Enable On Timer.
Press • or • to select Off.
Settingthe SleepTimer
You can set the sleep timer to turn off the TV after a set
length of time (maximum of 12 hours and 50 minutes).
To set the sleep timer using the remote control:
Press s_Ep on the remote control to set the length of time
until the TV tul*ns off. Repeatedly press s_Epto increase
the time in 10-minute increments, or press • or • to
increase or decrease the time in 10-minute increments,
to a maximum of 12 hours and 50 minutes.
To set the sleep timer using the on-screen menus:
1 From the APPLICATIONS menu, highlight Sleep
Timer and press 0.
2 Press the number buttons to enter the length of time
or press • or • to increase or decrease in 10-minute
increments (maximum of 12 hours and 50 minutes).
Note: When a power failure occurs, the sleep timer setting
may be cleared.
To display the remaining sleep time:
Press s_
To cancel the sleep timer:
Repeatedly press sL4_until it is set to 0 minutes.
48
Using REGZA-LINK®
This feature uses CEC technology and allows you to
control Toshiba REGZA-LINK compatible devices from
the TV remote via HDMI connection (_ page 16).
When Enable REGZA-LINK in the REGZA-LINK
Setup menu is set to On, the following REGZA-LINK
functions will be enabled.
REGZA-LINK® playbackdevice(DVD
player,etc.) control
With your TV's remote control, or using the REGZA-
LINK Player Control menu, you can control the
connected REGZA-LINK playback device you are
watching.
Available remote control key functions:
Before using the following key functions, first set the
MODE SELECT switch on the remote control to W.
PLAY
C_ Begins playback.
STOP
oo Stops playback.
p_._p Pauses the picture during play or record
_ mode.
SKIP
Skips forward.
SKIP
_0 Skips backward.
(_ Fast-forwards.
REW Rewinds / reverses.
• • < • Navigates contents menu, etc.
Enters contents menu, etc.
CH_TN Returns to the previous menu.
%T Closes the menu.
Note: These functions depend on the devices connected.
REGZA-LINK Player Control menu functions:
1 From the APPLICATIONS menu, highlight
REGZA-LINK Player Control and press _.
_) Press • or • to select the item you want to control
and press _.
Power Turns the select device on and off.
Root Menu Access the top menu of the select device.
Accesses the contents list when you press
Contents _, At this time, the REGZA-LINK Player
Menu
Control menu will disappear.
Setup Access the setup menu of a DVD player.
Menu
Accesses the top menu of a DVD during
Top Menu
playback.
Accesses the menu of a DVD during
Menu
playback.
Note:
• These functions depend on the devices connected.
• The REGZA-LINK Player Control item will be grayed out
in the following conditions:
- A non-HDMI input is currently selected.
The Enable REGZA-LINK item is set to Off.
The connected REGZA-LINK device is not a
playback or recording device.
REGZA-LINK®input source selection
If a REGZA-LINK device with HDMI switching
capability (e.g. Amplifier) is connected to the HDMI
input, you can select another REGZA-LINK device that
is connected to the master HDMI device using _) on
the remote control or the TV control panel (_#r' page 32).
49

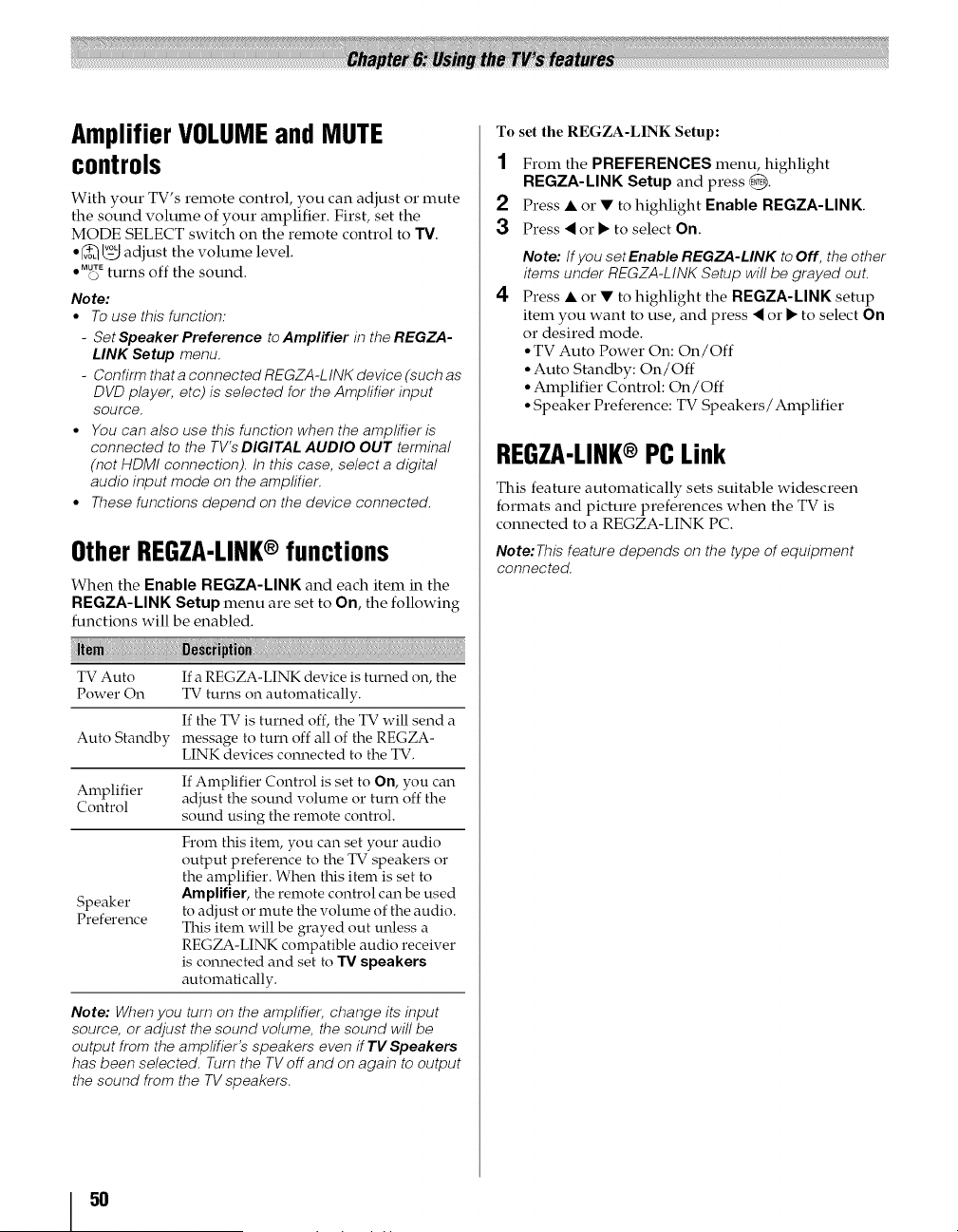

AmplifierVOLUMEandMUTE
controls
With your TV's remote control, you can adjust or mute
the sound volume of your amplifier. First, set the
MODE SELECT switch on the remote control to TV.
• _ _-_ adjust the volume level.
. M_Eturns off the sound.
Note:
• To use this function.
- Set Speaker Preference to Amplifier in the REGZA-
LINK Setup menu.
- Confirm that a connected REGZA-LINK device (such as
DVD player, etc) is selected for the Ampfifier input
source.
° You can also use this function when the amplifier is
connected to the TV's DIGITAL AUDIO OUT terminal
(not HDMI connection). In this case, select a digital
audio input mode on the amplifier.
• These functions depend on the device connected.
OtherREGZA-LINK® functions
When the Enable REGZA-LINK and each item in the
REGZA-LINK Setup menu are set to On, the following
functions will be enabled.
TV Auto If a REGZA-LINK device is turned on, the
Power On TV turns on automatically.
If the TV is turned off, the TV will send a
Auto Standby message to turn off all of the REGZA-
LINK devices connected to the TV.
If Amplifier Control is set to On, you can
Amplifier adjust the sound volume or turn off the
Control
sound using the remote control.
Speaker
Preference
From this item, you can set your audio
output preference to the TV speakers or
the amplifier. When this item is set to
Amplifier, the remote control can be used
to adjust or mute the volume of the audio.
This item will be grayed out unless a
REGZA-LINK compatible audio receiver
is connected and set to TV speakers
automatically.
Note: When you turn on the amplifier, change its input
source, or adjust the sound volume, the sound will be
output from the amplifier's speakers even if TV Speakers
has been selected. Turn the TV off and on again to output
the sound from the TV speakers.
To set the REGZA-LINK Setup:
1 From the PREFERENCES menu, highlight
REGZA-LINK Setup and press _.
2 Press • or • to highlight Enable REGZA-LINK
3 Press "< o1"• to select On.
4
Note: If you set Enable REGZA-LINK to Off, the other
items under REGZA-LINK Setup will be grayed ouL
Press • or • to highlight the REGZA-LINK setup
item you want to use, and press < or • to select On
or desired mode.
• TV Auto Power On: On/Off
• Auto Standby: On/Off
• Amplifier Control: On/Off
• Speaker Preference: TV Speakers / Amplifier
REGZA-LINK®PC Link
This feature automatically sets suitable widescreen
formats and picture preferences when the TV is
connected to a REGZA-LINK PC.
Note:This feature depends on the type of equipment
connected.
50
Usingthe HDMI settings feature
This menu consists of the following items (new HDMI
capabilities) and will be grayed out on non-HDMI
inputs.
Some HDMI legacy sources may not work properly
with your HDMI TV, please try setting the following
options (Deep Color, Lip Sync, INSTAPORT TM, and
RGB Range) to Off. Adjusting these settings should
allow your HDMI legacy source to operate properly
with your TV.
° Deep Color: On
This feature allows the HDMI source to increase
available colors bits within the boundaries defined by
the RGB or YCbCr color space.
• Lip Sync: On
The Lip Sync feature allows an HDMI source such as
an audio receiver to adjust audio delay to match the
video processing delay of the TV.
° INSTAPORTTM: On
This feature reduces the lag of switching time when
switching HDMI sources.
° RGB Range: Auto
This feature adjusts RGB full range signal
automatically
When Limit is selected, RGB output signal is output in
the range from 16 to 235. When Full is selected, RGB
output signal is output in the range from 0 to 255.
All of the above HDMI settings need proper HDMI
source devices. If an HDMI source device does not
support these features, the TV may not work properly
when these features are enabled.
Note: If your HDMI connection is capable of 1080/9 and/or
your TV is capable of refresh rates greater than 60Hz or
supports Deep Color, you will need a High Speed HDMF M
cable. Conventional HDMI/DVI cables may not work
properly with this mode.
] Select the appropriate HDMI input mode (HDMI 1,
HDMI 2, or HDMI 3).
2 From the SETUP menu, highlight AV Connection
and press _.
3 Press • or • to select HDMI Settings.
4 Press • or • to highlight the item you want to set.
5 Press < or • to select your desired setting.
Setting the HDMI audio mode
To set the HDMI audio mode:
1 From the SETUP menu, highlight AV Connection
and press _.
2 Press • or • to select PC/HDMI 1 Audio.
3 Press < or • to select HDMI 1.
4 Press • or • to select HDMI 1 Audio.
5 Press < or • to select Auto, Digital or Analog. (Auto
is the recommended mode.)
Auto
When viewing the HDMI 1 input, if
digital audio from the HDMI input is
available, it will be output. If not, the TV
will automatically detect and output
analog audio from the PC/HDMI 1
Audio input.
%qlen viewing the HDMI 1 input, digital
Digital audio from the HDMI input will be
output.
%qlen viewing the HDMI 1 input,
Analog analog audio from the PC/HDMI Audio
input will be output.
51

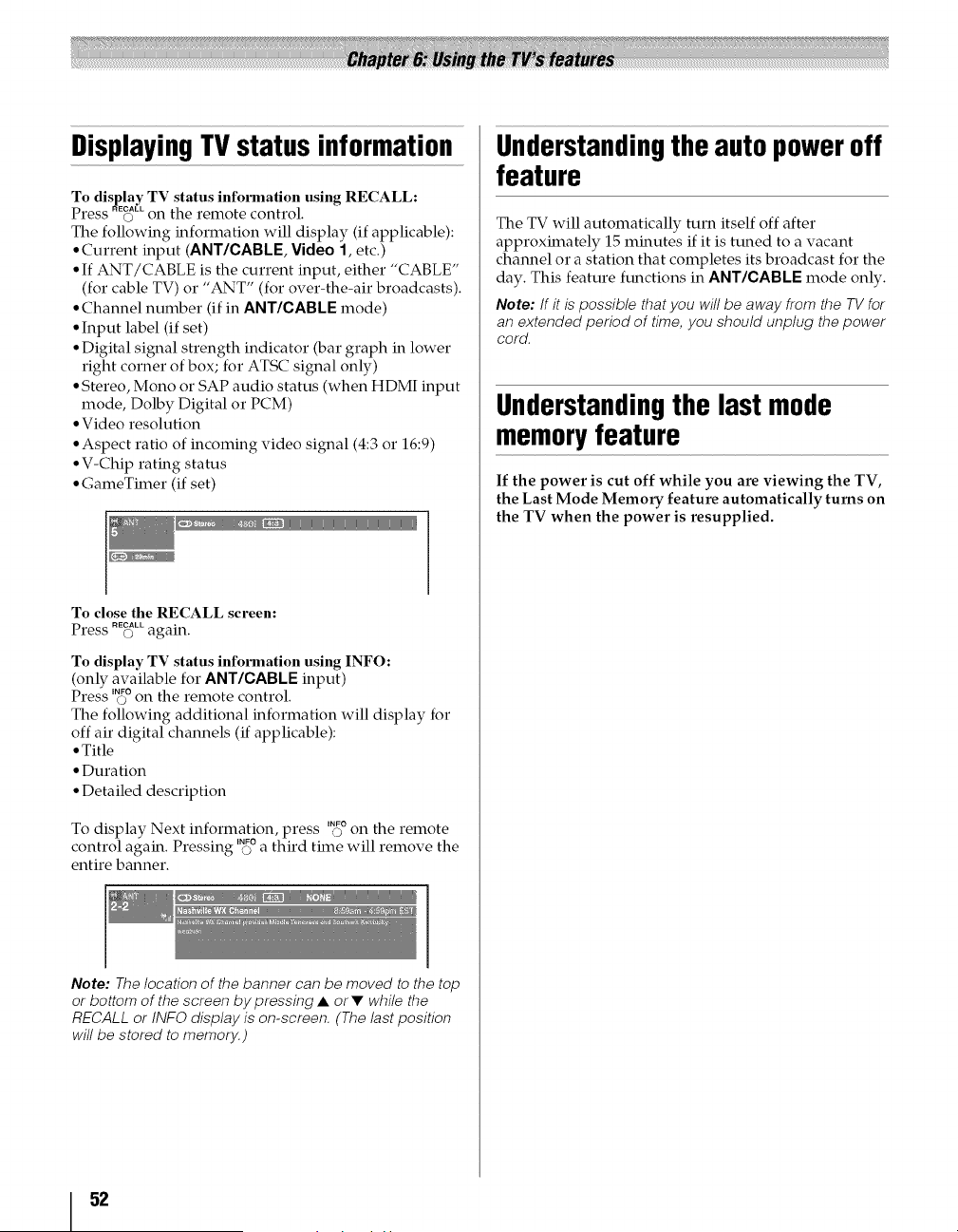

DisplayingTV status information
To display TV status infolanation using RECALL:
Press RE_LLon the remote control.
The following information will display (if applicable):
• Current input (ANT/CABLE, Video 1, etc.)
• If ANT/CABLE is the current input, either "CABLE"
(for cable TV) or "ANT" (for over-the-air broadcasts).
• Channel number (if in ANT/CABLE mode)
• Input label (if set)
• Digital signal strength indicator (bar graph in lower
right corner of box; for ATSC signal only)
• Stereo, Mono or SAP audio status (when HDMI input
mode, Dolby Digital or PCM)
• Video resolution
• Aspect ratio of incoming video signal (4:3 or 16:9)
• V-Chip rating status
• GameTimer (if set)
To close the RECALL screen:
Press RE_LLagain.
To display TV status infolTmation using INFO:
(only available for ANT/CABLE input)
Press _)o on the remote control.
The following additional information will display for
off air digital channels (if applicable):
• Title
• Duration
• Detailed description
To display Next information, press _._oon the remote
control again. Pressing _)o a third time will remove the
entire banner.
Note: The location of the banner can be moved to the top
or bottom of the screen by pressing • or V while the
RECALL or INFO display is on-screen. (The last position
will be stored to memory.)
Understandingthe autopoweroff
feature
The TV will automatically turn itself off after
approximately 15 minutes if it is tuned to a vacant
channel or a station that completes its broadcast for the
day. This feature functions in ANT/CABLE mode only.
Note: If it is possible that you will be away from the TV for
an extended period of time, you should unplug the power
cord.
Understandingthe last mode
memoryfeature
If the power is cut off while you are viewing the TV,
the Last Mode Memory feature automatically turns on
the TV when the power is resupplied.
52

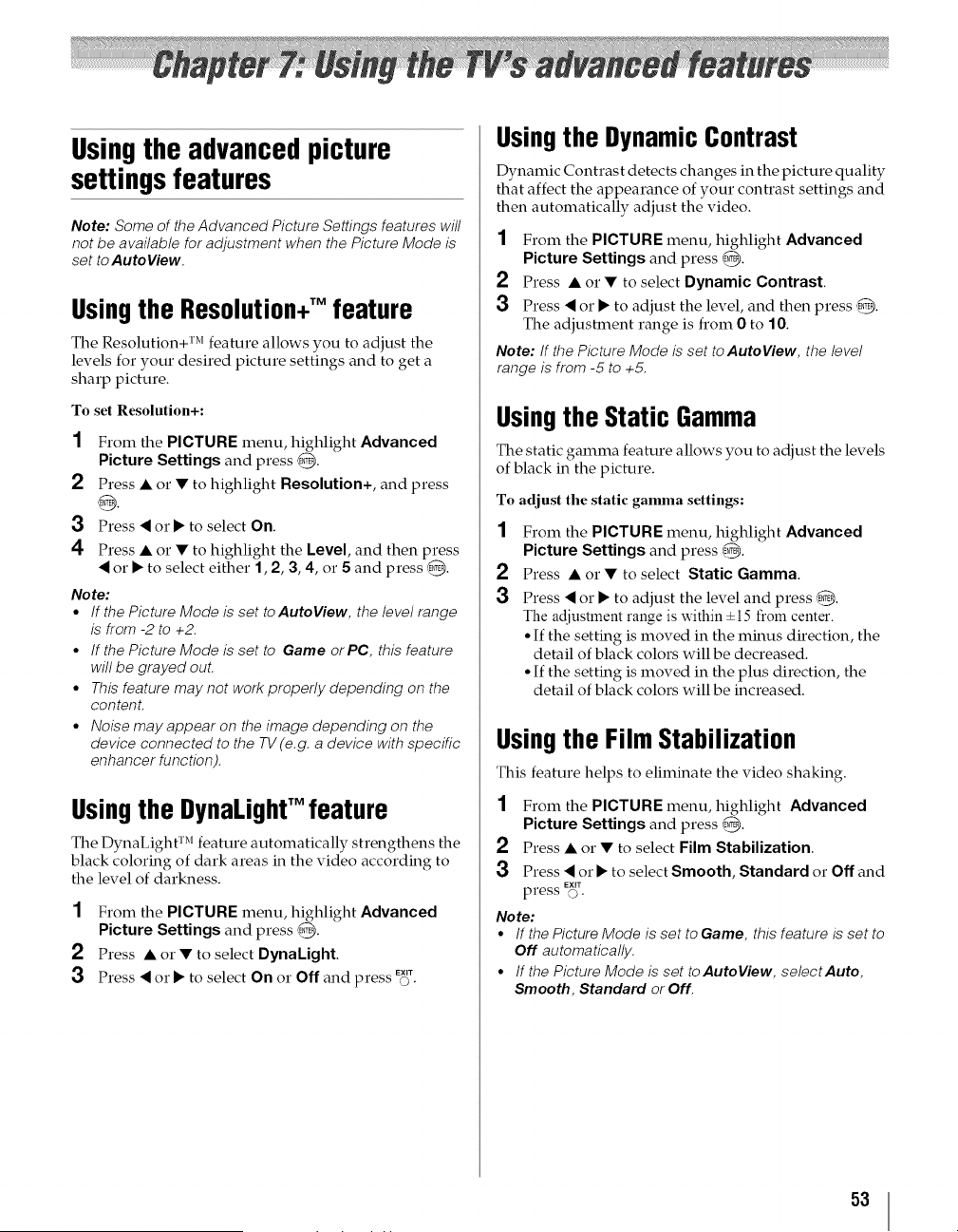

Usingthe advanced picture
settings features
Note: Some of the Advanced Picture Settings features will
not be available for adjustment when the Picture Mode is
set to Auto View.
Usingthe Resolution+TM feature
The Resolution+ TM feature allows you to adjust the
levels for your desired picture settings and to get a
sharp picture.
To set Resolution+:
1 From the PICTURE menu, highlight Advanced
Picture Settings and press _.
2 Press • or • to highlight Resolution+, and press
3 Press < or • to select On.
4 Press • or • to highlight the Level, and then press
or • to select either 1,2, 3, 4, or 5 and press _.
Note:
* /f the Picture Mode is set toAutoView, the level range
is from -2 to +2.
° If the Picture Mode is set to Game orPC, this feature
will be grayed out.
. This feature may not work properly depending on the
contenL
° Noise may appear on the image depending on the
device connected to the TV (e.g. a device with specific
enhancer function).
Usingthe DynaLightTM feature
The DynaLight TM feature automatically strengthens the
black coloring of dark areas in the video according to
the level of darkness.
1 From the PICTURE menu, highlight Advanced
Picture Settings and press _.
2 Press • or • to select DynaLight.
3 Press < or • to select On or Off and press EXIT
Usingthe Dynamic Contrast
Dynamic Contrast detects changes in the picture quality
that affect the appearance of your contrast settings and
then automatically adjust the video.
1 From the PICTURE menu, highlight Advanced
Picture Settings and press _.
2 Press • or • to select Dynamic Contrast.
3 Press < or • to adjust the level, and then press _.
The adjustment range is from 0 to 10.
Note: If the Picture Mode is set to AutoView, the level
range is from -5 to +5.
Usingthe Static Gamma
The static gamma feature allows you to adjust the levels
of black in the picture.
To adjust the static gamma settings:
1 From the PICTURE menu, highlight Advanced
Picture Settings and press _.
Press • or • to select Static Gamma.
2
3
Press < or • to adjust the level and press _.
The adjustment range is within ± 15 from center.
° If the setting is moved in the minus direction, the
detail of black colors ;viii be decreased.
° If the setting is moved in the plus direction, the
detail of black colors ;viii be increased.
Usingthe FilmStabilization
This feature helps to eliminate the video shaking.
1 From the PICTURE menu, highlight Advanced
Picture Settings and press _.
2 Press • or • to select Film Stabilization.
3 Press < or • to select Smooth, Standard or Off and
press %w.
Note:
• If the Picture Mode is set to Game, this feature is set to
Off automatically.
° If the Picture Mode is set toAutoView, selectAuto,
Smooth, Standard or Off.
53

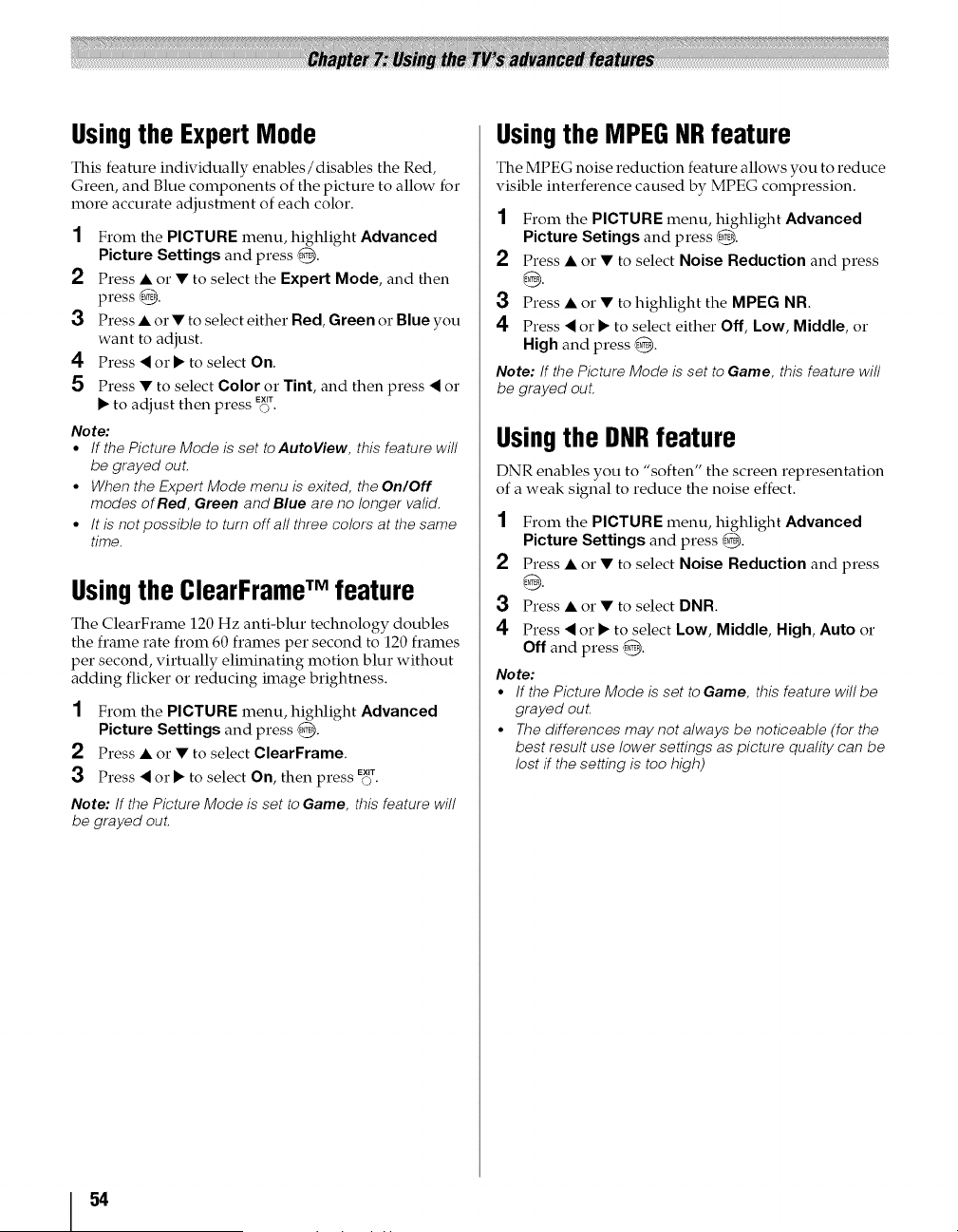

Usingthe ExpertMode
This feature individually enables/disables the Red,
Green, and Blue components of the picture to allow for
more accurate adjustment of each color.
1 From the PICTURE menu, highlight Advanced
Picture Settings and press @.
2 Press • or • to select the Expert Mode, and then
press @.
3 Press • or • to select either Red, Green or Blue you
want to adjust.
4 Press < or • to select On.
5 Press • to select Color or Tint, and then press < or
• to adjust then press E×'c].
Note:
• If the Picture Mode is set toAutoView, this feature will
be grayed ouL
• When the Expert Mode menu is exited, the On/Off
modes of Red, Green and Blue are no longer valid.
° It is notpossible to turn offal/three colors at the same
time.
Usingthe ClearFrameTM feature
The ClearFrame 120 Hz anti-blur technology doubles
the frame rate from 60 frames per second to 120 frames
per second, virtually eliminating motion blur without
adding flicker or reducing image brightness.
1
2
3
From the PICTURE menu, highlight Advanced
Picture Settings and press @.
Press • or • to select ClearFrame.
Press < or • to select On, then press E×'c].
Note: If the Picture Mode is set to Game, this feature will
be grayed out.
Usingthe MPEGNRfeature
The MPEG noise reduction feature allows you to reduce
visible interference caused by MPEG compression.
1 From the PICTURE menu, highlight Advanced
Picture Setings and press @.
2 Press • or • to select Noise Reduction and press
3 Press • or • to highlight the MPEG NR
4 Press < or • to select either Off, Low, Middle, or
High and press @.
Note: If the Picture Mode is set to Game, this feature will
be grayed out.
Usingthe DNRfeature
DNR enables you to "soften" the screen representation
of a weak signal to reduce the noise effect.
1 From the PICTURE menu, highlight Advanced
Picture Settings and press @.
2 Press • or • to select Noise Reduction and press
3 Press • or • to select DNR
4 Press < or • to select Low, Middle, High, Auto or
Off and press @.
Note:
• If the Picture Mode is set to Game, this feature wi//be
grayed ouL
• The differences may not always be noticeable (for the
best result use lower settings as picture quality can be
lost if the setting is too high)
54
Usingthe AutoBrightnessSensor
When the Auto Brightness Sensor feature is set to On,
the TV will automatically optimize the backlighting
levels to suit ambient light conditions.
1 From the PICTURE menu, highlight Advanced
Picture Settings and press _.
2 Press • or • to select Auto Brightness Sensor
Settings and press _.
3 Press • or • to highlight Auto Brightness Sensor.
4 Press _ or • to select On or Off and press _.
Note: If the Picture Mode is set to AutoView, this feature
will be automatically set to On and grayed out.
Usingthe BacklightAdjustmentPro
This feature adjusts the backlight so that it can change
to match the ambient light conditions.
1 From the PICTURE menu, highlight Advanced
Picture Settings and press _.
2 Press • or • to select Auto Brightness Sensor
Settings and press _.
3 Press • or • to highlight Backlight Adjustment
Pro and press _. The Backlight Control Level
window will appear.
4 Press _ to display the adjustment window. Press
or • to select the point and press • or • to adjust the
level. The adjustment range is from 0 to 100.
5
Press _ to fix the adjustment.
To cancel the adjustment when selecting a point,
select Cancel on the screen.
To revert the adjustments of all points to the factory
defaults, select Reset on the screen and press _.
Note: If theAuto Brightness Sensor is set to Off, this feature
will be grayed out.
Usingthe ColorMasterTM feature
The ColorMaster TM feature allows you to adjust
standard colors.
1 From the PICTURE menu, highlight Advanced
Picture Settings and press _.
2 Press • or • to select ColorMaster and press _ or
• to select On, then press Ex_j.
Usingthe BaseColorAdjustment
When ColorMaster TM is set to On, the list of base colors
will be displayed. You can select a base color to adjust.
1 From the PICTURE menu, highlight Advanced
Picture Settings and press _.
2 Press • or • to select Base Color Adjustment and
press _. The Base Color Adjustment window
will appear.
3 Press • or • to highlight the color you want to
adjust, and then press •.
4 Press _ or • to select either Hue, Saturation, or
Brightness.
5 Press • or • to adjust the setting.
6 Repeat steps 3 through 5 to adjust any other color.
To revert the adjustments to the factory defaults,
select Reset on the screen and press _.
55

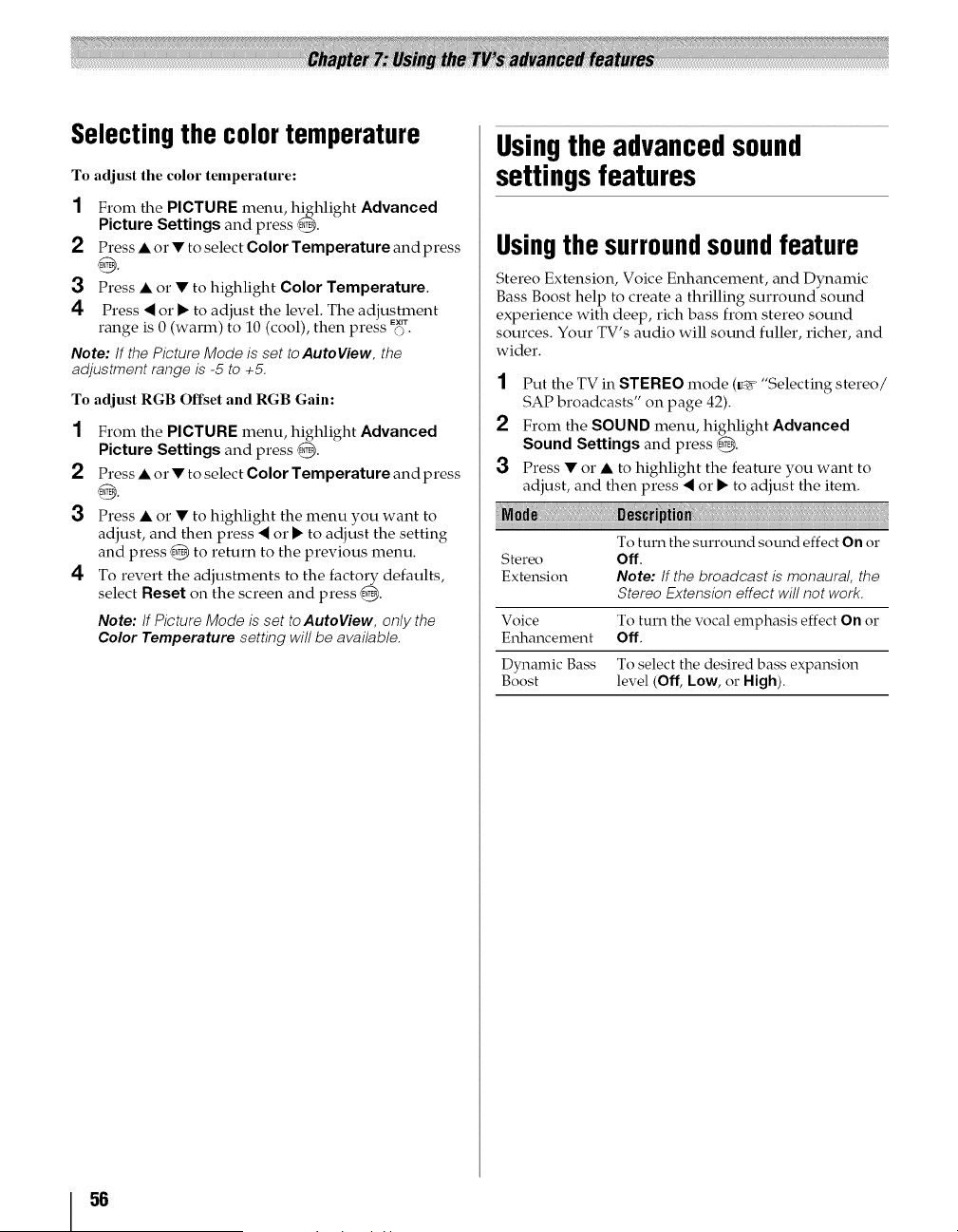

Selectingthe colortemperature
To adjust the color temperature:
1 From the PICTURE menu, highlight Advanced
Picture Settings and press @.
2 Press • or • to select Color Temperature and press
3 Press • or • to highlight Color Temperature.
4 Press < or • to adjust the level. The adjustment
range is 0 (warm) to 10 (cool), then press Ex_c].
Note: If the Picture Mode is set to AutoView, the
adjustment range is -5 to +5.
To adjust RGB Offset and RGB Gain:
1 From the PICTURE menu, highlight Advanced
Picture Settings and press _.
2 Press • or • to select Color Temperature and press
3 Press • or • to highlight the menu you want to
adjust, and then press < or • to adjust the setting
and press _ to return to the previous menu.
4 To revert the adjustments to the factory defaults,
select Reset on the screen and press _.
Note: If Picture Mode is set to AutoView, only the
Color Temperature setting will be available.
Usingthe advancedsound
settingsfeatures
Usingthe surroundsoundfeature
Stereo Extension, Voice Enhancement, and Dynamic
Bass Boost help to create a thrilling surround sound
experience with deep, rich bass from stereo sound
sources, Your TV's audio will sound fuller, richer, and
wider,
1 Put the TV in STEREO mode (_¢ "Selecting stereo/
SAP broadcasts" on page 42).
2 From the SOUND menu, highlight Advanced
Sound Settings and press _.
3 Press • or • to highlight the feature you want to
adjust, and then press < or • to adjust the item.
To turn the surround sound effect On or
Stereo Off.
Extension Note: If the broadcast is monaural, the
Stereo Extension effect will not work.
Voice To turn the vocal emphasis effect On or
Ellhancement Off.
Dynamic Bass To select the desired bass expansion
Boost level (Off, Low, or High).
56
Usingthe Media Player
The TV allows you to enjoy photos stored on a USB
device.
Note:
° Do not insert/remove the USB device while in use.
° M_uis not available during playback.
Media PlayerSpecifications
Device
USB device:
USB Mass Storage Class devices (MSC)
Note:
• Connectivity is not guaranteed for all devices.
° Connect the USB device to the TV directly.
° Do not use a USB hub.
Supported file system
FAT12, FAT16 and FAT32
You must obtain any required permission from copyright
owners to download or use copyrighted content. Toshiba
cannot and does not grant such permission.
Basicoperation
Auto sta11:
2
3
4
5
From the APPLICATIONS menu, highlight Media
Player and press @.
Press • or • to highlight Auto Start.
Press '_ o1"• to select On.
Insert USB device into the USB terminal on the right
side of the TV. A prompt will appear. Press '_ or •
to select Yes.
Press • or • to select a folder or photo, and then
press @.
Note: If the Auto Start is set to Off, you can start the Media
Player manually.
Manual Start:
1
2
3
Insert USB device into the USB terminal on the right
side of the TV.
From the APPLICATIONS menu, highlight Media
Player and press @.
Press • or • to select Photo and press @. The
thumbnail will appear.
To select a file in the list of contents:
1 Press • • '_ or • to select a file or folder.
2 Press @ to move to the next layer, press c"c_]"to
return to the previous layer.
To close the Media Player:
7
Press EXIT The TV will return to the last-x iewed channel
or video input.
57
Viewing JPEGfiles
To view in Single View mode:
1 When the thumbnail appears after starting the
Media Player (_#r' page 57), press _ • • • to select
a file or folder.
2 Press @ to begin viewing the selected file or to open
the selected folder. Press C,oaT,to return to the
previous folder.
Press c,<_T,to return to the previous layer.
3 Press • to view the next file, press _ to view the
previous file.
Note: If the previous or next file is not compatible, it will be
skipped automatically.
To view in Slideshow mode:
1 To switch to the Slideshow mode, press @ during
the Single View mode.
To return to Single View mode, press @ again.
2 Press • to view the next file, press _ to view the
previous file.
3
Note: If the previous or next file is not compatible, it will
be skipped automatically.
To close the Media Player, press Ex,j.
To set the Slideshow mode settings:
1 From the PREFERENCES menu, highlight Photo
Viewer Setup and press @.
2 Press • o1"• to highlight Interval Time o1"Repeat.
3 Press _ o1"• to adjust the setting and press @.
To set a time interval to view photos at
Interval Time your preferred intervals (3sec, 5sec,
10sec, 15sec, 30sec, 60sec, or 90sec).
To display photos in the same directory
Repeat repeatedly. On/Off
To rotate the image:
During viewing the image in the Single View mode,
press • to rotate the image 90 degrees clockwise, press
• to rotate the image 90 degrees counterclockwise.
To return to the thumbnail:
Press c._T.during Single View mode or Slideshow
mode.
To display file status information:
1 Press ._u.. The following information will be
displayed on the bottom of the screen.
• Content number/Total number (only for the
contents stored in the same directory)
• Photo title
• Date and time taken
• File size
• Slideshow icon (if applicable)
• Repeat play icon (if applicable)
• Operation guide
2 Press RE_L_again to make the information disappear
off screen.
Note: The file status information will disappear after about
6 seconds.
Compatibility files:
Data compatibility: JPEG Exif ver 2.2
File format: DCF ver 1.1
Maximum viewable resolution: 16384 x 16384 pixels
(Total number of pixels: 10,000,000)
Maximum photo size: c)MB
Total number of files: Less than 2000 per folder
58

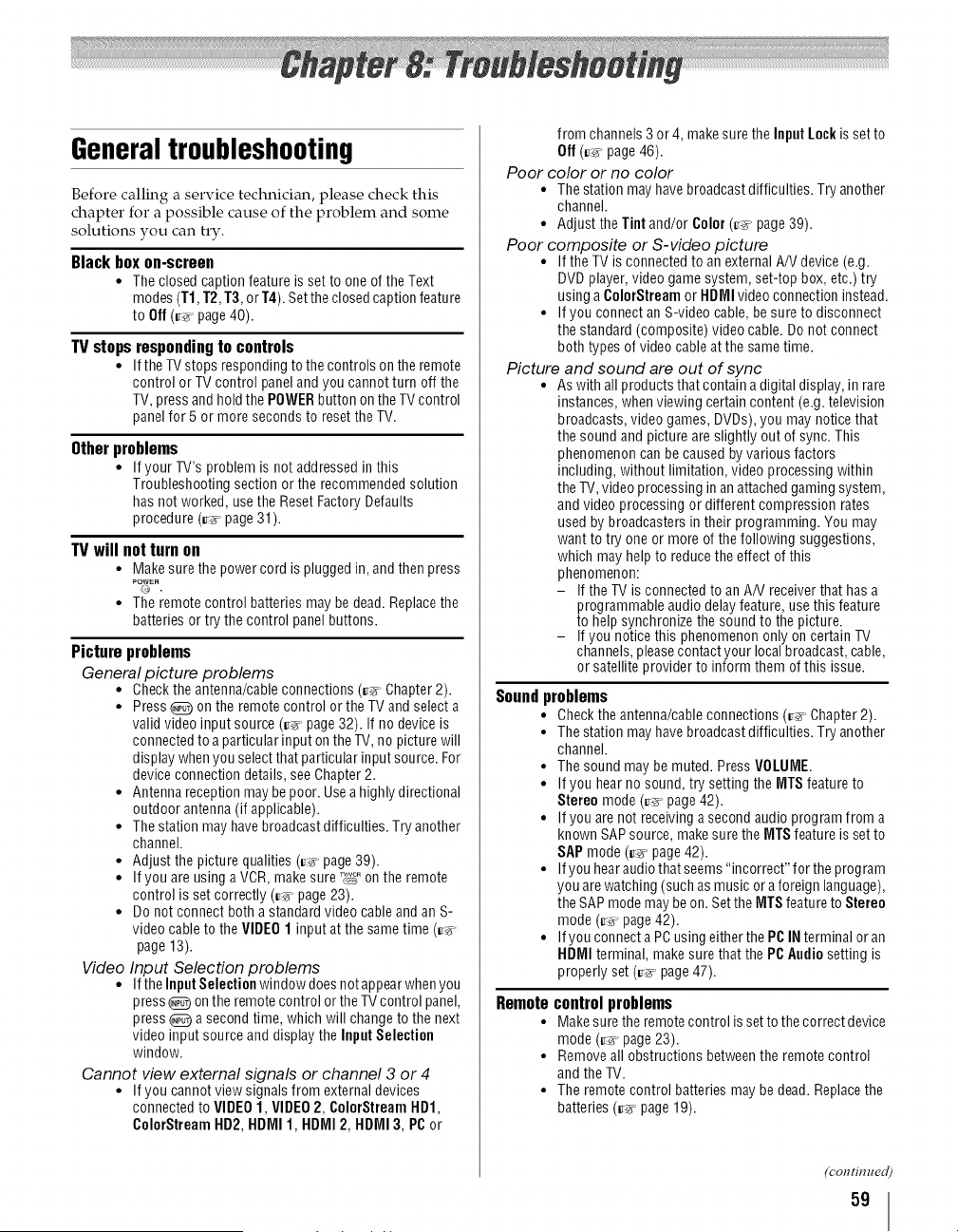

Generaltroubleshooting
Before calling a service technician, please check this
chapter for a possible cause of the problem and some
solutions you can try.
Black box on-screen
• The closed caption feature is set to one of the Text
modes (T1, T2,T3, or T4). Setthe closed caption feature
to Off (_-_-s-page40).
W stops responding to controls
• If the W stops responding to the controls on the remote
control or TV control paneland you cannot turn off the
TV, press and hold the POWERbutton on the TV control
panel for 5 or more seconds to reset the TV.
Other problems
• If your TV's problem is not addressed in this
Troubleshooting section or the recommended solution
has not worked, use the Reset Factory Defaults
procedure (_-_-s-page31).
W will not turn on
• Make sure the power cord is plugged in, and then press
PO_ER,
• The remote control batteries may be dead. Replace the
batteries or try the control panel buttons.
Picture problems
General picture problems
• Check the antenna/cable connections (_-_-s-Chapter 2).
• Press _D on the remote control or the TV and select a
valid video input source (_-_-s-page32). If no device is
connected to a particular input on the TV, no picture will
display when you select that particular input source. For
device connection details, see Chapter 2.
• Antenna reception may be poor. Usea highly directional
outdoor antenna (if applicable).
• The station may have broadcast difficulties. Try another
channel.
• Adjust the picture qualities (_-_-s-page 39).
• If you are using a VCR, make sure T_, on the remote
control is set correctly (c_-_page 23).
• Do not connect both a standard video cable and an S-
video cable to the VIDEO 1 input at the same time (_-_-s-
page 13).
Video Input Selection problems
• If the Input Selection window does not appear when you
press _D on the remote control or the TV control panel,
press _D a second time, which will change to the next
video input source and display the Input Selection
window.
Cannot view external signals or channel 3 or 4
• If you cannot view signals from external devices
connected to VIDEO 1, VIDEO2, ColorStream HD1,
ColorStream HD2, HDMI 1, HDMI 2, HDMI 3, PC or
from channels 3 or 4, make sure the Input Lockis set to
Off (_-s-page 46).
Poor color or no color
• The station may have broadcast difficulties. Try another
channel.
• Adjust the Tint and/or Color (c_-spage39).
Poor composite or S-video picture
• If the TV is connected to an external A/V device (e.g.
DVD player, video game system, set-top box, etc.) try
using a ColorStreamor HDMI video connection instead.
• If you connect an S-video cable, be sure to disconnect
the standard (composite) video cable. Do not connect
both types of video cable at the same time.
Picture and sound are out of sync
• As with all products that contain a digital display, in rare
instances, when viewing certain content (e.g. television
broadcasts, video games, DVDs), you may notice that
the sound and picture are slightly out of sync. This
phenomenon can be caused by various factors
including, without limitation, video processing within
the TV, video processing in an attached gaming system,
and video processing or different compression rates
used by broadcasters in their programming. You may
want to try one or more of the following suggestions,
which may help to reducethe effect of this
phenomenon:
If the TV is connected to an AN receiver that has a
programmable audio delay feature, use this feature
to help synchronize the sound to the picture.
If you notice this phenomenon only on certain TV
channels, please contact your local broadcast, cable,
or satellite provider to inform them of this issue.
Sound problems
• Check the antenna!cable connections (_s- Chapter 2).
• The station may have broadcast difficulties. Try another
channel.
• The sound may be muted. Press VOLUME.
• If you hear no sound, try setting the MTS feature to
Stereo mode (c,T page 42).
• If you are not receiving a second audio program from a
known SAPsource, makesure the MTS feature is set to
SAP mode (_-_-s-page42).
• If you hear audio that seems "incorrect" for the program
you are watching (such as music or aforeign language),
the SAP mode may be on. Setthe MTS feature to Stereo
mode (_-,Tpage 42).
• If you connect a PCusing either the PC IN terminal oran
HDMI terminal, make sure that the PC Audio setting is
properly set (_-_-s-page 47).
Remote
control problems
Make sure the remote control is set to the correct device
mode (_-_-_-page23).
Remove all obstructions between the remote control
and the TV.
The remote control batteries may be dead. Replacethe
batteries (_-_-_-page 19).
(continued)
59

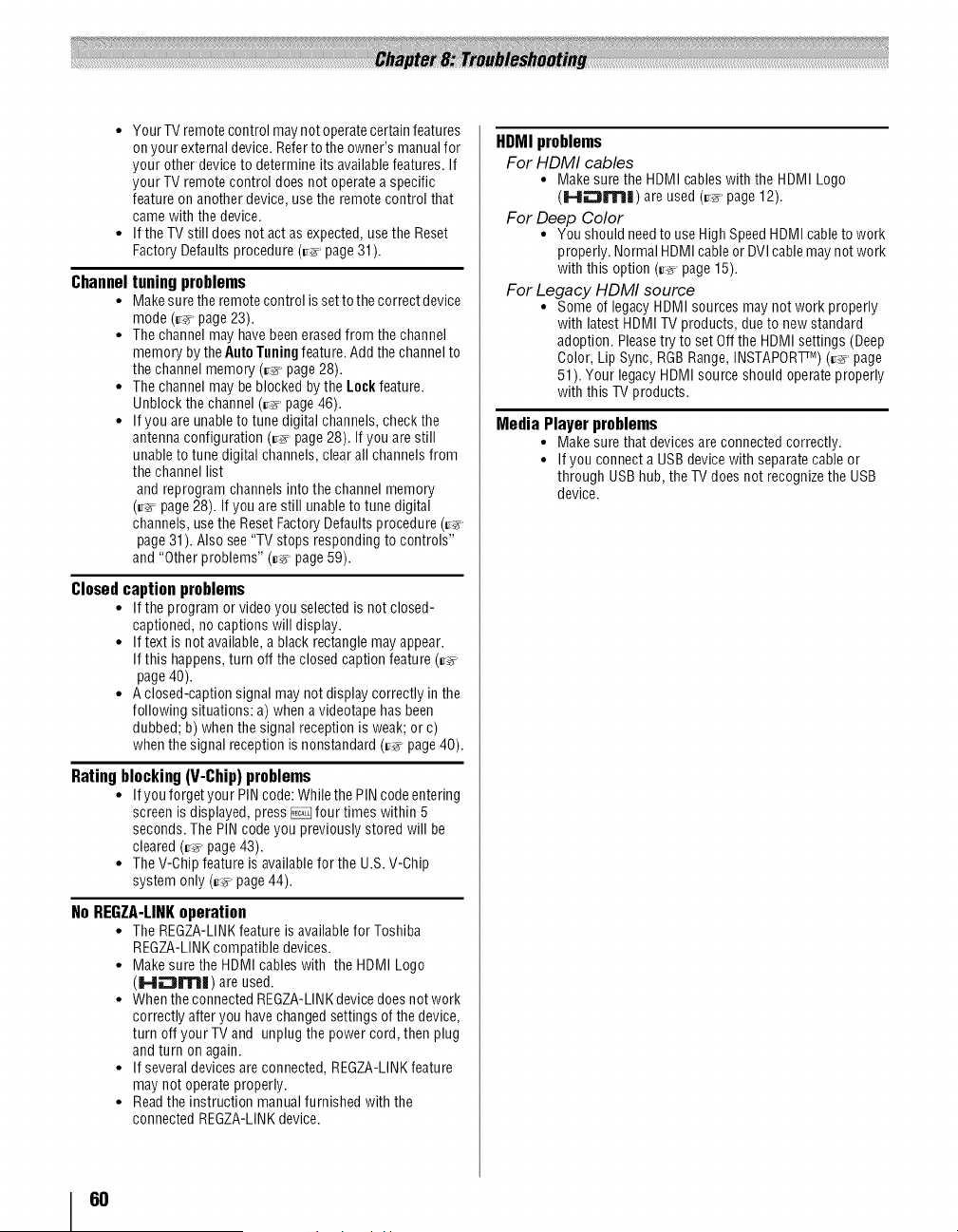

• Your TV remote control maynot operate certain features
on your external device. Referto the owner's manual for
your other device to determine its availablefeatures. If
your TV remote control does not operate a specific
feature on another device, use the remote control that
came with the device.
• If the TV still does not act as expected, use the Reset
Factory Defaults procedure (_-_--_page 31).
Channel
tuning problems
Makesurethe remotecontrolis settothe correctdevice
mode(_-_--_page23).
Thechannelmayhavebeenerasedfrom thechannel
memorybytheAutoTuningfeature.Addthechannelto
thechannelmemory(_,_ page28).
Thechannelmaybe blockedbythe lock feature.
Unblockthe channel(_-_--_page46).
If you areunableto tunedigitalchannels,checkthe
antennaconfiguration(_--_page28). If youarestill
unableto tunedigitalchannels,clearall channelsfrom
thechannellist
andreprogramchannelsintothe channelmemory
(_-_-_page28). If you arestill unableto tunedigital
channels,usethe ResetFactoryDefaultsprocedure(c_-_
page31).Alsosee"TVstopsrespondingto controls"
and"Otherproblems"(_-_-_page59).
Closed caption problems
• If theprogramor videoyou selectedis not closed-
captioned,nocaptionswill display.
• If text is not available,a blackrectanglemayappear.
If this happens,turn off theclosedcaptionfeature(_-_--_
page40).
• Aclosed-captionsignalmaynotdisplaycorrectlyin the
followingsituations:a) whena videotapehasbeen
dubbed;b) whenthe signalreceptionis weak;orc)
whenthe signalreceptionis nonstandard(_-_-_page40).
Rating blocking (V-Chip) problems
• If you forgetyour PiN code:While the PiN code entering
screen is displayed, press _ four times within 5
seconds. The PIN code you previously stored will be
cleared (_-_--_page 43).
• The V-Chip feature is available for the U.S. V-Chip
system only (_-_-_page 44).
No REGZA-LINKoperation
• TheREGZA-LINKfeatureis availablefor Toshiba
REGZA-LINKcompatibledevices.
• Makesurethe HDMIcableswith the HDMILogo
(IF.II=-_rrll|) areused.
• WhentheconnectedREGZA-LINKdevicedoesnot work
correctlyafteryou havechangedsettingsof thedevice,
turn off yourTVand unplugthe powercord,thenplug
andturn on again.
• If severaldevicesareconnected,REGZA-LINKfeature
maynotoperateproperly.
• Readtheinstructionmanualfurnishedwiththe
connectedREGZA-LINKdevice.
HDMI problems
For HDMI cables
• Make sure the HDMI cables with the HDMI Logo
(!,41_1['1_|) are used (_-_--_page 12).
For Deep Color
• You should needto use High Speed HDMI cable to work
properly. Normal HDMI cable or DVI cable may not work
with this option (_-_ page 15).
For Legacy HDMI source
• Some of legacy HDMI sources may not work properly
with latest HDMI TV products, due to new standard
adoption. Pleasetry to set Off the HDMI settings (Deep
Oolor, Lip Sync, RGB Range, INSTAPORTrM)(_-_ page
51). Your legacy HDMI source should operate properly
with this TV products.
Media Player problems
• Make sure that devices are connected correctly.
• If you connect a USBdevice with separate cable or
through USBhub, the TV does not recognize the USB
device.
60

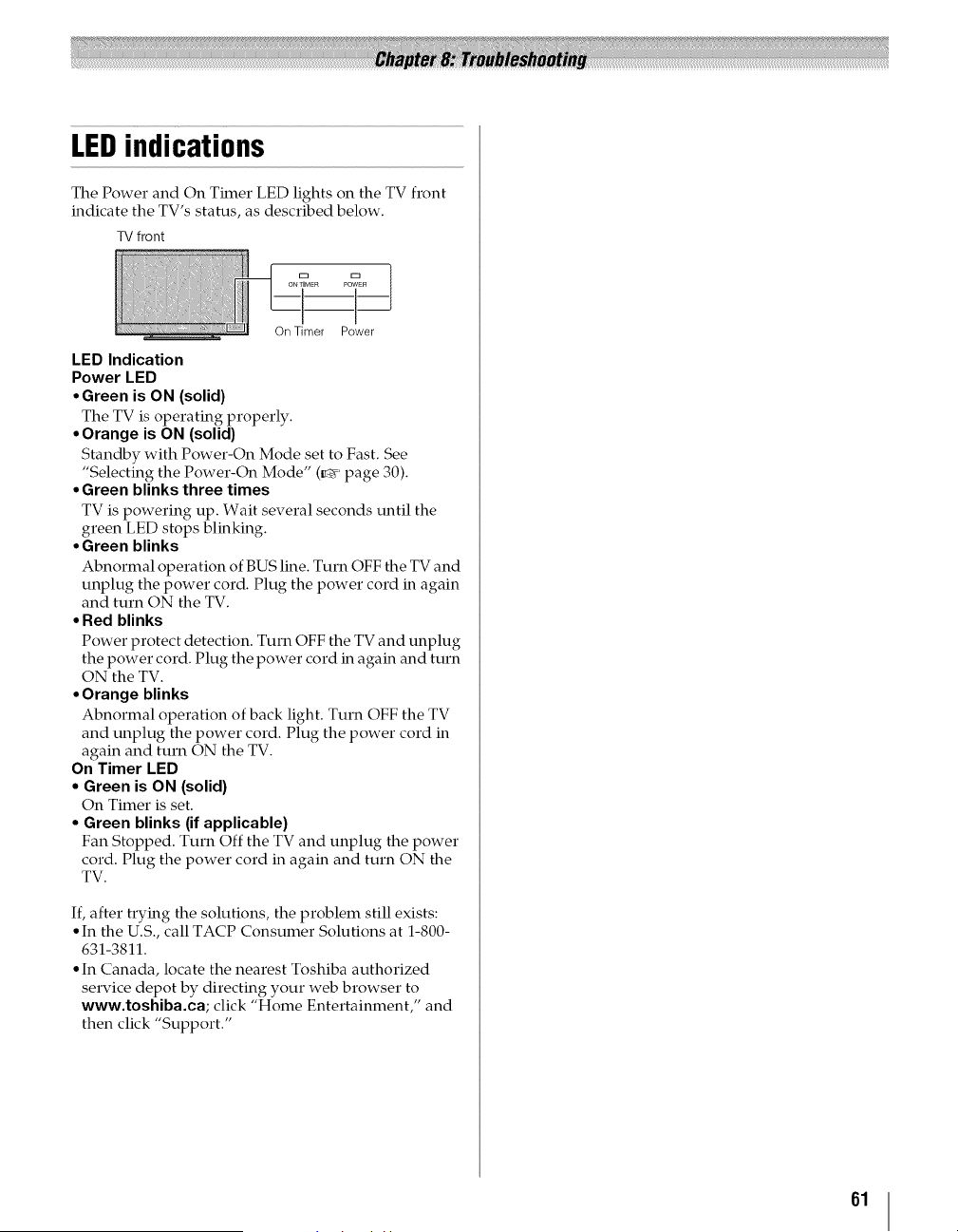

LEDindications
The Power and On Timer LED lights on the TV front
indicate the TV's status, as described below.
TV front
ONTIMER PO
On Timer Power
LED Indication
Power LED
• Green is ON (solid)
The TV is operating properly.
• Orange is ON (solid)
Standby with Power-On Mode set to Fast. See
"Selecting the Power-On Mode" (_ page 30).
• Green blinks three times
TV is powering up. Wait several seconds until the
green LED stops blinking.
• Green blinks
Abnormal operation of BUS line. Turn OFF the TV and
unplug the power cord. Plug the power cord in again
and turn ON the TV.
• Red blinks
Power protect detection. Turn OFF the TV and unplug
the power cord. Plug the power cord in again and turn
ON the TV.
• Orange blinks
Abnormal operation of back light. Turn OFF the TV
and unplug the power cord. Plug the power cord in
again and turn ON the TV.
On Timer LED
• Green is ON (solid)
On Timer is set.
• Green blinks (if applicable)
Fan Stopped. Turn Off the TV and unplug the power
cord. Plug the power cord in again and turn ON the
TV.
If, after trying the solutions, the problem still exists:
• In the U.S., call TACP Consumer Solutions at 1-800-
631-3811.
• In Canada, locate the nearest Toshiba authorized
service depot by directing your web browser to
www.toshiba.ca; click "Home Entertainment," and
then click "Support."
61

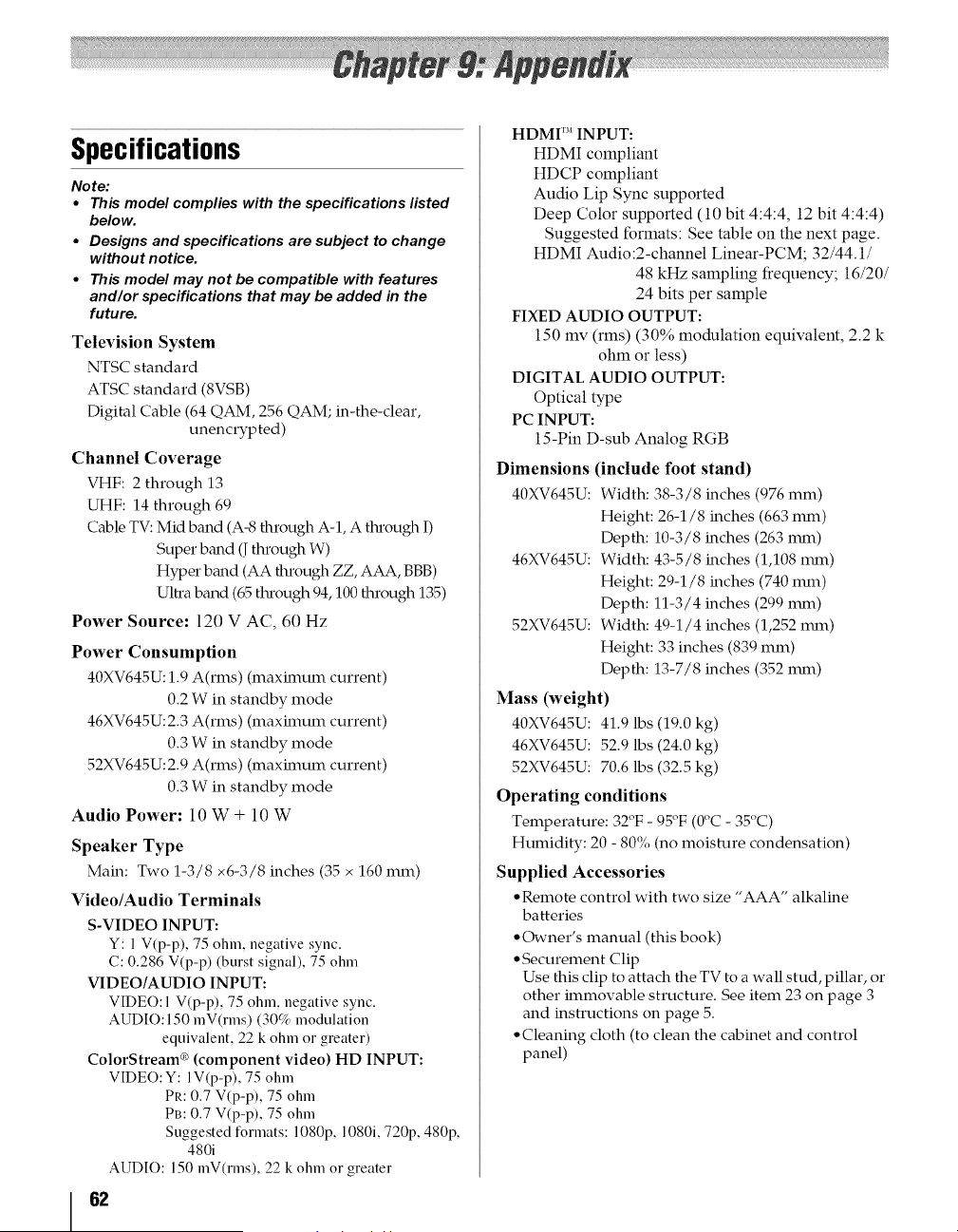

Specifications
Note:
° This model complies with the specifications listed
below.
° Designs and specifications are subject to change
without notice.
° This model may not be compatible with features
and/or specifications that may be added in the
future.
Television System
NTSC standard
ATSC standard (8VSB)
Digital Cable (64 QAM, 256 QAM; in-the-clear,
unencrypted)
Channel Coverage
VHF: 2 through 13
UHF: 14 through 69
Cable TV: Mid band (A-8 through A-l, A through I)
Super band (J through W)
Hyper band (AA through ZZ, AAA, BBB)
Ultra band (65 through 94,100 through 135)
Power Source: 120 V AC, 60 Hz
Power Consumption
40XV645U: 1.9 A(rms) (maximum current)
0.2 W in standby mode
46XV645U: 2.3 A(rms) (maximum current)
0.3 W in standby mode
52XV645U: 2.9 A(rms) (maximum current)
0.3 W in standby mode
Audio Power: 10 W + 10 W
Speaker Type
Main: Two 1-3/8 x6-3/8 inches (35 x 160 mm)
Video/Audio Terminals
S-VIDEO INPUT:
Y: I V(p-p), 75 ohm, negative sync.
C: 0.286 V(p-p) (burst signal), 75 ohm
VIDEO/AUDIO INPUT:
VIDEO:I V(p-p), 75 ohm. negative sync.
AUDIO: 150 mV(rms) (30% modulation
equivalent, 22 k ohm or greater)
ColorStream _ (component video) HD INPUT:
VIDEO:Y: IV(p-p), 75 ohm
PR: 0.7 V(p-p), 75 ohm
PB: 0.7 V(p-p), 75 ohm
Suggested formats: 1080p, 1080i, 720p, 480p,
480i
AUDIO: 150 mV(rms), 22 k ohm or greater
62
HDMI r'' INPUT:
HDMI compliant
HDCP compliant
Audio Lip Sync supported
Deep Color supported (10 bit 4:4:4, 12 bit 4:4:4)
Suggested formats: See table on the next page.
HDMI Audio:2-channel Linear-PCM; 32/44.1/
48 kHz sampling fi:equency; 16/20/
24 bits per sample
FIXED AUDIO OUTPUT:
150 mv (rms) (30% modulation equivalent, 2.2 k
ohm or less)
DIGITAL AUDIO OUTPUT:
Optical type
PC INPUT:
15-Pin D-sub Analog RGB
Dimensions (include foot stand)
40XV645U: Width: 38-3/8 inches (976 mm)
Height: 26-1/8 inches (663 mm)
Depth: 10-3/8 inches (263 mm)
46XV645U: Width: 43-5/8 inches (1,108 mm)
Height: 29-1/8 inches (740 mm)
Depth: 11-3/4 inches (299 mm)
52XV645U: Width: 49-1/4 inches (1,252 mm)
Height: 33 inches (839 mm)
Depth: 13-7/8 inches (352 mm)
Mass (weight)
40XV645U: 41.9 lbs (19.0 kg)
46XV645U: 52.9 lbs (24.0 kg)
52XV645U: 70.6 lbs (32.5 kg)
Operating conditions
Temperature: 32°F - 95°F (ff'C - 35°C)
Humidity: 20 - 80% (no moisture condensation)
Supplied Accessories
• Remote control with two size "AAA" alkaline
batteries
• Owner's manual (this book)
• Securement Clip
Use this clip to attach the TV to a wall stud, pillar, or
other immovable structure. See item 23 on page 3
and instructions on page 5.
• Cleaning cloth (to clean the cabinet and control
panel)
Acceptable signal formats for PC IN and HDMI terminals
PCINsignal formats
Note:
° The PC IN on this TVonlyaccepts the signal formats which are compliant with VESA-DMTas shown in the table below.
Since some PCs input signals which are different from the resolution and frequency described in the table below, the
following phenomenon may occur; incorrect display, false format detection, picture position failure, blur, or judder. In
this case, set the monitor output format on your PC to conform to any signals in the table below.
° The signals whose vertical frequency are 56Hz, 70Hz, 72Hz, or 75Hz are converted to 60Hz signal.
° Whenyou connecta PC to this TV, itis recommended to set the refresh rate ofyourPC to 60Hz.
° The PC IN on this TV does not accept the Sync on Green, Composit Sync and Interlace signals.
VGA 640 x 480
SVGA 800 x 600
XGA 1024 768
768
768
1024
WXGA 1280
1360
1280SXGA
59.940Hz 31.469kHz 25.175MHz O
72.809Hz 37.861kHz 31.500MHz
75.000Hz 37.500kHz 31.500MHz
56.250Hz 35.156kHz 36,000MHz
60.317Hz 37.879kHz 40.000MHz
72.188Hz 48.077kHz 50.000MHz
75.000Hz 46.875kHz 49.500MHz
60.004Hz 48.363kHz 65.000MHz
70.069Hz 56.476kHz 75.000MHz
75.029Hz 60.023kHz 78.750MHz
59.995Hz 47.396kHz 68,250MHz
59.870Hz 47.776kHz 79.500MHz
74.893Hz 60.289kHz 102.250MHz
60.015Hz 47.712kHz 85.500MHz
60.020Hz 63.981kHz 108.000MHz
75.025Hz 79.976kHz 135.000MHz
63
HDMIsignalformats
Note:
° The HDMI inputs on this TV only accept VGA, SVGA, XGA, WXGA, and SXGA signal formats which are compliant with
VESA as the table below. Since some PCs and HDMI or DVI devices input signals which are different from the resolution
and frequency described in the table below, the following phenomenon may occur; incorrect display, false format
detection, picture position failure, blur, or judder. In this case, set the monitor output format on your PC, HDMI or DVI
device to conform to any signals in the table below.
° The signals whose vertical frequency are 24Hz, 56Hz, 70Hz, 72Hz, or 75Hz are converted to 60Hz signal
° Whenyou connecta PC to this TV, itis recommended to set the refresh rate ofyourPC to 60Hz.
VGA 640 x 480
SVGA 800 x 600
XGA
WXGA
SXGA
1024 768
1280 768
1360 768
1280 1024
480i 720 x 480i
480p 720 x 480p
720p 1280 x 720p
1080i 1920 x 1080i
1080p 1920 x 1080p
59.940Hz 31.469kHz 25.175MHz O
72.809Hz 37.861kHz 31.500MHz
75.000Hz 37.500kHz 31.500MHz
56.250Hz 35.156kHz 36.000MHz
60.317Hz 37.879kHz 40.000MHz
72.188Hz 48.077kHz 50.000MHz
75.000Hz 46.875kHz 49.500MHz
60.004Hz 48.363kHz 65.000MHz
70.069Hz 56.476kHz 75.000MHz
75.029Hz 60.023kHz 78.750MHz
59.995Hz 47.396kHz 68.250MHz
59.870Hz 47.776kHz 79.500MHz
74.893Hz 60.289kHz 102.250MHz
60.015Hz 47.712kHz 85.500MHz
60.020Hz 63.981kHz 108.000MHz
75.000Hz 79.976kHz 135.000MHz
59.940/60Hz 15.734/15.750kHz 27.000/27.027MHz
59.940/60Hz 31.469/31.500kHz 27.000/27.027MHz
59.940/60Hz 44.955/45.000kHz 74.176/74.250MHz
59.940/60Hz 33.716/33.750kHz 74.176/74.250MHz
23.976/24Hz 26.973/27.000kHz 74.176/74.250MHz
59.940/60Hz 67.433/67.500kHz 148.352/148.500MHz
64
Limited United States Warranty
for LCDTelevisions 26" and Larger
Toshiba America Consumer Products, L.L.C. ("TACP") makes
the following limited warranties to original consumers in the
United States.
THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL
CONSUMER PURCHASER OR ANY PERSON RECEIVING
THIS LCD TELEVISION AS A GIFT FROM THE ORIGINAL
CONSUMER PURCHASER AND TO NO OTHER
PURCHASER OR TRANSFEREE.
LCD TELEVISIONS PURCHASED IN THE U.S.A. AND USED
ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING,
WITHOUT LIMITATION, CANADA AND MEXICO, ARE NOT
COVERED BY THESE WARRANTIES.
LCD TELEVISIONS PURCHASED ANYWHERE OUTSIDE OF
THE U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA
AND MEXICO, AND USED IN THE U.S.A., ARE NOT
COVERED BY THESE WARRANTIES.
Limited One (1) Year Warranty on Parts and Labor
TACP warrants this LCD Television and its parts against
defects in materials or workmanship for a period of one (1)
year after the date of original retail purchase. DURING THIS
PERIOD, TACP WILL, AT TACP'S OPTION, REPAIR OR
REPLACE A DEFECTIVE PART WITH A NEW OR
REFURBISHED PART WITHOUT CHARGE TO YOU FOR
PARTS OR LABOR. During this period, TACP Authorized
Service Station personnel will come to your home when
warranty service is required. Depending on the type of repair
required, the service will either be performed in your home or
the LCD Television will be taken to a TACP Authorized Service
Station for repair and returned to your home at no cost to you.
Rental Units
The warranty for LCD Television rental units begins on the
date of the first rental or thirty (30) days after the date of
shipment to the rental firm, whichever comes first.
Limited Warranty for Commercial Units
TACP warrants LCD Televisions that are sold and used for
commercial purposes as follows: all parts are warranted
against defects in materials or workmanship for a period of
ninety (90) days after the date of original retail purchase.
DURING THIS PERIOD, TACP WILL, AT TACP'S OPTION,
REPAIR OR REPLACE A DEFECTIVE PART WITH A NEW OR
REFURBISHED PART WITHOUT CHARGE TO YOU.
Owner's Manual and Product Registration Card
Read this owner's manual thoroughly before operating this
LCD Television.
Complete and mail the enclosed product registration card or
register your LCD Television online at
www.tacp.toshiba.com/service as soon as possible. By
registering your LCD Television you will enable TACP to bring
you new products specifically designed to meet your needs
and help us to contact you in the unlikely event a safety
notification is required under the U.S. Consumer Product
Safety Act. Failure to complete and return the product
registration card does not diminish your warranty
rights.
Your Responsibility
THE ABOVE WARRANTIES ARE SUBJECT TO THE
FOLLOWING CONDITIONS:
(1) You must retain your original bill of sale or provide other
proof of purchase.
(2) All warranty servicing of this LCD Television must be
performed by an Authorized TACP Service Station.
(3) The warranties from TACP are effective only if this LCD
Television is purchased and operated in the Continental
U.S.A. or Puerto Rico.
(4) Labor service charges for set installation, setup,
adjustment of customer controls, and installation or repair
of antenna systems are not covered by this warranty.
Reception problems caused by inadequate antenna
systems, misaligned satellite dishes, cable television
distribution, VCRs, DVD players/recorders, personal
computer level IEEE-1394 devices, and any other
connected signal source device are your responsibility.
(5) Warranties extend only to defects in materials or
workmanship as limited above, and do not extend to any
LCD Television or parts that have been lost or discarded
by you or to damage to the LCD Television or parts
caused by fires, misuse, accident, Acts of God (such as
lightning or fluctuations in electric power), improper
installation, improper maintenance, or use in violation of
instructions furnished by TACP; use or malfunction
through simultaneous use of this LCD Television and
connected equipment; or to units that have been
modified or had the serial number removed, altered,
defaced, or rendered illegible.
How to Obtain Warranty Service
If,after following all of the operating instructions in this manual
and reviewing the section entitled "Troubleshooting," you find
that service is needed:
(1) To find the nearest TACP Authorized Service Station, visit
TACP's website at www.tacp.toshiba.com/service
or contact TACP's Consumer Solution Center toll free at
1-800-631-3811.
(2) You must present your original bill of sale or other proof
of purchase to the TACP Authorized Service Station.
For additional information, visit TACP's website:
www.tacp.toshiba.com
ALLWARRANTIESIMPLIEDBYTHELAWOFANY STATEOF
THE U.S.A.,INCLUDINGTHE IMPLIEDWARRANTIESOF
MERCHANTABILITYAND FITNESSFORA PARTICULAR
PURPOSE,ARE EXPRESSLYLIMITEDTO THE DURATION
OFTHE LIMITEDWARRANTIESSET FORTHABOVE.WITH
THE EXCEPTIONOFANY WARRANTIESIMPLIEDBY THE
LAW OFANYSTATEOFTHE U.S.A.AS HEREBYLIMITED,
65
THE FOREGOINGWARRANTYIS EXCLUSIVEAND IN LIEU
OFALL OTHERWARRANTIES,GUARANTEES,
AGREEMENTS,AND SIMILAROBLIGATIONSOFTACP
WITH RESPECTTO THE REPAIROR REPLACEMENTOF
ANY PARTS.IN NO EVENTSHALLTACPBE LIABLEFOR
CONSEQUENTIALOR INCIDENTALDAMAGES
(INCLUDING,BUT NOT LIMITEDTO, LOSTPROFITS,
BUSINESSINTERRUPTION,OR MODIFICATIONOR
ERASUREOFRECORDEDDATACAUSEDBY USE,MISUSE
OR INABILITYTOUSETHISLCD TELEVISION).
Noperson, agent, distributor,dealer, or company is
authorizedto change, modify, or extend the termsof these
warranties in anymannerwhatsoever.The timewithin which
an action must be commencedto enforce any obligation of
TACParising under the warrantyor under any statute or law
of the UnitedStatesor any statethereof is hereby limitedto
ninety (90) days from the date you discover,or should have
discovered, the defect. This limitationdoes not apply to
impliedwarranties arising under the lawof any stateof the
U,S,A.
THISWARRANTYGIVESYOUSPECIFICLEGALRIGHTS
AND YOU MAYALSOHAVEOTHERRIGHTSWHICH MAY
VARYFROMSTATETO STATEINTHE U.S.A. SOME
STATESOF THEU.S.A.DO NOTALLOW LIMITATIONSON
THE DURATIONOFAN IMPLIEDWARRANTY,WHENAN
ACTIONMAYBE BROUGHT,OR THE EXCLUSIONOR
LIMITATIONOF INCIDENTALOR CONSEQUENTIAL
DAMAGES.THEREFORE,THE ABOVEPROVISIONSMAY
NOT APPLYTOYOU UNDERSUCH CIRCUMSTANCES.
Limited Canadian Warranty
for Toshiba Brand Flat Panel Televisions
Toshiba of Canada Limited ("TCL") makes the following
limited warranties to original consumers in Canada. THESE
LIMITED WARRANTIES EXTEND TO THE ORIGINAL
CONSUMER PURCHASER OR ANY PERSON RECEIVING
THIS TOSHIBA BRAND FLAT PANEL TELEVISION (the
"TELEVISION(S)" or "Television(s)") AS A GIFT FROM THE
ORIGINAL CONSUMER PURCHASER AND TO NO OTHER
PURCHASER OR TRANSFEREE.
TELEVISIONS PURCHASED IN CANADA, AND USED
ANYWHERE OUTSIDE OF CANADA INCLUDING, WITHOUT
LIMITATION, THE UNITED STATES AND MEXICO, ARE NOT
COVERED BY THESE WARRANTIES.
TELEVISIONS PURCHASED ANYWHERE OUTSIDE OF
CANADA, INCLUDING, WITHOUT LIMITATION, THE UNITED
STATES AND MEXICO, AND USED IN CANADA, ARE NOT
COVERED BY THESE WARRANTIES.
Limited One (1} Year Warranty on Parts and Labour
Subject to the more limited warranty if the Television is used
for any commercial or business purposes as set out below,
TCL warrants the Television and its parts against material
defects in materials or workmanship that result in the
Television failing for a period of one (1) year after the date of
original retail purchase. DURING THIS PERIOD, TCL WILL,
AT TCL'S OPTION, REPAIR OR REPLACE A DEFECTIVE
PART WITH A NEW OR REFURBISHED PART WITHOUT
CHARGE TO YOU FOR PARTS OR LABOUR.
(a) FOR TELEVISIONS 32 INCHES OR LESS: YOU MUST
DELIVER THE ENTIRE TELEVISION TO A TCL
TELEVISION AUTHORIZED SERVICE PROVIDER
("ASP"). YOU MUST PAY FOR ALL
TRANSPORTATION AND INSURANCE CHARGES
FOR THE TELEVISION TO AND FROM THE ASP.
(b) FOR TELEVISIONS OVER 32 INCHES: During this
period, ASP personnel will come to your home when
warranty service is required. Depending on the type of
repair required, the service will either be performed in
your home or the Television will be taken to an ASP for
repair and returned to your home at no cost to you. IN-
HOME SERVICE ONLY APPLIES WITHIN 100
KILOMETERS OF AN ASP. IF YOU ARE NOT WITHIN
100 KILOMETERS OF AN ASP, YOU MUST DELIVER
THE ENTIRE TELEVISION TO AN ASP. YOU MUST
PAY FOR ALLTRANSPORTATION AND INSURANCE
CHARGES FOR THE TELEVISION TO AND FROM
THE ASP.
Limited Warranty for Commercial Units
TCL warrants Televisions that are used for any commercial or
business purposes as follows: all parts are warranted against
material defects in materials or workmanship that result in the
Television failing for a period of ninety (90) days after the date
of original retail purchase. DURING THIS PERIOD, TCL WILL,
AT TCL'S OPTION, REPAIR OR REPLACE THE DEFECTIVE
PART WITH A NEW OR REFURBISHED PART WITHOUT
CHARGE TO YOU.
(c) FOR TELEVISIONS 32 INCHES OR LESS: YOU MUST
DELIVER THE ENTIRE TELEVISION TO AN ASP. YOU
MUST PAY FOR ALL TRANSPORTATION AND
INSURANCE CHARGES FOR THE TELEVISION TO AND
FROM THE ASP.
(d) FOR TELEVISIONS OVER 32 INCHES: During this
period, ASP personnel will come on-site when
warranty service is required. Depending on the type of
repair required, the service will either be performed
on-site or the Television will be taken to an ASP for
repair and returned at no cost to you. ON-SITE
SERVICE ONLY APPLIES WITHIN 100 KILOMETERS
OF AN ASP. IF YOU ARE NOT WITHIN 100
KILOMETERS OF AN ASP, YOU MUST DELIVER THE
ENTIRE TELEVISION TO AN ASP. YOU MUST PAY
FOR ALL TRANSPORTATION AND INSURANCE
CHARGES FOR THE TELEVISION TO AND FROM
THE ASP.
66
Rental Units
The warranty for Television rental units beg ins with the date of
first rental or thirty (30) days from the date of shipment to the
rental firm, whichever comes first,
Your Responsibility
THE ABOVE WARRANTIES ARE SUBJECT TO THE
FOLLOWING CONDITIONS:
(1) You must provide your bill of sale or other proof of
purchase.
(2) All warranty servicing of this Television must be
performed by an ASP.
(3) The warranties from TCL are effective only if the
Television is (i) purchased as new and unopened from
TCL or from TCL's authorized distributors, dealers or
resellers ("ADR's") and (ii)located/operated in Canada.
(4) Labour charges for set installation, setup, adjustment of
customer controls, and installation or repair of antenna
systems are not covered by these warranties. Reception
problems caused by inadequate antenna systems are
your responsibility.
(5) Warranties extend only to material defects in materials or
workmanship as limited above, and do not extend to:
a. Service, repairs or replacement made necessary by
accident, misuse, abuse, moisture, liquids, dust, dirt,
neglect, accident, damage, 24/7 applications,
improper installation, improper operation, improper
cleaning, improper maintenance, normal wear and
tear, screen burn or image retention caused by
prolonged display of static images and/or phosphor
aging, or any other external cause or event, act or
omission outside the control of TCL, including fire,
theft, acts of God, alteration, power failures, power
surges or power shortages, lightning, other electrical
faults, or repairs, modifications or replacements by
persons other than those authorized by TCL to service
the Television;
b, Replacement of missing, discarded or lost parts, the
provision of retrofits, or preventive maintenance;
c, Repair of damage that is cosmetic only or does not
affect the Television functionality, such as wear and
tear, scratches and dents;
d, Service on Toshiba-branded accessory items (such
accessory items may be covered by their own
warranty);
e, Service on third party products or service made
necessary by use of incompatible third party products;
f, Service made necessary by the simultaneous use of
this Television and connected equipment;
g. Modifications to the Television not approved in writing
by TCL, and service made necessary by the use or
installation of non-Toshiba modifications to the
Television;
h. Service of a Television on which the TOSHIBA label or
logo, rating label or serial number have been defaced
or removed;
i, On-site service and repair of the Television; and
j. Damage to the Television caused by failure to follow
the specifications, User manuals or guides as to usage
and/or storage.
Disclaimer and Limitation of Remedy
TO THE EXTENT NOT PRECLUDED BY LAW, ALL OTHER
EXPRESS AND IMPLIED WARRANTIES, CONDITIONS AND
REPRESENTATIONS FOR THIS TELEVISION, INCLUDING
THE IMPLIED WARRANTIES, CONDITIONS AND
REPRESENTATIONS OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED
AND EXCLUDED. IF THE APPLICABLE LAW, STATUTORY
OR OTHERWISE, PRECLUDES THE EXCLUSION OF ANY
IMPLIED WARRANTIES, CONDITIONS AND
REPRESENTATIONS THEN SUCH IMPLIED WARRANTIES,
CONDITIONS AND REPRESENTATIONS ARE OTHERWISE
LIMITED IN DURATION TO THE TERM OF THIS EXPRESS
WRITTEN LIMITED WARRANTY. TO THE EXTENT NOT
PRECLUDED BY LAW, STATUTORY OR OTHERWISE, THIS
WRITTEN WARRANTY SUPERCEDES AND SPECIFICALLY
DISCLAIMS ANY OTHER WARRANTY, CONDITION OR
REPRESENTATION NOT STATED IN THIS WARRANTY,
WHETHER MADE BY TCL, TOSHIBA CORPORATION, THEIR
AFFILIATES, ADRs AND ASPs AND WHETHER MADE
ORALLY OR IN WRITING (INCLUDING ANY STATEMENT IN
ANY BROCHURE, PRESS RELEASE, ANNOUNCEMENT,
ADVERTISEMENT, POINT OF SALE DISPLAY, ETC.).
YOU MUST READ AND FOLLOW ALL SET-UP AND USAGE
INSTRUCTIONS IN THE APPLICABLE USER GUIDES AND/
OR MANUALS. IF YOU FAIL TO DO SO, THIS TELEVISION
MAY NOT FUNCTION PROPERLY AND YOU MAY SUFFER
DAMAGE. THIS WARRANTY WILL NOT COVER ANY
SERVICE THAT IS REQUIRED, IN PART OR IN WHOLE, AS A
RESULT OF ANY FAILURE TO FOLLOW THE SET-UP AND
USAGE INSTRUCTIONS. THIS WARRANTY DOES NOT
APPLY AND SHALL BE VOID AND UNENFORCEABLE IF THE
TELEVISION IS OPENED, SERVICED, OR REPAIRED BY
PERSONS OTHER THAN THOSE AUTHORIZED BY TCL TO
SERVICE OR REPAIR THE TELEVISION.
IFTHE TELEVISION FALLSTO WORK AS WARRANTED
ABOVE, YOUR SOLE AND EXCLUSIVE REMEDY SHALL BE
REPAIR OR REPLACEMENT OF THE DEFECTIVE PART. IN
NO EVENT WILL TCL TOSHIBA CORPORATION THEIR
AFFILIATES, ADRs OR ASPs (THE "RELATED PARTIES"/BE
LIABLE TO YOU OR ANY THIRD PARTY FOR ANY
DAMAGES MONEY REIMBURSEMENT. COSTS OR
EXPENSES. THIS LIMITATION APPLIES TO DAMAGES,
MONEY, REIMBURSEMENT, COSTS OR EXPENSES OF ANY
KIND WHATSOEVER INCLUDING ANY DIRECT OR
INDIRECT DAMAGES, DAMAGE TO PROPERTY OR
PERSON, LOST PROFITS, LOST SAVINGS,
INCONVENIENCE OR OTHER SPECIAL, INCIDENTAL,
EXEMPLARY OR CONSEQUENTIAL DAMAGES, WHETHER
FOR BREACH OF WARRANTY, BREACH OF CONTRACT,
TORT (INCLUDING NEGLIGENCE), UNDER A STATUTE OR
UNDER ANY OTHER LAW OR FORM OR ACTION, OR
WHETHER ARISING OUT OF THE USE OF OR INABILITY TO
67
USE THE TELEVISION, EVEN IF ANY OF THE RELATED
PARTIES HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES OR OF ANY CLAIM BY ANY OTHER
PARTY,
No person, agent, distributor, dealer or company is
authorized to change, modify or extend the terms of these
warranties in any manner whatsoever.
Arbitration and Dispute Resolution
To the extent not precluded by law, any claim, dispute,
controversy or disagreement (whether for breach of warranty,
breach of contract, tort (including negligence and negligent
and/or fraudulent misrepresentation), under a statute or
under any other law or form of action) against any of the
Related Parties arising out of, or otherwise relating to: (i) this
warranty; (ii) the Television; (iii) any oral or written
representations, statements, brochures, press releases,
advertising, announcement, point of sale display, or
promotional material relating to the Television; (iv) the
relationships that result from this warranty, (the foregoing
claims, disputes controversies and disagreements are
collectively referred to as the "Dispute"), shall be referred to
and resolved by final and binding arbitration (to the exclusion
of the courts). To the extent not precluded by law, you agree
to waive any right that you may have to commence or
participate in any representative or class proceeding against
the Related Parties relating to any Dispute, If and where
applicable and to the extent not precluded by law, you further
agree to opt out of any such representative or class
proceedings. Arbitration of any Dispute will be conducted in
the forum and in the manner as agreed to between you and
TCL Failing such agreement, the arbitration will be
conducted by one arbitrator pursuant to the laws and rules
relating to arbitration generally in force in the jurisdiction in
which you reside at the time that the Dispute arises. To the
extent not precluded by law, no claim, dispute, controversy or
disagreement of any other person may be joined or combined
with any Dispute by you, without the prior written consent of
TCL.
Critical Applications
The Television you have purchased is not designed for any
"critical applications." "Critical applications" means life
support systems, medical applications, connections to
implanted medical devices, commercial transportation,
nuclear facilities or systems or any other applications where
Television failure could lead to injury to persons or loss of life
or catastrophic property damage,
IFTHE CUSTOMER USES THE TELEVISION IN ANY
CRITICAL APPLICATION, THE CUSTOMER - AND NOT TCL,
ITS AFFILIATES, ADRs OR ASPs- ASSUME SOLE AND FULL
RESPONSIBILITY FOR SUCH USE. TCL RESERVES THE
RIGHT TO REFUSE TO SERVICE ANY TELEVISION USED IN
A CRITICAL APPLICATION, TCL, ITS AFFILIATES, ADRs
AND ASPs HEREBY DISCLAIM ANY AND ALL LIABILITY,
DAMAGES AND CONSEQUENCES ARISING OUT OF THE
SERVICE OR REFUSAL TO SERVICE SUCH TELEVISION
AND FURTHER DISCLAIM ANY AND ALL LIABILITY,
CONSEQUENCES AND DAMAGES THAT MAY ARISE OR
RESULT FROM THE USE OF THE TELEVISION IN ANY
CRITICAL APPLICATIONS,
General Provisions
If and to the extent that any provision of this limited warranty
should generally be found to be unenforceable, the
unenforceable provision shall be severed from the warranty
and deemed not to form part of the warranty. The remaining
provisions of this warranty shall be and remain valid and
enforceable. If and to the extent that any provision of this
limited warranty as it relates to any of the Related Parties is
found to be invalid or unenforceable in respect of that party
(the "Excluded Party"). the Excluded Party shall be deemed
to be severed or excluded from the provision, and the
provision shall remain valid enforceable and applicable in
respect of the other or remaining Related Parties,
To the extent permitted by law, this limited warranty shall be
governed and construed in accordance with the laws of
Ontario,
If there is any inconsistency between this limited warranty, on
the one hand, and any statement in the packaging of the
Television or in any other document enclosed with, or used in
the context of the promotion or sale of, the Television, on the
other hand, the provisions of this limited warranty shall
prevail.
How to Obtain Warranty Services
If,after following all of the operating instructions in this manual
and checking the "Troubleshooting" section, you find that
service is needed:
(1) To find the nearest ASP, visit TCL's web site at
www.toshiba.ca, or call toll free 1-800-268-3404
(2) Present your bill of sale or other proof of purchase to the
ASP,
For additional information, visit TCL's website at
www.toshiba.ca
A copy of the GPL source code in this product may be
obtained by contacting Toshiba Consumer Solutions at
(800)631-3811. There will be a charge to cover the costs
of providing the source code,
A copy of the LGPL source code in this product may be
obtained by contacting Toshiba Consumer Solutions at
(800)631-3811. There will be a charge to cover the costs
of providing the source code,
Portions of this software are copyright © <2007> The
FreeType Project (www,freetype,org). All rights reserved,
68
A
Antenna input configuration ........... 28
Audio quality adjustments .............. 42
Audio system connection ............... 17
Auto Aspect .................................... 38
Auto Brightness Sensor .................. 55
Auto power off ................................ 52
Auto Tuning .................................... 28
AutoView TM ..................................... 39
B
Backlight ......................................... 39
Backlight Adjustment Pro ............... 55
Base Color Adjustment ................... 55
Blue Screen .................................... 30
C
CH AI,V buttons ............................... 35
CH RTN button ............................... 35
Channel Browser TM ......................... 33
Channel lock ................................... 46
Channel Number buttons ............... 35
Channel Tuning Mode .................... 35
ClearFrame TM .................................. 54
Closed captions .............................. 40
Color Temperature .......................... 56
ColorMaster TM ................................ 55
ColorStream ® ................................. 14
Component video ........................... 14
#
Deep Color ...................................... 51
Digital Audio Out ............................. 17
Digital audio selector ...................... 42
Digital CC Settings ......................... 41
DNR ................................................ 54
Dolby ® Digital ................................. 43
Dynamic Range Control ................. 43
DVD player connection ................... 14
DVl connection .................................
DynaLight TM .................................... 53
Dynamic Bass Boost ...................... 56
Dynamic Contrast ........................... 53
E
Expert Mode ................................... 54
$
Film Stabilization ............................ 53
FREEZE .......................................... 38
G
GameTimer ® ................................... 46
H
HDMI audio mode ........................... 51
HDMI settings ................................. 51
Deep Color ............................... 51
Lip Sync ................................... 51
INSTAPORT TM .......................... 51
RGB Range .............................. 51
HDMI TM connection ......................... 15
I
INFO button .................................... 52
INPUT button .................................. 32
Input Lock ....................................... 46
Input label ....................................... 29
INSTAPORT TM ................................. 51
Integrated digital tuning .................... 9
J
JPEG ............................................... 58
L
Language selection ......................... 27
Last mode memory feature ............. 52
LED indications ............................... 61
Location .......................................... 30
Lip Sync .......................................... 51
M
Manual Tuning ................................ 28
Media Player ................................... 57
MODE SELECT ................... 20, 21,23
MPEG NR ........................................ 54
MTS ................................................. 42
MUTE .............................................. 42
O
On Timer ......................................... 48
Optical audio output format ............ 43
P
Panel Lock ...................................... 46
PC Audio ......................................... 47
PC connection ................................ 18
PC settings ...................................... 47
Picture mode ................................... 39
Picture quality ................................. 39
Picture scroll ................................... 38
Picture size selection ...................... 36
PIN code ......................................... 43
POWER button .......................... 20, 21
Power-On Mode .............................. 30
R
RECALL button ............................... 52
REGZA-LINK ® connection .............. 16
REGZA-LINK ® feature ..................... 49
Remote control
Battery installation ...................... 19
Device code table ................. 24, 25
Functional key chart ................... 22
Programming .............................. 23
Reset Factory Defaults .................... 31
Resolution+ TM .................................. 53
RGB Range ...................................... 51
S
SAP sound ....................................... 42
Satellite receiver connection ........... 14
Sleep Timer ..................................... 48
StableSound ®.................................. 43
Static Gamma .................................. 53
Stereo Extension ............................. 56
Stereo sound ................................... 42
Surf Lock TM ....................................... 35
Surround .......................................... 56
System status .................................. 31
T
TheaterLock TM feature ..................... 40
TheaterWide ® picture size ............... 36
Time Zone ........................................ 30
TOSHIBA Illumination ...................... 30
Transparency ................................... 30
TV status information ...................... 52
V
V-Chip blocking ............................... 44
VCR connection ............................... 13
Voice Enhancement ......................... 56
69
TOSHIBA A_ER|CA CONSUMER PROOUCTSs
Corporate Headquarters: 82 TOTOWA ROAD, WAYNE, NJ 07470, U.S.A.
NATIONAL SERVICE DIVISION: 142B-B TOSHIBA DRIVE, LEBANON, TN 37087, U.S.A.
TOSHIBA OF CANADA LTD.
HEAD OFFICE: 191 McNABB STREET, MARKHAM, ONTARIO, L3R 8H2, CANADA TEL: (905) 470-5400
SERVICE CENTERS:
TORONTO: 191 McNABB STREET, MARKHAM, ONTARIO L3R 8H2, CANADA TEL: (905) 470- 5400
L,L,C.
MANUFACTURED BY
TOSHIBA ELECTROMEX, S=A= DE C=V=
AutoView, Channel Browser, ClearFrame, ColorMaster, DynaLight, SurfLock, and TheaterLock are trademarks of Toshiba
America Consumer Products, L.L.C.
ColorStream, GameTimer, StableSound, and TheaterWide are registered trademarks of Toshiba America Consumer
Products, L.L.C.
REGZA and REGZA-LINK are registered trademarks of Toshiba Corporation.
Resolution+ is a trademark of Toshiba Corporation.
PRINTED IN MEXICO
/o -o l TOSHIBA
