Dear Customer,

Thank you for purchasing this Toshiba LCD TV. This manual

will help you use the many exciting features of your new LCD

TV. Before operating your LCD TV, please read this manual

completely, and keep it nearby for future reference.

Safety Precautions

WARNING: TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

WARNING: TO REDUCE THE RiSK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK),

NO USER-SERViCEABLE PARTS iNSiDE, REFER

SERViCiNG TO QUALIFIED SERVICE PERSONNEL,

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated "dangerous voltage" within

the product's enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons,

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance,

WARNING

To prevent injury, this apparatus must be securely attached to

the floor/wall in accordance with the installation instructions.

See item 20 on page 3 and instructions on page 5.

WARNING:If you decide to wall mount this television,

always use a UL Listed wall bracket appropriate for the size

and weight of this television. The use of any wall bracket

other than a UL Listed wall bracket appropriate for the size

and weight of this television for wall mounting this television

could result in serious bodily injury and/or property damage.

See "Removing the Pedestal Stand" (_ page 5).

NOTETO CATVINSTALLERS

This is a reminder to call the CATV system installer's attention

to Article 820-40 of the U.S. NEC, which provides guidelines for

proper grounding and, in particular, specifies that the cable

ground shall be connected to the grounding system of the

building, as close to the point of cable entry as practical. For

additional antenna grounding information, see items 27 and 28

on page 4.

Congratulationson yourpurchase!As youenjoyyour

new product,pleasekeep thesesafety tipsin mind:

The issue

• The home theater entertainment experience isa growing trend

and larger flat panel displays are popular purchases. However,

flat panel displays are not always supported on the proper stands

or installed according to the manufacturer's recommendations.

• Flat panel displays that are

inappropriately situated on dressers,

bookcases, shelves, desks,

speakers, chests or carts mayfall

over and cause injury.

TOSHIBACares!

The consumer electronics industry

is committed to making home

entertainment enjoyable and safe.

Tuneinto Safety

• OnesizedoesNOTfit all. Followthemanufacturer'srecommendations

for the safeinstallationand useof your flat paneldisplay.

• Carefully read and understand all enclosed instructions for

proper use of this product.

• Don't allow children to climb on or play with furniture and

television sets.

• Don't placeflat panel displays on

furniture that can easily be used as

steps, such as a chest of drawers.

• Rememberthat children can

become excited while watching a

program, especially on a "larger

than life" flat panel display. Care

should be taken to place or install

the display where it cannot be

pushed, pulled over, or knocked down.

• Careshould be taken to route all cords and

cables connected to the flat panel display so that they cannot be

pulled or grabbed by curious children.

Wall Mounting: if you decide to wall mountyour

flat panel display,always:

• Use a mount that has been recommended by the display

manufacturer and/or listed by an independent laboratory (such

as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall mount

manufacturers.

• If you have any doubts about your ability to safely install your

flat panel display, contact your retailer about professional

installation.

• Make sure that the wall where you are mounting the display is

appropriate. Some wall mounts are not designedto be mounted

to walls with steel studs or old cinder block construction, if you

are unsure, contact a professional

installer.

• A minimum of two people are

required for installation. Flatpanel ..........,................

displays can be heavy, www.CE.org/safety

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 3 Wednesday, January 30 2008 3:54 PM

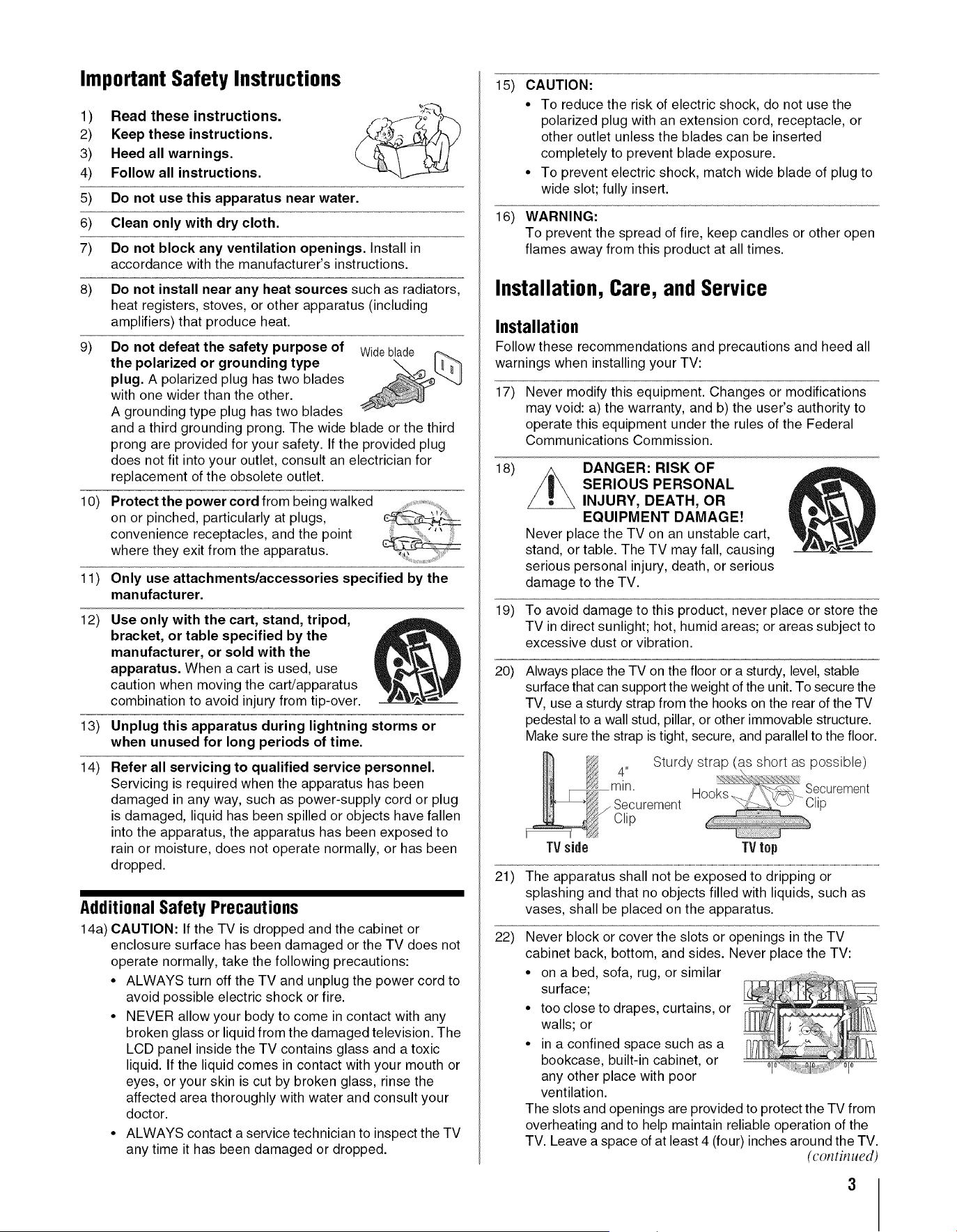

Important Safety Instructions

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of Wideblade

the polarized or grounding type

plug. A polarized plug has two blades

with one wider than the other.

A grounding type plug has two blades

and a third grounding prong. The wide blade or the third

prong are provided for your safety. If the provided plug

does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10) Protect the power cord from being walked

on or pinched, particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

11) Only use attachments/accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the

apparatus. When a cart is used, use

caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug

is damaged, liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or has been

dropped.

Additional Safety Precautions

14a) CAUTION: If the TV is dropped and the cabinet or

enclosure surface has been damaged or the TV does not

operate normally, take the following precautions:

• ALWAYS turn off the TV and unplug the power cord to

avoid possible electric shock or fire.

• NEVER allow your body to come in contact with any

broken glass or liquid from the damaged television. The

LCD panel inside the TV contains glass and a toxic

liquid. If the liquid comes in contact with your mouth or

eyes, or your skin is cut by broken glass, rinse the

affected area thoroughly with water and consult your

doctor.

• ALWAYS contact a service technician to inspect the TV

any time it has been damaged or dropped.

15)

16)

CAUTION:

• To reduce the risk of electric shock, do not use the

polarized plug with an extension cord, receptacle, or

other outlet unless the blades can be inserted

completely to prevent blade exposure.

• To prevent electric shock, match wide blade of plug to

wide slot; fully insert.

WARNING:

To prevent the spread of fire, keep candles or other open

flames away from this product at all times.

Installation, Care, and Service

Installation

Follow these recommendations and precautions and heed all

warnings when installing your TV:

17) Never modify this equipment. Changes or modifications

may void: a) the warranty, and b) the user's authority to

operate this equipment under the rules of the Federal

Communications Commission.

18)

DANGER: RISK OF

SERIOUS PERSONAL

INJURY, DEATH, OR

EQUIPMENT DAMAGE!

Never place the TV on an unstable cart,

stand, or table. The TV may fall, causing

serious personal injury, death, or serious

damage to the TV.

19) To avoid damage to this product, never place or store the

TV in direct sunlight; hot, humid areas; or areas subject to

excessive dust or vibration.

20) Always place the TV on the floor or a sturdy, level, stable

surface that can support the weight of the unit. To secure the

TV, use a sturdy strap from the hooks on the rear of the TV

pedestal to a wall stud, pillar, or other immovable structure.

Make sure the strap is tight, secure, and parallel to the floor.

4" Sturdy strap (as short as possible)

j Securement

Clip

TVside TVtop

21) The apparatus shall not be exposed to dripping or

splashing and that no objects filled with liquids, such as

vases, shall be placed on the apparatus.

22) Never block or cover the slots or openings in the TV

cabinet back, bottom, and sides. Never place the TV:

• on a bed, sofa, rug, or similar

surface;

i too close to drapes, curtains, or

walls; or

in a confined space such as a

bookcase, built-in cabinet, or __ _010

any other place with poor

ventilation.

The slots and openings are provided to protect the TV from

overheating and to help maintain reliable operation of the

TV. Leave a space of at least 4 (four) inches around the TV.

(cotTtitTued)

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 4 Wednesday, January 30 2008 3:54 PM

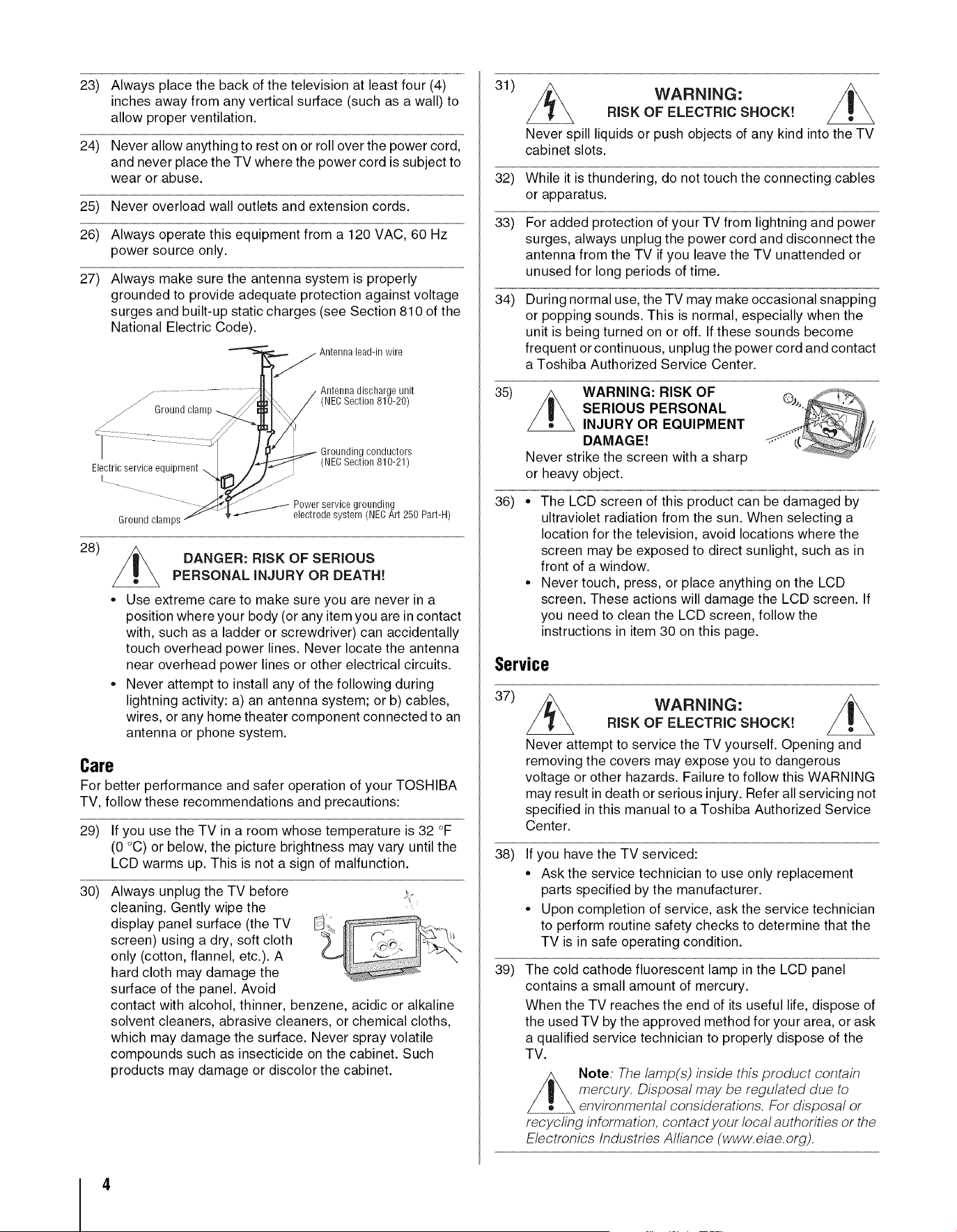

23) Always place the back of the television at least four (4)

inches away from any vertical surface (such as a wall) to

allow proper ventilation.

24) Never allow anything to rest on or roll over the power cord,

and never place the TV where the power cord is subject to

wear or abuse.

25) Never overload wall outlets and extension cords.

26) Always operate this equipment from a 120 VAC, 60 Hz

power source only.

27) Always make sure the antenna system is properly

grounded to provide adequate protection against voltage

surges and built-up static charges (see Section 810 of the

National Electric Code).

28)

Care

For

TV,

29)

30)

Antennalead-in wire

Antennadischarge unit

(NECSection 810-20)

J Ground clamp

Electric service equipment

Ground clamps

Grounding conductors

(NECSection 810-21)

/J"

Power service grounding

electrode system (NECArt 250 Part-H)

DANGER: RISK OF SERIOUS

PERSONAL INJURY OR DEATH!

• Use extreme care to make sure you are never in a

position where your body (or any item you are in contact

with, such as a ladder or screwdriver) can accidentally

touch overhead power lines. Never locate the antenna

near overhead power lines or other electrical circuits.

• Never attempt to install any of the following during

lightning activity: a) an antenna system; or b) cables,

wires, or any home theater component connected to an

antenna or phone system.

better performance and safer operation of your TOSHIBA

follow these recommendations and precautions:

If you use the TV in a room whose temperature is 32 °F

(0 °C) or below, the picture brightness may vary until the

LCD warms up. This is not a sign of malfunction.

Always unplug the TV before

cleaning. Gently wipe the

display panel surface (the TV

screen) using a dry, soft cloth

only (cotton, flannel, etc.). A

hard cloth may damage the

surface of the panel. Avoid

contact with alcohol, thinner, benzene, acidic or alkaline

solvent cleaners, abrasive cleaners, or chemical cloths,

which may damage the surface. Never spray volatile

compounds such as insecticide on the cabinet. Such

products may damage or discolor the cabinet.

31)

WARNING:

RISK OF ELECTRIC SHOCK!

Never spill liquids or push objects of any kind into the TV

cabinet slots.

32)

33)

34)

While it is thundering, do not touch the connecting cables

or apparatus.

For added protection of your TV from lightning and power

surges, always unplug the power cord and disconnect the

antenna from the TV if you leave the TV unattended or

unused for long periods of time.

During normal use, the TV may make occasional snapping

or popping sounds. This is normal, especially when the

unit is being turned on or off. If these sounds become

frequent or continuous, unplug the power cord and contact

a Toshiba Authorized Service Center.

35)

36) •

WARNING: RISK OF

SERIOUS PERSONAL

INJURY OR EQUIPMENT

DAMAGE!

Never strike the screen with a sharp

or heavy object.

The LCD screen of this product can be damaged by

ultraviolet radiation from the sun. When selecting a

location for the television, avoid locations where the

screen may be exposed to direct sunlight, such as in

front of a window.

Never touch, press, or place anything on the LCD

screen. These actions will damage the LCD screen. If

you need to clean the LCD screen, follow the

instructions in item 30 on this page.

Service

37)

WARNING:

RISK OF ELECTRIC SHOCKt

Never attempt to service the TV yourself. Opening and

removing the covers may expose you to dangerous

voltage or other hazards. Failure to follow this WARNING

may result in death or serious injury. Refer all servicing not

specified in this manual to a Toshiba Authorized Service

Center.

38)

39)

If you have the TV serviced:

• Ask the service technician to use only replacement

parts specified by the manufacturer.

• Upon completion of service, ask the service technician

to perform routine safety checks to determine that the

TV is in safe operating condition.

The cold cathode fluorescent lamp in the LCD panel

contains a small amount of mercury.

When the TV reaches the end of its useful life, dispose of

the used TV by the approved method for your area, or ask

a qualified service technician to properly dispose of the

TV.

Note: The lamp(s) inside this product contain

mercury. Disposal may be regulated due to

environmental considerations. For disposal or

recycling information, contact your local authorities or the

Electronics Industries Alliance (www. eiae. org).

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 5 Wednesday, January 30 2008 3:54 PM

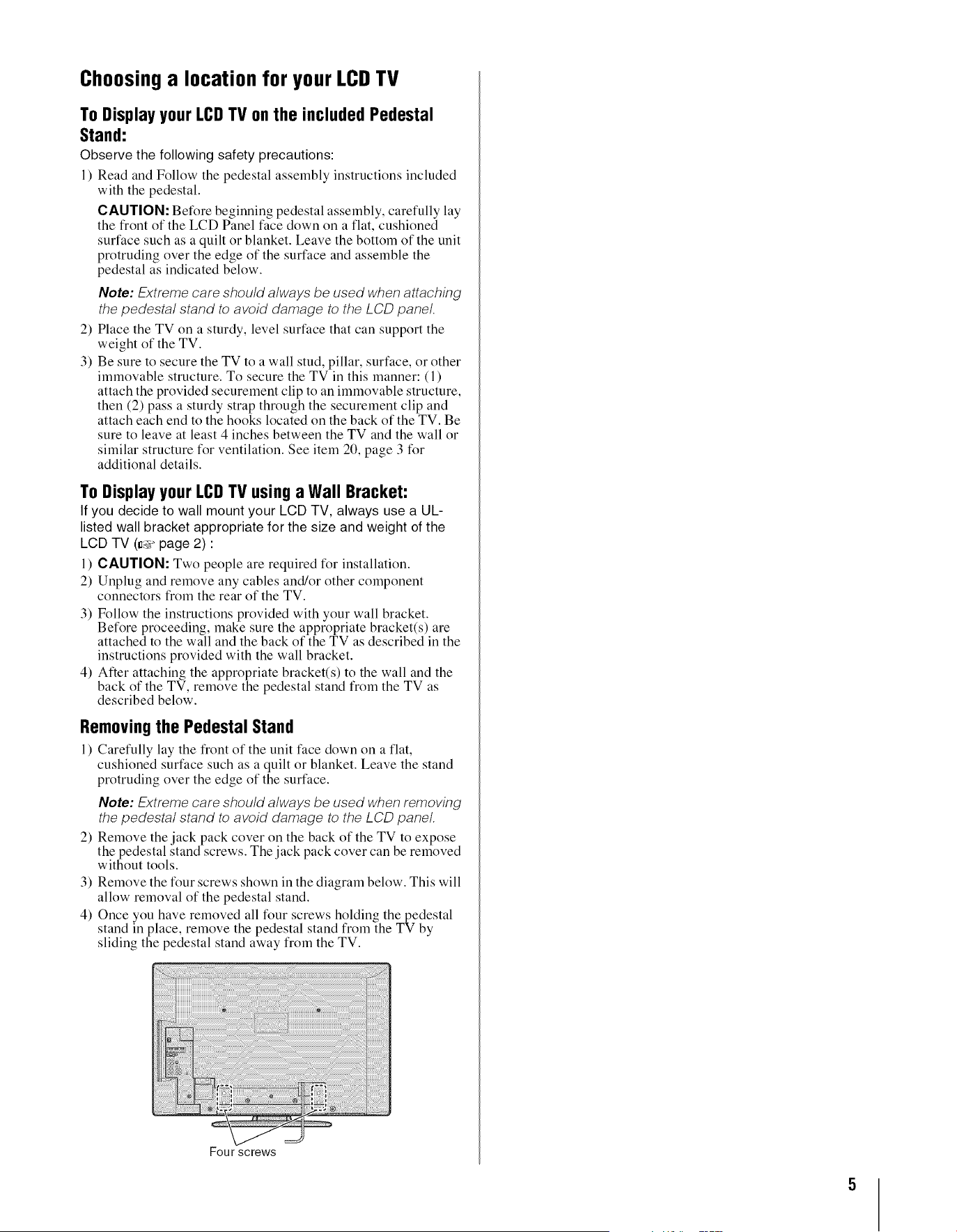

Choosinga location for your LCDTV

To Display your LCDTV on the included Pedestal

Stand:

Observe the following safety precautions:

1 Read and Follow the pedestal assembly instructions included

with the pedestal.

CAUTION: Before beginning pedestal assembly, carefully lay

the front of the LCD Panel face down on a flat, cushioned

surface such as a quilt or blanket. Leave the bottom of the unit

protruding over the edge of the surface and assemble the

pedestal as indicated below.

Note: Extreme care should always be used when attaching

the pedestal stand to avoid damage to the LCD par?el.

Place the TV on a sturdy, level surface that can support the

weight of the TV.

Be sure to secure the TV to a wall stud, pillar, surface, or other

immovable structure. To secure the TV in this manner: (1)

attach the provided securement clip to an immovable structure,

then (2) pass a sturdy strap through the securement clip and

attach each end to the hooks located on the back of the TV. Be

sure to leave at least 4 inches between the TV and the wall or

similar structure for ventilation. See item 20, page 3 for

additional details.

To Display your LCDTV using a Wall Bracket:

If you decide to wall mount your LCD TV, always use a UL-

listed wall bracket appropriate for the size and weight of the

LCD TV (_ page 2) :

l) CAUTION: Two people are required for installation.

2) Unplug and remove any cables and/or other component

connectors from the rear of the TV.

3) Follow the instructions provided with your wall bracket.

Before proceeding, make sure the appropriate bracket(s) are

attached to the wall and the back of the TV as described in the

instructions provided with the wall bracket.

4) After attaching the appropriate bracket(s) to the wall and the

back of the TV, remove the pedestal stand from the TV as

described below.

Removingthe Pedestal Stand

1 Carefully lay the front of the unit face down on a flat,

cushioned surface such as a quilt or blanket. Leave the stand

protruding over the edge of the surface.

Note: Extreme care should always be used when removing

the pedestal stand to avoid damage to the LCD panel.

2) Remove the.jack pack cover on the back of the TV to expose

the pedestal stand screws. The .jack pack cover can be removed

without tools.

3) Remove the four screws shown in the diagram below. This will

allow removal of the pedestal stand.

4) Once you have removed all four screws holding the pedestal

stand in place, remove the pedestal stand from the TV by

sliding the pedestal stand away from the TV.

Fou r screws

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page 6 Wednesday, January 30 2008 3:54 PM

FCgDeclaration of gonformity

gompliance Statement

(Fart 15):

The Toshiba 32RV530U, 37RV530U, 42RV530U, 46RV530U,

and 52RV530U Televisions comply with Part 15of the FCC

rules.

Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that

may cause undesired operation.

The party responsible for compliance to these rules is:

Toshiba America Consumer Products, L.L.C.

82 Totowa Rd. Wayne, NJ 07470.

Ph: 1-800-631-3811

Note: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

removing and applying power to the equipment, the user is

encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

Caution: Changes or modifications to this equipment not

expressly approved by Toshiba could void the user's authority

to operate this equipment.

important notes about your £gO

The following symptoms are technical limitations of LCD

Display technology and are not an indication of malfunction;

therefore, Toshiba is not responsible for perceived issues

resulting from these symptoms.

1) An afterimage (ghost) may appear on the screen if a fixed, non-

moving image is displayed for a long period of time. The

afterimage is not permanent and will disappear in a short period

of time.

2) The LCD panel contained in this TV is manufactured using an

extremely high level of precision technology; however, there

may be an occasional pixel (dot of light) that does not operate

properly (does not light, remains constantly lit, etc.). This is a

structural property of LCD technology, is not a sign of

malfunction, and is not covered under your warranty. Such

pixels are not visible when the picture is viewed from a normal

viewing distance.

Note: Interactive video games that involve shooting a "gun"

type of joystick at an on-screen target may not work with this

TV.

Trademarkinformation

• Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are registered trademarks of Dolby

Laboratories.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

• Deep Color is trademark of HDMI Licensing LLC. (Only available for

46" and 52" models)

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 7 Wednesday, January 30 2008 3:54 PM

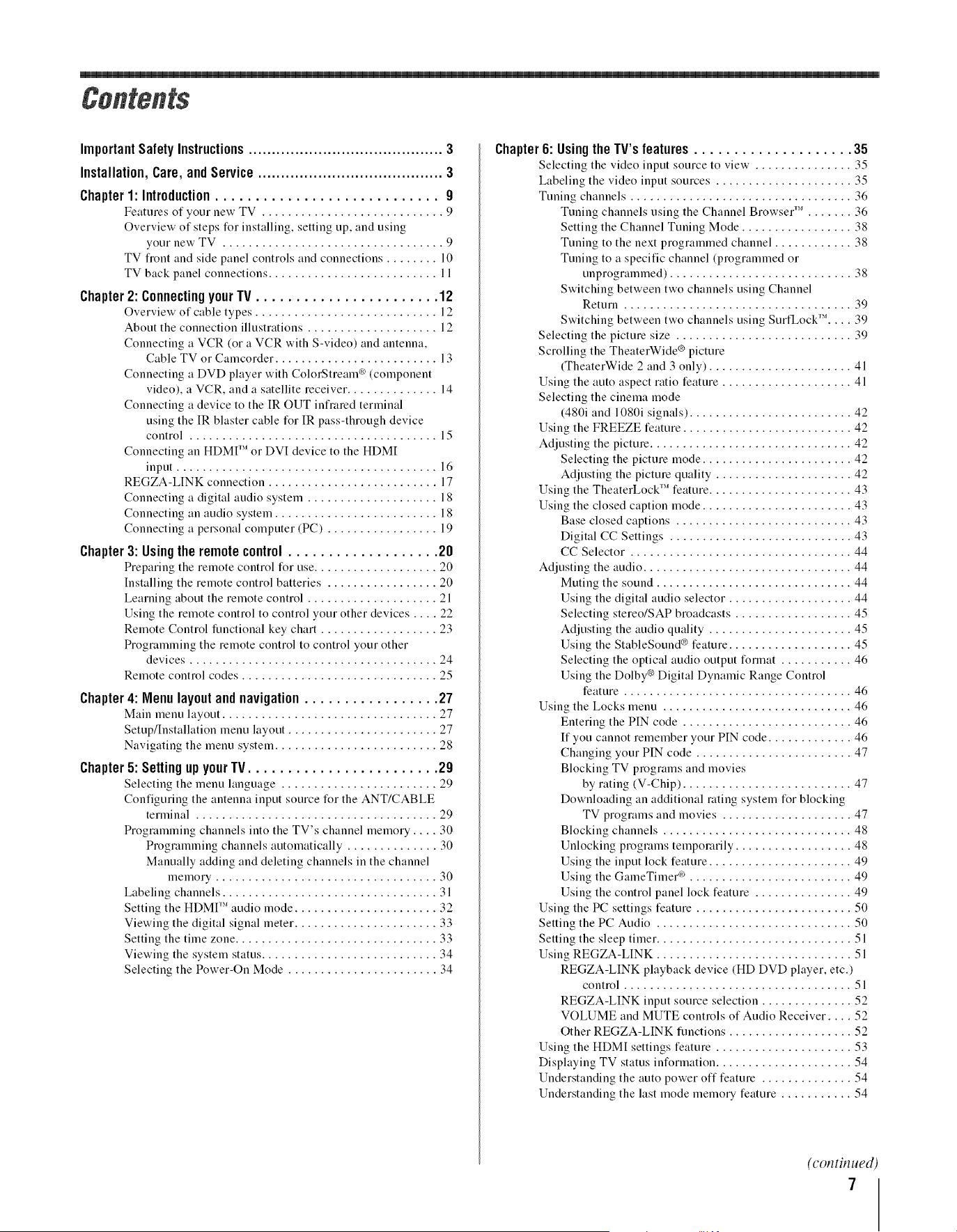

ImportantSafetyInstructions.......................................... 3

Installation,Care,andService ........................................ 3

Chapter1: Introduction............................ g

Features of your new TV ............................ 9

Overview of steps for installing, setting up, and using

your new TV .................................. 9

TV fiont and side panel controls and connections ........ 10

TV back panel connections .......................... 11

Chapter2: ConnectingyourIV ....................... 12

Overview of cable types ............................ 12

About the connection illustrations .................... 12

Connecting a VCR (or a VCR with S-video) and antenna,

Cable TV or Camcorder ......................... 13

Connecting a DVD player with ColorStream °° (component

video), a VCR, and a satellite receiver .............. 14

Connecting a device to the IR OUT infrared terminal

using the IR blaster cable for IR pass-through device

control ...................................... 15

Connecting an HDMI _' or DVI device to the HDMI

input ........................................ 16

REGZA-LINK connection .......................... 17

Connecting a digital audio system .................... 18

Connecting an audio system ......................... 18

Connecting a personal computer (PC) ................. 19

Chapter3: Usingtheremotecontrol................... 20

Preparing the remote control for use ................... 20

Installing the remote control batteries ................. 20

Learning about the remote control .................... 21

Using the remote control to control your other devices .... 22

Remote Control functional key chart .................. 23

Programming the remote control to control your other

devices ...................................... 24

Remote control codes .............................. 25

Chapter4: Menulayoutandnavigation................. 27

Main menu layout ................................. 27

Setup/Installation menu layout ....................... 27

Navigating the menu system ......................... 28

Chapter5: SettingupyourTV........................ 2g

Selecting the menu language ........................ 29

Configuring the antenna input source for the ANT/CABLE

terminal ..................................... 29

Programming channels into the TV's channel memory .... 30

Programming channels automatically .............. 30

Manually adding and deleting channels in the channel

memory .................................. 30

Labeling channels ................................. 31

Setting the HDMI _' audio mode ...................... 32

Viewing the digital signal meter ...................... 33

Setting the time zone ............................... 33

Viewing the system status ........................... 34

Selecting the Power-On Mode ....................... 34

Chapter6: UsingtheTV'sfeatures.................... 35

Selecting the video input source to view ............... 35

Labeling the video input sources ..................... 35

Tuning channels .................................. 36

Tuning channels using the Channel Browser '_' ....... 36

Setting the Channel Tuning Mode ................. 38

Tuning to the next programmed channel ............ 38

Tuning to a specific channel (programmed or

unprogmmmed) ............................ 38

Switching between two channels using Channel

Return ................................... 39

Switching between two channels using SurfLock '_'.... 39

Selecting the picture size ........................... 39

Scrolling the TheaterWide ® picture

(TheaterWide 2 and 3 only) ...................... 41

Using the auto aspect ratio feature .................... 41

Selecting the cinema mode

(480i and 1080i signals) ......................... 42

Using the FREEZE feature .......................... 42

Adjusting the picture ............................... 42

Selecting the picture mode ....................... 42

Adjusting the picture quality ..................... 42

Using the TheaterLock '_' feature ...................... 43

Using the closed caption mode ....................... 43

Base closed captions ........................... 43

Digital CC Settings ............................ 43

CC Selector .................................. 44

Adjusting the audio ................................ 44

Muting the sound .............................. 44

Using the digital audio selector ................... 44

Selecting stereo/SAP broadcasts .................. 45

Adjusting the audio quality ...................... 45

Using the StableSound ® feature ................... 45

Selecting the optical audio output format ........... 46

Using the Dolby ® Digital Dynamic Range Control

feature ................................... 46

Using the Locks menu ............................. 46

Entering the PIN code .......................... 46

If you cannot remember your PIN code ............. 46

Changing your PIN code ........................ 47

Blocking TV programs and movies

by rating iV-Chip) .......................... 47

Downloading an additional rating system for blocking

TV programs and movies .................... 47

Blocking channels ............................. 48

Unlocking programs temporarily .................. 48

Using the input lock feature ...................... 49

Using the GameTimer _ ......................... 49

Using the control panel lock feature ............... 49

Using the PC settings feature ........................ 50

Setting the PC Audio .............................. 50

Setting the sleep timer .............................. 51

Using REGZA-LINK .............................. 51

REGZA-LINK playback device (HD DVD player, etc.)

control ................................... 51

REGZA-LINK input source selection .............. 52

VOLUME and MUTE controls of Audio Receiver .... 52

Other REGZA-LINK functions ................... 52

Using the HDMI settings feature ..................... 53

Displaying TV status information ..................... 54

Understanding the auto power off feature .............. 54

Understanding the last mode memory feature ........... 54

(continuea

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 8 Wednesday, January 30 2008 3:54 PM

Chapter7: UsingtheTV'sadvancedfeatures............. 55

Using the advanced picture settings features ............ 55

Using dynamic contrast ......................... 55

Using the static gamma feature ................... 55

Selecting the color temperature ................... 56

Using CableClem _ digital noise reduction .......... 56

Using MPEG noise reduction ..................... 56

Using the ColorMaster '_' feature .................. 57

Using the Game Mode feature .................... 57

Using the advanced audio settings features ............. 58

Using the surround sound features ................. 58

Chapter8: Troubleshooting......................... 5g

General troubleshooting ............................ 59

LED indications .................................. 61

Chapterg: Appendix.............................. 62

Specifications .................................... 62

Acceptable signal t_rmats

for PC IN and HDMI terminals ................... 63

Limited United States Warranty

for LCD Televisions 26" and Larger ............... 64

Limited Canadian Warranty

for Toshiba Brand Flat Panel Televisions ........... 65

Index........................................ 68

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 9 Wednesday, January 30 2008 3:54 PM

Features of your new TV

The following are just a few of the many exciting features of

your new Toshiba widescreen, integrated HD, LCD TV:

• Integrated digital tuning (SVSB ATSC and QAM)

eliminates the need for a separate digital converter set-top

box (in most cases).

• 1080p output resolution.

• Four HDMI '_' digital, high-definition multimedia

interfaces with 1080p input support (r_¢ page 16).

• HDMI capabilities

Lip-Sync Latency feature activates an auto audio/video

display timing adjustment function that allows HDMI

source devices to accurately perform synchronization

automatically.

Deep Color feature allows the HDMI source to increase the

available colors bits within the boundaries defined by the

RGB or YCbCr color space. (Only supported on 46" and 52"

models)

• REGZA-LINK allows control of external devices from the

TV remote via HDMI connection (_'_¢page 51).

• Two sets of ColorStream ® HD high-resolution component

video inputs (_¢ page 14).

• Digital Audio Out optical audio connection with Dolby ®

Digital optical output format (_ page 46).

• CableClear ®digital picture noise reduction

(_ page 56).

• PC IN (Analog RGB) computer terminal (_¢ page 19).

• Channel Labeling allows you to put the Call Letters (e.g.

ABC, HBO, etc.) on the screen along with the station

numbers, so you always know what you're watching

(r_¢ page 31).

• IR OUT infrared terminal using the IR blaster cable for IR

pass-through device control (_'_¢pages 12 and 15).

• ColorMaster '_' allows you to adjust the TV's standard

colors. The menu for this feature has a unique "black"

design to enhance contrast while you're adjusting the color

(_'_epage 57).

Overviewof steps for installing,

setting up, and usingyour new TV

Follow these steps to set up your TV and begin using its many

exciting features.

1 Observe the following when choosing a location for the

TV:

• Read "Important notes about your LCD TV"

(_'_¢page 6).

• Place the TV in a proper location (_¢ pages 2-5)

2 Do not plug in any power cords until AFTER you have

connected all cables and devices to your TV.

3 BEFORE connecting cables or devices to the TV, learn

the functions of the TV's connections and controls

(g'_ pages 10-11).

4 Connect your other electronic device(s) to the TV

(g'_ pages 12-19).

5 See "Chapter,3: Using the remote control" (g'_ page 20)

for an overview of the buttons on the remote control,

install the batteries and prepare to operate your other

device(s).

AFTER connecting all cables and devices, plug in the

power cords for your TV and other devices.

See "Menu layout and navigation" for a quick overview of

navigating the TV's menu system (g'_ page 27).

Program channels into the TV's channel memory

(g'¢¢page 30).

For details on using the TV's features, see Chapters 6

and 7.

For help, refer to the Troubleshooting Guide, see

Chapter 8.

For technical specifications and warranty information, see

Chapter 9.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 10 Wednesday, Janu_y 30, 2008 3:54 PM

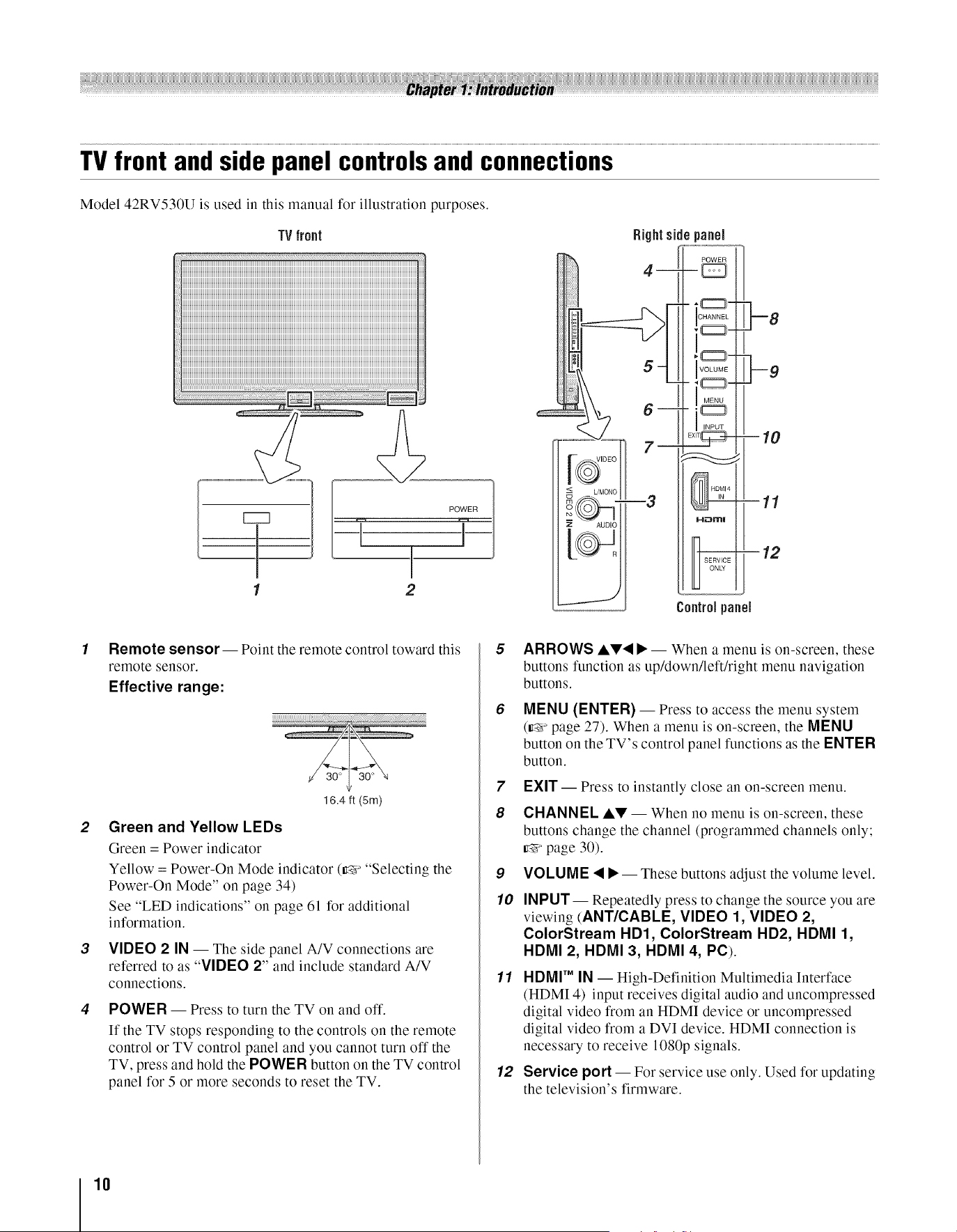

TV front and side panel controls and connections

Model 42RV530U is used in this manual for illustration purposes.

TVfront

[ZZ_

1 2

Rightsidepane[

--8

Remote sensor-- Point the remote control toward this

remote sensor.

Effective range:

16.4 ft (5m)

Green and Yellow LEDs

Green = Power indicator

Yellow = Power-On Mode indicator (_¢ "Selecting the

Power-On Mode" on page 34)

See "LED indications" on page 61 for additional

information.

VIDEO 2 IN -- The side panel A/V connections are

referred to as "VIDEO 2" and include standard A/V

connections.

POWER -- Press to turn the TV on and off.

If the TV stops responding to the controls on the remote

control or TV control panel and you cannot turn off the

TV, press and hold the POWER button on the TV control

panel for 5 or more seconds to reset the TV.

ARROWS AV< • -- When a menu is on-screen, these

buttons function as up/down/left/right menu navigation

buttons.

MENU (ENTER) -- Press to access the menu system

(_ page 27). When a menu is on-screen, the MENU

button on the TV's control panel functions as the ENTER

button.

EXIT -- Press to instantly close an on-screen menu.

CHANNEL Al!' -- When no menu is on-screen, these

buttons change the channel (programmed channels only;

page 30).

VOLUME < • -- These buttons adjust the volume level.

INPUT -- Repeatedly press to change the source you are

viewing (ANT/CABLE, VIDEO 1, VIDEO 2,

ColorStream HD1, ColorStream HD2, HDMI 1,

HDMI 2, HDMI 3, HDMI 4, PC).

HDMI T" IN -- High-Definition Multimedia Interface

(HDMI 4) input receives digital audio and uncompressed

digital video from an HDMI device or uncompressed

digital video from a DVI device. HDMI connection is

necessary to receive 1080p signals.

Service port -- For service use only. Used for updating

the television's firmware.

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page 11 Wednesday, Janu_y 30, 2008 3:54 PM

TV back panel connections

For an explanation of cable types and connections, see pages 12-19.

HDMJ iN

H_IRrl| I

j1 2 3

PC IN iN

-- HDM 1 -- 4

l Au0,oI

IN IN _ IN

£BN _RF./N VIDEO 1

p_ :: RXED

©l 0,J

LAII_:

OUT

5 6 7 8

TVback

-AN2

Power cord

--Cable Strap

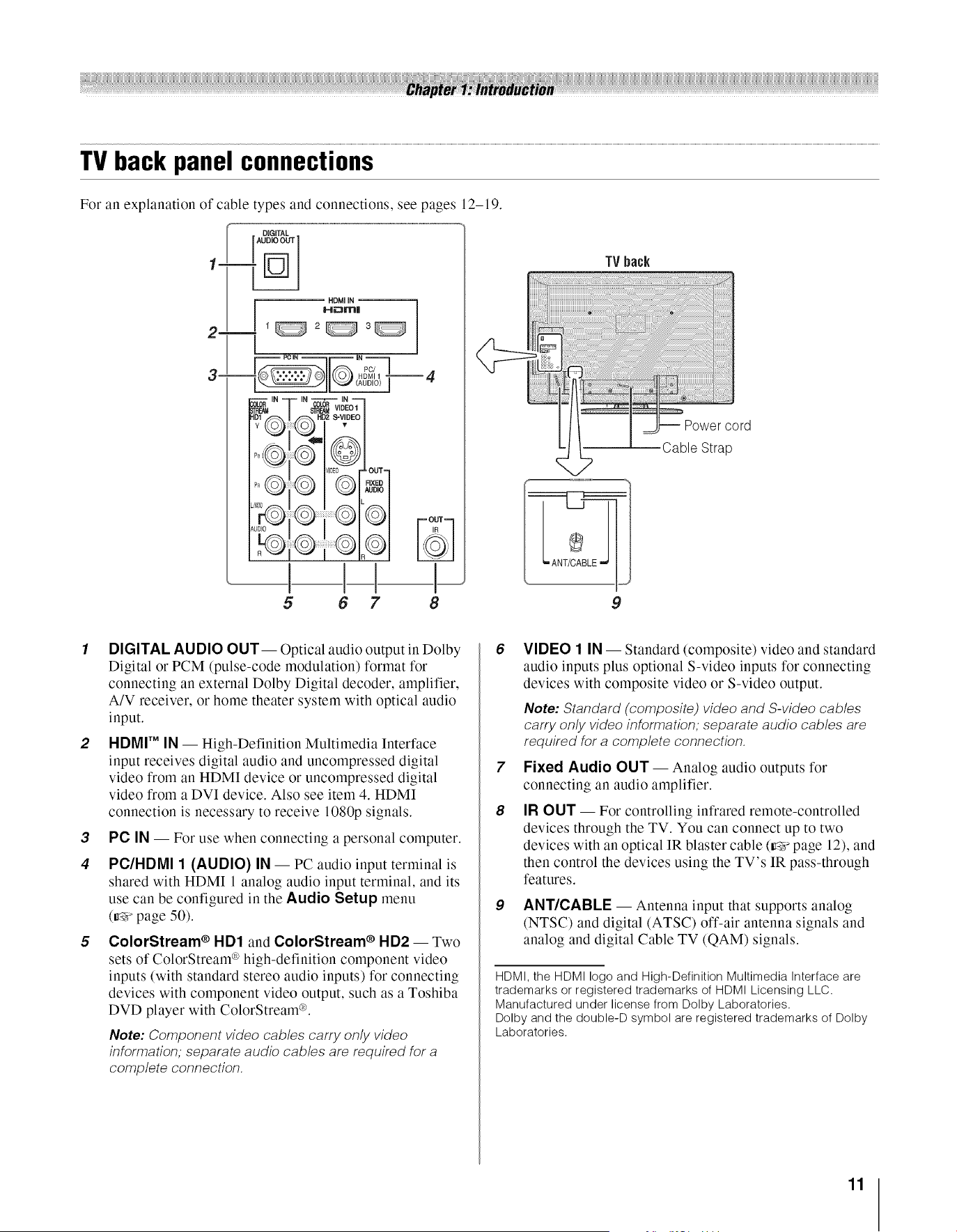

1 DIGITAL AUDIO OUT-- Optical audio output in Dolby

Digital or PCM (pulse-code modulation) format for

connecting an external Dolby Digital decoder, amplifier,

A/V receiver, or home theater system with optical audio

input.

2 HDMr IN-- High-Definition Multimedia Interface

input receives digital audio and uncompressed digital

video from an HDMI device or uncompressed digital

video from a DVI device. Also see item 4. HDMI

connection is necessary to receive 1080p signals.

PC IN -- For use when connecting a personal computer.

PC/HDMI 1 (AUDIO) IN -- PC audio input terminal is

shared with HDMI I analog audio input terminal, and its

use can be configured in the Audio Setup menu

(r_¢ page 50).

ColorStream ® HD1 and ColorStream ® HD2 -- Two

sets of ColorStream _ high-definition component video

inputs (with standard stereo audio inputs) for connecting

devices with component video output, such as a Toshiba

DVD player with ColorStream ®.

Note: Component video cables carry only video

inMrmation; separate audio cables are required Mr a

complete connection.

VIDEO 1 IN -- Standard (composite) video and standard

audio inputs plus optional S-video inputs for connecting

devices with composite video or S-video output.

Note: Standard (composite) video and S-video cables

carry only video information; separate audio cables are

required for a complete connection.

Fixed Audio OUT -- Analog audio outputs for

connecting an audio amplifier.

IR OUT -- For controlling infrared remote-controlled

devices through the TV. You can connect up to two

devices with an optical IR blaster cable (_¢ page 12), and

then control the devices using the TV's IR pass-through

features.

ANT/CABLE -- Antenna input that supports analog

(NTSC) and digital (ATSC) off-air antenna signals and

analog and digital Cable TV (QAM) signals.

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are registered trademarks of Dolby

Laboratories.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 12 Wednesday, Janu_y 30, 2008 3:54PM

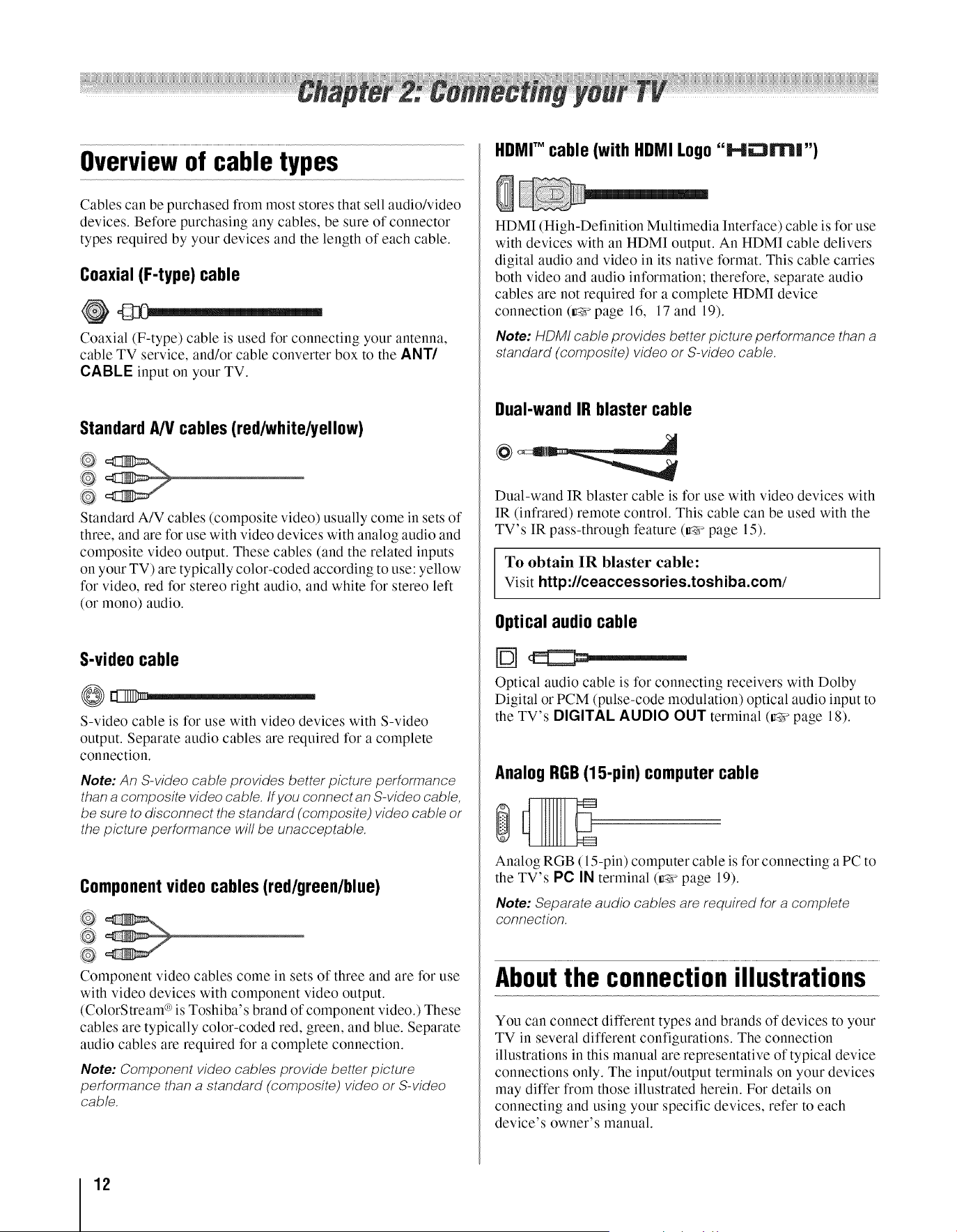

Overviewof cable types

Cables can be purchased from most stores that sell audio/video

devices. Before purchasing any cables, be sure of connector

types required by your devices and the length of each cable.

Coaxial (F-type) cable

Coaxial (F-type) cable is used for connecting your antenna,

cable TV service, and/or cable converter box to the ANT/

CABLE input on your TV.

Standard A/V cables (red/white/yellow)

Standard A/V cables (composite video) usually come in sets of

three, and are for use with video devices with analog audio and

composite video output. These cables (and the related inputs

on your TV) are typically color-coded according to use: yellow

for video, red for stereo right audio, and white for stereo left

(or mono) audio.

S-video cable

S-video cable is for use with video devices with S-video

output. Separate audio cables are required for a complete

connection.

Note: An S-video cable provides better picture performance

than a composite video cable. If you connect an S-video cable,

be sure to disconnect tf_estandard (composite) video cable or

the picture performance will be unacceptable.

Componentvideo cables (red/green/blue)

Component video cables come in sets of three and are for use

with video devices with component video output.

(ColorStream a_is Toshiba's brand of component video.) These

cables are typically color-coded red, green, and blue. Separate

audio cables are required for a complete connection.

Note: Component video cables provide better picture

performance than a standard (composite) video or S-video

cable.

HDMr_ cable (with HDMI Logo "H_rri|")

HDMI (High-Definition Multimedia Interface) cable is for use

with devices with an HDMI output. An HDMI cable delivers

digital audio and video in its native format. This cable carries

both video and audio information; therefore, separate audio

cables are not required for a complete HDMI device

connection (r_¢ page 16, 17 and 19).

Note: HDMI cable provides better picture performance than a

standard (composite) video or S-video cable.

Dual-wand IR blaster cable

Dual-wand IR blaster cable is for use with video devices with

IR (infrared) remote control. This cable can be used with the

TV's IR pass-through feature (r_¢ page 15).

To obtain IR blaster cable:

Visit http://ceaccessories.toshiba.com/

Optical audio cable

Optical audio cable is for connecting receivers with Dolby

Digital or PCM (pulse-code modulation) optical audio input to

the TV's DIGITAL AUDIO OUT terminal (r_¢ page 18).

Analog RGB(15-pin) computer cable

Analog RGB (15-pin) computer cable is for connecting a PC to

the TV's PC IN terminal (r_¢ page 19).

Note: Separate audio cables are required for a complete

connection.

Aboutthe connection illustrations

You can connect different types and brands of devices to your

TV in several different configurations. The connection

illustrations in this manual are representative of typical device

connections only. The input/output terminals on your devices

may differ from those illustrated herein. For details on

connecting and using your specific devices, refer to each

device's owner's manual.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 13 Wednesday, Janu_y 30, 2008 3:54PM

Connectinga VCR(or a VCRwith S-video) and antenna, Cable TV or

Camcorder

_ VIDEO2 inputs

onTVrightsidepanel

I __,oEo

TV upperhackpanel

From Cable TV

or antenna

TV lower hackpanel

S-video cable

Standard

A/V cable

From Cable TV

Cable box J

CH 4 OUT

StereoVCR

WOEO LAUDI_

..... CH4 u

L ANT/CABLE J_

You will need:

• coaxial cables

• standard A/V cables

- For better picture performance, if your VCR has S-video,

use an S-video cable (plus the audio cables) instead of

the standard video cable.

- For better picture performance, if your camcorder has

S-video, connect an S-video cable (plus the audio cables)

to VIDEO 1 on the TV back instead of the VIDEO 2 on the

TV right side pane/.

- If you have a mono VCR, connect L/MONO on the TV to

your VCR's audio out terminal using the white audio cable

only.

• S-video cable (if your VCR or camcorder has S-video)

- Do not connect both types of video cable to VIDEO 1 at

the same time or the picture performance will be

unacceptable.

• standard audio cables (if your VCR or camcorder has

S-video)

Note: When you use a Cable box, you may not be able to use

the remote control to program or access certain features on the

TV.

To view the antenna or Cable signal:

Select the ANT/CABLE video input source on the TV.*

To view basic and premium Cable channels:

Turn OFF the VCR. Select the ANT/CABLE video input

source on the TV.* Tune the TV to channel 3 or 4 (whichever

channel the Cable box output is set to). Use the Cable box

controls to change channels.

To view the VCR:

Turn ON the VCR. Select the VIDEO 1 video input source on

the TV.*

To view the camcorder video:

Select the VIDEO 2 video input source on the TV.*

* To select the video input source, press INPUT on the remote control

(t_ page 21). To program the TV remote control to operate other

devices, see Chapter 3.

The unauthorized recording, use, distribution, or revision of

television programs, videotapes, DVDs, and other materials is

prohibited under the Copyright Laws of the United States and

other countries, and may subject you to civil and criminal

liability.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 14 Wednesday, Janu_y 30, 2008 3:54 PM

Connectinga DVDplayer with ColorStream® (componentvideo), a VCR,

and a satellite receiver

Your TV has two sets of ColorStream ® (component video) inputs.

'%....

COMPONENTVIDEO S-VIDEO VIDEO

OUT OUT

DVDplayerwith componentvideo

From satellite dish

TV upperhack panel

Stereo VCR

From antenna

Satellite receiverwith componentvideo

TV lowerhackpanel

You will need:

coaxial cables

standard A/V cables

- For better picture performance, if your VCR has S-video,

use an S-video cable (plus the audio cables) instead of

the standard video cable. Do not connect both types of

video cable to VIDEO 1 at the same time or the picture

performance will be unacceptable.

- If you have a mono VCR, connect L/MONO on the TV to

your VCR's audio out terminal using the white audio cable

only.

standard audio cables

component video cables

- You can connect the component video cables (plus audio

cables) from the DVD player or satellite receiver to either

set of CoIorStream terminals on the TV (HD 1or HD2). The

ColorStream HD1 and HD2 terminals can be used to

display Progressive (480p, 720p) and Interlaced (48d,

1080i). Please check the Owner's Manual of the DVD

player or satellite in order to determine the best output

signal available (1080[) is not supported).

- If your DVD player or satellite receiver does not have

component video, connect a standard A/V cable to

VIDEO 2 on the side panel. If your DVD player has HDMI

video, see page 16.

To view antenna or Cable channels:

Select the ANT/CABLE video input source on the TV.*

To view the DVD player:

Turn ON the DVD player. Select the ColorStream HD1

video input source on the TV.*

To view satellite programs using the component video

connections:

Turn on the satellite receiver. Select the ColorStream HD2

video input source on the TV.*

To view the VCR or view and record antenna

channels:

Turn ON the VCR. Tune the VCR to the channel you want to

watch. Select the VIDEO 1 video input source on the TV.*

To record a TV program while watching a DVD:

Turn ON the VCR. Tune the VCR to the channel to record.

Select the ColorStream HD1 video input source on the TV*

to view the DVD.

* To select the video input source, press INPUT on the remote control

(r_ page 21). To program the TV remote control to operate other

devices, see Chapter 3.

The unauthorized recording, use, distribution, or revision of

television programs, videotapes, DVDs, and other materials is

prohibited under the Copyright Laws of the United States and

other countries, and may subject you to civil and criminal

liability.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 15 Wednesday, Janu_y 30, 2008 3:54PM

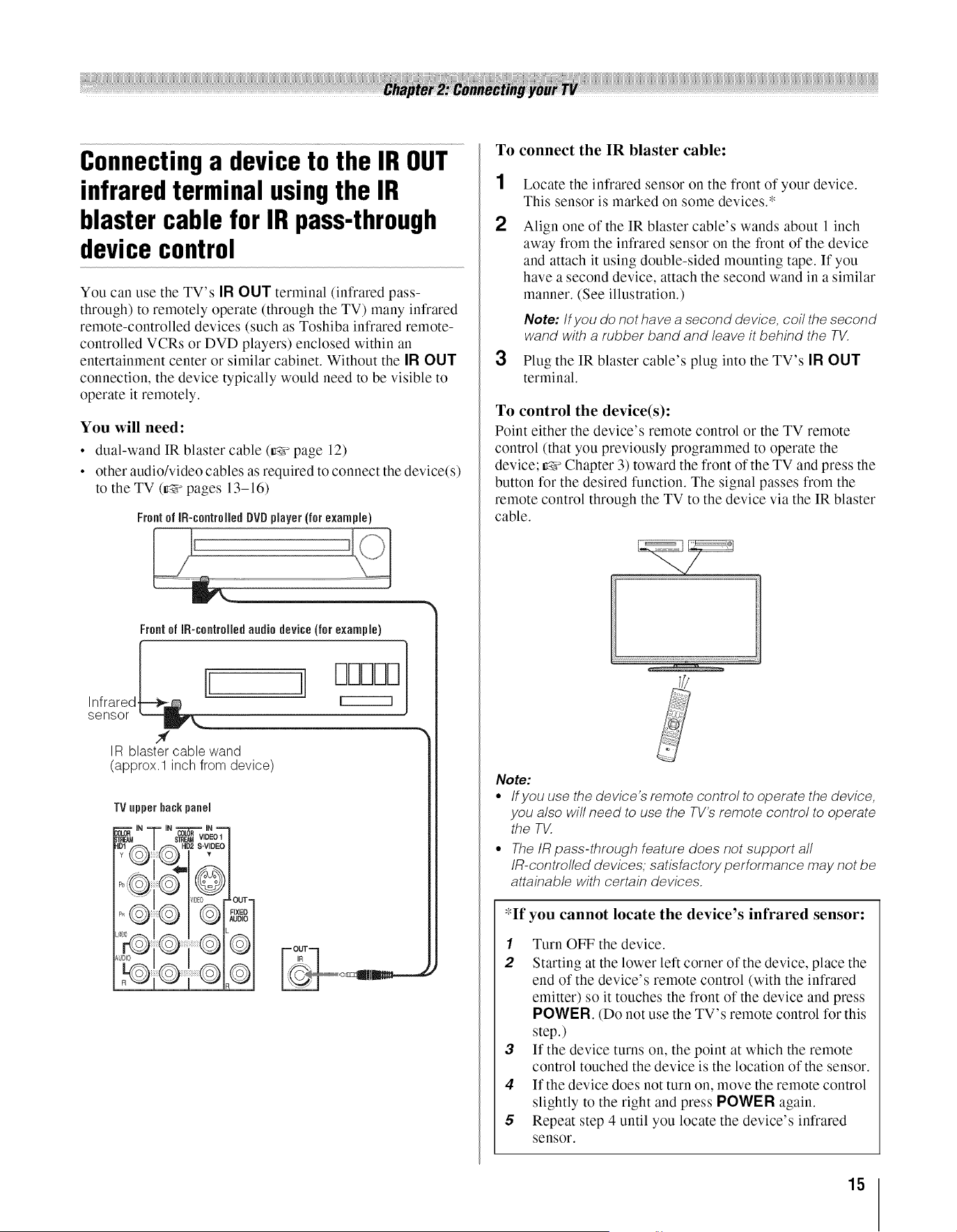

Connectinga device to the IR OUT

infrared terminal usingthe IR

blaster cable for IR pass-through

device control

You can use the TV's IN OUT terminal (infrared pass-

through) to remotely operate (through the TV) many infrared

remote-controlled devices (such as Toshiba infrared remote-

controlled VCRs or DVD players) enclosed within an

entertainment center or similar cabinet. Without the IN OUT

connection, the device typically would need to be visible to

operate it remotely.

You will need:

• dual-wand IR blaster cable (_¢ page 12)

• other audio/video cables as required to connect the device(s)

to the TV (_¢ pages 13-16)

Frontof IR-controlledDVDplayer(for example)

Frontof Ill-controlledandiodevice(forexample)

Infrared.

sensor

IR blaster cable wand

(approx.1 inch from device)

TV upperhackpanel

=N iN_ IN

PB'@ f@ VI@_ OUT"3

PR :I: F XED

J,©:© ®l,so,o/

I 1@[©1

OUT

To connect the IR blaster cable:

Locate the infrared sensor on the front of your device.

This sensor is marked on some devices.*

Align one of the IR blaster cable's wands about 1 inch

away from the infrared sensor on the front of the device

and attach it using double-sided mounting tape. If you

have a second device, attach the second wand in a similar

manner. (See illustration.)

Note: If you do not have a second device, coil the second

wand with a rubber band and leave it behind the TV.

3 Plug the IR blaster cable's plug into the TV's IR OUT

terminal.

To control the device(s):

Point either the device's remote control or the TV remote

control (that you previously programmed to operate the

device; _ Chapter 3) toward the front of the TV and press the

button for the desired function. The signal passes from the

remote control through the TV to the device via the IR blaster

cable.

Note:

• if you use the device's remote control to operate the device,

you also will need to use the TV's remote control to operate

the TE

• The IR pass-through feature does not support all

IR-controlled devices; satisfactory performance may not be

attainable with certain devices.

*If you cannot locate the device's infrared sensor:

1 Turn OFF the device.

2 Starting at the lower left corner of the device, place the

end of the device's remote control (with the infrared

emitter) so it touches the front of the device and press

POWER. (Do not use the TV's remote control for this

step.)

3 If the device turns on, the point at which the remote

control touched the device is the location of the sensor.

4 If the device does not turn on, move the remote control

slightly to the right and press POWER again.

8 Repeat step 4 until you locate the device's infrared

sensor.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 16 Wednesday, Janu_y 30, 2008 3:54 PM

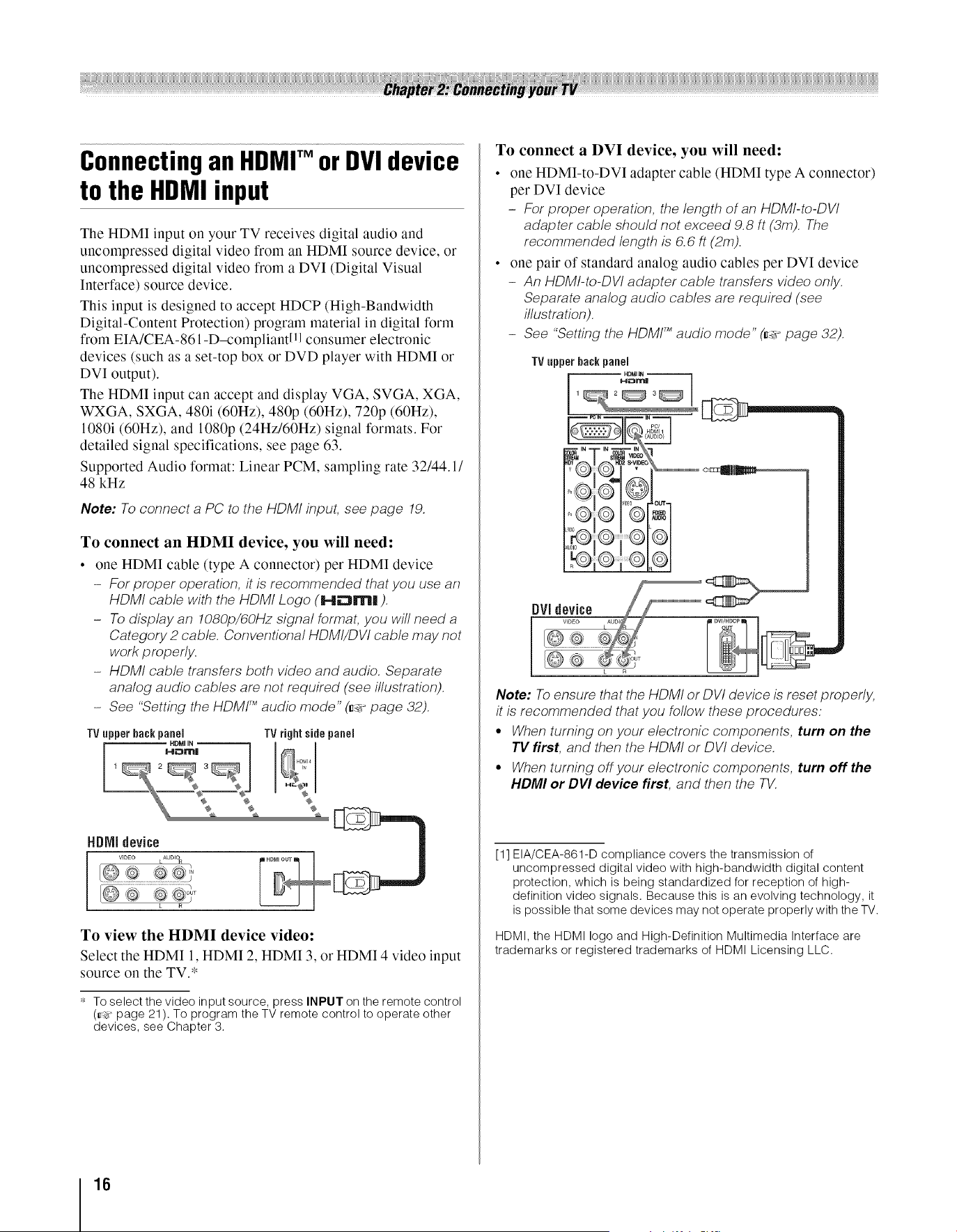

Connectingan HDMITMor DVI device

to the HDMI input

The HDMI input on your TV receives digital audio and

uncompressed digital video from an HDMI source device, or

uncompressed digital video from a DVI (Digital Visual

Interface) source device.

This input is designed to accept HDCP (High-Bandwidth

Digital-Content Protection) program material in digital form

from EIA/CEA-861 -D-compliant[_ I consumer electronic

devices (such as a set-top box or DVD player with HDMI or

DVI output).

The HDMI input can accept and display VGA, SVGA, XGA,

WXGA, SXGA, 480i (60Hz), 480p (60Hz), 720p (60Hz),

1080i (60Hz), and 1080p (24Hz/60Hz) signal formats. For

detailed signal specifications, see page 63.

Supported Audio format: Linear PCM, sampling rate 32/44.1/

48 kHz

Note: To connect a PC to the HDMI input, see page 19.

To connect an HDMI device, you will need:

• one HDMI cable (type A connector) per HDMI device

- For proper operation, it is recommended that you use an

HDMI cable with the HDMI Logo (H_:lrll| ).

- To display an 1080p/6OHz signal format, you will need a

Category 2 cable. Conventional HDMI/DVI cable may not

work properly.

- HDMI cable transfers both video and audio. Separate

analog audio cables are not required (see illustration).

- See "Setting the HDMI TMaudio mode" (_ page 32).

TV upperbackpanel TV rightside panel

To view the HDMI device video:

Select the HDMI 1, HDMI 2, HDMI 3, or HDMI 4 video input

source on the TV.*

* To select the video input source, press INPUT on the remote control

(r_ page 21 ). To program the TV remote control to operate other

devices, see Chapter 3.

To connect a DVI device, you will need:

• one HDMI-to-DVI adapter cable (HDMI type A connector)

per DVI device

- For proper operation, the length of an HDM/-to-DV/

adapter cable should not exceed 9.8 ft (3m). The

recommended length is 6. 6 ft (2m).

• one pair of standard analog audio cables per DVI device

- An HDMI-to-DVI adapter cable transfers video only.

Separate analog audio cables are required (see

illustration).

- See "Setting the HDMf _ audio mode" (_ page 32).

TV upperhackpanel

l iiis

PC/

HDMI 1

,OUT

Note: To ensure that the HDMI or DVI device is reset properly,

it is recommended that you follow these procedures:

• When turning on your electronic components, turn on the

TV first, and then the HDMI or DVI device.

• When turning offyour electronic components, turn off the

HDMI or DVI device first, and then the TV.

[1] EIA/CEA-861-D compliance covers the transmission of

uncompressed digital video with high-bandwidth digital content

protection, which is being standardized for reception of high-

definition video signals. Because this is an evolving technology, it

is possible that some devices may not operate properly with the TV.

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 17 Wednesday, Janu_y 30, 2008 3:54 PM

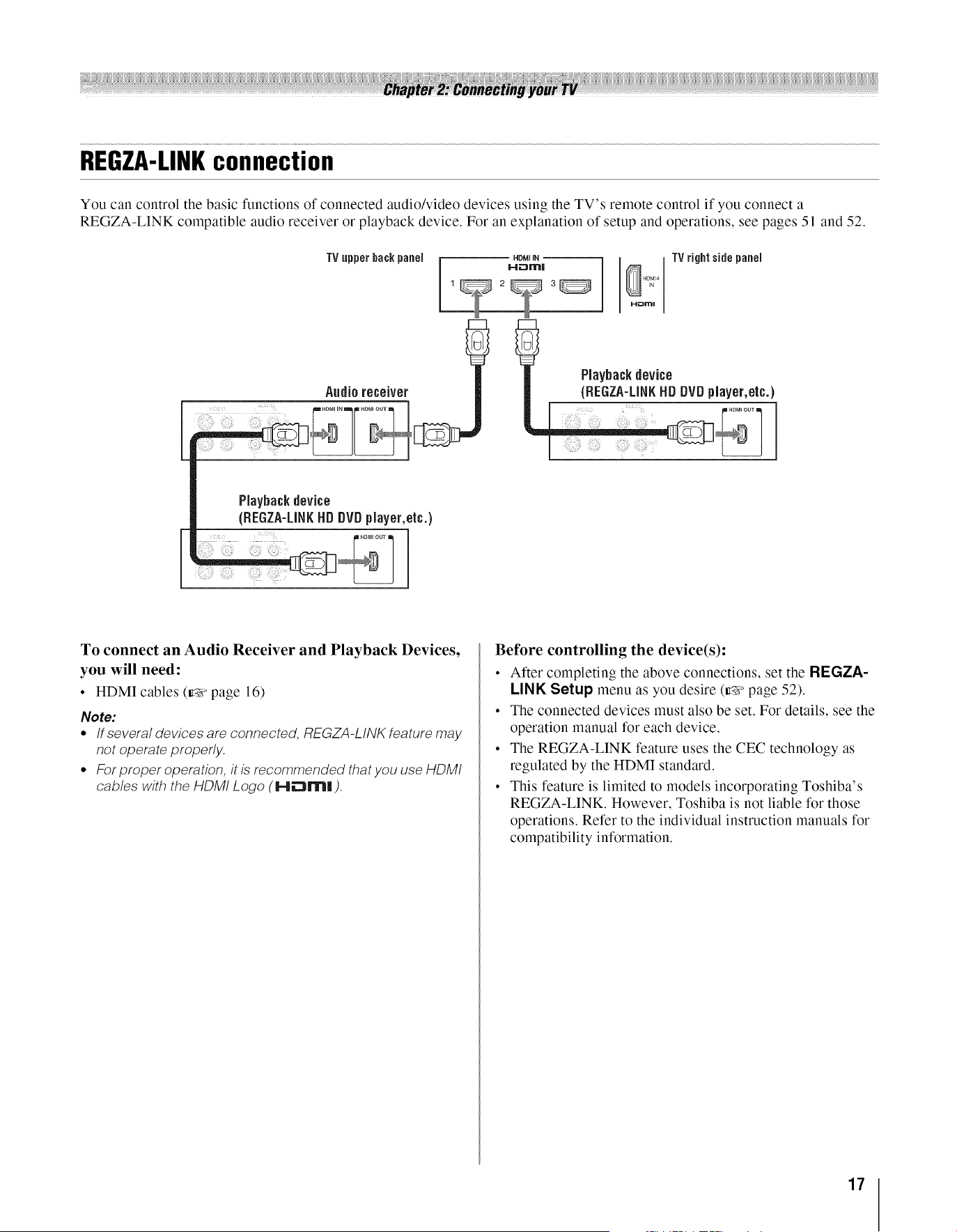

REGZA-LINKconnection

You can control the basic functions of connected audio/video devices using the TV's remote control if you connect a

REGZA-LINK compatible audio receiver or playback device. For an explanation of setup and operations, see pages 51 and 52.

TV upperhack panel

Audioreceiver

.DM__N-- TV rightside panel

I 1.....

N N

Playbackdevice

(REGZA-LNKHDDVDplayer,etc.)

Playbackdevice

(REGZA-LNKHDDVDplayer,etc.)

To connect an Audio Receiver and Playback Devices,

you will need:

• HDMI cables (r_¢ page 16)

Note:

• if several devices are connected, REGZA-L/NK feature may

not operate properly.

• For proper operation, it is recommended that you use HDMI

cables with the HDMI Logo (I-1£:311111).

Before controlling the device(s):

• After completing the above connections, set the REGZA-

LINK Setup menu as you desire (r_¢ page 52).

• The connected devices must also be set. For details, see the

operation manual for each device.

• The REGZA-LINK feature uses the CEC technology as

regulated by the HDMI standard.

• This feature is limited to models incorporating Toshiba's

REGZA-LINK. However, Toshiba is not liable for those

operations. Refer to the individual instruction manuals for

compatibility information.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 18 Wednesday, Janu_y 30, 2008 3:54PM

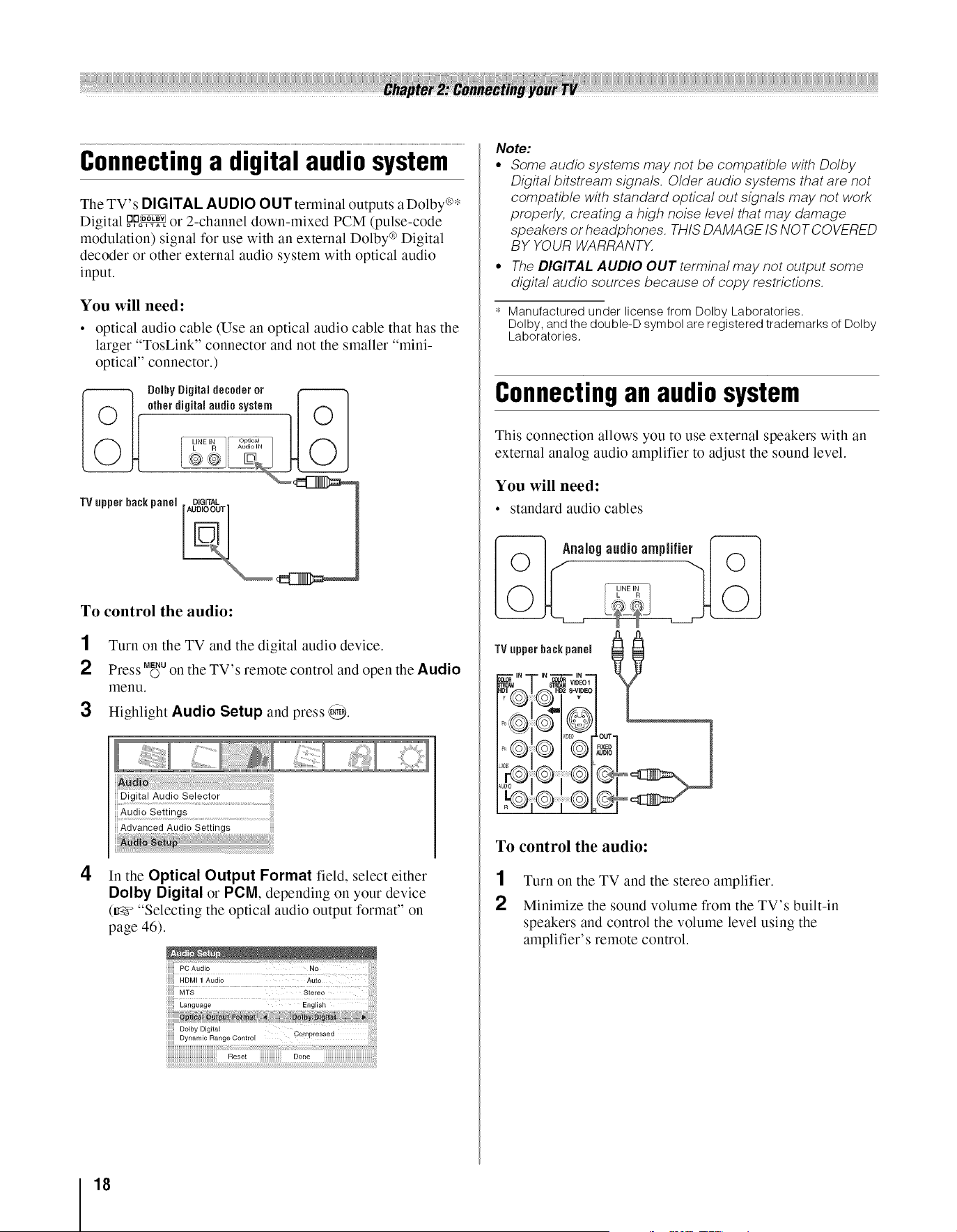

Connectinga digital audio system

The TV's DIGITAL AUDIO OUT terminal outputs aDolby ®*

Digital p,D_ or 2-channel down-mixed PCM (pulse-code

modulation) signal for use with an external Dolby <'_Digital

decoder or other external audio system with optical audio

input.

You will need:

• optical audio cable (Use an optical audio cable that has the

larger "TosLink" connector and not the smaller "mini-

optical" connector.)

°°'°2:°°'

To control the audio:

1 Turn on the TV and the digital audio device.

2 Press M_u on the TV's remote control and open the Audio

menu.

3 Highlight Audio Setup and press @.

Digital Audio Selector

Audio Se!!ings ...............................................................

Advanced Audio Settings

In the Optical Output Format field, select either

Oolby Digital or PCM, depending on your device

(gW "Selecting the optical audio output format" on

page 46).

Note:

• Some audio systems may not be compatible with Do/by

Digital bitstream signals. Older audio systems that are not

compatible with standard optical out signals may not work

properly, creating a high noise level that may damage

speakers or headphones. THIS DAMAGE IS NOT COVERED

BY YOUR WARRANTX

• The DIGITAL AUDIO OUT terminal may not output some

digital audio sources because of copy restrictions.

* Manufactured under license from Dolby Laboratories.

Dolby, and the double-D symbol are registered trademarks of Dolby

Laboratories.

Connectingan audio system

This connection allows you to use external speakers with an

external analog audio amplifier to adjust the sound level.

You will need:

• standard audio cables

TVupperbackpanel _

F©i©j _v'_°l/

To control the audio:

1 Turn on the TV and the stereo amplifier.

2 Minimize the sound volume from the TV's built-in

speakers and control the volume level using the

amplifier's remote control.

RV530U (E/F) Web 213:276

32 52RV530U EN.book Page 19 Wednesday, Janu_y 30, 2008 3:54 PM

Connectinga personal computer

(PC)

With either the PC IN or HDMI connection, you can watch

your computer's display on the TV and hear the sound from the

TV' s speakers.

To connect a PC to the PC IN terminal on the TV:

When connecting a PC to the PC IN terminal on the TV, use an

analog RGB (15-pin) computer cable and a PC audio cable.

TV upper hack panel

Conversion adapter

(if necessary)

• To use a PC, set the monitor output resolution on the PC

before connecting it to the TV. The PC IN terminal can

accept and display VGA, SVGA, XGA, WXGA, and SXGA

signal formats. For detailed signal specifications, see page

63.

• To display the optimum picture, use the PC setting feature

(g'_ "Using the PC settings feature" on page 50).

Note:

• The PC audio input terminals on the TVare shared with the

HDMI 1 analog audio input terminals (_ page 50).

• Some PC models cannot be connected to this TV.

• An adapter is not needed for computers with a compatible

mini D-sub 15-pin terminal.

• Depending on the DVD's title and the specifications of the

PC on which you are playing the DVD-Video, some scenes

may be skipped or you may not be able to pause during

multi-angle scenes.

Signal names for mini D-sub 15-pin connector

1 R

2 G

3 B

4 NC *

5 NC

• NC=Not connected

6 Ground 11 NC

7 Ground 12 NC

8 Ground 13 H-sync

9 NC 14 V-sync

10 Ground 15 NC

To connect a PC to the HDMI terminal on the TV:

When connecting a PC to the HDMI terminal on the TV, use

an adapter cable and analog audio cables.

If connecting a PC with an HDMI terminal, use an HDMI cable

(type A connector). Separate analog cables are not necessary

(r'_¢page 16).

TV upper back panel

E IN IN _ IN

VIDE¢

LTLL ....

iY •

iii_fi

Computer

PC/

HDMI 1

PC audio

cable

The HDMI input can accept and display VGA, SVGA, XGA.

WXGA, SXGA, 480i (60Hz), 480p (60Hz), 720p (60Hz),

1080i (60Hz), and 1080p (24Hz/60Hz) signal formats. For

detailed signal specifications, see page 63.

Note:

• The edges of the images may be hidden.

• If receiving a 480i (HDMI), 480[) (HDMI), 720p, 1080L or

1080[) signal program, Native mode scales the video to

display the entire picture within the borders of the screen

(i.e. no overscanning).

RV530U (E/F) Web 213:276

32 52RV530U EN.book Page 20 Wednesday, Janu_y 30, 2008 3:54 PM

Preparing the remote control

for use

Your TV remote control can operate your TV and many other

devices such as cable converter boxes, satellite receivers,

VCRs, DVD players, and HTIBs (home theater in a box), even

if they are different brands.

If you have a Toshiba device:

Your TV remote control is preprogrammed to operate most

Toshiba devices (r_¢ page 24).

If you have a non-Toshiba device or a Toshiba device

that the remote control is not preprogrammed to

operate:

You can program the TV remote control so it will operate the

other device (r_¢ pages 22-26).

Installing the remote control

batteries

1 Remove the battery cover from the back of the remote

control.

Squeeze tab

and lift cover.

Install two "AAA" size batteries, making sure to match

the + and - signs on the batteries to the signs on the battery

compartment.

Reinsert the battery cover in the remote control until the

tab snaps.

Caution: Batteries must not be exposed to excessive heat

such as sunshine, fire or the like.

Note:

• Be sure to use AAA size batteries.

• Dispose of batteries in a designated disposal area.

• Batteries should always be disposed of with the

environment in mind. Always dispose of batteries in

accordance with appficable laws and regulations.

• If the remote control does not operate correctly, or if the

operating range becomes reduced, replace batteries with

new ones.

• When necessary to replace batteries in the remote control,

always replace both batteries with new ones. Never mix

battery types or use new and used batteries in combination.

• Always remove batteries from the remote control if they are

dead or if the remote control is not to be used for an

extended period of time. This will prevent battery acid from

leaking into the battery compartment.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 21 Wednesday, Janu_y 30, 2008 3:54 PM

Learningabout the remote control

The buttons used for operating the TV only are described here.

For a complete list of the remote control's functions, see the

remote control functional key chart (_'q¢page 23).

PLAY

TV/VCR REC RESUMEPLAY SLOW

MODE SELECT

TOSHIBA

CT-90302

Note: The error message "Not A vai/ab/e" may appear if you

press a key for a function that is not available.

1 POWER turns the TV on and off. When the TV is on, the

green LED indicator on the TV front will be illuminated.

2 FREEZE freezes the picture.

Press again to restore the moving picture (_,v page 42).

3 SLEEP accesses the sleep timer (_,v page 51).

4 PIC SIZE cycles through thepicture sizes: Natural,

TheaterWide 1/2/3, Full, 4:3 HD, Native, and Dot by

Dot (_ page 39).

5 Channel Numbers (0-9, -/100) directly tune

channels. The (_) button is used to tune digital channels

(_,v page 38) or to edit the Favorites List (_,v page 36).

6 INPUT selects the video input source (_,v page 35).

7 CH Al!' cycles through programmed channels when no

menu is on-screen (_ page 30).

8 VOL + - adjusts the volume level.

9 FAV BROWSER accesses the Favorites List in the

Channel Brower'" (_ page 36).

10 RECALL displays TV status information (_'q¢page 54).

11 CH RTN returns to the last viewed channel or source

(_ page 39).

12 MUTE reduces or turns off the sound (_ page 44).

13 INFO displays TV status information as well as program

details, when available (_ page 54).

14 '_ • / _i • While watching TV, these buttons open the

Channel Browser '_' and tune to the previous/next channel

in the channel history (_ page 37). (Also see "Arrow

buttons.")

15 Arrow buttons (AT• •) When a menu is on-screen,

these buttons select or adjust programming menus. (Also

see

16 ENTER activates highlighted items in the main menu

system.

17 MENU accesses the main TV menu system (_,v page 27).

18 EXIT closes on-screen menus.

19 MODE SELECT switch switches between TV,

CABLE/SAT, AUX 1, and AUX 2 modes (_,v page 22).

Set to "TV" to control the TV.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 22 Wednesday,, Janu_y 30, 2008 3:54PM

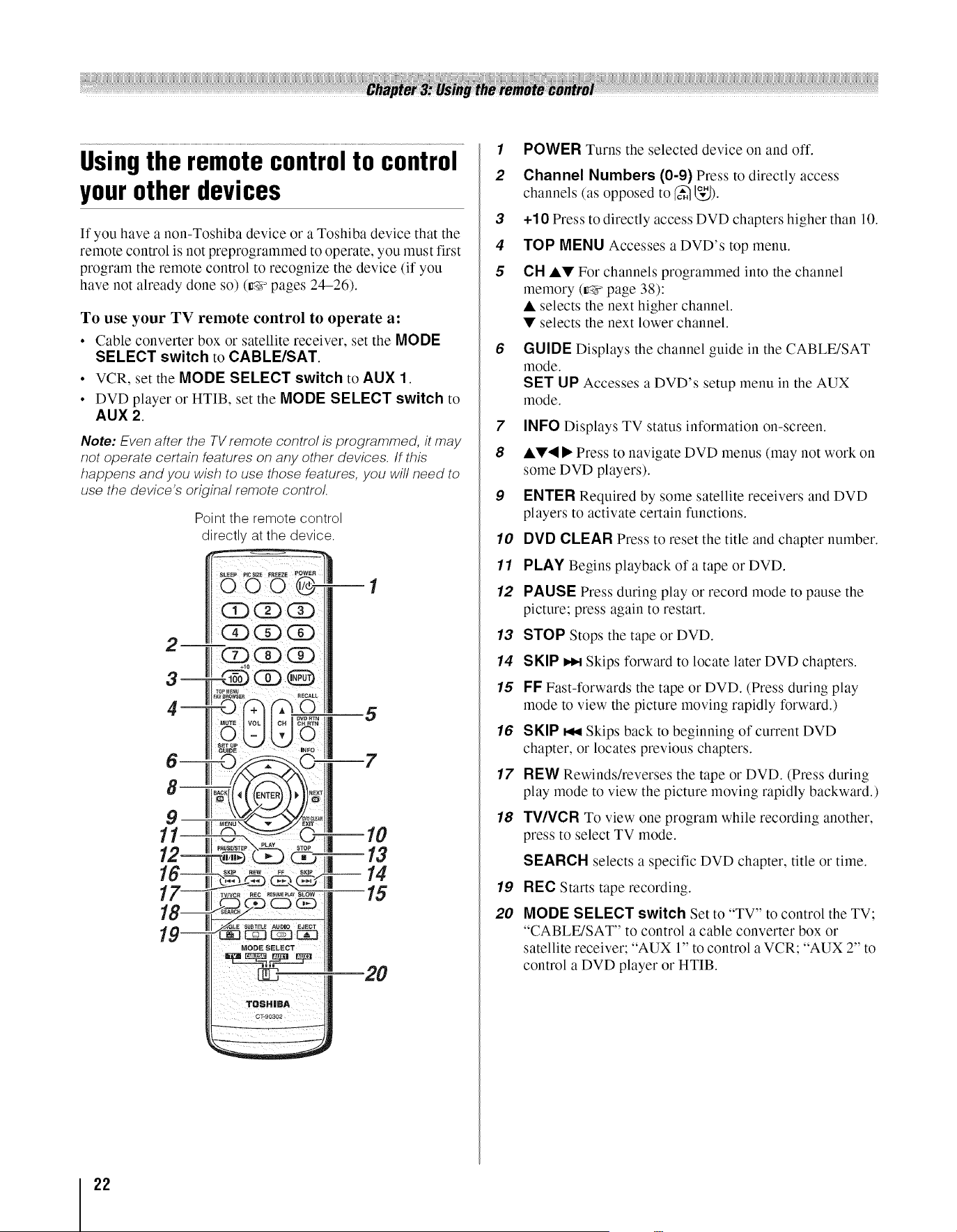

Usingthe remote control to control

your other devices

If you have a non-Toshiba device or a Toshiba device that the

remote control is not preprogrammed to operate, you must first

program the remote control to recognize the device (if you

have not already done so) (_¢ pages 24-26).

To use your TV remote control to operate a:

• Cable converter box or satellite receiver, set tile MODE

SELECT switch to CABLE/SAT.

• VCR, set the MODE SELECT switch to AUX 1.

• DVD player or HTIB, set the MODE SELECT switch to

AUX 2.

Note: Even after #Te TV remote control is programmed, it may

not operate certain features on any other devices. If this

happens and you wish to use those features, you will need to

use the device's original remote control.

Point the remote control

directly at the device.

SKIp

SUBTiT_ _AtJDiO EJECT

MODE SELECT

1 POWER Turns the selected device on and off.

2 Channel Numbers (0-9) Press to directly access

channels (as opposed to _ _,").

3 +10 Press to directly access DVD chapters higher than 10.

4 TOP MENU Accesses a DVD's top menu.

5 CH Al!' For channels programmed into the channel

memory (_¢ page 38):

• selects the next higher channel.

• selects the next lower channel.

6 GUIDE Displays the channel guide in the CABLE/SAT

mode.

SET UP Accesses a DVD's setup menu in the AUX

mode.

7 INFO Displays TV status information on-screen.

8 ••_1 • Press to navigate DVD menus (may not work on

some DVD players).

9 ENTER Required by some satellite receivers and DVD

players to activate certain functions.

10 DVD CLEAR Press to reset the title and chapter number.

11 PLAY Begins playback of a tape or DVD.

12 PAUSE Press during play or record mode to pause the

picture; press again to restart.

13 STOP Stops the tape or DVD.

14 SKIP 1,_ Skips forward to locate later DVD chapters.

15 FF Fast-forwards the tape or DVD. (Press during play

mode to view the picture moving rapidly forward.)

16 SKIP _ Skips back to beginning of current DVD

chapter, or locates previous chapters.

17 REW Rewinds/reverses the tape or DVD. (Press during

play mode to view the picture moving rapidly backward.)

18 TV/VCR To view one program while recording another,

press to select TV mode.

SEARCH selects a specific DVD chapter, title or time.

19 REC Starts tape recording.

20 MODE SELECT switch Set to "TV" to control the TV;

"CABLE/SAT" to control a cable converter box or

satellite receiver; "AUX 1" to control a VCR; "AUX 2" to

control a DVD player or HTIB.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 23 Wednesday, Janu_y 30, 2008 3:54PM

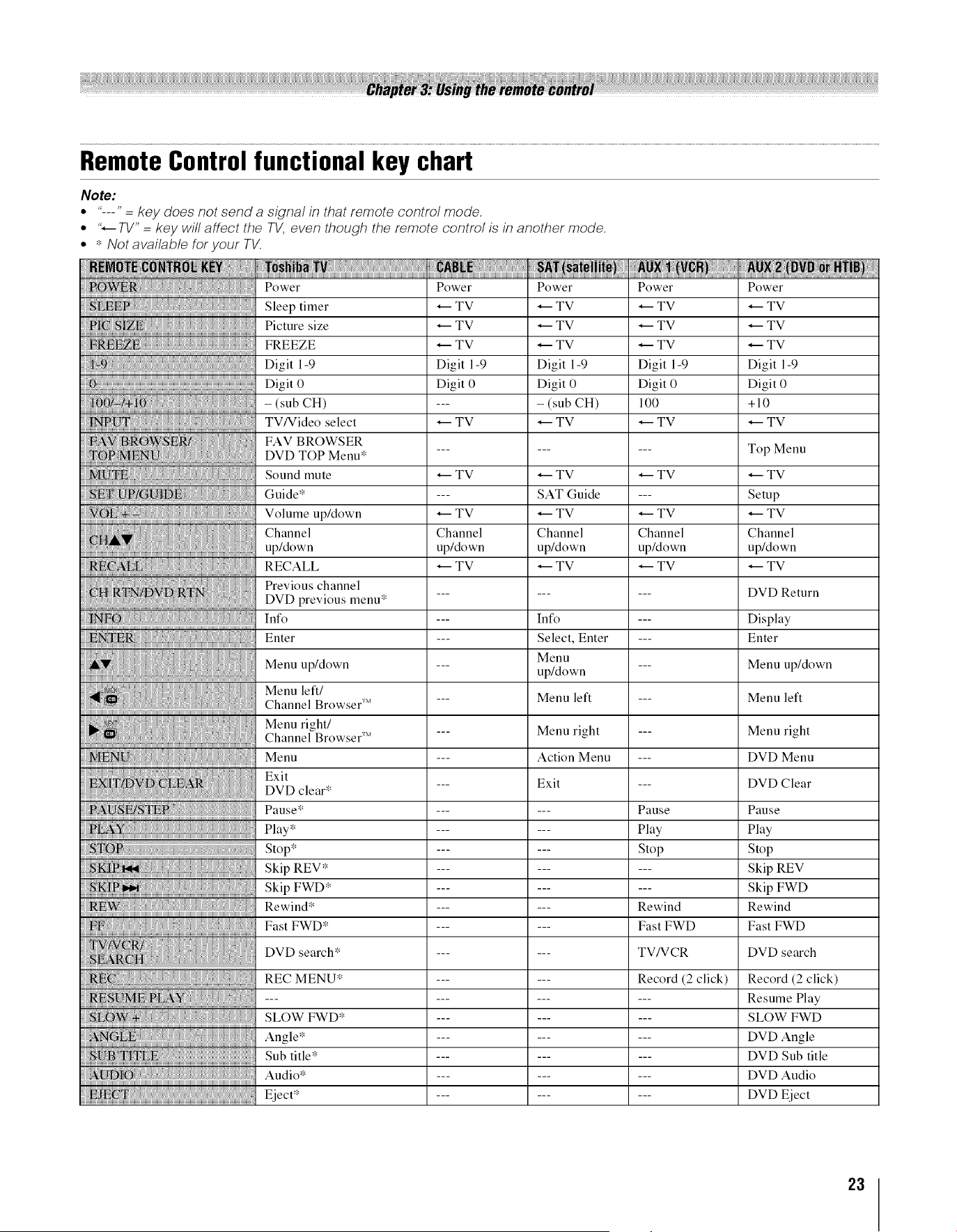

Remote Control functional key chart

Note:

• "---" = key does not send a signal in that remote control mode.

• "*--TV" = key will affect the TV, even though the remote control is in another mode.

• * Not available for your TV.

iiiiiiiilJ_iii!!!!ii_i_:iiiiiiWiiiii{iii!i_iiiiiiiii_i_i:i_iii!i!ii_ii_:i!iiii!_:i!iiii!_:i!iiii!_:iiiii

!!!i!!!!__!!ii_i__:0!! ! !i!!i!!H!!!!i!!i!!!....

!!L!! !

iiiii!_ii_Niiiiiii_{_ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_Ii_i_i

!!!!L!_!L!II!!_i_!!!!_!!i!!i!!!!!_I!!!_i!i_!!_!Lii!i_!!!_!_!!!_!_!i!!!_!!_!!_!_!!_!_!!!!!_!!_!_!!!!i_i!_!!i!!!!i_i!_!!_!!!!!_!_!!_!_!_!_!_!_!!!!_!!!!_!!!!_!_!_!!!_!!!!!_!!)!_!!_!_!!!!!i'ii'_

....

iiiiiiii!!!!i!!!!!!!!i!!i!!_!!,!,!!!!!!'i!!!!!!!!!!!!!!!!!!!!!!,!!,_,!_i!!!!_,!_,!!!_!!;!_,!!!!_!!!!!!

........s

iii i_I_!,!!,!,!!!!!!!!!!!!!_,!!!!_i!l!!!i!!!!!!!!!!i!i:!i!iiii!ii!!lli!lii!!lli!lii!!lli!lii!!lli!i!!

!!!!!i!! _!_! !!!!!!!!!!!!!!!!!!i

Power

Sleep timer

Picture size

FREEZE

Digit 1-9

Digit 0

- (sub CH)

TV/Video select

FAV BROWSER

DVD TOP Menu*

Sound mute

Guide*

Volume up/down

Channel

up/down

RECALL

Previous channel

DVD previous menu*

Info

Enter

Menu up/down

Menu left/

Channel Browser'"

Menu right/

Channel Browser '_'

Exit

DVD clear*

Pause*

Play*

Stop*

Skip REV*

Skip FWD*

Rewind*

Fast FWD*

DVD search*

REC MENU*

SLOW FWD*

Angle*

Sub title*

Audio*

Eject*

Power

-,-- TV

Digit 1-9

Digit 0

-,-- TV

Channel

up/down

-,-- TV

Power

-,-- TV

Digit 1-9

Digit 0

100

-,-- TV

Channel

upMown

-,-- TV

Power

-,-- TV

Digit 1-9

Digit 0

- (sub CH)

-,-- TV

SAT Guide

-,-- TV

Channel

up/down

-,-- TV

Info

Select, Enter

up/down

Menu left

Menu right

Action Menu

Exit

Power

-,-- TV

Digit 1-9

Digit 0

+10

-,-- TV

Top Menu

-,-- TV

Setup

-,-- TV

Channel

up/down

-,-- TV

DVD Return

Display

Enter

...... up/down

...... Menu left

Menu right

Pause

Play

Stop

Rewind

Fast FWD

TV/VCR

Record (2 click)

DVD Menu

DVD Clear

Pause

Play

Stop

Skip REV

Skip FWD

Rewind

Fast FWD

DVD search

Record (2 click)

Resume Play

SLOW FWD

DVD Angle

DVD Sub title

DVD Audio

DVD Eject

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 24 Wednesday, Janu_y 30, 2008 3:54 PM

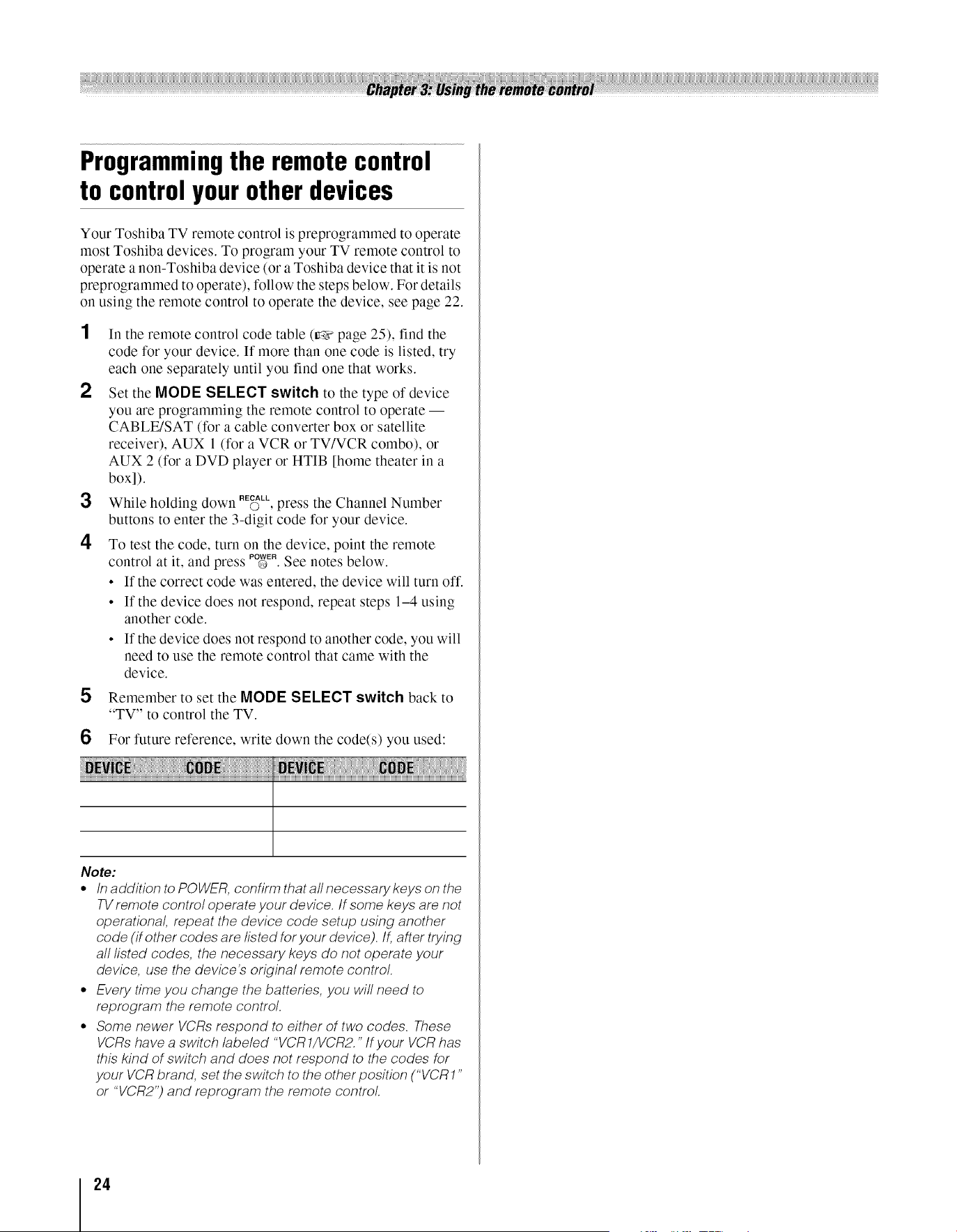

Programmingthe remote control

to control your other devices

Your Toshiba TV remote control is preprogrammed to operate

most Toshiba devices. To program your TV remote control to

operate a non-Toshiba device (or a Toshiba device that it is not

preprogrammed to operate), follow the steps below. For details

on using the remote control to operate the device, see page 22.

In the remote control code table (_ page 25), find the

code for your device. If more than one code is listed, try

each one separately until you find one that works.

Set the MODE SELECT switch to the type of device

you are programming the remote control to operate --

CABLE/SAT (for a cable converter box or satellite

receiver), AUX 1 (for a VCR or TV/VCR combo), or

AUX 2 (for a DVD player or HTIB [home theater in a

box]).

While holding down ,E_LL,press the Channel Number

buttons to enter the 3-digit code for your device.

To test the code, turn on the device, point the remote

control at it, and press PO_E,.See notes below.

• If the correct code was entered, the device will turn off.

• If the device does not respond, repeat steps 14 using

another code.

• If the device does not respond to another code, you will

need to use the remote control that came with the

device.

Remember to set the MODE SELECT switch back to

"TV" to control the TV.

For future reference, write down the code(s) you used:

Note:

• in addition to POWER, confirm thatallnecessarykeys on the

TVremote control operate your device. If some keys are not

operational, repeat the device code setup using another

code (if other codes are listed for your device). If, after trying

all fisted codes, the necessary keys do not operate your

device, use the device's original remote control.

• Every time you change the batteries, you will need to

reprogram the remote control.

• Some newer VCRs respond to either of two codes. These

VCRs ha vea s witch labeted "VCR 1/VCR2." If your VCR has

this kind of switch and does not respond to the codes for

your VCR brand, set the switch to the other position ("VCR 1"

or "VCR2") and reprogram the remote control.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 25 Wednesday,. Janu_y 30, 2008 3:54PM

Remote control codes

In some cases you may not be able to

operate your device with the TV

remote control. Your other device may

use a code that is not recognized by the

TV remote control. If this happens, use

the device's remote control.

Cable converter box

ABC 061,062, 063,082,

084,087, 092,

096,098

Archer 065,092, 097, 099

Cableview 064, 094

Century 092

Citizen 090, 092, 097

Contec 083,085, 086, 088,

093,098

Diamond 093

GE 061,062

Gemini 069,070, 094

Hamlin 093

Hitachi 062,095, 096

Jasco 097

Motorola/GI/Jerrold 062, 069, 071,082,

086,089, 096, 107

Magnavox 072,096

Memorex 092, 104

Multi Canal 090

Novavision 101

Panasonic 081,083, 085

Philco 087

Philips 066, 067, 068,070,

072,073, 074, 075,

092

Pioneer 076,077

tS"oscan 061,062

Radio Shack 092, 097, 099

RCA 064, 081

Realistic 065

Recoton 102

Samsung 077,090

Scientific Atlanta 063, 078,079,080,

088,098, 101, 105

Sears 095

Signature 062

Signature 2000 096

Sprucer 081,085

Starcom 069, 082, 087,096,

103, 104

Stargate 069,090

Sylvania 095, 100

TeleView 090

Texscan 100

Tocom 071,084, 085

U. S. Electronics 087,096, 098

United Cable 082

Universal 065, 092, 097, 099,

102, 103

Wards 096

Satellite receiver

Alphastar 038,059

Chaparral 034

DISH Network 057

Drake

Echostar

Express Vu

Fujitsu

General Instruments

Hitachi

Hughes

Hughes Network

Systems

Intersat

Janeil

JVC

Kenwood

Magnavox

Optimus

Pansat

tS"imestar

tS"oscan

Radio Shack

RCA

Realistic

Samsung

Sony

Star Choice

Star Trak

STS

Toshiba

Uniden

Zenith

TV/VCRCombo

Action

Goldstar

Panasonic

Precision

Quasar

Realistic

Sony

Toshiba

Zenith

Totevision

DVD/VCRCombo

Go Video

JVC

RCA

Samsung

Sanyo

Zenith

DVDplayer

Aiwa

Apex

BOSE

Broksonic

020,040,044,046,

050,053

018,041,051

057

027

008,009,013

010,011,012,022,

023,031,049

033

019

048

027

017,057

029

060

O58

036,052

015,042

008,009,013

022,023,030

008,009,013,016

O3O

O59

014,055

057,106

025,026,037,054

024

000,001,002,003,

004,005,006,007,

020,031,056

021,028,030,032,

035,039,043,045,

047,058

027

078

059,062

065

078

065

079

074

057

065

009,010,065

DVD=087,

VCR=081

DVD=088,

VCR=082

DVD=089,

VCR=083

DVD=090,

VCR=084

DVD=091,

VCR=085

DVD=092,

VCR=086

006,015

016,017

097

018

Clarion 019

Classic 020

Daewoo 021

Denon 022, 023, 024, 025

Emerson 026,027

Fisher 028

Funai 027

GE 001,029,030

Go Video 087

GPX 031

Hitachi 005,032,033,034,

035

JVC 003,007,036,042,

088

Kenwood 037

Konka 008,009

Magnavox 004,038

Memorex 039

Mintek 040

NAD 026

Nakamichi 041

Norcent 043

Onkyo 044

Oritron 058

Panasonic 010,045,046,047,

048,049,050

Philips 004,051

Pioneer 052,053,054,055

Proscan 001,056

Qwestar 057,058

RCA 001,002, 059, 089

Sampo 060

Samsung 061,062,086,090

Sansui 073

Sanyo 063,091

Sharp 064,067

Sherwood 074

Sony 011,012,065,066,

068,069,070

Sylvania 027

Teac 071

Technics 072

Techwood 075

Toshiba 000, 013,076,077,

078

Yamaha 079,080,081

Zenith 014,082,092

Portable DVDplayer

Aiwa 093

Audiovox 094,095

Panasonic 024,096,099

RCA 098

VCR

Admiral

Aiko

Aiwa

Akai

Audiovox

Bell & Howell

Broksonic

Calix

Carver

CCE

Citizen

Colortyme

049

019

018

003,004,037,038,

039,058,069

010

007,068

008,017

010

026

019

009,010,011,012,

013,014,015,019,

057,073

O05

(continued)

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page 26 Wednesday, Janu_y 30, 2008 3:54 PM

Craig 009,010, 016, 061,

065,079

Curtis Mathes 001,005, 009, 012,

014,040, 048,053,

056,057

Daewoo 011,013, 015,017,

018,019, 057, 078

Daytron 078

Denon 063

Dimensia 001,048

Electrohome 010. 020,

Emerson 003. 008,

017.018,

039.054,

065. 068,

007. 016,

023. 057,

070.071,

Fuji 004. 041

Funai 018,073

Garrard 018

GE 001,002, 009, 040,

042,048, 056

Go Video 056,059, 061,081

Goldstar 005, 010, 014,054,

056,065, 067

Gradiente 018,065

Harman Kardon 005

Hitachi 024,025, 035,037,

042,063, 070, 080

JBL 076

JC Penney 005, 006.

009.010.

025. 026.

061. 063.

024.025.

005. 006.

037.043.

063. 068.

005. 006.

014.037.

053. 068.

Kodak 010

LG 010

Lloyds 053,073, 079

Logik 061

LXI 010

Magnasonic 061,065,078

Magnavox 026, 027, 034, 044,

057,061,072

Marantz 005, 006, 007,012,

014,026, 053,067

Memorex 007, 009, 010, 016,

018,034, 049, 063,

065,066, 068,075,

079

MGA 020, 028,039

MGN 056

Minolta 024, 025,035,063

Mitsubishi 020, 024, 025,028,

039,043, 065

Montgomery Ward 049

Motorola 049

MTC 009, 046, 061

Multitech 009, 012, 018

NEC 005,006, 007, 012,

014,037, 043,053,

054,067, 070

Nikko 010

Noblex 009

Optimus 010, 049, 065

Optonica 031

Fisher

Jensen

JVC

Kenwood

O65

010,011,

020,028,

057,062,

072

021,022,

064,068,

079

007,008,

023,024,

035,056,

065

037,050

007,014,

055,062,

082

007,012,

043,050,

071

Orion

Panasonic

Pentax

Pentex Research

Philco

Philips

Pioneer

Portland

tS"oscan

Proton

Quasar

Radio Shack

Radio Shack/Realistic

Radix

RCA

Realistic

Ricoh

Runco

Samsung

Sansui

Sanyo

Scott

Sears

Sharp

Shintom

Signature

Signature 2000

Singer

Sony

STS

Sylvania

Symphonic

Tandy

Tashiko

Tatung

Teac

Technics

Teknika

Toshiba

Totevision

Unitec

Unitech

Vector Research

054,057,062,065,

068,072

036,045,046,057,

061,072,079

012,024,025,035,

042,053,063

014

026,027,063

026,031,044,057

006,024,043,055

012,013,015

001,002,048

061

O45

010,031,065

007,009,010,016,

018,020,021,022,

031,049

010

001,002,003,009,

024,025,029,035,

040,042,045,048,

055,056,063,071,

083

007,009,010,011,

016,018,020,021,

022,031,049,051,

056,060,065,075,

079

O47

034

009,011,038,056,

073,084

006,037,043,061

007,009,016,054,

064,068,071,075,

079,085

008,011,017,028,

030,057,065,072

007,010,016,021,

022,023,024,025,

035,053,057,063,

064,065,068,071,

075,079

013,020,031,049,

051,060,066

004,025,032,061

049

O75

047,061

004,032,033,041,

052,058,070,074,

076,077,080

035

018,026,027,028,

044,072

018,050,051,053,

073,079

OO7

010

037

018,029,037

036

010,018,065

000,011,021,023,

024,028,030,039,

057,074,078,079,

100,101

009,010,065

073

OO9

005,006,011,012,

O53

Video Concepts

Wards

White Westinghouse

XR- 1000

Yamaha

Zenith

HTIB

Lasonic

Panasonic

Venturer

005,006,011,012,

039,053

009,010,011,016,

018,020,024,025,

031,035,049,051,

056,057,060,065,

066,079

073

018

005,006,007,014,

037,053

004,032,034,041,

047,069,086

083

084

085

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page 27 Wednesday, Janu_y 30, 2008 3:54 PM

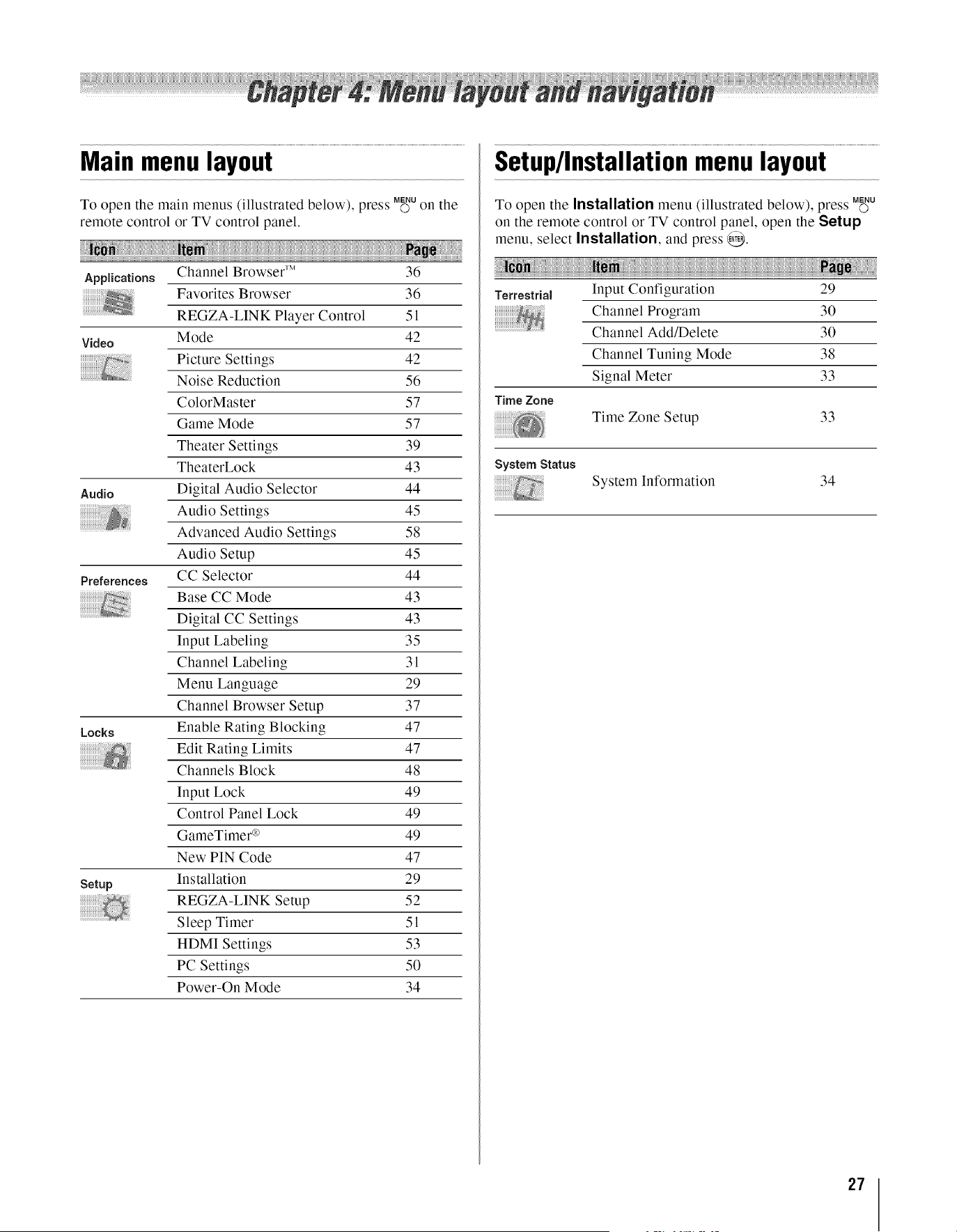

Main menulayout

To open the main menus (illustrated below), press M_uon the

remote control or TV control panel.

Applications Channel Browser '_' 36

Favorites Browser 36

REGZA-LINK Player Control 51

Video Mode 42

Picture Settings 42

Noise Reduction 56

ColorMaster 57

Game Mode 57

Theater Settings 39

TheaterLock 43

Audio Digital Audio Selector 44

Audio Settings 45

Advanced Audio Settings 58

Audio Setup 45

Preferences CC Selector 44

Base CC Mode 43

Digital CC Settings 43

Input Labeling 35

Channel Labeling 31

Menu Language 29

Channel Browser Setup 37

Locks Enable Rating Blocking 47

Edit Rating Limits 47

Channels Block 48

Input Lock 49

Control Panel Lock 49

GameTimer ® 49

New PIN Code 47

Setup Installation 29

REGZA-LINK Setup 52

Sleep Timer 51

HDMI Settings 53

PC Settings 50

Power-On Mode 34

Setup/Installation menu layout

To open the Installation menu (illustrated below), press MEnu

on the remote control or TV control panel, open the Setup

menu, select Installation, and press @.

Terrestrial Input Configuration 29

Channel Program 30

Channel Add/Delete 30

Channel Tuning Mode 38

Signal Meter 33

Time Zone

Time Zone Setup 33

System Status

System Information 34

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page 28 Wednesday,, Janu_y 30, 2008 3:54PM

Navigatingthe menu system

You can use the buttons on the remote control or TV control

panel to access and navigate your TV's on-screen menu

system.

• Press M_uto open the menu system.

Channel Browser

Favorites Browser

• When a menu is open, use the up/down/left/right arrow

buttons (AV_I I_) on the remote control or TV control panel

to move in the corresponding direction in the menu.

• Press @ to save your menu settings or select a highlighted

item. (A highlighted menu item appears in a different color

in the menu.)

• All menus close automatically if you do not make a selection

within 60 seconds, except the signal meter menu, which

closes automatically after about 5 minutes.

• To close a menu instantly, press E_T.

Note:

• The menu background may sometimes appear black,

depending on the signal the TV is receiving. This is not a

sign of malfunction.

• The Video sub-menu appears with a black background,

which looks different from other menus.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 29 Wednesday, Janu_y 30, 2008 3:54 PM

Selecting the menu language

You can choose from three different languages (English,

French and Spanish) for the on-screen display of menus and

messages.

To select the menu language:

1 Press M_uand open the Preferences menu.

2 Highlight Menu Language and press •.

3 Press • or • to select your preferred menu language and

press @.

Digital CC Settings

[abeiing .............................................................

4 Press E_, to close the Preferences menu.

Configuringthe antennainput

sourcefor the ANT/CABLEterminal

To configure the ANT/CABLE input source:

1 Press M_uand open the Setup menu.

2 Highlight Installation and press @.

Power-On Mode Power-Saving

(A new set of Installation menu icons will appear, as

shown below.) Open the Terrestrial menu, highlight

Input Configuration, and press @.

Channel Add/Delete

Channel Tuning Mode Auto

signai Meier

4 Press • or • to select the input source (Cable or

Antenna) for the ANT/CABLE input on the TV.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiic.... i Done

To save your new settings, highlight Done and press @.

To revert to your original settings, highlight Cancel and

press @.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 30 Wednesday, Janu_y 30, 2008 3:54 PM

Programmingchannels into the

TV's channel memory

When you press _ or _,_ on the remote control or TV control

panel, your TV will stop only on the channels you programmed

into the TV's channel memory.

Follow the steps below to program channels into the TV's

channel memory.

Programmingchannels automatically

Your TV can automatically detect all active channels in your

area and store them in its memory. After the channels are

programmed automatically, you can manually add or erase

individual channels in the channel memory.

Note:

• You must configure the ANT/CABLE input source before

programming channels (_ page 29).

• If the ANT/CABLE input signal type is set to Cable, the

automatic channel programming process erases channels

that were previously programmed into the TV's memory.

• If the ANT/CABLE input signal type is set to Antenna, the

automatic channel programming process adds newly found

channels to the existing set of programmed channels (and

does NOT erase channels that were previously

programmed into the TV's memory.) To remove an Antenna

source channel from the memory, you must manually delete

it.

• To tune the TV to a channel not programmed in the channel

memory, you must use the Channel Number buttons on the

remote control.

• Programming channels when the ANT/CABLE input is

configured for Cable will take substantially longer than when

the antenna input is configured for Antenna. This is normal,

however, once channet programming is finished, you should

not have to repeat the programming process again unless

your Cable TV service lineup changes significantly.

To program channels automatically:

1 Configure the antenna input source, if you have not

already done so (_ page 29).

2 From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

3 Open the Terrestrial menu, highlight Channel

Program to bring up the Start, and press @ again to

begin channel programming.

The TV will automatically cycle through all the antenna

channels, and store all active channels in the channel

memory. While the TV is cycling through the channels,

the message "Scanning channels, please wait" appears (as

shown above).

To cancel channel programming, press E_Ton the remote

control (or highlight Cancel in the on-screen display and

press @).

When channel programming is finished, press (_ or _ to

view the programmed channels.

Manually adding and deleting channels

in the channel memory

After automatically programming channels into the channel

memory, you can manually add or delete individual channels.

To add or delete channels in the channel memory:

From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

Open the Terrestrial menu, highlight Channel Add/

Delete, and then press @.

To add a channel to the channel memory:

Highlight the unchecked box next to the channel number you

want to add, and then press @ to check the box.

To manually add digital subchannels on a physical

channel:

Use the Channel Numbers and the Dash ((_)) on the remote

control to enter the channel number (for example, 56-1).

If the channel is found, the number will be added to the list and

the box will be checked.

If the channel is not found, a message will appear.

To remove a channel from the channel memory:

Highlight the checked box next to the channel number you

want to remove, and then press @ to uncheck the box.

To save your new settings:

Highlight Done and press @.

Note: A video preview of the currently highlighted channel is

provided to assist you in adding/deleting channels.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 31 Wednesday, Janu_y 30, 2008 3:54 PM

To revert to your original settings:

Highlight Cancel and press @ before saving.

To remove all channels from the channel memory:

Highlight Reset and press @, and then highlight Done and

press @.

To remove encrypted channels from the channel

memory:

If an encrypted channel is accidentally added to tile channel list

by programming channels, you can remove the unwanted

encrypted (non-viewable) channel while you are channel

surfing. When you tune into an encrypted channel, the

following message will appear.

Press (i) while the message is on the screen to remove the

unnecessary channel from the channel list.

Labeling channels

A list of common channel labels (logos) for various channels

(ABC, CBS, etc.) will be programmed into the TV. You will

be able to view and assign these logos from the Channel

Labeling window. If the desired channel label is not provided

in the list, you will be able to manually enter/edit labels using

the software keyboard.

assign channel labels:

From the Preferences menu, highlight Channel

Labeling andpress@.

The Channel Labeling window opens.

2 Press _ or _," to select tile channel you want to label.

3 Press AII'_I • to highlight the desired channel label and

press @.

4 Repeat steps 2 and 3 for other channels.

5 To save your settings, highlight Done and press @.

The maximum number of labels that can be stored is 128.

remove channel labels:

Open the Channel Labeling window.

Press _x_or_." to select the channel for which you want to

remove the label.

Press AII'_I • to highlight No Label and press @.

Repeat steps 2 and 3 for other channels.

To save your settings, highlight Done and press @.

If the desired channel label is not available from the list of

presets, you can create a custom label.

(continuea

RV530U (E/F) Web 213:276

32 52RV530U EN.book Page 32 Wednesday,, Janu_y 30, 2008 3:54PM

To create and assign a custom label:

1 Open the Channel Labeling window.

2 Press (_ or _," to select a channel you want to label.

3 Press Al!' • to highlight Custom and press @.

The software keyboard will appear.

Repeatedly press the corresponding key on the remote

control to highlight the desired character on the on-screen

software keyboard.

The highlighted character is entered after you either press

a different key, press • key, or after a two-second pause.

Repeat steps 4 and 5 until you have entered all desired

text.

When finished, press @.

New labels will be added to the list in alphabetical order

and marked with an icon J to indicate that they are

custom. Highlight the new custom label and press @ to

assign.

Assigned channel labels will be displayed in the banner,

Channel Add/Delete, Channels Block, and

Channel Browser.

To delete the custom label:

1 Open the Channel Labeling window.

2 Highlight the label to be deleted and press (_).

3 Highlight Yes from the deletion confirmation window

and press @.

4 Highlight Done and press @ to save changes, and go

back to the Channel Labeling window.

Setting the HDMITMaudio mode

To set the HDMI audio mode:

From the Audio menu, highlight Audio Setup and press

Press • or • to select HDMI 1 Audio and then press

• or • to select the HDMI 1 audio mode (Auto, Digital,

or Analog). (Auto is tile recommended mode.) See

"Connecting an HDMI or DVI device to the HDMI input"

(r_¢ page 16).

iiiiiiiii Language

iiiiiiiii Opiieai Output F.... t i i !iDoiby Digital ! ::! _

iiiiiiiUDynamic Range Control iiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!ili!!ii_! i:ii_i!! ................................................

Reset iiiiiiiiiiiiiiiiiiiiiiiiiDone iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!!ii

Auto

Digital

Analog

When viewing the HDMI 1 input, if

digital audio from the HDMI input is

available, it will be output. If not, the

TV will automatically detect and output

analog audio from the PC Audio input.

When viewing the HDMI I input,

digital audio from the HDMI input will

be output.

When viewing the HDMI I input,

analog audio from the PC Audio input

will be output.

3 To save your settings, highlight Done and press @.

Note: Because the PC and HDMI 1 inputs share the same set

of analog audio inputs, the PC,Audio menu setting influences

the HDMI 1Audio menu setting. If PC Audio is set to "No," the

NDMI 1Audio setting changes to "Auto." If Pc,Audio is set to

"Yes," the NDMI 1 Audio setting is set to "Digital" and is

grayed out in the menu. (Also see item 4 on page 11 and

"Setting the PC Audio" on page 50.)

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 33 Wednesday, Janu_y 30, 2008 3:54PM

Viewing the digital signal meter

You can view the digital signal meter in the ANT/CABLE

digital TV input source only.

To view the digital signal meter:

From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

Open the Terrestrial menu, highlight Signal Meter,

and press @.

Press &I'4 • to select the antenna input and digital

channel whose signal you want to check.

Note:

• The physical digital channel number listed in the Signal

Meter screen may not correspond to a virtual TV

channel number. Contact your local broadcasters to

obtain the RF channel numbers for your local digital

stations.

• The signal strength does not change between virtual

channels on the same physical channel.

To close the screen and return to the Terrestrial

menu:

Highlight Done and press @.

To return to normal viewing:

Press E_T.

Setting the time zone

The Time Zone setup will allow you to specify the correct time

zone for your region. This feature will allow the TV status

information to show the correct time zone information

(r_¢ page 54).

To set the time zone:

From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

Open the Time Zone menu, highlight Time Zone

Setup, and press @.

Press ,< or • to select the region, highlight Done, and

then press @.

After the time zone has been set, you will be asked to set the

current Daylight Saving Time status.

To set the Daylight Saving Time status:

I Press 4 or • to select Yes or No, highlight Done, and

then press @.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 34 Wednesday, Janu_y 30, 2008 3:54 PM

Viewing the systemstatus

To view the system status:

From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

Open the System Status menu, highlight System

Information, and press @.

Press • • to scroll through the menu bar to select the

Software Version and view the related information.

To close the screen and return to the Installation

menu:

Highlight Done and press @.

To return to normal viewing:

Press E_T.

Reset Factory Defaults

To reset all settings and channels to their factory

default values:

1 From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

2 Open the System Status menu, highlight System

Information, and press @.

3 Press • • to scroll through the menu bar to select

Factory Defaults.

4 Enter your PIN code (or 0000 if no PIN code has been set).

5 Highlight Yes and press @. The TV will turn off

automatically after a few seconds. After the TV turns off,

unplug the TV power cord and then plug it in again to

complete the reset process.

To cancel the reset:

Highlight No and press @.

Selectingthe Power-OnMode

You can select either Power-Saving or Fast mode.

• Power-Saving mode keeps power consumption in standby

mode to below 3W. As a result, it takes a bit longer for the

TV to turn on.

• Fast mode increases power consumption in standby mode.

As a result, the TV will turn on more quickly. While in Fast

mode, the yellow LED on the front of the TV will be lit.

To set the Power-On Mode feature:

1 From the Setup menu, highlight Power-On Mode and

press •.

2 Press • or • to select either Power-Saving or Fast, and

press @.

To return to normal viewing:

Press Ex,_.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 35 Wednesday, Janu_y 30, 2008 3:54PM

Selecting the video input source

to view

To select the video input source to view:

Press _) on the remote control or TV control panel.

And then either:

a) Press 0-9; or

b) Repeatedly press •V on the remote control and then

press @ to change the input; or

c) Repeatedly press _) on the remote control or TV

control panel to change the input.

The current signal source displays in the top right corner

of the Input Selection screen.

Note:

Video 2

Co[orStream HD1

Co[orStream HD2

HDM[1

HDM[ 2

@ HDM[ 3

HDM[ 4

@ PC

"- _ / @ to SeJect _aavigate

You can label the video input sources according to the

specific devices you have connected to the TV

(_ "Labeling the video input sources" at right).

• Sources can also be "hidden" (_ "Labeling the video input

sources" at right).

• "No Video Signal" will appear randomly on the screen if no

signal is received in video input mode.

• Ifa CEC device is connected to an HDMI input, the REGZA-

LINK icon will appear.

If a REGZA-LINK device with HDMI switching

capability (e.g. Audio Receiver) is connected to the

HDMI input:

Press _) on the remote or TV control panel repeatedly to

highlight HDMI 1, HDMI 2, HDMI 3, or HDMI 4

If the connected CEC device has any connected devices, a

separate device selection popup window will appear.

Press _) repeatedly to highlight the desired input source, and

then press E_T.

Note:

• When selecting REGZA-L/NK input sources from the popup

window using _), some REGZA-LINK devices may

automatically turn on.

• When selecting input sources using • V, you will have to

press @ to actually select a particular device from the

popup window.

Labelingthe video input sources

You can label each video input source according to the type of

device you connected to each source, from the following preset

list of labels:

• - - ((h_fault label)

• Audio Receiver

• Cable

• Compact Disc

• DTV

• DVD

• Game Console

• HD DVD

• HDMI Switch (HDMI inputs only)

• Laser Disk

• Satellite/DSS

• VCR

• Video Recorder

• Hide (to hide an unused input in the Input Selection screen

and in the Channel Browser Inputs list)

Note: If you select PC in the Input Selection screen, you can

choose only "--", "Game Console", or "Hide" as the label.

To label the video input sources:

1 Press M_uand open the Preferences menu.

2 Highlight Input Labeling and press @.

CC Selector

Channel Labeling

Menu Language English

Press • or • to highlight the video source you want to

label.

(continued)

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 36 Wednesday, Janu_y 30, 2008 3:54 PM

4 Press < or • to select the desired label for that input

source. If a particular input is not used, you can select

Hide as the label, which will cause that input to be

"grayed out" in the Input Selection screen and skipped

over when you press _) on the remote control.

5 To save the new input labels, highlight Done and

press @.

To revert to the factory default labels, highlight Reset

and press @.

Input labeling example:

The screen below left shows the default Input Selection

screen (with none of the inputs labeled as a specific device).

The screen below right is an example of how you could label

the inputs if you connected a VCR to VIDEO 1, Cable TV to

VIDEO 2, a video recorder to ColorStream HD 1, a DTV set-

top box to HDMI 1, a satellite/DSS set-top box to HDMI 2, a

DVD player to HDMI 3, and an HD DVD player to HDMI 4.

Also note that the ColorStream HD2 input is labeled "Hidden,"

which means that input will be skipped over when _) is

pressed.

_ ANII( ABLE

@ Video 1

@ Video 2

ColorStream HD1

0 ColorStream HD2

0 HDMI 1

HDMI 2

@ HDMI 3

HDMI 4

@ PC

-_ / _toSelect _Navigate

In _utSelection screenwith

no inputs labeled.

@ CaNe

Video Recorder

DTV

Satellite/DSS

@ DVD

HD DVD

@ pc

- @ / _to Select _Navigate

In _utSelection screenwith

all inputs labeledexceptinput 4,

which has beenhidden.

To clear the input labels:

1 From the Preferences menu, highlight Input Labeling

and press @.

2 Highlight Reset and press @.

Tuning channels

Tuning channels using the

Channel Browser"M

The Channel Browser ''' provides an easy navigation interface

for all your channels and inputs. This feature allows you to:

• Navigate the contents of all of your inputs.

• Keep a list of your favorite channels (see "Favorites

Browser," below).

• Keep a history of the last 32 channels or inputs viewed.

• Quickly surf and tune your recently viewed channels/inputs

from the Channel Browser'" History List (illustrated on the

next page).

• Surf via Browse mode (to immediately tune channels as you

highlight them in the Channel Browser'") or Select mode (to

surf over channels in the Channel Browser'" before you

select one to tune).

• Quickly change inputs from the Inputs List.

• Quickly select REGZA-LINK devices from the REGZA-

LINK List.

Favorites Browser

The Favorites Browser allows you to quickly set up a favorite

channels/inputs list that is integrated into the Channel Browser'".

To add a favorite channel/input:

] Tune to the channel or input.

2 Press and hold FAVBROWSERon the remote control for 3

seconds.

Note: Additions are added to the beginning of the Favoritesfist

on the left side of the Channel BrowserTM.

To delete a favorite channel/input:

1 Press _AVBROWSERto open the Favorites browser list.

2 Highlight the channel or input to delete by pressing

,'_<or _i •.

3 Press and hold _ for 3 seconds. The channel/input will

be removed from the Favorites list.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 37 Wednesday, Janu_y 30, 2008 3:54 PM

To set up the Channel BrowserTM:

From the Preferences menu, highlight Channel

Browser Setup and press _,_¢.

Press • to highlight Navigation, and then press • or •

to select either Browse Mode or Select Mode.

REGZA-LINK Ust .........

Press • to highlight History List, and then press • or •

to select the setting you prefer: either On or Off.

Note: History List will be cleared every time the TV is

powered off.

Press • to highlight ANT/CABLE List, and then press •

or • to select On or Off.

Press • to highlight Inputs List, and then press • or •

to select On or Off.

Press • to highlight Favorites List, then press • or • to

select On or Off.

Press • to highlight REGZA-LINK List, and then press

• or • to select On or Off.

Note: REGZA-LINK List will be automatically grayed out

and set to Off when Enable REGZA-LINK is switched to

Off. (See "To set the REGZA-LINK Setup" on page 53 for

more information.)

To save your entries, highlight Done and press @.

To return to factory defaults, highlight Reset and

press @.

To open the Channel BrowserTM:

Bt_C_ NE<T

• Press _ • or _, • on tile remote control.

• Press _c_• to surf backward through the previously tuned 32

channels in the History list, the channels in the ANT/

CABLE channel list, the inputs in the Inputs list, the

REGZA-LINK devices in the REGZA-LINK list, or the

favorite channels/inputs in the Favorites list.

• Press _i • to surf forward through the channel History, the

ANT/CABLE channel list, the Inputs list, the REGZA-

LINK list, or the favorite channels/inputs in the Favorites

list.

Elements of the Channel Browser'"

1 2 3 4

i I

5 6

1 Current list (History, ANT/CABLE, Inputs,

Favorites, or REGZA-LINK)

2 Input type

a Channel or input currently being viewed

4 Channel or input that is currently highlighted in the

browser

5 Channels stored in the History List

6 Channel labels

To toggle among the available lists:

After opening the Channel Browser'", press • or • to toggle

among History, ANT/CABLE, Inputs, Favorites, and

REGZA-LINK

Note:

• The Channel BrowserTMopens in History List by default.

Once another list has been selected, the Channel BrowseP_

will open in the last selected list.

• If all lists are turned off, pressing ,'_<, '_i•, or .... _,sE. will

not display the Channel BrowseP_. If Favorites List is

turned off, _AvB.owsE.will have no effect.

• Pressing .... _s_. will bring up the Channel BrowseP_

Favorites list regardless of the last selected list in the

Channel BrowseP_.

tune to a channel or input in Browse mode:

While watching TV, press '_ • or _i • to open the

Channel Browser'" and surf back to a previous item or

surf forward to the next item in the list.

In Browse mode, when you stop on an item in the

Channel Browser'", it will be highlighted and the TV will

automatically tune to the channel or input.

2 Press E_TtO close the Channel Browser ''.

tune to a channel or input in Select mode:

While watching TV, press 'c_• or _i • to open the

Channel Browser ''' and surf back to a previous item or

forward to the next item in the list.

In Select mode, when you stop on an item in the Channel

Browser'", it will be highlighted but you must press @ to

tune the TV to the highlighted item.

Press @ to tune the TV to the highlighted item.

Press E_TtO close the Channel Browser ''.

(continued)

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page 38 Wednesday, Janu_y 30, 2008 3:54PM

Adding and clearing channels and inputs in the

History List

Adding channels and inputs to the History List:

As a channel or input is tuned, the Channel Browser'" adds it

to the History List and displays it on the "right side" of the

Channel Browser '_'.Previously tuned channels/inputs are

"shifted" to the left, eventually moving off the left side. Press

i_ • to surf backward through the previously tuned channels/

inputs. Any channel or input that is tuned repeatedly will not

be repeated in the History List, but instead is moved to the end

of the list on the right side of the Channel Browser '_'.

The Channel Browser'" will store the following channels:

• All channels that are tuned using the numeric buttons on the

remote control.

• All channels that are tuned using _ or _." on the remote

control.

Note: Whenever an item is selected that cannot be tuned (for

various reasons), the TV will automatically tune to the

previously dewed channel or input.

Clearing channels from the History List:

• Reconfiguring the ANT/CABLE input will clear the

History List.

Note: See page 29 for details on configuring the antenna

input.

• Once 32 channels or inputs are stored in the History List, the

oldest item will be removed from the list when a new

channel or input is tuned.

• Turning off the TV will clear the History List.

Setting the Channel Tuning Mode

This feature allows you to choose how tuning will be handled

for analog and digital channels when the TV is in Antenna

mode.

Note: To use this feature, the InputConfigurationmust be set

to Antenna (_ page 29).

The channel tuning mode has three options.

Both analog and digital channels can be

Standard

tuned normally

Auto

(default)

Digital channels will have priority when

manually entering a channel number using

the Channel Number (0-9) on the remote

control, analog channels can still be tuned by

/ _._ if available

Digital Only digital channels can be tuned

Note: Digital mode will be most useful after analog channels

are shut down by the government in 2009.

To set the Channel Tuning Mode:

From the Setup menu, highlight Installation and press

@. A new set of Installation menu icons will appear.

Open the Terrestrial menu, highlight Channel Tuning

Mode, press • and • • to select your desired mode, and

then press @.

Note:

• The ChannetAdd/Detete & Channels Block windows as well

as the Channel Browser ANT/CABLE list will be updated

automatically when you change the mode. Also, the History

List will be cleared, but the Favorites List will be saved.

• Even if the Channel Tuning Mode is set to Digital, analog

channel 3 will still be the default channel to prevent the initial

case where no digital channels have been found in prior

channel scans. (Channel Add/Delete will not have anything

listed until a scan is done.)

Tuning to the next programmed channel

To tune to the next programmed channel:

Press (_) or _,_ on the remote control or TV control panel.

Note:This feature will not work unless you program channels

into the TV's channel memory (_ page 30).

Tuningto a specific channel(programmed

or unprogrammed)

Tuning analog channels:

Press the Channel Number (0-9) on the remote control. For

example, to select channel 125, press 1, 2, 5, then @.

Tuning digital channels:

Press the Channel Number (0-9) on the remote control,

followed by the dash ((_)) button and then the sub-channel

number. For example, to select digital channel 125-1, press 1,

2, 5, -, 1, then @.

Note: If a @ita/ channel is not programmed--either through

the automatic channel scan (_ page 30) or the channel add/

delete function (_ page 30)--you will have to tune the RF

channel using the Channel Number and dash ((_) on the

remote control.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 39 Wednesday, Janu_y 30, 2008 3:54 PM

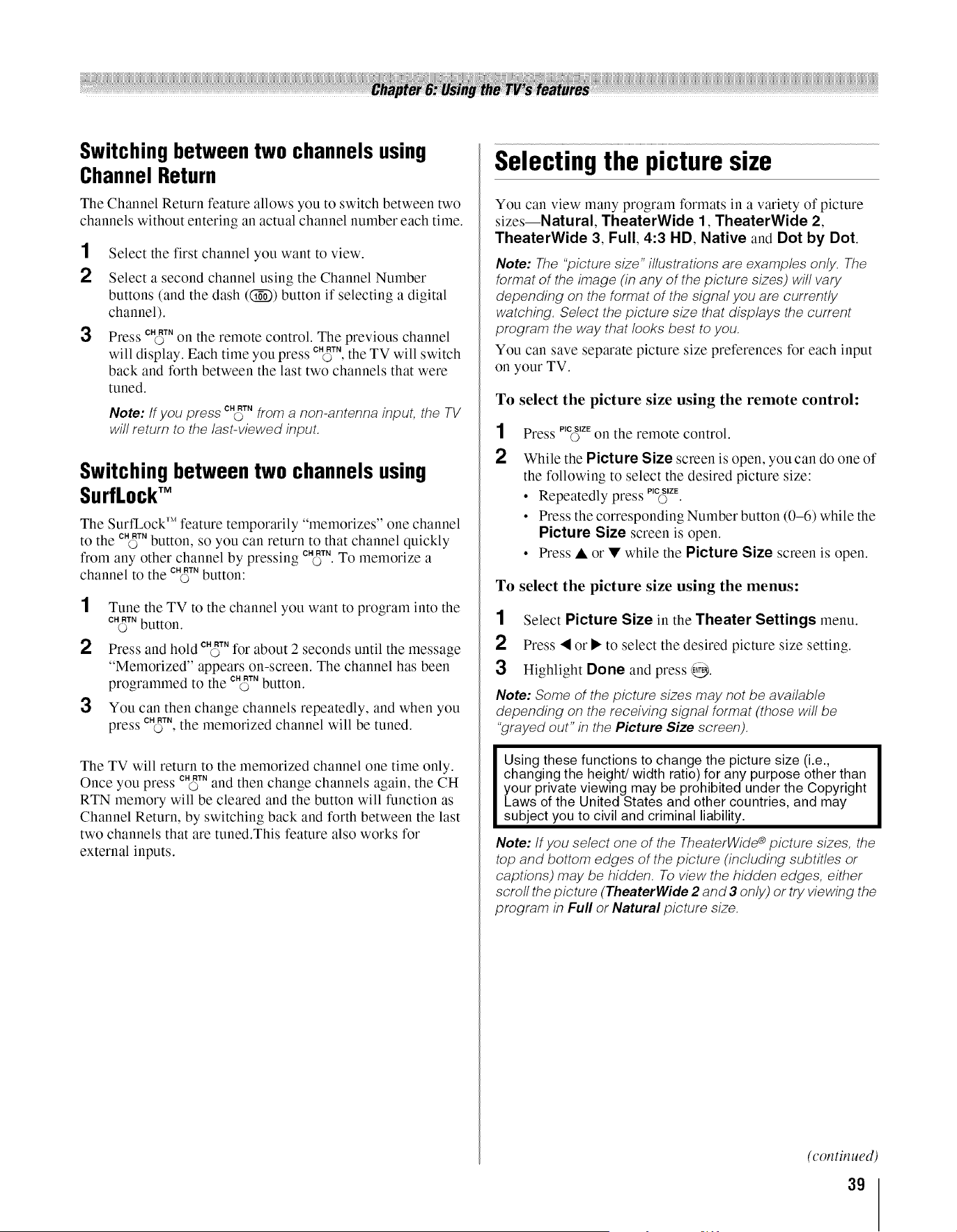

Switching between two channels using

Channel Return

The Channel Return feature allows you to switch between two

channels without entering an actual channel number each time.

1 Select the first channel you want to view.

2 Select a second channel using the Channel Number

buttons (and the dash ((_i)) button if selecting a digital

channel).

3 Press CH_TNon the remote control. The previous channel

will display. Each time you press CH_TN,the TV will switch

back and forth between the last two channels that were

tuned.

Note: If you press C._TNfrom a non-antenna input, the TV

will return to the last-viewed input.

Switching between two channels using

SurfLock"M

The SurfLock '_'feature temporarily "memorizes" one channel

to the c._T. button, so you can return to that channel quickly

from any other channel by pressing c._T. To memorize a

channel to the c._T. button:

Tune the TV to the channel you want to program into the

CH_TNbutton.

Press and hold c._T, for about 2 seconds until the message

"Memorized" appears on-screen. The channel has been

programmed to the CH_TNbutton.

You can then change channels repeatedly, and when you

press CH_TN,the memorized channel will be tuned.

The TV will return to the memorized channel one time only.

Once you press CH_TNand then change channels again, the CH

RTN memory will be cleared and the button will function as

Channel Return, by switching back and forth between the last

two channels that are tuned.This feature also works for

external inputs.

Selecting the picture size

You can view many program formats in a variety of picture

sizes--Natural, TheaterWide 1, TheaterWide 2,

TheaterWide 3, Full, 4:3 HD, Native and Dot by Dot.

Note: The "picture size" illustrations are examples only. The

format of the image (in any of the picture sizes) will vary

depending on the format of the signal you are currently

watching. Select the picture size that displays the current

program the way that looks best to you.

You can save separate picture size preferences for each input

on your TV.

To select the picture size using the remote control:

Press PIC@IZE on the remote control.

While the Picture Size screen is open, you can do one of

the following to select the desired picture size:

• Repeatedly press P,C©s.zE

• Press the corresponding Number button (0-6) while the

Picture Size screen is open.

• Press • or • while the Picture Size screen is open.

To select the picture size using the menus:

1 Select Picture Size in the Theater Settings menu.

2 Press • or • to select the desired picture size setting.

3 Highlight Done and press @.

Note: Some of the picture sizes may not be available

depending on the receiving signal format (those will be

"grayed out" in the Picture Size screen).

Using these functions to change the picture size (i.e.,

changing the height/width ratio) for any purpose other than

your private viewing may be prohibited under the Copyright

Laws of the United States and other countries, and may

subject you to civil and criminal liability.

Note: if you select one of #)e TheaterWide ® picture sizes, #)e

top and bottom edges of the picture (including subtitles or

captions) may be hidden. To view the hidden edges, either

scroll the picture (TheaterWide 2 and 3 only) or try viewing the

program in Full or Natural picture size.

(continued)

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 40 Wednesday, January 30, 2008 3:54 PM

Natural

13° i

O OO

Some program formats will display with sidebars and/or bars

at the top and bottom.

TheaterWide 1

(for4:3 format programs)

i3oo i i3o3io

The center of the picture remains close to its original

proportion, but the left and right edges are stretched wider to

fill the screen.

TheaterWide 2

(for letter box programs)

__OO

The top and bottom edges of the picture may be hidden*.

TheaterWide3

(for letter box programs withsubtitles)

oool Io o o

The top and bottom edges are hidden*.

Full

(for 16:9 [480i, 480p1 source programs only)

13oooo

• If receiving a squeezed 4:3 format program, the picture is

stretched wider to fill the width of the screen, but not

stretched taller.

• None of the picture is hidden.

_!i!i_i!!ii!_!i!_!_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!_:i_i_ii_i_!_i!_!ii_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!i

4:3 HD

(for 720p, 1080i, and 1080p program sources only)

°°

OOO

Picture is not distorted from original size.

Native

(for480i (HDMI), 480p (HDIVlI),720p, 1080i, and 1080p

signal programs)

roooi

=_OOO

• If receiving a 480i (HDMI), 480p (HDMI), 720p, 1080i, or

1080p signal program, Native mode scales the video to

display the entire picture within the borders of the screen

(i.e. no overscanning).

• This is especially useful for external HD sources such as

HD-DVD, DVHS movies, or PC graphics.

Note:

• This mode is supported only for HDMI (1080p, 1080i,

720p, 480p, and 480i), ColorStream (1080iand 720p), and

ANT/CABLE (digital) inputs (1080p, 1080Land 720[)).

• Depending on the input signals, the border of the picture

may be hidden, displayed in black, or noisy.

Dotby Dot

(forVGA,SVGA, XGA,WXGA,and SXGAsourcesonly)

"Dot by Dot" is a non-scaling display.

Depending on the input signal format, the picture is displayed

with sidebars and/or bars at the top and bottom. (Example:

VGA input source)

* To view the hidden areas (such as subtitles or captions), see

"Scrolling the TheaterWide ® picture" (r_ page 41 ).

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 41 Wednesday, Janu_y 30, 2008 3:54 PM

Scrollingthe TheaterWide®picture

(TheaterWide2 and3 only)

You can set separate scroll settings for the TheaterWide 2 and

TheaterWide 3 modes for each input.

To set the scroll settings:

1 Press M_uand open the Video menu.

2 Highlight Theater Settings and press @.

ili_iiiii_i_i_i@_!_i_i!_i_iiiiii!iiiii!iiiii!iiiii!iiiii!iiiii!iiiii!iiiii!iiiii!i_i_iiiii_iii1iiiiiii_iiiii_

TagaigiLock Oit

3 In the Picture Size field, select either TheaterWide 2

or TheaterWide 3 (you cannot scroll in any other mode).

4 Press • to highlight the Picture Scroll field.

5 Press < or • to scroll the picture up and down as needed,

from -10 to +20.

6 To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Usingthe auto aspectratiofeature

When the auto aspect ratio feature is set to On, the TV will

automatically select the picture size when one of the following

input sources is received:

• A 480i, 480p, 720p, 1080i digital signal from the ANT/

CABLE input

• A 480i signal from the Video 1 or Video 2 input

• A 480i, 480p, 720p, 1080i signal from the ColorStream

HD1 or HD2 input

• A 480i, 480p, 720p, 1080i, 1080p, or VGA (60/72/75Hz)

signal from the HDMI 1/2/314 input

4:3 normal Natural (with sidebars)

4:3 letter box TheaterWide 2

16:9 full Full

Not defined

(no ID-1 data The current picture size you set under

or HDMI "Selecting the picture size" on page 39.

aspect data)

Note: The auto aspect ratio feature is not app/icab/e to the PC

input.

turn on the auto aspect ratio feature:

From the Video menu, highlight Theater Settings and

press @.

In the Auto Aspect Ratio field, select On.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

To turn off the auto aspect ratio feature:

Select Off in step 2 above.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page42 Wednesday, Janu_y 30, 2008 3:54PM

Selecting the cinema mode

(480i and 1080i signals)

When you view a DVD (3:2 pulldown processed) from a DVD

player connected to the Video 1, Video 2, ColorStream

HD1, ColorStream HD2 (component video), or HDMI

inputs on the TV, smoother motion can be obtained by setting

the Cinema Mode to Film.

To set the Cinema Mode to Film:

From the Video menu, highlight Theater Settings and

press @.

In the Cinema Mode field, select Film.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

To set the Cinema Mode to Video:

Select Video in step 2 above.

Usingthe FREEZEfeature

To use the FREEZE feature:

1 When viewing the TV, press FROZE tO make the picture a

still picture.

2 To return to the moving picture, press FROZEagain (or any

other button).

Note: If the TV is left in FREEZE mode for more than 15

minutes, the FREEZE mode will automatically be released

and the TV will return to moving picture.

Using the FREEZE function for any purpose other than your

private viewing may be prohibited under the Copyright Laws

of the United States and other countries, and may subject

you to civil and criminal liability.

Adjustingthe picture

Selecting the picture mode

You can select your desired picture settings from tile following

modes, as described below.

Sports Bright and dynamic picture

Standard Standard picture settings

Movie Lower contrast for darkened room

PC Designed for viewing of PC tables and

documents

Preference Your personal preferences

Note: PC mode is available for HDM/ and PC inputs only

(grayed out for other input sources).

1 From the Video menu, highlight Mode and press @.

2 Press • or • to select the picture mode you prefer and

press @.

Note: The picture mode you select affects the current

input only. You can select a different picture mode for

each input.

Adjusting the picture quality

You can adjust tile picture quality (Contrast, Backlight,

DynaLight rM, Brightness, Color, Tint, and Sharpness) to your

personal preferences.

Contrast lower higher

Backlight* darker lighter

DynaLight** On/Off On/Off

Brightness darker lighter

Color paler deeper

Tint reddish greenish

Sharpness softer sharper

* Backlight

This feature adjusts the brightness of the entire screen. When in

video mode and no signal is input, this will automatically be set to 0.

(Settings are stored in memory.)

**DynaLight

This function automatically strengthens the black coloring of dark

areas in the video according to the level of darkness.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page43 Wednesday,, Janu_y 30, 2008 3:54PM

To adjust the picture quality:

From the Video menu, highlight Picture Settings and

press @.

Press • or • to select the picture quality you want to

adjust (Contrast, Backlight, Dynakight,

Brightness, Color, Tint, or Sharpness), and then

press • or • to adjust the setting, as described in the table

above.

To save the new settings, highlight Done and press @.

You can use any of the picture modes (_¢ "Selecting the

picture mode," above left) as a starting point for adjusting

the picture settings.

To revert back to the base mode that you began adjusting

the picture settings from, highlight Reset and press @.

The picture qualities you adjusted are automatically saved in

the Preference mode (_¢ "Selecting the picture mode,"

above left) until Reset is selected.

Usingthe TheaterLockTMfeature

The TheaterLock'" feature allows you to "lock" all items that

affect the picture mode setting. In other words, those settings

that when adjusted cause the Mode setting to automatically

change to "Preference" will be grayed out and unavailable

when the TheaterLock setting is set to "On". Items that do not

influence Mode status will not be affected e.g., Noise

Reduction, Game Mode, etc.

To turn on TheaterLockTM:

1 From the Video menu, press • or • to highlight the

TheaterLock field, press • and • • to select On, and

press @.

To turn off TheaterLockTM:

Select Off in step 1 above.

Usingthe closedcaptionmode

Base closed captions

Tile closed caption mode has two options:

• Captions--An on-screen display of the dialogue, narration,

and sound effects of TV programs and videos that are closed

captioned (usually marked "CC" in program guides).

• Text--An on-screen display of information not related to

the current program, such as weather or stock data (when

provided by individual stations).

To view captions or text:

From the Preferences menu, highlight Base CC

Mode and press •.

Press • or • to select the desired closed caption mode and

press 0.

To view captions:

Highlight CCl, CC2, CC3, or CC4. (CCl displays

translation of the primary language in your area.)

. _. 9° =. =o =

Note: If the program or video you selected is not closed

captioned, no captions will display on-screen.

To view text:

Highlight T1, T2, T3, or T4.

Note: If text is not available in your area, a black rectangle

may appear on screen. If this happens, set the Base CC

Mode to Off

To turn off the closed caption mode:

Select Off in step 2 above.

Note: A closed caption signal may not display in the following

situations:

• When a videotape has beer) dubbed

• When the signal reception is weak

• When the signal reception is non-standard

Digital CC Settings

You can customize the closed caption display characteristics

by changing the background color, opacity, text size, type,

edge, and color.

(continued)

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page 44 Wednesday, Janu_y 30, 2008 3:54 PM

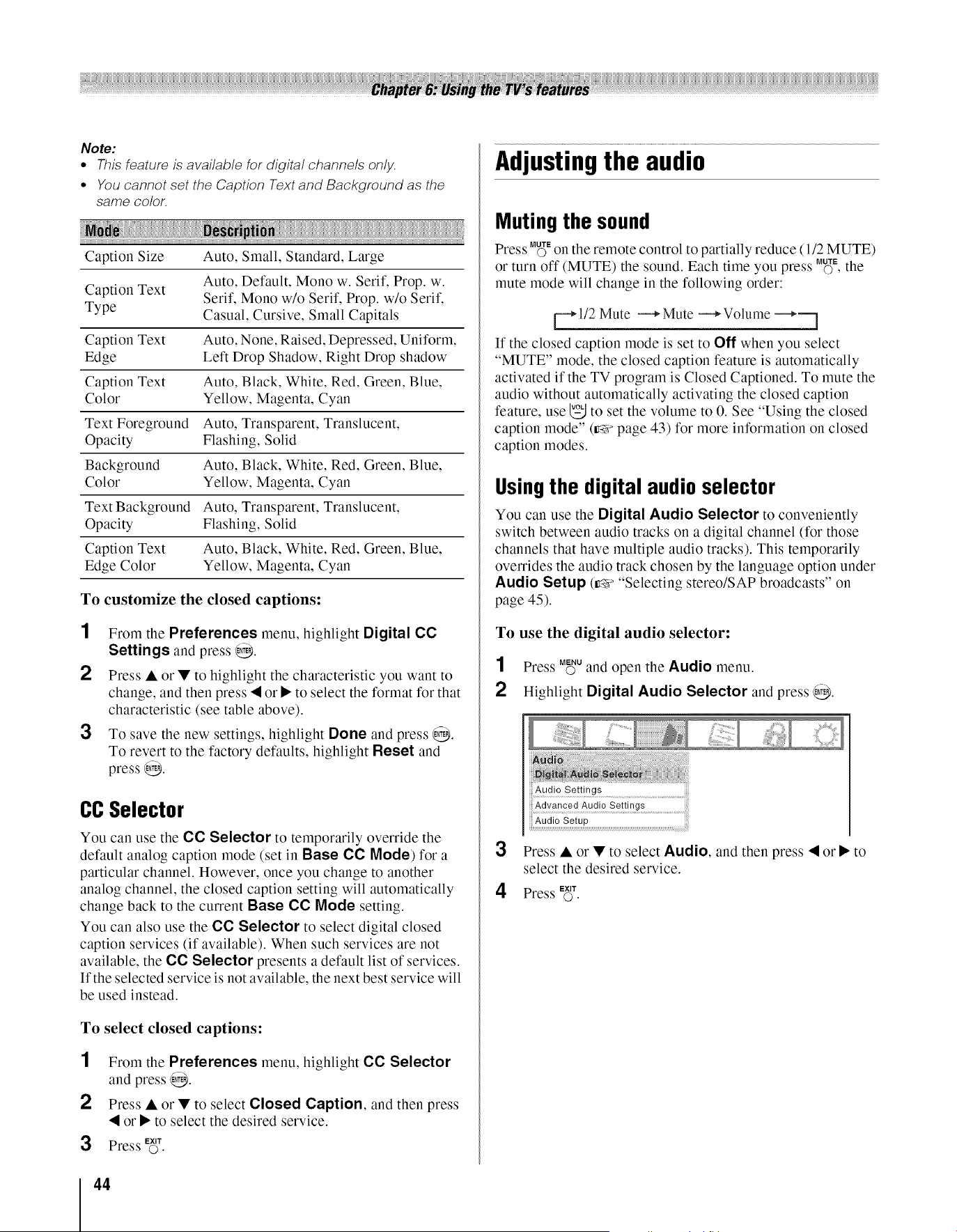

Note:

• This feature is available for digital channels only.

• You cannot set the Caption Text and Background as the

same color.

Caption Size Auto, Small, Standard, Large

Auto, Default, Mono w. Serif, Prop. w.

Caption Text Serif. Mono w/o Serif, Prop. w/o Serif,

Type Casual, Cursive, Small Capitals

Caption Text Auto. None, Raised, Depressed, Uniform,

Edge Left Drop Shadow, Right Drop shadow

Caption Text Auto. Black, White, Red, Green, Bhle,

Color Yellow, Magenta, Cyan

Text Foreground Auto. Transparent, Translucent,

Opacity Flashing, Solid

Background Auto. Black, White, Red, Green, Blue,

Color Yellow, Magenta, Cyan

Text Background Auto. Transparent, Translucent,

Opacity Flashing, Solid

Caption Text Auto. Black, White, Red, Green, Blue,

Edge Color Yellow, Magenta, Cyan

To customize the closed captions:

From the Preferences menu, highlight Digital CC

Settings and press@.

Press • or • to highlight the characteristic you want to

change, and then press • or • to select the format for that

characteristic (see table above).

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

CCSelector

You can use the CC Selector to temporarily override the

default analog caption mode (set in Base CC Mode) for a

particular channel. However, once you change to another

analog channel, the closed caption setting will automatically

change back to the current Base CC Mode setting.

You can also use the CC Selector to select digital closed

caption services (if available). When such services are not

available, the CC Selector presents a default list of services.

If the selected service is not available, the next best service will

be used instead.

To select closed captions:

From the Preferences menu, highlight CC Selector

and press E_.¢.

Press • or • to select Closed Caption, and then press

• or • to select the desired service.

3 Press Ex,_.

Adjustingthe audio

Muting the sound

Press M_Eon tile remote control to partially reduce ( 1/2 MUTE)

or turn off (MUTE) the sound. Each time you press M_E,the

mute mode will change in the following order:

[-+1/2 Mute -=+Mute --*Volume _---]

If the closed caption mode is set to Off when you select

"MUTE" mode, the closed caption feature is automatically

activated if the TV program is Closed Captioned. To mute the

audio without automatically activating the closed caption

feature, use _ to set the volume to 0. See "Using the closed

caption mode" (r_¢ page 43) for more information on closed

caption modes.

Usingthe digital audio selector

You can use the Digital Audio Selector to conveniently

switch between audio tracks on a digital channel (for those

channels that have multiple audio tracks). This temporarily

overrides the audio track chosen by the language option under

Audio Setup (_¢ "Selecting stereo/SAP broadcasts" on

page 45).

To use the digital audio selector:

1 Press M_uand open the Audio menu.

2 Highlight Digital Audio Selector and press @.

Audio Settings

Advanced.......................................................................Audio Settings

Audio Setup

Press • or • to select Audio, and then press • or • to

select the desired service.

Press E_T.

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page45 Wednesday,, Janu_y 30, 2008 3:54PM

Selecting stereo/SAP broadcasts

The multi-channel TV sound (MTS) feature allows you to

output high-fidelity stereo sound. MTS also can transmit a

second audio program (SAP) containing a second language,

music, or other audio information (when provided by

individual stations).

When the TV receives a stereo or SAP broadcast, the word

"STEREO" or "SAP" appears on-screen when RE_LLis pressed.

The MTS feature is only available for analog signals on the

ANT/CABLE input.

To listen to stereo sound:

1 From the Audio menu, highlight Audio Setup and press

2 In the MTS field, select Stereo.

3 To save the new settings, highlight Done and press @.

To reset the settings to the factory defaults, highlight

Reset and press @.

Note:

• You can typicallyleave the TVin Stereo mode because

it will automatically output the type of sound being

broadcast (stereo or monaural).

• If the stereo sound is noisy, select Mono to reduce the

noise.

To listen to an alternate language on an ATSC digital

station (if available):

Highlight the Language field in step 2 above, and then press

< or • to select the language you prefer.

To listen to a second audio program on an analog

station (if available):

Select SAP in step 2.

Note:

• A second audio program (SAP) can be heard only on those

TV stations that offer it. For example, a station might

broadcast another language as a second audio program. If

you have SAP on, you will see the current program on the

screen but hear the other language instead of the program's

normal audio.

• If you have SAP on and the station you are watching is not

broadcasting a second audio program, the station's normal

audio will be output. However, occasionally there is no

sound at all in SAP mode. If this happens, set the MTS

feature to Stereo mode.

Adjusting the audio quality

You can adjust the audio quality by adjusting the bass, treble,

and balance.

adjust the audio quality:

From the Audio menu, highlight Audio Settings and

press @.

Press • or • to highlight the item you want to adjust

(Bass, Treble, or Balance).

Press < or • to adjust the level.

• < makes #70 bass or treble weaker or increases the

balance in the left channel (depending on the item

selected).

• • makes the bass or treble stronger or increases the

balance in the right channel (depending on the item

selected).

To save the new settings, highlight Done and press @.

To reset the settings to the factory defaults, highlight

Reset and press @.

Usingthe StableSound® feature

The StableSound <'_feature limits the highest volume level to

prevent extreme changes in volume when the signal source

changes (for example, to prevent the sudden increase in

volume that often happens when a TV program switches to a

commercial).

To turn on the StableSound _ feature:

From the Audio menu, highlight Audio Settings and

press @.

In the StableSound field, select On.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Note: TheRESETfunction returns your audio adjustments

to the following factory settings:

Bass ........ center (50)

Treble ...... center (50)

Balance ..... center (0)

StableSound.. Off

Note: This feature will be gray out in @ita/ channels, to turn it

On or Off, it's necessary to be tuned in an analog channel.

To turn off the StableSound feature:

Select Off in step 2 above.

(continued)

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 46 Wednesday, Janu_y 30, 2008 3:54 PM

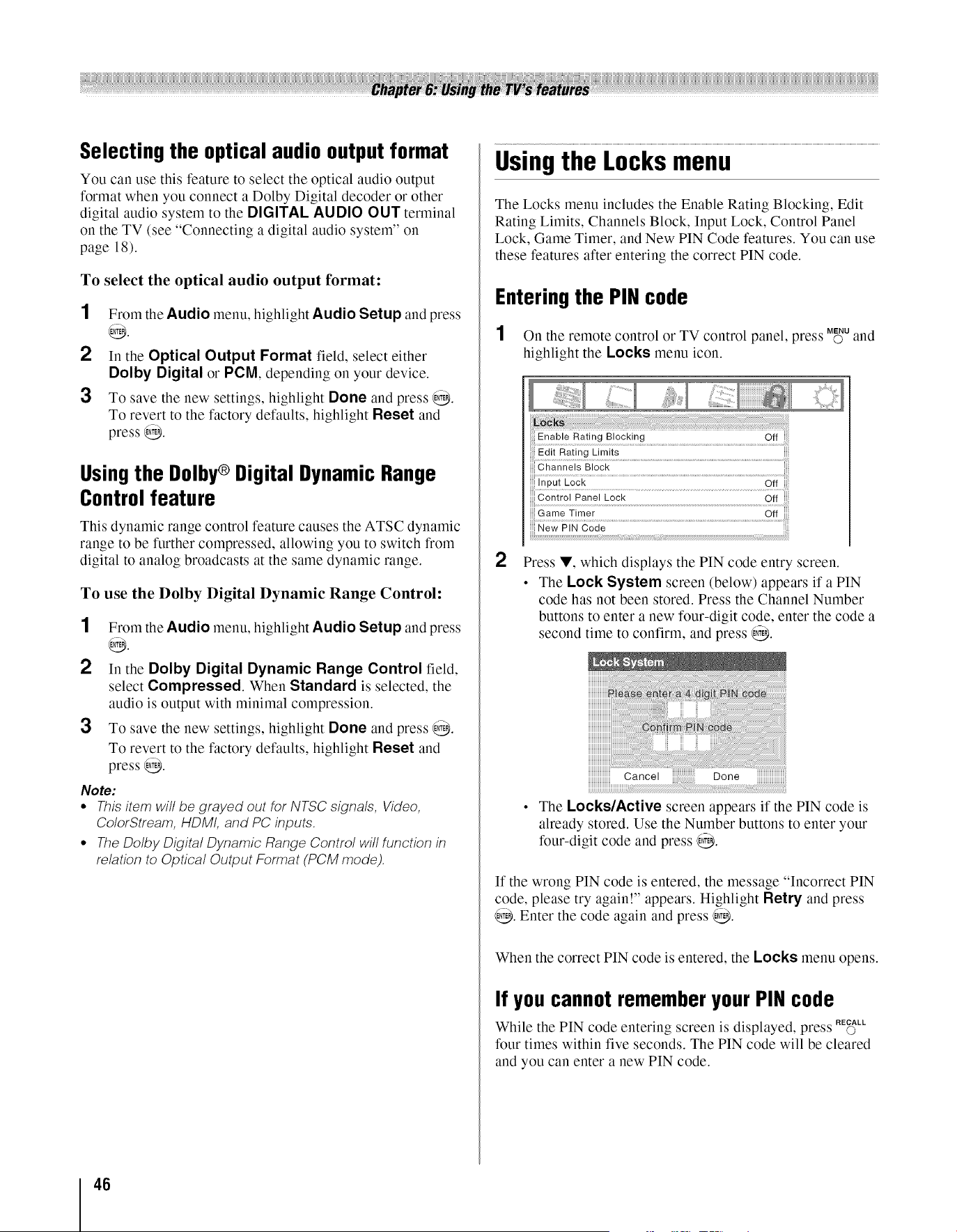

Selecting the optical audio output format

You can use this feature to select the optical audio output

format when you connect a Dolby Digital decoder or other

digital audio system to the DiGiTAL AUDIO OUT terminal

on the TV (see "Connecting a digital audio system" on

page 18).

To select the optical audio output format:

From the Audio menu, highlight Audio Setup and press

In the Optical Output Format field, select either

Dolby Digital or PCM, depending on your device.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Usingthe Dolby® Digital Dynamic Range

Control feature

This dynamic range control feature causes the ATSC dynamic

range to be further compressed, allowing you to switch from

digital to analog broadcasts at the same dynamic range.

To use the Dolby Digital Dynamic Range Control:

From the Audio menu, highlight Audio Setup and press

In the Dolby Digital Dynamic Range Control field,

select Compressed. When Standard is selected, the

audio is output with minimal compression.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Note:

• This item wi//be grayed out for NTSC signals, Video,

ColorStream, HDMI, and PC inputs.

• The Dolby Digital Dynamic Range Control will function in

relation to Optical Output Format (PCM mode).

Usingthe Locksmenu

The Locks menu includes the Enable Rating Blocking, Edit

Rating Limits, Channels Block, Input Lock, Control Panel

Lock, Game Timer, and New PIN Code features. You can use

these features after entering the correct PIN code.

Entering the PIN code

1 ontheremotecontrolorTVcontrolpanelpressM_oand

highlight the Locks menu icon.

Enable Rating Blocking Off

Edit Rating Limits

_h_i_ gio_ ..................................................................................................................

Input Lock Off

coniioiPaneiLock ...........................0if

Game Timer Off

New PIN Code

Press V, which displays the PIN code entry screen.

• The Lock System screen (below) appears if a PIN

code has not been stored. Press the Channel Number

buttons to enter a new four-digit code, enter the code a

second time to confirm, and press @.

• The Locks/Active screen appears if the PIN code is

already stored. Use the Number buttons to enter your

four-digit code and press _.

If the wrong PIN code is entered, the message "Incorrect PIN

code, please try again!" appears. Highlight Retry and press

@. Enter the code again and press @.

When the correct PIN code is entered, the Locks menu opens.

If you cannot remember your PIN code

RECALL

While the PIN code entering screen is displayed, press ©

four rimes within five seconds. The PIN code will be cleared

and you can enter a new PIN code.

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page 47 Wednesday, Janu_y 30, 2008 3:54 PM

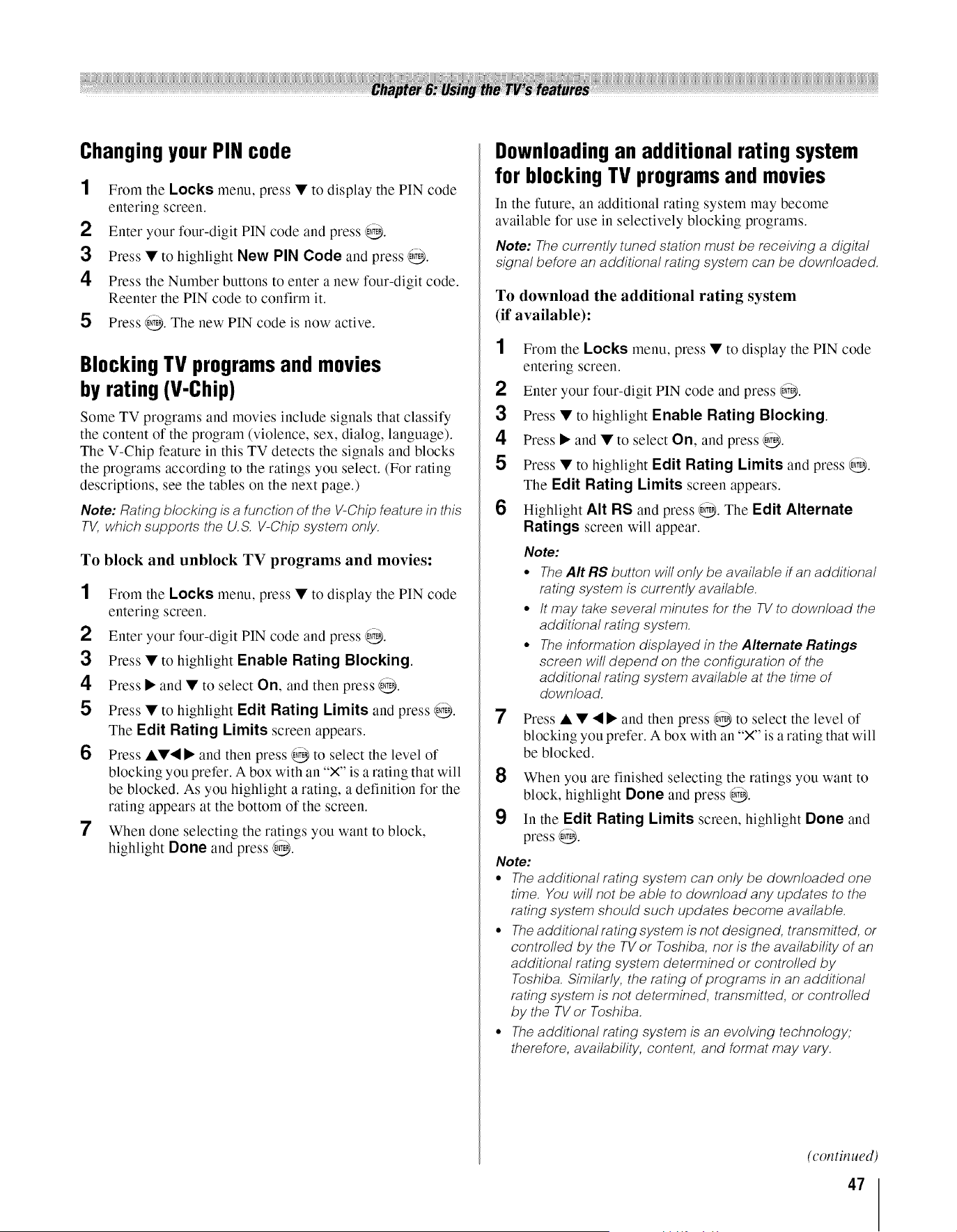

Changingyour PIN code

1 From the Locks menu, press • to display the PIN code

entering screen.

2 Enter your four-digit PIN code and press @.

3 Press • to highlight New PIN Code and press @.

4 Press the Number buttons to enter a new four-digit code.

Reenter the PIN code to confirm it.

5 Press @. The new PIN code is now active.

Blocking TV programs and movies

by rating (V-Chip)

Some TV programs and movies include signals that classify

the content of the program (violence, sex, dialog, language).

The V-Chip feature in this TV detects the signals and blocks

the programs according to the ratings you select. (For rating

descriptions, see the tables on the next page.)

Note: Rating blocking is a function of the V-Chip feature in this

TV, which supports the U.S. V-Chip system only.

To block and unblock TV programs and movies:

1 From the Locks menu, press • to display the PIN code

entering screen.

2 Enter your four-digit PIN code and press @.

3 Press • to highlight Enable Rating Blocking.

4 Press • and • to select On, and then press @.

5 Press • to highlight Edit Rating Limits and press @.

The Edit Rating Limits screen appears.

6 Press A•• • and then press @ to select the level of

blocking you prefer. A box with an "X" is a rating that will

be blocked. As you highlight a rating, a definition for the

rating appears at the bottom of the screen.

7 When done selecting the ratings you want to block,

highlight Done and press @.

Downloading an additional rating system

for blocking TV programs and movies

In tile future, an additional rating system may become

available for use in selectively blocking programs.

Note: The currently tuned station must be receiving a digital

signal before an additional rating system can be downloaded.

To download the additional rating system

(if available):

1 From the Locks menu, press • to display the PIN code

entering screen.

2 Enter your four-digit PIN code and press @.

3 Press• to highlight Enable Rating Blocking.

4 Press • and • to select On, and press @.

5 Press • to highlight Edit Rating Limits and press @.

The Edit Rating Limits screen appears.

6 Highlight AIt RS and press @. The Edit Alternate

Ratings screen will appear.

Note:

• The AIt RS button will only be available if an additional

rating system is currently available.

• It may take several minutes for the TV to download the

additional rating system.

• The information displayed in the Alternate Ratings

screen will depend on the configuration of the

additional rating system available at the time of

download.

Press • • • • and then press @ to select the level of

blocking you prefer. A box with an "X" is a rating that will

be blocked.

When you are finished selecting the ratings you want to

block, highlight Done and press @.

In the Edit Rating Limits screen, highlight Done and

press @.

Note:

• The additional rating system can only be downloaded one

time. You will not be able to download any updates to the

rating system should such updates become available.

• The additional rating system is not designed, transmitted, or

controlled by the TV or Toshiba, nor is the availability of an

additional rating system determined or controlled by

Toshiba. Similarly, the rating of programs in an additional

rating system is not determined, transmitted, or controlled

by the TV or Toshiba.

• The additional rating system is an evolving technology;

therefore, availability, content, and format may vary.

(continued)

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page48 Wednesday, Janu_y 30, 2008 3:54PM

Independentrating systemfor broadcasters

TV-MA

TV-14

TV-PG

Mature Audience Only (This program is specifically

designed to be viewed by adults and therefore may

be unsuitable for children under 17.)

L) Crude or indecent language S) Explicit sexual

activity V) Graphic violence

Parents Strongly Cautioned (This program contains

some material that many parents would find

unsuitable for children under 14 years of age.)

D) Intensely suggestive dialog L) Strong, coarse

language S) Intense sexual situations V) Intense

violence

Parental Guidance Suggested (This program

contains material parents may find unsuitable for

younger children.)

D) Some suggestive dialog L) Infrequent coarse

language S) Some sexual situations V) Moderate

violence

General Audience (Most parents would find this

program suitable for all ages.)

Directed to Older Children (This program is designed

for children age 7 and above. Note: Programs in

which fantasy violence may be more intense or more

combative than other programs in this category are

designated TV-Y7FV.)

All Children (This program is designed to be

appropriate for all children.)

TV-G

TV-Y7,

TV-Y7FV

TV-Y

Independentrating systemfor movies

X X-rated (For adults only)

N0-17 Not intended for anyone 17 and under

R Restricted (Under 17 requires accompanying parent

or adult)

Parents Strongly Cautioned (Some material may be

PG-13

inappropriate for children under 13)

Parental Guidance Suggested (Some material may

not be suitable for children)

G General Audience (Appropriate for all ages)

Note:

• /fyou p/ace an '×" in the box next to " 'None' Rated,"

programs rated "None" wi// be b/ocked, however, programs

that do not provide any rating information wi// not be

b/ocked.

• To disp/ay the rating of the program you are watching, press

RECALL

o on the remote contro/. /f it is rated "None," the word

"NONE" appears in the RECALL screen (as shown be/ow

right). /f rating information is not provided, no rating wi//

appear in the RECALL screen.

Blocking channels

With the Channels Block feature, you can block specific

channels. You will not be able to tune blocked channels unless

you unlock them.

To block channels:

1 From the Locks menu, press • to display the PIN code

entering screen.

2 Enter your four-digit PIN code and press @

(r_¢ page 46).

3 Press • to highlight Channels Block and then press @.

A list of the channels available for that input will be

displayed along with the call letters for each channel, if

available.

Press A• to highlight the channel you want to block and

press @, which puts an "X" in the box next to that

channel.

5 Repeat step 4 for other channels you want to block.

6 Highlight Done and press @.

To unblock individual channels:

In step 4 above, press A• to highlight the channel you want to

unblock, press @ to remove the "X" from the box, highlight

Done and press @.

To block all channels at once:

Highlight Block All in step 4 above and then highlight Done

and press @.

To unblock all locked channels at once:

Highlight Allow All in step 4 above and then highlight Done

and press @.

Unlocking programstemporarily

If you try to tune the TV to a program that exceeds the rating

limits you set, the TV will enter program lock mode and the

following message will appear on-screen:

You can either temporarily unlock the program or select an

unlocked program to watch.

temporarily unlock the program:

Press U_E.

Enter your four-digit PIN code and press @. If the correct

code is entered, the program lock mode is released and the

normal picture appears. All locking is disabled until the

TV is turned off. and will be enabled when the TV is

turned on again.

RV530U (E/F) Web 213:276

32 52RV530U EN.book Page 49 Wednesday, Janu_y 30, 2008 3:54 PM

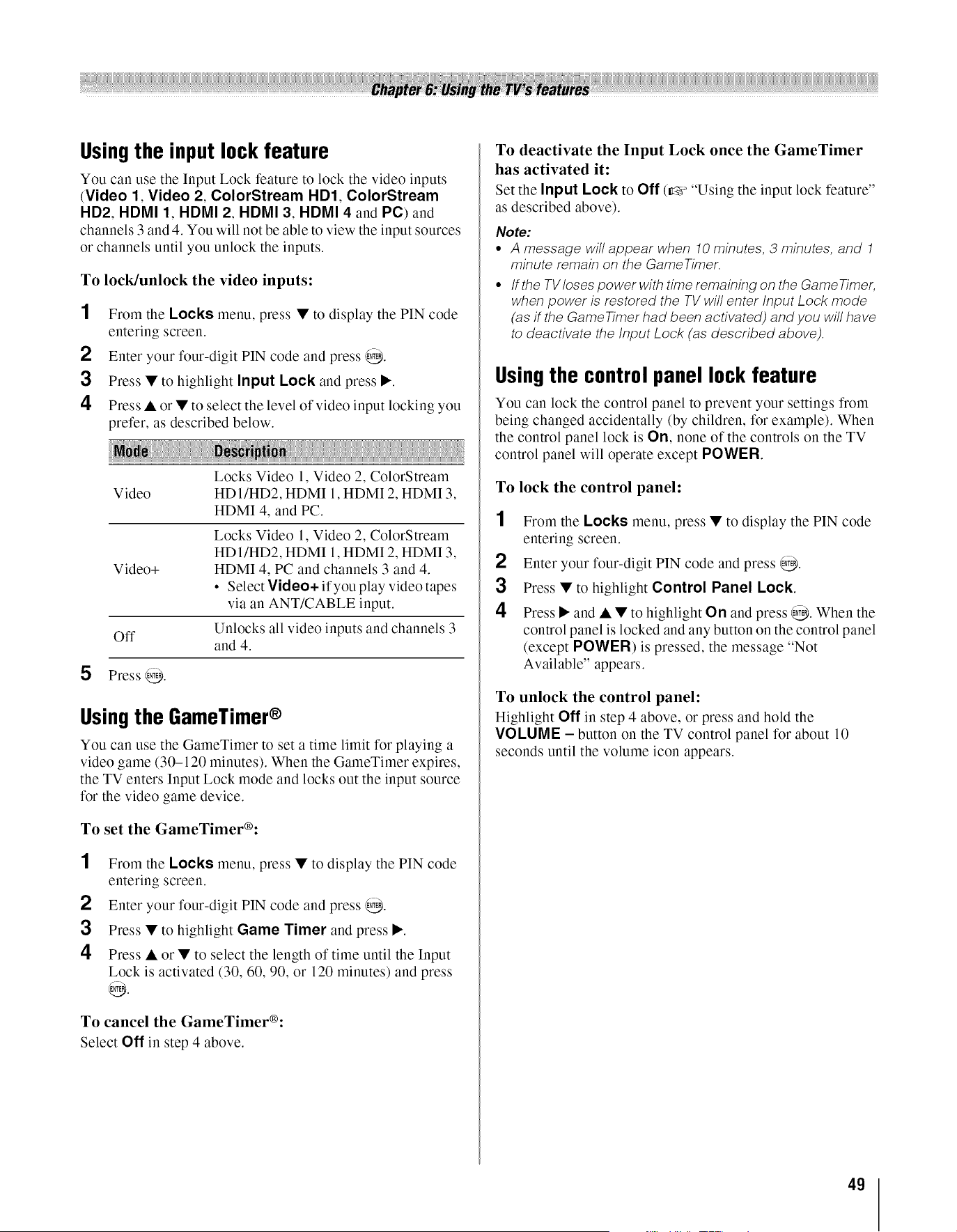

Usingthe input lock feature

You can use tile Input Lock feature to lock tile video inputs

(Video 1, Video 2, ColorStream HD1, ColorStream

HD2, HDMI 1, HDMI 2, HDMI 3, HDMI 4 and PC) and

channels 3 and 4. You will not be able to view tile input sources

or channels until you unlock the inputs.

To lock/unlock the video inputs:

1 From the Locks menu, press • to display the PIN code

entering screen.

2 Enter your four-digit PIN code and press @.

3 Press • to highlight Input Lock and press •.

4 Press • or • to select the level of video input locking you

prefer, as described below.

Locks Video 1, Video 2, ColorStream

Video HD 1/HD2, HDMI 1, HDMI 2, HDMI 3,

HDMI 4, and PC.

Video+

Off

Press @.

Locks Video 1, Video 2, ColorStream

HD 1/HD2, HDMI 1, HDMI 2, HDMI 3,

HDMI 4, PC and channels 3 and 4.

• Select Video+ if you play video tapes

via an ANT/CABLE input.

Unlocks all video inputs and channels 3

and 4.

Usingthe GameTimer®

You can use tile GameTimer to set a time limit for playing a

video game (30-120 minutes). When the GameTimer expires,

the TV enters Input Lock mode and locks out the input source

for the video game device.

To set the GameTimer®:

1 From the Locks menu, press • to display the PIN code

entering screen.

2 Enter your four-digit PIN code and press @.

3 Press • to highlight Game Timer and press •.

4 Press • or • to select the length of time until the Input

Lock is activated (30, 60, 90, or 120 minutes) and press

To cancel the GameTimer®:

Select Off in step 4 above.

To deactivate the Input Lock once the GameTimer

has activated it:

Set tile Input Lock to Off (_ "Using tile input lock feature"

as described above).

Note:

• A message will appear when 10 minutes, 3 minutes, and 1

minute remain on the GameTimer.

• If the TVIoses power with time remaining on the GameTimer,

when power is restored the TV will enter Input Lock mode

(as if the GameTimer had been activated) and you will have

to deactivate the Input Lock (as described above).

Usingthe control panel lock feature

You can lock the control panel to prevent your settings from

being changed accidentally (by children, for example). When

the control panel lock is On, none of the controls on the TV

control panel will operate except POWER.

lock the control panel:

From the Locks menu, press • to display the PIN code

entering screen.

Enter your four-digit PIN code and press @.

Press • to highlight Control Panel Lock.

Press • and • • to highlight On and press @. When the

control panel is locked and any button on the control panel

(except POWER) is pressed, the message "Not

Available" appears.

To unlock the control panel:

Highlight Off in step 4 above, or press and hold the

VOLUME -button on the TV control panel for about 10

seconds until the volume icon appears.

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page 50 Wednesday, Janu_y 30, 2008 3:54 PM

Usingthe PCsettings feature

You can view an image from a PC on the TV screen.

When a PC is connected to the TV's PC IN terminal, you can

use the PC Settings feature to make adjustments to the image.

If the edges of the picture are cut off, readjust the Horizontal

Position and Vertical Position. If the picture is affected by

interference, readjust the Clock Phase and Sampling

Clock.

To adjust the PC settings:

1 Select PC input mode (_ "Selecting the video input

source to view" page 35).

2 From the Setup menu, highlight PC Settings and press

Note: If a PC is not connected or there is no pc input

signal, this feature will be grayed out in the Setup menu.

3 Press • or • to highlight the item you want to adjust.

4 Press • or • to make the appropriate adjustments.

Note: The screen is disrupted momentarily when

adjusting the PC settings. This is not a sign of malfunction.

Moves the picture left/right.

Horizontal

The adjustment range is within .+10 from

Position

center.*

Moves the picture up/down.

Vertical

The adjustment range is within .+10 from

Position

center.*

Helps to reduce noise and sharpen the

Clock Phase picture.

The adjustment range is within _+32from

center.*

Helps to reduce noise and minimize periodic

Sampling vertical stripes on the screen.

Clock The adjustment range is within _+5from

center.*

* The default settings and/or adjustment range vary depending on

the input signal format.

Setting the PC Audio

This function allows you to output or mute the sound from

your PC when connecting using the PC IN terminal and an

analog RGB cable.

To set the PC Audio:

From the Audio menu, highlight Audio Setup and press

Press • or • to select PC Audio and then press • or •

to select No or Yes.

Yes: When viewing the PC input, the audio from the PC

Audio input can be heard.

No: When viewing the PC input, there will be no audio.

Note: Because the PC and HDMI 1 inputs share the same

set of analog audio inputs, the PC Audio menu setting

influences the HDMI 1 Audio menu setting. If PC Audio is

set to "No, "the HDMI 1 Audio setting changes to "Auto."

If PC Audio is set to "Yes," the HDMI 1 Audio setting is

set to "Digital" and is grayed out in the menu. (Also see

item 4 on page 11 and "Setting the HDMI TMaudio mode"

on page 32.)

RV530U (E/F) Web 213:276

32 52RV530U EN.book Page 51 Wednesday, Janu_y 30, 2008 3:54 PM

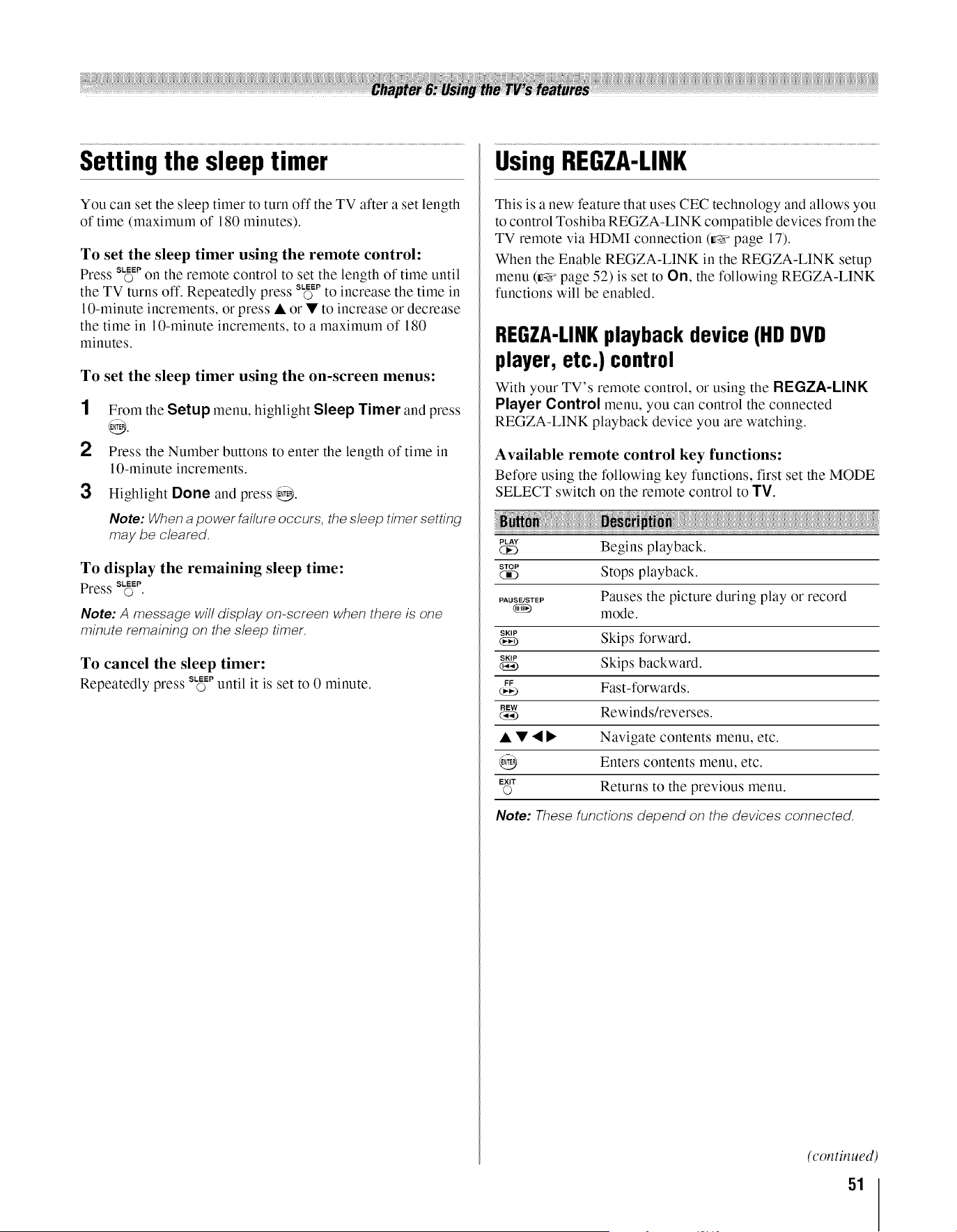

Setting the sleep timer

You can set the sleep timer to turn off the TV after a set length

of time (maximum of 180 minutes).

To set the sleep timer using the remote control:

Press s_Epon the remote control to set the length of time until

the TV turns off. Repeatedly press s_Epto increase the time in

10-minute increments, or press • or • to increase or decrease

the time in 10-minute increments, to a maximum of 180

minutes.

To set the sleep timer using the on-screen menus:

1 From the Setup menu, highlight Sleep Timer and press

2 Press the Number buttons to enter the length of time in

10-minute increments.

3 Highlight Done and press @.

Note: Whena power failureoccurs, the sleep timer setting

may be cleared.

To display the remaining sleep time:

Press SLEEPO•

Note: A message will display on-screen when there is one

minute remaining on the sleep timer.

To cancel the sleep timer:

Repeatedly press s_Epuntil it is set to 0 minute.

UsingREGZA-LINK

This is a new feature that uses CEC technology and allows you

to control Toshiba REGZA-LINK compatible devices from the

TV remote via HDMI connection (_ page 17).

When the Enable REGZA-LINK in the REGZA-LINK setup

menu (_ page 52) is set to On, the following REGZA-LINK

functions will be enabled.

REGZA-LINKplayback device (HDDVD

player, etc.) control

With your TV's remote control, or using the REGZA-LINK

Player Control menu, you can control the connected

REGZA-LINK playback device you are watching.

Available remote control key functions:

Before using the following key functions, first set the MODE

SELECT switch on the remote control to TV.

PLAY

Begins playback.

STOP

c_3 Stops playback.

PAUS_STEP Pauses the picture during play or record

mode.

SKIP

Skips forward.

SKIP

Skips backward.

Fast-forwards.

nEW

(_ Rewinds/reverses.

• • • • Navigate contents menu, etc.

@ Enters contents menu, etc.

EXIT

o Returns to the previous menu.

Note: These functions depend on the devices connected.

(cot_tit_ued)

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page 52 Wednesday, Janu_y 30, 2008 3:54 PM

REGZA-LINK Player Control menu functions:

1 Press M_oand open the Applications menu.

2 Highlight REGZA-LINK Player Control and press @.

3 Press • or • to select the item you want to control and

press @.

Power Turns the select device on and off.

Top Menu Accesses the top menu of a DVD.

Menu Accesses the menu of a DVD.

Accesses the contents list when you press

Contents @. At this time, the REGZA-LINK Player

Menu Control menu will disappear.

Note:

• These functions depend on the devices that are connected.

• The REGZA-LINK Player Control item will be grayed out in

the following conditions:

A non-HDMI input is currently selected.

The Enable REGZA-LINK item is set to Off.

The connected CEC device is not a playback or recording

device.

REGZA-LINKinput source selection

If a REGZA-LINK device with HDMI switching capability

(e.g. Audio Receiver) is connected to the HDMI input, you can

select another REGZA-LINK device that is connected to the

master HDMI device using the TV's INPUT button. See page

35 for details.

VOLUMEand MUTE controls of Audio

Receiver

With your TV's remote control, you can adjust or mute the

sound volume of the Audio Receiver. First, set the MODE

SELECT switch on the remote control to TV.

• I_ _ adjust the volume level.

• M_Eturns off the sound.

Note:

• To use this function:

- Set Speaker Preference to Audio Receiver in the

REGZA-LINK Setup menu.

Confirm that a connected REGZA-LINK device (such as

HD DVD player, etc) is selected for the Audio Receiver

input source.

• You can also use this function when the audio receiver is

connected to the TV's DIGITAL AUDIO OUT terminal (not

HDMI connection). In this case, select a digital audio input

mode on the Audio Receiver.

• These functions depend on the device connected.

Other REGZA-LINKfunctions

When the Enable REGZA-LINK and each item in the

REGZA-LINK Setup menu are set to On, the following

functions will be enabled.

If a connected HDMI device starts playing

TV Auto

video or audio, the TV will automatically

Input Switch

switch to the appropriate HDMI input.

If a REGZA-LINK device is turned on, the

TV Auto Power

TV turns on automatically.

If the TV is turned off the TV will send a

Device Auto

message to turn off all of the REGZA-

Standby LINK devices connected to the TV.

Speaker

Preference

From this item, you can set your audio

output preference to the TV speakers or the

audio receiver speakers. When this item is

set to Audio Receiver, the TV remote can

be used to adjust or mute the volume of the

audio. This item will be grayed out unless a

REGZA-LINK compatible audio receiver

is connected.

Note: When you turn on the Audio Receiver, change its input

source, or adjust the sound volume, the sound will be output

from the audio receiver's speakers even if TV Speakers has

been selected. Turn the TV off and on again to output the

sound from the TV speakers.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 53 Wednesday, Janu_y 30, 2008 3:54 PM

To set the REGZA-LINK Setup:

1 From the Setup menu, highlight REGZA-LINK Setup

and press @.

2 Press • or • to highlight Enable REGZA-LINK.

3 Press • or • to select On.

Note: if you set Enable REGZA-LINK to Off, the other

items will be grayed out.

4 Press • or • to highlight the REGZA-LINK setup item

you want to use, and press • or • to select On or desired

mode.

• TV Auto Input Switch: On/Off

• TV Auto Power: On/Off

• Device Auto Standby: On/Off

• Speaker Preference: TV Speakers/Audio Receiver

5 To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Usingthe HDMI settings feature

This menu consists of the following 2 items (new HDMI

capabilities) and will be grayed out on non-HDMI inputs.

Some HDMI legacy sources may not work properly with your

HDMI TV, please try setting the following options (Lip-Sync

Latency and Deep Color) to Off. Adjusting these settings

should allow your HDMI legacy source to operate properly

with your TV.

Note: Youmust disconnect your source device first before

settings car) be adjusted.

• Lip-Sync Latency: On

This option activates an auto audio/video display timing

adjustment function that allows HDMI source devices to

accurately perform synchronization automatically.

• Deep Color: On (46" and 52" models only)

This feature allows the HDMI source to increase available

colors bits within the boundaries defined by the RGB or

YCbCr color space.

All above HDMI settings need proper HDMI source device.

If HDMI source products does not support these features,

the TV may not work properly by activating these features.

Note: if your HDMI connection is capable of 1080p and/or

your TV is capable of refresh rates greater than 60Hz or

supports Deep Color, you will need a Category 2 cable.

Con ventional HDMI/D VI cables may not work properly with this

mode.

To set the HDMI Settings:

1 Select the appropriate HDMI input mode (HDMI 1,

HDMI 2, HDMI 3, or HDMI 4).

2 From the Setup menu, highlight HDMI Settings and

press @.

3 Press • or • to highlight the item you want to set.

4 Press • or • to select On or Off.

5 To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 54 Wednesday, Janu_y 30, 2008 3:54 PM

DisplayingTV status information

To display TV status information using RECALL:

Press RE_LLon the remote control.

The following information will display (if applicable):

• Current input (ANT/CABLE, Video 1, etc.)

• If ANT/CABLE is the current input, either "CABLE" (for

cable TV) or "ANT" (for over-the-air broadcasts).

• Channel number (if in ANT/CABLE mode)

• Channel label (if set)

• Digital signal strength indicator (bar graph in lower right

corner of box; for ATSC signal only)

• Stereo, Mono or SAP audio status (when HDMI input mode,

Dolby Digital or PCM)

• Video resolution

• Aspect ratio of incoming video signal (4:3 or 16:9)

• V-Chip rating status

• GameTimer (if set)

To close the RECALL screen:

Press ,E_LLagain.

To display TV status information using INFO:

(only available for ANT/CABLE input)

Press ,_o on the remote control.

The following additional information will display for off air

digital channels (if applicable):

• Title

• Duration

• Detailed description

To display Next information, press ,%oon the remote control

again. Pressing ,%oa third time will remove the entire banner.

Note: The location of the banner can be moved to the top or

bottom of the screen by pressing • or • while the RECALL or

INFO display is on-screen. (The last position will be stored to

memory.)

Understandingthe auto power off

feature

The TV will automatically turn itself off after approximately

15 minutes if it is tuned to a vacant channel or a station that

completes its broadcast for the day. This feature functions in

ANT/CABLE mode only.

Understandingthe last mode

memoryfeature

If the power is cut off while you are viewing the TV, the

Last Mode Memory feature automatically turns on the TV

when the power is resupplied.

Note:/f it's possible, and you will be away from the TV for an

extended period of time you should unplug the power cord.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 55 Wednesday, Janu_y 30, 2008 3:54 PM

Usingthe advancedpicture settings

features

Using dynamic contrast

When dynamic contrast is set to low, Middle, or High, the

TV will detect changes in the picture quality that affect the

appearance of your contrast settings and then automatically

adjust the video.

To select dynamic contrast preferences:

1 Press M_uand open the Video menu.

2 Highlight Picture Settings and press @.

Noise Reduction

ColorMaster

&ameMod; 6ii

Theater Settings

TheaterLock Off

Highlight Advanced Picture Settings and press @.

In the Dynamic Contrast field, select either Off, Low,

Middle or High.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Note: If you select one of the factory-set picture modes

(Sports, Standard, Movie, or PC) and then change the

dynamic contrast setting, the picture mode automatically

changes to Preference.

Usingthe static gamma feature

Tile static gamma feature allows you to adjust tile levels of

black in the picture.

adjust the static gamma settings:

From the Video menu, highlight Picture Settings and

press @.

Highlight Advanced Picture Settings and press @.

In the Static Gamma field, press • or • to adjust the

static gamma.

The adjustment range is within _+5from center.

• If the setting is moved in the minus direction, the detail

of black colors will be decreased.

• If the setting is moved in the plus direction, the detail of

black colors will be increased.

To save the new settings, highlight Done and press @.

To revert the factory defaults, highlight Reset and

press @.

Note: If you select one of the factory-set picture modes

(Sports, Standard, Movie, or PC) and then change the

static gamma setting, the picture mode automatically

changes to Preference.

(cot_tit_ued)

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 56 Wednesday, Janu_y 30, 2008 3:54 PM

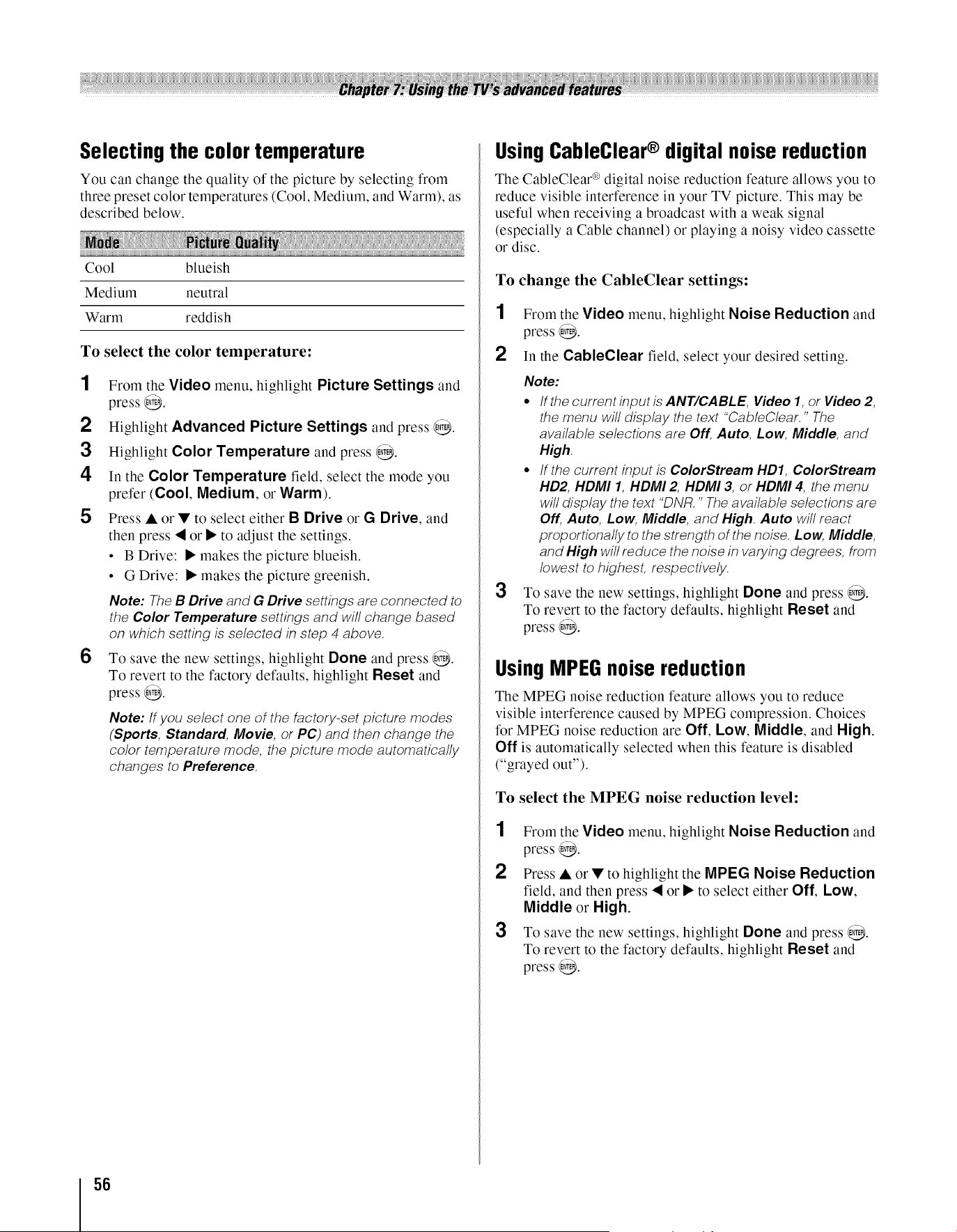

Selecting the color temperature

You can change tile quality of tile picture by selecting from

three preset color temperatures (Cool, Medium, and Warm), as

described below.

Cool blueish

Medium neutral

Warm reddish

To select the color temperature:

1 From the Video menu, highlight Picture Settings and

press @.

2 Highlight Advanced Picture Settings and press @.

3 Highlight Color Temperature and press @.

4 In the Color Temperature field, select the mode you

prefer (Cool, Medium, or Warm).

5 Press • or • to select either B Drive or G Drive, and

then press • or • to adjust the settings.

• B Drive: • makes the picture blueish.

• G Drive: • makes the picture greenish.

Note: The B Drive and G Drive settings are connected to

the Color Temperature settings and will change based

on which setting is selected in step 4 above.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Note: If you select one of the factory-set picture modes

(Sports, Standard, Movie, or PC) and then change the

color temperature mode, the picture mode automatically

changes to Preference.

Using CableClear® digital noise reduction

Tile CableClear °_digital noise reduction feature allows you to

reduce visible interference in your TV picture. This may be

useful when receiving a broadcast with a weak signal

(especially a Cable channel) or playing a noisy video cassette

or disc.

To change the CableClear settings:

From the Video menu, highlight Noise Reduction and

press @.

In the CableClear field, select your desired setting.

Note:

• If the current input is ANT/CABLE, Video 1, or Video 2,

the menu will display the text "CableClear." The

available selections are Off, Auto, Low, Middle, and

High.

• /f the current input is ColorStream HD1, ColorStream

HD2, HDMI 1, HDMI 2, HDMI 3, or HDMI 4, the menu

will display the text "DNR. " The available selections are

Off, Auto, Low, Middle, and High. Auto will react

proportionally to the strength of the noise. Low, Middle,

and High will reduce the noise in varying degrees, from

lowest to highest, respectively.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

Using MPEG noise reduction

The MPEG noise reduction feature allows you to reduce

visible interference caused by MPEG compression. Choices

for MPEG noise reduction are Oil, Low, Middle, and High.

Oil is automatically selected when this feature is disabled

("grayed out").

To select the MPEG noise reduction level:

From the Video menu, highlight Noise Reduction and

press @.

Press • or • to highlight the MPEG Noise Reduction

field, and then press • or • to select either Off, Low,

Middle or High.

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 57 Wednesday, Janu_y 30, 2008 3:54 PM

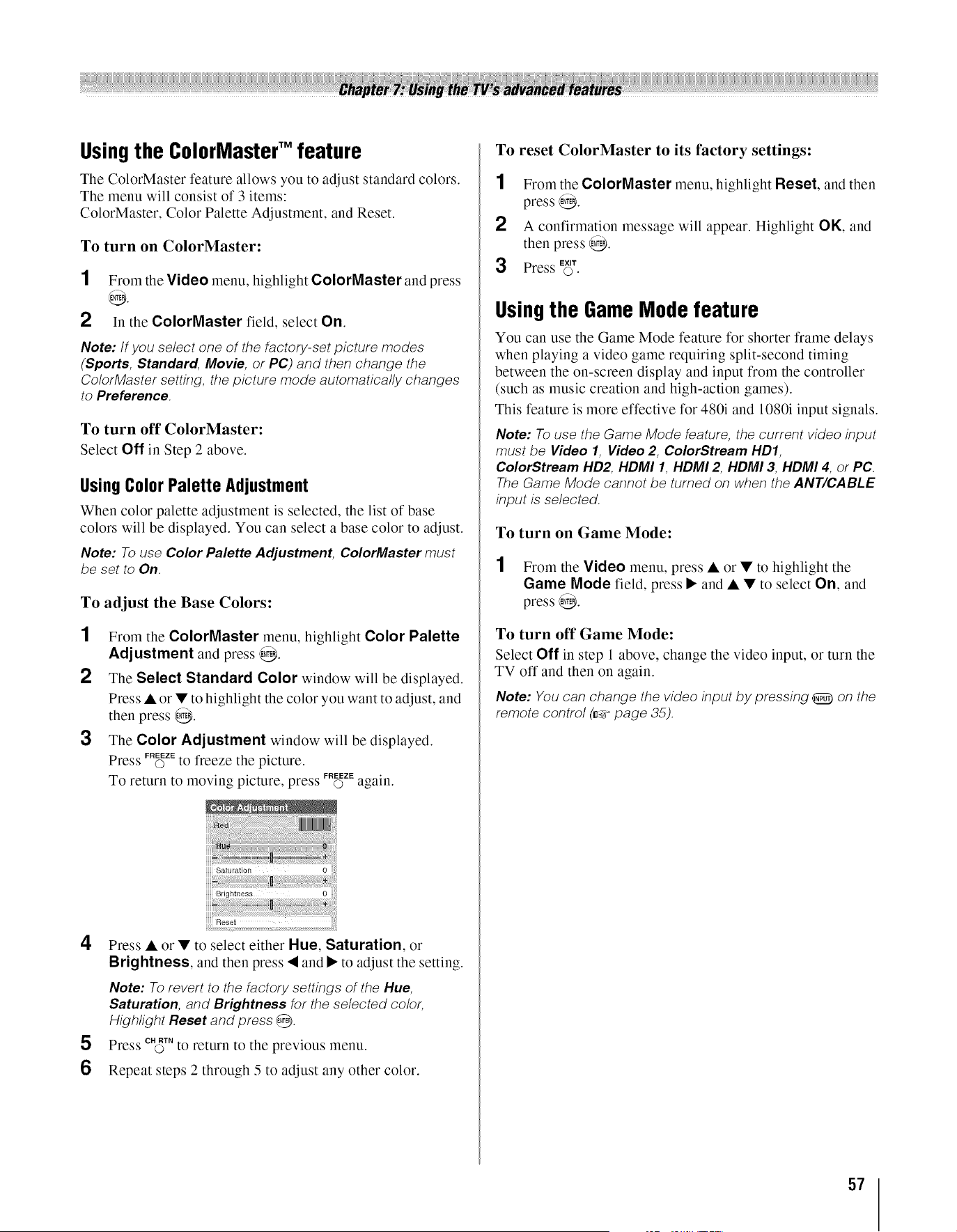

Usingthe ColorMaste¢ Mfeature

The ColorMaster feature allows you to adjust standard colors.

The menu will consist of 3 items:

ColorMaster, Color Palette Adjustment, and Reset.

To turn on ColorMaster:

1 From the Video menu, highlight ColorMaster and press

2 In the ColorMaster field, select On.

Note: If you select one of the factory-set picture modes

(Sports, Standard, Movie, or PC) and then change the

ColorMaster setting, the picture mode automatically changes

to Preference.

To turn off ColorMaster:

Select Off in Step 2 above.

UsingColorPalette Adjustment

When color palette adjustment is selected, tile list of base

colors will be displayed. You can select a base color to adjust.

Note: To use Color Palette AdjustmenL ColorMaster must

be set to On.

To adjust the Base Colors:

From the ColorMaster menu, highlight Color Palette

Adjustment and press @.

The Select Standard Color window will be displayed.

Press • or • to highlight the color you want to adjust, and

then press @.

The Color Adjustment window will be displayed.

Press FROZEtOfreeze the picture.

FREEZEa ain

Saturation

Press • or • to select either Hue, Saturation, or

Brightness, and then press • and • to adjust the setting.

Note: To revert to the factory settings of the Hue,

Saturation, and Brightness for the selected color,

Highlight Reset and press @.

Press CNF3TN to return to the previous menu.

Repeat steps 2 through 5 to adjust any other color.

To reset ColorMaster to its factory settings:

From the ColorMaster menu, highlight Reset, and then

press @.

A confirmation message will appear. Highlight OK, and

then press @.

Press E_T.

Usingthe Game Mode feature

You can use the Game Mode feature for shorter frame delays

when playing a video game requiring split-second timing

between the on-screen display and input from the controller

(such as music creation and high-action games).

This feature is more effective for 480i and 1080i input signals.

Note: To use the Game Mode feature, the current video input

must be Video 1, Video 2, ColorStream HD1,

ColorStream HD2, HDMI 1, HDMI 2, HDMI 3, HDMI 4, or PC.

The Game Mode cannot be turned on when the ANT/CABLE

input is selected.

To turn on Game Mode:

1 From the Video menu, press • or • to highlight the

Game Node field, press • and • • to select On, and

press @.

To turn off Game Mode:

Select Off in step 1 above, change the video input, or turn the

TV off and then on again.

Note: You can change the video input by pressing _ on the

remote control (_ page 35).

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 58 Wednesday, Janu_y 30, 2008 3:54 PM

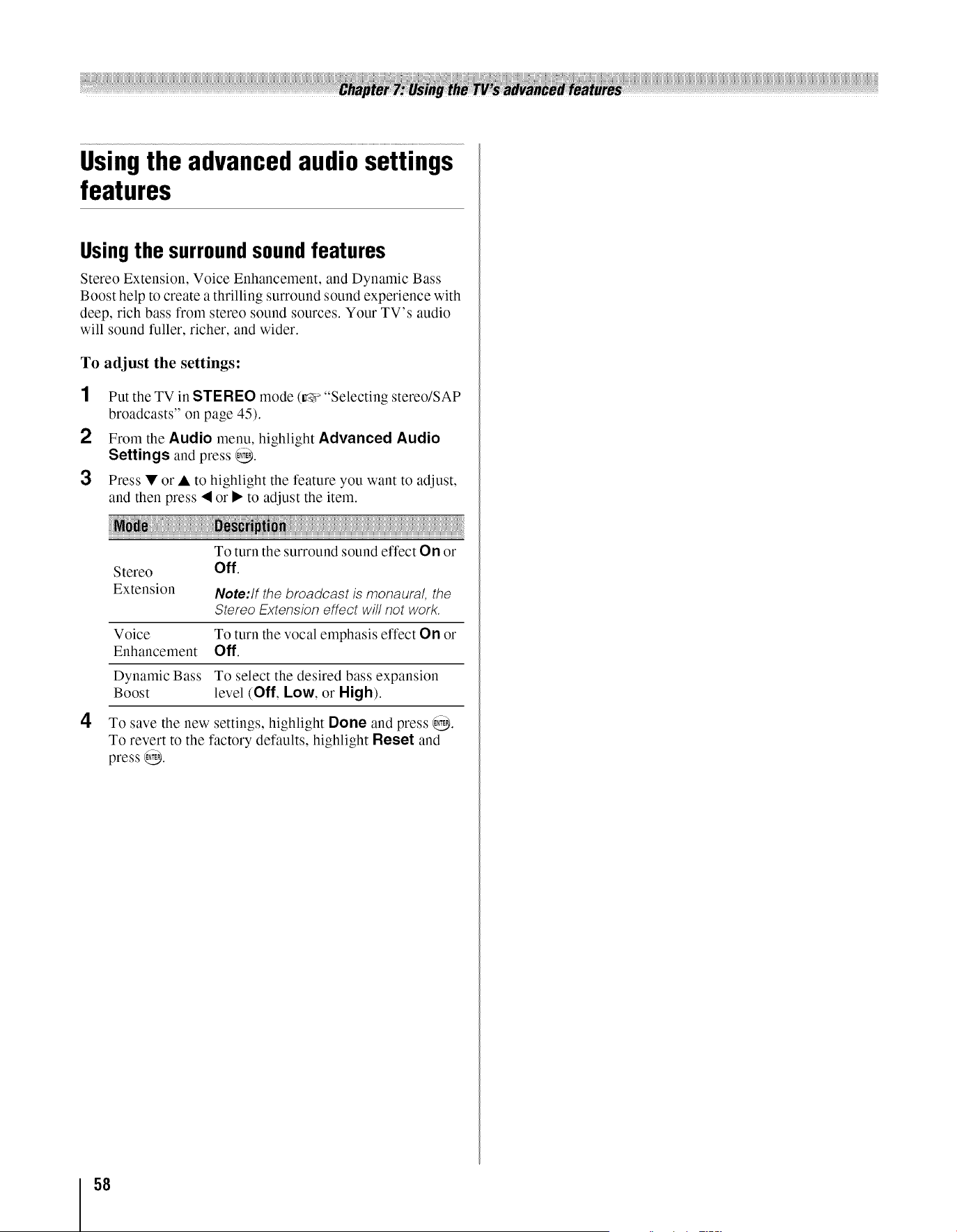

Usingthe advanced audiosettings

features

Usingthe surroundsound features

Stereo Extension, Voice Enhancement, and Dynamic Bass

Boost help to create a thrilling surround sound experience with

deep, rich bass from stereo sound sources. Your TV's audio

will sound fuller, richer, and wider.

To adjust the settings:

1 Put the TV in STEREO mode (_"Selecting stereo/SAP

broadcasts" on page 45).

2 From the Audio menu, highlight Advanced Audio

Settings and press @.

3 Press • or • to highlight the feature you want to adjust,

and then press < or • to adjust the item.

To turn the surround sound effect On or

Stereo Off.

Extension Note:If the broadcast is monaural, the

Stereo Extension effect will not work.

Voice To turn the vocal emphasis effect On or

Enhancement Off.

Dynamic Bass To select the desired bass expansion

Boost level (Off, Low, or High).

To save the new settings, highlight Done and press @.

To revert to the factory defaults, highlight Reset and

press @.

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page 59 Wednesday, Janu_y 30, 2008 3:54 PM

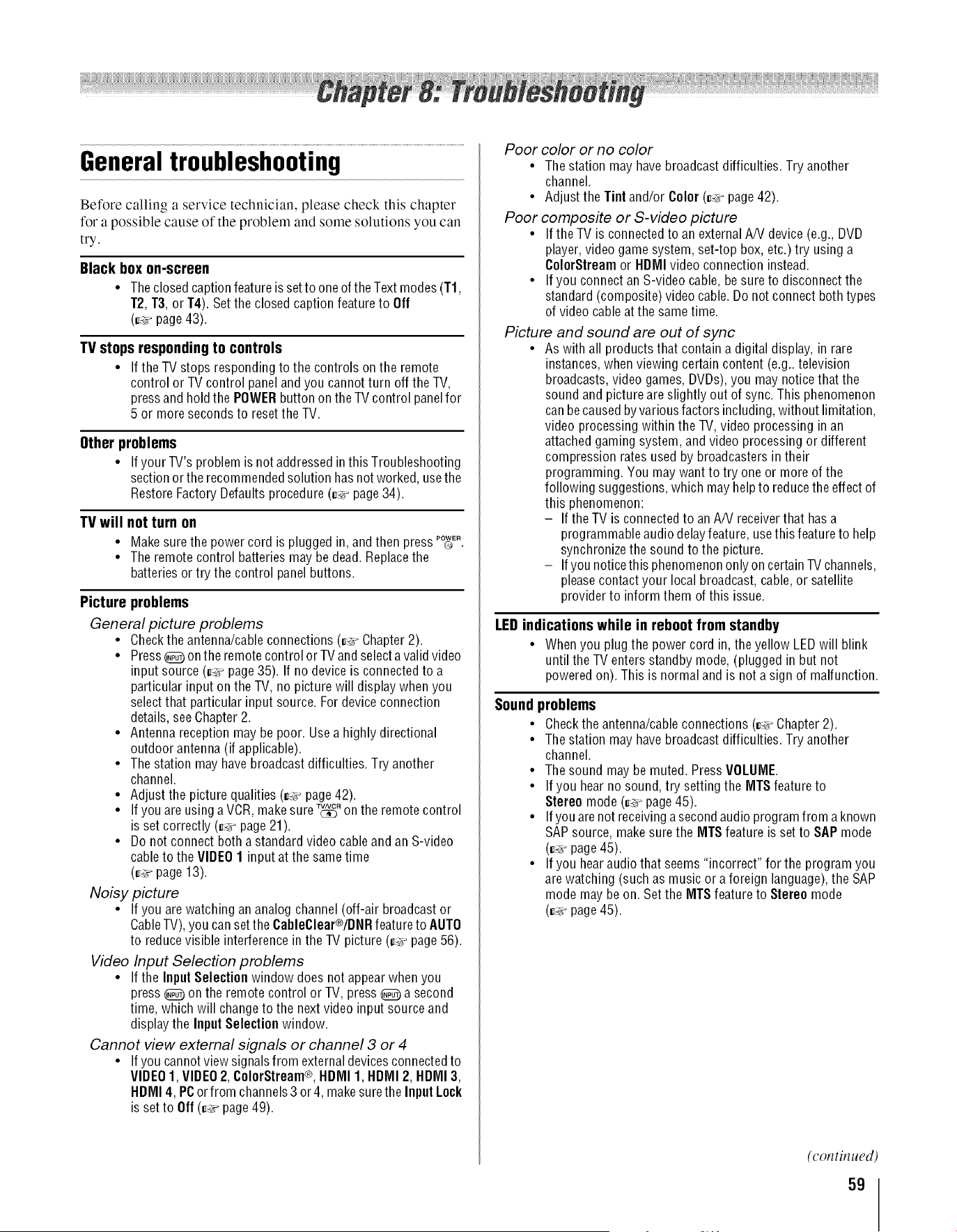

Generaltroubleshooting

Before calling a service technician, please check this chapter

for a possible cause of the problem and some solutions you can

try.

Black box on-screen

• The closed caption feature is setto one of the Text modes (T1,

T2, T3, or T4). Set the closed caption feature to Off

(e_ page43).

TV stops responding to controls

• If the TV stops responding to the controls on the remote

control or TV control panel and you cannot turn off the TV,

press and hold the POWERbutton on the TVcontrol panelfor

5 or more seconds to reset the TV.

Other problems

• If your TV's problem isnot addressed inthis Troubleshooting

section or the recommended solution has not worked, use the

Restore Factory Defaults procedure (e_ page 34).

TV will not turn on

Make sure the power cord is plugged in,and then press P%EL

The remote control batteries may be dead.Replacethe

batteries or try the control panel buttons.

Picture problems

General picture problems

• Checkthe antenna/cableconnections (e_ Chapter2)

• Press _ on the remote control or TV and select avalid video

input source (e_ page 35). If no device is connected to a

particular inputon the TV, no picture will display when you

select that particular input source For deviceconnection

details, see Chapter2.

• Antenna reception may be poor. Usea highly directional

outdoor antenna (if applicable)

• The station may have broadcast difficulties. Try another

channel.

• Adjust the picture qualities (e_ page 42).

• If you are using a VCR, make sure T_, on the remote control

is set correctly (e_ page 21).

• Do not connect both a standard video cableand an S-video

cableto the VIDEO 1 input at the sametime

(e_ page 13).

Noisy picture

• If you arewatching an analog channel (off-air broadcast or

CableTV), you can set the CableClear®/DNRfeature to AUTO

to reducevisible interference in the TV picture (e_ page 56).

Video Input Selection problems

• If the InputSelection window does not appearwhen you

press _ on the remote control or TV, press _ a second

time, which will changeto the next video inputsource and

display the InputSelection window.

Cannot view external signals or channel 3 or 4

• If you cannot view signals from externaldevices connectedto

VIDEO1, VIDEO2, ColorStream¢,HDMI 1, HDMI 2, HDMI 3,

HDMI 4, PCorfrom channels3 or4, make surethe InputLock

is set to Off (_ page49).

Poor color or no color

• The station may have broadcast difficulties. Try another

channel.

• Adjust the Tint and/or Color (e_ page 42).

Poor composfle or S-video picture

• If the TV is connected to an external A/V device (e.g., DVD

player, video game system, set-top box, etc.) try using a

ColorStreamor HDIVllvideo connection instead.

• If you connect anS-video cable, be sure to disconnect the

standard (composite) video cable.Do not connect both types

of video cableat the same time.

Picture and sound are out of sync

• As with all products that contain a digital display, in rare

instances, when viewing certain content (e.g..television

broadcasts, video games, DVDs), you may notice that the

sound and picture are slightly out of sync. This phenomenon

can be caused by various factors including, without limitation,

video processing within the TV, video processing in an

attached gaming system, and video processing or different

compression rates used by broadcasters in their

programming. You may want to try one or more of the

following suggestions, which may help to reducethe effect of

this phenomenon:

- If the TV is connected to an A/V receiverthat has a

programmable audio delay feature, use this feature to help

synchronize the sound to the picture.

- Ifyou notice this phenomenononly on certain TVchannels,

please contact your local broadcast, cable, or satellite

provider to inform them of this issue.

LEDindicationswhile in rebootfrom standby

• Whenyou plugthe powercord in,theyellowLEDwill blink

untilthe TVentersstandbymode,(pluggedinbut not

poweredon).This is normalandis not a signof malfunction.

Sound problems

• Checkthe antenna/cableconnections (e_ Chapter2).

• The station may have broadcast difficulties. Try another

channel.

• The sound may be muted. PressVOLUME.

• If you hear no sound, try setting the IVlTSfeature to

Stereo mode (e_ page 45).

• If you are not receiving a second audio program from a known

SAP source, make sure the IVlTSfeature is set to SAPmode

(e_ page45).

• If you hear audio that seems "incorrect" for the program you

are watching (such as music or a foreign language), the SAP

mode may be on. Set the IVlTSfeature to Stereo mode

(e_ page45).

(continued)

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 60 Wednesday, Janu_y 30, 2008 3:54 PM

Remote control problems

• Make sure the remote control is set to the correct device

mode (e_ page 21).

• Remove all obstructions betweenthe remote control and the

TV.

• The remote control batteries may be dead. Replacethe

batteries (e_ page 20).

• Your TV remote control may not operate certain features on

your external device. Referto the owner's manual for your

other deviceto determine itsavailablefeatures. If your TV

remote control does not operatea specific feature on another

device, use the remote control that came with the device

(e_ pages 22-26).

• If the TV still does not act as expected, use the Reset Factory

Defaults procedure (e_ page 34).

Channel tuning problems

• Make sure the remote control is set to the correct device

mode (e_ page 21).

• The channel may have beenerasedfrom the channel memory

by the ChannelAdd/Delete feature.Add the channel to the

channel memory (_ page 30).

• The channel may be blocked by the Channels Blockfeature.

Unblock the channel(_ page 48).

• If you are unable to tune digital channels, check the antenna

configuration (_ page 29). If you are still unable to tune

digital channels, clear all channels from the channel list

(_ page31) and reprogram channels into the channel

memory (_ page 30). If you are still unable to tune digital

channels, use the Reset Factory Defaults procedure

(_ page34). Also see "TV stops responding to controls"

and "Other problems" (_ page 59).

Closed

caption problems

If the program or video you selected isnot closed-captioned,

no captions will display (e_ page43).

If text is not available, a black rectangle may appear. If this

happens, turn off the closed caption feature (e_ page 43).

A closed-caption signal may not display correctly inthe

following situations: a) when avideotape has beendubbed; b)

when the signal reception is weak; or c) when the signal

reception is nonstandard (_ page43).

Rating blocking (V-Chip) problems

• If you forget your PIN code: While the PIN code entering

screen is displayed, press ,_LL four times within 5 seconds.

The PIN code you previously stored will be cleared

(_ page46).

• TheV-Chip feature is availablefor the U.S.V-Chip system only

(_ page47).

No REGZA-LINKoperation

• The REGZA-LINKfeature is availablefor Toshiba REGZA-LINK

compatible devices.

• Make surethe HDMI cableswith the HDMI Logo (|4;i:3fTl|)

are used.

• When the connected REGZA-LINKdevice does not work

correctly after you havechanged settings of the device, turn

off your TVand unplug the power cord, then plug andturn on

again.

• If several devicesare connected, REGZA-LINKfeature may

not operate properly.

• Readthe instruction manualfurnished with the connected

REGZA-LINKdevice.

HDMI problems

For HDMI cables

• Make surethe HDMI cableswith the HDMI Logo (H_rn|)

are used (e_ page 16).

For Deep Color

• You should needto use Category 2 cableto work properly.

Normal HDMI cable or DVI cable may not work with this

option (e_ page 53).

For Legacy HDMI source

• Some of legacy HDMI sources may not work properly with

latest HDMI TV products, dueto new standard adoption.

Pleasetry to set Off the HDMI settings(Lip-Sync Latency,

DeepColor). Your legacy HDMI source should operate

properly with this TV products (e_ page 53).

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 61 Wednesday, Janu_y 30, 2008 3:54 PM

LEDindications

The green and yellow LED lights on the TV front indicate the

TV's status, as described below.

Note: If the TV loses A/C power (e.g., a power outage occurs

or the power cord is unplugged), when power is restored, the

yellow LED will brink while the TV is booting until the remote

control is usable. This is normal and is not a sign of

malfunction.

TV front

POWER

Yellow LED Green LED

LED Indication

• Green is ON (solid)

The TV is operating properly.

• Yellow is ON (solid)

Standby with Power-On Mode set to Fast.

See "Selecting the Power-On Mode" (r_¢ page 34).

• Yellow blinks three times

TV is powering up.

Wait several seconds until the yellow LED stops blinking.

• Green blinks slowly

Abnormal operation of BUS line.

Turn OFF the TV and unplug the power cord. Plug the

power cord in again and turn ON the TV.

• Green blinks quickly

Power protect detection.

Turn OFF the TV and unplug the power cord. Plug the

power cord in again and turn ON the TV.

IL after trying the solutions, the problem still exists:

• In the U.S., call TACP Consumer Solutions at 1-800-575-

5469.

• In Canada, locate the nearest Toshiba authorized service

depot by directing your web browser to www.toshiba.ca;

click "Home Entertainment," and then click "Support."

RV530U (E/F) Web 213:276

@ 32 52RV530U EN.book Page 62 Wednesday,, Janu_y 30, 2008 3:54PM

Specifications

Note:

* This model complies with the specifications listed

below.

* Designs and specifications are subject to change

without notice.

* This model may not be compatible with features and/or

specifications that may be added in the future.

Television System

NTSC standard

ATSC standard (8VSB)

Digital Cable (64 QAM, 256 QAM: in-the-clear,

unencrypted)

Channel Coverage

VHF: 2 through 13

UHF: 14 through 69

Cable TV: Mid band (A-8 through A-I, A through I)

Super band (J through W)

Hyper band (AA through ZZ, AAA, BBB)

Ultra band (65 through 94, 100 through 135)

Power Source: 120 V AC, 60 Hz

Power Consumption

32RV530U: 1.6 Arms maximum current)

0.4 W in standby mode

37RV530U: 1.6 Arms (maximum current)

0.4 W in standby mode

42RV530U: 2.1 Arms (maximum current)

0.4 W in standby mode

46RV530U: 2.4 Arms (maximum current)

0.4 W in standby mode

52RV530U: 2.8 Arms (maximum current)

0.4 W in standby mode

Audio Power: 10 W + 10 W

Speaker Type

Main: Two 1-3/8 x 6-3/8 inches (35 x 160 ram)

Video/Audio Terminals

S-VIDEO INPUT:

Y: 1 V(p-p), 75 ohm, negative sync.

C: 0.286 V(p-p) (burst signal), 75 ohm

VIDEO/AUDIO INPUT:

VIDEO: 1 V(p-p), 75 ohm, negative sync.

AUDIO: 150 mV(rms) (30% modulation equivalent, 22 k

ohm or greater)

ColorStream ®(component video) HD INPUT:

VIDEO:Y: 1V(p-p), 75 ohm

PR: 0.7 V(p-p), 75 ohm

PB: (1.7 V(p-p), 75 ohm

Suggested formats: 1080i. 720p, 480p, 480i

AUDIO: 150 mV(rms), 22 k ohm or greater

HDMI TMINPUT:

HDMI compliant (type A connector)

HDCP compliant

Audio Lip Sync supported

Deep Color supported (10 bit 4:4:4, 12 bit 4:4:4) (only

for 46" and 52" models)

Suggested formats: See table on the next page.

HDMI Audio: 2-channel Linear-PCM; 32144.1148kHz

sampling frequency; 16120124bits per sample

FIXED AUDIO OUTPUT:

150 mv (rms) (30% modulation equivalent, 2.2 k ohm

or less)

DIGITAL AUDIO OUTPUT:

Optical type

IR OUT:

3 V(p-p), 3.5 mm mono socket

PC INPUT:

15-Pin D-sub Analog RGB

Dimensions

32RV530U:

37RV530U:

42RV530U:

46RV530U:

52RV530U:

Width: 31 inches (786 mm)

Height: 22-3/4 inches (575 ram)

Depth: 9-7/8 inches (25(/ram)

Width: 35-5/8 inches (902 ram)

Height: 25 inches (635 mm)

Depth: 9-7/8 inches (250 ram)

Width: 39-3/4 inches (1,009 ram)

Height: 27-3/8 inches (694 mm)

Depth: 12-1/4 inches (308 ram)

Width: 43-5/8 inches (1,108 ram)

Height: 29-3/8 inches (746 mm)

Depth: 12-1/4 inches (308 ram)

Width: 49-3/8 inches (1,252 ram)

Height: 33 inches (837 mm)

Depth: 14-1/2 inches (368 ram)

Mass (weight)

32RV530U: 37.3 lbs (16.9 kg)

37RV530U: 45.2 lbs (20.5 kg)

42RV530U: 6(/.2 lbs (27.3 kg)

46RV530U: 64.6 lbs (29.3 kg)

52RV530U: 87.8 lbs (39.8 kg)

Operating conditions

Temperature: 32°F - 95°F (0°C - 35°C)

Humidity: 20 - 80% (no moisture condensation)

Supplied Accessories

• Remote control with two size "AAA" batteries

° Owner's manual (this book)

• Securement Clip

Use this clip to attach the TV to a wall stud, pillar, or other

immovable structure. See item 20 on page 3 and

instructions on page 5.

° Cleaning cloth (to clean the cabinet and control panel)

RV530U (ELF) Web 213:276

@ 32 52RV530U EN.book Page 63 Wednesday, Janu_y 30, 2008 3:54PM

Acceptable signal formats for PC IN and HDMI terminals

PC IN signal formats

Note: Depending on the connected PC, the following status may occur, incorrect display, false format detection, picture position

failure, blur, or judder. But this is not a malfunction of your TV.

VGA 640 x 480 59.940Hz 31.469kHz 25.175MHz

72.809Hz 37.861kHz 31.500MHz

75.000Hz 37.500kHz 31.500MHz

SVGA 800 x 600 60.317Hz 37.879kHz 40.000MHz

72.188Hz 48.077kHz 50.000MHz

75.000Hz 46.875kHz 49.500MHz

XGA 1024 x 768 60.004Hz 48.363kHz 65.000MHz

70.069Hz 56.476kHz 75.000MHz

75.029Hz 60.023kHz 78.750MHz

WXGA 1280 x 768 59.995Hz 47.396kHz 68.250MHz

59.870Hz 47.776kHz 79.500MHz

74.893Hz 60.289kHz 102.250MHz

1360 x 768 60.015Hz 47.712kHz 85.500MHz

SXGA 1280 x 1024 60.020Hz 63.981 kHz 108.000MHz

HDMI signal formats

VGA 640 x 480 59.940Hz 31.469kHz 25.175MHz

72.809Hz 37.861kHz 31.500MHz

75.000Hz 37.500kHz 31.500MHz

SVGA 800 x 600 60.317Hz 37.879kHz 40.000MHz

72.188Hz 48.077kHz 50.000MHz

75.000Hz 46.875kHz 49.500MHz

XGA 1024 x 768 60.004Hz 48.363kHz 65.000MHz

70.069Hz 56.476kHz 75.000MHz

75.029Hz 60.023kHz 78.750MHz

WXGA 1280 x 768 59.995Hz 47.396kHz 68.250MHz

59.870Hz 47.776kHz 79.500MHz

74.893Hz 60.289kHz 102.250MHz

1360 x 768 60.015Hz 47.712kHz 85.500MHz

SXGA 1280 x 1024 60.020Hz 63.981 kHz 108.000MHz

480i 720 x 480i 59.940/60Hz 15.734/15.750kHz 27.000/27.027MHz

480p 720 x 480p 59.940/60Hz 31.469/31.500kHz 27.000/27.027MHz

720p 1280 x 720p 59.940/60Hz 44.955/45.000kHz 74.176/74.250MHz

1080i 1920 x 1080i 59.940/60Hz 33.716/33.750kHz 74.176/74.250MHz

1080p 1920 x 1080p 23.976/24Hz 26.973/27.000kHz 74.176/74.250MHz

1080p 1920 x 1080p 59.940/60Hz 67.433/67.500kHz 148.352/148.500MHz

RV530U (E/F) Web 213:276

Limited United States Warranty

for LCD Televisions 26" and Larger

Toshiba America Consumer Products, LL.C. CTACP") makes the

following limited warranties to original consumers in the United States.

THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL

CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS LCD

TELEVISION AS A GIFT FROM THE ORIGINAL CONSUMER

PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.

LCD TELEVISIONS PURCHASED IN THE U.S.A. AND USED

ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING, WITHOUT

LIMITATION, CANADA AND MEXICO, ARE NOT COVERED BY THESE

WARRANTIES.

LCD TELEVISIONS PURCHASED ANYWHERE OUTSIDE OF THE

U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA AND MEXICO,

AND USED IN THE U.S.A., ARE NOT COVERED BY THESE

WARRANTIES.

Limited One (1) Year Warranty on Parts and Labor

TACP warrants this LCD Television and its parts against defects in

materials or workmanship for a period of one (1) year after the date of

original retail purchase. DURING THIS PERIOD, TACP WILL, AT TACP'S

OPTION, REPAIR OR REPLACE A DEFECTIVE PART WITH A NEW OR

REFURBISHED PART WITHOUT CHARGE TO YOU FOR PARTS OR

LABOR. During this period, TACP Authorized Service Station personnel

will come to your home when warranty service is required. Depending on

the type of repair required, the service will either be performed in your

home or the LCD Television will be taken to a TACP Authorized Service

Station for repair and returned to your home at no cost to you.

Rental Units

The warranty for LCD Television rental units begins on the date of the first

rental or thirty (30) days after the date of shipment to the rental firm,

whichever comes first.

Limited Warranty for Commercial Units

TACP warrants LCD Televisions that are sold and used for commercial

purposes as follows: all parts are warranted against defects in materials

or workmanship for a period of ninety (90) days after the date of original

retail purchase. DURING THIS PERIOD, TACP WILL, AT TACP'S OPTION,

REPAIR OR REPLACE A DEFECTIVE PART WITH A NEW OR

REFURBISHED PART WITHOUT CHARGE TO YOU.

Owner's Manual and Product Registration Card

Read this owner's manual thoroughly before operating this LCD

Television.

Complete and mail the enclosed product registration card or register your

LCD Television online at www.tacp.toshiba.com/service as soon as

possible. By registering your LCD Television you will enable TACP to bring

you new products specifically designed to meet your needs and help us

to contact you in the unlikely event a safety notification is required under

the U.S. Consumer Product Safety Act. Failure to complete and

return the product registration card does not diminish your

warranty rights.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING

CONDITIONS:

(1) You must retain your original bill of sale or provide other proof of

purchase.

(2) All warranty servicing of this LCD Television must be performed by an

Authorized TACP Service Station.

(3) The warranties from TACP are effective only if this LCD Television is

purchased and operated in the Continental U.S.A. or Puerto Rico.

(4) Labor service charges for set installation, setup, adjustment of

customer controls, and installation or repair of antenna systems are

not covered by this warranty. Reception problems caused by

inadequate antenna systems, misaligned satellite dishes, cable

television distribution, VCRs, DVD players/recorders, personal

computer level IEEE-1394 devices, and any other connected signal

source device are your responsibility.

(5) Warranties extend only to defects in materials or workmanship as

limited above, and do not extend to any LCD Television or parts that

have been lost or discarded by you or to damage to the LCD

Television or parts caused by fires, misuse, accident, Acts of God

(such as lightning or fluctuations in electric power), improper

installation, improper maintenance, or use in violation of instructions

furnished by TACP; use or malfunction through simultaneous use of

this LCD Television and connected equipment; or to units that have

been modified or had the serial number removed, altered, defaced,

or rendered illegible.

How to Obtain Warranty Service

If, after following all of the operating instructions in this manual and

reviewing the section entitled "Troubleshooting," you find that service is

needed:

(1) To find the nearest TACP Authorized Service Station, visit TACP's

website at www.tacp.toshiba.com/service or contact TACP's

Consumer Solution Center toll free at 1-800-575-5469.

(2) You must present your original bill of sale or other proof of purchase

to the TACP Authorized Service Station.

For additional information, visit TACP's website:

www.tacp.toshiba.com

ALL WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE

U.S.A., INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

ARE EXPRESSLY LIMITED TO THE DURATION OF THE LIMITED

WARRANTIES SET FORTH ABOVE. WITH THE EXCEPTION OF ANY

WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE U.S.A.

AS HEREBY LIMITED, THE FOREGOING WARRANTY IS EXCLUSIVE

AND IN LIEU OF ALL OTHER WARRANTIES, GUARANTEES,

AGREEMENTS, AND SIMILAR OBLIGATIONS OF TACP WITH

RESPECTTOTHE REPAIR OR REPLACEMENT OFANY PARTS. IN NO

EVENT SHALL TACP BE LIABLE FOR CONSEQUENTIAL OR

INCIDENTAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, LOST

PROFITS, BUSINESS INTERRUPTION, OR MODIFICATION OR

ERASURE OF RECORDED DATA CAUSED BY USE, MISUSE OR

INABILITY TO USE THIS LCD TELEVISION).

No person, agent, distributor, dealer, or company is authorized to change,

modify, or extend the terms of these warranties in any manner whatsoever.

The time within which an action must be commenced to enforce any

obligation of TACP arising under the warranty or under any statute or law

of the United States or any state thereof is hereby limited to ninety (90)

days from the date you discover, or should have discovered, the defect.

This limitation does not apply to implied warranties arising under the law

of any state of the U.S.A.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU

MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE

TO STATE IN THE U.S.A. SOME STATES OFTHE U.S.A. DO NOT

ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED

WARRANTY, WHEN AN ACTION MAY BE BROUGHT, OR THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES. THEREFORE, THE ABOVE PROVISIONS MAY NOT APPLY

TO YOU UNDER SUCH CIRCUMSTANCES.

[0305]

RV53OU (E/F) Web 213:276

Limited CanadianWarranty

for Toshiba Brand Flat Panel Televisions

Toshiba of Canada Limited ("TCL") makes the following limited warranties

to original consumers in Canada. THESE LIMITED WARRANTIES

EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY

PERSON RECEIVING THIS TOSHIBA BRAND FLAT PANEL

TELEVISION (the "TELEVISION(S)" or "-i-elevision(s)") AS A GIFT FROM

THE ORIGINAL CONSUMER PURCHASER AND TO NO OTHER

PURCHASER OR TRANSFEREE.

TELEVISIONS PURCHASED IN CANADA, AND USED ANYWHERE

OUTSIDE OF CANADA INCLUDING, WITHOUT LIMITATION, THE

UNITED STATES AND MEXICO, ARE NOT COVERED BY THESE

WARRANTIES.

TELEVISIONS PURCHASED ANYWHERE OUTSIDE OF CANADA,

INCLUDING, WITHOUT LIMITATION, THE UNITED STATES AND

MEXICO, AND USED IN CANADA, ARE NOT COVERED BY THESE

WARRANTIES.

Limited One (1) Year Warranty on Parts and Labour

Subject to the more limited warranty if the Television is used for any

commercial or business purposes as set out below, TCL warrants the

Television and its parts against material defects in materials or

workmanship that result in the Television failing for a period of one (1) year

after the date of original retail purchase. DURING THIS PERIOD, TCL

WILL, AT TCL'S OPTION, REPAIR OR REPLACE A DEFECTIVE PART

WITH A NEW OR REFURBISHED PART WITHOUT CHARGE TO YOU

FOR PARTS OR LABOUR.

(a) FOR TELEVISIONS 32 INCHES OR LESS: YOU MUST DELIVER THE

ENTIRE TELEVISION TO A TCL TELEVISION AUTHORIZED

SERVICE PROVIDER ("ASP"). YOU MUST PAY FOR ALL

TRANSPORTATION AND INSURANCE CHARGES FOR THE

TELEVISION TO AND FROM THE ASP.

(b) FOR TELEVISIONS OVER 32 INCHES: During this period, ASP

personnel will come to your home when warranty service is required,

Depending on the type of repair required, the service will either be

performed in your home or the Television will be taken to an ASP for

repair and returned to your home at no cost to you. IN-HOME

SERVICE ONLY APPLIES WITHIN 100 KILOMETERS OF AN ASP.

IF YOU ARE NOT WITHIN 100 KILOMETERS OF AN ASP, YOU

MUST DELIVER THE ENTIRE TELEVISION TO AN ASP. YOU MUST

PAY FOR ALL TRANSPORTATION AND INSURANCE CHARGES

FOR THE TELEVISION TO AND FROM THE ASP.

Limited Warranty for Commercial Units

TCL warrants Televisions that are used for any commercial or business

purposes as follows: all parts are warranted against material defects in

materials or workmanship that result in the Television failing for a period of

ninety (90) days after the date of original retail purchase. DURING THIS

PERIOD, TCL WILL, AT TCL'S OPTION, REPAIR OR REPLACE THE

DEFECTIVE PART WITH A NEW OR REFURBISHED PART WITHOUT

CHARGE TO YOU.

ENTIRE TELEVISION TO AN ASP. YOU MUST PAY FOR ALL

TRANSPORTATION AND INSURANCE CHARGES FOR THE

TELEVISION TO AND FROM THE ASP.

(d) FOR TELEVISIONS OVER 32 INCHES: During this period, ASP

personnel will come on-site when warranty service is required.

Depending on the type of repair required, the service will either be

performed on-site or the Television will be taken to an ASP for repair

and returned at no cost to you. ON-SITE SERVICE ONLY APPLIES

WITHIN 100 KILOMETERS OF AN ASP. IF YOU ARE NOT WITHIN

100 KILOMETERS OF AN ASP, YOU MUST DELIVER THE ENTIRE

TELEVISION TO AN ASP. YOU MUST PAY FOR ALL

TRANSPORTATION AND INSURANCE CHARGES FOR THE

TELEVISION TO AND FROM THE ASP.

Rental Units

The warranty for Television rental units begins with the date of first rental

or thirty (30) days from the date of shipment to the rental firm, whichever

comes first,

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING

CONDITIONS:

(1) You must provide your bill of sale or other proof of purchase.

(2) All warranty servicing of this Television must be performed by an ASP,

(3) The warranties from TCL are effective only if the Television is (i)

purchased as new and unopened from TCL or from TCL's authorized

distributors, dealers or resellers CADR's") and (ii) located/operated in

Canada.

(4) Labour charges for set installation, setup, adjustment of customer

controls, and installation or repair of antenna systems are not covered

by these warranties. Reception problems caused by inadequate

antenna systems are your responsibility.

(5) Warranties extend only to material defects in materials or

workmanship as limited above, and do not extend to:

a, Service, repairs or replacement made necessary by accident,

misuse, abuse, moisture, liquids, dust, dirt, neglect, accident,

damage, 24/7 applications, improper installation, improper

operation, improper cleaning, improper maintenance, normal

wear and tear, screen burn or image retention caused by

prolonged display of static images and/or phosphor aging, or any

other external cause or event, act or omission outside the control

of TCL, including fire, theft, acts of God, alteration, power failures,

power surges or power shortages, lightning, other electrical

faults, or repairs, modifications or replacements by persons other

than those authorized by TCL to service the Television;

b, Replacement of missing, discarded or lost parts, the provision of

retrofits, or preventive maintenance;

c, Repair of damage that is cosmetic only or does not affect the

Television functionality, such as wear and tear, scratches and

dents;

d, Service on Toshiba-branded accessory items (such accessory

items may be covered by their own warranty);

e, Service on third party products or service made necessary by

use of incompatible third party products;

f, Service made necessary by the simultaneous use of this

Television and connected equipment;

g. Modifications to the Television not approved in writing by TCL,

and service made necessary by the use or installation of non-

Toshiba modifications to the Television;

h, Service of a Television on which the TOSHIBA label or logo, rating

label or serial number have been defaced or removed;

i. On-site service and repair of the Television; and

j. Damage to the Television caused by failure to follow the

specifications, User manuals or guides as to usage and/or

storage,

(continued)

Disclaimer and Limitation of Remedy

TO THE EXTENT NOT PRECLUDED BY LAW, ALL OTHER EXPRESS

AND IMPLIED WARRANTIES, CONDITIONS AND REPRESENTATIONS

FOR THIS TELEVISION, INCLUDING THE IMPLIED WARRANTIES,

CONDITIONS AND REPRESENTATIONS OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED

AND EXCLUDED. IF THE APPLICABLE LAW, STATUTORY OR

OTHERWISE, PRECLUDES THE EXCLUSION OF ANY IMPLIED

WARRANTIES, CONDITIONS AND REPRESENTATIONS THEN SUCH

IMPLIED WARRANTIES, CONDITIONS AND REPRESENTATIONS ARE

OTHERWISE LIMITED IN DURATION TO THE TERM OF THIS

EXPRESS WRITTEN LIMITED WARRANTY. TO THE EXTENT NOT

PRECLUDED BY LAW, STATUTORY OR OTHERWISE, THIS WRITTEN

WARRANTY SUPERCEDES AND SPECIFICALLY DISCLAIMS ANY

OTHER WARRANTY, CONDITION OR REPRESENTATION NOT

STATED IN THIS WARRANTY, WHETHER MADE BY TCL, TOSHIBA

CORPORATION, THEIR AFFILIATES, ADRs AN D ASPs AN D WHETHER

MADE ORALLY OR IN WRITING (INCLUDING ANY STATEMENT IN

ANY BROCHURE, PRESS RELEASE, ANNOUNCEMENT,

ADVERTISEMENT, POINT OF SALE DISPLAY, ETC.).

YOU MUST READ AND FOLLOW ALL SET-UP AND USAGE

INSTRUCTIONS IN THE APPLICABLE USER GUIDES AND/OR

MANUALS. IF YOU FAIL TO DO SO, THIS TELEVISION MAY NOT

FUNCTION PROPERLY AND YOU MAY SUFFER DAMAGE. THIS

WARRANTY WILL NOT COVER ANY SERVICE THAT IS REQUIRED, IN

PART OR IN WHOLE, AS A RESULT OF ANY FAILURE TO FOLLOW THE

SET-UP AND USAGE INSTRUCTIONS. THIS WARRANTY DOES NOT

APPLY AND SHALL BE VOID AND UNENFORCEABLE IFTHE

TELEVISION IS OPENED, SERVICED, OR REPAIRED BY PERSONS

OTHER THAN THOSE AUTHORIZED BY TCL TO SERVICE OR REPAIR

THE TELEVISION.

IFTHE TELEVISION FAILS TO WORK AS WARRANTED ABOVE, YOUR

SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT

OF THE DEFECTIVE PART. IN NO EVENT WILL TCL TOSHIBA

CORPORATION THEIR AFFILIATES ADRs OR ASPs (THE "RELATED

PARTIES") BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY

DAMAGES, MONEY, REIMBURSEMENT COSTS OR EXPENSES, THIS

LIMITATION APPLIES TO DAMAGES, MONEY, REIMBURSEMENT,

COSTS OR EXPENSES OF ANY KIND WHATSOEVER INCLUDING ANY

DIRECT OR INDIRECT DAMAGES, DAMAGE TO PROPERTY OR

PERSON, LOST PROFITS, LOST SAVINGS, INCONVENIENCE OR

OTHER SPECIAL, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL

DAMAGES, WHETHER FOR BREACH OF WARRANTY, BREACH OF

CONTRACT, TORT (INCLUDING NEGLIGENCE), UNDER A STATUTE OR

UNDER ANY OTHER LAW OR FORM OR ACTION, OR WHETHER

ARISING OUT OF THE USE OF OR INABILITY TO USE THE TELEVISION,

EVEN IF ANY OF THE RELATED PARTIES HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY OTHER

PARTY,

No person, agent, distributor, dealer or company is authorized to change,

modify or extend the terms of these warranties in any manner whatsoever,

Arbitration and Dispute Resolution

To the extent not precluded by law, any claim, dispute, controversy or

disagreement (whether for breach of warranty, breach of contract, tort

(including negligence), under a statute or under any other law or form of

action) against any of the Related Parties arising out of, or otherwise

relating to: (i) this warranty; (ii) the Television; (iii) any oral or written

representations, statements, brochures, press releases, advertising,

announcement, point of sale display, or promotional material relating to

the Television; (iv) the relationships that result from this warranty, (the

foregoing claims, disputes controversies and disagreements are

collectively referred to as the "Dispute"), shall be referred to and resolved

by final and binding arbitration (to the exclusion of the courts). To the

extent not precluded by law, you agree to waive any right that you may

have to commence or participate in any representative or class

proceeding against the Related Parties relating to any Dispute. If and

where applicable and to the extent not precluded by law, you further

agree to opt out of any such representative or class proceedings.

Arbitration of any Dispute will be conducted in the forum and in the

manner as agreed to between you and TCL Failing such agreement, the

arbitration will be conducted by one arbitrator pursuant to the laws and

rules relating to arbitration generally in force in the jurisdiction in which you

reside at the time that the Dispute arises. To the extent not precluded by

law, no claim, dispute, controversy or disagreement of any other person

may be joined or combined with any Dispute by you, without the prior

written consent of TCL

Critical Applications

The Television you have purchased is not designed for any "critical

applications." "Critical applications" means life support systems, medical

applications, connections to implanted medical devices, commercial

transportation, nuclear facilities or systems or any other applications

where Television failure could lead to injury to persons or loss of life or

catastrophic property damage,

IF THE CUSTOMER USES THE TELEVISION IN ANY CRITICAL

APPLICATION, THE CUSTOMER - AND NOT TCL, ITS AFFILIATES, ADRs

OR ASPs- ASSUME SOLE AND FULL RESPONSIBILITY FOR SUCH USE.

TCL RESERVES THE RIGHT TO REFUSE TO SERVICE ANY TELEVISION

USED IN A CRITICAL APPLICATION. TCL, ITS AFFILIATES, ADRs AND

ASPs HEREBY DISCLAIM ANY AND ALL LIABILITY, DAMAGES AND

CONSEQUENCES ARISING OUT OF THE SERVICE OR REFUSAL TO

SERVICE SUCH TELEVISION AND FURTHER DISCLAIM ANY AND ALL

LIABILITY, CONSEQUENCES AND DAMAGES THAT MAY ARISE OR

RESULT FROM THE USE OF THE TELEVISION IN ANY CRITICAL

APPLICATIONS,

General Provisions

If and to the extent that any provision of this limited warranty should

generally be found to be unenforceable, the unenforceable provision shall

be severed from the warranty and deemed not to form part of the warranty,

The remaining provisions of this warranty shall be and remain valid and

enforceable. If and to the extent that any provision of this limited warranty

as it relates to any of the Related Parties is found to be invalid or

unenforceable in respect of that party (the "Excluded Party"). the

Excluded Party shall be deemed to be severed or excluded from the

provision, and the provision shall remain valid enforceable and

applicable in respect of the other or remaining Related Parties,

To the extent permitted by law, this limited warranty shall be governed and

construed in accordance with the laws of Ontario,

If there is any inconsistency between this limited warranty, on the one

hand, and any statement in the packaging of the Television or in any other

document enclosed with, or used in the context of the promotion or sale

of, the Television, on the other hand, the provisions of this limited warranty

shall prevail,

How to Obtain Warranty Services

If, after following all of the operating instructions in this manual and

checking the "Troubleshooting" section, you find that service is needed:

(1) To find the nearest ASP, visit TCL's web site at www.toshiba.ca, or

call toll free 1-800-268-3404

(2) Present your bill of sale or other proof of purchase to the ASP,

For additional information, visit TCL's website at www.toshiba.ca

AcopyoftheGPLsourcecodeinthisproductmaybeobtainedby

contactingToshibaConsumerSolutionsat(800)631-3811.Therewillbe

achargetocoverthecostsofprovidingthesourcecode,

AcopyoftheLGPLsourcecodeinthisproductmaybeobtainedby

contactingToshibaConsumerSolutionsat(800)631-3811.Therewillbe

achargetocoverthecostsofprovidingthesourcecode,

(www,freetype,org).Allrightsreserved,

ThissoftwareisbasedinpartontheworkoftheIndependentJPEG

Group,

Antenna input configuration ............ 29

Audio quality adjustments ............... 45

Audio system connection ................ 18

Auto aspect .................................... 41

Auto power off ................................ 54

Base closed captions ...................... 43

Blocking channels .......................... 48

CableClear _ ..................................... 56

CH AT buttons ........................ 21_ 38

CH RTN button ......................... 21_ 39

Channel Browser TM . .......................... 36

Channel labeling ............................ 31

Channel Number buttons .......... 21_ 38

Channel programming

Automatic programming ........... 30

Manually adding and deleting... 30

Channel Tuning Mode .................... 38

Cinema mode ................................. 42

Closed captions .............................. 43

Color temperature .......................... 56

ColorMaster TM. .................................. 57

ColorStream ® ................................... 14

Component video ........................... 14

Deep Color ..................................... 53

Digital Audio Out ............................ 18

Digital audio selector ...................... 44

Digital CC Settings ......................... 43

Digital signal meter ......................... 33

Dolby Digital ................................... 18

Dolby Digital Dynamic Range

Control ....................................... 46

DVD player connection ................... 14

DVI connection ............................... 16

DynaLight TM ................................... 42

Dynamic Bass Boost ...................... 58

Dynamic contrast ............................ 55

FREEZE ........................................ 42

Game Mode feature ........................ 57

GameTimer ®.................................... 49

HDMI audio mode ........................... 32

HDMI settings

Deep Color .............................. 53

Lip-Sync Latency ..................... 53

HDMI TM connection .......................... 16

INFO button .................................... 54

INPUT button .................................. 35

Integrated digital tuning ..................... 9

IR blaster ........................................ 15

IR OUT connection ......................... 15

Labeling video input ........................ 35

Language selection ......................... 29

Last mode memory feature ............. 54

LED indications ......................... 10_ 61

Lip-Sync Latency ............................ 53

LOCKS menu

Channels, blocking ................... 48

Enable rating blocking .............. 47

New PIN code .......................... 47

Panel lock ................................ 49

Unlocking programs

temporarily ................. 48

Video inputs, locking ................ 49

Locks menu .................................... 46

MPEG noise reduction .................... 56

MTS feature ................................... 45

MUTE button .................................. 44

Optical audio output format ............. 46

PC Audio ........................................ 50

PC connection ................................ 19

PC settings ..................................... 50

Picture mode .................................. 42

Picture quality ................................. 42

Picture scroll ................................... 41

Picture size selection ...................... 39

POWER button ......................... 10_ 21

Power-On Mode ............................. 34

RECALL button ............................... 54

REGZA-LINK connection ................. 17

REGZA-LINK feature ...................... 51

Remote control

Battery installation .................... 20

Device code table ..................... 25

Functional key chart ................. 23

Programming ........................... 24

Reset Factory Defaults .................... 34

SAP sound ..................................... 45

Satellite receiver connection ............ 14

Scroll settings ................................. 41

Sleep timer ..................................... 51

StableSound ®................................... 45

Stereo Extension ............................. 58

Stereo sound .................................. 45

SurfLock TM ........................................ 39

System status ................................. 34

TheaterLock TM feature ...................... 43

TheaterWide ® picture size ............... 40

Time Zone ...................................... 33

TV status information ...................... 54

V-Chip blocking (Locks menu) ......... 46

VCR connection ....................... 13_ 14

Video input label ............................. 35

Video input lock .............................. 49

Voice Enhancement ........................ 58

RV530U (E/F) Web 213:276

TOSHIBA A_ER|CA CONSUMER PRODUCTSj L,L,C,

Corporate Headquarters: 82 TOTOWA ROAD, WAYNE,NJ 07470, U.S.A.

NATIONAL SERVICEDIVISION: 1420-B TOSHIBA DRIVE,LEBANON, TN 37087, U.S.A.

TOSHIBA OF CANADA LTO,

HEAD OFFICE: 191 McNABB STREET,MARKHAM, ONTARIO, L3R 8H2, CANADA-TEL: (905) 470-5400

SERVICECENTERS:

TORONTO: 191 MoNABB STREET,MARKHAM, ONTARIO L3R 8H2, CANADA-TEL: (905) 470- 5400

MONTREAL: 18050 TRANS CANADA, KIRKLAND, QUEBEC, H9J 4A1, CANADA- TEL: (514) 390-7766

VANCOUVER:13551 COMMERCEPARKWAY,SUITE 110, RICHMOND, B.C., V6V 2L1, CANADA- TEL: (604) 303-2500

MANUFACTURED BY

TOSHIBA ELECTROiVlEX. S.A. DE C.V.

CableClear,ColorStream,GameTimer,StableSound,andTheaterWideareregisteredtrademarksof ToshibaAmericaConsumerProducts,L.L.C.

ChannelBrowser,SurfLock,DynaLight,ColorMasterandTheaterLockaretrademarksof ToshibaAmericaConsumerProducts,L.L.C.

REGZAis a trademarkof ToshibaCorporation.

PRINTED IN USA

(08-01)

tOSHIBA

RV53OU (E/F) Web 213:276

Toshiba 52RV530U Lcd Television

Product's Documents

Owner's Manual

Specifications

Toshiba 52RV530U Questions and Answers
