ITEM #4057324
4057325
0901460
CYPRESS POINTE
CEILING FAN
Español p. 17
MODEL # CPR52MBK5
CPR52WW5
CPR60OSB5
Purchase Date
1
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
HARBOR BREEZE and logo design are
trademarks or registered trademarks of
LF, LLC. All rights reserved.
AS21485
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us
at [email protected] or visit www.lowespartsplus.com.
2
SAFETY INFORMATION
Safety Information ...............................................................................................................
.
. 2
Package Contents ..............................................................................................................
.
. 4
Hardware Contents
...........................................................................................................................
5
Preparation ........................................................................................................................... 5
Initial Installation ................................................................................................................... 6
Downrod-Style Fan Mounting ............................................................................................... 7
Closemount-Style Fan Mounting ........................................................................................
.
.. 9
Wiring ...................................................................................................................................11
Final Installation .................................................................................................................. 12
Operating Instructions ......................................................................................................... 13
Care and Maintenance ...................................................................................................
.
.... 15
Troubleshooting .................................................................................................................. 15
Limited Lifetime Warranty ................................................................................................... 16
Replacement Parts List ....................................................................................................... 16
TABLE OF CONTENTS
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan is: CPR52MBK5 and CPR52WW5: 19 lbs.
CPR60OSB5: 21 lbs.
SAFETY INFORMATION
3
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
DANGER
CAUTION
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.

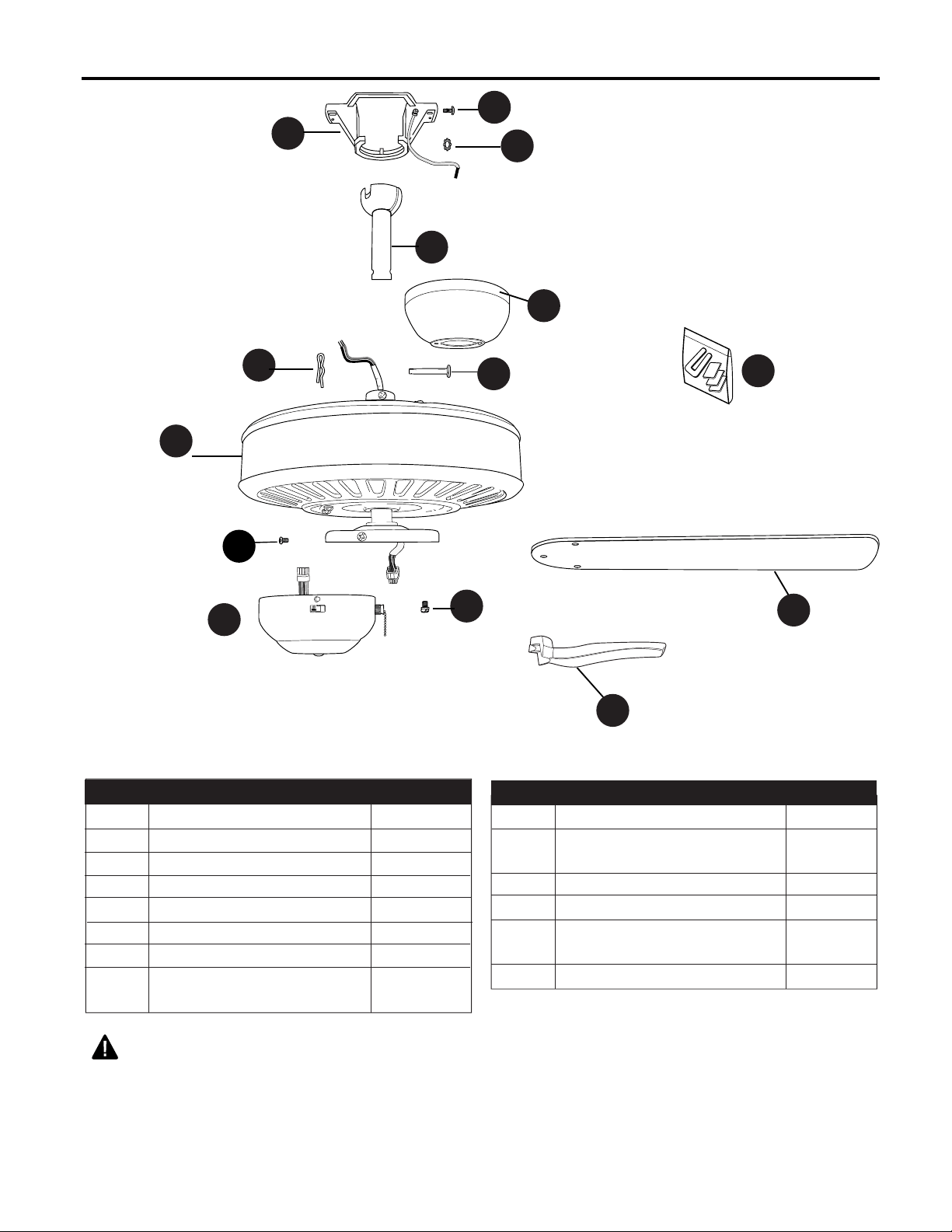

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
I Balancing Kit 1
J Canopy Mounting Screw 4
(preassembled)
K Pin (preassembled) 1
L Clip (preassembled) 1
M Switch Housing Screws 3
(preassembled)
N Switch Housing 1
PART DESCRIPTION QUANTITY
A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Motor Housing 1
E Star Washer 4
F Blade 5
G Blade Arm 5
H Motor Screw/Lock washer 10
(preassembled)
A
D
C
H
L
4
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
K
J
G
F
I
N
M
E
B
5
PREPARATION
Wire
Connector
Qty. 4
AA
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to install,
operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers.
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters.
BB CC
Blade
Screw
Qty. 15
+ 1 extra
Fiber Blade
Washer
Qty. 15
+ 1 extra
DD
Pull Chain
Extension
Qty. 1
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
ON
OFF
ON
OFF
1
3.
Check to make sure blades (F) are at least 30 in.
from any obstruction and at least 7 ft. above the
floor.
INITIAL INSTALLATION
3
7 ft.
min.
30 in.
min.
2.
F
6
Determine mounting method to use.
A. Downrod-style mount (standard or angled
ceiling).
B. Closemount-style (standard ceiling only).
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
A
B
2
19° max.
INITIAL INSTALLATION
DOWNROD-STYLE FAN MOUNTING
1.
Remove pin (K) and clip (L) from yoke at top of
motor housing (D) and partially loosen
preassembled set screws and nuts.
7
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is
installed facing the higher point of the ceiling, and
ensure the ceiling angle is not steeper than 19°.
4.
5.
Remove motor screws/lock washers (H) from
underside of motor housing (D).
NOTE: Use slot in motor plate for easy access to
motor screws/lock washers (H) with screwdriver.
[If there are plastic motor blocks installed with the
motor screws/lock washers (H), discard the
plastic motor blocks.]
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1 below. For
CLOSEMOUNT-STYLE FAN MOUNTING, skip
to page 9.
4
Open End
C
ANGLE MOUNTSTANDARD MOUNT
H
5
D
Plastic Motor Block
Set
Screw
and Nut
1
L
K
Yoke
D
C
3.
DOWNROD-STYLE FAN MOUNTING
8
Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the ball on the
downrod and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
2.
Insert downrod (A) through canopy (B). Thread
wires from motor housing (D) up through downrod
(A).
Ball
A
4
2
B
A
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (K) and clip (L). Tighten
set screws in motor housing yoke and then
tighten preassembled nuts on the set screws.
3
A
D
K
K
Yoke
L
K
Set Screw
& Nut
Side View
DOWNROD-STYLE FAN MOUNTING
If you cut back the lead wires in Step 4, strip 3/4
in. of insulation from end of of each wire -- white,
black, green and blue (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
5
5.
6.
Remove canopy cover from bottom of canopy (B).
[NOTE: It may be necessary to use the handle
end of a screwdriver (not included) to remove the
canopy cover by tapping gently on the canopy
cover from the inside of the canopy (B).]
NOTE: The downrod (A) and canopy cover are
not used in this type of installation.
CLOSEMOUNT-STYLE FAN MOUNTING
1.
9
C
Slot
Tab
6
A
Canopy
Cover
B
1
B
Install ball end of downrod (A) into opening of
mounting bracket (C). Align slot in ball with tab in
mounting bracket (C).
DANGER: Failure to align slot in ball with tab
may cause the fan to wobble or fall, which could
result in serious injury or death.
Continue to WIRING on page 11.
Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
4.
CLOSEMOUNT-STYLE FAN MOUNTING
10
Tab
B
D
C
4
3.
2.
Remove every other preassembled screw/lock
washer from top of motor housing (D).
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three screws/lock washers
previously removed.
D
2
3
C
D
B
Screw
Lock Washer
Screw
Lock Washer
CC
2.
2
AA
AA
AA
11
WIRING
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
NOTE: This fan is remote control adaptable (remote control not included). Please refer to instructions
provided with the remote control before proceeding with these wiring instructions.
For each wire connection below, use one of the wire
connectors (AA) provided, making sure to screw wire
connector (AA) on in a clockwise direction.
Connect BLACK and BLUE wire from fan to
BLACK wire from ceiling. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect
GREEN wire from fan (on downrod (A) and
mounting bracket (C)) to BARE/GREEN wire from
ceiling.
NOTE: BLACK wire is hot power for fan. BLUE wire
is hot power for light kit (sold separately). WHITE
wire is common for fan and light kit. BARE/GREEN
wire is ground.
1.
Wire Connector x 4
Hardware Used
AA
Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side
of box from the BLACK and BLUE (if applicable)
connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (AA) into outlet box.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1
FAN AND LIGHT CONTROLLED BY PULL CHAIN
120V POWER
FROM CEILING
GREEN
WHITE
BLACK
BLUE
BLACK (POWER)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
C
3.
Locate previously removed motor screws/lock
washers (H) (Step 5, page 7).
Insert two motor screws/lock washers (H) through
one blade arm (G) to attach blade arm (G) to
motor. Tighten motor screws/lock washers (H)
securely. Repeat with remaining blade arms (G),
making sure to completely secure each blade arm
(G) before proceeding with the next.
NOTE: If you purchased a compatible light kit, refer
to the instructions provided with the light kit to
complete your installation.
12
1.

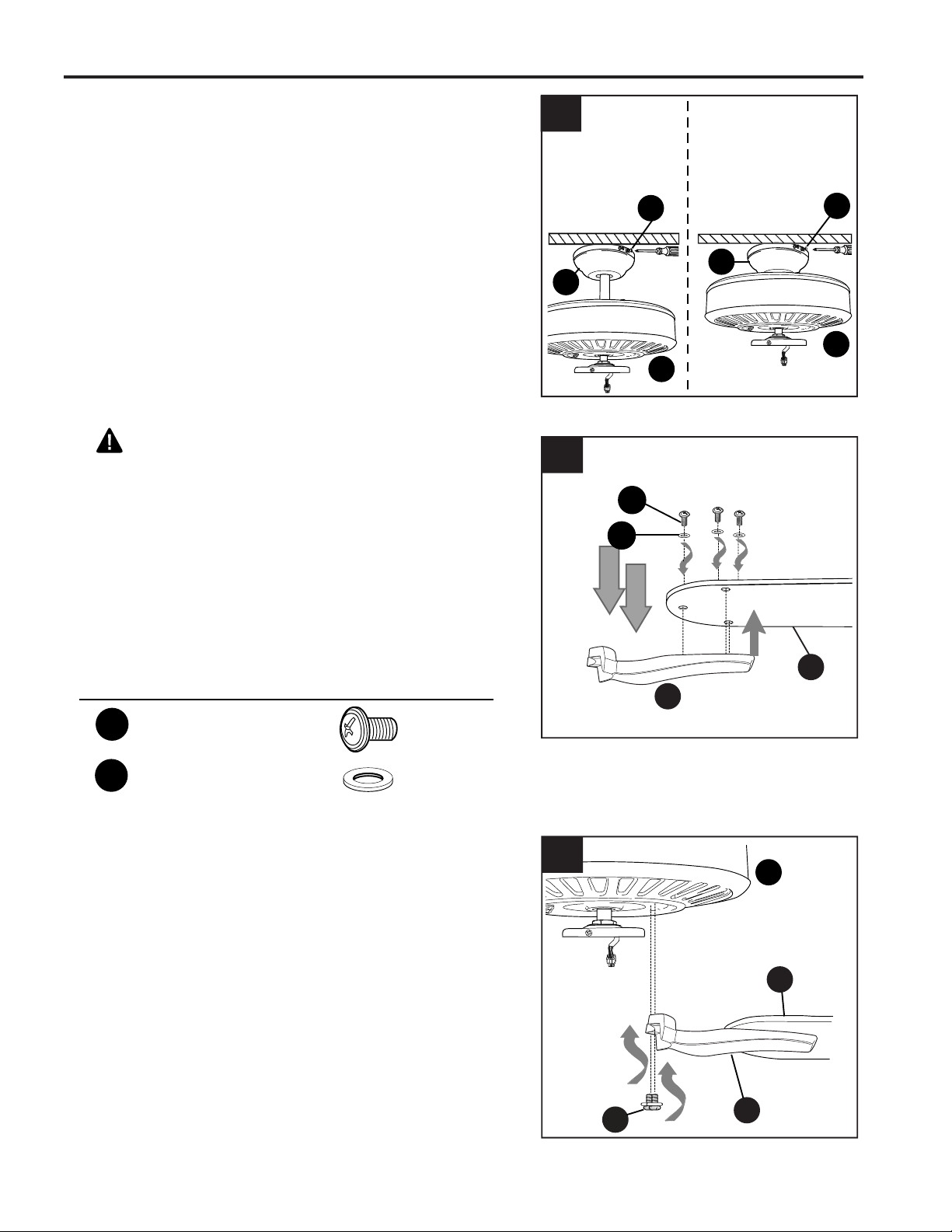

Temporarily lift canopy (B) to mounting bracket (C)
to determine which two canopy mounting screws
(J) in mounting bracket (C) align with slotted holes
in canopy (B) and partially loosen these two
canopy mounting screws (J). Remove the other
two canopy mounting screws (J) along with star
washers (E). Now, lift canopy (B) to mounting
bracket (C) again, aligning slotted holes in canopy
(B) with loosened canopy mounting screws (J) in
mounting bracket (C). Twist canopy (B) clockwise
to lock. Re-insert the two canopy mounting screws
(J), along with star washers (E), that were just
removed and tighten all canopy mounting screws
(J) securely.
FINAL INSTALLATION
1
B
D
J
J
D
B
Downrod
Option
Closemount
Option
G
3
D
H
F
2.
DANGER: To reduce the risk of serious
bodily injury, DO NOT use power tools to
assemble the blades (F). If screws are
overtightened, blades (F) may crack and break.
Partially insert three blade screws (AA) along
with three fiber blade washers (BB) into holes
in blade (F) to attach blade arm (G) to blade
(F). Then, tighten each blade screw (AA)
starting with the one in the middle.
Repeat for remaining blades (F) and blade
arms (G).
2
F
G
BB
AA
Hardware Used
Blade Screw
x 15
AA
Fiber Blade Washer
x 15
BB
FINAL INSTALLATION
5
Attach pull chain extension (DD) or a custom
pull chain extension (not included) to the fan pull
chain.
5.
E
1
OPERATING INSTRUCTIONS
The pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three
is LOW and four turns the fan OFF.

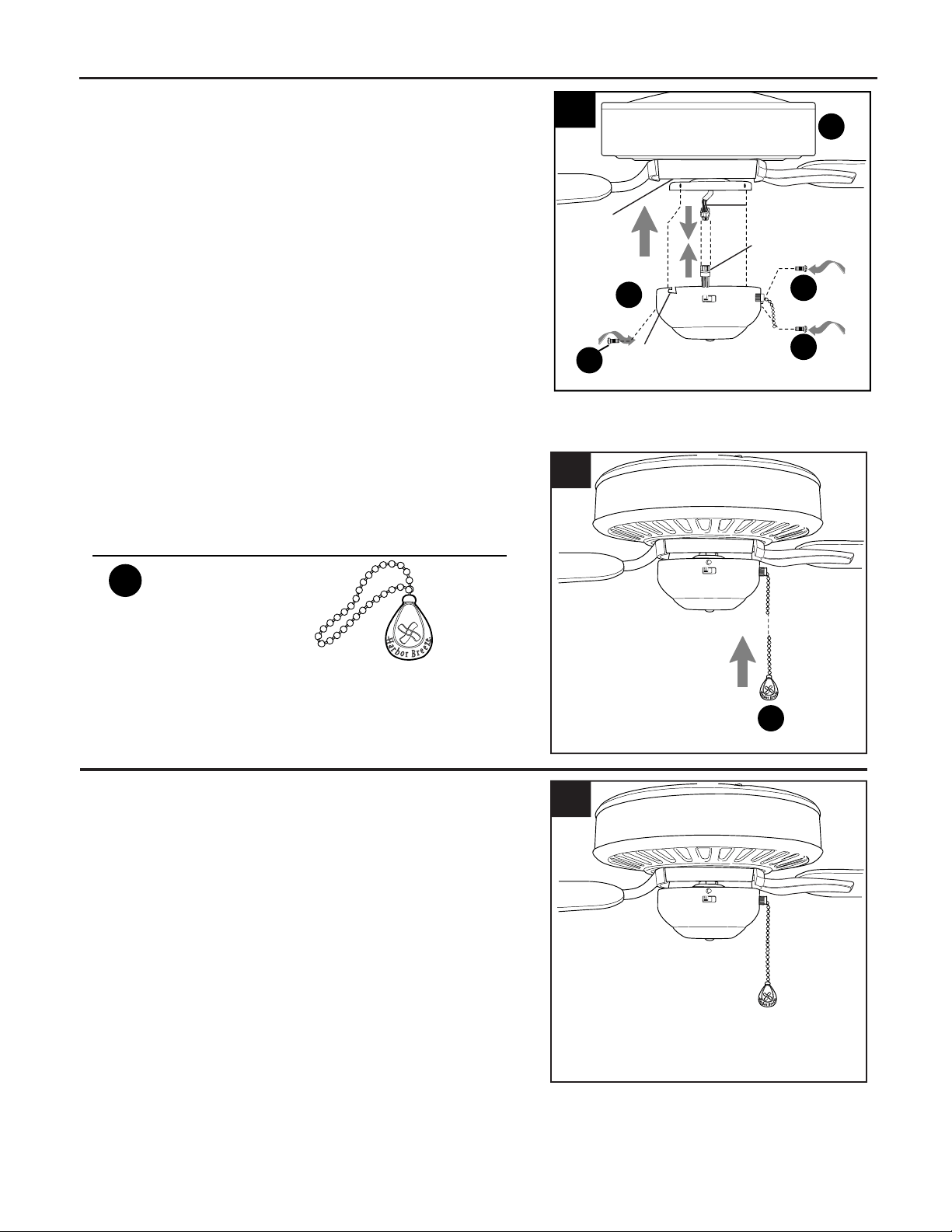

1.
Partially loosen two switch housing screws (M)
from motor plate on underside of the motor
housing (D) and remove the other switch housing
screw (M). Connect male plug from motor housing
(D) to female plug from switch housing (N),
matching up the colors on the plugs for the correct
fit. Make sure plugs connect tightly.
Carefully arrange wires inside switch housing (N).
Align slotted holes in switch housing (N) with
loosened switch housing screws (M) in motor
plate. Twist switch housing (N) to lock. Re-insert
the previously removed switch housing screw (M)
and tighten all switch housing screws (M)
securely.
Note: Make sure to align gap on motor plate with
the reverse switch on switch housing (N) for
correct fit.
4.
13
4
N
M
M
M
D
Motor
Plate
Male Plug
Female
Plug
Slotted
Hole
Hardware Used
Pull Chain Extension
x 1
DD
OPERATING INSTRUCTIONS
Use the fan reverse switch, located on the switch
housing, to optimize your fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
2.
14
2
Switch
Housing
2A
2B
2C
2C. IMPORTANT: Reverse switch must be
set either completely to the LEFT or
completely to the RIGHT for fan to function. If
the reverse switch is set in the middle
position, fan will not operate.
2A. In warmer weather, setting the reverse
switch in the LEFT position will result in
downward airflow creating a wind chill effect.
2B. In cooler weather, setting the reverse
switch in the RIGHT position will result in
upward airflow that can help move stagnant,
hot air off the ceiling area.
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all screws
on the fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades (F) with a lint-free cloth. You may occasionally apply a light coat of furniture polish
to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
CARE AND MAINTENANCE
Excessive wobbling.
1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side or use
balancing kit (I).
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
7. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
15
TROUBLESHOOTING
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of
a few days, especially when
running the fan at Medium and
High speeds.
REPLACEMENT PARTS LIST
16
Printed in China
GGLI2107
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer of
this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's own
responsibility. The distributor assumes no responsibility whatsoever for fan installation during the
limited lifetime warranty. Any service performed by an unauthorized person will render the warranty
invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting, pitting,
tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from varying
weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-888-251-1003) for return authorization and shipping instructions so that we may repair or replace the
ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
LIMITED LIFETIME WARRANTY
A
B
F
C
G
4057324-A 4057325-A 0901460-A
4057324-B 4057325-B 0901460-B
4057324-C 4057325-C 0901460-C
4057324-F 4057325-F 0901460-F
4057324-G 4057325-G 0901460-G
PART DESCRIPTION
#4057324 #4057325 #0901460
PART # PART # PART #
A Downrod
B Canopy
C Mounting Bracket
F Blade
G Blade Arm
For replacement parts, call our customer service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected] or visit www.lowespartsplus.com.
