Innity 12L, 16L, 20L, 26L and 26L Touch

2018 Rinnai Innity Product Release

*See over for Extended Warranty

Option Terms and Conditions

YEAR WARRANTY

12 YEAR

STANDARD

13 YEAR

EXTENDED

HEAT EXCHANGER WARRANTY

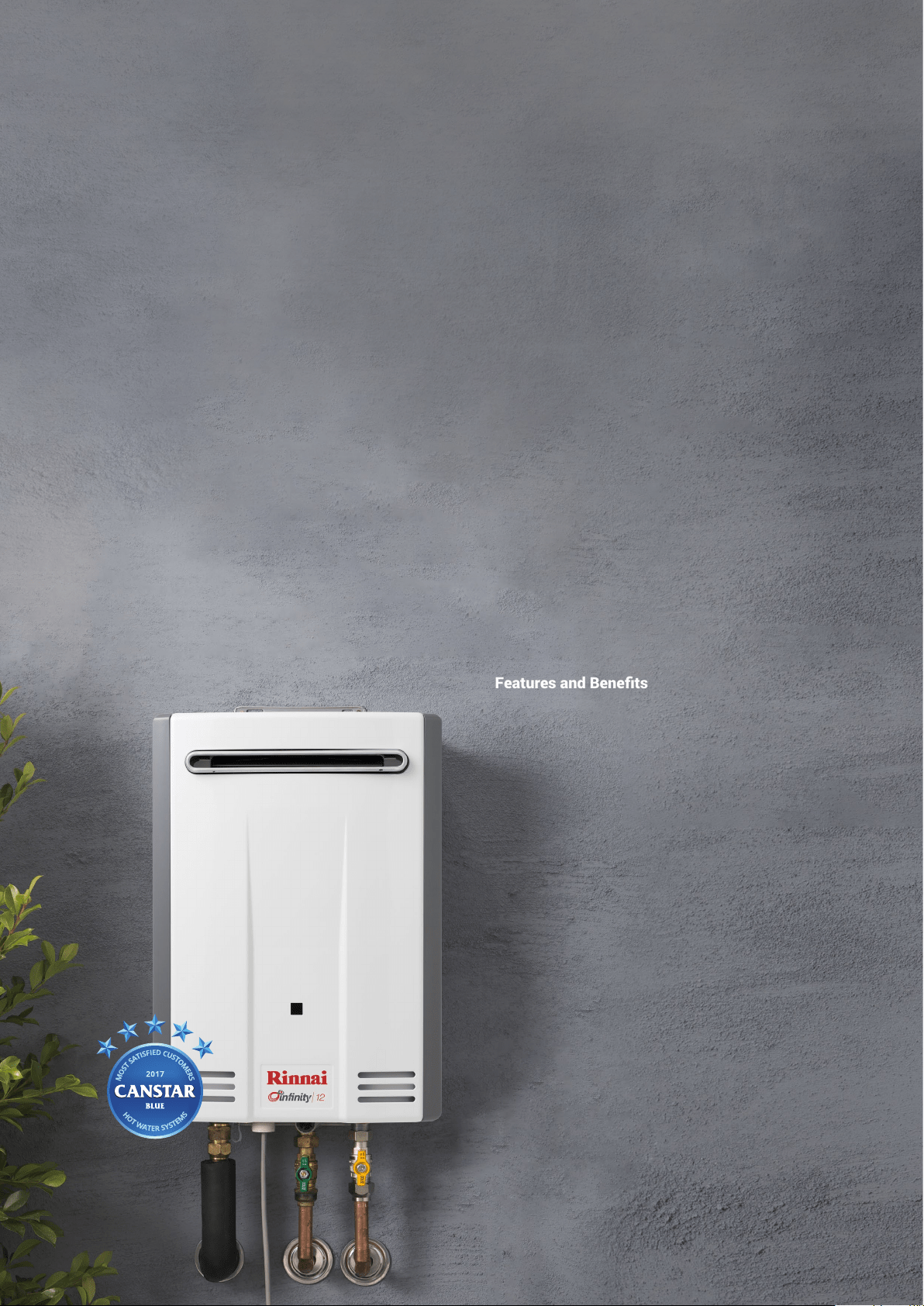

Features and Benets

- Quicker commissioning and installation

- Market leading quality

- 1.5L/min minimum operating water ow rate

- Improved resistance to corrosion

(Three times that of our builders range)

- Modern design packaged in a slimline case

construction

- 50°C models available

- Enhanced electronic controlled safety monitoring and

anti-frost protection

- 6 Star energy rating

- Puretemp

control

- 25 Year heat exchanger warranty

- Compatible with low ow WELLS rated shower heads

- Built in status operation monitor

*Adjustable upto 53°C. For 60°C plus installations a tempering valve in accordance

with as 3500.4 is required

Made from premium materials and built to last, Rinnai provides a standard 3 year (12

Year Heat exchanger) parts and labour warranty on all Rinnai Innity Continuous Flow

Hot Water systems plus an optional 13 years extended heat exchanger warranty.

Rinnai revolutionised the Australian water heating market in the early 1990’s when it launched the rst

electronic controlled Gas Continuous Flow Hot Water System. Appropriately named, the RINNAI INFINITY

delivered new user experience of steady and continuous temperature controlled hot water that never ran out.

Fast-forward 28 years, the RINNAI INFINITY has been re-invented. Rinnai has introduced signicant

improvements and changes to its agship models; Innity 16L, 20L, 26L and 26L Touch as well as adding a

new 12L offering while at the same time maintaining performance and the high level of quality expected from

the Rinnai name.

Pricing for the new Innity range and related accessories will remain the same as per the current price list

effective 1 March 2018.

New Innity 12L

The newest offering to our market leading range, the Innity 12L offers all the features and benets of

its larger counterparts but aimed at smaller dwellings and the replacement mechanical instantaneous

market. This unit utilises 240V power to deliver unparalleled water temperature stability, energy eciency

and reliability.The Innity 12L comes with a status monitor that displays the set temperature, assists with

servicing and ne tuning.

Controller options also ensure that energy eciency and user comfort is maximised, controllers can be either

wireless or hard-wired. For installations that require a minimum footprint or an unobtrusive aesthetic look, our

recess box and pipe cover options are the perfect solution.

New Innity range

Rinnai offers a comprehensive range of new accessories that assist with the installation and visual impact of our

continuous flow range. Working closely with customers and plumbers Rinnai has developed and improved its

offering of installation aids and accessories that are specically suited to the new Innity Range.

Hot water outlet

Cold water inlet

Gas inlet

Controller (MC601QA)

Our new Universal Controller is

designed for user comfort and

reduced water wastage. Minimalist

in design the universal controller

blends into any surrounding.

Pipe Cover (PCD01W)

Colour matched to enhance the

installation by hiding unsightly

pipe work and complement its

existing surroundings.

Recess Box (RBOX06LW)

Designed to house and hide the

pipe work but also create a smooth

and clean nish to the installation.

Accessories

Model

INF12

INF16

INF20

INF26

Touch

Factory pre-set temps

Min operating water ow (L/min) 1.5 1.5 1.5 1.5 1.5

Min water pressure (kPa)

Max 1000 (kPa)

120 120 160 200 200

Gas rate

(mg/h)

Min 16 16 19 16 16

Max 92 124 156 199 199

LPG

Min 16 16 19 16 16

Max 92 124 156 199 199

Flow rate

(L/Min)

25ºC Rise 12 16 20 26 26

20ºC Rise 15 20 24 26 26

Star rating 6.2 6.1 6.0 6.0 6.0

Width (mm) (Inc brackets) A 356 356 356 356 356

Depth (mm) (Inc brackets) B 202 202 202 202 202

Height (mm) (Inc brackets) C 571 571 571 571 571

Weight (kg) 13.5 13.5 14.5 15.5 15.5

Current Model Codes NEW Model Codes Description New Barcode Numbers

NEW

INF12N50MA RINNAI INFINITY 12 (50) NG 9314109258141

INF12L50MA RINNAI INFINITY 12 (50) LP 9314109258158

INF12N60MA RINNAI INFINITY 12 (60) NG 9314109258165

INF12L60MA RINNAI INFINITY 12 (60) LP 9314109258172

INF16N50M INF16N50MA RINNAI INFINITY 16 (50) NG 9314109257878

INF16L50M INF16L50MA RINNAI INFINITY 16 (50) LPG 9314109257885

INF16N60M INF16N60MA RINNAI INFINITY 16 (60) NG 9314109257892

INF16L60M INF16L60MA RINNAI INFINITY 16 (60) LPG 9314109257908

INF20N50M INF20N50MA RINNAI INFINITY 20 (50) NG 9314109257915

INF20L50M INF20L50MA RINNAI INFINITY 20 (50) LP 9314109257922

INF20N60M INF20N60MA RINNAI INFINITY 20 (60) NG 9314109257939

INF20L60M INF20L60MA RINNAI INFINITY 20 (60) LP 9314109257946

INF26N50M INF26N50MA RINNAI INFINITY 26 (50) NG 9314109257953

INF26L50M INF26L50MA RINNAI INFINITY 26 (50) LP 9314109257960

INF26N60M INF26N60MA RINNAI INFINITY 26 (60) NG 9314109257977

INF26L60M INF26L60MA RINNAI INFINITY 26 (60) LP 9314109257984

INF26TN50M INF26TN50MA RINNAI INF26 TOUCH (50) NG 9314109257991

INF26TL50M INF26TL50MA RINNAI INF26 TOUCH (50) LP 9314109258004

INF26TN60M INF26TN60MA RINNAI INF26 TOUCH (60) NG 9314109258189

INF26TL60M INF26TL60MA RINNAI INF26 TOUCH (60) LP 9314109258011

New Order Codes

New Innity model codes are identied with a sufx A on the model code and have new barcodes. New models are

further identied with updated packaging and will start to flow through to stores April/May as current stock is run-out.

Extended Warranty Option Terms and Conditions

1. Participation in this extended warranty program is optional and subject to these terms and conditions.

2. Within the rst 12 months of installation you must complete and submit your product warranty registration. The Extended Warranty Option can only be

registered online, please visit www.rinnai.com.au for registration.

3. Each eligible Innity product must have a general maintenance completed in accordance with the service schedule, performed by Rinnai Australia Pty Ltd (or its

nominated appointee) as follows:

• Serviced within the fth year after the date of installation. This provides an additional 4 years warranty on the Heat Exchanger (for a total of 16 years)

• Serviced within the tenth year after the date of installation. This provides an additional 3 years warranty on the Heat Exchanger (for a total of 19 years)

• Serviced within the fteenth year after date of installation. This provides an additional 3 years warranty on the Heat Exchanger (for a total of 22 years)

• Serviced within the twentieth year after date of installation. This provides an additional 3 years warranty on the Heat Exchanger (for a total of 25 years)

4. These services will be charged for by Rinnai.

5. In addition to meeting the conditions set out above, it is essential to comply with all of the general terms and conditions of the product warranty.

6. To obtain your extended warranty you must:

• During your scheduled service year, contact Rinnai to have a general service performed, and charged for by Rinnai. Service can be booked on line or by calling

1300 555 545.

• Ensure you retain proof of service in the form of proof of payment for service to Rinnai, and that the service maintenance schedule following has been completed

and endorsed.

7. Standard warranty applies should you not opt in the Extended Warranty program.
