Operating and installation instructions
Ceramic cooktops
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 11 007 620
Contents
2
Warning and Safety instructions.......................................................................... 4
Caring for the environment ................................................................................ 14
Overview............................................................................................................... 15
Cooktop................................................................................................................. 15
KM6520FR,KM6520FL................................................................................ 15
KM6522FR .....................................................................................................16
KM6527FR .....................................................................................................17
Controls and display ............................................................................................. 18
Cooking zone data ................................................................................................ 20
Before using for the first time ............................................................................ 21
Cleaning the cooktop for the first time.................................................................. 21
Switching on the cooktop for the first time ........................................................... 21
How the cooking zones work............................................................................. 22
Pans ...................................................................................................................... 23
Tips on saving energy ........................................................................................ 24
Power level range ................................................................................................ 25
Operation.............................................................................................................. 26
Operating principles .............................................................................................. 26
Switching on the cooktop ..................................................................................... 27
Setting the power level.......................................................................................... 27
Changing the power level...................................................................................... 27
Switching off a cooking zone/the cooktop............................................................ 27
Residual heat indicator.......................................................................................... 28
Setting the power level - extended setting range ................................................. 28
Extension............................................................................................................... 29
Auto heat-up ......................................................................................................... 30
Timer..................................................................................................................... 31
Minute minder ....................................................................................................... 31
Switching off a cooking zone automatically.......................................................... 32
Using both timer functions at the same time ........................................................ 33
Additional functions ............................................................................................ 34
Stop & Go.............................................................................................................. 34
Recall..................................................................................................................... 34
Demonstration mode............................................................................................. 35
Displaying cooktop data ....................................................................................... 35
Contents
3
Safety features..................................................................................................... 36
System lock / Safety lock...................................................................................... 36
Safety switch-off ................................................................................................... 38
Overheating protection.......................................................................................... 39
Programming ....................................................................................................... 40
Cleaning and care ............................................................................................... 43
Problem solving guide ........................................................................................ 45
Optional accessories .......................................................................................... 48
Safety instructions for installation..................................................................... 49
Safety distances .................................................................................................. 50
Installation notes ................................................................................................. 52
Installation of surface-mounted appliances .......................................................... 52
Flush-mounted installation.................................................................................... 53
Installation dimensions– Surface-mounted ..................................................... 54
KM6520FR .......................................................................................................... 54
KM6522FR .......................................................................................................... 55
KM6527FR .......................................................................................................... 56
Installation dimensions–Flush.......................................................................... 57
KM 6520 FL........................................................................................................... 57
Installation............................................................................................................ 58
Installation of surface-mounted appliances .......................................................... 58
Flush-mounted installation.................................................................................... 60
Electrical connection .......................................................................................... 61
Disconnecting devices .......................................................................................... 61
Service.................................................................................................................. 63
Contact in case of fault ......................................................................................... 63
Data plate .............................................................................................................. 63
Warranty ................................................................................................................ 63
Warning and Safety instructions
4
This appliance conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before using it for the first
time. They contain important notes on installation, safety, use and
maintenance.
Miele cannot be held liable for non-compliance with these
instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the contents. Pass them on to any future owner.
Warning and Safety instructions
5
Correct application
This cooktop is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
This cooktop is not suitable for outdoor use.
It is intended only to cook food and keep it warm. Any other use is
not supported by Miele and could be dangerous.
This cooktop is not intended for use by people (including children)
with reduced physical, sensory or mental capabilities or lack of
experience and knowledge, unless they have been given supervision
and instruction concerning its use by a person responsible for their
safety. They may only use the cooktop unsupervised if they have
been shown how to use it in a safe way. They must be able to
recognise and understand the potential dangers of improper use.
Warning and Safety instructions
6
Safety with children
Young children must not be allowed to use this appliance.
Older children may use the appliance without supervision if its
operation has been clearly explained to them and they are able to
use it safely. Children must be able to recognise and understand the
potential dangers of improper use.
Cleaning may only be carried out by older children under the
supervision of an adult.
Please supervise children in the vicinity of the cooktop and do not
let them play with it.
The cooktop gets hot when in use and remains hot for a while
after being switched off. Keep children well away from the cooktop
until it has cooled down and there is no danger of burning.
Danger of burning!
Do not store anything which might arouse a child's interest in
storage areas above or behind the cooktop. Otherwise children
could be tempted to climb onto the cooktop.
Danger of burning and scalding!
Turn the handles of pots and pans on the cooking zone to the side or
the rear so that children cannot pull them down and burn
themselves.
Danger of suffocation!
Whilst playing, children may become entangled in packaging
material (such as plastic wrapping) or pull it over their head with the
risk of suffocation. Keep packaging material away from children.
Activate the system lock to ensure that children cannot switch on
the cooktop inadvertently. Use the safety lock when the cooktop is in
use to prevent children from altering the settings selected.
Warning and Safety instructions
7
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
Damage to the cooktop can compromise your safety. Check the
appliance for visible signs of damage. Do not use the cooktop if it is
damaged.
Reliable and safe operation of this cooktop can only be assured if
it has been connected to the mains electricity supply.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system which complies with local and national safety regulations. It
is most important that this basic safety requirement is present and
tested regularly and, where there is any doubt, the household wiring
system should be inspected by a qualified electrician.
Before connecting the appliance to the mains supply, ensure that
the connection data on the data plate (voltage and frequency)
matches the mains electricity supply. This data must correspond in
order to avoid the risk of damage to the appliance.
Do not connect the cooktop to the mains electricity supply by a
multi-socket adapter or extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
For safety reasons, this cooktop may only be used after it has
been built in.
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Never open the casing of the cooktop.
Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.
Warning and Safety instructions
8
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
The cooktop is not intended for use with an external timer switch
or a remote control system.
The cooktop must be connected to the electricity supply by a
qualified electrician (see “Electrical connection”).
If the mains connection cable is damaged, it must be replaced
with a special connection cable by an electrician in order to avoid a
hazard (see “Electrical connection”).
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
– the mains circuit breaker is switched off, or
– it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
Danger of electric shock!
If the ceramic surface is faulty, cracked, chipped or damaged in any
way, switch off the cooktop immediately. Disconnect the cooktop
from the mains electricity supply. Contact Miele.
If the cooktop is installed behind a furniture door, do not close the
door while the cooktop is in operation. Heat and moisture can build
up behind the closed door. This can result in damage to the cooktop,
the housing unit and the floor. Do not close the door until the
residual heat indicators have gone out.
Warning and Safety instructions
9
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings clean at all times. Any damage caused by
cockroaches or other vermin will not be covered by the warranty.
DO NOT MODIFY THIS APPLIANCE.
Warning and Safety instructions
10
Correct use
The cooktop gets hot when in use and remains hot for a while
after being switched off. There is a danger of burning until the
residual heat indicators go out.
Do not use the appliance to heat up the room. Due to the high
temperatures radiated, objects left near the appliance could catch
fire.
Oil and fat can overheat and catch fire. Do not leave the cooktop
unattended when cooking with oil and fat. If it does ignite, do not
attempt to put the flames out with water.
Switch off the cooktop and use a suitable fire blanket, saucepan lid,
damp towel or similar to smother the flames.
The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
Flames could set the grease filters of a rangehood on fire. Do not
flambé under a rangehood.
Spray canisters, aerosols and other inflammable substances can
ignite when heated. Therefore do not store such items or substances
in a drawer under the cooktop. Cutlery inserts must be heat-
resistant.
Do not heat an empty pan.
Do not heat up food in closed containers e.g. tins or sealed jars
on the cooktop, as pressure can build up in the containers, causing
them to explode.
Do not cover the cooktop, e.g. with a cooktop cover, a cloth or
protective foil. The material could catch fire, shatter or melt if the
cooktop is switched on by mistake or if residual heat is still present.
Warning and Safety instructions
11
When the appliance is switched on either deliberately or by
mistake, or when there is residual heat present, there is the risk of
any metal items left on the cooktop heating up, with the danger of
burning. Depending on the material, other items left on the cooktop
could also melt or catch fire. Damp pan lids might adhere to the
ceramic surface and be difficult to dislodge. Do not use the
appliance as a resting place. Switch the cooking zones off after use
and do not rely on the pan detector.
You could burn yourself on the hot cooktop. Protect your hands
with heat-resistant pot holders or gloves when handling hot pots and
pans. Do not let them get wet or damp, as this causes heat to
transfer through the material more quickly with the risk of scalding or
burning yourself.
When using an electrical appliance, e.g. a hand-held food mixer,
near the cooktop, ensure that the cable of the electrical appliance
cannot come into contact with the hot cooktop. The insulation on the
cable could become damaged.
Grains of salt, sugar and sand (e.g. from cleaning vegetables) can
cause scratches if they get under pan bases. Make sure that the
ceramic surface is clean before placing pans on it.
Even a light object can cause damage in certain circumstances.
Do not drop anything on the ceramic surface.
Placing hot pans on the sensors and indicators could damage the
electronics underneath. Do not place hot pans on the sensors or
indicators.
Warning and Safety instructions
12
Do not allow solid or liquid sugar, or pieces of plastic or aluminium
foil to get onto the cooktop when it is hot, as they can damage the
ceramic surface when it cools down. If this should occur, switch off
the appliance and scrape off all the sugar, plastic or aluminium
residues whilst still hot, using a shielded scraper blade suitable for
use on glass. Wear oven gloves when doing this. Allow the ceramic
surface to cool down and then clean it with a suitable ceramic
cooktop cleaning agent.
Pans which boil dry can cause damage to the ceramic glass. Do
not leave the cooktop unattended whilst it is being used.
Only use pots and pans with smooth bases. Rough bases will
scratch the ceramic glass.
Lift pans into position on the cooktop. Sliding them into place can
cause scuffs and scratches.
Plastic and aluminium foil containers melt at high temperatures.
Do not use plastic or aluminium foil containers on the cooktop.
The cooktop frame or cooktop edges (on cooktops with bevelled
edges) and the controls can become hot due to the influence of the
following factors: operating duration, high power level(s), large pans
and the number of cooking zones being used.
Cookware that is made of aluminium or has an aluminium base
can leave behind shiny metallic spots. These can be removed with
the ceramic and stainless steel cooktop cleaner (see “Cleaning and
care”).
If spills remain on the cooktop for any length of time they can burn
on and in certain circumstances become impossible to remove.
Remove any soiling as quickly as possible and ensure that pan
bases are clean, dry and free of grease.
Do not use the ceramic surface for preparing food. Always use
suitable pots and pans.
Warning and Safety instructions
13
Cleaning and care
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach the electrical components and cause a short
circuit.
Caring for the environment
14
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.
Overview
15
Cooktop
KM6520FR,KM6520FL
a
Single circle zone
b
Single circle zone
c
Double circle zone
d
Single circle zone
e
Controls and indicators
Overview
16
KM6522FR
a
Double circle zone
b
Single circle zone
c
Extended cooking zone
d
Single circle zone
e
Controls and indicators
Overview
17
KM6527FR
a
Triple circle zone
b
Single circle zone
c
Single circle zone
d
Controls and indicators
Overview
18
Controls and display
Sensor controls
a
For switching the cooktop on/off
b
Numerical keybank
- For setting the power level
- For setting the timer
c
For switching on an extended cooking zone
d
Stop & Go
e
Cooking zone selection and display
Cooking zone ready for use
Keep warm setting
to Power level
Residual heat
Auto heat-up
Display / Indicator lights
f
Timer display
to Duration in minutes
System lock/Safety lock activated
Demonstration mode activated
g
Automatic switch-off allocation of cooking zones
Overview
19
h
Extended power level range setting
i
Stop & Go activated
j
Extension
Overview
20
Cooking zone data
KM6520FR,KM6520FL
Cooking zone Øin cm Rating in watts for 230 V
18.0 1800
16.0 1500
12.0/21.0 750/2200
14.5 1200
Total: 6700
KM6522FR
Cooking zone Øin cm Rating in watts for 230 V
12.0/21.0 750/2200
14.5 1200
17.0/17.0x29.0 1500/2400
18.0 1800
Total: 7600
KM6527FR
Cooking zone Øin cm Rating in watts for 230 V
14.5/21.0/27.0 1200/2300/3400
18.0 1800
16.0 1500
Total: 6700
Before using for the first time
21
Please stick the extra data plate for
the appliance supplied with this
documentation in the space provided
in the “Service” section of this
booklet. Alternatively, the additional
label can be stuck near the appliance
if the appliance markings are not
visible after installation.
Remove any protective wrapping and
stickers.
Cleaning the cooktop for the
first time
Before using for the first time, clean
the cooktop with a damp cloth only
and then wipe dry.
Switching on the cooktop for
the first time
The metal components have a
protective coating which when heated
for the first time will give off a slight
smell and possibly some vapours.
The smell and any vapours given off do
not indicate a faulty connection or
appliance and they are not hazardous
to health.
How the cooking zones work
22
Single circle cooking zones have one
heating element, whilst double circle
cooking zones and extended zones
have two. Depending on the model, the
heating elements may be separated by
an insulating ring.
Each cooking zone has overheating
protection (a temperature limiter), which
stops the ceramic surface from
becoming too hot (see “Safety features
- Overheating protection”).
When a power level is selected, the
heating switches on and the element
can be seen through the ceramic
surface. The temperature of the cooking
zones depends on the power level
selected and is electronically regulated.
This controls the “timing” of a cooking
zone, switching the element on and off.

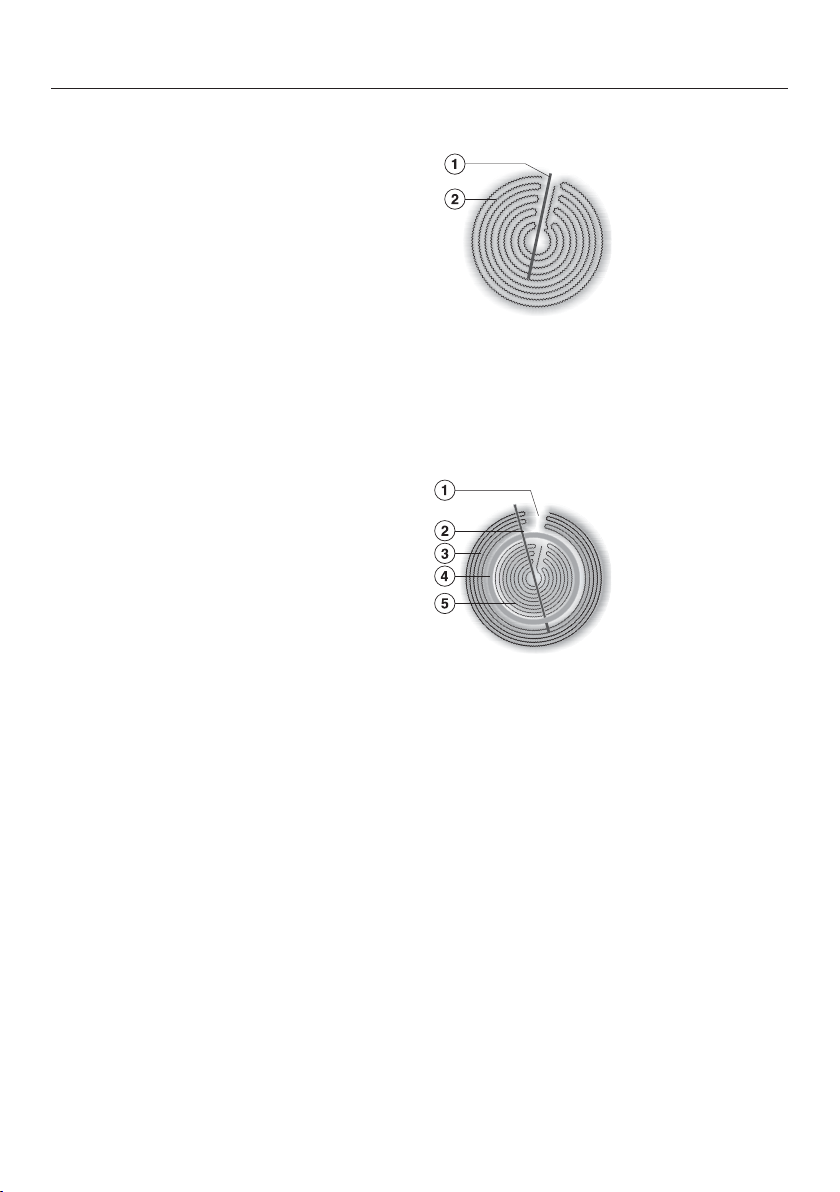

Single circle zone
a
Overheating protection
b
Heating element
Double circle zone
a
Technical requirement, not a defect
b
Overheating protection
c
Outer heating element
d
Insulating ring
e
Inner heating element
Pans
23
The most suitable cookware is metal
pots and pans with thick bases that,
when cold, bulge inwards slightly. On
warming, the base flattens and sits level
on the cooking zone. This optimises the
conduction of heat.
Cold Hot
Glass, ceramic, or stoneware is less
suitable. These materials do not
conduct the heat well.
Cookware made of synthetic material or
aluminium is not suitable. These melt
at high temperatures.
Cookware that is made of aluminium or
has an aluminium base can leave
behind shiny metallic spots. These can
be removed with the ceramic and
stainless steel cooktop cleaner (see
“Cleaning and care”).
Please be aware that the properties of
the pan base can affect the evenness
with which the food heats up (e.g. when
making pancakes).
– To make optimum use of the cooking
zones, choose pans with a suitable
base diameter (see chapter “Cooking
zones”).
– Use only pots and pans with smooth
bases. Rough bases can scratch the
ceramic glass.
– Always lift the pans to move them.
This will help prevent scratching.
– Please note that the maximum
diameter quoted by manufacturers
often refers to the diameter of the top
rim of the pot or pan. The diameter of
the base (generally smaller) is more
important.
Tips on saving energy
24
– Check that the diameter of the pan
base is wide enough for the cooking
zone so that heat is not lost
unnecessarily.
– Use a pan lid whenever possible to
minimise heat loss.
– Select a smaller pan when cooking
small quantities. A small pan on a
small cooking zone uses less energy
than a large, partially filled pan on a
large cooking zone.
– Cook with as little water as possible.
– Once food has come to the boil or
the oil in the pan is hot enough for
frying, reduce the heat to a lower
setting.
– When cooking for a long time, switch
the cooking zone off about 5 to 10
minutes before the end of the
cooking time. In this way, use is
made of the residual heat.
– Use a pressure cooker to reduce
cooking times.
Power level range
25
The cooktop is programmed with 9power levels at the factory. If you wish to fine-
tune a setting, you can extend the power level range to 17power levels (see
“Programming”).
Power level range
Default
setting
(9 power
levels)
Extended
settings
(17 power
levels)
Melting butter, chocolate etc.
Dissolving gelatine
1–2 1–2.
Warming small quantities of food/liquids
Keeping warm food which sticks easily
Cooking rice
1–3 1–3.
Warming liquid and semi-solid foods
Thickening sauces, e.g. Hollandaise
Making porridge
Preparing omelettes, lightly fried eggs
Steaming fruit
2–4 2–4.
Defrosting deep frozen food
Steaming vegetables, fish
Cooking pasta, pulses
Cooking broths, pulse soups
3–6 3–5.
Bringing to the boil and continued cooking of large
quantities of food
4–6 4.–5.
Gently frying meat, schnitzel, fish, sausages, eggs etc.
(without overheating the fat)
6–7 6–7.
Cooking potato fritters, pancakes etc. 7–8 7–8.
Boiling large quantities of water
Searing large amounts of meat
Bringing to the boil
8–9 8.–9
These settings should only be taken as a guide. They apply to 4normal servings. With deep
pans, large quantities or when cooking without the lid, a higher setting is required. For
smaller quantities, select a lower setting.
Operation
26
Operating principles
This ceramic cooktop is equipped with
electronic sensor controls which react
to finger contact. For safety reasons,
when switching the appliance on, the
On/Off sensor needs to be touched
for a little longer than the other sensors.
Each time you touch a sensor, an
acoustic signal sounds.
When the cooktop is switched off, only
the printed sensor control symbols and
numbers on the keybank for setting the
power levels are visible. More sensor
controls light up when the cooktop is
switched on.
In order to set or alter a power level, the
cooking zones must be “active”. To
activate a cooking zone, touch the
indicator of the relevant cooking zone.
The relevant cooking zone indicator will
begin to flash when touched. While the
indicator is flashing, you can set or
adjust the power level or the duration.
Exception: If only one of the cooking
zones is in operation, you can alter the
power level without activating the
cooking zone.
Malfunction due to dirty and/or
covered sensor controls.
If the sensor controls are dirty or
covered this could cause them to fail
to react, to activate a function
inadvertently or even to switch the
appliance off automatically (see
“Safety switch-off”). Placing hot
pans on the sensor controls/
indicators can damage the electronic
unit underneath.
Keep the sensor controls and
indicators clean.
Do not place anything over the
sensor control or indicators.
Do not place hot pans over the
sensor controls or indicators.
Operation
27
Risk of fire with overheated food.
Unattended food can overheat and
ignite.
Do not leave the cooktop unattended
whilst it is being used.
Switching on the cooktop
Touch the sensor.
Further sensor controls will light up.
If no further entry is made, the
cooktop will switch itself off after a
few seconds for safety reasons.
Setting the power level
Place a pan on the cooking zone you
want to use.
Touch the relevant cooking zone
indicator.
The cooking zone indicator control will
begin to flash.
Touch the appropriate sensor control
on the numerical keybank for the
power level you want.
The power level selected will flash in the
display for a few seconds and then light
up constantly.
Changing the power level
Touch the relevant cooking zone
indicator.
The cooking zone indicator control will
begin to flash.
Touch the appropriate sensor control
on the numerical keybank for the
power level you want.
Switching off a cooking zone/
the cooktop
To switch off a cooking zone, touch
the relevant cooking zone indicator.
The cooking zone indicator control will
begin to flash.
Touch the0 sensor control on the
numerical keybank.
To switch off the cooktop and all the
cooking zones, touch the sensor.
Operation
28
Residual heat indicator
If a cooking zone is still hot, the residual
heat indicator will light up after it has
been switched off.
The lines of the residual heat indicator
go out one after another as the cooking
zone cools down. The last horizontal
line only goes out when the cooking
zone is safe to touch.
The residual heat indicators will flash
in the event of a power cut either
during operation or whilst there is still
danger from residual heat.
Risk of burning on hot cooking
zones!
The cooking zones will be hot after
use.
Do not touch the cooking zones
while the residual heat indicators are
on.
Setting the power level -
extended setting range
Touch one of the number sensors.
The power level selected flashes in the
display for a few seconds to start with
and then lights up constantly. The
intermediate setting will be represented
by an illuminated dot next to the
number.
Operation
29
Extension
If you switch a double or triple cooking
zone on, the second heating element is
always switched on automatically. The
second heating element of an extended
cooking zone and the third heating
element of a triple zone must be
manually switched on.
On cooktops with a multi-circle cooking
zone/extended zone, the indicator light
to show that it is switched on lights up
constantly. On cooktops with two or
more multi-circle cooking zones/
extended zones the indicator light to
show that these are switched on only
lights up whilst the cooking zone
display is flashing. There is no
difference in the display between the
second and the third heating zone of a
three circle cooking zone.
Switching a heating element off
Briefly touch the cooking zone
indicator for the required cooking
zone.
The cooking zone indicator starts to
flash and the indicator for the extended
outer zone lights up.
While the cooking zone indicator is
flashing, touch the sensor
repeatedly until the indicator light for
the extended outer zone goes out.
Switching the extended heating zone
on
Briefly touch the indicator for the
required cooking zone.
The cooking zone indicator will begin to
flash.
Touch the sensor whilst the
cooking zone indicator is flashing.
The indicator light for the extended
outer zone will light up.
Set the required power level.
Operation
30
Auto heat-up
When Auto heat-up has been activated,
the cooking zone switches on
automatically at the highest setting and
then switches to the continued cooking
setting which you have previously
selected. The heat-up time depends on
which continued cooking setting has
been chosen (see chart).
Activating Auto heat-up
Briefly touch the indicator for the
required cooking zone.
Touch the sensor control for the
continued cooking setting you want
until a tone sounds and lights up in
the cooking zone display.
The symbol flashes alternately with
the selected power level in the cooking
zone display during the heat-up time
(see chart).
Changing the continued cooking
setting while the cooking zone is
heating up deactivates Auto heat-up.
Deactivating Auto heat-up
Briefly touch the indicator of the
required cooking zone.
Touch the continued cooking setting
you have set until goes out.
Or
Set a different power level.
Continued
cooking level*
Heat-up time
[min:sec]
1 1:20
1. 2:00
2 2:45
2. 3:25
3 4:05
3. 4:45
4 5:30
4. 6:10
5 6:50
5. 7:10
6 1:20
6. 2:00
7 2:45
7. 2:45
8 2:45
8. 2:45
9 –
* The continued cooking settings with a dot
after the number are only available if the
power level range has been extended (see
“Programming”). As the higher continued
cooking settings are generally used for
frying food, only a relatively short heat-up
time is needed to heat up the pan initially.
Timer
31
The cooktop has to be switched on if
you wish to use the timer.
You can set a time up to a maximum
of 99 minutes.
The timer can be used for the following
2 functions:
– For setting the minute minder
– For automatically switching a cooking
zone off
Minute minder
Setting the minute minder
Example: You want to set a time of
15minutes.
Make sure the cooktop is switched
on.
Touch the timer display.
will flash in the timer display.
First the tens digit is set, then the units
digit.
Touch the number sensor which
corresponds to the tens position (1 in
this case).
The timer display then changes and
appears on the right.
Touch the number sensor which
corresponds to the units position (5 in
this case).
The timer display will change. The
moves to the left and appears on the
right.
The minute minder will begin to count
down.
Changing the time set for the minute
minder
Touch the timer display.
Set a new minute minder time, as
described above.
Cancelling the minute minder
duration
Touch the timer display until
appears.
Timer
32
Switching off a cooking zone
automatically
You can set a time after which the
cooking zone will switch off
automatically. This function can be
used on all zones at the same time.
If the time programmed is longer than
the maximum operational time
allowed, the safety switch-off will
switch off the cooking zone after the
maximum permitted safety time has
elapsed (see “Safety switch-off”).
Select a power level for the zone you
require.
Touch the timer display repeatedly
until the indicator light for this zone
starts flashing.
If several cooking zones are on, the
indicator lights flash in a clockwise
direction, starting with the front left.
Set the required time.
If you want to set another cooking
zone to switch off automatically,
follow the same steps as described
above.
If more than one switch-off time is
programmed, the shortest time
remaining will be displayed, and the
corresponding indicator light will flash.
The other indicator lights will light up
constantly.
If you want to show the time
remaining for another zone which is
counting down in the background,
touch the timer display repeatedly
until the indicator light for the zone
you require flashes.
Changing the switch-off time
Touch the timer display repeatedly
until the indicator light for the
required zone starts flashing.
Set the required time.
Deleting the switch-off time
Touch the timer display repeatedly
until the indicator light for the
required zone starts flashing.
Touch on the numerical keybank.
Timer
33
Using both timer functions at
the same time
The minute minder and automatic
switch-off functions can be used at
the same time.
If you have programmed one or more
switch-off times, and would like to use
the minute minder as well:
Touch the timer display repeatedly
until the indicator lights of the
programmed cooking zones light up
constantly and starts flashing in
the timer display.
Set the time as described above.
If you have set the minute minder and
would like to programme one or more
switch-off times as well:
Touch the timer display repeatedly
until the indicator light for the
required zone starts flashing.
Set the time as described above.
Shortly after the last entry, the timer
display switches to the function with the
shortest remaining time.
If you want to show the times counting
down in the background:
Touch the timer display repeatedly
until
– the indicator light for the required
cooking zone flashes (automatic
switch-off).
– the timer display flashes (minute
minder).
Starting with the shortest time
remaining which is shown in the
display, all cooking zones which are
switched on and the minute minder
are selected clockwise.
Additional functions
34
Stop & Go
When Stop & Go is activated, the power
of all cooking zones in use is reduced to
power level1.
The power levels set for the cooking
zones and the timer settings cannot be
changed, the cooktop can only be
switched off. The minute minder,
switch-off times, and the Auto heat-up
times continue to run.
When Stop & Go is deactivated, the
cooking zones will operate at the power
level previously selected.
If the function is not deactivated within
1hour, the cooktop will switch off.
Activating/Deactivating
Touch the sensor.
Use this function when the sensors
need to be cleaned quickly.
Recall
If the cooktop is switched off
inadvertently during operation, this
function can be used to reset all
settings. For this to work, the cooktop
must be switched on again within
10seconds of being switched off.
Switch the cooktop on again.
Immediately after switching the
cooktop on, touch one of the flashing
cooking zone indicators.
Additional functions
35
Demonstration mode
This function enables the cooktop to be
demonstrated in showrooms without
heating up.
Activating/deactivating the
demonstration mode
Switch the cooktop on.
Touch and hold the0 and 2 sensor
controls on the numerical keybank at
the same time for 6seconds.
In the timer display, flashes
alternately with (demonstration mode
activated) or (demonstration mode
deactivated) for a few seconds.
Displaying cooktop data
The model designation and software
version can be displayed. There must
not be any pots or pans on the
cooktop.
Model number/Serial number
Switch the cooktop on.
Touch and hold the0 and 4 sensor
controls on the numerical keybank at
the same time for 6seconds.
Numbers appear in the timer display
separated by a dash.
Example: (Model number
KM1234)– (Serial
number)
Software version
Switch the cooktop on.
Touch and hold the0 and 3 sensor
controls on the numerical keybank at
the same time for 6seconds.
Numbers will flash on and off in the
timer display:
Example: flashing alternately with =
Software version 123.
Safety features
36
System lock / Safety lock
Your cooktop is equipped with a system
lock and a safety lock to prevent the
cooktop and the cooking zones being
switched on or any settings being
altered unintentionally.
The system lock is activated when the
cooktop is switched off. If the system
lock is activated, the cooktop cannot be
switched on and the timer cannot be
used. A set minute minder time
continues to count down. The cooktop
is programmed so that the system lock
must be activated manually. It can be
programmed to be activated
automatically 5minutes after the
cooktop has been switched off (see
“Programming”).
The safety lock is activated while the
cooktop is switched on. When the
safety lock is activated, the cooktop
can only be operated to a limited
extent:
– The cooking zones and the cooktop
can only be switched off.
– A set minute minder time can be
modified.
If an unavailable sensor is touched
whilst the system lock or safety lock is
activated will appear in the timer
display for few seconds and a tone will
sound.
Activating the system lock
Touch the sensor for 6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed will appear in the
timer display. The system lock has been
activated.
Deactivating the system lock
Touch the sensor for 6seconds.
will appear briefly in the timer display
and then the seconds will count down.
The system lock is deactivated once the
time has elapsed.
Safety features
37
Activating the safety lock
Touch and hold the and
sensors at the same time for
6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed will appear in the
timer display. The safety lock is
activated.
Deactivating the safety lock
Touch and hold the and
sensors at the same time for
6seconds.
will appear briefly in the timer display
and then the seconds will count down.
Once the time has elapsed, the safety
lock is deactivated.
Safety features
38
Safety switch-off
Safety switch-off if the sensors are
covered
Your cooktop will switch off
automatically if one or several of the
sensors remain covered for longer than
10seconds, for example, by finger
contact, food boiling over or by an
object such as an oven glove or a tea
towel. will appear in the timer display
for a few seconds. If the sensor is
affected, will light up until the object
or soiling has been removed.
will go out once you have removed
the object or cleaned the cooktop and
the cooktop will be ready to use again.
Excessive operating time
The safety switch-off mechanism is
triggered automatically if a cooking
zone is heated for an unusually long
period of time. This time depends on
the power level selected. If it has been
exceeded, the cooking zone switches
off and the residual heat indicator
appears. If you switch the cooking zone
on and off again, it is ready for
operation again.
The cooktop is programmed to safety
setting0 at the factory. If required you
can set a higher safety setting with a
shorter maximum operating time (see
chart).
Power level* Maximum operating time
[h:min]
Safety setting
0** 1 2
1 10:00 8:00 5:00
1. 10:00 7:00 4:00
2/2. 5:00 4:00 3:00
3/3. 5:00 3:30 2:00
4/4. 4:00 2:00 1:30
5/5. 4:00 1:30 1:00
6/6. 4:00 1:00 00:30
7/7. 4:00 00:42 00:24
8 4:00 00:30 00:20
8. 4:00 00:30 00:18
9 1:00 00:24 00:10
* The power levels with a dot after the
number are only available if the power level
range has been extended (see “Power level
range”).
** Factory default setting
Safety features
39
Overheating protection
Each zone is equipped with overheating
protection (internal temperature limiter).
This switches off the heating element
automatically before the ceramic
surface overheats. As soon as the
cooking zone temperature has cooled
sufficiently, heating is switched on
again automatically.
The overheating protection may be
triggered under the following
circumstances:
– There is no cookware on the cooking
zone that is switched on.
– The pot or pan being used is empty.
– The base of a pan is not sitting
evenly on the cooking zone.
– The pan is not conducting heat
properly.
You can tell that the overheating
protection has activated because the
heating element switches on and off
even when the highest power level is
selected.
Programming
40
You can adapt the programming of the
cooktop to your personal needs.
Several settings can be altered in
succession.
After accessing programming mode,
(Programme) and (Code) and 2
cooking zone indicators will appear in
the timer display.
The programme is shown in the left
hand cooking zone display, and the
code in the right hand cooking zone
display. From programme stage10 the
numbers appear alternately: flashes
alternately with .
Changing the programming
Calling up programming mode
With the cooktop switched off press
both the and sensor controls
until appears in the timer display
and 2 cooking zone indicators light
up.
Setting a programme
First touch the left-hand cooking
zone display and then touch the
relevant number on the numerical
keybank.
A dot will start to flash next to the
number.
While the dot is flashing, press the
relevant number(s) on the numerical
keybank for the programme number.
Setting the code
First touch the right-hand cooking
zone display and then touch the
relevant number on the numerical
keybank.
A dot will start to flash next to the
number.
While the dot is flashing, press the
relevant number(s) on the numerical
keybank for the code.
Saving the settings
Touch the sensor until the
indicators go out.
Programming
41
Programme
1)
Code
2)
Settings
1 Demonstration mode 0 Demonstration mode off
1
Demonstration mode on
3)
3 Factory settings 0 Factory default settings not
restored
1 Factory default settings restored
4 Number of power levels 0 9 power levels
1
17 power levels
4)
6 Confirmation tone when a
sensor control is touched
0
Off
5)
1 Quiet
2 Medium
3 Loud
7 Acoustic signal of the timer 0
Off
5)
1 Quiet
2 Medium
3 Loud
8 System lock 0 System lock can only be activated
manually
1 System lock activated
automatically
9 Maximum operating time 0 Safety setting 0
1 Safety setting 1
2 Safety setting 2
Programming
42
Programme
1)
Code
2)
Settings
12 Sensor controls reaction
speed
0 Slow
1 Normal
2 Fast
1)
Programmes not shown here have no allocation.
2)
The factory setting is shown in bold.
3)
After the cooktop has been switched on appears in the timer display for a few
seconds.
4)
The extended power levels are shown with a dot after the number.
5)
The confirmation tone of the On/Off sensorcontrol cannot be switched off.
Cleaning and care
43
Risk of burning on hot cooking
zones!
The cooking zones will be hot after
use.
Switch the cooktop off.
Allow the cooking zones to cool
down before cleaning the cooktop.
Risk of damage due to moisture
ingress.
The steam from a steam cleaner
could reach electrical components
and cause a short circuit.
Do not use a steam cleaner to clean
the cooktop.
The use of unsuitable cleaning
agents can cause the surfaces to
discolour or alter. All surfaces are
susceptible to scratching.
Remove any residual cleaning agent
immediately.
Never use abrasive sponges or
cleaning agents.
Clean the cooktop after every use.
Dry the cooktop thoroughly after
every cleaning to avoid limescale
residue.
Unsuitable cleaning agents
To avoid damaging the surfaces of the
appliance, do not use:
– washing-up liquid,
– cleaning agents containing soda,
alkalines, ammonia, acids or
chlorides,
– cleaning agents containing descaling
agents,
– stain and rust removers,
– abrasive cleaning agents, e.g.
powder cleaners and cream cleaners,
– solvent-based cleaning agents,
– dishwasher cleaner,
– oven sprays,
– glass cleaning agents,
– hard, abrasive brushes or sponges
(e.g. pot scourers), or sponges which
have been previously used and still
contain abrasive cleaning agents,
– dirt erasers.
Cleaning and care
44
Cleaning the ceramic surface
Risk of damage by pointed
objects.
The seal between the cooktop and
the worktop could be damaged.
The seal between the ceramic
surface and the frame could be
damaged.
Do not use pointed objects for
cleaning.
Do not use washing-up liquid to
clean the appliance. Using washing-
up liquid will not remove all soiling
and residues. An invisible film can
develop that can lead to
discolouration of the ceramic glass
surface. This discolouration cannot
be removed.
Clean the ceramic surface regularly
with a proprietary ceramic glass
cleaning agent.
Remove any coarse soiling with a
damp cloth and more stubborn
soiling with a glass scraper.
Then clean the ceramic glass surface
with the Miele ceramic and stainless
steel cooktop cleaner (see “Optional
accessories”) or with a proprietary
ceramic glass cleaner applied with
paper towel or a clean cloth. Do not
apply the cleaner while the cooktop is
still hot, as this can result in marking.
Please follow the cleaning agent
manufacturer's instructions.
Finally wipe the cooktop with a damp
cloth and dry it with a soft, dry cloth.
Residues can burn onto the cooktop
the next time it is used and cause
damage to the glass ceramic surface.
Ensure that all cleaner residues are
removed.
Spots caused by limescale, water
and aluminium residues (spots with a
metallic appearance) can be removed
using the Miele ceramic and stainless
steel cooktop cleaner.
Risk of burning on hot cooking
zones!
The cooking zones are hot during
use.
Wear oven gloves when removing
residues of sugar, plastic or
aluminium foil from a hot cooktop
with a glass scraper.
Should any sugar, plastic or
aluminium foil spill or fall onto a hot
cooking zone while it is in use, first
switch off the appliance.
Then carefully scrape off these
residues immediately whilst they are
still hot, using a shielded scraper
blade suitable for use on glass.
Afterwards, clean the ceramic surface
in its cooled state, as described
above.
Problem solving guide
45
With the help of the following guide, minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be remedied
without contacting Miele. This will save you time and money because you will not
need a service call.
Please note that a call-out charge will be applied to unnecessary service visits
where the problem could have been rectified as described in these operating
instructions.
Problem Possible cause and remedy
The cooktop or cooking
zones do not switch on.
There is no power to the cooktop.
Check if the circuit breaker has tripped. Contact
an electrician or Miele (for the minimum fuse
rating, see data plate).
There may be a technical fault.
Disconnect the appliance from the mains
electricity supply for approx. 1 minute. To do this:
– switch off at the wall socket and withdraw the
plug, or
– switch off at the residual current device.
If, after switching the circuit breaker or residual
current device back on, the appliance will still not
switch on, contact a qualified electrician or Miele.
A smell and vapours are
given off when the new
appliance is being used.
The metal components have a protective coating
which when heated for the first time will give off a
slight smell and possibly some vapours. The smell
and any vapours given off do not indicate a faulty
connection or appliance and they are not harmful to
health.
After the cooktop has
been switched on
appears in the timer
display for a few
seconds.
The system lock or safety lock is activated.
Deactivate the system lock or safety lock (see
“Safety features - System lock /Safety lock”).
flashes in the timer
display and the cooktop
switches off
automatically.
One or more of the sensor controls are covered, e.g.
by finger contact, food boiling over or an object.
Clean off any dirt and/or remove the object (see
“Safety switch-off”).
Problem solving guide
46
Problem Possible cause and remedy
After the cooktop has
been switched on
appears in the timer
display for a few
seconds. The cooking
zones do not heat up.
The cooktop is in Demonstration mode.
Touch the0 and 2 sensor controls at the same
time until flashes alternately with in the
timer display.
A cooking zone
switches itself off
automatically.
It has been operated for too long.
You can use the cooking zone again by switching
it back on (see “Safety features - Safety switch-
off”).
The food in the pan
hardly heats up or does
not heat up at all when
the Auto heat-up
function is switched on.
There is too much food in the pan.
Start cooking at the highest power level and then
turn down to a lower one manually later on.
The pan is not conducting heat properly.
Use a different pan which is better able to conduct
heat.
The food in the pan is
barely heating up or is
not heating up at all.
The pan is not conducting heat properly.
Use a different pan which is better able to conduct
heat.
The pan is too large for the cooking zone.
Use a smaller pan.
The outer ring of a double or extended cooking zone
is not switched on.
Switch the outer ring on.
The heating element for
one of the cooking
zones switches on and
off.
This “timing” of the element is normal. It is caused by
the electronic temperature control (see “How the
cooking zones work”).
If the heating switches on and off at the highest
power level, the overheating protection has been
triggered (see “Overheating protection”).
One or several residual
heat indicators is
flashing.
There was a power failure during operation or when
residual heat was present.
Problem solving guide
47
Problem Possible cause and remedy
The sensor switches
show increased
sensitivity or fail to
react.
The sensitivity level of the sensor switches has
changed.
Make sure that there is no direct light (from the sun
or from an artificial source) falling onto the
cooktop. The area surrounding the cooktop must
not be too dark.
Make sure that there is nothing covering the
sensors or the cooktop.
Take any pans off the cooktop and wipe away any
food deposits.
Interrupt the power supply to the cooktop for
approx. 1 minute.
If the problem persists after power is restored,
please contact Miele.
Optional accessories
48
Miele offers a range of useful
accessories, as well as cleaning and
conditioning products for your
appliance.
These products can be ordered from
the Miele online shop.
They can also be ordered directly from
Miele (see end of this booklet for
contact details).
Cleaning and care products
Original Miele ceramic and stainless
steel cooktop cleaner 250 ml
Removes heavy soiling, limescale
deposits and aluminium residues.
Original Miele all purpose microfibre
cloth
Removes finger marks and light soiling.
Safety instructions for installation
49
Risk of damage from incorrect installation.
Incorrect installation can cause damage to the cooktop.
The cooktop must only be installed by a qualified person.
Danger of electric shock!
Incorrect connection to the power supply may result in an electric shock.
The cooktop must be connected to the power supply by a qualified electrician.
Damage from falling objects.
Take care not to damage the cooktop when fitting wall units or a rangehood
above it.
Fit the wall units and the rangehood before the cooktop.
The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any splashbacks must be of heat-resistant
material as well.
The cooktop must not be installed over a fridge, fridge-freezer,
freezer, dishwasher, washing machine, washer-dryer or tumble dryer.
After installation, ensure that nothing can come into contact with
the connection cable and that it is without hindrance.
The connection cable may not come into contact with any moving
kitchen component (e.g. a drawer) or be subject to mechanical
obstruction which could damage it.
Carefully observe the safety clearances listed on the following
pages.
Safety distances
50
Safety distance above the
cooktop
The safety distance specified by the
manufacturer of the rangehood must be
maintained between the cooktop and
the rangehood above it.
For any flammable objects, e.g. utensil
rails, wall units etc., a minimum safety
distance of 600mm must be
maintained between these objects and
the highest part of the cooktop below.
When two or more appliances which
have different safety distances are
installed together below a
rangehood, observe the greatest
specified safety distance.
Safety distances
51
Safety distances to the sides
and back of the appliance
The minimum distance shown below
must be maintained between the back
edge of the cooktop and a tall unit or
wall.
Ideally the cooktop should be installed
with plenty of space on either side.
There may be a wall at the rear or a tall
unit or wall on one side (right or left),
taking into account the distances
below. On the other side, however, no
tall unit or wall should stand closer than
300mm to the edge of the cooktop.
Before installing the cooktop, check
that the below clearance requirements
are met.
Minimum horizontal distance from the
back edge of the cooktop to a
combustible surface:
50mm.
Minimum distance on the right side
between the worktop cut-out and the
closest adjacent piece of furniture (e.g.
tall unit) or a room wall:
50 mm KM6522/6527
70 mm KM6520/6521
Minimum horizontal distance from the
left edge of the cooktop to a vertical
surface:
50 mm KM6520/6521/6522
70 mm KM 6527
Interim shelf
It is not necessary to fit an interim shelf
underneath the cooktop but one may
be fitted if you wish.
If an interim shelf is fitted under the
cooktop, there must be a minimum gap
of 110mm between the top of the
worktop and the top of the shelf.
Leave a gap of 10mm at the back of
the shelf to accommodate the cable. If
the cooktop has an external mains
connection box, the minimum gap is
30mm.
Installation notes
52
Installation of surface-
mounted appliances

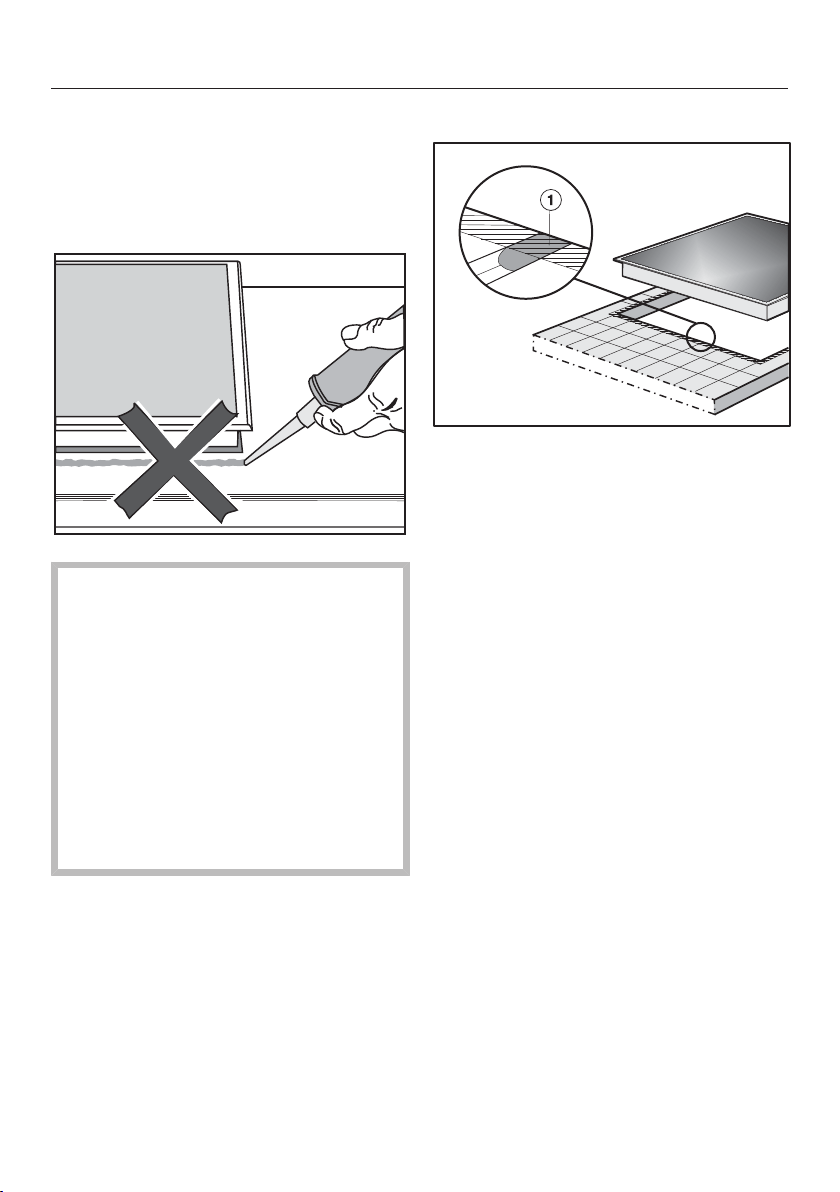

Seal between the cooktop and the
worktop
Damage caused by incorrect
installation.
Using sealant under the cooktop
could result in damage to the
cooktop and the worktop if the
cooktop ever needs to be removed
for servicing.
Do not use sealant between the
cooktop and the worktop.
The sealing strip under the edge of
the cooktop provides a sufficient seal
for the worktop.
Tiled worktop
Grout lines and the hatched area
underneath the cooktop frame must be
smooth and even. If they are not, the
cooktop will not sit flush with the
worktop and the sealing strip
underneath the cooktop will not provide
a good seal between the cooktop and
the worktop.
Installation notes
53
Flush-mounted installation
Flush-mounted installation is only
possible in natural stone (granite,
marble), solid wood and tiled
worktops. Certain models are suitable
for building into glass worktops -
please see the relevant label on the
cooktop. When using a worktop made
from any other material, please check
first with the worktop manufacturer
that it is suitable for installing a flush-
mounted cooktop.
The internal width of the base unit
underneath the appliance must be at
least as wide as the inner worktop cut-
out (see “Building-in dimensions -
Flush-mounted cooktops”), so that the
cooktop is easily accessible from
underneath after installation and the
bottom half of the casing can be
removed for maintenance. If the
underside of the cooktop is not freely
accessible after installation, any
sealant used to plug the gaps around
the appliance must be removed to
enable the cooktop to be lifted out of
the cut-out should this be necessary.
Natural stone worktops
The cooktop is placed directly in the
cut-out.
Solid wood worktops, tiled worktops,
glass worktops
The cooktop is placed on a wooden
frame inside the cut-out. The frame
must be provided on site and is not
supplied with the appliance.
Installation dimensions– Surface-mounted
54
All dimensions in this instruction booklet are given in mm.
KM6520FR
a
Front
b
Mains connection box with mains connection cable
Mains connection cable L=1440mm
c
Spring clips
Installation dimensions– Surface-mounted
55
KM6522FR
a
Front
b
Mains connection box with mains connection cable
Mains connection cable L=1440mm
c
Spring clips
Installation dimensions– Surface-mounted
56
KM6527FR
a
Front
b
Mains connection box with mains connection cable
Mains connection cable L=1440mm
c
Wiring harness, L = 1550 mm
d
Spring clips
Installation dimensions–Flush
57
All dimensions in this instruction booklet are given in mm.
KM 6520 FL
a
Front
b
Mains connection box with mains connection cable
Mains connection cable L=1440mm
c
Stepped cut-out, natural stone worktop
d
Wooden strip 13mm (not supplied)
Installation
58
Installation of surface-
mounted appliances
Preparing the worktop
Create the worktop cut-out.
Remember to maintain the minimum
safety distances (see “Safety
distances”).
Wooden worktops
Seal the cut surfaces with a suitable
heat-resistant sealant to avoid
swelling caused by moisture. The
sealant must be temperature-
resistant.
Make sure the sealant does not
come into contact with the top
surface of the worktop.
The sealing strip ensures that the
cooktop will sit securely in the cut-out
without slipping. Any gap between the
trim and worktop will become smaller
over time.
Securing the spring clips
The exact positioning of the spring
clips is shown in the individual
cooktop diagrams.
Wooden worktops
Position the spring clips on the top
edge of the cut-out as shown in the
cooktop illustration.
Fasten the spring clips using the
3.5x25mm wood screws supplied
with the appliance.
Installation
59

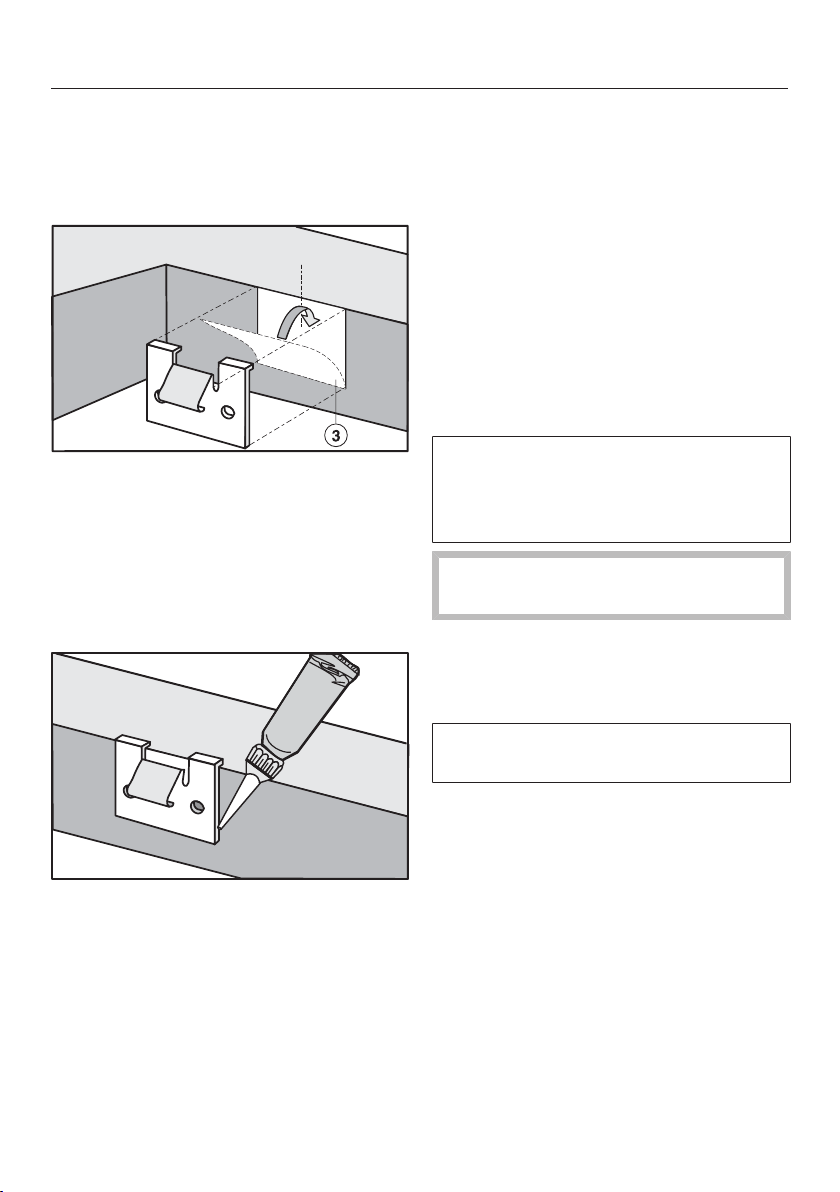

Granite and marble worktops
You will need heavy duty double-sided
adhesive tape (not included with the
cooktop) to fasten the spring clips.
Attach the adhesive tape along the
top edge of the cut-out in the
positions shown in the cooktop
illustration.
Position the spring clips on the top
edge of the cut-out and press them
firmly into place.
Apply silicone adhesive to the side
edges and bottom edge of the spring
clips.
Installing the cooktop
Feed the mains connection cable
down through the cut-out.
Position the cooktop in the worktop
cut-out.
Using both hands, press down evenly
on the sides of the cooktop until it
clicks into position. When doing this
make sure that the seal of the
appliance sits flush with the worktop
on all sides. This is important to
ensure an effective seal all round.
If the seal does not meet the worktop
correctly on the corners, the corner
radii (≤R4) can be carefully scribed to
suit.
Do not use any additional sealant
(e.g. silicone).
Connect the cooktop to the mains
electricity supply.
Check that the cooktop works.
The cooktop can only be removed
using a special tool.
Installation
60
Flush-mounted installation
Create the worktop cut-out.
Remember to maintain the minimum
safety distances (see “Safety
distances”).
Solid wood, tiled and glass worktops:
Fix a wooden frame 7mm below the
top edge of the worktop (see
“Building-in diagram - Flush-mounted
installation”).
Attach the sealing strip provided
underneath the edge of the cooktop.
Feed the mains connection cable
down through the cut-out.
Centre the cooktop in the cut-out.
The gap between the ceramic surface
and the worktop must be at least
2mm wide. This is required so that
the cooktop can be sealed.
Connect the cooktop to the mains
electricity supply.
Check that the cooktop works.
Seal the gap between the cooktop
and worktop with a silicone sealant
that is heat-resistant to at least
160°C.
Damage caused by unsuitable
sealant.
Unsuitable sealant can damage
natural stone.
For natural stone worktops and
natural stone tiles, only use silicone
sealant that is specially formulated
for natural stone. Please follow the
manufacturer's instructions.
Electrical connection
61
Risk of damage from incorrect
connection.
Incorrect installation, maintenance
and repairs can be dangerous to
users.
Miele cannot be held liable for
damage or injury caused by
unauthorised installation,
maintenance or repair work, or by an
inadequate or faulty on-site earthing
system (e.g. electric shock).
The cooktop must be connected to
the power supply by a qualified
electrician.
The electrician must be familiar with
and comply with the national
regulations and any additional
regulations of the local electricity
provider.
After installation, ensure that all
electrical components are shielded
and cannot be accessed by users.
Total power output
See data plate.
Connection data
The connection data is quoted on the
data plate. Please ensure this
information matches the household
mains supply.
Please see the wiring diagrams for
connection.
Residual current device
For extra safety, it is advisable to
protect the appliance with a suitable
residual current device (RCD) with a trip
range of 30 mA.
Disconnecting devices
Connection must be made via a
suitable isolator switch which provides
disconnection on all poles and which
complies with national and local safety
regulations. When switched off there
must be an all-pole contact gap of at
least 3mm in the isolator switch. The
isolator switch must be easily
accessible after the appliance has been
built in.
Electrical connection
62
Mains connection cable
The cooktop must be connected to the
electrical supply with a special
connection cable, type H 05 VV-F (PVC
insulated) with a suitable diameter.
Please see the wiring diagram for
connection.
See the data plate on the cooktop for
the correct voltage and frequency.
Replacing the mains
connection cable
Danger of electric shock!
Incorrect connection to the electricity
supply may result in an electric
shock.
The mains connection cable must
only be replaced by a suitably
qualified and competent person in
accordance with current local and
national safety regulations in order to
avoid a hazard.
When replacing the mains connection
cable, it must be replaced with cable
type H05VV-F with a suitable cross-
section. These cables are available from
Miele.
Wiring diagram
Service
63
Contact in case of fault
In the event of any faults which you cannot remedy yourself, please contact Miele.
Contact information for Miele can be found at the end of this booklet.
Please quote the model and serial number of your appliance when contacting
Miele. This information can be found on the data plate.
Data plate
Adhere the extra data plate supplied with the appliance in the space below. Make
sure that the model number matches the one specified on the back cover of this
document.
Warranty
The manufacturer's warranty for this appliance is 2years.
For further information, please refer to your warranty booklet.
www.miele.com.au
Miele Experience Centre and
Head Office Melbourne:
1 Gilbert Park Drive
Knoxfield, VIC 3180
Miele Experience Centre South Melbourne:
206-210 Coventry Street
South Melbourne, VIC 3205
Miele Experience Centre and Office Sydney:
3 Skyline Place
Frenchs Forest, NSW 2086
Miele Experience Centre and Office Brisbane:
Tenancy 4C, 63 Skyring Terrace
Newstead, QLD 4006
Miele Experience Centre and Office Perth:
83-85 Sir Donald Bradman Drive
Hilton, SA 5033
205-207 Stirling Highway
Claremont, WA 6010
Miele Experience Centre and Office Adelaide:
Miele Australia Pty. Ltd.
Miele New Zealand Limited
Level 2, 10 College Hill
Freemans Bay, Auckland 1011
Miele Experience Centre
Auckland:
8 College Hill
Freemans Bay, Auckland 1011
Telephone:
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
Miele Global Headquarters
Germany
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany
Head Office:
IRD 98 463 631
ACN 005 635 398
ABN 96 005 635 398
Miele Experience Centre Gold Coast:
131 Ferry Road
Southport, QLD 4215
M.-Nr. 11 007 620 / 00en-AU, NZ
KM6520FR, KM6520FL, KM6522FR, KM6527FR
