AssemblyInstructions/Useand Care Manual
LiquidPropaneGasGrill
ModelNo. 415.162110
This Grill is For
Outdoor Use Only
®
ASSEMBLY
m
c_
c_
Lo
• Read this manual before cooking on
grill. Failure to follow all
manufacturer's instructions could
result in fire or explosion which could
cause property damage, personal
injury or death.
• Combustion by=products produced
when using this product contain
chemicals known to the State of
California to cause cancer, birth
defects, or other reproductive harm.
__ m
• Read and follow all Safety
Statements, Assembly instructions
and Use & Care Directions before
attempting to assemble and cook.
• Some parts may contain sharp edges,
especially as noted in these
instructions. Wear protective gloves
if necessary.
• Parts
• Assembly
• Safety Rules
• Use and Care
• Troubleshooting
• Espafiol, p. 33
Assembly Questions?
Call 1=800=241=7548
Parts Ordering:
Call 1 =800=4=MY=HOME ®
To InstalledAssembler: Leave
these instructions with
consumer.
To Consumer: Keep this
manual for future reference.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
©2005Sears,RoebuckandCo., All Rights Reserved
Printedin USA

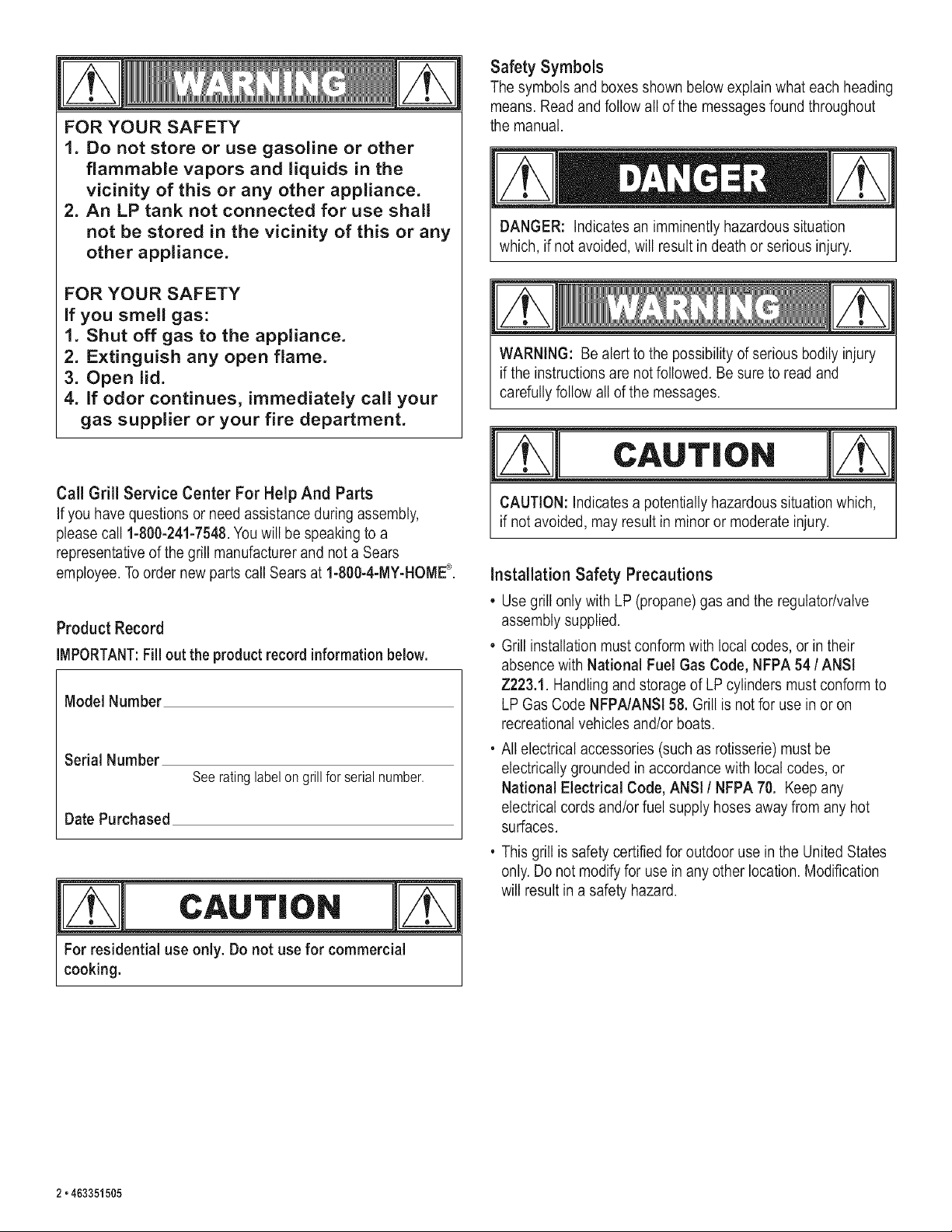

FOR YOUR SAFETY
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP tank not connected for use shall
not be stored in the vicinity of this or any
other appliance.
FOR YOUR SAFETY
if you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. if odor continues, immediately call your
gas supplier or your fire department.
Call Grill Service Center For Help And Parts
If you have questions or need assistance during assembly,
please call 1-800-241-7548. Youwill be speaking to a
representative of the grill manufacturer and not a Sears
employee. To order new parts call Sears at 1-800-4-MY-HOME®.
Product Record
IMPORTANT:Fill out the product record information below.
Model Number
Serial Number
Date Purchased
See ratinglabelongrillfor serialnumber.
CAUTION
For residential use only. Do not use for commercial
cooking.
Safety Symbols
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING: Be alert to the possibility of serious bodily injury
if the instructions are not followed. Be sure to read and
carefully follow all of the messages.
cAuTio.
CAUTION: indicatesa potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
Installation Safety Precautions
* Usegrill only with LP (propane) gas and the regulator/valve
assembly supplied.
* Grill installation must conform with local codes, or in their
absence with National Fuel Gas Code, NFPA 54 / ANSI
Z223.1. Handling and storage of LP cylinders must conform to
LP Gas Code NFPA/ANSl 58. Grill is not for use in or on
recreational vehicles and/or boats.
, All electrical accessories (such as rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code, ANSI / NFPA 70. Keep any
electrical cords and/or fuel supply hoses away from any hot
surfaces.
, This grill is safety certified for outdoor use in the United States
only. Do not modify for use in any other location. Modification
will result in a safety hazard.
2.463351505

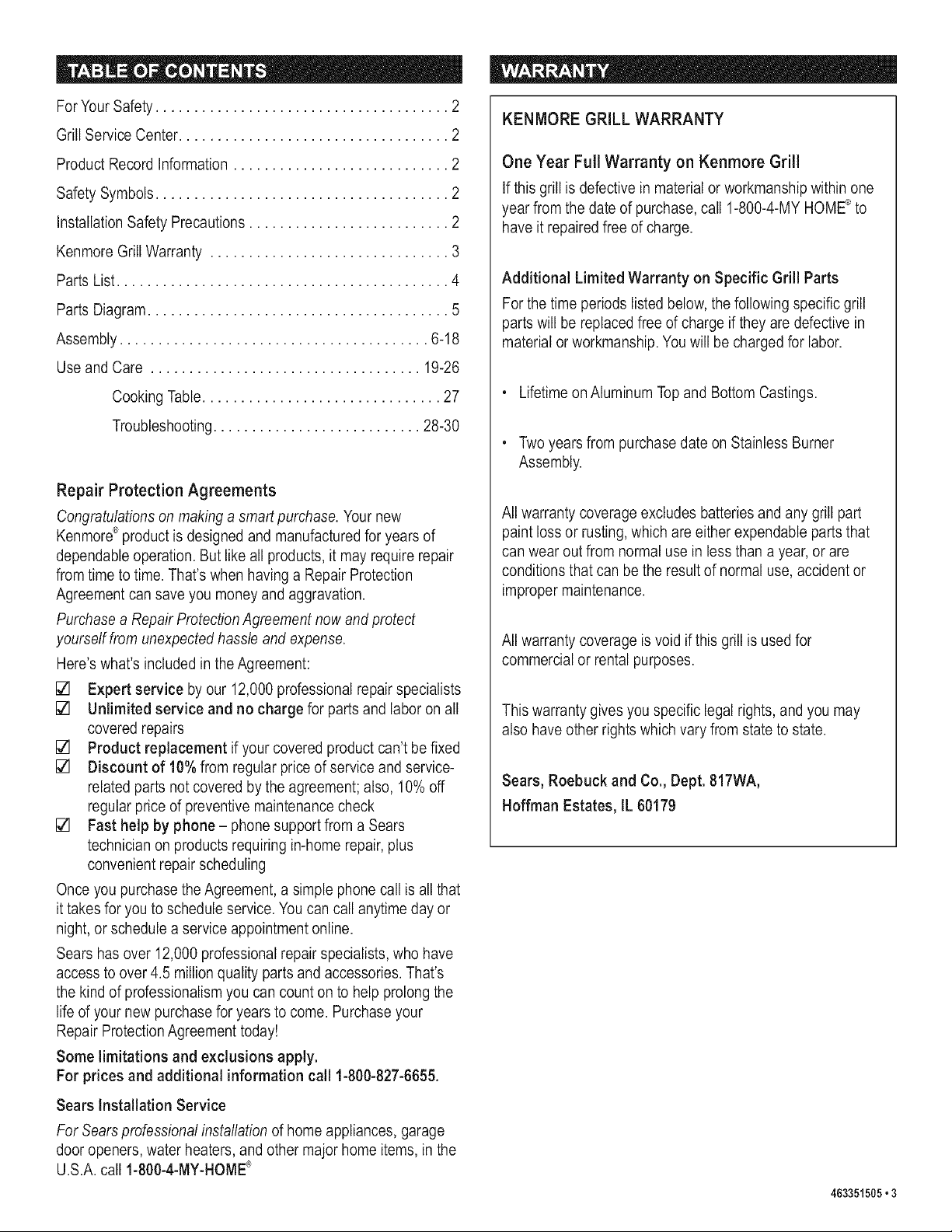

For Your Safety ...................................... 2
Grill Service Center................................... 2
Product Record Information ............................ 2
Safety Symbols ...................................... 2
Installation Safety Precautions .......................... 2
Kenmore Grill Warranty ............................... 3
Parts List........................................... 4

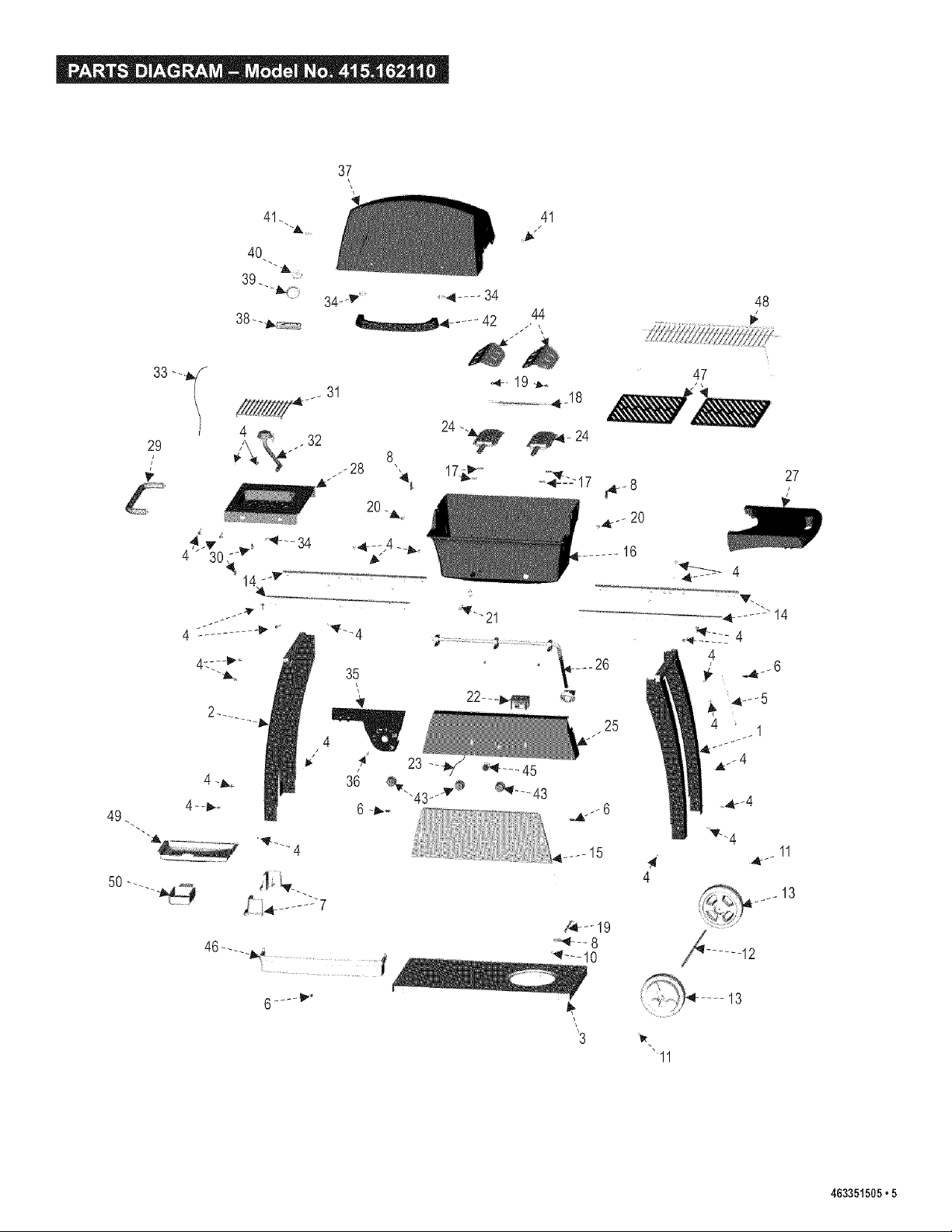

Parts Diagram....................................... 5
Assembly ........................................ 6-18

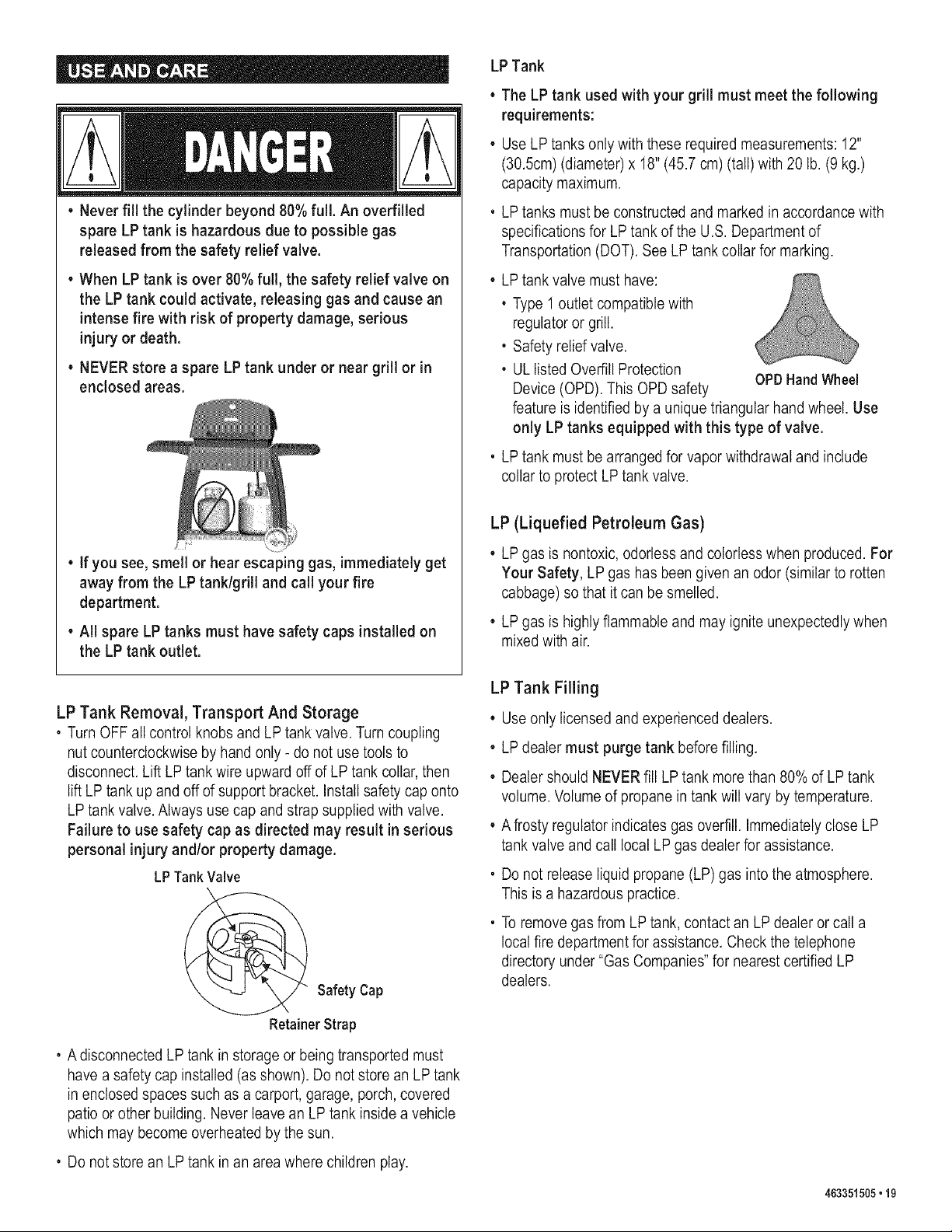

Use and Care ................................... 19-26

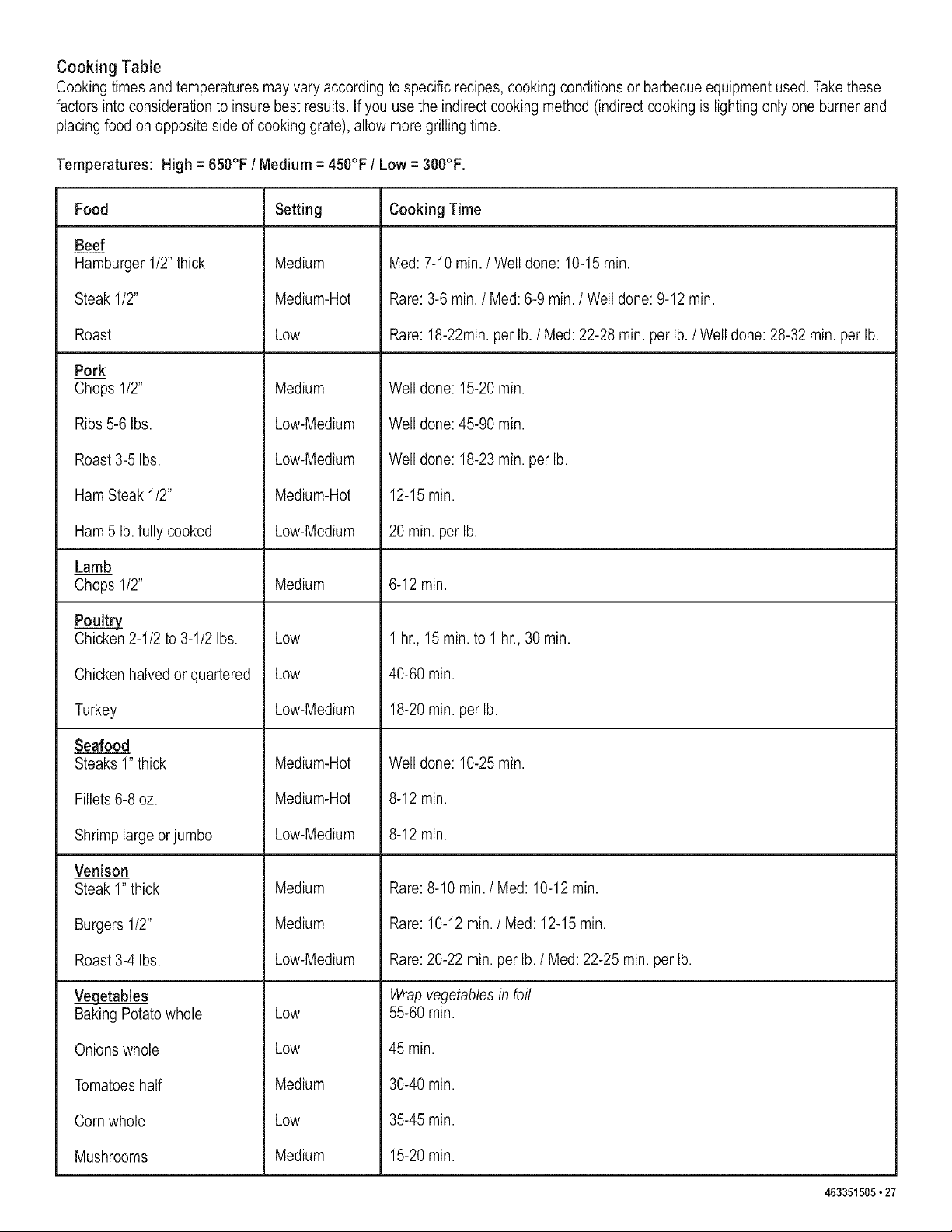

Cooking Table............................... 27

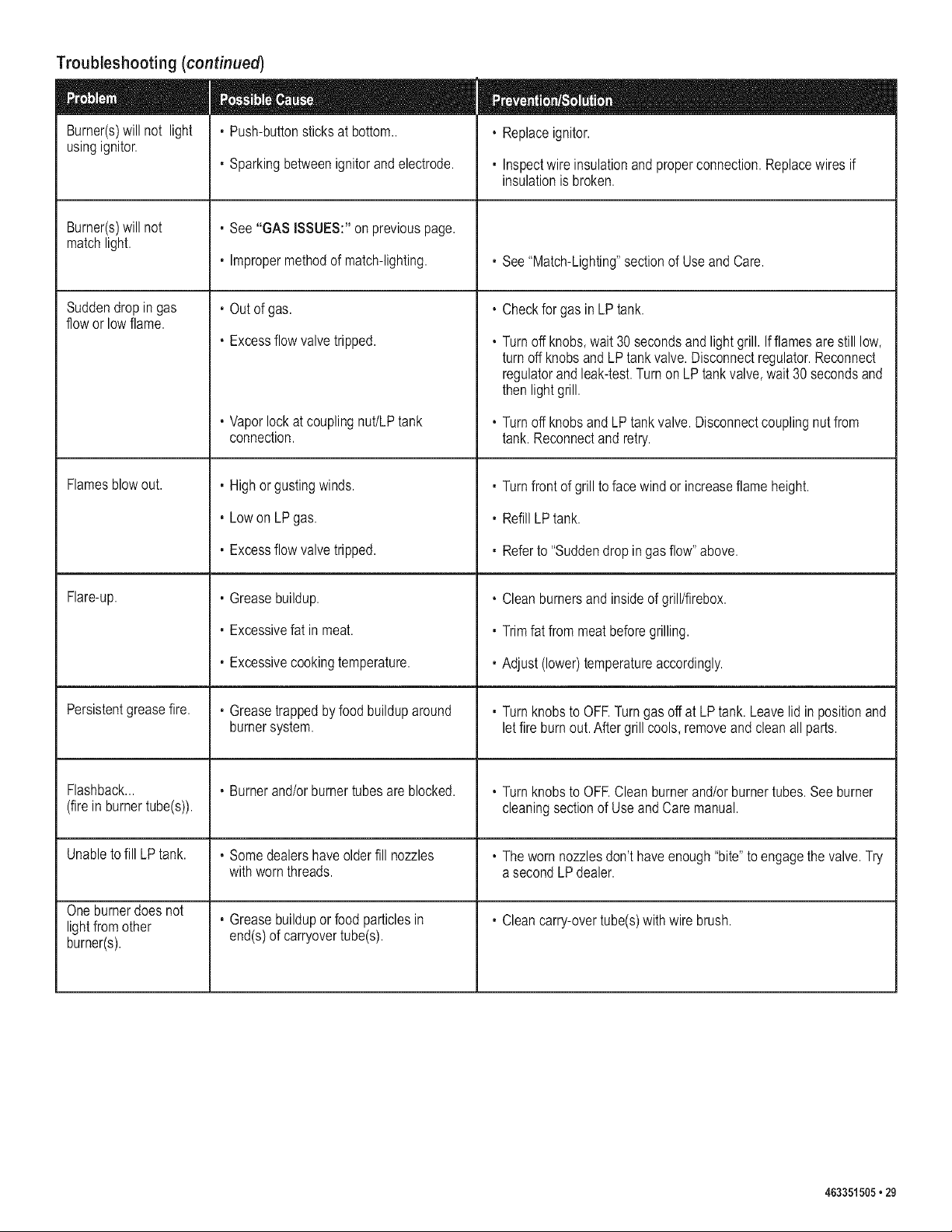

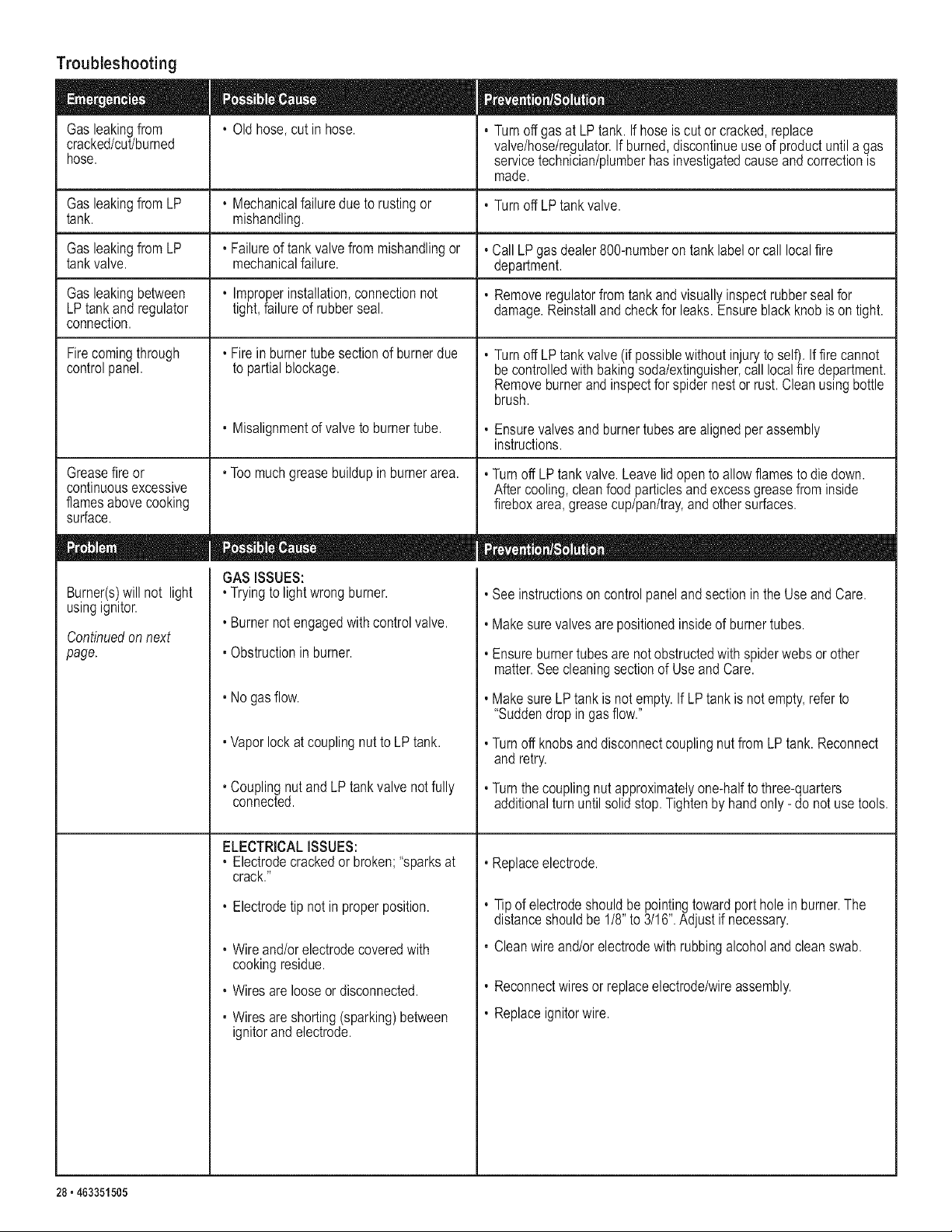

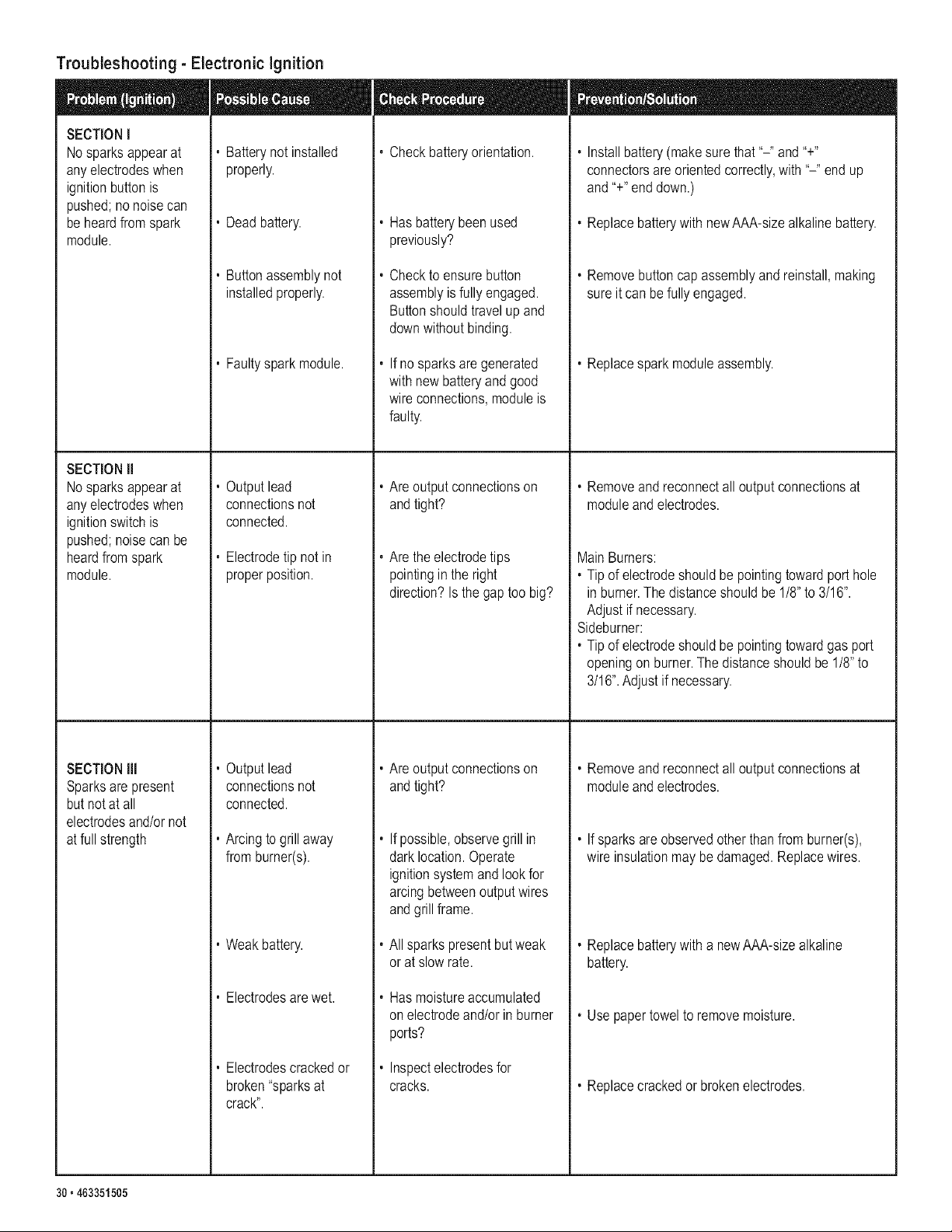

Troubleshooting........................... 28-30
Repair Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore®product is designed and manufactured for years of
dependable operation. But like all products, it may require repair
from time to time. That's when having a Repair Protection
Agreement can save you money and aggravation.
Purchase a Repair Protection Agreement now and protect
yourself from unexpected hassle and expense.
Here's what's included in the Agreement:
[] Expert service by our 12,000 professional repair specialists
[] Unlimited service and no charge for parts and labor on all
covered repairs
[] Product replacement if your covered product can't be fixed
[] Discount of 10%from regular price of service and service-
related parts not covered by the agreement; also, 10% off
regular price of preventive maintenance check
[] Fast help by phone- phone support from a Sears
technician on products requiring in-home repair, plus
convenient repair scheduling
Once you purchase the Agreement, a simple phone call is all that
it takes for you to schedule service. You can call anytime day or
night, or schedule a service appointment online.
Sears has over 12,000 professional repair specialists, who have
access to over 4.5 million quality parts and accessories. That's
the kind of professionalism you can count on to help prolong the
life of your new purchase for years to come. Purchase your
Repair Protection Agreement today!
Some limitations and exclusions apply.
For prices and additional information call 1-800-827-6655.
Sears installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in the
U.S.A. call 1-800-4-MY-HOME®
KENMORE GRILL WARRANTY
One Year Full Warranty on Kenmore Grill
If this grill is defective in material or workmanship within one
year from the date of purchase, call 1-800-4-MY HOME®to
have it repaired free of charge.
Additional Limited Warranty on Specific Grill Parts
For the time periods listed below, the following specific grill
parts will be replaced free of charge if they are defective in
material or workmanship. You will be charged for labor.
. Lifetime on Aluminum Top and Bottom Castings.
, Two years from purchase date on Stainless Burner
Assembly.
All warranty coverage excludes batteries and any grill part
paint loss or rusting, which are either expendable parts that
can wear out from normal use in less than a year, or are
conditions that can be the result of normal use, accident or
improper maintenance.
All warranty coverage is void if this grill is used for
commercial or rental purposes.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA,
Hoffman Estates, IL 60179
463351505,3

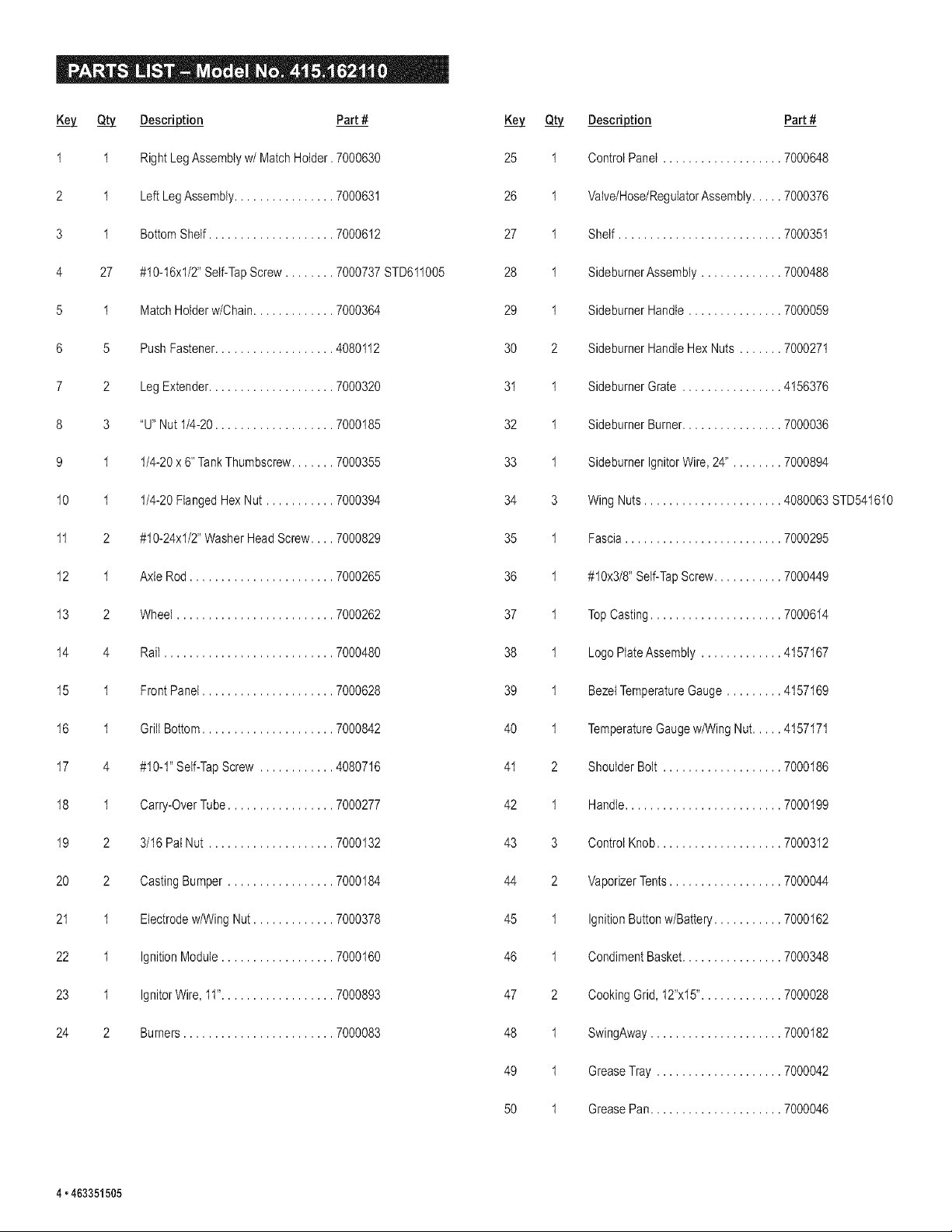

_ Description Part #
1 1 RightLegAssemblyw/Match Holder. 7000630
2 1 LeftLegAssembly................ 7000631
3 1 BottomShelf.................... 7000612
4 27 #10-16xl/2" Self-TapScrew ........ 7000737STD611005
5 1 MatchHolderw/Chain............. 7000364
6 5 PushFastener................... 4080112
7 2 LegExtender.................... 7000320
8 3 "U"Nut 1/4-20................... 7000185
9 1 1/4-20x 6" TankThumbscrew....... 7000355
10 1 1/4-20FlangedHexNut ........... 7000394
11 2 #10-24xl/2" WasherHeadScrew.... 7000829
12 1 Axle Rod ....................... 7000265
13 2 Wheel ......................... 7000262
14 4 Rail ........................... 7000480
15 1 FrontPanel..................... 7000628
16 1 Grill Bottom..................... 7000842
17 4 #10-1"Self-TapScrew ............ 4080716
18 1 Carry-OverTube................. 7000277
19 2 3/16Pat Nut .................... 7000132
20 2 CastingBumper................. 7000184
21 1 Electrodew/Wing Nut............. 7000378
22 1 IgnitionModule.................. 7000160
23 1 IgnitorWire, 11".................. 7000893
24 2 Burners........................ 7000083
_ Description Part #
25 1 ControlPanel ................... 7000648
26 1 Valve/Hose/RegulatorAssembly..... 7000376
27 1 Shelf .......................... 7000351
28 1 SideburnerAssembly ............. 7000488
29 1 SideburnerHandle ............... 7000059
30 2 SideburnerHandleHexNuts ....... 7000271
31 1 SideburnerGrate ................ 4156376
32 1 SideburnerBurner................ 7000036
33 1 SideburnerIgnitorWire, 24". ....... 7000894
34 3 WingNuts...................... 4080063STD541610
35 1 Fascia......................... 7000295
36 1 #10x3/8"Self-TapScrew........... 7000449
37 1 TopCasting..................... 7000614
38 1 LogoPlateAssembly ............. 4157167
39 1 BezelTemperatureGauge ......... 4157169
40 1 TemperatureGaugew/WingNut..... 4157171
41 2 ShoulderBolt ................... 7000186
42 1 Handle......................... 7000199
43 3 ControlKnob.................... 7000312
44 2 VaporizerTents.................. 7000044
45 1 IgnitionButtonw/Battery........... 7000162
46 1 CondimentBasket................ 7000348
47 2 CookingGrid,12"x15"............. 7000028
48 1 SwingAway..................... 7000182
49 1 GreaseTray .................... 7000042
50 1 GreasePan..................... 7000046
4,463351505
41.
4O
"'A,
39.
37
\\
41
/
3& -_" 4 .... 34
..... 42 .44,
48
33 --_"
29
st
49.
50 _
2O
4::- -_`
I;¸
.... _
.... 15
47
'3
27
/
"11
463351505,5

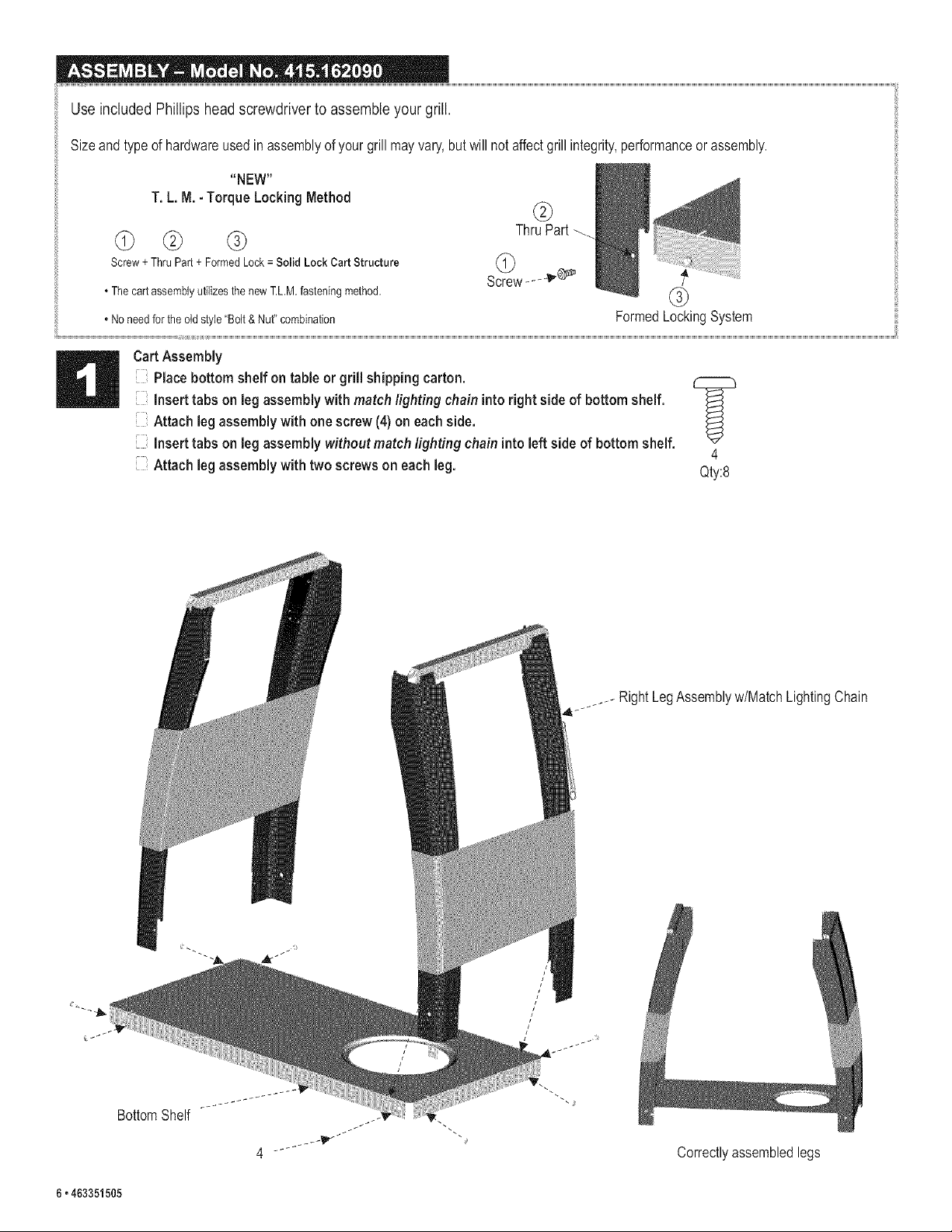

Use included Phillips head screwdriver to assemble your grill.
Sizeand type of hardwareusedinassemblyof your grill mayvary,butwill not affectgrillintegrity,performanceor assembly.
"NEW"
T. L.M.- Torque LockingMethod
Screw+ ThruPart + FormedLock= Solid Lock Cart Structure
, The cart assemblyutilizesthe new T.L.M.fasteningmethod.
, No needfor the old style"Bolt& Nut" combination
ThruPart
I
@
FormedLockingSystem
Cart Assembly
Placebottom shelf on table or grill shipping carton. CZZZC3
insert tabs on leg assembly with match lighting chain into right side of bottom shelf,
Attach leg assembly with one screw (4) on each side,
insert tabs on leg assembly without match lighting chain intoleft side of bottom shelf,
4
Attach leg assembly with two screws on each leg, Qty:8
BottomShelf
LegAssemblyw/MatchLightingChain
Correctlyassembledlegs
6,463351505

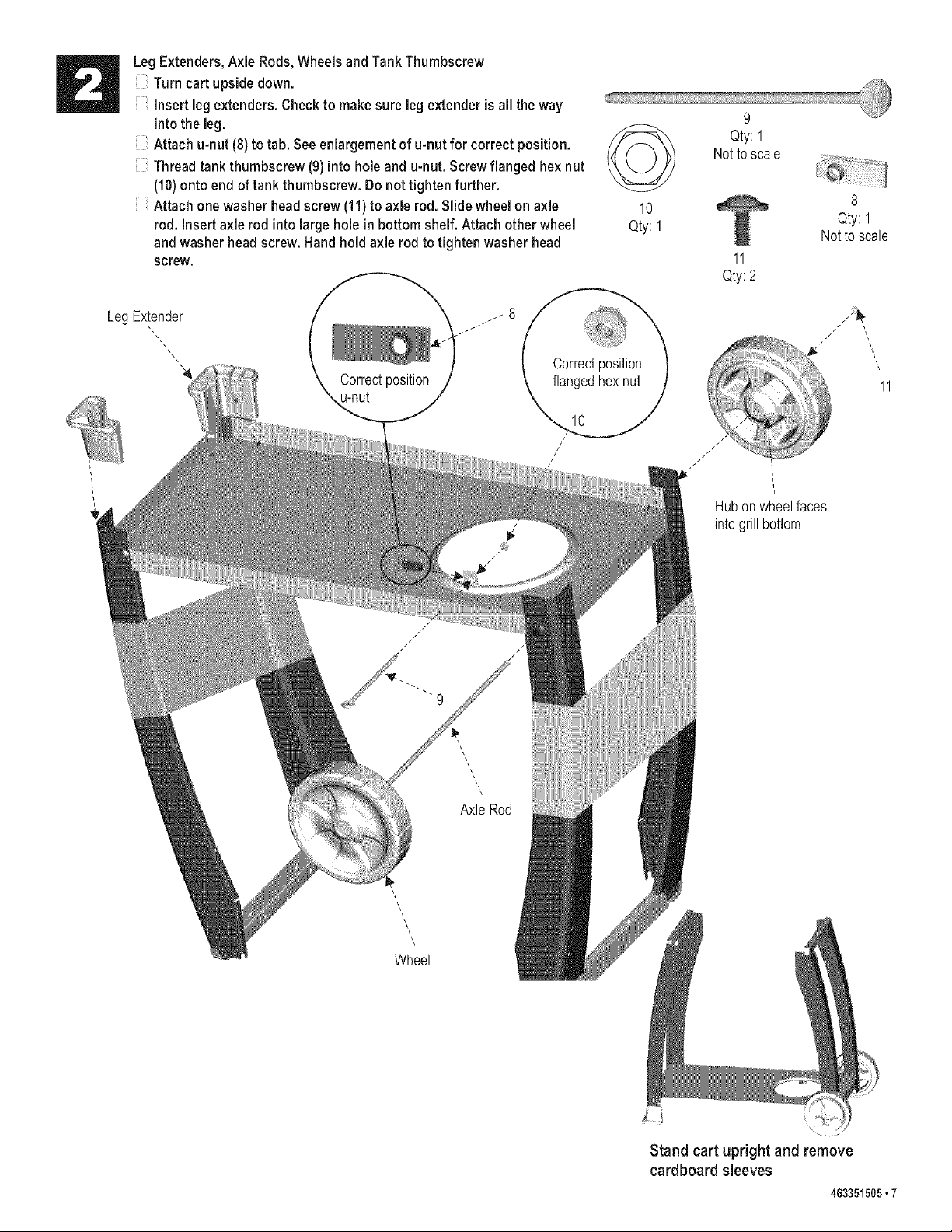

LegExtenders,Axle Rods, Wheels and Tank Thumbscrew
Turn cart upside down.
insertlegextenders. Checkto makesure legextenderis ail the way
intothe leg.
Attach u-nut (8)to tab. Seeenlargementof u-nut for correct position.
Threadtank thumbscrew (9)into hole and u-nut. Screwflanged hex nut
(10)onto end of tank thumbscrew. Do not tighten further.
Attach onewasher headscrew (11)to axle rod. Slide wheel on axle 10
rod. Insert axle rod intolarge hole in bottom shelf. Attach other wheel Qty: 1
andwasher headscrew. Hand hold axle rod to tighten washer head
screw.
LegExtender .J 8
\
Correctposition
u-nut
\
Axle Rod
9
Qty:l
Notto scale
11
8
Qty:l
Notto scale
Qty:2
11
Hubon wheelfaces
into grill bottom
Wheel
-_ _:i_¸_
Stand cart upright and remove
cardboard sleeves
463351505,7

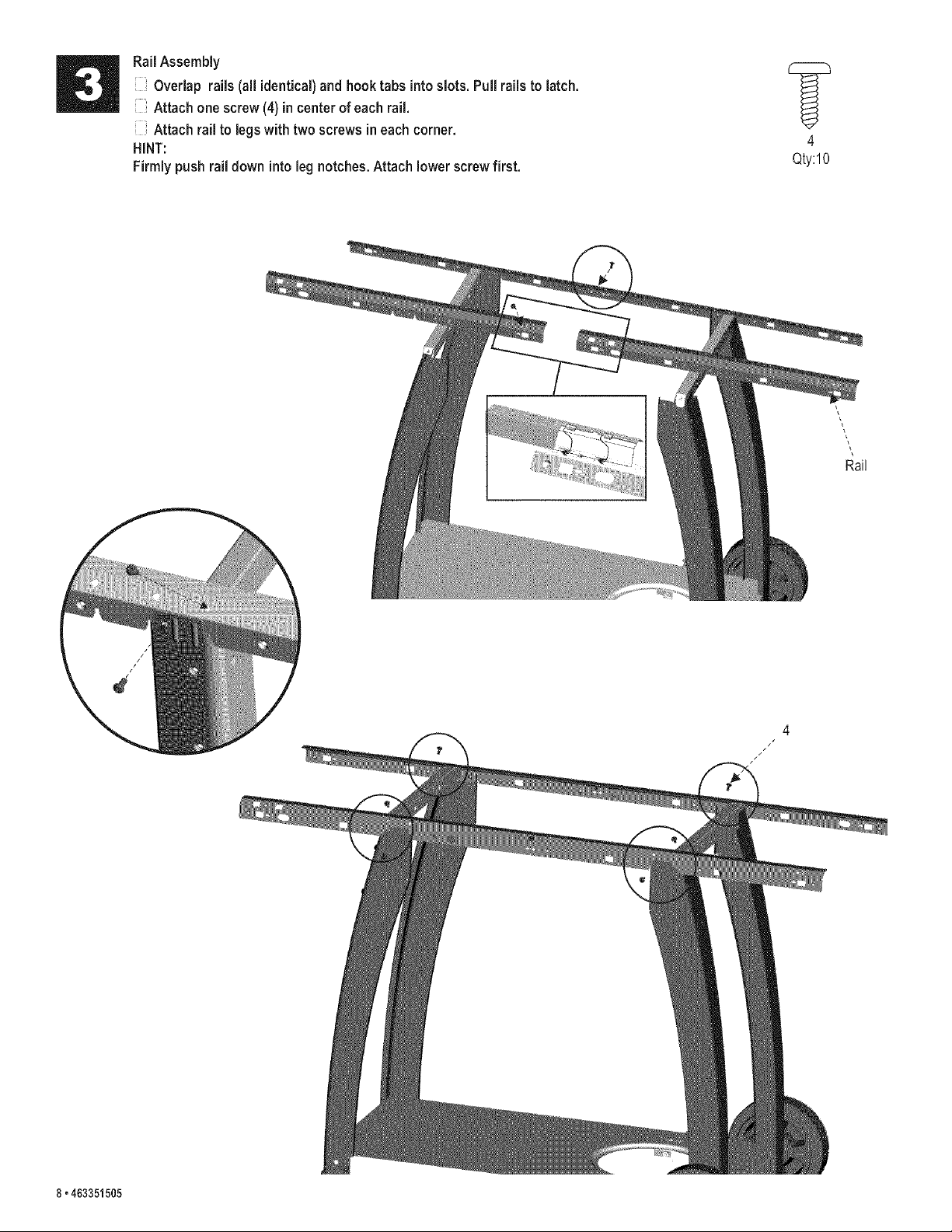

Rail Assembly
Overlap rails (all identical)and hook tabs intoslots.Pull rails to latch.
Attach one screw(4) in centerof each rail.
Attach rail to legswith two screws in each corner.
HINT:
Firmly push rail down intolegnotches.Attach lowerscrew first.
4
Qty:10
\
\
\
Rail
4
8.463351505

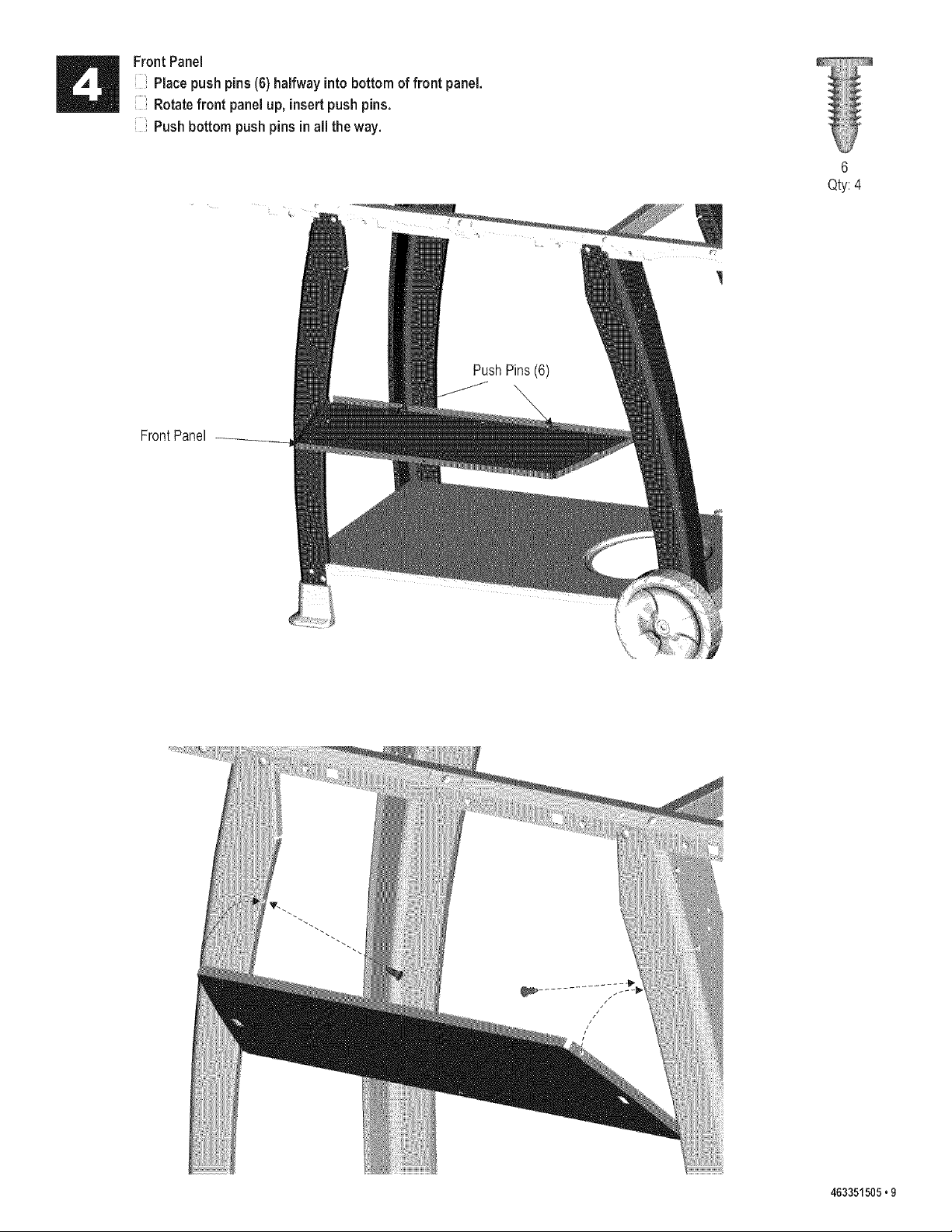

Front Panel
Placepush pins (6) halfway into bottom of front panel.
Rotatefront panel up, insertpush pins.
Push bottom push pins in all the way.
6
Qty:4
FrontPanel
\
463351505,9

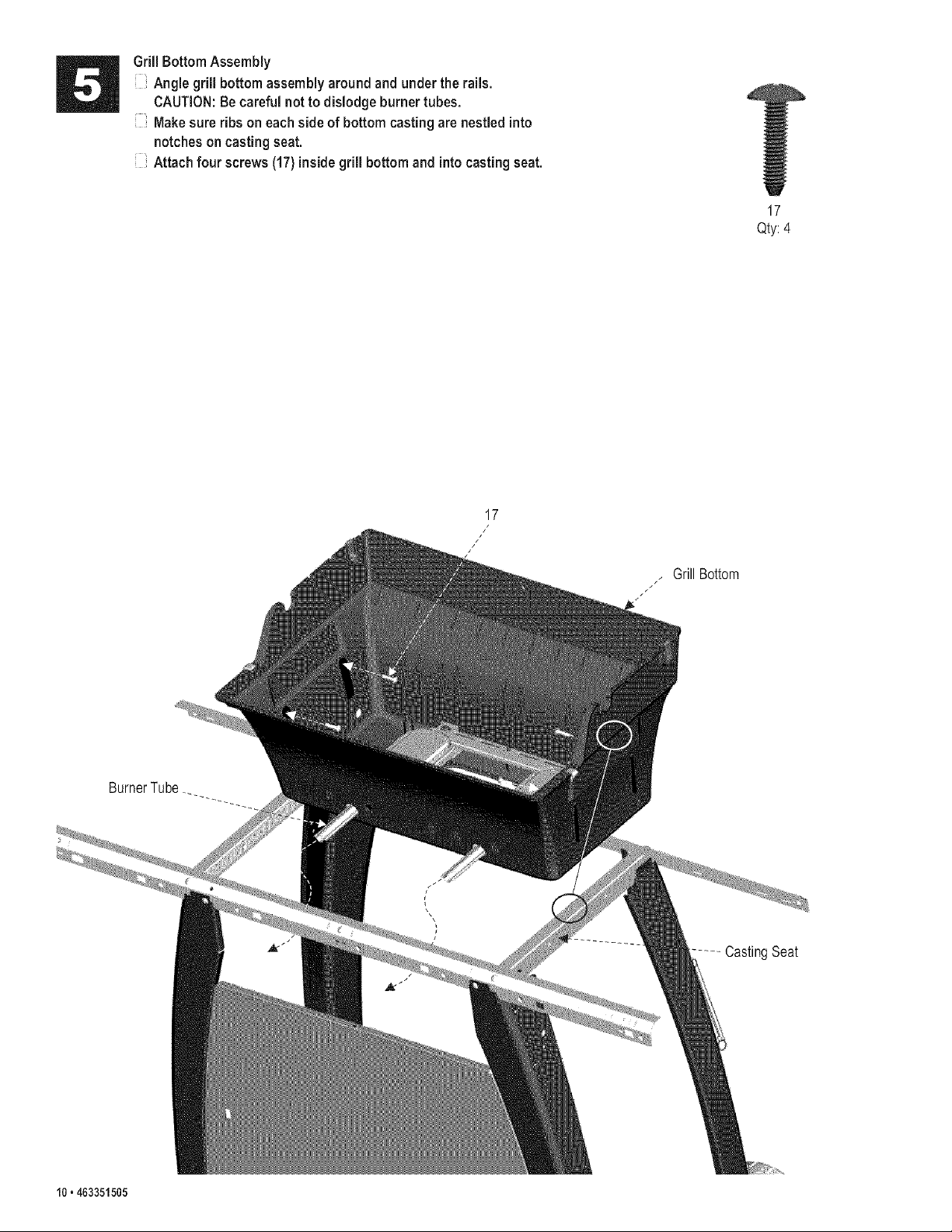

Grill Bottom Assembly
Angle grill bottom assembly around and under the rails.
CAUTION:Be careful not to dislodge burner tubes.
Makesure ribs on eachside of bottom casting are nestled into
notches on casting seat.
Attach four screws(17) insidegrill bottom and intocasting seat.
17
Qty:4
17
. GrillBottom
J
BurnerTube
CastingSeat
10,463351505

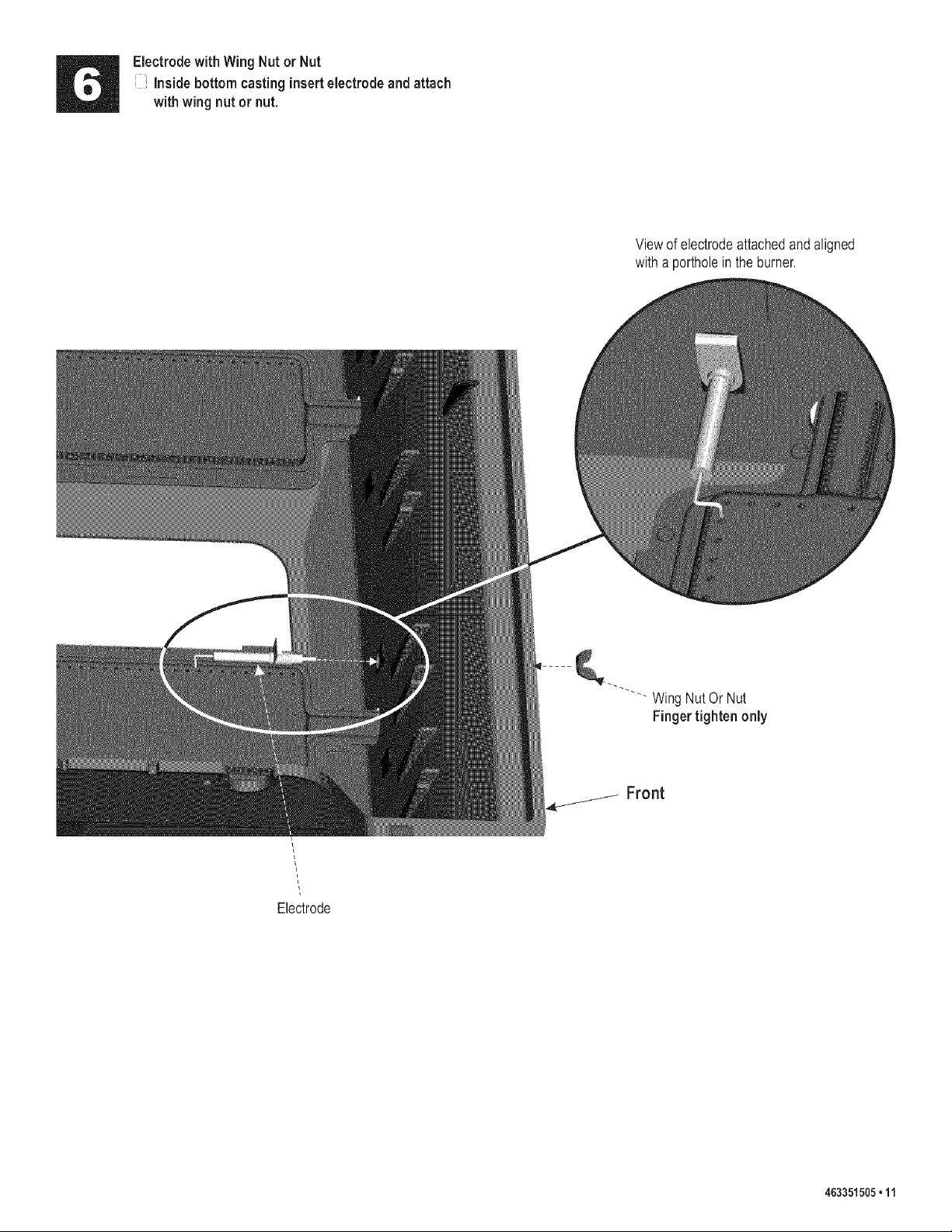

ElectrodewithWingNut or Nut
inside bottom casting insertelectrode and attach
with wing nut or nut.
Viewof electrodeattachedandaligned
witha portholeinthe burner.
..... WingNutOr Nut
Finger tighten only
Front
Electrode
463351505,11

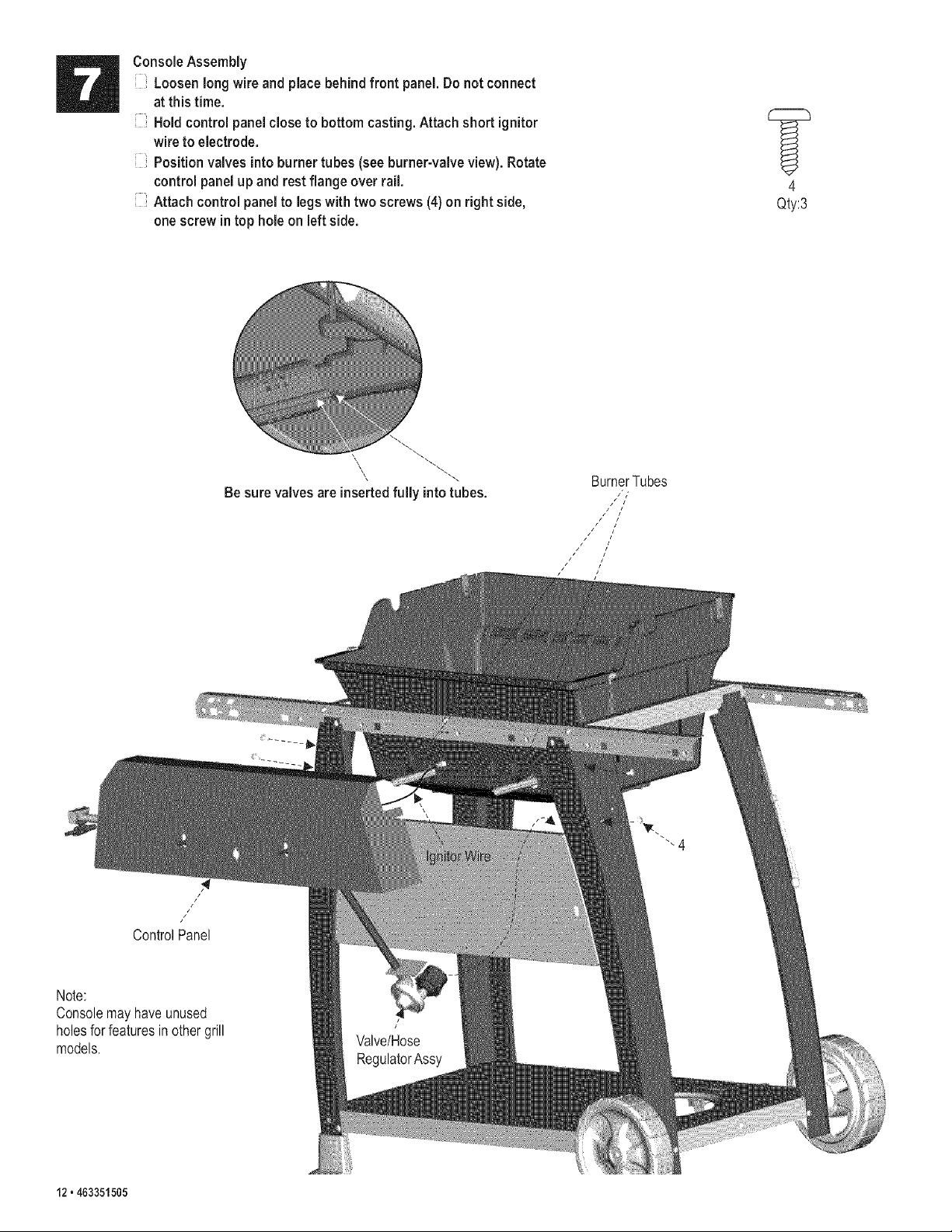

Console Assembly
Loosenlongwireandplacebehindfront panel.Do not connect
at this time.
Hold control panel close to bottom casting. Attach short ignitor
wire to electrode.
Position valves intoburner tubes (see burner-valveview). Rotate
control panelup and rest flange over rail.
Attach control panel to legs with two screws (4) on right side,
onescrewin top hole onleft side.
4
Qty:3
Be sure valves are inserted fully into tubes.
ControlPanel
Note:
Consolemayhaveunused
holesfor featuresinothergrill
models.
/
Valve/Hose
RegulatorAssy
BurnerTubes
l/
J /
/
12,463351505

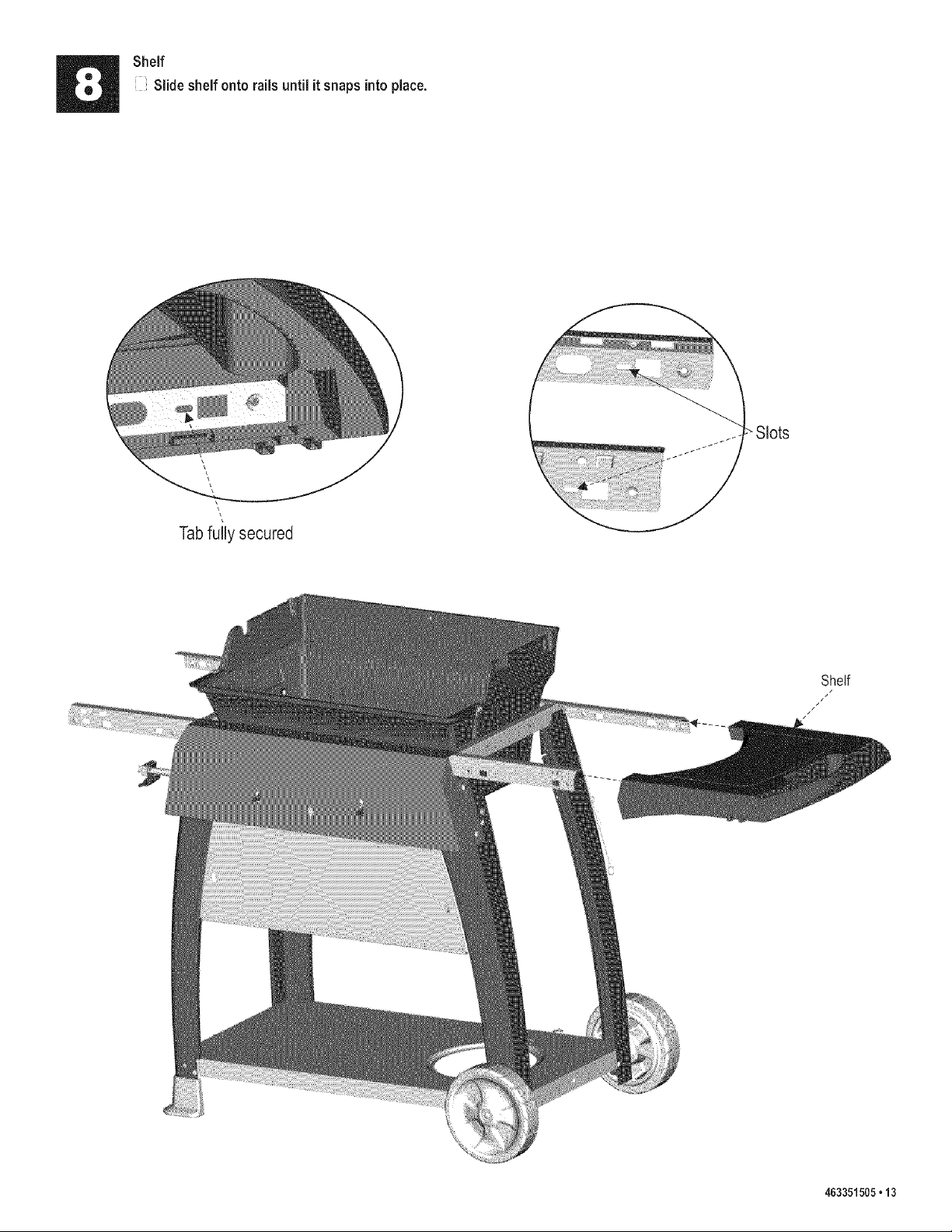

Shelf
Slideshelfontorails until it snapsintoplace.
Tabfully secured
Slots
Shelf
jJ
463351505,13

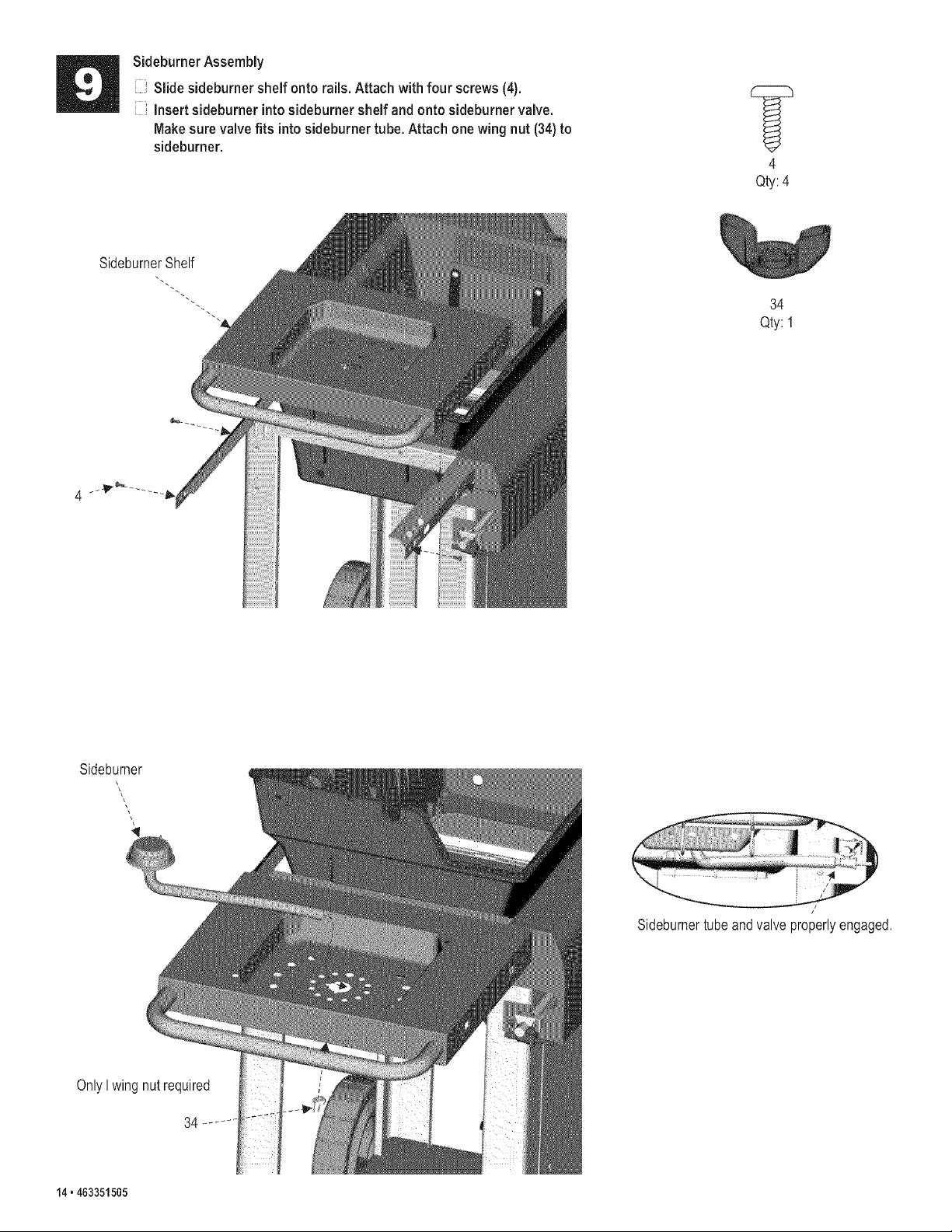

Sideburner Assembly
Slidesideburner shelf onto raUs.Attach withfour screws (4).
insertsideburner intosideburner shelf and ontosideburner valve.
Makesure valvefits intosideburner tube. Attach one wing nut (34) to
sideburner.
4
Qty:4
SidebumerShelf
34
Qty:l
f:V _ .....
4
Sidebumer
Sidebumertubeandvalveproperlyengaged.
OnlyI wingnut required
34 ......
14. 463351505

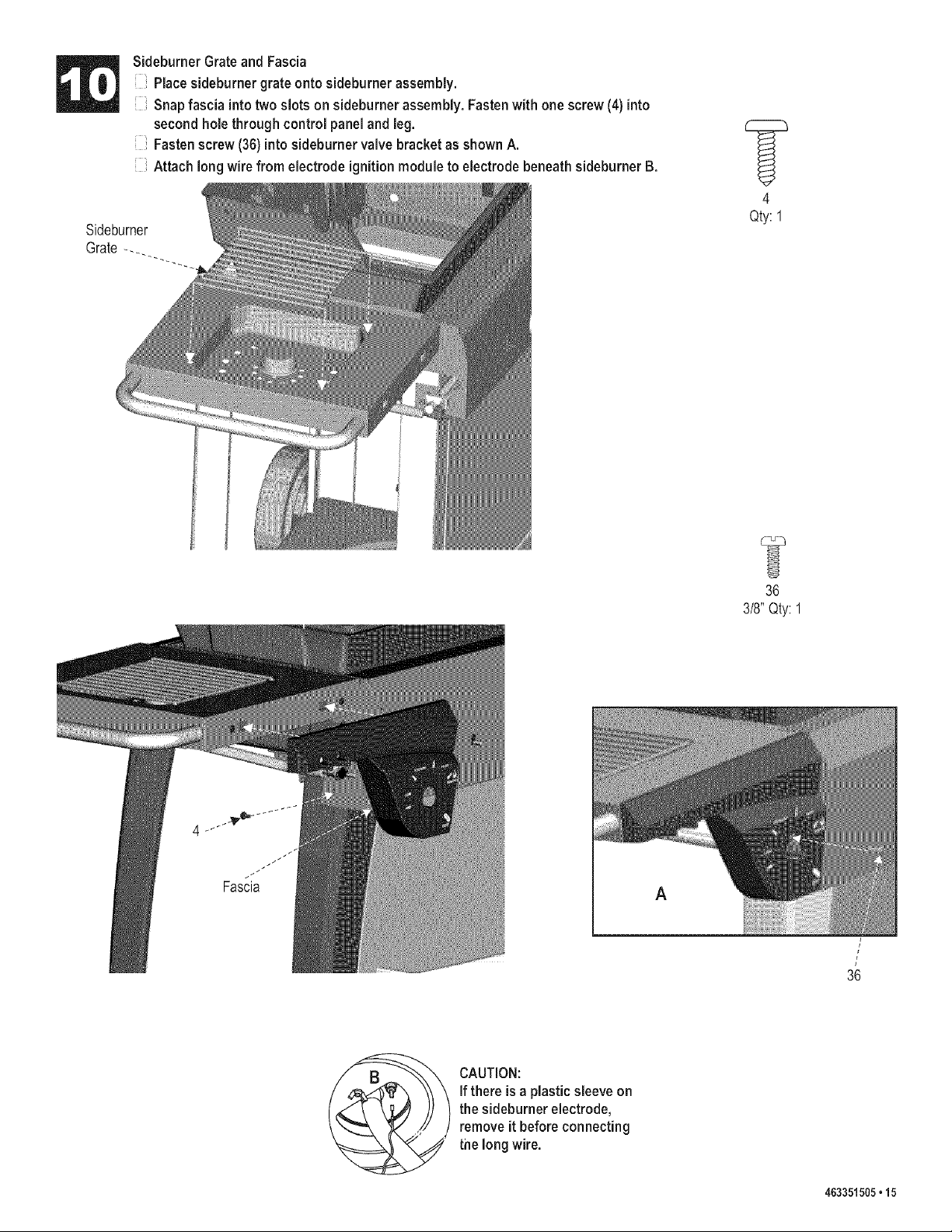

Sideburner Grateand Fascia
Placesideburner grate ontosideburner assembly.
Snapfascia intotwo slots on sideburnerassembly. Fastenwith one screw(4) into
second hole through control panel and leg.
Fastenscrew(36)intosideburnervalve bracket as shown A.
Attach long wire from electrode ignitionmodule to electrodebeneath sideburner B.
Sideburner
Grate ......
4
Qty:l
36
3/8" Qty: 1
Fascia
A
/
/
36
\
CAUTION:
If there is a plastic sleeveon
the sideburner electrode,
remove it before connecting
the long wire.
463351505,15

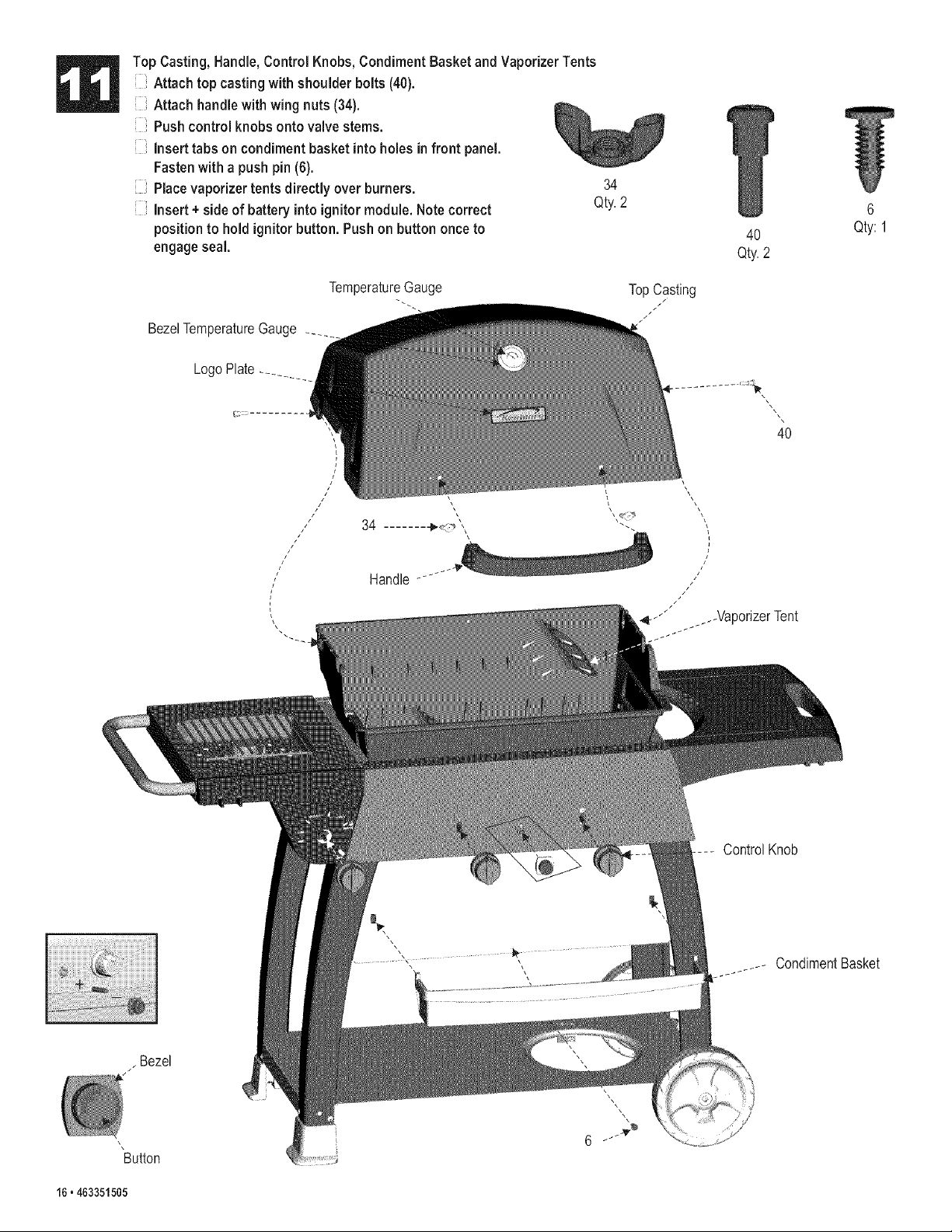

Top Casting,Handle,Control Knobs,Condiment Basket and Vaporizer Tents
Attach top casting with shoulder bolts (40).
Attach handle with wing nuts (34).
Push control knobs ontovalve stems.
Insert tabs on condiment basket intoholes infront panel.
Fastenwith a push pin (6).
Placevaporizer tents directly overburners.
Insert + side of battery intoignitormodule. Note correct
position to hold ignitorbutton. Push on button onceto
engageseal.
TemperatureGauge
BezelTemperatureGauge
LogoPlate
34
Qty.2
40 Qty:l
Qty.2
\
\\
4O
4 ........
\\
._- ..Vaporizer Tent
ControlKnob
CondimentBasket
. Bezel
Button
\\\
\\
\
6 _
16,463351505

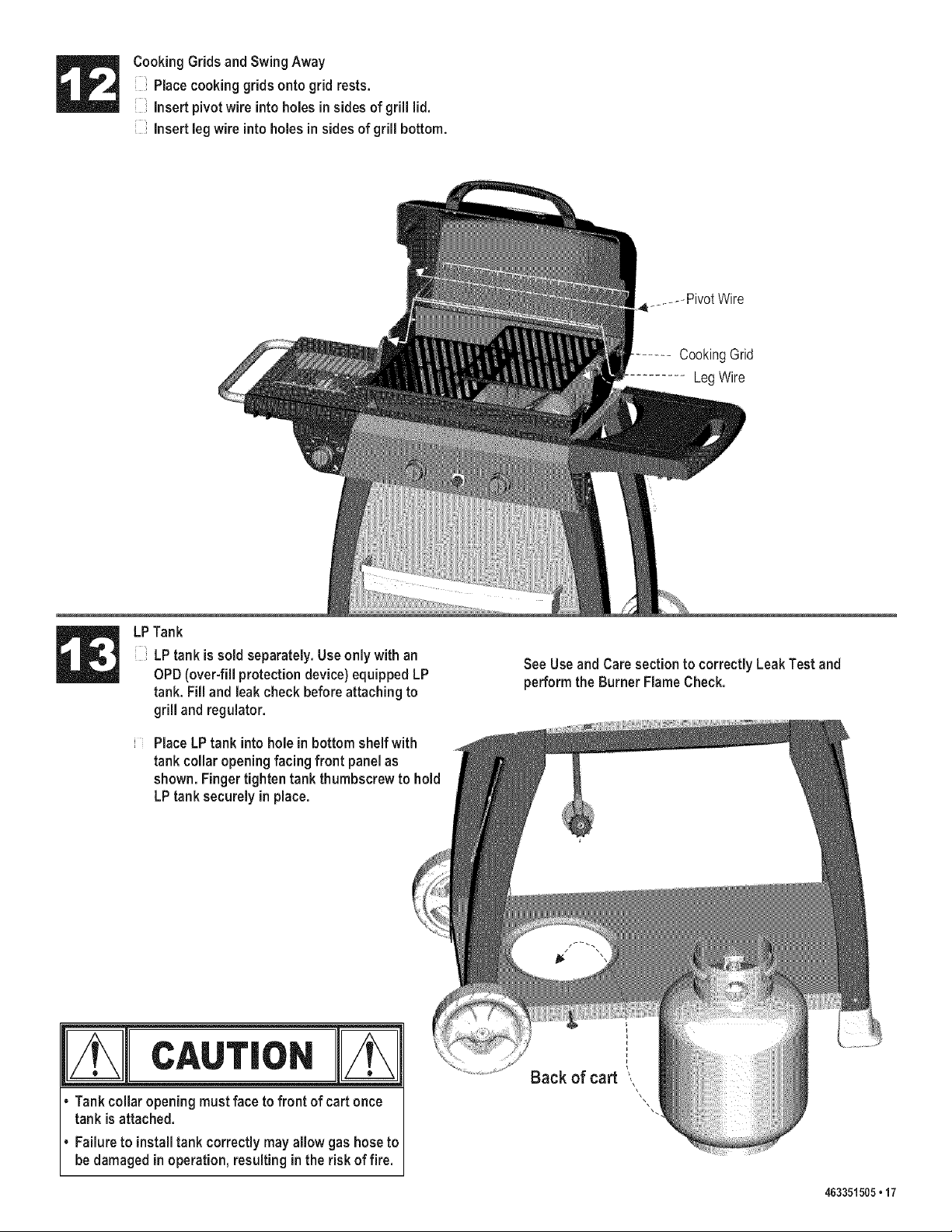

Cooking Grids and Swing Away
Placecooking grids ontogrid rests.
Insert pivot wire intoholes insides of grill lid.
Insert leg wire intoholes in sides of grill bottom.
---Pivot Wire
LPTank
LPtank issold separately. Use only with an
OPD(over-fill protection device)equipped LP
tank. Fill and leak check before attaching to
grill and regulator.
PlaceLP tank into hole inbottom shelf with
tank collar opening facing front panelas
shown, Finger tighten tank thumbscrew to hold
LPtank securely in place,
SeeUseand Care section to correctly Leak Test and
perform the Burner FlameCheck.
CAUTIO.
* Tank collar opening must face to front of cart once
tank is attached.
, Failure to install tank correctly may allow gas hose to
be damagedin operation, resulting in the risk of fire.
\\\
463351505,17

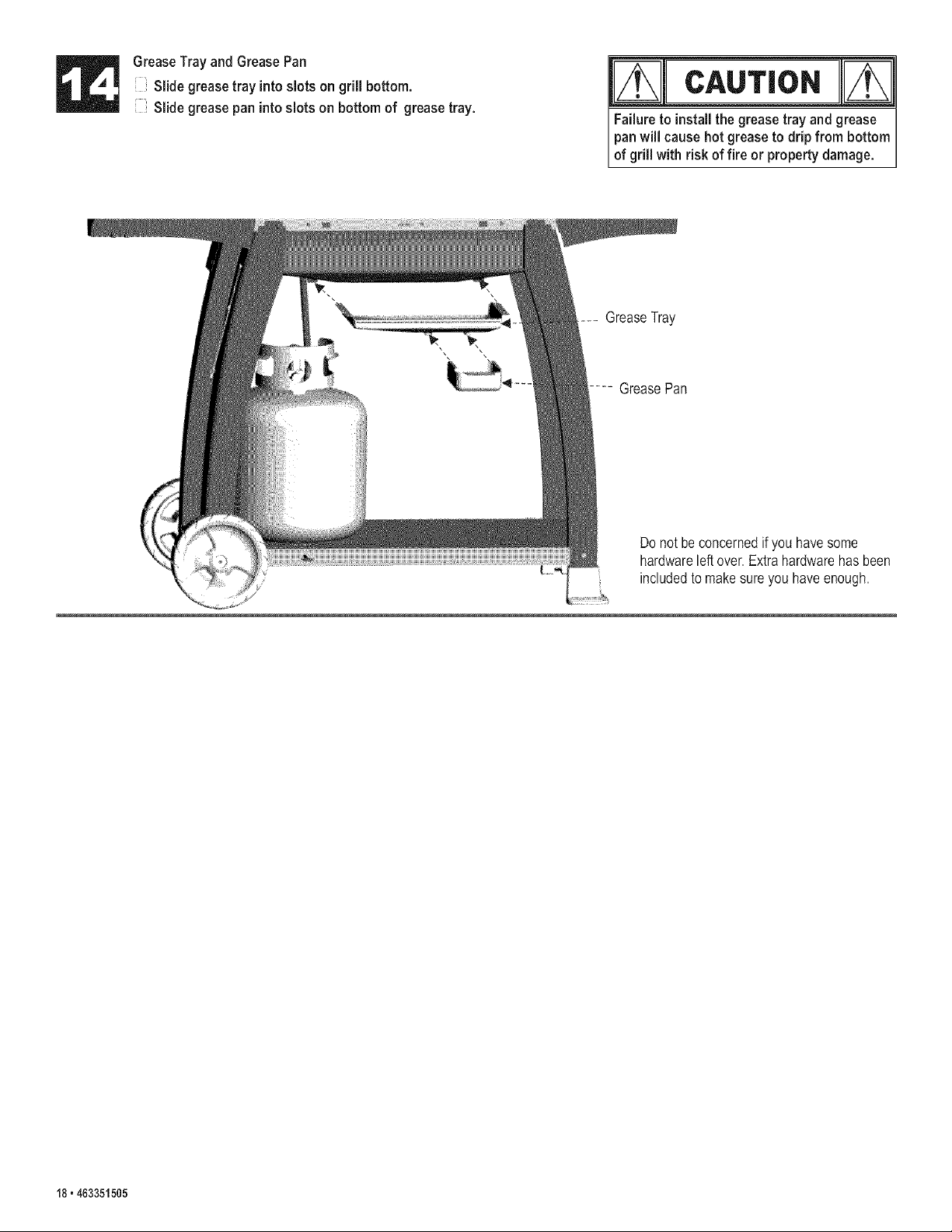

GreaseTray and GreasePan
Slidegrease tray intoslots on grill bottom.
Slidegrease pan intoslotson bottom of grease tray.
CAUT|ON
Failureto installthe grease tray and grease
panwUlcause hot grease to drip from bottom
of grill with risk of fire or property damage.
GreaseTray
GreasePan
Do not beconcernedif you havesome
hardwareleft over.Extrahardwarehasbeen
includedto makesureyou haveenough.
18,463351505
LP Tank
• Never fill the cylinder beyond 80% full. An overfilled
spare LP tank is hazardous due to possible gas
released from the safety relief valve.
• When LP tank is over 80% full, the safety relief valve on
the LP tank could activate, releasing gas and cause an
intense fire with risk of property damage, serious
injury or death.
• NEVER store a spare LP tank under or near grill or in
enclosed areas.
• if you see, smell or hear escaping gas, immediately get
away from the LP tank/grill and call your fire
department.
• All spare LP tanks must have safety caps installed on
the LP tank outlet.
LP Tank Removal, Transport And Storage
. Turn OFF all control knobs and LP tank valve. Turn coupling
nut counterclockwise by hand only - do not use tools to
disconnect. Lift LP tank wire upward off of LP tank collar, then
lift LP tank up and off of support bracket. Install safety cap onto
LP tank valve. Always use cap and strap supplied with valve.
Failure to use safety cap as directed may result in serious
personal injury and/or property damage.
LP TankValve
Safety Cap
RetainerStrap
, A disconnected LP tank in storage or being transported must
have a safety cap installed (as shown). Do not store an LP tank
in enclosed spaces such as a carport, garage, porch, covered
patio or other building. Never leave an LP tank inside a vehicle
which may become overheated by the sun.
, Do not store an LP tank in an area where children play.
The LP tank used with your grill must meet the following
requirements:
Use LP tanks only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
capacity maximum.
LP tanks must be constructed and marked in accordance with
specifications for LP tank of the U.S. Department of
Transportation (DOT). See LP tank collar for marking.
• LP tank valve must have:
, Type 1 outlet compatible with
regulator or grill.
, Safety relief valve.
, UL listed Overfill Protection
OPDHand Wheel
Device (OPD). This OPD safety
feature is identified by a unique triangular hand wheel. Use
only LP tanks equipped with this type of valve.
, LP tank must be arranged for vapor withdrawal and include
collar to protect LP tank valve.
LP (Liquefied Petroleum Gas)
• LP gas is nontoxic, odorless and colorless when produced. For
Your Safety, LP gas has been given an odor (similar to rotten
cabbage) so that it can be smelled.
• LP gas is highly flammable and may ignite unexpectedly when
mixed with air.
LP Tank Filling
Useonly licensed and experienced dealers.
• LP dealer must purge tank before filling.
• Dealer should NEVERfill LP tank more than 80% of LP tank
volume. Volume of propane in tank will vary by temperature.
• A frosty regulator indicates gas overfill. Immediately close LP
tank valve and call local LP gas dealer for assistance.
, Do not release liquid propane (LP) gas into the atmosphere.
This is a hazardous practice.
, To remove gas from LP tank, contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under "Gas Companies" for nearest certified LP
dealers.
463351505,19

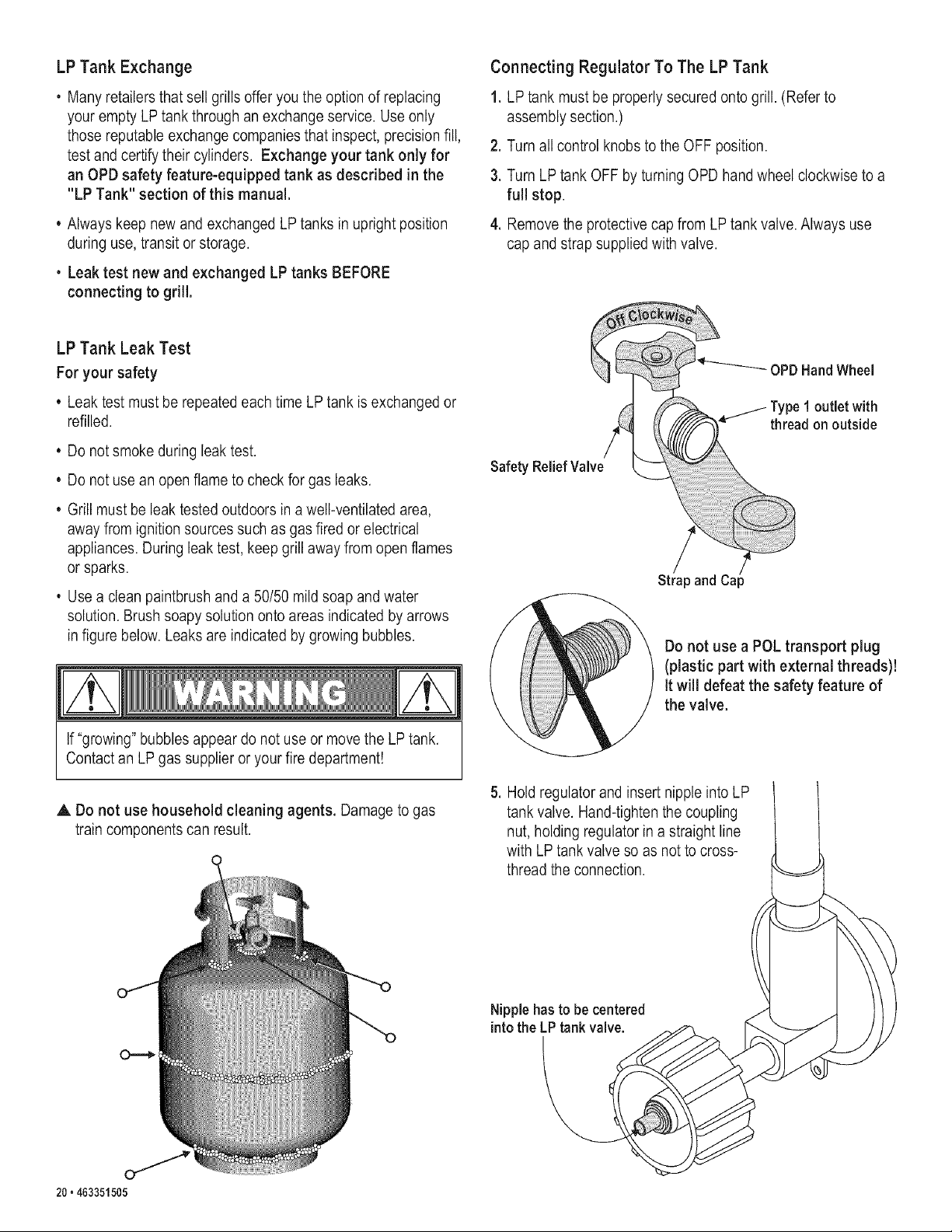

LP Tank Exchange
, Many retailers that sell grills offer you the option of replacing
your empty LP tank through an exchange service. Use only
those reputable exchange companies that inspect, precision fill,
test and certify their cylinders. Exchange your tank only for
an OPD safety feature-equipped tank as described in the
"LP Tank" section of this manual.
• Always keep new and exchanged LP tanks in upright position
during use, transit or storage.
, Leak test new and exchanged LP tanks BEFORE
connecting to grill.
Connecting Regulator To The LP Tank
1. LP tank must be properly secured onto grill. (Refer to
assembly section.)
2. Turn all control knobs to the OFF position.
3. Turn LP tank OFF by turning OPD hand wheel clockwise to a
full stop.
4. Remove the protective cap from LP tank valve. Always use
cap and strap supplied with valve.
LP Tank Leak Test
For your safety
• Leak test must be repeated each time LP tank is exchanged or
refilled.
Do not smoke during leak test.
• Do not use an open flame to check for gas leaks.
Grill must be leak tested outdoors in a well-ventilated area,
away from ignition sources such as gas fired or electrical
appliances. During leak test, keep grill away from open flames
or sparks.
, Usea clean paintbrush and a 50/50 mild soap and water
solution. Brush soapy solution onto areas indicated by arrows
in figure below. Leaks are indicated by growing bubbles.
If "growing" bubbles appear do not use or move the LP tank.
Contact an LP gas supplier or your fire department!
A Do not use household cleaning agents. Damage to gas
train components can result.
Safety Relief Valve
Strap and Cap
Do not use a POL transport plug
(plastic part with external threads)!
it will defeat the safety feature of
the valve.
5. Hold regulator and insert nipple into LP
tank valve. Hand-tighten the coupling
nut, holding regulator in a straight line
with LPtank valve so as not to cross-
thread the connection.
O====_
Nipple hasto be centered
intothe LP tank valve.
20. 463351505

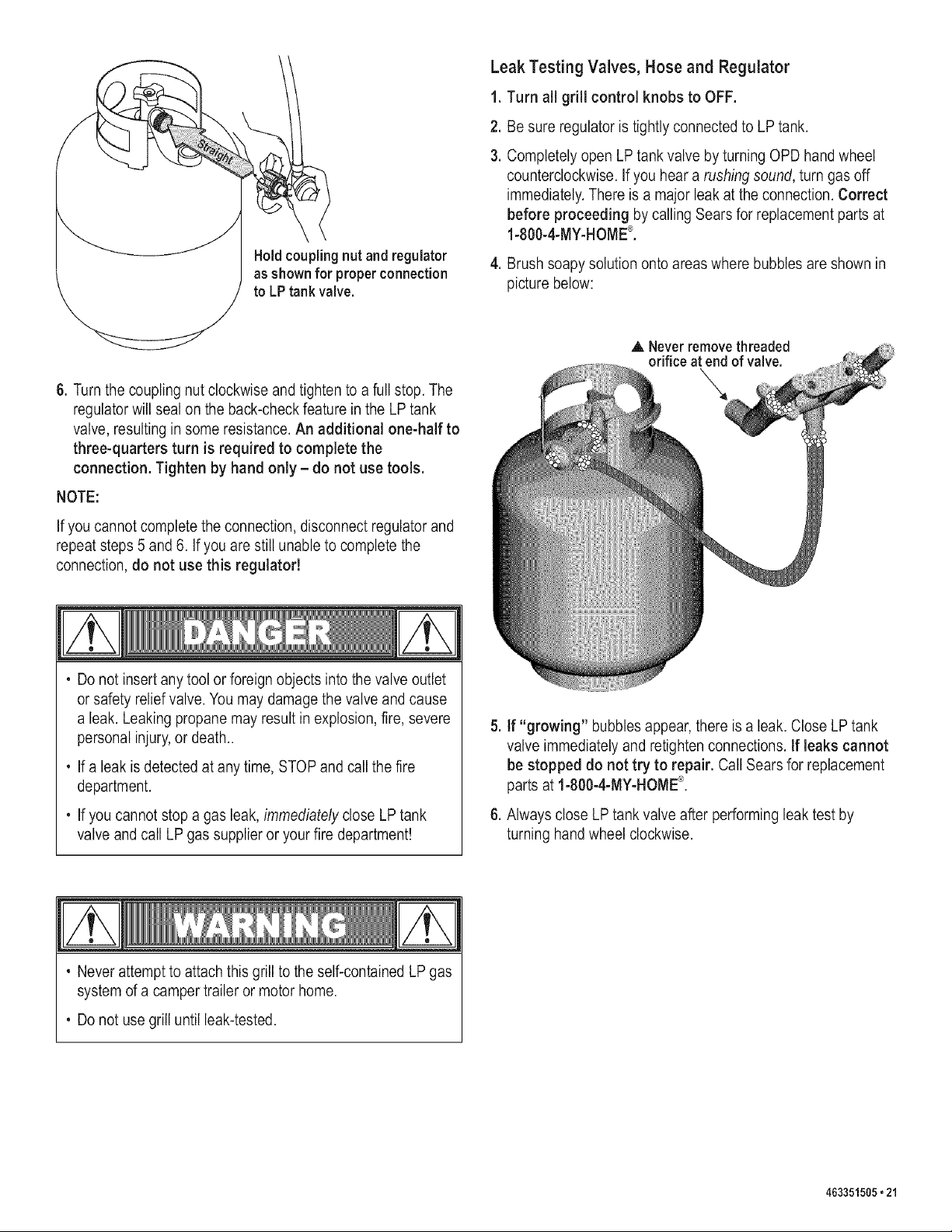

Hold coupling nutand regulator
as shown for properconnection
to LP tank valve.
Leak Testing Valves, Hose and Regulator
1. Turn all grill control knobs to OFF.
,
3.
Be sure regulator is tightly connected to LP tank.
Completely open LP tank valve by turning OPD hand wheel
counterclockwise. If you hear a rushing sound, turn gas off
immediately. There is a major leak at the connection. Correct
before proceeding by calling Sears for replacement parts at
1-800-4-MY-HOME®.
4. Brush soapy solution onto areas where bubbles are shown in
picture below:
6. Turn the coupling nut clockwise and tighten to a full stop. The
regulator will seal on the back-check feature in the LP tank
valve, resulting in some resistance. An additional one-half to
three-quarters turn is required to complete the
connection. Tighten by hand only - do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulator and
repeat steps 5 and 6. If you are still unable to complete the
connection, do not use this regulator!
, Do not insert any tool or foreign objects into the valve outlet
or safety relief valve. You may damage the valve and cause
a leak. Leaking propane may result in explosion, fire, severe
personal injury,or death..
, If a leak is detected at any time, STOP and call the fire
department.
, If you cannot stop a gas leak, immediately close LP tank
valve and call LP gas supplier or your fire department!
A Never remove threaded
orifice at end of valve.
5. ff "growing" bubbles appear, there is a leak. Close LP tank
valve immediately and retighten connections. If leaks cannot
be stopped do not try to repair, Call Sears for replacement
parts at 1-800-4-MY-HOME®.
6. Always close LP tank valve after performing leak test by
turning hand wheel clockwise.
, Never attempt to attach this grill to the self-contained LP gas
system of a camper trailer or motor home.
, Do not use grill until leak-tested.
463351505,21

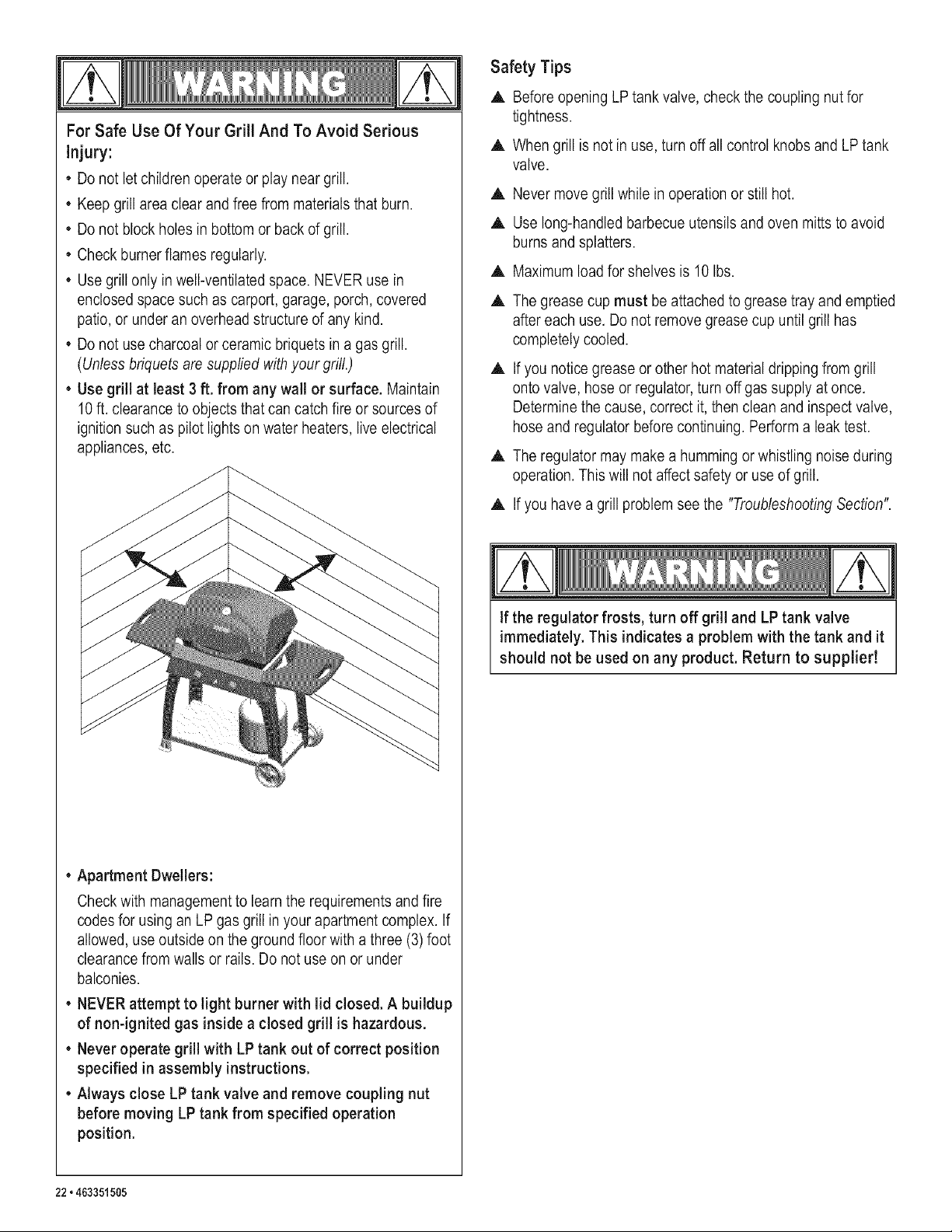

For Safe Use Of Your Grill And To Avoid Serious
injury:
• Do not let children operate or play near grill.
• Keep grill area clear and free from materials that burn.
• Do not block holes in bottom or back of grill.
• Check burnerflames regularly.
• Use grill only in well-ventilated space. NEVER use in
enclosed space such as carport, garage, porch, covered
patio, or under an overhead structure of any kind.
• Do not use charcoal or ceramic briquets in a gas grill.
(Unless briquets are supplied with your grill.)
• Use grill at least 3 ft. from any wall or surface. Maintain
10ft. clearance to objects that can catch fire or sources of
ignition such as pilot lights on water heaters, live electrical
appliances, etc.
Apartment Dwellers:
Check with management to learn the requirements and fire
codes for using an LP gas grill in your apartment complex. If
allowed, use outside on the ground floor with a three (3) foot
clearance from walls or rails. Do not use on or under
balconies.
• NEVER attempt to light burner with lid closed. A buildup
of non-ignited gas inside a closed grill is hazardous.
• Never operate grill with LP tank out of correct position
specified in assembly instructions.
• Always close LP tank valve and remove coupling nut
before moving LP tank from specified operation
position.
Safety Tips
,A. Before opening LP tank valve, check the coupling nut for
tightness.
A When grill is not in use, turn offall control knobs and LP tank
valve.
A Never move grill while in operation or still hot.
A Use long-handled barbecue utensils and oven mitts to avoid
burns and splatters.
A Maximum load for shelves is 10 Ibs.
A The grease cup must be attached to grease tray and emptied
after each use. Do not remove grease cup until grill has
completely cooled.
,A. If you notice grease or other hot material dripping from grill
onto valve, hose or regulator, turn off gas supply at once.
Determine the cause, correct it, then clean and inspect valve,
hose and regulator before continuing. Perform a leak test.
A The regulator may make a humming or whistling noise during
operation. This will not affect safety or use of grill.
A If you have a grill problem see the "Troubleshooting Section".
if the regulator frosts, turn off grill and LP tank valve
immediately. This indicates a problem with the tank and it
should not be used on any product. Return to supplier!
22,463351505
m m

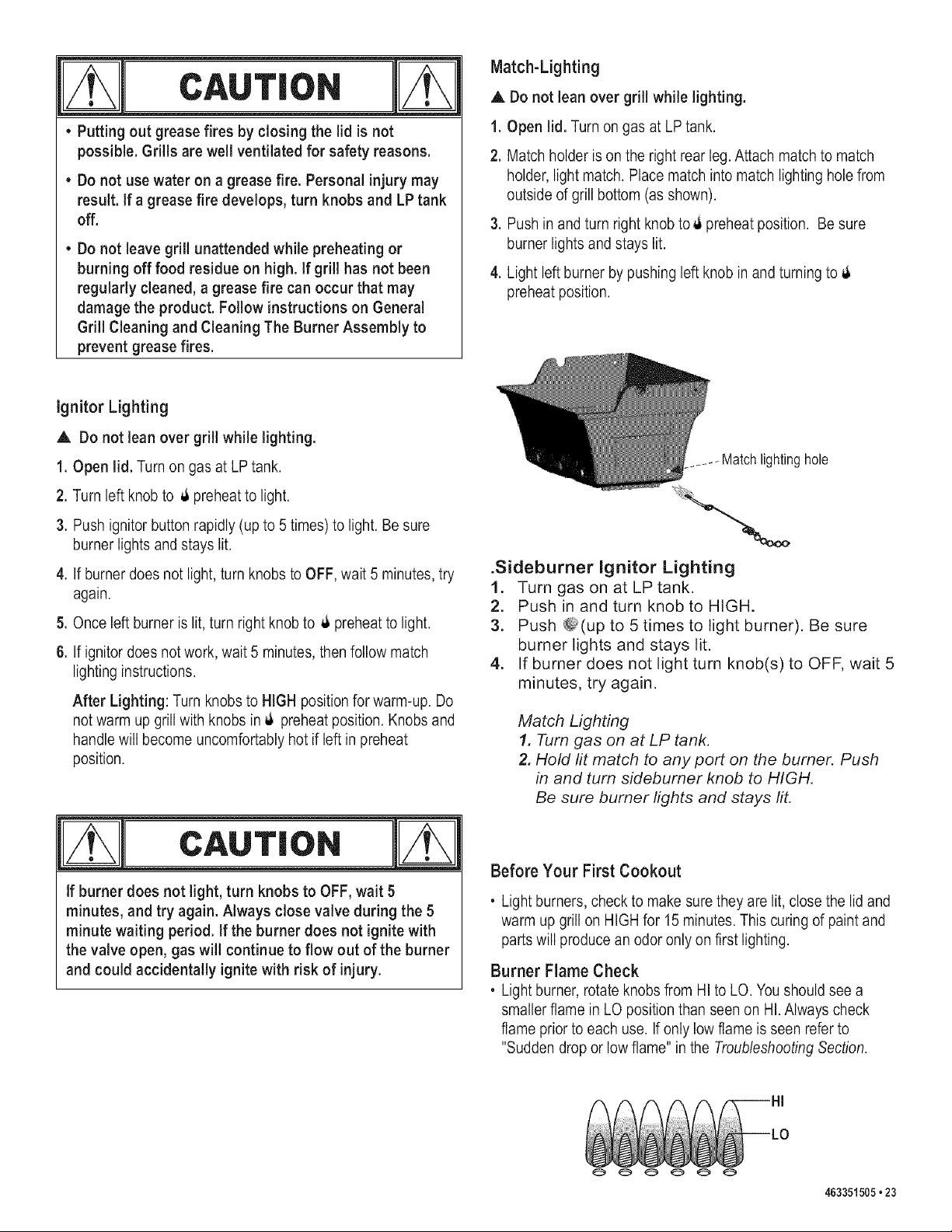

cAuTIo.
* Putting out grease fires by closing the lid is not
possible. Grills are well ventilated for safety reasons.
, Do not use water on a grease fire. Personal injury may
result. If a grease fire develops, turn knobs and LP tank
off.
* Do not leave grill unattended while preheating or
burning off food residue on high. if grill has not been
regularly cleaned, a grease fire can occur that may
damage the product. Follow instructions on General
Grill Cleaning and Cleaning The Burner Assembly to
prevent grease fires.
Match-Lighting
A Do not lean over grill while lighting.
1. Open lid. Turn on gas at LP tank.
2. Match holder ison the right rear leg. Attach match to match
holder, light match. Place match into match lighting hole from
outside of grill bottom (as shown).
3. Push in and turn right knob to _ preheat position. Be sure
burner lights and stays lit.
4. Light left burner by pushing left knob in and turning to
preheat position.
Ignitor Lighting
A Do not lean over grill while lighting.
1. Open lid. Turn on gas at LP tank.
2. Turn left knob to _ preheat to light.
3. Push ignitor button rapidly (up to 5 times) to light. Be sure
burner lights and stays lit.
4. If burner does not light, turn knobs to OFF, wait 5 minutes, try
again.
5. Once left burner is lit, turn right knob to _ preheat to light.
6. If ignitor does not work, wait 5 minutes, then follow match
lighting instructions.
After Lighting: Turn knobs to HIGH position for warm-up. Do
not warm up grill with knobs in _ preheat position. Knobs and
handle will become uncomfortably hot if left in preheat
position.
CAUTION
ff burner does not light, turn knobs to OFF, wait 5
minutes, and try again. Always close valve during the 5
minute waiting period. If the burner does not ignite with
the valve open, gas will continue to flow out of the burner
and could accidentally ignite with risk of injury.
-- Matchlightinghole
.Sideburner Ignitor Lighting
1. Turn gas on at LP tank.
2. Push in and turn knob to HIGH.
3. Push @(up to 5 times to light burner). Be sure
burner lights and stays lit.
4. If burner does not light turn knob(s) to OFF, wait 5
minutes, try again.
Match Lighting
1. Turn gas on at LP tank.
2. Hold fit match to any port on the burner. Push
in and turn sidebumer knob to HIGH.
Be sure burner lights and stays fit.
Before Your First Cookout
, Light burners, check to make sure they are lit, close the lid and
warm up grill on HIGH for 15 minutes. This curing of paint and
parts will produce an odor only on first lighting.
Burner Flame Check
, Light burner, rotate knobs from HI to LO. You should see a
smaller flame in LO position than seen on HI. Always check
flame prior to each use. If only low flame is seen refer to
"Sudden drop or low flame" in the Troubleshooting Section.
463351505,23

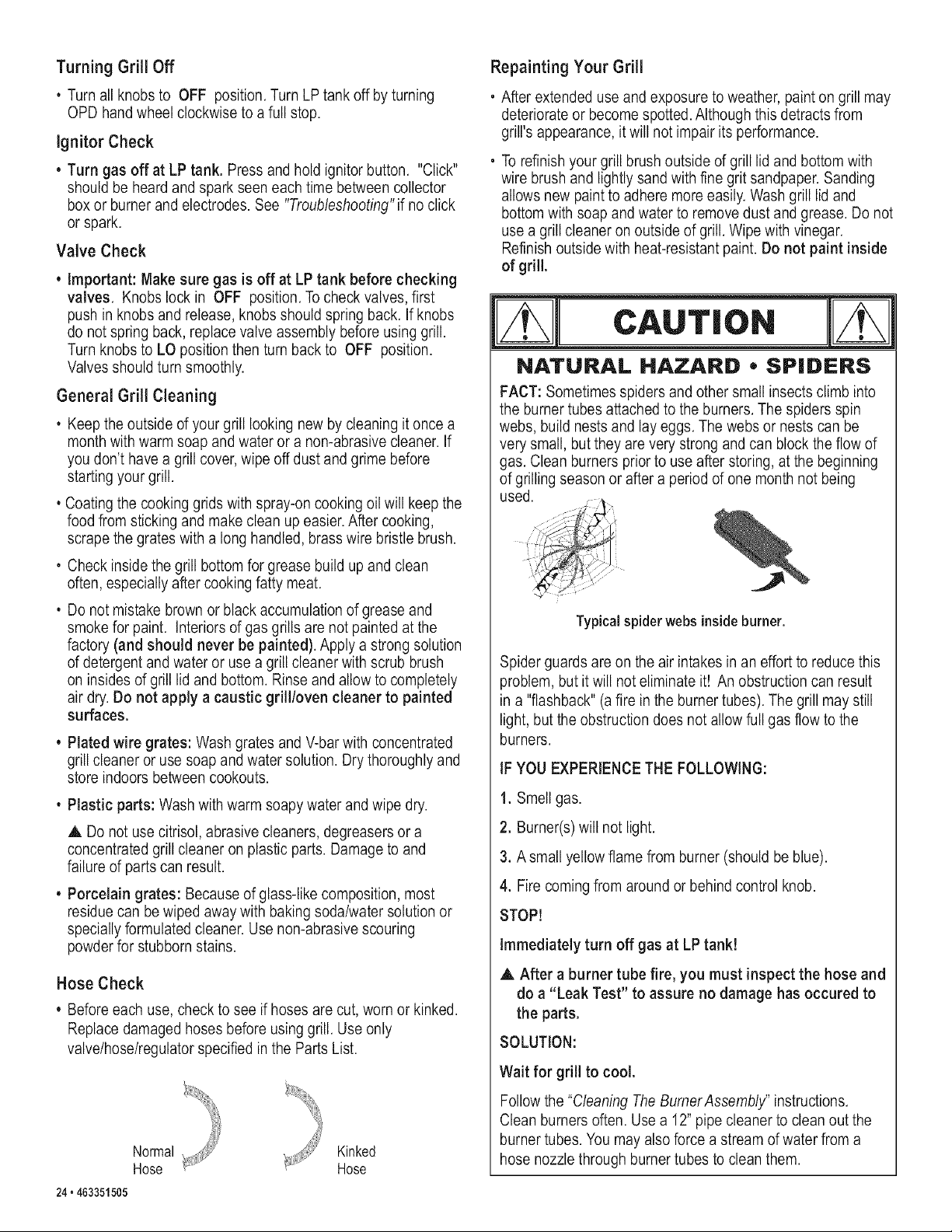

Turning Grill Off
, Turn all knobs to OFF position. Turn LP tank off by turning
OPD hand wheel clockwise to a full stop.
Ignitor Check
• Turn gas off at LP tank, Press and hold ignitor button. "Click"
should be heard and spark seen each time between collector
box or burner and electrodes. See "Troubleshooting"if no click
or spark.
Valve Check
• important: Make sure gas is off at LP tank before checking
valves. Knobs lock in OFF position. To check valves, first
push in knobs and release, knobs should spring back. If knobs
do not spring back, replace valve assembly before using grill.
Turn knobs to LO position then turn back to OFF position.
Valves should turn smoothly.
General Grill Cleaning
, Keep the outside of your grill looking new by cleaning it once a
month with warm soap and water or a non-abrasive cleaner. If
you don't have a grill cover, wipe off dust and grime before
starting your grill.
, Coating the cooking grids with spray-on cooking oil will keep the
food from sticking and make clean up easier. After cooking,
scrape the grates with a long handled, brass wire bristle brush.
, Check inside the grill bottom for grease build up and clean
often, especially after cooking fatty meat.
, Do not mistake brown or black accumulation of grease and
smoke for paint. Interiors of gas grills are not painted at the
factory (and should never be painted). Apply a strong solution
of detergent and water or use a grill cleaner with scrub brush
on insides of grill lid and bottom. Rinse and allow to completely
air dry. Do not apply a caustic grill/oven cleaner to painted
surfaces.
• Plated wire grates: Wash grates and V-bar with concentrated
grill cleaner or use soap and water solution. Dry thoroughly and
store indoors between cookouts.
, Plastic parts: Wash with warm soapy water and wipe dry.
A Do not use citrisol, abrasive cleaners, degreasers or a
concentrated grill cleaner on plastic parts. Damage to and
failure of parts can result.
• Porcelain grates: Because of glass-like composition, most
residue can be wiped away with baking soda/water solution or
specially formulated cleaner. Use non-abrasive scouring
powder for stubborn stains.
Hose Check
• Before each use, check to see if hoses are cut, worn or kinked.
Replace damaged hoses before using grill. Use only
valve/hose/regulator specified in the Parts List.
Normal Kinked
Hose Hose
24. 463351505
Repainting Your Grill
, After extended use and exposure to weather, paint on grill may
deteriorate or become spotted.Although this detracts from
grill's appearance, it will not impair its performance.
, To refinish your grill brush outside of grill lid and bottom with
wire brush and lightly sand with fine grit sandpaper. Sanding
allows new paint to adhere more easily. Wash grill lid and
bottom with soap and water to remove dust and grease. Do not
use a grill cleaner on outside of grill. Wipe with vinegar.
Refinish outside with heat-resistant paint. Do not paint inside
of grill,
__ m
D T,o.
NATURAL HAZARD • SPIDERS
FACT: Sometimes spiders and other small insects climb into
the burner tubes attached to the burners. The spiders spin
webs, build nests and lay eggs. The webs or nests can be
very small, but they are very strong and can block the flow of
gas. Clean burners prior to use after storing, at the beginning
of grilling season or after a period of one month not being
used.
Typical spider webs insideburner.
Spider guards are on the air intakes in an effort to reduce this
problem, but it will not eliminate it! An obstruction can result
in a "flashback" (a fire in the burner tubes). The grill may still
light, but the obstruction does not allow full gas flow to the
burners.
iF YOU EXPERIENCE THE FOLLOWING:
1. Smell gas.
2. Burner(s) will not light.
3. A small yellow flame from burner (should be blue).
4. Fire coming from around or behind control knob.
STOP!
immediately turn off gas at LP tank!
A After a burner tube fire, you must inspect the hose and
do a "Leak Test" to assure no damage has occured to
the parts,
SOLUTION:
Wait for grill to cool.
Follow the "Cleaning The Bumer Assembly" instructions.
Clean burners often. Use a 12" pipe cleaner to clean out the
burner tubes. You may also force a stream of water from a
hose nozzle through burner tubes to clean them.

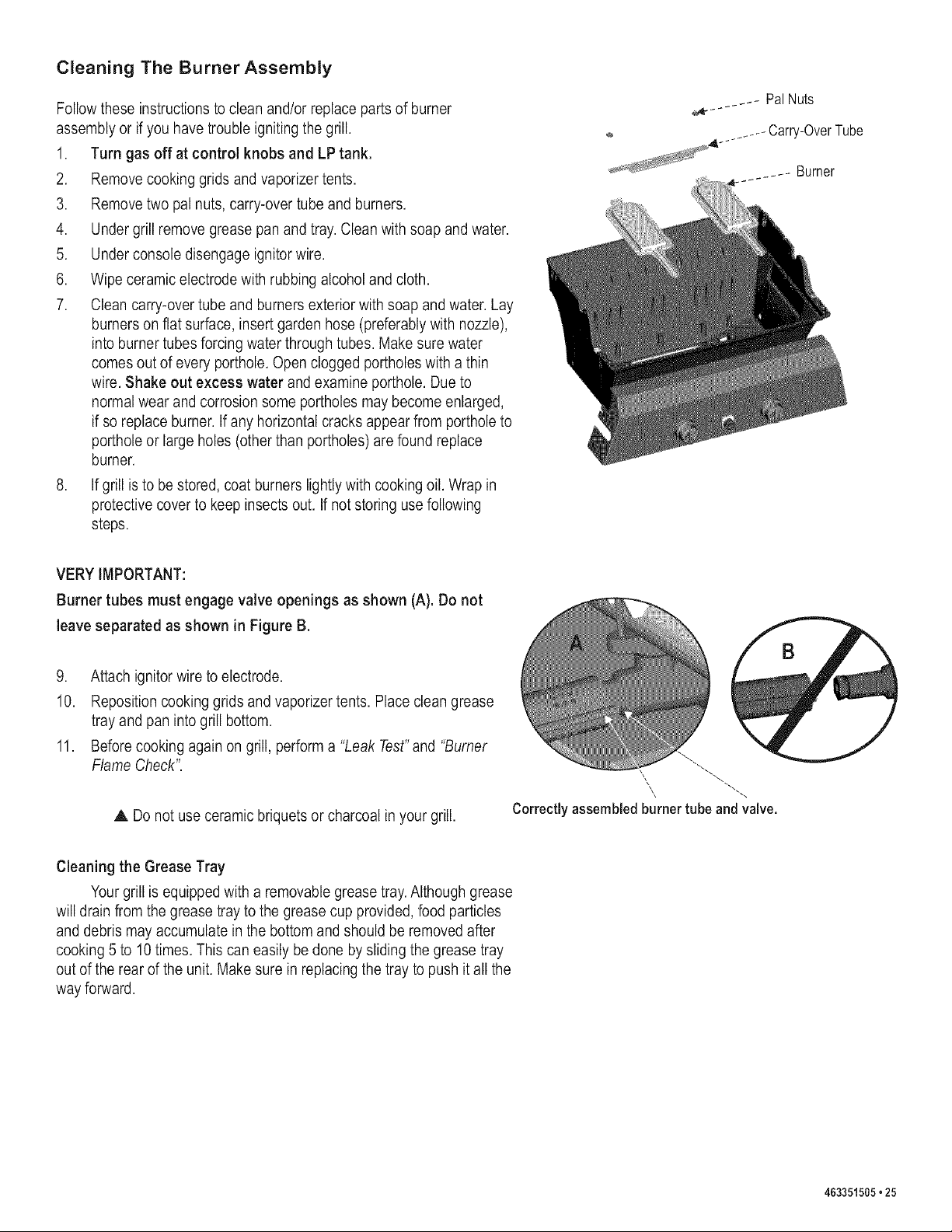

Cleaning The Burner Assembly
Follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting the grill.
1. Turn gas off at control knobs and LP tank,
2. Remove cooking grids and vaporizer tents.
3. Remove two pal nuts, carry-over tube and burners.
4. Under grill remove grease pan and tray. Clean with soap and water.
5. Under console disengage ignitor wire.
6. Wipe ceramic electrode with rubbing alcohol and cloth.
7. Clean carry-over tube and burners exterior with soap and water. Lay
burners on flat surface, insert garden hose (preferably with nozzle),
into burner tubes forcing water through tubes. Make sure water
comes out of every porthole. Open clogged portholes with a thin
wire. Shake out excess water and examine porthole. Due to
normal wear and corrosion some portholes may become enlarged,
if so replace burner. If any horizontal cracks appear from porthole to
porthole or large holes (other than portholes) are found replace
burner.
8. If grill is to be stored, coat burners lightly with cooking oil. Wrap in
protective cover to keep insects out. If not storing use following
steps.
_-- Pal Nuts
..... Carry-OverTube
Burner
VERY _MPORTANT:
Burner tubes must engage valve openings as shown (A). Do not
leave separated as shown in Figure B.
9. Attach ignitor wire to electrode.
10. Reposition cooking grids and vaporizer tents. Place clean grease
tray and pan into grill bottom.
11. Before cooking again on grill, perform a "Leak Test"and "Burner
Flame Check"
A Do not use ceramic briquets or charcoal in your grill.
Correctly assembled burner tube and valve.
Cleaning the Grease Tray
Your grill is equipped with a removable grease tray.Although grease
will drain from the grease tray to the grease cup provided, food particles
and debris may accumulate in the bottom and should be removed after
cooking 5 to 10 times. This can easily be done by sliding the grease tray
out of the rear of the unit. Make sure in replacing the tray to push it all the
way forward.
463351505,25

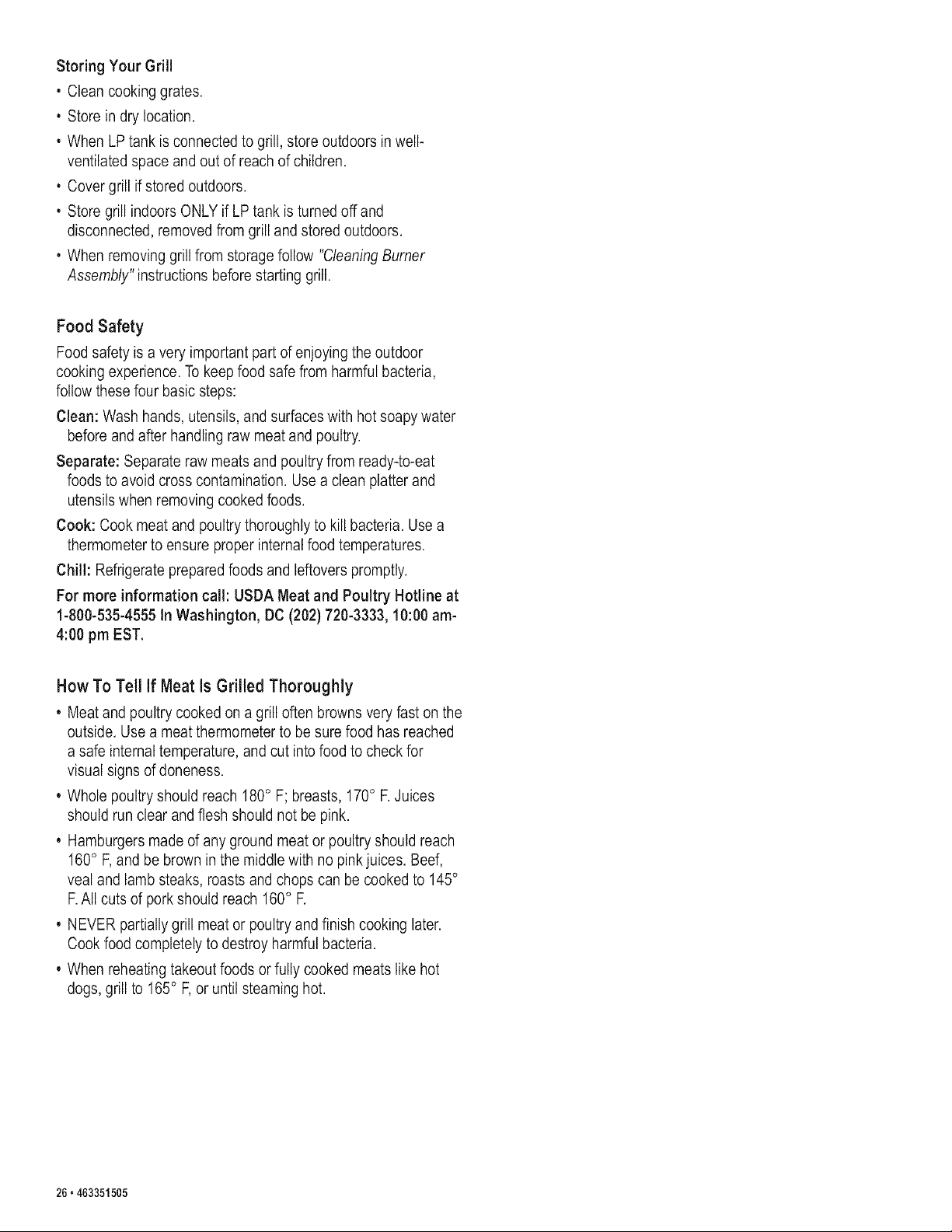

Storing Your Grill
, Clean cooking grates.
, Store in dry location.
, When LP tank is connected to grill, store outdoors in well-
ventilated space and out of reach of children.
, Cover grill if stored outdoors.
, Store grill indoors ONLY if LP tank is turned off and
disconnected, removed from grill and stored outdoors.
, When removing grill from storage follow "Cleaning Burner
Assembly" instructions before starting grill.
Food Safety
Food safety is a very important part of enjoying the outdoor
cooking experience. To keep food safe from harmful bacteria,
follow these four basic steps:
Clean: Wash hands, utensils, and surfaces with hot soapy water
before and after handling raw meat and poultry.
Separate: Separate raw meats and poultry from ready-to-eat
foods to avoid cross contamination. Usea clean platter and
utensils when removing cooked foods.
Cook: Cook meat and poultry thoroughly to kill bacteria. Use a
thermometer to ensure proper internal food temperatures.
Chill: Refrigerate prepared foods and leftovers promptly.
For more information call: USDA Meat and Poultry Hotline at
1-800-535-4555 In Washington, DC (202) 720-3333, 10:00 am-
4:00 pm EST.
How To Tell if Meat is Grilled Thoroughly
* Meat and poultry cooked on a grill often browns very fast on the
outside. Use a meat thermometer to be sure food has reached
a safe internal temperature, and cut into food to check for
visual signs of doneness.
* Whole poultry should reach 180° F; breasts, 170° F.Juices
should run clear and flesh should not be pink.
* Hamburgers made of any ground meat or poultry should reach
160° F,and be brown in the middle with no pink juices. Beef,
veal and lamb steaks, roasts and chops can be cooked to 145°
F.All cuts of pork should reach 160° R
, NEVER partially grill meat or poultry and finish cooking later.
Cook food completely to destroy harmful bacteria.
* When reheating takeout foods or fully cooked meats like hot
dogs, grill to 165° F,or until steaming hot.
26. 463351505
Cooking Table
Cooking times and temperatures may vary according to specific recipes, cooking conditions or barbecue equipment used. Take these
factors into consideration to insure best results. If you use the indirect cooking method (indirect cooking is lighting only one burner and
placing food on opposite side of cooking grate), allow more grilling time.
Temperatures: High = 650°F / Medium = 450°F / Low = 300°F.
Food
Beef
Hamburger 112"thick
Steak 112"
Roast
Pork
Chops 112"
Ribs 5-6 Ibs.
Roast 3-5 Ibs.
Ham Steak 112"
Ham 5 lb. fully cooked
Lamb
Chops 112"
Poultry
Chicken 2-1/2 to 3-1/2 Ibs.
Chicken halved or quartered
Turkey
Seafood
Steaks 1" thick
Fillets 6-8 oz.
Shrimp large or jumbo
Venison
Steak 1" thick
Burgers 112"
Roast 3-4 Ibs.
V__egetables
Baking Potato whole
Onions whole
Tomatoeshalf
Corn whole
Mushrooms
Setting Cooking Time
Medium
Medium-Hot
Low
Medium
Low-Medium
Low-Medium
Medium-Hot
Low-Medium
Medium
Low
Low
Low-Medium
Medium-Hot
Medium-Hot
Low-Medium
Medium
Medium
Low-Medium
Low
Low
Medium
Low
Medium
Med: 7-10 min./Well done: 10-15 min.
Rare: 3-6 min. / Med: 6-9 min./Well done: 9-12 min.
Rare: 18-22min. per lb. / Med: 22-28 min. per lb. / Well done: 28-32 min. per lb.
Well done: 15-20 min.
Well done: 45-90 min.
Well done: 18-23 min. per lb.
12-15 min.
20 min. per lb.
6-12 min.
1 hr., 15 min. to 1 hr., 30 min.
40-60 min.
18-20 min. per lb.
Well done: 10-25 min.
8-12 min.
8-12 min.
Rare: 8-10 min./Med: 10-12 min.
Rare: 10-12 min./Med: 12-15 min.
Rare: 20-22 min. per lb./Med: 22-25 min. per lb.
Wrap vegetables in foil
55-60 min.
45 min.
30-40 min.
35-45 min.
15-20 min.
463351505,27
Troubleshooting
Gasleakingfrom
cracked/cut/bumed
hose.
, Oldhose,cut in hose.
, Turnoffgas at LPtank. If hoseis cut or cracked,replace
valve/hose/regulator.Ifburned,discontinueuseof productuntila gas
servicetechnician/plumberhasinvestigatedcauseandcorrectionis
made.
Gasleakingfrom LP , Mechanicalfailuredue to rustingor , Turnoff LPtankvalve.
tank. mishandling.
Gasleakingfrom LP , Failureof tank valvefrom mishandlingor , Call LP gasdealer800-numberon tanklabelor call localfire
tankvalve, mechanicalfailure, department.
Gasleakingbetween , Improperinstallation,connectionnot , Removeregulatorfrom tankand visuallyinspectrubberseal for
LPtankandregulator tight,failureof rubberseal. damage.Reinstallandcheckfor leaks.Ensureblackknob ison tight.
connection.
Firecomingthrough
controlpanel.
Greasefire or
continuousexcessive
flamesabovecooking
surface.
, Fire in burnertubesectionof burnerdue
to partialblockage.
Burner(s)will not light
usingignitor.
, Misalignmentof valveto burnertube.
, Toomuchgreasebuildupin burnerarea.
GASISSUES:
, Tryingto lightwrongburner.
, Burnernotengagedwith controlvalve.
, Obstructionin burner.
, No gasflow.
, Vaporlockat couplingnut to LP tank.
, CouplingnutandLPtankvalvenotfully
connected.
ELECTRICALISSUES:
, Electrodecrackedor broken;"sparksat
crack."
, Electrodetip not in properposition.
, Wireand/orelectrodecoveredwith
cookingresidue.
, Wires are looseordisconnected.
, Wires are shorting(sparking)between
ignitorandelectrode.
Continuedonnext
page.
. Turnoff LPtankvalve(if possiblewithoutinjurytoself). If fire cannot
becontrolledwith bakingsoda/extinguisher,call localfire department.
Removeburnerandinspectfor spidernestor rust.Cleanusingbottle
brush.
, Ensurevalvesand burnertubes are alignedper assembly
instructions.
, Turnoff LP tank valve.Leavelidopento allowflamesto die down.
Aftercooling,cleanfood particlesand excessgreasefrom inside
fireboxarea,greasecup/pan/tray,andothersurfaces.
, Seeinstructionson controlpanelandsectionin the UseandCare.
, Makesure valvesare positionedinsideof burnertubes.
, Ensureburnertubes are notobstructedwithspiderwebsorother
matter.Seecleaningsectionof Useand Care.
, Makesure LP tank is notempty.If LP tank is notempty,referto
"Suddendropingasflow."
, Turnoff knobsand disconnectcouplingnutfromLPtank.Reconnect
and retry.
, Turnthecouplingnut approximatelyone-halfto three-quarters
additionalturnuntil solidstop.Tightenby handonly- do notusetools.
, Replaceelectrode.
, Tip of electrodeshouldbepointingtowardportholein burner.The
distanceshouldbe 1/8"to 3/16".Adjustif necessary.
, Cleanwireand/orelectrodewithrubbingalcoholand cleanswab.
, Reconnectwiresor replaceelectrode/wireassembly.
, Replaceignitorwire.
28 • 463351505
Burner(s)will not light
usingignitor.
Troubleshooting (continued)
, Push-buttonsticksat bottom..
Burner(s)will not
matchlight.
Suddendropingas
flowor lowflame.
Flamesblowout.
Flare-up.
Persistentgreasefire.
Flashback...
(firein burnertube(s)).
Unabletofill LPtank.
Oneburnerdoesnot
lightfromother
burner(s).
, Sparkingbetweenignitorandelectrode.
, See "GAS ISSUES:"onpreviouspage.
, Impropermethodof match-lighting.
, Outof gas.
, Excessflowvalvetripped.
, Vaporlock at couplingnut/LPtank
connection.
, Highor gustingwinds.
, Lowon LP gas.
, Excessflowvalvetripped.
, Greasebuildup.
, Excessivefat in meat.
, Excessivecookingtemperature.
, Greasetrappedbyfood builduparound
burnersystem.
, Burnerand/orburnertubesare blocked.
, Somedealershaveolder fill nozzles
withwornthreads.
, Greasebuildupor foodparticlesin
end(s)of carryovertube(s).
, Replaceignitor.
, Inspectwireinsulationand properconnection.Replacewires if
insulationis broken.
, See"Match-Lighting"sectionof UseandCare.
, Checkfor gas in LP tank.
, Turnoff knobs,wait 30 secondsand light grill.Ifflamesarestill low,
turnoff knobsand LPtank valve.Disconnectregulator.Reconnect
regulatorandleak-test.Turnon LPtank valve,wait30 secondsand
thenlightgrill.
, Turnoff knobsand LP tank valve.Disconnectcouplingnutfrom
tank.Reconnectandretry.
, Turnfront of grill to facewindor increaseflameheight.
, RefillLPtank.
, Referto "Suddendropin gasflow"above.
, Cleanburnersand insideof grill/firebox.
, Trimfat frommeatbeforegrilling.
, Adjust (lower)temperatureaccordingly.
, Turnknobsto OFF.Turngas off at LPtank. Leavelid in positionand
letfire burn out.After grill cools,removeandcleanall parts.
, Turnknobsto OFF.Cleanburnerand/orburnertubes.See burner
cleaningsectionof Use andCare manual.
, Thewornnozzlesdon'thaveenough"bite"to engagethe valve.Try
asecondLPdealer.
, Cleancarry-overtube(s)with wire brush.
463351505,29
Troubleshooting- Electronic ignition
SECTIONI
Nosparksappearat , Batterynot installed
any electrodeswhen properly.
ignitionbuttonis
pushed;nonoisecan
beheardfromspark , Deadbattery.
module.
SECTIONII
Nosparksappearat
any electrodeswhen
ignitionswitchis
pushed;noisecan be
heardfromspark
module.
SECTIONIII
Sparksarepresent
butnotat all
electrodesand/ornot
at full strength
, Buttonassemblynot
installedproperly.
, Faultyspark module.
, Outputlead
connectionsnot
connected.
, Electrodetip not in
properposition.
, Outputlead
connectionsnot
connected.
, Arcingto grillaway
fromburner(s).
, Weakbattery.
, Electrodesare wet.
, Electrodescrackedor
broken"sparksat
crack".
, Checkbatteryorientation.
, Has batterybeen used
previously?
, Checkto ensurebutton
assemblyis fully engaged.
Buttonshouldtravel up and
downwithoutbinding.
, Ifno sparksaregenerated
withnewbatteryand good
wireconnections,moduleis
faulty.
, Are outputconnectionson
andtight?
, Are the electrodetips
pointingin the right
direction?Isthe gap too big?
, Are outputconnectionson
andtight?
, Ifpossible,observegrill in
darklocation.Operate
ignitionsystemandlookfor
arcingbetweenoutputwires
andgrillframe.
, All sparkspresentbutweak
or at slow rate.
, Has moistureaccumulated
onelectrodeand/orin burner
ports?
, Inspectelectrodesfor
cracks.
, Installbattery(makesure that"-" and"+"
connectorsare orientedcorrectly,with "-" endup
and"+" enddown.)
, Replacebatterywith newAAA-sizealkalinebattery.
, Removebuttoncap assemblyandreinstall,making
sureit canbefullyengaged.
, Replacespark moduleassembly.
, Removeand reconnectall outputconnectionsat
moduleand electrodes.
MainBurners:
, Tip of electrodeshouldbe pointingtowardporthole
in burner.The distanceshouldbe 1/8"to 3/16".
Adjustif necessary.
Sideburner:
, Tip of electrodeshouldbe pointingtowardgas port
openingon burner.Thedistanceshouldbe1/8"to
3/16".Adjustif necessary.
, Removeand reconnectall outputconnectionsat
moduleand electrodes.
, Ifsparksare observedotherthanfrom burner(s),
wire insulationmay be damaged.Replacewires.
, Replacebatterywith a newAAA-sizealkaline
battery.
, Use papertowel to removemoisture.
, Replacecrackedor brokenelectrodes.
30. 463351505
e Blank
I nll:entionalm
463351505,31
e Blank
I nll:entionalm
32,463351505
