Owner's Manual
Liquid Propane Gas Grill
Model141.16228
Natural Gas Grill
Model141.17228
AWARNING:
Read this Owner's Manual carefully and be sure
your gas grill is properly assembled, installed and
maintained. Failure to follow these instructions
could result in serious bodily injury and/or property
damage. This gas grill is intended for outdoor use
only and is not intended to be installed in or on
recreational vehicles or boats.
Note to Installer: Leave this Owner's Manual
with the consumer after delivery and/or installation.
Note to Consumer: Leave this Owner's Manual
in a convenient place for future reference.
Sears, Roebuck and Co.,
Hoffman Estates, IL 60179 U.S.A.
P80102001B *Date:2004/01/20

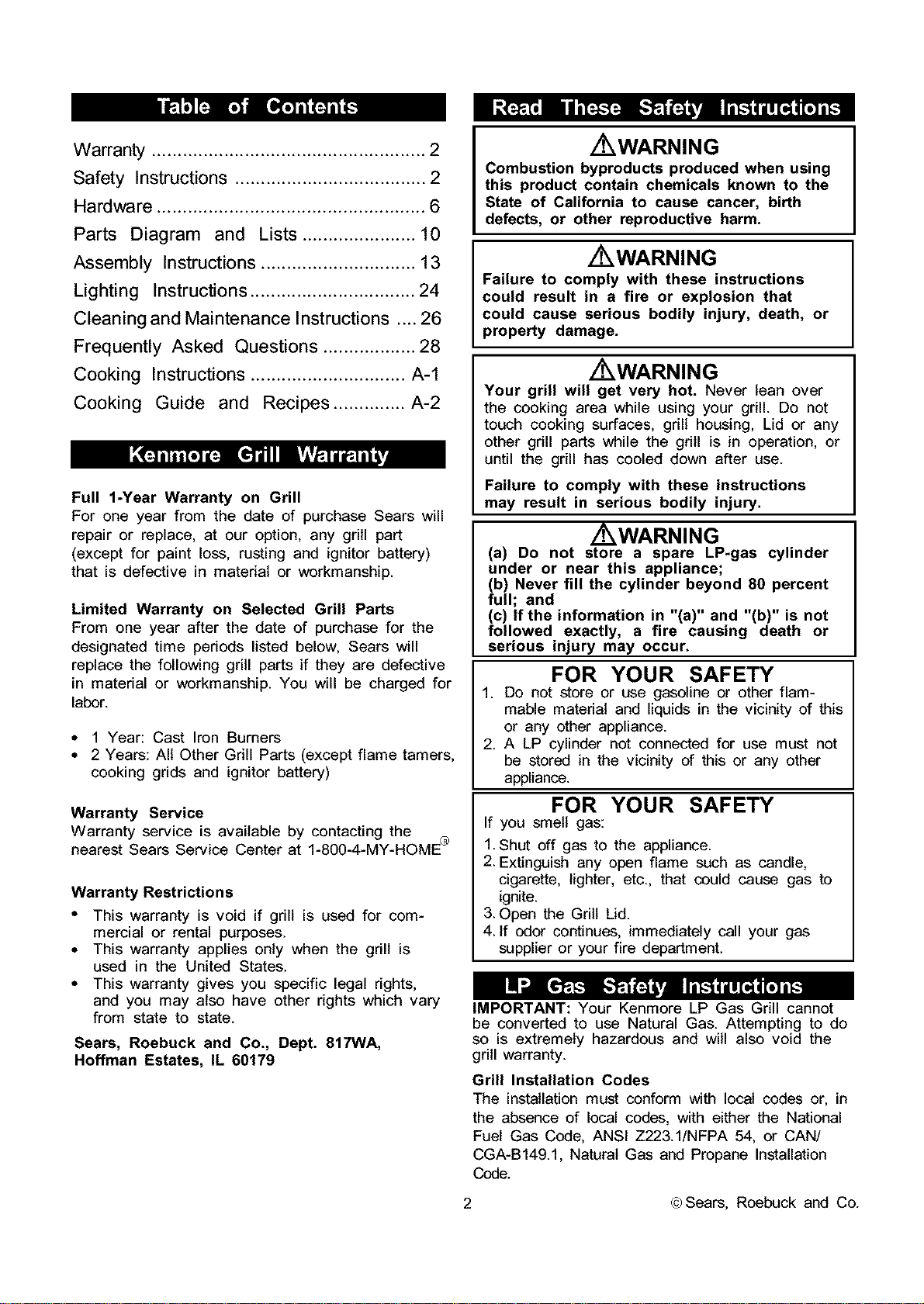

Warranty ..................................................... 2
Safety Instructions ..................................... 2

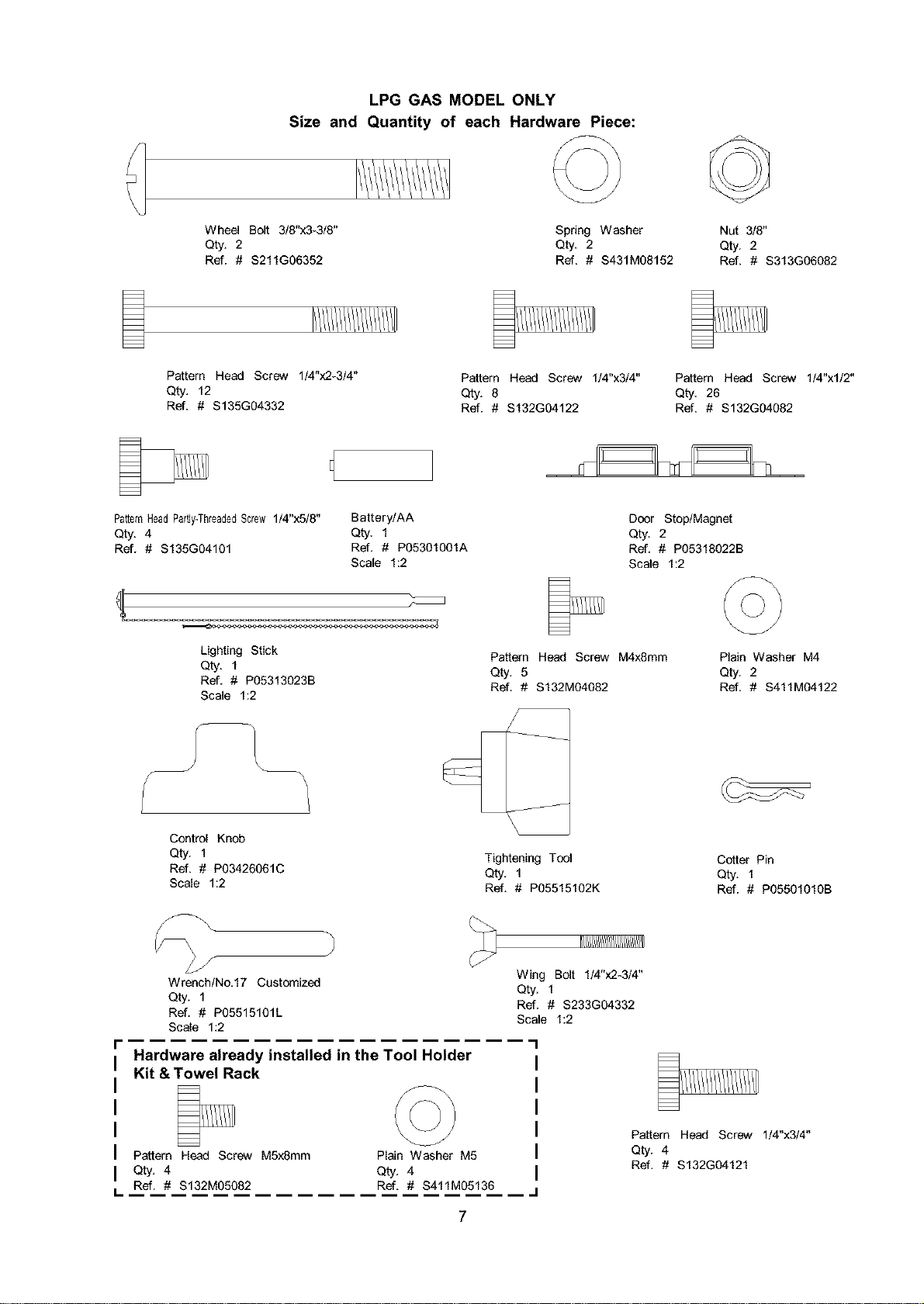

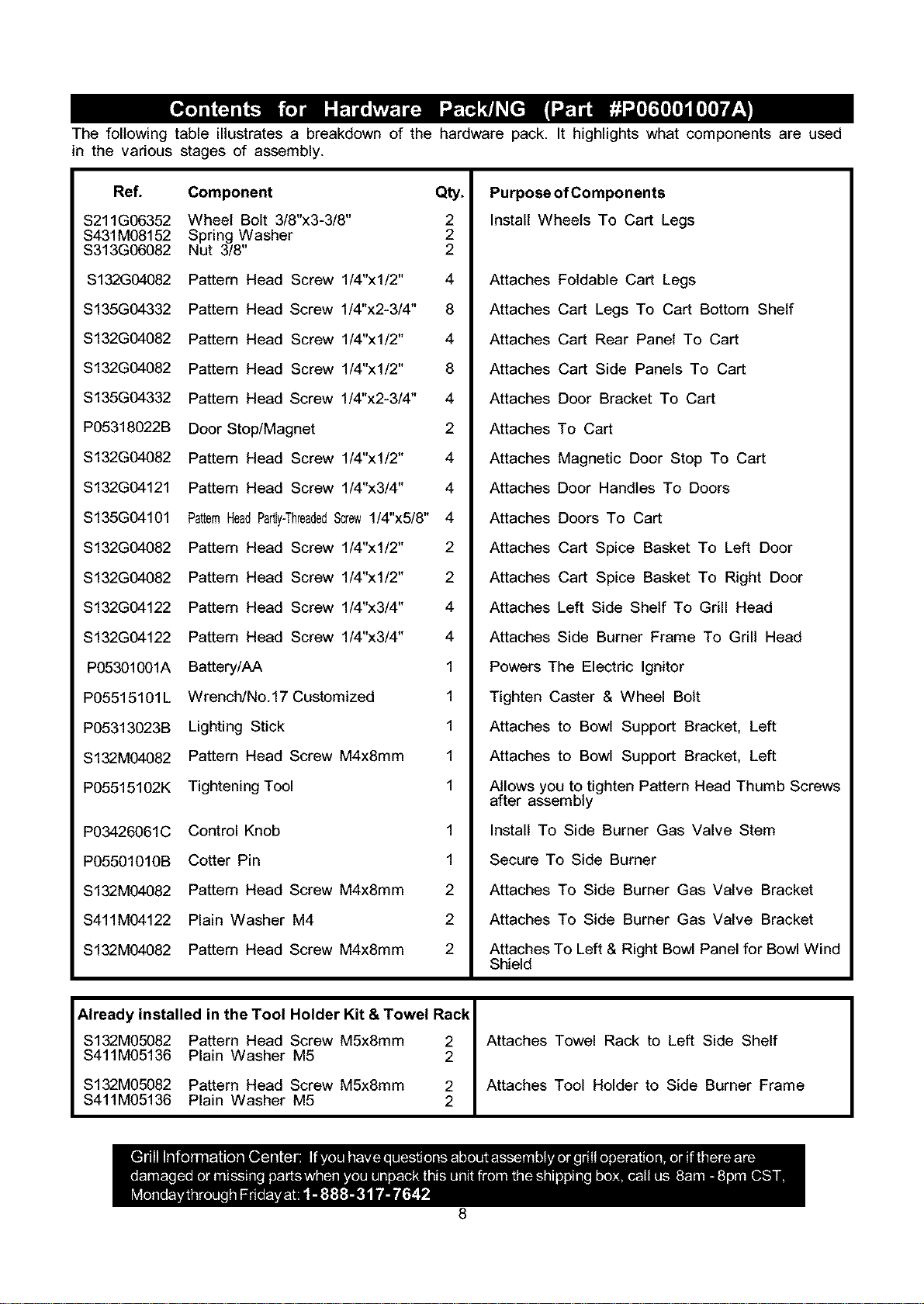

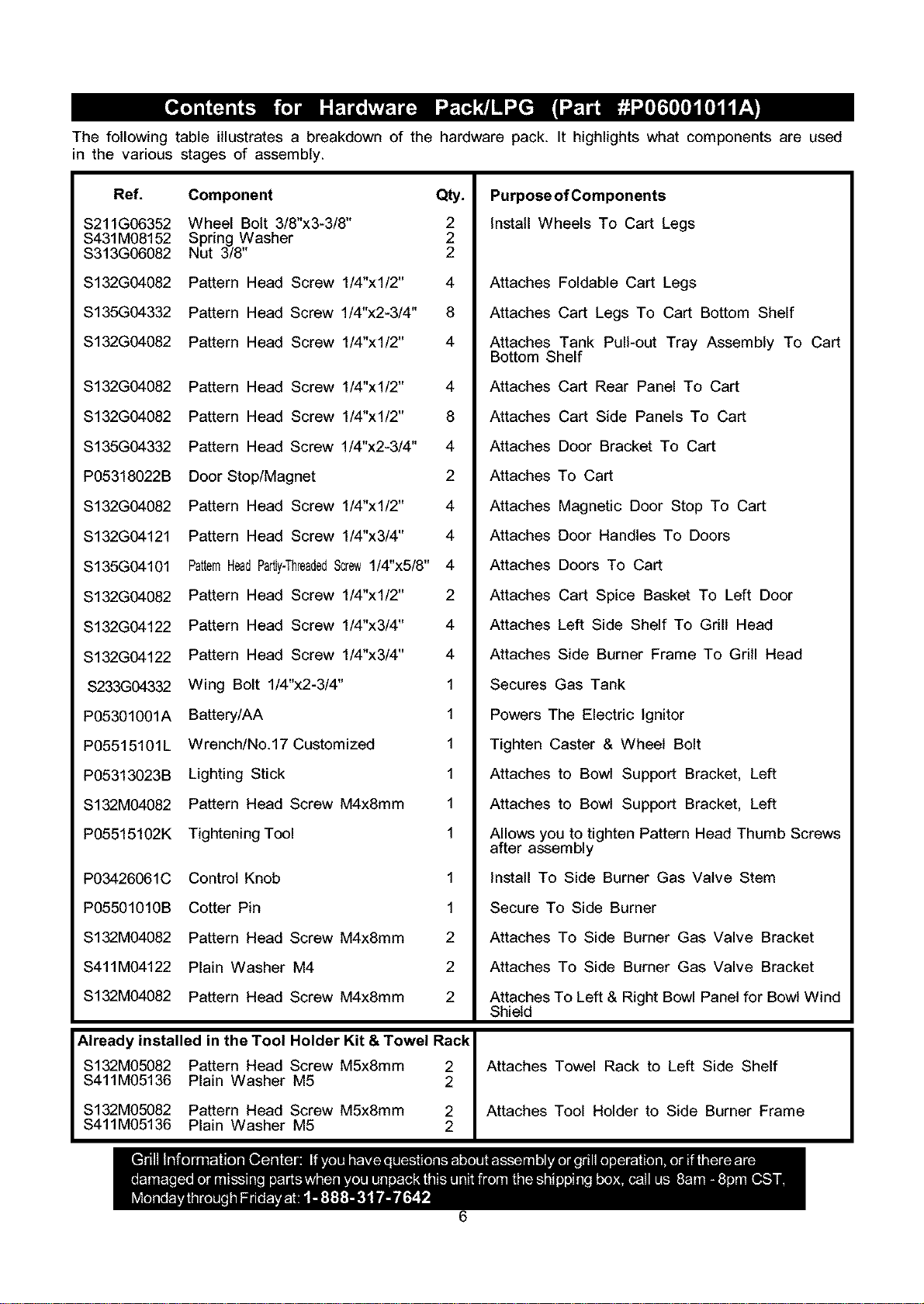

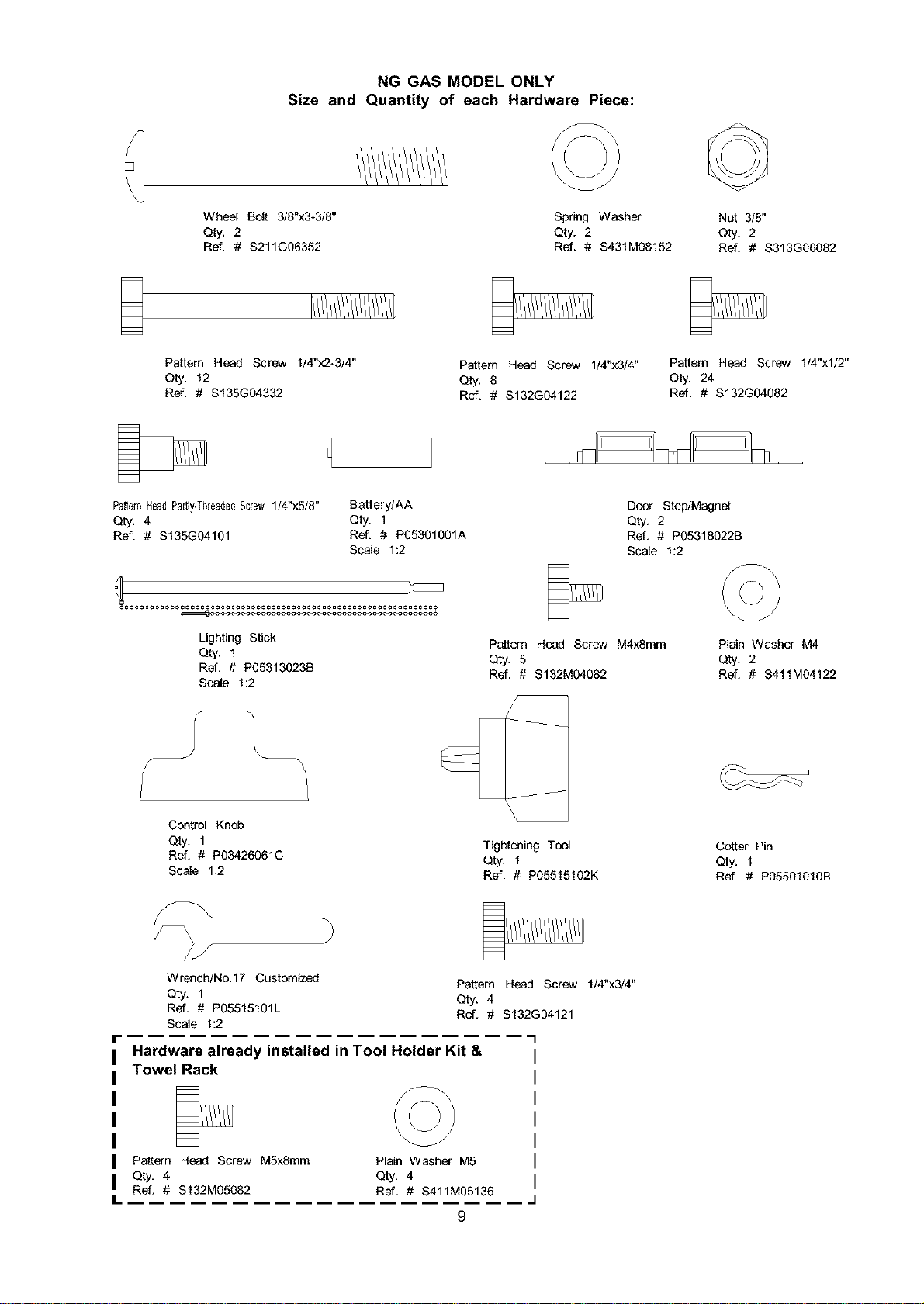

Hardware .................................................... 6

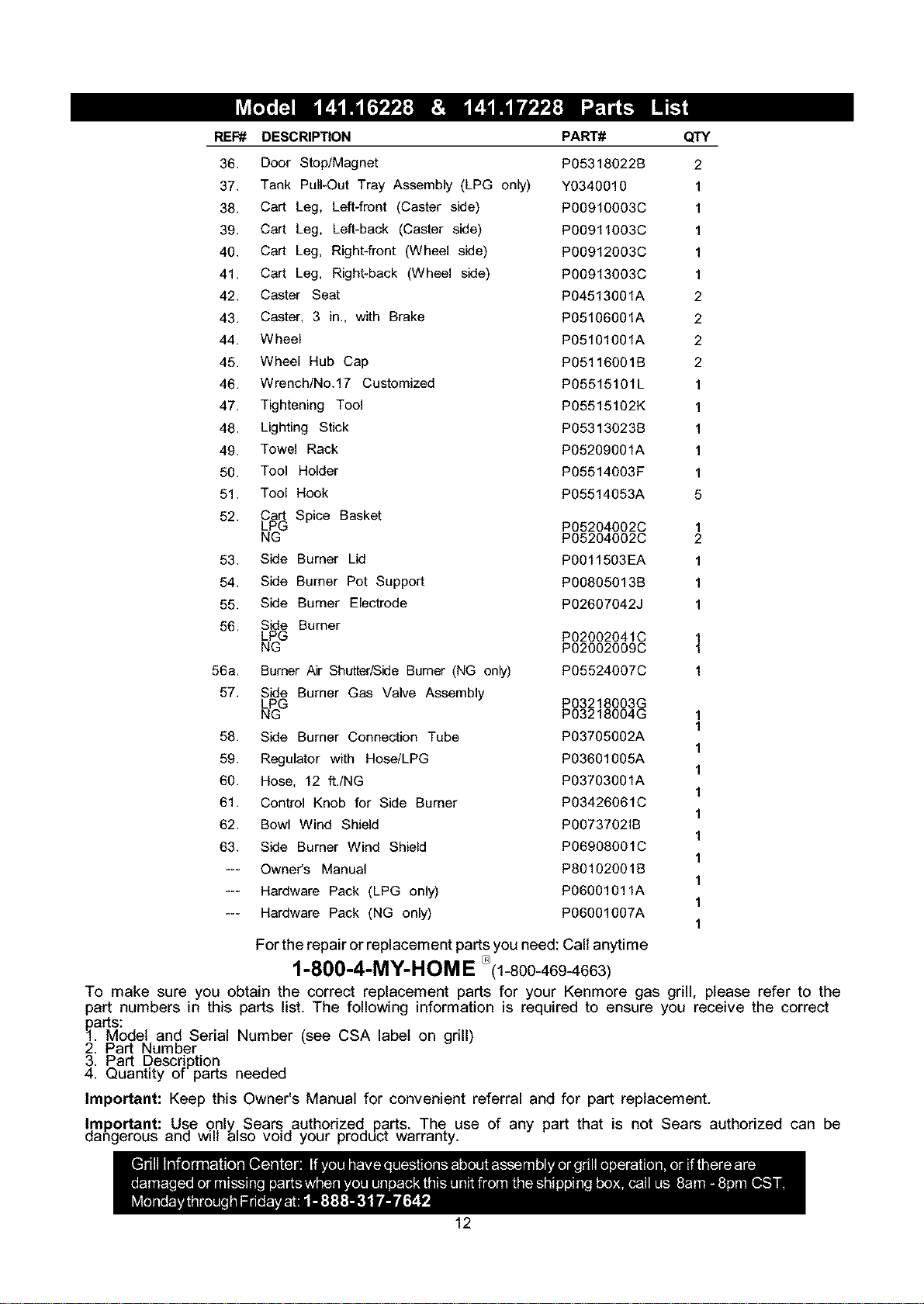

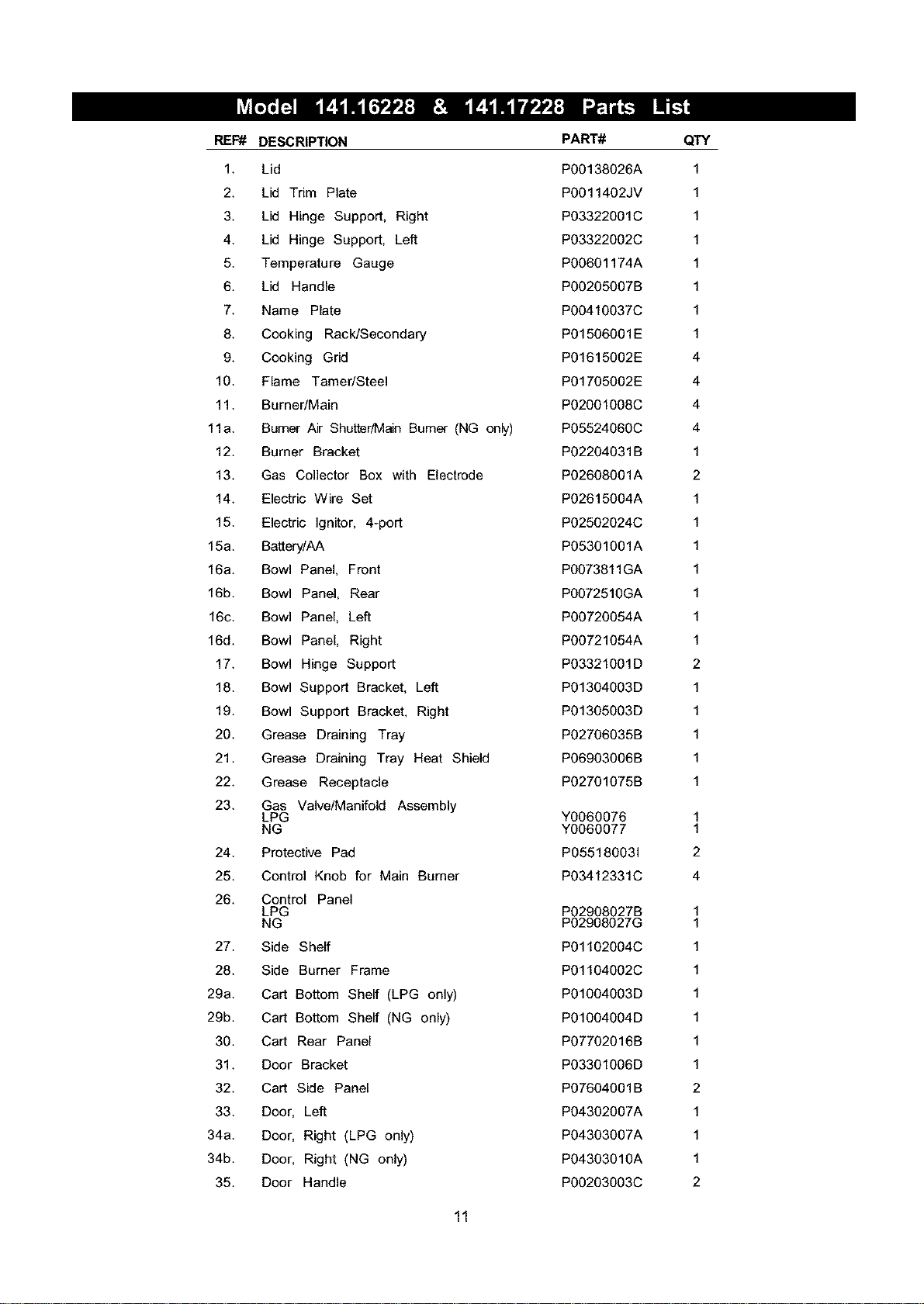

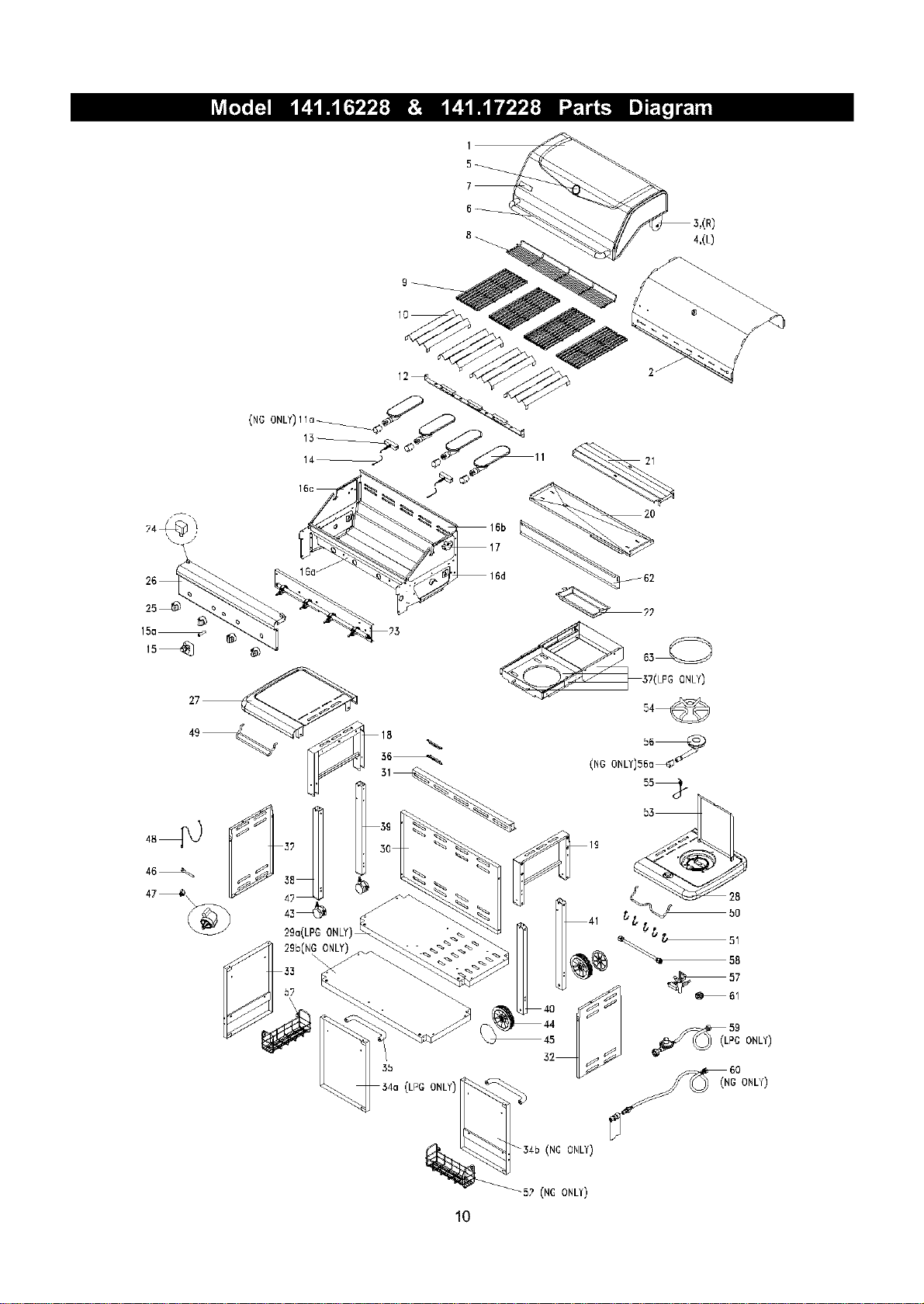

Parts Diagram and Lists ...................... 10

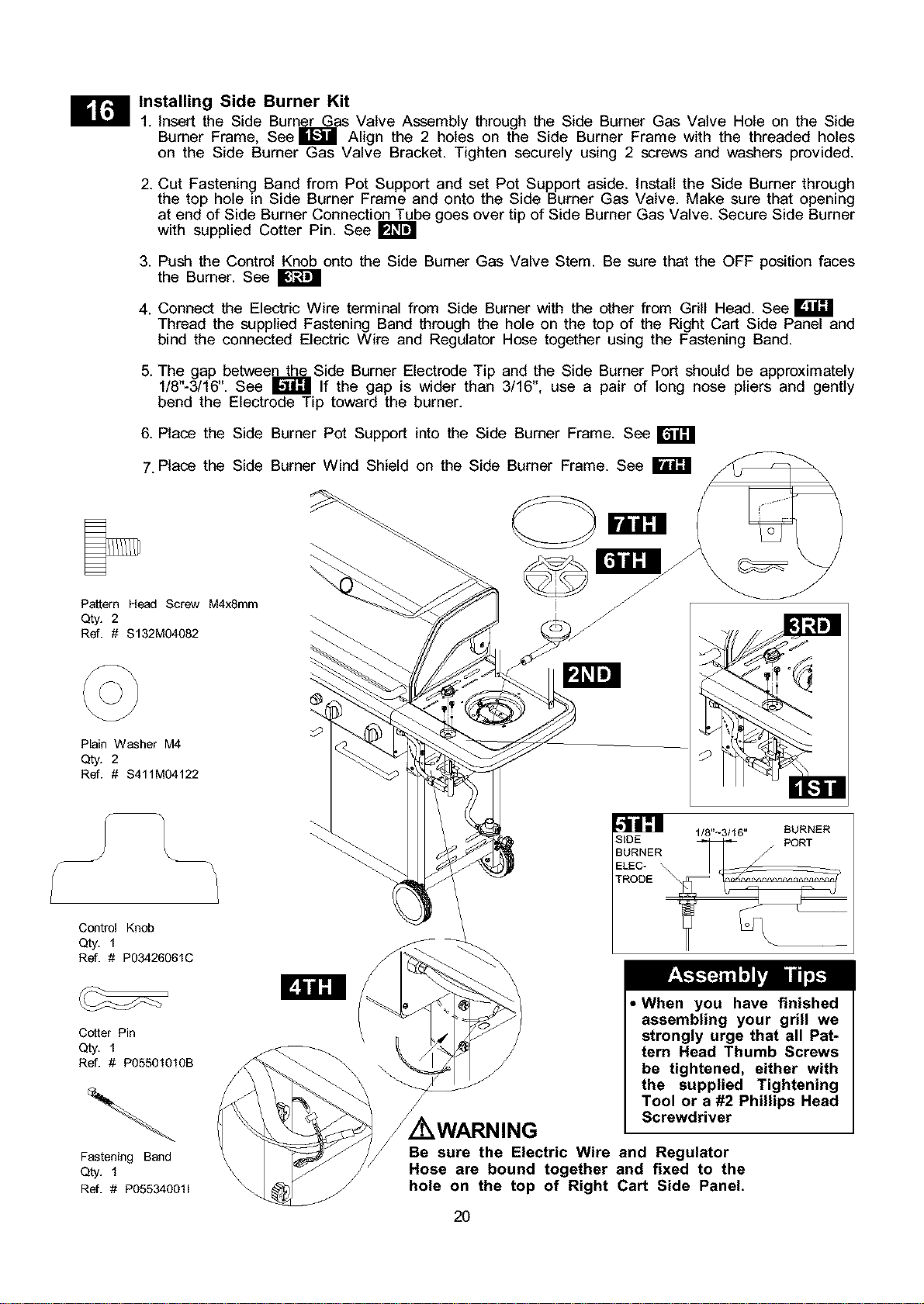

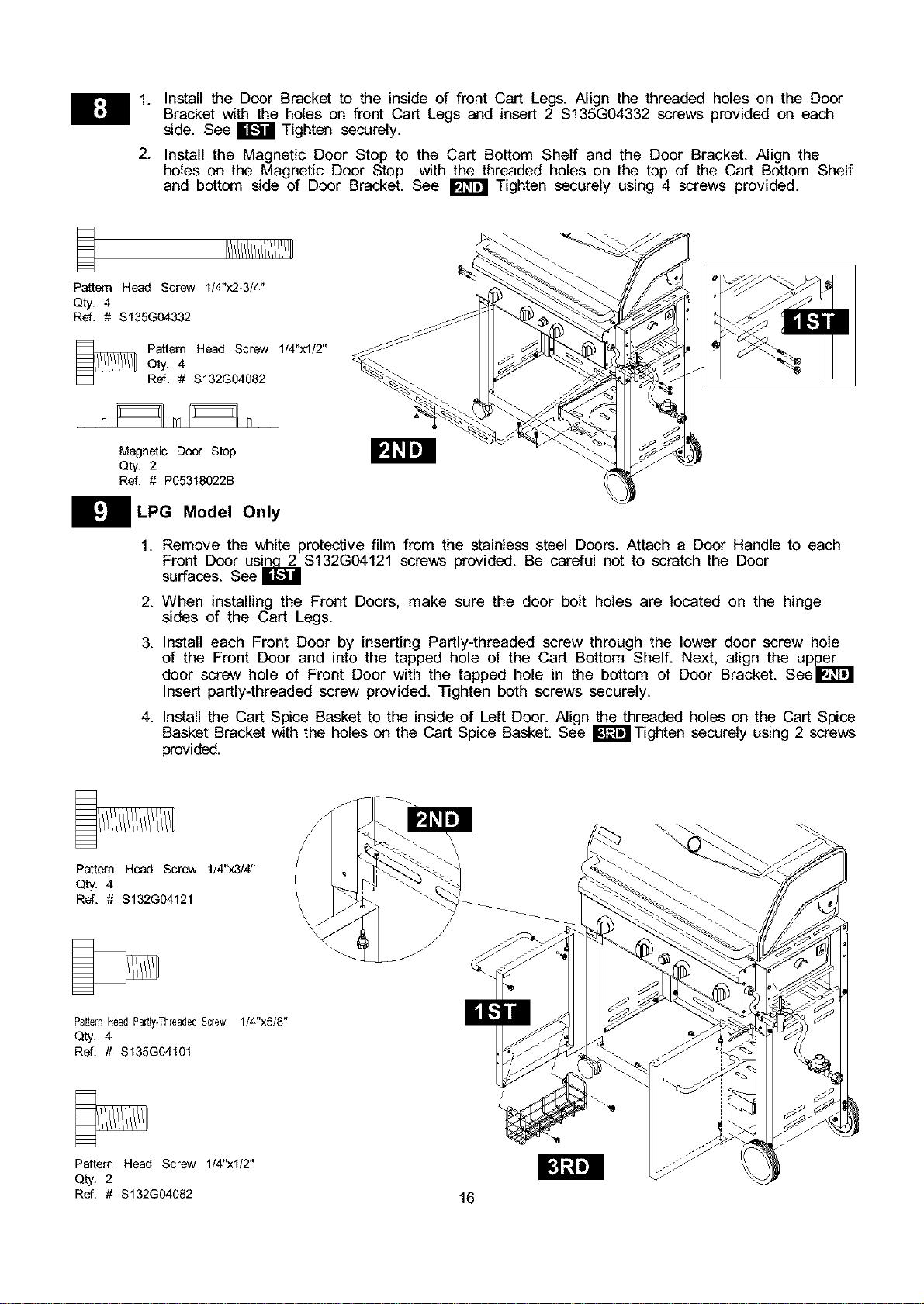

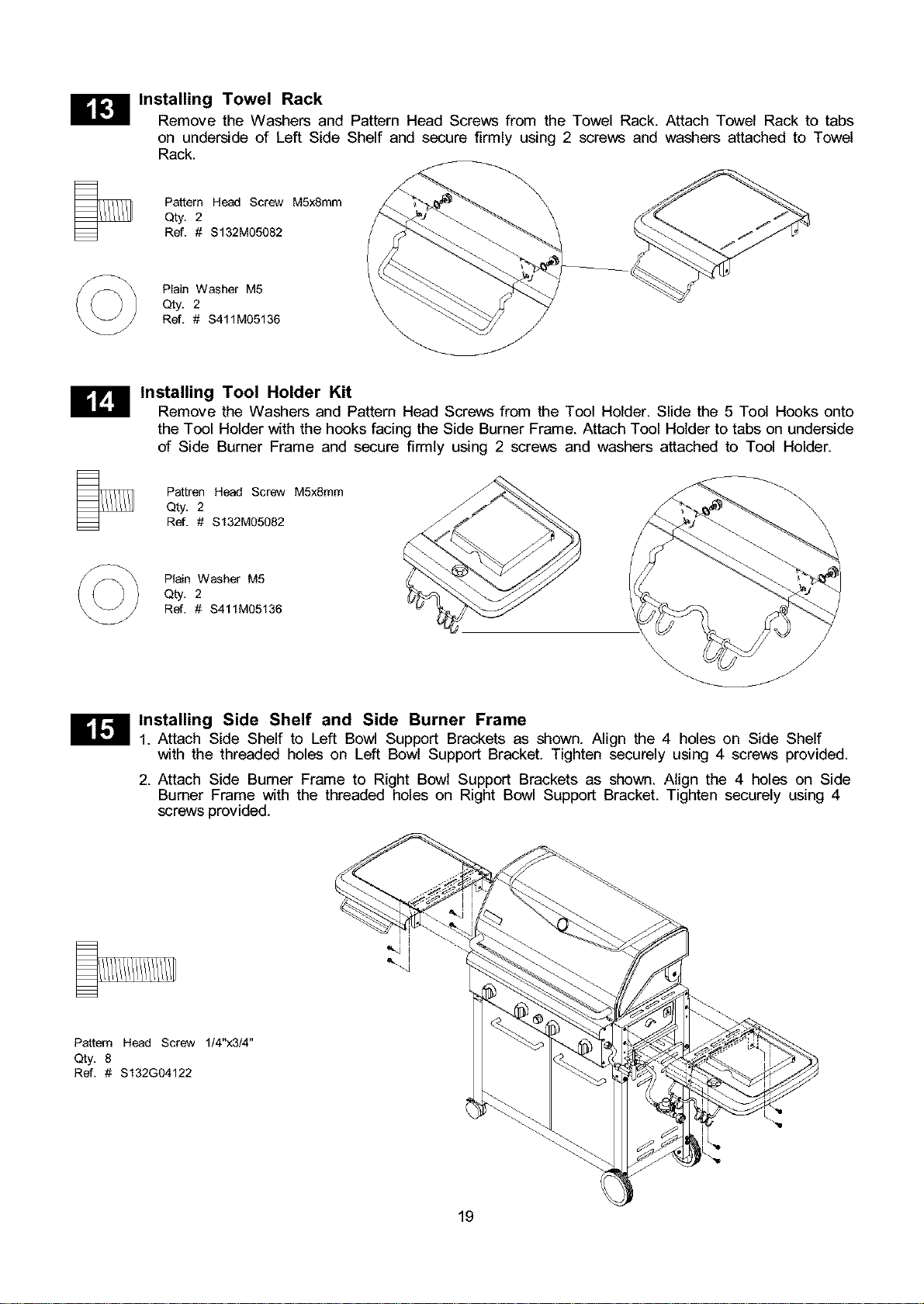

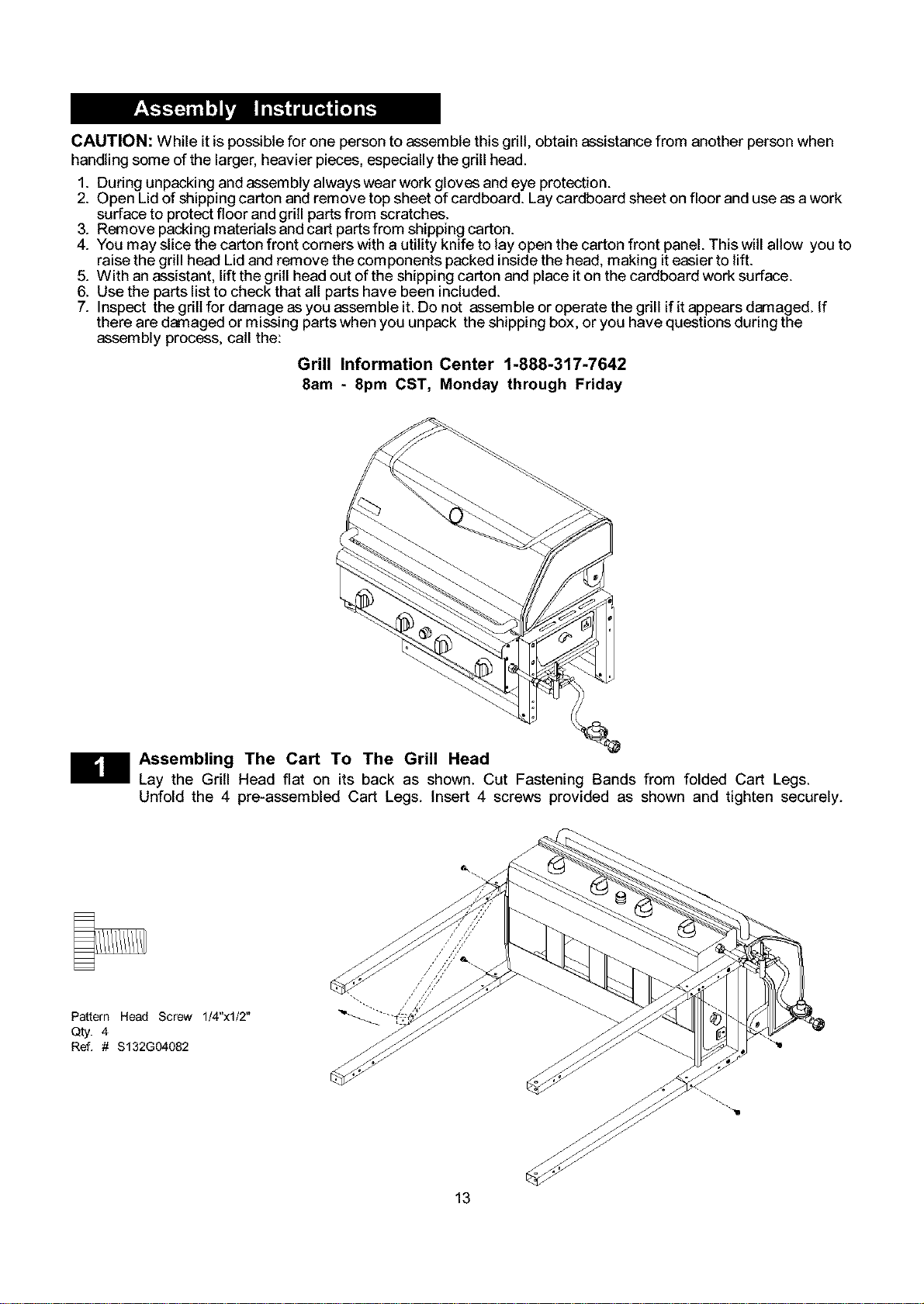

Assembly Instructions .............................. 13
Lighting Instructions ................................ 24

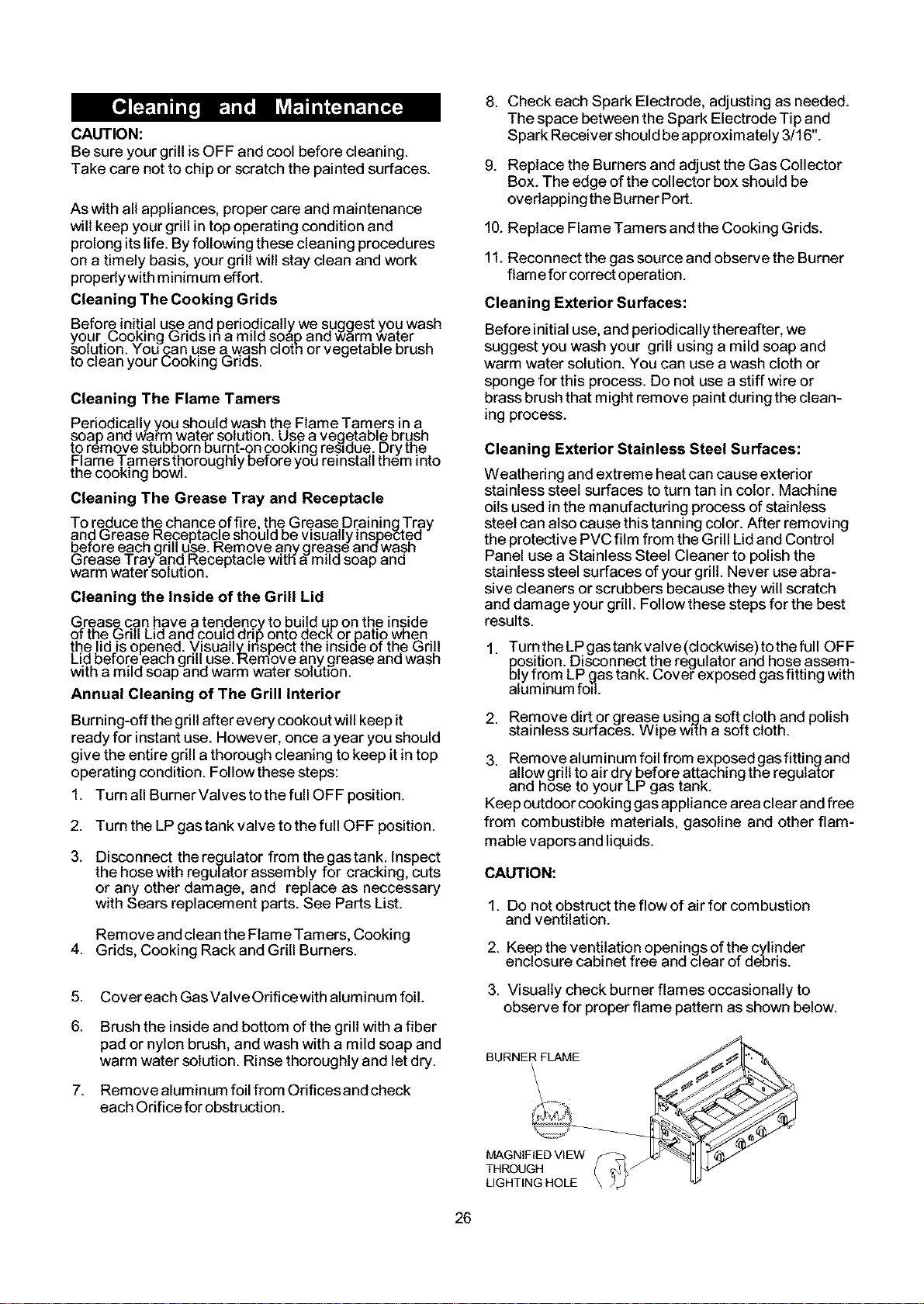

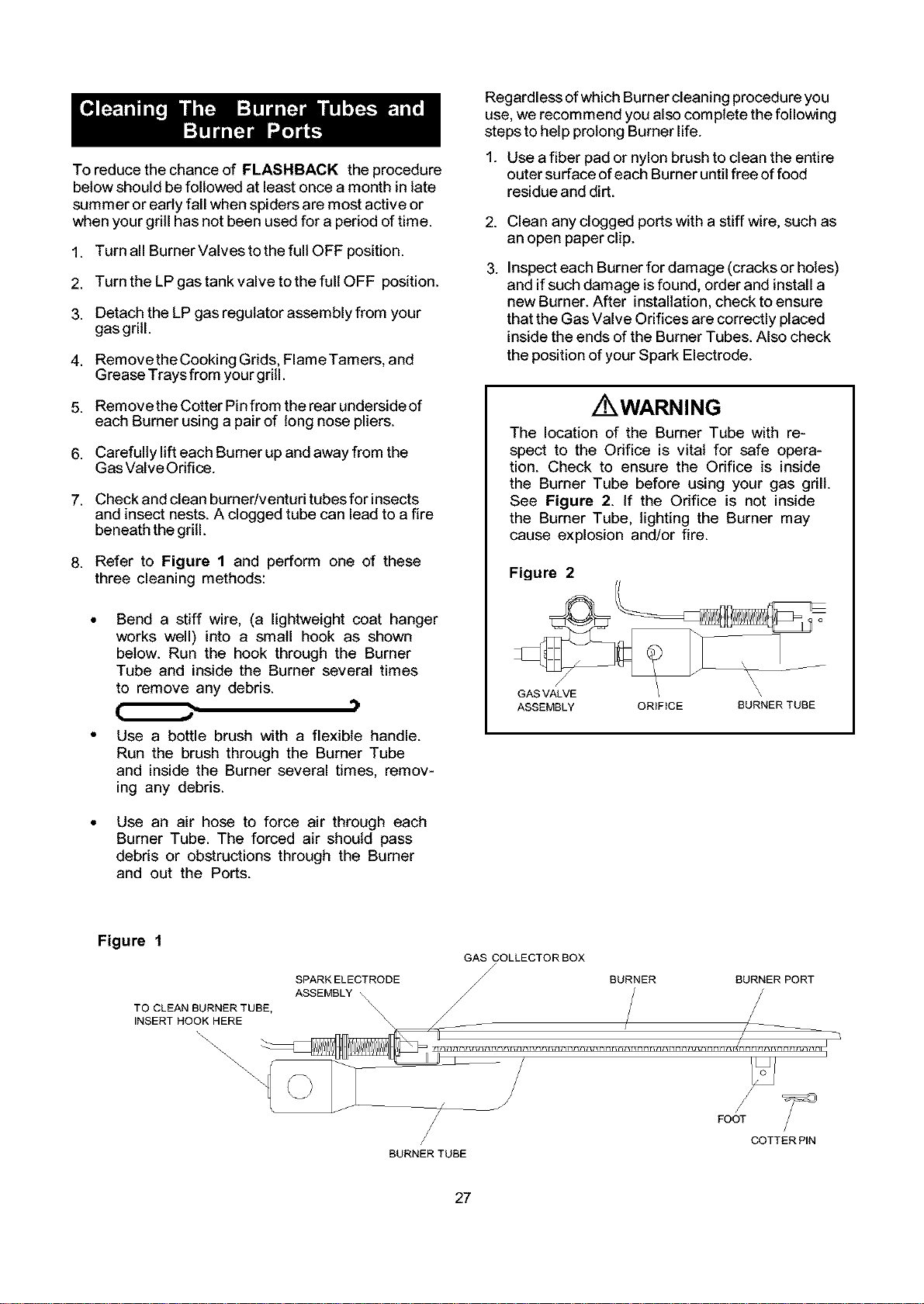

Cleaning and Maintenance Instructions .... 26

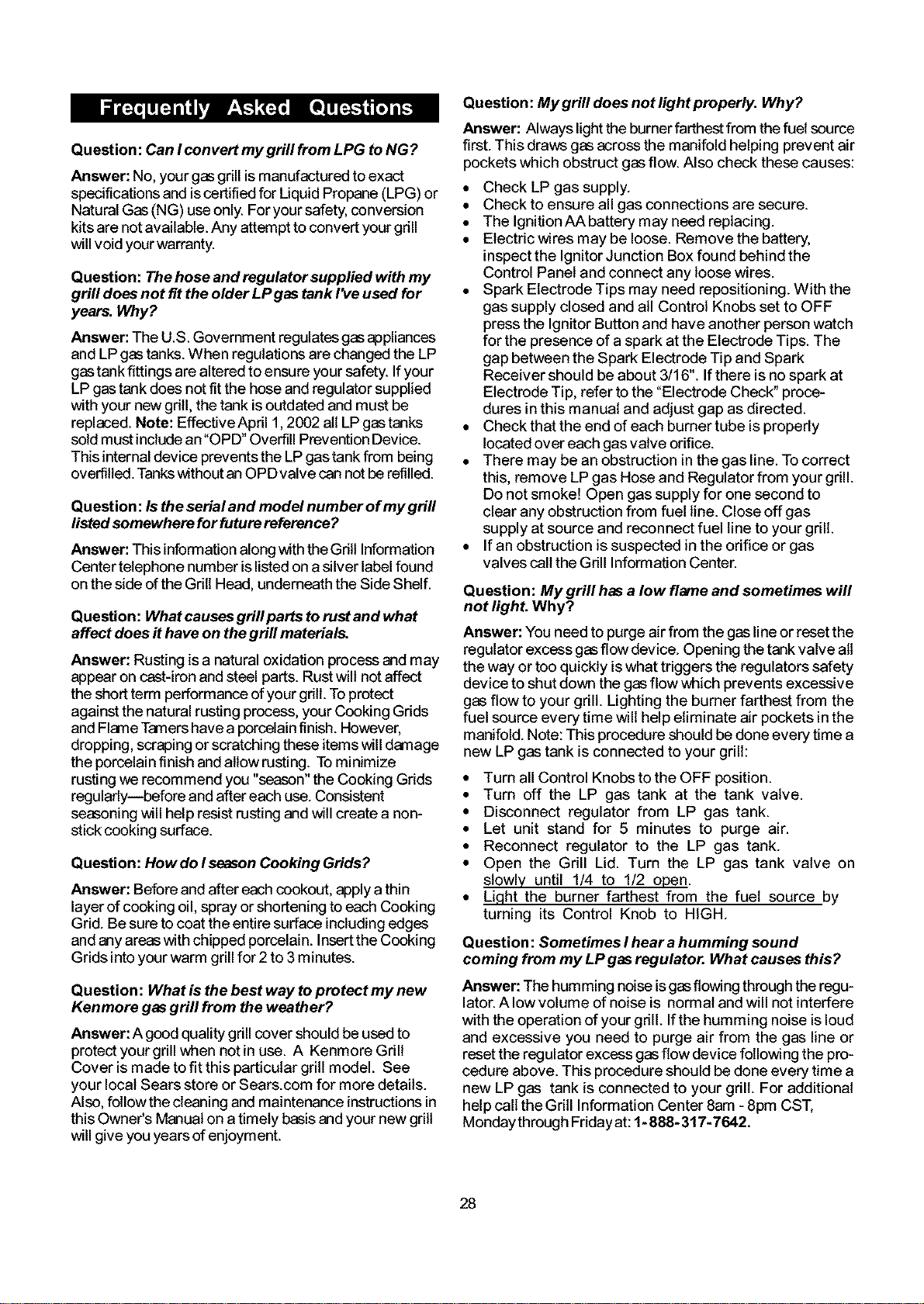

Frequently Asked Questions .................. 28

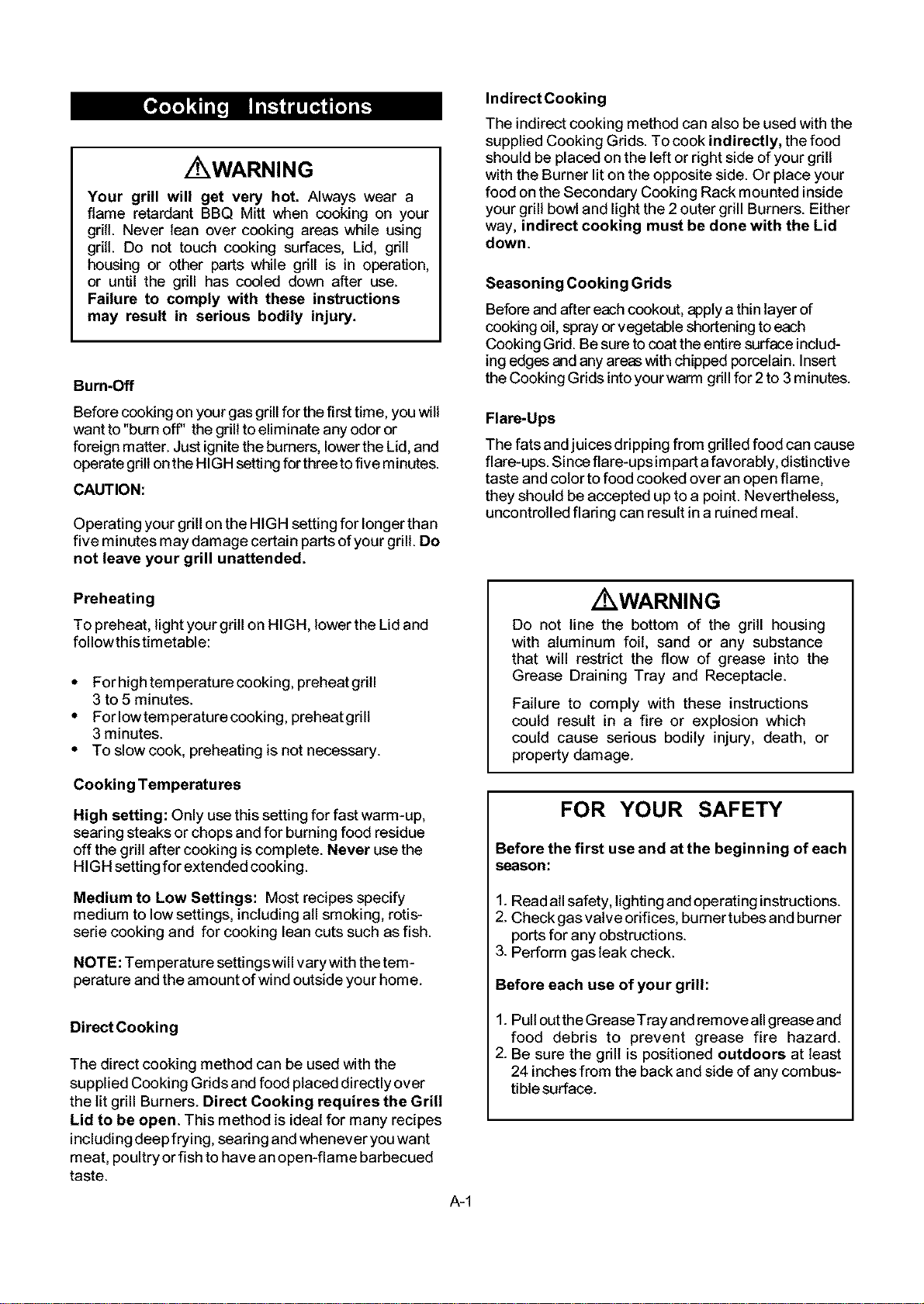

Cooking Instructions .............................. A-1

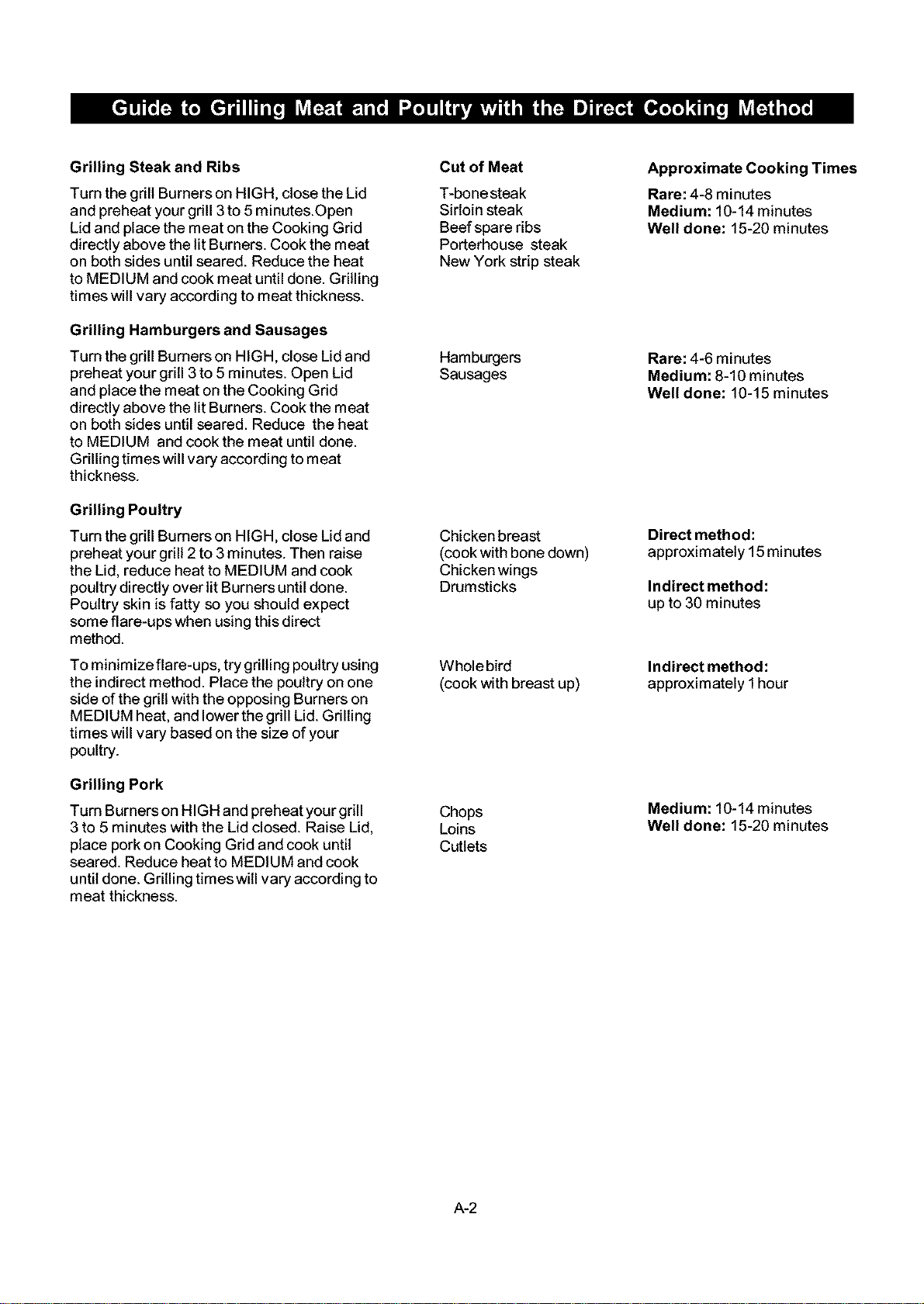

Cooking Guide and Recipes .............. A-2
Full 1-Year Warranty on Grill
For one year from the date of purchase Sears will
repair or replace, at our option, any grill part
(except for paint loss, rusting and ignitor battery)
that is defective in material or workmanship.
Limited Warranty on Selected Grill Parts
From one year after the date of purchase for the
designated time periods listed below, Sears will
replace the following grill parts if they are defective
in material or workmanship. You will be charged for
labor.
•1Year: Cast Iron Burners
• 2 Years: All Other Grill Parts (except flame tamers,
cooking grids and ignitor battery)
Warranty Service
Warranty service is available by contacting the
nearest Sears Service Center at 1-800-4-MY-HOME ®
Warranty Restrictions
• This warranty is void if grill is used for com-
mercial or rental purposes.
• This warranty applies only when the grill is
used in the United States.
• This warranty gives you specific legal rights,
and you may also have other rights which vary
from state to state.
Sears, Roebuck and Co., Dept. 817WA,
Hoffman Estates, IL 60179
Z_WARNING
Combustion byproducts produced when using
this product contain chemicals known to the
State of California to cause cancer, birth
defects, or other reproductive harm.
/_kWARNING
Failure to comply with these instructions
could result in a fire or explosion that
could cause serious bodily injury, death, or
property damage.
AkWARNING
Your grill will get very hot. Never lean over
the cooking area while using your grill. Do not
touch cooking surfaces, grill housing, Lid or any
other grill parts while the grill is in operation, or
until the grill has cooled down after use.
Failure to comply with these instructions
may result in serious bodily injury.
AkWARNING
(a) Do not store a spare LP-gas cylinder
under or near this appliance;
(b) Never fill the cylinder beyond 80 percent
full; and
(c) If the information in "(a)" and "(b)" is not
followed exactly, a fire causing death or
serious injury may occur.
FOR YOUR SAFETY
1. Do not store or use gasoline or other flam-
mable material and liquids in the vicinity of this
or any other appliance.
2. ALP cylinder not connected for use must not
be stored in the vicinity of this or any other
appliance.
FOR YOUR SAFETY
If you smell gas:
1.Shut off gas to the appliance.
2. Extinguish any open flame such as candle,
cigarette, lighter, etc., that could cause gas to
ignite.
3. Open the Grill Lid.
4. If odor continues, immediately call your gas
supplier or your fire department.
IMPORTANT: Your Kenmore LP Gas Grill cannot
be converted to use Natural Gas. Attempting to do
so is extremely hazardous and will also void the
grill warranty.
Grill Installation Codes
The installation must conform with local codes or, in
the absence of local codes, with either the National
Fuel Gas Cede, ANSI Z223.1/NFPA 54, or CAN/
CGA-B149.1, Natural Gas and Propane Installation
Code.
2 © Sears, Roebuck and Co.

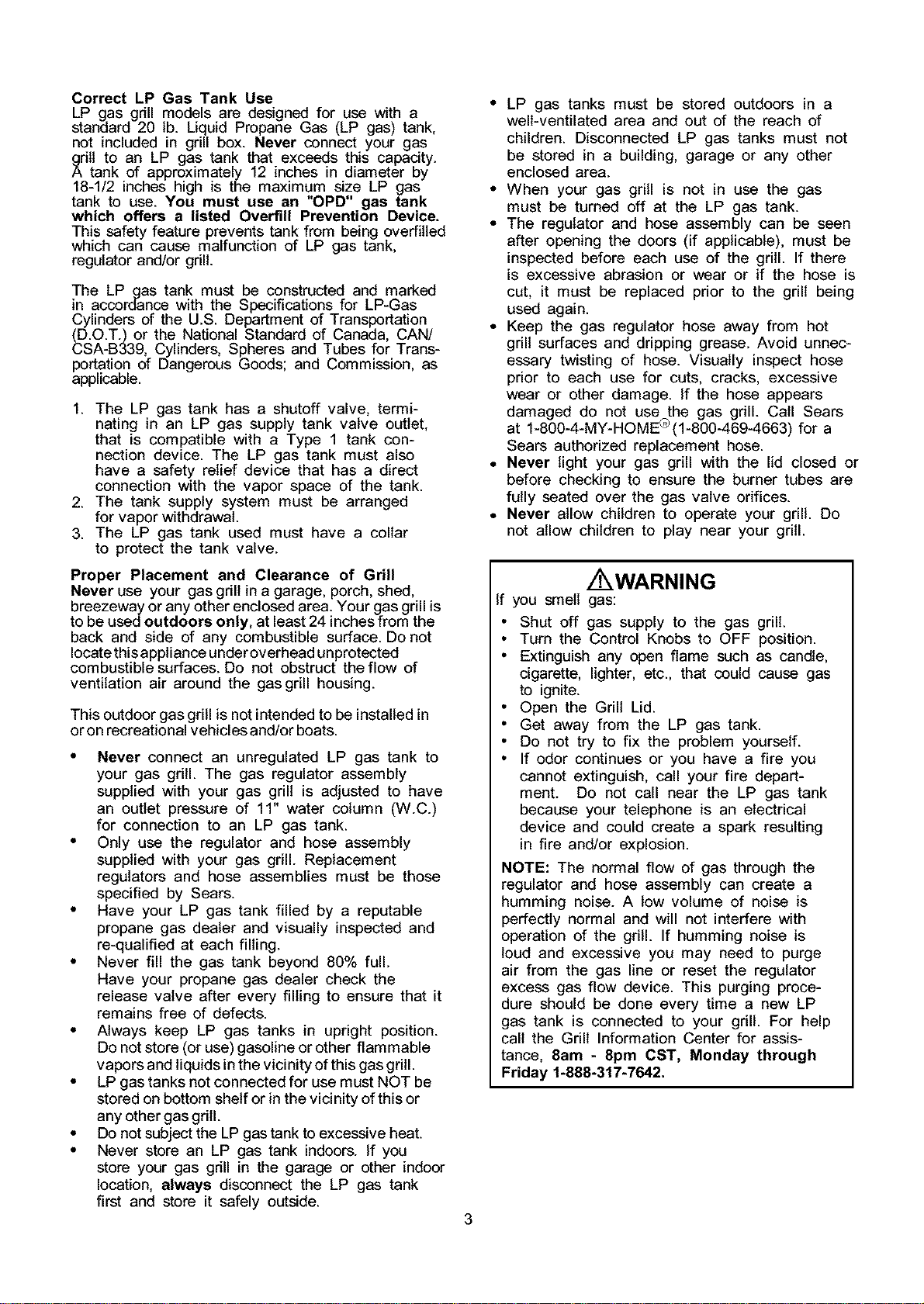

Correct LP Gas Tank Use
LP gas grill models are designed for use with a
standard 20 lb. Liquid Propane Gas (LP gas) tank,
not included in grill box. Never connect your gas
_ritl to an LP gas tank that exceeds this capacity.
tank of approximately 12 inches in diameter by
18-1/2 inches high is the maximum size LP gas
tank to use. You must use an "OPD" gas tank
which offers a listed Overfill Prevention Device.
This safety feature prevents tank from being overfltled
which can cause malfunction of LP gas tank,
regulator and/or grill.
The LP gas tank must be constructed and marked
in accordance with the Specifications for LP-Gas
Cylinders of the U.S. Department of Transportation
(D.O.T.) or the National Standard of Canada, CAN/
CSA-B339, Cylinders, Spheres and Tubes for Trans-
portation of Dangerous Goods; and Commission, as
applicable.
1. The LP gas tank has a shutoff valve, termi-
nating in an LP gas supply tank valve outlet,
that is compatible with a Type 1 tank con-
nection device. The LP gas tank must also
have a safety relief device that has a direct
connection with the vapor space of the tank.
2. The tank supply system must be arranged
for vapor withdrawal.
3. The LP gas tank used must have a collar
to protect the tank valve.
Proper Placement and Clearance of Grill
Never use your gas grill in a garage, porch, shed,
breezeway or any other enclosed area. Your gas grill is
to be used outdoors only, at least 24 inches from the
back and side of any combustible surface. Do not
locate this appliance underoverhead unprotected
combustible surfaces. Do not obstruct the flow of
ventilation air around the gasgrill housing.
This outdoor gas grill is not intended to be installed in
or on recreational vehicles and/or boats.
• Never connect an unregulated LP gas tank to
your gas grill. The gas regulator assembly
supplied with your gas grill is adjusted to have
an outlet pressure of 11" water column (W.C.)
for connection to an LP gas tank.
• Only use the regulator and hose assembly
supplied with your gas grill. Replacement
regulators and hose assemblies must be those
specified by Sears.
• Have your LP gas tank filled by a reputable
propane gas dealer and visually inspected and
re-qualified at each filling.
• Never fill the gas tank beyond 80% full.
Have your propane gas dealer check the
release valve after every filling to ensure that it
remains free of defects.
• Always keep LP gas tanks in upright position.
Do not store (or use) gasoline or other flammable
vapors and liquids in the vicinity of this gas grill.
• LP gas tanks not connected for use must NOT be
stored on bottom shelf or in the vicinity of this or
any other gas grill.
• Do not subject the LP gas tank to excessive heat.
• Never store an LP gas tank indoors. If you
store your gas grill in the garage or other indoor
location, always disconnect the LP gas tank
first and store it safely outside. 3
•LP gas tanks must be stored outdoors in a
well-ventilated area and out of the reach of
children. Disconnected LP gas tanks must not
be stored in a building, garage or any other
enclosed area.
• When your gas grill is not in use the gas
must be turned off at the LP gas tank.
• The regulator and hose assembly can be seen
after opening the doors (if applicable), must be
inspected before each use of the grill. If there
is excessive abrasion or wear or if the hose is
cut, it must be replaced prior to the grill being
used again.
• Keep the gas regulator hose away from hot
grill surfaces and dripping grease. Avoid unnec-
essary twisting of hose. Visually inspect hose
prior to each use for cuts, cracks, excessive
wear or other damage. If the hose appears
damaged do not use the gas grill. Call Sears
at 1-800-4-MY-HOME ® (1-800-469-4663) for a
Sears authorized replacement hose.
• Never light your gas grill with the lid closed or
before checking to ensure the burner tubes are
fully seated over the gas valve orifices.
• Never allow children to operate your grill. Do
not allow children to play near your grill.
,4kWARNING
If you smell gas:
• Shut off gas supply to the gas grill.
• Turn the Control Knobs to OFF position.
• Extinguish any open flame such as candle,
cigarette, lighter, etc., that could cause gas
to ignite.
• Open the Grill Lid.
• Get away from the LP gas tank.
• Do not try to fix the problem yourself.
• If odor continues or you have a fire you
cannot extinguish, call your fire depart-
ment. Do not call near the LP gas tank
because your telephone is an electrical
device and could create a spark resulting
in fire and/or explosion.
NOTE: The normal flow of gas through the
regulator and hose assembly can create a
humming noise. A low volume of noise is
perfectly normal and will not interfere with
operation of the grill. If humming noise is
loud and excessive you may need to purge
air from the gas line or reset the regulator
excess gas flow device. This purging proce-
dure should be done every time a new LP
gas tank is connected to your grill. For help
call the Grill Information Center for assis-
tance, 8am -8pm CST, Monday through
Friday 1-888-317-7642.

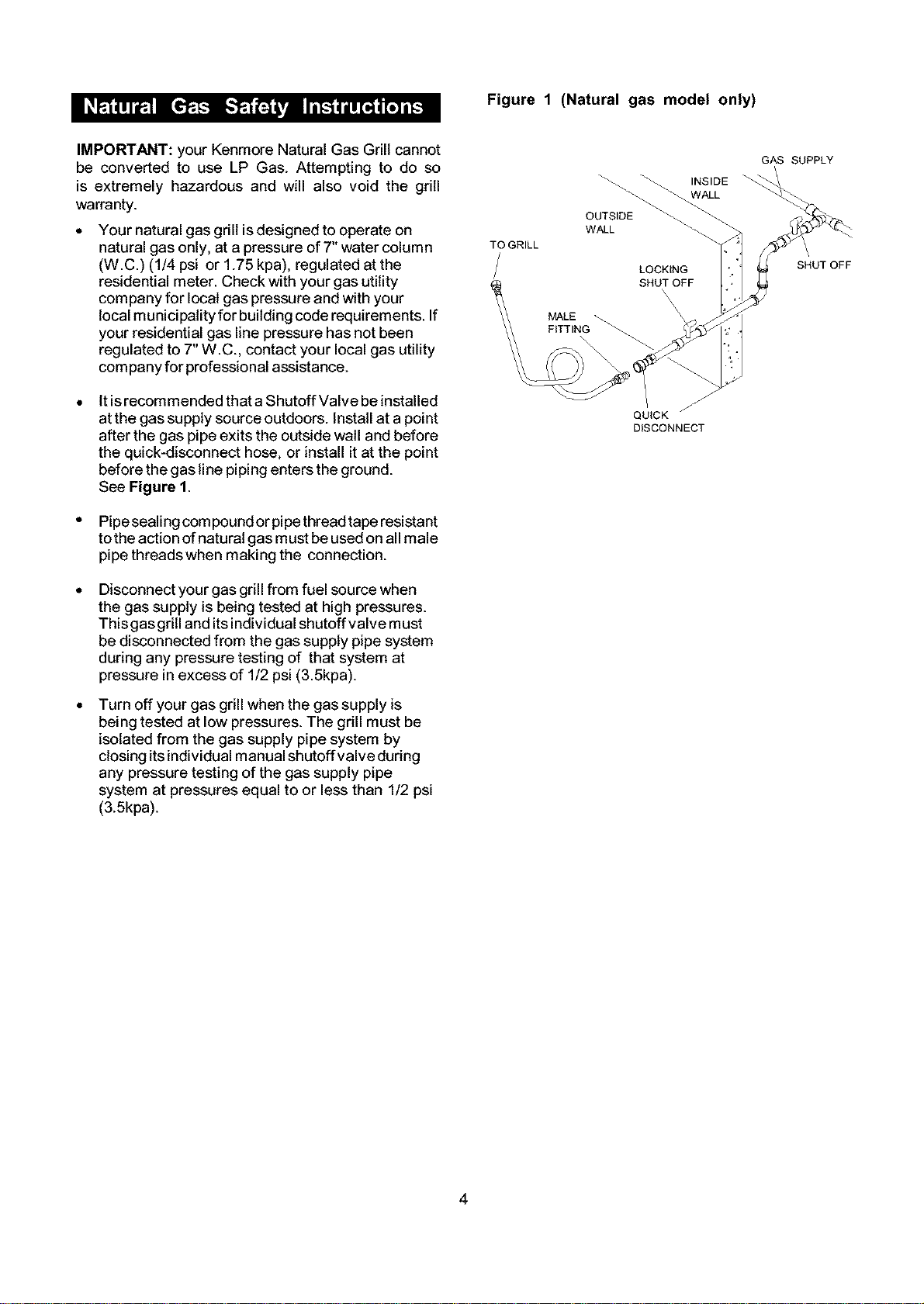

Figure 1 (Naturalgas modelonly)
IMPORTANT:your Kenmore Natural Gas Grill cannot
be converted to use LP Gas. Attempting to do so
is extremely hazardous and will also void the grill
warranty.
Your natural gas grill is designed to operate on
natural gas only, at a pressure of 7" water column
(W.C.) (1/4 psi or 1.75 kpa), regulated at the
residential meter. Check with your gas utility
company for local gas pressure and with your
local municipality for building code requirements. If
your residential gas line pressure has not been
regulated to 7" W.C., contact your local gas utility
company for professional assistance.
It isrecom mended that a Shutoff Valve be installed
at the gas supply source outdoors, install at a point
after the gas pipe exits the outside wall and before
the quick-disconnect hose, or install it at the point
before the gas line piping enters the ground.
See Figure 1.
• Pipe sealing com pound or pipe thread tape resistant
to the action of natural gas must be used on all male
pipe threadswhen making the connection.
Disconnect your gas grill from fuel source when
the gas supply is being tested at high pressures.
Thisgasgrill and its individual shutoffvalve must
be disconnected from the gas supply pipe system
during any pressure testing of that system at
pressure in excess of 1/2 psi (3.5kpa).
Turn off your gas grill when the gas supply is
being tested at low pressures. The grill must be
isolated from the gas supply pipe system by
closing itsindividual manual shutoff valve during
any pressure testing of the gas supply pipe
system at pressures equal to or less than 1/2 psi
(3.5kpa).
TO GRILL
OUTSIDE
WALL
MALE
F_TTING
INSIDE
WALL
LOCKING
SHUT OFF
\\\\\
QUICK
DISCONNECT
GAS SUPPLY
SHUT OFF
4

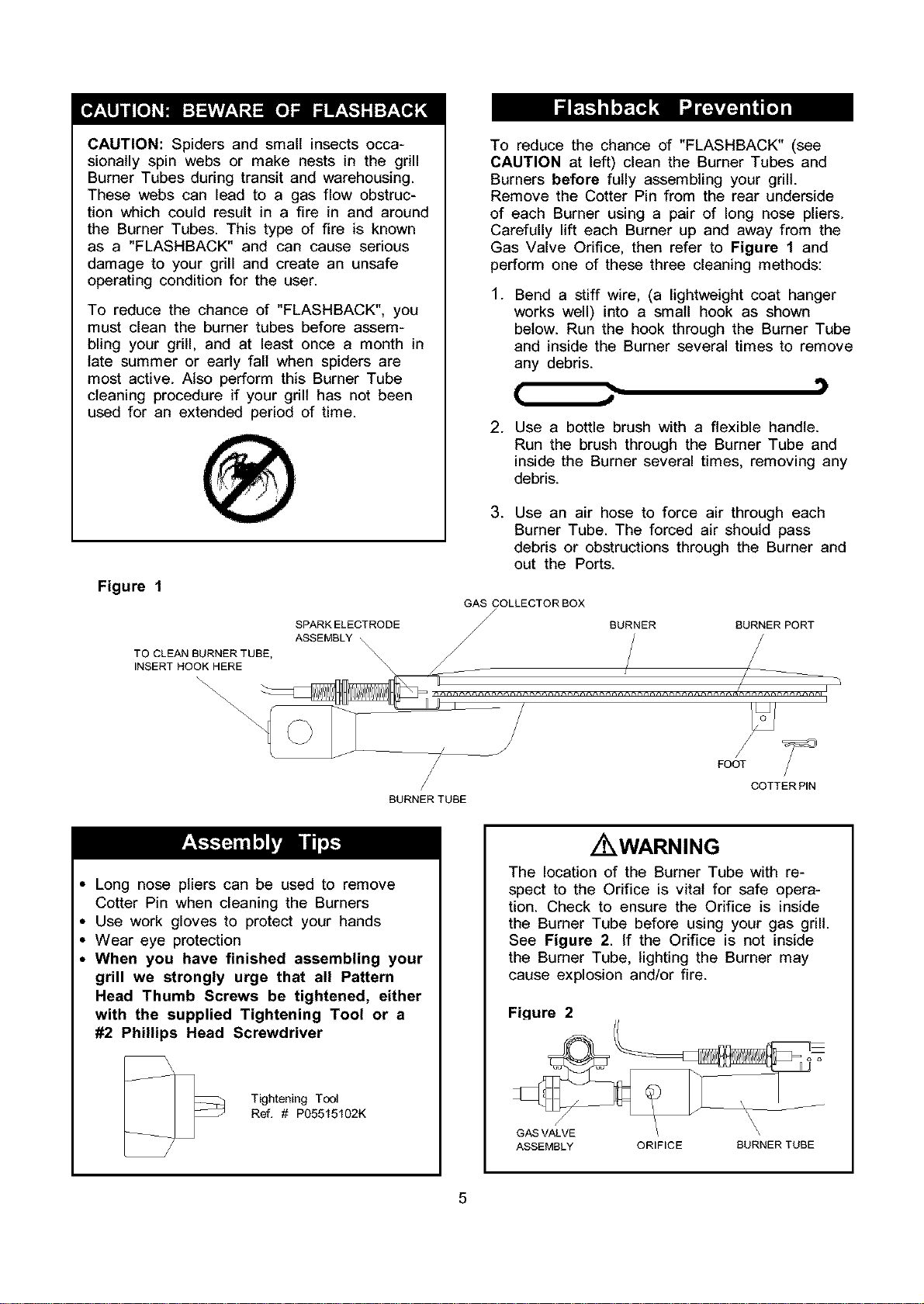

CAUTION:Spidersandsmallinsectsocca-
sionallyspinwebsor makenestsin the grill
BurnerTubesduringtransitandwarehousing.
Thesewebscanleadto a gasflowobstruc-
tionwhichcouldresultin a fire in andaround
theBurnerTubes.Thistypeof fire is known
as a "FLASHBACK"and cancauseserious
damageto yourgrill andcreatean unsafe
operatingconditionfor theuser.
To reducethechanceof "FLASHBACK",you
mustcleantheburnertubesbeforeassem-
blingyourgrill, andat leastoncea monthin
latesummeror earlyfall whenspidersare
mostactive.AlsoperformthisBurnerTube
cleaningprocedureif yourgrillhasnotbeen
usedfor an extendedperiodof time.
Figure 1
TO CLEAN BURNER TUBE,
INSERT HOOK HERE
\
SPARKELECTRODE
ASSEMBLY \\ \\
To reduce the chance of "FLASHBACK" (see
CAUTION at left) clean the Burner Tubes and
Burners before fully assembling your grill.
Remove the Cotter Pin from the rear underside
of each Burner using a pair of long nose pliers.
Carefully lift each Burner up and away from the
Gas Valve Orifice, then refer to Figure 1and
perform one of these three cleaning methods:
.Bend a stiff wire, (a lightweight coat hanger
works well) into a small hook as shown
below. Run the hook through the Burner Tube
and inside the Burner several times to remove
any debris. .. ')
(J
.Use a bottle brush with a flexible handle.
Run the brush through the Burner Tube and
inside the Burner several times, removing any
debris.
.Use an air hose to force air through each
Burner Tube. The forced air should pass
debris or obstructions through the Burner and
out the Ports.
GAS COLLECTOR BOX
BURNER BURNER PORT
I
BURNER TUBE
FOOT
COTTER PIN
Long nose pliers can be used to remove
Cotter Pin when cleaning the Burners
Use work gloves to protect your hands
Wear eye protection
When you have finished assembling your
grill we strongly urge that all Pattern
Head Thumb Screws be tightened, either
with the supplied Tightening Tool or a
#2 Phillips Head Screwdriver
Tightening Tool
Ref. # P05515102K
Z WARNING
The location of the Burner Tube with re-
spect to the Orifice is vital for safe opera-
tion. Check to ensure the Orifice is inside
the Burner Tube before using your gas grill.
See Figure 2. If the Orifice is not inside
the Burner Tube, lighting the Burner may
cause explosion and/or fire.
Figure 2
J \
GASVALVE \
ASSEMBLY ORIFICE BURNER TUBE
5
The following table illustrates a breakdown of the hardware pack. It highlights what components are used
in the various stages of assembly.
Ref.
S211G06352
S431M08152
S313G06082
S132G04082
S135G04332
S132G04082
S132G04082
S132G04082
S135G04332
PO5318022B
S132G04082
S132G04121
S135G04101
S132G04082
S132G04122
S132G04122
S233G04332
PO5301001A
P05515101L
P05313023B
S132M04082
PO5515102K
Component Qty.
Wheel Bolt 3/8"x3-3/8" 2
Spring Washer 2
Nut 3/8" 2
Pattern Head Screw 1/4"xl/2" 4
Pattern Head Screw 1/4"x2-3/4" 8
Pattern Head Screw 1/4"xl/2" 4
Pattern Head Screw 1/4"xl/2" 4
Pattern Head Screw 1/4"xl/2" 8
Pattern Head Screw 1/4"x2-3/4" 4
Door Stop/Magnet 2
Pattern Head Screw 1/4"xl/2" 4
Pattern Head Screw 1/4"x3/4" 4
PatternHeadPartly-ThreadedScrew1/4"x5/8" 4
Pattern Head Screw 1/4"x1/2" 2
Pattern Head Screw 1/4"x3/4" 4
Pattern Head Screw 1/4"x3/4" 4
Wing Bolt 1/4"x2-3/4" 1
Battery/AA 1
Wrench/No.17 Customized 1
Lighting Stick 1
Pattern Head Screw M4x8mm 1
Tightening Tool 1
P03426061C Control Knob 1
P05501010B Cotter Pin 1
S132M04082 Pattern Head Screw M4x8mm 2
S411M04122 Plain Washer M4 2
S132M04082 Pattern Head Screw M4x8mm 2
Already installed in the Tool Holder Kit & Towel Rack
$132Mg5082 Pattern Head Screw M5x8mm 2
$411Mg5136 Plain Washer M5 2
S132M05082 Pattern Head Screw M5x8mm 2
S411M05136 Plain Washer M5 2
6
PurposeofComponents
Install Wheels To Cart Legs
Attaches Foldable Cart Legs
Attaches Cart Legs To Cart Bottom Shelf
Attaches Tank Pull-out Tray Assembly To Cart
Bottom Shelf
Attaches Cart Rear Panel To Cart
Attaches Cart Side Panels To Cart
Attaches Door Bracket To Cart
Attaches To Cart
Attaches Magnetic Door Stop To Cart
Attaches Door Handles To Doors
Attaches Doors To Cart
Attaches Cart Spice Basket To Left Door
Attaches Left Side Shelf To Grill Head
Attaches Side Burner Frame To Grill Head
Secures Gas Tank
Powers The Electric Ignitor
Tighten Caster & Wheel Bolt
Attaches to Bowl Support Bracket, Left
Attaches to Bowl Support Bracket, Left
Allows you to tighten Pattern Head Thumb Screws
after assembly
Install To Side Burner Gas Valve Stem
Secure To Side Burner
Attaches To Side Burner Gas Valve Bracket
Attaches To Side Burner Gas Valve Bracket
Attaches To Left & Right Bowl Panel for Bowl Wind
Shield
Attaches Towel Rack to Left Side Shelf
Attaches Tool Holder to Side Burner Frame
LPG GAS MODEL ONLY
Size and Quantity of each Hardware Piece:
Wheel Bolt 3/8"x3_3/8"
Qty. 2
Ref. # $211G06352
Spdng Washer
Qty, 2
Ref. # $431M08152
Nut 3/8"
Qty. 2
Ref. # $313G06082
Pattern Head Screw 1/4"x2-3/4"
Qty, 12
Ref. # $135G04332
Pattern Head Screw 1/4"x3/4"
Qty. 8
Ref. # $132G04122
Pattern Head Screw 1/4"xl/2"
Qty, 26
Ref. # $132G04082
PatternHeadParUy.ThreadedScrew 1/4"x5/8"
Qty. 4
Ref. # $135G04101
Battery/AA
Qty, 1
Ref, # P05301001A
Scale 1:2
Door Stop/Magnet
Qty. 2
Ref. # P05318022B
Scale 1:2
Lighting Stick
Qty. 1
Ref. # P05313023B
Scale 1:2
Pattern Head Screw M4x8mm
Qty. 5
Ref. # $132M04082
Plain Washer M4
Qty. 2
Ref. # $411M04122
Control Knob
Qty. 1
Ref. # P03426061C
Scale 1:2
Tightening Tool
Qty. 1
Ref. # P05515102K
Cotter Pin
Qty. 1
Ref. # P05501010B
Wrench/No,17 Customized
Qty. 1
Ref. # P05515101L
Scale 1:2
Hardware already installed in the Tool Holder
Kit & Towel Rack
Pattern Head Screw MSx8mm
Qty. 4
Ref. # $132M05082
Plain Washer M5
Qty, 4
Ref. # $411M05136
7
Wing Belt 1/4"x2_3/4"
Qty. 1
Ref. #$233G04332
Scale 1:2
-I
.J
Pattern Head Screw 1/4"x3/4"
Qty. 4
Ref. # $132G04121
The following table illustrates a breakdown of the hardware pack. It highlights what components are used
in the various stages of assembly.
Refi
$211G06352
$431 M08152
$313G06082
S132G04082
$135G04332
S132G04082
S132G04082
$135G04332
PO5318022B
S132G04082
$132G04121
$135G04101
S132G04082
S132G04082
S132G04122
S132G04122
PO5301001A
PO5515101L
P05313023B
$132M04082
PO5515102K
Component Qty.
Wheel Bolt 3/8"x3-3/8" 2
Spring Washer 2
Nut 3/8" 2
Pattern Head Screw 1/4"xl/2" 4
Pattern Head Screw 1/4"x2-3/4" 8
Pattern Head Screw 1/4"xl/2" 4
Pattern Head Screw 1/4"xl/2" 8
Pattern Head Screw 1/4"x2-3/4" 4
Door Stop/Magnet 2
Pattern Head Screw 1/4"xl/2" 4
Pattern Head Screw 1/4"x3/4" 4
PatlemHeadPartly-ThreadedScrew1/4"x5/8" 4
Pattern Head Screw 1/4"x1/2" 2
Pattern Head Screw 1/4"x1/2" 2
Pattern Head Screw 1/4"x3/4" 4
Pattern Head Screw 1/4"x3/4" 4
Battery/AA 1
Wrench/No. 17 Customized 1
Lighting Stick 1
Pattern Head Screw M4x8mm 1
Tightening Tool 1
P03426061C Control Knob 1
P05501010B Cotter Pin 1
$132M04082 Pattern Head Screw M4x8mm 2
$411M04122 Plain Washer M4 2
$132M04082 Pattern Head Screw M4x8mm 2
Purpose of Components
Install Wheels To Cart Legs
Attaches
Attaches
Attaches
Attaches
Attaches
Attaches
Attaches
Attaches
Attaches
Attaches
Attaches
Attaches
Foldable Cart Legs
Cart Legs To Cart Bottom Shelf
Cart Rear Panel To Cart
Cart Side Panels To Cart
Door Bracket To Cart
To Cart
Magnetic Door Stop To Cart
Door Handles To Doors
Doors To Cart
Cart Spice Basket To Left Door
Cart Spice Basket To Right Door
Left Side Shelf To Grill Head
Attaches Side Burner Frame To Grill Head
Powers The Electric Ignitor
Tighten Caster & Wheel Bolt
Attaches to Bowl Support Bracket, Left
Attaches to Bowl Support Bracket, Left
Allows you to tighten Pattern Head Thumb Screws
after assembly
Install To Side Burner Gas Valve Stem
Secure To Side Burner
Attaches To Side Burner Gas Valve Bracket
Attaches To Side Burner Gas Valve Bracket
Attaches To Left & Right Bowl Panel for Bowl Wind
Shield
Already installed in the Tool Holder Kit & Towel Rack
$132M05082 Pattern Head Screw M5x8mm 2
$411M05136 Plain Washer M5 2
$132M05082 Pattern Head Screw M5x8mm 2
$411M05136 Plain Washer M5 2
8
Attaches Towel Rack to Left Side Shelf
Attaches Tool Holder to Side Burner Frame
NG GAS MODEL ONLY
Size and Quantity of each Hardware Piece:
Wheel Bolt 3/8"x3-3/8"
Qty. 2
Ref. # $211G06352
Spring Washer
Qty. 2
Ref. # $431M08152
Nut 3/8"
Qty. 2
Ref. # S313G06082
Pattern Head Screw 1/4"x2-3/4"
Qty. 12
Ref. # $135G04332
Pattern Head Screw 1/4"x3/4"
Qty. 8
Ref. # $132G04122
Pattern Head Screw 1/4"xl/2"
Qty. 24
Ref. # $132G04082
PatternHeadParUy.ThreadedScrew 1/4"x5/8"
Qty. 4
Ref. # $135G04101
Battery/AA
Qty. 1
Ref. # P05301001A
Scale 1:2
Lighting Stick
Qty. 1
Ref, # P05313023B
Scale 1:2
\
Control Knob
Qty. 1
Ref. # P03426061C
Scale 1:2
Door Stop/Magnet
Qty. 2
Ref, # P05318022B
Scale 1:2
Pattern Head Screw M4xSmm
Qty. 5
Ref. # $132M04082
J
Tightening Tool
Qty. 1
Ref. # P05515102K
Plain Washer M4
Qty. 2
Ref. # $411M04122
Cotter Pin
Qty. 1
Ref. # P05501010B
j)
Wrench/No.17 Customized
Qty. 1
Ref. # P05515101L
Scale 1:2
Pattern Head Screw 1/4"x3/4"
Qty. 4
Ref. # $132G04121
Hardware already installed in Tool Holder Kit &
Towel Rack
Pattern Heed Screw M5x8mm
Qty. 4
Ref. # $132M05082
I..i
Plain Washer M5
Qty. 4
Ref. # $411M05136 i.J
(NO ONLY)11a_
15_
(NO ONLY)
_57 (NG ONLY)
1o
REF# DESCRIPTION
1. Lid
2. Lid Trim Plate
3. Lid Hinge Support, Right
4. Lid Hinge Support, Left
5. Temperature Gauge
6. Lid Handle
7. Name Plate
8. Cooking Rack/Secondary
9. Cooking Grid
10. Flame TamedSteel
11. Burner/Main
1la. Burner Air Shutter/Main Bumer (NG only)
12. Burner Bracket
13. Gas Collector Box with Electrode
14. Electric Wire Set
15. Electric Ignitor, 4-port
15a. Battery/AA
16a. Bowl Panel, Front
16b. Bowl Panel, Rear
16c. Bowl Panel, Left
16d. Bowl Panel, Right
17. Bowl Hinge Support
18. Bowl Support Bracket, Left
19. Bowl Support Bracket, Right
20. Grease Draining Tray
21. Grease Draining Tray Heat Shield
22. Grease Receptacle
23. Gas Valve/Manifold Assembly
LPG
NG
24. Protective Pad
25. Control Knob for Main Burner
26. Control Panel
LPG
NG
27. Side Shelf
28. Side Burner Frame
29a. Cart Bottom Shelf (LPG only)
29b. Cart Bottom Shelf (NG only)
30. Cart Rear Panel
31. Door Bracket
32. Cart Side Panel
33. Door, Left
34a. Door, Right (LPG only)
34b. Door, Right (NG only)
35. Door Handle
11
PART#
POO138026A
POO11402JV
P03322001C
P03322002C
P00601174A
P00205007B
P00410037C
P01506001E
P01615002E
P01705002E
P02001008C
P05524060C
P02204031B
P02608001A
P02615004A
P02502024C
P05301001A
P0073811GA
P0072510GA
P00720054A
P00721054A
P03321O01D
P01304O03D
P01305O03D
P02706035B
P06903006B
P02701075B
YOO60076
Y0060077
P055180031
P03412331C
P02908027B
P02908027G
P01102004C
P01104002C
P01004O03D
P01004O04D
P07702016B
P03301O06D
P07604001B
P04302007A
P04303007A
P04303010A
P00203003C
QTY
1
1
1
1
1
1
1
1
4
4
4
4
1
2
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
2
4
1
1
1
1
1
1
1
1
2
1
1
1
2
REP# DESCRIPTION PART# QTY
36. Door Stop/Magnet P05318022B 2
37. Tank Pull-Out Tray Assembly (LPG only) Y0340010
38. Cart Leg, Left-front (Caster side) P00910003C 1
39. Cart Leg, Left-back (Caster side) P00911003C 1
40. Cart Leg, Right-front (Wheel side) P00912003C 1
41. Cart Leg, Right-back (Wheel side) P00913003C 1
42. Caster Seat PO4513OO1A 2
43. Caster, 3 in., with Brake P05106001A 2
44. Wheel P05101001A 2
45. Wheel Hub Cap P05116001B 2
46. Wrench/No.17 Customized P05515101L 1
47. Tightening Tool P05515102K 1
48. Lighting Stick P05313023B 1
49. Towel Rack P05209001A 1
50. Tool Holder PO5514003F 1
51. Tool Hook P05514053A 5
52. jCa_ Spice Basket P05204002C 1
NG P05204002C 2
53. Side Burner Lid P0011503EA 1
54. Side Burner Pot Support P00805013B 1
55. Side Burner Electrode P02607042J 1
56. Side Burner
LPG P02002041C 1
NG P02002009C 1
56a. Burner Air Shutter/Side Burner (NG only) P05524007C 1
57. Side Burner Gas Valve Assembly
LPG P03218003G
NG PO3218O04G 1
1
58. Side Burner Connection Tube P03705002A 1
59. Regulator with Hose/LPG P03601005A 1
60. Hose, 12 ft./NG P03703001A 1
61. Control Knob for Side Burner P03426061C 1
62. Bowl Wind Shield PO0737021B 1
63. Side Burner Wind Shield P06908001C 1
--- Owner's Manual P80102001B 1
--- Hardware Pack (LPG only) P06O01011A 1
--- Hardware Pack (NG only) P06001007A 1
For the repair or replacement parts you need: Call anytime
1-800-4-MY-HOM E °(1-800-469-4663)
To make sure you obtain the correct replacement parts for your Kenmore gas grill, please refer to the
part numbers in this parts list. The following information is required to ensure you receive the correct
parts: ,
1. Mooe and Serial Number (see CSA label on grill)
2. Part Number
3. Part Description
4. L4uantity or parts needed
Important: Keep this Owner's Manual for convenient referral and for part replacement.
Important: Use only, Seam" authorized, ports. The. use of any part that is not Sears authorized can be
aangerous ana Will also vola your proauc[ warran[y.
12
CAUTION:Whileit is possible for one person to assemble this grill, obtain assistance from another person when
handling some of the larger, heavier pieces, especially the grill head.
1. During unpacking and assembly always wear work gloves and eye protection.
2. Open Lid of shipping carton and remove top sheet of cardboard. Lay cardboard sheet on floor and use as a work
surface to protect floor and grill parts from scratches.
3. Remove packing materials and cart parts from shipping carton.
4. You may slice the carton front corners with a utility knife to lay open the carton front panel. This will allow you to
raise the grill head Lid and remove the components packed inside the head, making it easier to lift.
5. With an assistant, lift the grill head out of the shipping carton and place it on the cardboard work surface.
6. Use the parts list to check that all parts have been included.
7. Inspect the grill for damage as you assemble it. Do not assemble or operate the grill if it appears damaged. If
there are damaged or missing parts when you unpack the shipping box, or you have questions during the
assembly process, call the:
Grill Information Center 1-888-317-7642
8am -8pm CST, Monday through Friday
_1_ Assembling The Cart To The Grill Head
Lay the Grill Head flat on its back as shown. Cut Fastening Bands from folded Cart Legs.
Unfold the 4 pre-assembled Cart Legs. Insert 4 screws provided as shown and tighten securely.
Pattern Head Screw 1/4"xl/2"
Qty. 4
Ref. # $132G04082
13

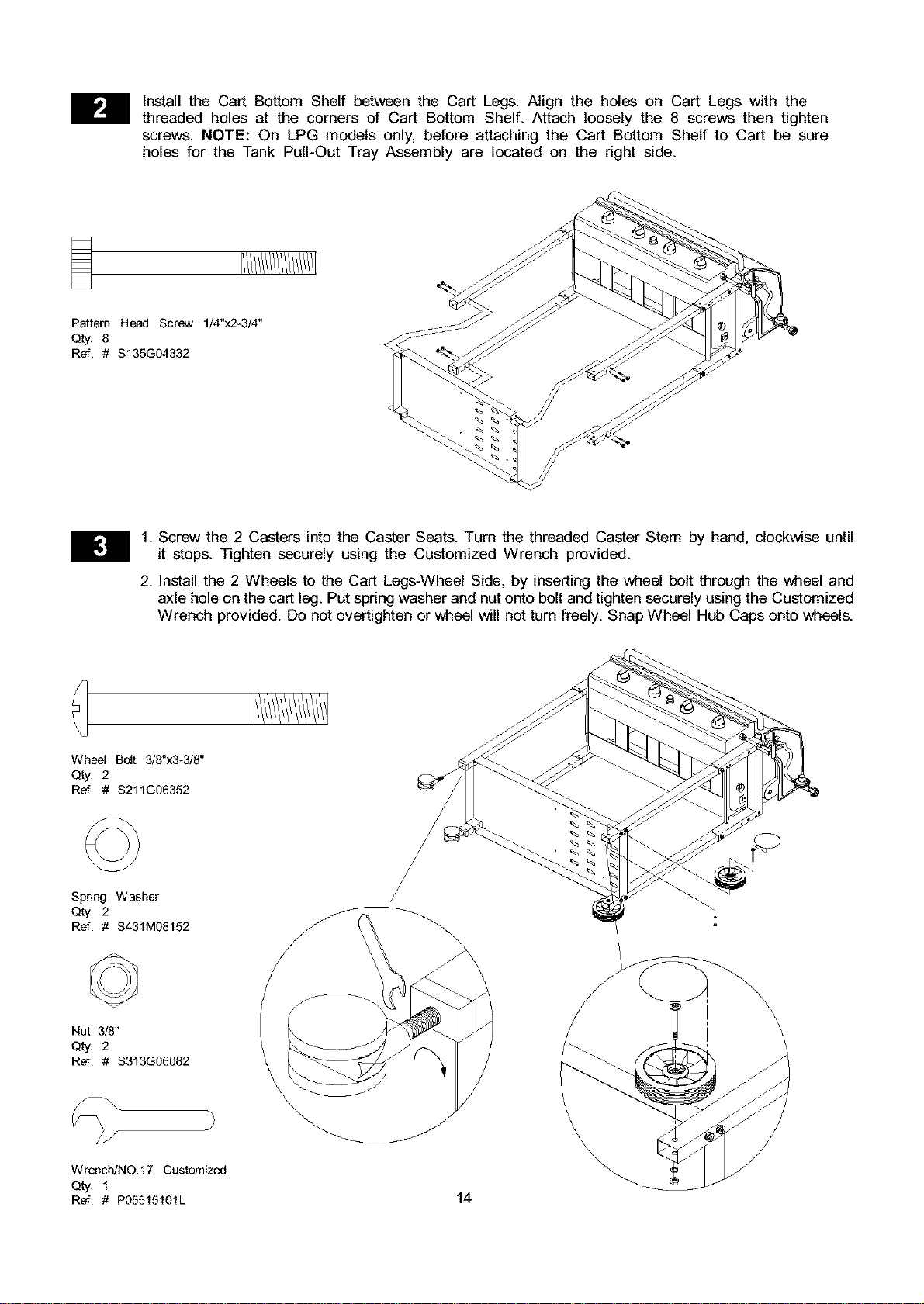

H Install the Cart Bottom Shelf between the Cart Legs. Align the holes on Cart Legs with the
threaded holes at the corners of Cart Bottom Shelf. Attach loosely the 8 screws then tighten
screws. NOTE: On LPG models only, before attaching the Cart Bottom Shelf to Cart be sure
holes for the Tank Pull-Out Tray Assembly are located on the right side.
Pattern Head Screw 1/4"x2-3/4"
Qty. 8
Ref. # $135G04332
1. Screw the 2 Casters into the Caster Seats. Turn the threaded Caster Stem by hand, clockwise until
it stops. Tighten securely using the Customized Wrench provided.
2. Install the 2 Wheels to the Cart Legs-Wheel Side, by inserting the wheel belt through the wheel and
axle hole on the cart leg. Put spring washer and nut onto bolt and tighten securely using the Customized
Wrench provided. Do not overtighten or wheel will not turn freely. Snap Wheel Hub Caps onto wheels.
Wheel Bolt 3/8"x3-3/8"
Qty, 2
Ref. # $211G06352
Spring Washer
Qty, 2
Ref. # $431M08152
Nut 3/8"
Qty, 2
Ref. # $313G06082
Wrench/NO.17 Customized
Qty, 1
Ref. # P05515101L 14
\\\\\

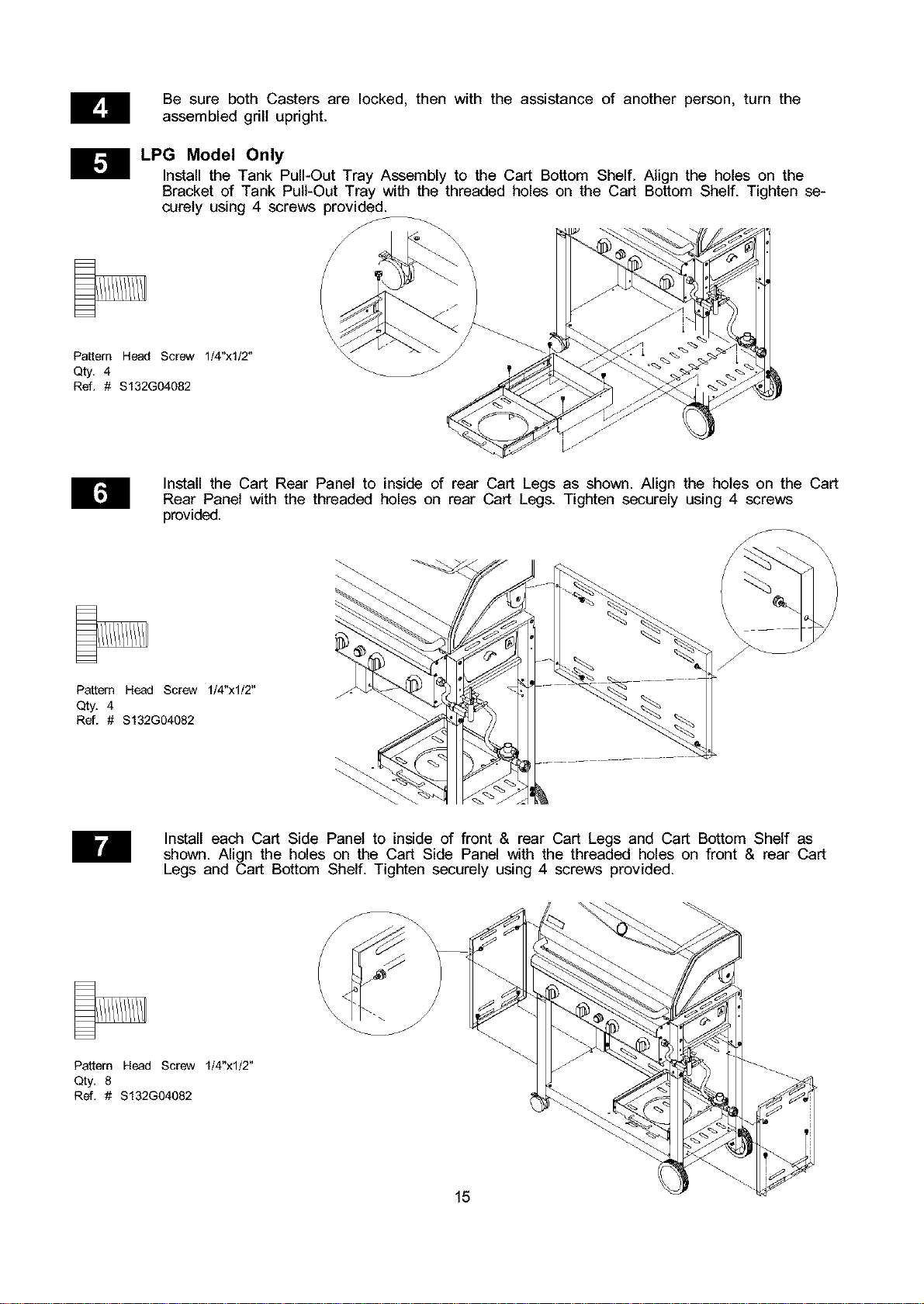

BesurebothCastersare locked,thenwith the assistanceof anotherperson,turnthe
assembledgrillupright.
_"._ LPG Model Only
Install the Tank Pull-Out Tray Assembly to the Cart Bottom Shelf. Align the holes on the
Bracket of Tank Pull-Out Tray with the threaded holes on the Cart Bottom Shelf. Tighten se-
curely using 4 screws provided.
Pattern Head Screw 1/4"xl/2" \
Qty. 4 _
Ref. # $132G04082
Install the Cart Rear Panel to inside of rear Cart Legs as shown. Align the holes on the Cart
Rear Panel with the threaded holes on rear Cart Legs. Tighten securely using 4 screws
provided.
\
Pattern Head Screw 1/4"xl/2"
Qty. 4
Ref. # $132G04082
Install each Cart Side Panel to inside of front & rear Cart Legs and Cart Bottom Shelf as
shown. Align the holes on the Cart Side Panel with the threaded holes on front & rear Cart
Legs and Cart Bottom Shelf. Tighten securely using 4 screws provided.
Pattern Head Screw 1/4"xl/2"
Qty. 8
Ref. # $132G04082
15
H1. Install the Door Bracket to the inside of front Cart Legs. Align the threaded holes on the Door
Bracket with the holes on front Cart Legs and insert 2 $135G04332 screws provided on each
side. See _ Tighten securely.
2. Install the Magnetic Door Stop to the Cart Bottom Shelf and the Door Bracket. Align the
holes on the Magnetic Door Stop with the threaded holes on the top of the Cart Bottom Shelf
and bottom side of Door Bracket. See _ Tighten securely using 4 screws provided.
Pattern Head Screw 1/4"x2-3/4"
Qty. 4
Ref. # $135G04332
Pattern Head Screw 1/4"xl/2"
Qty, 4
Ref. # $132G04082
Magnetic Door Stop
Qty. 2
Ref. # P05318022B
O LPG Model Only
1. Remove the white protective film from the stainless steel Doors. Attach a Door Handle to each
Front Door usina 2 $132G04121 screws provided. Be careful not to scratch the Door
surfaces. See
2. When installing the Front Doors, make sure the door bolt holes are located on the hinge
sides of the Cart Legs.
3. Install each Front Door by inserting Partly-threaded screw through the lower door screw hole
of the Front Door and into the tapped hole of the Cart Bottom Shelf. Next, align the upper
door screw hole of Front Door with the tapped hole in the bottom of Door Bracket. SeelP;!_i]l
Insert partly-threaded screw provided. Tighten both screws securely.
4. Install the Cart Spice Basket to the inside of Left Door. Align the threaded holes on the Cart Spice
Basket Bracket with the holes on the Cart Spice Basket. See I_J'_F_lTightensecurely using 2 screws
provided.
Pattern Head Screw 1/4"x3/4"
Qty. 4
Ref. # $132G04121
PatternHeadPartly.ThreadedScrew 1/4"x5/8"
Qty. 4
Ref. # $135G04101
Pattern Head Screw 1/4"xl/2"
Qty, 2
Ref. # $132G04082 16

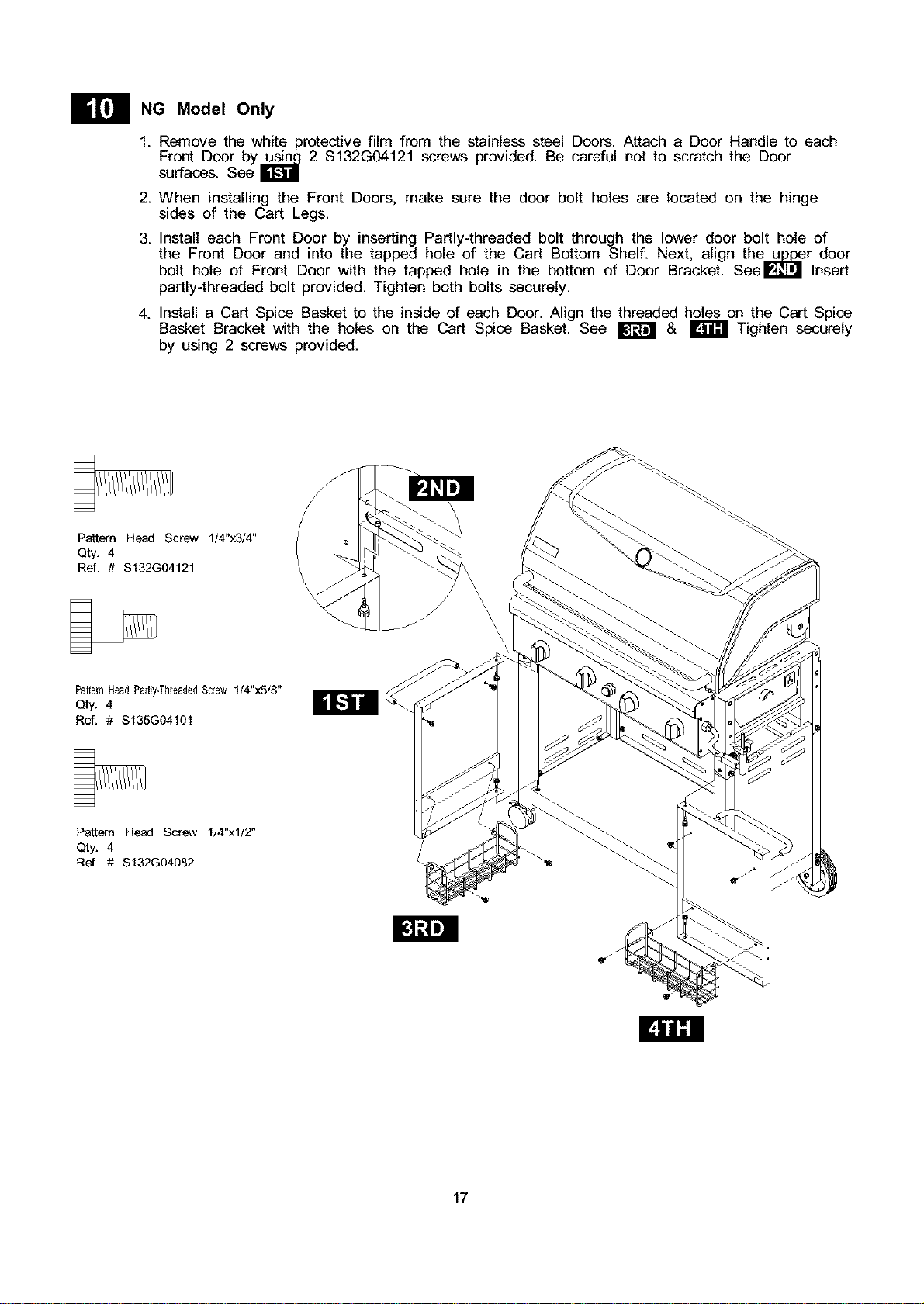

_s'r_ NG Model Only
1. Remove the white protective film from the stainless steel Doors. Attach a Door Handle to each
Front Door by using 2 $132G04121 screws provided. Be careful not to scratch the Door
surfaces. See
2. When installing the Front Doors, make sure the door bolt holes are located on the hinge
sides of the Cart Legs.
3. Install each Front Door by inserting Partly-threaded bolt through the lower door bolt hole of
the Front Door and into the tapped hole of the Cart Bottom Shelf. Next, align the upper door
bolt hole of Front Door with the tapped hole in the bottom of Door Bracket. Seel_4_lm] Insert
partly-threaded bolt provided. Tighten both bolts securely.
4. Install a Cart Spice Basket to the inside of each Door. Align the threaded holes on the Cart Spice
Basket Bracket with the holes on the Cart Spice Basket. See _ & _ Tighten securely
by using 2 screws provided.
Pattern Head Screw 1/4"x3/4"
Qty. 4
Ref. # $132G04121
PaltemHeadPadly-ThreadedScrew1/4"x5/8"
Qty. 4
Ref. # $135G04101 I il
Pattern Head Screw 1/4"xl/2"
Qty. 4
Ref. # $132G04082
\\\
J |11-'1
17

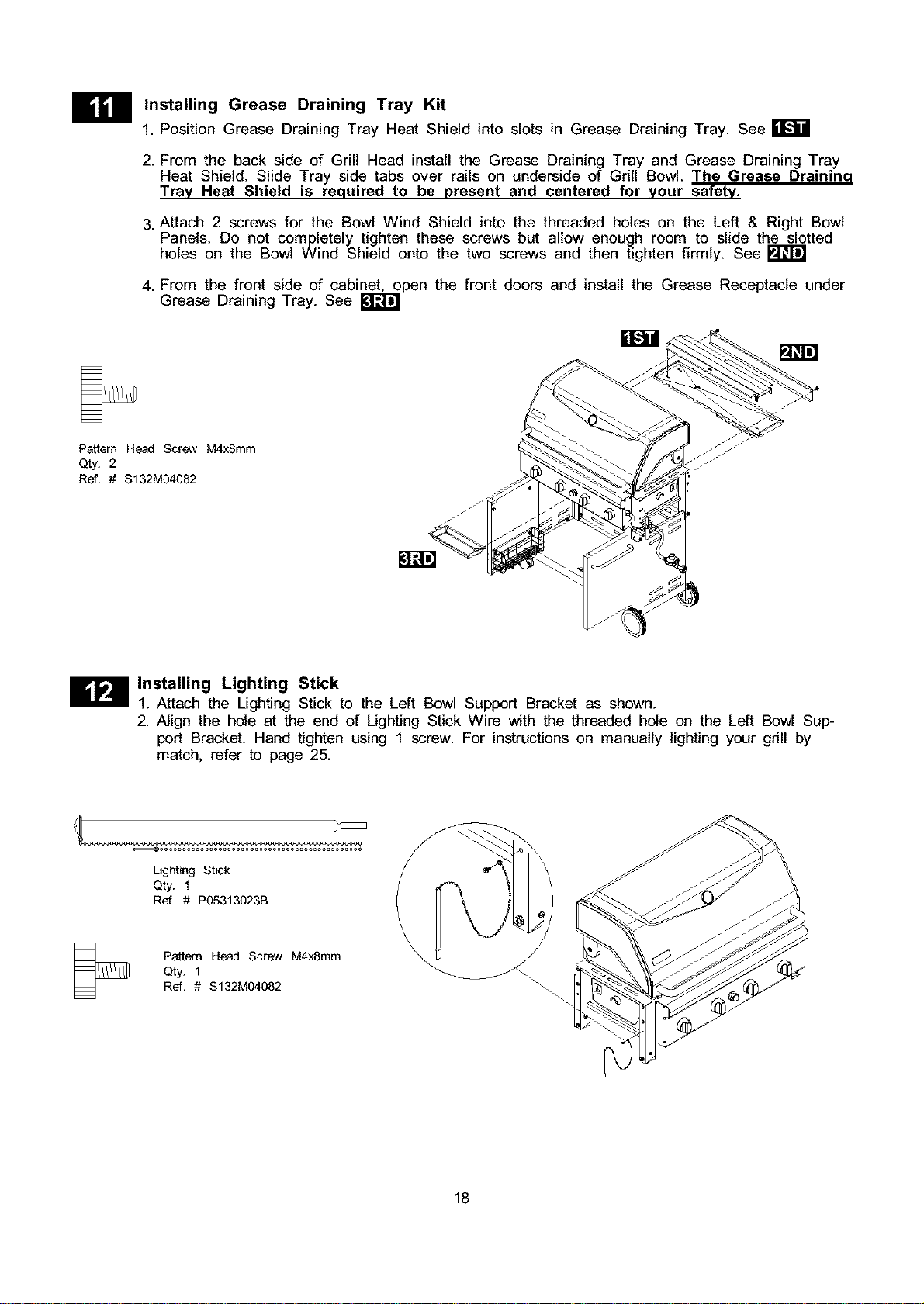

Installing Grease Draining Tray Kit
1. Position Grease Draining Tray Heat Shield into slots in Grease Draining Tray. See W
2. From the back side of Grill Head install the Grease Draining Tray and Grease Draining Tray
Heat Shield. Slide Tray side tabs over rails on underside of Grill Bowl. The Grease Draininq
Tray Heat Shield is required to be present and centered for your safety.
3. Attach 2 screws for the Bowl Wind Shield into the threaded holes on the Left & Right Bowl
Panels. Do not completely tighten these screws but allow enough room to slide the slotted
holes on the Bowl Wind Shield onto the two screws and then tighten firmly. See
4. From the front side of cabinet, open the front doors and install the Grease Receptacle under
Grease Draining Tray. See [_
Pattern Head Screw M4x8mm
Qty. 2
Ref. # $132M04082
.f.J"
.J
_"_ Installing Lighting Stick
1. Attach the Lighting Stick to the Left Bowl Support Bracket as shown.
2. Align the hole at the end of Lighting Stick Wire with the threaded hole on the Left Bowl Sup-
port Bracket. Hand tighten using 1 screw. For instructions on manually lighting your grill by
match, refer to page 25.
Lighting Stick
Qty. 1
Ref. # P05313023B
Pattern Head Screw M4xSmm
Qty. 1
Ref. # $132M04082
\\
18
_ Installing Towel Rack
Remove the Washers and Pattern Head Screws from the Towel Rack. Attach Towel Rack to tabs
on underside of Left Side Shelf and secure firmly using 2 screws and washers attached to Towel
Rack.
Pattern Head Screw M5x8mm
Qty. 2
Ref. # $132M05082
Plain Washer M5
Qty. 2
Ref. # $411M05136
_ Installing Tool Holder Kit
Remove the Washers and Pattern Head Screws from the Tool Holder. Slide the 5 Tool Hooks onto
the Tool Holder with the hooks facing the Side Burner Frame. Attach Tool Holder to tabs on unde_de
of Side Burner Frame and secure firmly using 2 screws and washers attached to Tool Holder.
Pattren Head Screw M5x8mm
Qty. 2
Ref. # $132M05082
Plain Washer M5
Qty. 2
Ref. # $411M05136
\\\
_li_ Installing Side Shelf and Side Burner Frame
1. Attach Side Shelf to Left Bowl Support Brackets as shown. Align the 4 holes on Side Shelf
with the threaded holes on Left Bowl Support Bracket. Tighten securely using 4 screws provided.
2. Attach Side Burner Frame to Right Bowl Support Brackets as shown. Align the 4 holes on Side
Burner Frame with the threaded holes on Right Bowl Support Bracket. Tighten securely using 4
screws provided.
Pattern Head Screw 1/4"x3/4"
Qty. 8
Ref. # $132G04122
19
_'_ Installing Side Burner Kit
1. Insert the Side Burn--s Valve Assembly through the Side Burner Gas Valve Hole on the Side
Burner Frame, See _ Align the 2 holes on the Side Burner Frame with the threaded holes
on the Side Burner Gas Valve Bracket. Tighten securely using 2 screws and washers provided.
2. Cut Fastening Band from Pot Support and set Pot Support aside. Install the Side Burner through
the top hole in Side Burner Frame and onto the Side Burner Gas Valve. Make sure that opening
at end of Side Burner Connection Tube goes over tip of Side Burner Gas Valve. Secure Side Burner
with supplied Cotter Pin. See
,
4.
Push the Control Knob onto the Side Burner Gas Valve Stem. Be sure that the OFF position faces
the Burner. See
Connect the Electric Wire terminal from Side Burner with the other from Grill Head. See W
Thread the supplied Fastening Band through the hole on the top of the Right Cart Side Panel and
bind the connected Electric Wire and Regulator Hose together using the Fastening Band.
5. The gap,,between the Side Burner Electrode Tip and the Side Burner Port should be approximately
1/8-3/16. See _ If the gap is wider than 3/16", use a pair of long nose pliers and gently
bend the Electrode Tip toward the burner.
6. Place the Side Burner Pot Support into the Side Burner Frame. See
7. Place the Side Burner Wind Shield on the Side Burner Frame. See
ilill
Pattern Head Screw M4x8mm
Qty. 2
Ref. # $132M04082
Plain Washer M4
Qty. 2
Ref. # $411M04122
\
Control Knob
Qty. 1
Ref. # P03426061C
li iil
Cotter Pin
Qty. 1
Ref. # P05501010B
Fastening Band
Qty. 1
Ref. # P055340011
\
f
_ll_ll_ 1/8"-3/16" BURNER
SiDE
•When you have finished
assembling your grill we
strongly urge that all Pat-
tern Head Thumb Screws
be tightened, either with
the supplied Tightening
Tool or a #2 Phillips Head
Screwdriver
WARNING
Be sure the Electric Wire and Regulator
Hose are bound together and fixed to the
hole on the top of Right Cart Side Panel.
2O

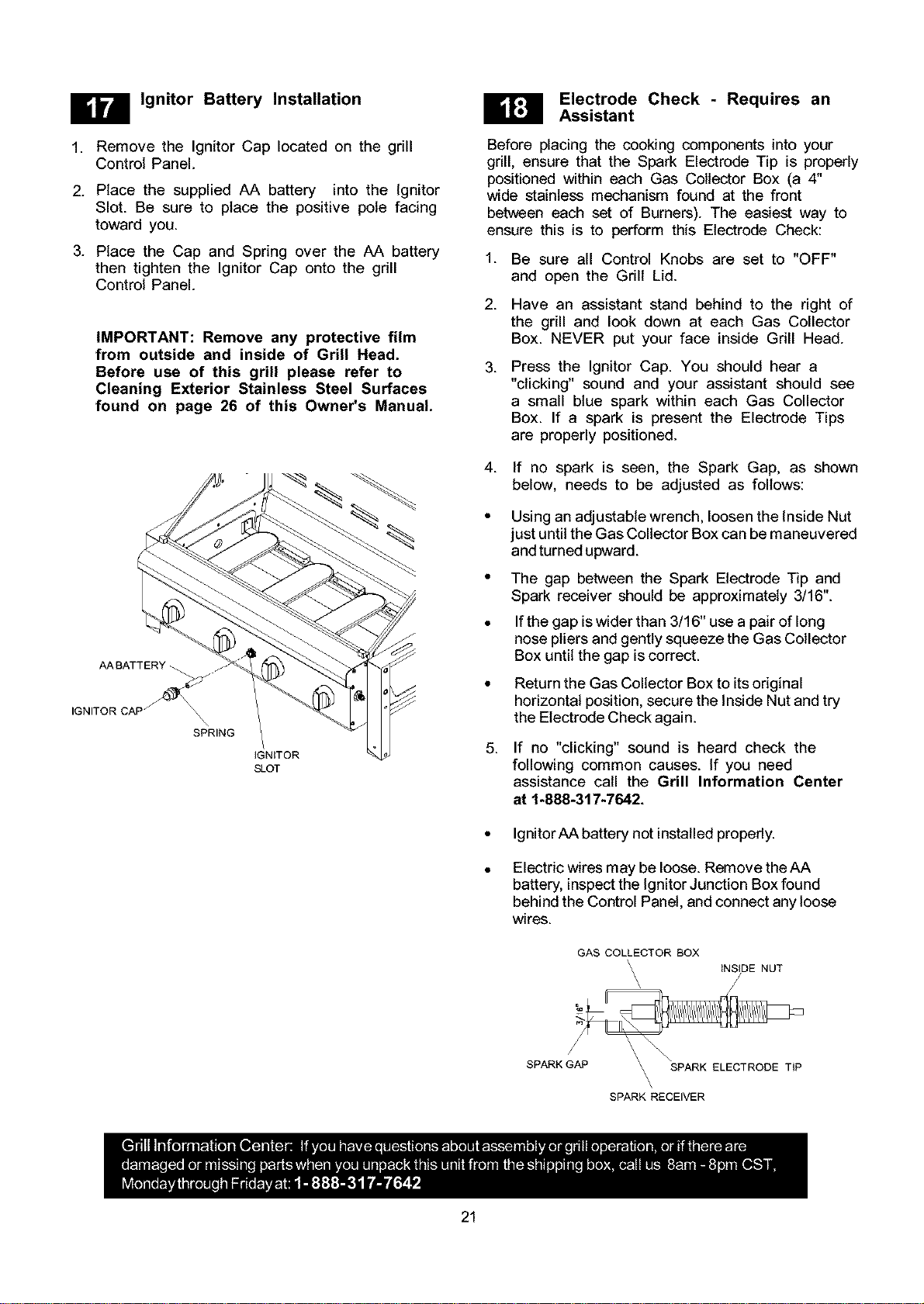

_'_ Ignitor Battery Installation
1. Remove the Ignitor Cap located on the grill
Control Panel.
2. Place the supplied AA battery into the Ignitor
Slot. Be sure to place the positive pole facing
toward you.
3. Place the Cap and Spring over the AA battery
then tighten the Ignitor Cap onto the grill
Control Panel.
IMPORTANT: Remove any protective film
from outside and inside of Grill Head.
Before use of this grill please refer to
Cleaning Exterior Stainless Steel Surfaces
found on page 26 of this Owner's Manual.
AA BATTERY _.f-
IGNITOR \
SPRING
iGNITOR
SLOT
Electrode Check -Requires an
Assistant
Before placing the cooking components into your
grill, ensure that the Spark Electrode Tip is properly
positioned within each Gas Collector Box (a 4"
wide stainless mechanism found at the front
between each set of Burners). The easiest way to
ensure this is to perform this Electrode Check:
1. Be sure all Control Knobs are set to "OFF"
and open the Grill Lid.
2. Have an assistant stand behind to the right of
the grill and look down at each Gas Collector
Box. NEVER put your face inside Grill Head.
,Press the Ignitor Cap. You should hear a
"clicking" sound and your assistant should see
a small blue spark within each Gas Collector
Box. If a spark is present the Electrode Tips
are properly positioned.
4. If no spark is seen, the Spark Gap, as shown
below, needs to be adjusted as follows:
,
Using an adjustable wrench, loosen the Inside Nut
just until the Gas Collector Box can be maneuvered
and turned upward.
The gap between the Spark Electrode Tip and
Spark receiver should be approximately 3/16".
If the gap is wider than 3/16" use a pair of long
nose pliers and gently squeeze the Gas Collector
Box until the gap is correct.
Return the Gas Collector Box to itsoriginal
horizontal position, secure the Inside Nut and try
the Electrode Check again.
If no "clicking" sound is heard check the
following common causes. If you need
assistance call the Grill Information Center
at 1-888-317-7642.
•Ignitor AA battery not installedproperly.
Electric wires may be loose. Remove the AA
battery, inspectthe Ignitor Junction Box found
behind the Control Panel, and connect any loose
wires.
GAS COLLECTOR BOX
\\ INSIDE NUT
/
SPARK GAP \ SPARK ELECTRODE TIP
\\
SPARK RECEIVER
21

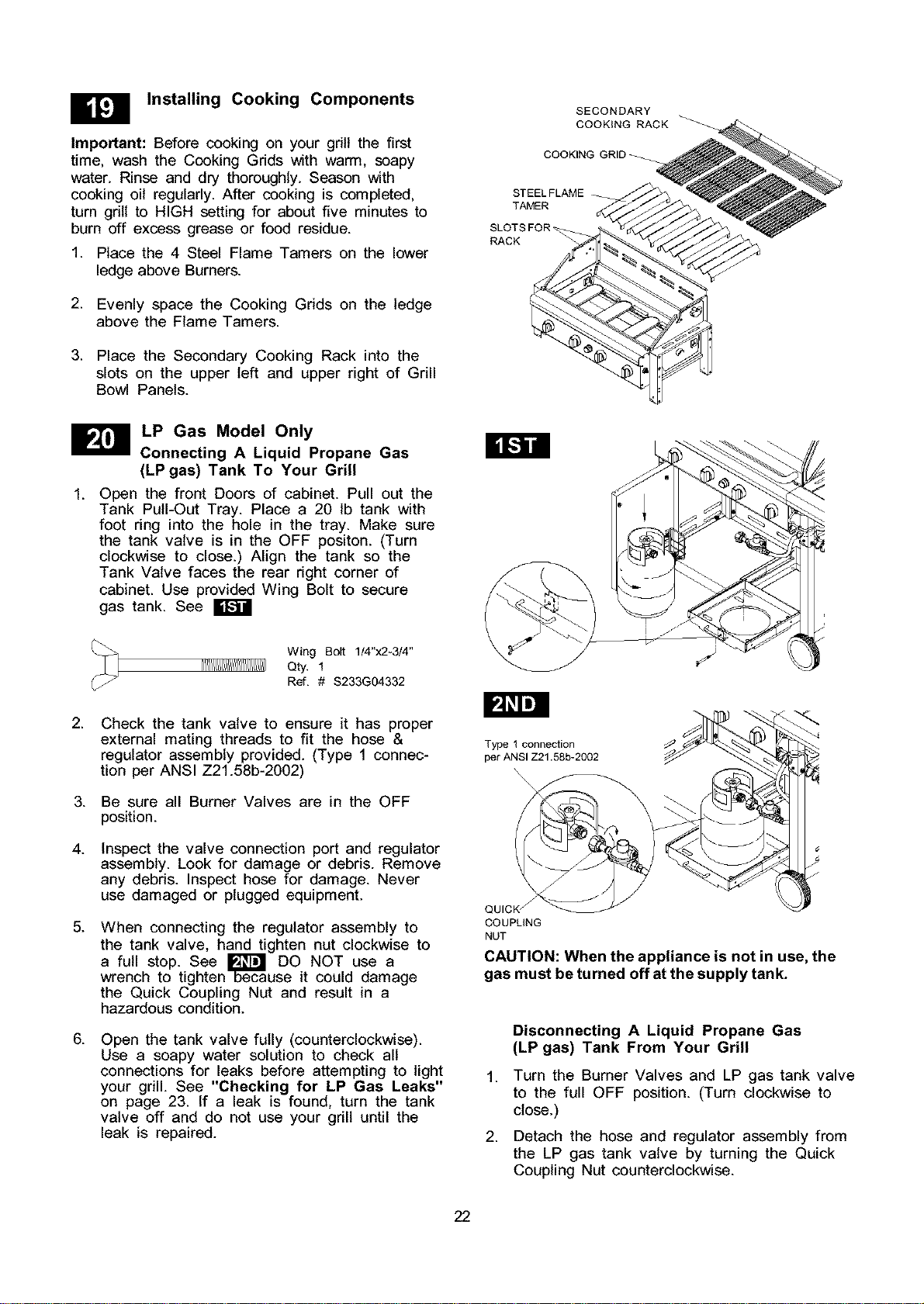

Installing Cooking Components
Important: Before cooking on your grill the first
time, wash the Cooking Grids with warm, soapy
water. Rinse and dry thoroughly. Season with
cooking oil regularly. After cooking is completed,
turn grill to HIGH setting for about five minutes to
burn off excess grease or food residue.
1. Place the 4 Steel Flame Tamers on the lower
ledge above Burners.
2. Evenly space the Cooking Grids on the ledge
above the Flame Tamers.
3. Place the Secondary Cooking Rack into the
slots on the upper left and upper right of Grill
Bowl Panels.
SECONDARY
COOKING RACK
COOKING GRID_
STEELFLAME
TAMER
RACK
_r_ LP Gas Model Only
Connecting A Liquid Propane Gas
(LP gas) Tank To Your Grill
1. Open the front Doors of cabinet. Pull out the
Tank Pull-Out Tray. Place a 20 lb tank with
foot ring into the hole in the tray. Make sure
the tank valve is in the OFF positon. (Turn
clockwise to close.) Align the tank so the
Tank Valve faces the rear right corner of
cabinet. Use provided Wing Bolt to secure
gas tank. See
Wing Bolt 1/4"x2+3/4"
Qty, 1
Ref. # $233G04332
<
J
2.
.
4.
.
.
Check the tank valve to ensure it has proper
external mating threads to fit the hose &
regulator assembly provided. (Type 1 connec-
tion per ANSI Z21.58b-2002)
Be sure all Burner Valves are in the OFF
position.
Inspect the valve connection port and regulator
assembly. Look for damage or debris. Remove
any debris. Inspect hose for damage. Never
use damaged or plugged equipment.
When connecting the regulator assembly to
the tank valve, hand tighten nut clockwise to
a full stop. See _ DO NOT use a
wrench to tighten because it could damage
the Quick Coupling Nut and result in a
hazardous condition.
Open the tank valve fully (counterclockwise).
Use a soapy water solution to check all
connections for leaks before attempting to light
your grill. See "Checking for LP Gas Leaks"
on page 23. If a leak is found, turn the tank
valve off and do not use your grill until the
leak is repaired.
Type t connection
per ANSI Z21.58b-2002
QUICK j
COUPLING
NUT
CAUTION: When the appliance is not in use, the
gas must be turned off at the supply tank.
Disconnecting A Liquid Propane Gas
(LP gas) Tank From Your Grill
1. Turn the Burner Valves and LP gas tank valve
to the full OFF position. (Turn clockwise to
close.)
2. Detach the hose and regulator assembly from
the LP gas tank valve by turning the Quick
Coupling Nut counterclockwise.
22

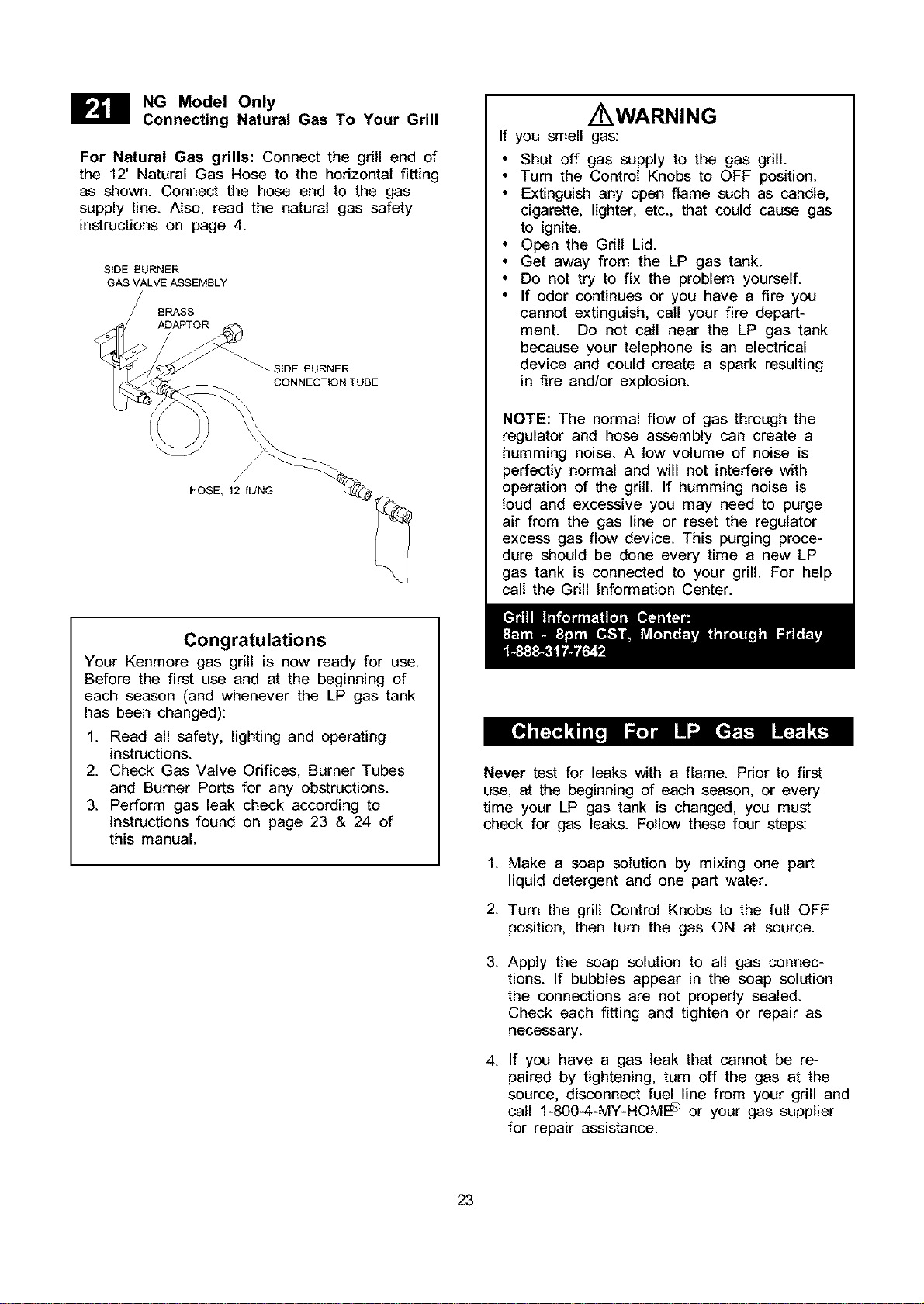

_! NG Model Only
Connecting Natural Gas To Your Grill
For Natural Gas grills: Connect the grill end of
the 12' Natural Gas Hose to the horizontal fitting
as shown. Connect the hose end to the gas
supply line. Also, read the natural gas safety
instructions on page 4.
SiDE BURNER
GAS VALVE ASSEMBLY
BRASS
ADAPTOR
S_DE BURNER
CONNECTION TUBE
HOSE, 12 ft./NG
Congratulations
Your Kenmore gas grill is now ready for use.
Before the first use and at the beginning of
each season (and whenever the LP gas tank
has been changed):
1. Read all safety, lighting and operating
instructions.
2. Check Gas Valve Orifices, Burner Tubes
and Burner Ports for any obstructions.
3. Perform gas leak check according to
instructions found on page 23 & 24 of
this manual.
Z WARNING
If you smell gas:
• Shut off gas supply to the gas grill.
• Turn the Control Knobs to OFF position.
• Extinguish any open flame such as candle,
cigarette, lighter, etc., that could cause gas
to ignite.
• Open the Grill Lid.
• Get away from the LP gas tank.
• Do not try to fix the problem yourself.
• If odor continues or you have a fire you
cannot extinguish, call your fire depart-
ment. Do not call near the LP gas tank
because your telephone is an electrical
device and could create a spark resulting
in fire and/or explosion.
NOTE: The normal flow of gas through the
regulator and hose assembly can create a
humming noise. A low volume of noise is
perfectly normal and will not interfere with
operation of the grill. If humming noise is
loud and excessive you may need to purge
air from the gas line or reset the regulator
excess gas flow device. This purging proce-
dure should be done every time a new LP
gas tank is connected to your grill. For help
call the Grill information Center.
Never test for leaks with a flame. Prior to first
use, at the beginning of each season, or every
time your LP gas tank is changed, you must
check for gas leaks. Follow these four steps:
1.
2.
Make a soap solution by mixing one part
liquid detergent and one part water.
Turn the grill Control Knobs to the full OFF
position, then turn the gas ON at source.
.
4.
Apply the soap solution to all gas connec-
tions. If bubbles appear in the soap solution
the connections are not properly sealed.
Check each fitting and tighten or repair as
necessary.
If you have a gas leak that cannot be re-
paired by tightening, turn off the gas at the
source, disconnect fuel line from your grill and
call 1-8OO-4-MY-HOME _ or your gas supplier
for repair assistance.
23

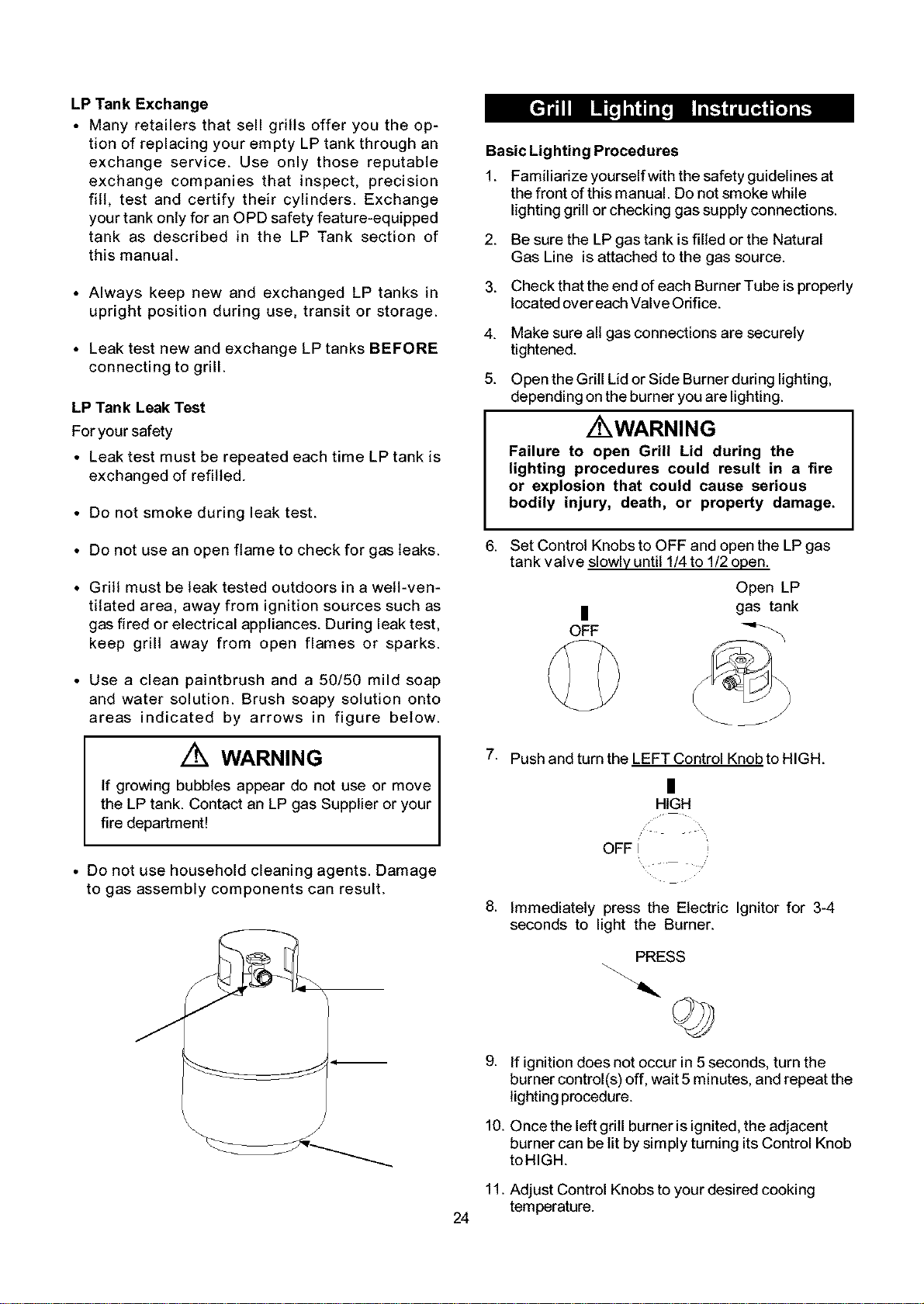

LP Tank Exchange
• Many retailers that sell grills offer you the op-
tion of replacing your empty LP tank through an
exchange service. Use only those reputable
exchange companies that inspect, precision
fill, test and certify their cylinders. Exchange
your tank only for an OPD safety feature-equipped
tank as described in the LP Tank section of
this manual.
• Always keep new and exchanged LP tanks in
upright position during use, transit or storage.
• Leak test new and exchange LP tanks BEFORE
connecting to grill.
LP Tank Leak Test
For your safety
• Leak test must be repeated each time LP tank is
exchanged of refilled.
• Do not smoke during leak test.
Basic Lighting Procedures
1. Familiarize yourself with the safety guidelines at
the front of this manual. Do not smoke while
lighting grill or checking gas supply connections.
2. Be sure the LP gas tank is filled or the Natural
Gas Line is attached to the gas source.
3. Check that the end of each Burner Tube is properly
located over each Valve Orifice.
4.
5.
Make sure all gas connections are securely
tightened.
Open the Grill Lid or Side Burner during lighting,
depending on the burner you are lighting.
Z WARNING
Failure to open Grill Lid during the
lighting procedures could result in a fire
or explosion that could cause serious
bodily injury, death, or property damage.
• Do not use an open flame to check for gas leaks.
• Grill must be leak tested outdoors in a well-ven-
tilated area, away from ignition sources such as
gas fired or electrical appliances. During leak test,
keep grill away from open flames or sparks.
.Set Control Knobs to OFF and open the LP gas
tank valve slowly until 1/4 to 1/2 open.
Open LP
IN gas tank
OFF _--'-_
• Use a clean paintbrush and a 50/50 mild soap
and water solution. Brush soapy solution onto
areas indicated by arrows in figure below.
WARNING
If growing bubbles appear do not use or move
the LP tank. Contact an LP gas Supplier or your
fire department!
• Do not use household cleaning agents. Damage
to gas assembly components can result.
l\
7. Push and turn the LEFT Control Knob to HIGH.
|
HIGH
OFF I i
8. Immediately press the Electric Ignitor for 3-4
seconds to light the Burner.
PRESS
J
g.
10.
If ignition does not occur in 5 seconds, turn the
burner control(s) off, wait 5 minutes, and repeat the
lighting procedure.
Once the left grill burner is ignited, the adjacent
burner can be lit by simply turning its Control Knob
toHIGH.
11. Adjust Control Knobs to your desired cooking
temperature.
24
_ Manually Lighting Your Grill by Match
To light your gas grill by match, insert a match intothe
Lighting Stick and follow steps 1through 6 of the
Basic Lighting Procedures. Then, light the match and
place Lighting Stick through the Lighting Hole on the
left side of the grill as shown below. Turn the nearest
Control Knob to the HIGH setting to release gas. The
Burner should light immediately.
LIGHTING
HOLE
LIGHTING
STICK
MATCH
Z WARNING
Never lean over the grill cooking area while
lighting your gas grill. Keep your face and
body a safe distance (at least 18 inches)
from the Lighting Hole or Burners, when
lighting your grill by match.
If the grill fails to light :
1. Turn gas off at source and turn the Control Knob to
OFF. Wait at least five minutes for gas to clear,
then retry.
2. If your grill still fails to light, check gas supply
and connections.
3. Repeat lighting procedure. If your grill still fails
to operate, turn the gas off at source, turn the
Control Knobs to OFF, then check the following:
• Misalignment of Burner Tubes over Orifices
Correction: Reposition BumerTubes overOri-
rices.
• Obstruction ingas line
Correction: Remove fuet line from grill. Donot
smoke! Open gas supply for one second to clear
any obstruction from fuel line. Close off gas supply
at source and reconnect fuel line to grill.
• PluggedOrifice
Correction: Remove Burnersfrom grill by pulling
Cotter Pin (beneath Burner) using Long nose
pliers. Carefully lift each Burner up and away
from gasvalve Orifice. Remove theOriflcefrom
gas valve and gently clear any obstruction with a
fine wire. Then reinstall all Orifices, Burners,
Cotter Pins and cooking components.
If an obstruction is suspected in Gas Valves or
Manifold, call the Grill Information Center at 1-
888-317-7642.
• Obstruction in Burner Tubes
Correction: Fotlowthe Burner Tube cleaning
procedure on page 27 of this Owner's Manual.
• Misalignment of Ignitoron Burner
Correction: Check for proper position of the
Electrode Tip as shown in step 18. The gap
between the Spark Electrode Tip and Spark
Receiver should be approximately 3/16". Adjust
if necessary. With the gas supply closed and all
Control Knobs set to OFF press the Electric
Ignitor cap and check for the presence of a
spark at the Electrode.
• Disconnected Electric Wires
Correction: Inspectthe Ignitor Junction Box
found behind the Control Panel. Connect loose
Electric wires to Junction Box and try to light the
grill.
• Weak AA battery
Correction: Unscrew the Ignitor Cap and replace
the battery.
4. If the grill still does not light you may need
to purge air from the gas line or reset the
regulator excess gas flow device. Note: This
procedure should be done every time a new
LP gas tank is connected to your grill.
5.
To purge air from your gas line and/or
reset the regulator excess gas flow device:
•Turn Control Knobs to the OFF position.
•Turn off the gas at the tank valve.
• Disconnect regulator from LP gas tank.
•Let unit stand for 5minutes to allow air to
purge.
•Reconnect regulator to the LP gas tank.
•Turn the tank valve on slowly until 1/4 to
1/2 open.
• Open the Grill Lid.
•Push and turn the LEFT Control Knob to
HIGH.
• Press Electric Ignitor for 3-4 seconds to
light the burners.
If all checks or corrections have been made and
you still have questions about operating your gas
grill, call the Grill Information Center
8am - 8pm CST, Monday through Friday at
1-888-317-7642.
Z WARNING
Should a FLASHBACK fire occur in/or
around the Burner Tubes, follow the
instructions below. Failure to comply with
these instructions could result in a fire or
explosion that could cause serious bodily
injury, death, or property damage.
• Shut off gas supply to the gas grill.
• Turn the Control Knobs to OFF position.
• Open the Grill Lid.
• Put out any flame with a Class B fire
extinguisher.
• Once the grill has cooled down, clean the
Burner Tubes and Burners according to
the cleaning instructions found on page 27
in this manual.
25
CAUTION:
BesureyourgrillisOFFandcoolbeforecleaning.
Takecarenottochiporscratchthepaintedsurfaces.
Aswithallappliances,propercareandmaintenance
willkeepyourgrillintopoperatingconditionand
prolongitslife.Byfollowingthesecleaningprocedures
onatimelybasis,yourgrillwillstaycleanandwork
propedywithminimumeffort.
CleaningTheCookingGrids
Beforeinitialuse.a,nciperio,dicallywesuggestyo.uwash
yourL,OOKmgL_nasIn a mlla soap ana warm water
sotu,tion. You £an ,use a..washcloth or vegetable brush
to clean your L,OOKIngL_rtas.
Cleaning The Flame Tamers
Periodically you sh.ould wa,sh the Flame Tam ,ers,in a
soap aria warm water solution, use a vege[aole orusn
to remove stubborn burnt-on cooking residue. Dry the
Flame/amers thoroughly oeToreyou reinstall them into
the cooking bowl.
Cleaning The Grease Tray and Receptacle
To reduce the chance pf fire, t,h,eGrease praining,Tray
ana orease Kecep[ac_e snou_aDewsuaHy mspectea
before each grill use. Remove any grease aria wash
Grease Tray and Receptacle with a mild soap and
warm water solution.
Cleaning the Inside of the Grill Lid
Gre,ase c,a,nhave a ten,d,encyto ,bui!d u,pon the ins,ide
of me L_riHLia ana coupearip onto aecK or pmio wnen
the !idis open ,ed. V,isuall_inspect the insiae of th,eGri!l
Lla before eacn grill use. Kemove any grease ana wasn
with a mild soap and warm water solution.
Annual Cleaning of The Grill Interior
Burning-off the grill after every cookout will keep it
ready for instant use. However, once a year you should
give the entire grill a thorough cleaning to keep it in top
operating condition. Follow these steps:
1. Turn all Burner Valves to the full OFF position.
2. Turn the LP gas tank valve to the full OFF position.
3. Disconnect the regulator from the gas tank. Inspect
the hose with regulator assembly for cracking, cuts
or any other damage, and replace as neccessary
with Sears replacement parts. See Parts List.
Remove and clean the Flame Tamers, Cooking
4. Grids, Cooking Rack and Grill Burners.
.
6.
7.
Cover each Gas Valve Orificewith aluminum foil.
Brush the inside and bottom of the grill with a fiber
pad or nylon brush, and wash with a mild soap and
warm water solution. Rinse thoroughly and let dry.
Remove aluminum foil from Oriflcesand check
each Orifice for obstruction.
8. Check each Spark Electrode, adjusting as needed.
The space between the Spark Electrode Tip and
Spark Receiver should be approximately 3/16".
9. Replace the Burners and adjust the Gas Collector
Box. The edge of the collector box should be
overlapping the Bumer Port.
10. Replace Flame Tamers and the Cooking Grids.
11. Reconnect the gas source and observe the Burner
flame for correct operation.
Cleaning Exterior Surfaces:
Before initialuse, and periodically thereafter, we
suggest you wash your grill using a mild soap and
warm water solution. You can use a wash cloth or
sponge for this process. Do not use a stiff wire or
brass brush that might remove paint during the clean-
ing process.
Cleaning Exterior Stainless Steel Surfaces:
Weathering and extreme heat can cause exterior
stainless steel surfaces to turn tan in color. Machine
oils used in the manufacturing process of stainless
steel can also cause this tanning color. After removing
the protective PVC film from the Grill Lid and Control
Panel use a Stainless Steel Cleaner to polish the
stainless steel surfaces of your grill. Never use abra-
sive cleaners or scrubbers because they will scratch
and damage your grill. Follow these steps for the best
results.
1. Turn the LP gas tank valve (clockwise) to the full OF F
position. Disconnect the regulator and hose assem-
bly from LP gas tank. Cover exposed gas fitting with
aluminum foil
2. Remove dirt.or grease using a soft cloth and polish
stainless surfaces. Wipe wi'th a soft cloth.
3. Remove aluminum foil from exposed gasfitting and
allow grill to air dry before attaching the regulator
and hose to yourLP gas tank.
Keep outdoor cooking gas appliance area clear and free
from combustible materials, gasoline and other flam-
mable vaporsand liquids.
CAUTION:
1. Do not obstruct the flowof air for combustion
and ventilation.
2. Keep the ventilation openings of the cylinder
enclosure cabinet free and clear of debris.
3. Visually check burner flames occasionally to
observe for proper flame pattern as shown below.
BURNERFLAME
MAGNIFIED VIEW
THROUGH
LIGHTING HOLE
26
To reduce the chance of FLASHBACK the procedure
below should be followed at least once a month in late
summer or early fall when spiders are most active or
when your grill has not been used for a period of time.
1. Turn all Burner Valves to the full OFF position.
2. Turn the LP gas tank valve to the full OFF position.
3. Detach the LP gas regulator assembly from your
gas grill.
4. Remove the Cooking Grids, Flame Tamers, and
Grease Trays from your grill.
5. Remove the Cotter Pin from the rear underside of
each Burner using a pair of long nose pliers.
6. Carefully lift each Burner up and away from the
Gas ValveOrifice.
7. Check and clean burner/venturi tubes for insects
and insect nests. A clogged tube can lead to a fire
beneath the grill.
8. Refer to Figure 1 and perform one of these
three cleaning methods:
Bend a stiff wire, (a lightweight coat hanger
works well) into a small hook as shown
below. Run the hook through the Burner
Tube and inside the Burner several times
to remove any debris.
Use a bottle brush with a flexible handle.
Run the brush through the Burner Tube
and inside the Burner several times, remov-
ing any debris.
Use an air hose to force air through each
Burner Tube. The forced air should pass
debris or obstructions through the Burner
and out the Ports.
Regardless of which Burner cleaning procedure you
use, we recommend you also complete the following
steps to help prolong Burner life.
1. Use a fiber pad or nylon brush to clean the entire
outer surface of each Burner until free of food
residue and dirt.
2.
3.
Clean any clogged ports with a stiff wire, such as
an open paper clip.
Inspect each Burner for damage (cracks or holes)
and if such damage is found, order and install a
new Burner. After installation, check to ensure
that the Gas Valve Orifices are correctly placed
inside the ends of the Burner Tubes. Also check
the position of your Spark Electrode.
iKWARNING
The location of the Burner Tube with re-
spect to the Orifice is vital for safe opera-
tion. Check to ensure the Orifice is inside
the Burner Tube before using your gas grill.
See Figure 2. If the Orifice is not inside
the Burner Tube, lighting the Burner may
cause explosion and/or fire.
Figure 2
\
GAS VALVE / \
ASSEMBLY ORIFICE BURNER TUBE
Figure 1
TO CLEAN BURNER TUBE,
INSERTHOOKHERE
\\\
SPARK ELECTRODE
ASSEMBLY \\ \\
GAS COLLECTORBOX
BURNER BURNER PORT
h
i
BURNER TUBE
FOOT
COTTER PIN
27
Question: Can Iconvert my grill from LPG to NG?
Answer: No, your gas grill ismanufactured to exact
specifications and iscertified for Liquid Propane (LPG) or
Natural Gas (NG) use only. For your safety, conversion
kits are not available. Any attempt to convert your grill
will void yourwarranty.
Question: The hose and regulator supplied with my
grill does not fit the older LP gas tank I_/e used for
years. Why?
Answer: The U.S. Government regulates gas appliances
and LP gas tanks. When regulations are changed the LP
gas tank fittings are altered to ensure your safety. If your
LP gas tank does not fit the hose and regulator supplied
with your new grill, the tank is outdated and must be
replaced. Note: Effective April 1,2002 ait LP gastanks
sold must include an"OPD" Overfill Prevention Device.
This internaldevice prevents the LP gas tank from being
overfitled. Tankswithout an OPD valve can not be refilled.
Question: Is the serial and model number of my grill
listed somewhere forfuture reference?
Answer: This informationalong with theGrill Information
Center telephone number is listed on a silver label found
on the side of the Grill Head, underneath the Side Shelf.
Question: What causes grill parts to rust and what
affect does it have on the grill materials.
Answer: Rusting isa natural oxidation process and may
appear on cast-iron and steel parts. Rust will not affect
the short term performance of your grill. Toprotect
against the natural rusting process, your Cooking Grids
and Flame Tamers have a porcelain finish. However,
dropping, scraping or scratching these items will damage
the porcelain finish and allow rusting. To minimize
rusting we recommend you "season" the Cooking Grids
regularly--before and after each use. Consistent
seasoning will help resist rusting and will create a non-
stick cooking surface.
Question: How do Iseason Cooking Grids?
Answer: Before and after each cookout, apply a thin
layer of cooking oil, spray or shortening to each Cooking
Grid. Be sure to coat the entire surface including edges
and any areas with chipped porcelain. Insert the Cooking
Grids into your warm grill for 2 to 3 minutes.
Question: What is the best way toprotect my new
Kenmore gas grill from the weather?
Answer: A good quality grill cover should be used to
protect your grill when not in use. A Kenmore Grill
Cover is made to fit this particular grill model. See
your local Sears store or Sears.com for more details.
Also, follow the cleaning and maintenance instructions in
this Owner's Manual on a timely basis and your new grill
will give you years of enjoyment.
Question: My grill does not light properly. Why?
Answer: Always light the burner farthest from the fuet source
first. This draws gas across the manifold helping prevent air
pockets which obstruct gas flow. Also check these causes:
• Check LP gas supply.
• Check to ensure all gas connections are secure.
• The Ignition AA battery may need replacing.
• Electric wires may be loose. Remove the battery,
inspect the Ignitor Junction Box found behind the
Control Panet and connect any loose wires.
• Spark Electrode Tips may need repositioning. With the
gas supply closed and all Control Knobs set to OFF
press the Ignitor Button and have another person watch
for the presence of a spark at the Electrode Tips. The
gap between the Spark Electrode Tip and Spark
Receiver should be about 3/16". If there is no spark at
Electrode Tip, refer to the "Electrode Check" proce-
dures in this manual and adjust gap as directed.
• Check that the end of each burner tube is properly
located over each gas valve orifice.
• There may be an obstruction in the gas line. To correct
this, remove LP gas Hose and Regulator from your grill.
Do not smoke! Open gas supply for one second to
clear any obstruction from fuel line. Close off gas
supply at source and reconnect fuel line to your grill.
• If an obstruction is suspected in the orifice or gas
valves call the Grill Information Center.
Question: My grill has a low flame and sometimes will
not light. Why?
Answer: You need to purge air from the gas line or reset the
regulator excess gasflow device. Opening the tank valve all
the way or too quickly is what triggers the regulators safety
device to shut down the gas flow which prevents excessive
gas flow to your grill. Lighting the burner farthest from the
fuel source every time will help eliminate air pockets in the
manifold. Note: This procedure should be done every time a
new LP gas tank is connected to your grill:
• Turn all Control Knobs to the OFF position.
• Turn off the LP gas tank at the tank valve.
• Disconnect regulator from LP gas tank.
• Let unit stand for 5 minutes to purge air.
• Reconnect regulator to the LP gas tank.
• Open the Grill Lid. Turn the LP gas tank valve on
slowly until 1/4 to 1/2 open.
• Light the burner farthest from the fuel source by
turning its Control Knob to HIGH.
Question: Sometimes Ihear a humming sound
coming from my LP gas regulator. What causes this?
Answer: The humming noise isgasflowing through the regu-
lator. A low volume of noise is normal and will not interfere
with the operation of your grill. If the humming noise is loud
and excessive you need to purge air from the gas line or
reset the regulator excess gasflow device following the pro-
cedure above. This procedure should be done every time a
new LP gas tank is connected to your grill. For additional
help call the Grill Information Center 8am - 8pm CST,
Monday through Friday at: 1-888- 317- 7642.
28
Z WARNING
Your grill will get very hot. Always wear a
flame retardant BBQ Mitt when cooking on your
grill. Never lean over cooking areas while using
grill. Do not touch cooking surfaces, Lid, grill
housing or other parts while grill is in operation,
or until the grill has cooled down after use.
Failure to comply with these instructions
may result in serious bodily injury.
Burn-Off
Before cooking on your gas grill for the first time, you wilt
want to "burn off" the grill to eliminate any odor or
foreign matter. Just ignite the burners, lower the Lid, and
operate grill on the HIGH setting for three to five minutes.
CAUTION:
Operating your grill on the HIGH setting for longer than
five minutes may damage certain parts of your grill. Do
not leave your grill unattended.
Indirect Cooking
The indirect cooking method can also be used with the
supplied Cooking Grids. To cook indirectly, the food
should be placed on the left or right side of your grill
with the Burner lit on the opposite side. Or place your
food on the Secondary Cooking Rack mounted inside
your grill bowl and light the 2 outer grill Burners. Either
way, indirect cooking must be done with the Lid
down.
Seasoning Cooking Grids
Before and after each cookout, apply a thin layer of
cooking oil, spray or vegetable shortening to each
Cooking Grid. Be sure to coat the entire surface includ-
ing edges and any areas with chipped porcelain. Insert
the Cooking Grids into your warm grill for 2 to 3 minutes.
Flare-Ups
The fats and juices dripping from grilled food can cause
flare-ups. Sinceflare-ups impart afavorably, disti nctive
taste and color to food cooked over an open flame,
they should be accepted up to a point. Nevertheless,
uncontrolled flaring can result in a ruined meal.
Preheating
To preheat, light your grill on HIGH, lower the Lid and
followthistimetable:
•For high temperature cooking, preheat grill
3 to 5 minutes.
• Forlowtemperaturecooking, preheatgrill
3 minutes.
• To slow cook, preheating is not necessary.
Cooking Temperatures
High setting: Only usa this setting for fast warm-up,
searing steaks or chops and for burning food residue
off the grill after cooking is complete. Never use the
HIGHsetti ng for extended cooking.
Medium to Low Settings: Most recipes specify
medium to low settings, including all smoking, rotis-
serie cooking and for cooking lean cuts such as fish.
NOT E: Temperature settings will vary with the tem -
perature and the amount of wind outside your home.
Direct Cooking
The direct cooking method can be used with the
supplied Cooking Grids and food placed directly over
the lit grill Burners. Direct Cooking requires the Grill
Lid to be open. This method is ideal for many recipes
including deep frying, saaring and whenever you want
meat, poultry or fish to have an open-flame barbecued
taste.
Z WARNING
Do not line the bottom of the grill housing
with aluminum foil, sand or any substance
that will restrict the flow of grease into the
Grease Draining Tray and Receptacle.
Failure to comply with these instructions
could result in a fire or explosion which
could cause serious bodily injury, death, or
property damage.
FOR YOUR SAFETY
Before the first use and at the beginning of each
season:
1. Read all safety, lighting and operating instructions.
2. Check gas valve orifices, burner tubes and burner
ports for any obstructions.
3. Perform gas leak check.
Before each use of your grill:
1. Pull out the Grease Tray and remove all grease and
food debris to prevent grease fire hazard.
2. Be sure the grill is positioned outdoors at least
24 inches from the back and side of any combus-
tible surface.
A-1
Grilling Steak and Ribs
Turn the grill Burners on HIGH, close the Lid
and preheat your grill 3 to 5 minutes.Open
Lid and place the meat on the Cooking Grid
directly above the lit Burners. Cook the meat
on both sides until seared. Reduce the heat
to MEDIUM and cook meat until done. Grilling
times will vary according to meat thickness.
Grilling Hamburgers and Sausages
Turn the grill Burners on HIGH, close Lid and
preheat your grill 3 to 5 minutes. Open Lid
and place the meat on the Cooking Grid
directly above the lit Burners. Cook the meat
on both sides until seared. Reduce the heat
to MEDIUM and cook the meat until done.
Grilling times will vary according to meat
thickness.
Grilling Poultry
Turn the grill Burners on HIGH, close Lid and
preheat your grill 2 to 3 minutes. Then raise
the Lid, reduce heat to MEDIUM and cook
poultry directly over lit Burners until done.
Poultry skin is fatty so you should expect
some flare-ups when using this direct
method.
To minimize flare-ups, try grilling poultry using
the indirect method. Place the poultry on one
side of the grill with the opposing Burners on
MEDIUM heat, and lower the grill Lid. Grilling
times will vary based on the size of your
poultry.
Grilling Pork
Turn Burners on HIGH and preheat your grill
3 to 5 minutes with the Lid closed. Raise Lid,
place pork on Cooking Grid and cook until
seared. Reduce heat to MEDIUM and cook
until done. Grilling times will vary according to
meat thickness.
Cut of Meat
T-bone steak
Sirloin steak
Beef spare ribs
Porterhouse steak
New York strip steak
Hamburgers
Sausages
Chicken breast
(cook with bone down)
Chicken wings
Drumsticks
Wholebird
(cook with breast up)
Chops
Loins
Cutlets
Approximate Cooking Times
Rare: 4-8 minutes
Medium: 10-14 minutes
Well done: 15-20 minutes
Rare: 4-6 minutes
Medium: 8-10 minutes
Well done: 10-15 minutes
Direct method:
approximately 15 minutes
Indirect method:
up to 30 minutes
Indirect method:
approximately 1hour
Medium: 10-14 minutes
Well done: 15-20 minutes
A-2
Whole Fish and Whole Fillets
Preheat your grill on HIGH for 2-3 minutes
with the Lid down. Raise lid and turn
Burners to MEDIUM heat. Place fish (skin
down) on grill and cook over direct heat until
done. Use cooking time as a guide or until
fish is opaque but still moist.
Smaller Fish Fillets and Cubes
Followthe directionsfrom above, using
approximate cooking times shown at right.
Place a small piece of aluminum foil on the
Cooking Grids if the fish pieces are small
enough to drop between the Cooking Grids.
Cut of Meat
Whelefish
Whole fish fillets
Fish fillets
Boneless cubes
Approximate Cooking Times
10 -12 minutes per pound or
until fish isopaque
4 - 5 minutes each side
or until fish isopaque
Prepare your fruit or vegetables and brush with butter
or basting sauce if desired. To cook indirectly, the
food should be placed on the left or right side of your
grill with the Burner lit on the opposite side and the
grill lid down. Or center your food on the Secondary
Cooking Rack and light the outer grill Burners. Either
way, indirect cooking must be done with the Lid
down.
In some instances, you may want to grill vegetables
and fruit directly over the heat, using the supplied
Cooking Grids. Foods that work best with direct heat
are relatively soft and require a short cooking time:
mushrooms, zucchini, tomatoes and skewered fruit
such as apricots, peaches, pineapple, strawberries
and kiwis. Remember the Grill Lid must remain up
when cooking directly.
For very firm vegetablesiparticutady potatoes and
yams, we recommend that you partially boil until
almost cooked, before placing them on the grill.
Cooking times using the indirect method with the lid
down will be similar to those for your kitchen oven.
However, there are many factors such as outside
temperature, wind conditions and location of grill that
affect your grill performance so we suggest you watch
the temperature gauge and adjust the heat accord-
ingly.
Cooking times for foods prepared with the direct
method will be much shorter mainly because of the
direct heat source and softness of the food. Timing will
be comparable to normal pan frying or grilling.
A-3
An Important Note About Heat Settings
The suggested heat settings shown are approximate.
There are many factors such as outside temperature,
wind conditions and grill location that affect your grill
performance. We offer these cooking times as a
convenience, but suggest you watch the temperature
gauge and adjust the heat accordingly.
Preparing to Roast
Roasting usesthe indirectcooking method. Therefore,
the food should be placed on the left or right side of your
grill with the Burner lit on the opposite side. You can
also use the supplied Cooking Grid with an aluminum
drip pan underneath allowing you to collect juices for
making gravies. Remember, indirect cooking requires
the Lid of your grill to be down.
Preheating your grill is not required for slow cooking
methods such as roasting, if you do choose to preheat
your grill before roasting, turn the Burners on HIGH and
close Lid for approximately 2-3 minutes.
Food preparation
Trim meat of excess fat. Truss meat and poultry with
cooking string to retain shape if desired. Bacon strips
can be used to cover the outside surface of lean meat
and poultry to help prevent itfrom drying out. Another
method for keeping food moist during roasting isto put
water in a cooking pan, then cover with foil. The foil
should be removed for the first or the last part of the
cooking time to ensure proper browning.
Tips for roasting
Except when roasting with water in a roasting pan, the
juices that collect in the pan can be used as the base for
a tasty sauce or gravy. Place a cooking pan directly over
the heat, add extra butter if needed, then add several
spoonfuls of flour to thicken sauce. Finally, add sufficient
chicken or beef stock to obtain the desired consistency.
Once the meat iscooked, remove itfrom your grill and
cover witha piece of foil. Allow itto stand for 10-15
minutes which altows the juices to settle. This will make
carving easier and ensure a tender, juicy roast.
Type of Food How Cooked Approximate Cooking Times
Beef Rare 18 minutes per pound
Medium 23 minutes per pound
Well done 27 minutes per pound
Lamb Medium 18 minutes per pound
Well done 23 minutes per pound
Veal
Pork
Chicken
Duck
Fish
Turkey, under 16 pounds
Turkey, over 16 pounds
27 minutes per pound
30-33 minutes per pound
20-25 minutes per pound
25 minutes per pound
10 minutes per pound
20-25 per pound + 30 minutes
18-23 per pound + 15 minutes
BAKING TECHNIQUES
From casseroles and combread to delicious desserts
like fondue fruit skewers or crumb cake, baking on the
grill is as easy as baking in the kitchen.
Preparing to Bake
To bake in your new grill you'll need a baking dish or
cast-iron cooking pan, and a pairof flame retardant BBQ
Mitts. If the cooking pan is cast-iron be sure to season
the pan before use.
Preheat your grill 3-5 minutes, then lower heat to achieve
the baking temperature desired. Baking uses the
indirect cooking method. Therefore, yourcooking pan
should be placed on the left or right side of your grill with
the burner lit on the opposite side.
Tips for Baking
Prepare your favorite recipe as you would inthe kitchen.
Foods cooked in the grill for long periods of time should
always be covered in aluminum foil to retain moisture.
You will need to stir the food several times as it bakes,
and add additional liquid ifrequired.
Watch the temperature, and adjust to cook according to
your recipe directions.
Oven Temperature
Slow 300 °- 340 °F
Moderate 355 °- 390 °F
High 410 ° -480 ° F
Recommended Grill Setting
Both outside Burnerson LOW
One outside Burner on HIGH and the other outside
Burner on LOW
Both outside Burners on HIGH
A-4
Slow Cooking with a Rotisserie
A Kenmore Rotisserie Kit is made to fit this particular
model. Rotisserie cooking produces foods that are
moist, flavorful and attractive. The optional rotisserie
system is most commonly used for cooking meat or
poultry and is desiqned to cook food slowly. You can
place a cooking pan beneath the food to collect juices
for basting and gravy. To flavor the contents of the
cooking pan you may add herbs, onions, or other
spices of your choice.
The cooking times on a rotisserie will be approximately
the same as for oven cooking.
Balancing the Food
In rotisserie cooking, balancing the food is of utmost
importance. The rotisserie must turn evenly or the
stopping and starting action will cause the food to cook
unevenly and possibly burn the heavier side.
The easiest foods to balance are those of uniform
shape and texture. To test if the food is balanced
correctly when secured, place the ends of the rotis-
serie spit loosely in the palms of your hands. If there
is no tendency to roll, give the spit a quarter turn. If it
is still stable, give it a final quarter turn. Itshould rest
without turning in each of these positions. It can then
be attached to your grill.
Food Preparation
When preparing poultry, truss the birds tightly so that
wings and drumsticks are close to the body of the bird.
The cavity of the bird may be stuffed prior to this. Pull the
neck skin down and, using a small skewer, fix it to the
back of the bird. Push the rotisserie spit through length-
wise, catching the bird inthe fork of the wishbone. Center
the bird and tighten with the holding forks. Test the
balance as described before.
A rolled piece of meat requires the rotisserie skewer to be
inserted through the center of the length of meat, then
secured and balanced.
For meats that contain bones, it is best to secure the
rotisserie skewer diagonally through the meaty sections.
If protruding bones or wings brown too quickly, cover with
pieces of foil.
Preparing to Smoke
Smoking givesfood a distinctive, deliciousflavor. You
will find a variety of wood chips or pellets available for
use in smoking grilled foods. Pre-soaking of wood
chips may be required so read and follow the manufac-
turers instructions for preparation of smoking chips
prior to use.
Note: it is our experience that many smoking chip and
pellet products do not actually produce a smoke but
instead infuses the food with flavor. Please read
product labels carefully and if in doubt, ask your
retaiter for details.
Using A Smoker Box
There are many optional smoker boxes available for
purchase. Follow these guidelines and always refer to
the label of your smoking chips or pellets for specific
directions.
Raise your Grill Lid and light the grill. Lower the Grill
Lid allowing your grill to reach the desired cooking
temperature for the food you are grilling. Fill your
smoker box with your prepared smoking chips or
pellets. Dried herbs and spices may also be added to
produce different flavors. Weara flame retardant BBQ
Mitt and place your smoker box on a Cooking Grid or
Flame Tamer directly above a lit grill Burner. The
heated smoki ng chips or pellets will flavor your foods.
Tips forSmoking
You can reduce the strength of the smoke flavor by
only smoking for half or three quarters of the cooking
time. The heat required for smoking is normally LOW
toMEDIUM.
Foods naturally high in oils lend themselves well to
smoking, while drier foods benefit from a marinade.
You can also rub the food with herbs, spices or
flavored oils. Many foods can be smoked to produce
stunning results with very little effort. Here are a few
suggestions:
•Tuna steaks, marinated inAsian flavors of sesame
oil, soy sauce and sherry.
• Pork fillets, rubbed with ginger, orange rind and
brushed with maple syrup.
•Mussels, brushed with lemon rind and chili oil.
• Lamb cutlets, marinated in virgin olive oil, lemon,
oregano and black pepper. The same marinade can
be used for a whole leg or rack of lamb.
• Chicken, bonetess chicken pieces--especially
sliced breasts.
• Fish, sliced fillets of firm fish, assorted seafood
such as prawns, scallops and calamari.
• Pork, sliced fillets, diced or minced pork, sliced
leg steak, sliced chops.
•Beef, sliced fillet, rib-eye, round, rump, sirloin.
• Lamb, sliced fillet, round, loin.
A-5
STIR-FRYING TECHNIQUES
This method of cooking ispopular around the worldand
can be easily accomplished outdoors on your Kenmore
gas grill. It's a quick and healthful way of preparing a
complete meal using meat, poultry or seafood in
infinite combinationswith otherinteresting ingredients
like vegetables, rice or noodles.
Preparing to Stir-fry
Although itis possible to stir fry in other dishes, a wok
is your best tool. Its high sides enable the cook to stir
food without spillage. Its construction allows you to
cook quickly at high temperatures, with instant control
of heat which is essential for successful stir frying.
Food preparation
Slice meat and poultry into long thin strips and cube
fish fillets. Remove all fat from meat and poultry and
cut large vegetables into even slices or cubes.
Marlhate foods for extra flav or and tenderness. Marlnat-
ing times will vary for red meat, fish and or various
cuts. Less tender cuts of meat should be marinated
longer. Remember to alwayschill marinating food in
the refrigerator prior to cooking.
Stir-fry meats, poultry or fish first. Next, add hard
vegetables like carrots. Then continue with softer
vegetables like soowpeas aod peppers. To ensure even
cooking, continually stir and toss the food in the wok
using a wooden spoon or spatula.
Tips for Stir-frying
Place a wok on a Cooking Grid or Side Burner directly
over a HIGH heat. Add only a small amount of food at
a time to ensure fast cooking and also to allow the wok
to reheat between ingredients.
DEEP-FRYING TECHNIQUES
A wide variety of foods can be deep-fried outdoors on
your grill, from potatoes, to seafood and chicken.
Deep-frying uses a large portion of oil, preferably
saturated. The outdoor location is ideal for deep-frying
as smoke, grease and smells disperse in the open air
instead of collecting on the ceiling of your kitchen.
Preparing to Deep-fry
Deep-fry on your grill using a cooking pan or wok, over
direct heat.
Fill a cooking pan no more than half full of vegetable or
corn oil. Start with LOW heat, then raise the heat
gradually. Check the temperature of the oil carefully
with a frying thermometer or test with a cube of bread.
The cube of bread should brown in about 30 seconds
for most cooking needs. A temperature between 350
and 400 degrees is optimal for preparing the majority
of deep-fried foods.
Food Preparation
Foods being deep-fried taste better when coated with
either batter or breadcru mbs to add flavor and prevent
moisture from escaping.
Tips for Deep-frying
Wear a flame retardant BBQ Mitt and slowly lower
foods into the hot oil using a wire scoop or stainless
steel tongs. Add only a small quantity of food to the
oil, allow it to cook, then repeat with another small
quantity. This ensures the oil doesn't drop in tempera-
ture. Once the food is cooked, remove it carefully and
drain onto a paper towel. Turn the heat off as soon as
you have finished deep-frying and allow your pan to
cool. W hen the oil is cool, remove all remnants of fried
foods by straining it through a fine metal sieve, and
store it in a clean bottle for future use.
Vegetables are generally easy to cook on the grill. The
Cooking Rack makes itconvenient because you can
still use the main cooking area while the vegetables
are suspended above the grids.
Pre-cook hard vegetables by briefly boiling or
microwaving them before cooking on the grill. Wrap
vegetables in a double thickness of foil to protect them
while cooking on the grill. Then, remove the foil if
desired, 10-15 minutes before the end of cooking,
brush vegetables with butter or oil and finish cooking.
The Cooking Rack can be used for purposes other
than just the obvious. Consider using the rack for
warming French bread, garlic bread, croissants or
even bagels.
A small whole fish wrapped in foil also cooks well on
the Cooking Rack. Parcels of seafood such as
scallops, prawns and sliced fish fillets prepared in a
sauce and portioned into small foil wraps cook well
this way, too.
A-6
ONIONBURGERS
A honey and mustard sauce glazes the onion slices
as they cook alongside these delicious burgers. For
optimal sweetness, select Vidalia or Walla Walla
onions. Makes 4 open face burgers.
Ingredients
2
2
2
2
1
1/4
1/8
4
4
large sweet onions, sliced (12 to 16 ounces)
tablespoons margarine or melted butter
teaspoons dry mustard
teaspoons honey
pound lean ground beef
teaspoon salt
teaspoon pepper
slices Texas toast
lettuce leaves
4 tomato slices
Preparing Onions
Place onions in a cooking pan or on a small piece of
aluminum foil. Combine melted margarine, mustard
and honey, then drizzle over onions. Cover pan with lid
or fold up edges of foil and seal with double fold to
completely enclose onions eaving space for steam to
build. Place pan or foil packet on grill directly over
medium heat for 15 minutes with the grill lid up.
Preparing Burgers
While onions are cooking, combine ground beef, salt
and pepper in a medium bowl and mix well. Shape
mixture into four 3/4 inch burger patties and add to
grill, directly over heat. Grill burgers along with onions
for about 5 minutes, then turn burgers. Grill for 8 to 10
minutes more or until no pink remains in meat, and
onions are tender. To serve, toast both sides of Texas
toast on grill. Then top each slice of Texas toast with a
burger, lettuce, tomato and onion. Sprinkle with pepper
ifdesired.
DOUBLE SALSABURGERS
A fresh tomato salsa flavors the beef mixture for a
zesty tasting burger. The salsa also serves as a
colorful topping. Makes 6 burger patties.
Ingredients
1
1/2
1/4
2
1
1
large tomato, seeded and finely chopped
cup finely chopped green pepper
cup finely chopped red onion
finely chopped, seededjalapeno peppers
garlicclove, minced
tablespoon snipped cilantro
1/4 teaspoon salt
1 1/2 poundslean ground beef
2 cups shredded lettuce
1/3 cup finely shredded cheddar cheese
1/4 cup dairy sour cream and/or guacamole
Preparing the Salsa
Com bine tomato, green pepper, onion, jalapeno
peppers, garlic, cilantro and salt in a bowl. Set
aside 2 tablespoons of salsa. Cover and chill remai n-
ing salsa until serving time.
Preparing Burgers
In another bowl, combine ground beef with 2 table-
spoons of reserved salsa, mix well. Shape mixture
into six 1/2 inch thick burgers and place on the grill
directly over medium heat with lid up. Grill for 13 to
15 minutes or until no pink remains. Turn burgers
once, halfway through grilling time. Arrangethe
shredded lettuce on individual plates. Top lettuce
with a burger, cheddar cheese and salsa. Serve with
sourcream and/or guacamole.
CHICAGO STYLE HOT DOGS
Serve these hot dogs "Chicago-style" with pickled pep-
pers! Makes 4 servings.
Ingredients
1/3
1/4
2
2
1/4
4
4
cup ketchup
cup chopped pickled peppers
tablespoons pickle relish
tablespoons chopped onion
teaspoon poppy seed
fully cooked 4-ounce jumbo hot dogs
hot dog buns
Preparing the Relish
Combine ketchup, chopped pickled peppers, relish,
onion and poppy seed in a small bowl, then set aside.
Preparing Hot Dogs
Place hot dogs on grill directly over MEDIUM heat 5 to
8 minutes with the lid up. Turn hot dogs and brush with
some of the relish mixture. Grill hot dogs 6 to 8
minutes more or until thoroughly cooked.
To Serve
Toast inner sides of hot dog buns on grill. Serve hot
dogs inside buns and top with remaining relish mixture.
A-7
RIB EYE STEAKS WITH GRILLED GARLIC
As they cook, the garlic cloves mellow inflavor,
making a delicious sauce for any grilled meat. And for
an appetizer, spread the softened cloves over toasted
slicesof french bread! Makes4servings.
Ingredients
1
2
1
whole Head of garlic
tablespoons olive oil or cooking oil
tablespoon snipped fresh basil, or 1/2
teaspoon dried basil, crushed
tablespoon snipped fresh rosemary or 1/2
teaspoon dried rosemary, crushed
twelve-oz, boneless rib eye steaks
Preparing the Garlic
Use a cooking pan or tear off a 24x18-inch piece of
aluminum foil and fold long length in half, then trim to
make a 12-inch square. Remove the outer layer of
garlic Head, then cut off and discard the top 1/2-inch of
garlic Head to expose the garlic cloves. Place garlic
Head in center of a cooking pan or in center of foil with
all sides of the foil folded up around the garlic to form a
cup. Drizzle garlic with oil and sprinkle with basil and
rosemary. Cover pan or twist the ends of the foil to
completely enclose the garlic.
Preparing Steaks
Place steaks and the garlic pack on grill directly over
MEDIUM heat and cook about 7 minutes with the lid
up. Turn steaks and grill for 5 to 8 minutes more, or
until cooked to taste. Then remove steaks and place
on platter. Remove gadic and drizzle its juices over
your steak. Remove the softened garlic cloves and
spread over your steak. Season with salt and pepper
as desired and cut into serving-size pieces.
Preparation
Combine ketchup, pepper, rosemary, basil and garlic
powder. Coat both sides of steak with mixture. Grill
steak with lid up, directly over medium heat for 6
minutes. Turn steak and grill for 8 to 12 minutes more
or until cooked as desired. Cut into serving size
pieces.
BARBECUEDRIBS
Serve this tangy barbecue classic with corn-on-the-
cob, green salad, potato salad or coleslaw!
Makes 4 servings.
Ingredients
2
1/2
1/2
2
pounds American style pork spareribs
cup barbecue sauce
cup tomato sauce
cloves garlic, crushed
juice of 1 lemon
few drops of tobasco sauce
Preparation
Place ribs intoa large glass or ceramic dish.
Combine remaining ingredients and pouroverthe
ribs. Refrigerate for several hours.
Preheat your grill 3 minutes and place the ribs on
cooking grid. Cook indirectly, over a low to medium
heat until cooked. During the last few minutes of
cooking you can cook the ribs over a direct fire for
added barbecue flavor and texture.
HERB-PEPPER SIRLOIN STEAK
The hearty beef flavor iscornplemented with a deli-
cious herb coating! Makes 6servings.
Ingredients
2 tablespoons ketchup
1/2 teaspoon coarsely ground pepper
1 1/2 teaspoons snipped fresh rosemary or 1/2
teaspoon dried rosemary, crushed
1 1/2 teaspoons snipped fresh basil or 1/2teaspoon
dried basil, crushed
1/8 teaspoon garlic powder
1 1 1/2-pound boneless beef sirloin steak,
cut 1-inch thick
A-8
MARINATED TU NA STEAK
Experiment with unique dishes, like this tuna steak
recipe boasting a delicious wine marinade!
Makes 4 servings.
Ingredients
4
1/3
1
1
1
2
1/4
6-ounce fresh or frozen tuna steaks cut 1 inch
thick. Thaw fish if frozen
cup dry white wine
tablespoon lemon juice
tablespoon olive oil or cooking oil
clove garlic, minced
teaspoons snipped fresh rosemary, crushed,
orl/2 teaspoon dried rosemary, crushed
teaspoon snipped fresh oregano, crushed, or
1/4 teaspoon dried oregano, crushed
teaspoon salt
Preparation
Combine wine, oil, garlic, rosemary, oregano and
salt. Place tuna steak in plastic bag and into
shallow dish, add marinade then seal bag. Rotate
bag to coat fish well then chill for up to 2 hours,
turning fish once.
Remove fish from bag and discard madnade. Place a
cooking pan with baking rack or roasting rack into
center of gdll with outer burners on MEDIUM heat.
Cook tuna steak on top of rack with lid down for 8 to
12 minutes or until fish begins to flake easily. Turn
fish once during cooking. When cooked, remove fish
from grill and serve.
MUSTARD-GLAZED HALIBUT STEAKS
A simple sauce of melted margarine, lemon juice,
Dijon-style mustard and basil adds a scintillating note
to these sizzling fish steaks! Makes 4 servings.
Ingredients
4
2
2
1
2
6-ounce fresh or frozen halibut steaks, cut 1
inch thick
tablespoons margarine or butter
tablespoons lemon juice
tablespoon Dijon-style mustard
teaspoons snipped fresh basil or 1/2
teaspoons dried basil, crushed
Preparation
Combine thawed fish, margarine or butter, lemon
juice, mustard and basil into a cooking pan or
aluminum foil rectangle, and cook directly over low
flame until melted. Brush mixture over both sides of
halibut fish steaks. Pour balance of mixture into
small bowl.
Place clean cooking pan or foil on center of grill with
both outer burners on MEDIUM. Place fish on grill
and close lid. Cook indirectly for 8 to 12 minutes or
just until fish begins to flake easily, turning once
and brushing as needed with remaining mixture.
ALMOND COATED TROUT
This delicious recipe isunique and easy toprepare on
your gas grill. Makes 4 servings.
Ingredients
2 trout
1/2 cup all purpose flour
1 egg, lightly beaten
1 cup sliced almonds
1/3 cup parmesan cheese, grated
olive or peanut oil for frying
Preparation
Remove the Head and tail from trout and fillet all
bones. Cut each fish in half to form 4 long fillets.
Coat fish in flour, dip in egg and roll in almonds.
Refrigerate for 1hour.
Fill a cooking pan with 1 to 2 inches of oil, and
place over HIGH heat. Cook trout until golden brown.
Drain oil, sprinkle trout with parmesan cheese and
serve right from the grill.
A-9
SOUTHWEST CHICKEN BREASTS
This popular recipe can also be a grilled chicken salad!
Slice chicken into small strips and place them on top
of shredded lettuce with avocado dressing and top with
cheese! Makes 6servings.
Ingredients
1/4
2
2
1/4
6
2
1
1
2
2
1
1
1
cup dry white wine
tablespoons olive oil or cooking oil
teaspoons snipped fresh tarragon or 1/4
teaspoon dried tarragon, crushed
teaspoon salt
skinless, boneless chicken breast halves
avocados, pitted, peeled and chopped
tomato, chopped
clove garlic, minced
tablespoons finely chopped seeded
green chili peppers of your choice
green onions, finety chopped
tablespoon soipped fresh cilantro
tablespoon honey
tablespoon lemon juice
Preparing the Chicken
Combine wine, oil, tarragon and salt. Rinse chicken
and dry with paper towels. Place chicken in plastic
bag and into shallow dish--then add marinade and
seal bag. Rotate chicken to coat well and chill up to 24
hours, turning bag occasionally.
Preparing the Avocado Dressing
Combine avocados, tomato, garlic, chili peppers,
onions, cilantro, honey and lemon juice. Toss well
then cover and chill up to 2 hours.
Grilling the Chicken
Remove the chicken from plastic bag and reserve the
marinade. Grill chicken directly over MEDIUM heat
with lid up for 5 minutes. Turn chicken and brush with
marinade, then grill for 5-10 minutes more or until
chicken is no longer pink. Serve with side of avocado
dressing.
BARBECUED CHICKEN
Another backyard favorite, this recipe includes an
easy to make sweet and spicy sauce.
Makes 4servings.
Ingredients
1/2 cup ketchup
1/4 cup orange marmalade
1tablespoon vinegar
1/2 teaspoon celery seed
1/2 teaspoon chili powder
1/4 to 1/2 teaspoon bottled hot pepper sauce
1 2 1/2 to 3 pound broiler-fryer chicken, pre-cut
Preparing the Sauce
Combine ketchup, marmalade, vinegar, ceteryseed,
chili powder and hot pepper sauce in a cooking pan,
and cook directly over a LOW to MEDIUM heat.
Leave the cooked sauce in the pan and remove from
heat until chicken is prepared.
Preparing the Chicken
Wash chicken and dry with paper towels. Turn
outside burners on MEDIUM and place pre-cut
chicken pieces (bone side down) in center of grill.
Close lid and cook indirectly for 1 hour or until
chicken is no longer pink. Brush occasionally with
sauce. Remove chicken from grill once cooked, then
place cooking pan with sauce into center of grill and
reheat. Pour warmed sauce over chicken and serve.
A-lO
TRADITIONAL HOLIDAY TURKEY
Imagine everyone's surprise when you serve your next
holiday turkey--complete with dressing--delicious
and tender straight from the grill! Serves 8- 10
Ingredients forTurkey
8- 10 poundwholeturkey
4 ounces butter, softened
2 tablespoons chopped thyme
2 tablespoons lemon juice
2 teaspoons grated lemon rind
Ingredients for Dressing
2
2
8
2
1/4
2
4
1/2
1/2
ounces butter
onions, finely chopped
ounces bacon, chopped
tablespoons port wine
cup red wine
chicken stock cubes
ounces chopped cashews, hazelnuts or
pecans
cup chopped celery
cup chopped carrot
1 - 1 1/2 cups fresh white breadcrumbs
1 egg, lightly beaten
-- salt and pepper to taste
Preparing the Dressing
Prepare dressing in a cooking pan directly over
MEDIUM heat. Melt butter, add onions and bacon then
saute 3 minutes. Add port, red wine and stock cubes
and bring to a boil. Cook 2 minutes. Wear protective
gloves and remove pan to allow ingredients to cool.
Add remaining ingredients and mix.
Preparing the Turkey
Although not required,you may wantto preheat your
grill 3minutes.
Wash insideof turkey and dry with paper towels.
Pack breadcrumb seasoning intothe turkey cavity.
Combine the butter, thyme, lemon juice and rind
together ina bo_. Using turkey baster, insertbutter
mixture underskirt covering the turkey breast.
Truss the turkey withstring and place iton a baking
pan or roasting rack that rests into a cooking pan.
Remove the cooking grids from your grill if necessary,
then place the cooking pan and turkey in the center of
your grill. Turn one outside burner to LOW, the other
to MEDIUM, and close lid. Cook indirectly for 3 1/2 to
4 hours or untit cooked. Halfway through cooking
time you may alternate burner temperatures so that
theturkey brownsevenly. Oncecooked, remove
dressing from cooked turkey, slice and serve.
PIZZA ON THE GRILL
You may never want to call out for pizza again!
Follow this pizza dough recipe, or purchase ready-
made pizza dough found in your grocers refrigerated
sectioninext to the biscuits. Slice and serve directly
from the grill. Serves 6- 8
Ingredients
1 1/2 teaspoons dried yeast
1 cup lukewarm water
1/2 teaspoon sugar
3 tablespoons olive oil
3 cupsall purpose flour
1/4 cup tomato paste or Italian tomato sauce
6 ounces sliced pepperoni
1 red pepper, roasted and sliced
3/4 cup pitted black olives
8 ounces grated mozzarella cheese
It's easy to customize this recipe with toppings to
suit your family's taste. For spicier crust, lightly rub
the dough with olive oil then spice with pepper and
garlic salt before spreading your tomato sauce.
Preparing the Pizza Dough
Combine yeast, water and sugar together and let
stand in a warm place until mixture startsto foam.
Add this yeast mixture to flour and oil and combine to
form your pizza dough. Knead on a lightly floured
surface until smooth and elastic. Cover and stand in a
warm place until doubled in size. Knock back dough
and roll out to a rectangle the size of your cooking
pan or baking dish. Place dough into a lightly oiled
pan.
If you purchased a ready-made pizza dough, simply
open can and roll dough into a lightly oiled cooking
pan.
Preparing the Pizza
Spread tomato paste or Italian tomato sauce on top of
your pizza dough. Top with pepperoni, red peppers,
olives, and lastly, mozzarella cheese. Or if you prefer,
you may place cheese first with toppings on last.
Place a cooking pan in center of grill and cook
indirectly,with one outside burner on HIGH and the
other on LOW, for approximately 20 minutes or until
bottom of crust is light brown. Lastly, raise the lid and
finish cooking pizza by turning burner under the
cooking pan on high for about 2 minutes. This will
insure the center of pizza gets brown. Then turn off
heat, slice and serve directly from pan.
A-11
FRESH VEGETABLE STIR-FRY
Take a trip tothe Orient with this easy, and healthy
vegetable recipe. Makes 4- 6 servings.
Ingredients
2
1
1
2
1
2
1
1/2
tablespoons oil
onion, cut into wedges
carrot, thinly sliced
cups broccoli, cut into small flowerets
red pepper, sliced
sticks celery, thinly sliced
cup snow peas
cup chicken broth
Preparation
Heat oil in a wok or saute pan, directly over a HIGH
heat. Add onion and cook 1 minute. Add carrot and
broccoli and stir-fry 2 minutes, then add red pepper,
celery and snow peas and continue cooking 1
minute more. Add chicken broth and toss veg-
etables until cooked to desired doneness.
ONION BLOSSOMS
Great served as a snack, or todress up barbecued
meats, poultryor fish. Makes 4 servings.
Ingredients
4
1
1
1/8
1
1
medium sweet onions (4-5 ounces each)
tablespoons margarine or butter, melted
teaspoon Dijon-style mustard
teaspoon hot pepper sauce
tablespoon brown sugar
pepper(optional)
Preparation
Peel onions, then cut almost completely through each
onion, forming 8 wedges. Onion will be loose, but still
intact. Prepare four 12-inch squares of aluminum foil.
Place one onion in the center of each foil square.
Stir margarine (or butter) with hot pepper sauce and
drizzle over onions. Sprinkle with brown sugar. Then
bring up two sides of foil square and double fold. Bring
remaining corners up and completely enclose eaving
enough space for steam to build.
Place wrapped onion blossoms on grill, directly over
MEDIUM heat. Close lid and cook 15 to 25 minutes
or until onions are nearly tender. Make a 2-inch
opening at the top of each onion wrapping, then close
lid and cook 5 to 10 minutes more, or until onions are
lightly browned. Sprinkle with pepper if desired and
servewarm.
GRILLED POTATO SKINS
Serve these crispy potatoes as a snack or side dish.
We've included microwave instructionsfor a timesav-
ing short cut. Makes 12 servings.
Ingredients
6
3
1/2
1
3
1
1
1/2
baking potatoes (about 8 ounces each)
tablespoons margarine or butter, melted
cup picante sauce
cup shredded cheddar cheese (4 ounces)
slices bacon, crisp-cooked and crumbled
or use prepackaged bacon bits
chopped tomato (optional)
diced green onion (optional)
cup sour cream (optional)
Preparation
Puncture clean potatoes with a fork, wrap in aluminum
foil and place directly over LOW to MEDIUM heat.
Close lid and cook directly for 1 hour or until center is
tender. OR- Microwave clean, punctured potatoes
on HIGH for 15 to 20 minutes, or until center tender.
Allow cooked potatoes to cool, then unwrap and
discard foil.
Cut potatoes in half - lengthwise. Scoop out potato
pulp (serve separately or discard.) Be sure to leave
1/4-inch thick potato shell remaining. Brush the inside
of each potato shell with melted margarine. Spoon 2
teaspoons picante sauce into each potato shell,
sprinkle with cheese and top with bacon.
Place prepared potato skins on grill, directly over
MEDIUM heat. Close lid and cook for 8 to 10 minutes
or until potato skins are crisp. Sprinkle each potato
skin with tomato and green onion and then top with
sour cream, if desired.
A-12
Your Heine
For _pai r- _tny_>u_h®me- of a|l major b_ nd appiiances
lawn and gar_n equipm_, or heating and cec,ling systems,
_e ma_er w_o made it, no mattarwh® sew it!
For the replacement pads, a_es_orles and
owner s ma nuals that you need # drMt-yeurself.
R3r Sears prefessie _ai installaii en _ home appliarices
and items like garage doer opene_ and water h®ters.
Ca Iianytime, day or night (|J.S.A, s_ C:sn_a}
Ou rHome
For re_ir efcarry4n i'_ms like '_acuurns, lawn equipmen_
and el_roni_, call or go on-line for the legation of your nea_¢
Se_rs Part_ & R÷pa_ Center
Gall anytime day ar nigh_ (U,S,A. only)
To pLrelease a proteelJen agreeme_ (U.S.A)
or maintenan_ agree_e_t (Canada) on a p_Juct sewieed by Seam:
