User Manual
CONTINENTAL
WLC
WLC-CEM02
Wireless Power Charger
WPC parameters
Parameters
Values
Carrier frequency
126.7 kHz
Frequency shift
+/-6 kHz
Supply voltage
13.5V battery
Voltage supply range
8V < V
BAT
< 16V
Max. supply power
33W
Operating temperature range*
Smartphone operating temperature range
-40°C < Temp < 85°C
-20°C < Temp < 60°C
Max. Output Power on receiver load**
11W
WPC chipset brand
Renesas
WPC litz coil
Single coil MPA14 according to Qi standard
WPC litz coil gain @ 126.7kHz
-108.3dBi
Dimensions (X/Y/Z in mm)
142 x 91.5 x 23.5
Product weight
150 g
Vehicle fuse protection
10 A
Vehicle installation
Although the WLC module is intended for different vehicles, it is always installed in the vehicle
front central console (see an example in Figure 7).

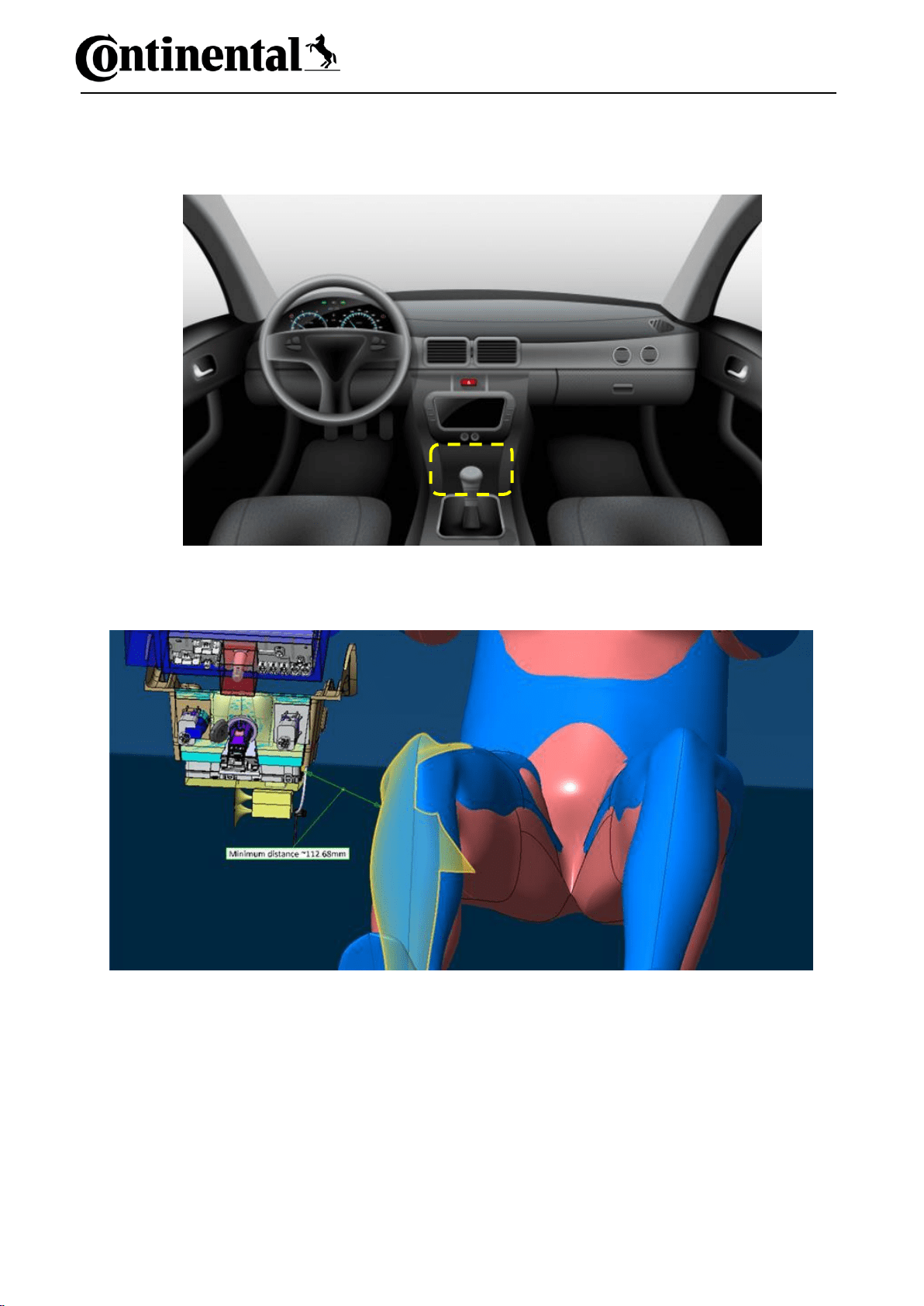

Figure 7. Location of WLC inside the vehicle
The installation with the shortest distance to the human body is illustrated in Figure 8:
11.26cm.
Figure 8. Shortest distance to human body
Warning statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference
received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void
the authority to operate equipment. This device and its antenna must not be co-located or
operating in
conjunction with any other antenna or transmitter.
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to
the following
two conditions: (1) This device may not cause interference; and (2) This device must accept
any
interference, including interference that may cause undesired operation of the device. Le
présent appareil
est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire
de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le
brouillage est susceptible d'en compromettre le fonctionnement
