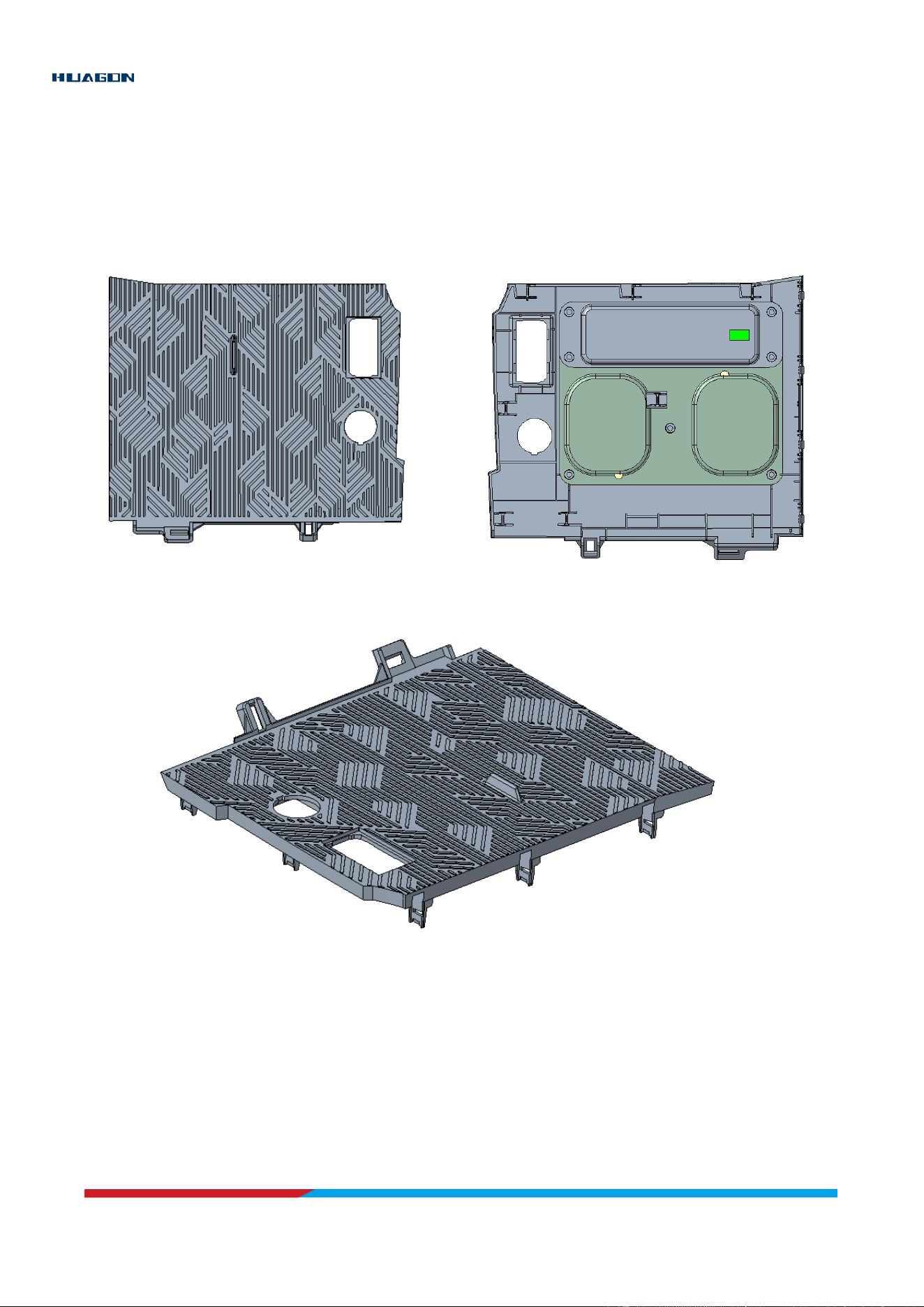

Car Wireless charger for 4Runner
本文档涉及华功科技公司的保密内容。禁止以任何形式向第三方传播这份文档或者文档里面的任何信息。华功科技公司对此
文档保留所有权利。
This document is convenient about HG-TECH. It is inhibit to transfer this document and the any information to the three part. This
document is copyright © 2024 by the HG-TECH .
Shenzhen huagon technology CO ., Ltd
SZ Office: 102, Building D,Weihuada Industrial Park, No. 5, Lirong Road, Dalang street, Longhua District, Shenzhen, China
www.huagoncharging.com
HG-TECH
Since-2013
r
1. Product definition description
The 2 coil wireless charging module that complies with the Wireless Power Consortium (WPC) Qi1.3.3 10W standard. This module can
automatically detect Qi-standard receivers, initiate data communication with them, and intelligently manage wireless power transmission. It
supports 7.5W fast wireless charging for Apple iPhone 12 to 15 series, as well as 10W fast wireless charging for Samsung Huawei google etc
android phones .
To enhance application flexibility, it is equipped with a dynamically detectable input power supply, compatible input DC 9-18V Power
input . By continuously monitoring the efficiency conversion between received power and transmitted power, the module can detect the
presence of metallic foreign objects, thereby preventing abrupt temperature rises during charging.
2. Product features
1. WPC Qi1.3.3 BPP standard ;
2. Maximum support for charging 15W receiver;
3. Compatible with charging equipment with Qi BPP, EPP standards;
4. Support Samsung，LG，Google Huawei mobile phone 10-15W fast charging;
5. Support Apple mobile phone Max 7.5W fast charge;
6. Overvoltage and overcurrent protection;
7. Foreign body detection (FOD);
8. Up to 73% charging efficiency ;
9. Reserved expansion interface, can be connected with LED-RGB fan, etc ;
10. Certificated : Support Passed CE-RED / FCC-ID / Rohs 2.0 / QI1.3.3
3. Electrical Specification
1. Input voltage : 12V4A
2. Rated input current: 4A MAX
3. Required input ripple voltage:<150mVp-p @ 2.3A 15V
4. Output power of Rx: 15W (Max 15W )
5. Switching frequency: EPP 115Khz-205Khz
6. Wireless charging efficiency 72% (Max)
7. Ambient operating Temperature: -30℃ to 80℃
8. Over current protection: 4.1A
9. Over voltage protection: 18.5V
10. Thermal protection:yes : 75℃ （80℃ power reduction, 85℃ error reporting , 65℃ recovery）
11. Operating temperature：0℃ to 45℃
12. Storage temperature：-20℃ to 80℃
13. Operating humidity：10% to 70% RH
14. Effective charging area: typ. +/-5mm from coil centre (Dz=3 mm)
15. Effective charging distance: 1~ 6mm from Tx-coil to Rx-coil
16. Charging power with charging distance : ≤3mm （15W） ＞3mm （10-15W）
Shenzhen huagon technology CO ., Ltd
SZ Office: 102, Building D,Weihuada Industrial Park, No. 5, Lirong Road, Dalang street, Longhua District, Shenzhen, China
www.huagoncharging.com
HG-TECH
Since-2013
r
Wireless charger design compatible the phone brand and charging power
Brand
mode
Charging power
Iphone
iPhone8
7.5W
iPhone8plus
7.5W
iPhoneX
7.5W
iPhoneXS
7.5W
iPhoneXS Max
7.5W
iPhone XR
7.5W
iPhone 11
7.5W
iPhone 11 Pro
7.5W
iPhone 11 ProMAX
7.5W
iPhoneSE 2
7.5W
iPhoneSE 3
7.5W
iPhone 12
7.5W
iPhone 12mini
7.5W
iPhone 12Pro
7.5W
iPhone 12ProMax
7.5W
iPhone 13
7.5W
iPhone 13mini
7.5W
iPhone 13Pro
7.5W
iPhone 13ProMax
7.5W
iPhone 14
7.5W
iPhone 14Plus
7.5W
iPhone 14Pro
7.5W
iPhone 14ProMax
7.5W
iPhone 15
7.5W
iPhone 15Plus
7.5W
iPhone 15Pro
7.5W
iPhone 15ProMax
7.5W
iPhone 16
7.5W
iPhone 16Plus
7.5W
iPhone 16Pro
7.5W
iPhone 16ProMax
7.5W
iPhone 17
7.5W
iPhone 17Pro
7.5W
iPhone 17Pro Max
7.5W
Google
PIXEL 5
10W
PIXEL 6
10W
PIXEL 6pro
10W
PIXEL 7a
7.5W
PIXEL 7
10W
PIXEL 7pro
10W
PIXEL 8a
10W
PIXEL 8
10W
Shenzhen huagon technology CO ., Ltd
SZ Office: 102, Building D,Weihuada Industrial Park, No. 5, Lirong Road, Dalang street, Longhua District, Shenzhen, China
www.huagoncharging.com
HG-TECH
Since-2013
r
PIXEL 8pro
10W
PIXEL 9a
10W
PIXEL 9
10W
PIXEL 9pro
10W
PIXEL 9proXL
10W
PIXEL 9 Pro Fold
7.5W
Samsung
Galaxy Note9
10W
Galaxy Note10
10W
Note10+
10W
Note10+ 5G
10W
Note20 5G
10W
Note20 Ultra 5G
10W
Galaxy S8
10W
Galaxy S8+
10W
Galaxy S9
10W
Galaxy S9+
10W
Galaxy S10
10W
Galaxy S10e
10W
Galaxy S10+
10W
Galaxy S20
10W
Galaxy S20+
10W
Galaxy S20 Ultra
10W
Galaxy S21
10W
Galaxy S21+
10W
Galaxy S21 Ultra
10W
Galaxy S22
10W
Galaxy S22+
10W
Galaxy S22 Ultra
10W
Galaxy S23
10W
Galaxy S23+
10W
Galaxy S23 Ultra
10W
Galaxy S24
10W
Galaxy S24+
10W
Galaxy S24 Ultra
10W
Galaxy S25
10W
Galaxy S25+
10W
Galaxy S25 Ultra
10W
Galaxy Z Flip 4
10W
Galaxy Z Flip 5
10W
Galaxy Z Flip 6
10W
Galaxy Z Fold 1
10W
Galaxy Z Fold 2
10W
Galaxy Z Fold 3
10W
Galaxy Z Fold 4
10W
Galaxy Z Fold 5
10W
Galaxy Z Fold 6
10W
Galaxy W21
10W
Shenzhen huagon technology CO ., Ltd
SZ Office: 102, Building D,Weihuada Industrial Park, No. 5, Lirong Road, Dalang street, Longhua District, Shenzhen, China
www.huagoncharging.com
HG-TECH
Since-2013
r
Galaxy W22
10W
Galaxy W23
10W
Galaxy W23 Flip
10W
Galaxy W24
10W
Galaxy W24 Flip
10W
Galaxy W25
10W
Galaxy W25 Flip
10W
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC RF exposure statement:
The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance between 20cm the radiator your body.
