“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE
REGULA TIONS FORCE AND ONLY USED IN A WELL VENTILATED
SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS
APPLIANCE”
“Conforms with the WEEE Regulations.”
HOOD DUCTING GUIDE
Here are some important points to consider when
choosing and/or installing a range hood:
• An externally ducted range hood will generally
outperform a recirculating range hood.
• We discourage the use of flexible ducting as this has
a significant negative impact on airflow and noise
due to turbulence
• caused by the ribs. Instead consider using semi-rigid
or rigid duct.
• Avoid using a narrower duct than specified as this
will reduce airflow; the best performance is obtained
when the range hood is installed with a short duct
with minimal bends.
• To determine the required clearance between the
cooktop and the range hood always consult the
installation manual for both the range hood and
cooktop. The required clearance is the greater of the
distance specified in either manual (and a minimum
of 600mm between the highest point of the highest
burner for gas cooktops).

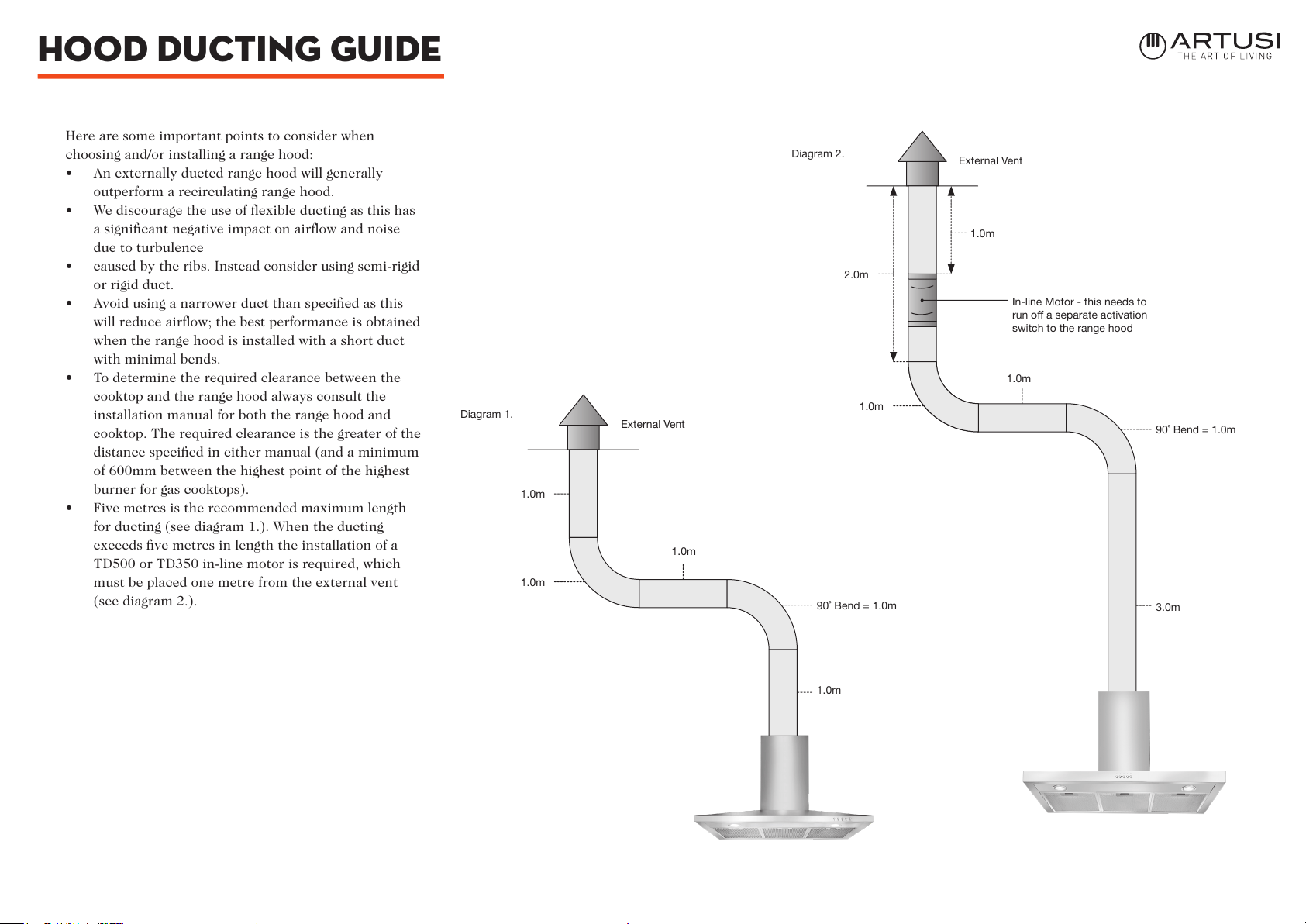

• Five metres is the recommended maximum length
for ducting (see diagram 1.). When the ducting
exceeds five metres in length the installation of a
TD500 or TD350 in-line motor is required, which
must be placed one metre from the external vent
(see diagram 2.).
1.0m
1.0m
1.0m
90˚ Bend = 1.0m
1.0m
2.0m
1.0m
1.0m
90˚ Bend = 1.0m
3.0m
1.0m
In-line Motor - this needs to
run o a separate activation
switch to the range hood
External Vent
External Vent
Diagram 1.
Diagram 2.
1
Information
and advice
In certain circumstances electrical appliances may be a hazard.
Please pay attention to the following points:
A. Always have air circulating through the room when the hood is in use especially if other appliances
burning gas or other fuels are in use.
B. Never open the filters to check their state while the hood is in use.
C. Do not touch the lightbulb within 30 minutes of using the hood.
D. Never flambé under the hood. The flames may cause the hood to catch on fire.
E. Do not light gas burners on a gas hob without putting a pan or pot over the flame as the flames may
damage the filters and are a fire hazard.
F. Never leave frying food unattended as the oil may catch on fire.
G. Disconnect the hood from the power supply before any maintenance.
H. Never allow persons with reduced physical, sensory, mental capabilities or lack of experience and
knowledge, including children under the age of 12, to use the hood without supervision and instruction
concerning use of the hood.
I. Supervise children to ensure they do not play with the hood.
J. Only install this hood over a hob with a maximum of 4 burners/ hot plates.
K. Immediately it is damaged replace the power cord with one from the manufacturer, its service agent
or similarly qualified to avoid electric shock / fire hazard.
Caution: Take care when touching the hood as it may become hot due to high heat from
steam and fats when cooking.
600-750mm
2
rating label
Remove the hood from the
carton and remove all packaging
materials.
Lay it on a padded / protected
surface to prevent damage.

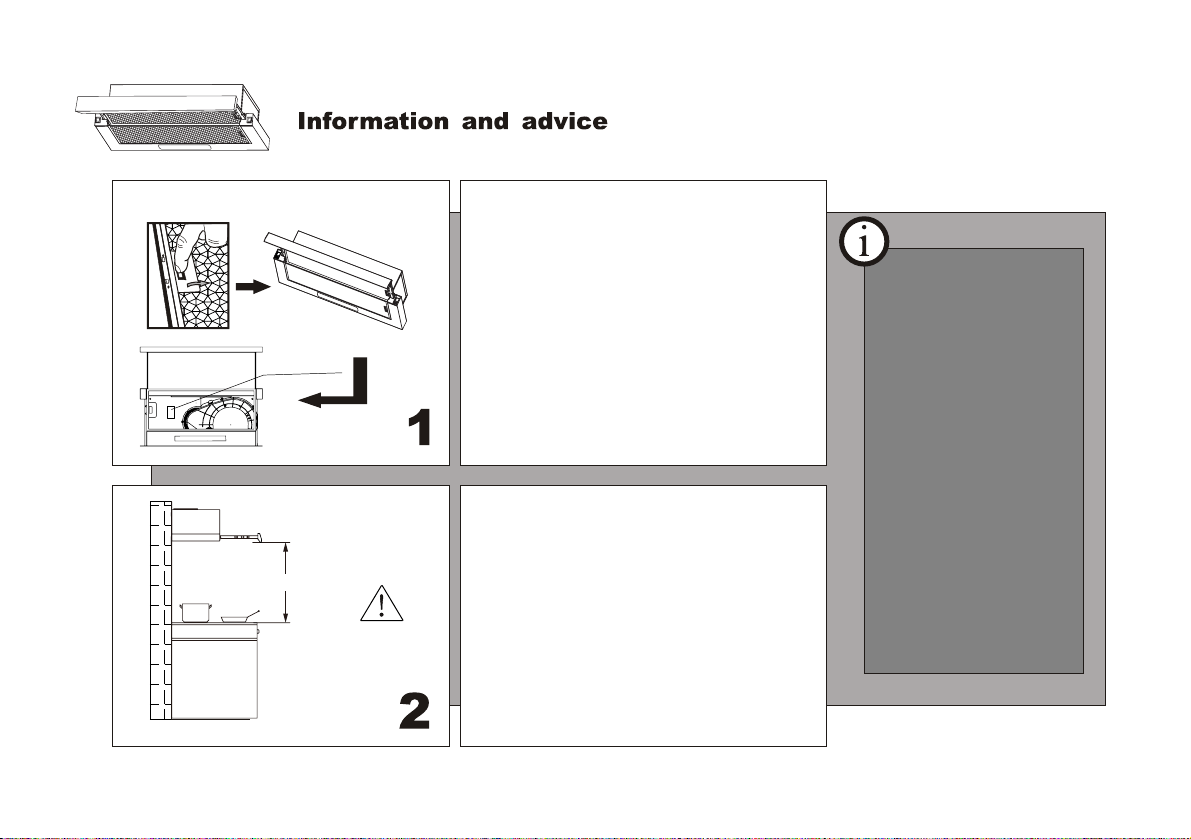

Check the voltage and frequency
on the rating label inside the hood
comply with local standards.
Install the hood no less than
600mm and no more than 750mm
above the cooking surface.
Caution:
Turn the power
off before starting
installation.
Ducted mode. Insert the big
block into the position as per
Fig. 3. Keep the small handle
rail installed on the hood.
Selection of venting or recirculation mode
Recirculation mode. Insert the
small block into the position as
per Fig. 4.
Remove the small handle rail
and attach the larger handle rail.
Big mode selection block
Small mode selection block
3
4
3
Caution:
The air
must not be
discharged
into a
duct/flue that
is used for
exhausting
fumes from
any other
appliances.
5
4
Ducted mode:

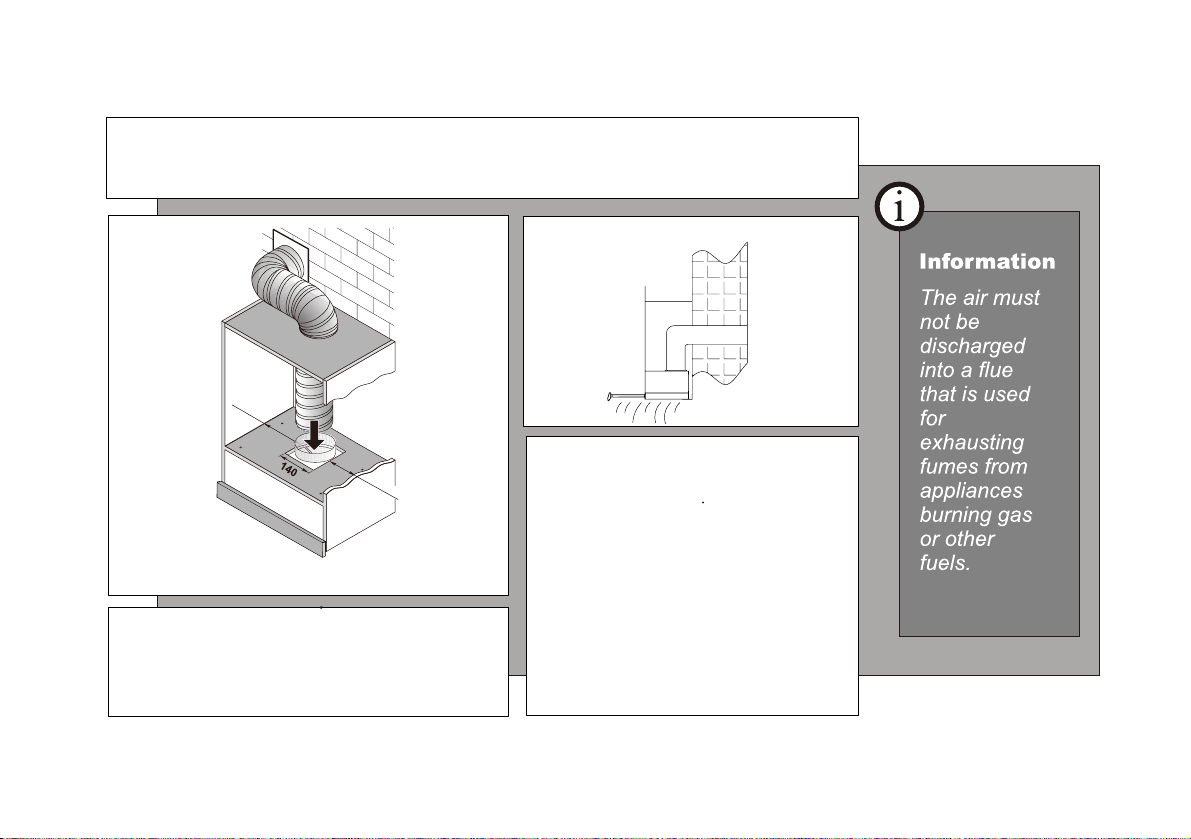

Remove the knockout (as per Fig 5) using a flat head screwdriver inserted
under one end and gently lever it up.
Cut the attachment points using tin snips and remove.
Screw the damper flap onto the hood as shown.
Recirculation mode:
Leave the knockout in place
Remove the tape from the vents
Caution:
Know where
the electrical
wiring and
other utilities
are located
behind walls
before cutting
or drilling
into walls or
ceilings.
ø6
5
4x
1
ø7
88
6
180/330
280/430
5
You will need 2 people to install the hood.
Keep the power cord and plug accessible for easy access to the power socket.
Ducting mode: Ensure the hole for the damper flap & duct has been cut in the cabinet.

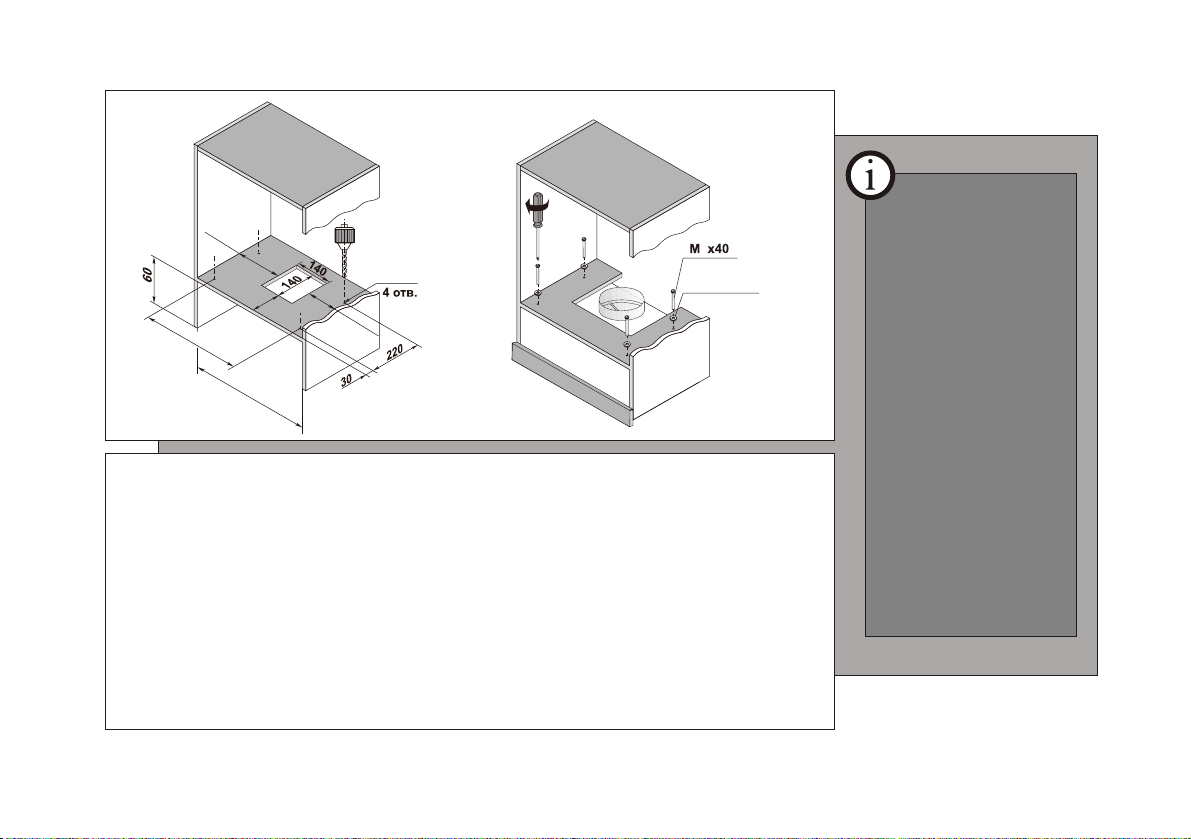

1. Using the template supplied mark the screw locations in the cabinet. Note: the gap
between the rear wall and the hood should not be more than 10mm.
2. Drill 4 x 7mm holes as marked using the template.
3. Make sure the opening in the hood aligns with the ductwork.
4. Put the screws into the expanding plugs (supplied) into the holes
5. Hold the hood in place and screw down until the hood is secured. Check there is no
space between the top of the hood and the cabinet.
Caution
Installation work
and electrical
wiring must be
done by qualified
person(s) in
accordance with
all applicable
laws, regulations
and safety
standards.
Caution:
The hood should
be power OFF.
443 / 743
600 / 900
180/330
7
8
Note: The duct hole is off centre
6
Ducted mode as per Fig. 7 and 8
Connect the hose (not supplied) to
the damper flap and place the duct
hose into position.
Plug in the appliance when it
is fully installed
280/430
9
7
To use
Pull out the telescopic hood using the handle rail. You will hear a click when
it is in place. No click, no power, this is the safety switch.

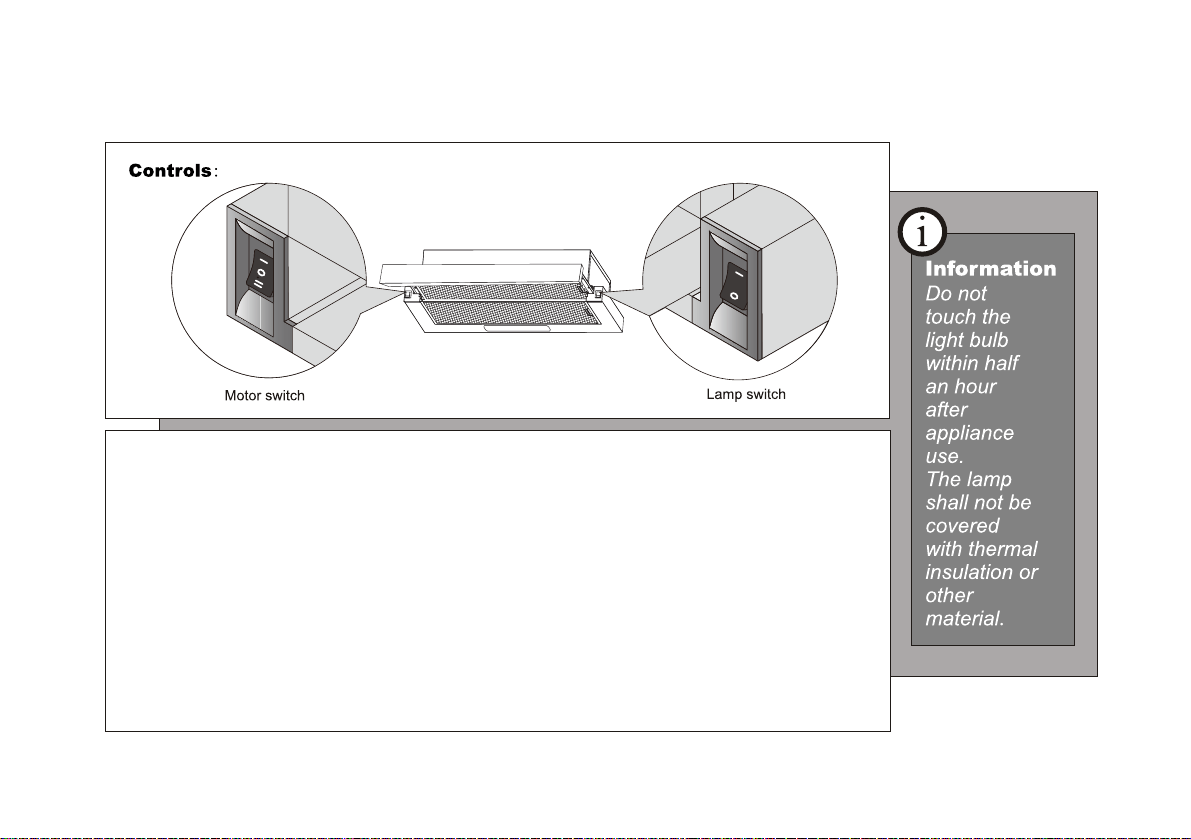

Select the motor speed as per Fig. 9 using the switch on the front of the
hood. (0 is off, I is low speed and II is high speed)
Turn on the lamp as per Fig. 9 using the other switch on the front of the
hood. (0 is off, I is on)
To turn off
Select motor speed 0
Turn off the light
Push the telescopic piece back into the hood.
10
11
Lamp Max 1x40W
8
Cleaning and maintenance instructions
Caution: Turn off the hood before cleaning.
Information:Clean the filters at least once every 3 months.
Cleaning instructions
1. Clean the surface of the hood frequently using mild soap or detergent.
2. Avoid the use of harsh cleaning agents as it may spoil the hood’s appearance.
3. Wash the filters using mild soap or detergent. The filters can be cleaned in a
dishwasher.
Note that heavy grease build up may not be able to be cleaned and the filters
should be replaced.
4. Never clean the charcoal filters. They must be replaced as necessary.
Information
Never let
water enter
the motor
or electrical
parts as this
may cause
an electric
shock
hazard.
Replacing the
light bulb

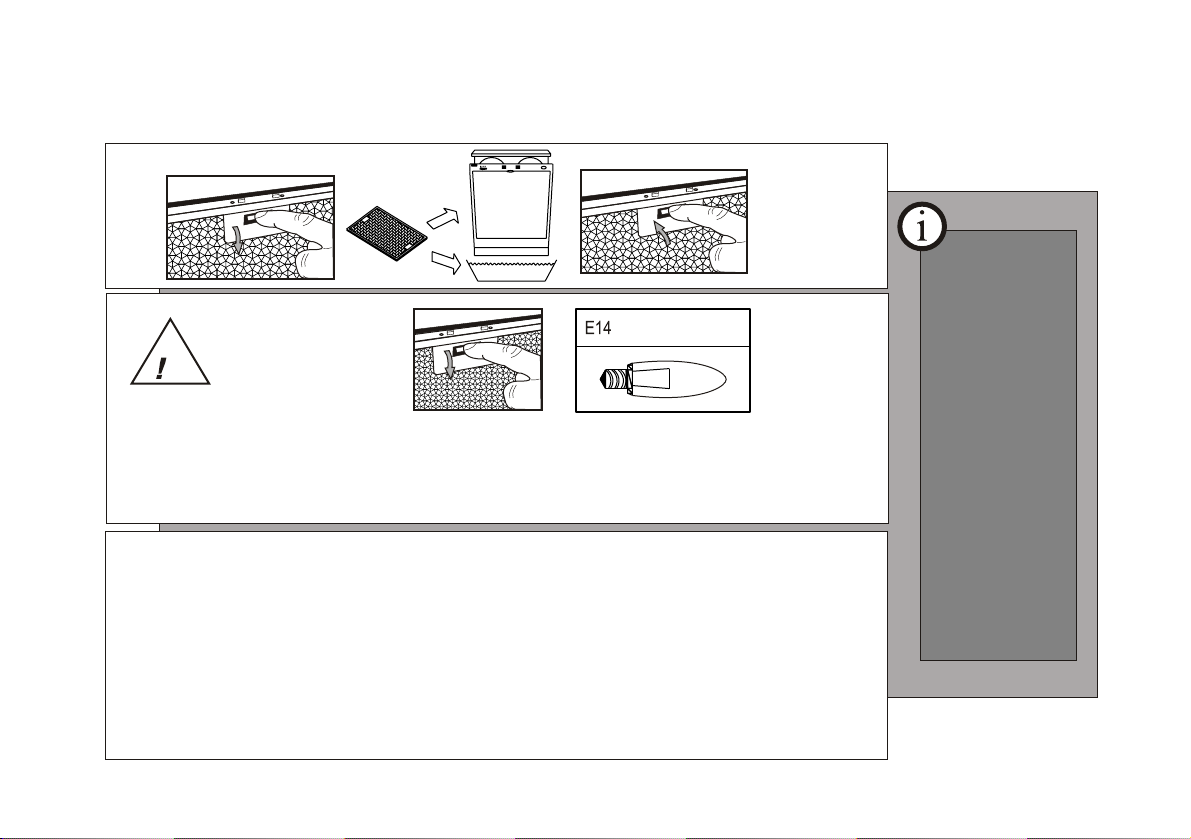

Caution: Wait 30 minutes for the light bulb to cool down after using the hood.
It is hot and may burn!
Open the filter, Remove the old light bulb.
Replace with a new lightbulb (no more than 40W)
9
