ASSEMBLY AND INSTALLATION
INSTRUCTIONS
191111
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
C0239
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Strap (A)
Set Screw (H)
Green Ground
Screw (E)
Fixture Mounting
Screw (D)
Mounting Screw (B) Wire Connector (C)
Lock Nut (F) Ball Nut (G)
Fixture Light
Outlet Box
House Ground Wire
Wire Connector (C)
Fixture Mounting Screw (D)
Mounting Strap (A)
Green Ground Screw (E)
Canopy
Ball Nut (G)
Coupling
Coupling
Lock Nut (F)
Mounting Screw (B)
Set Screw (H)
Socket
Glass Shade
Bulb Type B 40W
(not included)
Tube

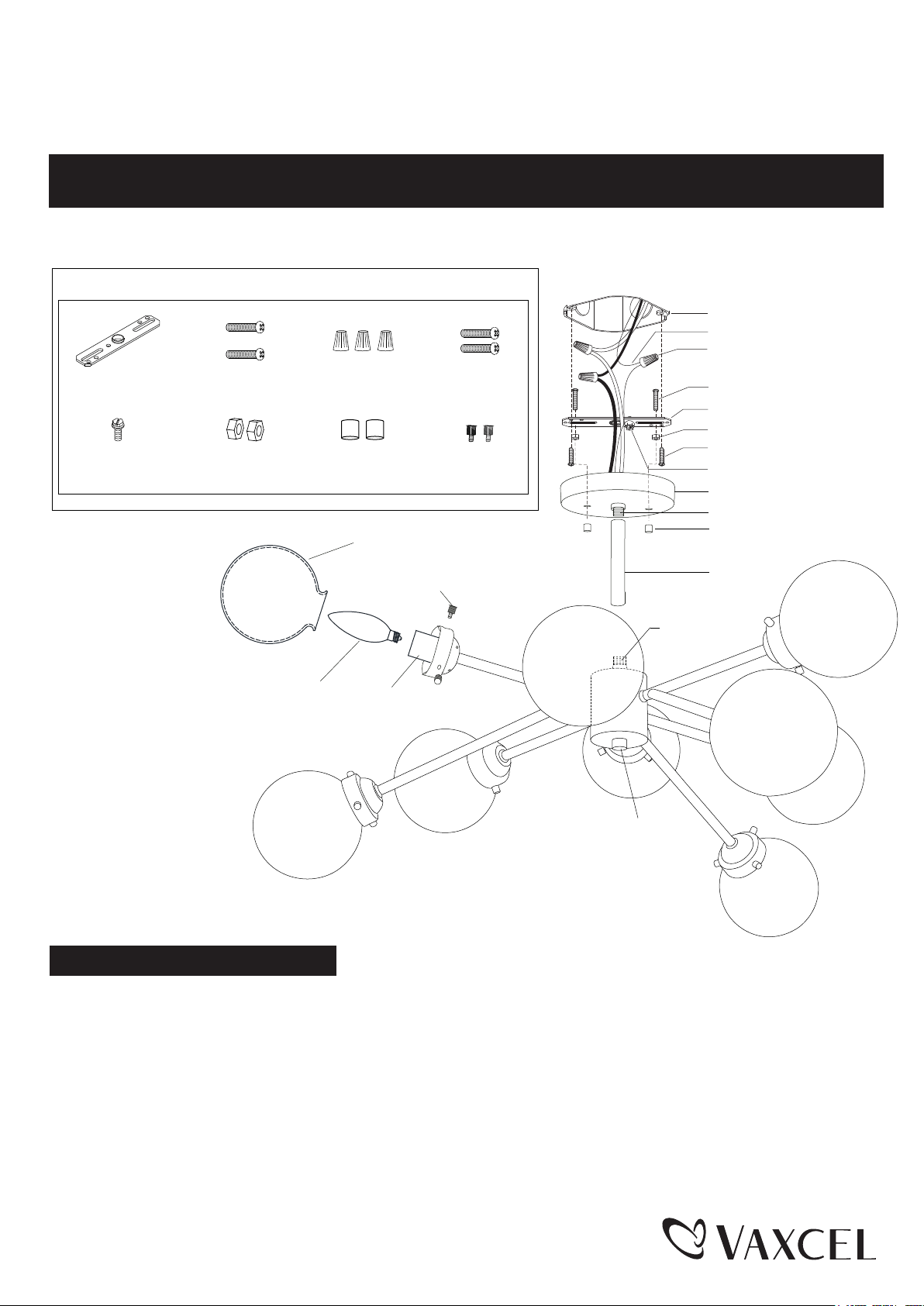

1. Attach two fixture mounting screws
(D) to the mounting strap (A), then secure it with two lock nuts (F). Adjust the length
of the fixture mounting screws (D) if necessary.
2. Attach the mounting strap (A) to the outlet box using two mounting screws (B).
3. Rotate coupling of the fixture light and the canopy into the both ends of the tube.
Turn off the power at fuse or circuit box
Installation Steps
191111

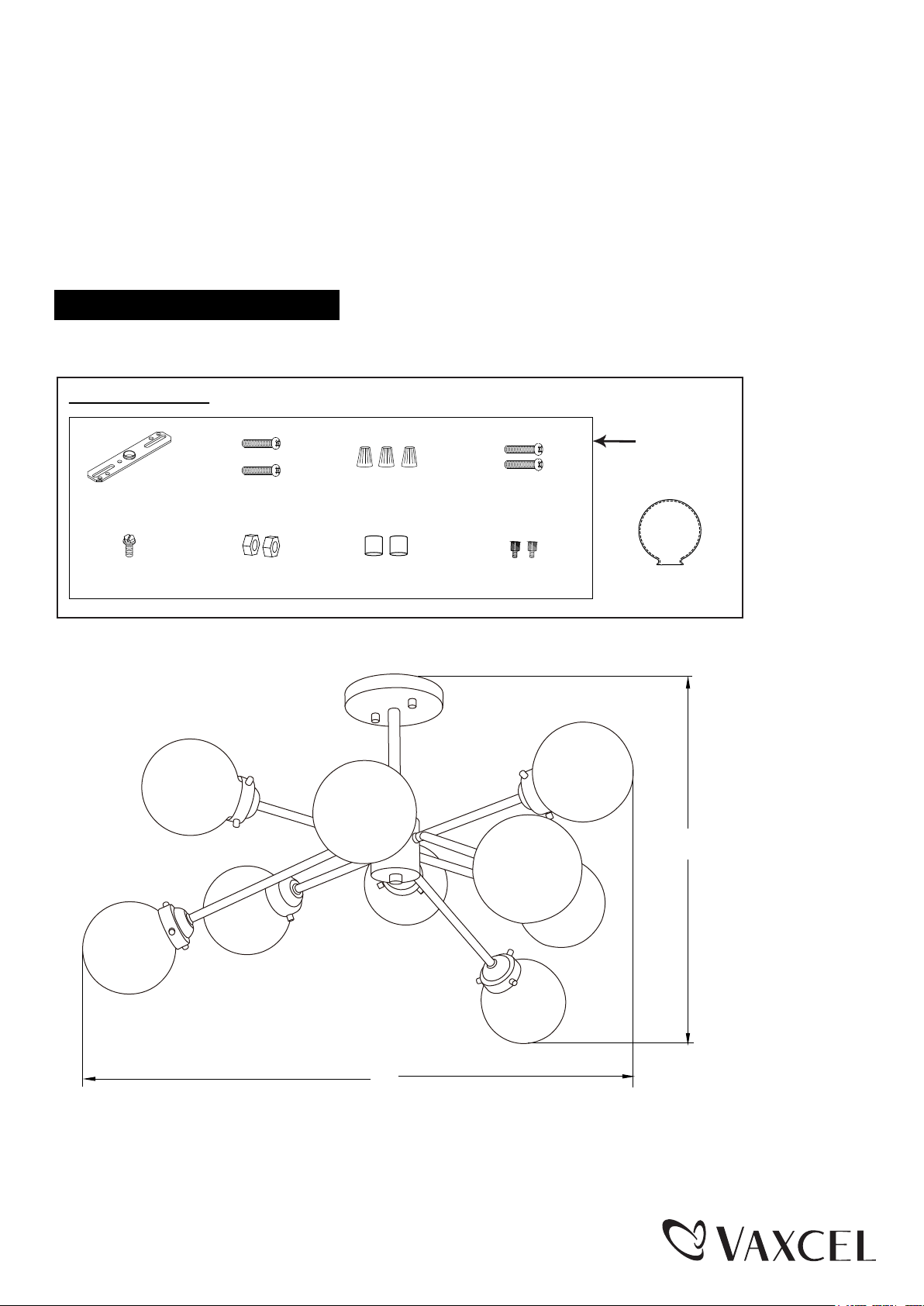

A: 15-1/2”
B: 32”
Spare Parts List:
Assembly Kit
6167MM (1SET)
The following parts are available for re-order if damaged or missing.
Glass Shade
9847CG
Mounting Strap (A)
Set Screw (H)
Green Ground
Screw (E)
Fixture Mounting
Screw (D)
Mounting Screw (B) Wire Connector (C)
Lock Nut (F) Ball Nut (G)
4. Pull out the source wires from the outlet box. Make wire connections using wire connector (C) as follows:
---Connect the black wire from the fixture to the black wire from the power source.
---Connect the white wire from the fixture to the white wire from the power source.
---Attach the fixture ground wire to the mounting strap (A) with the green ground screw (E), then connect it to the
house ground wire with a wire connector (C).
Carefully put the wires back into the outlet box.
4. Install the bulbs (not included). Check relamping label at socket area or packaging for maximum wattage allowed .
5. Attach the glass shade onto the socket and tighten it with set screws (H).
6. Attach the canopy onto the outlet and tighten it with two ball nuts (G).
Turn on the power at fuse or circuit box
A
B
