ASSEMBLY AND INSTALLATION
INSTRUCTIONS
180910
Outlet Box
House Grounding Wire
Wire Connector(C)
Fixture Mounting Screw (D)
Lock Nut (F)
Mounting Strap(A)
Green Grounding Screw(E)
Canopy
Ball Nut(G)
Set Screw
Socket
Fixture Light
Glass Shade
Mounting Screw(B)
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
C0193
Bulb Type B 40W
(not included)
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
1. Attach two fixture mounting screws to the mounting strap, and then secure it with two lock nuts. Adjust the length of the
fixture mounting screws if necessary.
2. Attach the mounting strap to the outlet box using two mounting screws.
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors as follows:
---Connect the black wire from the fixture to the black wire from the power source.
---Connect the white wire from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the green grounding screw, and then connect it to the
house grounding wire with a wire connector.
Carefully put the wires back into the outlet box.
4. Install the bulbs (not included). Check relamping label at socket area or packaging for maximum allowed wattage.
5. Attach the glass shade onto the socket and tighten it with set screws.
6. Attach the canopy onto the outlet and tighten it with two ball nuts.
Turn on the power at fuse or circuit box
Mounting Strap (A)
Green Grounding
Screw (E)
Fixture Mounting
Screw (D)
Mounting Screw (B)
Wire Connector (C)
Lock Nut (F)
Ball Nut (G)
Turn off the power at fuse or circuit box
Installation Steps
180910

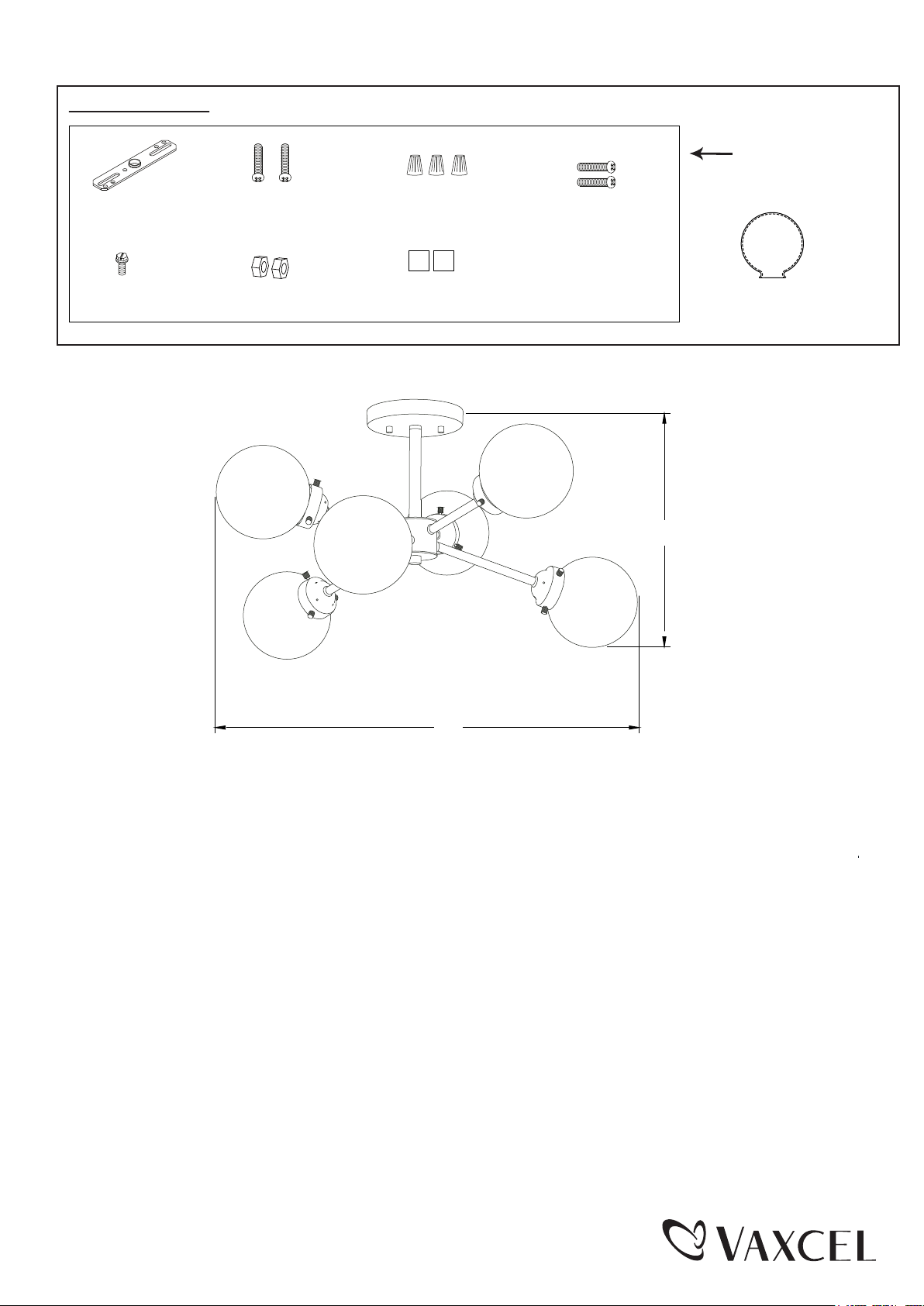

A: 12-1/4”
B: 25”
A
B
Spare Parts List:
Assembly Kit
5985MM (1SET)
The following parts are available for re-order if damaged or missing.
Glass Shade
9847CG
Mounting Strap (A)
Green Grounding
Screw (E)
Mounting Screw (B)
Wire Connector (C)
Lock Nut (F)
Ball Nut (G)
Fixture Mounting
Screw (D)
