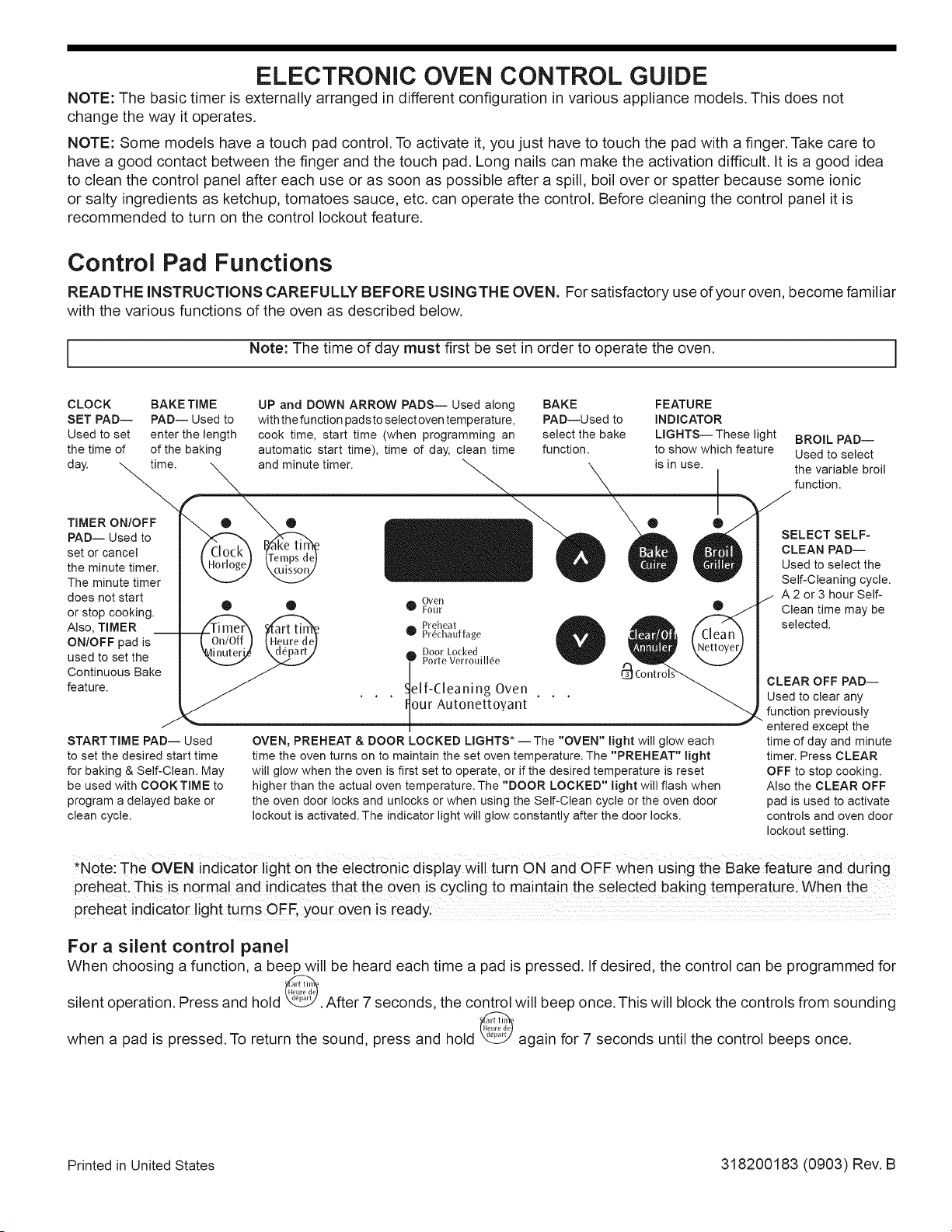

ELECTRONIC OVEN CONTROL GUIDE
NOTE: The basic timer is externally arranged in different configuration in various appliance models. This does not
change the way it operates.
NOTE: Some models have a touch pad control. To activate it, you just have to touch the pad with a finger. Take care to
have a good contact between the finger and the touch pad. Long nails can make the activation difficult. It is a good idea
to clean the control panel after each use or as soon as possible after a spill, boil over or spatter because some ionic
or salty ingredients as ketchup, tomatoes sauce, etc. can operate the control. Before cleaning the control panel it is
recommended to turn on the control lockout feature.
Control Pad Functions
READTHE INSTRUCTIONS CAREFULLY BEFORE USINGTHE OVEN. For satisfactory use of your oven, become familiar
with the various functions of the oven as described below.
Note: The time of day must first be set in order to operate the oven. I
I
CLOCK BAKETIME UP and DOWN ARROW PADS-- Used along BAKE FEATURE
SET PAD-- PAD-- Used to withthefunctionpadstoselectoventemperature, PAD--Used to INDICATOR
Used to set enter the length cook time, start time (when programming an select the bake LIGHTS-- These light BROIL PAD--
the time of of the baking automatic start time), time of day, clean time function, to show which feature Used to select
day. time. and minute timer, is in use. the variable broil
function.
TIMER ON/OFF
PAD-- Used to
set or cancel
the minute timer.
The minute timer
does not start
or stop cooking.
Also, TIMER
ON/OFF pad is
used to set the
Continuous Bake
feature.
® ®
STARTTIME PADi Used
to set the desired start time
for baking & Self-Clean. May
be used with COOKTIME to
program a delayed bake or
clean cycle.
®
Oven
@ Four
Preheat
• Pr_chauffage
• Door Locked
Porte Verrouill_e
elf-Cleaning Oven
, °
our Autonettoyant
OVEN, PREHEAT & DOOR LOCKED LIGHTS* -- The "OVEN" light will glow each
time the oven turns on to maintain the set oven temperature. The "PREHEAT" light
will glow when the oven is first set to operate, or if the desired temperature is reset
higher than the actual oven temperature. The "DOOR LOCKED" light will flash when
the oven door locks and unlocks or when using the Self-Clean cycle or the oven door
lockout is activated. The indicator light will glow constantly after the door locks.
SELECT SELF-
CLEAN PAD--
Used to select the
Self-Cleaning cycle.
A 2 or 3 hour Self-
Clean time may be
selected.
CLEAR OFF PAD--
Used to clear any
function previously
entered except the
time of day and minute
timer. Press CLEAR
OFF to stop cooking.
Also the CLEAR OFF
pad is used to activate
controls and oven door
lockout setting.
*Notel The OVEN !ndicator light 0n the electr0nic display Will turn ON and OFF When using the Bake feature and during
preheat, This is norma! and ind!cates that the oven is cYcling to maintain the se!ected baking temperature; When the
preheat indicator light turns OFF, your oven is ready,
For a silent control panel
When choosing a function, a beep will be heard each time a pad is pressed. If desired, the control can be programmed for
silent operation. Press and hold _. After 7 seconds, the control will beep once. This will block the controls from sounding
when a pad is pressed. To return the sound, press and hold _ again for 7 seconds until the control beeps once.
Printed in United States 318200183 (0903) Rev. B
