EN Robotic Vacuum Cleaner

Important safety instructions

READ CAREFULLY AND STORE FOR FUTURE USE.

General warnings

• This appliance may be used by children 8years of

age and older and by persons with physical or mental

impairments or by inexperienced persons, if they are

properly supervised or have been informed about how

to use the product in asafe manner and understand

thepotential dangers.

• Children must not play with the appliance. Cleaning

and maintenance performed by the user must not be

performed by unsupervised children.

• In the event that the power cord is damaged, have it

repaired at aprofessional service centre to prevent causing

adangerous situation. It is forbidden to use the appliance if

it has adamaged power cord.

• The robotic vacuum cleaner must only be used with the

original power adapter that came with it. In order to avoid

adangerous situation from arising, never use adifferent

type of power adapter.

• Prior to cleaning or maintenance, always disconnect the

robotic vacuum cleaner from the power socket and turn it

off using the power button.

• Adhere to the instructions contained in this user'smanual

when performing cleaning and maintenance tasks.

- 2 -

Revision 07/2021

• For charging the robotic vacuum cleaner, only use the

original charging station that was supplied with it.

• The appliance must only be powered using asmall safe

voltage corresponding to the markings on the appliance.

Laser

The laser sensor meets the laser safety class

according to standard EN60825-1.

• When using, handling or performing maintenance tasks

on the robotic vacuum cleaner with alaser sensor, always

adhere to the following instructions:

- Prior to any handling, turn off the robotic vacuum cleaner

using the power button.

- Do not point the laser beam at people.

- Do not look into the direct or reflected beam of the laser.

- Modifications or repairs of the laser sensor not performed

by an authorised service centre are forbidden.

Warning:

Not following the instructions contained in this

user'smanual may result in dangerous irradiation!

- 3 -

Revision 07/2021

Electrical safety

• Before connecting the adapter to apower socket, check

that the technical details on the rating label match the

electrical voltage in the socket.

• Connect the power adapter only to aproperly grounded

power socket. Do not use an extension cord.

• Do not disconnect the power adapter from the power

socket by pulling on the power cord. This could damage

the power adapter or the power socket. Disconnect the

power adapter from the power socket by pulling on the

plug.

• Do not place the power cord of the power adapter over

sharp objects. Make sure that the power cord does not

hang over the edge of atable and that it is not touching

aheated or hot surface.

• It is forbidden to use apower adapter with adamaged plug

or power cord. For areplacement power adapter, please

contact an authorised service centre.

• Never use the power adapter supplied with this appliance

for any other purposes.

• Keep the power adapter and its power cord dry.

• If the power cord of the power adapter is damaged, it must

be replaced by the manufacturer, its service technician

or by asimilarly qualified person, as this will prevent

adangerous situation from arising.

• Do not connect and disconnect the power adapter cord to

and from the power socket with wet hands.

• Do not uncover the electronic parts of the robotic

vacuum cleaner or its battery. They do not contain any

- 4 -

Revision 07/2021

components repairable by the user. Have the appliance

serviced by qualified persons.

• To charge the battery, only use the power adapter supplied

with this robotic vacuum cleaner.

• To avoid any injury by electrical shock, do not spray the

robotic vacuum cleaner with water and do not submerge it

in water or any other liquid.

• If you will not be using the robotic vacuum cleaner for

an extended period of time, take out the battery. Prior to

taking out the battery, ensure that the robotic vacuum

cleaner is disconnected from the power socket and that it

is turned off using the main switch.

• Do not use the robotic vacuum cleaner when it is not

working correctly, if it has been damaged or has been

submerged in water.

• To avoid the danger of injury by electrical shock, do

not repair the robotic vacuum cleaner yourself or make

any adjustments to it. Have all repairs performed at an

authorised service centre. Tampering with the robotic

vacuum cleaner during the warranty period may void the

warranty.

• Prior to cleaning or maintenance, always disconnect the

robotic vacuum cleaner from the power socket and turn it

off using the power button.

Safety during use

• This robotic vacuum cleaner is designed for use in

households, offices and similar types of areas. Do not use

it in industrial surroundings or outdoors.

- 5 -

Revision 07/2021

• The robotic vacuum cleaner is not intended for vacuuming

water and therefore must not be used in damp or wet

areas, for example in laundries, bathrooms or around

swimming pools. If it were to come into contact with water,

the internal electronics of the vacuum cleaner would be

destroyed.

• Do not use the robotic vacuum cleaner to vacuum the

following items:

- smouldering cigarettes, burning or flammable items,

matches or ash;

- water and other liquids;

- sharp items, e.g. splinters, needles, pins, etc.;

- flour, wall plaster and other building materials;

- larger pieces of paper or plastic bags, which can easily

block the suction hole.

• Do not expose the robotic vacuum cleaner to direct

sunlight and do not place it near an open fire or appliances

that are asource of heat.

• Do not use the robotic vacuum cleaner on narrow raised

surfaces such as tables, wardrobes, etc. If the vacuum

cleaner does not have sufficient space for manoeuvring, it

may fall and be damaged.

• Only use the robotic vacuum cleaner with the original

accessories from the manufacturer.

• Ensure that the robotic vacuum cleaner has adust filter

correctly installed in the dust container before use.

• Before putting the robotic vacuum cleaner into operation,

check that the entry door into your apartment or house is

closed. From the floor surfaces, remove clothing, paper,

- 6 -

Revision 07/2021

toys, power or extension cords and other items that the

vacuum cleaner could suck in or catch. Lift curtains and

drapes that reach to the floor so that they do not get

caught in the vacuum cleaner.

• Do not place any items on to the robotic vacuum cleaner

and do not step or sit on it.

• If the robotic vacuum cleaner is running, watch out for

children and household pets.

• When the robotic vacuum cleaner is running, ensure that

the air vents are not covered and that the suction hole is

not blocked. Otherwise, the robotic vacuum cleaner may

be damaged.

• Do not push on the laser navigation module or attempt to

lift its cover. This could damage the module.

- 7 -

Revision 07/2021

• Prior to using this appliance, please read the user'smanual

thoroughly, even in cases, when one has already familiarised

themselves with previous use of similar types of appliances. Only use

the appliance in the manner described in this user’smanual. Keep this

user'smanual in asafe place where it can be easily retrieved for future

use. In the event that you hand this appliance over to somebody else,

make sure to also include this user'smanual. We recommend saving

the original cardboard box, packaging material, purchase receipt and

responsibility statement of the vendor or warranty card for at least the

duration of the legal liability for unsatisfactory performance or quality.

In the event of transportation, we recommend that you pack the

appliance in the original box from the manufacturer.

• Carefully unpack the appliance and take care not to throw away any

part of the packaging before you find all the parts of the appliance.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES

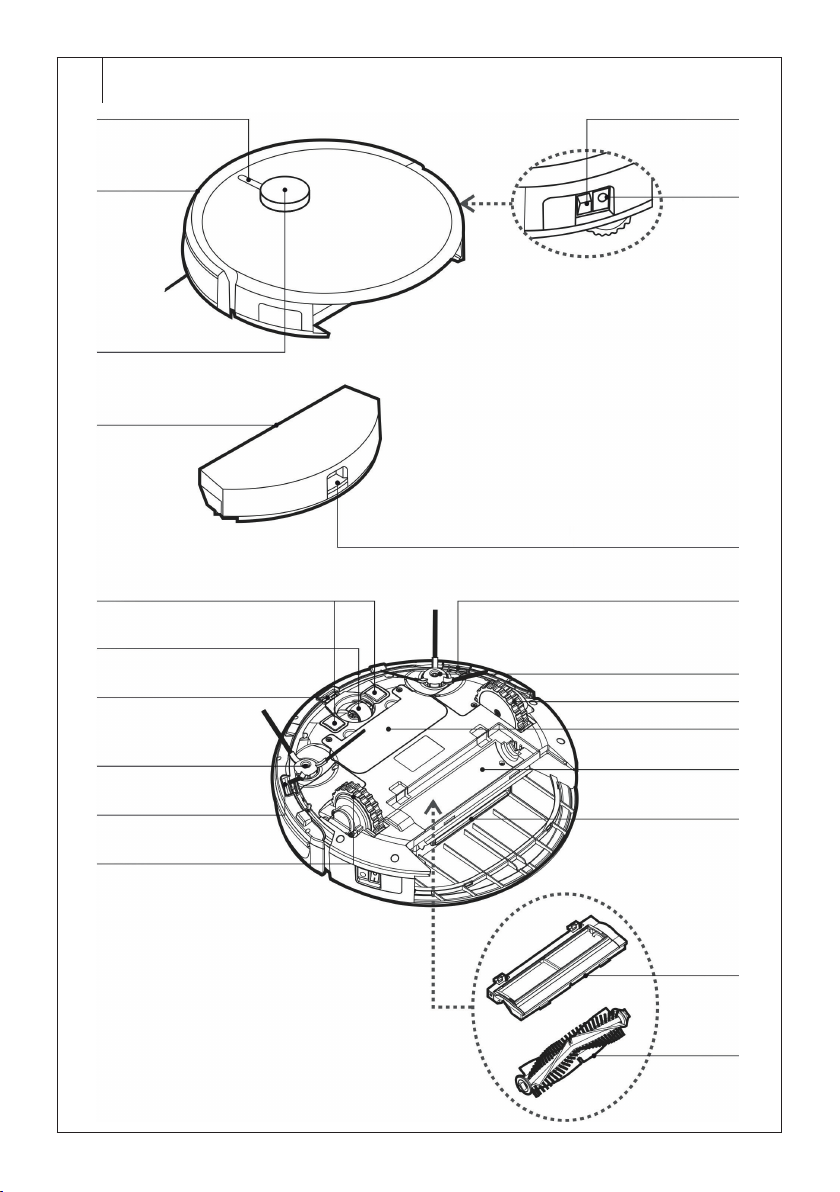

A1 Control panel

A2 Bumper bar with an anti-

collision sensor

A3 Laser navigation module

A4 Main switch

A5 Power adapter connector

socket

A6 Dust container

A7 Container release latch

A8 Charging contacts

A9 Front swivel wheel

A10 Bottom anti-fall sensor,

central

A11 Left rotary brush (L)

A12 Bottom anti-fall sensor, left

A13 Left motorised rubber wheel

A14 Bottom anti-fall sensor, right

A15 Right rotary brush (R)

A16 Right motorised rubber wheel

A17 Battery compartment cover

A18 Central rotary brush

compartment

A19 Suction hole

A20 Central rotary brush cover

A21 Central rotary brush

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

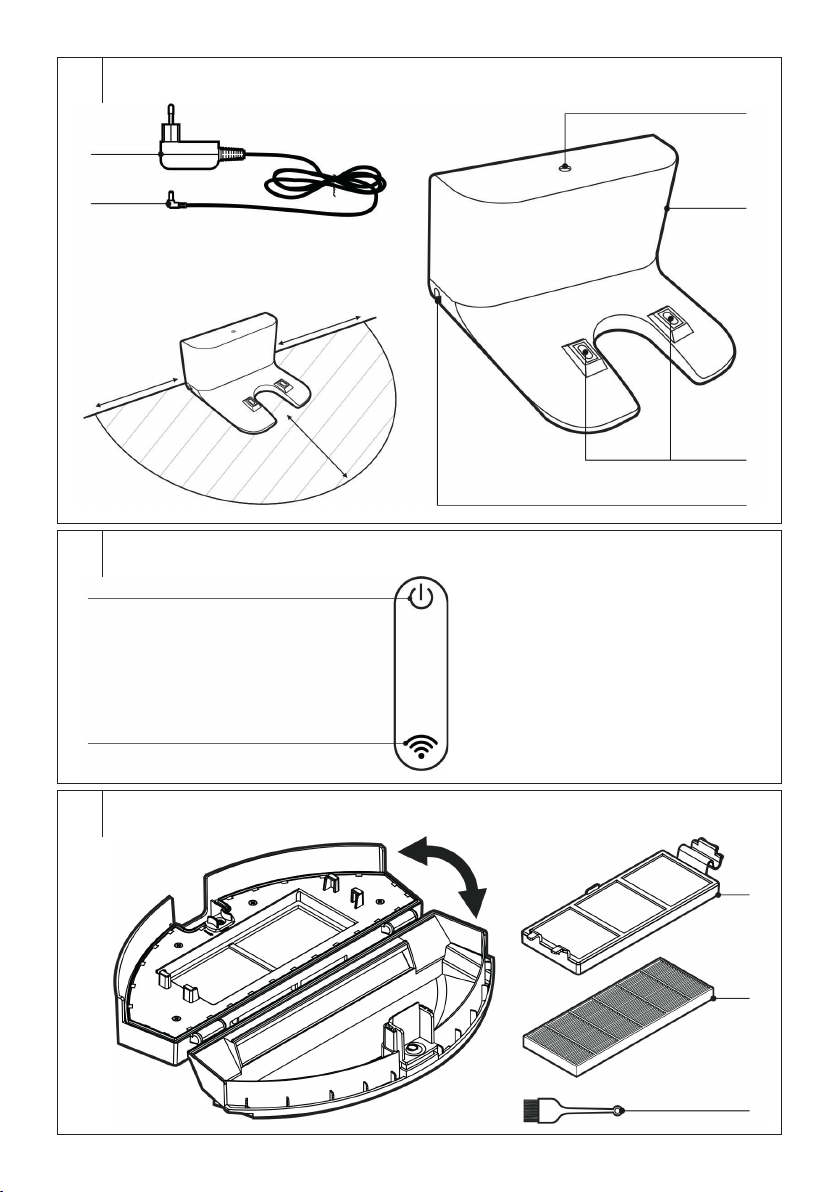

B1 Power adapter

B2 Power adapter plug

B3 Power indicator

B4 Charging station

B5 Charging contacts

B6 Power adapter plug socket

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

C1 On/Off button C2 Wi-Fi indicator

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

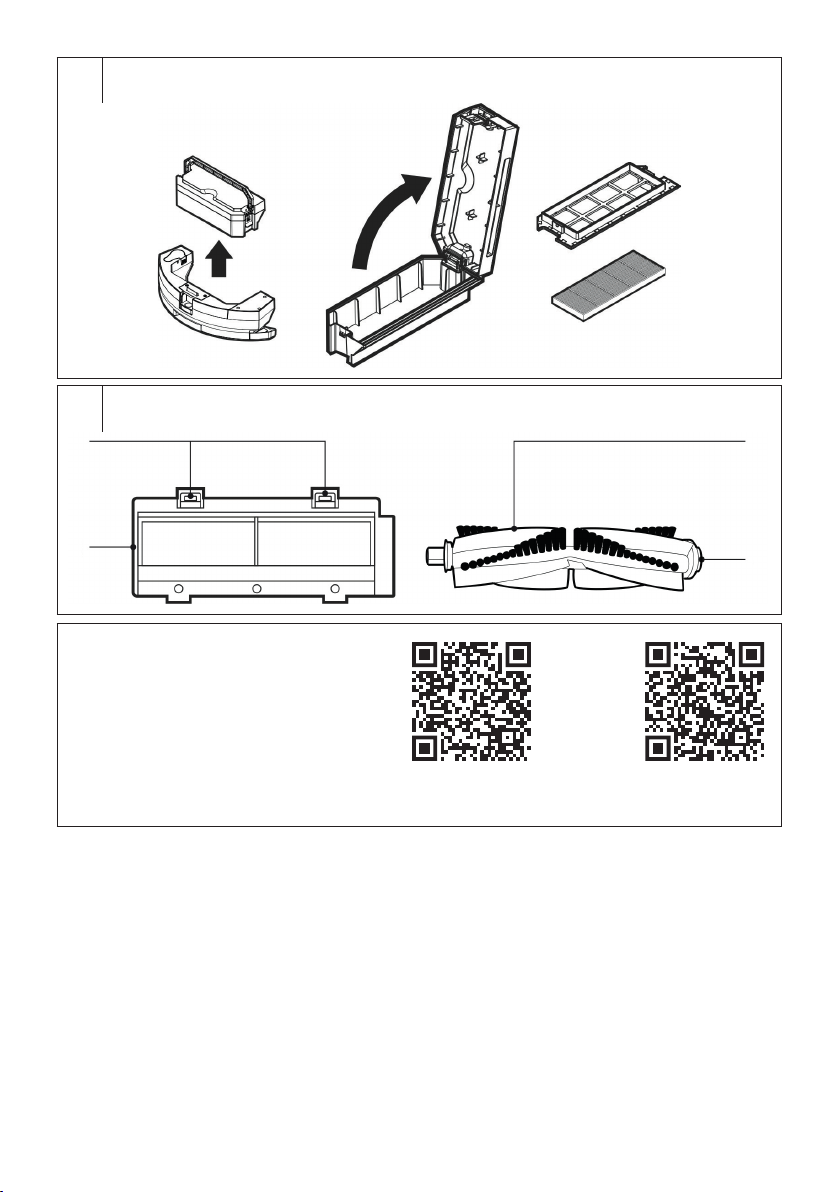

D1 HEPA filter holder

D2 HEPA filter

Highly effective air-borne

particle filter able to capture

even the finest dust particles

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

F1 Latches

F2 Rotary brush cover

F3 Rotary brush

F4 Brush bearings

Purpose of use and features of the robotic vacuum cleaner

• The robotic vacuum cleaner is intended for cleaning various types

of hard floors such as wooden or laminate floating floors, tiles, vinyl,

etc. and carpets with alow pile height. While vacuuming, it effectively

combines various routes to optimally clean the entire floor area.

• The suction hole effectively removes hair, animal fur, etc. The two

side rotary brushes brush dirt out of hard-to-reach places along walls

and furniture and out of corners. The motorised rubber wheels protect

sensitive floors against scratching and can travel over threshold strips

up to aheight of 1 cm and ride on to a2 cm high carpet.

• The suspended bumper enables the vacuum cleaner to dampen the

approach to an obstacle and to efficiently clean around it. The infrared

sensors in the front bumper prevent the robotic vacuum cleaner from

colliding with obstacles. Safe operation in rooms with stairs is made

possible by the bottom anti-stair-fall sensors.

• For easy identification of the operating state, the button on the cover

has an indicator light the colour of which indicates low battery voltage

(lit red), battery charging (flashing alternately red and blue), full charge

and operation (lit blue).

• The vacuum cleaner is equipped with GYRO MAPPING function

(orientation in space), which can identify the space geometry of

aroom in which it is cleaning, thereby the vacuum cleaner is able to

better clean the floor. The vacuum cleaner is also equipped with laser

navigation by means of which it maps out each room and then starts

to clean it systematically. Both functions are built-in and cannot be

affected in any way.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PREPARING THE ROBOTIC VACUUM CLEANER FOR OPERATION

Installing and using the rotary brushes

• The rotary brushes A11 and A15 are intended for smooth floor surfaces

and ensure effective cleaning in corners, along walls and furniture.

• Turn the vacuum cleaner upside down. Gradually push in the rotary

brushes precisely and with force on to the pins that are intended for

them. While doing this, make sure that the marks L and R both on the

brushes and on the vacuum cleaner match. Turn the vacuum cleaner

back over to the operating position.

• When using the vacuum cleaner to clean rooms with carpets, remove

the rotary brushes. When removing them, proceed in the reverse

sequence to their installation.

Inserting and removing the battery

• The robotic vacuum cleaner is equipped with aLi-ion battery. If the

battery is packed separately, it is necessary insert it into the vacuum

cleaner before first use. Use only the original battery type.

• Make sure that the vacuum cleaner is turned off with the main switch

A4. Turn the vacuum cleaner upside down and screw off the cover A17.

• Remove the vacuum cleaner connector from the battery

compartment. Connect the battery connector to it. The battery can

only be connected in one direction.

• Screw the cover A17 back on and turn the vacuum cleaner back over

to the operating position.

• Remove the battery in reverse sequence. Prior to removing it, always

check that the vacuum cleaner is turned off using the main switch. The

fabric strips on the body of the battery make battery removal easier.

• When the vacuum cleaner will not be used for an extended period of

time, take out the battery and store it in adry, clean and cool place out

of children'sreach.

Location of the charging station

• The charging station B4 serves to automatically recharge the battery

and the vacuum cleaner must have good access to it.

• Locate the charging station against awall on ahard, even and dry

surface within reach of apower socket. Make sure that there are no

stairs or obstacles within adistance of 1m on the left and right of the

charging station and within adistance of 2m in front of the charging

station, that would prevent the vacuum cleaner from finding the

charging station and docking successfully.

• Insert the power adapter plug B2 into socket B6 of the charging

station, and insert the power cord plug into apower socket. Place the

power cord in such away that it does not tangle into the cleaning

brushes of the vacuum cleaner.

• In the event that the vacuum cleaner is not used for an extended

period of time, disconnect the charging station from the power socket

and store it in adry, clean and cool place.

Robotic Vacuum Cleaner

User‘smanual

- 8 -

Revision 07/2021

Charging the battery for the first time

Note:

Prior to charging the battery, the vacuum cleaner must be

turned on using the main switch A4.

• Before using the vacuum cleaner for the first time, it is necessary to

fully charge the battery for at least 5hours.

• Check that the charging base is correctly positioned and connected

to apower socket according to chapter Location of the charging base.

Turn on the main switch A4 of the vacuum cleaner, grasp the robotic

vacuum cleaner and manually place it into the charging station so

that the charging contacts A8 on the underside of the vacuum cleaner

and the charging contacts B5 on the charging station are connected.

When the contacts are connected, the charging process will start.

• The vacuum cleaner can also be charged without using the charging

station. Insert the plug B2 of the power adapter B1 into socket A5

of the vacuum cleaner, and insert the power cord plug into apower

socket.

• During the charging process, the indicator light on button C1 will

alternately flash blue and red.

• When the battery is fully charged, the indicator light of button C1 will

remain permanently lit blue and the process will end automatically.

The vacuum cleaner is now ready for use.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATING THE ROBOTIC VACUUM CLEANER

Note:

Before starting the vacuum cleaner, always check that the

dust container A6, together with the HEPA filters, is inserted

in place.

Turning on the robotic vacuum cleaner

• Turn on the power supply to the vacuum cleaner using the main

switch A4.

• Press button C1. The button'sindicator will start flashing blue. When

the indicator is permanently lit blue, the vacuum cleaner is in stand-by

mode and ready for operation.

Stand-by mode

• The stand-by mode means that the vacuum cleaner is ready for

operation. Button C1 is backlit in blue colour.

• Set the vacuum cleaner to the stand-by mode by pressing button C1

on the vacuum cleaner either by turning on the power supply using

main switch or whenever while the vacuum cleaner is running.

Sleep mode

• The sleep mode serves to save the battery'scapacity. The vacuum

cleaner enters sleep mode either automatically after ten minutes

of inactivity or when it is unable to dock in the charging station.

The backlight on button C1 will turn off and the vacuum cleaner will

automatically switch to the sleep mode.

• To wake the vacuum cleaner from the sleep mode into the stand-by

mode, press button A4 on the vacuum cleaner.

Note:

When the vacuum cleaner is in sleep mode, it is not

possible to wake it up using the mobile phone application.

In the sleep mode, it only responds to buttons C1.

Turning off the robotic vacuum cleaner

• If you wish to completely turn off the vacuum cleaner, set the main

switch A4 to position 0 (off). The backlight on button C1 will turn off

and the power supply will be shut off. When the vacuum cleaner is

turned off, it will not respond to any button.

Selecting the robotic vacuum cleaner cleaning mode

• Before starting the cleaning process, check that the entry door into

your apartment or house is closed. From the floor surfaces, remove

clothing, paper, toys, power or extension cords and other items that

the vacuum cleaner could suck in or catch. Lift curtains and drapes

that reach to the floor so that the vacuum cleaner does not catch them.

Tip:

When vacuuming in anew environment for the first time,

carefully observe the movement of the vacuum cleaner.

You can thereby recognise problematic obstacles and

remove them for the next cleaning session.

Automatic cleaning mode

• Press button C1. The vacuum cleaner will enter the automatic cleaning

mode, in which it effectively combines various routes to achieve an

optimal clean of the entire floor area. As soon as the vacuum cleaner

finishes cleaning, it will seek out the charging station and dock there

to recharge.

Note:

In the application, you can choose from other cleaning

modes, e.g. maximum power mode or silent cleaning mode.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCHEDULED CLEANING

Note:

The scheduled cleaning time setting is based on the

system time set on the remote control. Therefore, before

setting the scheduled cleaning time, it is necessary to

correctly set the system time as described in chapter

SETTING SYSTEM TIME ON THE REMOTE CONTROL.

• This function enables scheduling the vacuum cleaner to automatically

start cleaning at acertain time once per day. If you use the application,

it is possible to schedule acleaning time for every day at adifferent

time. Please follow the instructions in the application.

• This function behaves as adelayed start, so you are actually setting

adelayed cleaning time. Example: If the current time on the vacuum

cleaner is 5:00p.m. then by setting the scheduled cleaning time

to2:30 the vacuum cleaner will automatically start cleaning only

at7:30p.m. If you leave the main switch of the vacuum cleaner

turned on, then the same cleaning process will be repeated at

7:30p.m. every day thereafter.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CONTROLLING THE ROBOTIC VACUUM CLEANER USING THE

MOBILE APPLICATION

• The vacuum cleaner can also be controlled using asmartphone or

tablet. The application enables one to select the cleaning mode, pause

cleaning as well as return to the charging station, schedule cleaning

for aselected time that may differ for the individual days of the week,

furthermore, cancel scheduled cleaning and also provides an overview

of the cleaning time and the status of the robotic vacuum cleaner.

• The application is freely available at the Apple App Store or Google

Play Store. This link for this application is found in the picture part of

this user'smanual.

Note:

The robotic vacuum cleaner supports Wi-Fi in the 2.4GHz

frequency band. If unsure about which standards are used

by your Wi-Fi network and your router, please contact your

internet service provider or the manufacturer of the router.

• After downloading and installing it, the application will guide you

through the process for connecting the robotic vacuum cleaner to

your Wi-Fi network. Turn off mobile data on your smartphone before

connecting to the Wi-Fi network. The pairing of the vacuum cleaner

with your Wi-Fi is indicated by symbol C2 being lit.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

- 9 -

Revision 07/2021

CHARGING THE ROBOTIC VACUUM CLEANER

Automatic charging

• As soon as the vacuum cleaner detects low voltage of the battery

during operation, it will automatically start to seek out the charging

station. In order for it to find it and dock, it needs to find the infrared signal

transmitted by the charging station. For this reason, we recommend

leaving the charging station constantly connected to the power source

and located in accordance with the instructions provided in chapter

LOCATION OF THE CHARGING STATION.

• After docking in the charging station, the charging cycle will commence.

Acomplete charge takes approximately 4 to 7 hours. The actual charging

time depends on the power level of the battery. Afully charged battery

will provide up to 120 minutes of operation.

• During the charging process, the indicator light on button C1 will

alternately flash red and blue.

• When the battery is fully charged, the indicator light of button C1 will

remain permanently lit blue and the process will end automatically.

• In the event that the charging contacts are disconnected during the

charging cycle, the vacuum cleaner will move away from the charging

station and then re-dock itself to resume the charging process, unless it is

prevented from doing so by an obstacle. In the event of apower outage, the

charging cycle will be interrupted and will continue after the power supply

is renewed. In the event that the maximum charging current is exceeded,

the charging station will automatically interrupt the charging cycle.

Manual charging

• If the vacuum cleaner is located away from the charging station and

detects alow battery voltage then button C1 will be lit red. In the

application, enter the vacuum command, which will send it to the

charging station.

• If the battery is so flat that the vacuum cleaner is unable to seek out the

charging station then it is necessary to dock the vacuum cleaner into the

charging station manually. Pick up the vacuum cleaner and manually place

it into the charging station so that the charging contacts on the underside of

the vacuum cleaner and the charging contacts on the charging station are

connected. When the contacts are connected, charging will start.

• The vacuum cleaner can also be charged without using the charging

station. Insert the power adapter connector into socket A5 on the side of

the vacuum cleaner and insert the power adapter plug into amains socket.

Caring for the battery

• We recommend that you do not interrupt the charging cycle and

maintain the battery in acharged state.

• Do not leave the vacuum cleaner standing fully charged or completely

flat for an unnecessarily long period of time.

• Abattery that is allowed to remain flat for along time may self-

discharge below apermissible level and thereby cause irreparable

damage to itself.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING

Problem Possible cause Solution

The vacuum

cleaner cannot

be turned on.

The battery is not

inserted correctly in the

robotic vacuum cleaner.

Insert the battery according

to the instructions in this

user'smanual.

The battery is flat. Charge the battery.

The vacuum

cleaner is on,

but it is not

vacuuming

dust and dirt.

The dust container is full. Empty the dust container.

The dust filter is not

properly installed in the

dust container.

Properly install the

dust filter into the dust

container.

The vacuum

cleaner travels

only backwards

when it is

turned on.

The vacuum cleaner was

placed on afloor that is

too dark.

Move the vacuum cleaner

to alighter-coloured floor

and start it again.

An anti-fall sensor is dirty.

Clean the anti-fall sensors.

The rotary

brushes are

deformed and

do not sweep

up dust and dirt.

The brushes are worn

out.

Dip them in warm water to

renew their original shape.

Contact the vendor or

service centre and order

new brushes.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LIGHT SIGNALS

Colour of button C1 Meaning

White – flashing slowly Starting / charging

White – lit Stand-by mode / charging complete

Red – flashing slowly Low battery voltage

Red – flashing quickly Error

Colour of button C2 Meaning

Blue – flashing quickly Wi-Fi settings complete

Blue – flashing slowly Connecting to Wi-Fi

Blue – lit Connected to Wi-Fi

Red – flashing slowly Wi-Fi connection error

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CLEANING AND MAINTENANCE

• Prior to cleaning it, always turn off the vacuum cleaner using the main

switch A4.

• For cleaning, never use abrasive cleaning products, solvents, etc.

• Neglecting cleaning and maintenance may negatively affect

the working order of the vacuum cleaner and lead to its reduced

performance.

Dust container and dust filter

• Empty out the dust container A6 after every use and clean it regularly.

• Press latch A7 to slide the dust container out of the vacuum cleaner,

open it and tip out the dirty material. For hygiene reasons, we

recommend doing this away from living areas.

• Release the filter holder D1 and the dust filter D2 and take them out of

the dust container.

• Wash both parts of the dust container under running water and dry it

well.

Note:

The inside of the dust container does not need to be

washed after every use, it is sufficient to wipe it out with

awet wiping cloth.

Tap out the dust filter and its holder. Check the condition of

the filter and if damaged, replace it with anew one. Insert

the filter back into the holder and into the dust container.

Secure it in place by turning the grip.

Insert the dust container A6 back into the vacuum cleaner.

Attention:

Do not wash the dust container or the dust filter in

adishwasher.

The dust filter must not be washed using water.

Before putting the vacuum cleaner back into

operation, check that the dust

filter is in its location. Otherwise the vacuum cleaner

may be damaged.

Central rotary brush

• Push on the latches F1 of the central rotary brush cover F2 and take

the cover out together with the brush.

• Use adry wiping cloth to clean out the area in which the rotary brush

is housed. Clean out the suction hole as described in the previous

paragraph.

- 10 -

Revision 07/2021

• Remove any dirt and material (dust, wound on hair, animal fur, etc.)

from the rotary brush and the bearings F4.

• Reinsert the rotary brush and its cover.

Suction hole

• The suction hole A19 is located underneath the central rotary brush

A21, therefore, take it out before cleaning the suction hole. With repeat

use, dust and dirt may accumulate around the suction hole, which

may manifest itself through decreased suction efficiency. Remove the

dirt and dust from the suction hole using asoft brush. Regularly clean

the suction hole to ensure maximum suction power.

Rotary brushes

• Take out the rotary brushes A11 and A15 by pulling them upwards.

Remove any dust and dirt from the location where the brushes were

mounted.

• Remove all dust and dirt from the brushes. If necessary you may

wash the brushes under running water. If the bristles were deformed

while the vacuum cleaner was running, dip them in warm water to

allow them to return to their original shape. Allow the brushes to dry

before reattaching to the vacuum cleaner.

• After cleaning them, reattach them.

Note:

The rotary brushes become worn out when used. After

acertain time it is necessary to replace the used brushes

with new ones. To order new brushes, please contact your

vendor or an authorised service centre.

Complete robotic vacuum cleaner

• Regularly wipe the surface of the vacuum cleaner using asoft dry

wiping cloth.

• Clean the front swivel wheel, motorised wheels, suction hole, rotary

brush and the bottom sensors at least once per week or more

frequently.

• First remove any coarser dirt from the front swivel wheel and the

motorised wheels. Then clean them around their entire perimeter

using alightly dampened cloth and wipe them dry. Do not forget to

also clean the area around the wheels.

• Wipe the sensors on the underside of the vacuum cleaner using asoft

dry wiping cloth or cotton bud.

Charging base

• At least once per week, clean the surface of the charging bast B4

including the charging contacts B5 using asoft dry wiping cloth.

Storage

• When not using the vacuum cleaner for an extended period of time,

do the following:

– Clean the vacuum cleaner as described in chapter CLEANING

AND MAINTENANCE.

– Remove the battery from the vacuum cleaner as described in

chapter INSERTING AND REMOVING THE BATTERY.

– Disconnect the charging station from the power socket.

– Store the vacuum cleaner with all its accessories in adry, clean

and cool place.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TECHNICAL SPECIFICATIONS

Robotic vacuum cleaner

Dimensions (diameter × height) ...................................................... 335 × 79 mm

Weight .....................................................................................................................2.5kg

Operating time per single charge ..................................................... up to 120min

Dust container capacity ...................................................................................475ml

Laser sensor class ..........................................................................................................I

Power adapter

Rated voltage range ..............................................................................100–240 V~

Rated frequency ...........................................................................................50/60Hz

Output ............................................................................................................. 24 V0.6 A

Battery

Type ................................................................................... Li-Ion / 14.4 V2,600 mAh

Charging time ........................................................................................................4–6 h

The declared noise emission level is lower than 65 dB(A), which

represents alevel Aof sound power with respect to areference sound

power of 1pW.

Safety class for electrical shock protection:

Class II – Electrical shock protection is provided by double or

heavy-duty insulation.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EXPLANATION OF TECHNICAL TERMINOLOGY

Laser sensor class:

Very low power lasers or encapsulated lasers. Safe for viewing with the

eye for atime of 100 seconds even with the use of optical devices.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DISPOSAL OF USED BATTERIES

Prior to handing over the product at aspecialised collection facility, it is

necessary to ensure that the battery is removed. Prior to removing the

battery, turn off the vacuum cleaner using the main switch. Disconnect

the battery using the reverse sequence to that described in chapter

INSERTING AND REMOVING THE BATTERY.

This symbol indicates that used batteries do not belong in

ordinary municipal waste. Hand over used batteries to

designated collection points for proper disposal. Correct

disposal of batteries will help prevent negative impacts on

the environment and human health.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of used

batteries, request the necessary information about the correct disposal

method from the local authorities or from your vendor.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF

USED PACKAGING MATERIALS

Dispose of used packaging material at asite designated for waste in your

municipality.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on products or original documents means that

used electric or electronic products must not be added to

ordinary municipal waste. For proper disposal, renewal and

recycling, hand over these appliances to determined

collection points. Alternatively, in some European Union

states or other European countries you may return your

appliances to the local retailer when buying an equivalent

new appliance. Correct disposal of this product helps save

valuable natural resources and prevents potential negative effects on the

environment and human health, which could result from improper waste

disposal. Ask your local authorities or collection facility for more details. In

accordance with national regulations penalties may be imposed for the

incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic equipment, ask your retailer

or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this

product, request the necessary information about the correct disposal

method from the local council or from your retailer.

This product meets all the basic requirements of EU

directives related to it.

SENCOR hereby declares that radio device model number SRV9200BK

is in compliance with directive 2014/53/EU. The full wording of

theEUDeclaration of Conformity is available at the website: www.sencor.eu.

FAST ČR, a.s.

U Sanitasu 1621

CZ-251 01 Říčany

Sencor SRV 9200BK Robotic vacuum cleaner

Product's Documents

User Manual

Specifications

Sencor SRV 9200BK Questions and Answers
