AET-RAYPORT-B-V1 2012
Lightning-Fast Deployment
·
Industry-leading installation time
·
Top-down assembly of PV modules
·
Integrated fasteners allowing one common bolt for all joints
·
Integrated panel grounding
·
Only 4 part numbers to order
MMaximize Your Project Dollars
·
Fits all major solar modules available today
·
Available in a variety of panel congurations
Engineered to Last
·
The ONLY stainless steel roof ballast system available
·
Wind Tunnel tested to 120mph
·
ETL Listed to UL2703
· ·
15-year limited warranty
Superior Customer Service
·
Engineering support from conception to completion
·
Full layout and loading analysis for every project
·
Online and onsite installation training available
Fits All Modules One Common Bolt
for All Joints
Panel Clamps
with Integrated
Grounding
Easy to install. Built to last.
With you all the way.
RAYPORT
™
• B
AETenergy.com Sales: 586.466.5073 Info@AETenergy.com
AET-RAYPORT-B-V1 2012

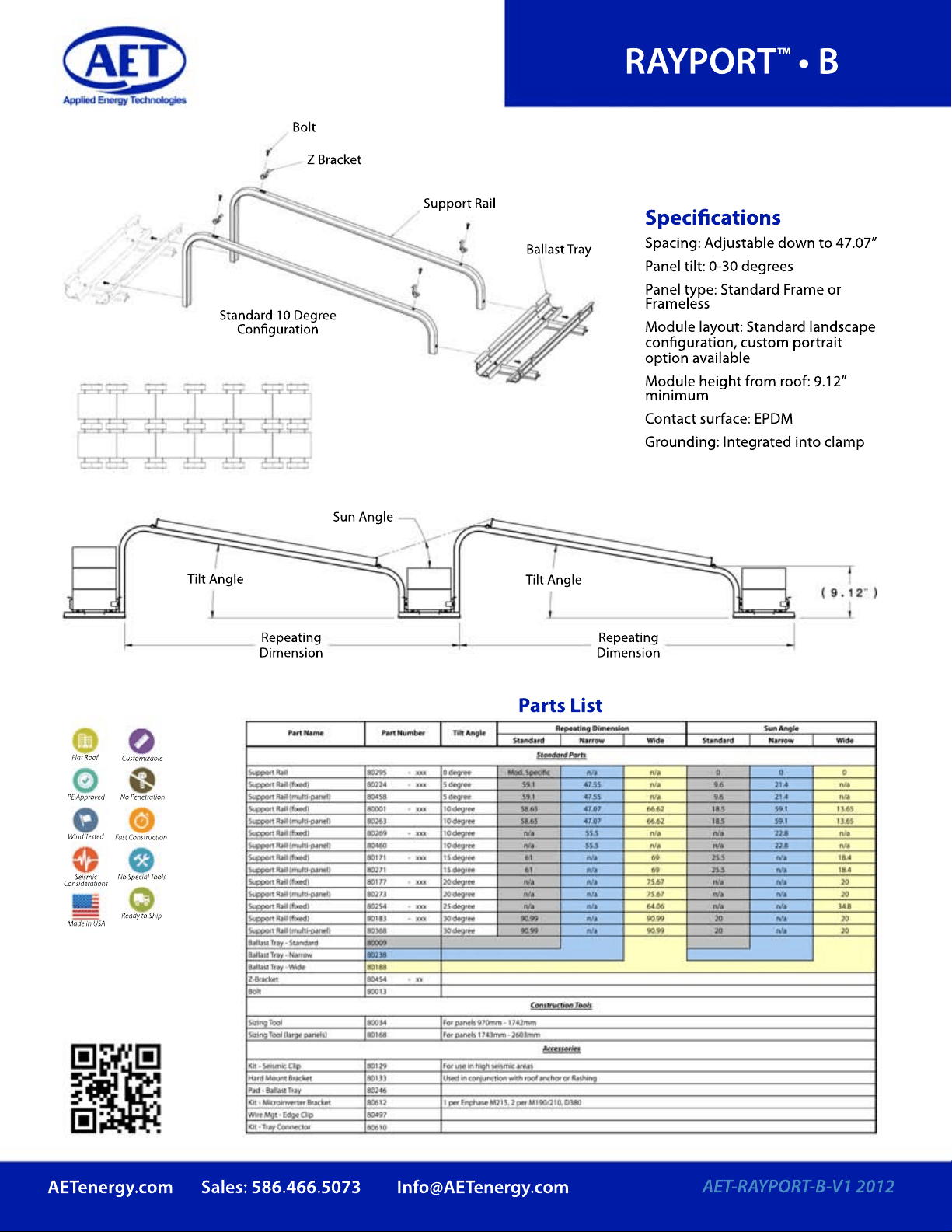

Specications
Spacing: Adjustable down to 47.07”
Panel tilt: 0-30 degrees
Panel type: Standard Frame or
Frameless
Module layout: Standard landscape
cconguration, custom portrait
option available
Module height from roof: 9.12”
minimum
Contact surface: EPDM
Grounding: Integrated into clamp
Bolt
Z Bracket
Support Rail
Standard 10 Degree
Conguration
Ballast Tray
Tilt Angle
Sun Angle
Tilt Angle
Repeating
Dimension
Repeating
Dimension
RAYPORT
™
• B
Parts List
Made in USA
Seismic
Considerations
Flat Roof
No Special Tools
Wind Tested
Ready to Ship
Fast Construction
No PenetrationPE Approved
Customizable
