Air circulation heater PALMA 2.0
Installation and
operating instructions
Air circulation heater
PALMA TWIN
PAL T-US
US

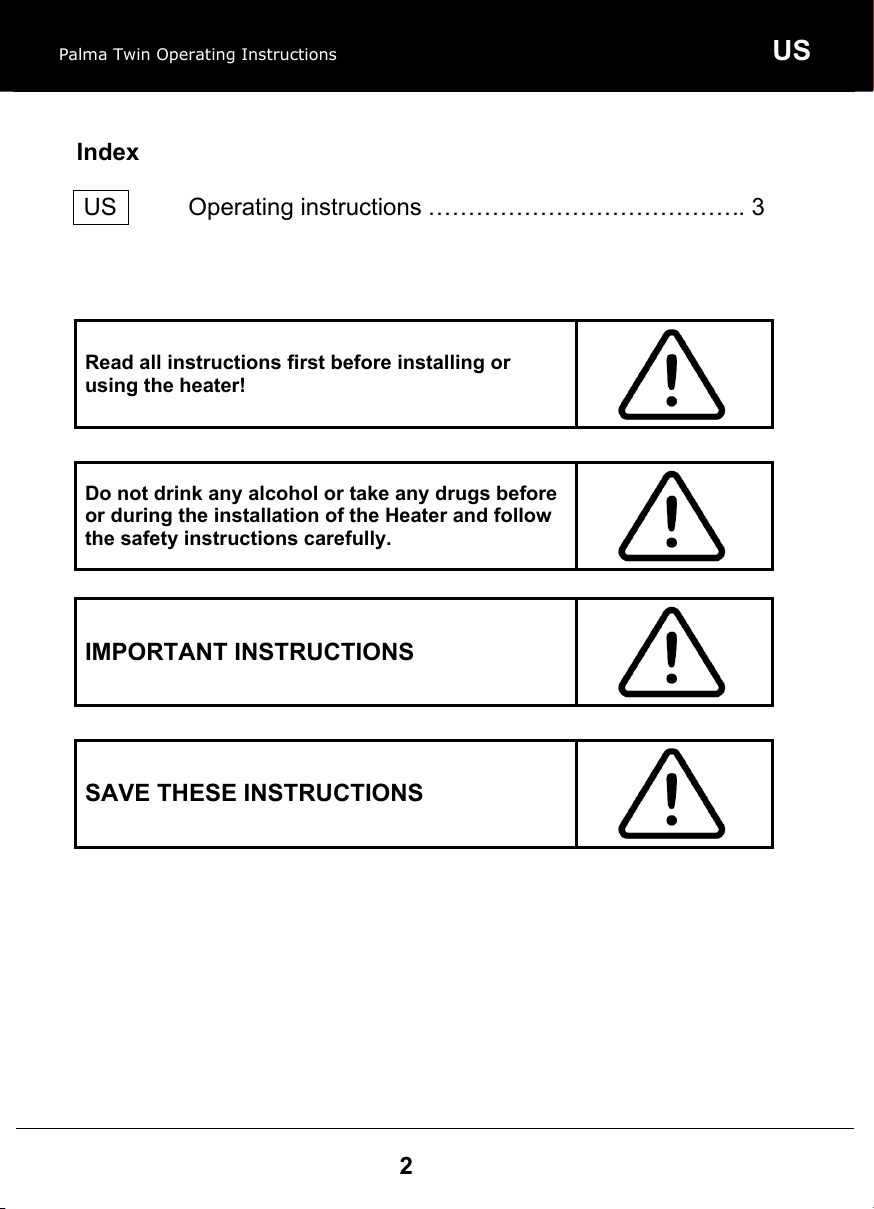

Index
Palma Twin Operating Instructions
US
Operating instructions …………………………………. 3
2
Read all instructions first before installing or
using the heater!
Do not drink any alcohol or take any drugs before
or during the installation of the Heater and follow
the safety instructions carefully.
IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
US

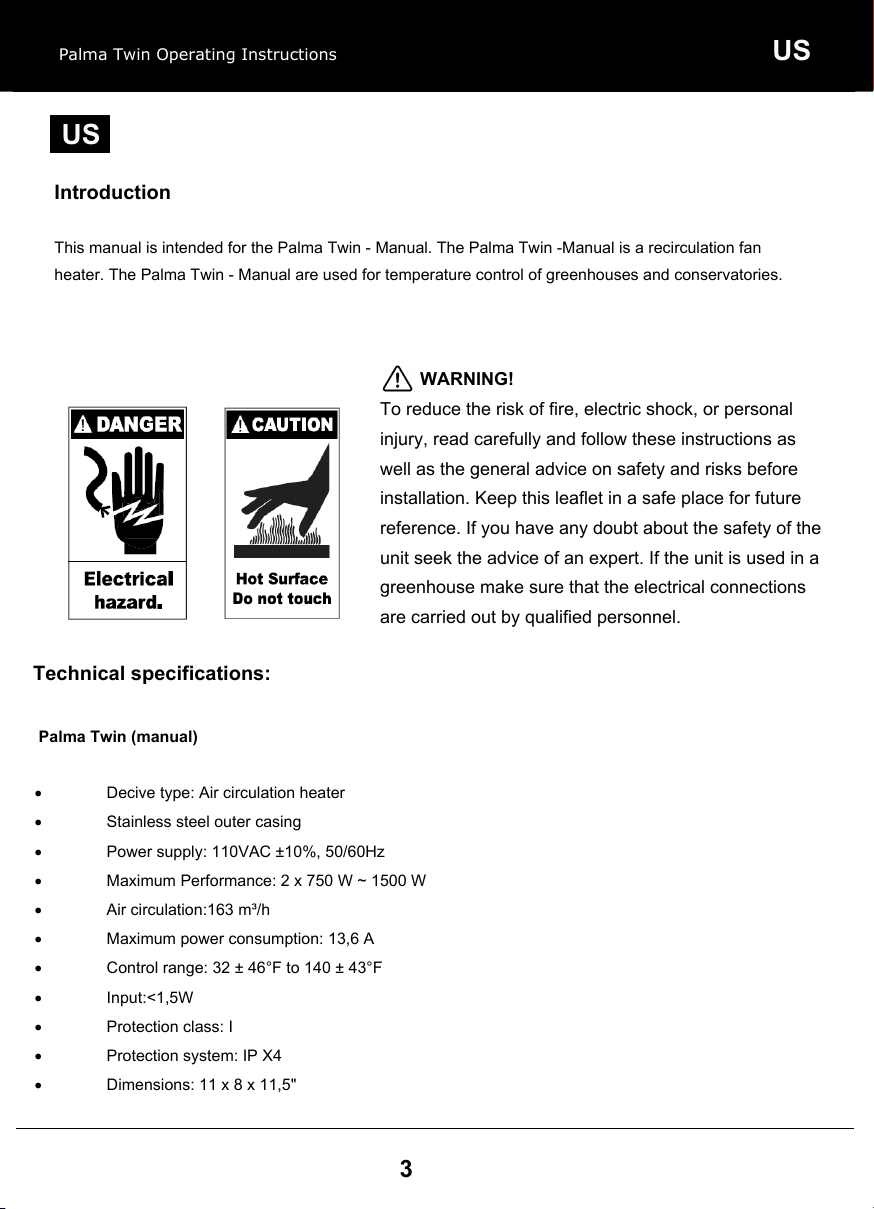

Introduction
This manual is intended for the Palma Twin - Manual. The Palma Twin -Manual is a recirculation fan
heater. The Palma Twin - Manual are used for temperature control of greenhouses and conservatories.
3
US
Palma Twin (manual)
� Decive type: Air circulation heater
� Stainless steel outer casing
� Power supply: 110VAC ±10%, 50/60Hz
� Maximum Performance: 2 x 750 W ~ 1500 W
� Air circulation:163 m³/h
� Maximum power consumption: 13,6 A
� Control range: 32 ± 46°F to 140 ± 43°F
� Input:<1,5W
� Protection class: I
� Protection system: IP X4
� Dimensions: 11 x 8 x 11,5"
WARNING!
To reduce the risk of fire, electric shock, or personal
injury, read carefully and follow these instructions as
well as the general advice on safety and risks before
installation. Keep this leaflet in a safe place for future
reference. If you have any doubt about the safety of the
unit seek the advice of an expert. If the unit is used in a
greenhouse make sure that the electrical connections
are carried out by qualified personnel.
Technical specifications:
Palma Twin Operating Instructions
US
4
Transport handle
Operating lamp
Selector switch
Air inlet opening
Air outlet opening
Heating coils
Thermostat switch

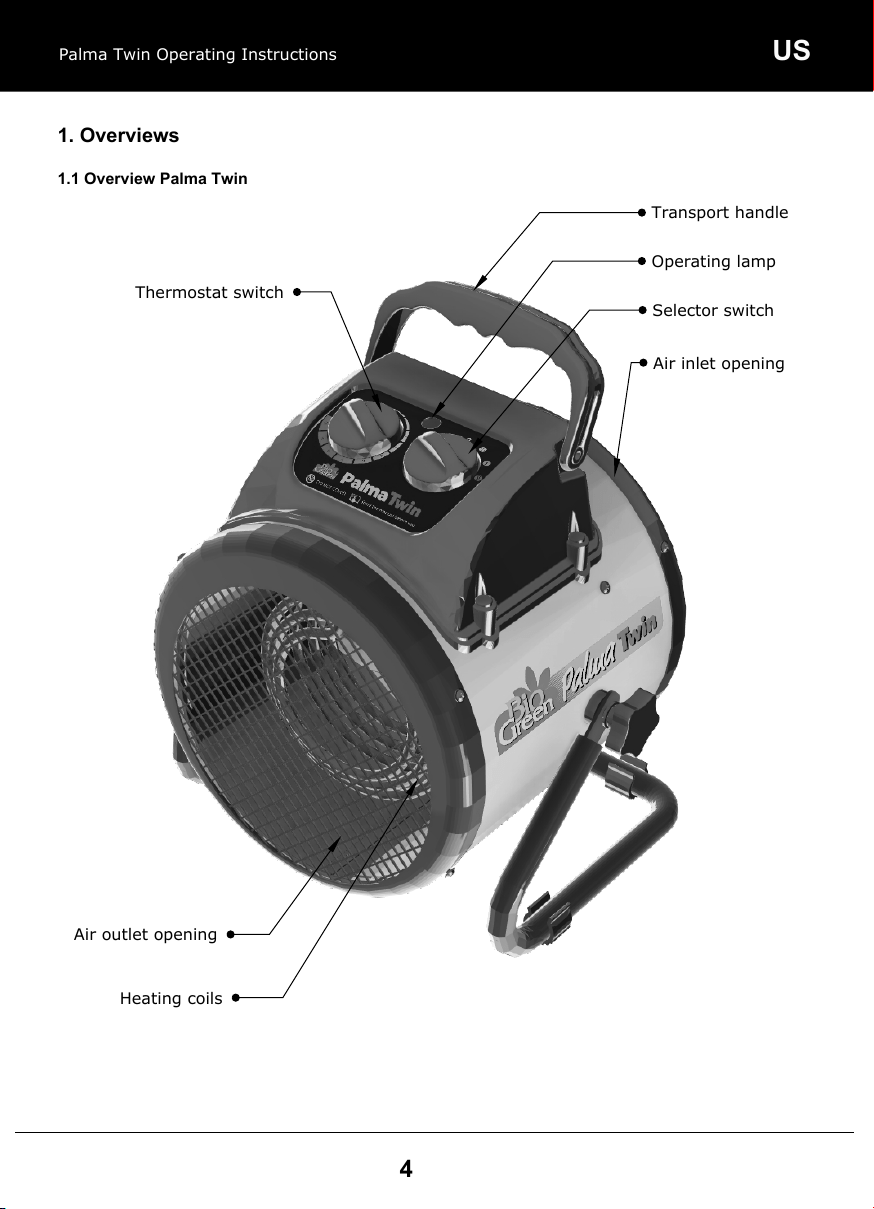

1. Overviews
1.1 Overview Palma Twin
Palma Twin Operating Instructions
US

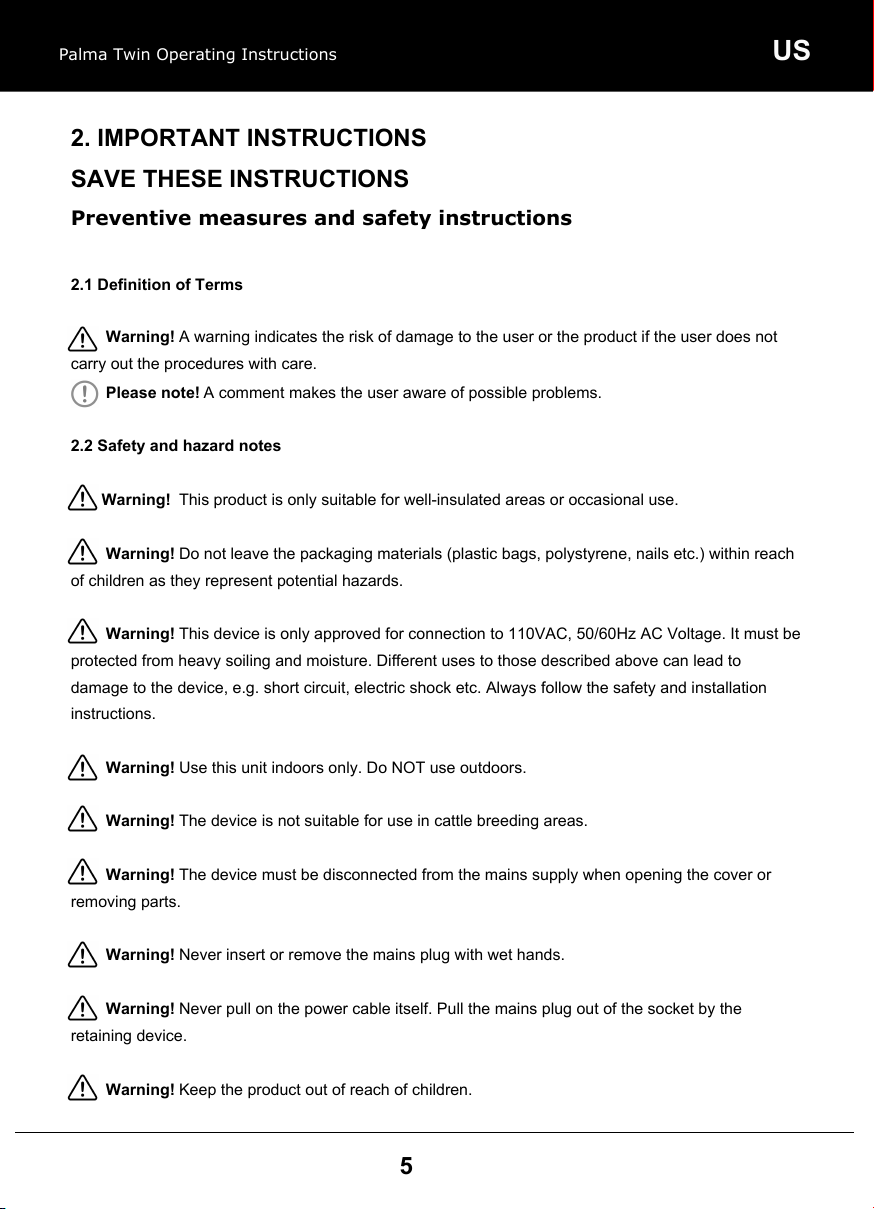

2. IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Preventive measures and safety instructions
2.1 Definition of Terms
Warning! A warning indicates the risk of damage to the user or the product if the user does not
carry out the procedures with care.
Please note! A comment makes the user aware of possible problems.
2.2 Safety and hazard notes
Warning! This product is only suitable for well-insulated areas or occasional use.
Warning! Do not leave the packaging materials (plastic bags, polystyrene, nails etc.) within reach
of children as they represent potential hazards.
Warning! This device is only approved for connection to 110VAC, 50/60Hz AC Voltage. It must be
protected from heavy soiling and moisture. Different uses to those described above can lead to
damage to the device, e.g. short circuit, electric shock etc. Always follow the safety and installation
instructions.
Warning! Use this unit indoors only. Do NOT use outdoors.
Warning! The device is not suitable for use in cattle breeding areas.
Warning! The device must be disconnected from the mains supply when opening the cover or
removing parts.
Warning! Never insert or remove the mains plug with wet hands.
Warning! Never pull on the power cable itself. Pull the mains plug out of the socket by the
retaining device.
Warning! Keep the product out of reach of children.
5
Palma Twin Operating Instructions
US
6
Warning! A heater has hot and arcing or sparking parts inside. Never use the unit in a highly
flammable environment (e.g. near heating gas, spray bottles, gasoline, paint or flammable liquids).
Warning! Do not cover the heater.
Warning! Never install the device close to taps, wash basins or other water sources. Also,
never connect your heater to a power source if its surface is damp.
Warning! Do not insert any objects into the openings on the device as this risks injury,
electric shock or damage to the device.
Warning! The installation location must be selected so that the devices cannot be sprayed
with water or fall into water in any event.
Warning! Electrical devices may only be operated in wet rooms connected to a residual
current circuit breaker.
Warning! Never submerge the device in water.
Warning! The guarantee is not valid if the repairs are not carried out correctly.
Warning! In commercial premises the accident prevention regulations of the employers liability
insurance association for electrical equipment and facilities must be observed.
Warning! These operating instructions form a constituent part of the device and should be kept in a
safe place. If the device is passed on to a third party then these instructions should be passed on with it.
Warning! Never pour liquids over the device. In the event that this happens remove the plug from the
socket and consult a specialist.
Warning! The housing heats up during operation. Install it in such a way that accidental contact
is avoided. After switching off, the unit cools down only slowly. Transport it only by the carrying
handle, which has been specially designed for this purpose.
Warning! Never dry flammable objects in front of the exhaust openings.
Palma Twin Operating Instructions
US
7

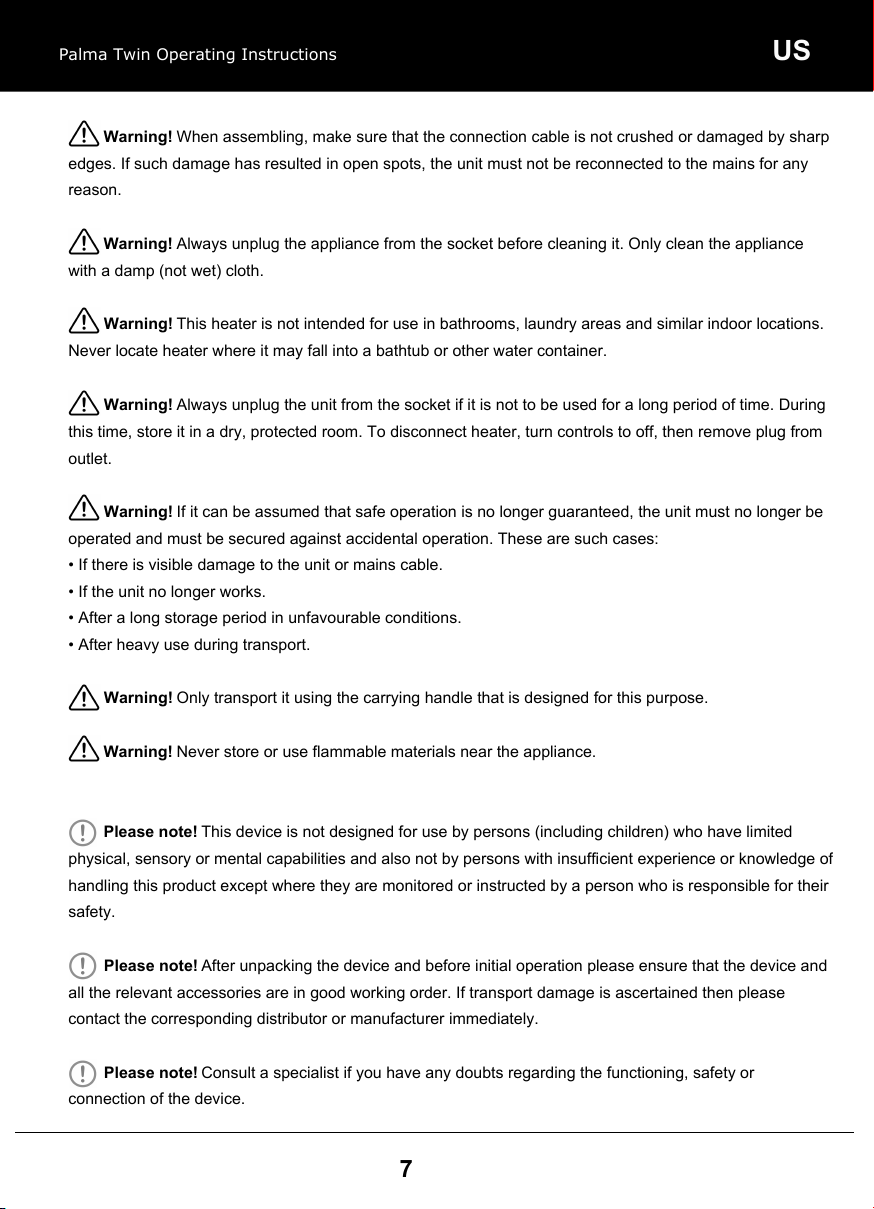

Warning! When assembling, make sure that the connection cable is not crushed or damaged by sharp
edges. If such damage has resulted in open spots, the unit must not be reconnected to the mains for any
reason.
Warning! Always unplug the appliance from the socket before cleaning it. Only clean the appliance
with a damp (not wet) cloth.
Warning! This heater is not intended for use in bathrooms, laundry areas and similar indoor locations.
Never locate heater where it may fall into a bathtub or other water container.
Warning! Always unplug the unit from the socket if it is not to be used for a long period of time. During
this time, store it in a dry, protected room. To disconnect heater, turn controls to off, then remove plug from
outlet.
Warning! If it can be assumed that safe operation is no longer guaranteed, the unit must no longer be
operated and must be secured against accidental operation. These are such cases:
•
If there is visible damage to the unit or mains cable.
•
If the unit no longer works.
•
After a long storage period in unfavourable conditions.
• After heavy use during transport.
Warning! Only transport it using the carrying handle that is designed for this purpose.
Warning! Never store or use flammable materials near the appliance.
Please note! This device is not designed for use by persons (including children) who have limited
physical, sensory or mental capabilities and also not by persons with insufficient experience or knowledge of
handling this product except where they are monitored or instructed by a person who is responsible for their
safety.
Please note! After unpacking the device and before initial operation please ensure that the device and
all the relevant accessories are in good working order. If transport damage is ascertained then please
contact the corresponding distributor or manufacturer immediately.
Please note! Consult a specialist if you have any doubts regarding the functioning, safety or
connection of the device.
Palma Twin Operating Instructions
US
8
Warning! Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended!
Warning! Do not operate any heater with a damaged cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner. Discard heater, or return to authorized service facility for
examination and/or repair.
Warning! Hyperthermia can result in death. Symptoms of hyperthermia include high body
temperature, headache, nausea, vomiting, tiredness, dizziness, fainting, and rapid pulse. If you begin to
experience symptoms related to hyperthermia, turn off the heater and seek medical attention.
Warning! To avoid excessive room temperatures which can cause hyperthermia: DO NOT leave
product running unattended in a confined space around infants, or individuals with reduced physical,
sensory, or mental capabilities.
Please note! SAVE THESE INSTRUCTIONS
3. Installation
Warning! Electrical appliances may only be operated in damp rooms that are protected by residual
current circuit breakers (RCD).
Warning! Before initial commissioning, check that the planned location has such a connection.
Warning! When using multiple sockets or extension cables, make sure that the maximum current
carrying capacity is not exceeded. Cable drums must always be fully unrolled.
Warning! The installation site must be selected so that the unit cannot be sprayed with water or fall
into water under any circumstances.
Warning! Do not wrap the connection cable around the unit and never operate the unit with a
wrapped cable. Always plug heaters directly into a wall outlet/receptacle. Never use with an extensi
on
cord or relocatable power tap (outlet/power strip).
Please note! Lay the connection cable so that no one can trip over it, it cannot be crushed or come
into contact with hot objects
Palma Twin Operating Instructions
US
9
Please note! Only use extension cables that are compatible with the output and comply with the
valid safety regulations of the unit. Connect to properly grounded outlets only.
Please note! Make sure to disconnect the unit from the mains before and during Installation.
This heater is for use on 110VAC, 50/60Hz only.
Warning! Never try to operate the device using a different voltage.
The cord has a plug as shown at A in below figure. An adapter as shown at C is available for connecting
three-blade grounding-type plugs to two-slot receptacles. The green grounding lug extending from the
adapter must be connected to a permanent ground such as a properly grounded outlet box. The adapter
should not be used if a three-slot grounded receptacle is available.
Palma Twin Operating Instructions
US
10

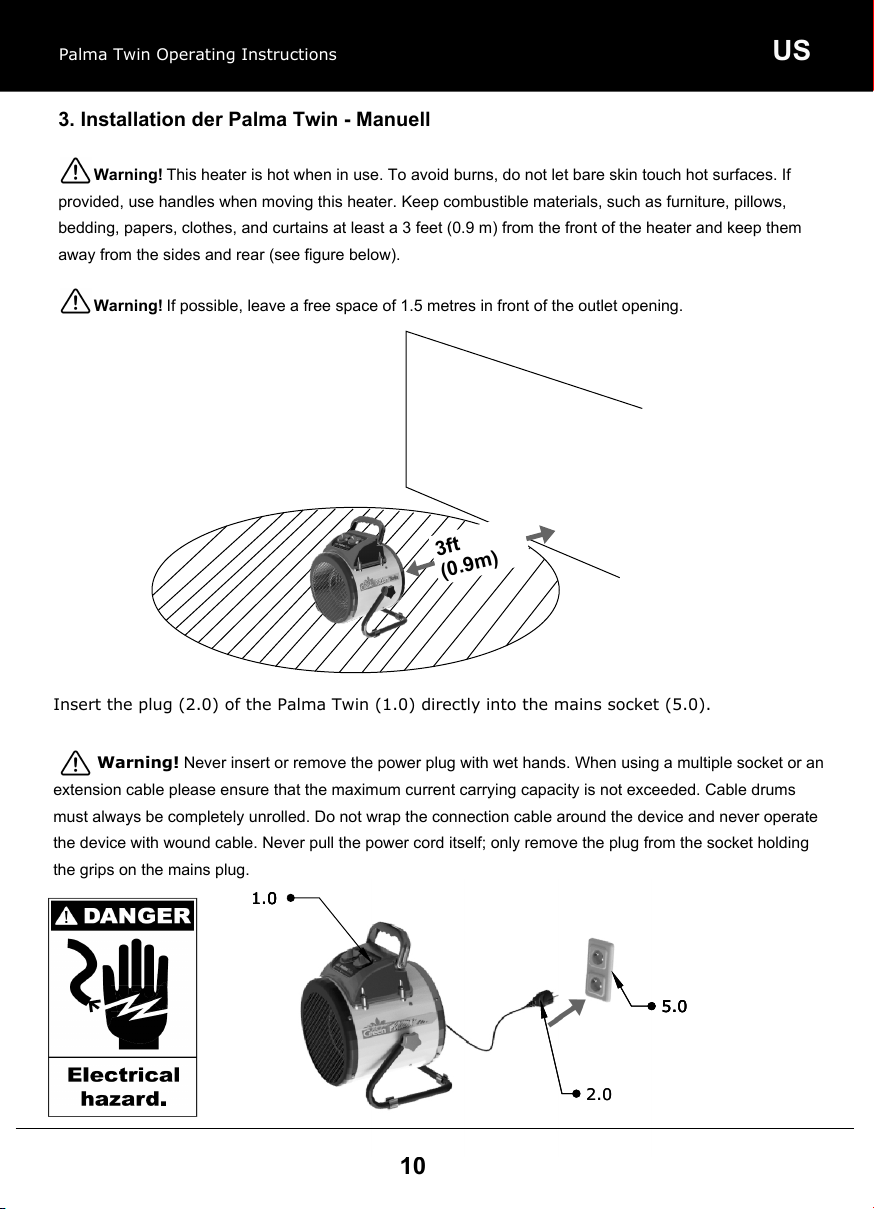

3. Installation der Palma Twin - Manuell
Warning! This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If
provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes, and curtains at least a 3 feet (0.9 m) from the front of the heater and keep them
away from the sides and rear (see figure below).
Warning! If possible, leave a free space of 1.5 metres in front of the outlet opening.
Insert the plug (2.0) of the Palma Twin (1.0) directly into the mains socket (5.0).
Warning! Never insert or remove the power plug with wet hands. When using a multiple socket or an
extension cable please ensure that the maximum current carrying capacity is not exceeded. Cable drums
must always be completely unrolled. Do not wrap the connection cable around the device and never operate
the device with wound cable. Never pull the power cord itself; only remove the plug from the socket holding
the grips on the mains plug.
1.0
2.0
5.0
3ft
(0.9m)
1.0
2.0
5.0
1.0
2.0
5.0
2.0
1.0
5.0
Palma Twin Operating Instructions
US
11

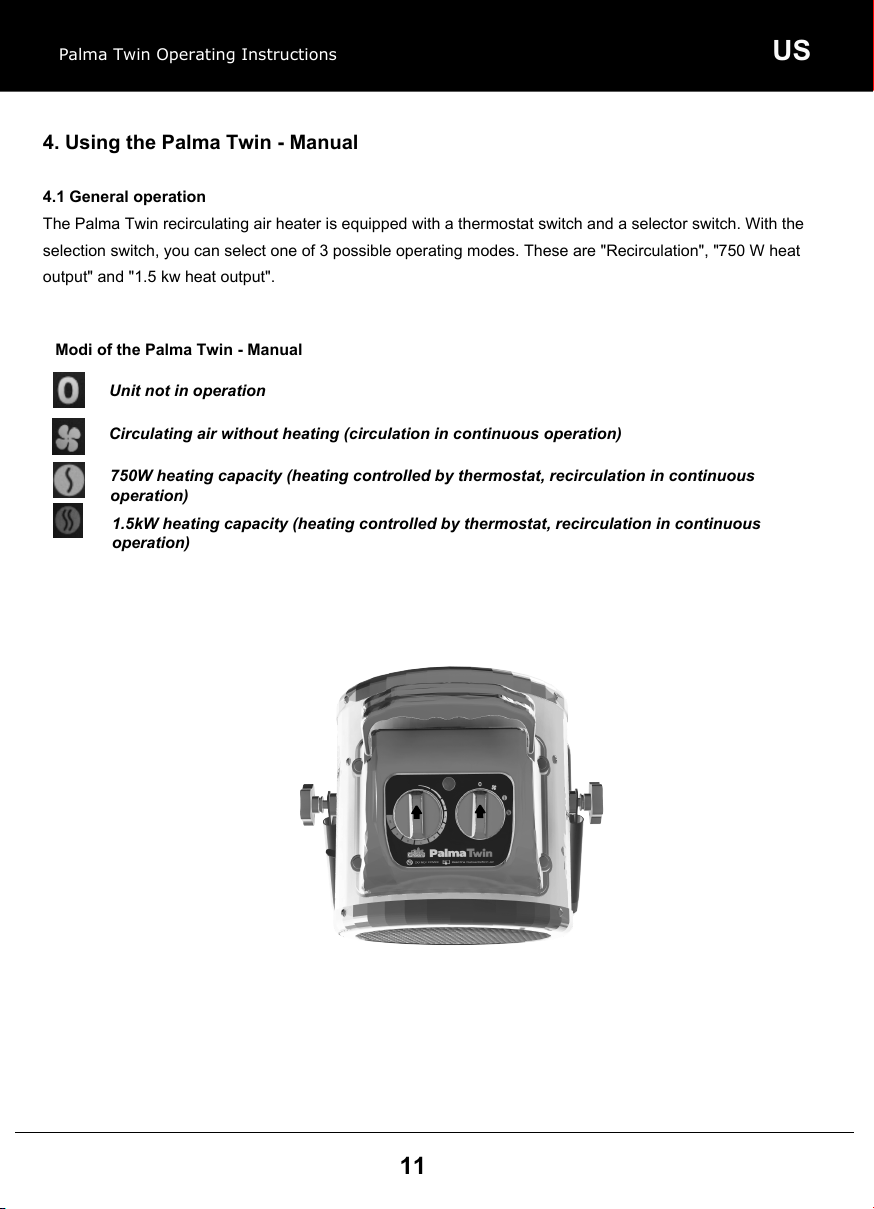

4. Using the Palma Twin - Manual
4.1 General operation
The Palma Twin recirculating air heater is equipped with a thermostat switch and a selector switch. With the
selection switch, you can select one of 3 possible operating modes. These are "Recirculation", "750 W heat
output" and "1.5 kw heat output".
Modi of the Palma Twin - Manual
Unit not in operation
Circulating air without heating (circulation in continuous operation)
750W heating capacity (heating controlled by thermostat, recirculation in continuous
operation)
1.5kW heating capacity (heating controlled by thermostat, recirculation in continuous
operation)
Palma Twin Operating Instructions
US

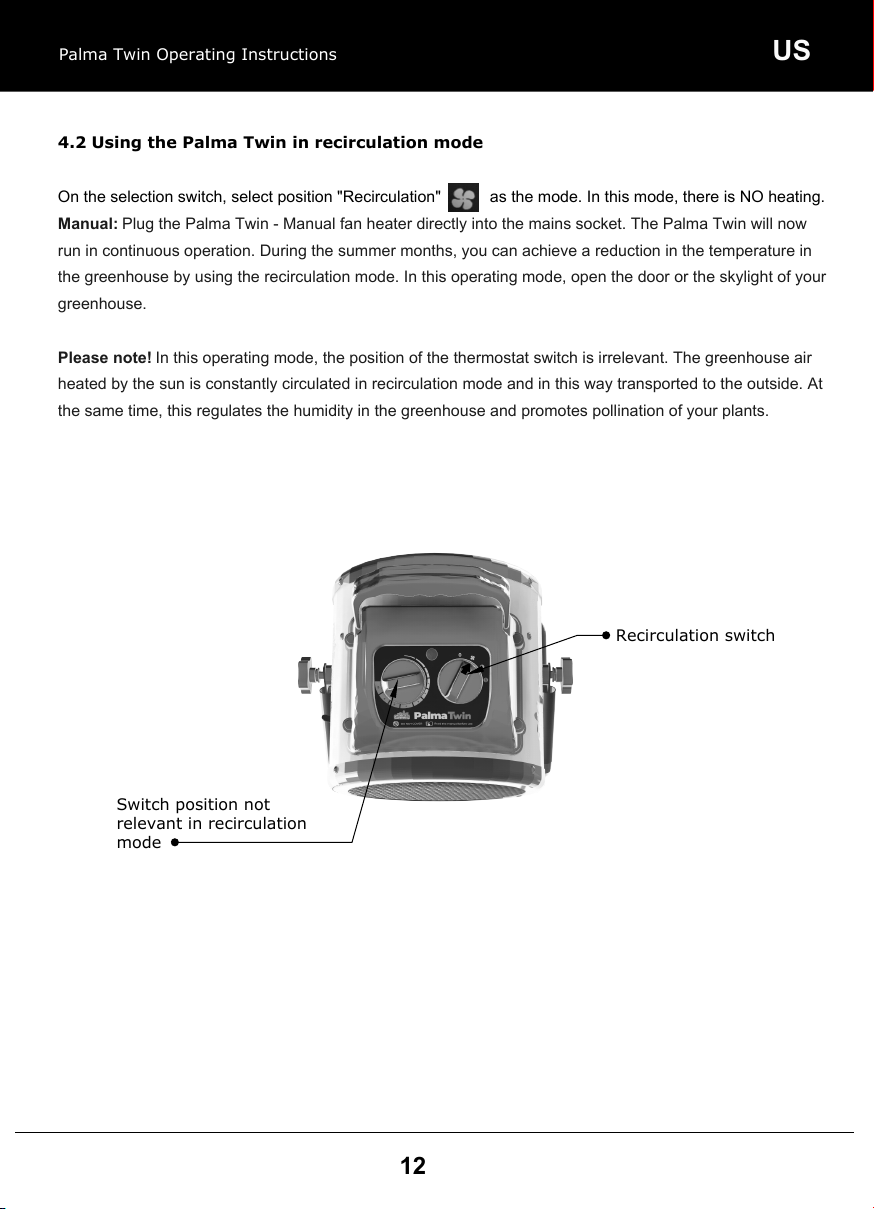

4.2 Using the Palma Twin in recirculation mode
On the selection switch, select position "Recirculation" as the mode. In this mode, there is NO heating.
Manual: Plug the Palma Twin - Manual fan heater directly into the mains socket. The Palma Twin will now
run in continuous operation. During the summer months, you can achieve a reduction in the temperature in
the greenhouse by using the recirculation mode. In this operating mode, open the door or the skylight of your
greenhouse.
Please note! In this operating mode, the position of the thermostat switch is irrelevant. The greenhouse air
heated by the sun is constantly circulated in recirculation mode and in this way transported to the outside. At
the same time, this regulates the humidity in the greenhouse and promotes pollination of your plants.
12
Recirculation switch
Switch position not
relevant in recirculation
mode
Palma Twin Operating Instructions
US
13

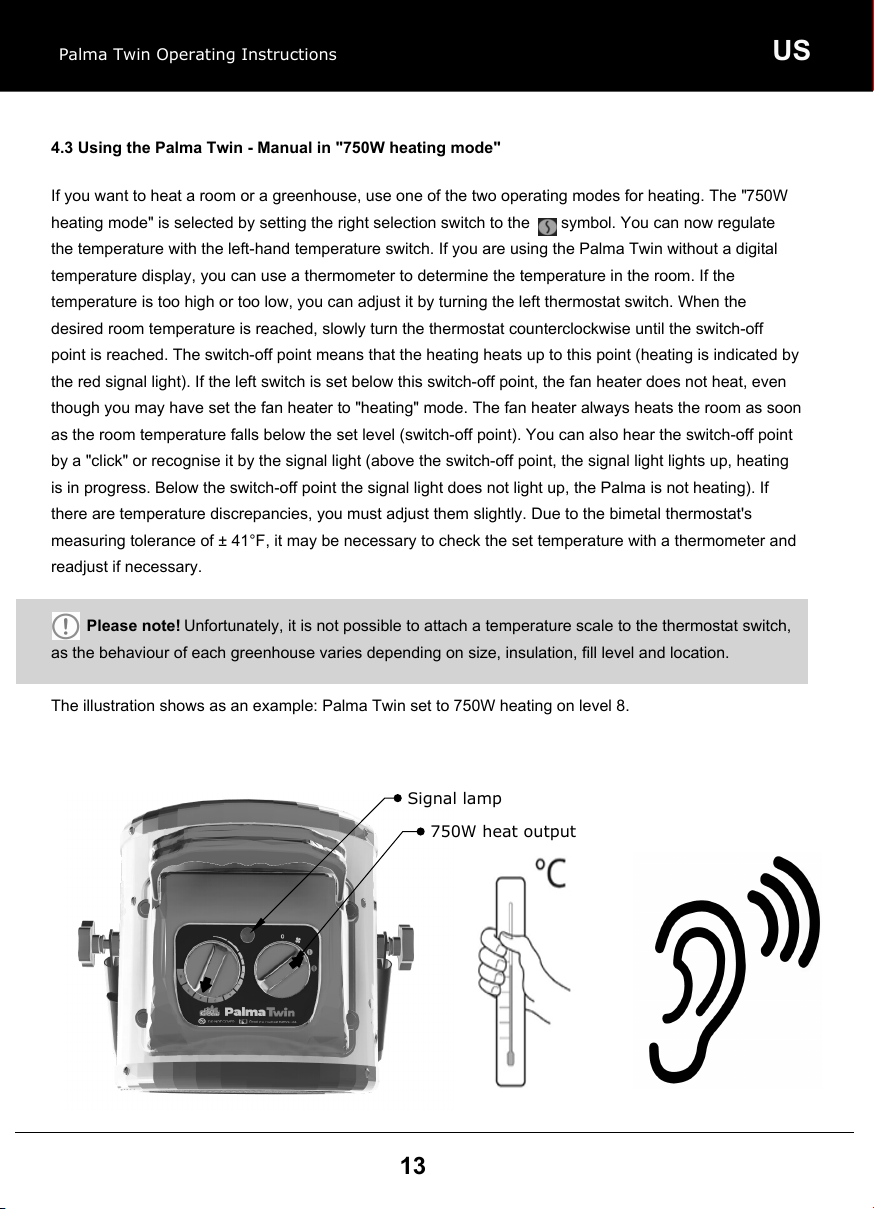

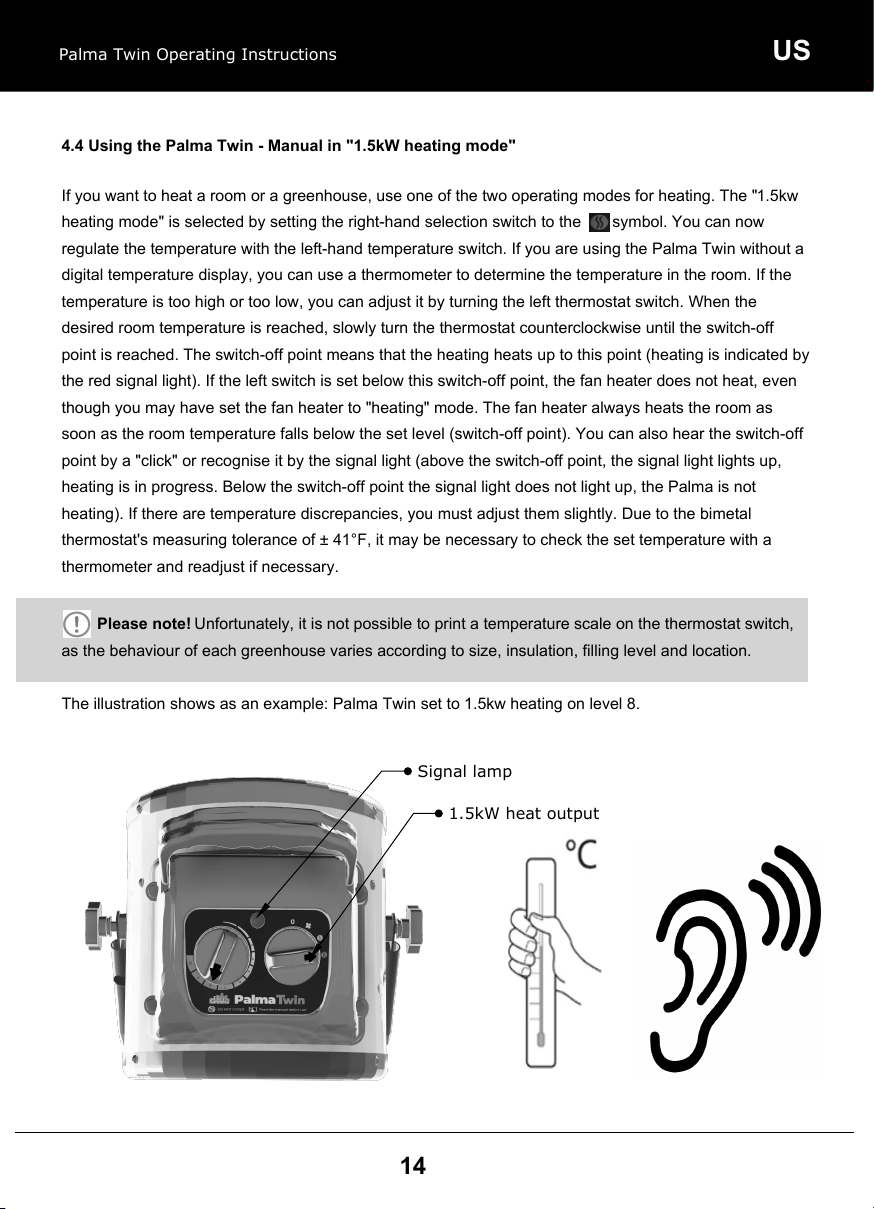

4.3 Using the Palma Twin - Manual in "750W heating mode"
If you want to heat a room or a greenhouse, use one of the two operating modes for heating. The "750W
heating mode" is selected by setting the right selection switch to the symbol. You can now regulate
the temperature with the left-hand temperature switch. If you are using the Palma Twin without a digital
temperature display, you can use a thermometer to determine the temperature in the room. If the
temperature is too high or too low, you can adjust it by turning the left thermostat switch. When the
desired room temperature is reached, slowly turn the thermostat counterclockwise until the switch-off
point is reached. The switch-off point means that the heating heats up to this point (heating is indicated by
the red signal light). If the left switch is set below this switch-off point, the fan heater does not heat, even
though you may have set the fan heater to "heating" mode. The fan heater always heats the room as soon
as the room temperature falls below the set level (switch-off point). You can also hear the switch-off point
by a "click" or recognise it by the signal light (above the switch-off point, the signal light lights up, heating
is in progress. Below the switch-off point the signal light does not light up, the Palma is not heating). If
there are temperature discrepancies, you must adjust them slightly. Due to the bimetal thermostat's
measuring tolerance of ± 41°F, it may be necessary to check the set temperature with a thermometer and
readjust if necessary.
Please note! Unfortunately, it is not possible to attach a temperature scale to the thermostat switch,
as the behaviour of each greenhouse varies depending on size, insulation, fill level and location.
The illustration shows as an example: Palma Twin set to 750W heating on level 8.
Signal lamp
750W heat output
Palma Twin Operating Instructions
US
14
4.4 Using the Palma Twin - Manual in "1.5kW heating mode"
If you want to heat a room or a greenhouse, use one of the two operating modes for heating. The "1.5kw
heating mode" is selected by setting the right-hand selection switch to the symbol. You can now
regulate the temperature with the left-hand temperature switch. If you are using the Palma Twin without a
digital temperature display, you can use a thermometer to determine the temperature in the room. If the
temperature is too high or too low, you can adjust it by turning the left thermostat switch. When the
desired room temperature is reached, slowly turn the thermostat counterclockwise until the switch-off
point is reached. The switch-off point means that the heating heats up to this point (heating is indicated by
the red signal light). If the left switch is set below this switch-off point, the fan heater does not heat, even
though you may have set the fan heater to "heating" mode. The fan heater always heats the room as
soon as the room temperature falls below the set level (switch-off point). You can also hear the switch-off
point by a "click" or recognise it by the signal light (above the switch-off point, the signal light lights up,
heating is in progress. Below the switch-off point the signal light does not light up, the Palma is not
heating). If there are temperature discrepancies, you must adjust them slightly. Due to the bimetal
thermostat's measuring tolerance of ± 41°F, it may be necessary to check the set temperature with a
thermometer and readjust if necessary.
Please note! Unfortunately, it is not possible to print a temperature scale on the thermostat switch,
as the behaviour of each greenhouse varies according to size, insulation, filling level and location.
The illustration shows as an example: Palma Twin set to 1.5kw heating on level 8.
Signal lamp
1.5kW heat output
Palma Twin Operating Instructions
US
15

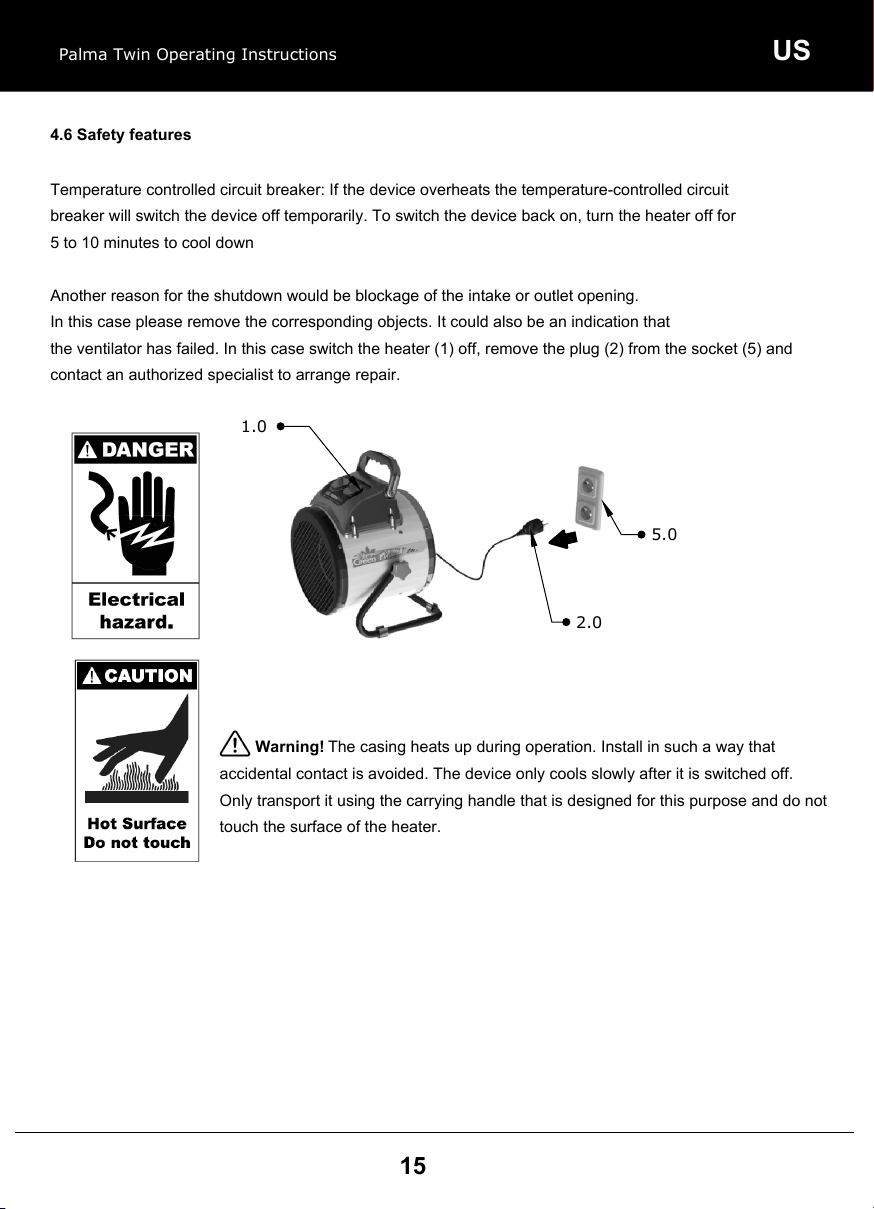

4.6 Safety features
Temperature controlled circuit breaker: If the device overheats the temperature-controlled circuit
breaker will switch the device off temporarily. To switch the device back on, turn the heater off for
5 to 10 minutes to cool down
Another reason for the shutdown would be blockage of the intake or outlet opening.
In this case please remove the corresponding objects. It could also be an indication that
the ventilator has failed. In this case switch the heater (1) off, remove the plug (2) from the socket (5) and
contact an authorized specialist to arrange repair.
1.0
2.0
5.0
Warning! The casing heats up during operation. Install in such a way that
accidental contact is avoided. The device only cools slowly after it is switched off.
Only transport it using the carrying handle that is designed for this purpose and do not
touch the surface of the heater.
Palma Twin Operating Instructions
US
16

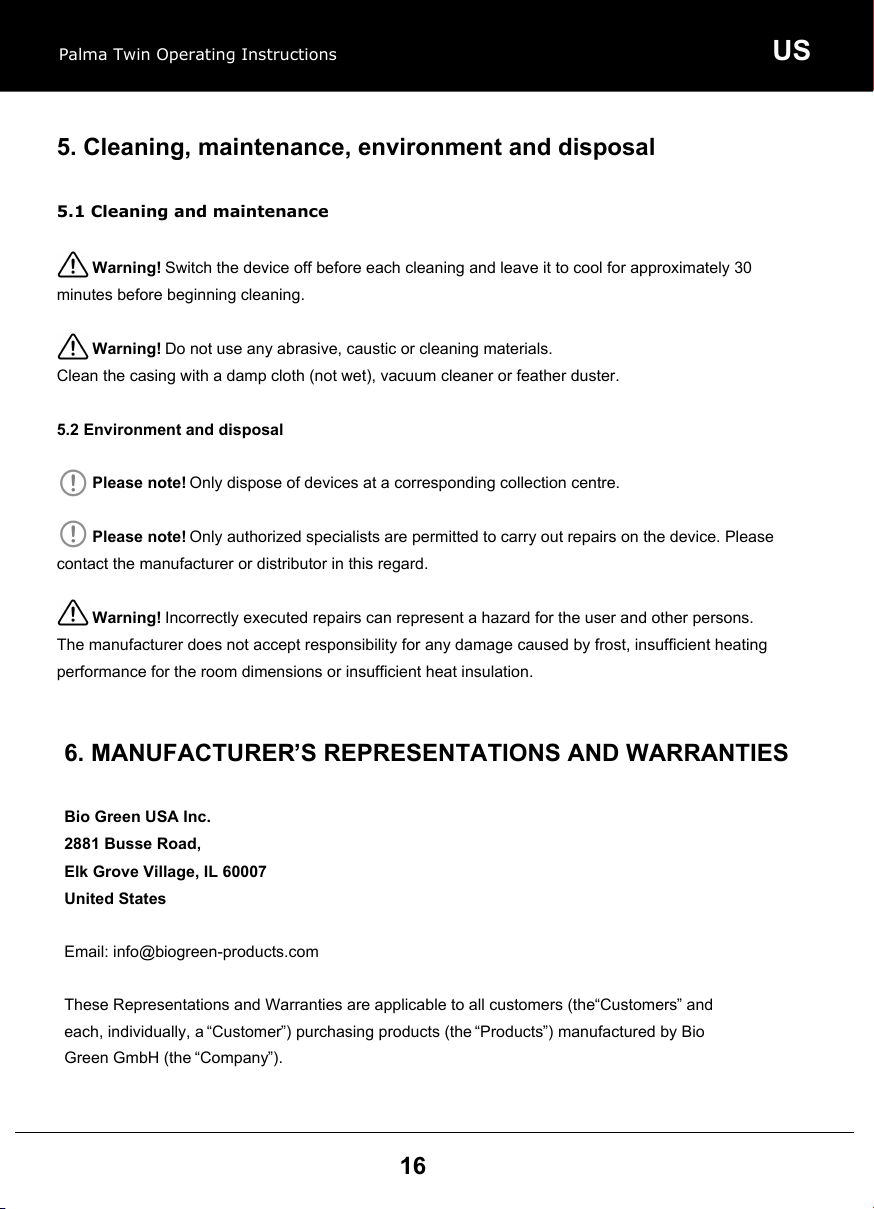

5. Cleaning, maintenance, environment and disposal
5.1 Cleaning and maintenance
Warning! Switch the device off before each cleaning and leave it to cool for approximately 30
minutes before beginning cleaning.
Warning! Do not use any abrasive, caustic or cleaning materials.
Clean the casing with a damp cloth (not wet), vacuum cleaner or feather duster.
5.2 Environment and disposal
Please note! Only dispose of devices at a corresponding collection centre.
Please note! Only authorized specialists are permitted to carry out repairs on the device. Please
contact the manufacturer or distributor in this regard.
Warning! Incorrectly executed repairs can represent a hazard for the user and other persons.
The manufacturer does not accept responsibility for any damage caused by frost, insufficient heating
performance for the room dimensions or insufficient heat insulation.
6. MANUFACTURER’S REPRESENTATIONS AND WARRANTIES
Bio Green USA Inc.
2881 Busse Road,
Elk Grove Village, IL 60007
United States
Email: [email protected]
These Representations and Warranties are applicable to all customers (the “Customers
” and
each, individually, a “Customer”) purchasing products (the “Products”) manufactured by Bio
Green GmbH (the “Company”).
Palma Twin Operating Instructions
US
17

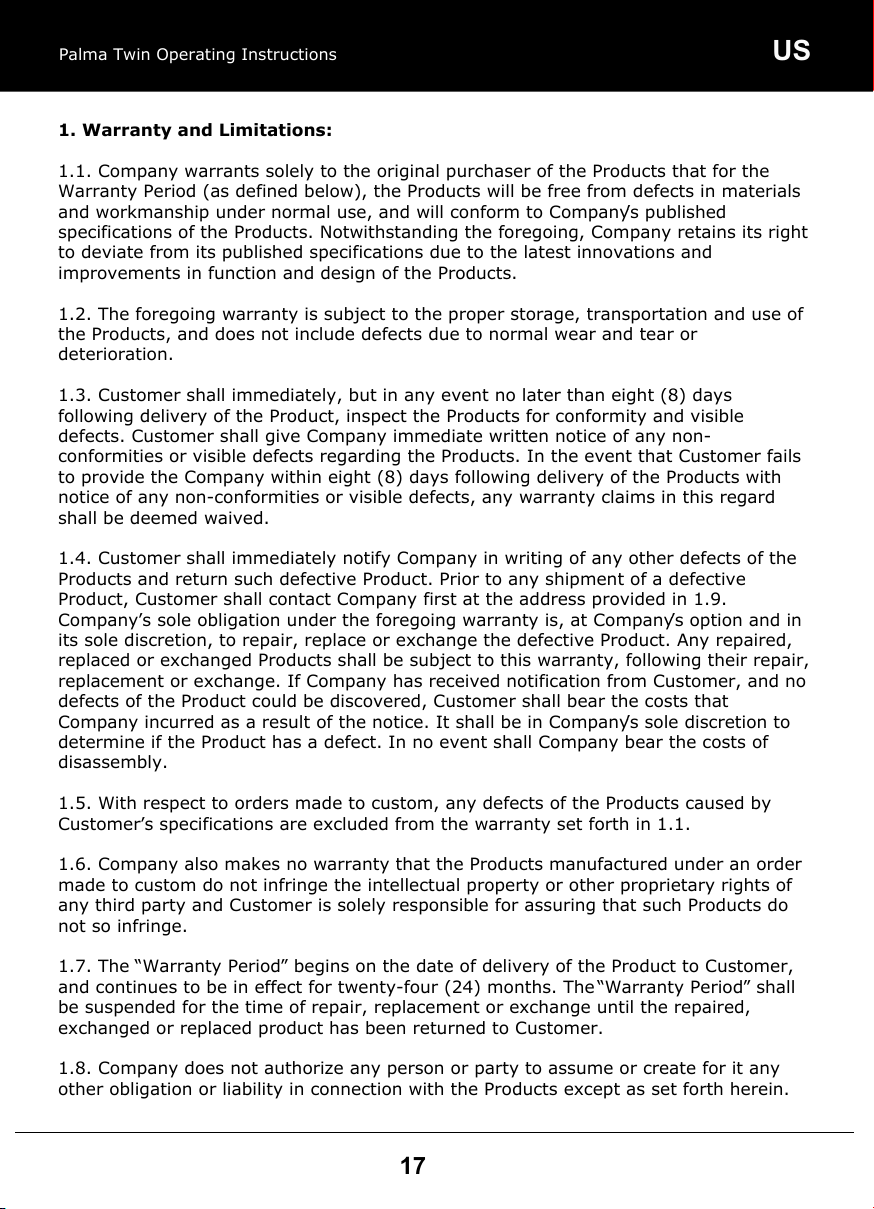

1. Warranty and Limitations:
1.1. Company warrants solely to the original purchaser of the Products that for the
Warranty Period (as defined below), the Products will be free from defects in materials
and workmanship under normal use, and will conform to Company’s published
specifications of the Products. Notwithstanding the foregoing, Company retains its right
to deviate from its published specifications due to the latest innovations and
improvements in function and design of the Products.
1.2. The foregoing warranty is subject to the proper storage, transportation and use of
the Products, and does not include defects due to normal wear and tear or
deterioration.
1.3. Customer shall immediately, but in any event no later than eight (8) days
following delivery of the Product, inspect the Products for conformity and visible
defects. Customer shall give Company immediate written notice of any non-
conformities or visible defects regarding the Products. In the event that Customer fails
to provide the Company within eight (8) days following delivery of the Products with
notice of any non-conformities or visible defects, any warranty claims in this regard
shall be deemed waived.
1.4. Customer shall immediately notify Company in writing of any other defects of the
Products and return such defective Product. Prior to any shipment of a defective
Product, Customer shall contact Company first at the address provided in 1.9.
Company
’s sole obligation under the foregoing warranty is, at Company’s option and in
its sole discretion, to repair, replace or exchange the defective Product. Any repaired,
replaced or exchanged Products shall be subject to this warranty, following their repair,
replacement or exchange. If Company has received notification from Customer, and no
defects of the Product could be discovered, Customer shall bear the costs that
Company incurred as a result of the notice. It shall be in Company’s sole discretion to
determine if the Product has a defect. In no event shall Company bear the costs of
disassembly.
1.5. With respect to orders made to custom, any defects of the Products caused by
Customer’s specifications are excluded from the warranty set forth in 1.1.
1.6. Company also makes no warranty that the Products manufactured under an order
made to custom do not infringe the intellectual property or other proprietary rights of
any third party and Customer is solely responsible for assuring that such Products do
not so infringe.
1.7. The “Warranty Period” begins on the date of delivery of the Product to Customer,
and continues to be in effect for twenty-four (24) months. The “Warranty Period” shall
be suspended for the time of repair, replacement or exchange until the repaired,
exchanged or replaced product has been returned to Customer.
1.8. Company does not authorize any person or party to assume or create for it any
other obligation or liability in connection with the Products except as set forth herein.
Palma Twin Operating Instructions
US
18
US

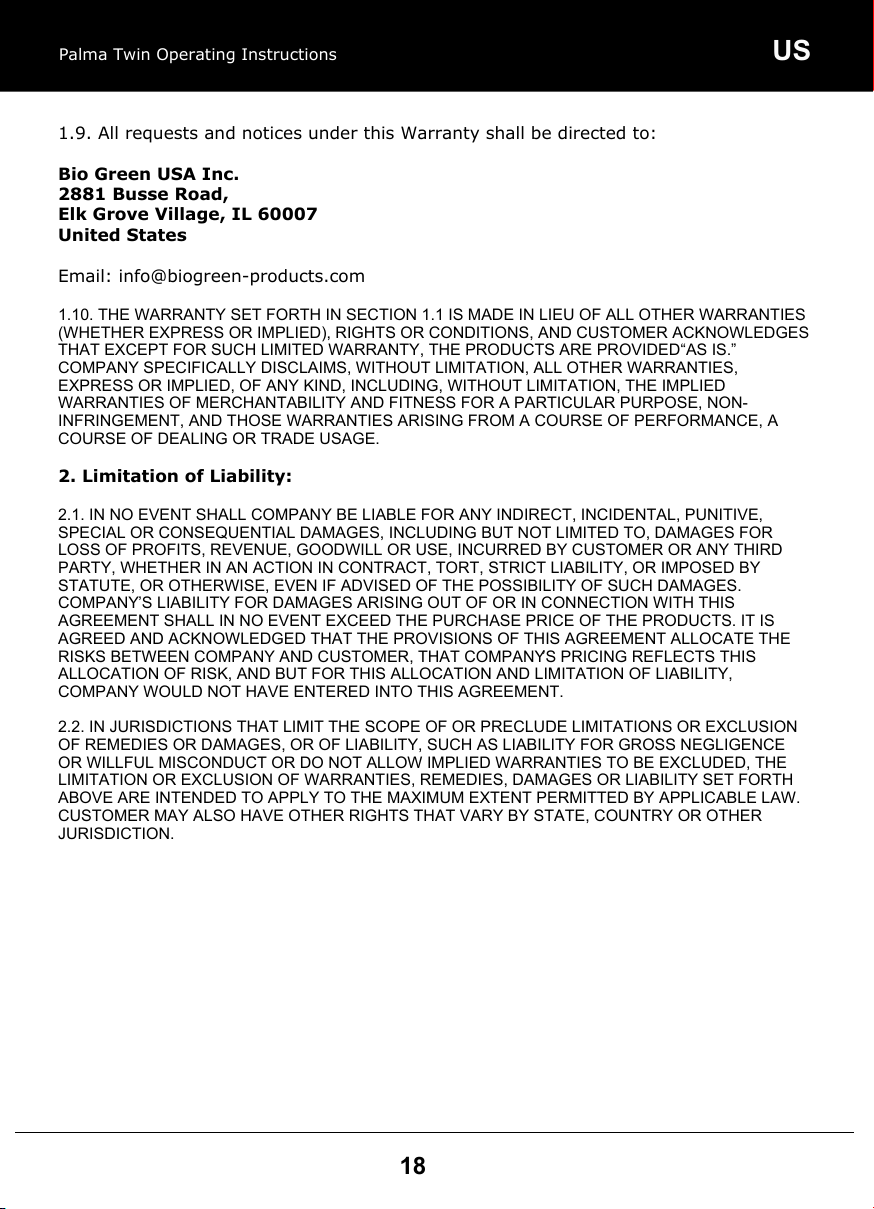

1.9. All requests and notices under this Warranty shall be directed to:
Bio Green USA Inc.
2881 Busse Road,
Elk Grove Village, IL 60007
United States
Email: [email protected]
1.10. THE WARRANTY SET FORTH IN SECTION 1.1 IS MADE IN LIEU OF ALL OTHER WARRANTIES
(WHETHER EXPRESS OR IMPLIED), RIGHTS OR CONDITIONS, AND CUSTOMER ACKNOWLEDGES
THAT EXCEPT FOR SUCH LIMITED WARRANTY, THE PRODUCTS ARE PROVIDED “AS IS.”
COMPANY SPECIFICALLY DISCLAIMS, WITHOUT LIMITATION, ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, OF ANY KIND, INCLUDING, WITHOUT LIMITATION, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, NON-
INFRINGEMENT, AND THOSE WARRANTIES ARISING FROM A COURSE OF PERFORMANCE, A
COURSE OF DEALING OR TRADE USAGE.
2. Limitation of Liability:
2.1. IN NO EVENT SHALL COMPANY BE LIABLE FOR ANY INDIRECT, INCIDENTAL, PUNITIVE,
SPECIAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO, DAMAGES FOR
LOSS OF PROFITS, REVENUE, GOODWILL OR USE, INCURRED BY CUSTOMER OR ANY THIRD
PARTY, WHETHER IN AN ACTION IN CONTRACT, TORT, STRICT LIABILITY, OR IMPOSED BY
STATUTE, OR OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
COMPANY’S LIABILITY FOR DAMAGES ARISING OUT OF OR IN CONNECTION WITH THIS
AGREEMENT SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS. IT IS
AGREED AND ACKNOWLEDGED THAT THE PROVISIONS OF THIS AGREEMENT ALLOCATE THE
RISKS BETWEEN COMPANY AND CUSTOMER, THAT COMPANY’S PRICING REFLECTS THIS
ALLOCATION OF RISK, AND BUT FOR THIS ALLOCATION AND LIMITATION OF LIABILITY,
COMPANY WOULD NOT HAVE ENTERED INTO THIS AGREEMENT.
2.2. IN JURISDICTIONS THAT LIMIT THE SCOPE OF OR PRECLUDE LIMITATIONS OR EXCLUSION
OF REMEDIES OR DAMAGES, OR OF LIABILITY, SUCH AS LIABILITY FOR GROSS NEGLIGENCE
OR WILLFUL MISCONDUCT OR DO NOT ALLOW IMPLIED WARRANTIES TO BE EXCLUDED, THE
LIMITATION OR EXCLUSION OF WARRANTIES, REMEDIES, DAMAGES OR LIABILITY SET FORTH
ABOVE ARE INTENDED TO APPLY TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW.
CUSTOMER MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE, COUNTRY OR OTHER
JURISDICTION.
Palma Twin Operating Instructions
Bio Green USA Inc.
2881 Busse Road
Elk Grove Village, IL 60007
United States
www.biogreen-products.com
