Miele PWM 300 SmartBiz [EL DP] Enamelled lotus white User Manual

Operating and installation

instructions

Washing machine

To avoid the risk of accidents or damage to the machine, it is essen-

tial to read these instructions before it is installed and used for the

first time.

en-GB M.-Nr. 12 038 960

Contents

Caring for the environment .............................................................................. 5

Warning and safety instructions ...................................................................... 6

Operating the washing machine ...................................................................... 14

Control panel....................................................................................................... 14

How the control field works................................................................................. 15

Before using for the first time .......................................................................... 17

Washing environmentally and economically .................................................. 19

Detergent............................................................................................................. 19

1. Preparing the laundry.................................................................................... 20

2. Loading the washing machine ..................................................................... 21

3. Selecting a programme and settings .......................................................... 22

4. Adding detergent........................................................................................... 23

5. Starting the programme – end of the programme ..................................... 27

Delay start .......................................................................................................... 28

Programme chart .............................................................................................. 29

Special features in the programme sequence................................................ 32

Spinning .............................................................................................................. 32

Anti-crease .......................................................................................................... 32

Changing the programme sequence............................................................... 33

Changing a programme....................................................................................... 33

Cancelling a programme ..................................................................................... 33

Adding or removing laundry ................................................................................ 33

Detergent ........................................................................................................... 34

The correct detergent.......................................................................................... 34

Recommended detergents in accordance with Directive (EU) No.

1015/2010 ...................................................................................................... 34

Cleaning and care ............................................................................................. 35

Cleaning the detergent drawer............................................................................ 35

Contents

Cleaning the casing and fascia panel ................................................................. 36

Cleaning the drum, suds container and drainage system................................... 36

Cleaning the water inlet filters ............................................................................. 37

Problem solving guide ...................................................................................... 38

The wash programme does not start .................................................................. 38

Programme cancellation and error message....................................................... 39

symbol on the time display ...........................................................................

Fault indicator light at the end of a programme .................................................. 40

An unsatisfactory wash result ............................................................................. 41

General problems ................................................................................................ 42

The door will not open......................................................................................... 43

Opening the door in the event of a blocked drain outlet and/or power cut ........ 44

Miele Service ..................................................................................................... 46

Contact in case of malfunction ........................................................................... 46

EPREL database ................................................................................................. 46

Optional accessories........................................................................................... 46

Installation.......................................................................................................... 47

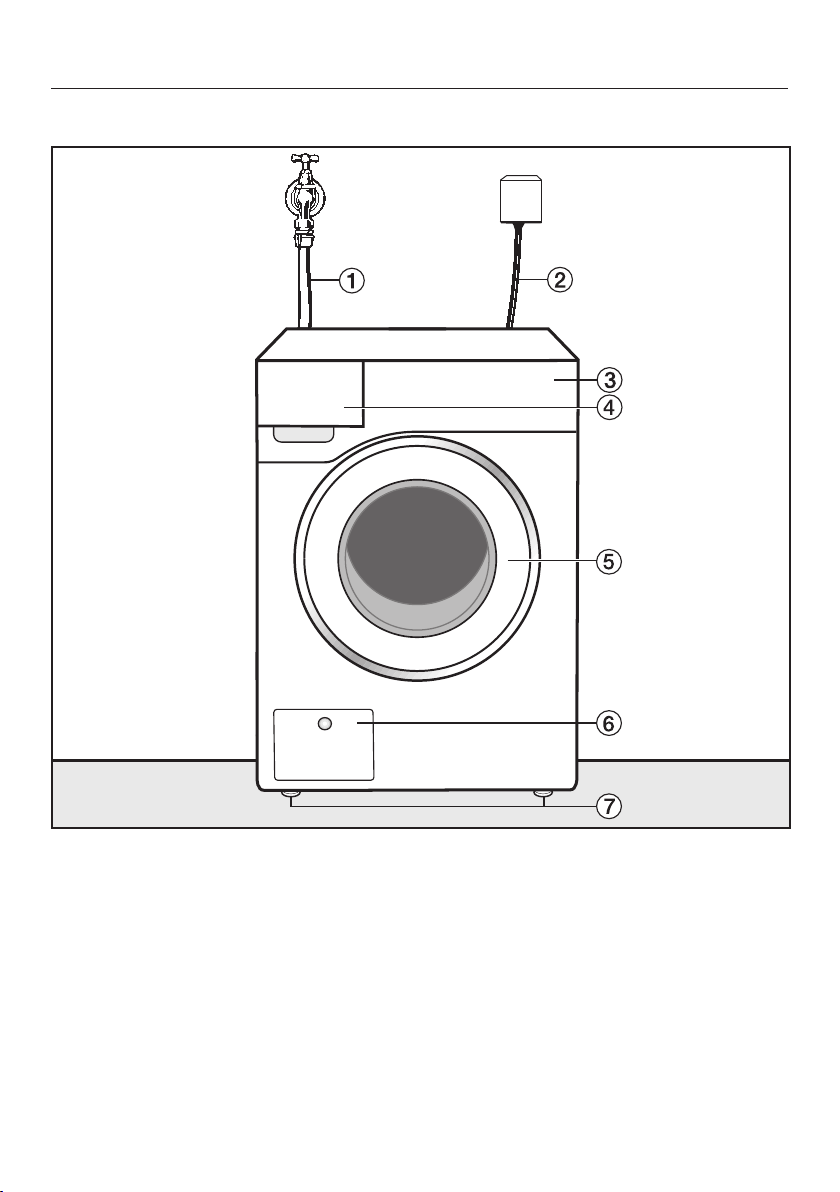

Front view ............................................................................................................ 47

Rear view............................................................................................................. 48

Installation locations............................................................................................ 49

Installation notes ................................................................................................. 49

Transporting the washing machine to its installation site.................................... 50

Installation surface .............................................................................................. 51

Removing the transit bars ................................................................................... 51

Fitting the transit bars ......................................................................................... 53

Levelling the washing machine ........................................................................... 54

Holding bracket for plinth .............................................................................. 55

Installing under a continuous worktop ........................................................... 57

Water connection ................................................................................................ 58

Cold water connection .................................................................................. 58

Drainage .............................................................................................................. 59

Drain pump..................................................................................................... 59

Electrical connection ........................................................................................... 60

Technical data.................................................................................................... 62

Consumption data............................................................................................. 63

Programmable functions .................................................................................. 64

Choosing and selecting a programmable function ............................................. 64

Editing and saving a programmable function...................................................... 65

Contents

Exiting the programming level............................................................................. 65

End of programme tone.................................................................................

Sensor control tone .......................................................................................

PIN code........................................................................................................

Control field switch-off status ......................................................................

Memory ........................................................................................................

Additional long pre-wash – Cottons.............................................................

Temperature reduction .................................................................................

Maximum rinse level.....................................................................................

Suds cooling .................................................................................................

Anti-crease ...................................................................................................

Low water pressure......................................................................................

Backlight brightness dimmed ......................................................................

Welcome tone...............................................................................................

Caring for the environment

Disposal of the packing mater-

ial

The packaging is designed to protect

the appliance from damage during

transportation. The packaging materials

used are selected from materials which

are environmentally friendly for disposal

and should be recycled.

Recycling the packaging reduces the

use of raw materials in the manufactur-

ing process and also reduces the

amount of waste in landfill sites.

Disposing of your old appli-

ance

Electrical and electronic appliances of-

ten contain valuable materials. They

also contain specific materials, com-

pounds and components, which were

essential for their correct function and

safety. These could be hazardous to hu-

man health and to the environment if

disposed of with your domestic waste

or if handled incorrectly. Please do not,

therefore, dispose of your old appliance

with your household waste.

Please dispose of it at your local com-

munity waste collection / recycling

centre for electrical and electronic ap-

pliances, or contact your dealer or

Miele for advice. You are also respons-

ible for deleting any personal data that

may be stored on the appliance being

disposed of. Please ensure that your

old appliance poses no risk to children

while being stored prior to disposal.

Warning and safety instructions

This washing machine complies with all current local and national

safety requirements. However, inappropriate use can lead to per-

sonal injury and damage to property.

Read the operating instructions carefully before using the washing

machine. They contain important information on safety, installa-

tion, use and maintenance. This prevents both personal injury and

damage to the washing machine.

In accordance with standard IEC60335-1, Miele expressly and

strongly advises that you read and follow the instructions in the

chapter on installing the washing machine as well as the safety in-

structions and warnings.

Miele cannot be held liable for damage caused by non-compliance

with these instructions.

Keep these operating instructions in a safe place and pass them

on to any future owner.

When instructing other people how to use the washing machine,

they must be made aware of these safety and warning instruc-

tions.

Appropriate use

 The washing machine is only suitable for washing fabrics with a

care label stating that they are suitable for machine washing. Any

other applications may be dangerous. The manufacturer cannot be

held liable for damage resulting from incorrect or improper use or

operation of the machine.

 This washing machine must be used as described in the operating

instructions and must be checked on a regular basis to make sure it

is functioning correctly. Maintenance must be carried out when ne-

cessary.

Warning and safety instructions

 The washing machine is not suitable for outdoor use.

 This washing machine may also be operated in public areas.

 This washing machine can only be used by people with reduced

physical, sensory or mental capabilities, or lack of experience or

knowledge, if they are supervised whilst using it or have been shown

how to use it in a safe way and understand and recognise the con-

sequences of incorrect operation.

 Children under the age of 8 must not be allowed near the washing

machine unless they are constantly supervised.

 Children over the age of 8 may only use the washing machine

without supervision if its operation has been clearly explained to

them and they are able to use it safely. Children must be able to un-

derstand and recognise the possible dangers caused by incorrect

operation.

 Children may not carry out cleaning or maintenance on the wash-

ing machine unsupervised.

 Always supervise any children in the vicinity of the washing ma-

chine. Never allow children to play with the washing machine.

Warning and safety instructions

Technical safety

 Before setting up the washing machine, check it for any externally

visible damage. Do not set up or use a damaged washing machine.

 The electrical safety of the washing machine can only be guaran-

teed when correctly earthed.

It is most important that this basic safety requirement is tested and

in case of any doubt the on-site wiring system should be inspected

by a qualified electrician.

Miele cannot be held liable for the consequences of an inadequate

earthing system.

 Unauthorised repairs could result in unforeseen dangers for the

user, for which the manufacturer cannot accept liability. Repairs

should only be undertaken by a Miele approved service technician,

otherwise any subsequent damage will not be covered by the war-

ranty.

 Do not make any alterations to the machine, unless authorised to

do so by Miele.

 The machine must be isolated from the electricity supply when

cleaning and maintaining the machine and in the event of a fault:

- switch off at the wall and disconnect the plug from the socket, or

- disconnect the fuse at the mains circuit board, or

- unscrew the on-site screw-in fuse.

See “Installation – Electrical connection”.

Warning and safety instructions

 If the electrical connection cable is faulty it must only be replaced

by a Miele authorised service technician to protect the user from

danger.

 The washing machine must only be connected to the on-site wa-

ter supply using a new hose kit. Old hoses must not be re-used.

Check the hose regularly for signs of wear. Replace it in good time to

avoid the risk of leaks and subsequent damage.

 Faulty components must only be replaced by genuine Miele ori-

ginal spare parts. Miele can only guarantee the safety standards of

the machine when Miele replacement parts are used.

 For reasons of safety, do not connect the machine to the mains

electricity supply by an extension lead, multi-socket adapter, or sim-

ilar. These can overheat and are a fire hazard.

 In the case of commercial use, all relevant national provisions and

regulations (DGUV in Germany) relating to accident insurance are ap-

plicable to this machine. It is recommended to carry out testing in

accordance with national regulations (e.g. the regulatory framework

described in DGUV100-500/Chapter 2.6/Section 4). The test book

required for the documentation is available from Miele.

 The machine must not be used in a non-stationary location (e.g.

on a ship).

 Please observe the instructions in “Installation” and “Technical

data”.

 If the washing machine is equipped with an electrical plug con-

nection, it must be easily accessible after installation so that the ma-

chine can be disconnected from the electricity supply if necessary.

Warning and safety instructions

 If the appliance is hard wired, an on-site all pole circuit breaker

must always be accessible to disconnect the washing machine from

the mains.

 Temporary or permanent operation on an autonomous power sup-

ply system or a power supply system that is not synchronised with

the mains power supply (e.g. island networks, back-up systems) is

possible. A prerequisite for operation is that the power supply sys-

tem complies with the specifications of EN50160 or an equivalent

standard.

The function and operation of the protective measures provided in

the domestic electrical installation and in this Miele product must

also be maintained in isolated operation or in operation that is not

synchronised with the mains power supply, or these measures must

be replaced by equivalent measures in the installation. As described,

for example, in the current version of BS OHSAS 18001–2 ISO

45001.

 While the washing machine is under warranty, repairs should only

be undertaken by a Miele authorised service technician. Otherwise

the warranty will be invalidated.

Correct use

 The maximum dry laundry weight is 7.0kg. The maximum recom-

mended loads for individual programmes are given in the Programme

chart.

 Do not install your washing machine in a room where temperat-

ures below freezing may occur. Frozen hoses may burst or split. The

reliability of the electronic control unit may be impaired at temperat-

ures below freezing point.

 Before using the machine for the first time, check that the transit

bars at the rear of the washing machine have been removed (see “In-

stallation – Removing transit bars”). During spinning, transit bars

which are still in place may result in damage to both the machine

and adjacent furniture or appliances.

Warning and safety instructions

 Close the stopcock if the machine is to be left for any length of

time (e.g. while on holiday), especially if there is no floor drain (gully)

in the immediate vicinity.

 Danger of flooding! If hooking the drain hose into a wash basin,

check that the water can drain off quickly enough to prevent the sink

from overflowing. Hook the hose over the edge and secure. If the

hose is unsecured, the force of the water flowing out of it can dis-

lodge it from the basin.

 Take care to ensure that foreign objects (e.g. nails, pins, coins, pa-

per clips) do not find their way into the machine with the laundry.

These may damage components of the machine (e.g. suds con-

tainer, drum). Damaged components can damage the laundry.

 If the correct amount of detergent is dispensed, the machine

should not need to be descaled. If, however, you do wish to descale

it, only use special non-corrosive descaling agents and strictly ob-

serve the instructions on the packaging. Special descaling agent is

available from your Miele dealer or from Miele Service. Strictly ob-

serve the instructions for the descaling agent.

 For textiles that have been treated with solvent-based detergents,

always check whether they can be washed in a washing machine. To

check whether this is possible, refer to safety notes, information con-

cerning the product's environmental properties, and other informa-

tion.

 Never use solvent based detergents, e.g. those containing ben-

zine, in this machine. Doing so may result in damage to component

parts and create toxic fumes. Risk of fire and explosion.

 Benzine, petrol, paraffin, or any easily flammable liquid must not

be stored or used near the machine. Risk of fire and explosion

 Only use dyes suitable for use in a washing machine. Always ob-

serve the manufacturer's instructions carefully.

Warning and safety instructions

 Colour run and dye removers contain sulphur compounds which

can cause damage such as corrosion. Do not use these products in

this washing machine.

 Avoid contact between stainless steel surfaces (front, lid, casing)

and liquid detergents or disinfecting agents which contain chlorine or

sodium hypochlorite. These agents can have a corrosive effect on

stainless steel. Aggressive vapours containing chlorine can also be

corrosive. Do not store open containers of these agents near the ma-

chine.

 Do not use a pressure washer or hose to clean the washing ma-

chine.

 It is particularly important to observe manufacturer's instructions

when using a combination of cleaning agents and special application

products. Products must only be used for applications approved by

the manufacturer to avoid any material damage or the occurrence of

strong chemical reactions.

 If detergent has come into contact with the eyes, rinse out imme-

diately with plenty of lukewarm water. If detergent has accidentally

been ingested, seek medical advice immediately. People with dam-

aged or sensitive skin should avoid contact with detergent.

 When adding or removing laundry during the main wash, your skin

may come into contact with detergent, particularly if the detergent is

dispensed externally. Take care when placing your hands inside the

drum. If suds have come into contact with the skin, rinse off immedi-

ately with lukewarm water.

Warning and safety instructions

Accessories

 Only use original Miele accessories. If other parts are used, war-

ranty, performance and product liability claims will be invalidated.

 Miele tumble dryers and Miele washing machines can be installed

as a washer-dryer stack. This requires a Miele washer-dryer stacking

kit which can be purchased separately. Please ensure that the

washer-dryer connection kit is suitable for the Miele tumble dryer

and the Miele washing machine.

 If installing the machine on a Miele plinth (available as an optional

accessory), please make sure you order the correct one for this

washing machine.

 Miele will guarantee to supply functional spare parts for 15years

following the discontinuation of your washing machine.

Miele cannot be held liable for damage caused by non-compliance

with these warning and safety instructions.

Operating the washing machine

Control panel

Control field

Temperature sensor controls

for selecting the temperature

Spin speed sensor controls

for selecting the spin speed

Pre-wash sensor control

Indicator lights   

light up when necessary

CapDosing sensor controls

Time display

for the programme running time

Sensor controls  

for the Delay start function

Start/Add laundry sensor control

starts the selected programme and

allows you to add laundry

Optical interface

for the Customer Service Depart-

ment

Programme selector

for selecting programmes and for

switching off the appliance

The washing machine is switched on

when you select a programme and

switched off by turning the pro-

gramme selector to the position.

Operating the washing machine

How the control field works

The, , , ,  and  sensor

controls react to fingertip contact. If a

sensor control is illuminated, it can be

selected.

If a sensor control is brightly lit, this

means it is currently selected.

If a sensor control is dimly lit, this

means it can be selected.

andsensor controls for temper-

ature and spin speed

After selecting a wash programme with

the programme selector, the recom-

mended temperature (in °C) and spin

speed (in rpm) light up brightly.

Selectable temperatures and spin

speeds light up dimly.

Pre-wash sensor control

You can supplement certain wash pro-

grammes with a pre-wash.

If a pre-wash can be selected for the

wash programme, the Pre-wash sensor

control lights up dimly.

Indicator lights

- 

lights up if there are faults with the

water inlet and drainage.

- 

lights up if excess detergent was

used.

- 

lights up as a reminder about hygiene

information.

- 

lights up when the door of the wash-

ing machine is locked.

CapDosing sensor controls

These are used for activating CapDos-

ing.

- 

Fabric care (e.g. fabric conditioner,

proofing agent)

- 

Additives (e.g. detergent enhancer)

- 

Detergent (for the main wash only)

Operating the washing machine

Time display

After the programme has started, the

programme duration will appear on the

display in hours and minutes.

When Delay start is being used, the

programme duration will appear after

the Delay start time has elapsed.

Sensor controls  

- 

After touching the sensor control,

a later start time for the programme

(Delay start) can be selected. Once

selected, lights up brightly.

-  

The duration of the Delay start period

is selected by touching the 

orsensor control.

The Delay start time selected will ap-

pear on the time display.

After the programme has started, the

Delay start time will begin to count

down.

Once the Delay start time has elapsed,

the programme begins. The estimated

programme duration appears on the

time display.

 Start/Add laundry sensor control

- The programme can be started as

soon as the sensor control is flashing

on and off. Touching the Start/Add

laundry sensor control starts the se-

lected programme. The sensor con-

trol lights up constantly.

- Once the programme has been star-

ted, the Start/Add laundry sensor

control allows you to add laundry.

Before using for the first time

 Damage resulting from incorrect

installation and connection.

Installing and connecting the wash-

ing machine incorrectly will cause

serious property damage.

See “Installation”.

Removing the protective foil

and stickers

 Remove:

- The protective foil from the door

- Any stickers from the front and the lid

Please do not remove any labels

(e.g. the data plate) which are visible

when you open the door.

Emptying the drum

A swivel elbow for the drain hose and/

or assembly material may be stored in

the drum.

 Pull open the door.

 Remove the swivel elbow and as-

sembly material.

 Shut the door with a gentle swing.

This washing machine has undergone

a complete functional test at the fact-

ory. Some residual water will therefore

remain in the drum from this process.

Before using for the first time

Running the first wash pro-

gramme

For safety reasons, spinning is not pos-

sible until the machine has been pre-

pared for use for the first time. To activ-

ate the spinning function, you must run

a wash programme without laundry and

without detergent.

Using detergent could result in an ex-

cessive build-up of foam!

 Open the stopcock.

 Turn the programme selector to the

Cottons position.

The washing machine is now switched

on and the temperature 60°C lights up

in the control field.

 Touch the Start/Add laundry sensor

control.

The wash programme starts and the

symbol lights up in the control field.

After 10minutes, the indicators dim

and the Start/Add laundrysensor con-

trol starts flashing.

At the end of the programme, the Anti-

crease function is switched on. The 

symbol lights up in the control field;

: appears on the time display.

 Touch the Start/Add laundry sensor

control.

The door will unlock.

 Reach under the recessed grip and

pull the door open.

Tip: Leave the door slightly open to al-

low the drum to dry.

 When the programme has ended,

turn the programme selector to.

The washing machine is switched off

and is now ready for use.

Washing environmentally and economically

Energy and water consumption

- To get the most out of your machine,

load the maximum dry load size for

the wash programme you are using.

This will keep the energy and water

consumption to a minimum in relation

to the size of the load.

- Programmes that are more efficient

with regard to energy and water con-

sumption generally have a longer run-

ning time. By extending the pro-

gramme running time, the wash tem-

perature that is actually reached can

be reduced while still providing the

same wash results.

For example, the ECO40-60 pro-

gramme has a longer running time

than the Cottons40°C or 60°C pro-

gramme. The ECO40-60 programme

is more efficient in terms of energy

and water consumption.

- Use the Express programme for

small, lightly soiled loads.

- Modern detergents make it possible

to wash laundry at lower temperat-

ures (e.g. 20°C). Using lower temper-

ature settings will save energy.

- To maintain the hygiene of the wash-

ing machine, carry out a hot wash

above 60°C at regular intervals. The

washing machine’s indicator light

will come on to remind you to carry

out a hot wash.

Detergent

- Do not exceed the amounts of deter-

gent recommended by the manufac-

turer on the packaging.

- Adjust the dosage to the degree of

soiling of the laundry.

- Reduce the amount of detergent with

smaller loads (approx. ⅓ less than

the amount recommended can be

used when washing a half load).

Information about subsequent

tumble drying

The spin speed selected affects the re-

sidual moisture in the laundry and the

sound emissions of the washing ma-

chine.

The higher the spin speed, the lower

the residual moisture in the laundry.

However, the sound emissions of the

washing machine will increase.

Select the highest possible spin speed

for the wash programme to save energy

in the subsequent tumble dryer cycle.

1. Preparing the laundry

Emptying pockets

 Empty all pockets.

 Damage due to foreign objects.

Nails, coins, paper clips, and so on

can cause damage to garments and

components in the machine.

Check the laundry before washing

and remove any foreign objects.

Sorting the laundry

 Sort the laundry according to colour

and the garment care label.

Pre-treating stains

 Badly soiled areas and stains should

be cleaned as soon as possible.

Spillages should be carefully dabbed

off using a soft, colourfast cloth.

 Damage due to solvent-based

detergents.

Detergents containing benzine, stain

remover, etc., can damage plastic

parts.

When pre-treating textiles, make sure

that any plastic parts do not come

into contact with the detergent.

 Risk of explosion due to solvent-

based detergents.

When using solvent-based deter-

gents, an explosive mixture may de-

velop.

Never use solvent-based detergents

in the washing machine.

General tips

- Do not machine wash items which

are specified by the manufacturer as

not washable on the care label ().

- Curtains: remove rollers and lead

weights or place in a laundry bag.

- Sew in or remove any loose underwir-

ing in bras.

- Turn garments inside out, if recom-

mended by the manufacturer.

- Zip up or close any jackets with Vel-

cro or hook and eye fastenings before

washing.

- Fasten duvet covers and pillow cases

to prevent small items from becoming

rolled up inside them.

- Please refer to the Programme chart

for more tips and tricks.

2. Loading the washing machine

Opening the door

 Reach under the door grip and pull

the door open.

Check the drum for foreign objects

before loading it with laundry.

 Unfold the laundry and load loosely

into the drum.

Mixing both large and small items gives

better wash results and also helps to

distribute the load evenly during spin-

ning.

The most efficient use of energy and

water is achieved when a full load is

washed. However, do not overload as

this reduces cleaning efficiency and

causes creasing.

Closing the door

 Make sure that no items are caught

between the door and the seal.

 Shut the door with a gentle swing.

3. Selecting a programme and settings

Selecting a programme

The washing machine is switched on by

turning the programme selector to a

wash programme.

 Turn the programme selector to the

required programme.

The estimated wash time is shown on

the time display and the pre-set tem-

perature and spin speed light up in the

control field.

Selecting a temperature and

spin speed

The wash programme’s pre-set tem-

perature and spin speed light up

brightly. The choice of available tem-

peratures and spin speeds for the

wash programme light up dimly.

 Touch the sensor control for the tem-

perature you want.

The sensor control lights up brightly.

 Touch the sensor control for the spin

speed you want.

The sensor control lights up brightly.

Selecting Pre-wash

If a pre-wash can be selected for the

wash programme, the Pre-wash

sensor control lights up dimly.

 Touch the Pre-wash sensor control.

The sensor control lights up brightly.

The programme duration is increased.

4. Adding detergent

Detergent drawer

You can use any detergent that is suit-

able for washing machines.

Detergent dispensing

Please follow the detergent manufac-

turer's instructions in relation to

dosage.

Adding too much detergent will lead

to excessive foaming.

Avoid adding excess detergent.

The amount to dispense will depend on:

- the amount of laundry

- the amount of soiling in the laundry

- the water hardness

Hardness

range

Hardness

inmmol/l

Degree of

German hardness

°dH

I (soft) 0-1.5 0-8.4

II (medium) 1.5-2.5 8.4-14

III (hard) above 2.5 above 14

Check with your local water supplier if

you do not know the water hardness in

your area.

Adding detergent

 Pull out the detergent drawer and add

detergent to the compartments.

 Detergent for the pre-wash (di-

vide the total recommended

amount as follows: ⅓ to com-

partment and ⅔ to compart-

ment)

 Detergent for the main wash

/



Fabric conditioner, liquid starch

or capsules

4. Adding detergent

Automatic dispensing of fabric

softener or liquid starch

 Add fabric conditioner or liquid starch

to the  compartment. Do not ex-

ceed the maximum level mark.

This will be automatically dispensed in

the final rinse. At the end of the wash

programme a small amount of water re-

mains in the  compartment.

Tip: If starching frequently, thoroughly

clean the detergent drawer, especially

the siphon tube, regularly.

Dye removers and dyes

 Damage due to colour run/dye

removers.

Colour run and dye removers can

cause corrosion in the washing ma-

chine.

Do not use colour run or dye re-

movers in this washing machine.

Only use dyes suitable for use in a

washing machine. The manufacturer's

instructions on the packaging must be

observed.

4. Adding detergent

CapDosing

3 different types of capsule are avail-

able:

 = Fabric care (e.g. fabric condi-

tioner, proofing agent)

 = Additives (e.g. detergent en-

hancer)

 = Detergent (for the main wash

only)

Only one capsule can be selected per

wash programme.

Depending on the setting selected, the

detergent, additive or fabric care agent

will be dispensed via the capsule for

this wash programme.

Each capsule contains the correct

amount for one wash cycle.

Caps are available to order from the

Miele online shop, Miele customer ser-

vice or your Miele retailer.

 Capsules pose a health risk.

The ingredients of capsules can be

hazardous to health if they are swal-

lowed or come into contact with

skin.

Keep capsules out of the reach of

children.

Activating CapDosing

 Touch the sensor control for the cap-

sule you want.

Inserting a capsule

 Open the detergent drawer.

 Open the lid of the / compart-

ment.

 Press the capsule in firmly.

4. Adding detergent

 Close the lid and press it firmly shut.

 Close the detergent drawer.

The capsule is opened by the act of

inserting it into the detergent drawer.

The contents can run out of the cap-

sule if you then remove it from the

capsule drawer before it is used.

Dispose of opened capsules.

The wash programme will dispense the

contents of the capsule at the correct

time.

When using CapDosing, water intake

to the  compartment takes place

solely via the capsule.

When using capsules, do not add ex-

tra fabric softener to the compart-

ment.

 Remove the empty capsule at the

end of the programme.

For technical reasons, a small amount

of water will remain in the capsule.

Deactivating or changing CapDosing

CapDosing can only be deactivated or

changed prior to the programme start.

 In order to switch off CapDosing,

touch the brightly lit sensor control.

 In order to change CapDosing, touch

one of the other capsule sensor con-

trols.

5. Starting the programme – end of the programme

Starting the programme

 Touch the flashing Start/Add laundry

sensor control.

The door will lock and the wash pro-

gramme will start.

- When the symbol lights up con-

stantly, the door is locked until the

end of the programme.

If a Delay start period has been selec-

ted, this counts down on the time dis-

play. At the end of the Delay start

period or immediately after the pro-

gramme has started, the programme

running time appears on the time dis-

play.

Energy savings

After 10minutes, the indicators dim.

The Start/Add laundry sensor control

flashes slowly.

To reactivate the indicators:

 Touch the Start/Add laundry sensor

control (this does not have any effect

on a programme that is running).

End of programme

The time display shows 0:00. The 

symbol will remain lit up in the control

field. The door is locked in the Anti-

crease phase.

 Touch the Start/Add laundry sensor

control.

The door unlocks and the symbol in

the control field goes out.

 Pull open the door.

 Remove the laundry.

Items left in the drum could discolour

other laundry in the next wash or be-

come discoloured themselves.

Remove all items from the drum.

 Check the door sealing ring for any

foreign objects.

Tip: Leave the door slightly open to al-

low the drum to dry.

 Turn the programme selector to the

position. This switches the wash-

ing machine off.

 If applicable, remove the used cap-

sule from the detergent drawer.

Tip: Leave the detergent drawer slightly

open to allow it to dry.

Delay start

With Delay start, you can delay the start

of a programme from 30minutes up to

a maximum of 24hours.

Selecting the Delay start func-

tion

Delay start cannot be selected in the

Drain/Spin programme.

 Select the programme required.

 Touch the sensor control.

The sensor control lights up brightly.

 Touch the or sensor control re-

peatedly until the required Delay start

time appears on the time display.

- In the case of settings below

10hours, the Delay start time

changes in increments of 30minutes.

- In the case of settings above

10hours, the Delay start time

changes in increments of 1hour.

Starting Delay start

 Touch the flashing Start/Add laundry

sensor control.

The Delay start process starts and

counts down on the time display.

The  symbol will flash.

Changing the Delay start time

 Touch the Start/Add laundry sensor

control until the door unlocks and the

symbol goes out.

The Delay start process stops.

 Touch the or sensor control re-

peatedly until the required Delay start

time appears on the time display.

 Touch the flashing Start/Add laundry

sensor control.

Cancelling Delay start

 Touch the Start/Add laundry sensor

control until the door unlocks and the

symbol goes out.

The Delay start process stops.

 Touch the brightly lit sensor con-

trol.

The Delay start period is deleted. The

programme running time appears on

the time display.

 Touch the flashing Start/Add laundry

sensor control in order to start the

wash programme.

Programme chart

Cottons Cold to 90°C Max. load 7.0kg

Items Cotton, linen and mixed fibre textiles

Tip - Select the temperature according to the instructions on the care

label, the detergent, the type of soiling and the hygiene require-

ments.

- For dark-coloured fabric, use a colour detergent or liquid deter-

gent.

1400rpm Extras: Pre-wash Rinses: 2

Minimum iron Cold to 60°C Max. load 4.0kg

Items Synthetic and mixed fibre textiles as well as easy care cotton

Tip - Reduce the spin speed for fabric that creases easily.

1200rpm Extras: Pre-wash Rinses: 2

Delicates Cold to 40°C Max. load 2.5kg

Items Delicate garments made from synthetic fibres, mixed fibres and

viscose

Tip - Deselect the spin speed for fabric that creases easily.

600rpm Extras: Pre-wash Rinses: 2

Woollens Cold to 30°C Max. load2.0kg

Use for Machine-washable woollens and woollen blends

Tip - Use detergent formulated for woollens.

1200rpm Rinses: 2

Drain/Spin Max. load 7.0kg

Tip - Make sure you select the appropriate spin speed.

- Drain only: select 0rpm for the spin speed.

1400rpm

Programme chart

ECO40-60 Max. load 7.0kg

Items Normally soiled cotton garments

Tip - A laundry load consisting of mixed cottons that are intended for

washing at 40°C or 60°C can be washed in the same wash

cycle.

- This programme is the most efficient in terms of energy and wa-

ter consumption for washing cottons.

1400rpm Rinses: 2

Note for test institutes:

Test programme for compliance with EU legislation regarding ecodesign

No. 2019/2023 and energy labelling in accordance with Regulation

No. 2019/2014.

Express 30°C Max. load 3.5kg

Items Cotton garments that have hardly been worn or are only very

lightly soiled

1400rpm Rinses: 1

Towelling 40°C to 60°C Max. load6.0kg

Use for Towels and bathrobes made from terrycloth

Tip - Use a colour detergent for dark textiles.

1400rpm Extras: Pre-wash Rinses: 2

Disinfection 60°C Max. load 5,5 kg

Use for Workwear or disinfection clothing, sorted by colour, provided the

items are suitable for disinfection.

Tip - Chemo-thermal disinfection with a 30-minute holding time at

60°C.

- Use special-purpose detergents.

1400 rpm Extras: Pre-wash  Rinses: 2

Intensive 40°C to 90°C Max. load 7.0kg

Items Heavily soiled workwear made from cotton, linen and mixed fibres

Tip - You can achieve particularly good wash and rinse results with a

high water level.

1400rpm Extras: Pre-wash Rinses: 2

Programme chart

Mops & cloths 40°C to 90°C Max. load 4.0kg

Items Mixed fibre or microfibre mops and cloths

Tip - The programme is designed to wash mops and cleaning cloths.

- Use special-purpose detergents.

- A pre-spin and a pre-rinse cycle are carried out before the main

wash.

1400rpm Rinses: 2

Cottons  40°C/60°C Max. load 7.0kg

Items Normally soiled cotton garments

Tip - These settings are the most efficient in terms of energy and wa-

ter consumption for washing cottons.

- With the selected temperature, the wash temperature

reached is below 60°C.

1400rpm Extras: Pre-wash Rinses: 2

The test programme conforms to EN60456 and the energy label to Direct-

ive1061/2010.

Special features in the programme sequence

Spinning

Final spin speed

When a programme is selected, the

maximum spin speed for this wash pro-

gramme is shown in the display.

You can reduce the final spin speed.

However, you cannot select a final spin

speed higher than that shown in the

chart.

Interim spin

There is a spin cycle after the main

wash and between the rinses. A reduc-

tion in the final spin speed will also re-

duce the interim spin speed as appro-

priate.

Omitting the interim spin and the fi-

nal spin

 Touch the sensor control.

After the last rinse, the water will be

pumped away and the anti-crease

phase will switch on.

Omitting the final spin (Rinse hold)

 Touch the sensor control (Rinse

hold).

The laundry is not spun after the final

rinse cycle and remains in the rinse wa-

ter. This helps to prevent creasing if the

laundry is not going to be removed from

the washing machine immediately after

the end of the programme.

Starting the final spin after Rinse

hold

The sensor control for the maximum

spin speed lights up in the control field.

You can change the spin speed. The

Start/Add laundry sensor control

flashes slowly.

 Touch the flashing Start/Add laundry

sensor control.

The final spin is carried out.

Ending the programme after Rinse

hold

 Reduce the spin speed to .

 Touch the Start/Add laundry sensor

control.

The washing machine pumps away the

suds. The programme has finished.

Anti-crease

At the end of the programme, the drum

continues to turn at intervals for up to

30minutes to help prevent creasing.

The washing machine can be opened at

any time.

There is no anti-crease phase at the

end of some programmes.

Changing the programme sequence

Changing a programme

After the start of a programme, it is no

longer possible to select a different pro-

gramme.

You will need to cancel the current pro-

gramme before you can select a new

one.

appears on the time display if the

programme selector has been moved.

Set the programme selector back to

its original position.

If the washing machine is switched off

during active programme operation,

the standby function does not switch

the washing machine off completely

after 15minutes. Safety functions

continue to be active because there

may still be water inside the drum.

Cancelling a programme

You can cancel a programme at any

time after it has started.

 Turn the programme selector to the

position.

 Turn the programme selector to any

position.

Rotating bars ...... or 

are shown on the time display.

The water is pumped away and the

door lock is then released.

Selecting a new programme

 Turn the programme selector to the

required programme.

 Check that there is still detergent in

the detergent drawer. Add more de-

tergent if there is none left.

 Touch the Start/Add laundry sensor

control.

Adding or removing laundry

Laundry can be added or removed at

any time, provided that the  symbol

is not illuminated on the control field.

 Touch theStart/Add laundry sensor

control.

Rotating bars ...... are

shown on the time display.

If the word  appears on the time dis-

play, the door can be opened.

 Open the door and add or remove

laundry.

 Close the door.

 Touch theStart/Add laundry sensor

control.

The programme will continue.

Detergent

The correct detergent

You can use any detergent that is suitable for washing machines. Instructions for

use and recommended amounts are given on the detergent packaging.

Recommended detergents in accordance with Directive (EU) No. 1015/2010

The recommendations apply to the temperature ranges given in the section “Pro-

gramme chart”.

Universal Colour Delicates and

woollens

Special

detergent

Cottons   – –

Minimum iron –  – –

Delicates – –  –

Woollens  – –  

ECO40-60   – –

Express –



– –

Towelling 



– –

Disinfection – – – 

Intensive  – – 

Cloths – – – 

Cottons    – –

 Recommended

– Not recommended

Liquid detergent

Cleaning and care

 Risk of electric shock.

Only ever perform cleaning and

maintenance work when the appli-

ance is disconnected from the

power.

Disconnect the washing machine

from the mains electricity supply.

Cleaning the detergent drawer

Washing at low temperatures and the

use of liquid detergent can lead to a

build-up of mould and bacteria in the

detergent drawer.

 For hygiene reasons, clean the entire

detergent drawer at regular intervals.

 Pull out the detergent drawer until

resistance is felt. Press down the re-

lease button and at the same time

pull the drawer right out of the appli-

ance.

 Clean the detergent drawer with

warm water.

Cleaning the siphon and the channel

 Pull the siphon out of the compart-

ment .

Clean the siphon under warm running

water. Clean the siphon tube in the

same way.

 Refit the siphon.

 Clean the fabric conditioner channel

using a brush and warm water.

Cleaning and care

Cleaning the detergent drawer

 Use a bottle brush to remove deter-

gent residues and limescale from the

jets inside the detergent drawer.

 Replace the detergent drawer.

Tip: Leave the detergent drawer slightly

open to allow it to dry.

Cleaning the casing and fascia

panel

 Damage caused by detergents.

Solvent-based cleaning agents, ab-

rasive cleaners, glass cleaners or

multi-purpose cleaning agents can

cause damage to plastic surfaces

and other parts.

Do not use any of these cleaning

agents.

 Risk of damage due to ingress of

water.

The pressure of a water jet can

cause water to get into the washing

machine, resulting in damage to

components.

Do not spray the washing machine

with a water jet.

 Clean the casing and fascia panel

with a mild cleaning agent or soap

and water and dry both with a soft

cloth.

 The drum and any other stainless

steel components can be cleaned us-

ing a suitable stainless-steel cleaning

agent.

Cleaning the drum, suds con-

tainer and drainage system

The drum, suds container and drainage

system must be cleaned whenever the

indicator light comes up or if neces-

sary.

 Start the Cottons 90°C programme

without a load.

 Add powder detergent to the

compartment in the detergent

drawer.

 At the end of the programme, check

the inner drum and remove any

coarse residues.

Cleaning and care

Cleaning the water inlet filters

The washing machine has filters to pro-

tect the water inlet valves. You should

inspect the filters approximately every

6months. Perform this check more of-

ten if there are frequent interruptions to

the external water supply.

Cleaning the filter in the inlet hose

 First turn off the stopcock.

 Unscrew the inlet hose from the stop-

cock.

 Remove the rubber seal 1 from the

recess.

 Using pointed pliers, take hold of the

plastic filter bar 2 and remove it.

 Clean the plastic filter.

 Reassemble in reverse order.

Make sure there is no water leaking

from the screw thread.

Tighten the screw thread.

Cleaning the filter in the inlet valve

 Using pliers, carefully loosen the

ribbed plastic nut on the inlet valve

and unscrew.

 Use pointed pliers to withdraw the

plastic filter by the bar.

 Clean the filter.

 Reassemble in reverse order.

The filters are used to protect the

water inlet valve.

The filters must be put back in place

after cleaning.

Problem solving guide

You are able to correct the majority of faults and problems that arise during day-to-

day use without external assistance. You can save time and money in many cases,

as you do not need to call Miele Service.

The following tables are designed to help you to find the cause of a malfunction or

a fault and to resolve it.

The wash programme does not start

Problem Cause and remedy

The control field re-

mains dark.

There is no power to the machine.

 Check whether the plug is plugged in.

 Check whether the fuse has tripped.

The washing machine has switched off automatically

to save energy.

 Switch the washing machine on again by turning

the programme selector.

andappear altern-

ately on the time dis-

play.

The door is not closed properly. The door lock could

not engage.

 Close the door again.

 Start the programme again.

If the fault message appears again, contact the

Miele Customer Service Department.

Problem solving guide

Programme cancellation and error message

Problem Cause and remedy

The fault indicator

light lights up,

and appear altern-

ately on the time display

and the buzzer sounds.

The water inlet is blocked or restricted.

 Check whether the stopcock has been properly

opened.

 Check whether the inlet hose is kinked.

 Check whether there is sufficient water pressure.

The filter in the water inlet is blocked.

 Clean the filter.

The fault indicator

light lights up,

and appear alternately

on the time display and

the buzzer sounds.

The drain is blocked or restricted.

The drain hose has been fixed too high.

 Clean the drain filter and the drain pump.

 The maximum drain height is 1m.

and appear altern-

ately on the time display

and the buzzer sounds.

There is a fault.

 Disconnect the washing machine from the mains

electricity supply, either by switching it off at the

wall socket and withdrawing the plug, or by dis-

connecting it at the circuit breaker.

 Wait at least 2minutes before reconnecting the

washing machine to the electricity supply.

 Switch the washing machine on again.

 Restart the programme.

If the fault message appears again, contact the

Customer Service Department.

The fault indicator

light lights up,

and appear altern-

ately on the time display

and the buzzer sounds.

The water protection system has reacted.

 Close the stopcock.

 Call the Miele Customer Service Department.

Problem solving guide

symbol on the time display

Problem Cause and remedy

 lights up The programme selector was moved to a different

position after the programme had started.

 Turn the programme selector back to the original

position.

The programme has been interrupted.

 Open the door.

 Close the door.

Fault indicator light at the end of a programme

Problem Cause and remedy

The indicator light

lights up.

When washing, a wash programme using a temperat-

ure above 60°C has not been run for a long time.

 In order to prevent bacteria and unpleasant odours

building up in the machine, run the Cottons 90°C

programme using a universal powder detergent.

The indicator light

lights up.

Excessive foam has built up during washing.

 Use less detergent next time and follow the manu-

facturer’s instructions on dosage given on the

packaging.

Problem solving guide

An unsatisfactory wash result

Problem Cause and remedy

Liquid detergent does

not give the required

result.

Liquid detergents usually contain no bleaching

agents. They do not remove fruit, coffee, and tea

stains.

 Use a general purpose powder detergent contain-

ing a bleaching agent.

 Pour stain removers into the  drawer in the dis-

penser compartment and liquid detergent into a

dispenser ball.

 Never put stain removers and liquid detergent to-

gether in the dispenser drawer.

White residues which

look like powder deter-

gent are seen on dark

textiles after washing.

The detergent contained compounds (zeolites) to aid

water softening which are not soluble in water. These

have ended up on the laundry.

 Try to brush off the residues with a soft brush once

the laundry is dry.

 In future, wash dark textiles using a detergent

which contains no zeolites. Liquid detergents usu-

ally contain no zeolites.

Textiles with particularly

greasy soiling are not

properly clean.

 Select a programme with pre-wash. Use liquid de-

tergent for the pre-wash.

 Continue to use universal powder detergent for the

main wash.

The use of heavy-duty detergent is recommended in

the main wash for very heavily soiled work clothing.

Please seek advice from the detergent manufacturer.

Grey, greasy particles

cling to washed laundry.

Insufficient amounts of detergent were used. The

laundry was heavily soiled with grease (oils, oint-

ments).

 Use more detergent or use liquid detergent with

this type of soiled laundry.

 Before washing the next load, run a 60°C pro-

gramme with liquid detergent but without a load.

Problem solving guide

General problems

Problem Cause and remedy

The machine shakes

during the spin cycle.

The machine feet are not level and not secured.

 Level the machine and adjust the feet correctly.

Strange pump noises

can be heard.

This is not a fault. These slurping noises occur at

the start and end of a pump sequence as a normal

part of the operation.

Large amounts of deter-

gent residue remain in

the detergent dispenser

drawer.

The water pressure is too low.

 Clean the filters in the water inlet.

Powder detergent used in conjunction with water

softeners tends to become sticky.

 Clean the detergent dispenser drawer and, in fu-

ture, add detergent into the drawer first, and then

add the water softener.

Fabric softener is not

completely dispensed

or too much water re-

mains in the com-

partment.

The siphon tube is not correctly positioned or is

clogged.

 Clean the siphon, see “Cleaning and care – Clean-

ing the detergent dispenser compartment”.

The laundry has not

been spun properly. The

laundry is still wet.

The machine detected a high level of imbalance dur-

ing the final spin and reduced the spin speed auto-

matically.

 Include both large and small items in the load as

this will achieve better distribution.

There is still liquid in the

capsule at the end of

the programme.

There is a blockage in the small pipe in the deter-

gent drawer onto which the capsule is placed.

 Clean the small pipe.

Not a fault!

For technical reasons, a small amount of water will

remain in the capsule.

Problem solving guide

General problems with the washing machine

Problem Cause and remedy

There is water next to

the capsule in the fabric

conditioner compart-

ment.

The CapDosing sensor control was not activated or

an empty capsule was not removed at the end of the

last wash programme.

 Activate the CapDosing sensor control when a

capsule is next used.

 Remove and dispose of the empty capsule at the

end of each programme.

There is a blockage in the small pipe in the detergent

drawer onto which the capsule is placed.

 Clean the small pipe.

The door will not open

Problem Cause and remedy

The door cannot be

pulled open during a

wash cycle.

The door is locked during the wash cycle.

 Touch the Start/Add laundry sensor control to can-

cel the programme.

The programme is cancelled, the door will unlock and

you will be able to pull it open.

There is still water in the drum and the washing ma-

chine is unable to drain.

 Clean the drain filter and drain pump as described

in “Problem solving guide – Opening the door in

the event of a blocked drain outlet and/or power

failure”.

After the programme is

cancelled, flashing bars

......... appear

in the time display.

For safety reasons the drum door cannot be opened

if the suds temperature is higher than 55°C.

 Wait until the temperature in the drum has de-

creased and the bars have stopped flashing in the

display.

 and  alternately ap-

pear in the time display.

The door lock has jammed.

 Call the Service Department.

Problem solving guide

Opening the door in the event

of a blocked drain outlet and/

or power cut

 Risk of electric shock.

Only ever perform cleaning and

maintenance work when the appli-

ance is disconnected from the

power.

Disconnect the washing machine

from the mains electricity supply.

 Open the access panel to the drain

system.

Blocked drain outlet

If the drain outlet is blocked, there may

be a large quantity of water (max. 30l)

left behind in the washing machine.

 Risk of scalding due to hot suds.

Escaping suds will be hot if laundry

has been washed at high temperat-

ures.

Carefully allow all suds to drain off.

Emptying the drum

....For machines with a drain pump

 Place a suitable container under the

access flap.

Remove the drain filter, though not

completely.

 Slowly unscrew the drain filter to let

the water out.

 Tighten the drain filter back up again

if you need to interrupt the flow of

water.

Problem solving guide

Cleaning the drain filter

Once the flow of water ceases:

 Remove the drain filter completely.

 Clean the drain filter thoroughly.

 Check the drain pump impellers to

make sure they can rotate freely.

 Remove any foreign objects (e.g. but-

tons, coins, etc.) and clean the in-

terior.

 Put the drain filter back in place and

secure it.

 Water damage.

Water will escape from the machine

if you forget to replace the drain filter.

Replace the drain filter correctly and

tighten it securely.

Opening the door

 Danger of injury due to rotating

drum.

Reaching into a moving drum is ex-

tremely dangerous.

Always make sure that the drum is

stationary before reaching in to re-

move laundry.

 Use a screwdriver to unlock the door.

 Pull open the door.

Miele Service

Contact in case of malfunction

In the event of any faults which you

cannot remedy yourself, please contact

your Miele Dealer or Miele Service.

Contact information for Miele Service

can be found at the end of this docu-

ment.

Please quote the model and serial num-

ber of your appliance when contacting

Miele Service. This information can be

found on the data plate.

The data plate is found above the

porthole glass when the washing ma-

chine door is opened:

EPREL database

From 1 March 2021, information on en-

ergy labelling and ecodesign require-

ments will be available in the European

Product Database (EPREL). You can

find the product database at the follow-

ing link https://eprel.ec.europa.eu/. You

will be asked to enter the model identi-

fier.

The model identifier can be found on

the data plate.

Made in xxx

Mod.: XXXxxx

M-Nr.: xxxxxxxx

Type: XXxx-X

Nr.:/ xxxxxxxxx

Optional accessories

Optional spare parts and accessories

for this washing machine are available

from Miele.

Installation

*INSTALLATION*

Front view

Inlet hose (cold water)

Electrical connection

Control panel

Detergent drawer

Door

Access flap to drain filter and drain

pump

Height-adjustable feet

Installation

*INSTALLATION*

Rear view

Drain hose

Transport clips for inlet and drain

hoses

Electrical connection

Protruding lid for holding when mov-

ing the appliance

Inlet hose

Safety caps for transit bars

Transport clips for inlet and drain

hoses and for storing transit bars

when not in use

Installation

*INSTALLATION*

Installation locations

Side view

1054

850

1100

636

Washer-dryer stack

min. 300

1702

The washing machine can be installed

as a washer-dryer stack together with a

Miele tumble dryer. This requires a

Miele washer-dryer stacking kit which

can be purchased separately.

Installation on a plinth

The washing machine can be installed

on a steel plinth (open or closed, avail-

able as an optional Miele accessory) or

on a concrete plinth.

 Injury can occur if the washing

machine has not been adequately

secured.

When installing the machine on a

plinth, there is the danger of the

washing machine falling off the plinth

during spinning.

Secure the washing machine using

the clamps supplied.

Installation notes

 Risk of damage due to moisture

ingress.

Moisture can damage electrical com-

ponents.

Do not install the machine near or

directly above an open gully or floor

drain.

Installation

*INSTALLATION*

Transporting the washing ma-

chine to its installation site

 Danger of injury from incorrect

transport.

If the washing machine tips up there

is a danger of injury to people and

damage to property.

Make sure the washing machine is

stable during transportation.

Transporting the washing machine

with a sack truck

 If transporting the washing machine

with a sack truck, make sure its left or

right side is resting on the truck.

 Risk of damage from incorrect

transport.

The front or back of the washing ma-

chine may be damaged if the ma-

chine is transported with a sack

truck.

Always insert the sack truck under

one of the sides of the washing ma-

chine.

Transporting the washing machine to

its installation site

The protruding lid at the back can be

used to hold the machine when trans-

porting.

 Danger of injury due to unsecure

lid.

The fixings at the back of the lid

could break as a result of external

forces. There is a danger of the lid

being pulled off when carrying the

machine.

Before carrying the machine, check

that the lid is secure where it pro-

trudes at the back of the machine.

 Carry the washing machine by the

front feet and by the lid where it pro-

trudes at the back of the appliance.

Installation

*INSTALLATION*

Installation surface

A concrete floor is the most suitable in-

stallation surface, being far less prone

to vibration during the spin cycle than

wooden floorboards or a carpeted sur-

face.

 The machine must be level and se-

curely positioned.

 To avoid vibrations during spinning,

the machine should not be installed

on soft floor coverings.

If installing on a wooden joist floor:

 Install the machine on a plywood

base (at least 70x60x3cm). The

base should span several joists and

be bolted to the joists and not only to

the floorboards.

Tip: If possible, install the machine in a

corner of the room. This is usually the

most stable part of the floor.

Removing the transit bars

Removing the left-hand transit bar

 Push the cover out and turn the left-

hand transit bar 90° using the span-

ner supplied.

 Withdraw the transit bar.

Installation

*INSTALLATION*

Removing the right-hand transit bar

 Push the cover out and turn the left-

hand transit bar 90° using the span-

ner supplied.

 Withdraw the transit bar.

Covering holes

 Risk of injury from sharp edges.

There is a risk of injury from reaching

into holes that are not covered.

Cover the holes for the transit bars

after they have been removed.

 Push the covers in firmly until they

engage in position.

Installation

*INSTALLATION*

Securing the transit bars

 Secure the transit bars to the back of

the washing machine. Make sure that

the top catch is located above the

holder.

 Risk of damage from incorrect

transport.

The washing machine may become

damaged if moved without the transit

bars in place.

Keep the transit bars in a safe place.

Fit them again if the machine is to be

moved (e.g. when moving house).

Fitting the transit bars

Opening the covers

 Press against the retainer with a

sharp object (a narrow screwdriver,

for example).

The cover opens.

Fitting the transit bars

 To fit the bars, follow the instructions

for removing them in reverse order.

Tip: The bars will slide in more easily if

you lift the drum slightly.

Installation

*INSTALLATION*

Levelling the washing machine

The washing machine must stand per-

fectly level on all four feet to ensure

safe and proper operation.

Incorrect installation may increase elec-

tric and water consumption and may

cause the machine to move about.

Screwing out and adjusting the feet

The 4 adjustable screw feet are used for

levelling the washing machine. The ma-

chine is supplied with all four feet

screwed in.

 Using the spanner supplied, turn

counter nut 2 in a clockwise direction.

Then turn counter nut 2 together with

foot 1 to unscrew.

 Use a level to check that the washing

machine is standing level.

 Hold foot 1 securely with a pipe

wrench. Turn counter nut 2 again us-

ing the spanner supplied until it sits

firmly up against the housing.

 Risk of damage due to incor-

rectly aligned washing machine.

There is a danger of the washing ma-

chine moving about if the feet are not

secured.

Turn all 4 counter nuts for the feet

until they sit firmly up against the

housing. Please also check this for

the feet which did not need adjust-

ment.

Installation

*INSTALLATION*

Holding bracket for plinth

The holding bracket prevents the wash-

ing machine from falling off the plinth

during operation.

Fastening with the holding bracket is

only intended for plinths made from

concrete. The plinth must be flat and

level. The surface below the plinth must

be able to withstand the physical loads.

Prior to installation, check whether the

plinth complies with the minimum di-

mensions.

Height: 6cm

Width: 60cm

Depth: 65cm

Positioning the holding bracket

 Risk of injury from sharp edges.

The holding bracket has sharp

edges. You could cut yourself on the

edges.

Take care when handling the holding

bracket.

Wear gloves while installing the hold-

ing bracket.

The front appliance feet must protrude

by at least 3mm. The washing ma-

chine must already be aligned (see

“Installation – Aligning the washing

machine”)

 Place the holding bracket on the front

appliance feet.

 Mark the position of the front edge of

the holding bracket with a pencil.

 Remove the holding bracket from the

feet.

 Carefully move the washing machine

until you have enough space to install

the holding bracket.

Installation

*INSTALLATION*

Installing the holding bracket

 Place the holding bracket on the

marking on the plinth.

 In the middle of the two outer slotted

holes, mark a point for each drill hole.

 Drill 2holes (8mm) with a depth of

approx. 55mm.

 Insert the plugs in the holes.

 Install the holding bracket with the

hexagon screws and the washers.

Do not tighten the screws yet – this

will allow the holding bracket to be

moved sideways.

Securing the washing machine with

the holding bracket

 Push the washing machine back on

to the installed holding bracket.

 Insert the appliance feet (the part

between the foot and the locknut)

into the openings in the holding

bracket.

 Push the holding bracket to the right

as far as it will go.

 Tighten the hexagon screws using a

spanner.

The washing machine is secured in the

holding bracket.

Installation

*INSTALLATION*

Installing under a continuous work-

top

 Risk of electric shock due to ex-

posed cables

There is a risk of coming into contact

with live parts while the lid is re-

moved.

Do not remove the washing machine

lid.

This washing machine (with lid intact)

can be pushed under a countertop if

there is space to do so.

Installation

*INSTALLATION*

Water connection

Cold water connection

The washing machine should be con-

nected to a mains water supply in ac-

cordance with current local and national

safety regulations. The German author-

ities do not require it to have a non-re-

turn valve as the washing machine has

been designed to comply with DIN reg-

ulations.

In the U.K. both the hot and cold wa-

ter supplies must be connected to

the mains water connection with the

provided double check valve. Hot

water temperature must not exceed

60 °C.

The flow pressure must amount to a

minimum of 100kPa and must not ex-

ceed 1000kPa. If the pressure exceeds

1000kPa, a pressure reducing valve

must be installed.

For the connection, a stopcock with a

¾" screw thread is required. If this type

of stopcock is not available, only a

qualified installer may connect the

washing machine to the mains water

supply.

The connection point is subject to

mains water pressure.

Turn on the stopcock slowly and

check for leaks. Correct the position

of the washer and screw thread if ap-

propriate.

The inlet hose for cold water is not

suitable for connection to a hot water

supply.

Maintenance

Only use genuine Miele hoses that have

been tested to withstand pressure of at

least 7000kPa should you ever need a

replacement.

A filter is located in the open end of

the inlet hose and another in the in-

take point to protect the water inlet

valve.

Neither filter may be removed.

Hose extension

Longer hoses of 2.5m or 4.0m in

length are available from Miele or from

your Miele dealer as accessories.

Installation

*INSTALLATION*

Drainage

Drain pump

The suds are drained through a drain

pump with a 1m delivery head. For the

water to drain freely, the hose must be

free of kinks. The elbow piece (access-

ory) can be hooked onto the end of the

hose.

Drainage options

1. Connected securely to a plastic drain

pipe with a rubber nipple (there is no

need to use a siphon).

2. Connected securely to a washbasin

with a plastic nipple.

3. Connected securely to a floor drain

(gully).

If required, the hose can be extended to

a length of up to 5m. Accessories are

available from Miele or from your Miele

dealer.

For a drain height of more than 1m (up

to a max. of 1.6m), a replacement drain

pump is available from Miele or from

your Miele dealer.

Installation

*INSTALLATION*

Electrical connection

This description applies to washing

machines both with and without a

mains plug.

The following applies to washing ma-

chines with a mains plug:

- The washing machine is ready to be

connected.

- The electrical socket must be easily

accessible after installation so that

the machine can be disconnected

from the electricity supply if neces-

sary.

 Damage caused by incorrect

supply voltage.

The data plate indicates the nominal

power consumption and the appro-

priate fuse rating.

Compare the specifications on the

data plate with those of the mains

electricity supply and make sure that

they match.

The washing machine may only be con-

nected to a permanent electrical system

that conforms to the national and local

codes and regulations.

Do not connect the machine to an ex-

tension lead or multi-socket adapter as

they do not guarantee the required

safety of the appliance (e.g. danger of

overheating).

If the machine is hard wired, an all pole

circuit breaker must be provided on-

site. When switched off there must be

an all-pole contact gap of at least 3mm

in the isolator switch (including mini-

ature circuit breaker, switch, fuses and

relays according to IEC/EN60947). This

connection process must be performed

by a qualified electrician.

The plug connector or isolator switch

should be easily accessible at all times.

 Risk of electric shock.

If the washing machine is disconnec-

ted from the mains, protective meas-

ures must be taken to ensure that the

point of disconnection cannot acci-

dentally be switched on again.

Make sure the isolator is lockable or

the point of disconnection is mon-

itored at all times.

New connections, modifications to the

system, or servicing of the earthing

conductor, including determining the

correct fuse amperage, must be carried

out by a qualified electrician, as they

are familiar with the pertinent regula-

tions and the specific requirements of

the electric utility company.

Installation

*INSTALLATION*

Single phase AC 230 V – country vari-

ant 230V 25A

This device is intended for connection

to a power supply system where the

maximum value of external phase neut-

ral loop impedance Zmax of 0.38 Ohms

at the point of distributor supply con-

nection is not exceeded.

The user has to ensure that this device

is connected only to a power supply

system which fulfils the requirement

above. If in doubt, please ask your elec-

trical distributor for actual impedance

value.

Technical data

Height 850mm

Width 596mm

Width (machines with a stainless steel lid) 605mm

Depth 636mm

Depth with door open 1054mm

Weight Approx. 90kg

Maximum floor load in operation 3000newtons

Capacity 7.0kg dry laundry

Supply voltage See data plate on back of appli-

ance

Rated load See data plate on back of appli-

ance

Fuse rating See data plate on back of appli-

ance

A-rated sound emissions L

in accordance

with ENISO11204/11203

<70dB re 20µPa

Minimum water flow pressure 100kPa (1bar)

Maximum water flow pressure 1000kPa (10bar)

Water inlet hose length 1.55m

Drain hose length 1.50m

Connection cable length 2.00m

Product safety standard EN50571, EN60335

Test certifications awarded See data plate

Power consumption in off mode 0,40 W

Consumption data

Programme Load Energy Water

Programme

running time

Temperat-

ure

Residual

moisture Speed

kg kWh Litres h:min °C % rpm

ECO40-60* 7.0 0.63 45 3:19 38 48 1400

3.5 0.41 38 2:39 30 48 1400

2.0 0.23 26 2:39 26 49 1400

Cottons 60 7.0 1.10 49 1:19 56 49 1400

20 7.0 0.35 49 0:54 20 49 1400

Minimum iron 30 4.0 0.35 41 0:54 26 32 1200

Express 30 3.5 0.30 30 0:20 30 60 1400

Test programme for compliance with EU legislation regarding ecodesign 2019/2023 and energy labelling in accordance with Regulation

No. 2019/2014

Maximum laundry temperature reached in main wash.

Consumption data can vary from the nominal values given depending on water pressure, water hardness, water

inlet temperature, room temperature, type and volume of load, fluctuations in the mains voltage and any extra

options selected.

Programmable functions

The programmable functions are used

to alter the machine’s electronics to

suit changing requirements. Program-

mable functions can be altered at any

time.

Programming is carried out in 9 steps

(, , ...) using the sensor con-

trols.

Opening the programming level

Prerequisites:

- The washing machine is switched on

and the programme selector is point-

ing to a wash programme.

- The washing machine door is open.

 Touch the Start/Add laundry sensor

control and hold it down whilst carry-

ing out steps –.

 Close the washing machine door.

 Wait until the Start/Add laundry

sensor control lights up constantly...

 ...and then release the Start/Add

laundry sensor control.

After a few seconds,  will light up on

the time display.

Choosing and selecting a pro-

grammable function

The number of the programmable

function will appear on the time dis-

play as  and a number, e.g..

 Touch the or sensor control to

scroll to the next or previous pro-

grammable function:

Programmable functions

 End of programme tone

 Keypad tone

 PIN code

 Control field switch-off status

 Memory

 Additional pre-wash time

 Temperature reduction

 Maximum rinse level

 Suds cooling

 Anti-crease

 Low water pressure

 Backlight brightness dimmed

 Welcome tone

 Confirm the selected programmable

function by touching the Start/Add

laundry sensor control.

Programmable functions

Editing and saving a program-

mable function

You can switch a programmable func-

tion on/off or select different options.

 Touch the or sensor control to

switch a programmable function on/

off or to select an option.

Programmable function

Available options

    4 to 

 O X

 X O

 O X

 X O

 O X

 O X X X

 O X

 O X

 X O

 X O

 O X

 X X O X

 O X X

X = Can be selected

O = Factory default setting

 Confirm the chosen selection with

the Start/Add laundry sensor control.

The number of the programmable func-

tion, e.g., will then light up again.

Exiting the programming level

 Turn the programme selector to the

position.

The settings you have selected are now

stored in the memory. You can alter the

settings again at any time.

Programmable functions

End of programme tone

The tone that sounds at the end of a

programme can be changed or

switched off.

Options

 = Off (factory default setting)

 = Normal

 = Loud

Sensor control tone

The tone that sounds when a sensor

control is pressed can be changed or

switched off.

Options

 = Off

 = Normal (factory default set-

ting)

 = Loud

PIN code

The PIN code prevents the washing

machine being used without your

knowledge.

If you activate the PIN code, you have

to enter a PIN code after switching the

washing machine on. Otherwise it can-

not be operated.

Options

 = Off (factory default setting)

 = On

If the option has been selected, you

will have to enter the PIN code before

you can operate the washing machine.

Using the washing machine with a

PIN code

The code is 125 and cannot be altered.

 Switch on the washing machine.

  appears on the time display and

the and sensor controls light up.

 Touch the sensor control twice.

   appears on the time display.

 Confirm the number with the Start/

Add laundry sensor control.

The first number has been saved and

you can now enter the second number

using the and sensor controls.

 Enter the second and third numbers

and confirm the numbers with the

Start/Add laundry sensor control.

The lock is released and a wash pro-

gramme can now be selected and star-

ted.

Programmable functions

Control field switch-off

status

To save energy, the time display and

sensor controls will go out after

10minutes, and only the Start/Add

laundry sensor control will flash slowly.

Options

 = Off

The time display and sensor

controls will remain lit up while

the washing machine is

switched on.

 = On (factory default setting)

The time display and sensor

controls will switch off after

10minutes if the programme is

started.

However, the time display and

sensor controls will remain lit

up for 10minutes after a Delay

start period has elapsed, after

the end of a programme or at

the end of the Anti-crease

phase.

Memory

The washing machine will save the

settings (temperature, spin speed)

which have been selected for a pro-

gramme after the programme has star-

ted.

When the programme is chosen again,

the saved settings will appear on the

display.

Options

 = Memory is switched off (fact-

ory default setting)

 = Memory is switched on

Additional long pre-wash –

Cottons

If you require a longer pre-wash, you

can extend the pre-wash time.

Options

 = No increase in the pre-wash

time (factory default setting)

 = + 6minutes increase in the

pre-wash time

 = + 9minutes increase in the

pre-wash time

 = + 12minutes increase in the

pre-wash time

Programmable functions

Temperature reduction

At high altitudes, water has a lower

boiling point. Miele recommends ac-

tivating the Temperature reduction set-

ting at altitudes of 2000m or above to

prevent water from boiling.

Options

 = The Temperature reduction set-

ting is switched off (factory

default setting)

 = The Temperature reduction set-

ting is switched on

Maximum rinse level

The water level in the rinses can be

permanently set to the highest value in

the Cottons and Minimum iron pro-

grammes.

This function is important for allergy

sufferers as it achieves excellent wash

results. The water consumption will be

increased.

Options

 = Maximum rinse level is

switched off (factory default

setting)

 = Maximum rinse level is

switched on

Suds cooling

Additional water flows into the drum at

the end of the main wash to cool the

suds down.

Suds cooling takes place when the Cot-

tons programme with a temperature of

70°C or higher is selected.

Suds cooling should be activated:

- To prevent the danger of scalding if

the drain hose is hooked over the

edge of a sink or basin

- Where the drainage pipes do not

comply with DIN1986

Options

 = Suds cooling is switched off

 = Suds cooling is switched on

(factory default setting)

Programmable functions

Anti-crease

The Anti-crease function reduces

creasing after the end of the pro-

gramme.

At the end of the programme, the drum

continues to turn at intervals for up to

30minutes. The washing machine door

can be opened at any time.

Options

 = The Anti-crease function is

switched off

 = The Anti-crease function is

switched on (factory default

setting)

Low water pressure

If the water pressure is below 100kPa

(1bar), the programme will be can-

celled. If the on-site water pressure

cannot be increased, activating the

setting will prevent the programme

from being cancelled prematurely.

Options

 = Off (factory default setting)

 = On

Backlight brightness

dimmed

The brightness of the dimmed sensor

controls in the control field can be set

to one of seven different levels.

The brightness changes as soon as you

select a different setting.

Options

 = Darkest level



 = Brightest level

 = (Factory default)

Welcome tone

The tone that sounds when the wash-

ing machine is switched on can be

changed or switched off.

Options

 = Off (factory default setting)

 = Normal

 = Loud

Malaysia

Miele Sdn Bhd

Suite 12-2, Level 12

Menara Sapura Kencana Petroleum

Solaris Dutamas No. 1, Jalan Dutamas 1

50480 Kuala Lumpur, Malaysia

Phone: +603-6209-0288

Fax: +603-6205-3768

Miele New Zealand Limited

IRD 98 463 631

8 College Hill

Freemans Bay, Auckland 1011, NZ

Tel: 0800 464 353

Internet: www.miele.com.au/professional

E-mail: [email protected]

New Zealand

Miele Pte. Ltd.

29 Media Circle, #11-04 ALICE@Mediapolis

Singapore 138565

Tel: +65 6735 1191, Fax: +65 6735 1161

E-Mail: [email protected]

Internet: www.miele.sg

Singapore

Miele (Pty) Ltd

63 Peter Place, Bryanston 2194

P.O. Box 69434, Bryanston 2021

Tel: (011) 875 9000, Fax: (011) 875 9035

E-mail: [email protected]

Internet: www.miele.co.za

South Africa

Miele Appliances Ltd.

Showroom 1, Eiffel 1 Building

Sheikh Zayed Road, Umm Al Sheif

P.O. Box 114782 - Dubai

Tel. +971 4 3044 999, Fax. +971 4 3418 852

800-MIELE (64353)

E-Mail: [email protected], Website: www.miele.ae

United Arab Emirates

United Kingdom

Miele Co. Ltd., Fairacres, Marcham Road

Abingdon, Oxon, OX14 1TW

Professional Sales, Tel: 0845 365 6608

E-mail: [email protected]

Internet: www.miele.co.uk/professional

Miele Australia Pty. Ltd.

ACN 005 635 398, ABN 96 005 635 398

1 Gilbert Park Drive, Knoxfield, VIC 3180

Tel: 1300 731 411

Internet: www.miele.com.au/professional

E-mail: [email protected]

Australia

Miele Electrical Appliances Co., Ltd.

1-3 Floor, No. 82 Shi Men Yi Road

Jing' an District, 200040 Shanghai, PRC

Tel: +86 21 6157 3500, Fax: +86 21 6157 3511

E-mail: [email protected], Internet: www.miele.cn

China Mainland

Miele (Hong Kong) Ltd.

41/F - 4101, Manhattan Place

23 Wang Tai Road, Kowloon Bay, Hong Kong

Tel: (852) 2610 1025, Fax: (852) 3579 1404

Email: [email protected]

Website: www.miele.hk

Hong Kong, China

Miele India Pvt. Ltd.

1st Floor, Copia Corporate Suites,

Commercial Plot 9, Mathura Road, Jasola,

New Delhi - 110025

E-mail: customercar[email protected], Website: www.miele.in

India

Miele Ireland Ltd.

2024 Bianconi Ave., Citywest Business Campus, Dublin 24

Tel: (01) 461 07 10, Fax: (01) 461 07 97

E-Mail: [email protected], Internet: www.miele.ie

Ireland

Manufacturer: Miele & Cie. KG

Carl-Miele-Straße 29, 33332 Gütersloh, Germany

M.-Nr. 12 038 960 / 00en-GB

PWM 300 SmartBiz

Miele PWM 300 SmartBiz [EL DP] Enamelled lotus white

Product's Documents

User Manual

Specifications

Miele PWM 300 Questions and Answers
