Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Warranty
(for North America model
only)
Quick Start Guide CD-ROM
(Owner’s Manual)
Safety Instructions
Power cord
Remote control unit
(RC-1205) (built-in battery)
Coaxial digital cable
Caps (silver) (x4)
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index
Features
High quality
0
A new style of CD player with Denon's trademark quality,
containing a high-precision 32-bit D/A converter
The D/A converter is a key element of sound quality, so this product
contains our 32bit/192kHz D/A converter, renowned for its high degree
of precision, to bring you the best sound quality possible.
0
This unit can be combined with our high-quality PMA-50 Class D
integrated amplifier to achieve a high degree of reproducibility
even for extremely weak signals
Our high-quality PMA-50 Class D integrated amplifier contains
Advanced AL32 Processing, Denon's unique analog waveform
reproduction technology. Use it with this unit to get the most out of our
exceptional sound quality that is both sensitive and powerful to a
degree that belies the size of the enclosure.
High performance
0
This new design is the optimal match for our PMA-50 integrated
amplifier
0
Supports vertical installation
This unit can be placed either vertically or horizontally.
The orientation of the display changes automatically to match the
orientation in which this unit is placed.
The operating mechanism of the CD slot allows smooth and steady
opening and closing whether this unit is placed vertically or horizontally.
0
Supports MP3 and WMA file playback
This unit can play back MP3 and WMA files recorded on CD-R and CD-
RW discs.
The high-visibility organic EL display can show information such as the
track name and artist name when playing back MP3s and WMAs.
0
The auto standby function reduces power consumption
0
This unit comes with a system remote control that can also
operate the PMA-50
Contents
Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index
.

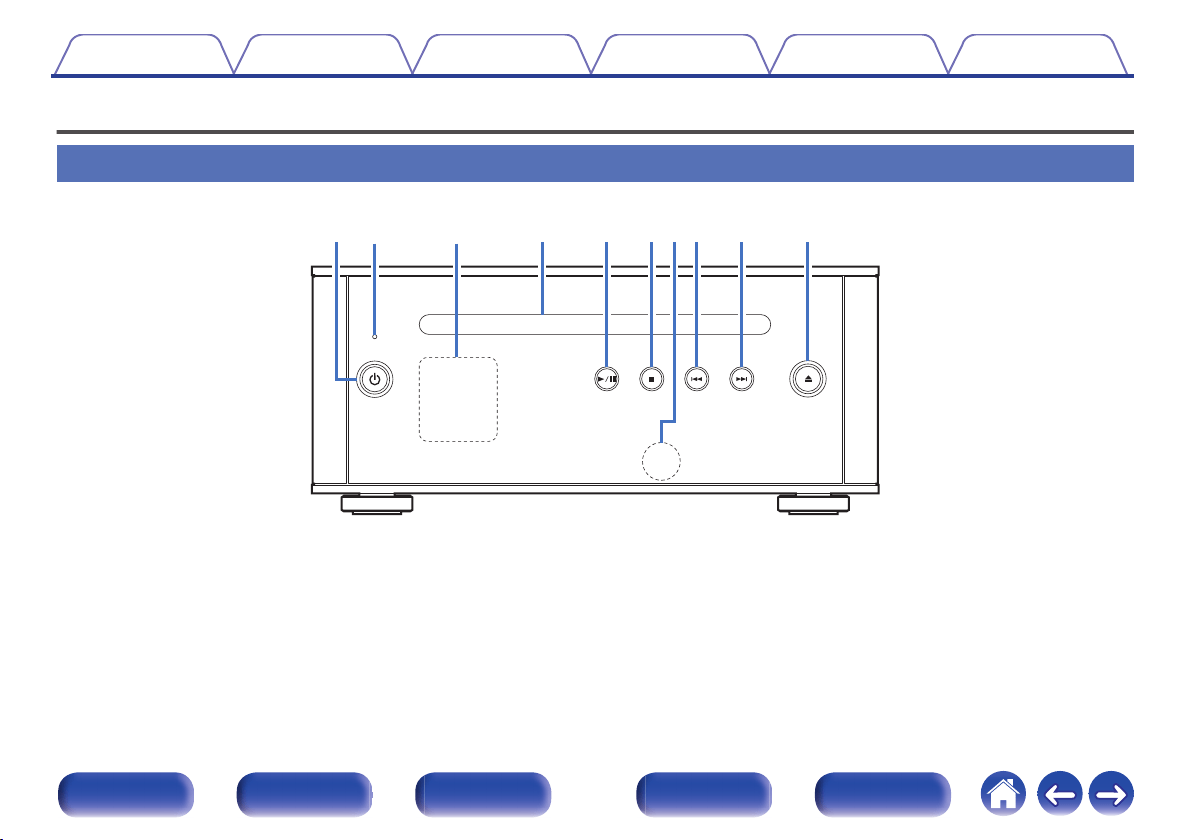

q w e
r t y u i o Q0 Q1 Q1
A
Power operation button (X)
This turns the power on/to standby. (v p. 23)
The power status is indicated as follows.
0
Power on: Display lit
0
Standby: Display off
B
Protection circuit indicator
This blinks when the protection circuit has operated. (v p. 34)
C
Display
This displays various pieces of information. (v
p. 8)
D
CD slot (v p. 41)
E
Play/pause button (1 / 3)
Plays the track/Pauses the track.
F
Stop button (2)
Stops playback.
G
Remote control sensor
This receives signals from the remote control unit. (v
p. 18)
H
Reverse-skip button (8)
Returns to the start of the currently playing track.
I
Forward-skip button (9)
Plays the next track.
J
CD Eject button (5)
Ejects the disc.
K
Installation holes for vertical installation feet
These are used when the unit is installed vertically. (v
p. 15)
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index
Display
The display automatically rotates to match the installation orientation.
Display sample
.
Track xx
Track
mm:ss
song tle
xx/XX
mm:ss
xx tracks
Total
mm:ss
Description of icon
P: random
z: repeat all
u: repeat 1
v: track
t: folder
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index
Rear panel
.
q w e
A
AC inlet (AC IN)
Used to connect the supplied power cord. (v
p. 21)
B
AUDIO OUT connectors (AUDIO OUT)
Used to connect an amplifier equipped with analog audio input
connectors. (v
p. 20)
C
DIGITAL AUDIO OUT connector (COAXIAL)
Used to connect an amplifier equipped with digital audio input
connector. (v
p. 19)
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

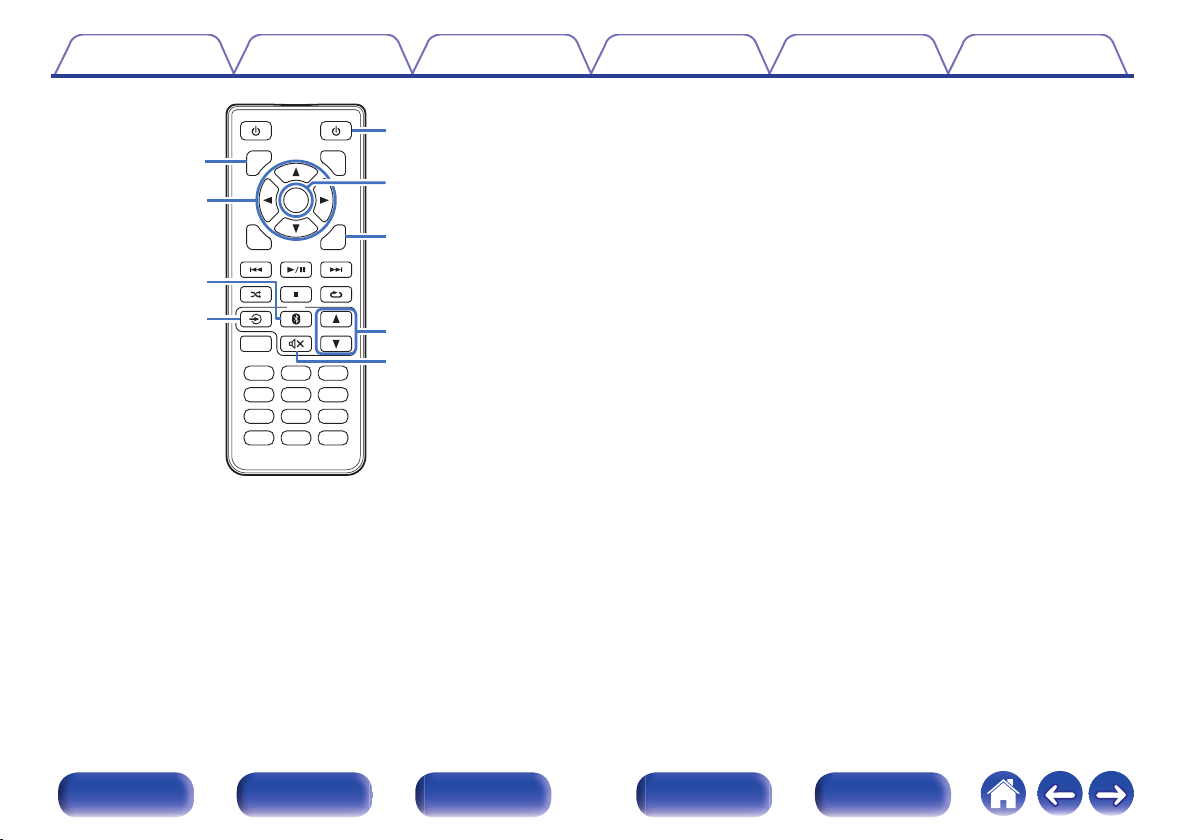

Remote control unit
o
Operating this unit
A
Power operation button (CD POWER X)
This turns the power on/to standby.
B
DIMMER button
Adjust the display brightness of this unit. (v p. 23)
C
Cursor buttons (df0 1)
These select folders or files on a data CD.
D
MODE button
This switches the playback mode. (v
p. 27)
E
INFO button
This switches the track information shown in the display during playback. This
switches the playback time display.
F
ENTER button
This determines the selection.
0
The DIMMER button also controls the Denon's Integrated Amplifier PMA-50, so the PMA-50
can be operated simultaneously with the DCD-50. When the two units have different settings,
press and hold in the button for lease 2 seconds to reset them both to the default setting, then
make the desired setting.
0
The display brightness is set to “Normal” by default.
AMP
AMP
VOLUME
VOLUME
INFO
INFOD
IMMER
IMMER
AMP POWER
AMP POWER
CD POWER
CD POWER
AMP
AMP
SE
TUP
TUP
MODE
MODE
PROGRAM
PROGRAM
ENTER
ENTER
CLEAR
CLEAR
1 2 3
4 5 6
7 8 9
+10
+10 0
q
w
e
r
t
y
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

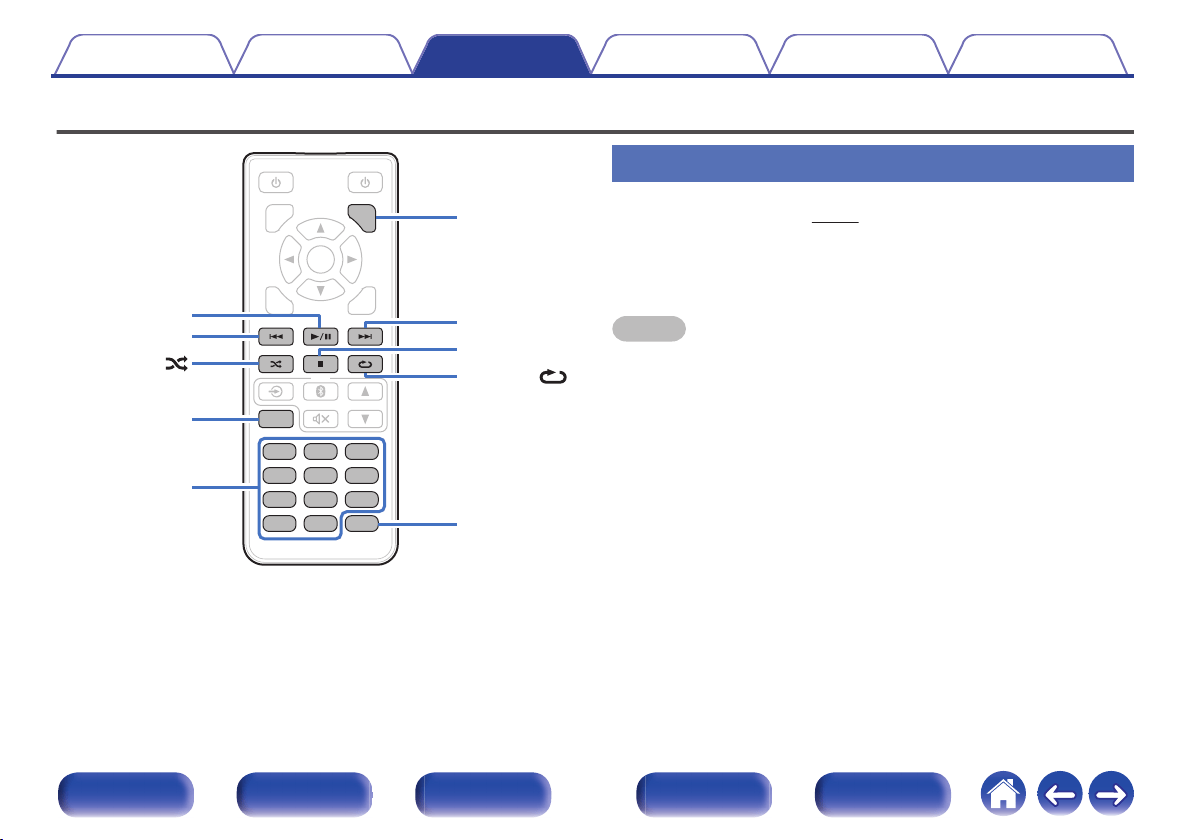

G
System buttons
These perform playback related operations.
0
Skip buttons (8 / 9)
0
Play/pause button (1 / 3)
0
Stop button (2)
H
Random button (P)
Switches the random playback.
I
PROGRAM button
This sets program playback. (v p. 26)
J
Number buttons (0～9, +10)
These enter numbers into the unit.
K
Repeat button (L)
Switches the repeat playback.
L
CLEAR button
This clears the program registration.
AMP
AMP
VOLUME
VOLUME
INFO
INFOD
IMMER
IMMER
AMP POWER
AMP POWER
CD POWER
CD POWER
AMP
AMP
SE
TUP
TUP
MODE
MODE
PROGRAM
PROGRAM
ENTER
ENTER
CLEAR
CLEAR
1 2 3
4 5 6
7 8 9
+10
+10 0
i
u
Q1
Q2
o
Q0
Contents
Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index
o
Amplifier operations
A
DIMMER button
Adjust the display brightness.
B
Cursor buttons (df0 1)
These select menu items.
C
Bluetooth button (V)
This switches the input to Bluetooth of PMA-50. This is also pressed during the
pairing operation.
D
Input source switching button (q)
This switches input sources of PMA-50.
E
AMP POWER button (X)
This turns the power of PMA-50 on/to standby.
F
ENTER button
This determines the selection.
G
AMP SETUP button
The setting menu is displayed on the display of PMA-50.
H
VOLUME buttons (df)
These adjusts the volume level.
I
Mute button (:)
This mutes the output audio of PMA-50.
AMP
AMP
VOLUME
VOLUME
INFO
INFOD
IMMER
IMMER
AMP POWER
AMP POWER
CD POWER
CD POWER
AMP
AMP
SE
TUP
TUP
MODE
MODE
PROGRAM
PROGRAM
ENTER
ENTER
CLEAR
CLEAR
1 2 3
4 5 6
7 8 9
+10
+10 0
q
t
u
i
o
w
r
e
y
Contents
Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index
Connections
o
Contents
Installing this unit 14
Connecting a digital device 19
Connecting an analog device 20
Connecting the power cord 21
NOTE
0
Do not plug in the power cord until all connections have been completed.
0
Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.
o

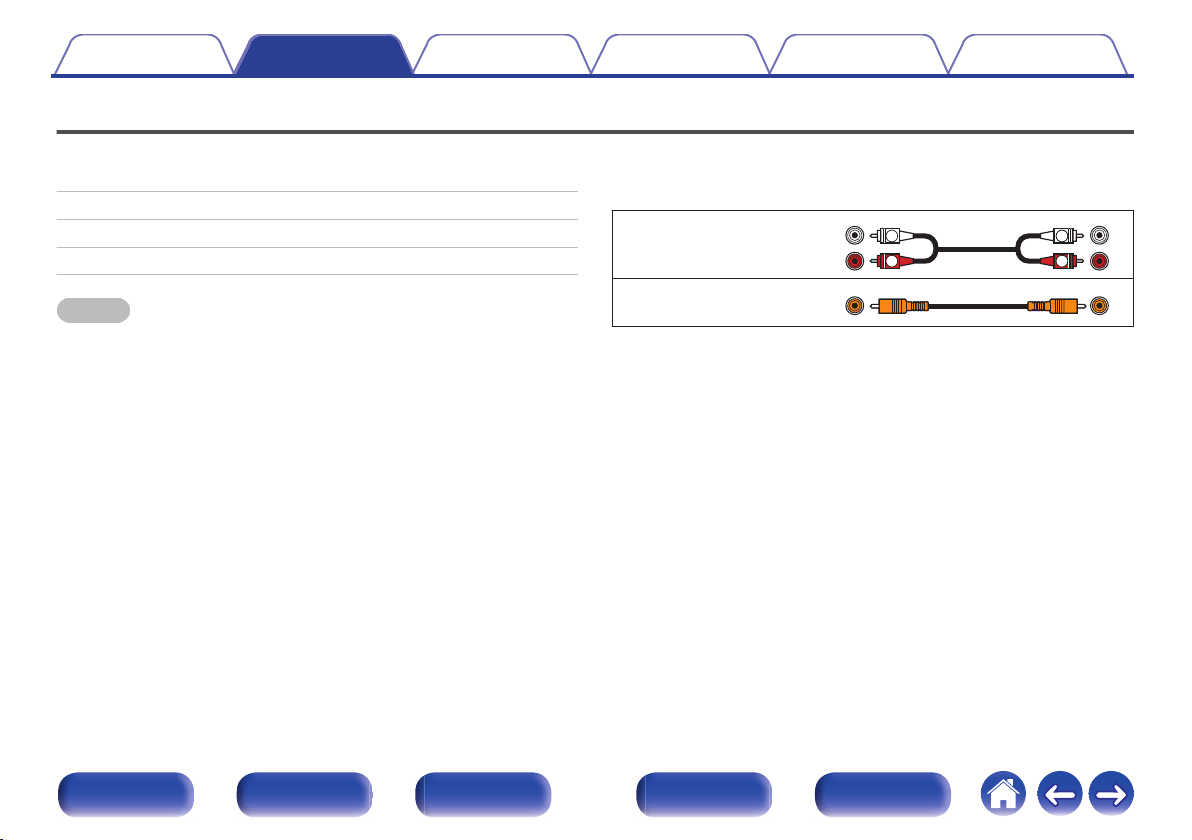

Cables used for connections
Provide necessary cables according to the devices you want to
connect.
Audio cable
.
R
L
R
L
Coaxial digital cable
(supplied)
.
Contents Connections Playback Settings Tips Appendix
Connections
13
Front panel Display Rear panel Remote Index
Installing this unit

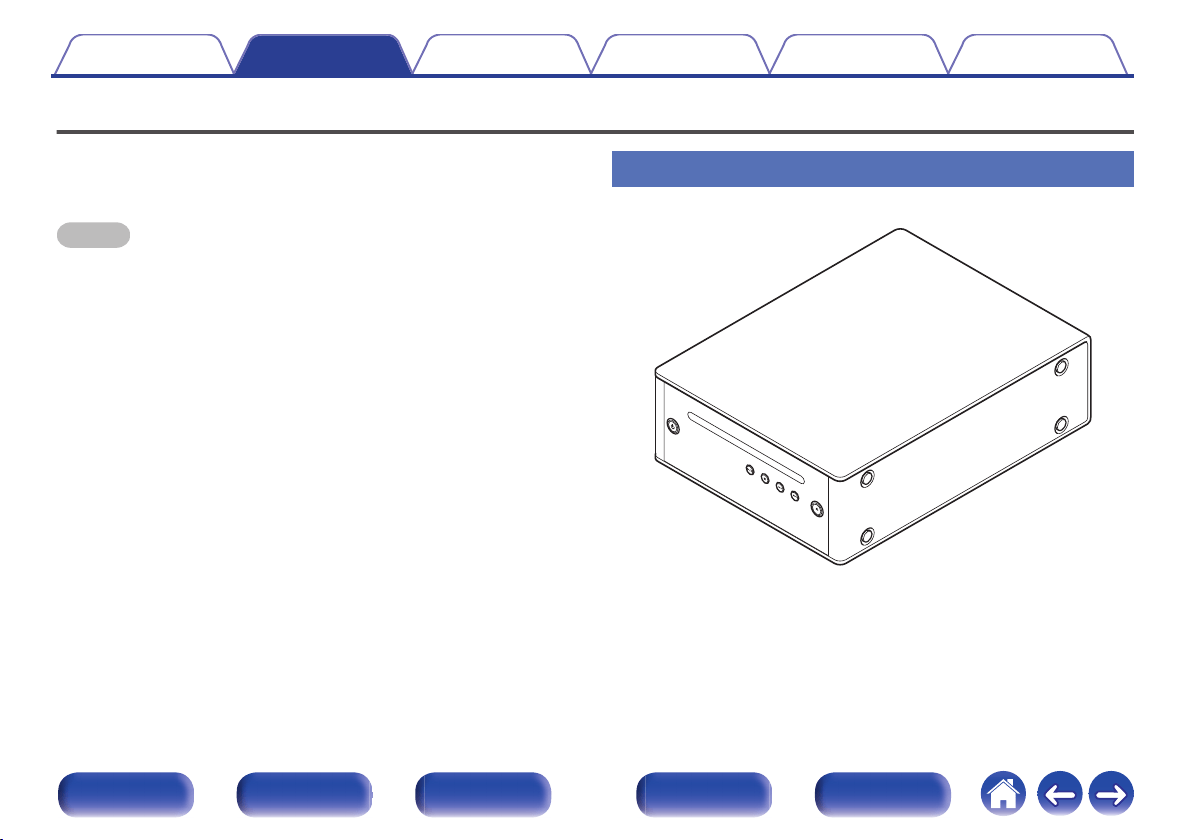

This unit can be installed in two ways - horizontally or vertically. You can
select how to install this unit according to the installation place and your
preference.
NOTE
0
Choose how you want to install this unit and install it correctly before playing back
discs.
Installing horizontally
The feet are initially attached to the unit for horizontal installation.
.
Contents
Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

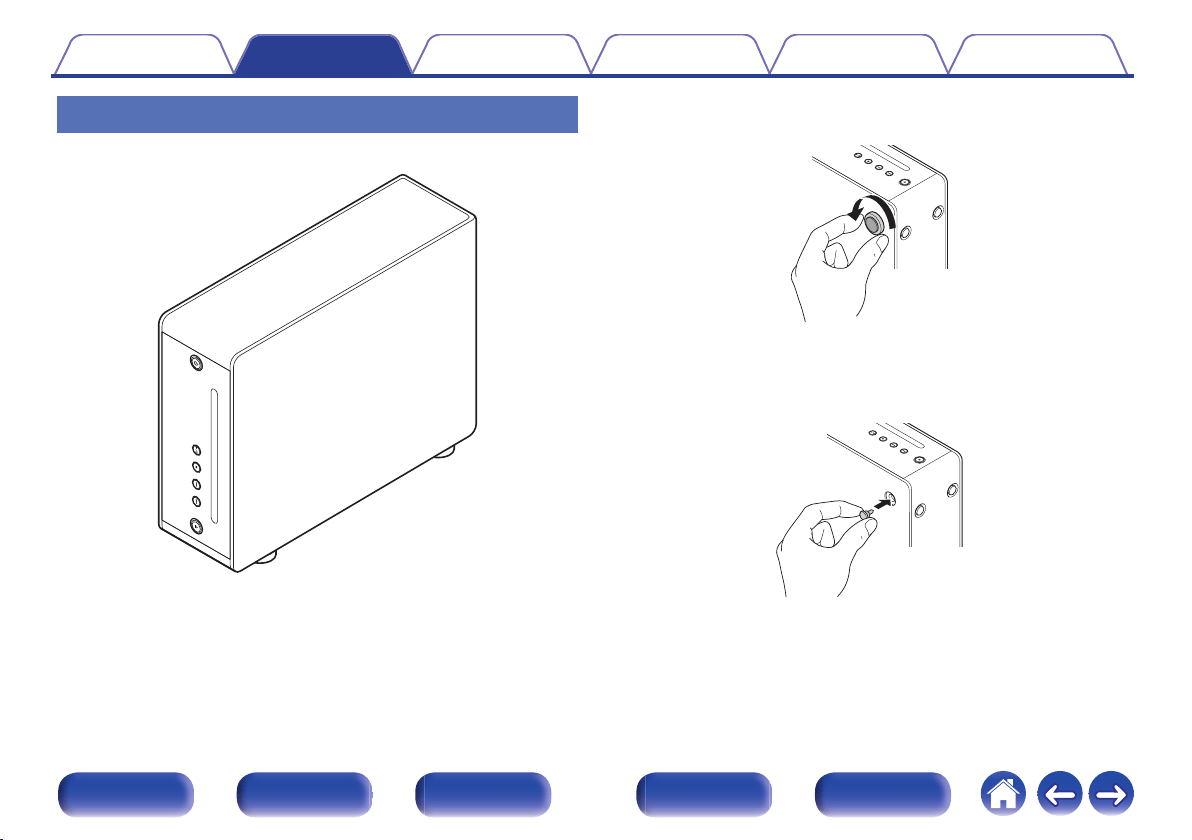

Installing vertically
This orientation is suitable for placing a narrow place.
.

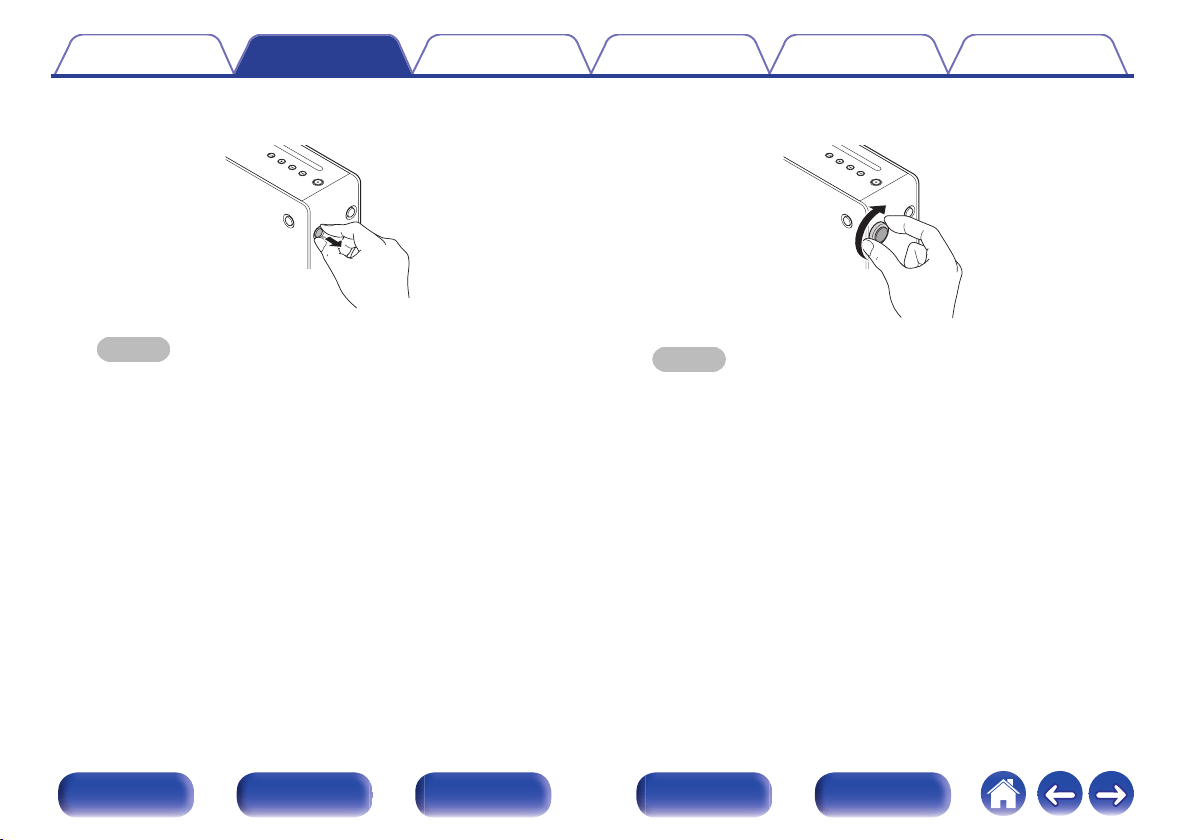

1
Remove the feet.
.
Rotate each of the 4 feet counter-clockwise to remove.
2
Insert the supplied caps (silver) into the holes from
which the feet were removed.
.
Contents
Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index
3
Remove the cap (black).
.
NOTE
0
Be careful not to damage your nails when removing the caps.
If necessary, use a thin-tipped tool to remove the caps. However, be careful
not to damage the unit when using tools.
4
Rotate the removed feet clockwise to attach them.
.
NOTE
0
After attaching the feet, adjust the height of the feet as necessary so that the
set is stable when installed.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index
Before using the remote control unit
The remote control unit has a built-in lithium battery.
Pull out the insulation sheet before use.
.
o
Replacing the battery

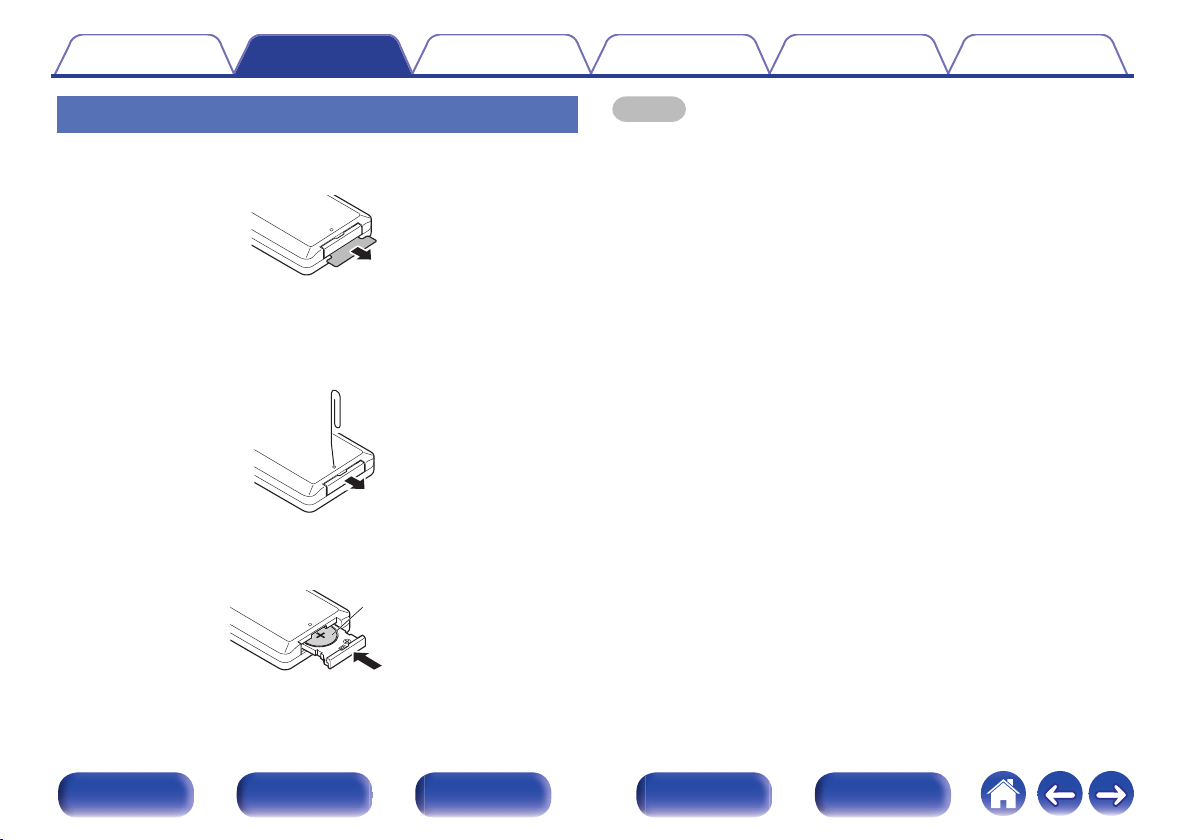

1. Insert a pointed object into the hole in the battery case and pull out the
battery tray.
.
2. Insert the lithium battery correctly into the battery compartment as
indicated.
3. Replace the battery case in the original position.
.
CR2025
NOTE
0
When inserting the lithium battery, be sure to do so in the proper direction,
following the F and G marks in the battery compartment.
0
If the battery should have a leakage, immediately replace and dispose of the
battery. In this case, there is a risk of burn when the liquid comes in contact with
skins or clothes, so a great care should be taken. If the liquid accidentally comes in
contact, wash with tap water and consult a doctor.
0
Remove the battery from the remote control unit if it will not be in use for long
periods.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

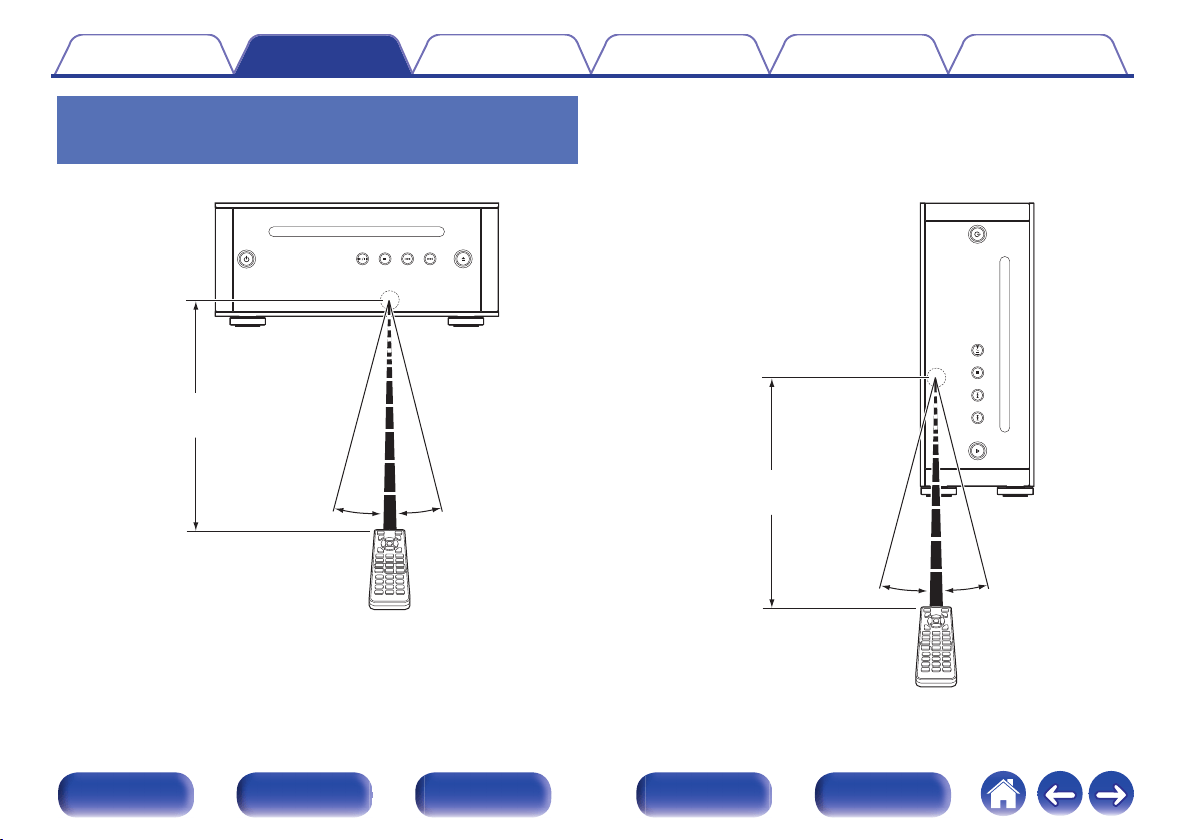

Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 23 ft/7 m
30° 30°
[Horizontal installation]
.
30°
30°
Approx. 23 ft/7 m
[Vertical installation]
Contents
Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index
Basic operation
.
AMP
AMP
VOLUME
VOLUME
INFO
INFO
AMP POWER
AMP POWER
AMP
AMP
SE
TUP
TUP
MODE
MODE
PROGRAM
PROGRAM
ENTER
ENTER
CLEAR
CLEAR
1 2 3
4 5 6
7 8 9
+10
+10 0
D
IMMER
IMMER
CD POWER
CD POWER
CD POWER
X
DIMMER

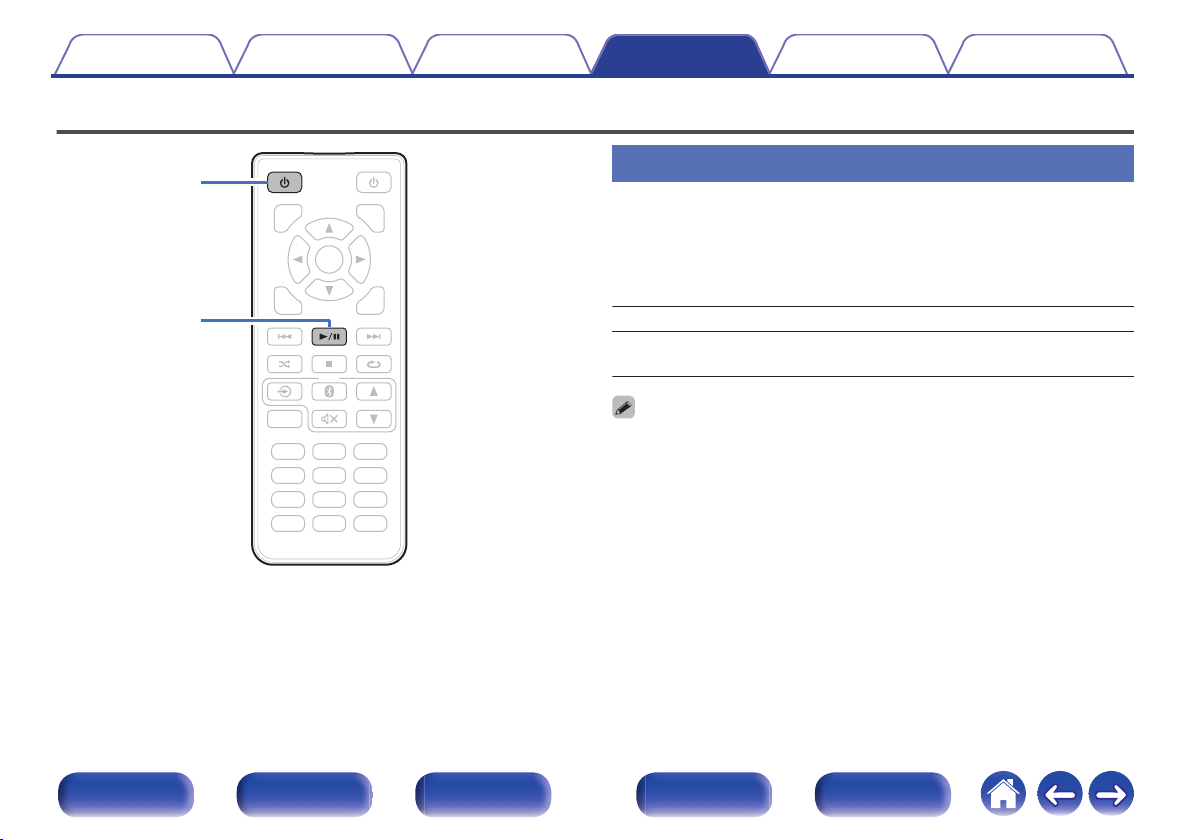

Turning the power on
1
Press CD POWER X to turn on power to the unit.
Turns the display on.
o
When power is switched to standby
1
Press CD POWER X.
Turns the display off.
0
You can also press X on the main unit for this operation.
NOTE
0
When the power is in the standby mode, some circuits are electrified. Before you
go out or travel for a long period of time, disconnect the power cord from the power
outlet.
Switching the display’s brightness
The brightness of the display can be adjusted to one of three levels.
1
Press DIMMER.
Contents Connections Playback Settings Tips Appendix
23
Front panel Display Rear panel Remote Index
Playing CDs
.
INFO
INFO
PROGRAM
PROGRAM
CLEAR
CLEAR
1 2 3
4 5 6
7 8 9
+10
+10 0
AMP
AMP
VOLUME
VOLUME
D
IMMER
IMMER
AMP POWER
AMP POWER
CD POWER
CD POWER
AMP
AMP
SE
TUP
TUP
MODE
MODE
ENTER
ENTER
8
PROGRAM
0-9, +10
1
/
3
RANDOM
INFO
CLEAR
2
9
REPEAT
Playing CDs
1
Insert a disc. (v p. 41)
2
Press 1/3.
The 1 indicator lights on the display. Playback starts.
NOTE
0
Do not place any foreign objects in the disc tray. Doing so could damage the set.
0
8 cm discs cannot be used on this unit. Do not insert 8 cm discs into the CD slot.
0
Do not put anything other than a CD to CD slot. Doing so could result in damage.
o
Eject CDs
1
Press 5 while playback is stopped.
Contents Connections Playback Settings Tips Appendix
24
Front panel Display Rear panel Remote Index
Operation buttons Function
1 / 3
Play/Pause
2
Stop
8 9
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-forward
0 – 9, +10 Select the track
RANDOM P
Random playback
REPEAT L
Repeat playback
0
Switching between All-track repeat and Single-
track repeat.
INFO Time display switching
0
Track elapsed time, Track remaining time and
Total remaining time
o
Playing a specific track (Direct searching)
1
Use 0 – 9 and +10 to select the tracks.
GExampleH
Track 4 :
Press number 4 to select track 4.
Track 12 :
Press numbers +10 and 2 consecutively to select track 12.
Contents Connections Playback Settings Tips Appendix
25
Front panel Display Rear panel Remote Index
Playing tracks in a specific order
(Program playback)
Up to 25 tracks can be programmed.
1
In the stop mode, press PROGRAM.
“PROG” is displayed on the display.
2
Use 0 – 9 and +10 to select the tracks.
GExampleH
To program tracks 3 and 12 to be played in that order, press 3, +10,
and 2 one after the other.
3
Press 1/3.
Playback starts in the programmed order.
0
When RANDOM P is pressed during program playback, the programmed tracks
are played in random order.
0
When REPEAT L is pressed during program playback, the tracks are played
repeatedly in the programmed order.
NOTE
0
The program is cleared when the disc is ejected or the power is turned off.
o
Checking the order of the programmed tracks
In the stop mode, press 9.
The tracks are shown in the programmed order in the display each
time 9 is pressed.
o
To clear the last track programmed
In the stop mode, press CLEAR.
To clear the last track programmed.
The last track programmed is cleared each time the button is pressed.
o
Clearing the all programmed track
In the stop mode, press PROGRAM.
Contents Connections Playback Settings Tips Appendix
26
Front panel Display Rear panel Remote Index
Playing DATA CDs (MP3 and WMA files)
.
INFOINFO
MODEMODE
ENTERENTER
AMPAMP
VOLUMEVOLUME
PROGRAMPROGRAM
CLEARCLEAR
1 2 3
4 5 6
7 8 9
+10+10 0
AMP POWERAMP POWERCD POWERCD POWER
DIMMERIMMER
AMPAMP
SETUPTUP
8
MODE
1
/
3
uio
p
ENTER
INFO
2
9
REPEAT
RANDOM
0 – 9
,
+10
0
This section explains how to playback MP3 and WMA files that are
recorded onto a CD-R or CD-RW. For details on how to playback files
recorded onto media other than CD-R or CD-RW, see the following
sections.
0
There are many music distribution sites on the Internet allowing you to
download music files in MP3 or WMA (Windows Media
®
Audio) format.
The music (files) downloaded from such sites can be stored on CD-R or
CD-RW discs and played on this unit.
“Windows Media” and “Windows” are the trademarks or
registered trademarks of Microsoft Corporation in the United
States and other countries.
Contents Connections Playback Settings Tips Appendix
27
Front panel Display Rear panel Remote Index
Playing files
1
Insert a CD-R or CD-RW containing MP3 or WMA format
music files into the CD slot. (v p. 41)
2
Press MODE to select the folder mode or all mode.
About the display
0
When “Folder mode” is selected
“t” indicator lights.
All the files in the selected folder are played.
0
When “All mode” is selected
“t” indicator turns off.
After the selected folder and files are played, all the files in all the
folders are played.
3
Use ui to select the folder to be played.
4
Use o p to select the file to be played.
5
Press 1/3.
Playback starts.
Operation buttons Function
1 / 3
Play/Pause
2
Stop
8 9
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-forward
u i
Folder select
o p
File select
0 – 9, +10 Select the track
MODE Switch to Folder playback mode
0
All the files in the selected folder are played.
RANDOM P
Random playback
REPEAT L
Repeat playback
0
Switching between All-track repeat and Single-
track repeat.
0
The folder and file numbers are set automatically when the disc is loaded.
Contents Connections Playback Settings Tips Appendix
28
Front panel Display Rear panel Remote Index
NOTE
0
Programmed playback is not possible with MP3/WMA discs.
0
Copyright-protected files cannot be played.
(The “Unsupported” is displayed.)
Note that depending on the software used for burning and other conditions, some
files may not play or display correctly.
o
Playable files (Extension) (v p. 38)
o
To switch the folder or file during playback
0
Folder
Use ui to select the folder, then press ENTER.
0
Files
Use o p to select the file, then press ENTER.
Also use 8, 9 to select the file, or use 0 – 9, +10 to select the
file number.
o
Switching the display
During playback, press INFO.
0
Switching between the title name, artist name and album name.
0
The player can display the following characters:
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
0123456789
! ” # $ % & : ; < > ? @ \ [ ] _ ` l { } ~ ^ ’( ) * + , - . / = (space)
If there is no title, the file name is displayed instead.
Contents Connections Playback Settings Tips Appendix
29
Front panel Display Rear panel Remote Index
Other settings
.
AMP
AMP
VOLUME
VOLUME
INFO
INFOD
IMMER
IMMER
AMP POWER
AMP POWER
AMP
AMP
SE
TUP
TUP
MODE
MODE
PROGRAM
PROGRAM
ENTER
ENTER
CLEAR
CLEAR
1 2 3
4 5 6
7 8 9
+10
+10 0
CD POWER
CD POWER
CD POWER
X
1
/
3
Auto Standby
Sets whether to automatically switch the unit to the standby mode when
the unit remains in the stop mode for more than 30 minutes.
1
When this unit in the power on, press and hold CD
POWER X for 5 seconds.
On: Enable Auto Standby mode.
Off
(Default):
Disable Auto Standby mode.
0
Press and hold CD POWER X to turn this setting ON or OFF.
0
When the setting is On, the display shows “Auto Standby On”.
0
When the setting is Off, the display shows “Auto Standby Off”.
Contents
Connections Playback Settings Tips Appendix
Settings
30
Front panel Display Rear panel Remote Index
Auto Play
Set whether to automatically start playback after inserting a disc.
1
When this unit in the power on, press and hold 1/3 for
5 seconds.
On: Playback starts automatically.
Off
(Default):
Playback does not start automatically.
0
Press and hold 1/3 to turn this setting ON or OFF.
0
When the setting is On, the display shows “Auto Play On”.
0
When the setting is Off, the display shows “Auto Play Off”.
0
Playback starts automatically when Auto Play is set to On and the power is turned
on when a disc is already inserted.
Contents Connections Playback Settings Tips Appendix
31
Front panel Display Rear panel Remote Index
o
Contents
Tips
I want to playback just the specified folder 33
I want to start playback automatically after inserting a disc 33
I want to play back music with a single operation from the standby
state 33
Troubleshooting
Power does not turn on / Power is turned off 34
LED is flashing 34
Operations cannot be performed through the remote control unit 35
No sound comes out 36
Cannot playback discs 36
Cannot eject the disc 37
File names or tag data are not displayed correctly 37
Contents Connections Playback Settings Tips Appendix
Tips
32
Front panel Display Rear panel Remote Index
Tips
I want to playback just the specified folder
0
The MODE button to set the playback range to “Folder mode”. (v p. 28)
I want to start playback automatically after inserting a disc
0
Turn Auto Play on. (v p. 31)
I want to play back music with a single operation from the standby state
0
Press the 1/3 button on this unit or the remote control unit to turn on the power and start playback.
Contents Connections Playback Settings Tips Appendix
33
Front panel Display Rear panel Remote Index
Troubleshooting
If a problem should arise, first check the following.
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
If this unit does not operate properly, check the items listed in the table below.
Should the problem persist, there may be a malfunction. In this case, disconnect the power immediately and contact your store of purchase.
o
Power does not turn on / Power is turned off
Symptom Cause / Solution Page
Power is not turned on.
0
Check whether the power plug is correctly inserted into the power outlet. 21
Power automatically turns
off.
0
The Auto Standby mode is set. The Auto Standby mode switches the unit to standby mode when the unit
is not operated for approximately 30 minutes. To disable the Auto Standby mode, press and hold the CD
POWER X button on the remote control unit for more than 5 seconds when the Auto Standby mode is
enabled.
30
o
LED is flashing
Symptom Cause / Solution Page
Flashing red.
0
A circuit in the unit has malfunctioned. Disconnect the power and contact the repair center. －
Contents Connections Playback Settings Tips Appendix
34
Front panel Display Rear panel Remote Index
o
Operations cannot be performed through the remote control unit
Symptom Cause / Solution Page
Operations cannot be
performed through the
remote control unit.
0
Batteries are worn out. Replace with new batteries. 17
0
Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within
30°.
18
0
Remove any obstacle between this unit and the remote control unit. －
0
Insert the batteries in the proper direction, checking the F and G marks.
17
0
The unit’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb
light, etc.). Move the unit to a place in which the remote control sensor will not be exposed to strong light.
－
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of
infrared communications between units (such as TV and glasses for 3D viewing). In this case, adjust the
direction of units with the 3D communications function and their distance to ensure they do not affect
operations from the remote control unit of this unit.
－
Contents Connections Playback Settings Tips Appendix
35
Front panel Display Rear panel Remote Index
o
No sound comes out
Symptom Cause / Solution Page
No sound is produced. Or
sound is distorted.
0
Check the connections for all devices. 13
0
Insert connection cables all the way in. －
0
Check that input connectors and output connectors are not reversely connected. －
0
Check cables for damage. －
0
Check the amplifier’s functions and controls and adjust as necessary. －
o
Cannot playback Discs
Symptom Cause / Solution Page
Cannot playback when the
play button is pressed, or
cannot correctly play back
a specific part of the disc.
0
The disc is dirty or scratched. Either clean the disc, or insert a different disc. 42
Cannot playback CD-
R/CD-RW.
0
Discs cannot be played back unless they have been finalized. Use a finalized disc. 38
0
This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly
recorded disc.
－
0
The DATA CD playback function of this unit only supports playback of MP3 and WMA files. 38
“Unsupported” is
displayed.
0
The disc is loaded upside-down. 38
0
The disc that cannot be played is loaded. 38
Contents Connections Playback Settings Tips Appendix
36
Front panel Display Rear panel Remote Index
o
Cannot eject the disc
Symptom Cause / Solution Page
The disc is not ejected
when the Eject button is
pressed.
0
Press and hold the 5 button for 5 seconds or more.
－
0
This unit is malfunctioning. Contact our repairs service. －
o
File names or tag data are not displayed correctly
Symptom Cause / Solution Page
The file names are not
displayed properly (“…”,
etc.).
0
Characters that cannot be displayed are used. This is not a malfunction. On this unit, characters that
cannot be displayed are replaced with a “.” (period).
－
Contents Connections Playback Settings Tips Appendix
37
Front panel Display Rear panel Remote Index
Playable media
Discs
Playable media
CD
.
CD-R
.
CD-RW
.
NOTE
0
Some discs and some recording formats may not be playable.
0
Non-finalized discs cannot be played.
Files
CD-R and CD-RW discs created in the format described below can be
played.
o
Writing software format
ISO9660 level 1, 2
Expansion format (Juliet.Romeo)
o
When written in other formats, it may not be
possible to play the disc properly.
Maximum number of playable files and folders
Number of folders : 255
Number of files : 255
o
Tag data
ID3-TAG (Ver.1.x and 2.x)
WMA-TAG
(The title, artist, and album tag data are supported)
Contents
Connections Playback Settings Tips Appendix
Appendix
38
Front panel Display Rear panel Remote Index
Playable files (Extension) File specification
MP3 (.mp3)
0
Sampling frequency : 32 / 44.1 / 48 kHz
0
Bit rate : 32 kbps to 320 kbps
0
File format : MPEG1 Audio Layer 3
WMA (.wma)
0
Sampling frequency : 32 / 44.1 / 48 kHz
0
Bit rate : 64 kbps to 192 kbps
0
File format : Windows Media Audio
NOTE
0
Be sure to give files the extension “.mp3” or “.wma”. Files with any other
extensions or files with no extensions cannot be played.
0
Recordings you have made should only be used for your personal enjoyment, and
as per copyright laws may not be used in other ways without permission of the
copyright holder.
Playback order of MP3/WMA files
When there are multiple folders containing MP3/WMA files, the playback
order of folders is automatically set when this unit reads the media. The
files in each folder are played back in the order in which the files were
recorded on the media, from the oldest date and time.
CD-R/CD-RW
For playback of files on CD-R or CD-RW, files in all folders on the first
layer are played first, next on the second layer, then next on the third layer,
and so on in this order.
0
The playback order displayed on a PC may differ from the actual playback order.
0
The playback order with a CD-R/CD-RW may differ, depending on the writing
software.
Contents Connections Playback Settings Tips Appendix
39
Front panel Display Rear panel Remote Index
About discs and files
Files, such as MP3/WMA etc., recorded on CD-R/-RW are divided into
large segments (folders) and small segments (files). Files are stored in
folders, and folders can be placed for storage in a hierarchy. The unit can
recognize up to 8 levels of folders.
.
3rd level
File 7
File 6
File 5
File 4
2nd level
Folder 3
File 3File 2
File 1
1st level
Folder 1
Folder 2
CD-R/-RW
When writing MP3/WMA etc. files on a CD-R/-RW disc, set the writing
software’s format to “ISO9660”. The files may not play properly if they are
recorded in other formats. For details, refer to the instructions of your
writing software.
Contents
Connections Playback Settings Tips Appendix
40
Front panel Display Rear panel Remote Index
Cautions on using media
Loading Discs
0
When the set is installed horizontally, insert the disc with the label side
up.
0
When the set is installed vertically, insert the disc with the label facing
right.
0
Insert the disc into the CD slot slowly. Release your hand once the disc
is drawn in.
.
0
When no disc is loaded, “No Disc” is displayed.
0
When the disc is loaded upside-down, “Unsupported” is displayed.
0
When the disc’s information could not be read properly, “Unsupported” is
displayed.
Cautions on Loading Discs
0
3 inch/8 cm discs cannot be used on this player. Do not insert 3 inch/8
cm discs into the CD slot.
0
Do not use an 3 inch/8 cm disc adapter.
0
Only load one disc at a time. Loading two or more discs can damage
the unit or scratch the discs.
0
Do not use cracked or warped discs or discs that have been repaired
with adhesive, etc.
0
Do not use discs on which the sticky part of cellophane tape or labels is
exposed or on which there are traces of where labels have been
removed. Such discs can get caught inside the player and damage it.
Contents Connections Playback Settings Tips Appendix
41
Front panel Display Rear panel Remote Index
How to handle media
0
Do not get fingerprints, oil or dirt on discs.
0
Take special care not to scratch discs when removing them from their
cases.
0
Do not bend or heat discs.
0
Do not enlarge the hole in the center.
0
Do not write on the labeled (printed) surface with ball-point pens,
pencils, etc., or stick new labels on discs.
0
Condensation may form on discs if they are moved suddenly from a
cold place (outdoors for example) to a warm place, but do not try to dry
discs with a hairdryer, etc.
0
Do not store discs in the following places:
1. Places exposed to direct sunlight for long periods of time
2. Dusty or humid places
3. Places exposed to heat from heaters, etc.
Cleaning discs
0
If there are fingerprints or dirt on a disc, wipe them off before using the
disc.
0
Use a commercially available disc cleaning set or a soft cloth to clean
discs.
.
Gently wipe the disc from the
inside towards the outside.
Do not wipe with a circular
motion.
NOTE
0
Do not use record spray, antistatic agents, benzene, thinner or other solvents.
Contents Connections Playback Settings Tips Appendix
42
Front panel Display Rear panel Remote Index
Explanation of terms
MP3 (MPEG Audio Layer-3)
This is an internationally standardized audio data compression scheme,
using the “MPEG-1” video compression standard. It compresses the data
volume to about one eleventh its original size while maintaining sound
quality equivalent to a music CD.
WMA (Windows Media Audio)
This is audio compression technology developed by Microsoft
Corporation.
WMA data can be encoded using Windows Media
®
Player.
To encode WMA files, only use applications authorized by Microsoft
Corporation. If you use an unauthorized application, the file may not work
properly.
Sampling frequency
Sampling involves taking a reading of a sound wave (analog signal) at
regular intervals and expressing the height of the wave at each reading in
digitized format (producing a digital signal).
The number of readings taken in one second is called the “sampling
frequency”. The larger the value, the closer the reproduced sound is to the
original.
Dynamic range
The difference between the maximum undistorted sound level and the
minimum discernible level above the noise emitted by the device.
Bit rate
This is the amount of audio data recorded on a disc that is read in one
second.
Finalizing
This process enables CDs recorded with a CD recorder or drive to be
played by other players.
Linear PCM
This is an uncompressed PCM (Pulse Code Modulation) signal. Unlike
lossy compression audio sources such as MP3, no audio quality or
dynamic range deteriorates.
Contents
Connections Playback Settings Tips Appendix
43
Front panel Display Rear panel Remote Index
Specifications
o
Audio performance
0
Analog output
Channels: 2-channels
Playable frequency range: 2 Hz – 20 kHz
Playable frequency response: 20 – 20 kHz (±1%)
S/N: 105 dB
Dynamic range: 100 dB
Channel Separation: 100 dB
Harmonic distortion: 0.004 % (1 kHz)
Wow & flutter: Crystal accuracy
0
Output level
Signal type: 2 V RMS stereo
0
Digital output
Coaxial: 0.5 Vp-p / 75 Ω/ohms
0
Optical readout system
Laser: AlGaAs
Wave length: 780 nm
Signal type: 16-bit linear PCM
Sampling frequency: 44.1 kHz
Contents Connections Playback Settings Tips Appendix
45
Front panel Display Rear panel Remote Index
o
General
Power supply: AC 120 V, 60 Hz
Power consumption: 10 W
Power consumption in standby mode: 0.4 W or less
Operating temperatures: +5 ℃ - +35 ℃
Operating humidity: 5 – 90 % (without dew)
For the purpose of improvement, the specifications and design are subject to change without notice.
Contents Connections Playback Settings Tips Appendix
46
Front panel Display Rear panel Remote Index
Index
v A
Analog device ................................................ 20
Auto Play ........................................................ 31
Auto Standby ................................................. 30
v C
CDs ................................................................ 24
v D
DATA CDs ..................................................... 27
Digital device .................................................. 19
Dimmer .......................................................... 23
Display ............................................................. 8
v F
Front panel ....................................................... 6
v P
Program playback .......................................... 26
v R
Random playback .................................... 24, 27
Rear panel ........................................................ 9
Remote control unit ........................................ 10
Repeat playback ...................................... 24, 27
Contents Connections Playback Settings Tips Appendix
48
Front panel Display Rear panel Remote Index
www.denon.com 3520 10488 00AD
Copyright ©2015 D&M Holdings Inc.All Rights Reserved.
49
