Craftsman 917275286 Garden Tractor User Manual

Owner's Manual

ICRRFTSMIIN°I

GARDEN TRACTOR

27.0 HP, 48" Mower

Electric Start

Automatic Transmission

Model No.

917.275286

[_]] This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

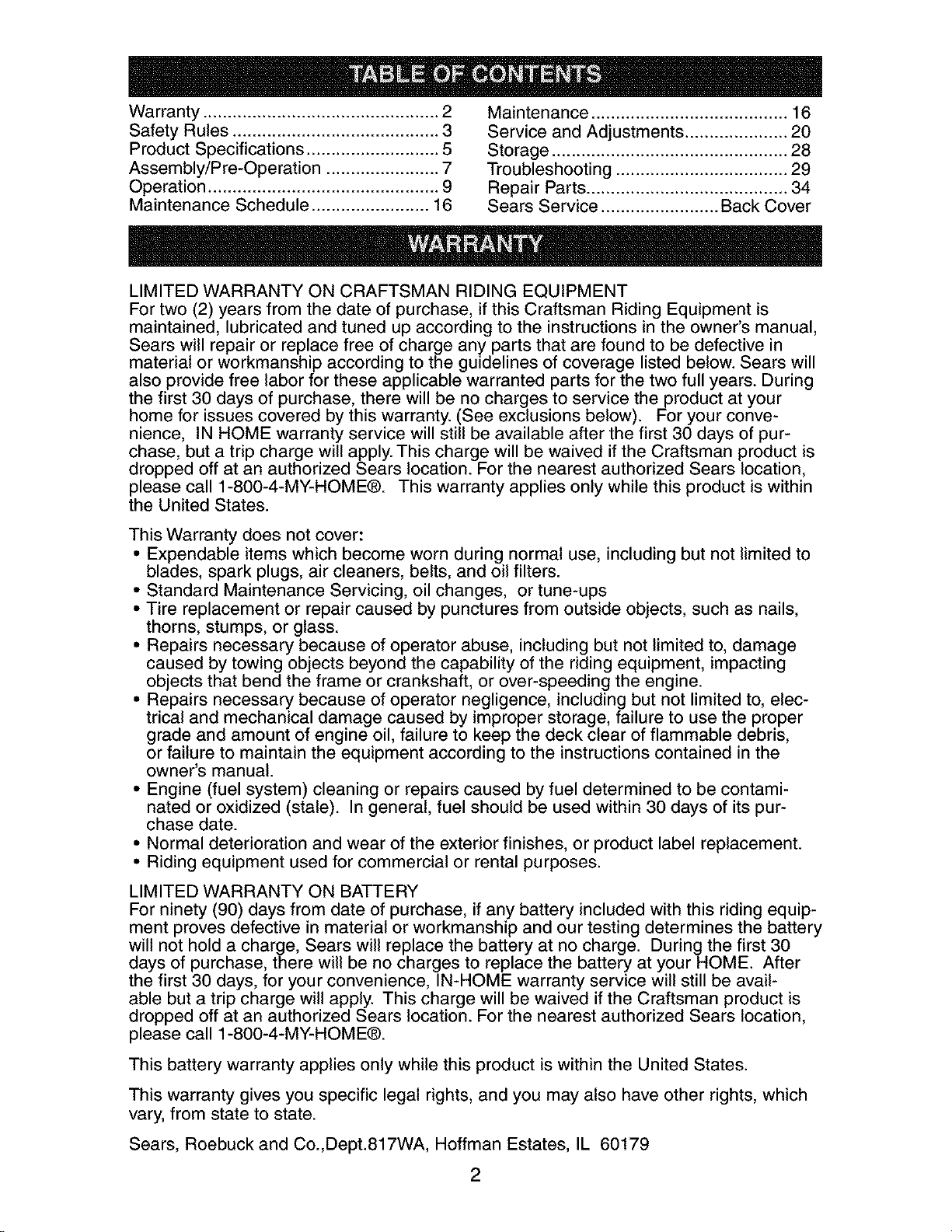

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 5

Assembly/P re-Operation ....................... 7

Operation ............................................... 9

Maintenance Schedule ........................ 16

Maintenance ........................................ 16

Service and Adjustments ..................... 20

Storage ................................................ 28

Troubleshooting ................................... 29

Repair Parts ......................................... 34

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

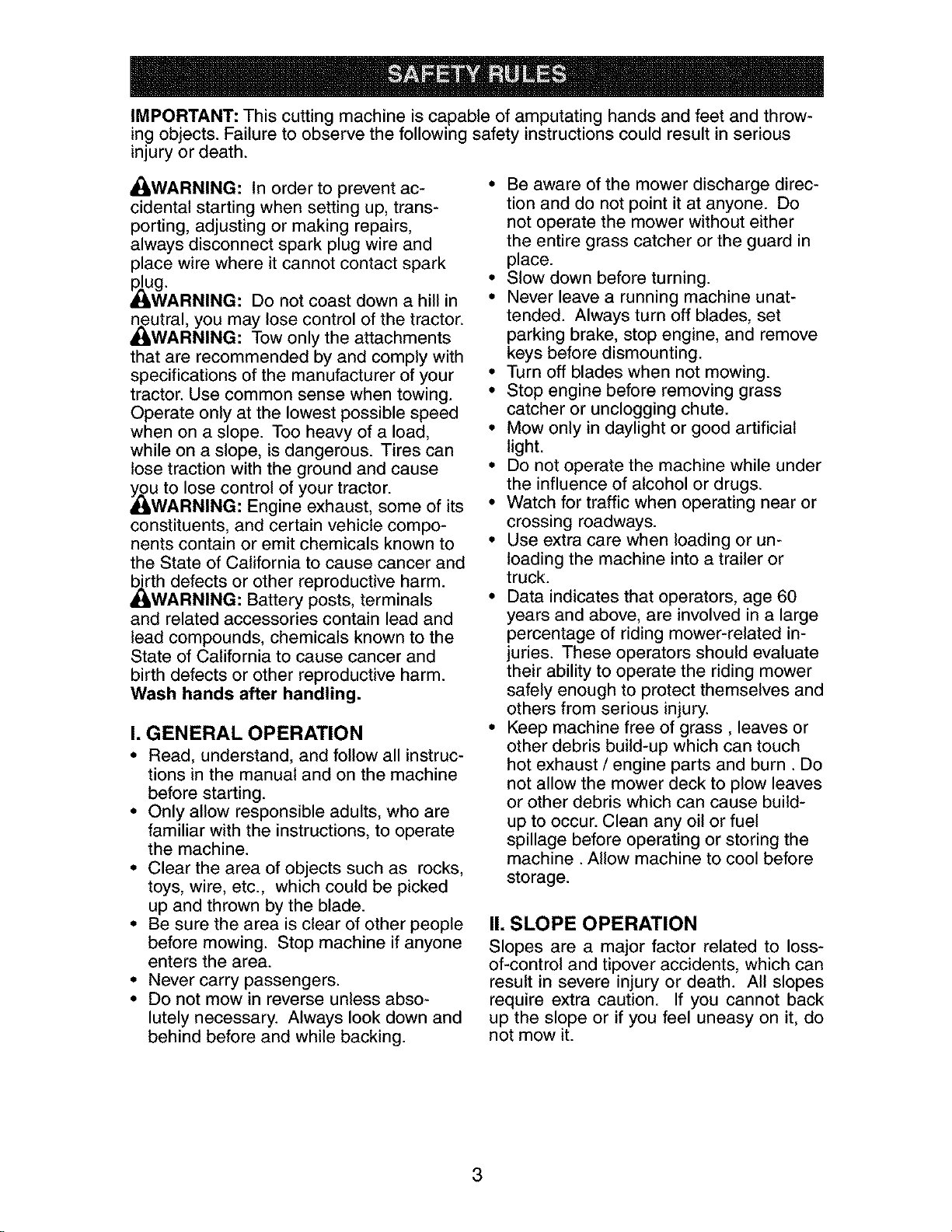

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_WARNING: Do not coast down a hill in

_utral, you may lose control of the tractor.

WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

_u to lose control of your tractor.

WARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer and

,_th defects or other reproductive harm.

WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

III, CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel con-

tainer inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

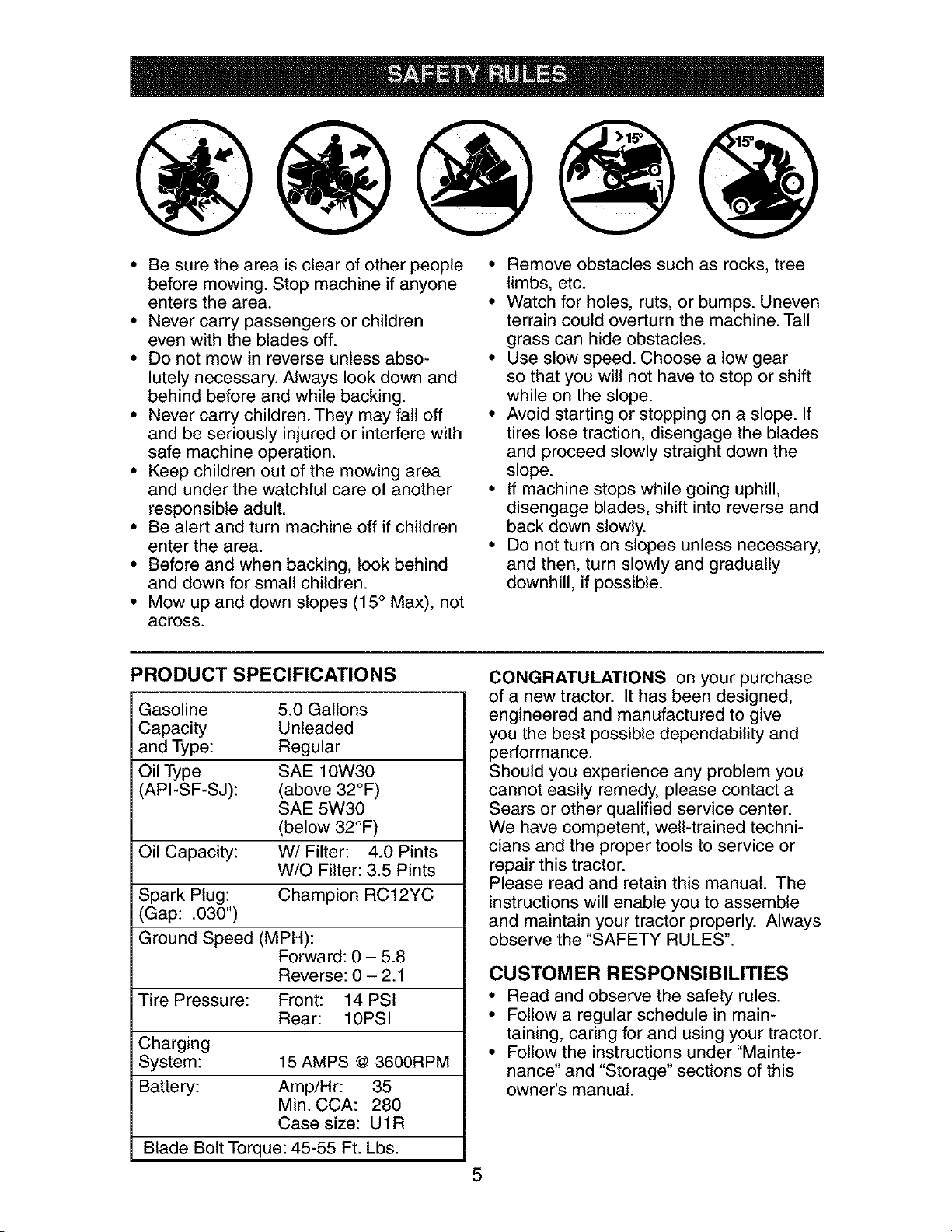

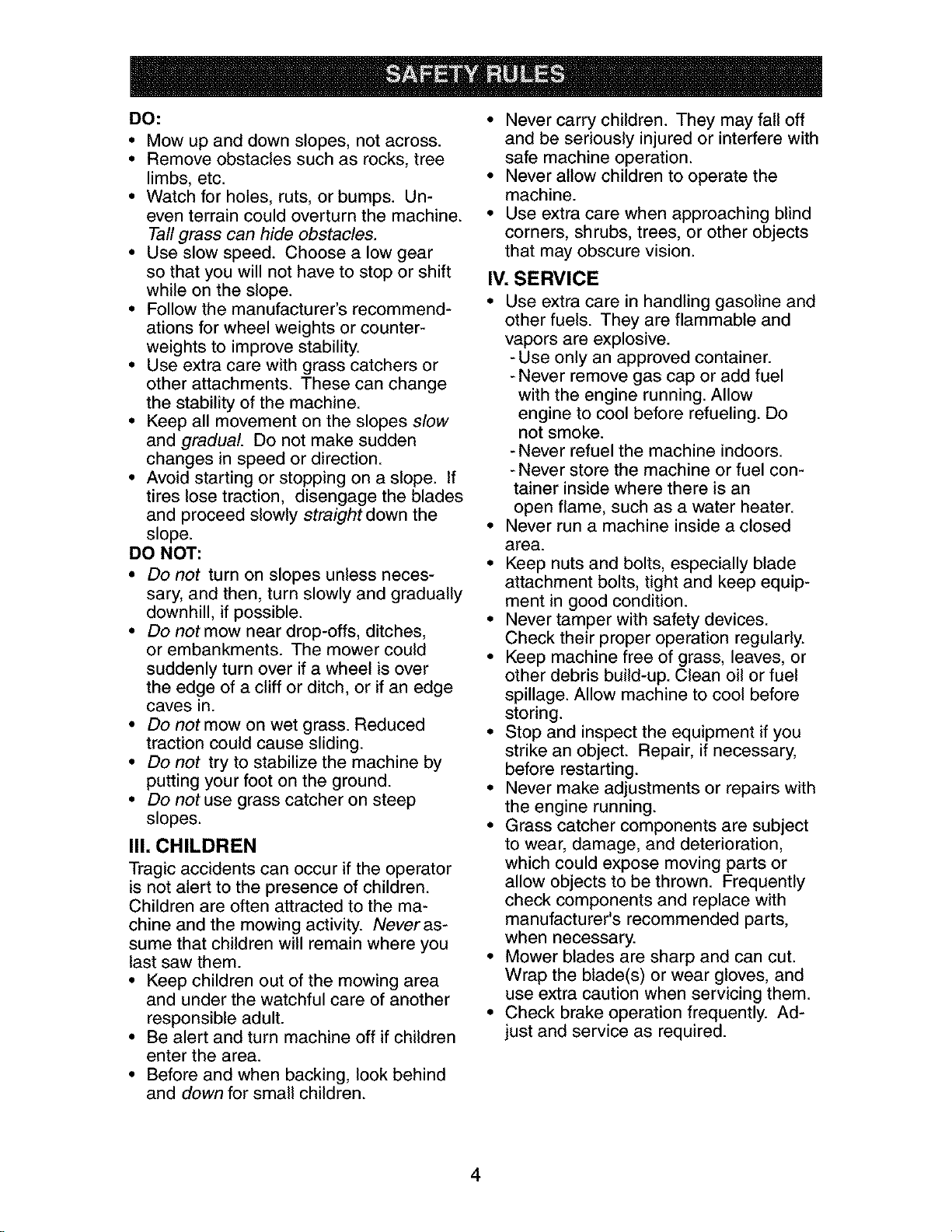

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max), not

across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Be not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 5.0 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 10W30

API-SF-SJ): (above 32°F)

SAE 5W30

(below 32°F)

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.5 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed (MPH):

Forward: 0 - 5.8

Reverse: 0 - 2.1

Tire Pressure: Front: 14 PSI

Rear: 10PSI

Charging

System: 15 AMPS @ 3600RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs_

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

4_kWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

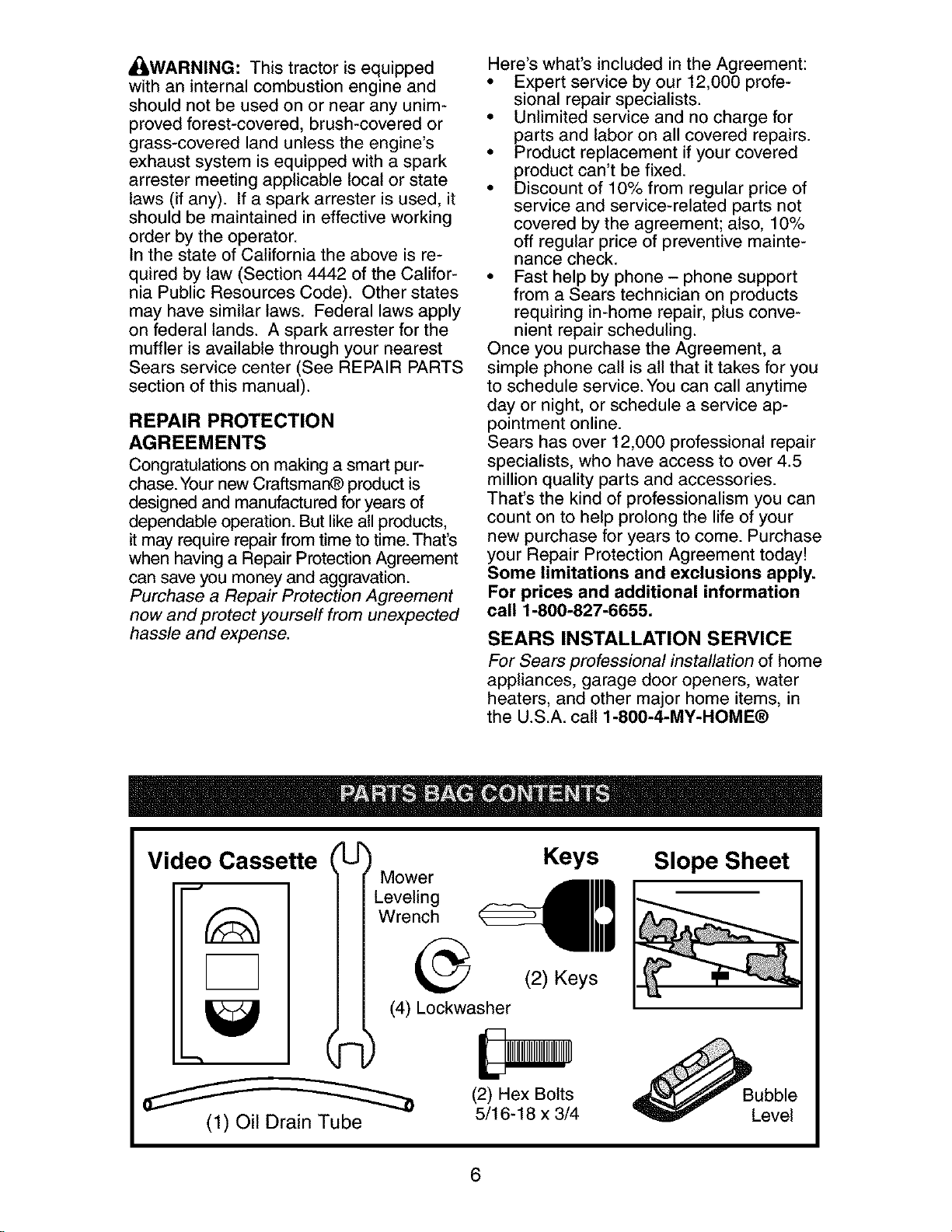

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman@ product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone - phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

I Video Cassette Keys

IF I ] [ LeMv°elWerg dll!ll

II wreo qlul

(4) Lockwasher

I {2)HexBolts

I (1) Oil Drain Tub_''- e _ 5/16-18 x 3/4

Slope Sheet

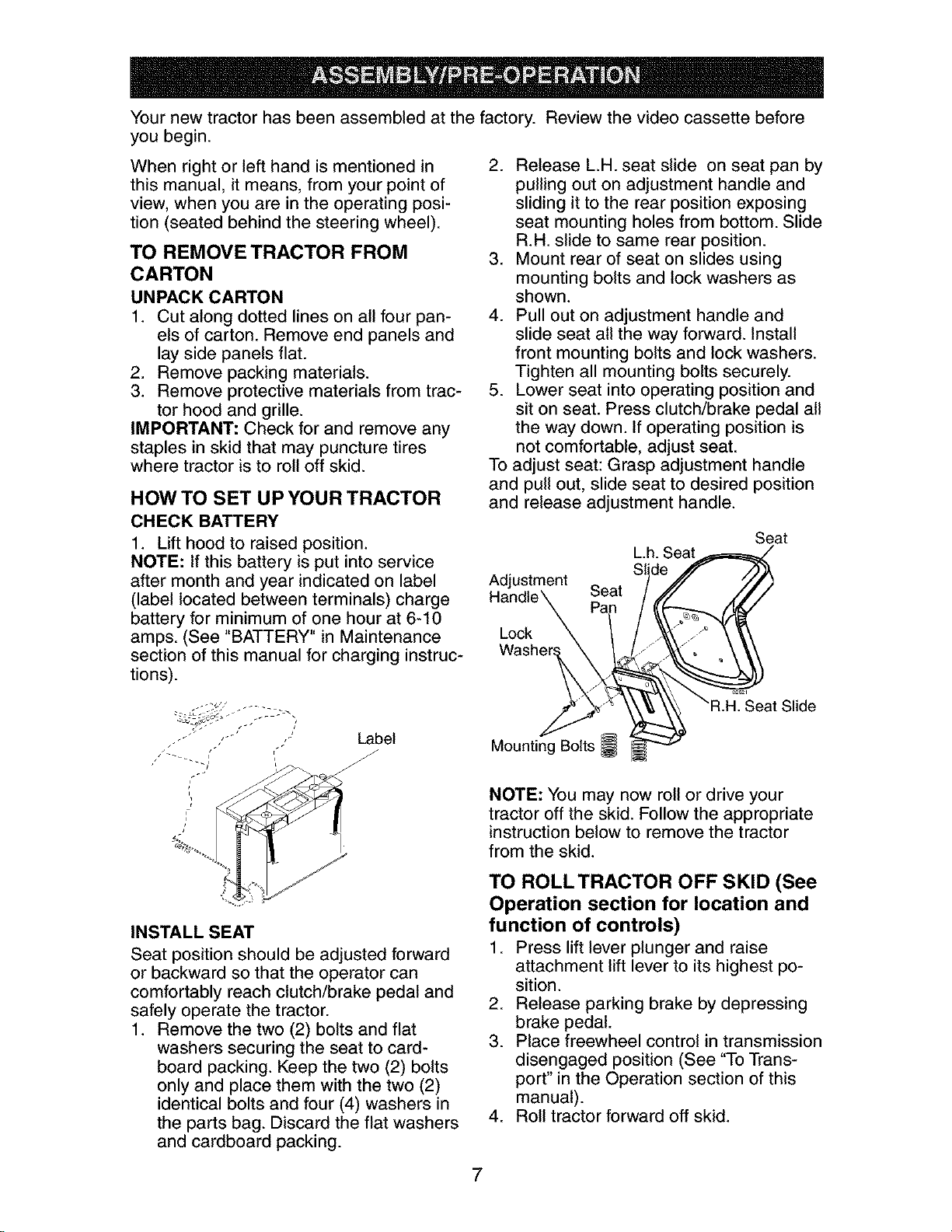

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

2. Remove packing materials.

3. Remove protective materials from trac-

tor hood and grille.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

.. %,, _ __

z ,- Label

i ×

INSTALL SEAT

Seat position should be adjusted forward

or backward so that the operator can

comfortably reach clutch/brake pedal and

safely operate the tractor.

1. Remove the two (2) bolts and flat

washers securing the seat to card-

board packing. Keep the two (2) bolts

only and place them with the two (2)

identical bolts and four (4) washers in

the parts bag. Discard the flat washers

and cardboard packing.

2. Release LH. seat slide on seat pan by

pulling out on adjustment handle and

sliding it to the rear position exposing

seat mounting holes from bottom. Slide

R.H. slide to same rear position.

3. Mount rear of seat on slides using

mounting bolts and lock washers as

shown.

4. Pull out on adjustment handle and

slide seat all the way forward. Install

front mounting bolts and lock washers.

Tighten all mounting bolts securely.

5. Lower seat into operating position and

sit on seat. Press clutch/brake pedal all

the way down. If operating position is

not comfortable, adjust seat.

To adjust seat: Grasp adjustment handle

and pull out, slide seat to desired position

and release adjustment handle.

Seat

L.h. Seat_

Adjustment l___

Handle\ Seat

\ Pan

Lock\ /

Washer ,_

_ R.H. Seat Slide

Mountln0Bo.s

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in transmission

disengaged position (See "To Trans-

port" in the Operation section of this

manual).

4. Roll tractor forward off skid.

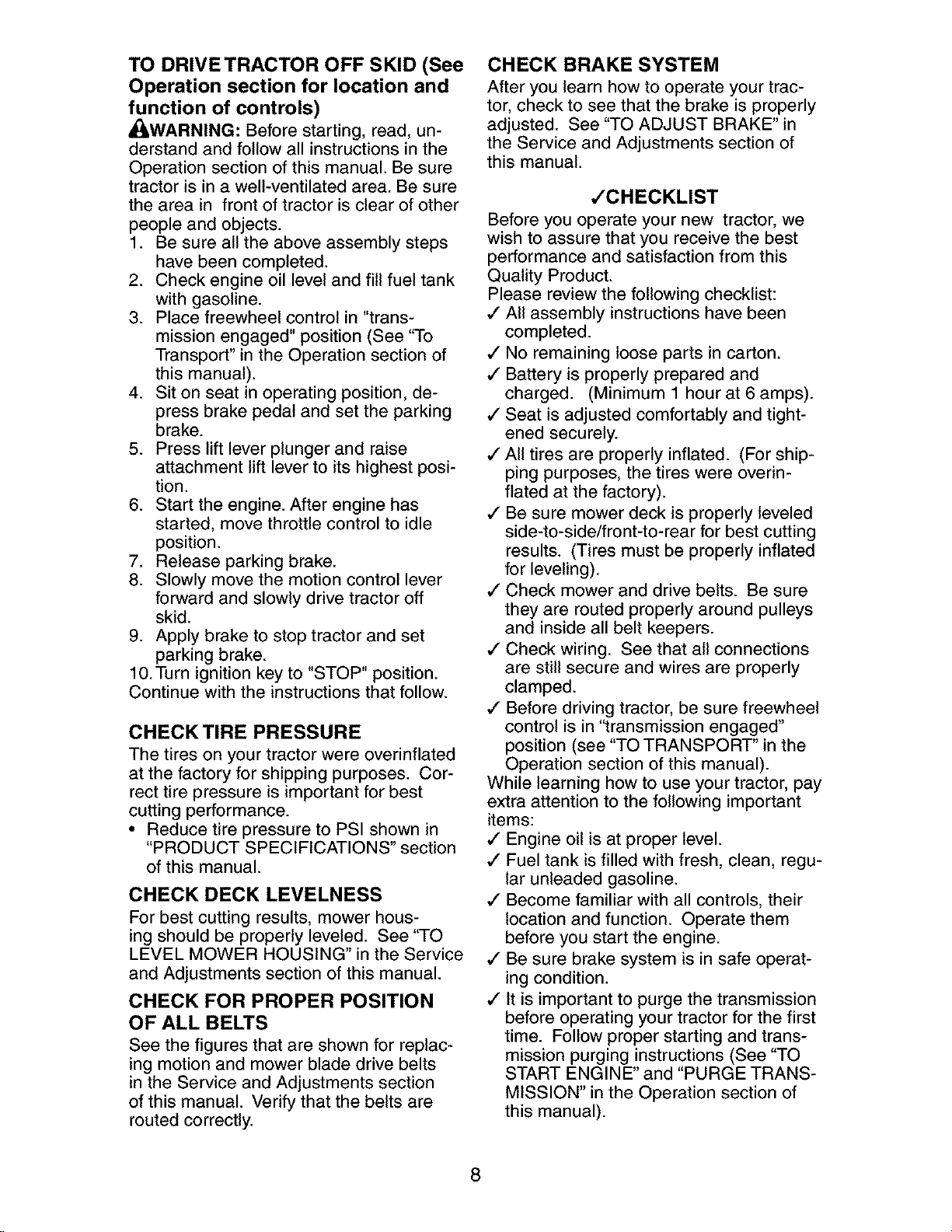

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position (See "To

Transport" in the Operation section of

this manual).

4. Sit on seat in operating position, de-

press brake pedal and set the parking

brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Release parking brake.

8. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

9. Apply brake to stop tractor and set

parking brake.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls, their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe operat-

ing condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

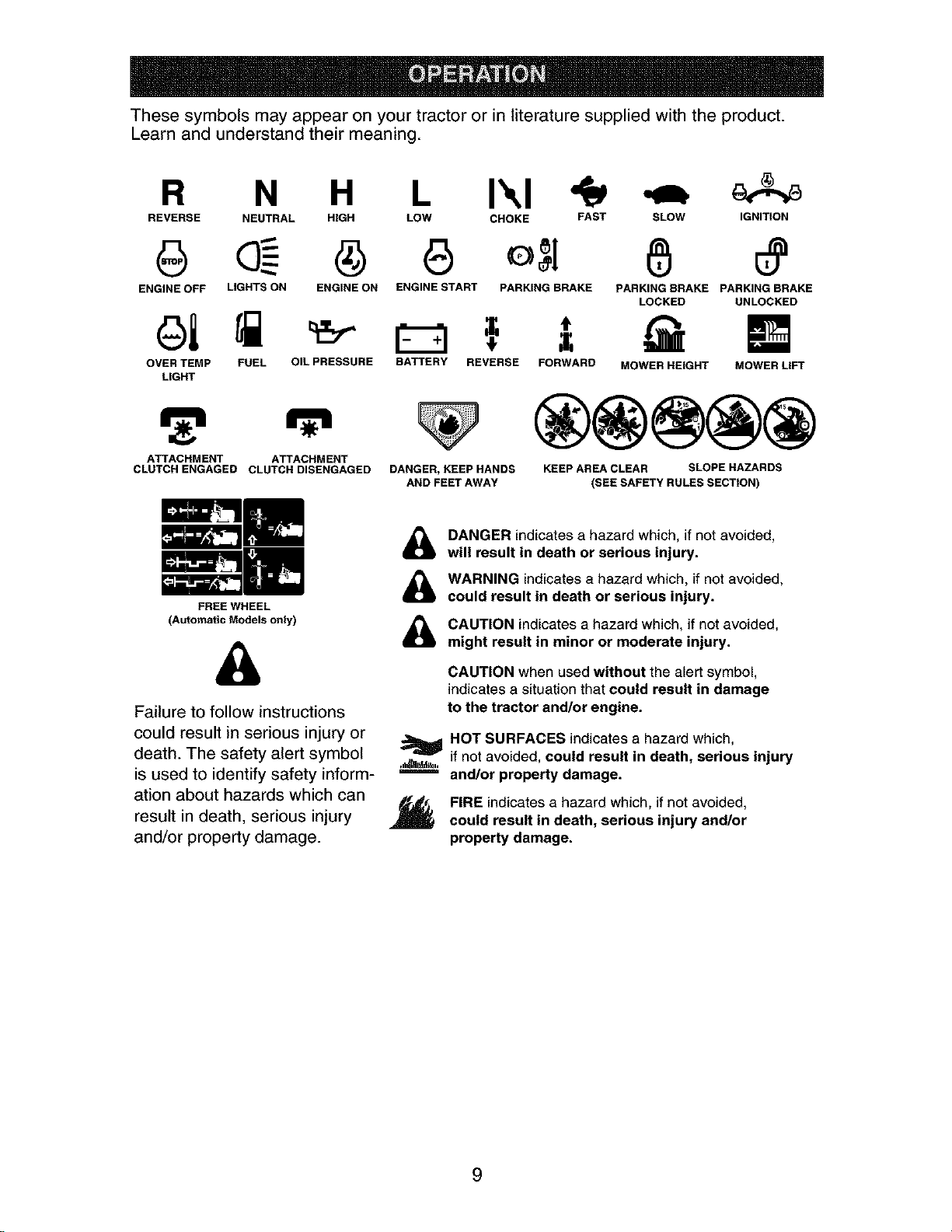

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I',,I

REVERSE NEUTRAL NIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

@@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicatesa hazard which, if not avoided,

will result in death or serious injury.

WARNING indicatesa hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicatesa hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

._.. if not avoided, could result in death, serious injury

""="" and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

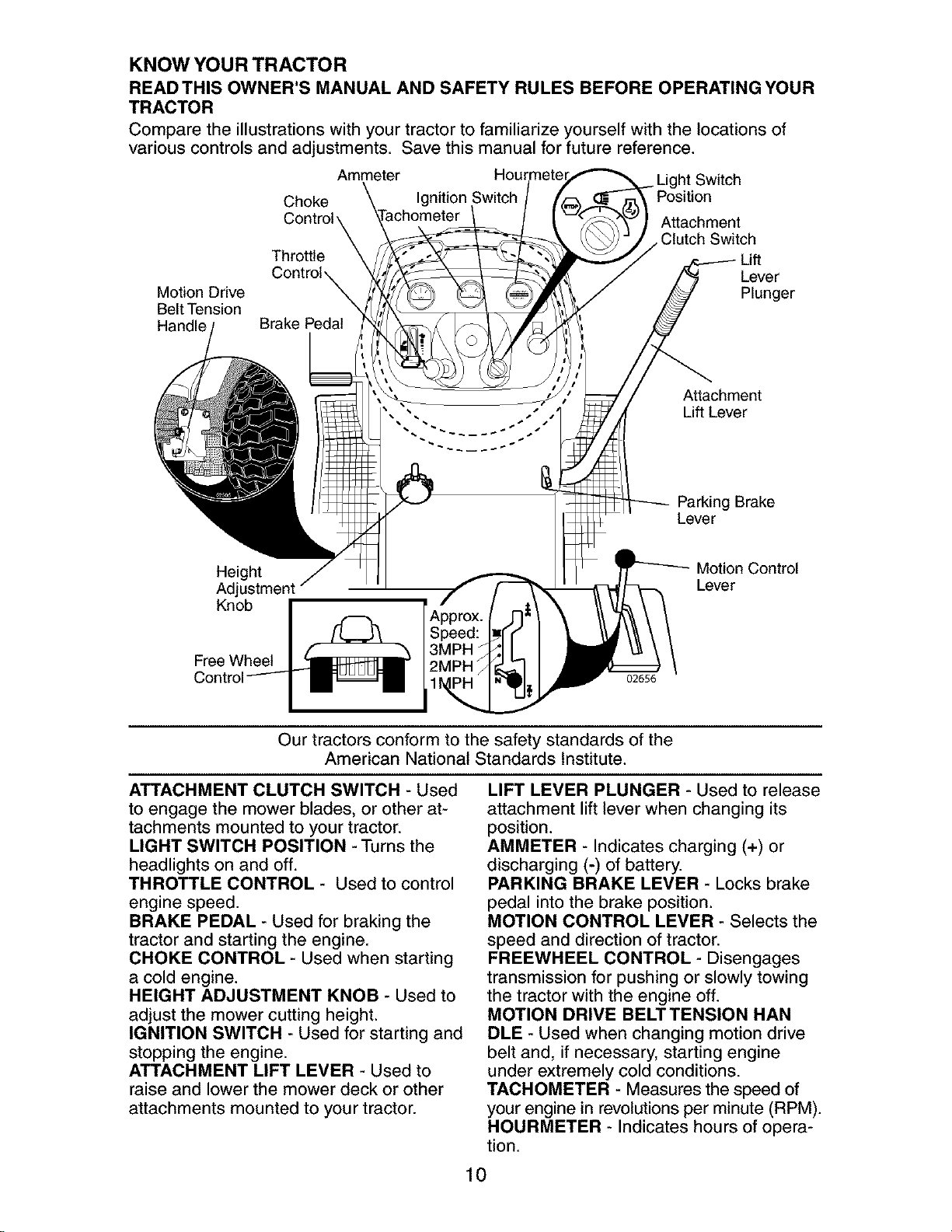

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Motion Drive

Belt Tension

Handle

Ammeter Hou ht Switch

Choke Ignition Switch Position

Throttle

Control

Attachment

Clutch Switch

Lever

Plunger

Attachment

Lift Lever

Parking Brake

Lever

Height

Adjustment

Knob

Motion Control

Lever

Free Wheel

02656

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWITCH - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

THROTTLE CONTROL - Used to control

engine speed.

BRAKE PEDAL - Used for braking the

tractor and starting the engine.

CHOKE CONTROL - Used when starting

a cold engine.

HEIGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

IGNITION SWITCH - Used for starting and

stopping the engine.

ATTACHMENT LIFT LEVER - Used to

raise and lower the mower deck or other

attachments mounted to your tractor.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

PARKING BRAKE LEVER - Locks brake

pedal into the brake position.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

MOTION DRIVE BELTTENSlON HAN

DLE - Used when changing motion drive

belt and, if necessary, starting engine

under extremely cold conditions.

TACHOMETER - Measures the speed of

your engine in revolutions per minute (RPM).

HOURMETER - Indicates hours of opera-

tion.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

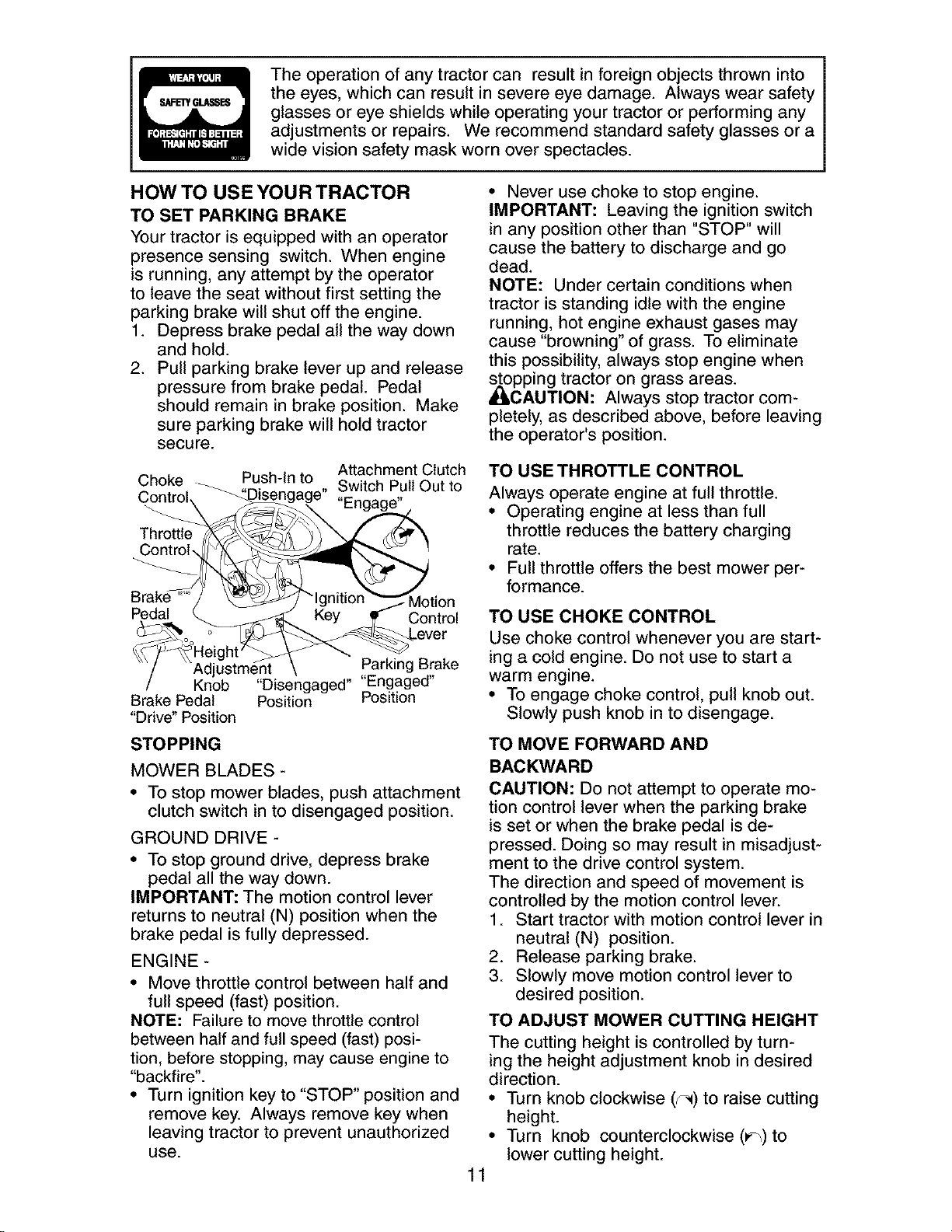

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress brake pedal all the way down

and hold.

2. Pull parking brake lever up and release

pressure from brake pedal. Pedal

should remain in brake position. Make

sure parking brake will hold tractor

secure.

Attachment Clutch

Choke __ Push-In to Switch Pull Out to

Control "Engage"

Throttle

Control

Pedal

Control

Knob

Brake Pedal

"Drive" Position

Parking Brake

"Disengaged" "Engaged"

Position Position

STOPPING

MOWER BLADES -

• To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE-

• To stop ground drive, depress brake

pedal all the way down.

IMPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedal is fully depressed.

ENGINE -

• Move throttle control between half and

full speed (fast) position.

NOTE: Failure to move throttle control

between half and full speed (fast) posi-

tion, before stopping, may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

_Ocpping trac!or on grass areas.

AUTION. Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USETHROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best mower per-

formance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND

BACKWARD

CAUTION: Do not attempt to operate mo-

tion control lever when the parking brake

is set or when the brake pedal is de-

pressed. Doing so may result in misadjust-

ment to the drive control system.

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

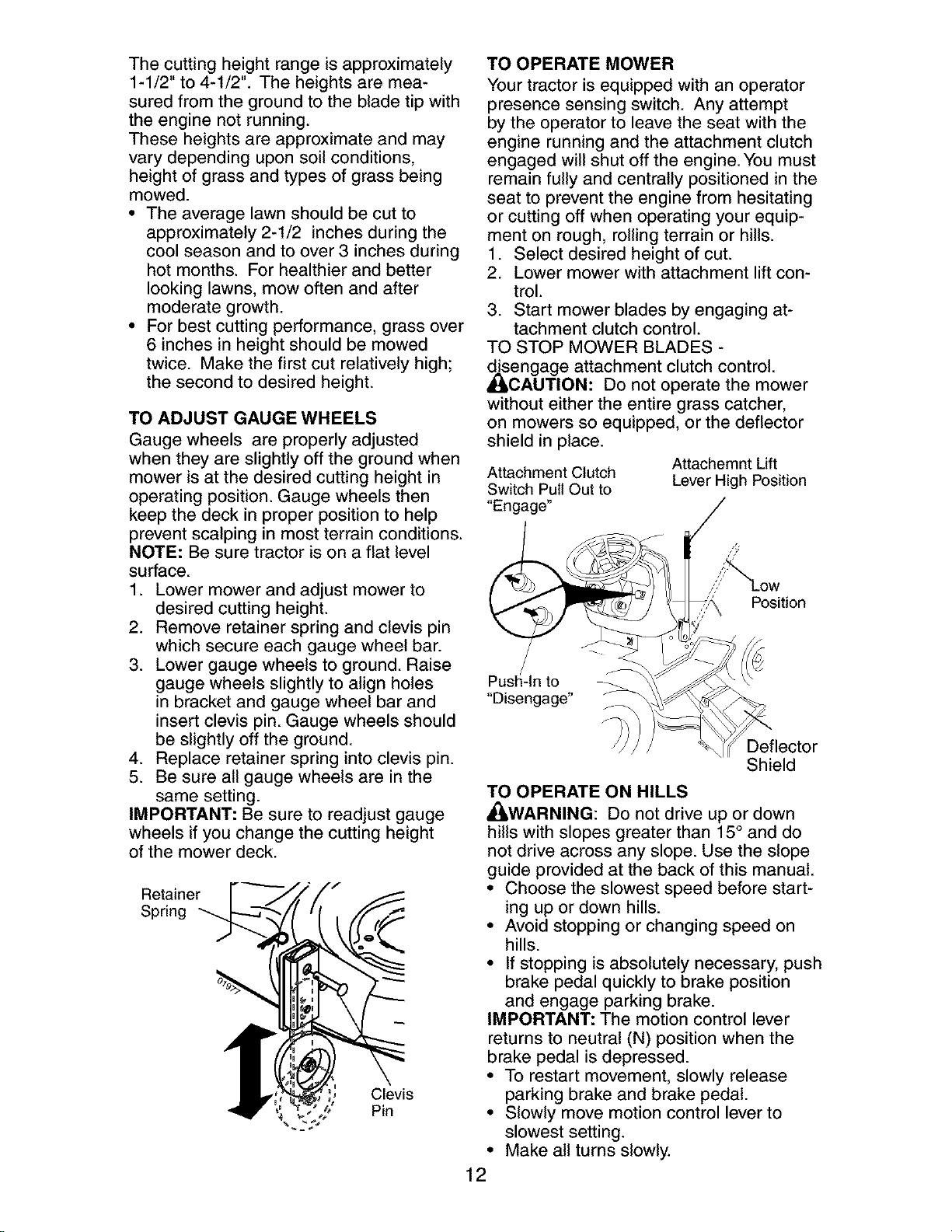

TO ADJUST MOWER CUTTING HEIGHT

The cutting height is controlled by turn-

ing the height adjustment knob in desired

direction.

• Turn knob clockwise (J_) to raise cutting

height.

• Turn knob counterclockwise (,_) to

lower cutting height.

Thecuttingheightrangeisapproximately

1-1/2"to 4-1/2". The heightsare mea-

suredfromthegroundtothe bladetipwith

theenginenotrunning.

These heightsare approximateand may

varydependinguponsoilconditions,

heightofgrassandtypesofgrassbeing

mowed.

• The averagelawnshouldbecut to

approximately2-1/2 inchesduringthe

coolseasonandtoover3 inchesduring

hotmonths. Forhealthierandbetter

lookinglawns,mowoftenandafter

moderategrowth.

• Forbestcuttingperformance,grassover

6 inchesin heightshouldbe mowed

twice. Makethefirst cut relativelyhigh;

the secondtodesiredheight.

TOADJUSTGAUGEWHEELS

Gaugewheels areproperlyadjusted

whentheyare slightlyoffthe groundwhen

mowerisatthe desiredcuttingheightin

operatingposition.Gaugewheelsthen

keepthedeckin properpositionto help

preventscalpingin mostterrainconditions.

NOTE:Besuretractorison aflat level

surface.

1. Lowermowerandadjust mowerto

desiredcuttingheight.

2. Removeretainerspringandclevispin

whichsecureeachgaugewheelbar.

3. Lowergaugewheelstoground.Raise

gaugewheelsslightlyto alignholes

in bracketand gaugewheelbarand

insertclevispin.Gaugewheelsshould

beslightlyoff theground.

4. Replaceretainerspringintoclevispin.

5. Besureallgaugewheelsare in the

samesetting.

IMPORTANT:Besureto readjustgauge

wheelsif youchangethe cuttingheight

of themowerdeck.

Retainer

Spring

Clevis

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Lower mower with attachment lift con-

trol.

3. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

,_Scengage attachment clutch control.

AUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachemnt Lift

Attachment Clutch Lever High Position

Switch Pull Out to

"Engage"

Position

Push/-In to

"Disengage"

Deflector

Shield

TO OPERATE ON HILLS

A_'_WARNING: De not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide provided at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• If stopping is absolutely necessary, push

brake pedal quickly to brake position

and engage parking brake.

IMPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedal is depressed.

• To restart movement, slowly release

parking brake and brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

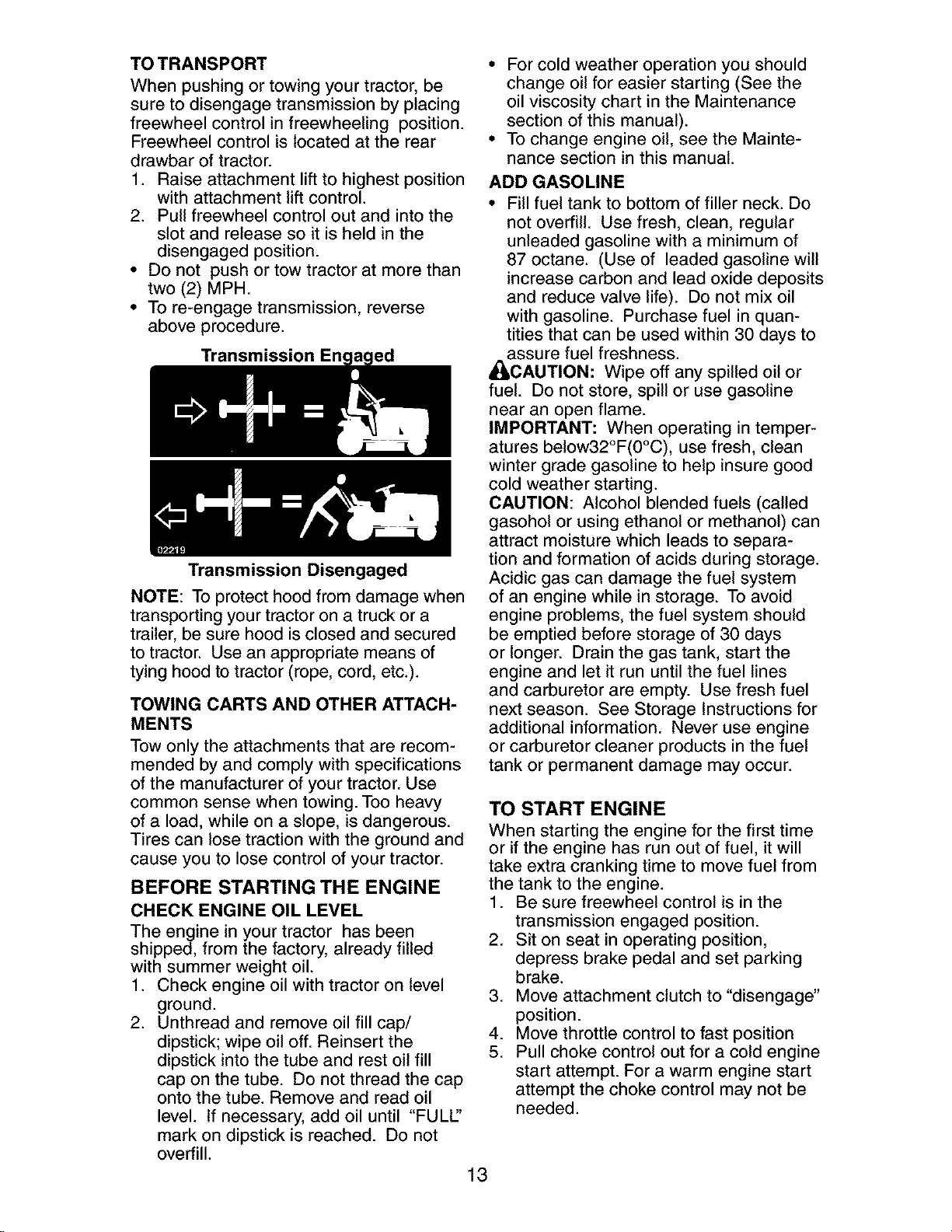

TOTRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest position

with attachment lift control.

2. Pull freewheel control out and into the

slot and release so it is held in the

disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

Transmission En

Transmission Disengaged

NOTE: To protect hood from damage when

transporting your tractor on a truck or a

trailer, be sure hood is closed and secured

to tractor. Use an appropriate means of

tying hood to tractor (rope, cord, etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Unthread and remove oil fill cap/

dipstick; wipe oil off. Reinsert the

dipstick into the tube and rest oil fill

cap on the tube. Do not thread the cap

onto the tube. Remove and read oil

level. If necessary, add oil until "FULl"

mark on dipstick is reached. Do not

overfill.

• For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

A(_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, itwill

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3. Move attachment clutch to "disengage"

position.

4. Move throttle control to fast position

5. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

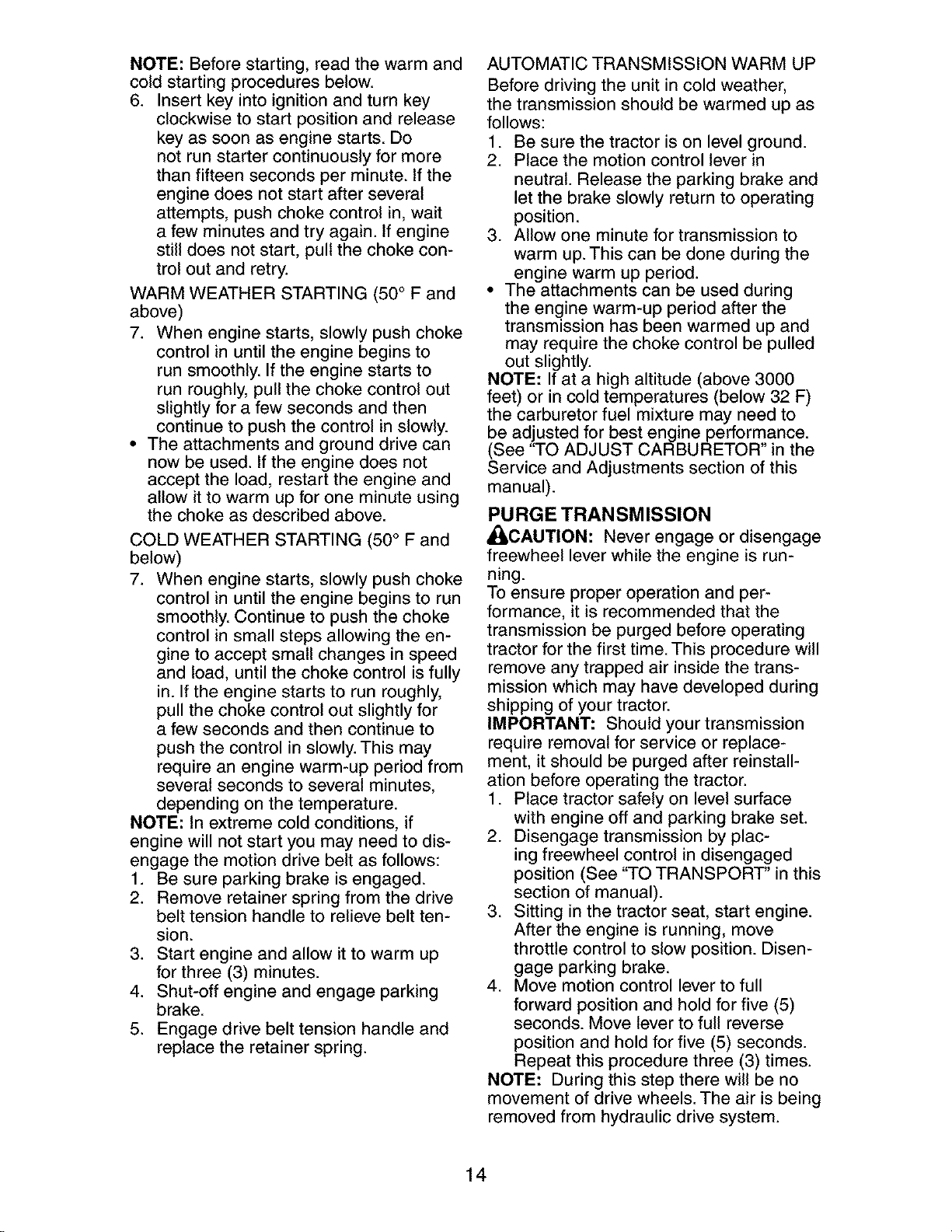

NOTE:Beforestarting,readthewarmand

coldstartingproceduresbelow.

6. Insertkeyintoignitionandturnkey

clockwisetostart positionandrelease

keyas soonas enginestarts.Do

notrunstartercontinuouslyfor more

thanfifteensecondsper minute.Ifthe

enginedoes notstartafterseveral

attempts,pushchokecontrolin,wait

afewminutesandtry again.Ifengine

still doesnotstart,pullthe chokecon-

troloutand retry.

WARMWEATHERSTARTING(50° Fand

above)

7. Whenenginestarts,slowlypushchoke

controlinuntiltheenginebeginsto

runsmoothly.Iftheenginestartsto

runroughly,pullthe chokecontrolout

slightlyfora fewsecondsandthen

continueto pushthecontrolinslowly.

• The attachmentsand grounddrivecan

nowbeused.Iftheenginedoesnot

acceptthe load,restarttheengineand

allowitto warm upforone minuteusing

the chokeasdescribedabove.

COLDWEATHERSTARTING(50° F and

below)

7. Whenenginestarts,slowlypushchoke

controlinuntiltheenginebeginsto run

smoothly.Continueto pushthechoke

controlinsmallstepsallowingthe en-

ginetoacceptsmallchangesinspeed

and load,untilthechokecontrolisfully

in.Iftheenginestartsto runroughly,

pullthechokecontroloutslightlyfor

afewsecondsandthencontinueto

pushthecontrolinslowly.Thismay

requirean enginewarm-upperiodfrom

severalsecondsto severalminutes,

dependingon thetemperature.

NOTE:Inextremecoldconditions,if

enginewill notstart you mayneedto dis-

engagethe motiondrivebeltasfollows:

1. Besure parkingbrakeisengaged.

2. Removeretainerspringfromthe drive

belt tensionhandleto relievebeltten-

sion.

3. Start engineandallow itto warm up

forthree(3)minutes.

4. Shut-offengineandengageparking

brake.

5. Engagedrive belttensionhandleand

replacetheretainerspring.

AUTOMATICTRANSMISSIONWARMUP

Beforedrivingthe unitin coldweather,

thetransmissionshouldbe warmedupas

follows:

1. Besurethetractorison levelground.

2. Placethe motioncontrolleverin

neutral.Releasetheparkingbrakeand

letthe brakeslowlyreturnto operating

position.

3. Allowone minutefortransmissionto

warmup.Thiscan be doneduringthe

enginewarm up period.

• The attachmentscanbe usedduring

theenginewarm-upperiodafterthe

transmissionhasbeenwarmedupand

mayrequirethe chokecontrolbe pulled

outslightly.

NOTE:Ifata highaltitude(above3000

feet)orin coldtemperatures(below32 F)

thecarburetorfuel mixturemayneedto

be adjustedforbestengineperformance.

(See"TOADJUSTCARBURETOR"inthe

ServiceandAdjustmentssectionofthis

manual).

PURGE TRANSMISSION

_CAUTION: Neverengageordisengage

freewheelleverwhilethe engineis run-

ning.

Toensureproperoperationandper-

formance,it is recommendedthat the

transmissionbe purgedbeforeoperating

tractorforthefirst time.Thisprocedurewill

removeanytrappedair insidethetrans-

missionwhichmayhavedevelopedduring

shippingof yourtractor.

IMPORTANT:Shouldyourtransmission

requireremovalfor serviceorreplace-

ment,itshouldbe purgedafterreinstall-

ationbeforeoperatingthetractor.

1. Placetractorsafelyon levelsurface

withengineoffandparkingbrakeset.

2. Disengagetransmissionbyplac-

ingfreewheelcontrolin disengaged

position(See"TOTRANSPORT'inthis

sectionof manual).

3. Sittingin thetractorseat,startengine.

Aftertheengineisrunning,move

throttlecontrolto slowposition.Disen-

gageparkingbrake.

4. Movemotioncontrolleverto full

forwardpositionandholdforfive(5)

seconds.Moveleverto full reverse

positionand holdforfive(5) seconds.

Repeatthisprocedurethree (3)times.

NOTE: Duringthis steptherewill be no

movementofdrivewheels.Theair is being

removedfromhydraulicdrivesystem.

t" •

5. Move motion control lever to neutral

(N) position. Shutoff engine and set

parking brake.

6. Engage transmission by placing free-

wheel control in engaged position (See

"TO TRANSPORT' in this section of

manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed.

Disengage parking brake.

8. Slowly move motion control lever for-

ward, after the tractor moves approxi-

mately five (5) feet, slowly move motion

control lever to reverse position. After

the tractor moves approximately five

(5) feet return the motion control lever

to the neutral (N) position. Repeat this

procedure with the motion control lever

three (3) times.

Your transmission is now purged and now

ready for normal operation.

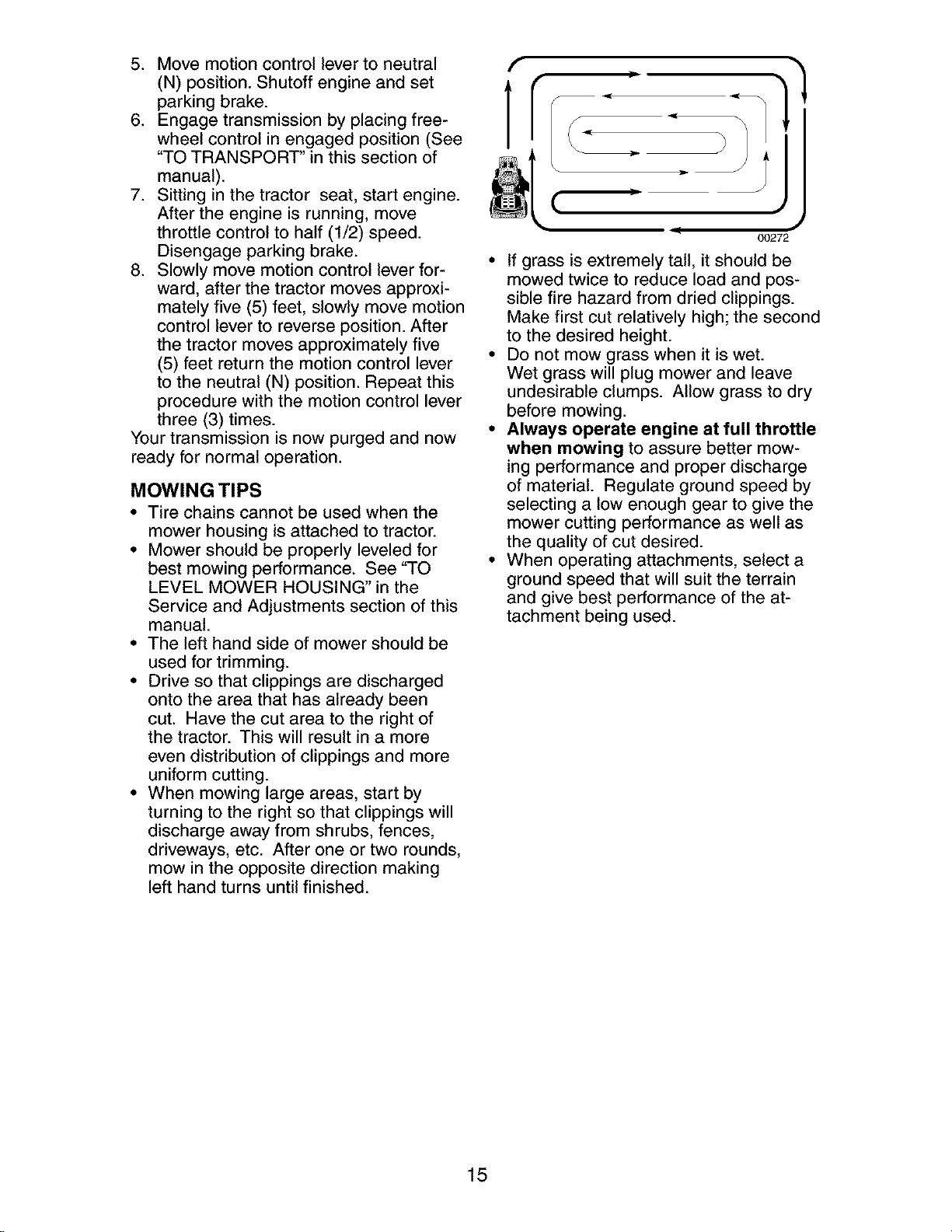

MOWING TIPS

• Tire chains cannot be used when the

mower housing is attached to tractor.

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

]1 J

( o

,, = J

00272

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

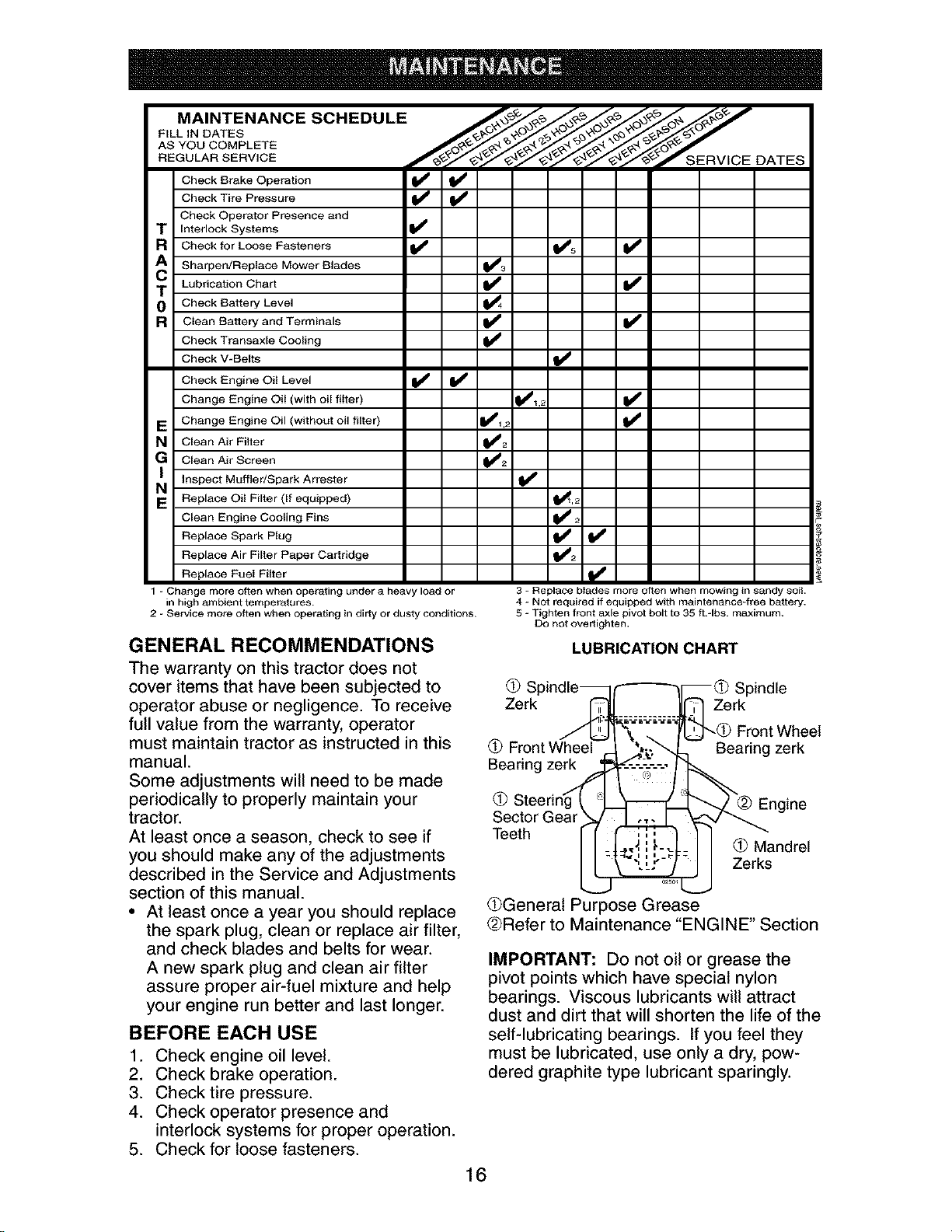

MAINTENANCE SCHEDULE .___ ._o_So_ _.._ _p"

FiLL,NOATES

AS YOU COMPLETE ._'__t_O_"_,_/_4._ 4.°; _,'_ A _4,--_ _b_._

REGU LARSE RVICE i__t_'_ SERVICE DATES

Check Brake Operation

Check Tire Pressure _

Check Operator Presence and

T Interlock Systems

R Check for Loose Fasteners _ _5 I_

Sharpen/Replace Mower Blades _43

T Lubrication Chart

0 Check Battery Level

R Ctean Battery and Terminals

Check Transaxle Cooling

Check V_Belts

Check Engine Oil Level _

Change Engine Oil (with oil filter) _1,2

E Change Engine Oil (without oil filter) _1,2

N CleanAirFilter _:

G Clean Air Screen

N_ Inspect Muffler/Spark Arrester

E Replace Oil Filter (If equipped) _,_

Clean Engine Cooling Fins _

Replace Spark Plug _

Replace Air Filter Paper Cartridge _2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - NOt required if equipped with maintenance-free battery.

5 - Tighten front axle pivOt bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

@ Spindle_f'---'---_ I--@ Spindle

Zerk ,,,_ _.___._.:_:_:=,L_-'l Ze rk

_ ".t_ _'" ,L_ @ Front Wheel

@ Front Wheel ',_:,'-. q Bearing zerk

Bearing zerk ---<_----:_----

@ Steering" _ _ngine

Sector Gear

Teeth

_Jii-- - I I @Mandrel

LII ZerOs

@General Put 3ose Grease

@Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

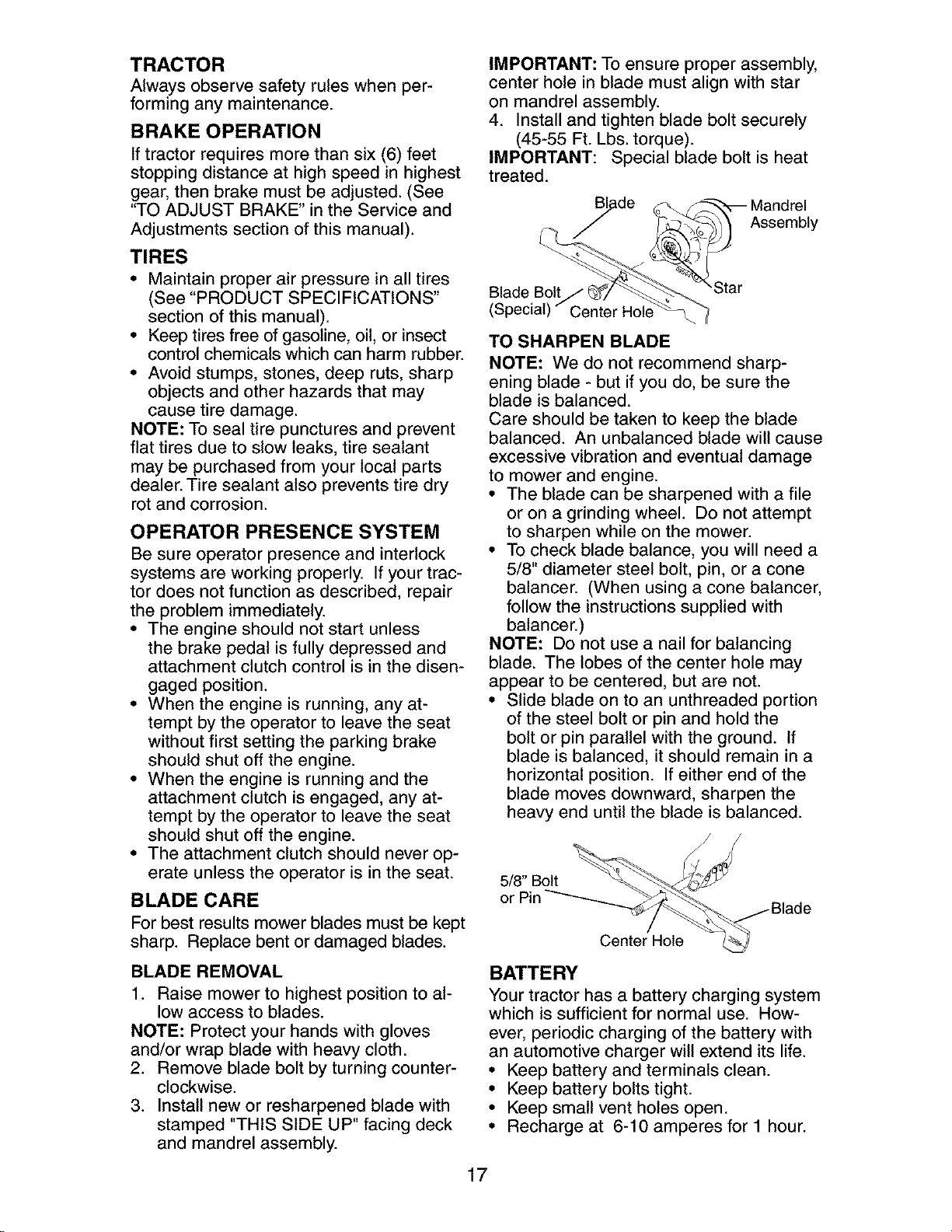

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless

the brake pedal is fully depressed and

attachment clutch control is in the disen-

gaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be kept

sharp. Replace bent or damaged blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

2. Remove blade bolt by turning counter-

clockwise.

3. Install new or resharpened blade with

stamped "THIS SIDE UP" facing deck

and mandrel assembly.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Install and tighten blade bolt securely

(45-55 Ft. Lbs. torque).

IMPORTANT: Special blade bolt is heat

treated.

.,B_ade

Assembly

Blade Bolt

Center Hol_

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

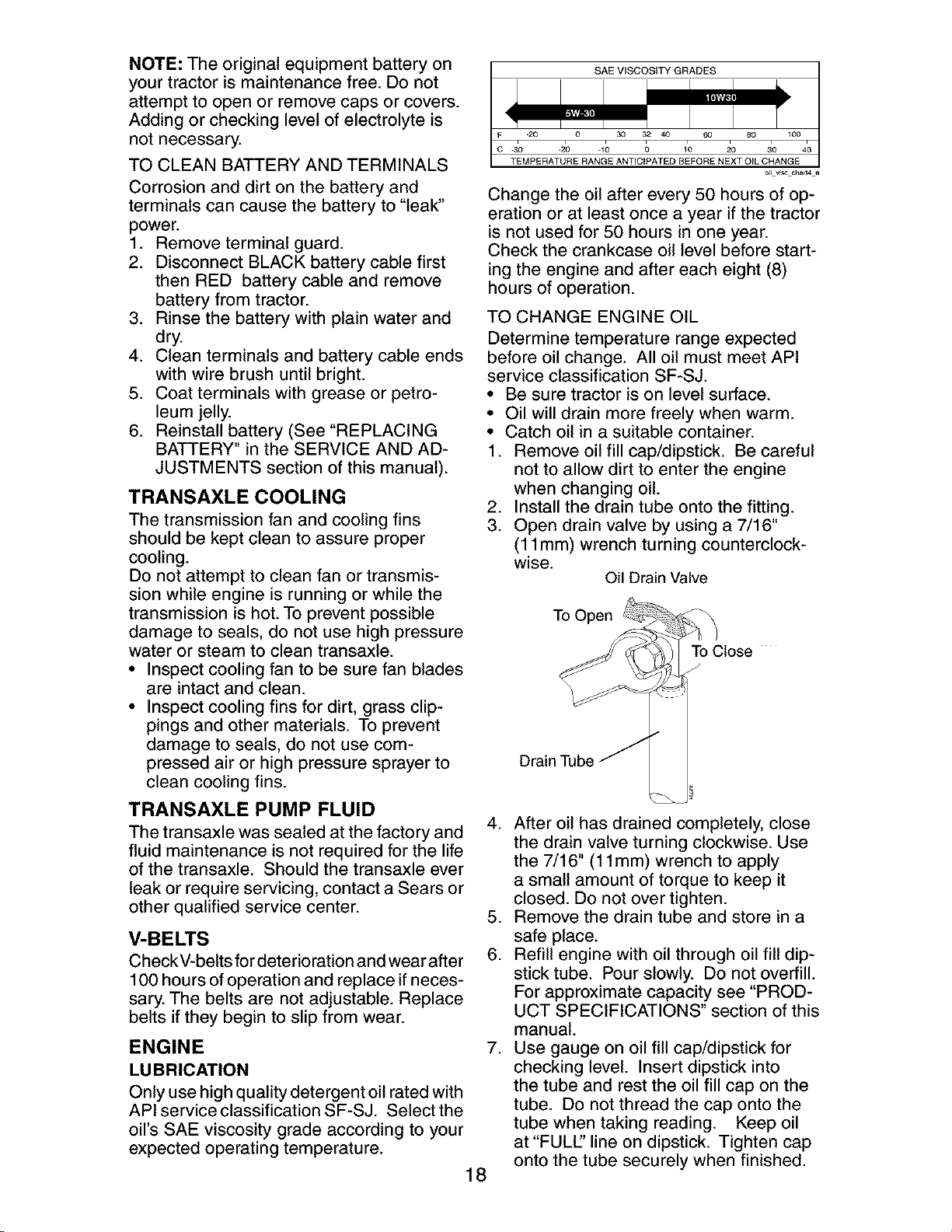

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLECOOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades

are intact and clean.

• Inspect cooling fins for dirt, grass clip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and

fluid maintenance is not required for the life

of the transaxle. Should the transaxle ever

leak or require servicing, contact a Sears or

other qualified service center.

V-BELTS

CheckV-belts for deterioration and wear after

100 hours of operation and replace if neces-

sary. The belts are not adjustable. Replace

belts if they begin to slip from wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with

API service classification SF-SJ. Select the

oil's SAE viscosity grade according to your

expected operating temperature.

SAE VISCOSITY GRADES

30 qo o 10 20 30 4o

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

o_ v_ dlart4 e

Change the oil after every 50 hours of op-

eration or at least once a year ifthe tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Install the drain tube onto the fitting.

3. Open drain valve by using a 7/16"

(11 mm) wrench turning counterclock-

wise.

Oil DrainValve

To Open

To Close

Drain

4. After oil has drained completely, close

the drain valve turning clockwise. Use

the 7/16" (1lmm) wrench to apply

a small amount of torque to keep it

closed. Do not over tighten.

5. Remove the drain tube and store in a

safe place.

6. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

7. Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into

the tube and rest the oil fill cap on the

tube. Do not thread the cap onto the

tube when taking reading. Keep oil

at "FULl.:' line on dipstick. Tighten cap

onto the tube securely when finished.

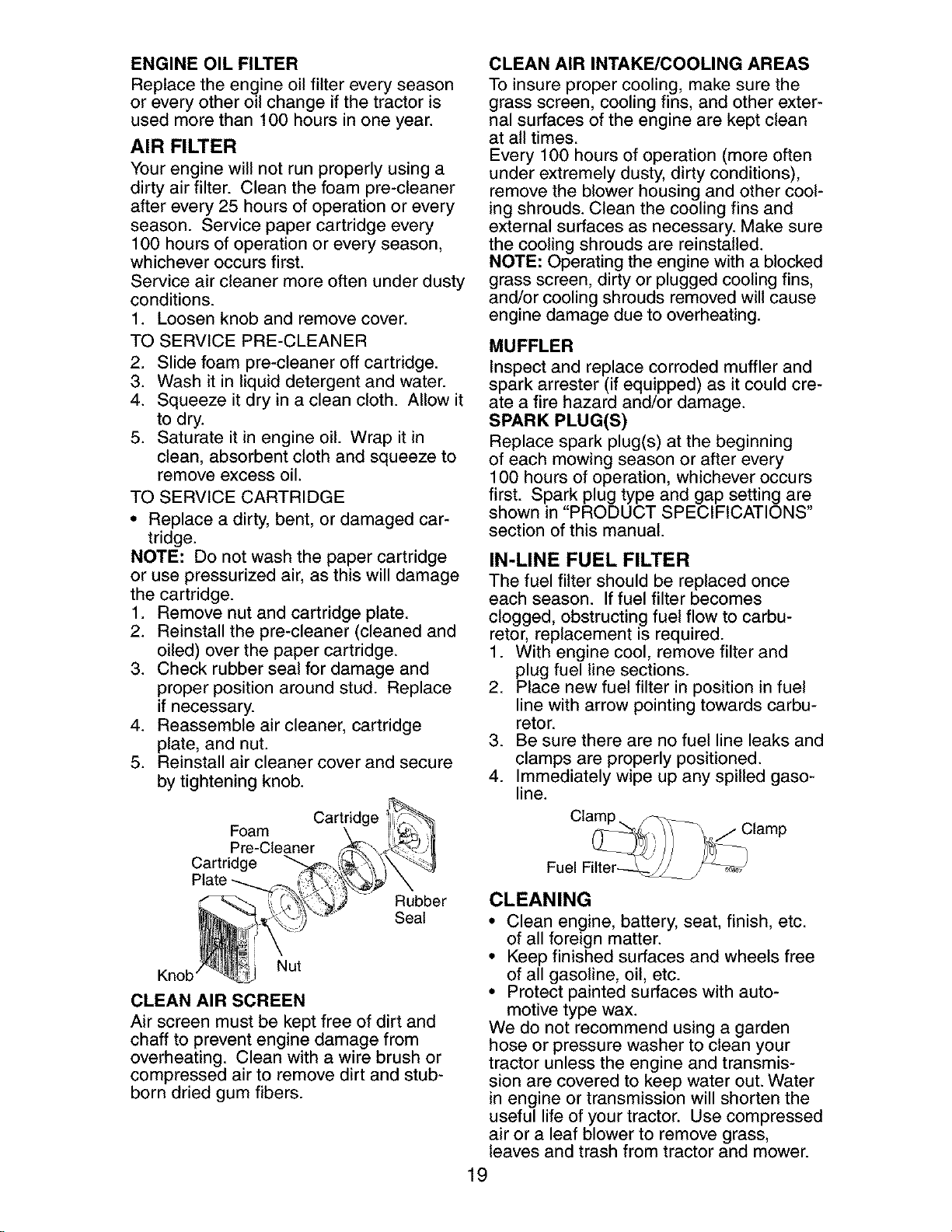

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth. Allow it

to dry.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

• Replace a dirty, bent, or damaged car-

tridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will damage

the cartridge.

1. Remove nut and cartridge plate.

2. Reinstall the pre-cleaner (cleaned and

oiled) over the paper cartridge.

3. Check rubber seal for damage and

proper position around stud. Replace

if necessary.

4. Reassemble air cleaner, cartridge

plate, and nut.

5. Reinstall air cleaner cover and secure

by tightening knob.

Cartridge

Foam

Pre-Cleaner

Cartridge

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other exter-

nal surfaces of the engine are kept clean

at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other cool-

ing shrouds. Clean the cooling fins and

external surfaces as necessary. Make sure

the cooling shrouds are reinstalled.

NOTE: Operating the engine with a blocked

grass screen, dirty or plugged cooling fins,

and/or cooling shrouds removed will cause

engine damage due to overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Fuel

Rubber

Seat

Nut

Knob'

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

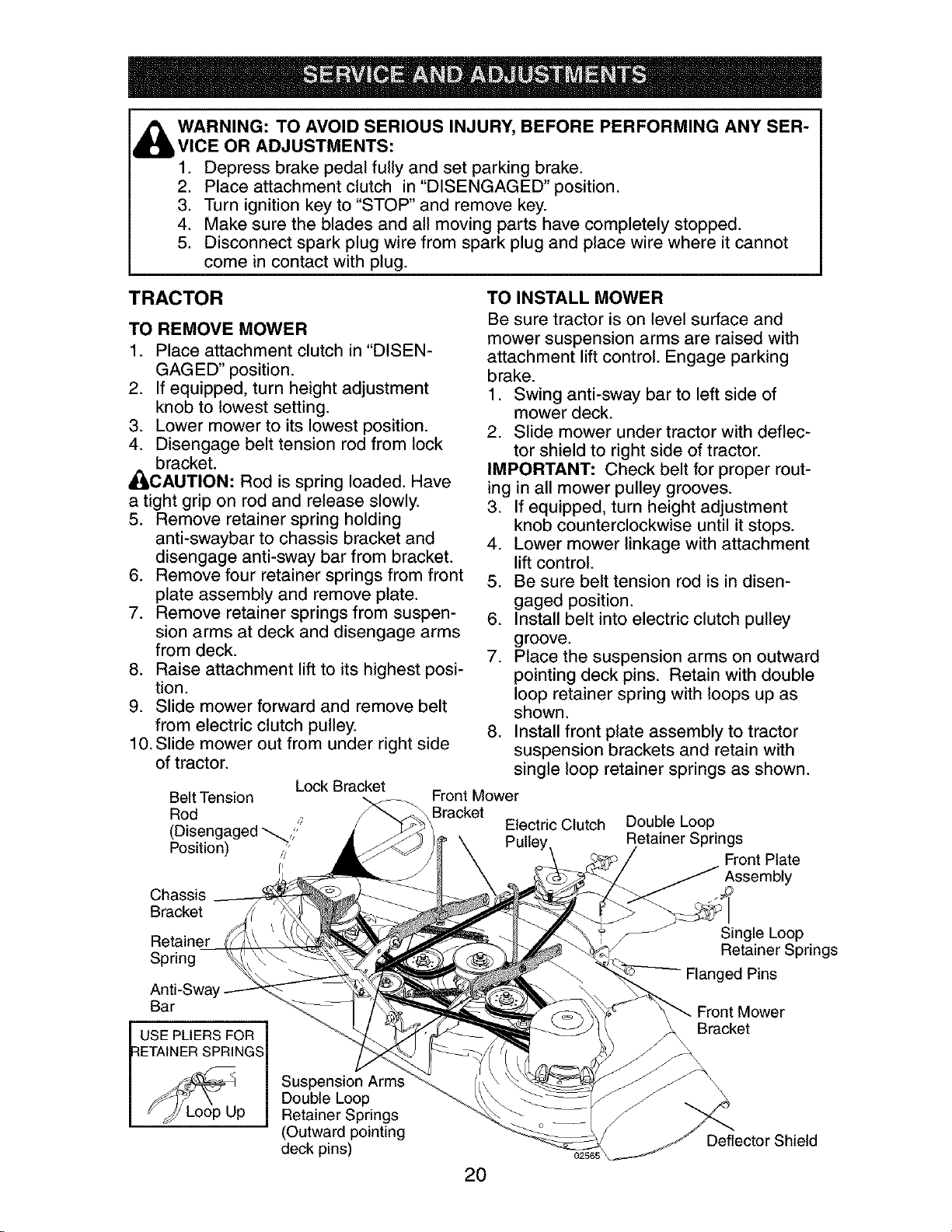

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER-

VICE OR ADJUSTMENTS:

1. Depress brake pedal fully and set parking brake.

2. Place attachment clutch in "DISENGAGED" position.

3. Turn ignition key to "STOP" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. If equipped, turn height adjustment

knob to lowest setting.

3. Lower mower to its lowest position.

4. Disengage belt tension rod from lock

bracket.

_CAUTION: Rod is spring loaded. Have

a tight grip on rod and release slowly.

5. Remove retainer spring holding

anti-swaybar to chassis bracket and

disengage anti-sway bar from bracket.

6. Remove four retainer springs from front

plate assembly and remove plate.

7. Remove retainer springs from suspen-

sion arms at deck and disengage arms

from deck.

8. Raise attachment lift to its highest posi-

tion.

9. Slide mower forward and remove belt

from electric clutch pulley.

10.Slide mower out from under right side

of tractor.

Lock Bracket

Belt Tension

Rod ,7

(Disengaged _,_,

Position) /'

TO INSTALL MOWER

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

1. Swing anti-sway bar to left side of

mower deck.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Be sure belt tension rod is in disen-

gaged position.

6. Install belt into electric clutch pulley

greeve.

7. Place the suspension arms on outward

pointing deck pins. Retain with double

loop retainer spring with loops up as

shown.

8. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

Front Mower

Bracket

Electric Clutch

Double Loop

Retainer Springs

Front Plate

Chassis

Bracket

Retainer

Spring

Anti-Sway

Bar

USE PLIERS FOR

:{ETAINER SPRINGS

Single Loop

Retainer Springs

Flanged Pins

Bracket

Suspension Arms

Double Loop

Retainer Springs

(Outward pointing

deck pins)

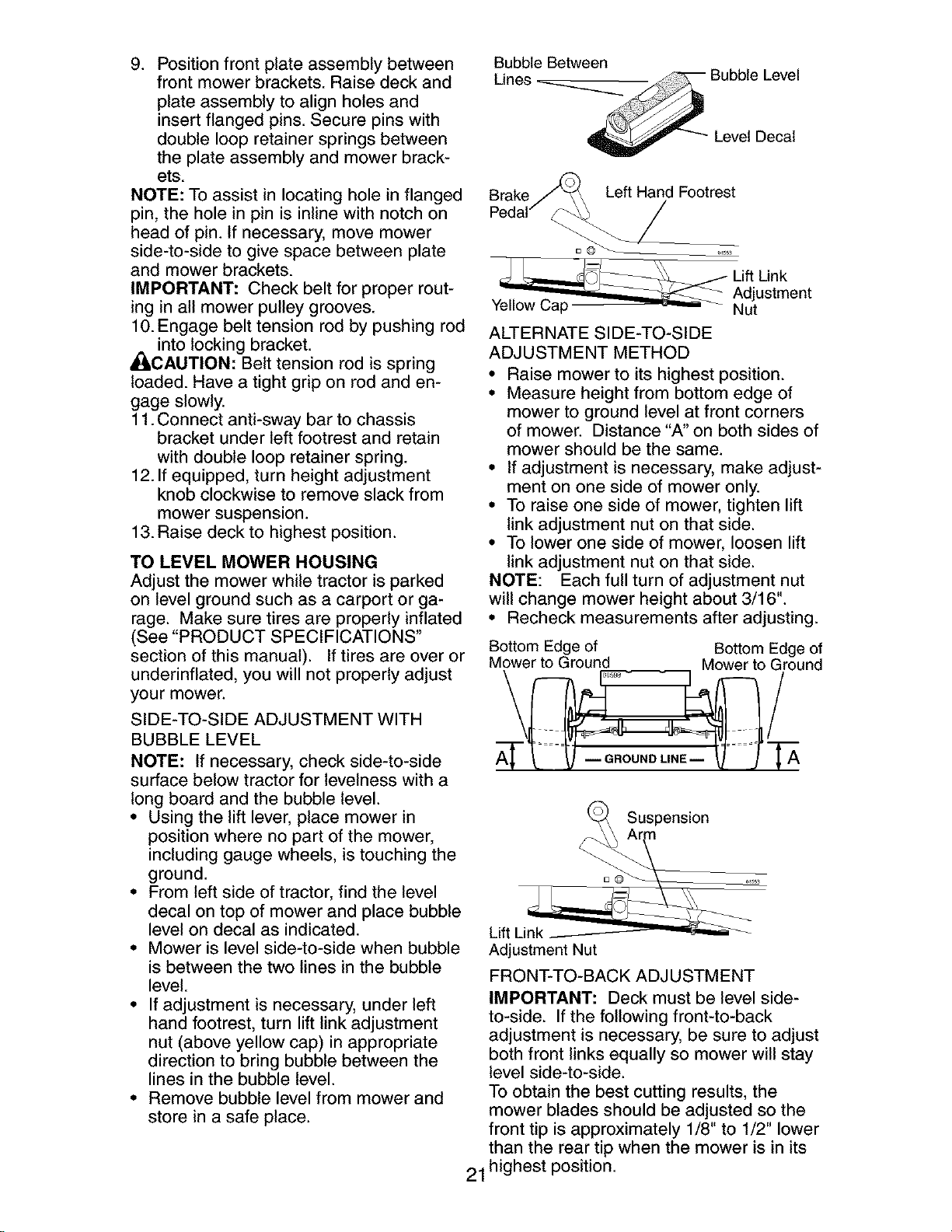

9. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate assembly and mower brack-

ets.

NOTE: To assist in locating hole in flanged

pin, the hole in pin is inline with notch on

head of pin. If necessary, move mower

side-to-side to give space between plate

and mower brackets.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

10. Engage belt tension rod by pushing rod

into locking bracket.

_,CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and en-

gage slowly.

11. Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

12. If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

13. Raise deck to highest position.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground such as a carport or ga-

rage. Make sure tires are properly inflated

(See "PRODUCT SPECIFICATIONS"

section of this manual). If tires are over or

underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

• Using the lift lever, place mower in

position where no part of the mower,

including gauge wheels, is touching the

ground.

• From left side of tractor, find the level

decal on top of mower and place bubble

level on decal as indicated.

• Mower is level side-to-side when bubble

is between the two lines in the bubble

level.

• If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap) in appropriate

direction to bring bubble between the

lines in the bubble level.

• Remove bubble level from mower and

store in a safe place.

Bubble Between

Lines Bubble Level

__'_" Level Decal

Brake J'_'_ Left Hand Footrest

Pedal/ _._

y_ Lift Link

Adjustment

Nut

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

• Raise mower to its highest position.

• Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance "A" on both sides of

mower should be the same.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

• Recheck measurements after adjusting.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

\ /

Suspension

Lift Li_

Adjustment Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-

to-side. If the following front-to-back

adjustment is necessary, be sure to adjust

both front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower blades should be adjusted so the

front tip is approximately 1/8" to 1/2" lower

than the rear tip when the mower is in its

highest position.

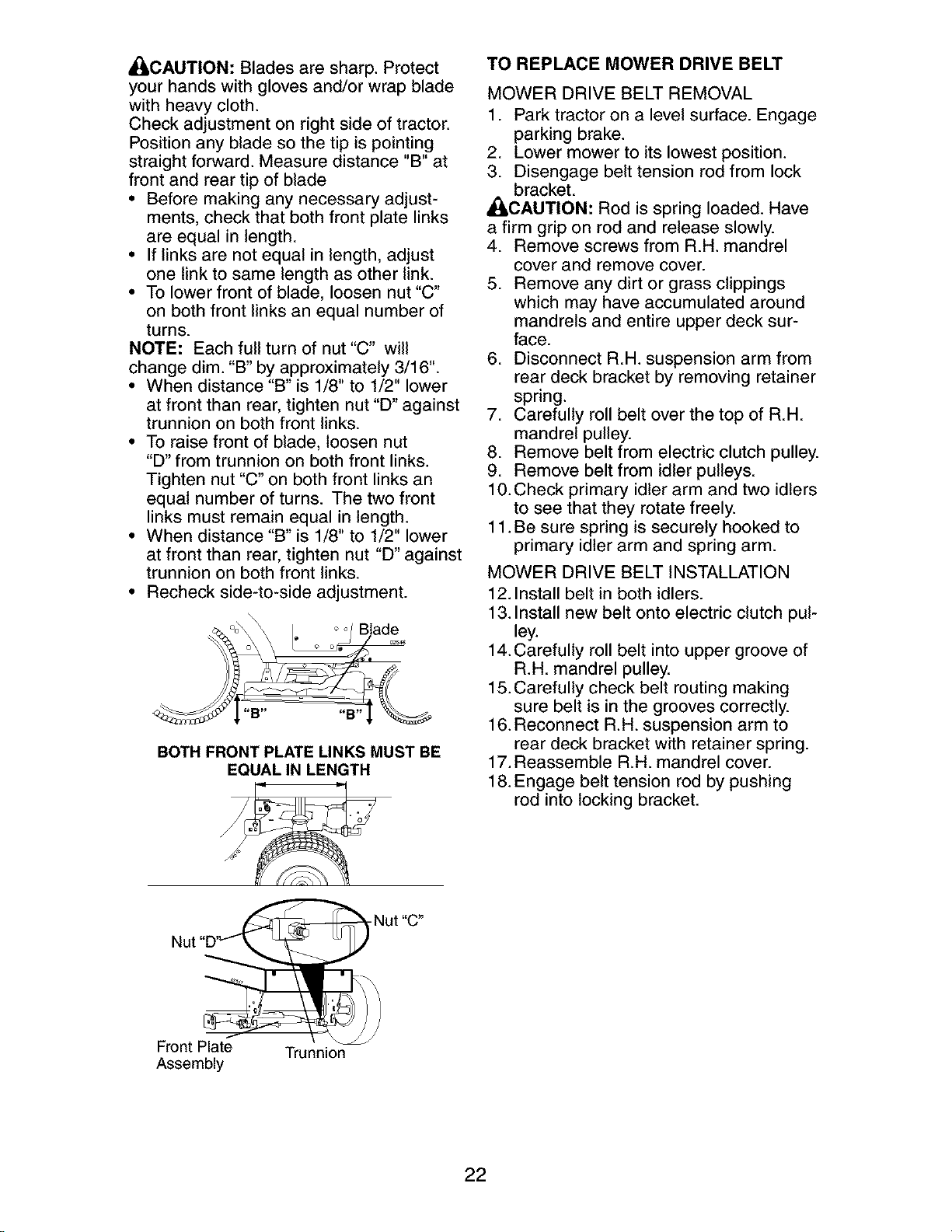

/I, CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap blade

with heavy cloth.

Check adjustment on right side of tractor.

Position any blade so the tip is pointing

straight forward. Measure distance "B" at

front and rear tip of blade

• Before making any necessary adjust-

ments, check that both front plate links

are equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of blade, loosen nut "C"

on both front links an equal number of

turns.

NOTE: Each full turn of nut "C" will

change dim. "B" by approximately 3/16".

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

• To raise front of blade, loosen nut

"D" from trunnion on both front links.

Tighten nut "C" on both front links an

equal number of turns. The two front

links must remain equal in length.

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

• Recheck side-to-side adjustment.

BOTH FRONT PLATE LINKS MUST BE

EQUAL IN LENGTH

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface. Engage

parking brake.

2. Lower mower to its lowest position.

3. Disengage belt tension rod from lock

bracket.

_CAUTION: Rod is spring loaded. Have

a firm grip on rod and release slowly.

4. Remove screws from R.H. mandrel

cover and remove cover.

5. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck sur-

face.

6. Disconnect R.H. suspension arm from

rear deck bracket by removing retainer

spring.

7. Carefully roll belt over the top of R.H.

mandrel pulley.

8. Remove belt from electric clutch pulley.

9. Remove belt from idler pulleys.

10.Check primary idler arm and two idlers

to see that they rotate freely.

11. Be sure spring is securely hooked to

primary idler arm and spring arm.

MOWER DRIVE BELT INSTALLATION

12. Install belt in both idlers.

13. Install new belt onto electric clutch pul-

ley.

14. Carefully roll belt into upper groove of

R.H. mandrel pulley.

15. Carefully check belt routing making

sure belt is in the grooves correctly.

16. Reconnect R.H. suspension arm to

rear deck bracket with retainer spring.

17. Reassemble R.H. mandrel cover.

18. Engage belt tension rod by pushing

rod into locking bracket.

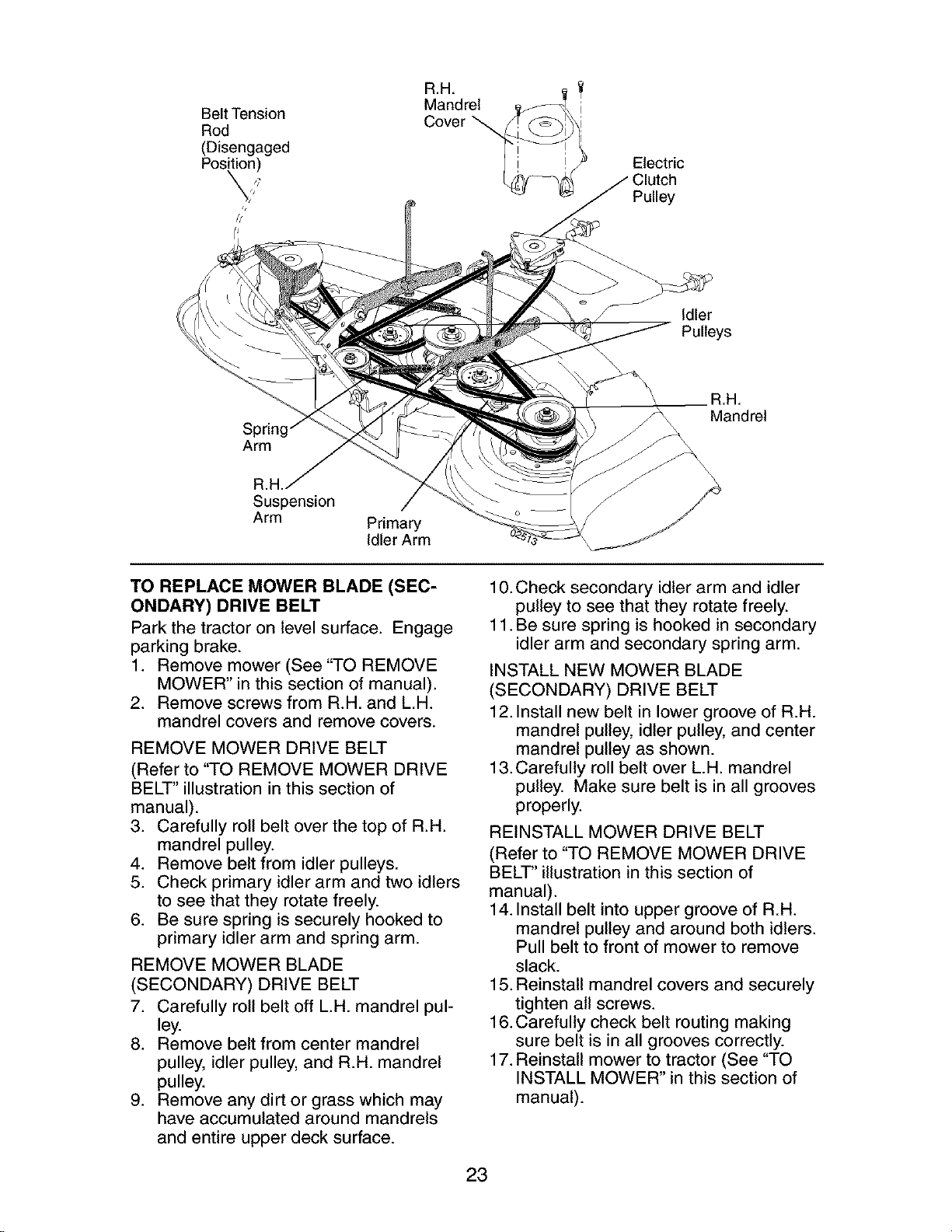

Front Plate Trunnion

Assembly

Belt Tension

Rod

(Disengaged

Position)

a.H.

Mandrel

Cover _

! /_ Electric

Pulley

Arm

a.H.

Mandrel

Suspension

Arm

Primary

Idler Arm

TO REPLACE MOWER BLADE (SEC-

ONDARY) DRIVE BELT

Park the tractor on level surface. Engage

parking brake.

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

2. Remove screws from R.H. and L.H.

mandrel covers and remove covers.

REMOVE MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

3. Carefully roll belt over the top of R.H.

mandrel pulley.

4. Remove belt from idler pulleys.

5. Check primary idler arm and two idlers

to see that they rotate freely.

6. Be sure spring is securely hooked to

primary idler arm and spring arm.

REMOVE MOWER BLADE

(SECONDARY) DRIVE BELT

7. Carefully roll belt off L.H. mandrel pul-

ley.

8. Remove belt from center mandrel

pulley, idler pulley, and R.H. mandrel

pulley.

9. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

10.Check secondary idler arm and idler

pulley to see that they rotate freely.

11.Be sure spring is hooked in secondary

idler arm and secondary spring arm.

INSTALL NEW MOWER BLADE

(SECONDARY) DRIVE BELT

12. Install new belt in lower groove of R.H.

mandrel pulley, idler pulley, and center

mandrel pulley as shown.

13.Carefully roll belt over L.H. mandrel

pulley. Make sure belt is in all grooves

properly.

REINSTALL MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

14. Install belt into upper groove of R.H.

mandrel pulley and around both idlers.

Pull belt to front of mower to remove

slack.

15.Reinstall mandrel covers and securely

tighten all screws.

16.Carefully check belt routing making

sure belt is in all grooves correctly.

17.Reinstall mower to tractor (See "TO

INSTALL MOWER" in this section of

manual).

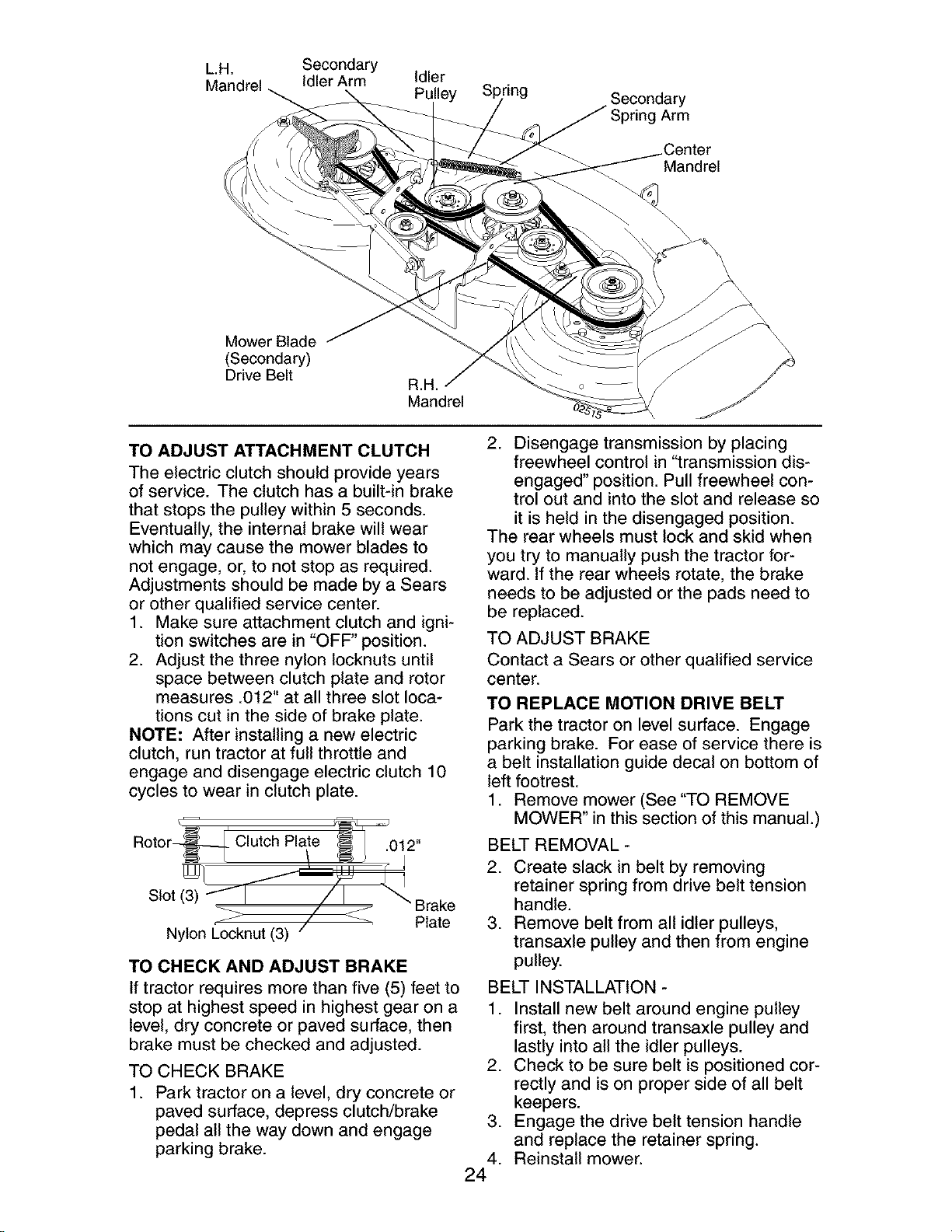

L.H. Secondary

Idler Arm Idler

Pulley

ring

Secondary

Arm

Mandrel

Mower Blade

(Secondary)

Drive Belt

R.H.

Mandrel

TO ADJUST ATTACHMENT CLUTCH

The electric clutch should provide years

of service. The clutch has a built-in brake

that stops the pulley within 5 seconds.

Eventually, the internal brake will wear

which may cause the mower blades to

not engage, or, to not stop as required.

Adjustments should be made by a Sears

or other qualified service center.

1. Make sure attachment clutch and igni-

tion switches are in "OFF" position.

2. Adjust the three nylon Iocknuts until

space between clutch plate and rotor

measures .012"at all three slot loca-

tions cut in the side of brake plate.

NOTE: After installing a new electric

clutch, run tractor at full throttle and

engage and disengage electric clutch 10

cycles to wear in clutch plate.

Rot( Clutch Plate .012"

Slot

ake

Plate

Nylon Locknut (3)

TO CHECK AND ADJUST BRAKE

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

Contact a Sears or other qualified service

center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there is

a belt installation guide decal on bottom of

left footrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of this manual.)

BELT REMOVAL -

2. Create slack in belt by removing

retainer spring from drive belt tension

handle.

3. Remove belt from all idler pulleys,

transaxle pulley and then from engine

pulley.

BELT INSTALLATION -

1. Install new belt around engine pulley

first, then around transaxle pulley and

lastly into all the idler pulleys.

2. Check to be sure belt is positioned cor-

rectly and is on proper side of all belt

keepers.

Engage the drive belt tension handle

and replace the retainer spring.

Reinstall mower.

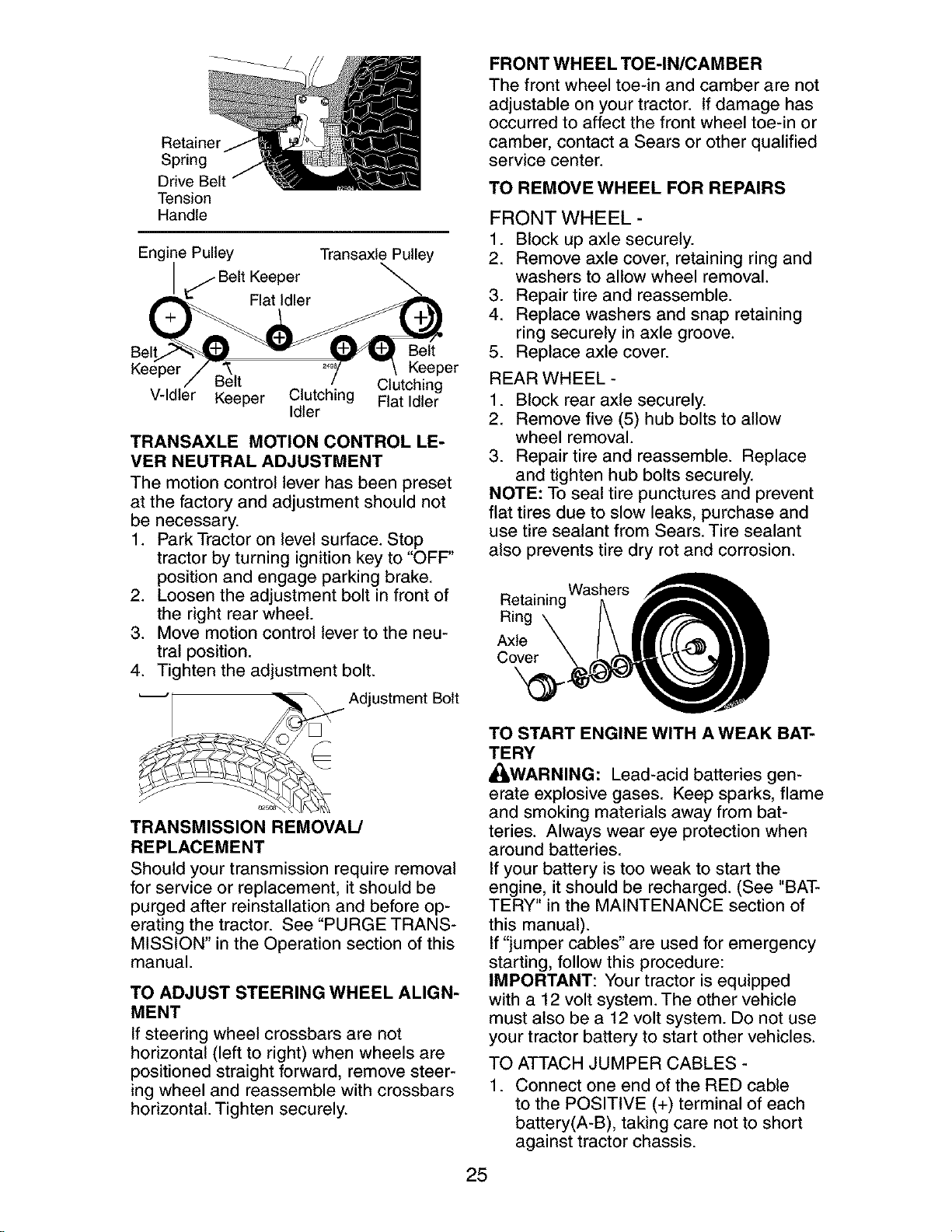

Retainer

Spring

Driv(

Tension

Handle

Engine Pulley Transaxle Pulley

__Belt Keeper

Be_+/+ _'_ /L_l_l_ Be,t

Keeper /"_ _/ \ Keepu,

/ Belt / Clutching

V-Idler Keeper Clutching Flat Idler

Idler

TRANSAXLE MOTION CONTROL LE-

VER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Park Tractor on level surface. Stop

tractor by turning ignition key to "OFF"

position and engage parking brake.

2. Loosen the adjustment bolt in front of

the right rear wheel.

3. Move motion control lever to the neu-

tral position.

4. Tighten the adjustment bolt.

Adjustment Bolt

TRANSMISSION REMOVAL/

REPLACEMENT

Should your transmission require removal

for service or replacement, it should be

purged after reinstallation and before op-

erating the tractor. See "PURGE TRANS-

MISSION" in the Operation section of this

manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL -

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal.

3. Repair tire and reassemble.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

REAR WHEEL -

1. Block rear axle securely.

2. Remove five (5) hub bolts to allow

wheel removal.

3. Repair tire and reassemble. Replace

and tighten hub bolts securely.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

R Washers

etaining r_ _'_,

Ring\ /\

Axle \ / \ IIt (f_4 IlI

TO START ENGINE WITH A WEAK BAT-

TERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

Terminal Keps Nut Hex Bolt

Access ...._, ._

Y __Positive

Terminal_ (Red) Cable

L_uara <:, _

_P_ Cable

TO REPLACE HEADLIGHT LAMP

a_m CAUTION: When lit, the halogen

ps get extremely hot. Hold lamp as-

sembly by the holder and do not touch the

bulb.

1. Raise hood.

2. Disconnect harness from lamp assembly.

3. Rotate counterclockwise and pull lamp

assembly out of the hole in the back-

side of the grill.

4. Insert new lamp assembly and rotate

clockwise to lock.

5. Reconnect harness to lamp

assembly.

6. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and liftoff of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Hood

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUSTTHROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

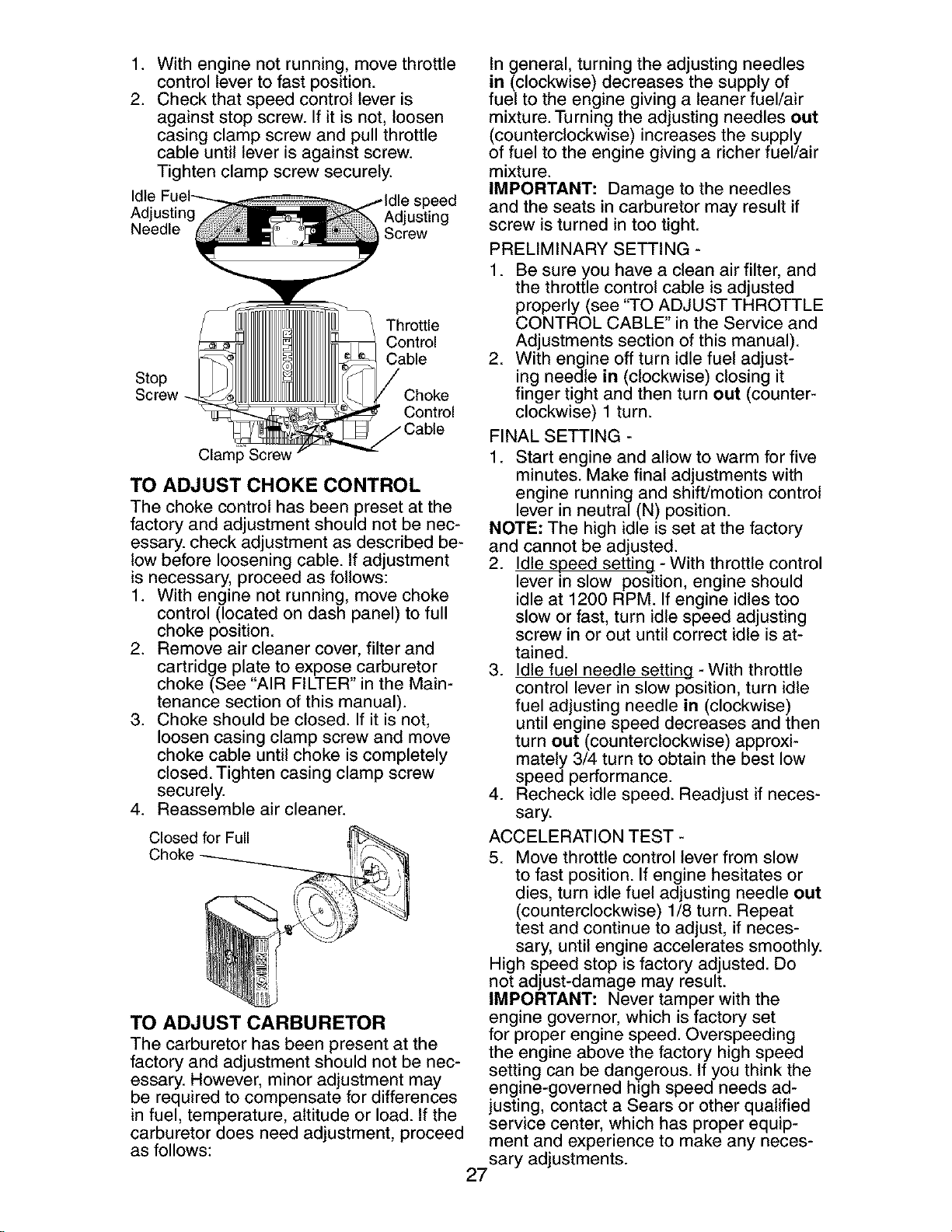

With engine not running, move throttle

control lever to fast position.

Check that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw.

Tighten clamp screw securely.

Idle

Adjusting Adjusting

Needle Screw

Stop

Screw

Throttle

Control

Cable

Choke

Control

Clamp Screw

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be nec-

essary, check adjustment as described be-

low before loosening cable. If adjustment

is necessary, proceed as follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (See "AIR FILTER" in the Main-

tenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Reassemble air cleaner.

Closed for Full

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. Ifthe

carburetor does need adjustment, proceed

as follows:

In general, turning the adjusting needles

in (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turning the adjusting needles out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixtu re.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

1. Be sure you have a clean air filter, and

the throttle control cable is adjusted

properly (see "TO ADJUST THROTTLE

CONTROL CABLE" in the Service and

Adjustments section of this manual).

2. With engine off turn idle fuel adjust-

ing needle in (clockwise) closing it

finger tight and then turn out (counter-

clockwise) 1 turn.

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

NOTE: The high idle is set at the factory

and cannot be adjusted.

2. Idle speed setting - With throttle control

lever in slow position, engine should

idle at 1200 RPM If engine idles too

slow or fast, turn idle speed adjusting

screw in or out until correct idle is at-

tained.

3. Idle fuel needle setting - With throttle

control lever in slow position, turn idle

fuel adjusting needle in (clockwise)

until engine speed decreases and then

turn out (counterclockwise) approxi-

mately 3/4 turn to obtain the best low

speed performance.

4. Recheck idle speed. Readjust if neces-

sary.

ACCELERATION TEST -

5. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle fuel adjusting needle out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeeding

the engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs ad-

justing, contact a Sears or other qualified

service center, which has proper equip-

ment and experience to make any neces-

sary adjustments.

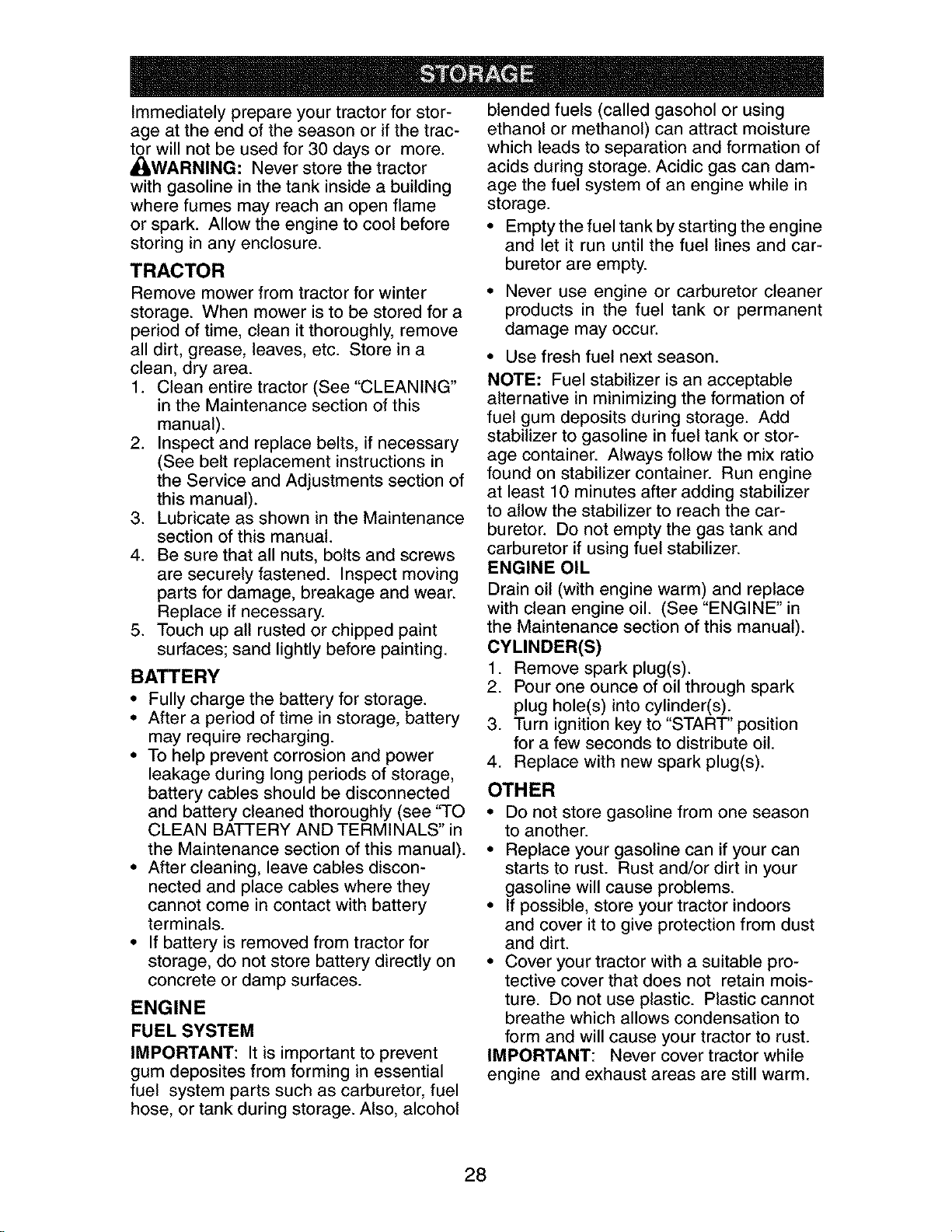

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See"CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposites from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

• Empty the fuel tank by starting the engine

and let it run until the fuel lines and car-

buretor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can ifyour can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

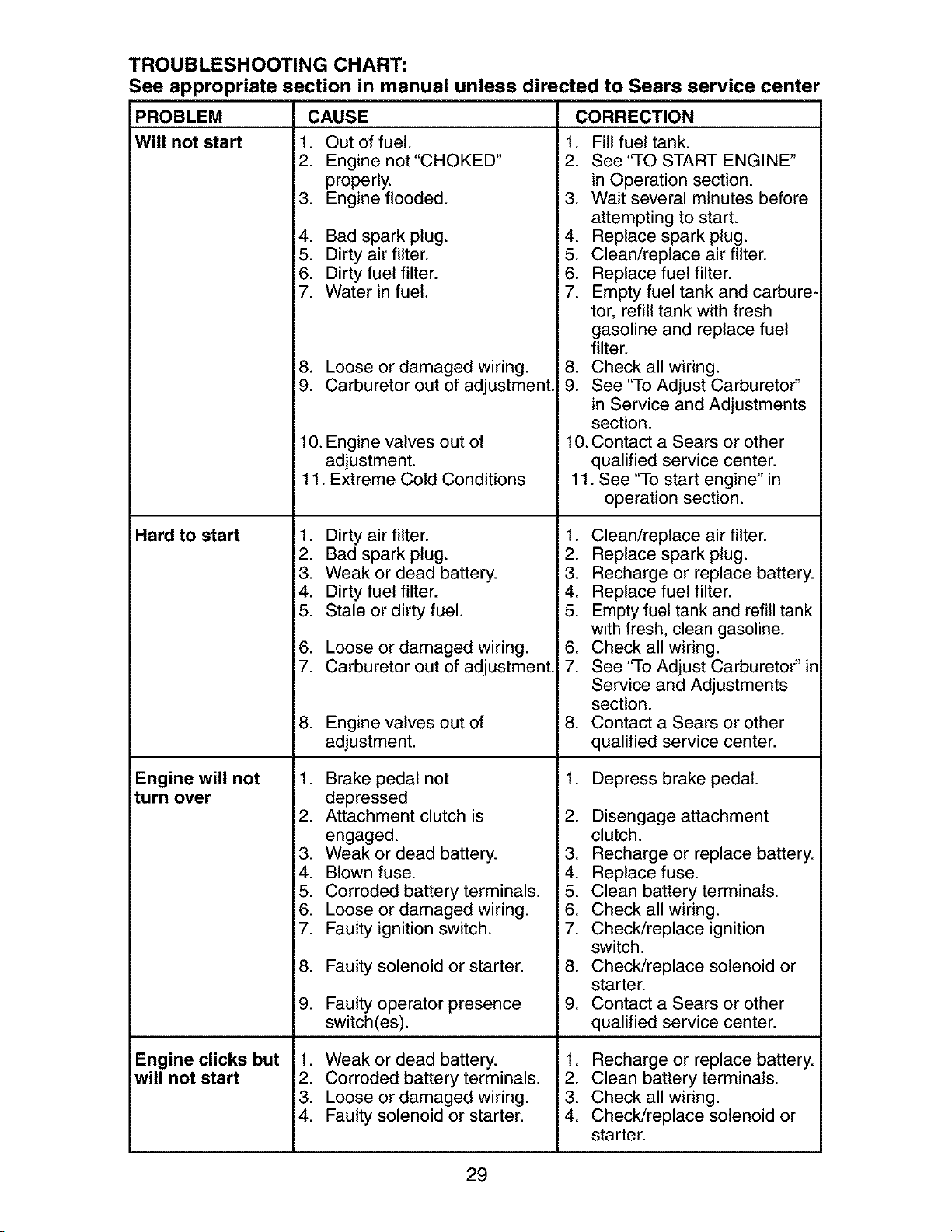

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

CAUSE CORRECTION

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

Engine will not

turn over

iEngine clicks but

will not start

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

11. Extreme Cold Conditions

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Brake pedal not

depressed

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

11. See "To start engine" in

operation section.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in

Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment

clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

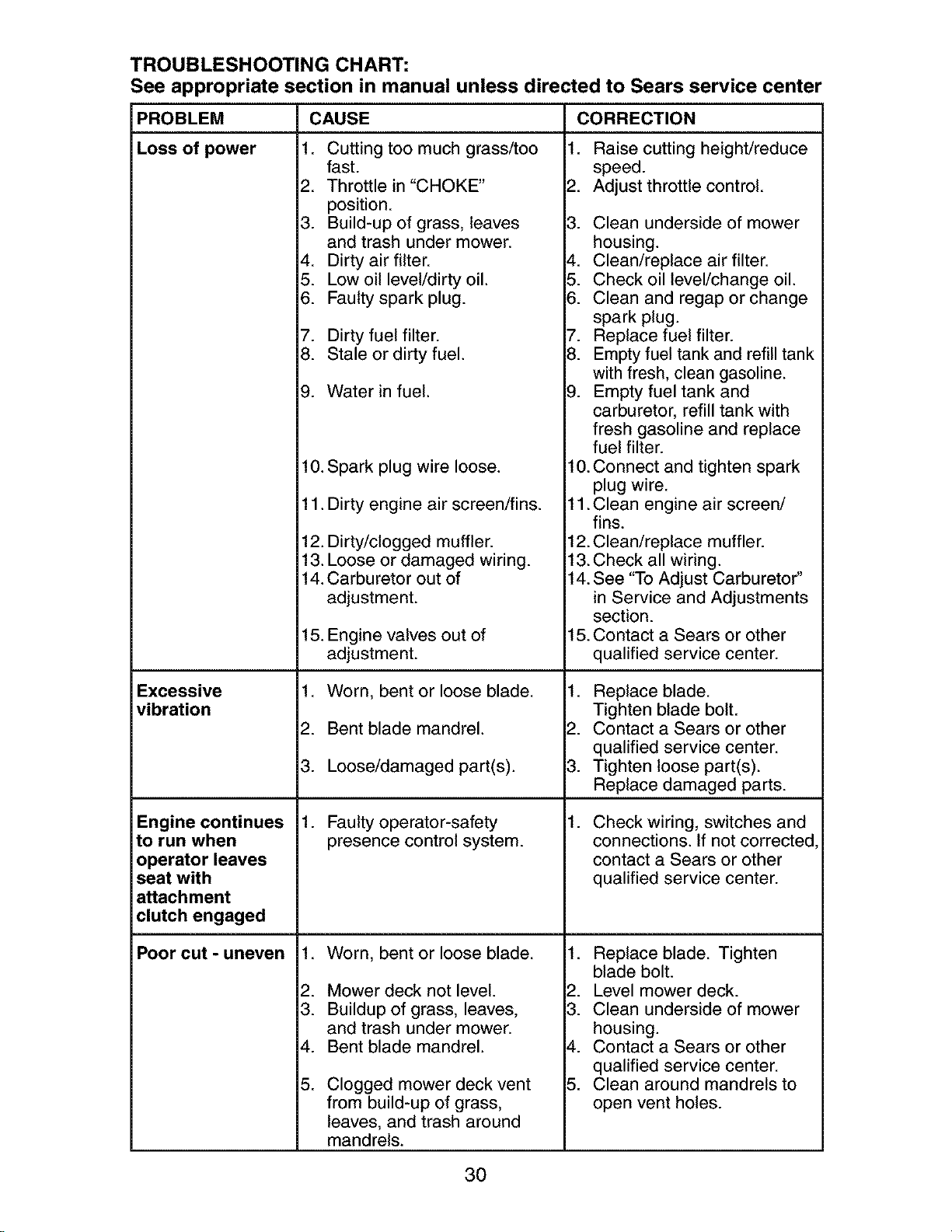

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

CAUSE CORRECTION

•

PROBLEM

Lossofpower

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attach ment

clutch engaged

Poor cut - uneven

7. Dirty fuel filter•

8. Stale or dirty fuel.

9. Water in fuel.

Cutting too much grass/too

fast.

Throttle in "CHOKE" 2.

position•

Build-up of grass, leaves 3.

and trash under mower.

Dirty air filter• _.

Low oil level/dirty oil. 5.

Faulty spark plug. 3.

_).

10.Spark plug wire loose.

• Raise cutting height/reduce

speed•

Adjust throttle control•

Clean underside of mower

housing.

Clean/replace air filter•

Check oil level/change oil.

Clean and regap or change

spark plug.

Replace fuel filter•

Empty fuel tank and refill tank

with fresh, clean gasoline.

Empty fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter•

10.Connect and tighten spark

plug wire.

11.Dirty engine air screen/fins.

12.Dirty/clogged muffler.

13.Loose or damaged wiring•

14.Carburetor out of

adjustment.

15.Engine valves out of

adjustment.

1. Worn, bent or loose blade•

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system•

•

Worn, bent or loose blade•

Mower deck not level•

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

11.Clean engine air screen/

fins.

12.Clean/replace muffler•

13.Check all wiring.

14.See "To Adjust Carburetor"

in Service and Adjustments

section•

15.Contact a Sears or other

qualified service center•

• Replace blade•

Tighten blade bolt.

2. Contact a Sears or other

qualified service center•

3. Tighten loose part(s).

Replace damaged parts•

Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center•

• Replace blade• Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

_. Contact a Sears or other

qualified service center•

5. Clean around mandrels to

open vent holes•

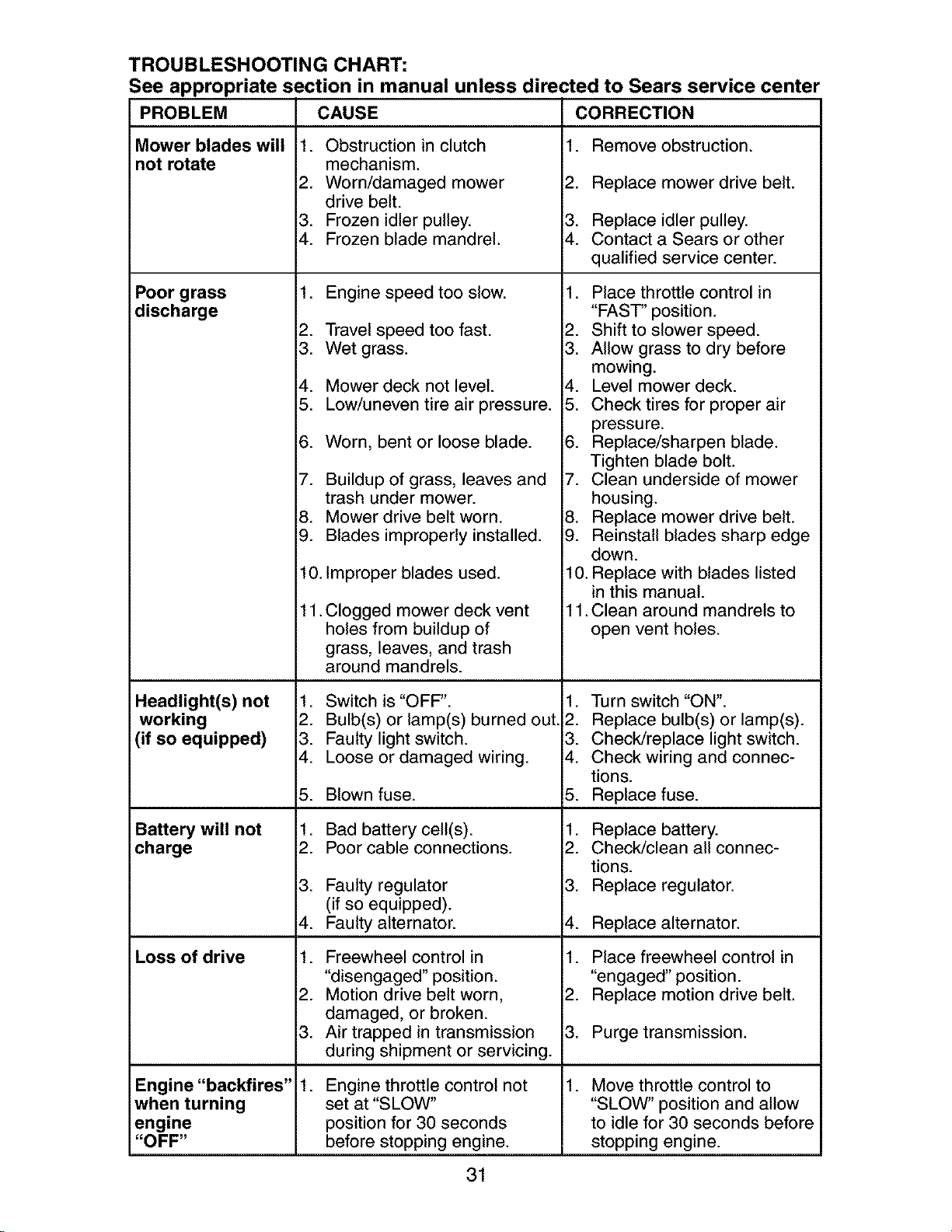

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

iMower blades will

not rotate

Poor grass

discharge

CAUSE CORRECTION

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

8. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

iHeadlight(s) not 1.

working 2.

(if so equipped) 3.

Battery will not 1.

charge 2.

Loss of drive 1.

Engine "backfires"

when turning

engine

"OFF"

Switch is "OFF".

Bulb(s) or lamp(s) burned out.

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Freewheel control in

"disengaged" position.

Motion drive belt worn,

damaged, or broken.

Air trapped in transmission

during shipment or servicing.

Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

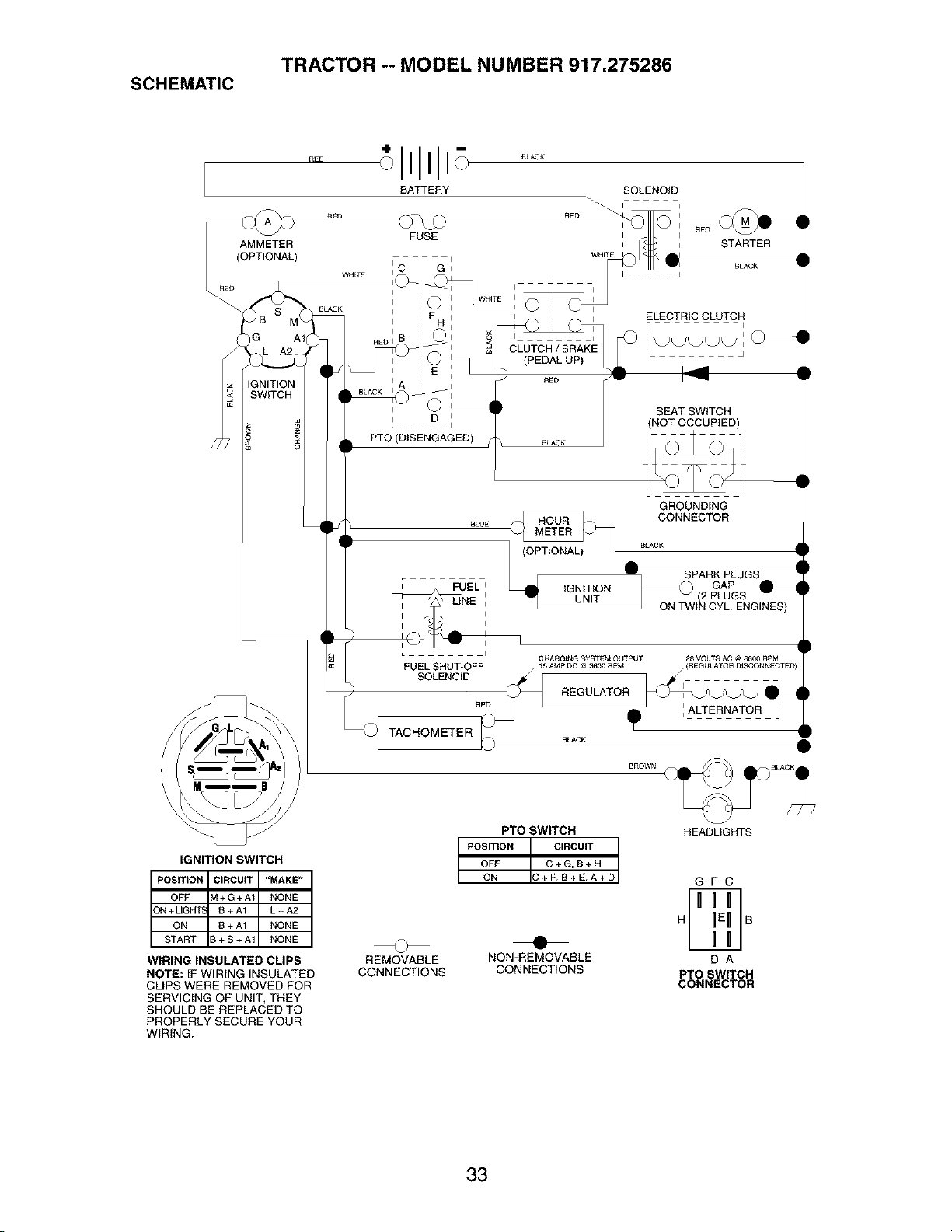

TRACTOR -- MODEL NUMBER 917.275286

SCHEMATIC

BATTERY SOLENOID

IGNITION SWITCH

POSITION CIRCUIT "MAKE _'

OFF M+G+A1 NONE

ON + LIGHT_ E+A1 L+A2

ON E+A1 NONE

START B+S+A1 NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

PTO SWITCH

POSITION CIRCUIT

OFF C+G,B+H

ON 3+F,B+E,A+D

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTIONS

HEADLIGHTS

GFC

PTO SWITCH

CONNECTOR

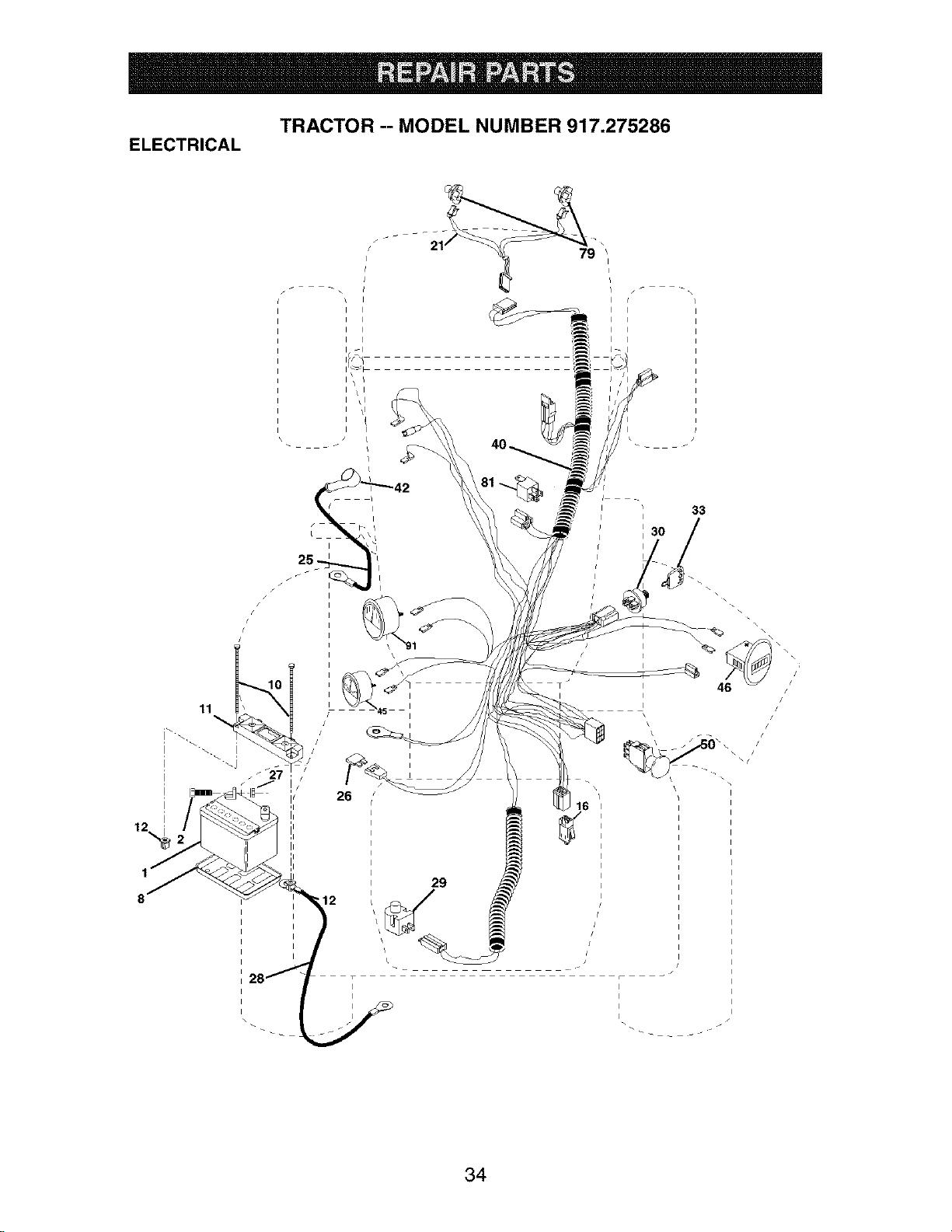

TRACTOR -- MODEL NUMBER 917.275286

ELECTRICAL

I I

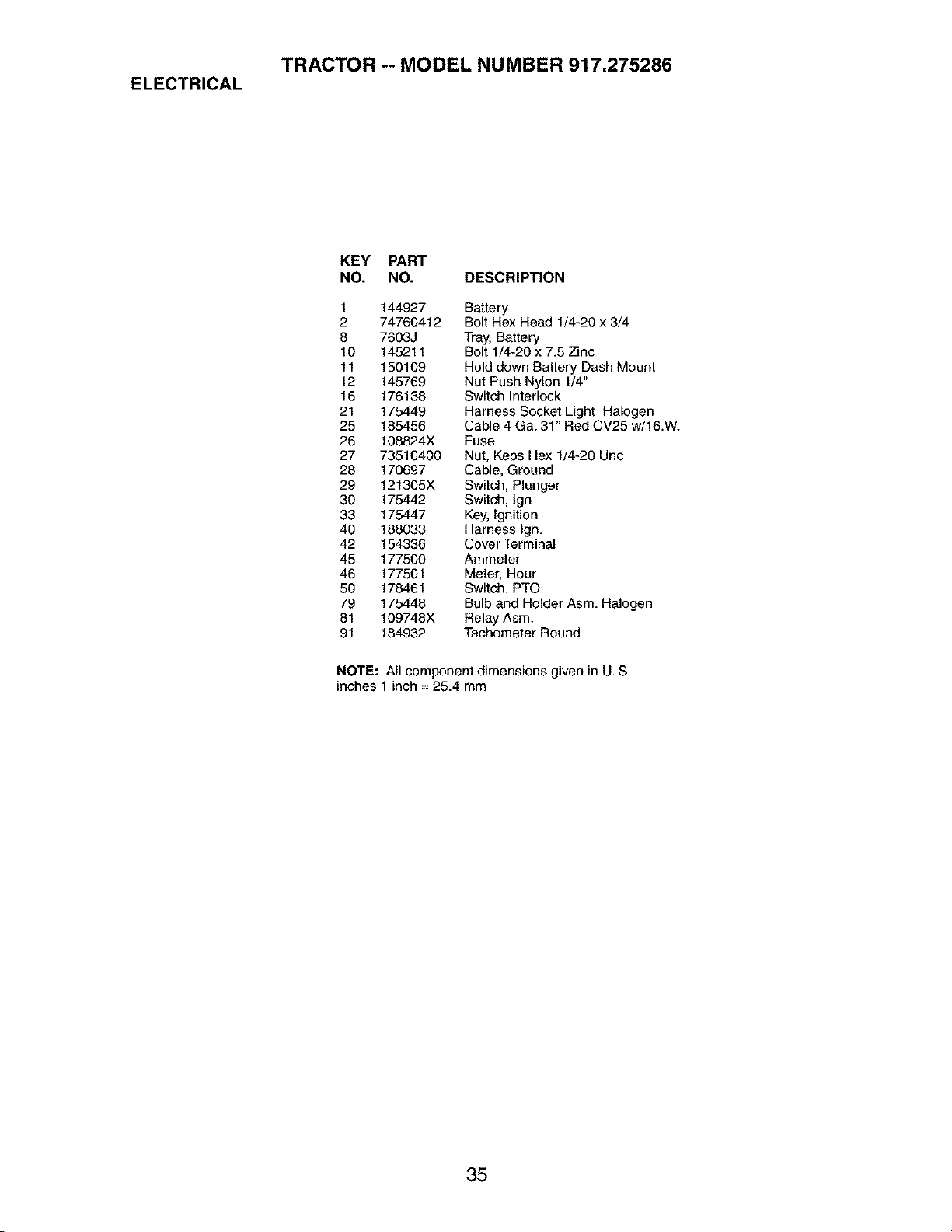

TRACTOR -- MODEL NUMBER 917.275286

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt Hex Head 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Belt 1/4-20 x 7.5 Zinc

11 150109 Hold down Battery Dash Mount

12 145769 Nut Push Nylon 1/4"

16 176138 Switch Interlock

21 175449 Harness Socket Light Halogen

25 185456 Cable 4 Ga. 31" Red CV25 w/16.W.

26 108824X Fuse

27 73510400 Nut, Keps Hex 1/4-20 Unc

28 170697 Cable, Ground

29 121305X Switch, Plunger

30 175442 Switch, lgn

33 175447 Key, Ignition

40 188033 Harness lgn.

42 154336 Cover Terminal

45 177500 Ammeter

46 177501 Meter, Hour

50 178461 Switch, PTO

79 175448 Bulb and Holder Asm. Halogen

81 109748X Relay Asm.

91 184932 Tachometer Round

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

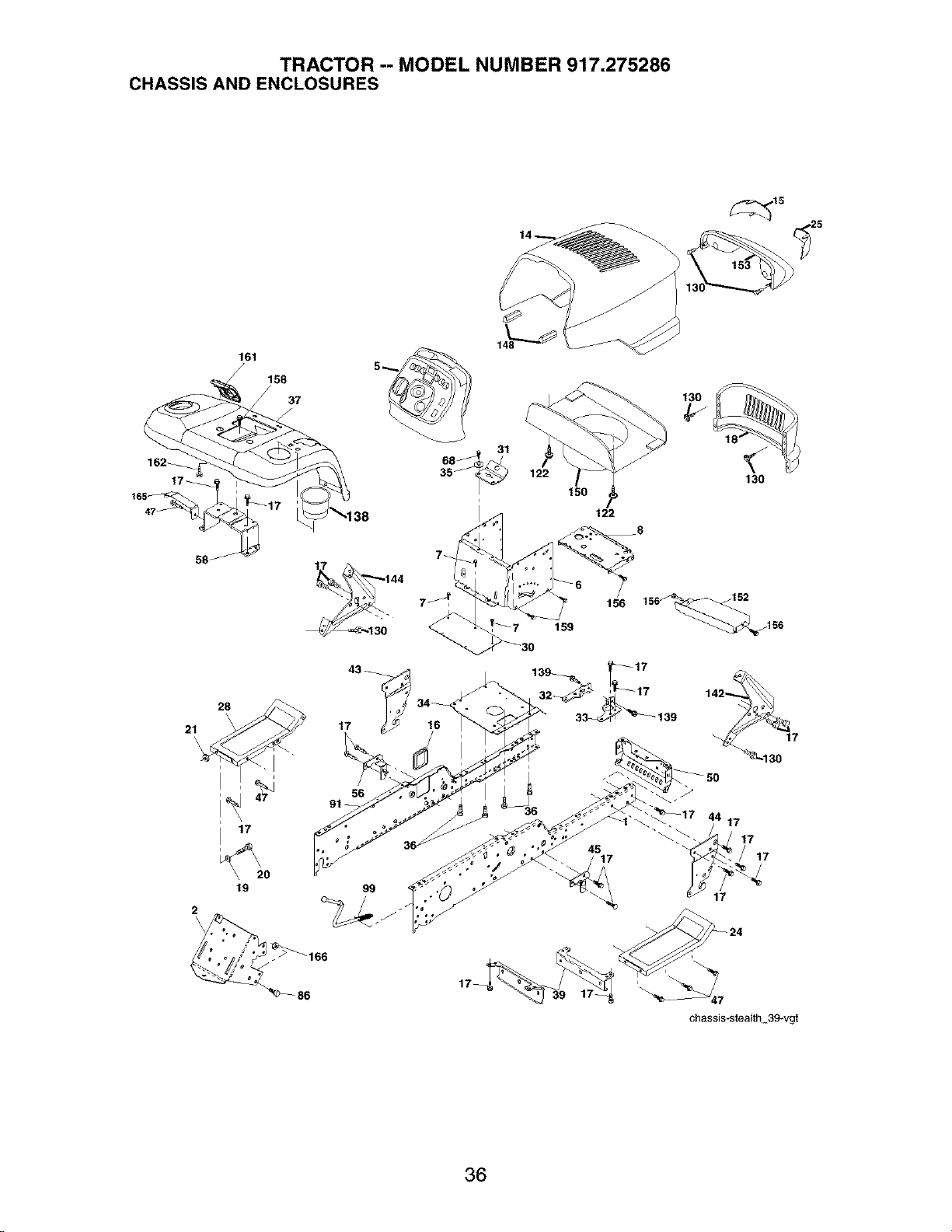

TRACTOR -- MODEL NUMBER 917.275286

CHASSIS AND ENCLOSURES

162_

161

158

35 122

150

_7 159

122

156

130

_152

_156

i i

\_ 20

43_

139_ _17

32_, 3_139

chassis-steatth39-vg

TRACTOR -- MODEL NUMBER 917.275286

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 180375 Kit Rail Chass. RH GT Serv.

2 175282 Drawbar, Gt

5 180639X418 Dash

6 157882 Dash, Lower Vgt One Piece

7 17720408 Screw, Thd Cut 1/4-20 x 1/2

8 184668 Support, Battery

14 175260X615 Hood Asm

15 161841 Lens LH

16 121794X Cover, Access

17 17000612 Screw 3/8-16 x .75

18 174515X615 Grille

19 19131312 Washer 13/32 x 13/16 x 12 Ga.

20 STD523710 Bolt, FinHex 3/8-16xl

21 STD541437 NutCrownlock 3/8-16Unc

24 179717X615 Footrest, RH

25 161842 Lens RH

28 179716X615 Footrest, LH

30 145052 Saddle, Hydro

31 161419 Brace, Supt 1-pc VGT

32 161327 Bracket, Pivot Chassis Lh

33 161326 Bracket, Pivot Chassis Rh

34 177018 Plate Asm Engine

35 19111116 Washer 11/32x11/16x16Ga.

36 17060512 Screw 5/16-18 x 3/4

37 178510X615 Fender Pnt

39 175278 Bracket, Axle Front

43 136939 Bracket, Spnsn Front Lh

44 136940 Bracket, Spnsn Front Rh

45 176018 Bracket Asm., Susp Chas.Rh

47 17490608 Screw ThdroL 3/8-16 x 1/2

50 175476 Bracket, Chassis Front

56 176016 Bracket Asm., Susp Chas. Lh

58 183569 Bracket Asm., Fender

68 17490508 Screw ThdroL 5/16-18 x 1/2

86 74780716 Bolt Fin Hex 7/16-14 Unc x 1

91 180374 Kit Rail Chass. LH GT Serv.

99 177143 Rod By Pass

122 161464 Screw Hex Wshd 8-18 x 7/8

130 171875 Screw Hwhd Hi-Lo #13-16 x 3/4

138 179125X418 CupHolder

139 171873 Bolt Shoulder 5/16-18 TT

142 161897 Bracket Dash Rh

144 161900 Bracket Dash Lh

148 164655 Extrusion Bumpers

150 175352 Duct Heat Hood

152 177956 Shield Heat

153 181574 Lens Lightbox

156 17000512 Screw 5/16-18 x 3/4

158 17670608 Screw Thdrol 3/8-16 x 1/2

159 17000612 Screw Hexwsh Thdrl 3/8-16 x 3/4

161 179612X418 Console Fuel Window

162 142432 Screw Hex Wsh Hi-Lo 1/4-1/2

165 183554 Bracket Support FueITank

166 73680700 Nut Crown Lock 7/16-14

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

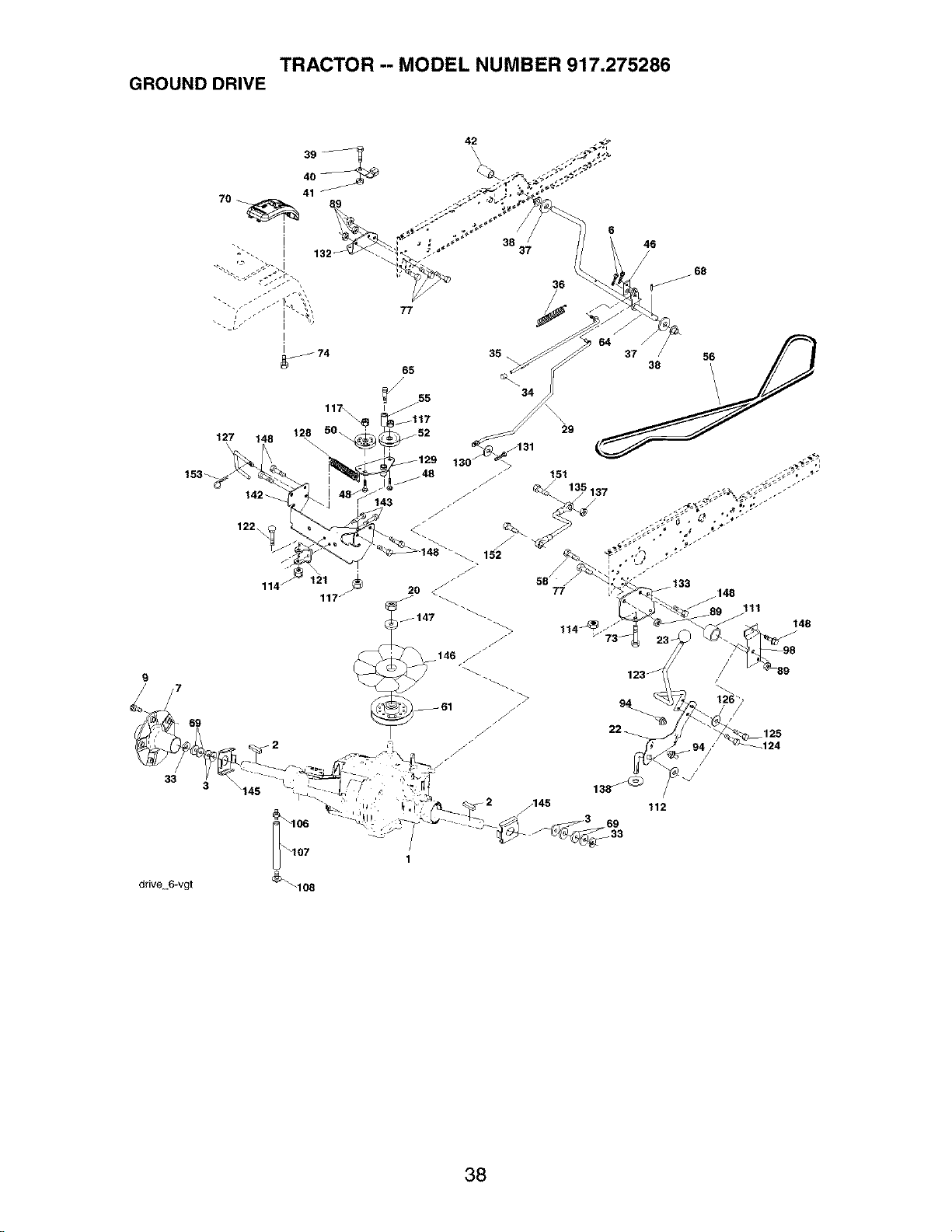

TRACTOR -- MODEL NUMBER 917.275286

GROUND DRIVE

117\

127 148 128

/55

_117

j52

153_

114f 117>

-2

drive 6wgt

U\107

_108

F131

.145

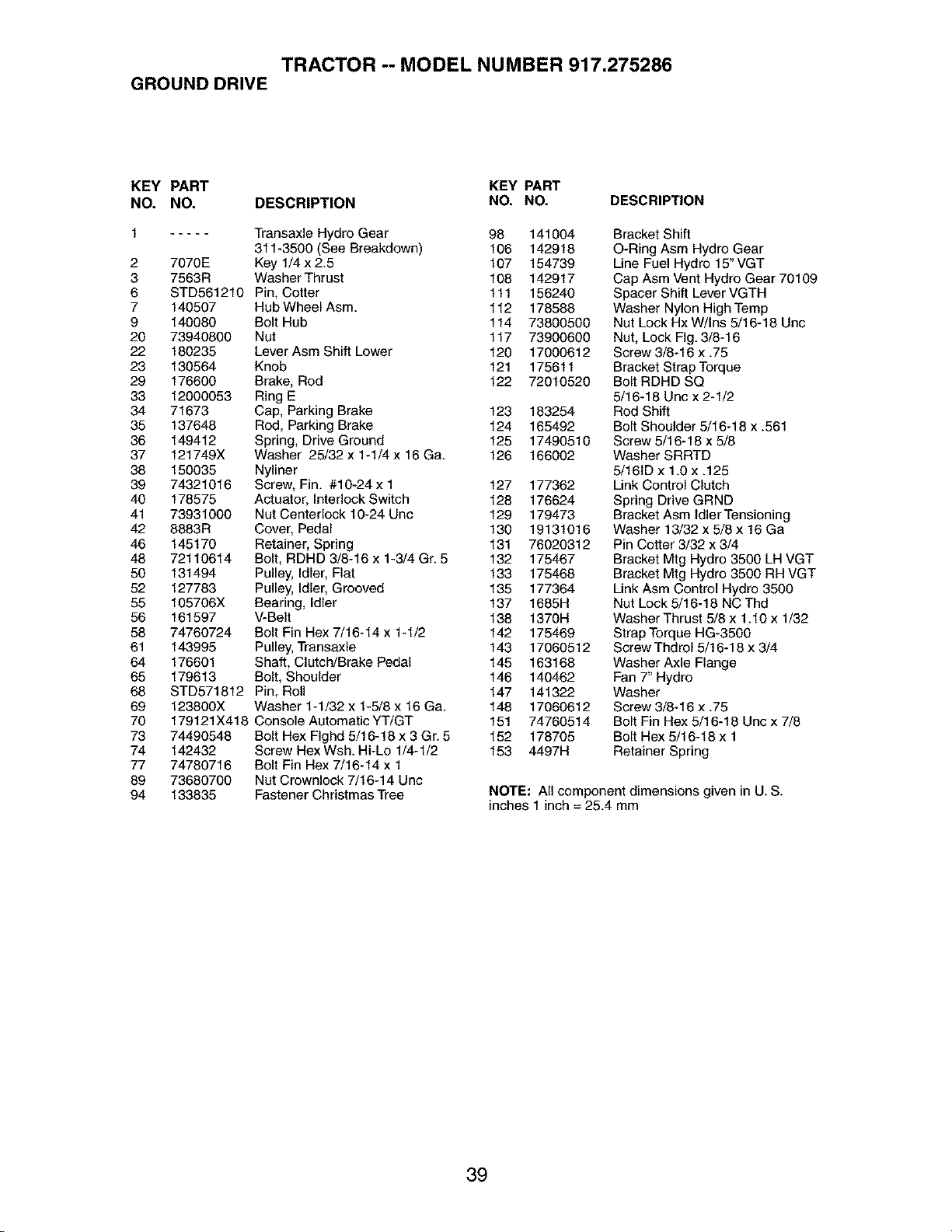

TRACTOR -- MODEL NUMBER 917.275286

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 ..... Transaxle Hydro Gear 98 141004

311-3500 (See Breakdown) 106 142918

2 7070E Key 1/4 x 2.5 107 154739

3 7563R Washer Thrust 108 142917

6 STD561210 Pin, Cotter 111 156240

7 140507 Hub Wheel Asm. 112 178588

9 140080 Bolt Hub 114 73800500

20 73940800 Nut 117 73900600

22 180235 Lever Asm Shift Lower 120 17000612

23 130564 Knob 121 175611

29 176600 Brake, Rod 122 72010520

33 12000053 Ring E

34 71673 Cap, Parking Brake 123 183254

35 137648 Red, Parking Brake 124 165492

36 149412 Spring, Drive Ground 125 17490510

37 121749X Washer 25/32 x 1-1/4 x 16 Ga. 126 166002

38 150035 Nyliner

39 74321016 Screw, Fin. #10-24x 1 127 177362

40 178575 Actuator, Interlock Switch 128 176624

41 73931000 Nut Centerlock 10-24 Uric 129 179473

42 8883R Cover, Pedal 130 19131016

46 145170 Retainer, Spring 131 76020312

48 72110614 Bolt, RDHD 3/8-16 x 1-3/4 Gr. 5 132 175467

50 131494 Pulley, Idler, Flat 133 175468

52 127783 Pulley, Idler, Grooved 135 177364

55 105706X Bearing, Idler 137 1685H

56 161597 V-Belt 138 1370H

58 74760724 Bolt Pin Hex 7/16-14 x 1-1/2 142 175469

61 143995 Pulley, Transaxle 143 17060512

64 176601 Shaft, Clutch/Brake Pedal 145 163168

65 179613 Bolt, Shoulder 146 140462

68 STD571812 Pin, Roll 147 141322

69 123800X Washer 1-1/32 x 1-5/8 x 16 Ga. 148 17060612

70 179121X418 Console Automatic YT/GT 151 74760514

73 74490548 Bolt Hex FIghd 5/16-18 x 3 Gr. 5 152 178705

74 142432 Screw Hex Wsh. Hi-Lo 1/4-1/2 153 4497H

77 74780716 Bolt Pin Hex 7/16-14 x 1

89 73680700 Nut Crewnlock 7/16-14 Unc

94 133835 Fastener Christmas Tree

Bracket Shift

O-Ring Asm Hydro Gear

Line Fuel Hydro 15" VGT

Cap Asm Vent Hydro Gear 70109

Spacer Shift Lever VGTH

Washer Nylon High Temp

Nut Lock Hx W/Ins 5/16-18 Uric

Nut, Lock Fig. 3/8-16

Screw 3/8-16 x .75

Bracket Strap Torque

Belt RDHD SQ

5/16-18 Unc x 2-1/2

Red Shift

Belt Shoulder 5/16-18 x .561

Screw 5/16-18 x 5/8

Washer SRRTD

5/16tD x 1.0 x .125

Link Control Clutch

Spring Drive GRND

Bracket Asm Idler Tensioning

Washer 13/32 x 5/8 x 16 Ga

Pin Cotter 3/32 x 3/4

Bracket Mtg Hydro 3500 LH VGT

Bracket Mtg Hydro 3500 RH VGT

Link Asm Control Hydro 3500

Nut Lock 5/16-18 NC Thd

Washer Thrust 5/8 x 1.10 x 1/32

Strap Torque HG-3500

Screw Thdrol 5/16-18 x 3/4

Washer Axle Flange

Fan 7" Hydro

Washer

Screw 3/8-16 x .75

Belt Fin Hex 5/16-18 Uric x 7/8

Belt Hex 5/16-18 x 1

Retainer Spring

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

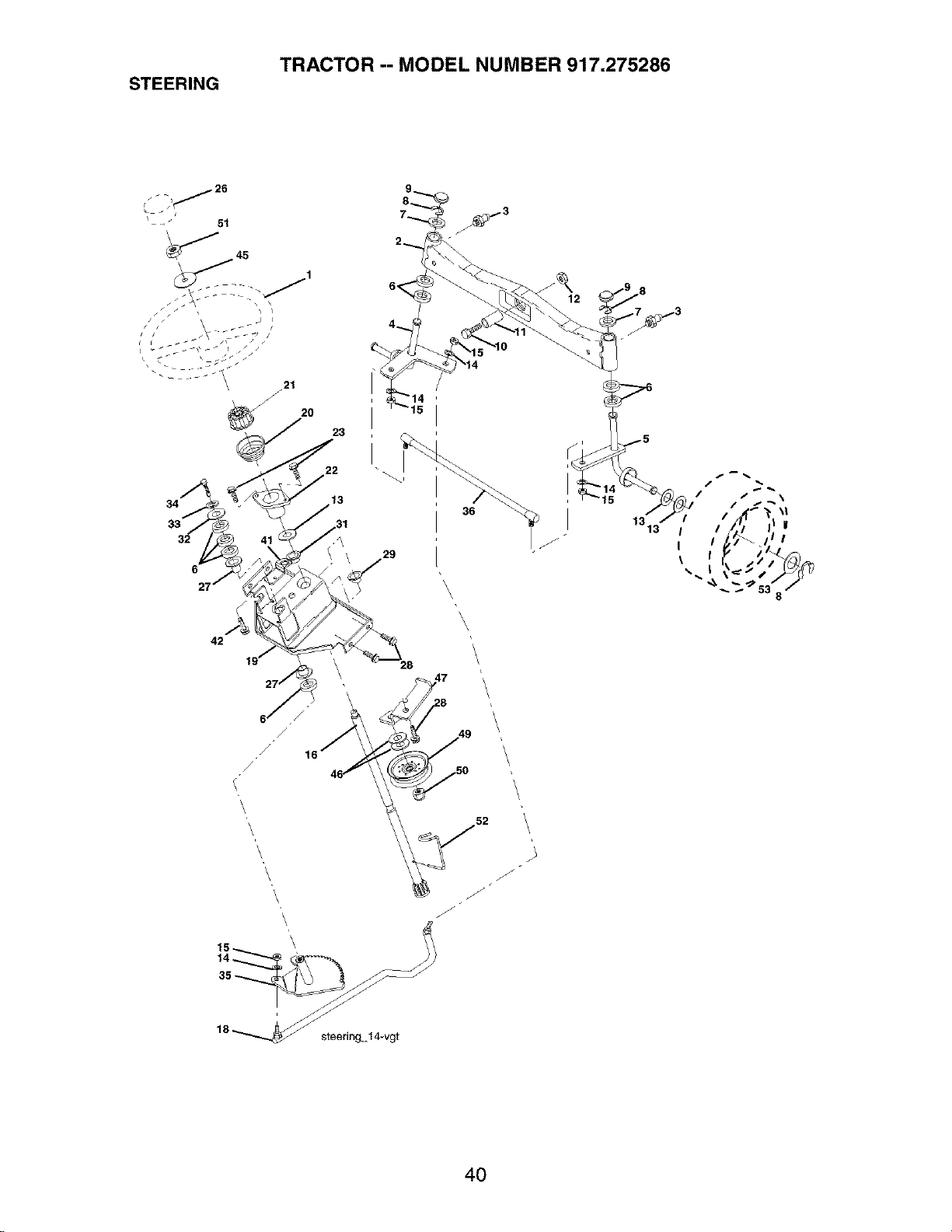

TRACTOR -- MODEL NUMBER 917.275286

STEERING

L J/

18 _ steering1 4_vgt

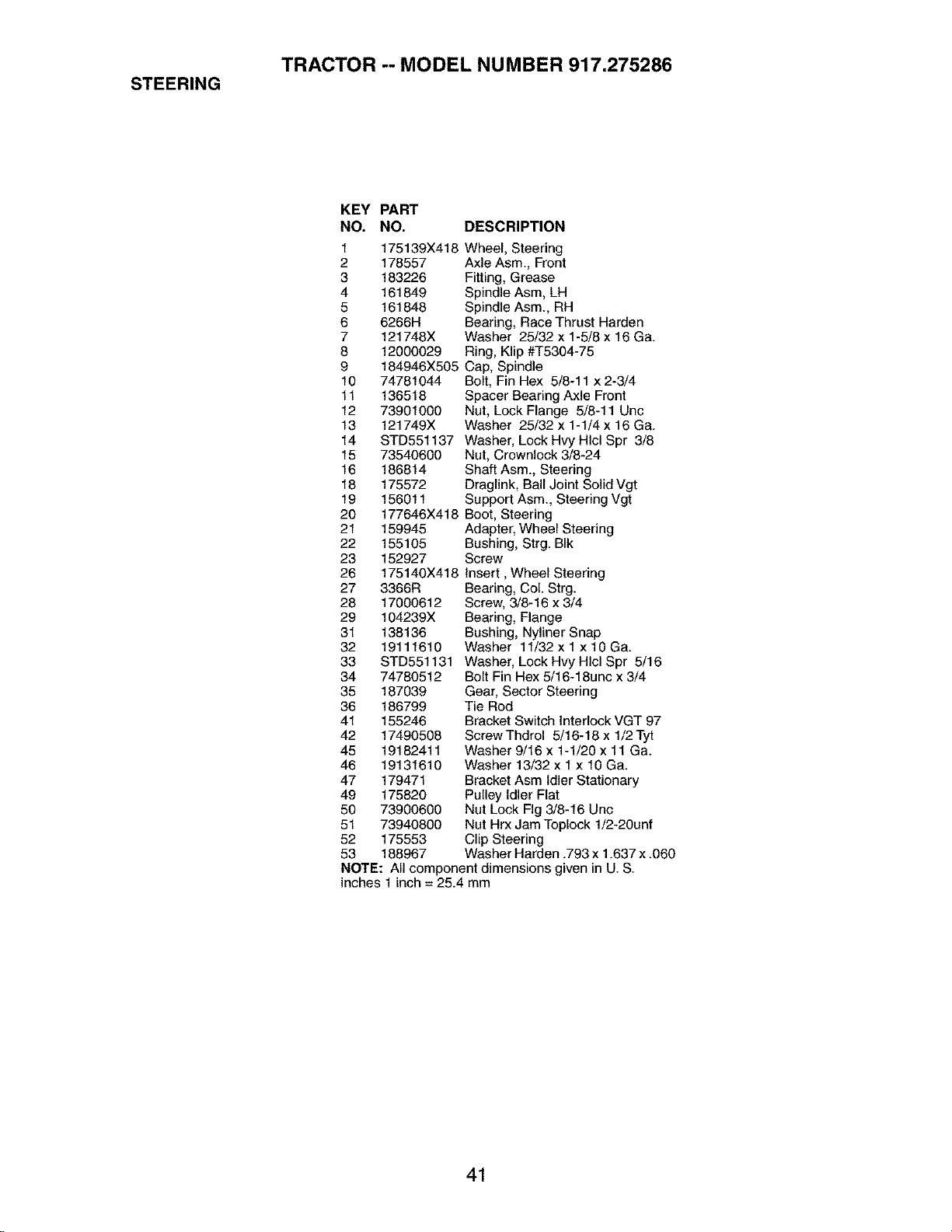

TRACTOR -- MODEL NUMBER 917.275286

STEERING

KEY PART

NO. NO. DESCRIPTION

2 178557

3 183226

4 161849

5 161848

6 6266H

7 121748X

8 12000029

NOTE: AIIcomponentdimensions given

inches 1 inch = 25.4 mm

175139X418 Wheel, Steering

Axle Asm., Front

Fitting,Grease

Spindle Asm, LH

Spindle Asm, RH

Bearing, Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Klip #T5304-75

184946X505 Cap, Spindle

74781044 Bolt, Fin Hex 5/8-11 x 2-3/4

136518 Spacer Bearing Axle Front

73901000 Nut, Lock Flange 5/8-11 Uric

121749X Washer 25/32 x 1-1/4 x 16 Ga.

STD551137 Washer, Lock Hvy Hlcl Spr 3/8

73540600 Nut, Crownlock 3/8-24

186814 Shaft Asm., Steering

175572 Draglink, Ball Joint Solid Vgt

156011 Support Asm, Steering Vgt

177646X418 Boot, Steering

159945 Adapter, Wheel Steering

155105 Bushing, Strg. BIk

152927 Screw

175140X418 Insert, Wheel Steering

3366R Bearing, Col. Strg.

17000612 Screw, 3/8-16 x 3/4

104239X Bearing, Flange

138136 Bushing, Nyliner Snap

19111610 Washer 11/32 x lx 10 Ga.

STD551131 Washer, Lock Hvy Hlcl Spr 5/16

74780512 Bolt Fin Hex 5/16-18unc x 3/4

187039 Gear, Sector Steering

186799 Tie Rod

155246 Bracket Switch Interlock VGT 97

17490508 ScrewThdrol 5/16-18 x 1/2Tyt

19182411 Washer 9/16 x 1-1/20 x 11 Ga.

19131610 Washer 13/32 x 1 x 10 Ga.

179471 Bracket Asm Idler Stationary

175820 Pulley Idler Flat

73900600 Nut Lock Fig 3/8-16 Unc

73940800 Nut Hrx Jam Toplock 1/2-20unf

175553 Clip Steering

188967 Washer Harden .793 x 1.637 x .060

in U. S.

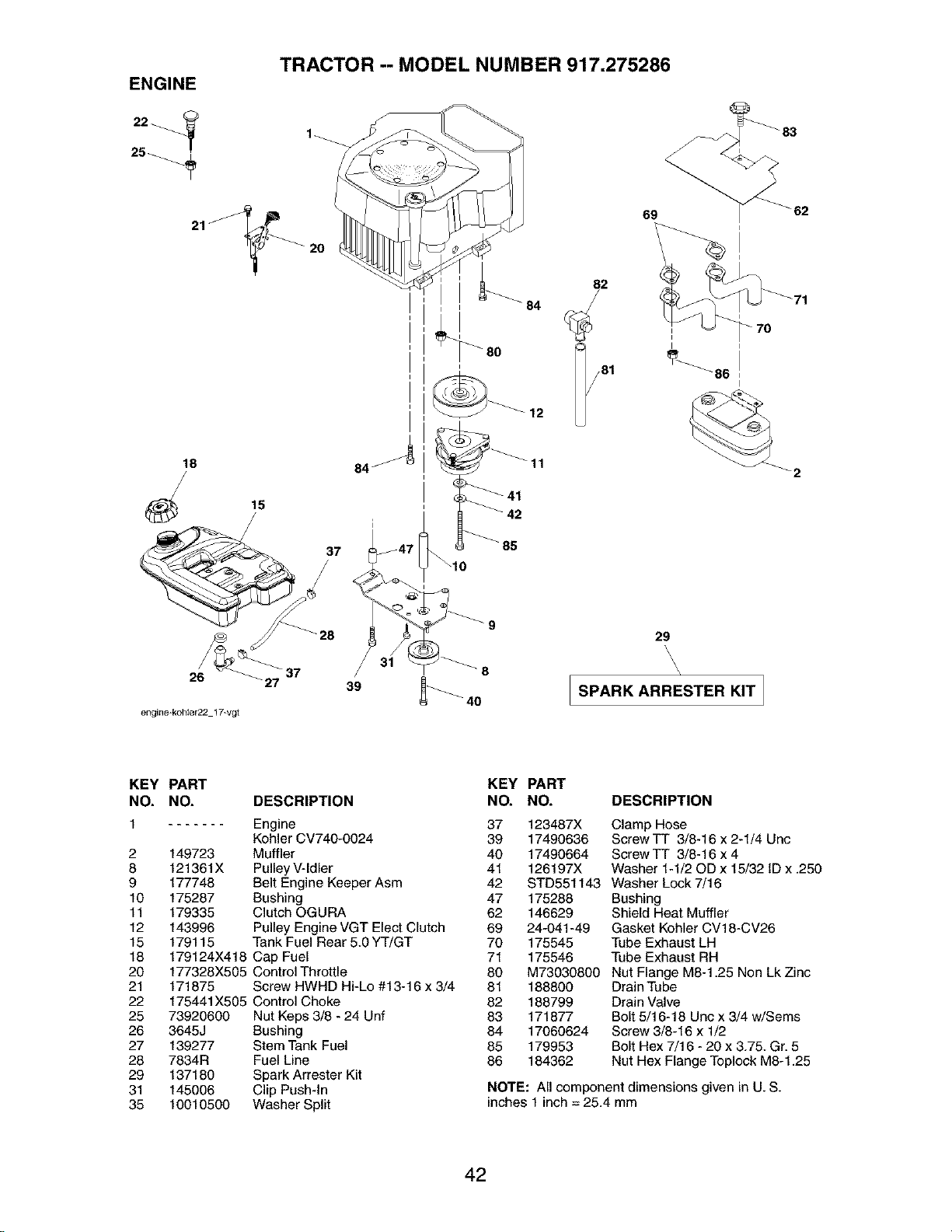

ENGINE

engine-kohler22 17-vgt

TRACTOR -- MODEL NUMBER 917.275286

27 39

KEY PART

NO. NO.

2 149723

8 121361X

9 177748

10 175287

11 179335

12 143996

15 179115

18 179124X418

20 177328X505

21 171875

22 175441X505

25 73920600

26 3645J

27 139277

28 7834R

29 137180

31 145006

35 10010500

DESCRIPTION

Engine

Kohler CV740-0024

Muffler

Pulley V-Idler

Belt Engine Keeper Asm

Bushing

Clutch OGURA

Pulley Engine VGT Elect Clutch

Tank Fuel Rear 5.0 YT/GT

Cap Fuel

Control Throttle

Screw HWHD Hi-Lo #13-16 x 3/4

Control Choke

Nut Keps 3/8 - 24 Unf

Bushing

Stem Tank Fuel

Fuel Line

Spark Arrester Kit

Clip Push-In

Washer Split

KEY PART

NO. NO. DESCRIPTION

37 123487X Clamp Hose

39 17490636 Screw TT 3/8-16 x 2-1/4 Unc

40 17490664 Screw TT 3/8-16 x 4

41 126197X Washer 1-1/20D x 15/32 ID x .250

42 STD551143 Washer Lock 7/16

47 175288 Bushing

62 146629 Shield Heat Muffler

69 24-041-49 Gasket Kohler CV18-CV26

70 175545 Tube Exhaust LH

71 175546 Tube Exhaust RH

80 M73030800 Nut Flange M8-1.25 Non Lk Zinc

81 188800 Drain Tube

82 188799 Drain Valve

83 171877 Belt 5/16-18 Uric x 3/4 w/Sems

84 17060624 Screw 3/8-16 x 1/2

85 179953 Bolt Hex 7/16 - 20 x 3.75. Gr. 5

86 184362 Nut Hex Flange Toplock M8-1.25

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

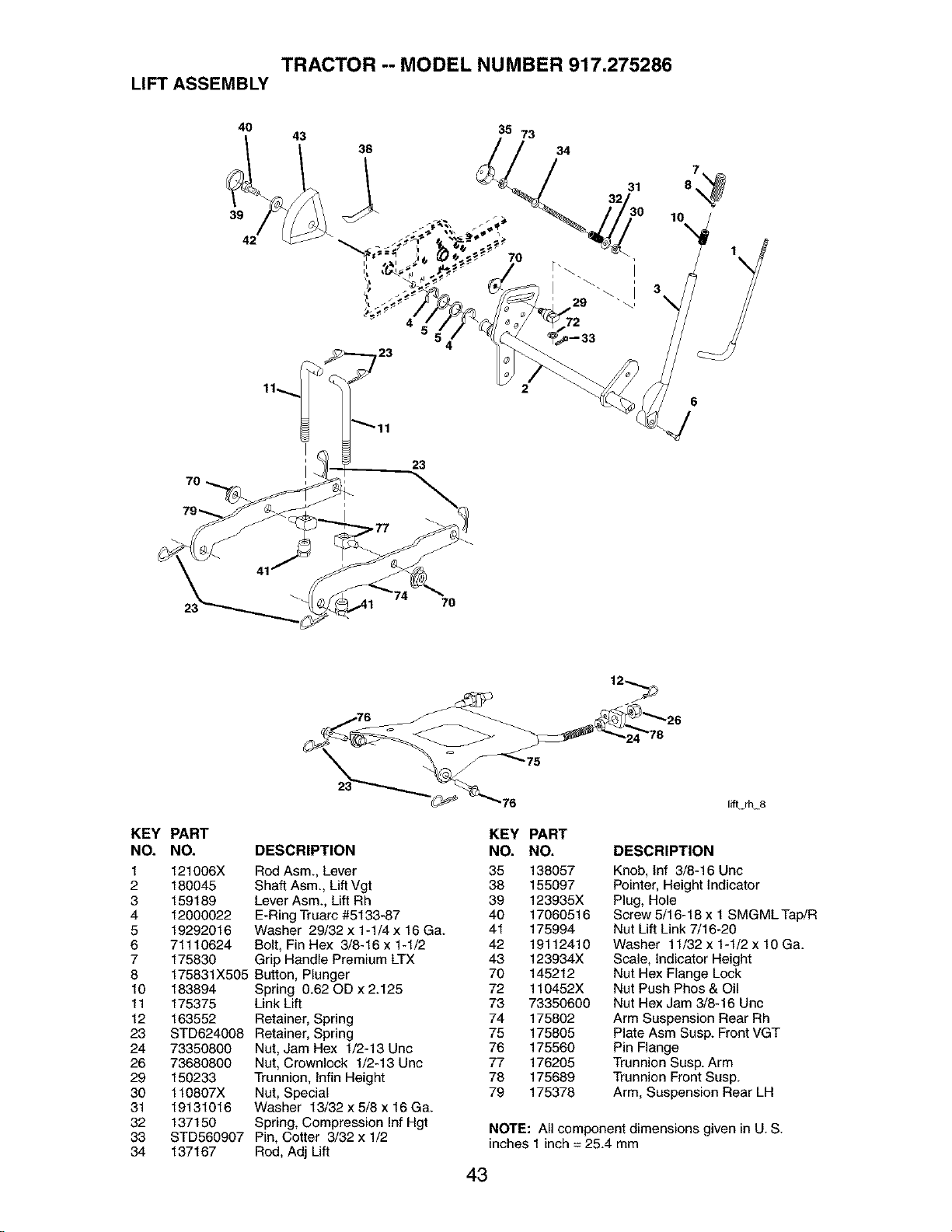

TRACTOR -- MODEL NUMBER 917.275286

LIFT ASSEMBLY

35 73

32 31

_ 30

10\ /

KEY PART

NO. NO. DESCRIPTION

121006X

180045

159189

12000022

19292016

71110624

175830

Rod Asm. Lever

Shaft Asm. LiftVgt

Lever Asm., Lift Rh

E-Ring Truarc #5133-87

Washer 29/32 x 1-1/4 x 16 Ga.

Bolt, Fin Hex 3/8-16 x 1-1/2

Grip Handle Premium LTX

175831X505 Button, Plunger

183894

175375

163552

STD624008

7335O8OO

73680800

150233

110807X

19131016

137150

STD560907

137167

Spring 0.62 OD x 2.125

Link Lift

Retainer, Spring

Nut, Jam Hex 1/2-13 Uric

Nut, Crewnlock 1/2-13 Unc

Trunnion, Infin Height

Nut, Special

Washer 13/32 x 5/8 x 16 Ga.

Spring, Compression Inf Hgt

Pin, Cotter 3/32 x 1/2

Rod, Adj Lift

lift .rh=8

KEY PART

NO. NO.

35 138057

38 155097

39 123935X

40 17060516

41 175994

42 19112410

43 123934X

70 145212

72 110452X

73 73350600

74 175802

75 175805

76 175660

77 176205

78 175689

79 175378

DESCRIPTION

Knob, lnf 3/8-16 Uric

Pointer, Height Indicator

Plug, Hole

Screw 5/16-18 x 1 SMGMLTap/R

Nut Lift Link 7/16-20

Washer 11/32x 1-1/2x 10Ga.

Scale, Indicator Height

Nut Hex Flange Lock

Nut Push Phos & Oil

Nut Hex Jam 3/8-16 Uric

Arm Suspension Rear Rh

Plate Asm Susp. Front VGT

Pin Flange

Trunnion Susp. Arm

Trunnion Front Susp.

Arm, Suspension Rear LH

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

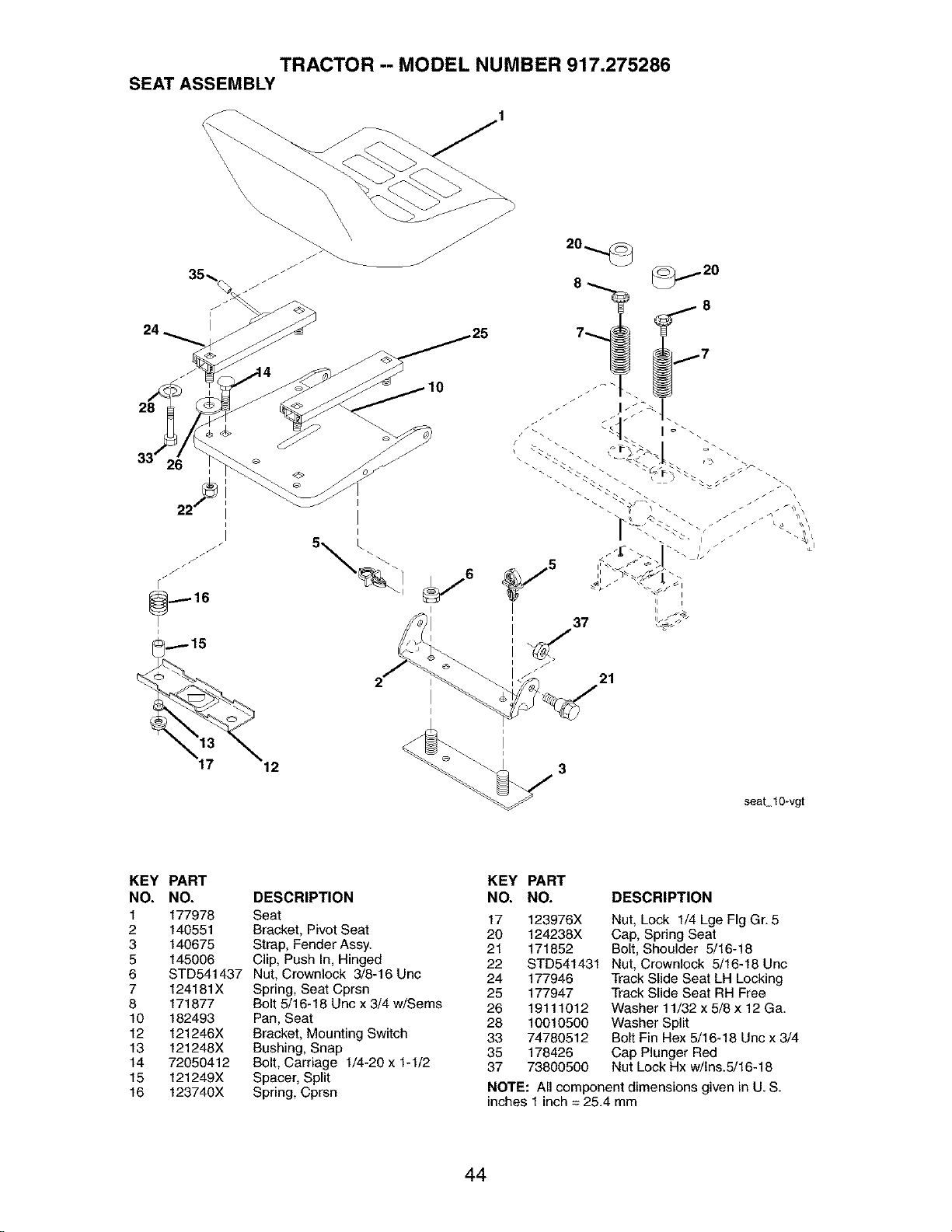

TRACTOR -- MODEL NUMBER 917.275286

SEAT ASSEMBLY

/ /

.....- 16

I i

5\ _

2o.

sea l0-vgt

KEY PART

NO. NO.

1 177978

2 140551

3 140675

5 145006

6 STD541437

7 124181X

8 171877

10 182493

12 121246X

13 121248X

14 72050412

15 121249X

16 123740X

DESCRIPTION

Seat

Bracket, Pivot Seat

Strap, Fender Assy.

Clip, Push In, Hinged

Nut, Crownlock 3/8-16 Unc

Spring, Seat Cprsn

Bolt 5/16-18 Unc x 3/4 w/Sems

Pan, Seat

Bracket, Mounting Switch

Bushing, Snap

Bolt, Carriage 1/4-20 x 1-1/2

Spacer, Split

Spring, Cprsn

KEY PART

NO. NO. DESCRIPTION

123976X Nut, Lock 1/4 Lge Fig Gr. 5

124238X Cap, Spring Seat

171852 Bolt, Shoulder 5/16-18

STD541431 Nut, Crownlock 5/16-18 Unc

177946

177947

19111012

1OO1O500

74780512

178426

73800500

Track Slide Seat LH Locking

Track Slide Seat RH Free

Washer 11/32 x 5/8 x 12 Ga.

Washer Split

Bolt Fin Hex 5/16-18 Unc x 3/4

Cap Plunger Red

Nut Lock Hx w/Ins.5/16-18

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR - MODEL NUMBER 917.275286

DECALS

5 4

20 13

KEY PART

NO. NO.

1 182221

2 186308

3 186242

4 186243

5 181470

6 133644

7 186244

8 177918

9 180978

10 156439

11 181252

12 178455

13 177554

14 175291

15 186294

16 177889

DESCRIPTION

Decal, Oper. Instructions

Decal, Hp Engine

Decal, Hood RH

Decal, Hood LH

Decal, Deck Leveling

Decal, Maintenance

Decal, Replacement

Decal Engine Twin

Decal, Hood/Seat

Decal, Fender Danger

Decal, Clutch/Brake

Decal, Deck Caution

Decal, Belt Drive

Decal, Deck Schematic

Decal, Side Panel

Decal Grille

KEY PART

NO. NO. DESCRIPTION

17 149516 Decal, Btry Dngr/Psn Eng. Acme

18 177890 Decal, Insert Strg

19 138047 Decal, Battery

20 182796 Decal, Lower Dash

21 177914 Decal Engine Kohl

22 177916 Decal Engine RH

23 106202X Reflector, Taillight

24 178482 Decal Deck Hvy Duty

25 177917 Decal Engine LH

- - 166960 Decal, Bypass Control (Drawbar)

- - 179768X418 Pad, Footrest LH

- - 179769X418 Pad, Footrest RH

- - 191170 Owner's Manual, English

- - 191171 Owner's Manual, Spanish

WHEELS

AND TIRES

7 10

8 9

KEY PART

NO. NO. DESCRIPTION

1 59192 Cap Valve Tire

2 65139 Stem Valve

8 148786X417 Rim Asm Front

4 8134H Tube, Front (Service Item Only)

5 148741 Tire, Front

6 278H Fitting Grease (Front Wheel Only)

7 9040H Bearing Flange (Front Wheel

Only)

104757X417 Cap Axle (Front Wheel Only)

151607 Tire Rear

7154J Tube Rear (Service Item Only)

148788X417 Rim Asm Rear

6856M Fitting Grease

144334 Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.275286

MOWER DECK

112

>30

mower deck.48prem 2

TRACTOR -- MODEL NUMBER 917.275286

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 180358 Deck Weldment Mower 48 49 73900600

3 178915 Bracket Asm., Sway Bar 50 72110612

5 4939M Retainer Spring 52 175820

6 178024 Sway Bar 56 155986

8 174365 Bolt 7/16 Asm. Blade 57 156941

(The following blades are 91 180535

available) 94 176066

11 180054 Blade, 48" Hi-Lift 95 180534

(For bagging and discharging) 97 178515

- - 173921 Blade, 48" Mulching 98 179479

(For mulching mowers only) 99 184058

13 174360 Shaft Asm. w/Lower Bearing 100 72110616

14 174358 Mandrel Asm. 110 175016

15 110485X Bearing, Ball, Mandrel 112 174387

16 174493 Stripper Mandrel Deck 113 72110506

17 72110610 Bolt RDHD Sq Neck 3/8-16xl.25 114 174384

18 72140505 Bolt, Carriage 5/16-18x5/8 115 174609

19 132827 Bolt, Hex Hd, Shoulder 5/16-18 116 184219

20 174378 Baffle, Vortex Mower 117 174873

21 73680500 Nut, Crownlock 5/16-18 Unc 118 73930600

24 105304X Cap, Sleeve 119 19121414

25 178102 Spring, Torsion 121 174371

26 110452X Nut, Push 122 174606

27 180655X428 Deflector Shield 126 174372

28 19111016 Washer 11/32x5/8x16Ga. 130 17000616

29 131491 Rod, Hinge 132 17000612

30 173984 Screw, Thdroll Washer Head 182 179127

31 187690 Washer, Spacer 183 163552

32 177865 Pulley, Mandrel 184 173979

33 178342 Nut, Fig.Top Lock Cntr. 9/16 - - 174356

37 177968 Pulley, Idler, Flat

39 174375 Pulley, Idler, Driven - - 181579

42 165723 Spacer, Retainer

43 174373 Arm, Idler Secondary

45 180806 Cover, Mandrel Deck

46 137729 Screw, Thdroll. 1/4-20 x 5/8

47 180808 V-Belt, Mower, Secondary

48 174368 V-Belt, Mower, Primary

Nut, Lock 3/8-16 Unc

Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5

Pulley Idler Flat

Bar Pnt Adj.

Pin Head Rivet

Bracket Asm. Noseroller RH

Noseroller

Bracket Asm Noseroller LH

Washer Hardened

Spring Primary Drive

Pulley Idler"V"

Bolt RDHD Sqnk 3/8-16 Unc x 2

Arm Spring Secondary

Link Tension Relief Lever

Bolt 5/16-18 x 3/4

Tension Asm. Relief Lever

Arm Spring Tension Relief

Bolt, Shoulder

Gauge Wheel

Nut, Centerlock 3/8-16 Unc

Washer 3/8 x 7/8 x 14 Ga.

Spring Secondary Drive

Bushing Pivot Tension Relief

Arm, Idler, Primary Deck

Screw 3/8-16 x 1.0

Screw 3/8-16 x 3/4

Rod Roller Nose

Retainer Spring

Keeper Belt Idler

Mandrel Assembly

(Includes Key Nos. 13-15 and 33)

Replacement Mower, Complete

(Std. Deck-Order separately nose

roller components Key Nos. 91

- 95 and 132, 182, and 183.)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

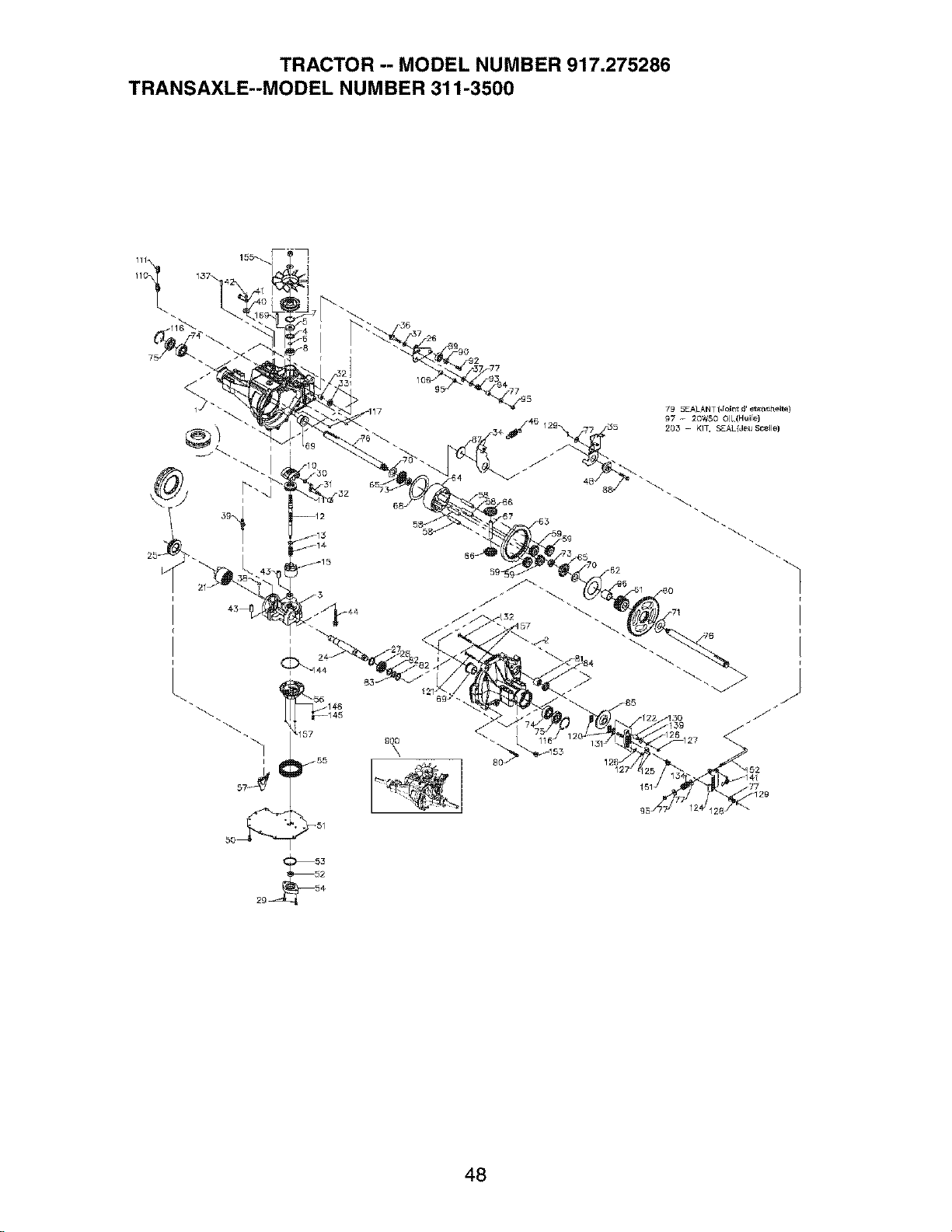

TRACTOR -- MODEL NUMBER 917.275286

TRANSAXLE--MODEL NUMBER 311-3500

__53

TRACTOR -- MODEL NUMBER 917.275286

TRANSAXLE--MODEL NUMBER 311-3500

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 161122 Main Housing Assembly 74 169535

2 178317 R.H. Housing Assembly 75 161157

3 169522 Center Section Assembly 76 161158

4 161125 Spacer 77 142884

5 142932 Seal-Lip 79 178322

6 142928 Wire Retaining Ring 80 161159

7 142933 Retaining Ring 81 161160

8 142934 Ball Bearing 82 161161

9 169523 Cradle Rearing 83 161162

10 169524 Variable Swashplate 84 161163

11 150771 Thrust Bearing 30 X 52 X 13

12 161126 Input Shaft 85 161164

13 142978 Block Thrust Washer 87 178323

14 142977 Arm -Trunnion 88 178324

15 196050 10cc Cylinder Block Assembly 89 178325

21 169525 21cc Cylinder Block Assembly 90 178326

24 161127 Output (Motor) Shaft 91 169536

25 169526 Thrust Bearing 42 X 68 X 16 92 178327

26 161128 Control Arm 93 142969

27 161129 Spacer 94 142980

28 161130 16t Pinion Gear 95 169537

29 169527 Capscrew, M6 X 1-22 96 169538

30 142941 Slot Guide 97 150798

31 161132 Trunnion Arm 106 161166

32 161133 Trunnion Bushing 108 178328

33 142940 Lip Seal 110 142918

34 178318 Arm Return 111 142917

35 178319 Arm Actuating 116 169539

36 169528 5/16-24 Stud 117 161168

37 142967 Puck, Friction 120 142883

38 150787 Bypass Plate 121 169540

39 169529 Bypass Actuator 122 178329

40 142945 Lip Seal 124 178330

41 142952 Bypass Arm 125 142887

42 142953 Retaining Ring 126 161172

43 142965 Pin 127 161173

44 150797 Screw 128 142885

48 178320 Puck 129 142886

50 178343 Screw-Self Tapping 130 161174

51 169530 Lower Cover 131 142882

52 169531 Gerotor Assembly 132 169544

53 144581 O-Ring 134 178331

54 161139 Gerotor Cover 136 178332

55 178321 Filter 137 178333

56 169533 Charge Manifold 138 178334

57 161142 Retainer, Motor Bearing 139 161176

58 161143 Pin, Carrier

59 161144 15t Planet Gear 141 178335

60 161145 7t Spur Gear 144 169545

61 161146 21t Sun Gear 145 169546

62 161147 Planet Thrust Plate 146 169547

63 161148 51t Ring Gear 151 161181

64 161149 Planetary Carrier 152 178336

65 178511 Miter Gear, Diff.(Splined) 153 142914

66 178512 Miter Gear, Diff. 155 178337

67 161152 Shaft, Differential 157 169548

68 161153 Diff. Thrust Plate 180 169549

69 169534 Flange Bearing 203 178338

70 161154 Washer 900 176057

71 161155 Washer

73 161156 Hex Jam Nut, 5/8-18

DESCRIPTION

Ball Brg 6205-1

Seal l"ld X 2.0472" X 0.375"

Shaft, Axle

Washer

Gasket Material

Torx Head Screw, 5/16-18

Needle Bearing (Sce1412)

Washer2

Retaining Ring

Lip Seal

(0.875LD.X1.3o.D.X0.25

Brake Disk

Washer

Screw 5/16-24

Bearing

Spacer

Oring, 0.070 X 0.239

Screw

Spring, Friction Pack

Spacer, Friction Pack

Hex Lock Nut 5/16-24

Sleeve Bearing

Oil

Spacer, Trunnion

Plug

Fitting-O Ring Ass'y

Cap Vent Ass'y

Retaining Ring

Std Hdls Pin

Puck, Brake

Rib Neck Bolt, 2"

Brake Yoke

Arm, Brake

Pins, Brake

Lockwasher, 1/4"

Nut, 1/4-20

Nut, Castle

Cotter Pin

Spacer

Puck Plate

Rib Neck Bolt, 3" 1

Spring

Spring Extension

Pin Spring

Bolt Self Tapping

Washer, 7/8od X 0.265id X

0.125 Thk

Spring Brake

O Ring, 2.864 Id X 0.070 Thk

Spring, Relief

Ball, 7/16

Comp. Spring, Brake Anti-Drag

Brake Pull Red

Plug, Straight Thread

Kit Fan

Screw O-Ring

Manifold Kit

Kit Seal

Transaxle, complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.275286

KOHLER ENGINE-MODEL NUMBER CV740,TYPE NUMBER 0024

iCYLINDER HEAD, VALVE AND BREATHERJ

2'_ !E

17L;i

_\26

i¸ r_¸¸ i /1_

li _ ! "_i_i_ ¸¸

CRANKCASEJ

i 24 _ /

1 2 26

21) ,

lS j

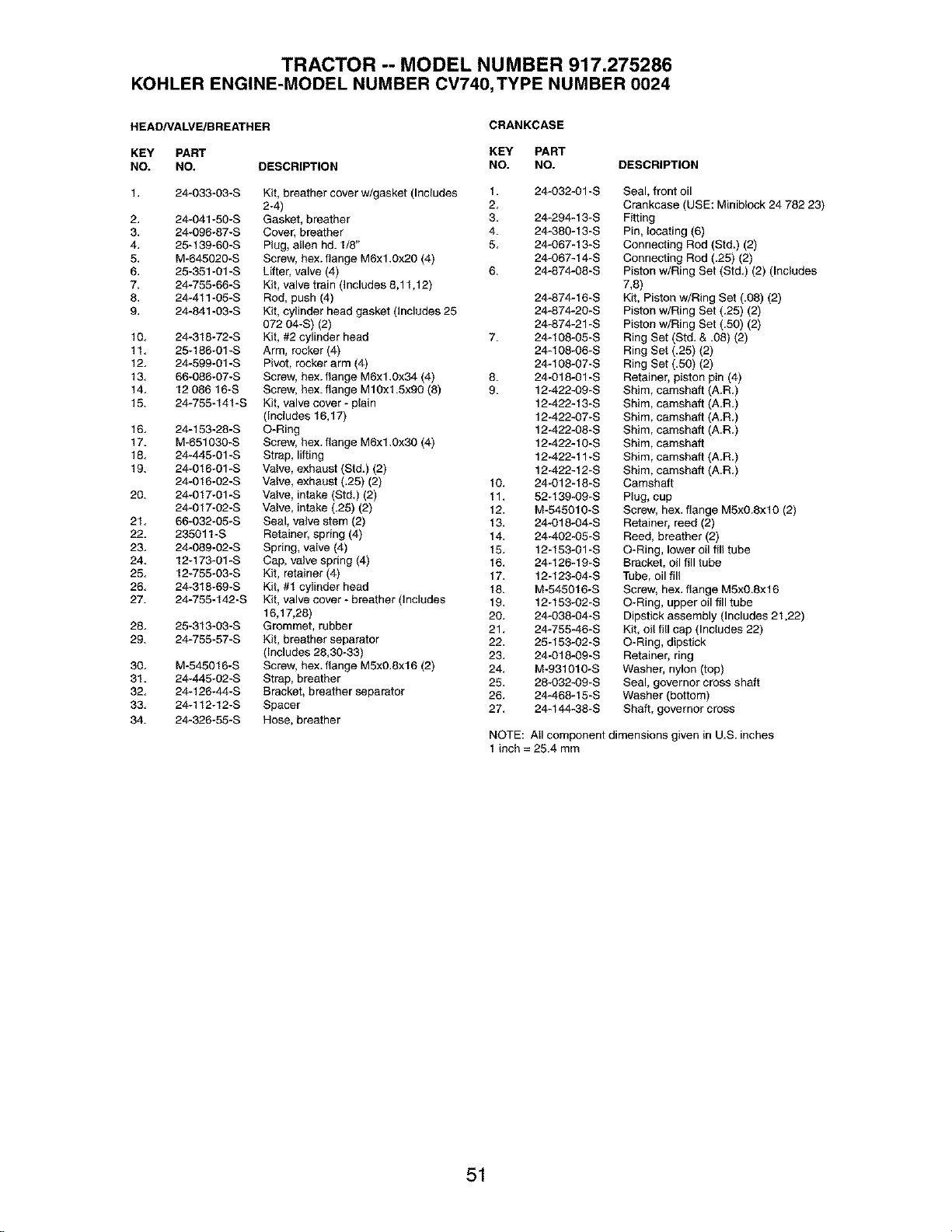

TRACTOR -- MODEL NUMBER 917.275286

KOHLER ENGINE-MODEL NUMBER CV740,TYPE NUMBER 0024

HEAD/VALVE/BREATHER

CRANKCASE

KEY PART KEY PART

NO. N_ DESCRIPTION N_ NO. DESCRIPTION

24-033-03-S Kit, breather cover w/gasket (Includes 1. 24-032-01-S

2-4) 2.

24-041-50-S Gasket, breather 3. 24-294-13-S

24-096-87-S Cover, breather 4. 24-380-13-S

25-139-60-S Plug, allen hd. 1/8" 5. 24-067-13-S

M-645020-S Screw, hex. flange M6xl.0x20 (4) 24-067-14-S

25-351-01-S Lifter, valve (4) 6. 24-874-08-S

24W55-66-S Kit, valve train (includes 8,11,12)

24-411-05-S Rod, push (4) 24-874-16-S

24-841-03-S Kit, cylinder head gasket (Includes 25 24-874-20-S

072 04-S) (2) 24-874-21 -S

24-318-72-S Kit, #2 cylinder head 7. 24-108-05-S

25-166-01-S Arm, rocker (4) 24-108-06-S

24-599-01-S Pivot, rocker arm (4) 24-108-07-S

66-086-07-S Screw, hex. flange M6x1.0x34 (4) 8. 24-018-01-S

12 086 16-S Screw, hex. flange M10xl.5x90 (8) 9. 12-422-09-S

24-755-141-S Kit, valve cover- plain 12-422-13-S

(Includes 16,17) 12-422-07-S

24-153-28-S O-Ring 12-422-08-S

M-651030-S Screw, hex. flange M6xl.0x30 (4) 12-422-10-S

24-445-01-S Strap, lifting 12-422-11-S

24-016-01-S Valve, exhaust (Sfd.) (2) 12-422-12-S

24-016-02-S Valve, exhaust (.25) (2) 10. 24-012-18-S

24-017-01-S Valve, intake (Std.) (2) 11. 52-139-09-S

24-017-02-S Valve, intake (.25) (2) 12. M-545010-S

66-032-05-S Seal, valve stem (2) 13. 24-018-04-S

235011-S Retainer, spring (4) 14. 24-402-05-S

24-089-02-S Spring, valve (4) 15. 12-153-01-S

12-173-01-S Cap, valve spring (4) 16. 24-126-19-S

12W55-03-S Kit, retainer (4) 17. 12-123-04-S

24-318-69-S Kit, #1 cylinder head 18. M-545016-S

24-755-142-S Kit, valve cover- breather (includes 19. 12-153-02-S

16,17,28) 20. 24-038-04-S

25-313-03-S Grommet, rubber 21. 24-755-46-S

24-755-57-S Kit, breather separator 22. 25-153-02-S

(Includes 28,30-33) 23. 24-018-09-S

M-545016-S Screw, hex. flange M5x0.Sx16 (2) 24. M-931010-S

24-445-02-S Strap, breather 25. 28-032-09-S

24-126-44-S Bracket. breather separator 26. 24-468-15-S

24-112-12-S Spacer 27. 24-144-38-S

24-326-55-S Hose, breather

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

Seal, front oil

Crankcase (USE: Miniblock 24 782 23)

Fitting

Pin, locating (6)

Connecting Rod (Std.) (2)

Connecting Rod (.25) (2)

Piston wiring Set (Std.) (2) (Includes

7,8)

Kit, Piston w/Ring Set (.08) (2)

Piston w/Ring Set (.25) (2)

Piston w/Ring Set (.50) (2)

Ring Set (Std. & .08) (2)

Ring Set (.25) (2)

Ring Set (.60) (2)

Retainer, piston pin (4)

Shim, camshaft (A.R.)

Shim, camshaft

Shim, camshaft (A.R.)

Camshaft

Plug, cup

Screw, hex. flange M5x0.Sxl0 (2)

Retainer, reed (2)

Reed, breather (2)

O-Ring, lower oil fill tube

Bracket, oil fill tube

Tube, oil fill

Screw. hex. flange M5x0.Sx16

O-Ring, upper oil fill tube

Dipstick assembly (includes 21,22)

Kit, oil fill cap (Includes 22)

O-Ring, dipstick

Retainer, ring

Washer, nylon (top)

Seal, governor cross shaft

Washer (bottom)

Shaft, governor cross

NOTE: AII component dimensions given in U.S.inches

I inch = 25.4 mm

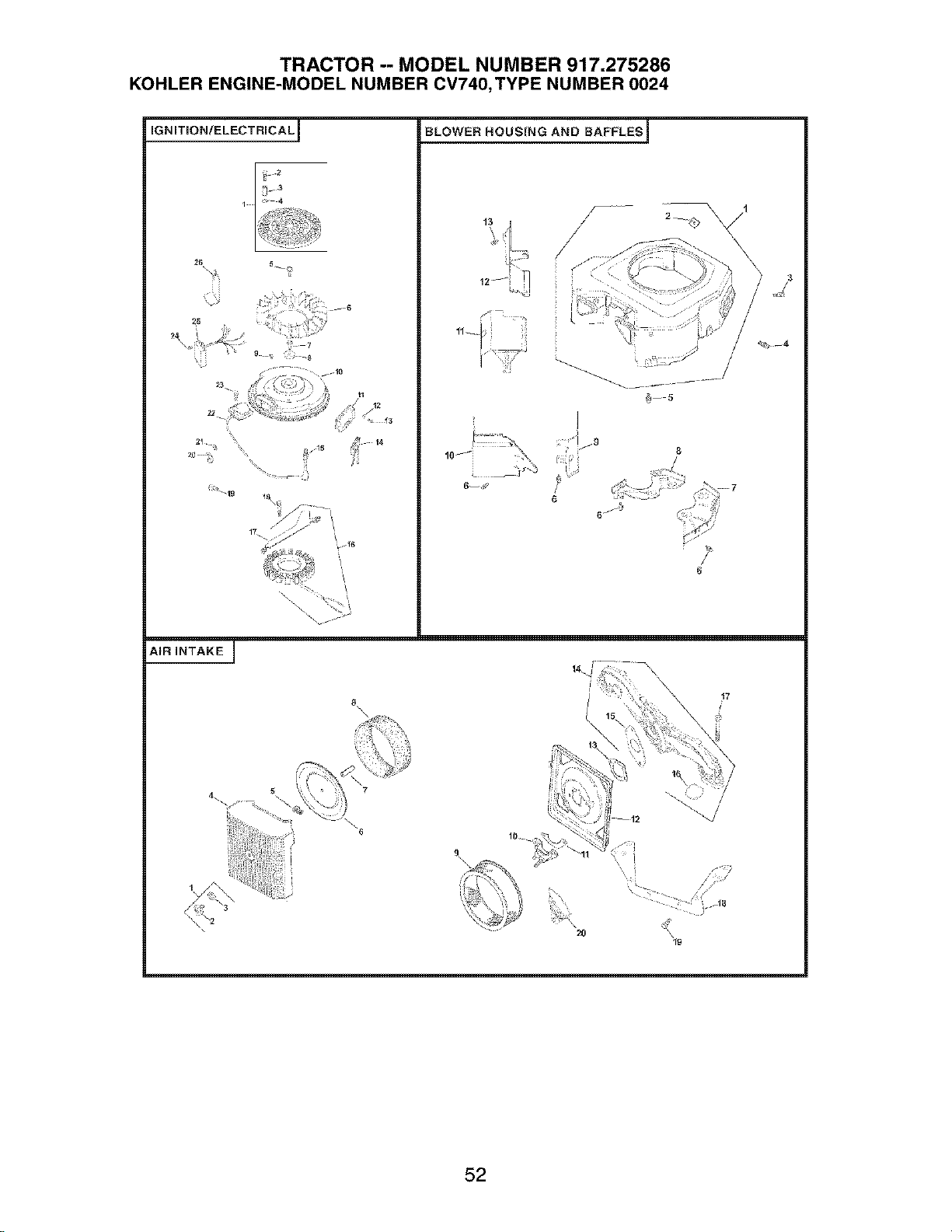

TRACTOR -- MODEL NUMBER 917.275286

KOHLER ENGINE-MODEL NUMBER CV740,TYPE NUMBER 0024

IGNITION/ELECTRICAL]

BLOWER HOUSING AND BAFFLES]

I ; /

AIR iNTAKE I

_20

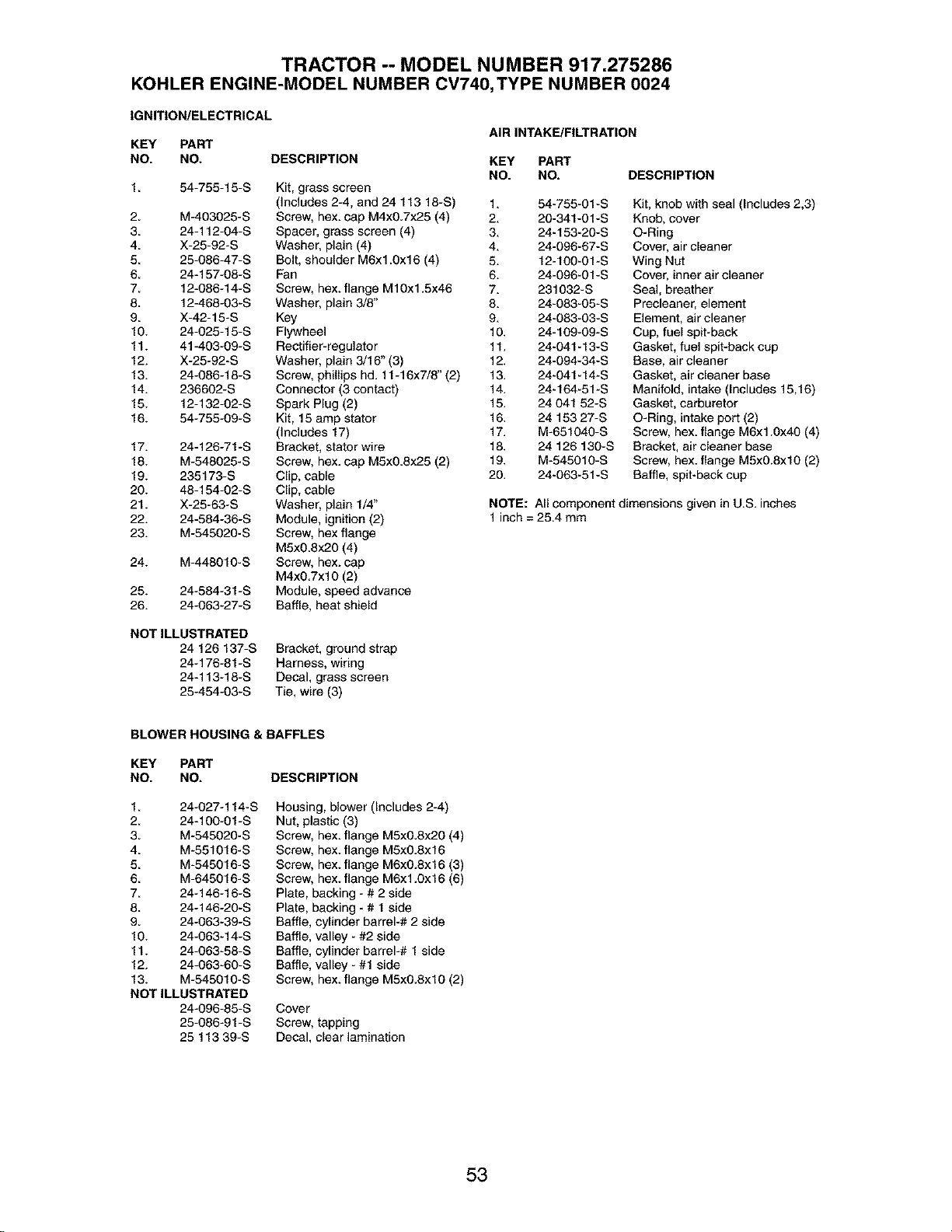

TRACTOR -- MODEL NUMBER 917.275286

KOHLER ENGINE-MODEL NUMBER CV740,TYPE NUMBER 0024

IGNITION/ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

AIR INTAKE/FILTRATION

KEY PART

NO. NO.

1 54-755-15-S Kit, grass screen

(includes 2-4, and 24 113 18-S) 1. 54-755-01-S

2. M-403025-S Screw, hex. cap M4x0.7x25 (4) 2. 20-341-01-S

3. 24-112-04-S Spacer, grass screen (4) 3. 24-153-20-S

4. X-25-92-S Washer, plain (4) 4. 24-096-67-S

5. 25-086-47-S Bolt, shoulder M6x1.0x16 (4) 5. 12-100-01-S

6. 24-157-08-S Fan 6. 24-096-01-S

7. 12-086-14-S Screw, hex.flange M10x1.5x46 7. 231032-S

8. 12-468-03-S Washer, plain 3/8" 8. 24-083-05-S

9. X-42-15-S Key 9. 24-083-03-S

10. 24-025-15-S Flywheel 10. 24-109-09-S

11. 41-403-09-S Rectifier-regulator 11. 24-041-13-S

12. X-25-92-S Washer, plain 3/16" (3) 12. 24-094-34-S

13. 24-086-18-S Screw, phillips hd. 11-16x7/8" (2) 13. 24-041-14-S

14. 236602-S Connector (3 contact) 14. 24-164-51-S

15. 12-132-02-S Spark Plug (2) 15. 24 041 52-S

16. 54-755-09-S Kit, 15 amp stator 16. 24 153 27-S

(includes 17) 17. M-651040-S

17. 24-126-71-S Bracket, stator wire 18. 24 126 130-S

18. M-548025-S Screw, hex. cap M5x0.8x25 (2) 19. M-545010-S

19. 235173-S Clip, cable 20. 24-063-51-S

20. 48-154-02-S Clip_ cable

21. X-25-63-S Washer, plain 1/4"

22. 24-584-36-S Madule, ignition (2)

23. M-545020-S Screw, hex flange

M5x0.8x20 (4)

24. M-448010-S Screw, hex. cap

M4x0.7xl0 (2)

25. 24-584-31-S Module, speed advance

26. 24-063-27-S Baffle, heat shield

DESCRIPTION

Kit, knob with seal (Includes 2,3

Knob, cover

O-Ring

Cover, air cleaner

Wing Nut

Cover, inner air cleaner

Seal, breather

Precleaner, element

Element, air cleaner

Cup, fuel spit-back

Gasket, fuel spit-back cup

Base, air cleaner

Gasket, air cleaner base

Manifold, intake (Includes 15,16)

Gasket, carburetor

O-Ring, intake port (2)

Screw, hex. flange M6x1.0x40 (4)

Bracket, air cleaner base

Screw, hex. flange M5x0.8xl0 (2)

Baffle, spit-back cup

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

NOT ILLUSTRATED

24 126 137-S

24-176-81-S

24-113-18-S

25-454-03-S

Bracket, ground strap

Harness, wiring

Decal, grass screen

Tie, wire (3)

BLOWER HOUSING & BAFFLES

KEY PART

NO. NO. DESCRIPTION

1 24-027-114-S

2 24-100-01-S

3 M-545020-S

4 M-551016-S

5. M-545016-S

6. M-645016-S

7. 24-146-16-S

8. 24-146-20-S

9. 24-063-39-S

10. 24-063-14-S

11. 24-063-58-S

12. 24-063-60-S

13. M-545010-S

NOT ILLUSTRATED

24-096-85-S

25-086-91-S

25 113 39-S

Housing, blower (Includes 2-4)

Nut, plastic (3)

Screw, hex. flange M5x0.8x20 (4)

Screw, hex. flange M5x0.8x16

Screw, hex. flange M6x0.8x16 (3)

Screw, hex. flange M6x1.0x16 (6)

Plate, backing - # 2 side

Plate, backing - # 1 side

Baffle, cylinder barrel-# 2 side

Baffle, valley - #2 side

Baffle, cylinder barrel-# 1 side

Baffle, valley - #1 side

Screw, hex. flange M5x0.8xl0 (2)

Cover

Screw, tapping

Decal, clear lamination

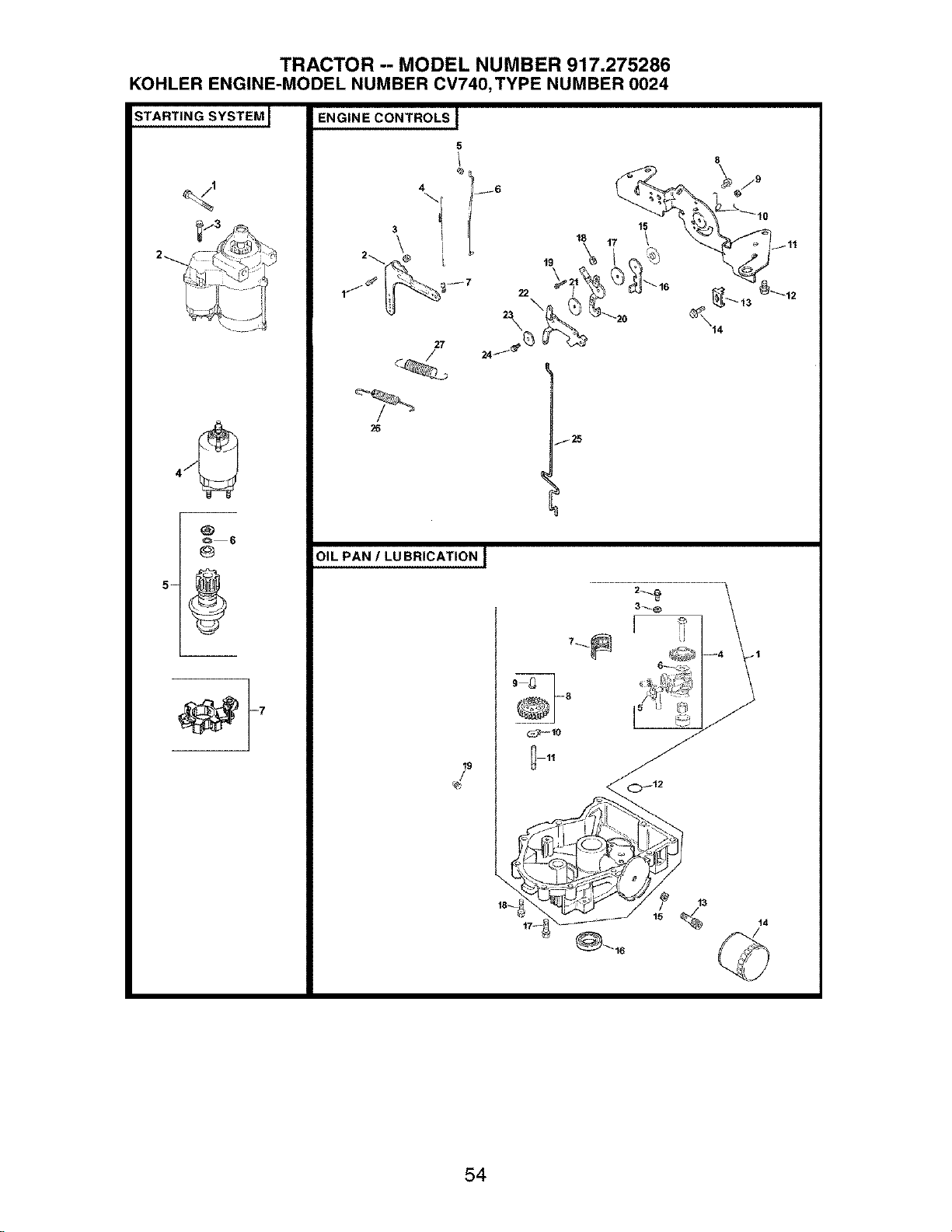

TRACTOR -- MODEL NUMBER 917.275286

KOHLER ENGINE-MODEL NUMBER CV740,TYPE NUMBER 0024

STARTING SYSTEM I

ENGINE CONTROLS ]

OIL PAN / LUBRICATION J

j 25

9_-N8

_--10

_12

_16

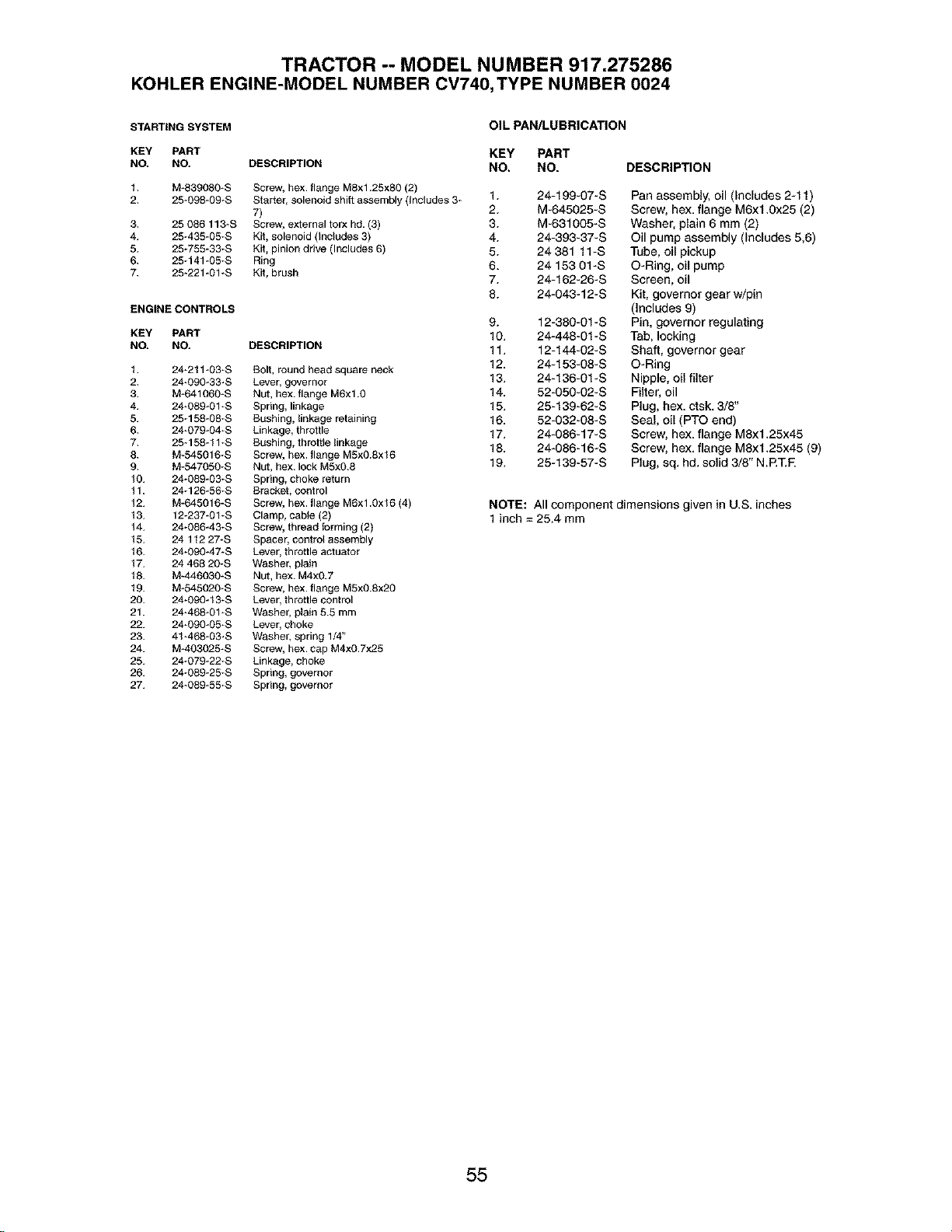

TRACTOR -- MODEL NUMBER 917.275286

KOHLER ENGINE-MODEL NUMBER CV740,TYPE NUMBER 0024

STARTING SYSTEM

OIL PAN/LUBRICATION

KEY PART KEY PART

N_ NO. DESCRIPTION NO. NO.

t. M-839080-S Screw, hex. flange M8x1.25x80 (2)

2. 25-098-09-S Starter, solenoid shift assembly (_ncludes 3* 1.

7) 2.

3. 25 086 113_S Screw, external torx hd. (3) 3.

4. 25-435-05-S Kit, solenoid (_ncludes 3) 4.

5. 25-755-33-S Kit, pinion ddve (k_cludes 6) 5.

6. 25-141-05-S Ring 6.

7. 25-221-01-S Kit, brush 7.

ENGINECONTROLS

KEY PART

NO. NO. DESCRIPTION

Colt, round head square neck

Lever, governor

Nut, hex. flange M6x1.0

Spdng, linkage

Cushing, linkage retaining

Linkage, throttle

Cushing, throttle linkage

Screw, hex. flange M5x0.8xt6

Nut, hex. lock M5x0.8

Spdng, choke return

Cracket, control

Screw, hex. flange M6x1.0xt6 (4)

Clamp, cable (2)

Screw, thread forming (2)

Spacer, control assembly

Lever, throttle actuator

Washer, plain

Nut, hex. M4x0.7

Screw, hex. flange M5x0.8x20

Lever, throttle control

Washer, plain 5.5 mm

Lever, choke

Washer, spring 1/4"

Screw, hex. cap M4x0.7x25

Linkage, choke

Spdng, governor

Spdng, govemor

t. 24-2t 1-03-S

2. 24-090-33-S

3. M-641060-S

4. 24-089-01 *S

5. 25-15g-08-S

6. 24-079-04-S

7. 25-158-t 1-S

8. M-545016-S

9. M-547050-S

t0. 24-089-03-S

tl. 24-126-56-S

12. M-645016-S

13. 12-237-01-S

14. 24-086-43-S

15. 24 112 27-S

16. 24-090-47-S

17. 24 468 20-S

18. M-446030-S

19. M-545020-S

20. 24-090-t 3-S

21. 24-468-01-S

22. 24-090-05-S

23. 41-468-03-S

24. M-403025-S

25. 24-079-22-S

26. 24-089-25-S

27. 24-089-55-S

DESCRIPTION

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

24-199-07-S

M-645025-S

M-631005-S

24-393-37-S

24 381 11-S

24 153 01-S

24-162-26-S

24-043-12-S

12-380-01-S

24-448-01 -S

12-144-02-S

24-153-08-S

24-136-01-S

52-050-02-S

25-139-62-S

52-032-08-S

24-086-17-S

24-086-16-S

25-139-57-S

Pan assembly, oil (Includes 2-11)

Screw, hex. flange M6x1.0x25 (2)

Washer, plain 6 mm (2)

Oil pump assembly (Includes 5,6)

Tube, oil pickup

O-Ring, oil pump

Screen, oil

Kit, governor gear w/pin

(Includes g)

Pin, governor regulating

Tab, locking

Shaft, governor gear

O-Ring

Nipple, oil filter

Filter, oil

Plug, hex. ctsk. 3/8"

Seal, oil (PTO end)

Screw, hex. flange M8x1.25x45

Screw, hex. flange M8x1.25x45 (g)

Plug, sq. hd. solid 3/8" N.F_I_E

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

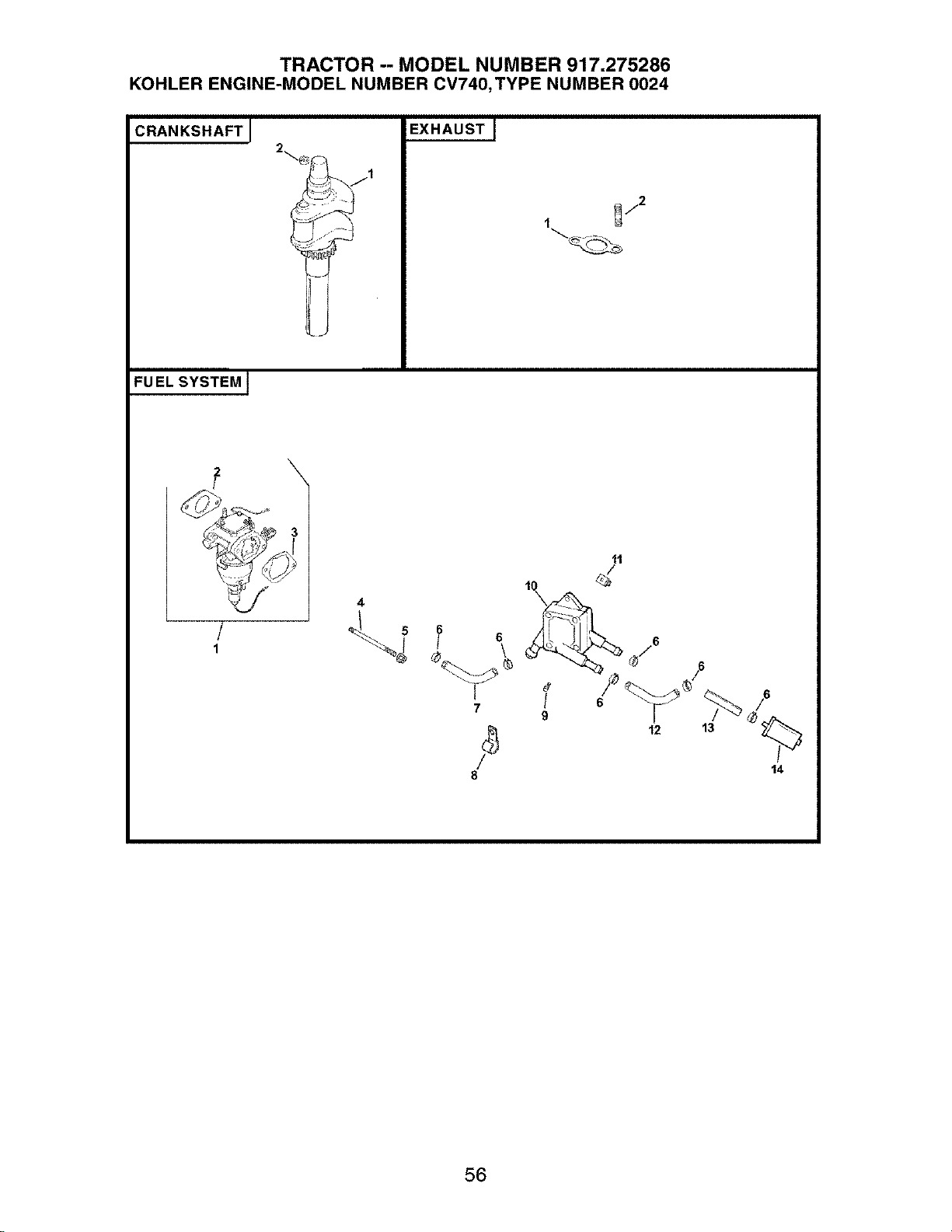

TRACTOR -- MODEL NUMBER 917.275286

KOHLER ENGINE-MODEL NUMBER CV740,TYPE NUMBER 0024

CRANKSHAFTJ

EXHAUSTJ

FUEL SYSTEM I

o 9

12 t3 :_

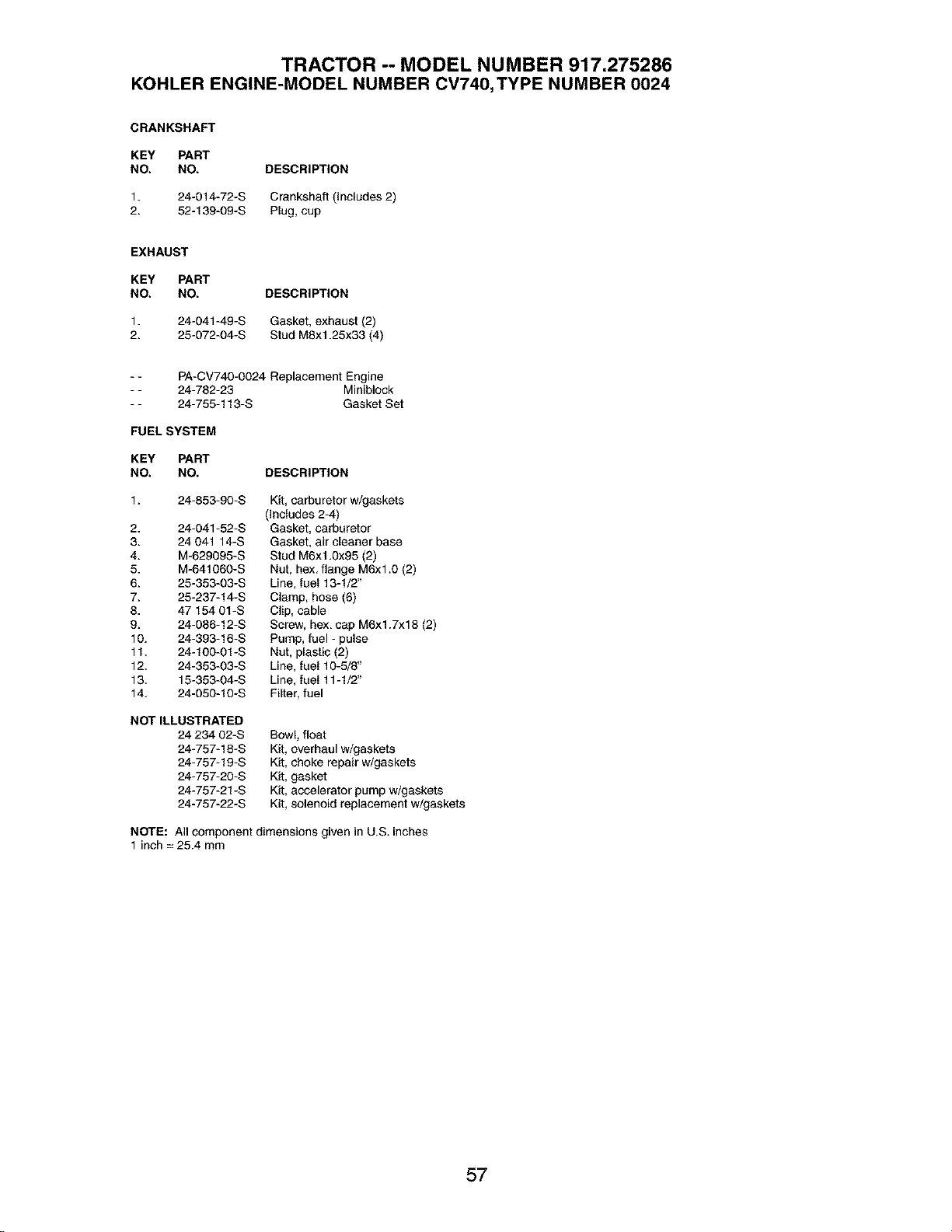

TRACTOR -- MODEL NUMBER 917.275286

KOHLER ENGINE-MODEL NUMBER CV740,TYPE NUMBER 0024

CRANKSHAFT

KEY PART

NO. NO. DESCRIPTION

1. 24-014-72-S Crankshaft (Includes 2)

2. 52-139-09-S Plug, cup

EXHAUST

KEY PART

NO. NO. DESCRIPTION

1. 24-041-49-S Gasket, exhaust (2)

2. 25-072-04-S Stud M8x1.25x33 (4)

PA-CV740-O024 Replacement Engine

24-782-23 Miniblock

24-755-113-S Gasket Set

FUELSYSTEM

KEY PART

N_ NO. DESCRIPTION

1. 24-853-90-S Kit, carburetor w/gaskets

(Includes 2-4)

2. 24-041-52-S Gasket, carburetor

3. 24 041 14-S Gasket, air cleaner base

4. M-629095-S Stud M6x1.0x95 (2)

5. M-641060-S Nut, hex. flange M6x1.0 (2)

6. 25-353-03-S Line, fuel 13-1/2"

7. 25-237-14-S Clamp, hose (6)

8. 47 154 01-S Clip, cable

9. 24-086-12-S Screw, hex. cap M6x1.7x18 (2)

10. 24-393-16-S Pump, fuel - pulse

11. 24-100-01-S Nut, plastic (2)

12. 24-353-03-S Line, fuel 10-5/8"

13. 15-353-04-S Line, fuel 11-1/2"

14. 24-050-10-S Filter, fuel

NOT ILLUSTRATED

24 234 02-S

24-757-18-S

24-757-19-S

24-757-20-S

24-757-21 -S

24-757-22-S

Bowl, float

Kit, overhaul w/gaskets

Kit, choke repair w/gaskets

Kit, gasket

Kit, accelerator pump w/gaskets

Kit, solenoid replacement w/gaskets

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

¢.o

_ ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME e_ Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (u.s._) 1-800-361-6665 (Canada)

Para pedir servicio de reparaciSn

a domicilio, y para ordenar piezas:

Au Canada pour service en fran(2ais:

1-800-LE-FOYER Mc

(1@-533@7)

www.sears.ca

,.SEARSO 4,O

TM SM

® Registered Trademark / Trademark / Service Mark of Sears, Roebuck and Co.

TM SM

® Marca Registrada / Marca de F_bdca / Mama de Servicio de Sears, Roebuck and Co.

MCMarque de commerce / Marque d6pos6e de Sears, Roebuck and Co.

191170 Rev. 1 01.20.04 TR/MH Printed in U.S.A.

Craftsman 917275286 Garden Tractor

Product's Documents

User Manual

Specifications

Craftsman 917275286 Questions and Answers
